1. POE
Stefano Rodighiero
OpenExp 2006

2. Perl
Object
Environment
POE - A Perl Object Environment

3. ?
POE - A Perl Object Environment

4. Framework
POE - A Perl Object Environment

5. Event
driven
POE - A Perl Object Environment

6. Multitasking
Cooperativo
POE - A Perl Object Environment

7. Single
thread
POE - A Perl Object Environment

8. Networking
POE - A Perl Object Environment

9. System
administration
POE - A Perl Object Environment

10. GUI
POE - A Perl Object Environment

11. POE - A Perl Object Environment

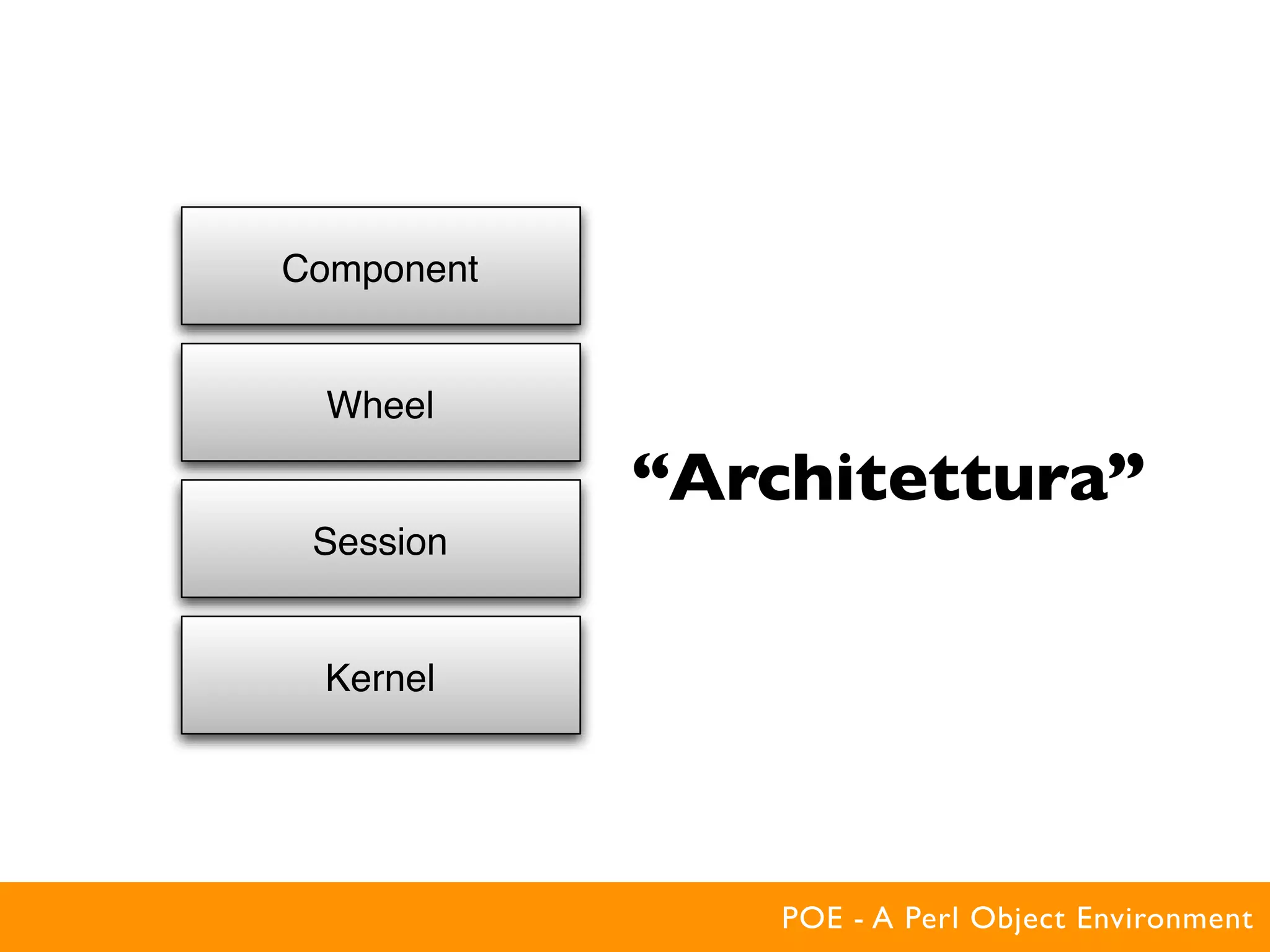

12. Component
Wheel
“Architettura”
Session
Kernel
POE - A Perl Object Environment

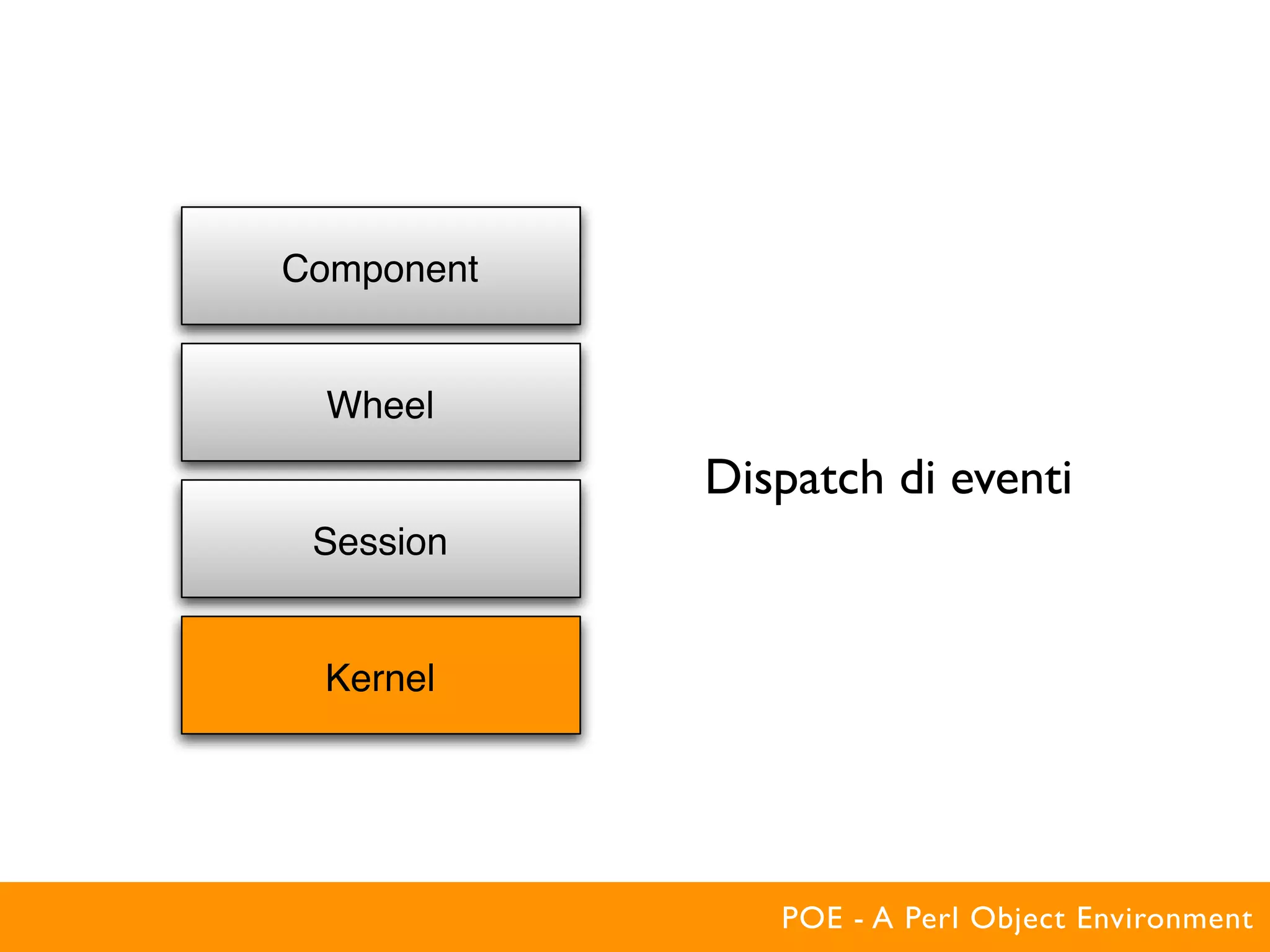

13. Component
Wheel
Dispatch di eventi
Session
Kernel
POE - A Perl Object Environment

14. Component
Wheel
Risponde agli eventi
Session
Kernel
POE - A Perl Object Environment

15. Component
“Plugin” per sessioni,
incapsula insiemi di
Wheel
gestori di eventi
Session POE::Wheel::FollowTail
POE::Wheel::Run
Kernel
POE - A Perl Object Environment

16. Component
Wheel POE::Component::IRC
POE::Component::Server::TCP
POE::Component::Server::SimpleHTTP
…CPAN…
Session
Kernel
POE - A Perl Object Environment

17. POE - A Perl Object Environment

18. Un programma tipico
• Istanzia una o più sessioni
• Esplicitamente, eventualmente usando
delle Wheel
• Implicitamente, con Componenti già
pronti
• POE::Kernel->run()
POE - A Perl Object Environment

19. sub POE::Kernel::TRACE_EVENTS() { 1 }
POE - A Perl Object Environment

20. use POE;
POE - A Perl Object Environment

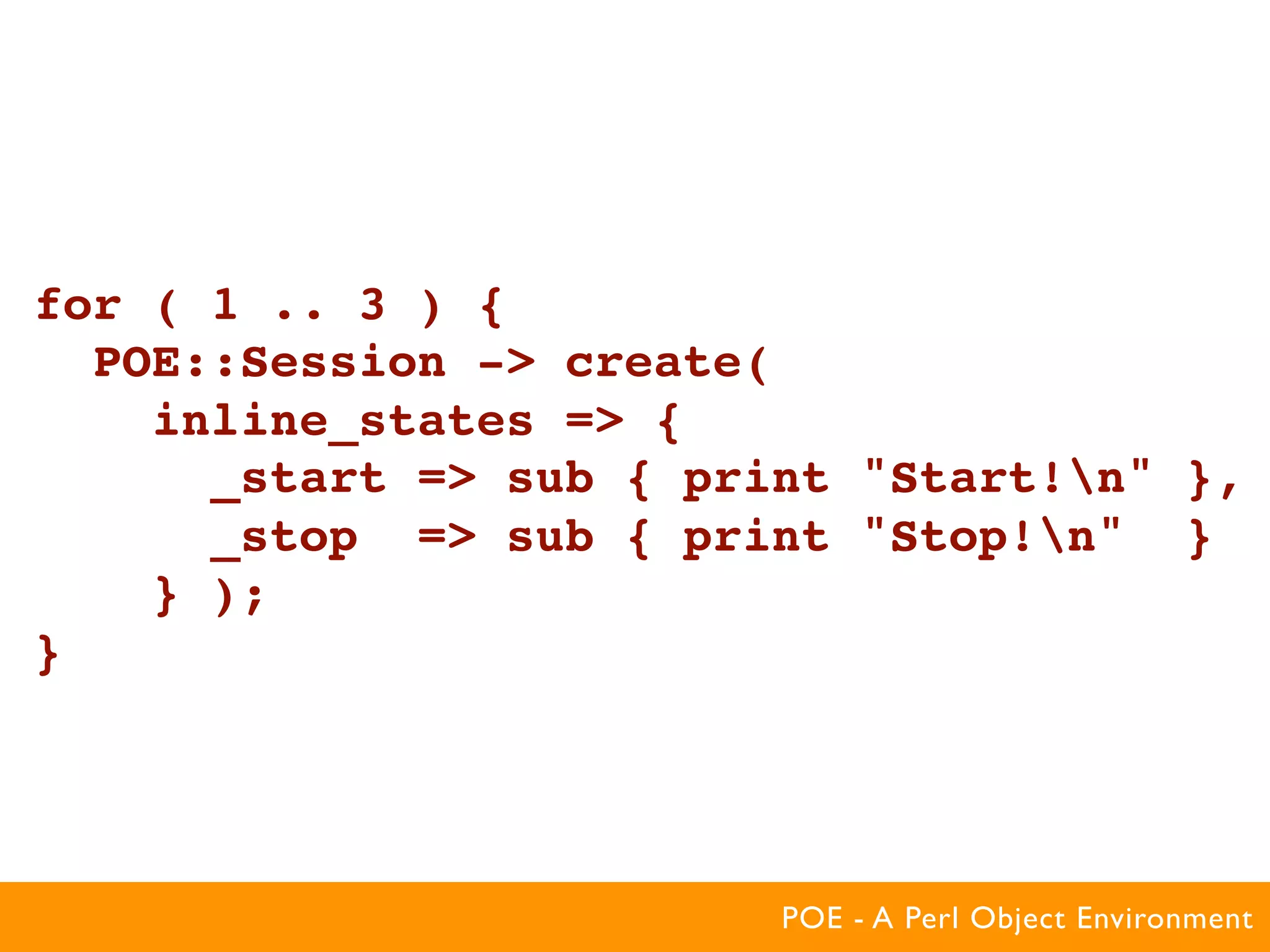

21. for ( 1 .. 3 ) {
POE::Session -> create(
inline_states => {
_start => sub { print quot;Start!nquot; },
_stop => sub { print quot;Stop!nquot; }
} );
}
POE - A Perl Object Environment

22. POE::Kernel->run();
POE - A Perl Object Environment

23. _start
Session
Kernel
POE - A Perl Object Environment

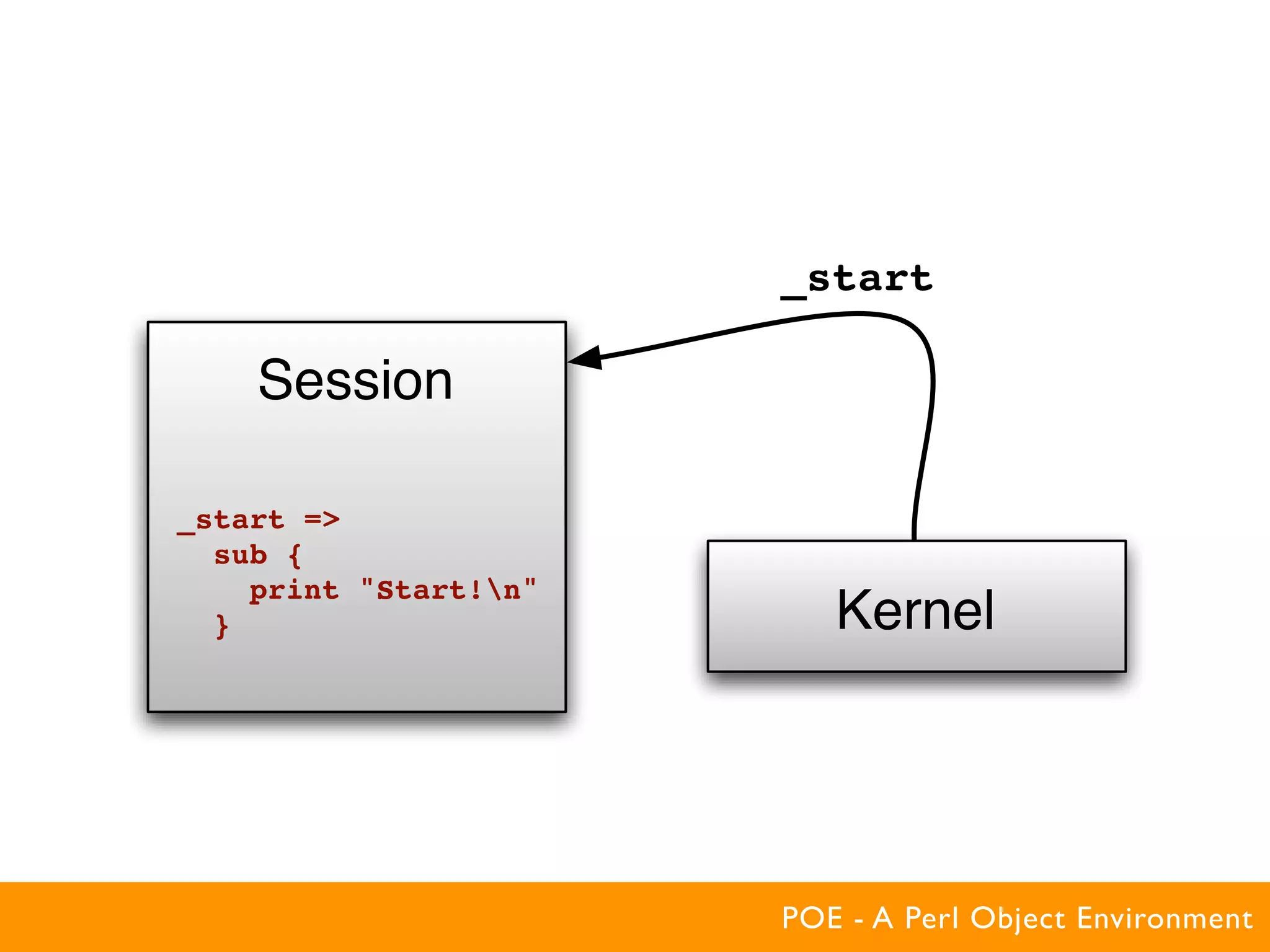

24. _start
Session
_start =>
sub {
print quot;Start!nquot;
Kernel
}
POE - A Perl Object Environment

25. Passaggio di messaggi
Accoda un evento, da inoltrare
post() alla session specificata
Accoda un evento, da inoltrare
yield() alla session stessa
Invoca - in maniera
sincrona - un evento per una
call()
sessione specificata
POE - A Perl Object Environment

26. Passaggio di messaggi
post()/yield()
POE - A Perl Object Environment

27. Passaggio di messaggi
call()
POE - A Perl Object Environment

28. Comunicazione
tra sessioni
POE - A Perl Object Environment

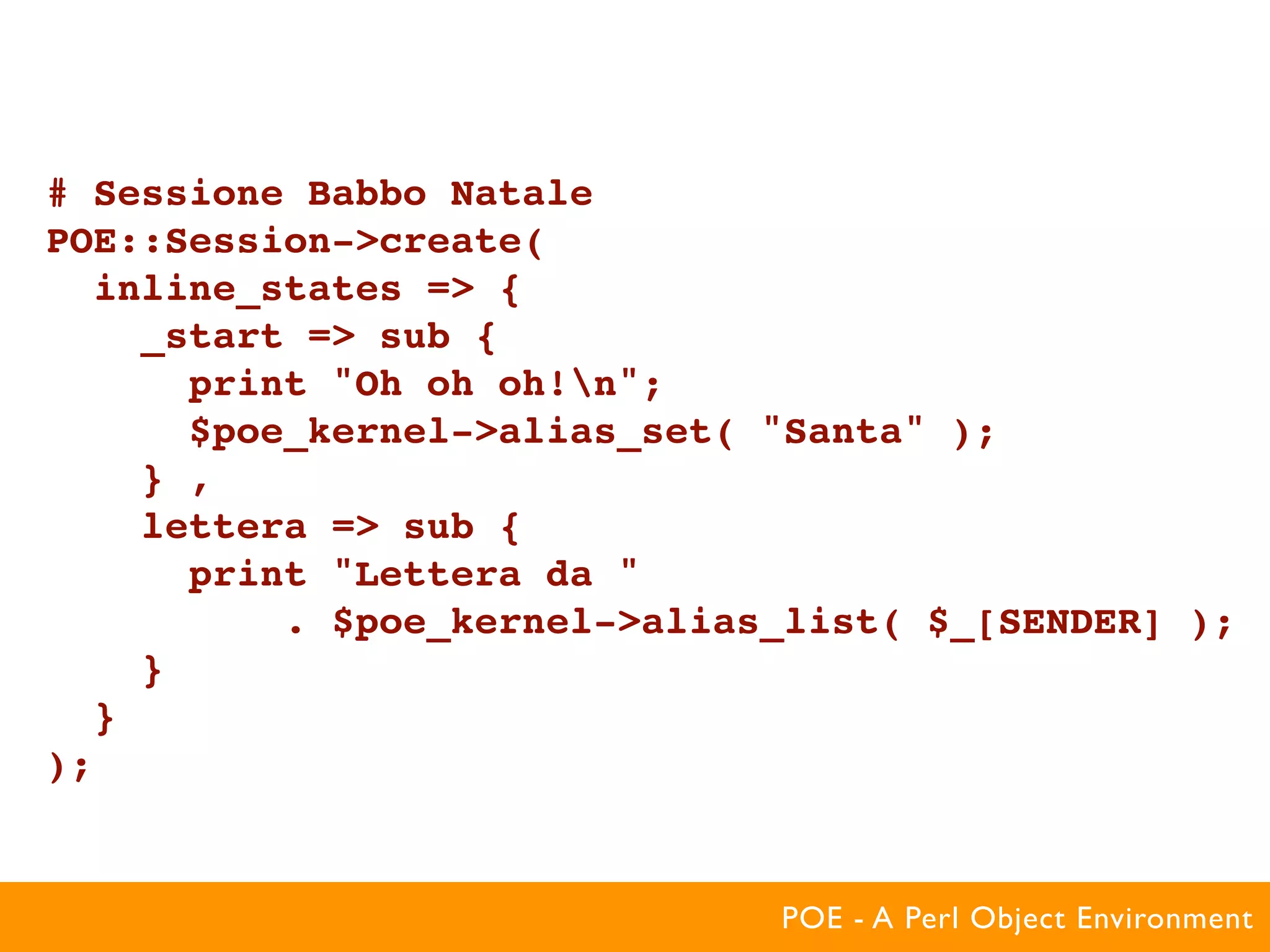

29. # Sessione Babbo Natale
POE::Session->create(
inline_states => {
_start => sub {
print quot;Oh oh oh!nquot;;
$poe_kernel->alias_set( quot;Santaquot; );
},
lettera => sub {
print quot;Lettera da quot;
. $poe_kernel->alias_list( $_[SENDER] );
}
}
);
POE - A Perl Object Environment

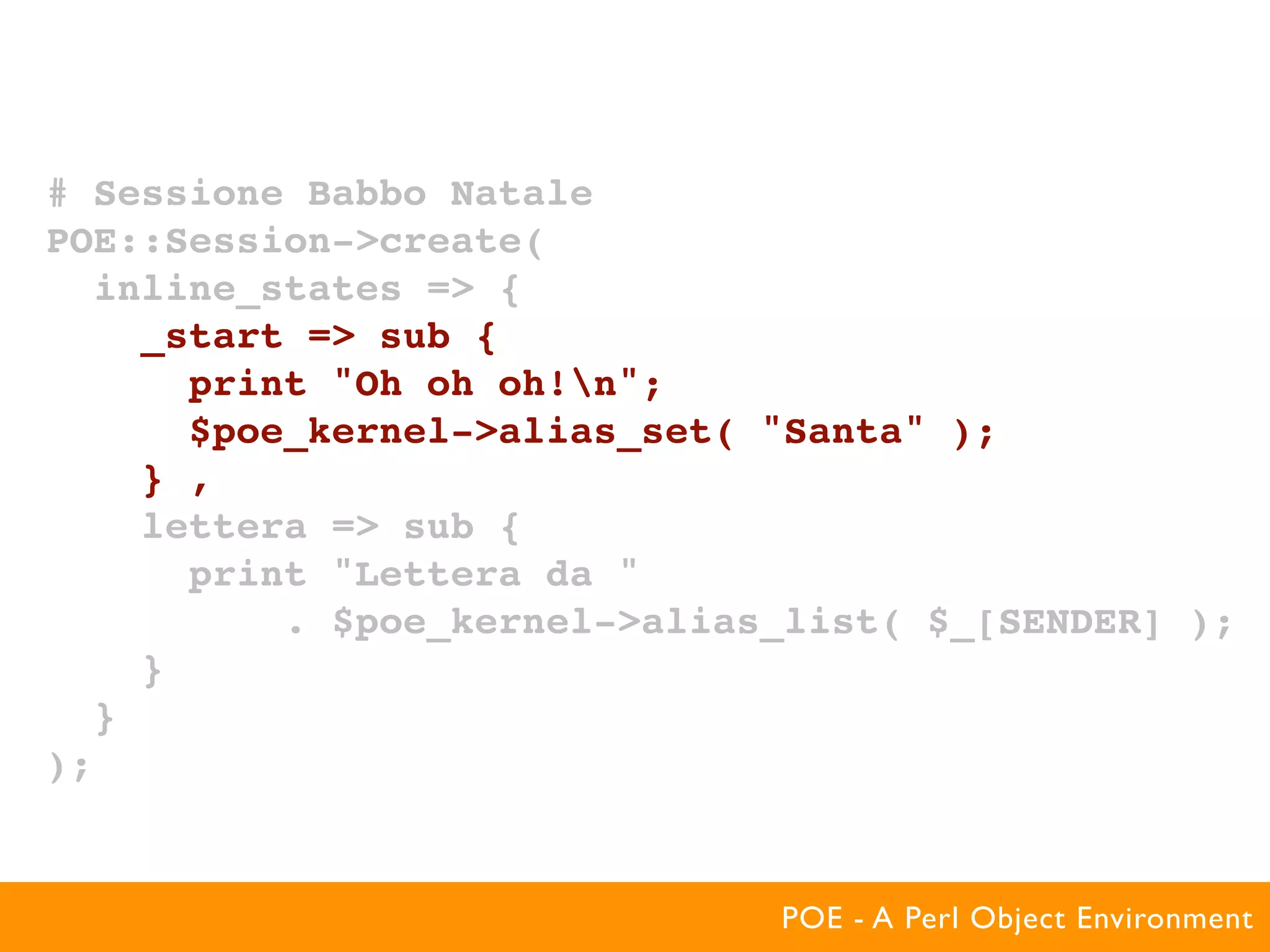

30. # Sessione Babbo Natale
POE::Session->create(
inline_states => {
_start => sub {
print quot;Oh oh oh!nquot;;
$poe_kernel->alias_set( quot;Santaquot; );
},
lettera => sub {
print quot;Lettera da quot;
. $poe_kernel->alias_list( $_[SENDER] );
}
}
);
POE - A Perl Object Environment

31. # Sessione Babbo Natale
POE::Session->create(
inline_states => {
_start => sub {
print quot;Oh oh oh!nquot;;
$poe_kernel->alias_set( quot;Santaquot; );
},
lettera => sub {
print quot;Lettera da quot;
. $poe_kernel->alias_list( $_[SENDER] );
}
}
);
POE - A Perl Object Environment

32. # Sessione Babbo Natale
POE::Session->create(
inline_states => {
_start => sub {
print quot;Oh oh oh!nquot;;
$poe_kernel->alias_set( quot;Santaquot; );
},
lettera => sub {
print quot;Lettera da quot;
. $poe_kernel->alias_list( $_[SENDER] );
}
}
);
POE - A Perl Object Environment

33. # Sessione bimbo
POE::Session->create(
inline_states => {
_start => sub {
$poe_kernel->alias_set( quot;Paolinoquot; );
$poe_kernel->post( quot;Santaquot; => 'lettera' );
},
}
);
POE - A Perl Object Environment

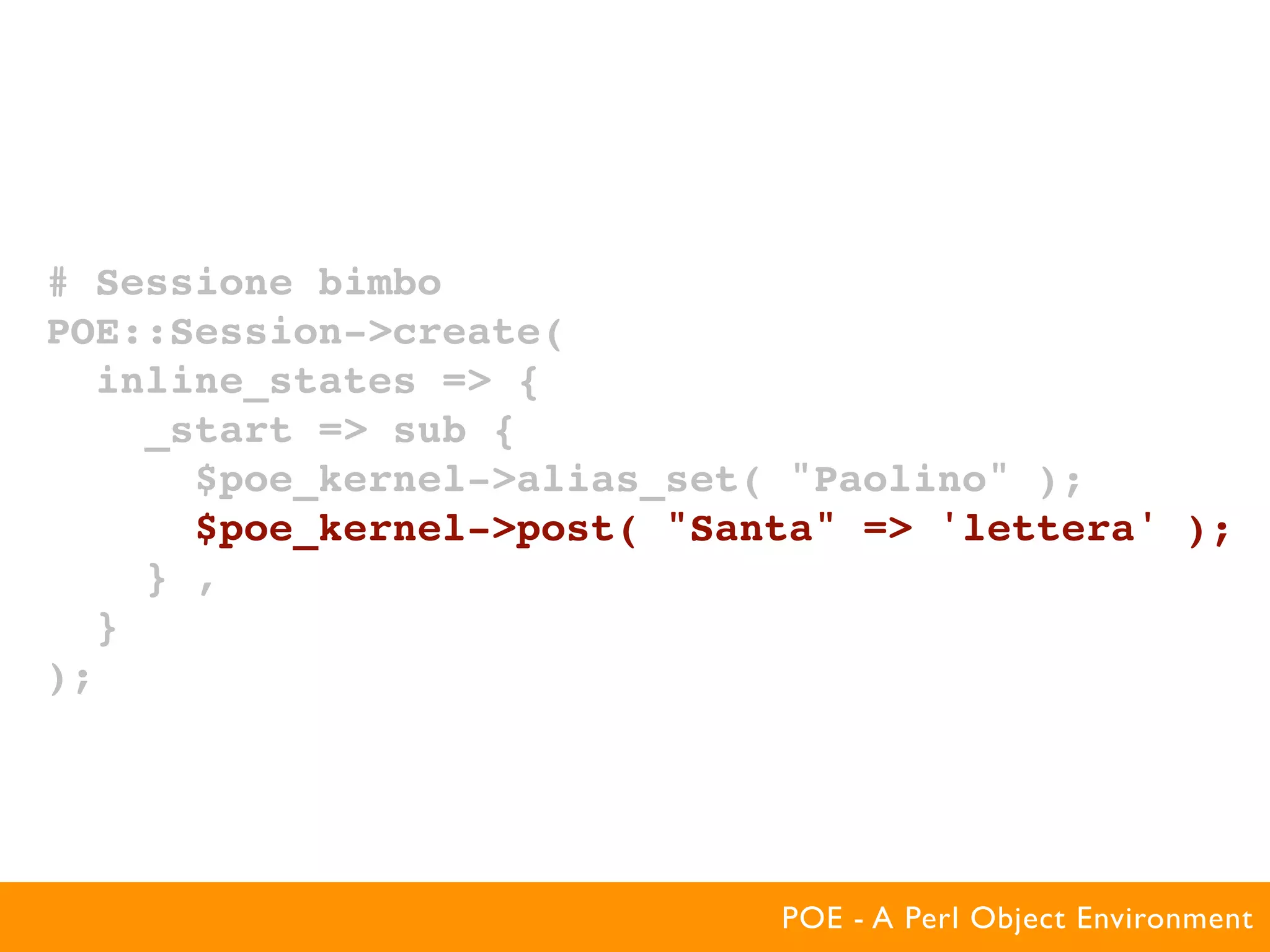

34. # Sessione bimbo
POE::Session->create(
inline_states => {
_start => sub {
$poe_kernel->alias_set( quot;Paolinoquot; );
$poe_kernel->post( quot;Santaquot; => 'lettera' );
},
}
);
POE - A Perl Object Environment

35. Babbo Natale _start
Kernel
Paolino
_start
POE - A Perl Object Environment

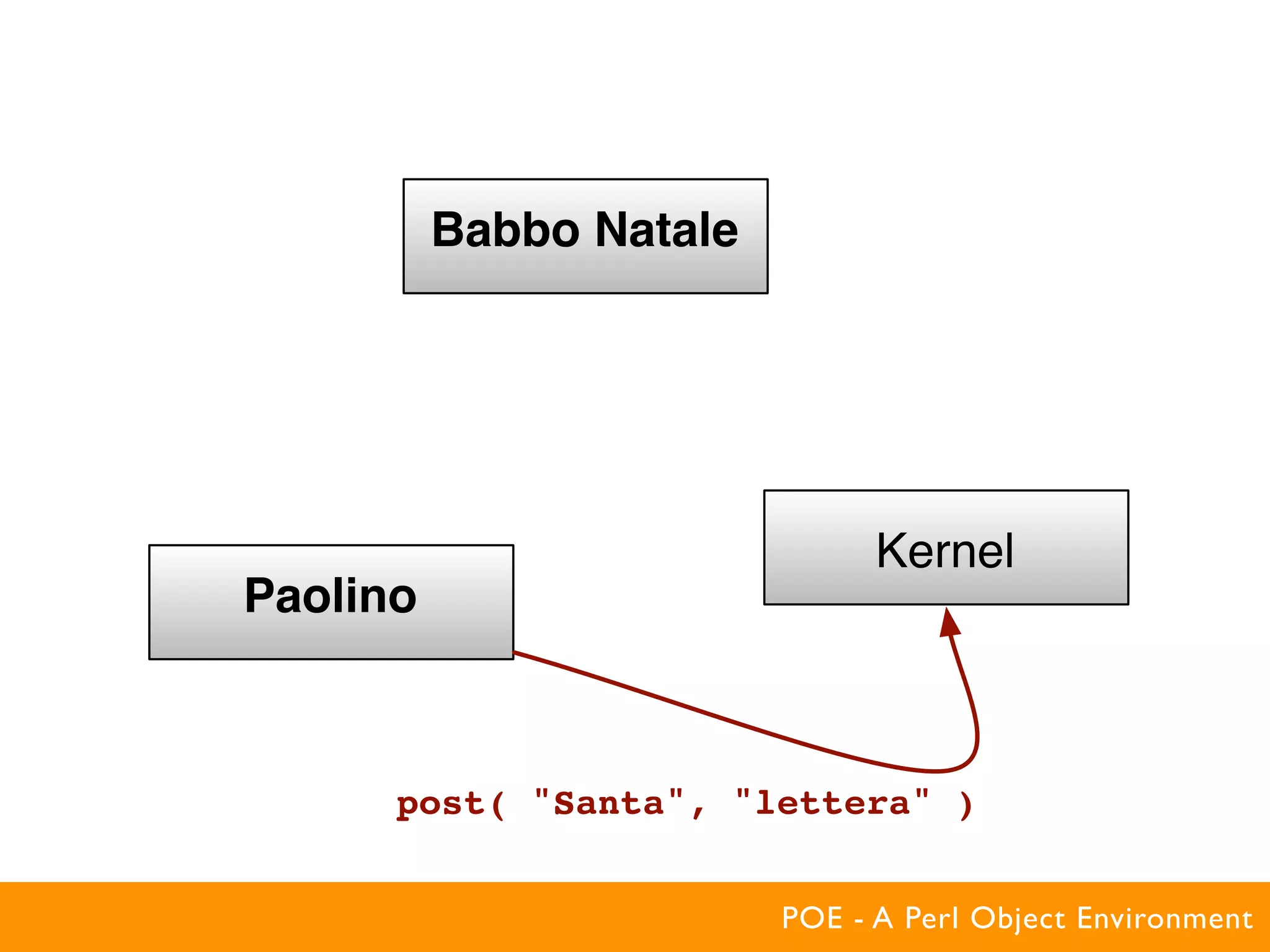

36. Babbo Natale
Kernel
Paolino
post( quot;Santaquot;, quot;letteraquot; )
POE - A Perl Object Environment

37. lettera
Babbo Natale
Kernel
Paolino
POE - A Perl Object Environment

38. lettera
Babbo Natale
lettera
Kernel
Paolino
post( quot;Santaquot;, quot;letteraquot; )
POE - A Perl Object Environment

39. POE - A Perl Object Environment

40. Wheel
POE - A Perl Object Environment

41. Insiemi di
gestori di
eventi
POE - A Perl Object Environment

42. POE::
Wheel::
FollowTail
POE - A Perl Object Environment

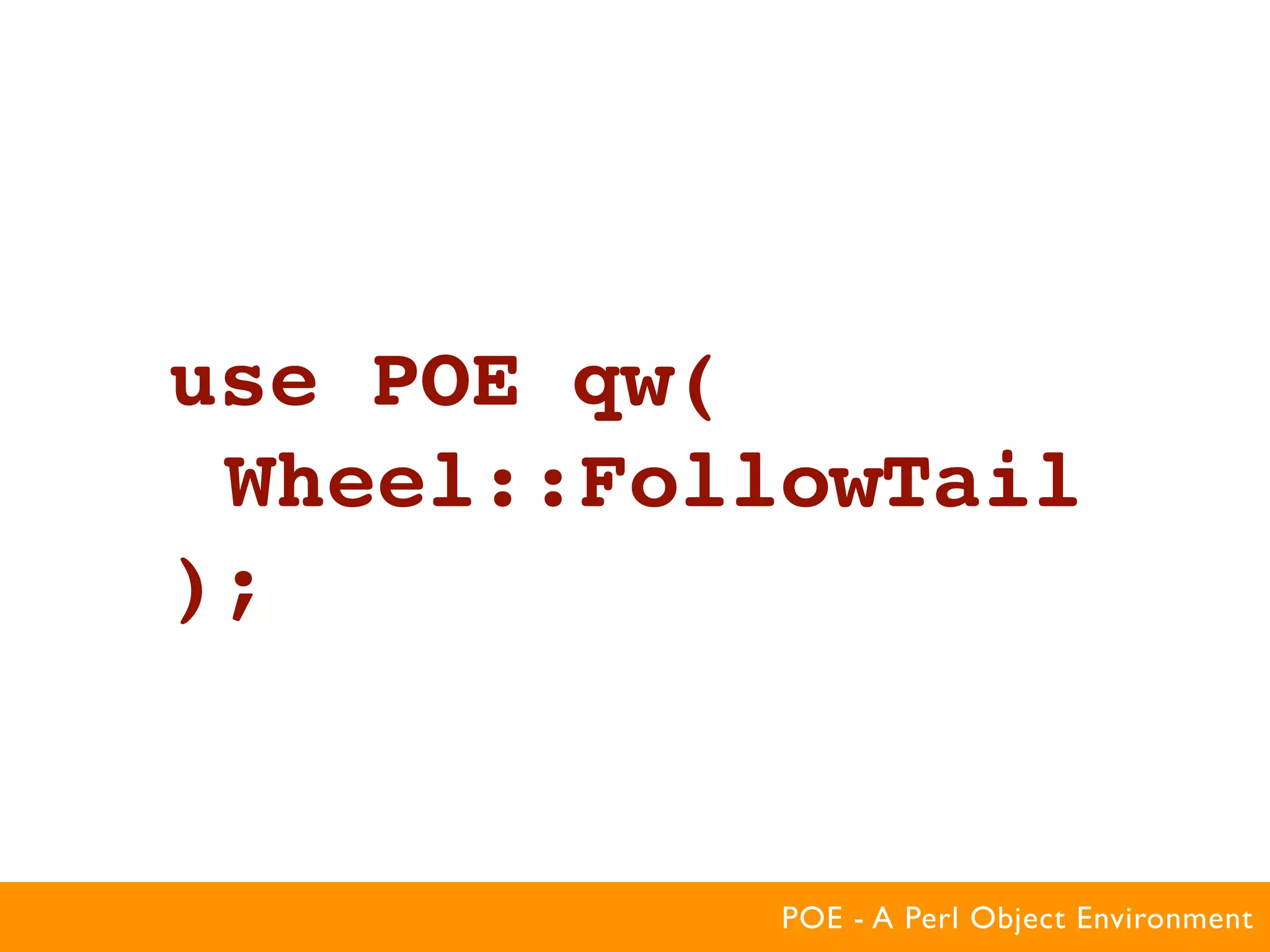

43. use POE qw(
Wheel::FollowTail
);
POE - A Perl Object Environment

44. $|++
POE - A Perl Object Environment

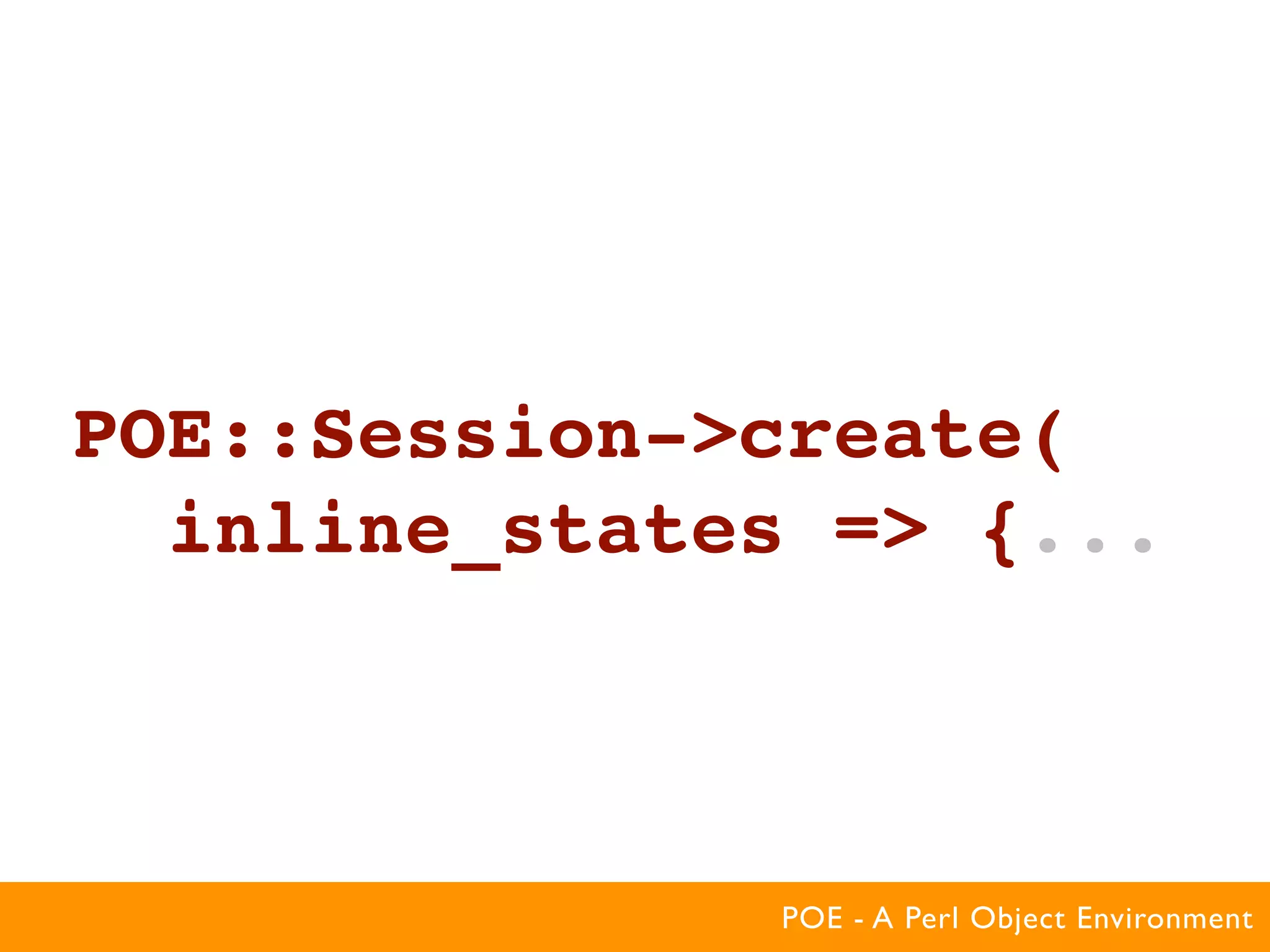

45. POE::Session-create(
inline_states = {...
POE - A Perl Object Environment

46. _start = sub {
my $heap = $_[ HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'logfile.log',
PollInterval = 1,
InputEvent = 'input_state'
);
$heap-{ watcher } = $watcher;
} , ...
POE - A Perl Object Environment

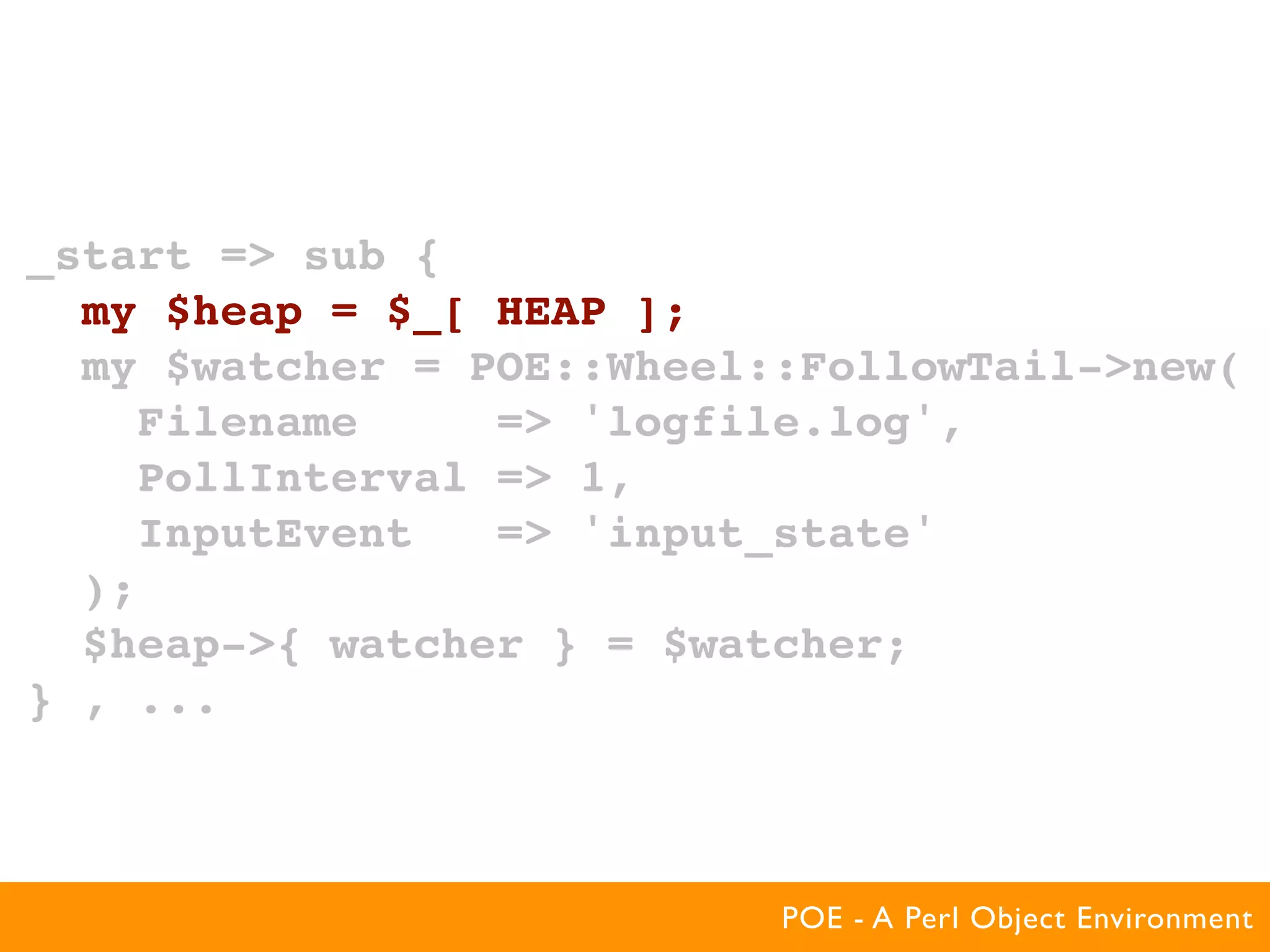

47. _start = sub {
my $heap = $_[ HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'logfile.log',
PollInterval = 1,
InputEvent = 'input_state'
);
$heap-{ watcher } = $watcher;
} , ...
POE - A Perl Object Environment

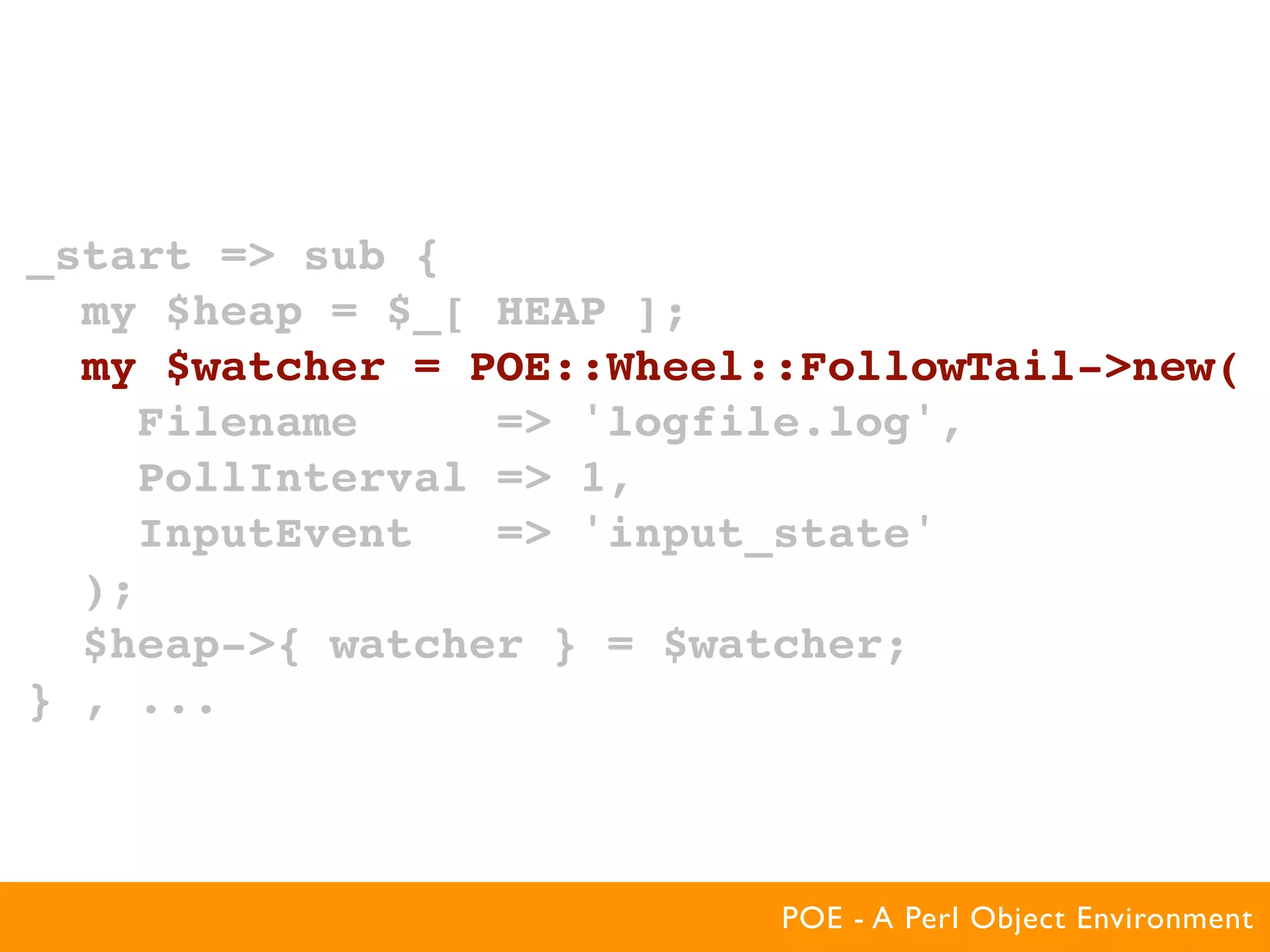

48. _start = sub {
my $heap = $_[ HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'logfile.log',
PollInterval = 1,
InputEvent = 'input_state'
);
$heap-{ watcher } = $watcher;
} , ...
POE - A Perl Object Environment

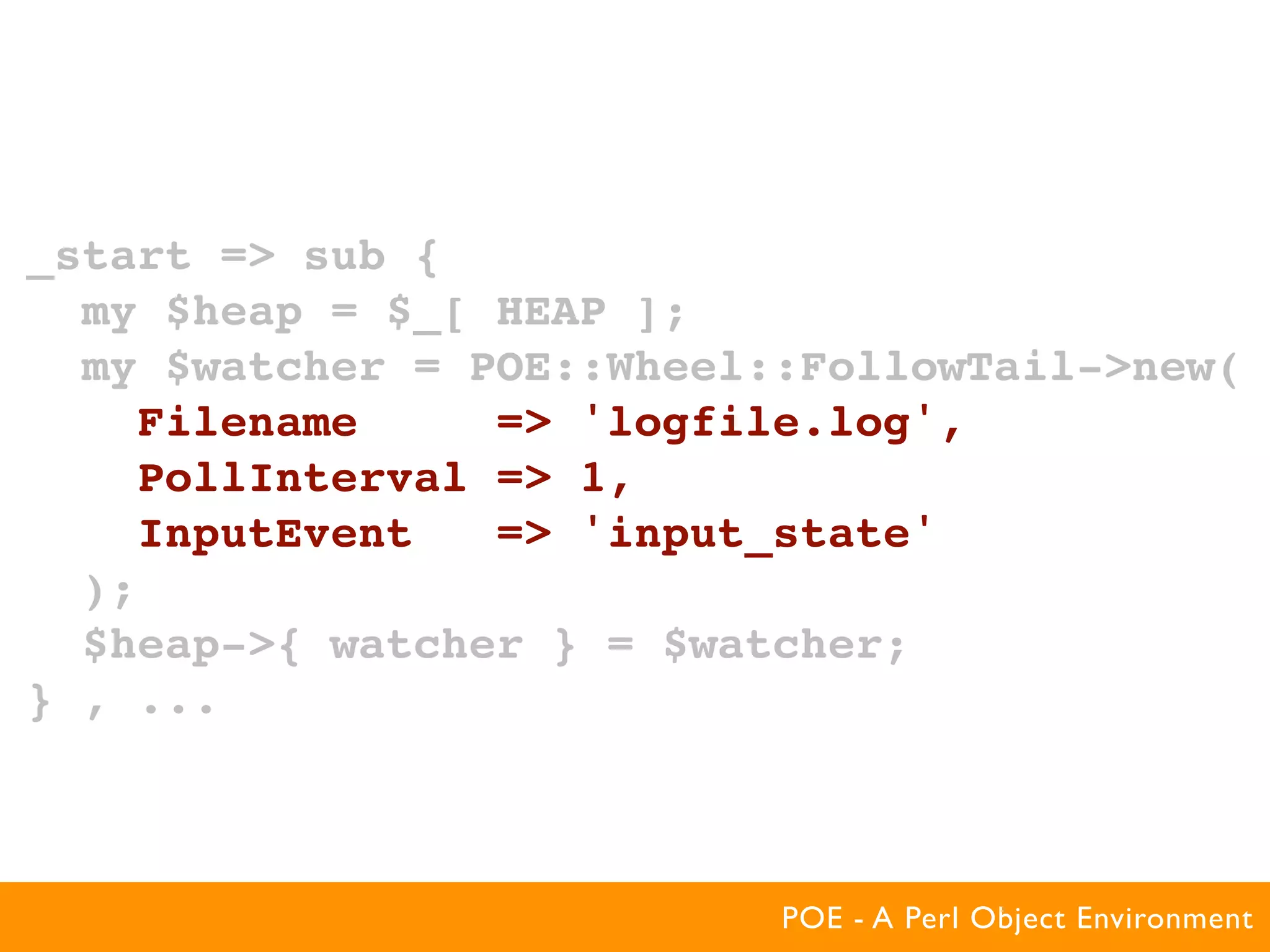

49. _start = sub {
my $heap = $_[ HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'logfile.log',
PollInterval = 1,
InputEvent = 'input_state'
);
$heap-{ watcher } = $watcher;
} , ...
POE - A Perl Object Environment

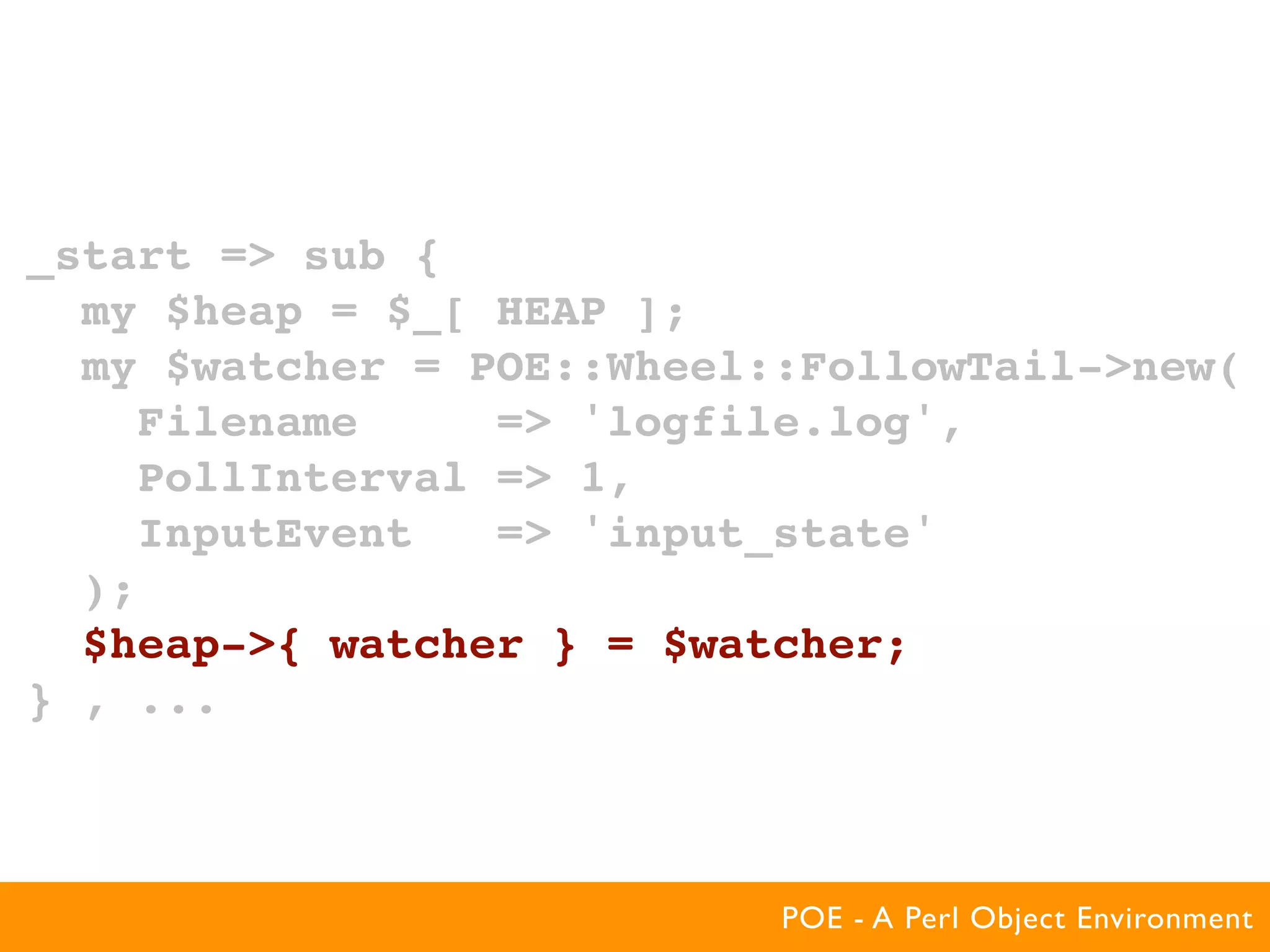

50. _start = sub {
my $heap = $_[ HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'logfile.log',
PollInterval = 1,
InputEvent = 'input_state'
);
$heap-{ watcher } = $watcher;
} , ...
POE - A Perl Object Environment

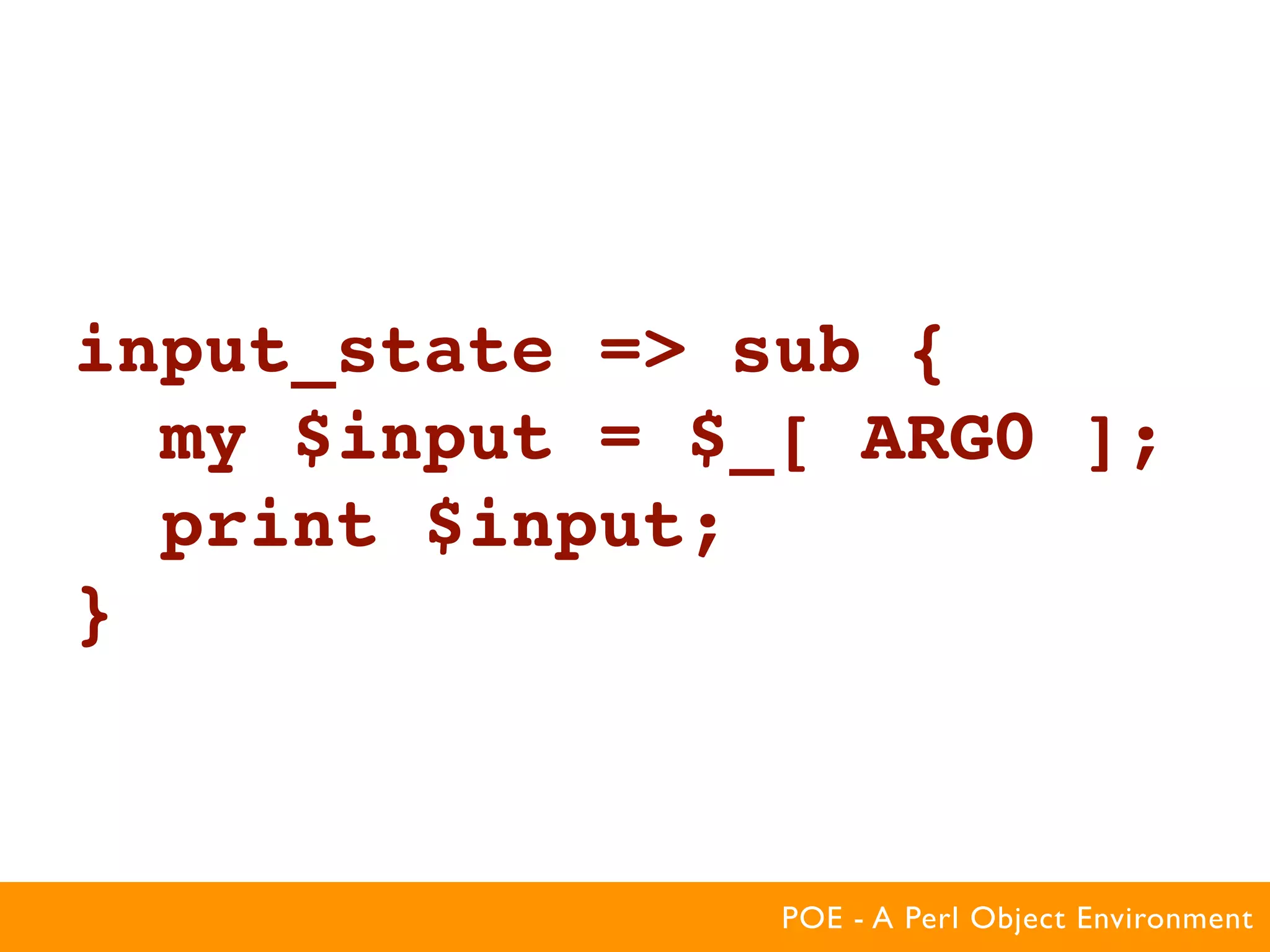

51. input_state = sub {
my $input = $_[ ARG0 ];
print $input;
}
POE - A Perl Object Environment

52. Session
__________
__________
__________
__________
__________
__________
Wheel
POE - A Perl Object Environment

53. Session
__________
__________
__________
input_event
__________
__________
__________
Wheel
POE - A Perl Object Environment

54. POE - A Perl Object Environment

55. POE
+ Test
+ IRC
POE - A Perl Object Environment

56. Testing?
POE - A Perl Object Environment

57. Failed 3/10
tests
?
Test IRC
POE - A Perl Object Environment

58. 09:41 Quinn larsen: Avast!
Whoreson swab!
You failed 3/10 tests!
POE - A Perl Object Environment

59. ?
Test IRC
POE - A Perl Object Environment

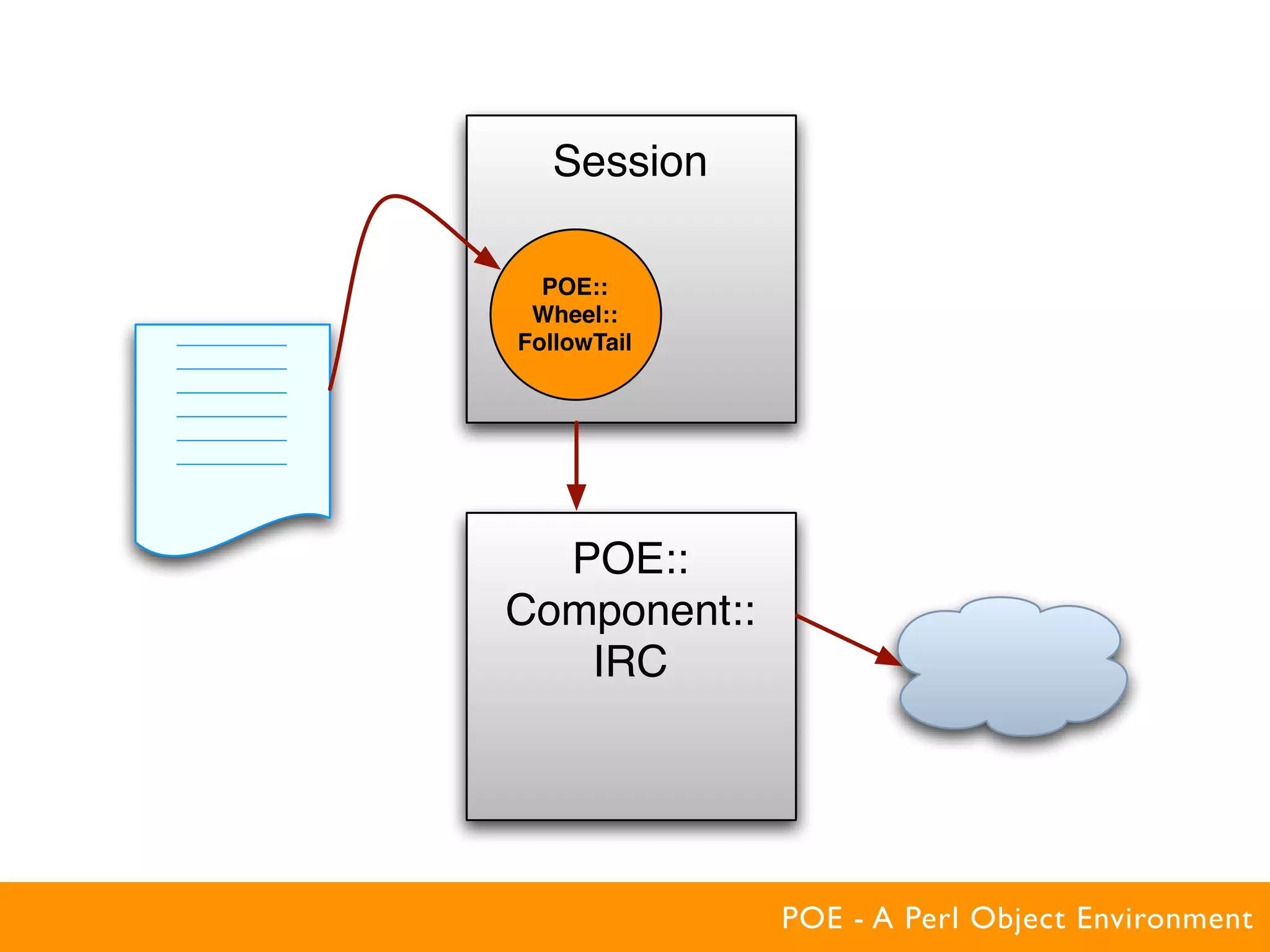

60. Session
POE::
Wheel::
__________ FollowTail
__________
__________
__________
__________
__________
POE::
Component::
IRC
POE - A Perl Object Environment

61. POE::
Component::
IRC
POE - A Perl Object Environment

62. use POE qw/ Wheel::FollowTail
Component::IRC
/;
POE - A Perl Object Environment

63. use Acme::Scurvy::Whoreson::BilgeRat;
POE - A Perl Object Environment

64. my $conf = {
nick = 'Quinn',
ircname = 'HAR!',
server = 'irc.freenode.net',
port = 6667
};
my $channel = '#scummbar';
POE - A Perl Object Environment

65. my $irc = POE::Component::IRC-spawn( %$conf )
or die quot;HAR!!! $!quot;;
POE - A Perl Object Environment

66. POE::Session-create(
package_states = [
'main' = [ qw(
_default
_start
irc_001
irc_public
tell_results
) ],
],
heap = { irc = $irc }
);
POE - A Perl Object Environment

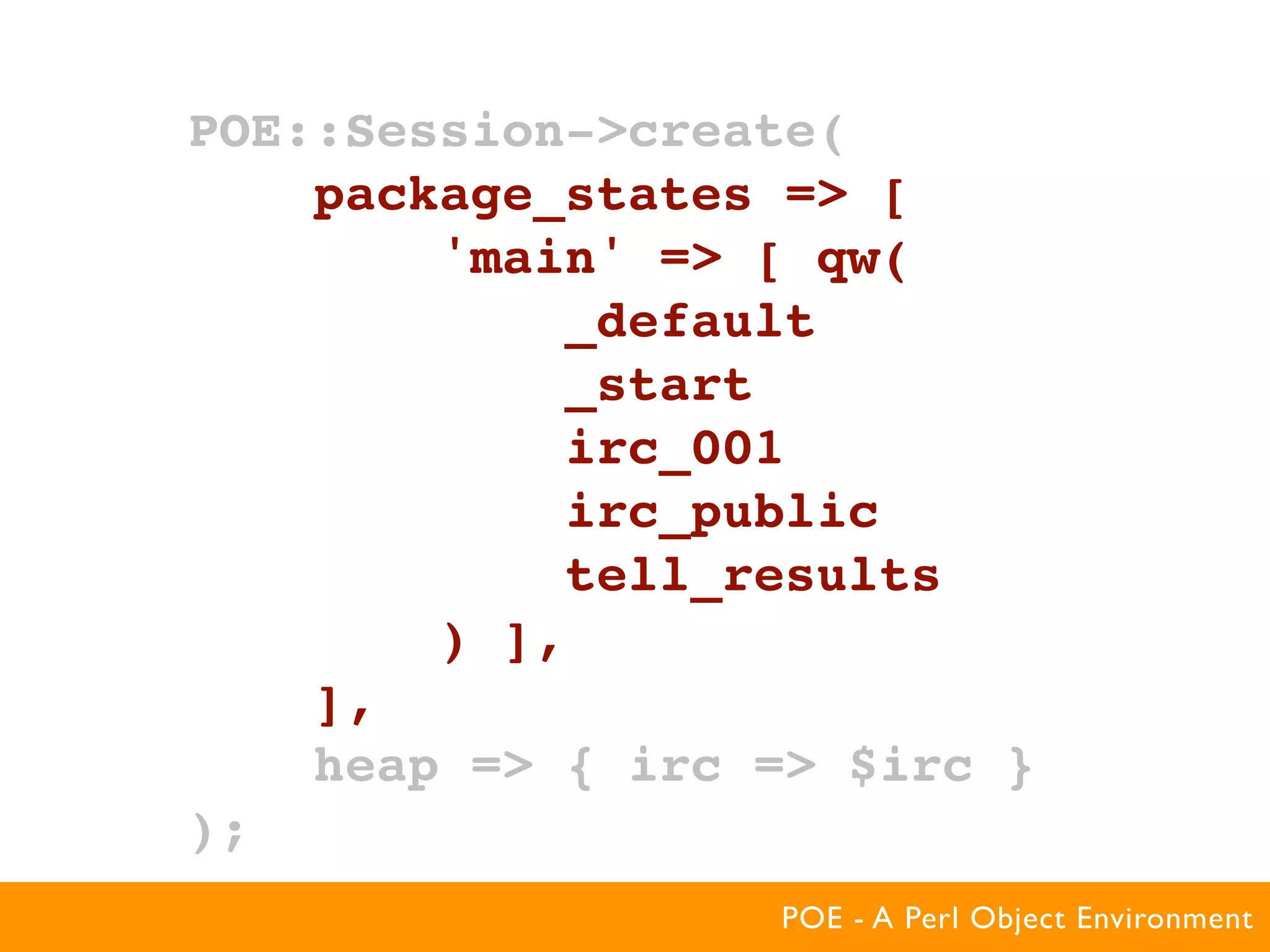

67. POE::Session-create(
package_states = [
'main' = [ qw(
_default
_start
irc_001
irc_public
tell_results
) ],
],
heap = { irc = $irc }
);
POE - A Perl Object Environment

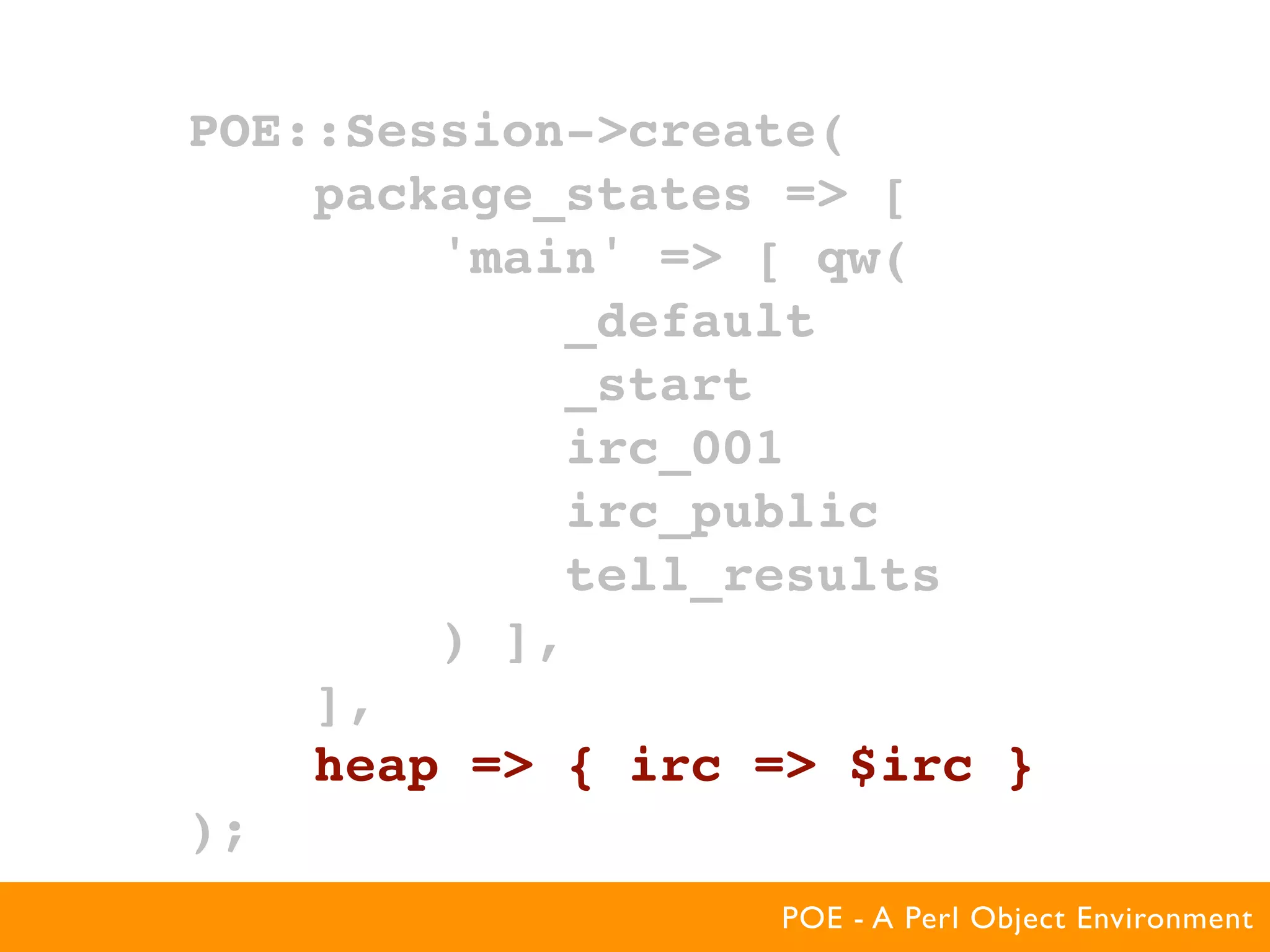

68. POE::Session-create(
package_states = [
'main' = [ qw(
_default
_start
irc_001
irc_public
tell_results
) ],
],
heap = { irc = $irc }
);
POE - A Perl Object Environment

69. sub _start {
my ( $kernel, $heap ) = @_[ KERNEL, HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'tests.log' ,
PollInterval = 1 ,
InputEvent = 'tell_results'
);
$heap-{ watcher } = $watcher;
my $irc_sess = $heap-{irc}-session_id();
$kernel-post( $irc_sess = register = 'all' );
$kernel-post( $irc_sess = connect = {} );
undef;
}
POE - A Perl Object Environment

70. sub _start {
my ( $kernel, $heap ) = @_[ KERNEL, HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'tests.log' ,
PollInterval = 1 ,
InputEvent = 'tell_results'
);
$heap-{ watcher } = $watcher;
my $irc_sess = $heap-{irc}-session_id();
$kernel-post( $irc_sess = register = 'all' );
$kernel-post( $irc_sess = connect = {} );
undef;
}
POE - A Perl Object Environment

71. sub _start {
my ( $kernel, $heap ) = @_[ KERNEL, HEAP ];
my $watcher = POE::Wheel::FollowTail-new(
Filename = 'tests.log' ,
PollInterval = 1 ,
InputEvent = 'tell_results'
);
$heap-{ watcher } = $watcher;
my $irc_sess = $heap-{irc}-session_id();
$kernel-post( $irc_sess = register = 'all' );
$kernel-post( $irc_sess = connect = {} );
undef;
}
POE - A Perl Object Environment

72. sub irc_001 {
my ( $kernel, $sender ) =
@_[ KERNEL, SENDER ];
$kernel-post(
$sender = join = $channel );
undef;
}
POE - A Perl Object Environment

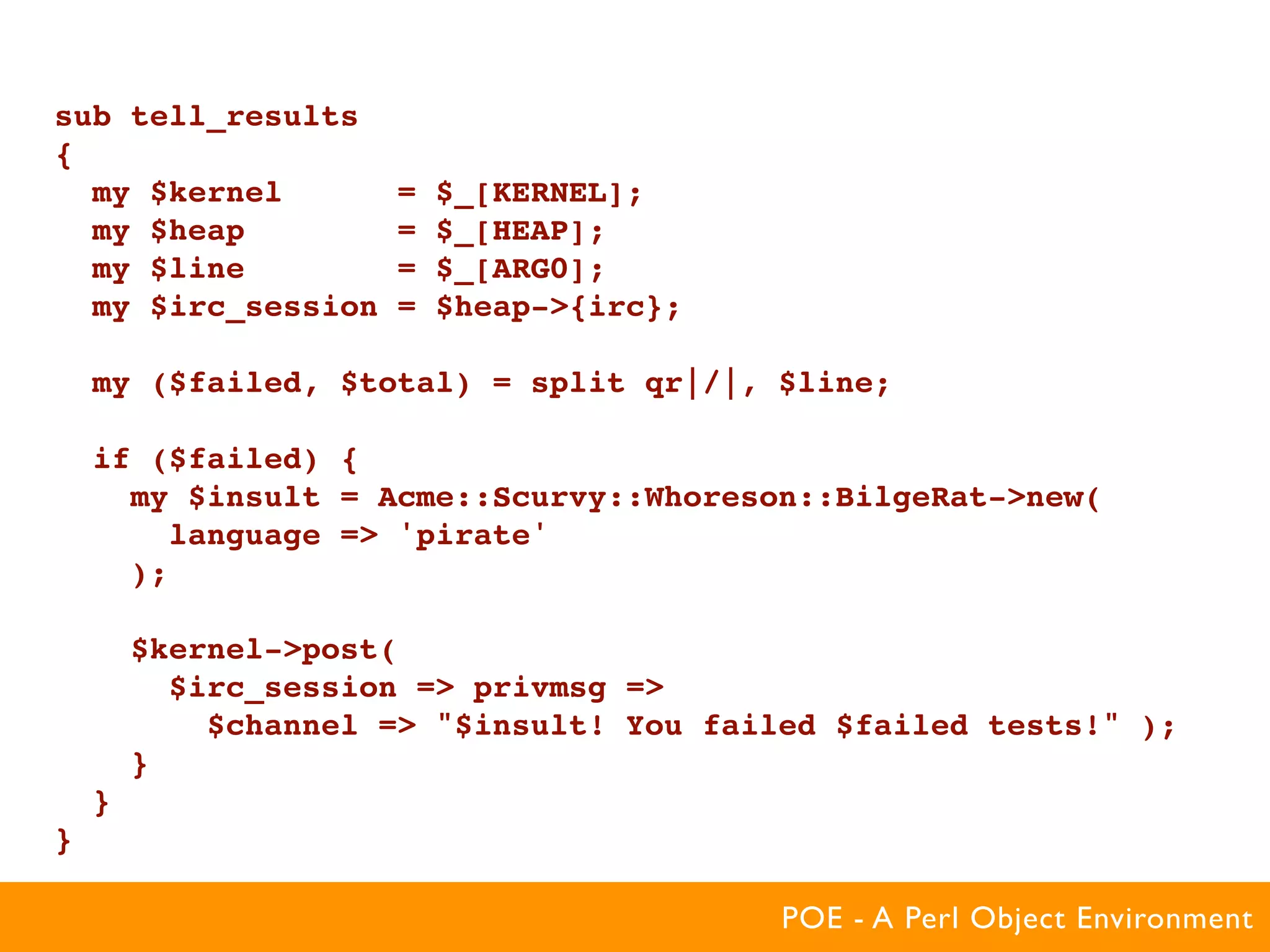

73. sub tell_results
{
my $kernel = $_[KERNEL];
my $heap = $_[HEAP];
my $line = $_[ARG0];
my $irc_session = $heap-{irc};
my ($failed, $total) = split qr|/|, $line;
if ($failed) {
my $insult = Acme::Scurvy::Whoreson::BilgeRat-new(
language = 'pirate'
);
$kernel-post(
$irc_session = privmsg =
$channel = quot;$insult! You failed $failed tests!quot; );
}
}
}
POE - A Perl Object Environment

74. sub tell_results
{
my $kernel = $_[KERNEL];
my $heap = $_[HEAP];
my $line = $_[ARG0];
my $irc_session = $heap-{irc};
my ($failed, $total) = split qr|/|, $line;
if ($failed) {
my $insult = Acme::Scurvy::Whoreson::BilgeRat-new(
language = 'pirate'
);
$kernel-post(
$irc_session = privmsg =
$channel = quot;$insult! You failed $failed tests!quot; );
}
}
}
POE - A Perl Object Environment

75. sub tell_results
{
my $kernel = $_[KERNEL];
my $heap = $_[HEAP];
my $line = $_[ARG0];
my $irc_session = $heap-{irc};
my ($failed, $total) = split qr|/|, $line;
if ($failed) {
my $insult = Acme::Scurvy::Whoreson::BilgeRat-new(
language = 'pirate'
);
$kernel-post(
$irc_session = privmsg =
$channel = quot;$insult! You failed $failed tests!quot; );
}
}
}
POE - A Perl Object Environment

76. POE - A Perl Object Environment

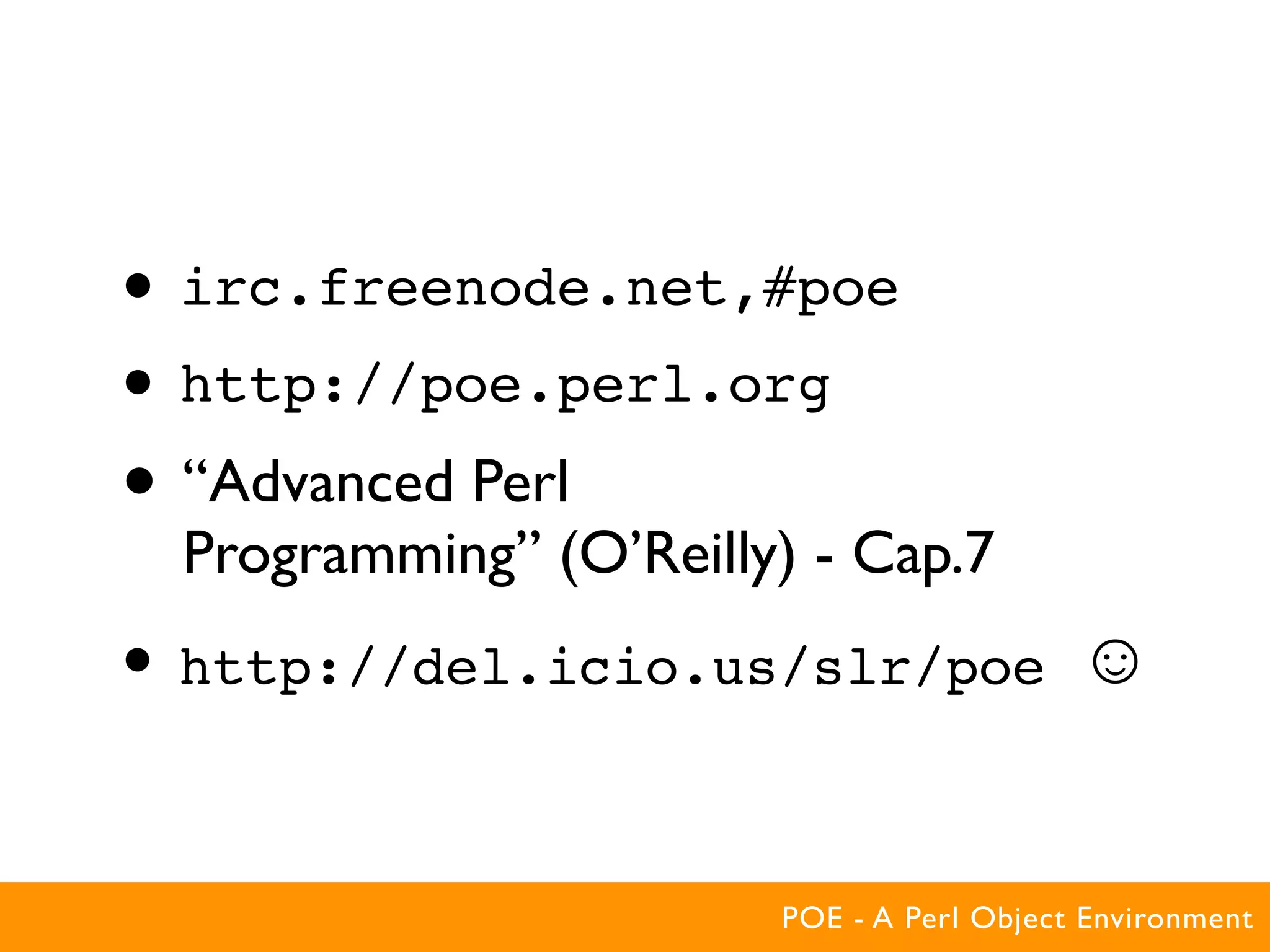

77. • irc.freenode.net,#poe
• http://poe.perl.org
• “Advanced Perl
Programming” (O’Reilly) - Cap.7
• http://del.icio.us/slr/poe ☺
POE - A Perl Object Environment

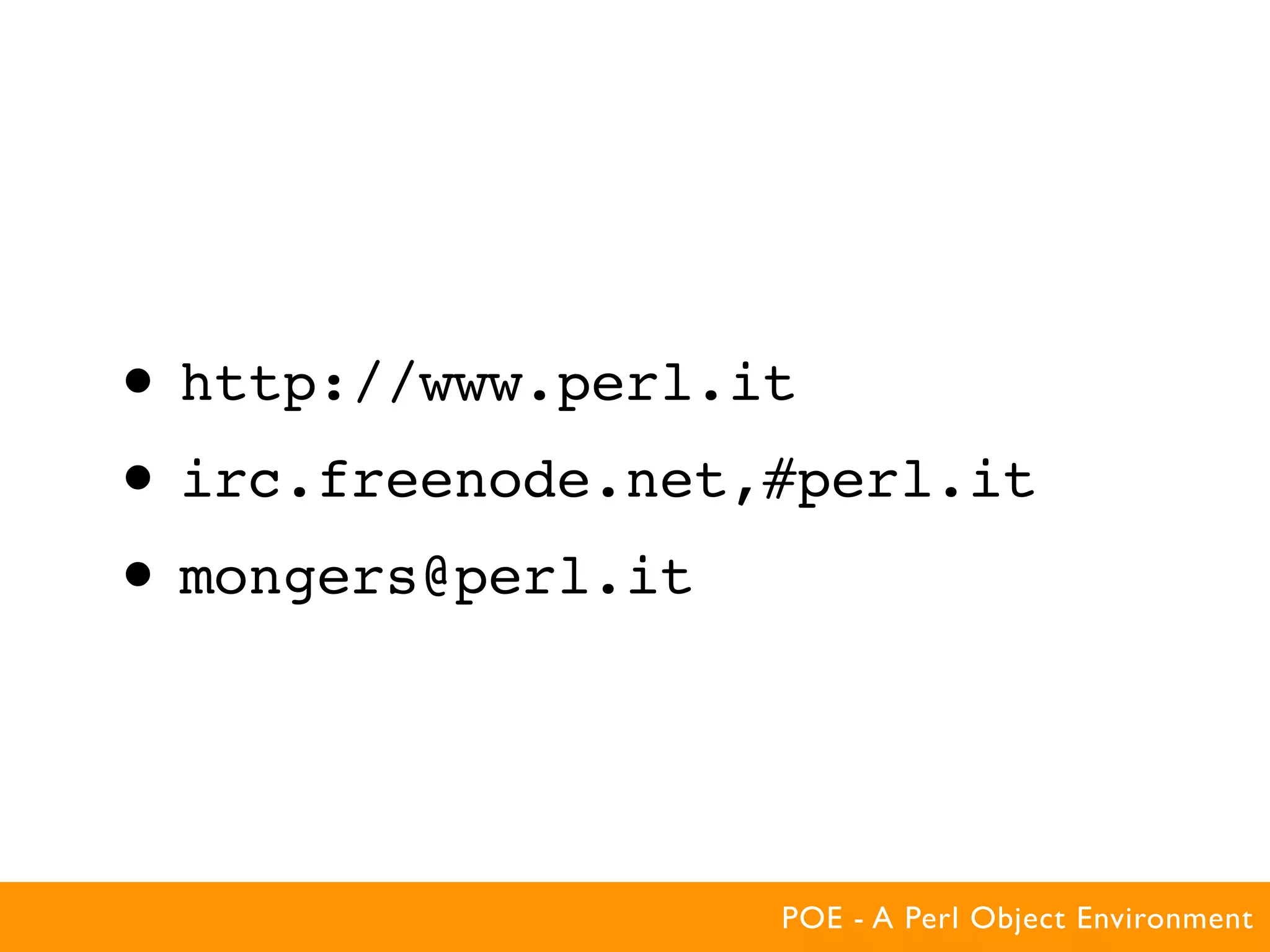

78. • http://www.perl.it
• irc.freenode.net,#perl.it
• mongers@perl.it
POE - A Perl Object Environment

79. Grazie!
Stefano Rodighiero
larsen@perl.it
