1. A modern Java templating language
Thymeleaf
Andre Azzolini!
Broadleaf Commerce!
FW JUG - July 2nd, 2014

2. Introduction
Who am I?!
‣ Graduated from The University of Texas at Austin (Computer Science)!
‣ Consultant at Credera!
‣ Senior Engineer at Broadleaf Commerce!
!
What is Broadleaf Commerce?!
‣ Open source Java enterprise eCommerce framework!
‣ Focus on extensibility and scalability!
‣ Based on Spring, Hibernate, Thymeleaf

3. ‣ Why use Thymeleaf?!
‣ Thymeleaf Basics!
‣ Intermediate Thymeleaf!
‣ Existing Ecosystem!
‣ Broadleaf Use Cases
Agenda

4. ‣ Not compiled —> short feedback loop!
‣ Natural templating —> closer to designers’ HTML!
‣ Modular architecture —> hooks for customization
Why use Thymeleaf?

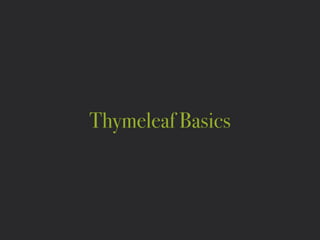

5. Thymeleaf Basics

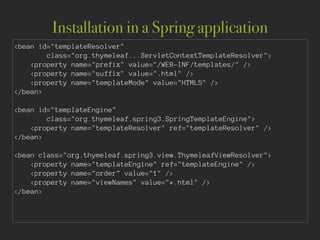

6. Installation in a Spring application
<bean id="templateResolver"
class="org.thymeleaf...ServletContextTemplateResolver">
<property name="prefix" value="/WEB-INF/templates/" />
<property name="suffix" value=".html" />
<property name="templateMode" value="HTML5" />
</bean>
<bean id="templateEngine"
class="org.thymeleaf.spring3.SpringTemplateEngine">
<property name="templateResolver" ref="templateResolver" />
</bean>
!
<bean class="org.thymeleaf.spring3.view.ThymeleafViewResolver">
<property name="templateEngine" ref="templateEngine" />
<property name="order" value="1" />
<property name="viewNames" value="*.html" />
</bean>

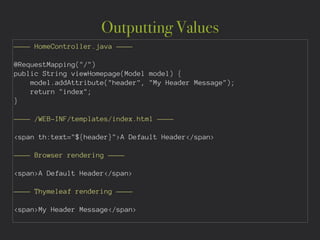

7. Outputting Values
———— HomeController.java ————
!
@RequestMapping("/")
public String viewHomepage(Model model) {
model.addAttribute("header", "My Header Message");
return "index";
}
!
———— /WEB-INF/templates/index.html ————
!
<span th:text="${header}">A Default Header</span>
!
———— Browser rendering ————
!
<span>A Default Header</span>
!
———— Thymeleaf rendering ————
!
<span>My Header Message</span>

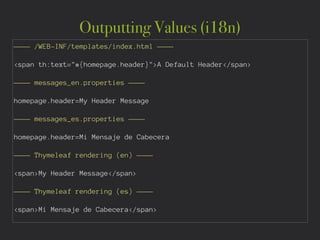

8. Outputting Values (i18n)
———— /WEB-INF/templates/index.html ————
!
<span th:text="#{homepage.header}">A Default Header</span>
!
———— messages_en.properties ————
!
homepage.header=My Header Message
!
———— messages_es.properties ————
!
homepage.header=Mi Mensaje de Cabecera
!
———— Thymeleaf rendering (en) ————
!
<span>My Header Message</span>
!
———— Thymeleaf rendering (es) ————
!
<span>Mi Mensaje de Cabecera</span>

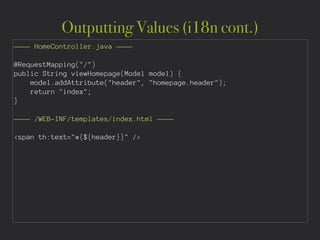

9. Outputting Values (i18n cont.)
———— HomeController.java ————
!
@RequestMapping("/")
public String viewHomepage(Model model) {
model.addAttribute("header", "homepage.header");
return "index";
}
!
———— /WEB-INF/templates/index.html ————
!
<span th:text="#{${header}}" />

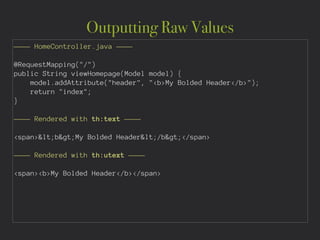

10. Outputting Raw Values
———— HomeController.java ————
!
@RequestMapping("/")
public String viewHomepage(Model model) {
model.addAttribute("header", "<b>My Bolded Header</b>");
return "index";
}
!
———— Rendered with th:text ————
!
<span>&lt;b&gt;My Bolded Header&lt;/b&gt;</span>
!
———— Rendered with th:utext ————
!
<span><b>My Bolded Header</b></span>

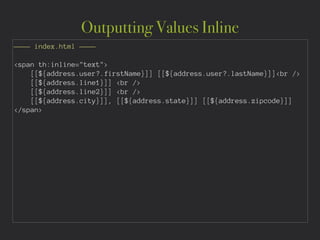

11. Outputting Values Inline
———— index.html ————
!
<span th:inline="text">
[[${address.user?.firstName}]] [[${address.user?.lastName}]]<br />
[[${address.line1}]] <br />
[[${address.line2}]] <br />
[[${address.city}]], [[${address.state}]] [[${address.zipcode}]]
</span>

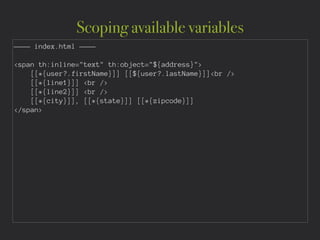

12. Scoping available variables
———— index.html ————
!
<span th:inline="text" th:object="${address}">
[[*{user?.firstName}]] [[${user?.lastName}]]<br />
[[*{line1}]] <br />
[[*{line2}]] <br />
[[*{city}]], [[*{state}]] [[*{zipcode}]]
</span>

13. Attribute Manipulation
———— index.html ————
!
<span th:class="${isEven ? 'even' : 'odd'}"
th:classappend="${isError ? 'error'}"
th:attr="data-row-id=${row.id}"
th:text="${row.description}" />
———— Rendered index.html ————
!
<span class="odd error" data-row-id="5">Row 5 Description</span>

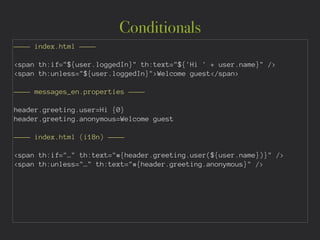

14. Conditionals
———— index.html ————
!
<span th:if="${user.loggedIn}" th:text="${'Hi ' + user.name}" />
<span th:unless="${user.loggedIn}">Welcome guest</span>
!
———— messages_en.properties ————
!
header.greeting.user=Hi {0}
header.greeting.anonymous=Welcome guest
!
———— index.html (i18n) ————
!
<span th:if="…" th:text="#{header.greeting.user(${user.name})}" />
<span th:unless="…" th:text="#{header.greeting.anonymous}" />

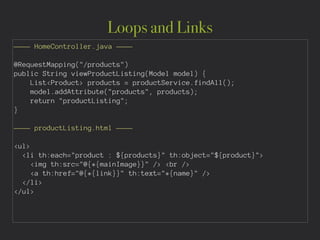

15. Loops and Links
———— HomeController.java ————
!
@RequestMapping("/products")
public String viewProductListing(Model model) {
List<Product> products = productService.findAll();
model.addAttribute("products", products);
return "productListing";
}
!
———— productListing.html ————
!
<ul>
<li th:each="product : ${products}" th:object="${product}">
<img th:src="@{*{mainImage}}" /> <br />
<a th:href="@{*{link}}" th:text="*{name}" />
</li>
</ul>

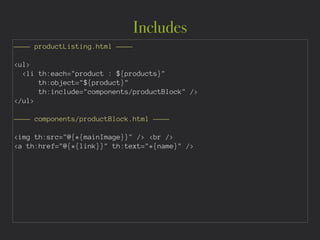

16. Includes
———— productListing.html ————
!
<ul>
<li th:each="product : ${products}"
th:object="${product}"
th:include="components/productBlock" />
</ul>
!
———— components/productBlock.html ————
!
<img th:src="@{*{mainImage}}" /> <br />
<a th:href="@{*{link}}" th:text="*{name}" />

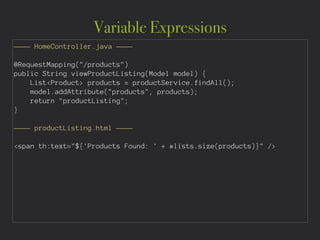

17. Variable Expressions
———— HomeController.java ————
!
@RequestMapping("/products")
public String viewProductListing(Model model) {
List<Product> products = productService.findAll();
model.addAttribute("products", products);
return "productListing";
}
!
———— productListing.html ————
!
<span th:text="${'Products Found: ' + #lists.size(products)}" />

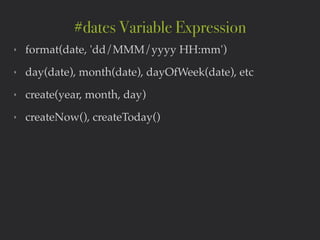

18. ‣ format(date, 'dd/MMM/yyyy HH:mm')!
‣ day(date), month(date), dayOfWeek(date), etc!
‣ create(year, month, day)!
‣ createNow(), createToday()
#dates Variable Expression

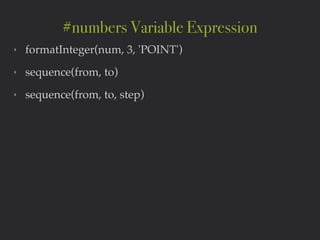

19. ‣ formatInteger(num, 3, 'POINT')!
‣ sequence(from, to)!
‣ sequence(from, to, step)
#numbers Variable Expression

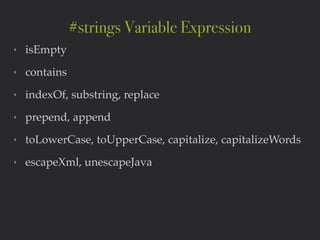

20. ‣ isEmpty!
‣ contains!
‣ indexOf, substring, replace!
‣ prepend, append!
‣ toLowerCase, toUpperCase, capitalize, capitalizeWords!
‣ escapeXml, unescapeJava
#strings Variable Expression

21. ‣ isEmpty, size!
‣ contains, containsAll!
‣ sort
#arrays, #lists, #sets, #maps Variable Expressions

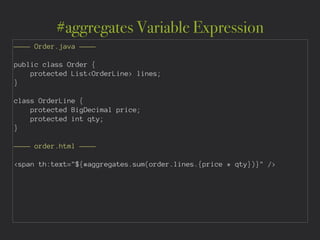

22. #aggregates Variable Expression
———— Order.java ————
!
public class Order {
protected List<OrderLine> lines;
}
!
class OrderLine {
protected BigDecimal price;
protected int qty;
}
!
———— order.html ————
!
<span th:text="${#aggregates.sum(order.lines.{price * qty})}" />

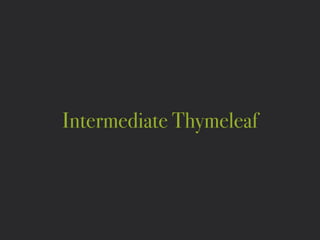

23. Intermediate Thymeleaf

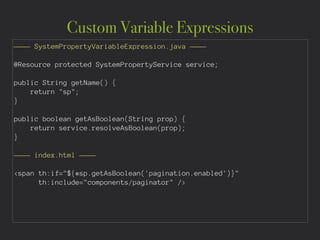

24. Custom Variable Expressions
———— SystemPropertyVariableExpression.java ————
!
@Resource protected SystemPropertyService service;
!
public String getName() {
return "sp";
}
!
public boolean getAsBoolean(String prop) {
return service.resolveAsBoolean(prop);
}
!
———— index.html ————
!
<span th:if="${#sp.getAsBoolean('pagination.enabled')}"
th:include="components/paginator" />

25. Spring Bean Direct Access
———— MyService.java ————
!
@Service
public class MyService {
!
public boolean isPalindrome(String str) {
return str.equals(StringUtils.reverse(str));
}
!
}
!
———— index.html ————
!
<span th:if="${@myService.isPalindrome('tacocat')}" />

26. Custom Processors
———— PriceProcessor.java ————
!
public class PriceProcessor extends
AbstractTextChildModifierAttrProcessor {
public PriceTextDisplayProcessor() {
super("price");
}
!
protected String getText(Arguments arguments, Element element,
String attributeName) {
Expression expression = ...
Object result = expression.execute(...);
if (result instanceof Money) {
return ((Money) result).getFormattedValue();
} else {
return result.toString();
}
}
}

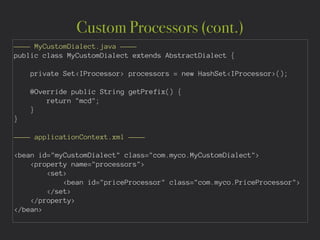

27. Custom Processors (cont.)
———— MyCustomDialect.java ————
public class MyCustomDialect extends AbstractDialect {
private Set<IProcessor> processors = new HashSet<IProcessor>();
@Override public String getPrefix() {
return "mcd";
}
}
!
———— applicationContext.xml ————
!
<bean id="myCustomDialect" class="com.myco.MyCustomDialect">
<property name="processors">
<set>
<bean id="priceProcessor" class="com.myco.PriceProcessor">
</set>
</property>
</bean>

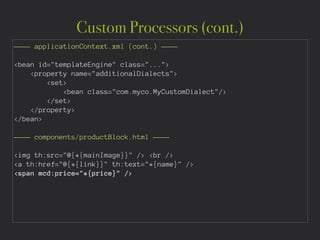

28. Custom Processors (cont.)
———— applicationContext.xml (cont.) ————
!
<bean id="templateEngine" class="...">
<property name="additionalDialects">
<set>
<bean class="com.myco.MyCustomDialect"/>
</set>
</property>
</bean>
!
———— components/productBlock.html ————
!
<img th:src="@{*{mainImage}}" /> <br />
<a th:href="@{*{link}}" th:text="*{name}" />
<span mcd:price="*{price}" />

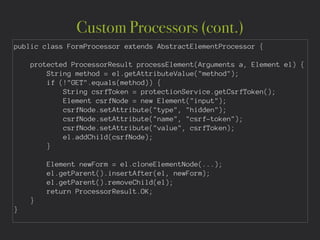

29. Custom Processors (cont.)
public class FormProcessor extends AbstractElementProcessor {
!
protected ProcessorResult processElement(Arguments a, Element el) {
String method = el.getAttributeValue("method");
if (!"GET".equals(method)) {
String csrfToken = protectionService.getCsrfToken();
Element csrfNode = new Element("input");
csrfNode.setAttribute("type", "hidden");
csrfNode.setAttribute("name", "csrf-token");
csrfNode.setAttribute("value", csrfToken);
el.addChild(csrfNode);
}
!
Element newForm = el.cloneElementNode(...);
el.getParent().insertAfter(el, newForm);
el.getParent().removeChild(el);
return ProcessorResult.OK;
}
}

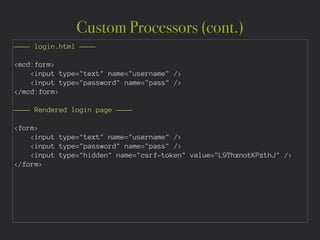

30. Custom Processors (cont.)
———— login.html ————
!
<mcd:form>
<input type="text" name="username" />
<input type="password" name="pass" />
</mcd:form>
!
———— Rendered login page ————
!
<form>
<input type="text" name="username" />
<input type="password" name="pass" />
<input type="hidden" name="csrf-token" value="L9ThxnotKPzthJ" />
</form>

31. Spring Form Binding
———— UserRegistrationForm.java ————
!
public class UserRegistrationForm {
!
protected String username;
protected String password;
protected String confirmPassword;
protected String email;
!
... getters / setters ...
!
}

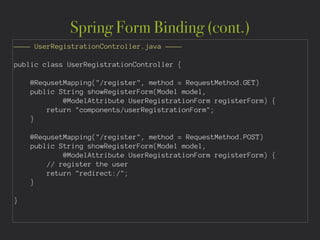

32. Spring Form Binding (cont.)
———— UserRegistrationController.java ————
!
public class UserRegistrationController {
!
@RequsetMapping("/register", method = RequestMethod.GET)
public String showRegisterForm(Model model,
@ModelAttribute UserRegistrationForm registerForm) {
return "components/userRegistrationForm";
}
!
@RequsetMapping("/register", method = RequestMethod.POST)
public String showRegisterForm(Model model,
@ModelAttribute UserRegistrationForm registerForm) {
// register the user
return "redirect:/";
}
!
}

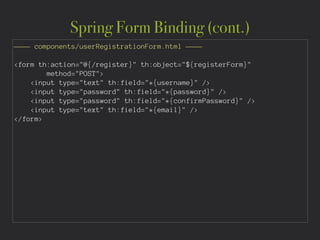

33. Spring Form Binding (cont.)
———— components/userRegistrationForm.html ————
!
<form th:action="@{/register}" th:object="${registerForm}"
method="POST">
<input type="text" th:field="*{username}" />
<input type="password" th:field="*{password}" />
<input type="password" th:field="*{confirmPassword}" />
<input type="text" th:field="*{email}" />
</form>

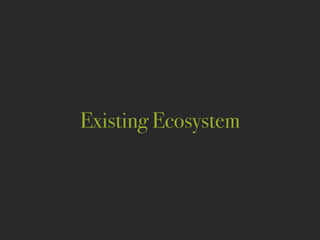

34. Existing Ecosystem

35. ‣ Code completion for out of box processors!
‣ Content assist inside expressions!
‣ Ability to provide completion for custom processors
Eclipse IDE Plugin

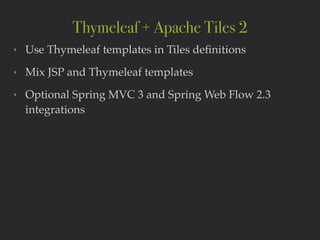

36. ‣ Use Thymeleaf templates in Tiles definitions!
‣ Mix JSP and Thymeleaf templates!
‣ Optional Spring MVC 3 and Spring Web Flow 2.3
integrations
Thymeleaf + Apache Tiles 2

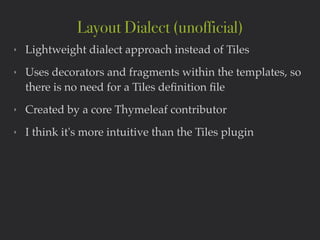

37. ‣ Lightweight dialect approach instead of Tiles!
‣ Uses decorators and fragments within the templates, so
there is no need for a Tiles definition file!
‣ Created by a core Thymeleaf contributor!
‣ I think it's more intuitive than the Tiles plugin
Layout Dialect (unofficial)

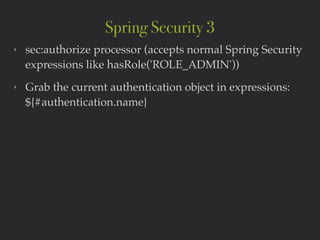

38. ‣ sec:authorize processor (accepts normal Spring Security
expressions like hasRole('ROLE_ADMIN'))!
‣ Grab the current authentication object in expressions:
${#authentication.name}!
Spring Security 3

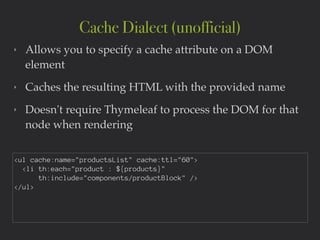

39. ‣ Allows you to specify a cache attribute on a DOM
element!
‣ Caches the resulting HTML with the provided name!
‣ Doesn't require Thymeleaf to process the DOM for that
node when rendering
Cache Dialect (unofficial)
<ul cache:name="productsList" cache:ttl="60">
<li th:each="product : ${products}"
th:include="components/productBlock" />
</ul>

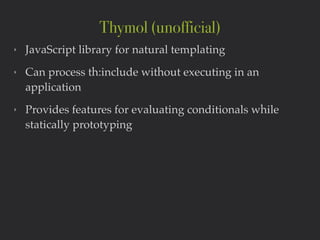

40. ‣ JavaScript library for natural templating!
‣ Can process th:include without executing in an
application!
‣ Provides features for evaluating conditionals while
statically prototyping
Thymol (unofficial)

41. Broadleaf Use Cases

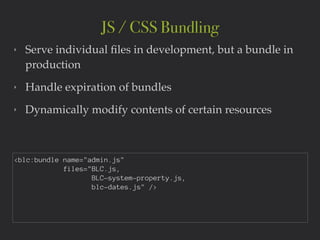

42. ‣ Serve individual files in development, but a bundle in
production!
‣ Handle expiration of bundles!
‣ Dynamically modify contents of certain resources
JS / CSS Bundling
<blc:bundle name="admin.js"
files="BLC.js,
BLC-system-property.js,
blc-dates.js" />

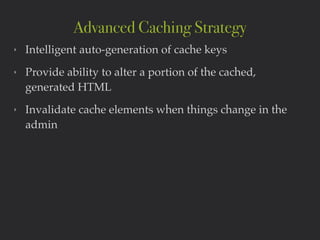

43. ‣ Intelligent auto-generation of cache keys!
‣ Provide ability to alter a portion of the cached,
generated HTML!
‣ Invalidate cache elements when things change in the
admin
Advanced Caching Strategy

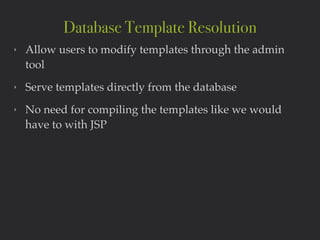

44. ‣ Allow users to modify templates through the admin
tool!
‣ Serve templates directly from the database!
‣ No need for compiling the templates like we would
have to with JSP
Database Template Resolution

45. Thanks!
