![THE SOFTWARE EXPERTS
Custom Metadata
• Definition
@ViewMetaData
@interface InfoPage { /*...*/ }
• Usage
@Inject
private ViewConfigResolver vcr;
//...
ViewConfigDescriptor vcd =
vcr.getViewConfigDescriptor(
/*[Class|String]*/);
List<InfoPage> metaDataList =
vcd.getMetaData(InfoPage.class);](https://image.slidesharecdn.com/apachedeltaspike-140704064413-phpapp01/85/Apache-DeltaSpike-18-320.jpg)
More Related Content
Apache DeltaSpike
- 1. THE SOFTWARE EXPERTS ApacheDeltaSpike ... closes the gaps!
- 2. THE SOFTWARE EXPERTS Agenda •History • DeltaSpike is… • DeltaSpike by Example Core JSF Module Test-Control Module • Portability • Module Overview • Bonus
- 3. THE SOFTWARE EXPERTS History JavaEE without CDI Spring Framework Seam2 MyFaces Orchestra MyFaces CODI Java EE with CDI Seam3 + CDI implementation DeltaSpike Other Extensions

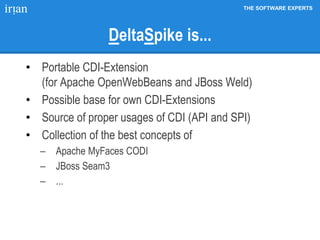

- 4. THE SOFTWARE EXPERTS DeltaSpikeis... • Portable CDI-Extension (for Apache OpenWebBeans and JBoss Weld) • Possible base for own CDI-Extensions • Source of proper usages of CDI (API and SPI) • Collection of the best concepts of Apache MyFaces CODI JBoss Seam3 ...

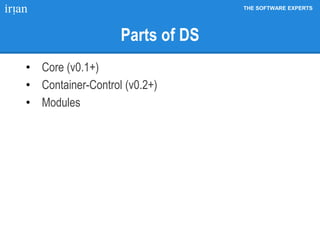

- 5. THE SOFTWARE EXPERTS Partsof DS • Core (v0.1+) • Container-Control (v0.2+) • Modules
- 6. THE SOFTWARE EXPERTS DSby Example
- 7.

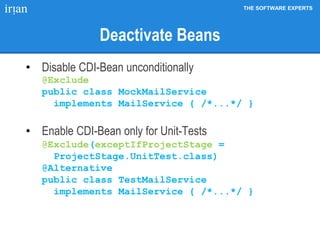

- 8. THE SOFTWARE EXPERTS DeactivateBeans • Disable CDI-Bean unconditionally @Exclude public class MockMailService implements MailService { /*...*/ } • Enable CDI-Bean only for Unit-Tests @Exclude(exceptIfProjectStage = ProjectStage.UnitTest.class) @Alternative public class TestMailService implements MailService { /*...*/ }
- 9. THE SOFTWARE EXPERTS Window-Scope- Overview • Based on the CDI Session-Scope • A HTTP-Session is optional Allows logical windows (for batches,...) Simple/r to test • Needs to get de-/activated explicitly (autom. handling with the JSF-Module) • Base for Grouped-Conversation-Scope View-Access-Scope

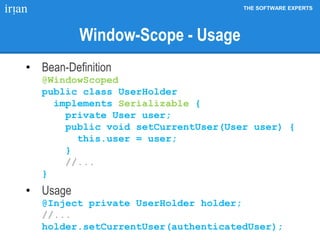

- 10. THE SOFTWARE EXPERTS Window-Scope- Usage • Bean-Definition @WindowScoped public class UserHolder implements Serializable { private User user; public void setCurrentUser(User user) { this.user = user; } //... } • Usage @Inject private UserHolder holder; //... holder.setCurrentUser(authenticatedUser);

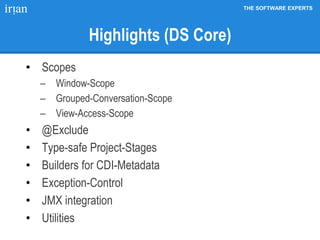

- 11. THE SOFTWARE EXPERTS Highlights(DS Core) • Scopes Window-Scope Grouped-Conversation-Scope View-Access-Scope • @Exclude • Type-safe Project-Stages • Builders for CDI-Metadata • Exception-Control • JMX integration • Utilities

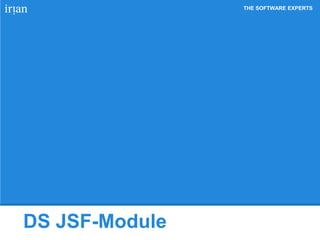

- 12. THE SOFTWARE EXPERTS DSJSF-Module

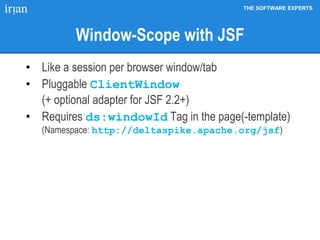

- 13. THE SOFTWARE EXPERTS Window-Scopewith JSF • Like a session per browser window/tab • Pluggable ClientWindow (+ optional adapter for JSF 2.2+) • Requires ds:windowId Tag in the page(-template) (Namespace: http://deltaspike.apache.org/jsf)

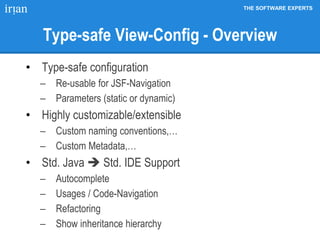

- 14. THE SOFTWARE EXPERTS Type-safeView-Config - Overview • Type-safe configuration Re-usable for JSF-Navigation Parameters (static or dynamic) • Highly customizable/extensible Custom naming conventions,… Custom Metadata,… • Std. Java Std. IDE Support Autocomplete Usages / Code-Navigation Refactoring Show inheritance hierarchy

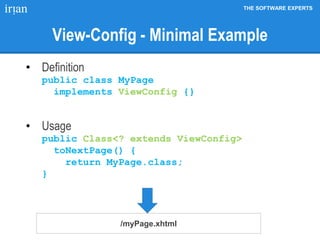

- 15. THE SOFTWARE EXPERTS View-Config- Minimal Example • Definition public class MyPage implements ViewConfig {} • Usage public Class<? extends ViewConfig> toNextPage() { return MyPage.class; } /myPage.xhtml

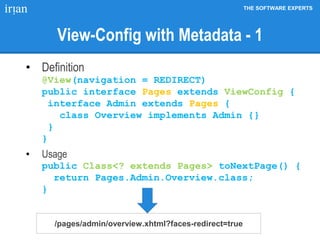

- 16. THE SOFTWARE EXPERTS View-Configwith Metadata - 1 • Definition @View(navigation = REDIRECT) public interface Pages extends ViewConfig { interface Admin extends Pages { class Overview implements Admin {} } } • Usage public Class<? extends Pages> toNextPage() { return Pages.Admin.Overview.class; } /pages/admin/overview.xhtml?faces-redirect=true

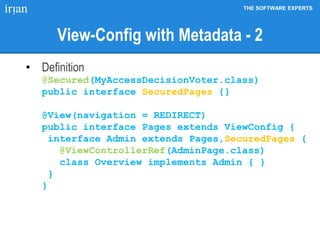

- 17. THE SOFTWARE EXPERTS View-Configwith Metadata - 2 • Definition @Secured(MyAccessDecisionVoter.class) public interface SecuredPages {} @View(navigation = REDIRECT) public interface Pages extends ViewConfig { interface Admin extends Pages,SecuredPages { @ViewControllerRef(AdminPage.class) class Overview implements Admin { } } }

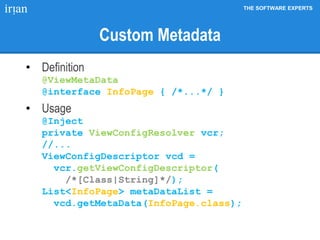

- 18. THE SOFTWARE EXPERTS CustomMetadata • Definition @ViewMetaData @interface InfoPage { /*...*/ } • Usage @Inject private ViewConfigResolver vcr; //... ViewConfigDescriptor vcd = vcr.getViewConfigDescriptor( /*[Class|String]*/); List<InfoPage> metaDataList = vcd.getMetaData(InfoPage.class);

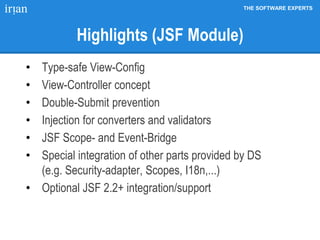

- 19. THE SOFTWARE EXPERTS Highlights(JSF Module) • Type-safe View-Config • View-Controller concept • Double-Submit prevention • Injection for converters and validators • JSF Scope- and Event-Bridge • Special integration of other parts provided by DS (e.g. Security-adapter, Scopes, I18n,...) • Optional JSF 2.2+ integration/support
- 20. THE SOFTWARE EXPERTS DSTest-Control

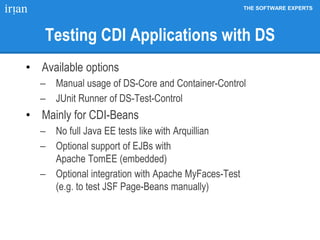

- 21. THE SOFTWARE EXPERTS TestingCDI Applications with DS • Available options Manual usage of DS-Core and Container-Control JUnit Runner of DS-Test-Control • Mainly for CDI-Beans No full Java EE tests like with Arquillian Optional support of EJBs with Apache TomEE (embedded) Optional integration with Apache MyFaces-Test (e.g. to test JSF Page-Beans manually)
- 22. THE SOFTWARE EXPERTS InjectCDI-Beans in Tests - Setup • Add OpenWebBeans or Weld • Add DeltaSpike (at least Core) • Add the test-dependencies JUnit DeltaSpike Container-Control DeltaSpike Test-Control
- 23. THE SOFTWARE EXPERTS InjectCDI-Beans in Tests - Usage • Use the Test-Runner to write a test @RunWith(CdiTestRunner.class) public class SimpleTest { @Inject private QuestionOfLifeBean bean; @Test public void ultimateAnswer() { assertEquals(42, bean.getAnswer()); } }

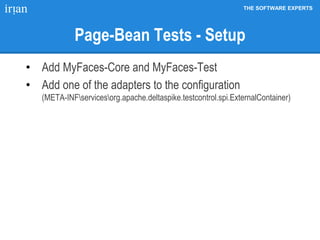

- 24. THE SOFTWARE EXPERTS Page-BeanTests - Setup • Add MyFaces-Core and MyFaces-Test • Add one of the adapters to the configuration (META-INFservicesorg.apache.deltaspike.testcontrol.spi.ExternalContainer)

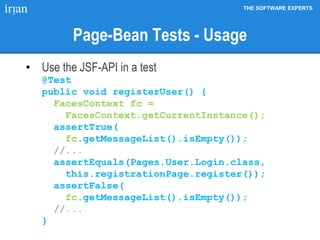

- 25. THE SOFTWARE EXPERTS Page-BeanTests - Usage • Use the JSF-API in a test @Test public void registerUser() { FacesContext fc = FacesContext.getCurrentInstance(); assertTrue( fc.getMessageList().isEmpty()); //... assertEquals(Pages.User.Login.class, this.registrationPage.register()); assertFalse( fc.getMessageList().isEmpty()); //... }

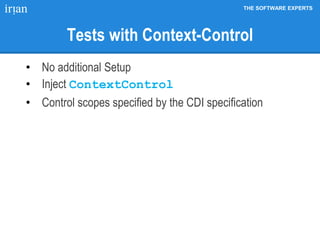

- 26. THE SOFTWARE EXPERTS Testswith Context-Control • No additional Setup • Inject ContextControl • Control scopes specified by the CDI specification

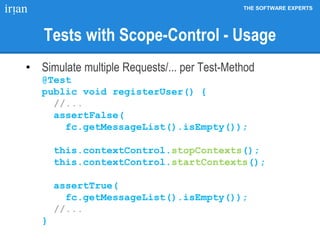

- 27. THE SOFTWARE EXPERTS Testswith Scope-Control - Usage • Simulate multiple Requests/... per Test-Method @Test public void registerUser() { //... assertFalse( fc.getMessageList().isEmpty()); this.contextControl.stopContexts(); this.contextControl.startContexts(); assertTrue( fc.getMessageList().isEmpty()); //... }

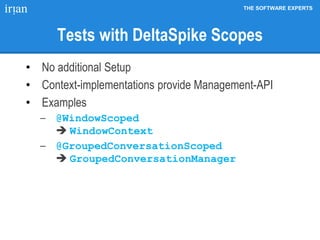

- 28. THE SOFTWARE EXPERTS Testswith DeltaSpike Scopes • No additional Setup • Context-implementations provide Management-API • Examples @WindowScoped WindowContext @GroupedConversationScoped GroupedConversationManager

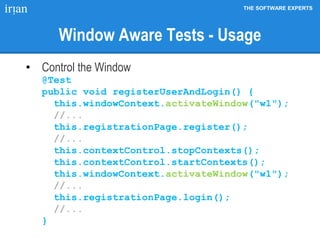

- 29. THE SOFTWARE EXPERTS WindowAware Tests - Usage • Control the Window @Test public void registerUserAndLogin() { this.windowContext.activateWindow("w1"); //... this.registrationPage.register(); //... this.contextControl.stopContexts(); this.contextControl.startContexts(); this.windowContext.activateWindow("w1"); //... this.registrationPage.login(); //... }

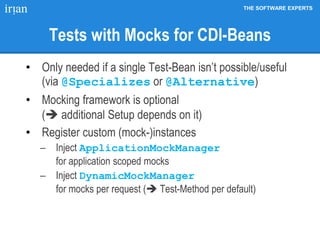

- 30. THE SOFTWARE EXPERTS Testswith Mocks for CDI-Beans • Only needed if a single Test-Bean isn’t possible/useful (via @Specializes or @Alternative) • Mocking framework is optional ( additional Setup depends on it) • Register custom (mock-)instances Inject ApplicationMockManager for application scoped mocks Inject DynamicMockManager for mocks per request ( Test-Method per default)

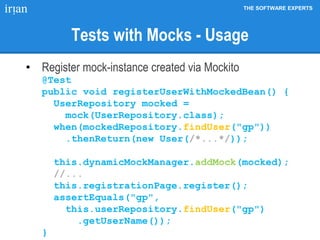

- 31. THE SOFTWARE EXPERTS Testswith Mocks - Usage • Register mock-instance created via Mockito @Test public void registerUserWithMockedBean() { UserRepository mocked = mock(UserRepository.class); when(mockedRepository.findUser("gp")) .thenReturn(new User(/*...*/)); this.dynamicMockManager.addMock(mocked); //... this.registrationPage.register(); assertEquals("gp", this.userRepository.findUser("gp") .getUserName()); }

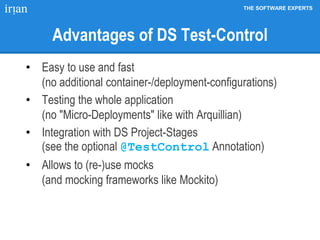

- 32. THE SOFTWARE EXPERTS Advantagesof DS Test-Control • Easy to use and fast (no additional container-/deployment-configurations) • Testing the whole application (no "Micro-Deployments" like with Arquillian) • Integration with DS Project-Stages (see the optional @TestControl Annotation) • Allows to (re-)use mocks (and mocking frameworks like Mockito)
- 33. THE SOFTWARE EXPERTS Disadvantagesof DS Test-Control • No deployment to the Target-EE-Server • Mainly for CDI • EJB-Support just with TomEE embedded (@Transactional of DeltaSpike might be easier for tests)
- 34. THE SOFTWARE EXPERTS TestedPortability

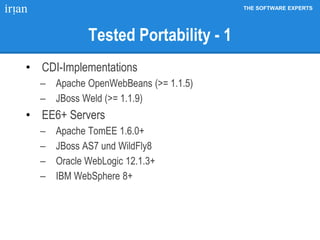

- 35. THE SOFTWARE EXPERTS TestedPortability - 1 • CDI-Implementations Apache OpenWebBeans (>= 1.1.5) JBoss Weld (>= 1.1.9) • EE6+ Servers Apache TomEE 1.6.0+ JBoss AS7 und WildFly8 Oracle WebLogic 12.1.3+ IBM WebSphere 8+

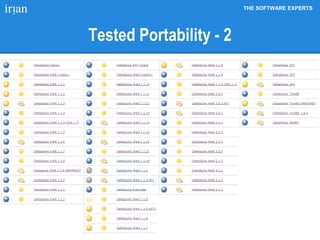

- 36. THE SOFTWARE EXPERTS TestedPortability - 2
- 37. THE SOFTWARE EXPERTS DSModule Overview

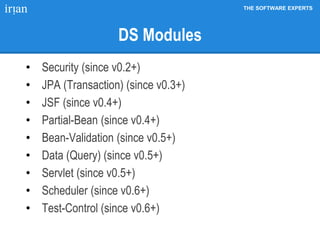

- 38. THE SOFTWARE EXPERTS DSModules • Security (since v0.2+) • JPA (Transaction) (since v0.3+) • JSF (since v0.4+) • Partial-Bean (since v0.4+) • Bean-Validation (since v0.5+) • Data (Query) (since v0.5+) • Servlet (since v0.5+) • Scheduler (since v0.6+) • Test-Control (since v0.6+)
- 39. THE SOFTWARE EXPERTS Bonus- Advanced CDI

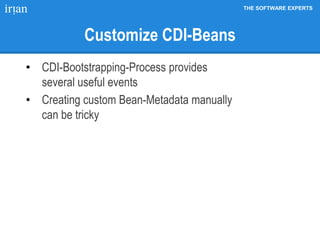

- 40. THE SOFTWARE EXPERTS CustomizeCDI-Beans • CDI-Bootstrapping-Process provides several useful events • Creating custom Bean-Metadata manually can be tricky
- 41. THE SOFTWARE EXPERTS DShelps with Builders for Metadata • Dynamically change the existing metadata AnnotatedType<T> annotatedType = processAnnotatedType.getAnnotatedType(); processAnnotatedType.setAnnotatedType( new AnnotatedTypeBuilder<T>() .readFromType(annotatedType) .addToClass( new MyAnnotationLiteral()) .create());
- 42.

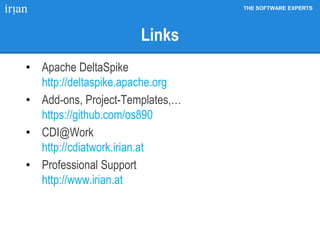

- 43. THE SOFTWARE EXPERTS Links •Apache DeltaSpike http://deltaspike.apache.org • Add-ons, Project-Templates,… https://github.com/os890 • CDI@Work http://cdiatwork.irian.at • Professional Support http://www.irian.at
