GROUP 10
PAULO MALOLES
JOSHUA Q. NULIAL
ZENDRICK B.ARCE
EZIKIEL O. ORANTES
CONTENT:
• SHELL STRCTURES
• CONCRETE SHELL
• GRID SHELL
• THIN SHELL
• MONOCOQUE SHELL
• STEEL FRAMMING
• GEODESIC STRUCTURE

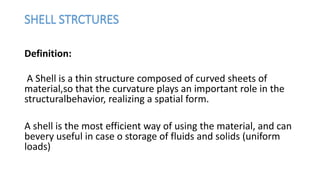

SHELL STRCTURES
SHELL STRCTURES
Definition:
A Shell is a thin structure composed of curved sheets of
material,so that the curvature plays an important role in the
structuralbehavior, realizing a spatial form.
A shell is the most efficient way of using the material, and can
bevery useful in case o storage of fluids and solids (uniform
loads)

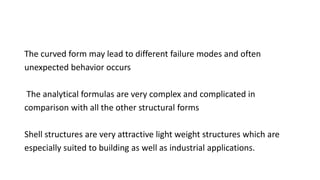

The curved form may lead to different failure modes and often
unexpected behavior occurs
The analytical formulas are very complex and complicated in
comparison with all the other structural forms
Shell structures are very attractive light weight structures which are
especially suited to building as well as industrial applications.

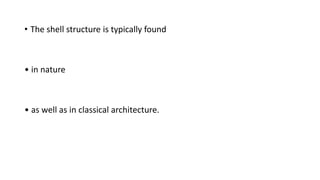

• The shell structure is typically found
• in nature
• as well as in classical architecture.
• There are two principal uses of shells in civil engineering:
• industrial structures:
• – silos, tanks, cooling towers, reactor vessels etc.
• aesthetic and architectural special structures

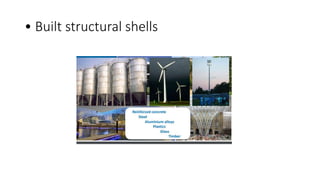

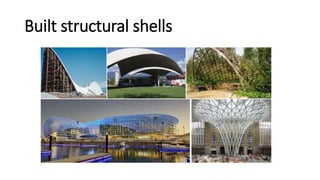

• Built structural shells

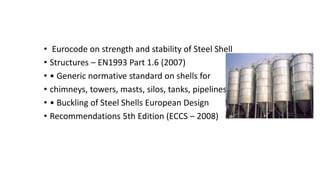

• Eurocode on strength and stability of Steel Shell
• Structures – EN1993 Part 1.6 (2007)
• • Generic normative standard on shells for
• chimneys, towers, masts, silos, tanks, pipelines
• • Buckling of Steel Shells European Design
• Recommendations 5th Edition (ECCS – 2008)

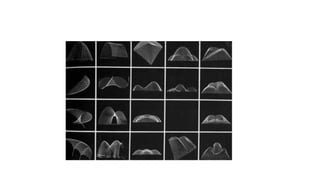

Structural typologies
• Shells are the most difficult form of structure to analyse and the form
with the most complex behaviour. As a result, all but the simplest
conditions must be analysed using computers.

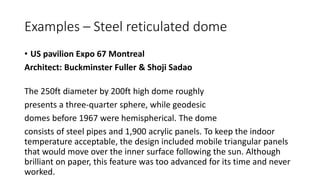

Examples – Steel reticulated dome

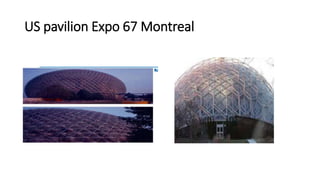

• US pavilion Expo 67 Montreal
Architect: Buckminster Fuller & Shoji Sadao
The 250ft diameter by 200ft high dome roughly
presents a three-quarter sphere, while geodesic
domes before 1967 were hemispherical. The dome
consists of steel pipes and 1,900 acrylic panels. To keep the indoor
temperature acceptable, the design included mobile triangular panels
that would move over the inner surface following the sun. Although
brilliant on paper, this feature was too advanced for its time and never
worked.
US pavilion Expo 67 Montreal

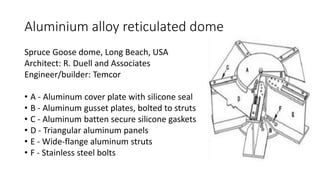

Aluminium alloy reticulated dome

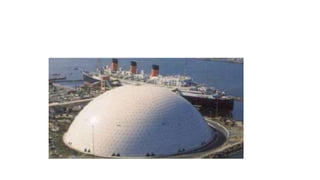

Spruce Goose dome, Long Beach, USA
Architect: R. Duell and Associates
Engineer/builder: Temcor
• A - Aluminum cover plate with silicone seal
• B - Aluminum gusset plates, bolted to struts
• C - Aluminum batten secure silicone gaskets
• D - Triangular aluminum panels
• E - Wide-flange aluminum struts
• F - Stainless steel bolts
– Timber-steel free form grid shell
Architect: Thomas Herzog
Engineer: Julius Natterer
• Wood grid shell with PTFE
membrane
• The theme pavilion advanced the
philosophy:
• Wood is the only renewable material
• Requires the least energy for
production
• Use of wood maintains healthy
forests
Shell Design
• Resistance
• Stability
• Highly sensitive to imperfections
• Buckling is a process by which a structure cannot withstand loads with its
original
• shape, so that it changes this shape in order to find a new equilibrium
• configuration. This is an undesired process (from the point of view of the
• engineer), and occurs for a well–defined value of the load.

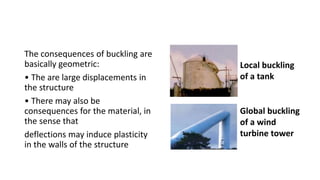

The consequences of buckling are
basically geometric:
• The are large displacements in
the structure
• There may also be
consequences for the material, in
the sense that
deflections may induce plasticity
in the walls of the structure
Local buckling
of a tank
Global buckling
of a wind
turbine tower
CONCRETE
SHELL

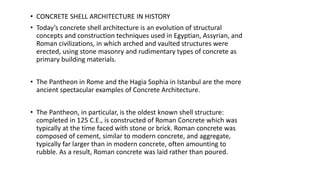

• CONCRETE SHELL ARCHITECTURE IN HISTORY
• Today’s concrete shell architecture is an evolution of structural
concepts and construction techniques used in Egyptian, Assyrian, and
Roman civilizations, in which arched and vaulted structures were
erected, using stone masonry and rudimentary types of concrete as
primary building materials.
• The Pantheon in Rome and the Hagia Sophia in Istanbul are the more
ancient spectacular examples of Concrete Architecture.
• The Pantheon, in particular, is the oldest known shell structure:
completed in 125 C.E., is constructed of Roman Concrete which was
typically at the time faced with stone or brick. Roman concrete was
composed of cement, similar to modern concrete, and aggregate,
typically far larger than in modern concrete, often amounting to
rubble. As a result, Roman concrete was laid rather than poured.
A concrete shell, also called a “thin
shell” concrete structure, is
composed of a thin shell of concrete
formed in such a way as to be self-
supporting, often with no
interior columns or
exterior buttresses. The shells are
most commonly flat plates
and domes. They can also take the
form of ellipsoids
or cylindrical sections. The first
concrete shell dates back to the 2nd
century.
• These concrete shapes are usually strong
structures, allowing clear spans without
the use of internal supports, giving an
open, unobstructed interior. The use of
concrete as both the form and structure
can reduce both material cost and
construction cost over other approaches
to design and construction, as concrete is
relatively inexpensive and plastic to
conform to compound curves. The
resulting structure may be immensely
strong and safe; modern monolithic
dome houses, for example, have
resisted hurricanes and fires, and are
widely considered to be strong enough to
withstand even F5 tornadoes.

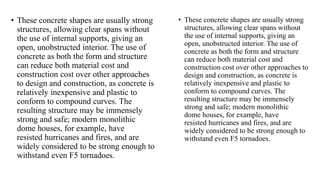

• These concrete shapes are usually strong
structures, allowing clear spans without
the use of internal supports, giving an
open, unobstructed interior. The use of
concrete as both the form and structure
can reduce both material cost and
construction cost over other approaches to
design and construction, as concrete is
relatively inexpensive and plastic to
conform to compound curves. The
resulting structure may be immensely
strong and safe; modern monolithic
dome houses, for example, have
resisted hurricanes and fires, and are
widely considered to be strong enough to
withstand even F5 tornadoes.
These concrete shapes are usually strong structures, allowing
clear spans without the use of internal supports, giving an open,
unobstructed interior. The use of concrete as both the form and
structure can reduce both material cost and construction cost over
other approaches to design and construction, as concrete is
relatively inexpensive and plastic to conform to compound
curves. The resulting structure may be immensely strong and safe;
modern monolithic dome houses, for example, have
resisted hurricanes and fires, and are widely considered to be
strong enough to withstand even F5 tornadoes.

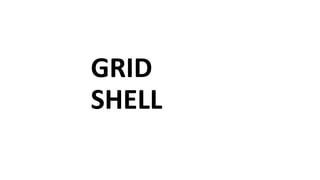

GRID
SHELL
• Gridshells are today not the most
common type of structure but
increasingly finds its use in buildings
focusing on the architectural shape
in addition to good performance,
efficiency and cost. Spectacular
shapes may be constructed, as there
is lot of flexibility concerning the
form finding, as long as it has its
basis in structural considerations.
That is, to be fruitful there is a clear
benefit, even a clear demand,
regarding understanding and
collaboration between the architect
and structural engineer.

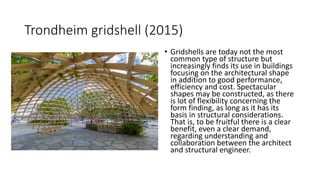

Trondheim gridshell (2015)

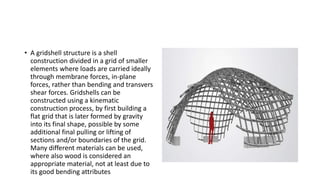

• A gridshell structure is a shell
construction divided in a grid of smaller
elements where loads are carried ideally
through membrane forces, in-plane
forces, rather than bending and transvers
shear forces. Gridshells can be
constructed using a kinematic
construction process, by first building a
flat grid that is later formed by gravity
into its final shape, possible by some
additional final pulling or lifting of
sections and/or boundaries of the grid.
Many different materials can be used,
where also wood is considered an
appropriate material, not at least due to
its good bending attributes

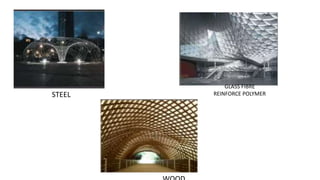

GLASS FIBRE
REINFORCE POLYMER
STEEL

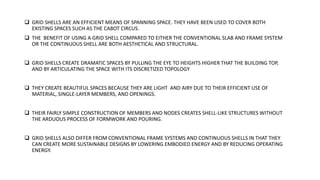

 GRID SHELLS ARE AN EFFICIENT MEANS OF SPANNING SPACE. THEY HAVE BEEN USED TO COVER BOTH
EXISTING SPACES SUCH AS THE CABOT CIRCUS.
 THE BENEFIT OF USING A GRID SHELL COMPARED TO EITHER THE CONVENTIONAL SLAB AND FRAME SYSTEM
OR THE CONTINUOUS SHELL ARE BOTH AESTHETICAL AND STRUCTURAL.
 GRID SHELLS CREATE DRAMATIC SPACES BY PULLING THE EYE TO HEIGHTS HIGHER THAT THE BUILDING TOP,
AND BY ARTICULATING THE SPACE WITH ITS DISCRETIZED TOPOLOGY
 THEY CREATE BEAUTIFUL SPACES BECAUSE THEY ARE LIGHT AND AIRY DUE TO THEIR EFFICIENT USE OF
MATERIAL, SINGLE-LAYER MEMBERS, AND OPENINGS.
 THEIR FAIRLY SIMPLE CONSTRUCTION OF MEMBERS AND NODES CREATES SHELL-LIKE STRUCTURES WITHOUT
THE ARDUOUS PROCESS OF FORMWORK AND POURING.
 GRID SHELLS ALSO DIFFER FROM CONVENTIONAL FRAME SYSTEMS AND CONTINUOUS SHELLS IN THAT THEY
CAN CREATE MORE SUSTAINABLE DESIGNS BY LOWERING EMBODIED ENERGY AND BY REDUCING OPERATING
ENERGY.
THIN SHELL
A structural membrane or shell is a
curved surface structure. Usually, it is
capable of transmitting loads in more
than two directions to supports. It is
highly efficient structurally when it is
so shaped, proportioned, and
supported that it transmits the loads
without bending or twisting.
A membrane or a shell is defined by its middle
surface, halfway between its extrados, or outer
surface and intrados, or inner surface. Thus,
depending on the geometry of the middle
surface, it might be a type of dome, barrel
arch, cone, or hyperbolic paraboloid. Its
thickness is the distance, normal to the middle
surface, between extrados and intrados.
MONOCOQUE
SHELL

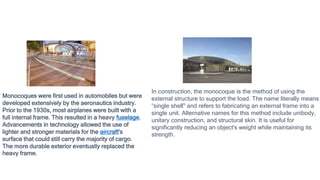

In construction, the monocoque is the method of using the
external structure to support the load. The name literally means
“single shell" and refers to fabricating an external frame into a
single unit. Alternative names for this method include unibody,
unitary construction, and structural skin. It is useful for
significantly reducing an object's weight while maintaining its
strength.
Monocoques were first used in automobiles but were
developed extensively by the aeronautics industry.
Prior to the 1930s, most airplanes were built with a
full internal frame. This resulted in a heavy fuselage.
Advancements in technology allowed the use of
lighter and stronger materials for the aircraft's
surface that could still carry the majority of cargo.
The more durable exterior eventually replaced the
heavy frame.

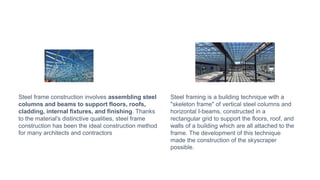

STEEL FRAMMING
Steel frame construction involves assembling steel
columns and beams to support floors, roofs,
cladding, internal fixtures, and finishing. Thanks
to the material's distinctive qualities, steel frame
construction has been the ideal construction method
for many architects and contractors
Steel framing is a building technique with a
"skeleton frame" of vertical steel columns and
horizontal I-beams, constructed in a
rectangular grid to support the floors, roof, and
walls of a building which are all attached to the
frame. The development of this technique
made the construction of the skyscraper
possible.

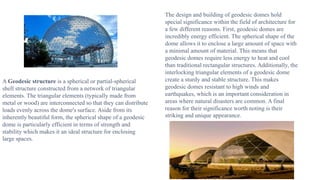

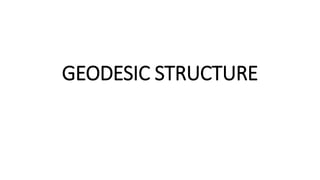

GEODESIC STRUCTURE
A Geodesic structure is a spherical or partial-spherical
shell structure constructed from a network of triangular
elements. The triangular elements (typically made from
metal or wood) are interconnected so that they can distribute
loads evenly across the dome's surface. Aside from its
inherently beautiful form, the spherical shape of a geodesic
dome is particularly efficient in terms of strength and
stability which makes it an ideal structure for enclosing
large spaces.
The design and building of geodesic domes hold
special significance within the field of architecture for
a few different reasons. First, geodesic domes are
incredibly energy efficient. The spherical shape of the
dome allows it to enclose a large amount of space with
a minimal amount of material. This means that
geodesic domes require less energy to heat and cool
than traditional rectangular structures. Additionally, the
interlocking triangular elements of a geodesic dome
create a sturdy and stable structure. This makes
geodesic domes resistant to high winds and
earthquakes, which is an important consideration in
areas where natural disasters are common. A final
reason for their significance worth noting is their
striking and unique appearance.
Built structural shells

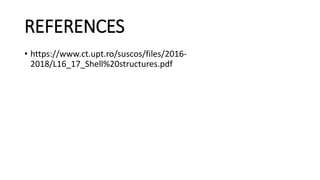

REFERENCES
• https://www.ct.upt.ro/suscos/files/2016-
2018/L16_17_Shell%20structures.pdf

More Related Content

Similar to group10.pptx

BUILDING TECHNOLOGY REPORT S.Y. 2023-2024
BUILDING TECHNOLOGY REPORT S.Y. 2023-2024BUILDING TECHNOLOGY REPORT S.Y. 2023-2024
BUILDING TECHNOLOGY REPORT S.Y. 2023-2024
redeemingruth2024

Geodesic Dome and Ribbed Dome
Geodesic Dome and Ribbed DomeGeodesic Dome and Ribbed Dome
Geodesic Dome and Ribbed Dome
Geetika Singla

Roof final
Roof finalRoof final
Roof final
HetviPatel58

Surface active systems
Surface active systems Surface active systems
Surface active systems
Rishikesh Kalal

Cargotecture
CargotectureCargotecture
Cargotecture
Anjith Augustine

Structural systems notes
Structural systems notesStructural systems notes
Structural systems notes
Aaqib Iqbal

Domes Basics and It's Future from it's origin
Domes Basics and It's Future from it's originDomes Basics and It's Future from it's origin
Domes Basics and It's Future from it's origin
abhinavmj

Miscellaneous Structures
Miscellaneous StructuresMiscellaneous Structures
Miscellaneous Structures
Fleming Prakash

Monolithic Dome Seminar paper rev01
Monolithic Dome Seminar paper rev01Monolithic Dome Seminar paper rev01
Monolithic Dome Seminar paper rev01Shola O. Aribido

Shell structure
Shell structureShell structure
Shell structure
Susmita Paul

Finite ElementAnalysis of Doubly Curved Thin Concrete Shells
Finite ElementAnalysis of Doubly Curved Thin Concrete ShellsFinite ElementAnalysis of Doubly Curved Thin Concrete Shells
Finite ElementAnalysis of Doubly Curved Thin Concrete Shells
HARISH B A

SK IV 2023 -Pneumatic Structures.pdfpppp
SK IV 2023 -Pneumatic Structures.pdfppppSK IV 2023 -Pneumatic Structures.pdfpppp
SK IV 2023 -Pneumatic Structures.pdfpppp
BayuAdyatma

Shell structure Conctruction.pptx
Shell structure Conctruction.pptxShell structure Conctruction.pptx
Shell structure Conctruction.pptx
Harshit Jain

High Rise Building Structure Systems Types
High Rise Building Structure Systems TypesHigh Rise Building Structure Systems Types
High Rise Building Structure Systems Types
Mazin Elbashkatib

L16_17_Shell structures.pdf
L16_17_Shell structures.pdfL16_17_Shell structures.pdf
L16_17_Shell structures.pdf
RijuDasgupta

Tensile structures
Tensile structuresTensile structures
Tensile structures
RRSA

T e m p o r a r y s t r u c t u r e s 2 1
T e m p o r a r y   s t r u c t u r e s 2 1T e m p o r a r y   s t r u c t u r e s 2 1
T e m p o r a r y s t r u c t u r e s 2 1
Nandini Shah

FERROCRETE - MATERIAL AND CONSTRUCTION METHODS
FERROCRETE - MATERIAL AND CONSTRUCTION METHODSFERROCRETE - MATERIAL AND CONSTRUCTION METHODS
FERROCRETE - MATERIAL AND CONSTRUCTION METHODS
jagrutib22


Similar to group10.pptx (20)

BUILDING TECHNOLOGY REPORT S.Y. 2023-2024
BUILDING TECHNOLOGY REPORT S.Y. 2023-2024BUILDING TECHNOLOGY REPORT S.Y. 2023-2024
BUILDING TECHNOLOGY REPORT S.Y. 2023-2024

Geodesic Dome and Ribbed Dome
Geodesic Dome and Ribbed DomeGeodesic Dome and Ribbed Dome
Geodesic Dome and Ribbed Dome

Roof final
Roof finalRoof final
Roof final

Surface active systems
Surface active systems Surface active systems
Surface active systems

Cargotecture
CargotectureCargotecture
Cargotecture

Structural systems notes
Structural systems notesStructural systems notes
Structural systems notes

Domes Basics and It's Future from it's origin
Domes Basics and It's Future from it's originDomes Basics and It's Future from it's origin
Domes Basics and It's Future from it's origin

Miscellaneous Structures
Miscellaneous StructuresMiscellaneous Structures
Miscellaneous Structures

Monolithic Dome Seminar paper rev01
Monolithic Dome Seminar paper rev01Monolithic Dome Seminar paper rev01
Monolithic Dome Seminar paper rev01

Space and shell structures
Space and shell structuresSpace and shell structures
Space and shell structures

Shell structure
Shell structureShell structure
Shell structure

Finite ElementAnalysis of Doubly Curved Thin Concrete Shells
Finite ElementAnalysis of Doubly Curved Thin Concrete ShellsFinite ElementAnalysis of Doubly Curved Thin Concrete Shells
Finite ElementAnalysis of Doubly Curved Thin Concrete Shells

SK IV 2023 -Pneumatic Structures.pdfpppp
SK IV 2023 -Pneumatic Structures.pdfppppSK IV 2023 -Pneumatic Structures.pdfpppp
SK IV 2023 -Pneumatic Structures.pdfpppp

Structural System
Structural SystemStructural System
Structural System

Shell structure Conctruction.pptx
Shell structure Conctruction.pptxShell structure Conctruction.pptx
Shell structure Conctruction.pptx

High Rise Building Structure Systems Types
High Rise Building Structure Systems TypesHigh Rise Building Structure Systems Types
High Rise Building Structure Systems Types

L16_17_Shell structures.pdf
L16_17_Shell structures.pdfL16_17_Shell structures.pdf
L16_17_Shell structures.pdf

Tensile structures
Tensile structuresTensile structures
Tensile structures

T e m p o r a r y s t r u c t u r e s 2 1
T e m p o r a r y   s t r u c t u r e s 2 1T e m p o r a r y   s t r u c t u r e s 2 1
T e m p o r a r y s t r u c t u r e s 2 1

FERROCRETE - MATERIAL AND CONSTRUCTION METHODS
FERROCRETE - MATERIAL AND CONSTRUCTION METHODSFERROCRETE - MATERIAL AND CONSTRUCTION METHODS
FERROCRETE - MATERIAL AND CONSTRUCTION METHODS


Recently uploaded

weather web application report.pdf
weather web application report.pdfweather web application report.pdf
weather web application report.pdf
Pratik Pawar

block diagram and signal flow graph representation
block diagram and signal flow graph representationblock diagram and signal flow graph representation
block diagram and signal flow graph representation
Divya Somashekar

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf
Pipe Restoration Solutions

ethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.pptethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.ppt
Jayaprasanna4

power quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptxpower quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptx
ViniHema

COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfCOLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
Kamal Acharya

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdfAKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
SamSarthak3

Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.
PrashantGoswami42

Immunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary AttacksImmunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary Attacks
gerogepatton

WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234
AafreenAbuthahir2

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
bakpo1

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.
ankuprajapati0525

addressing modes in computer architecture
addressing modes  in computer architectureaddressing modes  in computer architecture
addressing modes in computer architecture
ShahidSultan24

Gen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdfGen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdf
gdsczhcet

road safety engineering r s e unit 3.pdf
road safety engineering  r s e unit 3.pdfroad safety engineering  r s e unit 3.pdf
road safety engineering r s e unit 3.pdf
VENKATESHvenky89705

Event Management System Vb Net Project Report.pdf
Event Management System Vb Net  Project Report.pdfEvent Management System Vb Net  Project Report.pdf
Event Management System Vb Net Project Report.pdf
Kamal Acharya

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation & Control

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
AJAYKUMARPUND1

Standard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - NeometrixStandard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - Neometrix
Neometrix_Engineering_Pvt_Ltd

ethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.pptethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.ppt
Jayaprasanna4


Recently uploaded (20)

weather web application report.pdf
weather web application report.pdfweather web application report.pdf
weather web application report.pdf

block diagram and signal flow graph representation
block diagram and signal flow graph representationblock diagram and signal flow graph representation
block diagram and signal flow graph representation

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf

ethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.pptethical hacking in wireless-hacking1.ppt
ethical hacking in wireless-hacking1.ppt

power quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptxpower quality voltage fluctuation UNIT - I.pptx
power quality voltage fluctuation UNIT - I.pptx

COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdfCOLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf
COLLEGE BUS MANAGEMENT SYSTEM PROJECT REPORT.pdf

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdfAKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf

Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.Quality defects in TMT Bars, Possible causes and Potential Solutions.
Quality defects in TMT Bars, Possible causes and Potential Solutions.

Immunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary AttacksImmunizing Image Classifiers Against Localized Adversary Attacks
Immunizing Image Classifiers Against Localized Adversary Attacks

WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234

一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理
一比一原版(SFU毕业证)西蒙菲莎大学毕业证成绩单如何办理

The role of big data in decision making.
The role of big data in decision making.The role of big data in decision making.
The role of big data in decision making.

addressing modes in computer architecture
addressing modes  in computer architectureaddressing modes  in computer architecture
addressing modes in computer architecture

Gen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdfGen AI Study Jams _ For the GDSC Leads in India.pdf
Gen AI Study Jams _ For the GDSC Leads in India.pdf

road safety engineering r s e unit 3.pdf
road safety engineering  r s e unit 3.pdfroad safety engineering  r s e unit 3.pdf
road safety engineering r s e unit 3.pdf

Event Management System Vb Net Project Report.pdf
Event Management System Vb Net  Project Report.pdfEvent Management System Vb Net  Project Report.pdf
Event Management System Vb Net Project Report.pdf

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...

Standard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - NeometrixStandard Reomte Control Interface - Neometrix
Standard Reomte Control Interface - Neometrix

ethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.pptethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.ppt


group10.pptx

  • 1. GROUP 10 PAULO MALOLES JOSHUA Q. NULIAL ZENDRICK B.ARCE EZIKIEL O. ORANTES
  • 2. CONTENT: • SHELL STRCTURES • CONCRETE SHELL • GRID SHELL • THIN SHELL • MONOCOQUE SHELL • STEEL FRAMMING • GEODESIC STRUCTURE
  • 4. SHELL STRCTURES Definition: A Shell is a thin structure composed of curved sheets of material,so that the curvature plays an important role in the structuralbehavior, realizing a spatial form. A shell is the most efficient way of using the material, and can bevery useful in case o storage of fluids and solids (uniform loads)
  • 5. The curved form may lead to different failure modes and often unexpected behavior occurs The analytical formulas are very complex and complicated in comparison with all the other structural forms Shell structures are very attractive light weight structures which are especially suited to building as well as industrial applications.
  • 6. • The shell structure is typically found • in nature • as well as in classical architecture.
  • 7. • There are two principal uses of shells in civil engineering: • industrial structures: • – silos, tanks, cooling towers, reactor vessels etc. • aesthetic and architectural special structures
  • 9. • Eurocode on strength and stability of Steel Shell • Structures – EN1993 Part 1.6 (2007) • • Generic normative standard on shells for • chimneys, towers, masts, silos, tanks, pipelines • • Buckling of Steel Shells European Design • Recommendations 5th Edition (ECCS – 2008)
  • 10. Structural typologies • Shells are the most difficult form of structure to analyse and the form with the most complex behaviour. As a result, all but the simplest conditions must be analysed using computers.
  • 11.
  • 12. Examples – Steel reticulated dome • US pavilion Expo 67 Montreal Architect: Buckminster Fuller & Shoji Sadao The 250ft diameter by 200ft high dome roughly presents a three-quarter sphere, while geodesic domes before 1967 were hemispherical. The dome consists of steel pipes and 1,900 acrylic panels. To keep the indoor temperature acceptable, the design included mobile triangular panels that would move over the inner surface following the sun. Although brilliant on paper, this feature was too advanced for its time and never worked.
  • 13. US pavilion Expo 67 Montreal
  • 14. Aluminium alloy reticulated dome Spruce Goose dome, Long Beach, USA Architect: R. Duell and Associates Engineer/builder: Temcor • A - Aluminum cover plate with silicone seal • B - Aluminum gusset plates, bolted to struts • C - Aluminum batten secure silicone gaskets • D - Triangular aluminum panels • E - Wide-flange aluminum struts • F - Stainless steel bolts
  • 15.
  • 16. – Timber-steel free form grid shell Architect: Thomas Herzog Engineer: Julius Natterer • Wood grid shell with PTFE membrane • The theme pavilion advanced the philosophy: • Wood is the only renewable material • Requires the least energy for production • Use of wood maintains healthy forests
  • 17. Shell Design • Resistance • Stability • Highly sensitive to imperfections • Buckling is a process by which a structure cannot withstand loads with its original • shape, so that it changes this shape in order to find a new equilibrium • configuration. This is an undesired process (from the point of view of the • engineer), and occurs for a well–defined value of the load.
  • 18. The consequences of buckling are basically geometric: • The are large displacements in the structure • There may also be consequences for the material, in the sense that deflections may induce plasticity in the walls of the structure Local buckling of a tank Global buckling of a wind turbine tower
  • 20. • CONCRETE SHELL ARCHITECTURE IN HISTORY • Today’s concrete shell architecture is an evolution of structural concepts and construction techniques used in Egyptian, Assyrian, and Roman civilizations, in which arched and vaulted structures were erected, using stone masonry and rudimentary types of concrete as primary building materials. • The Pantheon in Rome and the Hagia Sophia in Istanbul are the more ancient spectacular examples of Concrete Architecture. • The Pantheon, in particular, is the oldest known shell structure: completed in 125 C.E., is constructed of Roman Concrete which was typically at the time faced with stone or brick. Roman concrete was composed of cement, similar to modern concrete, and aggregate, typically far larger than in modern concrete, often amounting to rubble. As a result, Roman concrete was laid rather than poured.
  • 21. A concrete shell, also called a “thin shell” concrete structure, is composed of a thin shell of concrete formed in such a way as to be self- supporting, often with no interior columns or exterior buttresses. The shells are most commonly flat plates and domes. They can also take the form of ellipsoids or cylindrical sections. The first concrete shell dates back to the 2nd century.
  • 22. • These concrete shapes are usually strong structures, allowing clear spans without the use of internal supports, giving an open, unobstructed interior. The use of concrete as both the form and structure can reduce both material cost and construction cost over other approaches to design and construction, as concrete is relatively inexpensive and plastic to conform to compound curves. The resulting structure may be immensely strong and safe; modern monolithic dome houses, for example, have resisted hurricanes and fires, and are widely considered to be strong enough to withstand even F5 tornadoes. • These concrete shapes are usually strong structures, allowing clear spans without the use of internal supports, giving an open, unobstructed interior. The use of concrete as both the form and structure can reduce both material cost and construction cost over other approaches to design and construction, as concrete is relatively inexpensive and plastic to conform to compound curves. The resulting structure may be immensely strong and safe; modern monolithic dome houses, for example, have resisted hurricanes and fires, and are widely considered to be strong enough to withstand even F5 tornadoes.
  • 23. These concrete shapes are usually strong structures, allowing clear spans without the use of internal supports, giving an open, unobstructed interior. The use of concrete as both the form and structure can reduce both material cost and construction cost over other approaches to design and construction, as concrete is relatively inexpensive and plastic to conform to compound curves. The resulting structure may be immensely strong and safe; modern monolithic dome houses, for example, have resisted hurricanes and fires, and are widely considered to be strong enough to withstand even F5 tornadoes.
  • 25. • Gridshells are today not the most common type of structure but increasingly finds its use in buildings focusing on the architectural shape in addition to good performance, efficiency and cost. Spectacular shapes may be constructed, as there is lot of flexibility concerning the form finding, as long as it has its basis in structural considerations. That is, to be fruitful there is a clear benefit, even a clear demand, regarding understanding and collaboration between the architect and structural engineer. Trondheim gridshell (2015)
  • 26. • A gridshell structure is a shell construction divided in a grid of smaller elements where loads are carried ideally through membrane forces, in-plane forces, rather than bending and transvers shear forces. Gridshells can be constructed using a kinematic construction process, by first building a flat grid that is later formed by gravity into its final shape, possible by some additional final pulling or lifting of sections and/or boundaries of the grid. Many different materials can be used, where also wood is considered an appropriate material, not at least due to its good bending attributes
  • 28.  GRID SHELLS ARE AN EFFICIENT MEANS OF SPANNING SPACE. THEY HAVE BEEN USED TO COVER BOTH EXISTING SPACES SUCH AS THE CABOT CIRCUS.  THE BENEFIT OF USING A GRID SHELL COMPARED TO EITHER THE CONVENTIONAL SLAB AND FRAME SYSTEM OR THE CONTINUOUS SHELL ARE BOTH AESTHETICAL AND STRUCTURAL.  GRID SHELLS CREATE DRAMATIC SPACES BY PULLING THE EYE TO HEIGHTS HIGHER THAT THE BUILDING TOP, AND BY ARTICULATING THE SPACE WITH ITS DISCRETIZED TOPOLOGY  THEY CREATE BEAUTIFUL SPACES BECAUSE THEY ARE LIGHT AND AIRY DUE TO THEIR EFFICIENT USE OF MATERIAL, SINGLE-LAYER MEMBERS, AND OPENINGS.  THEIR FAIRLY SIMPLE CONSTRUCTION OF MEMBERS AND NODES CREATES SHELL-LIKE STRUCTURES WITHOUT THE ARDUOUS PROCESS OF FORMWORK AND POURING.  GRID SHELLS ALSO DIFFER FROM CONVENTIONAL FRAME SYSTEMS AND CONTINUOUS SHELLS IN THAT THEY CAN CREATE MORE SUSTAINABLE DESIGNS BY LOWERING EMBODIED ENERGY AND BY REDUCING OPERATING ENERGY.
  • 30. A structural membrane or shell is a curved surface structure. Usually, it is capable of transmitting loads in more than two directions to supports. It is highly efficient structurally when it is so shaped, proportioned, and supported that it transmits the loads without bending or twisting. A membrane or a shell is defined by its middle surface, halfway between its extrados, or outer surface and intrados, or inner surface. Thus, depending on the geometry of the middle surface, it might be a type of dome, barrel arch, cone, or hyperbolic paraboloid. Its thickness is the distance, normal to the middle surface, between extrados and intrados.
  • 32. In construction, the monocoque is the method of using the external structure to support the load. The name literally means “single shell" and refers to fabricating an external frame into a single unit. Alternative names for this method include unibody, unitary construction, and structural skin. It is useful for significantly reducing an object's weight while maintaining its strength. Monocoques were first used in automobiles but were developed extensively by the aeronautics industry. Prior to the 1930s, most airplanes were built with a full internal frame. This resulted in a heavy fuselage. Advancements in technology allowed the use of lighter and stronger materials for the aircraft's surface that could still carry the majority of cargo. The more durable exterior eventually replaced the heavy frame.
  • 34. Steel frame construction involves assembling steel columns and beams to support floors, roofs, cladding, internal fixtures, and finishing. Thanks to the material's distinctive qualities, steel frame construction has been the ideal construction method for many architects and contractors Steel framing is a building technique with a "skeleton frame" of vertical steel columns and horizontal I-beams, constructed in a rectangular grid to support the floors, roof, and walls of a building which are all attached to the frame. The development of this technique made the construction of the skyscraper possible.
  • 36. A Geodesic structure is a spherical or partial-spherical shell structure constructed from a network of triangular elements. The triangular elements (typically made from metal or wood) are interconnected so that they can distribute loads evenly across the dome's surface. Aside from its inherently beautiful form, the spherical shape of a geodesic dome is particularly efficient in terms of strength and stability which makes it an ideal structure for enclosing large spaces. The design and building of geodesic domes hold special significance within the field of architecture for a few different reasons. First, geodesic domes are incredibly energy efficient. The spherical shape of the dome allows it to enclose a large amount of space with a minimal amount of material. This means that geodesic domes require less energy to heat and cool than traditional rectangular structures. Additionally, the interlocking triangular elements of a geodesic dome create a sturdy and stable structure. This makes geodesic domes resistant to high winds and earthquakes, which is an important consideration in areas where natural disasters are common. A final reason for their significance worth noting is their striking and unique appearance.
