This document provides specifications for a PM 6015 motor with a 115V voltage, 2450 RPM speed, and 160:1 ratio PL 7300 gearbox. Key specifications include a 15.3 RPM no load speed, 112.8 lb-in of torque, 0.63A of current, and 32.3% system efficiency. Start/stall conditions are listed as 2.79A of current and 1174.24 lb-in of torque. Performance curves are provided showing torque, speed, and efficiency at varying torque levels from 0 to 18 lb-in.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
115 v FWR
2450 rpm 2 Poles
PL 7300 160:1 Ratio
Product ID: 62322
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
15.3 rpm
112.8lb-in
0.63 amps
20 watts
0.0273 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
53.7 %
60.2 %
32.3 %
Start/Stall Conditions:
Current:
Torque:
2.79 amps
1174.24 lb-in
Constants:
Ke: 43.81 v/krpm
Kt: 3.70 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
0.0
0
2.0
120
4.0
240
6.0
360
8.0
480
10.0
600
12.0
720
14.0
840
16.0
960
18.0
1080
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0

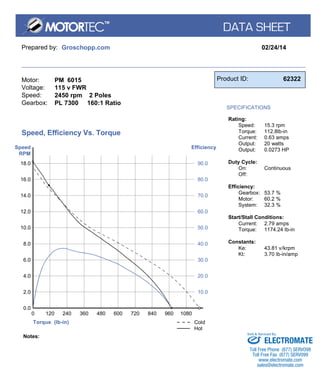

Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
