This document provides specifications for a PM 6015 motor with a PL 7300 377:1 ratio gearbox. The motor runs on 115V, has a speed of 1300 RPM, and outputs 3.5 RPM and 314.8 lb-in of torque at 0.47 amps and 13 watts or 0.0175 HP. The gearbox has an efficiency of 52.4% and the motor 54.3% for a total system efficiency of 28.4%. Start conditions require 1.54 amps and 2022.72 lb-in of torque. A graph shows efficiency between 10-90% as torque varies from 0-4.5 lb-in and speed from 0-2250 RPM.

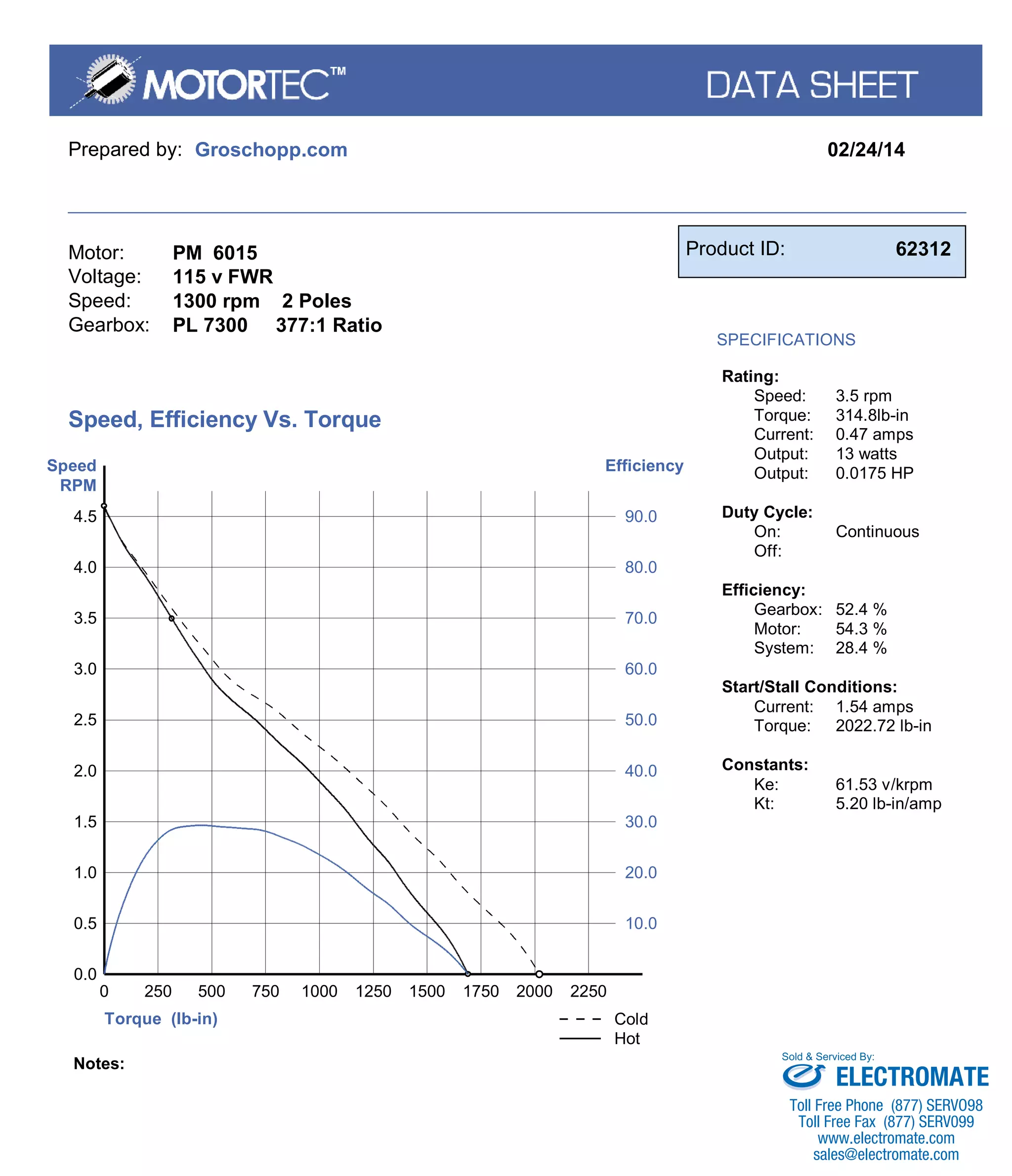

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
115 v FWR
1300 rpm 2 Poles
PL 7300 377:1 Ratio
Product ID: 62312
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
3.5 rpm
314.8lb-in
0.47 amps
13 watts
0.0175 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
52.4 %
54.3 %
28.4 %
Start/Stall Conditions:
Current:
Torque:
1.54 amps
2022.72 lb-in
Constants:
Ke: 61.53 v/krpm
Kt: 5.20 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
0.0
0
0.5
250
1.0
500
1.5
750
2.0
1000
2.5
1250
3.0
1500
3.5
1750
4.0
2000
4.5
2250
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
Notes:
