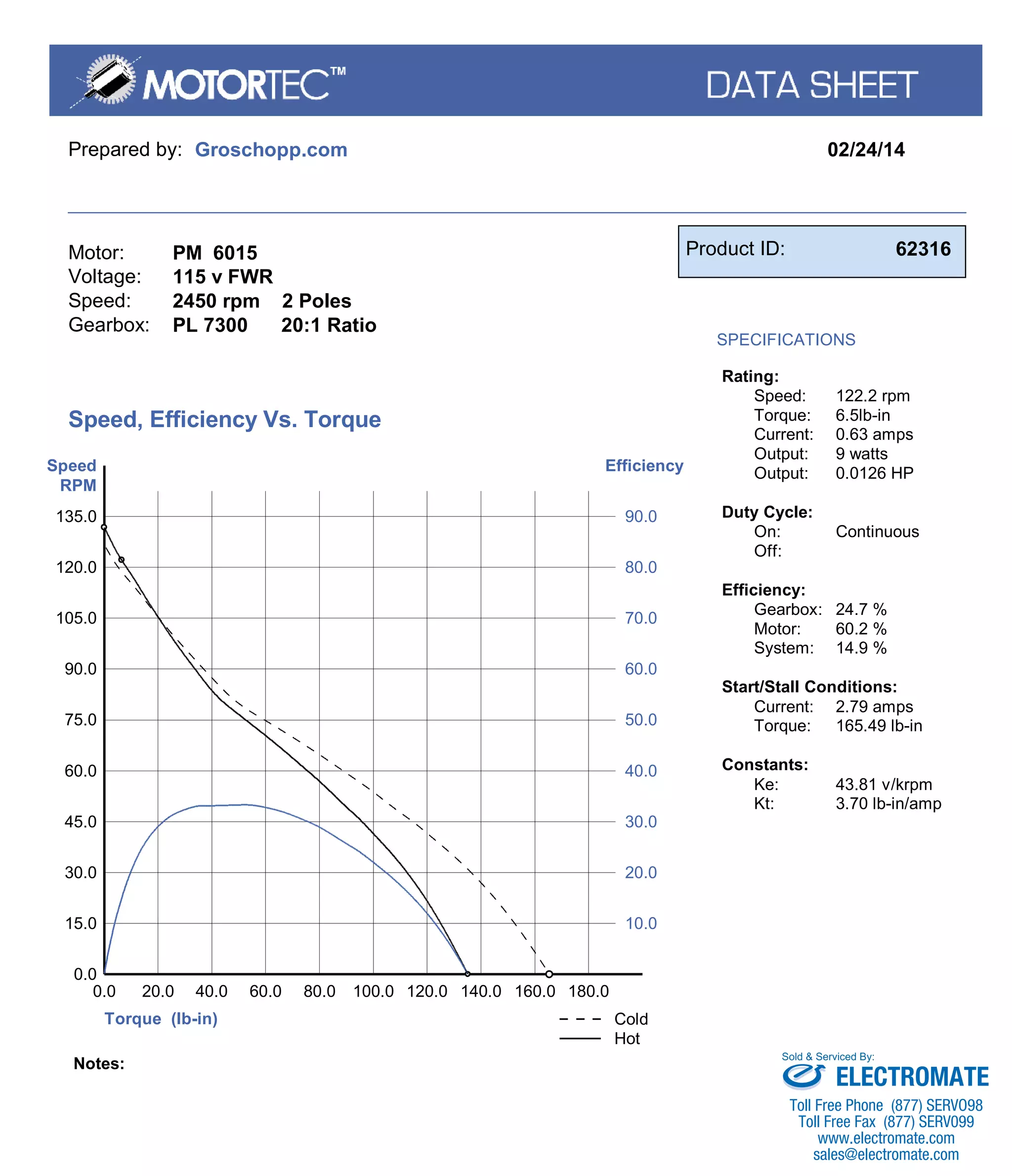

This document provides specifications for a PM 6015 motor with a 20:1 gearbox. It lists details such as the motor's voltage, speed, torque, current and efficiency ratings. Charts show the motor's torque and efficiency at varying speeds. The motor is sold and serviced by Electromate.

1. Prepared by: Groschopp.com 02/24/14
Motor:
Voltage:
Speed:
Gearbox:
PM 6015
115 v FWR
2450 rpm 2 Poles
PL 7300 20:1 Ratio
Product ID: 62316
SPECIFICATIONS
Rating:
Speed:
Torque:
Current:
Output:
Output:
122.2 rpm
6.5lb-in
0.63 amps
9 watts
0.0126 HP
Duty Cycle:
On:
Off:
Continuous
Efficiency:
Gearbox:
Motor:
System:
24.7 %
60.2 %
14.9 %
Start/Stall Conditions:
Current:
Torque:
2.79 amps
165.49 lb-in
Constants:
Ke: 43.81 v/krpm
Kt: 3.70 lb-in/amp
Torque (lb-in)
Speed
RPM
Efficiency
15.0
0.0
0.0
20.0
30.0
40.0
45.0
60.0
60.0
80.0
75.0
100.0
90.0
120.0
105.0
140.0
120.0
160.0
135.0
180.0
90.0
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Speed, Efficiency Vs. Torque
Cold
Hot
