1. Creating Modeler using
Graphiti
Manikantan Subramanyam
SAP Labs India

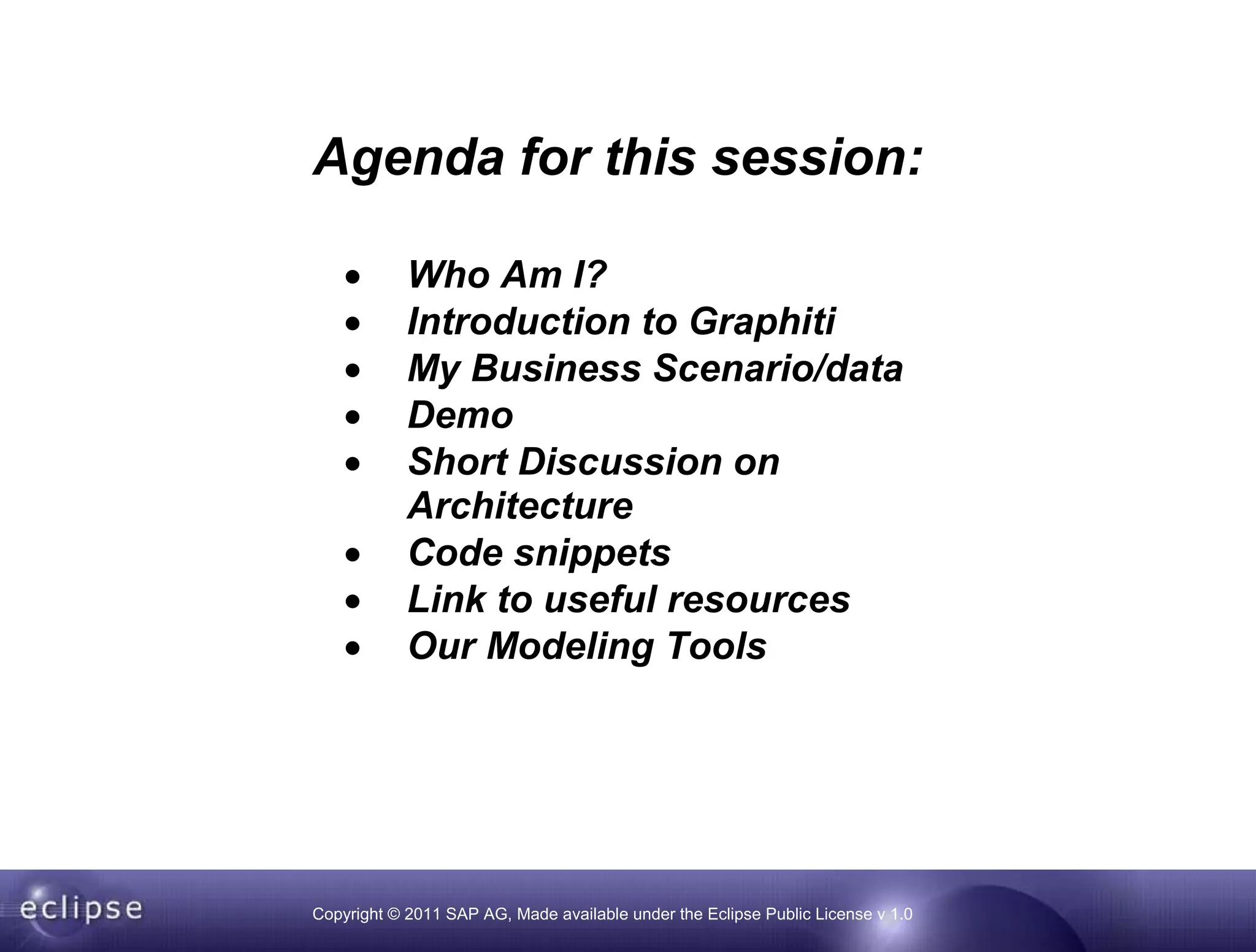

2. Agenda for this session:
 Who Am I?
 Introduction to Graphiti
 My Business Scenario/data
 Demo
 Short Discussion on
Architecture
 Code snippets
 Link to useful resources
 Our Modeling Tools
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

3. Some buzzzzzz words:
 EMF: Eclipse Modeling
Framework
 Domain Model: Your business
data as Java /EMF Objects
 Pictogram Model: Graphiti’s
data model
 Pictorial Elements: UI Shapes
created by Graphiti
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

4. What Is Graphiti All About ?
“The goal easy
creation and edit
underlying
graphical
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

5. Why Would I Want to Use Graphiti ?
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v

6. My Business Data
(Domain data)
Club
ClubInfo PlayerInfo CouncilInfo
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

7. Example of My Data:
Club: RCB
ClubInfo: clubName: rcb
PlayerInfo: playerName: Daniel Vettori
CouncilInfo: councilName: BCCI
Club: Mumbai Indians
ClubInfo: clubName: mi
PlayerInfo: playerName: The GOD 
CouncilInfo: councilName: BCCI
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

8. Demo
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

9. Sequence Flow…
Prepare
Business Data
Define
ImageProvider
Define
DiagramTypeProvider Define
ToolBehaviorProvider
Define
FeatureProvider
Draw FeatureProvider.add()
Pictorial Elements
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

10. Prepare Business Data
(Domain data)
Club RCB = createNewClub(factory, "RCB", "Daniel Vettori");
Club MI = createNewClub(factory, "MI", "Sachin Tendulkar");
private Club createNewClub(MyIPLFactory factory, String
clubName, String playerName) {
Club newClub = factory.createClub();
ClubInfo clubInfo = factory.createClubInfo();
clubInfo.setClubName(clubName);
PlayerInfo playerInfo =
factory.createPlayerInfo();
playerInfo.setPlayerName(playerName);
Council council = factory.createCouncil();
council.setCouncilName("BCCI");
newClub.setClubInfo(clubInfo);
newClub.setPlayerInfo(playerInfo);
newClub.setCouncilInfo(council);
return newClub;
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

11. How Does Graphiti Work ?
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

12. What about the Diagram Type Agent ?
Custom
Features
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

13. Graphiti’s Extesntion
Points…
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

14. ImageProvider..
public class MyDiagramImageProvider extends
AbstractImageProvider implements
IImageProvider {
public MyDiagramImageProvider() {
}
@Override
protected void addAvailableImages() {
addImageFilePath("rcb", "icons/rcb.jpg");
addImageFilePath("mi", "icons/mi.jpg");
addImageFilePath("rd", "icons/rd.jpg");
addImageFilePath("sd", "icons/sd.jpg");
}
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

15. ToolBehaviorProvider..
public class ToolBehaviorProvider extends CommonToolBehaviorProvider
{
public ToolBehaviorProvider(IDiagramTypeProvider
diagramTypeProvider) {
super(diagramTypeProvider);
}
// Important Methods of CommonToolBehaviorProvider that can be
overridden
getContextButtonPad();
getContextMenu();
getPalette();
getToolTip();
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

16. DiagramTypeProvider..
public class MyDiagramTypeProvider extends AbstractDiagramTypeProvider
implements IDiagramTypeProvider {
private IToolBehaviorProvider[] toolBehaviorProviders;
public MyDiagramTypeProvider() {
super();
setFeatureProvider(new MyDiagramFeatureProvider(this));
}
@Override
public IToolBehaviorProvider[] getAvailableToolBehaviorProviders() {
if (this.toolBehaviorProviders == null) {
this.toolBehaviorProviders = new IToolBehaviorProvider[] { new
ToolBehaviorProvider(this) };
}
return this.toolBehaviorProviders;
}
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

17. FeatureProvider..
public class MyDiagramFeatureProvider extends DefaultFeatureProviderWithPatterns
{
ICustomFeature[] customFeatures = null;
public MyDiagramFeatureProvider(IDiagramTypeProvider dtp) {
super(dtp);
}
@Override
public IAddFeature getAddFeature(IAddContext context) {
if (context.getNewObject() instanceof ClubInfo)
return new AddClubInfoFeature(this);
else if (context.getNewObject() instanceof PlayerInfo)
return new AddPlayerInfoFeature(this);
else if (context.getNewObject() instanceof Council)
return new AddBCCIFeature(this);
return super.getAddFeature(context);
}
// Important Methods of DefaultFeatureProviderWithPatterns that can be
overridden
getCustomFeatures();
getMoveShapeFeature();
getResizeShapeFeature();
getDeleteFeature();
getRemoveFeature();
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

18. How to draw the RCB Club Logo ?
protected void drawClubInfo(ClubInfo
clubInfo) {
// Create an area for the Drawing
the Club Logo
AreaContext areaContext = new
AreaContext();
areaContext.setSize(400, 400);
IAddContext myClubContext = new
AddContext(areaContext, clubInfo);
((AddContext)
myClubContext).setTargetContainer(diagram);
IAddFeature addFeature =
featureProvider.getAddFeature(myClubContext
);
addFeature.add(myClubContext);
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

19. How is the Club Icon drawn ?
public class AddClubInfoFeature extends
AbstractAddShapeFeature{
public AddClubInfoFeature(IFeatureProvider fp) {
super(fp);
}
@Override
public PictogramElement add(IAddContext context) {
// Get the EMF object from the context object
ClubInfo addedClubInfo = (ClubInfo) context.getNewObject();
// Get the parent for this Club Icon
Diagram parent = (Diagram) context.getTargetContainer();
// Create a container shape using Graphiti utility classes
ContainerShape containerShape =
Graphiti.getPeCreateService().createContainerShape(
parent, true);
// Give the imageID which is mentioned in ImageProvider
String imageID = addedClubInfo.getClubName();
// Create an Image using Graphiti utility classes
Image image =
Graphiti.getGaCreateService().createImage(containerShape,
imageID);
// Set the X, Y, Height and Width of this image
gaService.setLocationAndSize(image, 0, 0, 300, 300);
}
@Override
public boolean canAdd(IAddContext arg0) {
return true;
}
}
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

20. ght © 2011 SAP AG, Made aAny other Feature apart from AddFeature ?
Feature
Name Default Class Important Methods
create(),
Create AbstractCreateFeature canCreate()
update(),
Update AbstractUpdateFeature canUpdate()
remove(),
Remove DefaultRemoveFeature canRemove()
delete(),
Delete DefaultDeleteFeature canDelete()
Move DefaultMoveShapeFeature canMoveShape()
canResizeShape(),
Resize DefaultResizeShapeFeature resizeShape()
layout(),
Layout AbstractLayoutFeature canLayout()
execute(),
Custom AbstractCustomFeature canExecute()
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

21. Graphiti – Where to Get It ?
  Graphiti version 0.7.1 is available 
  www.eclipse.org/graphiti 
  Information around the project and framework 
  Downloads 
  Framework 
  Documentation 
  Tutorial 
 Forum 
Copyright © 2011 SAP AG, Made available under the Eclipse Public License v 1.0

22. Thanks 
