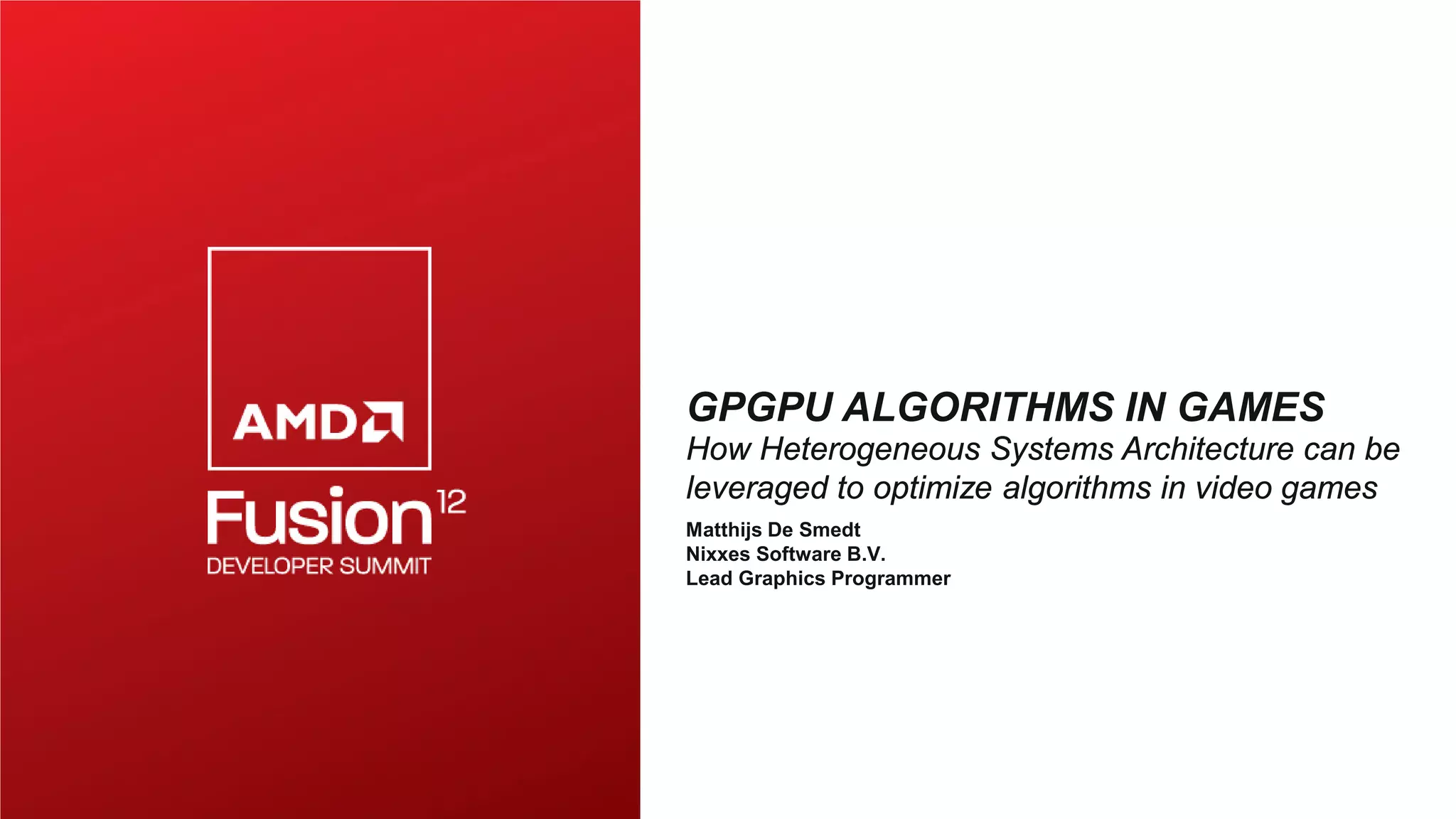

1. GPGPU ALGORITHMS IN GAMES
How Heterogeneous Systems Architecture can be
leveraged to optimize algorithms in video games
Matthijs De Smedt
Nixxes Software B.V.
Lead Graphics Programmer

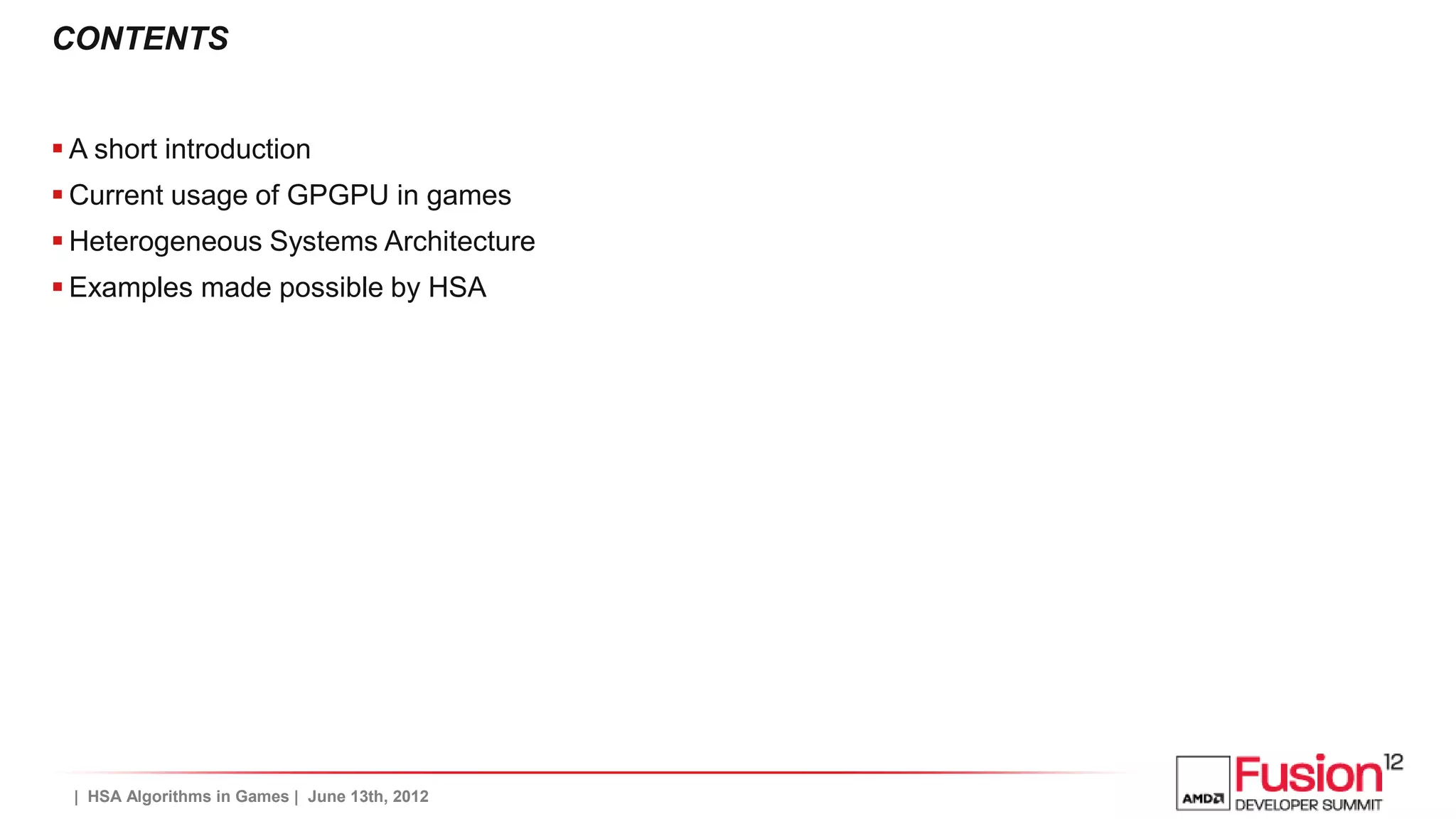

2. CONTENTS
 A short introduction
 Current usage of GPGPU in games
 Heterogeneous Systems Architecture
 Examples made possible by HSA
| HSA Algorithms in Games | June 13th, 2012

3. INTRODUCTION

4. VIDEOGAMES
 Games are near real-time simulations
CPU
 Response time is key Input
 Most systems run in sync with the output frequency
– Rendering 60 frames per second
– Allows for 16ms of processing time Simulate
 Framerate is limited either by:
– GPU
Render
– CPU
– Display (VSync)
GPU
Render
| HSA Algorithms in Games | June 13th, 2012

5. HARDWARE
 Typical hardware target for PC games:
– One multicore CPU
– One GPU
 Multiple GPUs: CrossFire
– Transparent to the application
– Driver alternates frames between GPUs
 GPUs are becoming more general purpose:
– General Purpose GPU algorithms (GPGPU)
CrossFire
| HSA Algorithms in Games | June 13th, 2012

6. GPGPU IN GAMES

7. INTRODUCTION TO GPGPU
 Rendering is a sequence of parallel algorithms
 GPUs are great at parallel computation
 Evolution of hardware and software to general purpose
 First GPGPU was accomplished with programmable rendering
– DirectX
– OpenGL
 Second generation using dedicated GPGPU APIs:
– CUDA
– OpenCL
– DirectCompute
 Third generation of GPGPU on the way:
– Heterogeneous Systems Architecture
| HSA Algorithms in Games | June 13th, 2012

8. GPGPU IN GAMES
 Some GPGPU algorithms are being used in
games right now. For example:
– Physics
 Particles
 Fluid simulation
 Destruction
– Specialized graphics algorithms
 Post-processing
 All these algorithms drive visual effects
GPU particle system by Fairlight
| HSA Algorithms in Games | June 13th, 2012

9. CURRENT PHYSICS EXAMPLE
 GPGPU particle simulation using DirectCompute
CPU
 Great for simulating thousands of visible particles
 Results of simulation are never copied back to CPU Call GPU
– Can not interfere with gameplay
– Not synced in networked games
 Example: Smoke particles that affect game AI GPU
Simulate
particles
Render
particles
| HSA Algorithms in Games | June 13th, 2012

10. GPGPU LIMITATIONS
 Why isn’t GPGPU used more for non-graphics?
 Latency
– DirectX has many layers and buffers
– DirectX commands are buffered up to multiple frames
– Actual execution on the GPU is delayed
 Copy overhead
– GPU cannot directly access application memory
– Must copy all data from and to the application
 Functionality
– Constrained programming models
| HSA Algorithms in Games | June 13th, 2012

11. HETEROGENEOUS SYSTEMS
ARCHITECTURE

12. HETEROGENEOUS SYSTEMS ARCHITECTURE
 New hardware and software
Hardware Software
 New features on discrete GPUs  "Drivers"
 Accelerated Processing Unit – HSA provides a new, thin Compute API
– Next generation processor – Very low latency
– Multiple CPU and GPU cores on – Unified Address Space
the same die – Exposes more hardware capabilities
– Shared memory access  HSA Intermediate Language
– Soon to be as widespread as – Virtual ISA
multicore CPUs
– Introduces CPU programming features to the GPU
| HSA Algorithms in Games | June 13th, 2012

13. USING THE APU
 Distinction between two hardware configurations
 APU without discrete GPU
– Found in many laptops, soon in many desktops
– Use the on-die GPU for rendering
 APU with discrete GPU:
– Hard-core gamers will still use discrete GPUs
– Asymmetrical CrossFire
– Or: Dedicate the on-die GPU to Compute algorithms
 Could result in massive speedup of algorithms
 Using SIMD co-processors to offload the CPU is familiar to PS3 developers
| HSA Algorithms in Games | June 13th, 2012

14. COPY OVERHEAD
 Current Compute APIs require the application to explicitly copy all input and output memory
– Copying can easily takes longer than processing on CPU!
– Only small datasets or very expensive computations benefit from GPGPU
 HSA introduces a Unified Address Space for CPU and GPU memory
– CPU pointers on the GPU
– Virtual memory on the GPU
 Paging over PCI-Express (discrete) or shared memory controller (APU)
– Fully coherent
– Will make GPGPU an option for many more algorithms
| HSA Algorithms in Games | June 13th, 2012

15. LATENCY
 DirectX commands are buffered
 When the GPU is fully loaded this buffer is saturated
 Delay between scheduling and executing a GPGPU program on a busy GPU can take multiple frames
– Results will be several frames behind
– Game simulation needs all objects to be in sync
 GPGPU is currently impractical to use for anything but visual effects
| HSA Algorithms in Games | June 13th, 2012

16. | HSA Algorithms in Games | June 13th, 2012

17. | HSA Algorithms in Games | June 13th, 2012

18. | HSA Algorithms in Games | June 13th, 2012

19. | HSA Algorithms in Games | June 13th, 2012

20. LATENCY
 HSA’s new Compute API will reduce latency
 How to deal with a saturated GPU?
 A second GPU
– Dedicate the APU to Compute
– Virtually no latency
 HSA feature: Graphics pre-emption
– Context switching on the GPU
 Interrupt a graphics task (typically a large command list)
 Execute Compute algorithm
 Switch back to graphics
– Can be used both on discrete GPUs or on the APU
 Choose the solution best suited to your needs
| HSA Algorithms in Games | June 13th, 2012

21. APU USAGE EXAMPLE
Schedule Execute
DirectCompute
GPU
CPU
HSA
Frame
Execute
| HSA Algorithms in Games | June 13th, 2012

22. PROGRAMMING MODEL
 HSA Intermediate Language: HSAIL
 Designed for parallel algorithms
 JIT compiles your algorithm to CPU or GPU hardware
– Also makes multi-core SIMD programming easy!
 High level language features
– Object-oriented programming
– Virtual functions
– Exceptions
 Debugging
 SysCall support
– I/O
| HSA Algorithms in Games | June 13th, 2012

23. EXAMPLE ALGORITHMS

24. PHYSICS
 Current GPGPU physics solutions only output to
the renderer
 With HSA you can simulate physics on the GPU
and get the results back in the same frame
 Use hardware acceleration to compute physics for
gameplay objects
 Reduced CPU load
 More objects, higher fidelity
| HSA Algorithms in Games | June 13th, 2012

25. FRUSTUM CULLING
 Videogames tend to be GPU-bound
 Avoid rendering what cannot be seen
 Cull objects outside the camera viewport
– Test the bounding box of every object against
the camera frustum
– Currently done on the CPU
– Lots of vector math
– Can be computed completely in parallel!
 CPU needs the results immediately
– HSA will allow low-latency execution
| HSA Algorithms in Games | June 13th, 2012

26. OCCLUSION CULLING
 Objects may be hidden behind others: Occlusion
 Final per-pixel occlusion is only known after
rendering the scene
 Approximate occlusion by rendering low-detail
geometry
– This kind of occlusion culling is currently being
done on CPU or on SPUs
– Rendering is better suited to GPUs
 HSA solution:
– Software rasterization in Compute on the GPU
– HSA does not yet expose graphics pipeline 
Software occlusion culling in Battlefield 3
– Still much faster than a multicore CPU
| HSA Algorithms in Games | June 13th, 2012

27. SORTING
 Typically several long lists per frame need sorting
 Sorting on the GPU using a parallel sort algorithm
– Ken Batcher: Bitonic or Odd-even mergesort
 Copy overhead currently negates the performance
advantage of using a GPU sorting algorithm
 HSA solution:
– Unified Address Space
– GPU can sort in-place in system memory
| HSA Algorithms in Games | June 13th, 2012

28. ASSET DECOMPRESSION
 Game assets are stored compressed on disk
 Decompression is expensive
 The usage of some compression algorithms is
prevented by CPU speed
 Games are moving away from loading screens
 An APU with Unified Address Space
– Can be used to decompress new assets
without taxing the CPU or discrete GPU
– Perhaps even use HSAIL I/O to read from disk
– A better streaming experience for gamers
| HSA Algorithms in Games | June 13th, 2012

29. PATHFINDING
 Some strategy games simulate thousands of units
 Pathfinding over complex terrain with thousands of
moving units is very expensive
 Clever approximate solutions are often used
– Supreme Commander 2 “Flow field”
 GPGPU pathfinding with HSA
– Use one GPU thread per unit to do a deep
search for an optimal path
– With HSA such an algorithm can page all
requisite data from system memory and write
back found paths
– APU could be fully saturated with pathfinding
without impacting framerate
| HSA Algorithms in Games | June 13th, 2012

30. CONCLUSION
 Many algorithms in games are suitable for offloading to the GPU
 Heterogeneous Systems Architecture solves two major obstacles
– Latency
– Memory access
 HSAIL allows for entirely new kinds of GPGPU programs
 APUs can be used to offload the CPU
 HSA will finally make GPUs available to developers as full-featured co-processors
| HSA Algorithms in Games | June 13th, 2012

31. THANK YOU
 Any questions?
| HSA Algorithms in Games | June 13th, 2012
