This document discusses NCTU's implementation of SDN-IP, which allows an SDN network to connect to external networks using BGP. It describes NCTU's SDN-IP topology featuring ONOS controllers connected to OpenFlow switches and Quagga routers. It also outlines the software stack, including ONOS, Quagga, Open vSwitch, and Ansible for configuration verification. Finally, it discusses a live demo of Taiwan's SDN-IP network at ONS 2016 and plans for future work integrating CORD and testing additional BGP software.

1. Global SDN-IP Deployment
at NCTU
Ping-Chun Huang <pichuang@cs.nctu.edu.tw>
Min-Cheng Chan <charles@onlab.us>
Bao-Shuh Paul Lin <bplin@mail.nctu.edu.tw>
Chien-Chao Tseng <cctseng@cs.nctu.edu.tw>

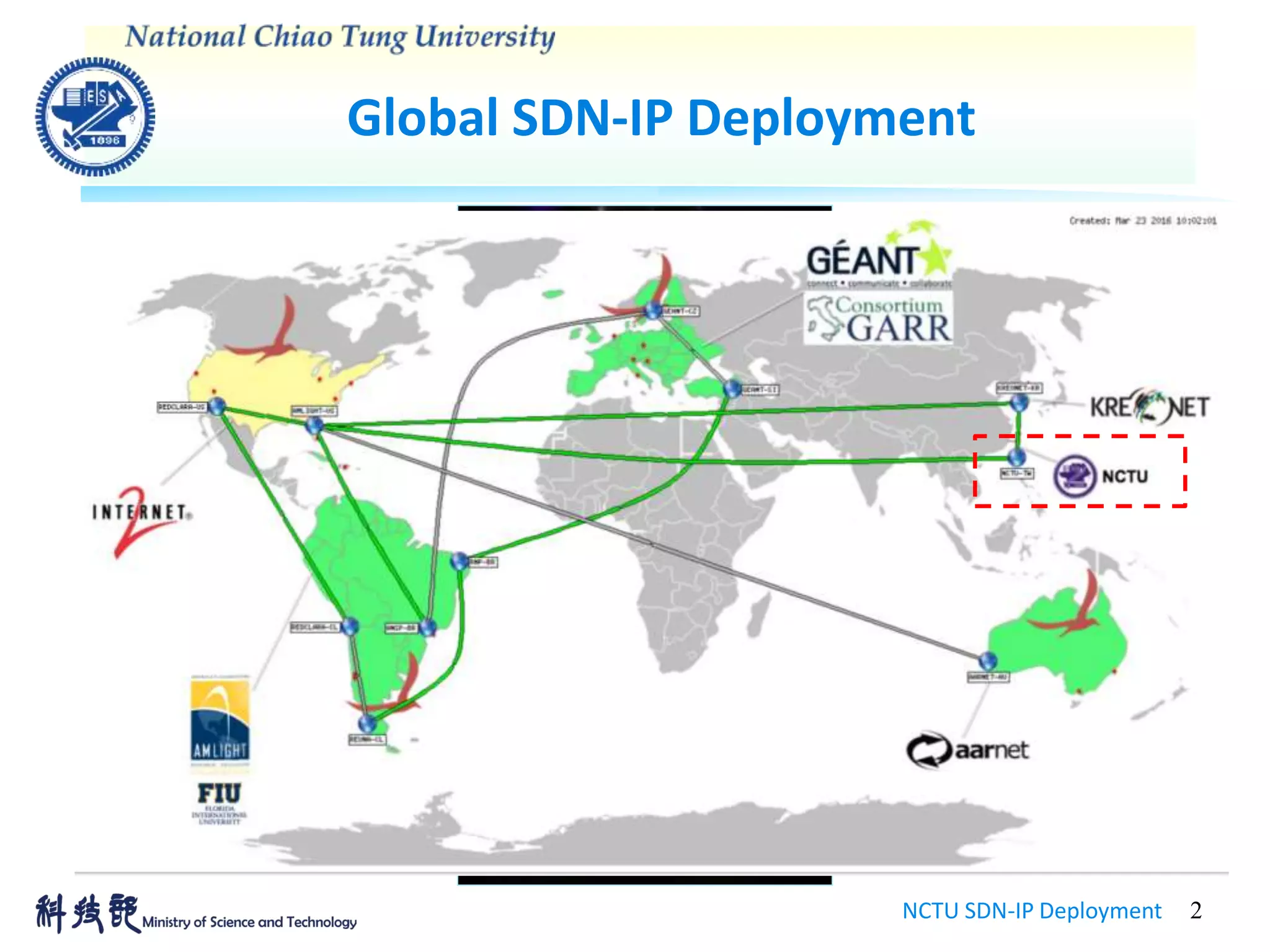

2. Global SDN-IP Deployment
NCTU SDN-IP Deployment 2

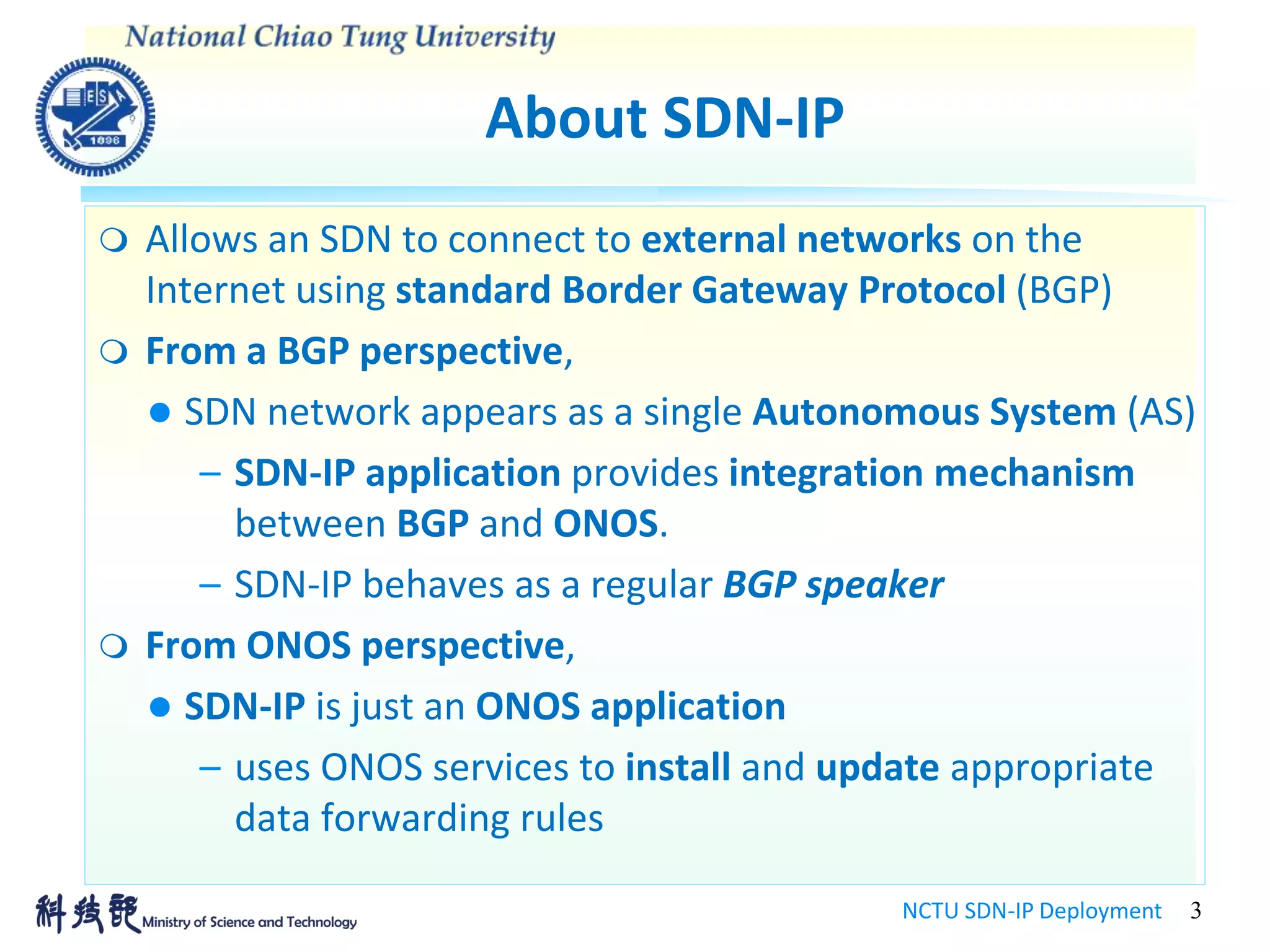

3. About SDN-IP
NCTU SDN-IP Deployment 3
 Allows an SDN to connect to external networks on the
Internet using standard Border Gateway Protocol (BGP)
 From a BGP perspective,
 SDN network appears as a single Autonomous System (AS)
– SDN-IP application provides integration mechanism
between BGP and ONOS.
– SDN-IP behaves as a regular BGP speaker
 From ONOS perspective,
 SDN-IP is just an ONOS application
– uses ONOS services to install and update appropriate
data forwarding rules

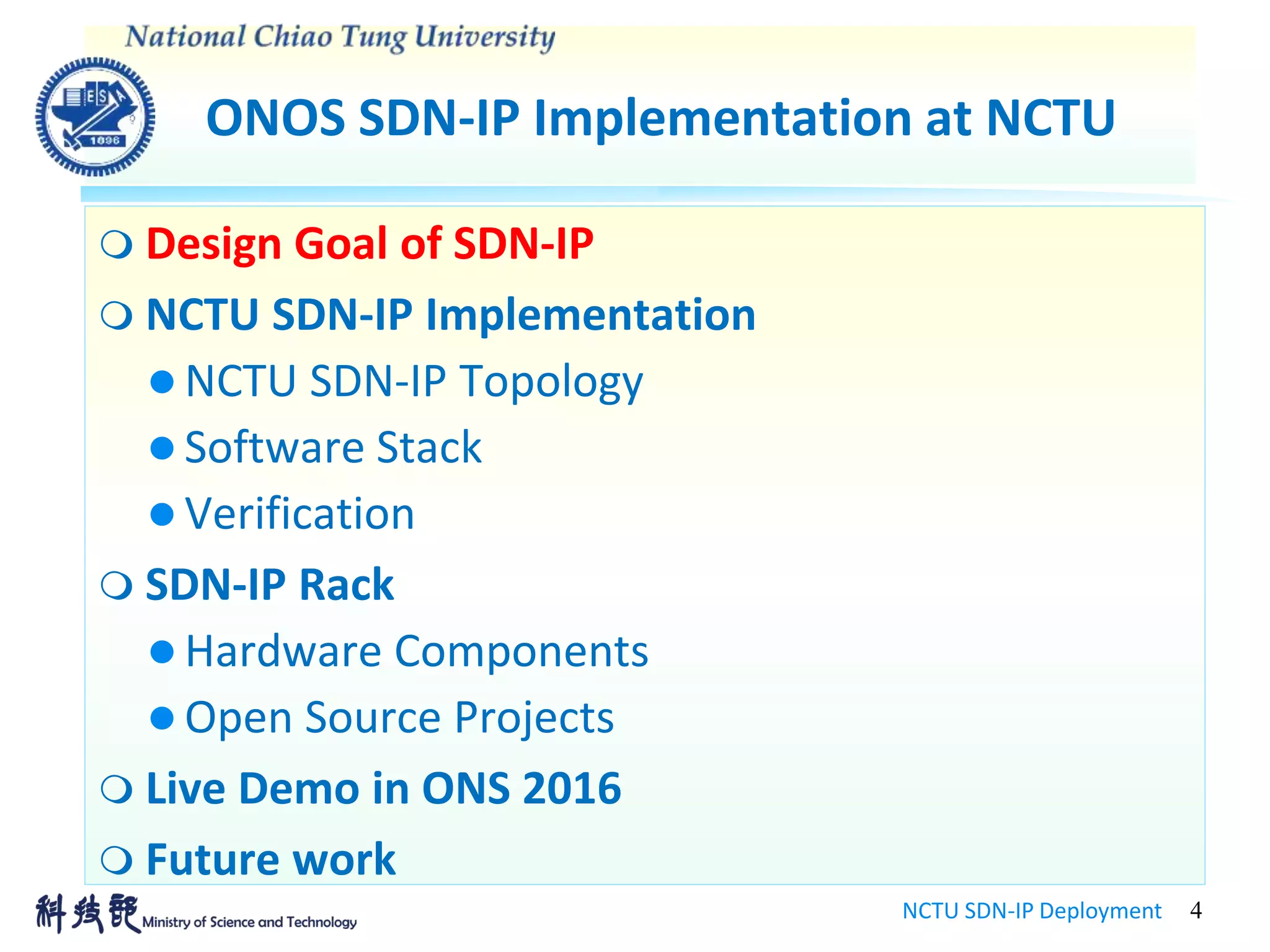

4. ONOS SDN-IP Implementation at NCTU
NCTU SDN-IP Deployment 4
 Design Goal of SDN-IP
 NCTU SDN-IP Implementation
 NCTU SDN-IP Topology
 Software Stack
 Verification
 SDN-IP Rack
 Hardware Components
 Open Source Projects
 Live Demo in ONS 2016
 Future work

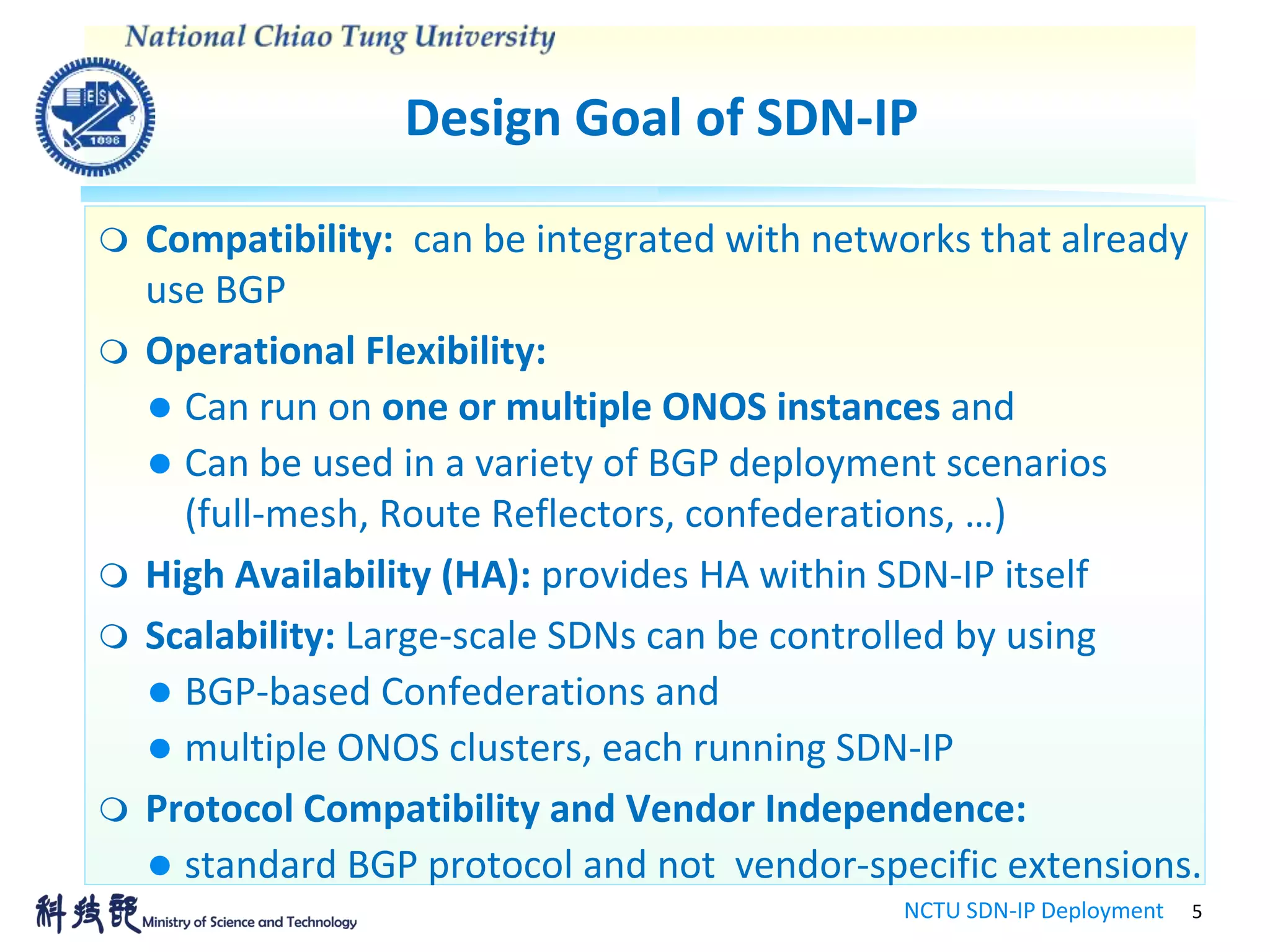

5. Design Goal of SDN-IP
NCTU SDN-IP Deployment 5
 Compatibility: can be integrated with networks that already
use BGP
 Operational Flexibility:
 Can run on one or multiple ONOS instances and
 Can be used in a variety of BGP deployment scenarios
(full-mesh, Route Reflectors, confederations, …)
 High Availability (HA): provides HA within SDN-IP itself
 Scalability: Large-scale SDNs can be controlled by using
 BGP-based Confederations and
 multiple ONOS clusters, each running SDN-IP
 Protocol Compatibility and Vendor Independence:
 standard BGP protocol and not vendor-specific extensions.

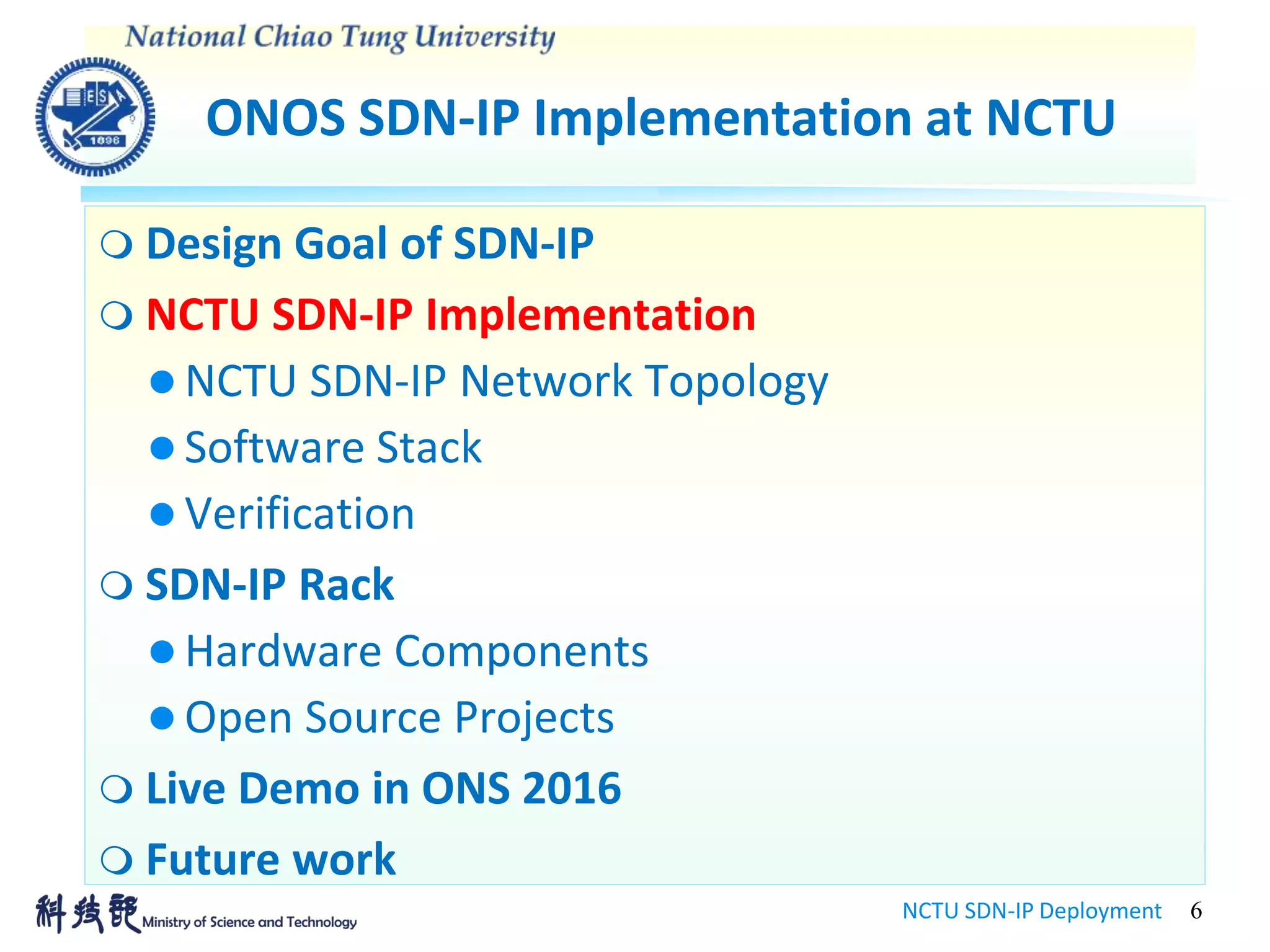

6. ONOS SDN-IP Implementation at NCTU
NCTU SDN-IP Deployment 6
 Design Goal of SDN-IP
 NCTU SDN-IP Implementation
 NCTU SDN-IP Network Topology
 Software Stack
 Verification
 SDN-IP Rack
 Hardware Components
 Open Source Projects
 Live Demo in ONS 2016
 Future work

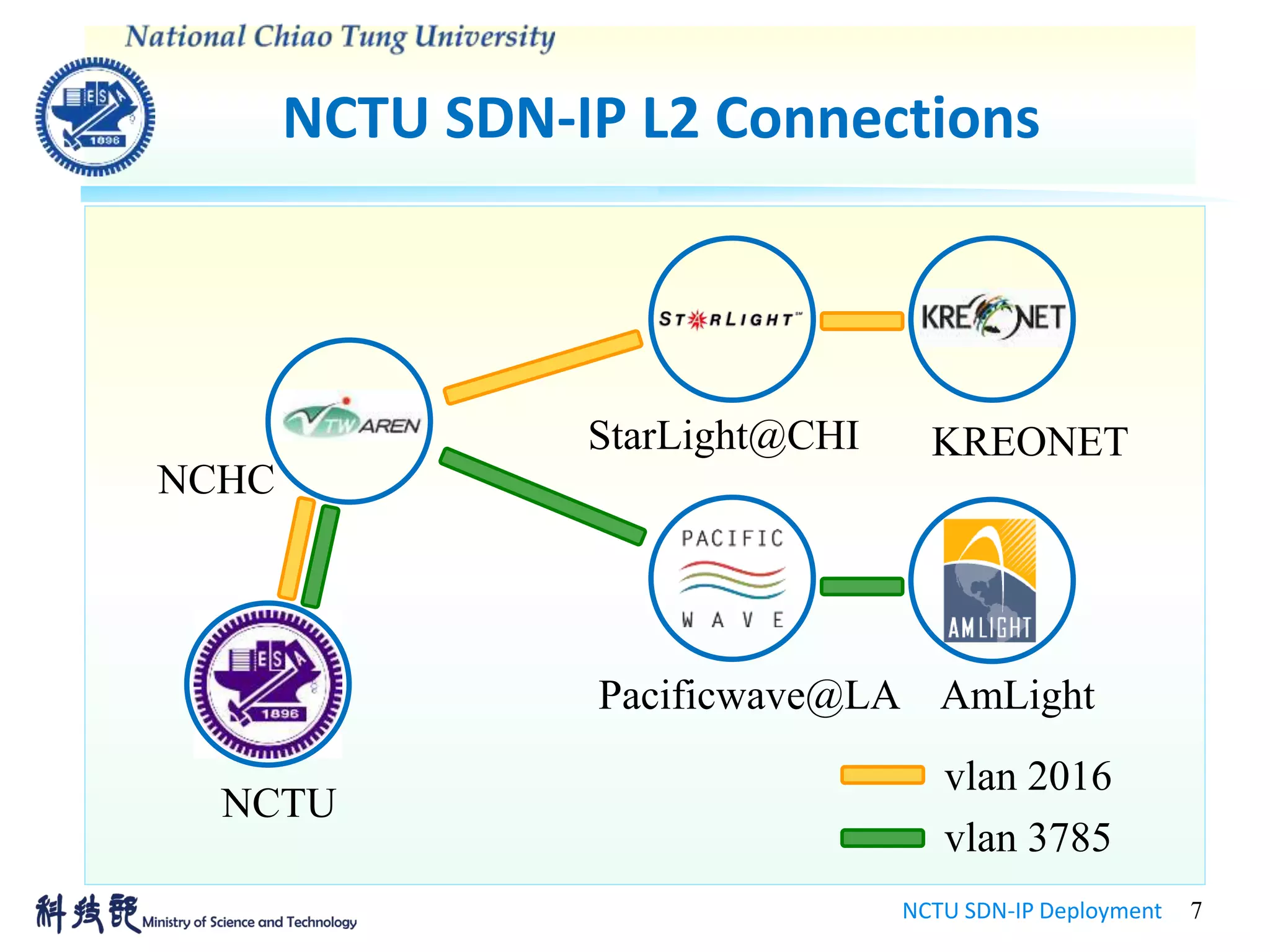

7. NCTU SDN-IP L2 Connections
NCTU SDN-IP Deployment 7
NCTU
NCHC
StarLight@CHI
Pacificwave@LA
KREONET
AmLight
vlan 2016
vlan 3785

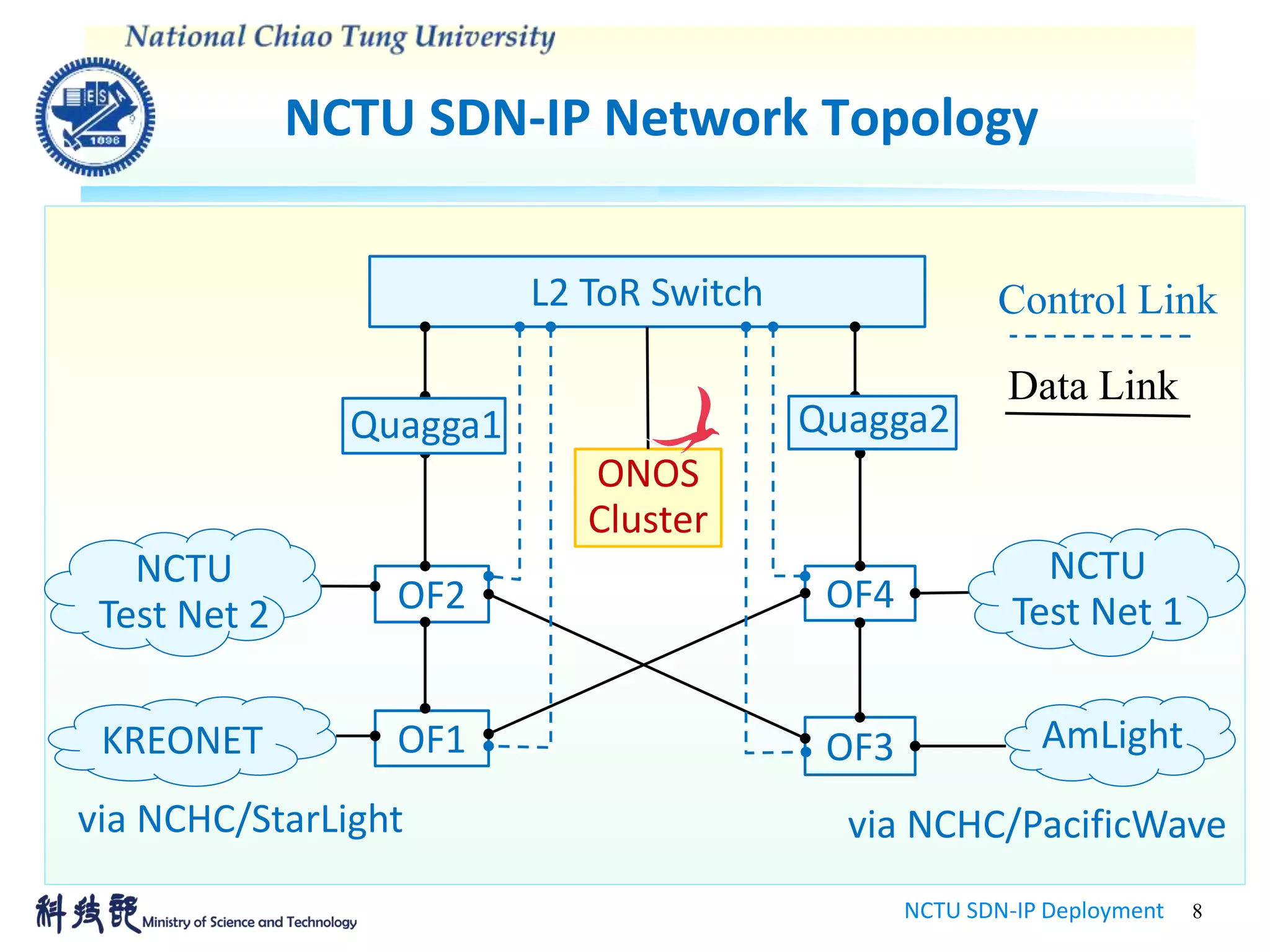

8. NCTU SDN-IP Network Topology
NCTU SDN-IP Deployment 8
ONOS
Cluster
L2 ToR Switch
OF1
OF4OF2
OF3
via NCHC/PacificWavevia NCHC/StarLight
NCTU
Test Net 2
Quagga1 Quagga2
NCTU
Test Net 1
AmLightKREONET
Control Link
Data Link

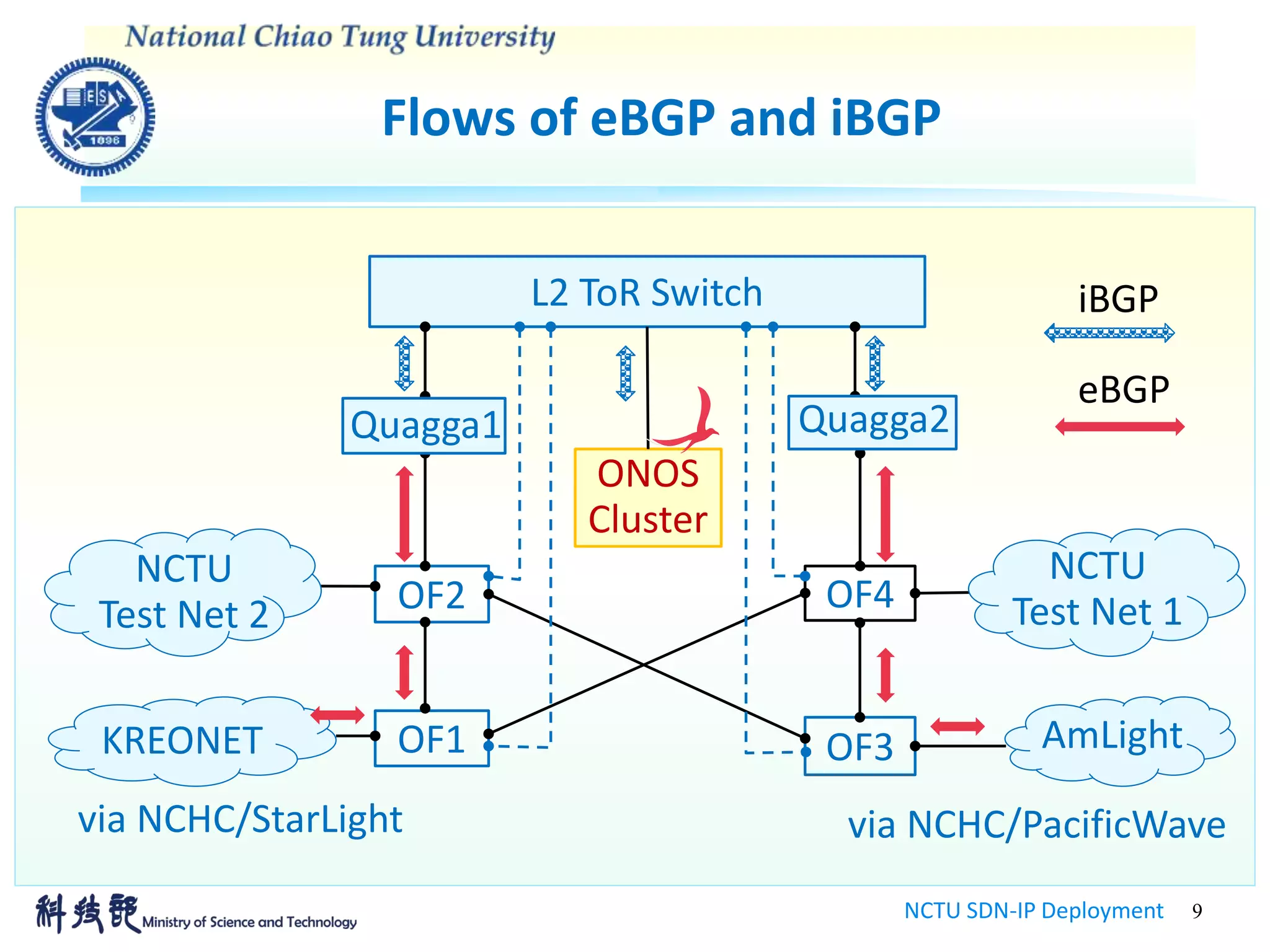

9. Flows of eBGP and iBGP
NCTU SDN-IP Deployment 9
iBGP
eBGP
ONOS
Cluster
L2 ToR Switch
OF1
OF4OF2
OF3
via NCHC/PacificWavevia NCHC/StarLight
NCTU
Test Net 2
Quagga1 Quagga2
NCTU
Test Net 1
AmLightKREONET

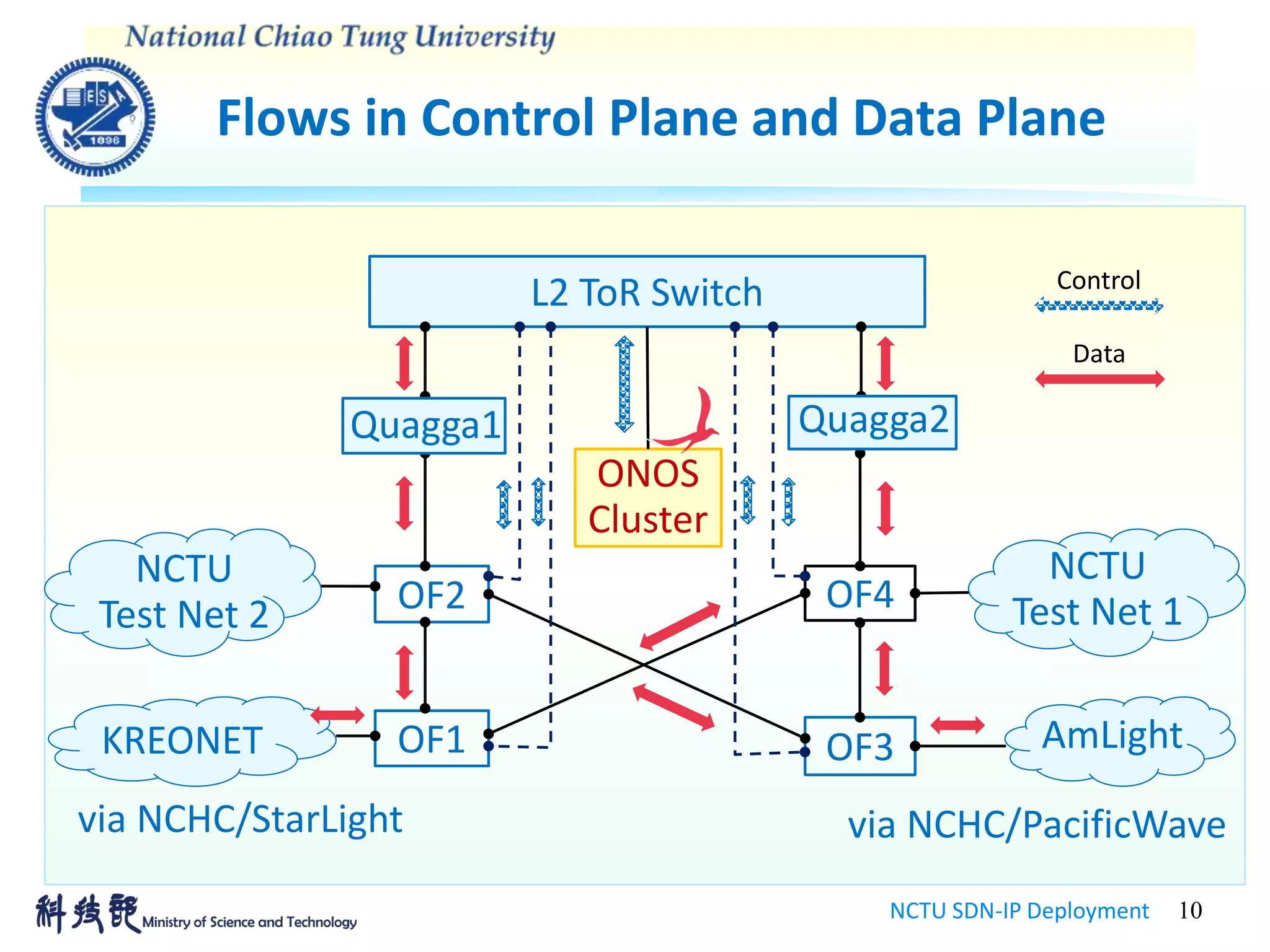

10. Flows in Control Plane and Data Plane
NCTU SDN-IP Deployment 10
ONOS
Cluster
L2 ToR Switch
OF1
OF4OF2
OF3
via NCHC/PacificWavevia NCHC/StarLight
NCTU
Test Net 2
Quagga1 Quagga2
NCTU
Test Net 1
AmLightKREONET
Control
Data

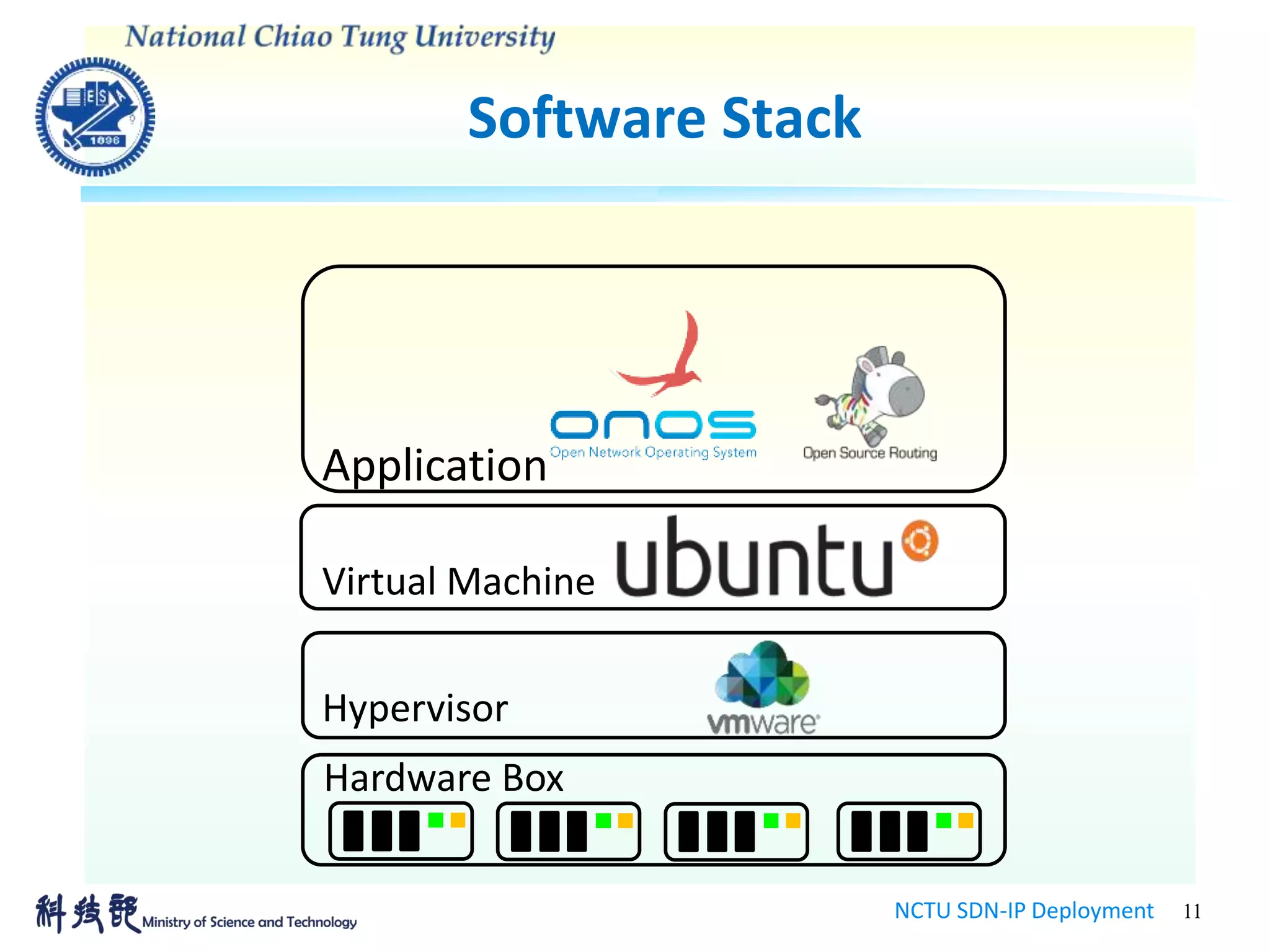

11. Software Stack
NCTU SDN-IP Deployment 11
Application
Hardware Box
Hypervisor
Virtual Machine

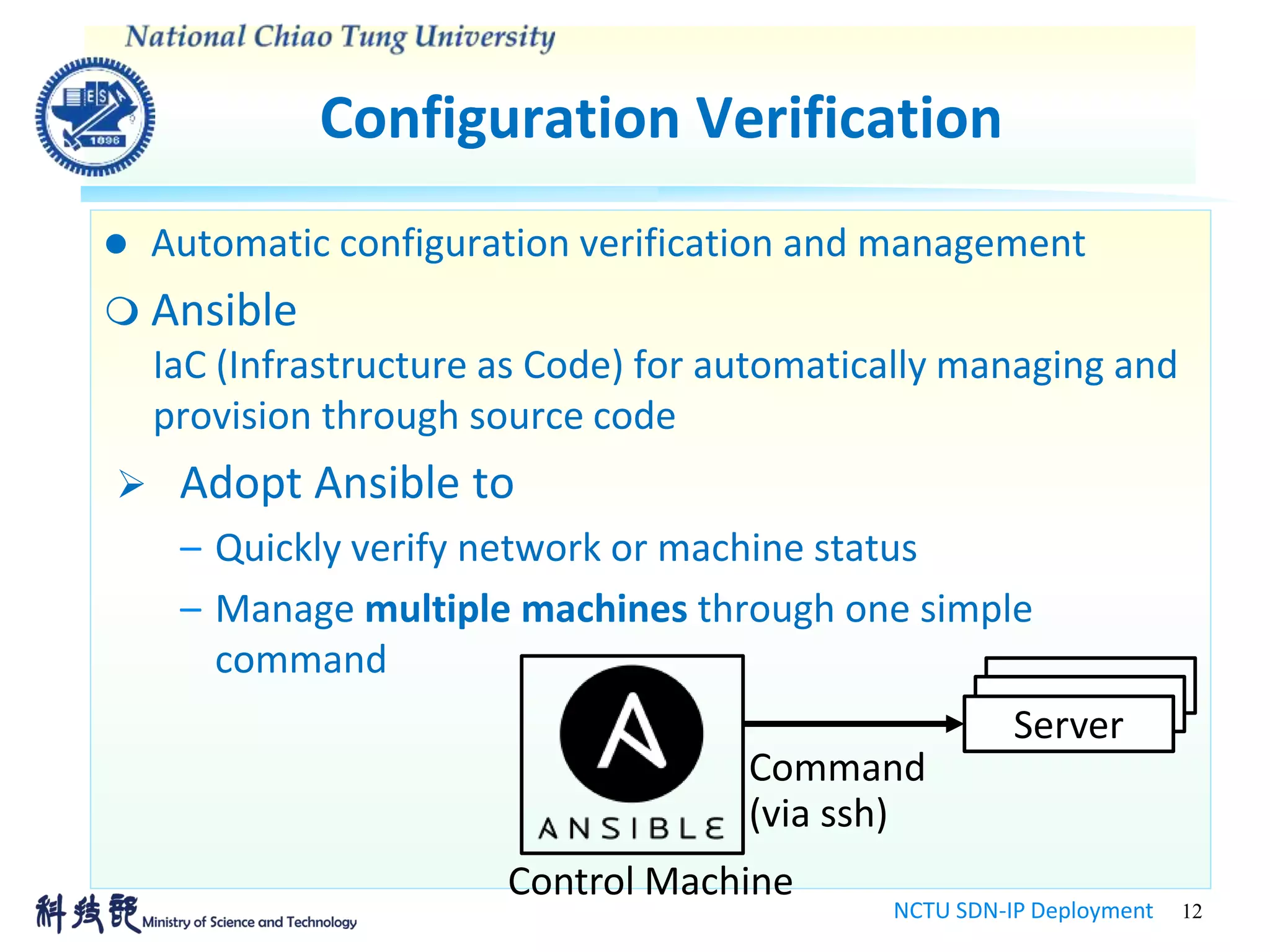

12. Configuration Verification
NCTU SDN-IP Deployment 12
 Automatic configuration verification and management
 Ansible
IaC (Infrastructure as Code) for automatically managing and
provision through source code
 Adopt Ansible to
– Quickly verify network or machine status
– Manage multiple machines through one simple
command
Server
Command
(via ssh)
Control Machine

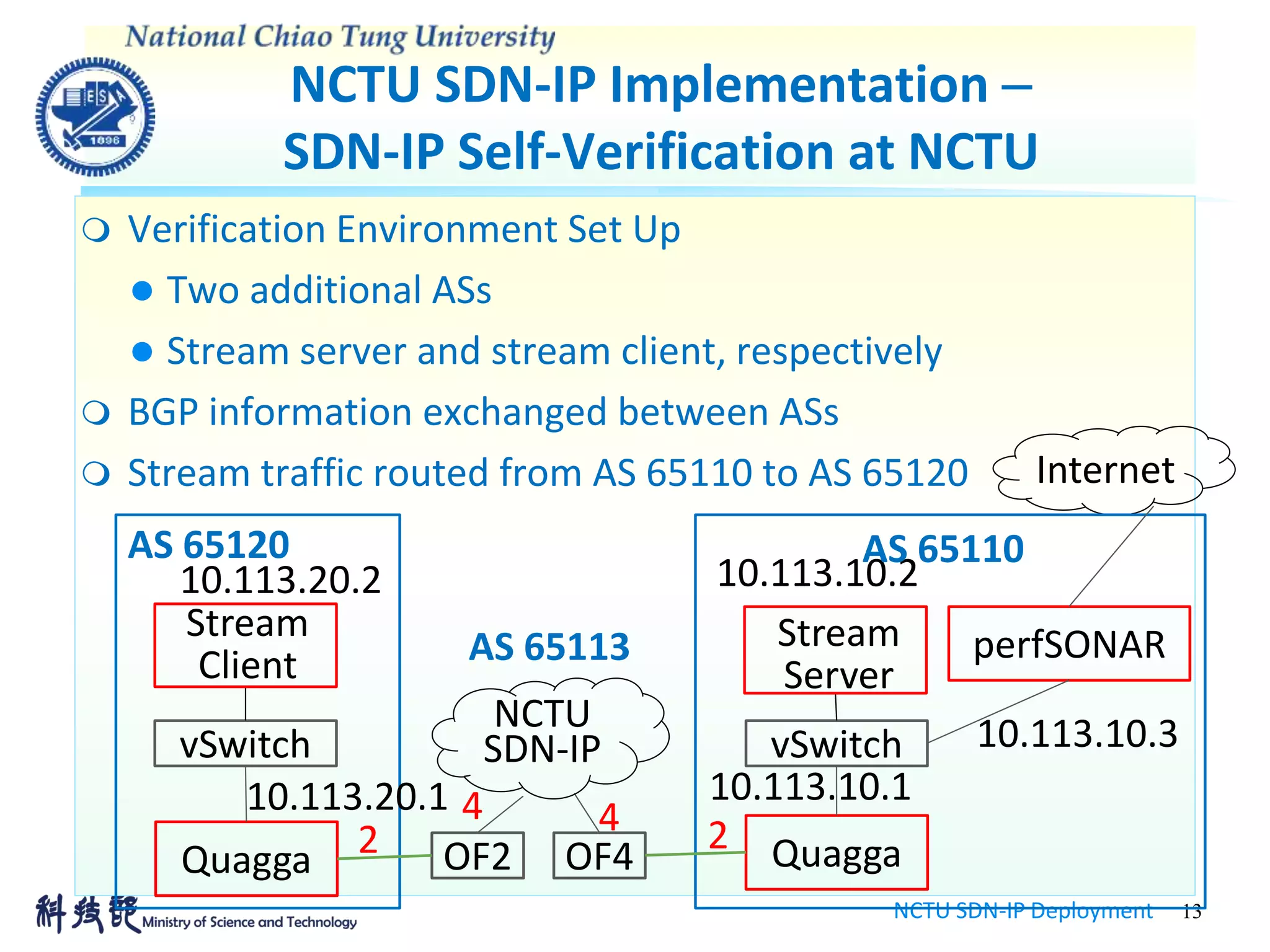

13. NCTU SDN-IP Implementation 
SDN-IP Self-Verification at NCTU
NCTU SDN-IP Deployment 13
 Verification Environment Set Up
 Two additional ASs
 Stream server and stream client, respectively
 BGP information exchanged between ASs
 Stream traffic routed from AS 65110 to AS 65120 Internet
QuaggaOF4
4 2
vSwitch
perfSONAR
10.113.10.3
10.113.10.1
10.113.10.2
NCTU
SDN-IP
Quagga OF2
4
2
vSwitch
10.113.20.2
10.113.20.1
AS 65113
AS 65120 AS 65110
Stream
Server
Stream
Client

14. ONOS SDN-IP Implementation at NCTU
NCTU SDN-IP Deployment 14
 Design Goal of SDN-IP
 NCTU SDN-IP Implementation
 NCTU SDN-IP Network Topology
 Software Stack
 Verification
 SDN-IP Rack
 Hardware Components
 Open Source Projects
 Live Demo in ONS 2016
 Future work

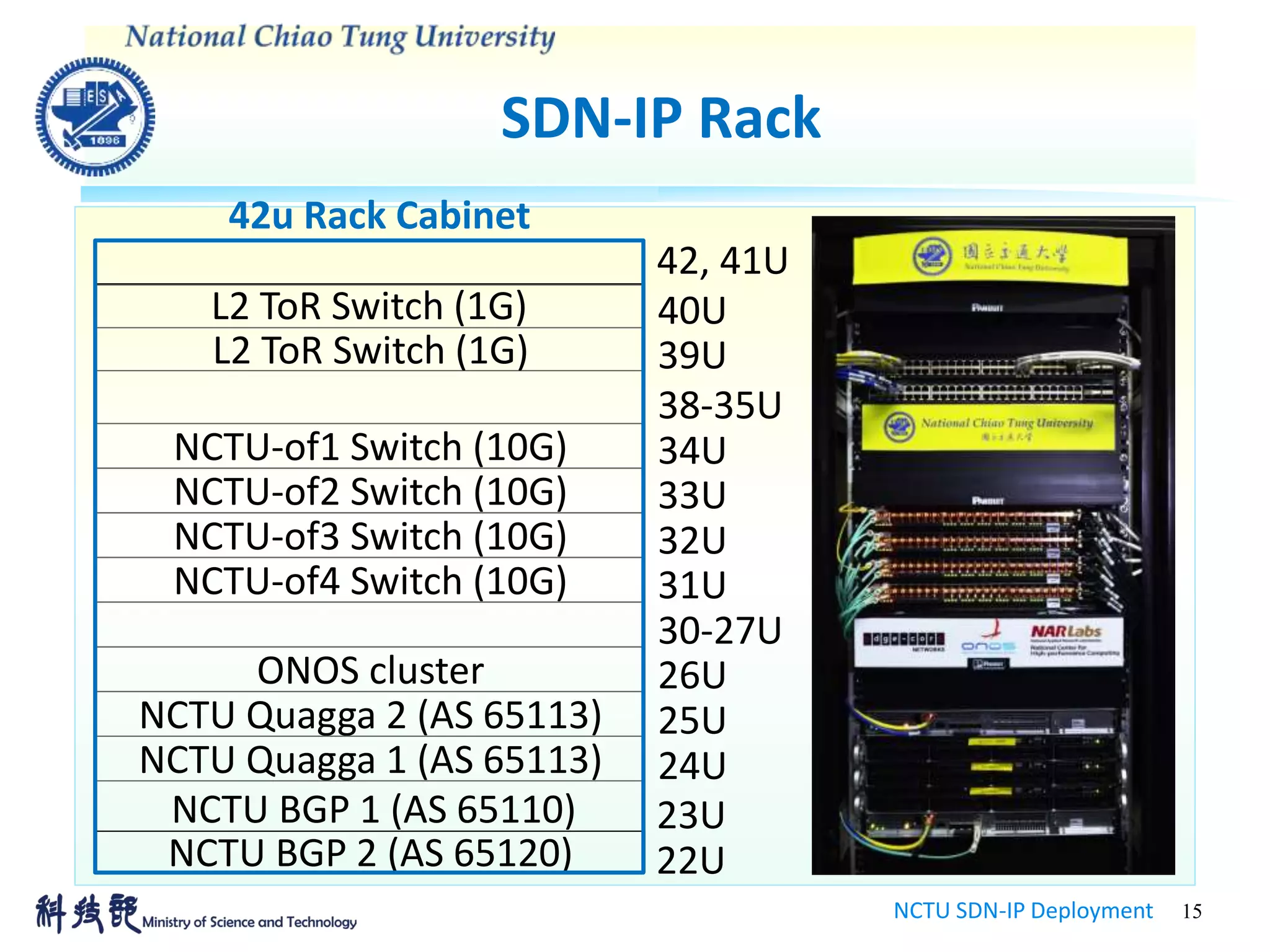

15. SDN-IP Rack
NCTU SDN-IP Deployment 15
42u Rack Cabinet
NCTU-of1 Switch (10G)
NCTU-of2 Switch (10G)
NCTU-of3 Switch (10G)
NCTU-of4 Switch (10G)
ONOS cluster
NCTU Quagga 2 (AS 65113)
40U
26U
30-27U
31U
32U
33U
34U
38-35U
39U
25U
24U
L2 ToR Switch (1G)
NCTU BGP 2 (AS 65120) 22U
NCTU Quagga 1 (AS 65113)
23UNCTU BGP 1 (AS 65110)
L2 ToR Switch (1G)
42, 41U

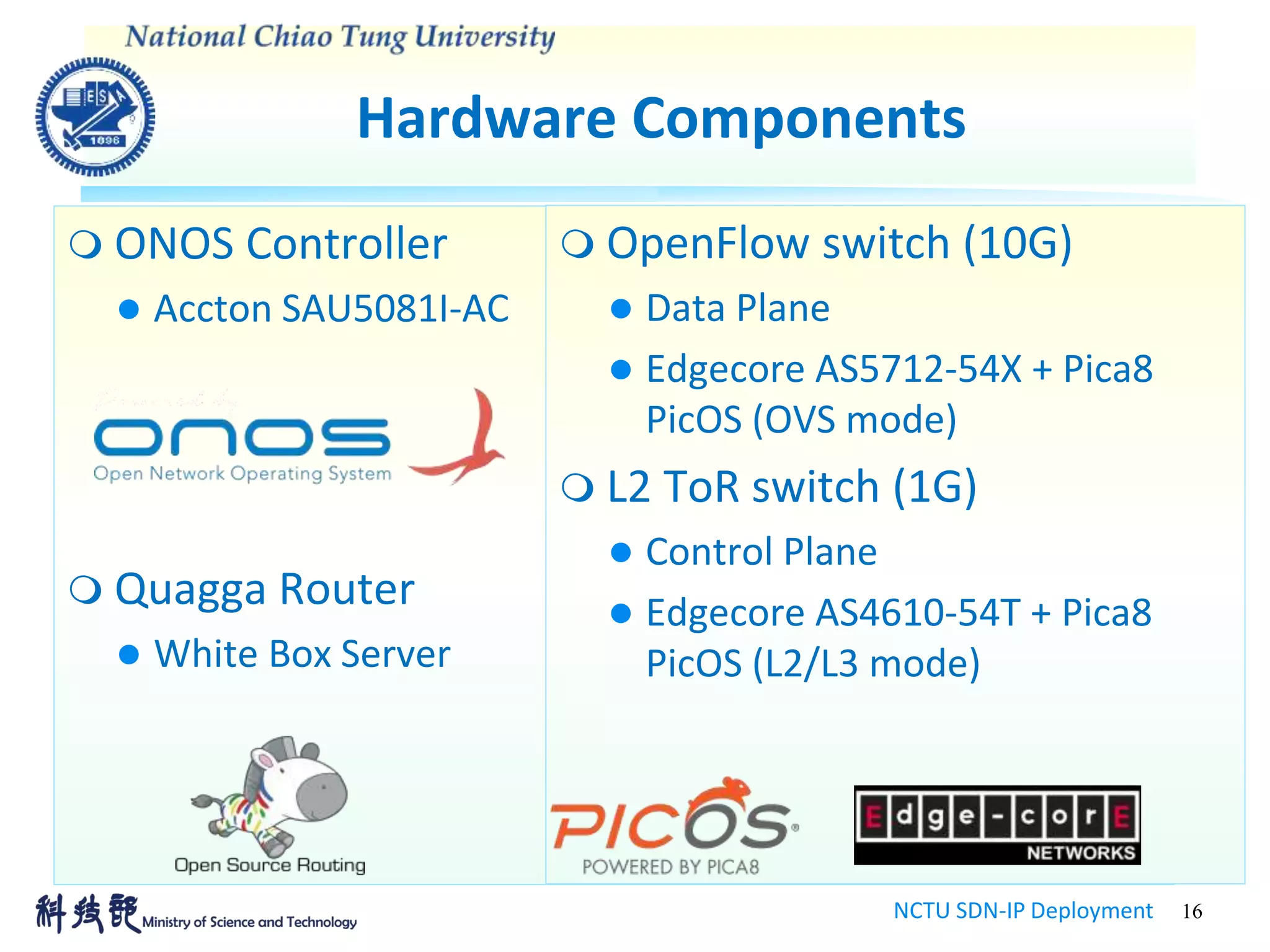

16. Hardware Components
NCTU SDN-IP Deployment 16
 ONOS Controller
 Accton SAU5081I-AC
 Quagga Router
 White Box Server
 OpenFlow switch (10G)
 Data Plane
 Edgecore AS5712-54X + Pica8
PicOS (OVS mode)
 L2 ToR switch (1G)
 Control Plane
 Edgecore AS4610-54T + Pica8
PicOS (L2/L3 mode)

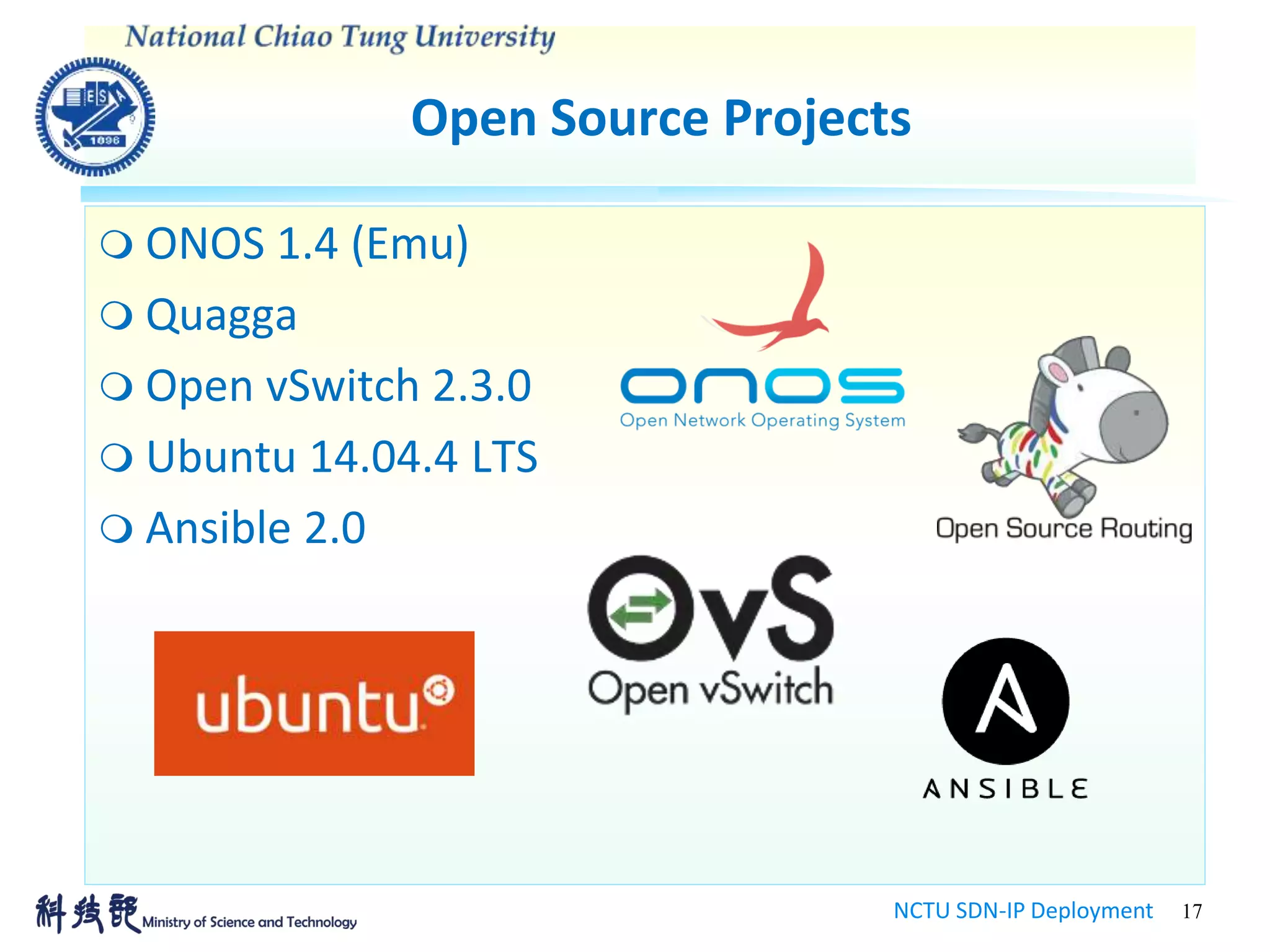

17. Open Source Projects
NCTU SDN-IP Deployment 17
 ONOS 1.4 (Emu)
 Quagga
 Open vSwitch 2.3.0
 Ubuntu 14.04.4 LTS
 Ansible 2.0

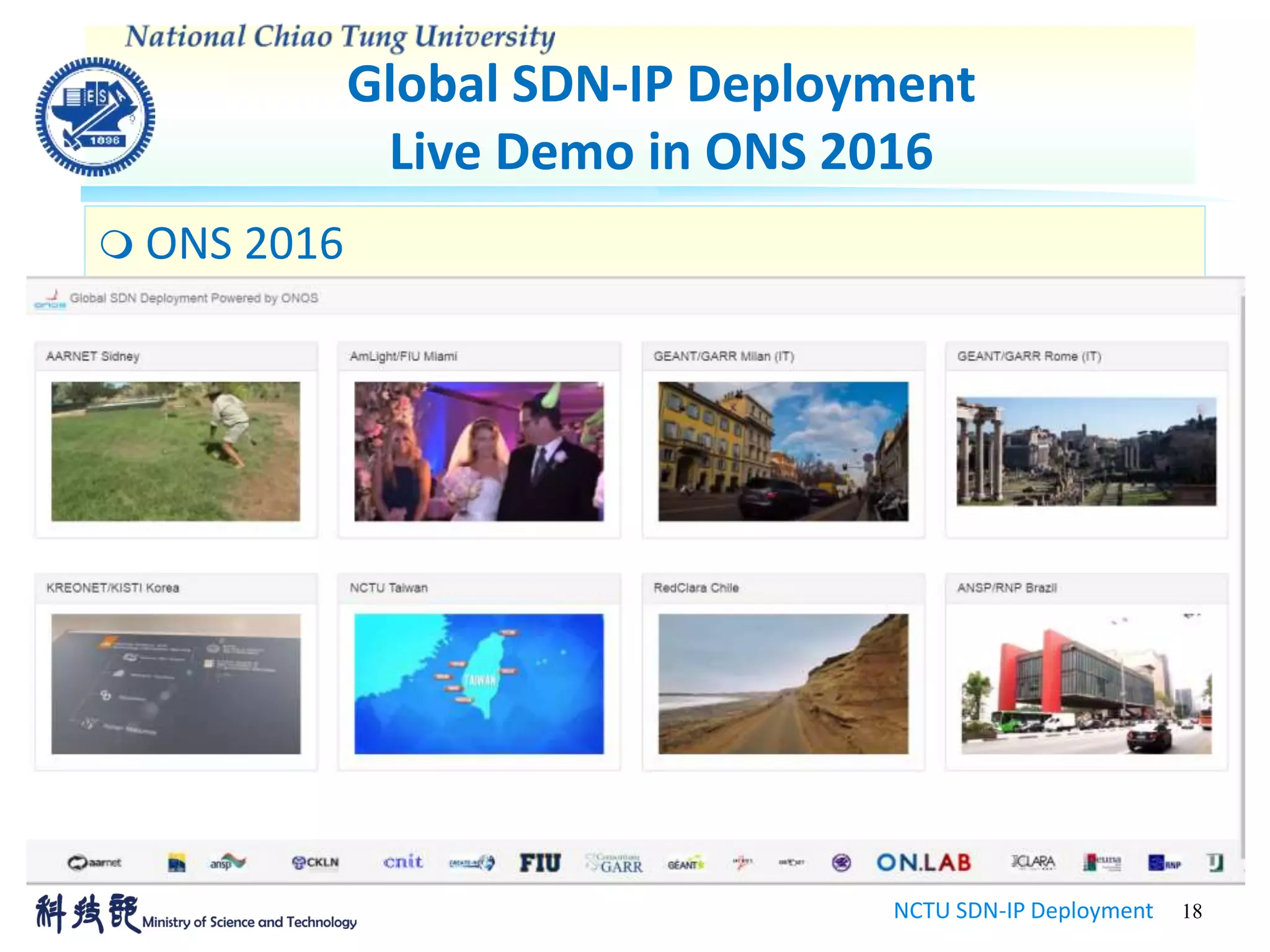

18. Global SDN-IP Deployment
Live Demo in ONS 2016
NCTU SDN-IP Deployment 18
 ONS 2016

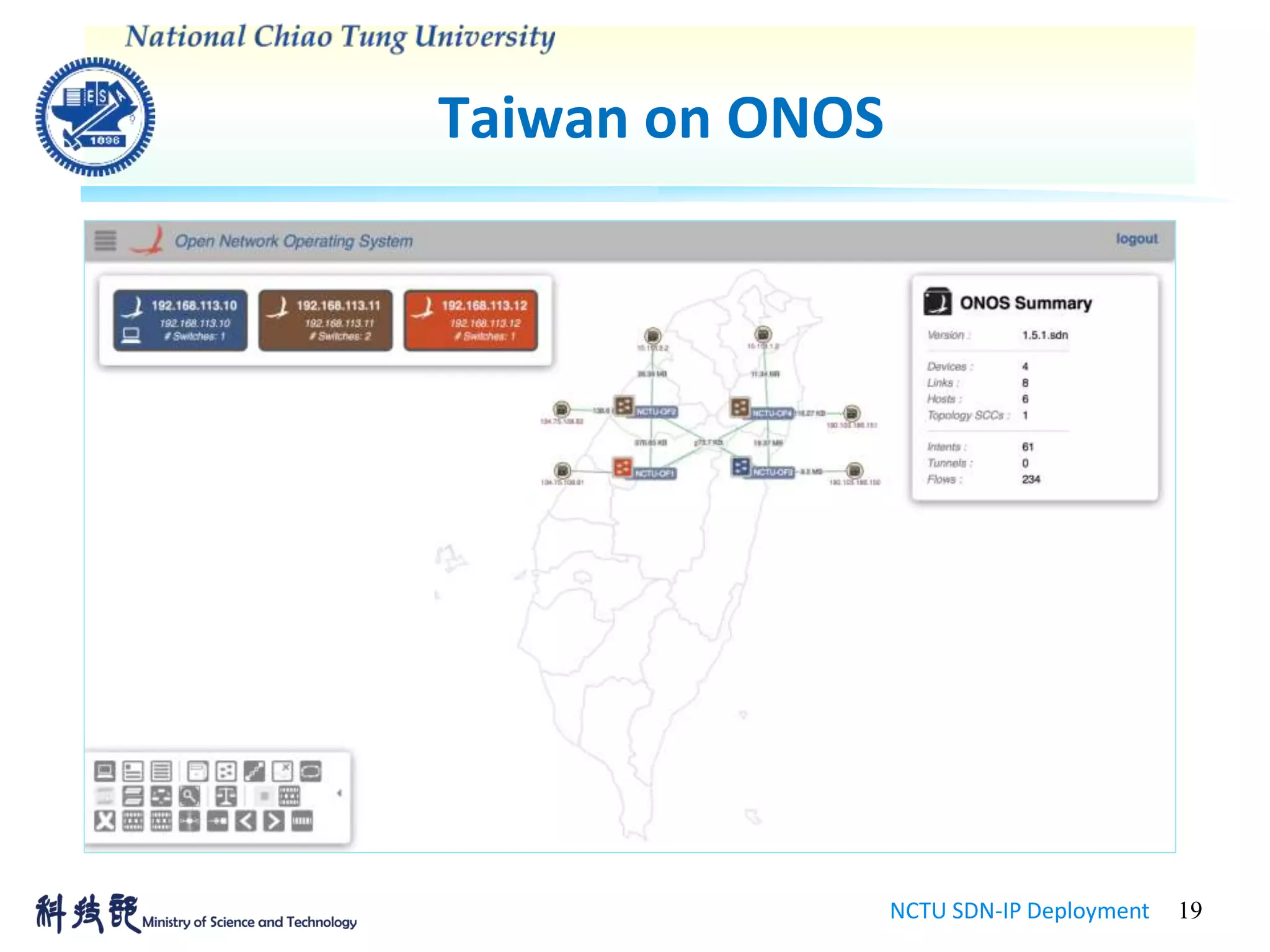

19. Taiwan on ONOS
NCTU SDN-IP Deployment 19

20.  Contributors
– ON.Lab Showcase (S3),
ONS 2016
NCTU  a Carrier!
NCTU SDN-IP Deployment 20
NCTU
Carrier/WAN

21. SDN-IP Booth at ONS 2016
NCTU SDN-IP Deployment 21

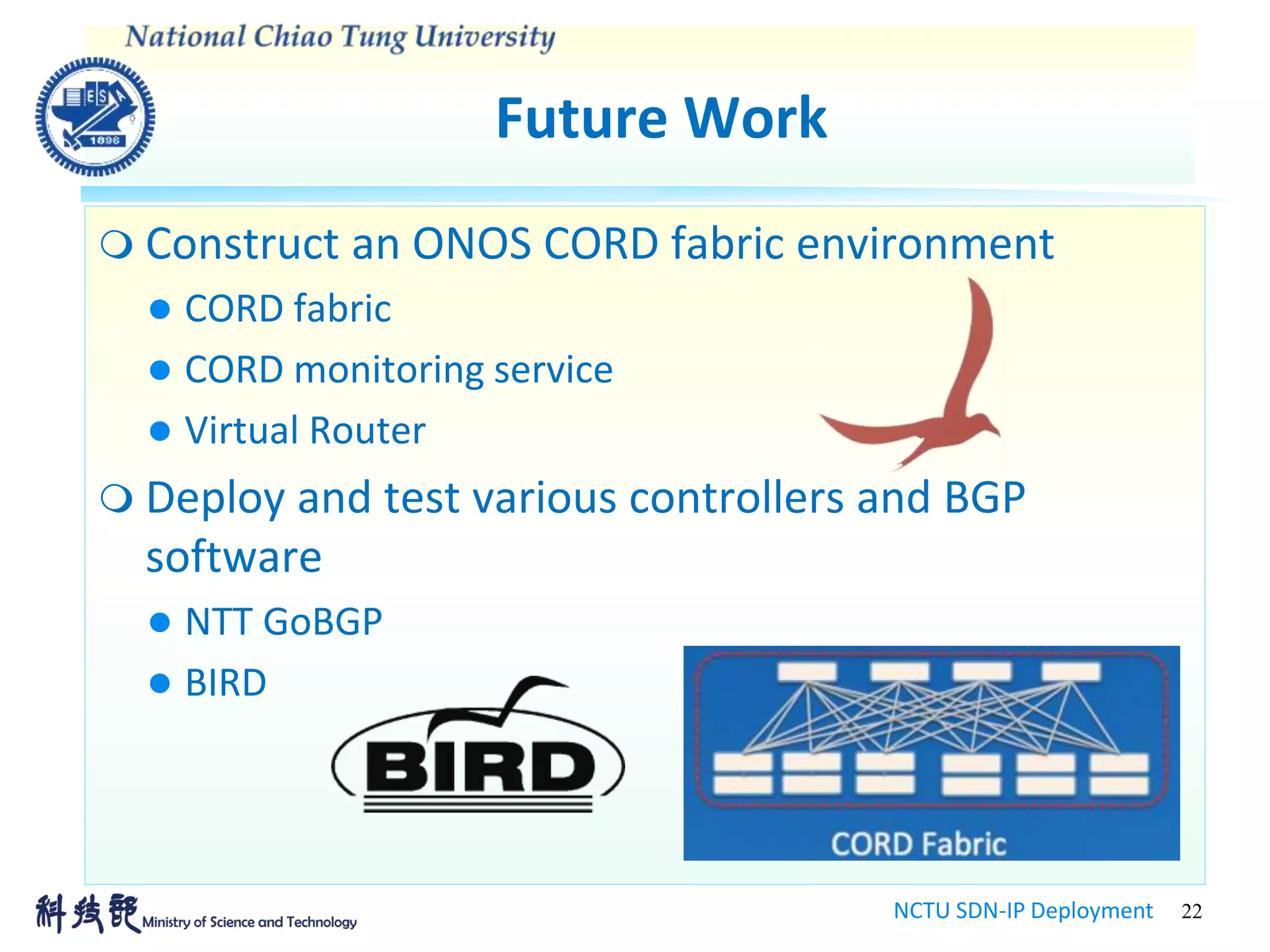

22. Future Work
NCTU SDN-IP Deployment 22
 Construct an ONOS CORD fabric environment
 CORD fabric
 CORD monitoring service
 Virtual Router
 Deploy and test various controllers and BGP
software
 NTT GoBGP
 BIRD

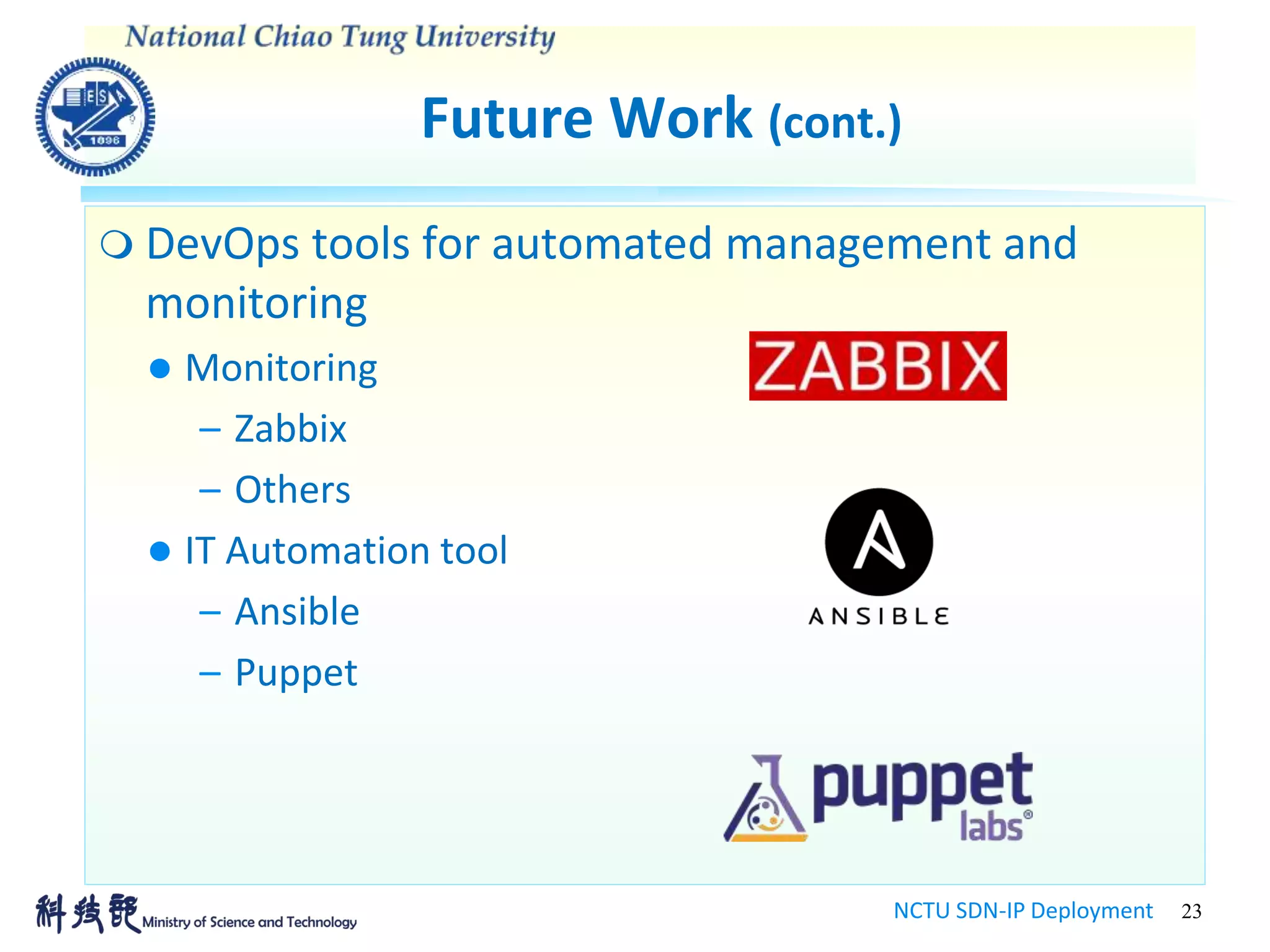

23. Future Work (cont.)
NCTU SDN-IP Deployment 23
 DevOps tools for automated management and
monitoring
 Monitoring
– Zabbix
– Others
 IT Automation tool
– Ansible
– Puppet
