This document provides information on solar control insulating glasses and façade glazing options from Geodomas. It describes how solar control glasses allow natural light in while preventing excessive heat gain, improving energy efficiency. Various glazing configurations are presented with different glass makeup and performance properties for angles from 11 to 85 degrees, including Ug values ranging from 0.5 to 1.1 W/m2K. Laminated safety glasses and noise reducing options are also detailed.

1. www.geodomas.eu
info@geodomas.euSTRUCTURAL GLAZING FAÇADE
 Highest quality and optimized intrinsic color
 Undistorted vision
 Homogeneous, smooth surface
 High chemical resistance
 No color changes
 Resistant to weathering
 Acid and alkali resistant.
STRUCTURAL GLAZING FAÇADE

2. ESG GLASS for façade
Modern glass facades are an expression of contemporary architecture. Glass ensures plenty of natural
daylight, which has a direct positive influence on well-being and quality of life. However, large areas of glass
may also give rise to undesirable heat build-up in summer. solar control insulating glasses permit optimum
use of the natural light source and can also prevent solar energy causing excessive increases in room
temperatures. With solar control glasses, the indoor climate remains pleasant and comfortable even in
summer while energy costs for air-conditioning are also reduced. These interrelated functions optimise the
overall energy management of buildings in a cost-effective way.
We offer a wide range of solar control products with balanced ratios of light transmission (LT value) and total
solar energy transmittance (g value) in order to satisfy individual needs related to building services
engineering
The insulating glasses offer a balanced range of colour-neutral and colour-nuanced coatings with graduated
light transmission and total solar energy transmittance values.
• ESG Flat single pane safety glass
• Laminated safety glass
• Insulating glass for thermal insulation and sun protection
• Curved glass
• Fire-resistant glass
www.geodomas.eu
info@geodomas.eu

3. Energy efficient,
low-energy consuming
www.geodomas.eu
info@geodomas.eu

4. solar control www.geodomas.eu
info@geodomas.eu

5. Uncoated float glass
Calculated for two float glasses of 4mm (ISO unit)
www.geodomas.eu
info@geodomas.eu

6. STANDART GLASS PLATE
TECHNICAL INFO
www.geodomas.eu
info@geodomas.eu

7. EN2plus Insulating glass for
thermal insulation and sun
protection
The new coating in the form of triple insulating glazing achieves a very low
Ug value of 0.6/m 2K and so plays a crucial part in largely preventing heat losses.
www.geodomas.eu
info@geodomas.eu

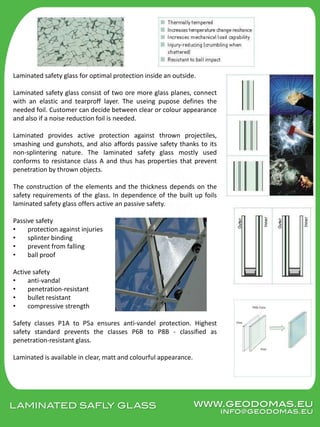

8. LAMINATED SAFLY GLASS
Laminated safety glass for optimal protection inside an outside.
Laminated safety glass consist of two ore more glass planes, connect
with an elastic and tearproff layer. The useing pupose defines the
needed foil. Customer can decide between clear or colour appearance
and also if a noise reduction foil is needed.
Laminated provides active protection against thrown projectiles,
smashing und gunshots, and also affords passive safety thanks to its
non-splintering nature. The laminated safety glass mostly used
conforms to resistance class A and thus has properties that prevent
penetration by thrown objects.
The construction of the elements and the thickness depends on the
safety requirements of the glass. In dependence of the built up foils
laminated safety glass offers active an passive safety.
Passive safety
• protection against injuries
• splinter binding
• prevent from falling
• ball proof
Active safety
• anti-vandal
• penetration-resistant
• bullet resistant
• compressive strength
Safety classes P1A to P5a ensures anti-vandel protection. Highest
safety standard prevents the classes P6B to P8B - classified as
penetration-resistant glass.
Laminated is available in clear, matt and colourful appearance.
www.geodomas.eu
info@geodomas.eu

9. Laminated SOUND PROT
special noise reduction foil in the
inside
Laminated safety glass with noise reduction foil
For a quiter world - Laminated Sound have a special noise reduction
foil in the inside. The glass combine safety and soundproofing.
Attributes
• foil rise the sound insulation level up to 2dB
• efficient noise reduction together with various glass thickness
• neutral look
• various possible applications
www.geodomas.eu
info@geodomas.eu

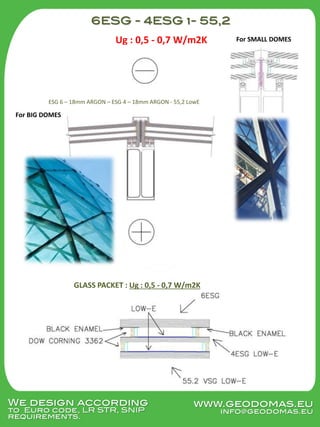

10. We design according
to Euro code, LR STR, SNIP
requirements.
GLASS PACKET : Ug : 0,5 - 0,7 W/m2K
6ESG - 4ESG +- 55,2
Ug : 0,5 - 0,7 W/m2K
for 11° - 85° angles
ESG 6 – 18mm ARGON – ESG 4 – 18mm ARGON - 55,2 LowE
For BIG DOMES
For SMALL DOMES
www.geodomas.eu
info@geodomas.eu

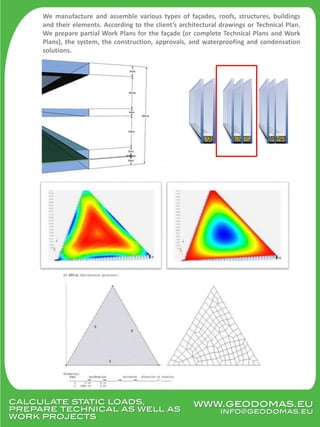

11. calculate static loads,
prepare technical as well as
work projects
We manufacture and assemble various types of façades, roofs, structures, buildings
and their elements. According to the client’s architectural drawings or Technical Plan.
We prepare partial Work Plans for the façade (or complete Technical Plans and Work
Plans), the system, the construction, approvals, and waterproofing and condensation
solutions.
www.geodomas.eu
info@geodomas.eu

12. GLAZING FAÇADE
for 45° - 85° angles
ESG 6 - 18 ARGON - ESG 4 LowE -18 ARGON - 55,2 LowE
For 45° - 85° angles
The outer glass - Tempered glass
Central Glass - Tempered glass coated EN2plus
Inner glass - GS EN2plus coated, gummed with a protective lamination
Ug : 0,5 W/m2K
45° - 85°
www.geodomas.eu
info@geodomas.eu

13. ESG 6 - 18 ARGON - ESG 4 LowE -18 ARGON - 55,2 LowE
For 11° - 45 angles
The outer glass - Tempered glass
Central Glass - Tempered glass coated EN2plus
Inner glass - GS EN2plus coated, gummed with a protective
lamination
Ug : 0,7 W/m2K
45° - 85°
11° - 45°
GLAZING FAÇADE
for 11° - 45° angles
www.geodomas.eu
info@geodomas.eu

14. Combi 6132 ESG-16A-F4ESG-16A-55.2EN2 PLUS
The outer glass - Tempered glass
Central Glass - Tempered glass coated EN2plus
Inner glass - GS EN2plus coated, gummed with a protective
lamination
Ug : 0,5 W/m2K
45° - 85°
GLAZING FAÇADE www.geodomas.eu
info@geodomas.eu

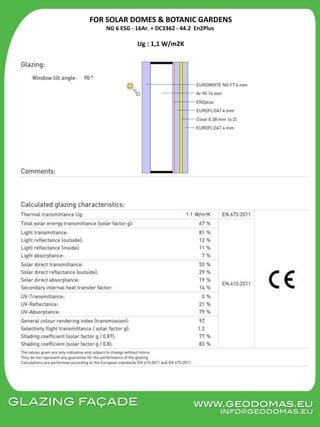

15. FOR SOLAR DOMES & BOTANIC GARDENS
NG 6 ESG - 16Ar. + DC3362 - 44.2 En2Plus
Ug : 1,1 W/m2K
GLAZING FAÇADE www.geodomas.eu
info@geodomas.eu

16. GLAZING WINDOW
FAÇADE
www.geodomas.eu
info@geodomas.eu

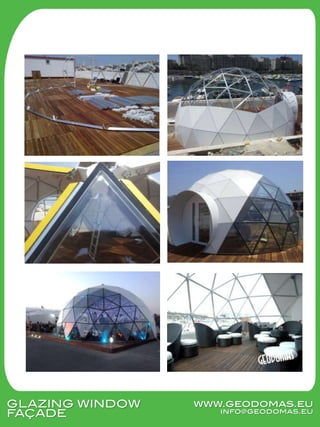

17. GLAZING WINDOW
