Geodesic Tent Portable Domes

TECHNICAL DATA
COVER : PVC-coated polyester textile
630gr/m2, flame retardant to DIN 4102 B1, M2
TRANSPARENT WINDOW : PVC- polyester
textile 0,5mm EN ISO 2286-2
MATERIAL FOR STRUTS PRODUCTION :
Galvanized Steel Tube EN 10240
NUMBER OF DIFFERENT STRUTS : 6pc.
NUMBER OF STRUTS FEET: 104 pc.
CIRCULAR POLYESTER ENTRIES : 1 pc.
TOP WENT : 2 pc.
ZIP WENT : 1 pc.
INSTALLATION TIME : 1-2 h
DEINSTALLATION TIME : 0,5-1 h
FLOOR AREA : 28 m2
DIAMETER : 6 m
HEIGHT : 3 m
COVER SURFACE : 56 m2
VOLUME : 51 m³
COVER WEIGHT : 50 kg
FRAME WEIGHT: 163 kg
WIND/SNOW LOAD: 120kg/m2
COMPLETE PACKAGE WEIGHT: 210 kg
PACKAGE TYPE: Euro pallets 1 pc.

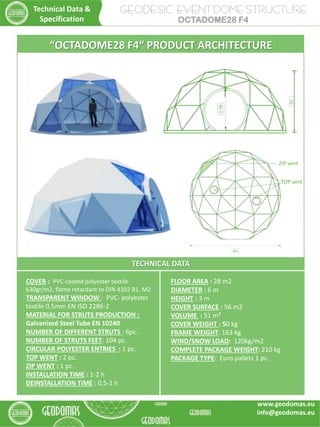

“OCTADOME28 F4“ PRODUCT ARCHITECTURE
TOP vent
ZIP vent
GEODESIC EVENT DOME STRUCTURE
OCTADOME28 F4
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

ICODOME 28m2 Vilnius, Lietuva
Manufacture
& Building
GEODESIC DOMES FOR EVENTS
www.geodomas.eu
info@geodomas.eu

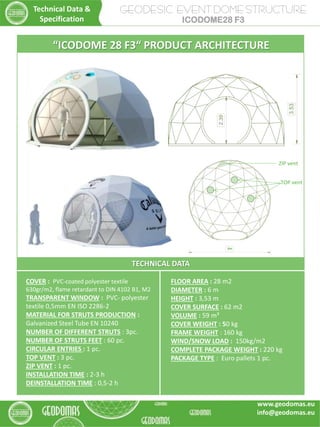

ICODOME28 F3
TECHNICAL DATA
NUMBER OF STRUTS FEET : 60 pc.
CIRCULAR ENTRIES : 1 pc.
TOP VENT : 3 pc.
ZIP VENT : 1 pc.
FLOOR AREA : 28 m2
DIAMETER : 6 m
HEIGHT : 3,53 m
VOLUME : 59 m³
FRAME WEIGHT : 160 kg
WIND/SNOW LOAD : 150kg/m2
COMPLETE PACKAGE WEIGHT : 220 kg
PACKAGE TYPE : Euro pallets 1 pc.
Technical Data &
Specification
“ICODOME 28 F3“ PRODUCT ARCHITECTURE
6m
TOP vent
ZIP vent
www.geodomas.eu
info@geodomas.eu

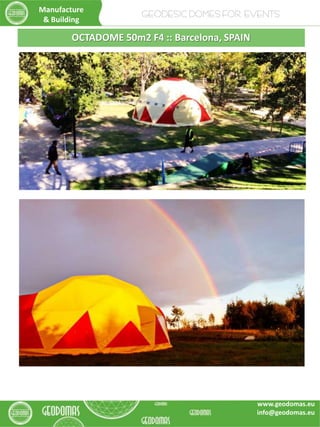

OCTADOME 50m2 F4 :: Barcelona, SPAIN
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

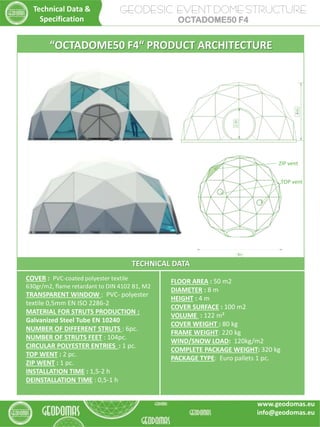

TECHNICAL DATA
NUMBER OF STRUTS FEET : 104pc.
TOP WENT : 2 pc.
ZIP WENT : 1 pc.
INSTALLATION TIME : 1,5-2 h
FLOOR AREA : 50 m2
DIAMETER : 8 m
HEIGHT : 4 m
VOLUME : 122 m³
TOP vent
ZIP vent
OCTADOME50 F4
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

ICODOME 50m2 F4 Vilnius, Lietuva
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

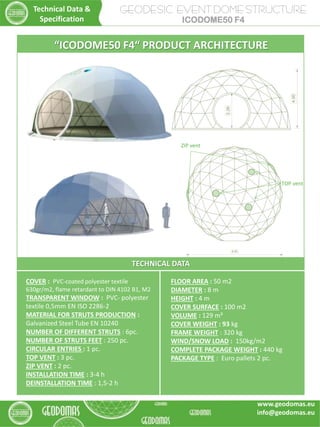

ICODOME50 F4
TECHNICAL DATA
TOP VENT : 3 pc.
ZIP VENT : 2 pc.
FLOOR AREA : 50 m2
DIAMETER : 8 m
HEIGHT : 4 m
VOLUME : 129 m³
Technical Data &
Specification
“ICODOME50 F4“ PRODUCT ARCHITECTURE
TOP vent
ZIP vent
www.geodomas.eu
info@geodomas.eu

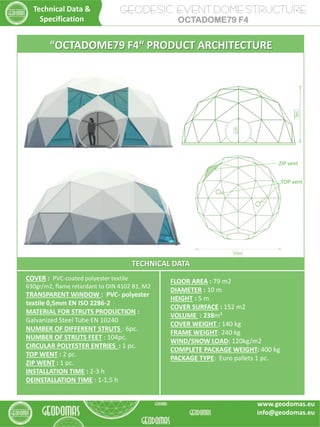

TECHNICAL DATA
TOP WENT : 2 pc.
ZIP WENT : 1 pc.
DEINSTALLATION TIME : 1-1,5 h
FLOOR AREA : 79 m2
DIAMETER : 10 m
HEIGHT : 5 m
VOLUME : 238m³
TOP vent
ZIP vent
OCTADOME79 F4
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 3 pc.
ZIP WENT : 2 pc.
DEINSTALLATION TIME : 2-3 h
FLOOR AREA : 95 m2
DIAMETER : 11 m
HEIGHT : 5,5 m
VOLUME : 270m³
TOP vent
ZIP vent
OCTADOME95 F6
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

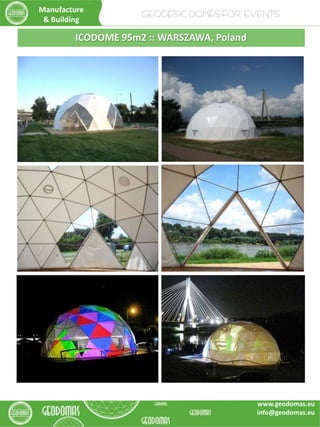

ICODOME 95m2 :: WARSZAWA, Poland
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

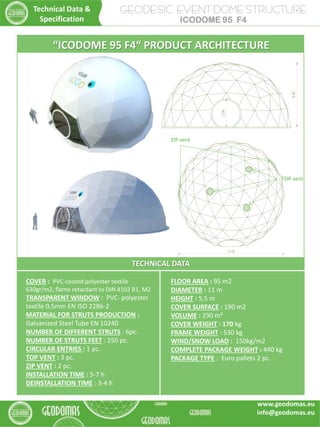

ICODOME 95 F4
TECHNICAL DATA
TOP VENT : 3 pc.
ZIP VENT : 2 pc.
FLOOR AREA : 95 m2
DIAMETER : 11 m
HEIGHT : 5,5 m
VOLUME : 290 m³
Technical Data &
Specification
“ICODOME 95 F4“ PRODUCT ARCHITECTURE
TOP vent
ZIP vent
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 3 pc.
ZIP WENT : 2 pc.
FLOOR AREA : 133 m2
DIAMETER : 13 m
HEIGHT : 6,5 m
VOLUME : 480m³
TOP vent
ZIP vent

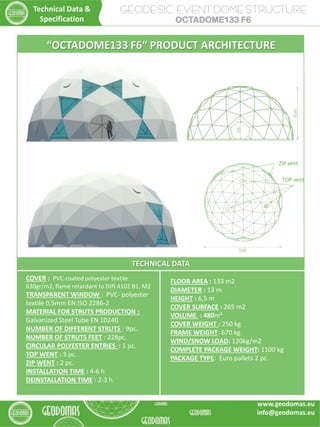

OCTADOME133 F6
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
NUMBER OF DIFFERENT STRUTS: 6pc.
TOP WENT : 3 pc.
ZIP WENT : 2 pc.
FLOOR AREA : 154 m2
DIAMETER : 14 m
HEIGHT : 5 m
VOLUME : 555 m³
FRAME WEIGHT: 920kg

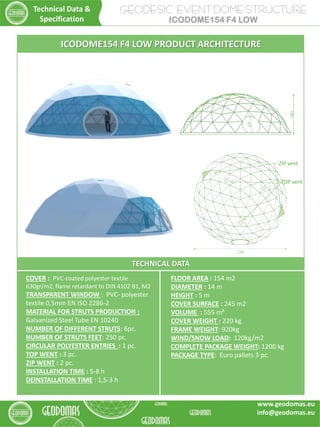

ICODOME154 F4 LOW PRODUCT ARCHITECTURE
TOP vent
ZIP vent
NAMIOTY EWENTOWE
Specjaliści z branży
VIP NAMIOTY EWENTOWE
ICODOME 154 F4 LOW
ICODOME154 F4 LOW
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
Galvanized steel, EN 10240
TOP WENT : 3 pc.
ZIP WENT : 2 pc.
FLOOR AREA : 154 m2
DIAMETER : 14 m
HEIGHT : 7 m
VOLUME : 689m³
TOP vent
ZIP vent

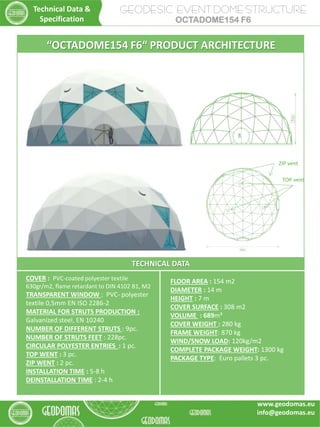

OCTADOME154 F6
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

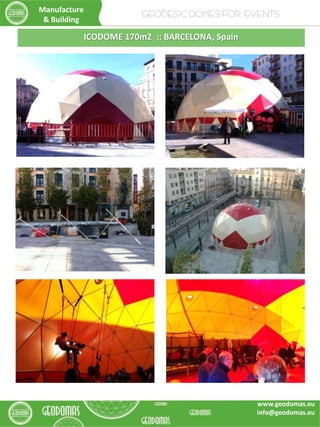

ICODOME 170m2 :: BARCELONA, Spain
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 4 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 177 m2
DIAMETER : 15 m
HEIGHT : 7,5 m
VOLUME : 780m³
FRAME WEIGHT: 1200kg
TOP vent
ZIP vent
OCTADOME177 F8
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 3 pc.
ZIP WENT : 2 pc.
FLOOR AREA : 201m2
DIAMETER : 16 m
HEIGHT : 5,5 m
VOLUME : 835 m³
PACKAGE TYPE: Euro pallets 4pc.
TOP vent
ZIP vent
ICODOME201 F6 LOW
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 4 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 201 m2
DIAMETER : 16 m
HEIGHT : 8 m
VOLUME : 1047m³
TOP vent
ZIP vent
16m
OCTADOME201 F8
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

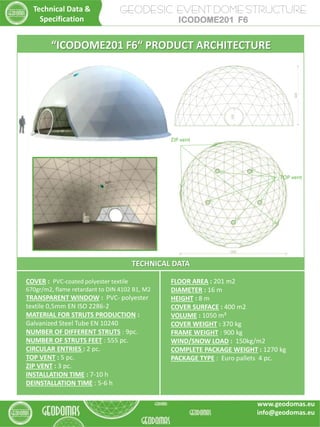

ICODOME201 F6
TECHNICAL DATA
TOP VENT : 5 pc.
ZIP VENT : 3 pc.
FLOOR AREA : 201 m2
DIAMETER : 16 m
HEIGHT : 8 m
VOLUME : 1050 m³
Technical Data &
Specification
TOP vent
ZIP vent
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 5 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 201m2
DIAMETER : 16 m
HEIGHT : 5,5 m
VOLUME : 835 m³
TOP vent
ZIP vent
ICODOME254 F6 LOW
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 4 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 254 m2
DIAMETER : 18m
HEIGHT : 9 m
VOLUME : 1450m³
TOP vent
ZIP vent

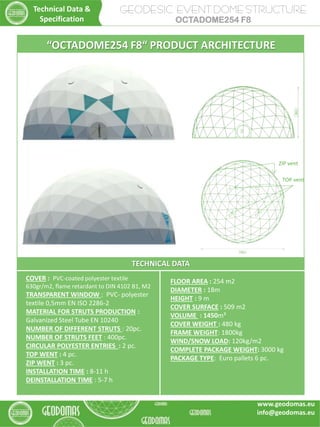

OCTADOME254 F8
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 5 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 314m2
DIAMETER : 20 m
HEIGHT : 7 m
VOLUME : 1641 m³
TOP vent
ZIP vent
ICODOME314 F6 LOW
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 4 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 314 m2
DIAMETER : 20m
HEIGHT : 10 m
VOLUME : 2050m³
TOP vent
ZIP vent
ICODOME314 F8
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

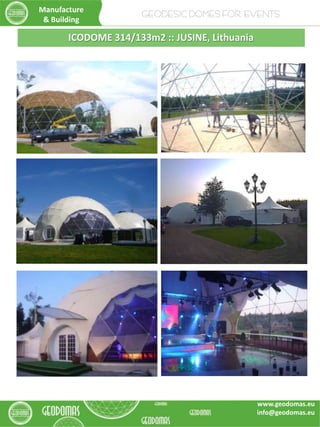

ICODOME 314/133m2 :: JUSINE, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

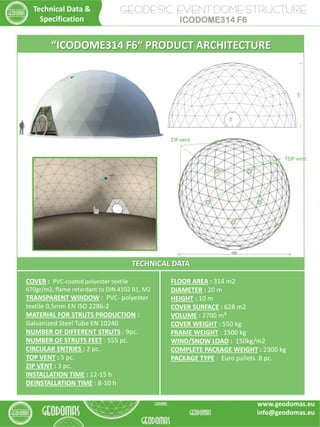

ICODOME314 F6
TECHNICAL DATA
TOP VENT : 5 pc.
ZIP VENT : 3 pc.
FLOOR AREA : 314 m2
DIAMETER : 20 m
HEIGHT : 10 m
VOLUME : 2700 m³
Technical Data &
Specification
TOP vent
ZIP vent
www.geodomas.eu
info@geodomas.eu

ICODOME 314/50m2 :: CONFERENCE CENTRUM, BAKU, AR
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 5 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 409m2
DIAMETER : 25 m
HEIGHT : 8,2 m
VOLUME : 2800 m³
TOP vent
ZIP vent

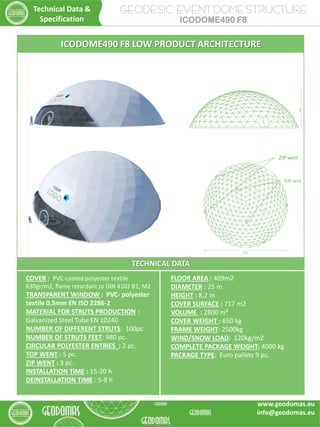

ICODOME490 F8
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

ICODOME450m2 LOW :: RODEO DOME, LEDZINY, POLAND
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
TOP WENT : 5 pc.
ZIP WENT : 3 pc.
FLOOR AREA : 707m2
DIAMETER : 30 m
HEIGHT : 10 m
VOLUME : 5240 m³
TOP vent
ZIP vent
ICODOME707 F8 LOW
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

ICODOME707 LOW/50/28 :: ZOOSAFARI, BORYSEW, POLAND
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA

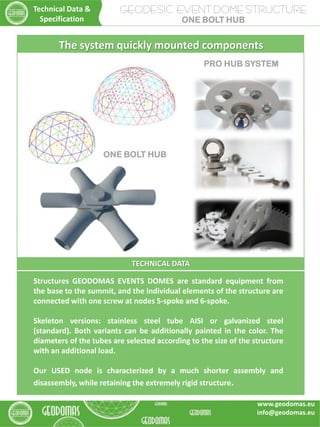

Structures GEODOMAS EVENTS DOMES are standard equipment from
the base to the summit, and the individual elements of the structure are
connected with one screw at nodes 5-spoke and 6-spoke.
Skeleton versions: stainless steel tube AISI or galvanized steel
(standard). Both variants can be additionally painted in the color. The
diameters of the tubes are selected according to the size of the structure
with an additional load.
Our USED node is characterized by a much shorter assembly and
disassembly, while retaining the extremely rigid structure.
The system quickly mounted components
ONE BOLT HUB
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu
ONE BOLT HUB

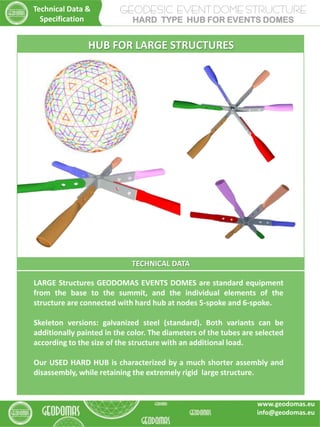

PRO HUB SYSTEM

TECHNICAL DATA
LARGE Structures GEODOMAS EVENTS DOMES are standard equipment
from the base to the summit, and the individual elements of the
structure are connected with hard hub at nodes 5-spoke and 6-spoke.
Skeleton versions: galvanized steel (standard). Both variants can be
additionally painted in the color. The diameters of the tubes are selected
according to the size of the structure with an additional load.
Our USED HARD HUB is characterized by a much shorter assembly and
disassembly, while retaining the extremely rigid large structure.
HUB FOR LARGE STRUCTURES
HARD TYPE HUB FOR EVENTS DOMES
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TRANSPORT BAGS
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu
HARD BOX

TECHNICAL DATA

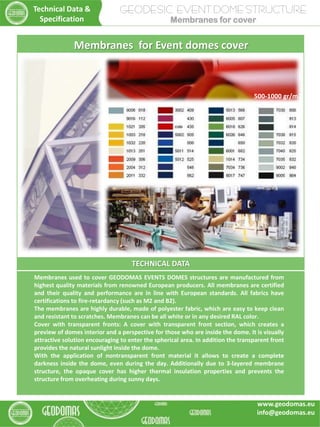

Membranes used to cover GEODOMAS EVENTS DOMES structures are manufactured from
highest quality materials from renowned European producers. All membranes are certified
and their quality and performance are in line with European standards. All fabrics have
certifications to fire-retardancy (such as M2 and B2).
The membranes are highly durable, made of polyester fabric, which are easy to keep clean
and resistant to scratches. Membranes can be all white or in any desired RAL color.
Cover with transparent fronts: A cover with transparent front section, which creates a
preview of domes interior and a perspective for those who are inside the dome. It is visually
attractive solution encouraging to enter the spherical area. In addition the transparent front
provides the natural sunlight inside the dome.
With the application of nontransparent front material it allows to create a complete
darkness inside the dome, even during the day. Additionally due to 3-layered membrane
structure, the opaque cover has higher thermal insulation properties and prevents the
structure from overheating during sunny days.
Membranes for Event domes cover
500-1000 gr/m2
Membranes for cover
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

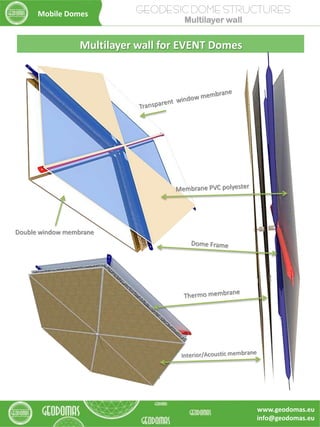

Multilayer wall for EVENT Domes
GEODESIC DOME STRUCTURES
Multilayer wall
Double window membrane
Mobile Domes
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
Thermo Membrane is the first thin, multi-reflector, multi-layer insulation system with all surfaces fully
thermally welded together. Thermo Membrane provides an almost impenetrable barrier against
infrared radiation in both summer and winter.
Thermo Membranes
Thermo Membranes Heading ant Condition
Mobile Domes
www.geodomas.eu
info@geodomas.eu
thickness +/- 7 mm
Number of layers of aluminum 2
The thickness of the polyethylene foam -
Thickness ext. a layer of polyethylene 30 μm
occasion +/-550 g/m2
Tear resistance 1.000 kg/m2
R [m2 K/W] R= 2,639 m2 K/W
Impact sound ΔLw = 26 dB
The scope of work temperature - 40°C - +80°C

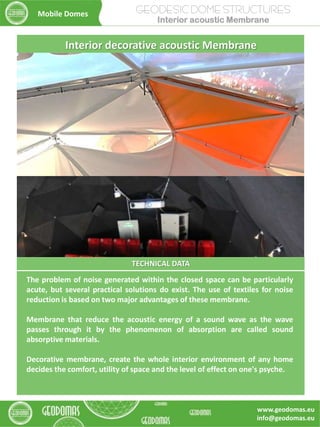

TECHNICAL DATA
The problem of noise generated within the closed space can be particularly
acute, but several practical solutions do exist. The use of textiles for noise
reduction is based on two major advantages of these membrane.
Membrane that reduce the acoustic energy of a sound wave as the wave
passes through it by the phenomenon of absorption are called sound
absorptive materials.
Decorative membrane, create the whole interior environment of any home
decides the comfort, utility of space and the level of effect on one's psyche.
Interior decorative acoustic Membrane
Interior acoustic Membrane
Mobile Domes
www.geodomas.eu
info@geodomas.eu

TECHNICAL DATA
Ground Screws are a high performance solution to all your ground
anchor needs. They are precisely adjustable, storm proof, suitable for all
types of ground, resonably priced and easy to remove and re-use.
The Ground Screws are installed, using a number of different screwing
aids and machines. Perfectly perpendicular and at the exact point in a
matter of minutes. This new screw - in foundation system is not only
suitable for natural ground, but also for dense, and even tarred surfaces.
Applications are countless, from securing garden umbrellas, windy
dryers and fences; to carports, flag poles and traffic signs. Solar panel
systems, advertising boards and even outdoor buildings for events and
expositions are quickly and easily erected and removed.
Ground Screws for mobile domes
Ground Screws
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

TOP & ZIP VET SYSTEM
TECHNICAL DATA
ZIP VENT INFORMATION
MATERIAL : PVC-coated polyester textile
630gr/m2
DIMENSION : By dome triangle type
LOCK SYSTEM : PVC zipper
ADDONS : Mosquito nets
TOP VET INFORMATION
MATERIAL : PVC has exceptional
chemical resistance, excellent electrical
and thermal insulation properties.
DIAMETR : 0,45m
HEIGHT : 0,30m
WEIGHT : 0,5 kg
TOP & ZIP VENTILATION ADDONS
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

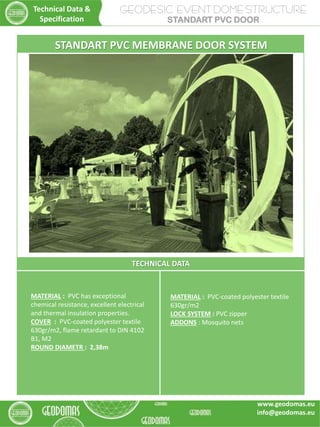

STANDART PVC DOOR
TECHNICAL DATA
MATERIAL : PVC-coated polyester textile
630gr/m2
LOCK SYSTEM : PVC zipper
MATERIAL : PVC has exceptional
chemical resistance, excellent electrical
and thermal insulation properties.
630gr/m2, flame retardant to DIN 4102
B1, M2
ROUND DIAMETR : 2,38m
STANDART PVC MEMBRANE DOOR SYSTEM
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

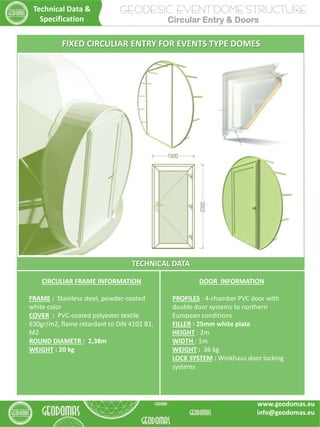

Circular Entry & Doors
TECHNICAL DATA
CIRCULIAR FRAME INFORMATION
FRAME : Stainless steel, powder-coated
white color
630gr/m2, flame retardant to DIN 4102 B1,
M2
ROUND DIAMETR : 2,38m
WEIGHT : 20 kg
DOOR INFORMATION
PROFILES : 4-chamber PVC door with
double door systems to northern
European conditions
FILLER : 25mm white plate
HEIGHT : 2m
WIDTH : 1m
WEIGHT : 36 kg
LOCK SYSTEM : Winkhaus door locking
systems
FIXED CIRCULIAR ENTRY FOR EVENTS TYPE DOMES
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

Mobile Floor An innovative flooring system is characterised by exceptional durability and
quick assembly.
Stable base for every event
Mobile Floor is based on a steel frame that maps the shape of the perimeter of the tent
and is fixed with the structure of the dome. The floor itself serves as ballast and reduces to
minimum the amount of additional weight required to keep the structure down.
Safety and functionality
Entire construction is protected against corrosion by zinc coating. Floor surface is made of
waterproof plywood with anti-slippery layer in brown or gray colour. Plywood is produced
using materials that meet European standards for fire-retardancy.
Solid mounting on the ground
The system enables mounting of the dome structure to the ground with steel pegs or with
ballast weights located beneath the surface of the floor, which excludes the use of
unaesthetic loads outside the dome.
ROUND FLOOR SYSTEM
MOBILE FLOOR SYSTEM
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

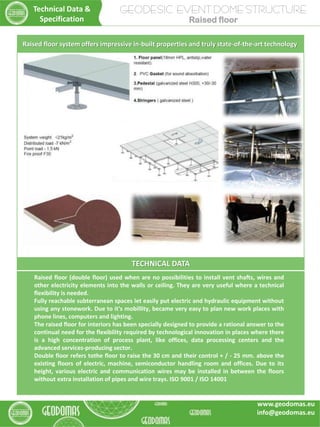

TECHNICAL DATA
Raised floor (double floor) used when are no possibilities to install vent shafts, wires and
other electricity elements into the walls or ceiling. They are very useful where a technical
flexibility is needed.
Fully reachable subterranean spaces let easily put electric and hydraulic equipment without
using any stonework. Due to it's mobillity, became very easy to plan new work places with
phone lines, computers and lighting.
The raised floor for interiors has been specially designed to provide a rational answer to the
continual need for the flexibility required by technological innovation in places where there
is a high concentration of process plant, like offices, data processing centers and the
advanced services-producing sector.
Double floor refers tothe floor to raise the 30 cm and their control + / - 25 mm. above the
existing floors of electric, machine, semiconductor handling room and offices. Due to its
height, various electric and communication wires may be installed in between the floors
without extra installation of pipes and wire trays. ISO 9001 / ISO 14001
Raised floor system offers impressive in-built properties and truly state-of-the-art technology
Raised floor
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

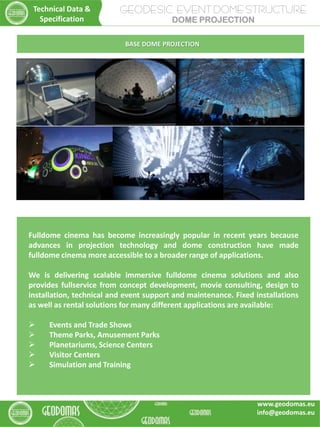

Fulldome cinema has become increasingly popular in recent years because
advances in projection technology and dome construction have made
fulldome cinema more accessible to a broader range of applications.
We is delivering scalable immersive fulldome cinema solutions and also
provides fullservice from concept development, movie consulting, design to
installation, technical and event support and maintenance. Fixed installations
as well as rental solutions for many different applications are available:
 Events and Trade Shows
 Theme Parks, Amusement Parks
 Planetariums, Science Centers
 Visitor Centers
 Simulation and Training
BASE DOME PROJECTION
DOME PROJECTION
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

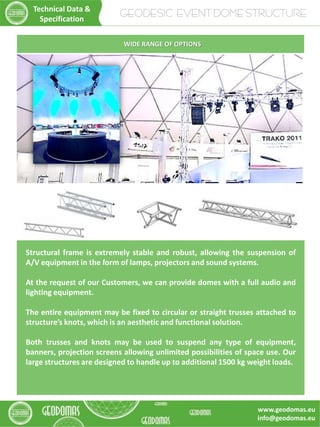

Structural frame is extremely stable and robust, allowing the suspension of
A/V equipment in the form of lamps, projectors and sound systems.
At the request of our Customers, we can provide domes with a full audio and
lighting equipment.
The entire equipment may be fixed to circular or straight trusses attached to
structure’s knots, which is an aesthetic and functional solution.
Both trusses and knots may be used to suspend any type of equipment,
banners, projection screens allowing unlimited possibilities of space use. Our
large structures are designed to handle up to additional 1500 kg weight loads.
WIDE RANGE OF OPTIONS
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

DOME SHAPED MOBILE ESTRADA
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

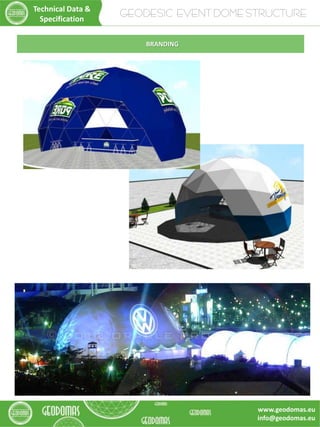

BRANDING
Technical Data &
Specification
www.geodomas.eu
info@geodomas.eu

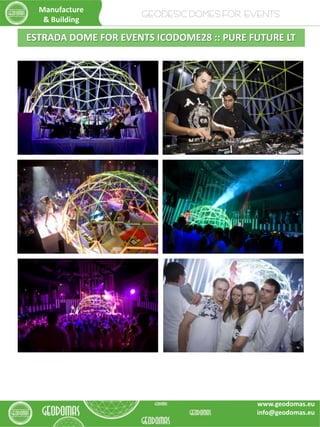

ESTRADA DOME FOR EVENTS ICODOME28 :: PURE FUTURE LT
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 314/28m2 :: MIT SŁOWIANSKI, Poland
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 314/28 :: Vilnius, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

HYBRIDOME 78m2 :: 4D CINEMA, BULGARY
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME64m2 F4 Palanga, Lietuva
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

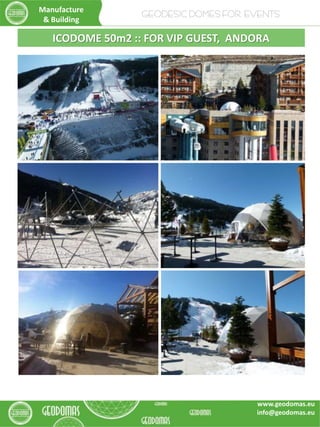

ICODOME 50m2 :: FOR VIP GUEST, ANDORA
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 50/50/28/15m2 :: NEW YEAR 2010, VILNIUS, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 50m2 :: PURE FUTURE, TRAKAI, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 28m2 F4 :: FASION BY ALEX, Vilnius, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 100m2 :: Fashion Infection, Vilnius, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

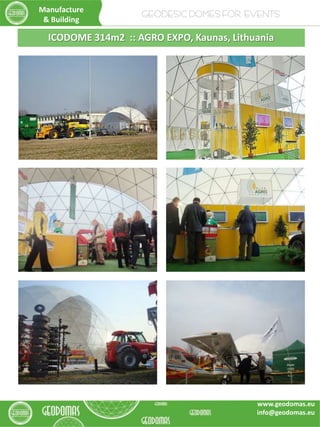

ICODOME 314m2 :: AGRO EXPO, Kaunas, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 28/28m2 :: Vilnius, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

ICODOME 95/28m2 :: Vilnius, Lithuania
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

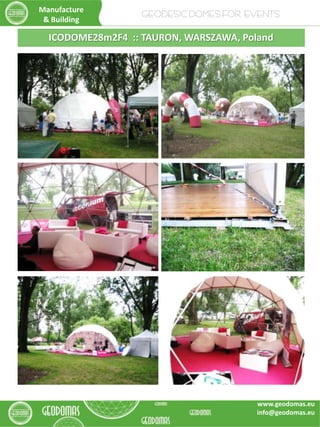

ICODOME28m2F4 :: TAURON, WARSZAWA, Poland
Manufacture
& Building
www.geodomas.eu
info@geodomas.eu

Geodesic Tent Portable Domes

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Geodesic Tent Portable Domes

Similar to Geodesic Tent Portable Domes (20)

More from Geodomas Engineering

More from Geodomas Engineering (9)

Recently uploaded

Recently uploaded (20)

Geodesic Tent Portable Domes
