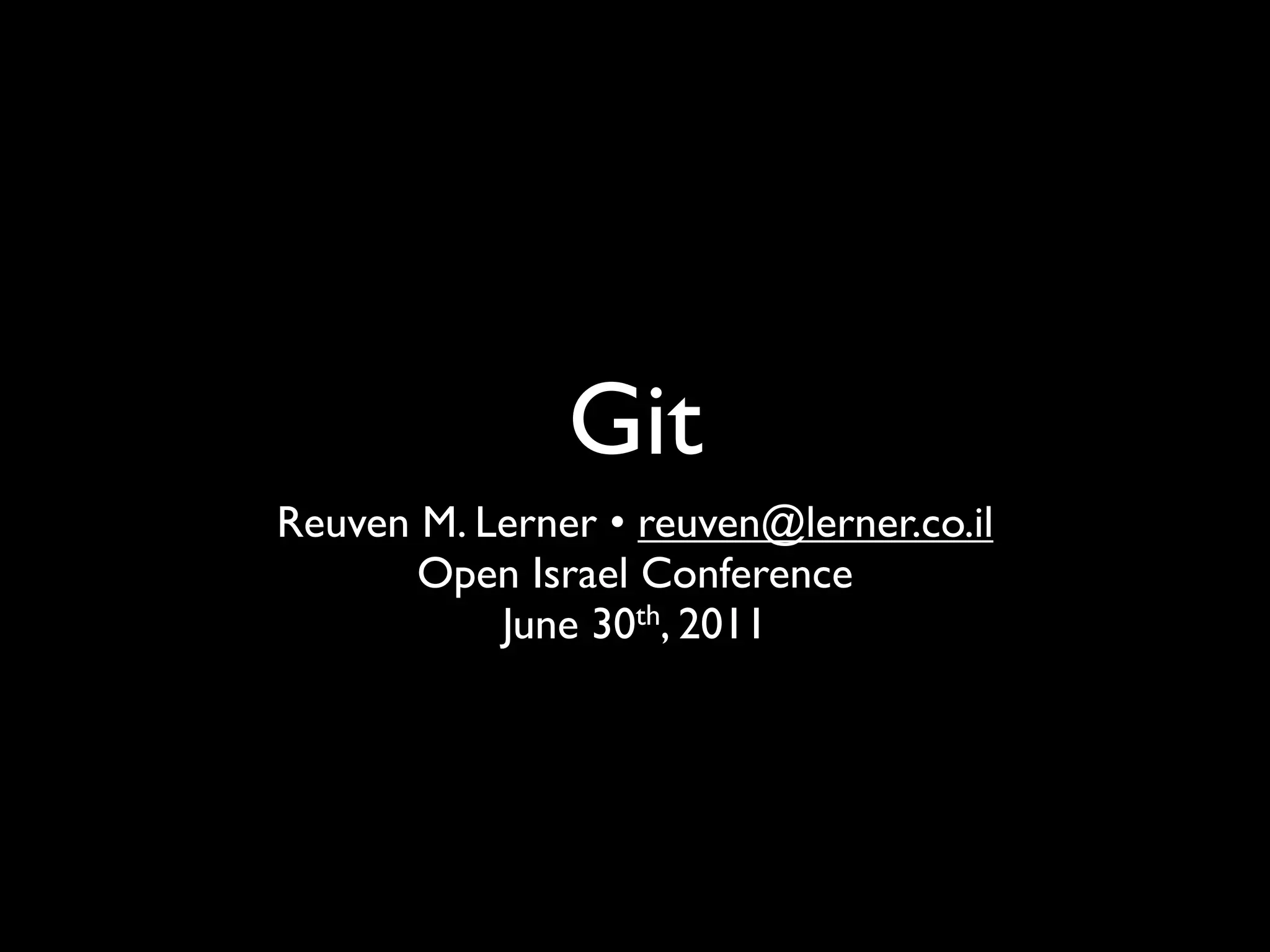

1. Git
Reuven M. Lerner • reuven@lerner.co.il
Open Israel Conference
June 30th, 2011

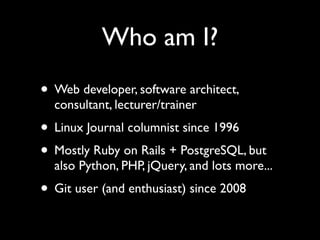

2. Who am I?
• Web developer, software architect,
consultant, lecturer/trainer
• Linux Journal columnist since 1996
• Mostly Ruby on Rails + PostgreSQL, but
also Python, PHP, jQuery, and lots more...
• Git user (and enthusiast) since 2008

3. What is
version control?

4. Time machine
• Return to any point in
a project’s history
• Find out how files,
folders have changed
• Learn which user
made which changes

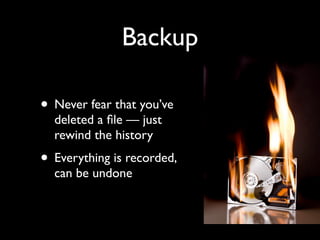

5. Backup
• Never fear that you’ve
deleted a file — just
rewind the history
• Everything is recorded,
can be undone

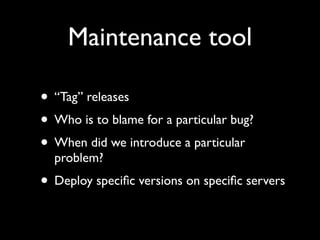

6. Maintenance tool
• “Tag” releases
• Who is to blame for a particular bug?
• When did we introduce a particular
problem?
• Deploy specific versions on specific servers

7. Scratchpad
• Try out new ideas
• Experiment with alternative techniques
• Upgrade a library
• Refactor without affecting the “live” code
base

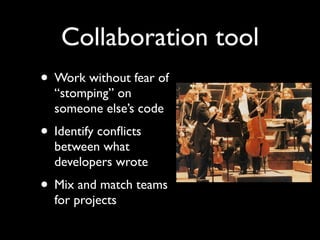

8. Collaboration tool
• Work without fear of
“stomping” on
someone else’s code
• Identify conflicts
between what
developers wrote
• Mix and match teams
for projects

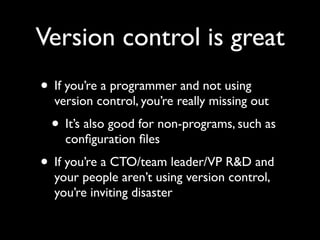

9. Version control is great
• If you’re a programmer and not using
version control, you’re really missing out
• It’s also good for non-programs, such as
configuration files
• If you’re a CTO/team leader/VP R&D and
your people aren’t using version control,
you’re inviting disaster

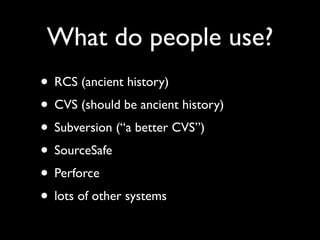

10. What do people use?
• RCS (ancient history)
• CVS (should be ancient history)
• Subversion (“a better CVS”)
• SourceSafe
• Perforce
• lots of other systems

11. Problems with these
• Work requires a server connection
• (You can work, but not commit.)
• Branching and merging is painful and slow
• So no one does it!
• Enforces a particular workflow
• More code, more developers — slower VC

12. Distributed version
control
• Distributed: Everyone is their own server!
• Everyone has a complete commit history
• No single point of failure
• Commit whenever you want (i.e., often)
• Merge when two repositories connect

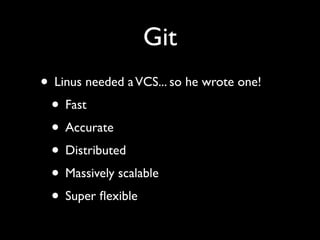

13. Git
• Linus needed a VCS... so he wrote one!
• Fast
• Accurate
• Distributed
• Massively scalable
• Super flexible

14. Open-source Git users
• Linux kernel
• PostgreSQL
• Ruby language
• Ruby on Rails
• Perl language
• among many, many others

15. Give me details!
• What does Git do that others don’t?
• Why do I claim that Git has changed my
life?

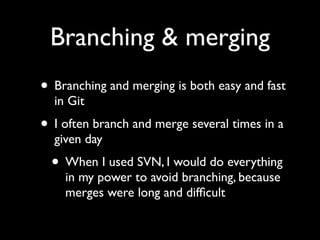

16. Branching & merging
• Branching and merging is both easy and fast
in Git
• I often branch and merge several times in a
given day
• When I used SVN, I would do everything
in my power to avoid branching, because
merges were long and difficult

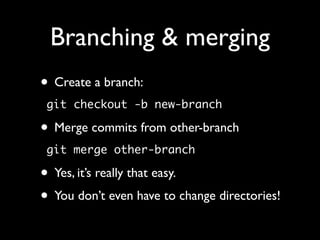

17. Branching & merging
• Create a branch:
git checkout -b new-branch
• Merge commits from other-branch
git merge other-branch
• Yes, it’s really that easy.
• You don’t even have to change directories!

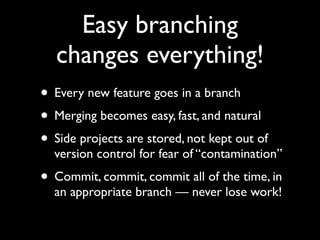

18. Easy branching
changes everything!
• Every new feature goes in a branch
• Merging becomes easy, fast, and natural
• Side projects are stored, not kept out of
version control for fear of “contamination”
• Commit, commit, commit all of the time, in
an appropriate branch — never lose work!

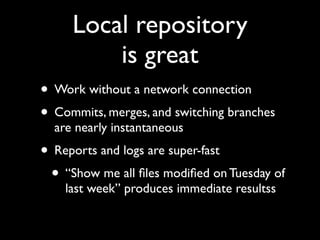

19. Local repository
is great
• Work without a network connection
• Commits, merges, and switching branches
are nearly instantaneous
• Reports and logs are super-fast
• “Show me all files modified on Tuesday of
last week” produces immediate resultss

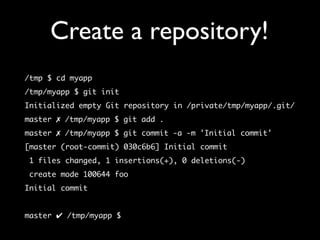

20. Create a repository!
/tmp $ cd myapp
/tmp/myapp $ git init
Initialized empty Git repository in /private/tmp/myapp/.git/
master ✗ /tmp/myapp $ git add .
master ✗ /tmp/myapp $ git commit -a -m 'Initial commit'
[master (root-commit) 030c6b6] Initial commit
1 files changed, 1 insertions(+), 0 deletions(-)
create mode 100644 foo
Initial commit
master ✔ /tmp/myapp $

21. Create a repository!
/tmp $ cd myapp
/tmp/myapp $ git init
Initialized empty Git repository in /private/tmp/myapp/.git/
master ✗ /tmp/myapp $ git add .
master ✗ /tmp/myapp $ git commit -a -m 'Initial commit'
[master (root-commit) 030c6b6] Initial commit
1 files changed, 1 insertions(+), 0 deletions(-)
create mode 100644 foo
Initial commit
master ✔ /tmp/myapp $

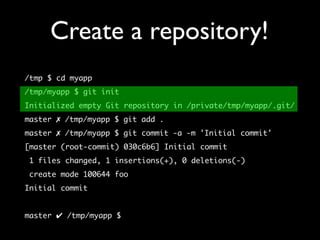

22. Create a repository!
/tmp $ cd myapp
/tmp/myapp $ git init
Initialized empty Git repository in /private/tmp/myapp/.git/
master ✗ /tmp/myapp $ git add .
master ✗ /tmp/myapp $ git commit -a -m 'Initial commit'
[master (root-commit) 030c6b6] Initial commit
1 files changed, 1 insertions(+), 0 deletions(-)
create mode 100644 foo
Initial commit
master ✔ /tmp/myapp $

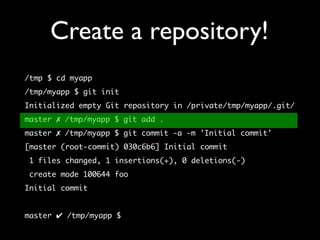

23. Create a repository!
/tmp $ cd myapp
/tmp/myapp $ git init
Initialized empty Git repository in /private/tmp/myapp/.git/
master ✗ /tmp/myapp $ git add .
master ✗ /tmp/myapp $ git commit -a -m 'Initial commit'
[master (root-commit) 030c6b6] Initial commit
1 files changed, 1 insertions(+), 0 deletions(-)
create mode 100644 foo
Initial commit
master ✔ /tmp/myapp $

24. Create a repository!
/tmp $ cd myapp
/tmp/myapp $ git init
Initialized empty Git repository in /private/tmp/myapp/.git/
master ✗ /tmp/myapp $ git add .
master ✗ /tmp/myapp $ git commit -a -m 'Initial commit'
[master (root-commit) 030c6b6] Initial commit
1 files changed, 1 insertions(+), 0 deletions(-)
create mode 100644 foo
Initial commit
master ✔ /tmp/myapp $

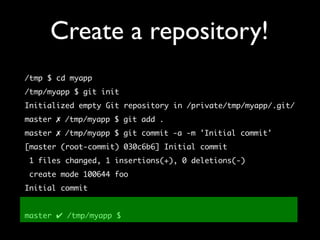

25. Create a repository!
/tmp $ cd myapp
/tmp/myapp $ git init
Initialized empty Git repository in /private/tmp/myapp/.git/
master ✗ /tmp/myapp $ git add .
master ✗ /tmp/myapp $ git commit -a -m 'Initial commit'
[master (root-commit) 030c6b6] Initial commit
1 files changed, 1 insertions(+), 0 deletions(-)
create mode 100644 foo
Initial commit
master ✔ /tmp/myapp $

26. The result
master ✔ /tmp/myapp $ git log
commit 030c6b691993e0f43d78119d9ff1c9e759120d11
Author: Reuven Lerner <reuven@lerner.co.il>
Date: Thu Jun 30 12:29:29 2011 +0300
I

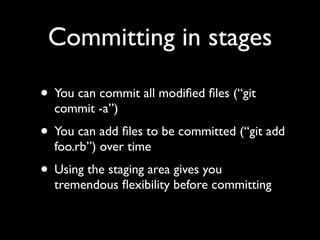

27. Committing in stages
• You can commit all modified files (“git
commit -a”)
• You can add files to be committed (“git add
foo.rb”) over time
• Using the staging area gives you
tremendous flexibility before committing

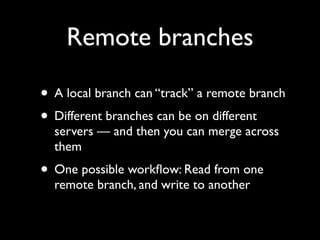

28. Remote branches
• A local branch can “track” a remote branch
• Different branches can be on different
servers — and then you can merge across
them
• One possible workflow: Read from one
remote branch, and write to another

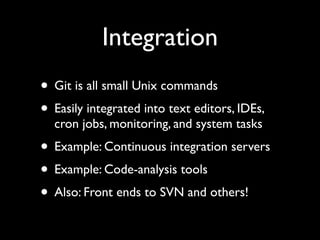

29. Integration
• Git is all small Unix commands
• Easily integrated into text editors, IDEs,
cron jobs, monitoring, and system tasks
• Example: Continuous integration servers
• Example: Code-analysis tools
• Also: Front ends to SVN and others!

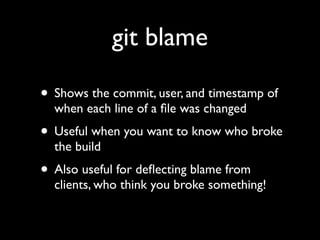

30. git blame
• Shows the commit, user, and timestamp of
when each line of a file was changed
• Useful when you want to know who broke
the build
• Also useful for deflecting blame from
clients, who think you broke something!

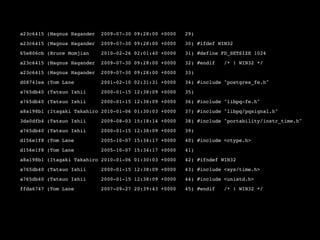

31. a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 29)
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 30) #ifdef WIN32
65e806cb (Bruce Momjian 2010-02-26 02:01:40 +0000 31) #define FD_SETSIZE 1024
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 32) #endif /* ! WIN32 */
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 33)
d08741ea (Tom Lane 2001-02-10 02:31:31 +0000 34) #include "postgres_fe.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 35)
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 36) #include "libpq-fe.h"
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 37) #include "libpq/pqsignal.h"
3da0dfb4 (Tatsuo Ishii 2009-08-03 15:18:14 +0000 38) #include "portability/instr_time.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 39)
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 40) #include <ctype.h>
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 41)
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 42) #ifndef WIN32
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 43) #include <sys/time.h>
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 44) #include <unistd.h>
ffda6747 (Tom Lane 2007-09-27 20:39:43 +0000 45) #endif /* ! WIN32 */

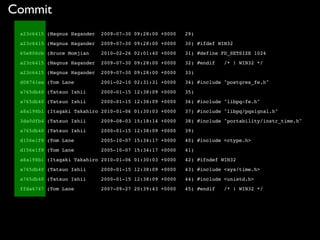

32. Commit
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 29)
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 30) #ifdef WIN32
65e806cb (Bruce Momjian 2010-02-26 02:01:40 +0000 31) #define FD_SETSIZE 1024
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 32) #endif /* ! WIN32 */
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 33)
d08741ea (Tom Lane 2001-02-10 02:31:31 +0000 34) #include "postgres_fe.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 35)
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 36) #include "libpq-fe.h"
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 37) #include "libpq/pqsignal.h"
3da0dfb4 (Tatsuo Ishii 2009-08-03 15:18:14 +0000 38) #include "portability/instr_time.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 39)
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 40) #include <ctype.h>
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 41)
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 42) #ifndef WIN32
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 43) #include <sys/time.h>
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 44) #include <unistd.h>
ffda6747 (Tom Lane 2007-09-27 20:39:43 +0000 45) #endif /* ! WIN32 */

33. Commit User
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 29)
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 30) #ifdef WIN32
65e806cb (Bruce Momjian 2010-02-26 02:01:40 +0000 31) #define FD_SETSIZE 1024
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 32) #endif /* ! WIN32 */
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 33)
d08741ea (Tom Lane 2001-02-10 02:31:31 +0000 34) #include "postgres_fe.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 35)
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 36) #include "libpq-fe.h"
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 37) #include "libpq/pqsignal.h"
3da0dfb4 (Tatsuo Ishii 2009-08-03 15:18:14 +0000 38) #include "portability/instr_time.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 39)
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 40) #include <ctype.h>
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 41)
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 42) #ifndef WIN32
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 43) #include <sys/time.h>
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 44) #include <unistd.h>
ffda6747 (Tom Lane 2007-09-27 20:39:43 +0000 45) #endif /* ! WIN32 */

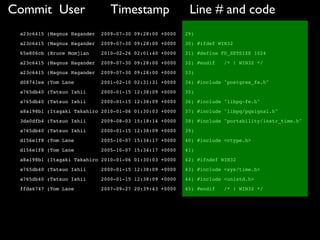

34. Commit User Timestamp
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 29)
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 30) #ifdef WIN32
65e806cb (Bruce Momjian 2010-02-26 02:01:40 +0000 31) #define FD_SETSIZE 1024
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 32) #endif /* ! WIN32 */
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 33)
d08741ea (Tom Lane 2001-02-10 02:31:31 +0000 34) #include "postgres_fe.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 35)
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 36) #include "libpq-fe.h"
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 37) #include "libpq/pqsignal.h"
3da0dfb4 (Tatsuo Ishii 2009-08-03 15:18:14 +0000 38) #include "portability/instr_time.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 39)
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 40) #include <ctype.h>
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 41)
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 42) #ifndef WIN32
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 43) #include <sys/time.h>
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 44) #include <unistd.h>
ffda6747 (Tom Lane 2007-09-27 20:39:43 +0000 45) #endif /* ! WIN32 */

35. Commit User Timestamp Line # and code
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 29)
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 30) #ifdef WIN32
65e806cb (Bruce Momjian 2010-02-26 02:01:40 +0000 31) #define FD_SETSIZE 1024
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 32) #endif /* ! WIN32 */
a23c6415 (Magnus Hagander 2009-07-30 09:28:00 +0000 33)
d08741ea (Tom Lane 2001-02-10 02:31:31 +0000 34) #include "postgres_fe.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 35)
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 36) #include "libpq-fe.h"
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 37) #include "libpq/pqsignal.h"
3da0dfb4 (Tatsuo Ishii 2009-08-03 15:18:14 +0000 38) #include "portability/instr_time.h"
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 39)
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 40) #include <ctype.h>
d156e1f8 (Tom Lane 2005-10-07 15:34:17 +0000 41)
a8a198b1 (Itagaki Takahiro 2010-01-06 01:30:03 +0000 42) #ifndef WIN32
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 43) #include <sys/time.h>
a765db40 (Tatsuo Ishii 2000-01-15 12:38:09 +0000 44) #include <unistd.h>
ffda6747 (Tom Lane 2007-09-27 20:39:43 +0000 45) #endif /* ! WIN32 */

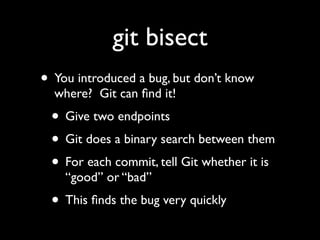

36. git bisect
• You introduced a bug, but don’t know
where? Git can find it!
• Give two endpoints
• Git does a binary search between them
• For each commit, tell Git whether it is
“good” or “bad”
• This finds the bug very quickly

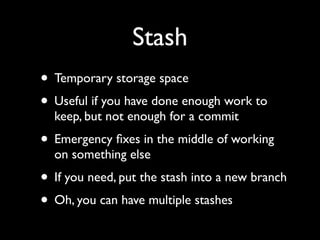

37. Stash
• Temporary storage space
• Useful if you have done enough work to
keep, but not enough for a commit
• Emergency fixes in the middle of working
on something else
• If you need, put the stash into a new branch
• Oh, you can have multiple stashes

38. Hooks
• Execute arbitrary code when things happen
• Example: Update submodules automatically
• Example: Send e-mail after a commit
• Example: Heroku uses hooks to deploy a
new version of your Web app when you
push to them!

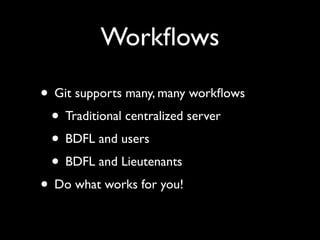

39. Workflows
• Git supports many, many workflows
• Traditional centralized server
• BDFL and users
• BDFL and Lieutenants
• Do what works for you!

40. Traditional
Source: ProGit.org

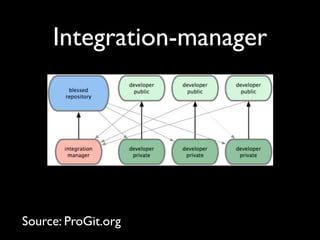

41. Integration-manager
Source: ProGit.org

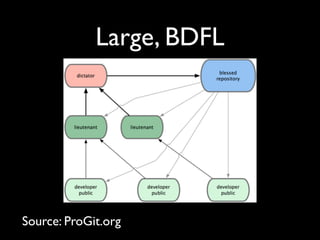

42. Large, BDFL
Source: ProGit.org

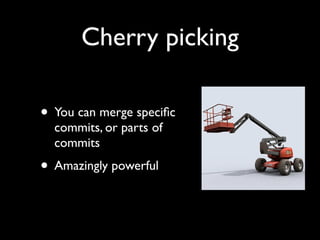

43. Cherry picking
• You can merge specific
commits, or parts of
commits
• Amazingly powerful

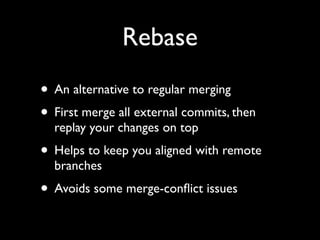

44. Rebase
• An alternative to regular merging
• First merge all external commits, then
replay your changes on top
• Helps to keep you aligned with remote
branches
• Avoids some merge-conflict issues

45. Submodules
• A Git repository can point to other
repositories — submodules
• Break a project into smaller projects
• Git puts the pieces together for you!

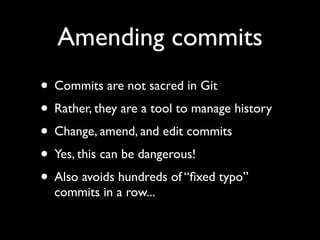

46. Amending commits
• Commits are not sacred in Git
• Rather, they are a tool to manage history
• Change, amend, and edit commits
• Yes, this can be dangerous!
• Also avoids hundreds of “fixed typo”
commits in a row...

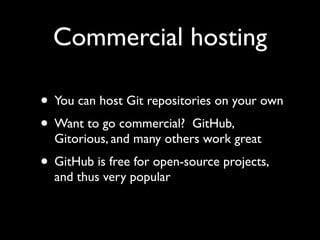

47. Commercial hosting
• You can host Git repositories on your own
• Want to go commercial? GitHub,
Gitorious, and many others work great
• GitHub is free for open-source projects,
and thus very popular

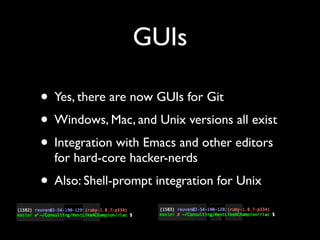

49. GUIs
• Yes, there are now GUIs for Git
• Windows, Mac, and Unix versions all exist
• Integration with Emacs and other editors
for hard-core hacker-nerds
• Also: Shell-prompt integration for Unix

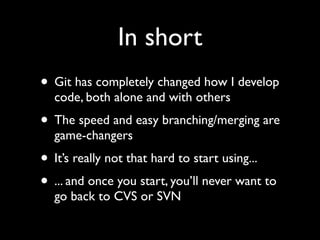

50. In short
• Git has completely changed how I develop
code, both alone and with others
• The speed and easy branching/merging are
game-changers
• It’s really not that hard to start using...
• ... and once you start, you’ll never want to
go back to CVS or SVN

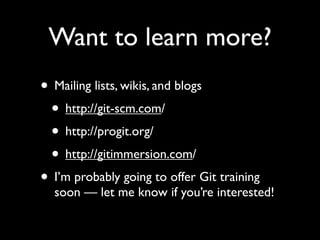

51. Want to learn more?
• Mailing lists, wikis, and blogs
• http://git-scm.com/
• http://progit.org/
• http://gitimmersion.com/
• I’m probably going to offer Git training
soon — let me know if you’re interested!

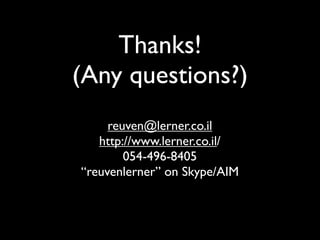

52. Thanks!
(Any questions?)
reuven@lerner.co.il
http://www.lerner.co.il/
054-496-8405
“reuvenlerner” on Skype/AIM
