![Git pull
Pull changes from remote repository
git pull
git pull [<remote> <branch>]
git pull origin master](https://image.slidesharecdn.com/powercoders-gittraining-190626180251/75/Git-training-23-2048.jpg)

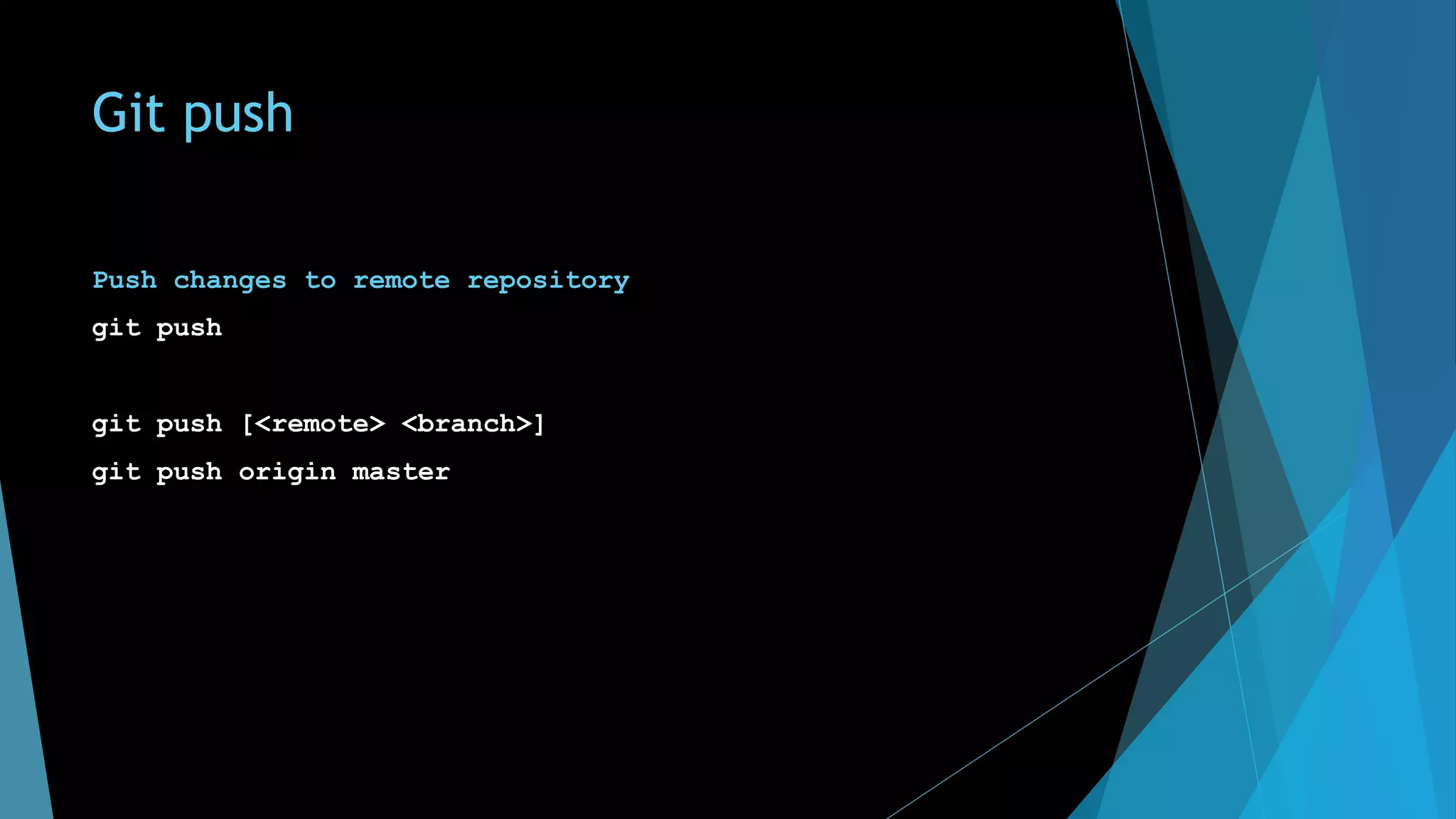

![Git push
Push changes to remote repository
git push
git push [<remote> <branch>]
git push origin master](https://image.slidesharecdn.com/powercoders-gittraining-190626180251/75/Git-training-25-2048.jpg)

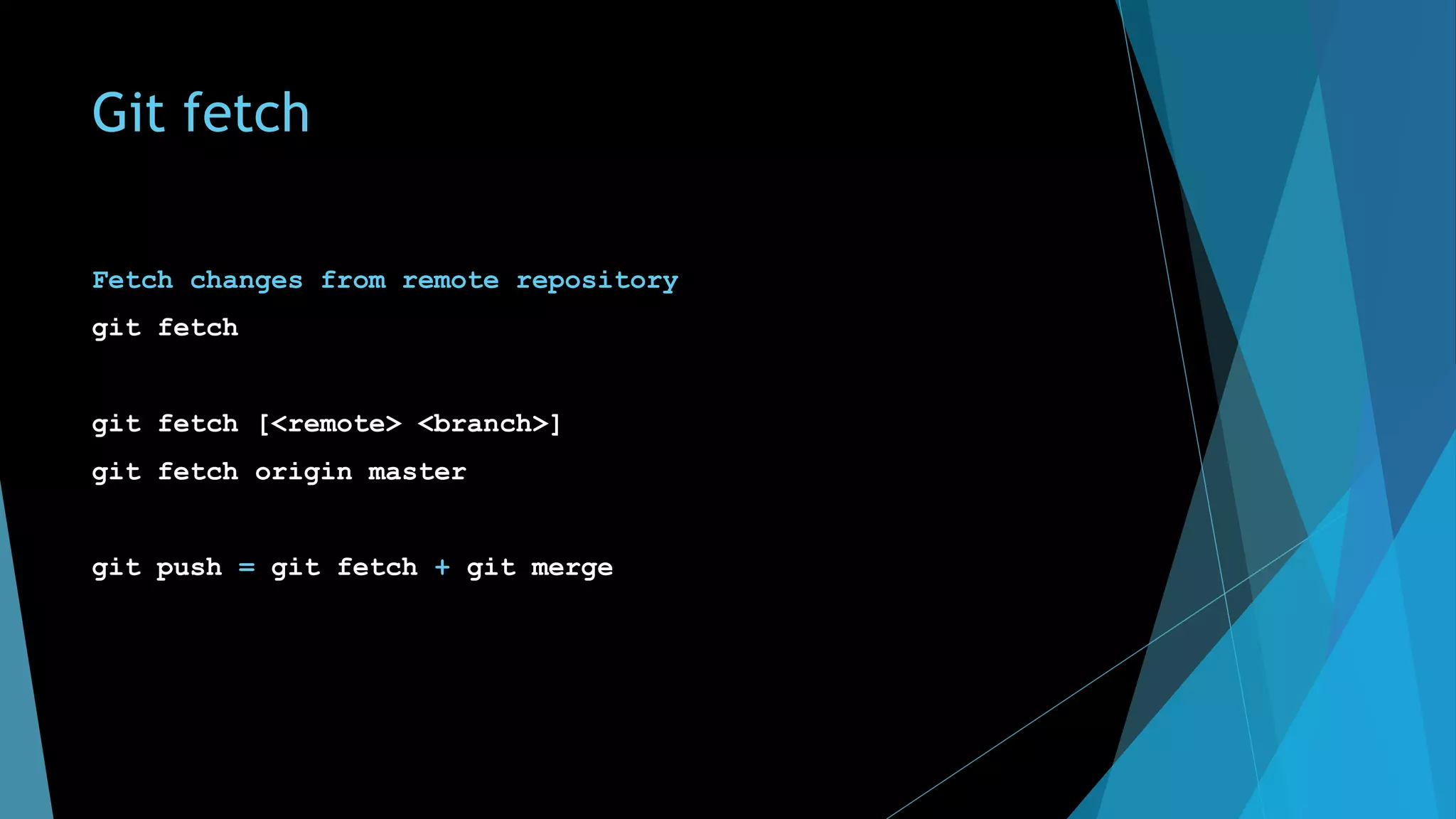

![Git fetch
Fetch changes from remote repository
git fetch
git fetch [<remote> <branch>]
git fetch origin master
git push = git fetch + git merge](https://image.slidesharecdn.com/powercoders-gittraining-190626180251/75/Git-training-27-2048.jpg)

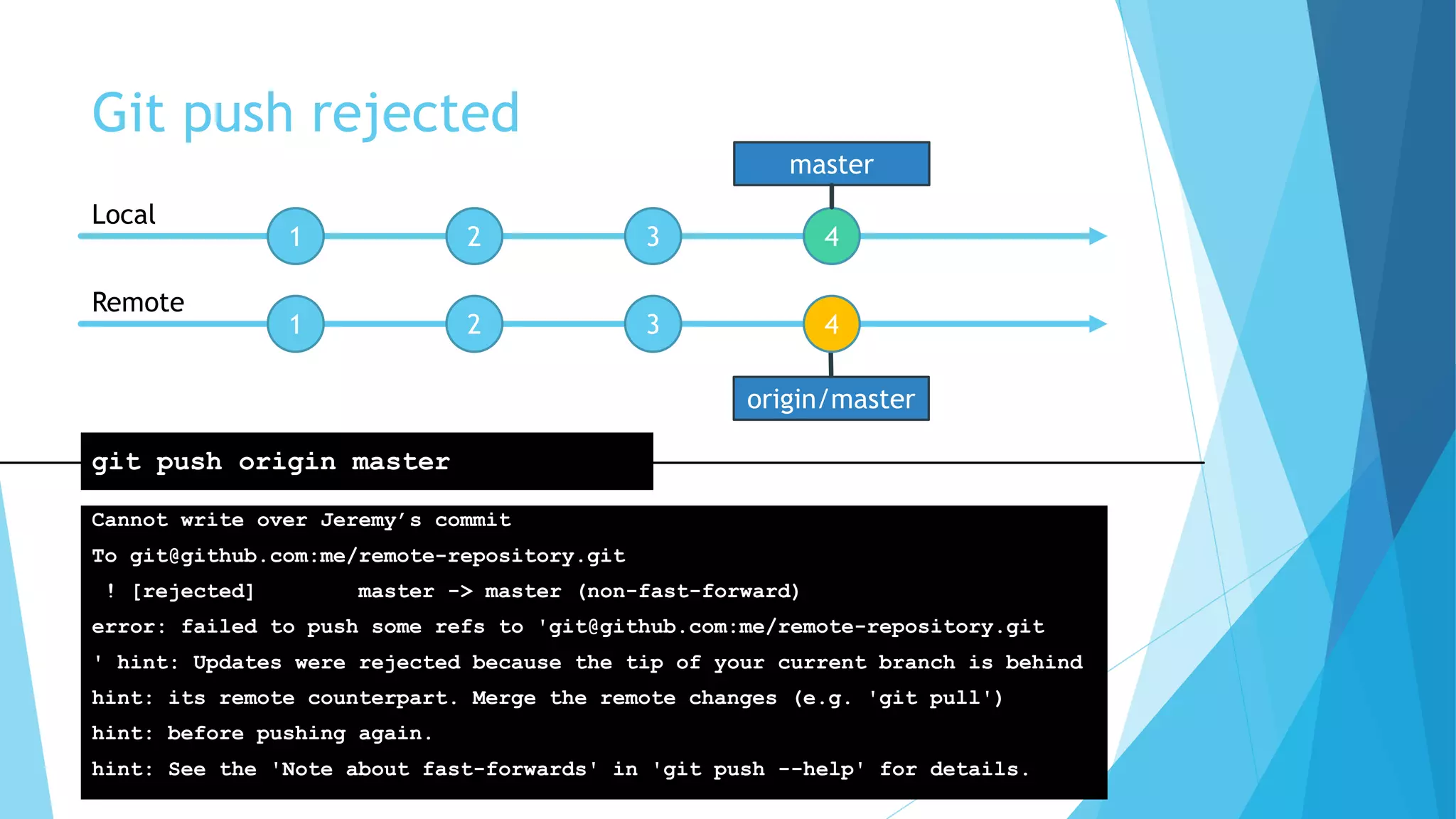

![origin/master
Git push rejected
Cannot write over Jeremy’s commit
To git@github.com:me/remote-repository.git
! [rejected] master -> master (non-fast-forward)
error: failed to push some refs to 'git@github.com:me/remote-repository.git
' hint: Updates were rejected because the tip of your current branch is behind
hint: its remote counterpart. Merge the remote changes (e.g. 'git pull')
hint: before pushing again.
hint: See the 'Note about fast-forwards' in 'git push --help' for details.
1 2 3
1 2 3 4
Local
Remote
git push origin master
4
master](https://image.slidesharecdn.com/powercoders-gittraining-190626180251/75/Git-training-33-2048.jpg)

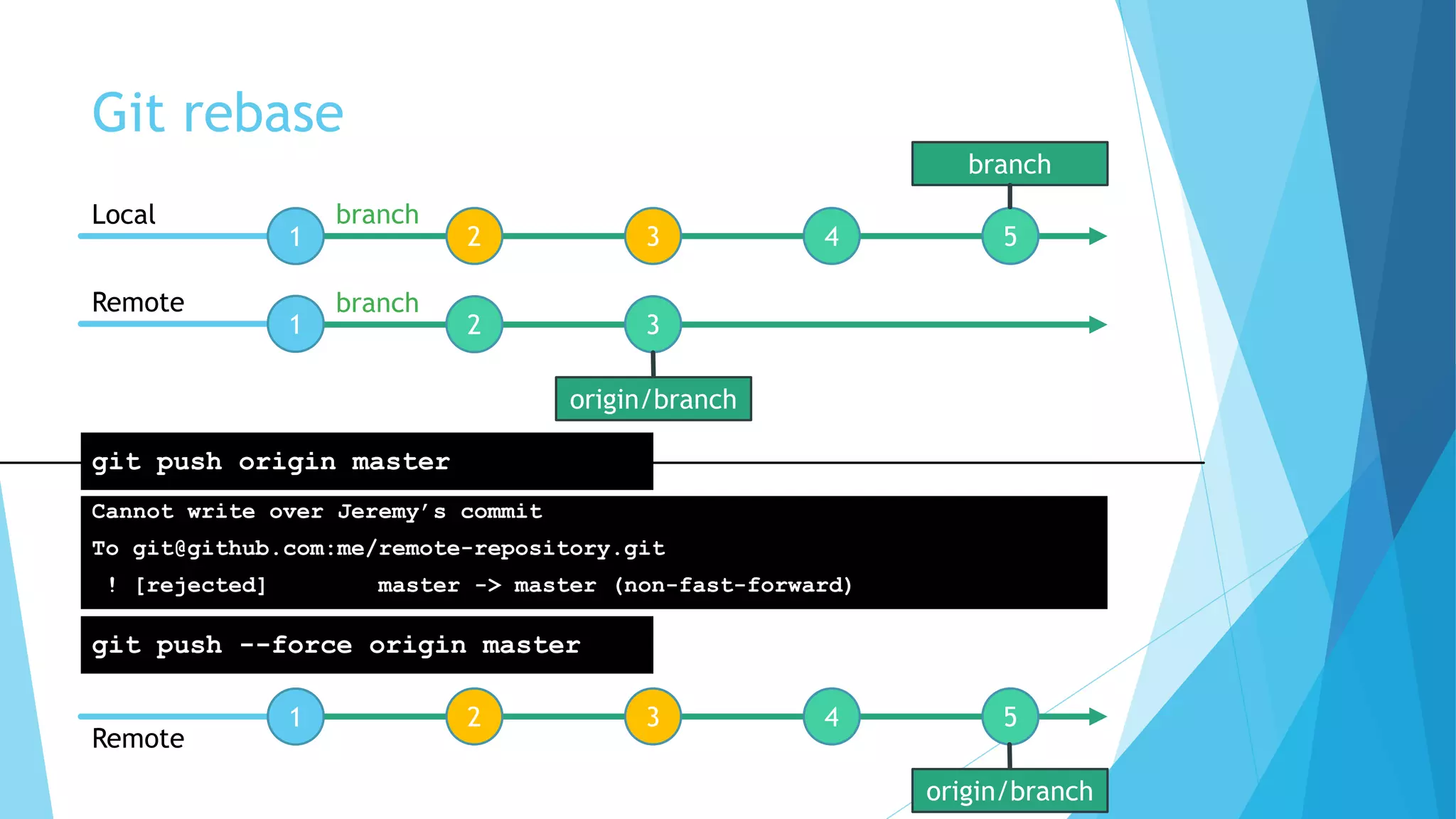

![branch
Git rebase
1
2 31
Local
Remote
git push origin master
2 3 4 5
branch
origin/branch
branch
Cannot write over Jeremy’s commit
To git@github.com:me/remote-repository.git
! [rejected] master -> master (non-fast-forward)
git push --force origin master
1 2 3 4 5
Remote
origin/branch](https://image.slidesharecdn.com/powercoders-gittraining-190626180251/75/Git-training-54-2048.jpg)

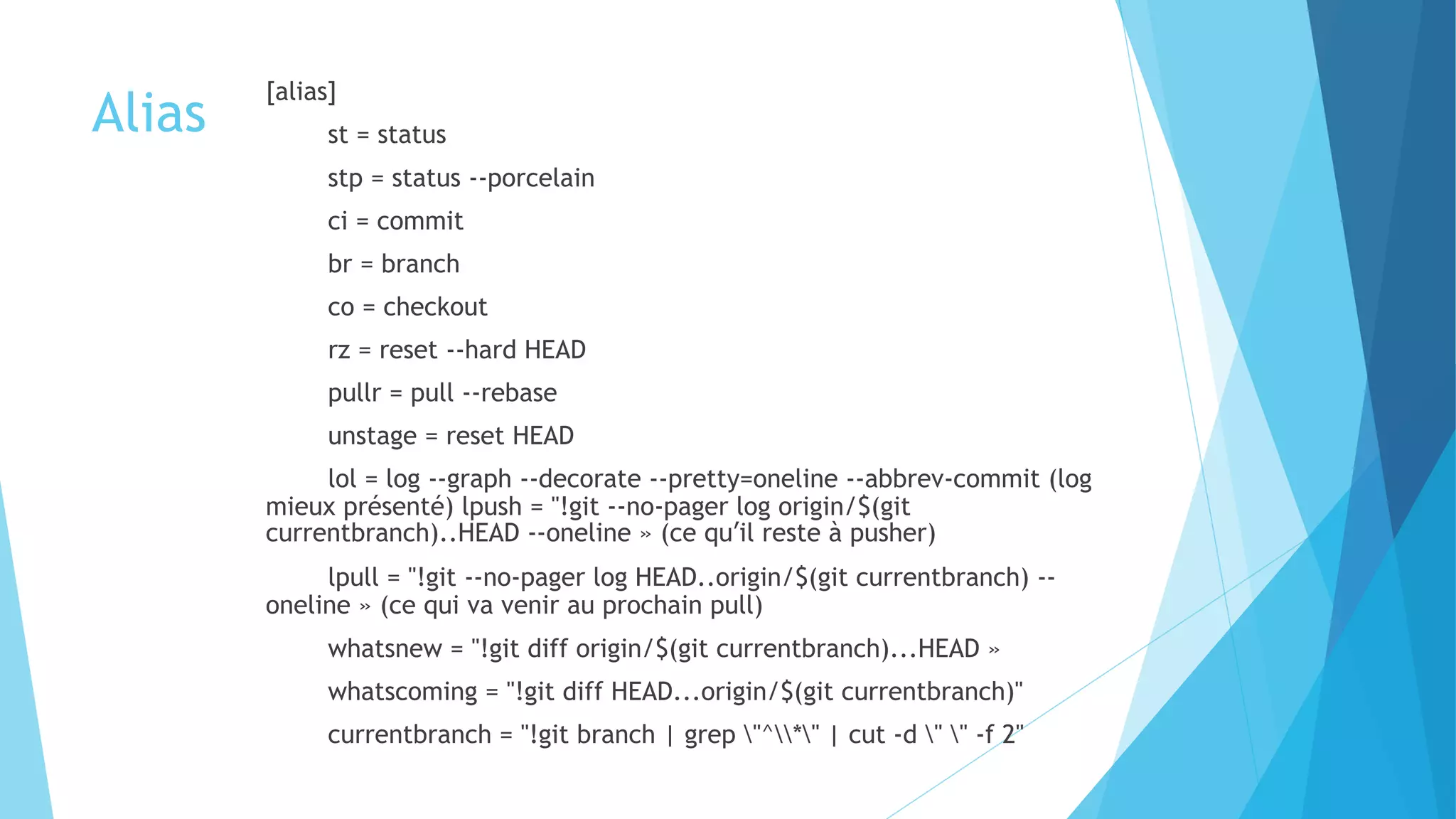

![Alias
[alias]
st = status
stp = status --porcelain
ci = commit
br = branch
co = checkout
rz = reset --hard HEAD
pullr = pull --rebase
unstage = reset HEAD
lol = log --graph --decorate --pretty=oneline --abbrev-commit (log
mieux présenté) lpush = "!git --no-pager log origin/$(git
currentbranch)..HEAD --oneline » (ce quʼil reste à pusher)
lpull = "!git --no-pager log HEAD..origin/$(git currentbranch) --
oneline » (ce qui va venir au prochain pull)
whatsnew = "!git diff origin/$(git currentbranch)...HEAD »
whatscoming = "!git diff HEAD...origin/$(git currentbranch)"
currentbranch = "!git branch | grep "^*" | cut -d " " -f 2"](https://image.slidesharecdn.com/powercoders-gittraining-190626180251/75/Git-training-69-2048.jpg)
More Related Content
Git training
- 1.

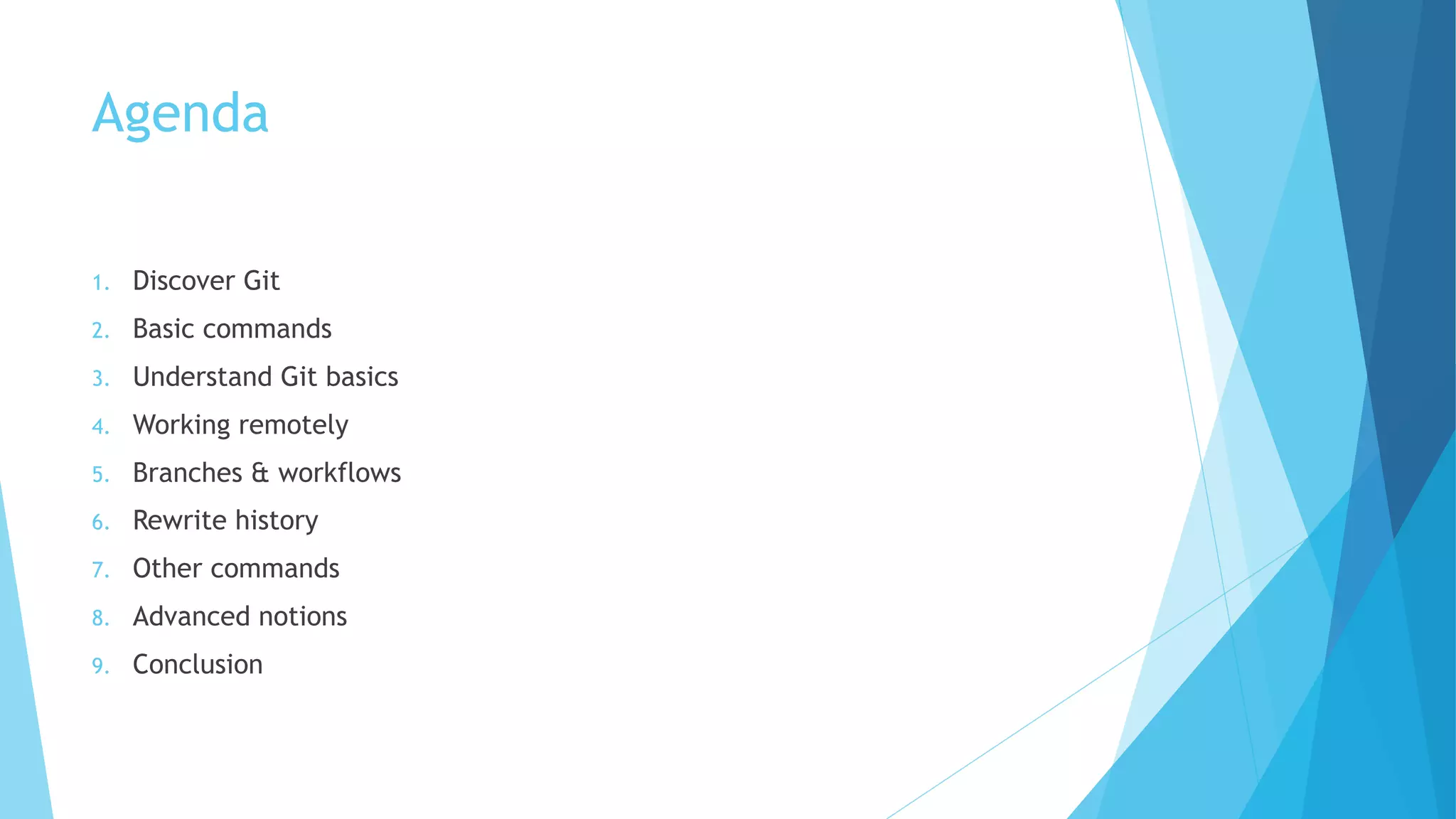

- 2. Agenda 1. Discover Git 2.Basic commands 3. Understand Git basics 4. Working remotely 5. Branches & workflows 6. Rewrite history 7. Other commands 8. Advanced notions 9. Conclusion
- 3.

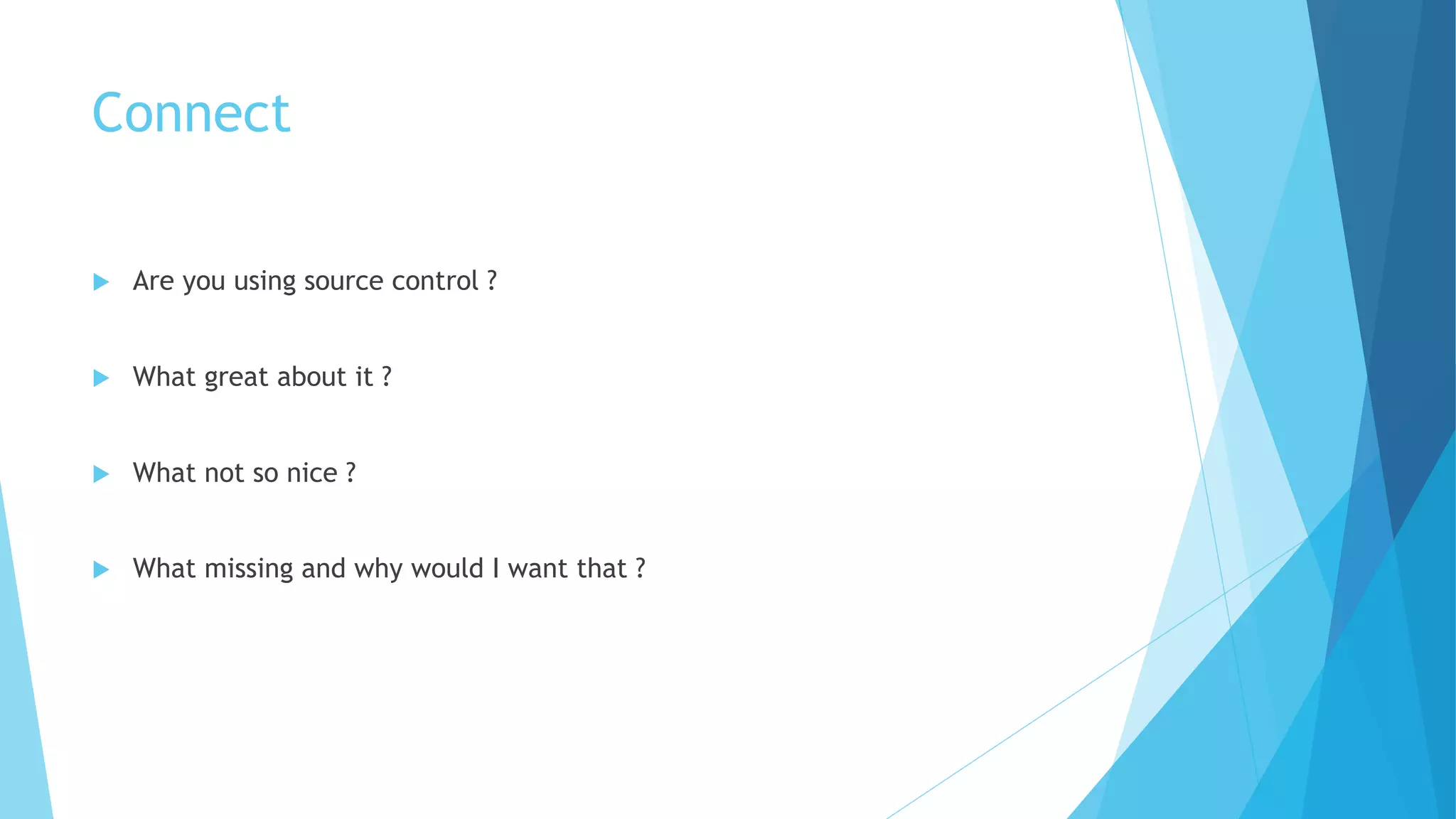

- 4. Connect u Are youusing source control ? u What great about it ? u What not so nice ? u What missing and why would I want that ?

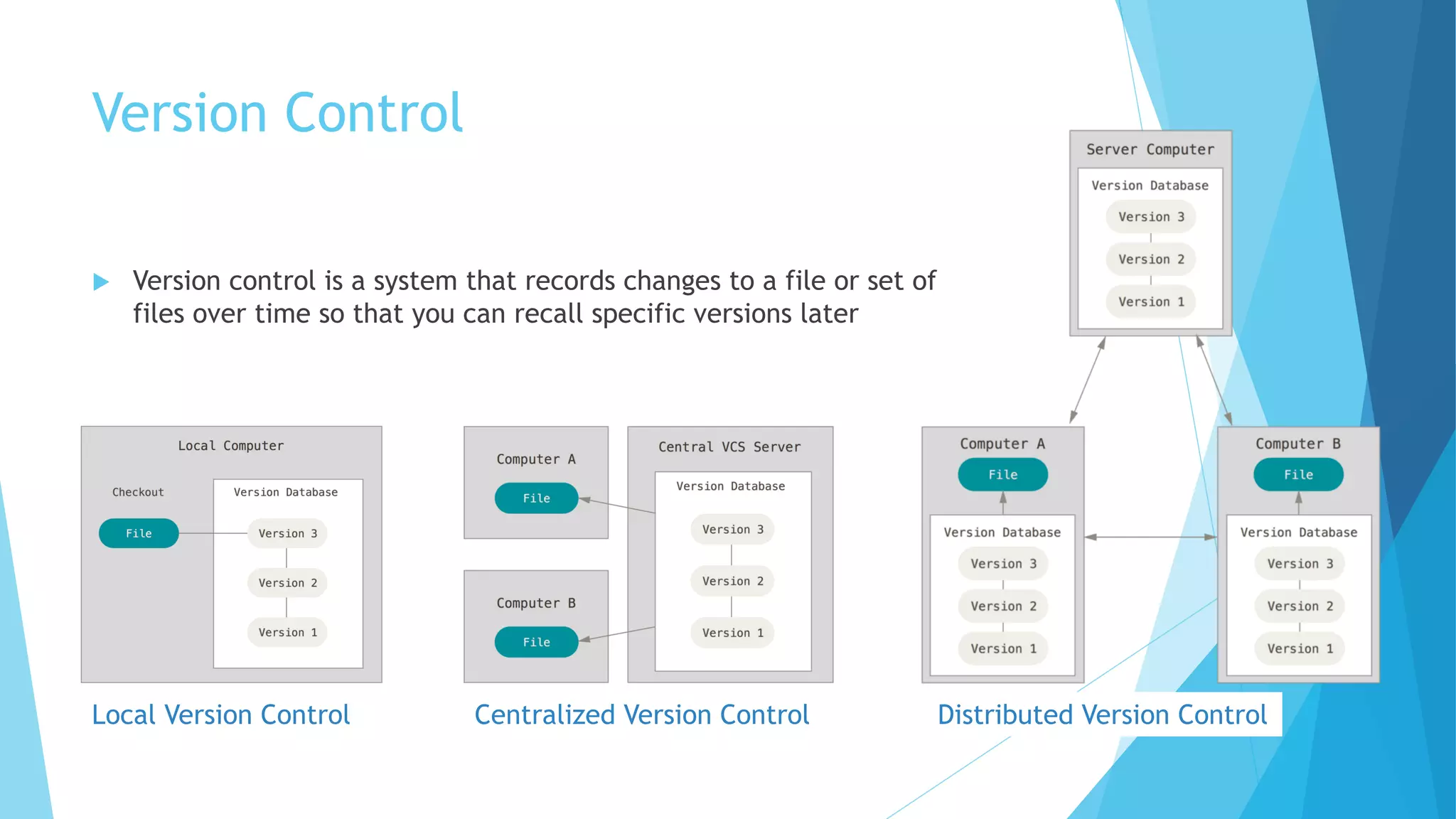

- 5. Version Control u Versioncontrol is a system that records changes to a file or set of files over time so that you can recall specific versions later Local Version Control Centralized Version Control Distributed Version Control

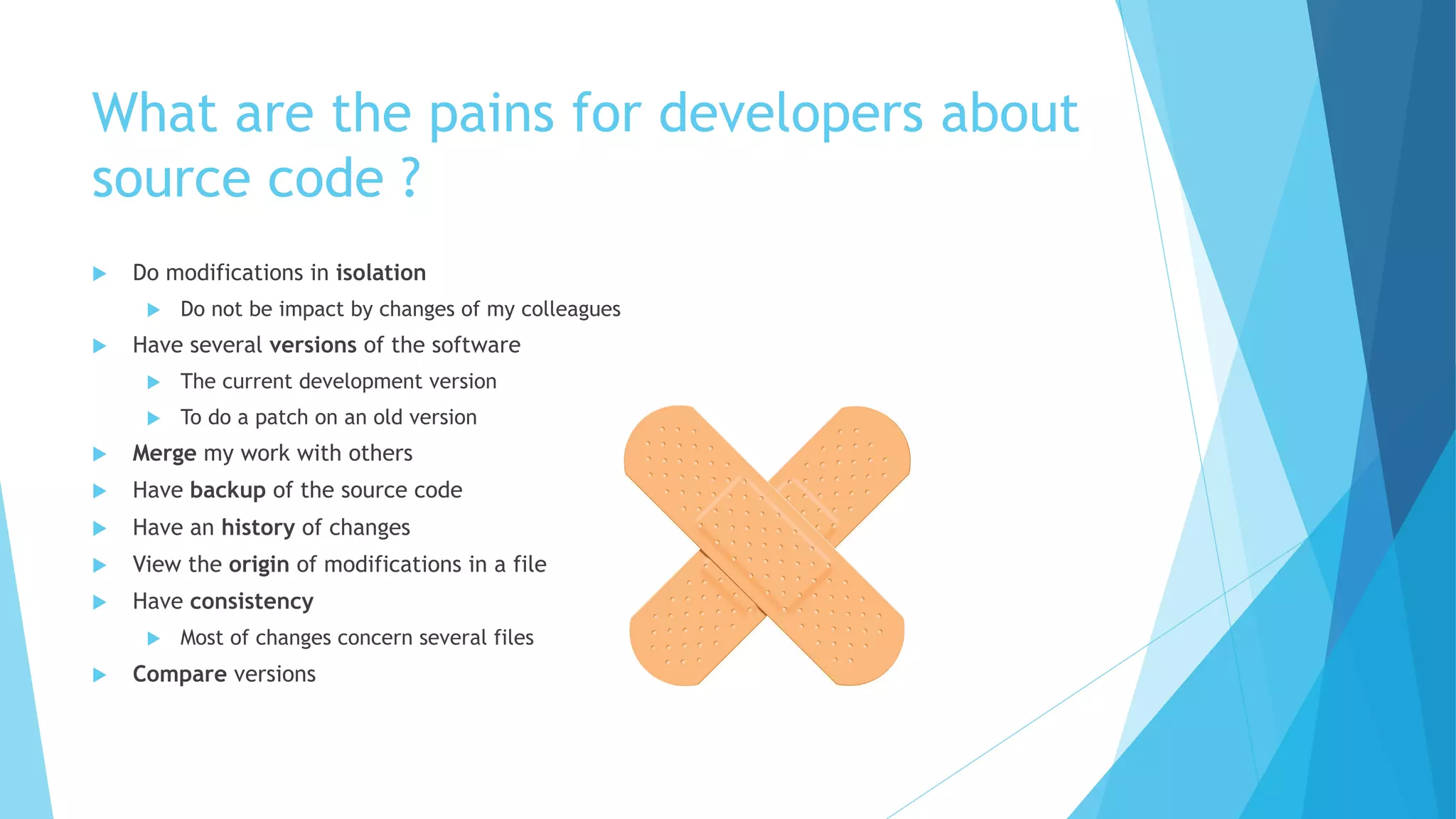

- 6. What are thepains for developers about source code ? u Do modifications in isolation u Do not be impact by changes of my colleagues u Have several versions of the software u The current development version u To do a patch on an old version u Merge my work with others u Have backup of the source code u Have an history of changes u View the origin of modifications in a file u Have consistency u Most of changes concern several files u Compare versions
- 7. Git & Ecosystem uGit is the heart, but there are also fundamental tools/sites around u They offer free or paid remote repository u 'Social network' feature about coding u Tasks repository u Collaborative feature : Merge (or Pull request) https://gitlab.com/https://github.com/ https://bitbucket.org/
- 8.

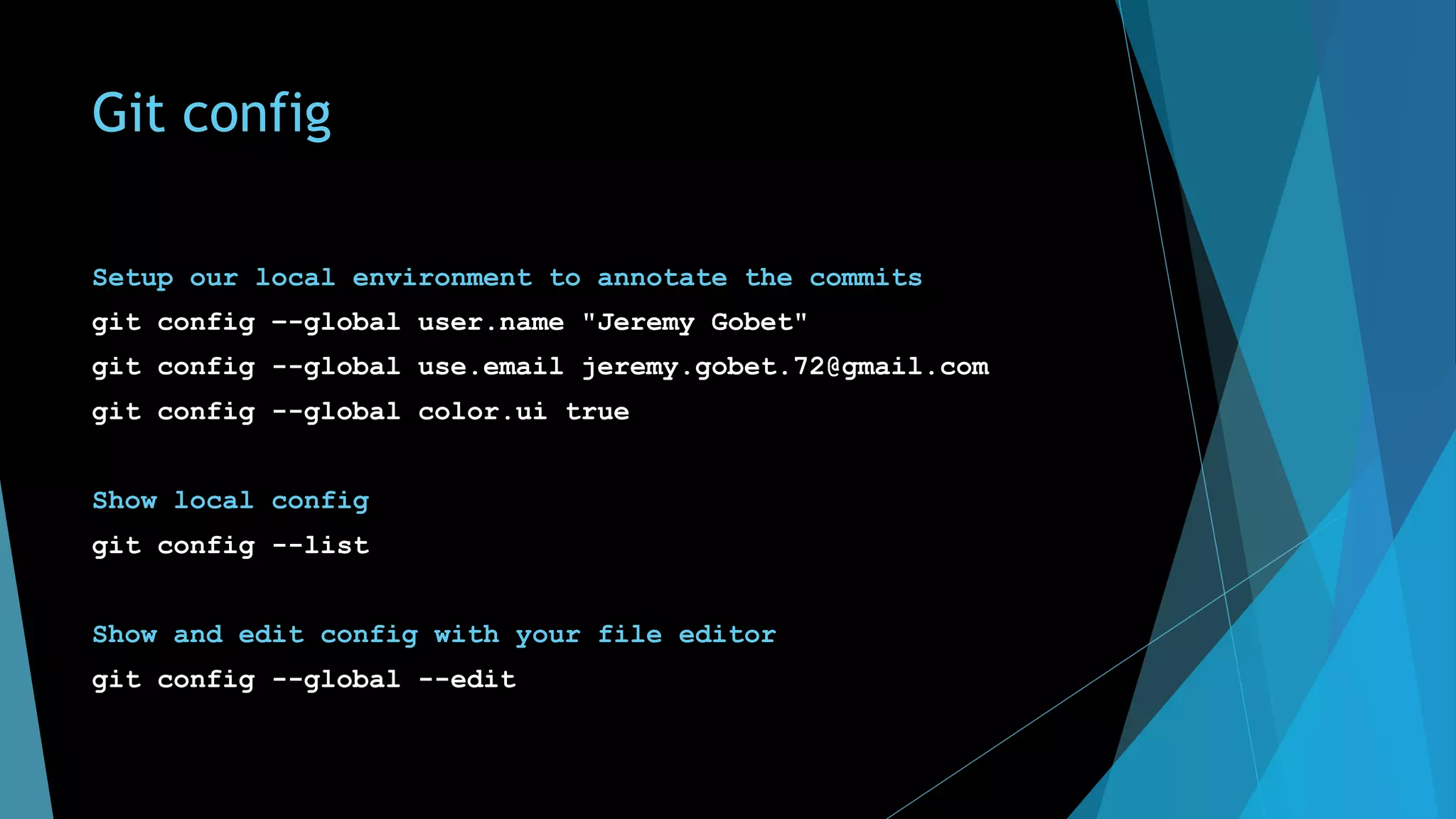

- 9. Git config Setup ourlocal environment to annotate the commits git config –-global user.name "Jeremy Gobet" git config --global use.email jeremy.gobet.72@gmail.com git config --global color.ui true Show local config git config --list Show and edit config with your file editor git config --global --edit

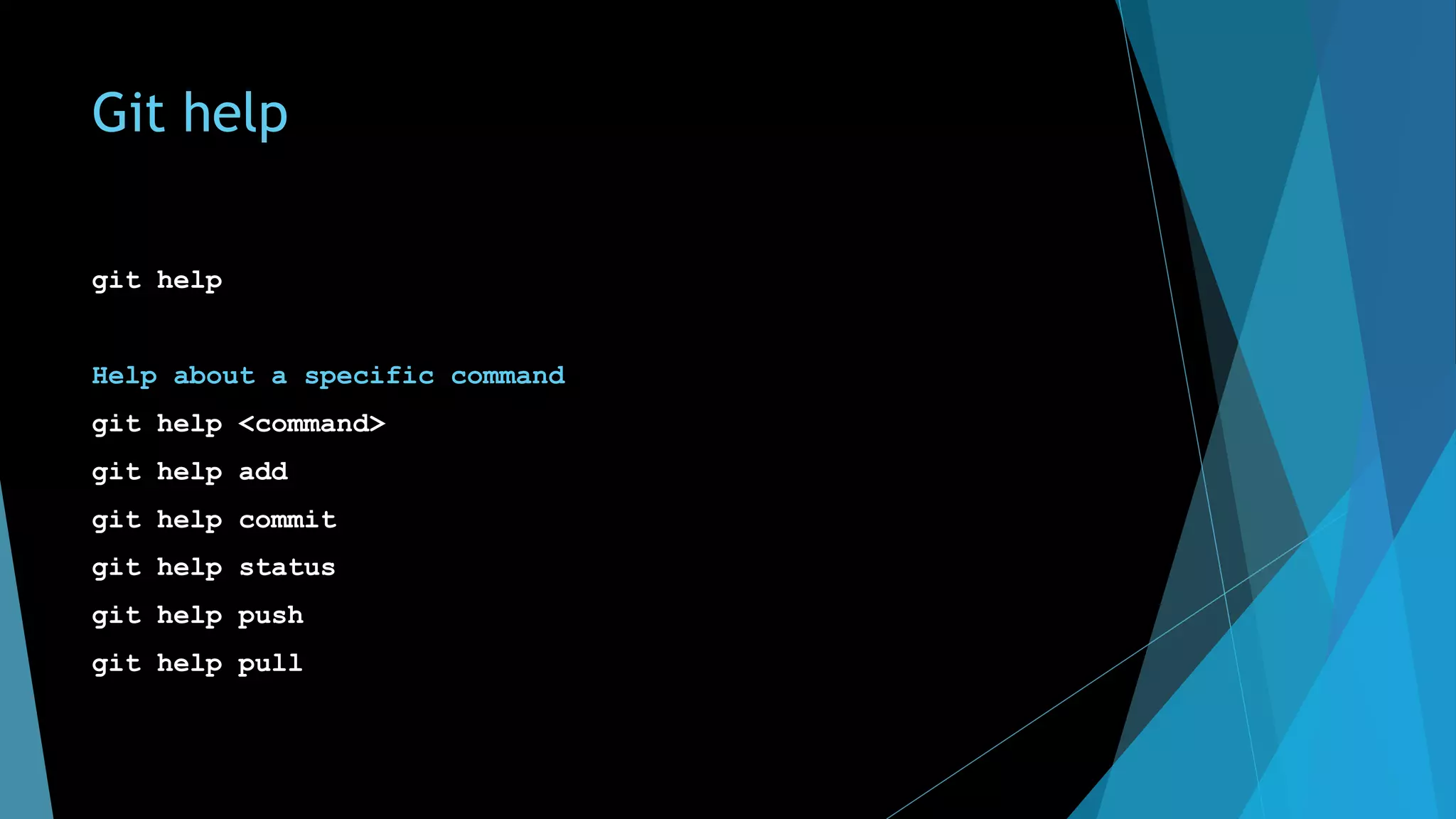

- 10. Git help git help Helpabout a specific command git help <command> git help add git help commit git help status git help push git help pull
- 11.

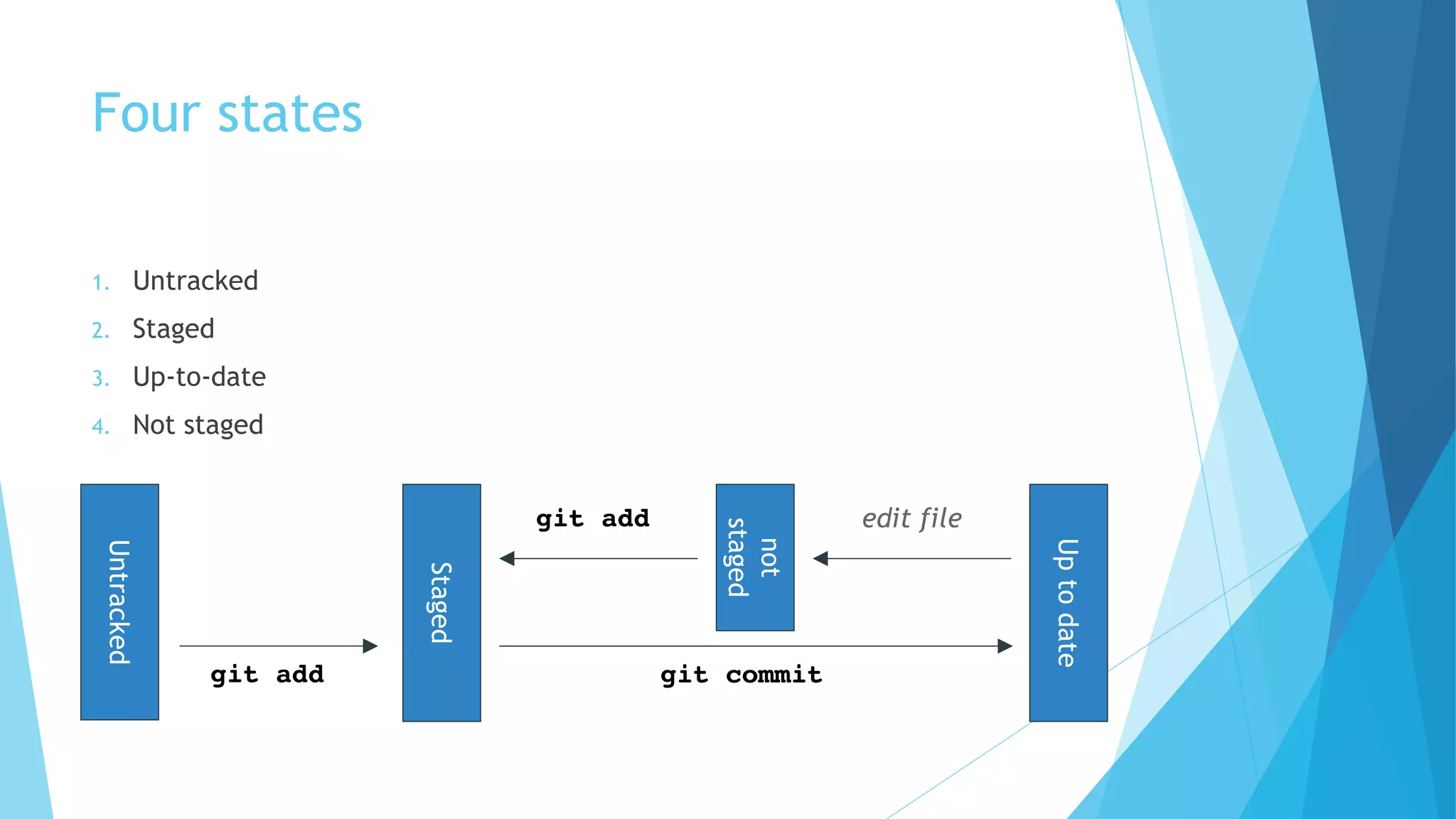

- 12. Four states 1. Untracked 2.Staged 3. Up-to-date 4. Not staged Untracked Staged Uptodate git add git commit not staged edit filegit add

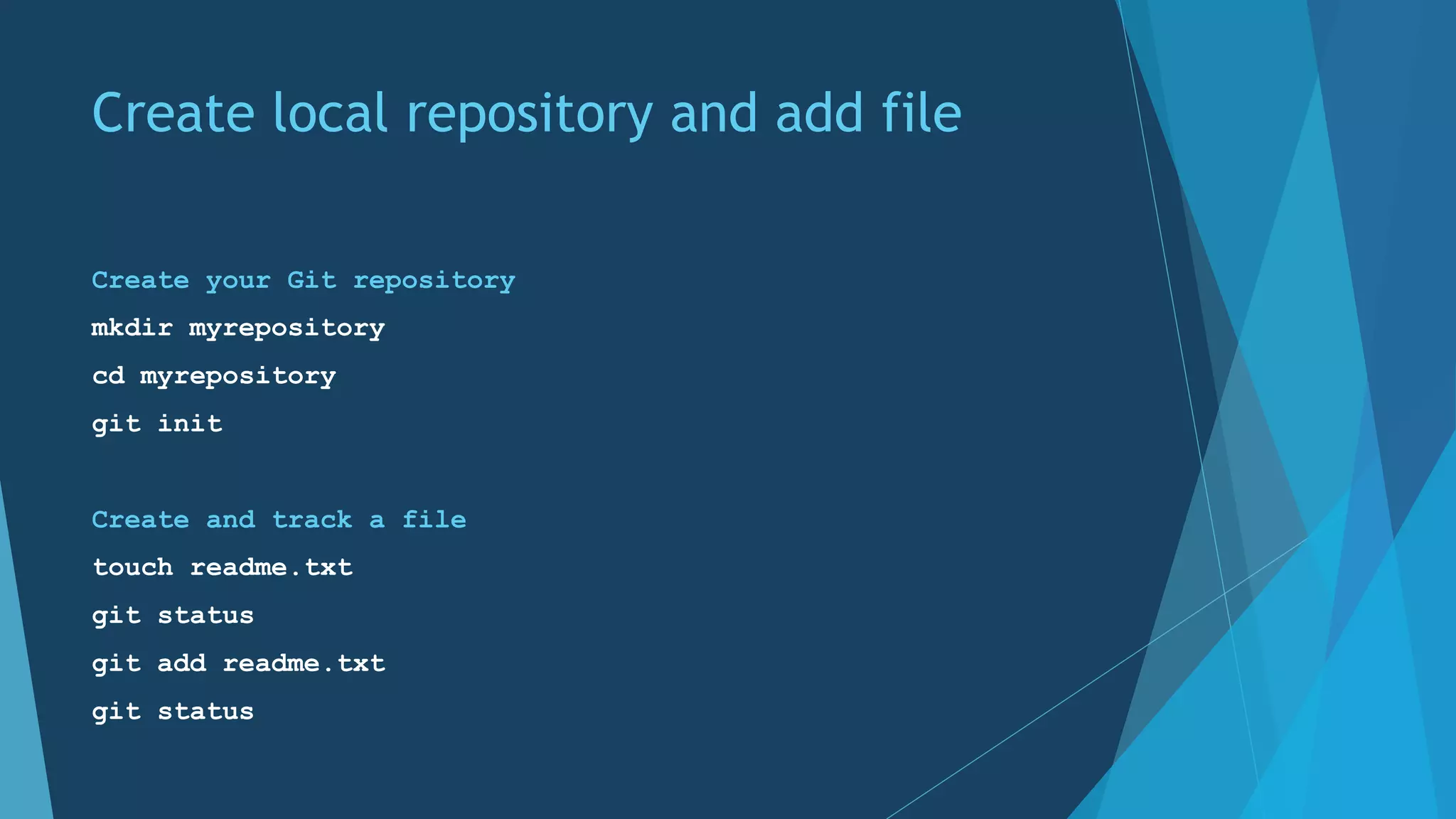

- 13. Create local repositoryand add file Create your Git repository mkdir myrepository cd myrepository git init Create and track a file touch readme.txt git status git add readme.txt git status

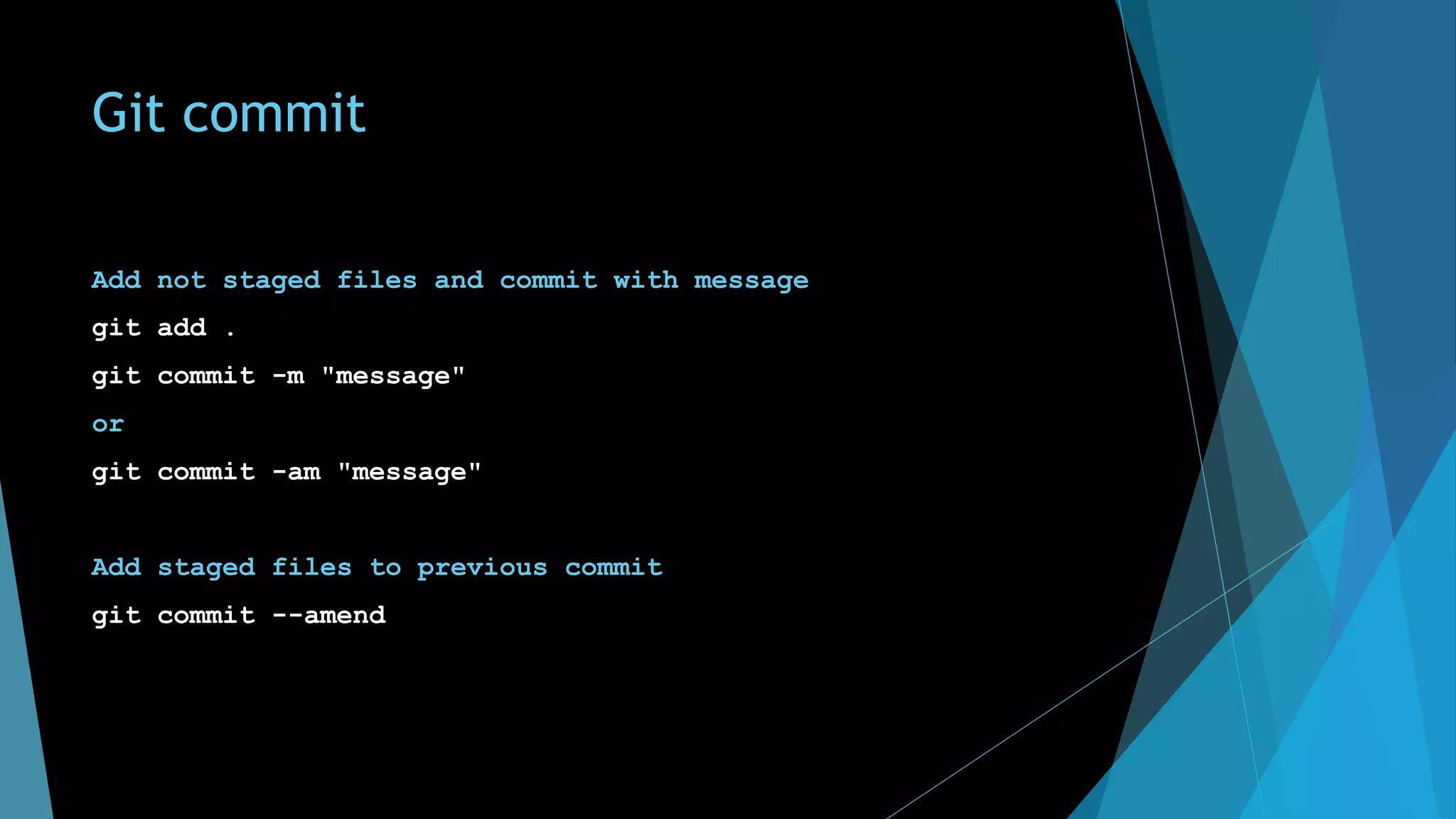

- 14. Git commit Add notstaged files and commit with message git add . git commit -m "message" or git commit -am "message" Add staged files to previous commit git commit --amend

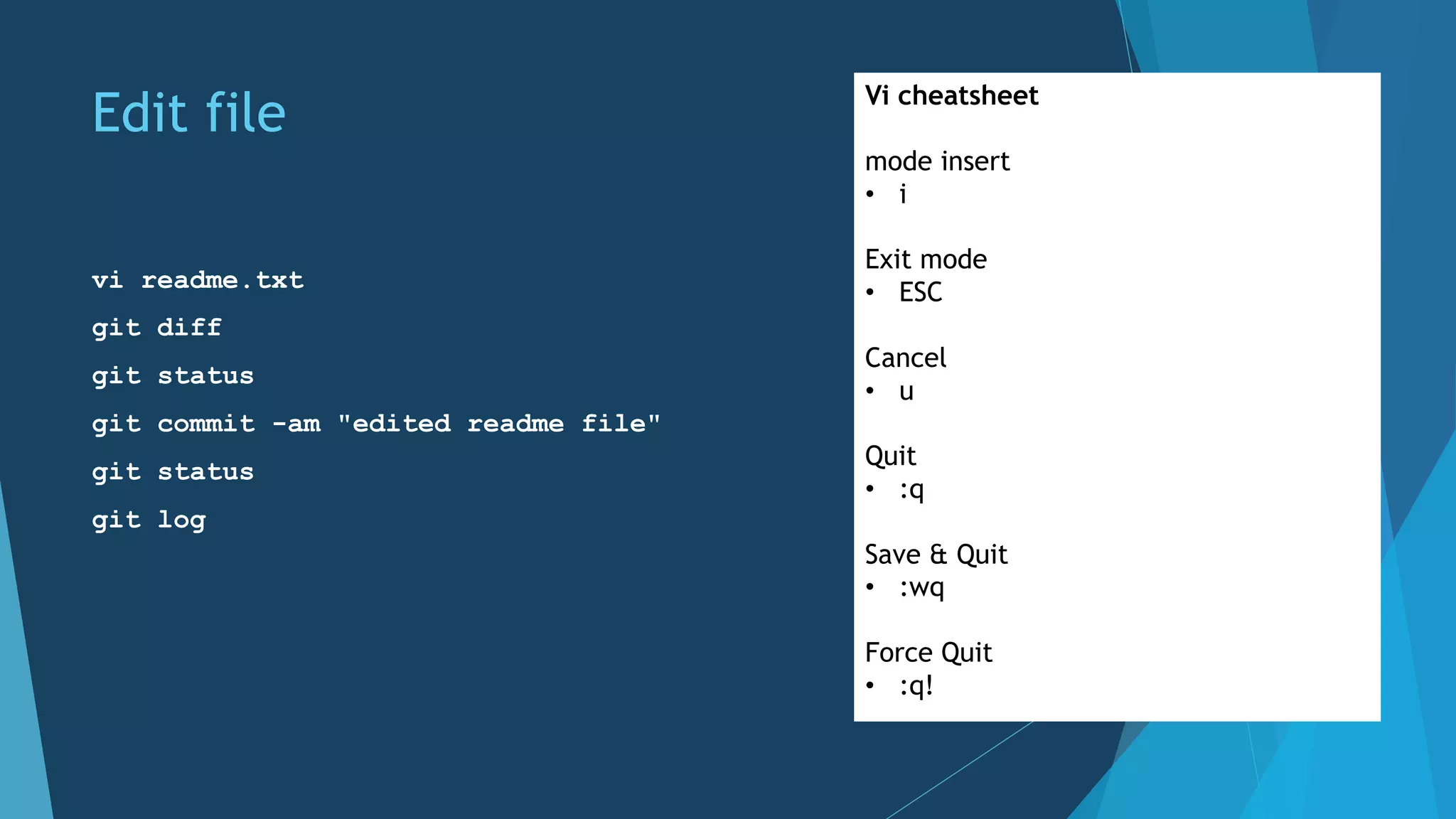

- 15. Edit file vi readme.txt gitdiff git status git commit -am "edited readme file" git status git log Vi cheatsheet mode insert • i Exit mode • ESC Cancel • u Quit • :q Save & Quit • :wq Force Quit • :q!

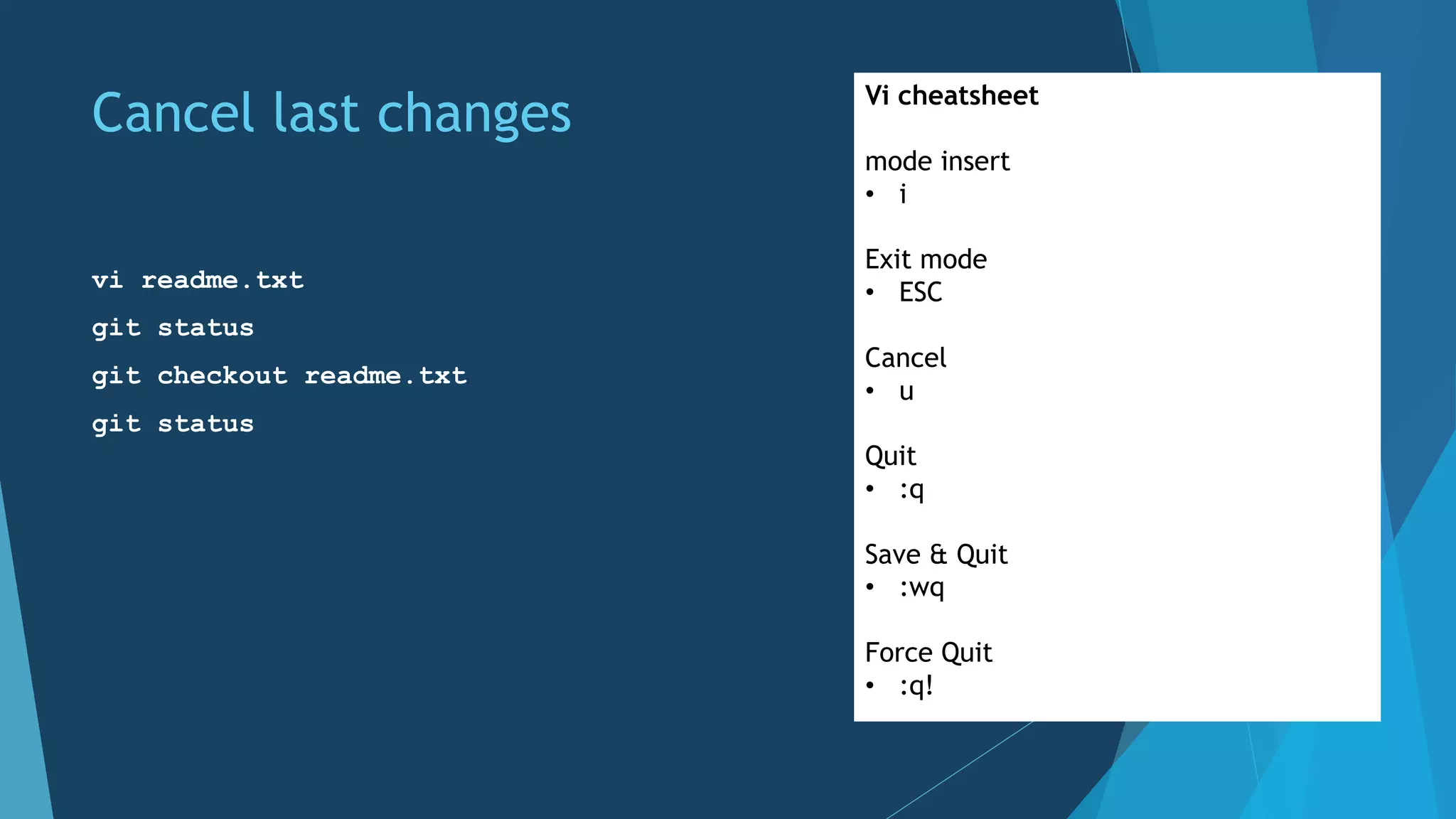

- 16. Cancel last changes vireadme.txt git status git checkout readme.txt git status Vi cheatsheet mode insert • i Exit mode • ESC Cancel • u Quit • :q Save & Quit • :wq Force Quit • :q!

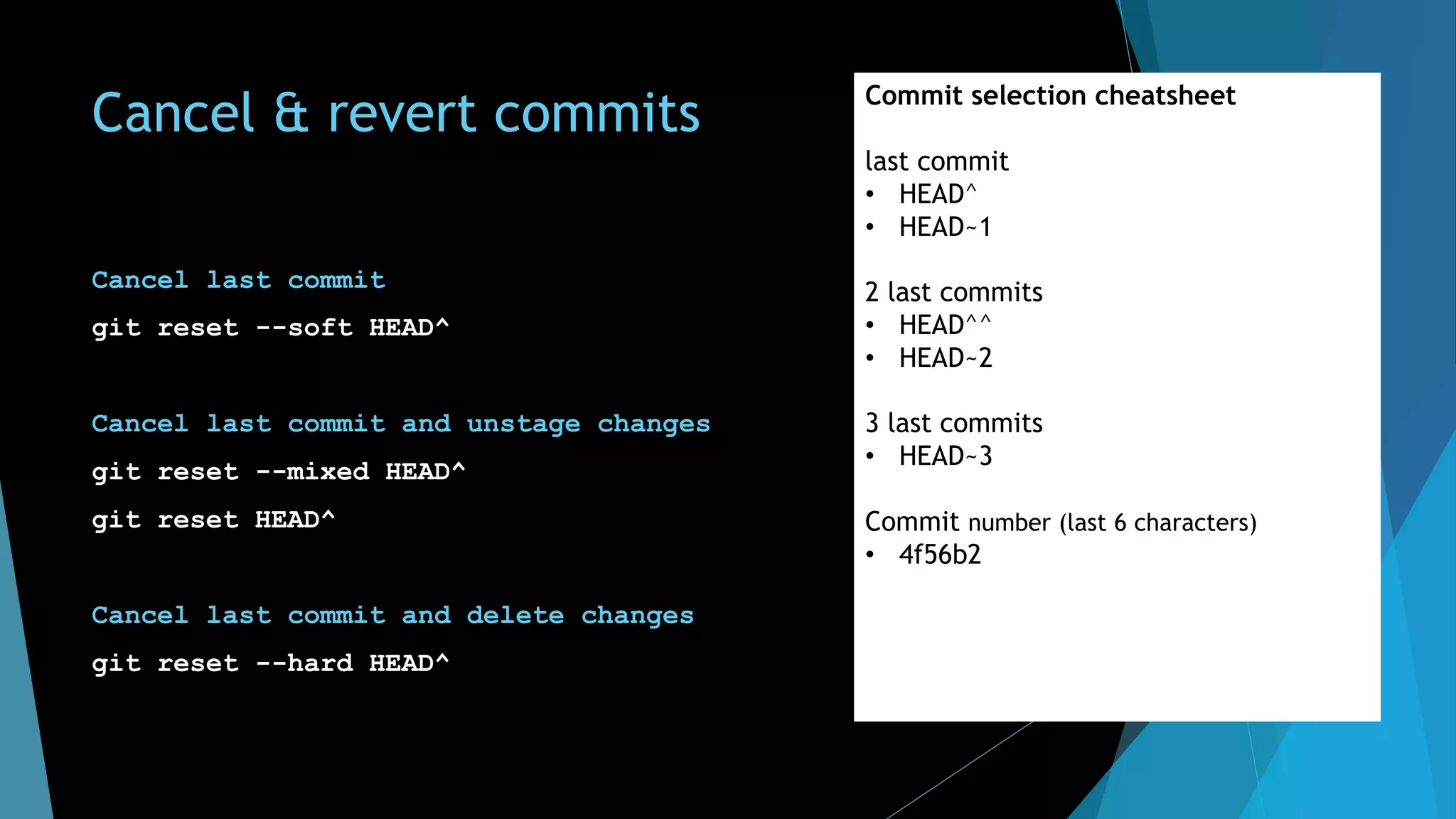

- 17. Cancel & revertcommits Cancel last commit git reset --soft HEAD^ Cancel last commit and unstage changes git reset --mixed HEAD^ git reset HEAD^ Cancel last commit and delete changes git reset --hard HEAD^ Commit selection cheatsheet last commit • HEAD^ • HEAD~1 2 last commits • HEAD^^ • HEAD~2 3 last commits • HEAD~3 Commit number (last 6 characters) • 4f56b2

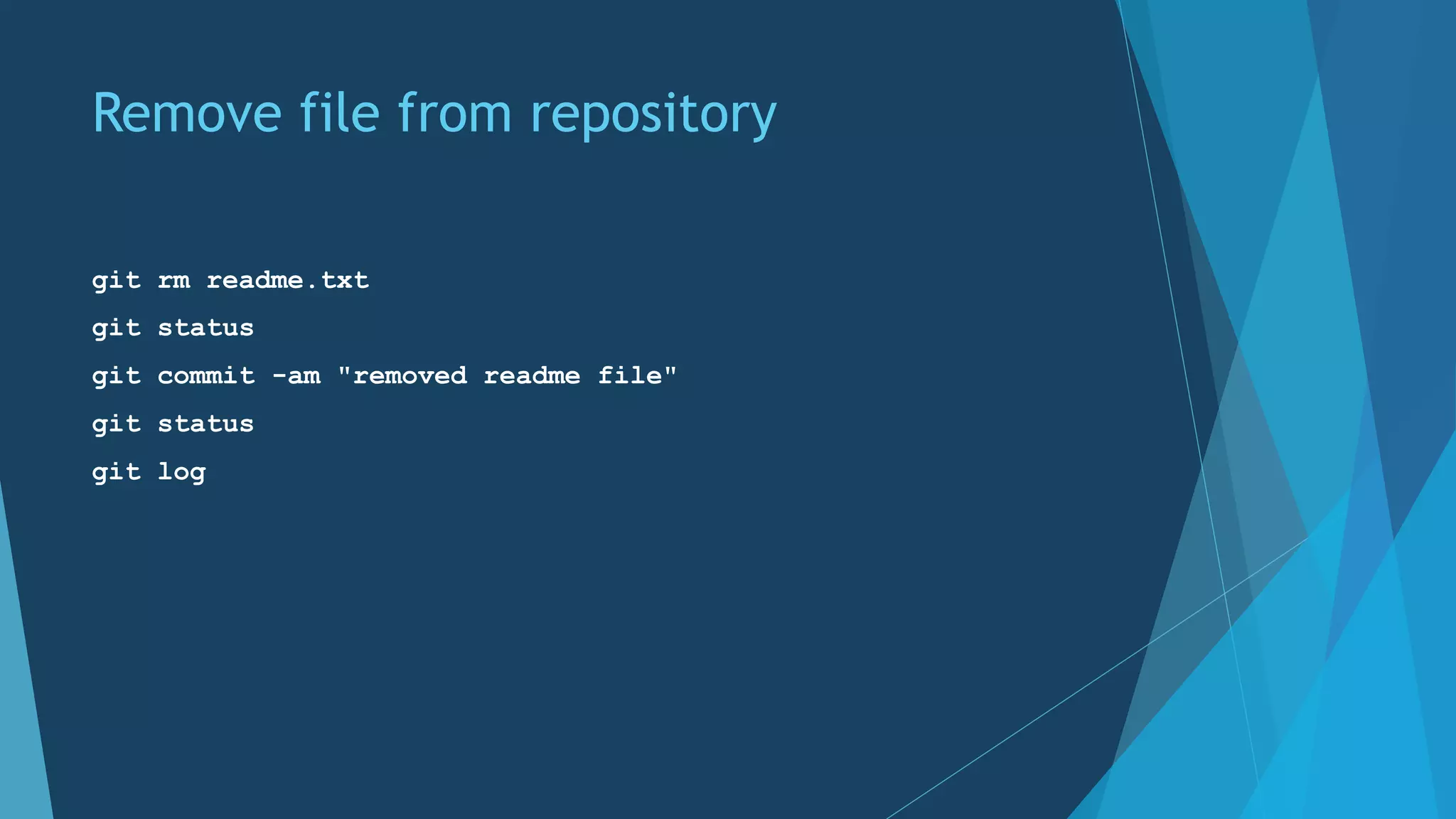

- 18. Remove file fromrepository git rm readme.txt git status git commit -am "removed readme file" git status git log

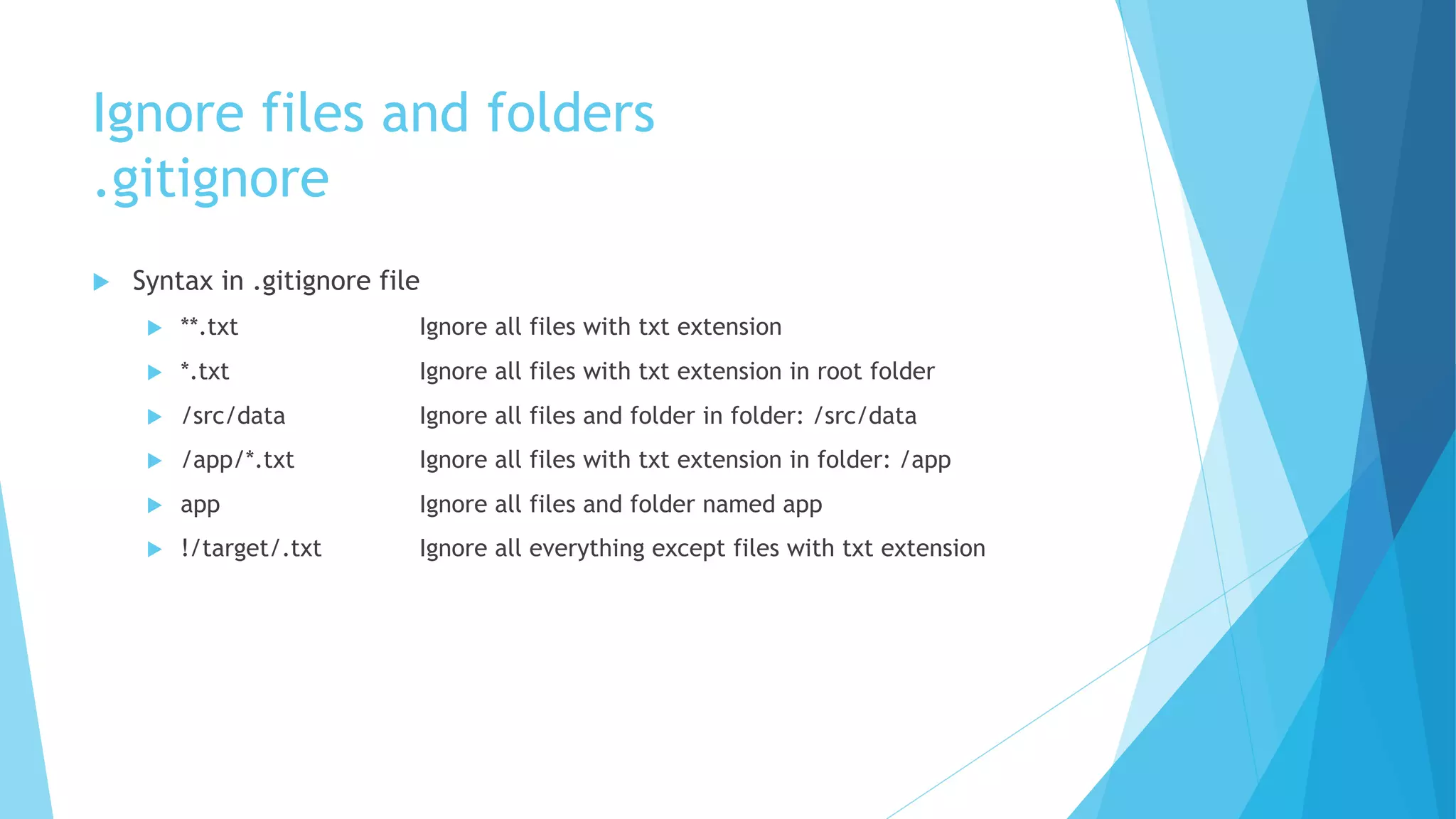

- 19. Ignore files andfolders .gitignore u Syntax in .gitignore file u **.txt Ignore all files with txt extension u *.txt Ignore all files with txt extension in root folder u /src/data Ignore all files and folder in folder: /src/data u /app/*.txt Ignore all files with txt extension in folder: /app u app Ignore all files and folder named app u !/target/.txt Ignore all everything except files with txt extension
- 20.

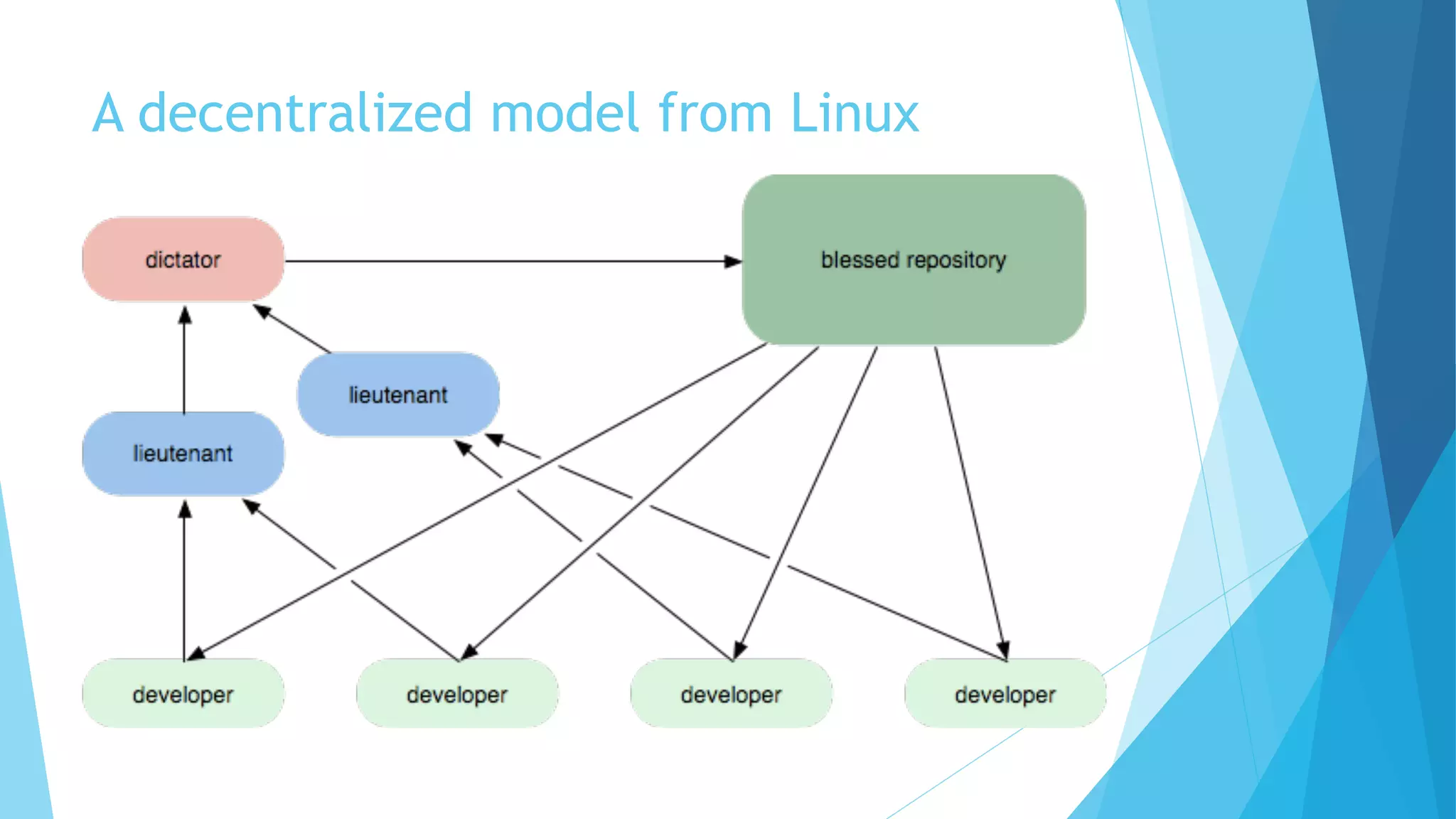

- 21. A decentralized modelfrom Linux
- 22.
- 23. Git pull Pull changesfrom remote repository git pull git pull [<remote> <branch>] git pull origin master

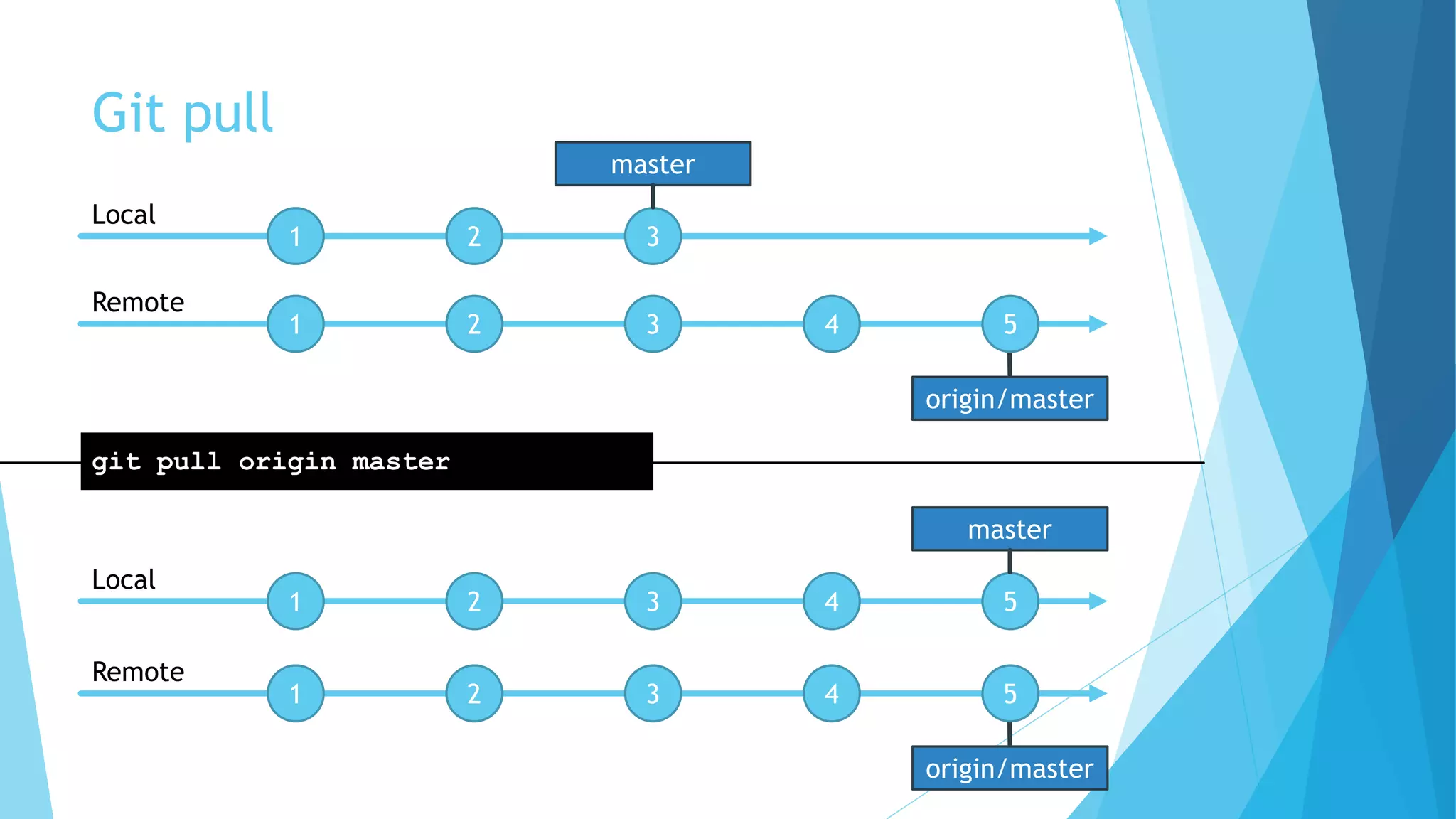

- 24. origin/master Git pull 1 23 1 2 3 4 5 Local Remote master 1 2 3 4 5 Local master git pull origin master origin/master 1 2 3 4 5 Remote
- 25. Git push Push changesto remote repository git push git push [<remote> <branch>] git push origin master

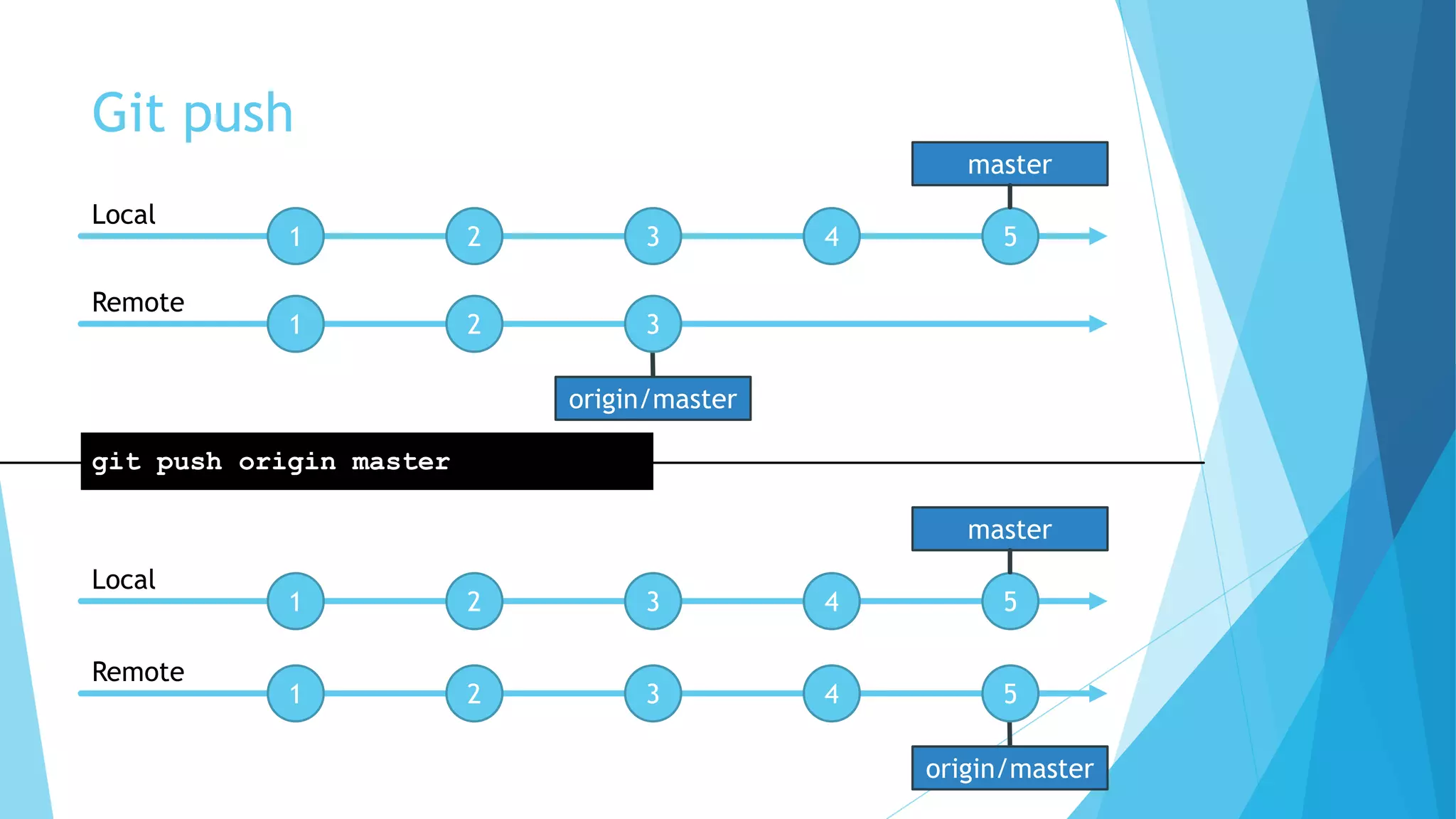

- 26. Git push origin/master 1 23 1 2 3 Local Remote 1 2 3 4 5 Local master git push origin master origin/master 1 2 3 4 5 Remote 4 5 master
- 27. Git fetch Fetch changesfrom remote repository git fetch git fetch [<remote> <branch>] git fetch origin master git push = git fetch + git merge

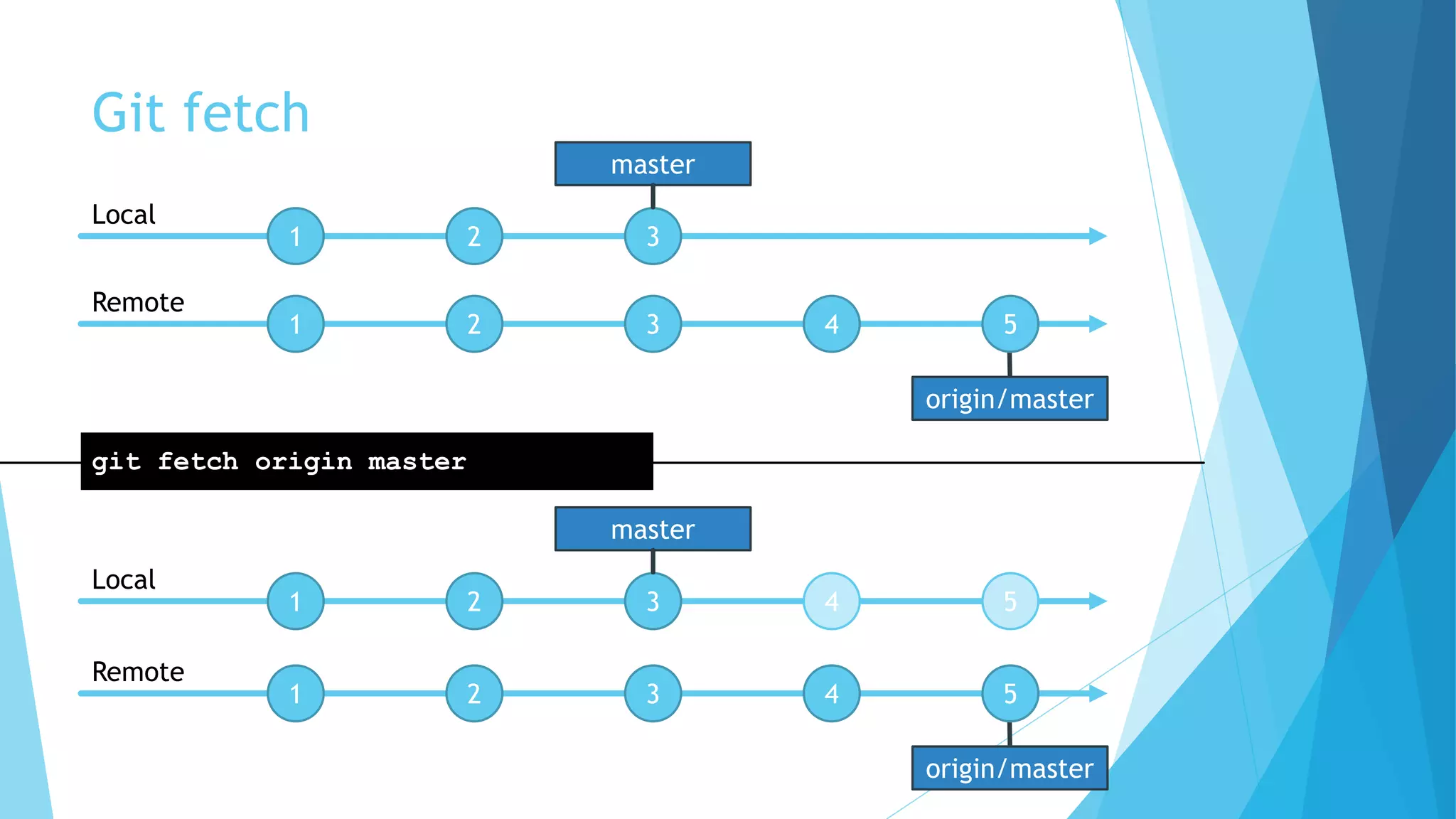

- 28. Git fetch origin/master 1 23 1 2 3 4 5 Local Remote master 1 2 3 4 5 Local master git fetch origin master origin/master 1 2 3 4 5 Remote

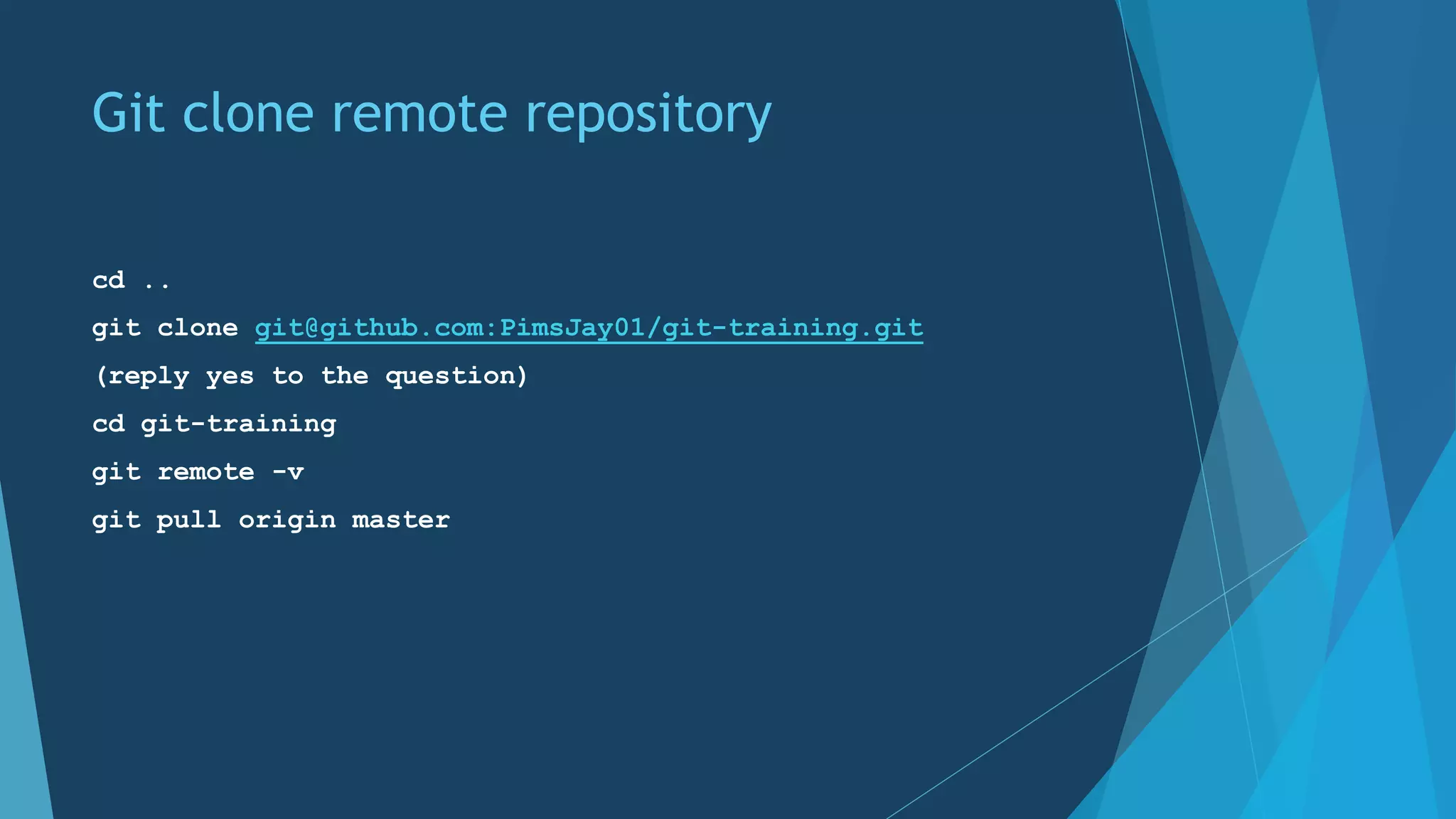

- 29. Git clone remoterepository cd .. git clone git@github.com:PimsJay01/git-training.git (reply yes to the question) cd git-training git remote -v git pull origin master

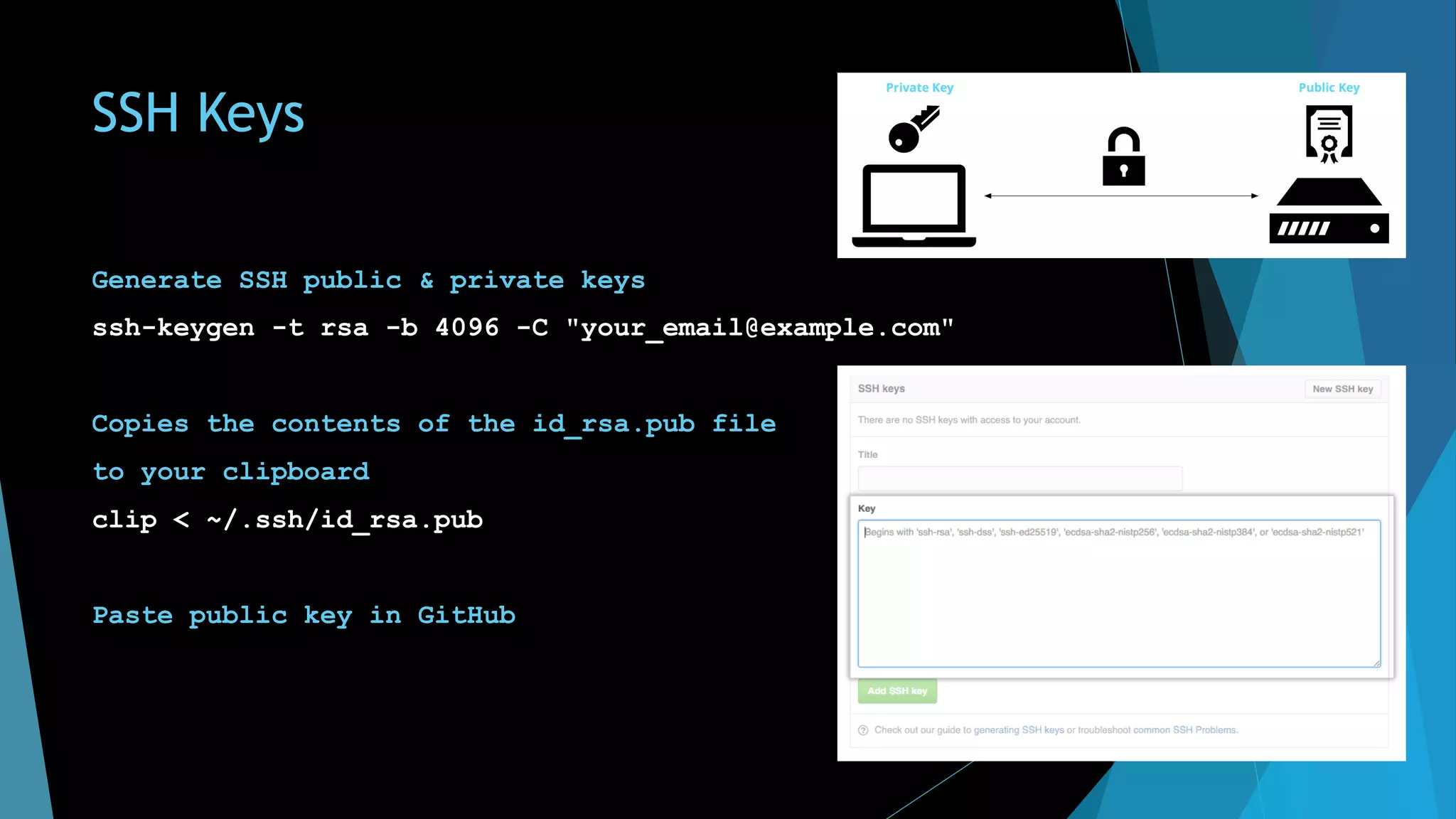

- 30. SSH Keys Generate SSHpublic & private keys ssh-keygen -t rsa -b 4096 -C "your_email@example.com" Copies the contents of the id_rsa.pub file to your clipboard clip < ~/.ssh/id_rsa.pub Paste public key in GitHub

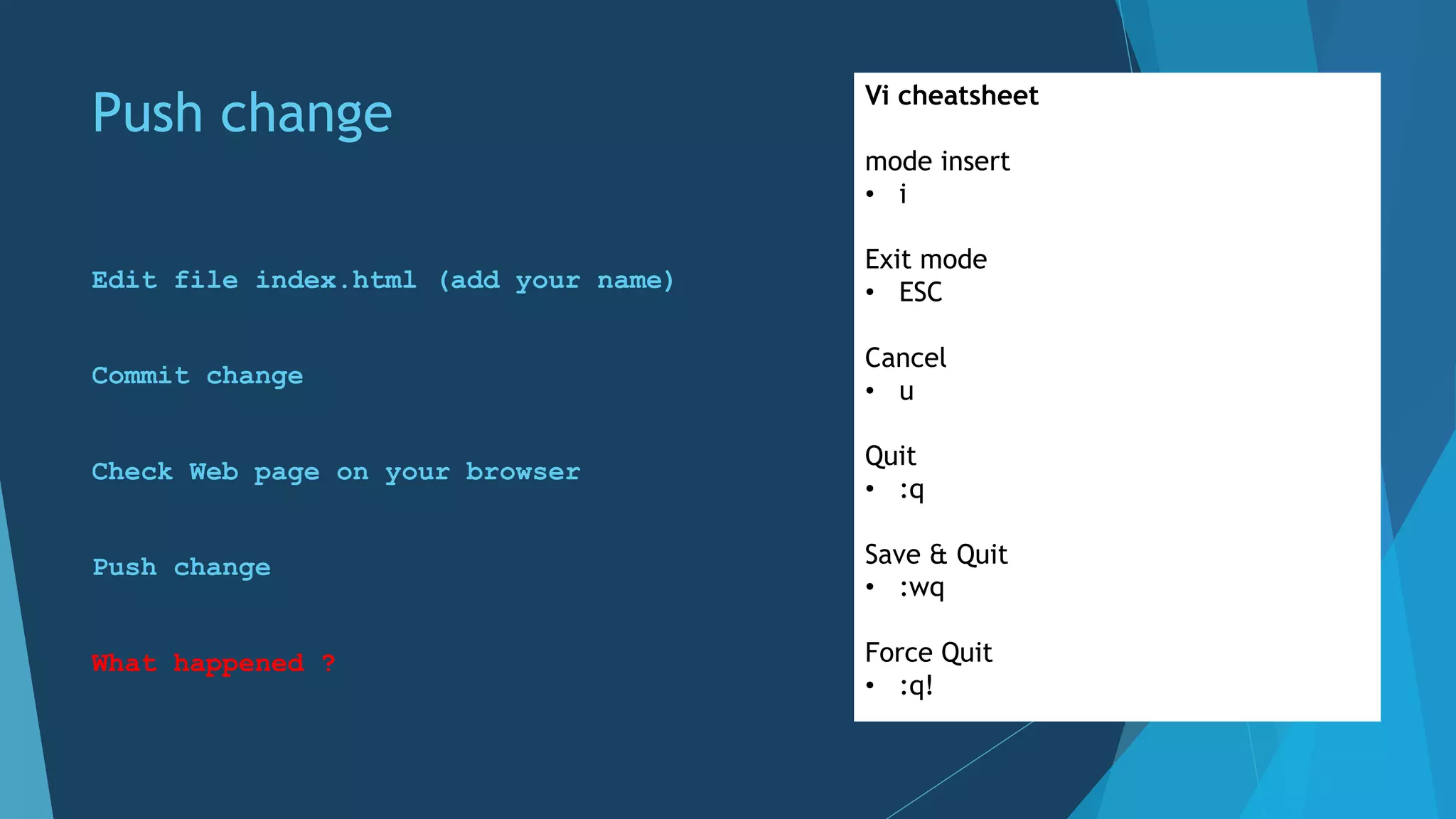

- 32. Push change Edit fileindex.html (add your name) Commit change Check Web page on your browser Push change What happened ? Vi cheatsheet mode insert • i Exit mode • ESC Cancel • u Quit • :q Save & Quit • :wq Force Quit • :q!
- 33. origin/master Git push rejected Cannotwrite over Jeremy’s commit To git@github.com:me/remote-repository.git ! [rejected] master -> master (non-fast-forward) error: failed to push some refs to 'git@github.com:me/remote-repository.git ' hint: Updates were rejected because the tip of your current branch is behind hint: its remote counterpart. Merge the remote changes (e.g. 'git pull') hint: before pushing again. hint: See the 'Note about fast-forwards' in 'git push --help' for details. 1 2 3 1 2 3 4 Local Remote git push origin master 4 master

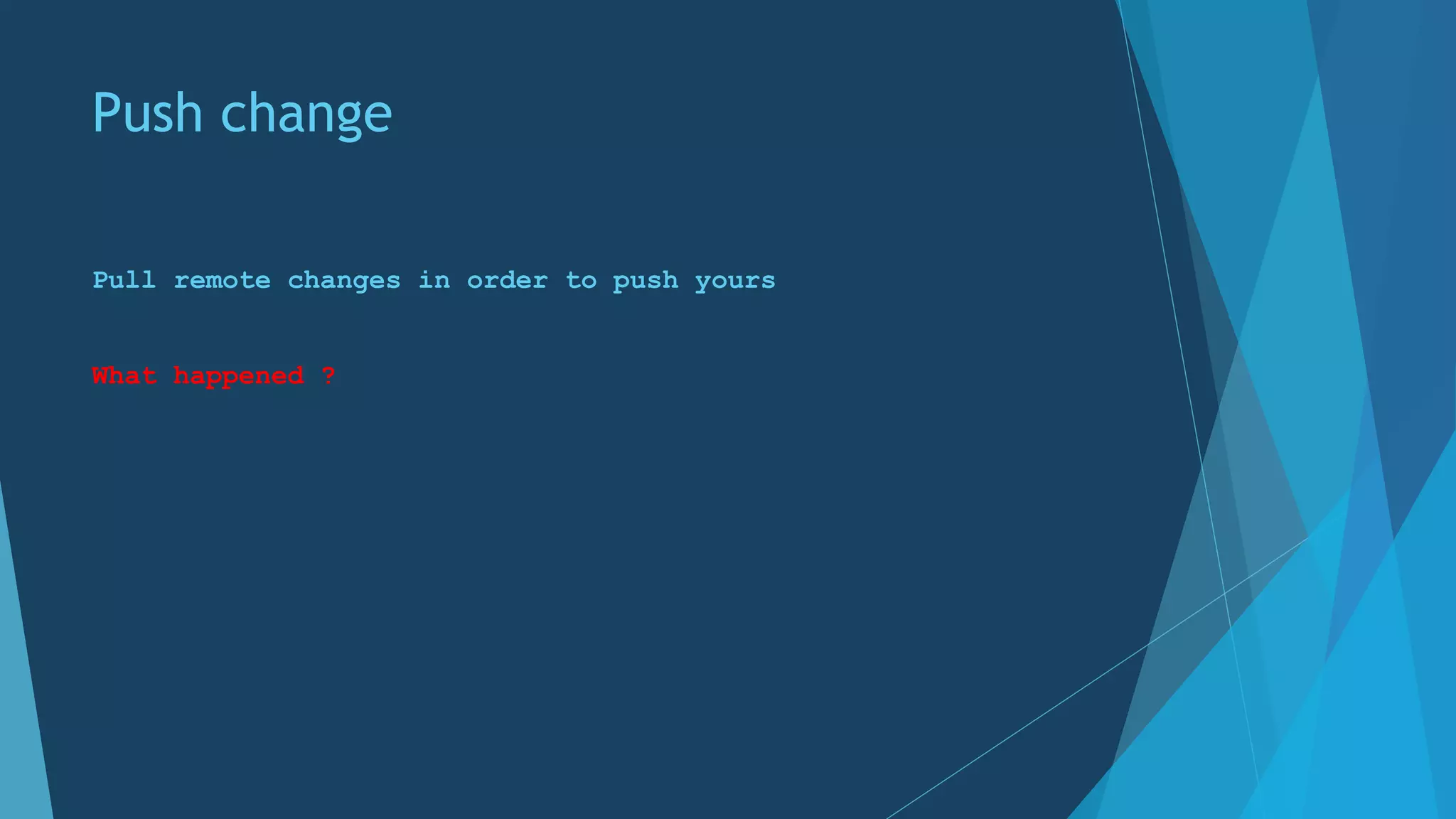

- 34. Push change Pull remotechanges in order to push yours What happened ?

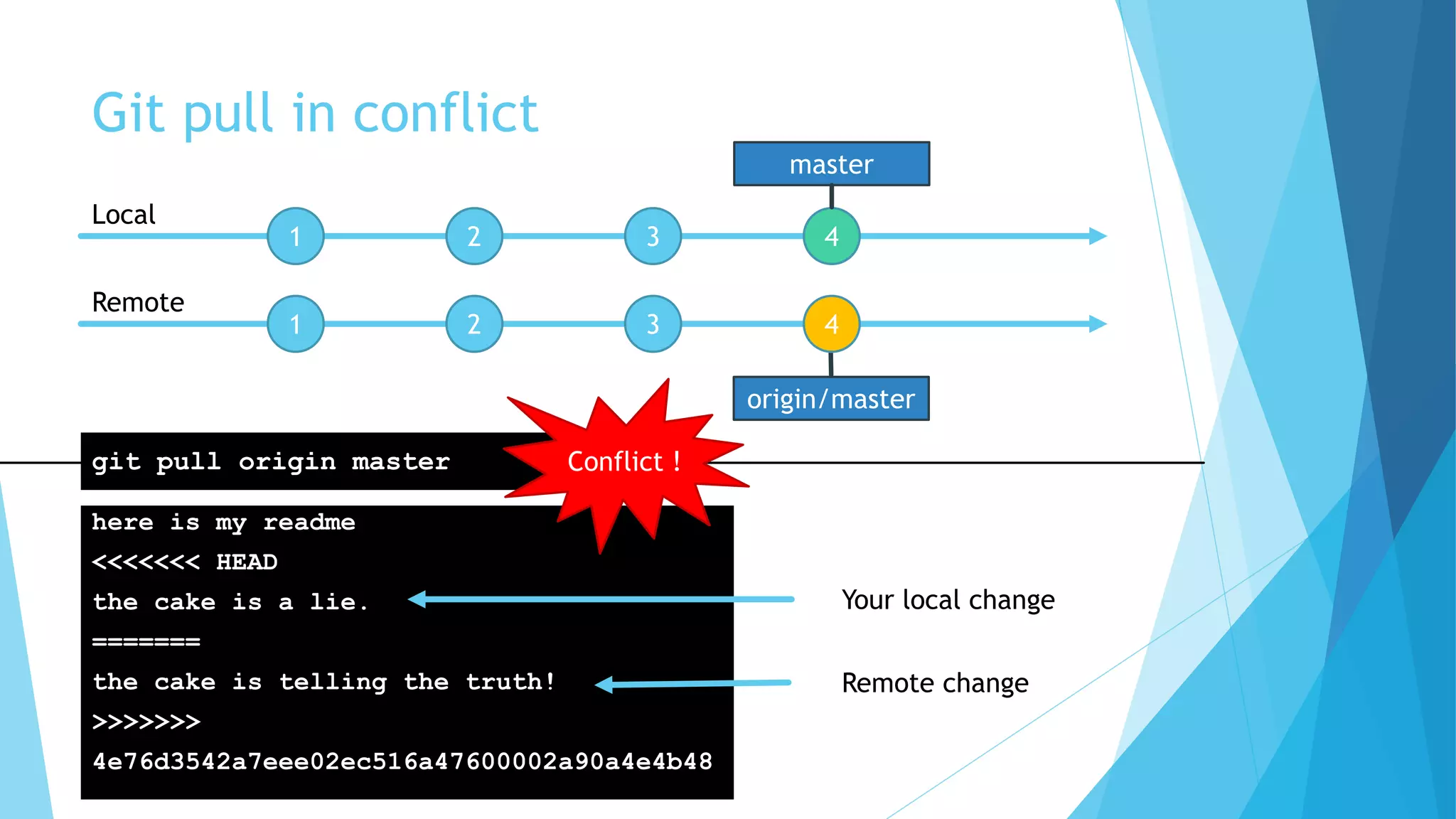

- 35. origin/master Git pull inconflict here is my readme <<<<<<< HEAD the cake is a lie. ======= the cake is telling the truth! >>>>>>> 4e76d3542a7eee02ec516a47600002a90a4e4b48 1 2 3 1 2 3 4 Local Remote git pull origin master 4 master Conflict ! Your local change Remote change
- 36.

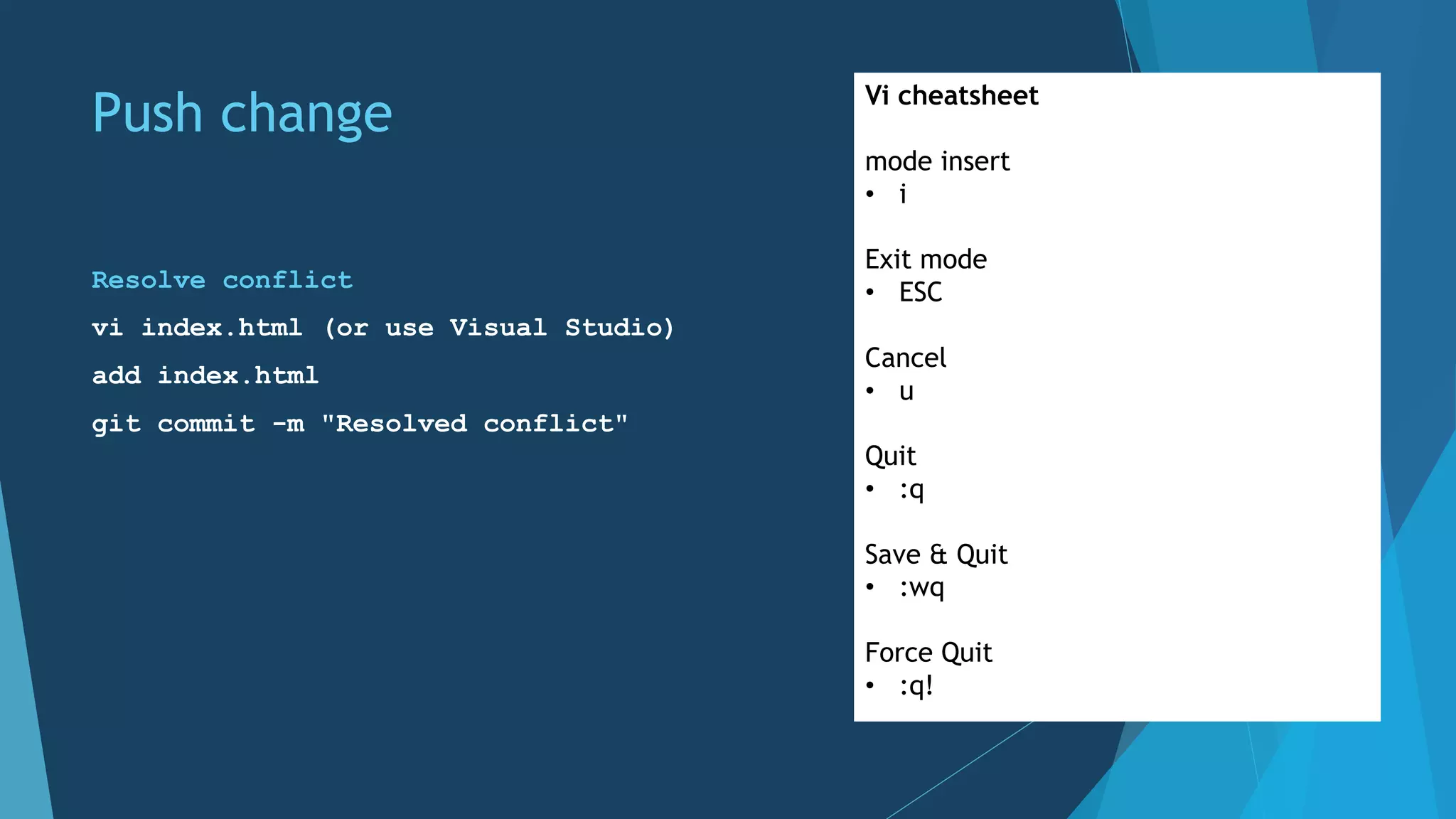

- 37. Push change Resolve conflict viindex.html (or use Visual Studio) add index.html git commit -m "Resolved conflict" Vi cheatsheet mode insert • i Exit mode • ESC Cancel • u Quit • :q Save & Quit • :wq Force Quit • :q!

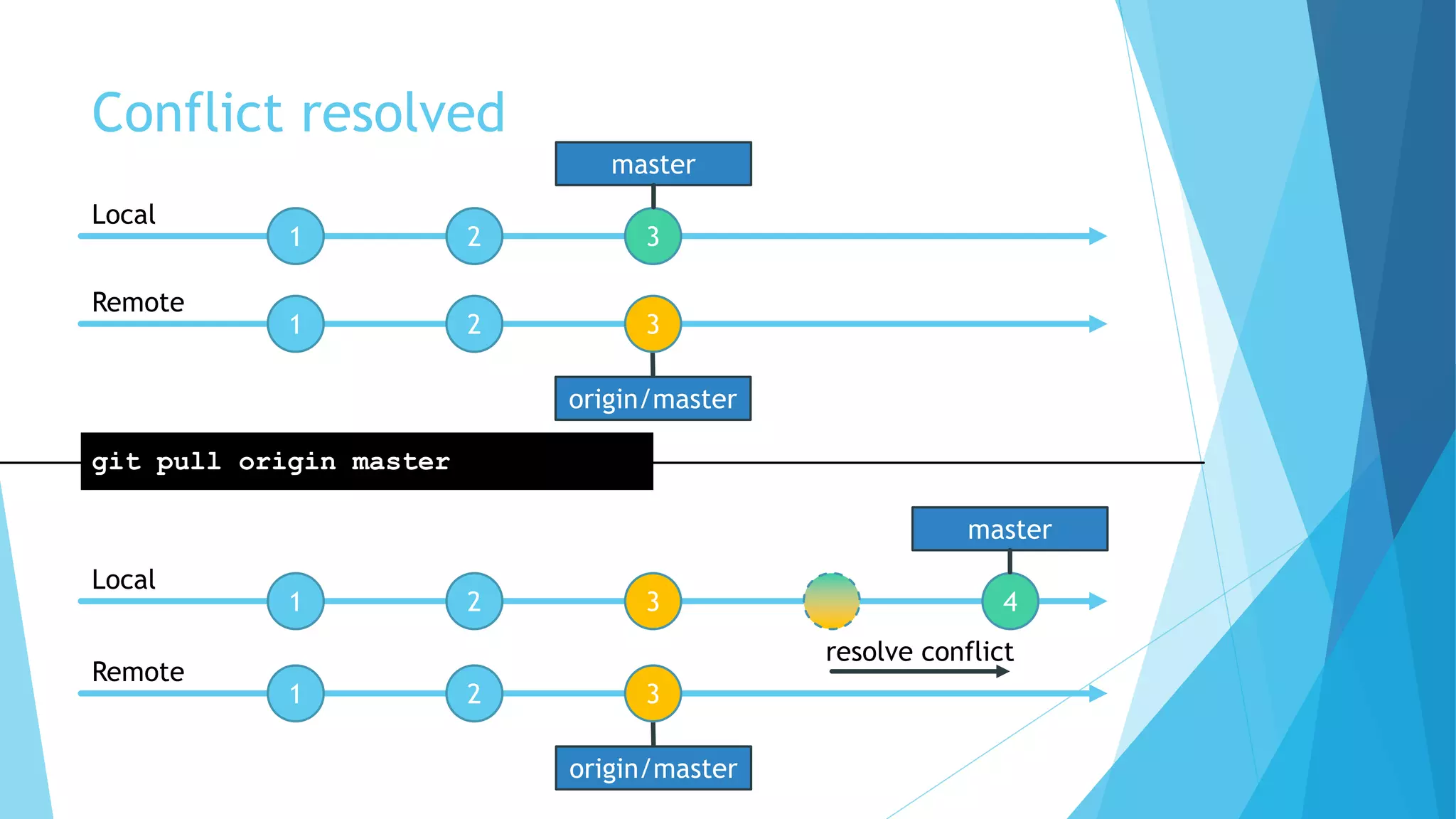

- 38. origin/master Conflict resolved 1 23 1 2 3 Local Remote 1 2 3 4 Local master git pull origin master origin/master 1 2 3 Remote master resolve conflict

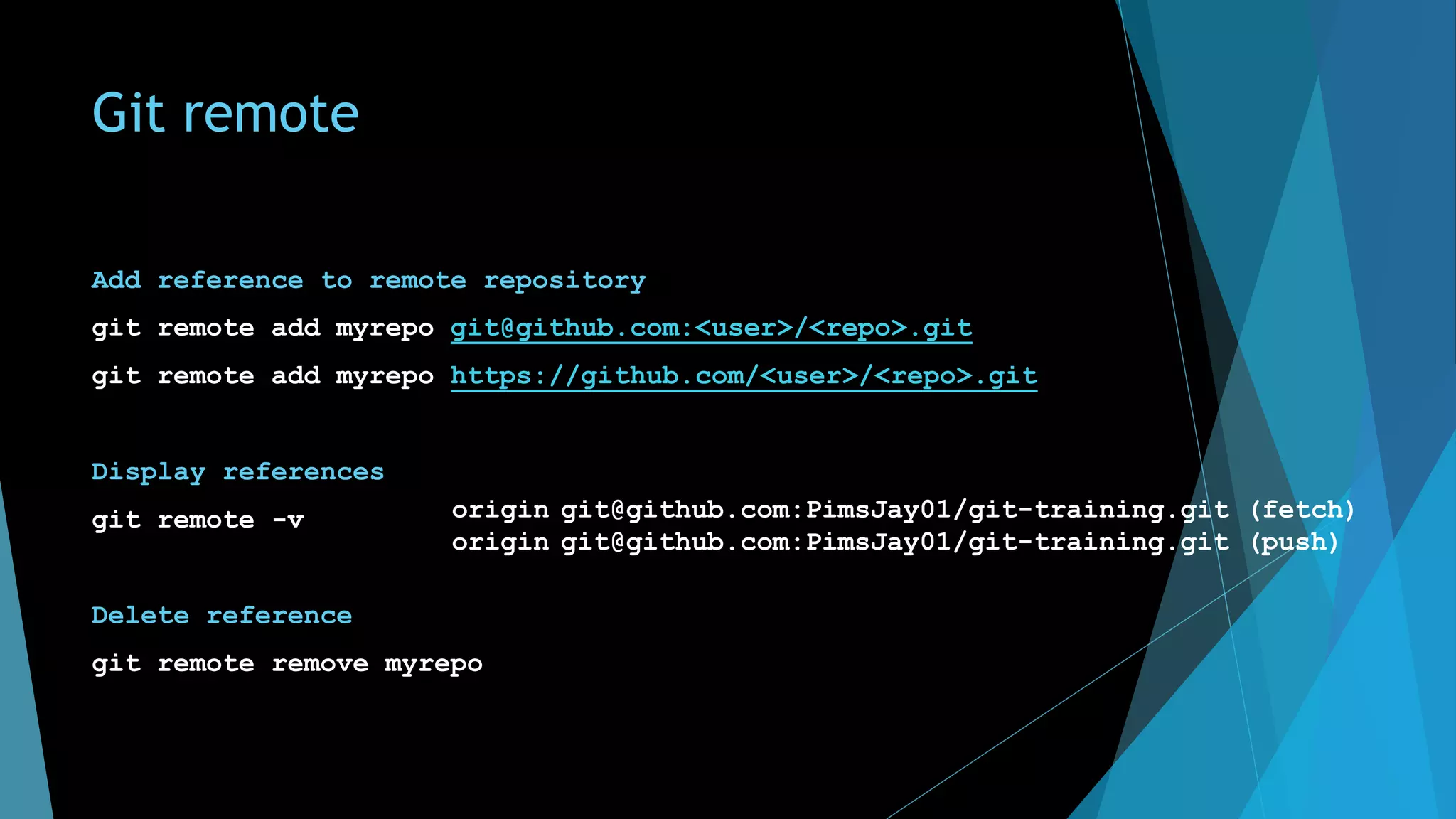

- 39. Git remote Add referenceto remote repository git remote add myrepo git@github.com:<user>/<repo>.git git remote add myrepo https://github.com/<user>/<repo>.git Display references git remote -v Delete reference git remote remove myrepo origin git@github.com:PimsJay01/git-training.git (fetch) origin git@github.com:PimsJay01/git-training.git (push)

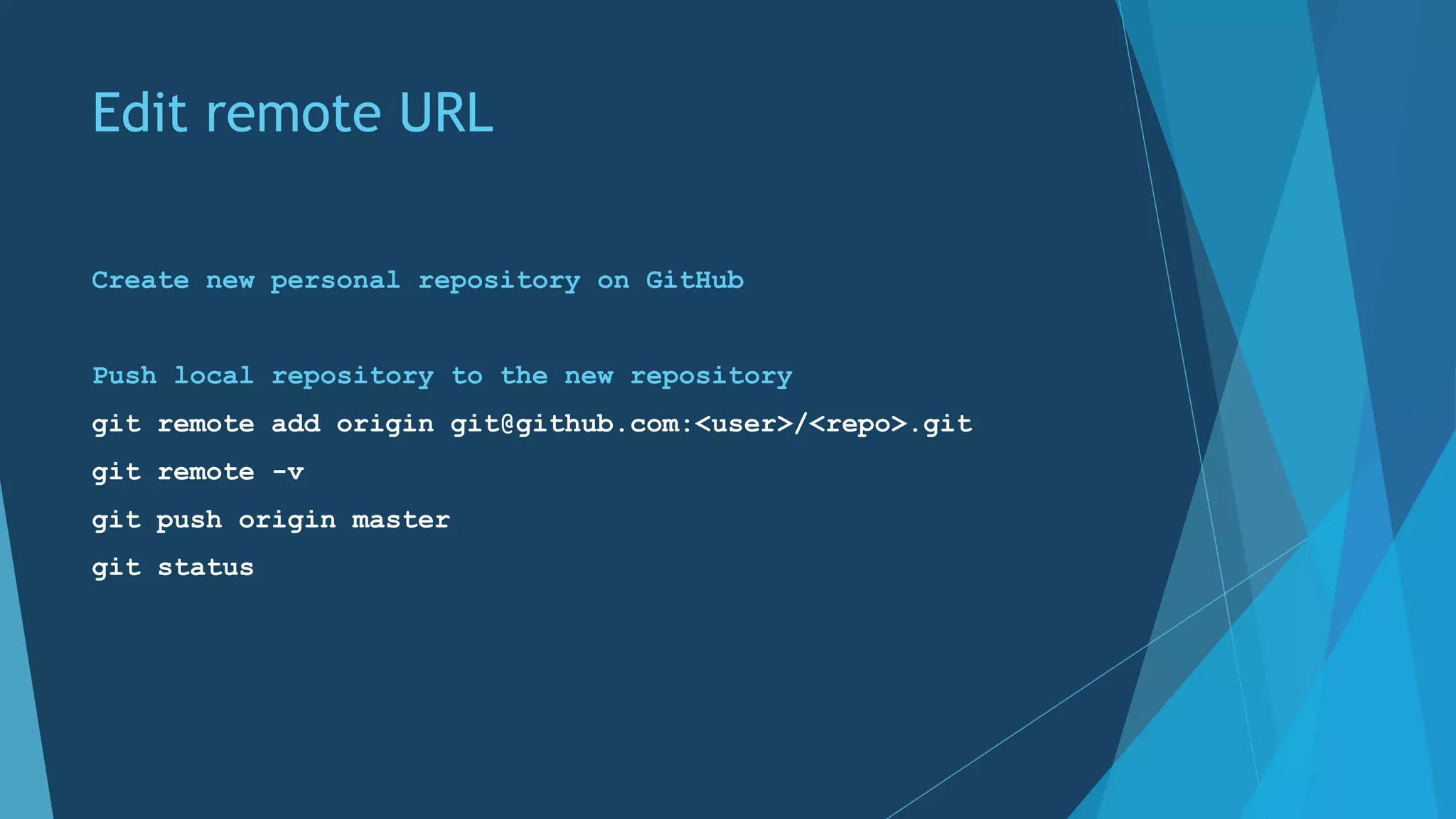

- 40. Edit remote URL Createnew personal repository on GitHub Push local repository to the new repository git remote add origin git@github.com:<user>/<repo>.git git remote -v git push origin master git status
- 41.

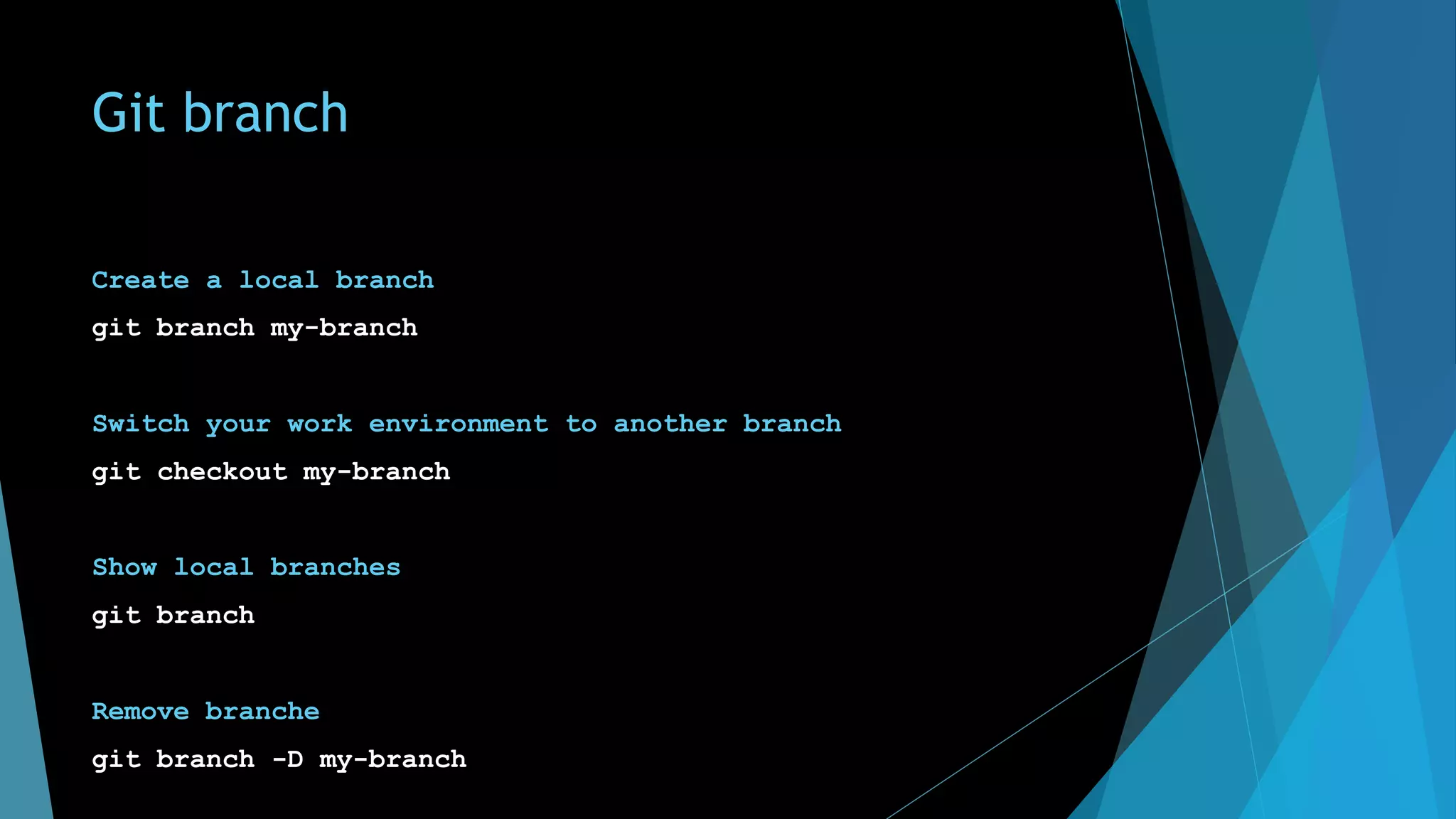

- 42. Git branch Create alocal branch git branch my-branch Switch your work environment to another branch git checkout my-branch Show local branches git branch Remove branche git branch -D my-branch

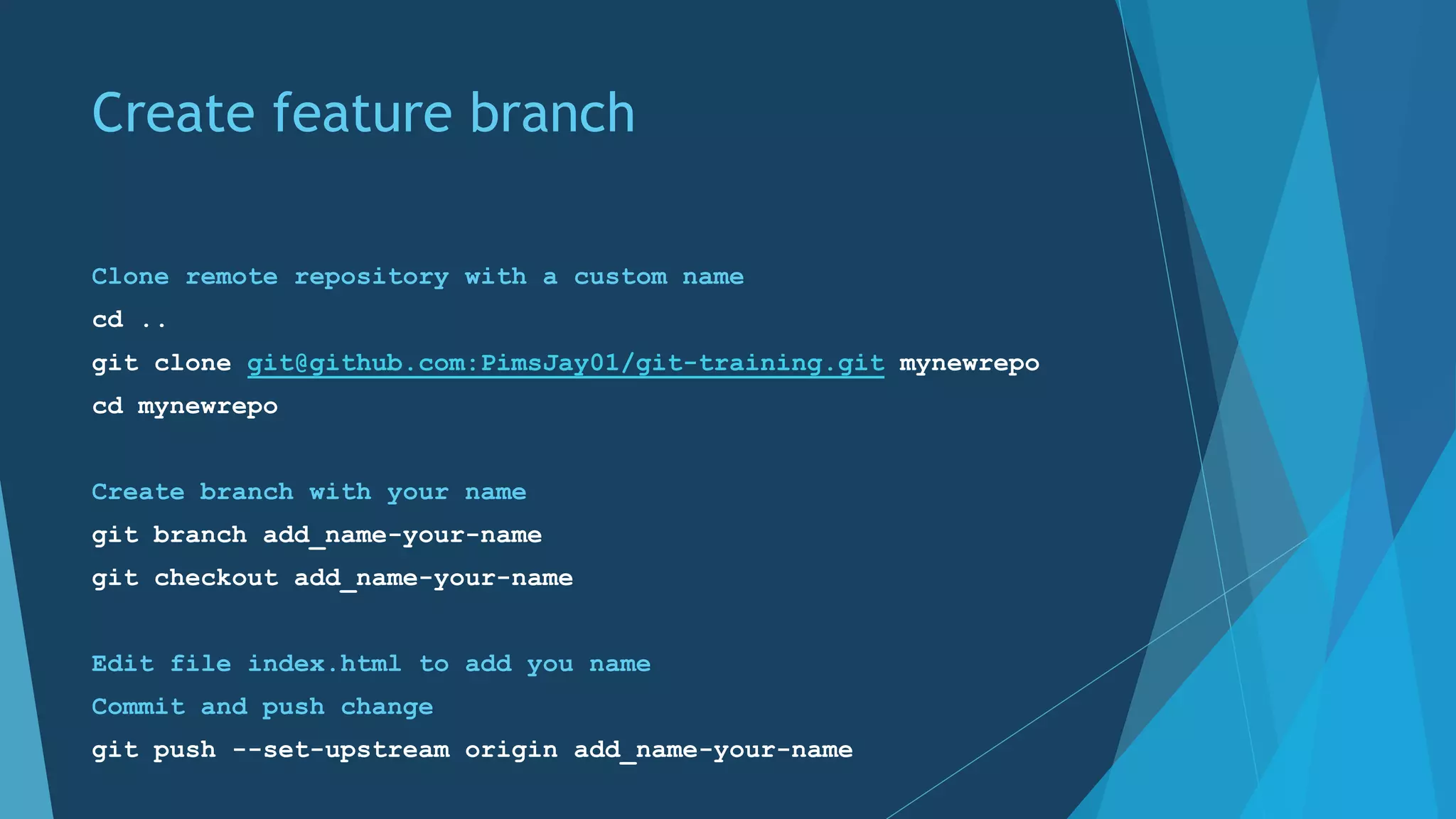

- 43. Create feature branch Cloneremote repository with a custom name cd .. git clone git@github.com:PimsJay01/git-training.git mynewrepo cd mynewrepo Create branch with your name git branch add_name-your-name git checkout add_name-your-name Edit file index.html to add you name Commit and push change git push --set-upstream origin add_name-your-name

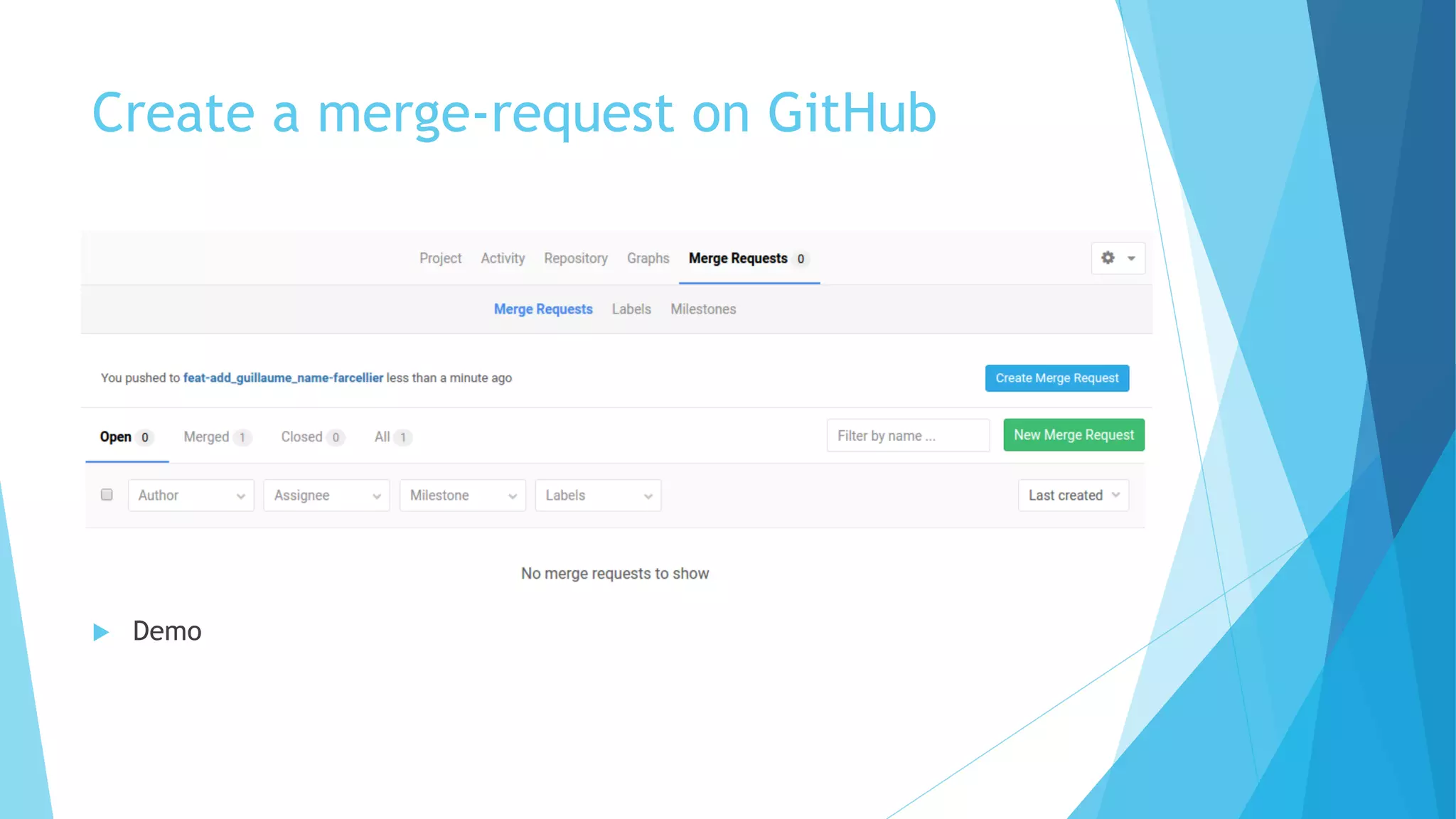

- 44. Create a merge-requeston GitHub u Demo

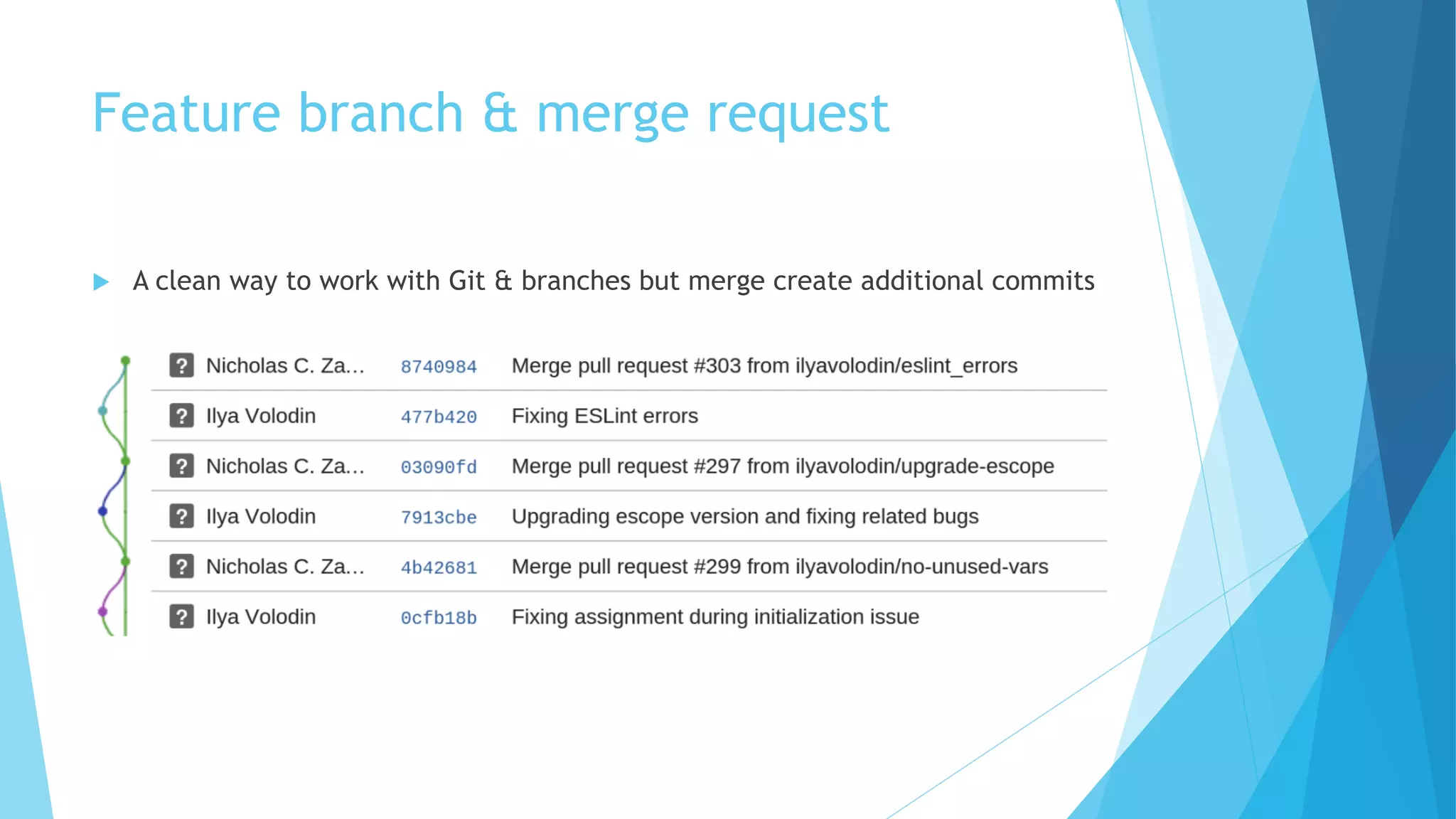

- 45. Feature branch &merge request u A clean way to work with Git & branches but merge create additional commits
- 46.
- 47.

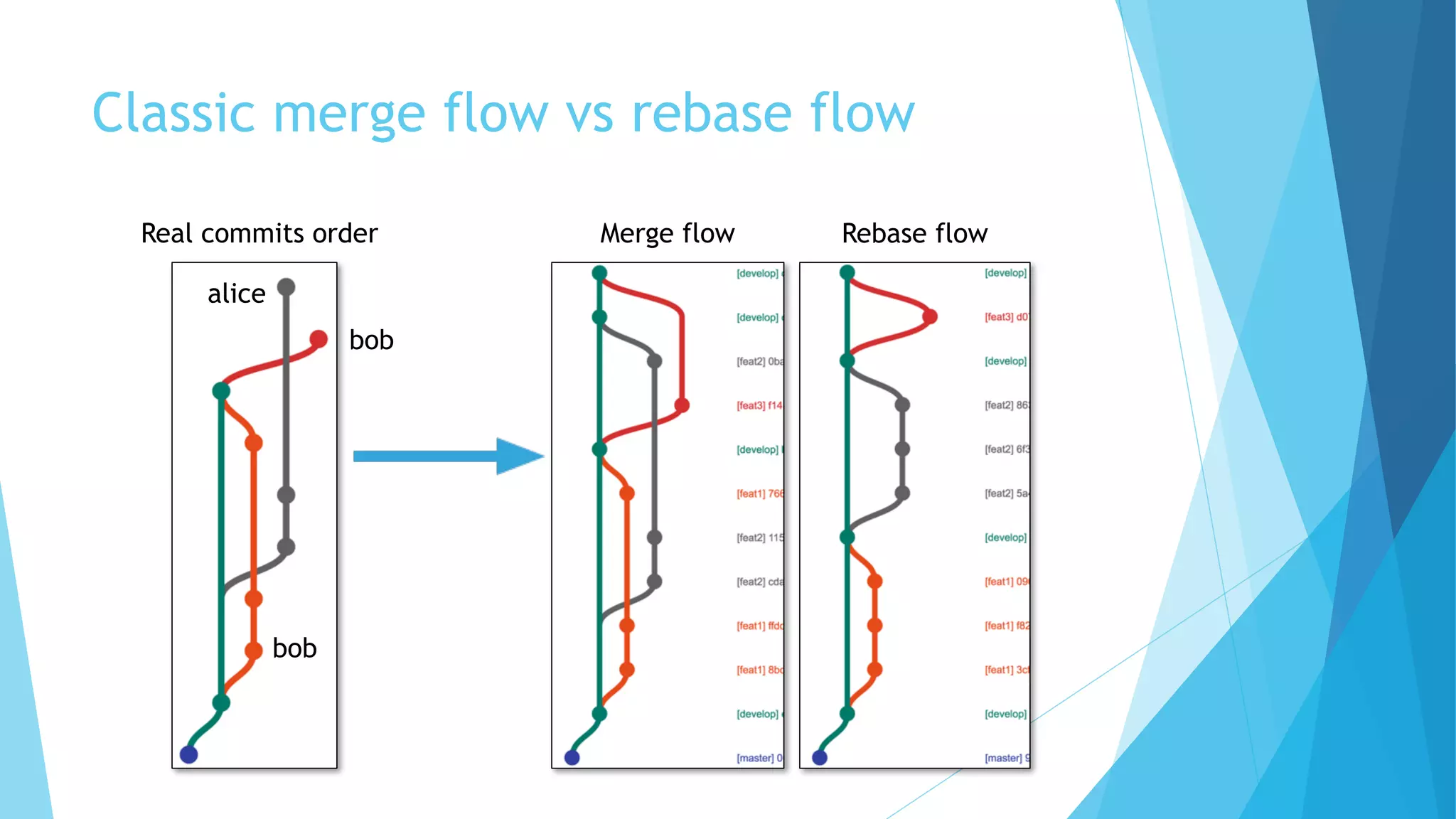

- 48. Classic merge flowvs rebase flow Real commits order Merge flow Rebase flow bob bob alice
- 49.

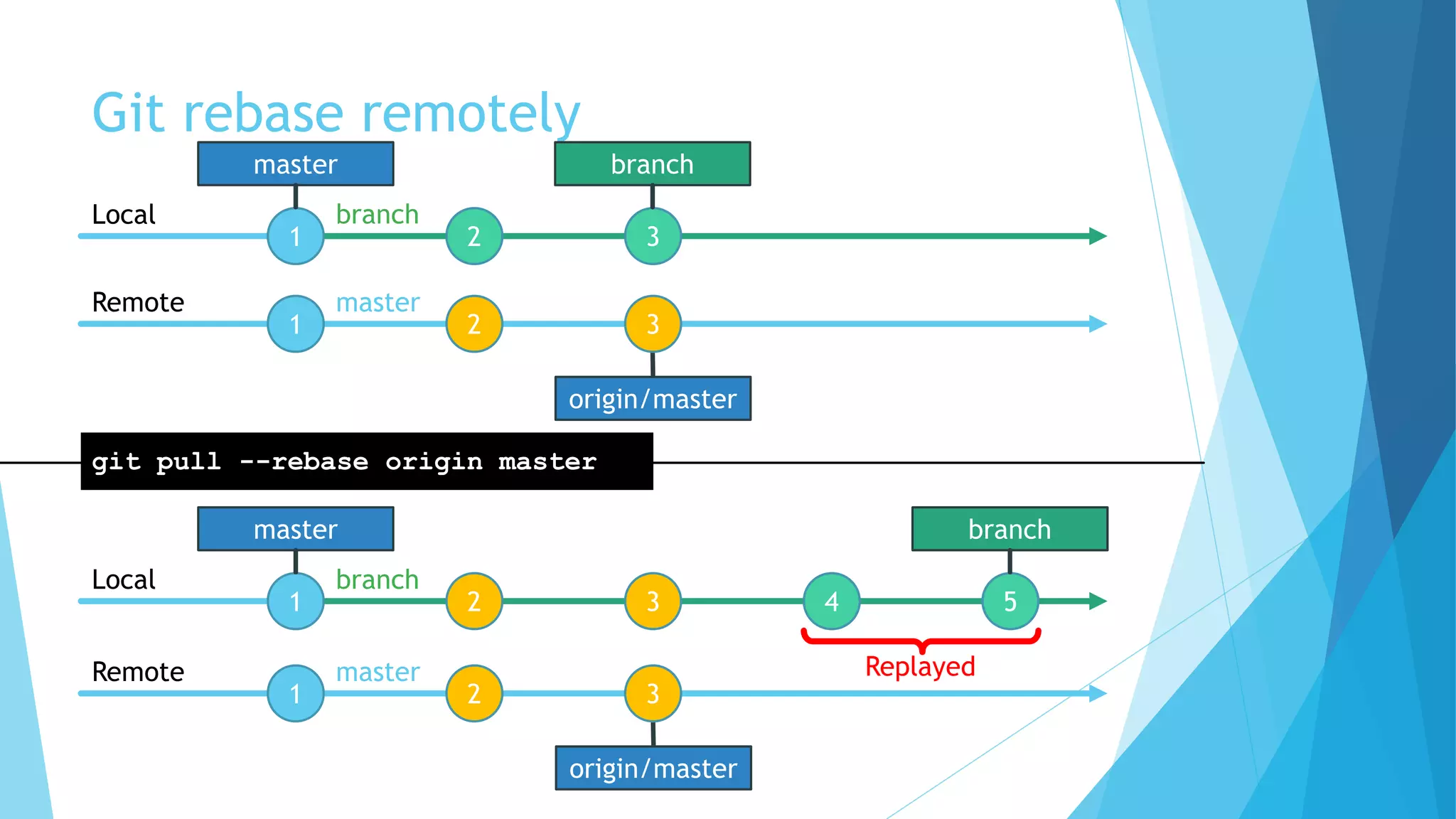

- 50. Git rebase remotely origin/master 12 3 1 2 3 Local Remote git pull --rebase origin master master 1 2 3 4 5 Local branch origin/master 1 2 3 Remote branch master branch master branch master Replayed

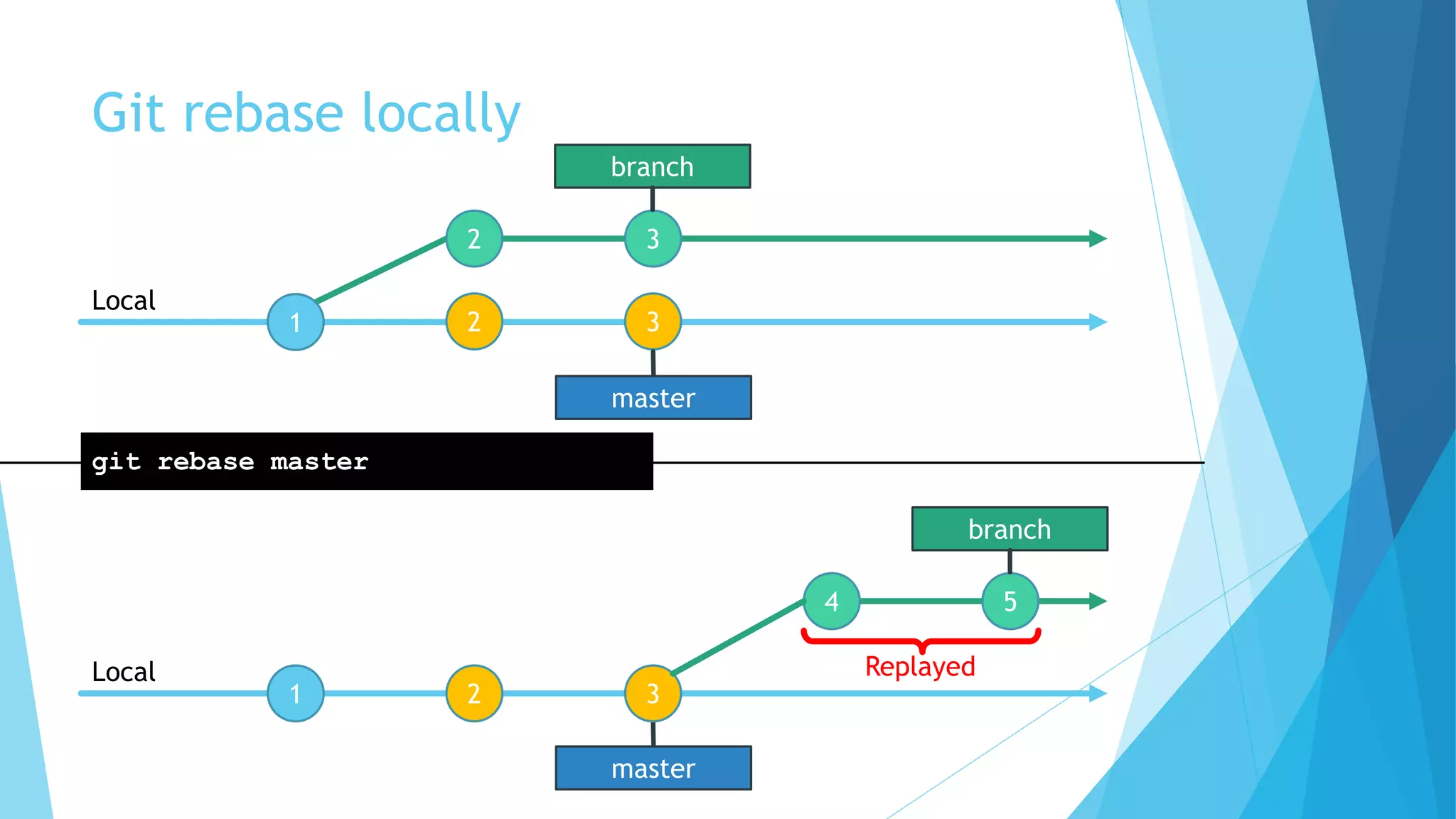

- 51. Git rebase locally 1 23 Local git rebase master 4 5 branch master 1 2 3 Local branch Replayed 2 3 master

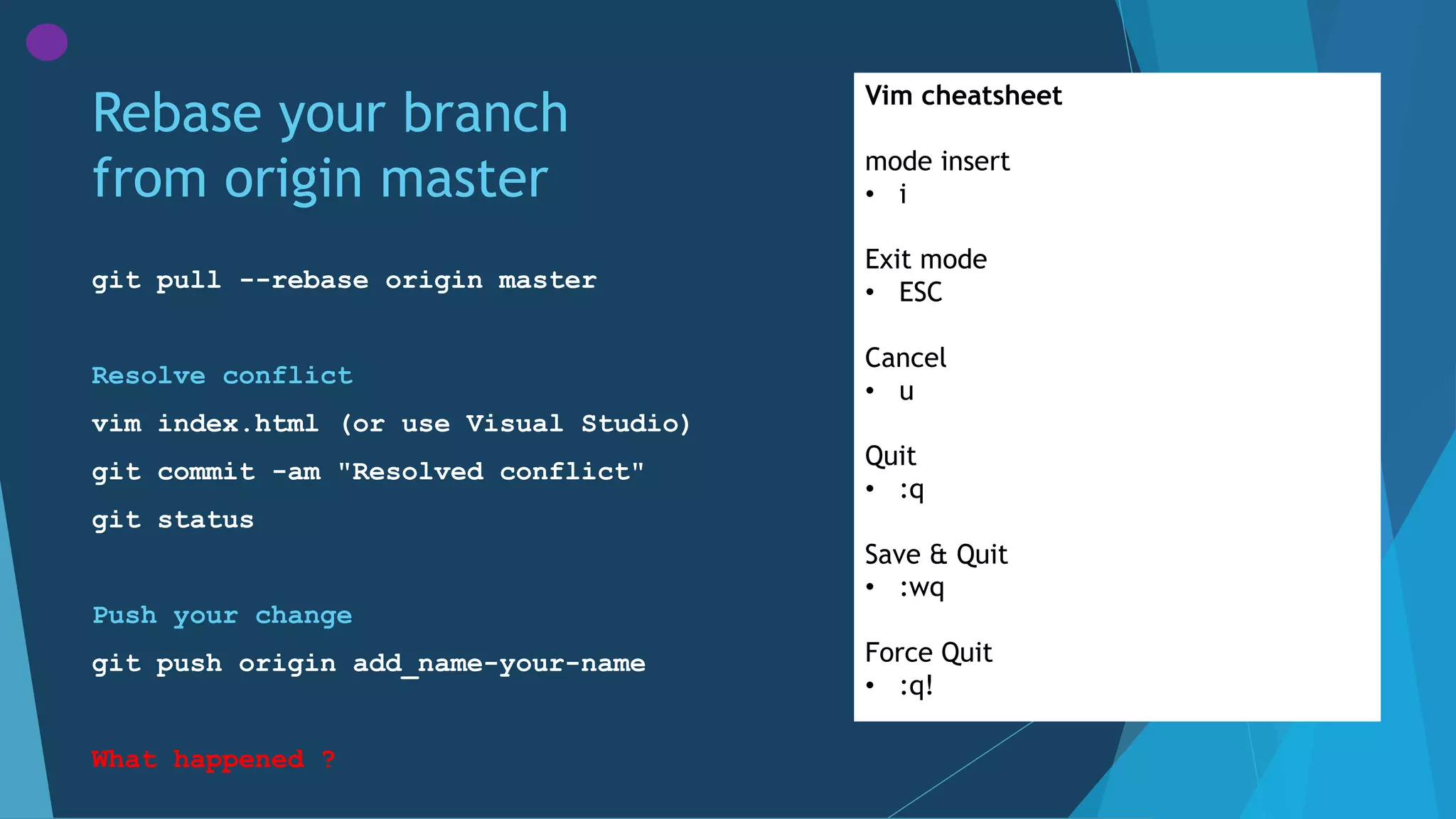

- 52. Rebase your branch fromorigin master git pull --rebase origin master Resolve conflict vim index.html (or use Visual Studio) git commit -am "Resolved conflict" git status Push your change git push origin add_name-your-name What happened ? Vim cheatsheet mode insert • i Exit mode • ESC Cancel • u Quit • :q Save & Quit • :wq Force Quit • :q!

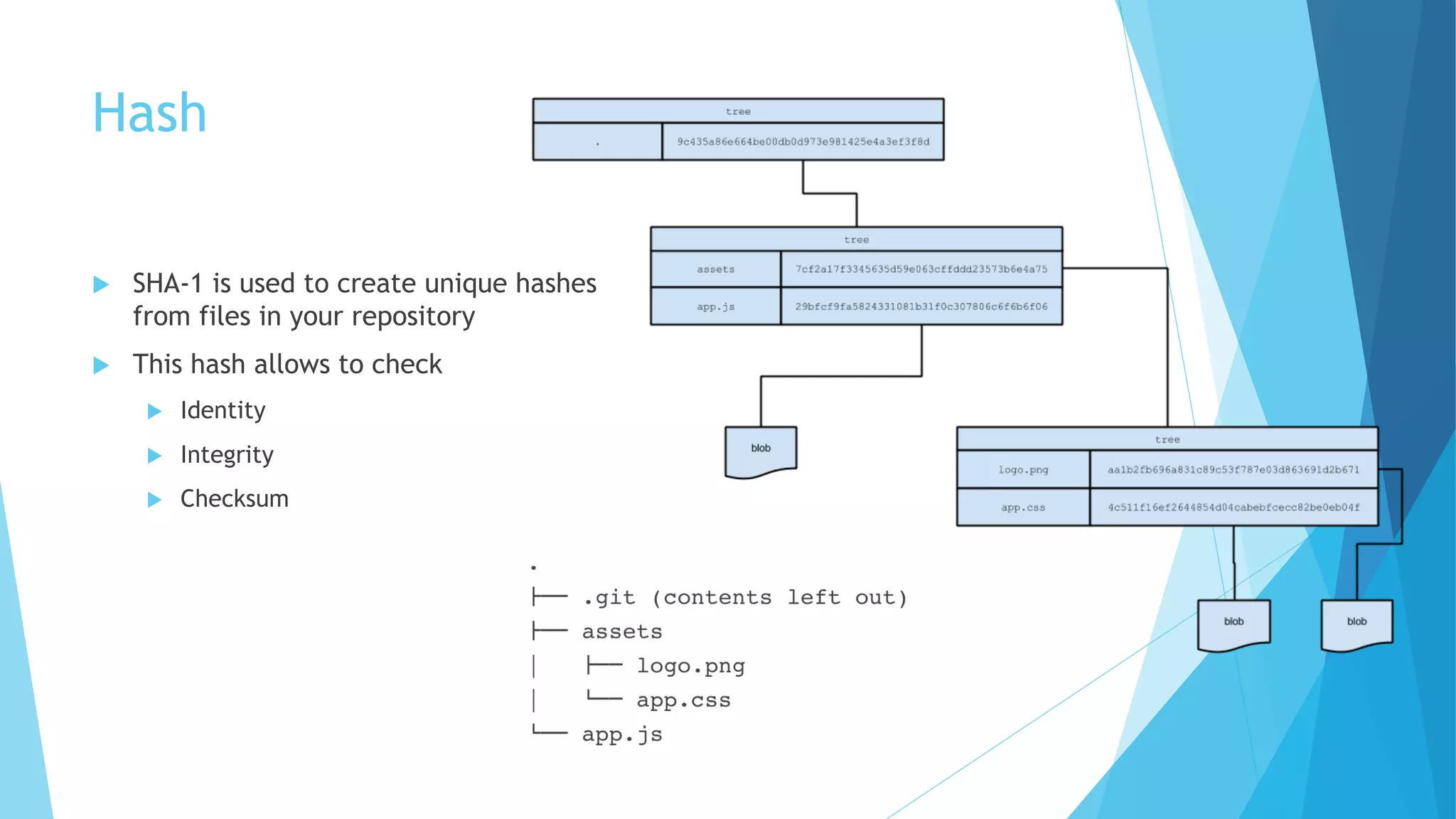

- 53. Hash u SHA-1 isused to create unique hashes from files in your repository u This hash allows to check u Identity u Integrity u Checksum
- 54. branch Git rebase 1 2 31 Local Remote gitpush origin master 2 3 4 5 branch origin/branch branch Cannot write over Jeremy’s commit To git@github.com:me/remote-repository.git ! [rejected] master -> master (non-fast-forward) git push --force origin master 1 2 3 4 5 Remote origin/branch

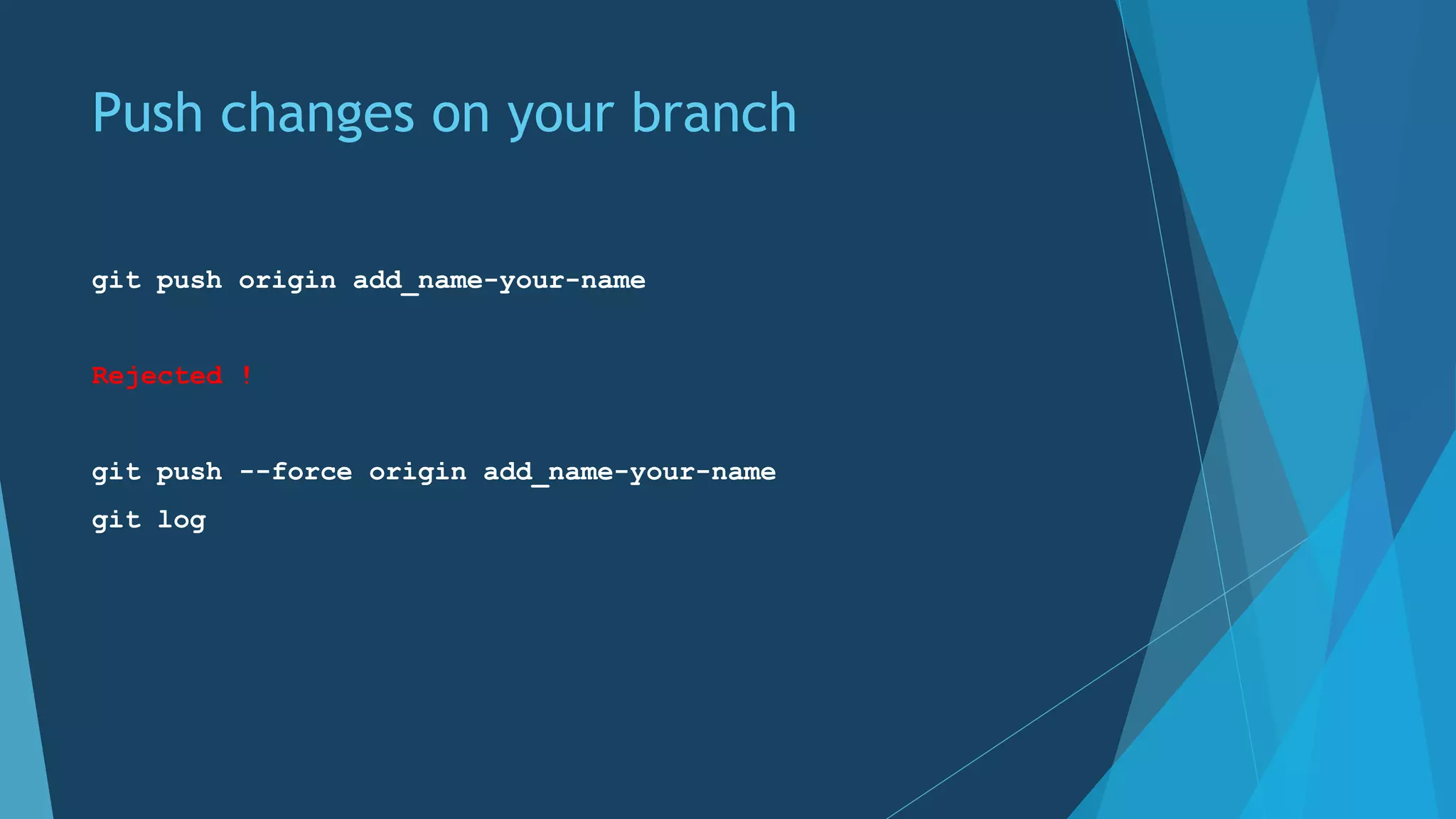

- 55. Push changes onyour branch git push origin add_name-your-name Rejected ! git push --force origin add_name-your-name git log

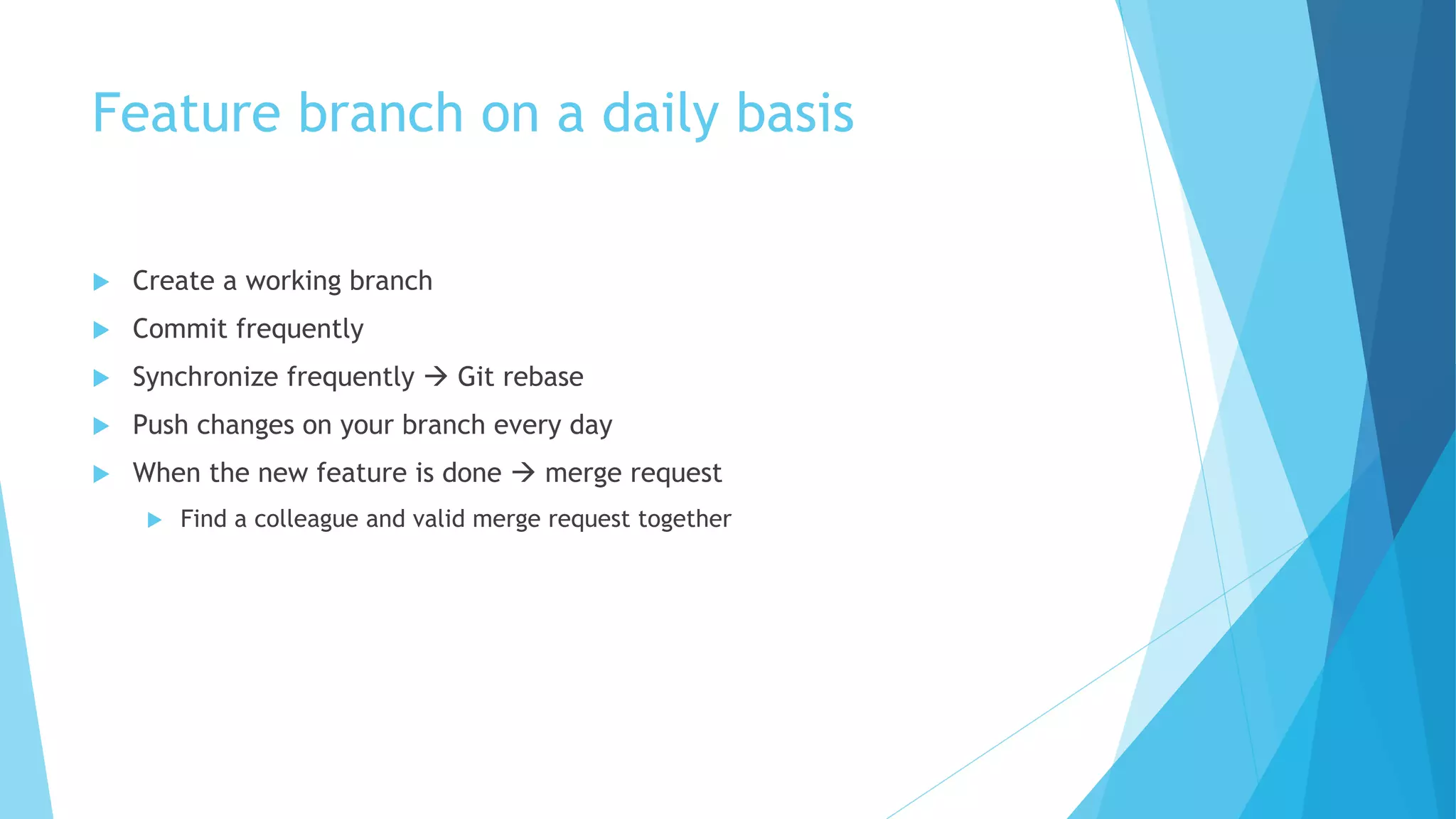

- 57. Feature branch ona daily basis u Create a working branch u Commit frequently u Synchronize frequently à Git rebase u Push changes on your branch every day u When the new feature is done à merge request u Find a colleague and valid merge request together
- 58.

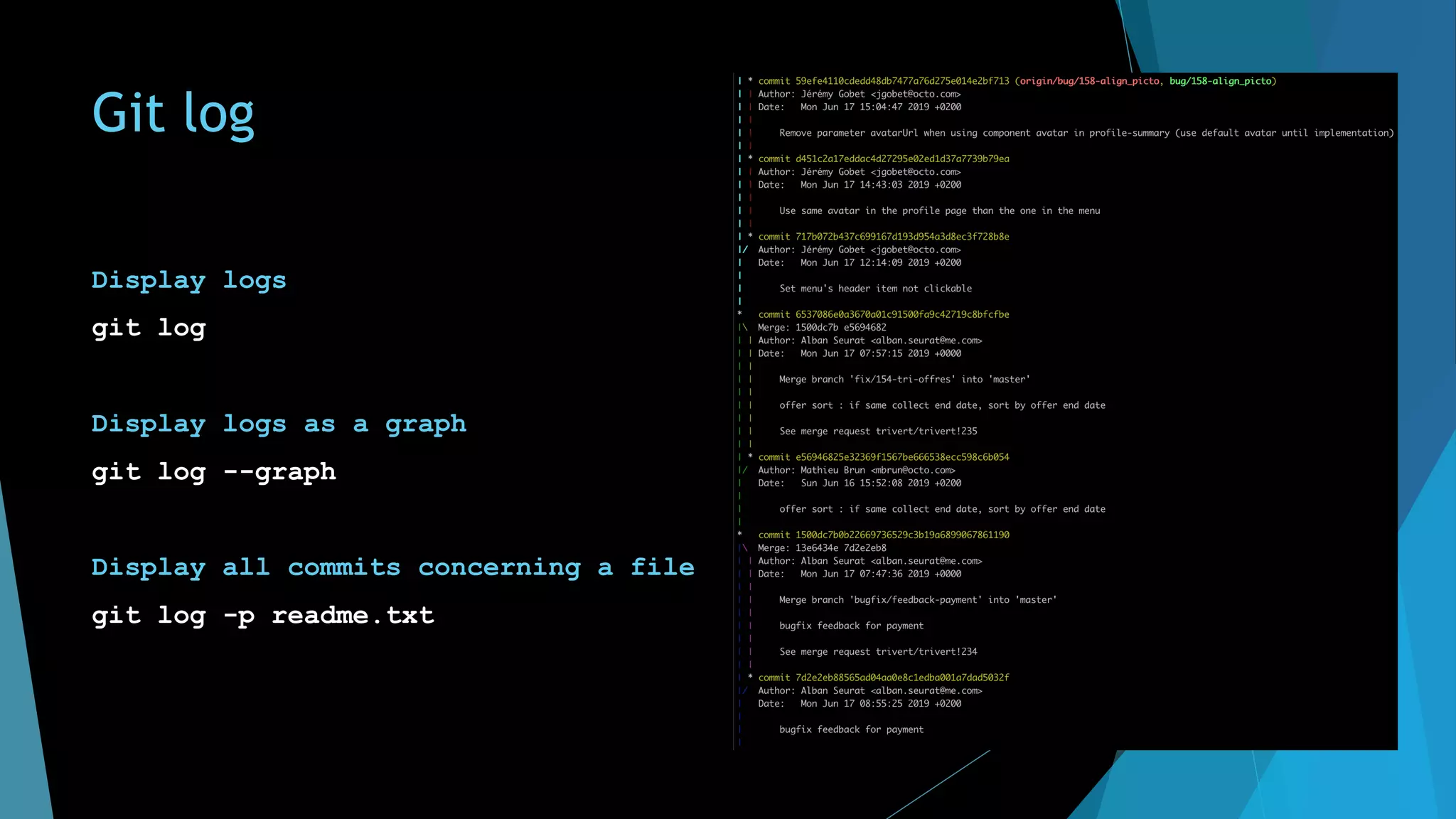

- 59. Git log Display logs gitlog Display logs as a graph git log --graph Display all commits concerning a file git log -p readme.txt

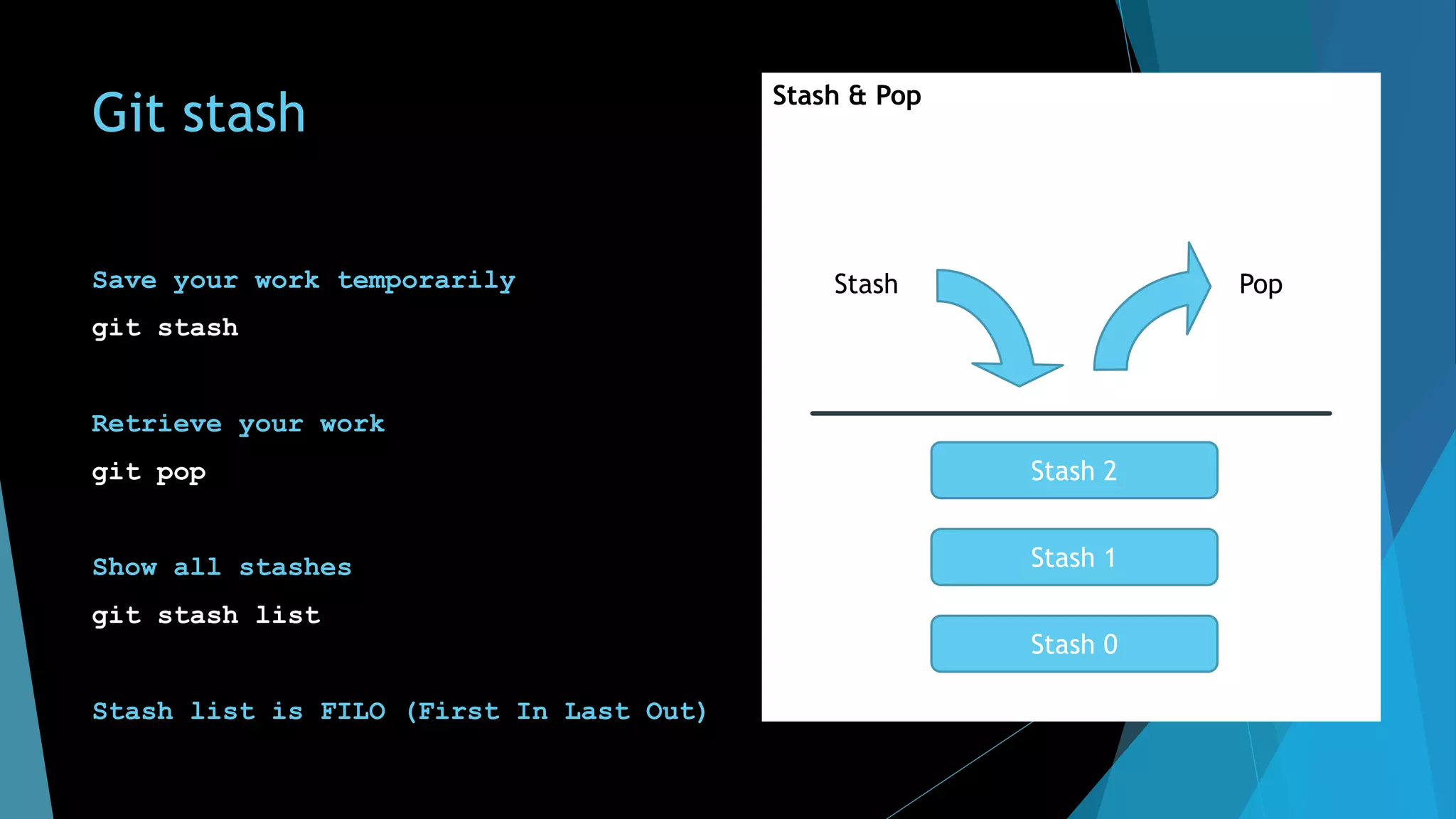

- 60. Git stash Save yourwork temporarily git stash Retrieve your work git pop Show all stashes git stash list Stash list is FILO (First In Last Out) Stash & Pop Stash 0 Stash 1 Stash 2 Stash Pop

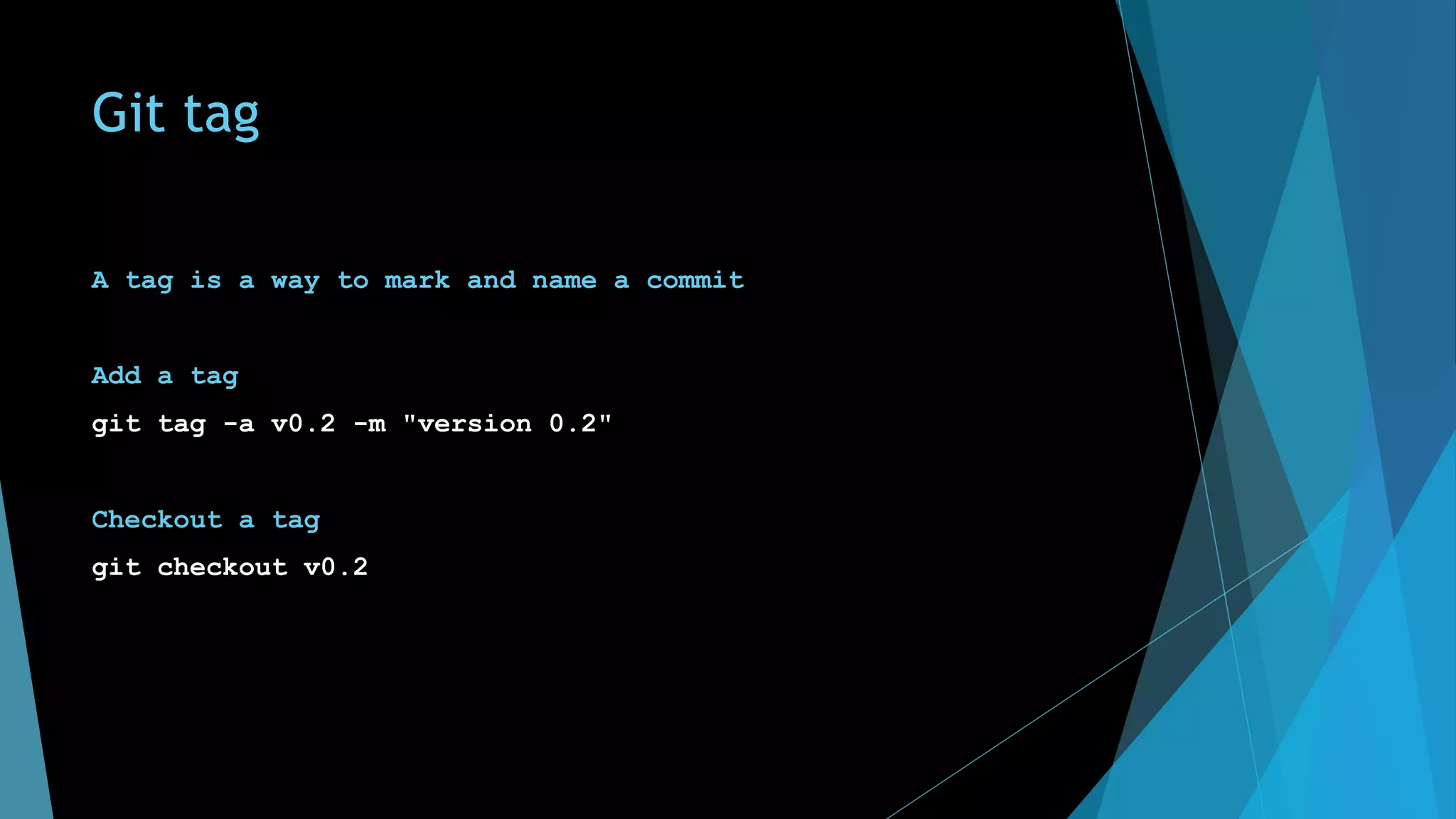

- 61. Git tag A tagis a way to mark and name a commit Add a tag git tag -a v0.2 -m "version 0.2" Checkout a tag git checkout v0.2

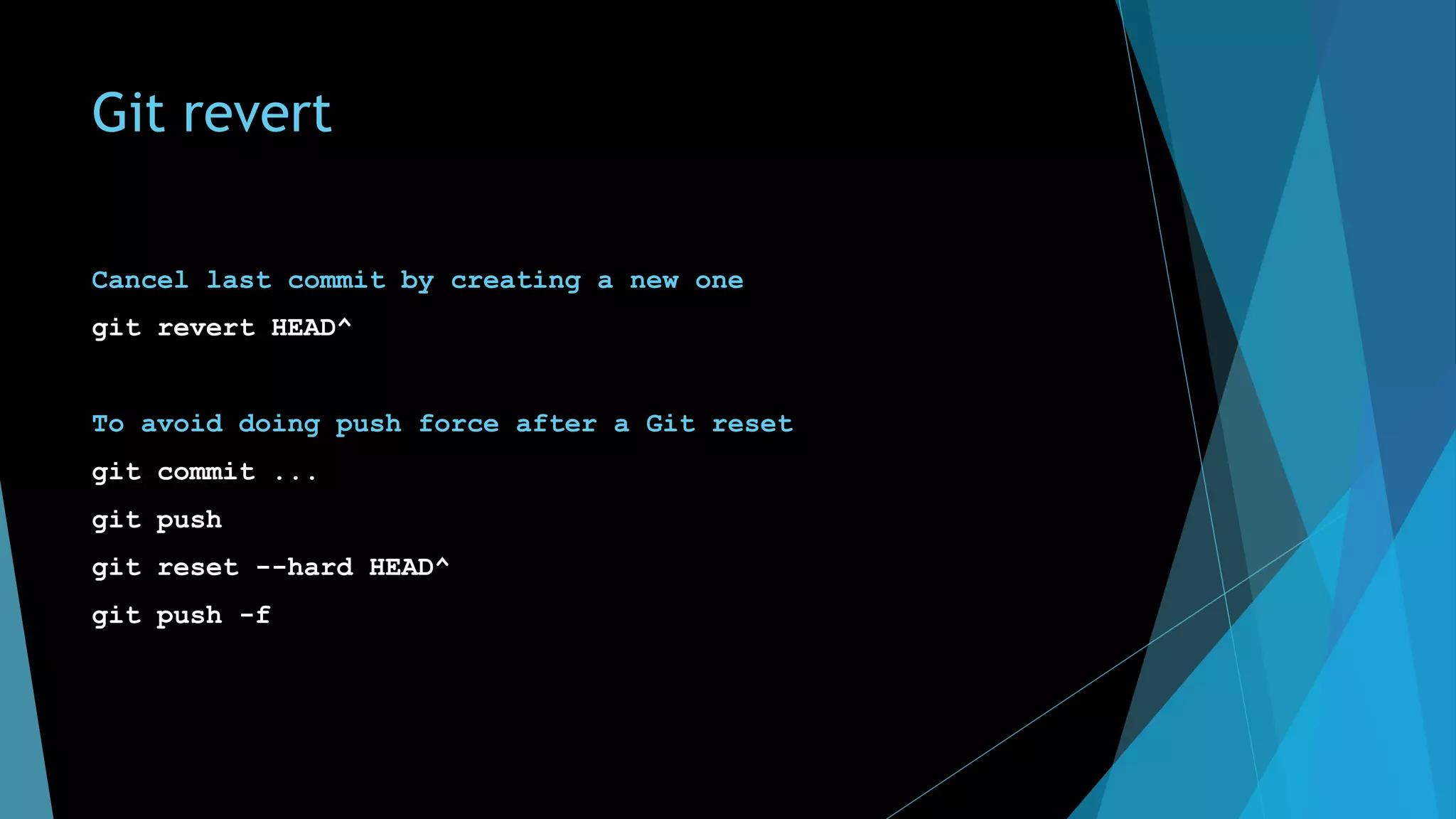

- 62. Git revert Cancel lastcommit by creating a new one git revert HEAD^ To avoid doing push force after a Git reset git commit ... git push git reset --hard HEAD^ git push -f

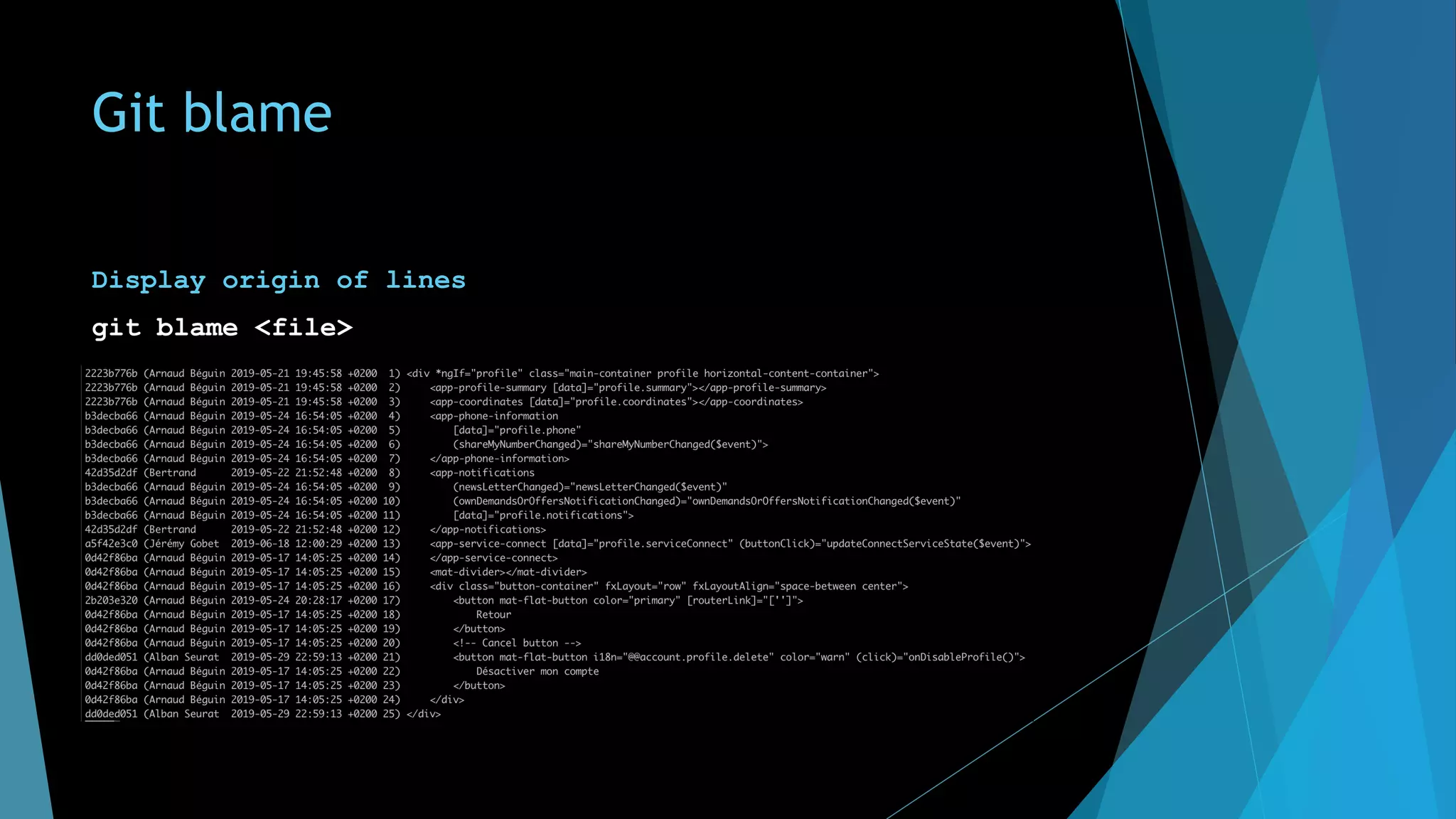

- 63. Git blame Display originof lines git blame <file>
- 64.

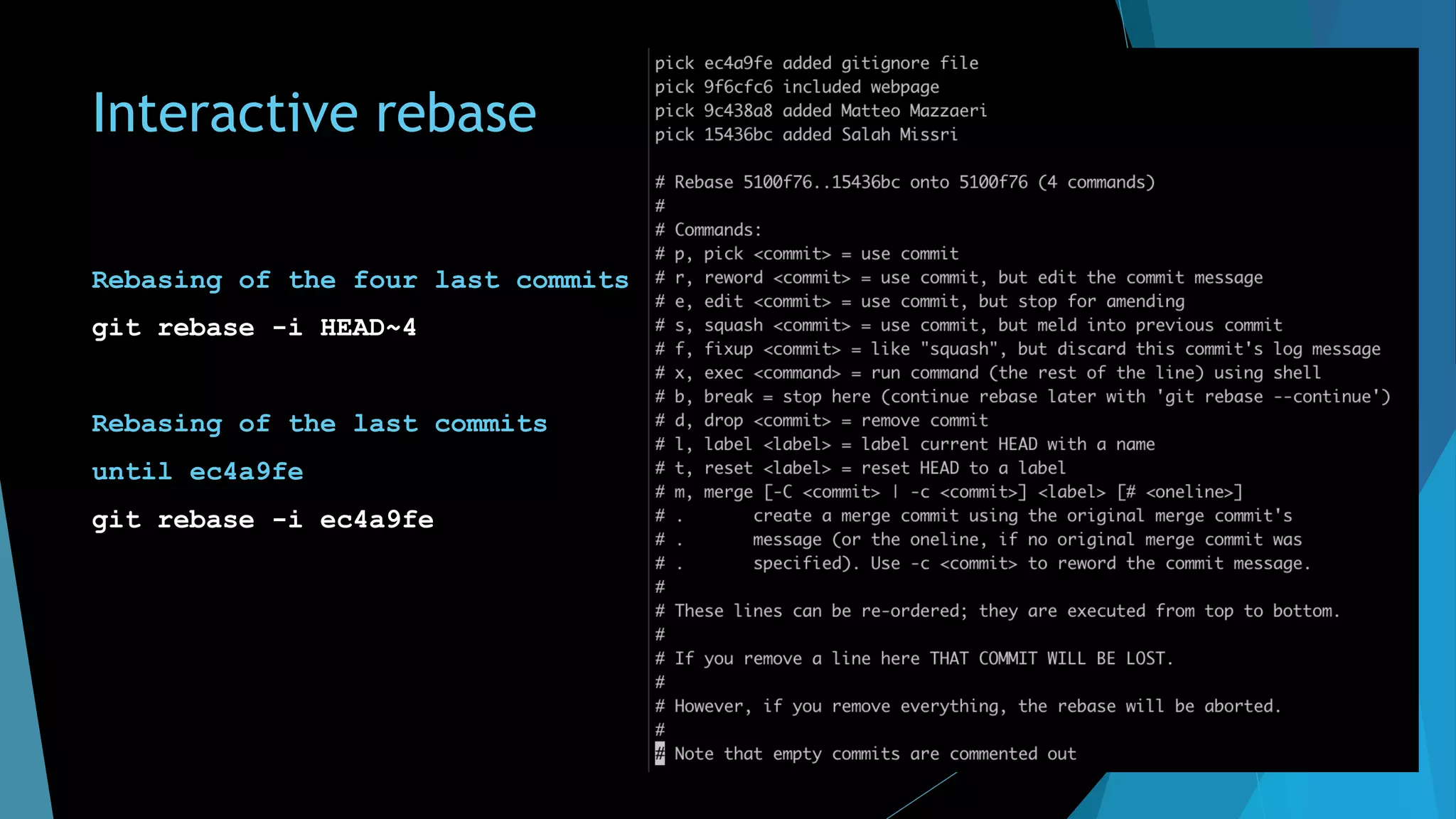

- 65. Interactive rebase Rebasing ofthe four last commits git rebase -i HEAD~4 Rebasing of the last commits until ec4a9fe git rebase -i ec4a9fe

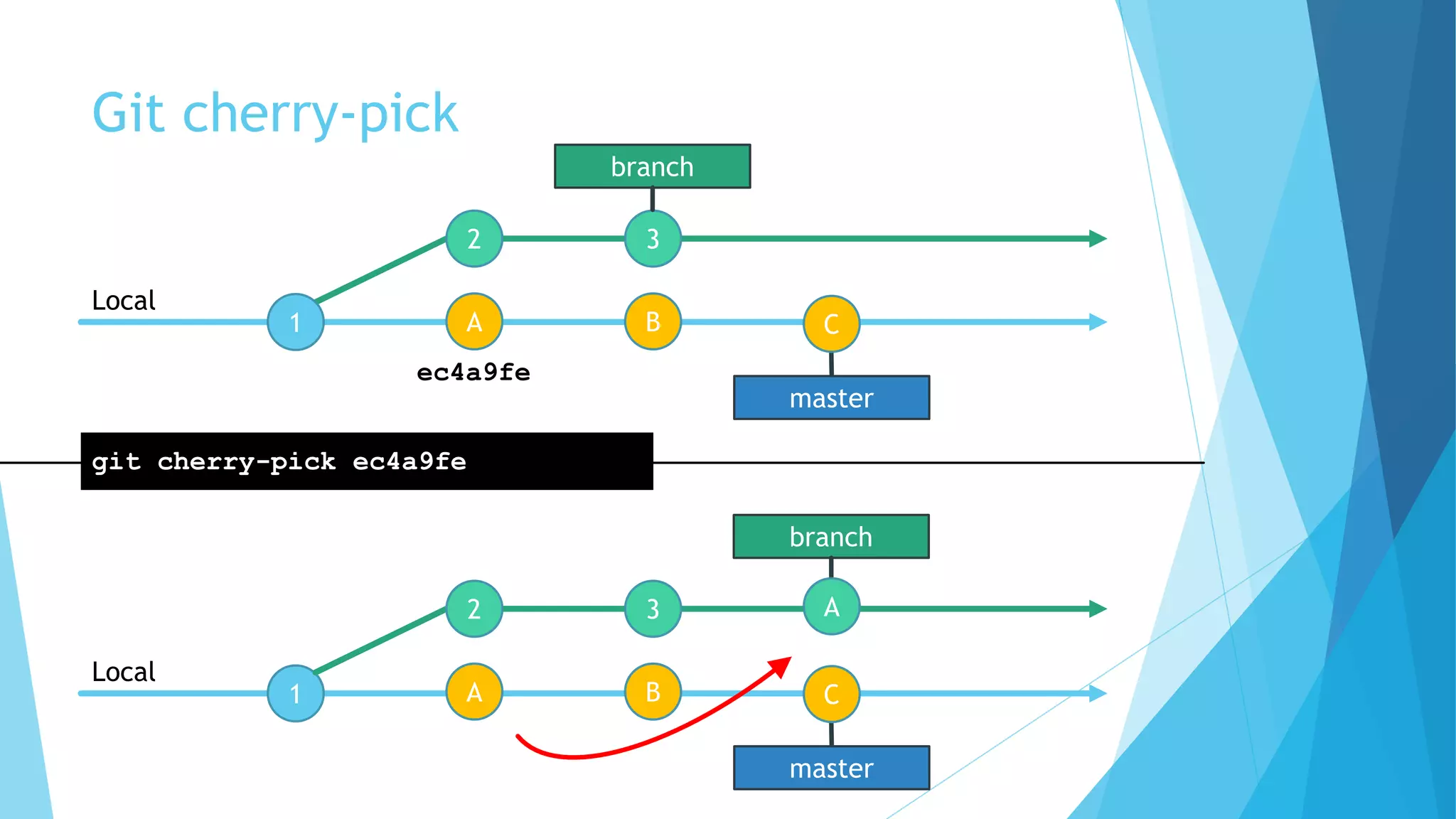

- 66. Git cherry-pick 1 2 3 Local gitcherry-pick ec4a9fe 1 Local branch A B master C 2 3 branch A B master C A ec4a9fe

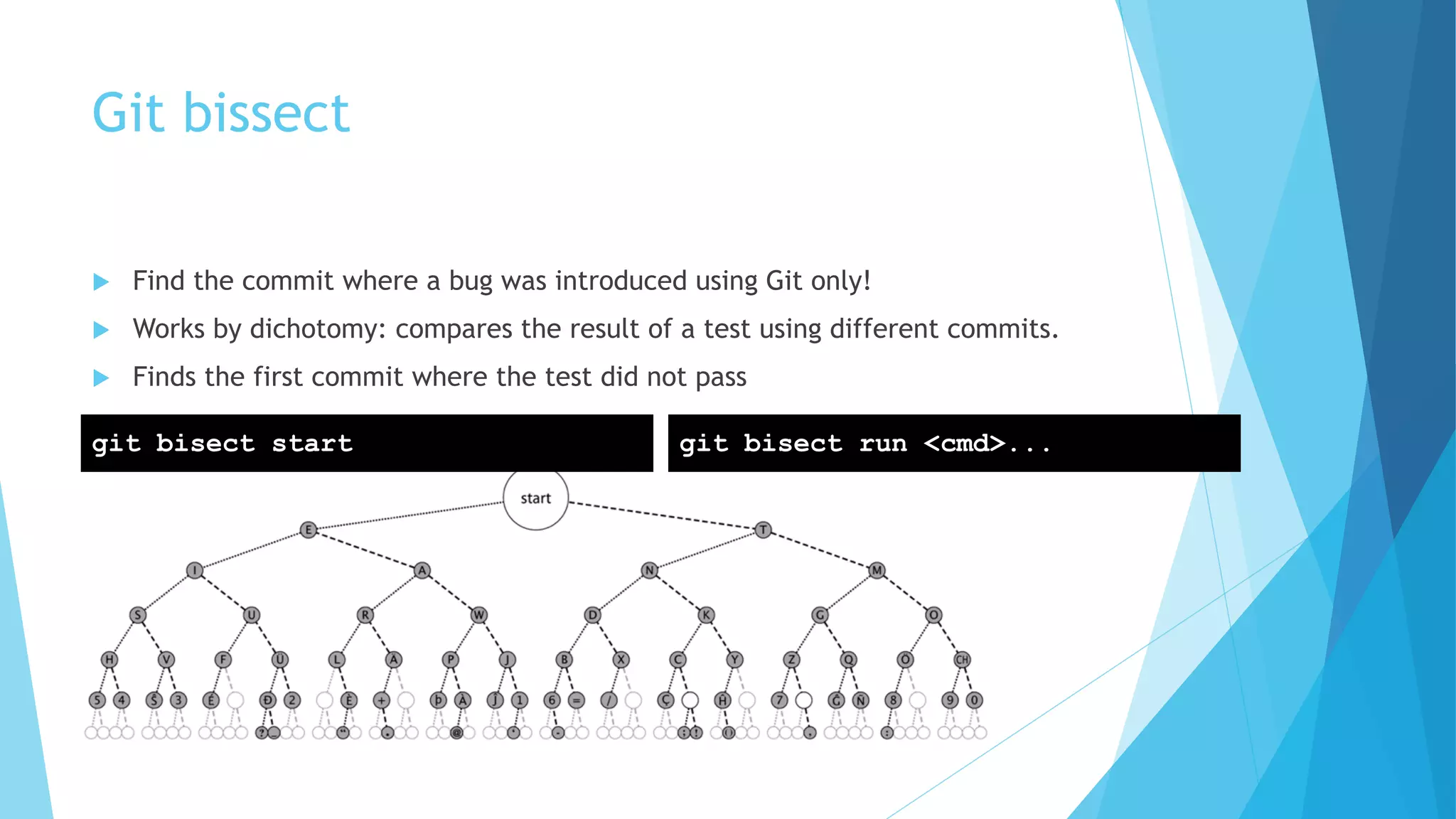

- 67. Git bissect u Findthe commit where a bug was introduced using Git only! u Works by dichotomy: compares the result of a test using different commits. u Finds the first commit where the test did not pass git bisect start git bisect run <cmd>...

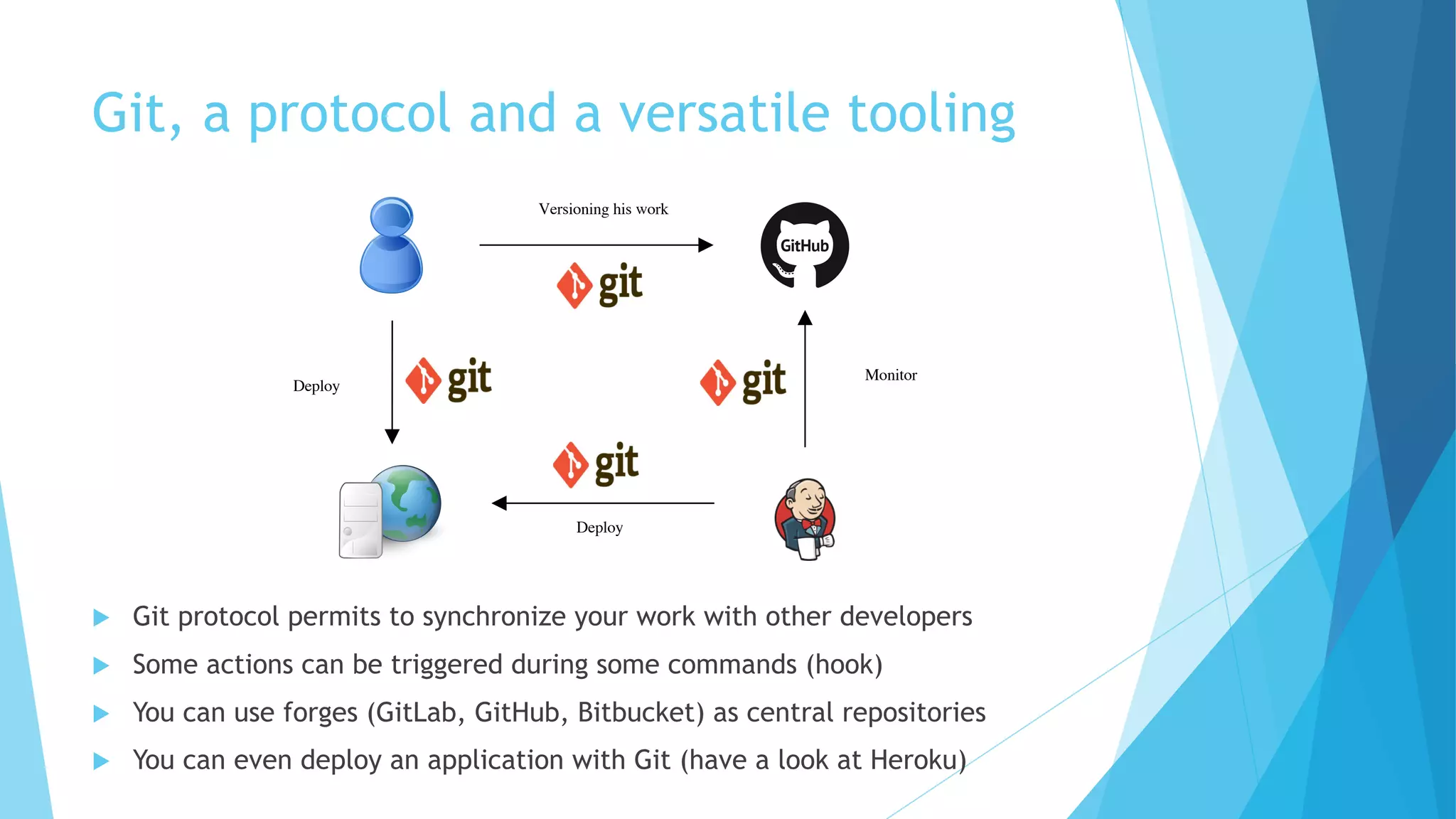

- 68. Git, a protocoland a versatile tooling u Git protocol permits to synchronize your work with other developers u Some actions can be triggered during some commands (hook) u You can use forges (GitLab, GitHub, Bitbucket) as central repositories u You can even deploy an application with Git (have a look at Heroku) Versioning his work Deploy Monitor Deploy
- 69. Alias [alias] st = status stp= status --porcelain ci = commit br = branch co = checkout rz = reset --hard HEAD pullr = pull --rebase unstage = reset HEAD lol = log --graph --decorate --pretty=oneline --abbrev-commit (log mieux présenté) lpush = "!git --no-pager log origin/$(git currentbranch)..HEAD --oneline » (ce quʼil reste à pusher) lpull = "!git --no-pager log HEAD..origin/$(git currentbranch) -- oneline » (ce qui va venir au prochain pull) whatsnew = "!git diff origin/$(git currentbranch)...HEAD » whatscoming = "!git diff HEAD...origin/$(git currentbranch)" currentbranch = "!git branch | grep "^*" | cut -d " " -f 2"

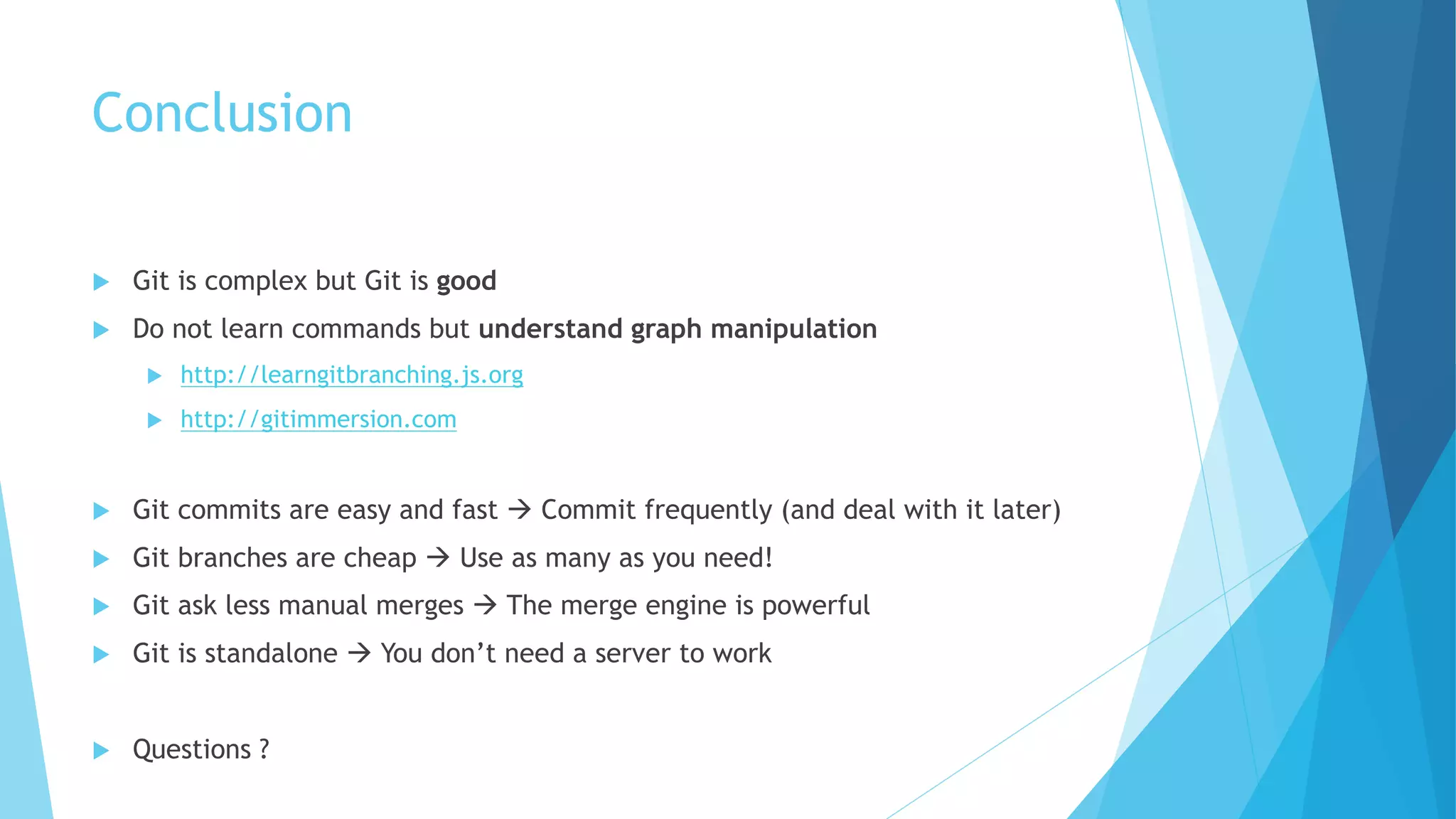

- 70. Conclusion u Git iscomplex but Git is good u Do not learn commands but understand graph manipulation u http://learngitbranching.js.org u http://gitimmersion.com u Git commits are easy and fast à Commit frequently (and deal with it later) u Git branches are cheap à Use as many as you need! u Git ask less manual merges à The merge engine is powerful u Git is standalone à You don’t need a server to work u Questions ?
