This document provides an overview of version control systems and compares Git and SVN. It discusses why version control is useful, describes popular version control systems from the past and present, and highlights key differences between distributed (Git) and centralized (SVN) systems. The document also includes instructions for downloading, setting up, and using basic Git functions for managing a code repository, including commands for saving changes, inspecting history, undoing edits, syncing repositories, and working with branches.

1. Initiation to
Mouad.elfakir@gmail.com
Mouad EL Fakir

2. Why ?
• Easy code source management.
• Easy project management.
• Keep history of modifications (commits).
• Branches facilitates parallel tasks.

3. Version Control Solutions
• SCCS (1972)
• RCS (1982)
• CSV (1990)
• SVN (2000)
• GIT (2005)
• Mercurial (2005)

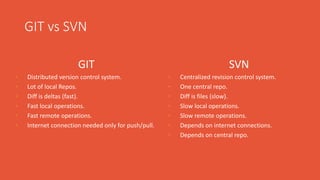

4. GIT vs SVN
GIT
• Distributed version control system.
• Lot of local Repos.
• Diff is deltas (fast).
• Fast local operations.
• Fast remote operations.
• Internet connection needed only for push/pull.
SVN
• Centralized revision control system.
• One central repo.
• Diff is files (slow).
• Slow local operations.
• Slow remote operations.
• Depends on internet connections.
• Depends on central repo.

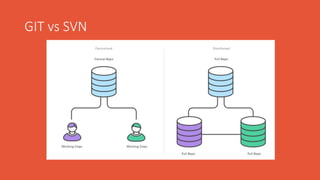

5. GIT vs SVN

6. GIT vs SVN
GIT
SVN
Repo
Local
Repo
RemoteCommit Push Pull
Repo
RemoteCommit Update

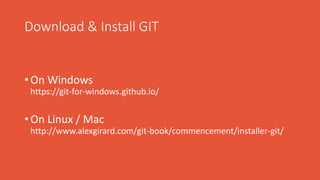

7. Download & Install GIT
• On Windows
https://git-for-windows.github.io/
• On Linux / Mac
http://www.alexgirard.com/git-book/commencement/installer-git/

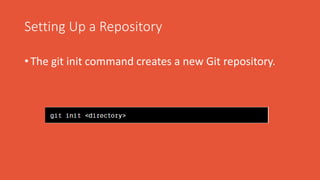

8. Setting Up a Repository
• The git init command creates a new Git repository.

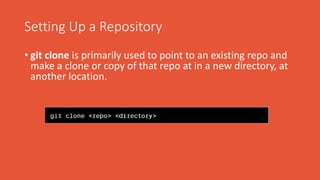

9. Setting Up a Repository
• git clone is primarily used to point to an existing repo and
make a clone or copy of that repo at in a new directory, at
another location.

10. Setting Up a Repository
• The git config command is a convenience function that is
used to set Git configuration values on a global or local
project level.

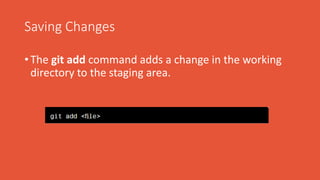

11. Saving Changes
• The git add command adds a change in the working
directory to the staging area.

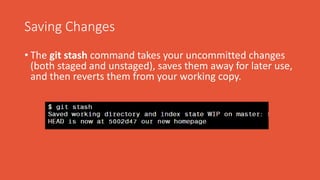

12. Saving Changes
• The git stash command takes your uncommitted changes
(both staged and unstaged), saves them away for later use,
and then reverts them from your working copy.

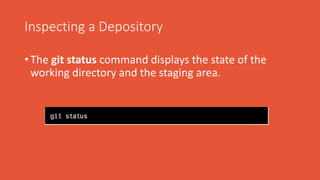

13. Inspecting a Depository
• The git status command displays the state of the
working directory and the staging area.

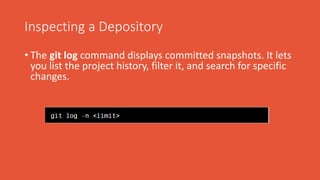

14. Inspecting a Depository
• The git log command displays committed snapshots. It lets
you list the project history, filter it, and search for specific
changes.

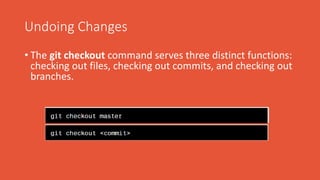

15. Undoing Changes
• The git checkout command serves three distinct functions:
checking out files, checking out commits, and checking out
branches.

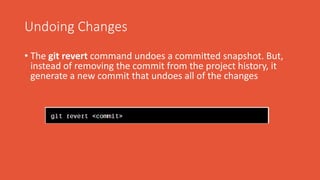

16. Undoing Changes
• The git revert command undoes a committed snapshot. But,
instead of removing the commit from the project history, it
generate a new commit that undoes all of the changes

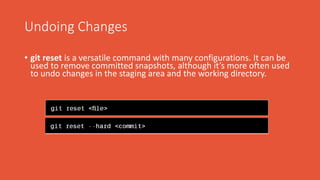

17. Undoing Changes
• git reset is a versatile command with many configurations. It can be
used to remove committed snapshots, although it’s more often used
to undo changes in the staging area and the working directory.

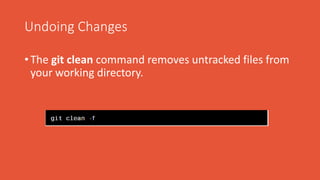

18. Undoing Changes
• The git clean command removes untracked files from
your working directory.

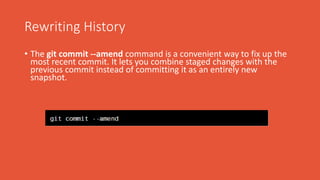

19. Rewriting History
• The git commit --amend command is a convenient way to fix up the
most recent commit. It lets you combine staged changes with the
previous commit instead of committing it as an entirely new
snapshot.

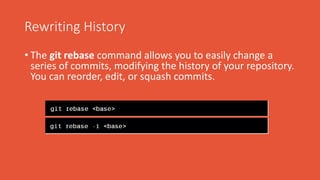

20. Rewriting History
• The git rebase command allows you to easily change a
series of commits, modifying the history of your repository.
You can reorder, edit, or squash commits.

21. Syncing
• The git remote command lets you create, view, and
delete connections to other repositories.

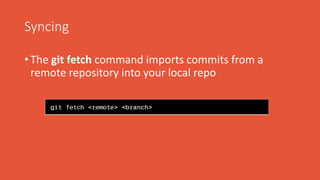

22. Syncing
• The git fetch command imports commits from a
remote repository into your local repo

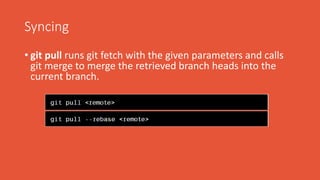

23. Syncing
• git pull runs git fetch with the given parameters and calls
git merge to merge the retrieved branch heads into the
current branch.

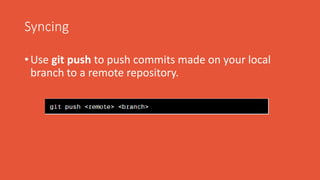

24. Syncing
• Use git push to push commits made on your local
branch to a remote repository.

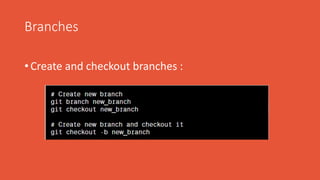

25. Branches
• Create and checkout branches :

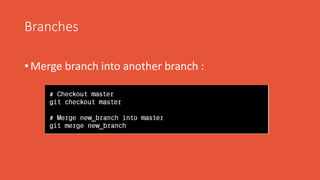

26. Branches
• Merge branch into another branch :

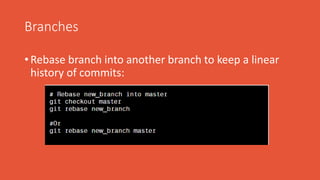

27. Branches
• Rebase branch into another branch to keep a linear
history of commits:

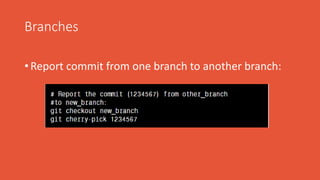

28. Branches
• Report commit from one branch to another branch:

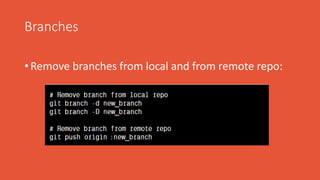

29. Branches
• Remove branches from local and from remote repo:

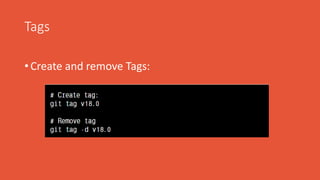

30. Tags
• Create and remove Tags:

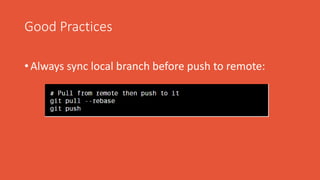

31. Good Practices
• Always sync local branch before push to remote:

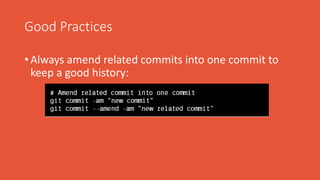

32. Good Practices
• Always amend related commits into one commit to
keep a good history:

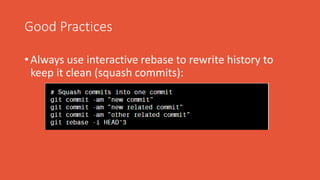

33. Good Practices
• Always use interactive rebase to rewrite history to
keep it clean (squash commits):

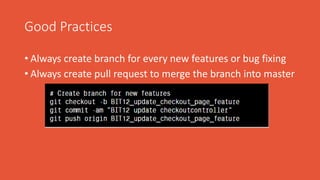

34. Good Practices
• Always create branch for every new features or bug fixing
• Always create pull request to merge the branch into master

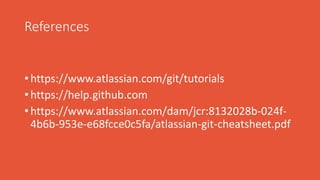

35. References
• https://www.atlassian.com/git/tutorials
• https://help.github.com
• https://www.atlassian.com/dam/jcr:8132028b-024f-
4b6b-953e-e68fcce0c5fa/atlassian-git-cheatsheet.pdf

36. DEMO
