Gic2011 aula3-ingles
This document discusses key aspects of data warehousing design and implementation including: - Storing historical data in a separate environment from operational data with a different structure optimized for analysis rather than transactions. - Requirements gathering, data modeling, ETL, OLAP cube design, and report development to architect the analytical environment. - Ongoing maintenance of the data warehouse including performance tuning, query optimization, quality assurance, and incremental enhancements.
More Related Content
Gic2011 aula3-ingles
- 1. Information & Knowledge Management - Class 3 Marielba Zacarias Prof. Auxiliar DEEI FCT I, Gab 2.69, Ext. 7749 Data-warehousing mzacaria@ualg.pt http://w3.ualg.pt/~mzacaria
- 2. Summary Data-warehouses The architectedenvironment Design Process Data-modeling schemas
- 3. Data Warehousing Data collectionfor analysis and reporting taks Historical data Stored in a distinct environment from operational data Structure different from data-bases
- 4. Why Operational and analiticaldata have different requirements in terms of usage (frequency, response time) hardware software structure
- 5. Data-warehousing Users
- 6. Before Data-Warehouses.... The “spider web” 6
- 7. The “arquitected” environment” Atomic Dept. individual operational dw dw dw “data-marts” Detailed temporal More granular derived, daily Ad-hoc Temporal Some primitive current value Heuristic Integrated Typical of Marketing High access prob. Não-repetitive Subject oriented Engineering Application oriented Oriented to PC or Sumarized Production workstations Accounting 7
- 8. Type of questions Atomico operacional Dept. individual dw J. Jones 1986-87 Jan – 4101 Clientes 123 Main St. J. Jones Fev – 4209 Desde 1982 Credit - AA 456 High St. Mar- 4175 Com saldos Credit - B Apr - 4215 > 5,000 Jones e crédito Credit? 1987-89 Monthly >= B J. Jones 456 High St. Sales? Credit - A 1989 – pte. Client types Jones J. Jones in analysis? Credit 123 Main St. History? Credit - AA 8
- 9. Architected Environment Production Environment Operational Analitical environment Environment 9
- 10. Data-warehouse design Requirement Performance Tuning Gatherings Query Physical Optimization Environment Setup Quality Assurance Data Modeling Rolling out to ETL Production OLAP Cube Design Production Front End Maintenance Development Incremental Enhancements Report Development
- 11. Requirements Gathering Take into account users Executive with little time and knowledge about technical terms Interviews, JAD sessions User Reporting/Analysis Requirements Hardware, training requirements Data source identification Concrete project plan
- 12. Physical Environment Setup Setup Servers, DBMS and databases, ETL, OLAP Cubes and reporting services Create three environments development, testing, production

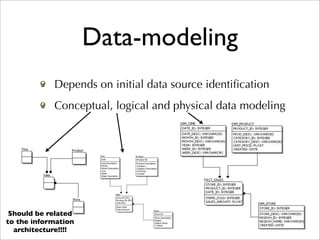

- 13. Data-modeling Depends on initial data source identification Conceptual, logical and physical data modeling Should be related to the information architecture!!!!
- 14. Data Modeling Dimensional Approach Transactional data is partitioned in facts Numeric transaction data products ordered, price Dimensions provide context for facts order date, customer name, product number, location info, salesperson

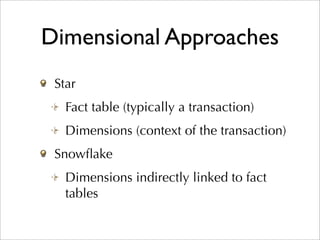

- 15. Dimensional Approaches Star Fact table (typically a transaction) Dimensions (context of the transaction) Snowflake Dimensions indirectly linked to fact tables
- 16.
- 17.
- 18.
- 19.
- 20.
- 21. OLAP Cube Design Specificationof detailed reporting needs in terms of the multi-dimensional structure previously defined (star or snowflake), but regarded as a n- dimensional cube star/snowflake and cubes are pretty much the same thing cubes are more appropriate for not IT users
- 22.
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29. SQL Server Integration ExamplesII Qualitative data Description term ActionId team meeting 18 hr distribution 19 project list 19 team meeting 19 hr distribution 26 project list 26 claims application 27 claims application 28 cards application maintenance 29 claims application integration 30 hr distribution 31 project list 31 claims application 34 claims application 35 hr distribution 36 project list 36
- 30. SQL Server Integration ExamplesIII Fuzzy Transformations
- 31. Front-end development Front-endsrange from in-house development with scripting languages php, asp, or perl to off-the-shelf products such as Crystal Reports or higher-end products such as Actuate OLAP vendors also offer front-ends of their own
- 32. Report Development Derived fromrequirements Main point of contact between the data- warehouse and users User customization Report Delivery (web, e-mail, sms, file formats) Access privileges
- 33. Performance Tuning ETL Query Processing Users loose interest after 30 sec! Query optimization Report Delivery
- 34. Query Optimization Understand howyour DBMS executes queries Store intermediate results in temporary tables Query Optimization tips Use indexes Partition tables (vertically and horizontally) De-normalize (less joins) Server Tuning
- 35. Quality Assurance Test planwith quality criteria for data Critical success factor Often overlooked Performed by people with knowledge of the business data not data-warehouses Resistance
- 36. Rolling to production Seemseasy but.. Putting everyone online may take a full week in some cases Online access can be as simple as sending a link by e-mail
- 37. Production Maintenance Backupand recovery processes Crisis Management Monitoring end-user usage Capture runaways queries before whole system is slowed down To measure usage for ROI calculations and future enhancements
- 38. Incremental enhancements Accomplish small changes such as changing original geographical designations A company may add new sales regions No matter how simple, never do them directly in production environment
- 39.
- 40.
- 41.
- 42.
- 43. Tools for unstructured informationmanagement Content Management Systems Record Management Systems Digital Image Management Systems Digital Asset Management Systems Digital Imaging Systems
