1. Getting Started with Coded UI Testing:
Building Your First Automated Test
Imaginet Resources Corp.
http://www.imaginet.com

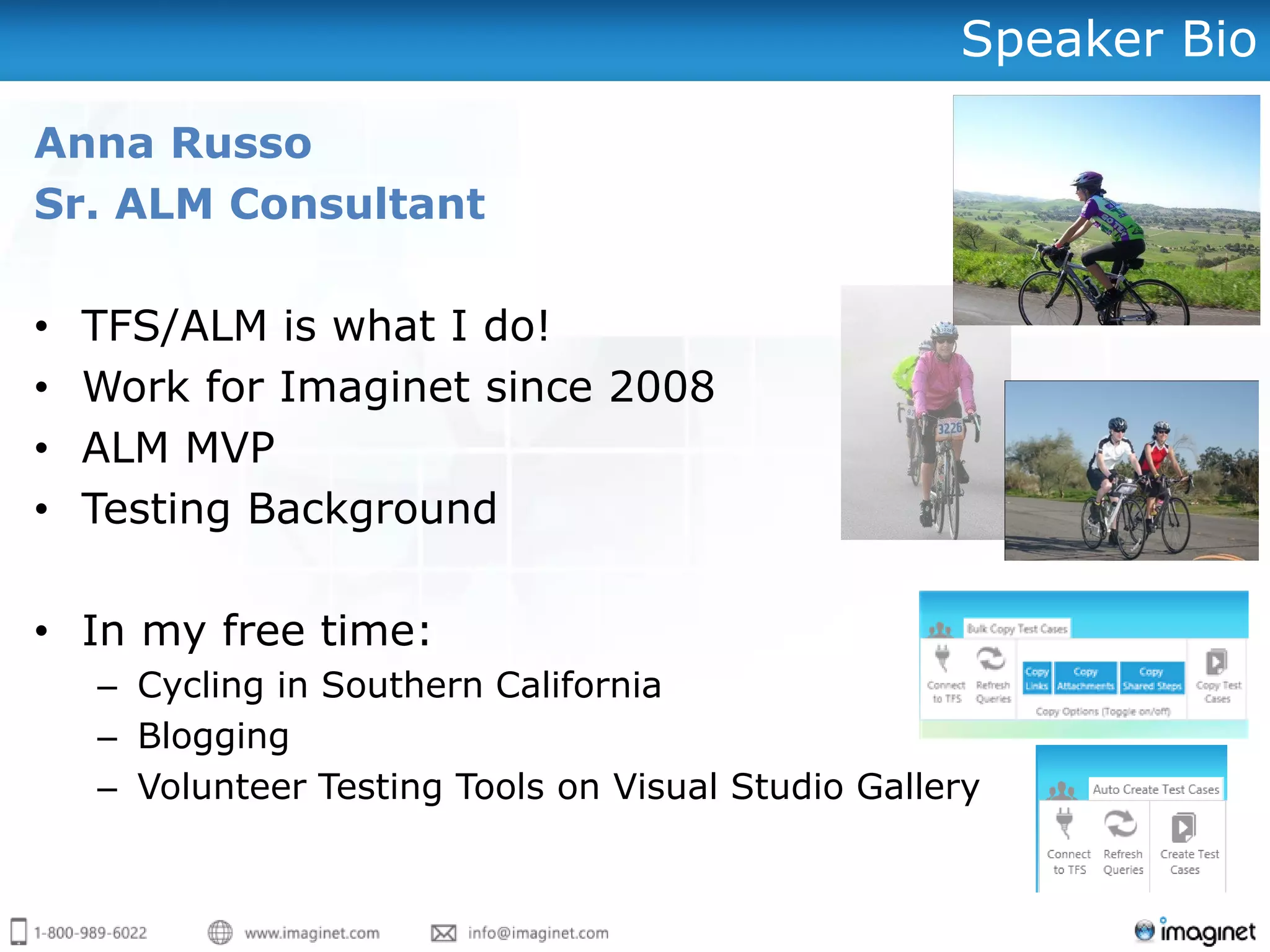

2. Speaker Bio
Anna Russo
Sr. ALM Consultant
• TFS/ALM is what I do!
• Work for Imaginet since 2008
• ALM MVP
• Testing Background
• In my free time:
– Cycling in Southern California
– Blogging
– Volunteer Testing Tools on Visual Studio Gallery

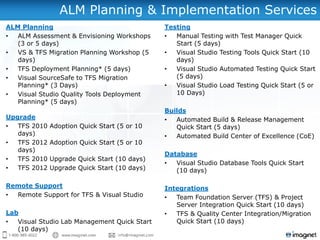

3. Email us at:
ALM Planning & Implementation Services
ALM Planning
• ALM Assessment & Envisioning Workshops
(3 or 5 days)
• VS & TFS Migration Planning Workshop (5
days)
• TFS Deployment Planning* (5 days)
• Visual SourceSafe to TFS Migration
Planning* (3 Days)
• Visual Studio Quality Tools Deployment
Planning* (5 days)
Upgrade
• TFS 2010 Adoption Quick Start (5 or 10
days)
• TFS 2012 Adoption Quick Start (5 or 10
days)
• TFS 2010 Upgrade Quick Start (10 days)
• TFS 2012 Upgrade Quick Start (10 days)
Remote Support
• Remote Support for TFS & Visual Studio
Lab
• Visual Studio Lab Management Quick Start
(10 days)
Testing
• Manual Testing with Test Manager Quick
Start (5 days)
• Visual Studio Testing Tools Quick Start (10
days)
• Visual Studio Automated Testing Quick Start
(5 days)
• Visual Studio Load Testing Quick Start (5 or
10 Days)
Builds
• Automated Build & Release Management
Quick Start (5 days)
• Automated Build Center of Excellence (CoE)
Database
• Visual Studio Database Tools Quick Start
(10 days)
Integrations
• Team Foundation Server (TFS) & Project
Server Integration Quick Start (10 days)
• TFS & Quality Center Integration/Migration
Quick Start (10 days)

4. Agenda
• Coded UI Test Overview
• Recording Coded UI Tests
• Adding Test Validation
• Writing your own code
• Best Practices

5. Coded UI Test Tools
• Used to automate testing from the user interface
• Test development/maintenance in Visual Studio
• Tools provided to improve creation and maintenance
of Coded UI tests
• Can author and maintain tests without writing code or
can extend tests using .NET
• Can run within Visual Studio or through automation
(e.g., a build)
Test development and maintenance from within
Visual Studio

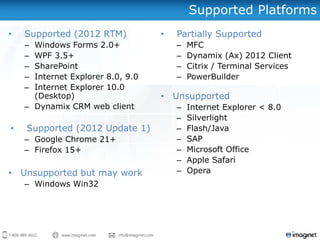

6. Supported Platforms
• Supported (2012 RTM)
– Windows Forms 2.0+
– WPF 3.5+
– SharePoint
– Internet Explorer 8.0, 9.0
– Internet Explorer 10.0
(Desktop)
– Dynamix CRM web client
• Supported (2012 Update 1)
– Google Chrome 21+
– Firefox 15+
• Unsupported but may work
– Windows Win32
• Partially Supported
– MFC
– Dynamix (Ax) 2012 Client
– Citrix / Terminal Services
– PowerBuilder
• Unsupported
– Internet Explorer < 8.0
– Silverlight
– Flash/Java
– SAP
– Microsoft Office
– Apple Safari
– Opera

7. Third-Party Support

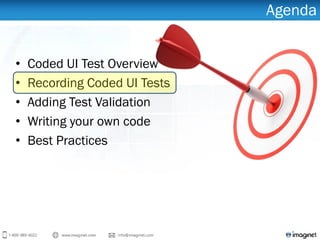

8. Agenda
• Coded UI Test Overview
• Recording Coded UI Tests
• Adding Test Validation
• Writing your own code
• Best Practices

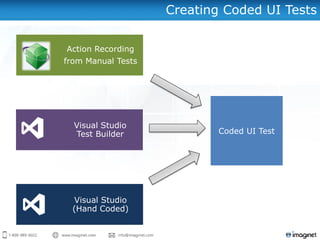

9. Creating Coded UI Tests
Action Recording
from Manual Tests
Visual Studio
Test Builder
Visual Studio
(Hand Coded)
Coded UI Test

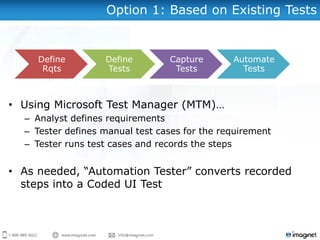

10. Option 1: Based on Existing Tests
• Using Microsoft Test Manager (MTM)…
– Analyst defines requirements
– Tester defines manual test cases for the requirement
– Tester runs test cases and records the steps
• As needed, “Automation Tester” converts recorded
steps into a Coded UI Test
Define
Rqts
Define
Tests
Capture
Tests
Automate
Tests

11. AnnaBots

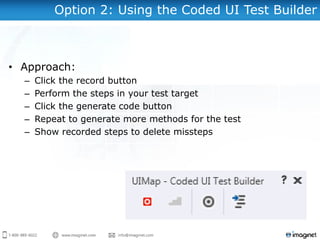

12. Option 2: Using the Coded UI Test Builder
• Approach:
– Click the record button
– Perform the steps in your test target
– Click the generate code button
– Repeat to generate more methods for the test
– Show recorded steps to delete missteps

13. DEMONSTRATION
• Converting Test Cases
• Recording tests with the
Coded UI Test Builder

14. Option 3: Author Tests using .NET
• Hand-code in .NET, without any additional assistance
• Utilize one of the Coded UI-based community frameworks:
– CUITe (Coded UI Test Enhanced)
• Authored by Microsoft employees but not a ‘product’
• Uses its own tooling to maintain a separate UI object repository
• Improves code maintainability
• Browser-based only
• Currently only supported on Visual Studio 2010
• Maintained on CodePlex:
http://cuite.codeplex.com/
– Code First Coded UI
• Led by Microsoft employees but not a ‘product’
• Pure code – does not use an object repository
• Installable via NuGet
• Uses Scaffolding approach to generate tests
• Browser-based only
• Currently only supported on Visual Studio 2010
• Maintained on CodePlex:
http://codeduicodefirst.codeplex.com/

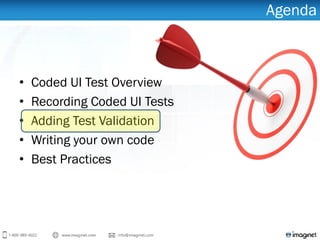

15. Agenda
• Coded UI Test Overview
• Recording Coded UI Tests
• Adding Test Validation
• Writing your own code
• Best Practices

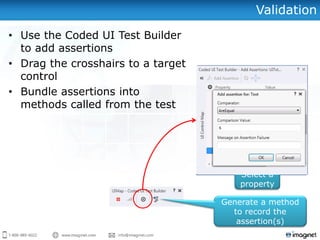

16. Validation
• Use the Coded UI Test Builder
to add assertions
• Drag the crosshairs to a target
control
• Bundle assertions into
methods called from the test
Select a
property
Click to add
assertion
Generate a method
to record the
assertion(s)

17. DEMONSTRATION
• Adding Assertions
(Verification/Validation)

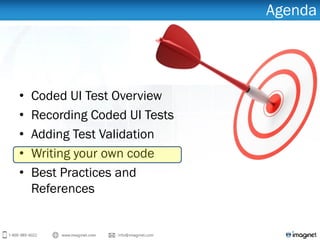

18. Agenda
• Coded UI Test Overview
• Recording Coded UI Tests
• Adding Test Validation
• Writing your own code
• Best Practices and
References

19. The Primary Components
• Test Class (e.g., MyTest.cs)
– A .NET Coded UI Test class containing one or more Test
Methods.
• Test Method
– An individual automated test case inside a Test Class.
• Recorded Method
– Code which actually automates the UI and performs
assertions. (Do not change this code!)
• UIMap
– An XML designer file and related generated classes containing
the recorded methods.

20. Overriding Generated Properties
[TestMethod]
public void CodedUITestMethod1()
{
this.UIMap.OpenCalc();
this.UIMap.AddThreeAndTwo();
this.UIMap.VerifySumExpectedValues.UITxtDisplayEditText = "5";
this.UIMap.VerifySum();
this.UIMap.CloseCalc();
}
“Recorded Methods” created
using the UI Test Builder.
Hand-coded to change the expected
value for the VerifySum recorded
method. There are many other
overrides made available to you in
the generated code.

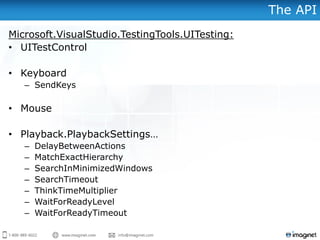

21. The API
Microsoft.VisualStudio.TestingTools.UITesting:
• UITestControl
• Keyboard
– SendKeys
• Mouse
• Playback.PlaybackSettings…
– DelayBetweenActions
– MatchExactHierarchy
– SearchInMinimizedWindows
– SearchTimeout
– ThinkTimeMultiplier
– WaitForReadyLevel
– WaitForReadyTimeout

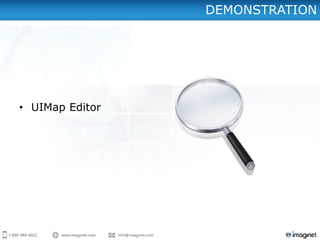

22. DEMONSTRATION
• UIMap Editor

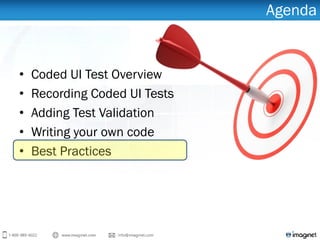

23. Agenda
• Coded UI Test Overview
• Recording Coded UI Tests
• Adding Test Validation
• Writing your own code
• Best Practices

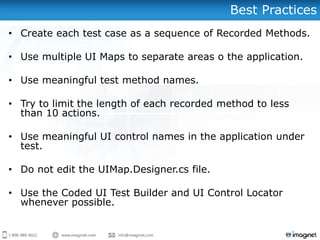

24. Best Practices
• Create each test case as a sequence of Recorded Methods.
• Use multiple UI Maps to separate areas o the application.
• Use meaningful test method names.
• Try to limit the length of each recorded method to less
than 10 actions.
• Use meaningful UI control names in the application under
test.
• Do not edit the UIMap.Designer.cs file.
• Use the Coded UI Test Builder and UI Control Locator
whenever possible.

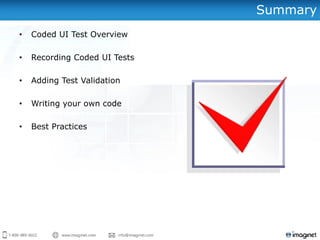

25. Summary
• Coded UI Test Overview
• Recording Coded UI Tests
• Adding Test Validation
• Writing your own code
• Best Practices

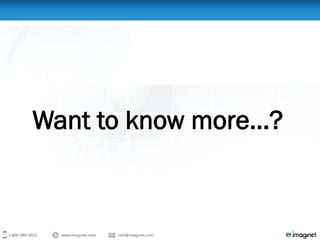

26. Want to know more...?

27. Need Help?
• Includes installing, configuring, and implementing both
Microsoft Test Manager (for manual testing) and Microsoft
Visual Studio (for automated and performance testing).
• Learn best practices for designing and implementing an
effective testing strategy from an ALM perspective.
• Support and training for your team
• Includes a high-level ALM assessment
Imaginet’s Visual Studio 2012
Testing Tools 5 or 10-day Quickstart
Interested? Just email us at info@imaginet.com.

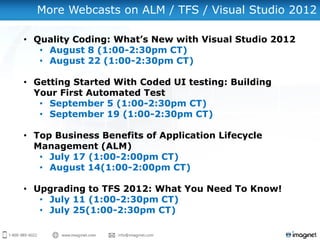

28. More Webcasts on ALM / TFS / Visual Studio 2012
• Quality Coding: What’s New with Visual Studio 2012
• August 8 (1:00-2:30pm CT)
• August 22 (1:00-2:30pm CT)
• Getting Started With Coded UI testing: Building
Your First Automated Test
• September 5 (1:00-2:30pm CT)
• September 19 (1:00-2:30pm CT)
• Top Business Benefits of Application Lifecycle
Management (ALM)
• July 17 (1:00-2:00pm CT)
• August 14(1:00-2:00pm CT)
• Upgrading to TFS 2012: What You Need To Know!
• July 11 (1:00-2:30pm CT)
• July 25(1:00-2:30pm CT)

29. For questions or more information,
please contact us at:
info@imaginet.com or (972)607-4830
Remember to add http://blog.imaginet.com to your favorite reader!

30. Questions?

31. http://www.imaginet.com
