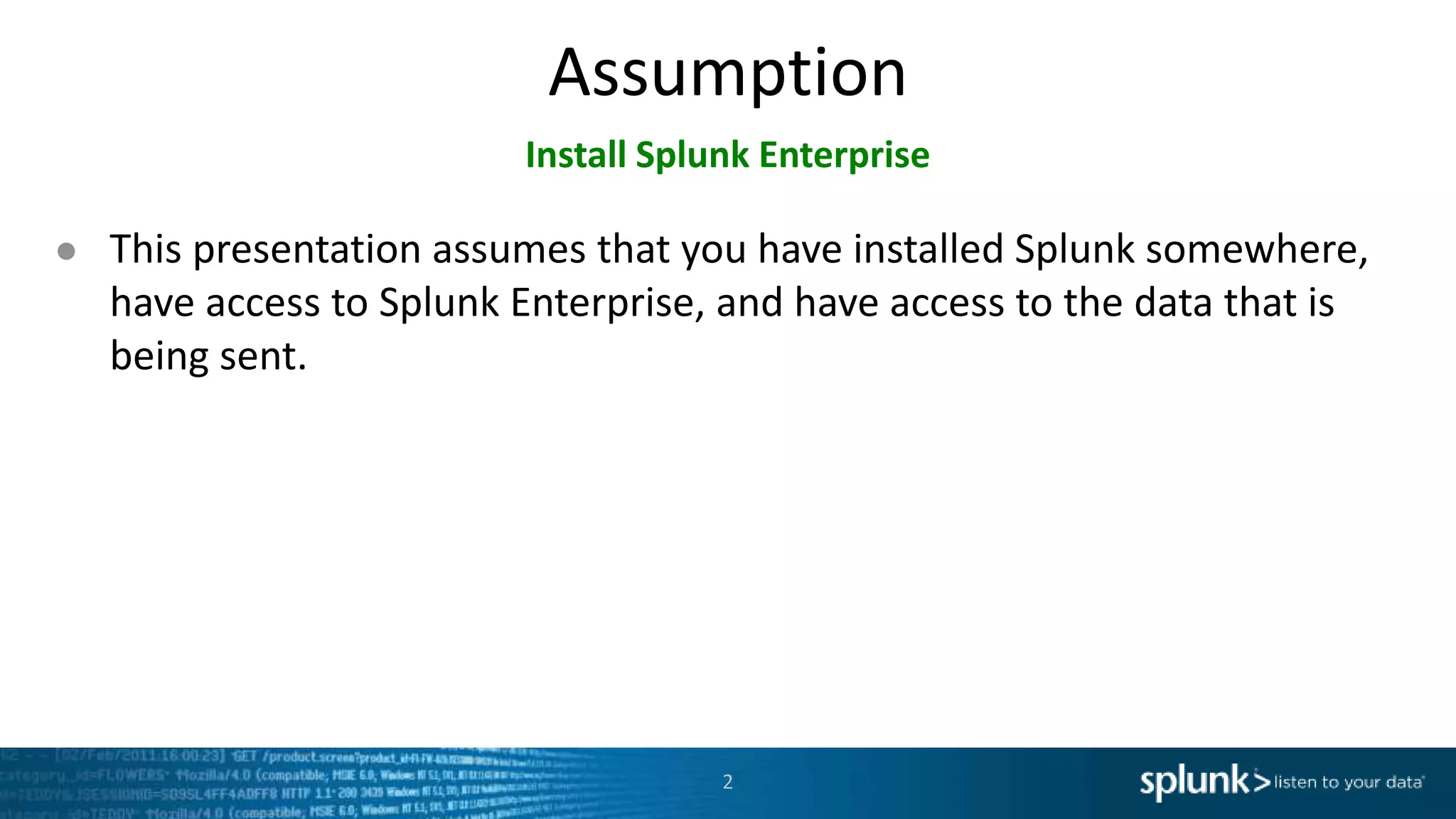

2. Assumption
Install Splunk Enterprise
● This presentation assumes that you have installed Splunk somewhere,
have access to Splunk Enterprise, and have access to the data that is
being sent.
2
4. Universal Forwarder
● Download the Splunk UF for your platform and install it where your files
reside.
In directory or folder $SPLUNK_HOME/etc/system/local/, create
or modify a file called outputs.conf (Create local, if not present)
outputs.conf will send data to the place where Splunk Enterprise
resides.
Know your Splunk Enterprise’s IP or Domain Name and listening port.
Restart the forwarder after changing outputs.conf
4
Software to Send Data
5. Example Outputs.conf
File that controls where data is sent
#Default Place Where Data is sent. It’s just a name used in the next stanza
[tcpout]
defaultGroup=my_indexers
# Notice (commas for more) name of the server and listening port
[tcpout:my_indexers]
server=mysplunk_indexer1:9997
# Any optional properties for the indexer. Leave blank for now.
[tcpout-server://mysplunk_indexer1:9997]
5
6. Set up Indexer to Receive Data
Under Settings->Forwarding and Receiving->Receive Data --Add New
6
7. Inputs.conf
Place file in same place as outputs.conf
● This file controls what data is monitored or collected by the forwarder
● Opt In: Only data that is monitored will be sent to Splunk Indexers.
● If you make changes to the file manually, restart the forwarder
7
8. Sample Inputs.conf to monitor files
Always put in a sourcetype (and optional index)!!!!!
[monitor:///opt/logs/webfiles*] # files starting with webfiles
sourcetype=access_combined
[monitor:///apache/*.log] # files ending with.log in apache
sourcetype=access_combined
[monitor://var/.../log(a|b).log] # files loga.log or logb.log
sourcetype=syslog
index=IT
8
9. Sample Inputs.conf to blacklist whitelist files
Always put in a sourcetype!!!!!
[monitor:///mnt/logs] # ignore files ending with .txt or .gz
blacklist = .(?:txt|gz)$ # blacklist blocks
sourcetype=my_app
[monitor:///apache] # files stdout.log and web.log in apache
whitelist = stdout.log$|web.log$ # whitelist allows
sourcetype=access_combined
# For better performance, use … or * followed by regex over whitelist and blacklist
9
10. Sample Inputs.conf for Windows Events
inputs.conf on a Windows Machine
# Windows platform specific input processor.
[WinEventLog://Application]
disabled = 0 # disabled=false and disabled=0 are the same instruction: Enable
[WinEventLog://Security]
disabled = 0
[WinEventLog://System]
disabled = 0
10
11. Line breaking
Default line breaker for events is a newline (r|n)
● How do you tell Splunk to break multi-line events correctly?
● Create or modify a props.conf file on the machine indexing the
data in either the app’s local directory or
$SPLUNK_HOME/etc/system/local.
● Contents of props.conf
[name of your sourcetype] # Use either of the two below
BREAK_ONLY_BEFORE = regular expression indicating end of your event
LINE_BREAKER=(matching group regex indicting end of event)
● LINE_BREAKER performs better than BREAK_ONLY_BEFORE
11
12. Line Breaking Example
Example props.conf and channel event data
[channel_entry]
BREAK_ONLY_BEFORE = ^channel
Sample Events
channel=documentaryfilm
<video> <id> 120206922 </id> <video>
channel=Indiefilm
<video> <id> 120206923 </id> <video>
12
13. Timestamp Recognizion
Normally, Splunk recognizes timestamps automatically, but…
● How do you tell Splunk to recognize custom timestamps?
● Create or modify a props.conf file on the machine indexing the data in
either the app’s local directory or $SPLUNK_HOME/etc/system/local.
● Contents of props.conf
[name of your sourcetype]
TIME_PREFEX= regular expression indicating where to find timestamp
TIME_FORMAT=*NIX <strptime-style format. See Docs online for format>
MAX_TIMESTAMP_LOOKAHEAD= number of characters to look ahead for TS
13
14. Timestamp Example
Example props.conf and some event data
[journal]
TIME_PREFIX = Valid_Until=
TIME_FORMAT = %b %d %H:%M:%S %Z%z %Y
Sample Events
…Valid_Until=Thu Dec 31 17:59:59 GMT-06:00 2020
14
16. Network Inputs
Splunk Indexer or forwarder can listen for TCP on UDP data
● Configure your inputs.conf to listen on a port for TCP or UDP data.
● You can use Splunk Web itself to configure this on an indexer machine.
● Restart the indexer or forwarder if you modified inputs.conf directly.
16
18. Assign UDP sourcetype dynamically
All data goes through the same port
inputs.conf
[udp://514]
props.conf
[source::udp:514]
TRANSFORMS-ASA=assign_ASA
TRANSFORMS-PAN=assign_PAN
18
19. Use transforms.conf to assign sourcetype
Transforms.conf is in the same place as props.conf
Transforms.conf
[assign_ASA]
REGEX = ASA
FORMAT = sourcetype::cisco_ASA
DEST_KEY = MetaData:Sourcetype
[assign_PAN]
REGEX = pand+
FORMAT = sourcetype::pan_threat
DEST_KEY = MetaData:Sourcetype
19
20. Example TCP inputs.conf
Connection Oriented
[tcp://remote_server:9998]
sourcetype=cisco_asa
[tcp://9999] # any server can connect to send data
sourcetype=pan_threat
20
21. Best Practice to collect from Network
Use intermediary to collect data to files and forward the data
21
23. Using Scripted Input
• Splunk’s inputs.conf file can monitor the output of any script
• Script can be written in any language executable by OS’s shell.
• Wrap the executable language in top level script, if necessary
• Each script is executed on a number of seconds interval basis
• Output of script is captured by Splunk’s indexer
• Output should be considered an Event to be be indexed
25. Inputs.conf for calling Java program
# For Windows. Unix is the 2nd entry. weather.bat|sh are wrappers.
[script://.binweather.bat]
interval = 120
sourcetype = weather_entry
source = weather_xml
disabled = false
[script://./bin/weather.sh]
interval = 120
sourcetype = weather_entry
source = weather_xml
disabled = false
26. Example Inputs.conf for listener
# Unix/Linux called from Splunk App
[script://./bin/JMSReceive.sh]
interval=-1 # -1 means start once and only once
sourcetype=JMS_event
source=JMS_entry
host=virtual_linux
disabled=false
27. Example Inputs.conf for Windows Perf
# Collect CPU processor usage metrics on a windows machine.
# Splunk provides perfmon input.
[perfmon://Processor]
object = Processor
instances = _Total
counters = % Processor Time;% User Time
index = Perf
interval = 30
disabled = 0
30. HEC Set Up
Set up via Splunk Web to get a Token used by developers
● Get an unique token for your developers to send events via HTTP/S
● Give token to developers. Enable the token.
● Developers log events via HTTP using a language that supports HTTP/S
● Data can go directly to an indexer machine or intermediary forwarder
● Logic should be built-in the code to handle exceptions and retries
30
31. Set up HEC Token
Go to Settings->Data Inputs->HTTP Event Collector and click on it.
31
37. Test your token
Curl can be used to send HTTP data
● > curl -k
https://localhost:8088/services/collector/event
-H "Authorization: Splunk 65123E77-86B1-4136-
B955-E8CDD6A7D3B1" -d '{"event": "my log entry
via HEC"}’
● {"text":"Success","code":0}
● Notice the token in the Authorization:Splunk
● This event is can be sent as JSON or raw data and returns success
● http://dev.splunk.com/view/event-collector/SP-CAAAE6P
37
39. Sample Java Code to send via HEC
● Run with -Djava.util.logging.config.file=/path/to/jdklogging.properties
import java.util.logging.*;
import com.splunk.logging.*;
%user_logger_name%.level = INFO
%user_logger_name%.handlers = com.splunk.logging.HttpEventCollectorLoggingHandler
# Configure the com.splunk.logging.HttpEventCollectorLoggingHandler
com.splunk.logging.HttpEventCollectorLoggingHandler.url = “https://mydomain:8088”
com.splunk.logging.HttpEventCollectorLoggingHandler.level = INFO
com.splunk.logging.HttpEventCollectorLoggingHandler.token = “65123E77-86B1-4136-B955-
E8CDD6A7D3B1”
com.splunk.logging.HttpEventCollectorLoggingHandler.disableCertificateValidation=true
logger.info("This is a test event for Logback test");
39
41. Modular Input
Wrap your scripted Input into a Modular Input
● Modular input allows you to package your input as a reusable framework
● Modular Input provides validation of input and REST API access for
administration such as permission granting
● Modular inputs can be configured by your user via Splunk Web on an
indexer or new custom entries for inputs.conf
● See Splunk docs for more details
http://docs.splunk.com/Documentation/Splunk/latest/AdvancedDev/ModInputsIntro
41
43. Splunk Stream
Splunk supported app to listen to network TAP or SPAN for data
● Captures wire data without the need for a forwarder on very end point
– Network must allow promiscuous read or provide certificates to decrypt
– Splunk Stream can still be placed on a machine to capture its network output
● Ingestion of payload can be controlled and filtered
● Works with a variety of protocols out of the box
● Ingests wired data into human readable JSON format automatically
● See Splunk docs for more details and download from Splunkbase.
43
