1. Smart Cabling Infrastructure Solutions for Data Centers Constantin Ciuperca Project Manager Genesys Systems

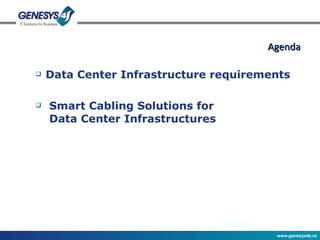

2. Agenda Data Center Infrastructure requirements Smart Cabling Solutions for Data Center Infrastructures

3. Tyco Electronics – AMP NETCONNECT Strategic Division for Complete Communication Infrastructures

4. Data Center Infrastructure Requirements

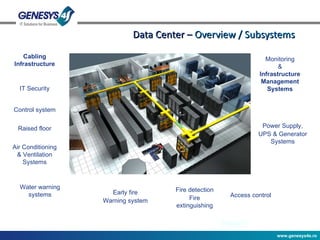

5. Data Center – Overview / Subsystems Cabling Infrastructure IT Security Control system Raised floor Air Conditioning & Ventilation Systems Early fire Warning system Fire detection Fire extinguishing Water warning systems Access control Monitoring & Infrastructure Management Systems Power Supply, UPS & Generator Systems

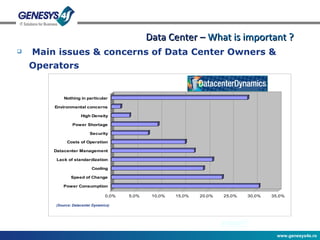

6. Main issues & concerns of Data Center Owners & Operators Data Center – What is important ? (Source: Datacenter Dynamics)

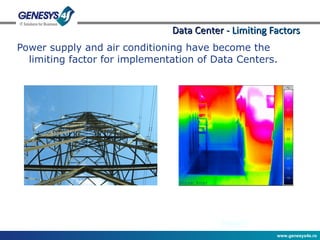

7. Power supply and air conditioning have become the limiting factor for implementation of Data Centers. Data Center - Limiting Factors Picture: Knürr

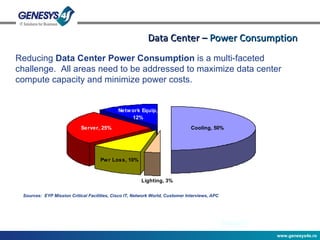

8. Data Center – Power Consumption Sources: EYP Mission Critical Facilities, Cisco IT, Network World, Customer Interviews, APC Reducing Data Center Power Consumption is a multi-faceted challenge. All areas need to be addressed to maximize data center compute capacity and minimize power costs.

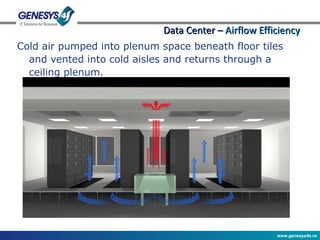

9. Cold air pumped into plenum space beneath floor tiles and vented into cold aisles and returns through a ceiling plenum. Data Center – Airflow Efficiency

10. Airflow is blocked by a fully loaded raised floor For new buildings, cabling in the ceiling shall be considered for better management and improved airflow. Data Center – Airflow & Cable Placement Cable trays Cable trays Cable trays Cable trays Cable trays Cable trays Power cables Power cables Power cables

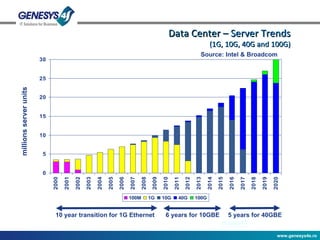

11. millions server units Data Center – Server Trends (1G, 10G, 40G and 100G) Source: Intel & Broadcom 10 year transition for 1G Ethernet 6 years for 10GBE 5 years for 40GBE

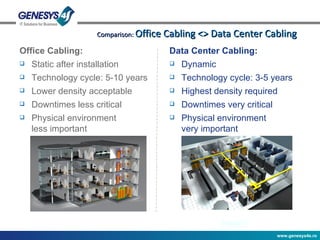

12. Comparison: Office Cabling <> Data Center Cabling Office Cabling: Static after installation Technology cycle: 5-10 years Lower density acceptable Downtimes less critical Physical environment less important Data Center Cabling: Dynamic Technology cycle: 3-5 years Highest density required Downtimes very critical Physical environment very important

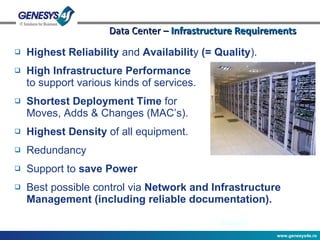

13. Data Center – Infrastructure Requirements Highest Reliability and Availabilit y (= Quality ). High Infrastructure Performance to support various kinds of services. Shortest Deployment Time for Moves, Adds & Changes (MAC’s). Highest Density of all equipment. Redundancy Support to save Power Best possible control via Network and Infrastructure Management (including reliable documentation).

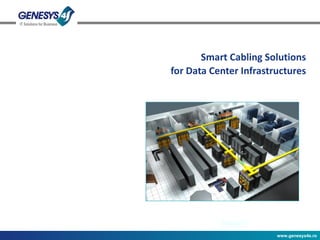

14. Smart Cabling Solutions for Data Center Infrastructures

15. Data Center – Relevant Standards EN 50173-5 Data Center Cabling ISO/IEC 24764 (created according EN 50173-5) EIA/TIA 942 “Telecommunications Infrastructure Standards for Data Centers”

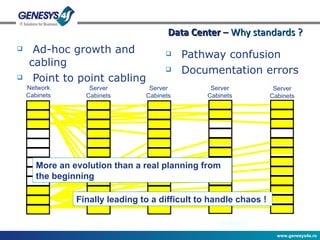

16. Ad-hoc growth and cabling Point to point cabling Pathway confusion Documentation errors Data Center – Why standards ? Network Cabinets Server Cabinets Server Cabinets Server Cabinets Server Cabinets More an evolution than a real planning from the beginning Finally leading to a difficult to handle chaos !

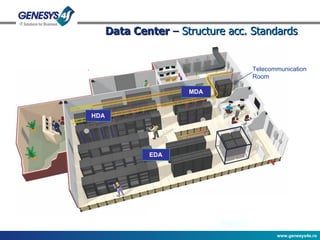

17. Data Center – Structure acc. Standards MDA HDA EDA Telecommunication Room

18. Data Center – Structure & Cabling Requirements Main Distribution Area (MDA) Horizontal Distribution Area (HDA) Equipment Distribution Area (EDA) Optional: Zone Distribution Area (ZDA) HDA EDA ZDA HC HC HC MC Primary Entrance Room HC Scondary Entrance Room Access Providers Access Providers Access Providers Offices, Operations Center Support Rooms Telecom Room Interconnect Active Equip. Storage Area Devices etc. Interconnect Active Equipment Interconnect Active Equipment Active Equipment Interconnect Backbone Cabling Backbone Cabling Backbone Cabling Horizontal Cabling Horizontal Cabling Horizontal Cabling MDA Highest Performance Cat. 6 A / 7 A or Fiber Optic Density & Flexibility MRJ 21 MPO “Plug & Go”

19. Complete Data Center Solutions AMP NETCONNECT provide the complete Cabling Infrastructure: Classical High Performance Cabling Systems Data Center Optimized Plug&Go Solutions “Smart Cabling for Data Centers” Cable Management Systems ready to be integrated into Intelligent Infrastructure Management System (IIMS)

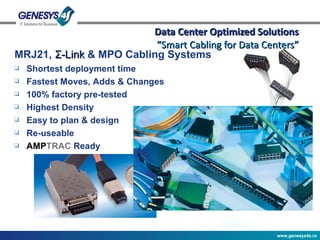

20. Data Center Optimized Solutions “Smart Cabling for Data Centers” MRJ21, Σ-Link & MPO Cabling Systems Shortest deployment time Fastest Moves, Adds & Changes 100% factory pre-tested Highest Density Easy to plan & design Re-useable AMP TRAC Ready

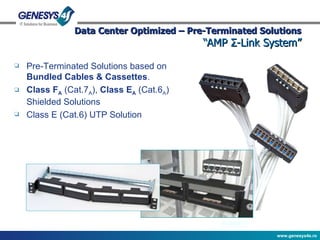

21. Data Center Optimized – Pre-Terminated Solutions “AMP Σ-Link System” Pre-Terminated Solutions based on Bundled Cables & Cassettes . Class F A (Cat.7 A ), Class E A (Cat.6 A ) Shielded Solutions Class E (Cat.6) UTP Solution

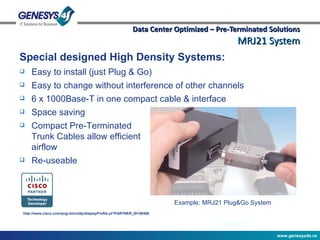

22. Data Center Optimized – Pre-Terminated Solutions MRJ21 System Special designed High Density Systems: Easy to install (just Plug & Go) Easy to change without interference of other channels 6 x 1000Base-T in one compact cable & interface Space saving Compact Pre-Terminated Trunk Cables allow efficient airflow Re-useable Example: MRJ21 Plug&Go System http://www.cisco.com/pcgi-bin/ctdp/displayProfile.pl?PARTNER_ID=59368

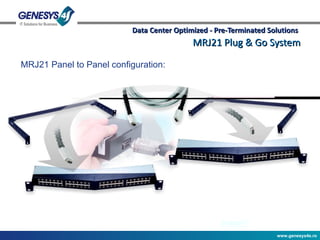

23. Data Center Optimized - Pre-Terminated Solutions MRJ21 Plug & Go System MRJ21 Panel to Panel configuration:

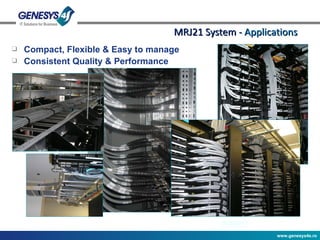

24. MRJ21 System - Applications Compact, Flexible & Easy to manage Consistent Quality & Performance

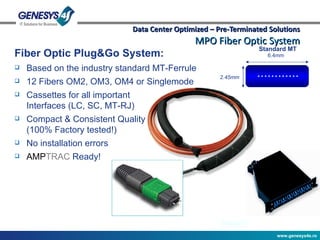

25. Data Center Optimized – Pre-Terminated Solutions MPO Fiber Optic System Fiber Optic Plug&Go System: Based on the industry standard MT-Ferrule 12 Fibers OM2, OM3, OM4 or Singlemode Cassettes for all important Interfaces (LC, SC, MT-RJ) Compact & Consistent Quality (100% Factory tested!) No installation errors AMP TRAC Ready! Standard MT 2.45mm 6.4mm

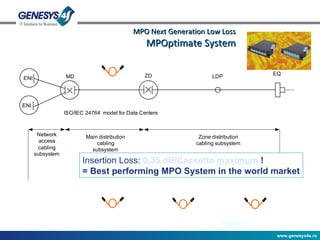

26. MPO Next Generation Low Loss MPOptimate System Insertion Loss: 0,35 dB/Cassette maximum ! = Best performing MPO System in the world market

27. Data Center Optimized Solutions “Smart Cabling for Data Centers” Benefits: Fast Setup Time and MAC’s All Performance requirement (1/10/40/100 GBit) Pre-Tested Improved Cable Management Efficient Airflow Management

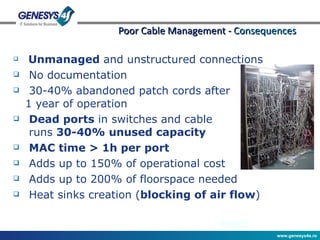

28. Unmanaged and unstructured connections No documentation 30-40% abandoned patch cords after 1 year of operation Dead ports in switches and cable runs 30-40% unused capacity MAC time > 1h per port Adds up to 150% of operational cost Adds up to 200% of floorspace needed Heat sinks creation ( blocking of air flow ) Poor Cable Management - Consequences

29. Hi-D – Cable Management Platform Very high density Side Cable Management saves space for horizontal management Requires 800mm Rack Compatible with all Copper & Fiber Panels Controlled Bend Radius = Easy access to each Patchcord in case of changes!

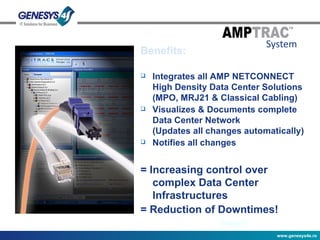

31. System Benefits: Integrates all AMP NETCONNECT High Density Data Center Solutions (MPO, MRJ21 & Classical Cabling) Visualizes & Documents complete Data Center Network (Updates all changes automatically) Notifies all changes = Increasing control over complex Data Center Infrastructures = Reduction of Downtimes!

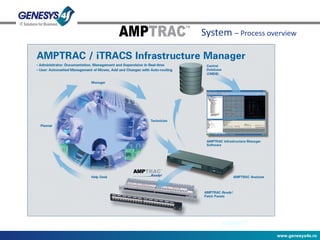

32. System – Process overview

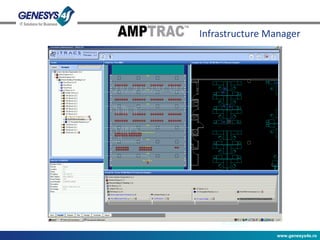

33. Infrastructure Manager

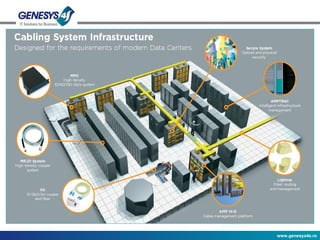

34. AMP NETCONNECT – Total Solution

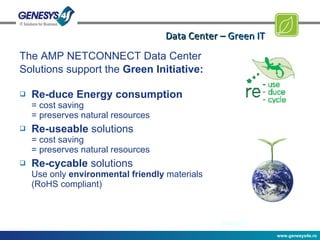

35. Data Center – Green IT The AMP NETCONNECT Data Center Solutions support the Green Initiative: Re-duce Energy consumption = cost saving = preserves natural resources Re-useable solutions = cost saving = preserves natural resources Re-cycable solutions Use only environmental friendly materials (RoHS compliant)

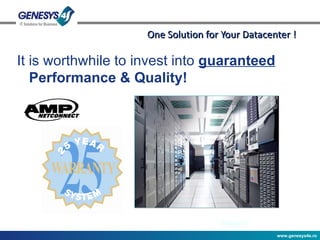

36. One Solution for Your Datacenter ! It is worthwhile to invest into guaranteed Performance & Quality!

37. AMP NETCONNECT Data Center Solutions Your Benefits Unique Solution – optimized exactly for the special needs in a Data Center (we do not just try to implement office infrastructures into a data center – as many others do) All changes in a data center (which happens often!) can be done in very short time – without interruption of other services. = maximized uptime! = highest flexibility Space & Energy saving solution = $$$$ savings on operational costs = fast return on investment Complete Management & Documentation Solution (AMPTRAC) = comes up with IT SM requirements from ITIL

38. Thank You ! - Questions ? A Solid Foundation for Your Communication Infrastructure
