Digital Data Transmission
ECE 457
Spring 2005

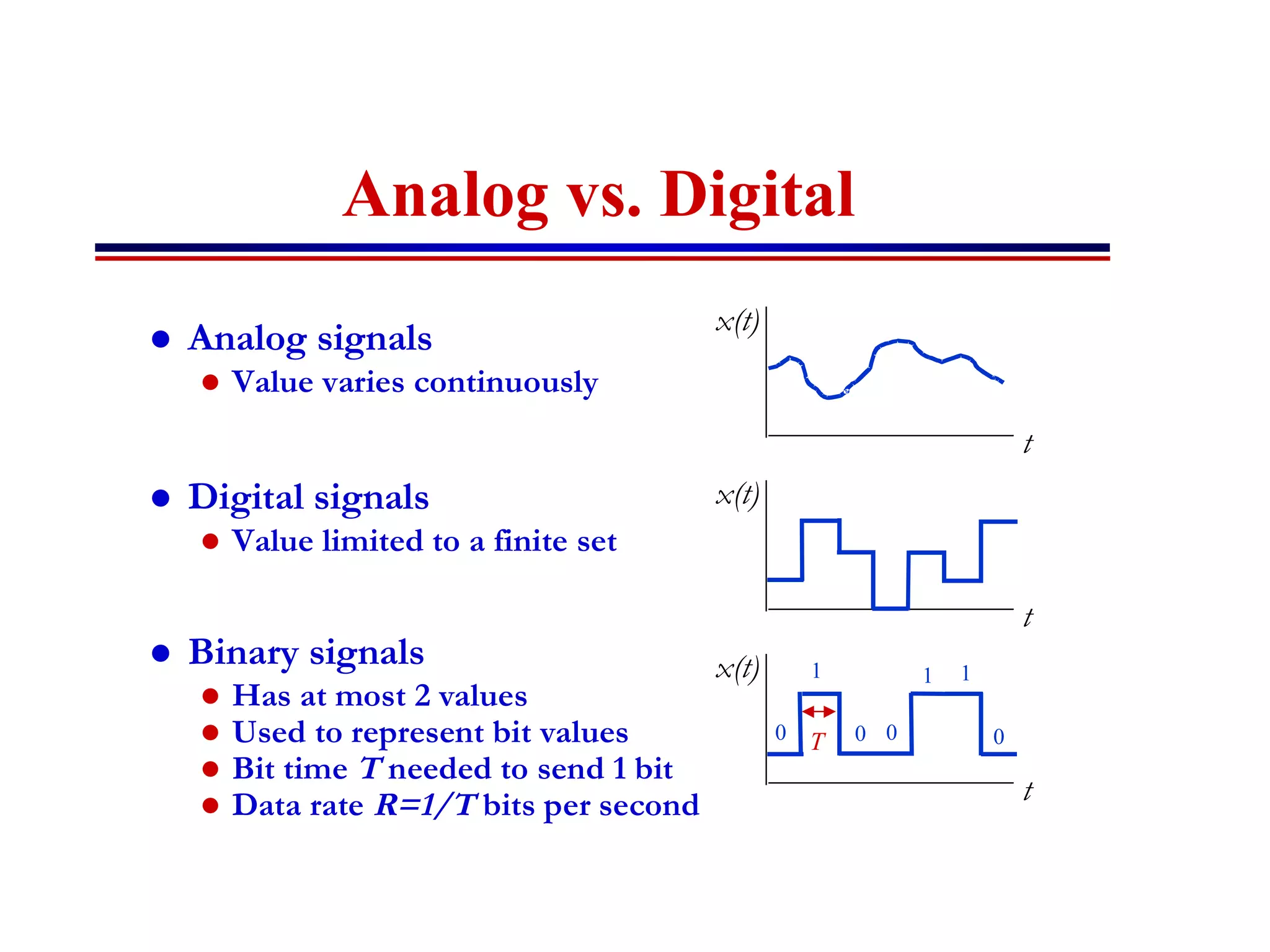

A n a l o g v s . D i g i t a l
 Analog signals
Value varies continuously
 Digital signals
Value limited to a finite set
 Binary signals
Has at most 2 values
Used to represent bit values
Bit time T needed to send 1 bit
Data rate R=1/T bits per second
t
x(t)
t
x(t)
t
x(t) 1
0 0 0
1 1
T 0

Information Representation
• Communication systems convert information into
a form suitable for transmission
• Analog systemsAnalog signals are modulated
(AM, FM radio)
• Digital system generate bits and transmit digital
signals (Computers)
• Analog signals can be converted to digital signals.

Digital Data System
Figure 7-1 Block diagram of a digital data system. (a) Transmitter.
Principles of Communications, 5/E by Rodger Ziemer and William Tranter
Copyright © 2002 John Wiley & Sons. Inc. All rights reserved.
(b) Receiver.

Components of Digital
Communication
• Sampling: If the message is analog, it’s converted
to discrete time by sampling.
(What should the sampling rate be ?)
• Quantization: Quantized in amplitude.
Discrete in time and amplitude
• Encoder:
– Convert message or signals in accordance with a set of
rules
– Translate the discrete set of sample values to a signal.
• Decoder: Decodes received signals back into
original message

Different Codes
0 1 1 0 1 0 0 1

Performance Metrics
• In analog communications we want,
• Digital communication systems:
mˆ (t) @ m(t)
– Data rate (R bps) (Limited) Channel Capacity
– Probability of error
P
e – Without noise, we don’t make bit errors
– Bit Error Rate (BER): Number of bit errors that occur
for a given number of bits transmitted.
• What’s BER if P=10-6 and 107 bits are transmitted?
e

Advantages
• Stability of components: Analog hardware
change due to component aging, heat, etc.
• Flexibility:
– Perform encryption
– Compression
– Error correction/detection
• Reliable reproduction

Applications
• Digital Audio
Transmission
• Telephone channels
• Lowpass
filter,sample,quantize
• 32kbps-64kbps
(depending on the
encoder)
• Digital Audio
Recording
• LP vs. CD
• Improve fidelity
(How?)
• More durable and
don’t deteriorate with
time

Baseband Data Transmission
Figure 7-2
System model and waveforms
for synchronous baseband
digital data transmission.
(a) Baseband digital data
communication system.
(b) Typical transmitted
sequence. (c) Received
sequence plus noise.

• Each T-second pulse is a bit.
• Receiver has to decide whether it’s a 1 or 0
( A or –A)
• Integrate-and-dump detector
• Possible different signaling schemes?

Receiver Structure
Figure 7-3 Receiver structure and integrator output. (a) Integrate-and-dump
receiver. (b) Output from the integrator.

Receiver Preformance
• The output of the integrator:
t T
ò +
0
= + V s t n t dt
î í ì
t
0
[ ( ) ( )]
AT +
N A is sent
AT N A is sent
- + -
=
t T
ò + =
• 0
N n ( t )
dt
is a random variable.
• t
N is Gaussian. 0
Why?

Analysis
t T
0
t T
+ +
0
ò ò
E N E n t dt E n t dt
= = =
[ ] [ ( ) ] [ ( )] 0
2 2
0
0
t
Var N E N E N
t
= -
[ ] [ ] [ ]
2
E N Why
[ ] ?
é
t T
ì
ïî
ïí
+
ò
E n t dt
t T
+ +
ò ò
t
t T
=
=
=
ü
ïþ
ïý
ù
ú úû
ê êë
+ +
ò ò
= -
t
t
t T
t
t T
N T
0
0
0
2
0
0
0
0
0
0
0
0
E n t n s dtds
t
=
• Key Point
( )
2
[ ( ) ( )]
N d
t s dtds Why White noise is uncorrelated
( ) ?( !)
0
2
– White noise is uncorrelated

Error Analysis
• Therefore, the pdf of N is:
2
n N T
/( 0 )
N T
-
=
f n e
N
0
( )
p
• In how many different ways, can an error
occur?

Error Analysis
• Two ways in which errors occur:
– A is transmitted, AT+N<0 (0 received,1 sent)
– -A is transmitted, -AT+N>0 (1 received,0 sent)
Figure 7-4 Illustration of error probabilities for binary signaling.

•
AT n N T
/ 2 ( | )
• Similarly,
æ
-
2
dn Q A T
æ
¥ -
2
/ 2 ( | )
dn Q A T
• The average probability of error:
ö
÷ ÷
ø
ç ç
è
= ò =
-¥
-
0
0
0
2
N
N T
P Error A e
p
ö
÷ ÷
ø
ç ç
è
- = ò =
0
0
0
2
N
N T
P Error A e
AT
n N T
p
P = P E A P A + P E - A P -
A E
( | ) ( ) ( | ) ( )
ö
÷ ÷
ø
æ
Q A T
ç ç
è
=
2 2
0
N

• Energy per bit:
t T
= = ò +
2 2
0
E A dt A T
t
b
0
• Therefore, the error can be written in terms
of the energy.
• Define
E
z = A T = b
0 0
2
N
N

• Recall: Rectangular pulse of duration T
seconds has magnitude spectrum
ATsinc(Tf )
• Effective Bandwidth:
• Therefore,
B T p =1/
z A
2
N B
0
p =
• What’s the physical meaning of this
quantity?

Probability of Error vs. SNR
Figure 7-5
PE for antipodal baseband
digital signaling.

Error Approximation
• Use the approximation
, 1
2
Q u e
P Q 2
A T
, 1
2
( )
2
0
2 / 2
ö
>> @ ÷ ÷
ø
æ
ç ç
è
=
@ >>
-
-
z
z
e
N
u
u
z
E
u
p
p

Example
• Digital data is transmitted through a
baseband system with N = 10 -
7W / Hz
, the
0
received pulse amplitude A=20mV.
a)If 1 kbps is the transmission rate, what is
probability of error?
SNR z A
= = = ´
400 10
3
2
6
7 3
0
2
3
3
2.58 10
1 1
2
400 10 4
10 10
10
10
-
-
-
-
-
-
@ = ´
= ´ =
´
= = =
z
P e
N B
T
B
z
E
p
p
p

b) If 10 kbps are transmitted, what must be
the value of A to attain the same
probability of error?
2
A A A mV
z A
2
= = -
N B
p
2 3
= Þ = ´ Þ =
4 4 10 63.2
7 4
´
-
10 10
0
• Conclusion:
Transmission power vs. Bit rate

Binary Signaling Techniques
Figure 7-13
Waveforms for ASK, PSK, and
FSK modulation.

ASK, PSK, and FSK
 Amplitude Shift Keying (ASK)
A f t m nT
î í ì
cos(2 ) ( ) 1
c c b
c c m nT
 Phase Shift Keying (PSK)
A p
f t m nT
cos(2 ) ( ) 1
c c b
c c A f t m nT
 Frequency Shift Keying
=
=
= =
0 ( ) 0
( ) ( ) cos(2 )
b
s t m t A f t
p
p
î í ì
=
+ =-
= =
cos(2 ) ( ) 1
( ) ( ) cos(2 )
c c b
s t A m t f t
p p
p
A f t m nT
î í ì
=
p
cos(2 ) ( ) 1
=-
=
c 1
b
A f t m nT
cos(2 ) ( ) 1
( )
c 2
b
s t
p
1 0 1 1
m(t)
AM Modulation
1 0 1 1
m(t)
PM Modulation
1 0 1 1
FM Modulation

Amplitude Shift Keying (ASK)
• 00
• 1Acos(wct)
• What is the structure of the optimum
receiver?

Receiver for binary signals in
noise
Figure 7-6 A possible receiver structure for detecting binary signals in
white Gaussian noise.

Error Analysis
• 0s1(t), 1s2(t) in general.
• The received signal:
y ( t ) s ( t ) n ( t ),
t t t T
OR
= + £ £ +
1 0 0
y ( t ) = s ( t ) + n ( t ),
t £ t £ t +
T
2 0 0
• Noise is white and Gaussian.
• Find PE
• In how many different ways can an error occur?

Error Analysis (general case)
• Two ways for error:
» Receive 1 Send 0
» Receive 0Send 1
• Decision:
» The received signal is filtered. (How does this
compare to baseband transmission?)
» Filter output is sampled every T seconds
» Threshold k
» Error occurs when:
v ( T ) s ( T ) n ( T )
k
OR
= + >
01 0
v ( T ) = s ( T ) + n ( T )
<
k
02 0

• s , s , n
are filtered signal and noise terms.
01 02 0 • Noise term: n0(t)
is the filtered white Gaussian
noise.
• Therefore, it’s Gaussian (why?)
• Has PSD:
S ( f ) =
N 0 H ( f ) 2
n 0 2
• Mean zero, variance?
• Recall: Variance is equal to average power of the
noise process
¥
2 N0 H( f ) 2 df
ò 2
-¥
s =

• The pdf of noise term is:
0
2 2
ps
2
n s
/ 2
2
-
=
f ( n )
e
N
• Note that we still don’t know what the filter is.
• Will any filter work? Or is there an optimal one?
• Recall that in baseband case (no modulation), we
had the integrator which is equivalent to filtering
with
( ) = 1
j f
H f
2p

• The input to the thresholder is:
V = v T = s T +
N
OR
( ) ( )
01
V = v ( T ) = s ( T )
+
N
02
• These are also Gaussian random variables; why?
• Mean:
s ( T ) OR s ( T
) 01 02 • Variance: Same as the variance of N

Distribution of V
• The distribution of V, the input to the
threshold device is:
Figure 7-7 Conditional probability density functions of the filter output
at time t = T.

Probability of Error
• Two types of errors:
v s T
P E s t e dv Q k s T
ö çè
s
[ ( )] / 2
ps s
1 ( )
ö çè
¥ - -
s
k v s T
[ ( )] / 2
k
• The average probability of error:
÷ø
= = - æ -
÷ø
= ò
= æ -
ò
-¥
- -
ps s
2
( | ( ))
( )
2
( | ( ))
02
2
2
01
2
1
2 2
02
2 2
01
P E s t e dv Q k s T
1 2 P P E s t P E s t E = +
[ | ( )]
[ | ( )] 1
2
1
2

÷ø
• Goal: çè
Minimize the average probability of
errror
• Choose the optimal threshold
• What should the optimal threshold, kbe?
opt • K=0.5[s(T)+s(T)]
opt0102• P = Q æ s ( T ) -
s ( T ) 02 01 ö E
2s

Observations
• PE is a function of the difference between the two
signals.
• Recall: Q-function decreases with increasing
argument. (Why?)
• Therefore, PE will decrease with increasing
distance between the two output signals
• Should choose the filter h(t) such that PE is a
minimummaximize the difference between the
two signals at the output of the filter

Matched Filter
( ), ( ) 1 2 s t s t
• Goal: Given , choose H(f) such
that d = s ( T ) - s ( T
) 02 01 is maximized.
s
• The solution to this problem is known as the
matched filter and is given by:
( ) ( ) ( ) 0 2 1 h t = s T - t - s T - t
• Therefore, the optimum filter depends on
the input signals.

Matched filter receiver
Figure 7-9 Matched filter receiver for binary signaling in white
Gaussian noise.

Error Probability for Matched
Filter Receiver
• Recall
P = Q æ
d E
çè
ö • The maximum value of the distance,
÷ø
2
2 ( 2 )
d = + -
max E E E E r
1 2 1 2 12
0
2
N
• E1 is the energy of the first signal.
• E2 is the energy of the second signal.
t +
T
ò
2
E s t dt
1 1
t
t +
T
ò
=
0
( )
E =
s t dt
t
0
0
0
( )
2
2 2
1 ( ) ( )
s t s t dt
12 ò
E E
1 2
1 2
¥
-¥
r =

• Therefore,
ù
ú ú
û
é
æ + -
ç ç
ê ê
è
ë
1/ 2
ö
÷ ÷
ø
P =
Q E
E E E E
2
N
r
1 2 1 2 12
0
2
• Probability of error depends on the signal energies
(just as in baseband case), noise power, and the
similarity between the signals.
• If we make the transmitted signals as dissimilar as
possible, then the probability of error will decrease
( r = -
1 12 )

ASK
( ) 0, ( ) cos(2 ) 1 2 s t s t A f t c = = p
• The matched filter:
• Optimum Threshold:
• Similarity between signals?
• Therefore,
Acos(2 f t) c p
1
A2T
4
Q( z )
ö
æ
2
4
P Q A T E = ÷ ÷
N
ø
ç ç
è
=
0
• 3dB worse than baseband.

PSK
= p + - = p - -
( ) sin(2 cos ), ( ) sin(2 cos 1 )
s t A f t m s t A f t m 1 c 2
c
1
• Modulation index: m (determines the phase
jump)
• Matched Filter:
- 2A 1 - m2 cos(2 p
f t) c • Threshold: 0
• Therefore,
P = Q( 2(1 -
m2 )z ) E • For m=0, 3dB better than ASK.

Matched Filter for PSK
Figure 7-14 Correlator realization of optimum receiver for PSK.

FSK
( ) cos(2 ), ( ) cos(2 ( ) ) 1 2 s t A f t s t A f f t c c = p = p + D
•
•
Df =m
T
• Probability of Error:
• Same as ASK
Q( z )

Applications
• Modems: FSK
• RF based security and access control
systems
• Cellular phones

Digital data transmission

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Digital data transmission

Similar to Digital data transmission (20)

Recently uploaded

Recently uploaded (20)

Digital data transmission
