The document discusses code generation from a directed acyclic graph (DAG) representation of a basic block. It describes how a DAG makes rearranging the computation order easier than from a linear sequence. It also discusses labeling nodes in a tree representation with the minimum number of registers needed and generating code by evaluating nodes requiring more registers first. Finally, it discusses handling operations like multiplication that require multiple registers in the labeling algorithm.

1. Presented by
INDUMATHI.A (BP150517)

2.  The advantage of generating code for a basic block
from its dag representation is that, from a dag we can
easily see how to rearrange the order of the final
computation sequence than we can starting from a
linear sequence of three-address statements or
quadruples

3.  t1 := a + b
 t2 := c + d
 t3 := e - t2
 t4 := t1 - t3
(1) MOV a, R0
(2) ADD b, R0
(3) MOV c, R1
(4) ADD d, R1
(5) MOV R0, t1
(6) MOV e, R0
(7) SUB R1, R0
(8) MOV t1, R1
(9) SUB R0, R1
(10) MOV R1, t4
-
+ -
+a0 b0 e0
c0 d0
t1
t2
t3
t4

4.  t2 := c + d
 t3 := e - t2
 t1 := a + b
 t4 := t1 - t3
(1) MOV c, R0
(2) ADD d, R0
(3) MOV e, R1
(4) SUB R0, R1
(5) MOV a, R0
(6) ADD b, R0
(7) SUB R1, R0
(8) MOV R0, t4
-
+ -
+a0 b0 e0
c0 d0
t1
t2
t3
t4

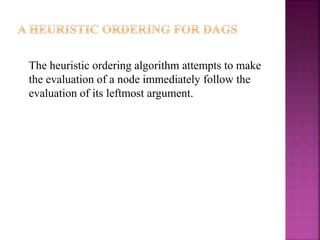

5. The heuristic ordering algorithm attempts to make
the evaluation of a node immediately follow the
evaluation of its leftmost argument.

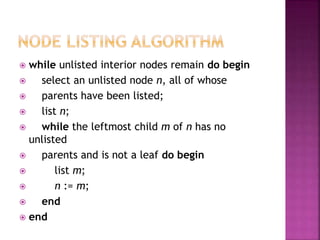

6.  while unlisted interior nodes remain do begin
 select an unlisted node n, all of whose
 parents have been listed;
 list n;
 while the leftmost child m of n has no
unlisted
 parents and is not a leaf do begin
 list m;
 n := m;
 end
 end

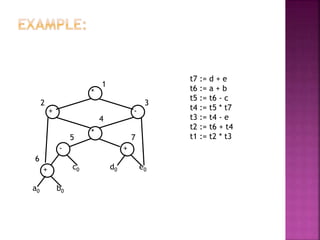

7. 32
1
-
+
*
a0 b0
c0
+
d0 e0
6
-+
*
4
5 7
t7 := d + e
t6 := a + b
t5 := t6 - c
t4 := t5 * t7
t3 := t4 - e
t2 := t6 + t4
t1 := t2 * t3

8.  Label each node of the tree bottom-up with an
integer denoting fewest number of registers
required to evaluate the tree with no stores of
immediate results
 Generate code during a tree traversal by first
evaluating the operand requiring more registers

9.  if n is a leaf then
 if n is the leftmost child of its parent then
 label(n) := 1
 else
 label(n) := 0
 else begin
 let n1, n2, …, nk be the children of n ordered
by label so that label(n1)  label(n2)  … 
label(nk);
label(n) := max1 i  k(label(ni) + i - 1)
 end

10. label(n) = max(l1, l2), if l1  l2
l1 + 1, if l1 = l2
t1
t4
t2a b
c
t3
d
e
1
2
1 2
0
1 0
11
For binary interior nodes:

11.  Use a stack rstack to allocate registers R0,
R1, …, R(r-1)
 The value of a tree is always computed in
the top register on rstack
 The function swap(rstack) interchanges the
top two registers on rstack
 Use a stack tstack to allocate temporary
memory locations T0, T1, ...

12. op
n1 n2
op
n1 n2
op
n1 n2
label(n1) < label(n2) label(n2)  label(n1) both labels  r
op
n1 n2n name
name

13. /* case 1 */
begin
let name be the operand represented by n2;
gencode(n1);
print op || name || ',' || top(rstack)
end
/* case 2 */
begin
swap(rstack); gencode(n2);
R := pop(rstack); gencode(n1);
print op || R || ',' || top(rstack);
push(rstack, R); swap(rstack);
end

14. /* case 3 */
begin
gencode(n1);
R := pop(rstack); gencode(n2);
print op || R || ',' || top(rstack);
push(rstack, R);
end
/* case 4 */
begin
gencode(n2); T := pop(tstack);
print 'MOV' || top(rstack) || ',' || T;
gencode(n1); push(tstack, T);
print op || T || ',' || top(rstack);
end

15. gencode(t4) [R1, R0] /* 2 */
gencode(t3) [R0, R1] /* 3 */
gencode(e) [R0, R1] /* 0 */
print MOV e, R1
gencode(t2) [R0] /* 1 */
gencode(c) [R0] /* 0 */
print MOV c, R0
print ADD d, R0
print SUB R0, R1
gencode(t1) [R0] /* 1 */
gencode(a) [R0] /* 0 */
print MOV a, R0
print ADD b, R0
print SUB R1, R0
t1
t4
t2a b
c
t3
d
e
1
2
1 2
0
1 0
11

16.  Some operations like multiplication, division,
or a function call normally require more than
one register
 The labeling algorithm needs to ensure that
label(n) is always at least the number of
registers required by the operation
label(n) = max(2, l1, l2), if l1  l2
l1 + 1, if l1 = l2

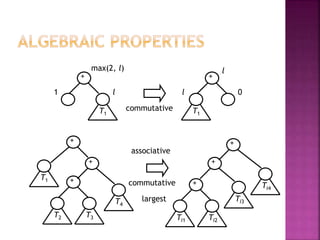

17. +
T1
+
T1
1 l
max(2, l)
l 0
l
+
T1
T4
+
T2 T3
+
Ti3
+
Ti1 Ti2
+
Ti4
+
associative
commutative
largest
commutative

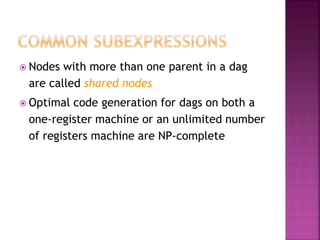

18.  Nodes with more than one parent in a dag
are called shared nodes
 Optimal code generation for dags on both a
one-register machine or an unlimited number
of registers machine are NP-complete
