This document provides an overview of a workshop on beginning game programming using C/C++ and the Allegro game development library. It discusses installing the necessary software tools and covers creating a basic graphics program that draws shapes and animates a bouncing ball. It also introduces concepts like game loops, color values, and adding sound. The document is intended to give attendees a starting point for creating their own game programs.

1. Beginning Game Programming Murray State University Computer Science and Information Systems Dr. Bob - bob.pilgrim@murraystate.edu

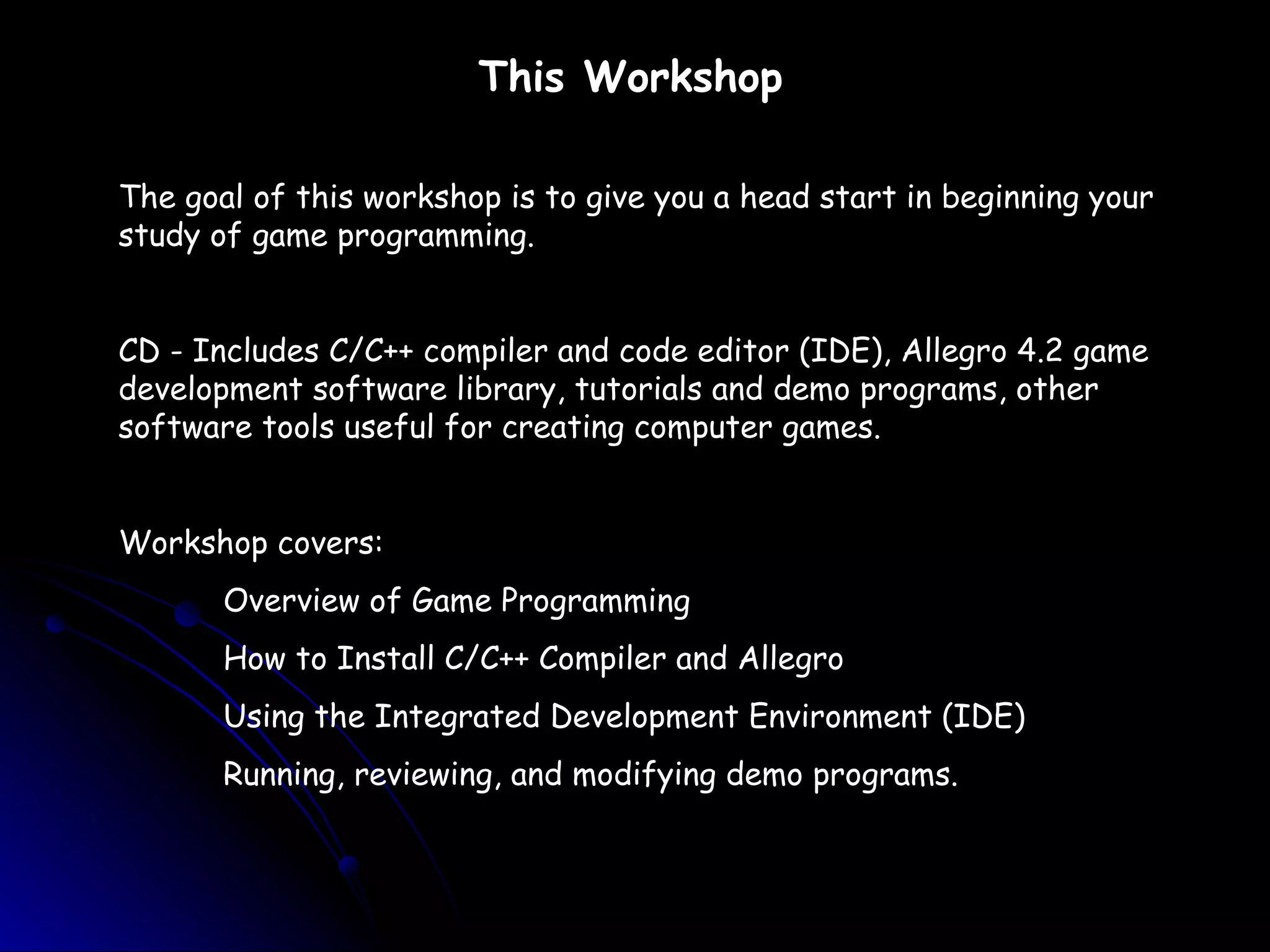

2. This Workshop The goal of this workshop is to give you a head start in beginning your study of game programming. CD - Includes C/C++ compiler and code editor (IDE), Allegro 4.2 game development software library, tutorials and demo programs, other software tools useful for creating computer games. Workshop covers: Overview of Game Programming How to Install C/C++ Compiler and Allegro Using the Integrated Development Environment (IDE) Running, reviewing, and modifying demo programs.

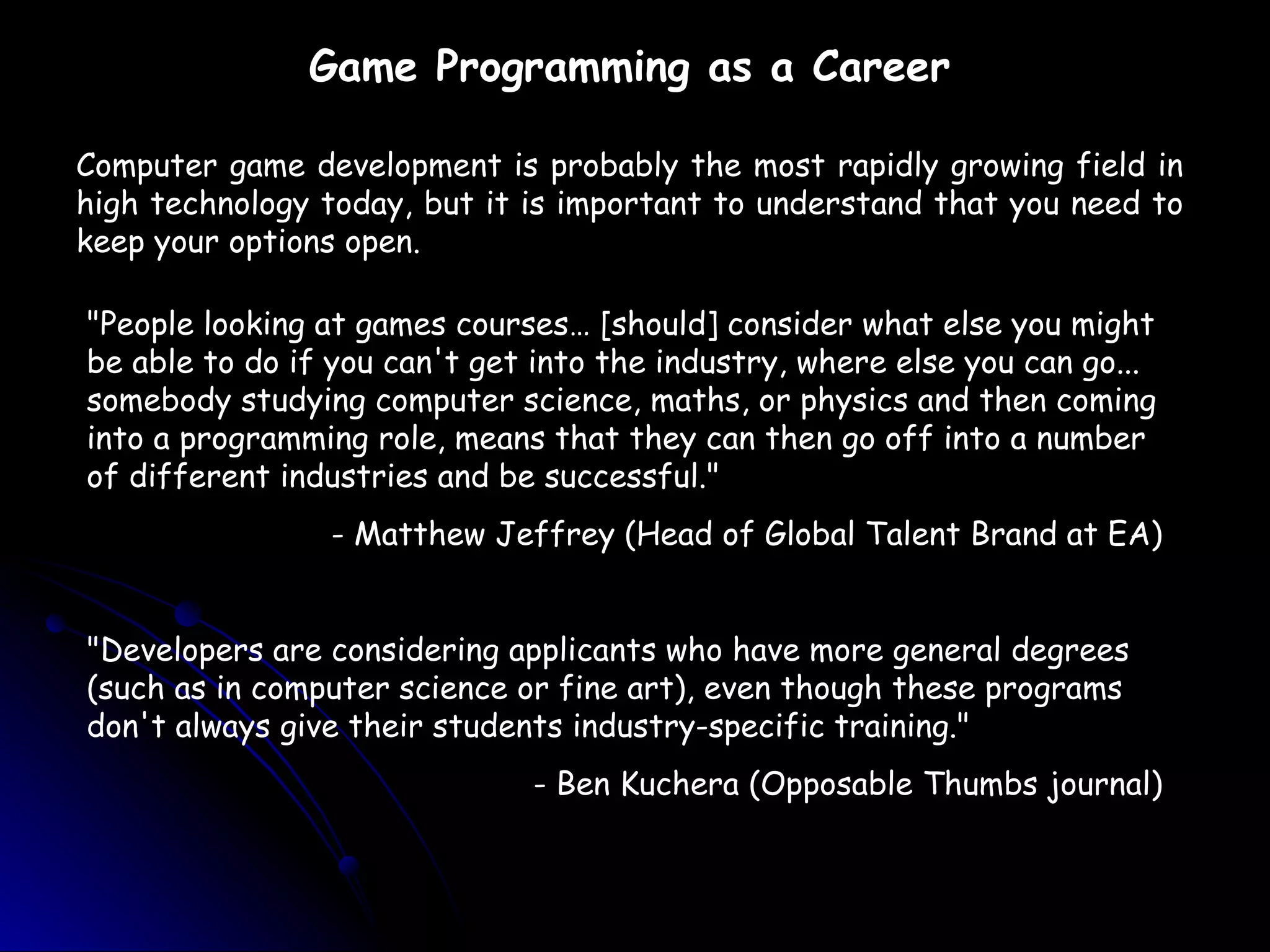

3. Game Programming as a Career Computer game development is probably the most rapidly growing field in high technology today, but it is important to understand that you need to keep your options open. "People looking at games courses… [should] consider what else you might be able to do if you can't get into the industry, where else you can go... somebody studying computer science, maths, or physics and then coming into a programming role, means that they can then go off into a number of different industries and be successful." - Matthew Jeffrey (Head of Global Talent Brand at EA) "Developers are considering applicants who have more general degrees (such as in computer science or fine art), even though these programs don't always give their students industry-specific training." - Ben Kuchera (Opposable Thumbs journal)

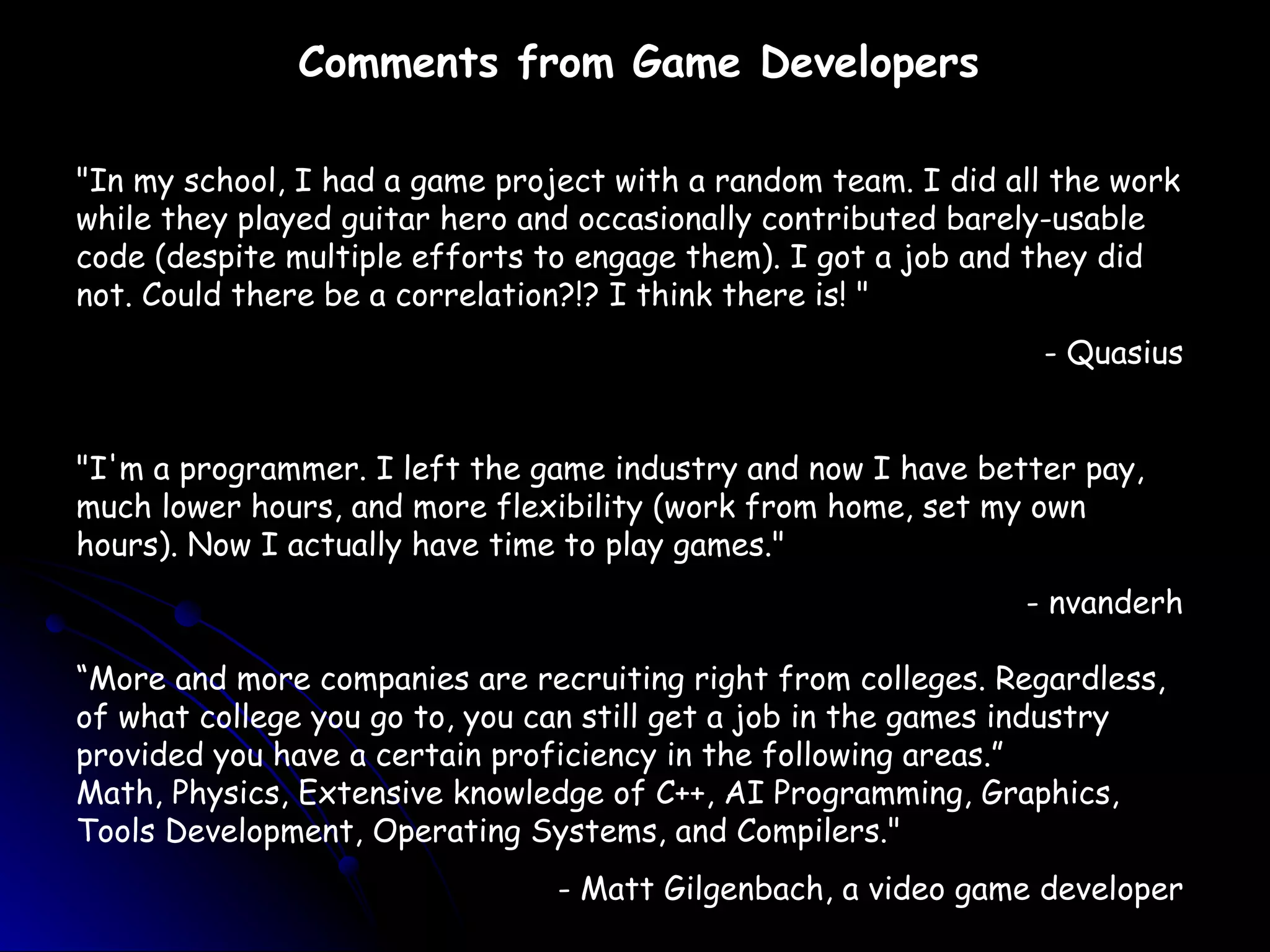

4. "In my school, I had a game project with a random team. I did all the work while they played guitar hero and occasionally contributed barely-usable code (despite multiple efforts to engage them). I got a job and they did not. Could there be a correlation?!? I think there is! " - Quasius "I'm a programmer. I left the game industry and now I have better pay, much lower hours, and more flexibility (work from home, set my own hours). Now I actually have time to play games." - nvanderh “ More and more companies are recruiting right from colleges. Regardless, of what college you go to, you can still get a job in the games industry provided you have a certain proficiency in the following areas.” Math, Physics, Extensive knowledge of C++, AI Programming, Graphics, Tools Development, Operating Systems, and Compilers." - Matt Gilgenbach, a video game developer Comments from Game Developers

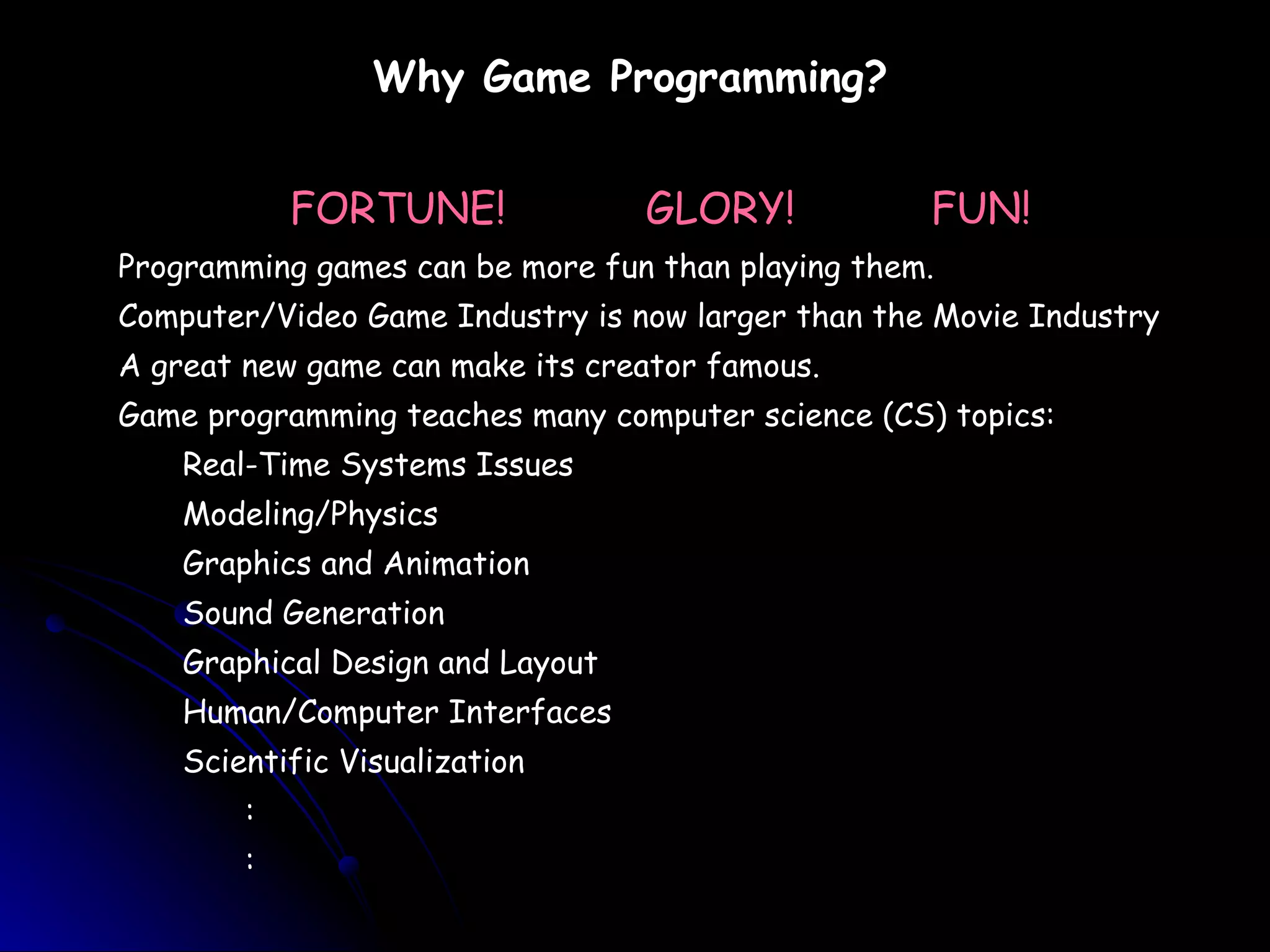

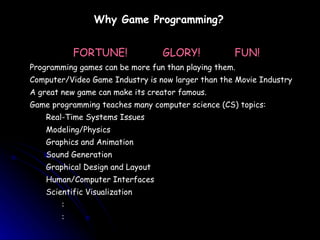

5. Why Game Programming? FORTUNE! GLORY! FUN! Programming games can be more fun than playing them. Computer/Video Game Industry is now larger than the Movie Industry A great new game can make its creator famous. Game programming teaches many computer science (CS) topics: Real-Time Systems Issues Modeling/Physics Graphics and Animation Sound Generation Graphical Design and Layout Human/Computer Interfaces Scientific Visualization : :

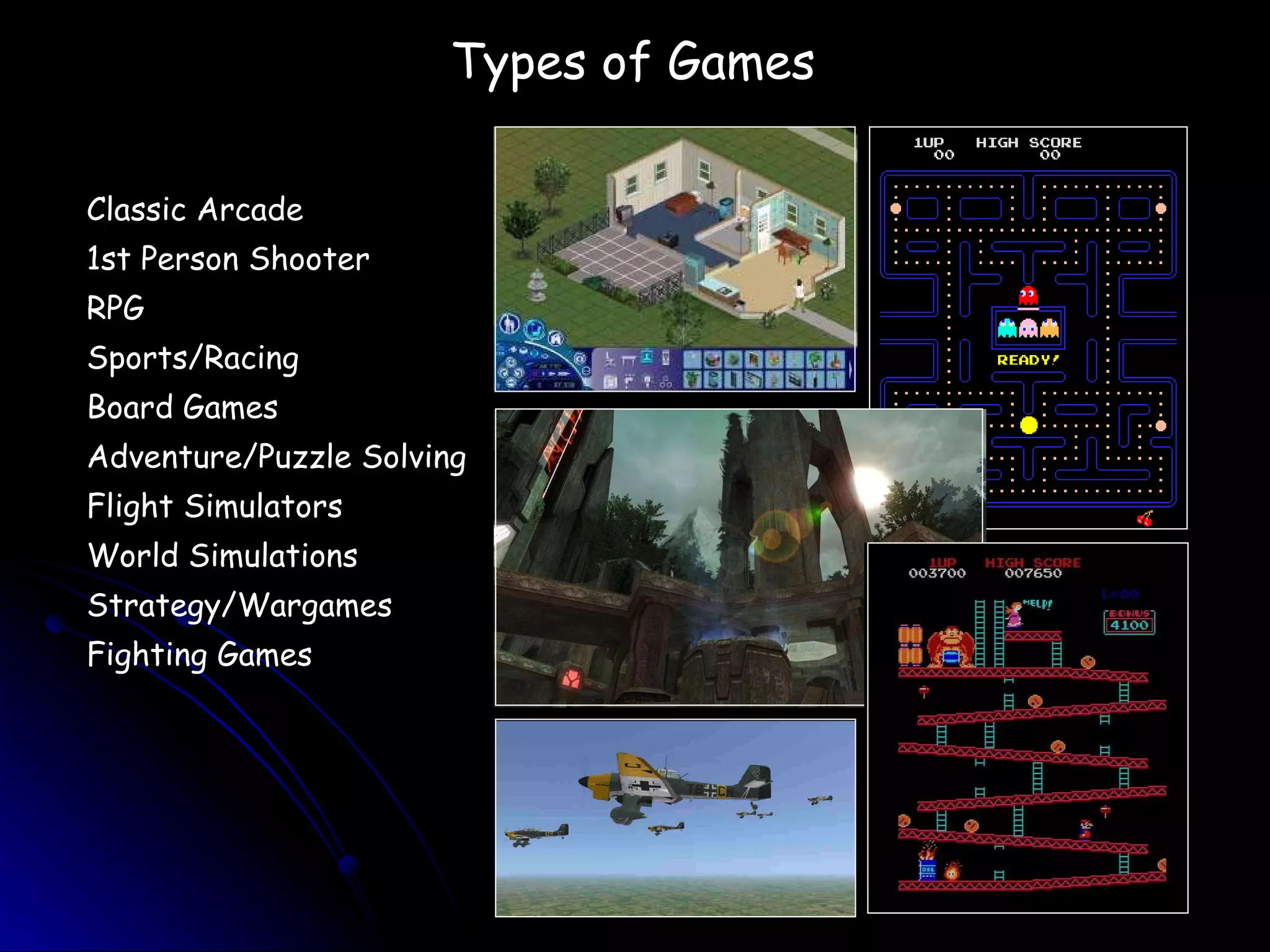

6. Types of Games Classic Arcade 1st Person Shooter RPG Sports/Racing Board Games Adventure/Puzzle Solving Flight Simulators World Simulations Strategy/Wargames Fighting Games

7. Can One Person Still Write a Great Game ? While many popular computer games are the result of 100s of programmers, designers, writers, artists, and producers, there is still a place for the lone programmer. The growing popularity of online (e.g. applet-level) games and games on PDA's, handhelds, and even cell-phones need great games. Lone programmers and small start-up game companies can fill this need. YES!

8. Great Games come from Great Ideas Each of the types of games started out as one game and one person's idea.

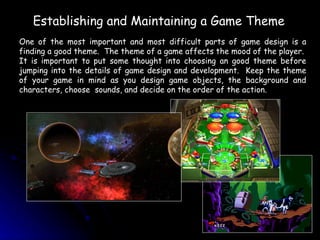

9. Establishing and Maintaining a Game Theme One of the most important and most difficult parts of game design is a finding a good theme. The theme of a game affects the mood of the player. It is important to put some thought into choosing an good theme before jumping into the details of game design and development. Keep the theme of your game in mind as you design game objects, the background and characters, choose sounds, and decide on the order of the action.

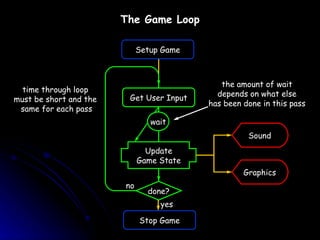

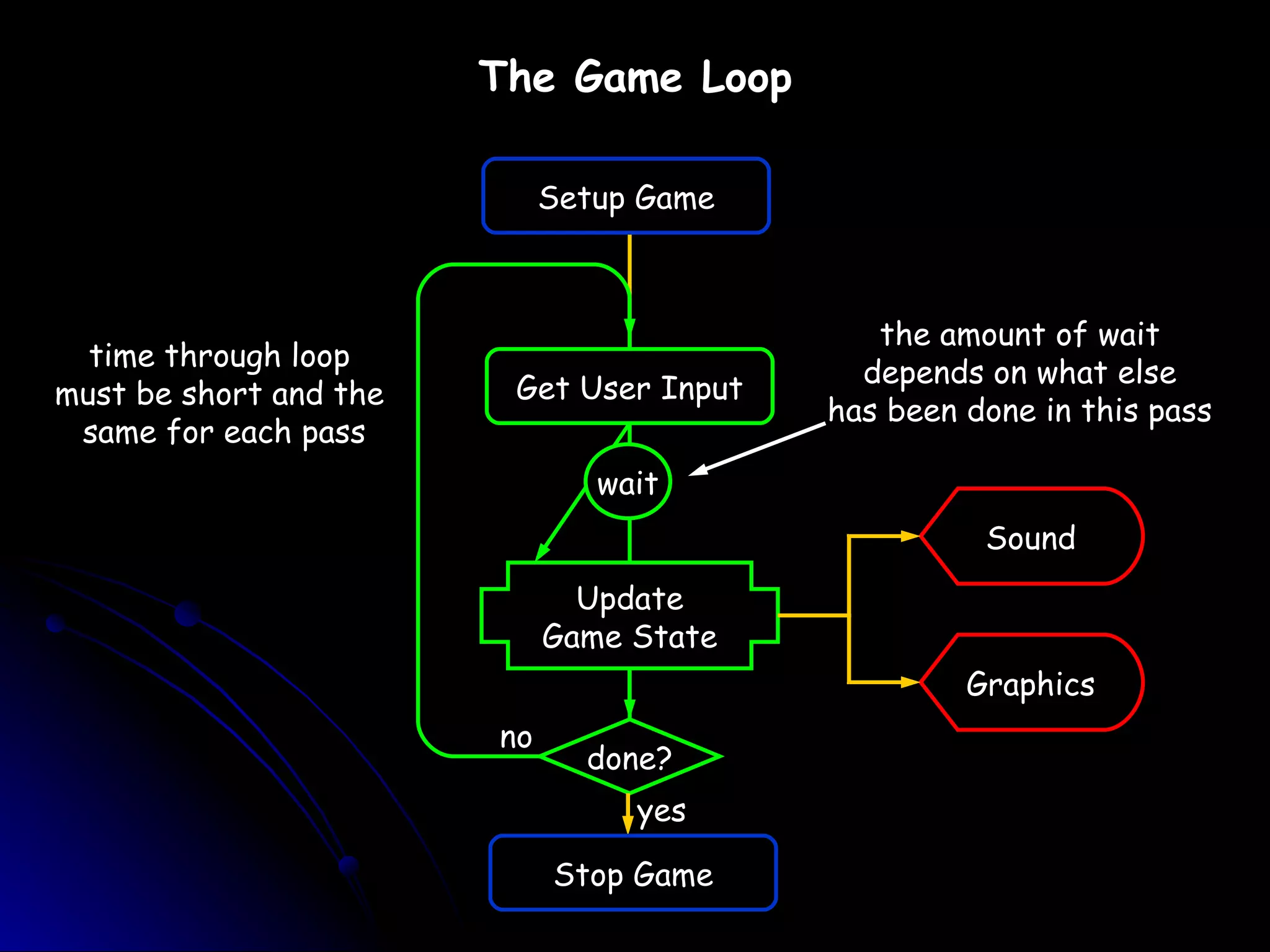

10. The Game Loop Update Game State Get User Input Sound Graphics Setup Game done? Stop Game no yes wait time through loop must be short and the same for each pass the amount of wait depends on what else has been done in this pass

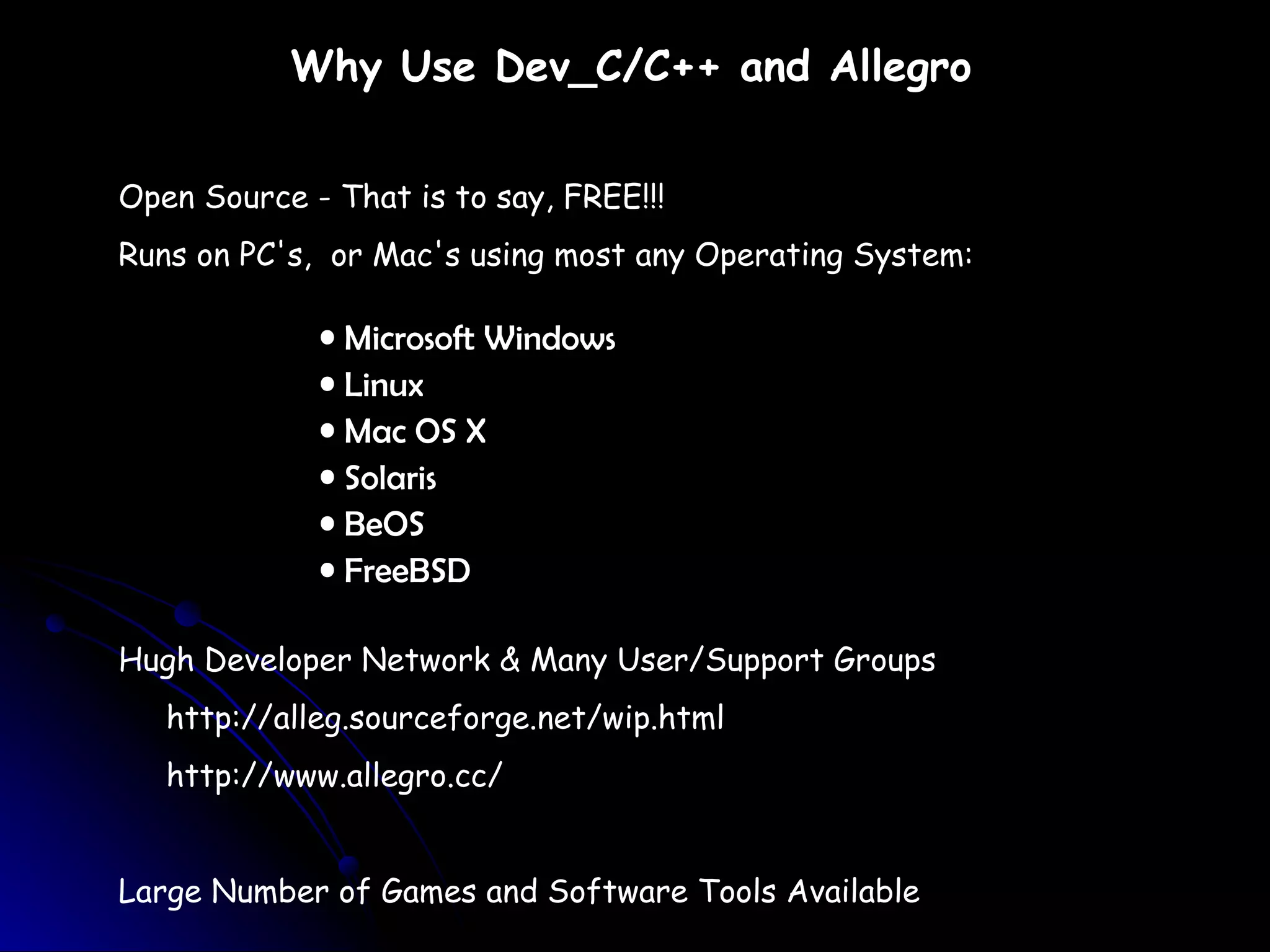

11. Why Use Dev_C/C++ and Allegro Open Source - That is to say, FREE!!! Runs on PC's, or Mac's using most any Operating System: Hugh Developer Network & Many User/Support Groups http://alleg.sourceforge.net/wip.html http://www.allegro.cc/ Large Number of Games and Software Tools Available Microsoft Windows Linux Mac OS X Solaris BeOS FreeBSD

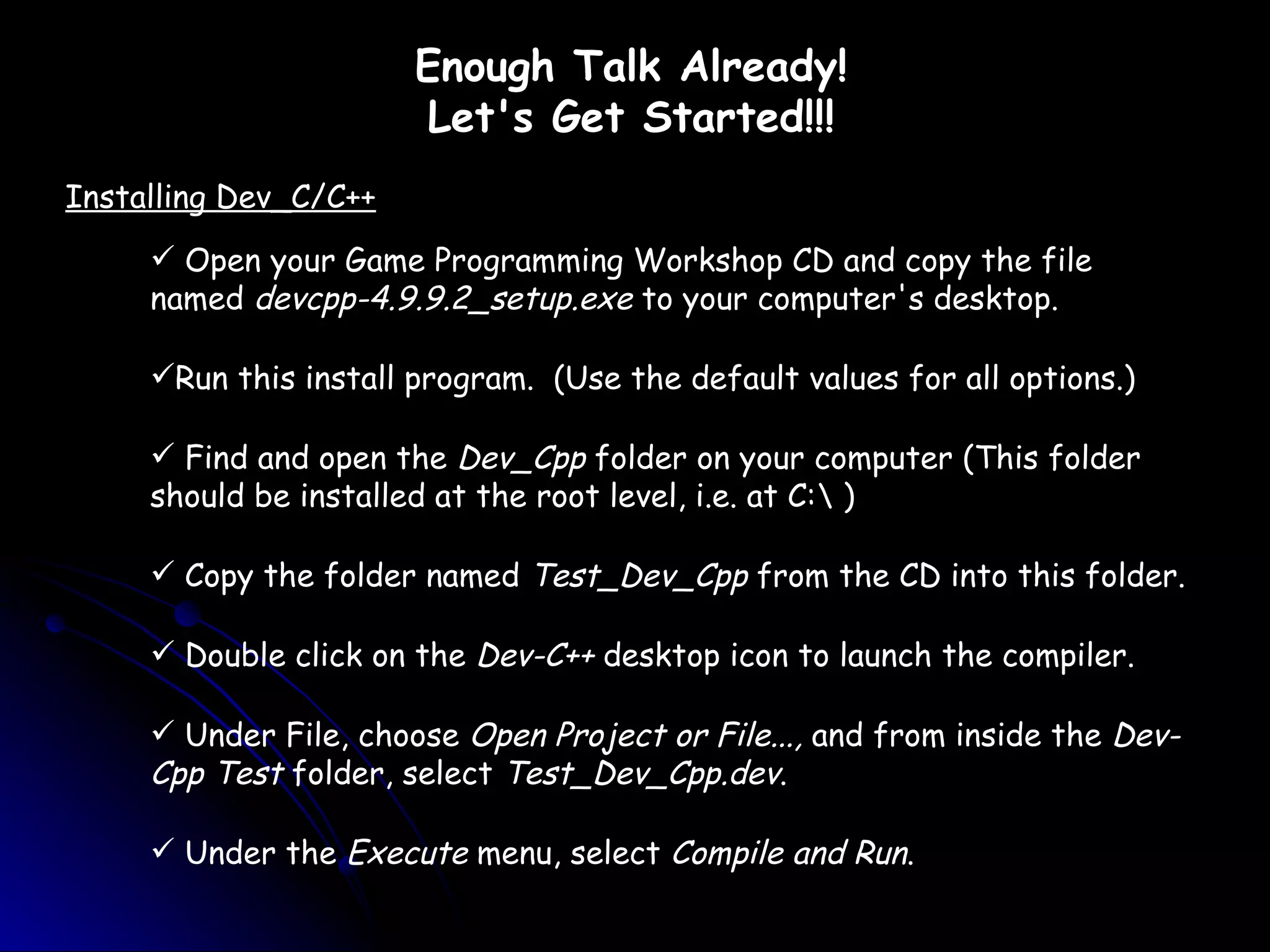

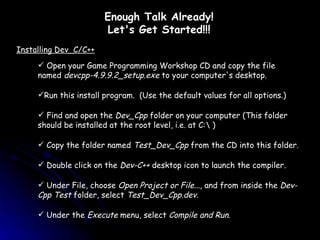

12. Enough Talk Already! Let's Get Started!!! Installing Dev_C/C++ Open your Game Programming Workshop CD and copy the file named devcpp-4.9.9.2_setup.exe to your computer's desktop. Run this install program. (Use the default values for all options.) Find and open the Dev_Cpp folder on your computer (This folder should be installed at the root level, i.e. at C:\ ) Copy the folder named Test_Dev_Cpp from the CD into this folder. Double click on the Dev-C++ desktop icon to launch the compiler. Under File, choose Open Project or File..., and from inside the Dev-Cpp Test folder, select Test_Dev_Cpp.dev . Under the Execute menu, select Compile and Run .

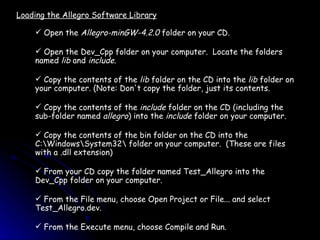

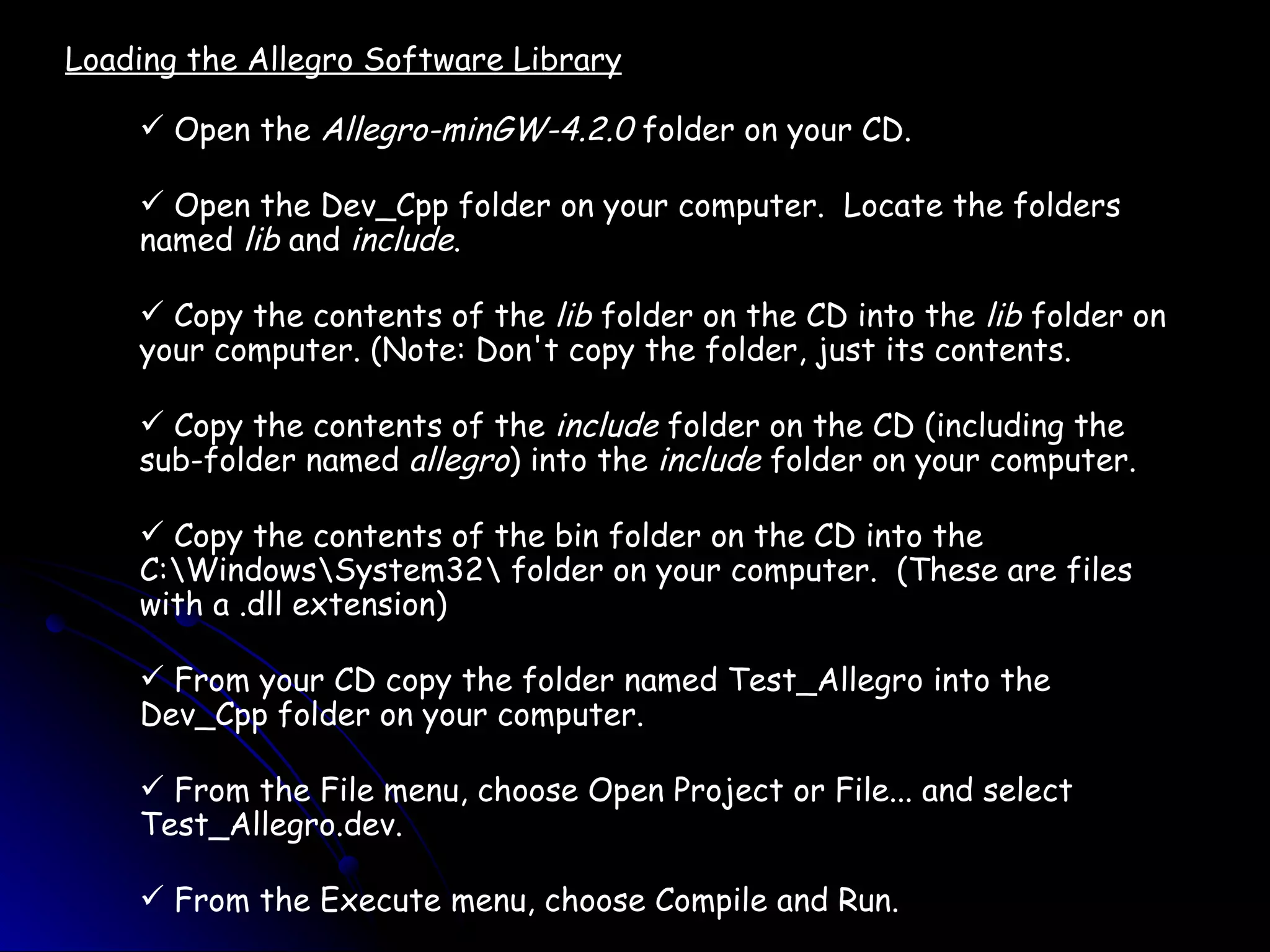

13. Loading the Allegro Software Library Open the Allegro-minGW-4.2.0 folder on your CD. Open the Dev_Cpp folder on your computer. Locate the folders named lib and include . Copy the contents of the lib folder on the CD into the lib folder on your computer. (Note: Don't copy the folder, just its contents. Copy the contents of the include folder on the CD (including the sub-folder named allegro ) into the include folder on your computer. Copy the contents of the bin folder on the CD into the C:\Windows\System32\ folder on your computer. (These are files with a .dll extension) From your CD copy the folder named Test_Allegro into the Dev_Cpp folder on your computer. From the File menu, choose Open Project or File... and select Test_Allegro.dev. From the Execute menu, choose Compile and Run.

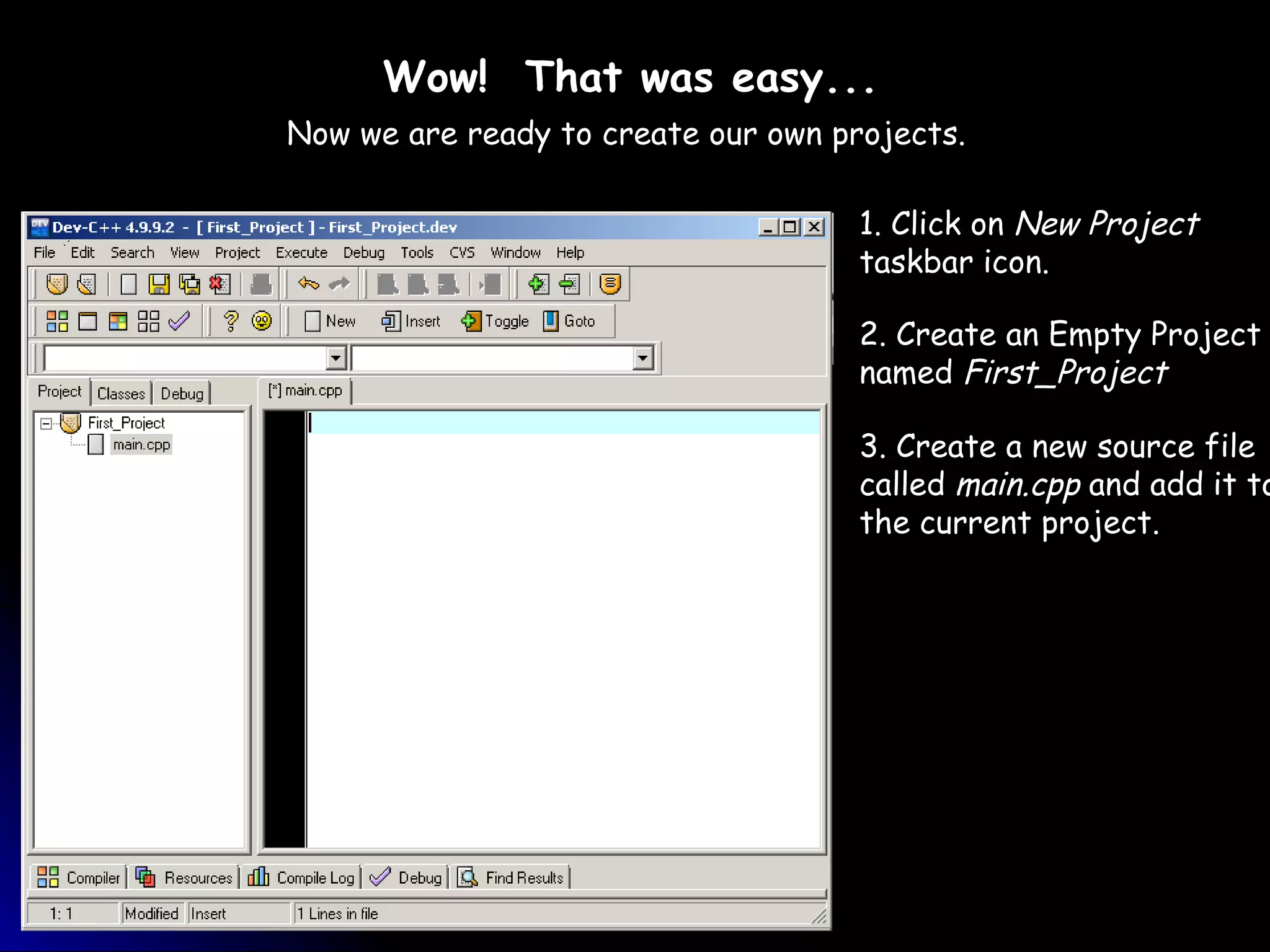

14. Wow! That was easy... Now we are ready to create our own projects. 1. Click on New Project taskbar icon. 2. Create an Empty Project named First_Project 3. Create a new source file called main.cpp and add it to the current project.

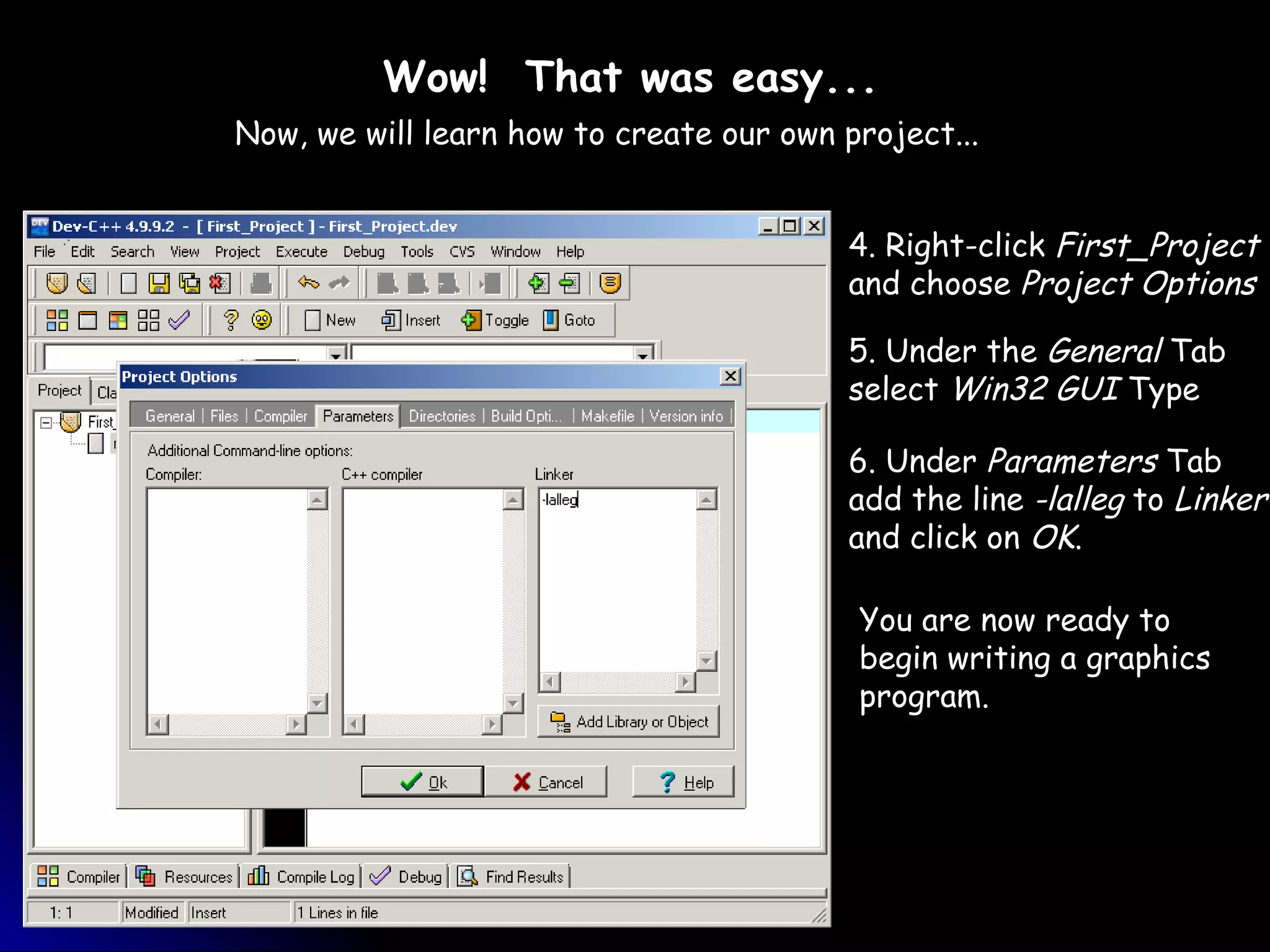

15. Wow! That was easy... Now, we will learn how to create our own project... 4. Right-click First_Project and choose Project Options 5. Under the General Tab select Win32 GUI Type 6. Under Parameters Tab add the line -lalleg to Linker and click on OK . You are now ready to begin writing a graphics program.

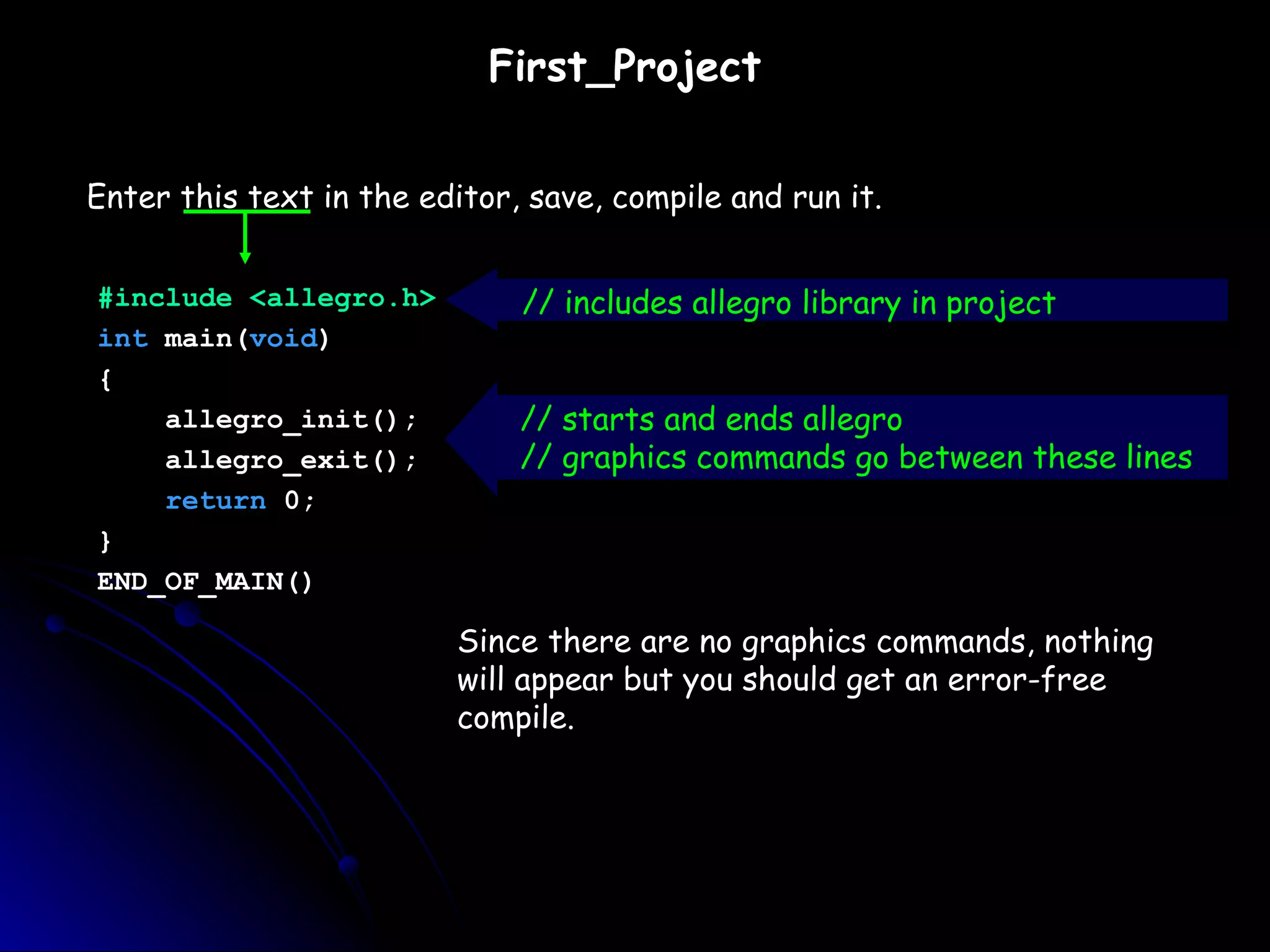

16. #include <allegro.h> int main( void ) { allegro_init(); allegro_exit(); return 0; } END_OF_MAIN() First_Project // includes allegro library in project // starts and ends allegro // graphics commands go between these lines Enter this text in the editor, save, compile and run it. Since there are no graphics commands, nothing will appear but you should get an error-free compile.

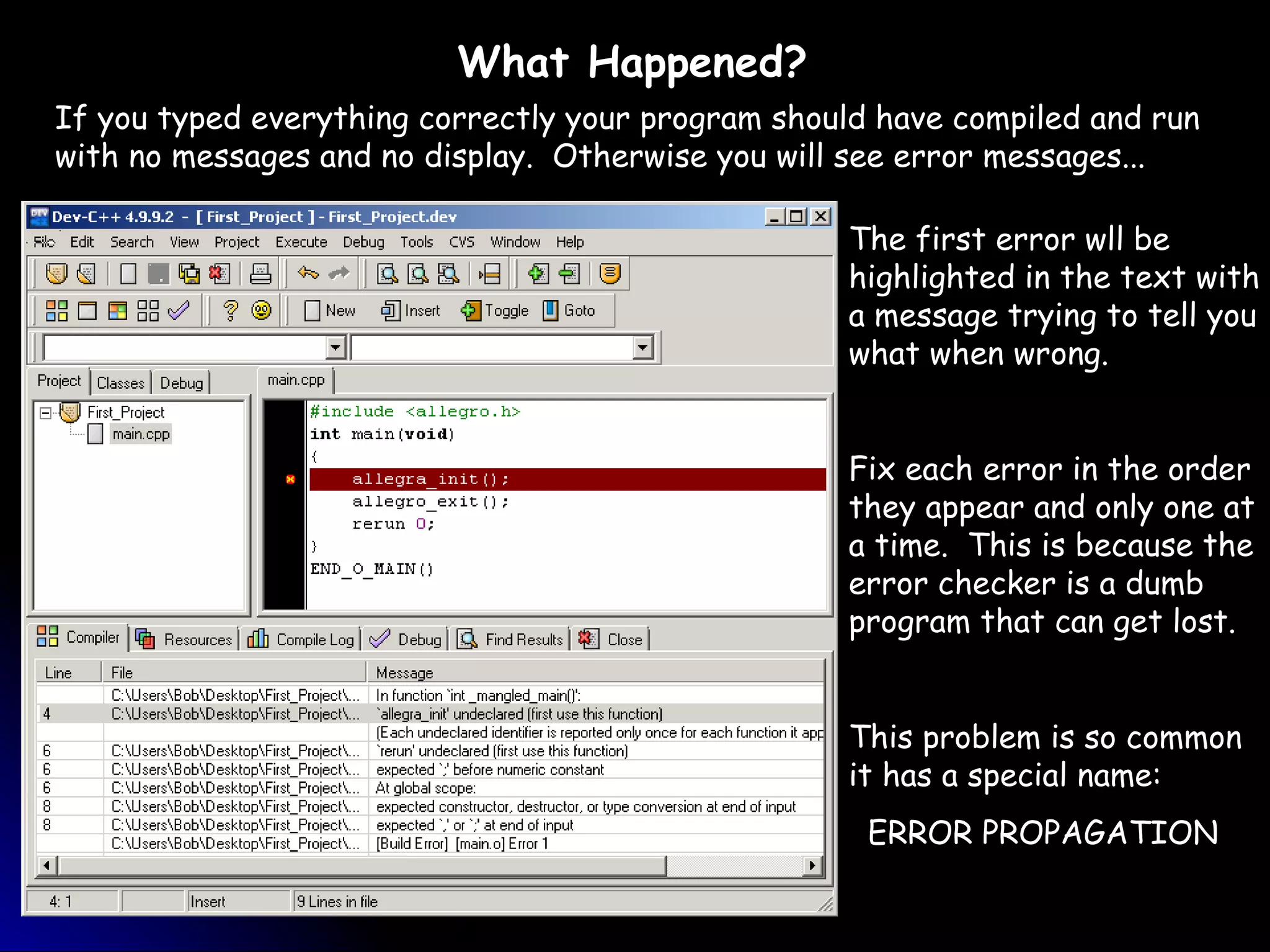

17. What Happened? If you typed everything correctly your program should have compiled and run with no messages and no display. Otherwise you will see error messages... The first error wll be highlighted in the text with a message trying to tell you what when wrong. Fix each error in the order they appear and only one at a time. This is because the error checker is a dumb program that can get lost. This problem is so common it has a special name: ERROR PROPAGATION

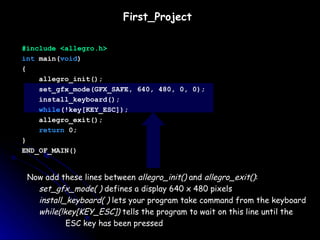

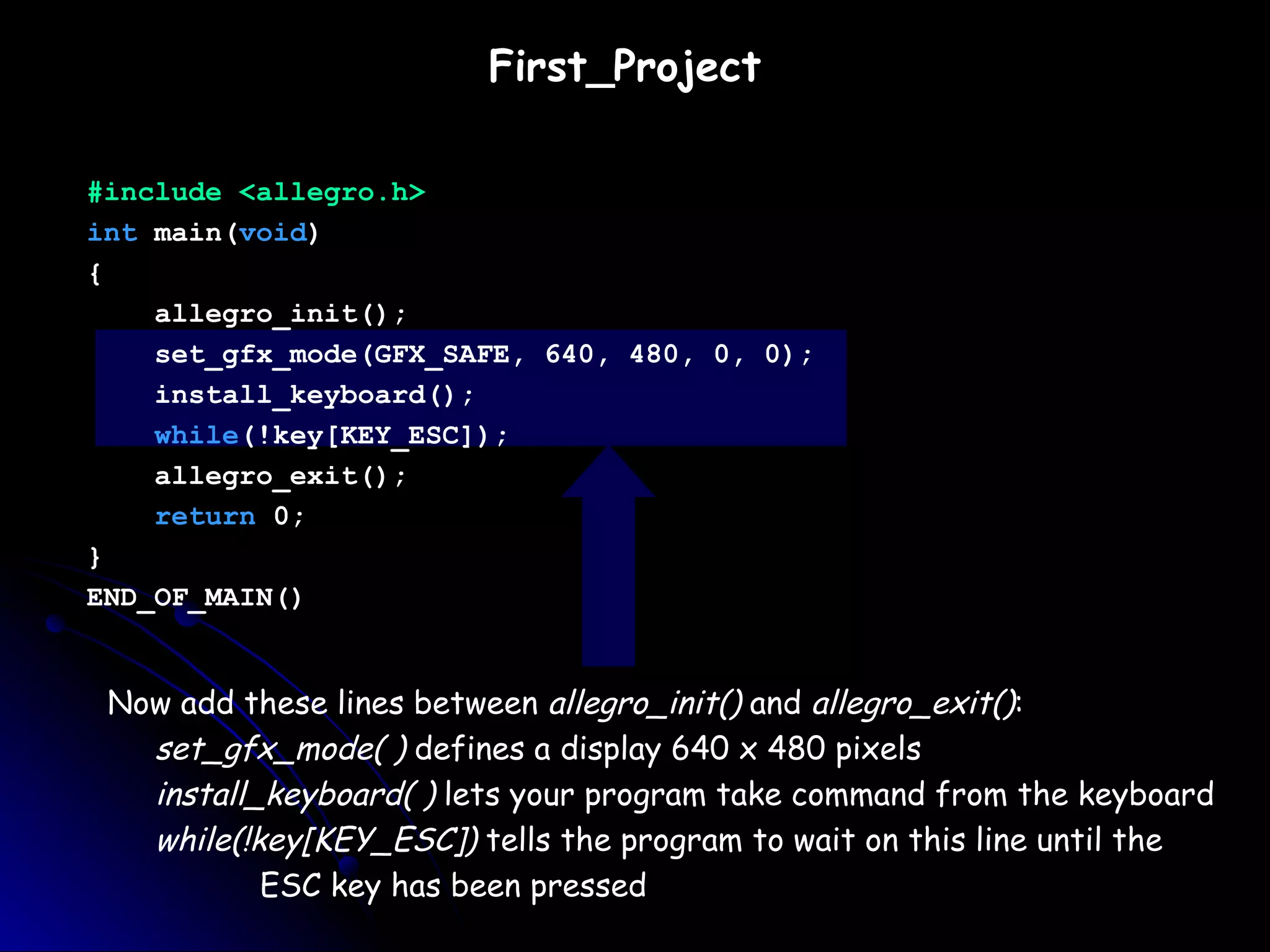

18. #include <allegro.h> int main( void ) { allegro_init(); set_gfx_mode(GFX_SAFE, 640, 480, 0, 0); install_keyboard(); while (!key[KEY_ESC]); allegro_exit(); return 0; } END_OF_MAIN() First_Project Now add these lines between allegro_init() and allegro_exit() : set_gfx_mode( ) defines a display 640 x 480 pixels install_keyboard( ) lets your program take command from the keyboard while(!key[KEY_ESC]) tells the program to wait on this line until the ESC key has been pressed

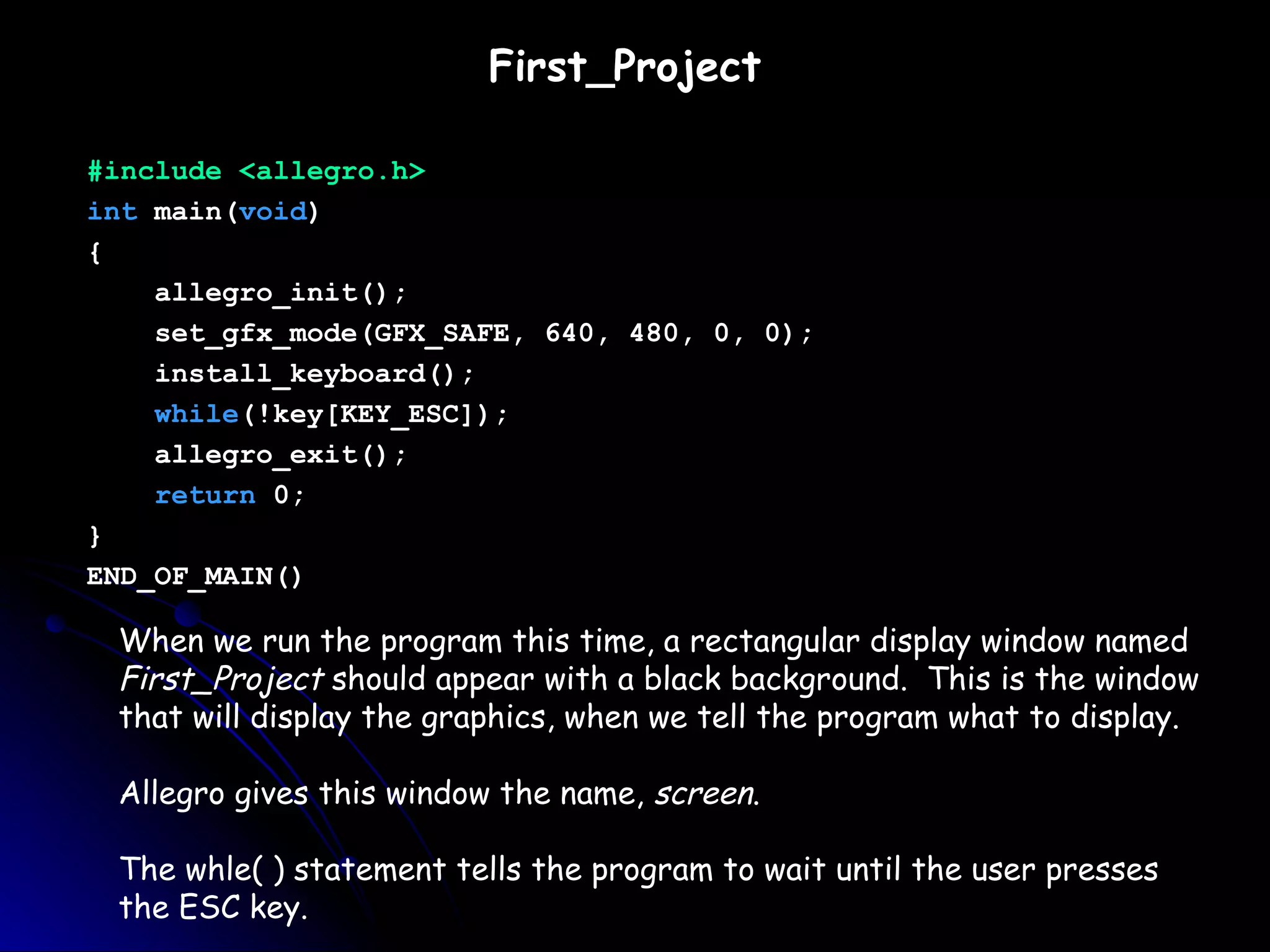

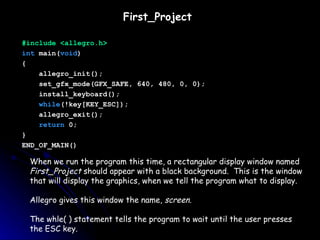

19. #include <allegro.h> int main( void ) { allegro_init(); set_gfx_mode(GFX_SAFE, 640, 480, 0, 0); install_keyboard(); while (!key[KEY_ESC]); allegro_exit(); return 0; } END_OF_MAIN() First_Project When we run the program this time, a rectangular display window named First_Project should appear with a black background. This is the window that will display the graphics, when we tell the program what to display. Allegro gives this window the name, screen . The whle( ) statement tells the program to wait until the user presses the ESC key.

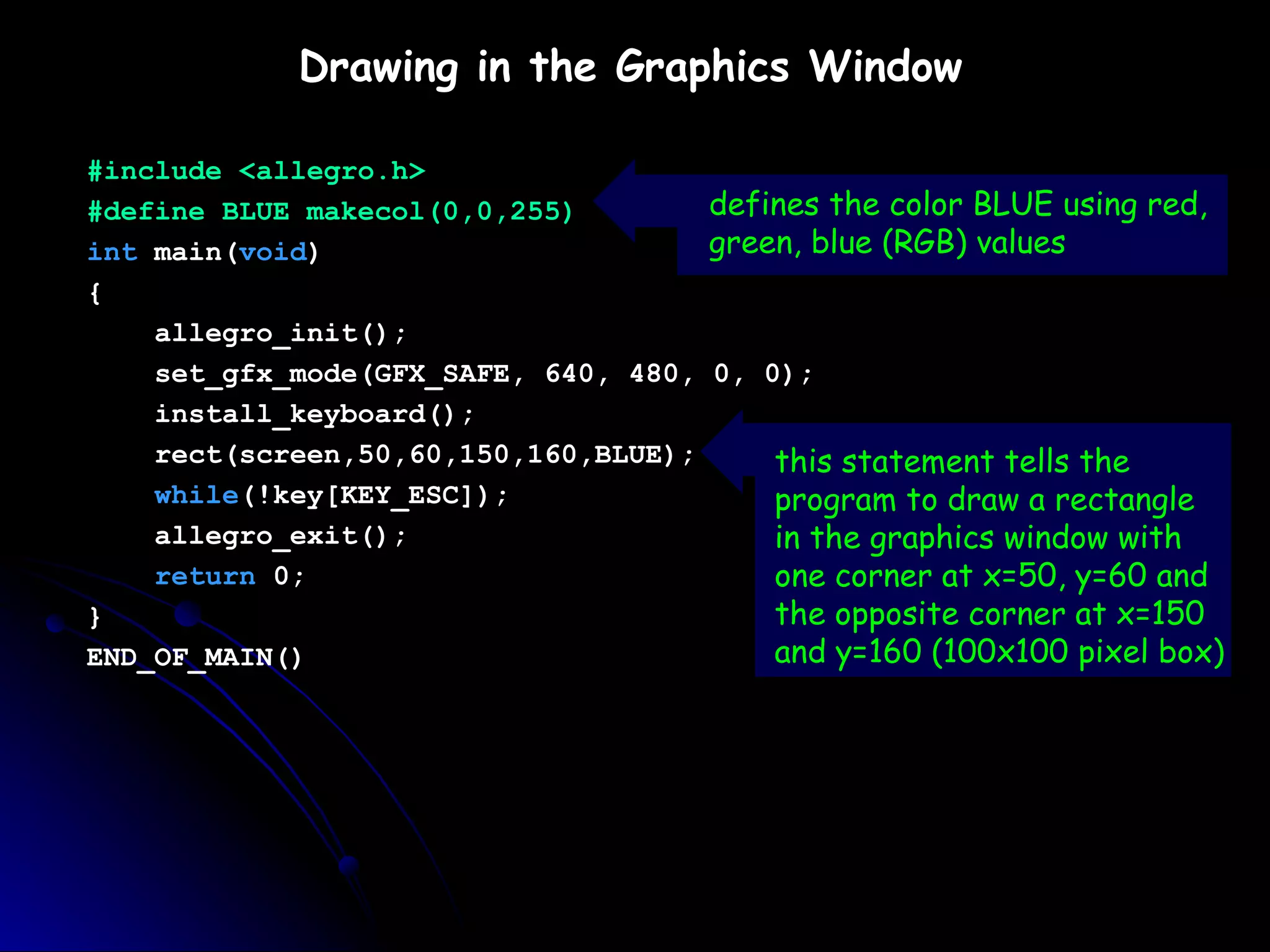

20. Drawing in the Graphics Window #include <allegro.h> #define BLUE makecol(0,0,255) int main( void ) { allegro_init(); set_gfx_mode(GFX_SAFE, 640, 480, 0, 0); install_keyboard(); rect(screen,50,60,150,160,BLUE); while (!key[KEY_ESC]); allegro_exit(); return 0; } END_OF_MAIN() defines the color BLUE using red, green, blue (RGB) values this statement tells the program to draw a rectangle in the graphics window with one corner at x=50, y=60 and the opposite corner at x=150 and y=160 (100x100 pixel box)

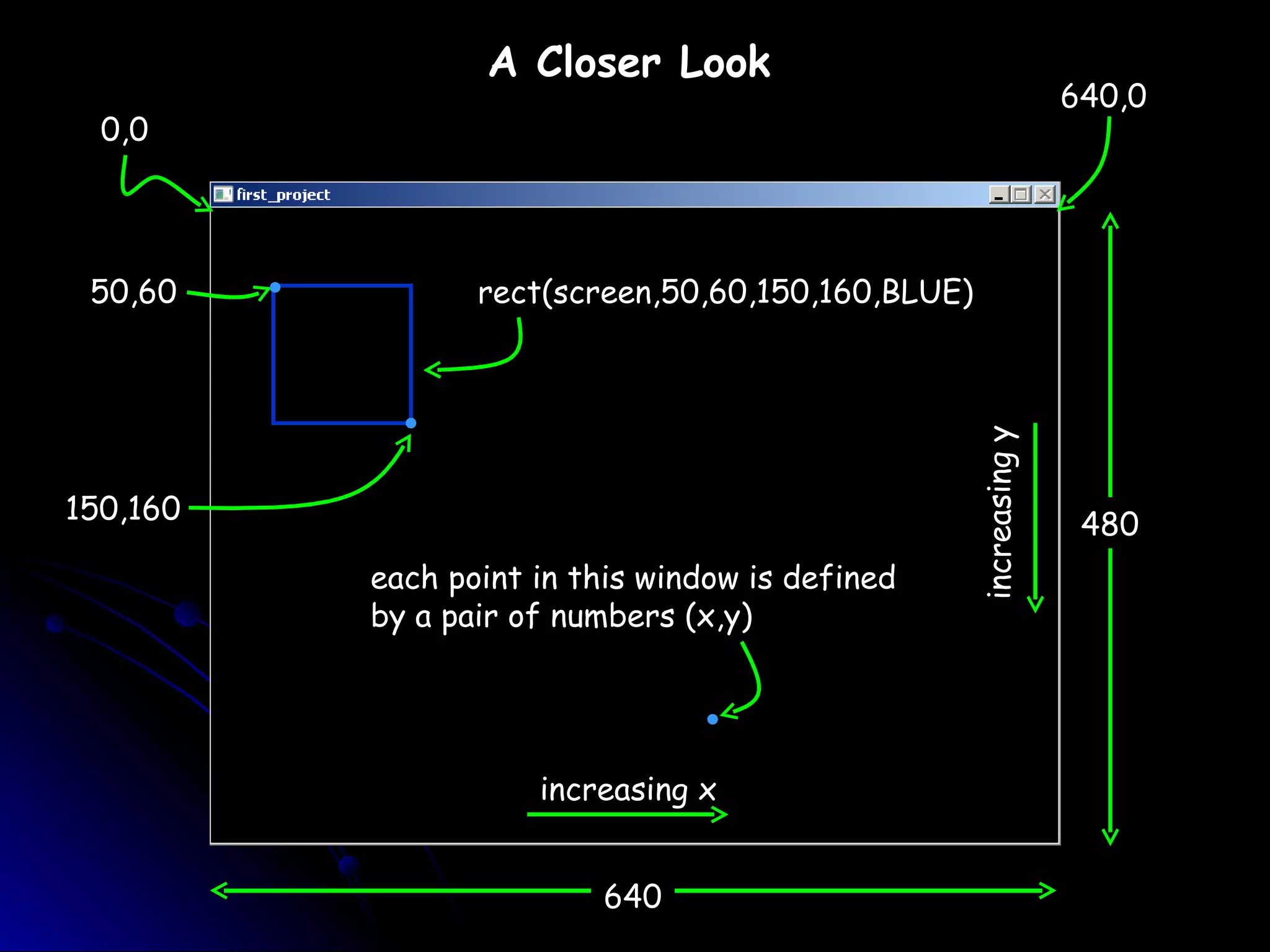

21. A Closer Look 640 480 0,0 each point in this window is defined by a pair of numbers (x,y) 640,0 50,60 150,160 increasing y increasing x rect(screen,50,60,150,160,BLUE)

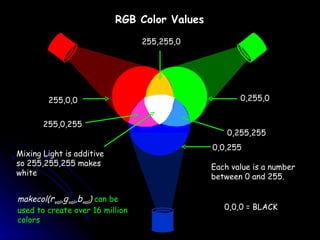

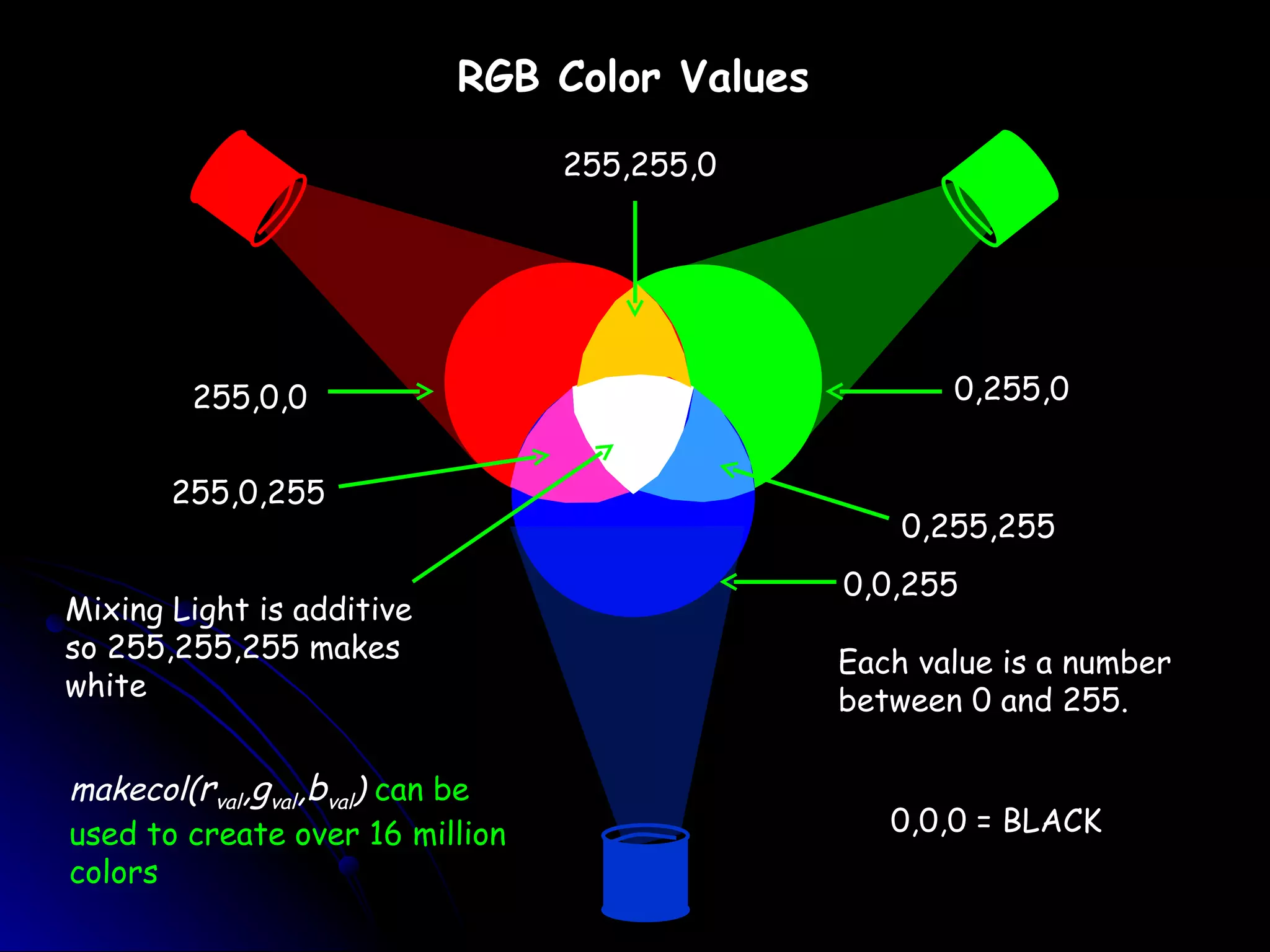

22. RGB Color Values Each value is a number between 0 and 255. Mixing Light is additive so 255,255,255 makes white 255,0,0 255,0,255 255,255,0 0,255,0 0,0,255 0,255,255 0,0,0 = BLACK makecol( r val ,g val ,b val ) can be used to create over 16 million colors

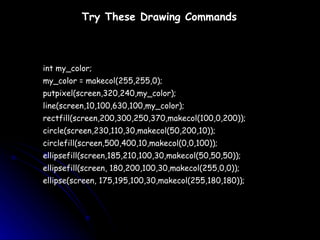

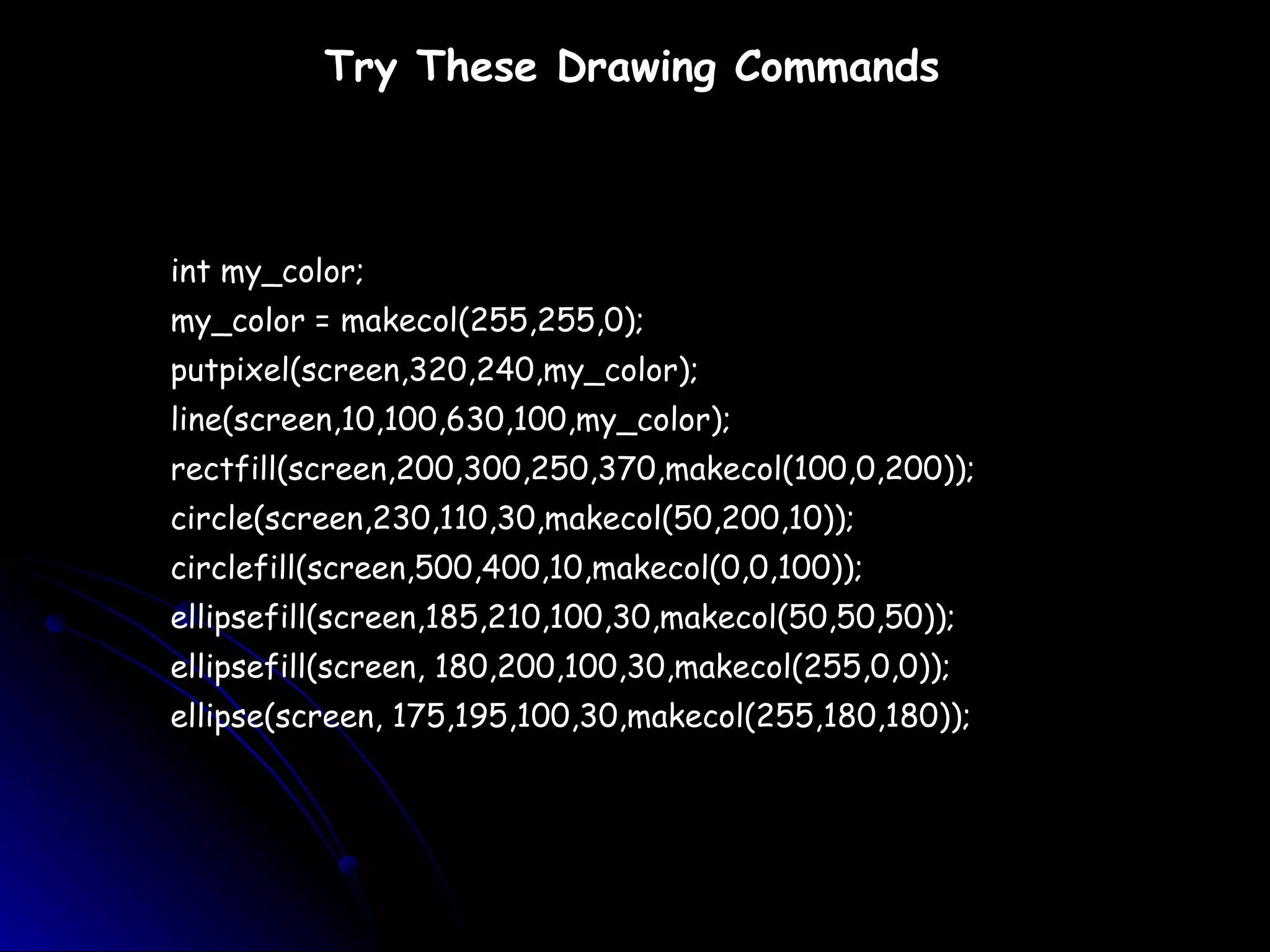

23. Try These Drawing Commands int my_color; my_color = makecol(255,255,0); putpixel(screen,320,240,my_color); line(screen,10,100,630,100,my_color); rectfill(screen,200,300,250,370,makecol(100,0,200)); circle(screen,230,110,30,makecol(50,200,10)); circlefill(screen,500,400,10,makecol(0,0,100)); ellipsefill(screen,185,210,100,30,makecol(50,50,50)); ellipsefill(screen, 180,200,100,30,makecol(255,0,0)); ellipse(screen, 175,195,100,30,makecol(255,180,180));

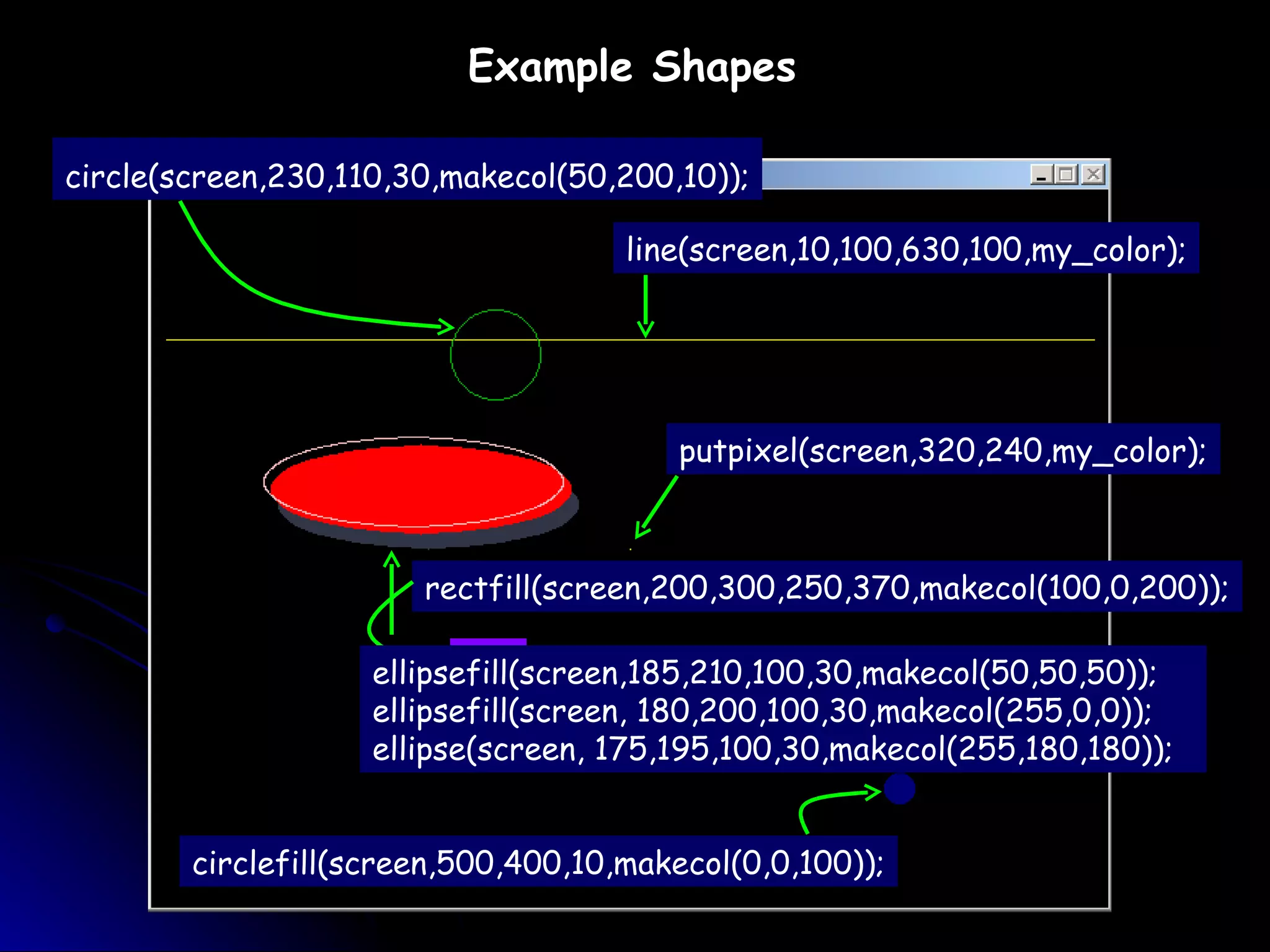

24. Example Shapes putpixel(screen,320,240,my_color); line(screen,10,100,630,100,my_color); rectfill(screen,200,300,250,370,makecol(100,0,200)); circle(screen,230,110,30,makecol(50,200,10)); circlefill(screen,500,400,10,makecol(0,0,100)); ellipsefill(screen,185,210,100,30,makecol(50,50,50)); ellipsefill(screen, 180,200,100,30,makecol(255,0,0)); ellipse(screen, 175,195,100,30,makecol(255,180,180));

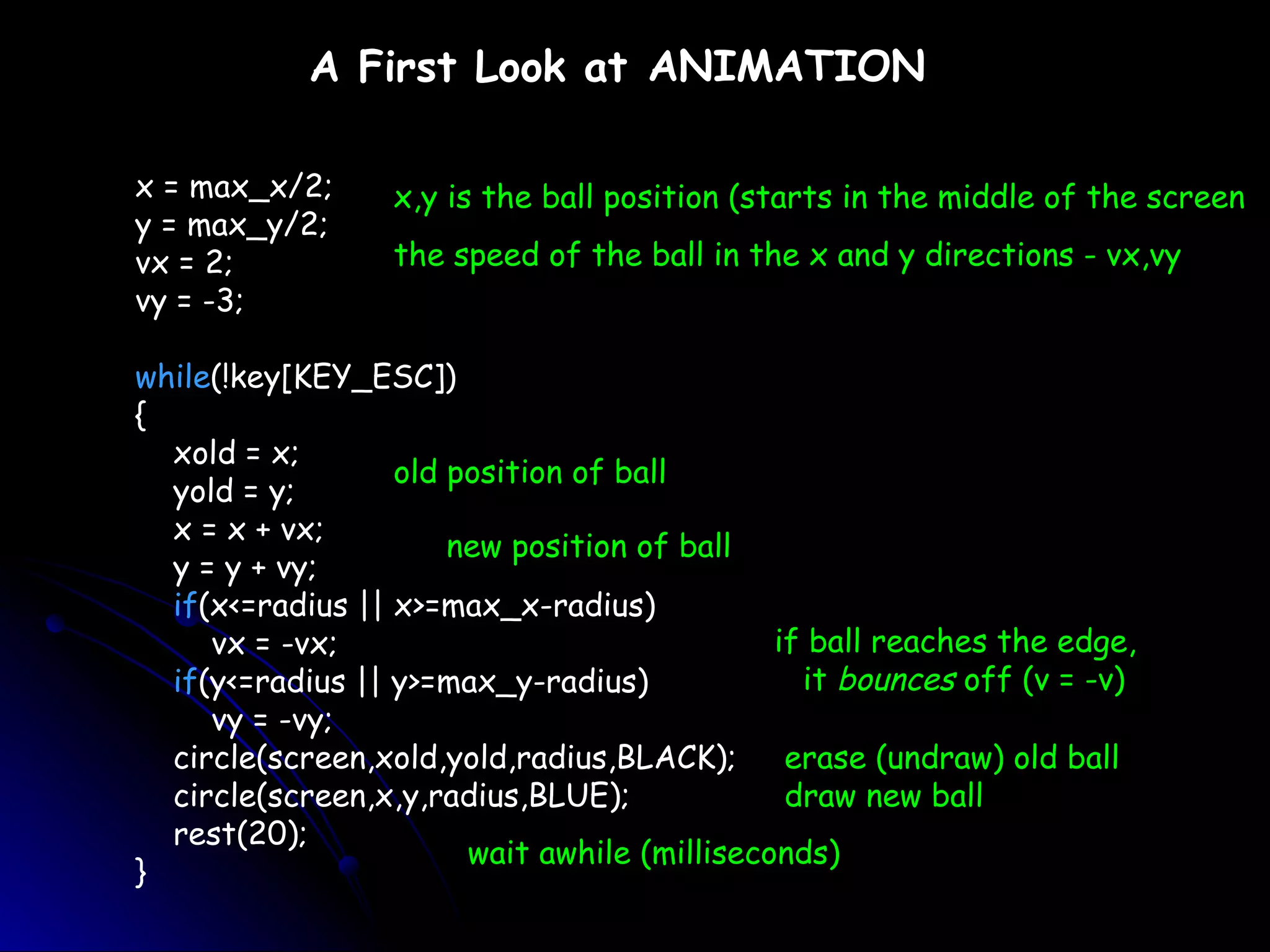

25. A First Look at ANIMATION x = max_x/2; y = max_y/2; vx = 2; vy = -3; while (!key[KEY_ESC]) { xold = x; yold = y; x = x + vx; y = y + vy; if (x<=radius || x>=max_x-radius) vx = -vx; if (y<=radius || y>=max_y-radius) vy = -vy; circle(screen,xold,yold,radius,BLACK); circle(screen,x,y,radius,BLUE); rest(20); } x,y is the ball position (starts in the middle of the screen the speed of the ball in the x and y directions - vx,vy old position of ball new position of ball if ball reaches the edge, it bounces off (v = -v) erase (undraw) old ball draw new ball wait awhile (milliseconds)

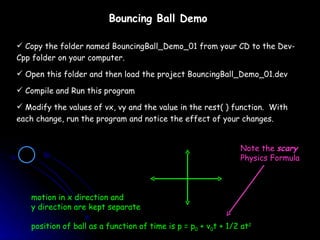

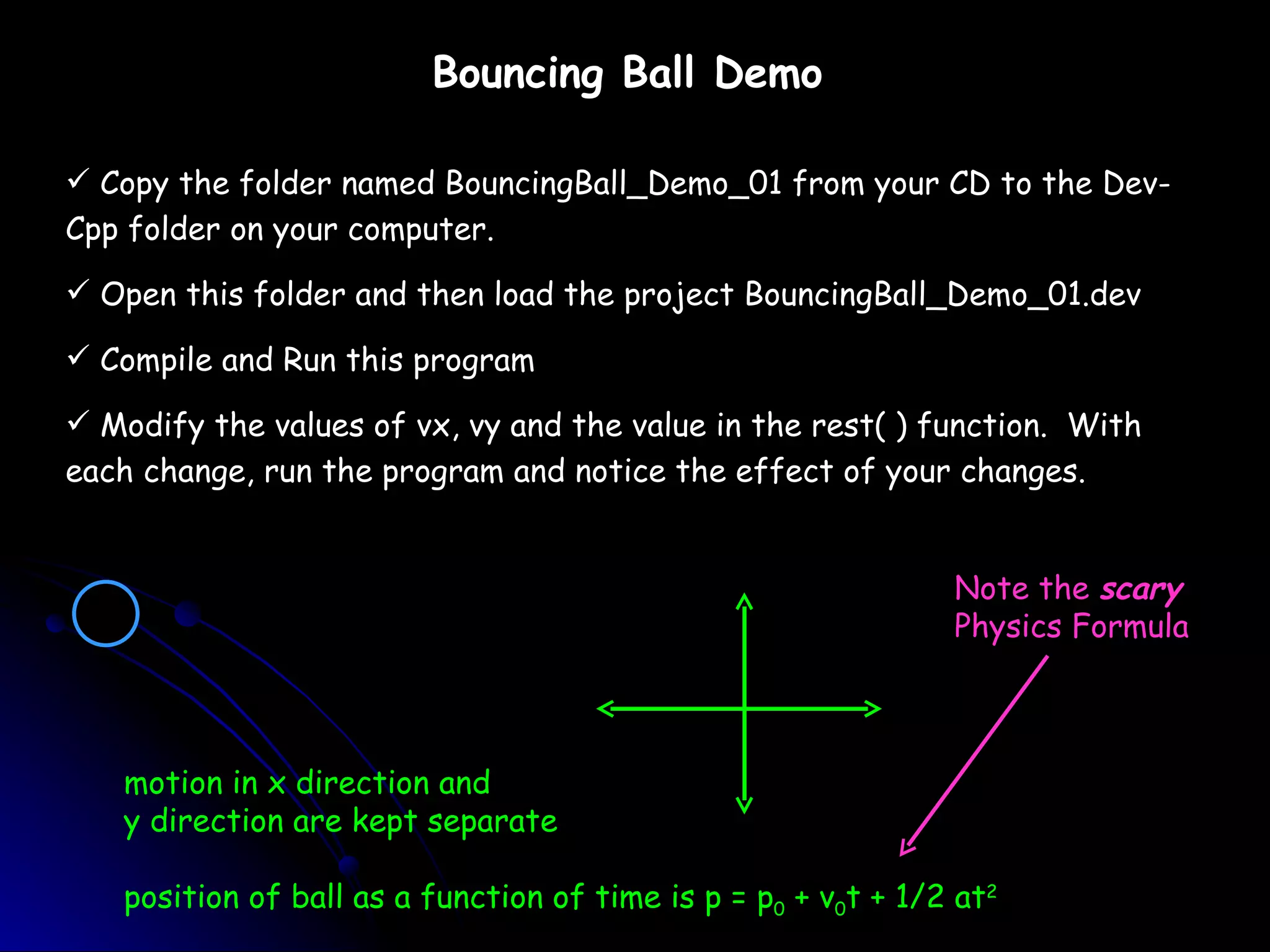

26. Bouncing Ball Demo Copy the folder named BouncingBall_Demo_01 from your CD to the Dev-Cpp folder on your computer. Open this folder and then load the project BouncingBall_Demo_01.dev Compile and Run this program Modify the values of vx, vy and the value in the rest( ) function. With each change, run the program and notice the effect of your changes. motion in x direction and y direction are kept separate position of ball as a function of time is p = p 0 + v 0 t + 1/2 at 2 Note the scary Physics Formula

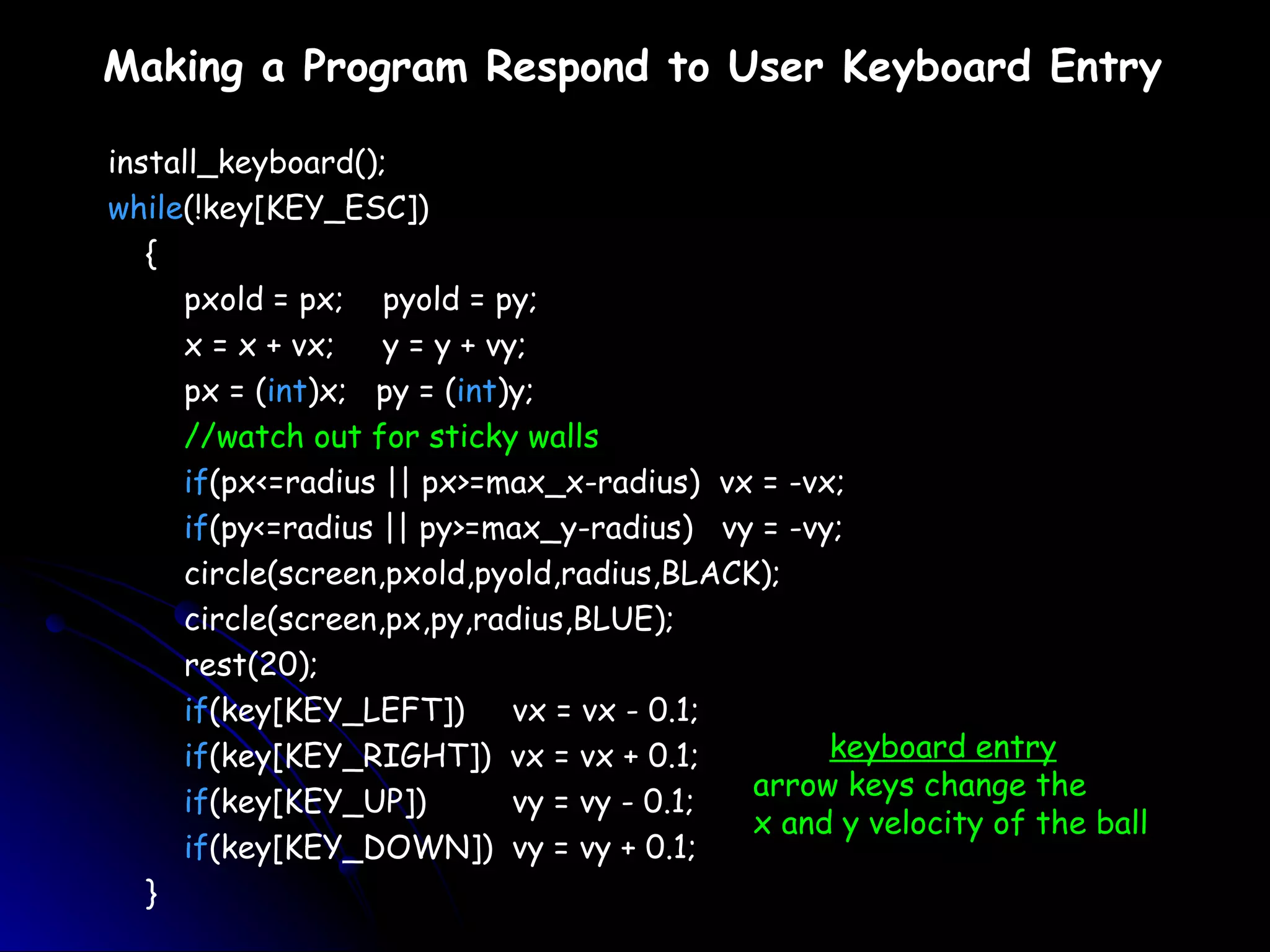

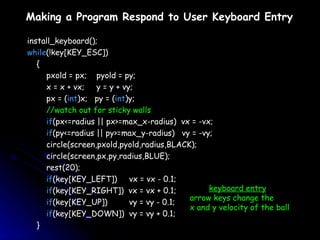

27. install_keyboard(); while (!key[KEY_ESC]) { pxold = px; pyold = py; x = x + vx; y = y + vy; px = ( int )x; py = ( int )y; //watch out for sticky walls if (px<=radius || px>=max_x-radius) vx = -vx; if (py<=radius || py>=max_y-radius) vy = -vy; circle(screen,pxold,pyold,radius,BLACK); circle(screen,px,py,radius,BLUE); rest(20); if (key[KEY_LEFT]) vx = vx - 0.1; if (key[KEY_RIGHT]) vx = vx + 0.1; if (key[KEY_UP]) vy = vy - 0.1; if (key[KEY_DOWN]) vy = vy + 0.1; } Making a Program Respond to User Keyboard Entry keyboard entry arrow keys change the x and y velocity of the ball

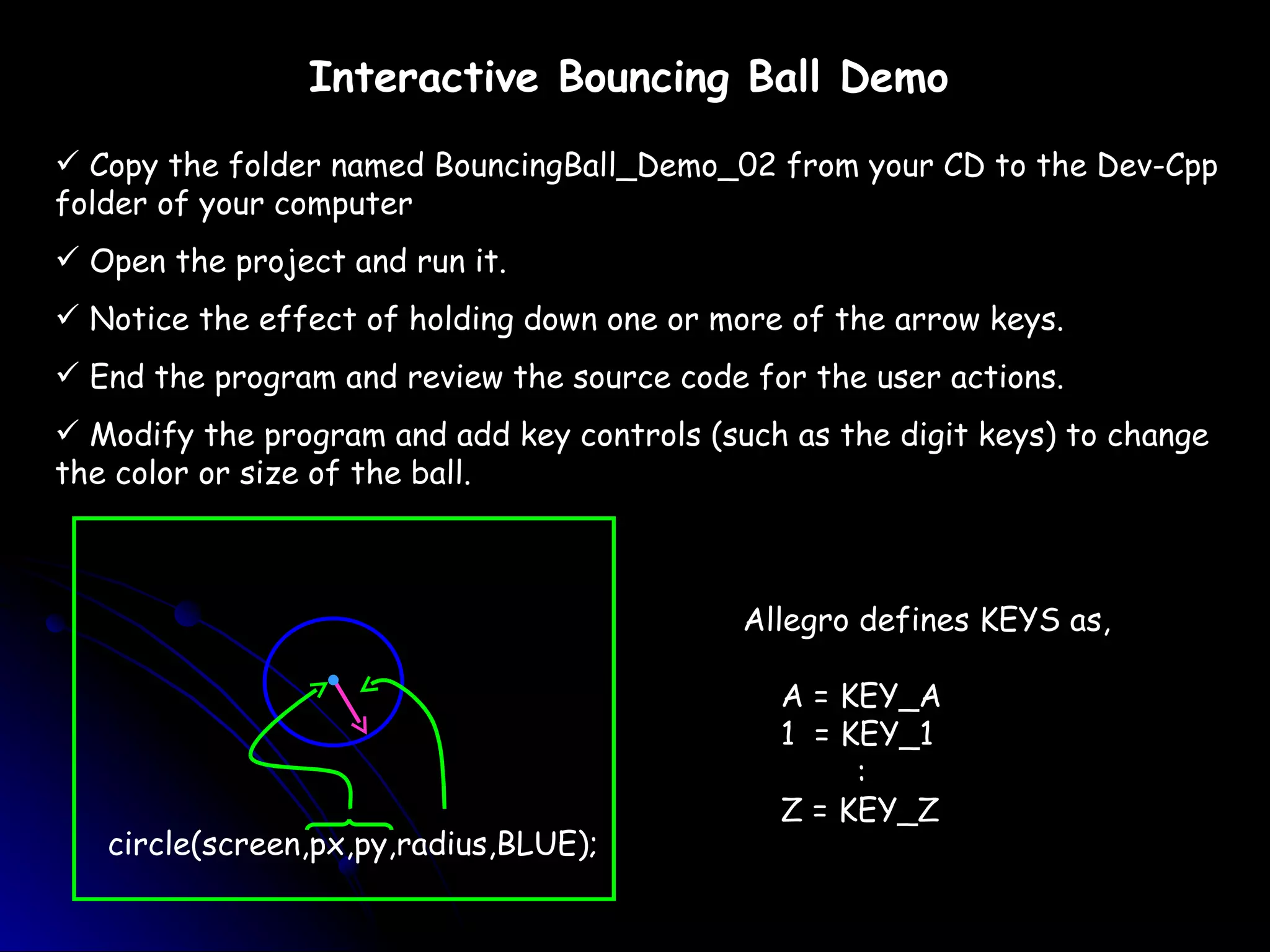

28. Interactive Bouncing Ball Demo Copy the folder named BouncingBall_Demo_02 from your CD to the Dev-Cpp folder of your computer Open the project and run it. Notice the effect of holding down one or more of the arrow keys. End the program and review the source code for the user actions. Modify the program and add key controls (such as the digit keys) to change the color or size of the ball. circle(screen,px,py,radius,BLUE); Allegro defines KEYS as, A = KEY_A 1 = KEY_1 : Z = KEY_Z

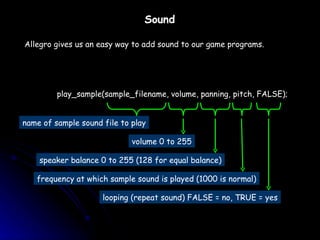

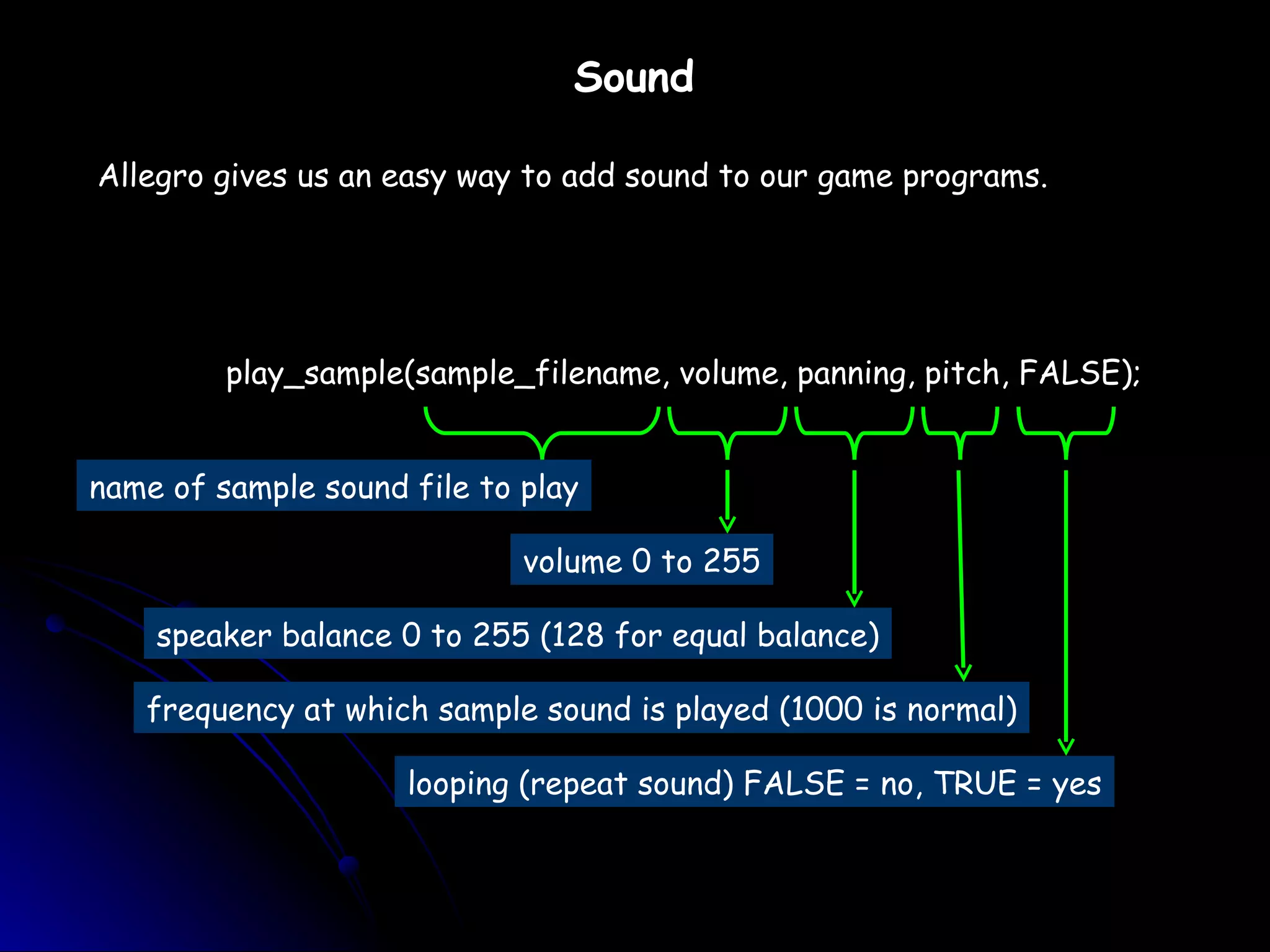

29. play_sample(sample_filename, volume, panning, pitch, FALSE); Sound Allegro gives us an easy way to add sound to our game programs. name of sample sound file to play volume 0 to 255 speaker balance 0 to 255 (128 for equal balance) frequency at which sample sound is played (1000 is normal) looping (repeat sound) FALSE = no, TRUE = yes

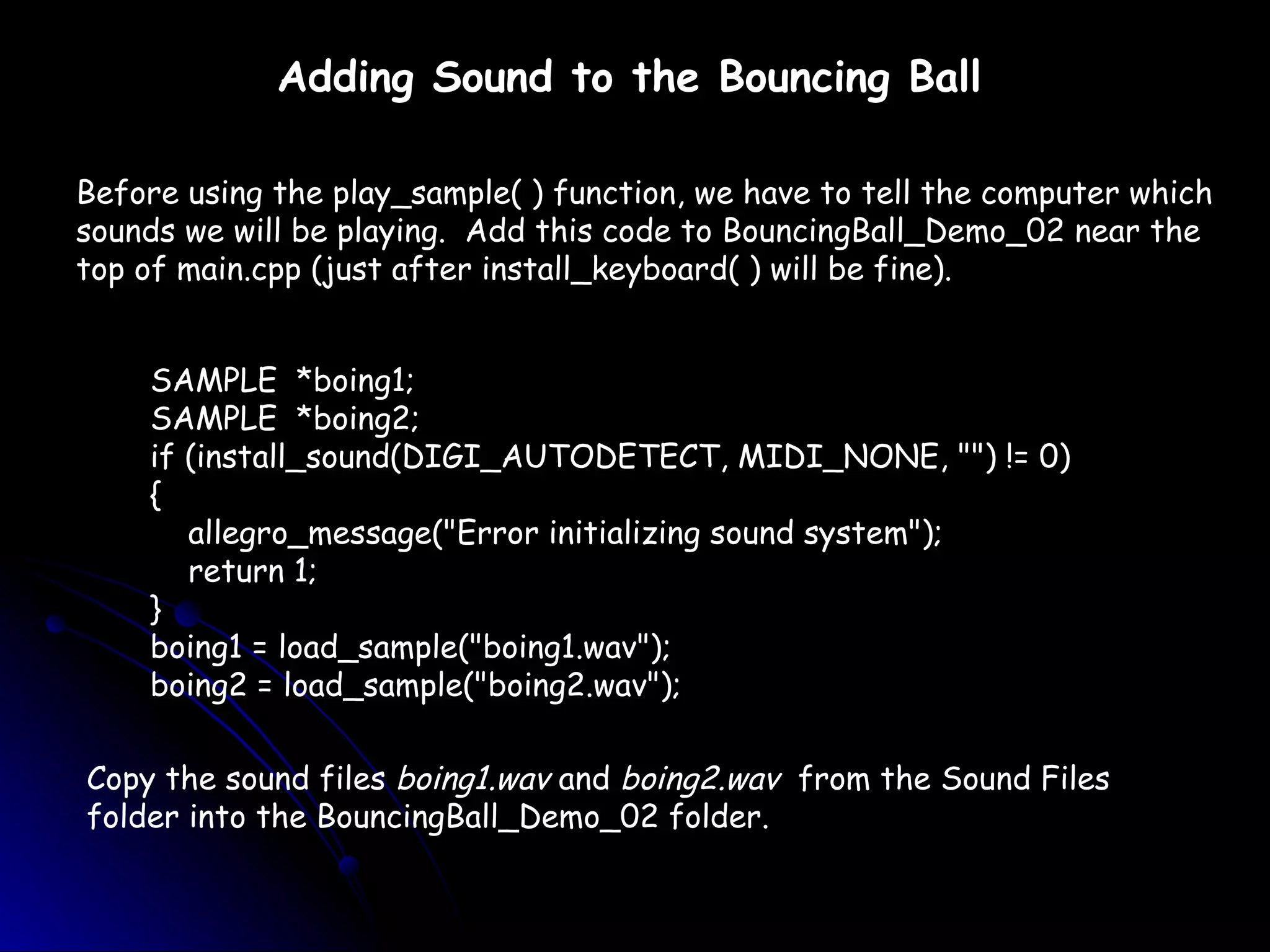

30. SAMPLE *boing1; SAMPLE *boing2; if (install_sound(DIGI_AUTODETECT, MIDI_NONE, &quot;&quot;) != 0) { allegro_message(&quot;Error initializing sound system&quot;); return 1; } boing1 = load_sample(&quot;boing1.wav&quot;); boing2 = load_sample(&quot;boing2.wav&quot;); Adding Sound to the Bouncing Ball Before using the play_sample( ) function, we have to tell the computer which sounds we will be playing. Add this code to BouncingBall_Demo_02 near the top of main.cpp (just after install_keyboard( ) will be fine). Copy the sound files boing1.wav and boing2.wav from the Sound Files folder into the BouncingBall_Demo_02 folder.

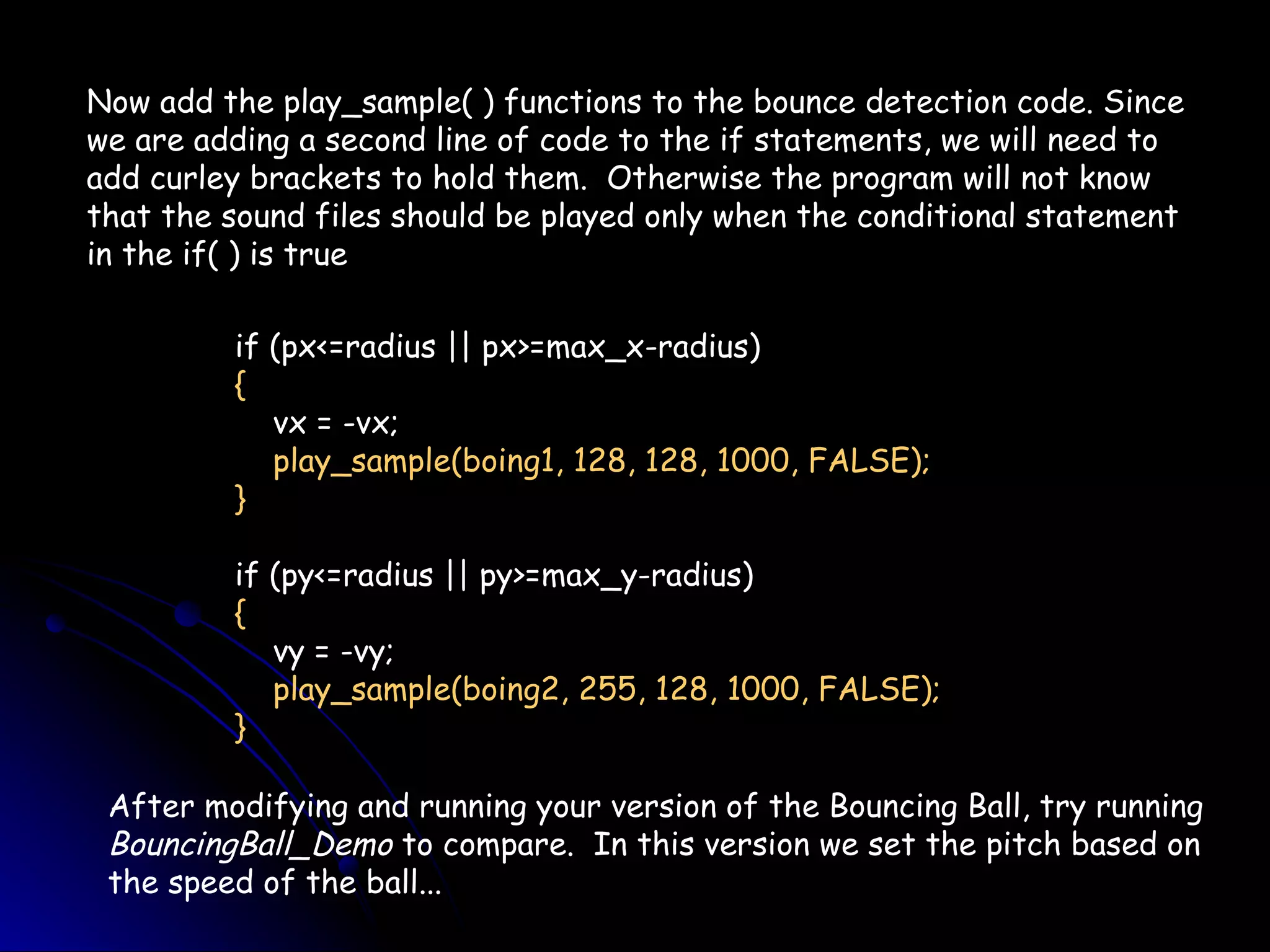

31. if (px<=radius || px>=max_x-radius) { vx = -vx; play_sample(boing1, 128, 128, 1000, FALSE); } if (py<=radius || py>=max_y-radius) { vy = -vy; play_sample(boing2, 255, 128, 1000, FALSE); } Now add the play_sample( ) functions to the bounce detection code. Since we are adding a second line of code to the if statements, we will need to add curley brackets to hold them. Otherwise the program will not know that the sound files should be played only when the conditional statement in the if( ) is true After modifying and running your version of the Bouncing Ball, try running BouncingBall_Demo to compare. In this version we set the pitch based on the speed of the ball...

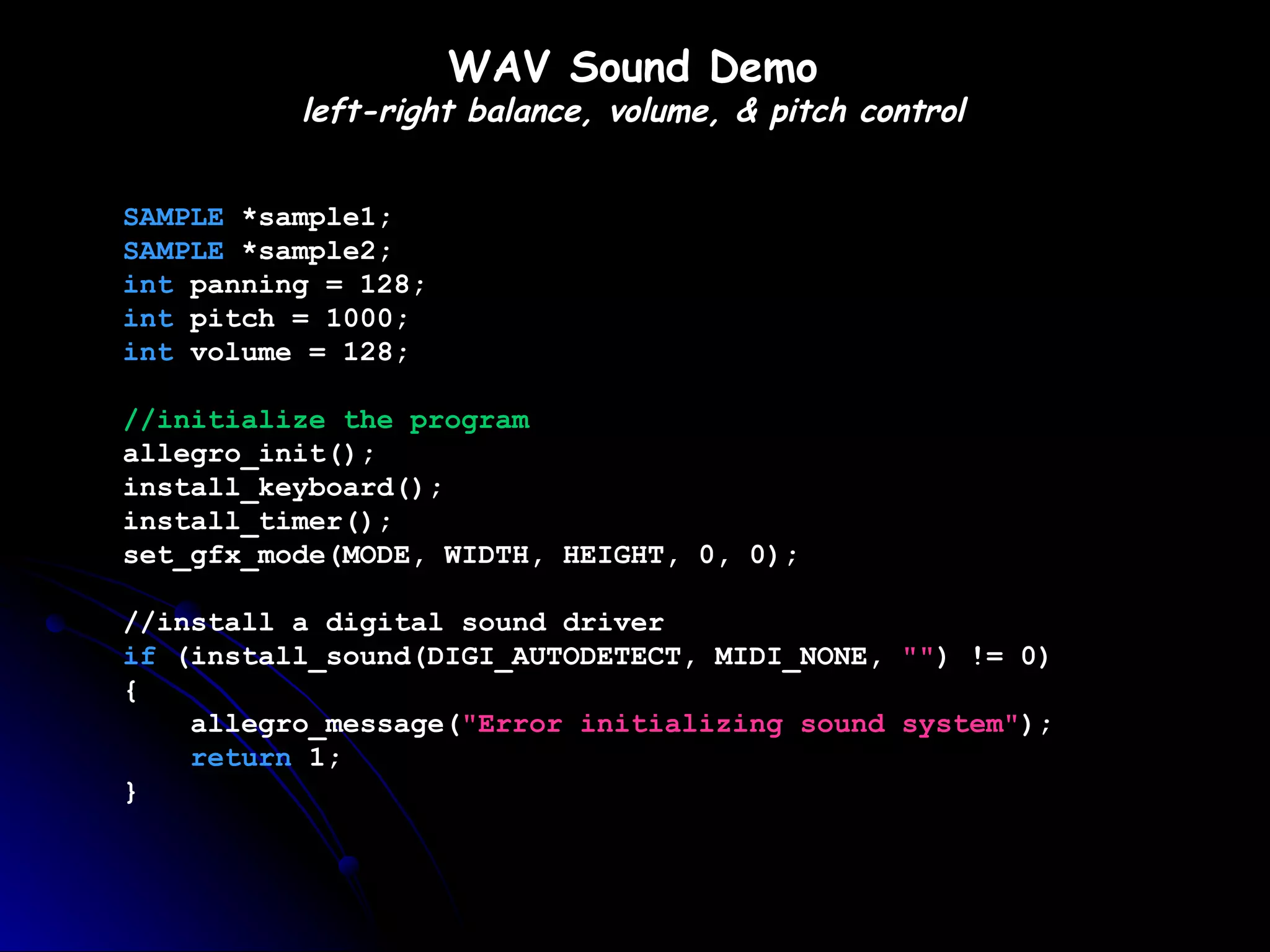

32. SAMPLE *sample1; SAMPLE *sample2; int panning = 128; int pitch = 1000; int volume = 128; //initialize the program allegro_init(); install_keyboard(); install_timer(); set_gfx_mode(MODE, WIDTH, HEIGHT, 0, 0); //install a digital sound driver if (install_sound(DIGI_AUTODETECT, MIDI_NONE, &quot;&quot; ) != 0) { allegro_message( &quot;Error initializing sound system&quot; ); return 1; } WAV Sound Demo left-right balance, volume, & pitch control

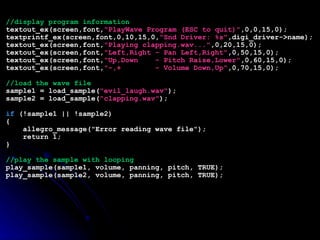

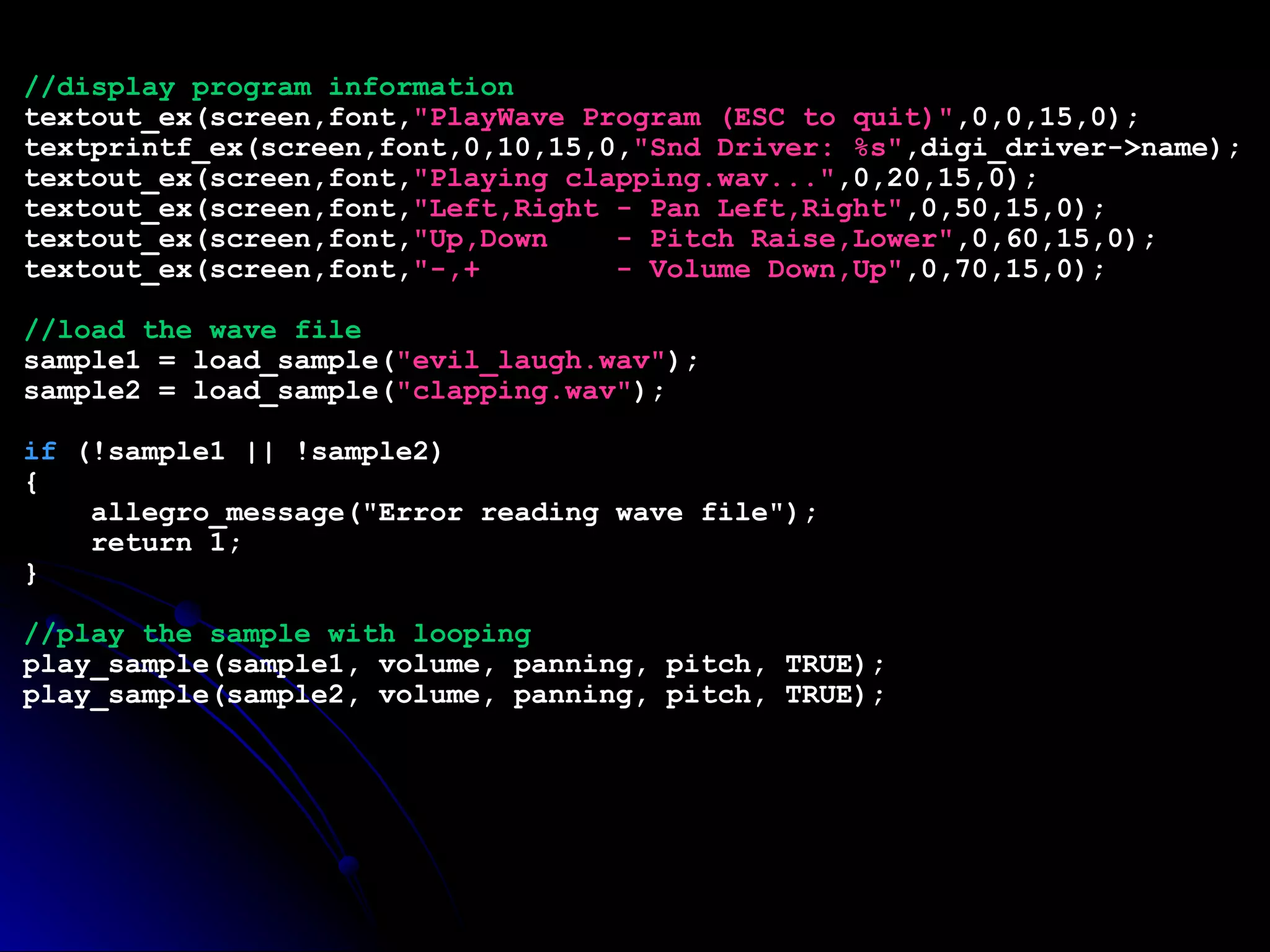

33. //display program information textout_ex(screen,font, &quot;PlayWave Program (ESC to quit)&quot; ,0,0,15,0); textprintf_ex(screen,font,0,10,15,0, &quot;Snd Driver: %s&quot; ,digi_driver->name); textout_ex(screen,font, &quot;Playing clapping.wav...&quot; ,0,20,15,0); textout_ex(screen,font, &quot;Left,Right - Pan Left,Right&quot; ,0,50,15,0); textout_ex(screen,font, &quot;Up,Down - Pitch Raise,Lower&quot; ,0,60,15,0); textout_ex(screen,font, &quot;-,+ - Volume Down,Up&quot; ,0,70,15,0); //load the wave file sample1 = load_sample( &quot;evil_laugh.wav&quot; ); sample2 = load_sample( &quot;clapping.wav&quot; ); if (!sample1 || !sample2) { allegro_message(&quot;Error reading wave file&quot;); return 1; } //play the sample with looping play_sample(sample1, volume, panning, pitch, TRUE); play_sample(sample2, volume, panning, pitch, TRUE);

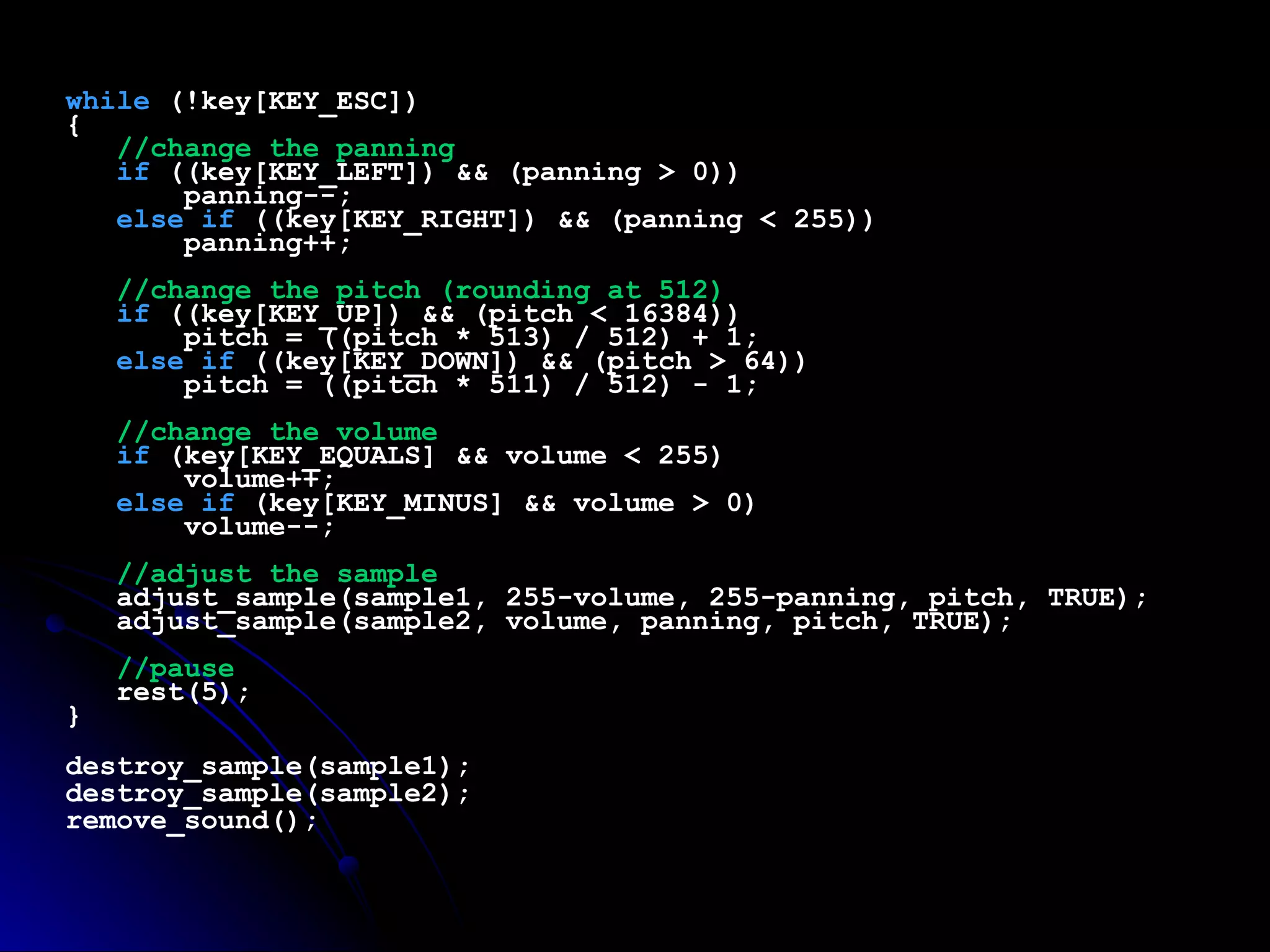

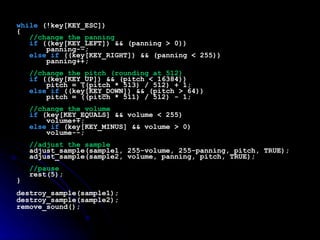

34. while (!key[KEY_ESC]) { //change the panning if ((key[KEY_LEFT]) && (panning > 0)) panning--; else if ((key[KEY_RIGHT]) && (panning < 255)) panning++; //change the pitch (rounding at 512) if ((key[KEY_UP]) && (pitch < 16384)) pitch = ((pitch * 513) / 512) + 1; else if ((key[KEY_DOWN]) && (pitch > 64)) pitch = ((pitch * 511) / 512) - 1; //change the volume if (key[KEY_EQUALS] && volume < 255) volume++; else if (key[KEY_MINUS] && volume > 0) volume--; //adjust the sample adjust_sample(sample1, 255-volume, 255-panning, pitch, TRUE); adjust_sample(sample2, volume, panning, pitch, TRUE); //pause rest(5); } destroy_sample(sample1); destroy_sample(sample2); remove_sound();

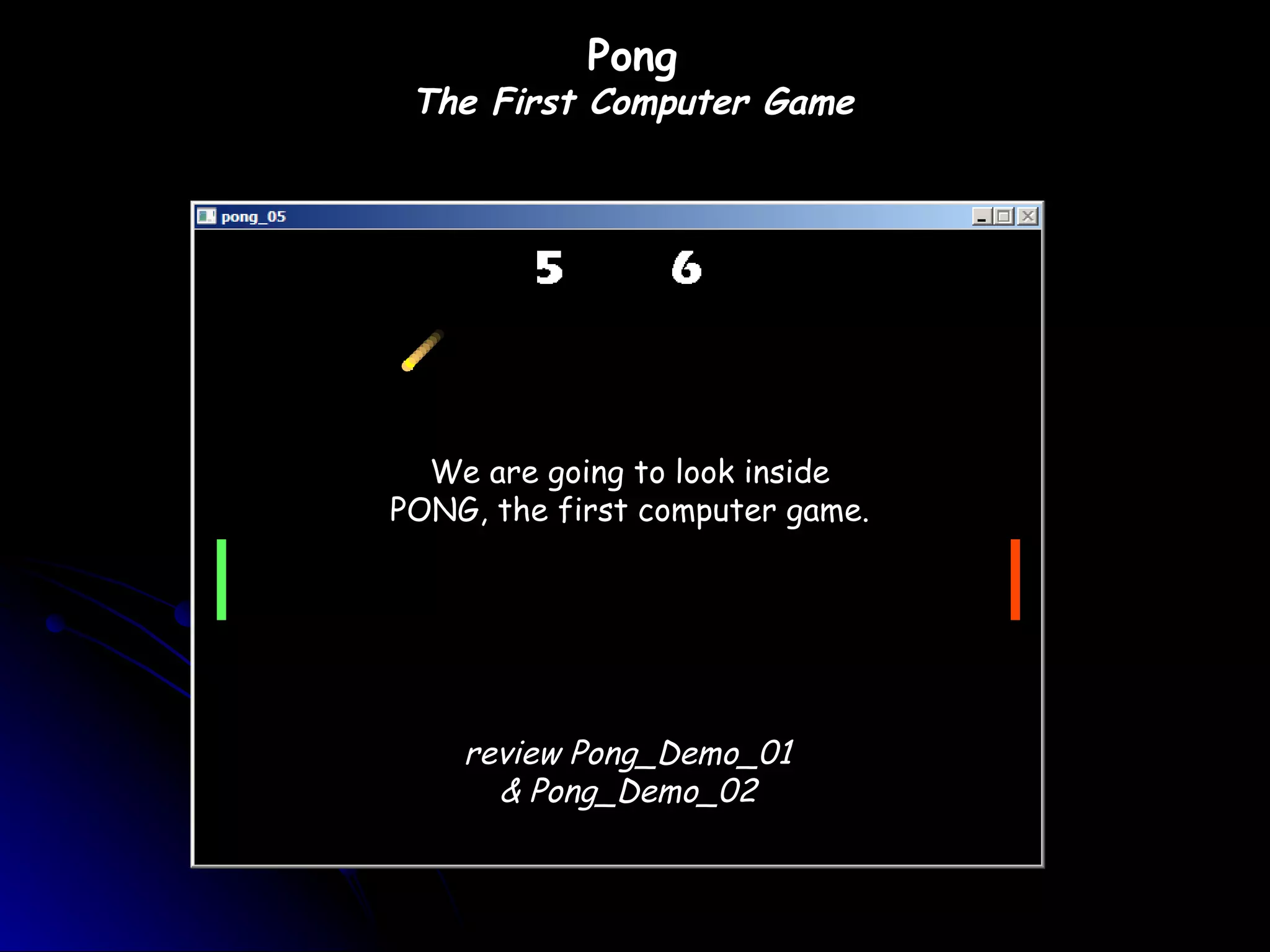

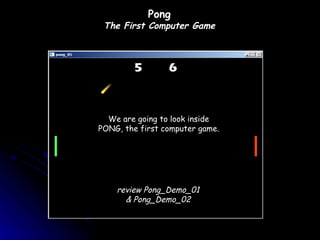

35. Pong The First Computer Game We are going to look inside PONG, the first computer game. review Pong_Demo_01 & Pong_Demo_02

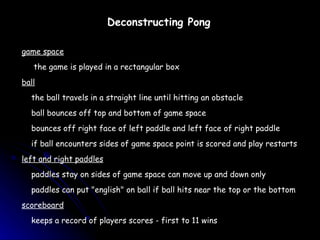

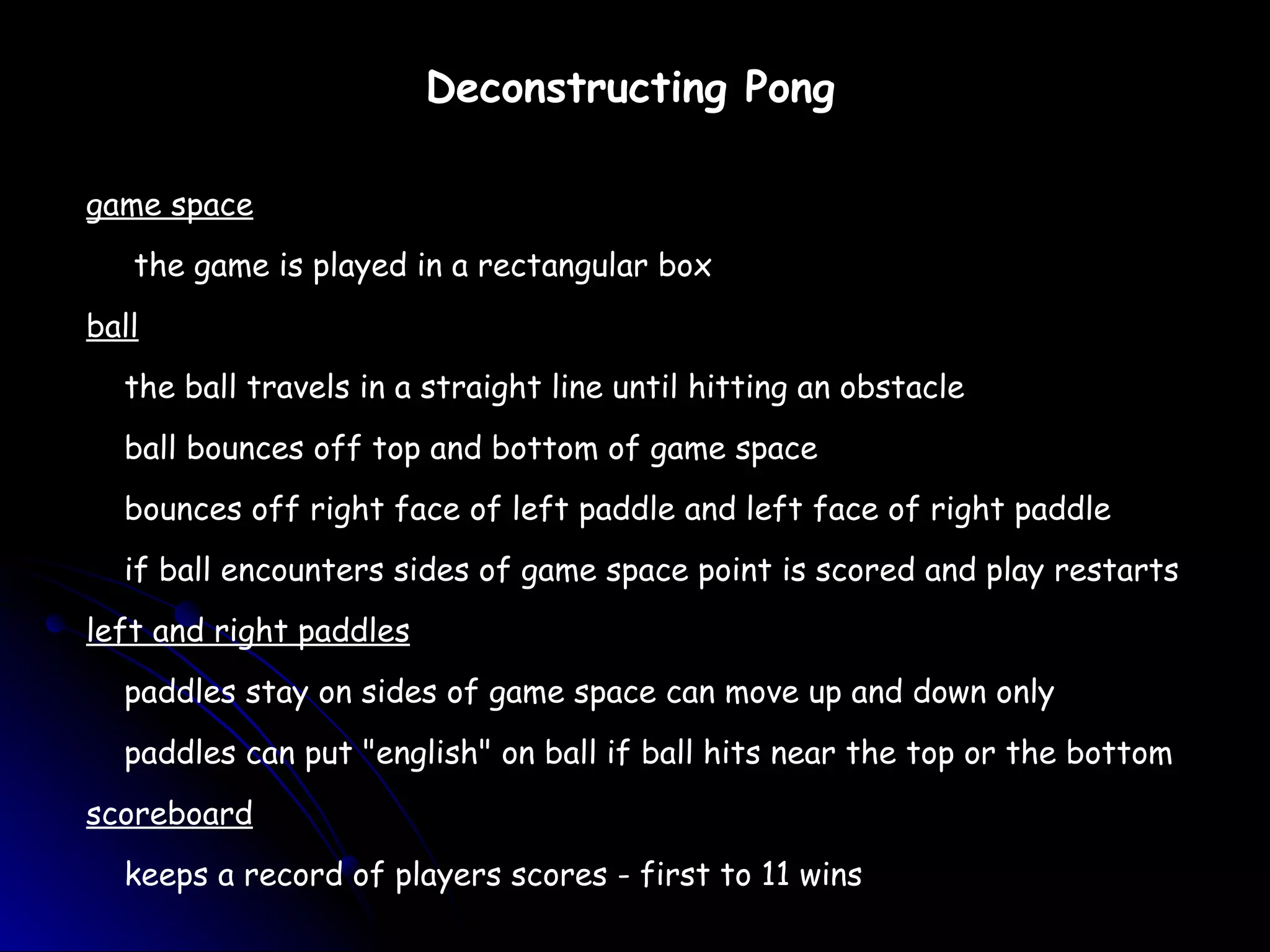

36. Deconstructing Pong game space the game is played in a rectangular box ball the ball travels in a straight line until hitting an obstacle ball bounces off top and bottom of game space bounces off right face of left paddle and left face of right paddle if ball encounters sides of game space point is scored and play restarts left and right paddles paddles stay on sides of game space can move up and down only paddles can put &quot;english&quot; on ball if ball hits near the top or the bottom scoreboard keeps a record of players scores - first to 11 wins

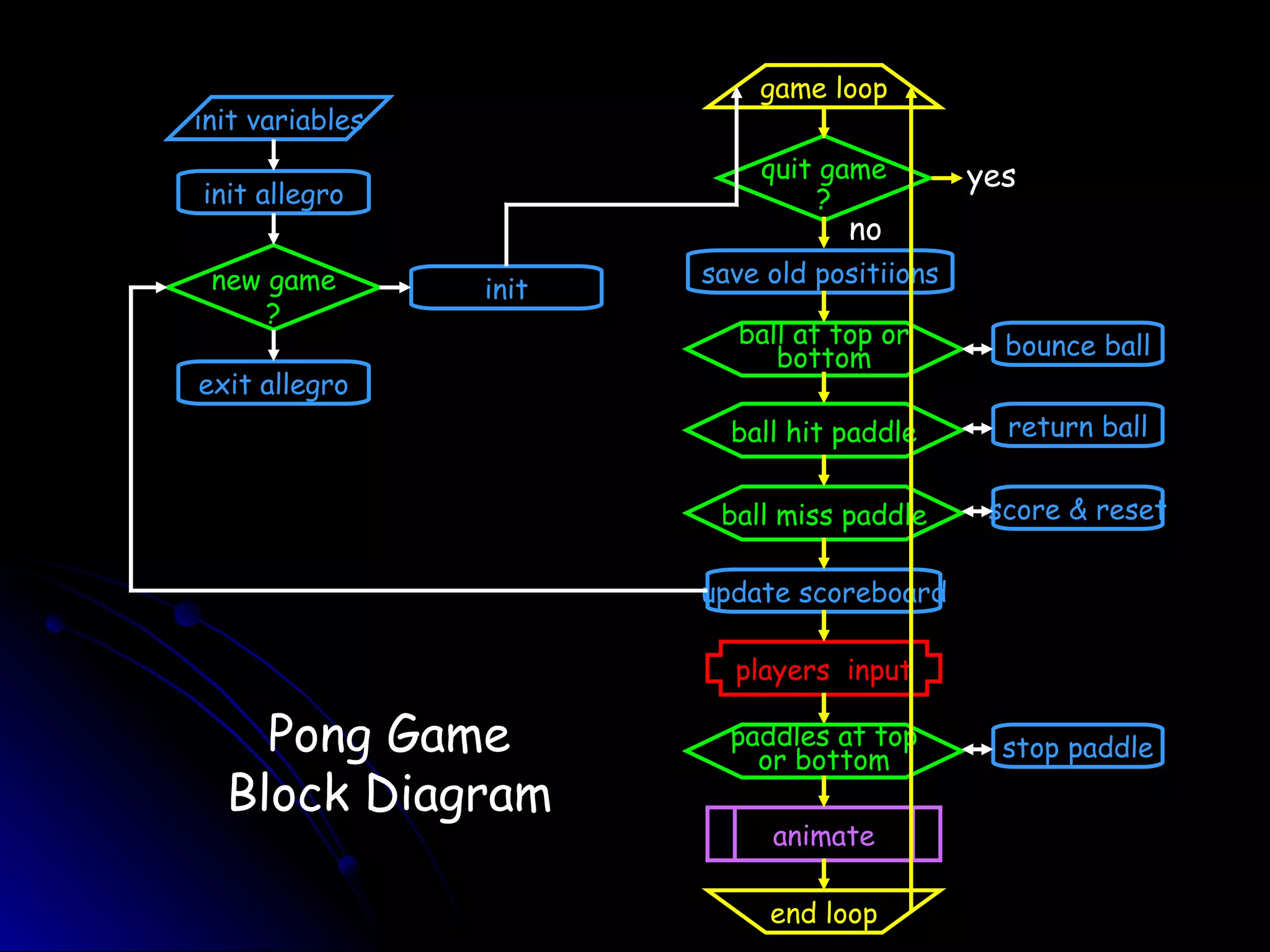

37. init allegro init init variables new game ? save old positiions end loop game loop ball at top or bottom ball hit paddle ball miss paddle quit game ? update scoreboard players input animate score & reset return ball bounce ball paddles at top or bottom stop paddle exit allegro Pong Game Block Diagram yes no

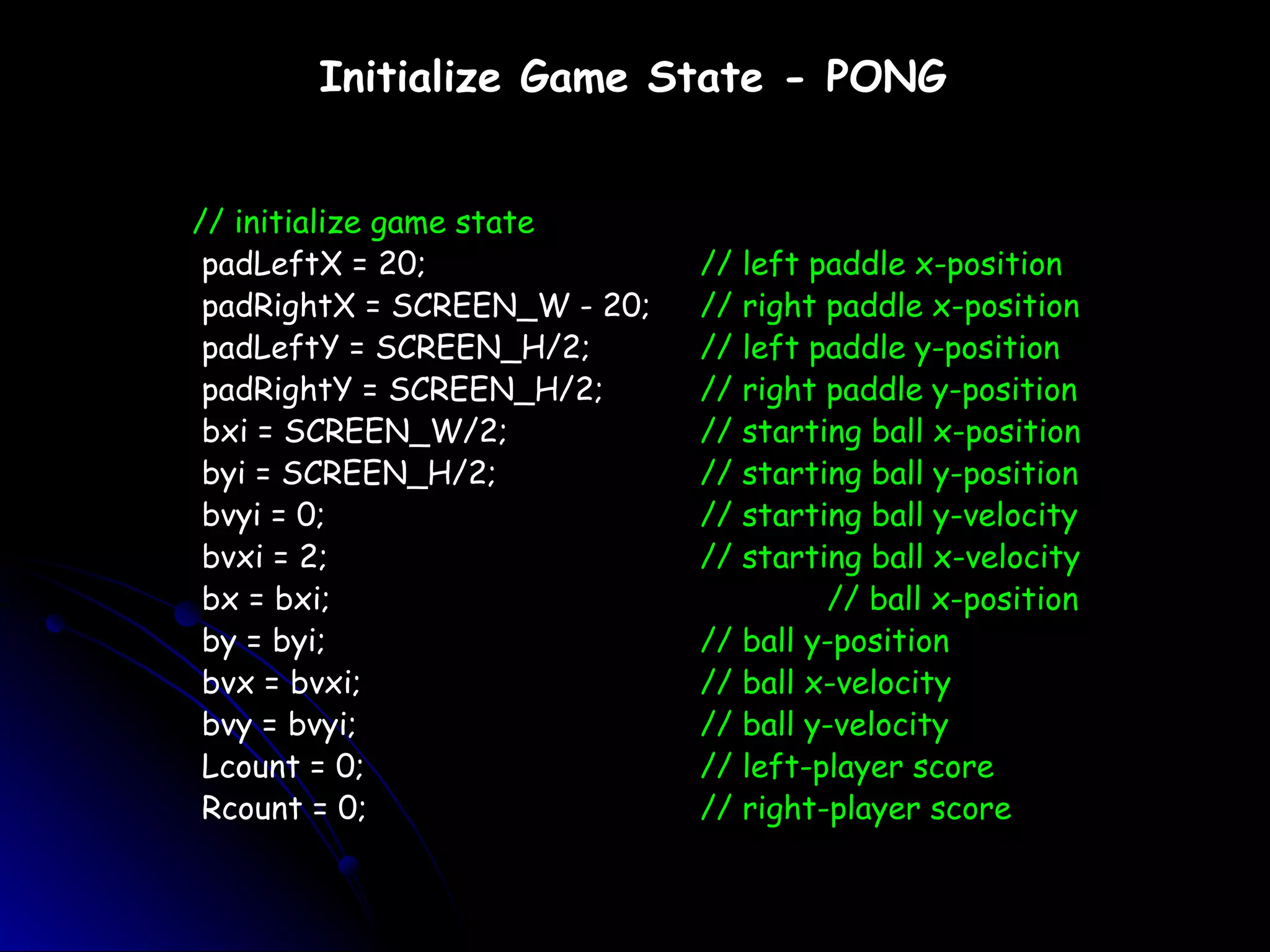

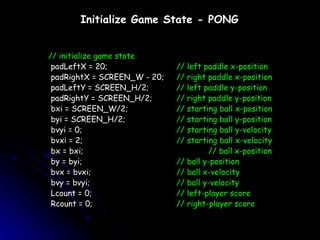

38. // initialize game state padLeftX = 20; // left paddle x-position padRightX = SCREEN_W - 20; // right paddle x-position padLeftY = SCREEN_H/2; // left paddle y-position padRightY = SCREEN_H/2; // right paddle y-position bxi = SCREEN_W/2; // starting ball x-position byi = SCREEN_H/2; // starting ball y-position bvyi = 0; // starting ball y-velocity bvxi = 2; // starting ball x-velocity bx = bxi; // ball x-position by = byi; // ball y-position bvx = bvxi; // ball x-velocity bvy = bvyi; // ball y-velocity Lcount = 0; // left-player score Rcount = 0; // right-player score Initialize Game State - PONG

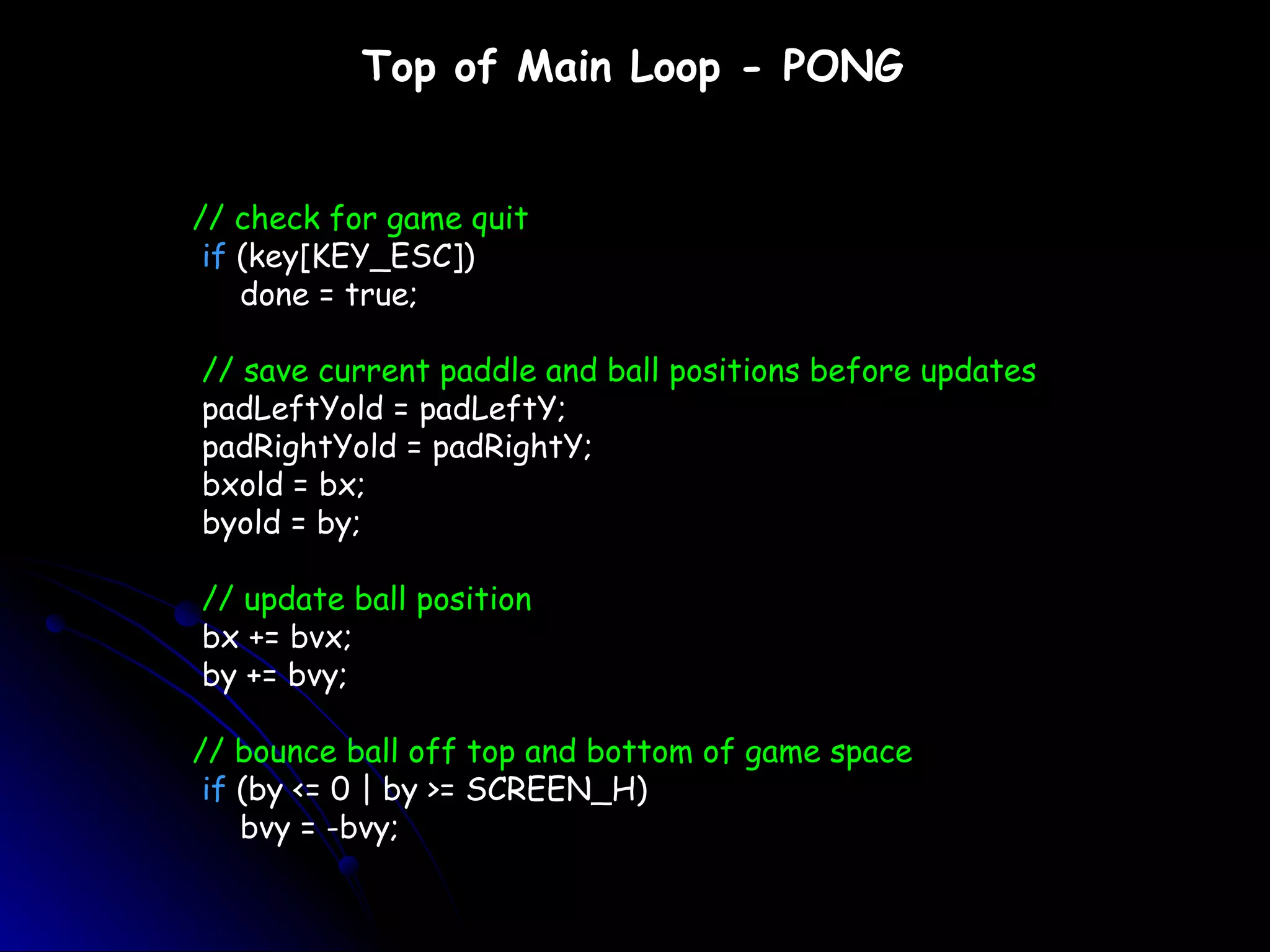

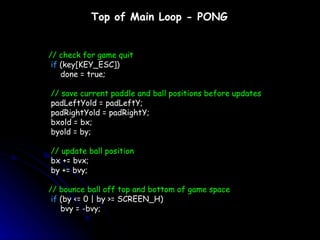

39. // check for game quit if (key[KEY_ESC]) done = true; // save current paddle and ball positions before updates padLeftYold = padLeftY; padRightYold = padRightY; bxold = bx; byold = by; // update ball position bx += bvx; by += bvy; // bounce ball off top and bottom of game space if (by <= 0 | by >= SCREEN_H) bvy = -bvy; Top of Main Loop - PONG

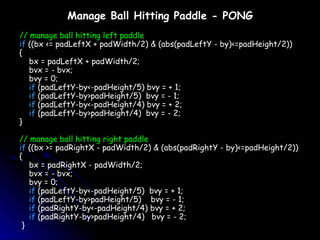

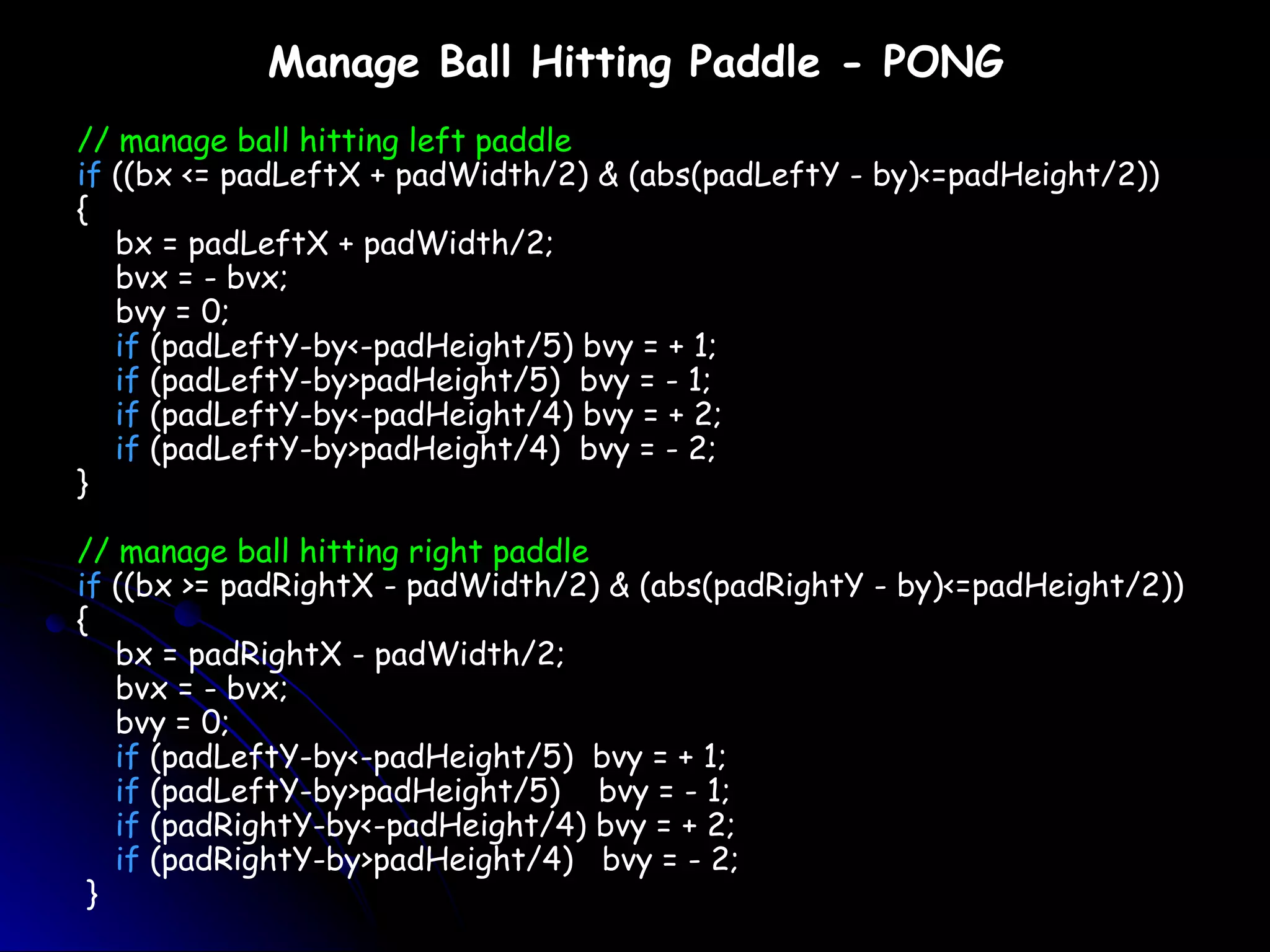

40. // manage ball hitting left paddle if ((bx <= padLeftX + padWidth/2) & (abs(padLeftY - by)<=padHeight/2)) { bx = padLeftX + padWidth/2; bvx = - bvx; bvy = 0; if (padLeftY-by<-padHeight/5) bvy = + 1; if (padLeftY-by>padHeight/5) bvy = - 1; if (padLeftY-by<-padHeight/4) bvy = + 2; if (padLeftY-by>padHeight/4) bvy = - 2; } // manage ball hitting right paddle if ((bx >= padRightX - padWidth/2) & (abs(padRightY - by)<=padHeight/2)) { bx = padRightX - padWidth/2; bvx = - bvx; bvy = 0; if (padLeftY-by<-padHeight/5) bvy = + 1; if (padLeftY-by>padHeight/5) bvy = - 1; if (padRightY-by<-padHeight/4) bvy = + 2; if (padRightY-by>padHeight/4) bvy = - 2; } Manage Ball Hitting Paddle - PONG

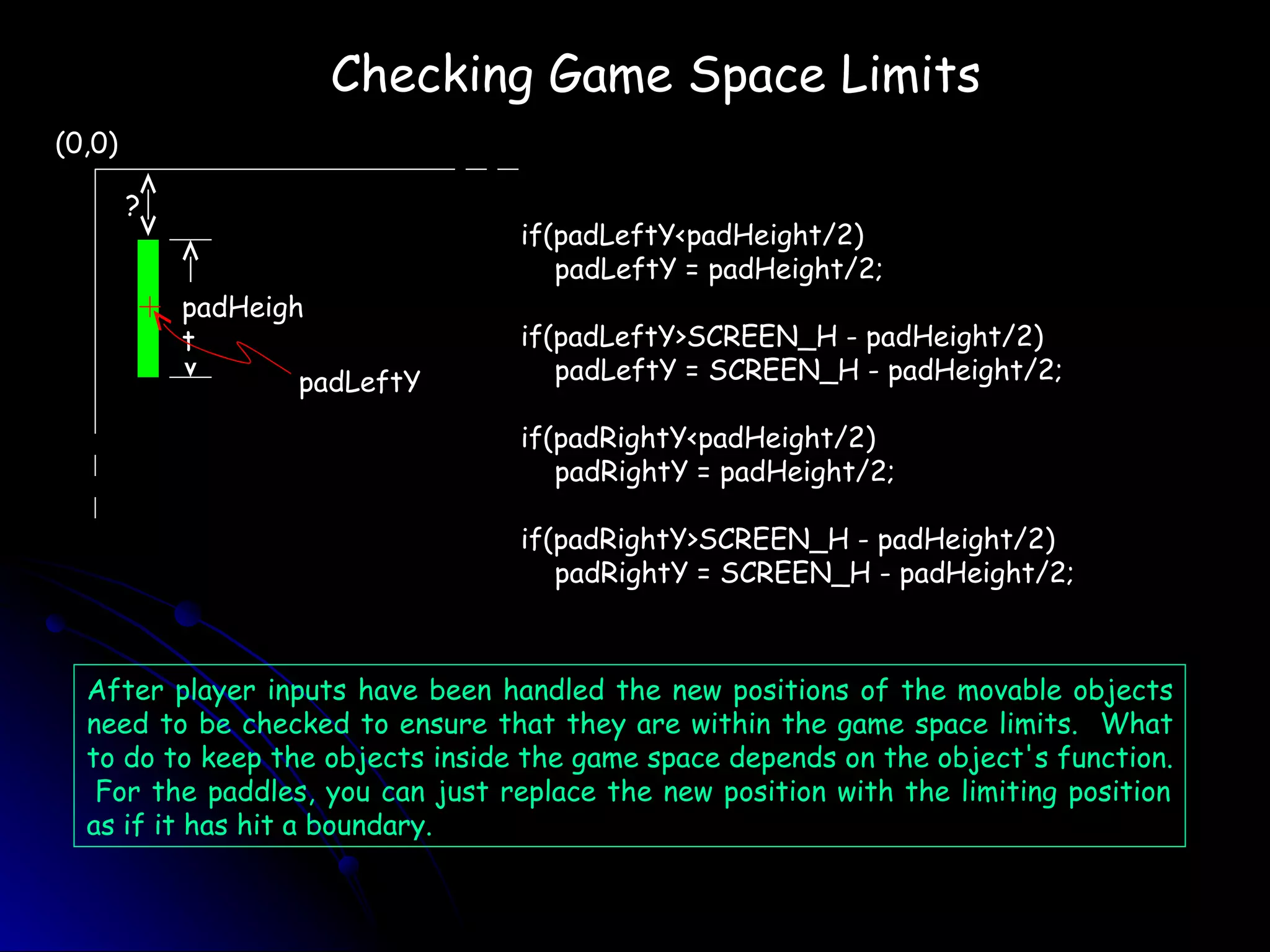

41. if(padLeftY<padHeight/2) padLeftY = padHeight/2; if(padLeftY>SCREEN_H - padHeight/2) padLeftY = SCREEN_H - padHeight/2; if(padRightY<padHeight/2) padRightY = padHeight/2; if(padRightY>SCREEN_H - padHeight/2) padRightY = SCREEN_H - padHeight/2; Checking Game Space Limits padHeight padLeftY (0,0) ? After player inputs have been handled the new positions of the movable objects need to be checked to ensure that they are within the game space limits. What to do to keep the objects inside the game space depends on the object's function. For the paddles, you can just replace the new position with the limiting position as if it has hit a boundary.

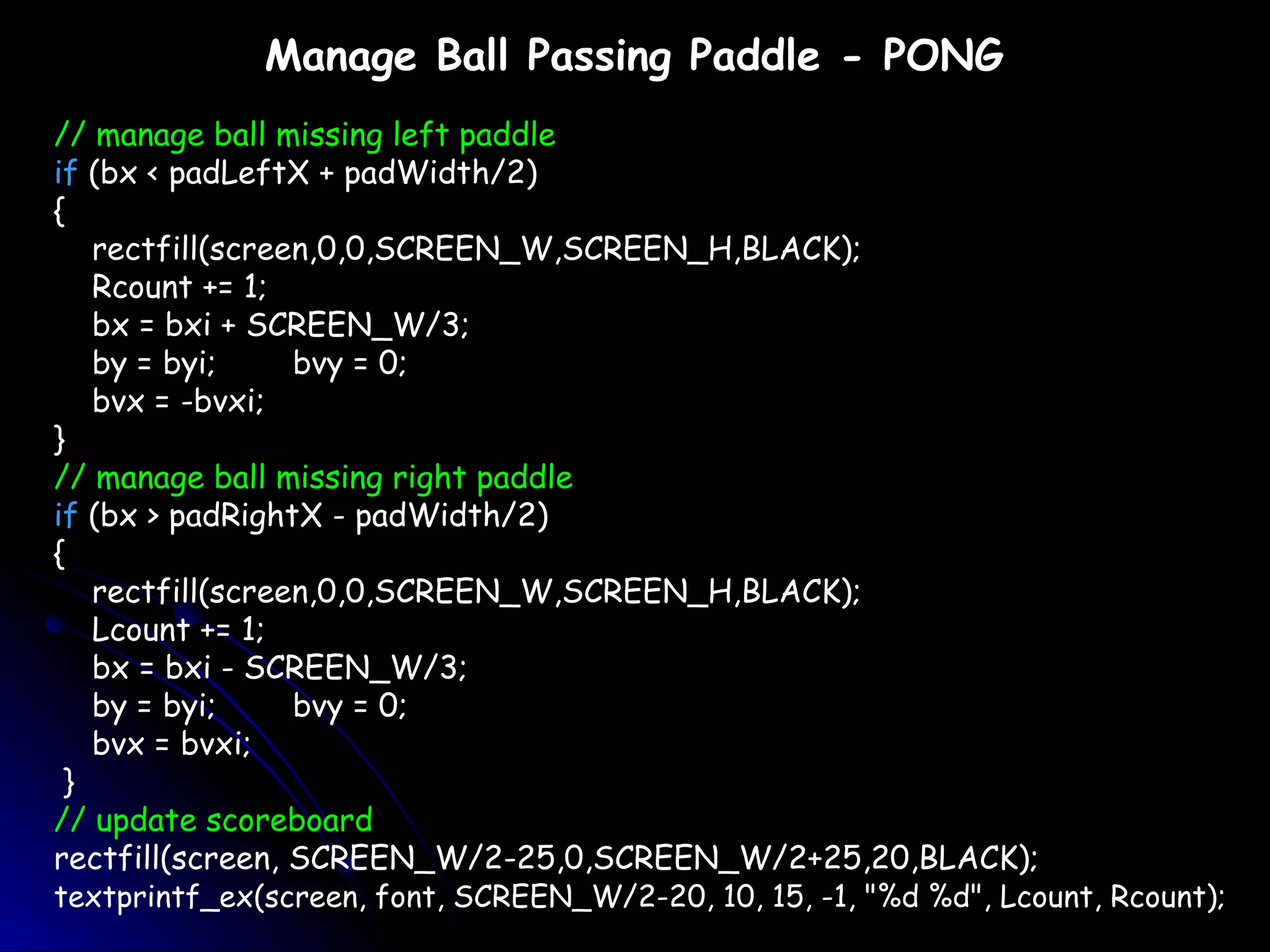

42. // manage ball missing left paddle if (bx < padLeftX + padWidth/2) { rectfill(screen,0,0,SCREEN_W,SCREEN_H,BLACK); Rcount += 1; bx = bxi + SCREEN_W/3; by = byi; bvy = 0; bvx = -bvxi; } // manage ball missing right paddle if (bx > padRightX - padWidth/2) { rectfill(screen,0,0,SCREEN_W,SCREEN_H,BLACK); Lcount += 1; bx = bxi - SCREEN_W/3; by = byi; bvy = 0; bvx = bvxi; } // update scoreboard rectfill(screen, SCREEN_W/2-25,0,SCREEN_W/2+25,20,BLACK); textprintf_ex(screen, font, SCREEN_W/2-20, 10, 15, -1, &quot;%d %d&quot;, Lcount, Rcount); Manage Ball Passing Paddle - PONG

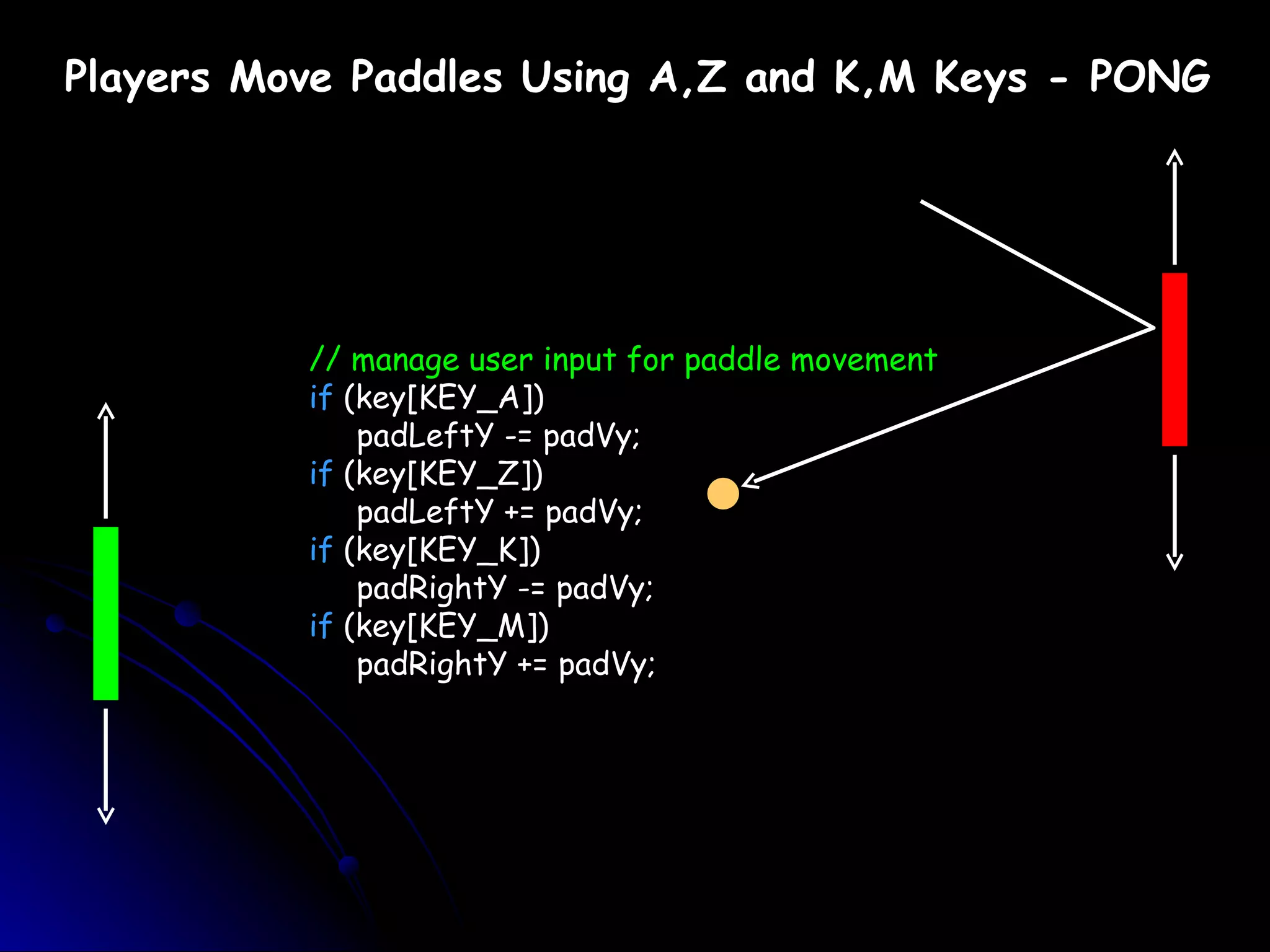

43. // manage user input for paddle movement if (key[KEY_A]) padLeftY -= padVy; if (key[KEY_Z]) padLeftY += padVy; if (key[KEY_K]) padRightY -= padVy; if (key[KEY_M]) padRightY += padVy; Players Move Paddles Using A,Z and K,M Keys - PONG

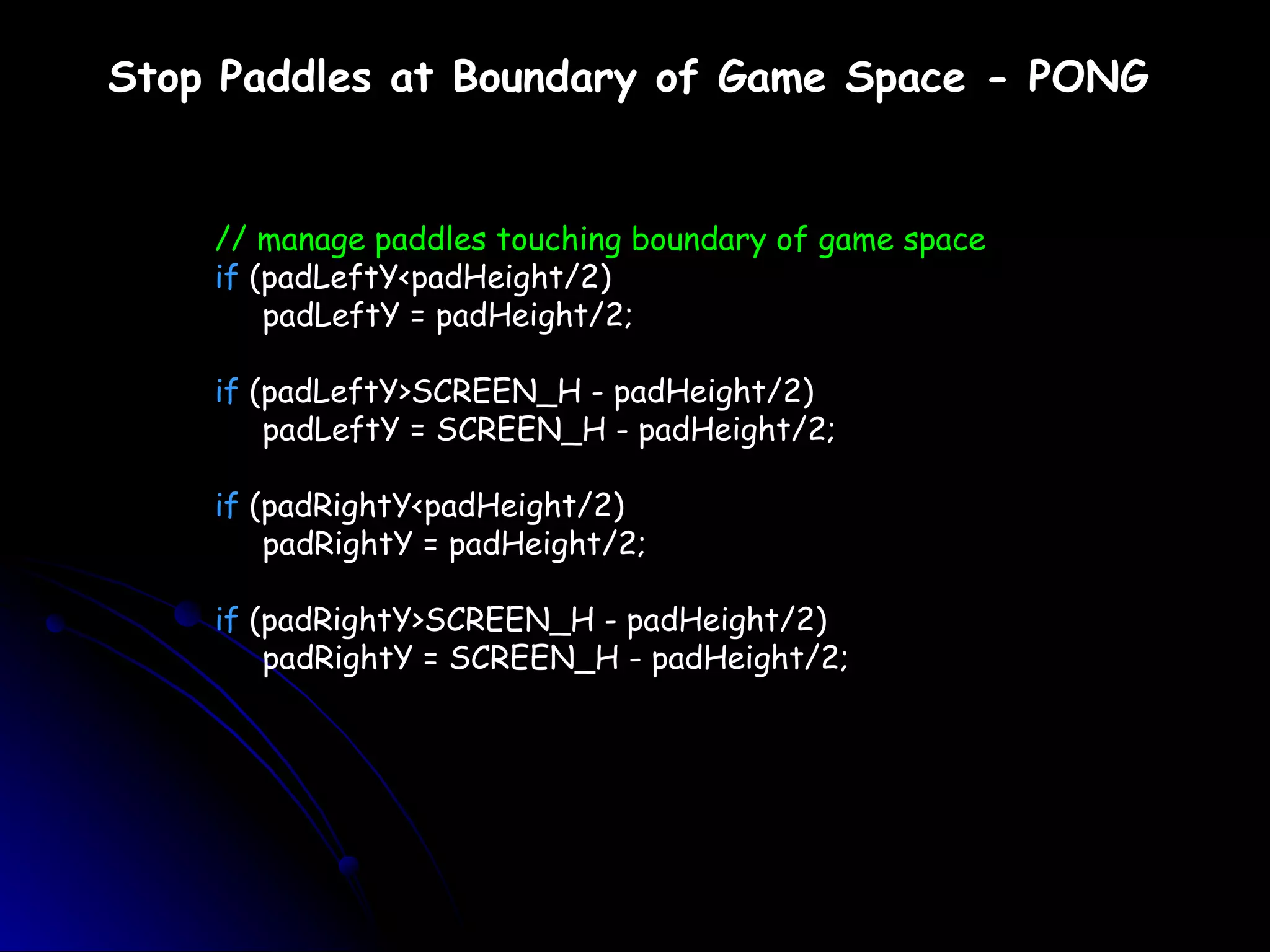

44. // manage paddles touching boundary of game space if (padLeftY<padHeight/2) padLeftY = padHeight/2; if (padLeftY>SCREEN_H - padHeight/2) padLeftY = SCREEN_H - padHeight/2; if (padRightY<padHeight/2) padRightY = padHeight/2; if (padRightY>SCREEN_H - padHeight/2) padRightY = SCREEN_H - padHeight/2; Stop Paddles at Boundary of Game Space - PONG

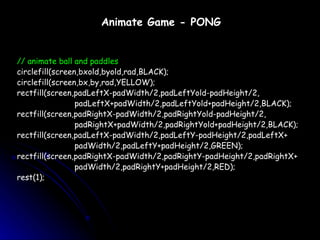

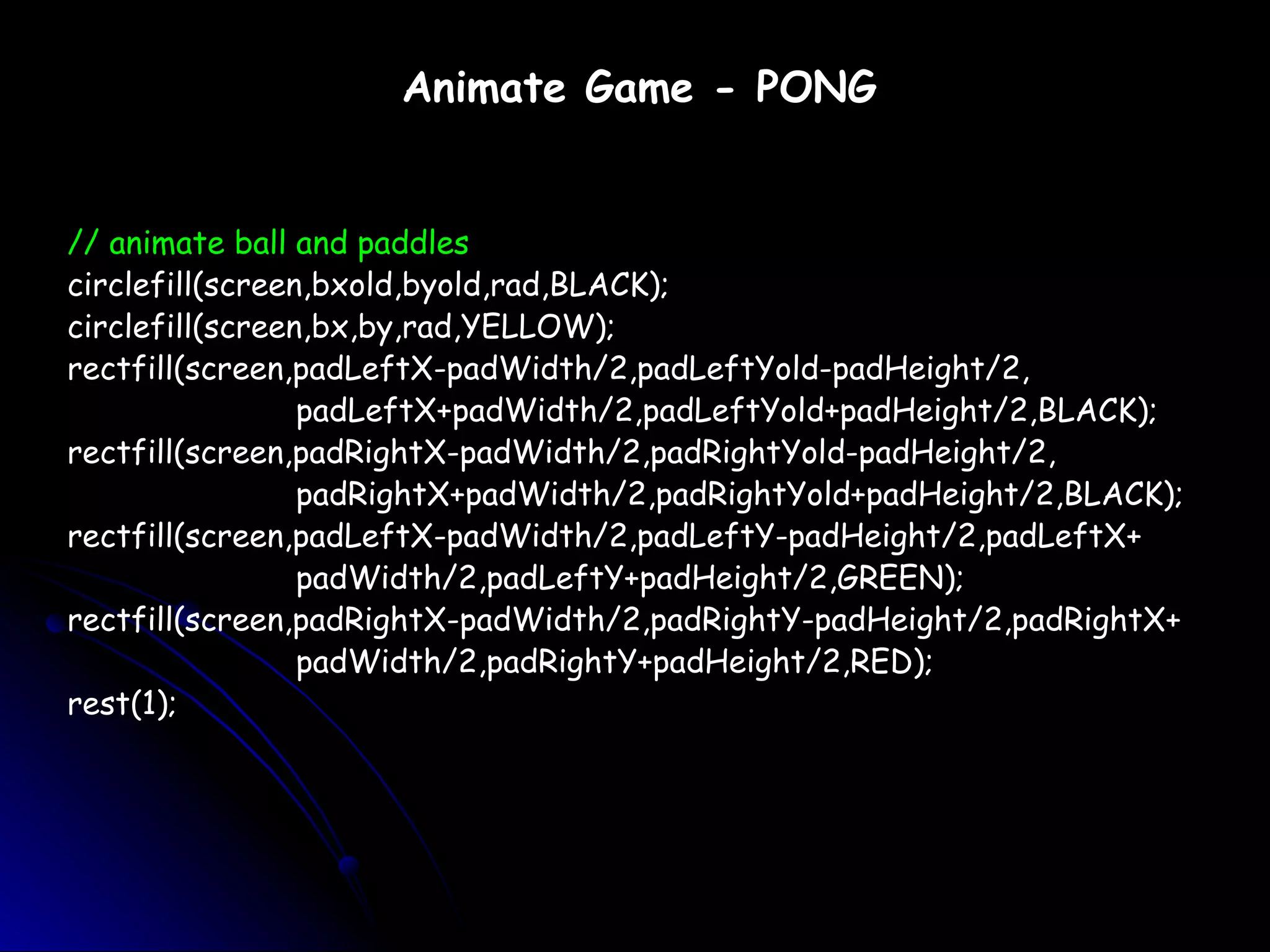

45. // animate ball and paddles circlefill(screen,bxold,byold,rad,BLACK); circlefill(screen,bx,by,rad,YELLOW); rectfill(screen,padLeftX-padWidth/2,padLeftYold-padHeight/2, padLeftX+padWidth/2,padLeftYold+padHeight/2,BLACK); rectfill(screen,padRightX-padWidth/2,padRightYold-padHeight/2, padRightX+padWidth/2,padRightYold+padHeight/2,BLACK); rectfill(screen,padLeftX-padWidth/2,padLeftY-padHeight/2,padLeftX+ padWidth/2,padLeftY+padHeight/2,GREEN); rectfill(screen,padRightX-padWidth/2,padRightY-padHeight/2,padRightX+ padWidth/2,padRightY+padHeight/2,RED); rest(1); Animate Game - PONG

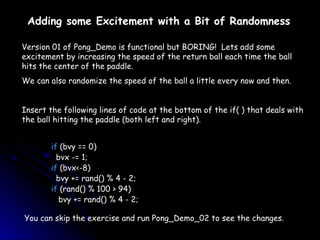

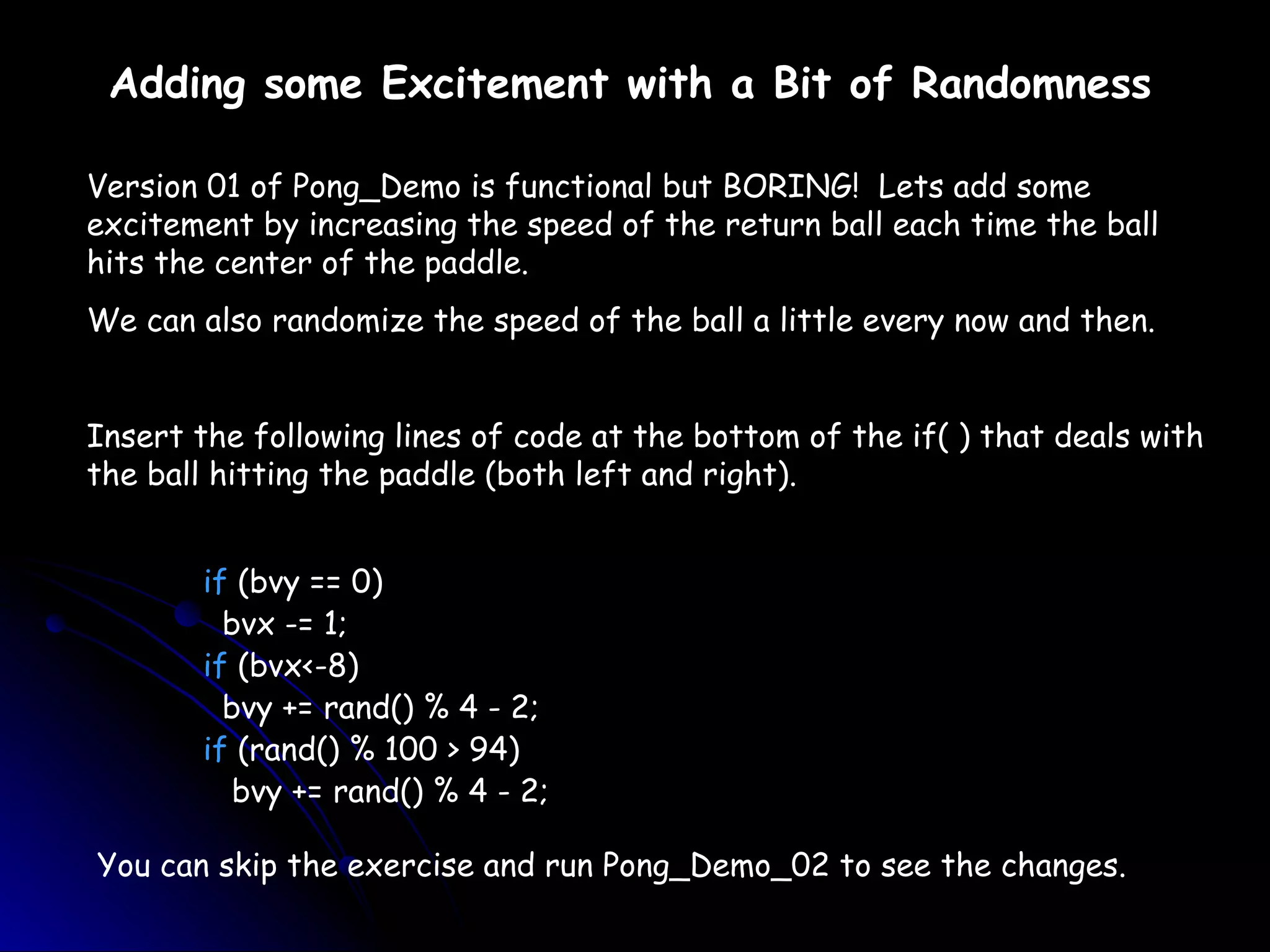

46. Adding some Excitement with a Bit of Randomness Version 01 of Pong_Demo is functional but BORING! Lets add some excitement by increasing the speed of the return ball each time the ball hits the center of the paddle. We can also randomize the speed of the ball a little every now and then. Insert the following lines of code at the bottom of the if( ) that deals with the ball hitting the paddle (both left and right). if (bvy == 0) bvx -= 1; if (bvx<-8) bvy += rand() % 4 - 2; if (rand() % 100 > 94) bvy += rand() % 4 - 2; You can skip the exercise and run Pong_Demo_02 to see the changes.

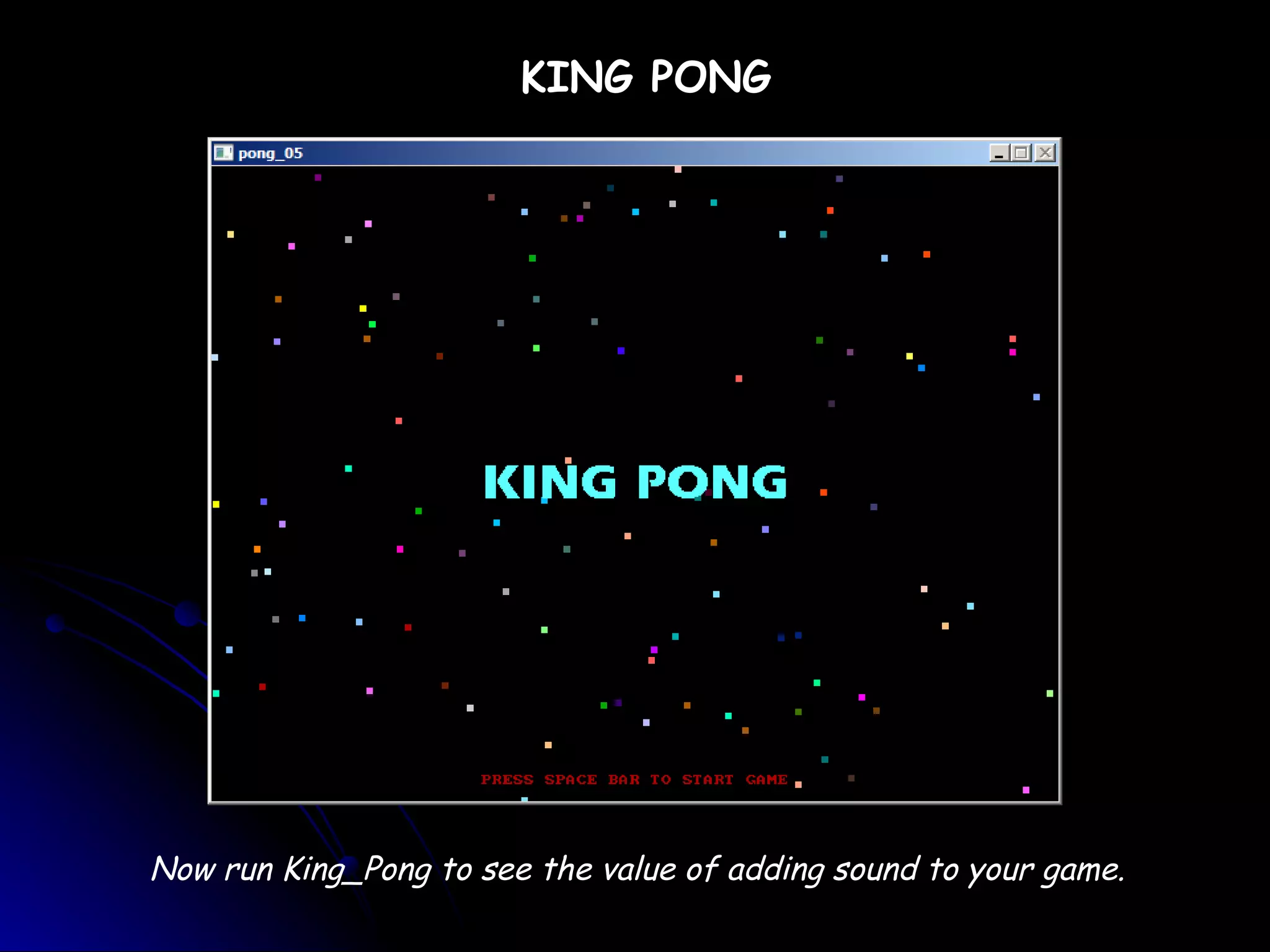

47. KING PONG Now run King_Pong to see the value of adding sound to your game.

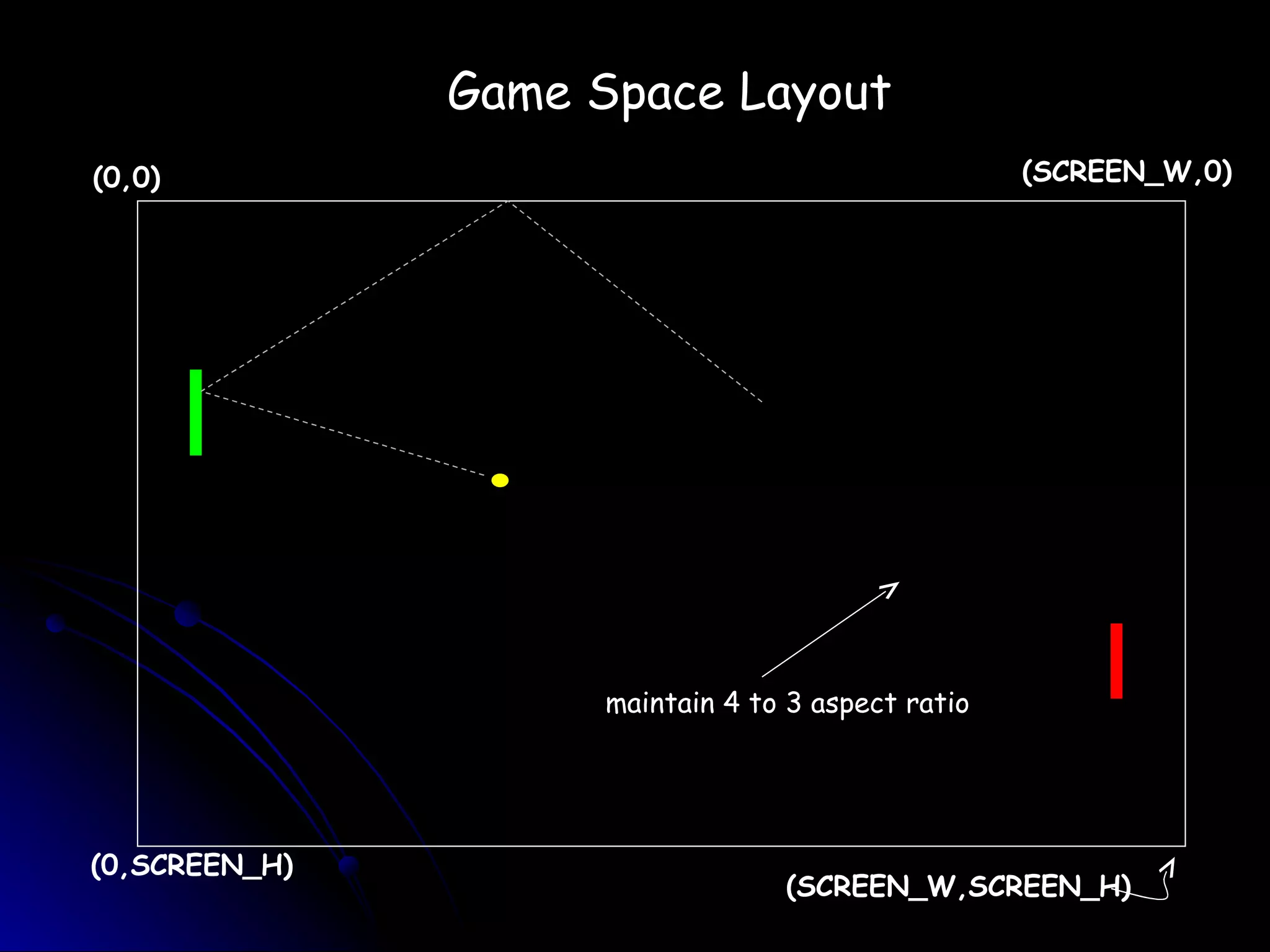

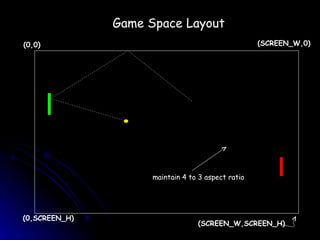

48. (0,0) (0,SCREEN_H) (SCREEN_W,SCREEN_H) (SCREEN_W,0) maintain 4 to 3 aspect ratio Game Space Layout

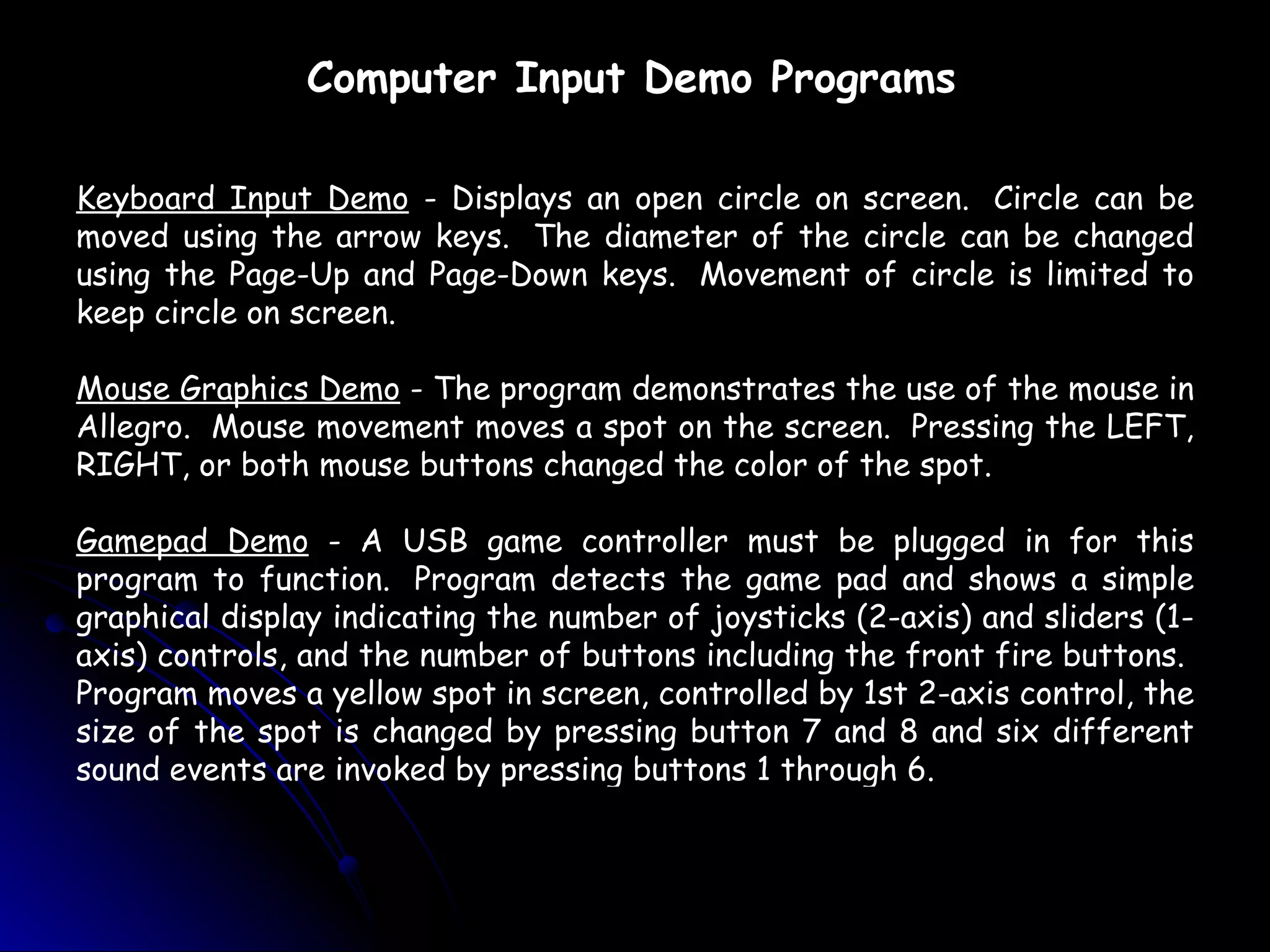

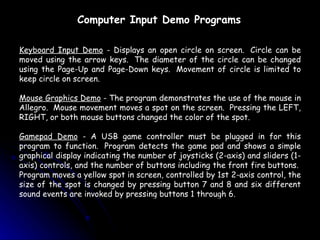

49. Keyboard Input Demo - Displays an open circle on screen. Circle can be moved using the arrow keys. The diameter of the circle can be changed using the Page-Up and Page-Down keys. Movement of circle is limited to keep circle on screen. Mouse Graphics Demo - The program demonstrates the use of the mouse in Allegro. Mouse movement moves a spot on the screen. Pressing the LEFT, RIGHT, or both mouse buttons changed the color of the spot. Gamepad Demo - A USB game controller must be plugged in for this program to function. Program detects the game pad and shows a simple graphical display indicating the number of joysticks (2-axis) and sliders (1-axis) controls, and the number of buttons including the front fire buttons. Program moves a yellow spot in screen, controlled by 1st 2-axis control, the size of the spot is changed by pressing button 7 and 8 and six different sound events are invoked by pressing buttons 1 through 6. Computer Input Demo Programs

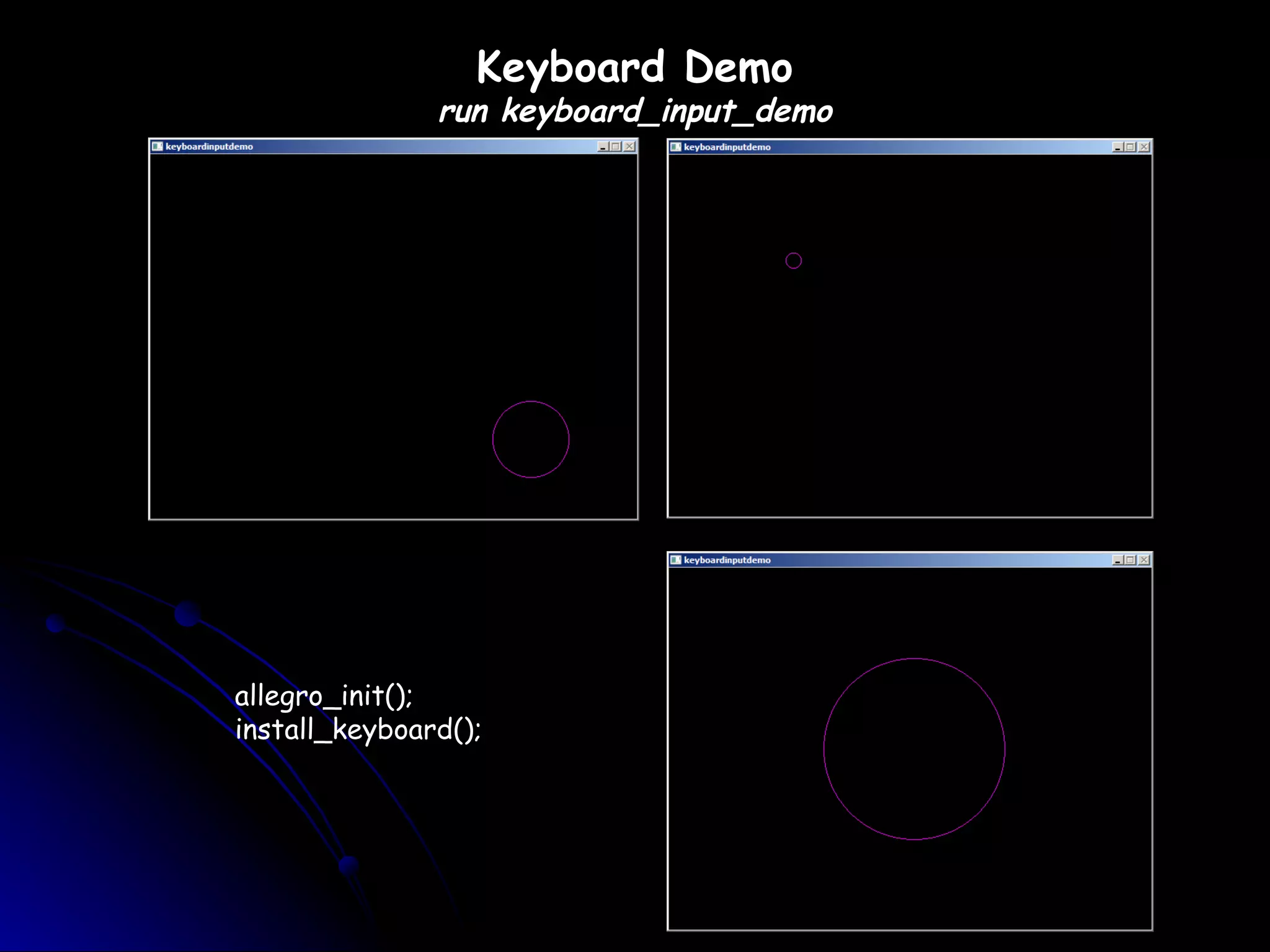

50. allegro_init(); install_keyboard(); Keyboard Demo run keyboard_input_demo

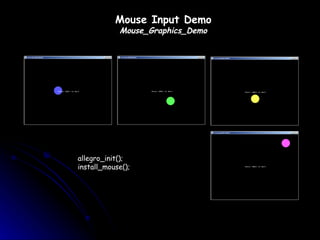

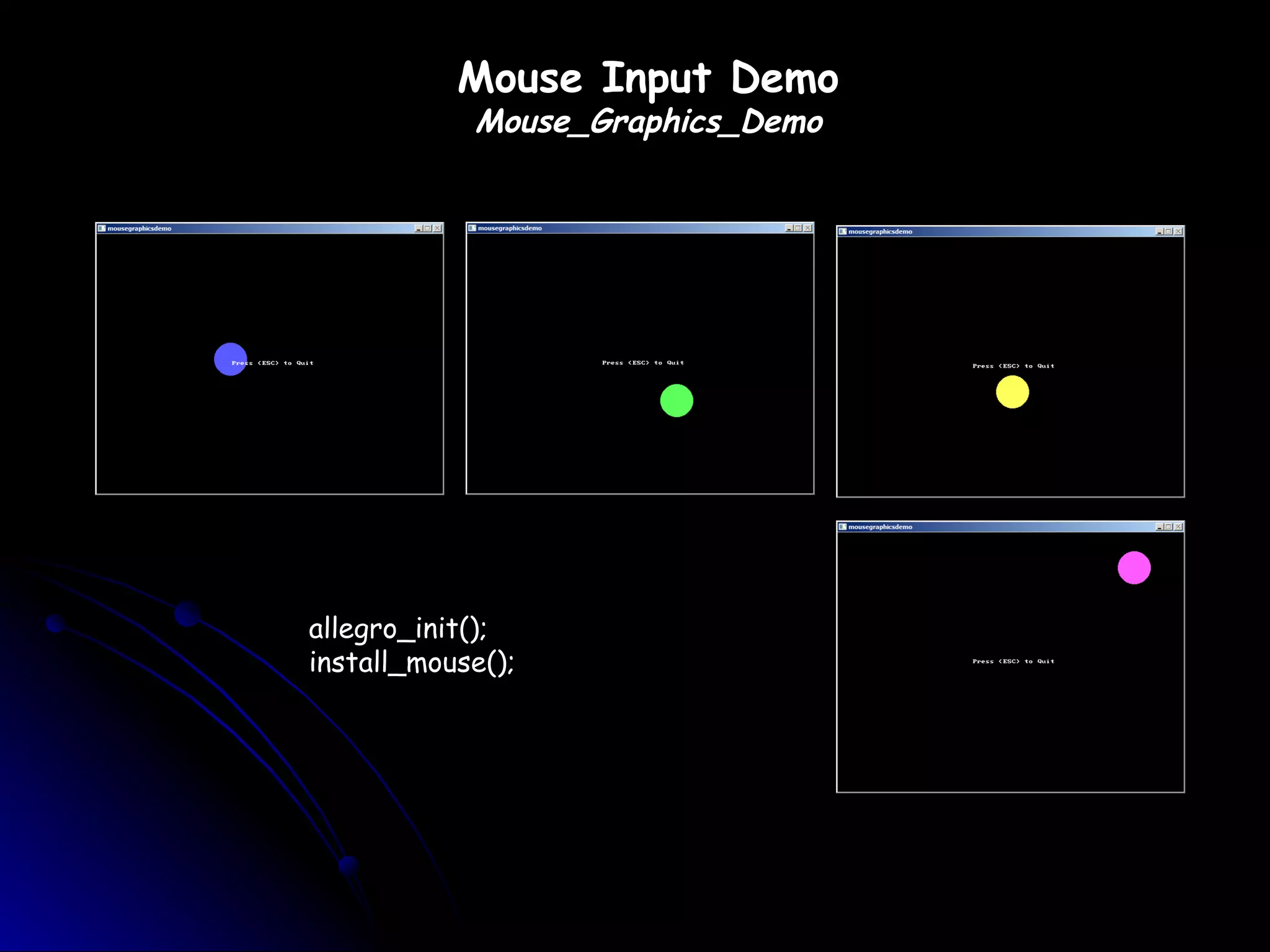

51. Mouse Input Demo Mouse_Graphics_Demo allegro_init(); install_mouse();

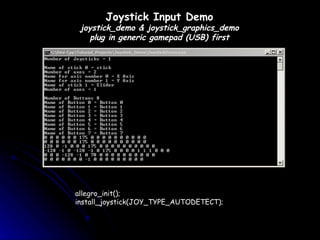

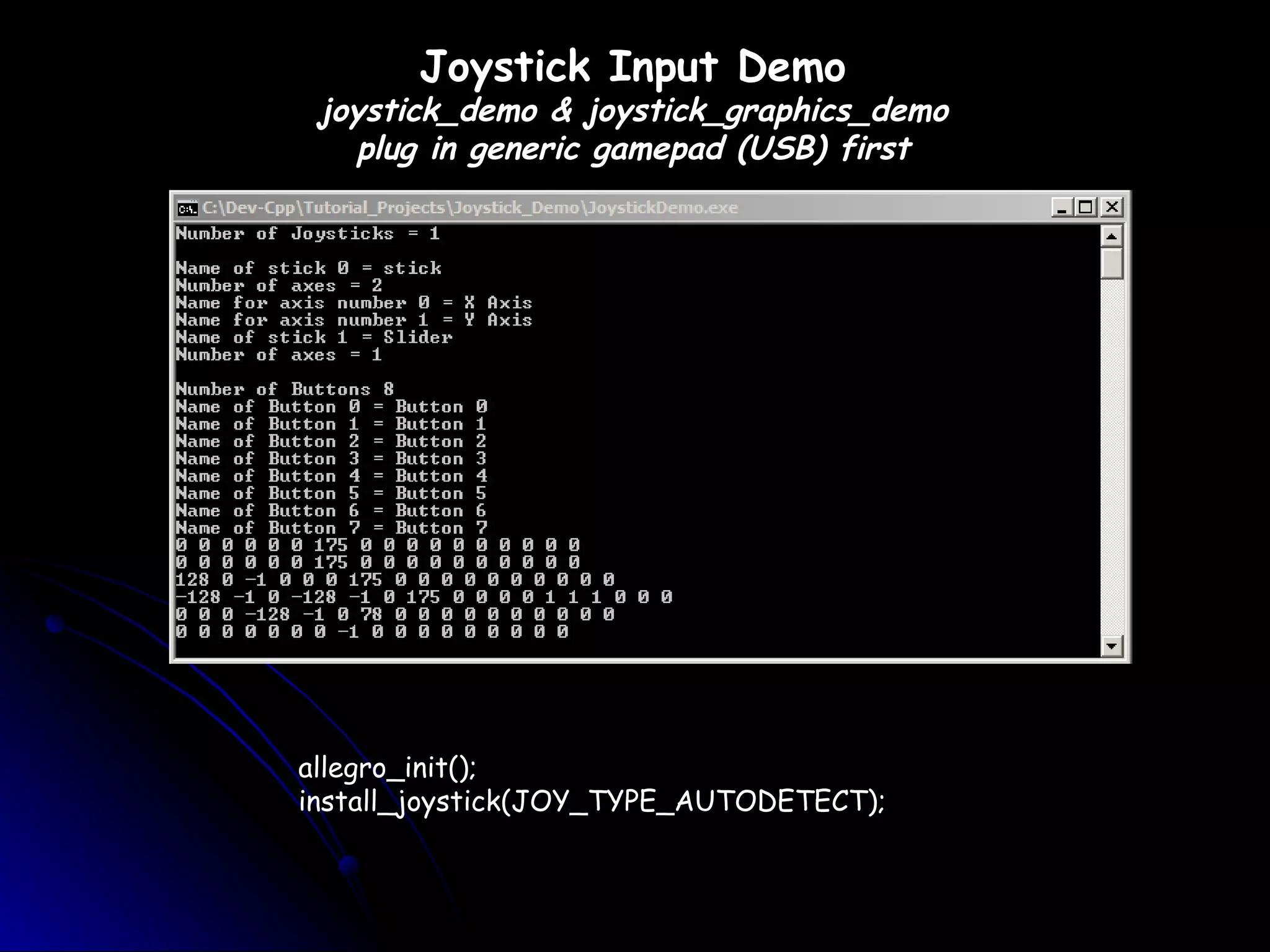

52. Joystick Input Demo joystick_demo & joystick_graphics_demo plug in generic gamepad (USB) first allegro_init(); install_joystick(JOY_TYPE_AUTODETECT);

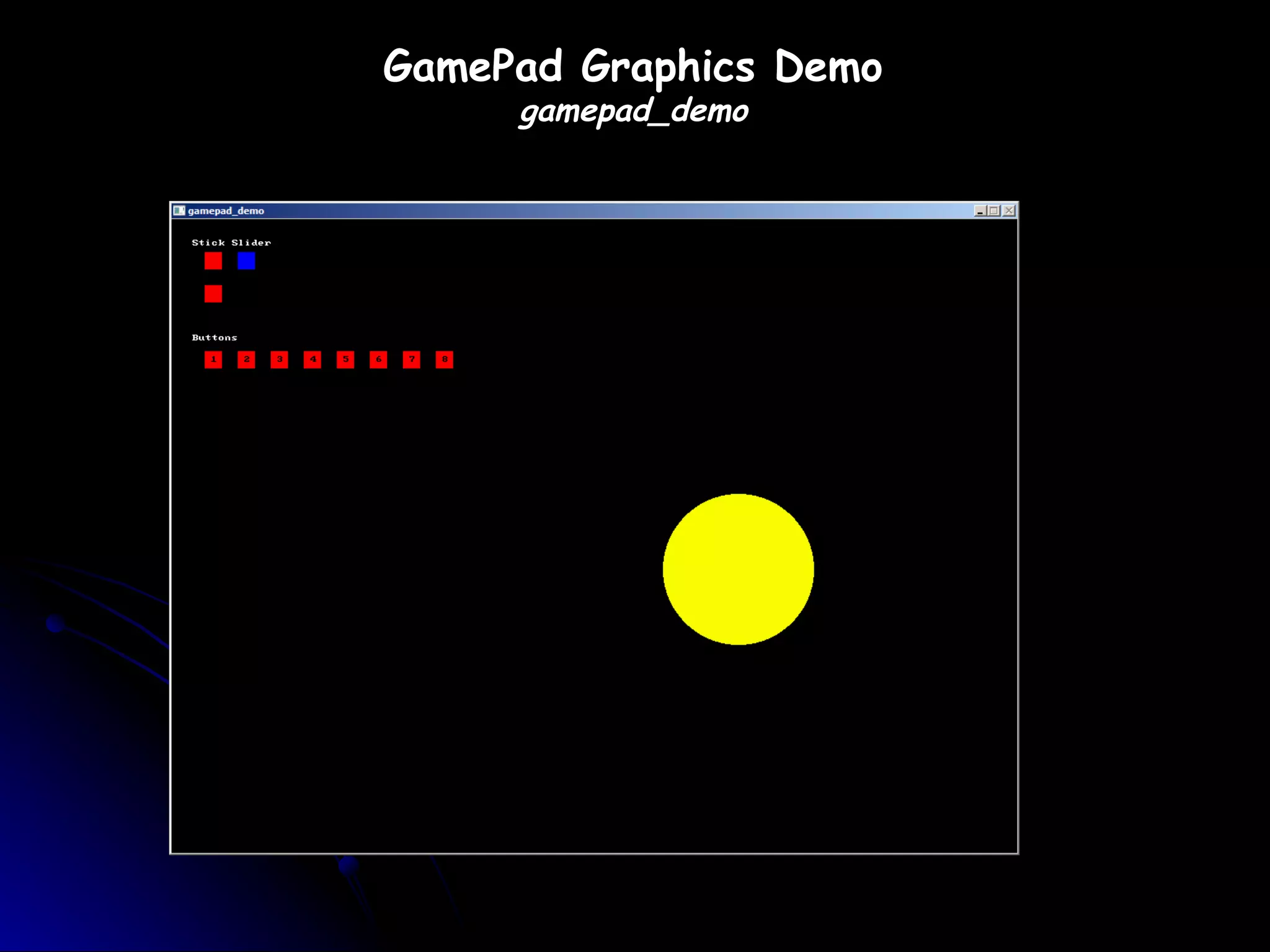

53. GamePad Graphics Demo gamepad_demo

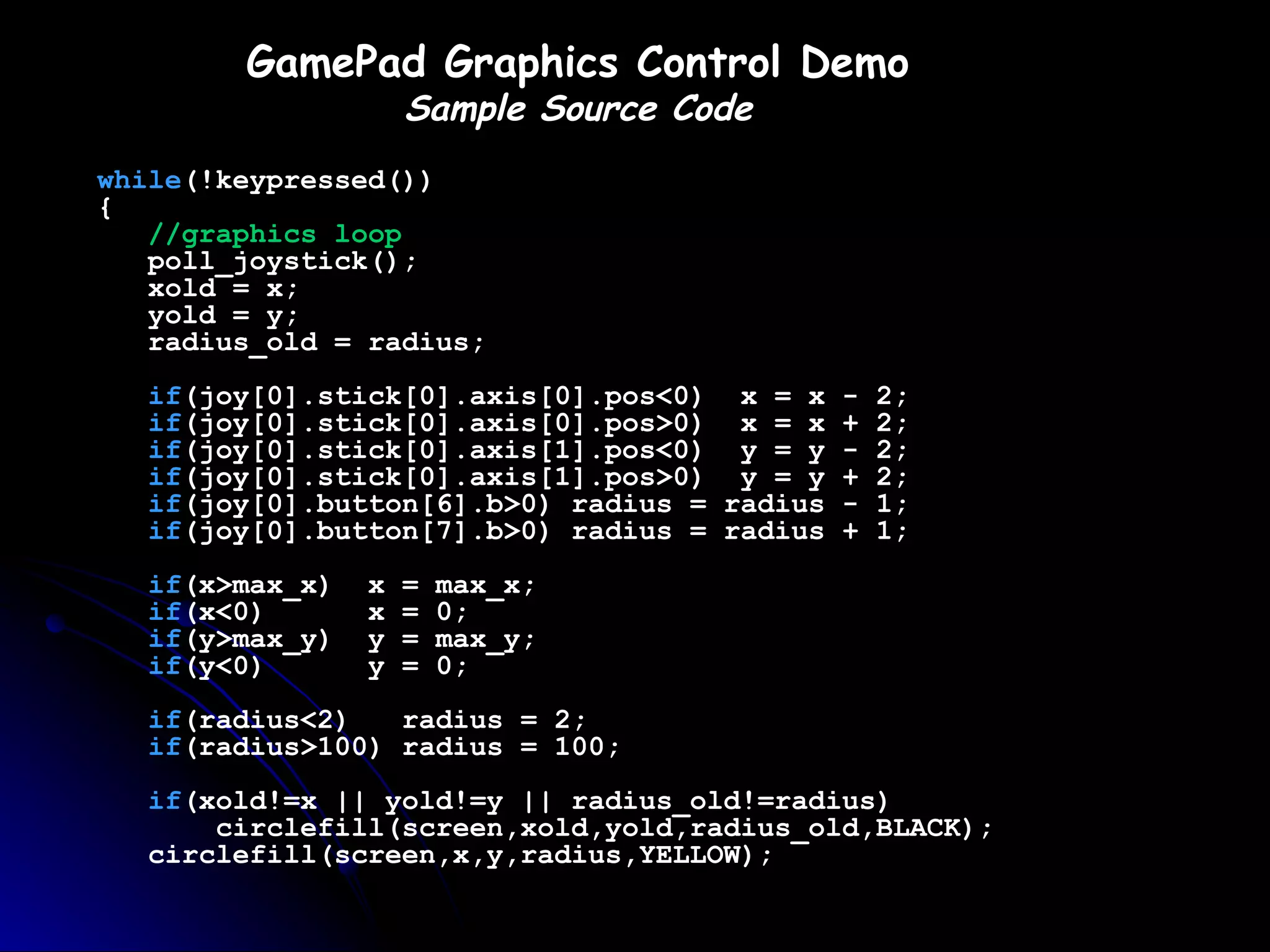

54. while (!keypressed()) { //graphics loop poll_joystick(); xold = x; yold = y; radius_old = radius; if (joy[0].stick[0].axis[0].pos<0) x = x - 2; if (joy[0].stick[0].axis[0].pos>0) x = x + 2; if (joy[0].stick[0].axis[1].pos<0) y = y - 2; if (joy[0].stick[0].axis[1].pos>0) y = y + 2; if (joy[0].button[6].b>0) radius = radius - 1; if (joy[0].button[7].b>0) radius = radius + 1; if (x>max_x) x = max_x; if (x<0) x = 0; if (y>max_y) y = max_y; if (y<0) y = 0; if (radius<2) radius = 2; if (radius>100) radius = 100; if (xold!=x || yold!=y || radius_old!=radius) circlefill(screen,xold,yold,radius_old,BLACK); circlefill(screen,x,y,radius,YELLOW); GamePad Graphics Control Demo Sample Source Code

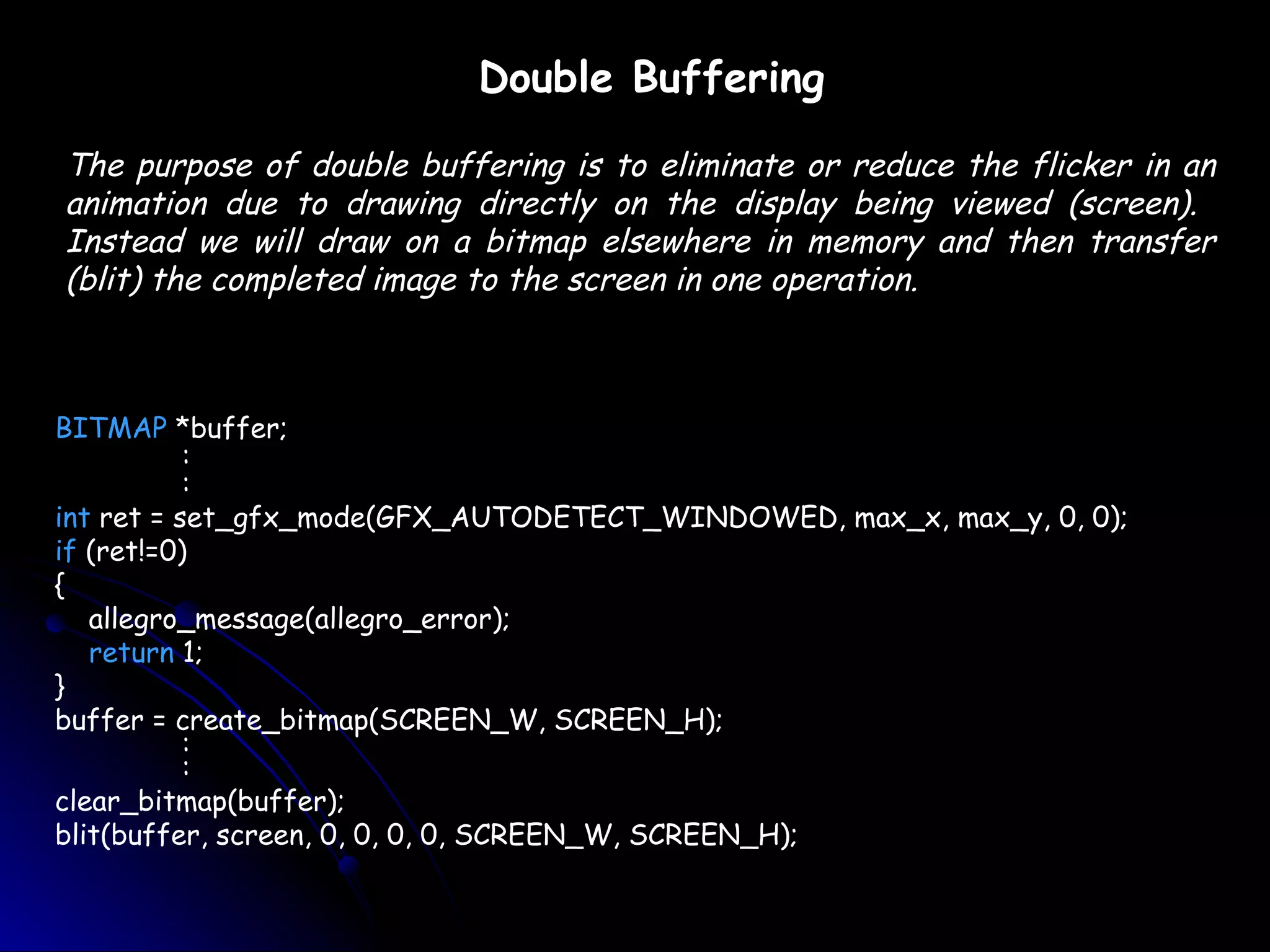

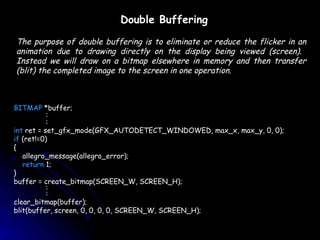

55. BITMAP *buffer; : : int ret = set_gfx_mode(GFX_AUTODETECT_WINDOWED, max_x, max_y, 0, 0); if (ret!=0) { allegro_message(allegro_error); return 1; } buffer = create_bitmap(SCREEN_W, SCREEN_H); : : clear_bitmap(buffer); blit(buffer, screen, 0, 0, 0, 0, SCREEN_W, SCREEN_H); Double Buffering The purpose of double buffering is to eliminate or reduce the flicker in an animation due to drawing directly on the display being viewed (screen). Instead we will draw on a bitmap elsewhere in memory and then transfer (blit) the completed image to the screen in one operation.

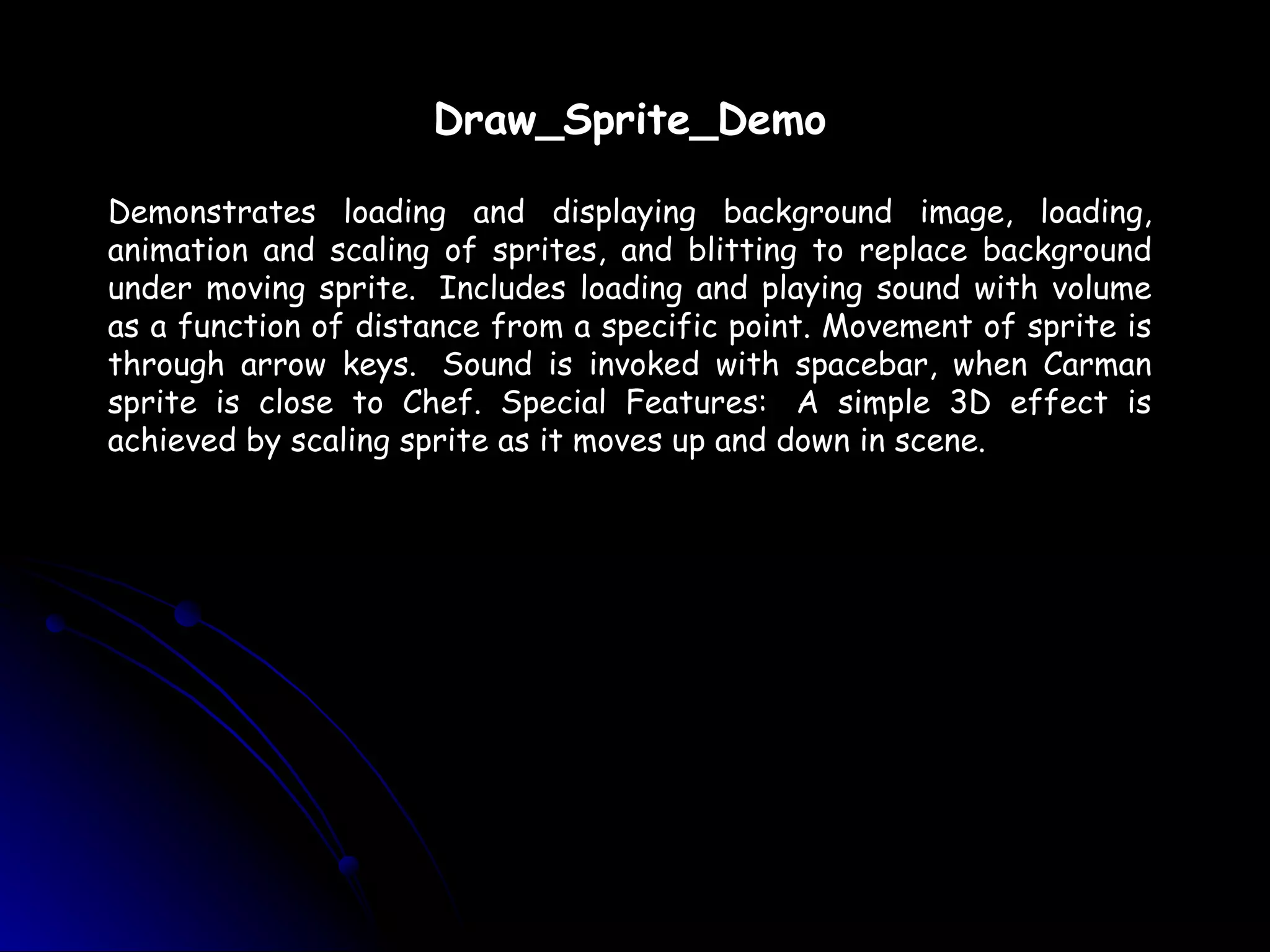

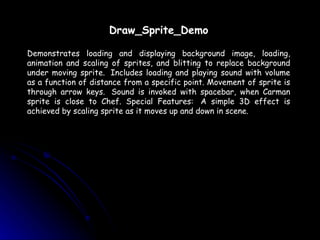

56. Draw_Sprite_Demo Demonstrates loading and displaying background image, loading, animation and scaling of sprites, and blitting to replace background under moving sprite. Includes loading and playing sound with volume as a function of distance from a specific point. Movement of sprite is through arrow keys. Sound is invoked with spacebar, when Carman sprite is close to Chef. Special Features: A simple 3D effect is achieved by scaling sprite as it moves up and down in scene.

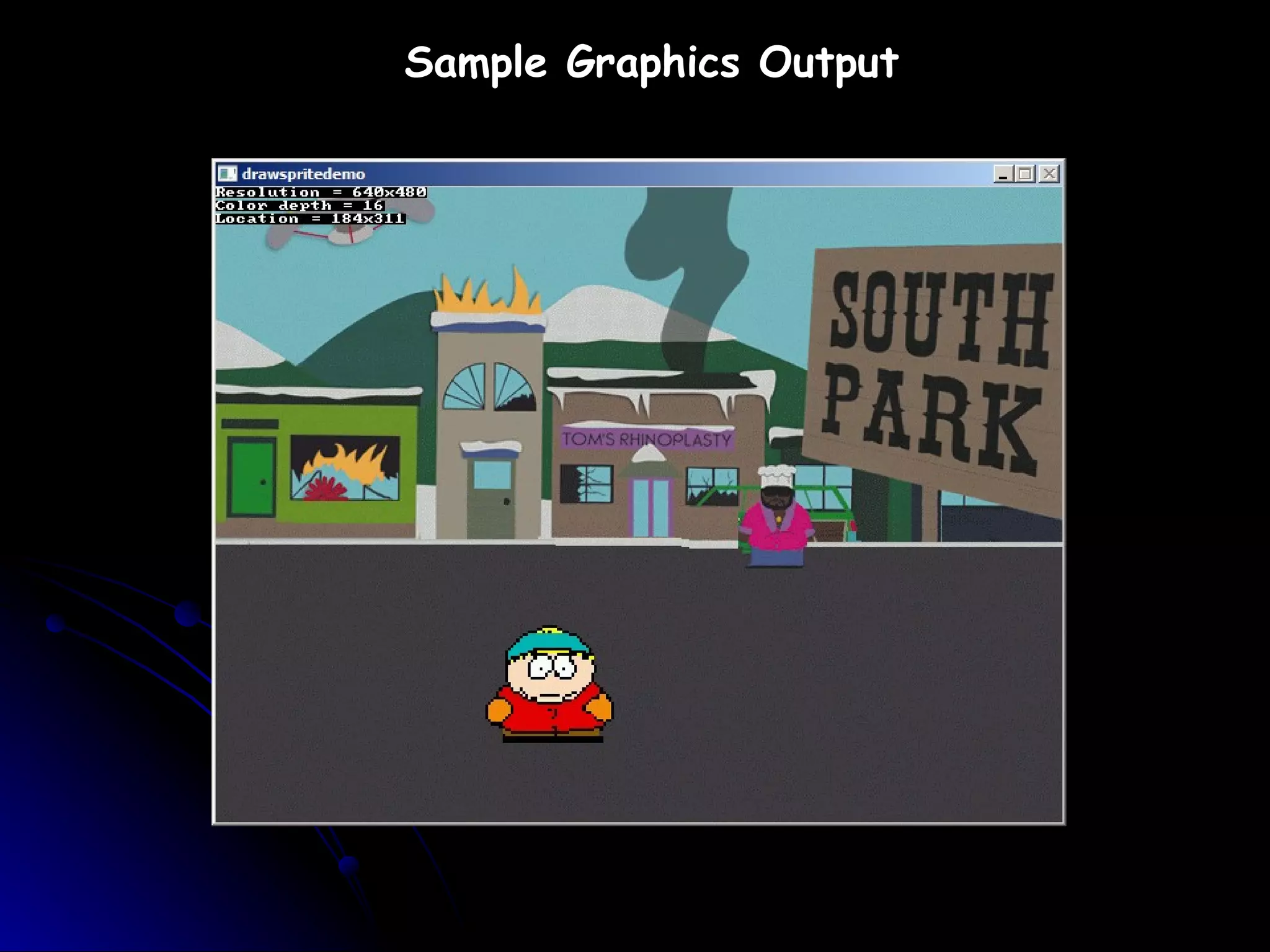

57. Sample Graphics Output

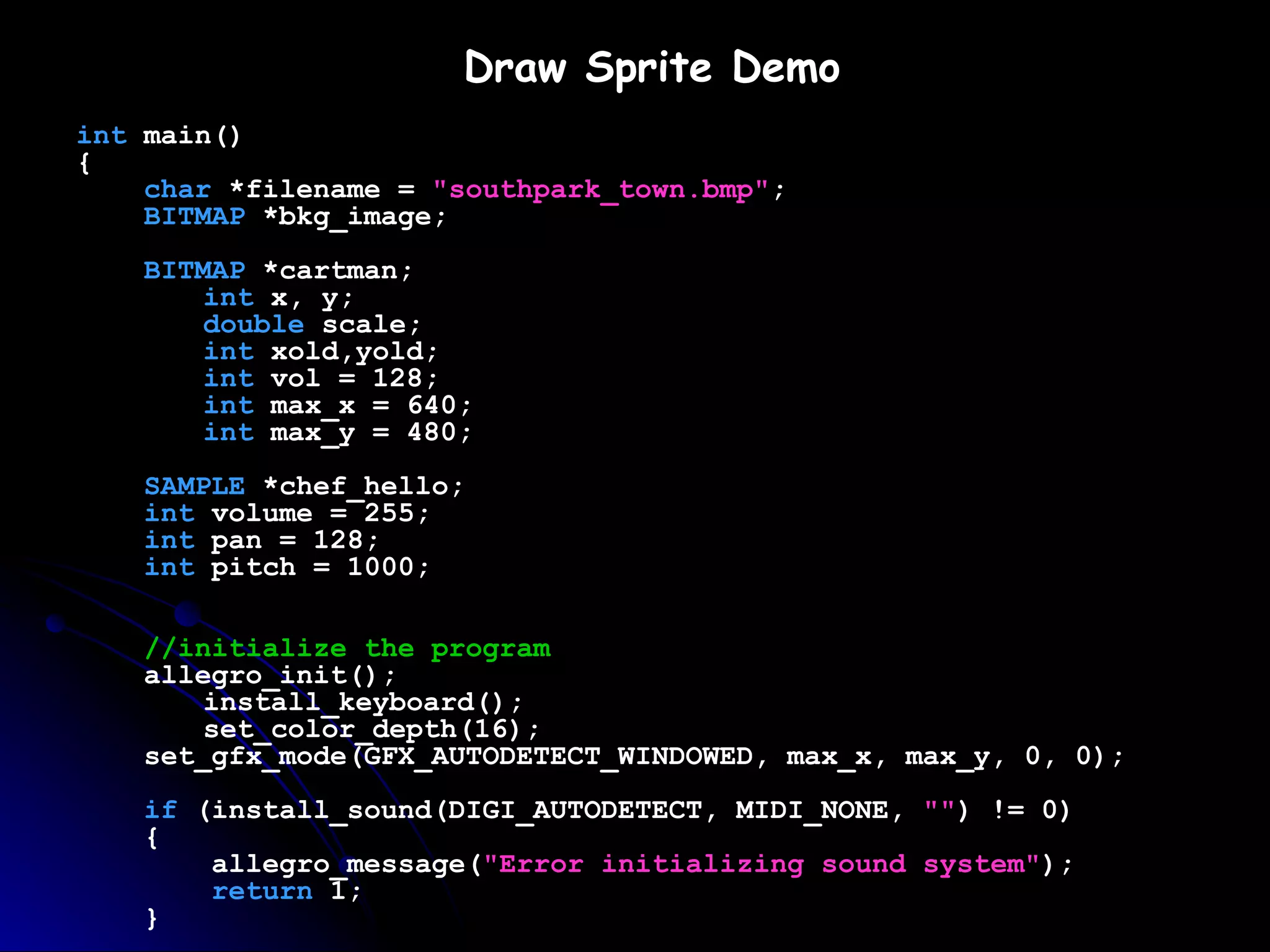

58. int main() { char *filename = &quot;southpark_town.bmp&quot; ; BITMAP *bkg_image; BITMAP *cartman; int x, y; double scale; int xold,yold; int vol = 128; int max_x = 640; int max_y = 480; SAMPLE *chef_hello; int volume = 255; int pan = 128; int pitch = 1000; //initialize the program allegro_init(); install_keyboard(); set_color_depth(16); set_gfx_mode(GFX_AUTODETECT_WINDOWED, max_x, max_y, 0, 0); if (install_sound(DIGI_AUTODETECT, MIDI_NONE, &quot;&quot; ) != 0) { allegro_message( &quot;Error initializing sound system&quot; ); return 1; } Draw Sprite Demo

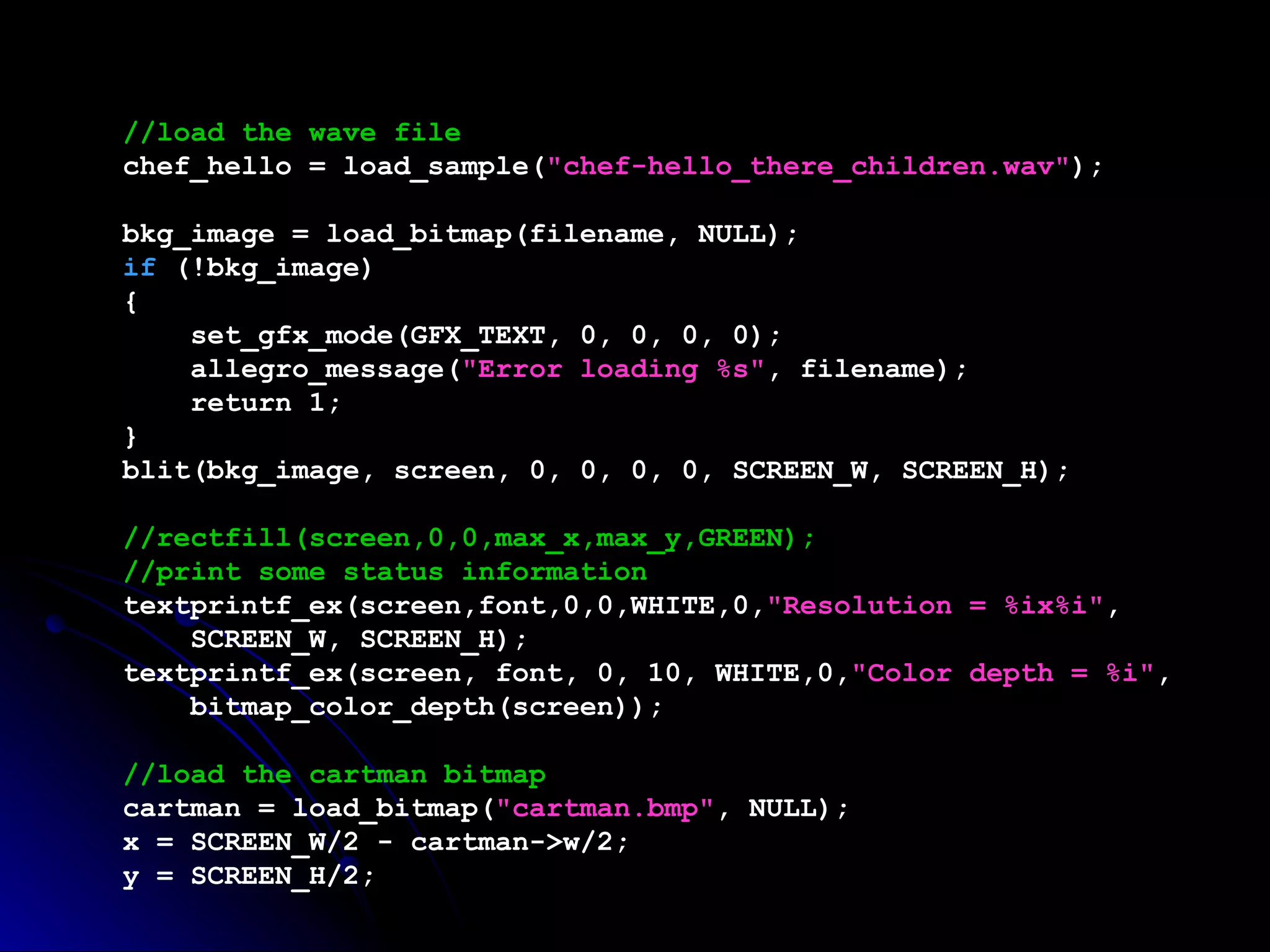

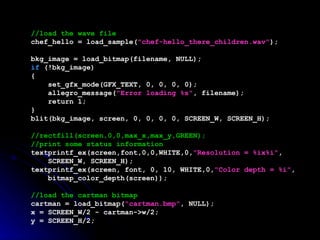

59. //load the wave file chef_hello = load_sample( &quot;chef-hello_there_children.wav&quot; ); bkg_image = load_bitmap(filename, NULL); if (!bkg_image) { set_gfx_mode(GFX_TEXT, 0, 0, 0, 0); allegro_message( &quot;Error loading %s&quot; , filename); return 1; } blit(bkg_image, screen, 0, 0, 0, 0, SCREEN_W, SCREEN_H); //rectfill(screen,0,0,max_x,max_y,GREEN); //print some status information textprintf_ex(screen,font,0,0,WHITE,0, &quot;Resolution = %ix%i&quot; , SCREEN_W, SCREEN_H); textprintf_ex(screen, font, 0, 10, WHITE,0, &quot;Color depth = %i&quot; , bitmap_color_depth(screen)); //load the cartman bitmap cartman = load_bitmap( &quot;cartman.bmp&quot; , NULL); x = SCREEN_W/2 - cartman->w/2; y = SCREEN_H/2;

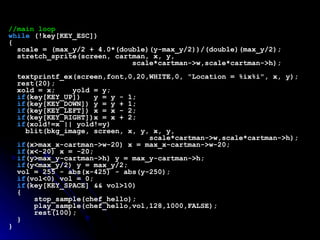

60. //main loop while (!key[KEY_ESC]) { scale = (max_y/2 + 4.0*(double)(y-max_y/2))/(double)(max_y/2); stretch_sprite(screen, cartman, x, y, scale*cartman->w,scale*cartman->h); textprintf_ex(screen,font,0,20,WHITE,0, &quot;Location = %ix%i&quot;, x, y); rest(20); xold = x; yold = y; if (key[KEY_UP]) y = y - 1; if (key[KEY_DOWN]) y = y + 1; if (key[KEY_LEFT]) x = x - 2; if (key[KEY_RIGHT])x = x + 2; if (xold!=x || yold!=y) blit(bkg_image, screen, x, y, x, y, scale*cartman->w,scale*cartman->h); if (x>max_x-cartman->w-20) x = max_x-cartman->w-20; if (x<-20) x = -20; if (y>max_y-cartman->h) y = max_y-cartman->h; if (y<max_y/2) y = max_y/2; vol = 255 - abs(x-425) - abs(y-250); if (vol<0) vol = 0; if (key[KEY_SPACE] && vol>10) { stop_sample(chef_hello); play_sample(chef_hello,vol,128,1000,FALSE); rest(100); } }

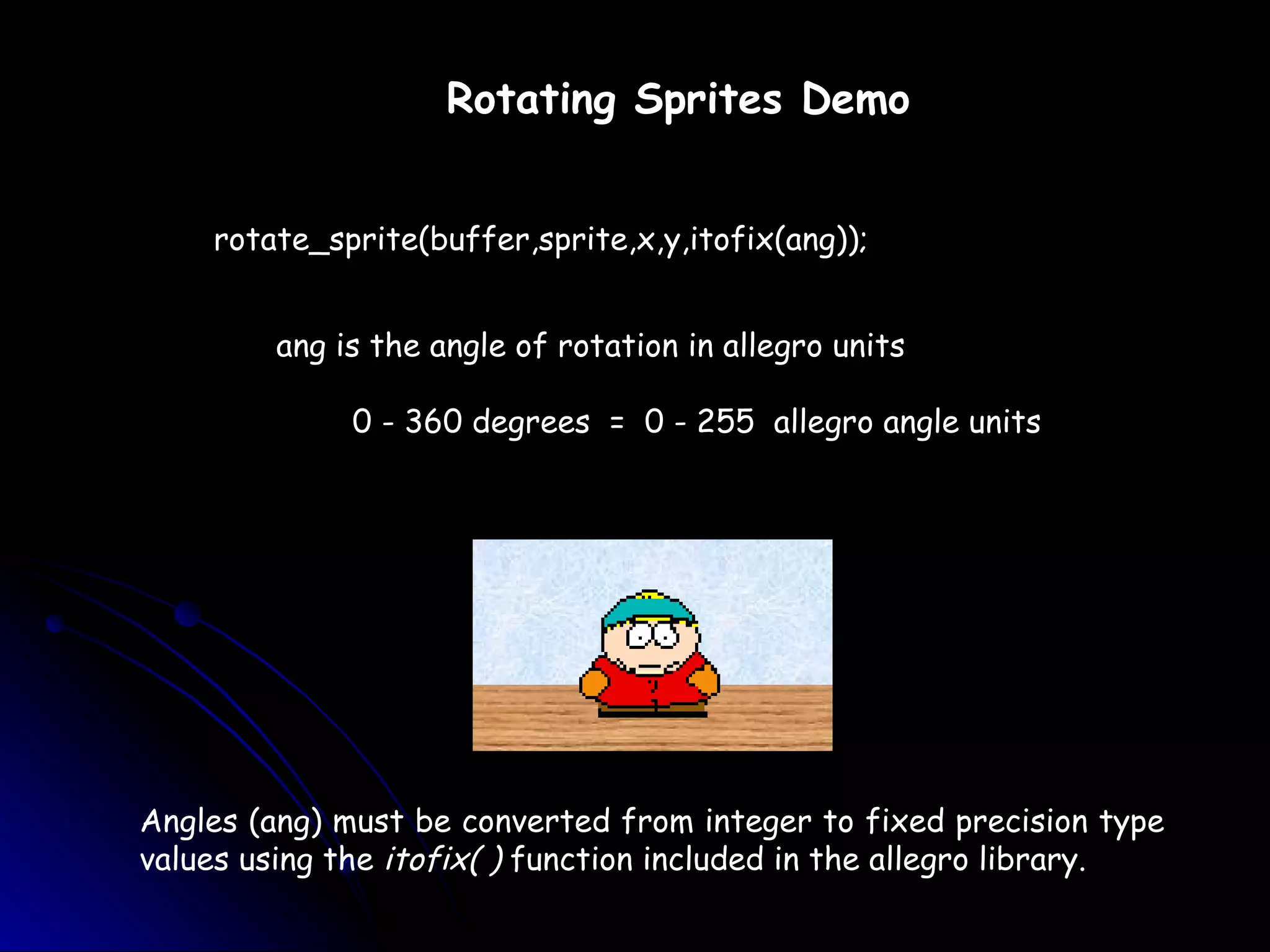

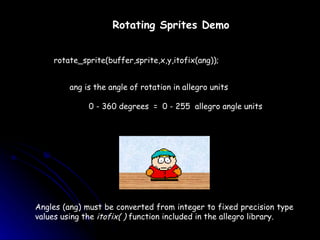

61. Rotating Sprites Demo rotate_sprite(buffer,sprite,x,y,itofix(ang)); ang is the angle of rotation in allegro units 0 - 360 degrees = 0 - 255 allegro angle units Angles (ang) must be converted from integer to fixed precision type values using the itofix( ) function included in the allegro library.

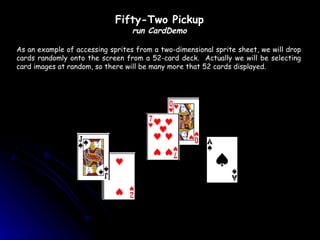

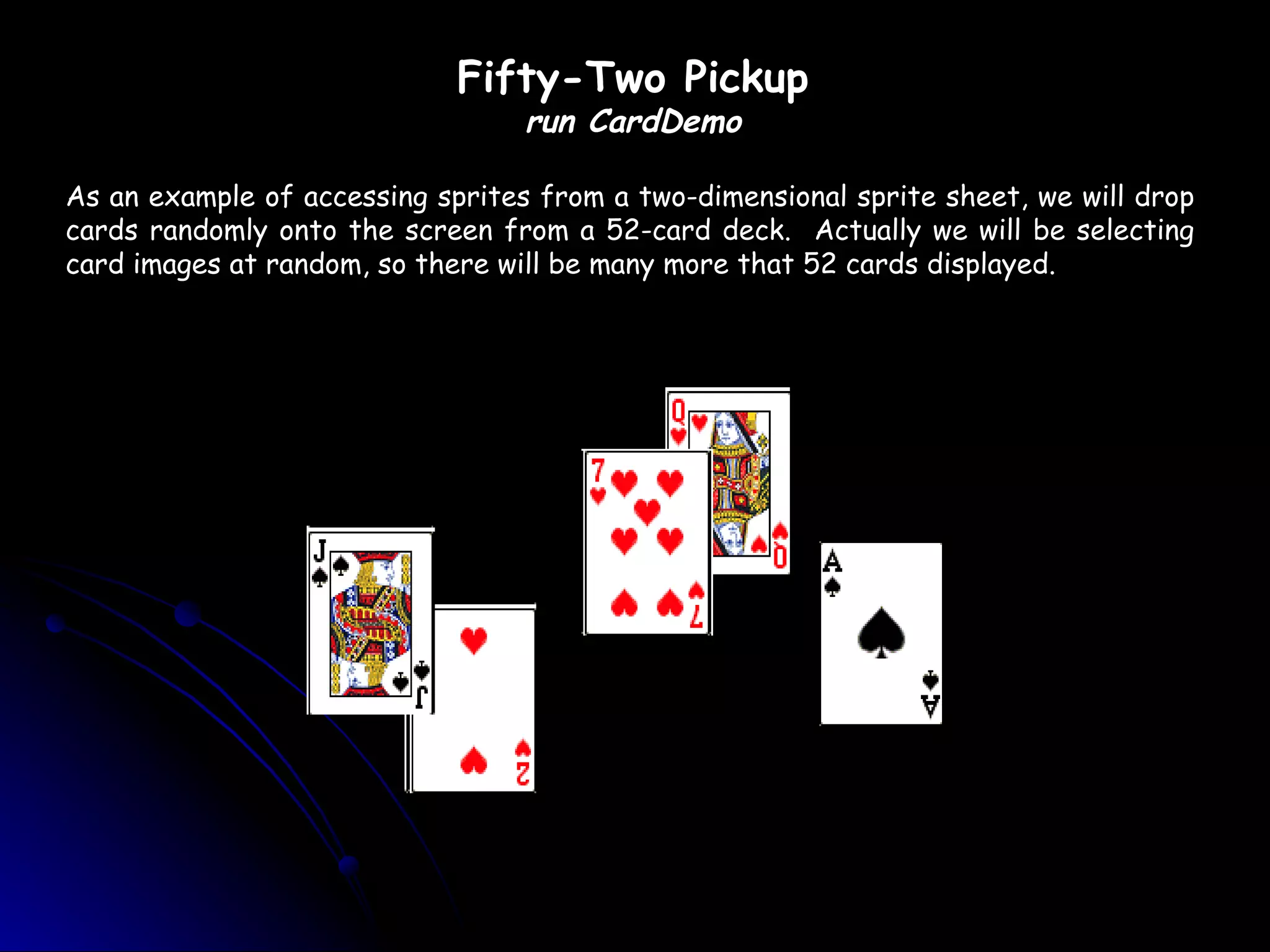

62. Fifty-Two Pickup run CardDemo As an example of accessing sprites from a two-dimensional sprite sheet, we will drop cards randomly onto the screen from a 52-card deck. Actually we will be selecting card images at random, so there will be many more that 52 cards displayed.

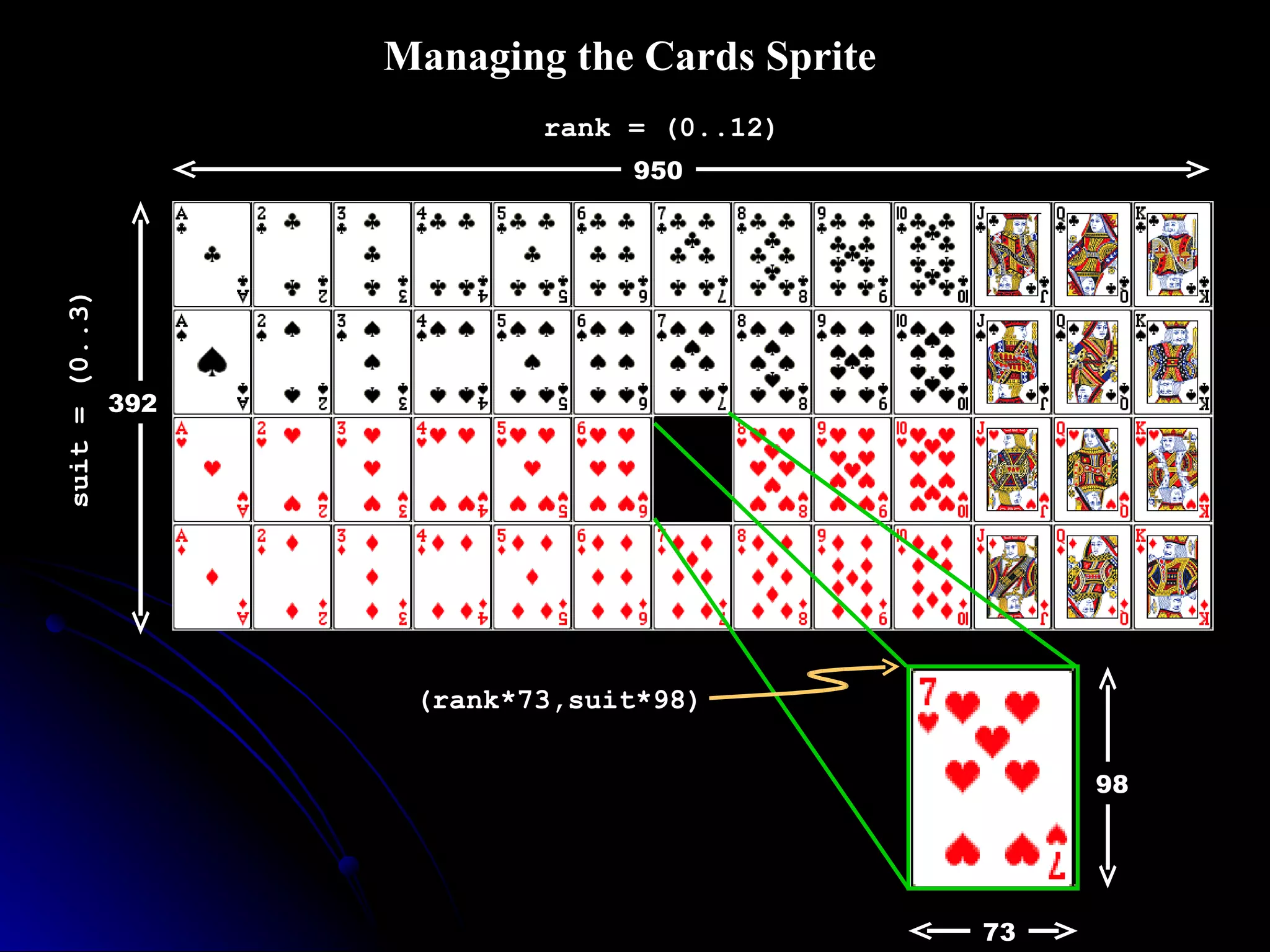

63. 950 392 98 73 (rank*73,suit*98) rank = (0..12) suit = (0..3) Managing the Cards Sprite

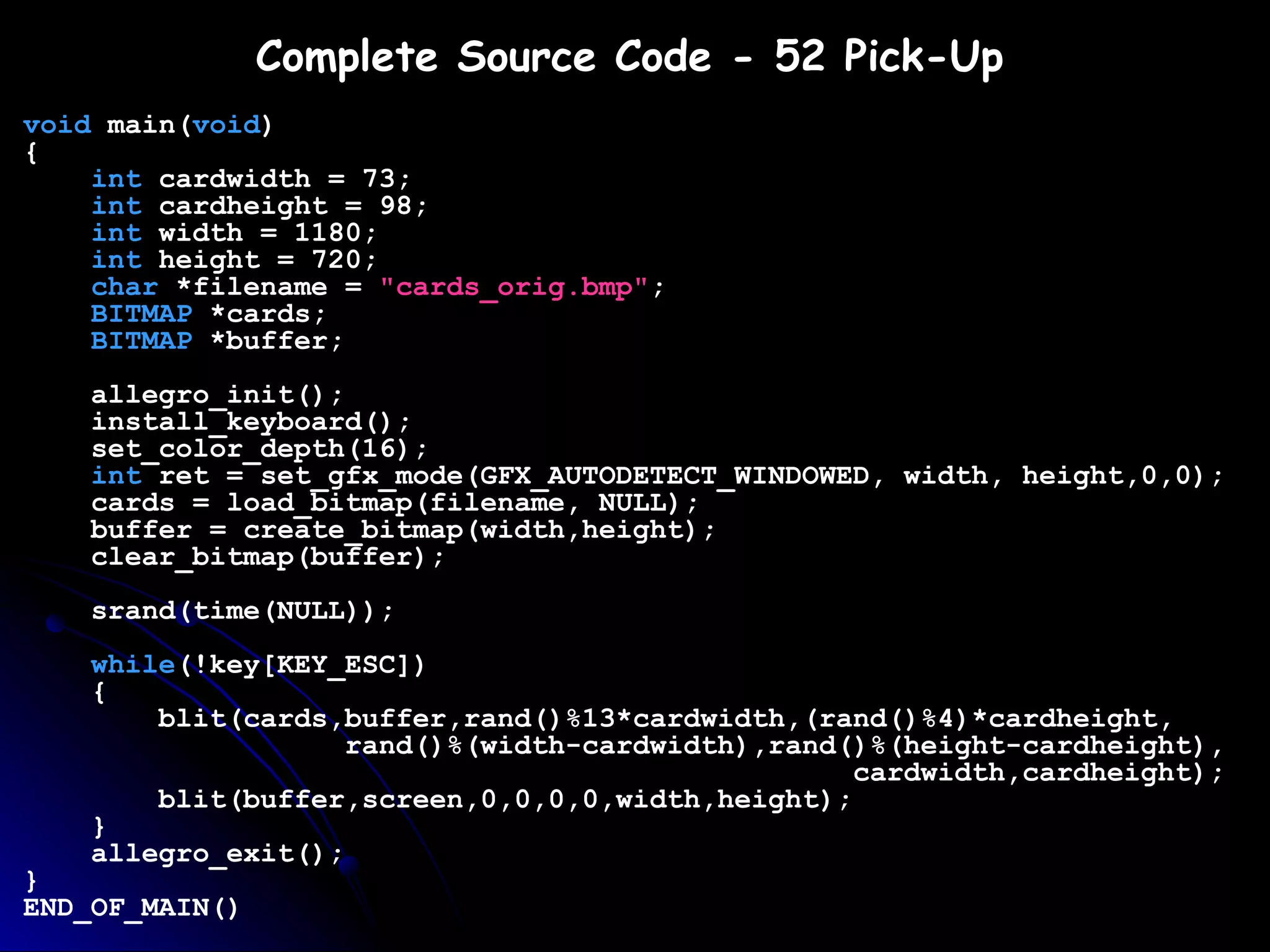

64. void main( void ) { int cardwidth = 73; int cardheight = 98; int width = 1180; int height = 720; char *filename = &quot;cards_orig.bmp&quot; ; BITMAP *cards; BITMAP *buffer; allegro_init(); install_keyboard(); set_color_depth(16); int ret = set_gfx_mode(GFX_AUTODETECT_WINDOWED, width, height,0,0); cards = load_bitmap(filename, NULL); buffer = create_bitmap(width,height); clear_bitmap(buffer); srand(time(NULL)); while (!key[KEY_ESC]) { blit(cards,buffer,rand()%13*cardwidth,(rand()%4)*cardheight, rand()%(width-cardwidth),rand()%(height-cardheight), cardwidth,cardheight); blit(buffer,screen,0,0,0,0,width,height); } allegro_exit(); } END_OF_MAIN() Complete Source Code - 52 Pick-Up

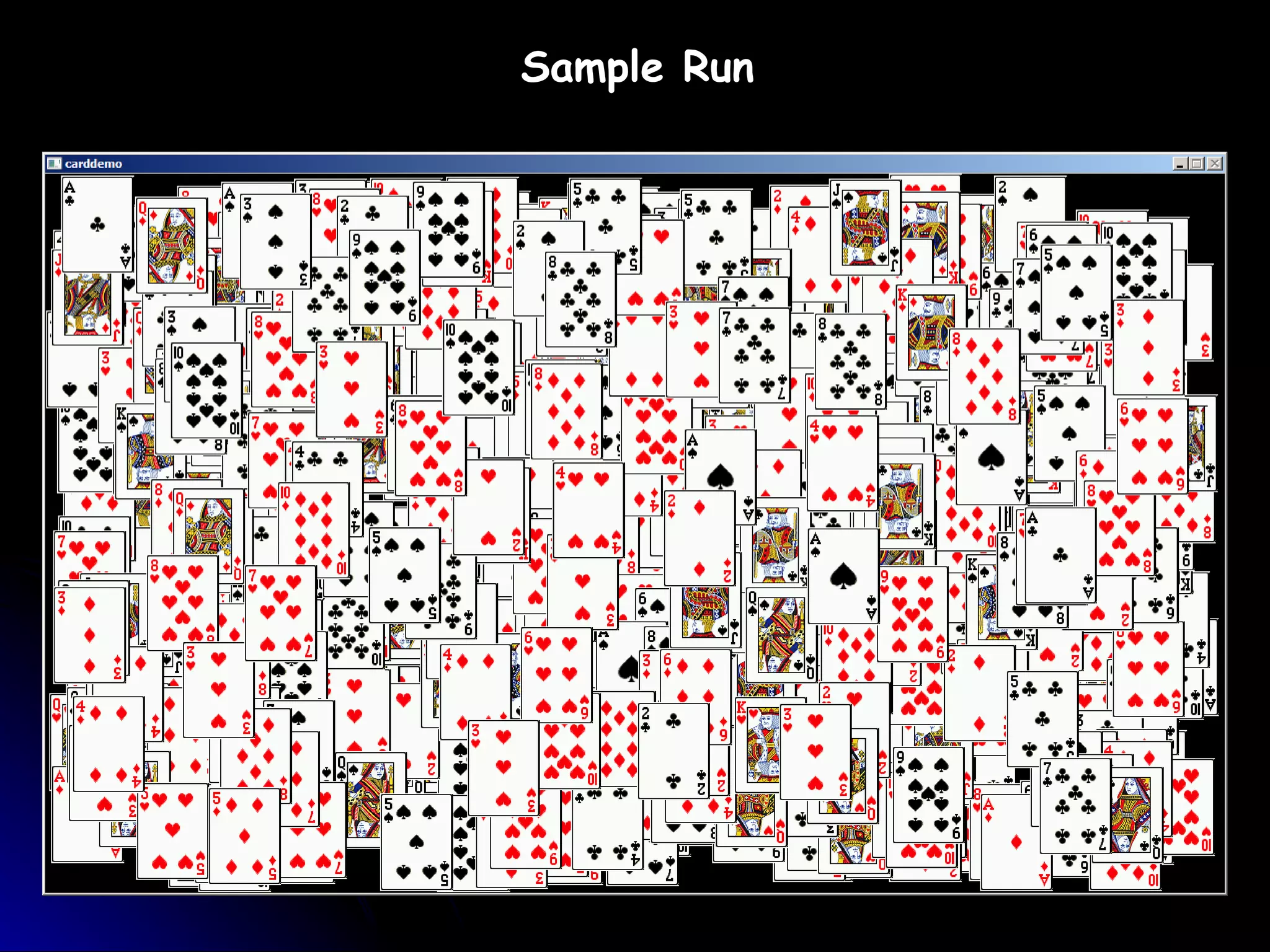

65. Sample Run

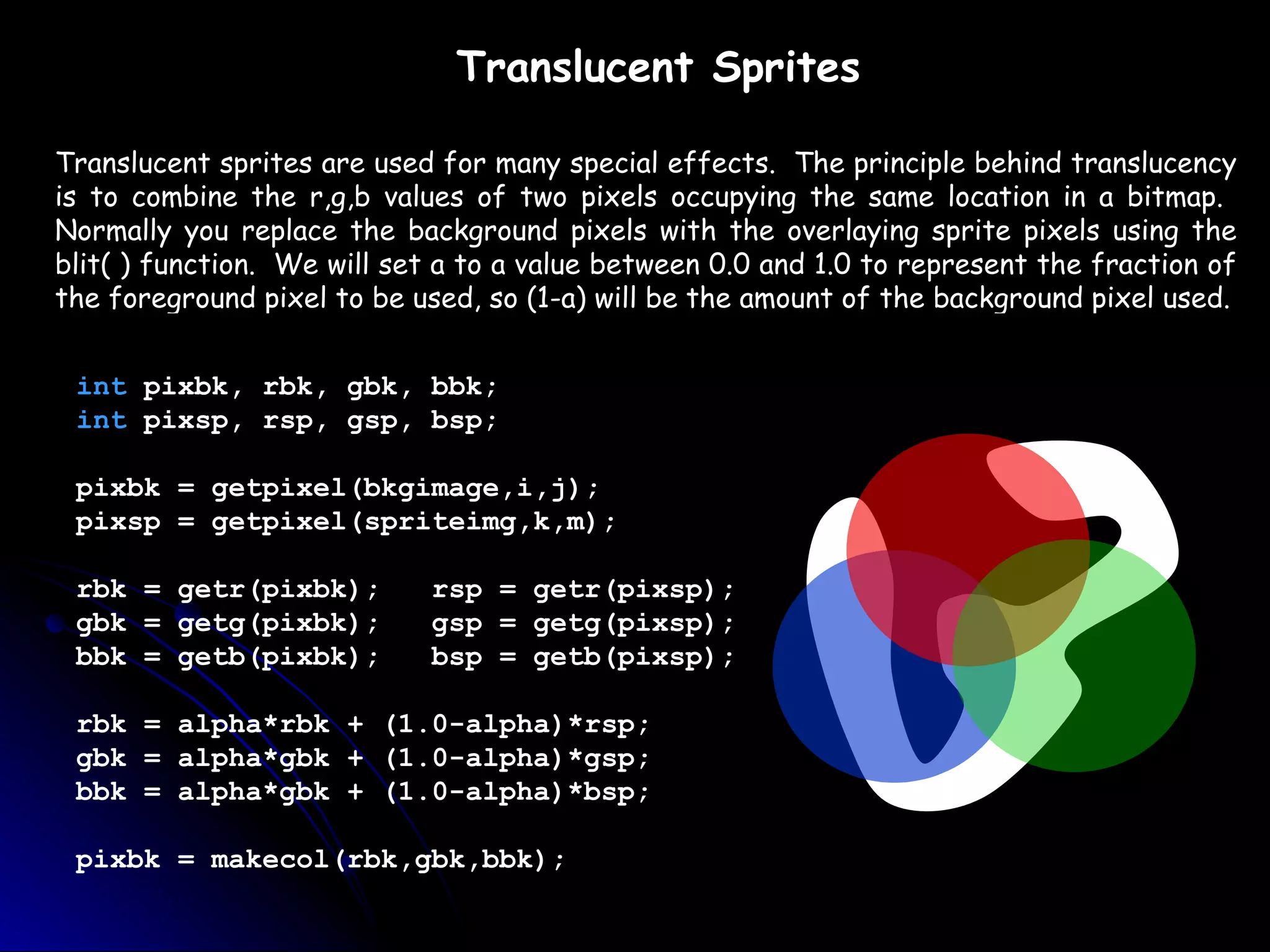

66. Translucent Sprites Translucent sprites are used for many special effects. The principle behind translucency is to combine the r,g,b values of two pixels occupying the same location in a bitmap. Normally you replace the background pixels with the overlaying sprite pixels using the blit( ) function. We will set a to a value between 0.0 and 1.0 to represent the fraction of the foreground pixel to be used, so (1-a) will be the amount of the background pixel used. int pixbk, rbk, gbk, bbk; int pixsp, rsp, gsp, bsp; pixbk = getpixel(bkgimage,i,j); pixsp = getpixel(spriteimg,k,m); rbk = getr(pixbk); rsp = getr(pixsp); gbk = getg(pixbk); gsp = getg(pixsp); bbk = getb(pixbk); bsp = getb(pixsp); rbk = alpha*rbk + (1.0-alpha)*rsp; gbk = alpha*gbk + (1.0-alpha)*gsp; bbk = alpha*gbk + (1.0-alpha)*bsp; pixbk = makecol(rbk,gbk,bbk);

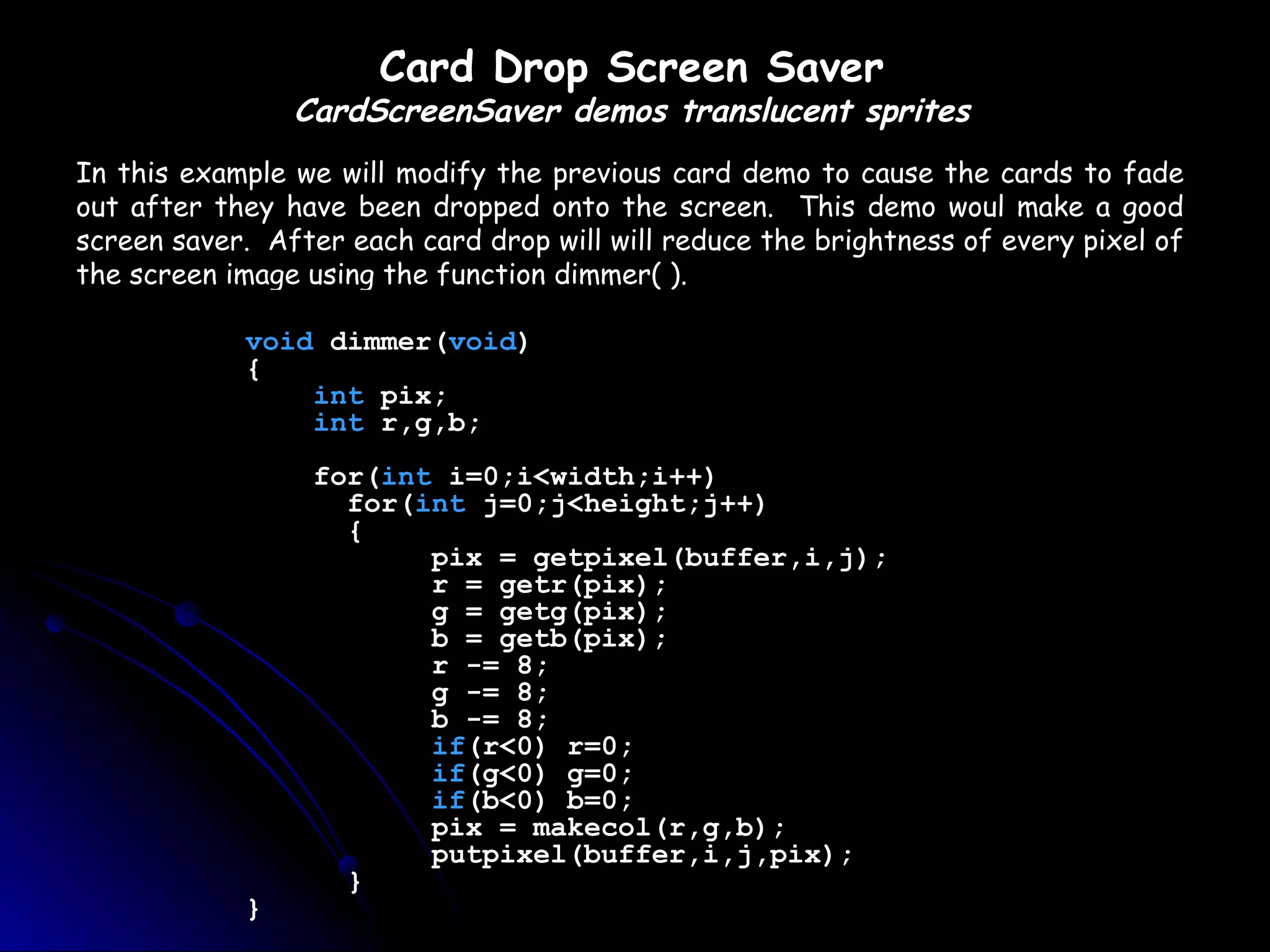

67. Card Drop Screen Saver CardScreenSaver demos translucent sprites In this example we will modify the previous card demo to cause the cards to fade out after they have been dropped onto the screen. This demo woul make a good screen saver. After each card drop will will reduce the brightness of every pixel of the screen image using the function dimmer( ). void dimmer( void ) { int pix; int r,g,b; for( int i=0;i<width;i++) for( int j=0;j<height;j++) { pix = getpixel(buffer,i,j); r = getr(pix); g = getg(pix); b = getb(pix); r -= 8; g -= 8; b -= 8; if (r<0) r=0; if (g<0) g=0; if (b<0) b=0; pix = makecol(r,g,b); putpixel(buffer,i,j,pix); } }

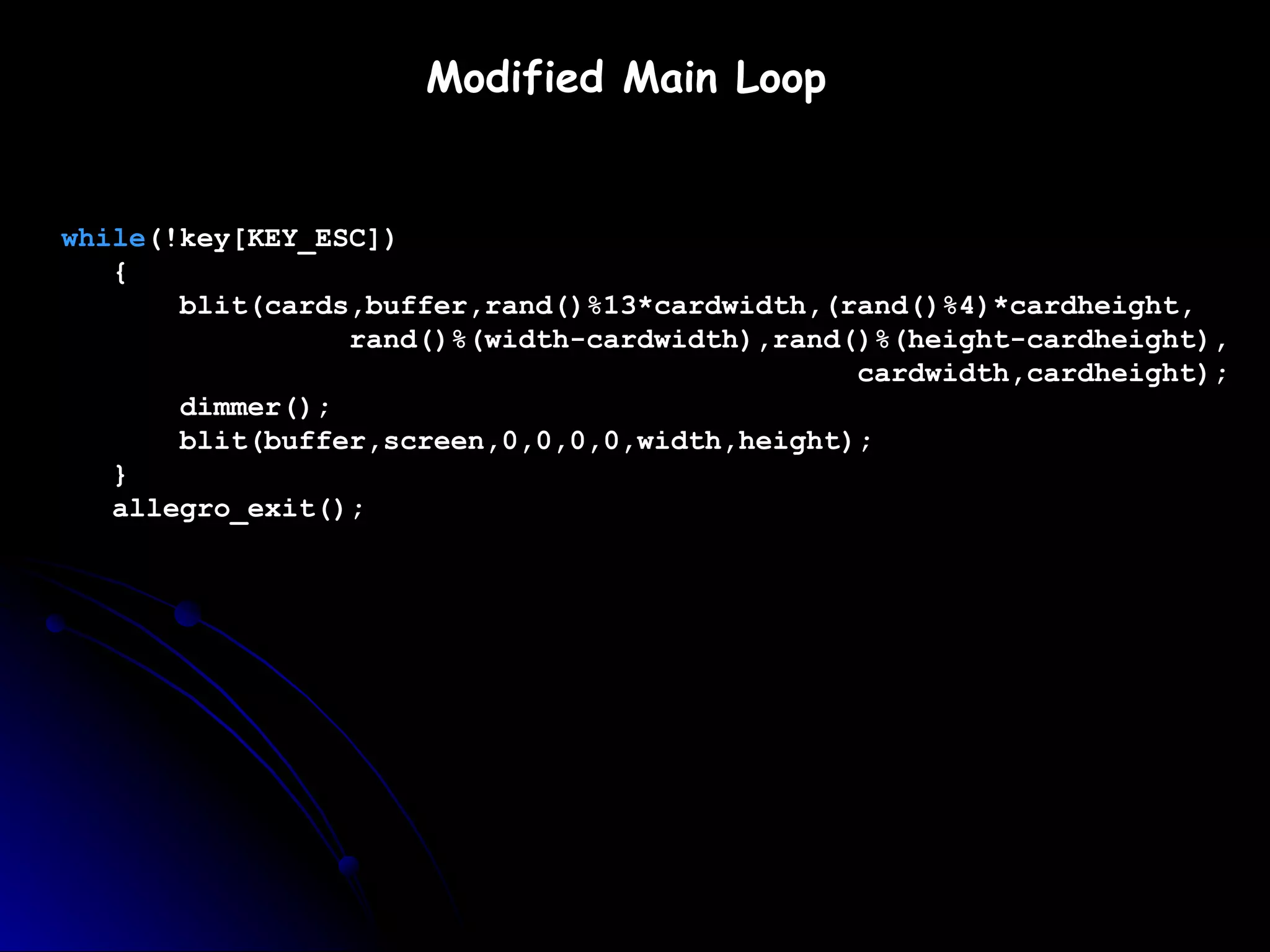

68. while (!key[KEY_ESC]) { blit(cards,buffer,rand()%13*cardwidth,(rand()%4)*cardheight, rand()%(width-cardwidth),rand()%(height-cardheight), cardwidth,cardheight); dimmer(); blit(buffer,screen,0,0,0,0,width,height); } allegro_exit(); Modified Main Loop

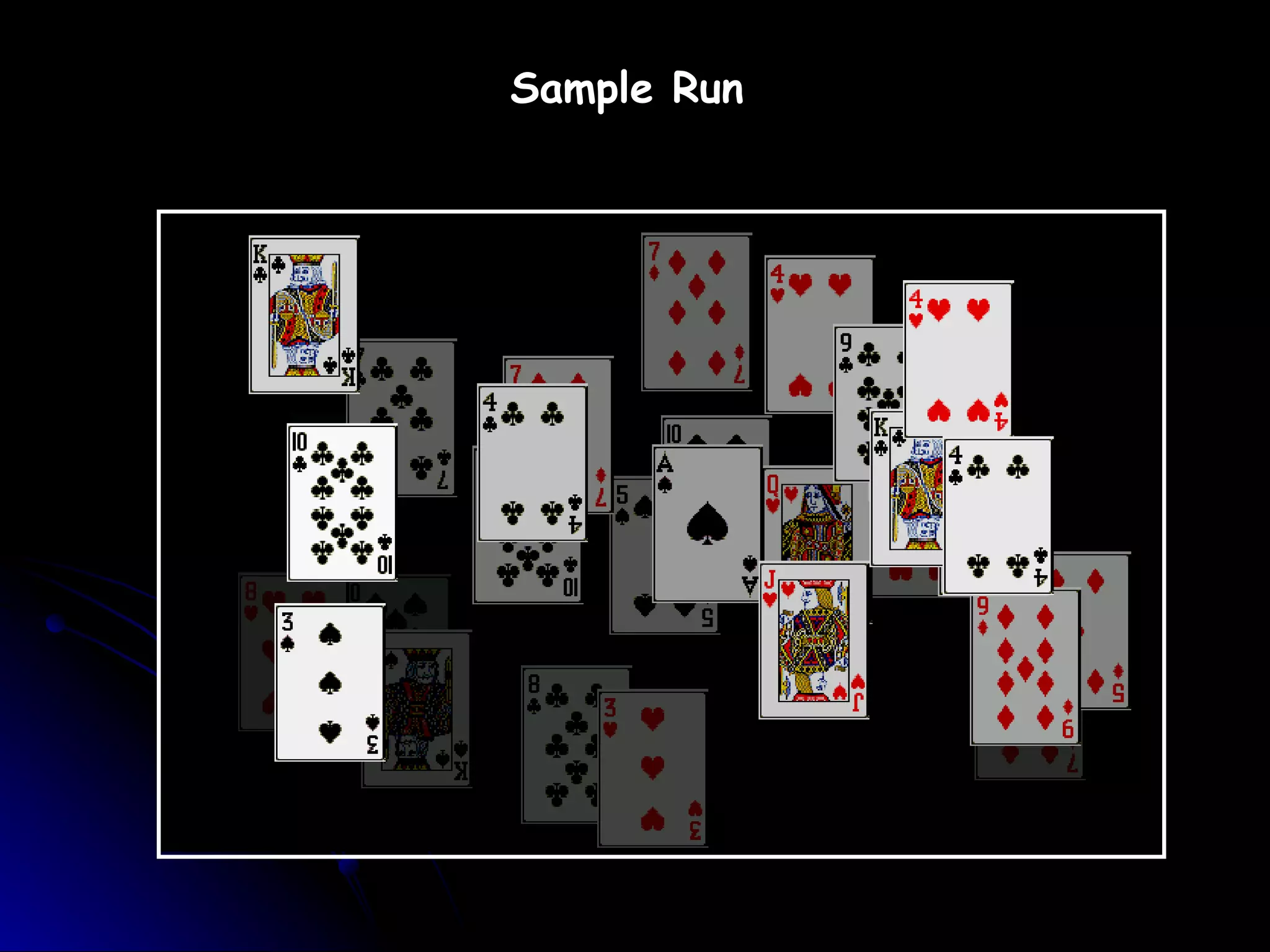

69. Sample Run

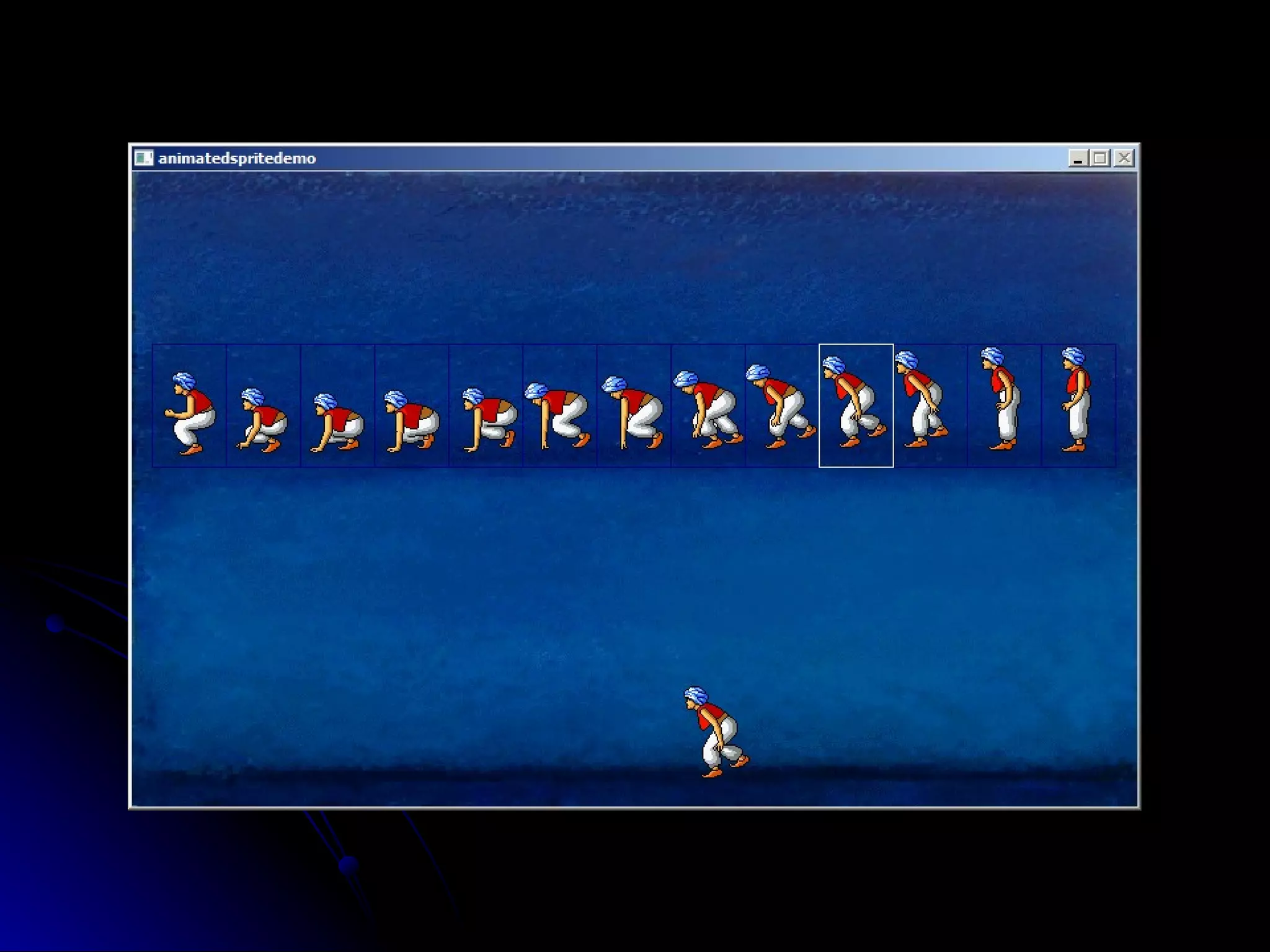

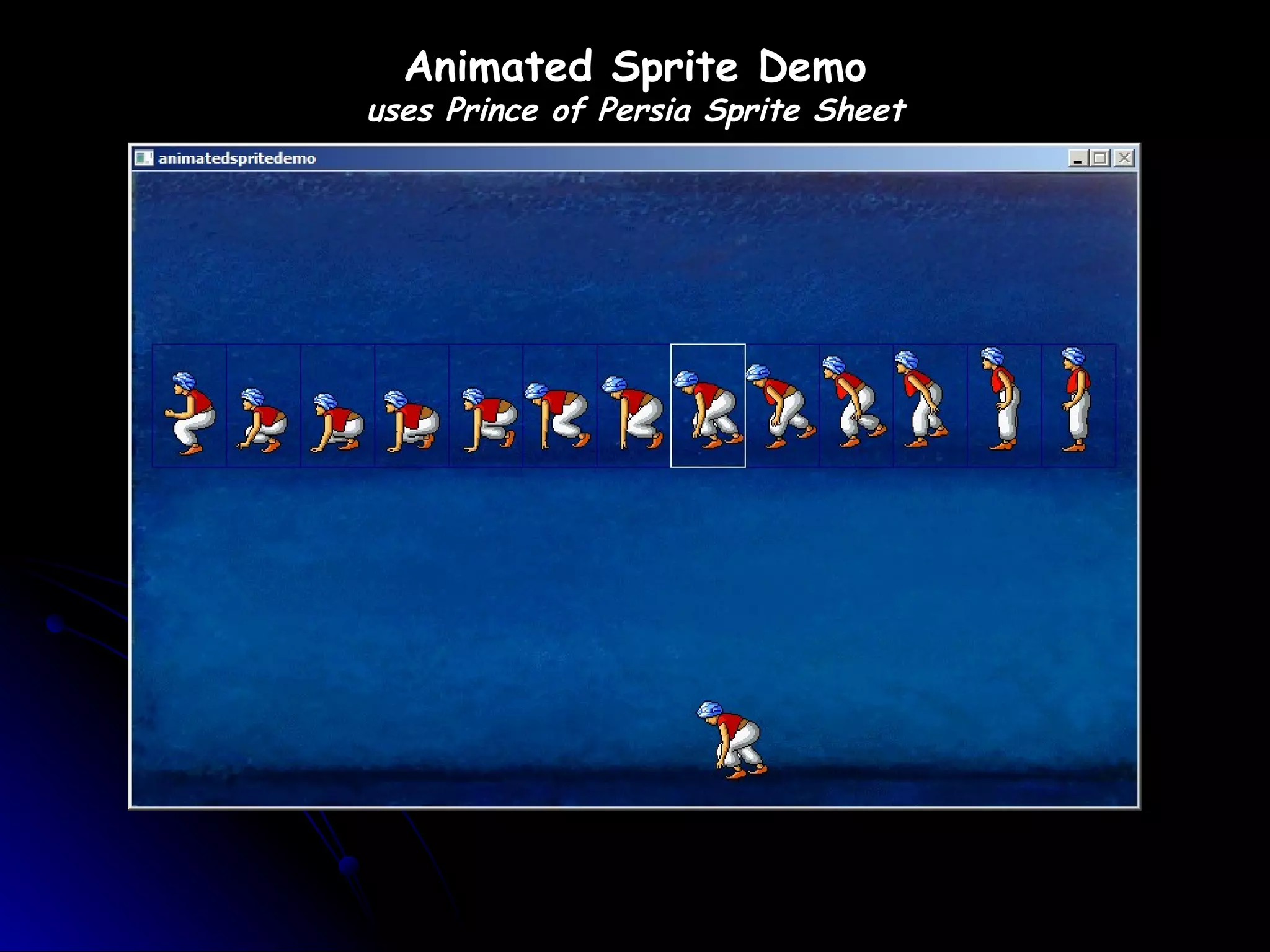

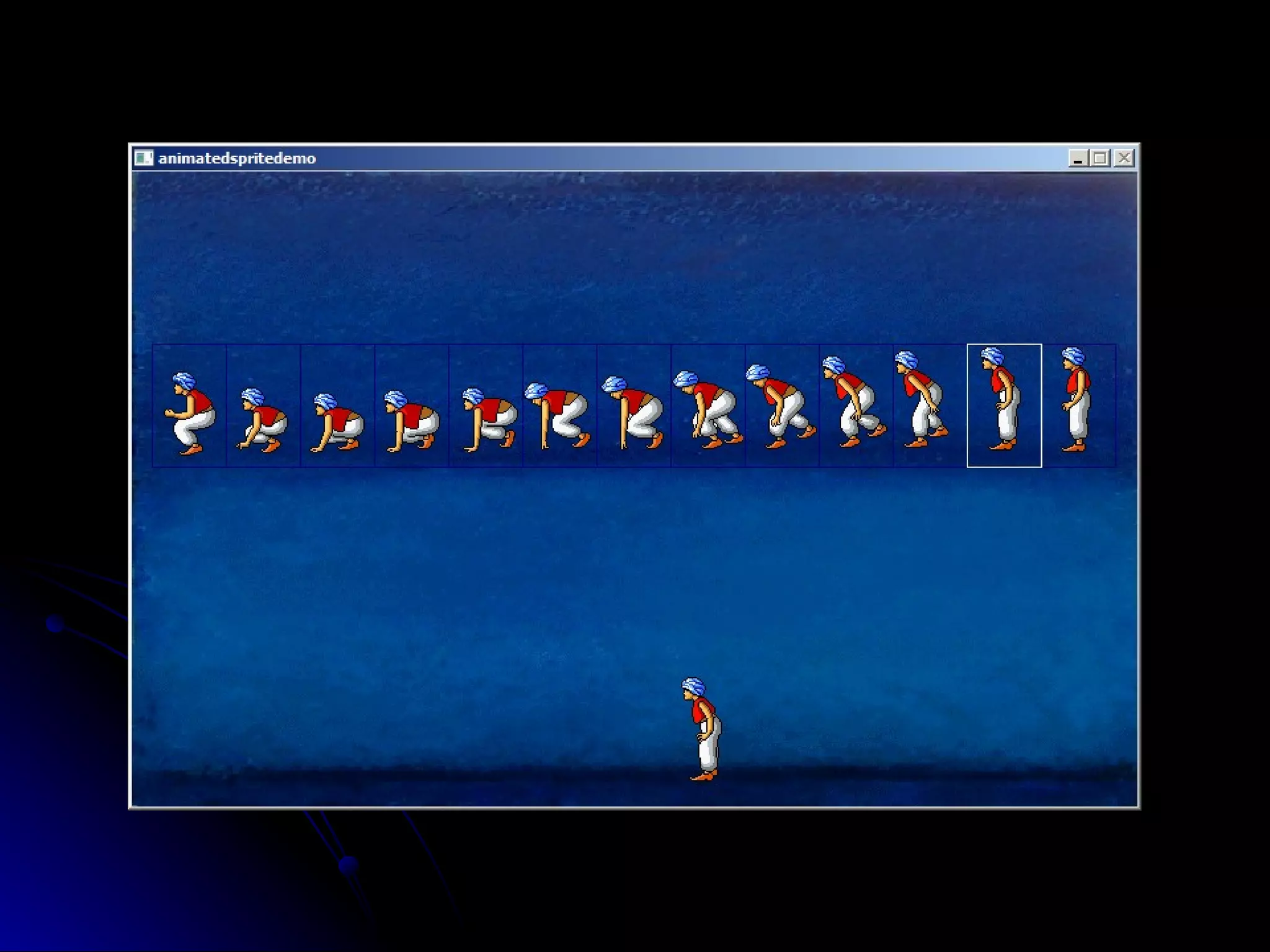

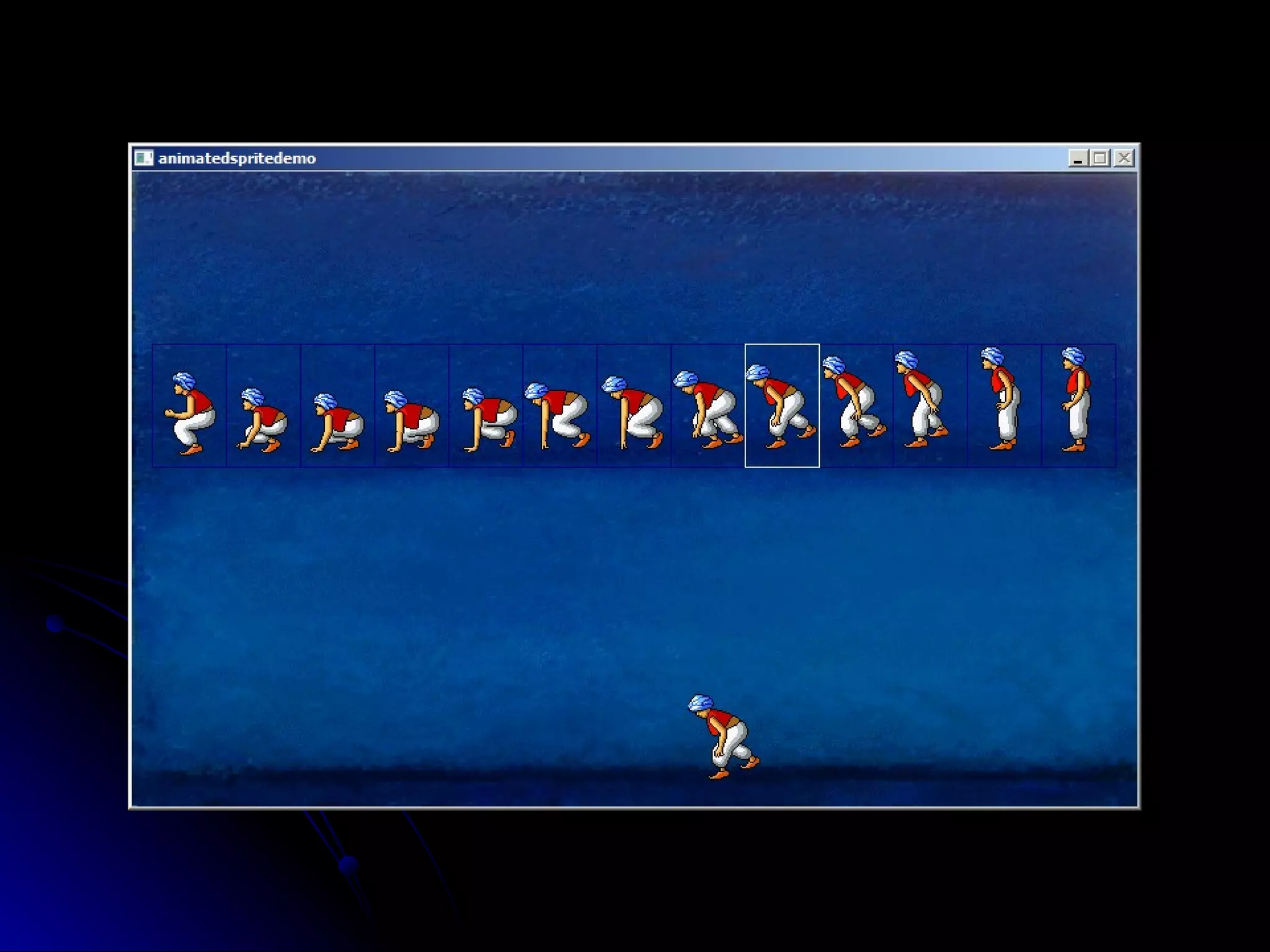

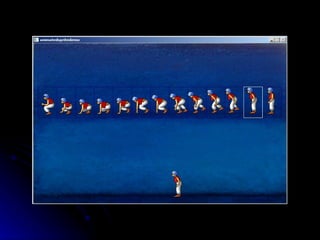

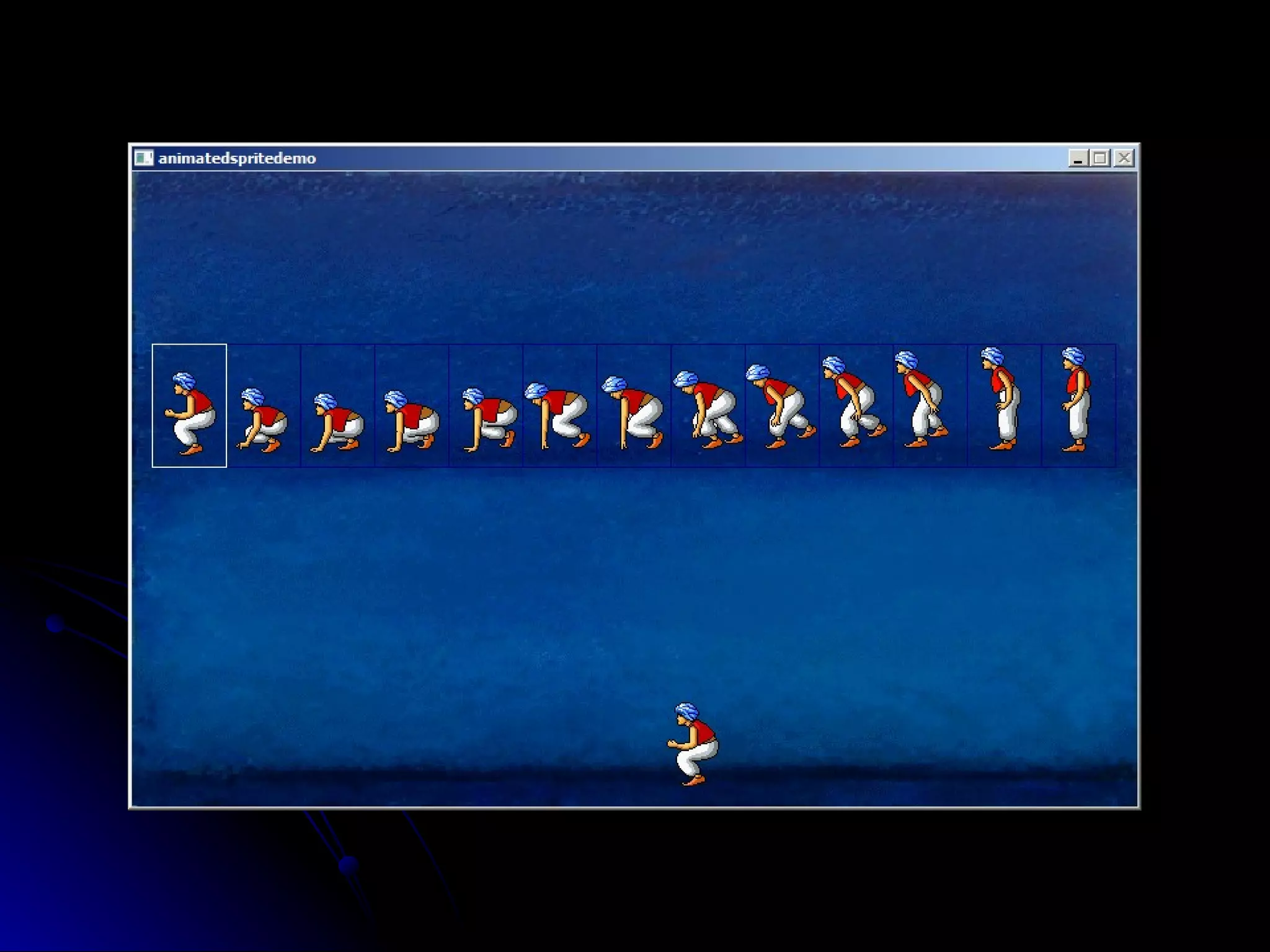

70. Animated Sprite Demo uses Prince of Persia Sprite Sheet

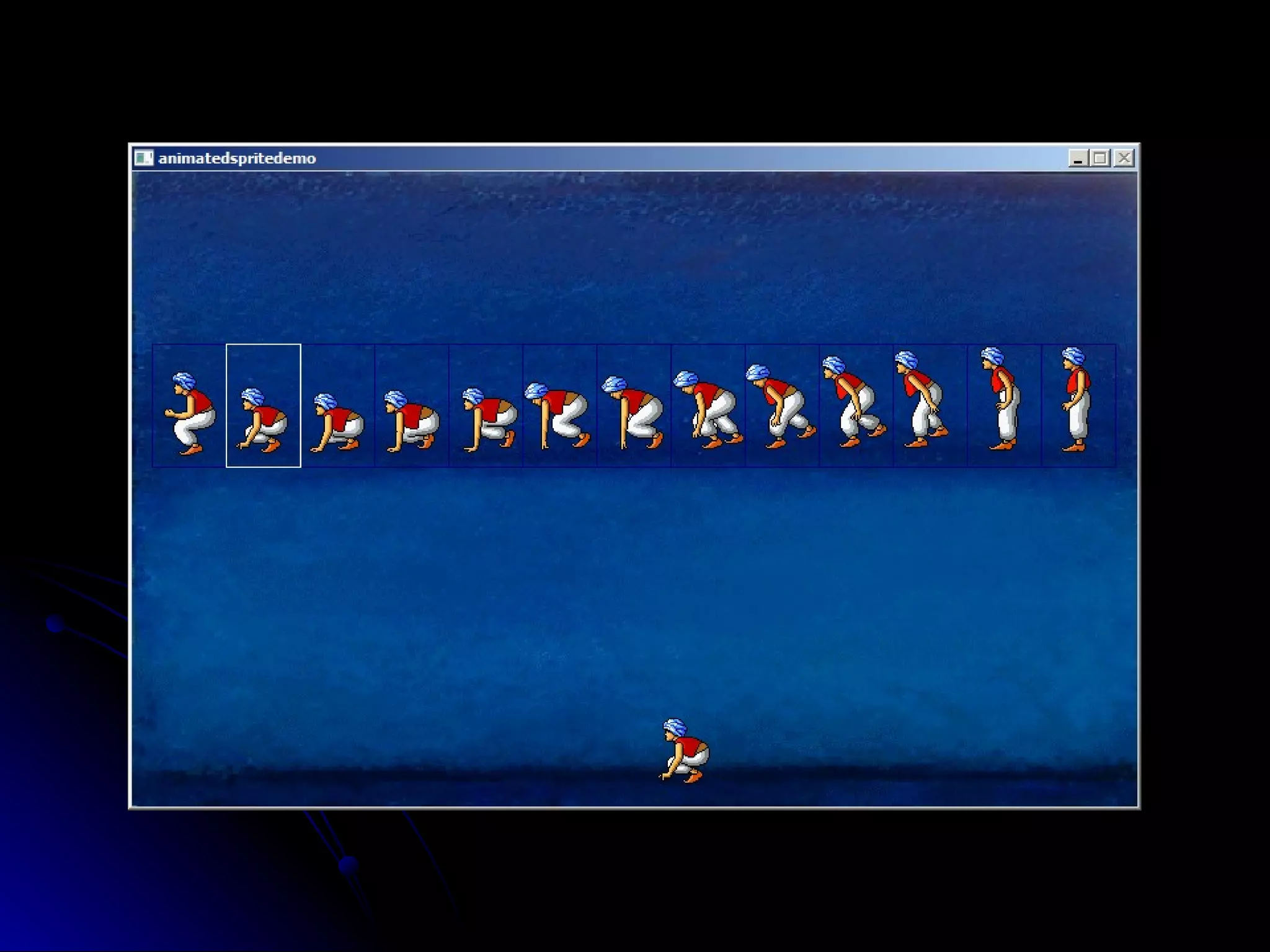

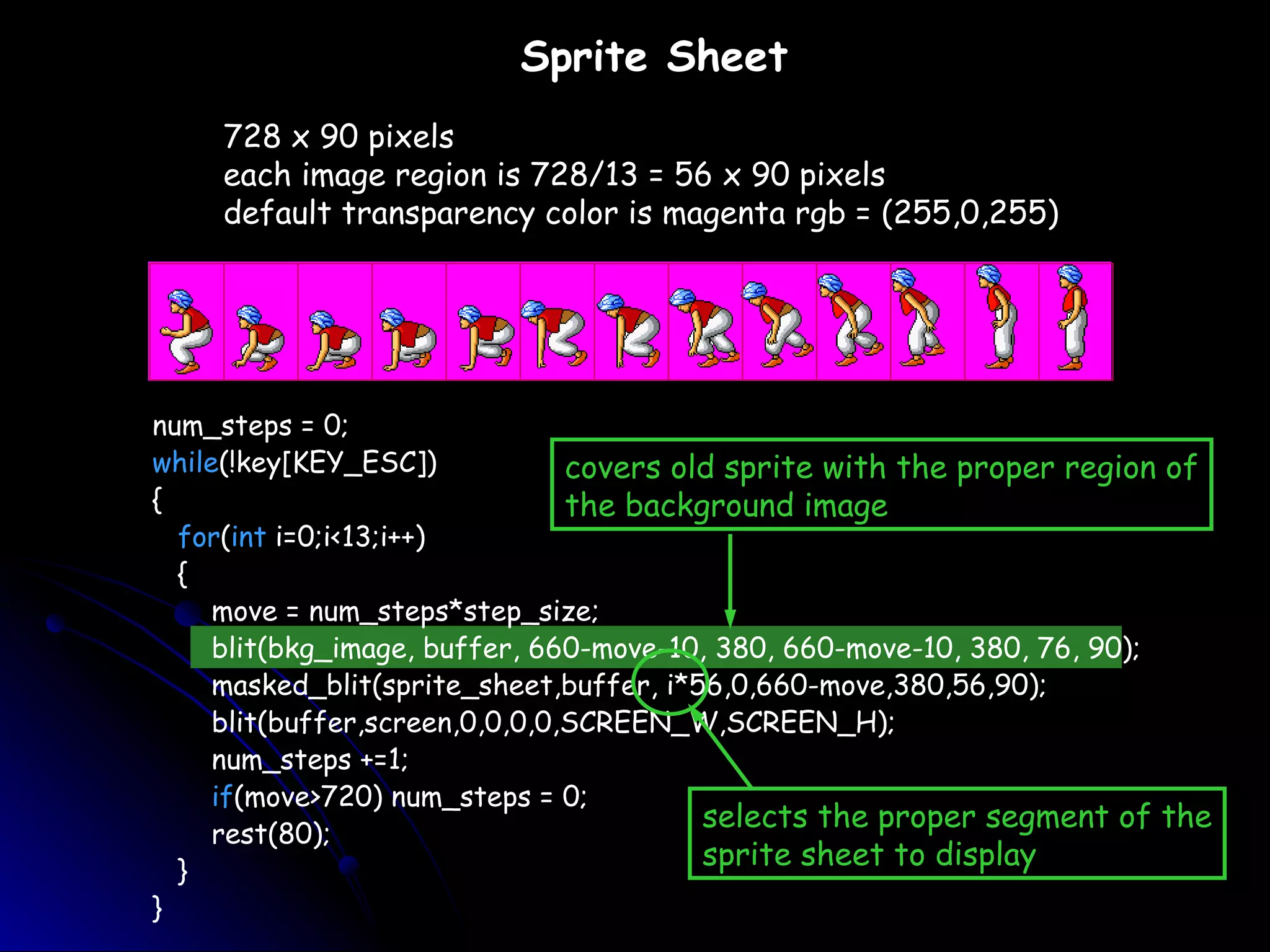

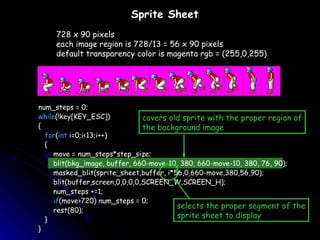

78. Sprite Sheet 728 x 90 pixels each image region is 728/13 = 56 x 90 pixels default transparency color is magenta rgb = (255,0,255) num_steps = 0; while (!key[KEY_ESC]) { for ( int i=0;i<13;i++) { move = num_steps*step_size; blit(bkg_image, buffer, 660-move-10, 380, 660-move-10, 380, 76, 90); masked_blit(sprite_sheet,buffer, i*56,0,660-move,380,56,90); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); num_steps +=1; if (move>720) num_steps = 0; rest(80); } } selects the proper segment of the sprite sheet to display covers old sprite with the proper region of the background image

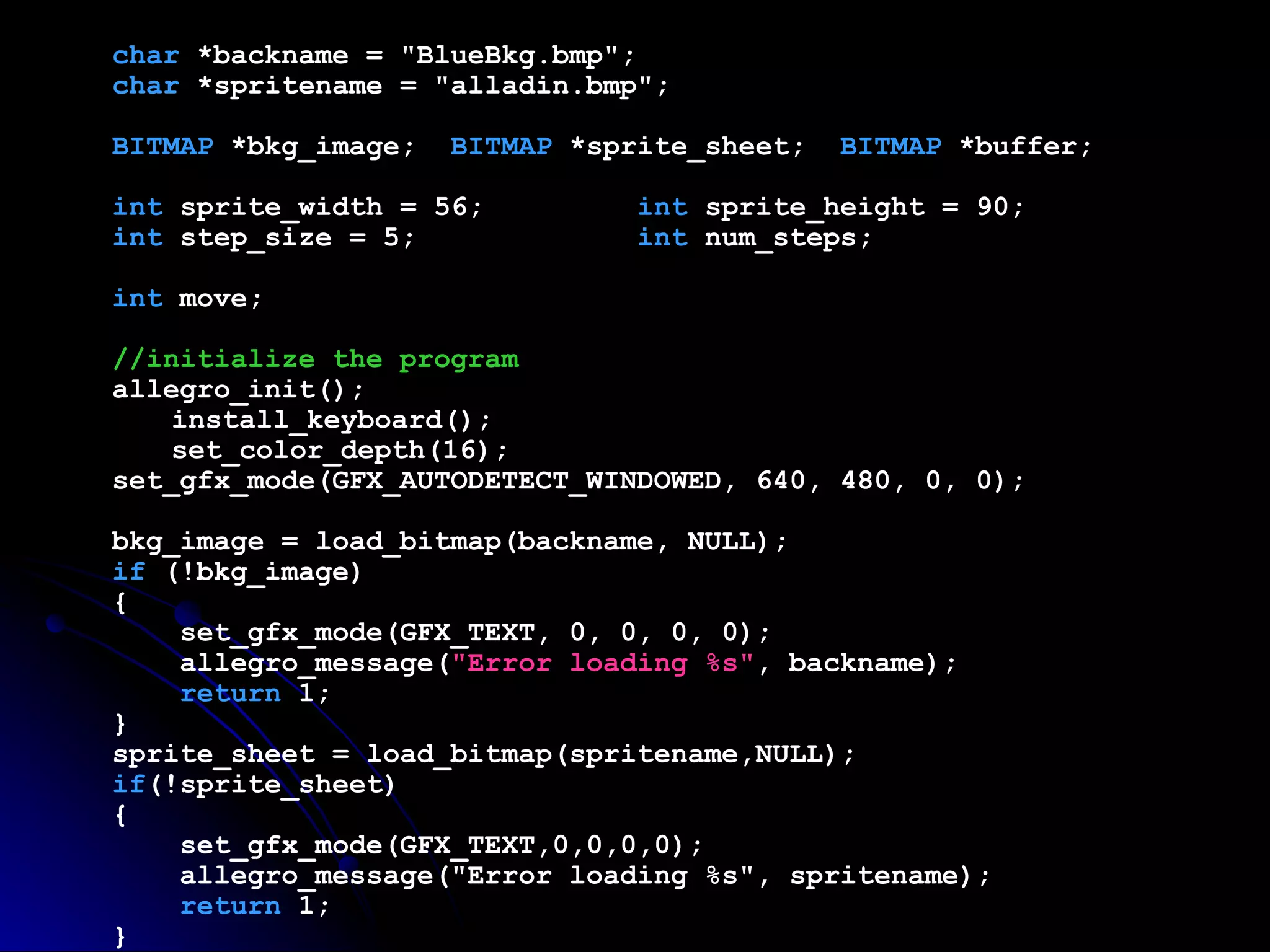

79. char *backname = &quot;BlueBkg.bmp&quot;; char *spritename = &quot;alladin.bmp&quot;; BITMAP *bkg_image; BITMAP *sprite_sheet; BITMAP *buffer; int sprite_width = 56; int sprite_height = 90; int step_size = 5; int num_steps; int move; //initialize the program allegro_init(); install_keyboard(); set_color_depth(16); set_gfx_mode(GFX_AUTODETECT_WINDOWED, 640, 480, 0, 0); bkg_image = load_bitmap(backname, NULL); if (!bkg_image) { set_gfx_mode(GFX_TEXT, 0, 0, 0, 0); allegro_message( &quot;Error loading %s&quot; , backname); return 1; } sprite_sheet = load_bitmap(spritename,NULL); if (!sprite_sheet) { set_gfx_mode(GFX_TEXT,0,0,0,0); allegro_message(&quot;Error loading %s&quot;, spritename); return 1; }

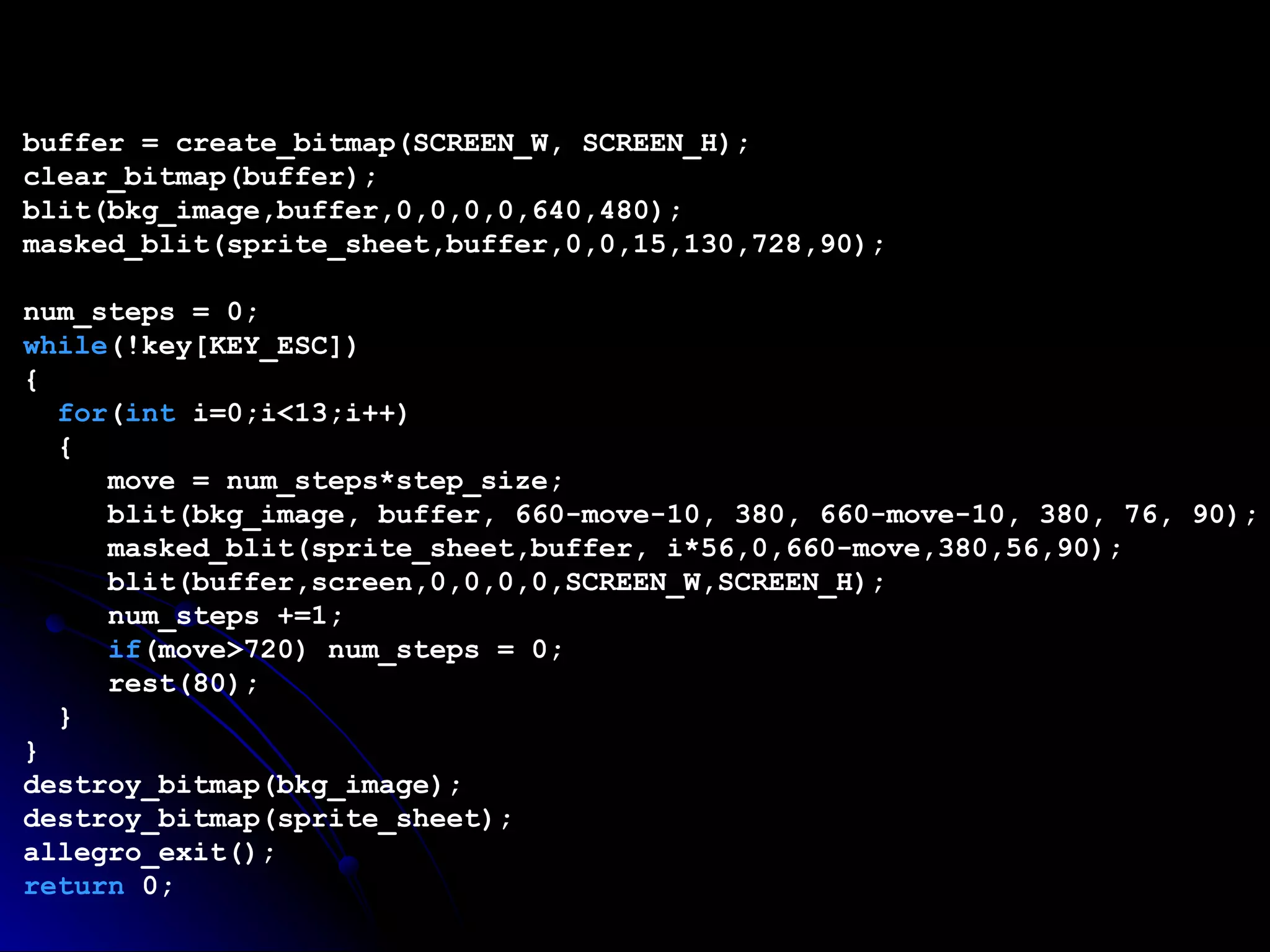

80. buffer = create_bitmap(SCREEN_W, SCREEN_H); clear_bitmap(buffer); blit(bkg_image,buffer,0,0,0,0,640,480); masked_blit(sprite_sheet,buffer,0,0,15,130,728,90); num_steps = 0; while (!key[KEY_ESC]) { for ( int i=0;i<13;i++) { move = num_steps*step_size; blit(bkg_image, buffer, 660-move-10, 380, 660-move-10, 380, 76, 90); masked_blit(sprite_sheet,buffer, i*56,0,660-move,380,56,90); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); num_steps +=1; if (move>720) num_steps = 0; rest(80); } } destroy_bitmap(bkg_image); destroy_bitmap(sprite_sheet); allegro_exit(); return 0;

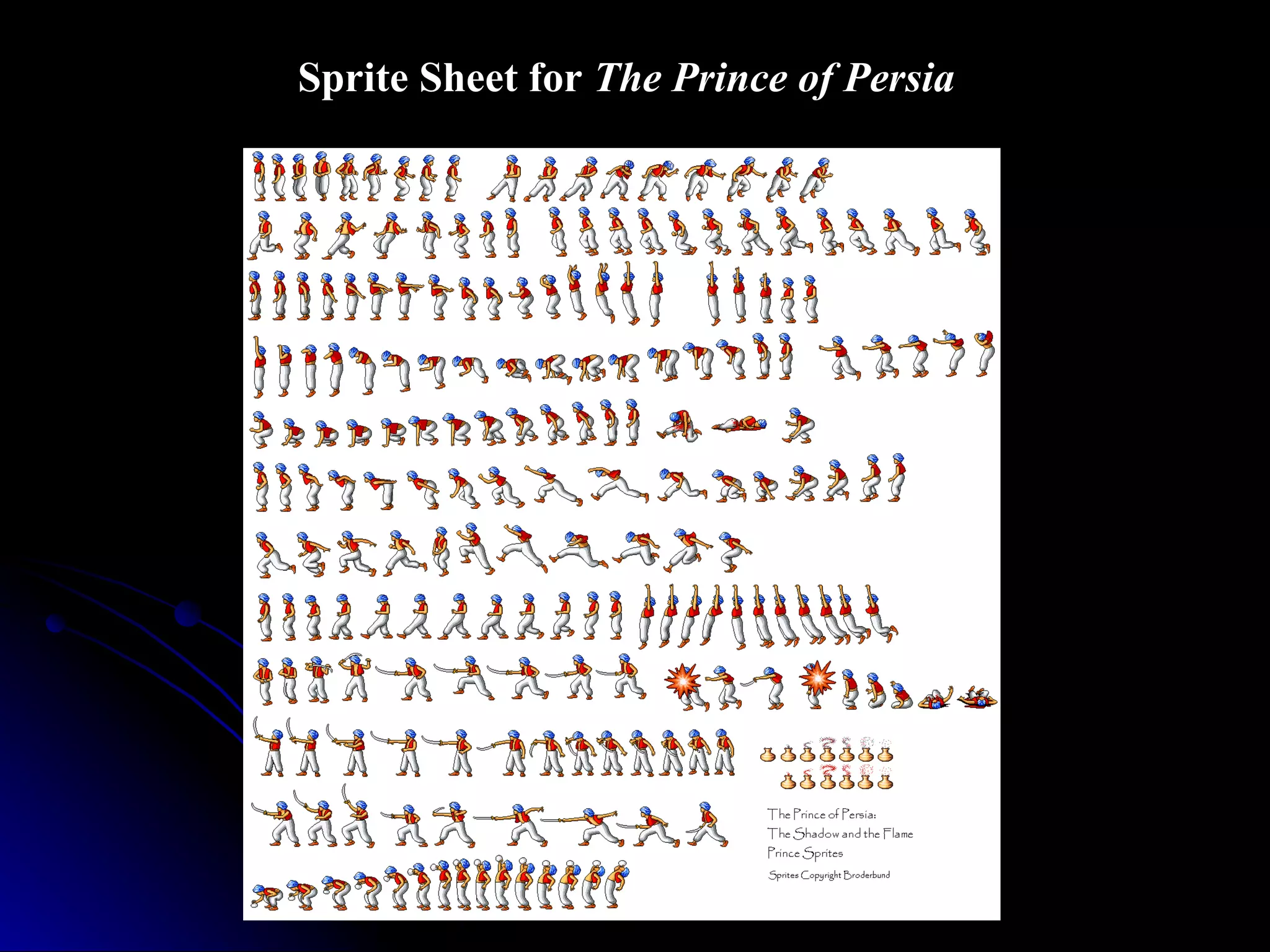

81. Sprite Sheet for The Prince of Persia

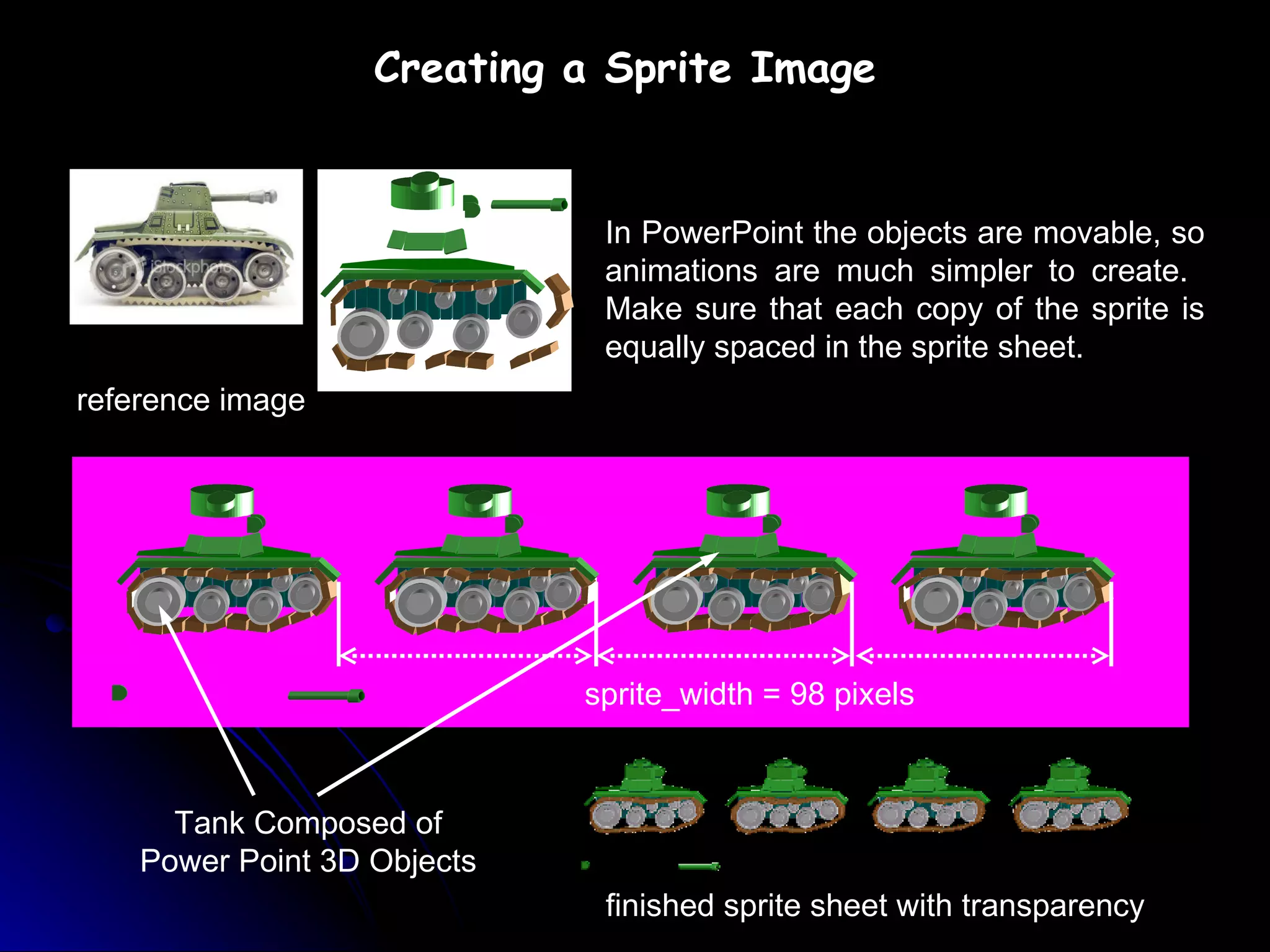

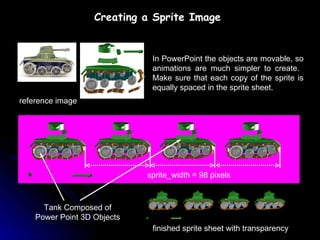

82. Creating a Sprite Image Tank Composed of Power Point 3D Objects finished sprite sheet with transparency reference image In PowerPoint the objects are movable, so animations are much simpler to create. Make sure that each copy of the sprite is equally spaced in the sprite sheet. sprite_width = 98 pixels

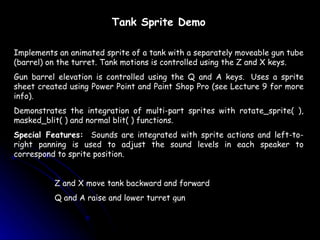

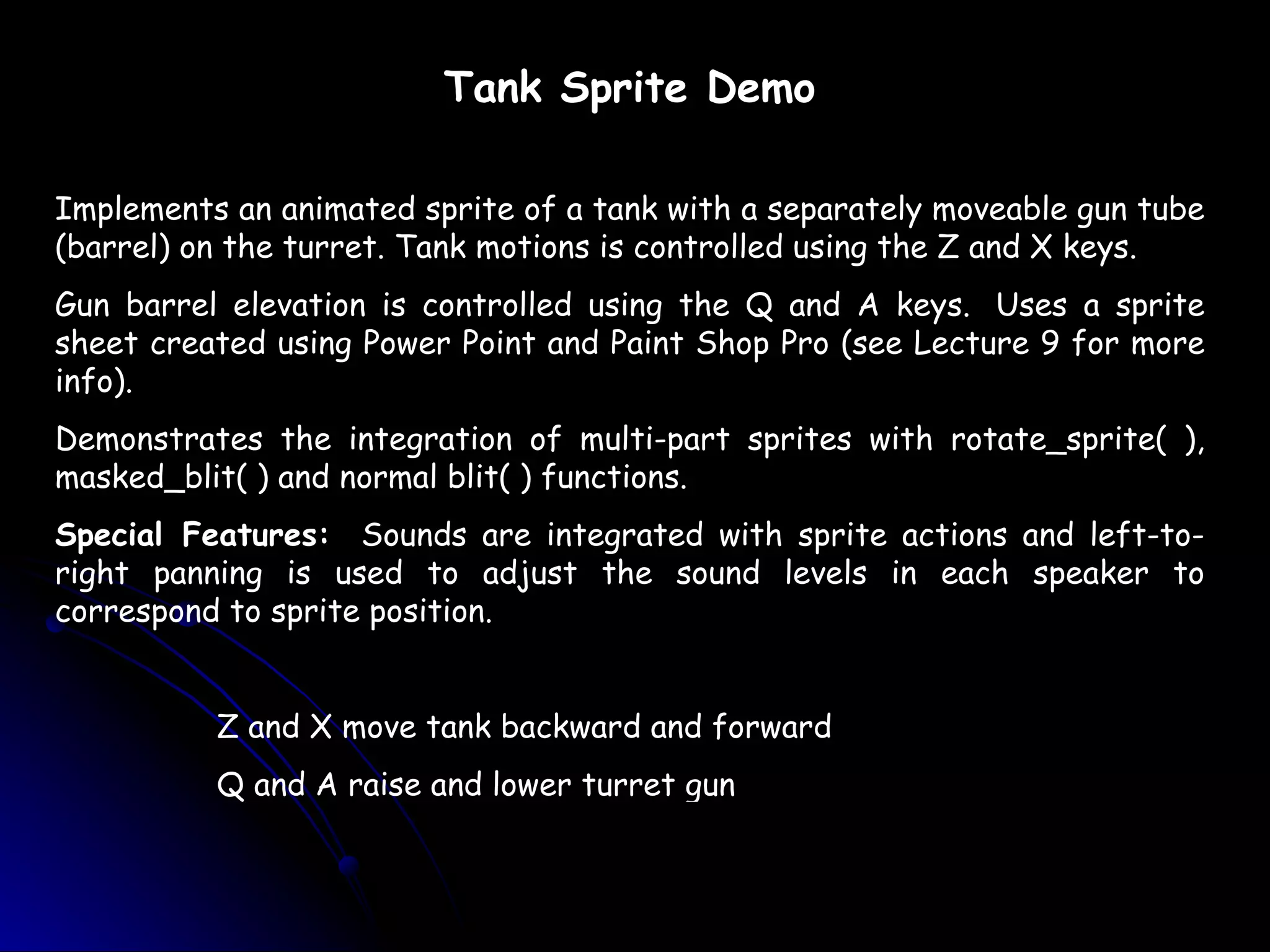

83. Tank Sprite Demo Implements an animated sprite of a tank with a separately moveable gun tube (barrel) on the turret. Tank motions is controlled using the Z and X keys. Gun barrel elevation is controlled using the Q and A keys. Uses a sprite sheet created using Power Point and Paint Shop Pro (see Lecture 9 for more info). Demonstrates the integration of multi-part sprites with rotate_sprite( ), masked_blit( ) and normal blit( ) functions. Special Features: Sounds are integrated with sprite actions and left-to-right panning is used to adjust the sound levels in each speaker to correspond to sprite position. Z and X move tank backward and forward Q and A raise and lower turret gun

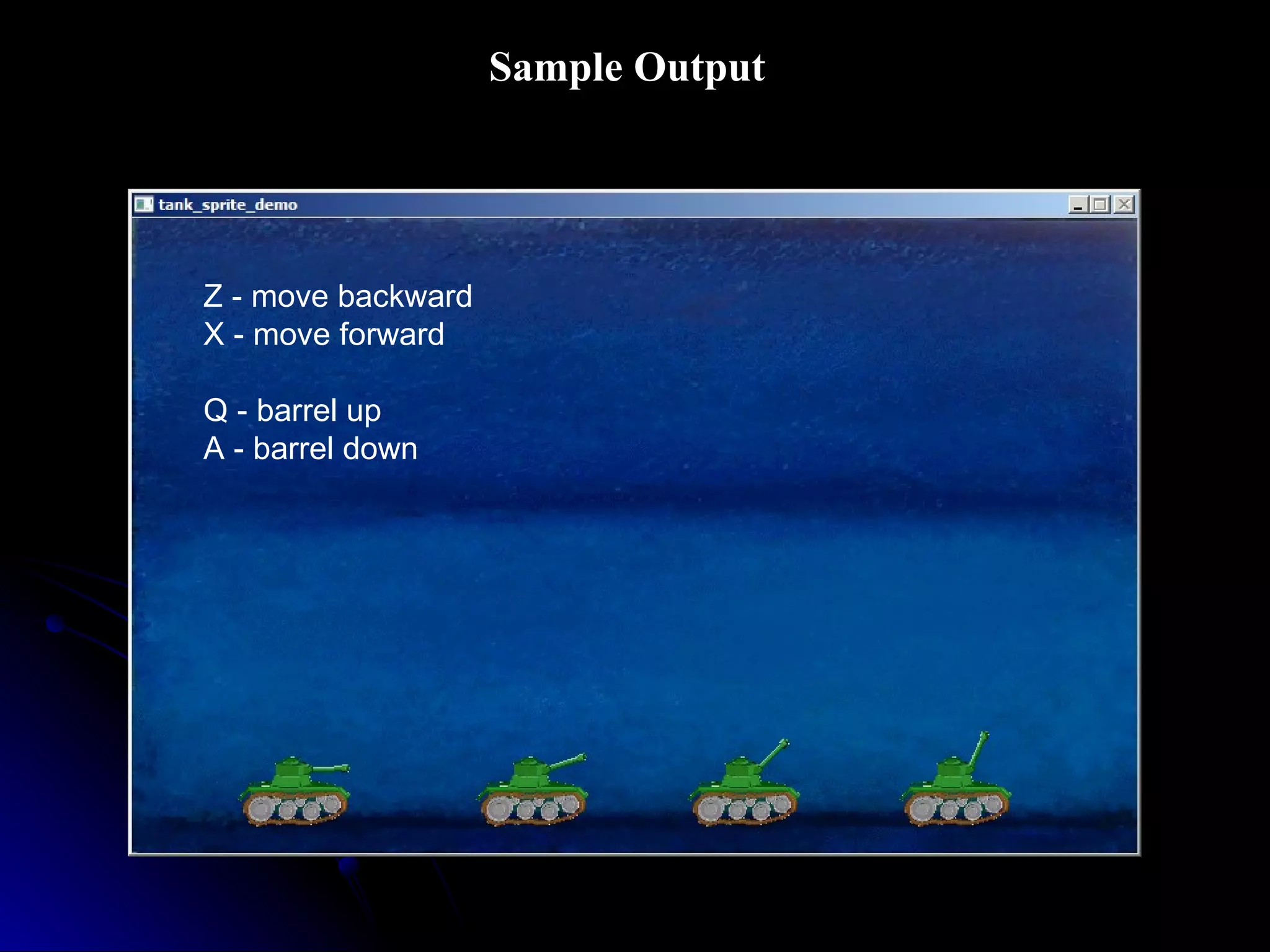

84. Sample Output Z - move backward X - move forward Q - barrel up A - barrel down

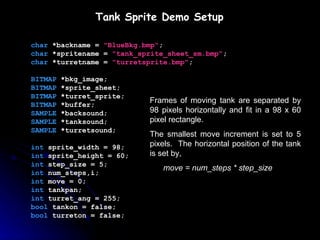

85. char *backname = &quot;BlueBkg.bmp&quot; ; char *spritename = &quot;tank_sprite_sheet_sm.bmp&quot; ; char *turretname = &quot;turretsprite.bmp&quot; ; BITMAP *bkg_image; BITMAP *sprite_sheet; BITMAP *turret_sprite; BITMAP *buffer; SAMPLE *backsound; SAMPLE *tanksound; SAMPLE *turretsound; int sprite_width = 98; int sprite_height = 60; int step_size = 5; int num_steps,i; int move = 0; int tankpan; int turret_ang = 255; bool tankon = false; bool turreton = false; Tank Sprite Demo Setup Frames of moving tank are separated by 98 pixels horizontally and fit in a 98 x 60 pixel rectangle. The smallest move increment is set to 5 pixels. The horizontal position of the tank is set by, move = num_steps * step_size

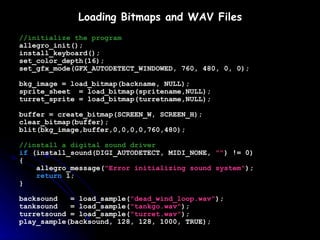

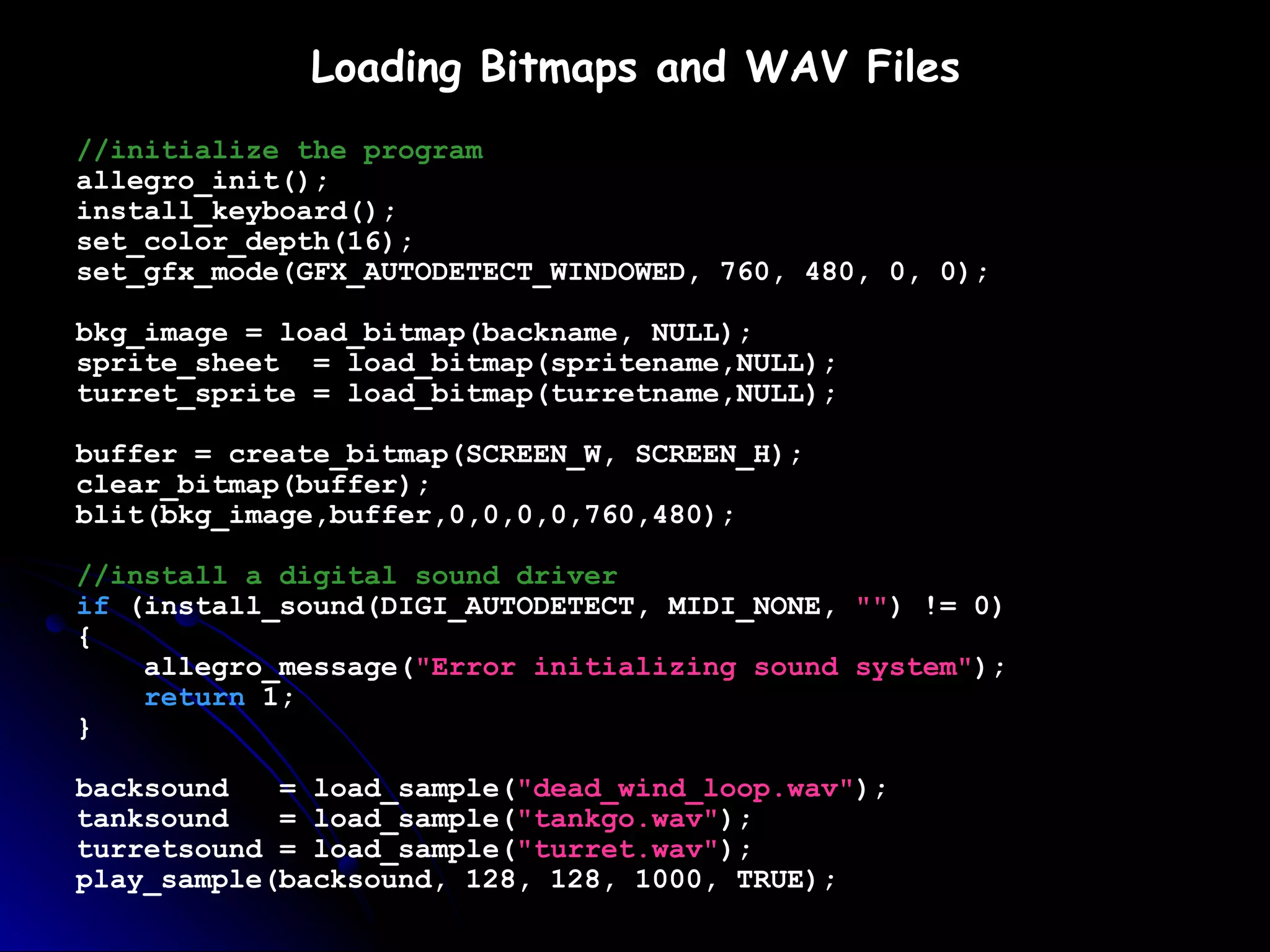

86. //initialize the program allegro_init(); install_keyboard(); set_color_depth(16); set_gfx_mode(GFX_AUTODETECT_WINDOWED, 760, 480, 0, 0); bkg_image = load_bitmap(backname, NULL); sprite_sheet = load_bitmap(spritename,NULL); turret_sprite = load_bitmap(turretname,NULL); buffer = create_bitmap(SCREEN_W, SCREEN_H); clear_bitmap(buffer); blit(bkg_image,buffer,0,0,0,0,760,480); //install a digital sound driver if (install_sound(DIGI_AUTODETECT, MIDI_NONE, &quot;&quot; ) != 0) { allegro_message( &quot;Error initializing sound system&quot; ); return 1; } backsound = load_sample( &quot;dead_wind_loop.wav&quot; ); tanksound = load_sample( &quot;tankgo.wav&quot; ); turretsound = load_sample( &quot;turret.wav&quot; ); play_sample(backsound, 128, 128, 1000, TRUE); Loading Bitmaps and WAV Files

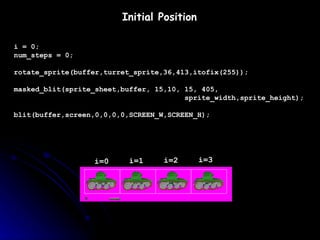

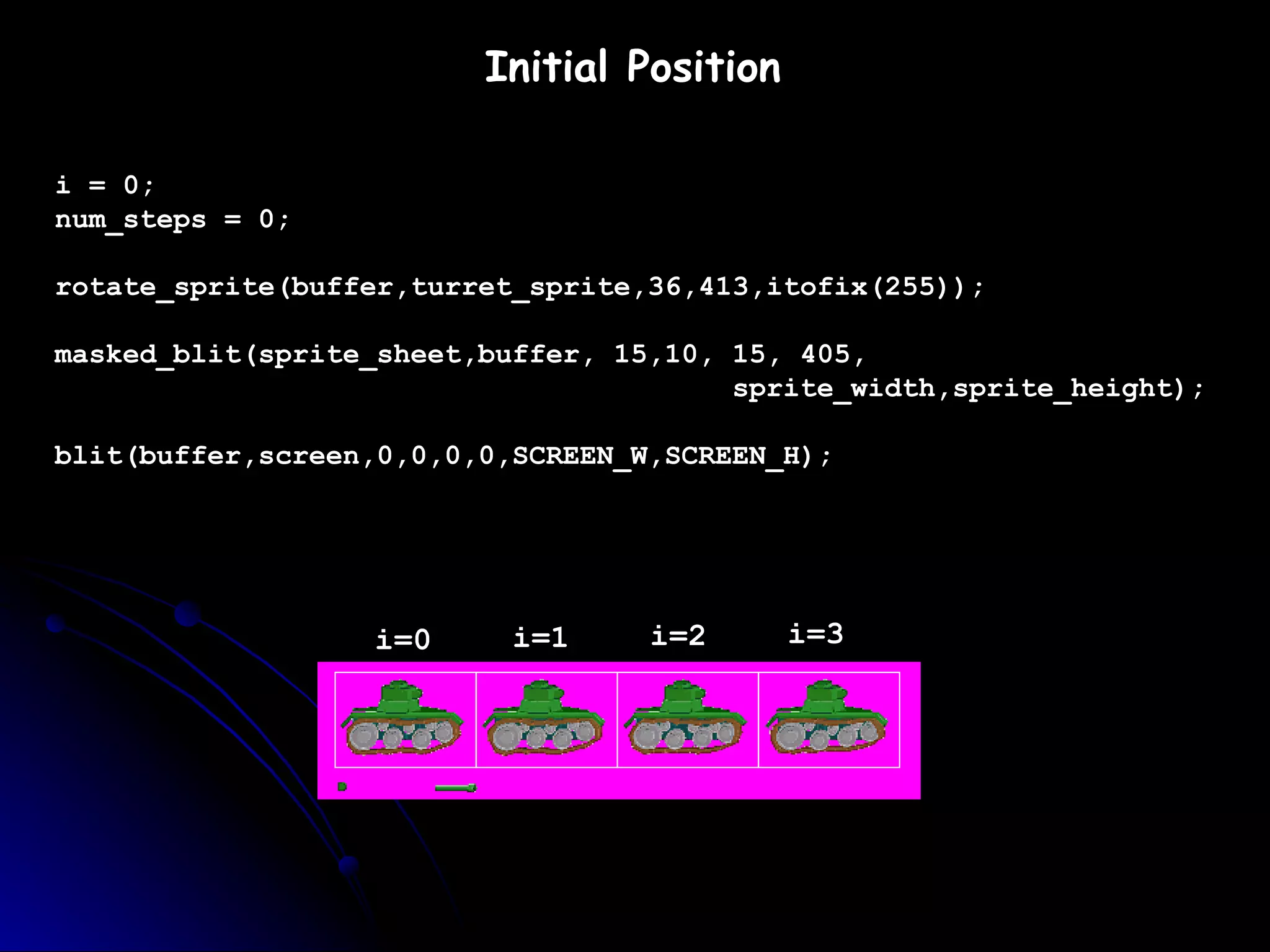

87. i = 0; num_steps = 0; rotate_sprite(buffer,turret_sprite,36,413,itofix(255)); masked_blit(sprite_sheet,buffer, 15,10, 15, 405, sprite_width,sprite_height); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); i=0 i=1 i=2 i=3 Initial Position

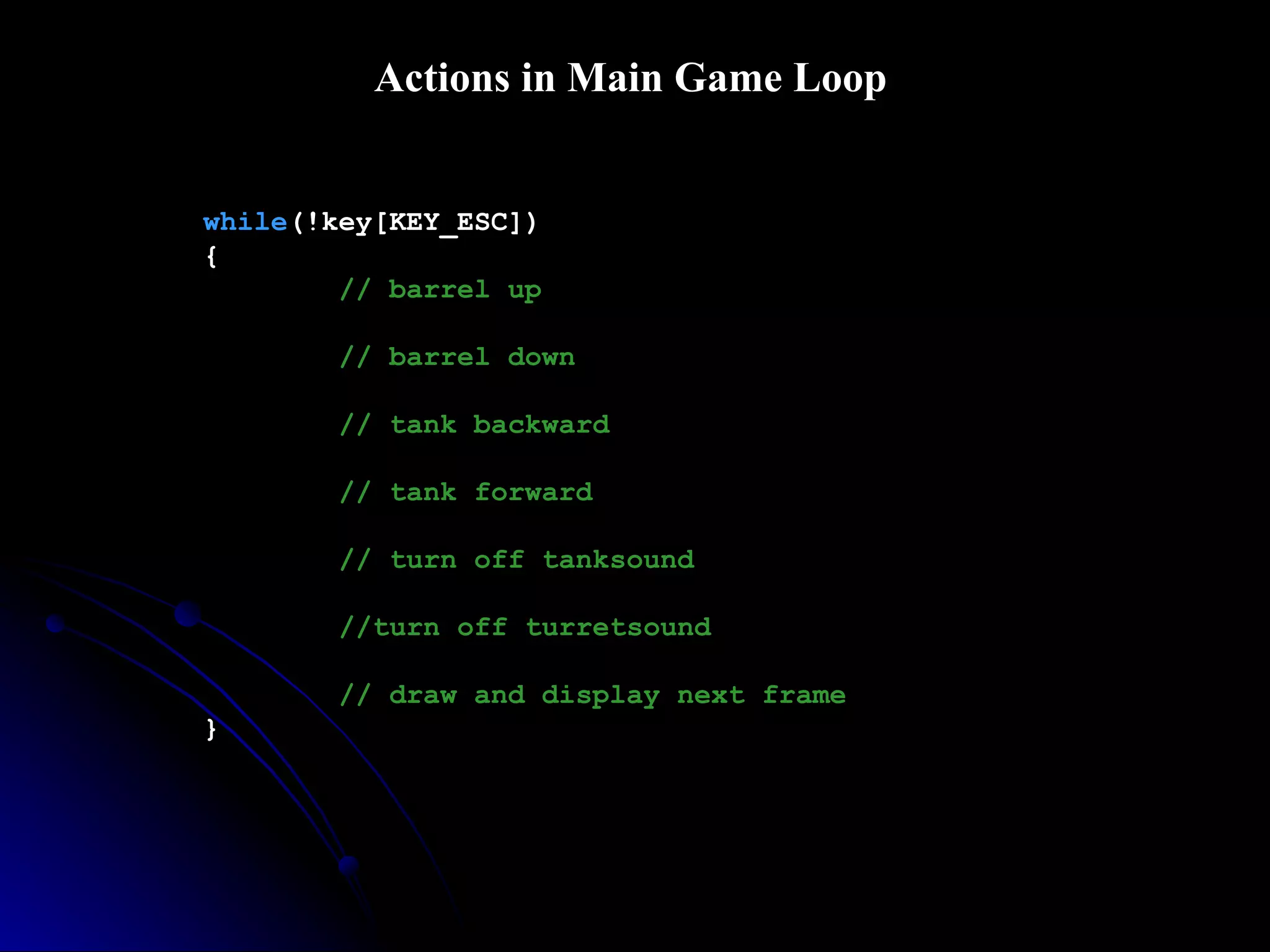

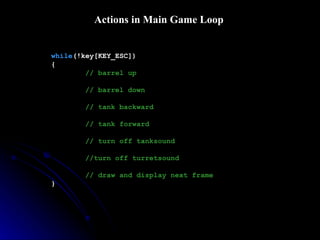

88. while (!key[KEY_ESC]) { // barrel up // barrel down // tank backward // tank forward // turn off tanksound //turn off turretsound // draw and display next frame } Actions in Main Game Loop

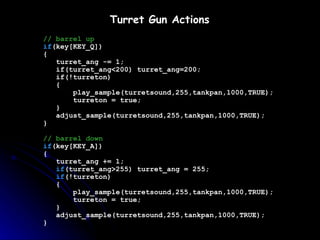

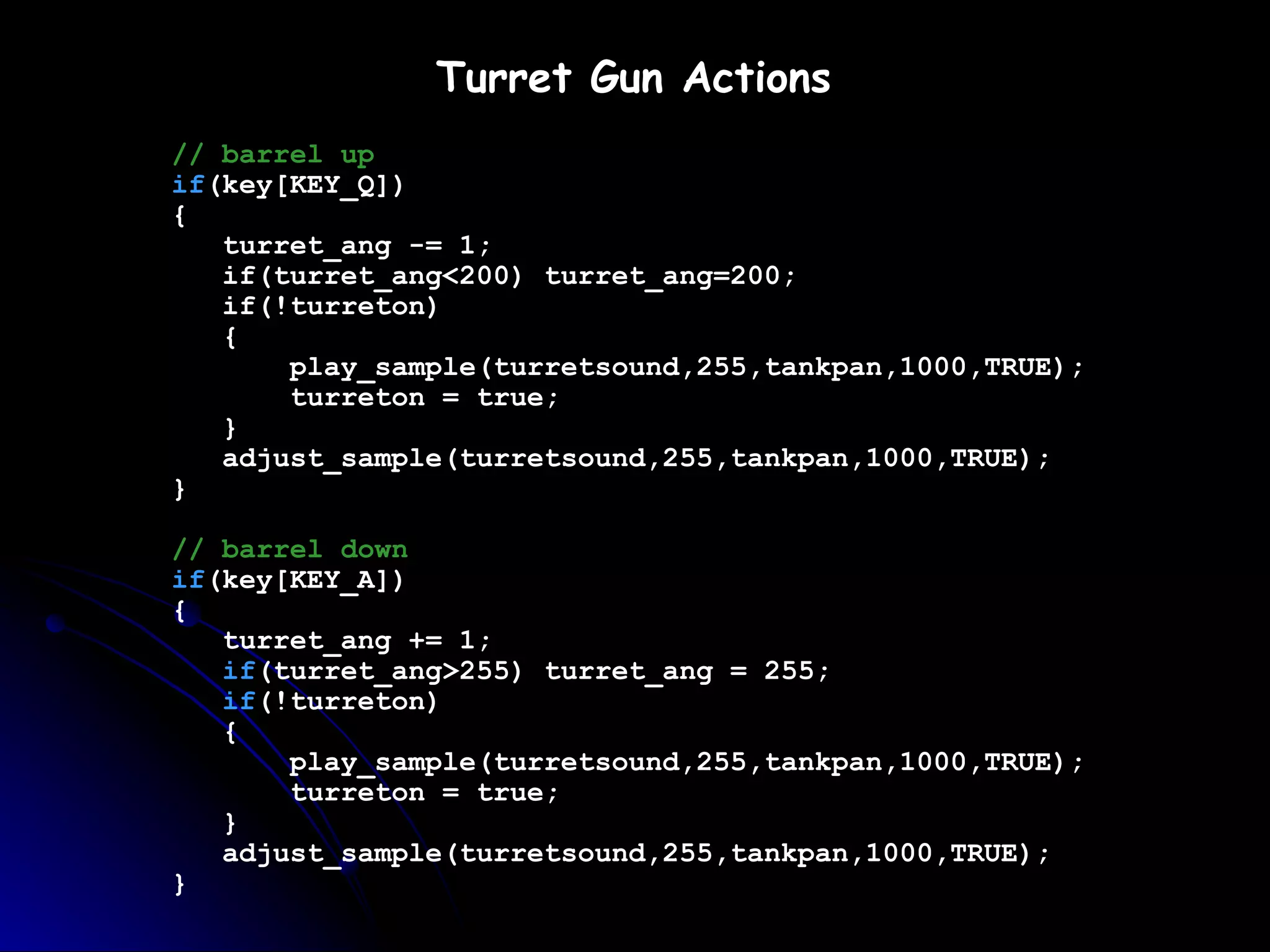

89. // barrel up if (key[KEY_Q]) { turret_ang -= 1; if(turret_ang<200) turret_ang=200; if(!turreton) { play_sample(turretsound,255,tankpan,1000,TRUE); turreton = true; } adjust_sample(turretsound,255,tankpan,1000,TRUE); } // barrel down if (key[KEY_A]) { turret_ang += 1; if (turret_ang>255) turret_ang = 255; if (!turreton) { play_sample(turretsound,255,tankpan,1000,TRUE); turreton = true; } adjust_sample(turretsound,255,tankpan,1000,TRUE); } Turret Gun Actions

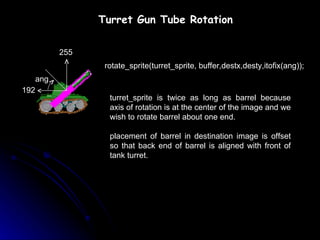

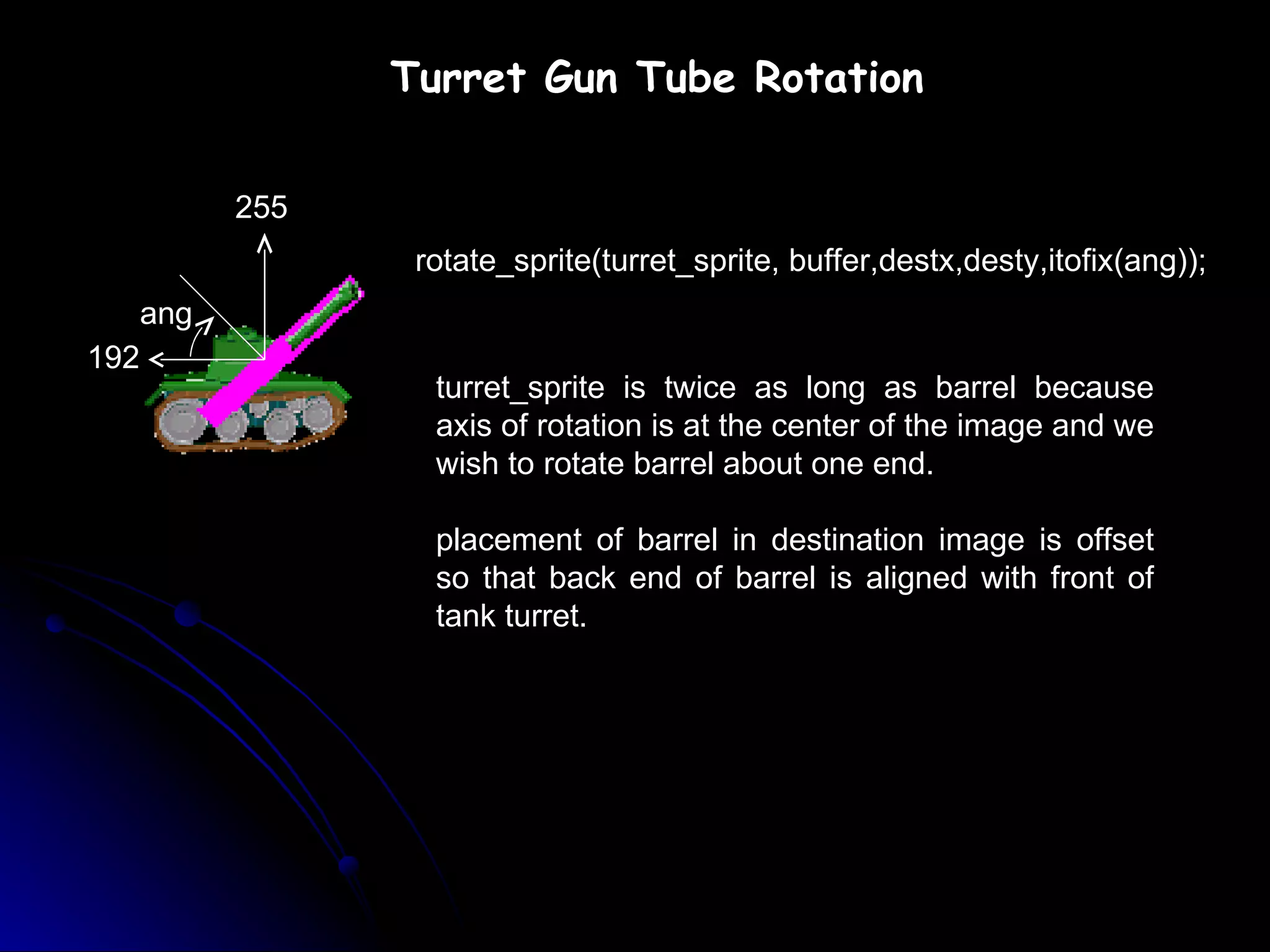

90. Turret Gun Tube Rotation rotate_sprite(turret_sprite, buffer,destx,desty,itofix(ang)); 255 192 ang turret_sprite is twice as long as barrel because axis of rotation is at the center of the image and we wish to rotate barrel about one end. placement of barrel in destination image is offset so that back end of barrel is aligned with front of tank turret.

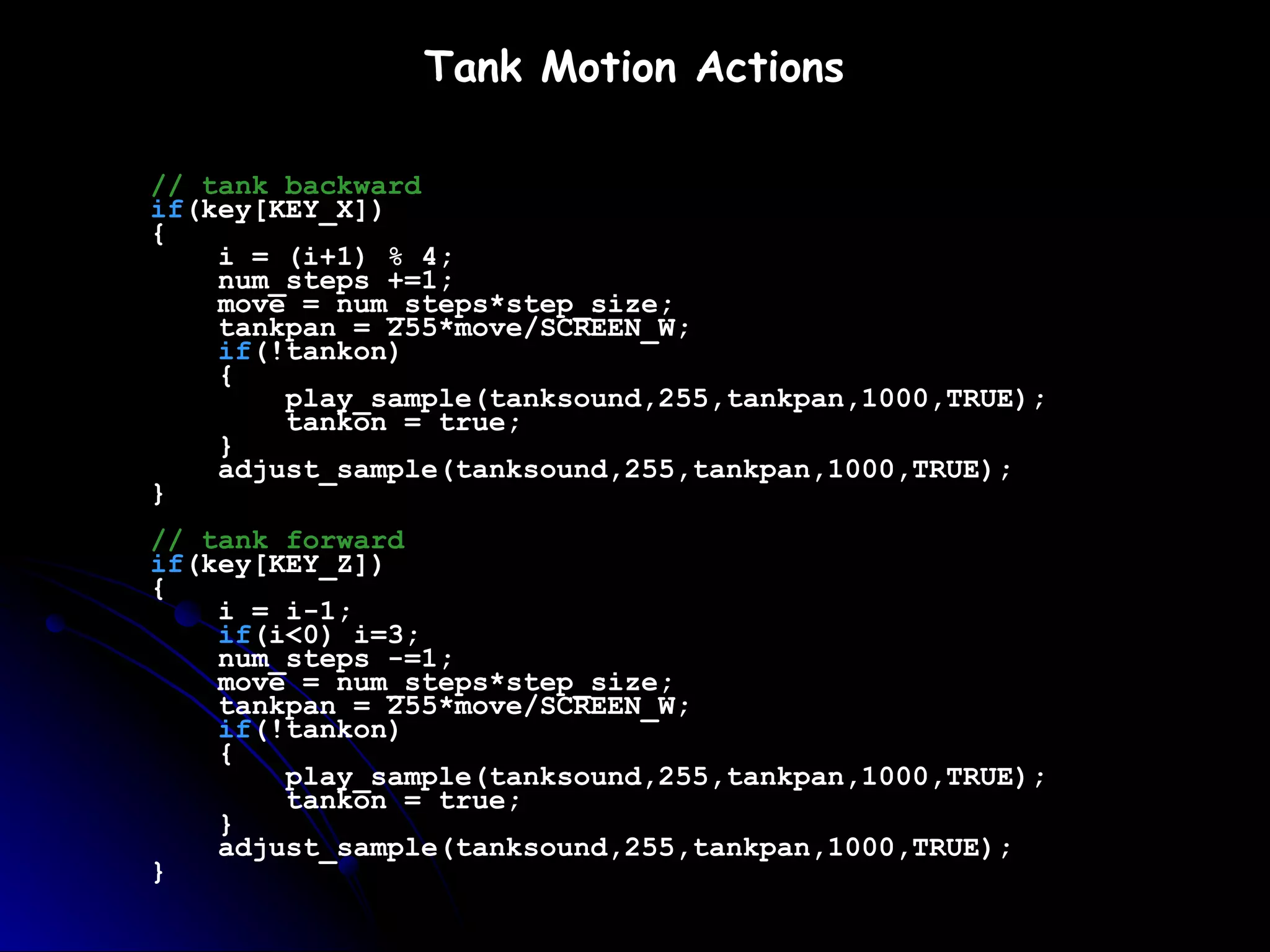

91. // tank backward if (key[KEY_X]) { i = (i+1) % 4; num_steps +=1; move = num_steps*step_size; tankpan = 255*move/SCREEN_W; if (!tankon) { play_sample(tanksound,255,tankpan,1000,TRUE); tankon = true; } adjust_sample(tanksound,255,tankpan,1000,TRUE); } // tank forward if (key[KEY_Z]) { i = i-1; if (i<0) i=3; num_steps -=1; move = num_steps*step_size; tankpan = 255*move/SCREEN_W; if (!tankon) { play_sample(tanksound,255,tankpan,1000,TRUE); tankon = true; } adjust_sample(tanksound,255,tankpan,1000,TRUE); } Tank Motion Actions

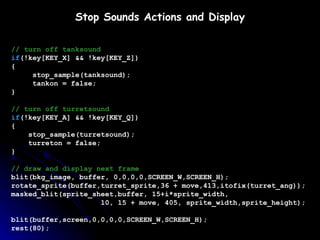

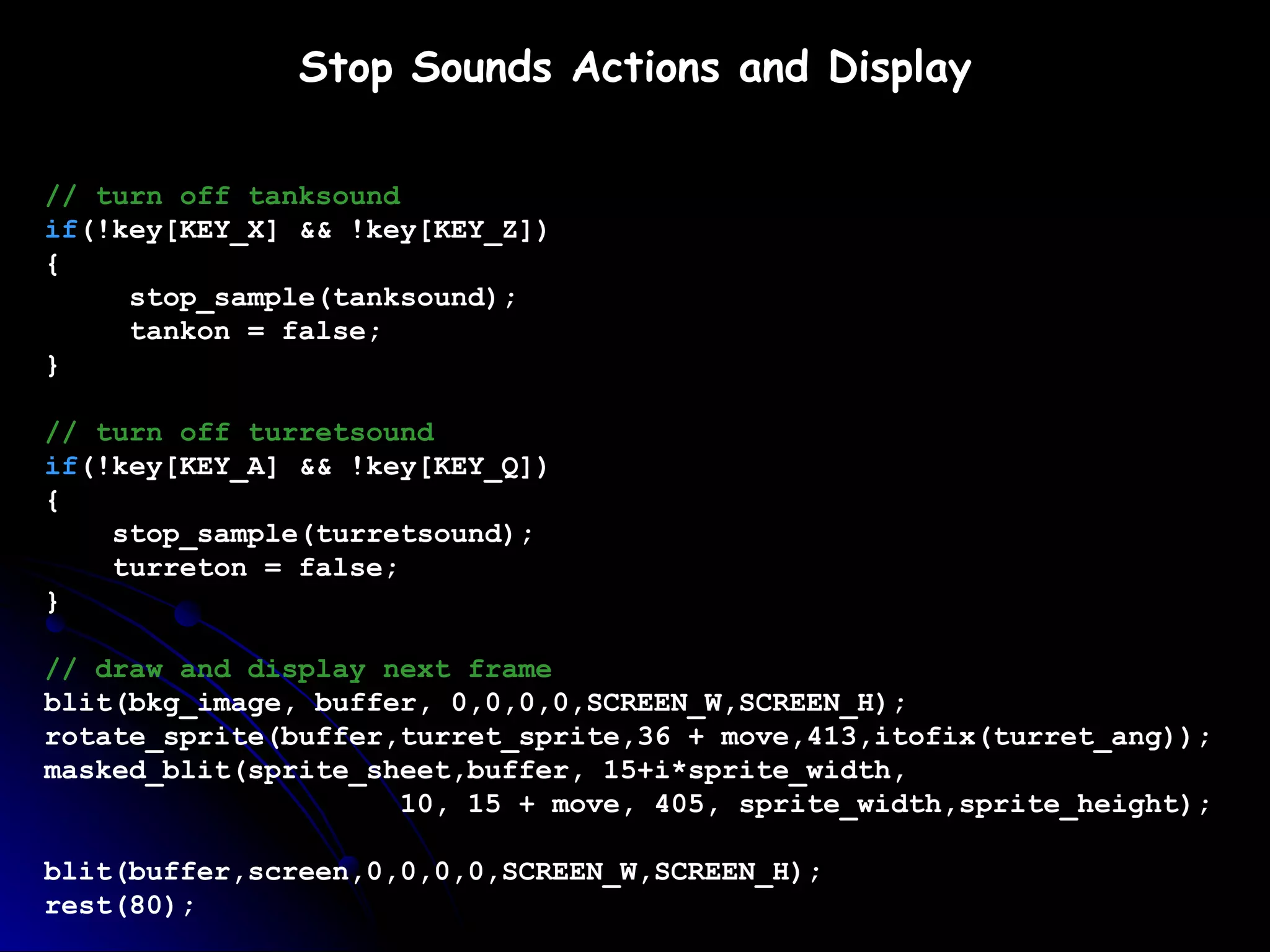

92. // turn off tanksound if (!key[KEY_X] && !key[KEY_Z]) { stop_sample(tanksound); tankon = false; } // turn off turretsound if (!key[KEY_A] && !key[KEY_Q]) { stop_sample(turretsound); turreton = false; } // draw and display next frame blit(bkg_image, buffer, 0,0,0,0,SCREEN_W,SCREEN_H); rotate_sprite(buffer,turret_sprite,36 + move,413,itofix(turret_ang)); masked_blit(sprite_sheet,buffer, 15+i*sprite_width, 10, 15 + move, 405, sprite_width,sprite_height); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); rest(80); Stop Sounds Actions and Display

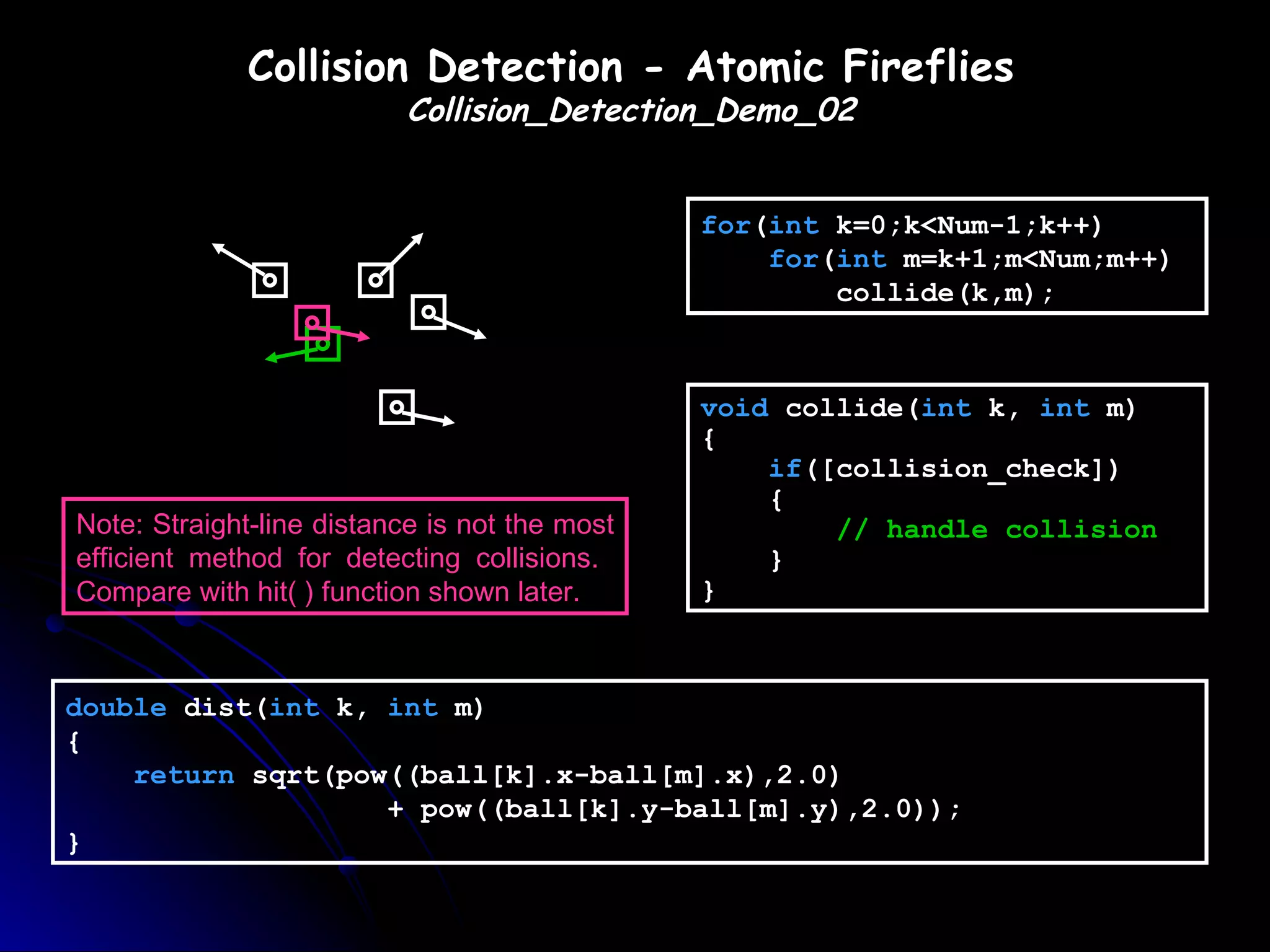

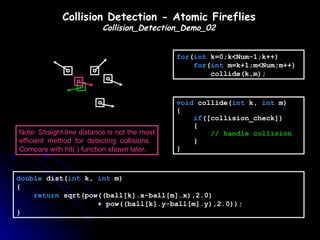

93. Collision Detection - Atomic Fireflies Collision_Detection_Demo_02 for ( int k=0;k<Num-1;k++) for ( int m=k+1;m<Num;m++) collide(k,m); void collide( int k, int m) { if ([collision_check]) { // handle collision } } double dist( int k, int m) { return sqrt(pow((ball[k].x-ball[m].x),2.0) + pow((ball[k].y-ball[m].y),2.0)); } Note: Straight-line distance is not the most efficient method for detecting collisions. Compare with hit( ) function shown later.

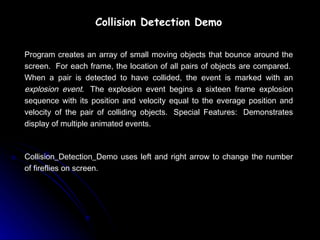

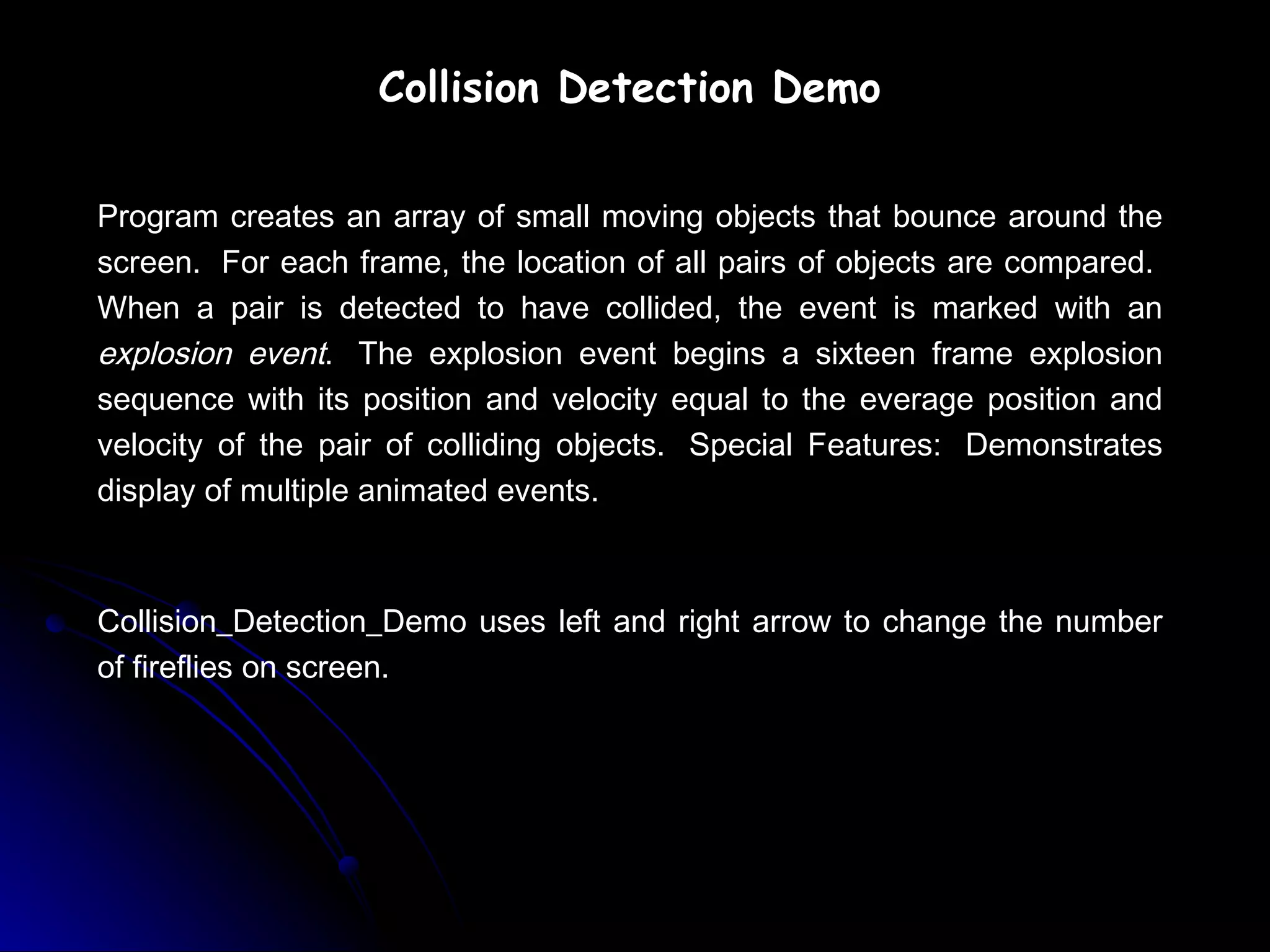

94. Collision Detection Demo Program creates an array of small moving objects that bounce around the screen. For each frame, the location of all pairs of objects are compared. When a pair is detected to have collided, the event is marked with an explosion event . The explosion event begins a sixteen frame explosion sequence with its position and velocity equal to the everage position and velocity of the pair of colliding objects. Special Features: Demonstrates display of multiple animated events. Collision_Detection_Demo uses left and right arrow to change the number of fireflies on screen.

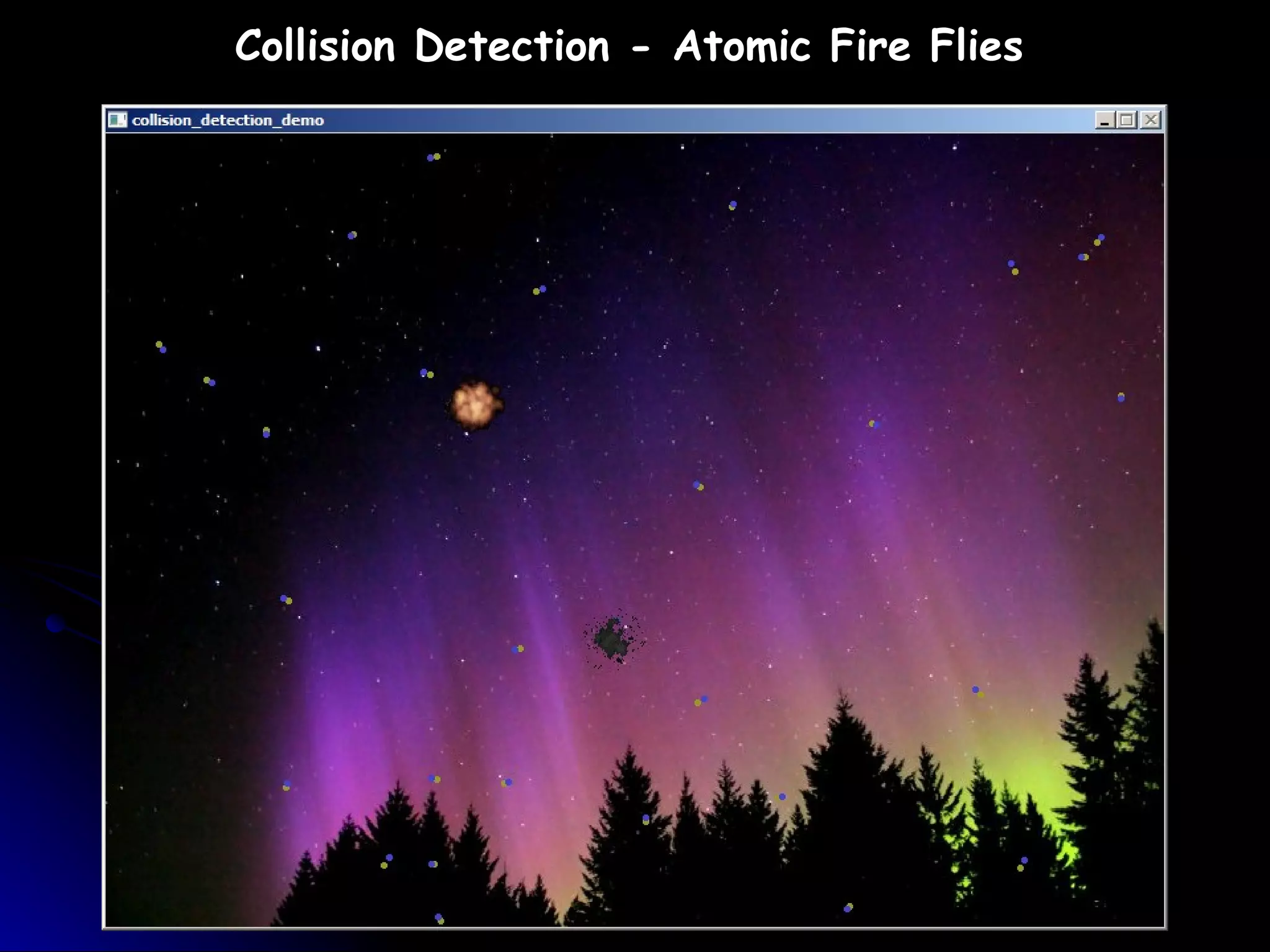

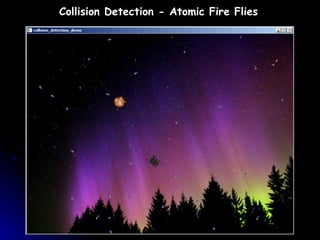

95. Collision Detection - Atomic Fire Flies

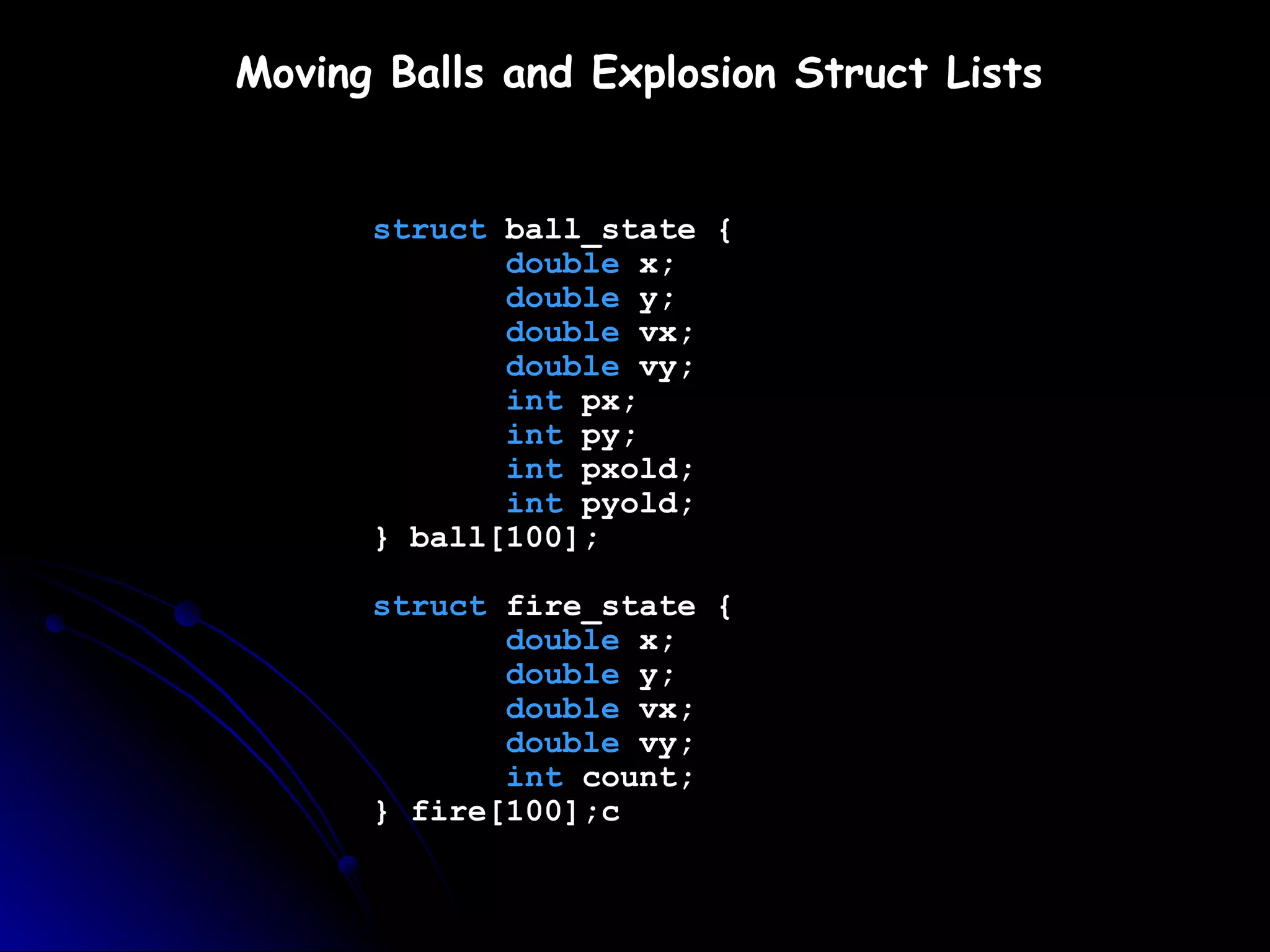

96. struct ball_state { double x; double y; double vx; double vy; int px; int py; int pxold; int pyold; } ball[100]; struct fire_state { double x; double y; double vx; double vy; int count; } fire[100];c Moving Balls and Explosion Struct Lists

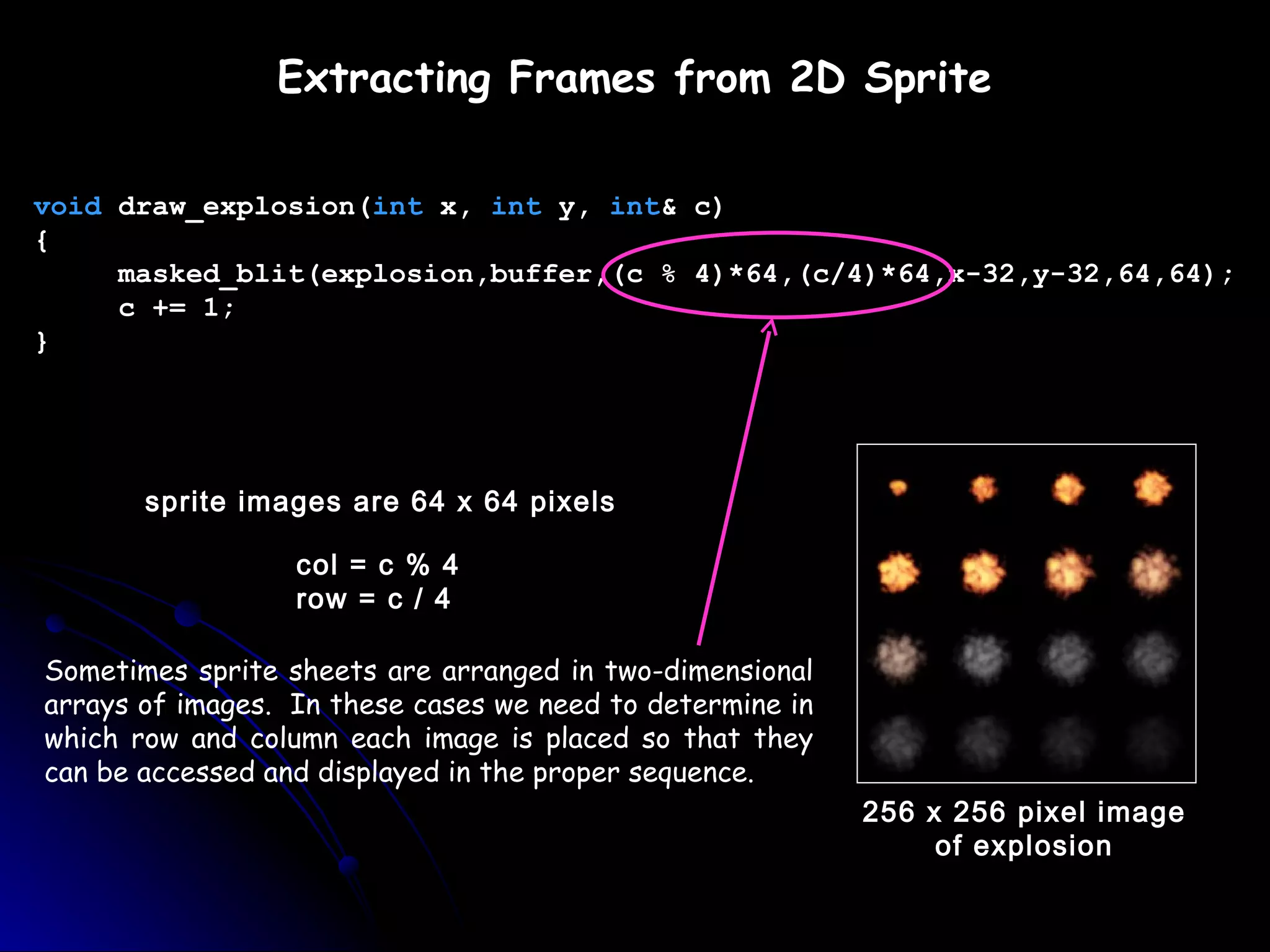

97. void draw_explosion( int x, int y, int & c) { masked_blit(explosion,buffer,(c % 4)*64,(c/4)*64,x-32,y-32,64,64); c += 1; } 256 x 256 pixel image of explosion col = c % 4 row = c / 4 sprite images are 64 x 64 pixels Extracting Frames from 2D Sprite Sometimes sprite sheets are arranged in two-dimensional arrays of images. In these cases we need to determine in which row and column each image is placed so that they can be accessed and displayed in the proper sequence.

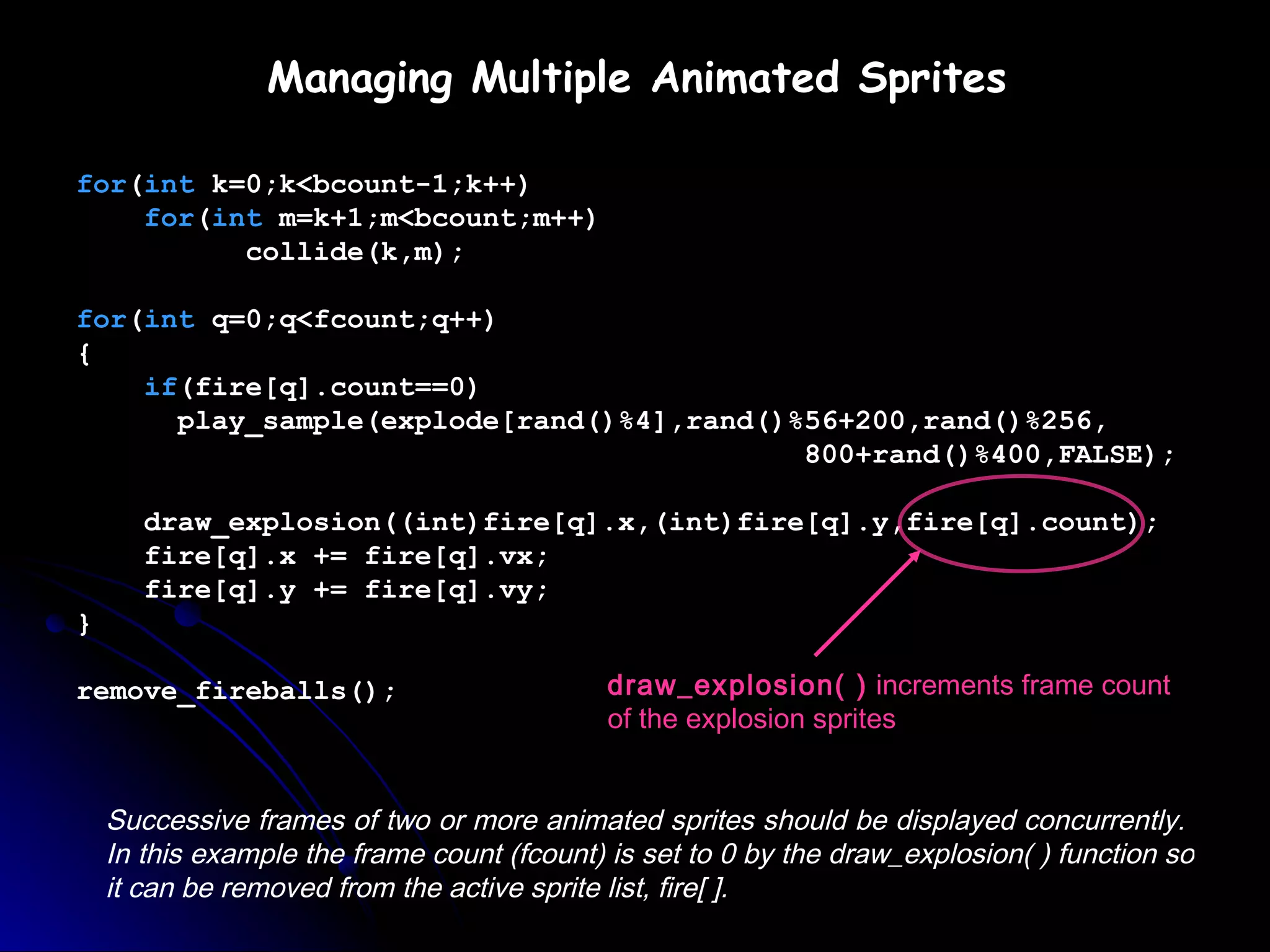

98. for ( int k=0;k<bcount-1;k++) for ( int m=k+1;m<bcount;m++) collide(k,m); for ( int q=0;q<fcount;q++) { if (fire[q].count==0) play_sample(explode[rand()%4],rand()%56+200,rand()%256, 800+rand()%400,FALSE); draw_explosion((int)fire[q].x,(int)fire[q].y,fire[q].count); fire[q].x += fire[q].vx; fire[q].y += fire[q].vy; } remove_fireballs(); Managing Multiple Animated Sprites Successive frames of two or more animated sprites should be displayed concurrently. In this example the frame count (fcount) is set to 0 by the draw_explosion( ) function so it can be removed from the active sprite list, fire[ ]. draw_explosion( ) increments frame count of the explosion sprites

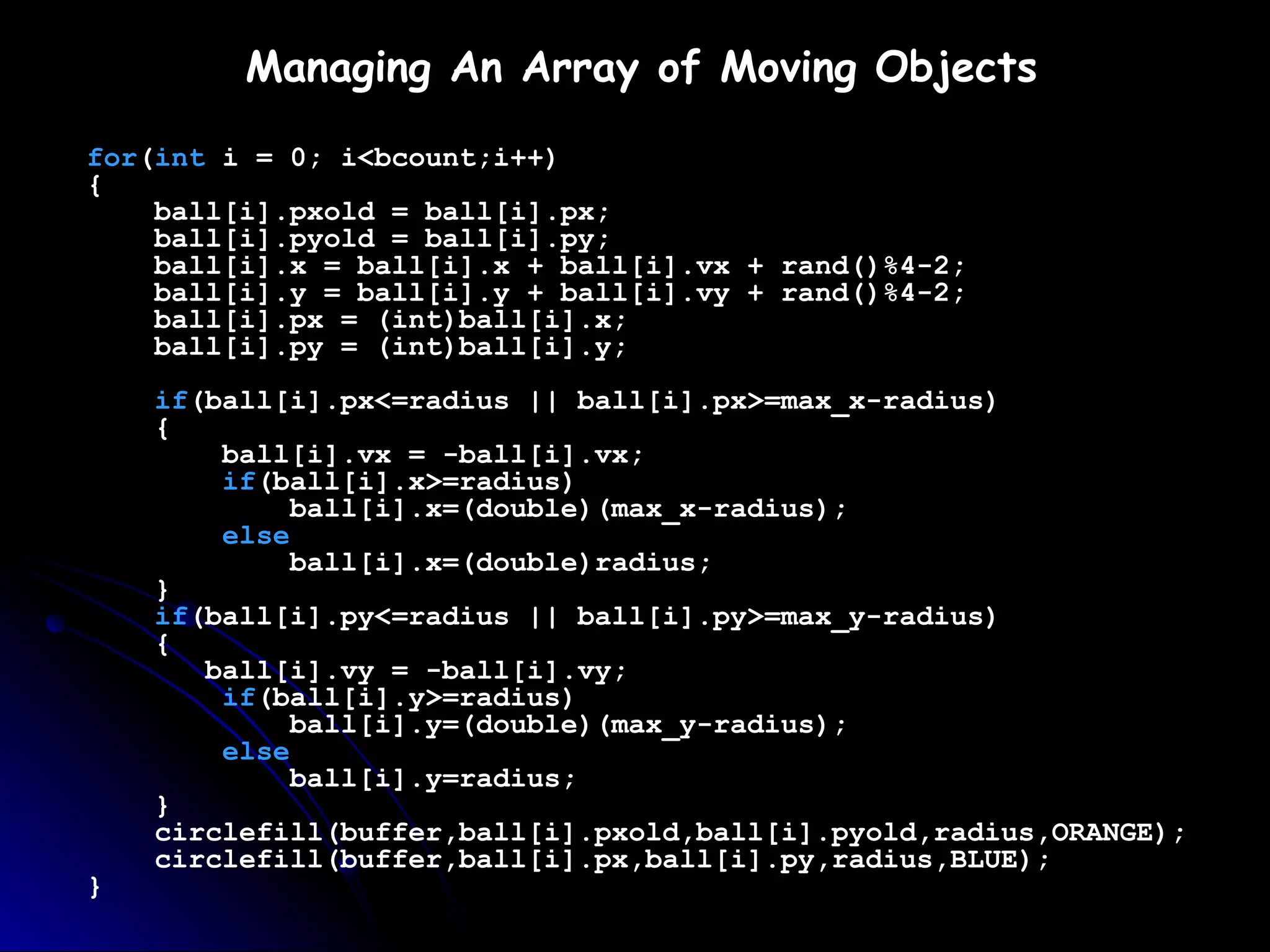

99. for ( int i = 0; i<bcount;i++) { ball[i].pxold = ball[i].px; ball[i].pyold = ball[i].py; ball[i].x = ball[i].x + ball[i].vx + rand()%4-2; ball[i].y = ball[i].y + ball[i].vy + rand()%4-2; ball[i].px = (int)ball[i].x; ball[i].py = (int)ball[i].y; if (ball[i].px<=radius || ball[i].px>=max_x-radius) { ball[i].vx = -ball[i].vx; if (ball[i].x>=radius) ball[i].x=(double)(max_x-radius); else ball[i].x=(double)radius; } if (ball[i].py<=radius || ball[i].py>=max_y-radius) { ball[i].vy = -ball[i].vy; if (ball[i].y>=radius) ball[i].y=(double)(max_y-radius); else ball[i].y=radius; } circlefill(buffer,ball[i].pxold,ball[i].pyold,radius,ORANGE); circlefill(buffer,ball[i].px,ball[i].py,radius,BLUE); } Managing An Array of Moving Objects

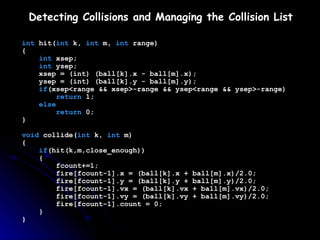

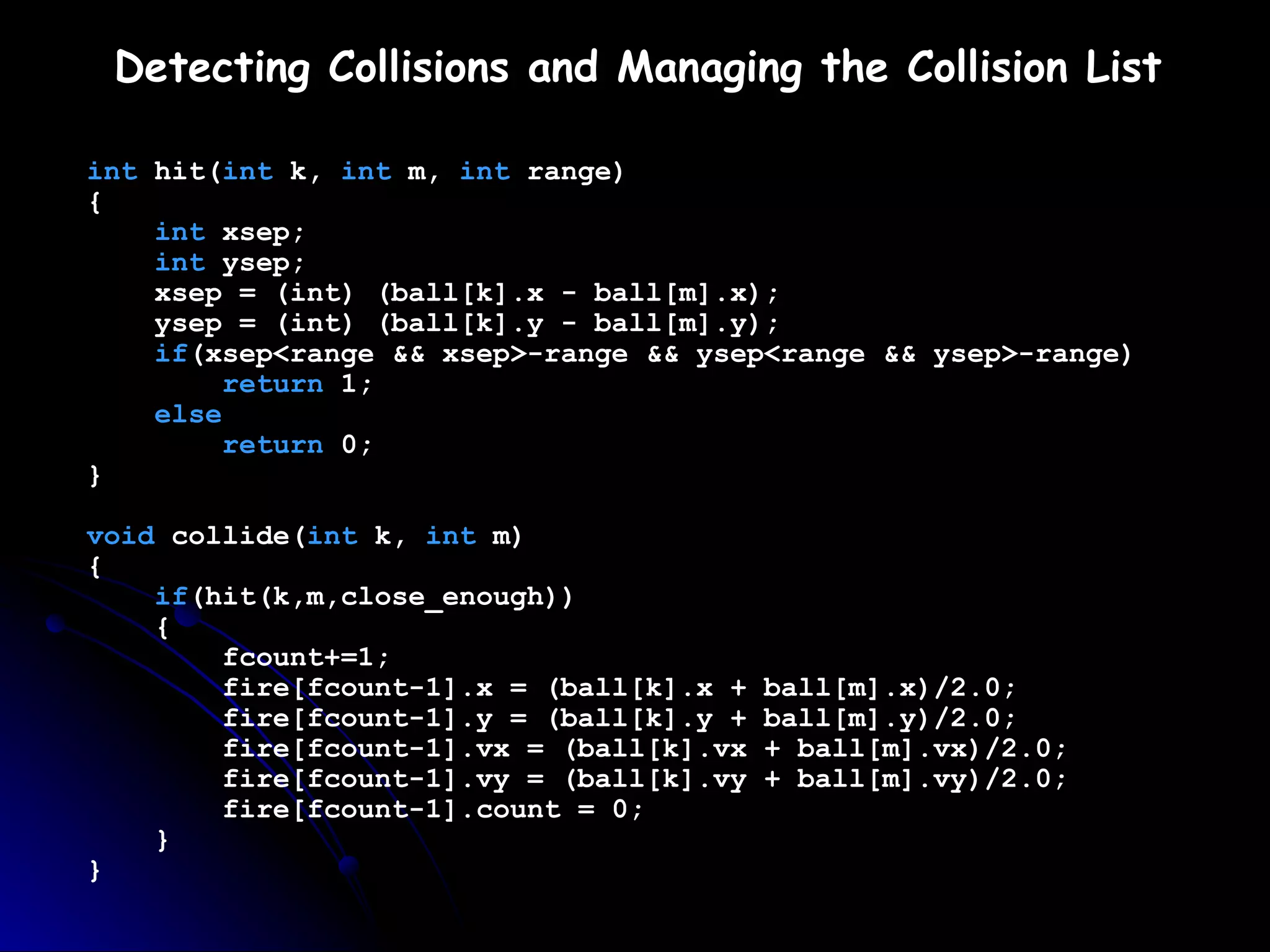

100. int hit( int k, int m, int range) { int xsep; int ysep; xsep = (int) (ball[k].x - ball[m].x); ysep = (int) (ball[k].y - ball[m].y); if (xsep<range && xsep>-range && ysep<range && ysep>-range) return 1; else return 0; } void collide( int k, int m) { if (hit(k,m,close_enough)) { fcount+=1; fire[fcount-1].x = (ball[k].x + ball[m].x)/2.0; fire[fcount-1].y = (ball[k].y + ball[m].y)/2.0; fire[fcount-1].vx = (ball[k].vx + ball[m].vx)/2.0; fire[fcount-1].vy = (ball[k].vy + ball[m].vy)/2.0; fire[fcount-1].count = 0; } } Detecting Collisions and Managing the Collision List

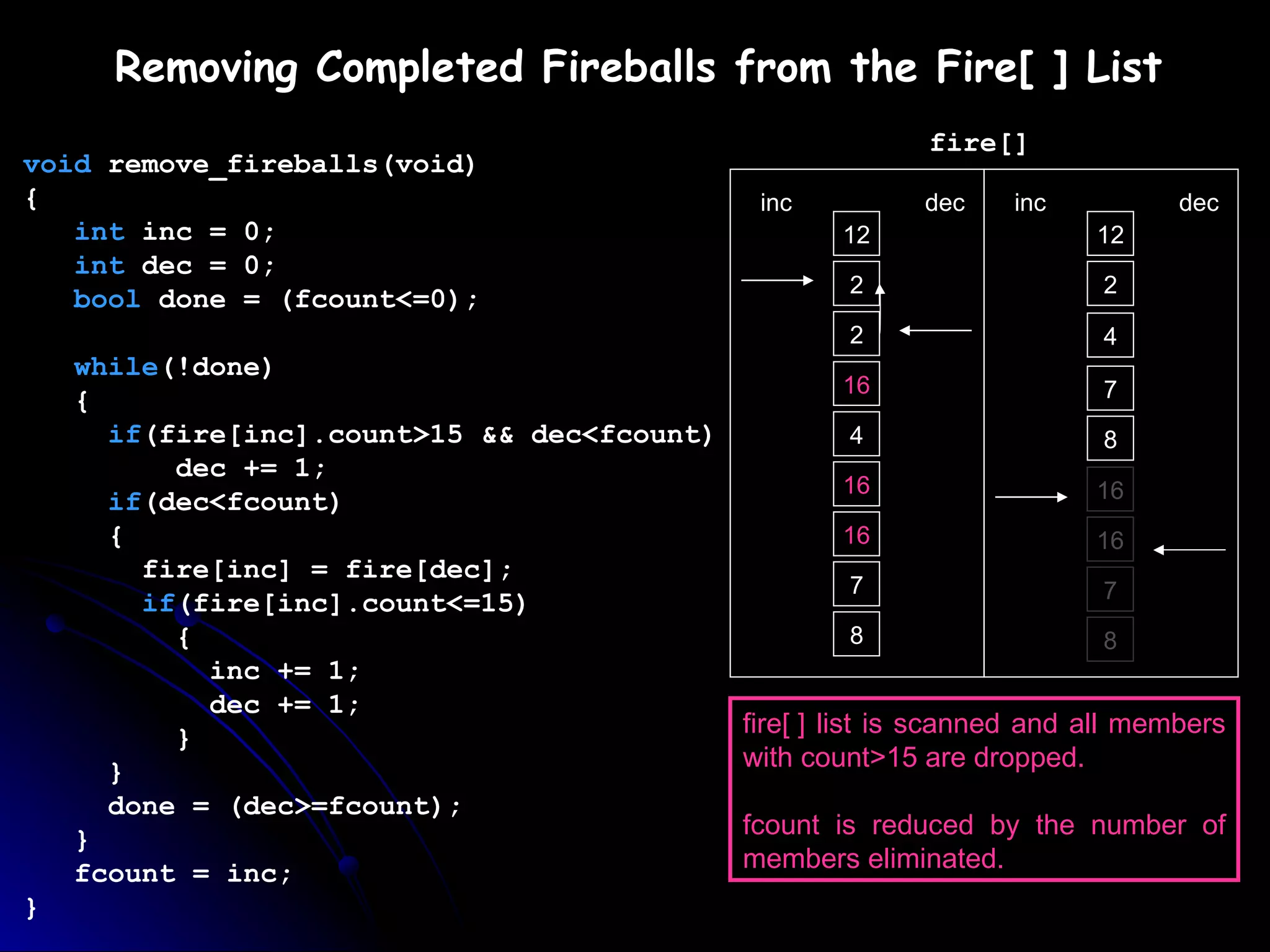

101. void remove_fireballs(void) { int inc = 0; int dec = 0; bool done = (fcount<=0); while (!done) { if (fire[inc].count>15 && dec<fcount) dec += 1; if (dec<fcount) { fire[inc] = fire[dec]; if (fire[inc].count<=15) { inc += 1; dec += 1; } } done = (dec>=fcount); } fcount = inc; } Removing Completed Fireballs from the Fire[ ] List fire[ . ] list is scanned and all members with count>15 are dropped. fcount is reduced by the number of members eliminated. 12 2 2 16 4 16 16 7 8 inc dec 12 2 4 7 8 inc dec 16 16 7 8 fire[]

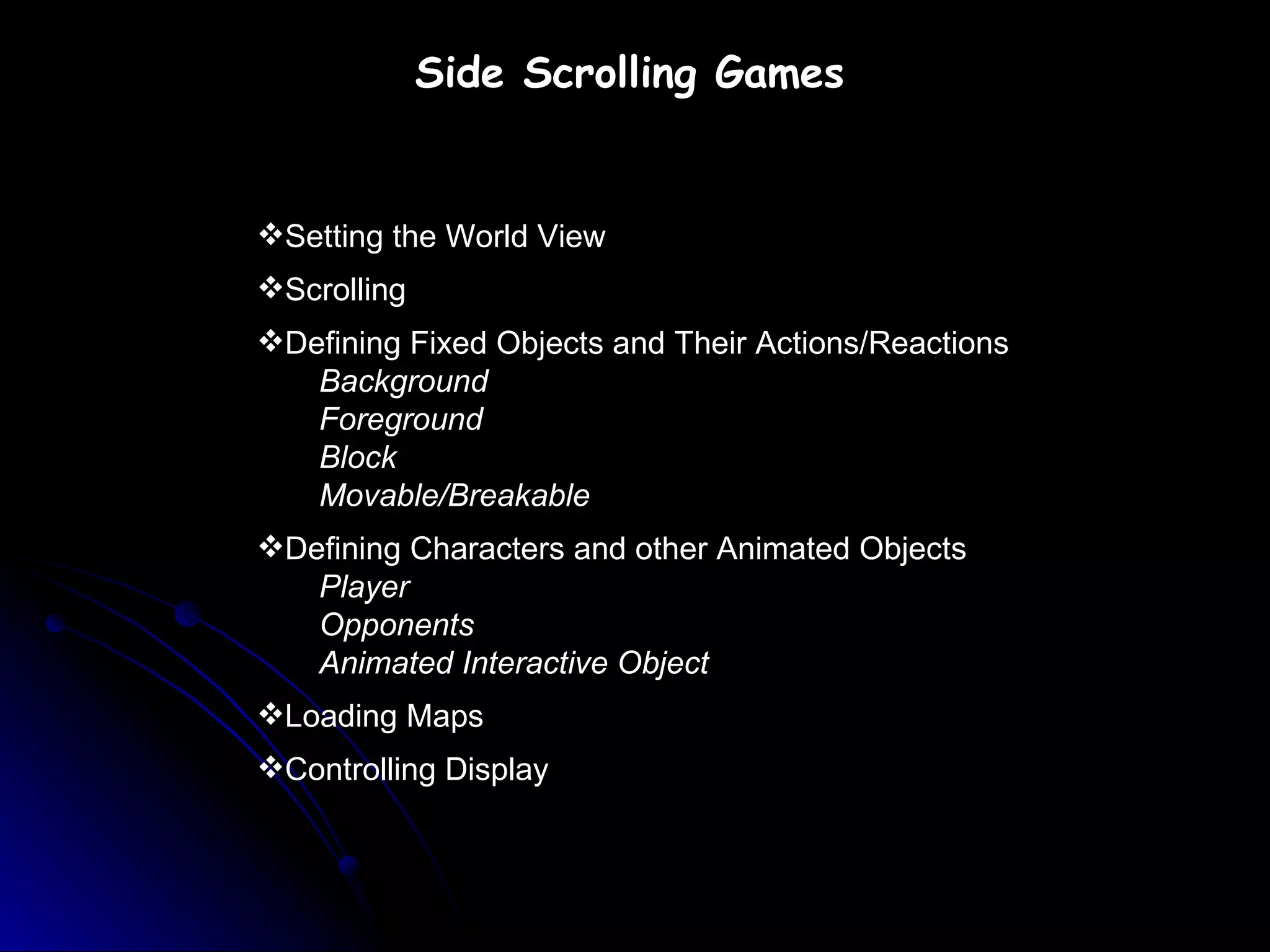

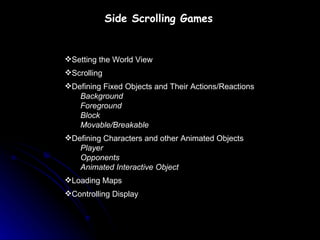

102. Setting the World View Scrolling Defining Fixed Objects and Their Actions/Reactions Background Foreground Block Movable/Breakable Defining Characters and other Animated Objects Player Opponents Animated Interactive Object Loading Maps Controlling Display Side Scrolling Games

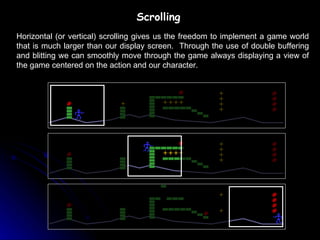

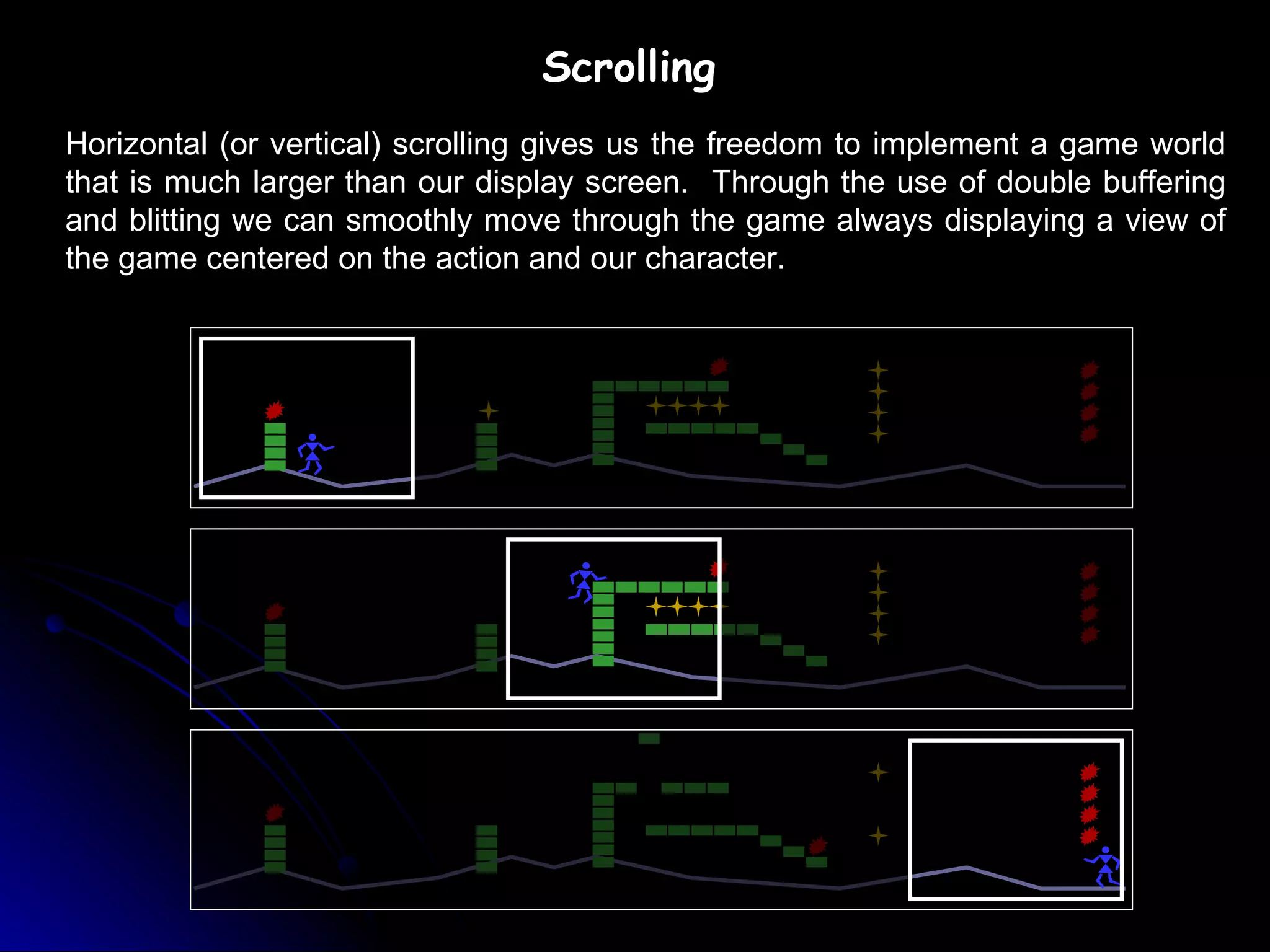

103. Scrolling Horizontal (or vertical) scrolling gives us the freedom to implement a game world that is much larger than our display screen. Through the use of double buffering and blitting we can smoothly move through the game always displaying a view of the game centered on the action and our character.

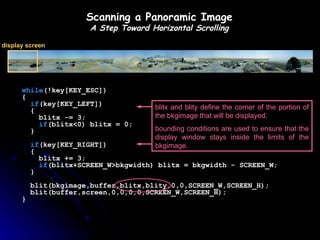

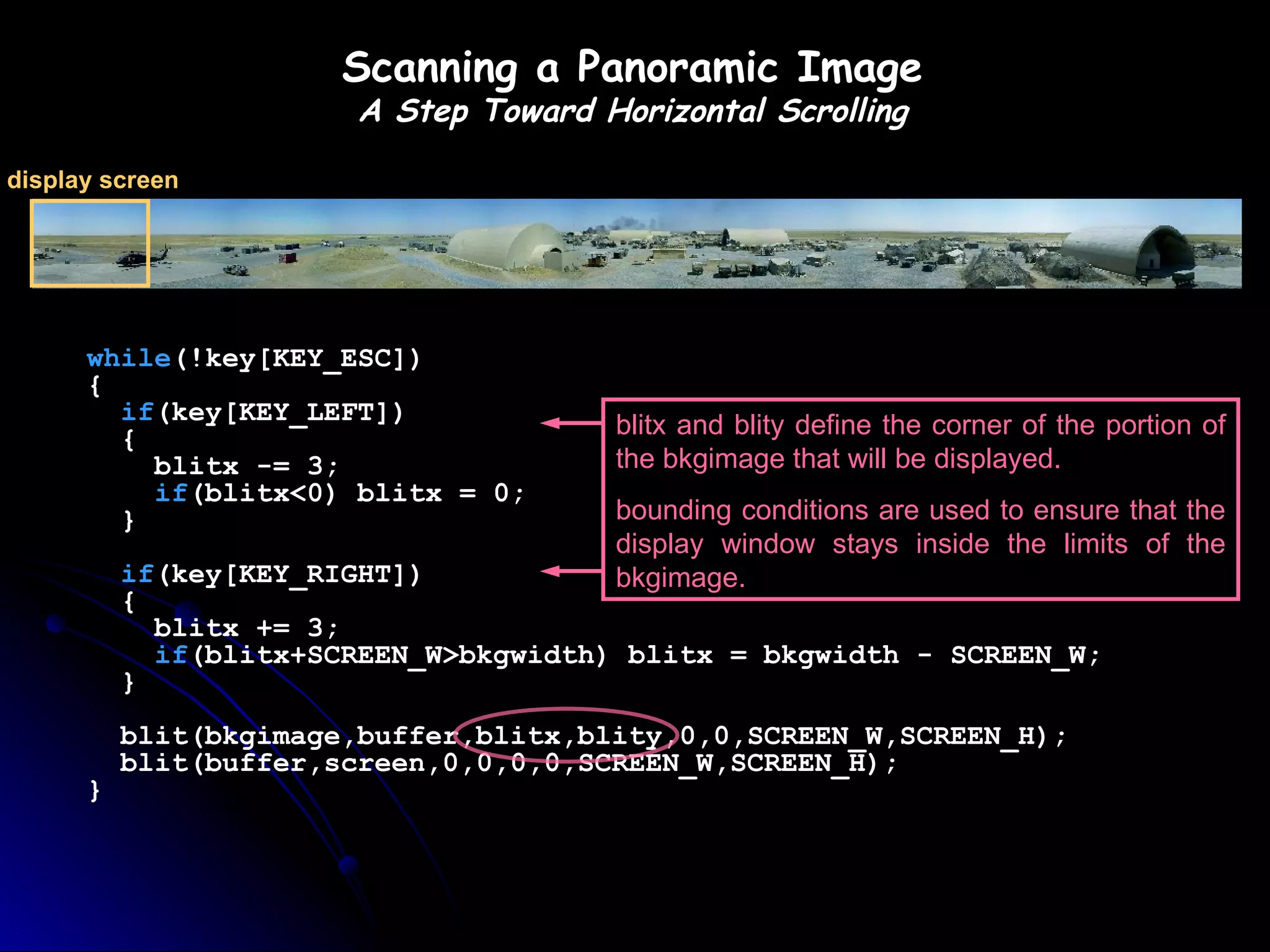

104. Scanning a Panoramic Image A Step Toward Horizontal Scrolling while (!key[KEY_ESC]) { if (key[KEY_LEFT]) { blitx -= 3; if (blitx<0) blitx = 0; } if (key[KEY_RIGHT]) { blitx += 3; if (blitx+SCREEN_W>bkgwidth) blitx = bkgwidth - SCREEN_W; } blit(bkgimage,buffer,blitx,blity,0,0,SCREEN_W,SCREEN_H); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); } blitx and blity define the corner of the portion of the bkgimage that will be displayed. bounding conditions are used to ensure that the display window stays inside the limits of the bkgimage. display screen

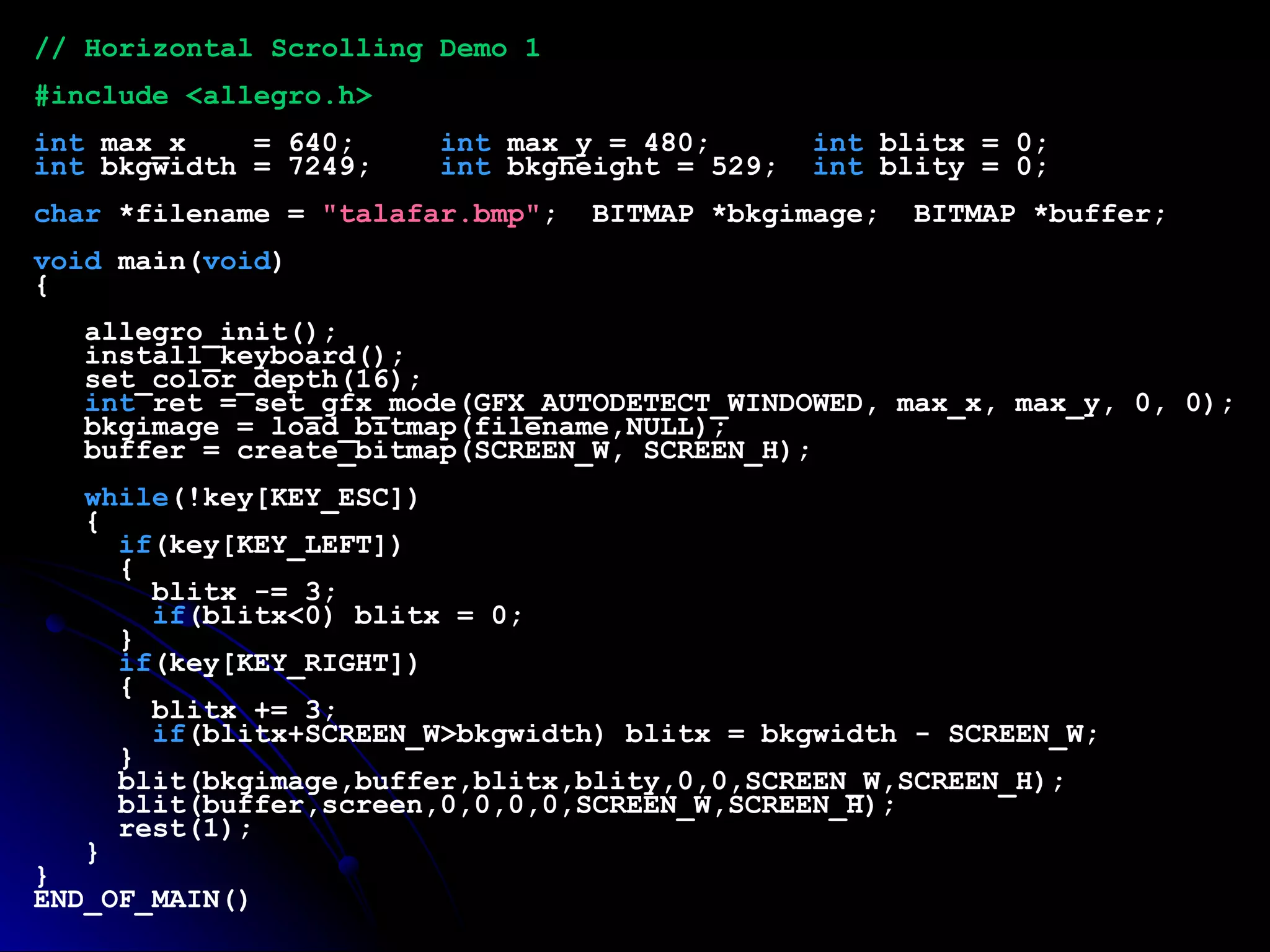

105. // Horizontal Scrolling Demo 1 #include <allegro.h> int max_x = 640; int max_y = 480; int blitx = 0; int bkgwidth = 7249; int bkgheight = 529; int blity = 0; char *filename = &quot;talafar.bmp&quot; ; BITMAP *bkgimage; BITMAP *buffer; void main( void ) { allegro_init(); install_keyboard(); set_color_depth(16); int ret = set_gfx_mode(GFX_AUTODETECT_WINDOWED, max_x, max_y, 0, 0); bkgimage = load_bitmap(filename,NULL); buffer = create_bitmap(SCREEN_W, SCREEN_H); while (!key[KEY_ESC]) { if (key[KEY_LEFT]) { blitx -= 3; if (blitx<0) blitx = 0; } if (key[KEY_RIGHT]) { blitx += 3; if (blitx+SCREEN_W>bkgwidth) blitx = bkgwidth - SCREEN_W; } blit(bkgimage,buffer,blitx,blity,0,0,SCREEN_W,SCREEN_H); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); rest(1); } } END_OF_MAIN()

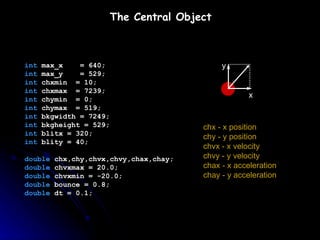

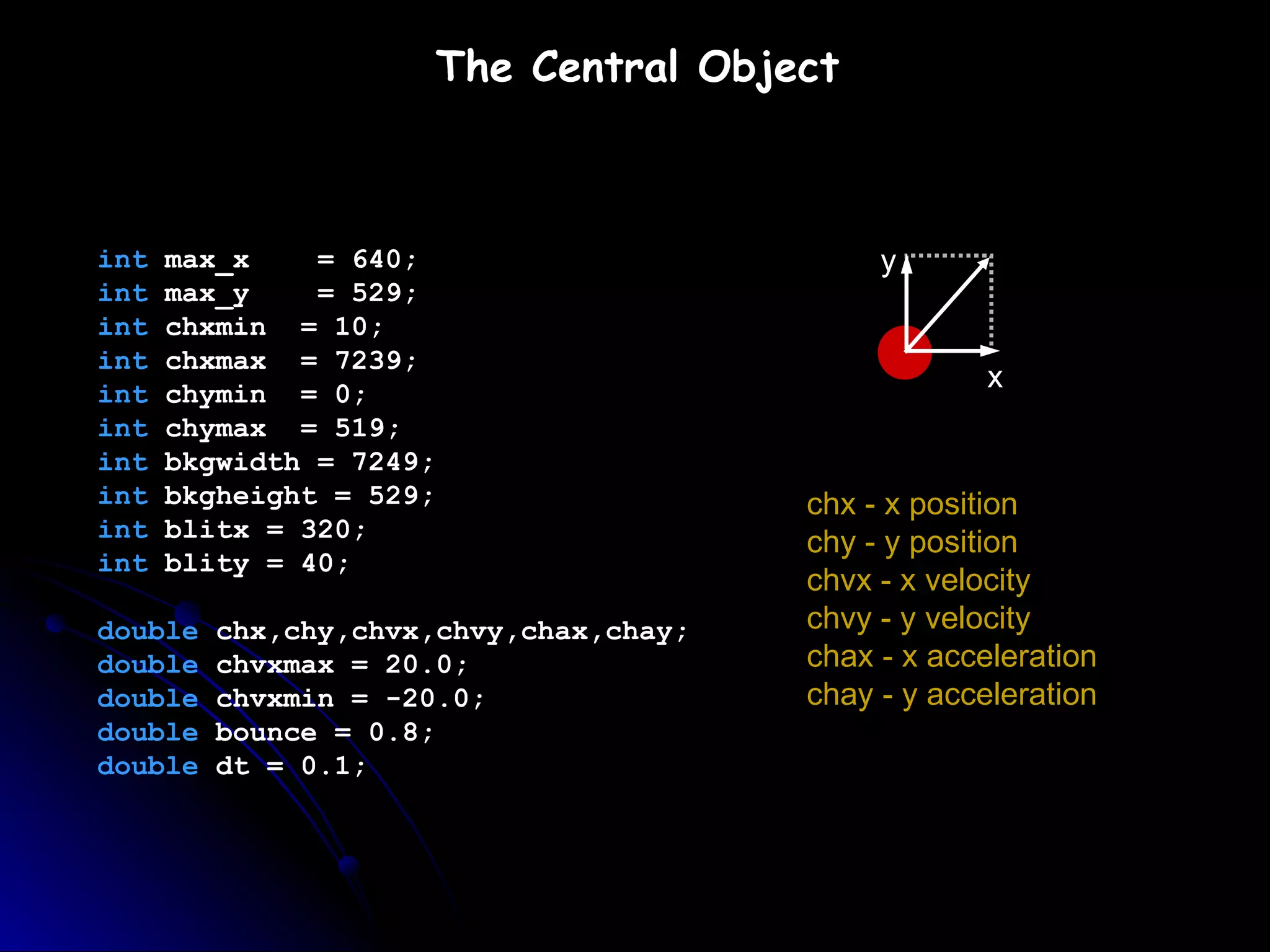

106. The Central Object int max_x = 640; int max_y = 529; int chxmin = 10; int chxmax = 7239; int chymin = 0; int chymax = 519; int bkgwidth = 7249; int bkgheight = 529; int blitx = 320; int blity = 40; double chx,chy,chvx,chvy,chax,chay; double chvxmax = 20.0; double chvxmin = -20.0; double bounce = 0.8; double dt = 0.1; x y chx - x position chy - y position chvx - x velocity chvy - y velocity chax - x acceleration chay - y acceleration

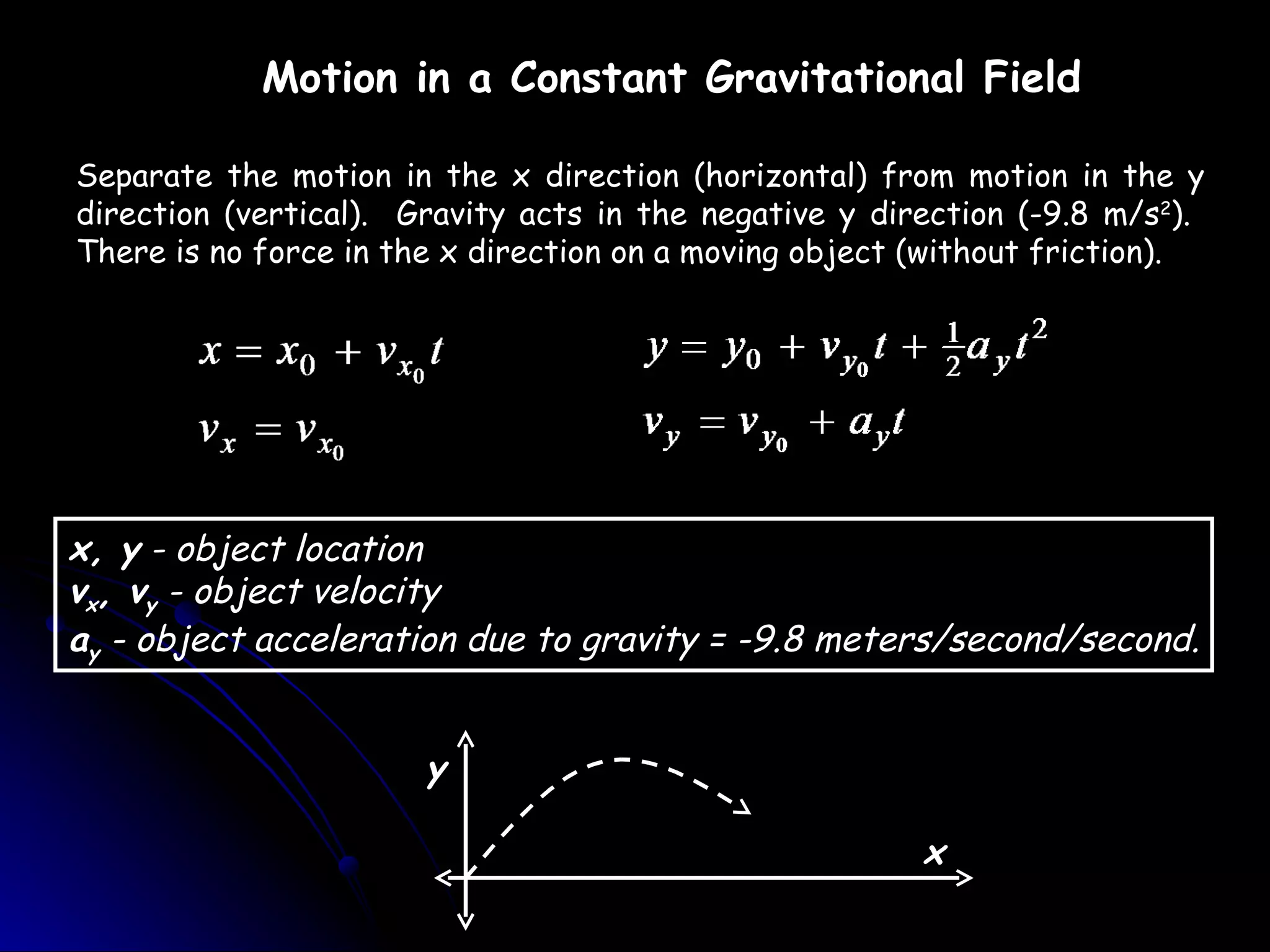

107. Motion in a Constant Gravitational Field Separate the motion in the x direction (horizontal) from motion in the y direction (vertical). Gravity acts in the negative y direction (-9.8 m/s 2 ). There is no force in the x direction on a moving object (without friction). x y x, y - object location v x , v y - object velocity a y - object acceleration due to gravity = -9.8 meters/second/second.

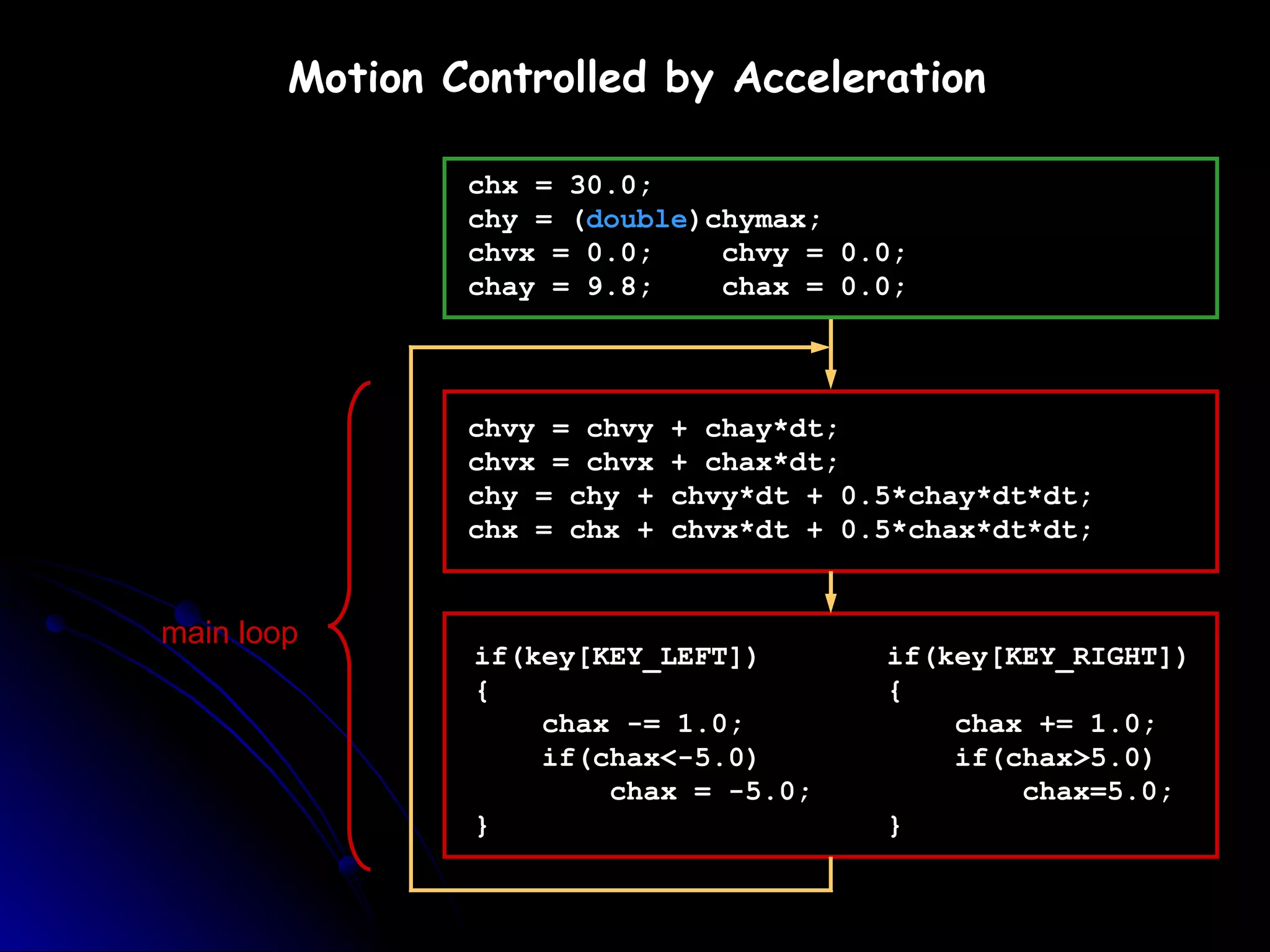

108. chx = 30.0; chy = ( double )chymax; chvx = 0.0; chvy = 0.0; chay = 9.8; chax = 0.0; chvy = chvy + chay*dt; chvx = chvx + chax*dt; chy = chy + chvy*dt + 0.5*chay*dt*dt; chx = chx + chvx*dt + 0.5*chax*dt*dt; if(key[KEY_LEFT]) { chax -= 1.0; if(chax<-5.0) chax = -5.0; } if(key[KEY_RIGHT]) { chax += 1.0; if(chax>5.0) chax=5.0; } main loop Motion Controlled by Acceleration

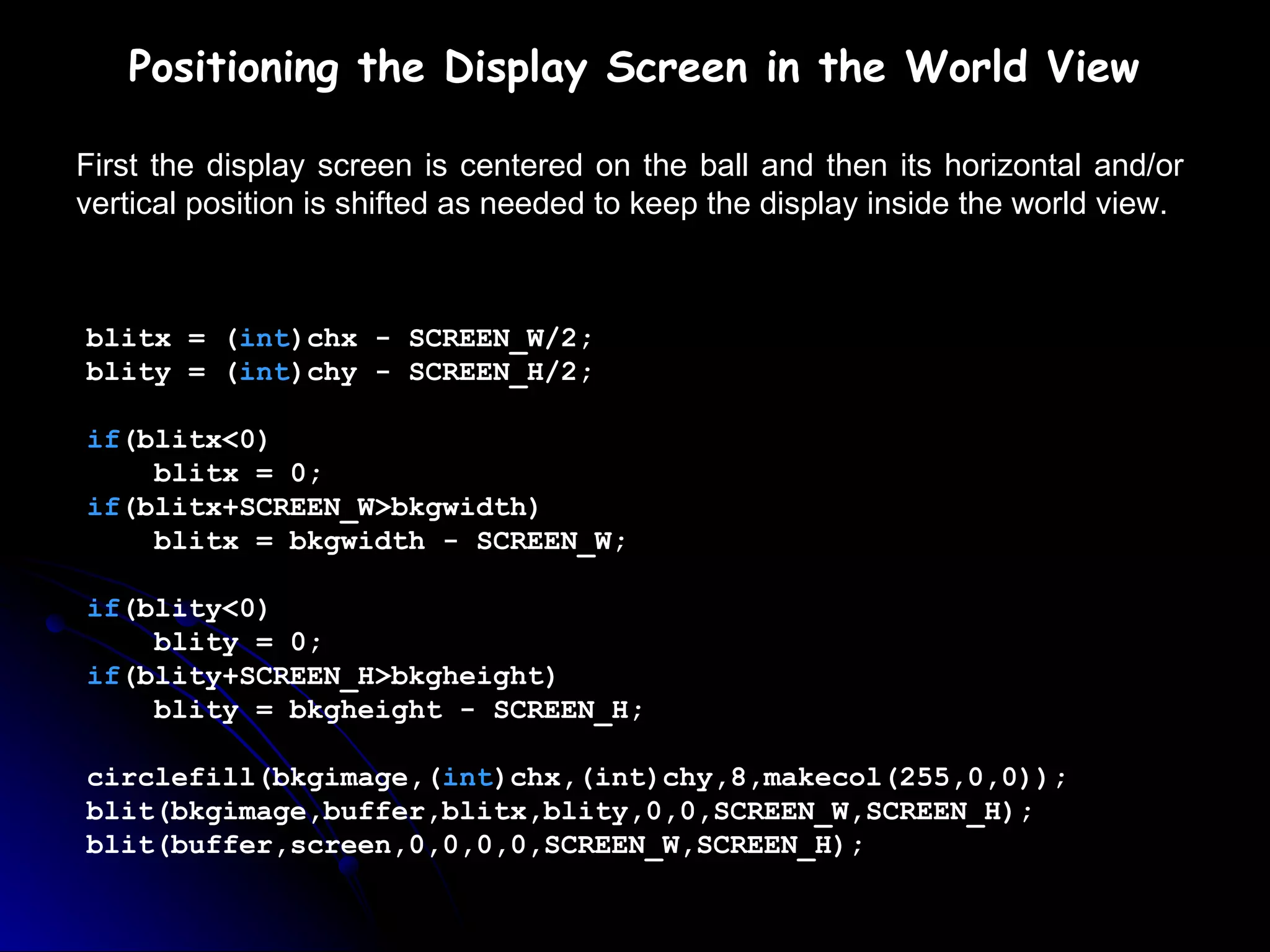

109. blitx = ( int )chx - SCREEN_W/2; blity = ( int )chy - SCREEN_H/2; if (blitx<0) blitx = 0; if (blitx+SCREEN_W>bkgwidth) blitx = bkgwidth - SCREEN_W; if (blity<0) blity = 0; if (blity+SCREEN_H>bkgheight) blity = bkgheight - SCREEN_H; circlefill(bkgimage,( int )chx,(int)chy,8,makecol(255,0,0)); blit(bkgimage,buffer,blitx,blity,0,0,SCREEN_W,SCREEN_H); blit(buffer,screen,0,0,0,0,SCREEN_W,SCREEN_H); Positioning the Display Screen in the World View First the display screen is centered on the ball and then its horizontal and/or vertical position is shifted as needed to keep the display inside the world view.

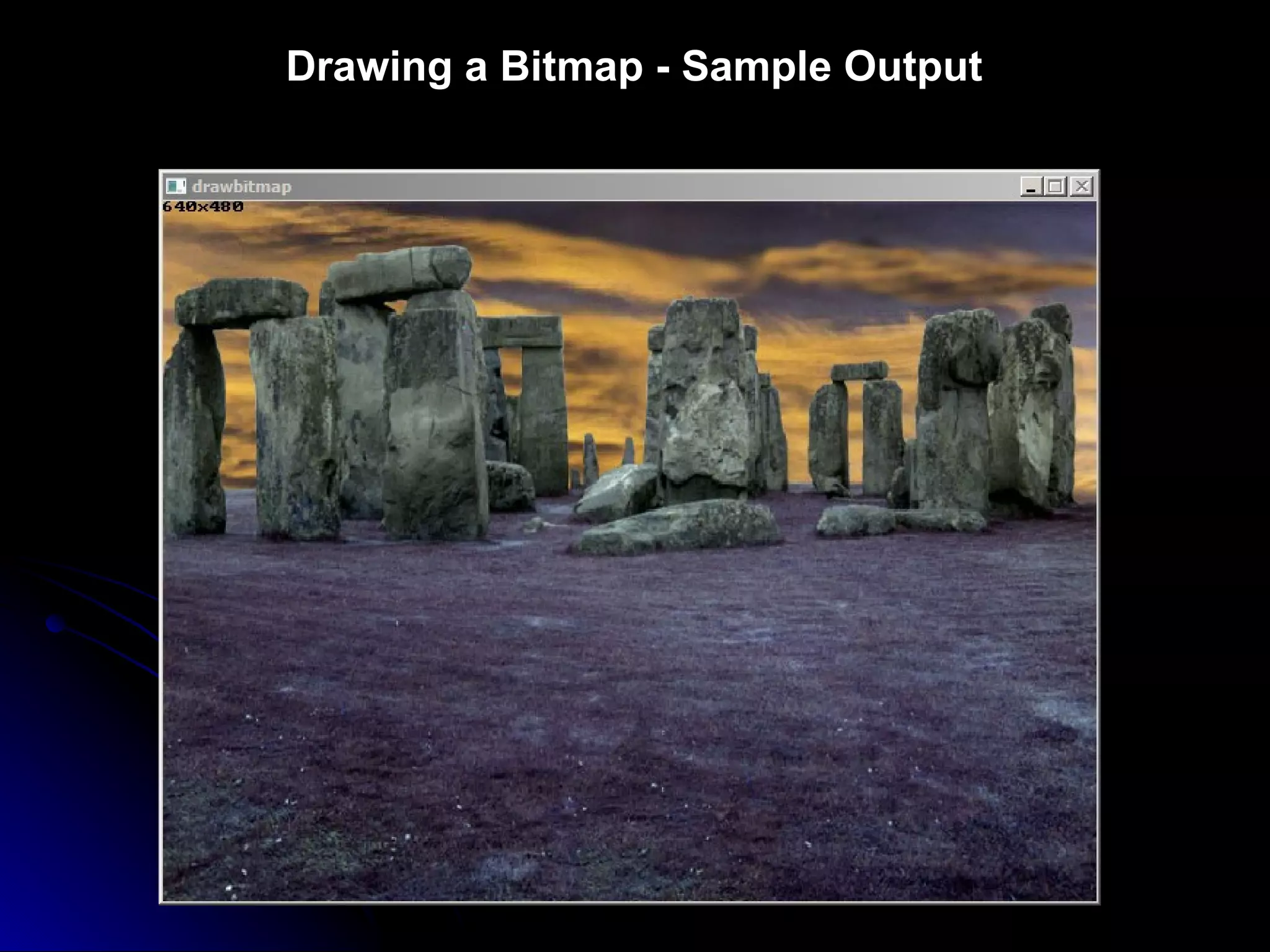

110. Drawing a Bitmap - Sample Output

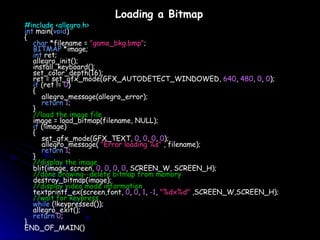

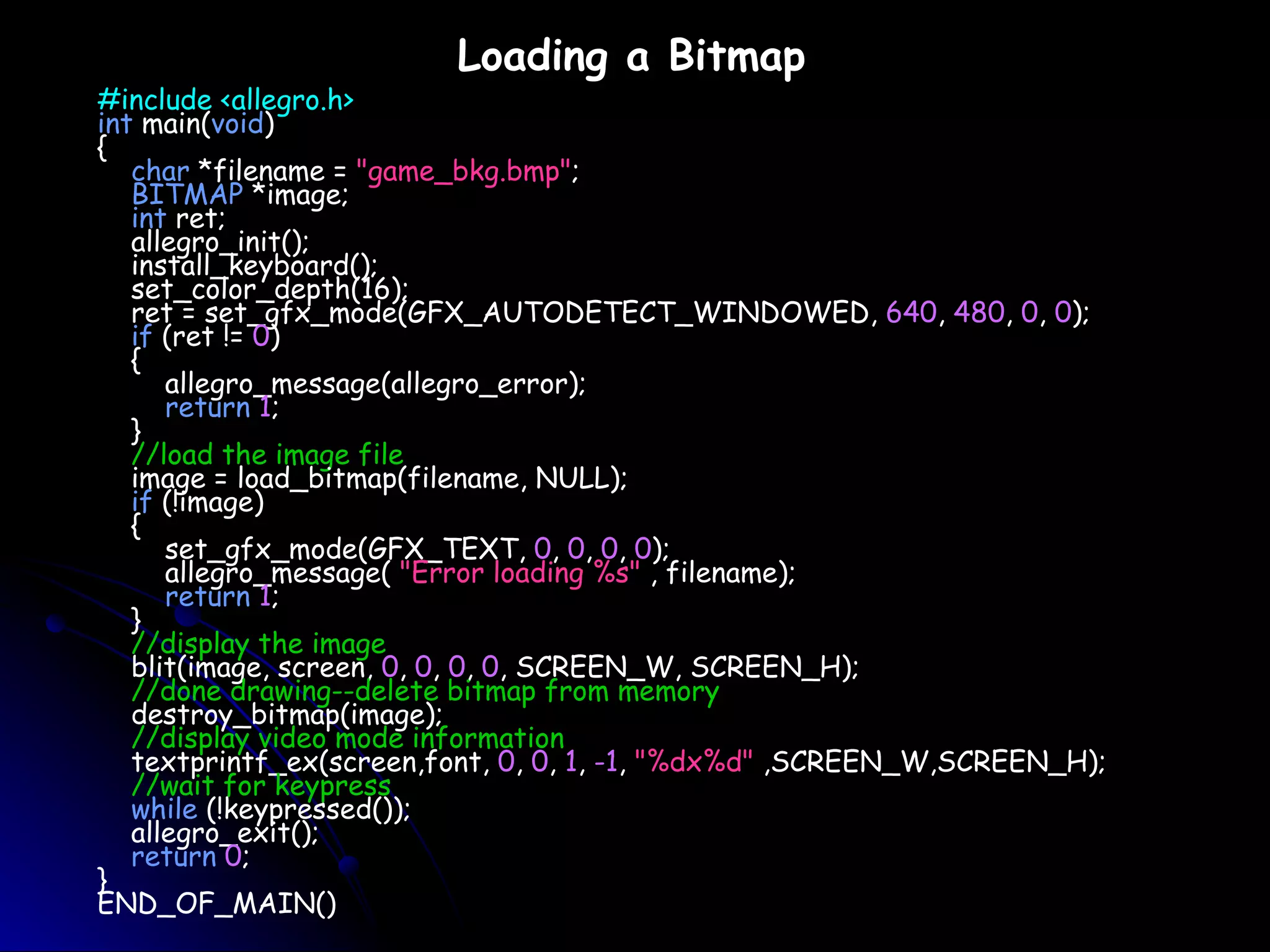

111. #include <allegro.h> int main( void ) { char *filename = &quot;game_bkg.bmp&quot; ; BITMAP *image; int ret; allegro_init(); install_keyboard(); set_color_depth(16); ret = set_gfx_mode(GFX_AUTODETECT_WINDOWED, 640 , 480 , 0 , 0 ); if (ret != 0 ) { allegro_message(allegro_error); return 1 ; } //load the image file image = load_bitmap(filename, NULL); if (!image) { set_gfx_mode(GFX_TEXT, 0 , 0 , 0 , 0 ); allegro_message( &quot;Error loading %s&quot; , filename); return 1 ; } //display the image blit(image, screen, 0 , 0 , 0 , 0 , SCREEN_W, SCREEN_H); //done drawing--delete bitmap from memory destroy_bitmap(image); //display video mode information textprintf_ex(screen,font, 0 , 0 , 1 , -1 , &quot;%dx%d&quot; ,SCREEN_W,SCREEN_H); //wait for keypress while (!keypressed()); allegro_exit(); return 0 ; } END_OF_MAIN() Loading a Bitmap

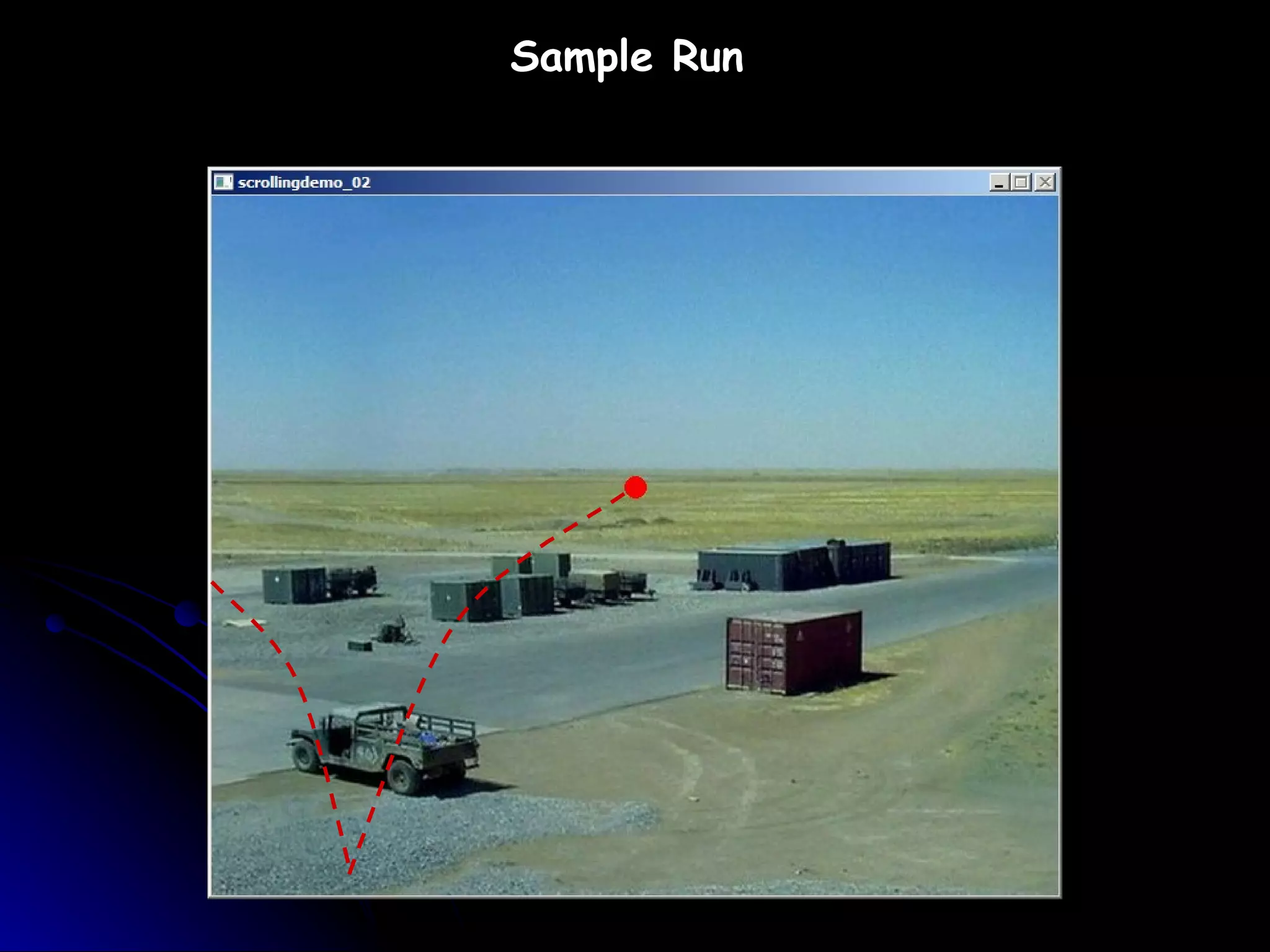

112. Sample Run

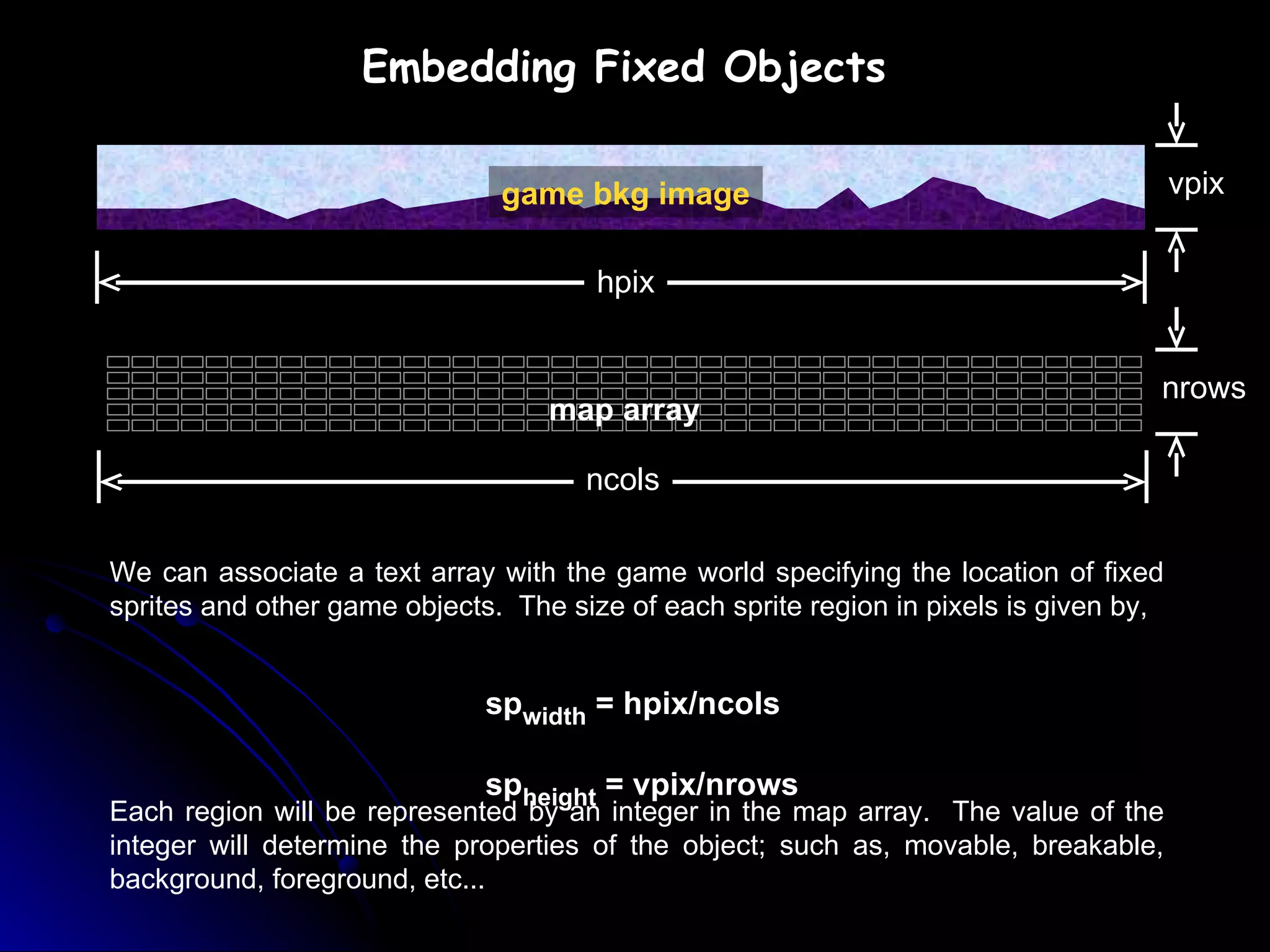

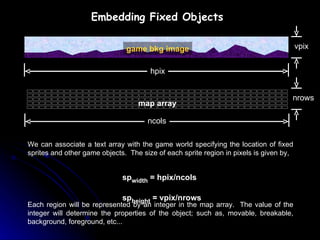

113. Embedding Fixed Objects vpix hpix map array nrows ncols game bkg image We can associate a text array with the game world specifying the location of fixed sprites and other game objects. The size of each sprite region in pixels is given by, Each region will be represented by an integer in the map array. The value of the integer will determine the properties of the object; such as, movable, breakable, background, foreground, etc... sp width = hpix/ncols sp height = vpix/nrows

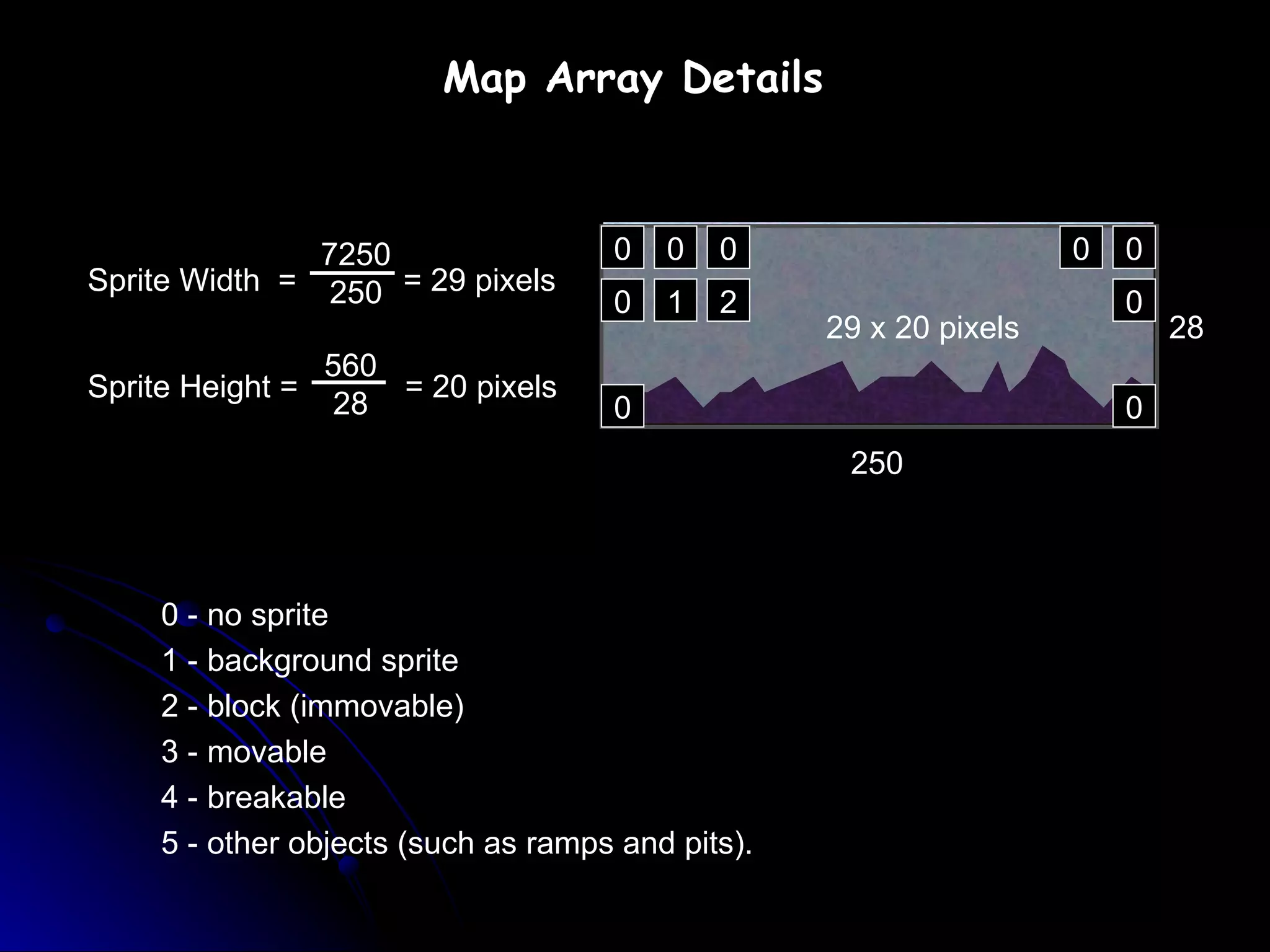

114. Sprite Width = = 29 pixels Sprite Height = = 20 pixels Map Array Details 560 28 0 - no sprite 1 - background sprite 2 - block (immovable) 3 - movable 4 - breakable 5 - other objects (such as ramps and pits). 0 0 0 0 0 0 0 0 0 29 x 20 pixels 250 28 1 2 7250 250

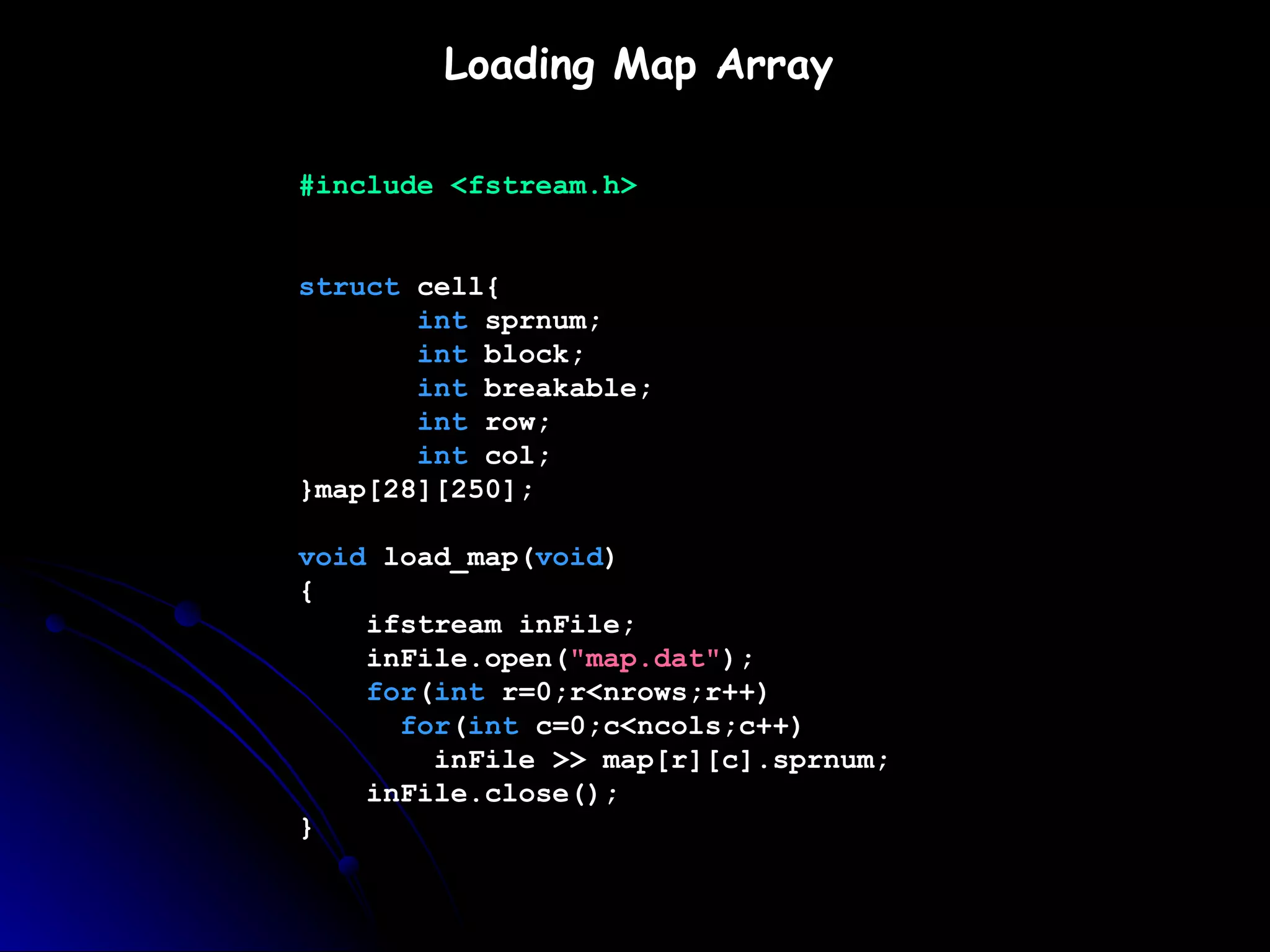

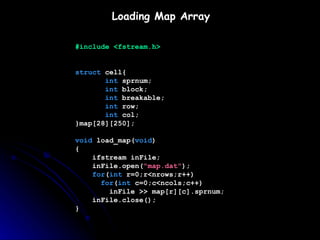

115. #include <fstream.h> struct cell{ int sprnum; int block; int breakable; int row; int col; }map[28][250]; void load_map( void ) { ifstream inFile; inFile.open( &quot;map.dat&quot; ); for ( int r=0;r<nrows;r++) for ( int c=0;c<ncols;c++) inFile >> map[r][c].sprnum; inFile.close(); } Loading Map Array

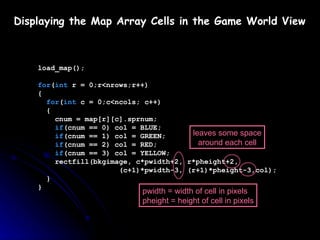

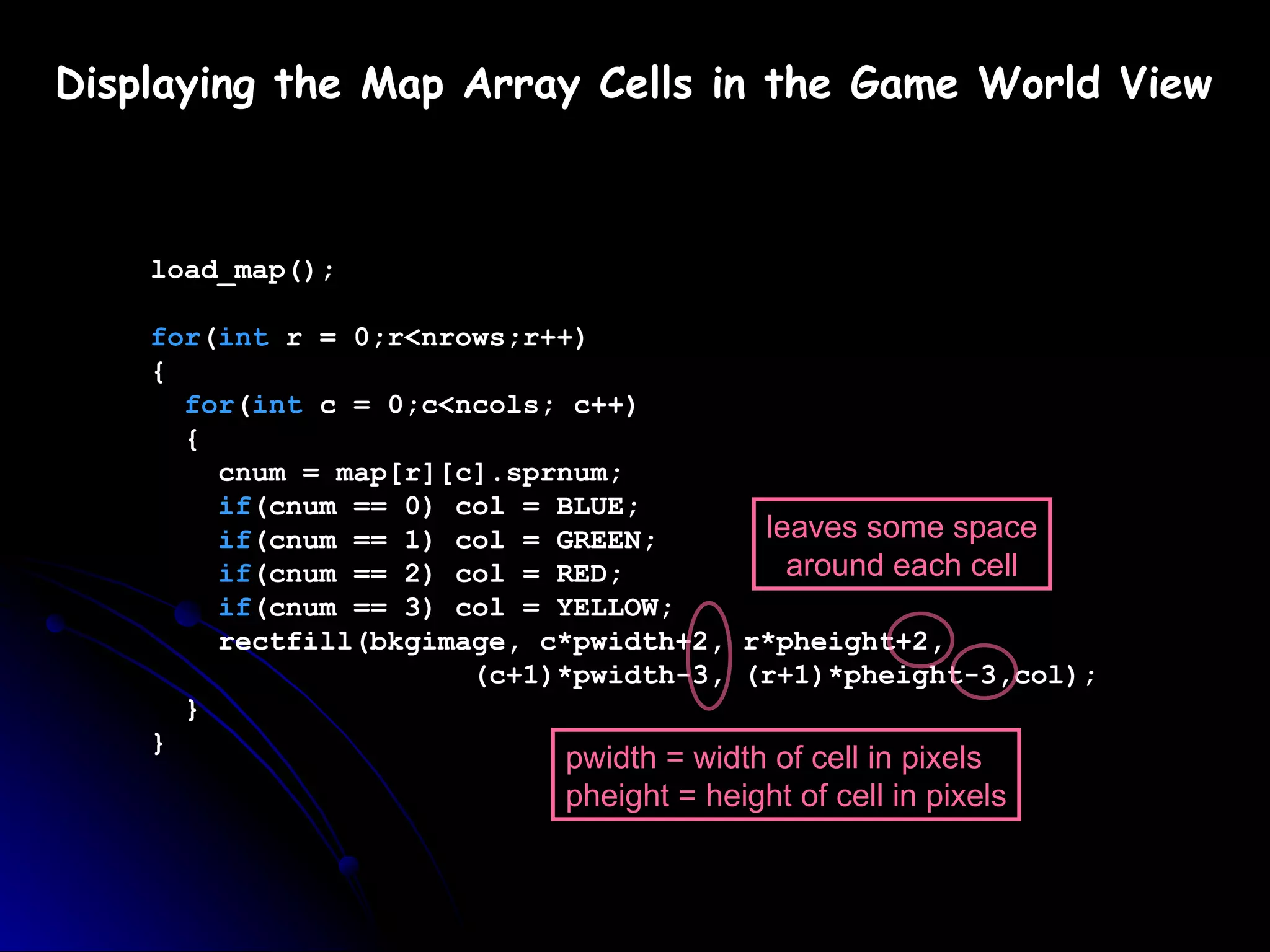

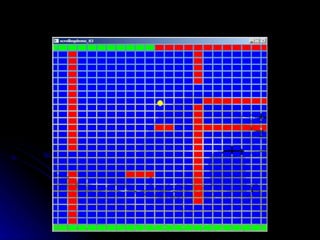

116. Displaying the Map Array Cells in the Game World View load_map(); for ( int r = 0;r<nrows;r++) { for ( int c = 0;c<ncols; c++) { cnum = map[r][c].sprnum; if (cnum == 0) col = BLUE; if (cnum == 1) col = GREEN; if (cnum == 2) col = RED; if (cnum == 3) col = YELLOW; rectfill(bkgimage, c*pwidth+2, r*pheight+2, (c+1)*pwidth-3, (r+1)*pheight-3,col); } } leaves some space around each cell pwidth = width of cell in pixels pheight = height of cell in pixels

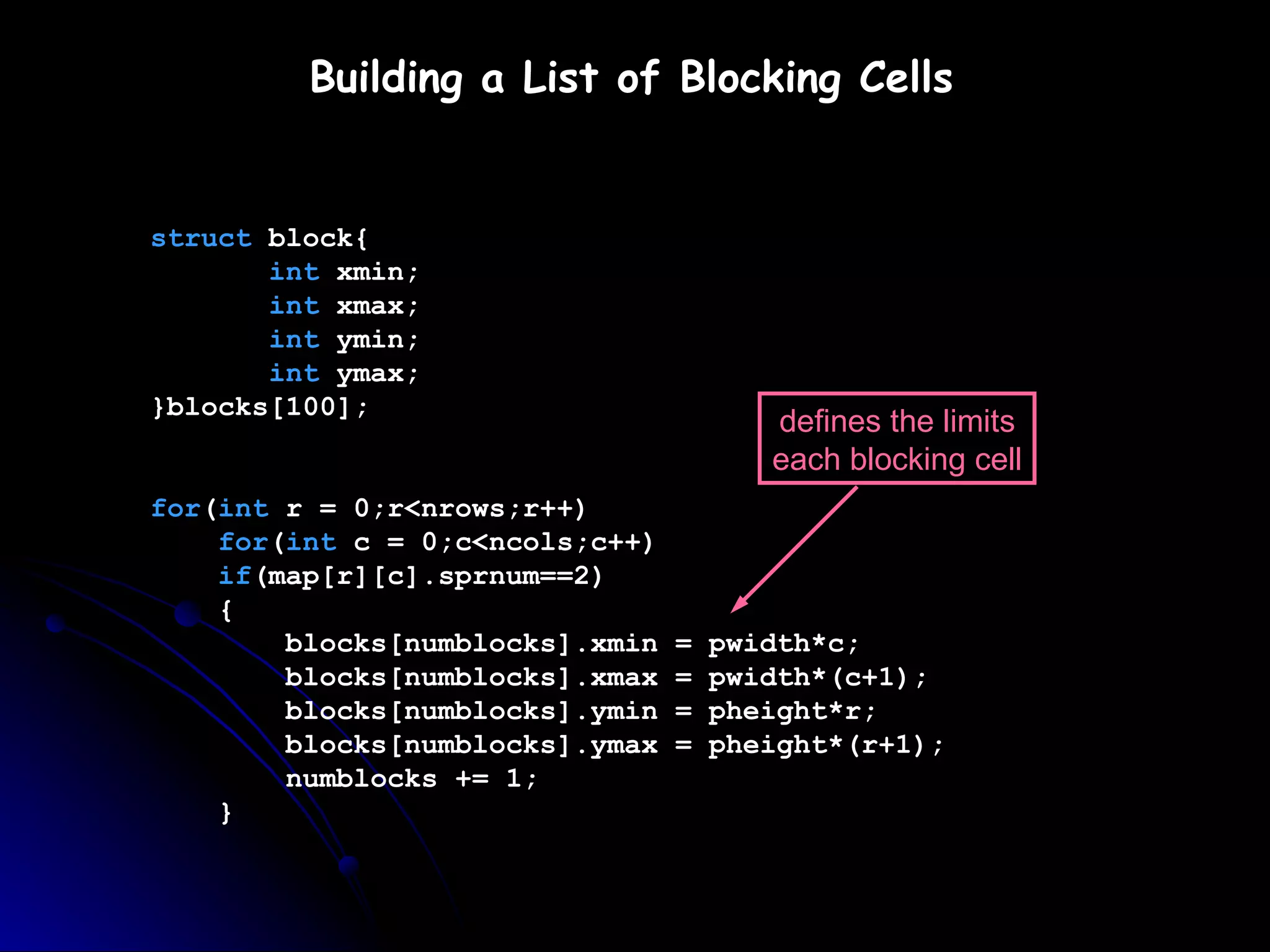

117. struct block{ int xmin; int xmax; int ymin; int ymax; }blocks[100]; for ( int r = 0;r<nrows;r++) for ( int c = 0;c<ncols;c++) if (map[r][c].sprnum==2) { blocks[numblocks].xmin = pwidth*c; blocks[numblocks].xmax = pwidth*(c+1); blocks[numblocks].ymin = pheight*r; blocks[numblocks].ymax = pheight*(r+1); numblocks += 1; } Building a List of Blocking Cells defines the limits each blocking cell

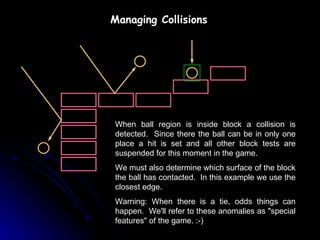

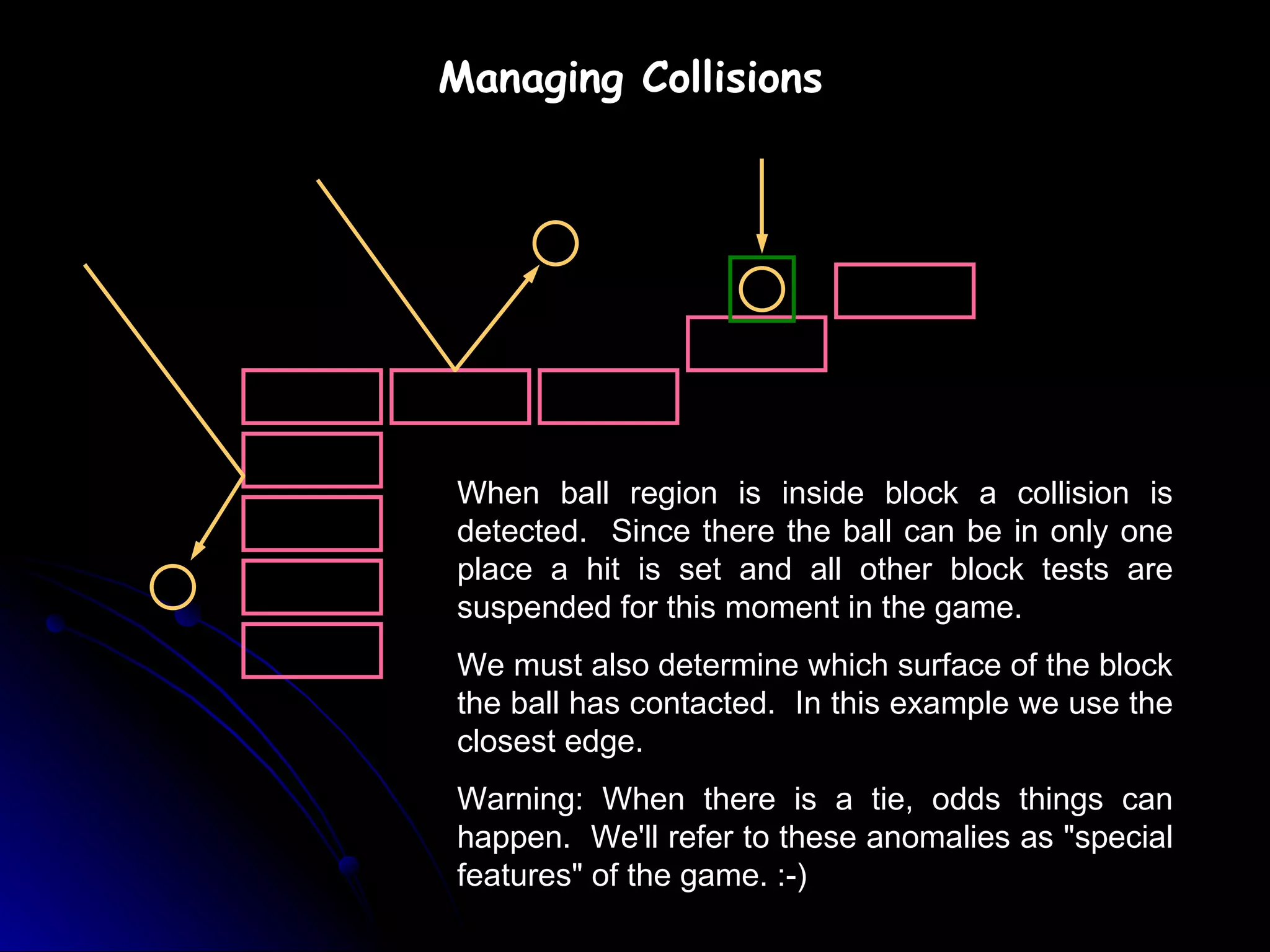

118. When ball region is inside block a collision is detected. Since there the ball can be in only one place a hit is set and all other block tests are suspended for this moment in the game. We must also determine which surface of the block the ball has contacted. In this example we use the closest edge. Warning: When there is a tie, odds things can happen. We'll refer to these anomalies as &quot;special features&quot; of the game. :-) Managing Collisions

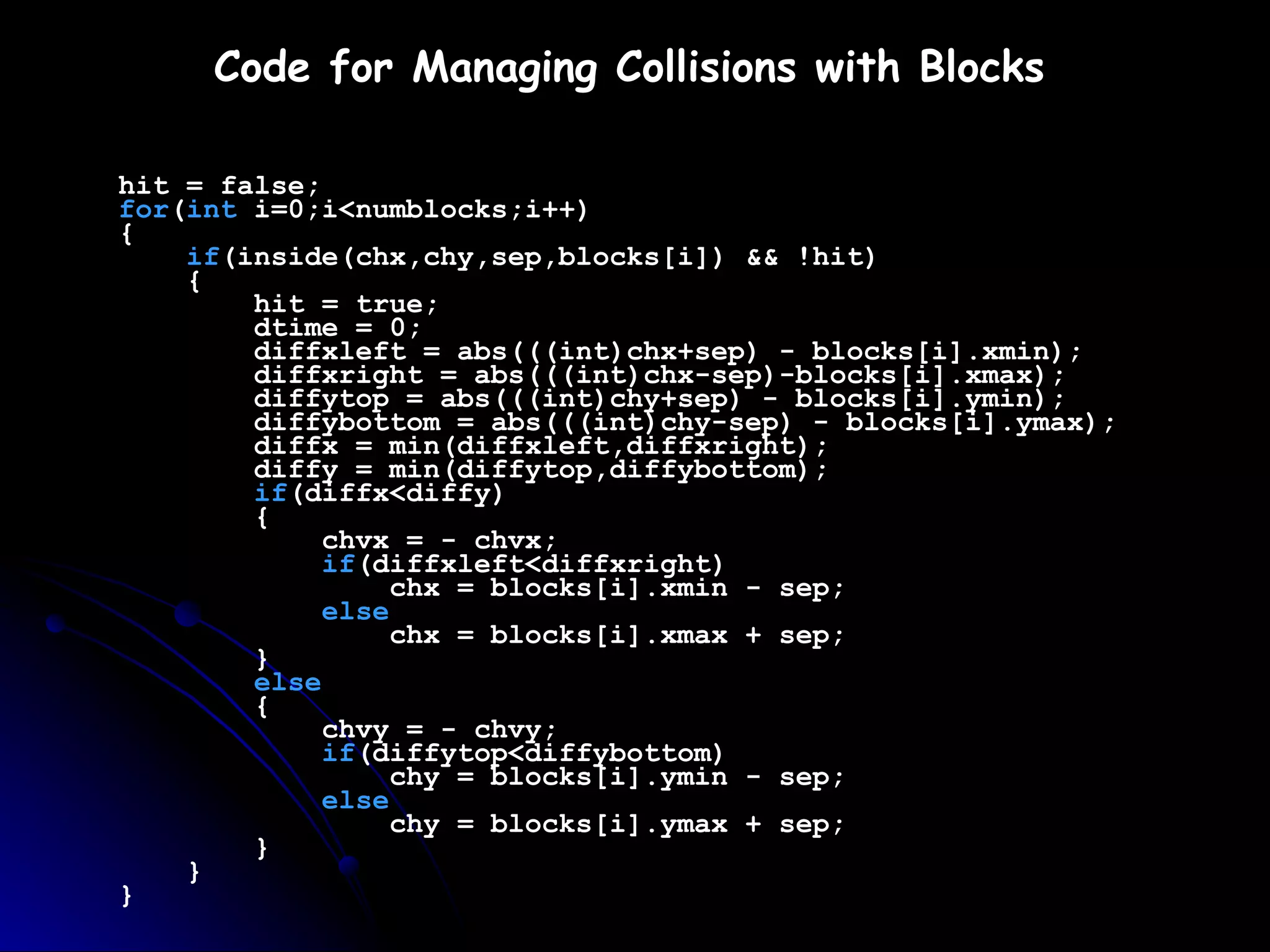

119. hit = false; for ( int i=0;i<numblocks;i++) { if (inside(chx,chy,sep,blocks[i]) && !hit) { hit = true; dtime = 0; diffxleft = abs(((int)chx+sep) - blocks[i].xmin); diffxright = abs(((int)chx-sep)-blocks[i].xmax); diffytop = abs(((int)chy+sep) - blocks[i].ymin); diffybottom = abs(((int)chy-sep) - blocks[i].ymax); diffx = min(diffxleft,diffxright); diffy = min(diffytop,diffybottom); if (diffx<diffy) { chvx = - chvx; if (diffxleft<diffxright) chx = blocks[i].xmin - sep; else chx = blocks[i].xmax + sep; } else { chvy = - chvy; if (diffytop<diffybottom) chy = blocks[i].ymin - sep; else chy = blocks[i].ymax + sep; } } } Code for Managing Collisions with Blocks

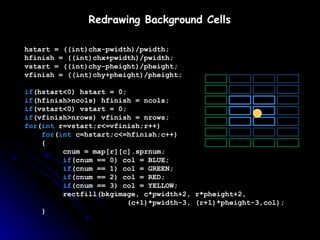

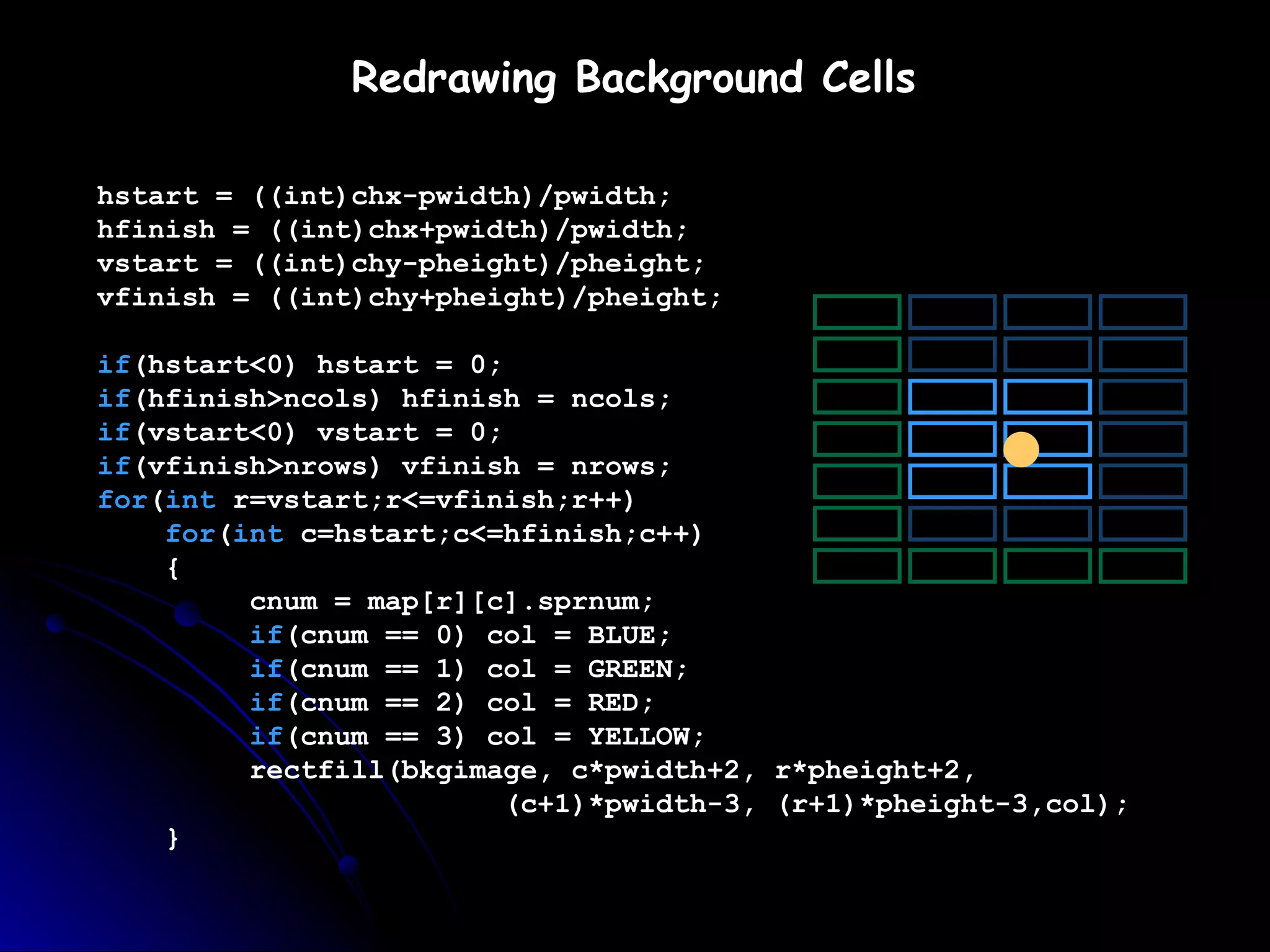

120. hstart = ((int)chx-pwidth)/pwidth; hfinish = ((int)chx+pwidth)/pwidth; vstart = ((int)chy-pheight)/pheight; vfinish = ((int)chy+pheight)/pheight; if (hstart<0) hstart = 0; if (hfinish>ncols) hfinish = ncols; if (vstart<0) vstart = 0; if (vfinish>nrows) vfinish = nrows; for ( int r=vstart;r<=vfinish;r++) for ( int c=hstart;c<=hfinish;c++) { cnum = map[r][c].sprnum; if (cnum == 0) col = BLUE; if (cnum == 1) col = GREEN; if (cnum == 2) col = RED; if (cnum == 3) col = YELLOW; rectfill(bkgimage, c*pwidth+2, r*pheight+2, (c+1)*pwidth-3, (r+1)*pheight-3,col); } Redrawing Background Cells

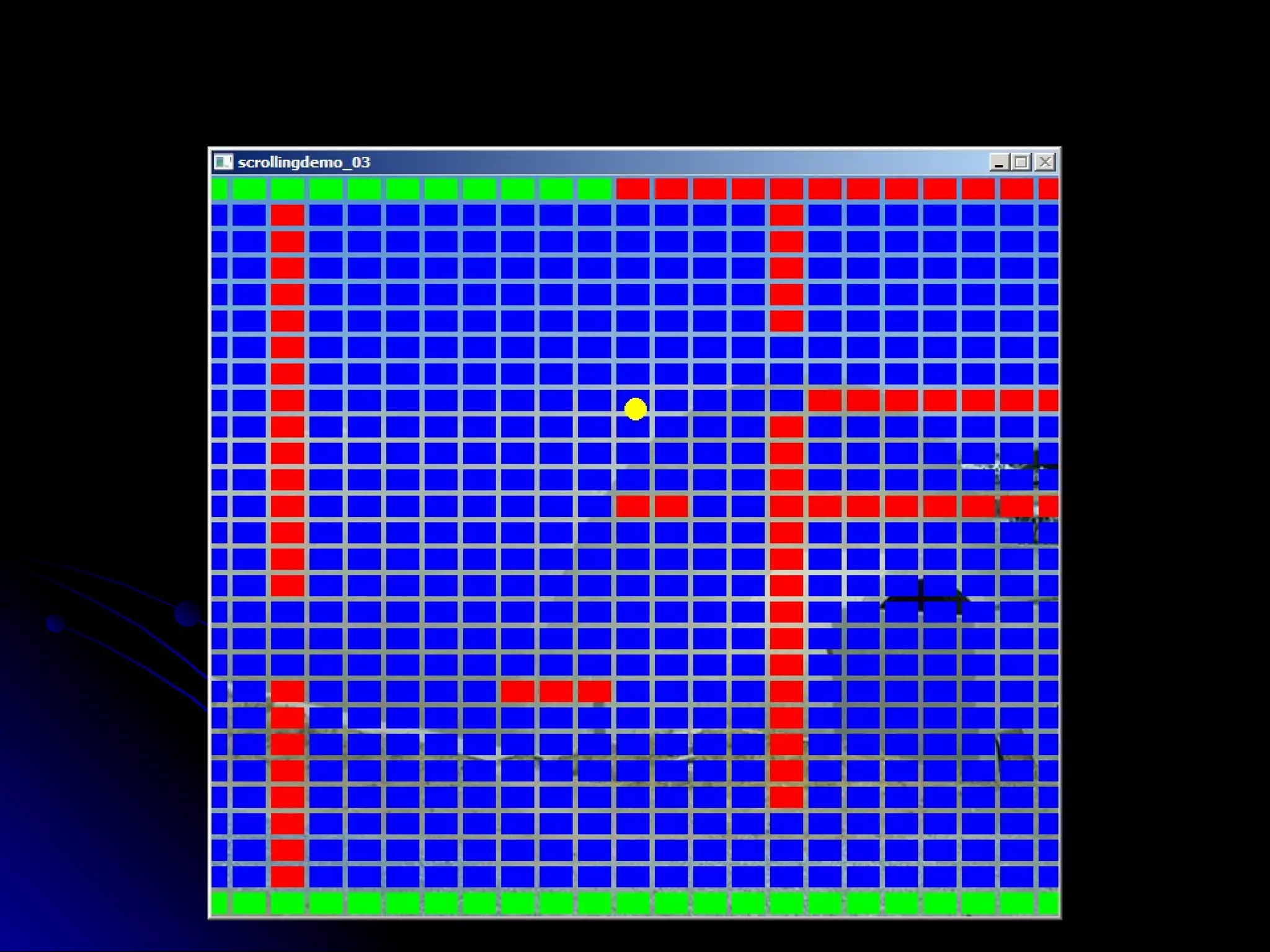

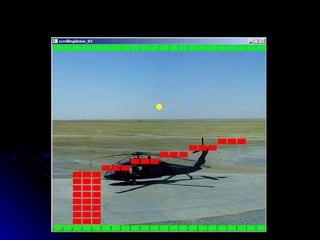

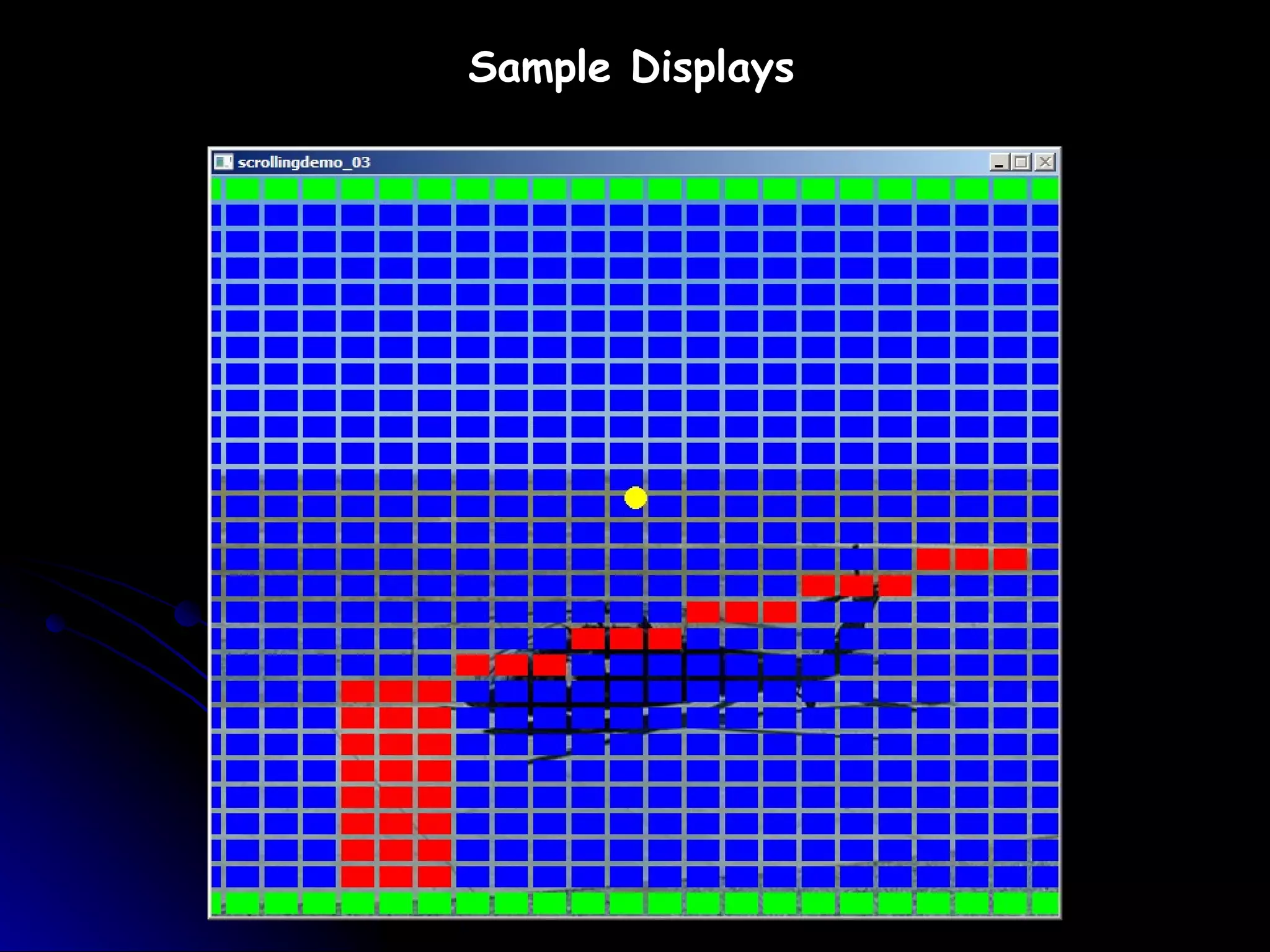

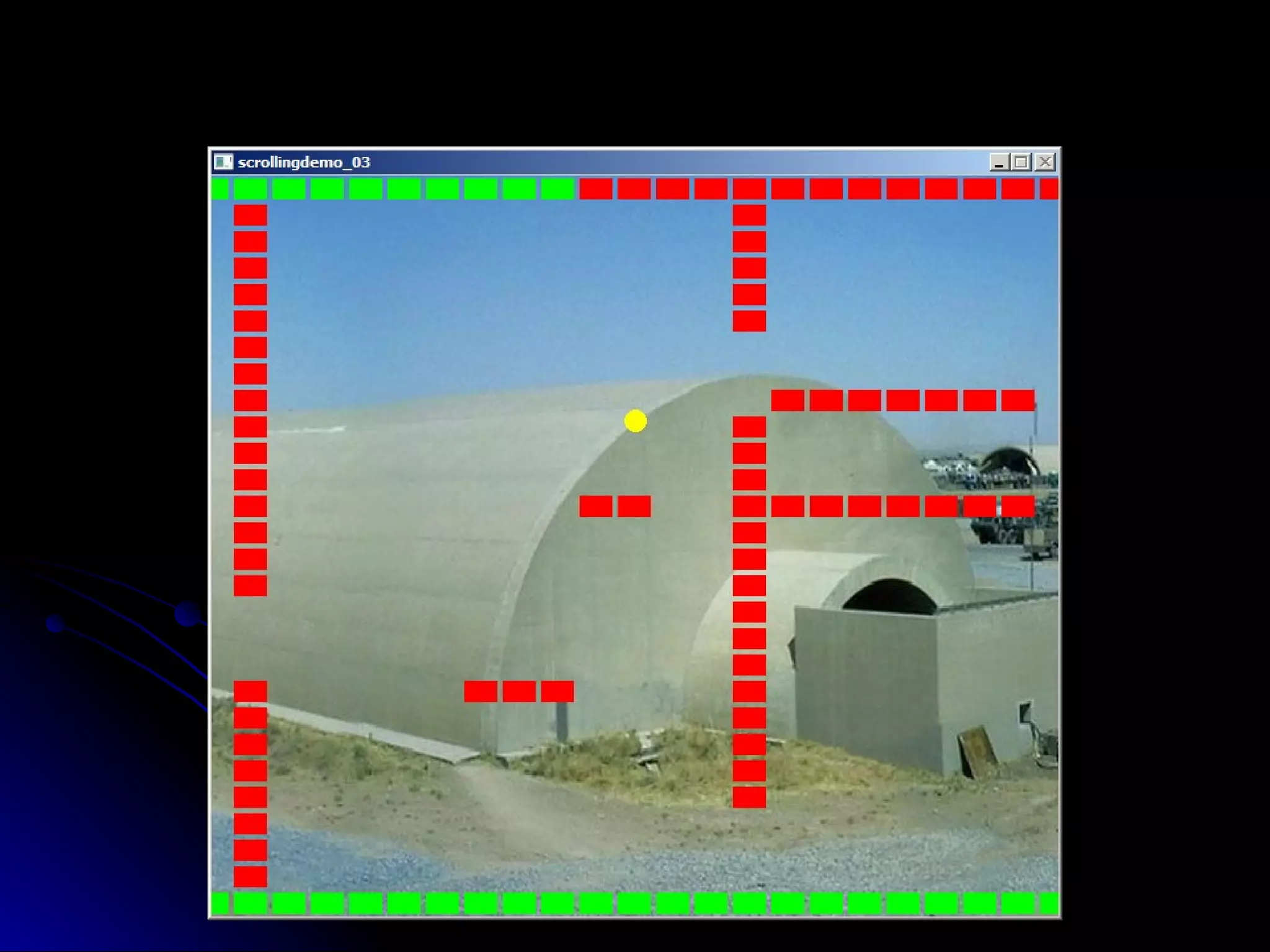

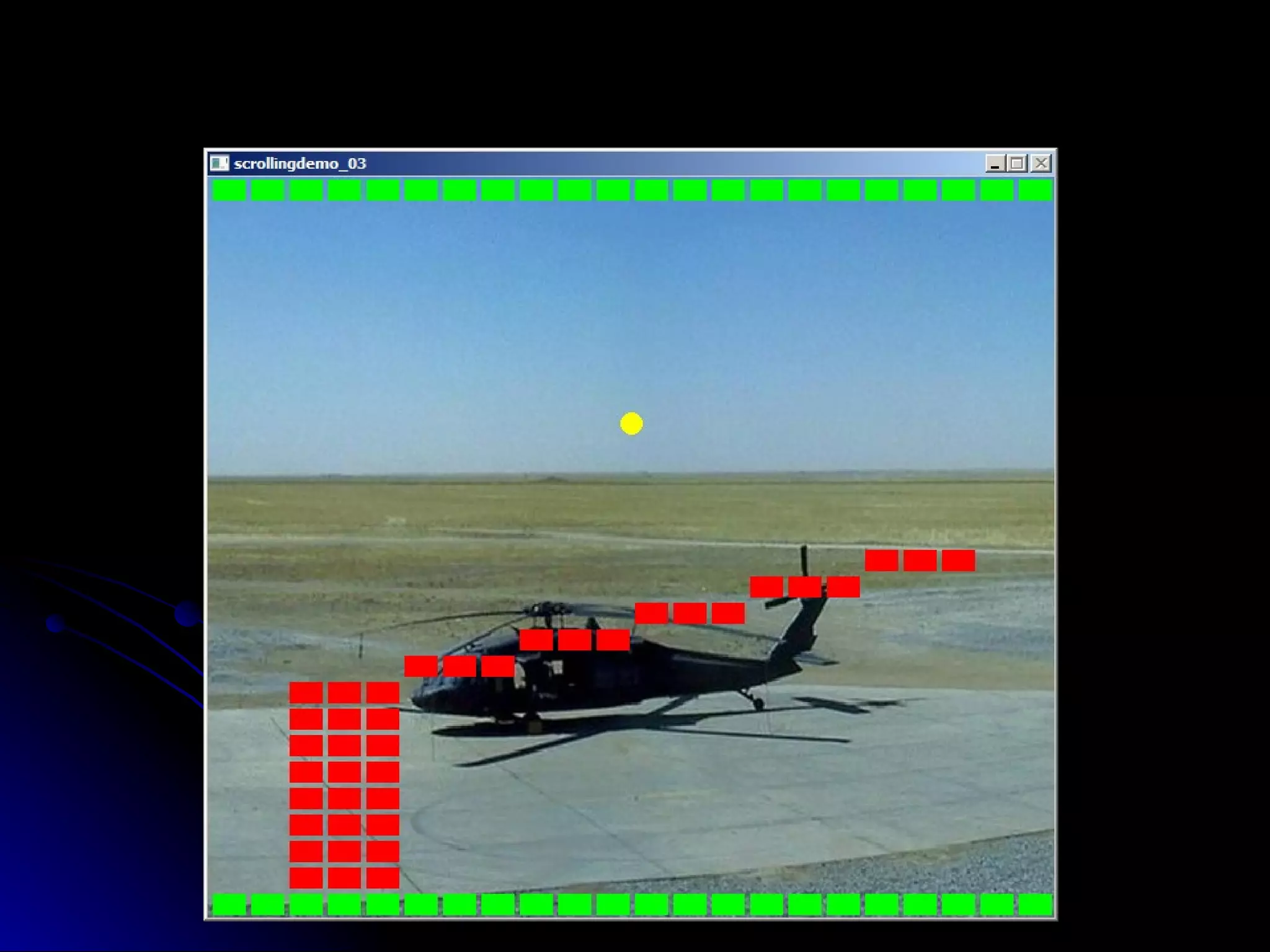

121. Sample Displays

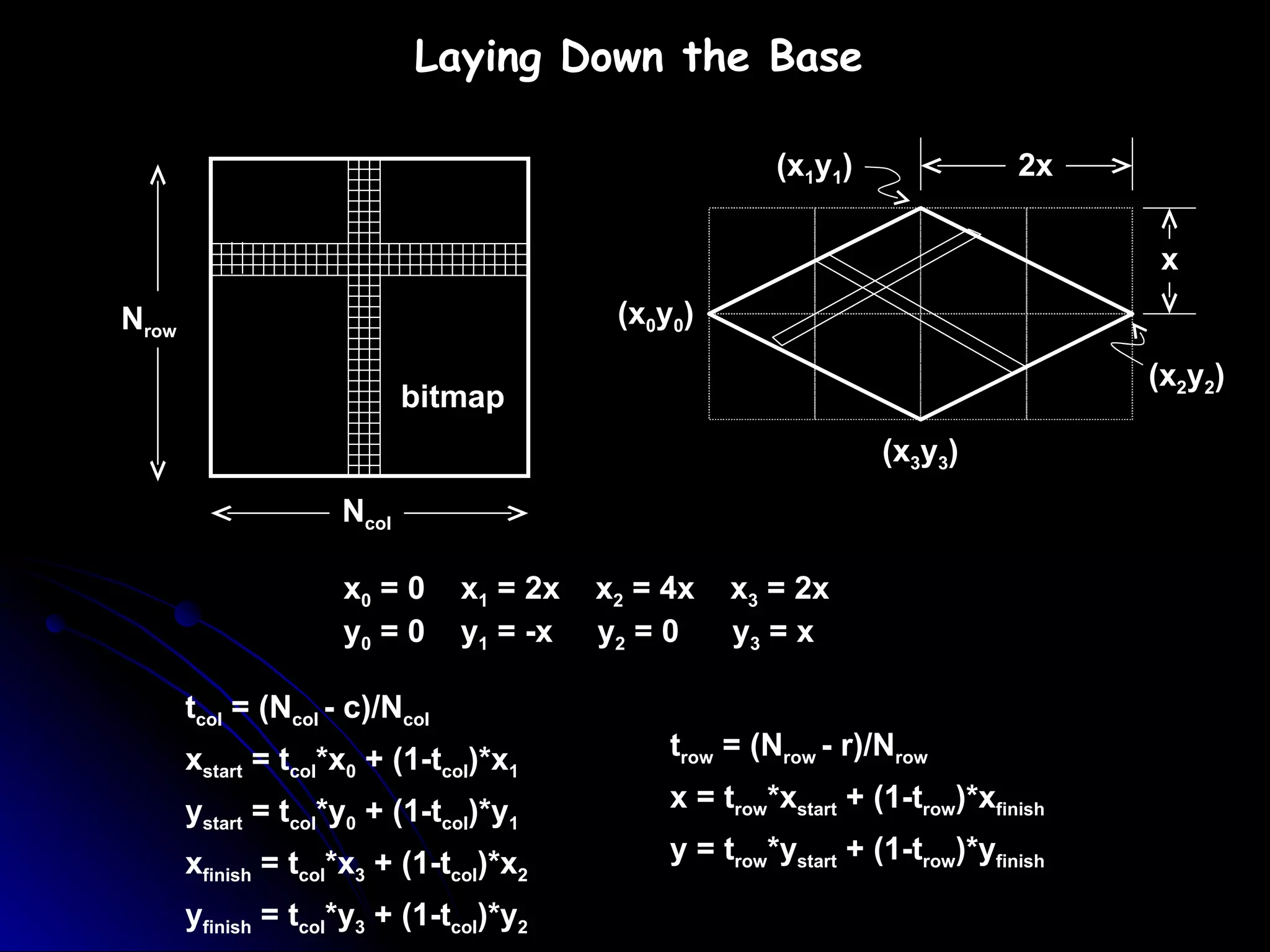

125. x 0 = 0 x 1 = 2x x 2 = 4x x 3 = 2x y 0 = 0 y 1 = -x y 2 = 0 y 3 = x Laying Down the Base t col = (N col - c)/N col x start = t col *x 0 + (1-t col )*x 1 y start = t col *y 0 + (1-t col )*y 1 x finish = t col *x 3 + (1-t col )*x 2 y finish = t col *y 3 + (1-t col )*y 2 t row = (N row - r)/N row x = t row *x start + (1-t row )*x finish y = t row *y start + (1-t row )*y finish (x 2 y 2 ) (x 1 y 1 ) (x 3 y 3 ) (x 0 y 0 ) N row bitmap N col 2x x

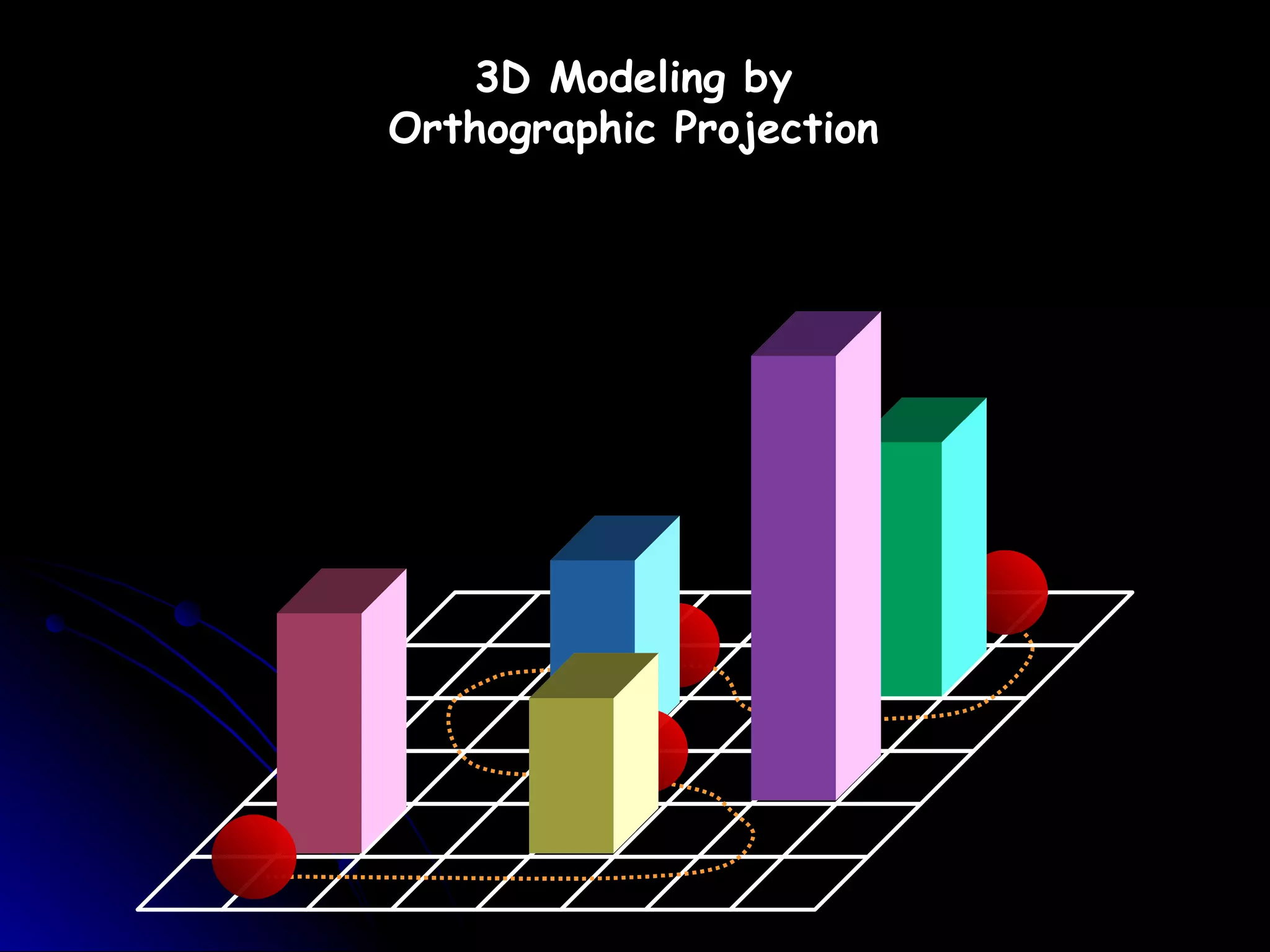

126. 3D Modeling by Orthographic Projection

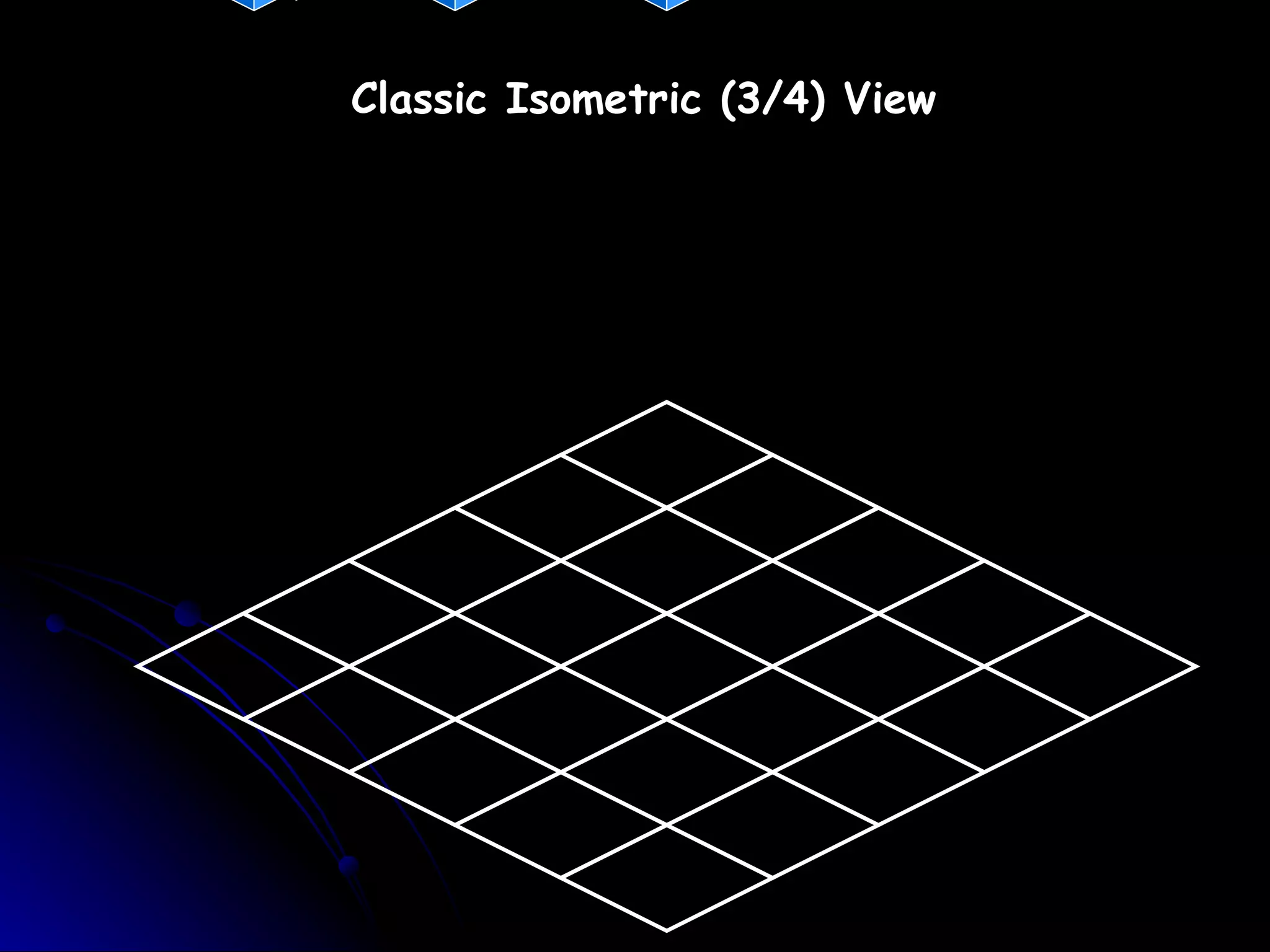

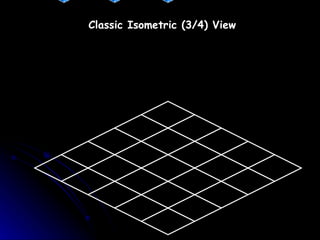

127. Classic Isometric (3/4) View

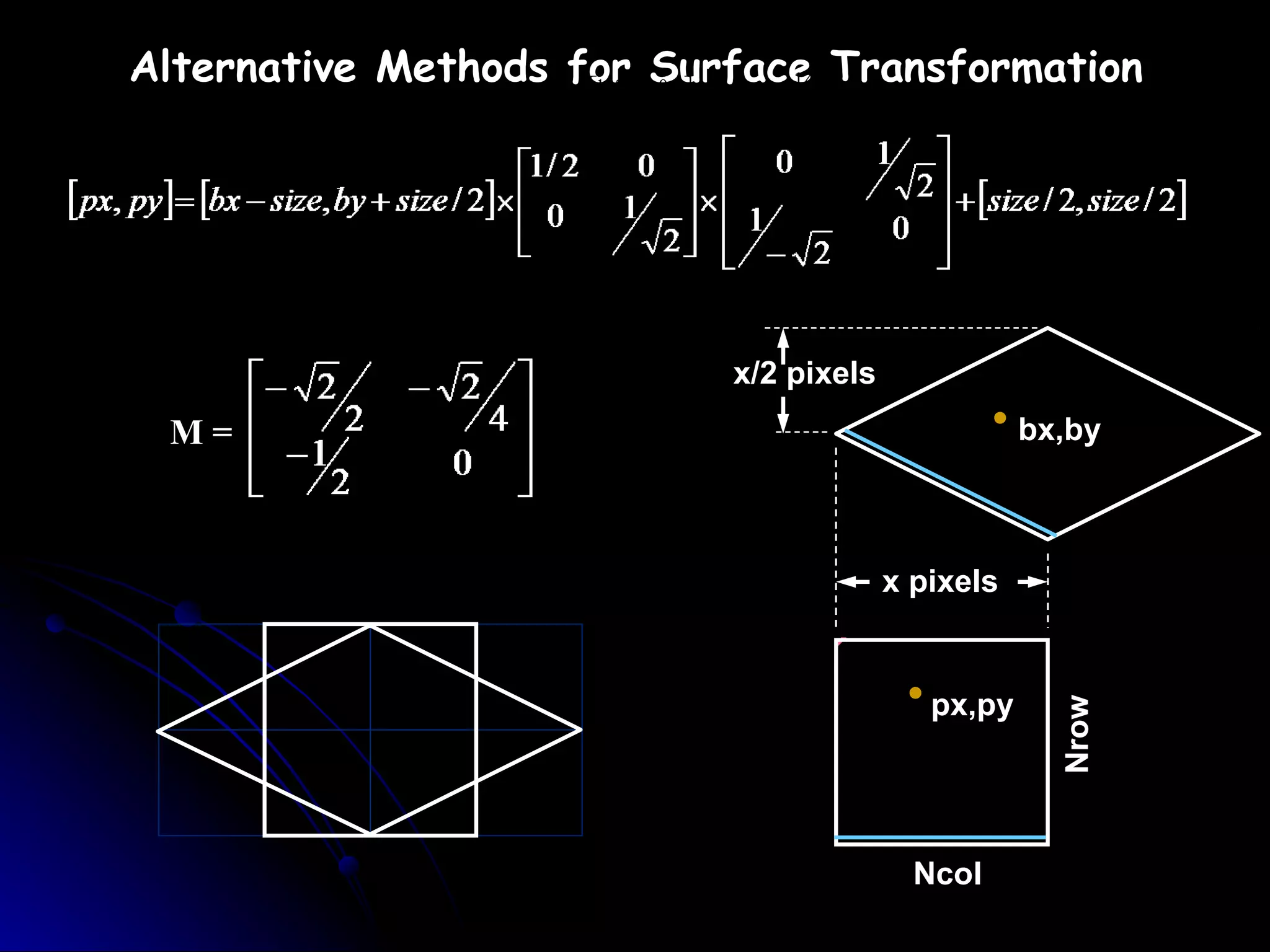

128. x/2 pixels Alternative Methods for Surface Transformation px,py bx,by x pixels Nrow Ncol M =

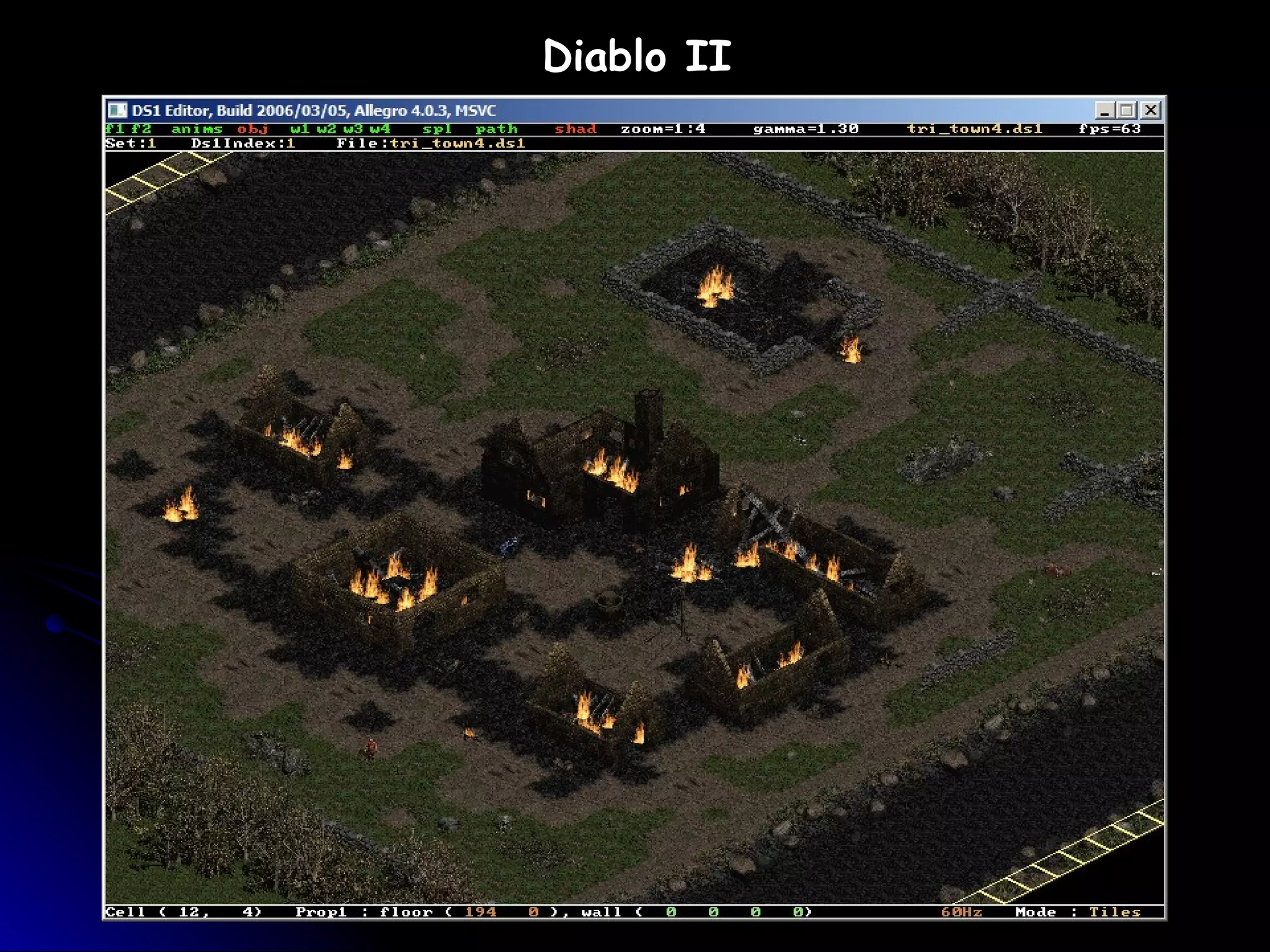

129. Diablo II

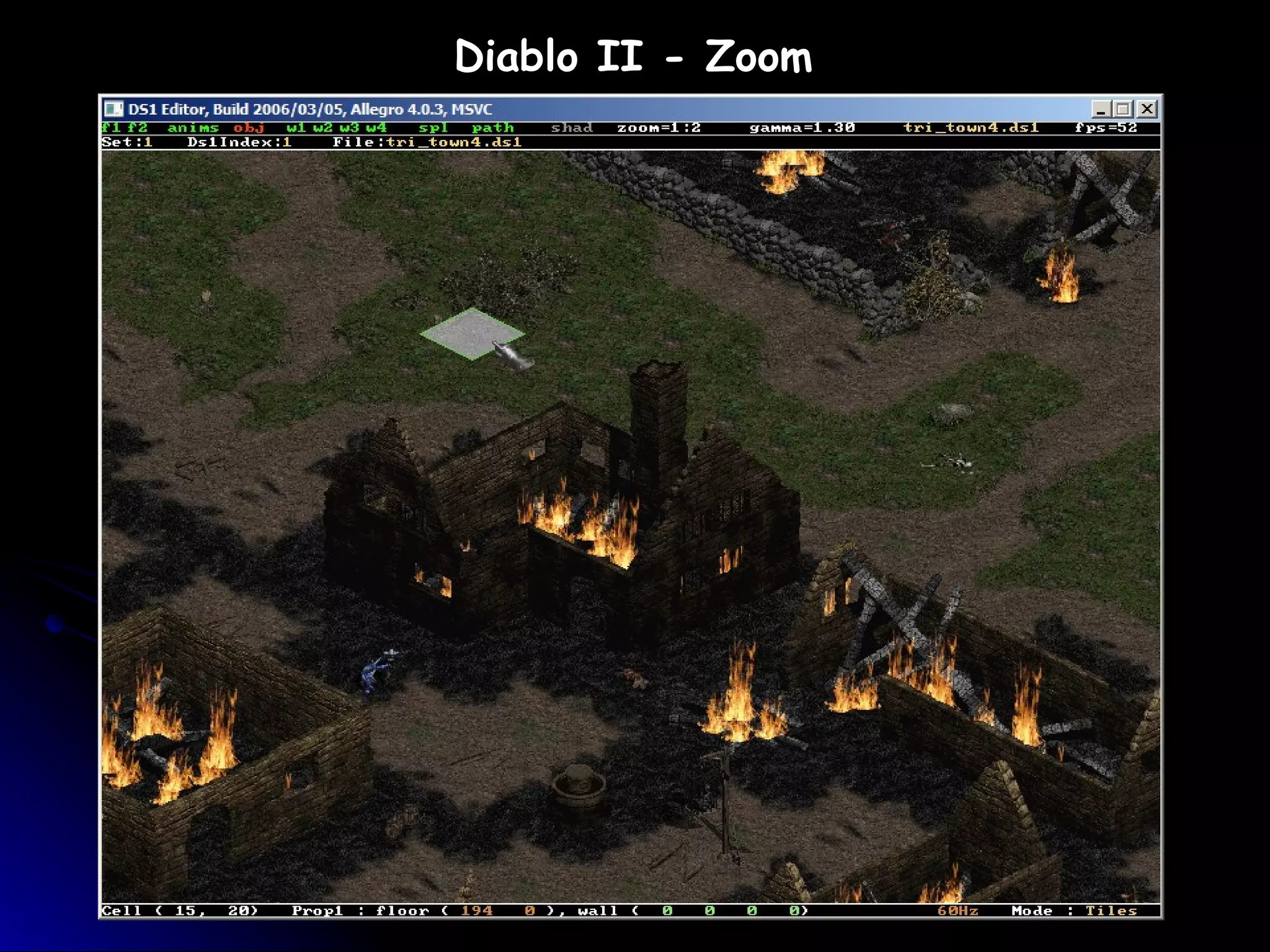

130. Diablo II - Zoom

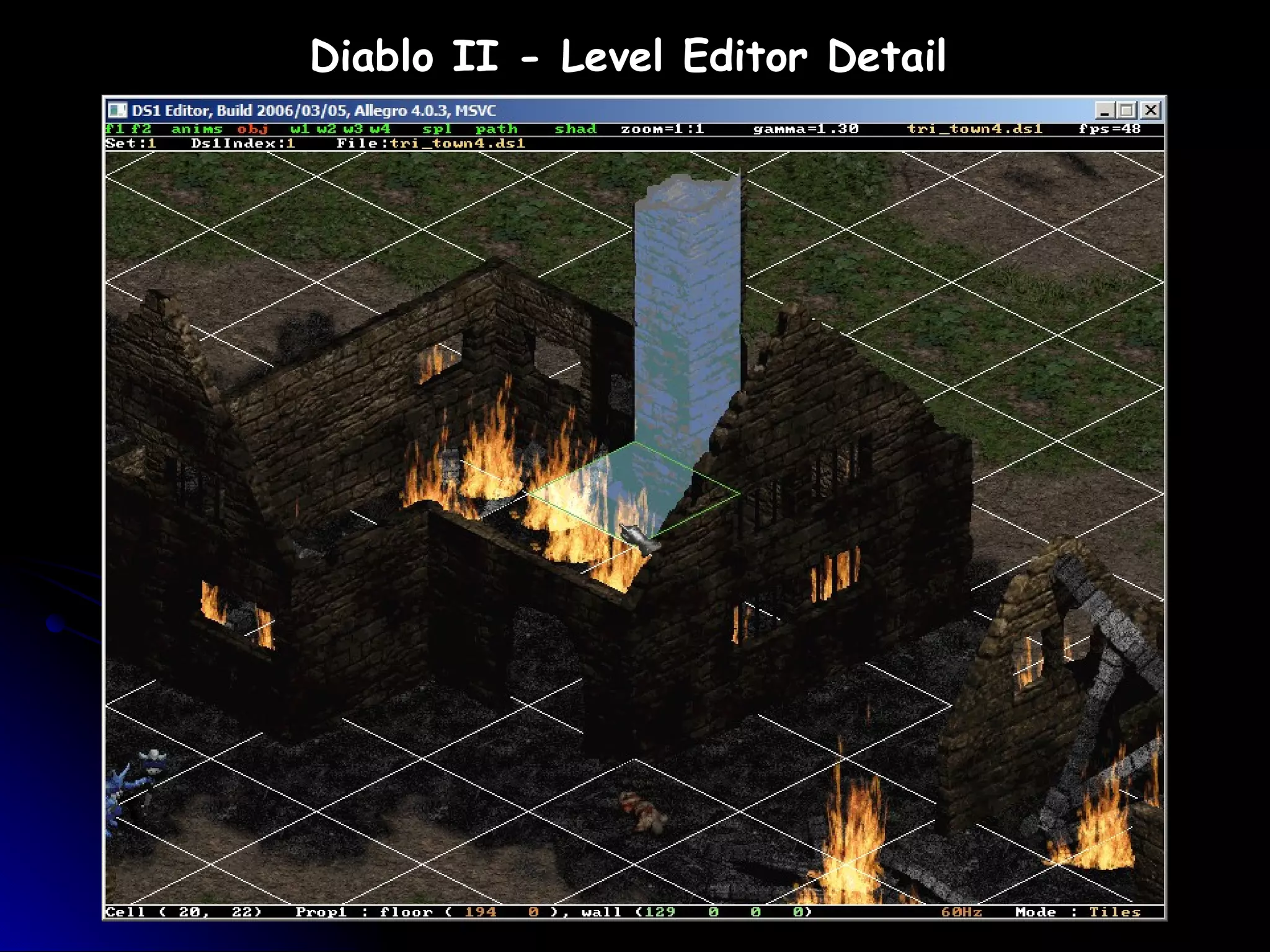

131. Diablo II - Level Editor Detail

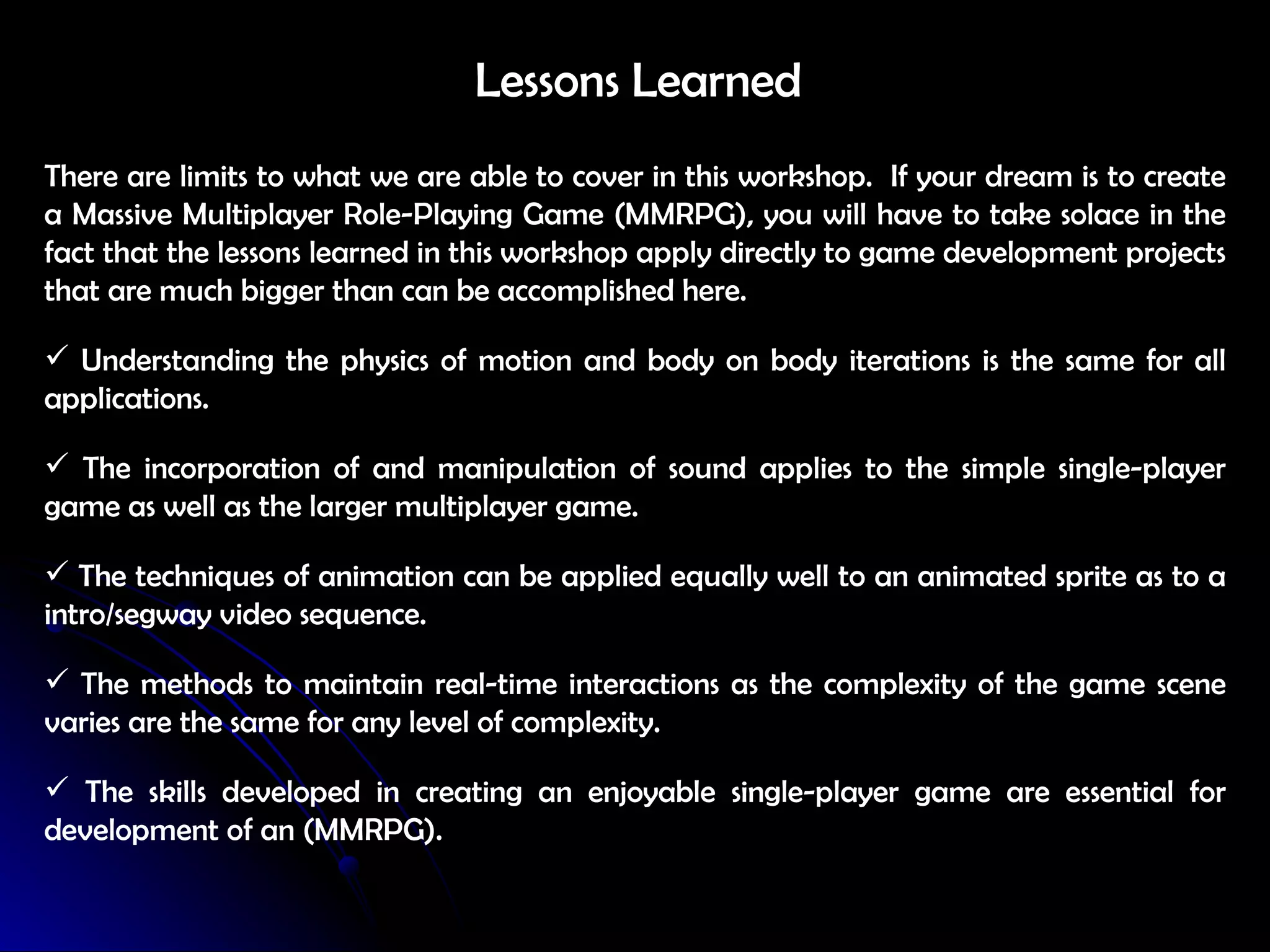

132. Lessons Learned There are limits to what we are able to cover in this workshop. If your dream is to create a Massive Multiplayer Role-Playing Game (MMRPG), you will have to take solace in the fact that the lessons learned in this workshop apply directly to game development projects that are much bigger than can be accomplished here. Understanding the physics of motion and body on body iterations is the same for all applications. The incorporation of and manipulation of sound applies to the simple single-player game as well as the larger multiplayer game. The techniques of animation can be applied equally well to an animated sprite as to a intro/segway video sequence. The methods to maintain real-time interactions as the complexity of the game scene varies are the same for any level of complexity. The skills developed in creating an enjoyable single-player game are essential for development of an (MMRPG).
