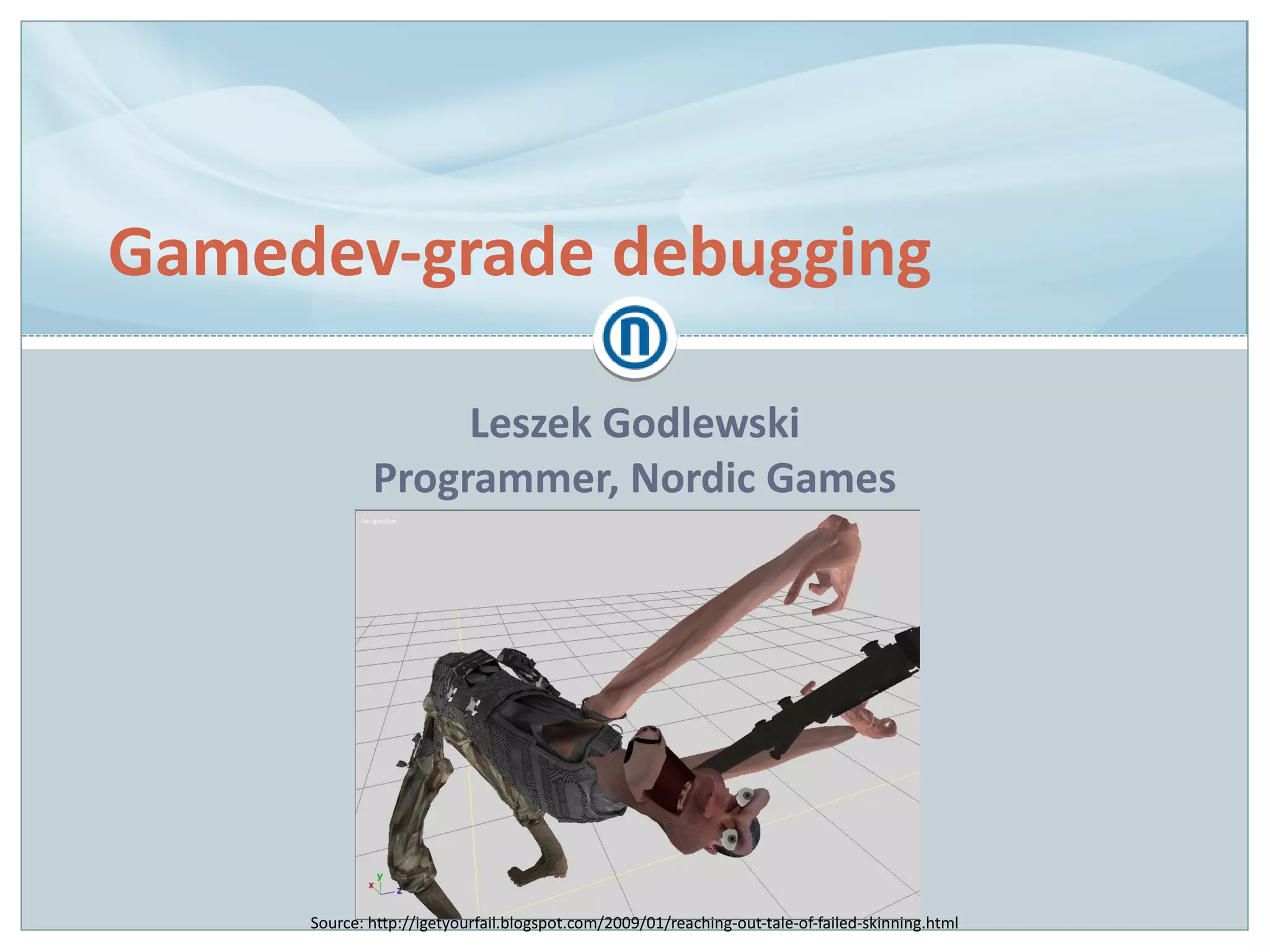

1. Leszek Godlewski
Programmer, Nordic Games
Gamedev-grade debugging
Source: http://igetyourfail.blogspot.com/2009/01/reaching-out-tale-of-failed-skinning.html

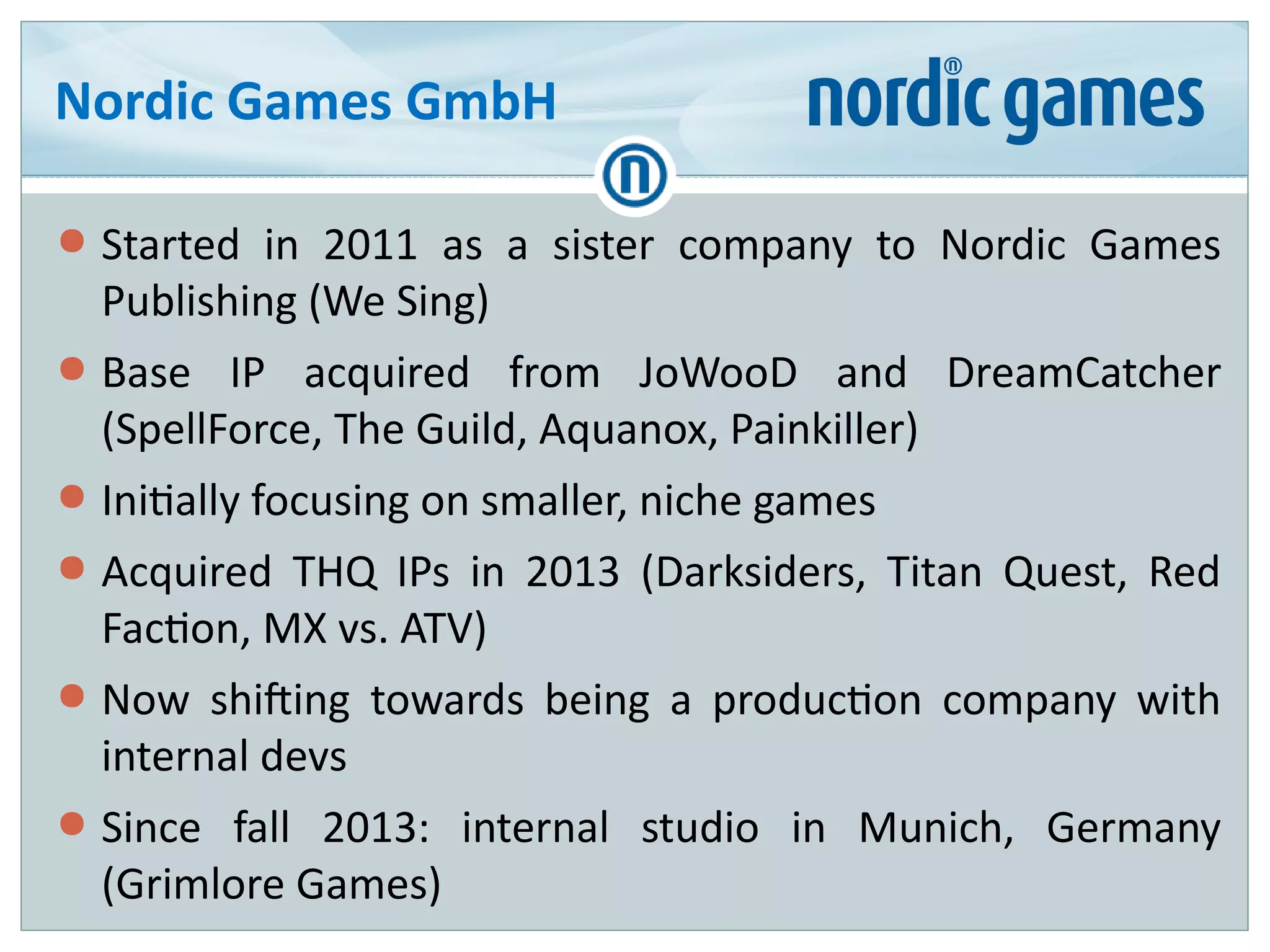

2. Nordic Games GmbH
● Started in 2011 as a sister company to Nordic Games
Publishing (We Sing)
● Base IP acquired from JoWooD and DreamCatcher
(SpellForce, The Guild, Aquanox, Painkiller)
● Initially focusing on smaller, niche games
● Acquired THQ IPs in 2013 (Darksiders, Titan Quest, Red
Faction, MX vs. ATV)
● Now shifting towards being a production company with
internal devs
● Since fall 2013: internal studio in Munich, Germany
(Grimlore Games)

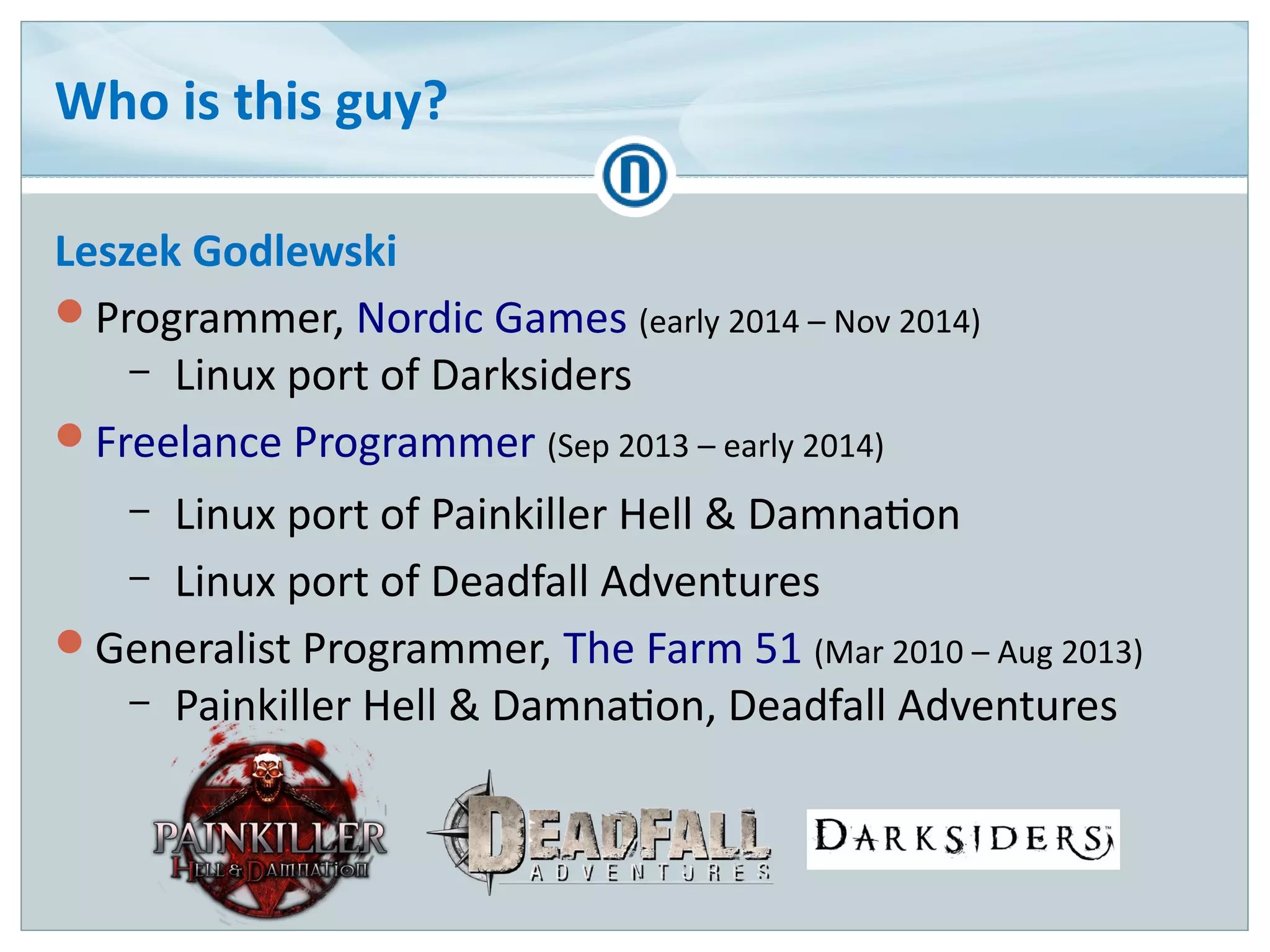

3. Who is this guy?
Leszek Godlewski
Programmer, Nordic Games (early 2014 – Nov 2014)
– Linux port of Darksiders
Freelance Programmer (Sep 2013 – early 2014)
– Linux port of Painkiller Hell & Damnation
– Linux port of Deadfall Adventures
Generalist Programmer, The Farm 51 (Mar 2010 – Aug 2013)
– Painkiller Hell & Damnation, Deadfall Adventures

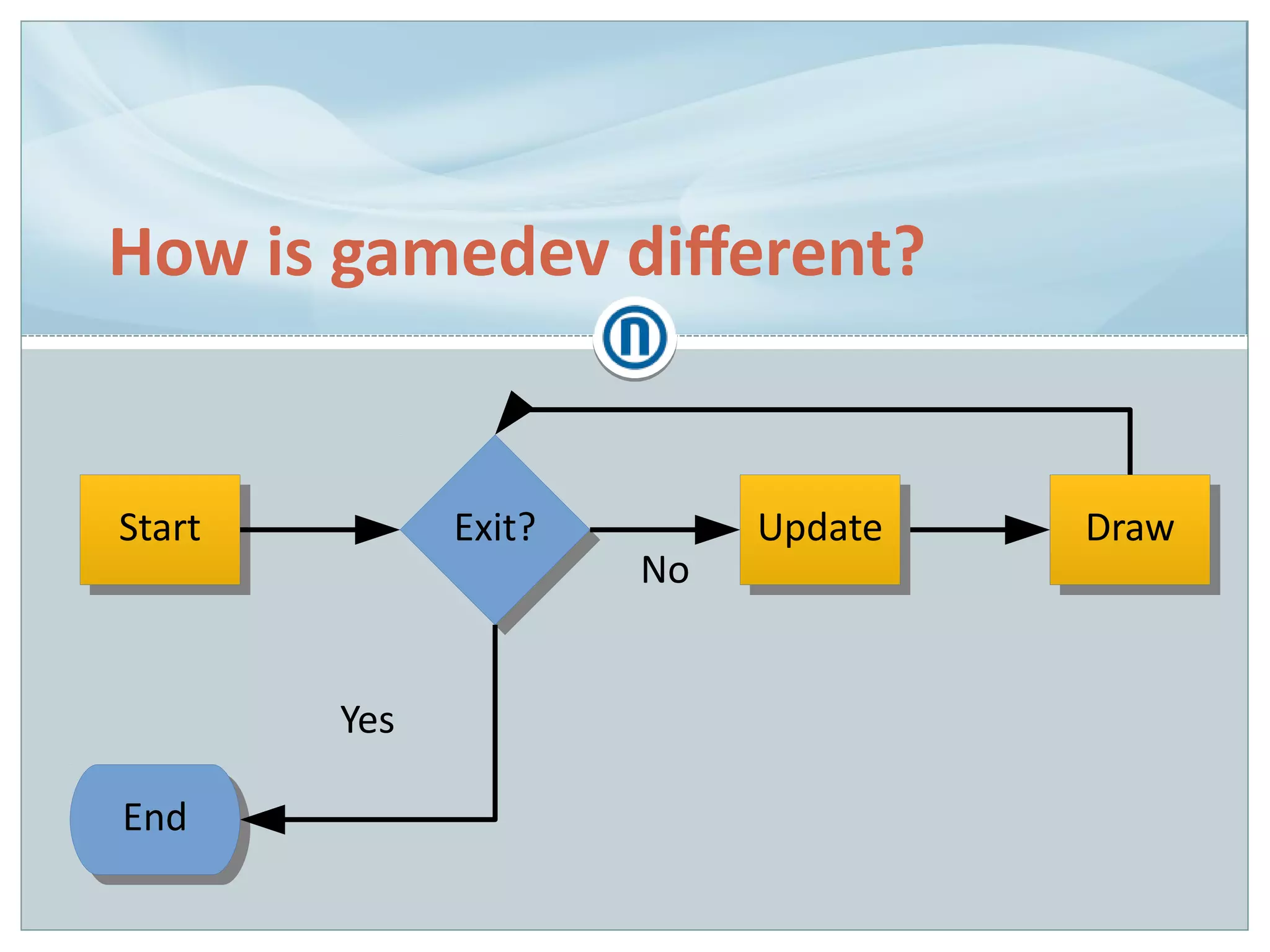

5. How is gamedev different?
StartStart Exit?Exit?
EndEnd
Yes
No
UpdateUpdate DrawDraw

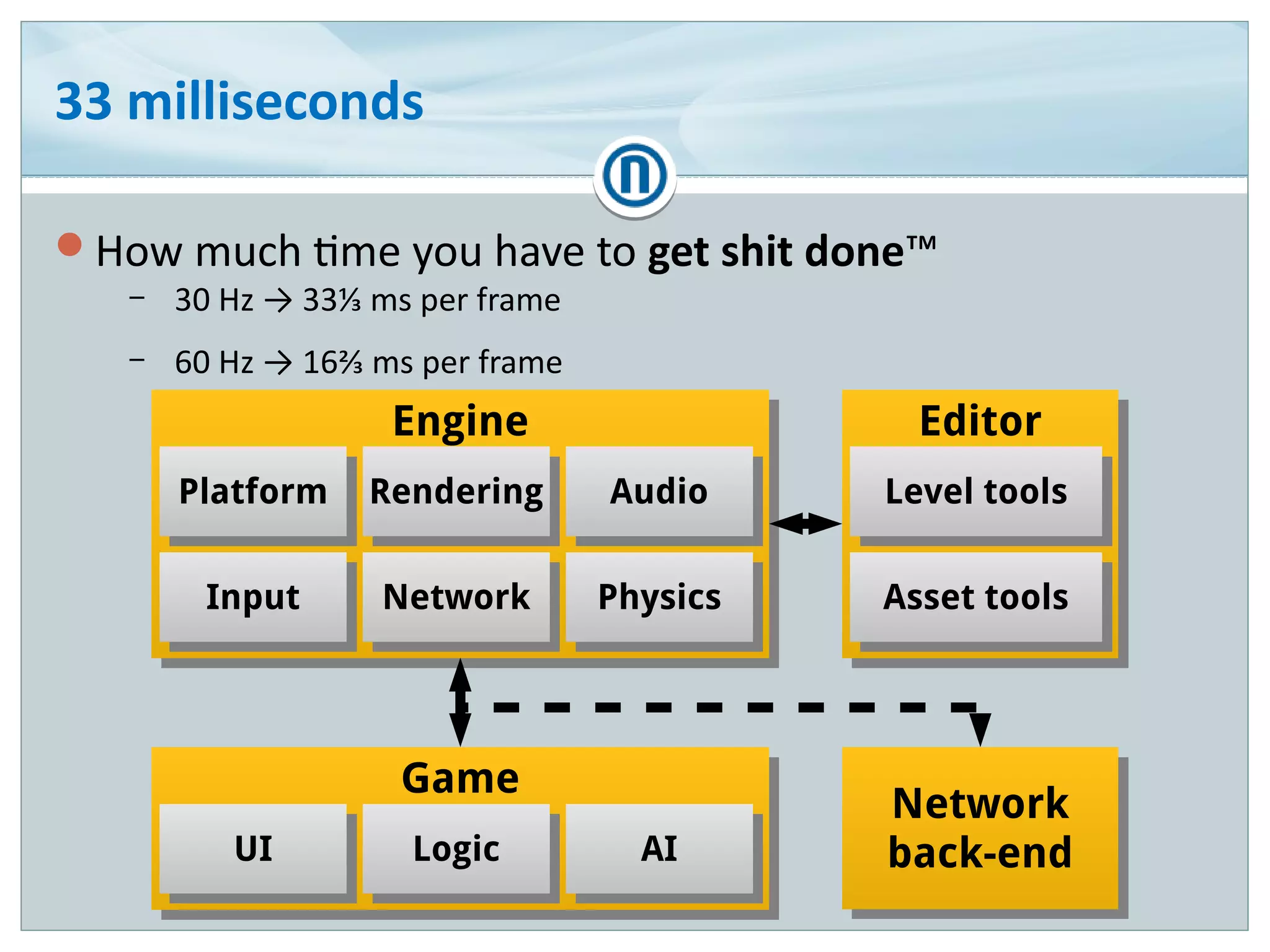

6. 33 milliseconds
How much time you have to get shit done™
– 30 Hz → 33⅓ ms per frame
– 60 Hz → 16⅔ ms per frame
EditorEditor
Level toolsLevel tools
Asset toolsAsset tools
EngineEngine
PhysicsPhysics
RenderingRendering AudioAudio
NetworkNetwork
PlatformPlatform
InputInput
Network
back-end
Network
back-end
GameGame
UIUI LogicLogic AIAI

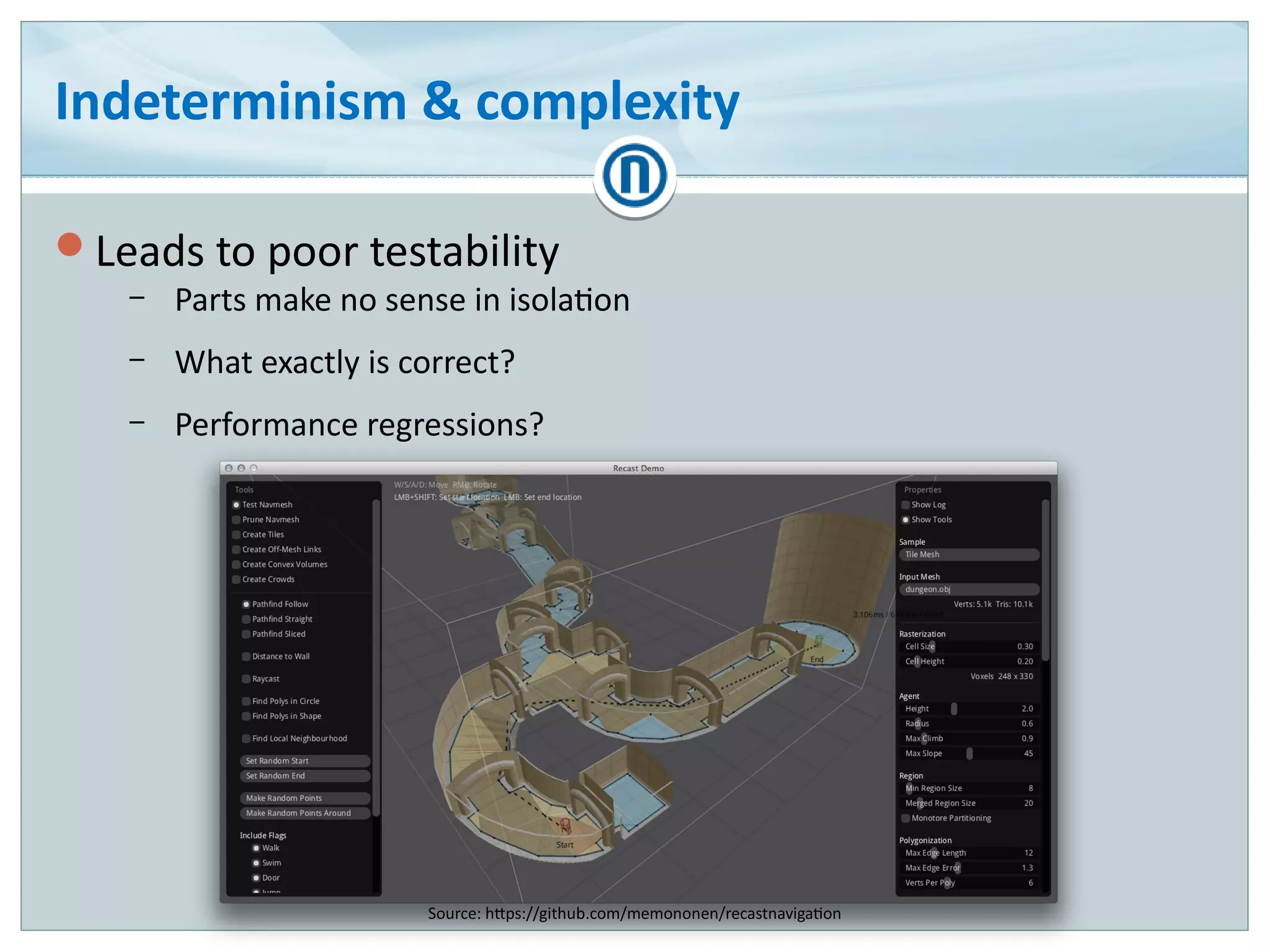

10. Indeterminism & complexity
Leads to poor testability
– Parts make no sense in isolation
– What exactly is correct?
– Performance regressions?
Source: https://github.com/memononen/recastnavigation

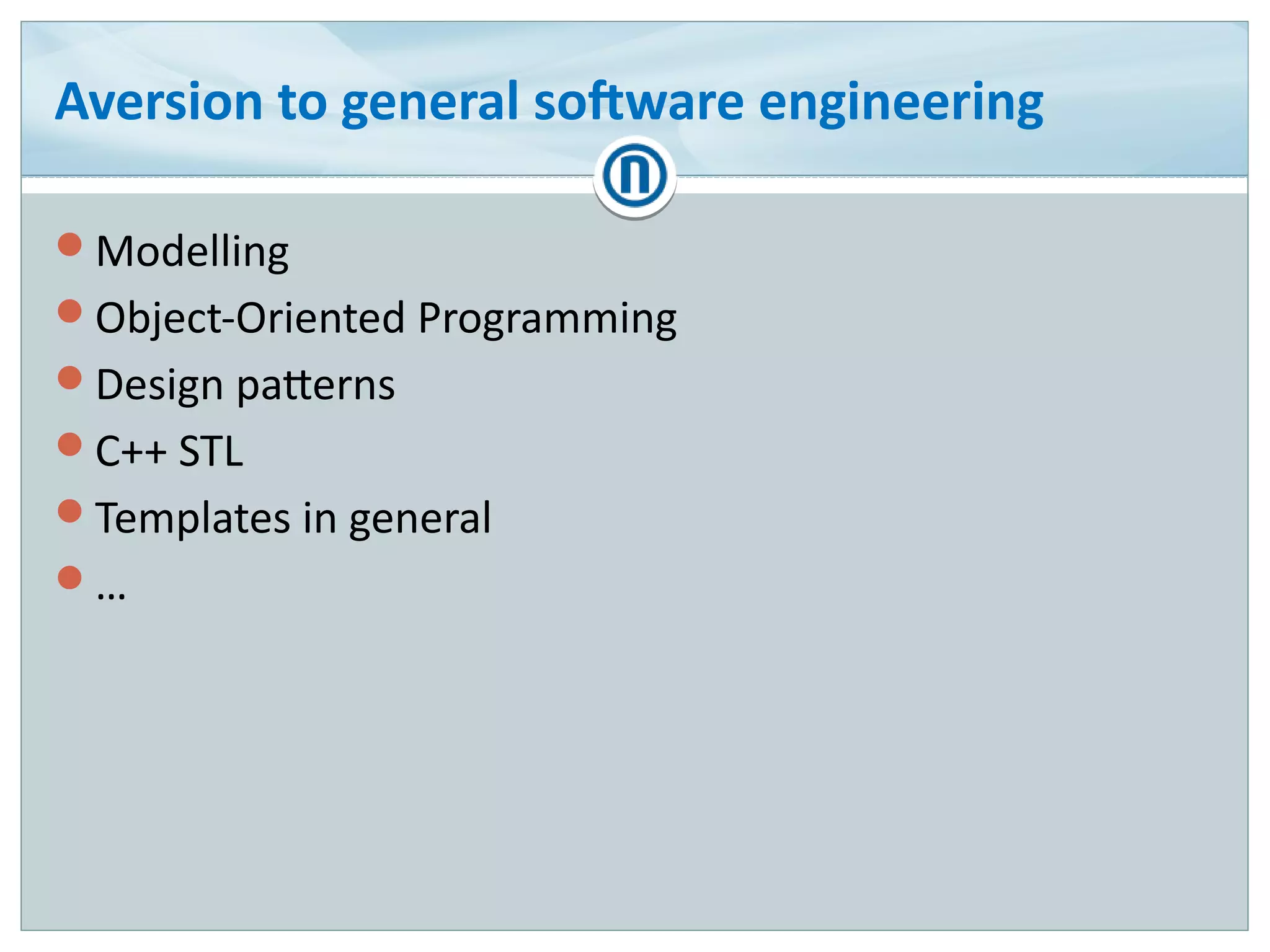

11. Aversion to general software engineering
Modelling
Object-Oriented Programming
Design patterns
C++ STL
Templates in general
…

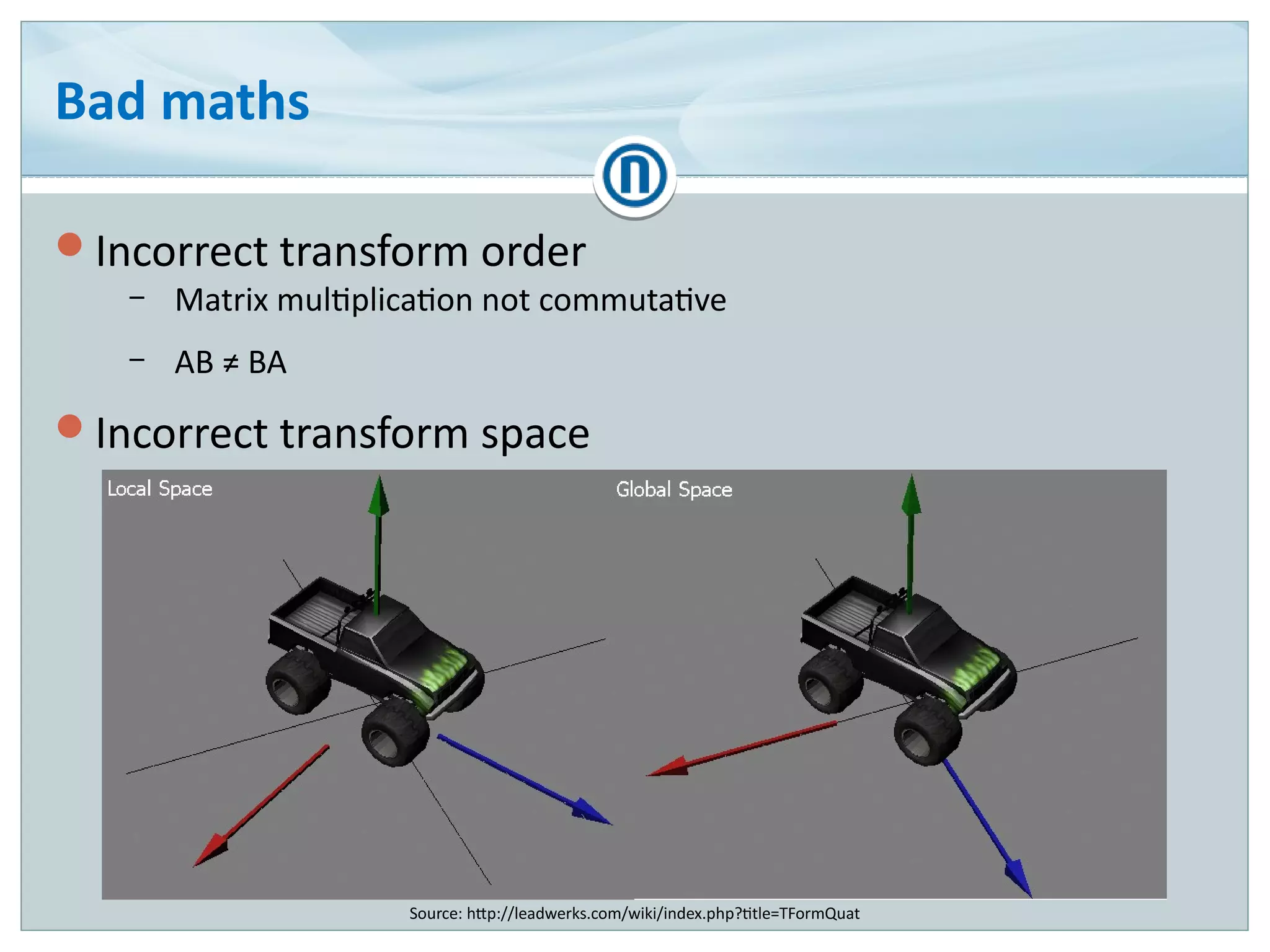

15. Bad maths
Incorrect transform order
– Matrix multiplication not commutative
– AB ≠ BA
Incorrect transform space
Source: http://leadwerks.com/wiki/index.php?title=TFormQuat

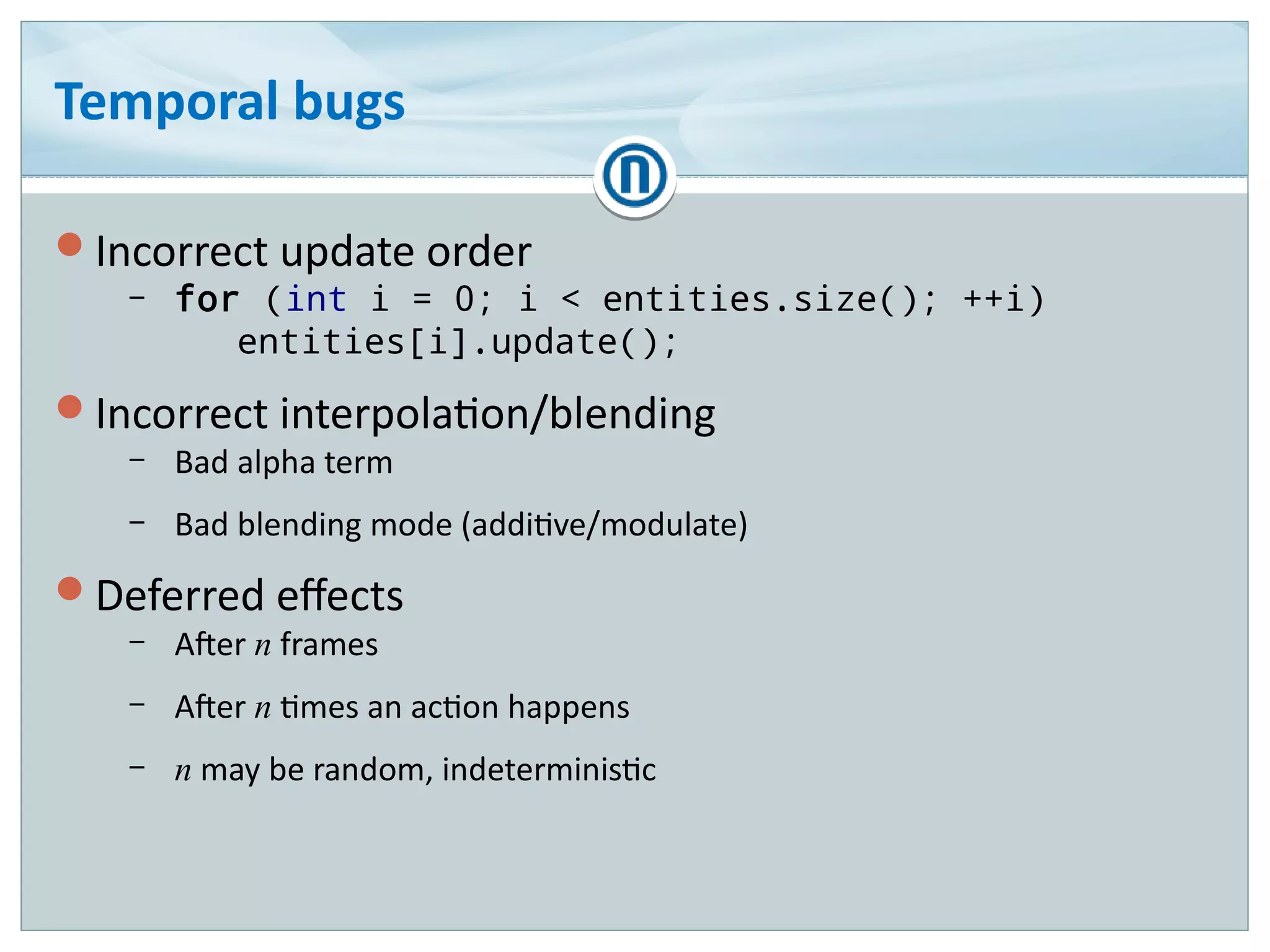

16. Temporal bugs
Incorrect update order
– for (int i = 0; i < entities.size(); ++i)
entities[i].update();
Incorrect interpolation/blending
– Bad alpha term
– Bad blending mode (additive/modulate)
Deferred effects
– After n frames
– After n times an action happens
– n may be random, indeterministic

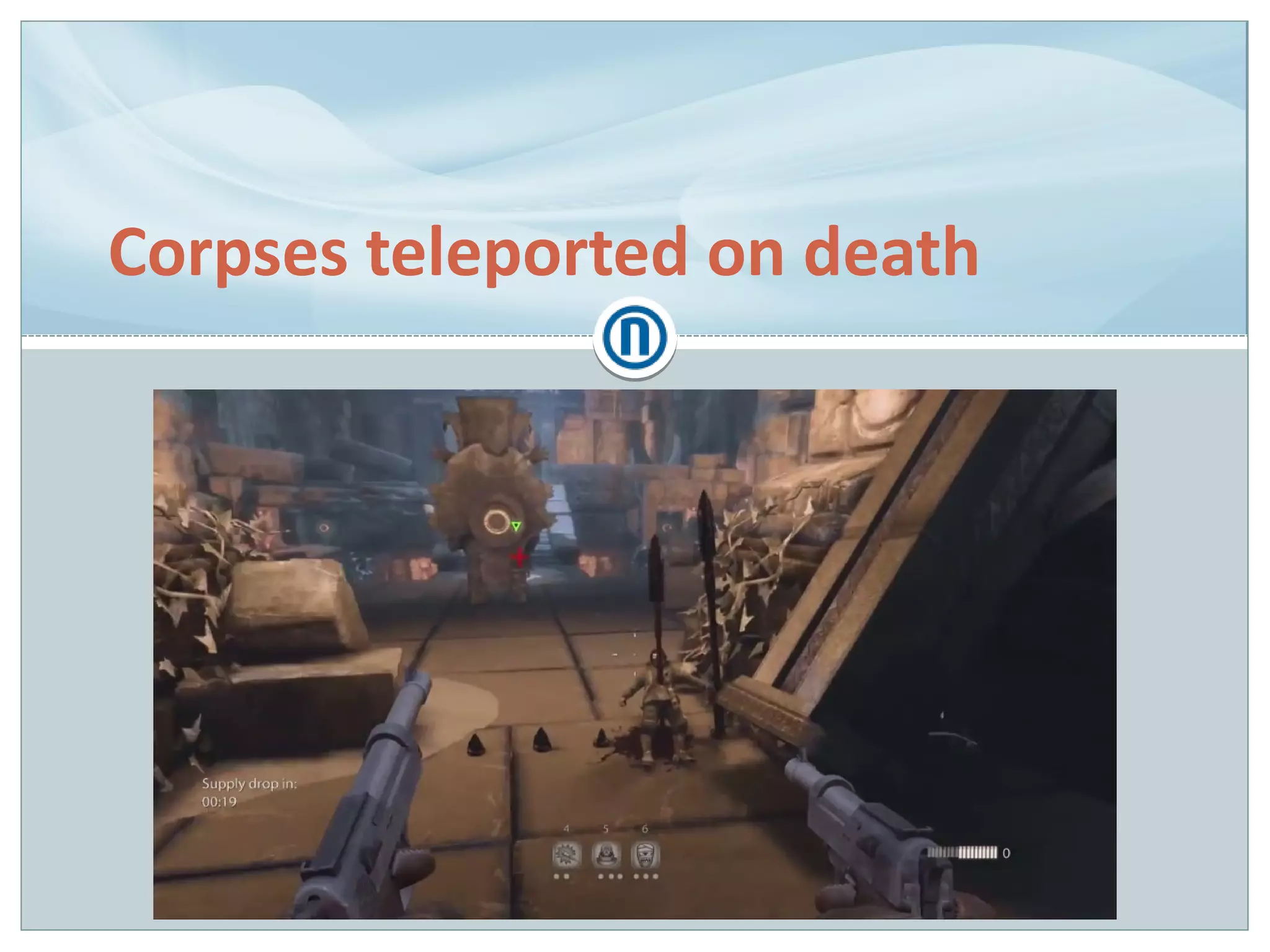

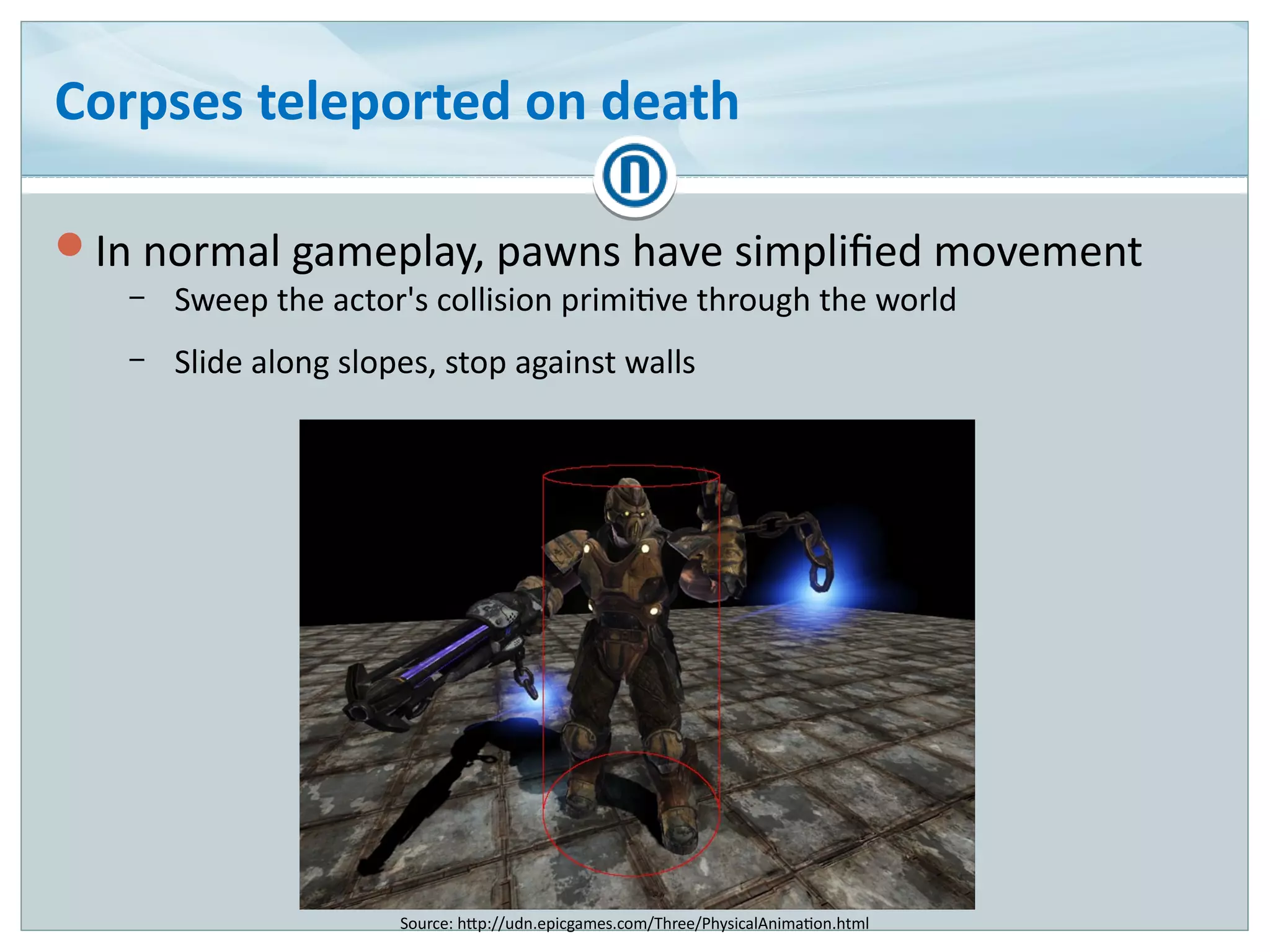

26. Corpses teleported on death
In normal gameplay, pawns have simplified movement
– Sweep the actor's collision primitive through the world
– Slide along slopes, stop against walls
Source: http://udn.epicgames.com/Three/PhysicalAnimation.html

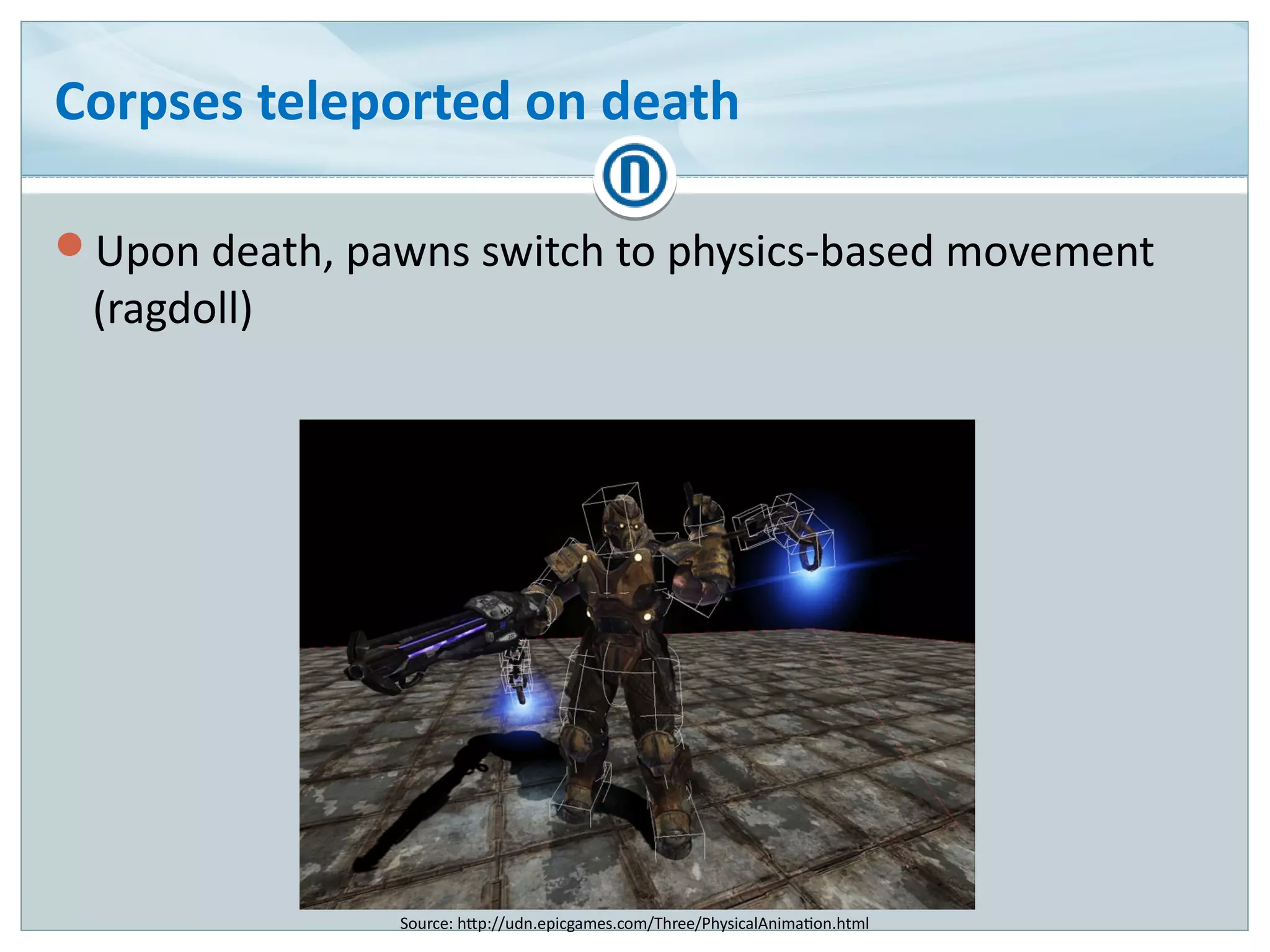

27. Corpses teleported on death
Upon death, pawns switch to physics-based movement
(ragdoll)
Source: http://udn.epicgames.com/Three/PhysicalAnimation.html

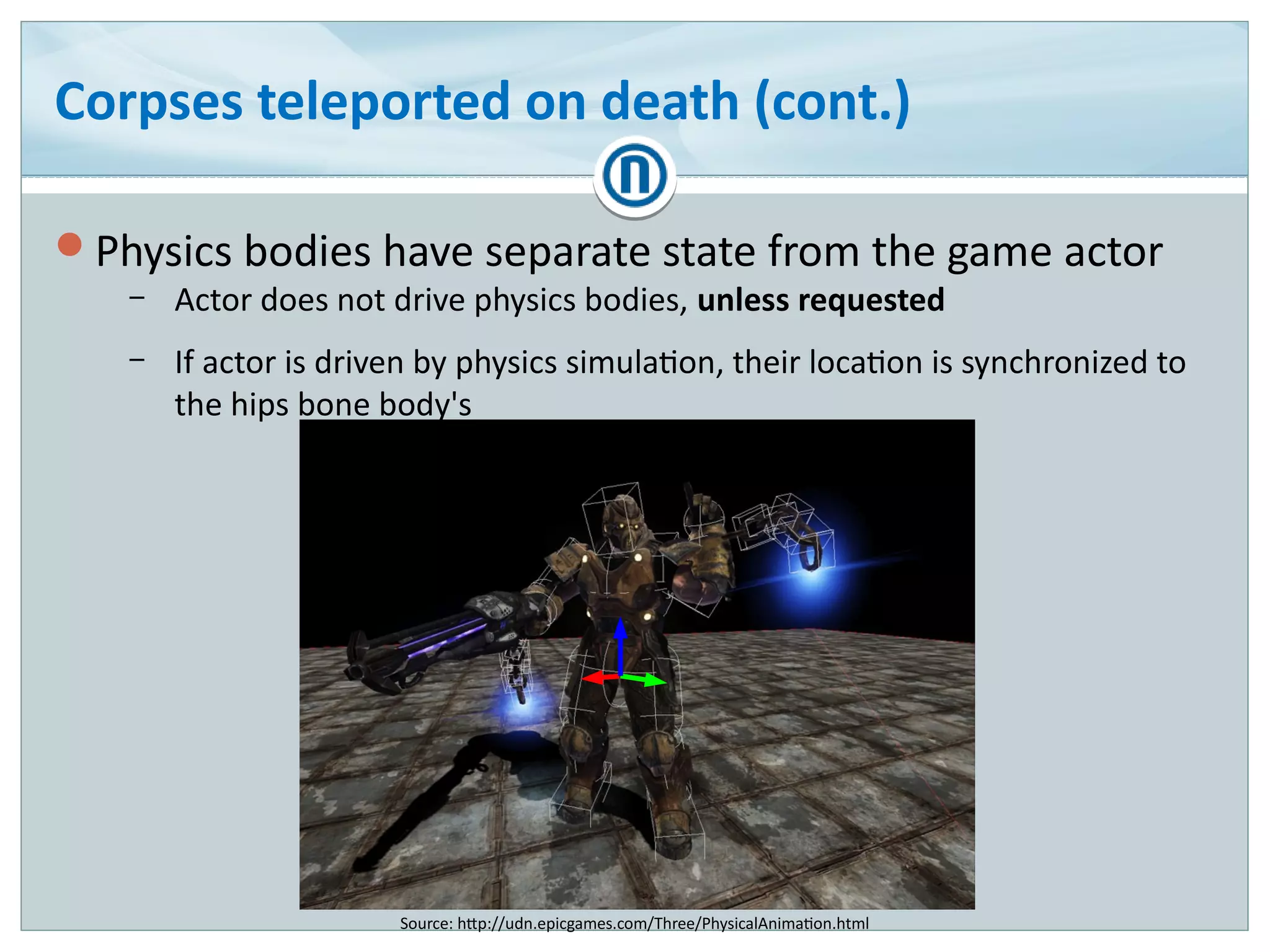

28. Corpses teleported on death (cont.)
Physics bodies have separate state from the game actor
– Actor does not drive physics bodies, unless requested
– If actor is driven by physics simulation, their location is synchronized to
the hips bone body's
Source: http://udn.epicgames.com/Three/PhysicalAnimation.html

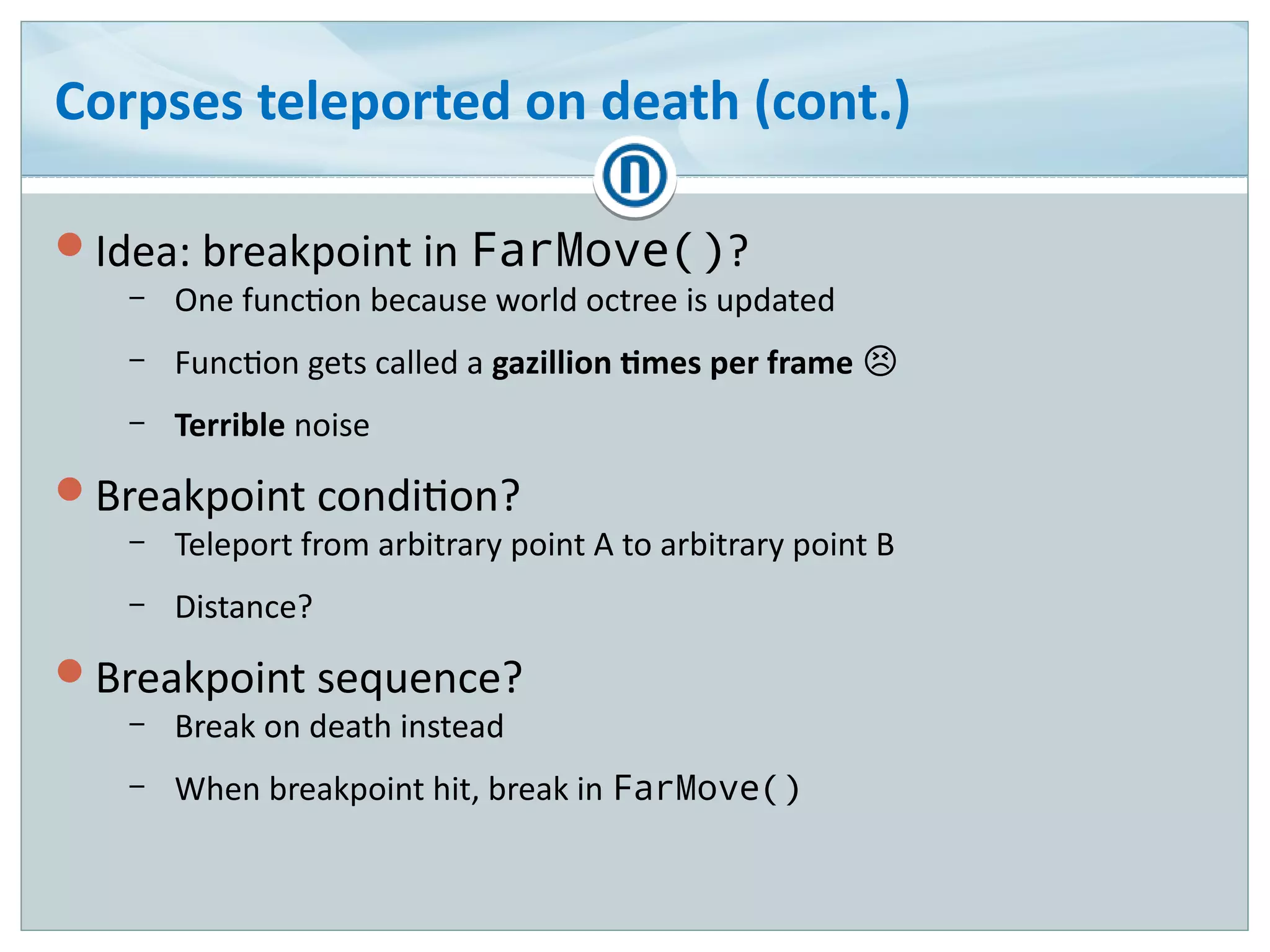

29. Corpses teleported on death (cont.)
Idea: breakpoint in FarMove()?
– One function because world octree is updated
– Function gets called a gazillion times per frame �
– Terrible noise
Breakpoint condition?
– Teleport from arbitrary point A to arbitrary point B
– Distance?
Breakpoint sequence?
– Break on death instead
– When breakpoint hit, break in FarMove()
30. Corpses teleported on death (cont.)
Cause: physics body driving the actor with out-of-date
state
Fix: request physics body state synchronization to
animation before switching to ragdoll

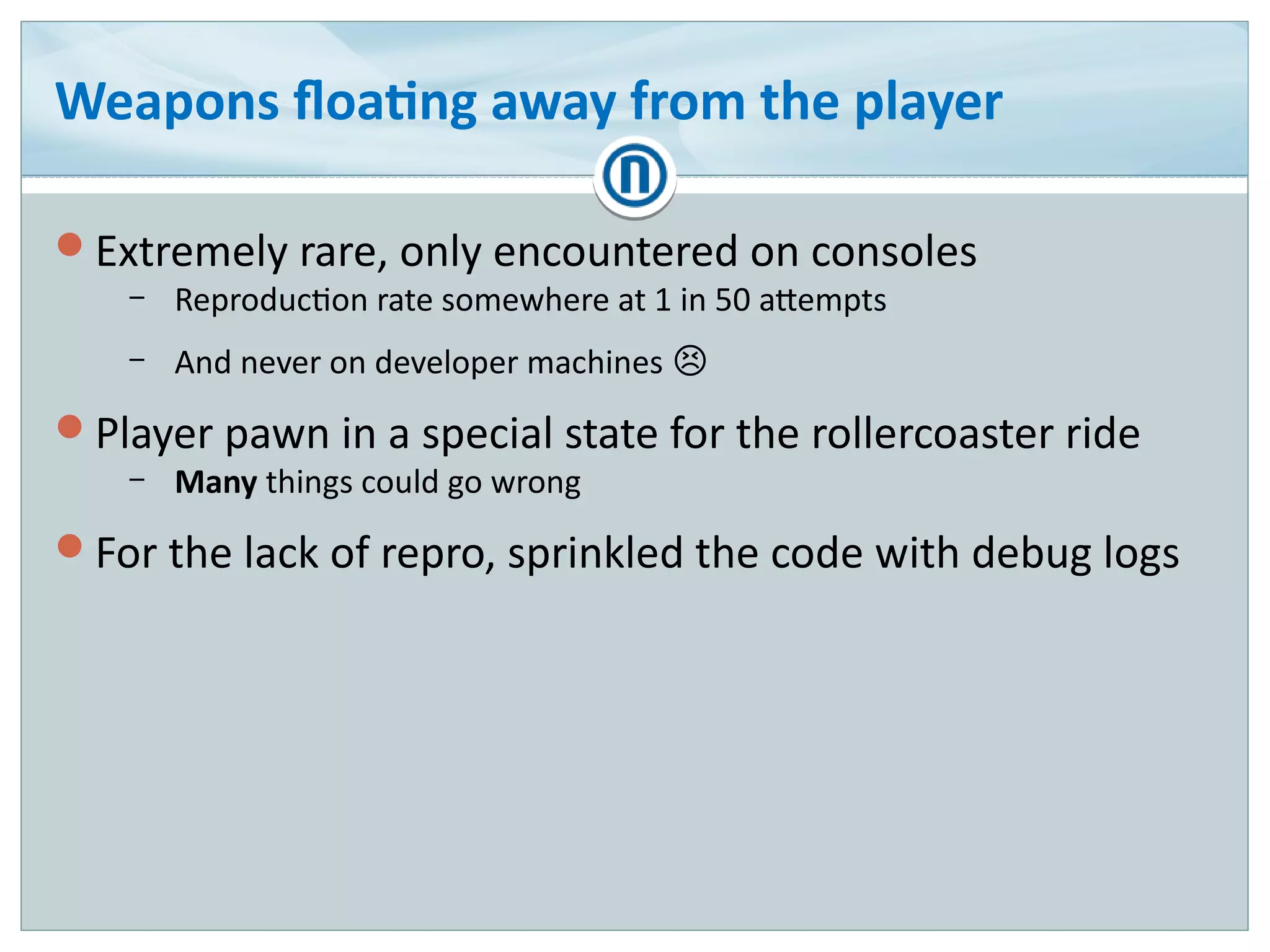

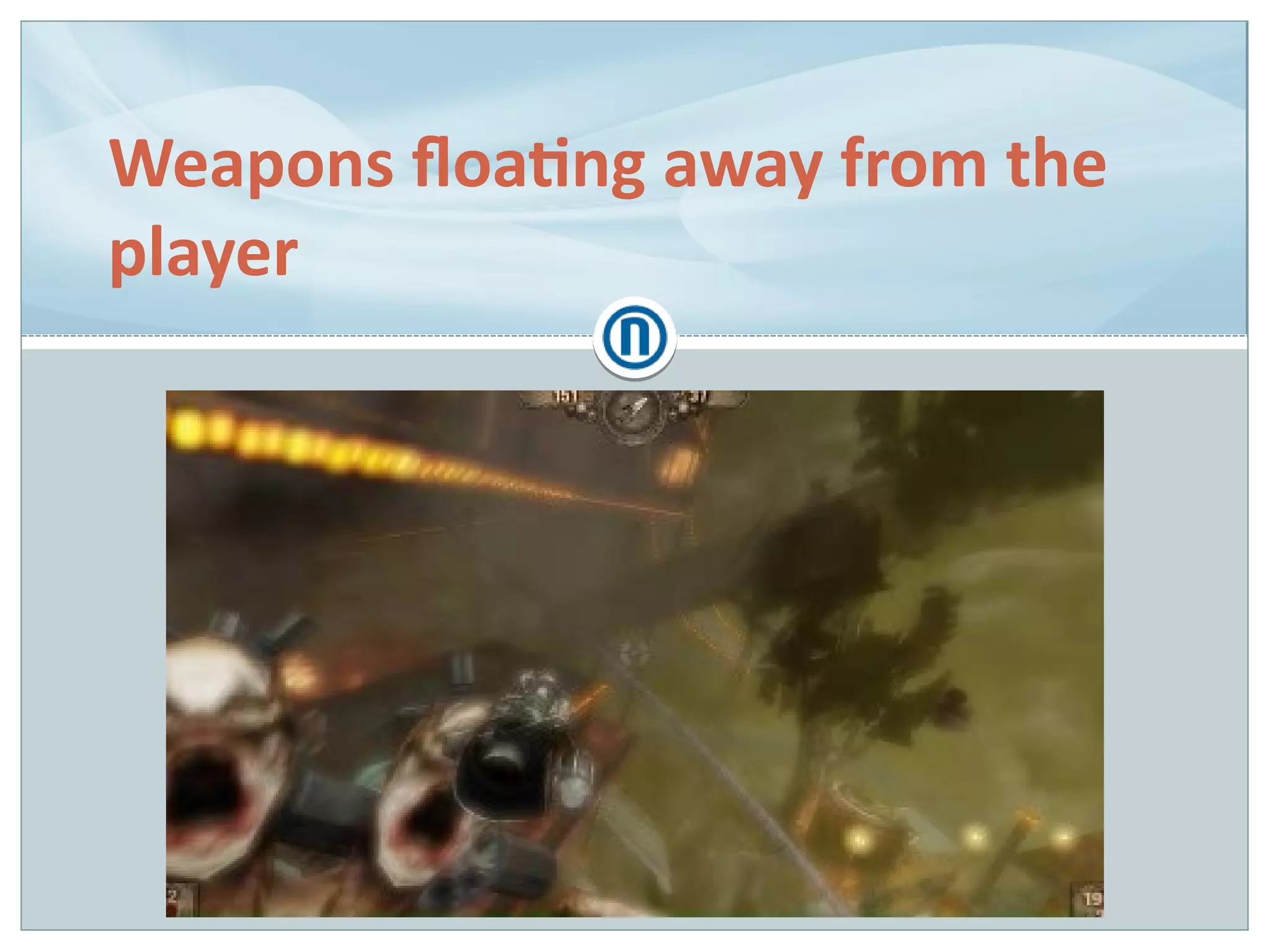

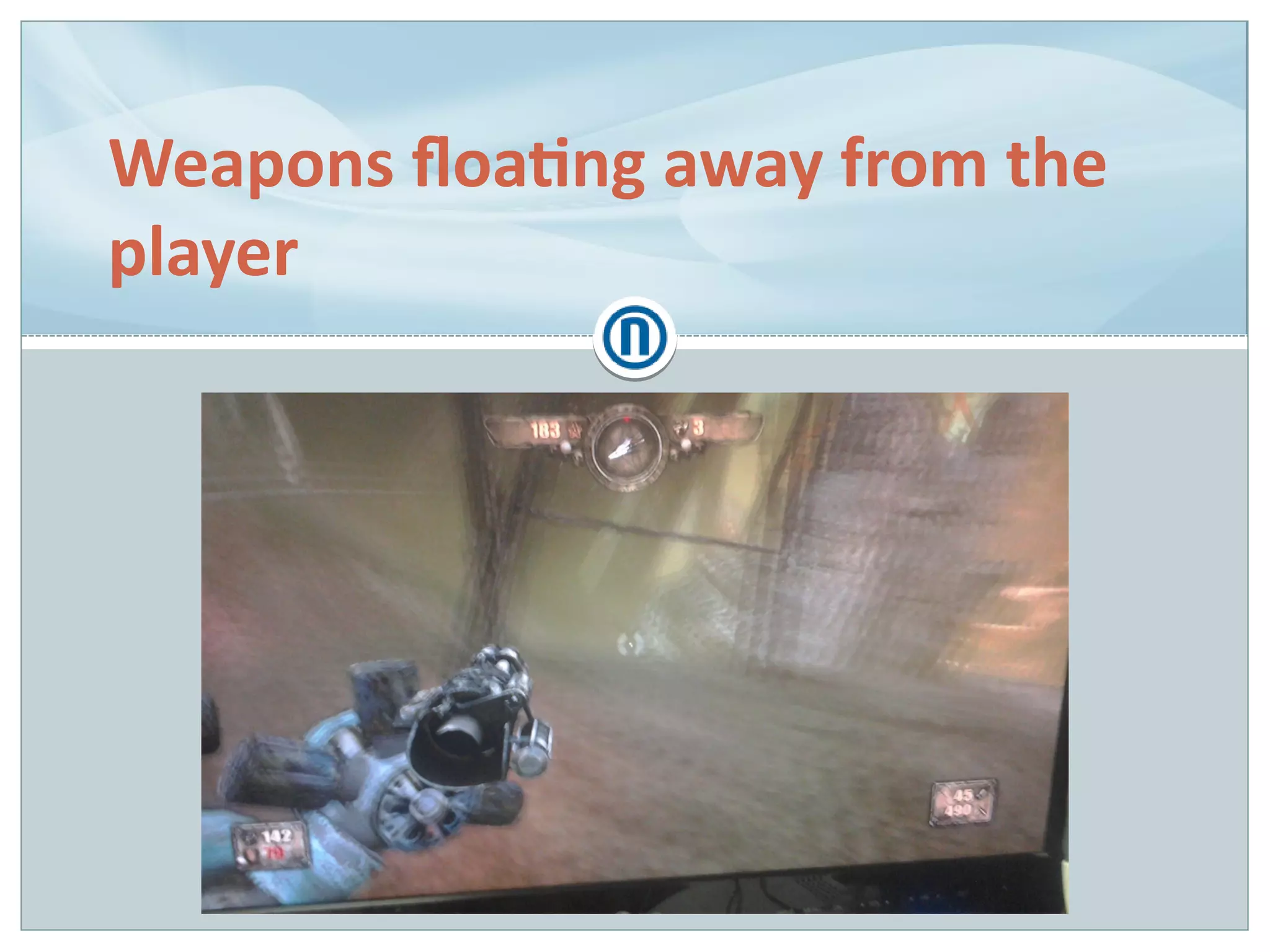

33. Weapons floating away from the player
Extremely rare, only encountered on consoles
– Reproduction rate somewhere at 1 in 50 attempts
– And never on developer machines �
Player pawn in a special state for the rollercoaster ride
– Many things could go wrong
For the lack of repro, sprinkled the code with debug logs
34. Weapons floating away from the player (cont.)
Cause: incorrect update order
– for (int i = 0; i < entities.size(); ++i)
entities[i].update();
– Player pawn forced to update after rollercoaster car
– Possible for weapons to be updated before player pawns
Fix: enforce weapon update after player pawns

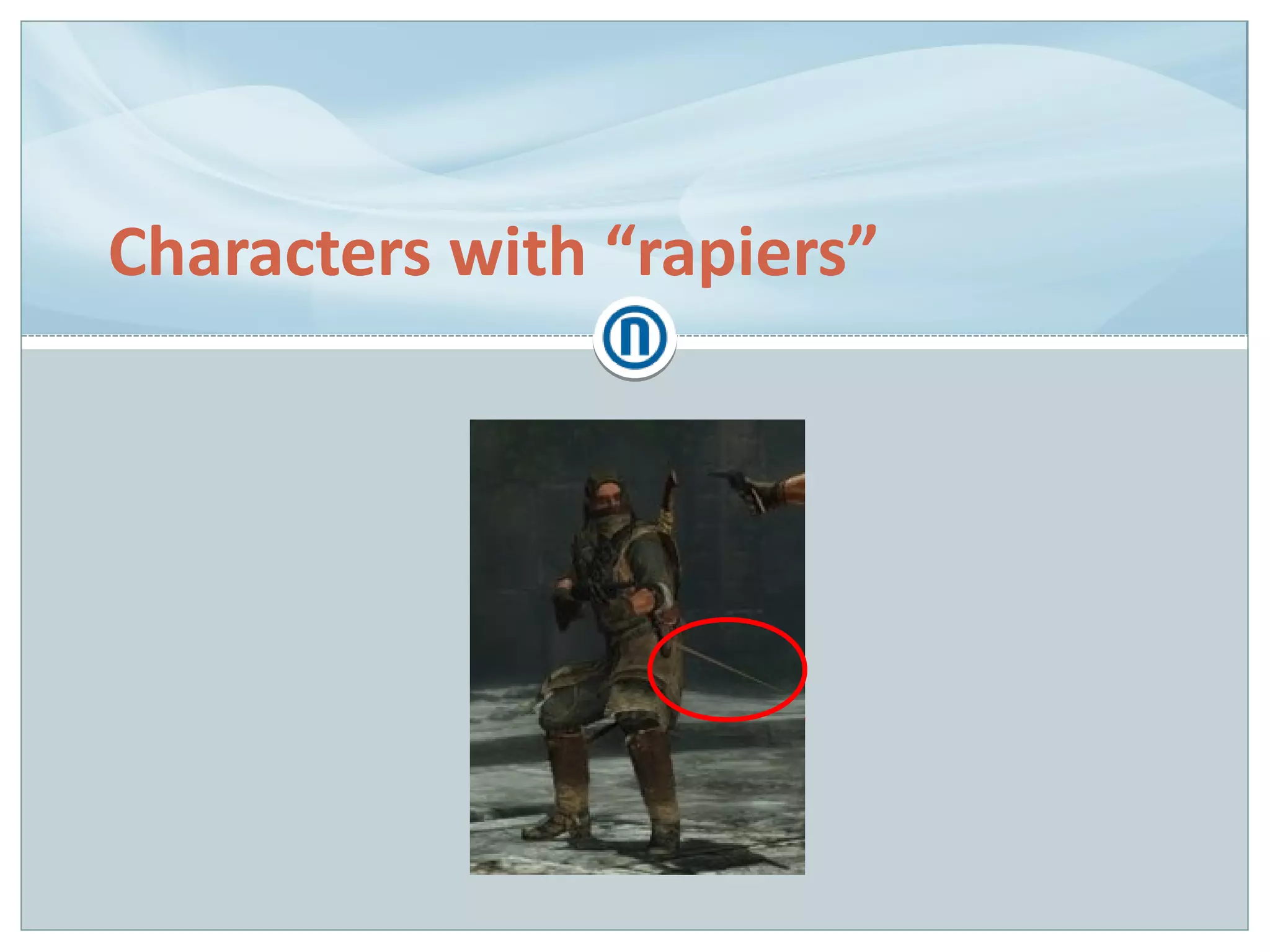

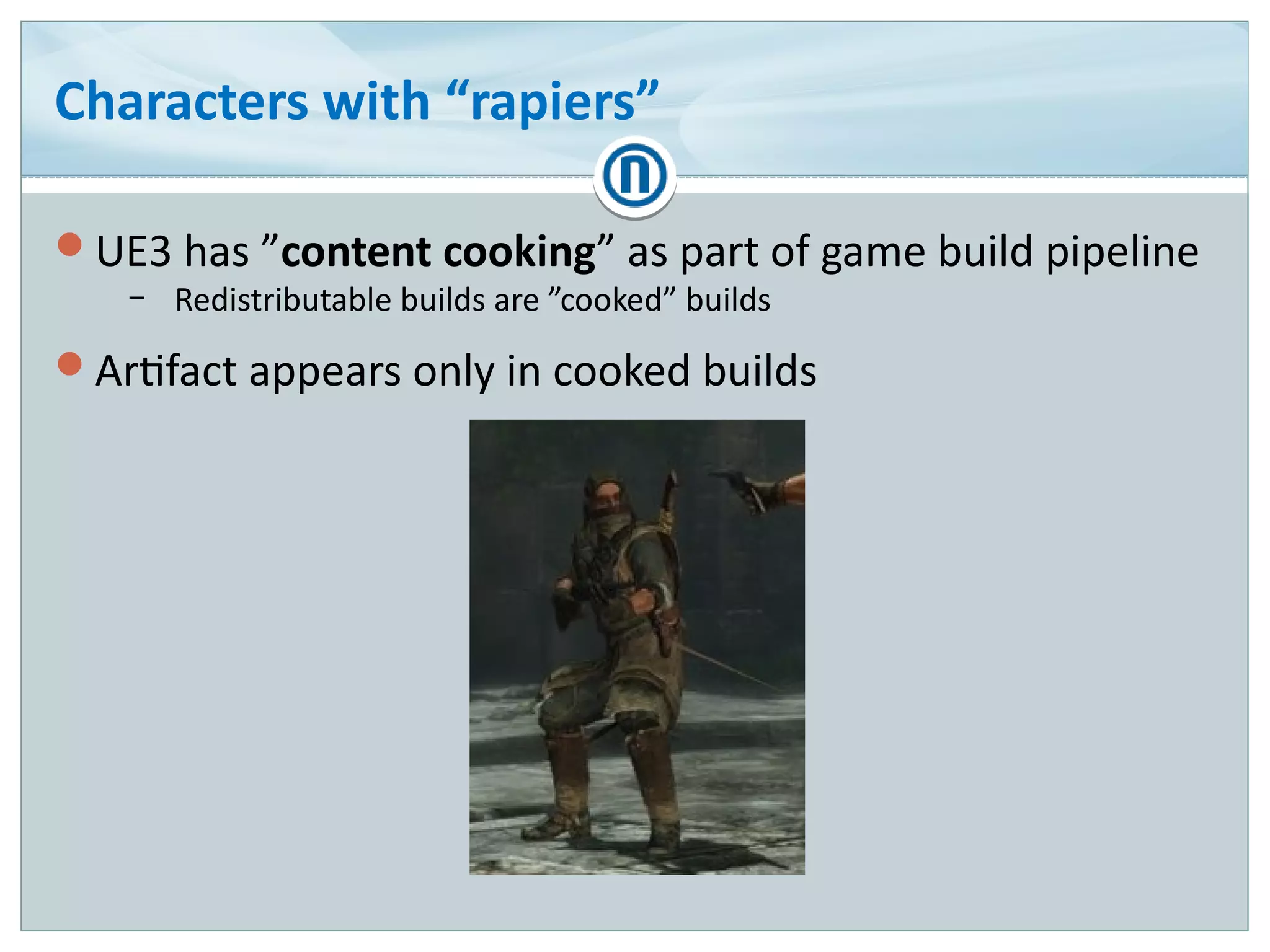

36. Characters with “rapiers”
UE3 has ”content cooking” as part of game build pipeline
– Redistributable builds are ”cooked” builds
Artifact appears only in cooked builds

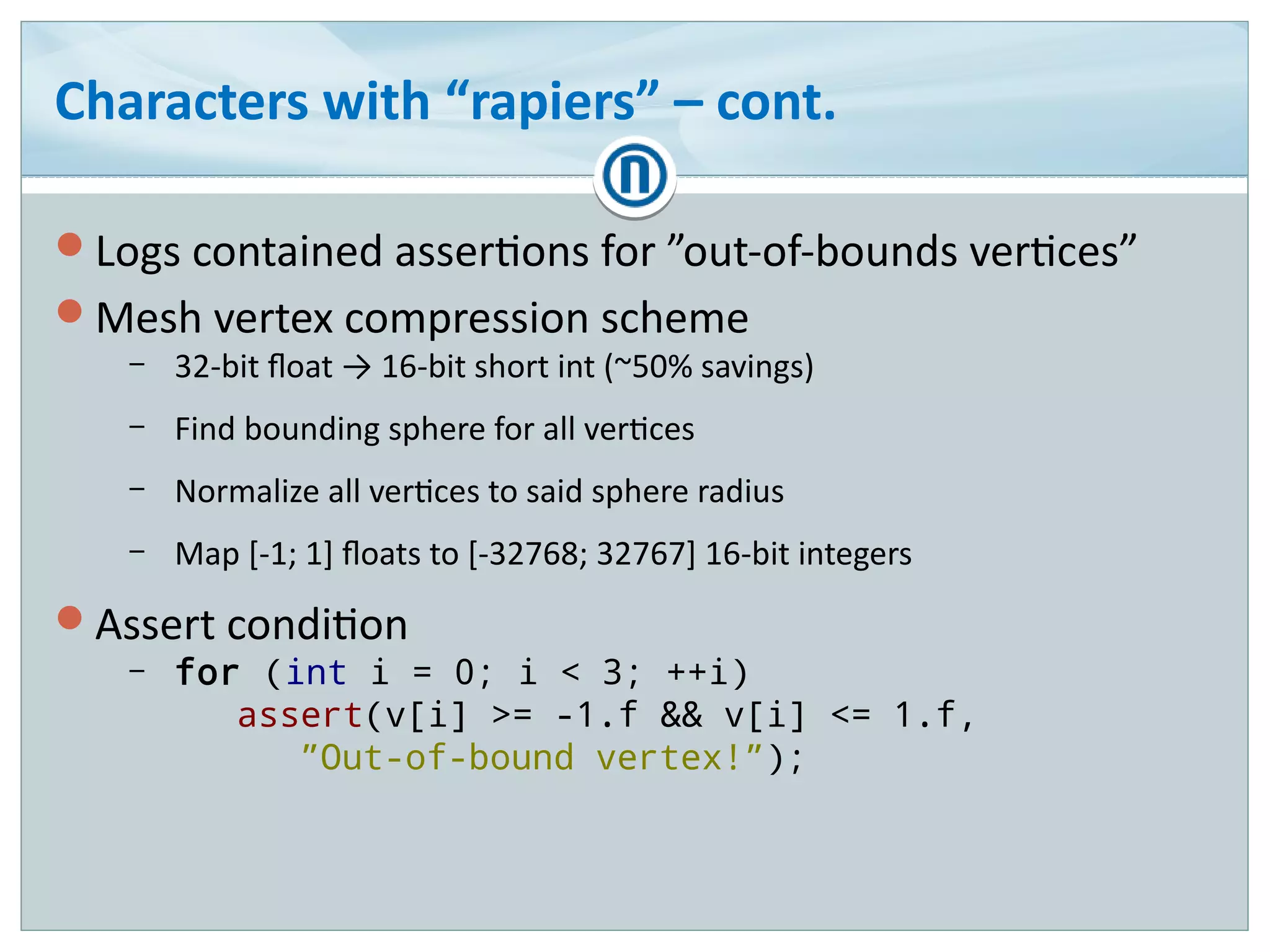

37. Characters with “rapiers” – cont.
Logs contained assertions for ”out-of-bounds vertices”
Mesh vertex compression scheme
– 32-bit float → 16-bit short int (~50% savings)
– Find bounding sphere for all vertices
– Normalize all vertices to said sphere radius
– Map [-1; 1] floats to [-32768; 32767] 16-bit integers
Assert condition
– for (int i = 0; i < 3; ++i)
assert(v[i] >= -1.f && v[i] <= 1.f,
”Out-of-bound vertex!”);

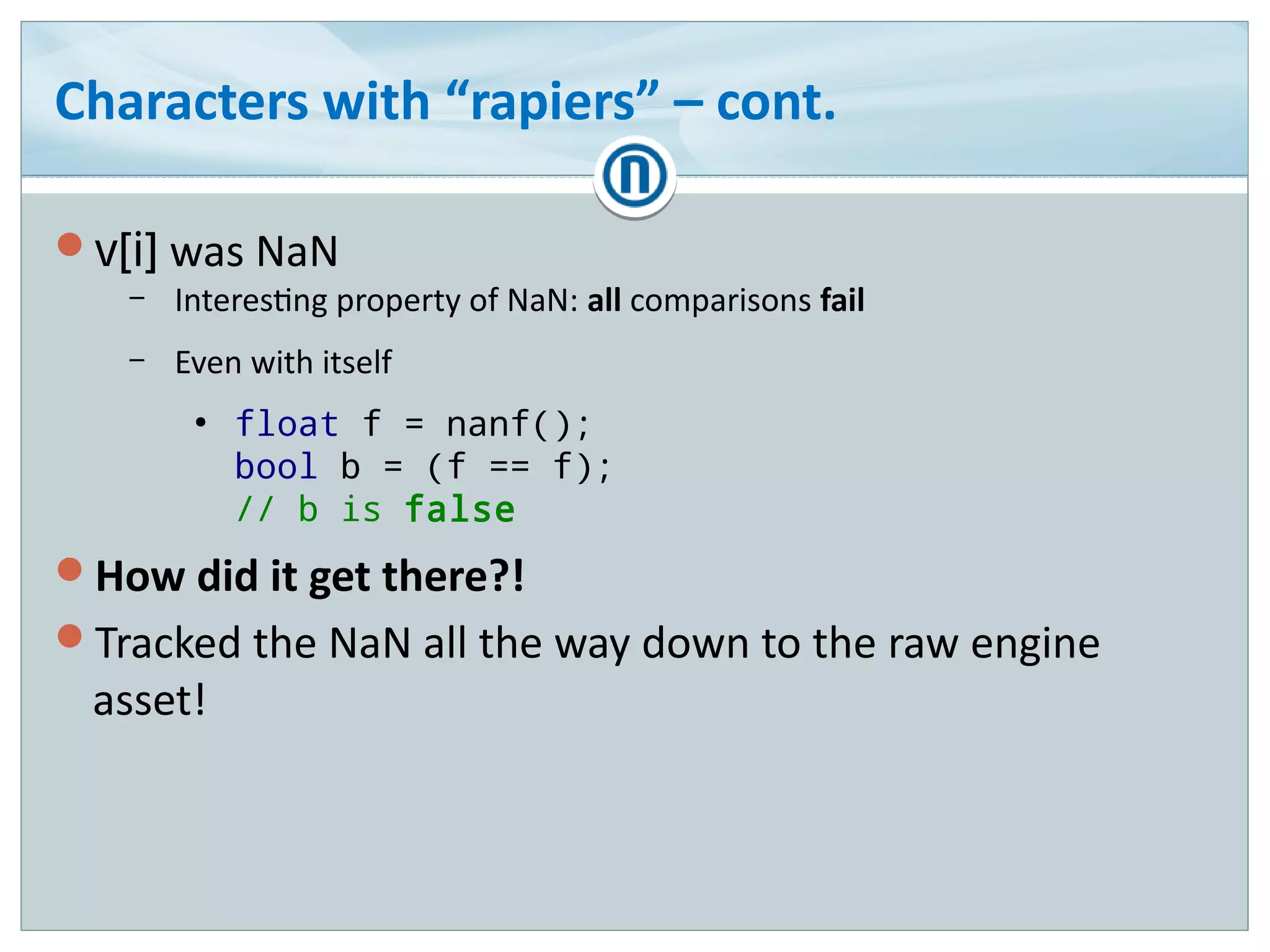

38. Characters with “rapiers” – cont.
v[i] was NaN
– Interesting property of NaN: all comparisons fail
– Even with itself
●
float f = nanf();
bool b = (f == f);
// b is false
How did it get there?!
Tracked the NaN all the way down to the raw engine
asset!

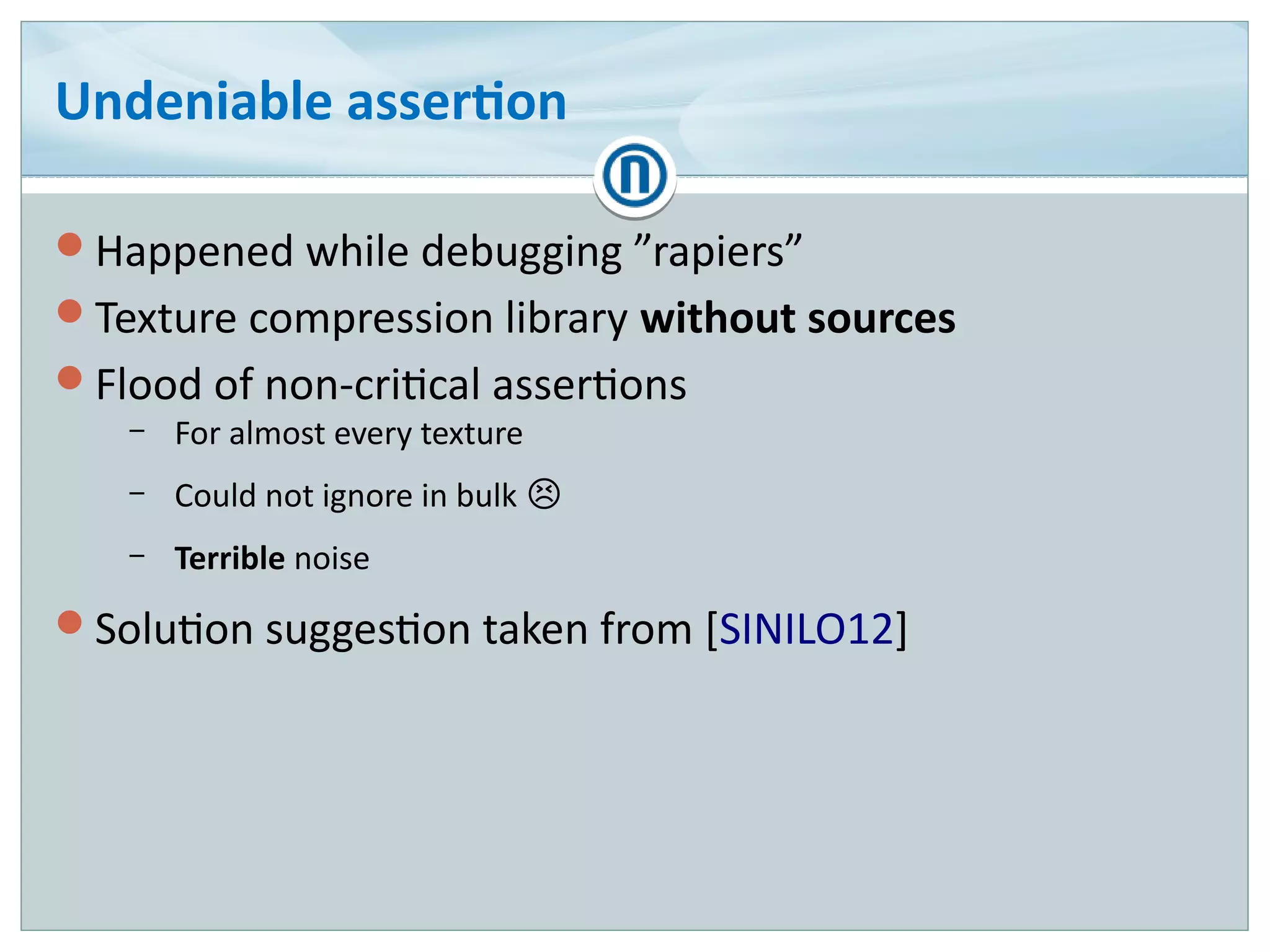

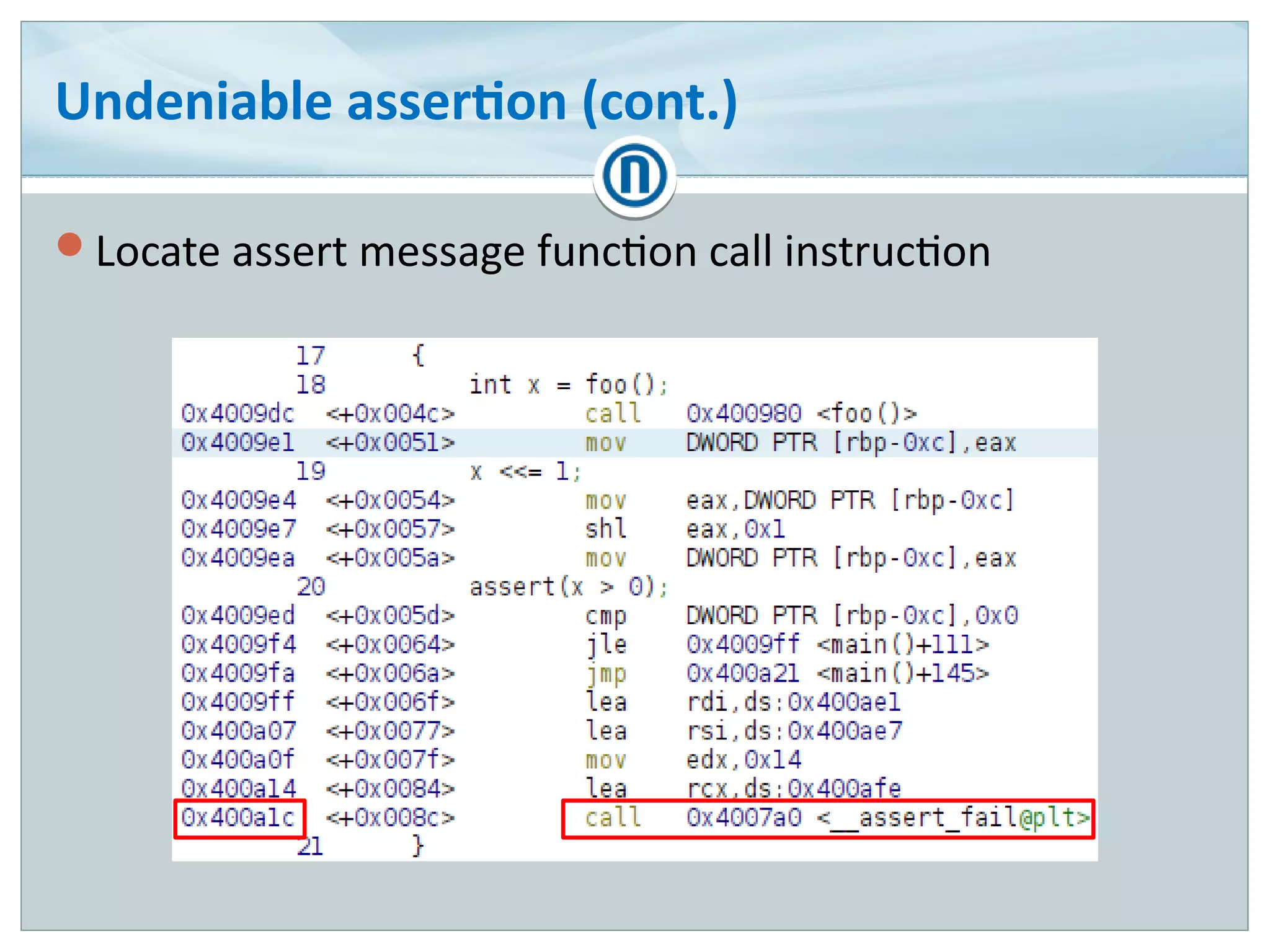

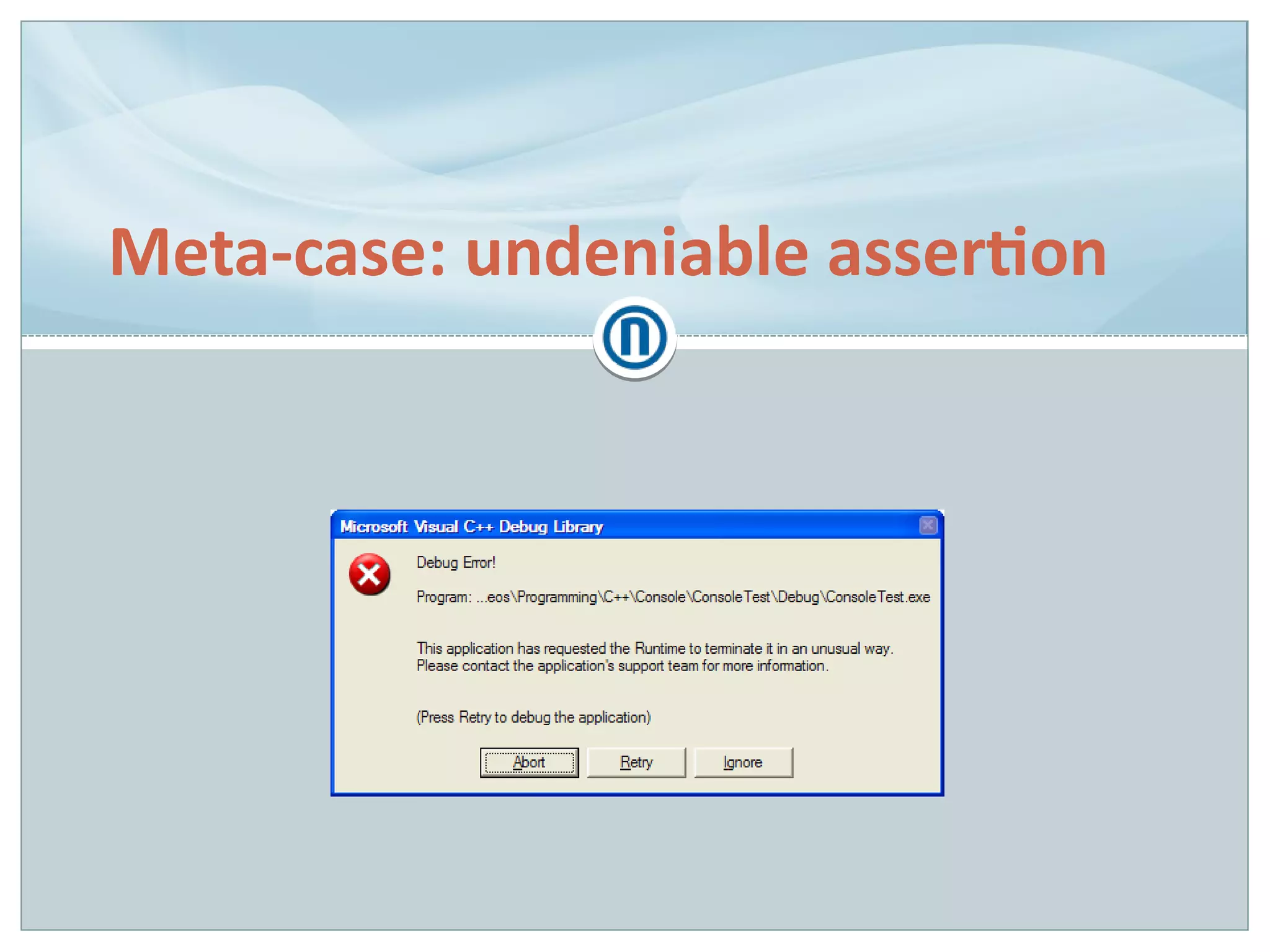

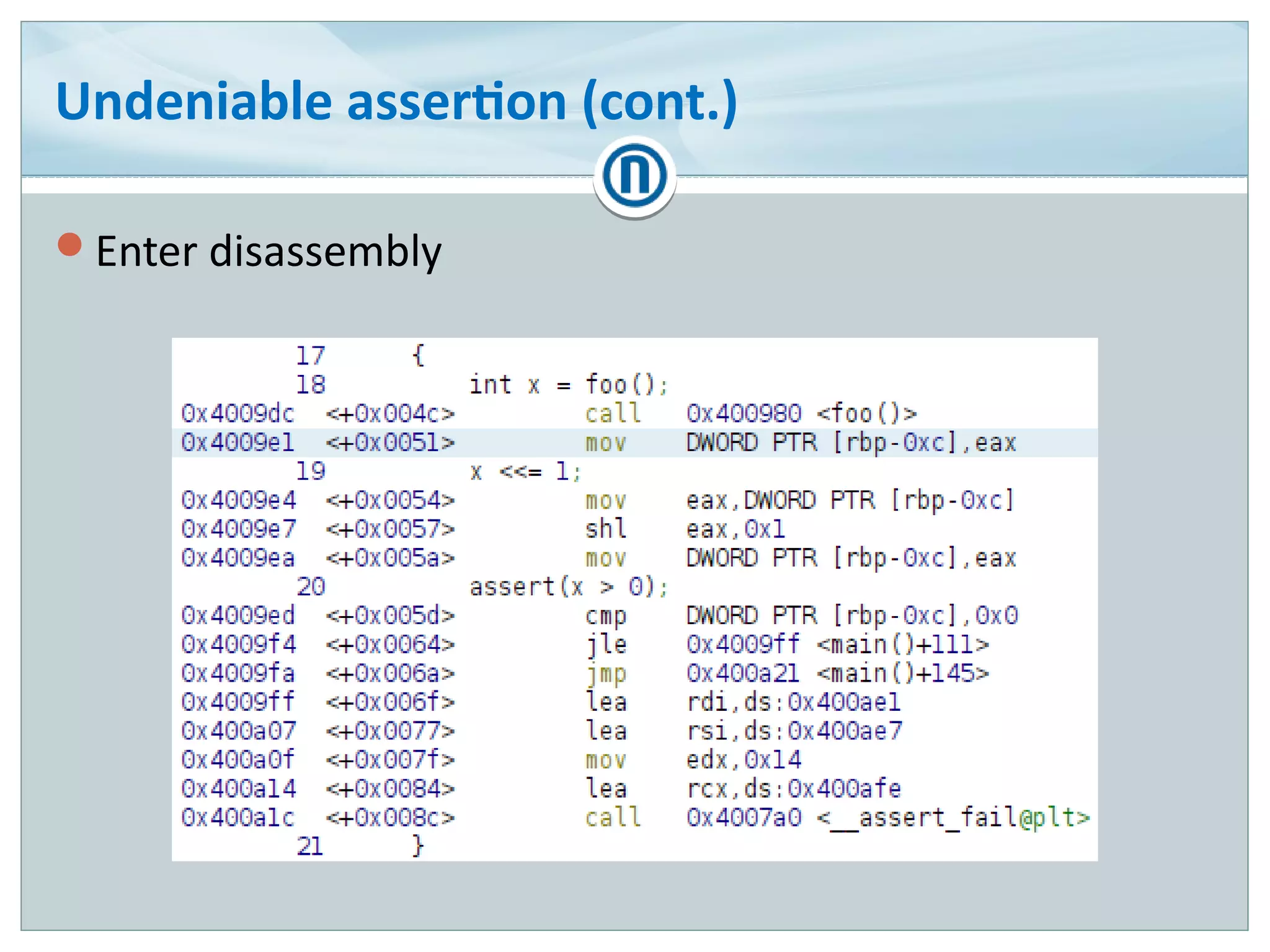

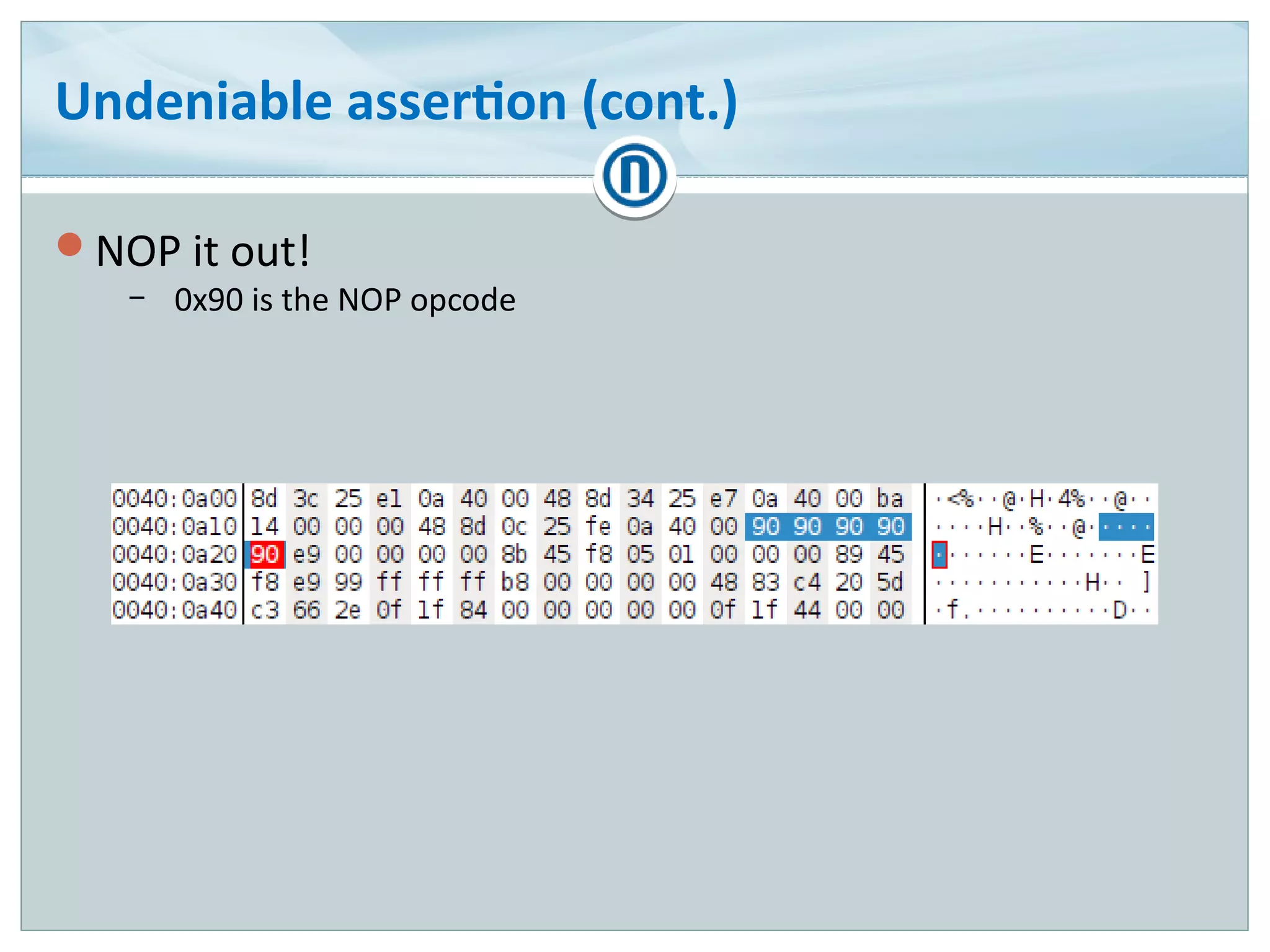

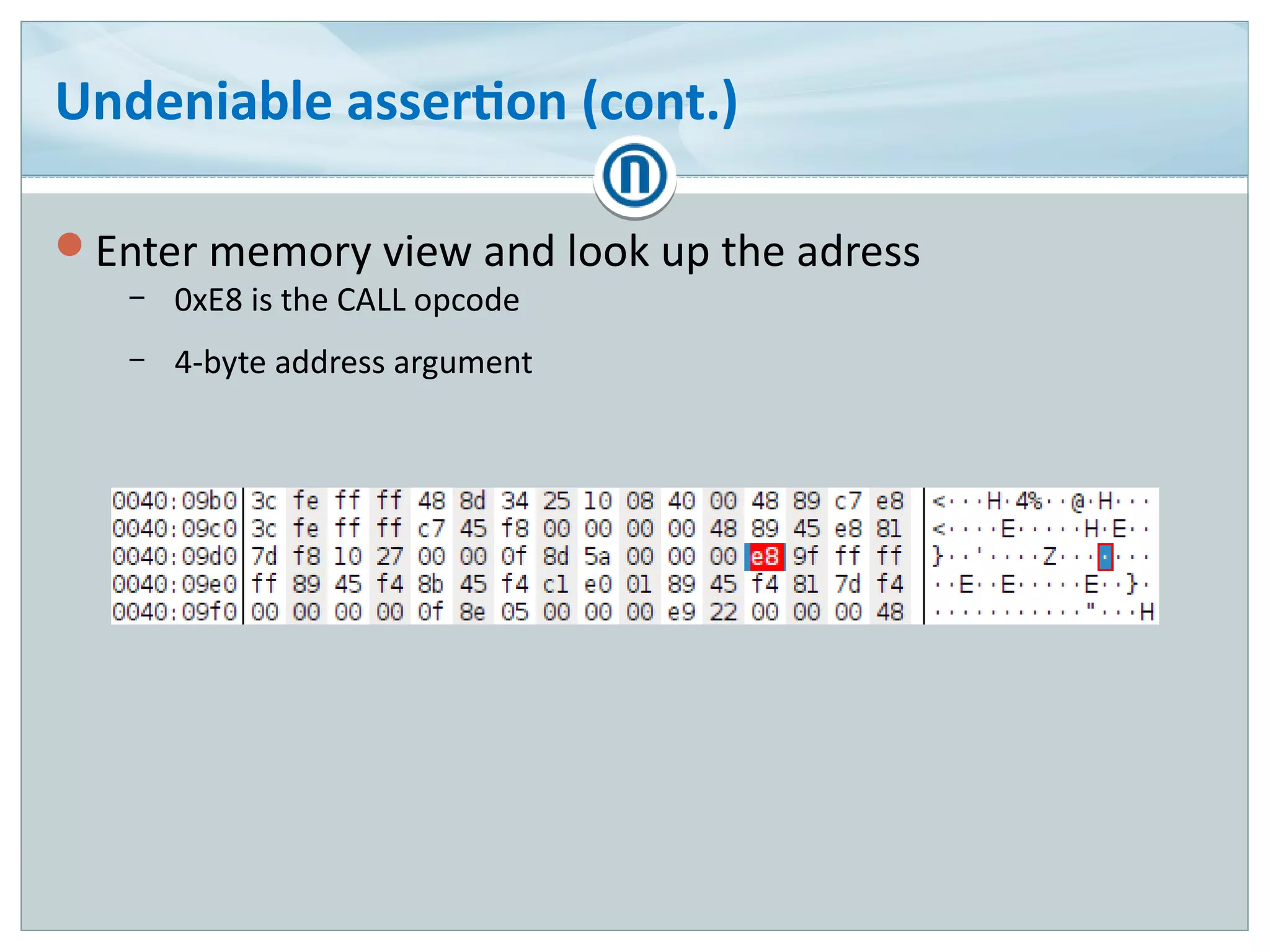

41. Undeniable assertion
Happened while debugging ”rapiers”
Texture compression library without sources
Flood of non-critical assertions
– For almost every texture
– Could not ignore in bulk �
– Terrible noise
Solution suggestion taken from [SINILO12]

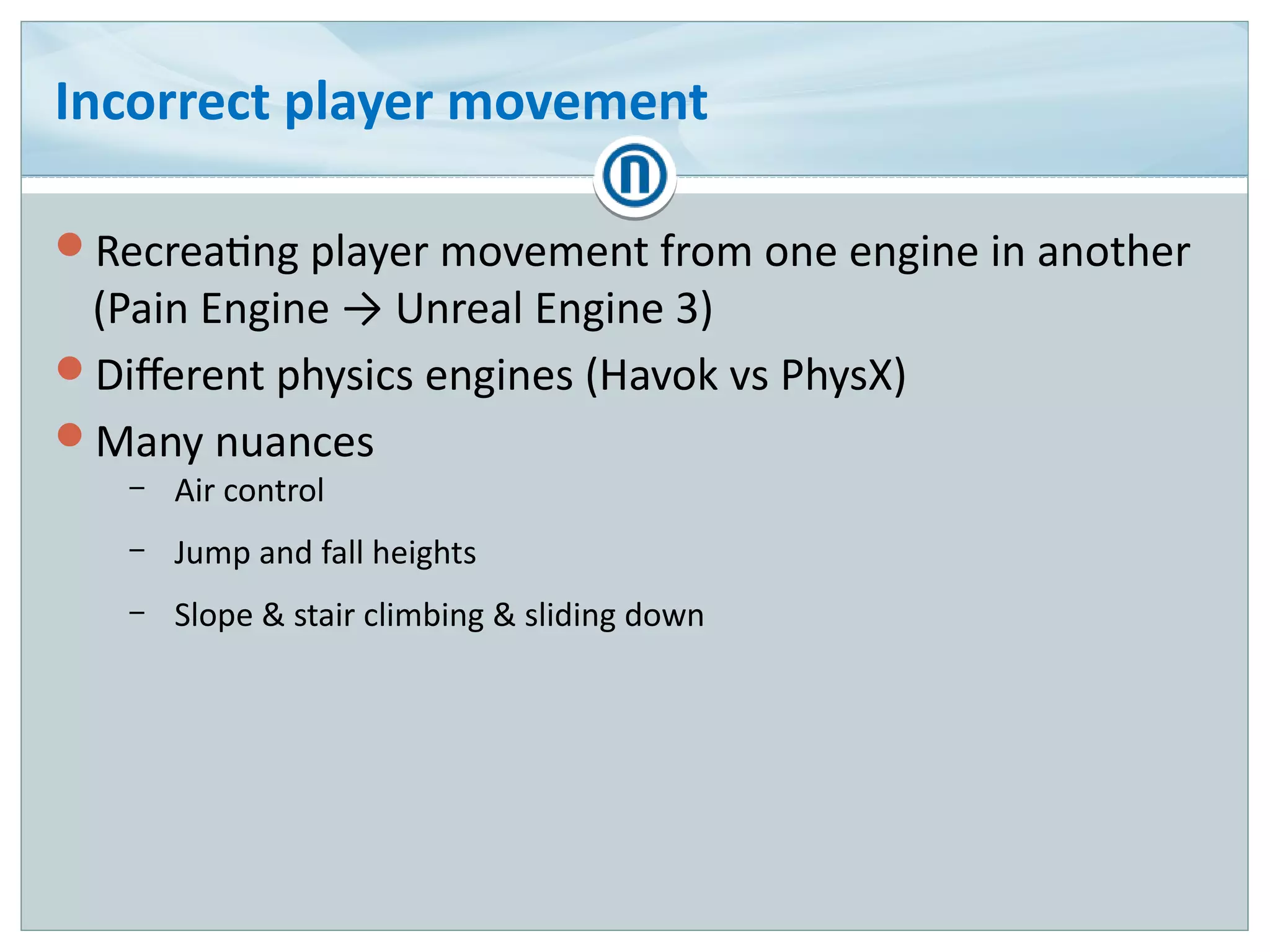

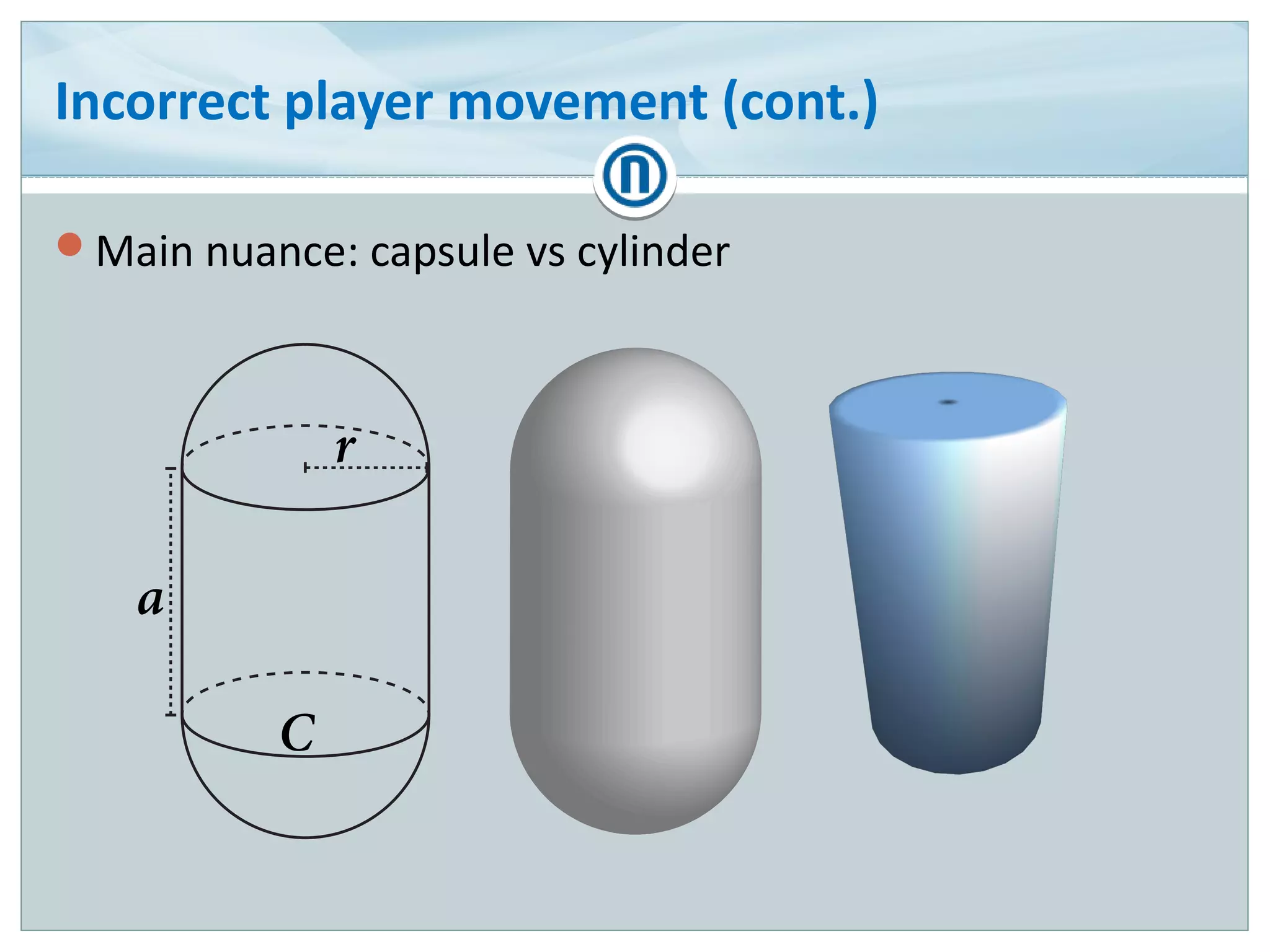

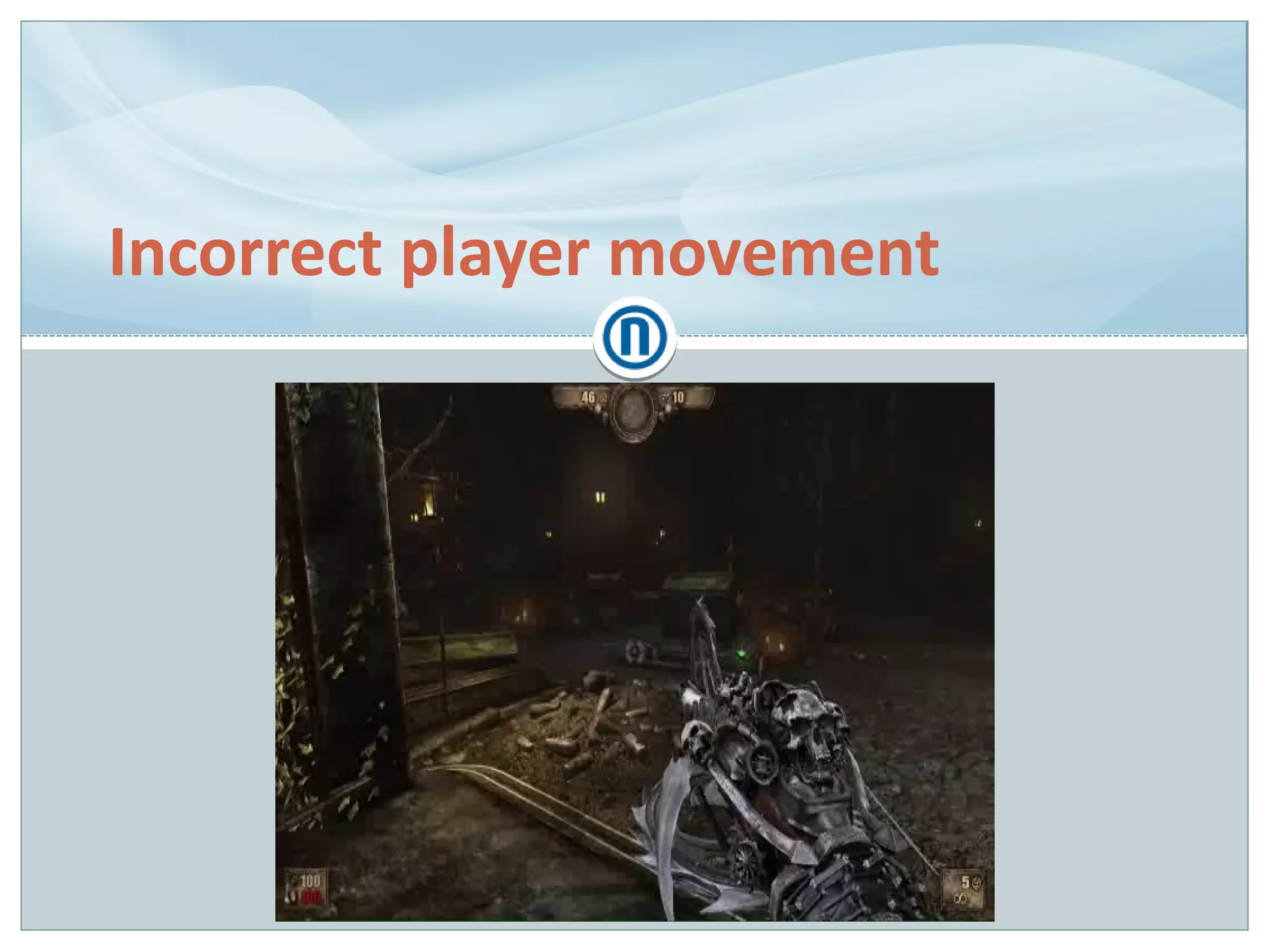

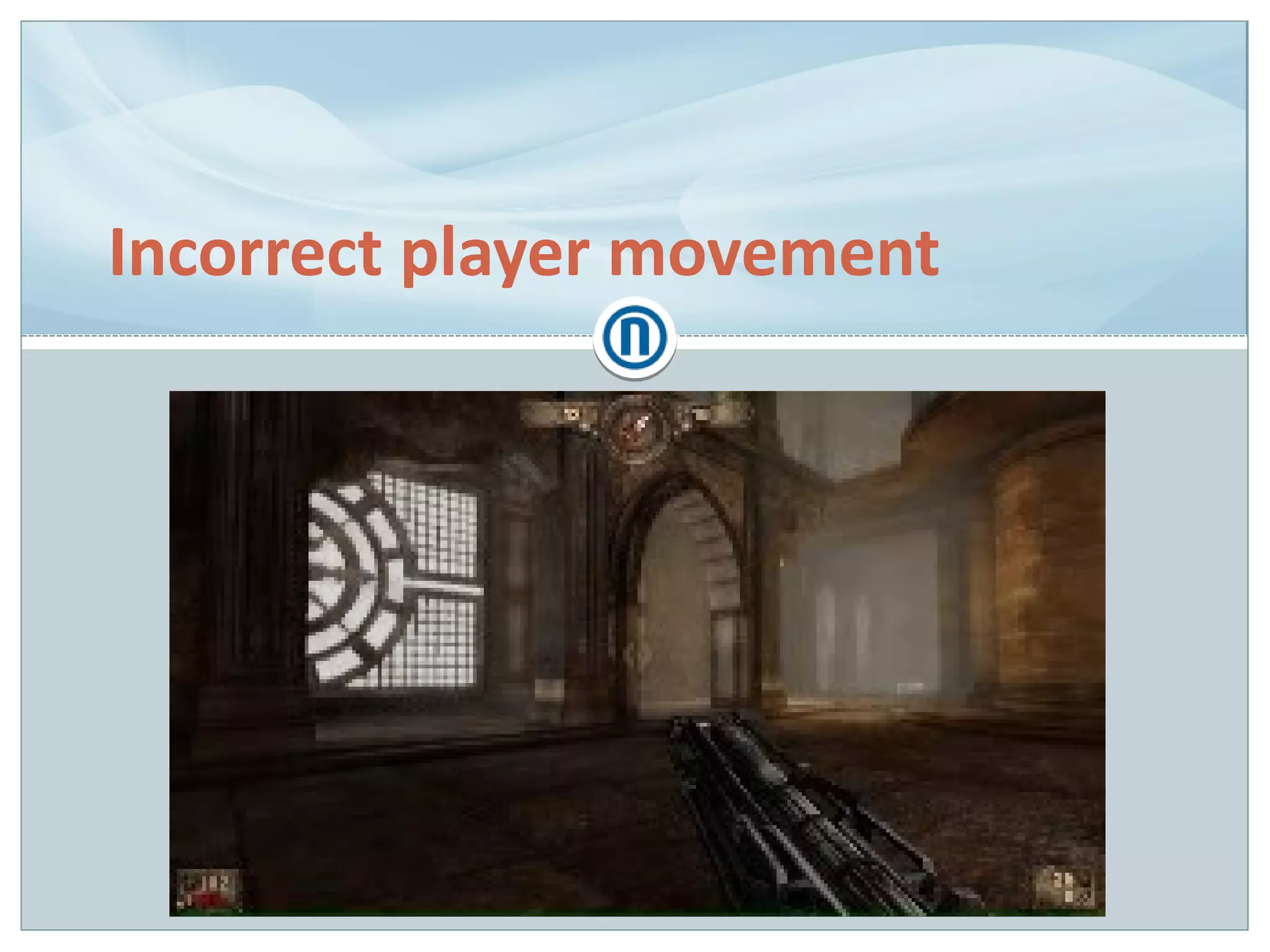

49. Incorrect player movement
Recreating player movement from one engine in another
(Pain Engine → Unreal Engine 3)
Different physics engines (Havok vs PhysX)
Many nuances
– Air control
– Jump and fall heights
– Slope & stair climbing & sliding down

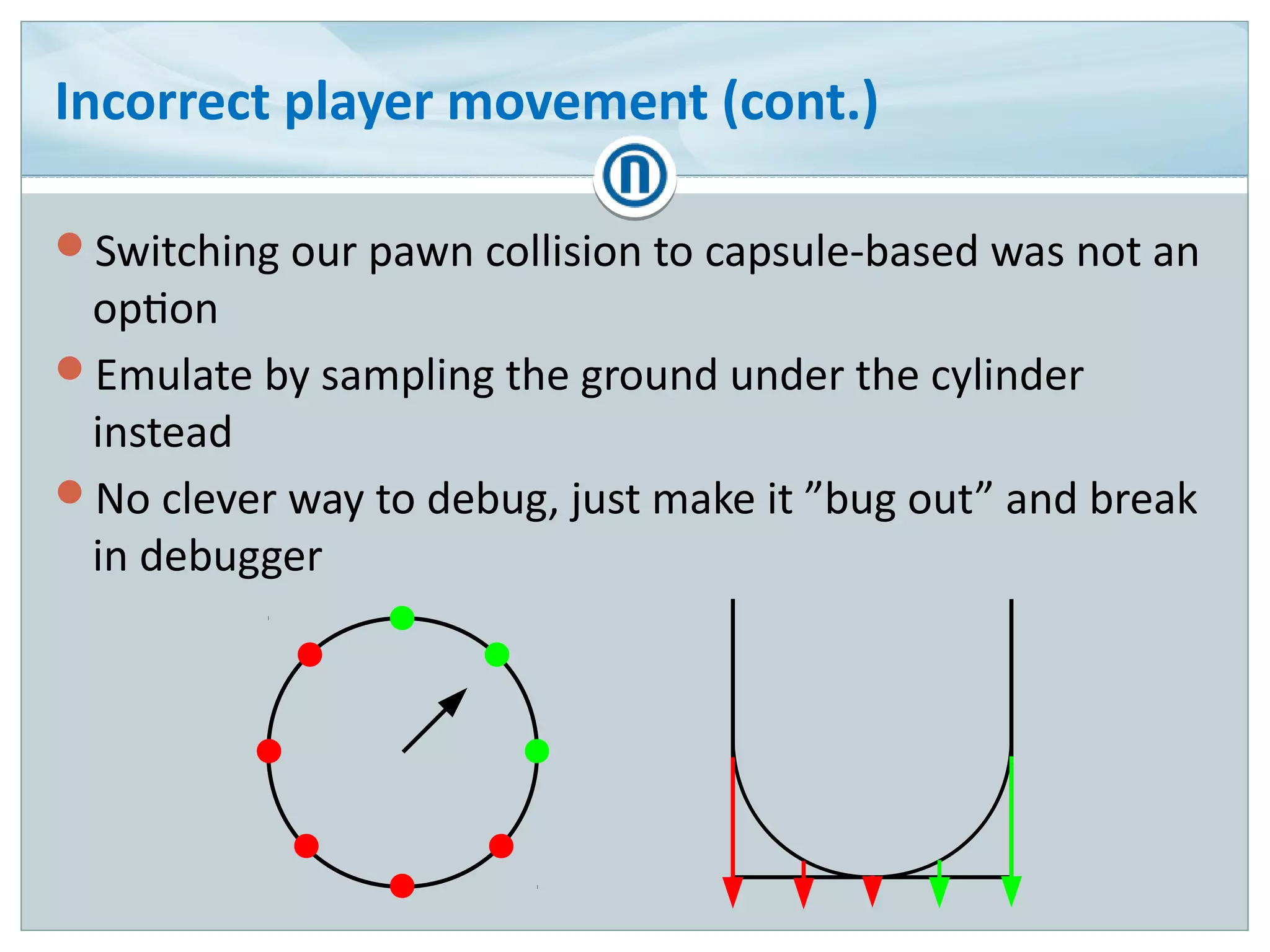

51. Incorrect player movement (cont.)
Switching our pawn collision to capsule-based was not an
option
Emulate by sampling the ground under the cylinder
instead
No clever way to debug, just make it ”bug out” and break
in debugger

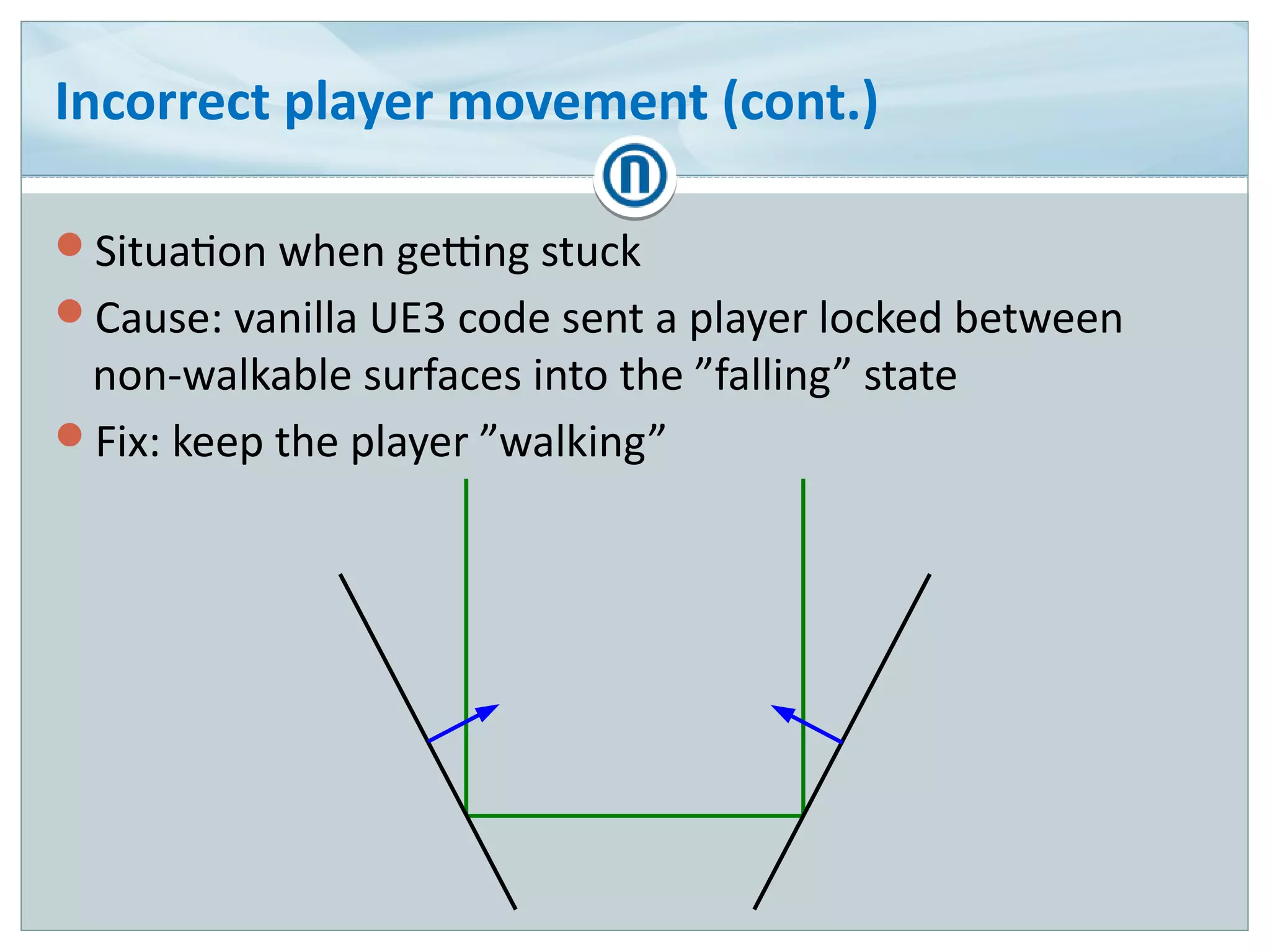

52. Incorrect player movement (cont.)
Situation when getting stuck
Cause: vanilla UE3 code sent a player locked between
non-walkable surfaces into the ”falling” state
Fix: keep the player ”walking”

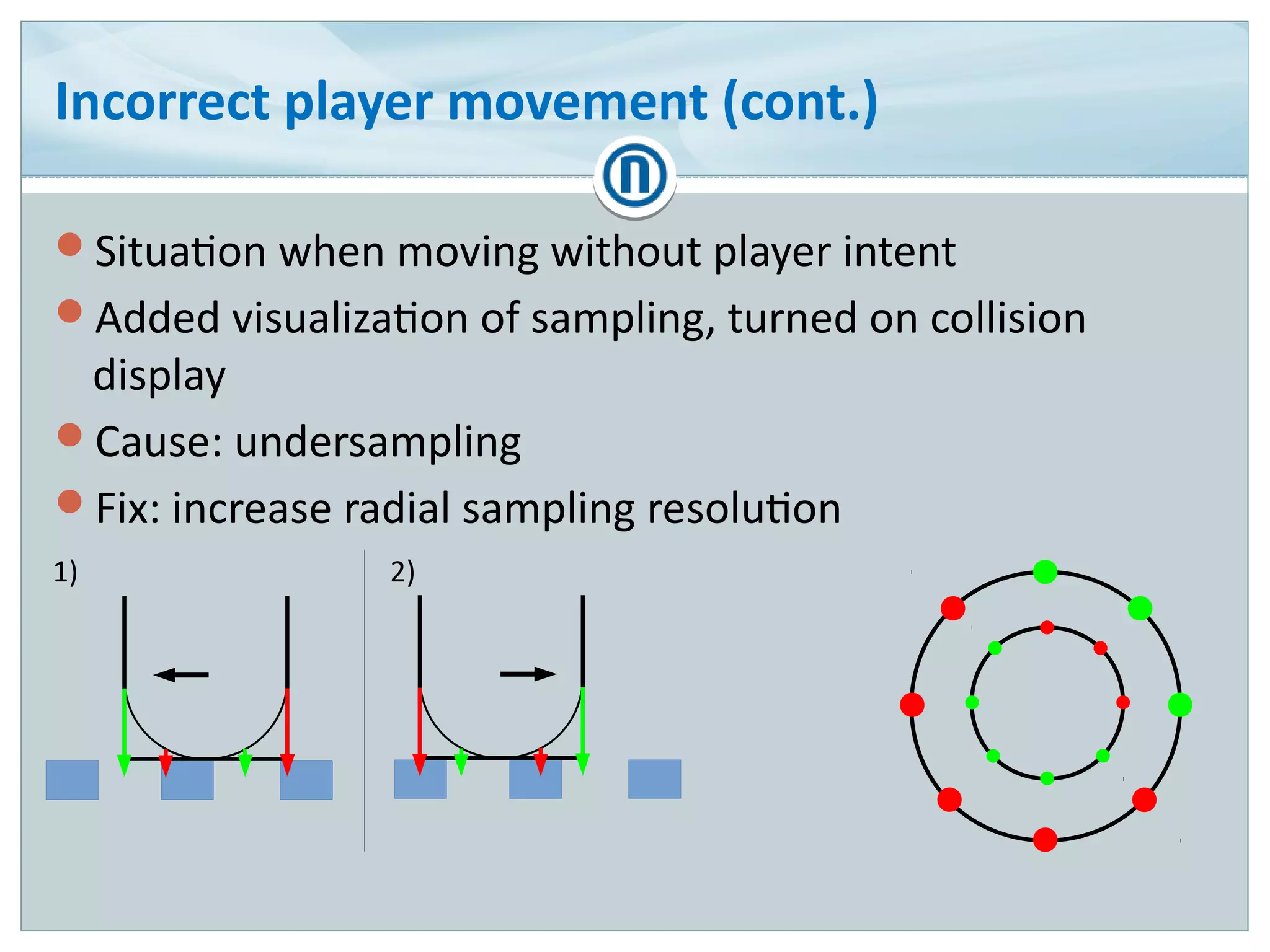

53. Incorrect player movement (cont.)
Situation when moving without player intent
Added visualization of sampling, turned on collision
display
Cause: undersampling
Fix: increase radial sampling resolution
1) 2)

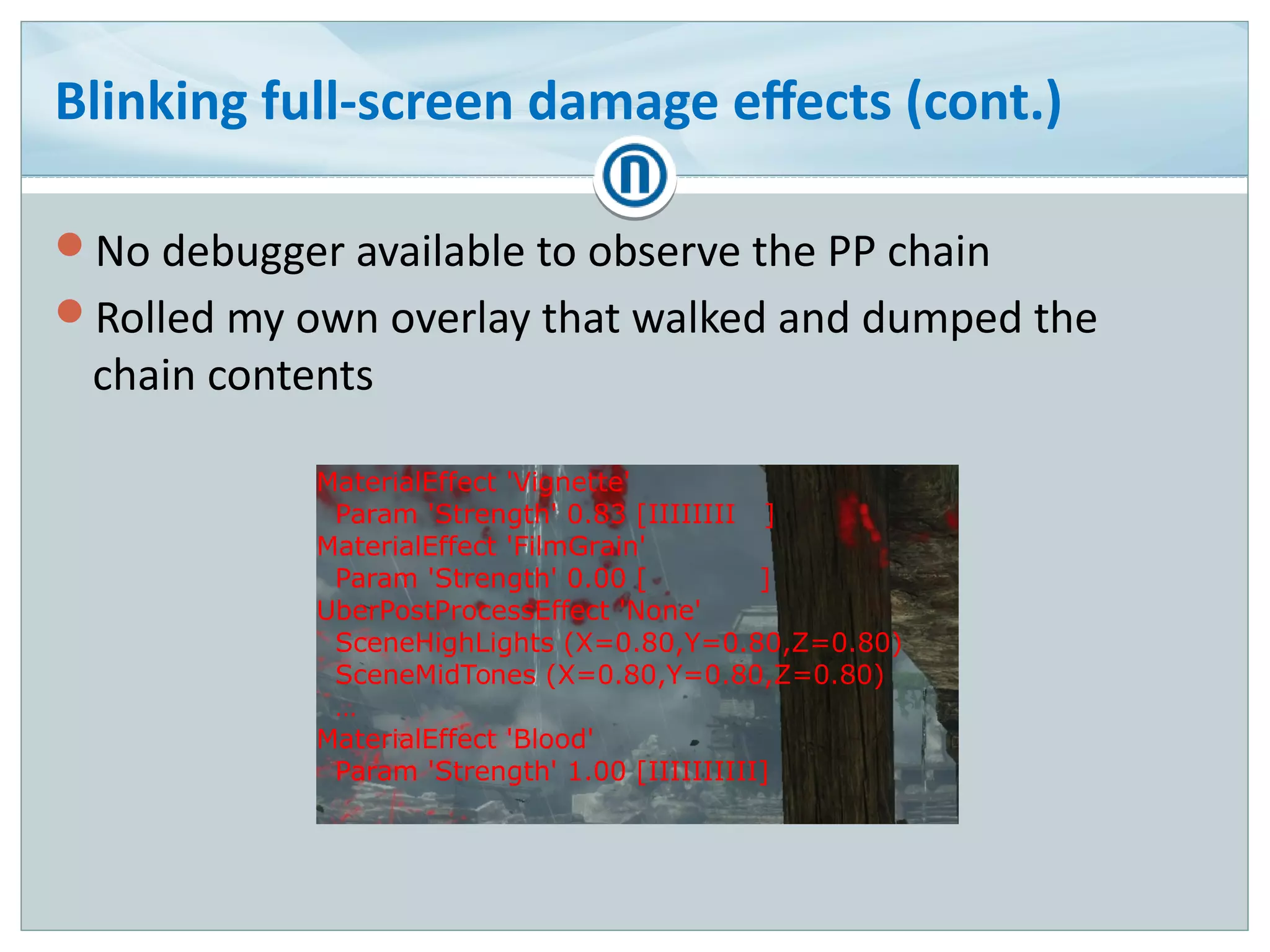

56. Blinking full-screen damage effects (cont.)
No debugger available to observe the PP chain
Rolled my own overlay that walked and dumped the
chain contents
MaterialEffect 'Vignette'
Param 'Strength' 0.83 [IIIIIIII ]
MaterialEffect 'FilmGrain'
Param 'Strength' 0.00 [ ]
UberPostProcessEffect 'None'
SceneHighLights (X=0.80,Y=0.80,Z=0.80)
SceneMidTones (X=0.80,Y=0.80,Z=0.80)
…
MaterialEffect 'Blood'
Param 'Strength' 1.00 [IIIIIIIIII]

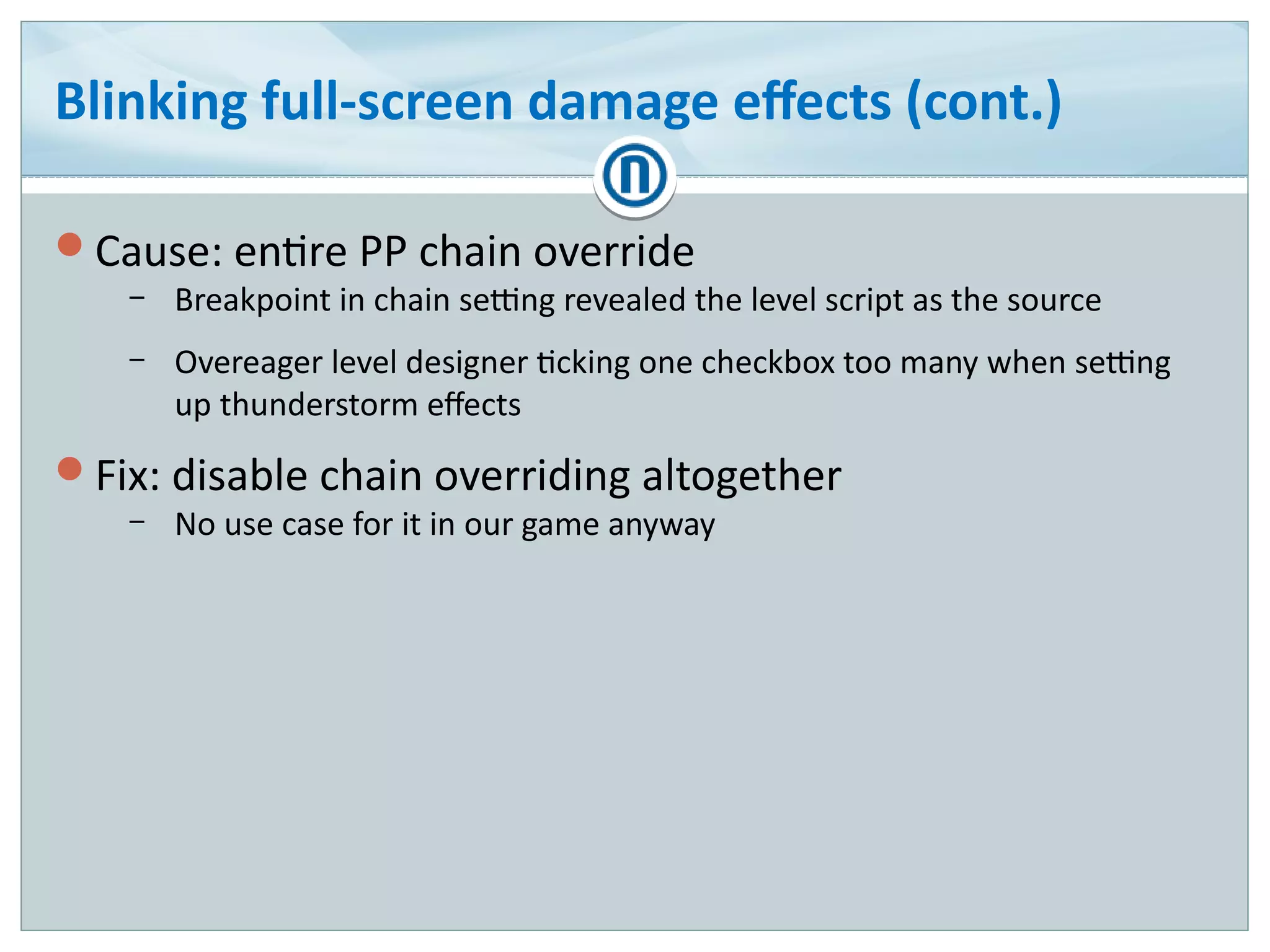

57. Blinking full-screen damage effects (cont.)
Cause: entire PP chain override
– Breakpoint in chain setting revealed the level script as the source
– Overeager level designer ticking one checkbox too many when setting
up thunderstorm effects
Fix: disable chain overriding altogether
– No use case for it in our game anyway

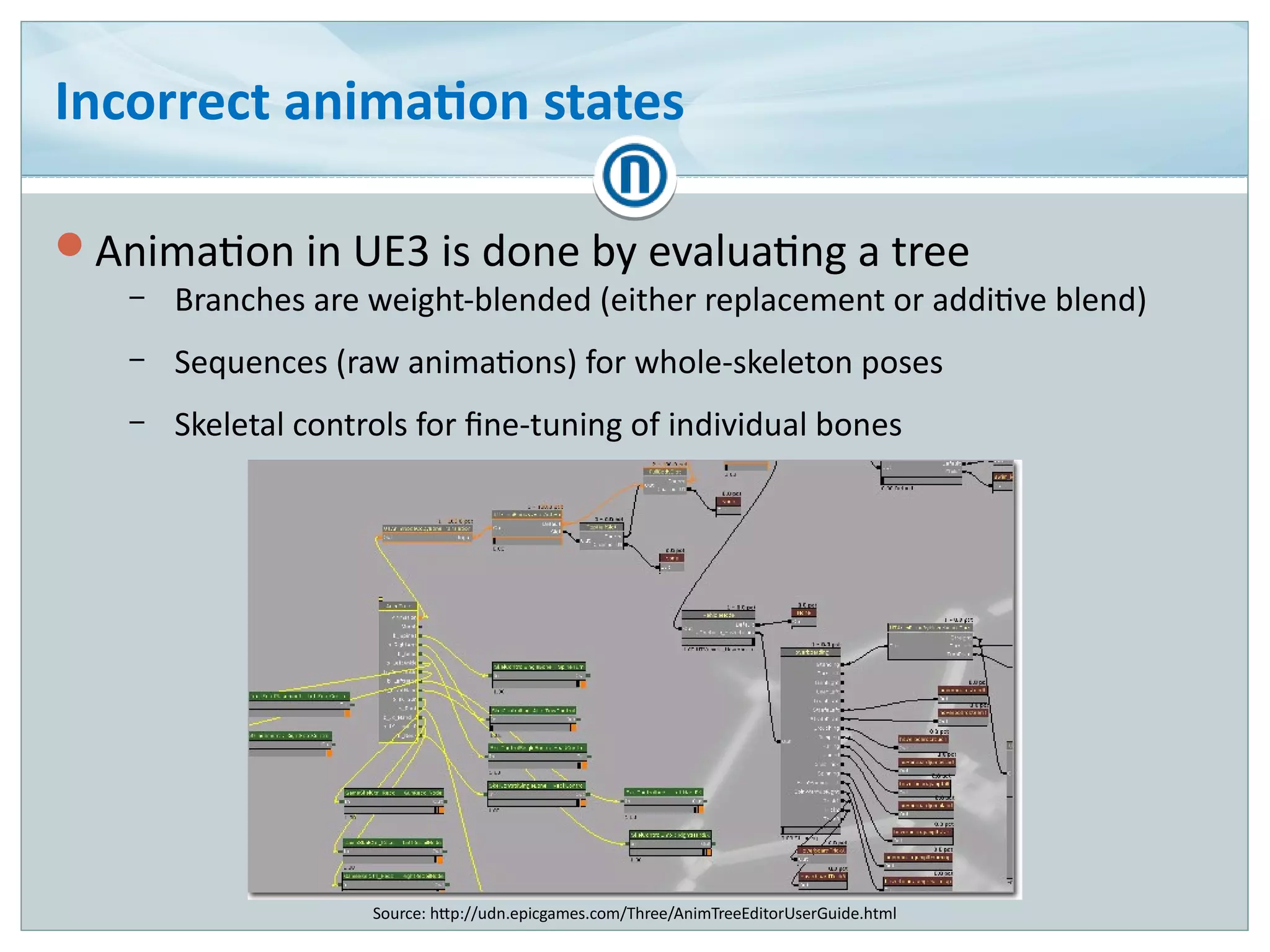

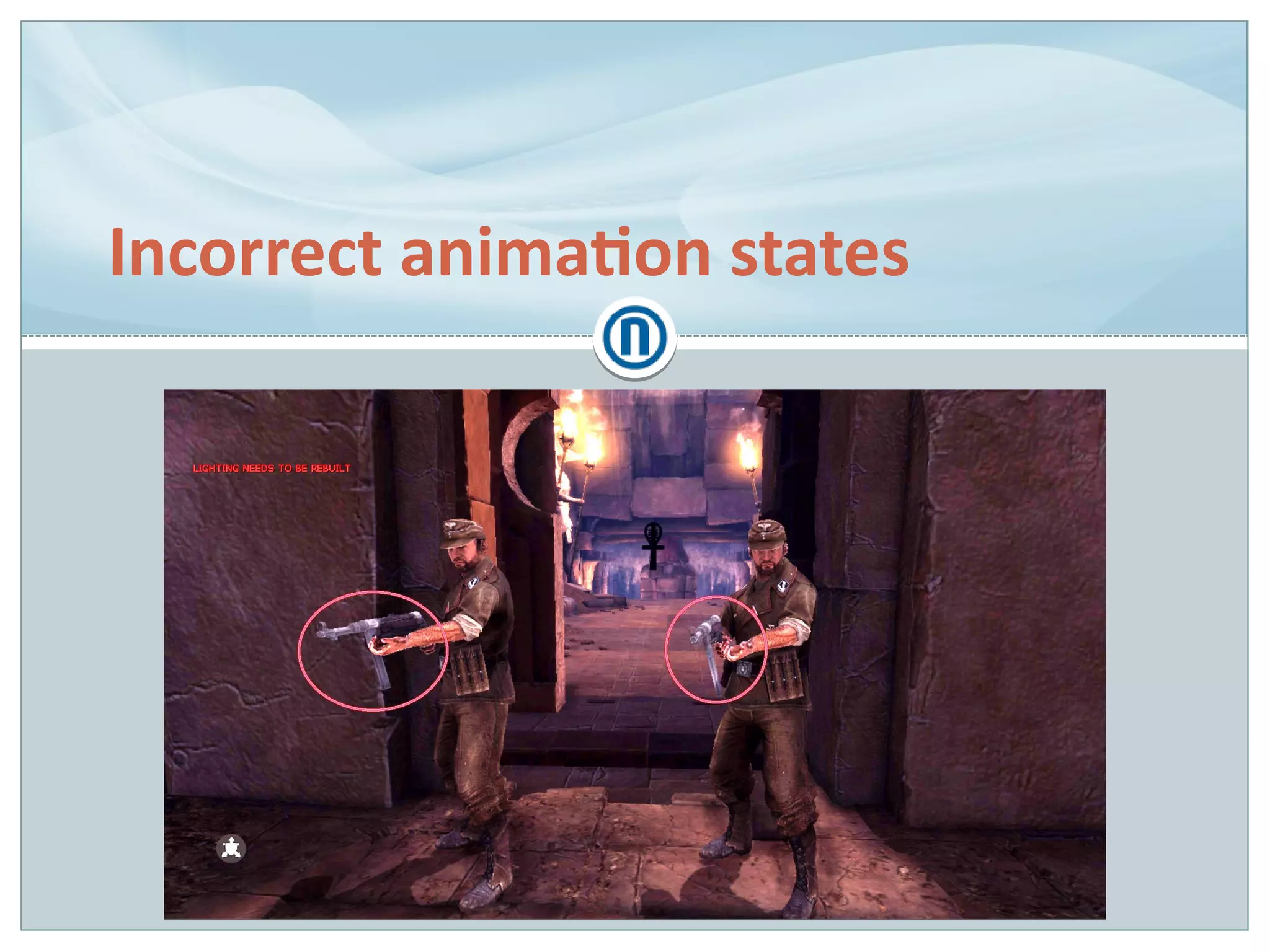

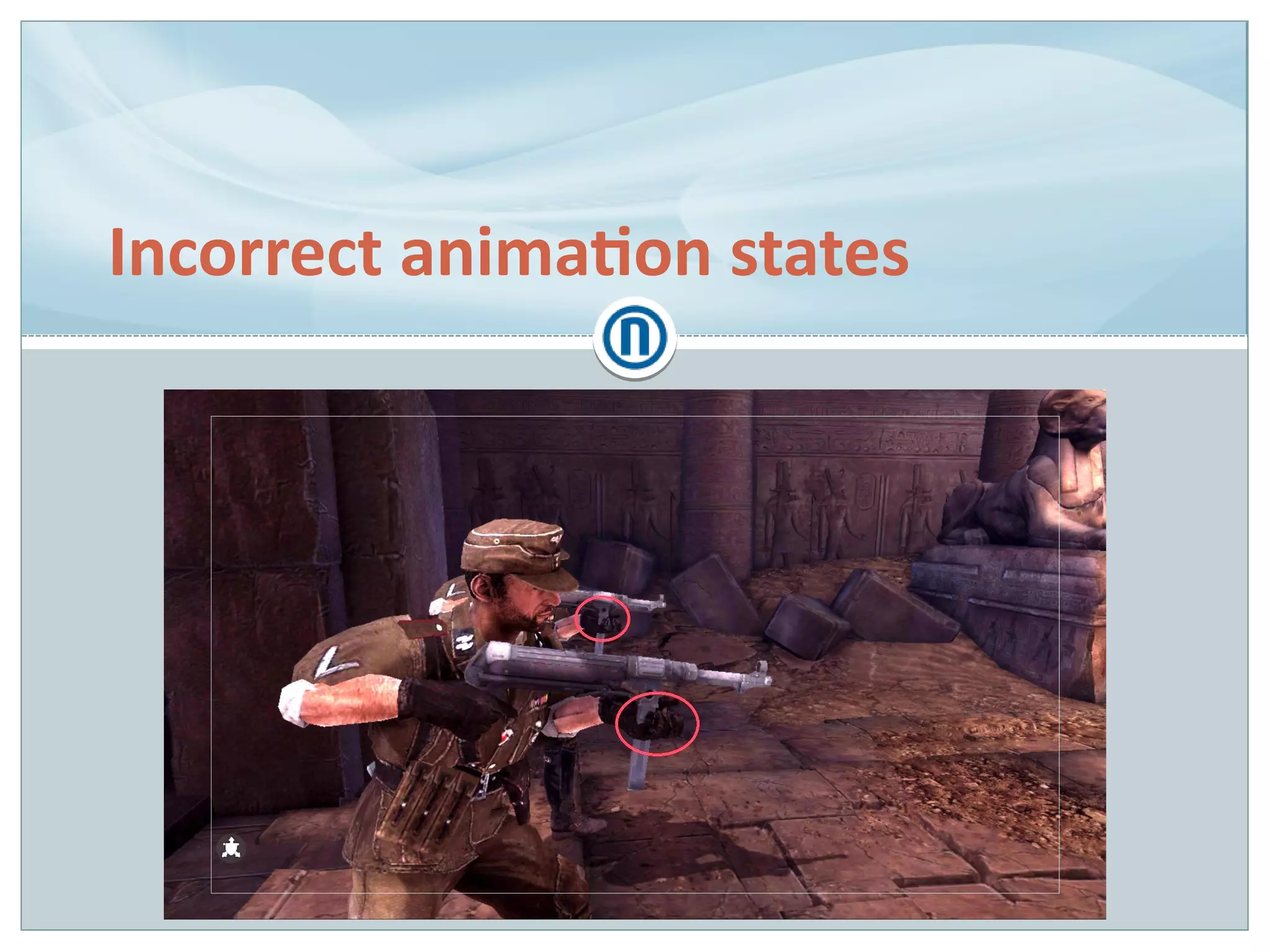

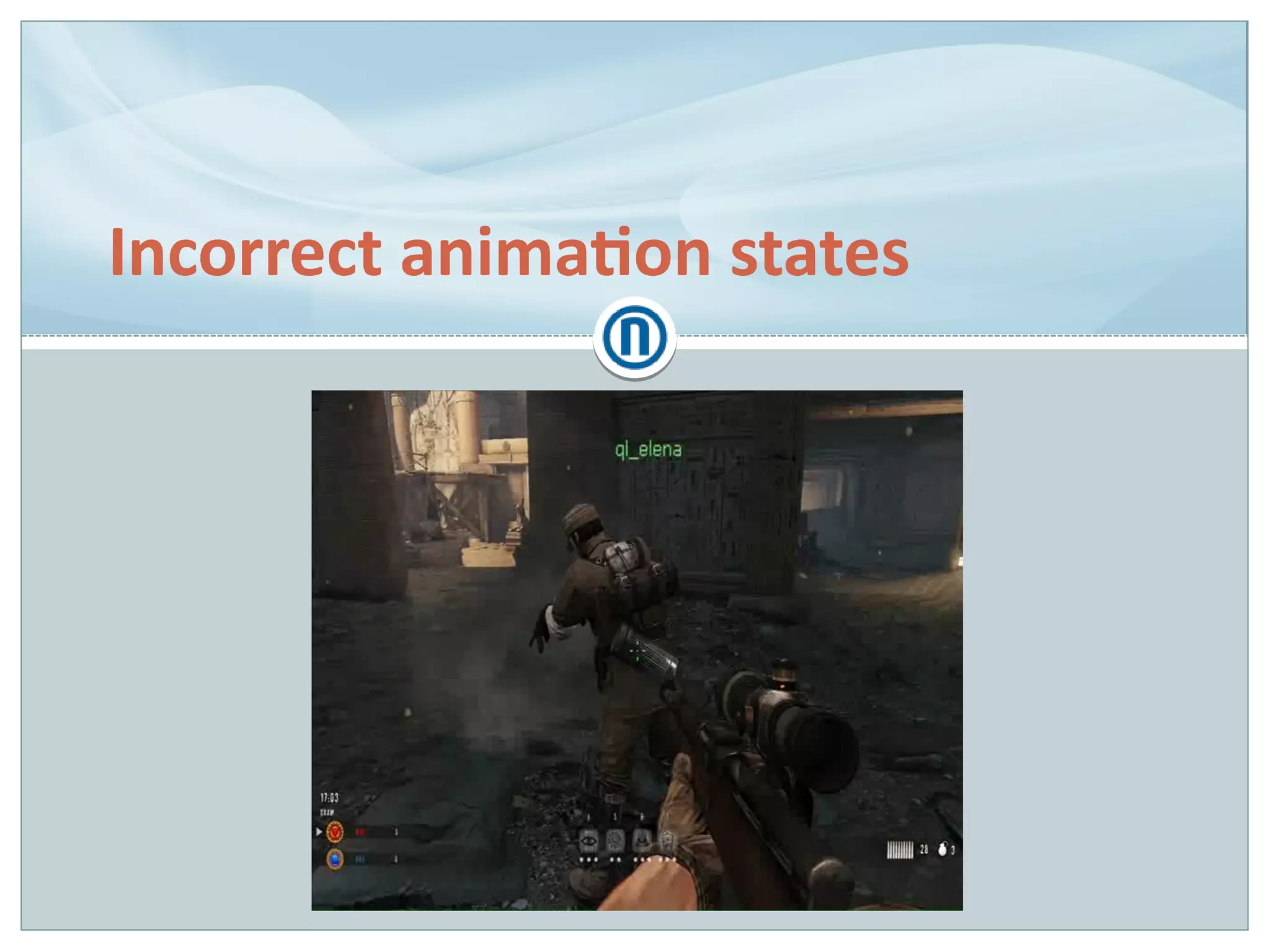

61. Incorrect animation states
Animation in UE3 is done by evaluating a tree
– Branches are weight-blended (either replacement or additive blend)
– Sequences (raw animations) for whole-skeleton poses
– Skeletal controls for fine-tuning of individual bones
Source: http://udn.epicgames.com/Three/AnimTreeEditorUserGuide.html

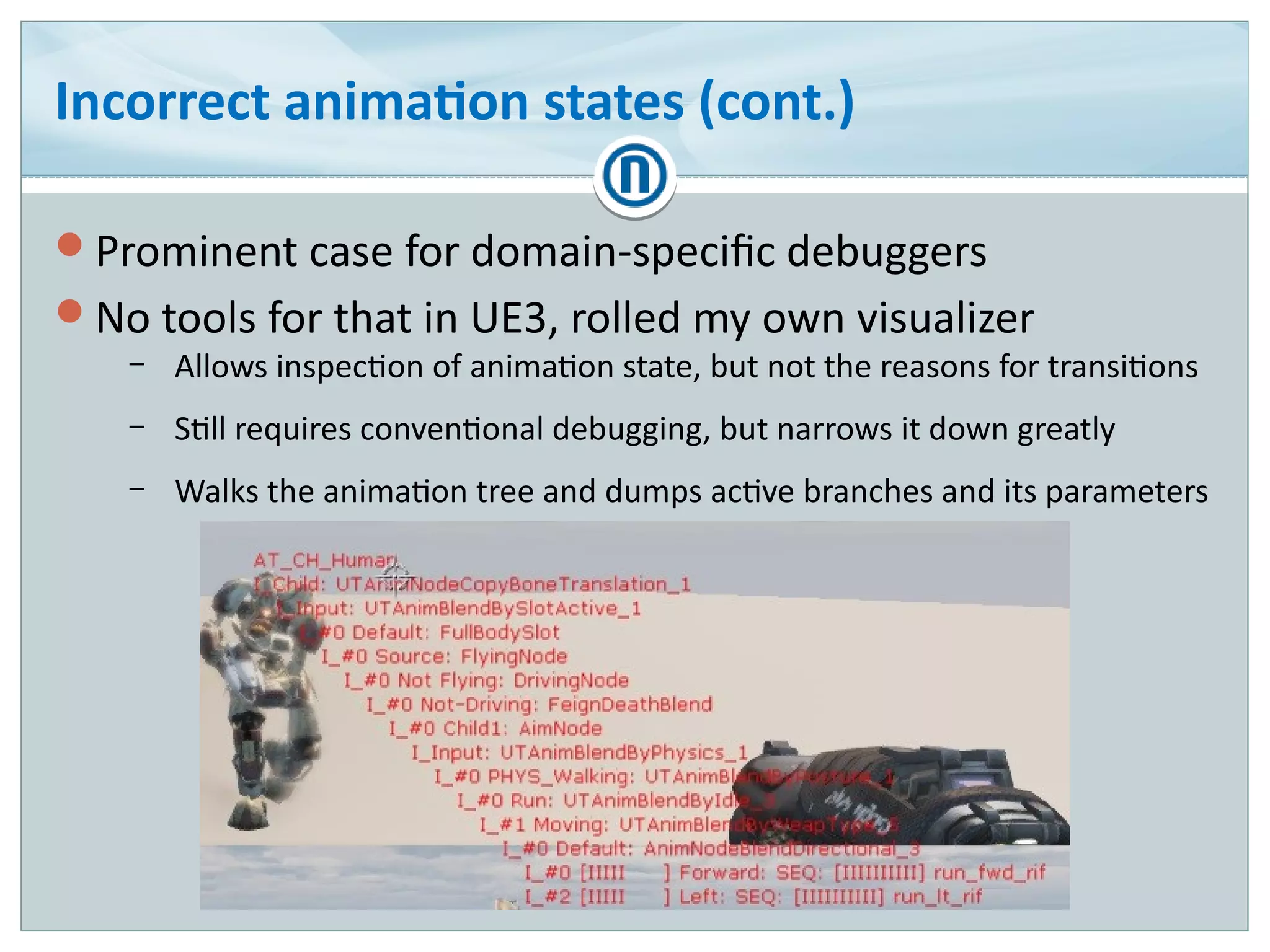

62. Incorrect animation states (cont.)
Prominent case for domain-specific debuggers
No tools for that in UE3, rolled my own visualizer
– Allows inspection of animation state, but not the reasons for transitions
– Still requires conventional debugging, but narrows it down greatly
– Walks the animation tree and dumps active branches and its parameters

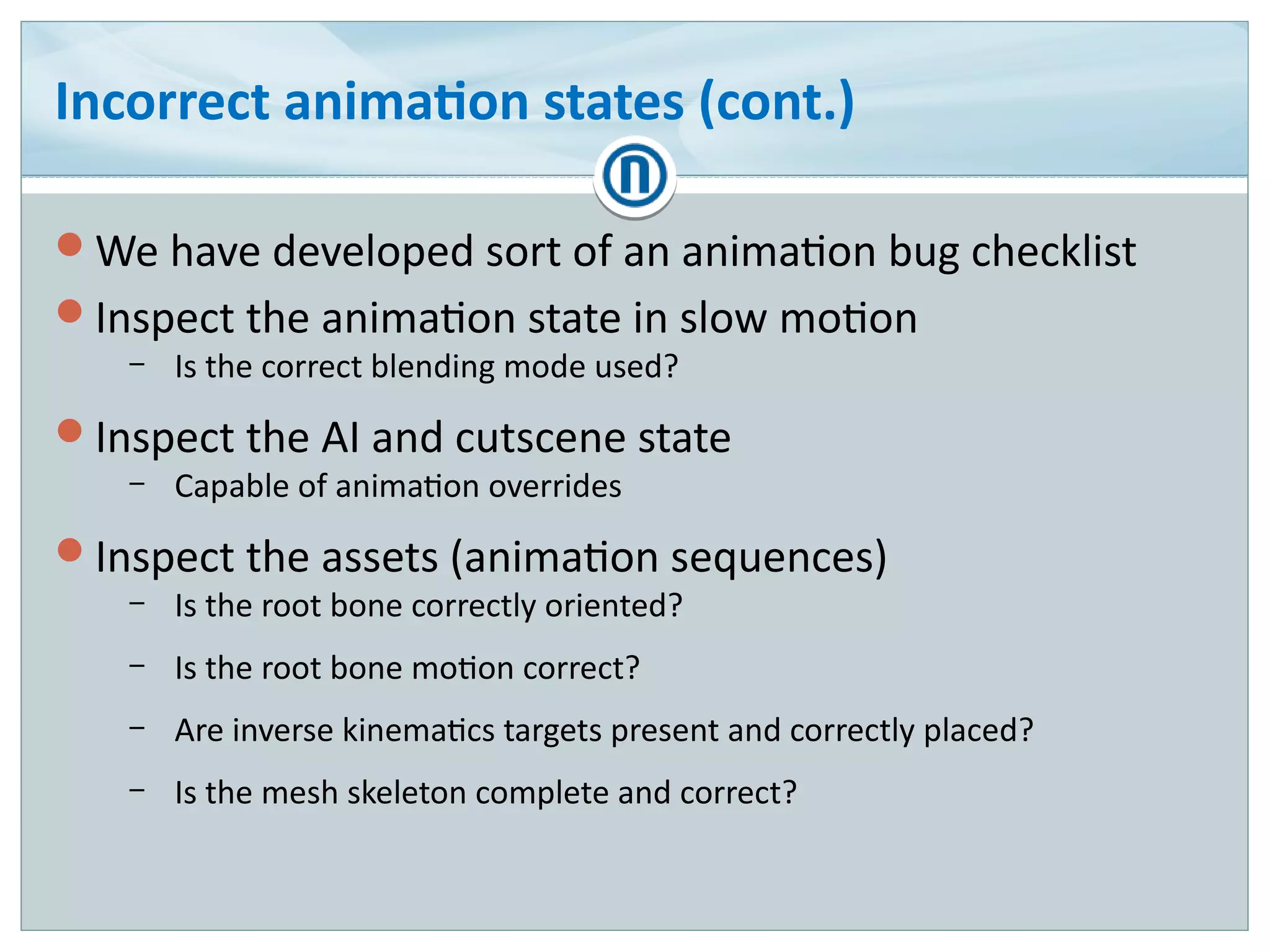

63. Incorrect animation states (cont.)
We have developed sort of an animation bug checklist
Inspect the animation state in slow motion
– Is the correct blending mode used?
Inspect the AI and cutscene state
– Capable of animation overrides
Inspect the assets (animation sequences)
– Is the root bone correctly oriented?
– Is the root bone motion correct?
– Are inverse kinematics targets present and correctly placed?
– Is the mesh skeleton complete and correct?

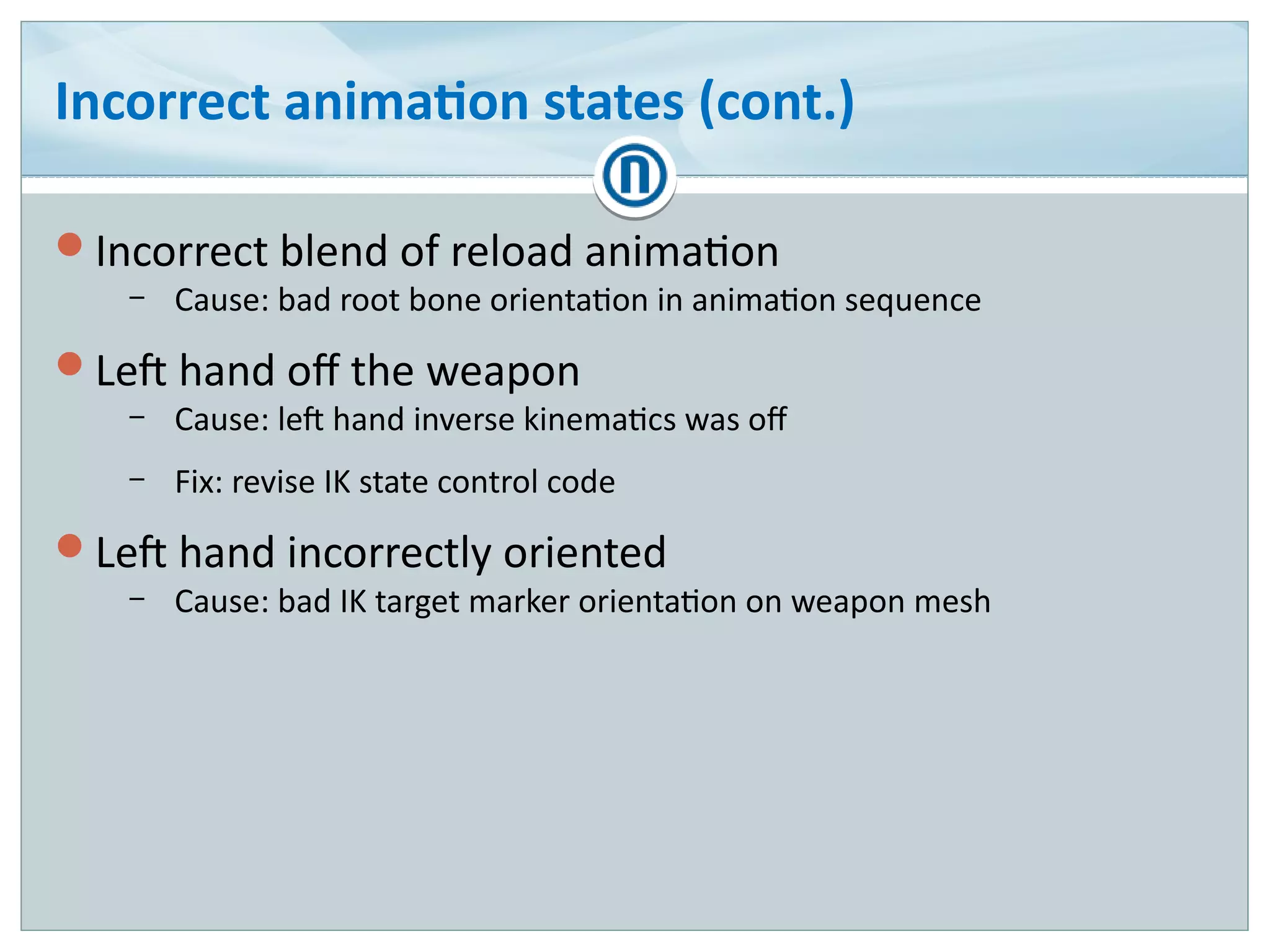

64. Incorrect animation states (cont.)
Incorrect blend of reload animation
– Cause: bad root bone orientation in animation sequence
Left hand off the weapon
– Cause: left hand inverse kinematics was off
– Fix: revise IK state control code
Left hand incorrectly oriented
– Cause: bad IK target marker orientation on weapon mesh

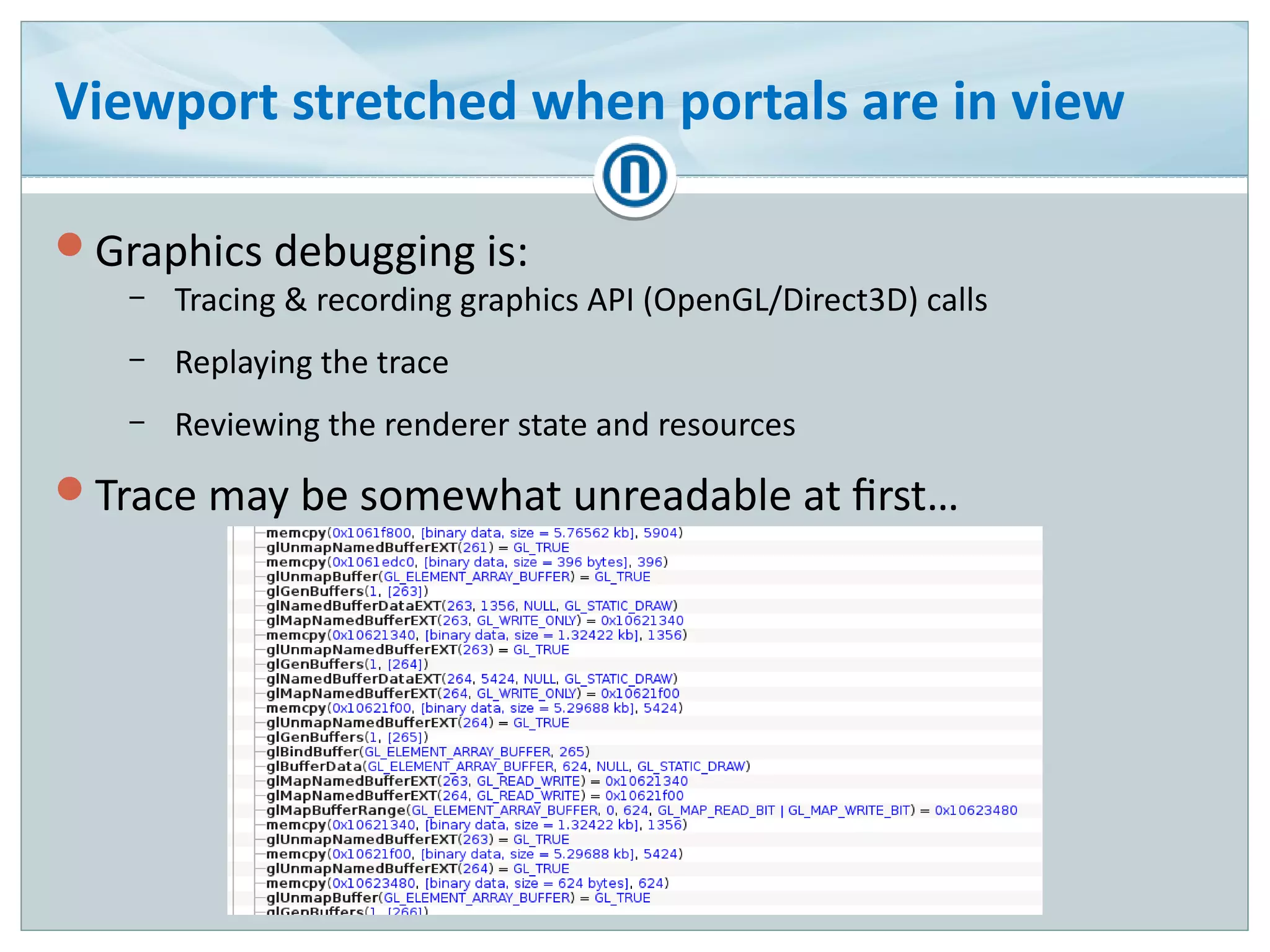

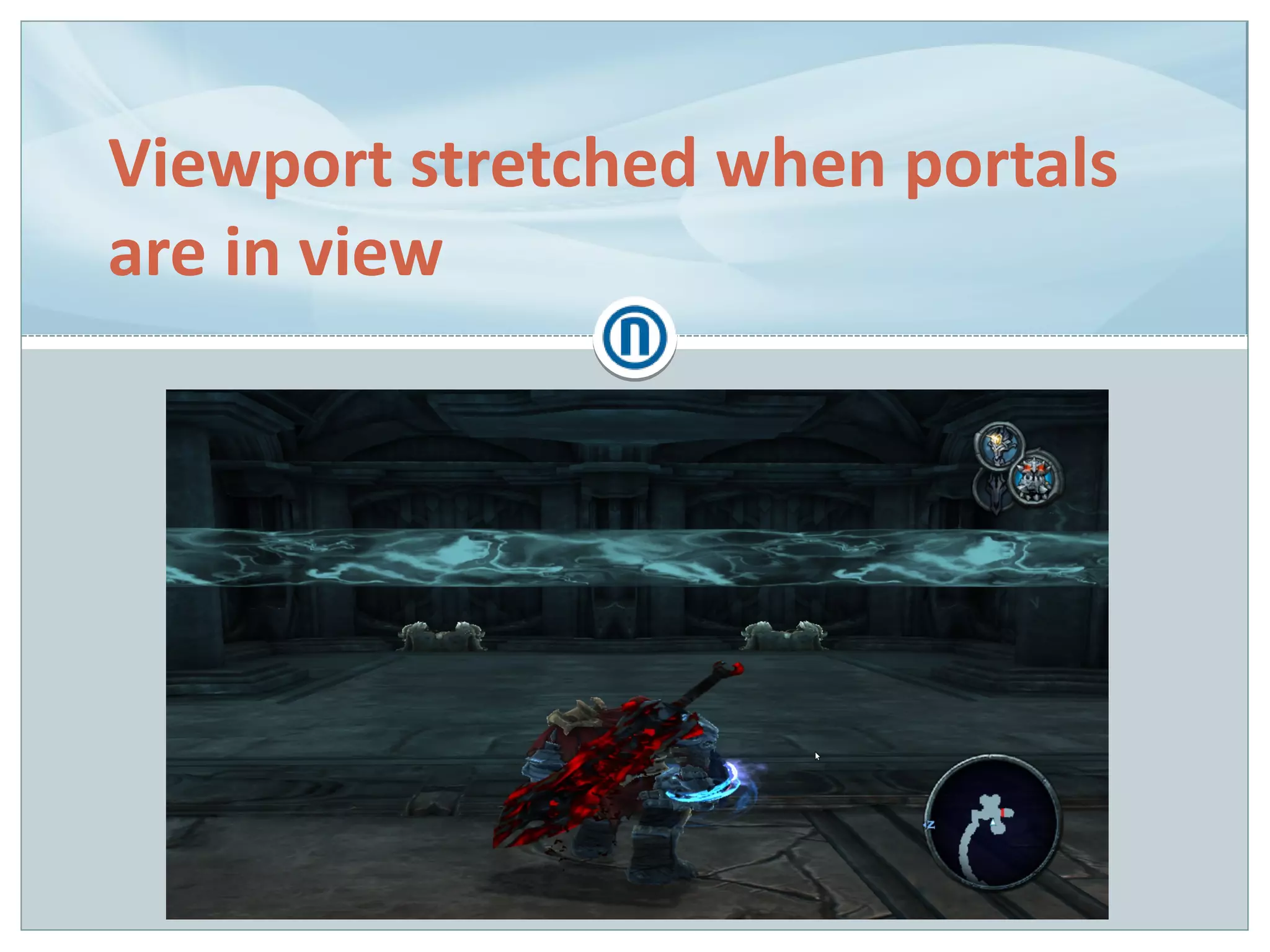

66. Viewport stretched when portals are in view
Graphics debugging is:
– Tracing & recording graphics API (OpenGL/Direct3D) calls
– Replaying the trace
– Reviewing the renderer state and resources
Trace may be somewhat unreadable at first…

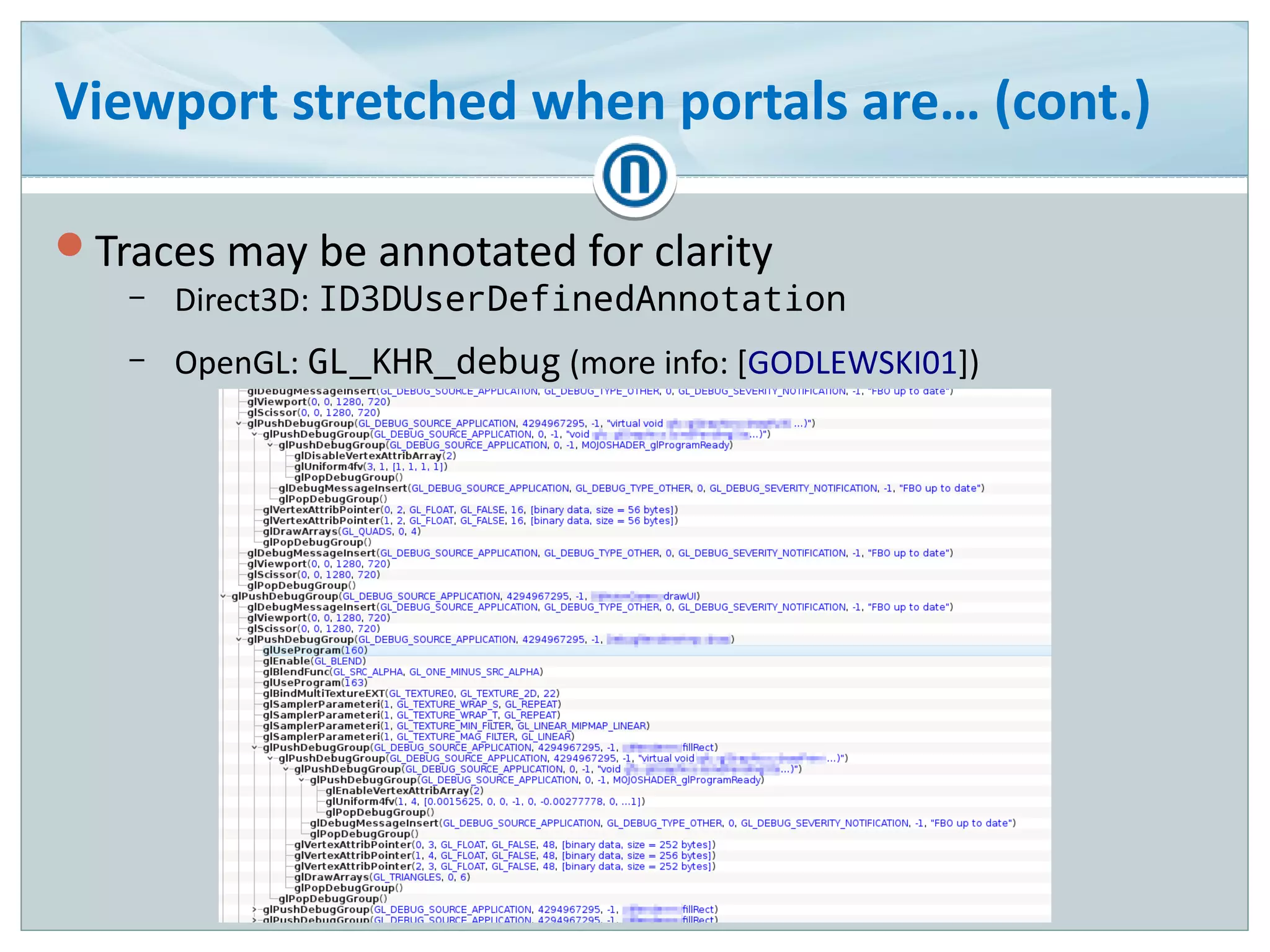

67. Viewport stretched when portals are… (cont.)
Traces may be annotated for clarity
– Direct3D: ID3DUserDefinedAnnotation
– OpenGL: GL_KHR_debug (more info: [GODLEWSKI01])

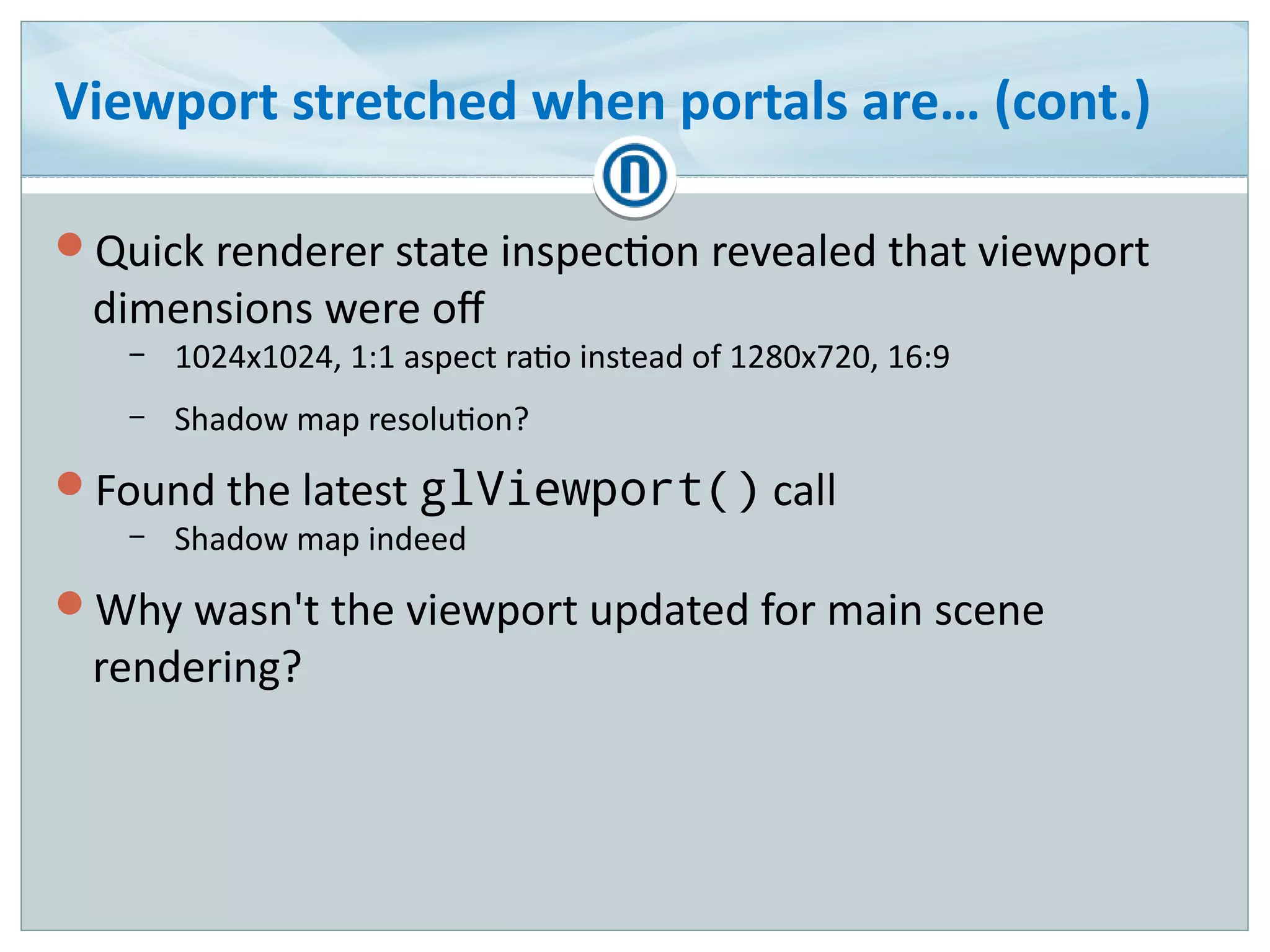

68. Viewport stretched when portals are… (cont.)
Quick renderer state inspection revealed that viewport
dimensions were off
– 1024x1024, 1:1 aspect ratio instead of 1280x720, 16:9
– Shadow map resolution?
Found the latest glViewport() call
– Shadow map indeed
Why wasn't the viewport updated for main scene
rendering?

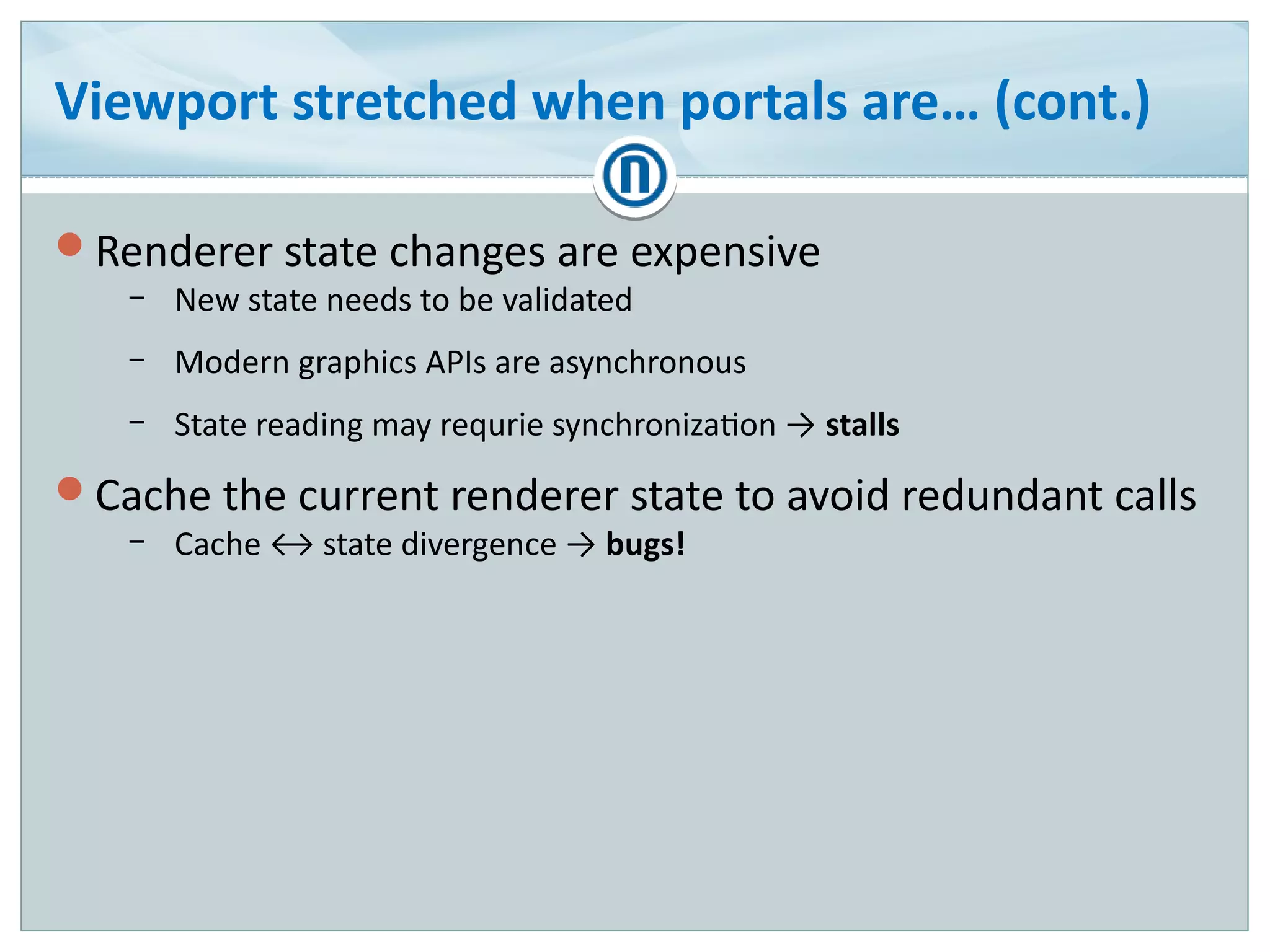

69. Viewport stretched when portals are… (cont.)
Renderer state changes are expensive
– New state needs to be validated
– Modern graphics APIs are asynchronous
– State reading may requrie synchronization → stalls
Cache the current renderer state to avoid redundant calls
– Cache ↔ state divergence → bugs!

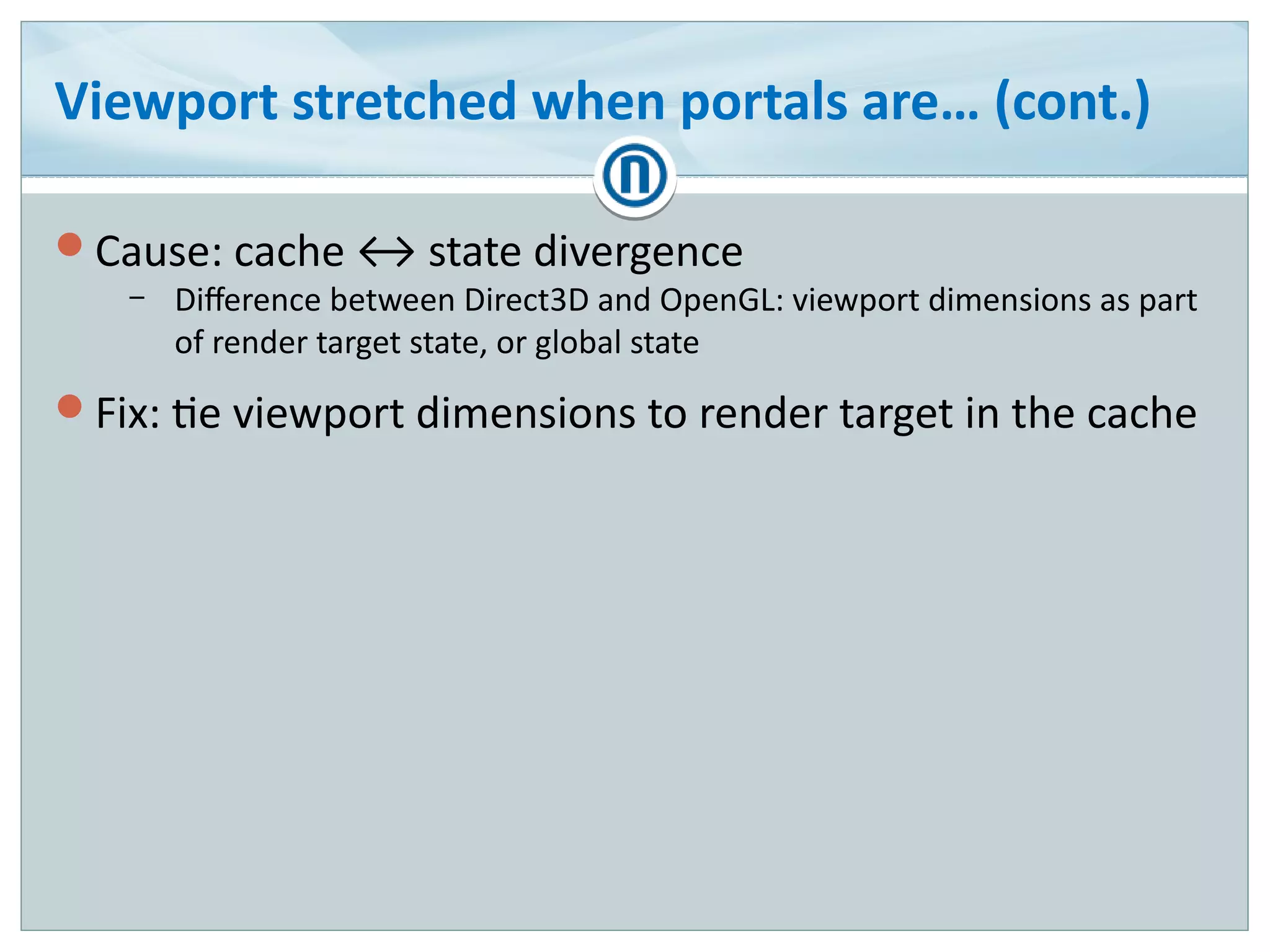

70. Viewport stretched when portals are… (cont.)
Cause: cache ↔ state divergence
– Difference between Direct3D and OpenGL: viewport dimensions as part
of render target state, or global state
Fix: tie viewport dimensions to render target in the cache

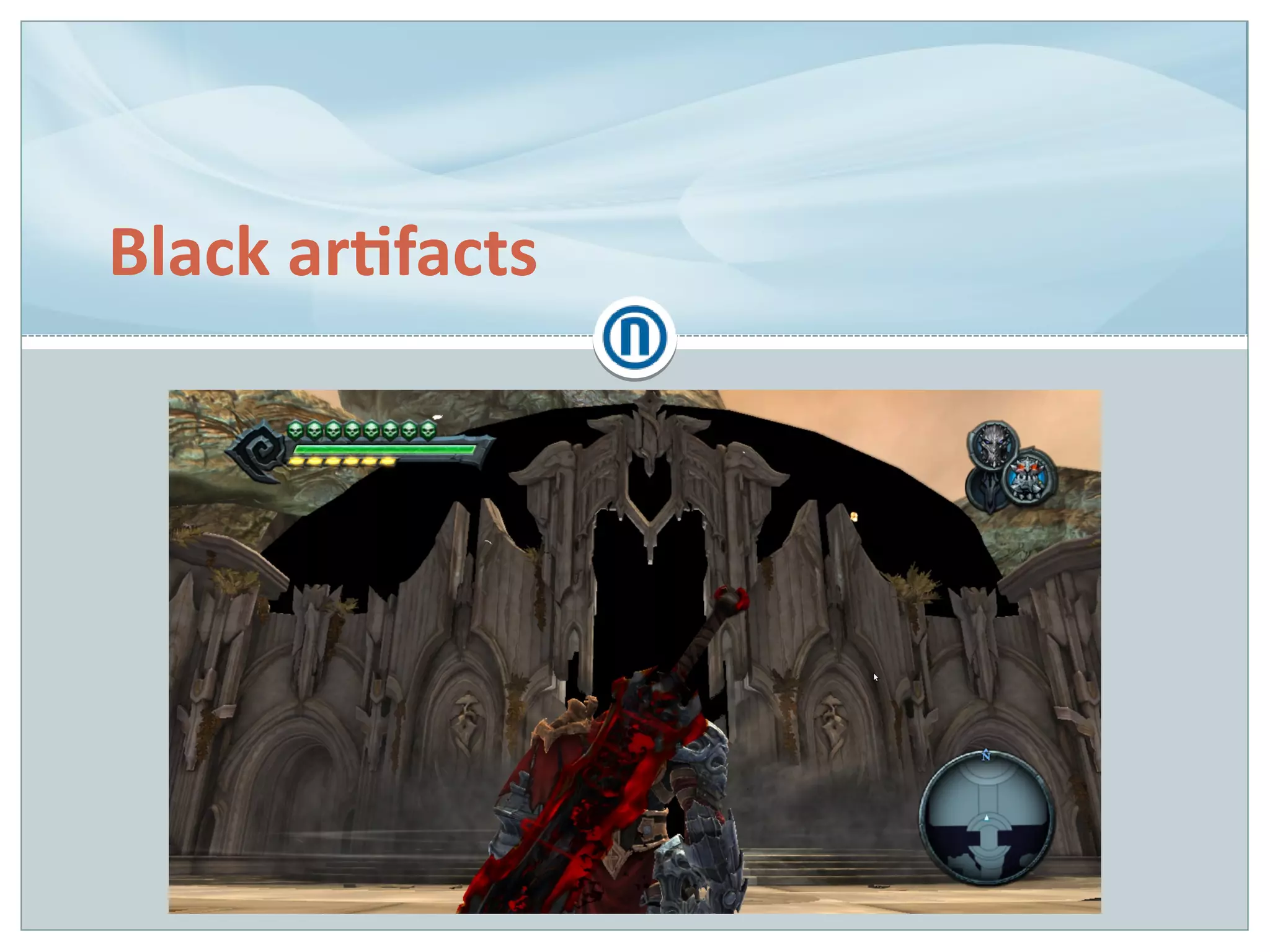

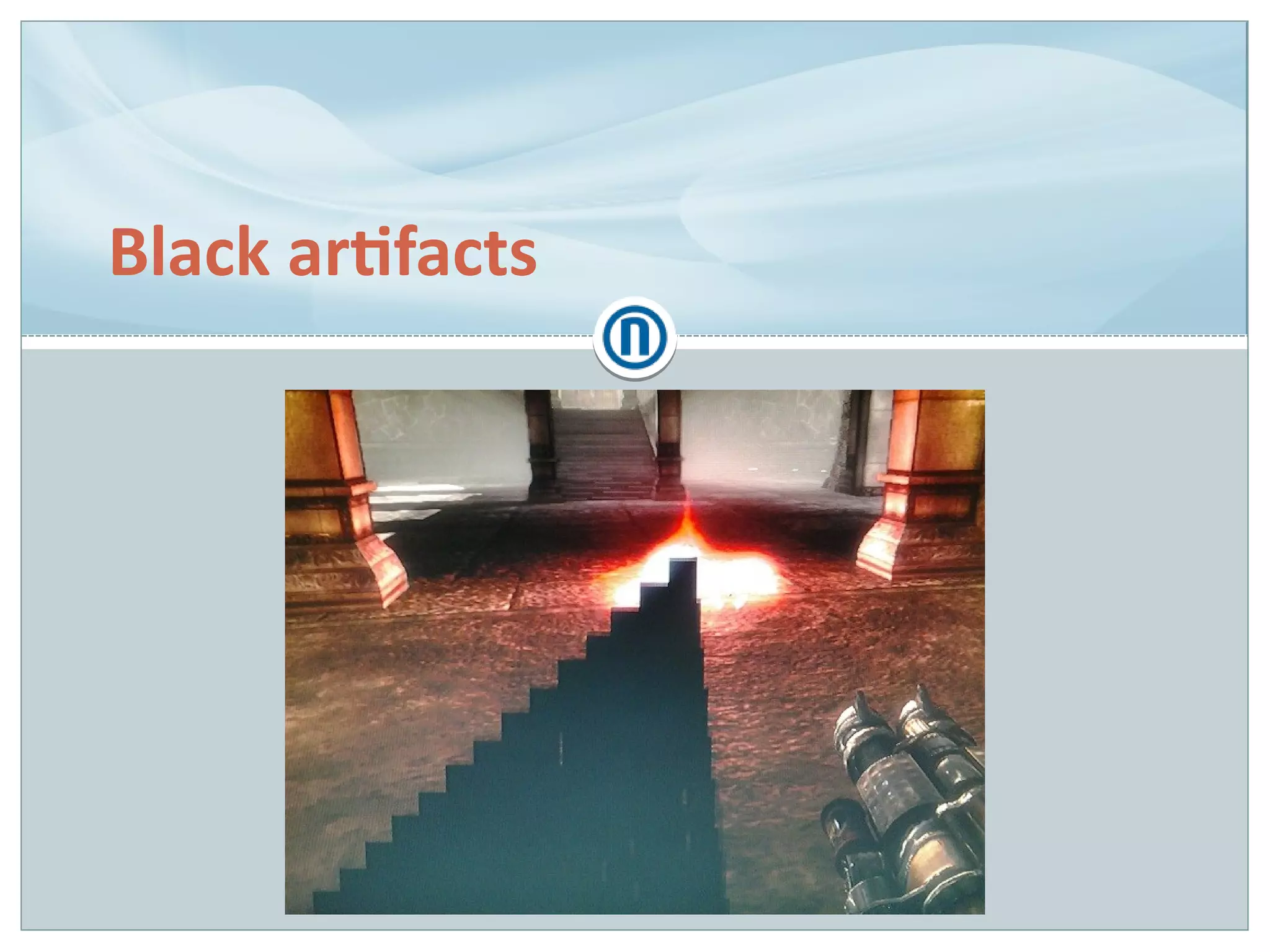

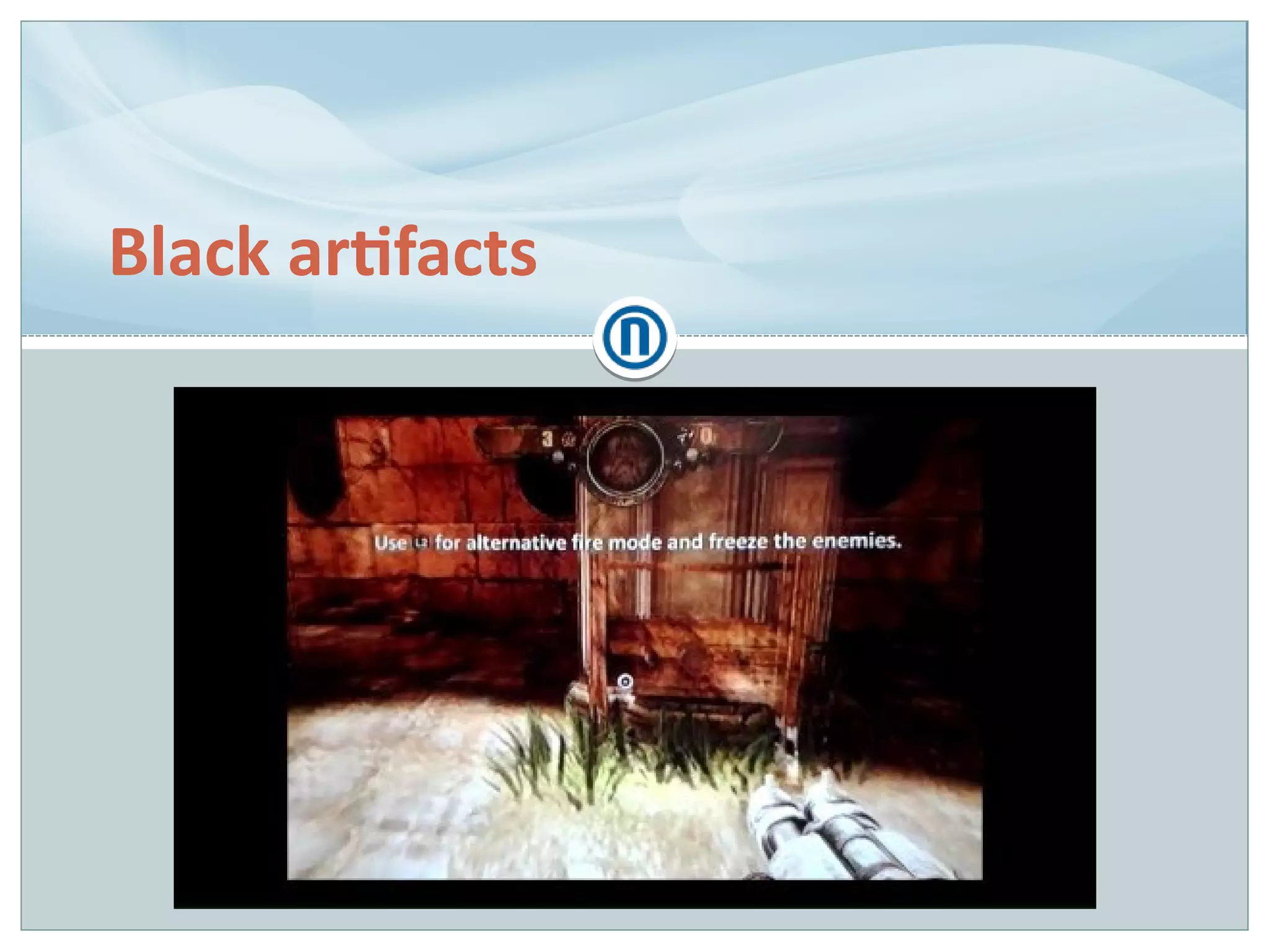

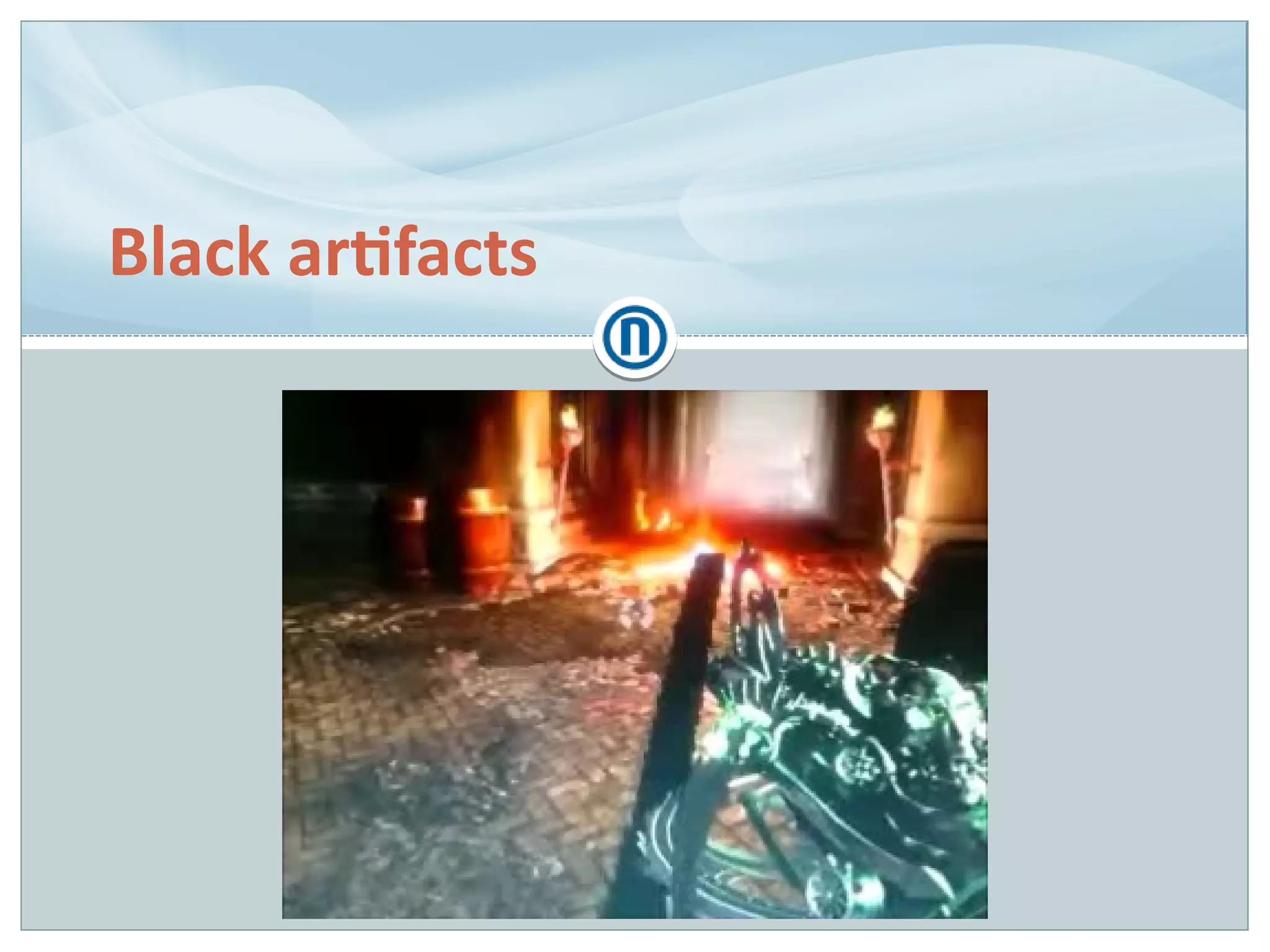

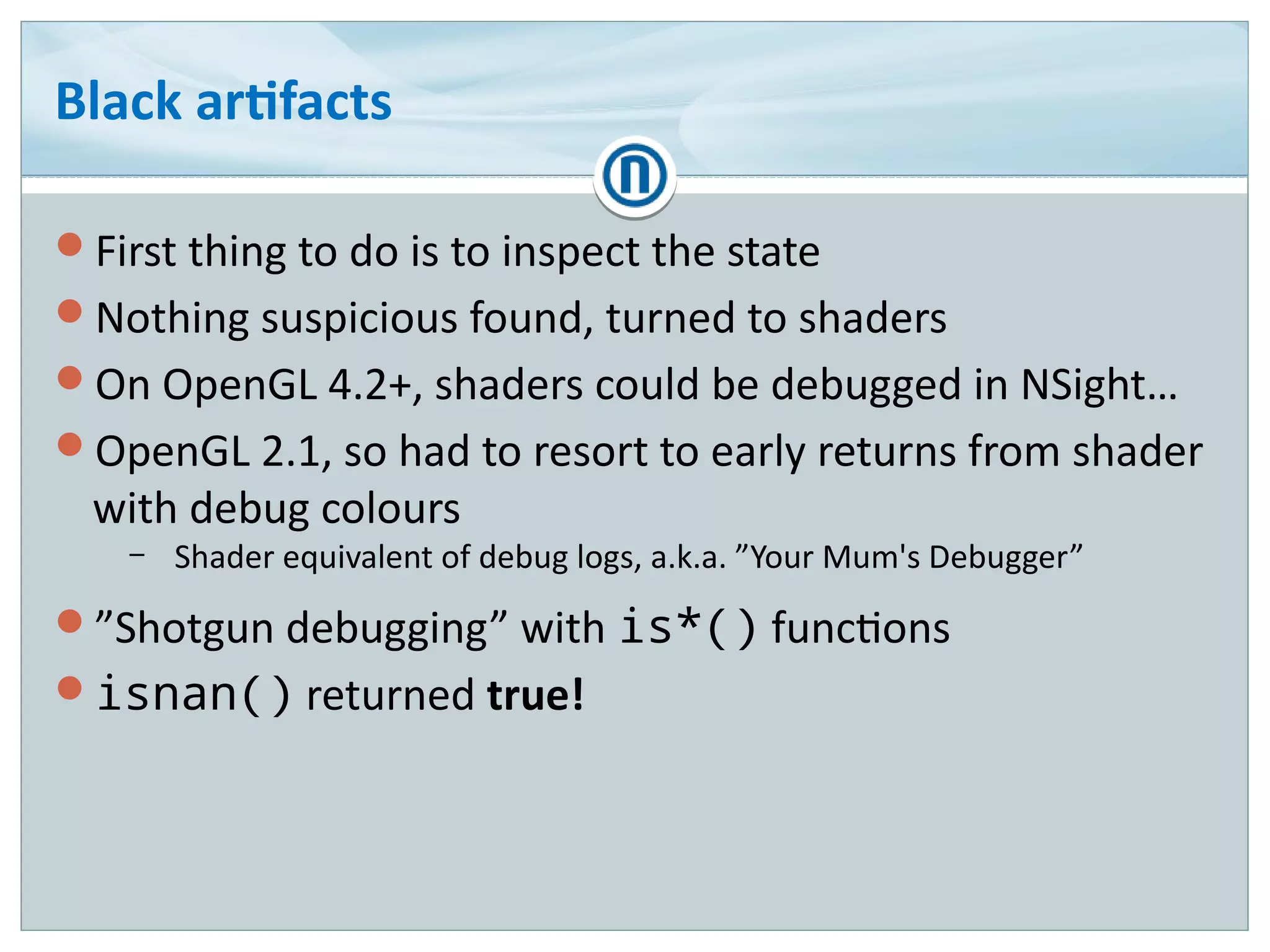

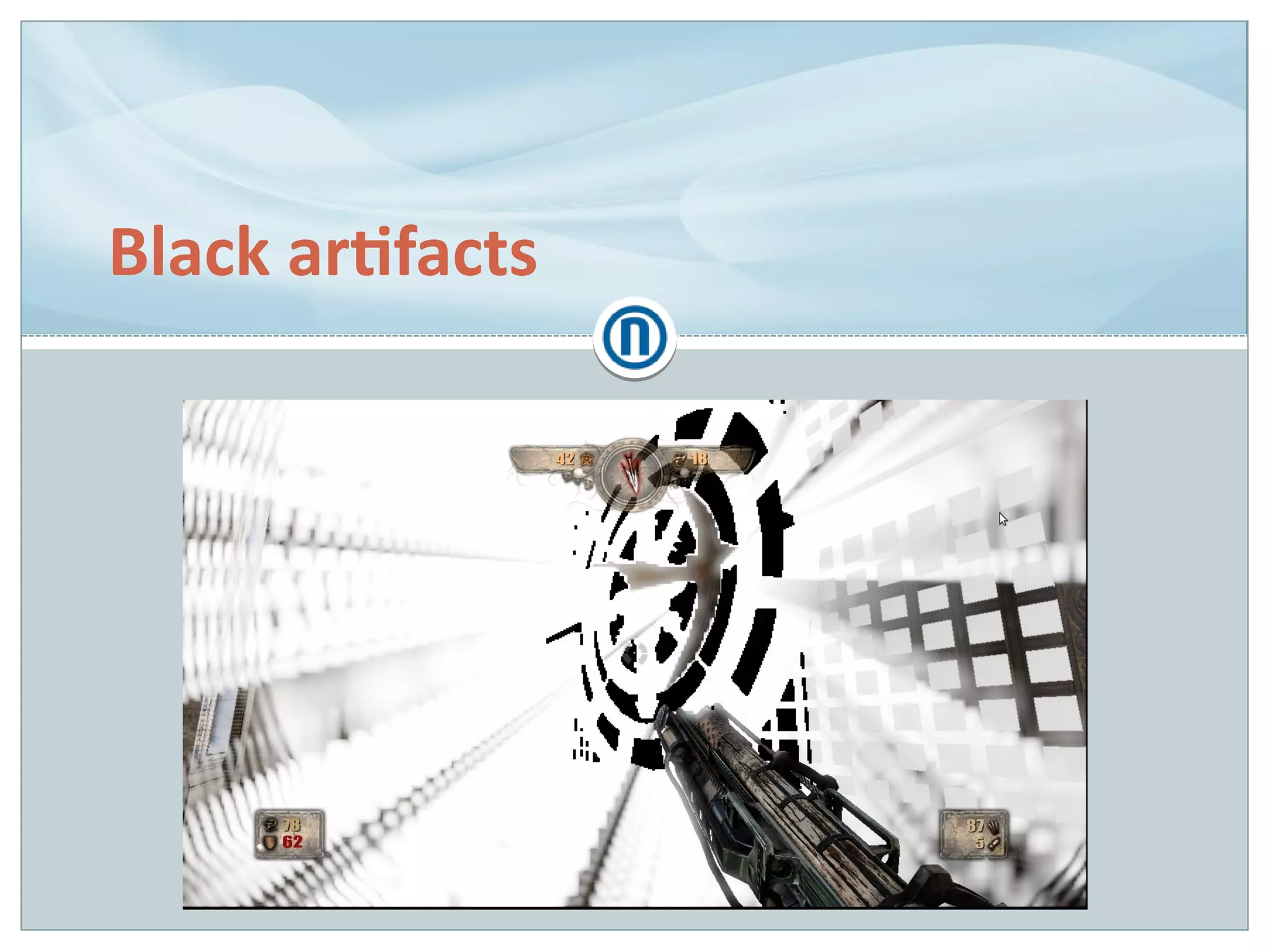

76. Black artifacts
First thing to do is to inspect the state
Nothing suspicious found, turned to shaders
On OpenGL 4.2+, shaders could be debugged in NSight…
OpenGL 2.1, so had to resort to early returns from shader
with debug colours
– Shader equivalent of debug logs, a.k.a. ”Your Mum's Debugger”
”Shotgun debugging” with is*() functions
isnan() returned true!

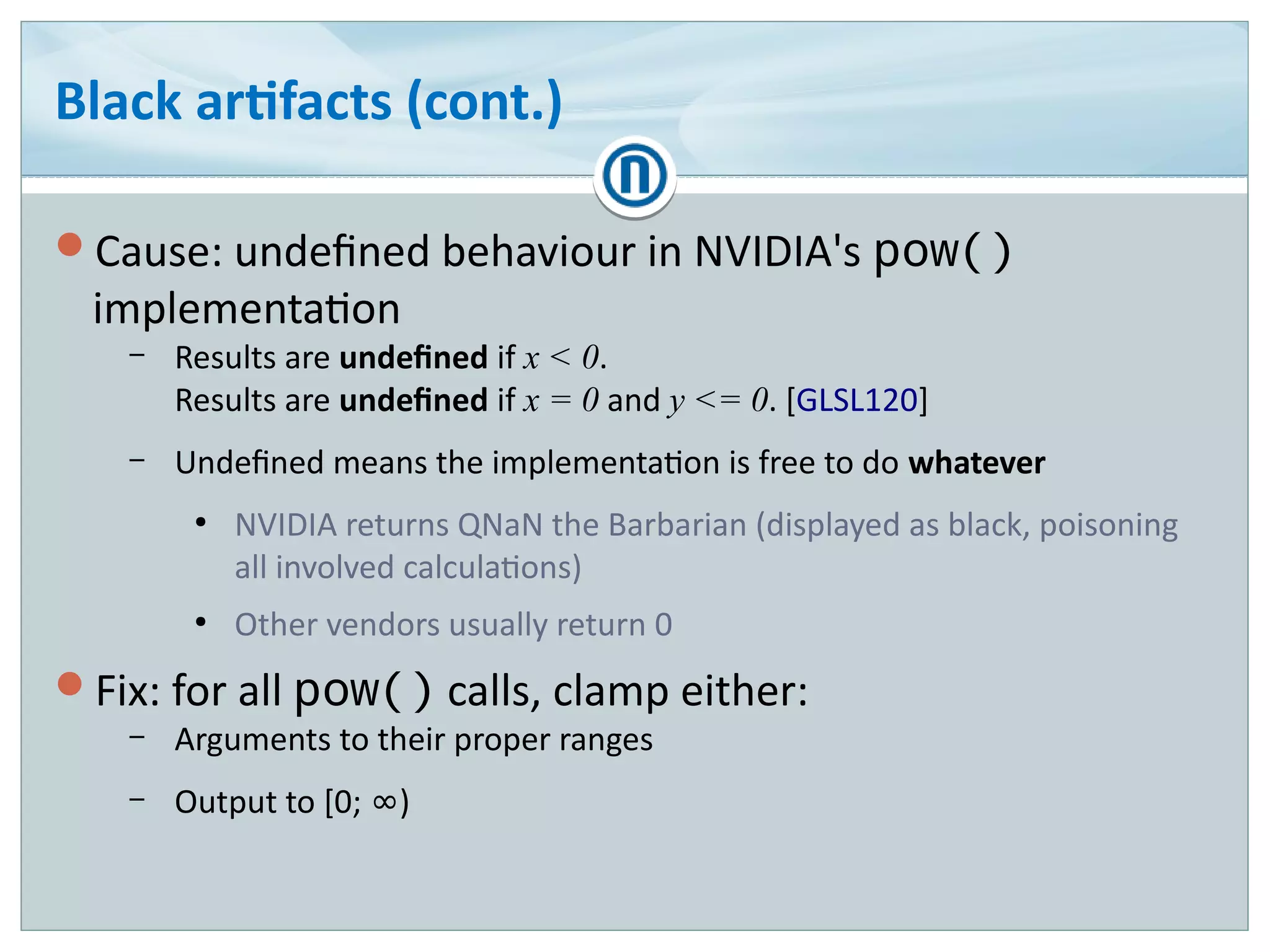

77. Black artifacts (cont.)
Cause: undefined behaviour in NVIDIA's pow()
implementation
– Results are undefined if x < 0.
Results are undefined if x = 0 and y <= 0. [GLSL120]
– Undefined means the implementation is free to do whatever
●
NVIDIA returns QNaN the Barbarian (displayed as black, poisoning
all involved calculations)
●
Other vendors usually return 0
Fix: for all pow() calls, clamp either:
– Arguments to their proper ranges
– Output to [0; ∞)

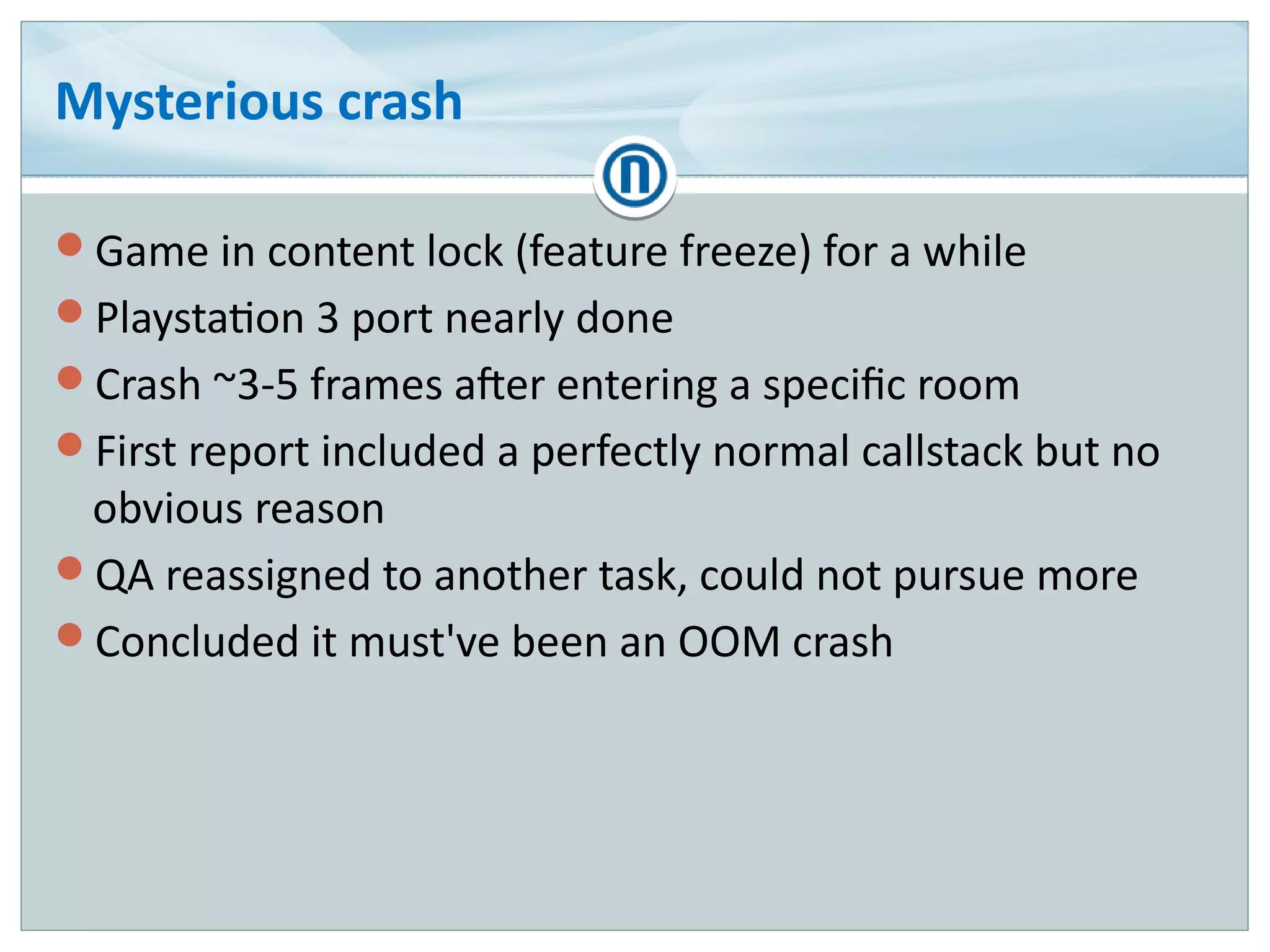

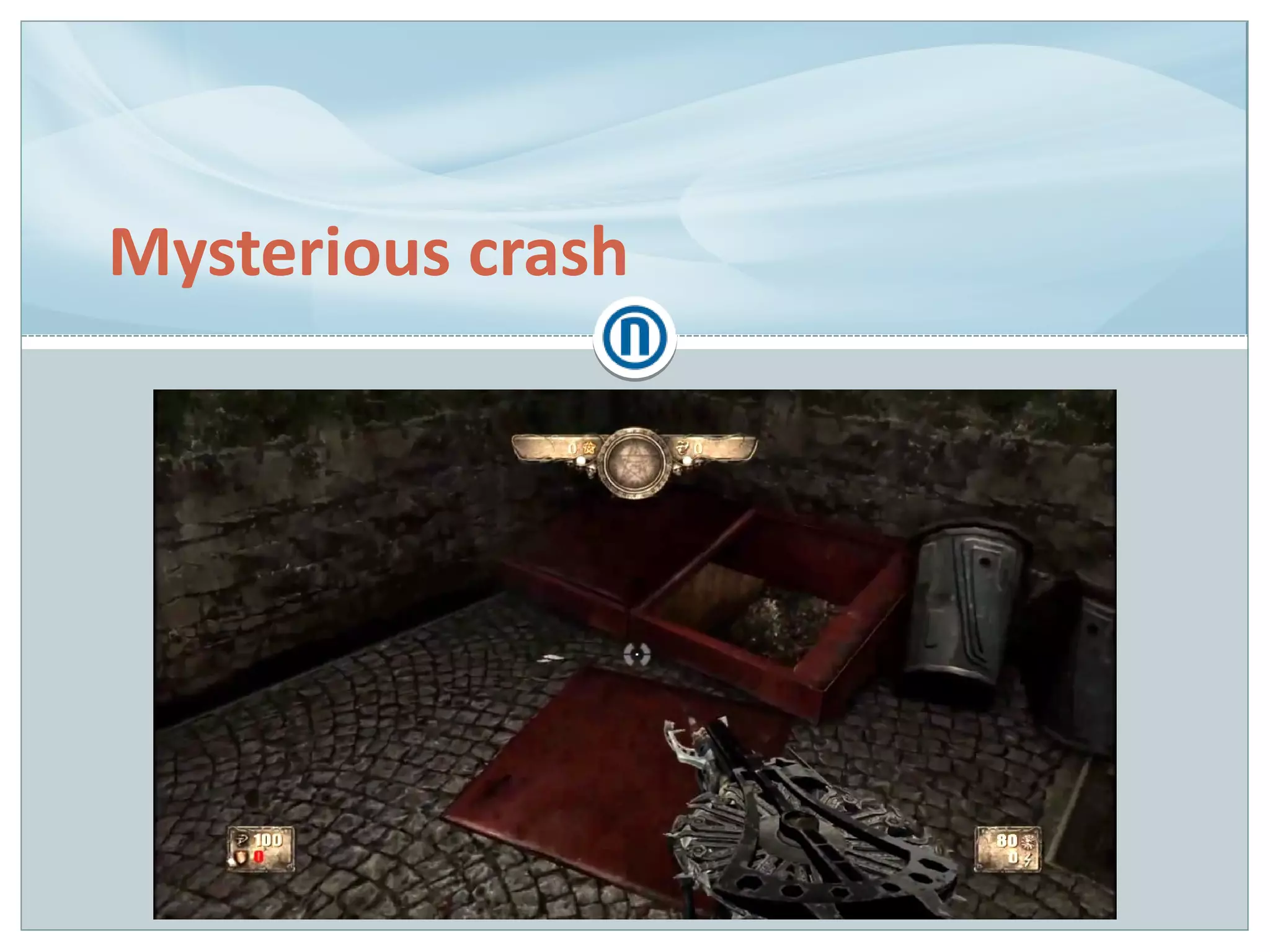

79. Mysterious crash
Game in content lock (feature freeze) for a while
Playstation 3 port nearly done
Crash ~3-5 frames after entering a specific room
First report included a perfectly normal callstack but no
obvious reason
QA reassigned to another task, could not pursue more
Concluded it must've been an OOM crash

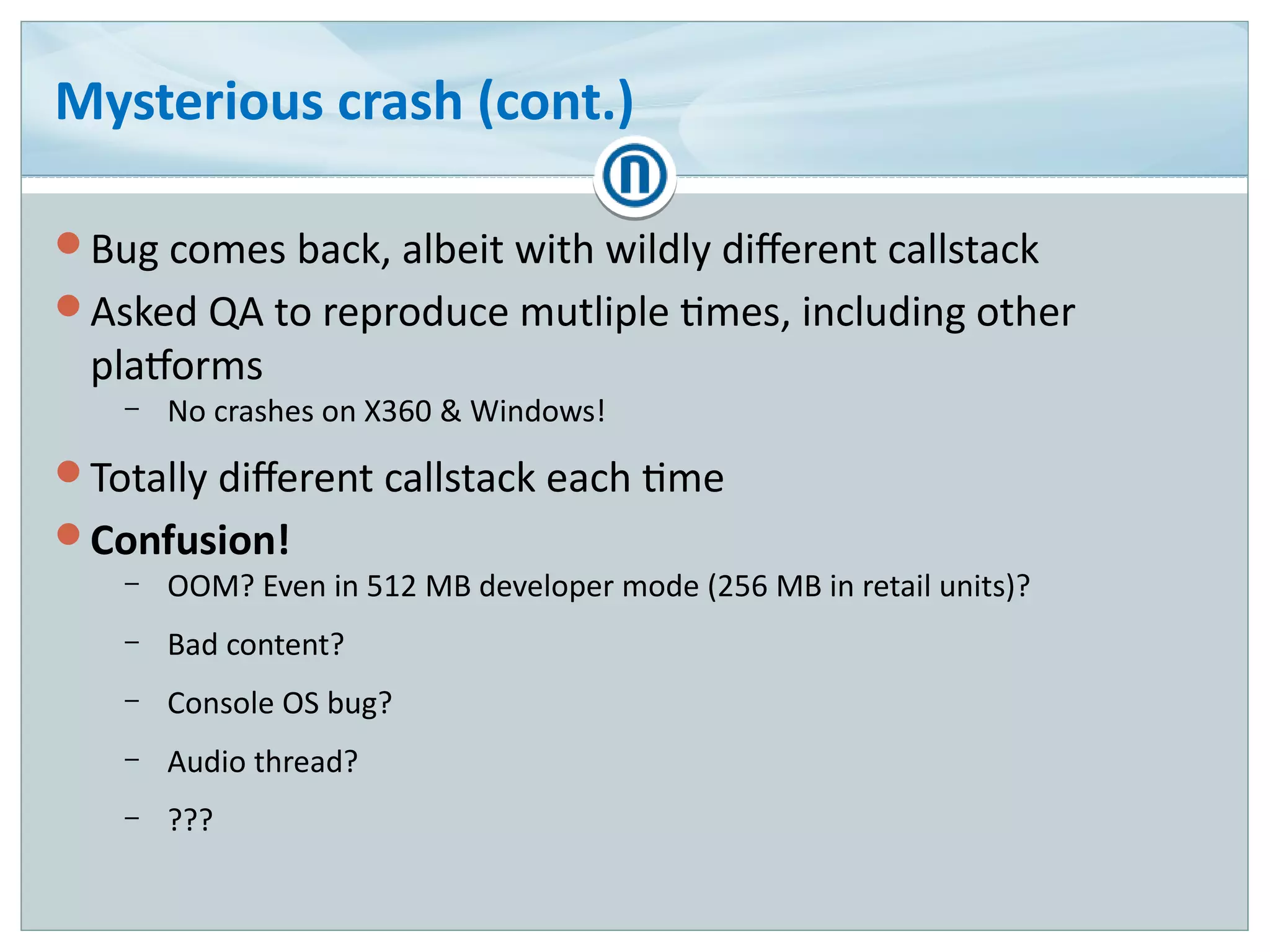

80. Mysterious crash (cont.)
Bug comes back, albeit with wildly different callstack
Asked QA to reproduce mutliple times, including other
platforms
– No crashes on X360 & Windows!
Totally different callstack each time
Confusion!
– OOM? Even in 512 MB developer mode (256 MB in retail units)?
– Bad content?
– Console OS bug?
– Audio thread?
– ???

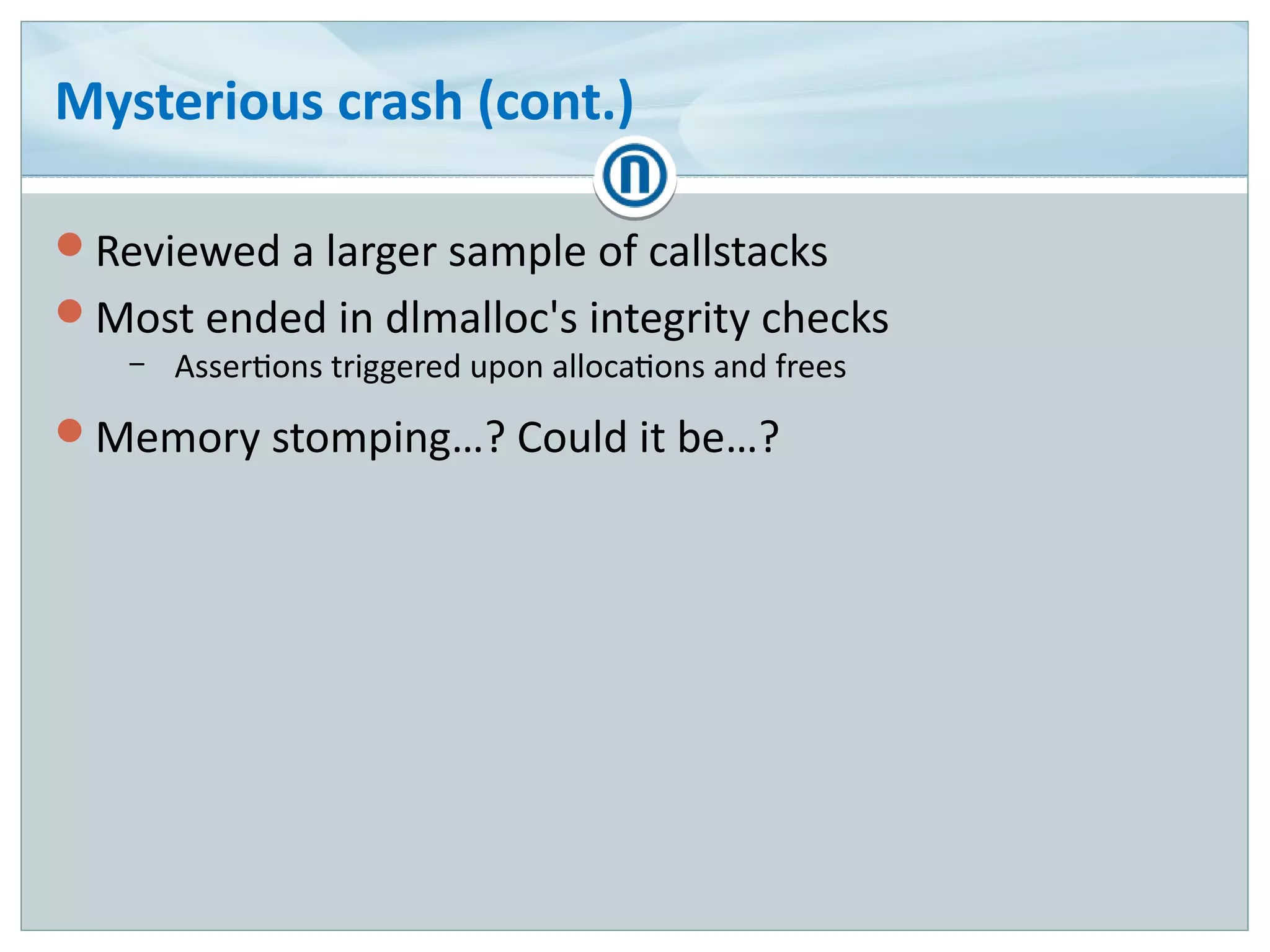

81. Mysterious crash (cont.)
Reviewed a larger sample of callstacks
Most ended in dlmalloc's integrity checks
– Assertions triggered upon allocations and frees
Memory stomping…? Could it be…?

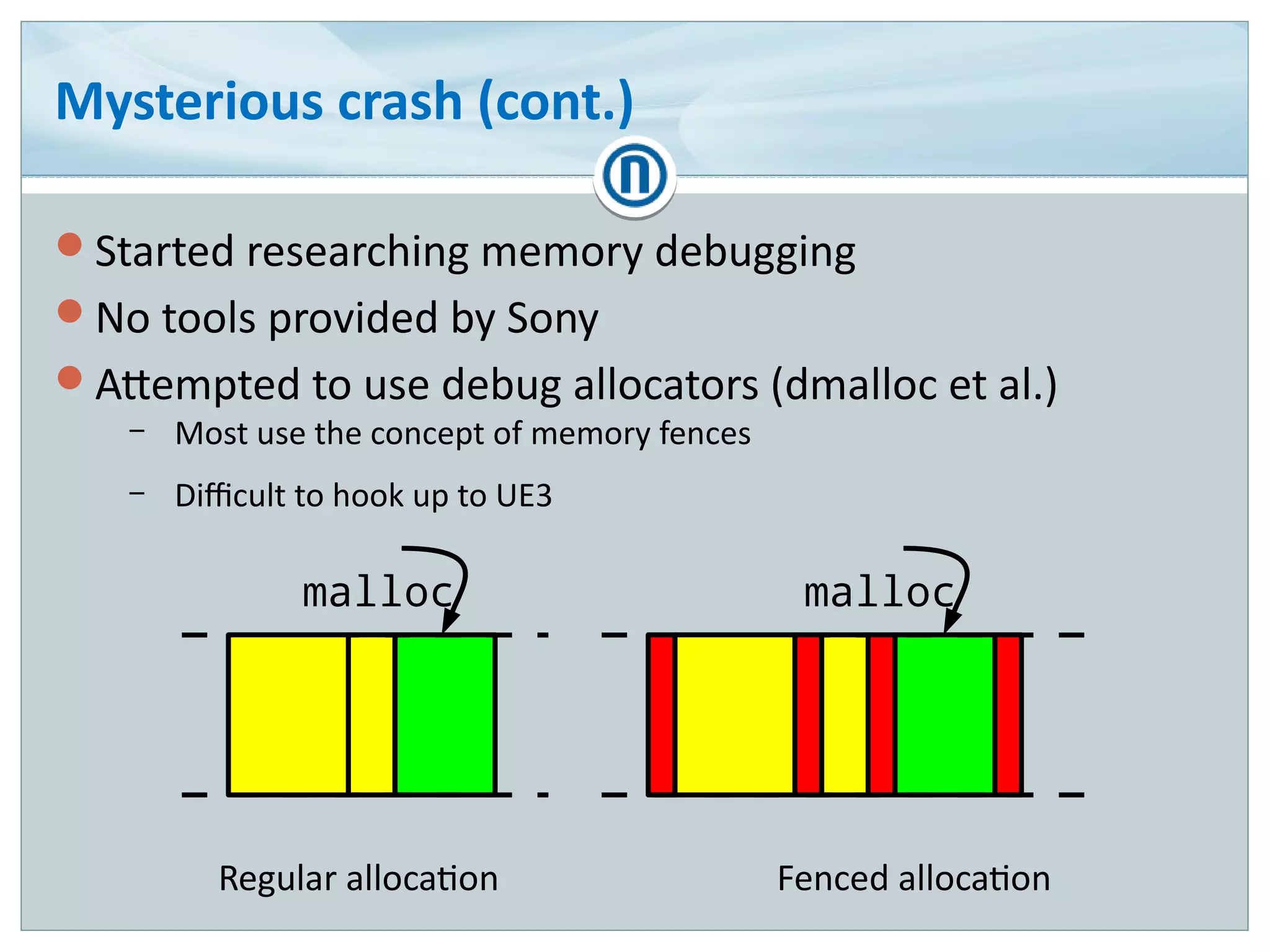

82. Mysterious crash (cont.)
Started researching memory debugging
No tools provided by Sony
Attempted to use debug allocators (dmalloc et al.)
– Most use the concept of memory fences
– Difficult to hook up to UE3
malloc
Regular allocation Fenced allocation
malloc

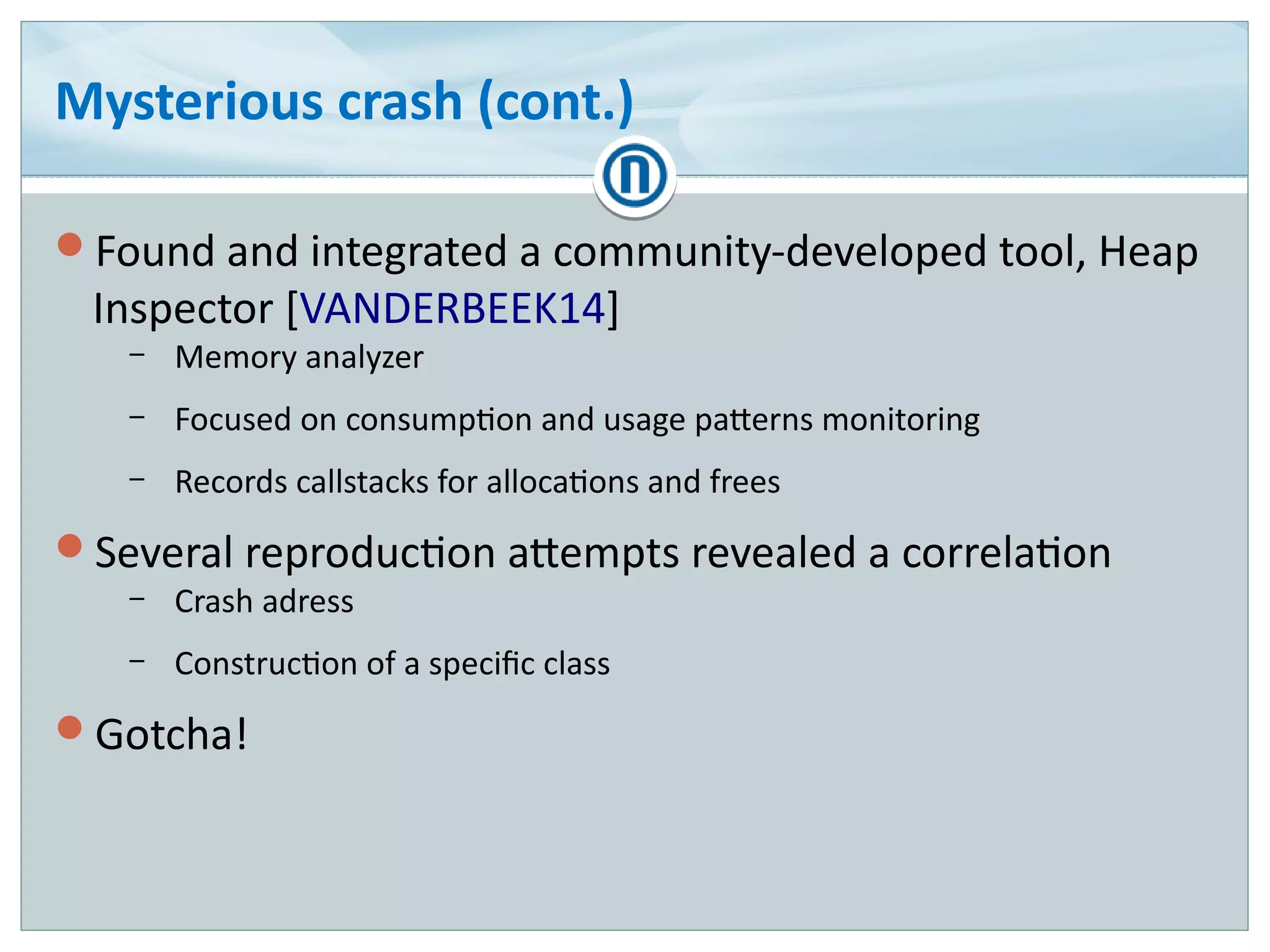

83. Mysterious crash (cont.)
Found and integrated a community-developed tool, Heap
Inspector [VANDERBEEK14]
– Memory analyzer
– Focused on consumption and usage patterns monitoring
– Records callstacks for allocations and frees
Several reproduction attempts revealed a correlation
– Crash adress
– Construction of a specific class
Gotcha!

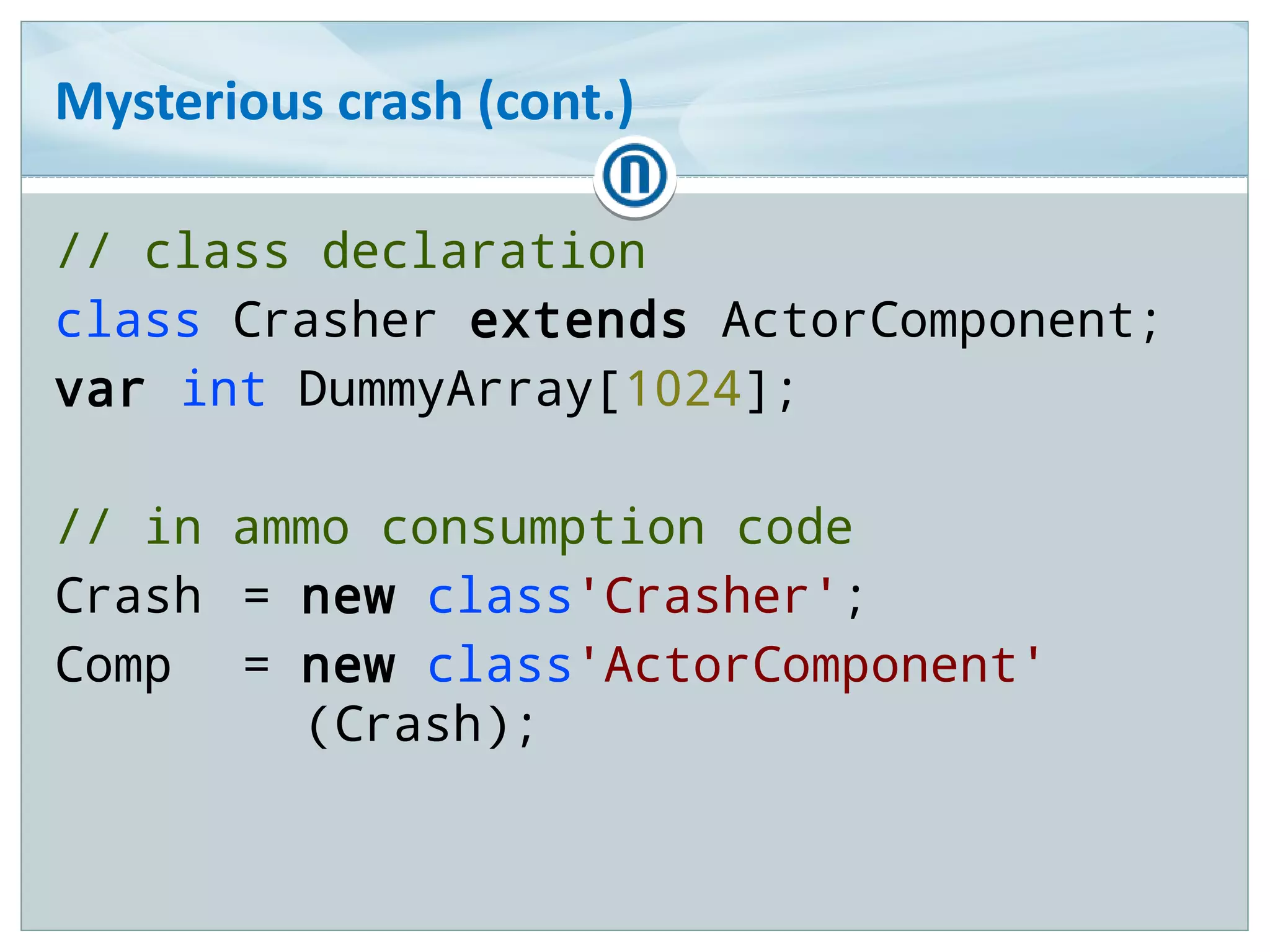

84. Mysterious crash (cont.)
// class declaration
class Crasher extends ActorComponent;
var int DummyArray[1024];
// in ammo consumption code
Crash = new class'Crasher';
Comp = new class'ActorComponent'
(Crash);

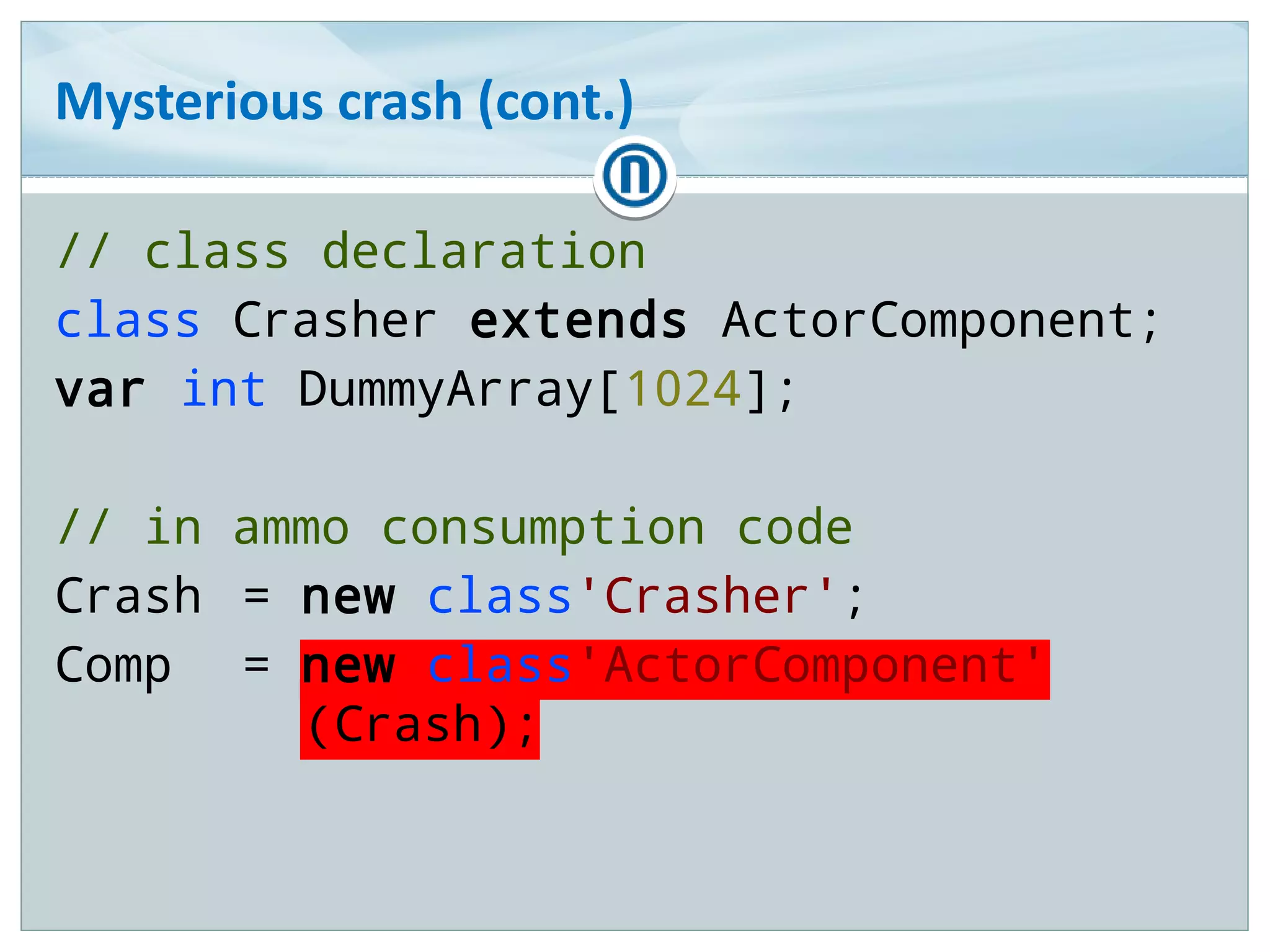

85. Mysterious crash (cont.)
// class declaration
class Crasher extends ActorComponent;
var int DummyArray[1024];
// in ammo consumption code
Crash = new class'Crasher';
Comp = new class'ActorComponent'
(Crash);

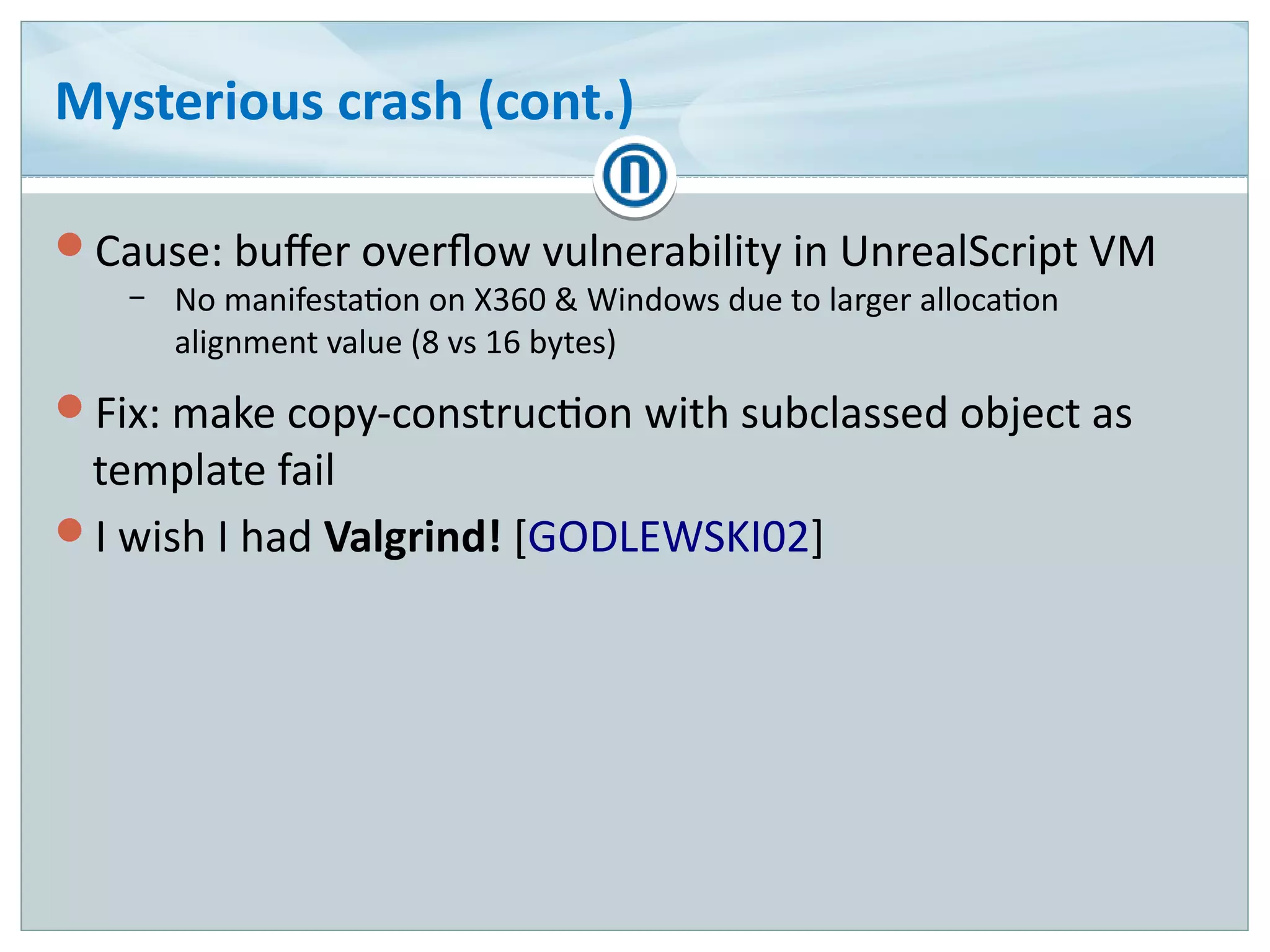

86. Mysterious crash (cont.)
Cause: buffer overflow vulnerability in UnrealScript VM
– No manifestation on X360 & Windows due to larger allocation
alignment value (8 vs 16 bytes)
Fix: make copy-construction with subclassed object as
template fail
I wish I had Valgrind! [GODLEWSKI02]

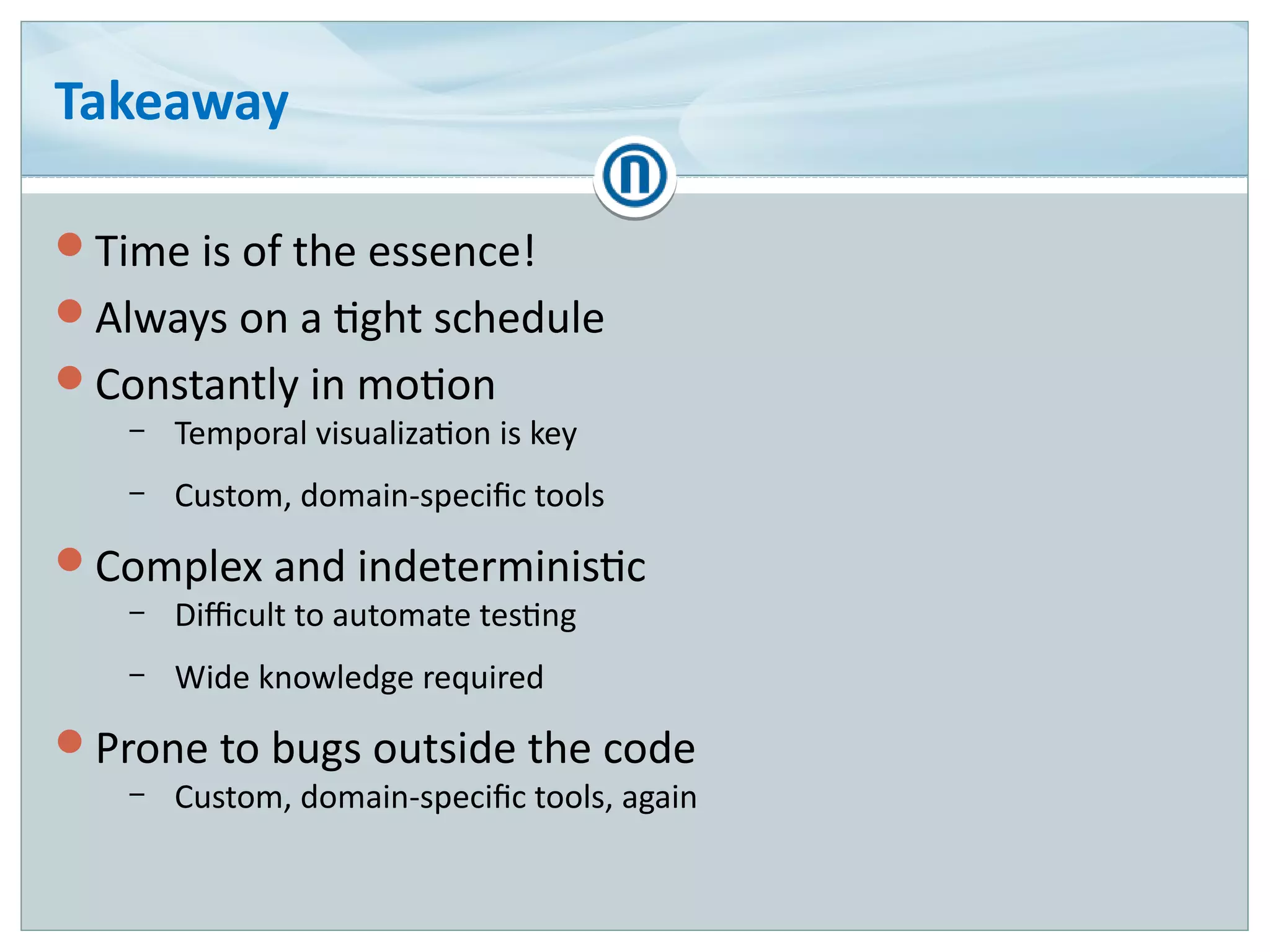

88. Takeaway
Time is of the essence!
Always on a tight schedule
Constantly in motion
– Temporal visualization is key
– Custom, domain-specific tools
Complex and indeterministic
– Difficult to automate testing
– Wide knowledge required
Prone to bugs outside the code
– Custom, domain-specific tools, again

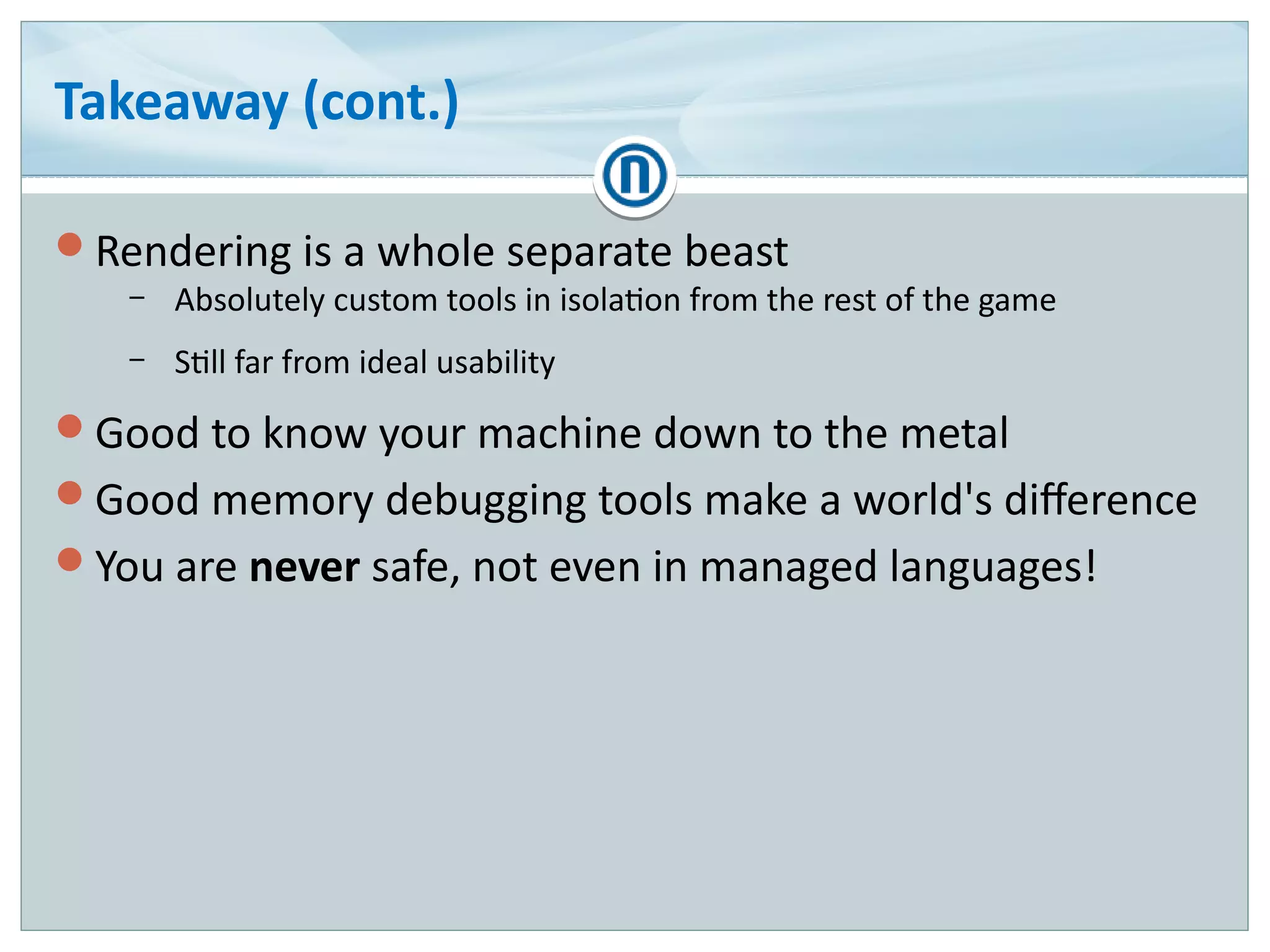

89. Takeaway (cont.)
Rendering is a whole separate beast
– Absolutely custom tools in isolation from the rest of the game
– Still far from ideal usability
Good to know your machine down to the metal
Good memory debugging tools make a world's difference
You are never safe, not even in managed languages!
90. @ l go d l ews k i @ n o rd i c ga m e s . at
t @ T h e I n e Q u ati o n
K w w w. i n e q u ati o n . o rg
Questions?
91. F u rt h e r N o rd i c G a m e s i nfo rm ati o n :
K w ww. n o rd i c ga m e s . at
Deve l o p me nt i nfo rmati o n :
K ww w. gr i m l o re ga m e s . co m
Thank you!

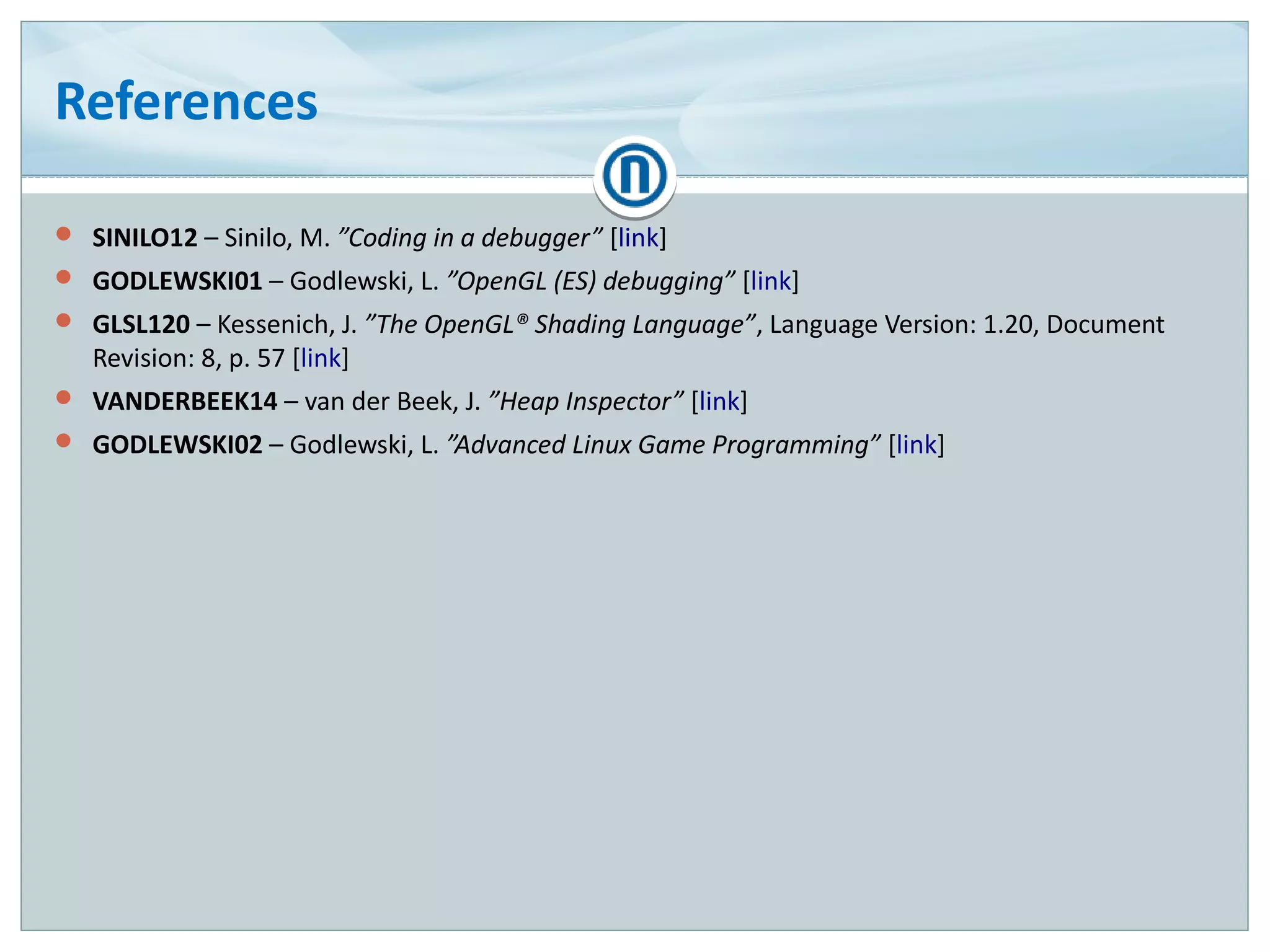

92. References
SINILO12 – Sinilo, M. ”Coding in a debugger” [link]
GODLEWSKI01 – Godlewski, L. ”OpenGL (ES) debugging” [link]
GLSL120 – Kessenich, J. ”The OpenGL® Shading Language”, Language Version: 1.20, Document
Revision: 8, p. 57 [link]
VANDERBEEK14 – van der Beek, J. ”Heap Inspector” [link]
GODLEWSKI02 – Godlewski, L. ”Advanced Linux Game Programming” [link]
