1. Gamedev-grade debugging
Leszek Godlewski, The Astronauts
Source: http://igetyourfail.blogspot.com/2009/01/reaching-out-tale-of-failed-skinning.html

2. ● Engine Programmer, The Astronauts (Nov 2014 –
present)
– PS4 port of The Vanishing of Ethan Carter
● Programmer, Nordic Games (early 2014 – Nov 2014)
● Freelance Programmer (Sep 2013 – early 2014)
● Generalist Programmer, The Farm 51 (Mar 2010 –
Aug 2013)
Who is this guy?

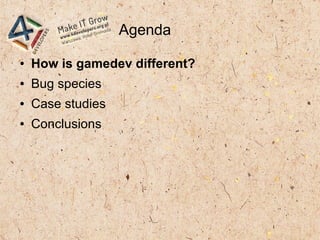

3. Agenda
● How is gamedev different?
● Bug species
● Case studies
● Conclusions

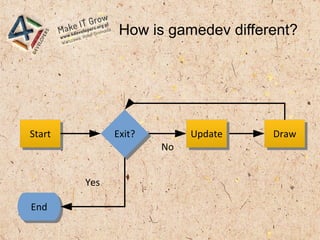

4. StartStart Exit?Exit?
EndEnd
Yes
No
UpdateUpdate DrawDraw
How is gamedev different?

5. 33 milliseconds
● How much time you have to get shit done™
– 30 Hz → 33⅓ ms per frame
– 60 Hz → 16⅔ ms per frame
EditorEditor
Level toolsLevel tools
Asset toolsAsset tools
EngineEngine
PhysicsPhysics
RenderingRendering AudioAudio
NetworkNetwork
PlatformPlatform
InputInput
Network
back-end
Network
back-end
GameGame
UIUI LogicLogic AIAI

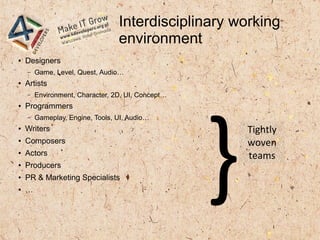

6. Interdisciplinary working
environment
● Designers
– Game, Level, Quest, Audio…
● Artists
– Environment, Character, 2D, UI, Concept…
● Programmers
– Gameplay, Engine, Tools, UI, Audio…
● Writers
● Composers
● Actors
● Producers
● PR & Marketing Specialists
● … }
Tightly
woven
teams

7. Severe, fixed hardware
constraints
● Main reason for extensive use of native code

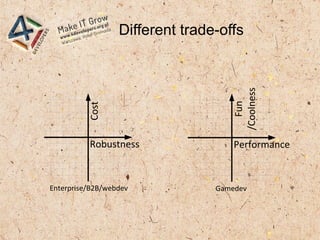

8. Different trade-offs
Robustness
Cost
Performance
Fun
/Coolness
Enterprise/B2B/webdev Gamedev

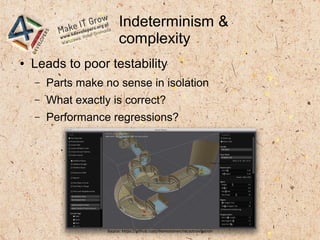

9. Indeterminism &
complexity
● Leads to poor testability
– Parts make no sense in isolation
– What exactly is correct?
– Performance regressions?
Source: https://github.com/memononen/recastnavigation

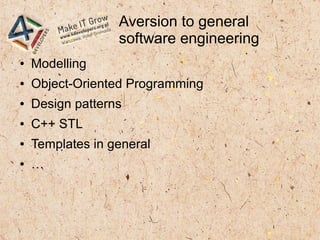

10. Aversion to general
software engineering
● Modelling
● Object-Oriented Programming
● Design patterns
● C++ STL
● Templates in general
● …

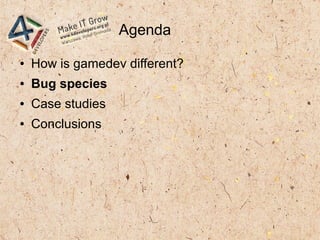

11. Agenda
● How is gamedev different?
● Bug species
● Case studies
● Conclusions

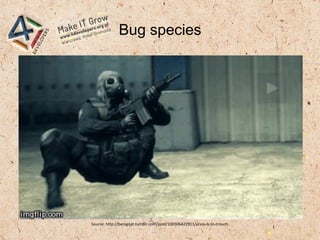

12. Source: http://benigoat.tumblr.com/post/100306422911/press-b-to-crouch
Bug species

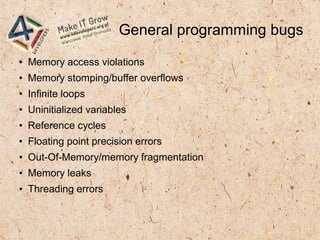

13. General programming bugs
● Memory access violations
● Memory stomping/buffer overflows
● Infinite loops
● Uninitialized variables
● Reference cycles
● Floating point precision errors
● Out-Of-Memory/memory fragmentation
● Memory leaks
● Threading errors

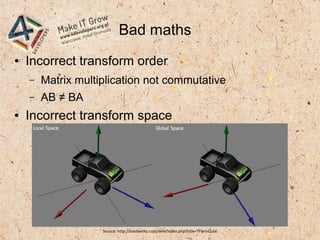

14. Bad maths
● Incorrect transform order
– Matrix multiplication not commutative
– AB ≠ BA
● Incorrect transform space
Source: http://leadwerks.com/wiki/index.php?title=TFormQuat

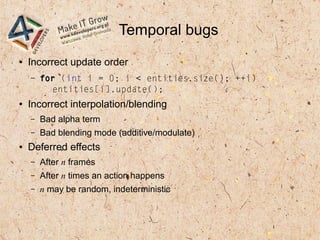

15. Temporal bugs
● Incorrect update order
– for (int i = 0; i < entities.size(); ++i)
entities[i].update();
● Incorrect interpolation/blending
– Bad alpha term
– Bad blending mode (additive/modulate)
● Deferred effects
– After n frames
– After n times an action happens
– n may be random, indeterministic

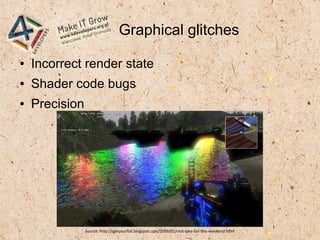

16. Graphical glitches
● Incorrect render state
● Shader code bugs
● Precision
Source: http://igetyourfail.blogspot.com/2009/01/visit-lake-fail-this-weekend.html

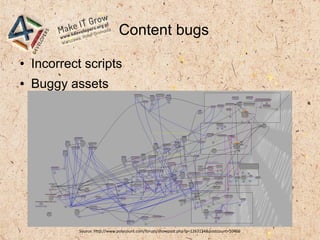

17. Content bugs
● Incorrect scripts
● Buggy assets
Source: http://www.polycount.com/forum/showpost.php?p=1263124&postcount=10466

18. Worst part?
● Most cases are two or more of the
aforementioned, intertwined

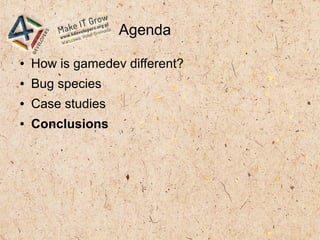

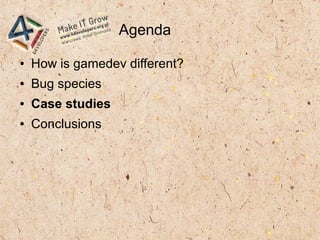

19. Agenda
● How is gamedev different?
● Bug species
● Case studies
● Conclusions

20. Most material captured by
Case studies

21. Video settings not updating

22. Incorrect weapon after
demon mode
foreshadowing

23. Post-death sprint camera
anim

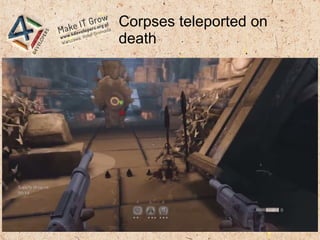

24. Corpses teleported on
death

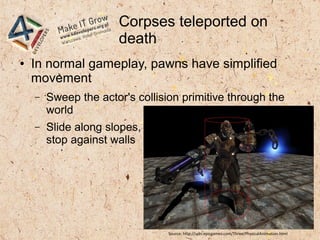

25. Corpses teleported on
death
● In normal gameplay, pawns have simplified
movement
– Sweep the actor's collision primitive through the
world
– Slide along slopes,
stop against walls
Source: http://udn.epicgames.com/Three/PhysicalAnimation.html

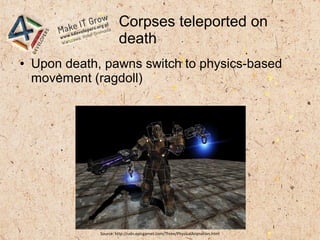

26. Corpses teleported on
death
● Upon death, pawns switch to physics-based
movement (ragdoll)
Source: http://udn.epicgames.com/Three/PhysicalAnimation.html

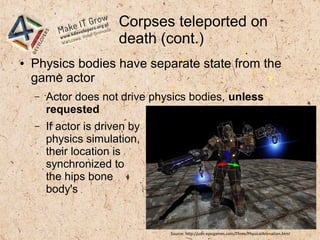

27. Corpses teleported on
death (cont.)
● Physics bodies have separate state from the
game actor
– Actor does not drive physics bodies, unless
requested
– If actor is driven by
physics simulation,
their location is
synchronized to
the hips bone
body's
Source: http://udn.epicgames.com/Three/PhysicalAnimation.html

28. Corpses teleported on
death (cont.)
● Idea: breakpoint in FarMove()?
– One function because world octree is updated
– Function gets called a gazillion times per frame �
– Terrible noise
● Breakpoint condition?
– Teleport from arbitrary point A to arbitrary point B
– Distance?
● Breakpoint sequence?
– Break on death instead
– When breakpoint hit, break in FarMove()

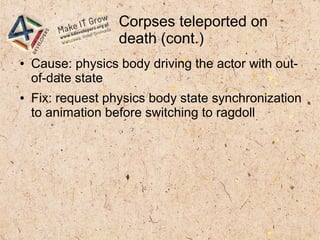

29. Corpses teleported on
death (cont.)
● Cause: physics body driving the actor with out-
of-date state
● Fix: request physics body state synchronization
to animation before switching to ragdoll

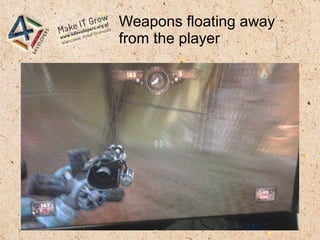

30. Weapons floating away
from the player

31. Weapons floating away
from the player

32. Weapons floating away
from the player
● Extremely rare, only encountered on consoles
– Reproduction rate somewhere at 1 in 50 attempts
– And never on developer machines �
● Player pawn in a special state for the
rollercoaster ride
– Many things could go wrong
● For the lack of repro, sprinkled the code with
debug logs

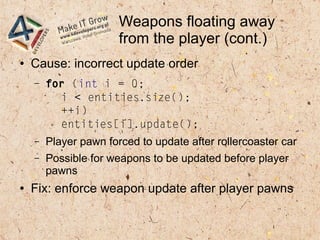

33. Weapons floating away
from the player (cont.)
● Cause: incorrect update order
– for (int i = 0;
i < entities.size();
++i)
entities[i].update();
– Player pawn forced to update after rollercoaster car
– Possible for weapons to be updated before player
pawns
● Fix: enforce weapon update after player pawns

34. Characters with “rapiers”

35. Characters with “rapiers”
● UE3 has ”content cooking” as part of game
build pipeline
– Redistributable builds are ”cooked” builds
● Artifact appears only in cooked builds

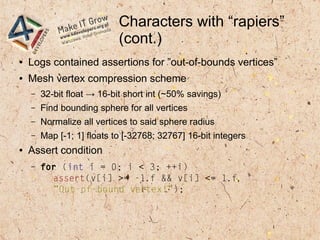

36. Characters with “rapiers”
(cont.)
● Logs contained assertions for ”out-of-bounds vertices”
● Mesh vertex compression scheme
– 32-bit float → 16-bit short int (~50% savings)
– Find bounding sphere for all vertices
– Normalize all vertices to said sphere radius
– Map [-1; 1] floats to [-32768; 32767] 16-bit integers
● Assert condition
– for (int i = 0; i < 3; ++i)
assert(v[i] >= -1.f && v[i] <= 1.f,
”Out-of-bound vertex!”);

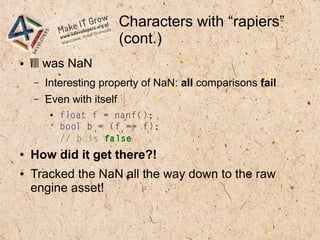

37. Characters with “rapiers”
(cont.)
● v[i] was NaN
– Interesting property of NaN: all comparisons fail
– Even with itself
● float f = nanf();
bool b = (f == f);
// b is false
● How did it get there?!
● Tracked the NaN all the way down to the raw
engine asset!

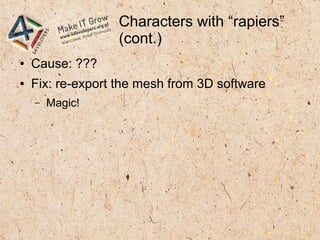

38. Characters with “rapiers”
(cont.)
● Cause: ???
● Fix: re-export the mesh from 3D software
– Magic!

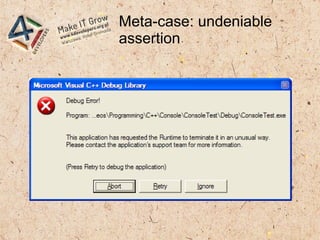

39. Meta-case: undeniable
assertion

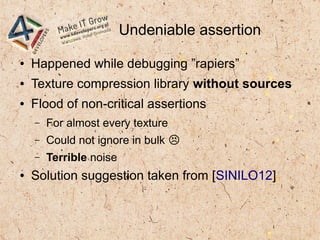

40. Undeniable assertion
● Happened while debugging ”rapiers”
● Texture compression library without sources
● Flood of non-critical assertions
– For almost every texture
– Could not ignore in bulk �
– Terrible noise
● Solution suggestion taken from [SINILO12]

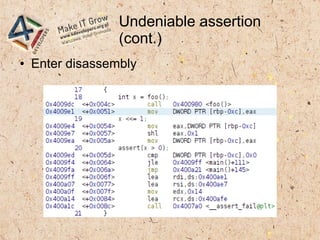

41. Undeniable assertion
(cont.)
● Enter disassembly

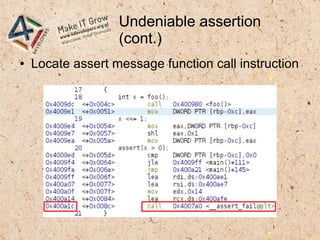

42. Undeniable assertion
(cont.)
● Locate assert message function call instruction

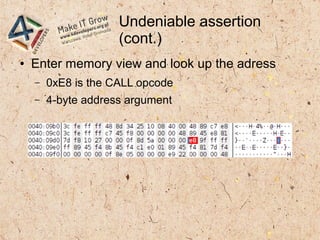

43. Undeniable assertion
(cont.)
● Enter memory view and look up the adress
– 0xE8 is the CALL opcode
– 4-byte address argument

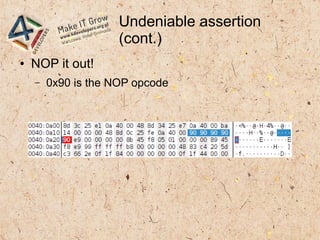

44. Undeniable assertion
(cont.)
● NOP it out!
– 0x90 is the NOP opcode

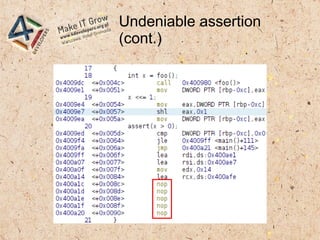

45. Undeniable assertion
(cont.)

46. Incorrect player movement

47. Incorrect player movement

48. Incorrect player movement
● Recreating player movement from one engine
in another (Pain Engine → Unreal Engine 3)
● Different physics engines (Havok vs PhysX)
● Many nuances
– Air control
– Jump and fall heights
– Slope & stair climbing & sliding down

49. Incorrect player movement
(cont.)

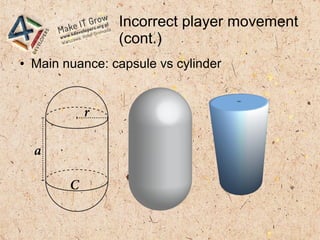

● Main nuance: capsule vs cylinder

50. Incorrect player movement
(cont.)

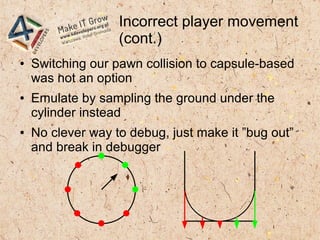

● Switching our pawn collision to capsule-based
was not an option
● Emulate by sampling the ground under the
cylinder instead
● No clever way to debug, just make it ”bug out”
and break in debugger

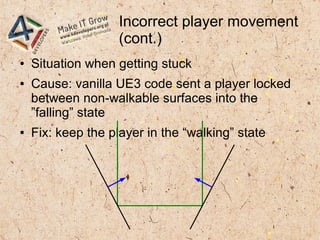

51. Incorrect player movement
(cont.)
● Situation when getting stuck
● Cause: vanilla UE3 code sent a player locked
between non-walkable surfaces into the
”falling” state
● Fix: keep the player in the “walking” state

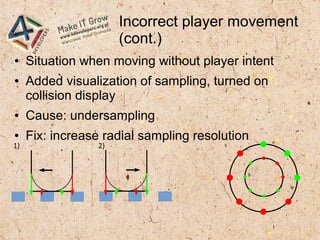

52. Incorrect player movement
(cont.)
● Situation when moving without player intent
● Added visualization of sampling, turned on
collision display
● Cause: undersampling
● Fix: increase radial sampling resolution
1) 2)

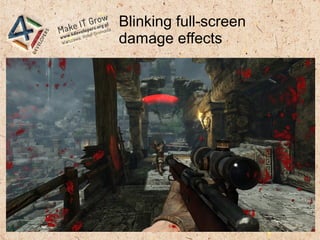

53. Blinking full-screen
damage effects

54. Blinking full-screen
damage effects
● Post-process effects are organized in one-way
chains

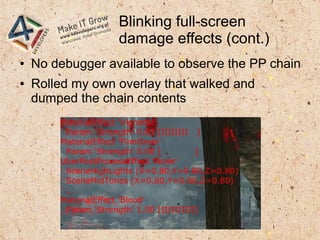

55. Blinking full-screen
damage effects (cont.)
● No debugger available to observe the PP chain
● Rolled my own overlay that walked and
dumped the chain contents
MaterialEffect 'Vignette'
Param 'Strength' 0.83 [IIIIIIII ]
MaterialEffect 'FilmGrain'
Param 'Strength' 0.00 [ ]
UberPostProcessEffect 'None'
SceneHighLights (X=0.80,Y=0.80,Z=0.80)
SceneMidTones (X=0.80,Y=0.80,Z=0.80)
…
MaterialEffect 'Blood'
Param 'Strength' 1.00 [IIIIIIIIII]

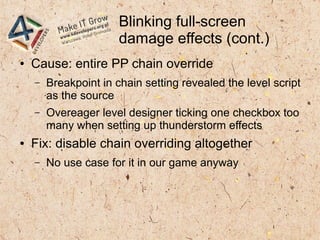

56. Blinking full-screen
damage effects (cont.)
● Cause: entire PP chain override
– Breakpoint in chain setting revealed the level script
as the source
– Overeager level designer ticking one checkbox too
many when setting up thunderstorm effects
● Fix: disable chain overriding altogether
– No use case for it in our game anyway

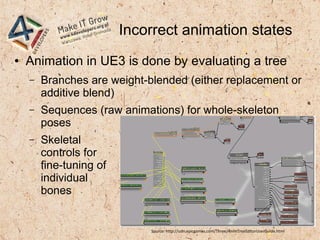

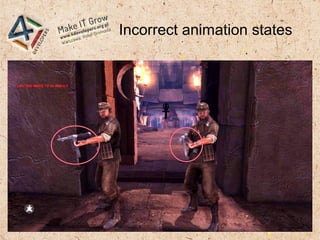

57. Incorrect animation states

58. Incorrect animation states

59. Incorrect animation states

60. Incorrect animation states
● Animation in UE3 is done by evaluating a tree
– Branches are weight-blended (either replacement or
additive blend)
– Sequences (raw animations) for whole-skeleton
poses
– Skeletal
controls for
fine-tuning of
individual
bones
Source: http://udn.epicgames.com/Three/AnimTreeEditorUserGuide.html

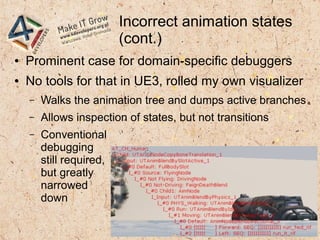

61. Incorrect animation states
(cont.)
● Prominent case for domain-specific debuggers
● No tools for that in UE3, rolled my own visualizer
– Walks the animation tree and dumps active branches
– Allows inspection of states, but not transitions
– Conventional
debugging
still required,
but greatly
narrowed
down

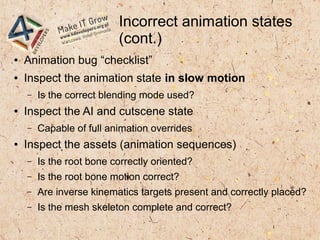

62. Incorrect animation states
(cont.)
● Animation bug “checklist”
● Inspect the animation state in slow motion
– Is the correct blending mode used?
● Inspect the AI and cutscene state
– Capable of full animation overrides
● Inspect the assets (animation sequences)
– Is the root bone correctly oriented?
– Is the root bone motion correct?
– Are inverse kinematics targets present and correctly placed?
– Is the mesh skeleton complete and correct?

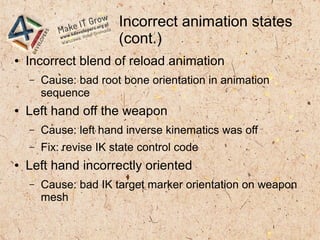

63. Incorrect animation states
(cont.)
● Incorrect blend of reload animation
– Cause: bad root bone orientation in animation
sequence
● Left hand off the weapon
– Cause: left hand inverse kinematics was off
– Fix: revise IK state control code
● Left hand incorrectly oriented
– Cause: bad IK target marker orientation on weapon
mesh

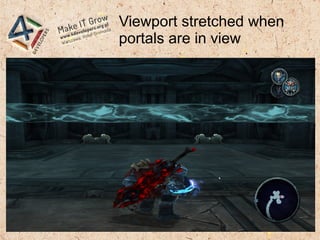

64. Viewport stretched when
portals are in view

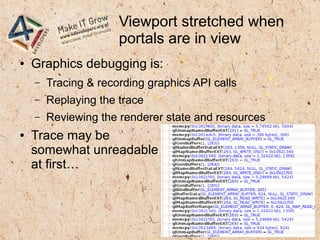

65. Viewport stretched when
portals are in view
● Graphics debugging is:
– Tracing & recording graphics API calls
– Replaying the trace
– Reviewing the renderer state and resources
● Trace may be
somewhat unreadable
at first…

66. Viewport stretched when
portals are… (cont.)
● Traces may be annotated for clarity
– Direct3D: ID3DUserDefinedAnnotation
– OpenGL:
GL_KHR_debug
(more info:
[GODLEWSKI01])

67. Viewport stretched when
portals are… (cont.)
● Quick renderer state inspection revealed that
viewport dimensions were off
– 1024x1024, 1:1 aspect ratio instead of 1280x720, 16:9
– Looks like shadow map resolution?
● Found the latest glViewport() call
– Shadow map code indeed
● Why wasn't the viewport updated for main scene
rendering?

68. Viewport stretched when
portals are… (cont.)
● Renderer state changes are expensive
– New state needs to be validated
– Modern graphics APIs are asynchronous
– State reading may requrie synchronization →
stalls
● Cache the current renderer state to avoid
redundant calls
– Cache ↔ state divergence → bugs!

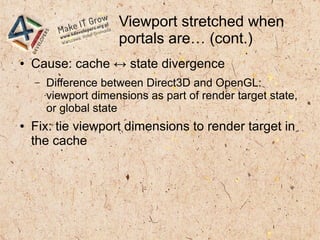

69. Viewport stretched when
portals are… (cont.)
● Cause: cache ↔ state divergence
– Difference between Direct3D and OpenGL:
viewport dimensions as part of render target state,
or global state
● Fix: tie viewport dimensions to render target in
the cache

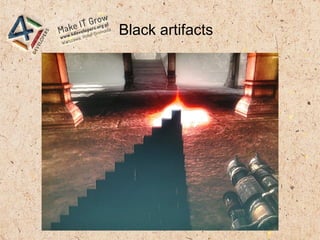

70. Black artifacts

71. Black artifacts

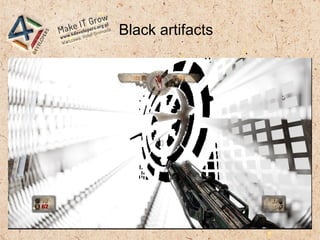

72. Black artifacts

73. Black artifacts

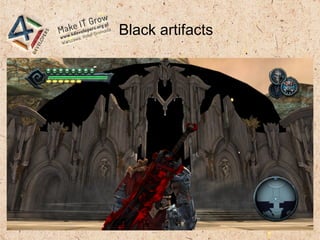

74. Black artifacts

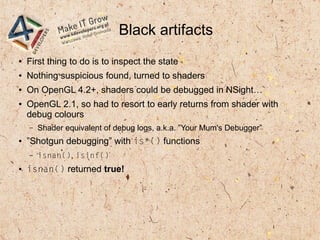

75. Black artifacts
● First thing to do is to inspect the state
● Nothing suspicious found, turned to shaders
● On OpenGL 4.2+, shaders could be debugged in NSight…
● OpenGL 2.1, so had to resort to early returns from shader with
debug colours
– Shader equivalent of debug logs, a.k.a. ”Your Mum's Debugger”
● ”Shotgun debugging” with is*() functions
– isnan(), isinf()
● isnan() returned true!

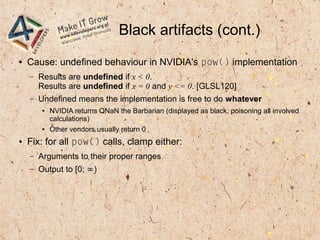

76. Black artifacts (cont.)
● Cause: undefined behaviour in NVIDIA's pow() implementation
– Results are undefined if x < 0.
Results are undefined if x = 0 and y <= 0. [GLSL120]
– Undefined means the implementation is free to do whatever
● NVIDIA returns QNaN the Barbarian (displayed as black, poisoning all involved
calculations)
● Other vendors usually return 0
● Fix: for all pow() calls, clamp either:
– Arguments to their proper ranges
– Output to [0; ∞)

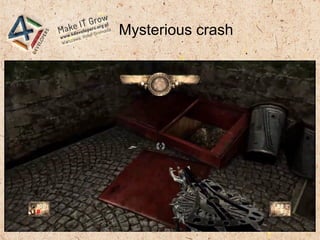

77. Mysterious crash

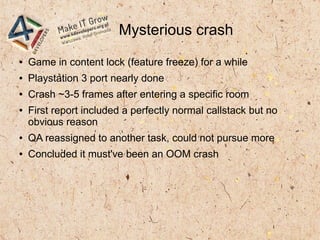

78. Mysterious crash
● Game in content lock (feature freeze) for a while
● Playstation 3 port nearly done
● Crash ~3-5 frames after entering a specific room
● First report included a perfectly normal callstack but no
obvious reason
● QA reassigned to another task, could not pursue more
● Concluded it must've been an OOM crash

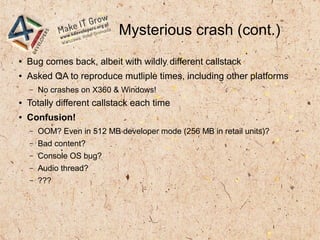

79. Mysterious crash (cont.)
● Bug comes back, albeit with wildly different callstack
● Asked QA to reproduce mutliple times, including other platforms
– No crashes on X360 & Windows!
● Totally different callstack each time
● Confusion!
– OOM? Even in 512 MB developer mode (256 MB in retail units)?
– Bad content?
– Console OS bug?
– Audio thread?
– ???

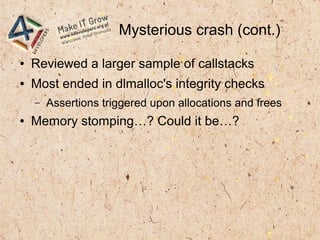

80. Mysterious crash (cont.)
● Reviewed a larger sample of callstacks
● Most ended in dlmalloc's integrity checks
– Assertions triggered upon allocations and frees
● Memory stomping…? Could it be…?

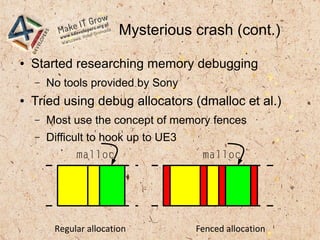

81. Mysterious crash (cont.)
● Started researching memory debugging
– No tools provided by Sony
● Tried using debug allocators (dmalloc et al.)
– Most use the concept of memory fences
– Difficult to hook up to UE3
malloc
Regular allocation Fenced allocation
malloc

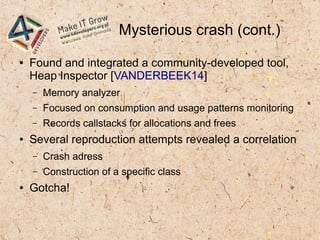

82. Mysterious crash (cont.)
● Found and integrated a community-developed tool,
Heap Inspector [VANDERBEEK14]
– Memory analyzer
– Focused on consumption and usage patterns monitoring
– Records callstacks for allocations and frees
● Several reproduction attempts revealed a correlation
– Crash adress
– Construction of a specific class
● Gotcha!

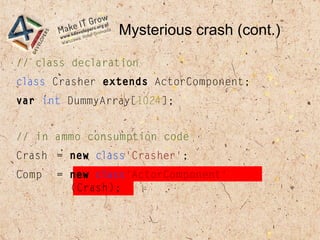

83. Mysterious crash (cont.)
// class declaration
class Crasher extends ActorComponent;
var int DummyArray[1024];
// in ammo consumption code
Crash = new class'Crasher';
Comp = new class'ActorComponent'
(Crash);

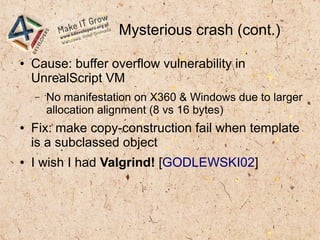

84. Mysterious crash (cont.)
● Cause: buffer overflow vulnerability in
UnrealScript VM
– No manifestation on X360 & Windows due to larger
allocation alignment (8 vs 16 bytes)
● Fix: make copy-construction fail when template
is a subclassed object
● I wish I had Valgrind! [GODLEWSKI02]

85. Agenda
● How is gamedev different?
● Bug species
● Case studies
● Conclusions

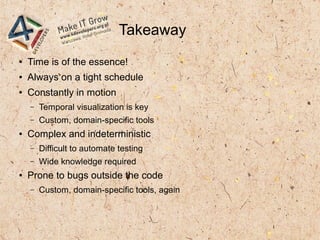

86. Takeaway
● Time is of the essence!
● Always on a tight schedule
● Constantly in motion
– Temporal visualization is key
– Custom, domain-specific tools
● Complex and indeterministic
– Difficult to automate testing
– Wide knowledge required
● Prone to bugs outside the code
– Custom, domain-specific tools, again

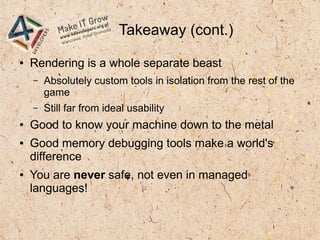

87. Takeaway (cont.)
● Rendering is a whole separate beast
– Absolutely custom tools in isolation from the rest of the
game
– Still far from ideal usability
● Good to know your machine down to the metal
● Good memory debugging tools make a world's
difference
● You are never safe, not even in managed
languages!

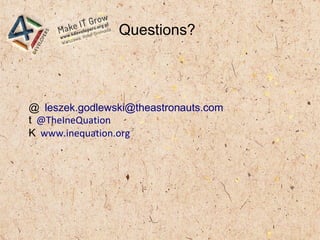

88. Questions?
@ leszek.godlewski@theastronauts.com
t @TheIneQuation
K www.inequation.org

89. Thank you!

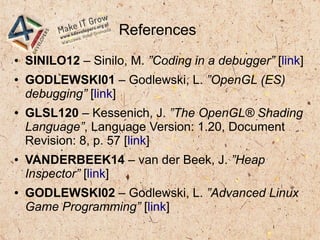

90. References
● SINILO12 – Sinilo, M. ”Coding in a debugger” [link]
● GODLEWSKI01 – Godlewski, L. ”OpenGL (ES)
debugging” [link]
● GLSL120 – Kessenich, J. ”The OpenGL® Shading
Language”, Language Version: 1.20, Document
Revision: 8, p. 57 [link]
● VANDERBEEK14 – van der Beek, J. ”Heap
Inspector” [link]
● GODLEWSKI02 – Godlewski, L. ”Advanced Linux
Game Programming” [link]
