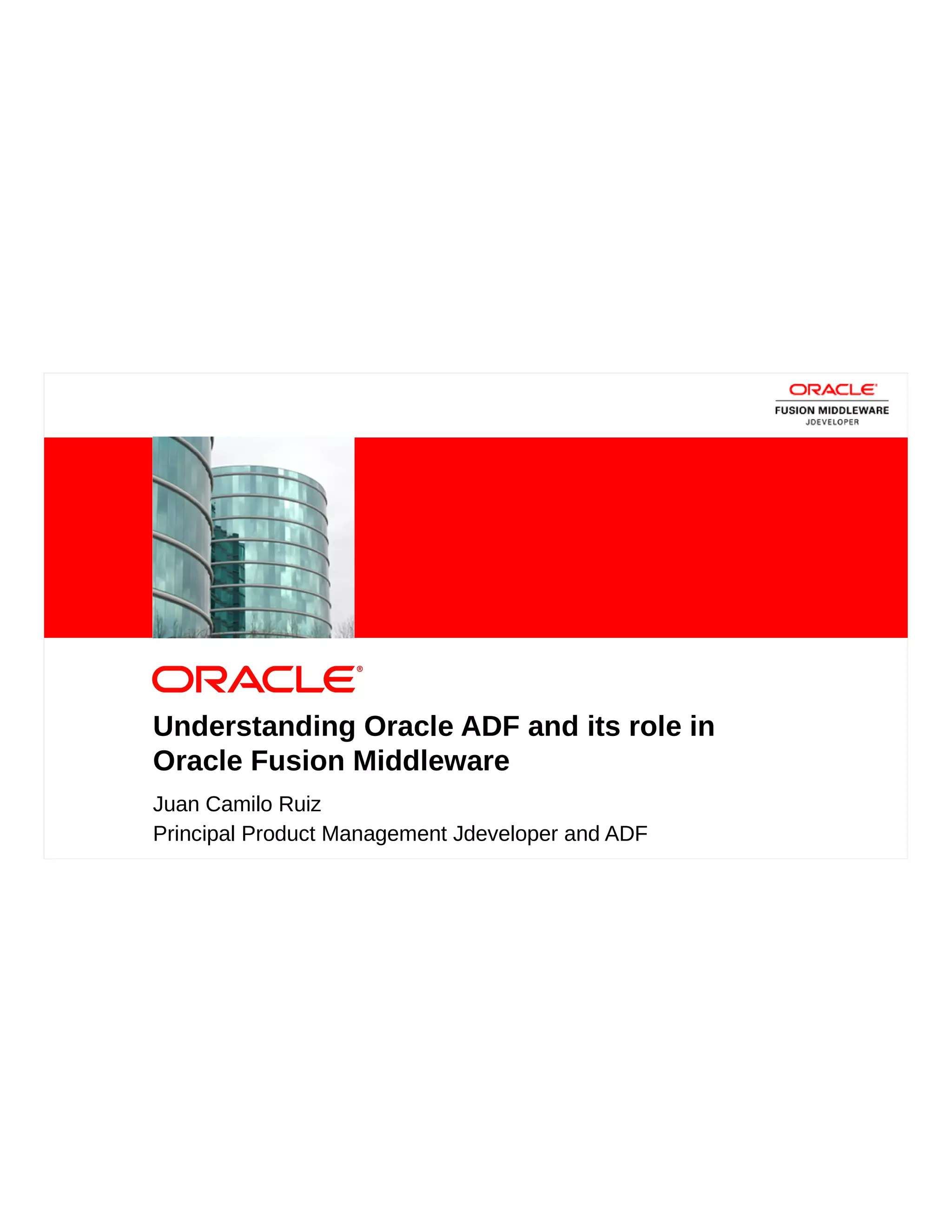

Understanding Oracle ADF and its role in
Oracle Fusion Middleware
Juan Camilo Ruiz
2 Principal Product Management Jdeveloper and ADF
Copyright © 2011, Oracle and/or its affiliates. All rights
reserved.
Insert Information Protection Policy Classification from Slide 8

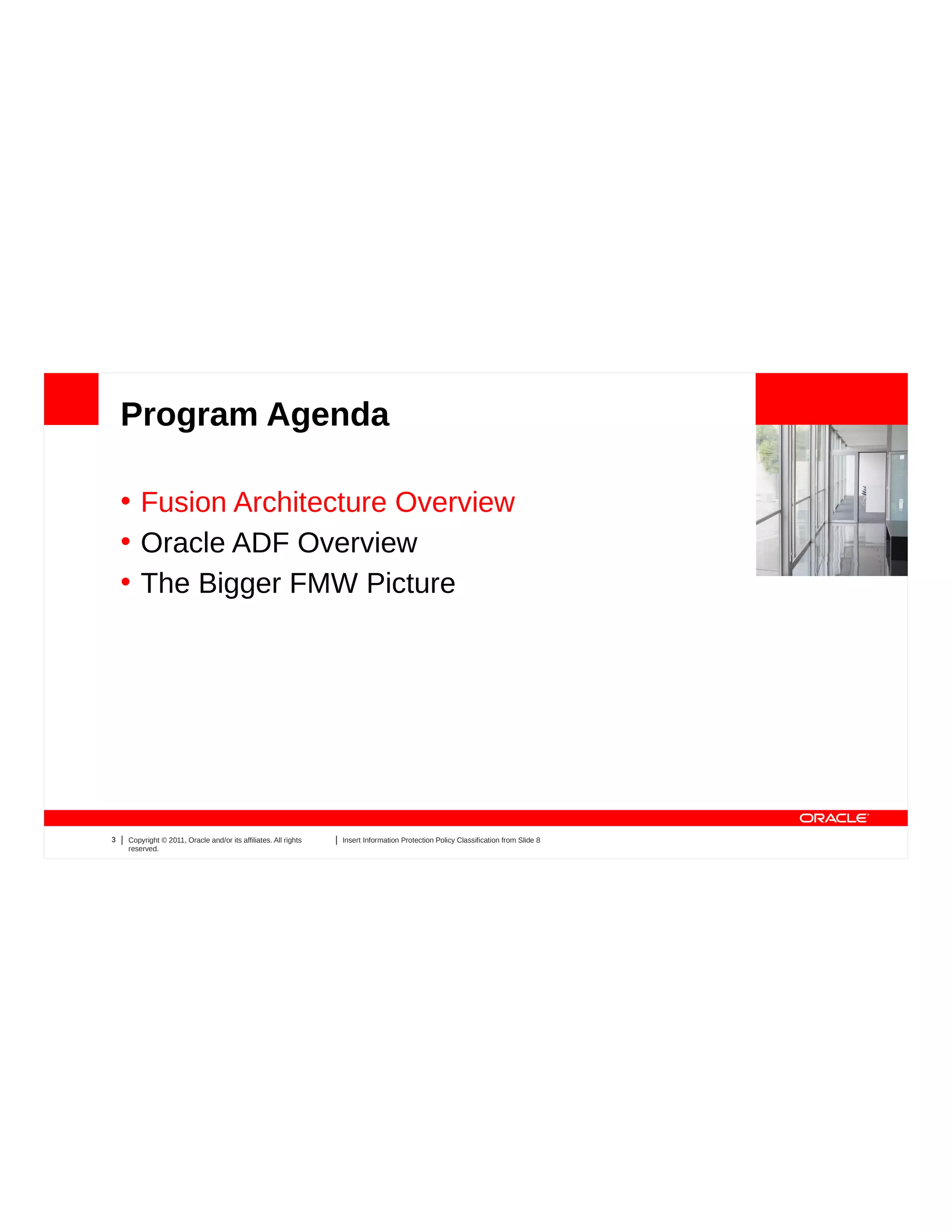

3. Program Agenda
• Fusion Architecture Overview
• Oracle ADF Overview
• The Bigger FMW Picture
3 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

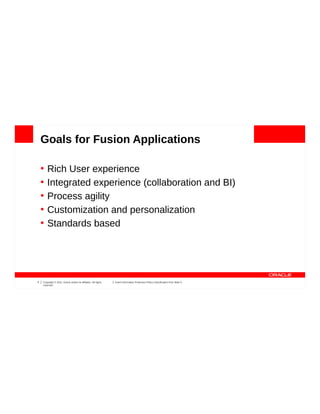

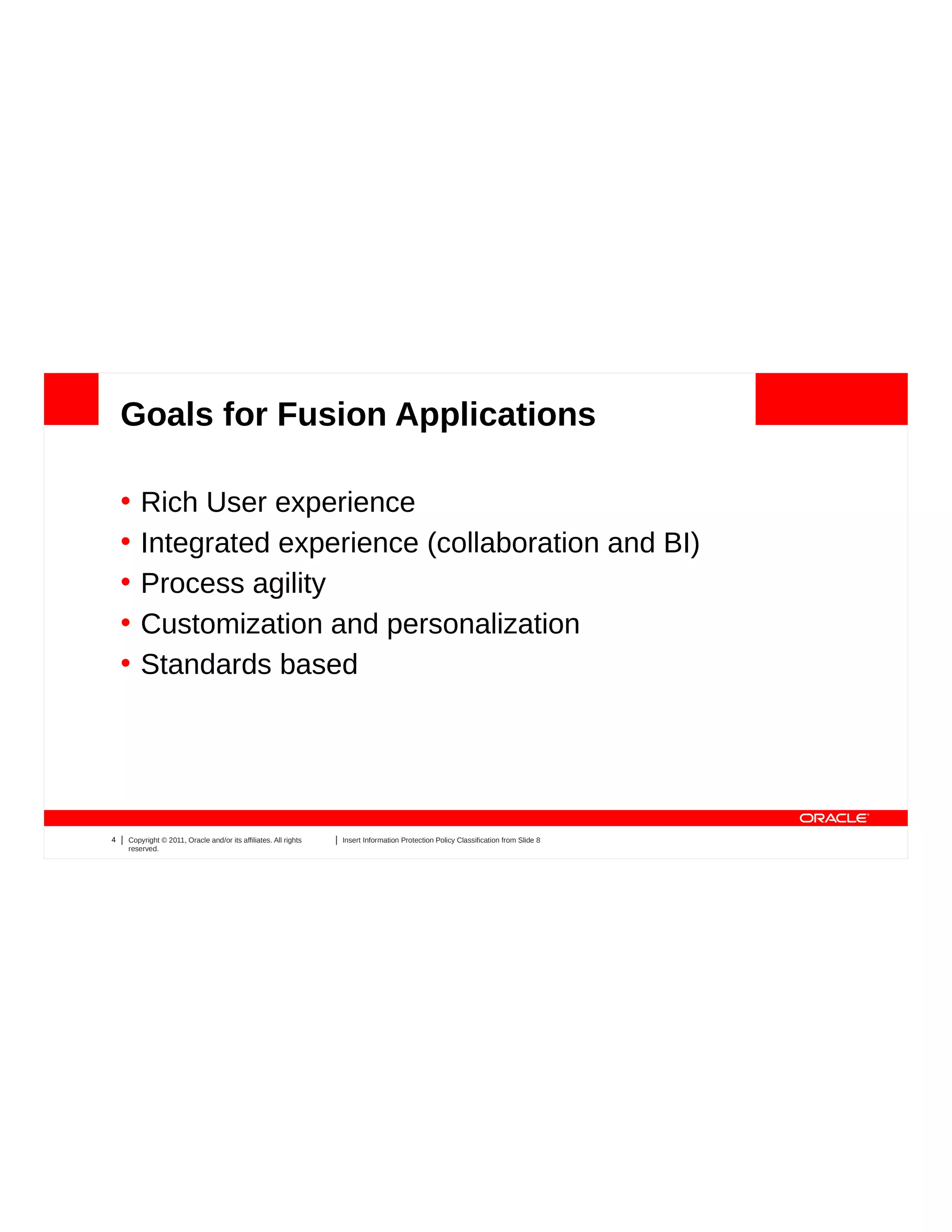

4. Goals for Fusion Applications
• Rich User experience
• Integrated experience (collaboration and BI)
• Process agility
• Customization and personalization
• Standards based
4 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

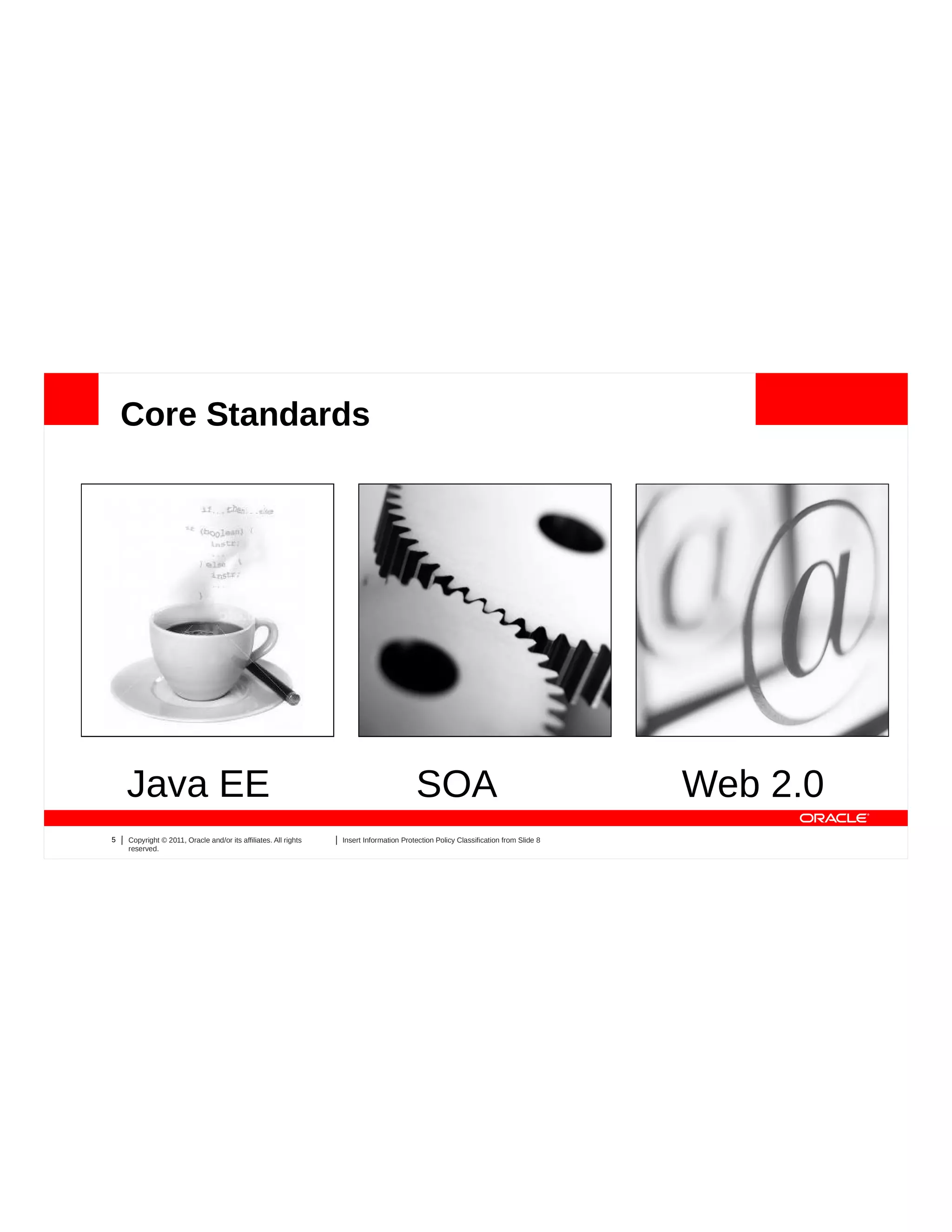

5. Core Standards
Java EE SOA Web 2.0
5 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

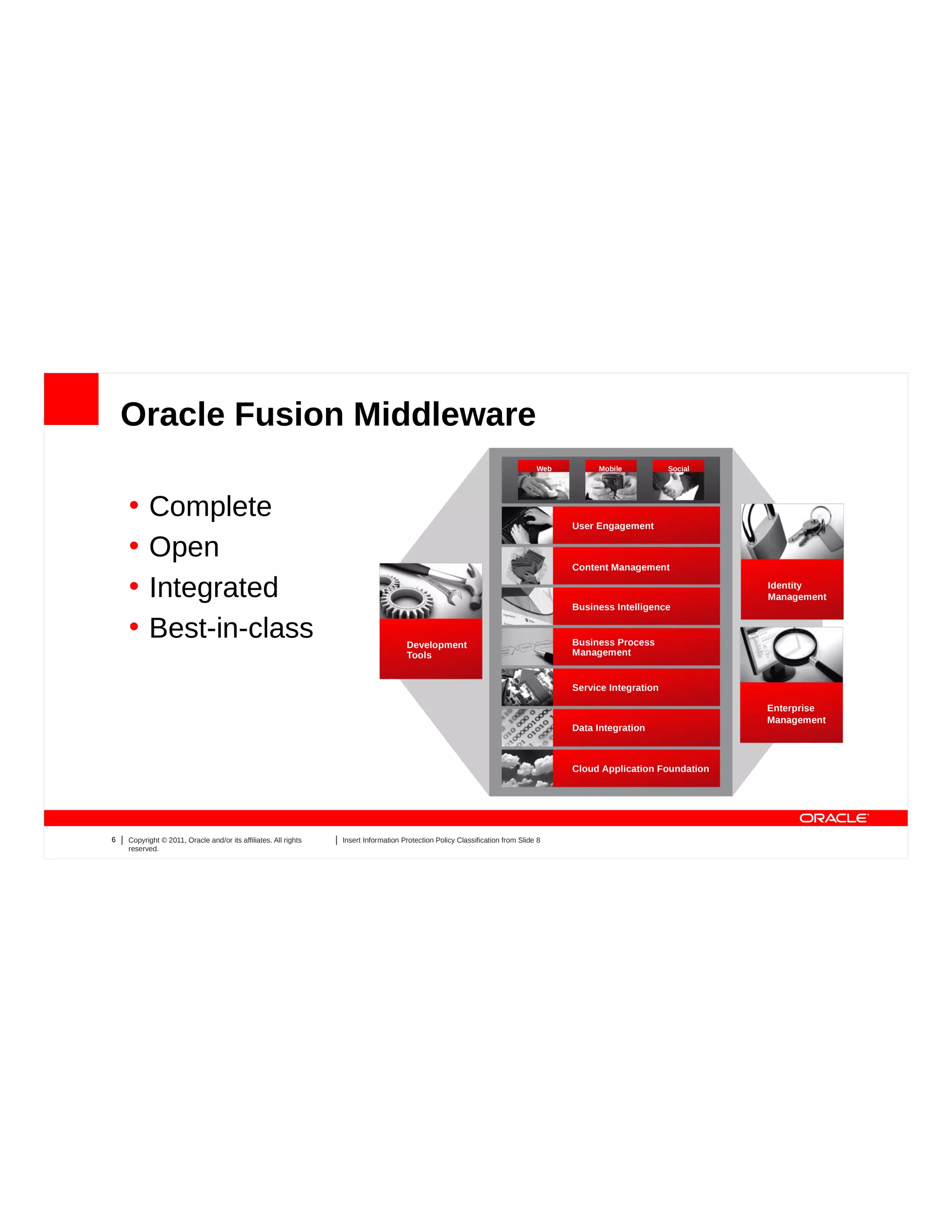

6. Oracle Fusion Middleware
Web Mobile Social
• Complete User Engagement
• Open Content Management
• Integrated Identity
Management
Business Intelligence
• Best-in-class Development Business Process
Tools Management
Service Integration
Enterprise
Management
Data Integration
Cloud Application Foundation
6 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

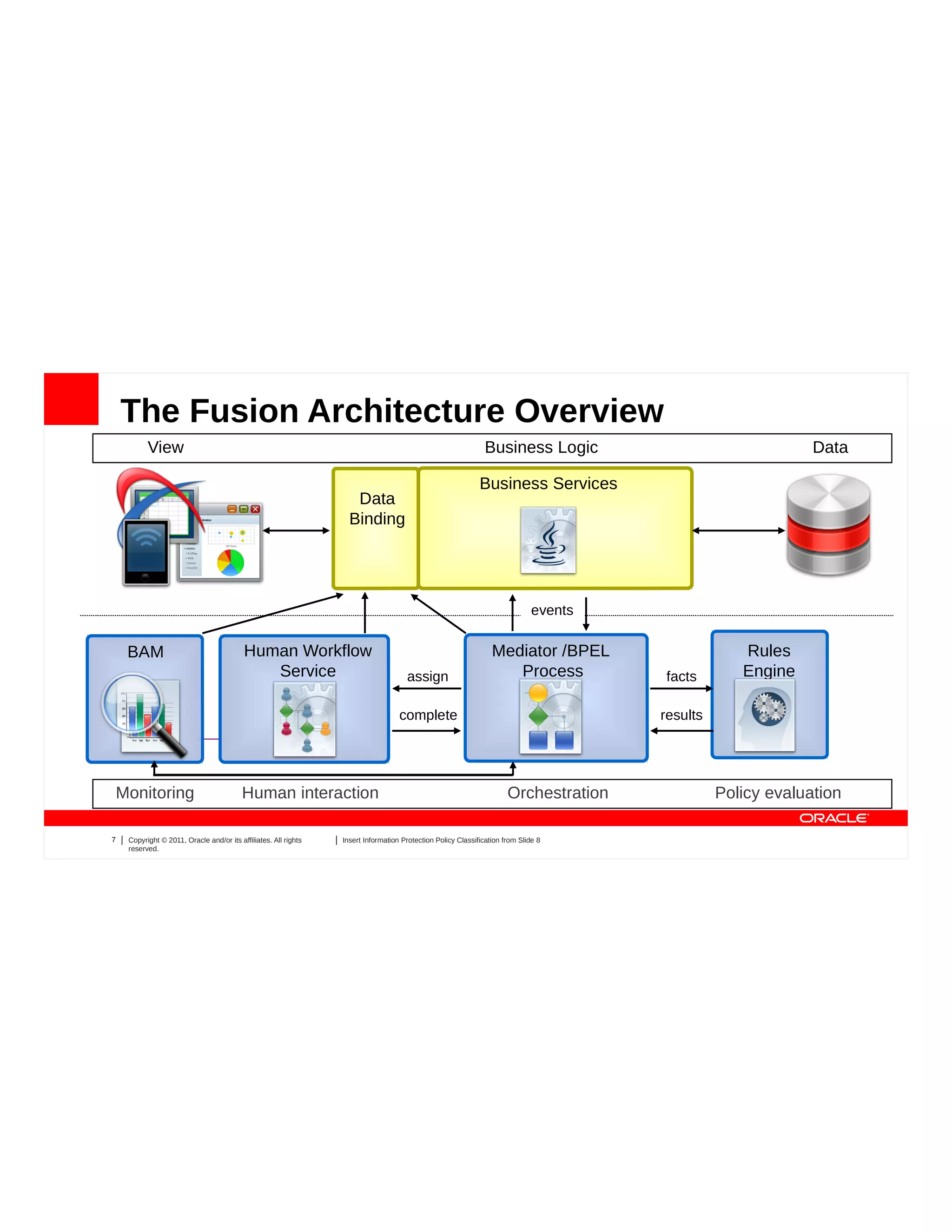

7. The Fusion Architecture Overview
View Business Logic Data
Business Services
Data
Binding
events
BAM Human Workflow Mediator /BPEL Rules
Service assign Process facts Engine
complete results
Monitoring Human interaction Orchestration Policy evaluation
7 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

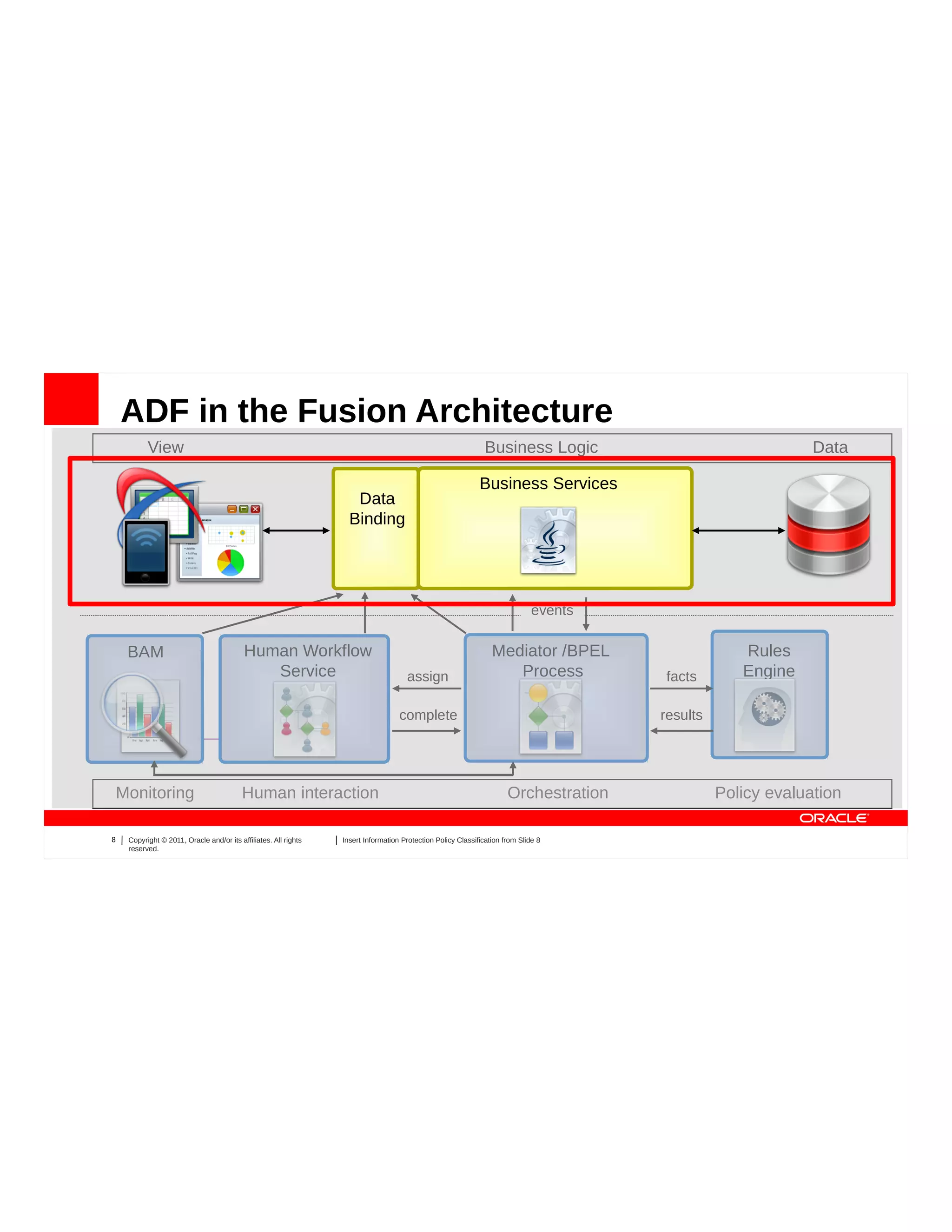

8. ADF in the Fusion Architecture
View Business Logic Data
Business Services
Data
Binding
events
BAM Human Workflow Mediator /BPEL Rules
Service assign Process facts Engine
complete results
Monitoring Human interaction Orchestration Policy evaluation
8 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

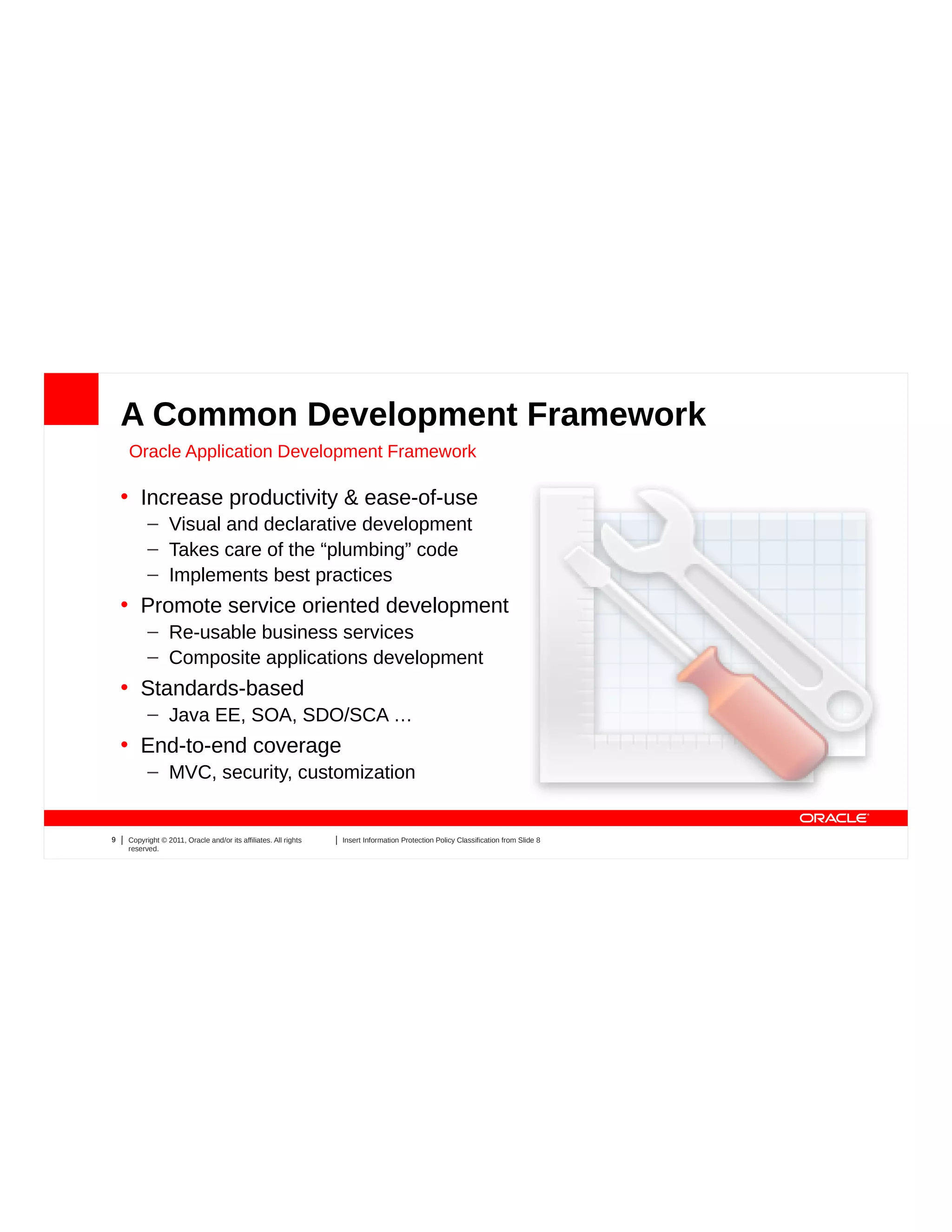

9. A Common Development Framework
Oracle Application Development Framework
• Increase productivity & ease-of-use
– Visual and declarative development
– Takes care of the “plumbing” code
– Implements best practices
• Promote service oriented development
– Re-usable business services
– Composite applications development
• Standards-based
– Java EE, SOA, SDO/SCA …
• End-to-end coverage
– MVC, security, customization
9 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

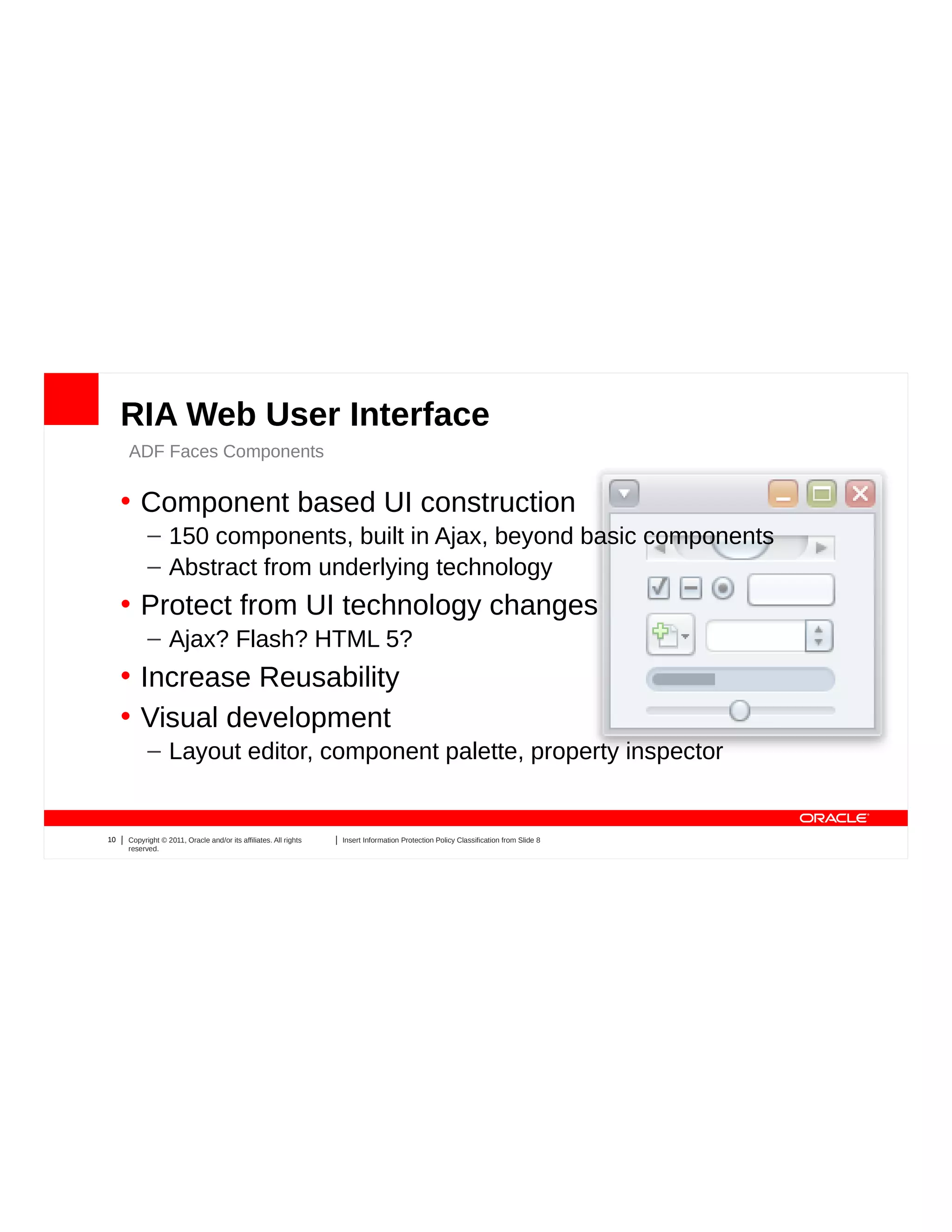

10. RIA Web User Interface
ADF Faces Components
• Component based UI construction
– 150 components, built in Ajax, beyond basic components
– Abstract from underlying technology
• Protect from UI technology changes
– Ajax? Flash? HTML 5?
• Increase Reusability
• Visual development
– Layout editor, component palette, property inspector
10 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

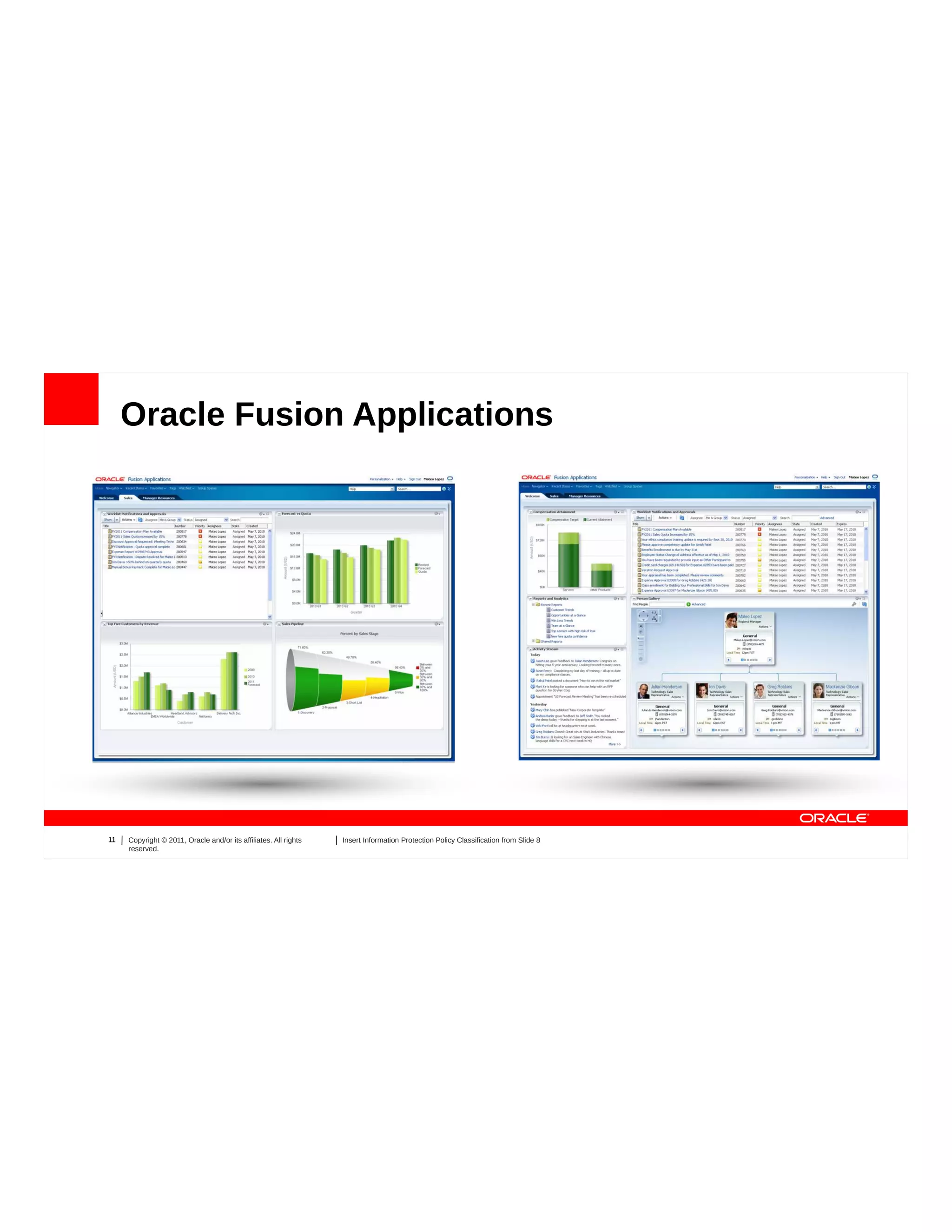

11. Oracle Fusion Applications
11 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

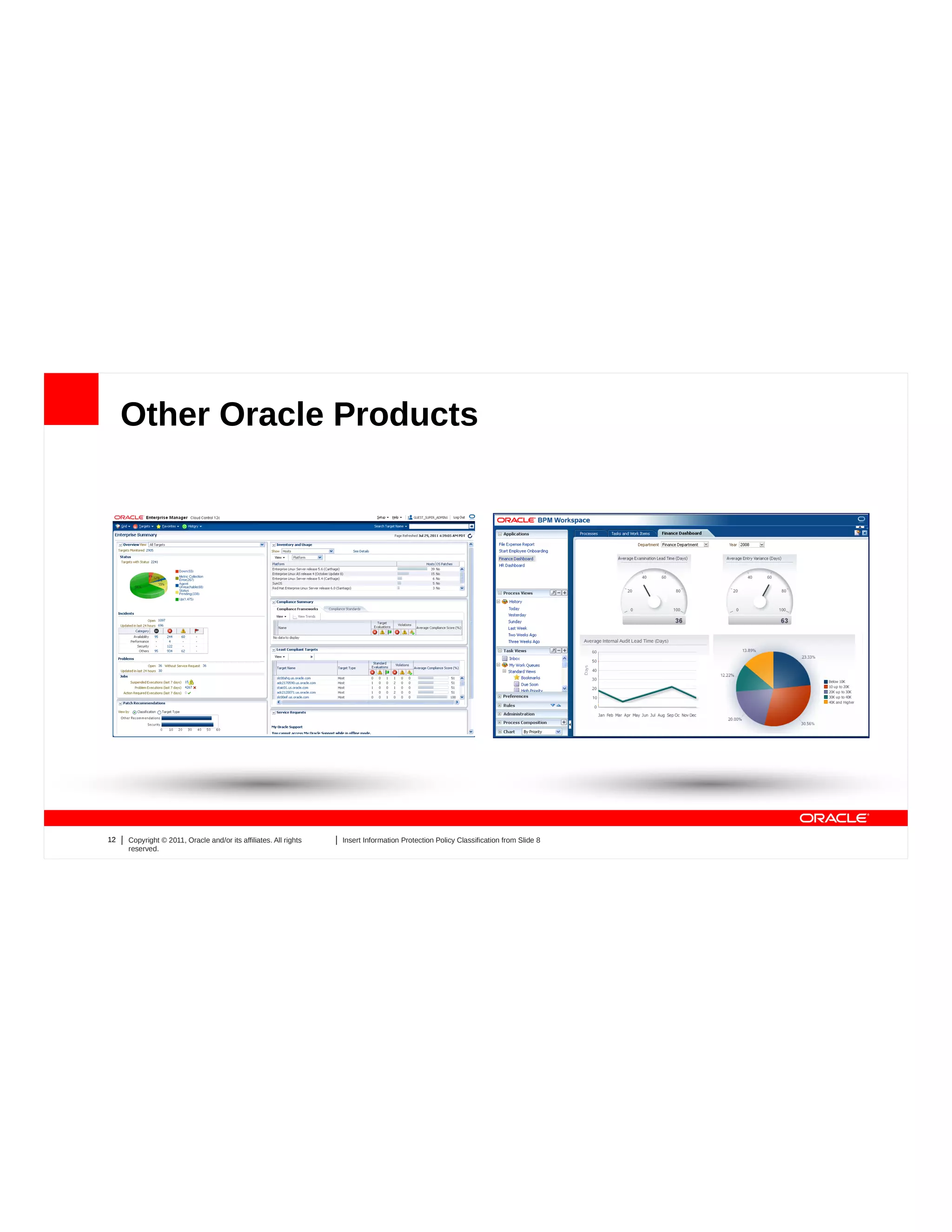

12. Other Oracle Products
12 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

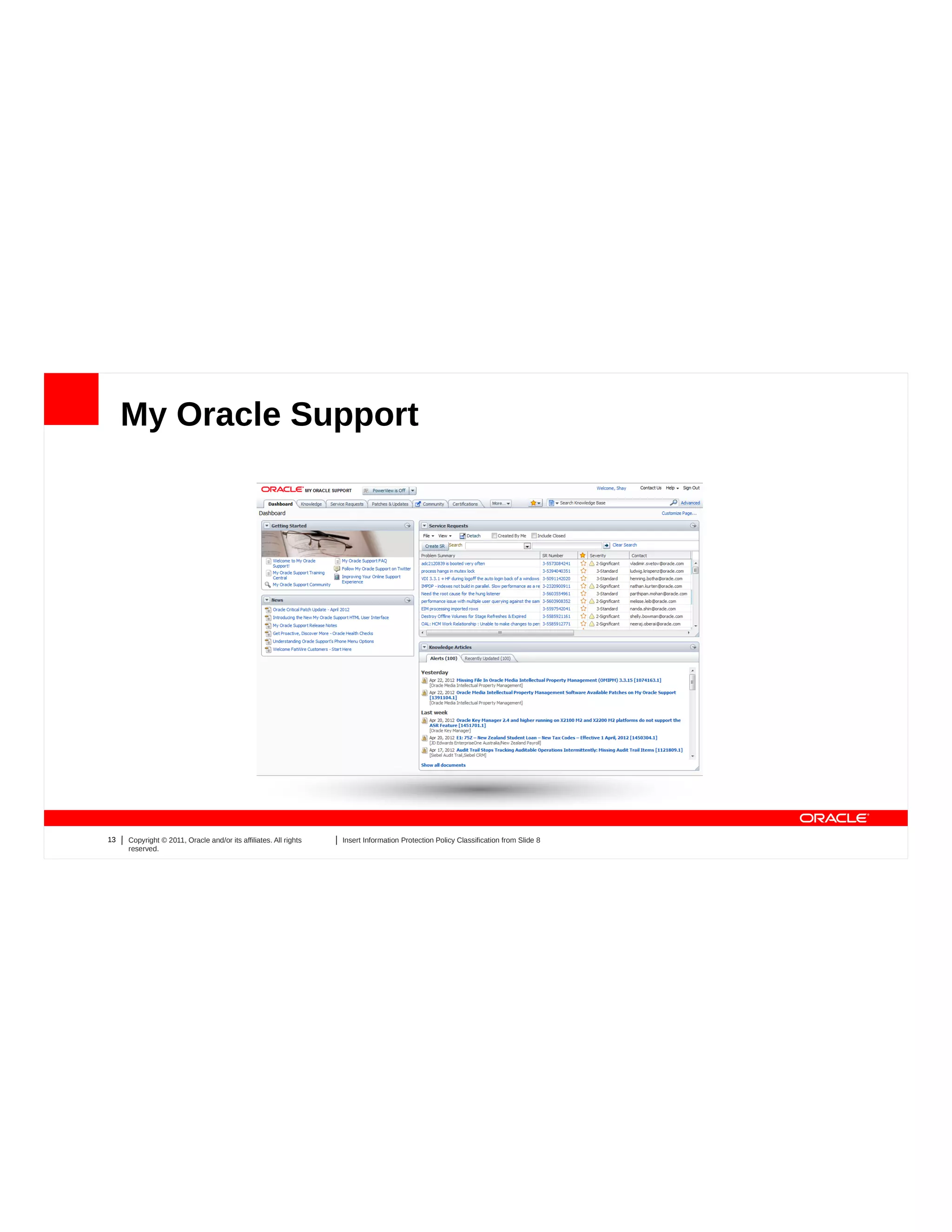

13. My Oracle Support
13 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

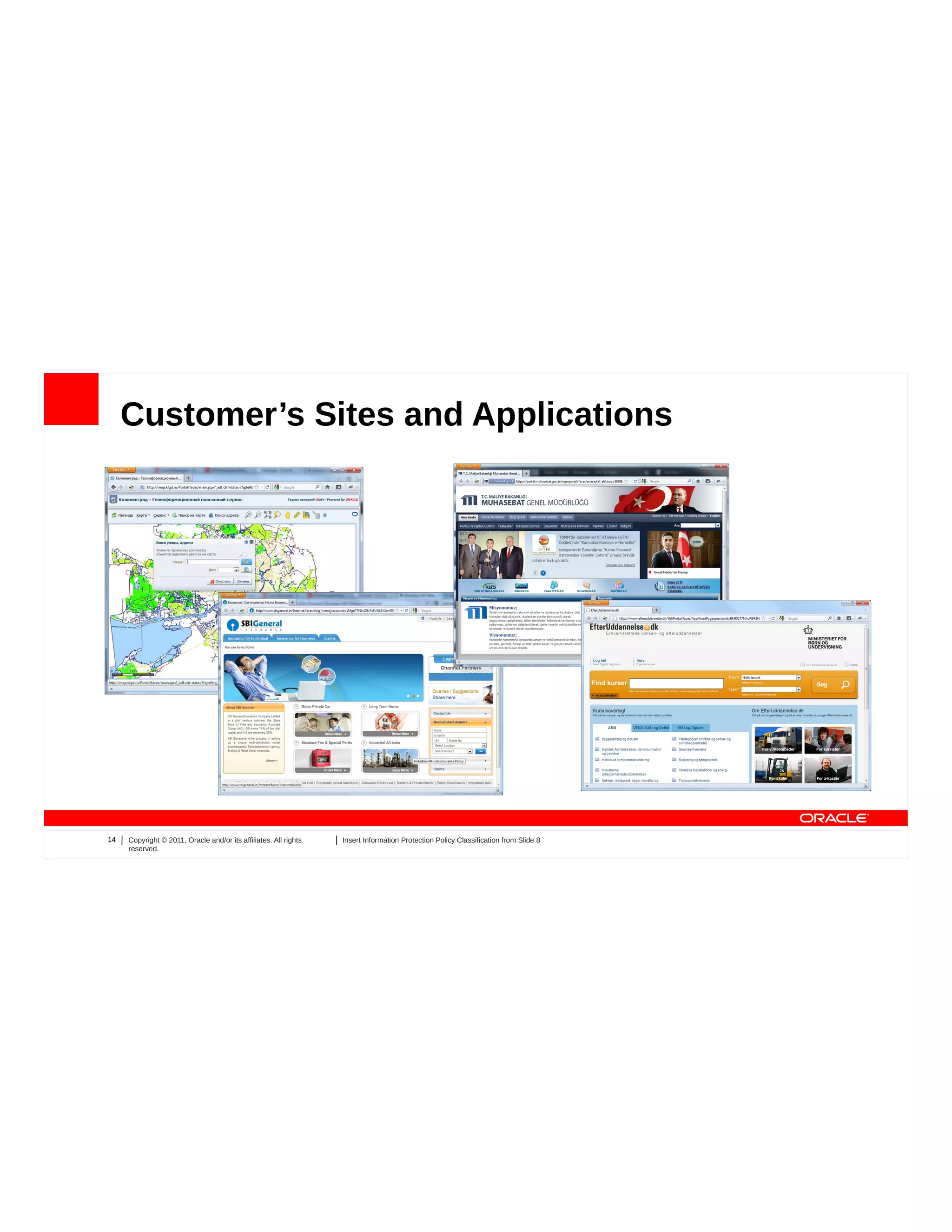

14. Customer’s Sites and Applications
14 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

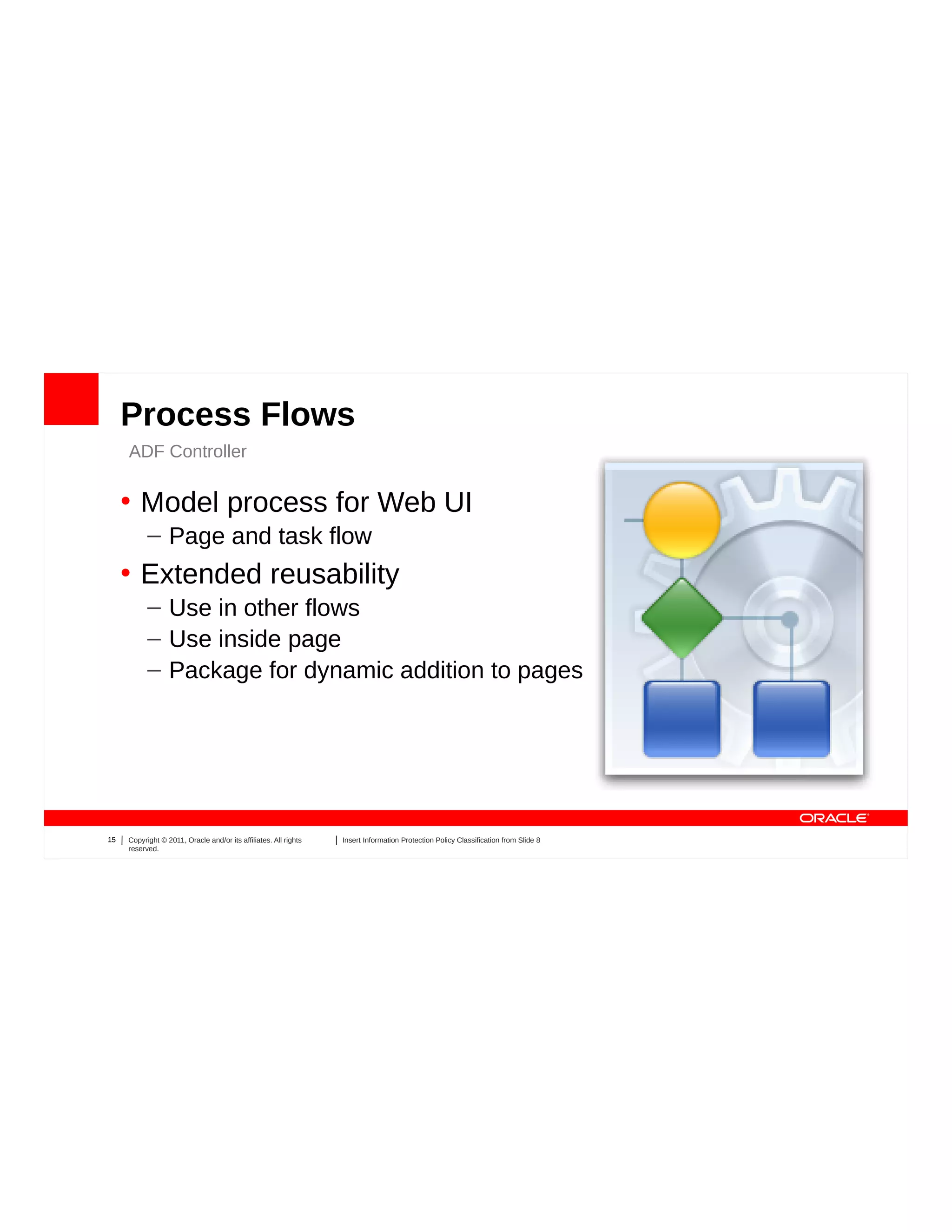

15. Process Flows
ADF Controller
• Model process for Web UI
– Page and task flow
• Extended reusability
– Use in other flows
– Use inside page
– Package for dynamic addition to pages
15 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

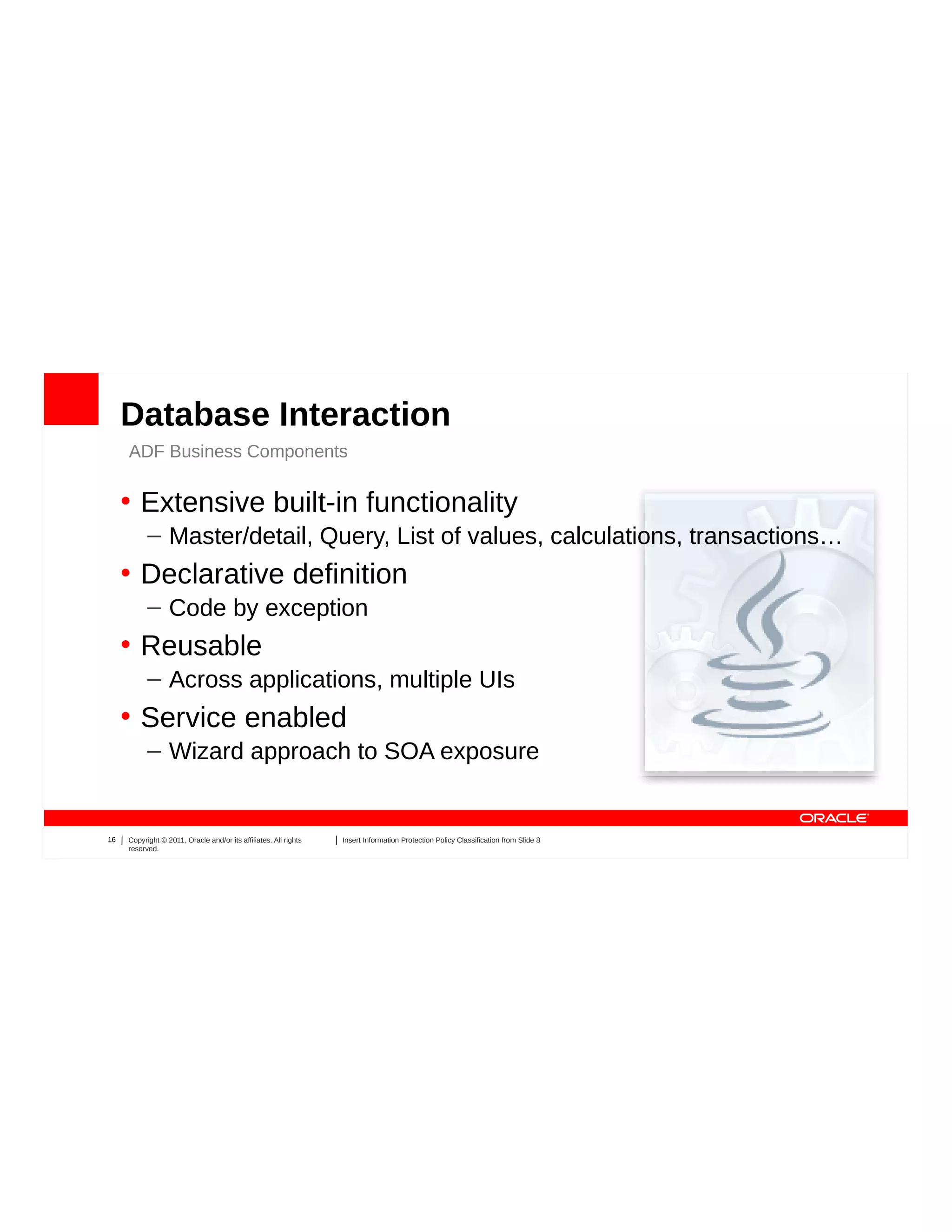

16. Database Interaction
ADF Business Components
• Extensive built-in functionality
– Master/detail, Query, List of values, calculations, transactions…
• Declarative definition
– Code by exception
• Reusable
– Across applications, multiple UIs
• Service enabled
– Wizard approach to SOA exposure
16 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

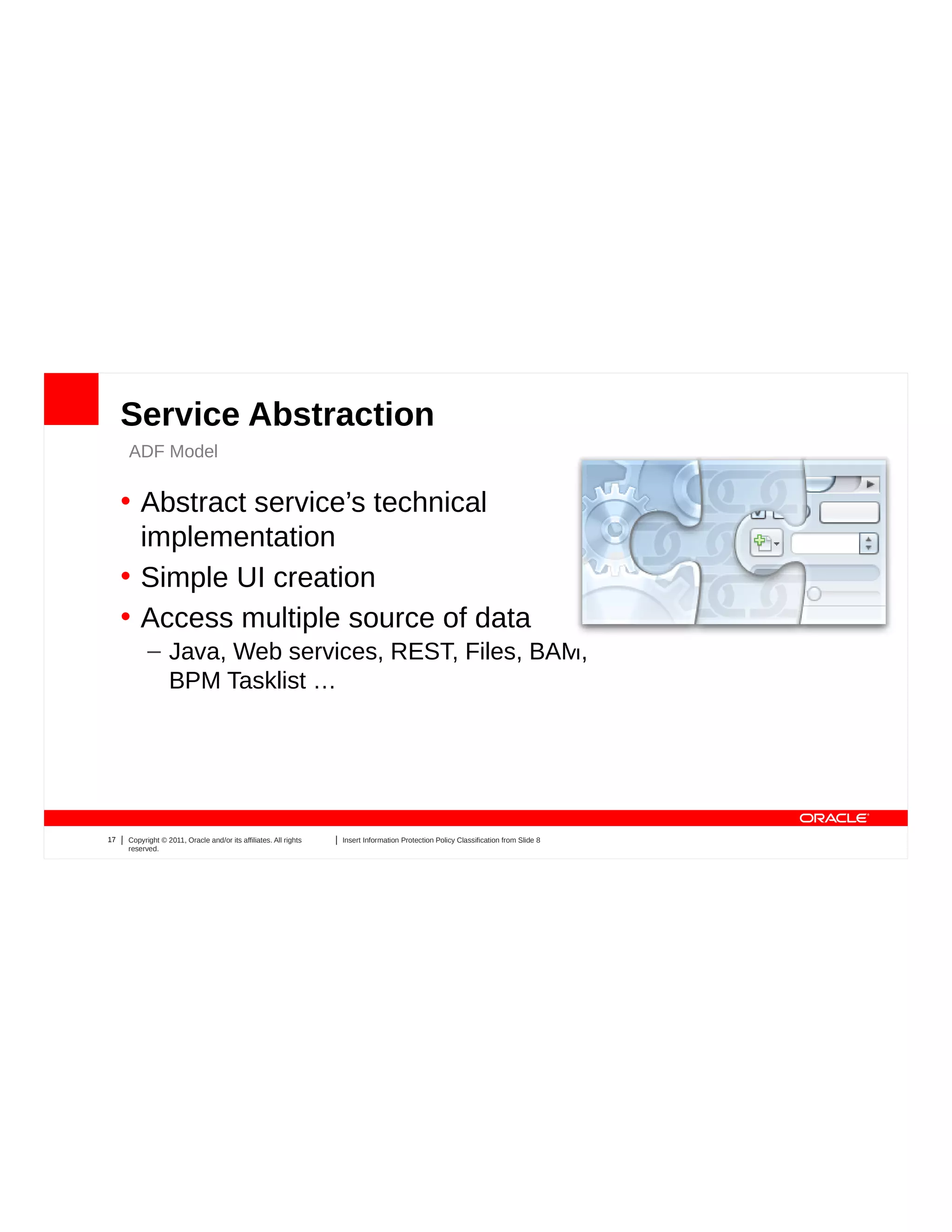

17. Service Abstraction
ADF Model
• Abstract service’s technical
implementation
• Simple UI creation
• Access multiple source of data
– Java, Web services, REST, Files, BAM,
BPM Tasklist …
17 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

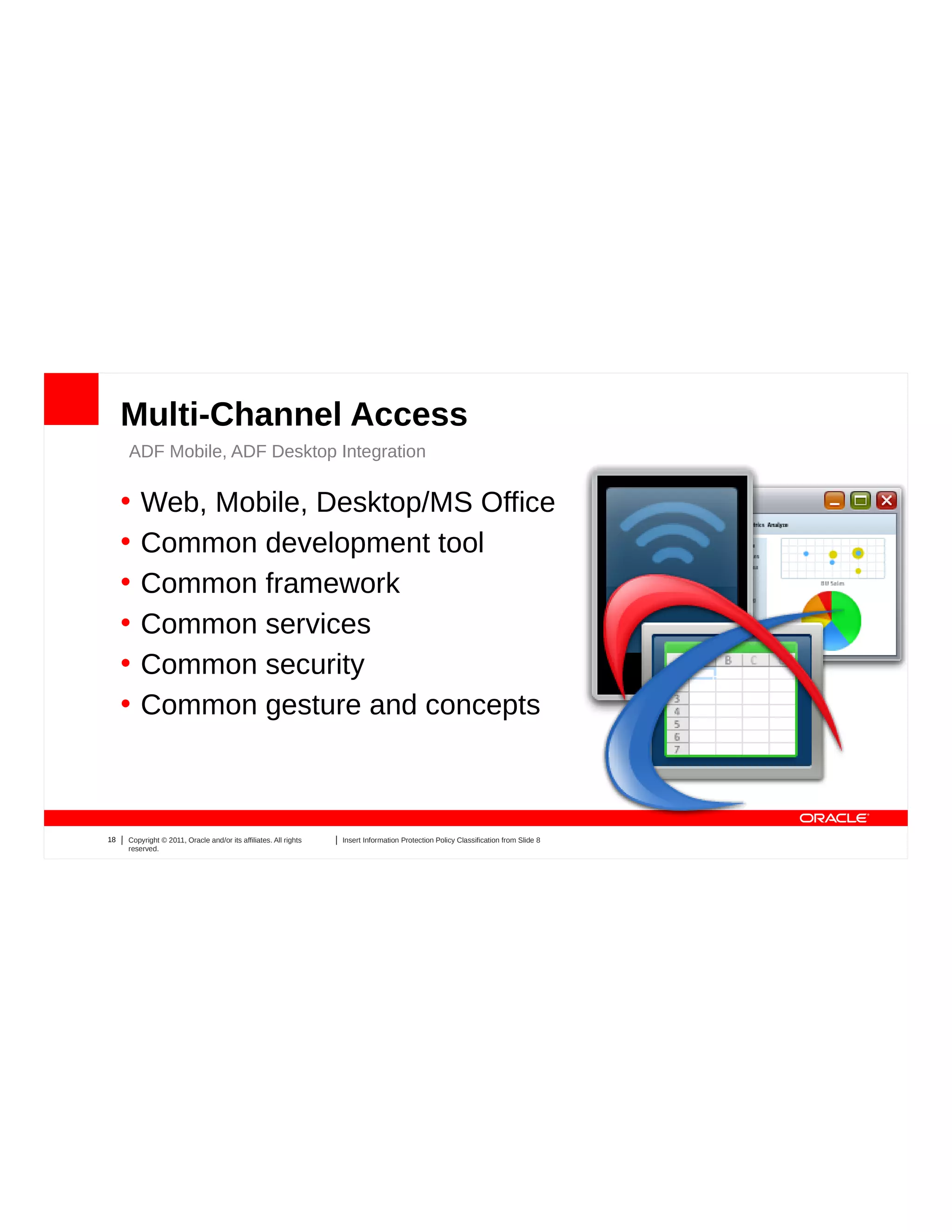

18. Multi-Channel Access
ADF Mobile, ADF Desktop Integration
• Web, Mobile, Desktop/MS Office
• Common development tool
• Common framework
• Common services
• Common security
• Common gesture and concepts
18 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

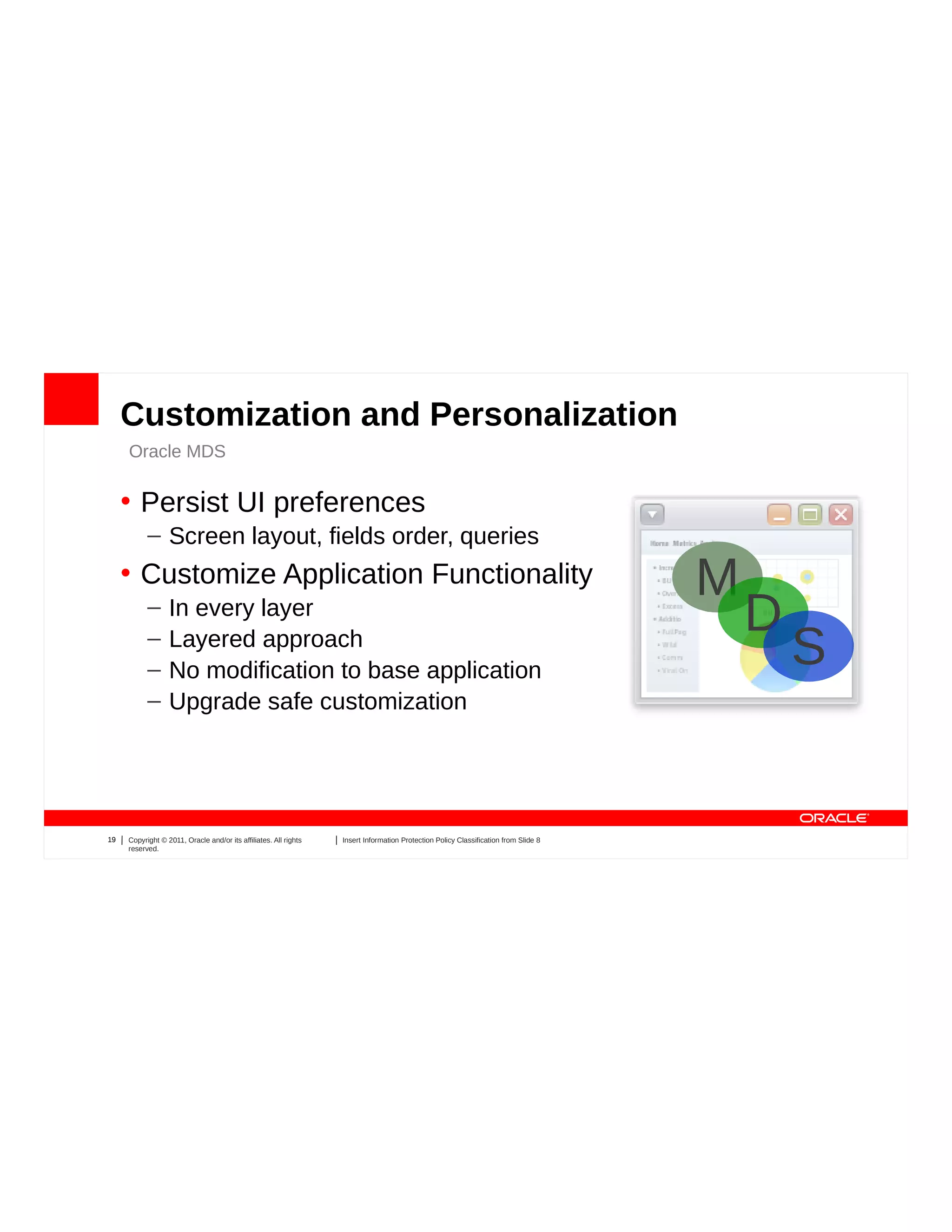

19. Customization and Personalization
Oracle MDS
• Persist UI preferences
– Screen layout, fields order, queries
• Customize Application Functionality M
– In every layer
D
–
–
Layered approach
No modification to base application
S
– Upgrade safe customization
19 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

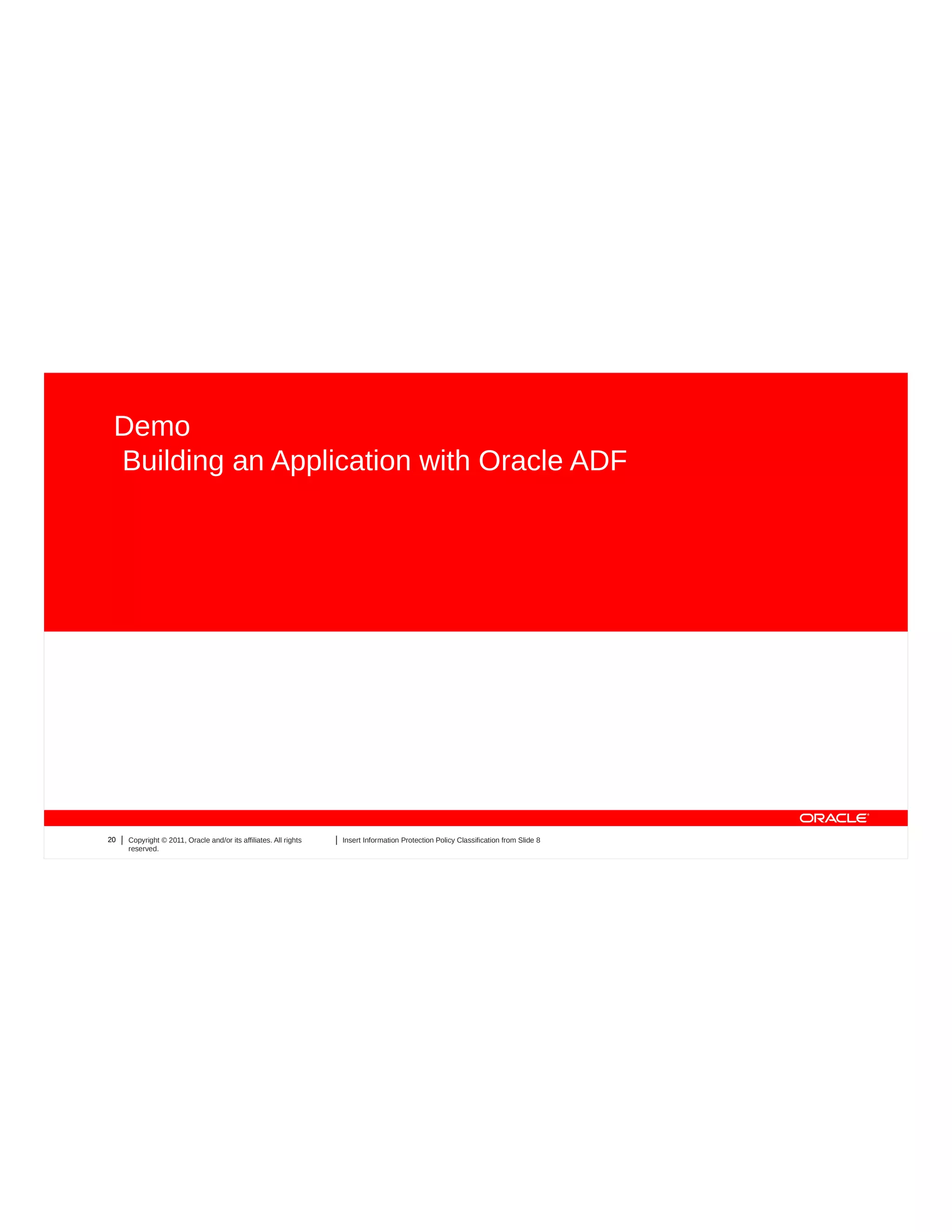

20. Demo
Building an Application with Oracle ADF
20 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

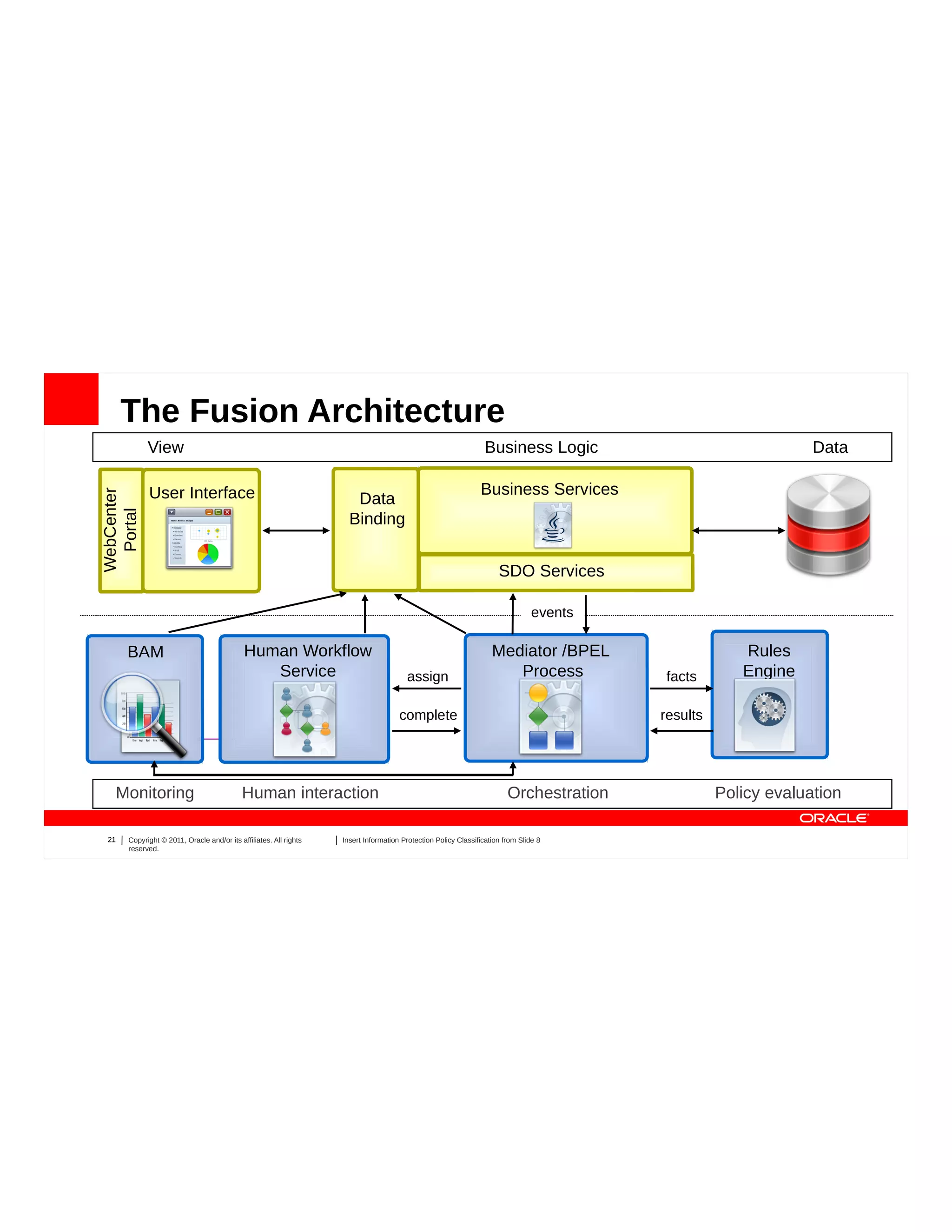

21. The Fusion Architecture
View Business Logic Data
User Interface Business Services
WebCenter
Data
Portal
Binding
SDO Services
events
BAM Human Workflow Mediator /BPEL Rules
Service assign Process facts Engine
complete results
Monitoring Human interaction Orchestration Policy evaluation
21 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

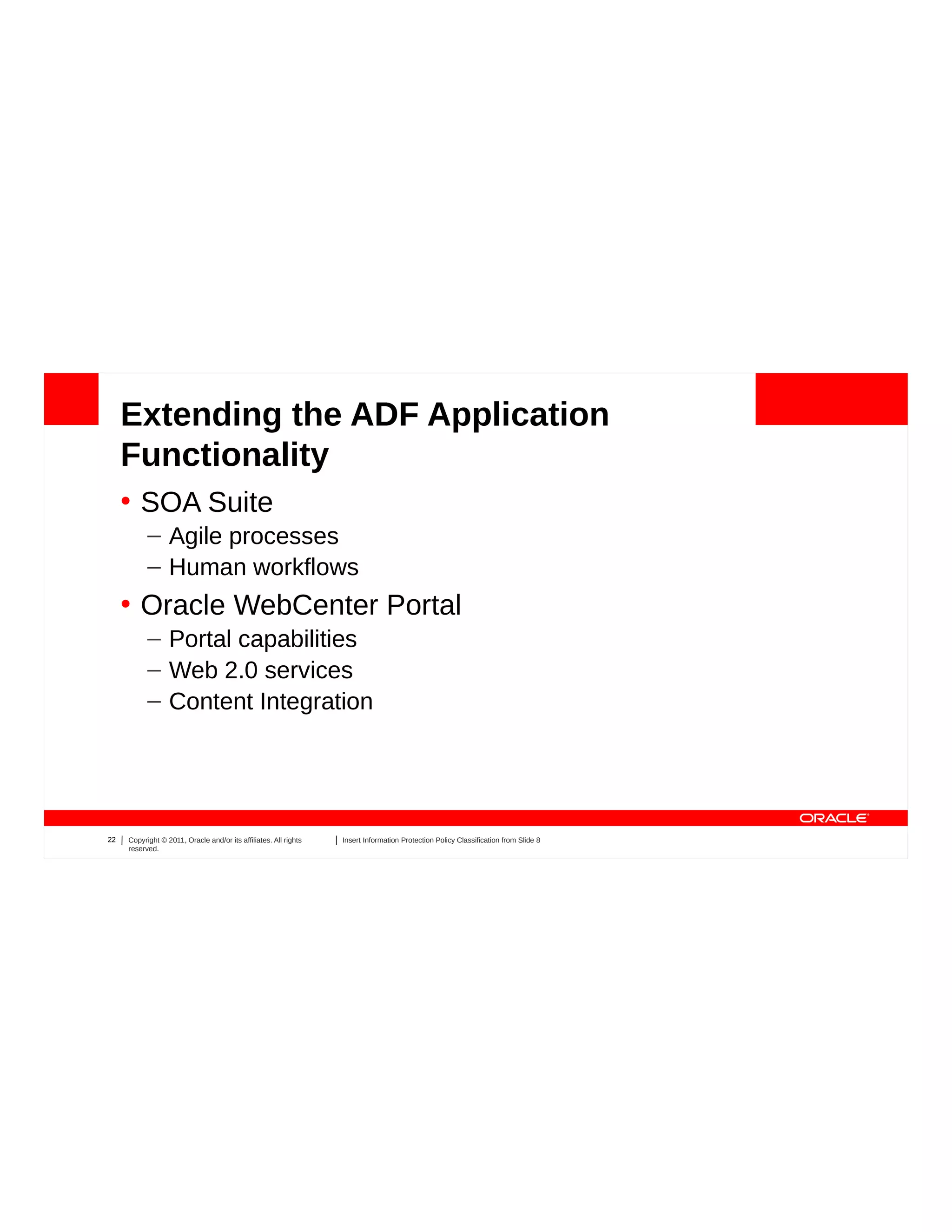

22. Extending the ADF Application
Functionality
• SOA Suite
– Agile processes
– Human workflows
• Oracle WebCenter Portal
– Portal capabilities
– Web 2.0 services
– Content Integration
22 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

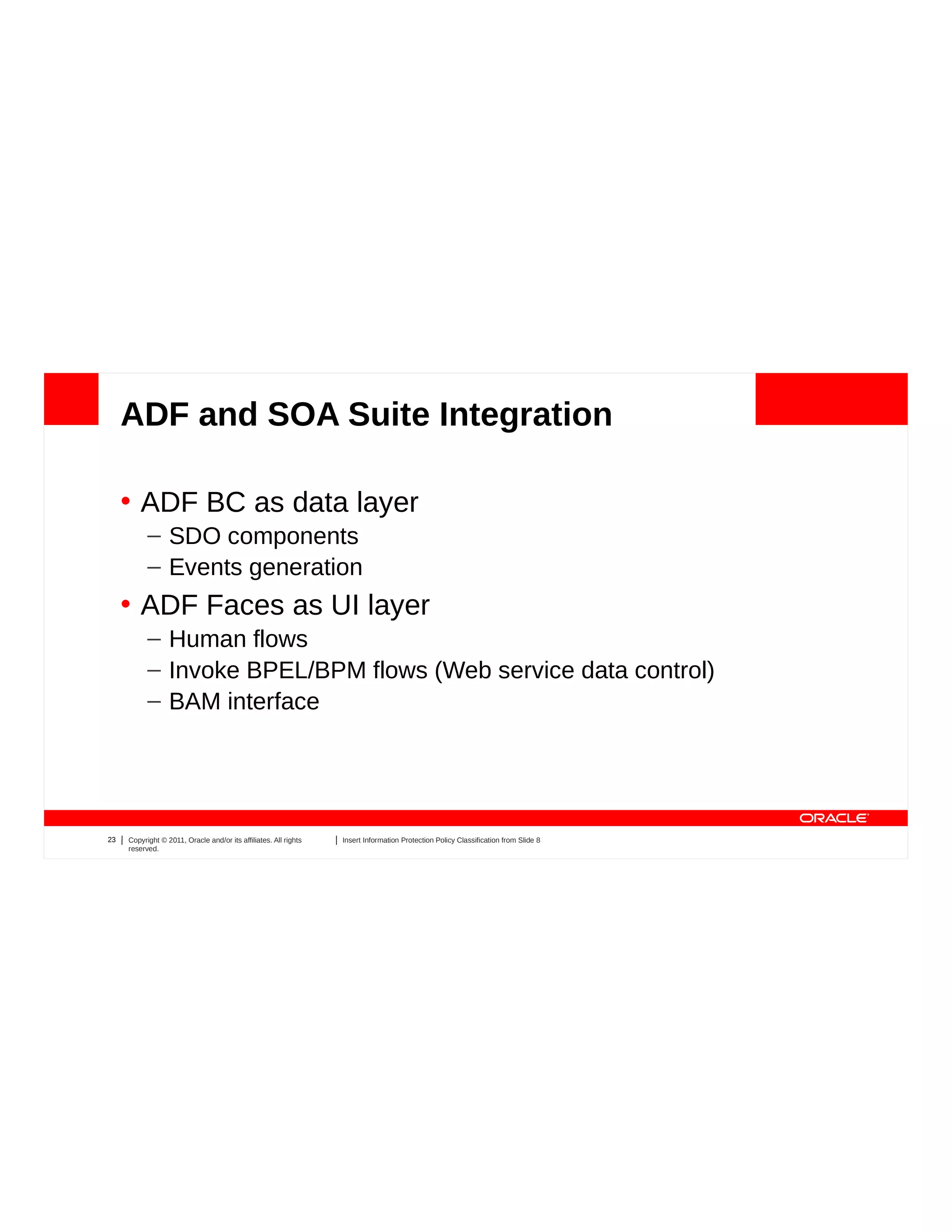

23. ADF and SOA Suite Integration
• ADF BC as data layer
– SDO components
– Events generation
• ADF Faces as UI layer
– Human flows
– Invoke BPEL/BPM flows (Web service data control)
– BAM interface
23 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

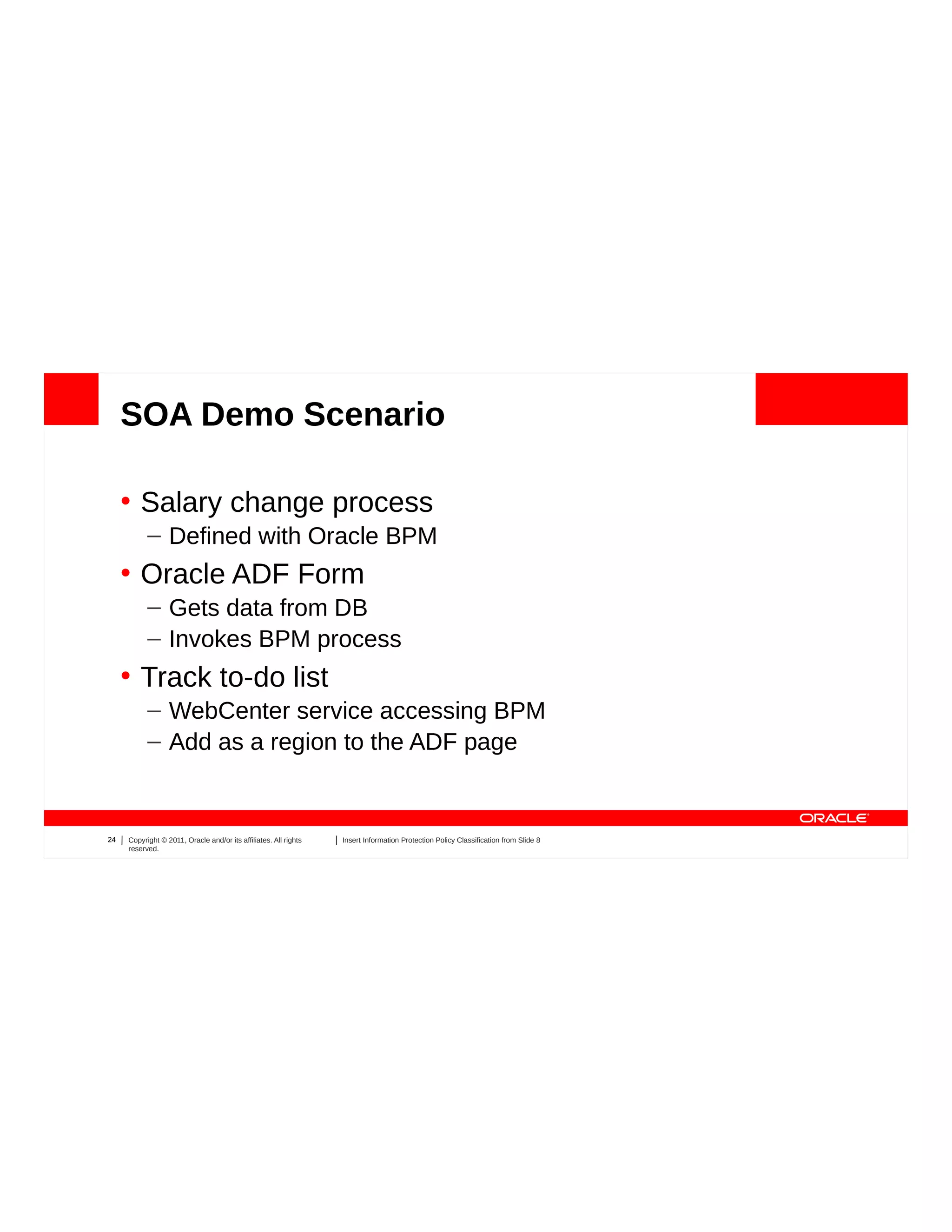

24. SOA Demo Scenario
• Salary change process
– Defined with Oracle BPM
• Oracle ADF Form
– Gets data from DB
– Invokes BPM process
• Track to-do list
– WebCenter service accessing BPM
– Add as a region to the ADF page
24 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

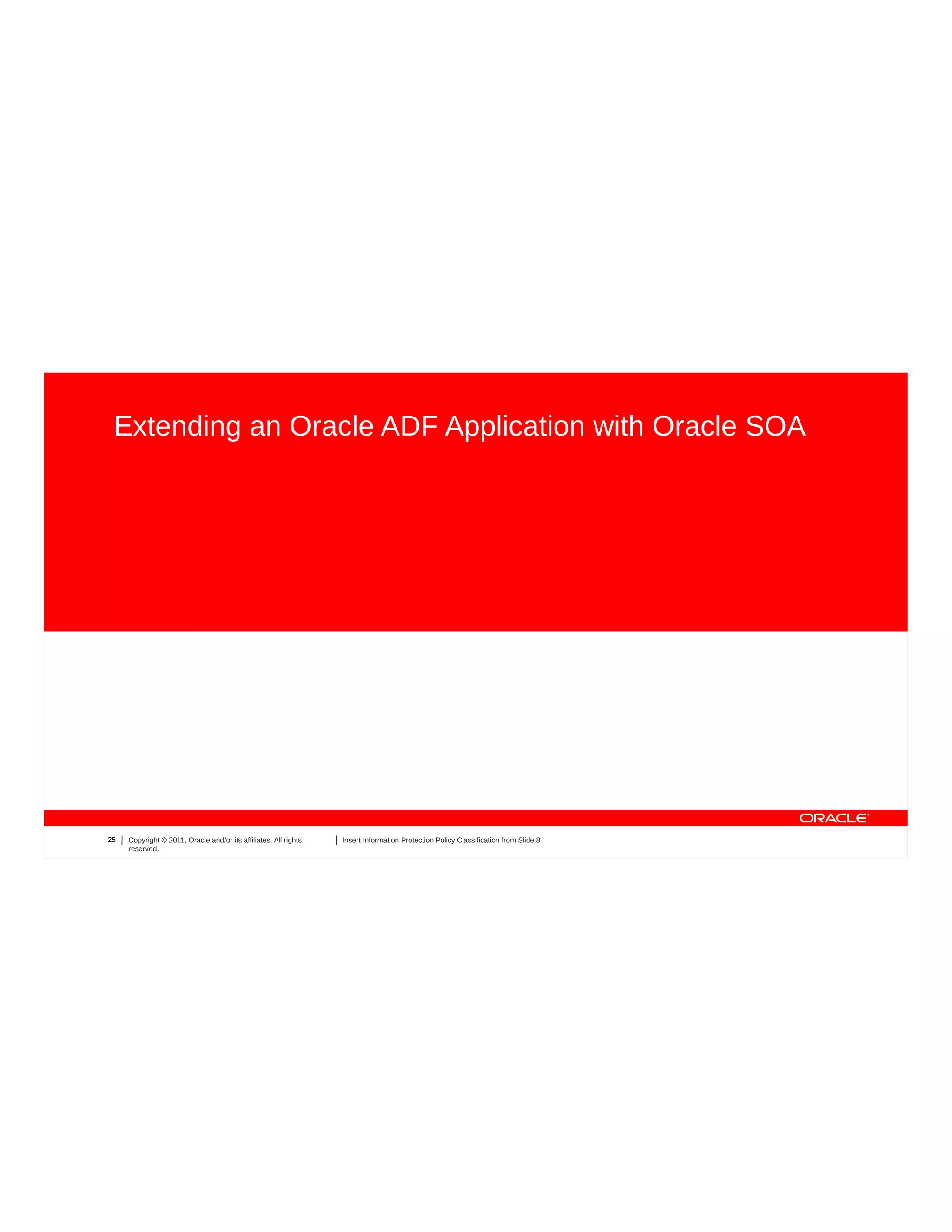

25. Extending an Oracle ADF Application with Oracle SOA
25 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

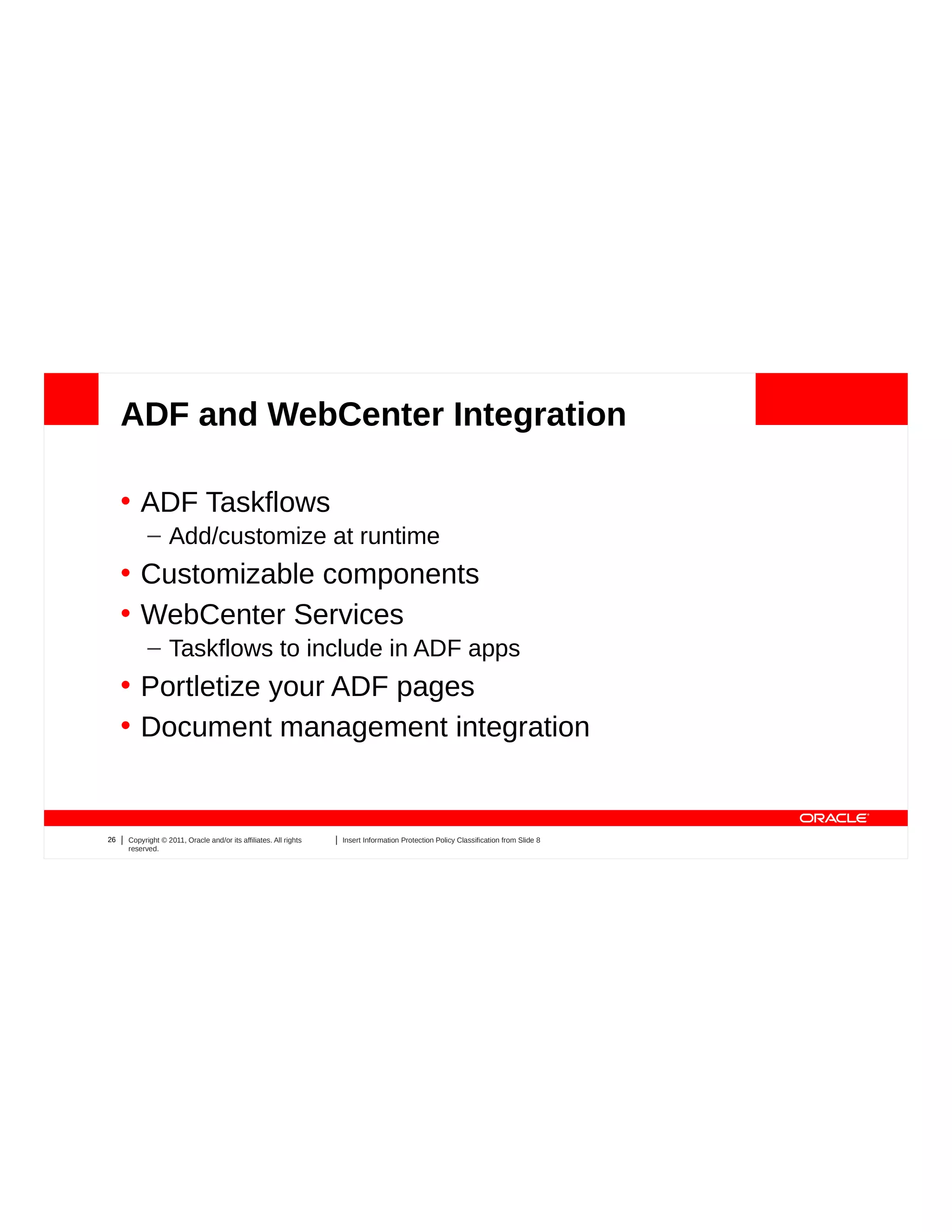

26. ADF and WebCenter Integration
• ADF Taskflows
– Add/customize at runtime
• Customizable components
• WebCenter Services
– Taskflows to include in ADF apps
• Portletize your ADF pages
• Document management integration
26 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

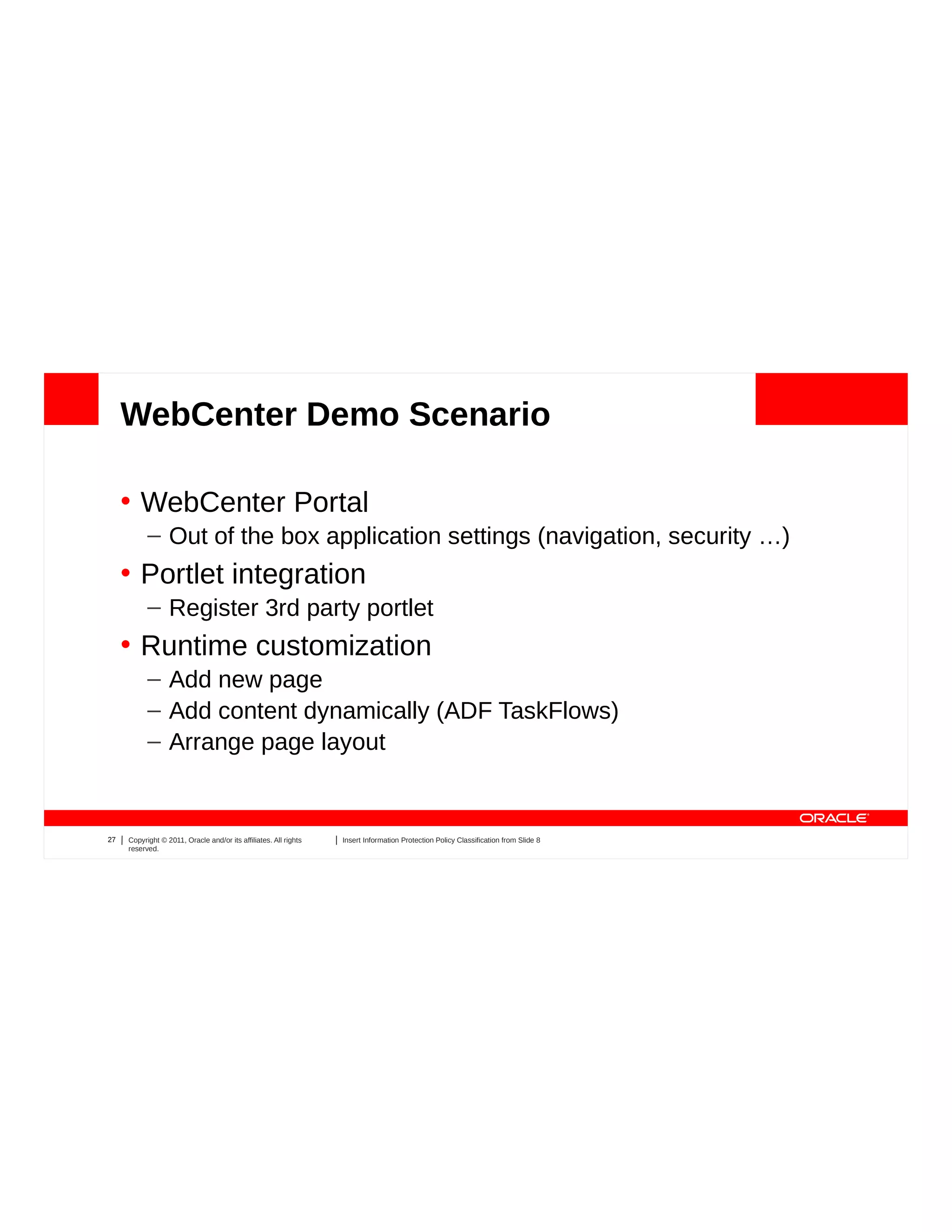

27. WebCenter Demo Scenario
• WebCenter Portal
– Out of the box application settings (navigation, security …)
• Portlet integration
– Register 3rd party portlet
• Runtime customization
– Add new page
– Add content dynamically (ADF TaskFlows)
– Arrange page layout
27 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

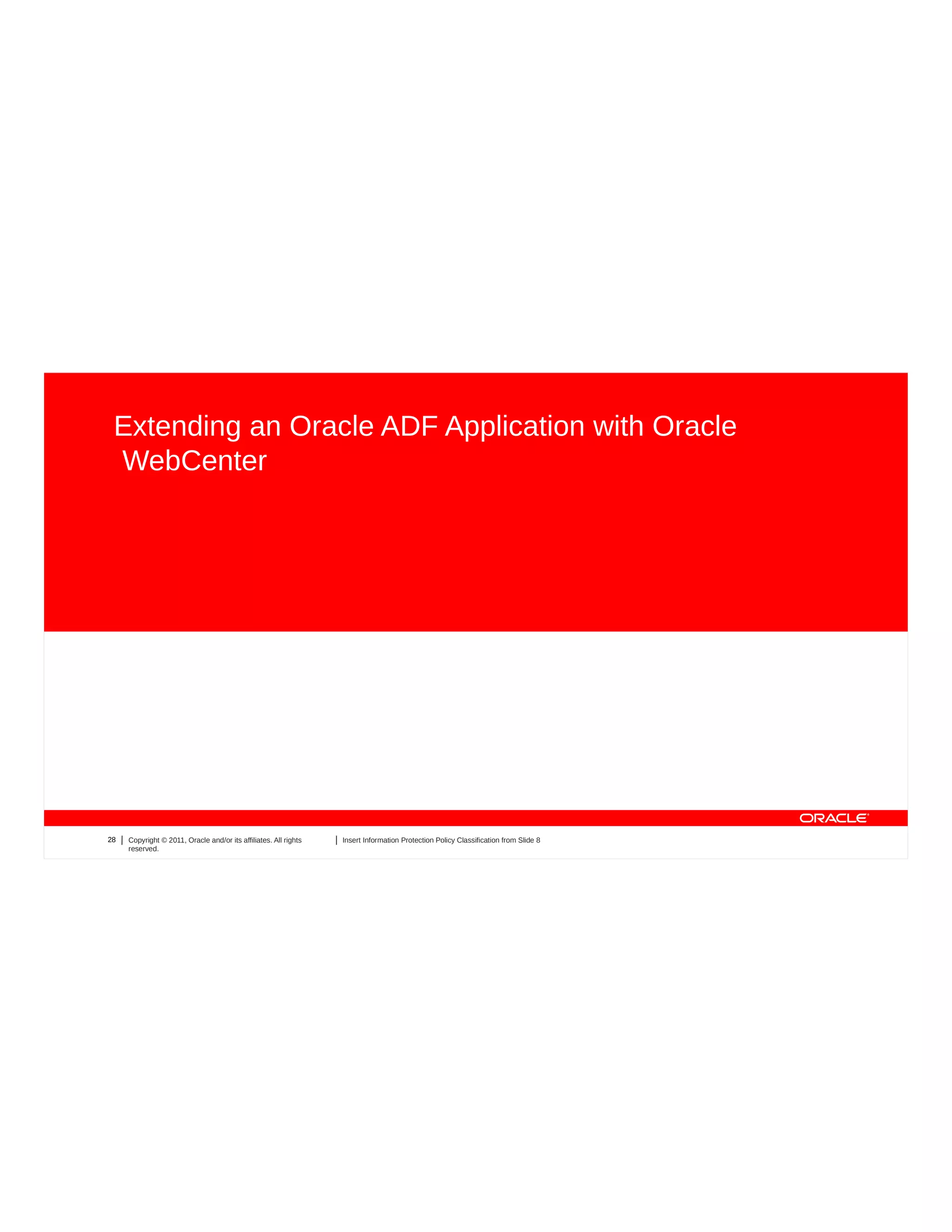

28. Extending an Oracle ADF Application with Oracle
WebCenter
28 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

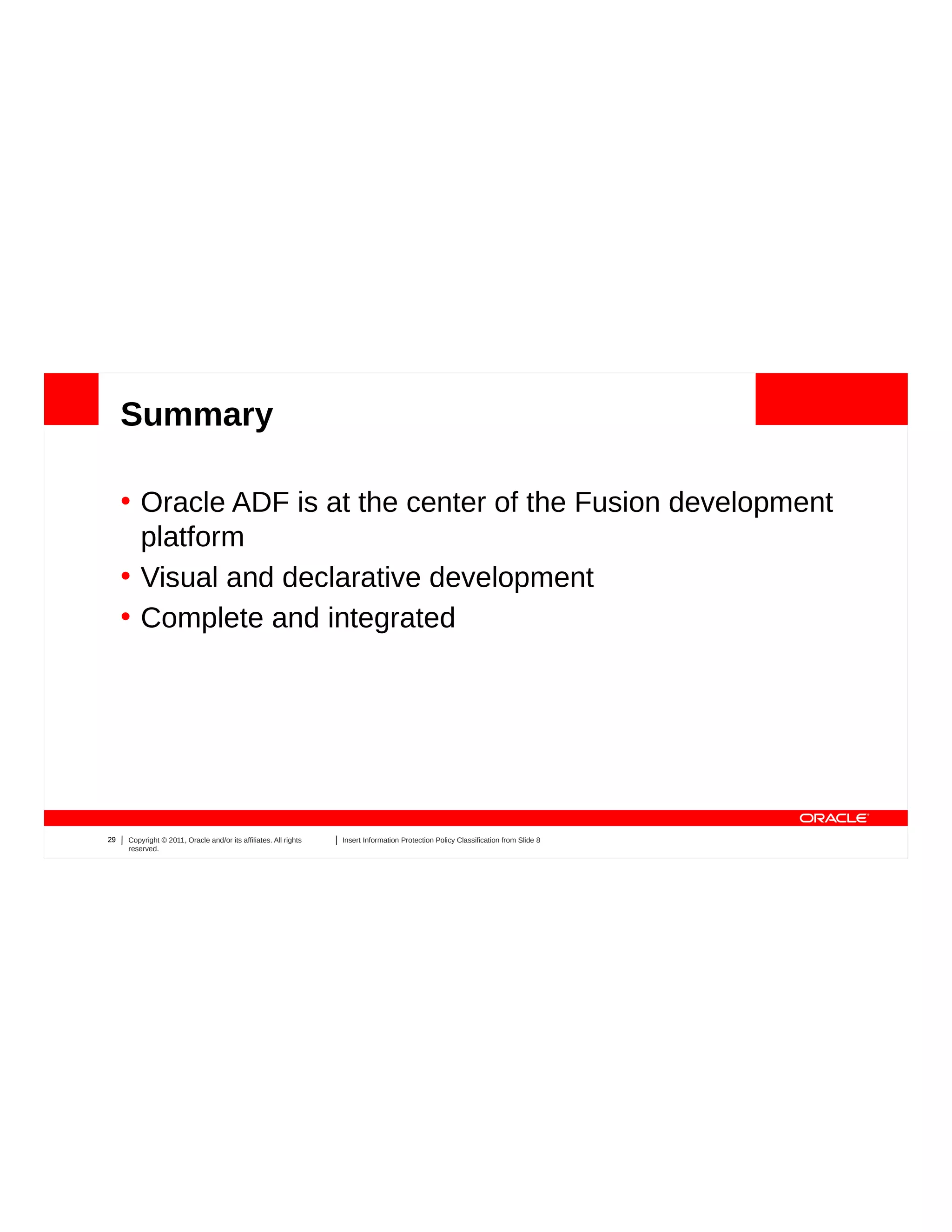

29. Summary
• Oracle ADF is at the center of the Fusion development
platform
• Visual and declarative development
• Complete and integrated
29 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

30. Join the JDeveloper/ADF Community
Twitter
twitter.com/JDeveloper
Facebook
facebook.com/JDeveloper
Oracle’s JDeveloper PM blog
blogs.oracle.com/ JDeveloperpm
oracle.com/technetwork/jdev
30 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

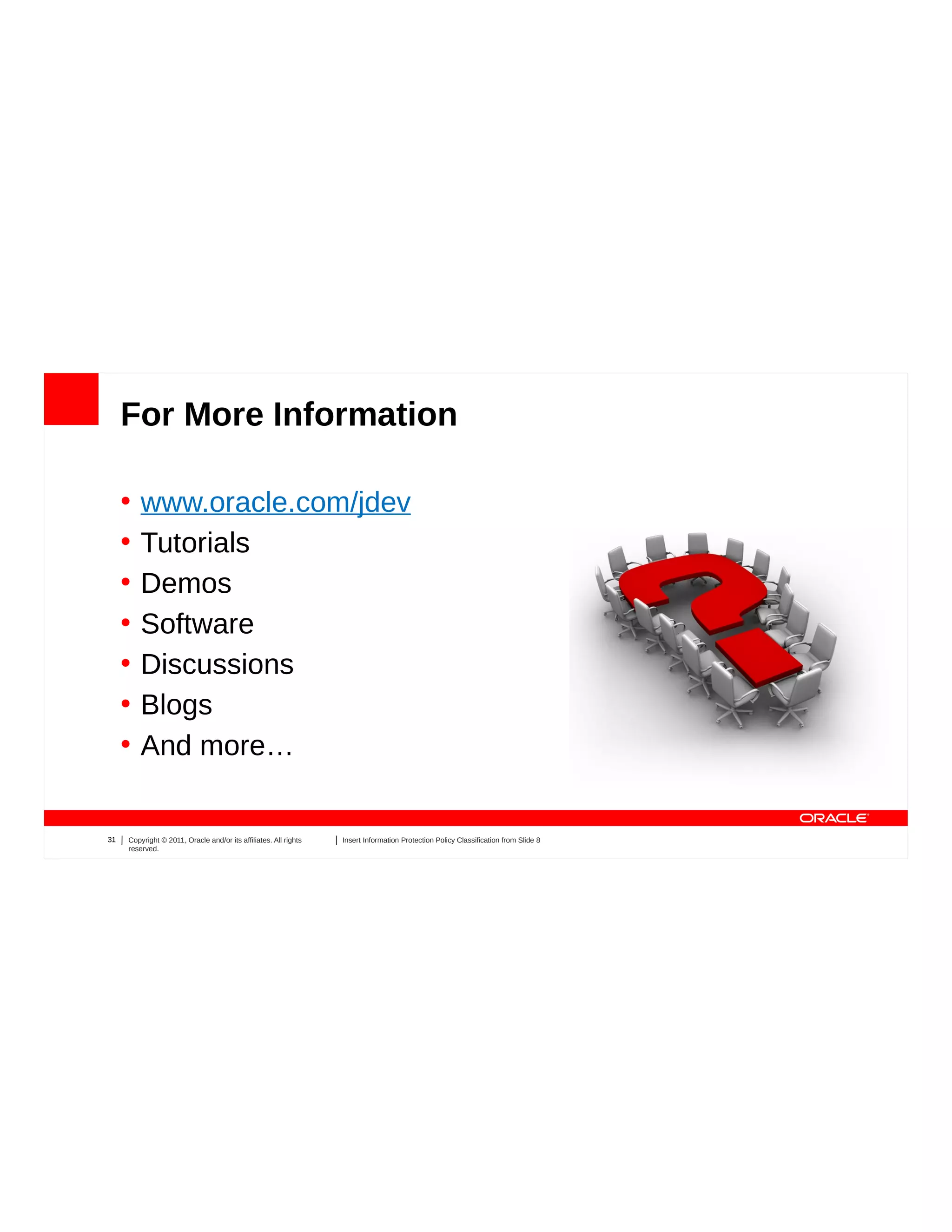

31. For More Information
• www.oracle.com/jdev
• Tutorials
• Demos
• Software
• Discussions
• Blogs
• And more…
31 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

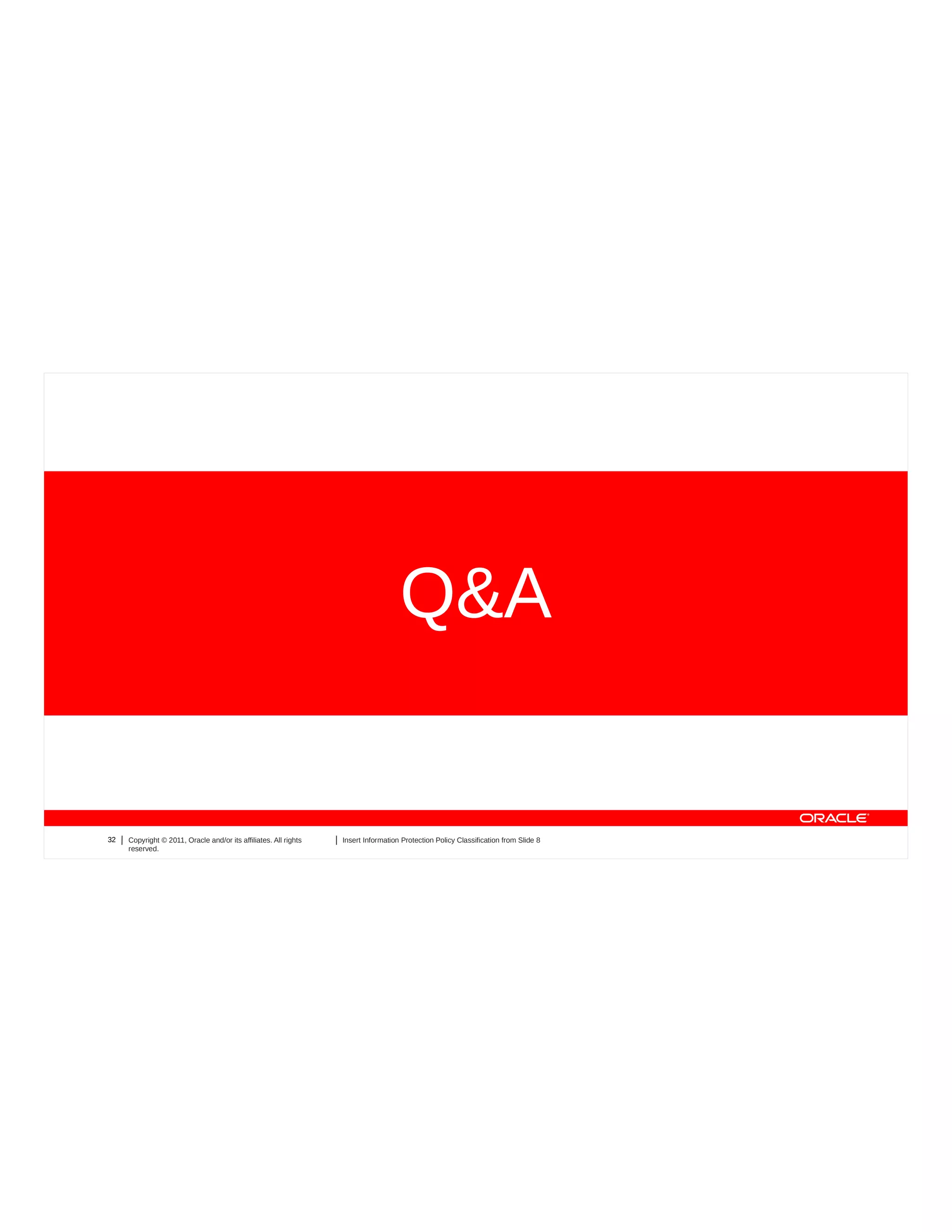

32. Q&A
32 Copyright © 2011, Oracle and/or its affiliates. All rights Insert Information Protection Policy Classification from Slide 8
reserved.

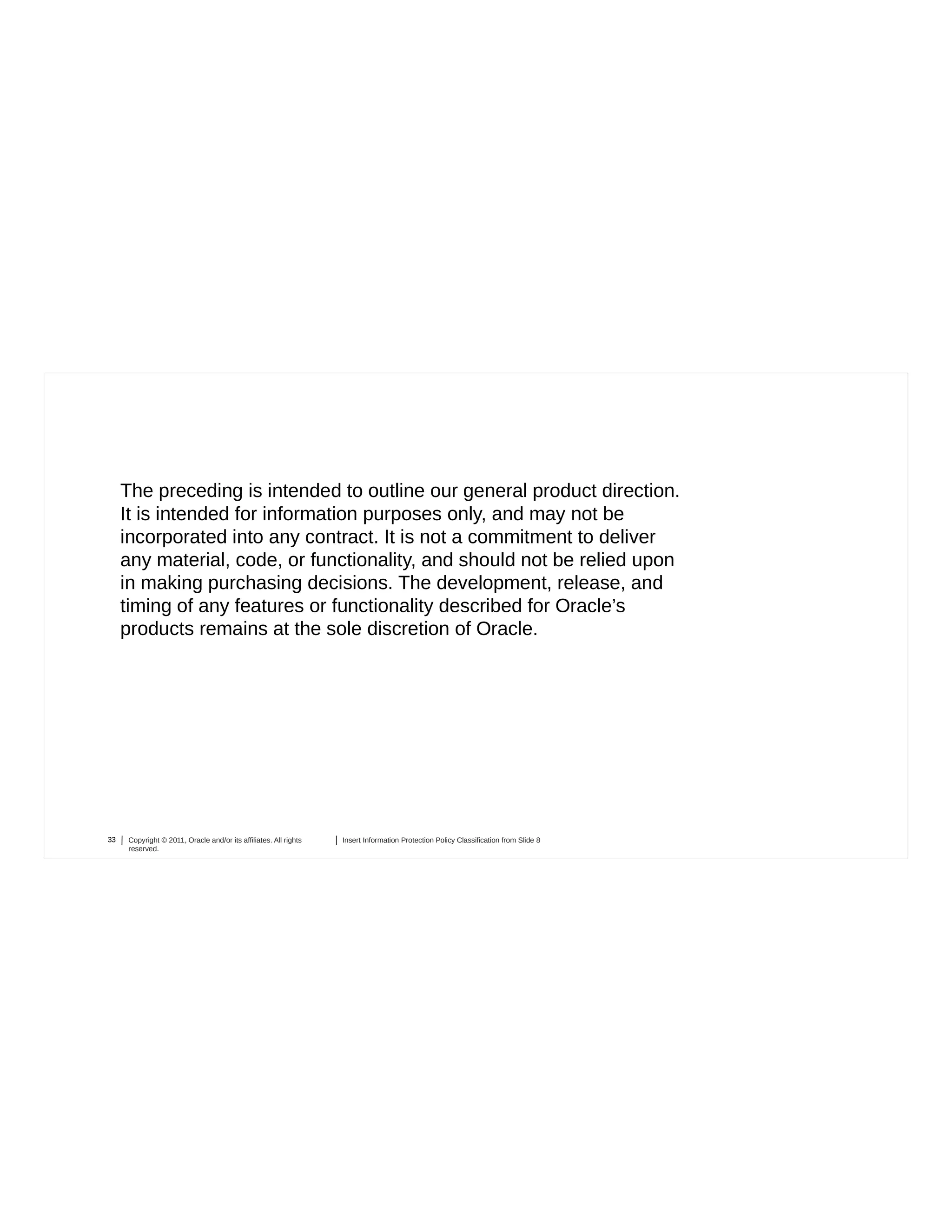

33. The preceding is intended to outline our general product direction.
