Fast and Reliable Swift APIs with gRPC
Tim Burks
Google, Inc.

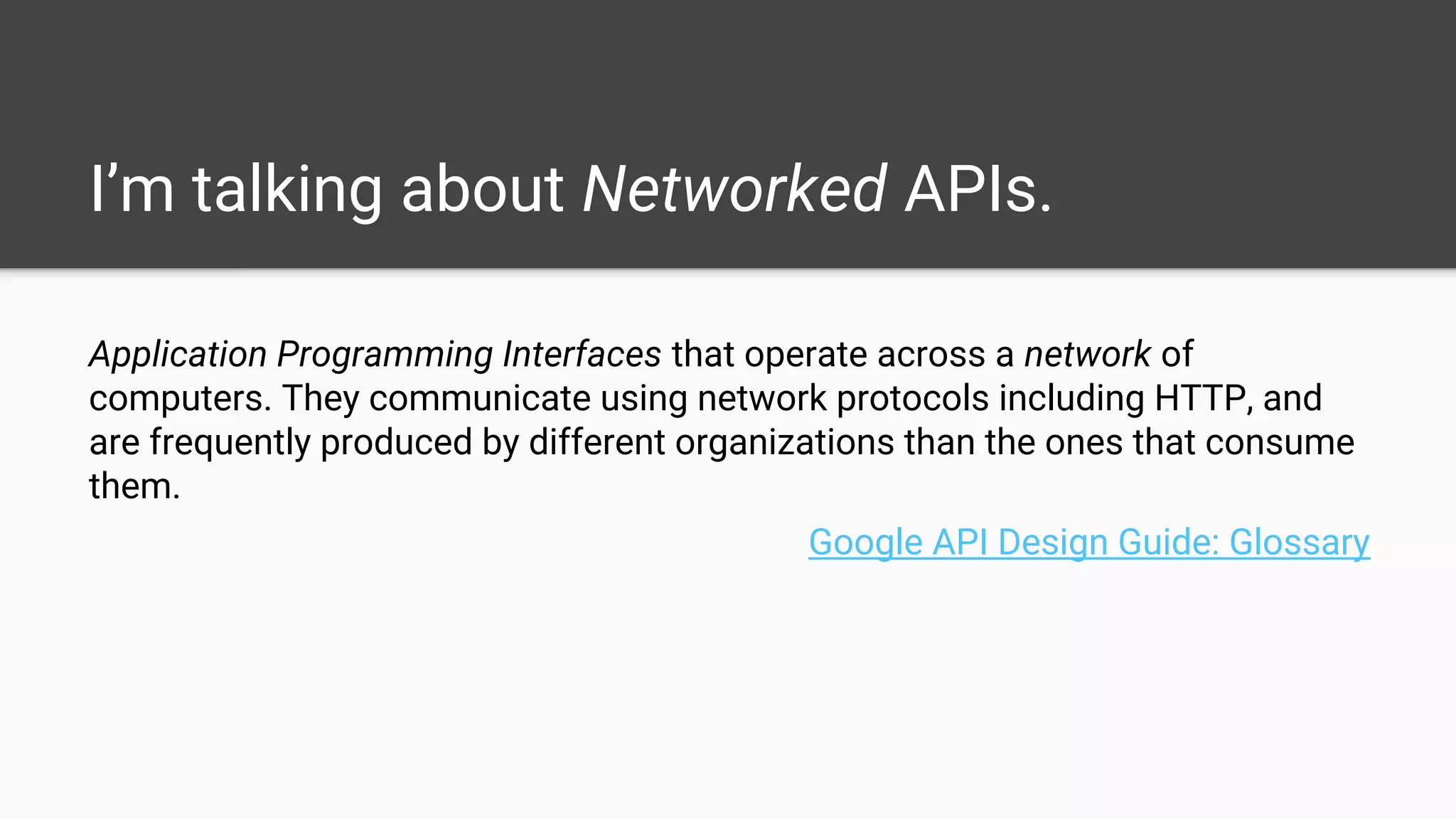

I’m talking about Networked APIs.
Application Programming Interfaces that operate across a network of
computers. They communicate using network protocols including HTTP, and
are frequently produced by different organizations than the ones that consume
them.
Google API Design Guide: Glossary
I love APIs.

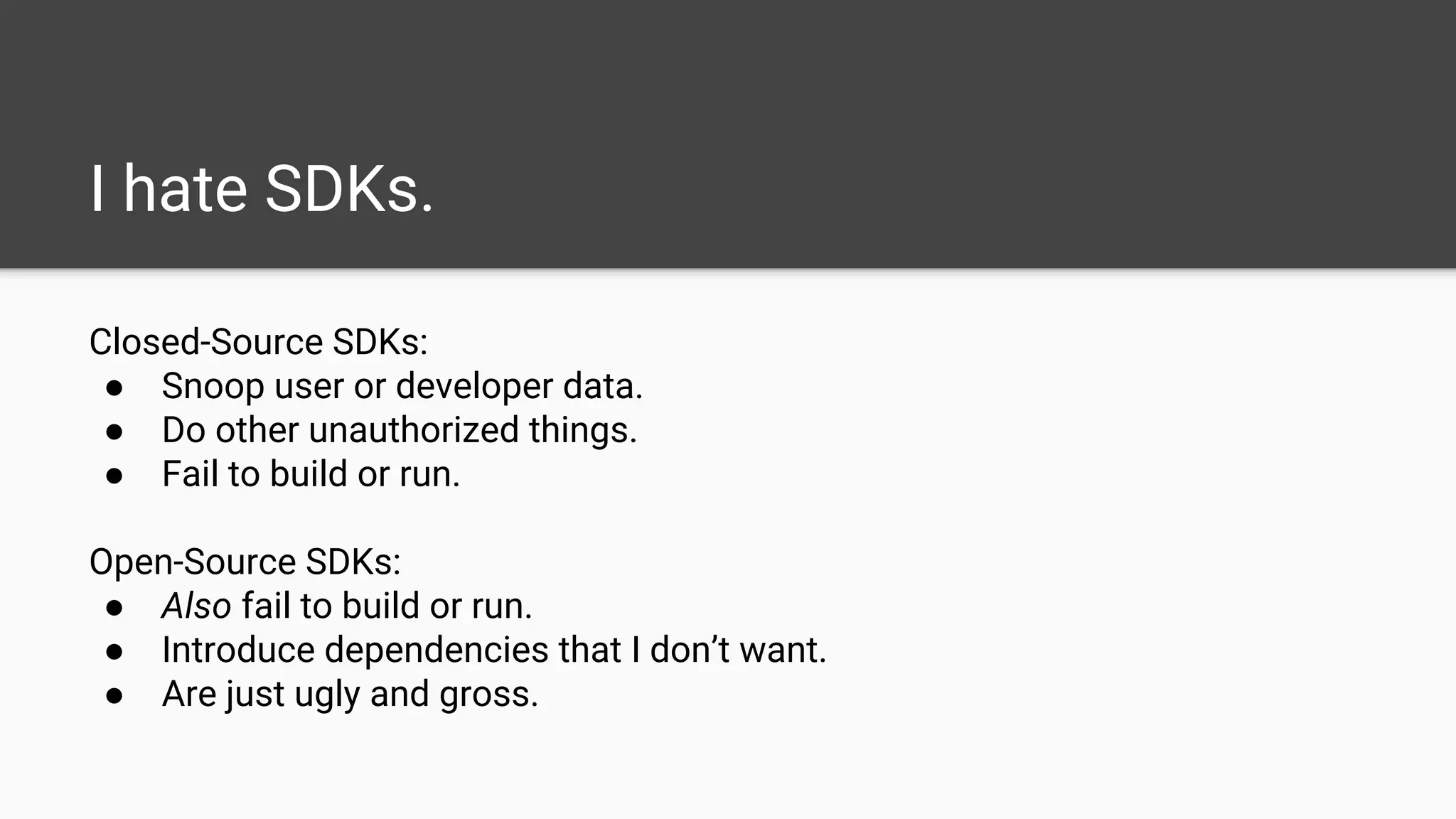

I hate SDKs.
Closed-Source SDKs:
● Snoop user or developer data.
● Do other unauthorized things.
● Fail to build or run.
Open-Source SDKs:
● Also fail to build or run.
● Introduce dependencies that I don’t want.
● Are just ugly and gross.
but now I make
SDKs…
● google-cloud-python
● google-cloud-node
● google-cloud-ruby
● google-cloud-java
● google-cloud-go
● google-cloud-php
● google-cloud-dotnet
● google-api-python-client
● google-api-nodejs-client
● google-api-ruby-client
● google-api-java-client
● google-api-go-client
● google-api-php-client
● google-api-dotnet-client
● google-api-objectivec-client
● google-api-objectivec-client-for-rest

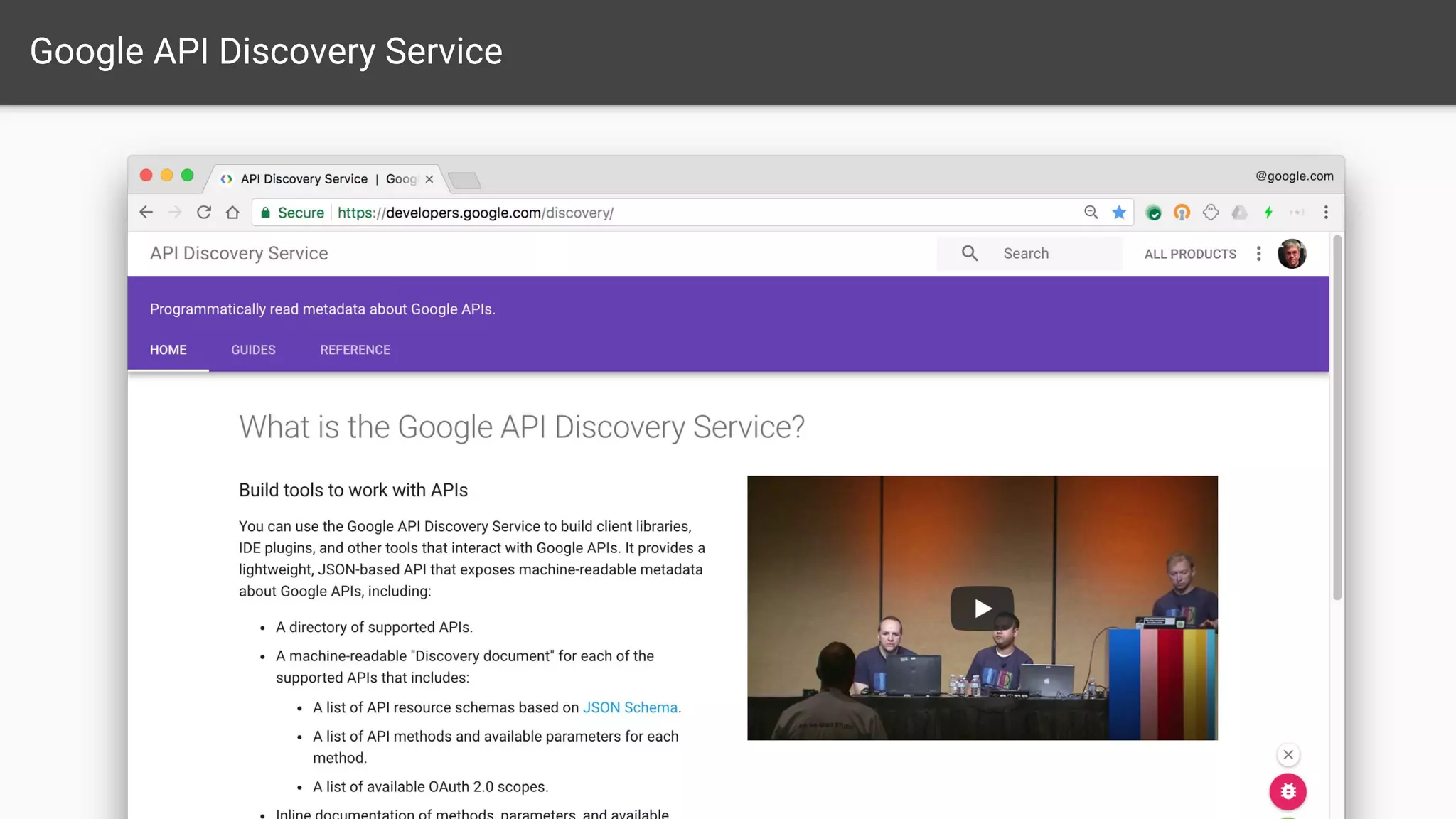

Google API Discovery Service
October 4, 2000

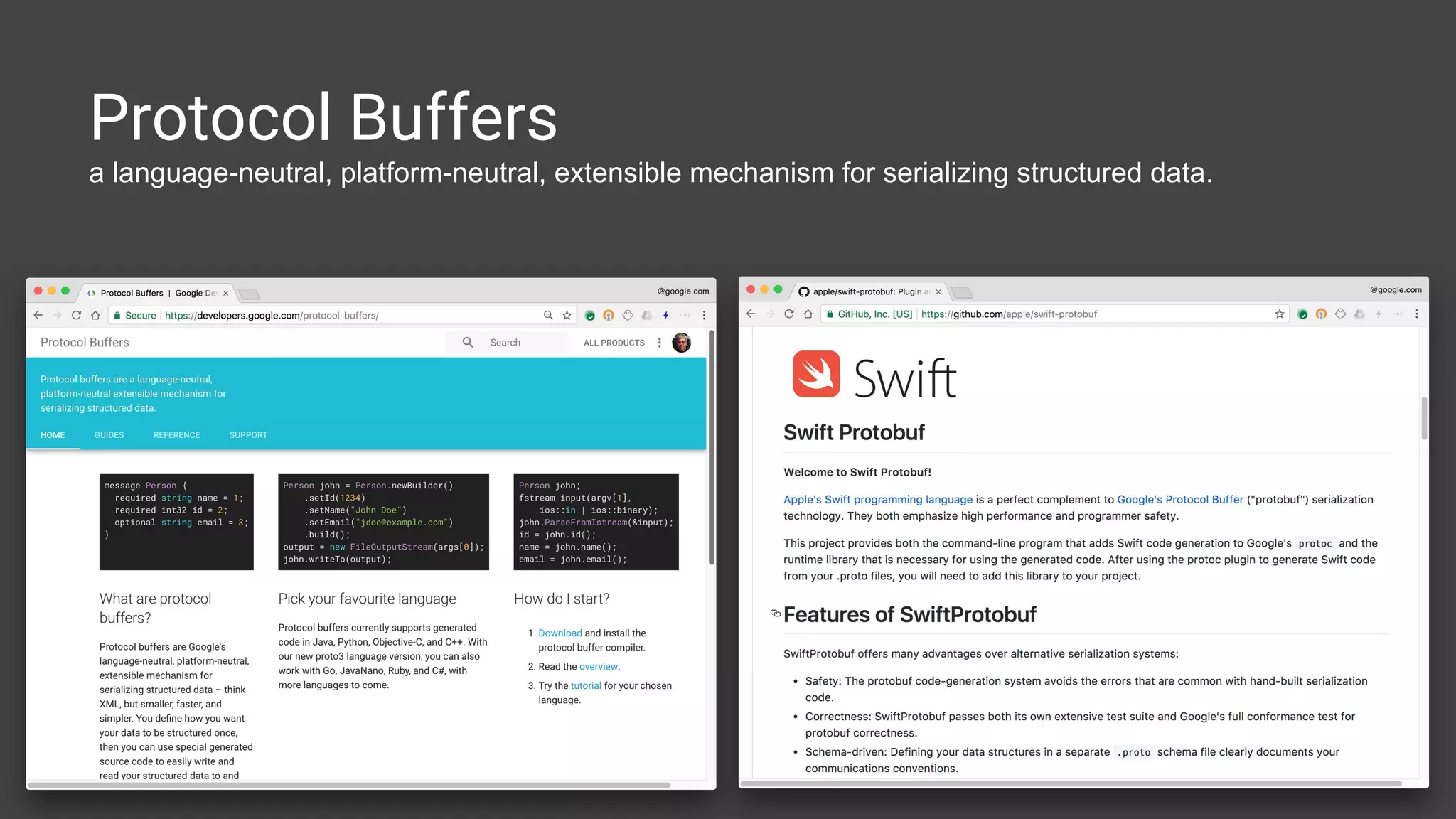

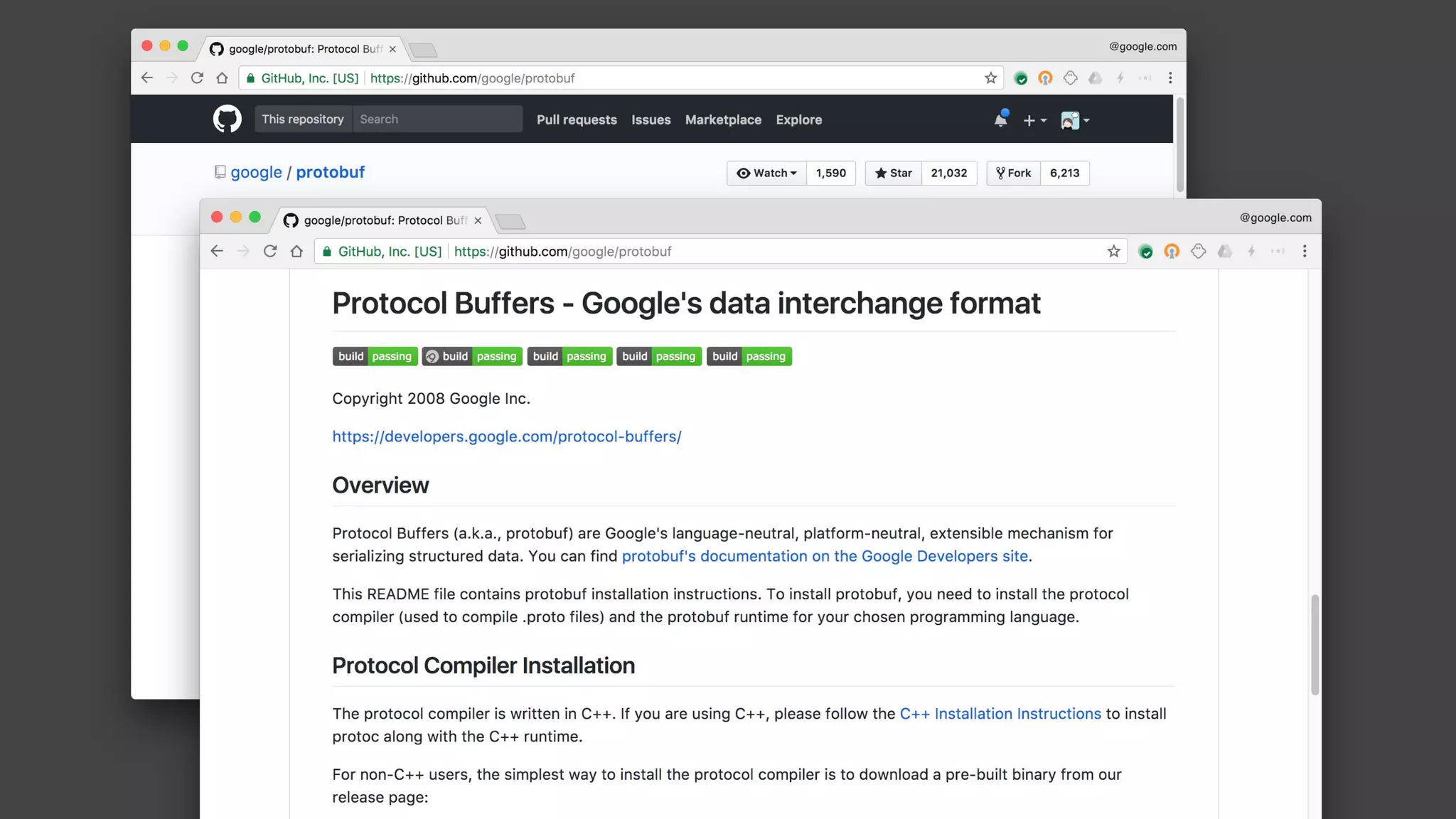

Protocol Buffers
a language-neutral, platform-neutral, extensible mechanism for serializing structured data.
“Protocol Buffers” means several things
1. A serialization mechanism
2. An interface description language
3. A methodology

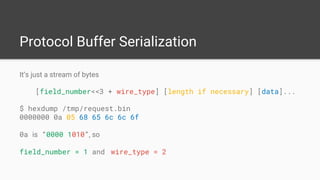

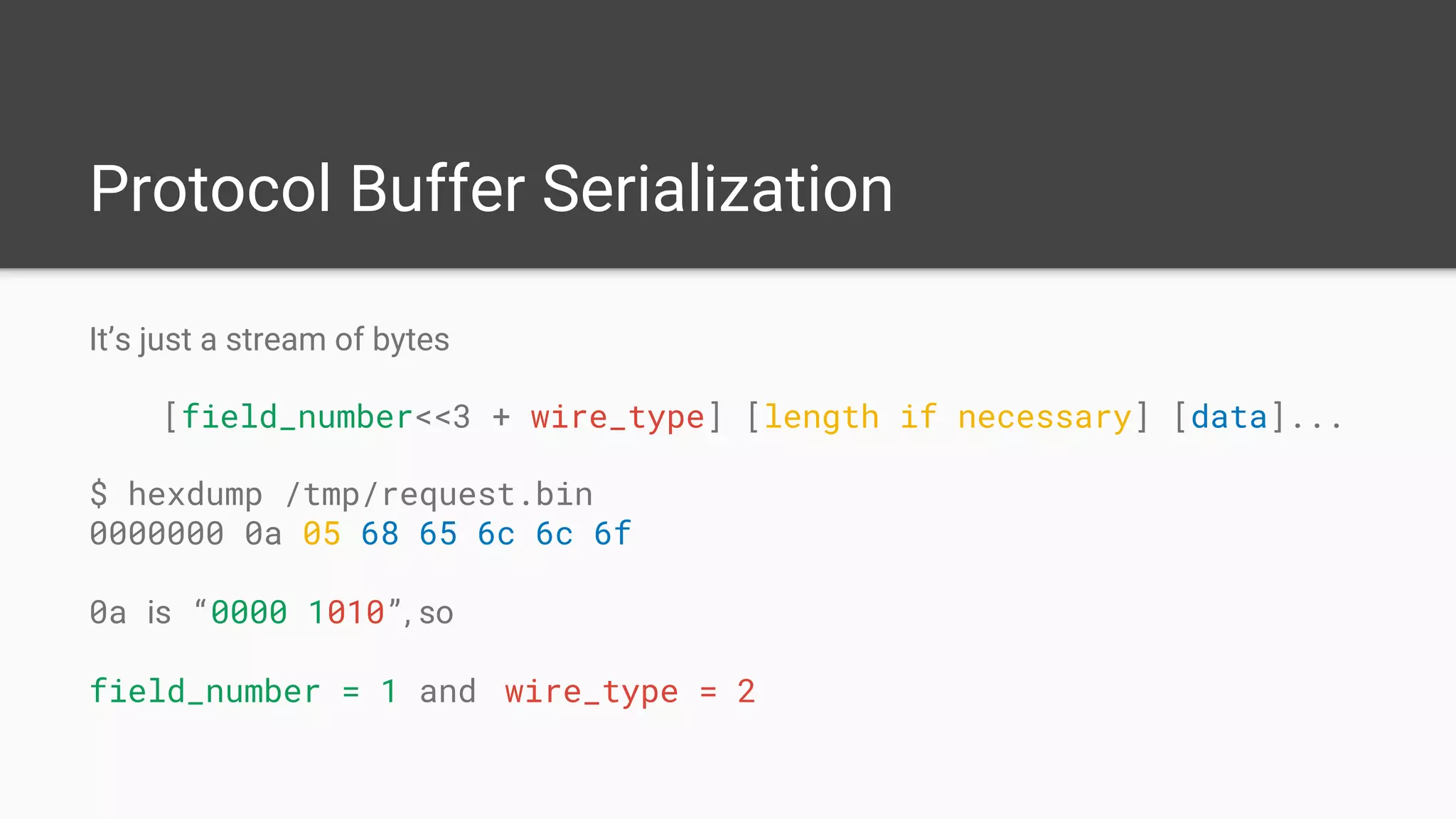

Protocol Buffer Serialization
It’s just a stream of bytes
[field_number<<3 + wire_type] [length if necessary] [data]...
$ hexdump /tmp/request.bin
0000000 0a 05 68 65 6c 6c 6f
0a is “0000 1010”, so
field_number = 1 and wire_type = 2

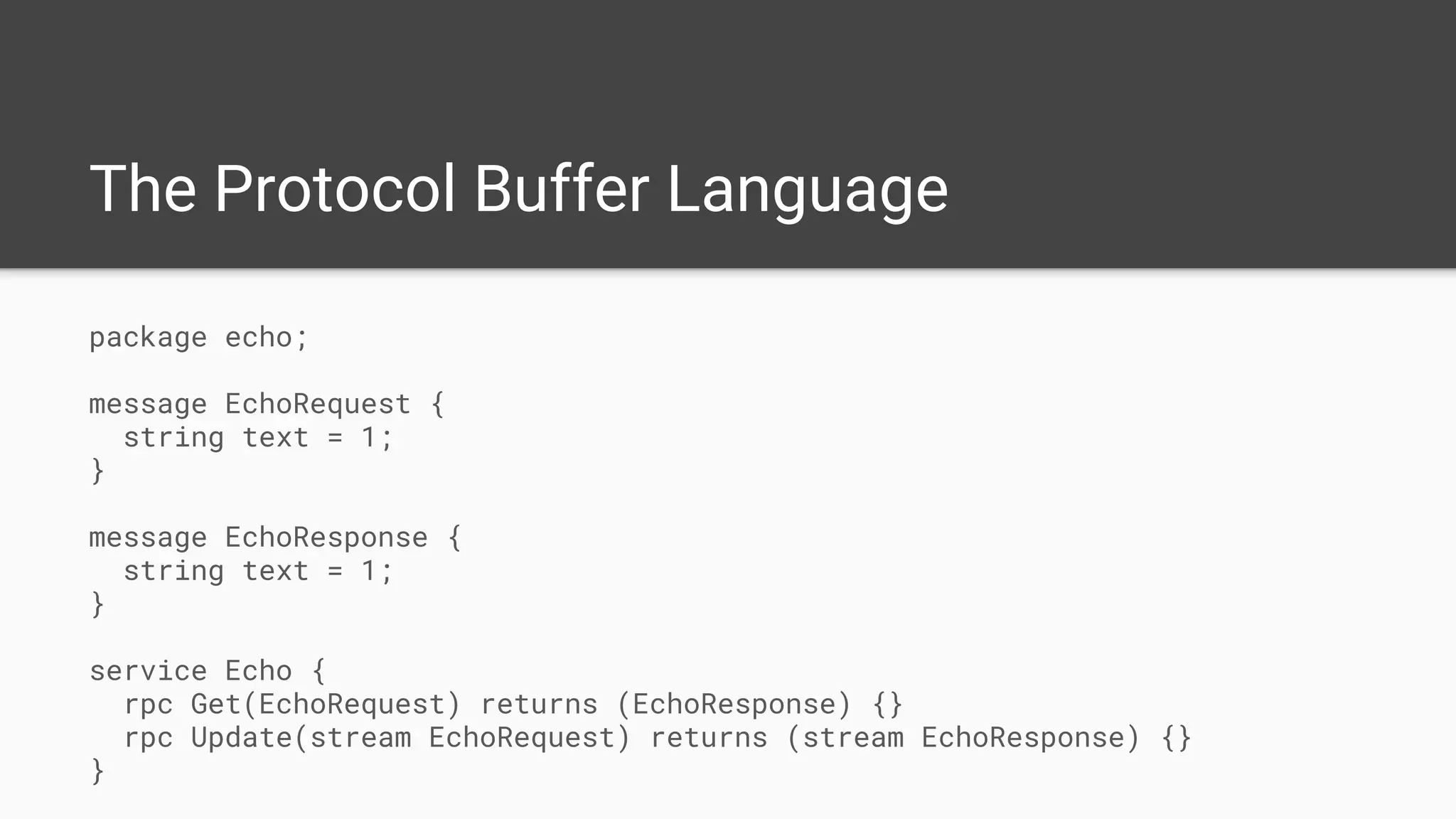

The Protocol Buffer Language
package echo;
message EchoRequest {
string text = 1;
}
message EchoResponse {
string text = 1;
}
service Echo {
rpc Get(EchoRequest) returns (EchoResponse) {}
rpc Update(stream EchoRequest) returns (stream EchoResponse) {}
}

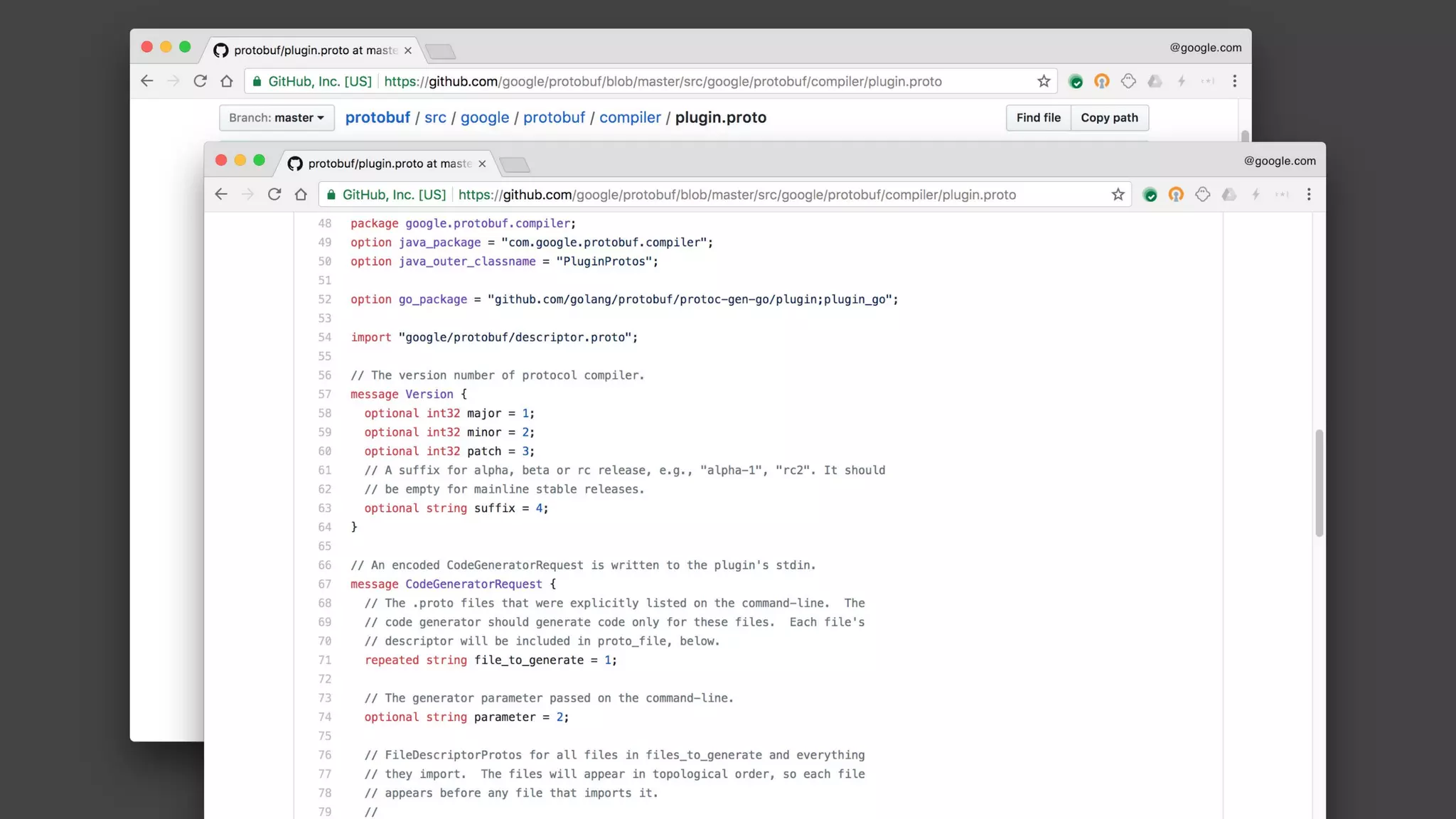

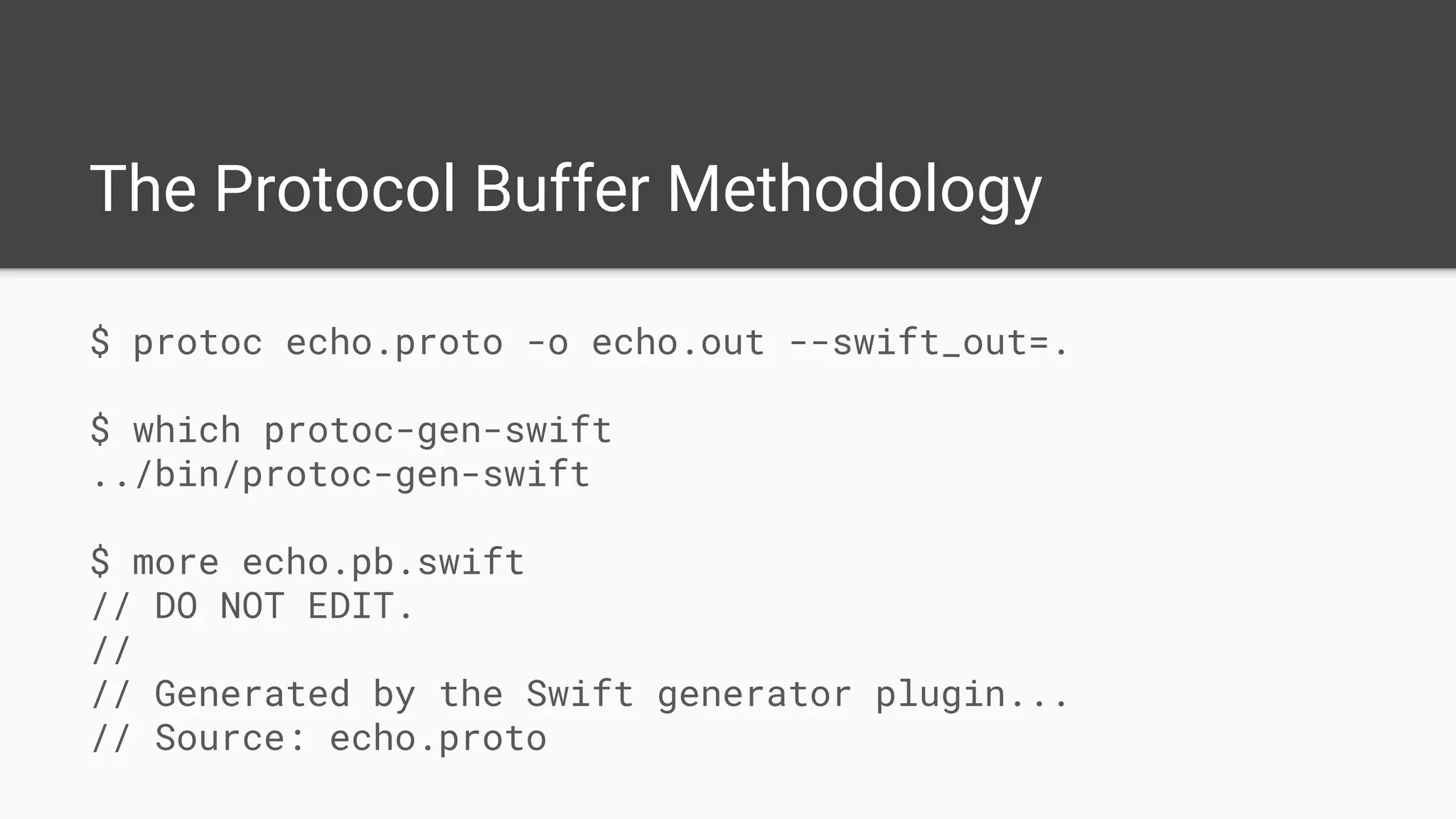

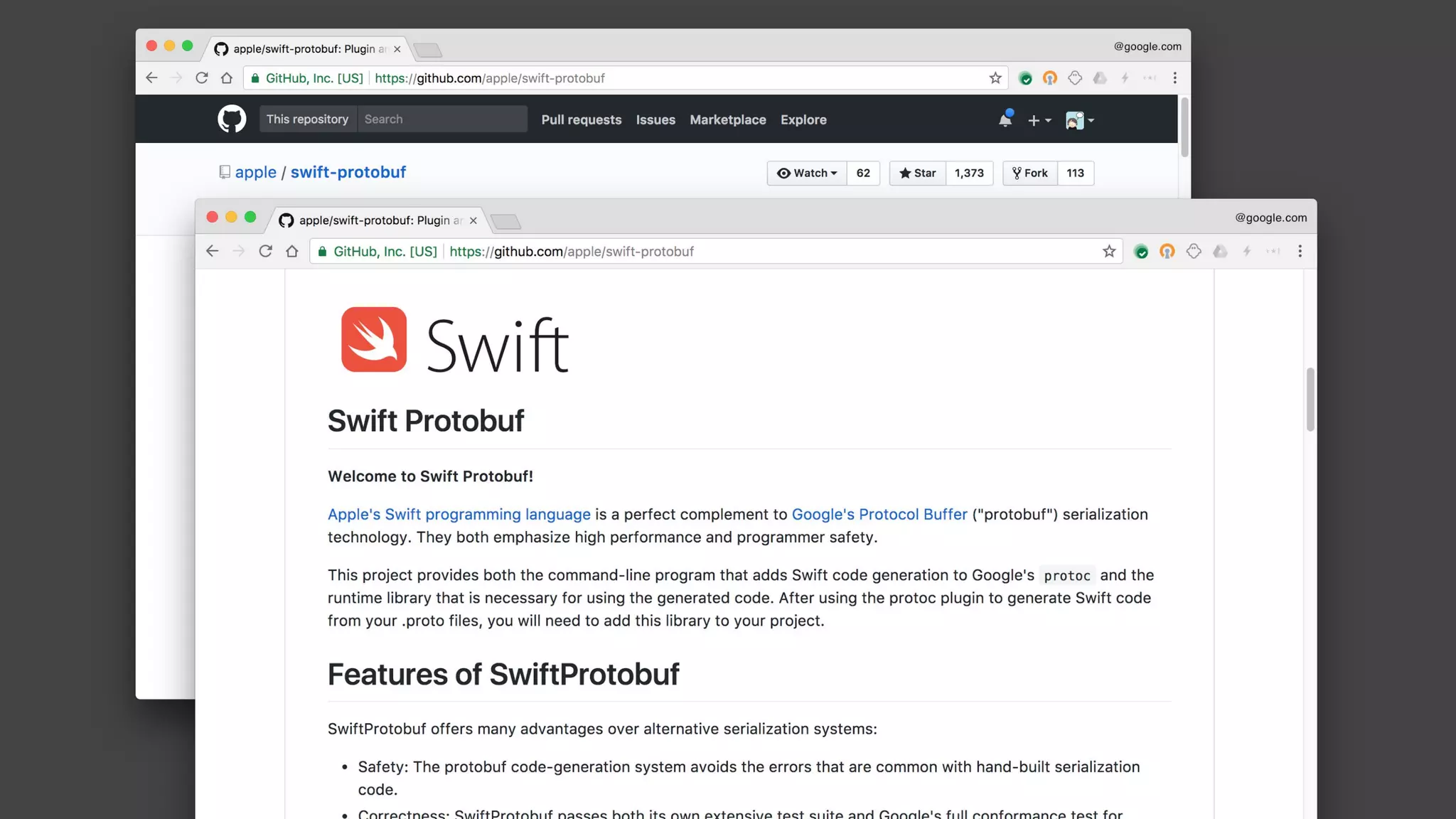

The Protocol Buffer Methodology
$ protoc echo.proto -o echo.out --swift_out=.
$ which protoc-gen-swift
../bin/protoc-gen-swift

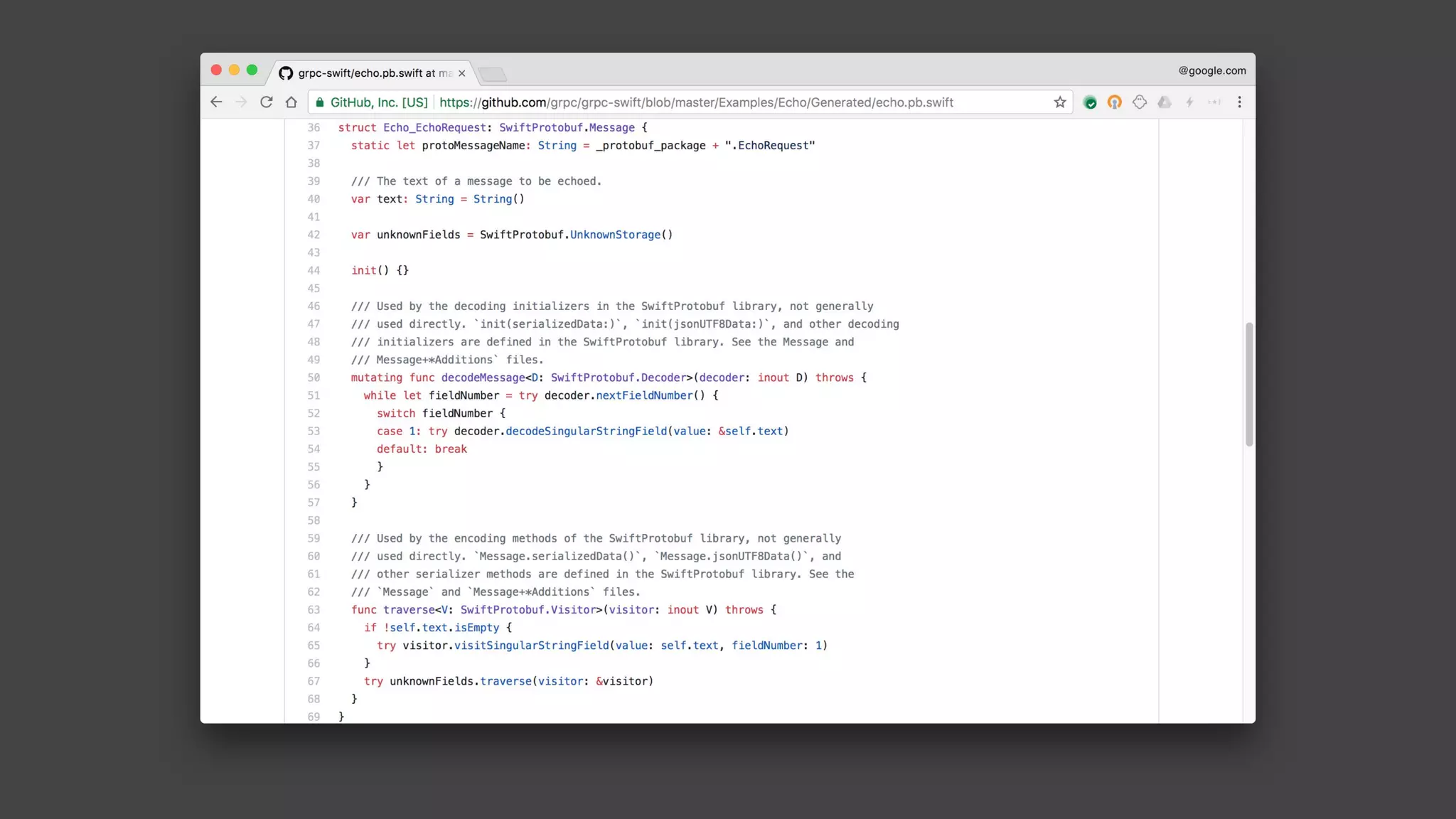

$ more echo.pb.swift
// DO NOT EDIT.
//
// Generated by the Swift generator plugin...
// Source: echo.proto

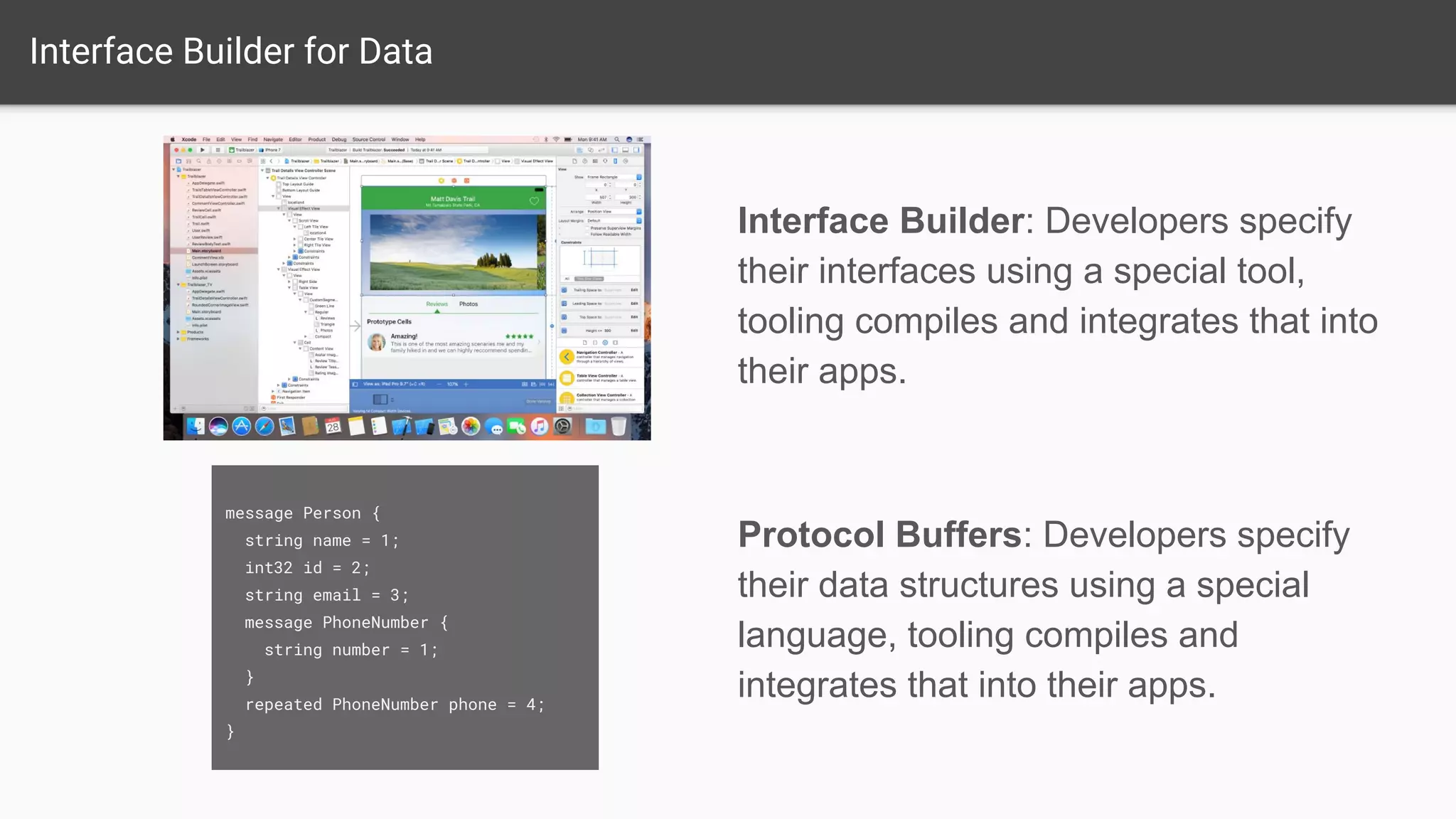

Interface Builder for Data
message Person {
string name = 1;
int32 id = 2;
string email = 3;
message PhoneNumber {
string number = 1;
}
repeated PhoneNumber phone = 4;
}
Interface Builder: Developers specify
their interfaces using a special tool,
tooling compiles and integrates that into
their apps.
Protocol Buffers: Developers specify
their data structures using a special
language, tooling compiles and
integrates that into their apps.
10 billion+
API calls
every second

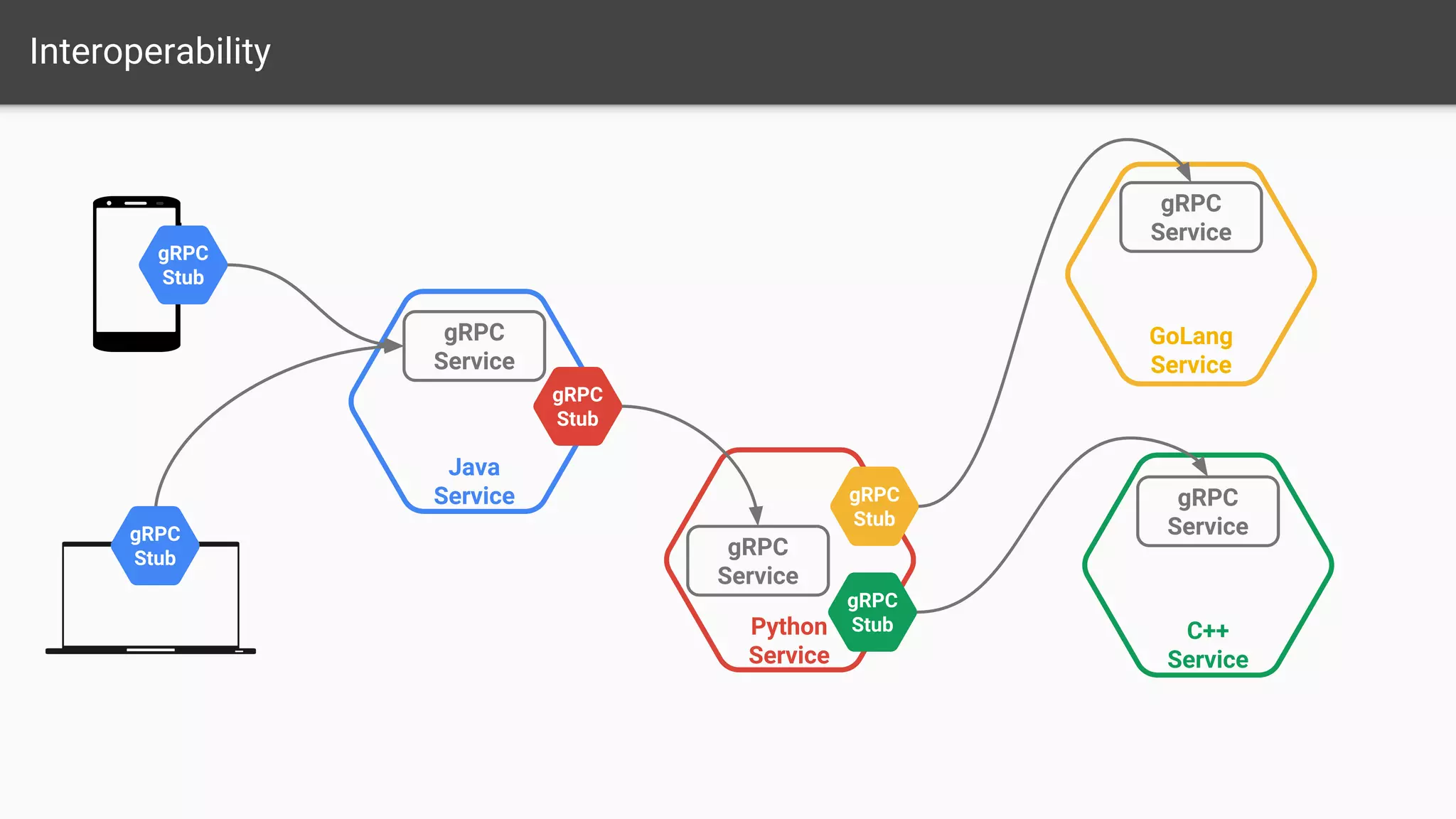

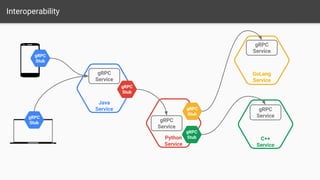

Interoperability
Java
Service
Python
Service
GoLang
Service
C++
Service
gRPC
Service
gRPC
Stub
gRPC
Stub
gRPC
Stub
gRPC
Stub
gRPC
Service
gRPC
Service
gRPC
Service
gRPC
Stub

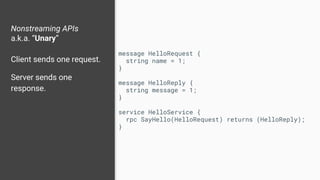

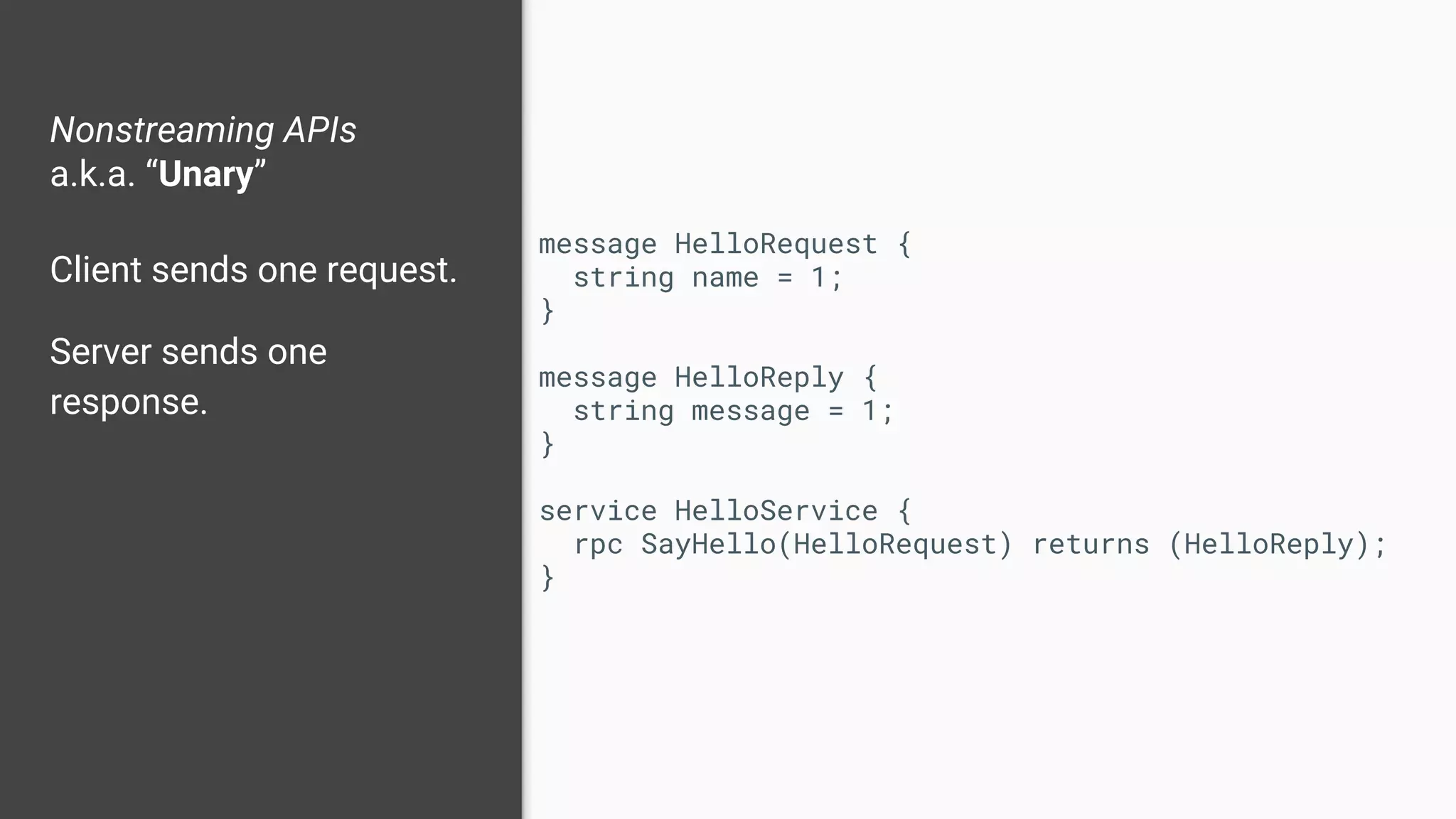

Nonstreaming APIs
a.k.a. “Unary”
Client sends one request.
Server sends one
response.
message HelloRequest {
string name = 1;
}
message HelloReply {
string message = 1;
}
service HelloService {
rpc SayHello(HelloRequest) returns (HelloReply);
}

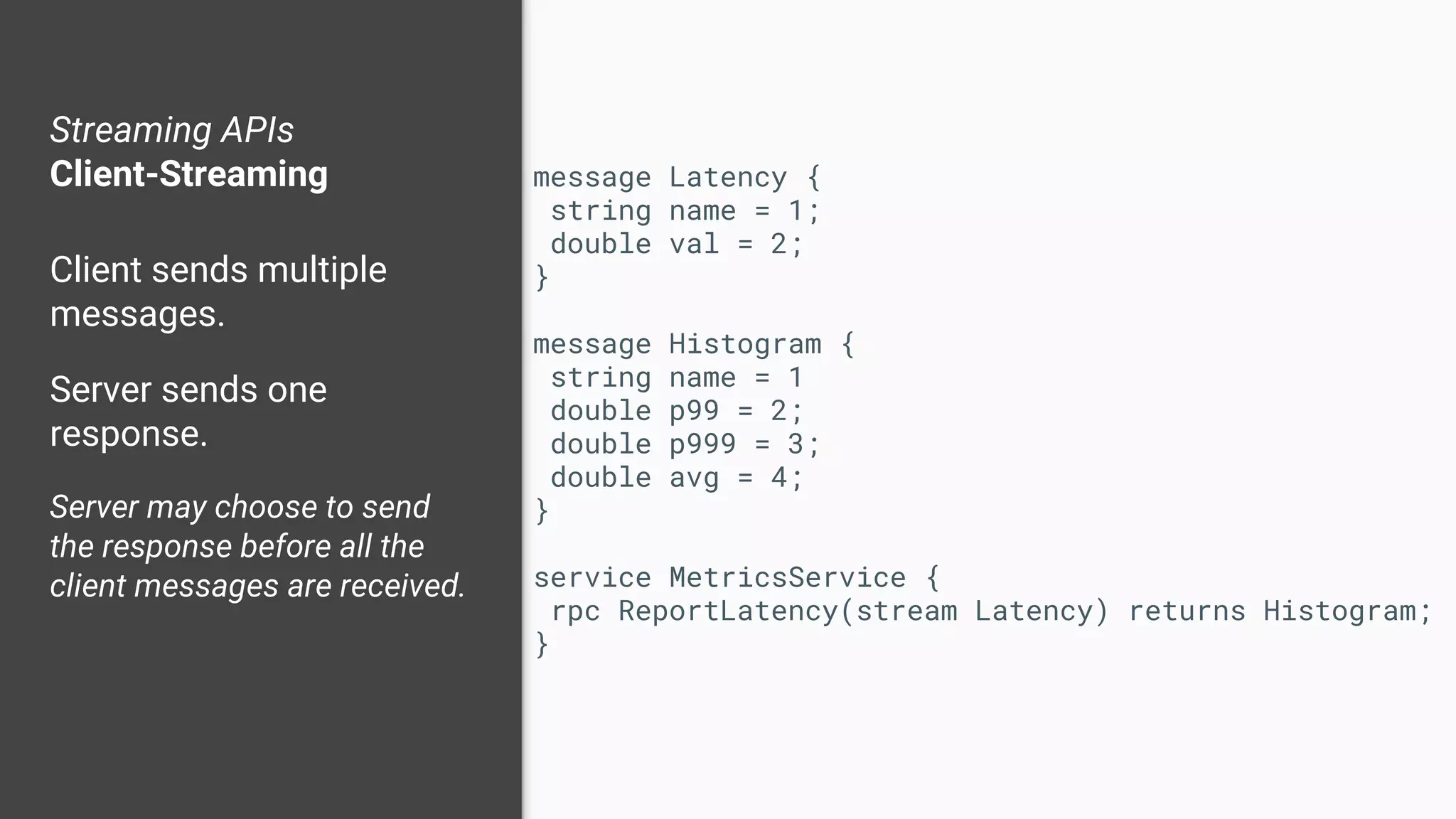

Streaming APIs
Client-Streaming
Client sends multiple
messages.
Server sends one
response.
Server may choose to send
the response before all the
client messages are received.
message Latency {
string name = 1;
double val = 2;
}
message Histogram {
string name = 1
double p99 = 2;
double p999 = 3;
double avg = 4;
}
service MetricsService {
rpc ReportLatency(stream Latency) returns Histogram;
}

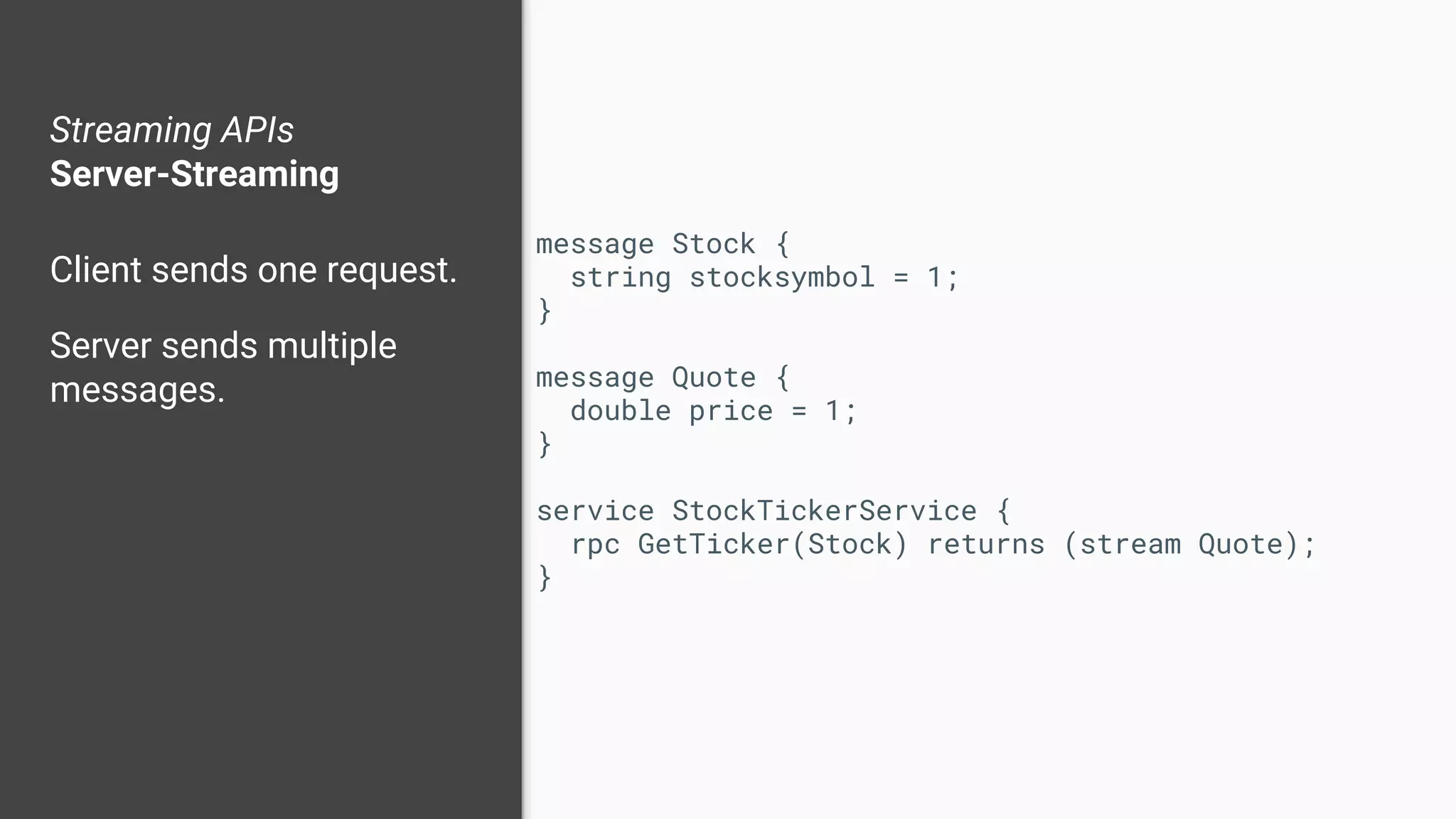

Streaming APIs
Server-Streaming
Client sends one request.
Server sends multiple
messages.
message Stock {
string stocksymbol = 1;
}
message Quote {
double price = 1;
}
service StockTickerService {
rpc GetTicker(Stock) returns (stream Quote);
}

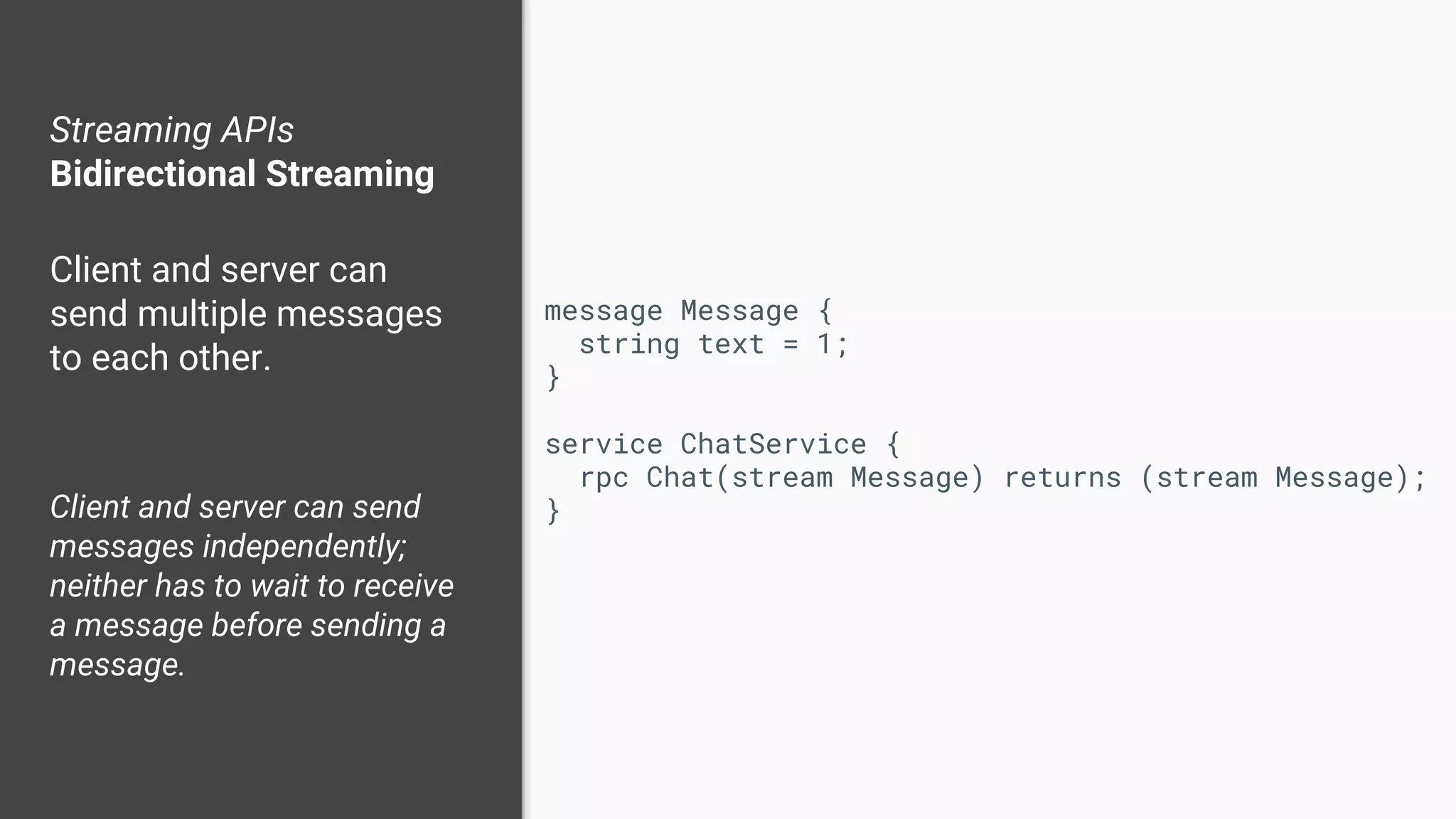

Streaming APIs
Bidirectional Streaming
Client and server can
send multiple messages
to each other.
Client and server can send
messages independently;
neither has to wait to receive
a message before sending a
message.
message Message {
string text = 1;
}
service ChatService {
rpc Chat(stream Message) returns (stream Message);
}

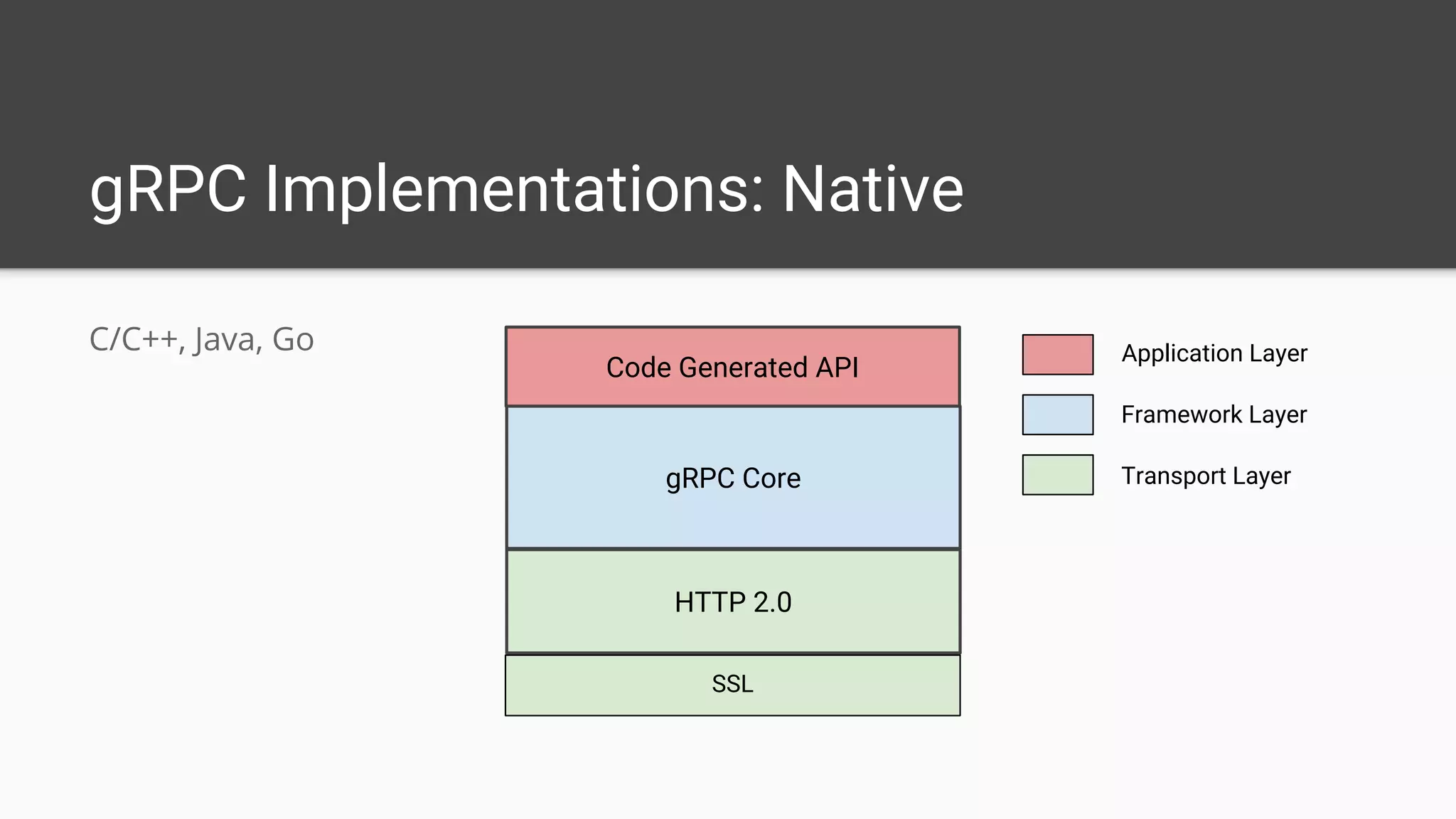

gRPC Implementations: Native
C/C++, Java, Go
gRPC Core
HTTP 2.0
SSL
Code Generated API
Application Layer
Framework Layer
Transport Layer

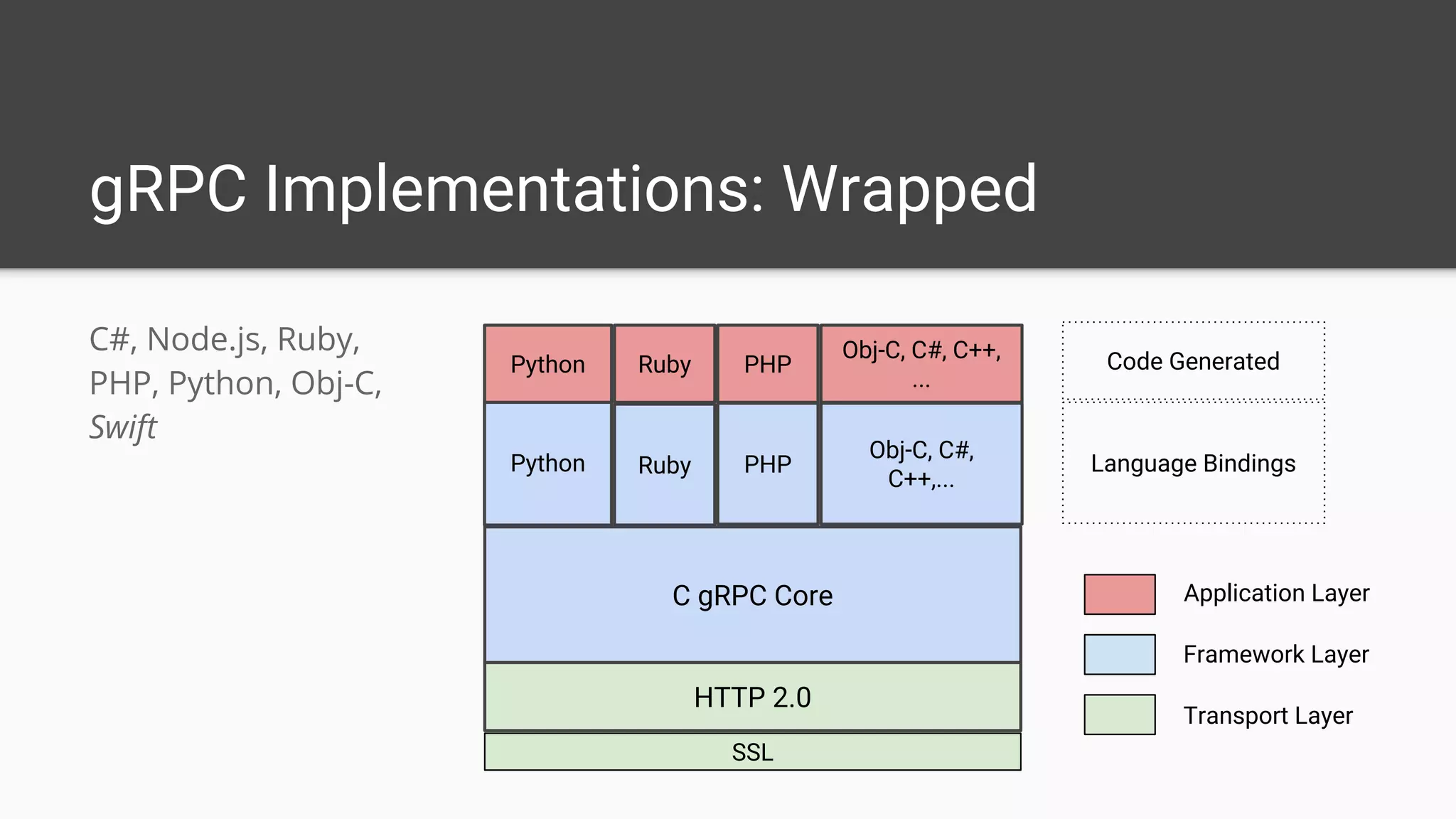

gRPC Implementations: Wrapped
C#, Node.js, Ruby,
PHP, Python, Obj-C,
Swift
Python
Obj-C, C#, C++,
...
Ruby PHPPython
C gRPC Core
HTTP 2.0
SSL
Language Bindings
Code Generated
Ruby PHP
Obj-C, C#,
C++,...
Application Layer
Framework Layer
Transport Layer

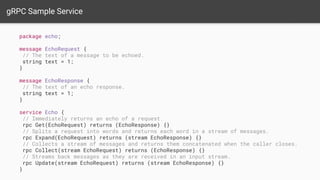

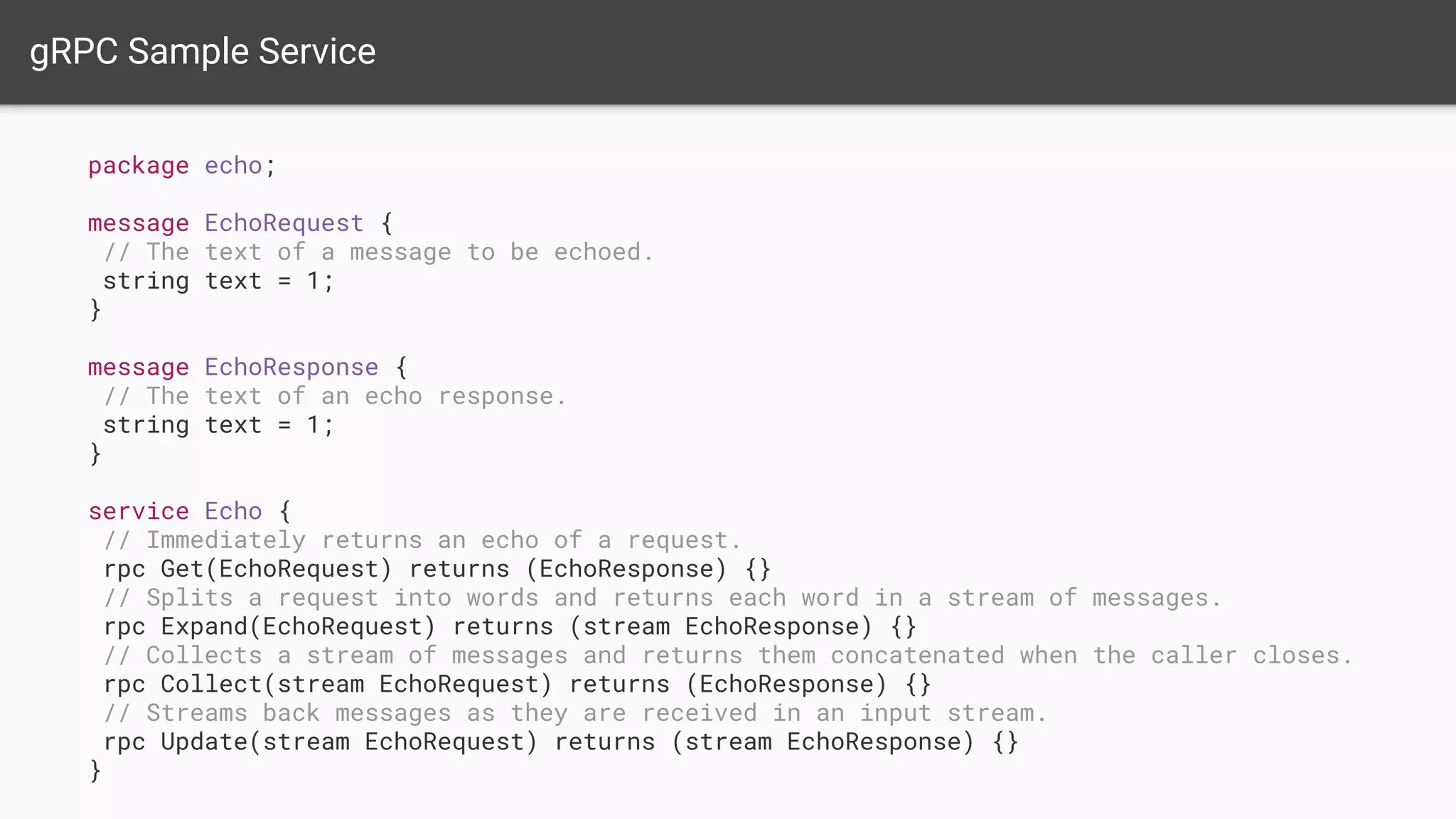

gRPC Sample Service
package echo;
message EchoRequest {
// The text of a message to be echoed.
string text = 1;
}
message EchoResponse {
// The text of an echo response.
string text = 1;
}
service Echo {
// Immediately returns an echo of a request.
rpc Get(EchoRequest) returns (EchoResponse) {}
// Splits a request into words and returns each word in a stream of messages.
rpc Expand(EchoRequest) returns (stream EchoResponse) {}
// Collects a stream of messages and returns them concatenated when the caller closes.
rpc Collect(stream EchoRequest) returns (EchoResponse) {}
// Streams back messages as they are received in an input stream.
rpc Update(stream EchoRequest) returns (stream EchoResponse) {}
}

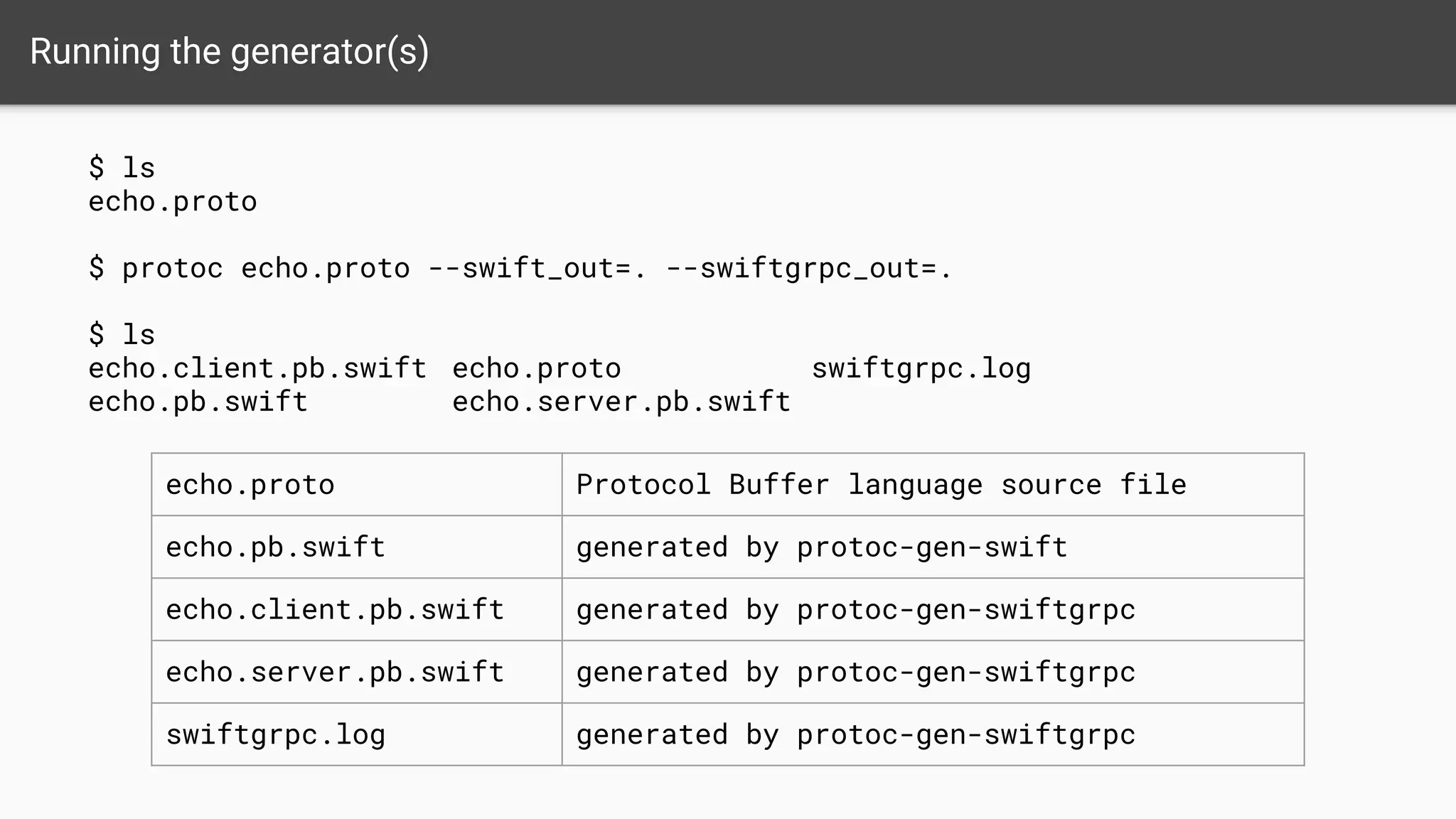

Running the generator(s)
$ ls
echo.proto
$ protoc echo.proto --swift_out=. --swiftgrpc_out=.
$ ls
echo.client.pb.swift echo.proto swiftgrpc.log
echo.pb.swift echo.server.pb.swift
echo.proto Protocol Buffer language source file
echo.pb.swift generated by protoc-gen-swift
echo.client.pb.swift generated by protoc-gen-swiftgrpc
echo.server.pb.swift generated by protoc-gen-swiftgrpc
swiftgrpc.log generated by protoc-gen-swiftgrpc

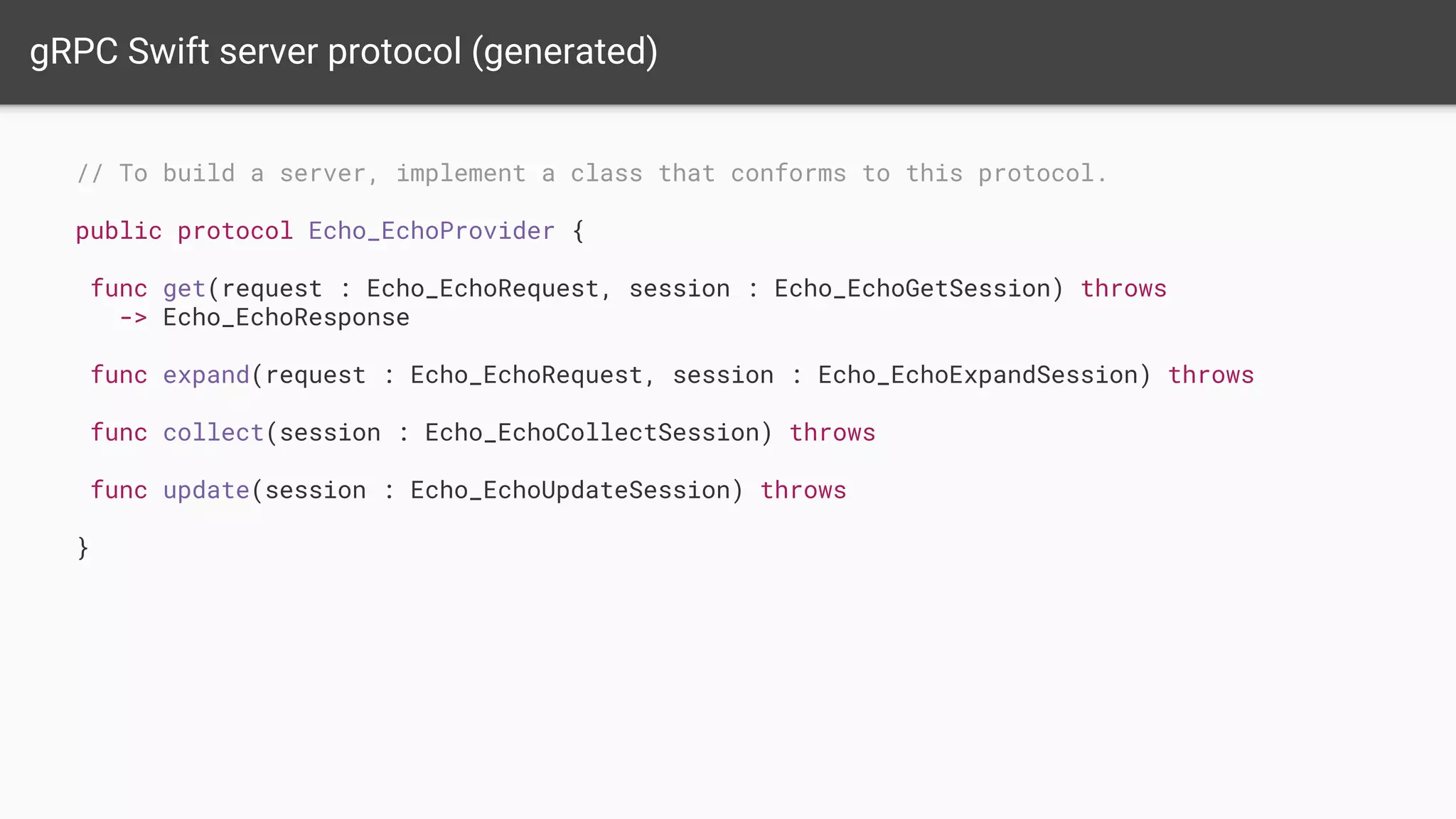

gRPC Swift server protocol (generated)
// To build a server, implement a class that conforms to this protocol.
public protocol Echo_EchoProvider {
func get(request : Echo_EchoRequest, session : Echo_EchoGetSession) throws
-> Echo_EchoResponse
func expand(request : Echo_EchoRequest, session : Echo_EchoExpandSession) throws
func collect(session : Echo_EchoCollectSession) throws
func update(session : Echo_EchoUpdateSession) throws
}

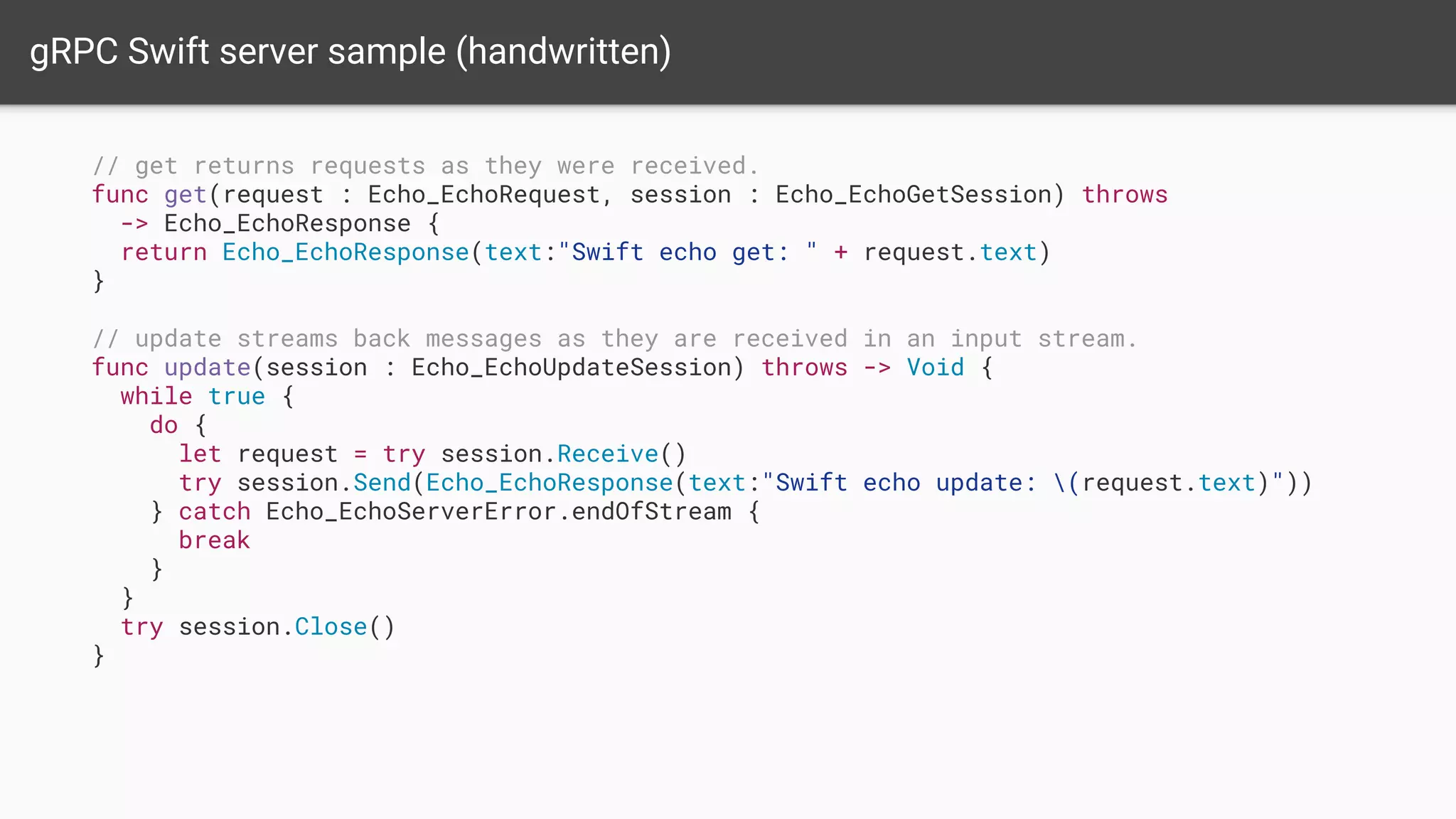

gRPC Swift server sample (handwritten)
// get returns requests as they were received.
func get(request : Echo_EchoRequest, session : Echo_EchoGetSession) throws
-> Echo_EchoResponse {
return Echo_EchoResponse(text:"Swift echo get: " + request.text)
}
// update streams back messages as they are received in an input stream.
func update(session : Echo_EchoUpdateSession) throws -> Void {
while true {
do {
let request = try session.Receive()
try session.Send(Echo_EchoResponse(text:"Swift echo update: (request.text)"))
} catch Echo_EchoServerError.endOfStream {
break
}
}
try session.Close()
}

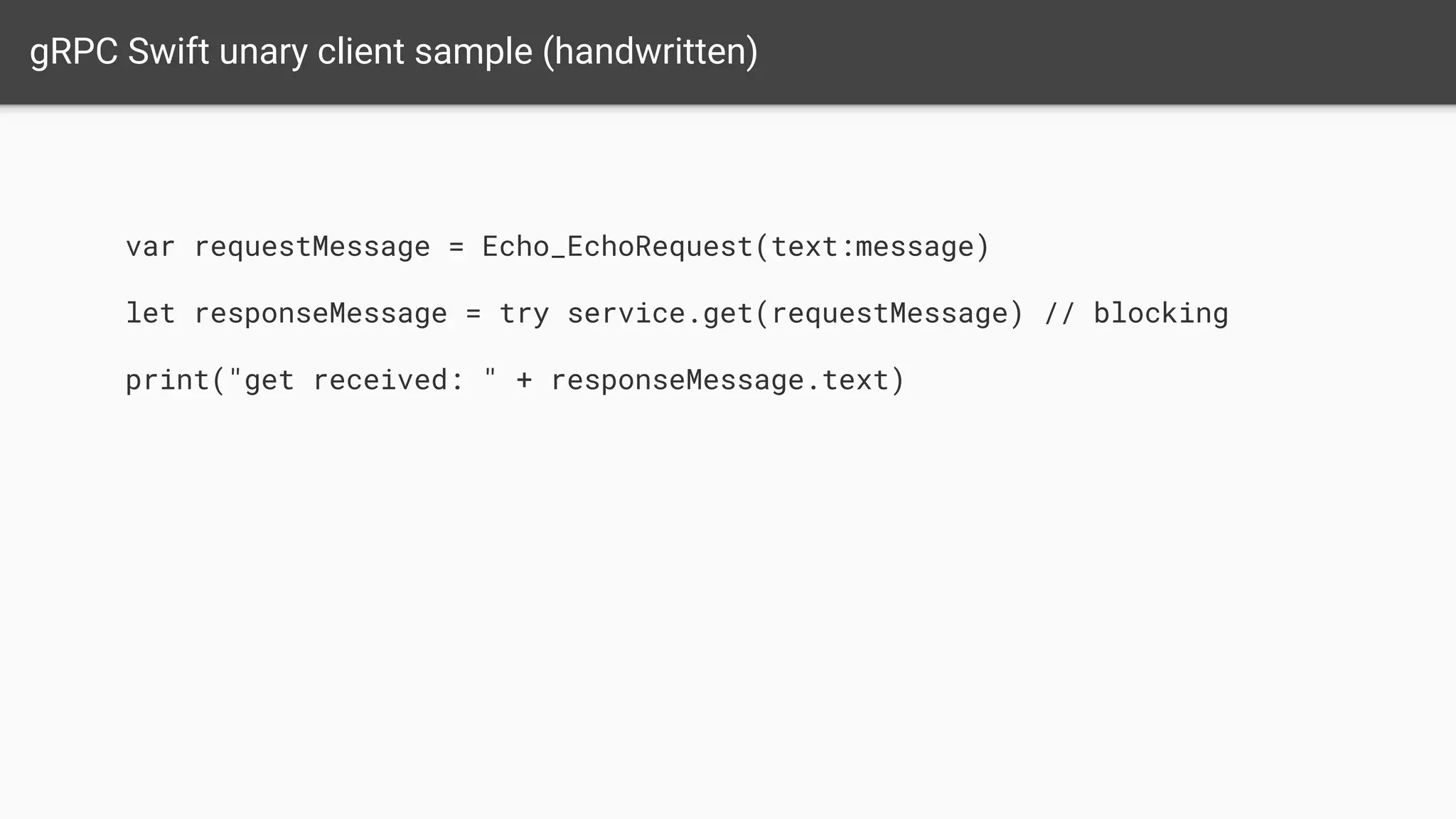

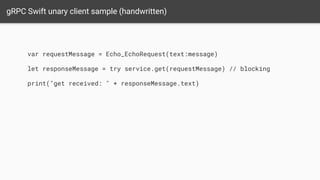

gRPC Swift unary client sample (handwritten)
var requestMessage = Echo_EchoRequest(text:message)
let responseMessage = try service.get(requestMessage) // blocking
print("get received: " + responseMessage.text)

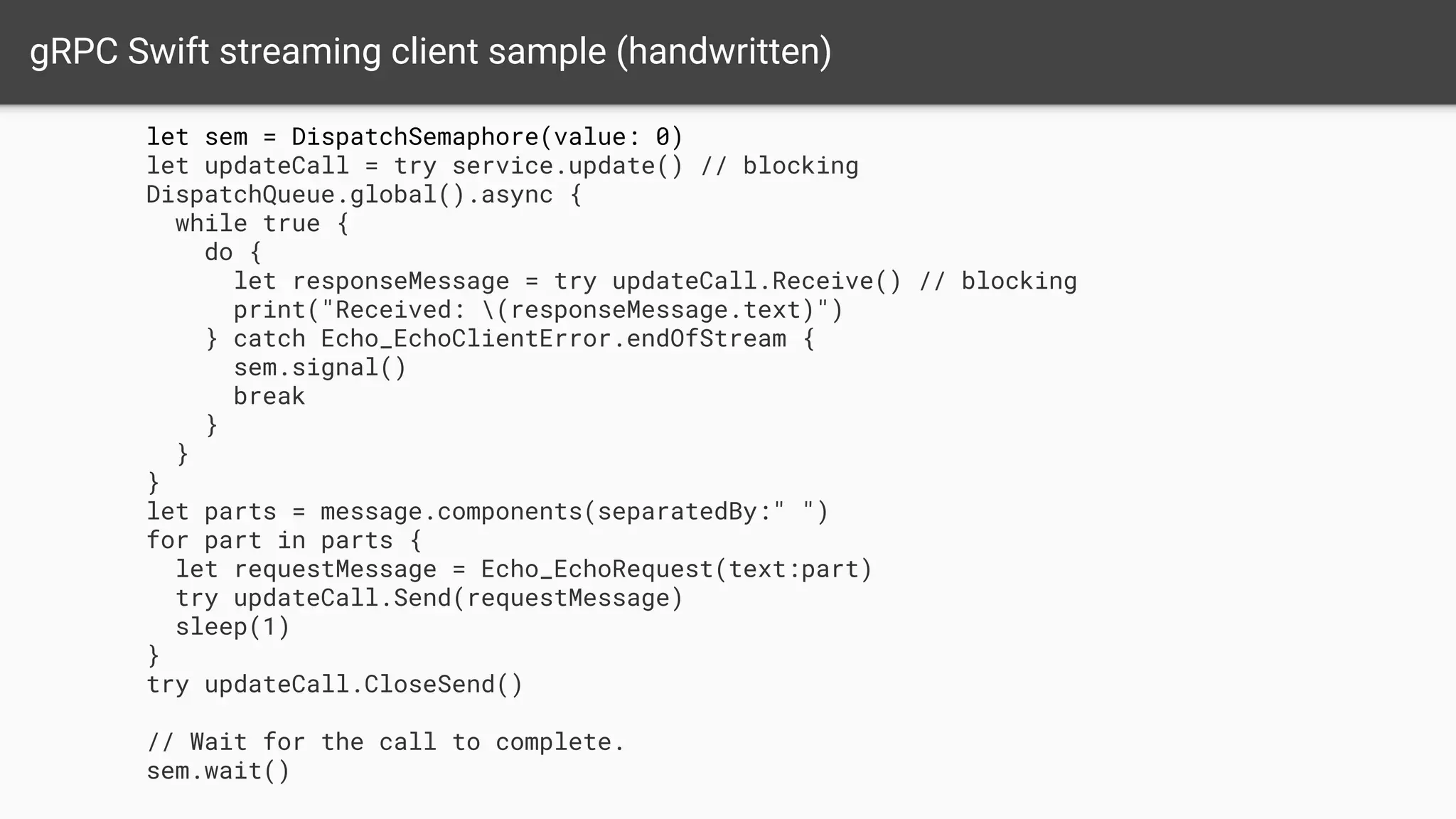

gRPC Swift streaming client sample (handwritten)
let sem = DispatchSemaphore(value: 0)
let updateCall = try service.update() // blocking
DispatchQueue.global().async {
while true {
do {
let responseMessage = try updateCall.Receive() // blocking
print("Received: (responseMessage.text)")
} catch Echo_EchoClientError.endOfStream {
sem.signal()
break
}
}
}
let parts = message.components(separatedBy:" ")
for part in parts {
let requestMessage = Echo_EchoRequest(text:part)
try updateCall.Send(requestMessage)
sleep(1)
}
try updateCall.CloseSend()
// Wait for the call to complete.
sem.wait()

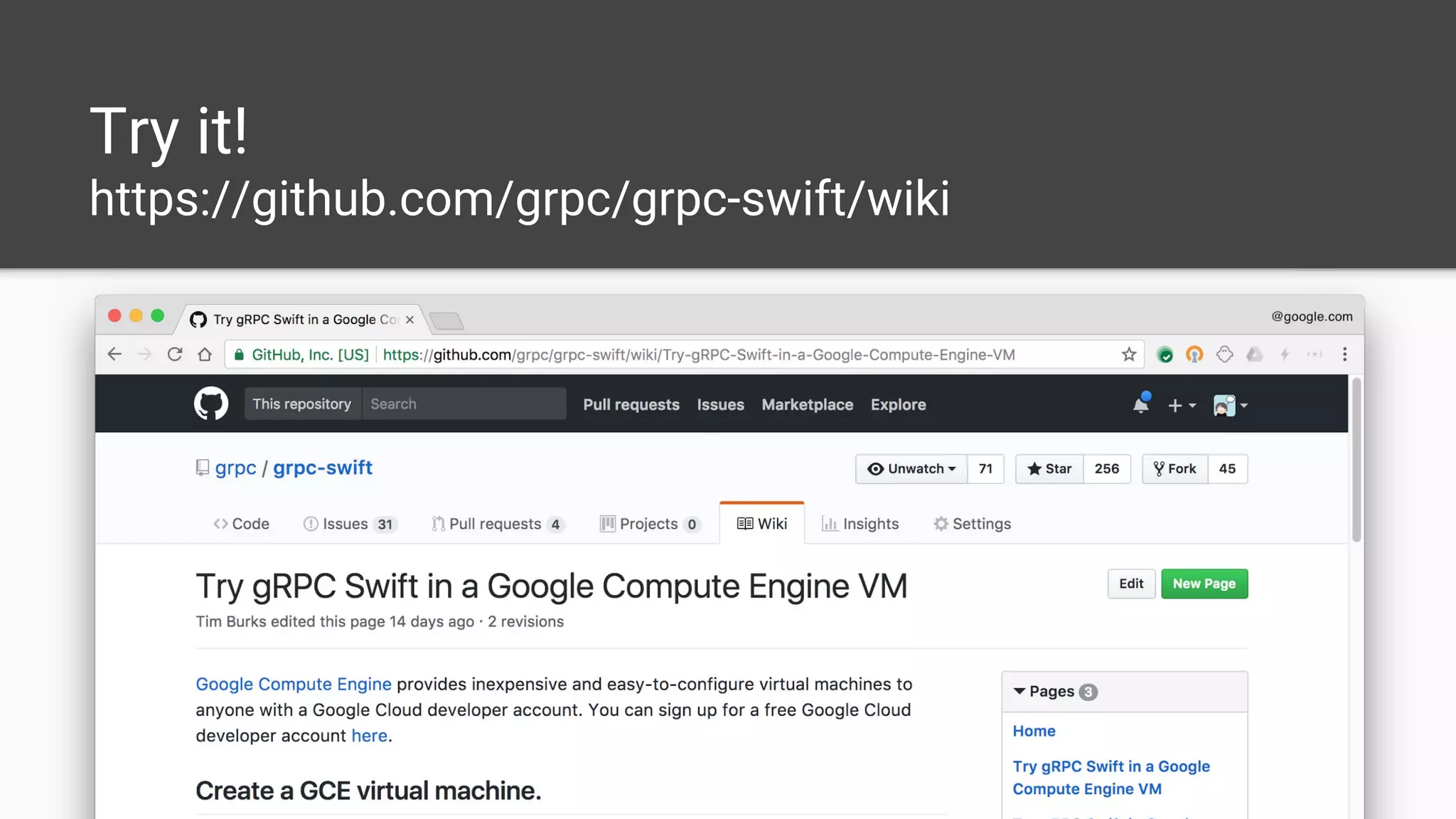

Try it!
https://github.com/grpc/grpc-swift/wiki

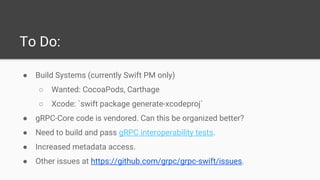

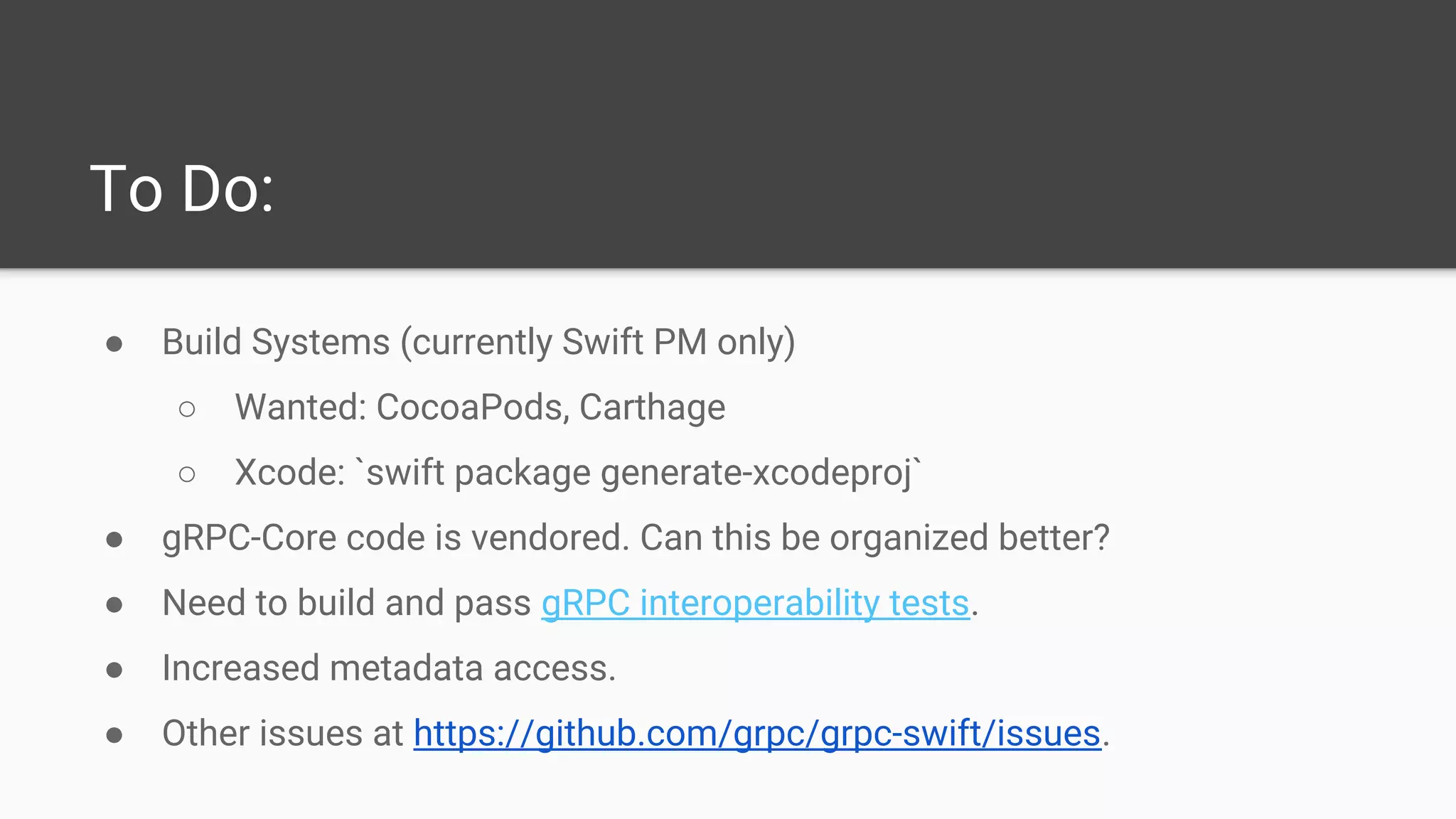

To Do:
● Build Systems (currently Swift PM only)
○ Wanted: CocoaPods, Carthage
○ Xcode: `swift package generate-xcodeproj`
● gRPC-Core code is vendored. Can this be organized better?
● Need to build and pass gRPC interoperability tests.
● Increased metadata access.
● Other issues at https://github.com/grpc/grpc-swift/issues.

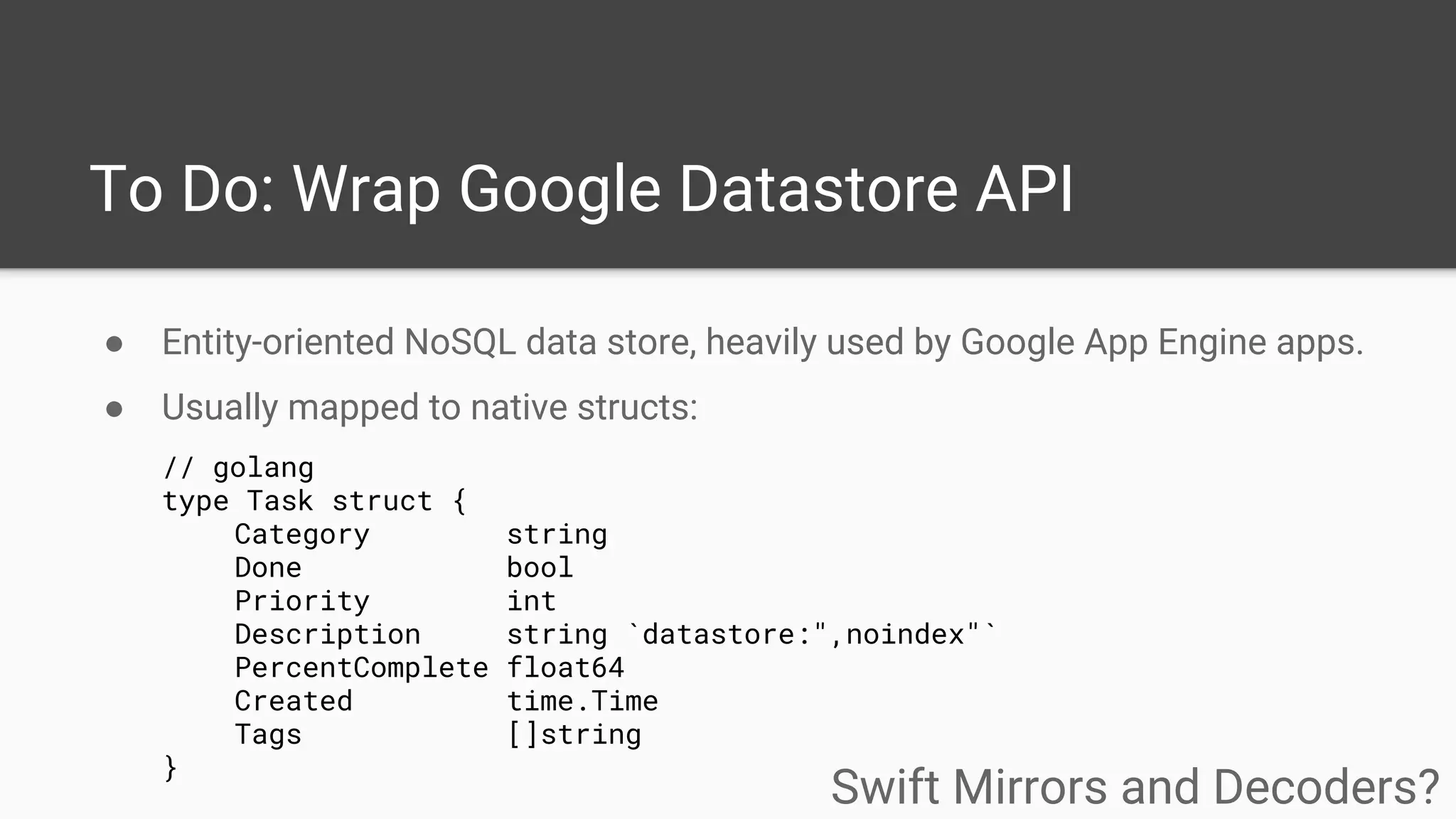

To Do: Wrap Google Datastore API
● Entity-oriented NoSQL data store, heavily used by Google App Engine apps.
● Usually mapped to native structs:
// golang
type Task struct {
Category string
Done bool
Priority int
Description string `datastore:",noindex"`
PercentComplete float64
Created time.Time
Tags []string
}
Swift Mirrors and Decoders?

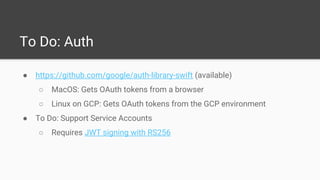

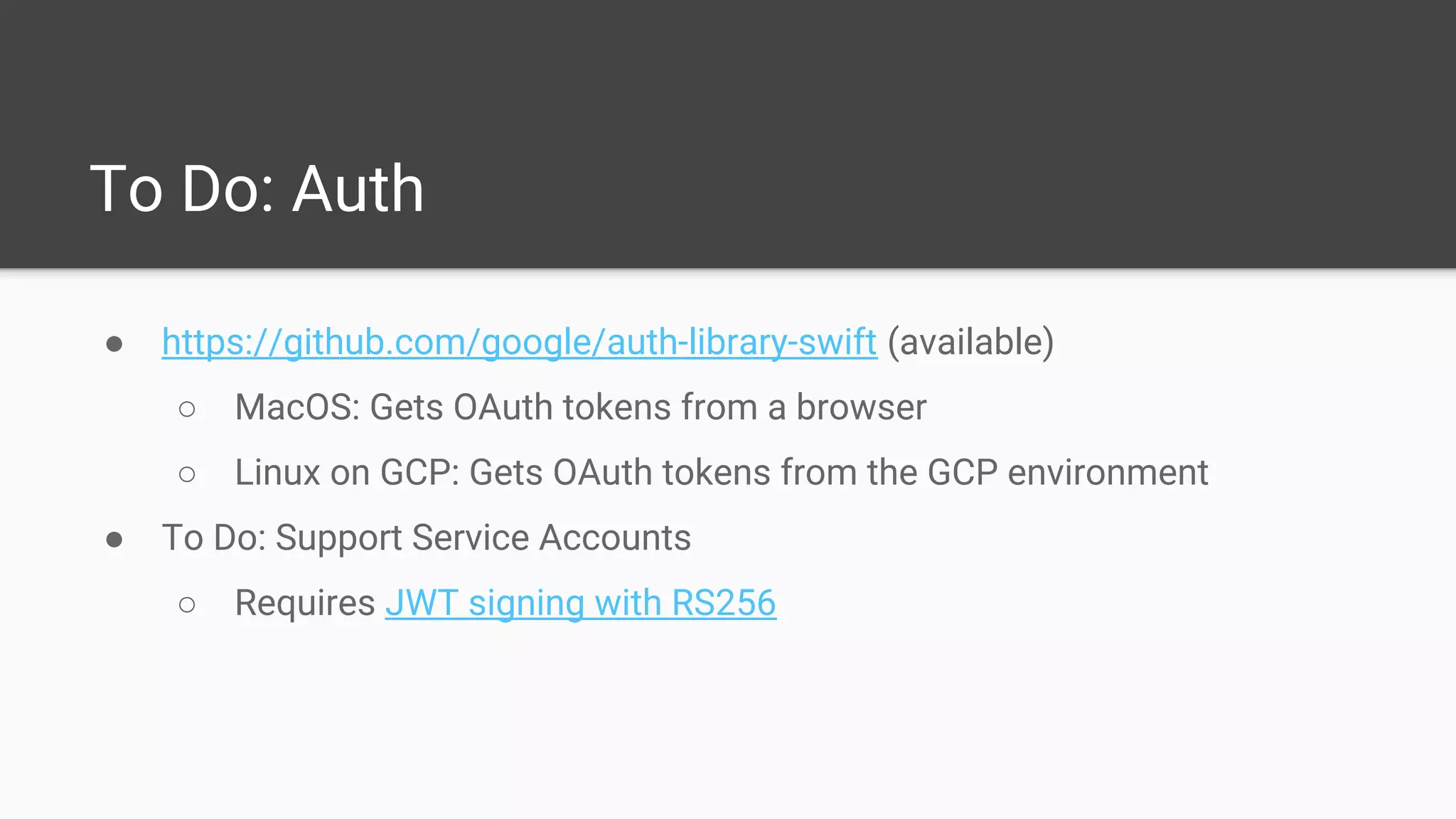

To Do: Auth
● https://github.com/google/auth-library-swift (available)
○ MacOS: Gets OAuth tokens from a browser
○ Linux on GCP: Gets OAuth tokens from the GCP environment
● To Do: Support Service Accounts
○ Requires JWT signing with RS256

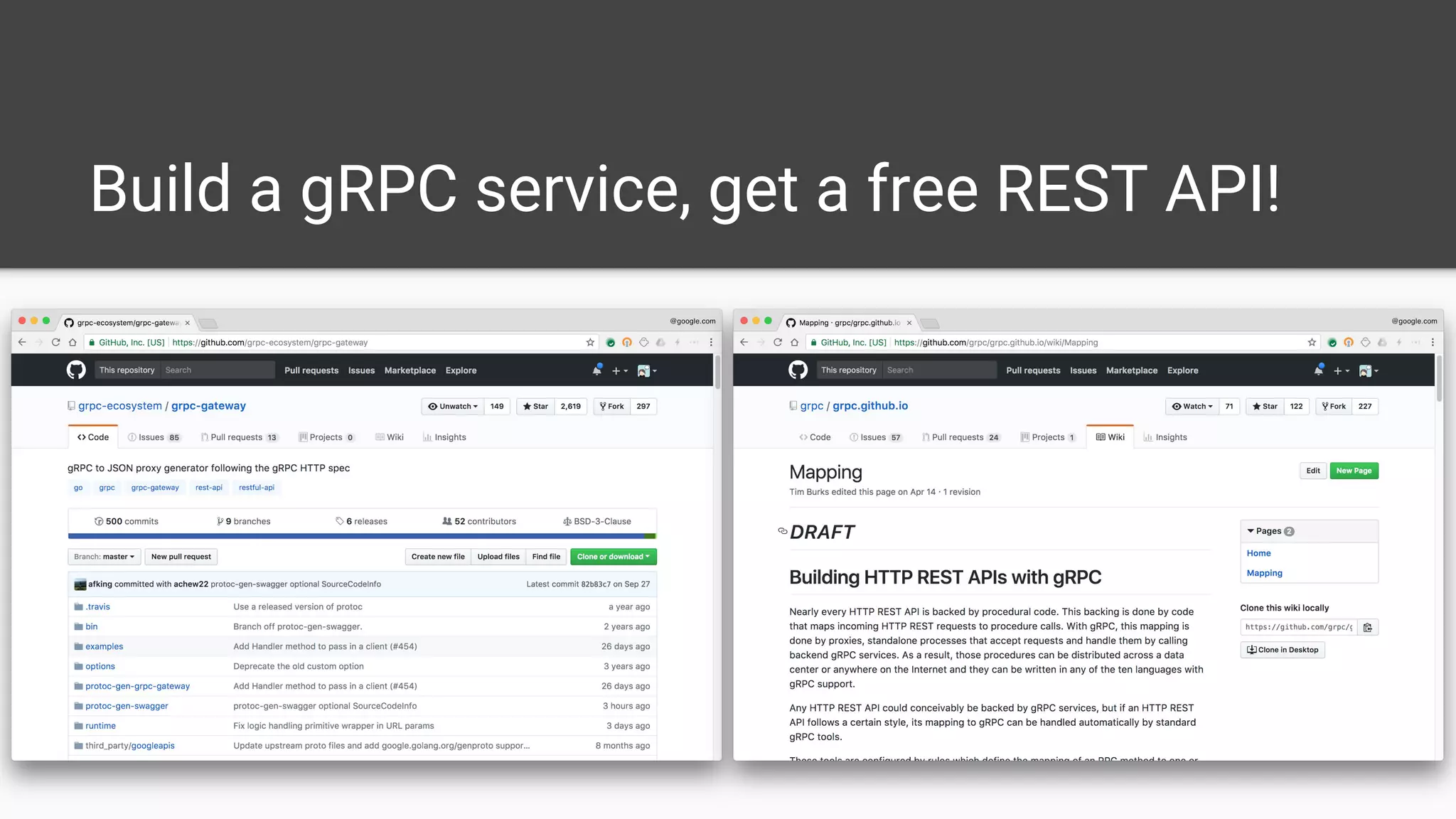

Build a gRPC service, get a free REST API!
Fast and Reliable Swift APIs with gRPC

More Related Content

What's hot

Building scalable and language independent java services using apache thrift
Building scalable and language independent java services using apache thriftBuilding scalable and language independent java services using apache thrift
Building scalable and language independent java services using apache thriftTalentica Software

Inroduction to golang
Inroduction to golangInroduction to golang
Inroduction to golangYoni Davidson

Knowledge Sharing Session on JavaScript Source Maps & Angular Compilation
Knowledge Sharing Session on JavaScript Source Maps & Angular CompilationKnowledge Sharing Session on JavaScript Source Maps & Angular Compilation
Knowledge Sharing Session on JavaScript Source Maps & Angular CompilationMd.Zahidur Rahman

Come With Golang
Come With GolangCome With Golang
Come With Golang尚文 曾

The Parenscript Common Lisp to JavaScript compiler
The Parenscript Common Lisp to JavaScript compilerThe Parenscript Common Lisp to JavaScript compiler
The Parenscript Common Lisp to JavaScript compilerVladimir Sedach

Open MPI State of the Union X SC'16 BOF
Open MPI State of the Union X SC'16 BOFOpen MPI State of the Union X SC'16 BOF
Open MPI State of the Union X SC'16 BOFJeff Squyres

gRPC: The Story of Microservices at Square
gRPC: The Story of Microservices at SquaregRPC: The Story of Microservices at Square
gRPC: The Story of Microservices at SquareApigee | Google Cloud

Debugging Python with gdb
Debugging Python with gdbDebugging Python with gdb
Debugging Python with gdbRoman Podoliaka

Translating Qt Applications
Translating Qt ApplicationsTranslating Qt Applications
Translating Qt Applicationsaccount inactive

TypeScript - Silver Bullet for the Full-stack Developers
TypeScript - Silver Bullet for the Full-stack DevelopersTypeScript - Silver Bullet for the Full-stack Developers
TypeScript - Silver Bullet for the Full-stack DevelopersRutenis Turcinas

IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...
IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...
IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...Mickael Istria

EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4Max Kleiner

parenscript-tutorial
parenscript-tutorialparenscript-tutorial
parenscript-tutorialtutorialsruby

Web technology slideshare
Web technology slideshareWeb technology slideshare
Web technology slideshareGuruAbirami2

vienna.js - Automatic testing of (RESTful) API documentation
vienna.js - Automatic testing of (RESTful) API documentationvienna.js - Automatic testing of (RESTful) API documentation
vienna.js - Automatic testing of (RESTful) API documentationRouven Weßling

Tech Days 2015: Multi-language Programming with GPRbuild
Tech Days 2015: Multi-language Programming with GPRbuildTech Days 2015: Multi-language Programming with GPRbuild
Tech Days 2015: Multi-language Programming with GPRbuildAdaCore

The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019
The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019
The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019corehard_by

Understanding how concurrency work in os
Understanding how concurrency work in osUnderstanding how concurrency work in os
Understanding how concurrency work in osGenchiLu1

Dependency management in golang
Dependency management in golangDependency management in golang
Dependency management in golangRamit Surana


What's hot (20)

Building scalable and language independent java services using apache thrift
Building scalable and language independent java services using apache thriftBuilding scalable and language independent java services using apache thrift
Building scalable and language independent java services using apache thrift

Inroduction to golang
Inroduction to golangInroduction to golang
Inroduction to golang

Knowledge Sharing Session on JavaScript Source Maps & Angular Compilation
Knowledge Sharing Session on JavaScript Source Maps & Angular CompilationKnowledge Sharing Session on JavaScript Source Maps & Angular Compilation
Knowledge Sharing Session on JavaScript Source Maps & Angular Compilation

Come With Golang
Come With GolangCome With Golang
Come With Golang

The Parenscript Common Lisp to JavaScript compiler
The Parenscript Common Lisp to JavaScript compilerThe Parenscript Common Lisp to JavaScript compiler
The Parenscript Common Lisp to JavaScript compiler

Open MPI State of the Union X SC'16 BOF
Open MPI State of the Union X SC'16 BOFOpen MPI State of the Union X SC'16 BOF
Open MPI State of the Union X SC'16 BOF

gRPC: The Story of Microservices at Square
gRPC: The Story of Microservices at SquaregRPC: The Story of Microservices at Square
gRPC: The Story of Microservices at Square

Debugging Python with gdb
Debugging Python with gdbDebugging Python with gdb
Debugging Python with gdb

Translating Qt Applications
Translating Qt ApplicationsTranslating Qt Applications
Translating Qt Applications

TypeScript - Silver Bullet for the Full-stack Developers
TypeScript - Silver Bullet for the Full-stack DevelopersTypeScript - Silver Bullet for the Full-stack Developers
TypeScript - Silver Bullet for the Full-stack Developers

IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...
IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...
IDE as a Front-end and Fast time-to-market language support in Eclipse IDE re...

EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4EKON 25 Python4Delphi_mX4
EKON 25 Python4Delphi_mX4

parenscript-tutorial
parenscript-tutorialparenscript-tutorial
parenscript-tutorial

Web technology slideshare
Web technology slideshareWeb technology slideshare
Web technology slideshare

vienna.js - Automatic testing of (RESTful) API documentation
vienna.js - Automatic testing of (RESTful) API documentationvienna.js - Automatic testing of (RESTful) API documentation
vienna.js - Automatic testing of (RESTful) API documentation

Mixing Python and Java
Mixing Python and JavaMixing Python and Java
Mixing Python and Java

Tech Days 2015: Multi-language Programming with GPRbuild
Tech Days 2015: Multi-language Programming with GPRbuildTech Days 2015: Multi-language Programming with GPRbuild
Tech Days 2015: Multi-language Programming with GPRbuild

The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019
The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019
The Hitchhiker's Guide to Faster Builds. Viktor Kirilov. CoreHard Spring 2019

Understanding how concurrency work in os
Understanding how concurrency work in osUnderstanding how concurrency work in os
Understanding how concurrency work in os

Dependency management in golang
Dependency management in golangDependency management in golang
Dependency management in golang


Viewers also liked

Gocon2017:Goのロギング周りの考察
Gocon2017:Goのロギング周りの考察Gocon2017:Goのロギング周りの考察
Gocon2017:Goのロギング周りの考察貴仁 大和屋

ドメインロジックの実装方法とドメイン駆動設計
ドメインロジックの実装方法とドメイン駆動設計ドメインロジックの実装方法とドメイン駆動設計
ドメインロジックの実装方法とドメイン駆動設計Tadayoshi Sato

C#実装から見るDDD(ドメイン駆動設計)
C#実装から見るDDD(ドメイン駆動設計)C#実装から見るDDD(ドメイン駆動設計)
C#実装から見るDDD(ドメイン駆動設計)Takuya Kawabe

Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介
Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介
Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介Kentoku

ScalaからGoへ
ScalaからGoへScalaからGoへ
ScalaからGoへJames Neve

An introduction and future of Ruby coverage library
An introduction and future of Ruby coverage libraryAn introduction and future of Ruby coverage library
An introduction and future of Ruby coverage librarymametter

Streaming Data Analytics with Amazon Redshift and Kinesis Firehose
Streaming Data Analytics with Amazon Redshift and Kinesis FirehoseStreaming Data Analytics with Amazon Redshift and Kinesis Firehose
Streaming Data Analytics with Amazon Redshift and Kinesis FirehoseAmazon Web Services

Operations: Production Readiness Review – How to stop bad things from Happening
Operations: Production Readiness Review – How to stop bad things from HappeningOperations: Production Readiness Review – How to stop bad things from Happening
Operations: Production Readiness Review – How to stop bad things from HappeningAmazon Web Services

golang.tokyo #6 (in Japanese)
golang.tokyo #6 (in Japanese)golang.tokyo #6 (in Japanese)
golang.tokyo #6 (in Japanese)Yuichi Murata

神に近づくx/net/context (Finding God with x/net/context)
神に近づくx/net/context (Finding God with x/net/context)神に近づくx/net/context (Finding God with x/net/context)
神に近づくx/net/context (Finding God with x/net/context)guregu

AndApp開発における全て #denatechcon
AndApp開発における全て #denatechconAndApp開発における全て #denatechcon
AndApp開発における全て #denatechconDeNA

AWS X-Rayによるアプリケーションの分析とデバッグ
AWS X-Rayによるアプリケーションの分析とデバッグAWS X-Rayによるアプリケーションの分析とデバッグ
AWS X-Rayによるアプリケーションの分析とデバッグAmazon Web Services Japan

Apache Spark Streaming + Kafka 0.10 with Joan Viladrosariera
Apache Spark Streaming + Kafka 0.10 with Joan ViladrosarieraApache Spark Streaming + Kafka 0.10 with Joan Viladrosariera
Apache Spark Streaming + Kafka 0.10 with Joan ViladrosarieraSpark Summit

MongoDBの可能性の話
MongoDBの可能性の話MongoDBの可能性の話
MongoDBの可能性の話Akihiro Kuwano

Swaggerでのapi開発よもやま話
Swaggerでのapi開発よもやま話Swaggerでのapi開発よもやま話
Swaggerでのapi開発よもやま話KEISUKE KONISHI


Viewers also liked (20)

Gocon2017:Goのロギング周りの考察
Gocon2017:Goのロギング周りの考察Gocon2017:Goのロギング周りの考察
Gocon2017:Goのロギング周りの考察

ドメインロジックの実装方法とドメイン駆動設計
ドメインロジックの実装方法とドメイン駆動設計ドメインロジックの実装方法とドメイン駆動設計
ドメインロジックの実装方法とドメイン駆動設計

RSpec 2 Best practices
RSpec 2 Best practicesRSpec 2 Best practices
RSpec 2 Best practices

C#実装から見るDDD(ドメイン駆動設計)
C#実装から見るDDD(ドメイン駆動設計)C#実装から見るDDD(ドメイン駆動設計)
C#実装から見るDDD(ドメイン駆動設計)

Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介
Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介
Spiderストレージエンジンの使い方と利用事例 他ストレージエンジンの紹介

ScalaからGoへ
ScalaからGoへScalaからGoへ
ScalaからGoへ

SLOのすすめ
SLOのすすめSLOのすすめ
SLOのすすめ

An introduction and future of Ruby coverage library
An introduction and future of Ruby coverage libraryAn introduction and future of Ruby coverage library
An introduction and future of Ruby coverage library

Blockchain on Go
Blockchain on GoBlockchain on Go
Blockchain on Go

Streaming Data Analytics with Amazon Redshift and Kinesis Firehose
Streaming Data Analytics with Amazon Redshift and Kinesis FirehoseStreaming Data Analytics with Amazon Redshift and Kinesis Firehose
Streaming Data Analytics with Amazon Redshift and Kinesis Firehose

Operations: Production Readiness Review – How to stop bad things from Happening
Operations: Production Readiness Review – How to stop bad things from HappeningOperations: Production Readiness Review – How to stop bad things from Happening
Operations: Production Readiness Review – How to stop bad things from Happening

golang.tokyo #6 (in Japanese)
golang.tokyo #6 (in Japanese)golang.tokyo #6 (in Japanese)
golang.tokyo #6 (in Japanese)

神に近づくx/net/context (Finding God with x/net/context)
神に近づくx/net/context (Finding God with x/net/context)神に近づくx/net/context (Finding God with x/net/context)
神に近づくx/net/context (Finding God with x/net/context)

AndApp開発における全て #denatechcon
AndApp開発における全て #denatechconAndApp開発における全て #denatechcon
AndApp開発における全て #denatechcon

AWS X-Rayによるアプリケーションの分析とデバッグ
AWS X-Rayによるアプリケーションの分析とデバッグAWS X-Rayによるアプリケーションの分析とデバッグ
AWS X-Rayによるアプリケーションの分析とデバッグ

Apache Spark Streaming + Kafka 0.10 with Joan Viladrosariera
Apache Spark Streaming + Kafka 0.10 with Joan ViladrosarieraApache Spark Streaming + Kafka 0.10 with Joan Viladrosariera
Apache Spark Streaming + Kafka 0.10 with Joan Viladrosariera

What’s New in Amazon Aurora
What’s New in Amazon AuroraWhat’s New in Amazon Aurora
What’s New in Amazon Aurora

MongoDBの可能性の話
MongoDBの可能性の話MongoDBの可能性の話
MongoDBの可能性の話

Microservices at Mercari
Microservices at MercariMicroservices at Mercari
Microservices at Mercari

Swaggerでのapi開発よもやま話
Swaggerでのapi開発よもやま話Swaggerでのapi開発よもやま話
Swaggerでのapi開発よもやま話


Similar to Fast and Reliable Swift APIs with gRPC

Networked APIs with swift
Networked APIs with swiftNetworked APIs with swift
Networked APIs with swiftTim Burks

CocoaConf: The Language of Mobile Software is APIs
CocoaConf: The Language of Mobile Software is APIsCocoaConf: The Language of Mobile Software is APIs
CocoaConf: The Language of Mobile Software is APIsTim Burks

What I learned about APIs in my first year at Google
What I learned about APIs in my first year at GoogleWhat I learned about APIs in my first year at Google
What I learned about APIs in my first year at GoogleTim Burks

Taming Cloud APIs with Swift
Taming Cloud APIs with SwiftTaming Cloud APIs with Swift
Taming Cloud APIs with SwiftTim Burks

apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...
apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...
apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...apidays

692015 programming assignment 1 building a multi­threaded w
692015 programming assignment 1 building a multi­threaded w692015 programming assignment 1 building a multi­threaded w
692015 programming assignment 1 building a multi­threaded wsmile790243

Web Server and how we can design app in C#
Web Server and how we can design app  in C#Web Server and how we can design app  in C#
Web Server and how we can design app in C#caohansnnuedu

Networking & Socket Programming In Java
Networking & Socket Programming In JavaNetworking & Socket Programming In Java
Networking & Socket Programming In JavaAnkur Agrawal

Creating Great REST and gRPC API Experiences (in Swift)
Creating Great REST and gRPC API Experiences (in Swift)Creating Great REST and gRPC API Experiences (in Swift)
Creating Great REST and gRPC API Experiences (in Swift)Tim Burks

Docker serverless v1.0
Docker serverless v1.0Docker serverless v1.0
Docker serverless v1.0Thomas Chacko

Running gRPC Services for Serving Legacy API on Kubernetes
Running gRPC Services for Serving Legacy API on KubernetesRunning gRPC Services for Serving Legacy API on Kubernetes
Running gRPC Services for Serving Legacy API on KubernetesSungwon Lee

Driving containerd operations with gRPC
Driving containerd operations with gRPCDriving containerd operations with gRPC
Driving containerd operations with gRPCDocker, Inc.

Iron Languages - NYC CodeCamp 2/19/2011
Iron Languages - NYC CodeCamp 2/19/2011Iron Languages - NYC CodeCamp 2/19/2011
Iron Languages - NYC CodeCamp 2/19/2011Jimmy Schementi

[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx
[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx
[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docxhanneloremccaffery

How to Leverage Go for Your Networking Needs
How to Leverage Go for Your Networking NeedsHow to Leverage Go for Your Networking Needs
How to Leverage Go for Your Networking NeedsDigitalOcean

Server side JavaScript: going all the way
Server side JavaScript: going all the wayServer side JavaScript: going all the way
Server side JavaScript: going all the wayOleg Podsechin

Clojure and the Web
Clojure and the WebClojure and the Web
Clojure and the Webnickmbailey


Similar to Fast and Reliable Swift APIs with gRPC (20)

Networked APIs with swift
Networked APIs with swiftNetworked APIs with swift
Networked APIs with swift

CocoaConf: The Language of Mobile Software is APIs
CocoaConf: The Language of Mobile Software is APIsCocoaConf: The Language of Mobile Software is APIs
CocoaConf: The Language of Mobile Software is APIs

What I learned about APIs in my first year at Google
What I learned about APIs in my first year at GoogleWhat I learned about APIs in my first year at Google
What I learned about APIs in my first year at Google

Taming Cloud APIs with Swift
Taming Cloud APIs with SwiftTaming Cloud APIs with Swift
Taming Cloud APIs with Swift

apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...
apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...
apidays LIVE Helsinki - Implementing OpenAPI and GraphQL Services with gRPC b...

Day01 api
Day01   apiDay01   api
Day01 api

692015 programming assignment 1 building a multi­threaded w
692015 programming assignment 1 building a multi­threaded w692015 programming assignment 1 building a multi­threaded w
692015 programming assignment 1 building a multi­threaded w

Web Server and how we can design app in C#
Web Server and how we can design app  in C#Web Server and how we can design app  in C#
Web Server and how we can design app in C#

Networking & Socket Programming In Java
Networking & Socket Programming In JavaNetworking & Socket Programming In Java
Networking & Socket Programming In Java

Creating Great REST and gRPC API Experiences (in Swift)
Creating Great REST and gRPC API Experiences (in Swift)Creating Great REST and gRPC API Experiences (in Swift)
Creating Great REST and gRPC API Experiences (in Swift)

Docker serverless v1.0
Docker serverless v1.0Docker serverless v1.0
Docker serverless v1.0

Intro to Node
Intro to NodeIntro to Node
Intro to Node

XML-RPC and SOAP (April 2003)
XML-RPC and SOAP (April 2003)XML-RPC and SOAP (April 2003)
XML-RPC and SOAP (April 2003)

Running gRPC Services for Serving Legacy API on Kubernetes
Running gRPC Services for Serving Legacy API on KubernetesRunning gRPC Services for Serving Legacy API on Kubernetes
Running gRPC Services for Serving Legacy API on Kubernetes

Driving containerd operations with gRPC
Driving containerd operations with gRPCDriving containerd operations with gRPC
Driving containerd operations with gRPC

Iron Languages - NYC CodeCamp 2/19/2011
Iron Languages - NYC CodeCamp 2/19/2011Iron Languages - NYC CodeCamp 2/19/2011
Iron Languages - NYC CodeCamp 2/19/2011

[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx
[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx
[Type text]ECET465Project 2Project Assignment 2 Building a Mul.docx

How to Leverage Go for Your Networking Needs
How to Leverage Go for Your Networking NeedsHow to Leverage Go for Your Networking Needs
How to Leverage Go for Your Networking Needs

Server side JavaScript: going all the way
Server side JavaScript: going all the wayServer side JavaScript: going all the way
Server side JavaScript: going all the way

Clojure and the Web
Clojure and the WebClojure and the Web
Clojure and the Web


More from Tim Burks

Governing APIs at Scale
Governing APIs at ScaleGoverning APIs at Scale
Governing APIs at ScaleTim Burks

Usable APIs at Scale
Usable APIs at ScaleUsable APIs at Scale
Usable APIs at ScaleTim Burks

Build your next REST API with gRPC
Build your next REST API with gRPCBuild your next REST API with gRPC
Build your next REST API with gRPCTim Burks

Implementing OpenAPI and GraphQL services with gRPC
Implementing OpenAPI and GraphQL services with gRPCImplementing OpenAPI and GraphQL services with gRPC
Implementing OpenAPI and GraphQL services with gRPCTim Burks

Enforcing API Design Rules for High Quality Code Generation
Enforcing API Design Rules for High Quality Code GenerationEnforcing API Design Rules for High Quality Code Generation
Enforcing API Design Rules for High Quality Code GenerationTim Burks

OpenAPI and gRPC Side by-Side
OpenAPI and gRPC Side by-SideOpenAPI and gRPC Side by-Side
OpenAPI and gRPC Side by-SideTim Burks

Interpreting Objective C
Interpreting Objective CInterpreting Objective C
Interpreting Objective CTim Burks

Deep Geek Diving into the iPhone OS and Frameworks
Deep Geek Diving into the iPhone OS and FrameworksDeep Geek Diving into the iPhone OS and Frameworks
Deep Geek Diving into the iPhone OS and FrameworksTim Burks

Building Open Radar
Building Open RadarBuilding Open Radar
Building Open RadarTim Burks


More from Tim Burks (9)

Governing APIs at Scale
Governing APIs at ScaleGoverning APIs at Scale
Governing APIs at Scale

Usable APIs at Scale
Usable APIs at ScaleUsable APIs at Scale
Usable APIs at Scale

Build your next REST API with gRPC
Build your next REST API with gRPCBuild your next REST API with gRPC
Build your next REST API with gRPC

Implementing OpenAPI and GraphQL services with gRPC
Implementing OpenAPI and GraphQL services with gRPCImplementing OpenAPI and GraphQL services with gRPC
Implementing OpenAPI and GraphQL services with gRPC

Enforcing API Design Rules for High Quality Code Generation
Enforcing API Design Rules for High Quality Code GenerationEnforcing API Design Rules for High Quality Code Generation
Enforcing API Design Rules for High Quality Code Generation

OpenAPI and gRPC Side by-Side
OpenAPI and gRPC Side by-SideOpenAPI and gRPC Side by-Side
OpenAPI and gRPC Side by-Side

Interpreting Objective C
Interpreting Objective CInterpreting Objective C
Interpreting Objective C

Deep Geek Diving into the iPhone OS and Frameworks
Deep Geek Diving into the iPhone OS and FrameworksDeep Geek Diving into the iPhone OS and Frameworks
Deep Geek Diving into the iPhone OS and Frameworks

Building Open Radar
Building Open RadarBuilding Open Radar
Building Open Radar


Recently uploaded

Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-CloudAlluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-CloudAlluxio, Inc.

Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...drm1699

GraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with GraphGraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with GraphNeo4j

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConNatan Silnitsky

Weeding your micro service landscape.pdf
Weeding your micro service landscape.pdfWeeding your micro service landscape.pdf
Weeding your micro service landscape.pdftimtebeek1

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAShane Coughlan

Auto Affiliate AI Earns First Commission in 3 Hours..pdf
Auto Affiliate  AI Earns First Commission in 3 Hours..pdfAuto Affiliate  AI Earns First Commission in 3 Hours..pdf
Auto Affiliate AI Earns First Commission in 3 Hours..pdfSelfMade bd

UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida
UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale IbridaUNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida
UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale IbridaNeo4j

Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Lisi Hocke

[GRCPP] Introduction to concepts (C++20)
[GRCPP] Introduction to concepts (C++20)[GRCPP] Introduction to concepts (C++20)
[GRCPP] Introduction to concepts (C++20)Dimitrios Platis

A Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdfA Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdfICS

Workshop - Architecting Innovative Graph Applications- GraphSummit Milan
Workshop -  Architecting Innovative Graph Applications- GraphSummit MilanWorkshop -  Architecting Innovative Graph Applications- GraphSummit Milan
Workshop - Architecting Innovative Graph Applications- GraphSummit MilanNeo4j

Transformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksTransformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksJinanKordab

Modern binary build systems - PyCon 2024
Modern binary build systems - PyCon 2024Modern binary build systems - PyCon 2024
Modern binary build systems - PyCon 2024Henry Schreiner

Automate your OpenSIPS config tests - OpenSIPS Summit 2024
Automate your OpenSIPS config tests - OpenSIPS Summit 2024Automate your OpenSIPS config tests - OpenSIPS Summit 2024
Automate your OpenSIPS config tests - OpenSIPS Summit 2024Andreas Granig

From Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIFrom Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIInflectra

Test Automation Design Patterns_ A Comprehensive Guide.pdf
Test Automation Design Patterns_ A Comprehensive Guide.pdfTest Automation Design Patterns_ A Comprehensive Guide.pdf
Test Automation Design Patterns_ A Comprehensive Guide.pdfkalichargn70th171


Recently uploaded (20)

Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-CloudAlluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud
Alluxio Monthly Webinar | Simplify Data Access for AI in Multi-Cloud

Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...
Abortion Pills For Sale WhatsApp[[+27737758557]] In Birch Acres, Abortion Pil...

GraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with GraphGraphSummit Milan - Neo4j: The Art of the Possible with Graph
GraphSummit Milan - Neo4j: The Art of the Possible with Graph

Effective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeConEffective Strategies for Wix's Scaling challenges - GeeCon
Effective Strategies for Wix's Scaling challenges - GeeCon

Weeding your micro service landscape.pdf
Weeding your micro service landscape.pdfWeeding your micro service landscape.pdf
Weeding your micro service landscape.pdf

OpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCAOpenChain Webinar: AboutCode and Beyond - End-to-End SCA
OpenChain Webinar: AboutCode and Beyond - End-to-End SCA

Auto Affiliate AI Earns First Commission in 3 Hours..pdf
Auto Affiliate  AI Earns First Commission in 3 Hours..pdfAuto Affiliate  AI Earns First Commission in 3 Hours..pdf
Auto Affiliate AI Earns First Commission in 3 Hours..pdf

UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida
UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale IbridaUNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida
UNI DI NAPOLI FEDERICO II - Il ruolo dei grafi nell'AI Conversazionale Ibrida

Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...
Team Transformation Tactics for Holistic Testing and Quality (NewCrafts Paris...

[GRCPP] Introduction to concepts (C++20)
[GRCPP] Introduction to concepts (C++20)[GRCPP] Introduction to concepts (C++20)
[GRCPP] Introduction to concepts (C++20)

A Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdfA Deep Dive into Secure Product Development Frameworks.pdf
A Deep Dive into Secure Product Development Frameworks.pdf

Abortion Pill Prices Mthatha (@](+27832195400*)[ 🏥 Women's Abortion Clinic In...
Abortion Pill Prices Mthatha (@](+27832195400*)[ 🏥 Women's Abortion Clinic In...Abortion Pill Prices Mthatha (@](+27832195400*)[ 🏥 Women's Abortion Clinic In...
Abortion Pill Prices Mthatha (@](+27832195400*)[ 🏥 Women's Abortion Clinic In...

Workshop - Architecting Innovative Graph Applications- GraphSummit Milan
Workshop -  Architecting Innovative Graph Applications- GraphSummit MilanWorkshop -  Architecting Innovative Graph Applications- GraphSummit Milan
Workshop - Architecting Innovative Graph Applications- GraphSummit Milan

Transformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with LinksTransformer Neural Network Use Cases with Links
Transformer Neural Network Use Cases with Links

Modern binary build systems - PyCon 2024
Modern binary build systems - PyCon 2024Modern binary build systems - PyCon 2024
Modern binary build systems - PyCon 2024

Automate your OpenSIPS config tests - OpenSIPS Summit 2024
Automate your OpenSIPS config tests - OpenSIPS Summit 2024Automate your OpenSIPS config tests - OpenSIPS Summit 2024
Automate your OpenSIPS config tests - OpenSIPS Summit 2024

Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...
Abortion Pill Prices Germiston ](+27832195400*)[ 🏥 Women's Abortion Clinic in...

From Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST APIFrom Theory to Practice: Utilizing SpiraPlan's REST API
From Theory to Practice: Utilizing SpiraPlan's REST API

Abortion Pill Prices Jozini ](+27832195400*)[ 🏥 Women's Abortion Clinic in Jo...
Abortion Pill Prices Jozini ](+27832195400*)[ 🏥 Women's Abortion Clinic in Jo...Abortion Pill Prices Jozini ](+27832195400*)[ 🏥 Women's Abortion Clinic in Jo...
Abortion Pill Prices Jozini ](+27832195400*)[ 🏥 Women's Abortion Clinic in Jo...

Test Automation Design Patterns_ A Comprehensive Guide.pdf
Test Automation Design Patterns_ A Comprehensive Guide.pdfTest Automation Design Patterns_ A Comprehensive Guide.pdf
Test Automation Design Patterns_ A Comprehensive Guide.pdf


Fast and Reliable Swift APIs with gRPC

  • 1. Fast and Reliable Swift APIs with gRPC Tim Burks Google, Inc.
  • 2. I’m talking about Networked APIs. Application Programming Interfaces that operate across a network of computers. They communicate using network protocols including HTTP, and are frequently produced by different organizations than the ones that consume them. Google API Design Guide: Glossary
  • 4. I hate SDKs. Closed-Source SDKs: ● Snoop user or developer data. ● Do other unauthorized things. ● Fail to build or run. Open-Source SDKs: ● Also fail to build or run. ● Introduce dependencies that I don’t want. ● Are just ugly and gross.
  • 5. but now I make SDKs… ● google-cloud-python ● google-cloud-node ● google-cloud-ruby ● google-cloud-java ● google-cloud-go ● google-cloud-php ● google-cloud-dotnet ● google-api-python-client ● google-api-nodejs-client ● google-api-ruby-client ● google-api-java-client ● google-api-go-client ● google-api-php-client ● google-api-dotnet-client ● google-api-objectivec-client ● google-api-objectivec-client-for-rest

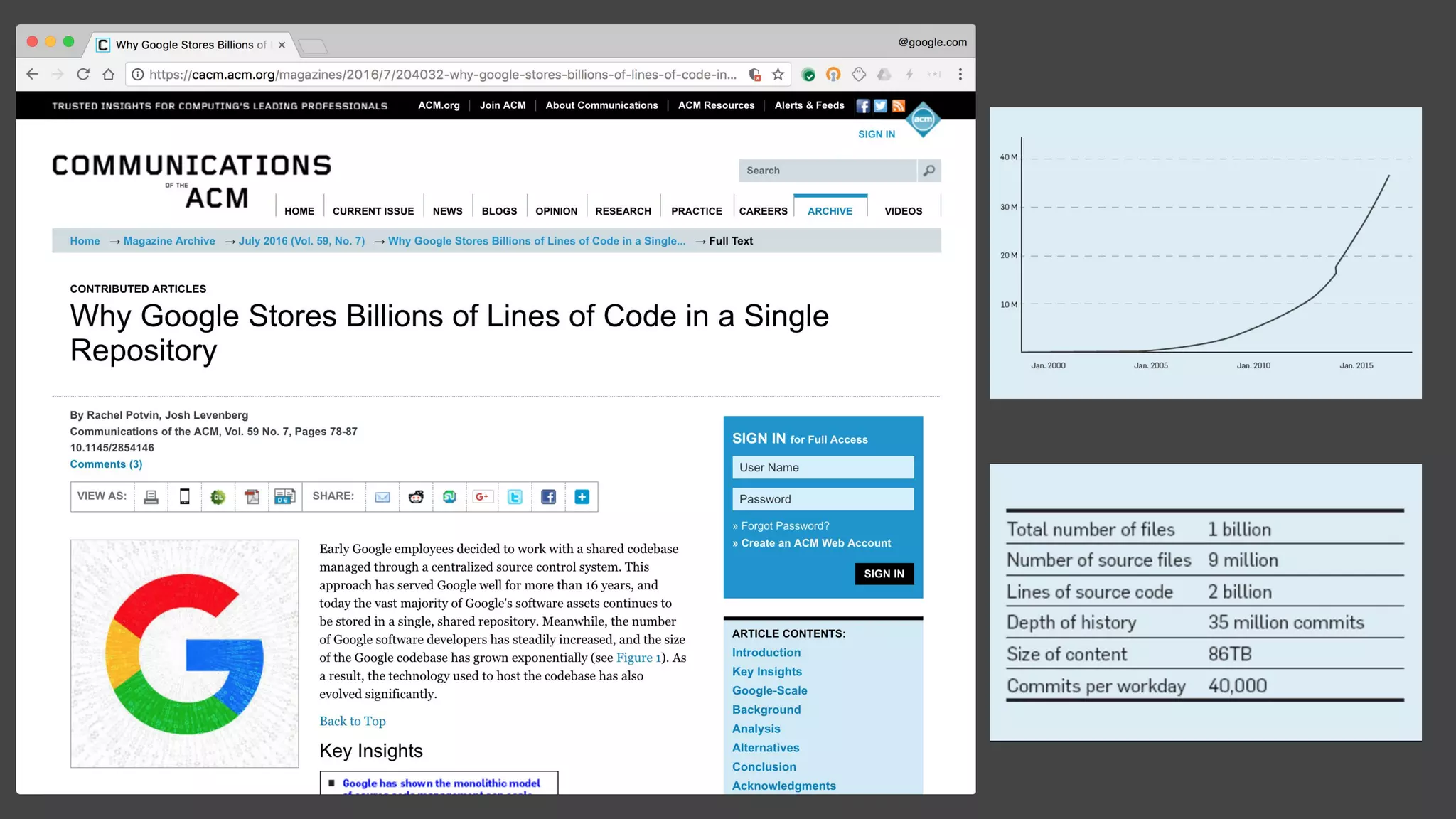

  • 7.
  • 9. Protocol Buffers a language-neutral, platform-neutral, extensible mechanism for serializing structured data.
  • 10. “Protocol Buffers” means several things 1. A serialization mechanism 2. An interface description language 3. A methodology
  • 11. Protocol Buffer Serialization It’s just a stream of bytes [field_number<<3 + wire_type] [length if necessary] [data]... $ hexdump /tmp/request.bin 0000000 0a 05 68 65 6c 6c 6f 0a is “0000 1010”, so field_number = 1 and wire_type = 2
  • 12. The Protocol Buffer Language package echo; message EchoRequest { string text = 1; } message EchoResponse { string text = 1; } service Echo { rpc Get(EchoRequest) returns (EchoResponse) {} rpc Update(stream EchoRequest) returns (stream EchoResponse) {} }
  • 13. The Protocol Buffer Methodology $ protoc echo.proto -o echo.out --swift_out=. $ which protoc-gen-swift ../bin/protoc-gen-swift $ more echo.pb.swift // DO NOT EDIT. // // Generated by the Swift generator plugin... // Source: echo.proto
  • 14.

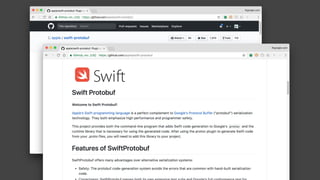

  • 15.
  • 16.

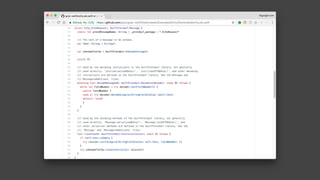

  • 17.
  • 18. Interface Builder for Data message Person { string name = 1; int32 id = 2; string email = 3; message PhoneNumber { string number = 1; } repeated PhoneNumber phone = 4; } Interface Builder: Developers specify their interfaces using a special tool, tooling compiles and integrates that into their apps. Protocol Buffers: Developers specify their data structures using a special language, tooling compiles and integrates that into their apps.

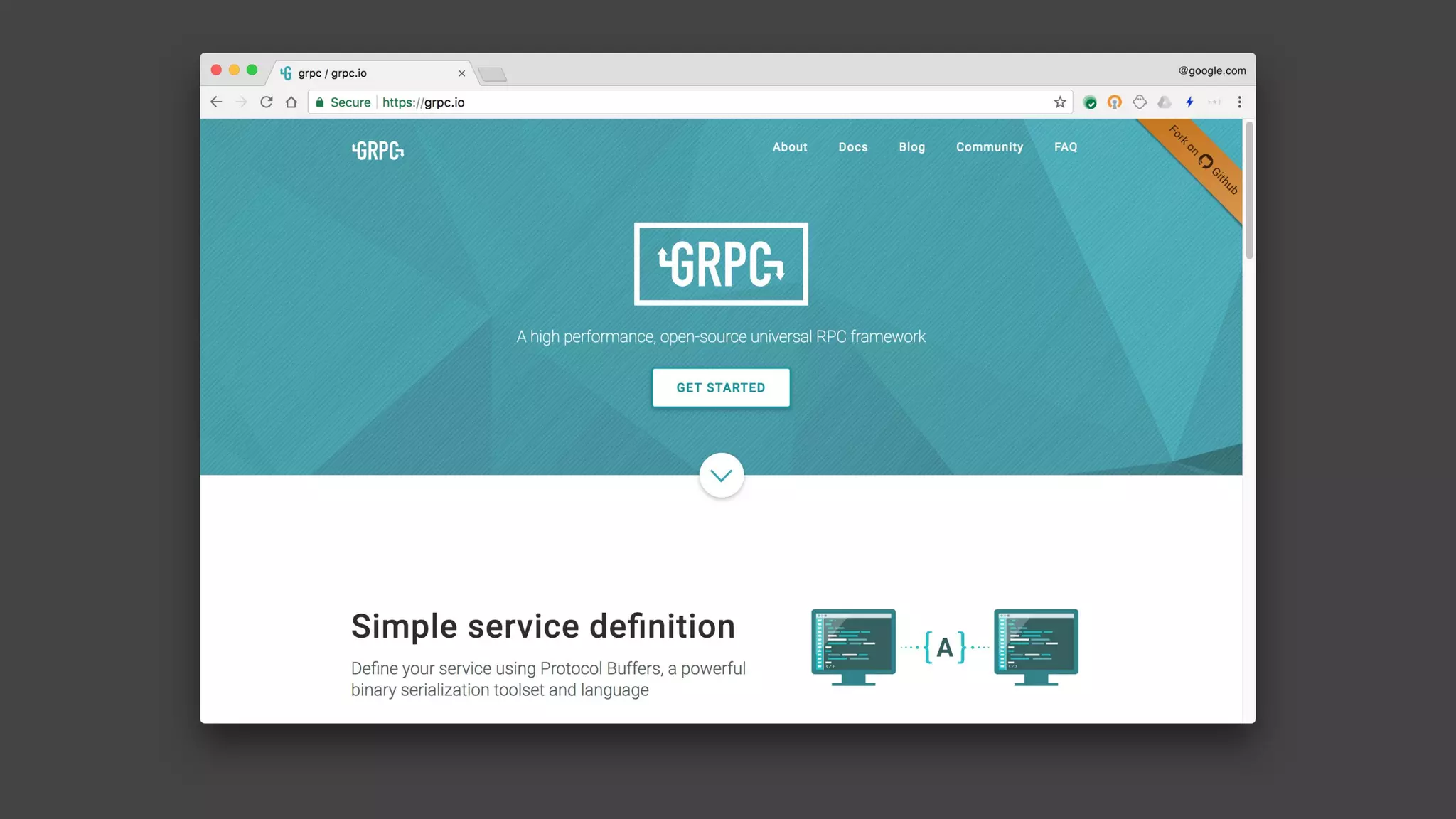

  • 20.

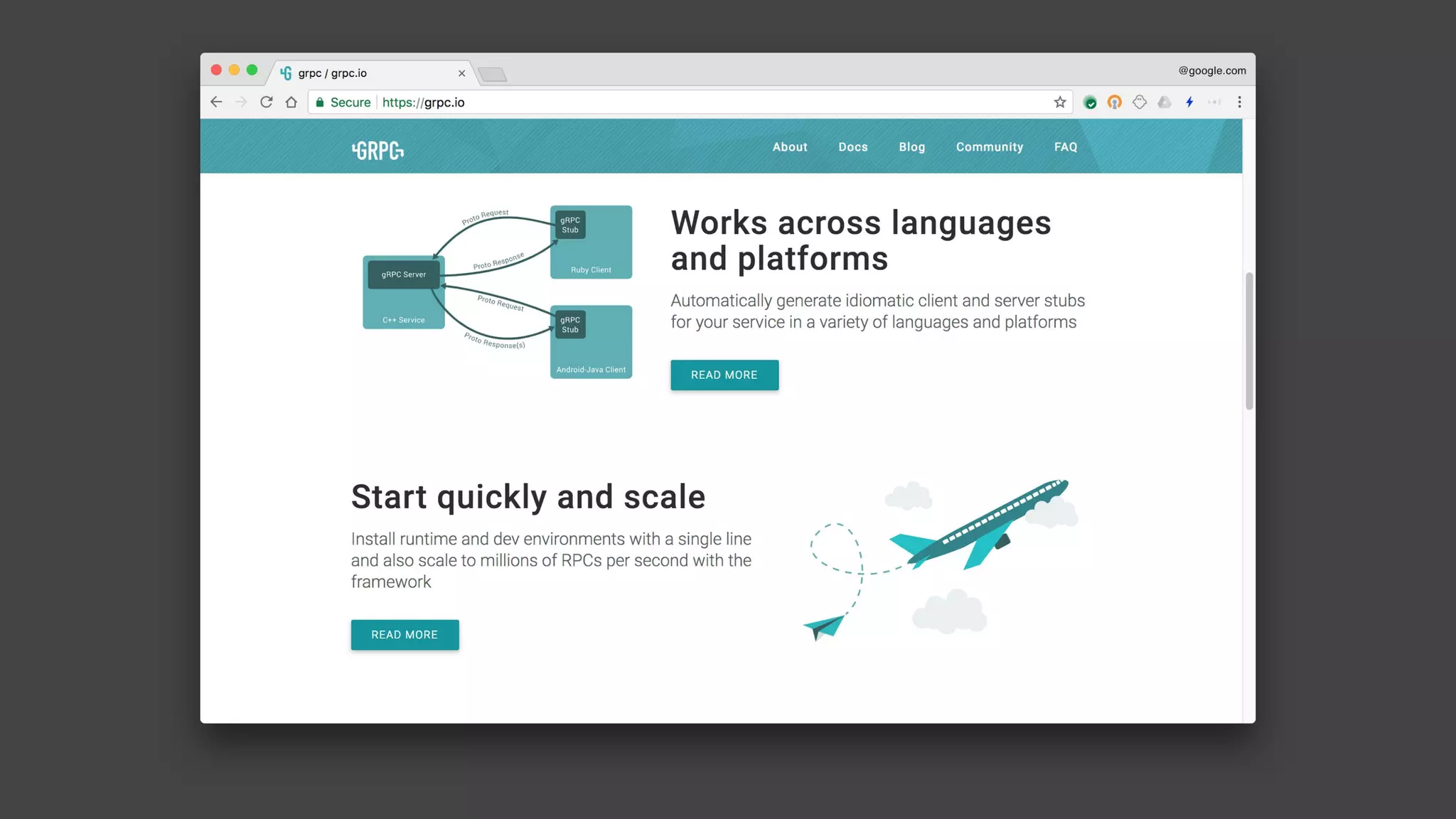

  • 21.

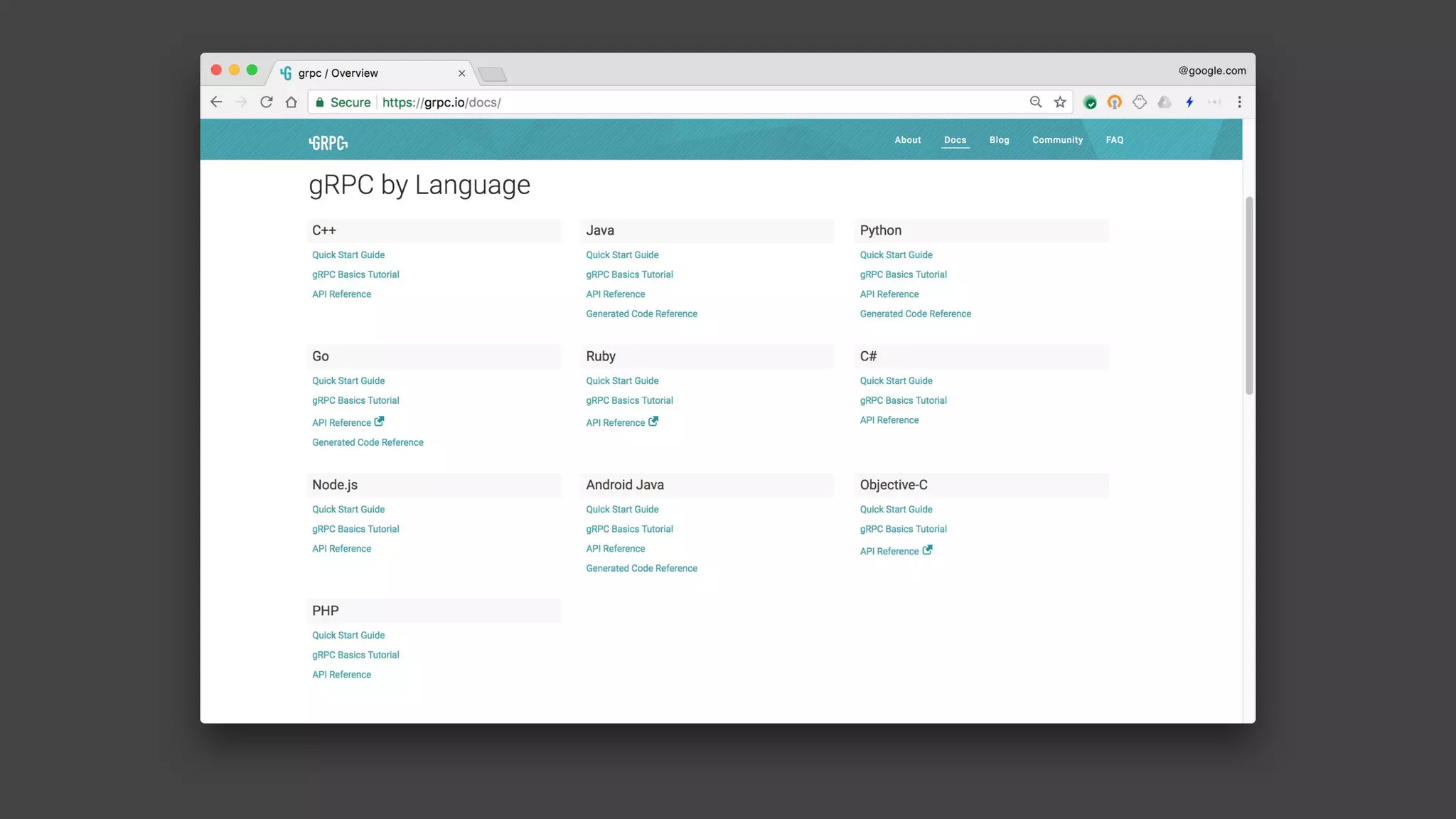

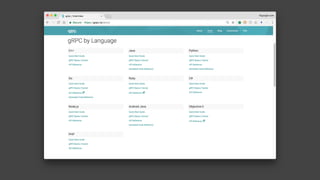

  • 22.
  • 24. Nonstreaming APIs a.k.a. “Unary” Client sends one request. Server sends one response. message HelloRequest { string name = 1; } message HelloReply { string message = 1; } service HelloService { rpc SayHello(HelloRequest) returns (HelloReply); }
  • 25. Streaming APIs Client-Streaming Client sends multiple messages. Server sends one response. Server may choose to send the response before all the client messages are received. message Latency { string name = 1; double val = 2; } message Histogram { string name = 1 double p99 = 2; double p999 = 3; double avg = 4; } service MetricsService { rpc ReportLatency(stream Latency) returns Histogram; }
  • 26. Streaming APIs Server-Streaming Client sends one request. Server sends multiple messages. message Stock { string stocksymbol = 1; } message Quote { double price = 1; } service StockTickerService { rpc GetTicker(Stock) returns (stream Quote); }
  • 27. Streaming APIs Bidirectional Streaming Client and server can send multiple messages to each other. Client and server can send messages independently; neither has to wait to receive a message before sending a message. message Message { string text = 1; } service ChatService { rpc Chat(stream Message) returns (stream Message); }
  • 28. gRPC Implementations: Native C/C++, Java, Go gRPC Core HTTP 2.0 SSL Code Generated API Application Layer Framework Layer Transport Layer
  • 29. gRPC Implementations: Wrapped C#, Node.js, Ruby, PHP, Python, Obj-C, Swift Python Obj-C, C#, C++, ... Ruby PHPPython C gRPC Core HTTP 2.0 SSL Language Bindings Code Generated Ruby PHP Obj-C, C#, C++,... Application Layer Framework Layer Transport Layer
  • 30. gRPC Sample Service package echo; message EchoRequest { // The text of a message to be echoed. string text = 1; } message EchoResponse { // The text of an echo response. string text = 1; } service Echo { // Immediately returns an echo of a request. rpc Get(EchoRequest) returns (EchoResponse) {} // Splits a request into words and returns each word in a stream of messages. rpc Expand(EchoRequest) returns (stream EchoResponse) {} // Collects a stream of messages and returns them concatenated when the caller closes. rpc Collect(stream EchoRequest) returns (EchoResponse) {} // Streams back messages as they are received in an input stream. rpc Update(stream EchoRequest) returns (stream EchoResponse) {} }
  • 31. Running the generator(s) $ ls echo.proto $ protoc echo.proto --swift_out=. --swiftgrpc_out=. $ ls echo.client.pb.swift echo.proto swiftgrpc.log echo.pb.swift echo.server.pb.swift echo.proto Protocol Buffer language source file echo.pb.swift generated by protoc-gen-swift echo.client.pb.swift generated by protoc-gen-swiftgrpc echo.server.pb.swift generated by protoc-gen-swiftgrpc swiftgrpc.log generated by protoc-gen-swiftgrpc
  • 32. gRPC Swift server protocol (generated) // To build a server, implement a class that conforms to this protocol. public protocol Echo_EchoProvider { func get(request : Echo_EchoRequest, session : Echo_EchoGetSession) throws -> Echo_EchoResponse func expand(request : Echo_EchoRequest, session : Echo_EchoExpandSession) throws func collect(session : Echo_EchoCollectSession) throws func update(session : Echo_EchoUpdateSession) throws }
  • 33. gRPC Swift server sample (handwritten) // get returns requests as they were received. func get(request : Echo_EchoRequest, session : Echo_EchoGetSession) throws -> Echo_EchoResponse { return Echo_EchoResponse(text:"Swift echo get: " + request.text) } // update streams back messages as they are received in an input stream. func update(session : Echo_EchoUpdateSession) throws -> Void { while true { do { let request = try session.Receive() try session.Send(Echo_EchoResponse(text:"Swift echo update: (request.text)")) } catch Echo_EchoServerError.endOfStream { break } } try session.Close() }
  • 34. gRPC Swift unary client sample (handwritten) var requestMessage = Echo_EchoRequest(text:message) let responseMessage = try service.get(requestMessage) // blocking print("get received: " + responseMessage.text)
  • 35. gRPC Swift streaming client sample (handwritten) let sem = DispatchSemaphore(value: 0) let updateCall = try service.update() // blocking DispatchQueue.global().async { while true { do { let responseMessage = try updateCall.Receive() // blocking print("Received: (responseMessage.text)") } catch Echo_EchoClientError.endOfStream { sem.signal() break } } } let parts = message.components(separatedBy:" ") for part in parts { let requestMessage = Echo_EchoRequest(text:part) try updateCall.Send(requestMessage) sleep(1) } try updateCall.CloseSend() // Wait for the call to complete. sem.wait()
  • 37. To Do: ● Build Systems (currently Swift PM only) ○ Wanted: CocoaPods, Carthage ○ Xcode: `swift package generate-xcodeproj` ● gRPC-Core code is vendored. Can this be organized better? ● Need to build and pass gRPC interoperability tests. ● Increased metadata access. ● Other issues at https://github.com/grpc/grpc-swift/issues.
  • 38. To Do: Wrap Google Datastore API ● Entity-oriented NoSQL data store, heavily used by Google App Engine apps. ● Usually mapped to native structs: // golang type Task struct { Category string Done bool Priority int Description string `datastore:",noindex"` PercentComplete float64 Created time.Time Tags []string } Swift Mirrors and Decoders?
  • 39. To Do: Auth ● https://github.com/google/auth-library-swift (available) ○ MacOS: Gets OAuth tokens from a browser ○ Linux on GCP: Gets OAuth tokens from the GCP environment ● To Do: Support Service Accounts ○ Requires JWT signing with RS256
  • 40. Build a gRPC service, get a free REST API!
