Full Stack Development with
Node.js and NoSQL
Matthew Groves (@mgroves)
#couchbase

©2016 Couchbase Inc. 2

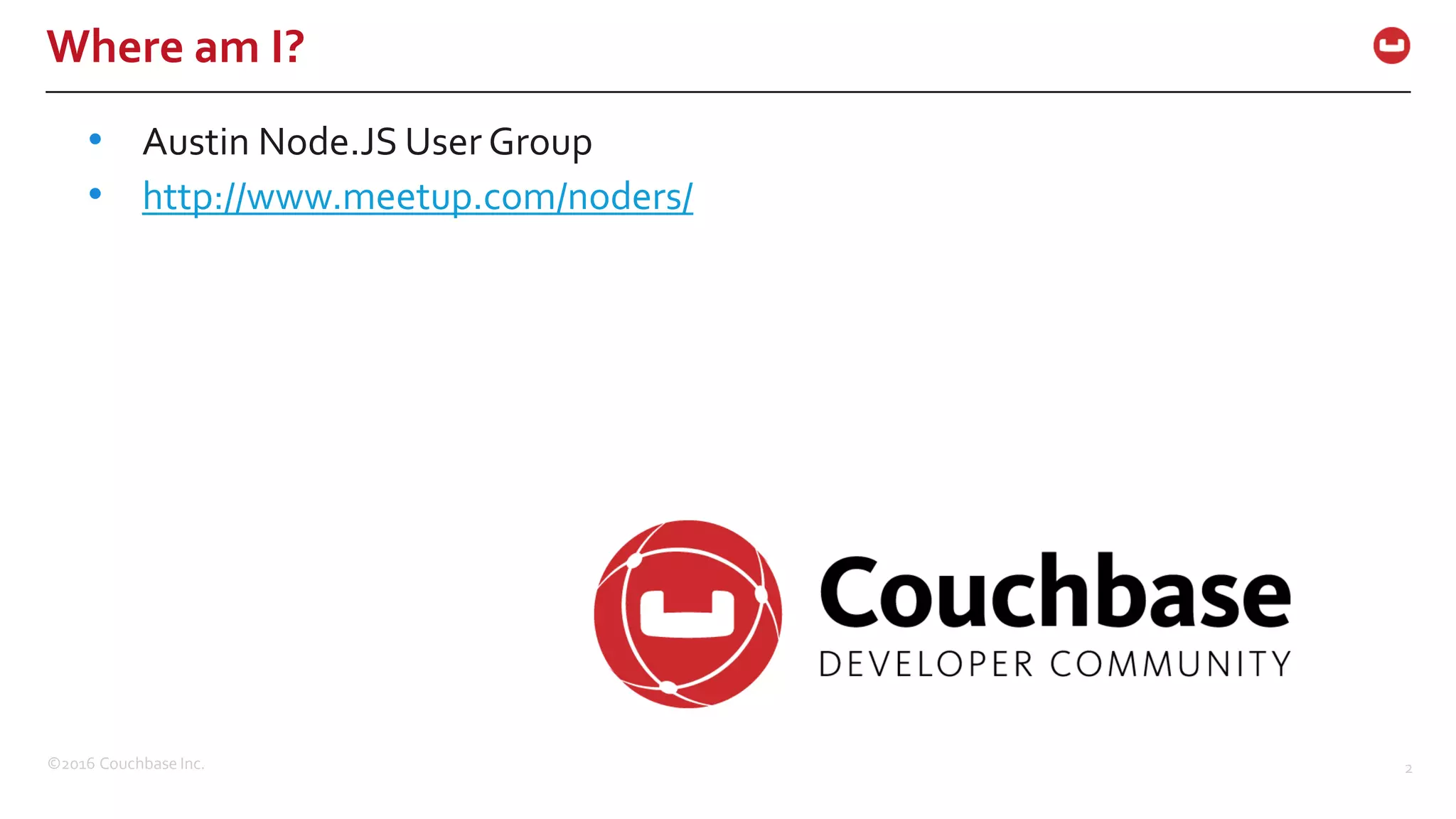

Where am I?
• Austin Node.JS User Group
• http://www.meetup.com/noders/

Who am I?
• Matthew D. Groves
• Developer Advocate for Couchbase
• @mgroves onTwitter
• Podcast and blog: http://crosscuttingconcerns.com
• “I am not an expert, but I am an enthusiast.” – Alan Stevens

Couchbase and CouchDB
Couchbase is to CouchDB
as
MySQL is to SQL Server

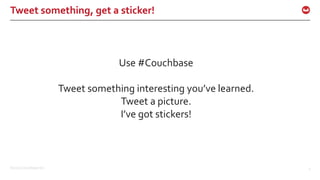

Tweet something, get a sticker!
Use #Couchbase
Tweet something interesting you’ve learned.
Tweet a picture.
I’ve got stickers!

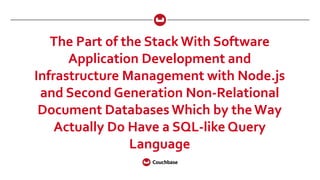

The Part of the Stack With Software
Application Development and
Infrastructure Management with Node.js
and Second Generation Non-Relational
Document Databases Which by theWay
Actually Do Have a SQL-like Query
Language

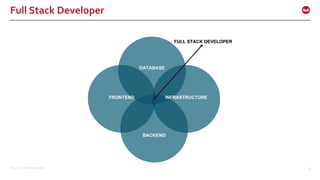

Full Stack Developer

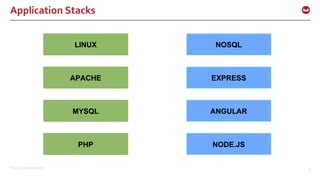

Application Stacks

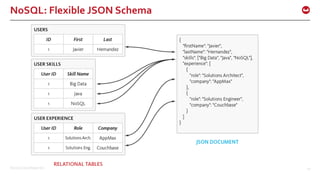

NoSQL: Flexible JSON Schema

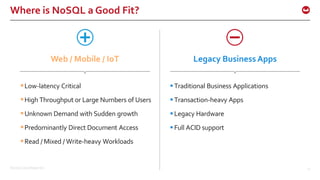

Where is NoSQL a Good Fit?
Low-latency Critical
High Throughput or Large Numbers of Users
Unknown Demand with Sudden growth
Predominantly Direct Document Access
Read / Mixed / Write-heavy Workloads
Traditional Business Applications
Transaction-heavy Apps
Legacy Hardware
Full ACID support
Web / Mobile / IoT Legacy Business Apps

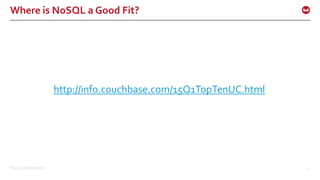

Where is NoSQL a Good Fit?
http://info.couchbase.com/15Q1TopTenUC.html

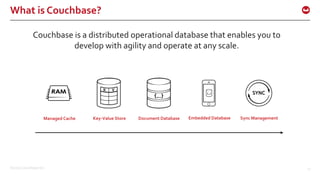

What is Couchbase?
Couchbase is a distributed operational database that enables you to
develop with agility and operate at any scale.
Managed Cache Key-Value Store Document Database Embedded Database Sync Management

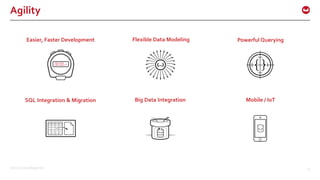

Agility
Easier, Faster Development Flexible Data Modeling Powerful Querying
SQL Integration & Migration Big Data Integration Mobile / IoT

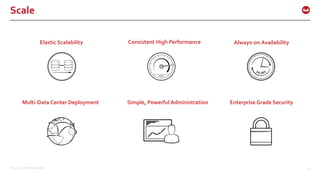

Scale
Elastic Scalability Consistent High Performance Always-on Availability
Multi-Data Center Deployment Simple, Powerful Administration Enterprise Grade Security

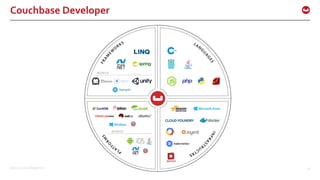

Couchbase Developer

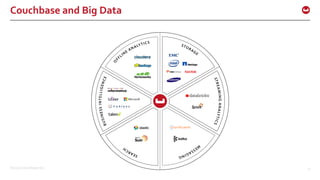

Couchbase and Big Data

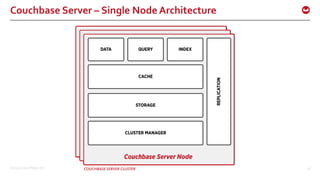

Couchbase Server – Single Node Architecture

Simplified Administration: Console

Simplified Administration: RESTful API

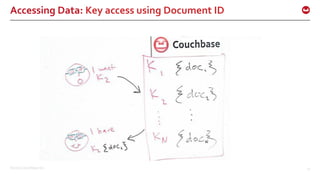

Accessing Data: Key access using Document ID

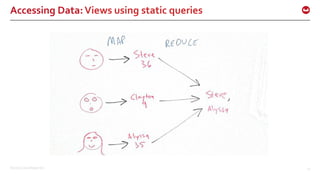

Accessing Data:Views using static queries

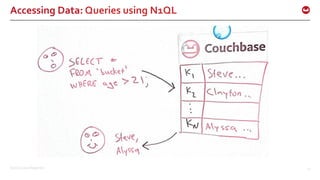

Accessing Data: Queries using N1QL

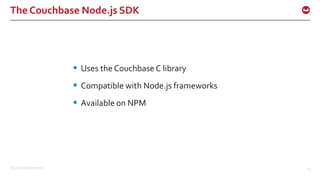

The Couchbase Node.js SDK
 Uses the Couchbase C library
 Compatible with Node.js frameworks
 Available on NPM

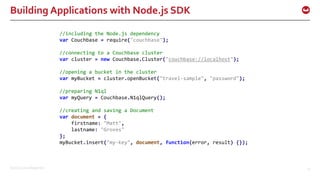

Building Applications with Node.js SDK
//including the Node.js dependency
var Couchbase = require("couchbase");
//connecting to a Couchbase cluster
var cluster = new Couchbase.Cluster("couchbase://localhost");
//opening a bucket in the cluster
var myBucket = cluster.openBucket("travel-sample", "password");
//preparing N1ql
var myQuery = Couchbase.N1qlQuery();
//creating and saving a Document
var document = {
firstname: "Matt",
lastname: "Groves"
};
myBucket.insert("my-key", document, function(error, result) {});

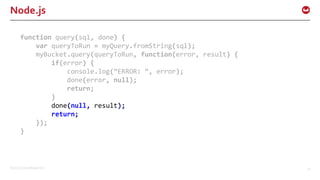

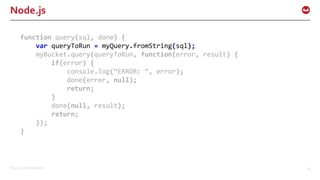

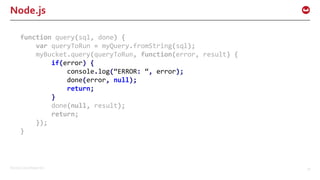

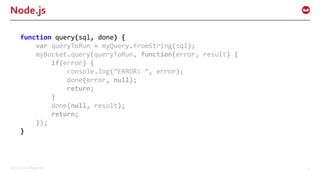

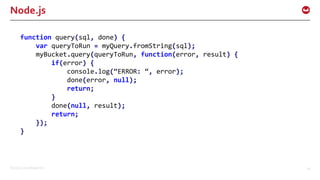

Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function(error, result) {
if(error) {
console.log(“ERROR: “, error);
done(error, null);
return;
}
done(null, result);
return;
});
}

Node.js
if(error) {
done(error, null);
return;
}
done(null, result);
return;
});
}

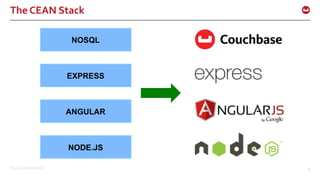

The CEAN Stack

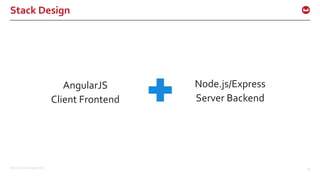

Stack Design
AngularJS
Client Frontend
Node.js/Express
Server Backend

Multiple Frontends & One Backend

The Angular 2 Frontend

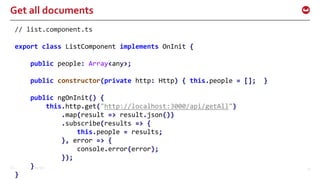

Get all documents
// list.component.ts
export class ListComponent implements OnInit {
public people: Array<any>;
public constructor(private http: Http) { this.people = []; }
public ngOnInit() {
this.http.get("http://localhost:3000/api/getAll")
.map(result => result.json())
.subscribe(results => {
this.people = results;
}, error => {
console.error(error);
});
}
}

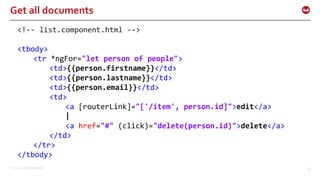

Get all documents

<tbody>
<tr *ngFor="let person of people">
<td>{{person.firstname}}</td>
<td>{{person.lastname}}</td>
<td>{{person.email}}</td>
<td>
<a [routerLink]="['/item', person.id]">edit</a>
|
<a href="#" (click)="delete(person.id)">delete</a>
</td>
</tr>
</tbody>

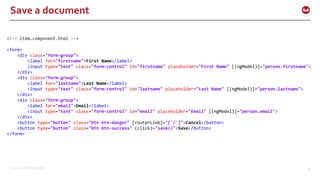

Save a document

<form>
<div class="form-group">
<label for="firstname">First Name</label>
<input type="text" class="form-control" id="firstname" placeholder="First Name" [(ngModel)]="person.firstname">
</div>
<label for="lastname">Last Name</label>
<input type="text" class="form-control" id="lastname" placeholder="Last Name" [(ngModel)]="person.lastname">
</div>
<label for="email">Email</label>
<input type="text" class="form-control" id="email" placeholder="Email" [(ngModel)]="person.email">
</div>
<button type="button" class="btn btn-danger" [routerLink]="['/']">Cancel</button>
<button type="button" class="btn btn-success" (click)="save()">Save</button>
</form>

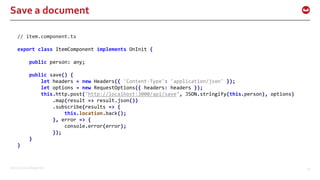

Save a document
// item.component.ts
export class ItemComponent implements OnInit {
public person: any;
public save() {
let headers = new Headers({ 'Content-Type': 'application/json' });
let options = new RequestOptions({ headers: headers });
this.http.post("http://localhost:3000/api/save", JSON.stringify(this.person), options)
.map(result => result.json())
.subscribe(results => {
this.location.back();
}, error => {
console.error(error);
});
}
}

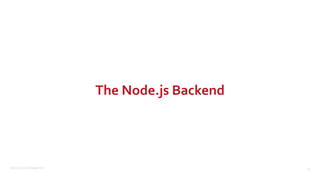

The Node.js Backend

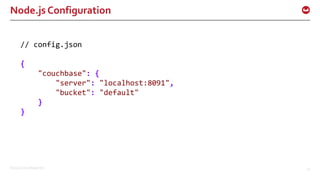

Node.js Configuration
// config.json
{
"couchbase": {
"server": "localhost:8091",
"bucket": "default"
}
}

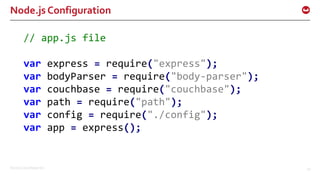

// app.js file
var express = require("express");
var bodyParser = require("body-parser");
var couchbase = require("couchbase");
var path = require("path");
var config = require("./config");
var app = express();

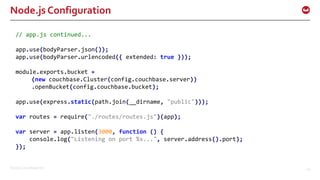

// app.js continued...
app.use(bodyParser.json());
app.use(bodyParser.urlencoded({ extended: true }));
module.exports.bucket =
(new couchbase.Cluster(config.couchbase.server))
.openBucket(config.couchbase.bucket);
app.use(express.static(path.join(__dirname, "public")));
var routes = require("./routes/routes.js")(app);
var server = app.listen(3000, function () {
console.log("Listening on port %s...", server.address().port);
});

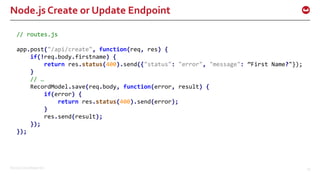

Node.js Create or Update Endpoint
// routes.js
app.post("/api/create", function(req, res) {
if(!req.body.firstname) {
return res.status(400).send({"status": "error", "message": ”First Name?"});
}
// …
RecordModel.save(req.body, function(error, result) {
if(error) {
return res.status(400).send(error);
}
res.send(result);
});
});

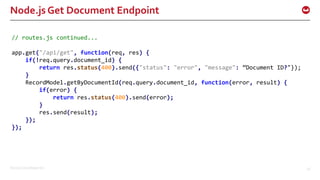

Node.js Get Document Endpoint
// routes.js continued...
app.get("/api/get", function(req, res) {
if(!req.query.document_id) {
return res.status(400).send({"status": "error", "message": ”Document ID?"});
}
RecordModel.getByDocumentId(req.query.document_id, function(error, result) {
if(error) {
}
res.send(result);
});
});

Node.js Delete Endpoint
// routes.js continued...
app.post("/api/delete", function(req, res) {
if(!req.body.document_id) {
return res.status(400).send({"status": "error", "message": ”ID?"});
}
RecordModel.delete(req.body.document_id, function(error, result) {
if(error) {
}
res.send(result);
});
});

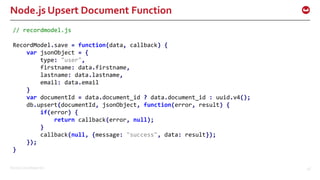

Node.js Upsert Document Function
// recordmodel.js
RecordModel.save = function(data, callback) {
var jsonObject = {
type: "user",
firstname: data.firstname,
lastname: data.lastname,
email: data.email
}
var documentId = data.document_id ? data.document_id : uuid.v4();
db.upsert(documentId, jsonObject, function(error, result) {
if(error) {
return callback(error, null);
}
callback(null, {message: "success", data: result});
});
}

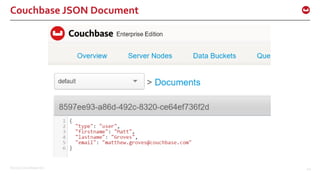

Couchbase JSON Document

Node.js Get Document with N1QL Function
// recordmodel.js continued…
RecordModel.getByDocumentId = function(documentId, callback) {
var statement = "SELECT firstname, lastname, email " +
"FROM `" + config.couchbase.bucket + "` AS users " +
"WHERE META(users).id = $1";
var query = N1qlQuery.fromString(statement);
db.query(query, [documentId], function(error, result) {
if(error) {
}
callback(null, result);
});
};

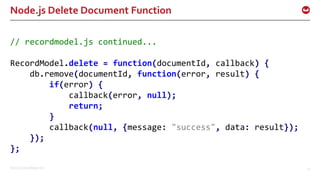

Node.js Delete Document Function
// recordmodel.js continued...
RecordModel.delete = function(documentId, callback) {
db.remove(documentId, function(error, result) {
if(error) {
callback(error, null);
return;
}
callback(null, {message: "success", data: result});
});
};

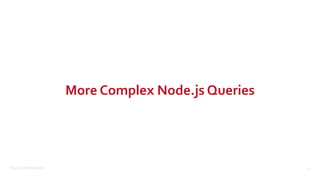

More Complex Node.js Queries

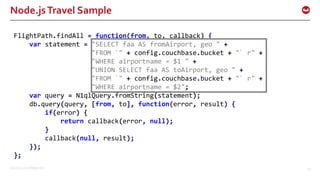

Node.jsTravel Sample
FlightPath.findAll = function(from, to, callback) {
var statement = "SELECT faa AS fromAirport, geo " +
"FROM `" + config.couchbase.bucket + "` r" +
"WHERE airportname = $1 " +
"UNION SELECT faa AS toAirport, geo " +
"WHERE airportname = $2";
db.query(query, [from, to], function(error, result) {
if(error) {
}
});
};

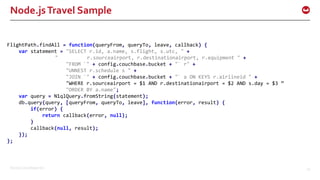

Node.jsTravel Sample
FlightPath.findAll = function(queryFrom, queryTo, leave, callback) {
var statement = "SELECT r.id, a.name, s.flight, s.utc, " +
" r.sourceairport, r.destinationairport, r.equipment " +
"UNNEST r.schedule s " +
"JOIN `" + config.couchbase.bucket + "` a ON KEYS r.airlineid " +
"WHERE r.sourceairport = $1 AND r.destinationairport = $2 AND s.day = $3 ”
"ORDER BY a.name";
db.query(query, [queryFrom, queryTo, leave], function(error, result) {
if(error) {
}
});
};

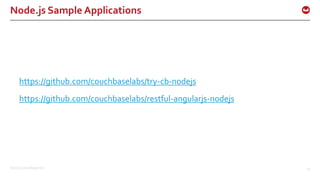

Node.js Sample Applications
https://github.com/couchbaselabs/try-cb-nodejs
https://github.com/couchbaselabs/restful-angularjs-nodejs

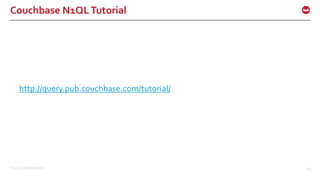

Couchbase N1QLTutorial
http://query.pub.couchbase.com/tutorial/

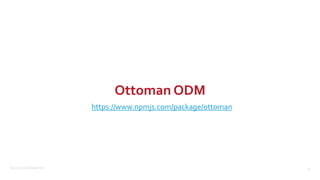

Ottoman ODM
https://www.npmjs.com/package/ottoman

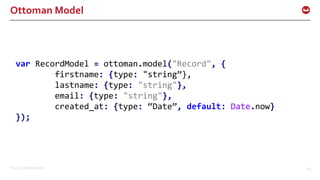

Ottoman Model
var RecordModel = ottoman.model("Record", {
firstname: {type: "string”},
lastname: {type: "string"},
email: {type: "string"},
created_at: {type: “Date”, default: Date.now}
});

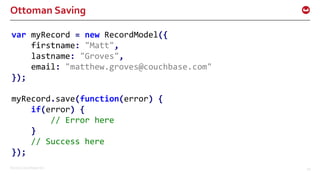

Ottoman Saving
var myRecord = new RecordModel({
firstname: "Matt",
lastname: "Groves",
email: "matthew.groves@couchbase.com"
});
myRecord.save(function(error) {
if(error) {
// Error here
}
// Success here
});

Ottoman Finding
RecordModel.find({}, function(error, result) {
if(error) {
// Error here
}
// Array of results here
});

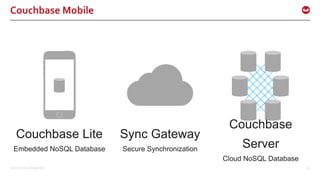

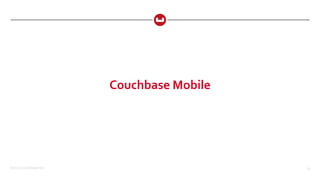

Couchbase Mobile

Couchbase Lite
Embedded NoSQL Database
Sync Gateway
Secure Synchronization
Couchbase
Server
Cloud NoSQL Database
Couchbase Mobile

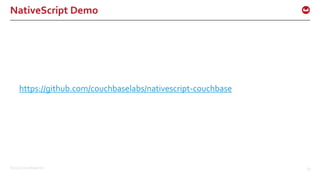

NativeScript Demo
https://github.com/couchbaselabs/nativescript-couchbase

Couchbase, everybody!
http://couchbase.com/connect
http://info.couchbase.com/Connect16_Livestream_Registration.html

Where do you find us?
• developer.couchbase.com
• blog.couchbase.com
• forums.couchbase.com
• @couchbasedev
• #couchbase
• @mgroves
• @couchbase
