Quick and Easy Development with Node.js and Couchbase Server

©2015 Couchbase Inc. 1
Nic Raboy, Developer Advocate at Couchbase
Quick and Easy Development with Node.js
and Couchbase Server

About Me
Nic Raboy
Developer Advocate at Couchbase
@nraboy (Twitter)
Node.js, Android, Java, Ionic Framework, NoSQL, SQL

What Is Couchbase?

What makes Couchbase unique?
4
Performance &
scalability leader
Sub millisecond latency
with high throughput;
memory-centric
architecture
Multi-
purpose
Simplified
administration
Easy to deploy &
manage; integrated
Admin Console, single-
click cluster expansion
& rebalance
Cache, key value store,
document database,
and local/mobile
database in single
platform
Always-on
availability
Data replication across
nodes, clusters, and
data centers
Enterprises choose Couchbase for several key advantages
24x365

 Consolidated cache and
database
 Tune memory required based
on application requirements

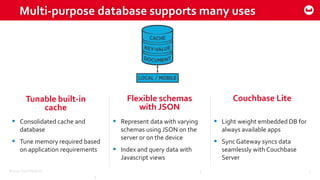

Multi-purpose database supports many uses
5
5
Tunable built-in
cache
Flexible schemas
with JSON
Couchbase Lite
 Represent data with varying
schemas using JSON on the
server or on the device
 Index and query data with
Javascript views
 Light weight embedded DB for
always available apps
 Sync Gateway syncs data
seamlessly with Couchbase
Server

Couchbase leads in performance and scalability
Auto
Sharding
Memory-memory
XDCR
Single
NodeType
 No manual sharding
 Database manages data
movement to scale out – not
the user
 Market’s only memory-to-
memory database replication
across clusters and geos
 Provides disaster recover /
data locality
 Hugely simplifies management
of clusters
 Easy to scale clusters by adding
any number of nodes

Available Couchbase Server SDKs
And more…

Overview of the Node.js SDK

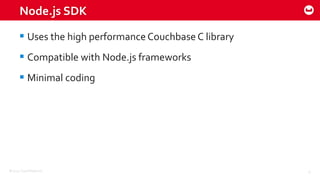

Node.js SDK
 Uses the high performance Couchbase C library
 Compatible with Node.js frameworks
 Minimal coding

Node.js
// InstantiateThe Query API
var couchbase = require(“couchbase”);
var myCluster = new Couchbase.Cluster(“localhost:8091”);
var myBucket = myCluster.openBucket(“travel-sample”);
var myQuery = couchbase.N1qlQuery();

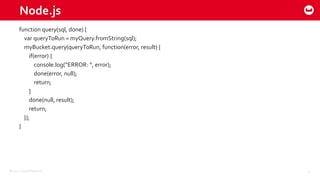

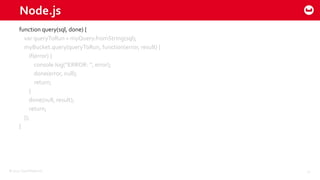

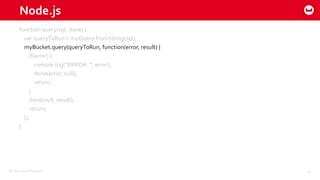

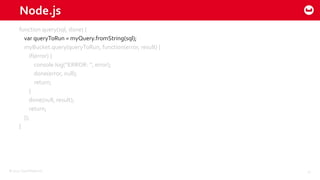

Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function(error, result) {
if(error) {
console.log(“ERROR: “, error);
done(error, null);
return;
}
done(null, result);
return;
});
}

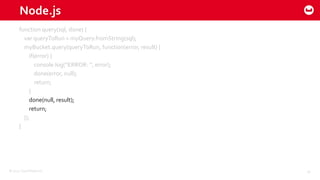

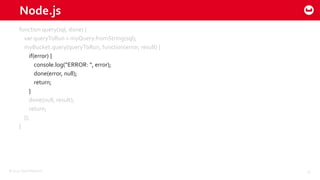

Node.js
if(error) {
done(error, null);
return;
}
done(null, result);
return;
});
}

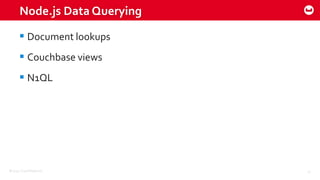

Node.js Data Querying
 Document lookups
 Couchbase views
 N1QL

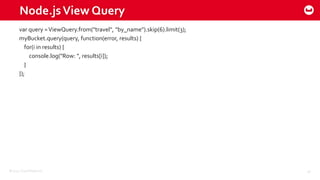

Node.jsView Query
var query =ViewQuery.from("travel", "by_name").skip(6).limit(3);
myBucket.query(query, function(error, results) {
for(i in results) {
console.log("Row: ", results[i]);
}
});

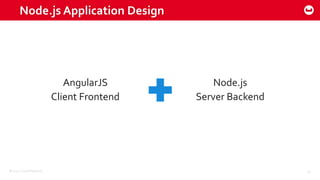

Node.js Application Design
AngularJS
Client Frontend
Node.js
Server Backend

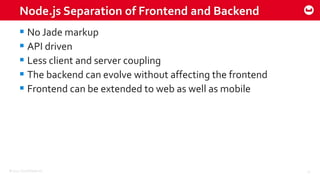

Node.js Separation of Frontend and Backend
 No Jade markup
 API driven
 Less client and server coupling
 The backend can evolve without affecting the frontend
 Frontend can be extended to web as well as mobile

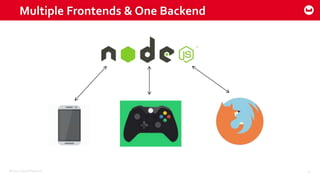

Multiple Frontends & One Backend

The Node.js Backend

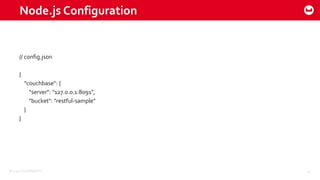

Node.js Configuration
// config.json
{
"couchbase": {
"server": "127.0.0.1:8091",
"bucket": "restful-sample"
}
}

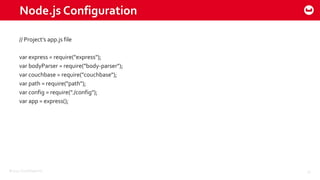

// Project’s app.js file
var express = require("express");
var bodyParser = require("body-parser");
var couchbase = require("couchbase");
var path = require("path");
var config = require("./config");
var app = express();

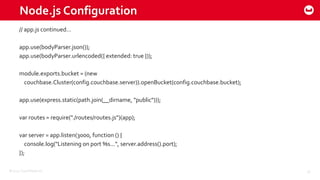

// app.js continued…
app.use(bodyParser.json());
app.use(bodyParser.urlencoded({ extended: true }));
module.exports.bucket = (new
couchbase.Cluster(config.couchbase.server)).openBucket(config.couchbase.bucket);
app.use(express.static(path.join(__dirname, "public")));
var routes = require("./routes/routes.js")(app);
var server = app.listen(3000, function () {
console.log("Listening on port %s...", server.address().port);
});

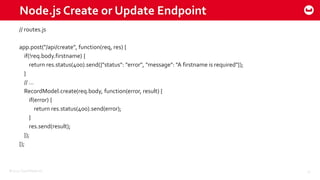

Node.js Create or Update Endpoint
// routes.js
app.post("/api/create", function(req, res) {
if(!req.body.firstname) {
return res.status(400).send({"status": "error", "message": "A firstname is required"});
}
// …
RecordModel.create(req.body, function(error, result) {
if(error) {
return res.status(400).send(error);
}
res.send(result);
});
});

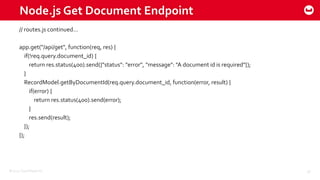

Node.js Get Document Endpoint
// routes.js continued…
app.get("/api/get", function(req, res) {
if(!req.query.document_id) {
return res.status(400).send({"status": "error", "message": "A document id is required"});
}
RecordModel.getByDocumentId(req.query.document_id, function(error, result) {
if(error) {
}
res.send(result);
});
});

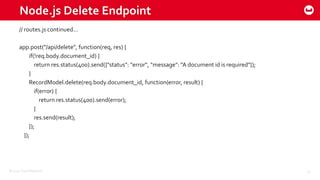

Node.js Delete Endpoint
// routes.js continued…
app.post("/api/delete", function(req, res) {
if(!req.body.document_id) {
return res.status(400).send({"status": "error", "message": "A document id is required"});
}
RecordModel.delete(req.body.document_id, function(error, result) {
if(error) {
}
res.send(result);
});
});

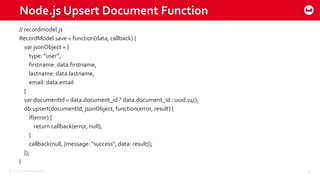

Node.js Upsert Document Function
// recordmodel.js
RecordModel.save = function(data, callback) {
var jsonObject = {
type: “user”,
firstname: data.firstname,
lastname: data.lastname,
email: data.email
}
var documentId = data.document_id ? data.document_id : uuid.v4();
db.upsert(documentId, jsonObject, function(error, result) {
if(error) {
return callback(error, null);
}
callback(null, {message: "success", data: result});
});
}

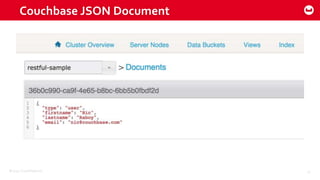

Couchbase JSON Document

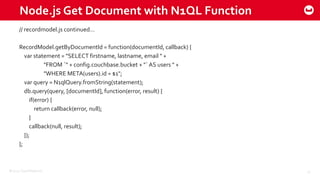

Node.js Get Document with N1QL Function
// recordmodel.js continued…
RecordModel.getByDocumentId = function(documentId, callback) {
var statement = "SELECT firstname, lastname, email " +
"FROM `" + config.couchbase.bucket + "` AS users " +
"WHERE META(users).id = $1";
var query = N1qlQuery.fromString(statement);
db.query(query, [documentId], function(error, result) {
if(error) {
}
callback(null, result);
});
};

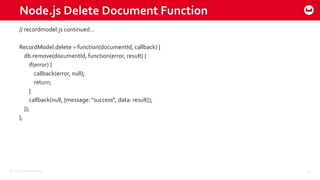

Node.js Delete Document Function
// recordmodel.js continued…
RecordModel.delete = function(documentId, callback) {
db.remove(documentId, function(error, result) {
if(error) {
callback(error, null);
return;
}
callback(null, {message: "success", data: result});
});
};

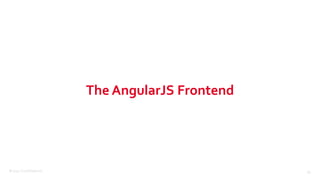

The AngularJS Frontend

// AngularJS app.js
$scope.fetchAll = function() {
$http(
{
method: "GET",
url: "/api/getAll"
}
)
.success(function(result) {
for(var i = 0; i < result.length; i++) {
$scope.items[result[i].id] = result[i];
}
});
}

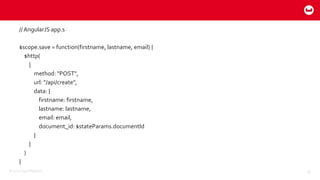

// AngularJS app.s
$scope.save = function(firstname, lastname, email) {
$http(
{
method: "POST",
url: "/api/create",
data: {
firstname: firstname,
lastname: lastname,
email: email,
document_id: $stateParams.documentId
}
}
)
}

More Complex Node.js Queries

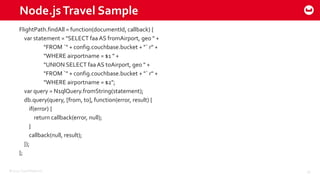

Node.jsTravel Sample
FlightPath.findAll = function(documentId, callback) {
var statement = "SELECT faa AS fromAirport, geo " +
"FROM `" + config.couchbase.bucket + "` r" +
"WHERE airportname = $1 " +
"UNION SELECT faa AS toAirport, geo " +
"WHERE airportname = $2";
db.query(query, [from, to], function(error, result) {
if(error) {
}
});
};

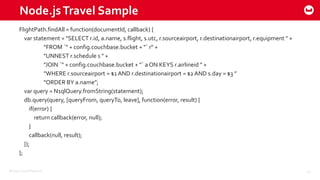

Node.jsTravel Sample
FlightPath.findAll = function(documentId, callback) {
var statement = "SELECT r.id, a.name, s.flight, s.utc, r.sourceairport, r.destinationairport, r.equipment " +
"UNNEST r.schedule s " +
"JOIN `" + config.couchbase.bucket + "` a ON KEYS r.airlineid " +
"WHERE r.sourceairport = $1AND r.destinationairport = $2AND s.day = $3 ”
"ORDER BY a.name";
db.query(query, [queryFrom, queryTo, leave], function(error, result) {
if(error) {
}
});
};

Node.js Sample Applications
https://github.com/couchbaselabs/try-cb-nodejs
https://github.com/couchbaselabs/restful-angularjs-nodejs

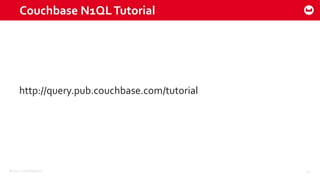

Couchbase N1QLTutorial
http://query.pub.couchbase.com/tutorial
