This document discusses developing a command line tool in Swift. It covers using the Commandant framework to parse command line arguments, setting up the project structure with Xcode workspaces, adding dependencies with Carthage, configuring build settings, and implementing commands using the Commandant protocol. The goal is to provide a guide for creating a CLI tool in Swift, from setting up the initial project to deploying and debugging the finished application.

1. Command Line Tool in
Swift
Mercari Inc. @kitasuke

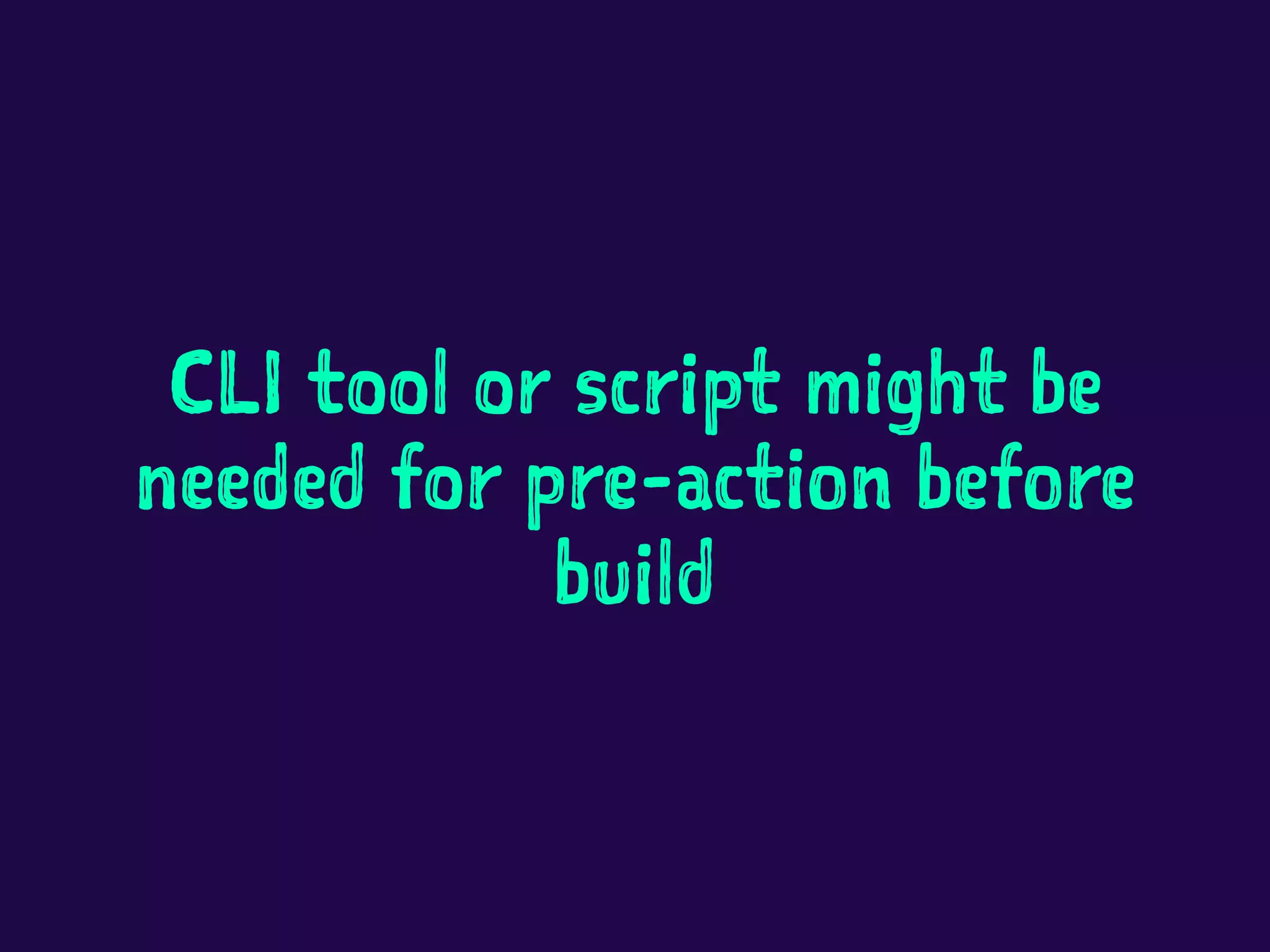

2. CLI tool or script might be
needed for pre-action before
build

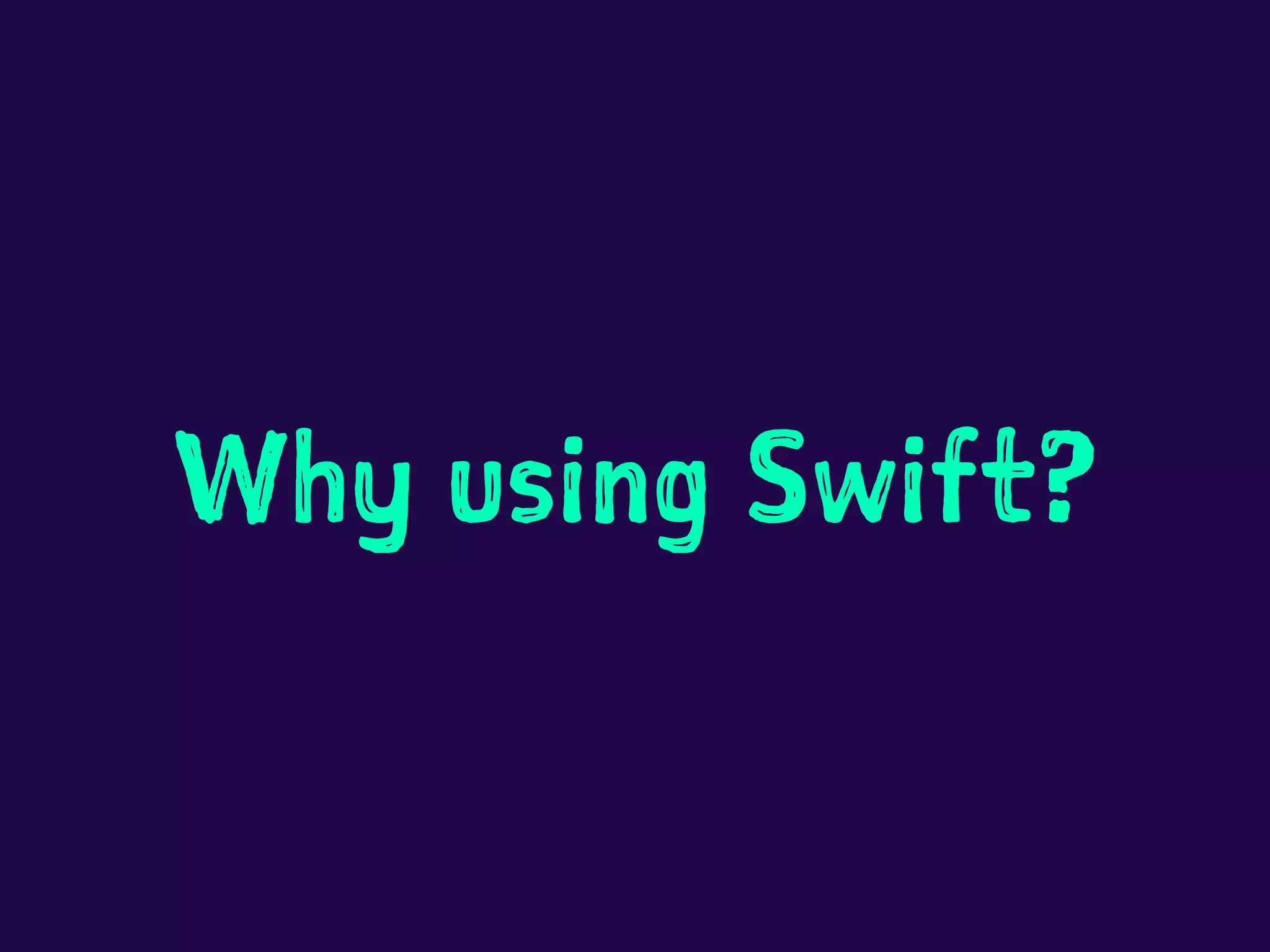

3. Why using Swift?

4. First step to use
Swift in your project

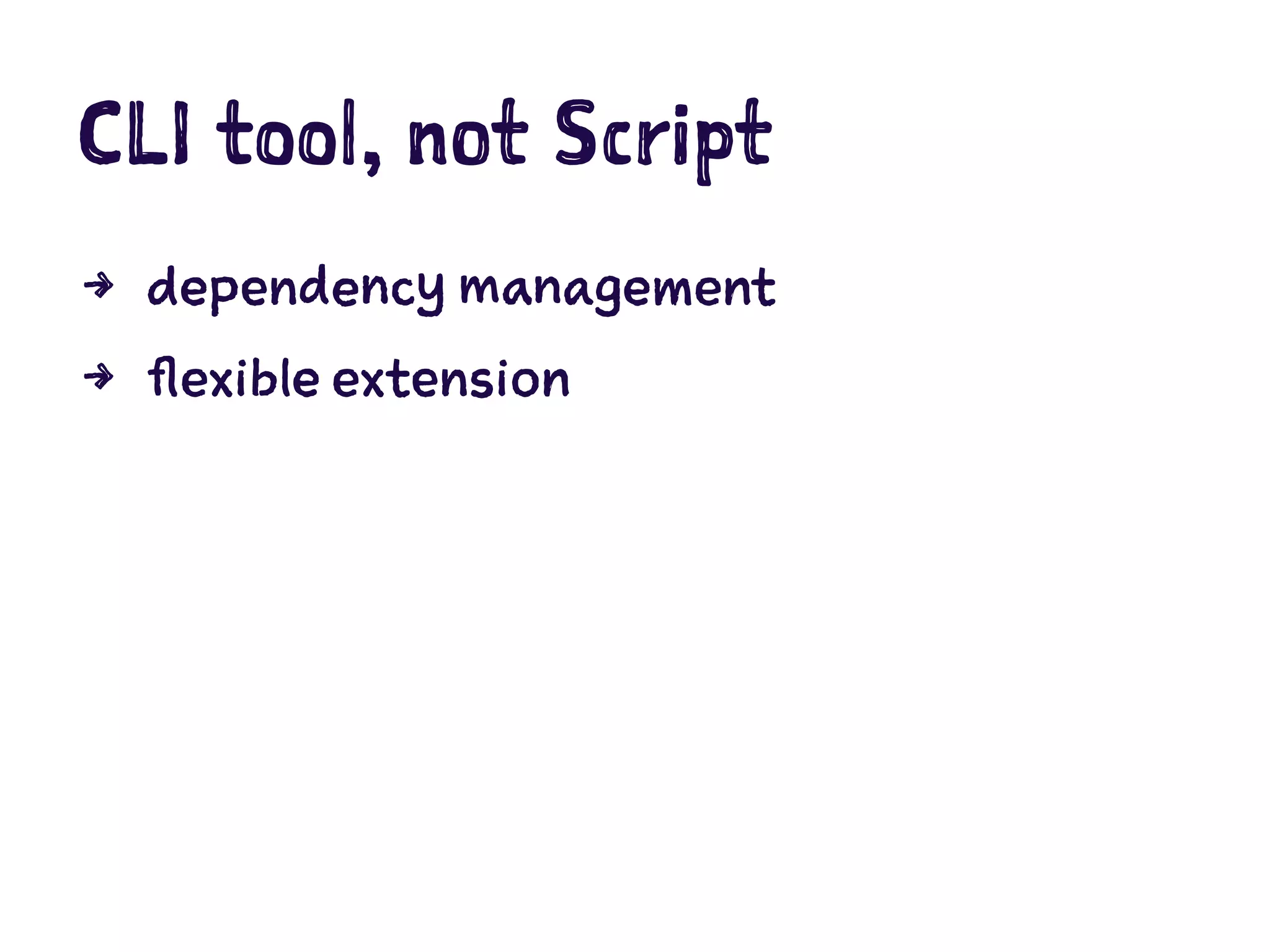

5. CLI tool, not Script
4 dependency management
4 flexible extension

6. How developing with
Xcode?

7. References
Carthage, SwiftCov

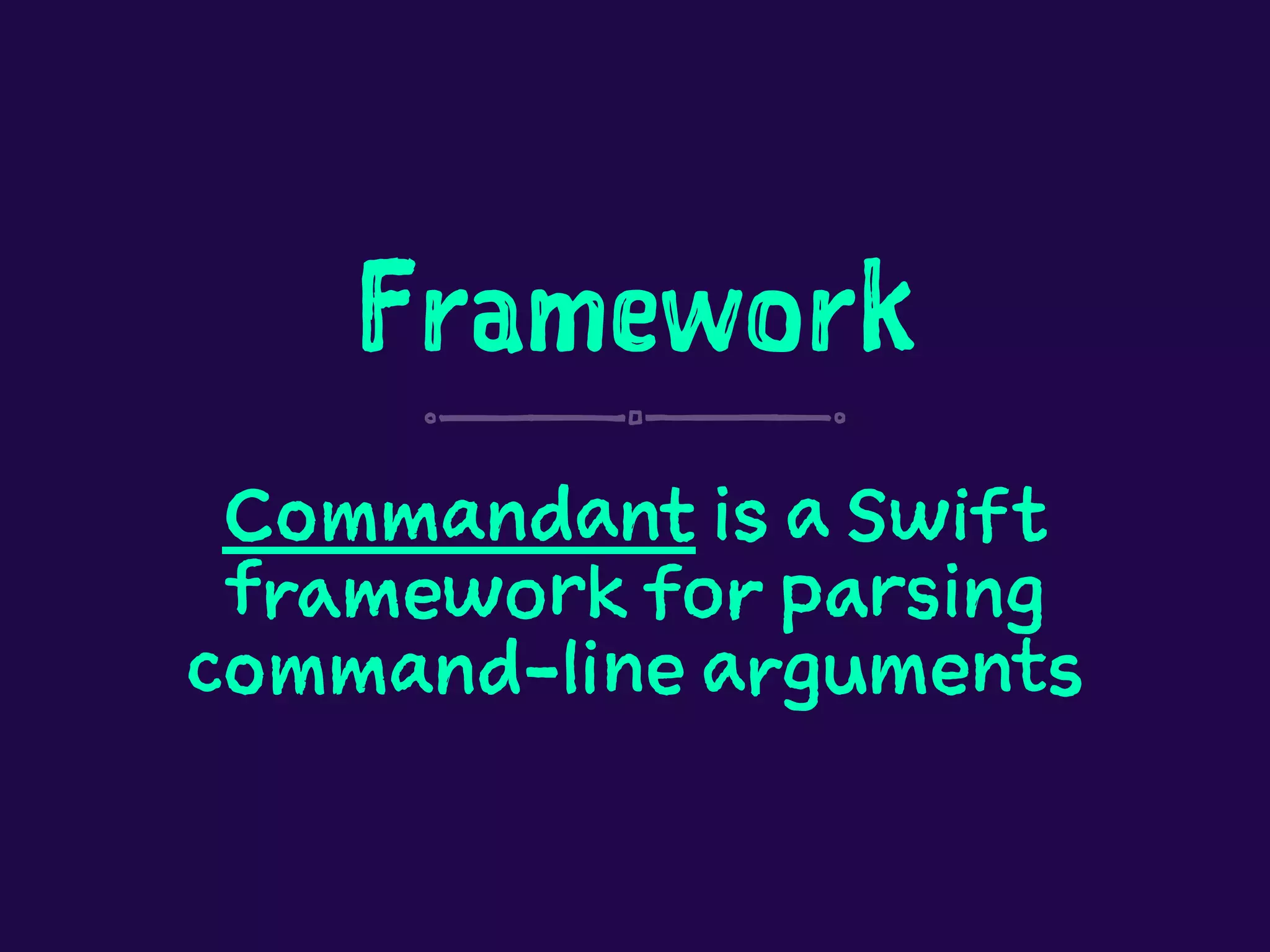

8. Framework
Commandant is a Swift
framework for parsing
command-line arguments

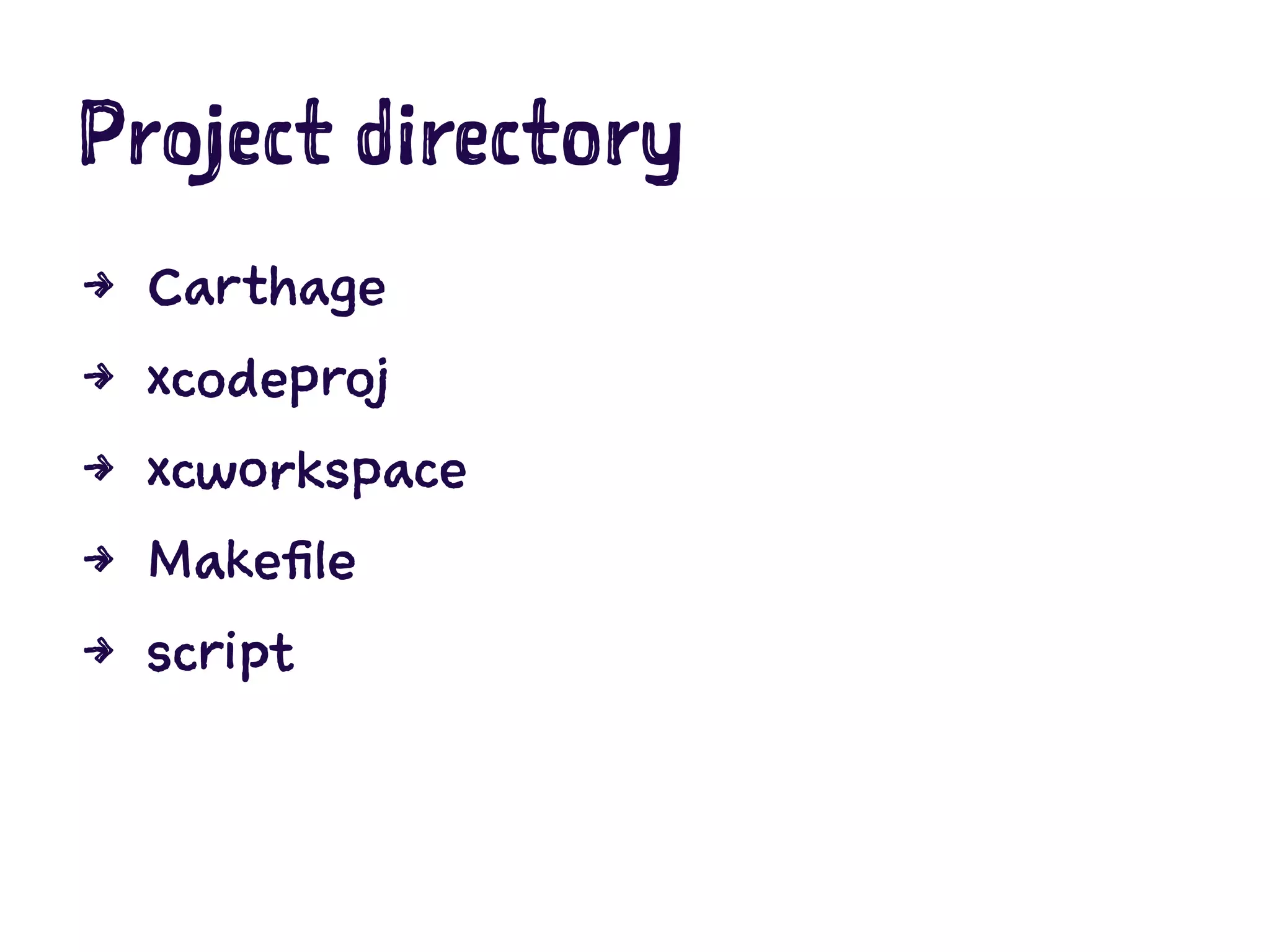

9. Project directory
4 Carthage
4 xcodeproj
4 xcworkspace
4 Makefile
4 script

10. Workspace structure
4 Main target
4 Static framework target
4 Test target
4 xcconfigs
4 framework projects

11. Configurations

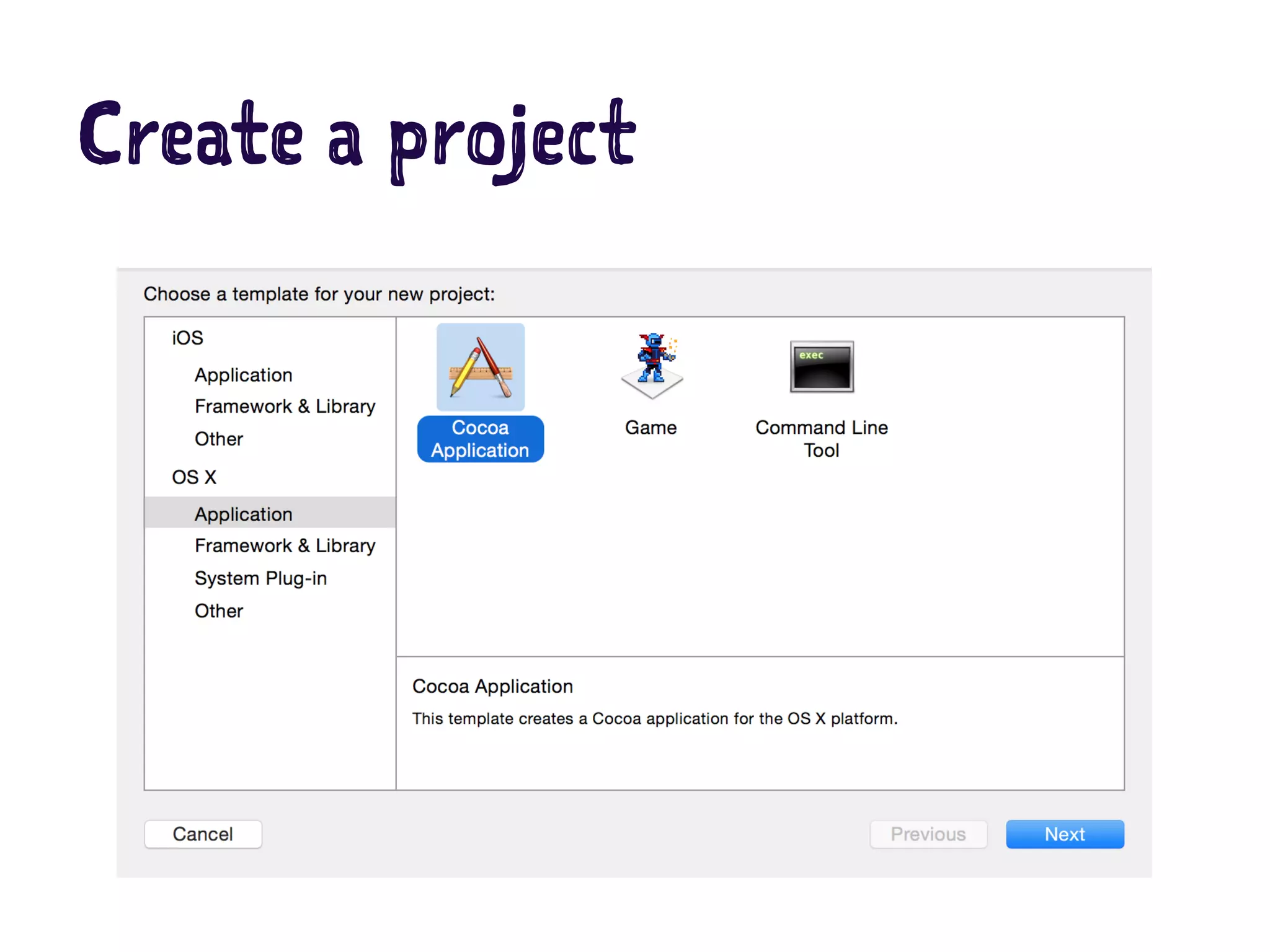

12. Create a project

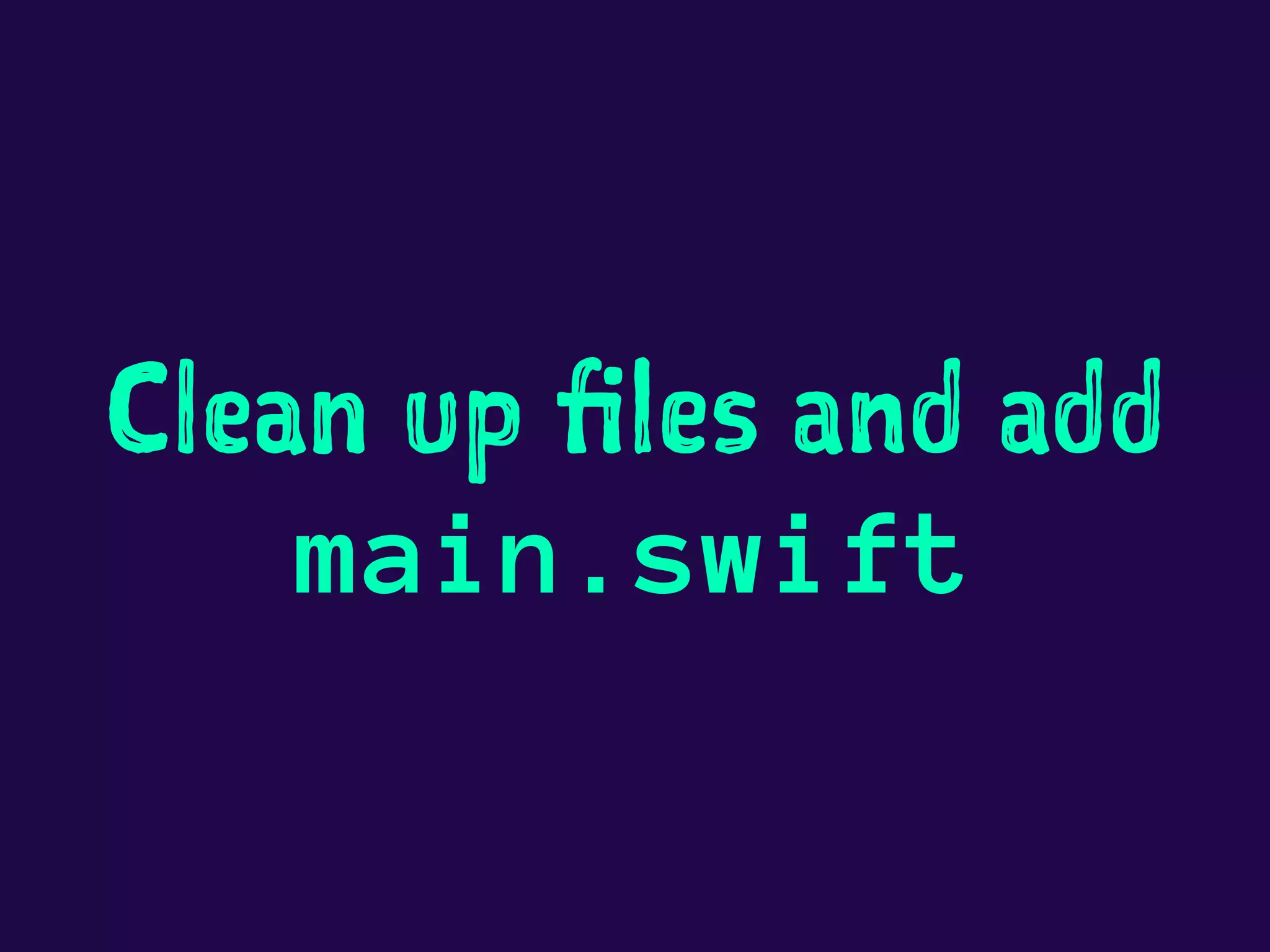

13. Clean up files and add
main.swift

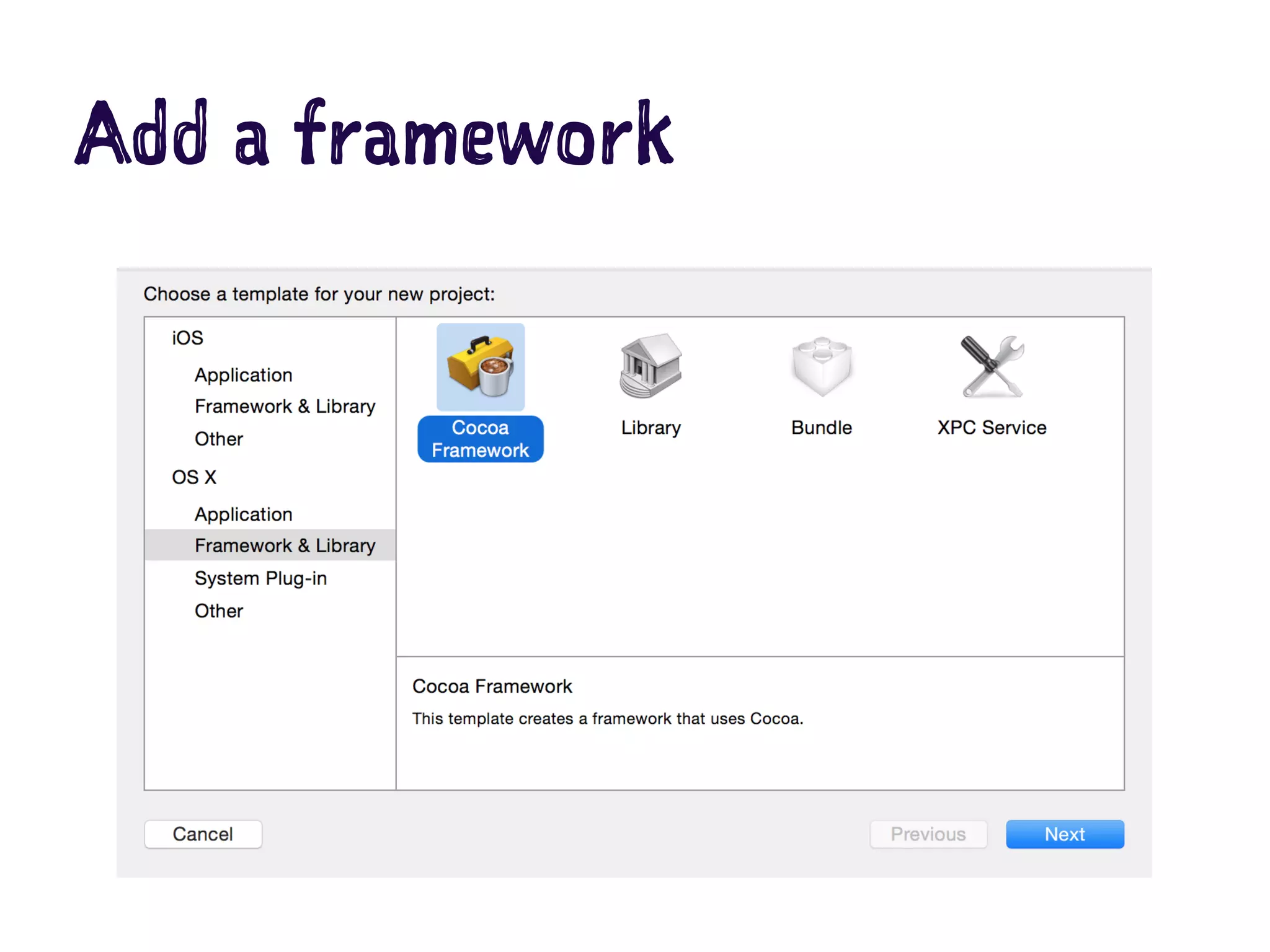

14. Add a framework

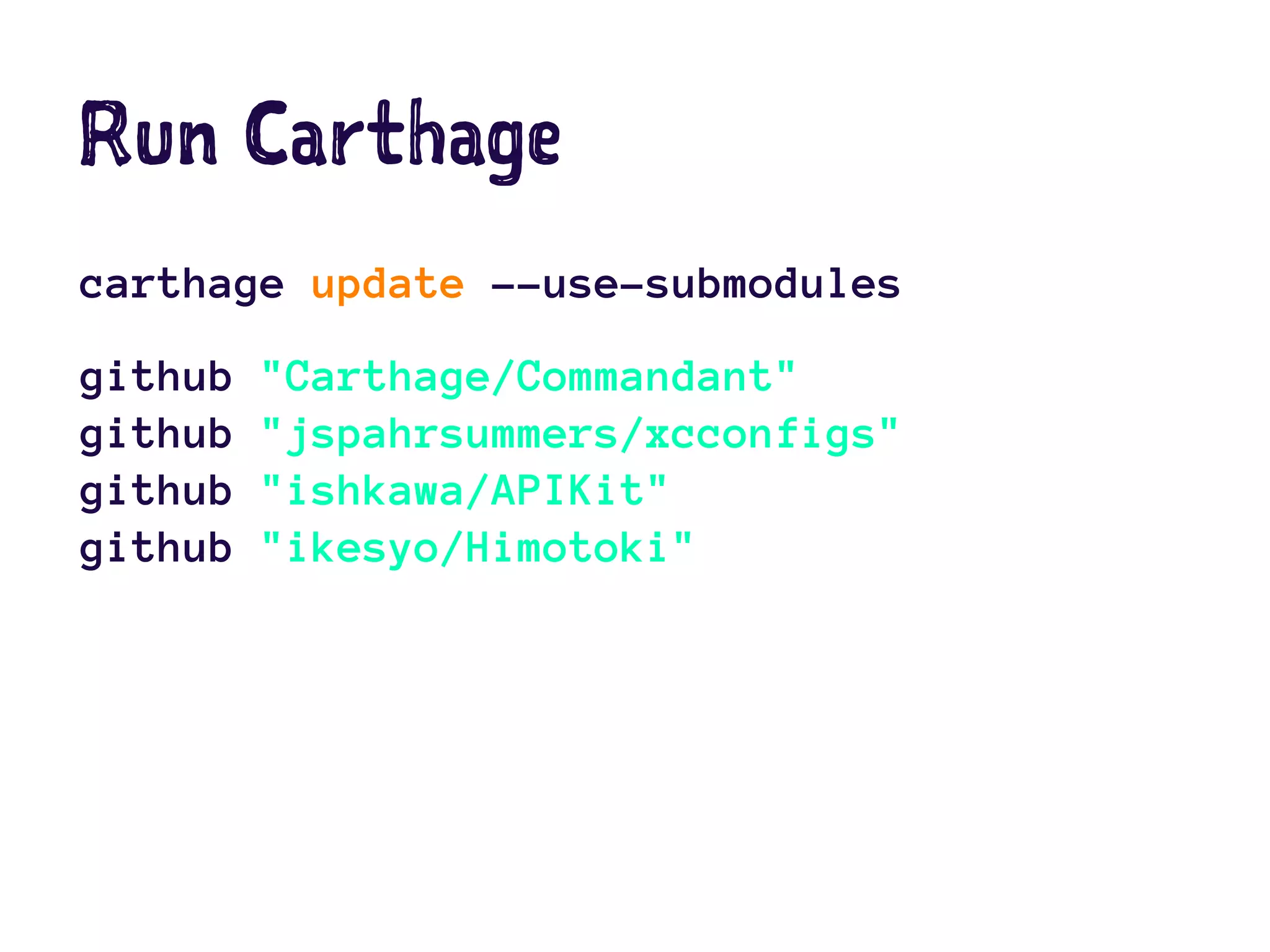

15. Run Carthage
carthage update --use-submodules
github "Carthage/Commandant"
github "jspahrsummers/xcconfigs"
github "ishkawa/APIKit"
github "ikesyo/Himotoki"

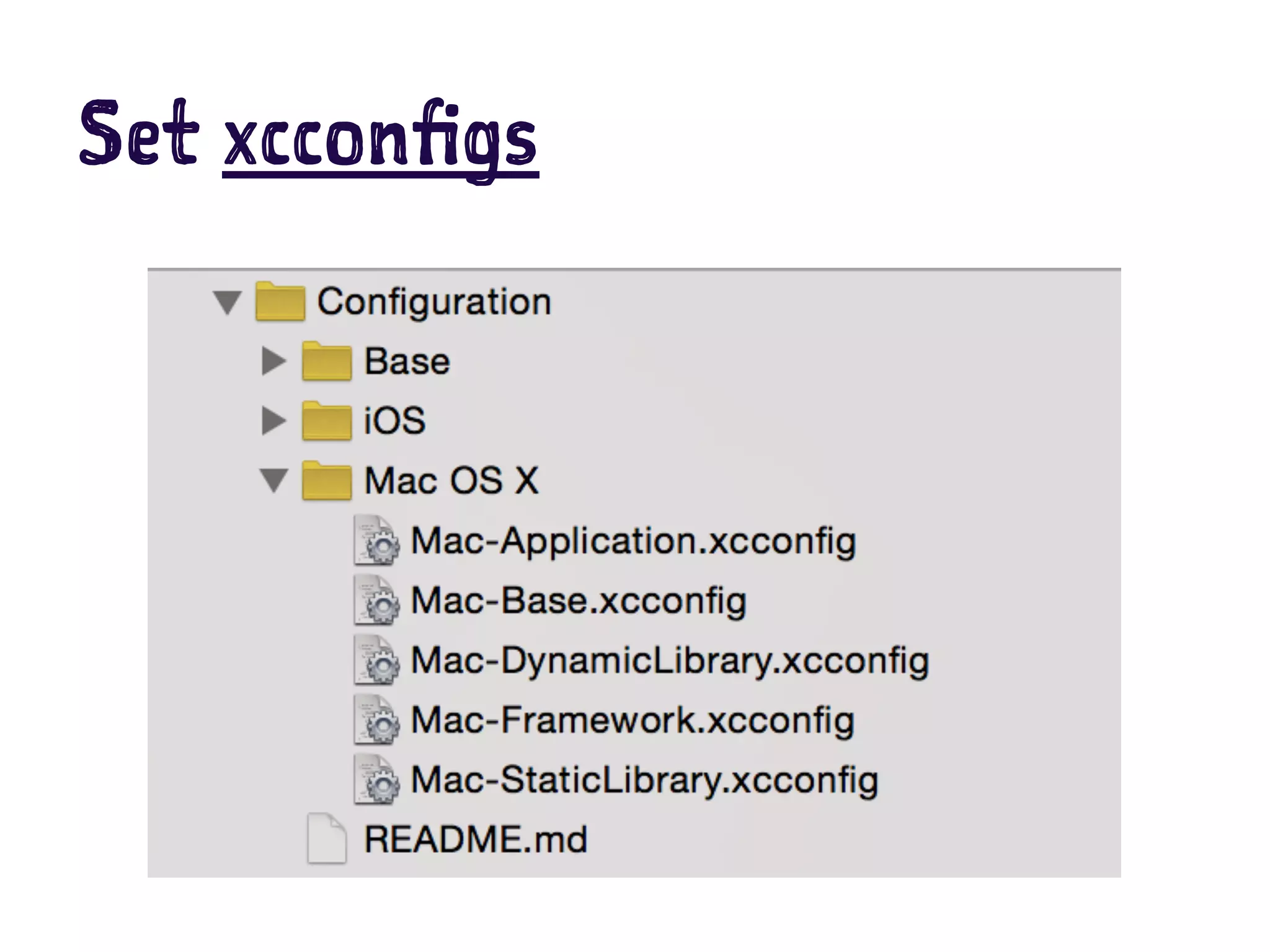

16. Set xcconfigs

17. Run bootstrap script
objc-build-scripts: standardize
how Objective-C projects are
bootstrapped after cloning

18. New workspace
Add all the projects into here

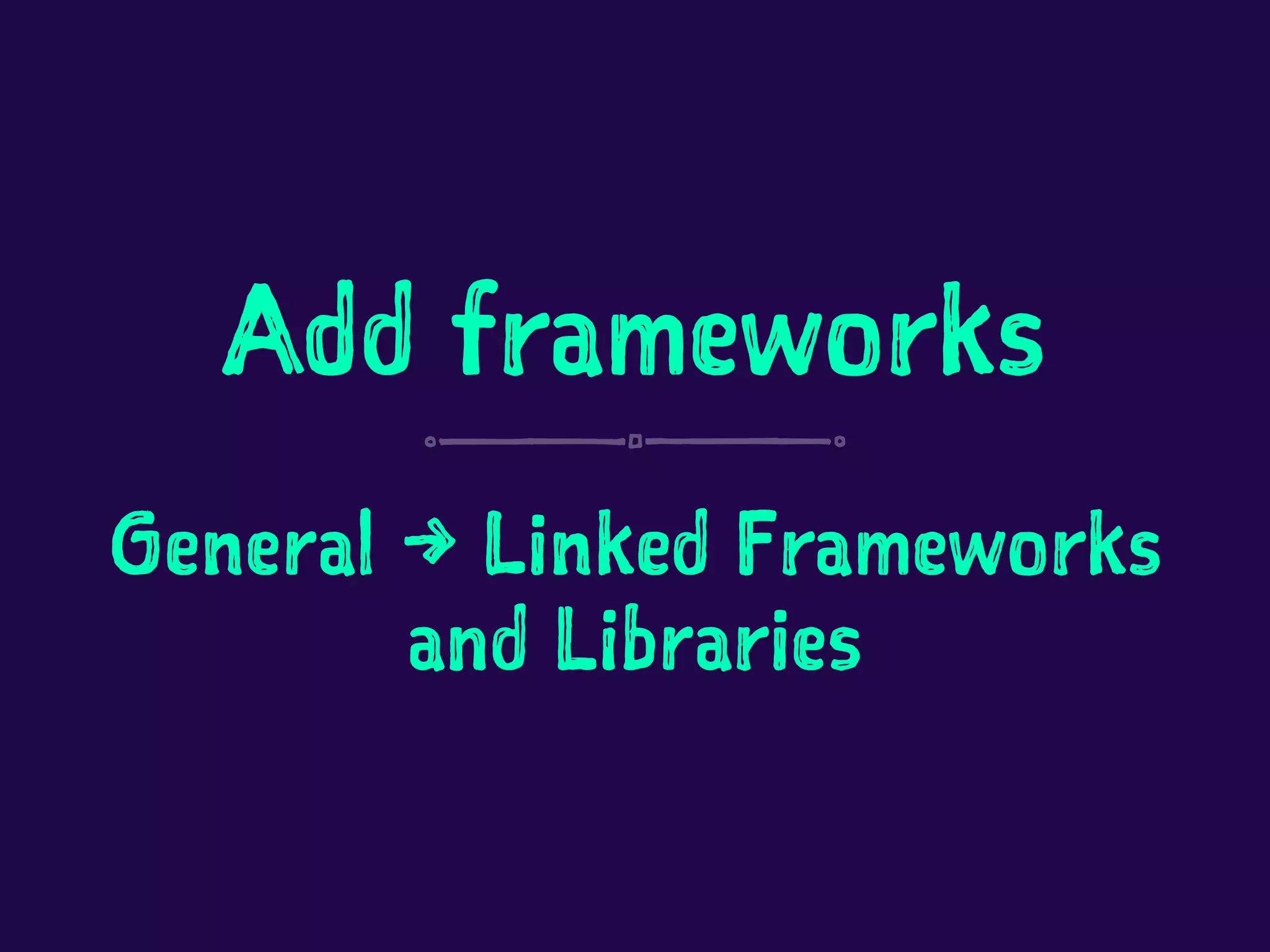

19. Add frameworks
General → Linked Frameworks
and Libraries

20. Copy frameworks in
Build Phrases
Destination is frameworks

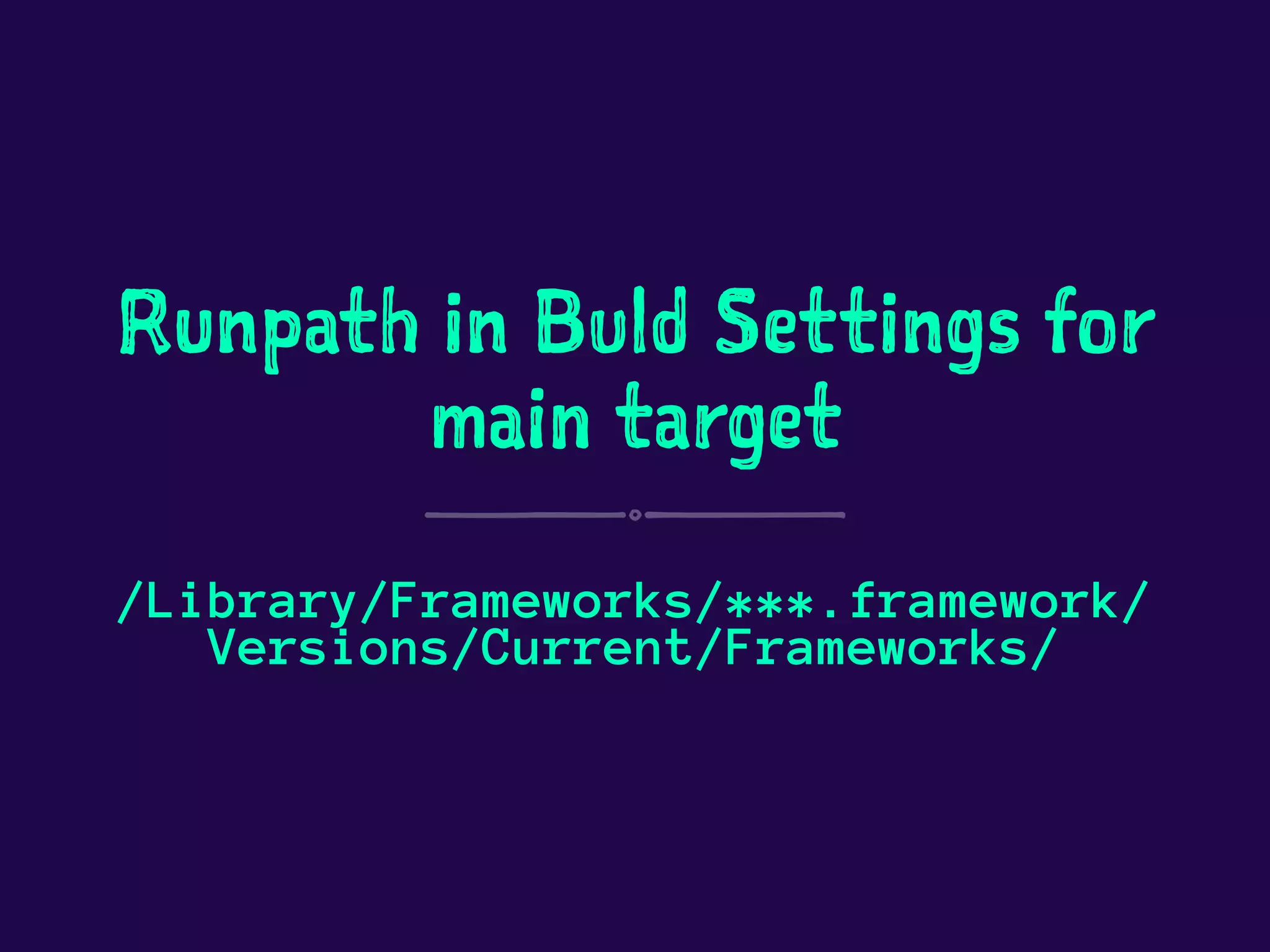

21. Runpath in Buld Settings for
main target
/Library/Frameworks/***.framework/
Versions/Current/Frameworks/

22. Embedded Content Contains
Swift Code for framework
target
Set to YES, default is NO

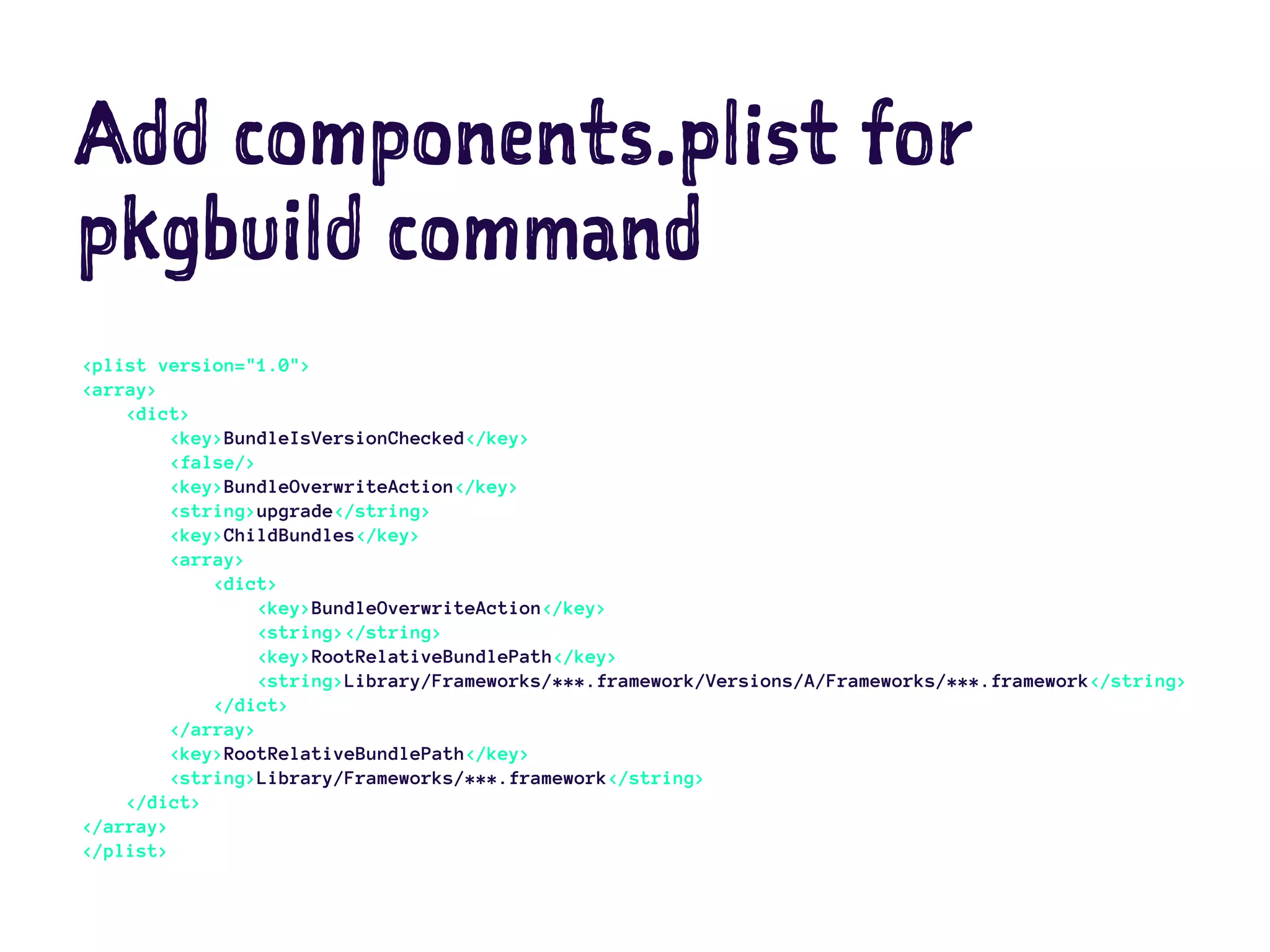

23. Add components.plist for
pkgbuild command
<plist version="1.0">
<array>
<dict>
<key>BundleIsVersionChecked</key>
<false/>
<key>BundleOverwriteAction</key>
<string>upgrade</string>
<key>ChildBundles</key>
<array>
<dict>
<key>BundleOverwriteAction</key>
<string></string>
<key>RootRelativeBundlePath</key>
<string>Library/Frameworks/***.framework/Versions/A/Frameworks/***.framework</string>
</dict>
</array>
<key>RootRelativeBundlePath</key>
<string>Library/Frameworks/***.framework</string>
</dict>
</array>
</plist>

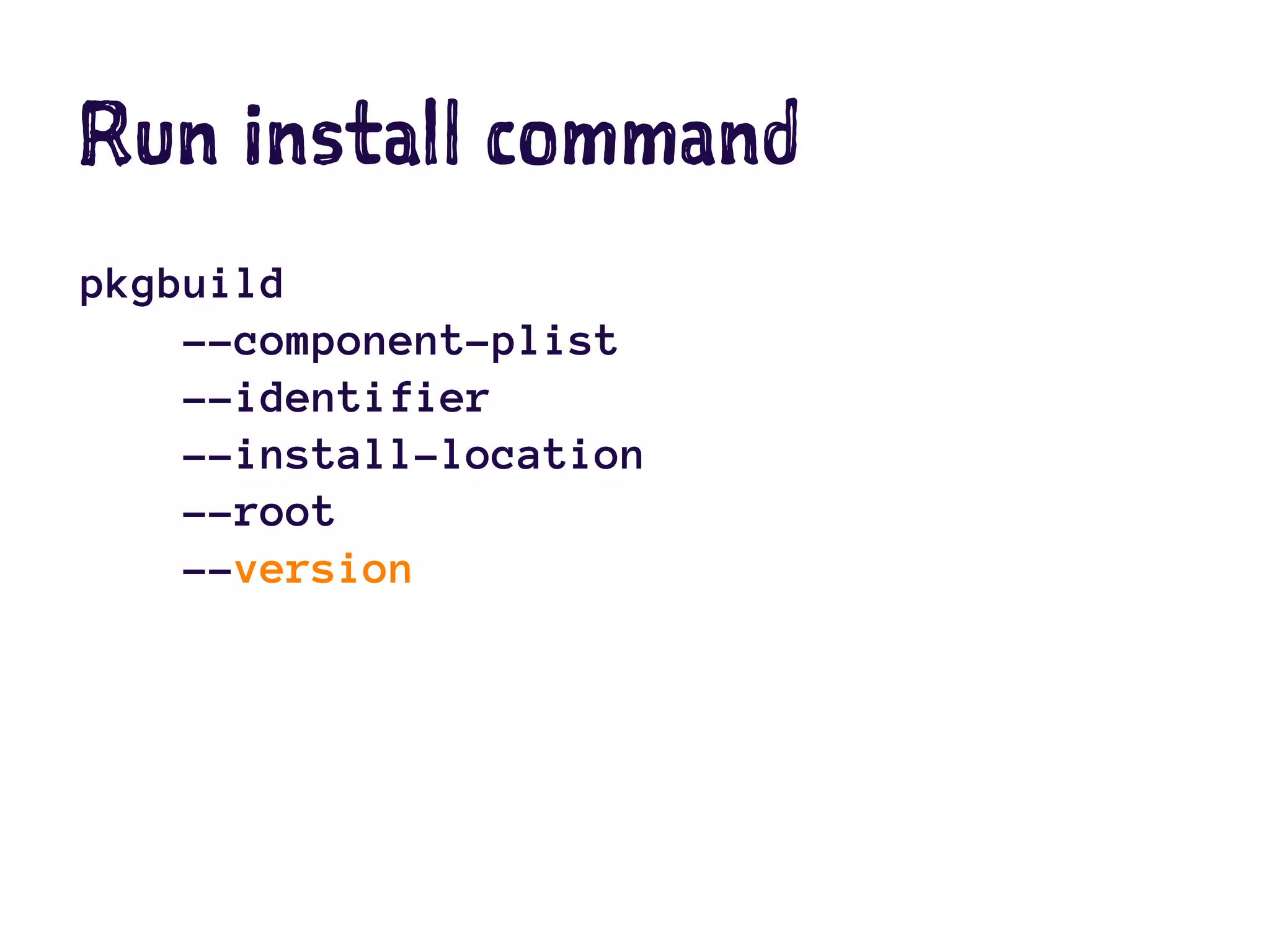

24. Run install command
pkgbuild
--component-plist
--identifier
--install-location
--root
--version

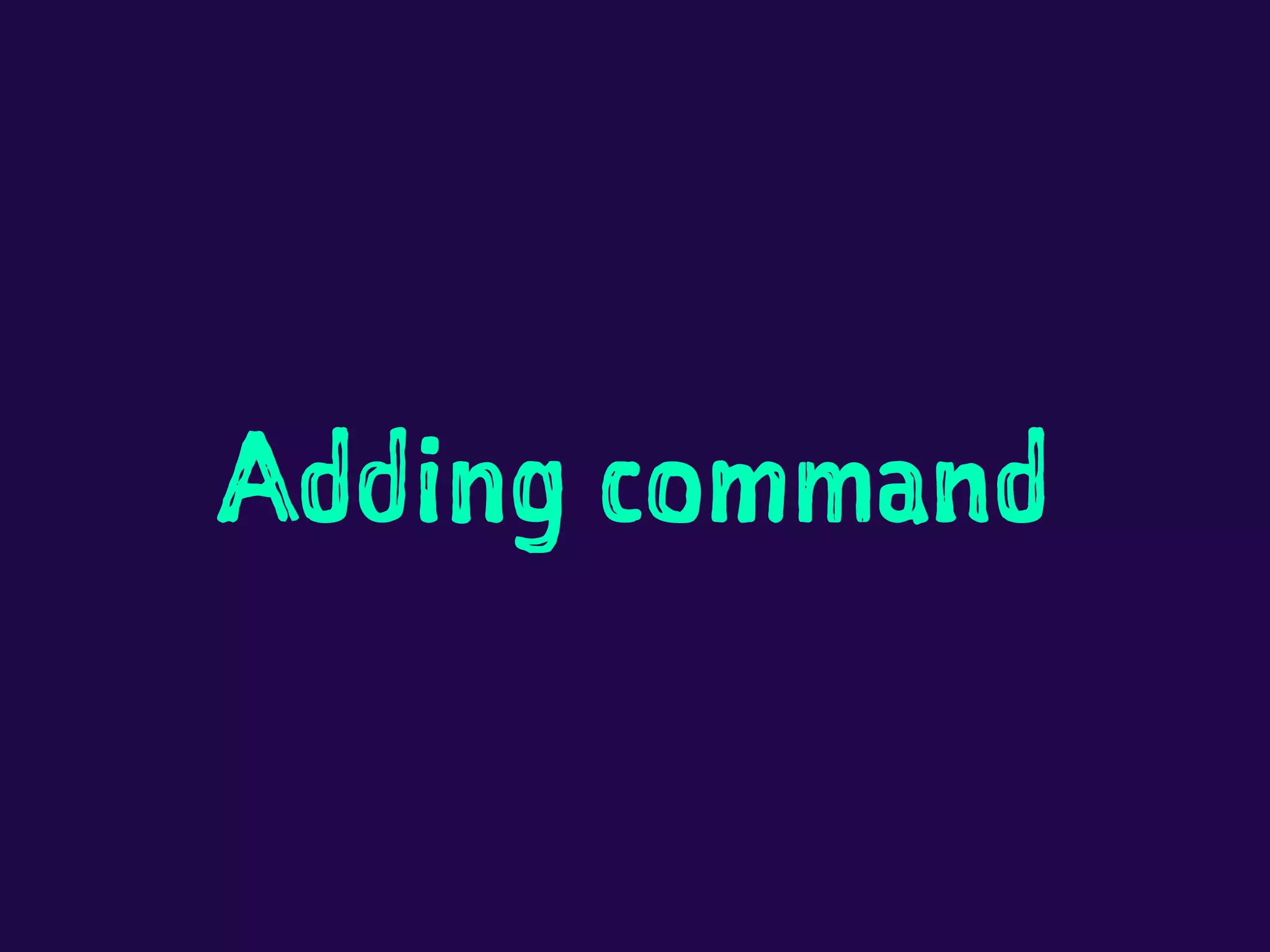

25. Adding command

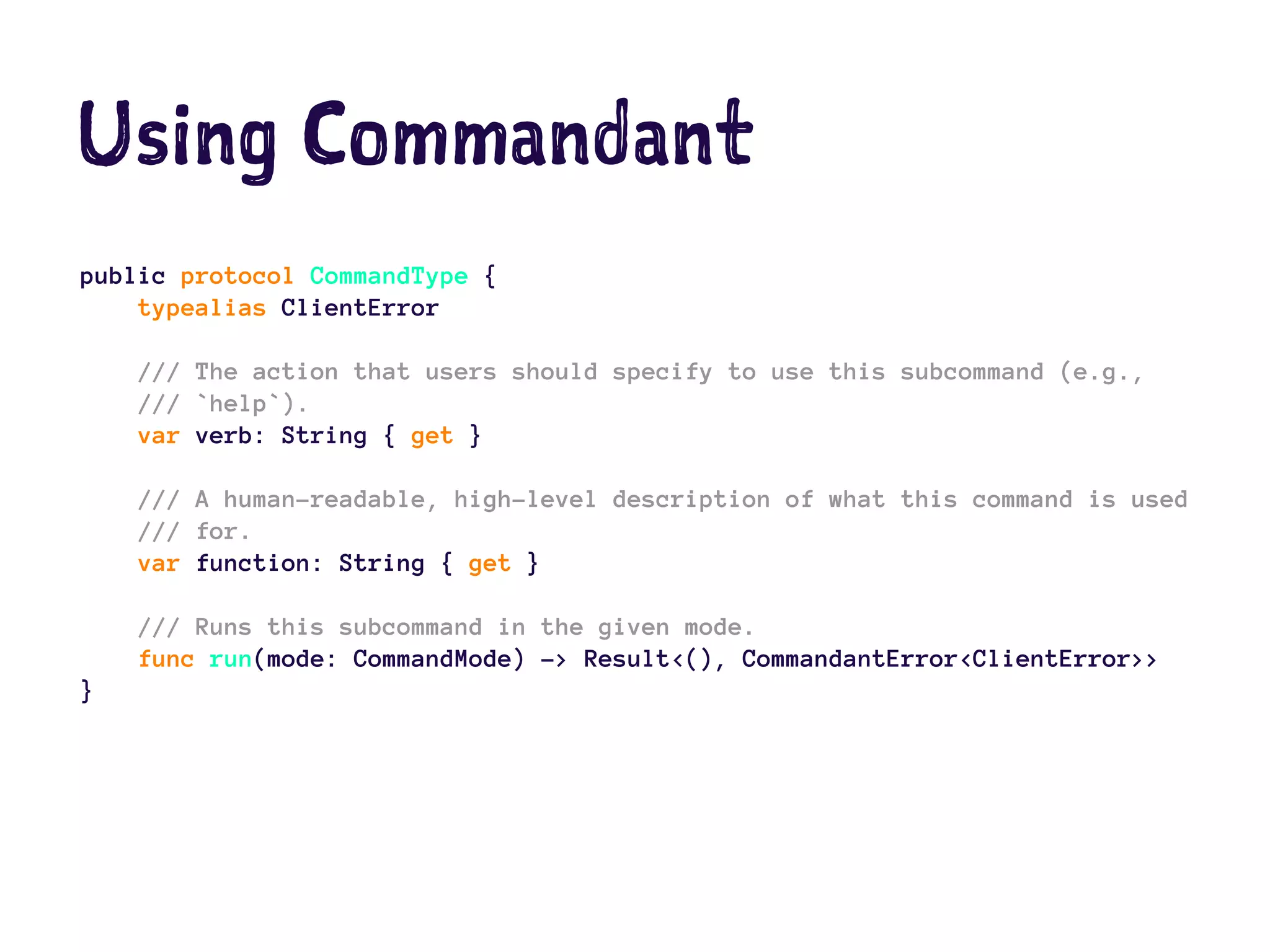

26. Using Commandant
public protocol CommandType {
typealias ClientError
/// The action that users should specify to use this subcommand (e.g.,
/// `help`).
var verb: String { get }
/// A human-readable, high-level description of what this command is used
/// for.
var function: String { get }
/// Runs this subcommand in the given mode.
func run(mode: CommandMode) -> Result<(), CommandantError<ClientError>>
}

27. Debugging

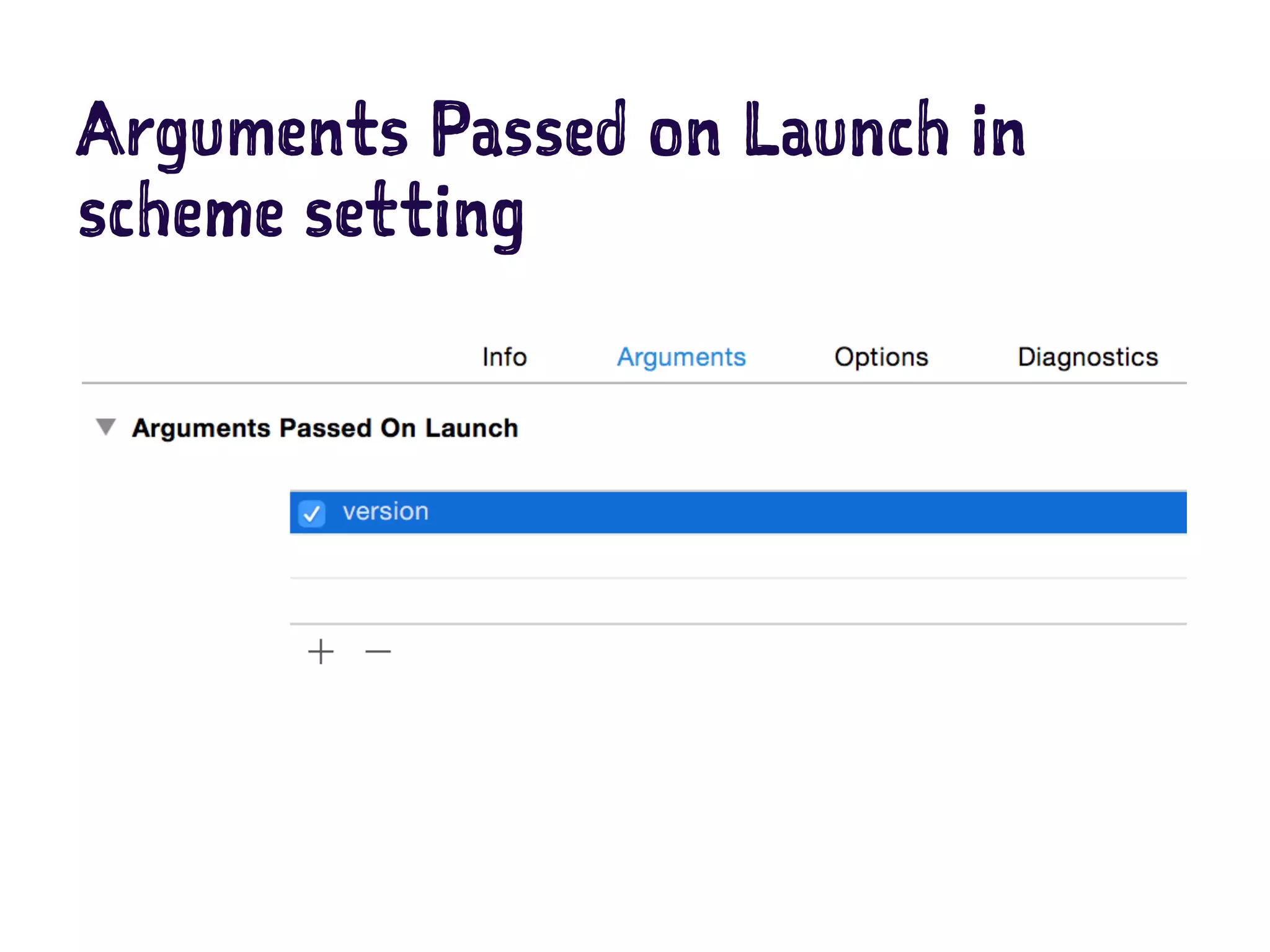

28. Arguments Passed on Launch in
scheme setting

29. Demo

30. Start your Swift life
from now !

31. Thank you
