1. Full Stack
Development with
Node.js and NoSQL
Matthew D. Groves (@mgroves)
Nic Raboy (@nraboy)

2. Full Stack?

3. Where am I?
• All Things Open
• Raleigh, North Carolina
• https://allthingsopen.org/

4. Who am I?
• Nic Raboy Matthew D. Groves
• Developer Advocate for Couchbase
• @mgroves on Twitter
• Podcast and blog: https://crosscuttingconcerns.com
• "I am not an expert, but I am an enthusiast."
–Alan Stevens

5. Full Stack
Development with
Node.js and NoSQL
Matthew D. Groves (@mgroves)
Nic Raboy (@nraboy)

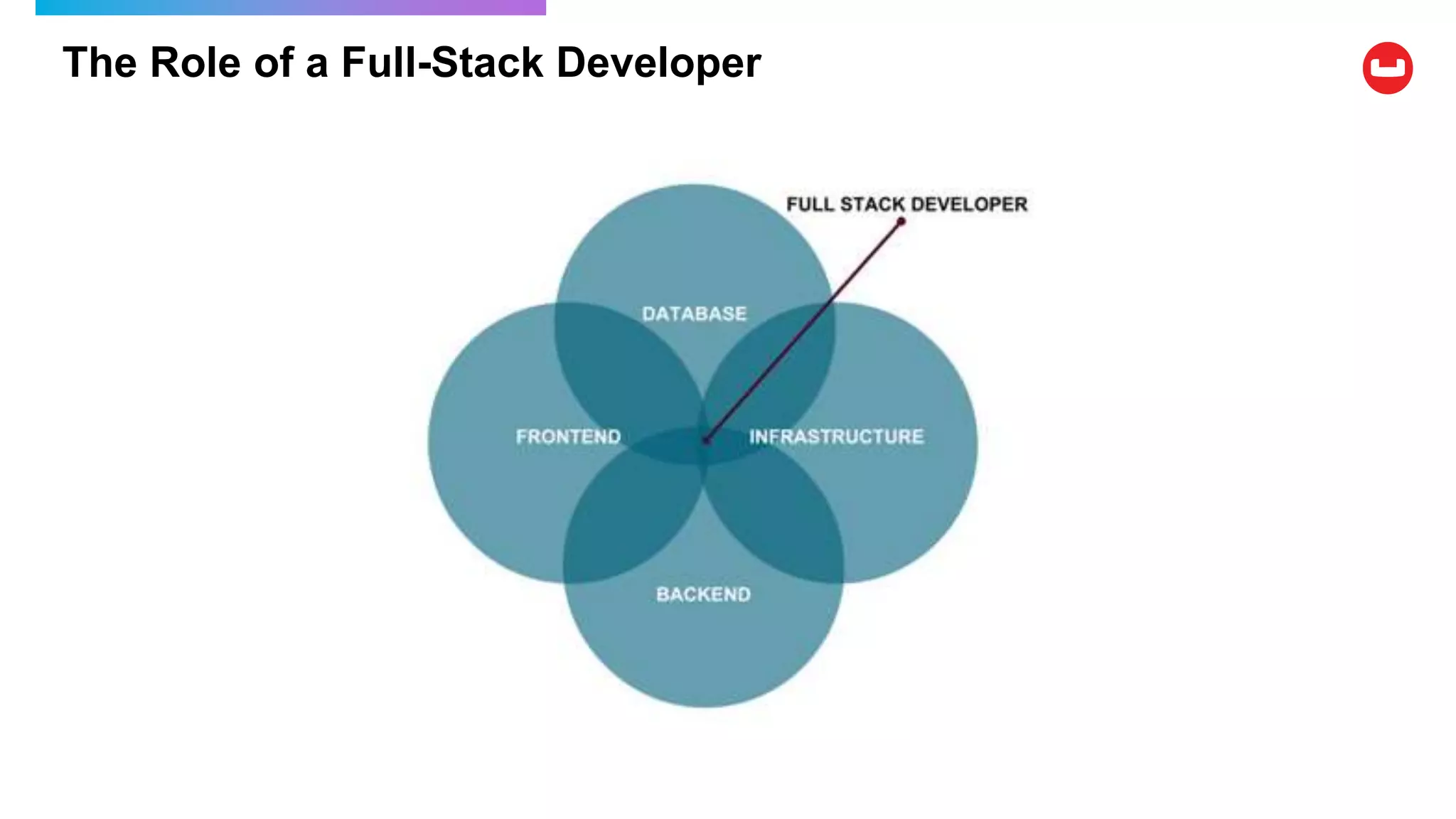

6. The Role of a Full-Stack Developer

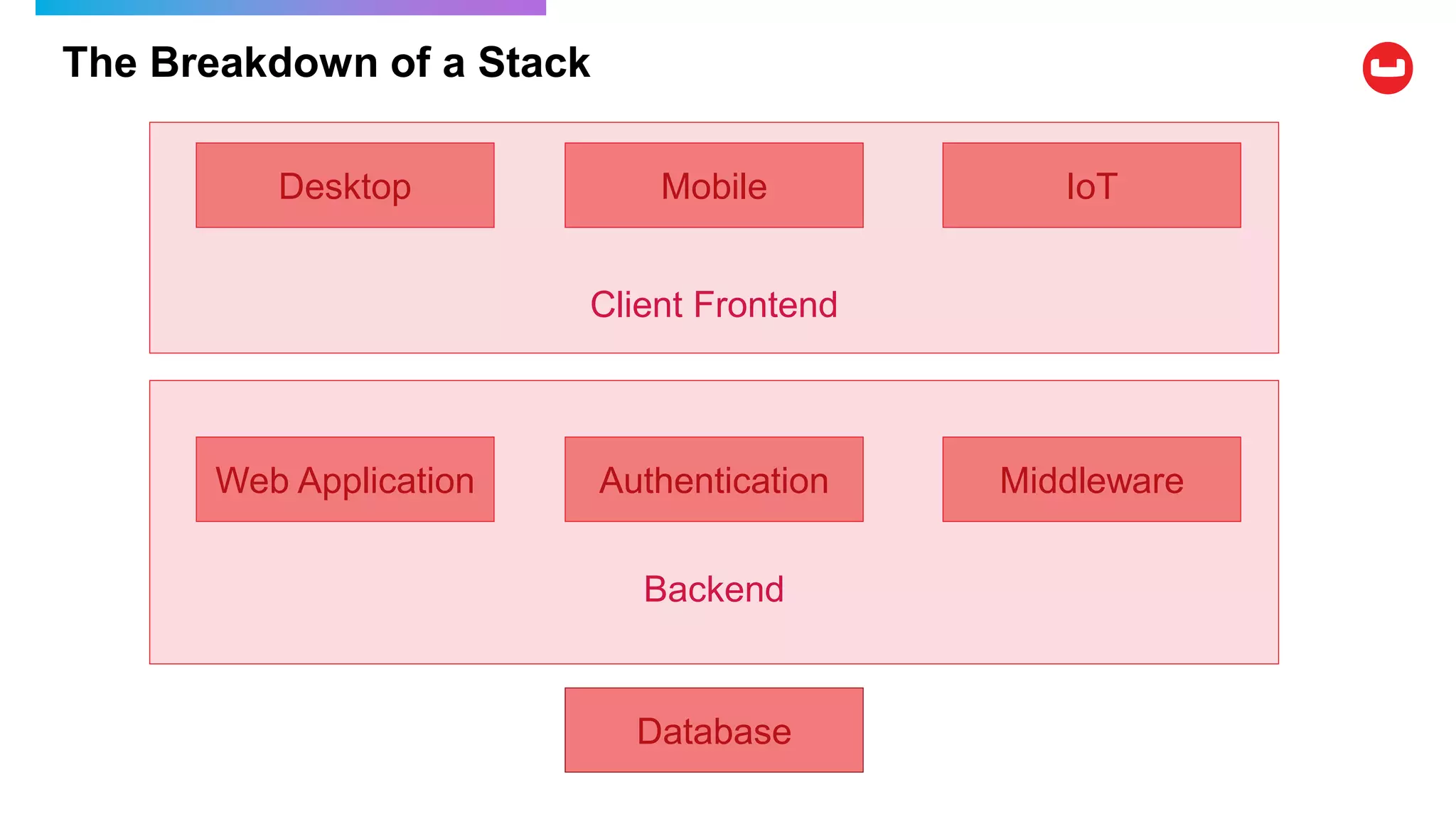

7. Client Frontend
Backend
The Breakdown of a Stack
Database
Web Application Authentication Middleware
Mobile IoTDesktop

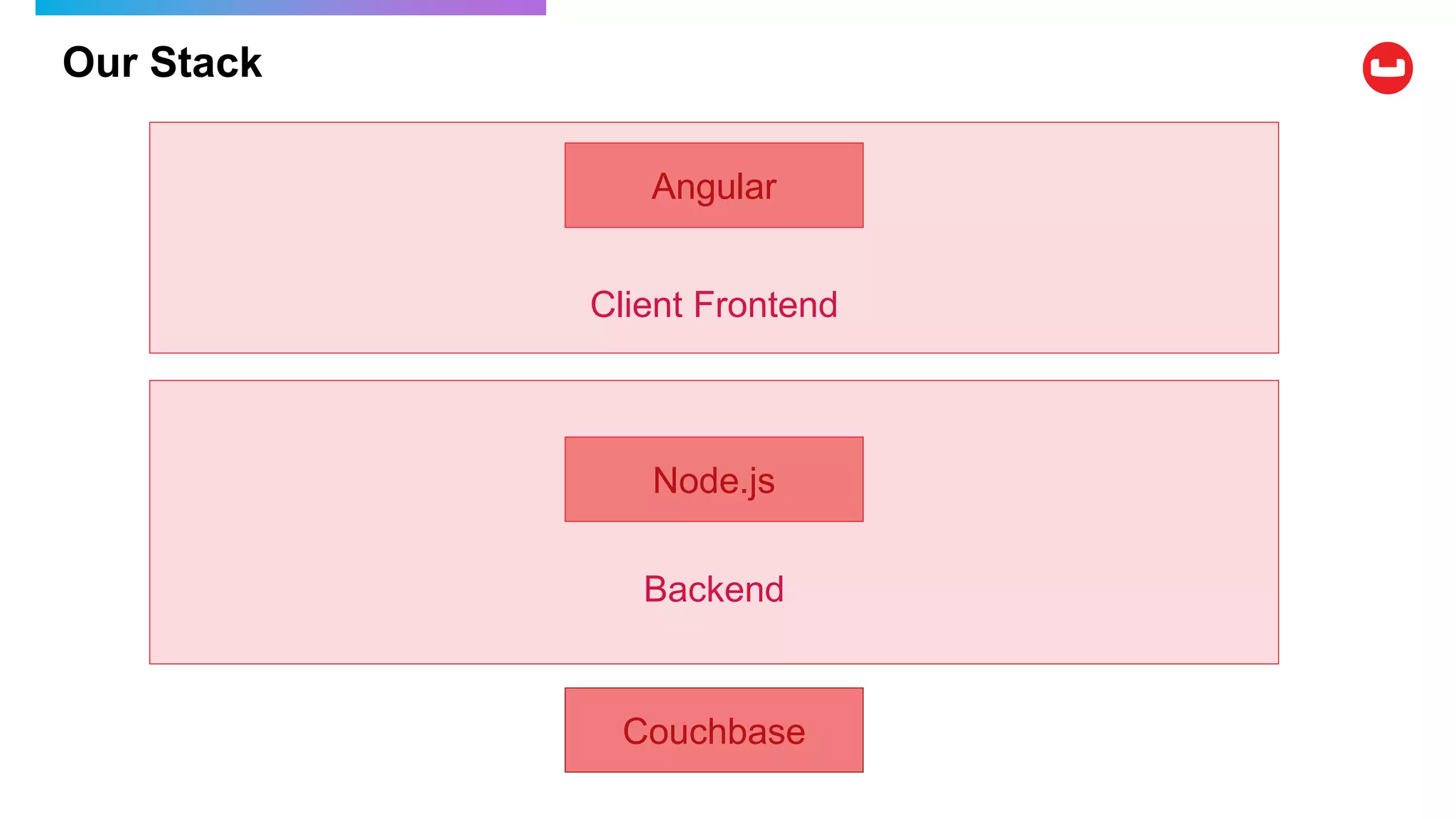

8. Client Frontend
Backend
Our Stack
Couchbase
Node.js
Angular

9. What is
Couchbase?

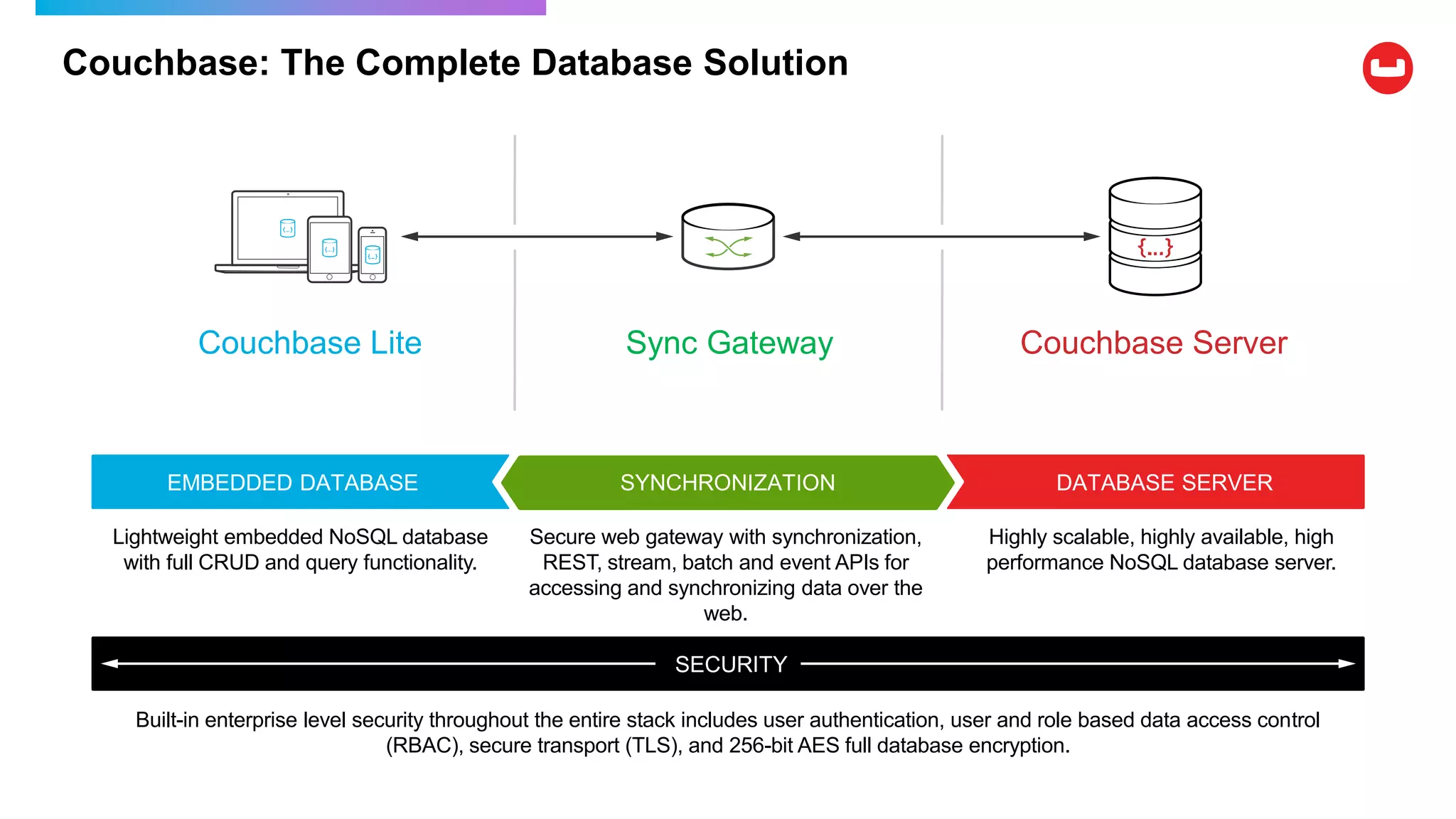

10. Couchbase: The Complete Database Solution
Lightweight embedded NoSQL database
with full CRUD and query functionality.
Secure web gateway with synchronization,
REST, stream, batch and event APIs for
accessing and synchronizing data over the
web.
Highly scalable, highly available, high
performance NoSQL database server.
Built-in enterprise level security throughout the entire stack includes user authentication, user and role based data access control
(RBAC), secure transport (TLS), and 256-bit AES full database encryption.
Couchbase Lite Sync Gateway Couchbase Server
EMBEDDED DATABASE SYNCHRONIZATION DATABASE SERVER
SECURITY

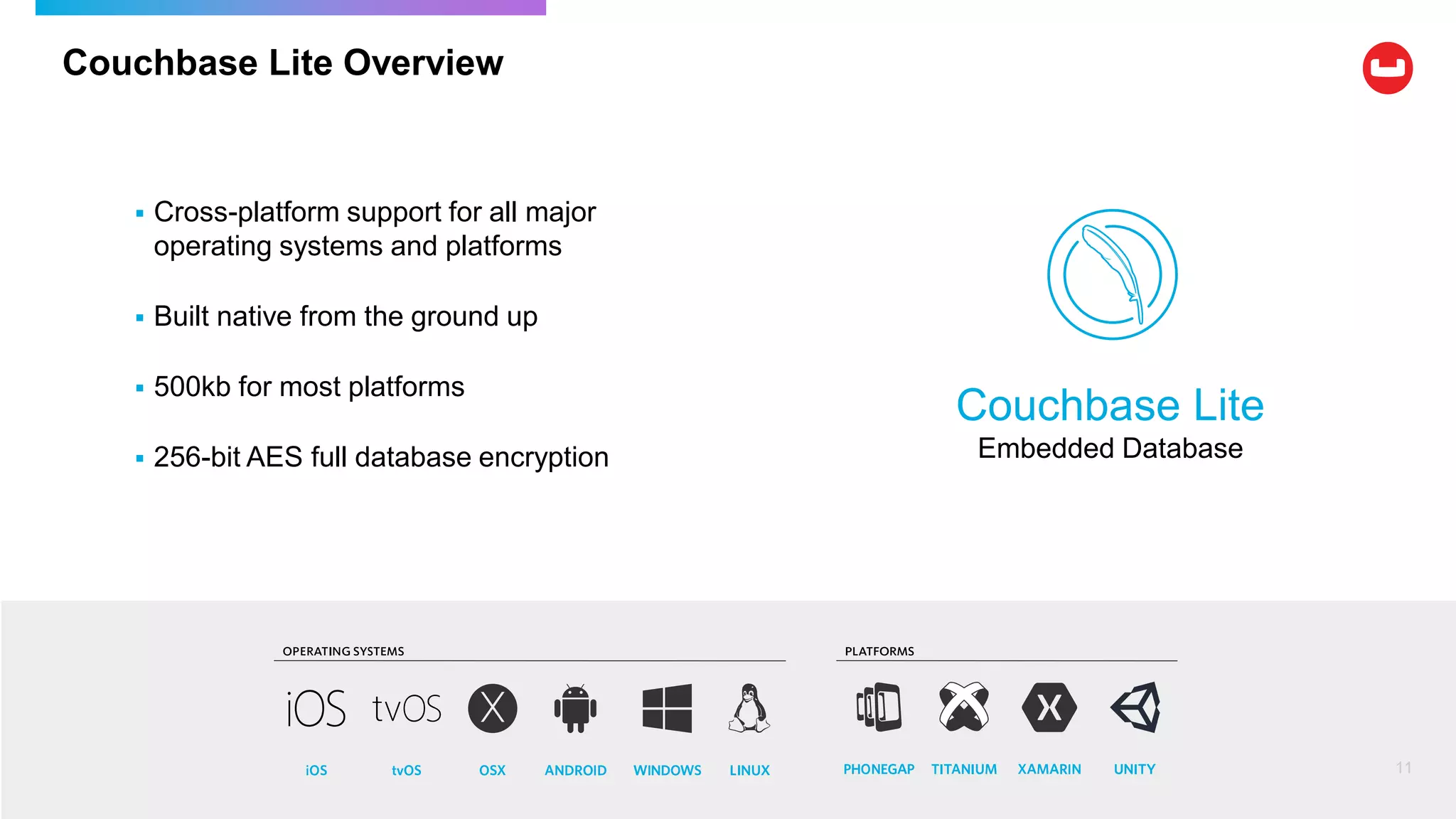

11. Couchbase Lite Overview
 Cross-platform support for all major
operating systems and platforms
 Built native from the ground up
 500kb for most platforms
 256-bit AES full database encryption
11
Couchbase Lite
Embedded Database

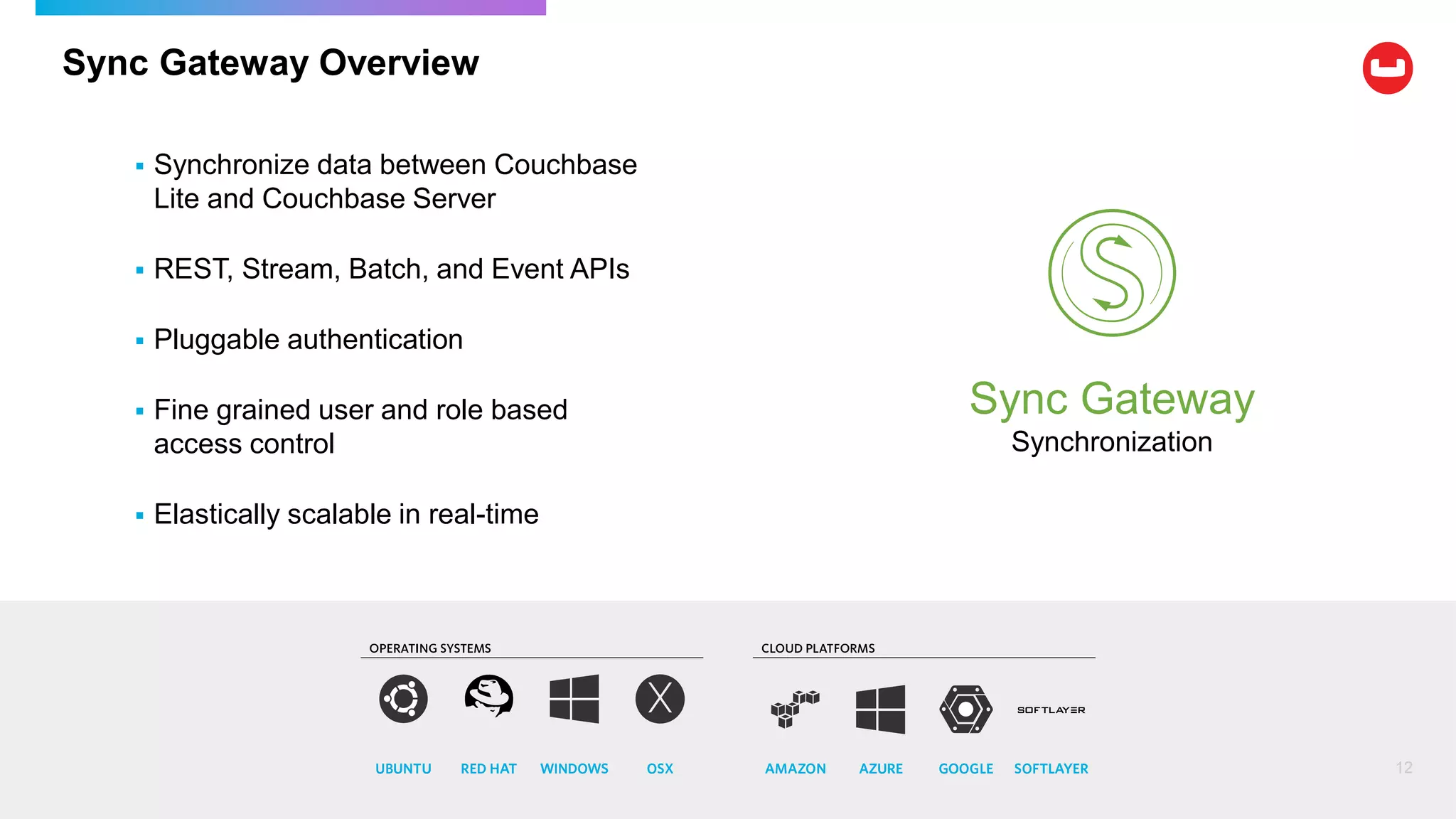

12. Sync Gateway Overview
 Synchronize data between Couchbase
Lite and Couchbase Server
 REST, Stream, Batch, and Event APIs
 Pluggable authentication
 Fine grained user and role based
access control
 Elastically scalable in real-time
12
Sync Gateway
Synchronization

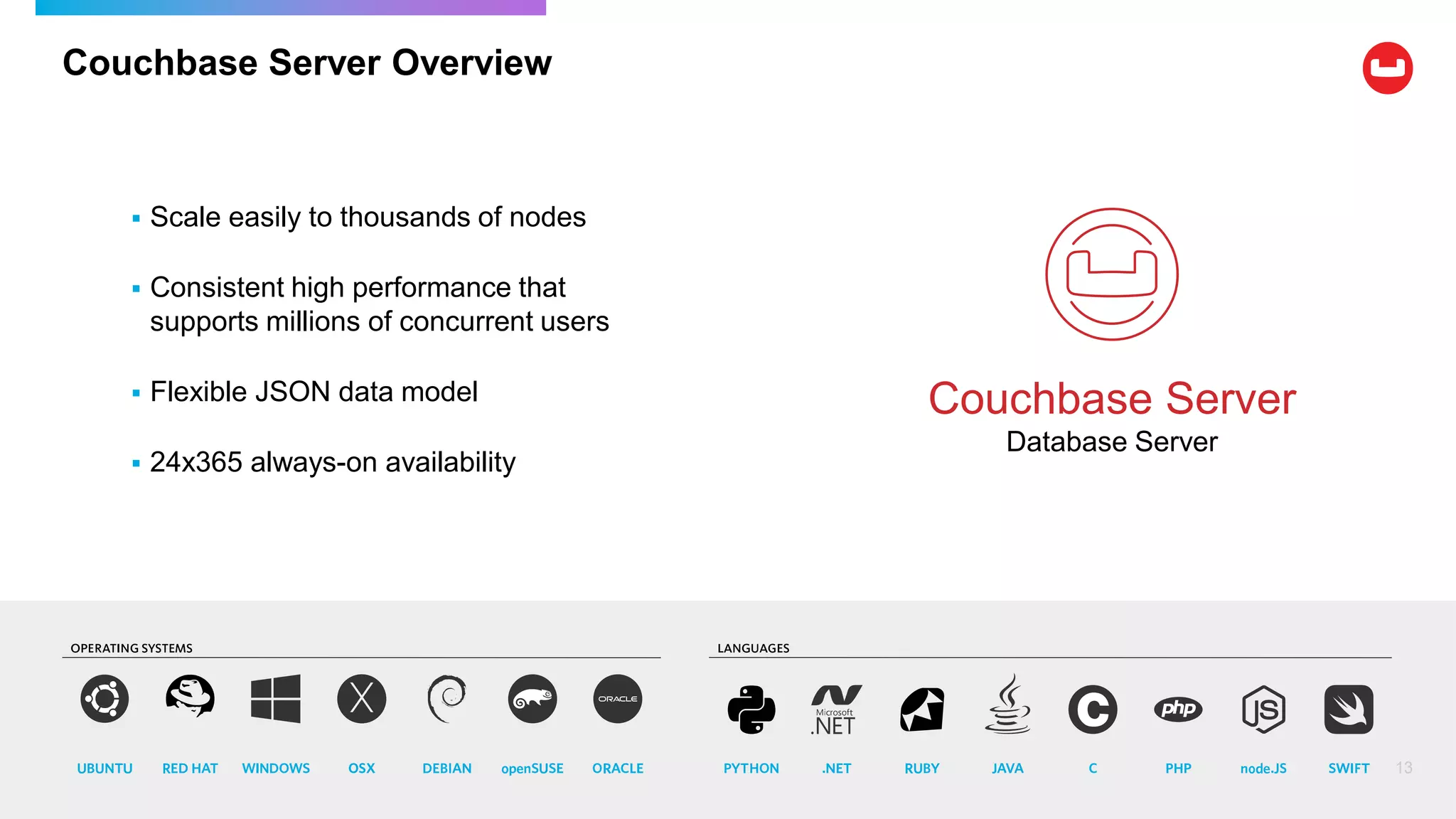

13. Couchbase Server Overview
 Scale easily to thousands of nodes
 Consistent high performance that
supports millions of concurrent users
 Flexible JSON data model
 24x365 always-on availability
13
Couchbase Server
Database Server

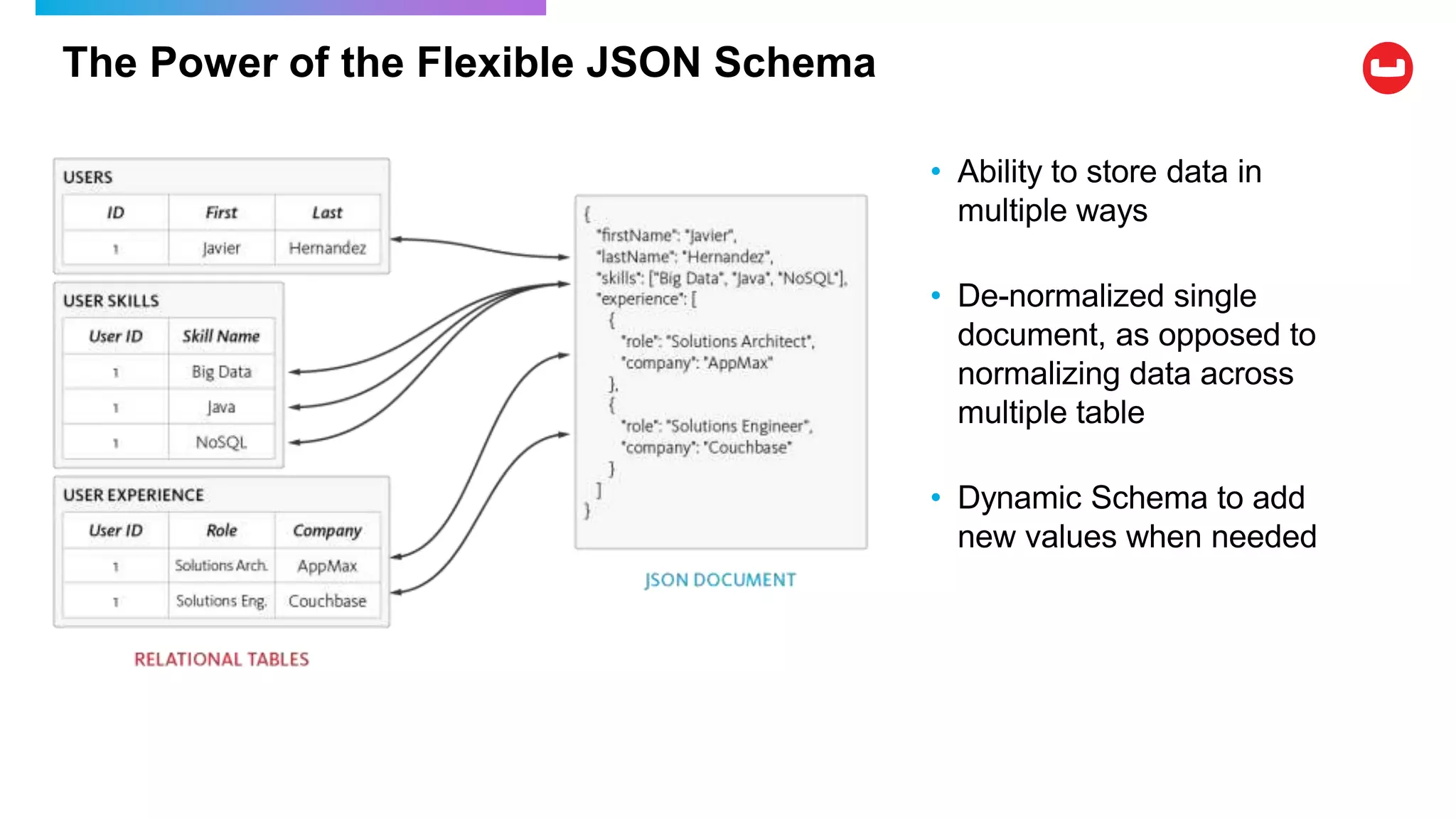

14. The Power of the Flexible JSON Schema
• Ability to store data in
multiple ways
• De-normalized single
document, as opposed to
normalizing data across
multiple table
• Dynamic Schema to add
new values when needed

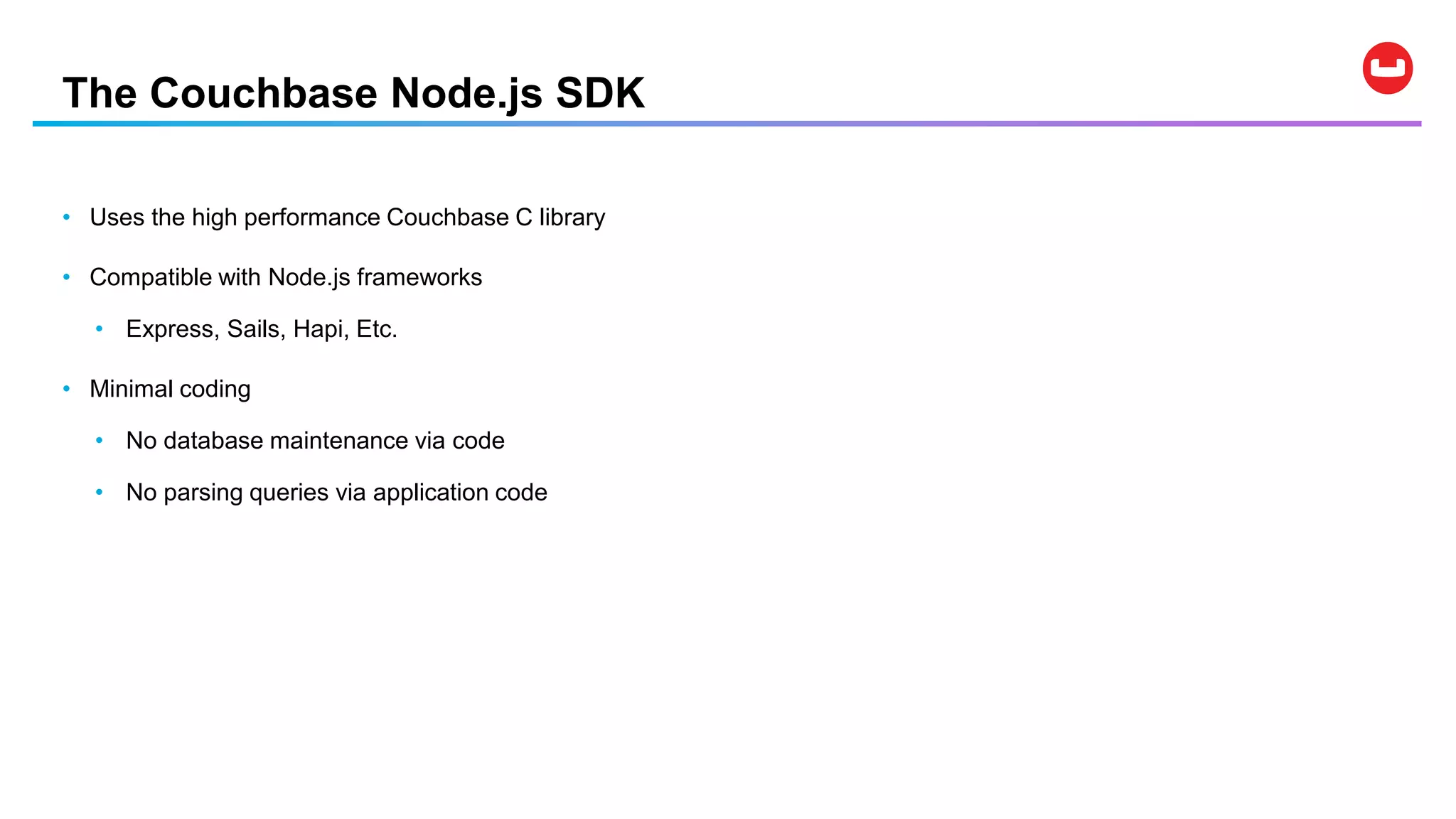

15. The Couchbase Node.js SDK
• Uses the high performance Couchbase C library
• Compatible with Node.js frameworks
• Express, Sails, Hapi, Etc.
• Minimal coding
• No database maintenance via code
• No parsing queries via application code

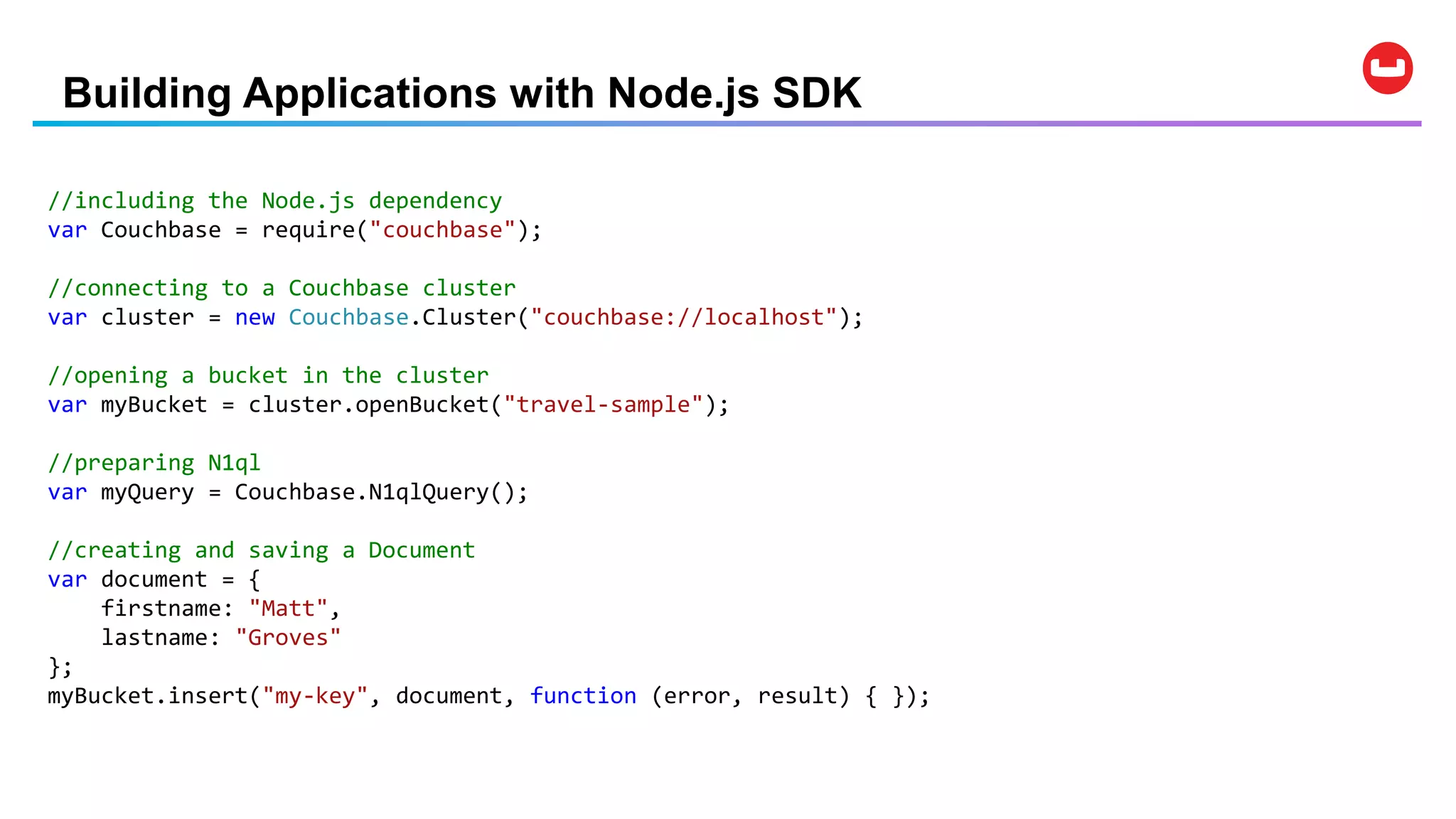

16. Building Applications with Node.js SDK
//including the Node.js dependency
var Couchbase = require("couchbase");
//connecting to a Couchbase cluster
var cluster = new Couchbase.Cluster("couchbase://localhost");
//opening a bucket in the cluster
var myBucket = cluster.openBucket("travel-sample");
//preparing N1ql
var myQuery = Couchbase.N1qlQuery();
//creating and saving a Document
var document = {
firstname: "Matt",
lastname: "Groves"
};
myBucket.insert("my-key", document, function (error, result) { });

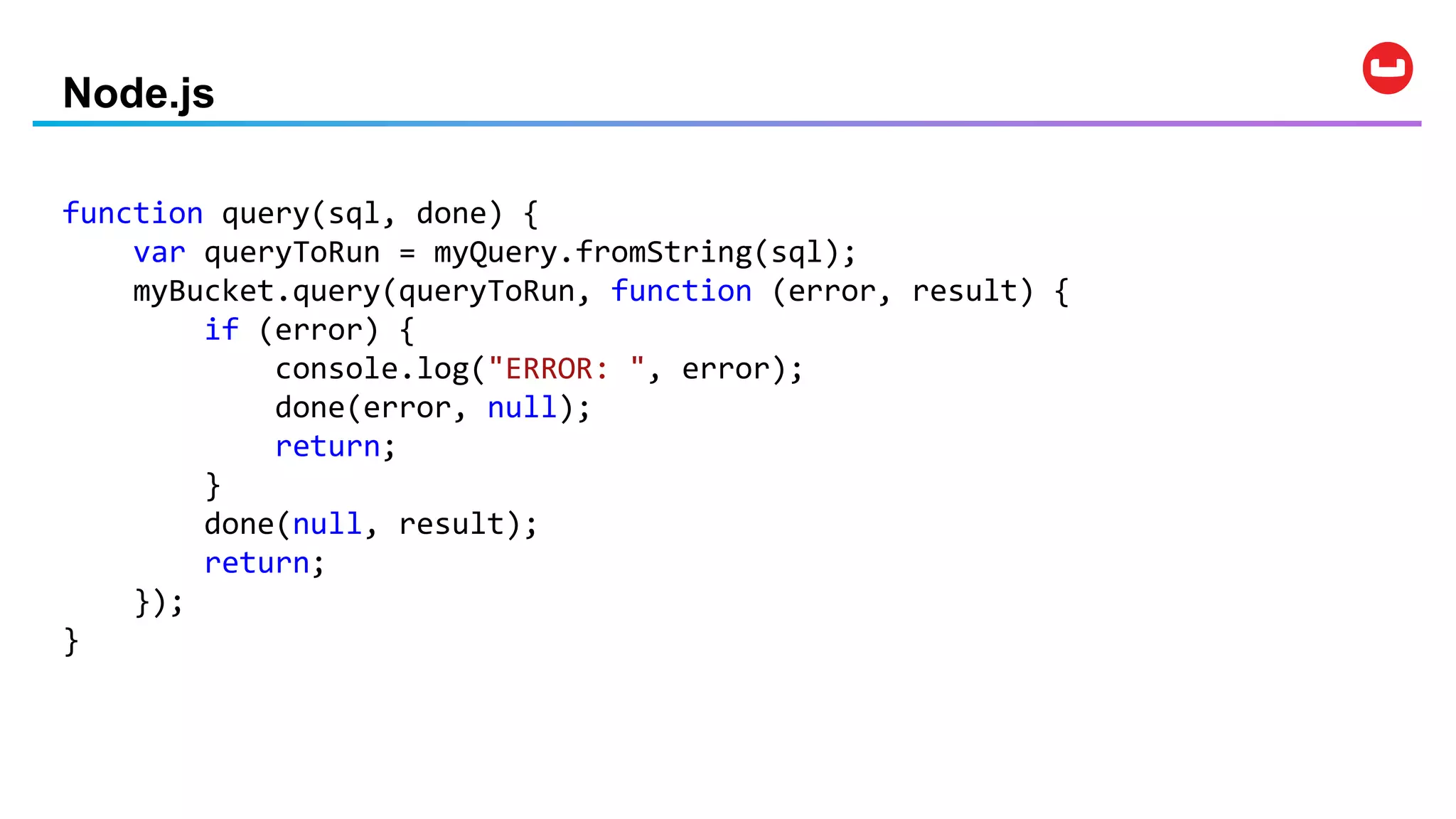

17. Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function (error, result) {
if (error) {
console.log("ERROR: ", error);
done(error, null);
return;
}
done(null, result);
return;
});
}

18. Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function (error, result) {
if (error) {
console.log("ERROR: ", error);
done(error, null);
return;
}
done(null, result);
return;
});
}

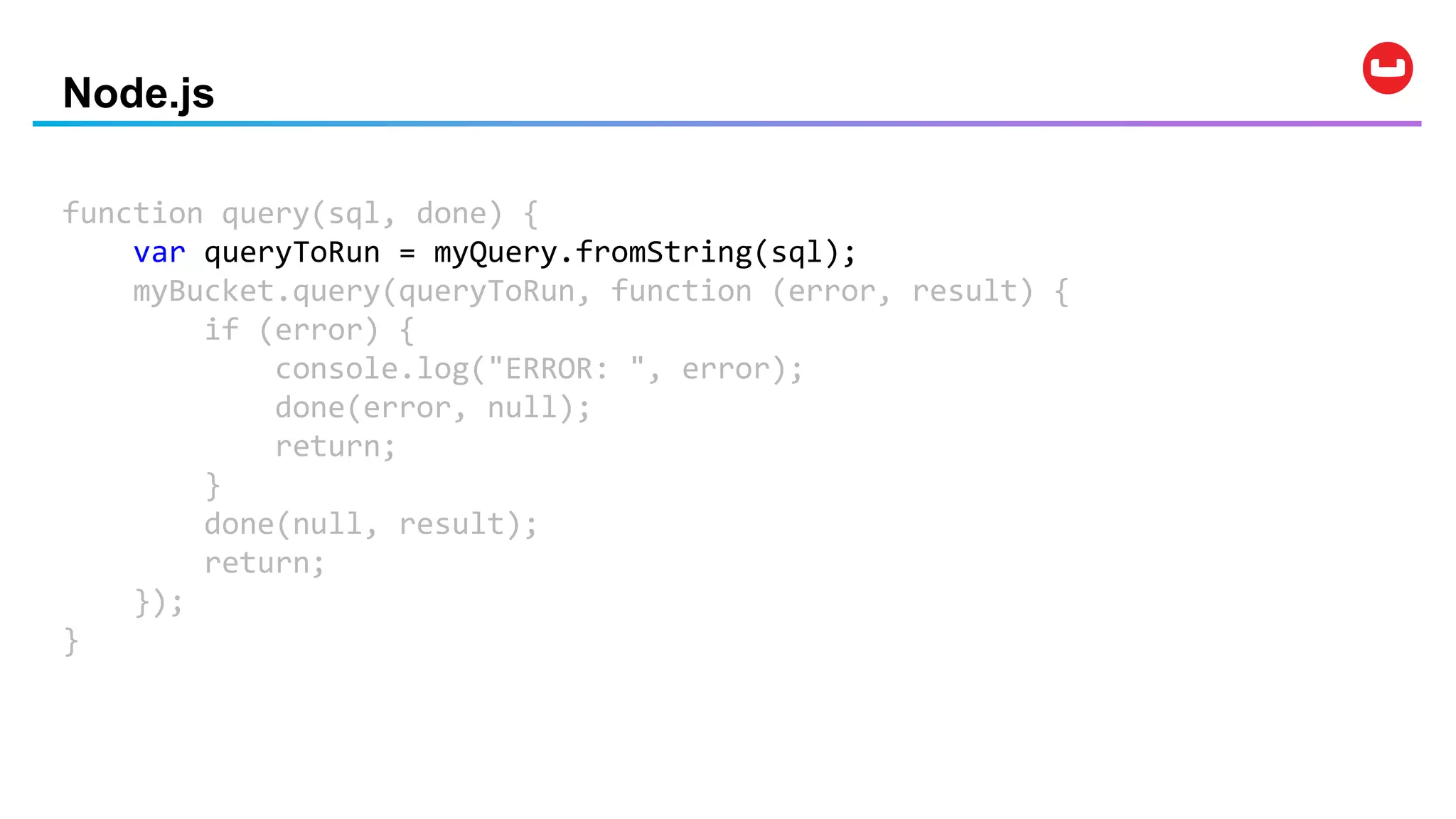

19. Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function (error, result) {
if (error) {
console.log("ERROR: ", error);
done(error, null);
return;
}
done(null, result);
return;
});
}

20. Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function (error, result) {
if (error) {
console.log("ERROR: ", error);
done(error, null);
return;
}
done(null, result);
return;
});
}

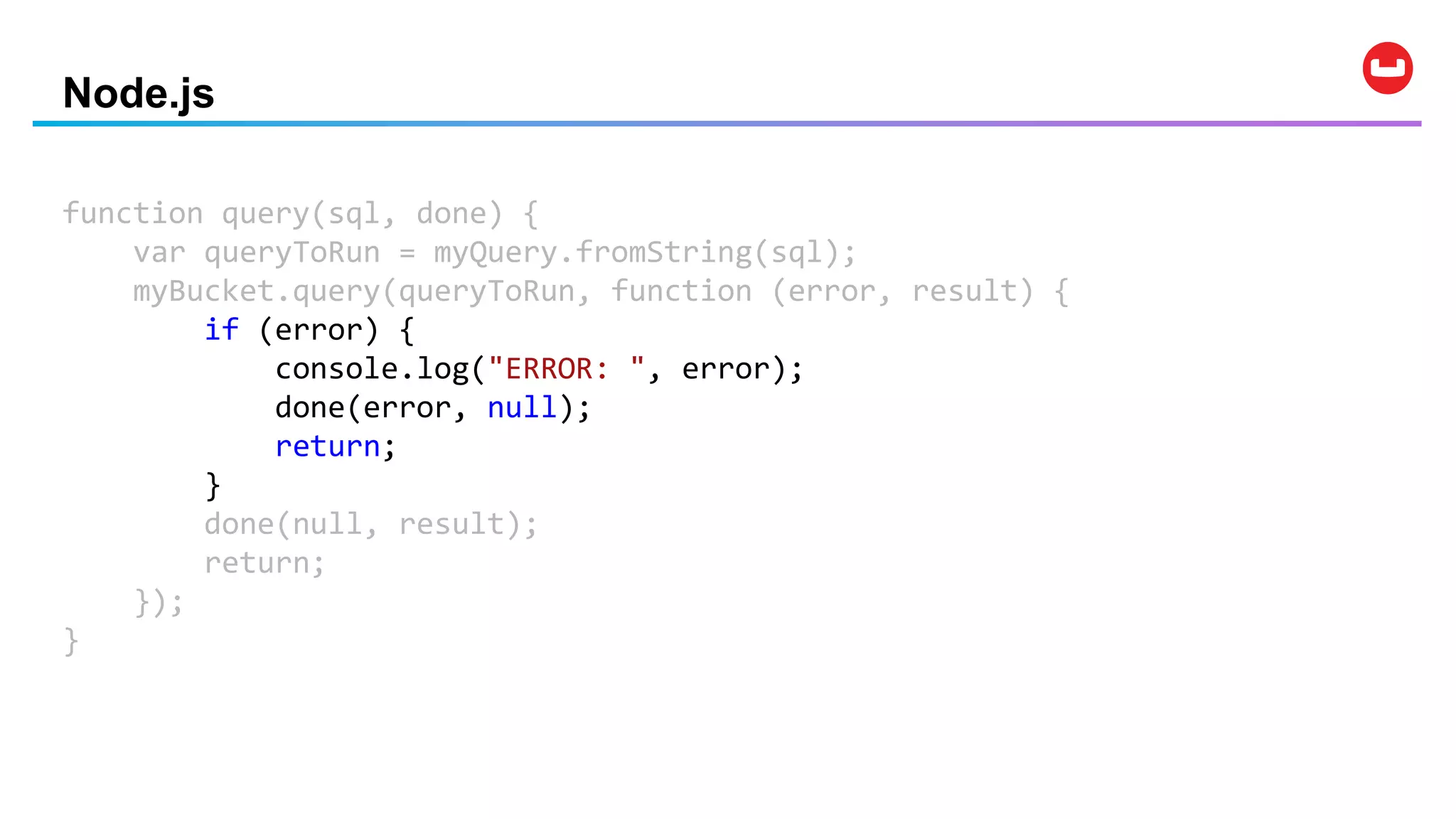

21. Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function (error, result) {
if (error) {
console.log("ERROR: ", error);
done(error, null);
return;
}
done(null, result);
return;
});
}

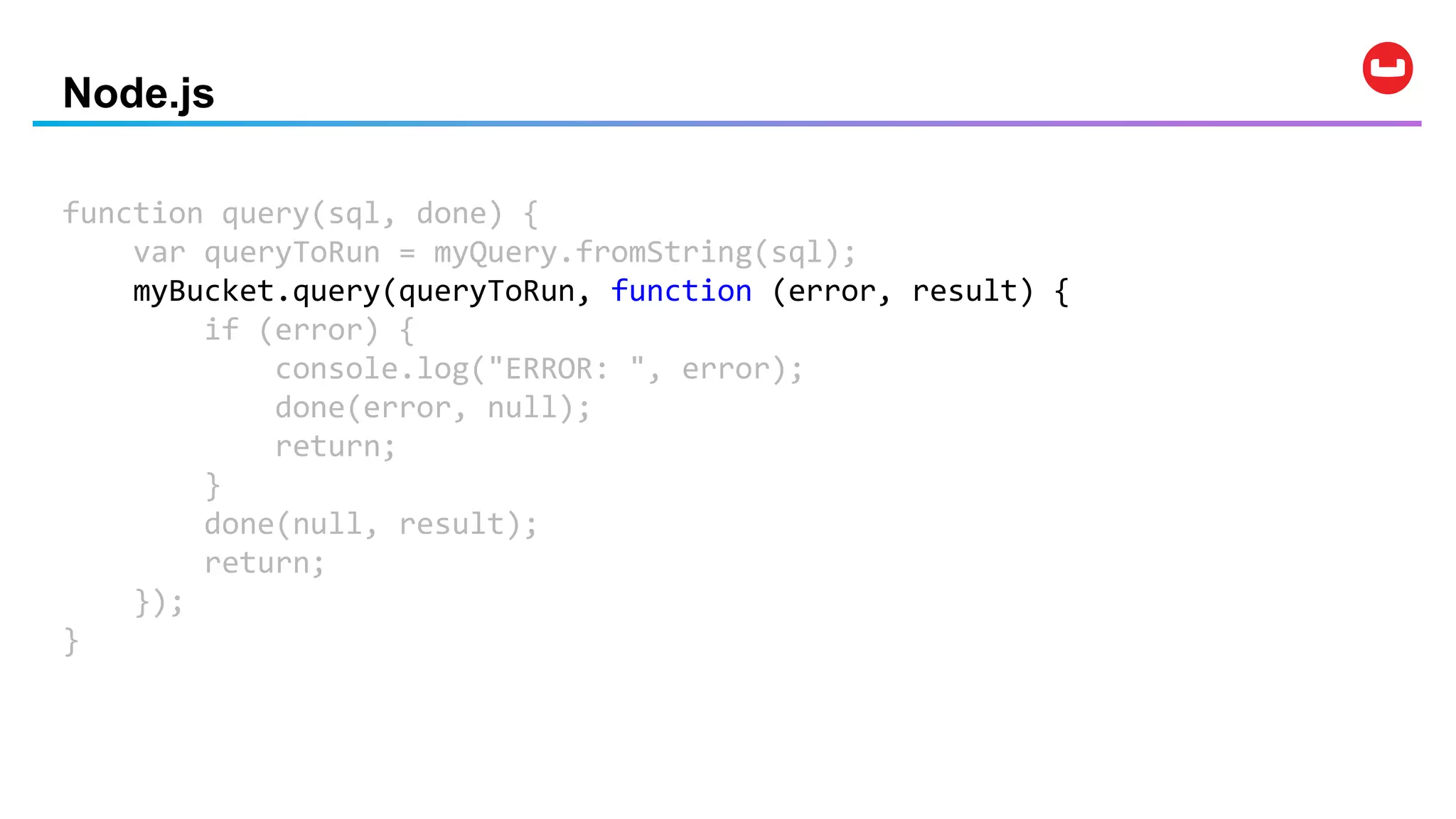

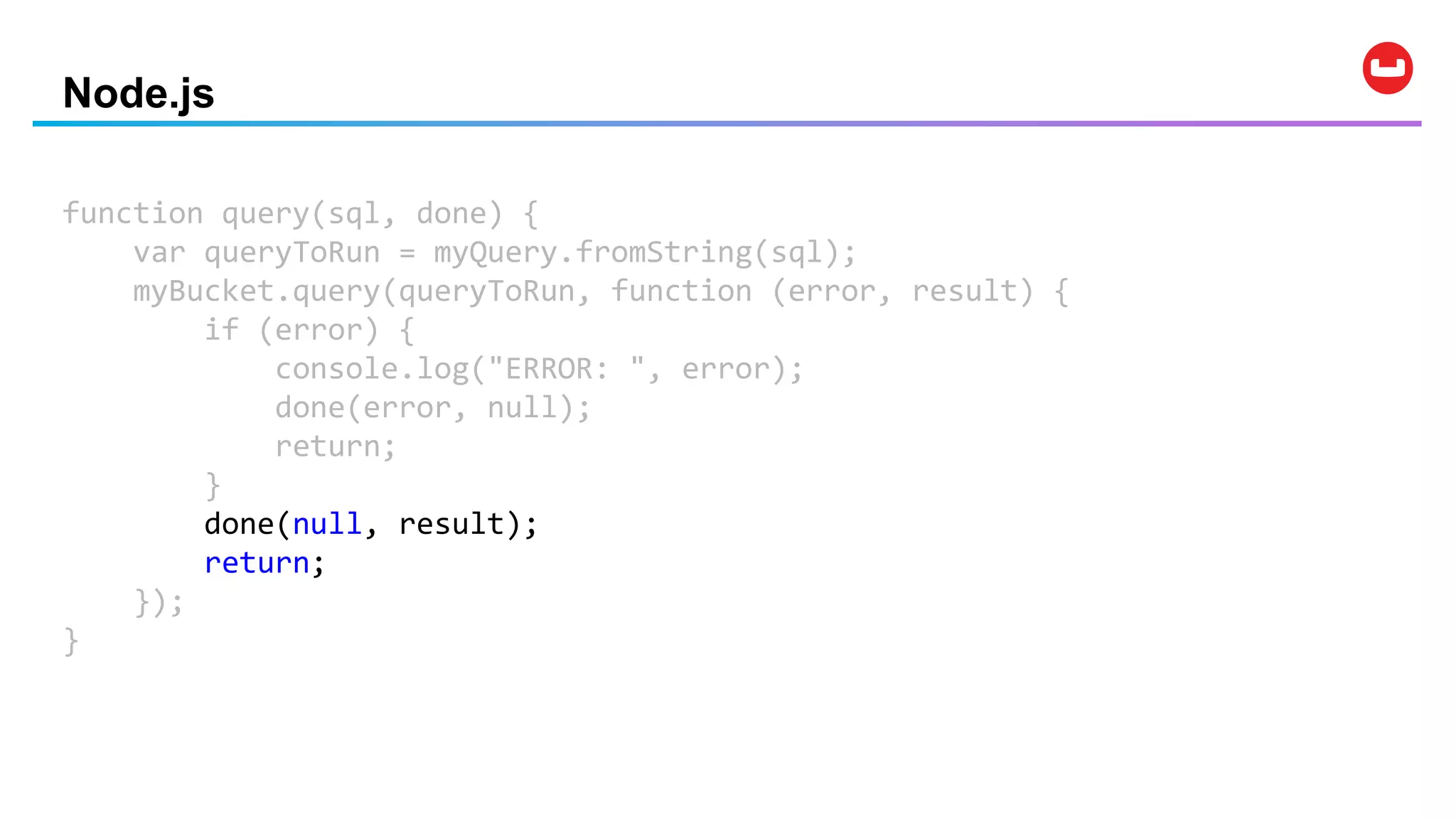

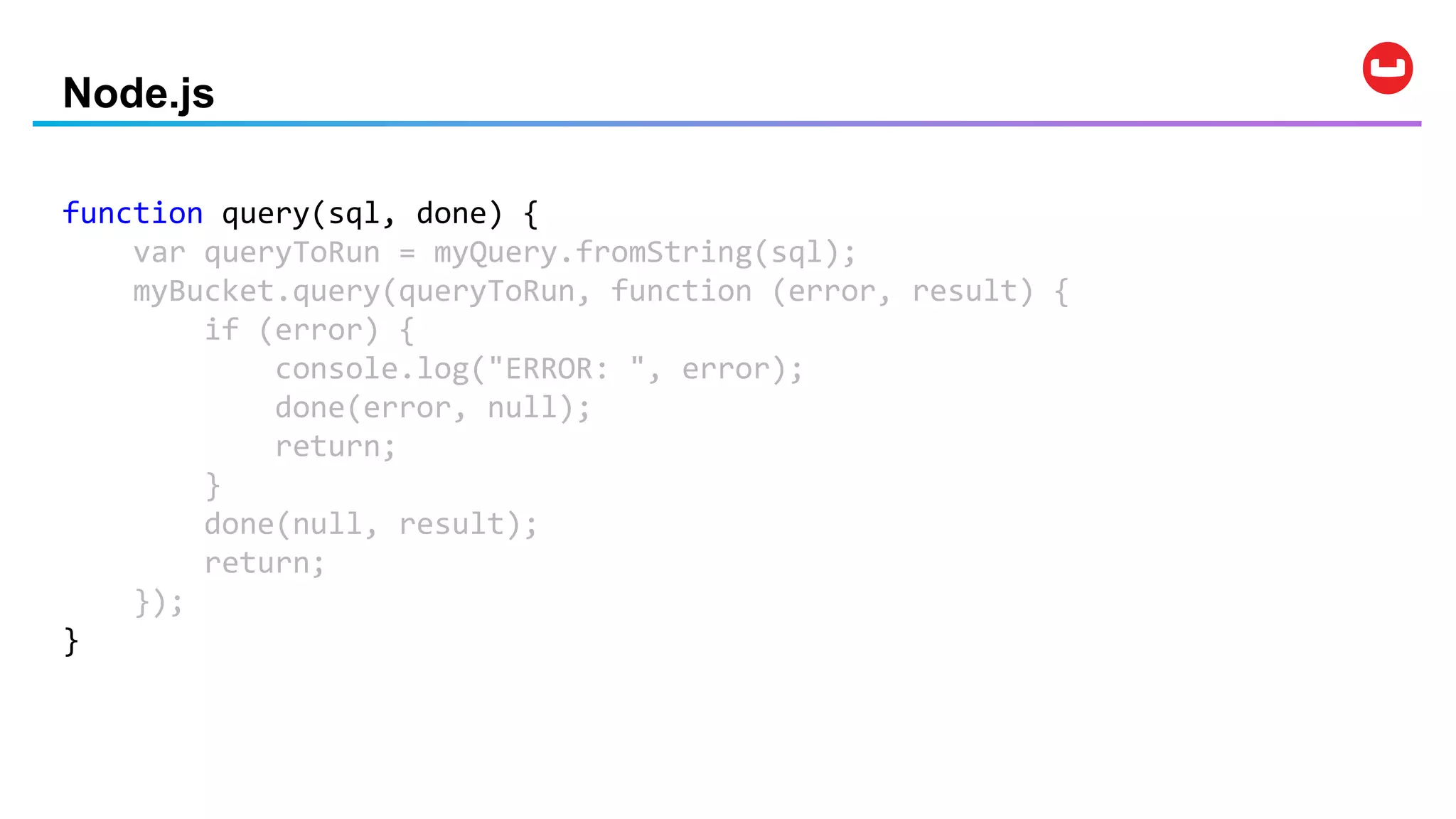

22. Node.js
function query(sql, done) {
var queryToRun = myQuery.fromString(sql);
myBucket.query(queryToRun, function (error, result) {
if (error) {
console.log("ERROR: ", error);
done(error, null);
return;
}
done(null, result);
return;
});
}

23. Demo Time!

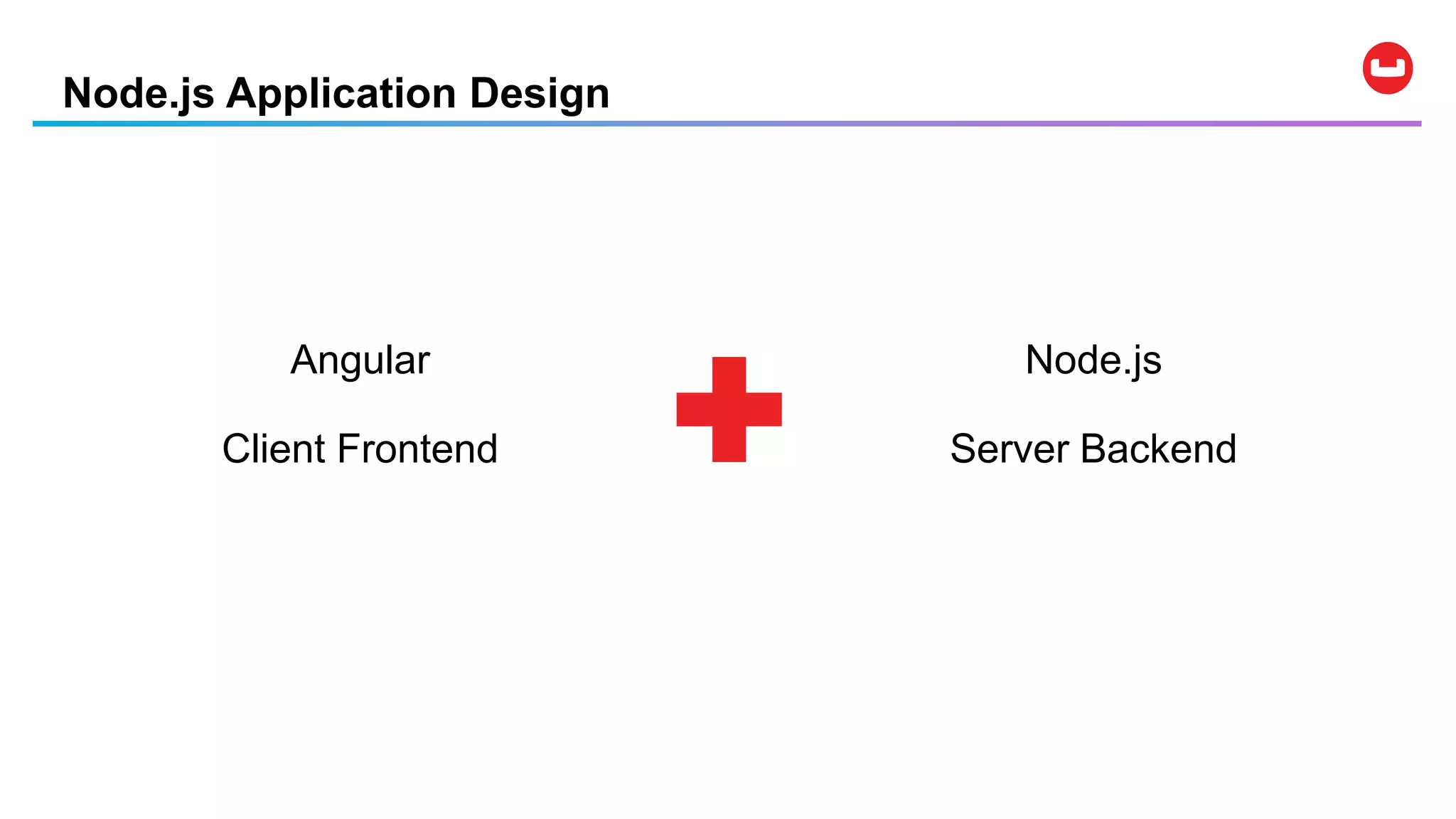

24. Node.js Application Design
Node.js
Server Backend
Angular
Client Frontend

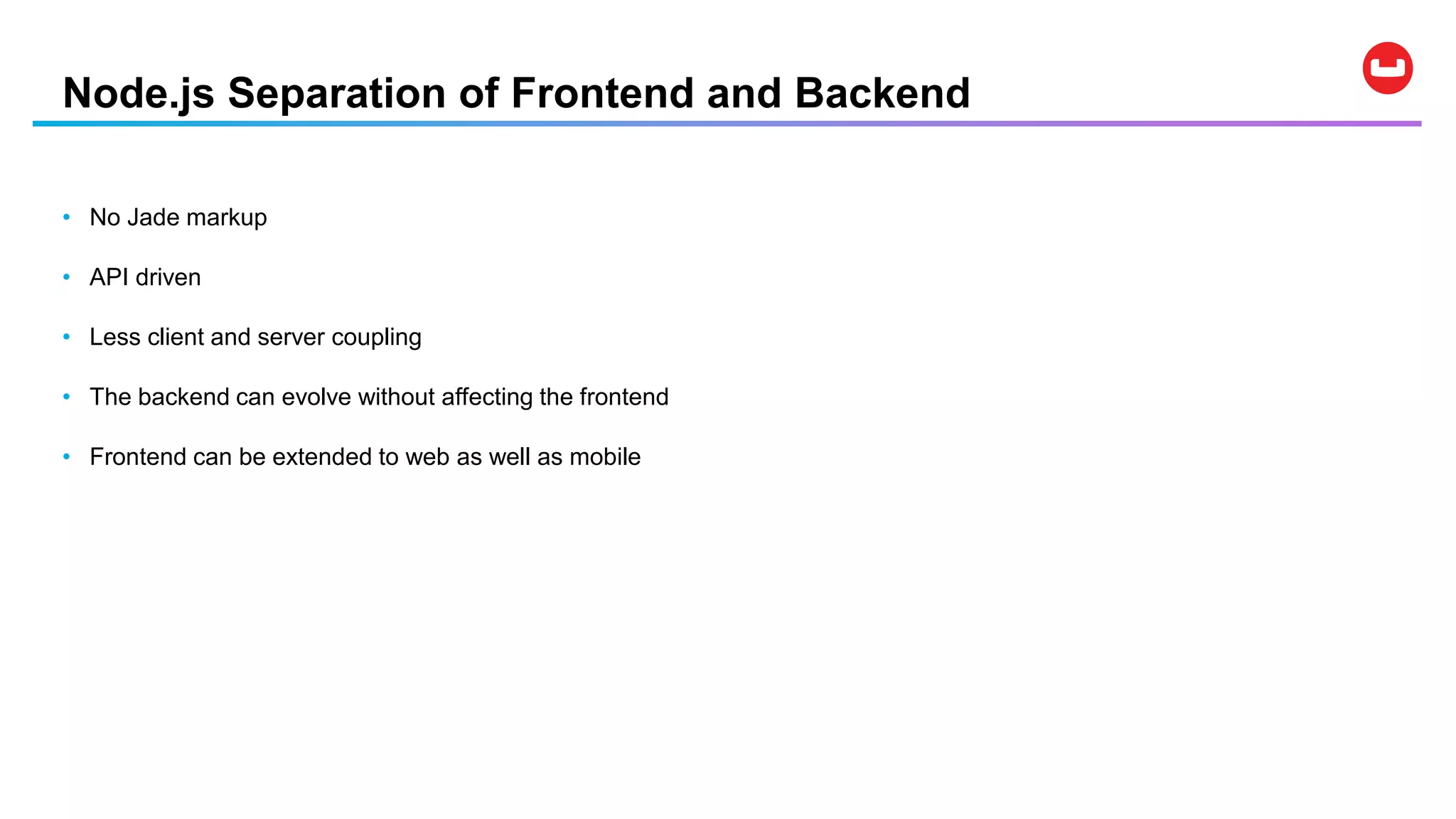

25. Node.js Separation of Frontend and Backend
• No Jade markup
• API driven
• Less client and server coupling
• The backend can evolve without affecting the frontend
• Frontend can be extended to web as well as mobile

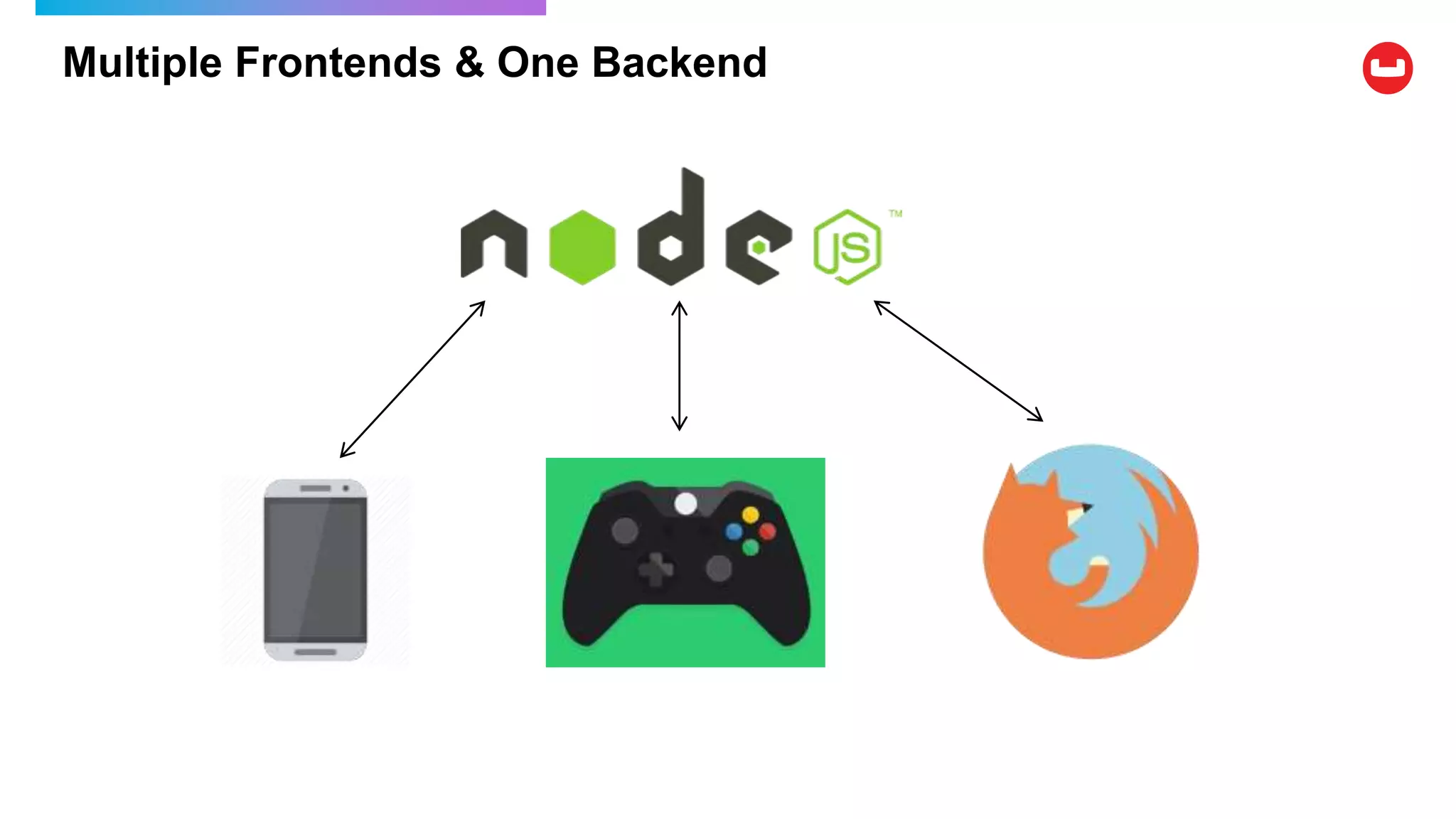

26. Multiple Frontends & One Backend

27. The Node.js
Backend

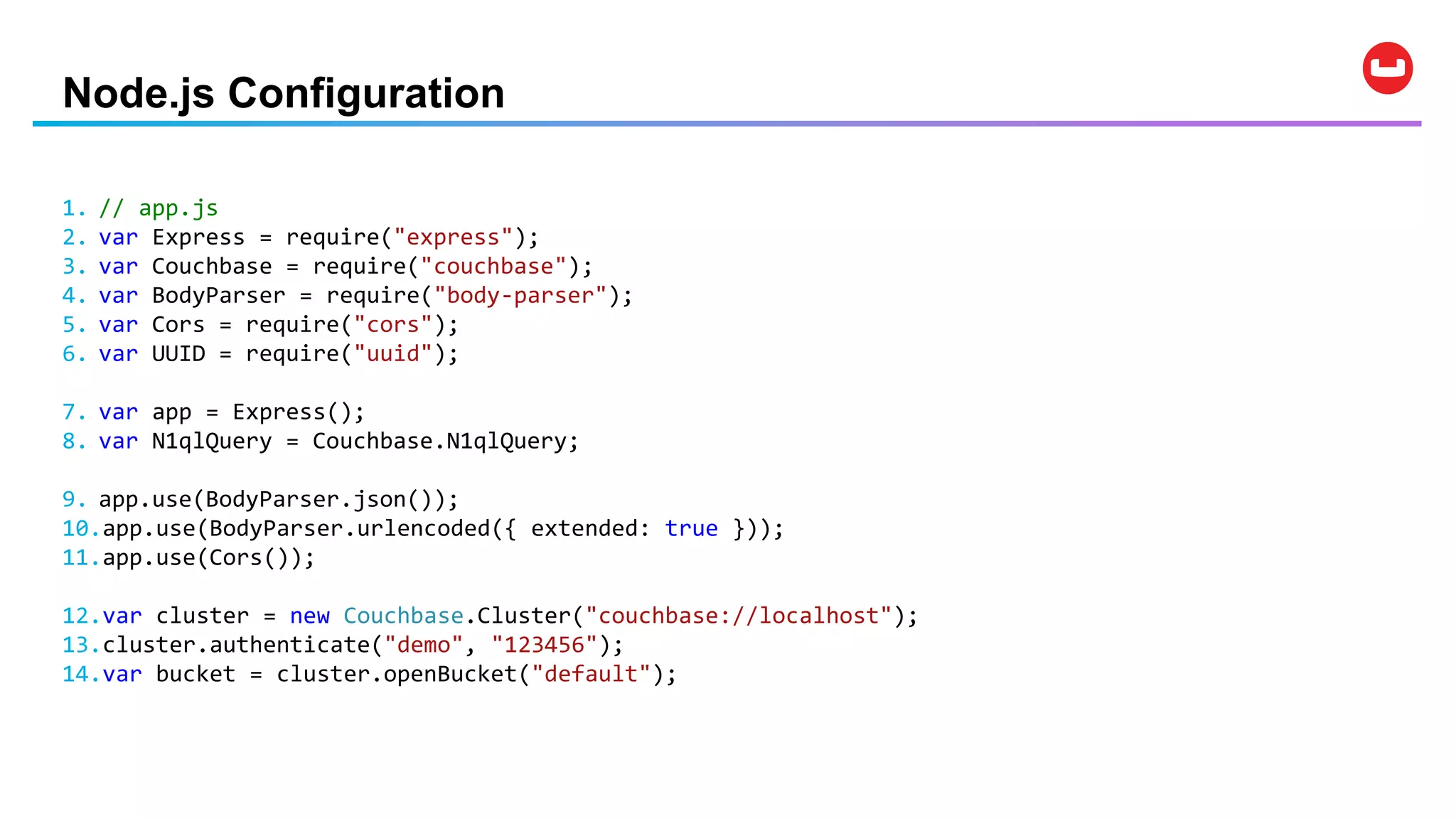

28. Node.js Configuration
1. // app.js
2. var Express = require("express");
3. var Couchbase = require("couchbase");
4. var BodyParser = require("body-parser");
5. var Cors = require("cors");
6. var UUID = require("uuid");
7. var app = Express();
8. var N1qlQuery = Couchbase.N1qlQuery;
9. app.use(BodyParser.json());
10.app.use(BodyParser.urlencoded({ extended: true }));
11.app.use(Cors());
12.var cluster = new Couchbase.Cluster("couchbase://localhost");
13.cluster.authenticate("demo", "123456");
14.var bucket = cluster.openBucket("default");

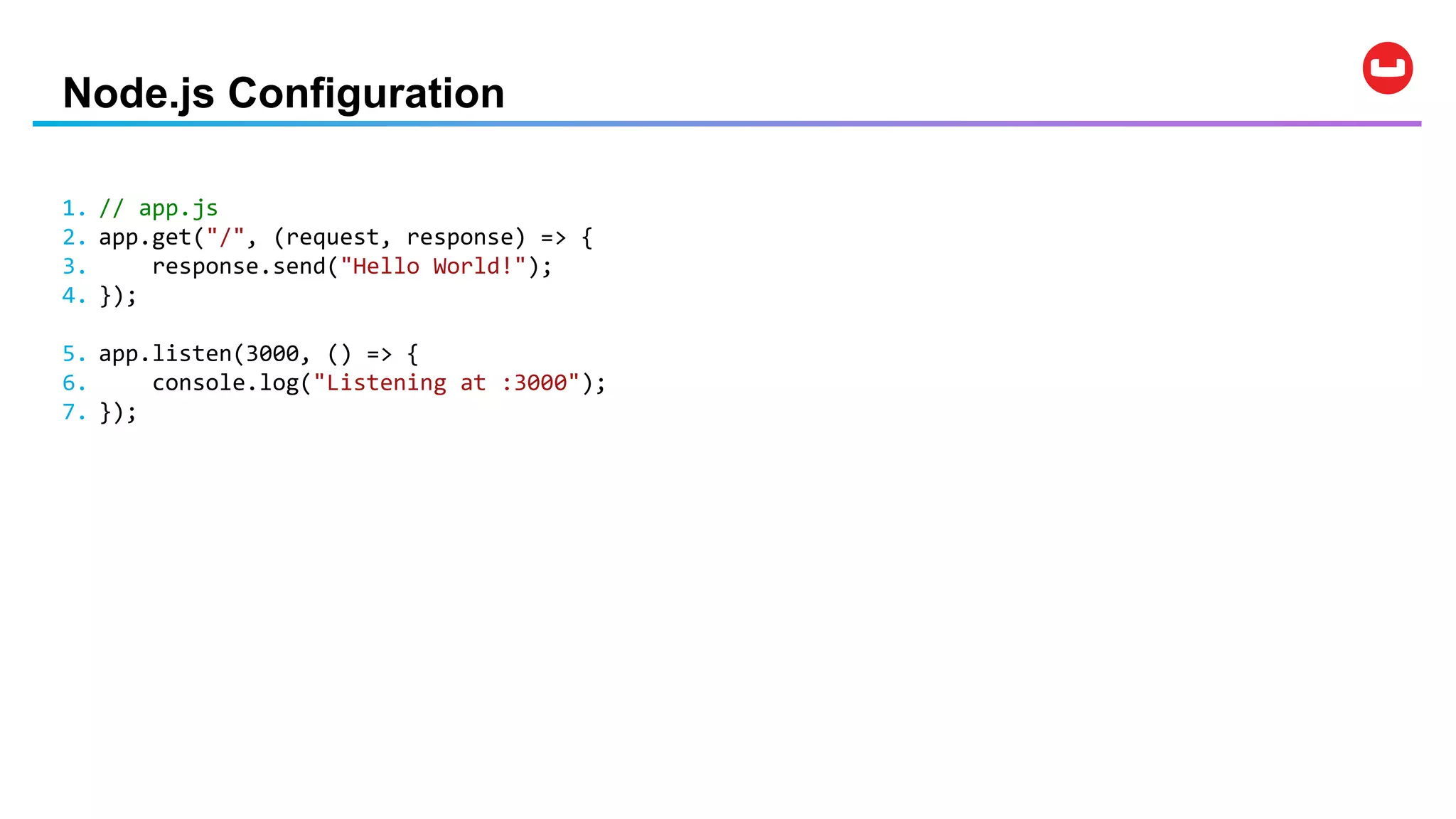

29. Node.js Configuration
1. // app.js
2. app.get("/", (request, response) => {
3. response.send("Hello World!");
4. });
5. app.listen(3000, () => {
6. console.log("Listening at :3000");
7. });

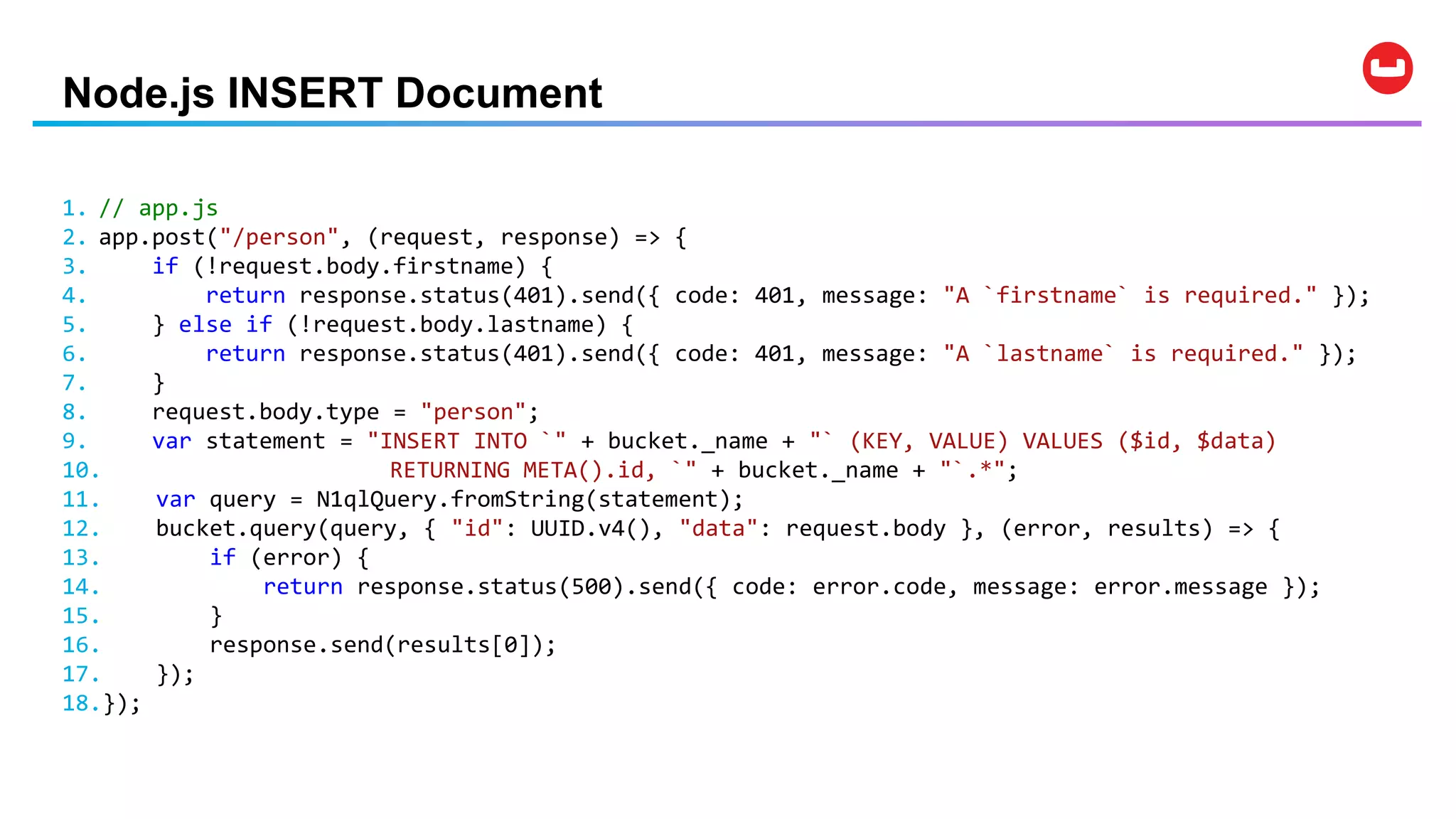

30. Node.js INSERT Document
1. // app.js
2. app.post("/person", (request, response) => {
3. if (!request.body.firstname) {
4. return response.status(401).send({ code: 401, message: "A `firstname` is required." });
5. } else if (!request.body.lastname) {
6. return response.status(401).send({ code: 401, message: "A `lastname` is required." });
7. }
8. request.body.type = "person";
9. var statement = "INSERT INTO `" + bucket._name + "` (KEY, VALUE) VALUES ($id, $data)
10. RETURNING META().id, `" + bucket._name + "`.*";
11. var query = N1qlQuery.fromString(statement);
12. bucket.query(query, { "id": UUID.v4(), "data": request.body }, (error, results) => {
13. if (error) {
14. return response.status(500).send({ code: error.code, message: error.message });
15. }
16. response.send(results[0]);
17. });
18.});

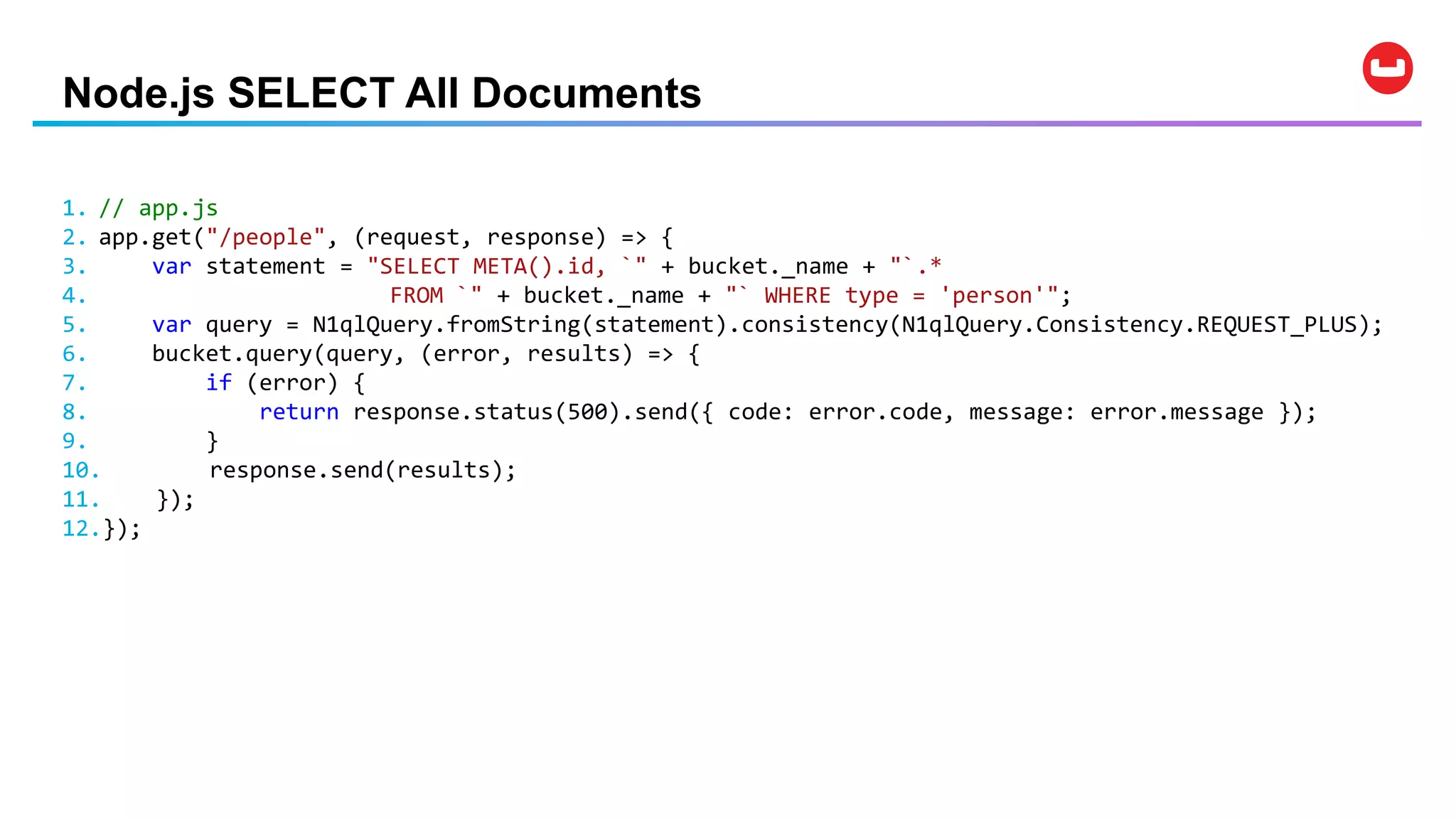

31. Node.js SELECT All Documents
1. // app.js
2. app.get("/people", (request, response) => {
3. var statement = "SELECT META().id, `" + bucket._name + "`.*
4. FROM `" + bucket._name + "` WHERE type = 'person'";
5. var query = N1qlQuery.fromString(statement).consistency(N1qlQuery.Consistency.REQUEST_PLUS);
6. bucket.query(query, (error, results) => {
7. if (error) {
8. return response.status(500).send({ code: error.code, message: error.message });
9. }
10. response.send(results);
11. });
12.});

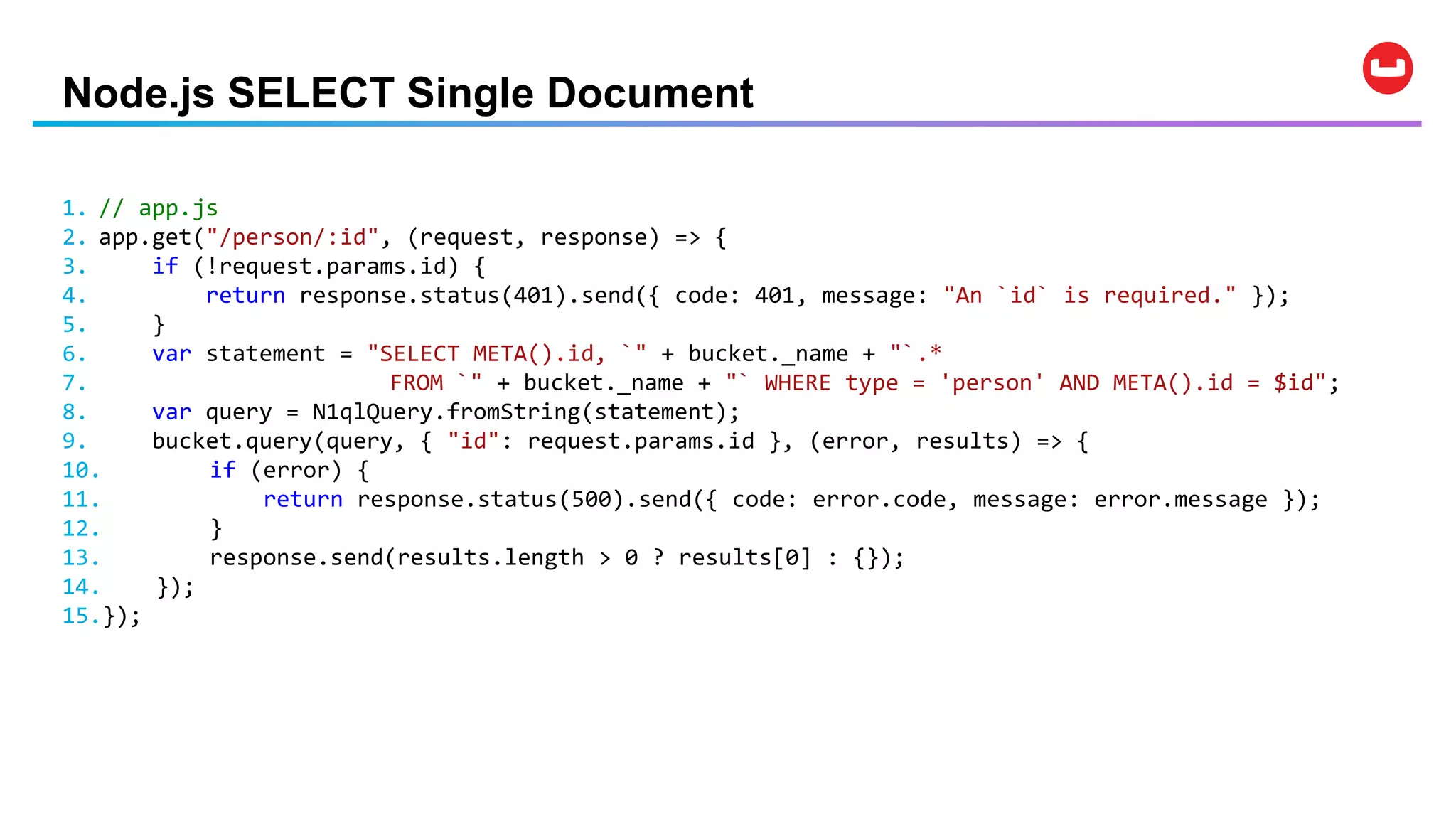

32. Node.js SELECT Single Document
1. // app.js
2. app.get("/person/:id", (request, response) => {
3. if (!request.params.id) {
4. return response.status(401).send({ code: 401, message: "An `id` is required." });
5. }
6. var statement = "SELECT META().id, `" + bucket._name + "`.*
7. FROM `" + bucket._name + "` WHERE type = 'person' AND META().id = $id";
8. var query = N1qlQuery.fromString(statement);
9. bucket.query(query, { "id": request.params.id }, (error, results) => {
10. if (error) {
11. return response.status(500).send({ code: error.code, message: error.message });
12. }
13. response.send(results.length > 0 ? results[0] : {});
14. });
15.});

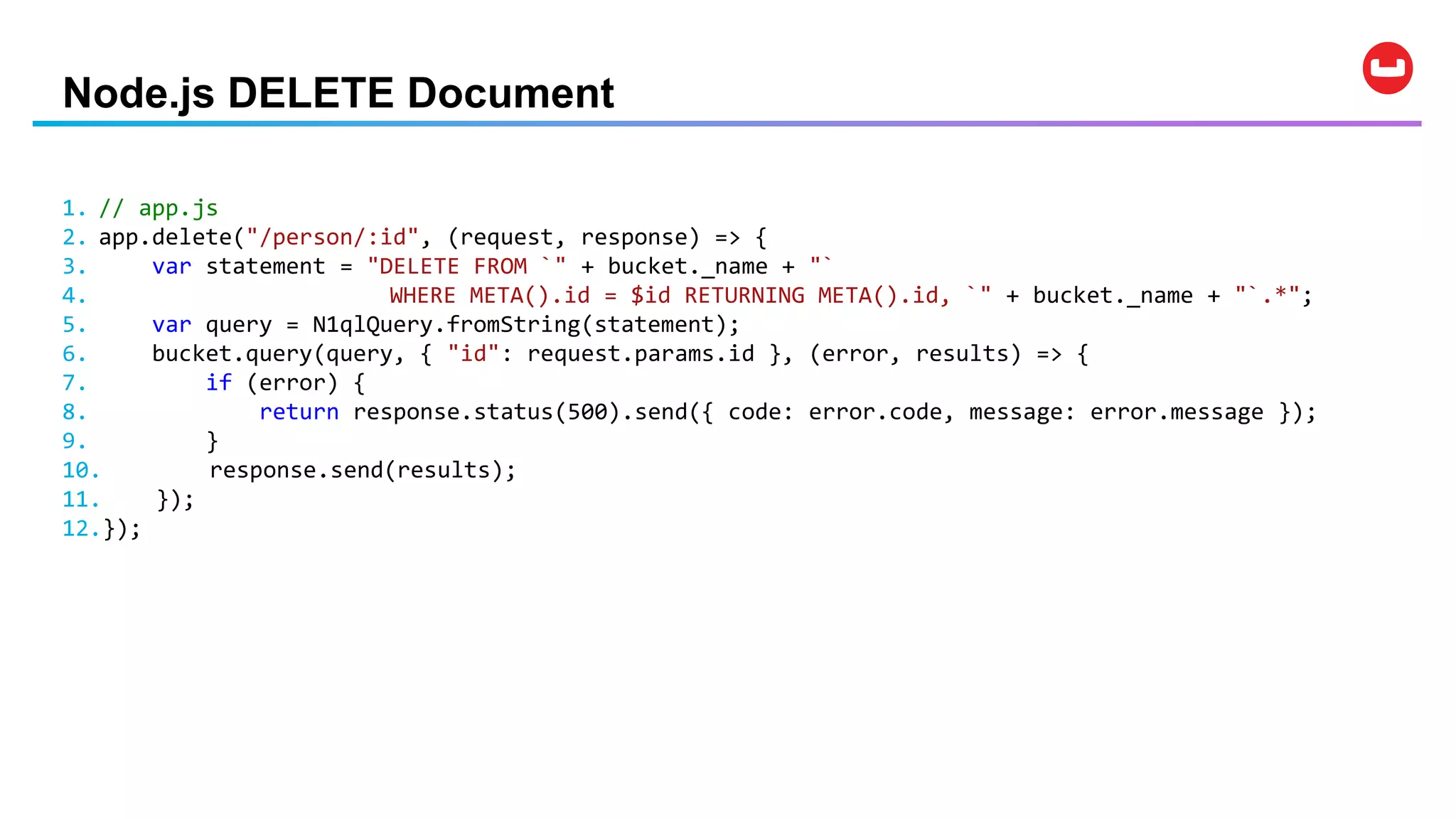

33. Node.js DELETE Document
1. // app.js
2. app.delete("/person/:id", (request, response) => {
3. var statement = "DELETE FROM `" + bucket._name + "`
4. WHERE META().id = $id RETURNING META().id, `" + bucket._name + "`.*";
5. var query = N1qlQuery.fromString(statement);
6. bucket.query(query, { "id": request.params.id }, (error, results) => {
7. if (error) {
8. return response.status(500).send({ code: error.code, message: error.message });
9. }
10. response.send(results);
11. });
12.});

34. The Angular
Frontend

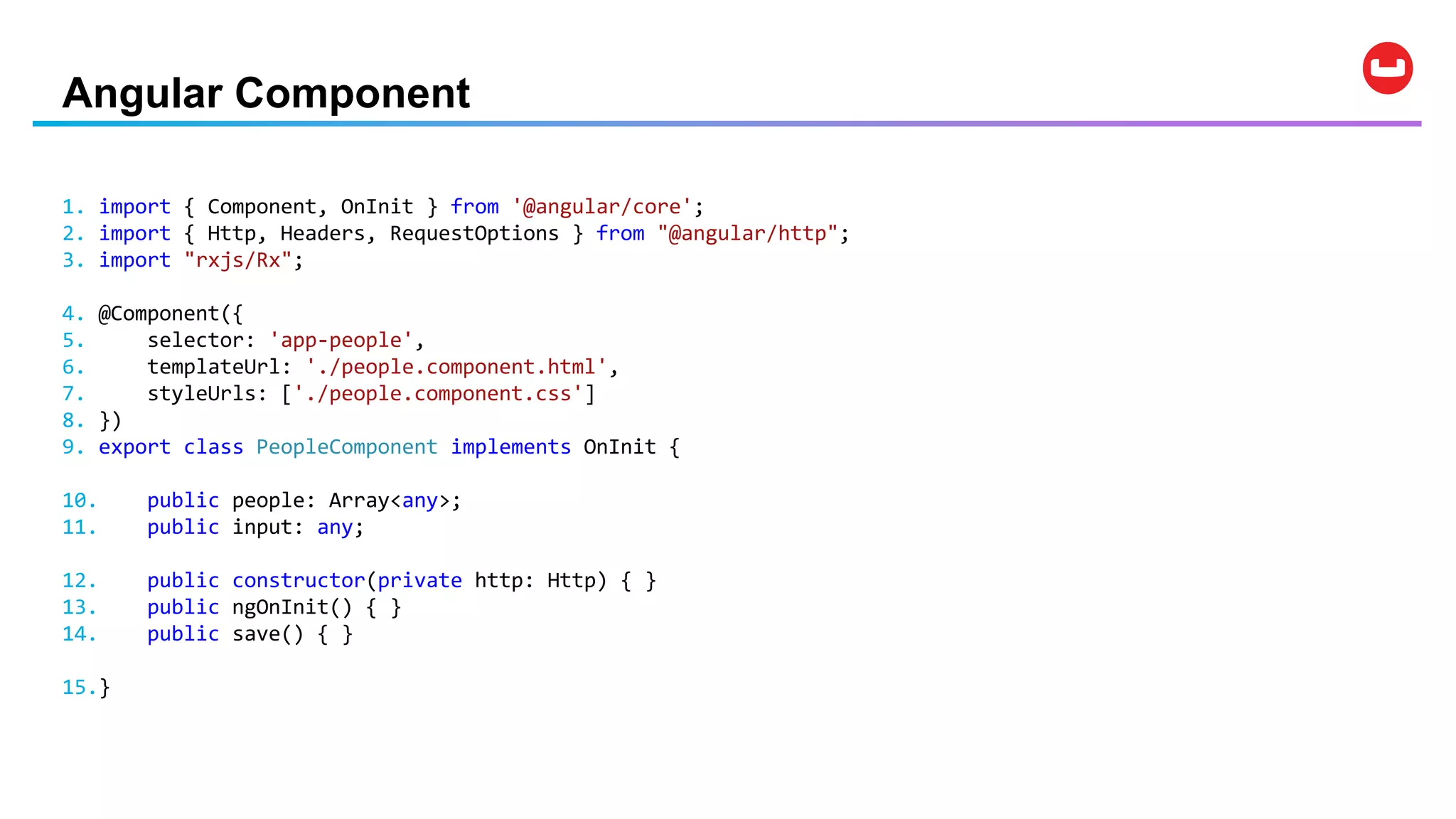

35. Angular Component
1. import { Component, OnInit } from '@angular/core';
2. import { Http, Headers, RequestOptions } from "@angular/http";
3. import "rxjs/Rx";
4. @Component({
5. selector: 'app-people',
6. templateUrl: './people.component.html',
7. styleUrls: ['./people.component.css']
8. })
9. export class PeopleComponent implements OnInit {
10. public people: Array<any>;
11. public input: any;
12. public constructor(private http: Http) { }
13. public ngOnInit() { }
14. public save() { }
15.}

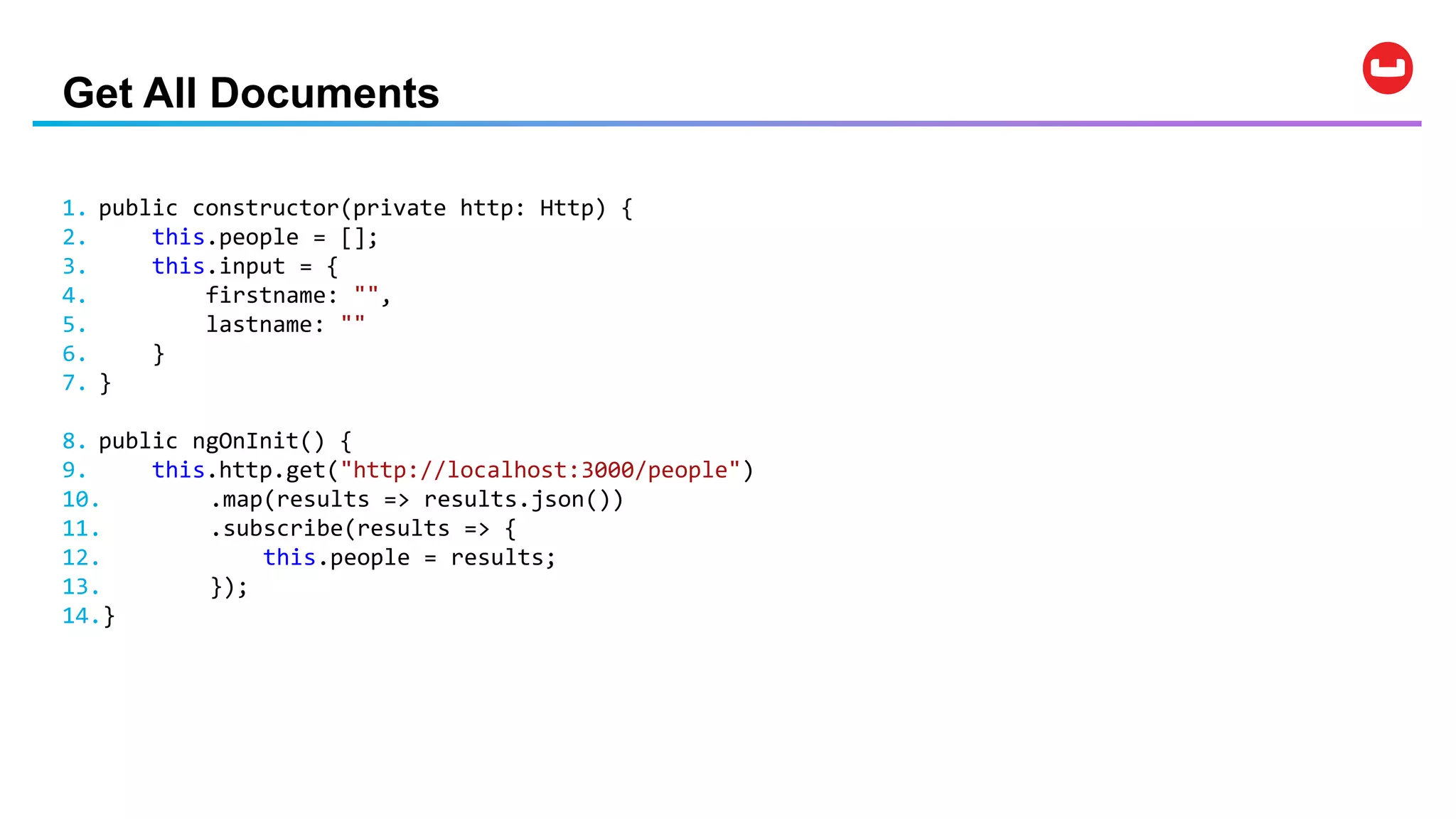

36. Get All Documents
1. public constructor(private http: Http) {
2. this.people = [];
3. this.input = {
4. firstname: "",
5. lastname: ""
6. }
7. }
8. public ngOnInit() {
9. this.http.get("http://localhost:3000/people")
10. .map(results => results.json())
11. .subscribe(results => {
12. this.people = results;
13. });
14.}

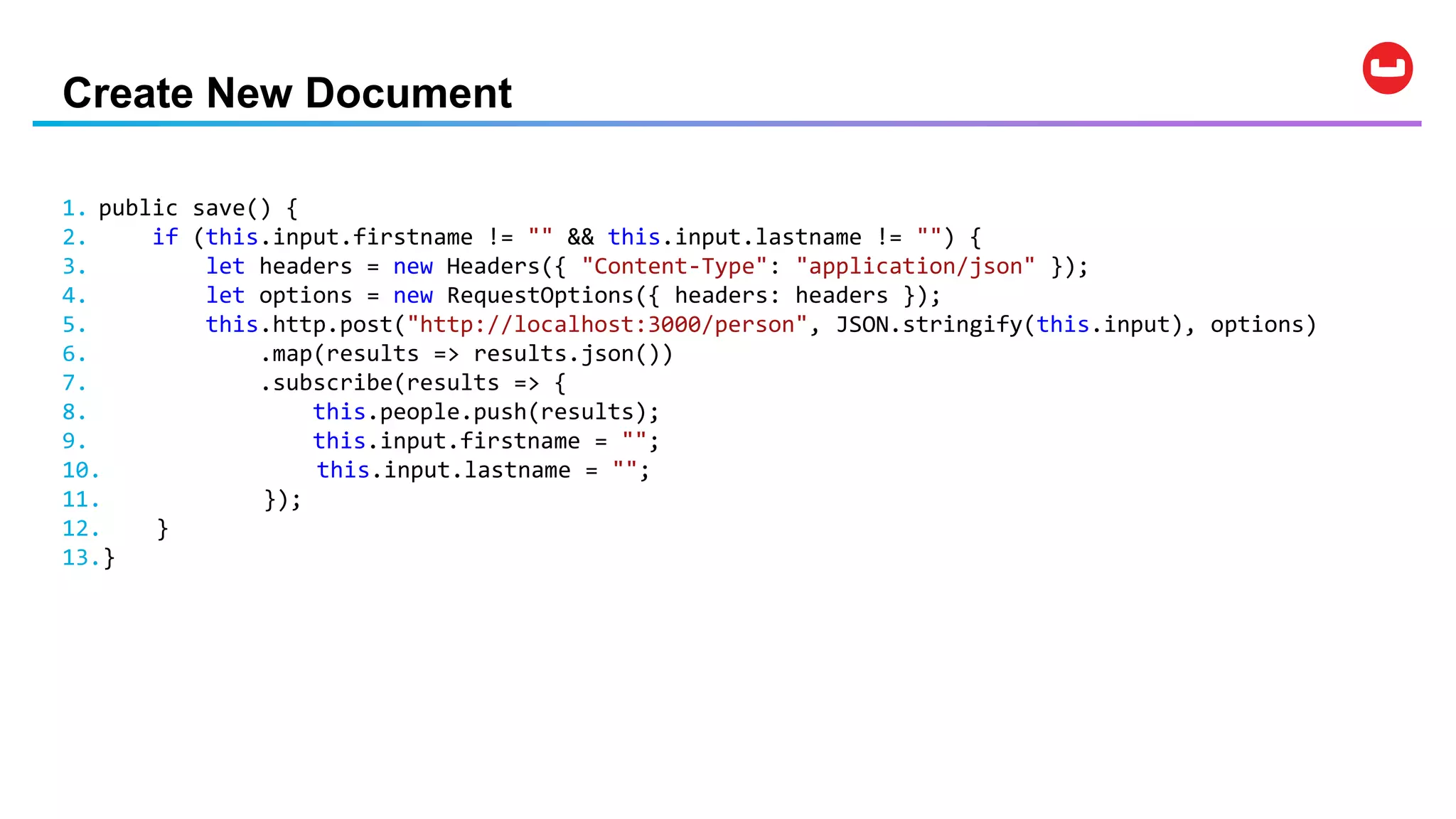

37. Create New Document
1. public save() {
2. if (this.input.firstname != "" && this.input.lastname != "") {
3. let headers = new Headers({ "Content-Type": "application/json" });
4. let options = new RequestOptions({ headers: headers });
5. this.http.post("http://localhost:3000/person", JSON.stringify(this.input), options)
6. .map(results => results.json())
7. .subscribe(results => {
8. this.people.push(results);
9. this.input.firstname = "";
10. this.input.lastname = "";
11. });
12. }
13.}

38. More Complex
Node.js Queries

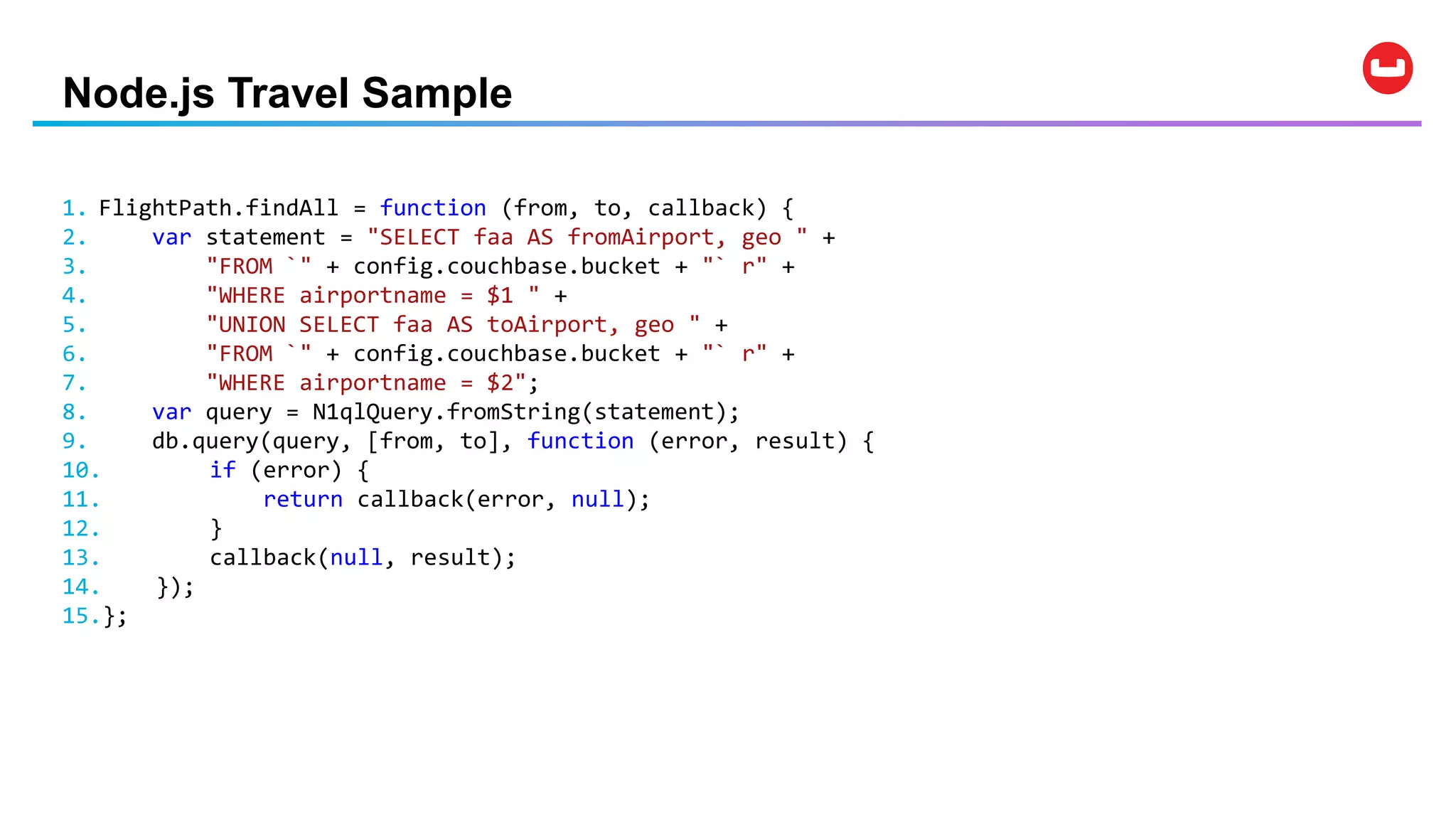

39. Node.js Travel Sample
1. FlightPath.findAll = function (from, to, callback) {
2. var statement = "SELECT faa AS fromAirport, geo " +
3. "FROM `" + config.couchbase.bucket + "` r" +
4. "WHERE airportname = $1 " +
5. "UNION SELECT faa AS toAirport, geo " +
6. "FROM `" + config.couchbase.bucket + "` r" +
7. "WHERE airportname = $2";
8. var query = N1qlQuery.fromString(statement);
9. db.query(query, [from, to], function (error, result) {
10. if (error) {
11. return callback(error, null);
12. }
13. callback(null, result);
14. });
15.};

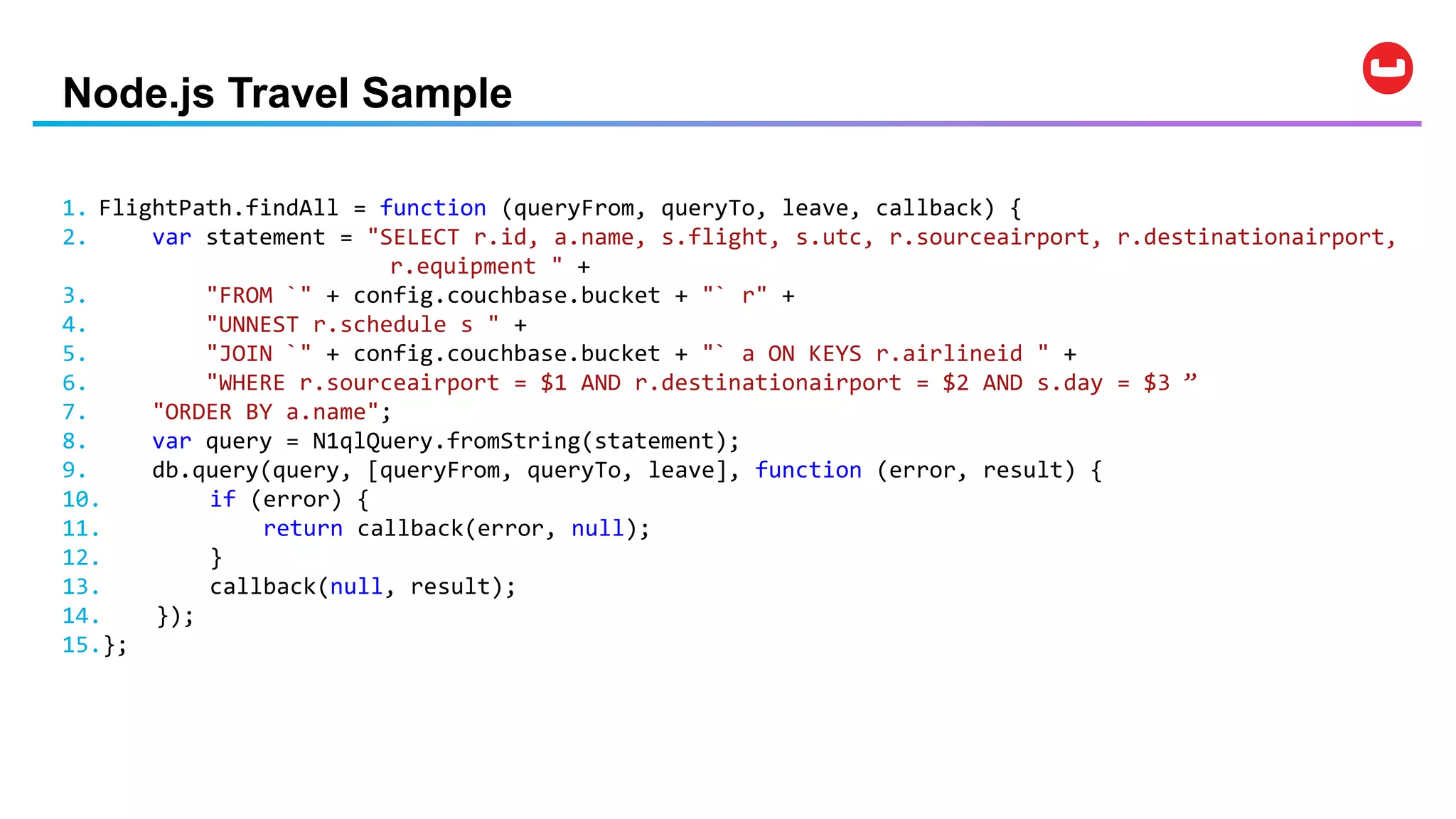

40. Node.js Travel Sample
1. FlightPath.findAll = function (queryFrom, queryTo, leave, callback) {
2. var statement = "SELECT r.id, a.name, s.flight, s.utc, r.sourceairport, r.destinationairport,
r.equipment " +
3. "FROM `" + config.couchbase.bucket + "` r" +
4. "UNNEST r.schedule s " +
5. "JOIN `" + config.couchbase.bucket + "` a ON KEYS r.airlineid " +
6. "WHERE r.sourceairport = $1 AND r.destinationairport = $2 AND s.day = $3 ”
7. "ORDER BY a.name";
8. var query = N1qlQuery.fromString(statement);
9. db.query(query, [queryFrom, queryTo, leave], function (error, result) {
10. if (error) {
11. return callback(error, null);
12. }
13. callback(null, result);
14. });
15.};

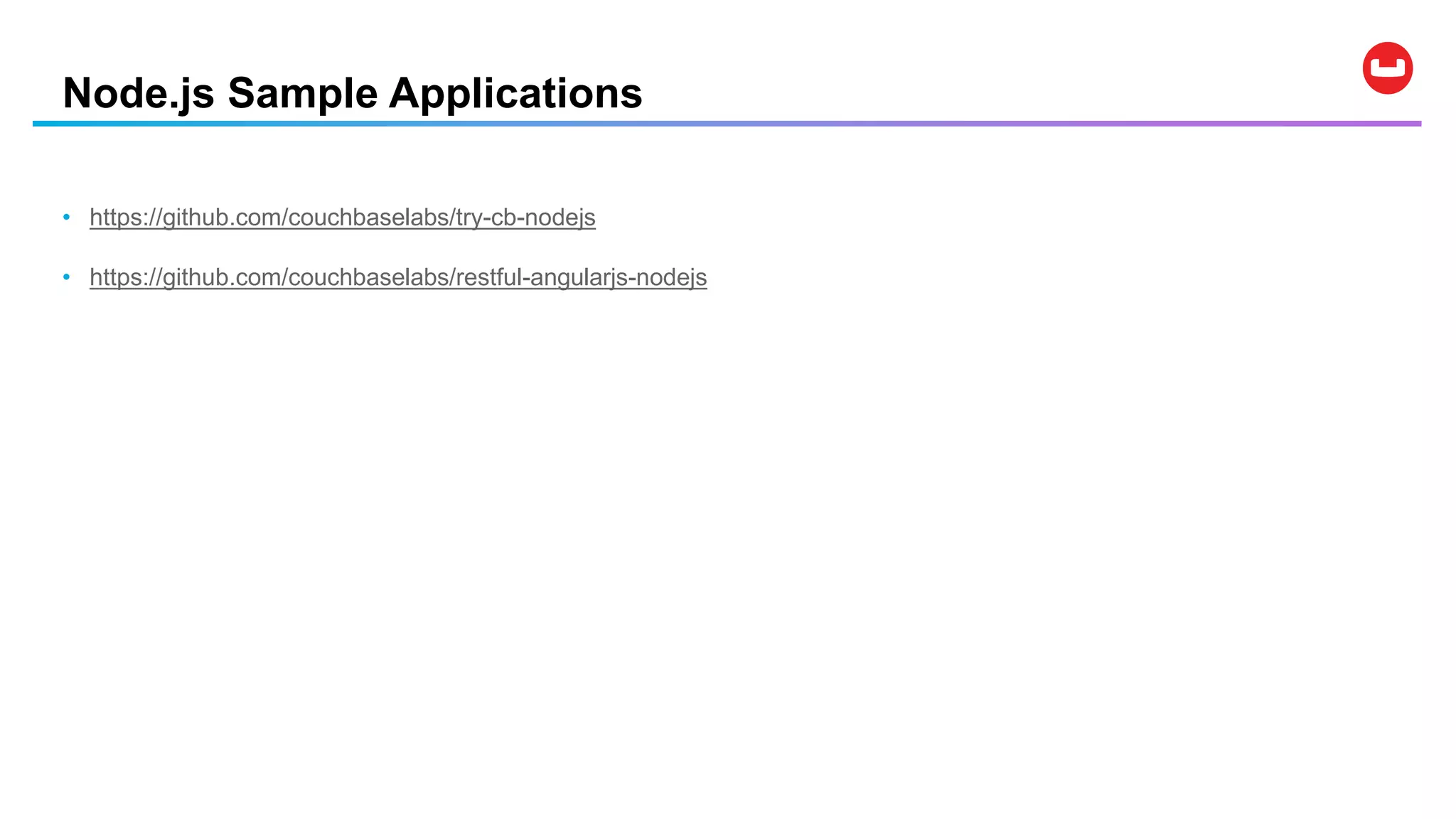

41. Node.js Sample Applications
• https://github.com/couchbaselabs/try-cb-nodejs
• https://github.com/couchbaselabs/restful-angularjs-nodejs

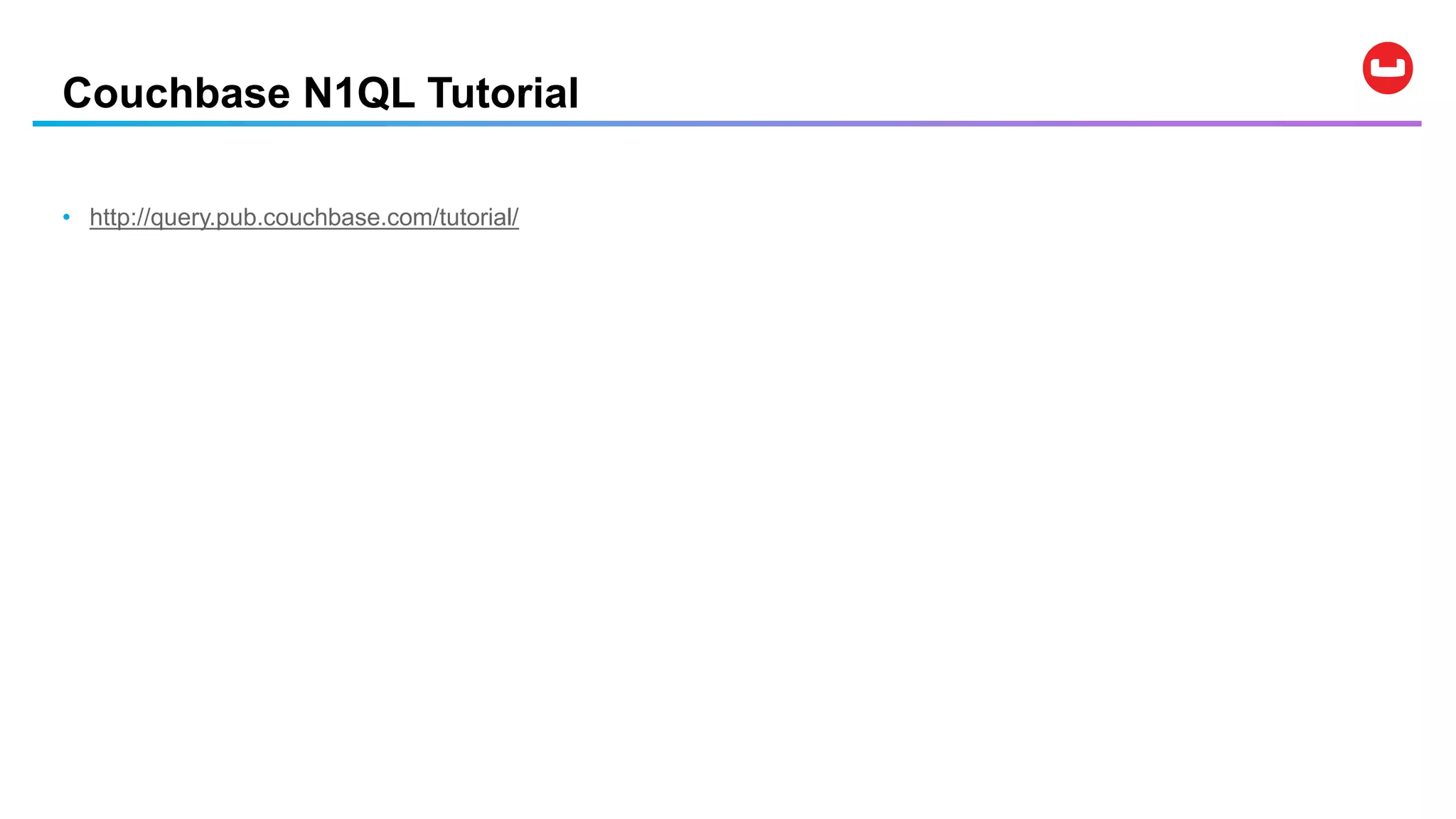

42. Couchbase N1QL Tutorial
• http://query.pub.couchbase.com/tutorial/

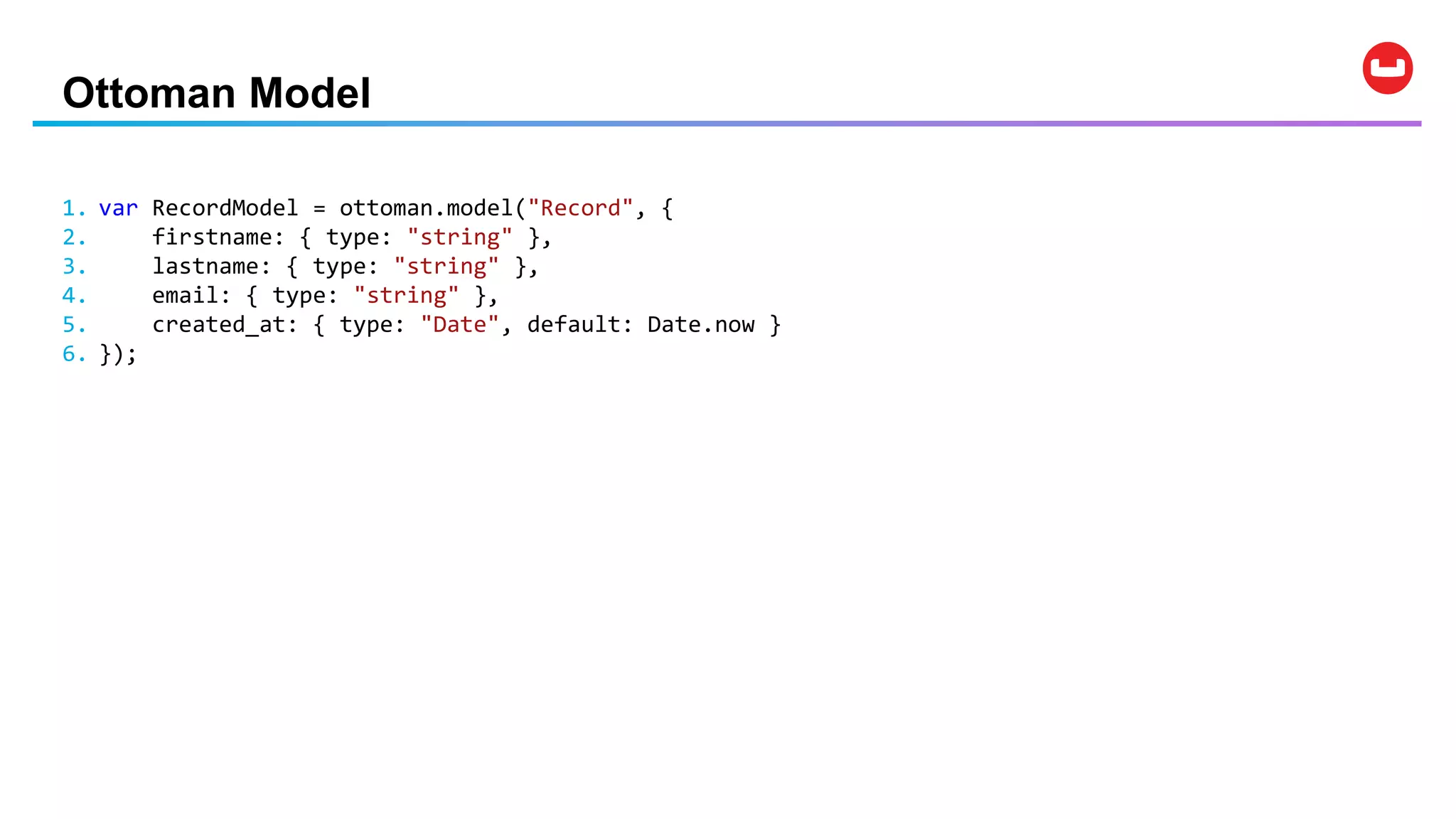

43. Ottoman ODM
4
3
Confidential and Proprietary. Do not distribute without Couchbase consent. © Couchbase 2017. All rights reserved.

44. Ottoman Model
1. var RecordModel = ottoman.model("Record", {
2. firstname: { type: "string" },
3. lastname: { type: "string" },
4. email: { type: "string" },
5. created_at: { type: "Date", default: Date.now }
6. });

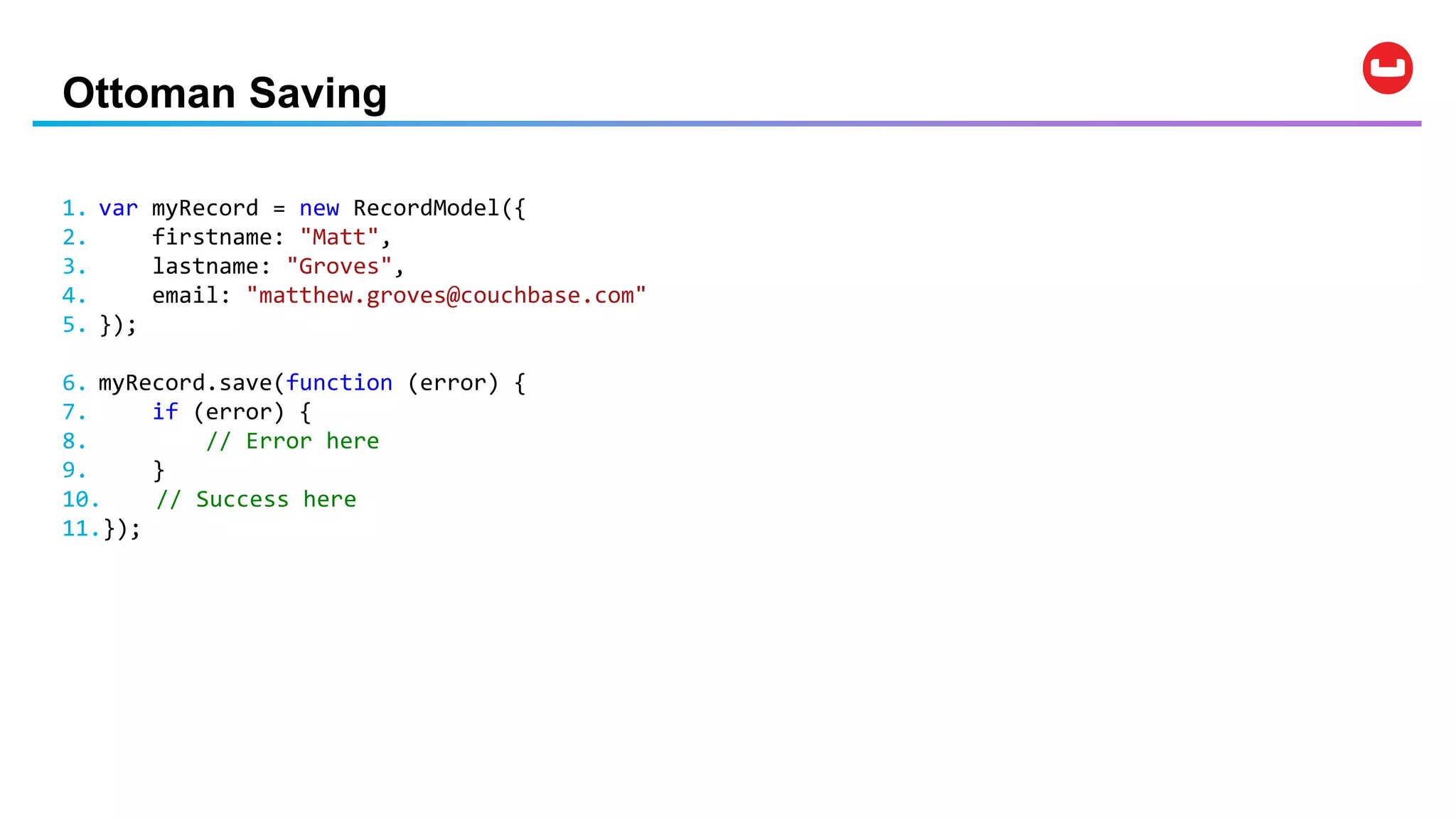

45. Ottoman Saving
1. var myRecord = new RecordModel({
2. firstname: "Matt",
3. lastname: "Groves",
4. email: "matthew.groves@couchbase.com"
5. });
6. myRecord.save(function (error) {
7. if (error) {
8. // Error here
9. }
10. // Success here
11.});

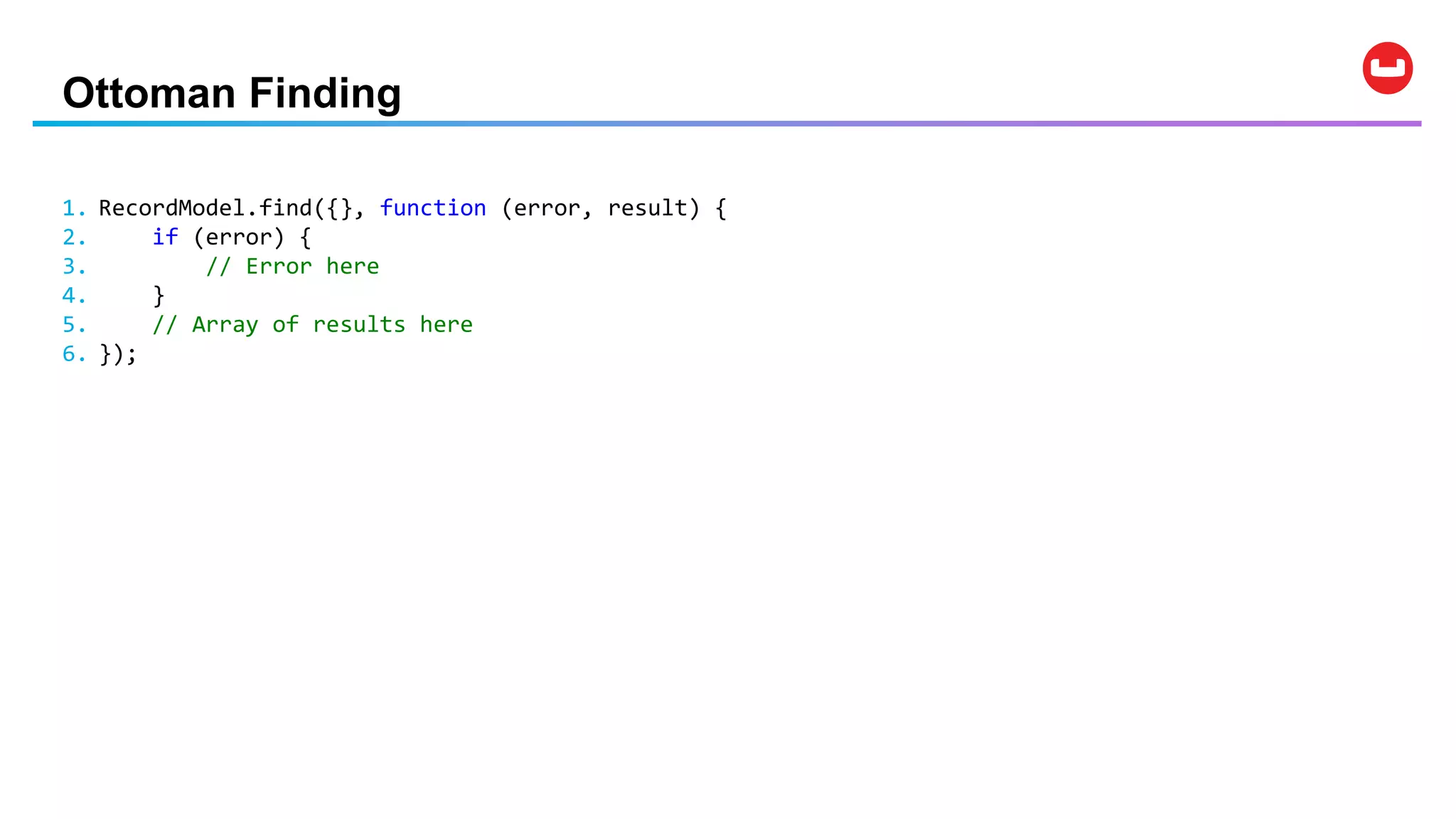

46. Ottoman Finding
1. RecordModel.find({}, function (error, result) {
2. if (error) {
3. // Error here
4. }
5. // Array of results here
6. });

47. Where do you find us?
• developer.couchbase.com
• blog.couchbase.com
• @couchbase / @couchbasedev / @mgroves
• forums.couchbase.com
• stackoverflow.com/questions/tagged/couchbase

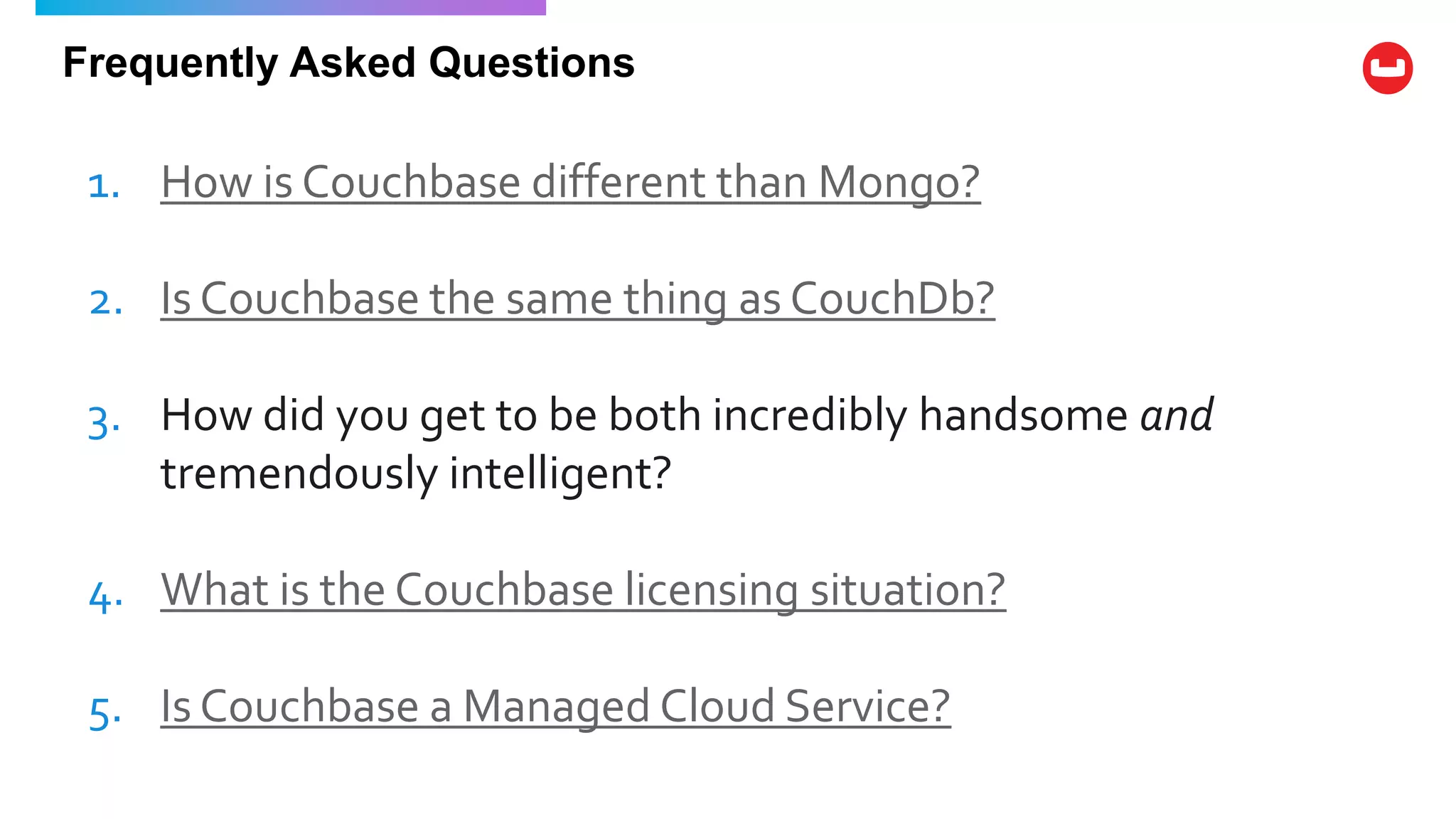

48. Frequently Asked Questions
1. How is Couchbase different than Mongo?
2. Is Couchbase the same thing as CouchDb?
3. How did you get to be both incredibly handsome and
tremendously intelligent?
4. What is the Couchbase licensing situation?
5. Is Couchbase a Managed Cloud Service?

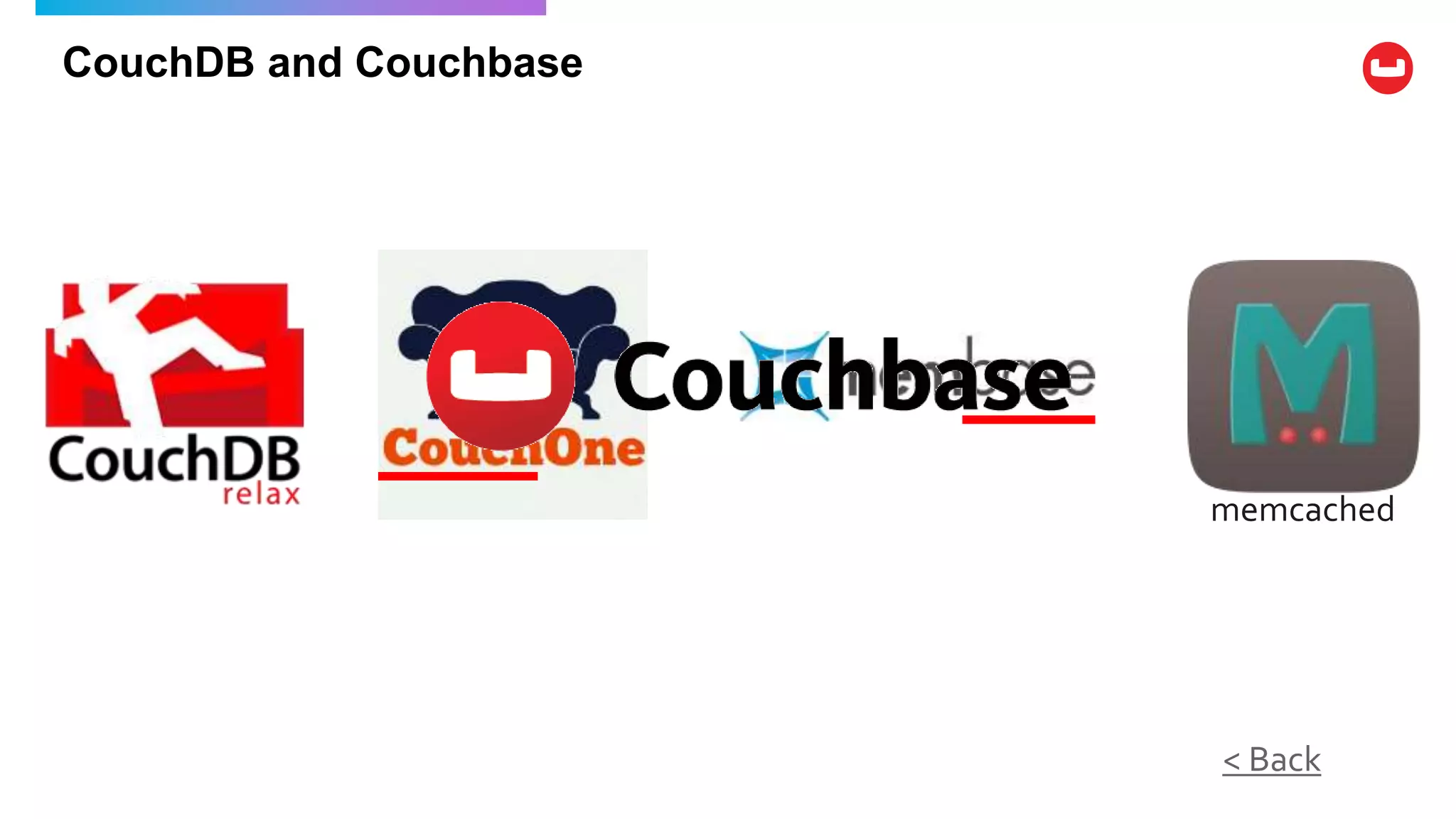

49. CouchDB and Couchbase
< Back
memcached

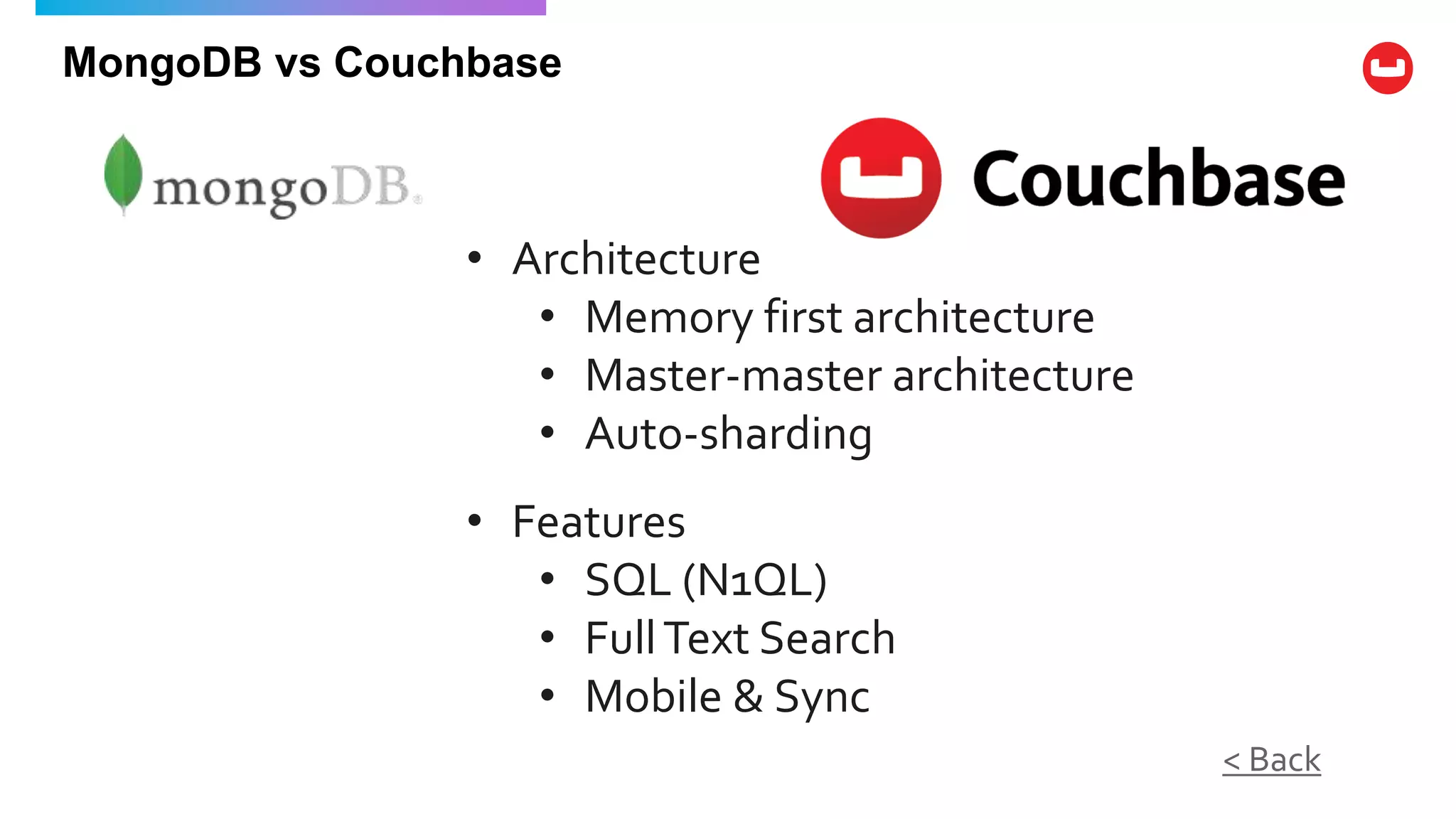

50. MongoDB vs Couchbase
• Architecture
• Memory first architecture
• Master-master architecture
• Auto-sharding
< Back
• Features
• SQL (N1QL)
• FullText Search
• Mobile & Sync

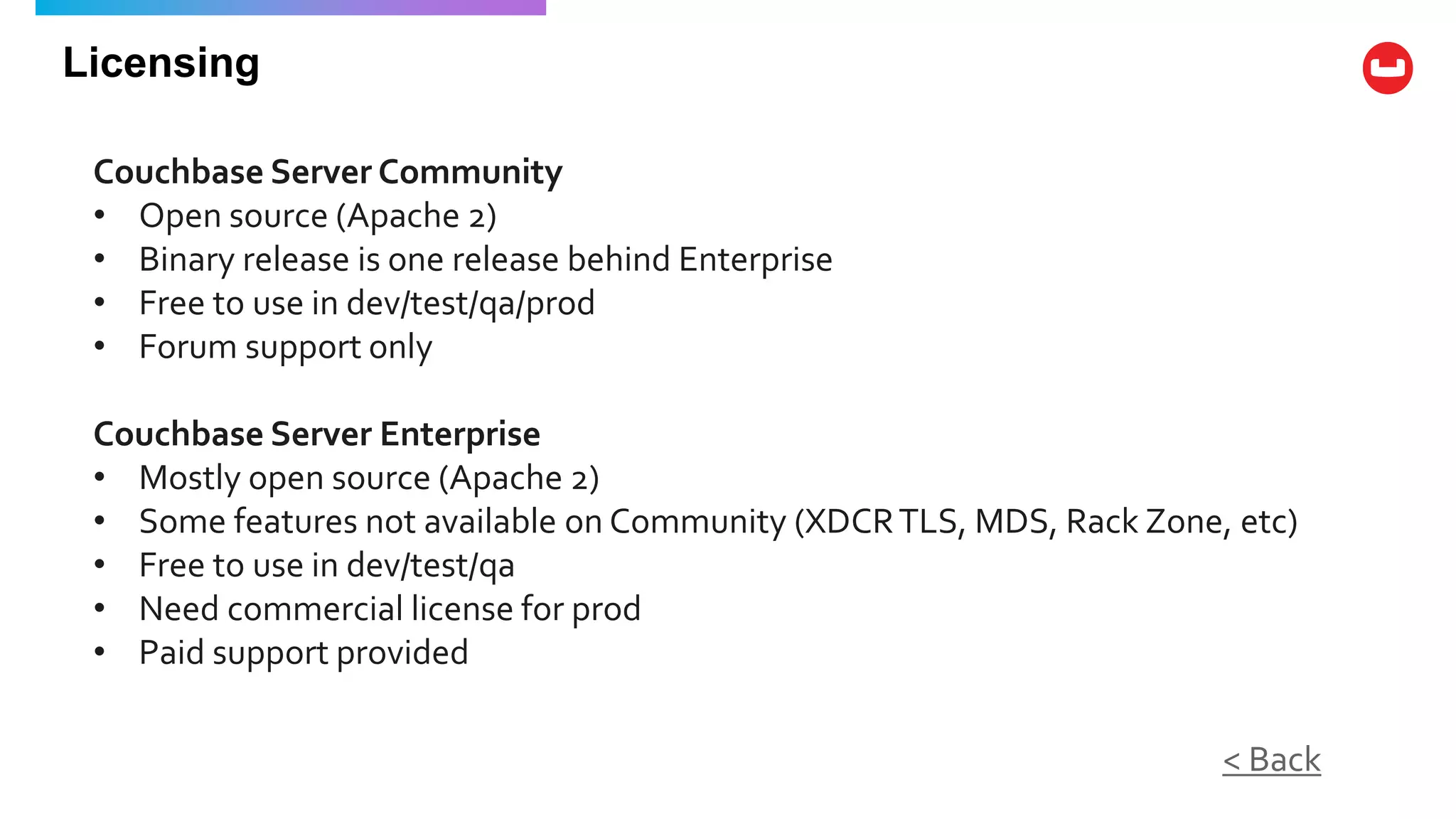

51. Licensing
Couchbase Server Community
• Open source (Apache 2)
• Binary release is one release behind Enterprise
• Free to use in dev/test/qa/prod
• Forum support only
Couchbase Server Enterprise
• Mostly open source (Apache 2)
• Some features not available on Community (XDCRTLS, MDS, Rack Zone, etc)
• Free to use in dev/test/qa
• Need commercial license for prod
• Paid support provided
< Back

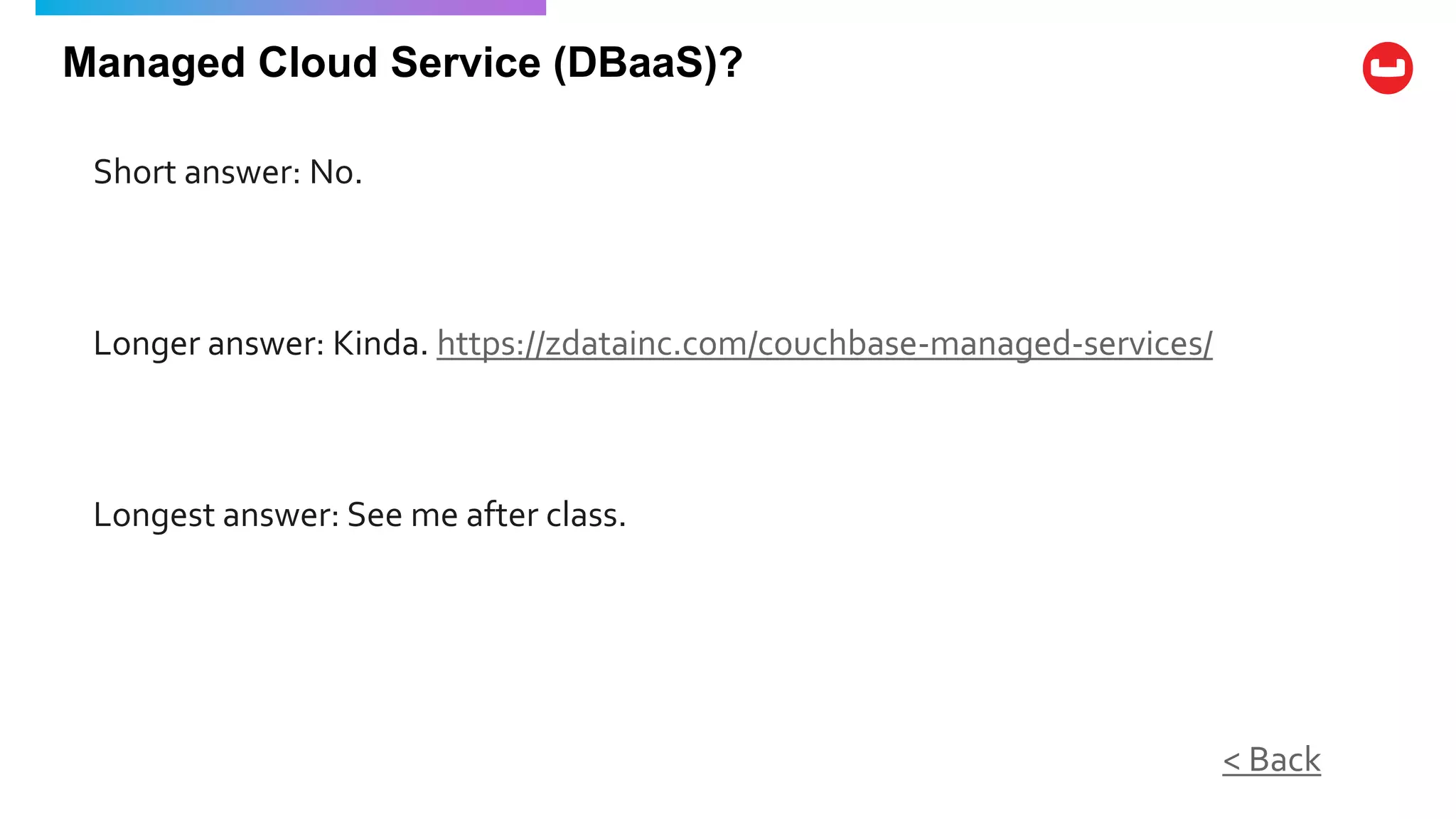

52. Managed Cloud Service (DBaaS)?
Short answer: No.
< Back
Longer answer: Kinda. https://zdatainc.com/couchbase-managed-services/
Longest answer: See me after class.
