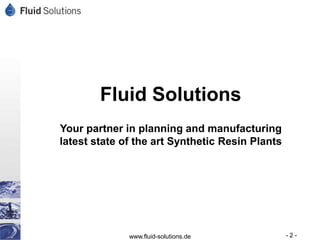

2. Fluid Solutions
Your partner in planning and manufacturing
latest state of the art Synthetic Resin Plants
www.fluid-solutions.de -2-

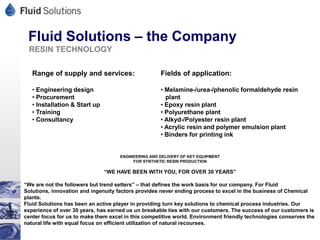

3. Fluid Solutions – the Company
RESIN TECHNOLOGY
Range of supply and services: Fields of application:
• Engineering design • Melamine-/urea-/phenolic formaldehyde resin
• Procurement plant
• Installation & Start up • Epoxy resin plant
• Training • Polyurethane plant
• Consultancy • Alkyd-/Polyester resin plant
• Acrylic resin and polymer emulsion plant
• Binders for printing ink
ENGINEERING AND DELIVERY OF KEY EQUIPMENT
FOR SYNTHETIC RESIN PRODUCTION
“WE HAVE BEEN WITH YOU, FOR OVER 30 YEARS”
“We are not the followers but trend setters” – that defines the work basis for our company. For Fluid
Solutions, innovation and ingenuity factors provides never ending process to excel in the business of Chemical
plants.
Fluid Solutions has been an active player in providing turn key solutions to chemical process industries. Our
experience of over 30 years, has earned us un breakable ties with our customers. The success of our customers is
center focus for us to make them excel in this competitive world. Environment friendly technologies conserves the
natural life with equal focus on efficient utilization of natural recourses.

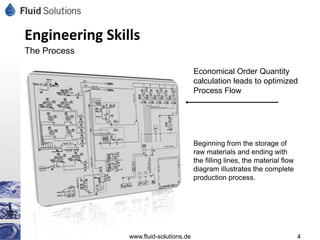

4. Engineering Skills
The Process
Economical Order Quantity
calculation leads to optimized
Process Flow
Beginning from the storage of
raw materials and ending with
the filling lines, the material flow
diagram illustrates the complete
production process.
www.fluid-solutions.de 4

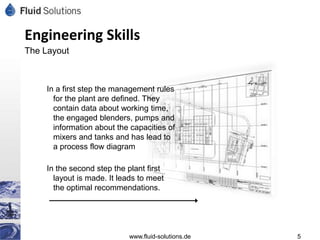

5. Engineering Skills
The Layout
In a first step the management rules
for the plant are defined. They
contain data about working time,
the engaged blenders, pumps and
information about the capacities of
mixers and tanks and has lead to
a process flow diagram
In the second step the plant first
layout is made. It leads to meet
the optimal recommendations.
www.fluid-solutions.de 5
6. Engineering Skills
Modelling
Complete 3D Engineering for Steelframes, Equipments and Piping
Modell Construction
www.fluid-solutions.de 6

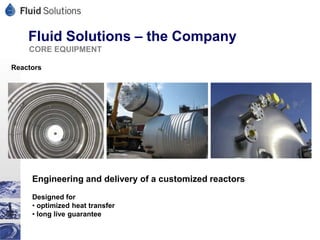

8. Fluid Solutions – the Company
CORE EQUIPMENT
Reactors
Engineering and delivery of a customized reactors
Designed for
• optimized heat transfer
• long live guarantee

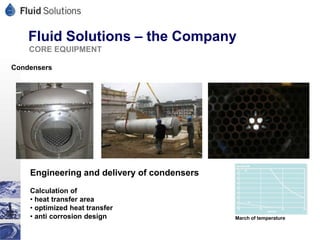

9. Fluid Solutions – the Company
CORE EQUIPMENT
Condensers
Engineering and delivery of condensers
Calculation of
• heat transfer area
• optimized heat transfer
• anti corrosion design March of temperature

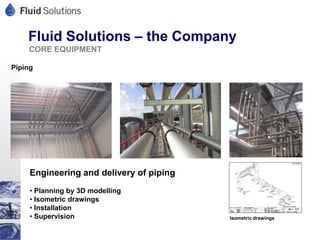

10. Fluid Solutions – the Company
CORE EQUIPMENT
Piping
Engineering and delivery of piping
• Planning by 3D modelling
• Isometric drawings
• Installation
• Supervision Isometric drawings

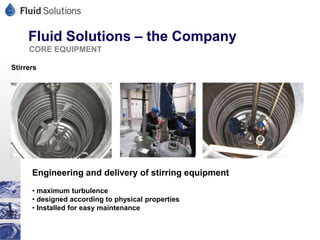

11. Fluid Solutions – the Company
CORE EQUIPMENT
Stirrers
Engineering and delivery of stirring equipment
• maximum turbulence
• designed according to physical properties
• Installed for easy maintenance

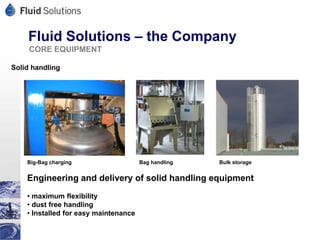

12. Fluid Solutions – the Company
CORE EQUIPMENT
Solid handling
Big-Bag charging Bag handling Bulk storage
Engineering and delivery of solid handling equipment
• maximum flexibility
• dust free handling
• Installed for easy maintenance

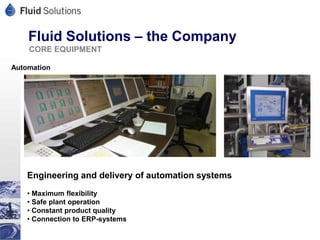

13. Fluid Solutions – the Company
CORE EQUIPMENT
Automation
Engineering and delivery of automation systems
• Maximum flexibility
• Safe plant operation
• Constant product quality
• Connection to ERP-systems

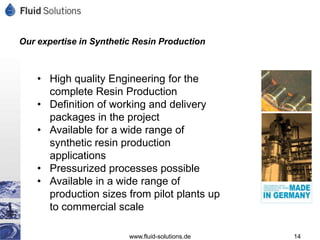

14. Our expertise in Synthetic Resin Production
• High quality Engineering for the
complete Resin Production
• Definition of working and delivery
packages in the project
• Available for a wide range of
synthetic resin production
applications
• Pressurized processes possible
• Available in a wide range of
production sizes from pilot plants up
to commercial scale
www.fluid-solutions.de 14
