FRP is a programming paradigm that uses reactive and functional programming concepts. It models real-time user interfaces and event-driven applications using streams of events and cells that hold values. This allows the program structure to be declarative by describing what the program does rather than how it works. Common FRP concepts include streams that represent events, cells that hold values over time, and primitives like map, filter and merge that transform and combine streams and cells. Sodium is an FRP library for Java that uses push-based evaluation.

1. Functional Reactive
Programming
指導老師：陳恭
學生：蔡詠捷

2. Introduce FRP
• FRP is a subset of Functional Programming
and Reactive Programming

3. What is FRP
• Use observer pattern.
• Modular way to code event-driven.
• Expressed as a reaction to its inputs.
• Expressed as a flow of data.
• Management of program state.
• Replaces the listeners and callbacks.

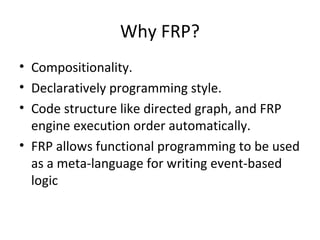

4. Why FRP?
• Compositionality.
• Declaratively programming style.
• Code structure like directed graph, and FRP
engine execution order automatically.
• FRP allows functional programming to be used
as a meta-language for writing event-based
logic

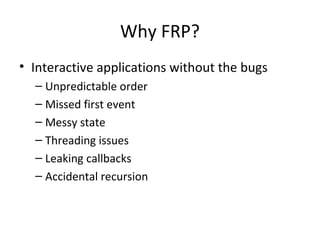

5. Why FRP?
• Interactive applications without the bugs
– Unpredictable order
– Missed first event
– Messy state
– Threading issues
– Leaking callbacks
– Accidental recursion

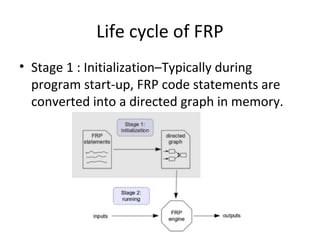

6. Life cycle of FRP
• Stage 1 : Initialization–Typically during
program start-up, FRP code statements are
converted into a directed graph in memory.

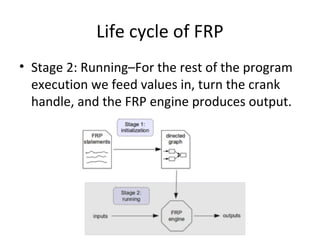

7. Life cycle of FRP
• Stage 2: Running–For the rest of the program
execution we feed values in, turn the crank
handle, and the FRP engine produces output.

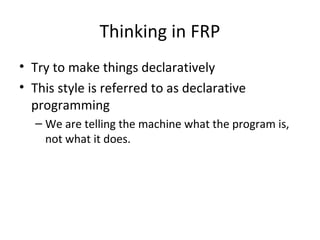

8. Thinking in FRP
• Try to make things declaratively
• This style is referred to as declarative
programming
– We are telling the machine what the program is,
not what it does.

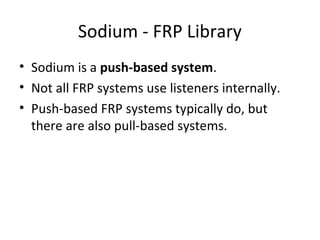

9. Sodium - FRP Library
• Sodium is a push-based system.
• Not all FRP systems use listeners internally.
• Push-based FRP systems typically do, but
there are also pull-based systems.

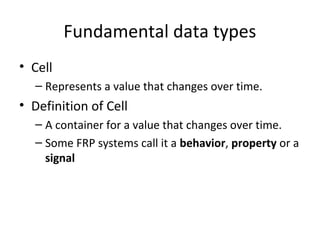

10. Fundamental data types
• Cell
– Represents a value that changes over time.
• Definition of Cell
– A container for a value that changes over time.
– Some FRP systems call it a behavior, property or a
signal

11. Fundamental data types
• Stream
– Represents a stream of events.
• Definition of Stream
– A stream of discrete events.
– It is also known in other FRP systems as event,
event stream, observable or signal.
– When an event propagates through a stream, we
sometimes say that the stream has fired.

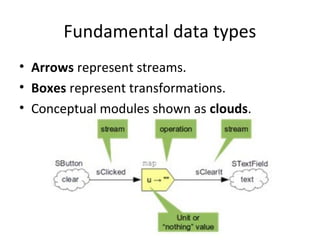

12. Fundamental data types
• Arrows represent streams.
• Boxes represent transformations.
• Conceptual modules shown as clouds.

13. Lambda Syntax
• The new lambda syntax in Java 8 lets us write
this much shorter, with no fewer than six
variations of the syntax:
– (Integer k) -> { return k+1; }
– (k) -> { return k+1; }
– k -> { return k+1; }
– (Integer k) -> k+1
– (k) -> k+1
– k -> k+1

14. FRP Programming Tips
• Do not perform any I/O.
• Do not throw any exceptions unless they are
caught and handled within the function.
• Do not read the value of any external variable
if its value can change, but constants are
allowed and encourage.
• Do not modify any externally visible state.

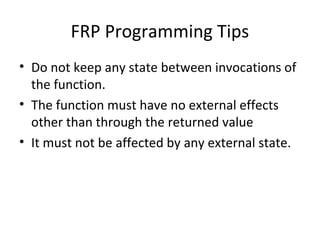

15. FRP Programming Tips
• Do not keep any state between invocations of
the function.
• The function must have no external effects
other than through the returned value
• It must not be affected by any external state.

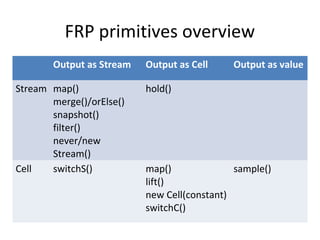

16. FRP primitives overview
Output as Stream Output as Cell Output as value
Stream map()
merge()/orElse()
snapshot()
filter()
never/new
Stream()
hold()
Cell switchS() map()
lift()
new Cell(constant)
switchC()
sample()

17. FRP Primitives
• map
– map transforms a Stream into a new Stream of
the same type or a different type.

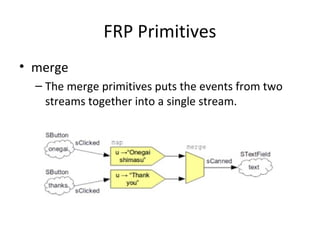

18. FRP Primitives
• merge
– The merge primitives puts the events from two
streams together into a single stream.

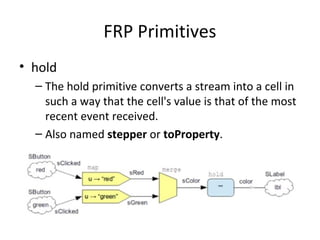

19. FRP Primitives
• hold
– The hold primitive converts a stream into a cell in
such a way that the cell's value is that of the most
recent event received.
– Also named stepper or toProperty.

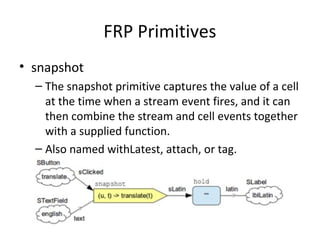

20. FRP Primitives
• snapshot
– The snapshot primitive captures the value of a cell
at the time when a stream event fires, and it can
then combine the stream and cell events together
with a supplied function.
– Also named withLatest, attach, or tag.

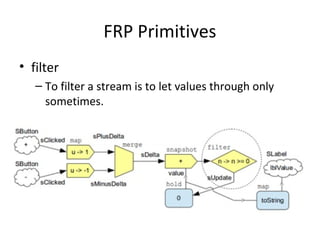

21. FRP Primitives
• filter
– To filter a stream is to let values through only
sometimes.

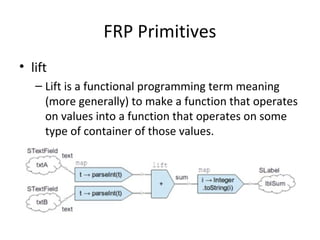

22. FRP Primitives
• lift
– Lift is a functional programming term meaning
(more generally) to make a function that operates
on values into a function that operates on some
type of container of those values.

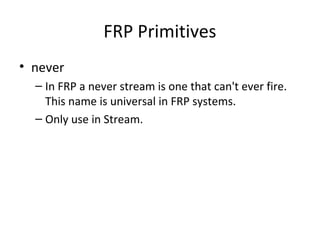

23. FRP Primitives
• never
– In FRP a never stream is one that can't ever fire.
This name is universal in FRP systems.
– Only use in Stream.

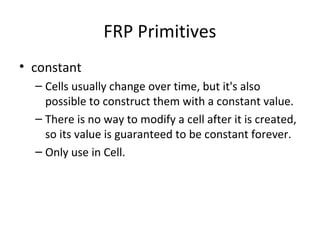

24. FRP Primitives
• constant
– Cells usually change over time, but it's also
possible to construct them with a constant value.
– There is no way to modify a cell after it is created,
so its value is guaranteed to be constant forever.
– Only use in Cell.

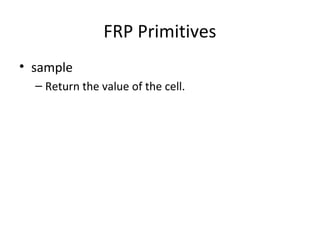

25. FRP Primitives
• sample
– Return the value of the cell.

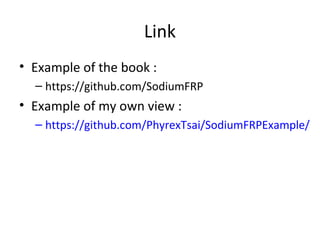

26. Link
• Example of the book :
– https://github.com/SodiumFRP
• Example of my own view :
– https://github.com/PhyrexTsai/SodiumFRPExample/

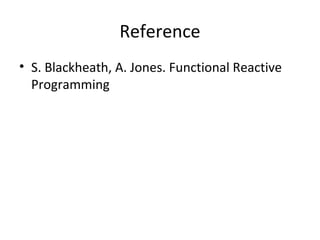

27. Reference
• S. Blackheath, A. Jones. Functional Reactive
Programming
