This document describes Frontera, an open source framework for large scale web crawling. It discusses the architecture and components of Frontera, which includes Scrapy for network operations, Apache Kafka as a data bus, and Apache HBase for storage. It also outlines some challenges faced during the development of Frontera and solutions implemented, such as handling large websites that flood the queue, optimizing traffic to HBase, and prioritizing URLs. The document provides details on using Frontera to crawl the Spanish (.es) web domain and presents results and future plans.

1. Frontera: open source, large scale web
crawling framework
Alexander Sibiryakov, October 15, 2015
sibiryakov@scrapinghub.com

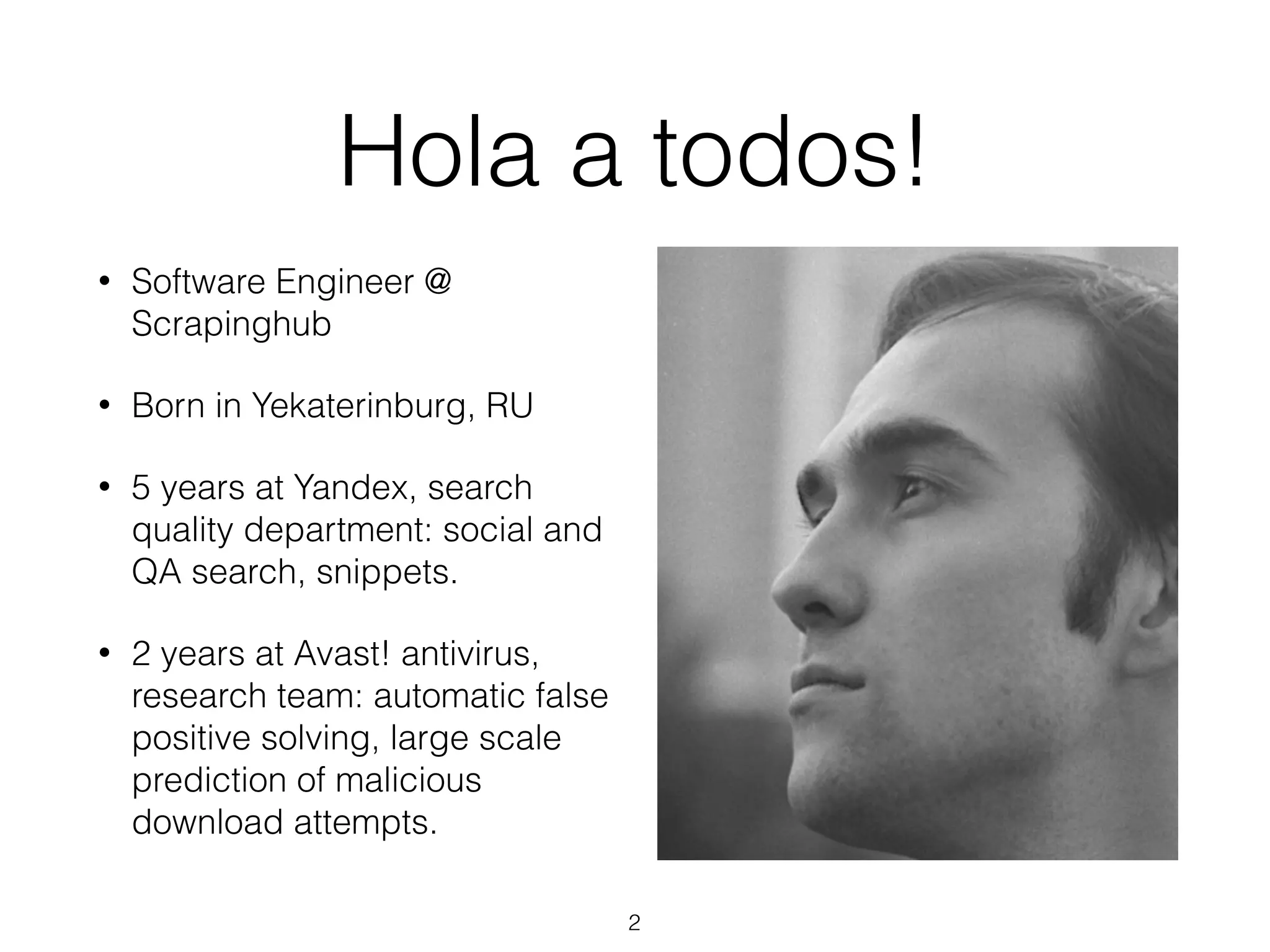

2. • Software Engineer @
Scrapinghub
• Born in Yekaterinburg, RU
• 5 years at Yandex, search
quality department: social and
QA search, snippets.
• 2 years at Avast! antivirus,
research team: automatic false
positive solving, large scale
prediction of malicious
download attempts.
Hola a todos!
2

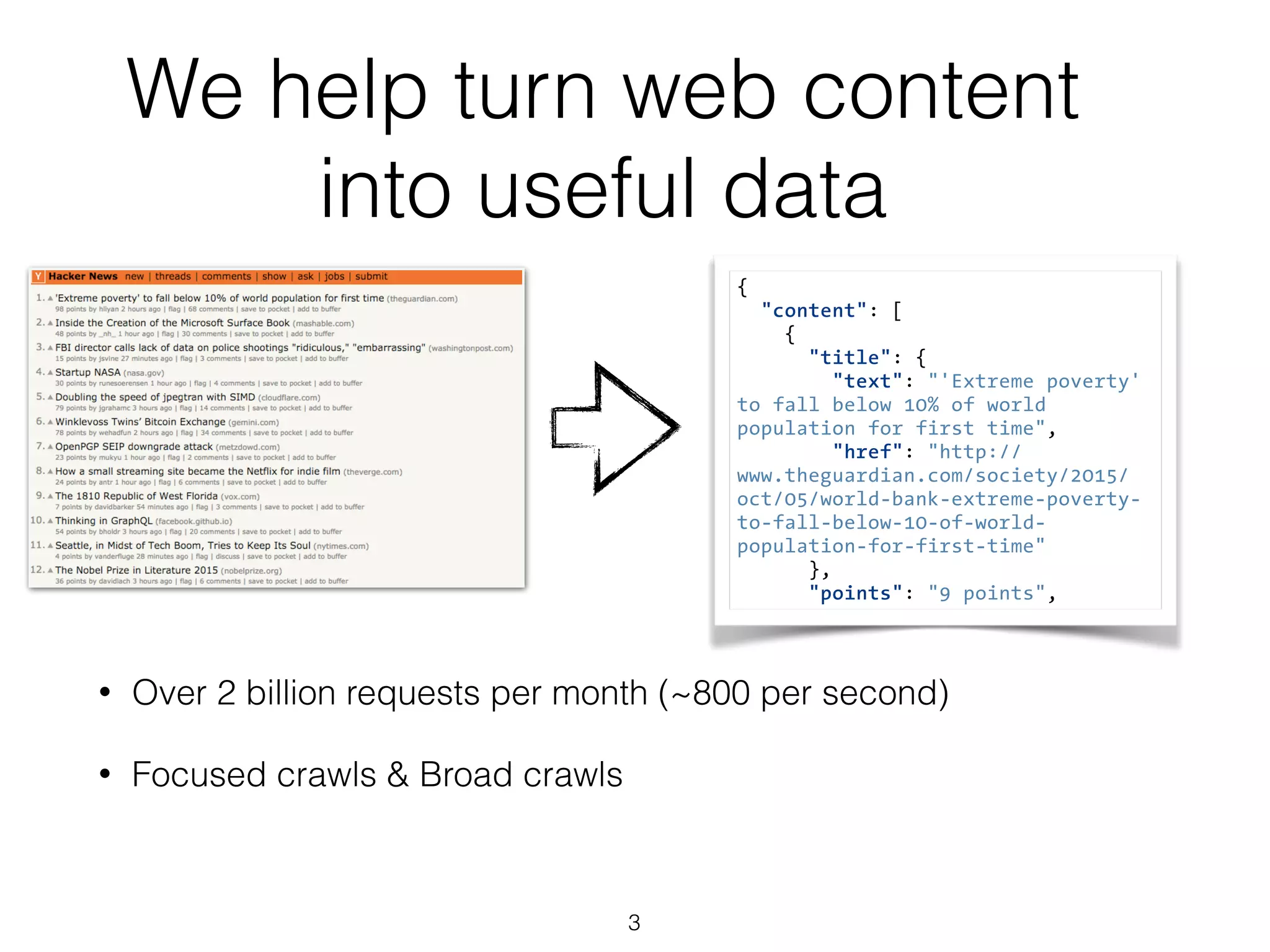

3. • Over 2 billion requests per month (~800 per second)
• Focused crawls & Broad crawls
We help turn web content
into useful data
3
{
"content": [
{
"title": {
"text": "'Extreme poverty'
to fall below 10% of world
population for first time",
"href": "http://
www.theguardian.com/society/2015/
oct/05/world-bank-extreme-poverty-
to-fall-below-10-of-world-
population-for-first-time"
},
"points": "9 points",

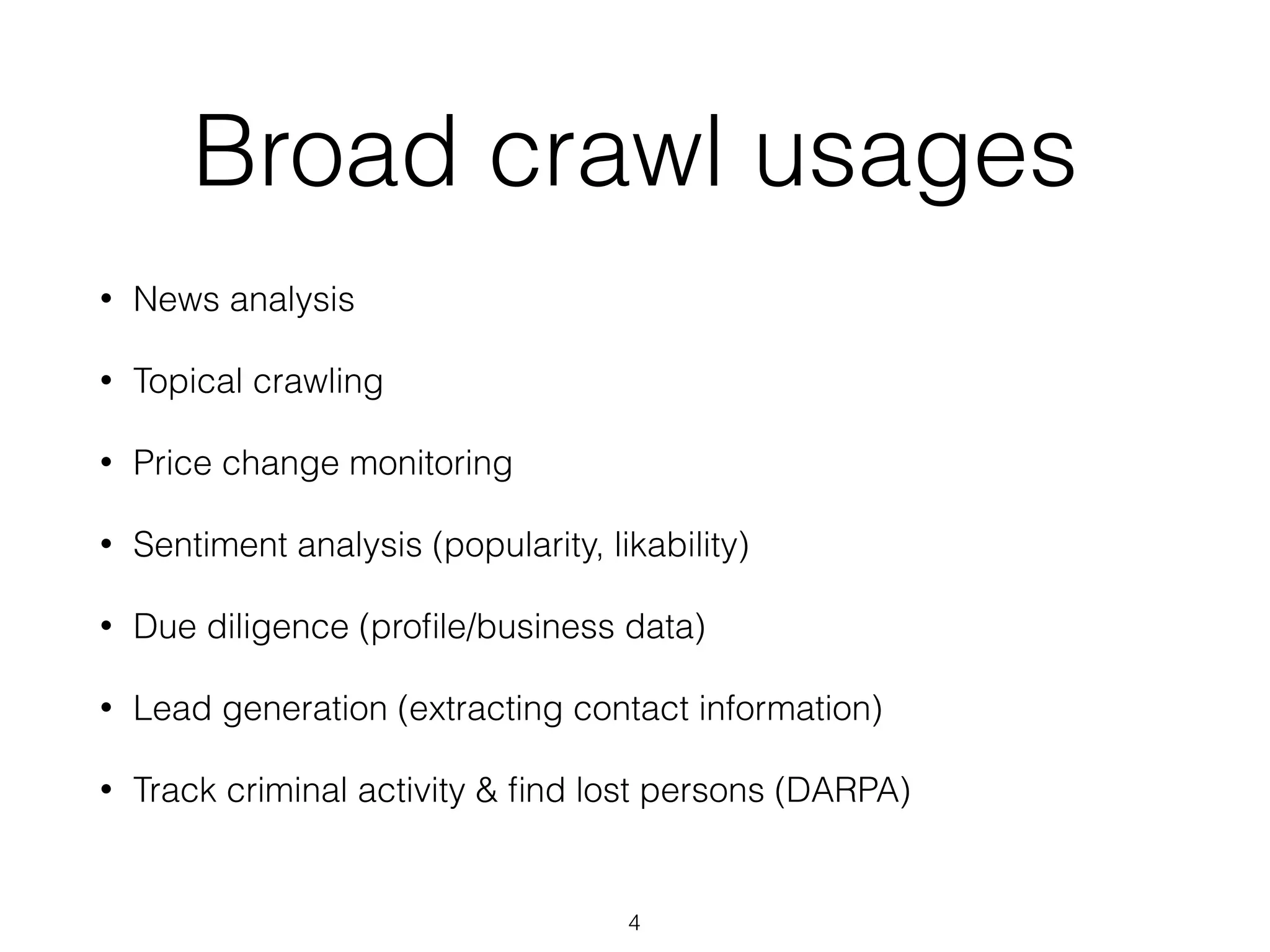

4. • News analysis
• Topical crawling
• Price change monitoring
• Sentiment analysis (popularity, likability)
• Due diligence (profile/business data)
• Lead generation (extracting contact information)
• Track criminal activity & find lost persons (DARPA)
Broad crawl usages
4

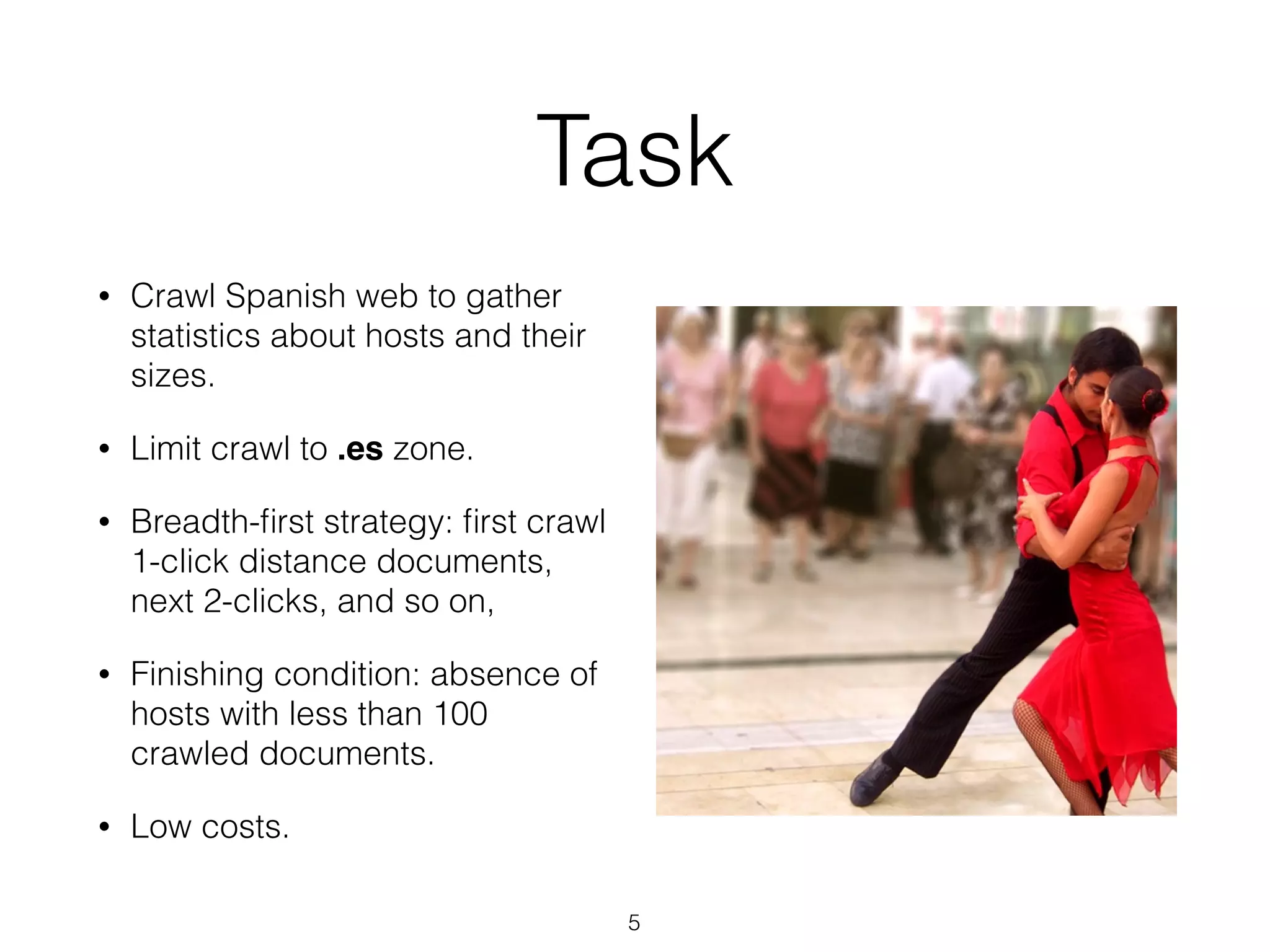

5. Task
• Crawl Spanish web to gather
statistics about hosts and their
sizes.
• Limit crawl to .es zone.
• Breadth-first strategy: first crawl
1-click distance documents,
next 2-clicks, and so on,
• Finishing condition: absence of
hosts with less than 100
crawled documents.
• Low costs.
5

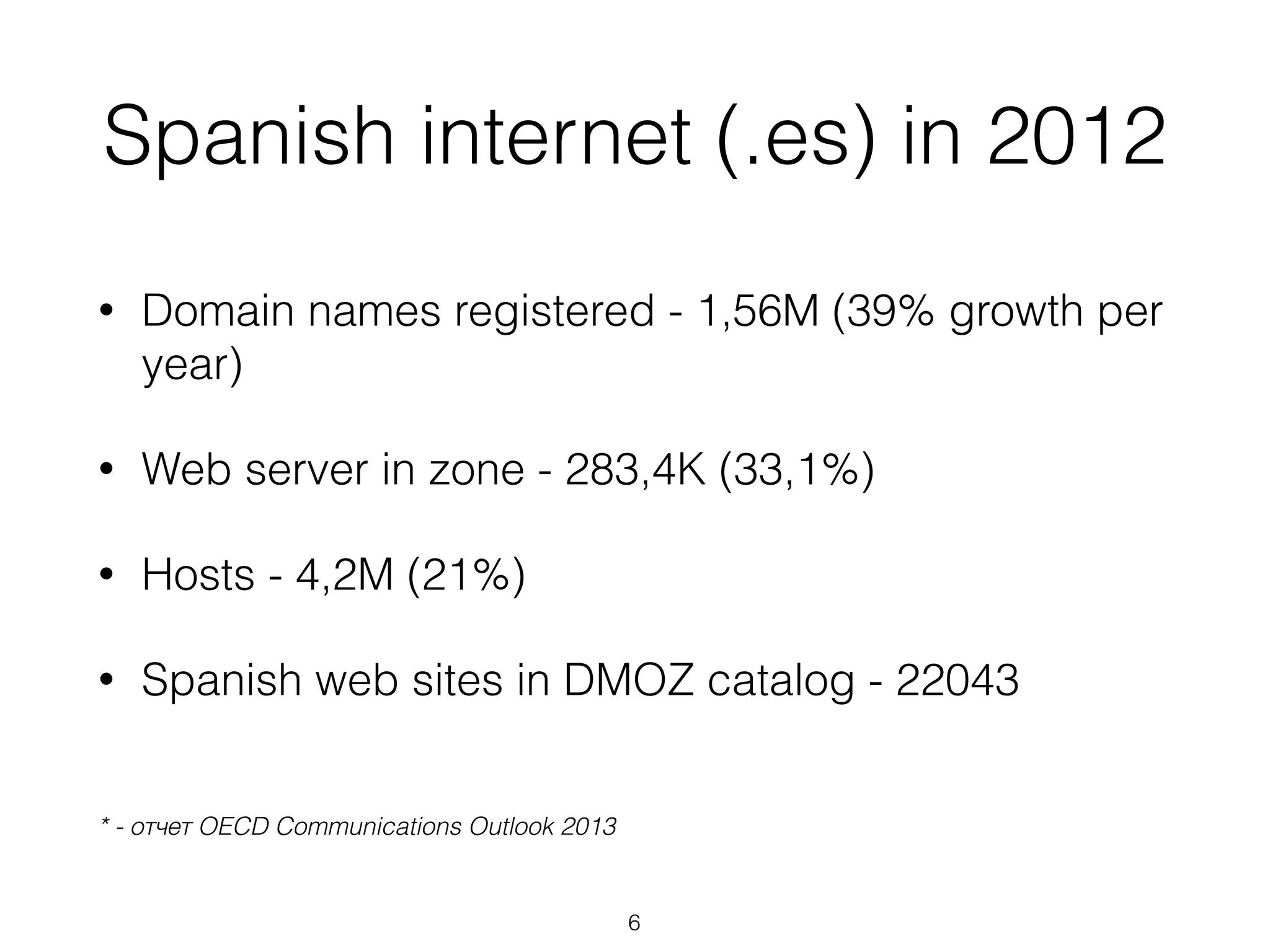

6. Spanish internet (.es) in 2012
• Domain names registered - 1,56М (39% growth per
year)
• Web server in zone - 283,4K (33,1%)
• Hosts - 4,2M (21%)
• Spanish web sites in DMOZ catalog - 22043
* - отчет OECD Communications Outlook 2013
6

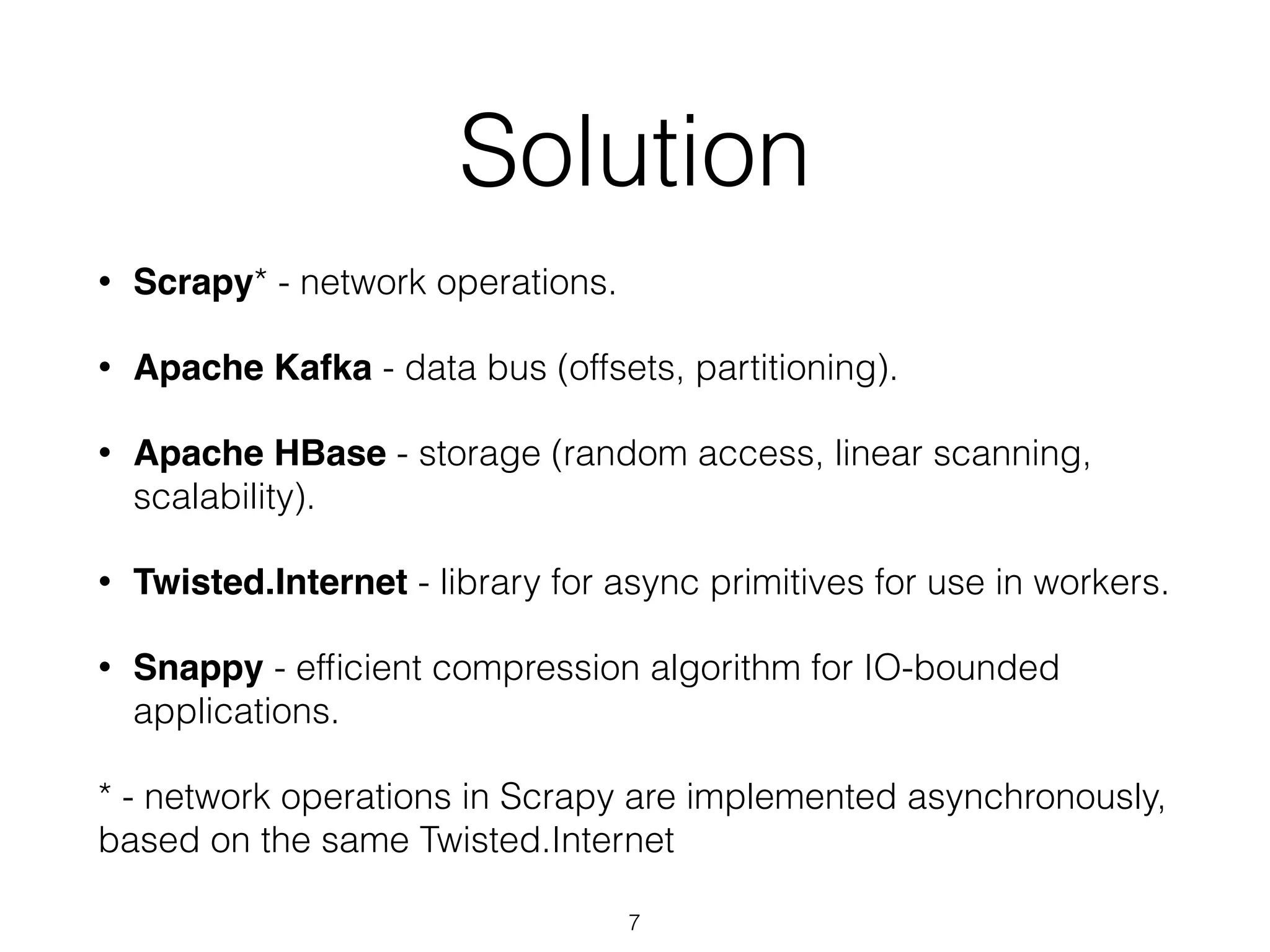

7. Solution
• Scrapy* - network operations.
• Apache Kafka - data bus (offsets, partitioning).
• Apache HBase - storage (random access, linear scanning,
scalability).
• Twisted.Internet - library for async primitives for use in workers.
• Snappy - efficient compression algorithm for IO-bounded
applications.
* - network operations in Scrapy are implemented asynchronously,
based on the same Twisted.Internet
7

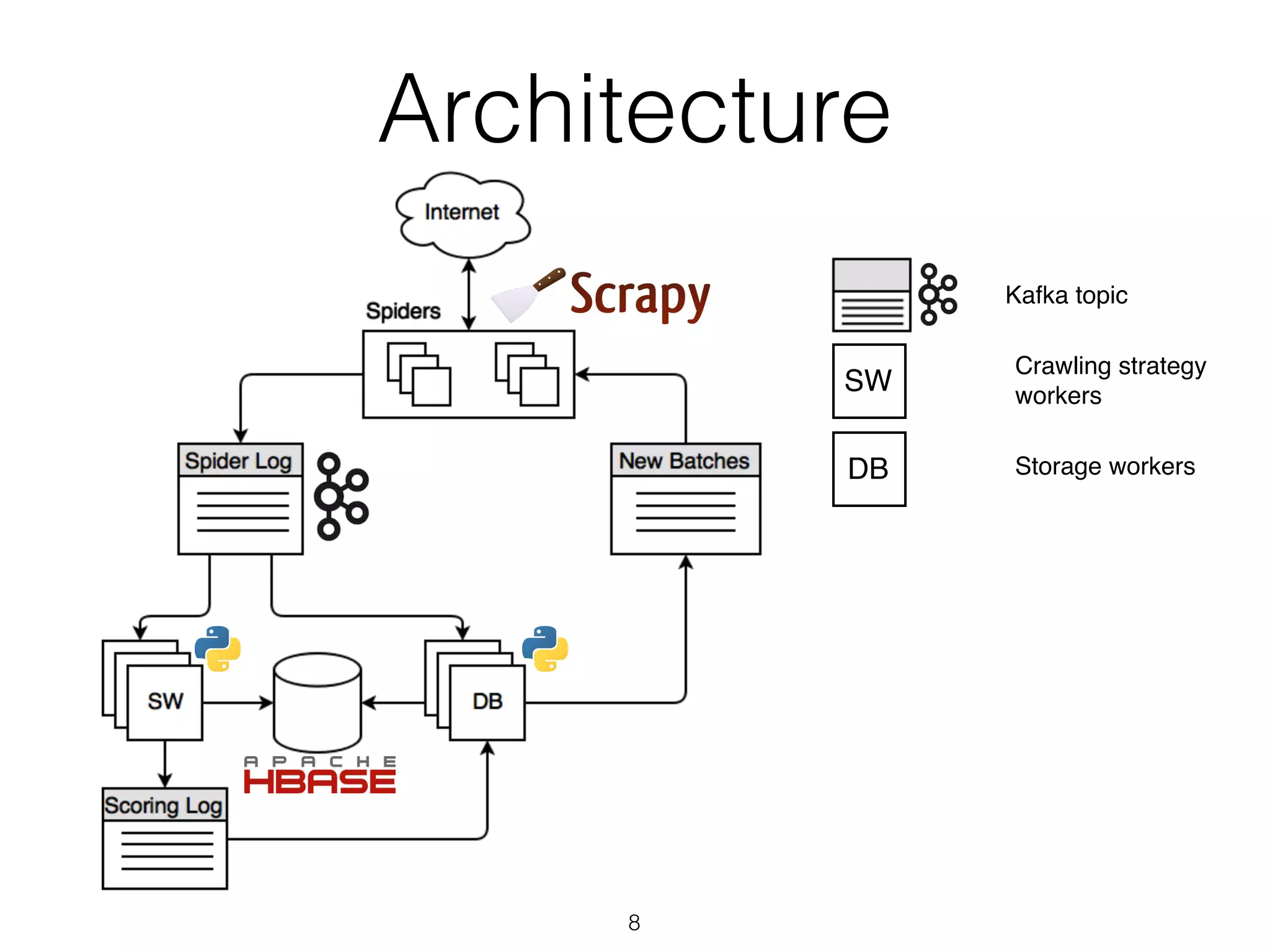

8. Architecture
Kafka topic
SW
Crawling strategy
workers
Storage workers
8
DB

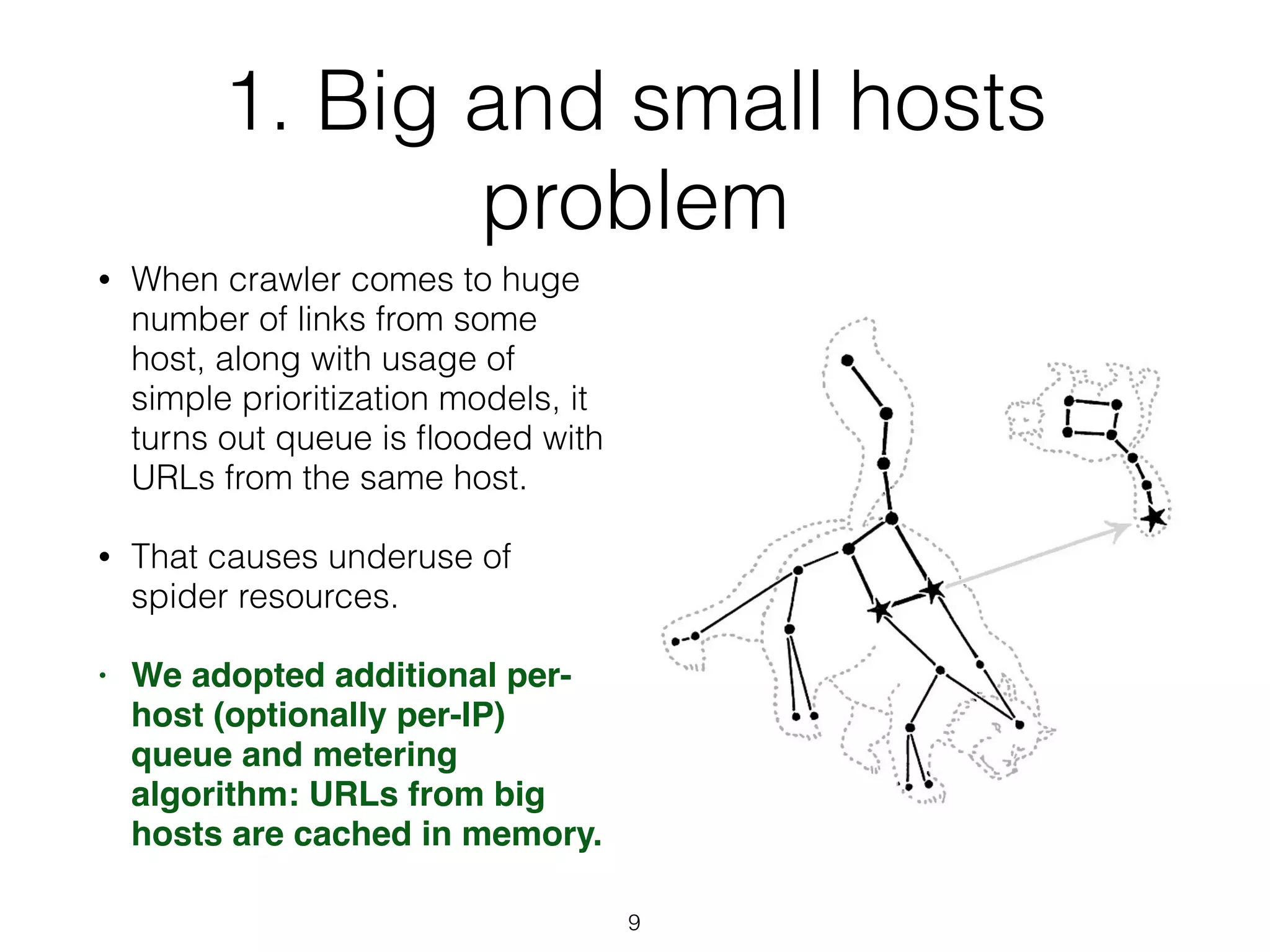

9. 1. Big and small hosts
problem
• When crawler comes to huge
number of links from some
host, along with usage of
simple prioritization models, it
turns out queue is flooded with
URLs from the same host.
• That causes underuse of
spider resources.
• We adopted additional per-
host (optionally per-IP)
queue and metering
algorithm: URLs from big
hosts are cached in memory.
9

10. 2. DDoS DNS service
Amazon AWS
• Breadth-first strategy assumes
first visiting of previously
unknown hosts, therefore
generating huge amount of
DNS request.
• Recursive DNS server on each
downloading node, with
upstream set to Verizon and
OpenDNS.
• We used dnsmasq.
10

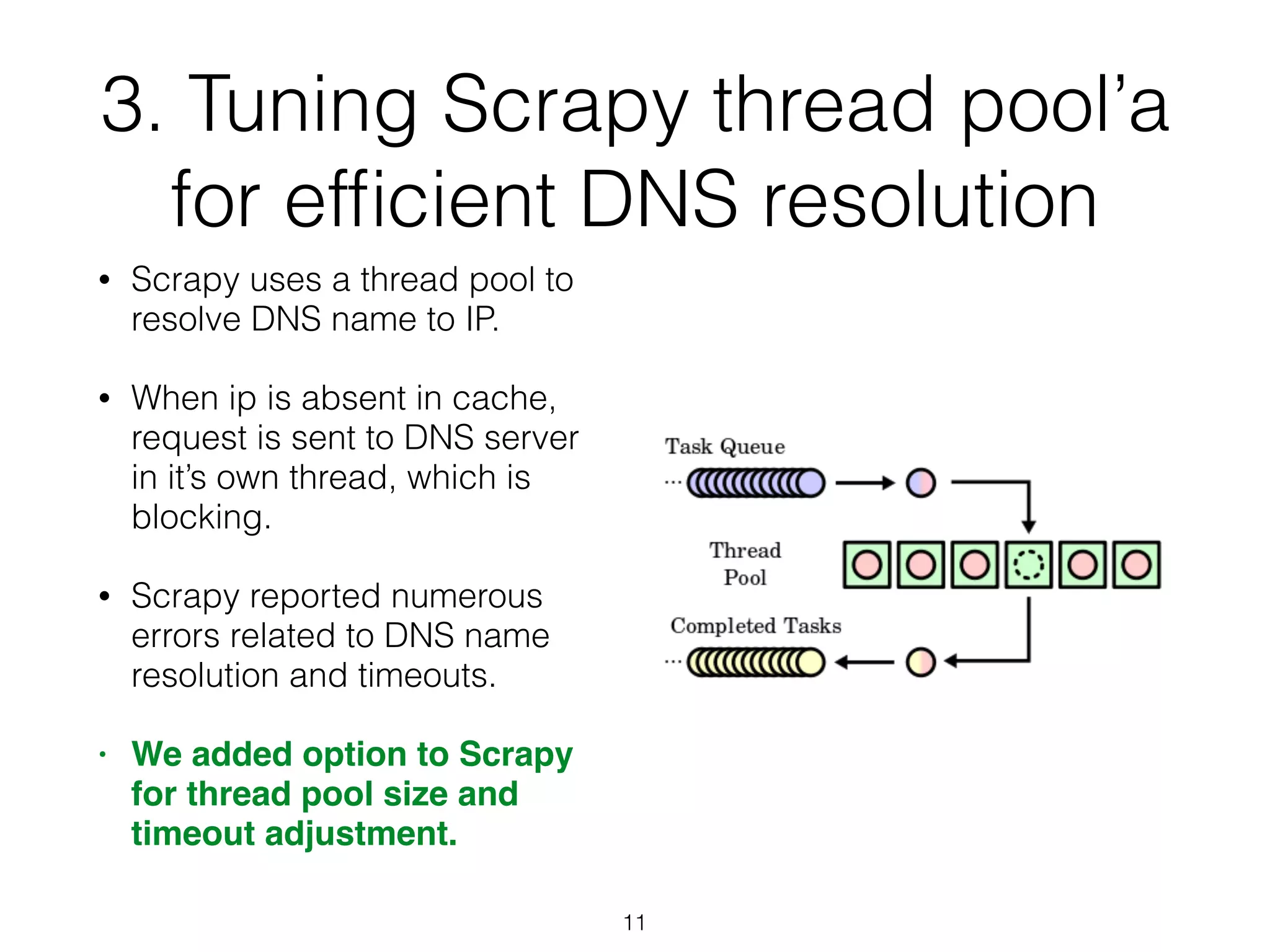

11. 3. Tuning Scrapy thread pool’а
for efficient DNS resolution
• Scrapy uses a thread pool to
resolve DNS name to IP.
• When ip is absent in cache,
request is sent to DNS server
in it’s own thread, which is
blocking.
• Scrapy reported numerous
errors related to DNS name
resolution and timeouts.
• We added option to Scrapy
for thread pool size and
timeout adjustment.
11

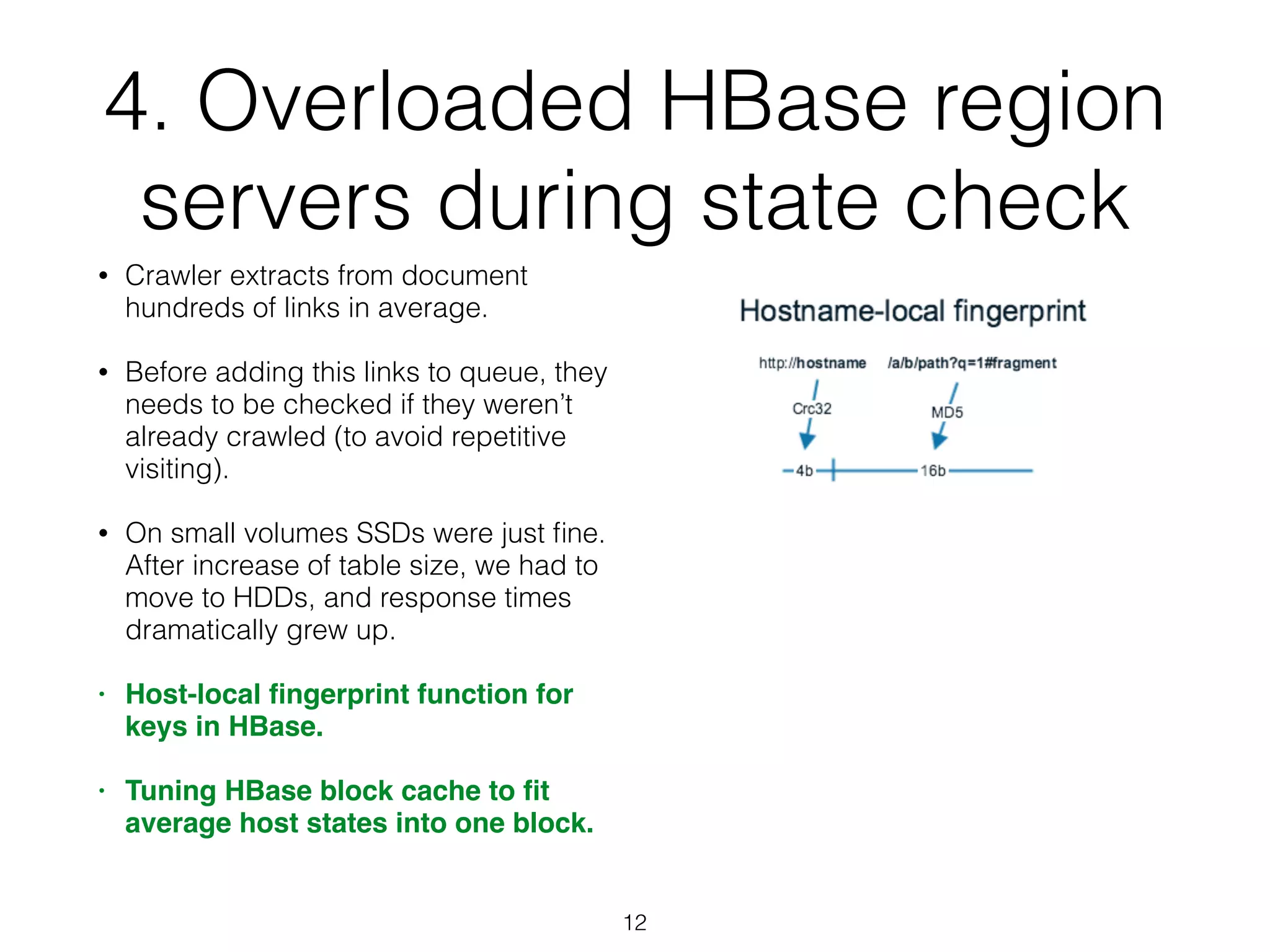

12. 4. Overloaded HBase region
servers during state check
• Crawler extracts from document
hundreds of links in average.
• Before adding this links to queue, they
needs to be checked if they weren’t
already crawled (to avoid repetitive
visiting).
• On small volumes SSDs were just fine.
After increase of table size, we had to
move to HDDs, and response times
dramatically grew up.
• Host-local fingerprint function for
keys in HBase.
• Tuning HBase block cache to fit
average host states into one block.
12

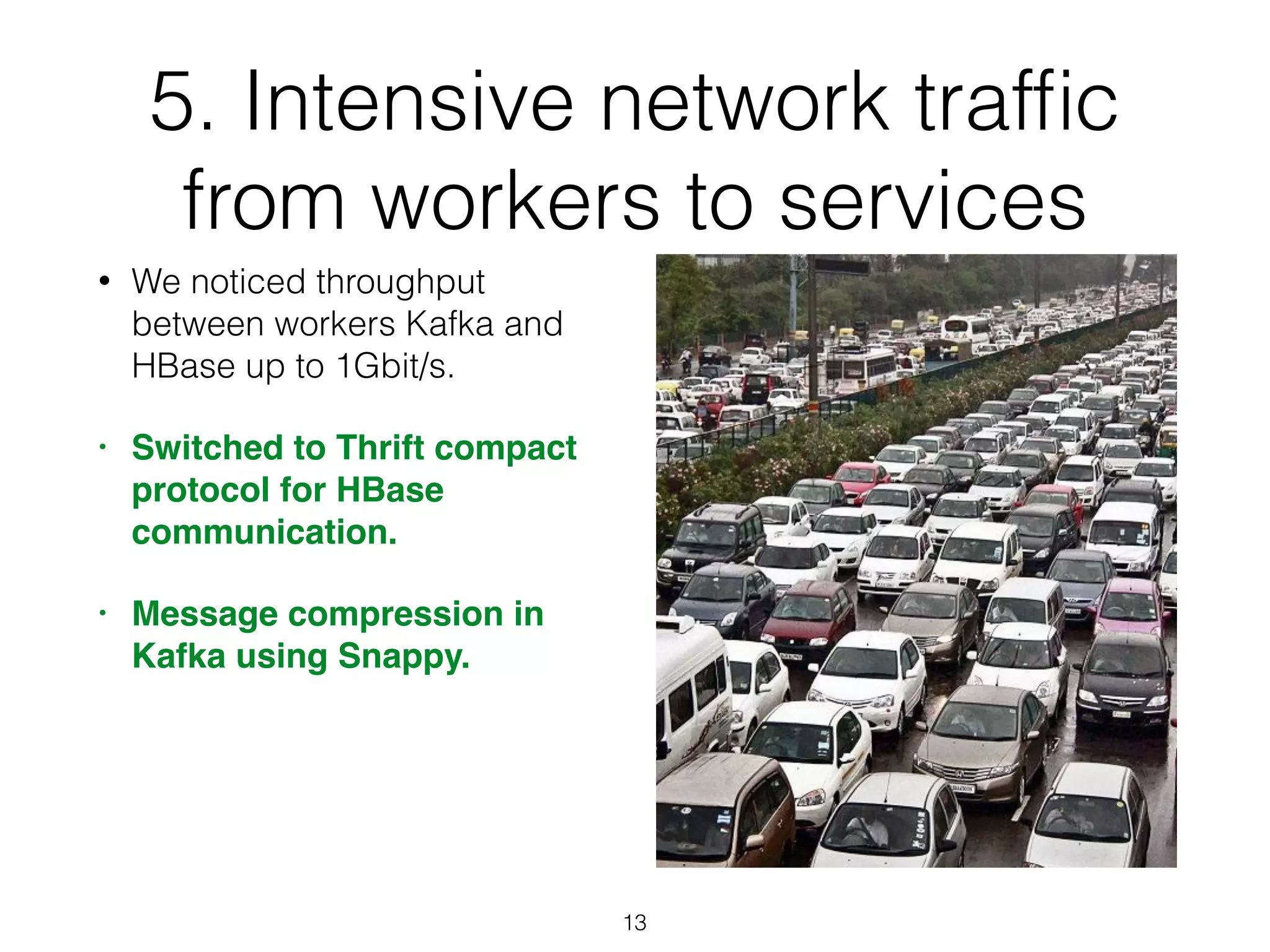

13. 5. Intensive network traffic
from workers to services
• We noticed throughput
between workers Kafka and
HBase up to 1Gbit/s.
• Switched to Thrift compact
protocol for HBase
communication.
• Message compression in
Kafka using Snappy.
13

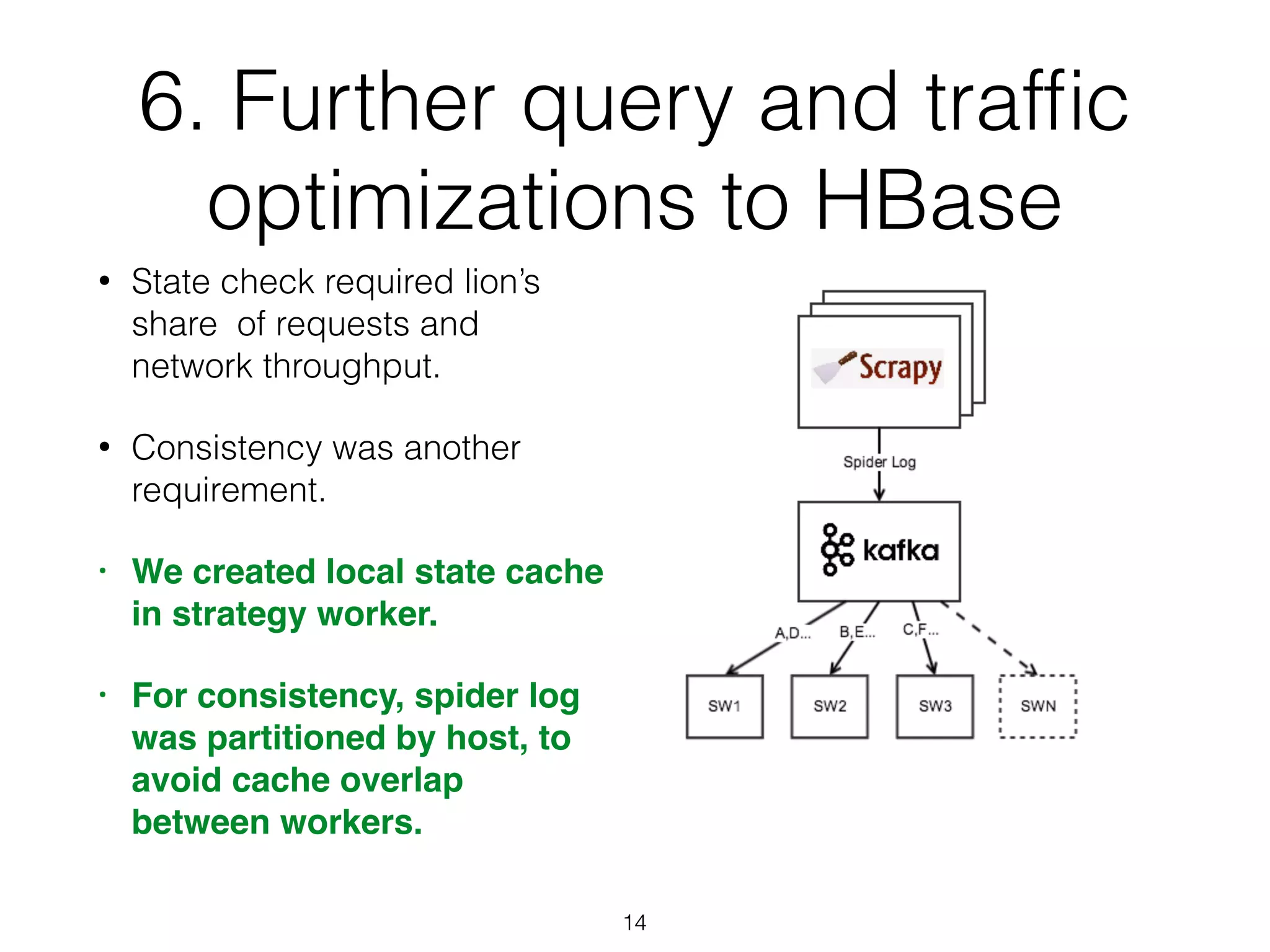

14. 6. Further query and traffic
optimizations to HBase
• State check required lion’s
share of requests and
network throughput.
• Consistency was another
requirement.
• We created local state cache
in strategy worker.
• For consistency, spider log
was partitioned by host, to
avoid cache overlap
between workers.
14

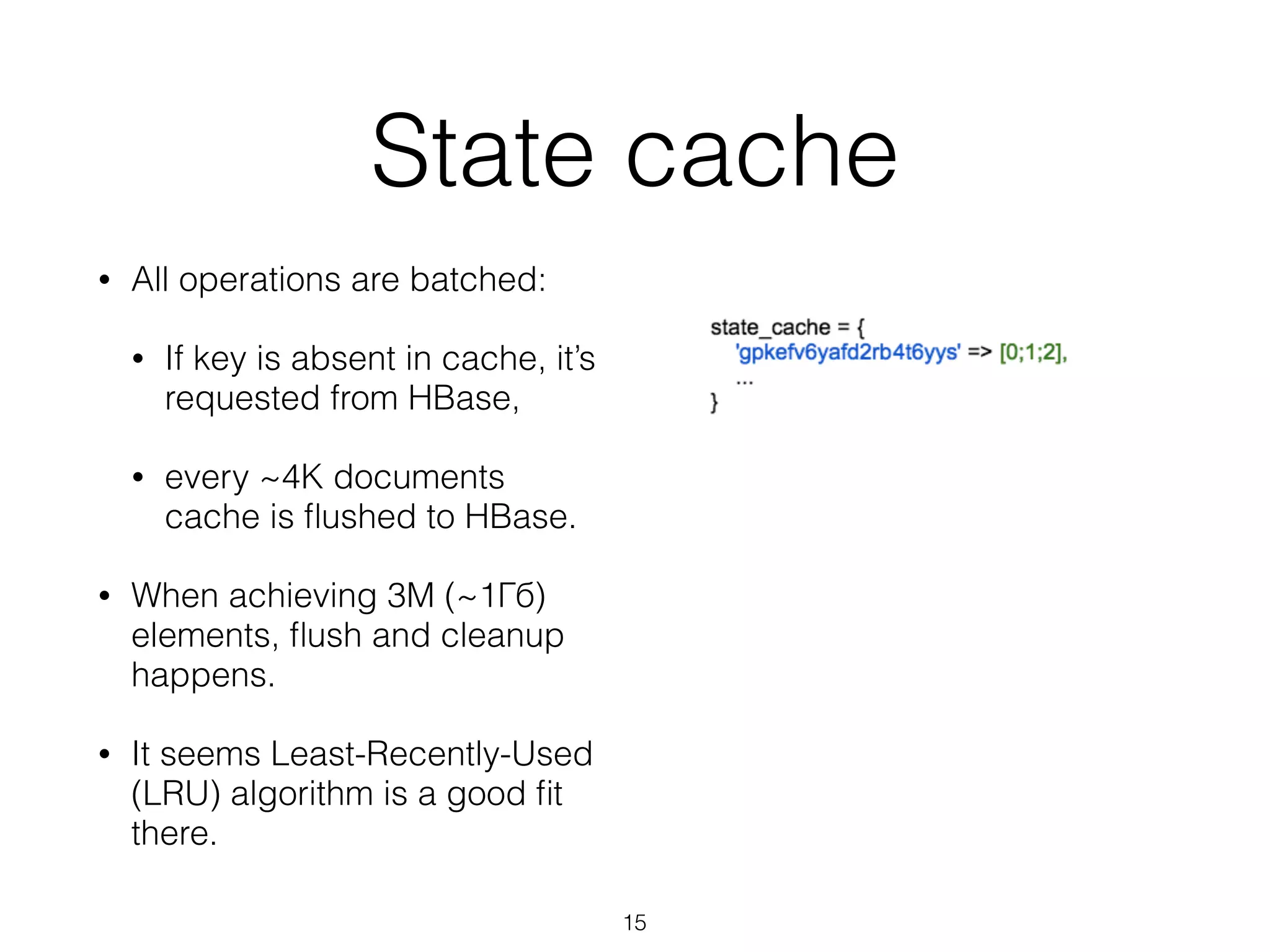

15. State cache
• All operations are batched:
• If key is absent in cache, it’s
requested from HBase,
• every ~4K documents
cache is flushed to HBase.
• When achieving 3M (~1Гб)
elements, flush and cleanup
happens.
• It seems Least-Recently-Used
(LRU) algorithm is a good fit
there.
15

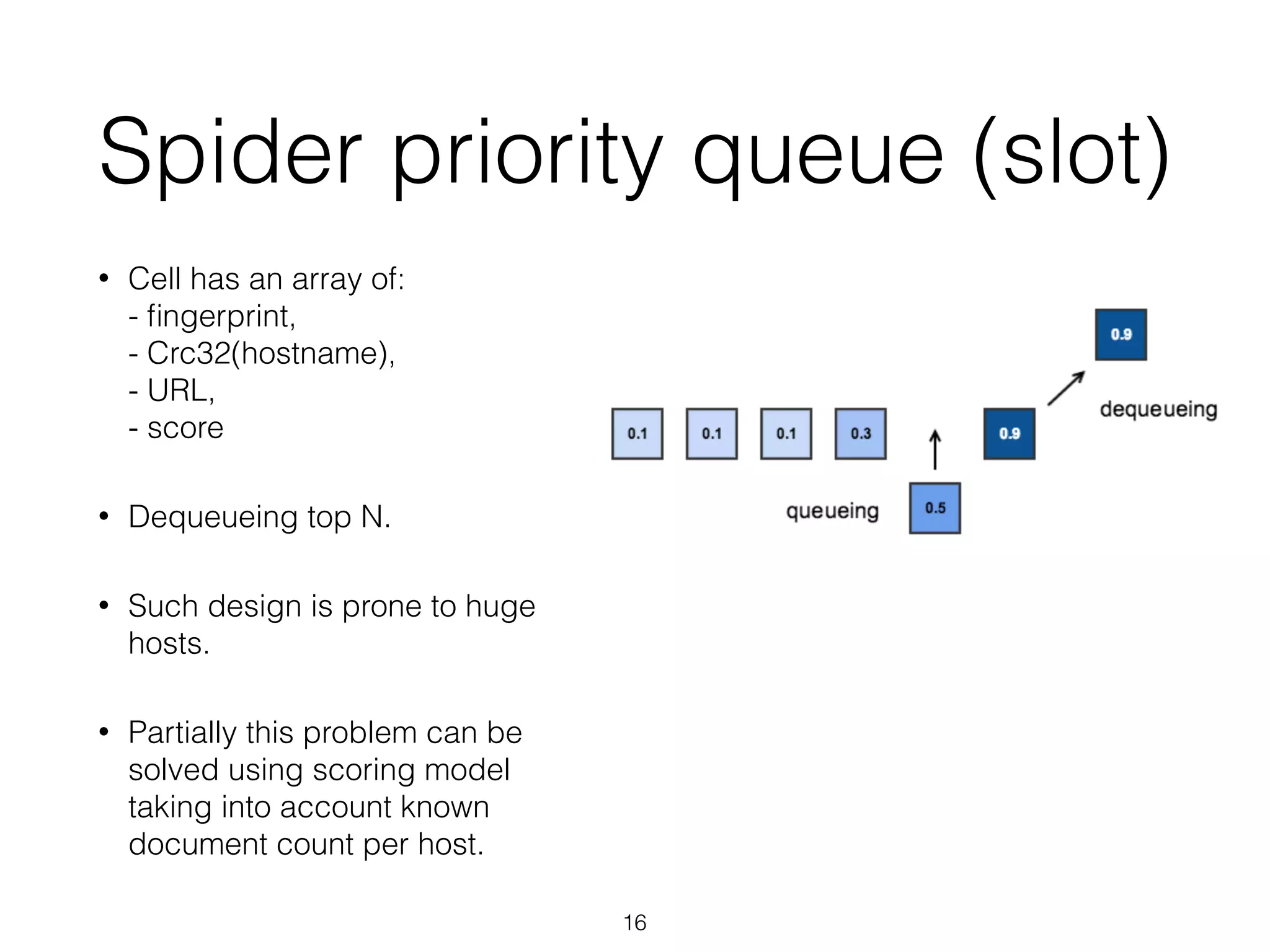

16. Spider priority queue (slot)
• Cell has an array of:
- fingerprint,
- Crc32(hostname),
- URL,
- score
• Dequeueing top N.
• Such design is prone to huge
hosts.
• Partially this problem can be
solved using scoring model
taking into account known
document count per host.
16

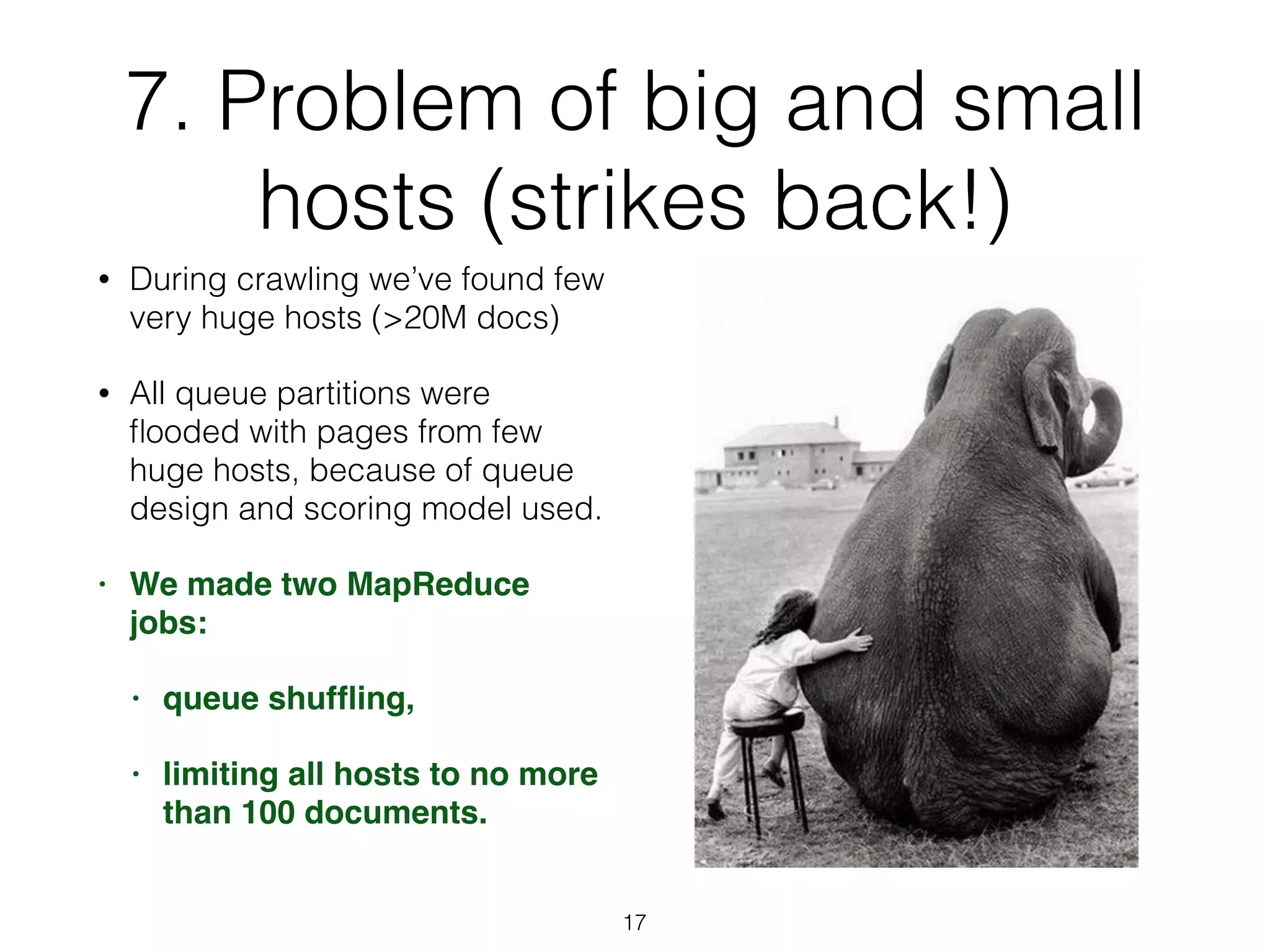

17. 7. Problem of big and small
hosts (strikes back!)
• During crawling we’ve found few
very huge hosts (>20M docs)
• All queue partitions were
flooded with pages from few
huge hosts, because of queue
design and scoring model used.
• We made two MapReduce
jobs:
• queue shuffling,
• limiting all hosts to no more
than 100 documents.
17

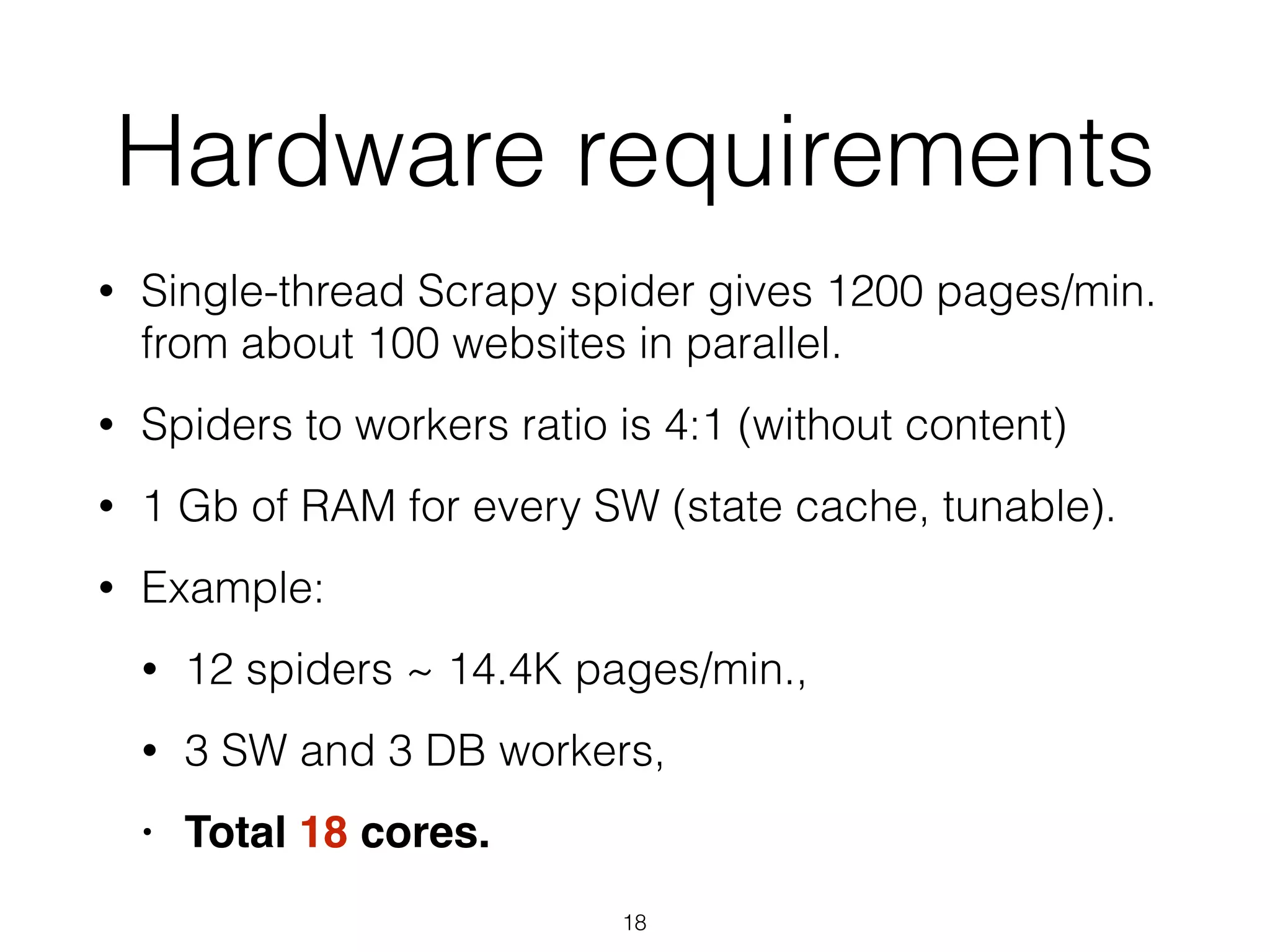

18. • Single-thread Scrapy spider gives 1200 pages/min.
from about 100 websites in parallel.
• Spiders to workers ratio is 4:1 (without content)
• 1 Gb of RAM for every SW (state cache, tunable).
• Example:
• 12 spiders ~ 14.4K pages/min.,
• 3 SW and 3 DB workers,
• Total 18 cores.
Hardware requirements
18

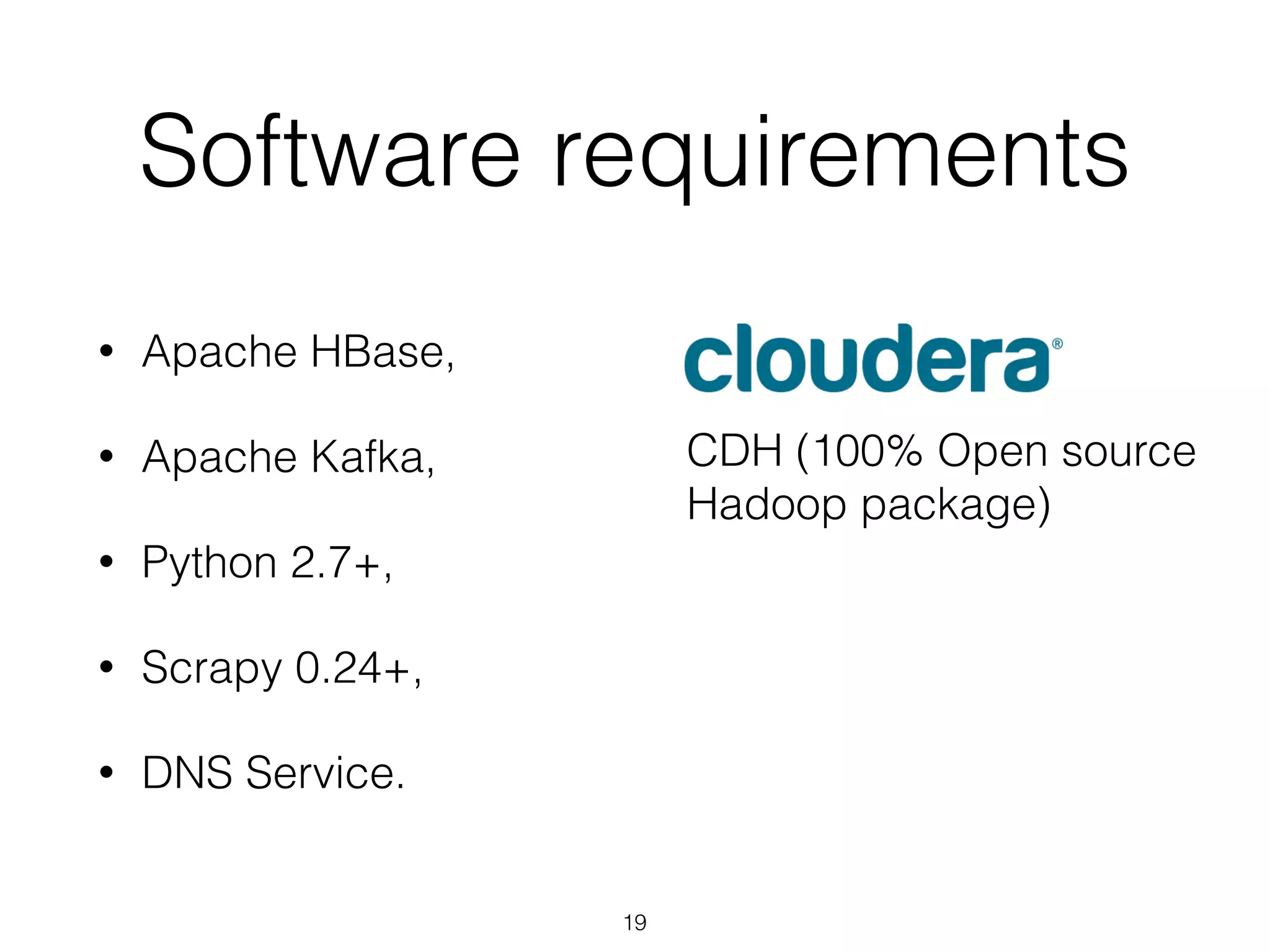

19. • Apache HBase,
• Apache Kafka,
• Python 2.7+,
• Scrapy 0.24+,
• DNS Service.
Software requirements
CDH (100% Open source
Hadoop package)
19

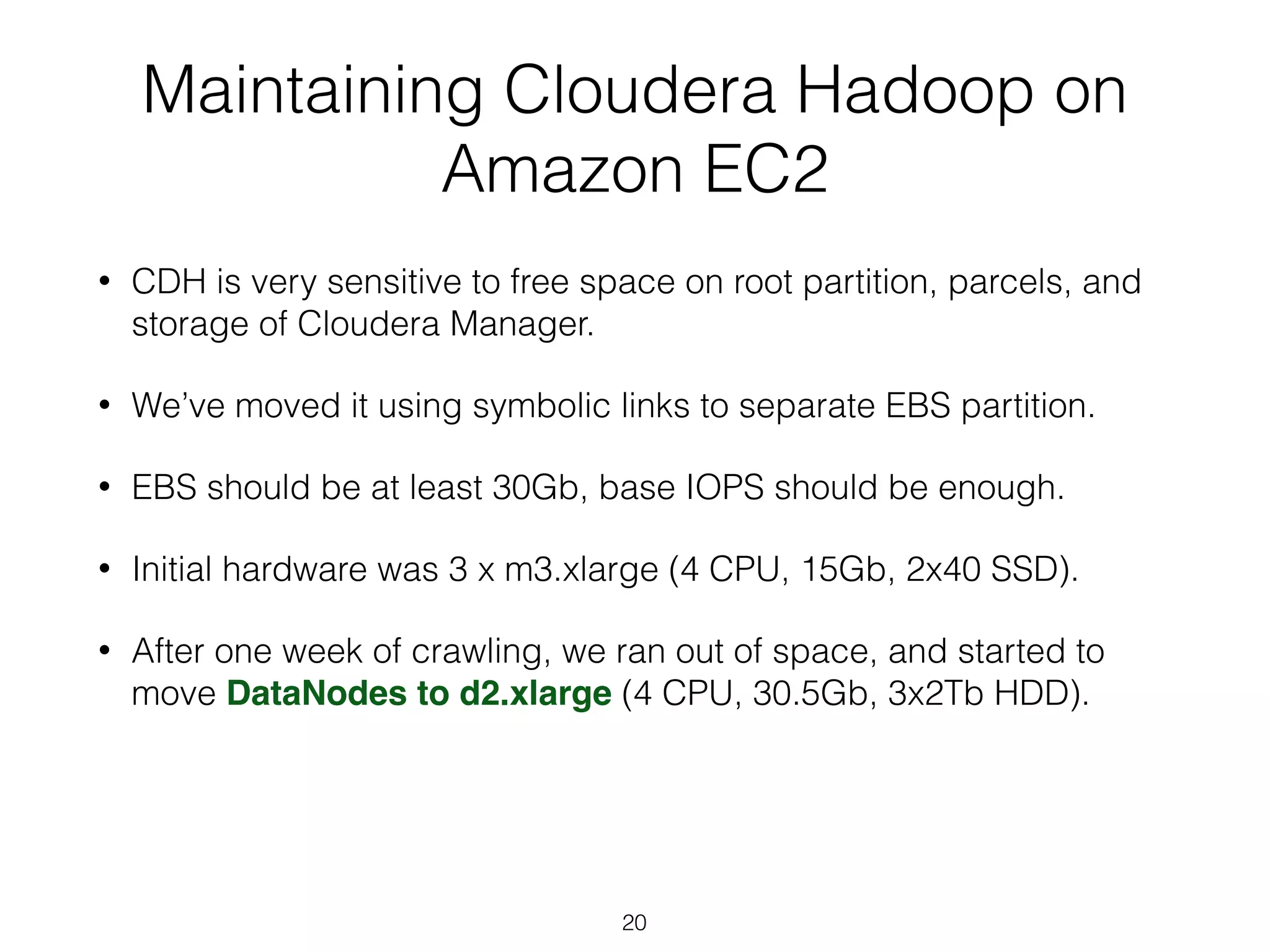

20. Maintaining Cloudera Hadoop on
Amazon EC2
• CDH is very sensitive to free space on root partition, parcels, and
storage of Cloudera Manager.
• We’ve moved it using symbolic links to separate EBS partition.
• EBS should be at least 30Gb, base IOPS should be enough.
• Initial hardware was 3 x m3.xlarge (4 CPU, 15Gb, 2x40 SSD).
• After one week of crawling, we ran out of space, and started to
move DataNodes to d2.xlarge (4 CPU, 30.5Gb, 3x2Tb HDD).
20

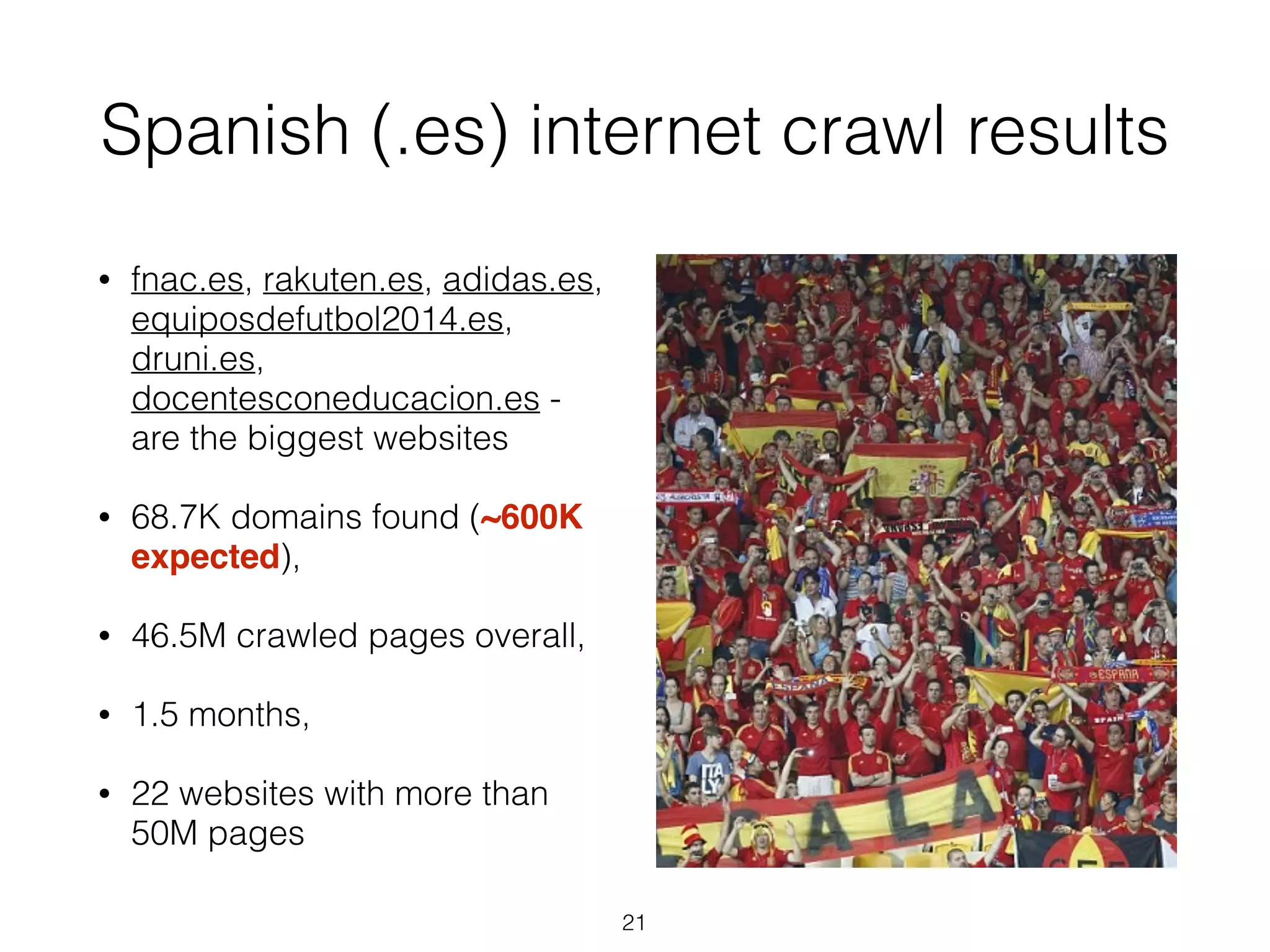

21. Spanish (.es) internet crawl results
• fnac.es, rakuten.es, adidas.es,
equiposdefutbol2014.es,
druni.es,
docentesconeducacion.es -
are the biggest websites
• 68.7K domains found (~600K
expected),
• 46.5M crawled pages overall,
• 1.5 months,
• 22 websites with more than
50M pages
21

22. where are the rest of
web servers?!

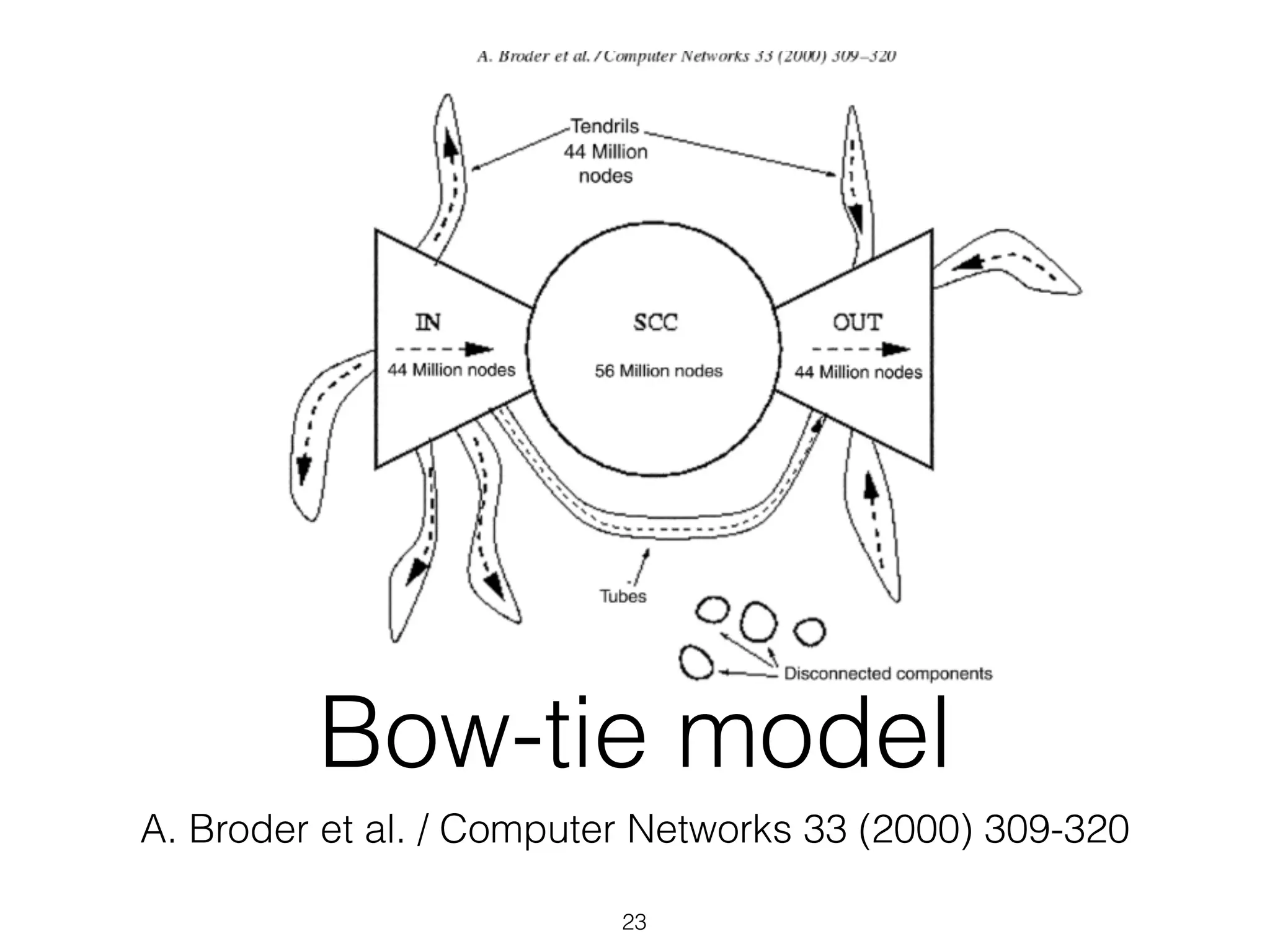

23. Bow-tie model
A. Broder et al. / Computer Networks 33 (2000) 309-320
23

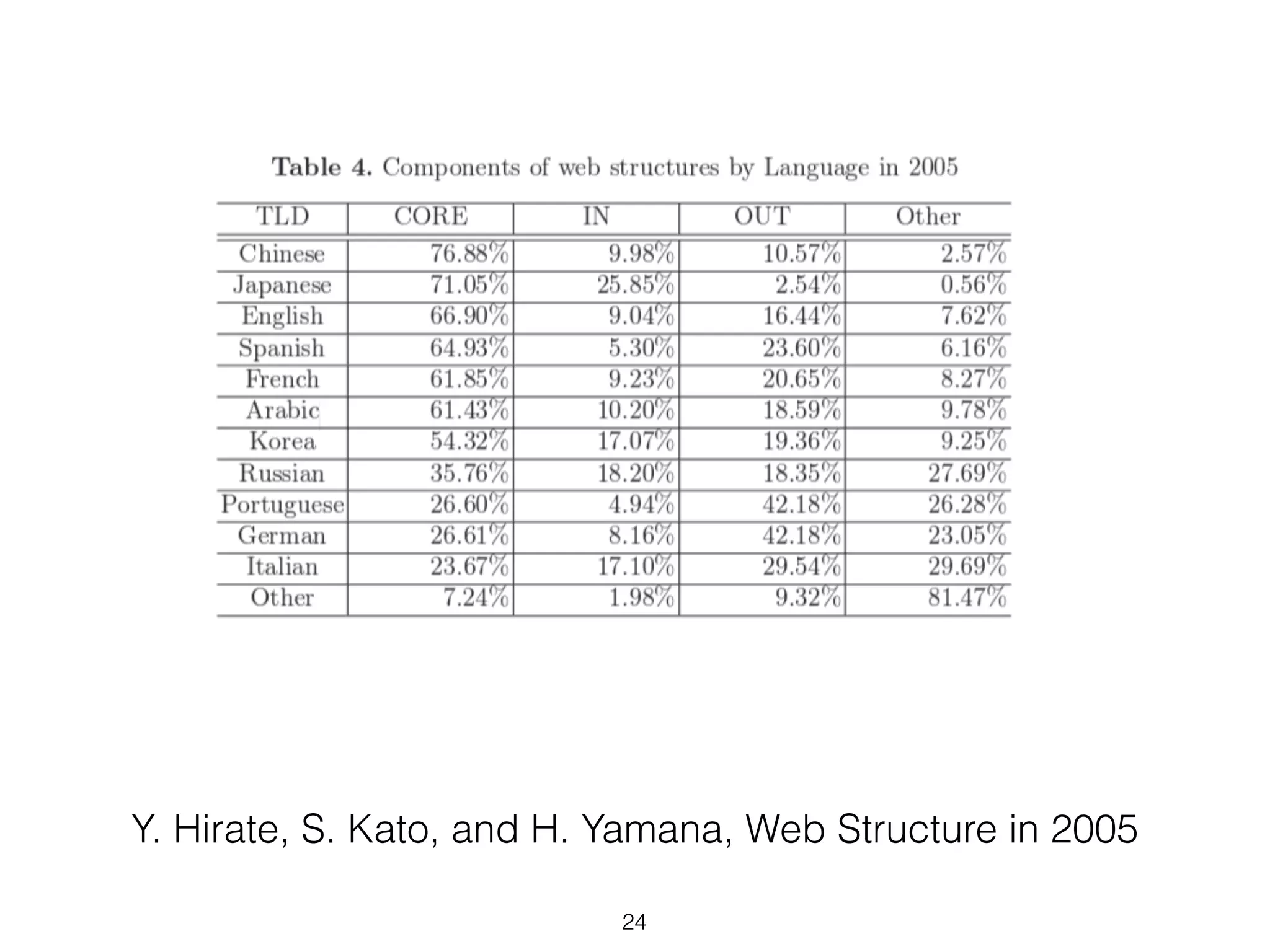

24. Y. Hirate, S. Kato, and H. Yamana, Web Structure in 2005
24

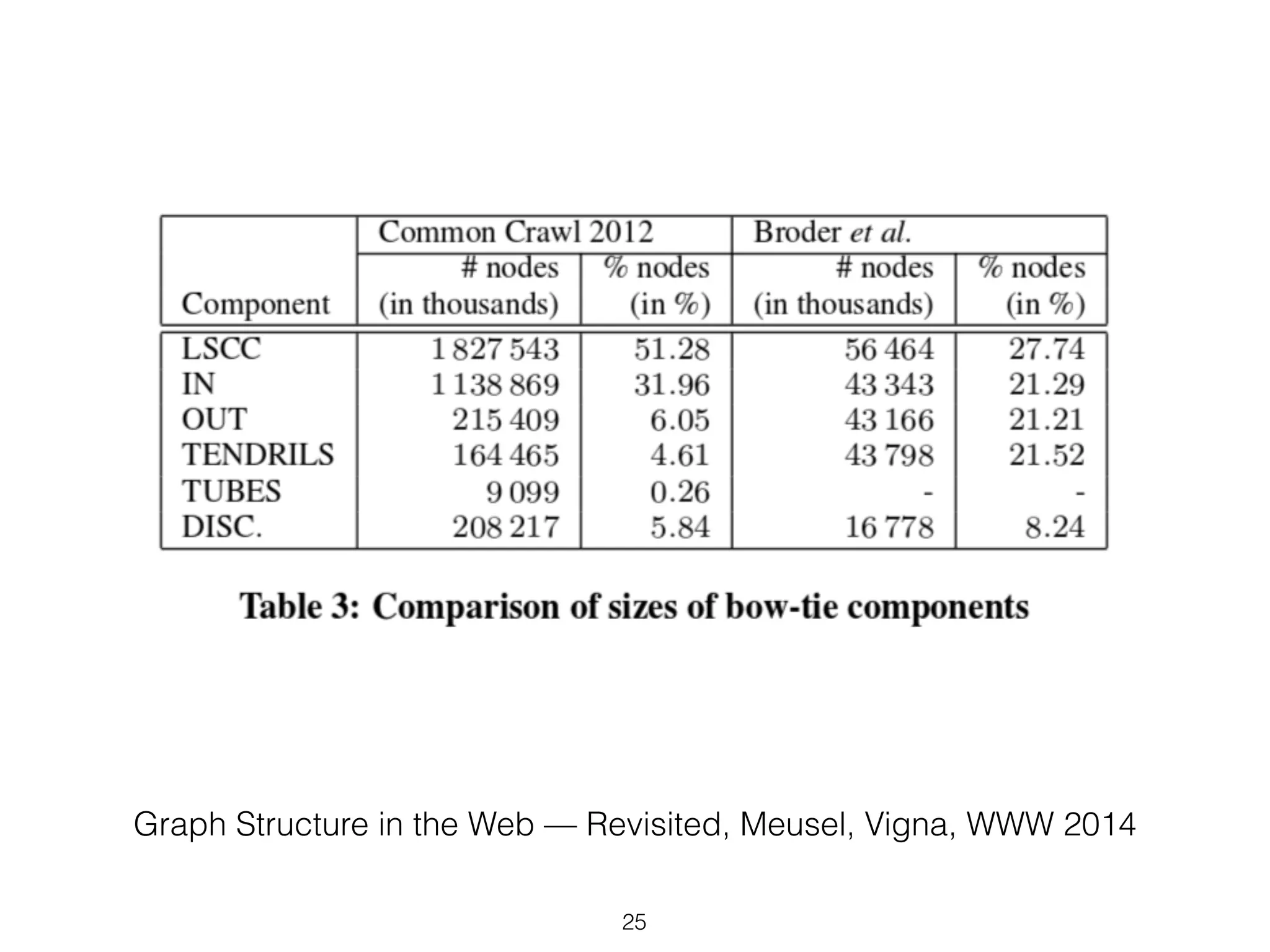

25. Graph Structure in the Web — Revisited, Meusel, Vigna, WWW 2014
25

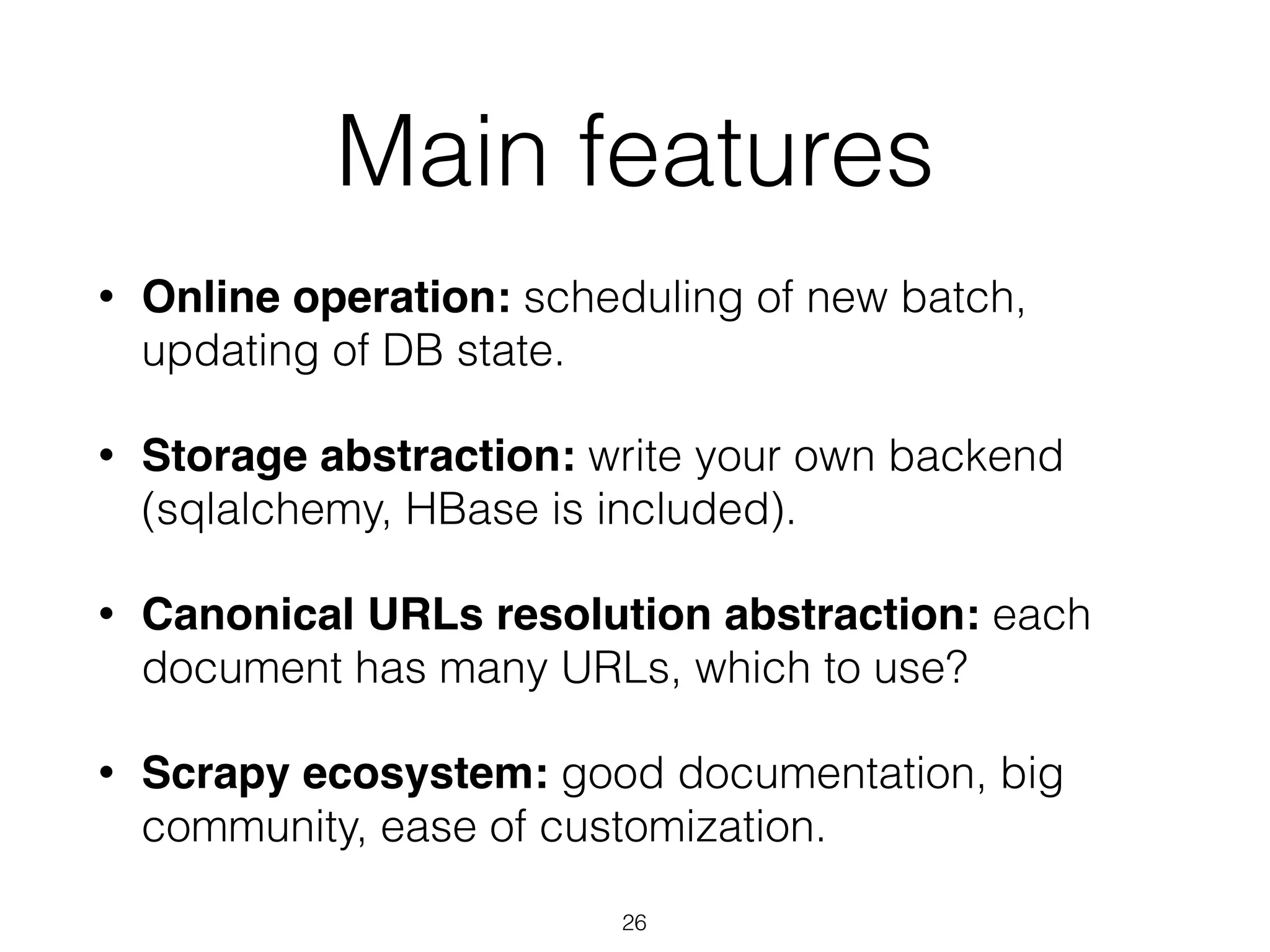

26. • Online operation: scheduling of new batch,
updating of DB state.
• Storage abstraction: write your own backend
(sqlalchemy, HBase is included).
• Canonical URLs resolution abstraction: each
document has many URLs, which to use?
• Scrapy ecosystem: good documentation, big
community, ease of customization.
Main features
26

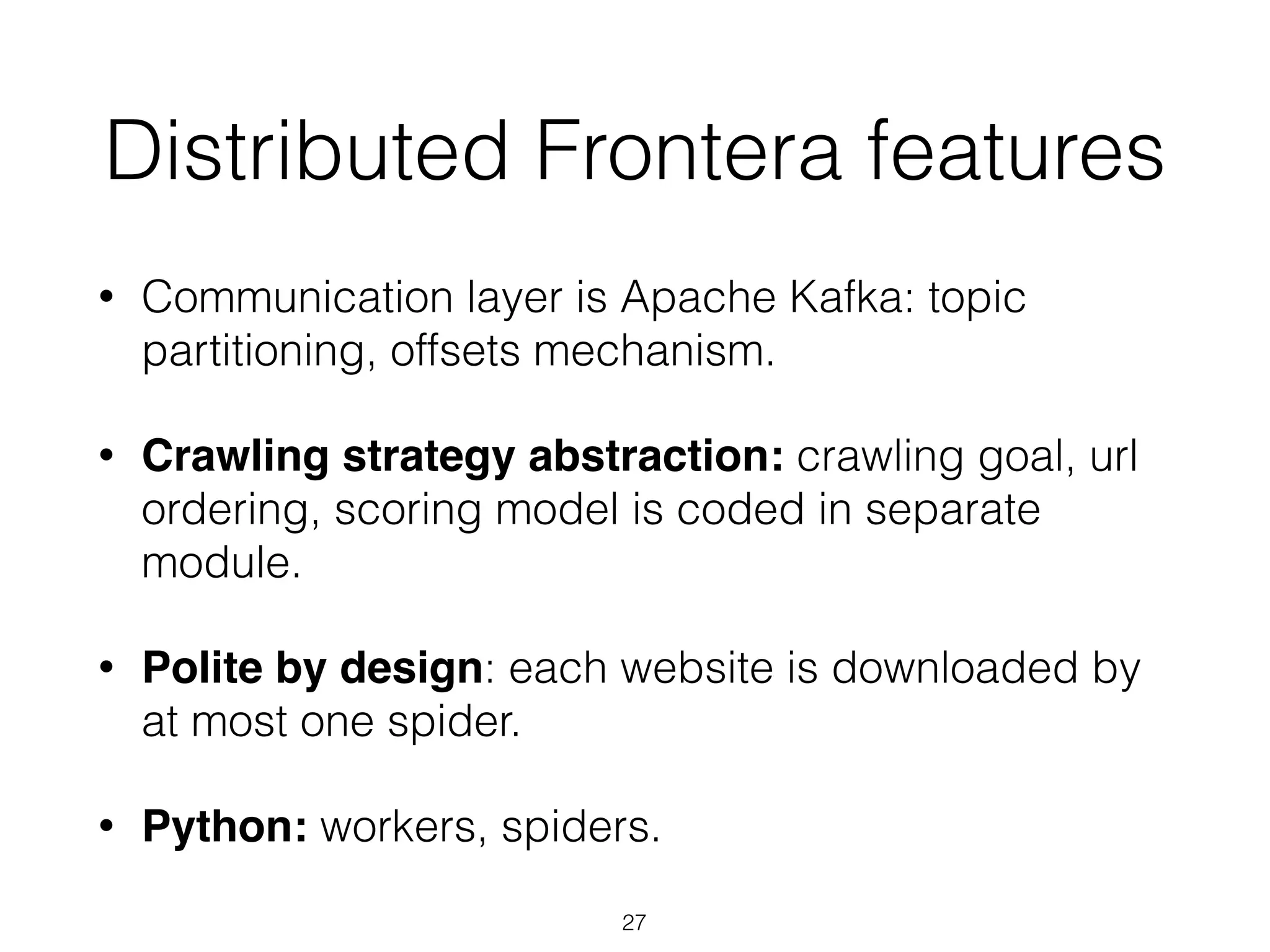

27. • Communication layer is Apache Kafka: topic
partitioning, offsets mechanism.
• Crawling strategy abstraction: crawling goal, url
ordering, scoring model is coded in separate
module.
• Polite by design: each website is downloaded by
at most one spider.
• Python: workers, spiders.
Distributed Frontera features
27

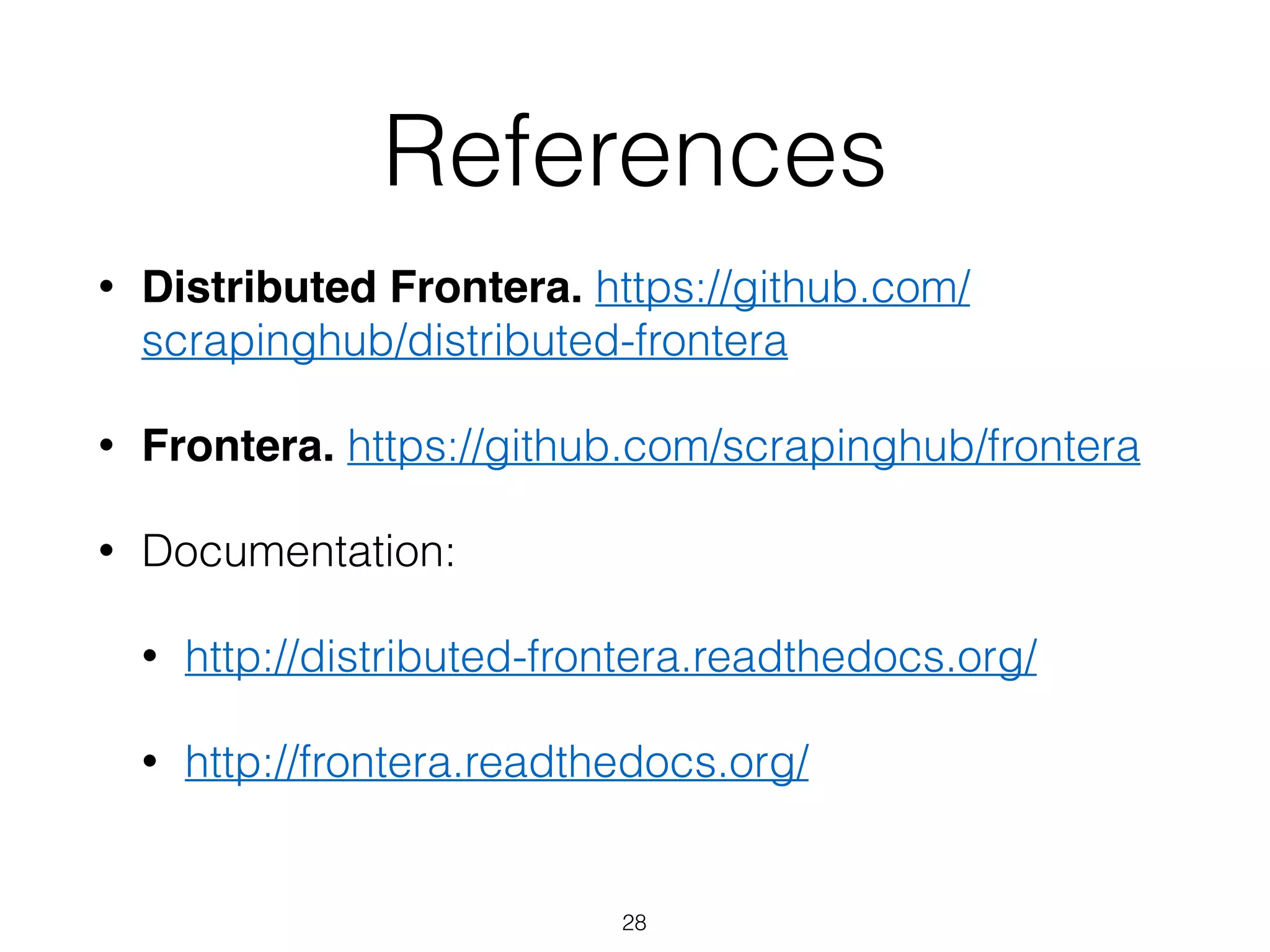

28. References
• Distributed Frontera. https://github.com/
scrapinghub/distributed-frontera
• Frontera. https://github.com/scrapinghub/frontera
• Documentation:
• http://distributed-frontera.readthedocs.org/
• http://frontera.readthedocs.org/
28

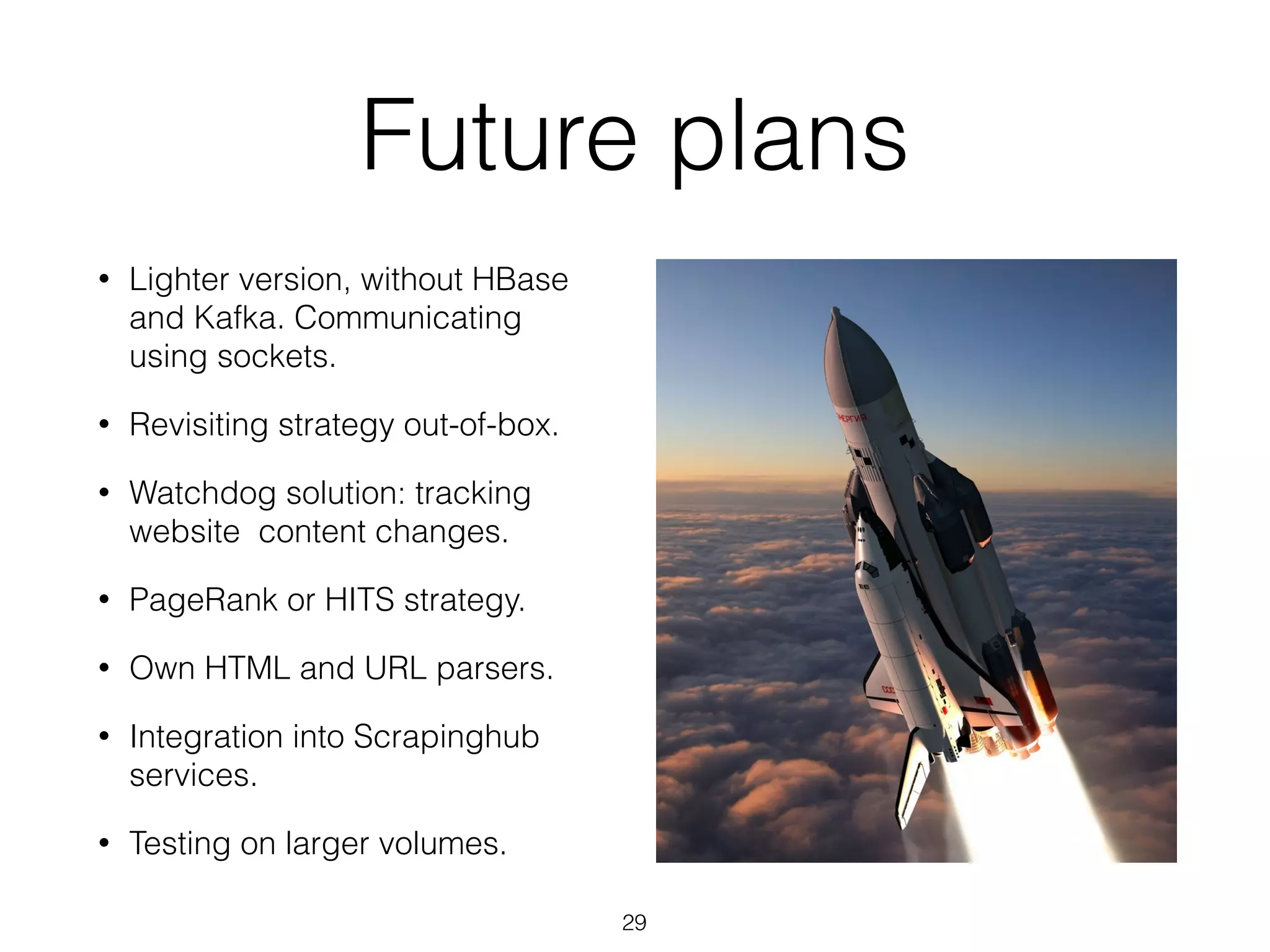

29. Future plans
• Lighter version, without HBase
and Kafka. Communicating
using sockets.
• Revisiting strategy out-of-box.
• Watchdog solution: tracking
website content changes.
• PageRank or HITS strategy.
• Own HTML and URL parsers.
• Integration into Scrapinghub
services.
• Testing on larger volumes.
29

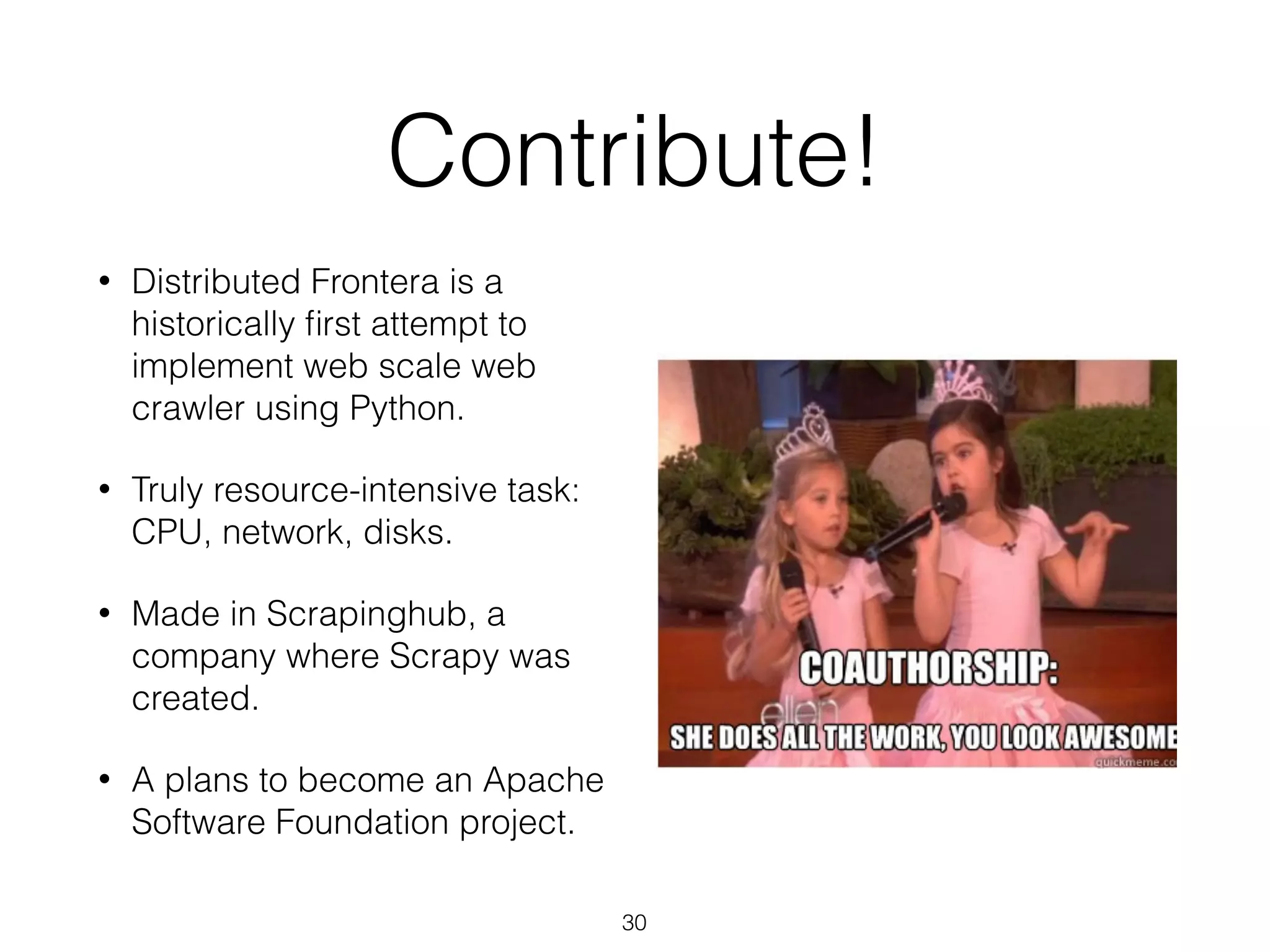

30. Contribute!
• Distributed Frontera is a
historically first attempt to
implement web scale web
crawler using Python.
• Truly resource-intensive task:
CPU, network, disks.
• Made in Scrapinghub, a
company where Scrapy was
created.
• A plans to become an Apache
Software Foundation project.
30

31. We’re hiring!
http://scrapinghub.com/jobs/
31

32. 32
Mandatory sales slide
Crawl the web, at scale
• cloud-based platform
• smart proxy rotator
Get data, hassle-free
• off-the-shelf datasets
• turn-key web scraping
try.scrapinghub.com/BDS15

33. Gracias!
Thank you!
Alexander Sibiryakov,
sibiryakov@scrapinghub.com
