Auto scaling of Java EE applications is not that easy task, that is why we decided to help you and highlighted a general concept for Java EE apps with real use cases, issues, and tricky things. Find out how to configure and package clustered Payara Micro with load balancing, automatic scaling and dedicated storage for building cloud-native microservices from this comprehensive presentation by Ihor Kolodyuk (Technical Director at Jelastic) at JEEConf Kyiv 2017.

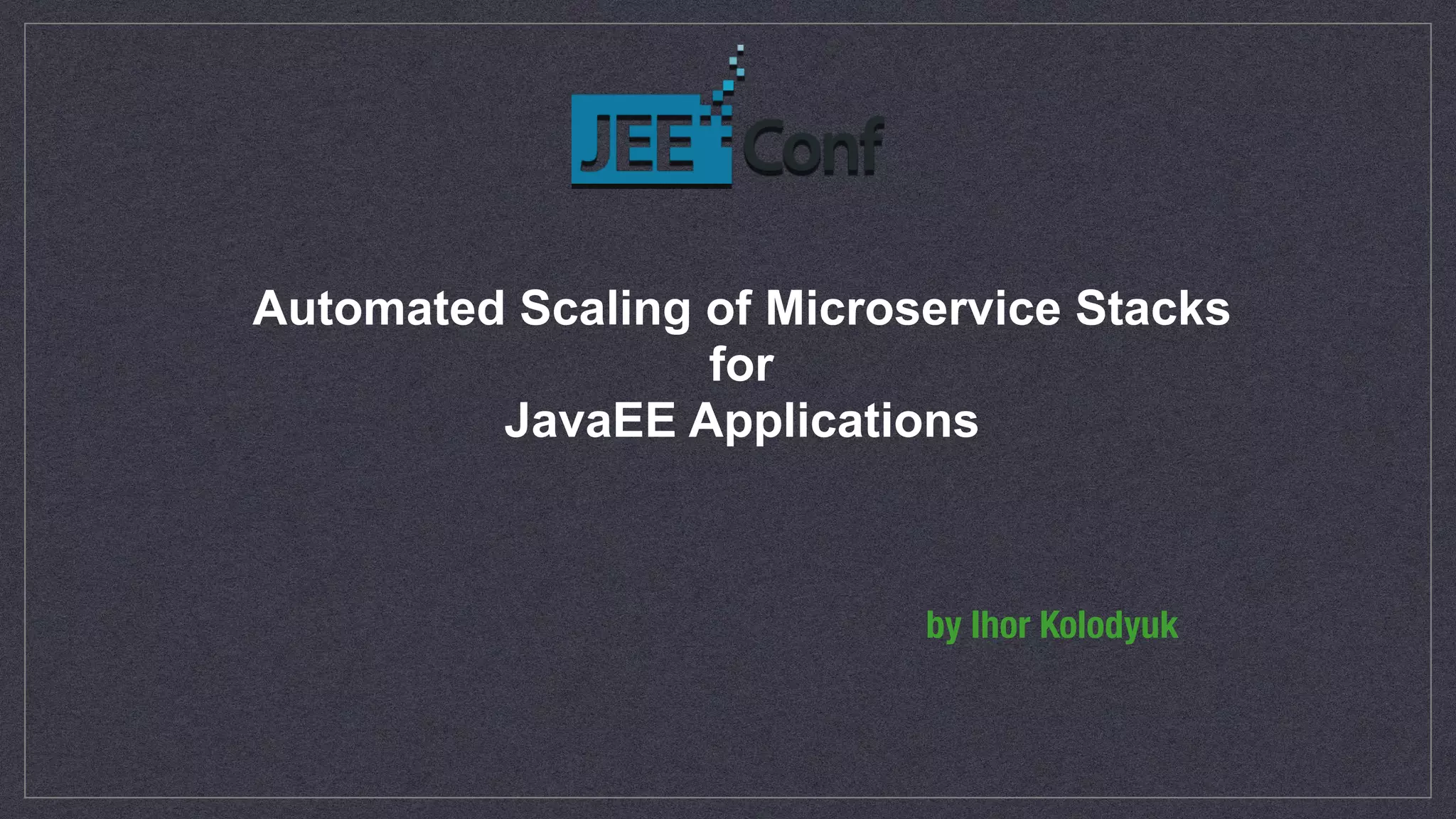

1. Automated Scaling of Microservice Stacks
for
JavaEE Applications
by Ihor Kolodyuk

2. Few words about me …
Driving technology direction at Jelastic
Like to solve unsolvable problems
Checking technology concepts on practice

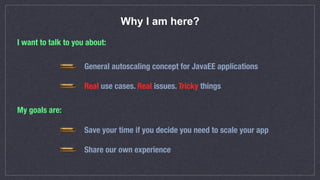

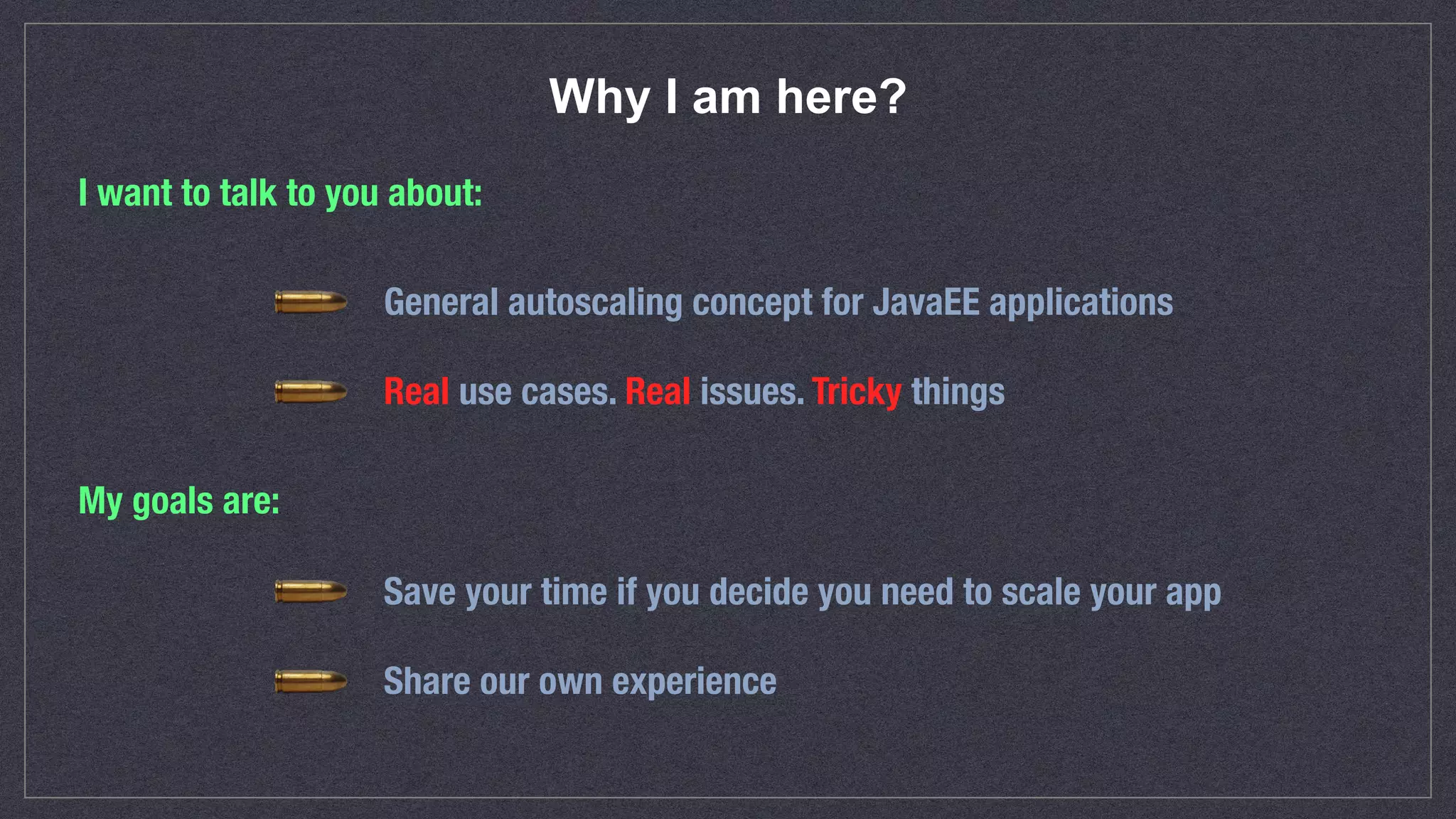

3. Why I am here?
I want to talk to you about:
General autoscaling concept for JavaEE applications
Real use cases. Real issues. Tricky things
My goals are:
Save your time if you decide you need to scale your app
Share our own experience

4. I just deploy my application to Docker, set a number of replicas and
… have it running … bla bla bla … super easy! Done!
The myth

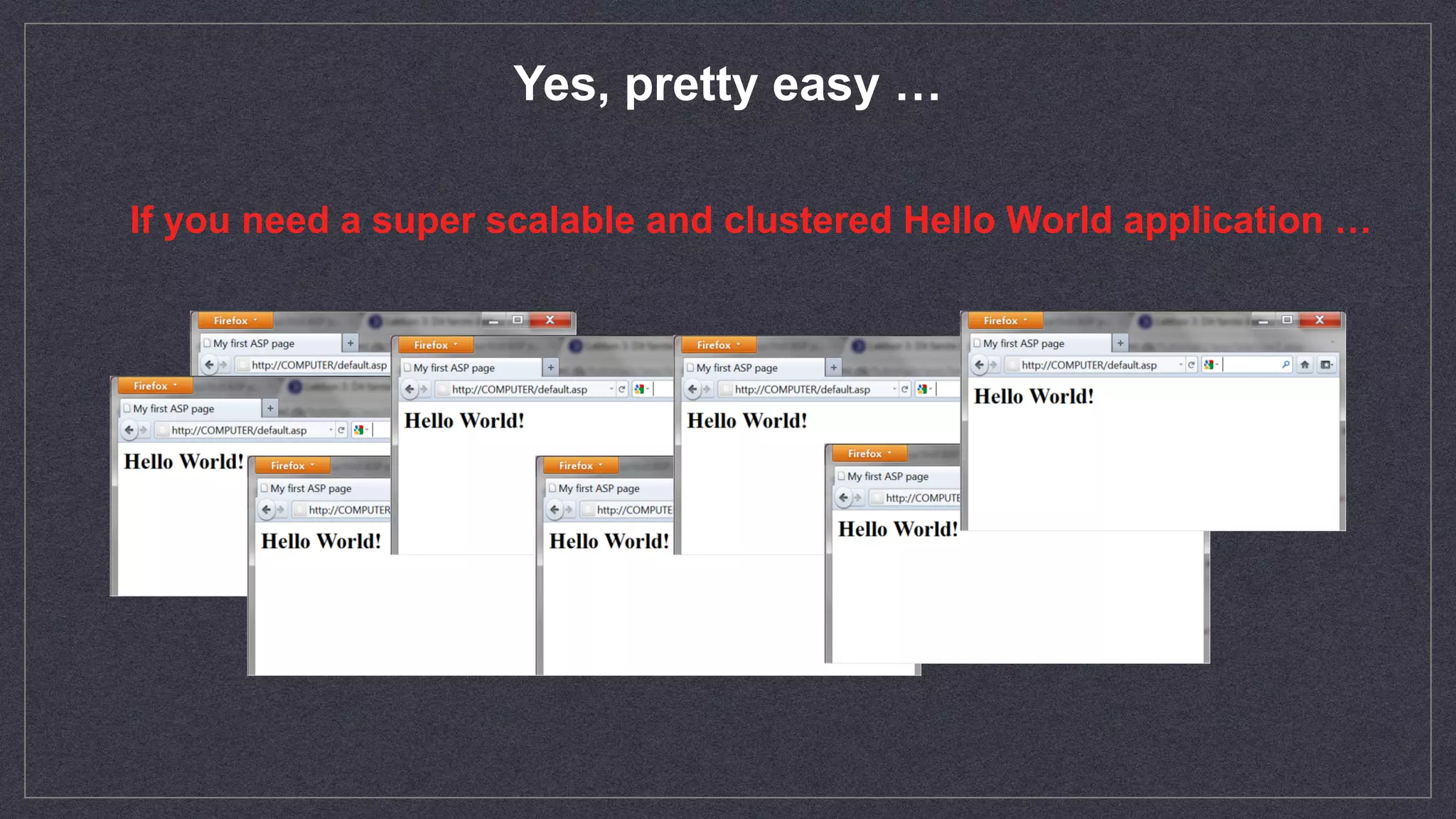

5. Yes, pretty easy …
If you need a super scalable and clustered Hello World application …

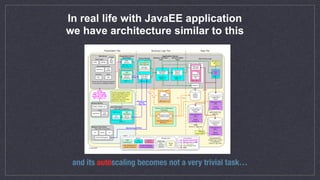

6. In real life with JavaEE application
we have architecture similar to this
and its autoscaling becomes not a very trivial task…

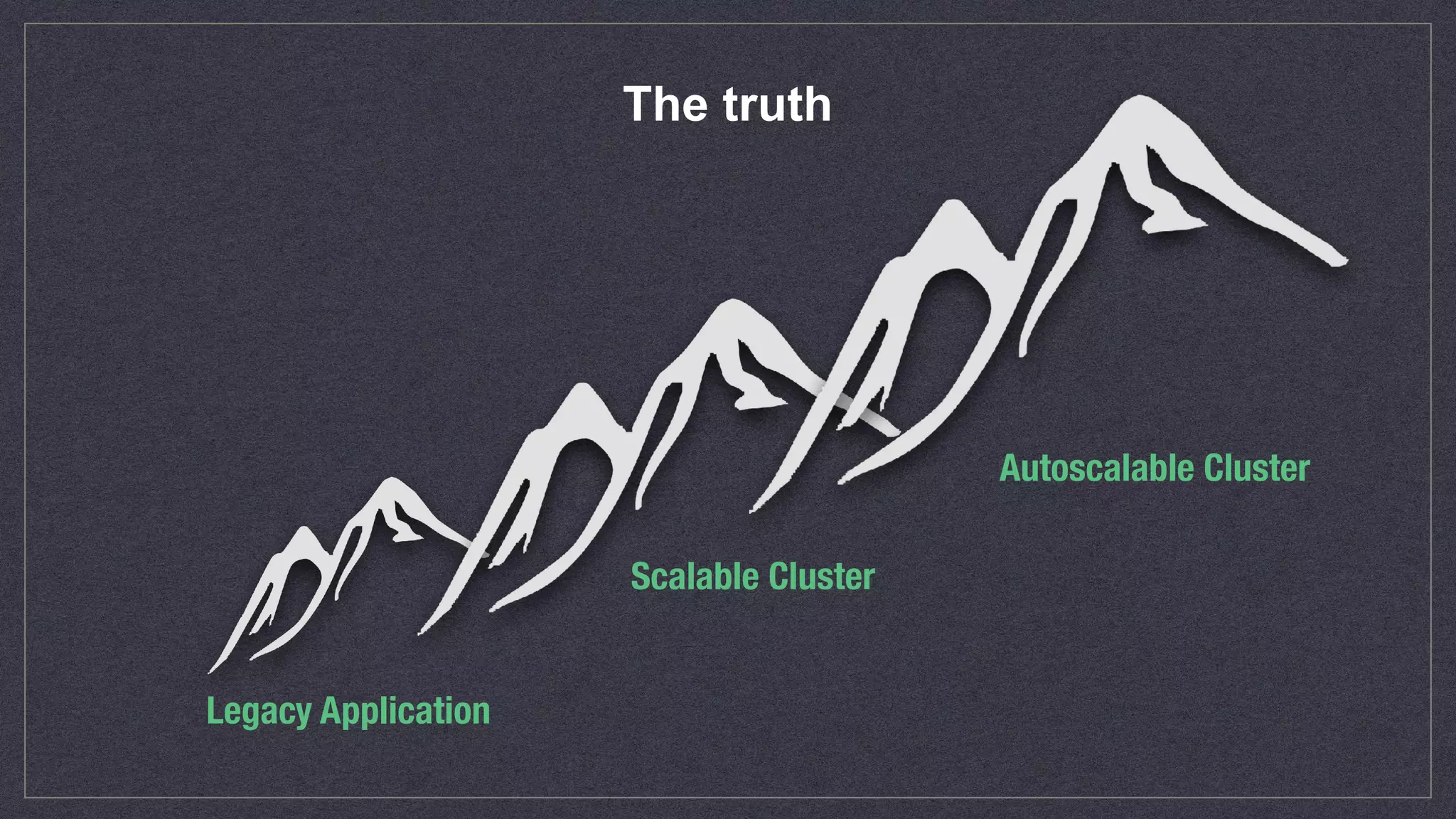

7. The truth
Legacy Application
Scalable Cluster
Autoscalable Cluster

8. Theoretical part

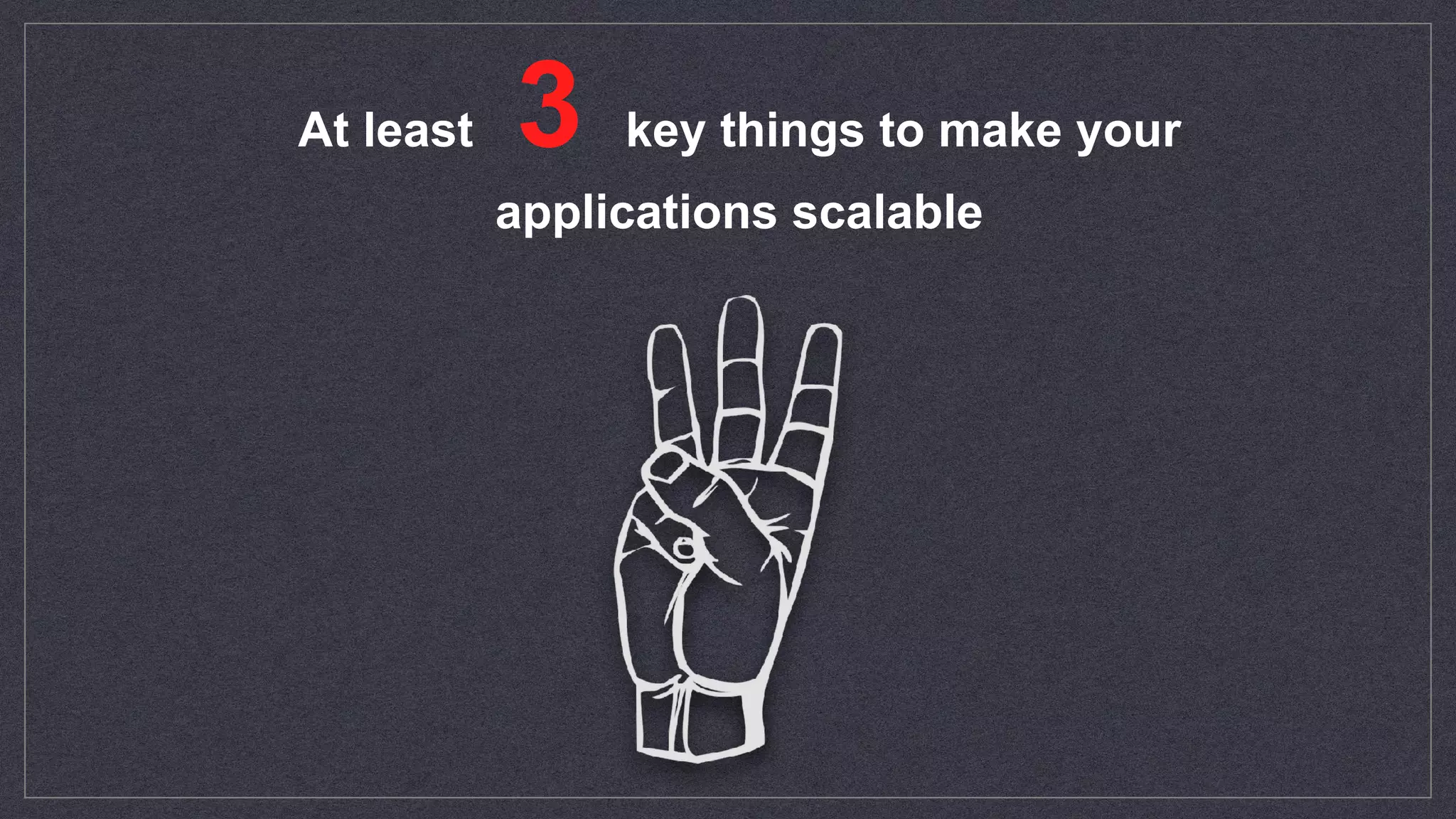

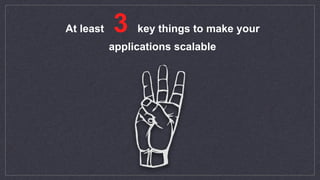

9. At least 3 key things to make your
applications scalable

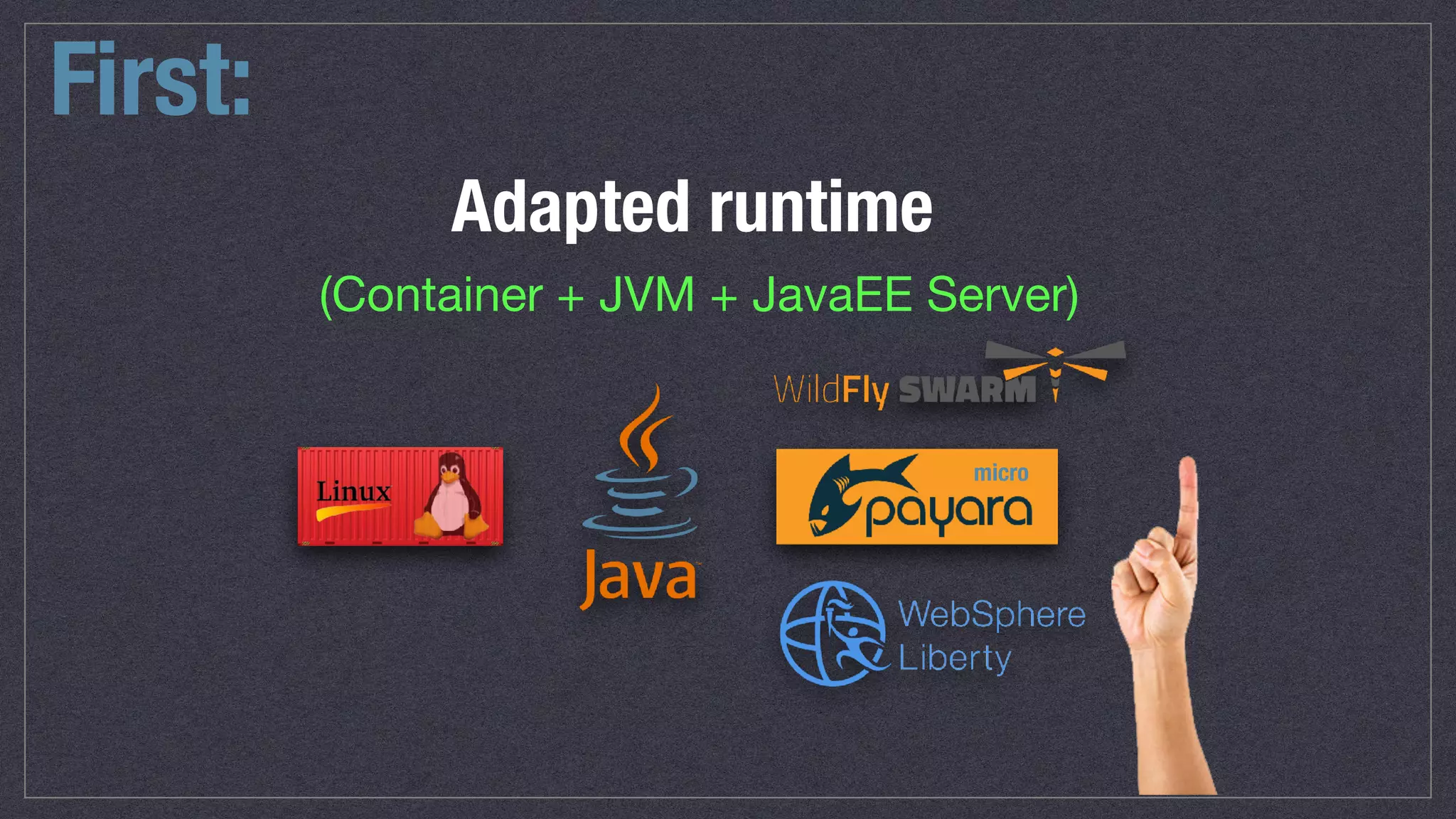

10. First:
Adapted runtime
(Container + JVM + JavaEE Server)
micro

11. Preferably, thin versions of application servers
YES!NO!

12. micro
glassfish

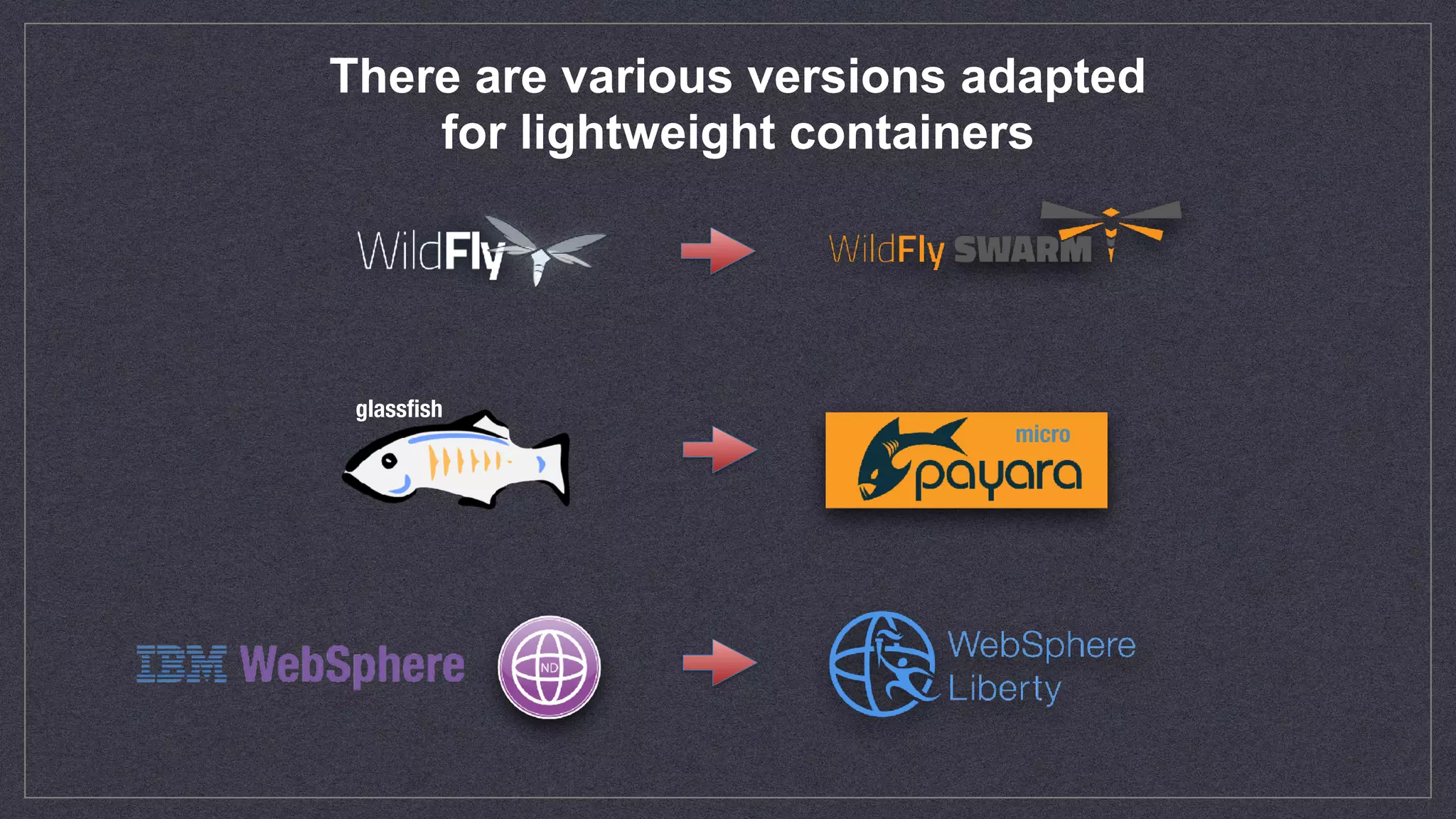

There are various versions adapted
for lightweight containers

13. Any specific reason to use
VMs for microservices?
NO!

14. Well…it might be, but …

15. What should we use instead?
YES!

16. One container - one microservice
instance
YES! NO!

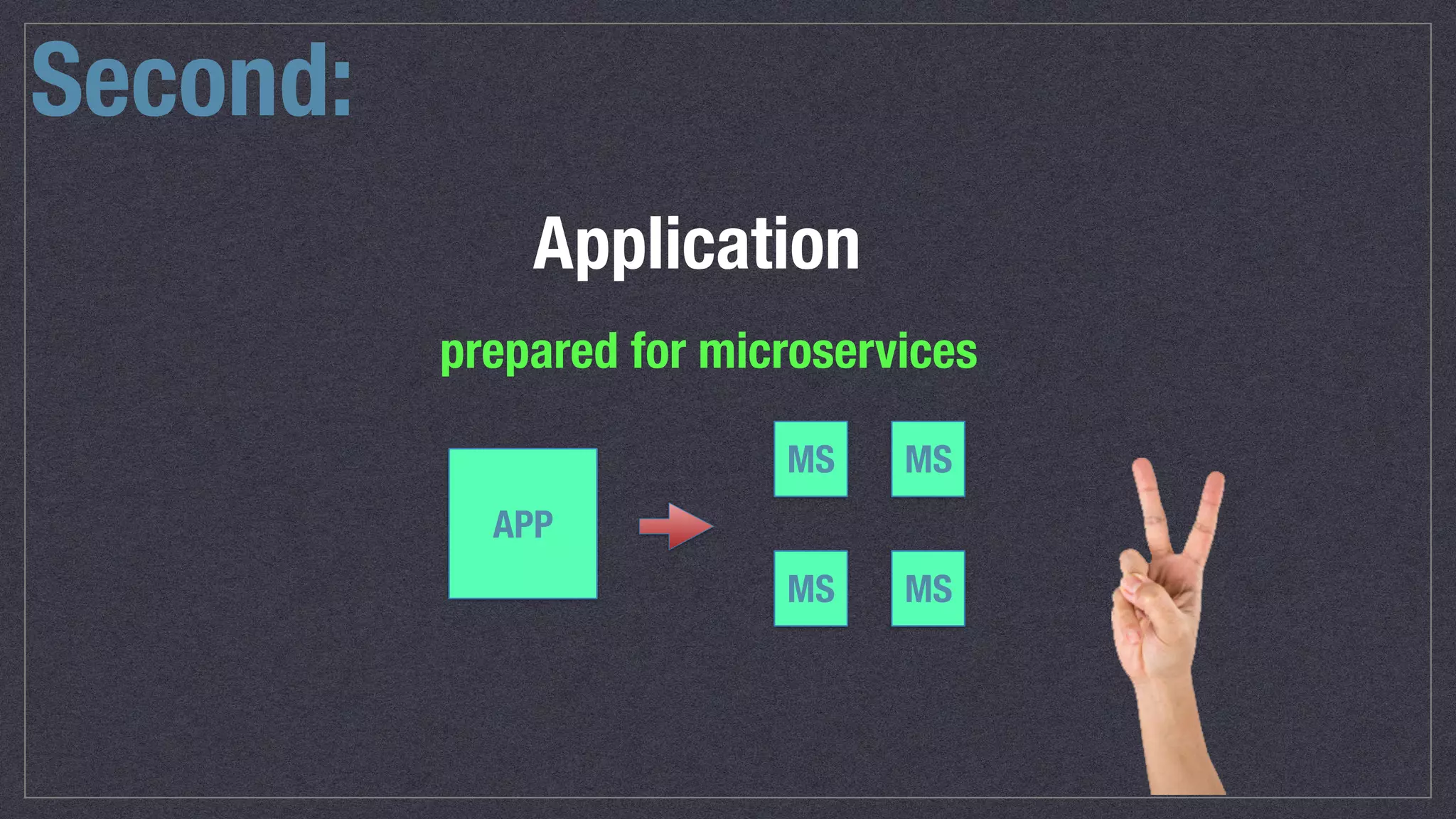

17. Second:
Application
prepared for microservices
APP
MS
MS MS
MS

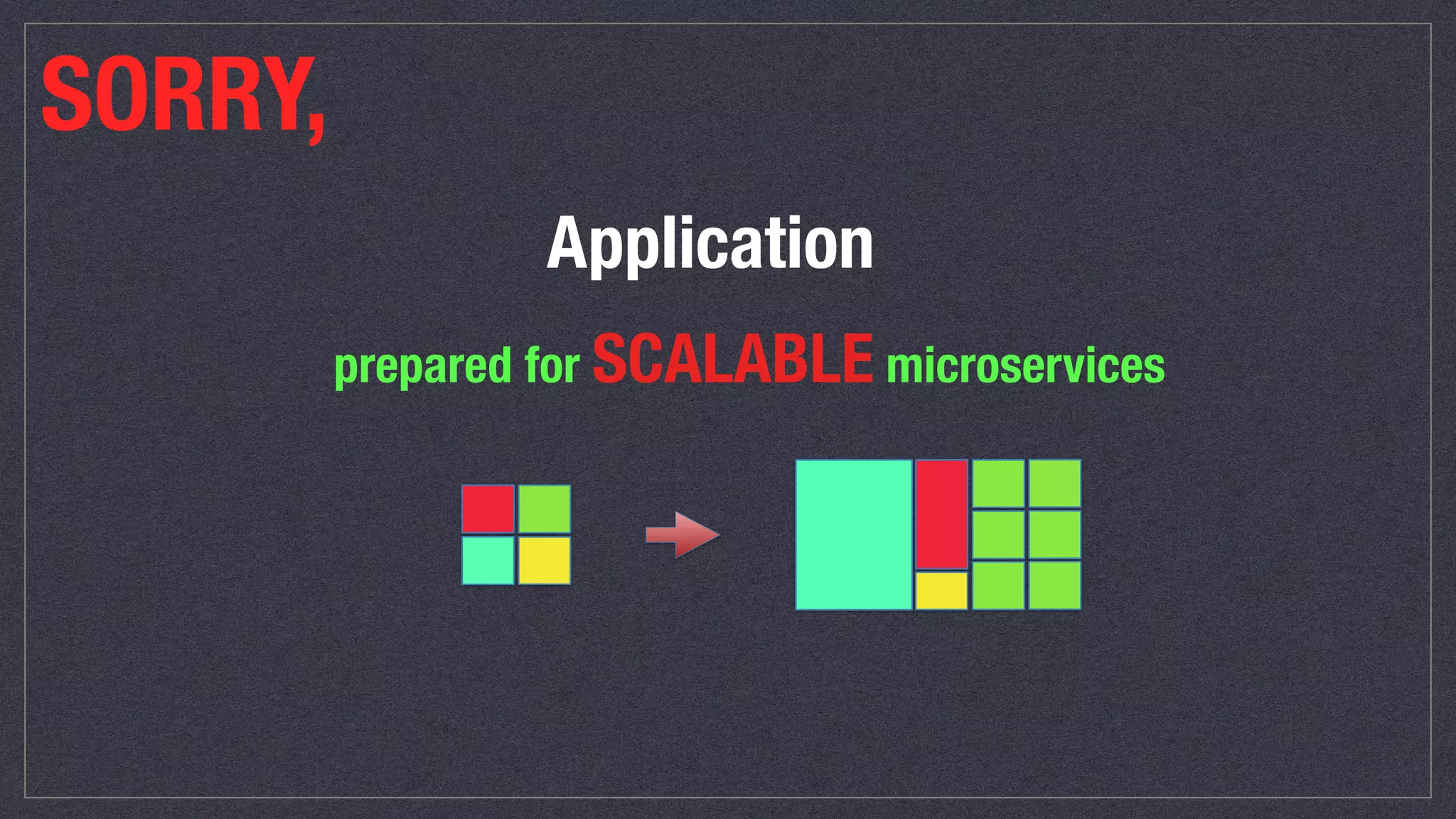

18. SORRY,
Application
prepared for SCALABLE microservices

19. Next few slides can be a bit boring for those
who know…
BUT
Still important!!!!!!

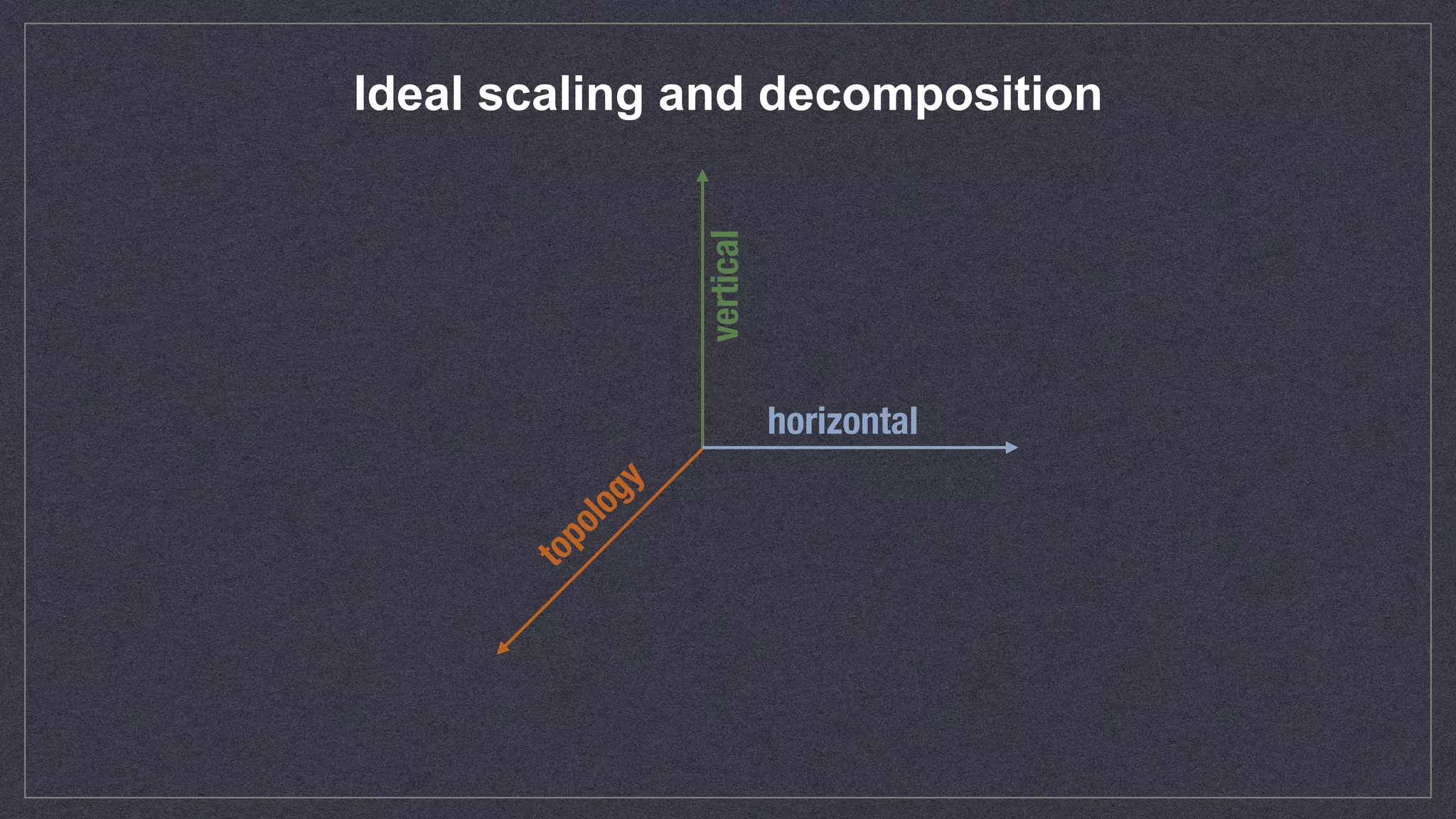

20. Ideal scaling and decomposition
horizontal
vertical
topology

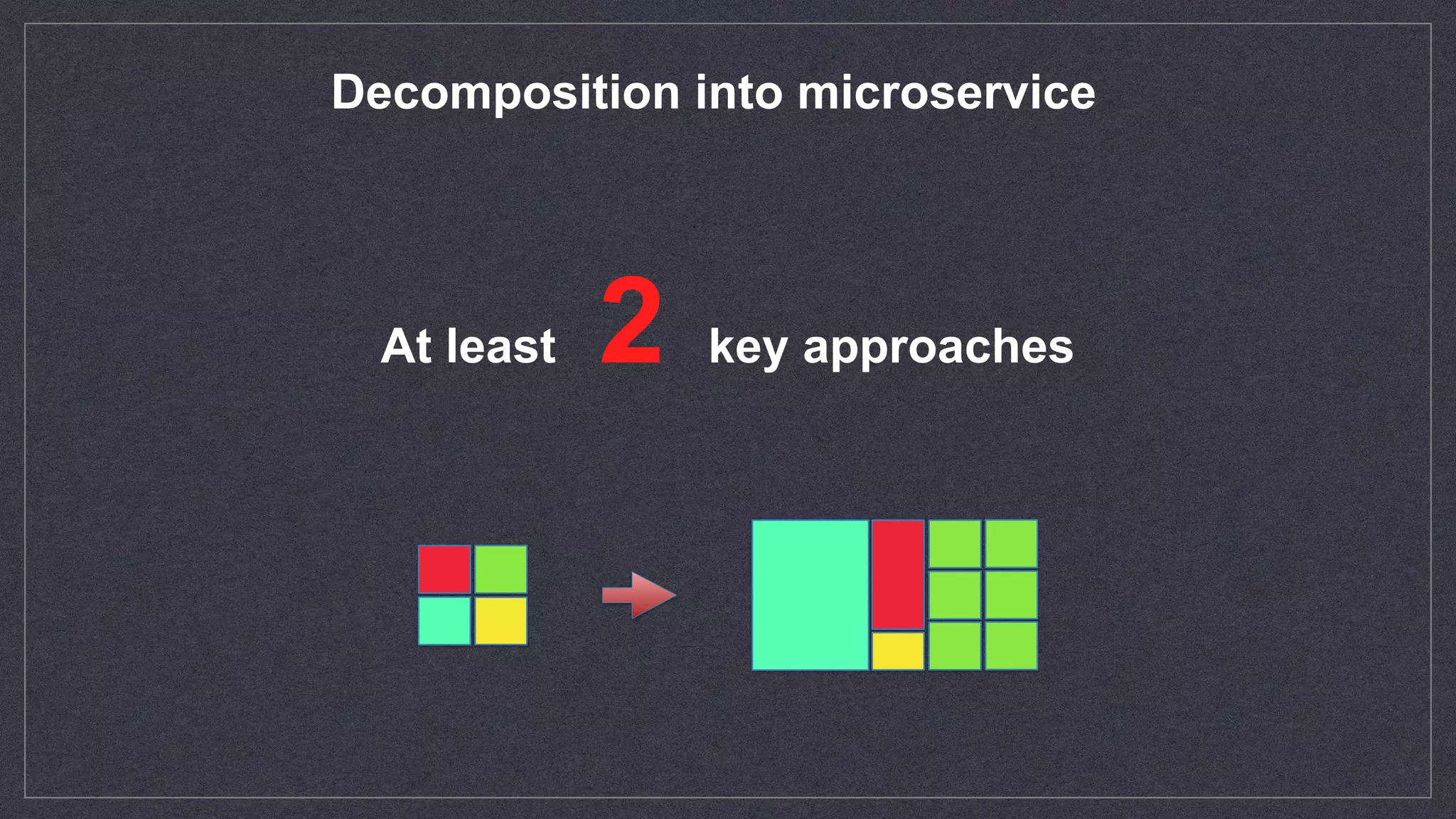

21. Decomposition into microservice
At least 2 key approaches

22. Logical division

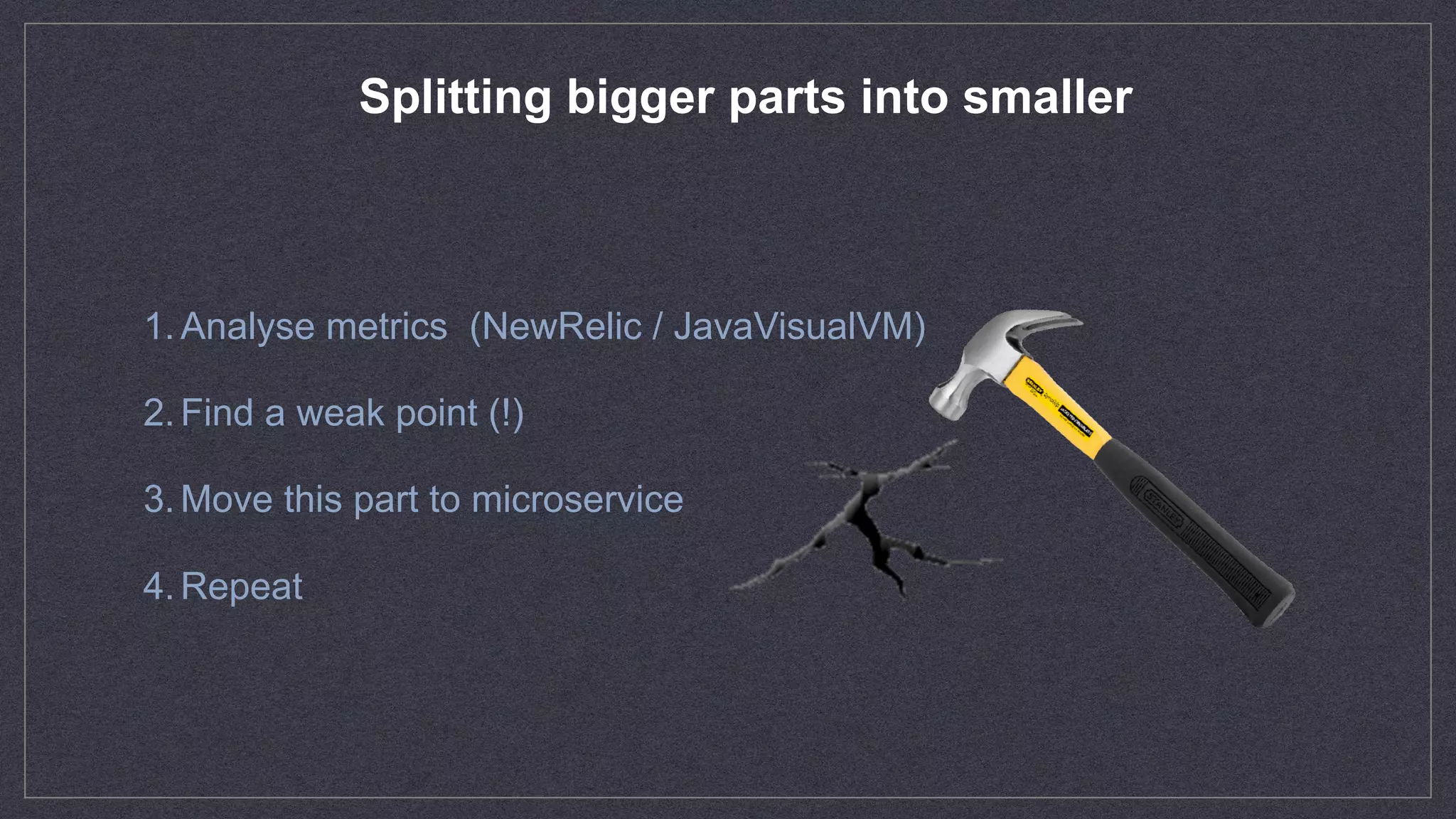

23. Splitting bigger parts into smaller
1.Analyse metrics (NewRelic / JavaVisualVM)
2.Find a weak point (!)
3.Move this part to microservice
4.Repeat

24. Third:
Orchestration software

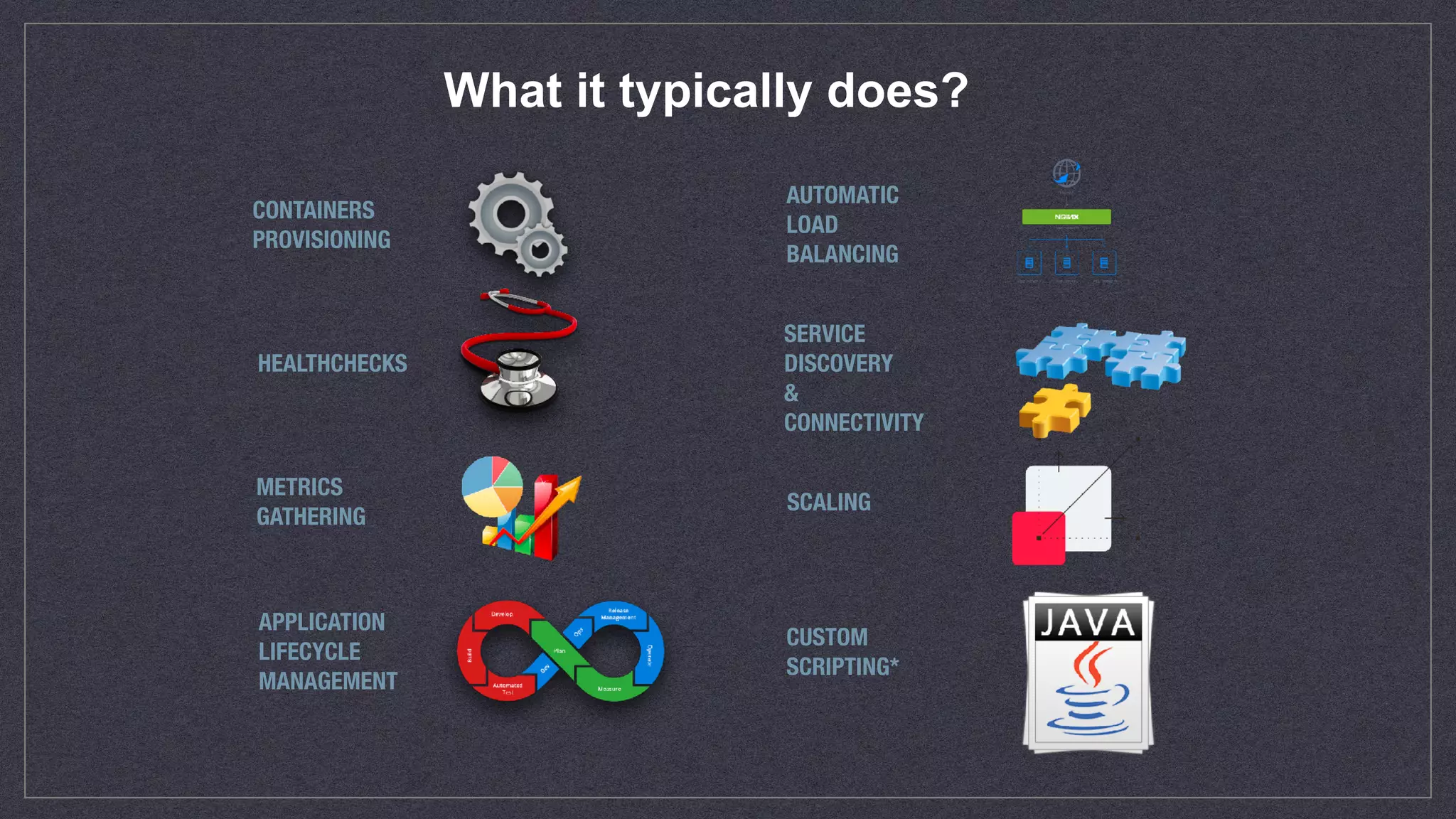

25. What it typically does?
CONTAINERS
PROVISIONING
HEALTHCHECKS
METRICS
GATHERING
APPLICATION
LIFECYCLE
MANAGEMENT
SCALING
AUTOMATIC
LOAD
BALANCING
SERVICE
DISCOVERY
&
CONNECTIVITY
CUSTOM
SCRIPTING*

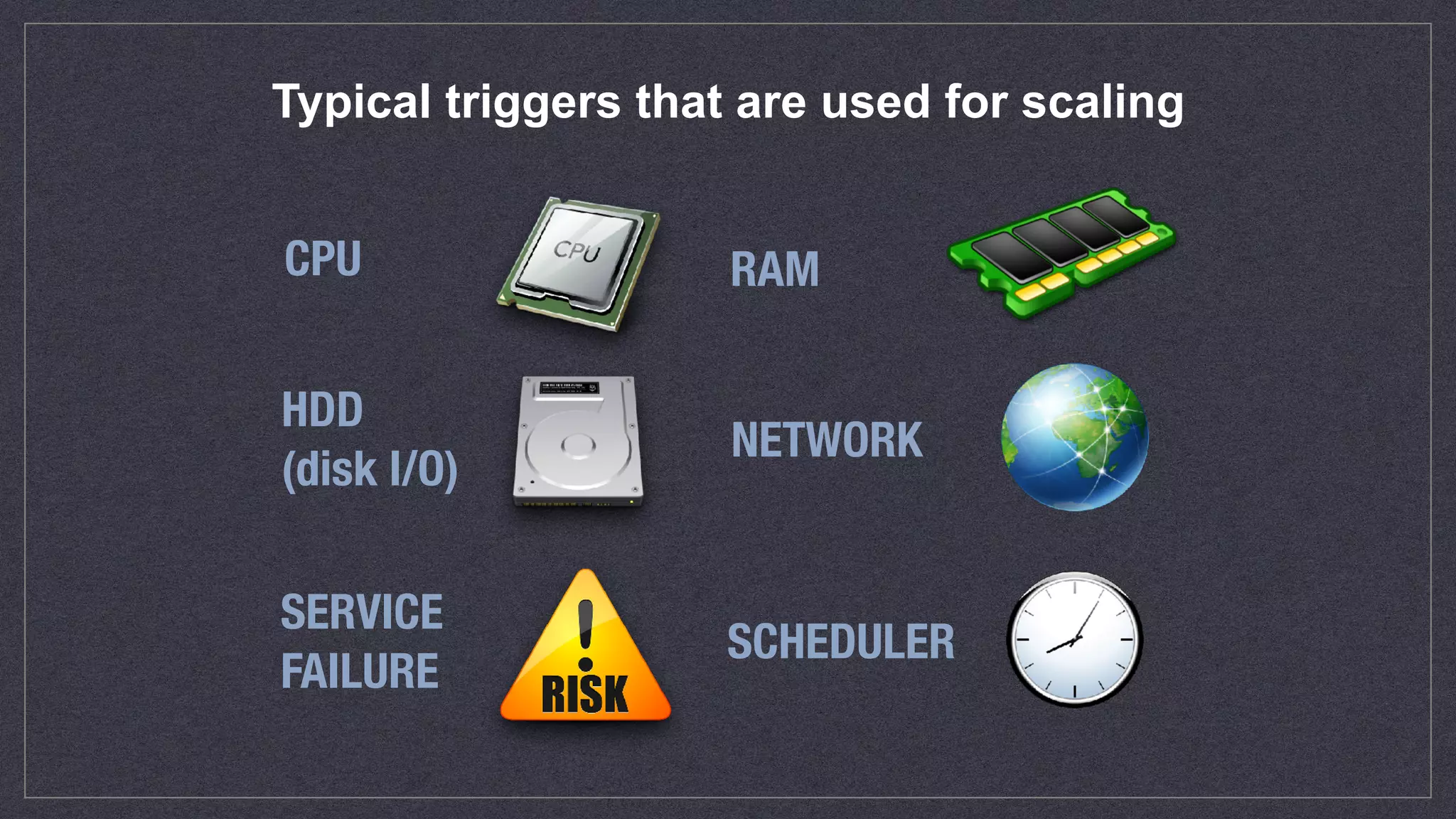

26. Typical triggers that are used for scaling
CPU RAM
HDD
(disk I/O)
NETWORK
SERVICE
FAILURE
SCHEDULER

27. Practical part
Tricky things
Typical issues
Examples

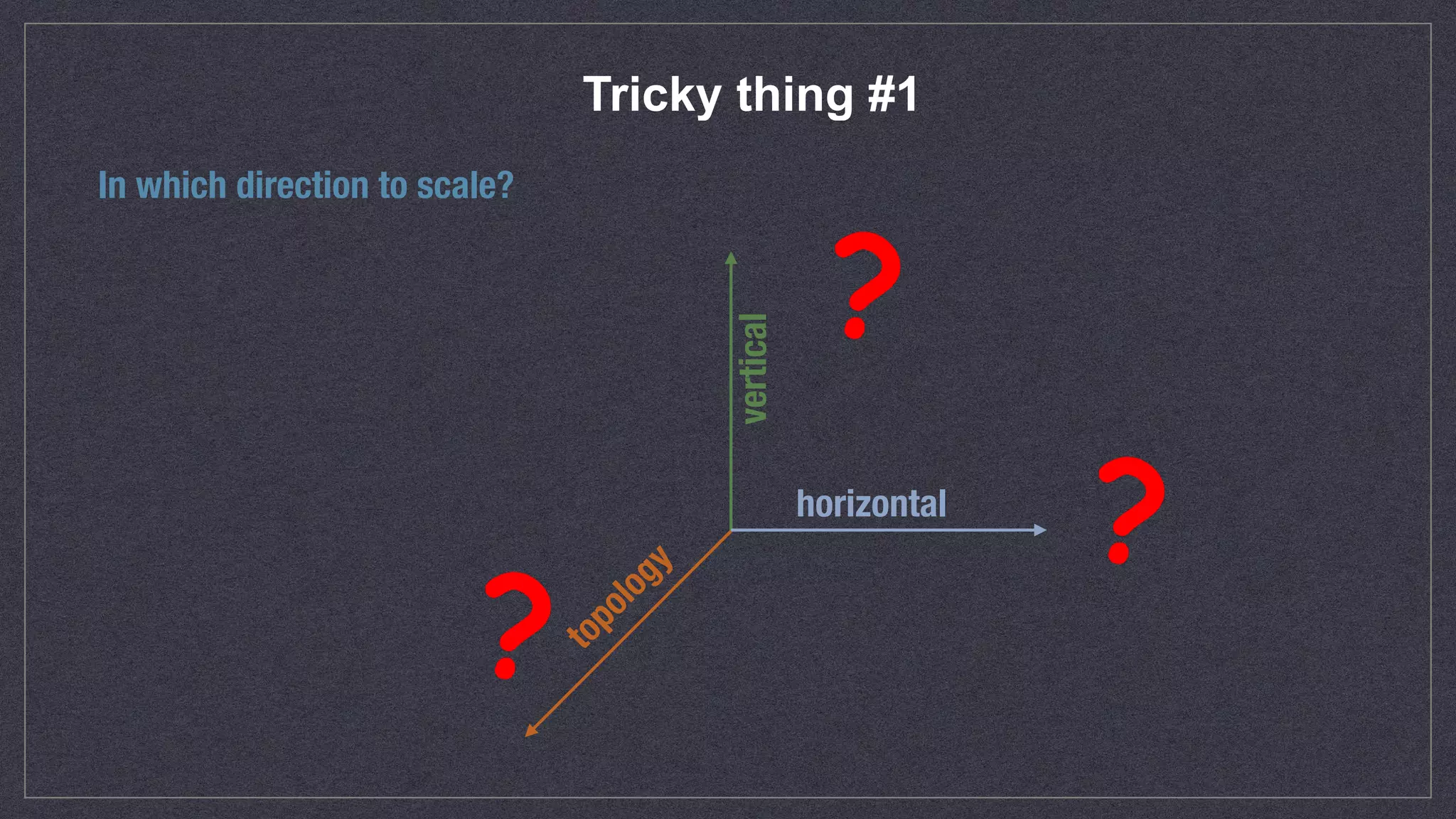

28. Tricky thing #1
In which direction to scale?
horizontal
vertical
topology

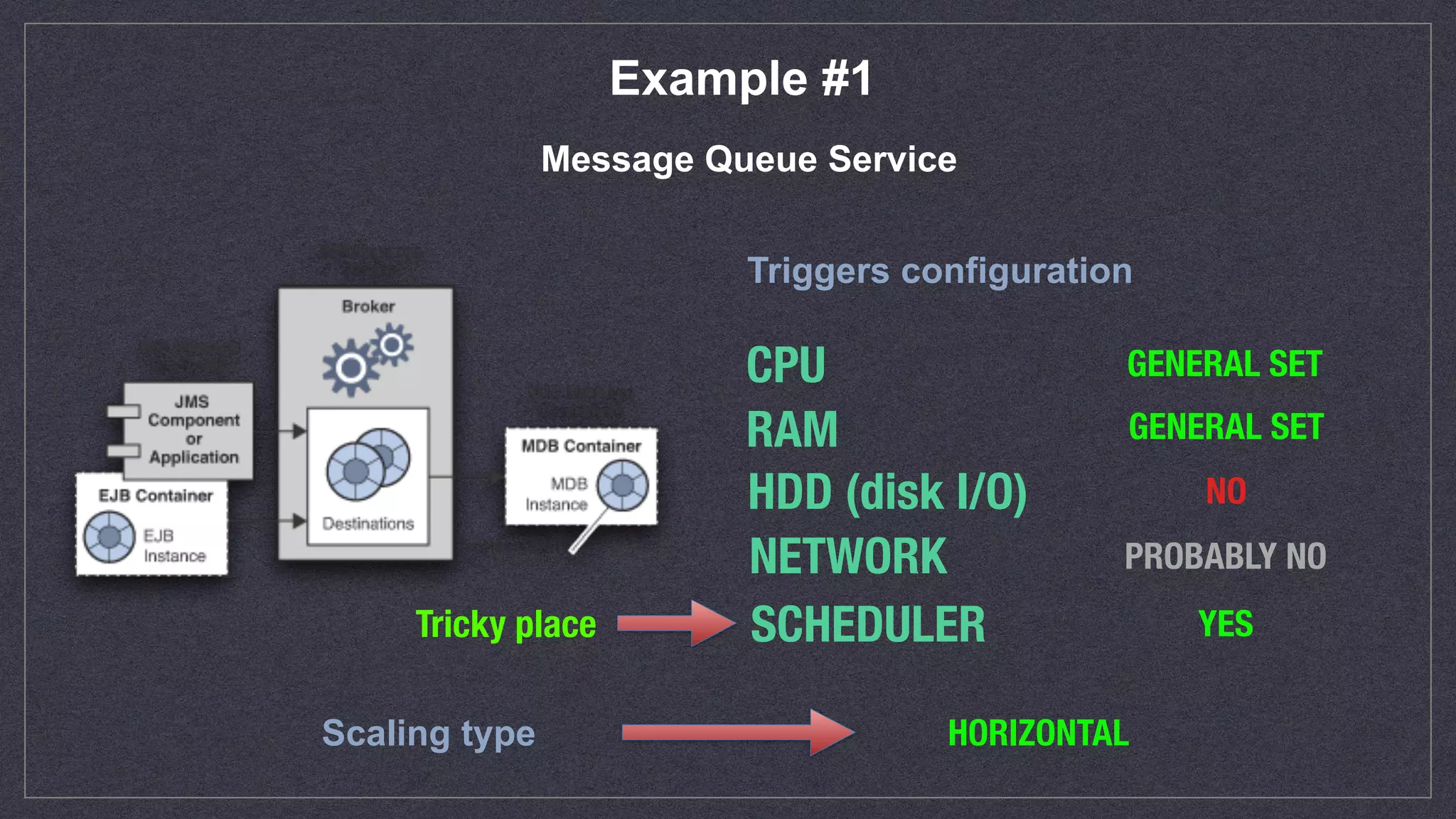

29. Example #1
Message Queue Service
Triggers configuration
CPU
RAM
HDD (disk I/O)
NETWORK
SCHEDULER YES
NO
PROBABLY NO
GENERAL SET
GENERAL SET
Scaling type HORIZONTAL
Tricky place

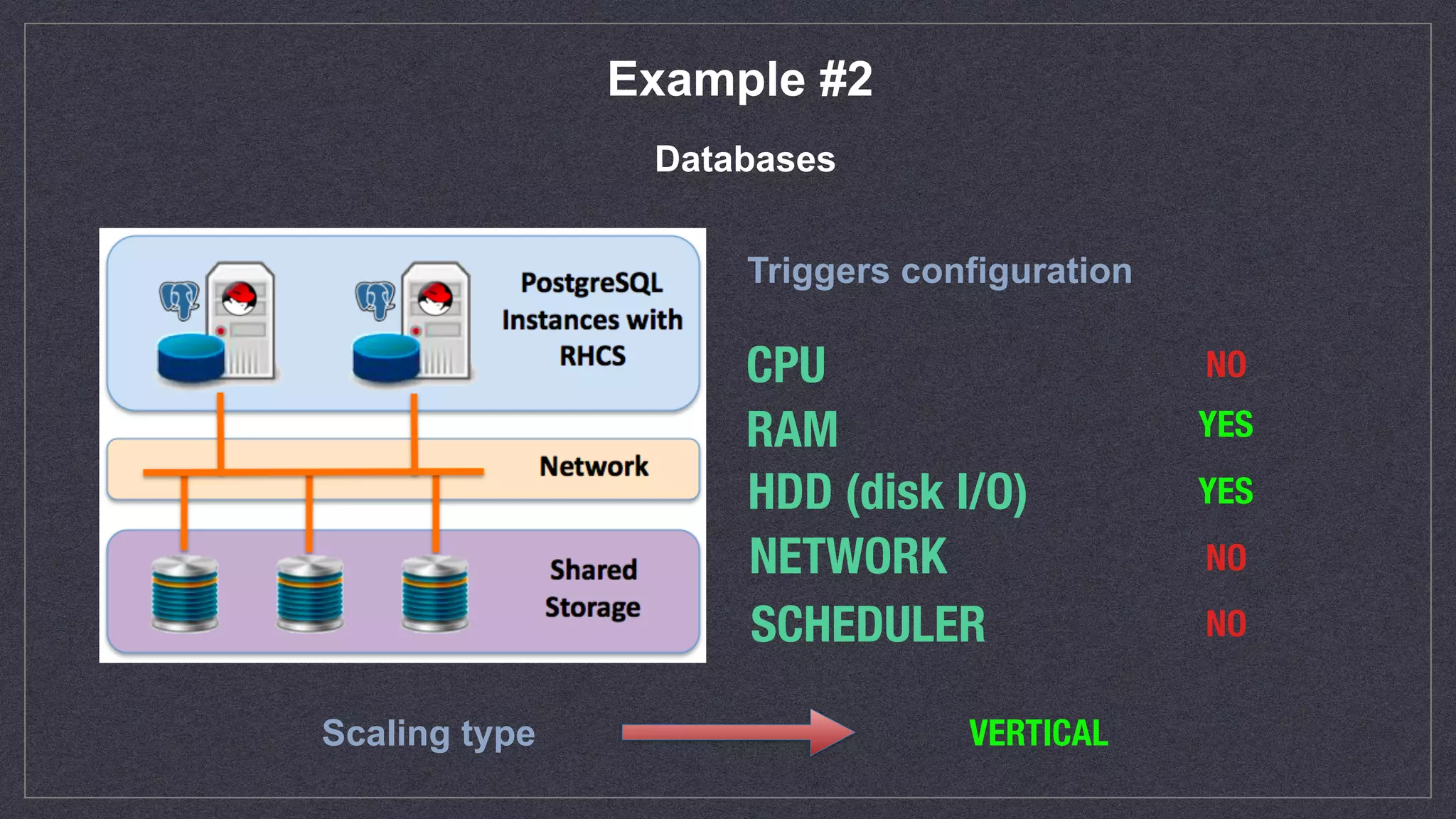

30. Example #2
Databases
CPU
RAM
HDD (disk I/O)
NETWORK
SCHEDULER
YES
VERTICAL
NO
NO
NO
Scaling type
Triggers configuration
YES

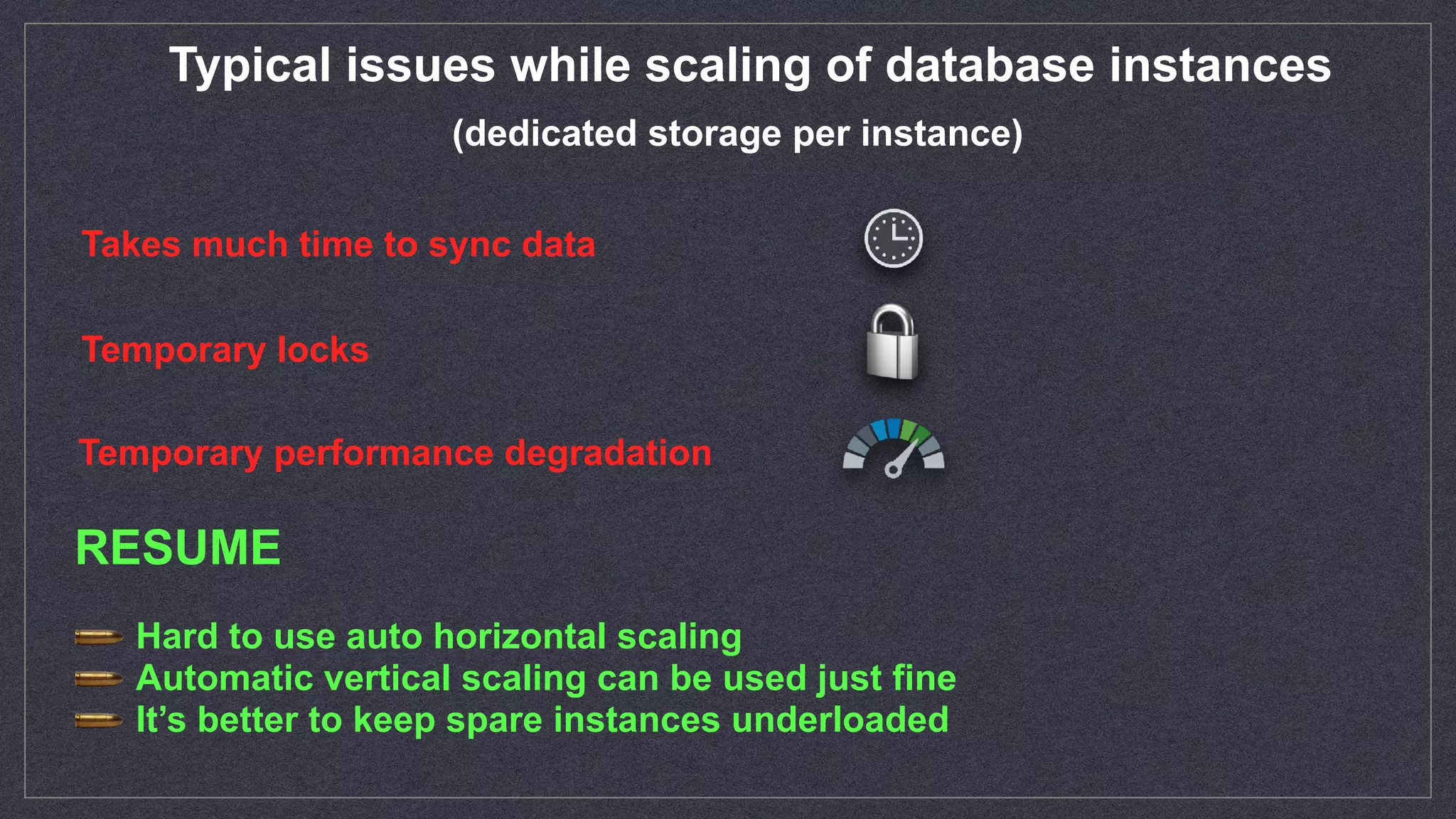

31. Typical issues while scaling of database instances
Takes much time to sync data
Temporary locks
Temporary performance degradation
Hard to use auto horizontal scaling
Automatic vertical scaling can be used just fine
It’s better to keep spare instances underloaded
(dedicated storage per instance)
RESUME

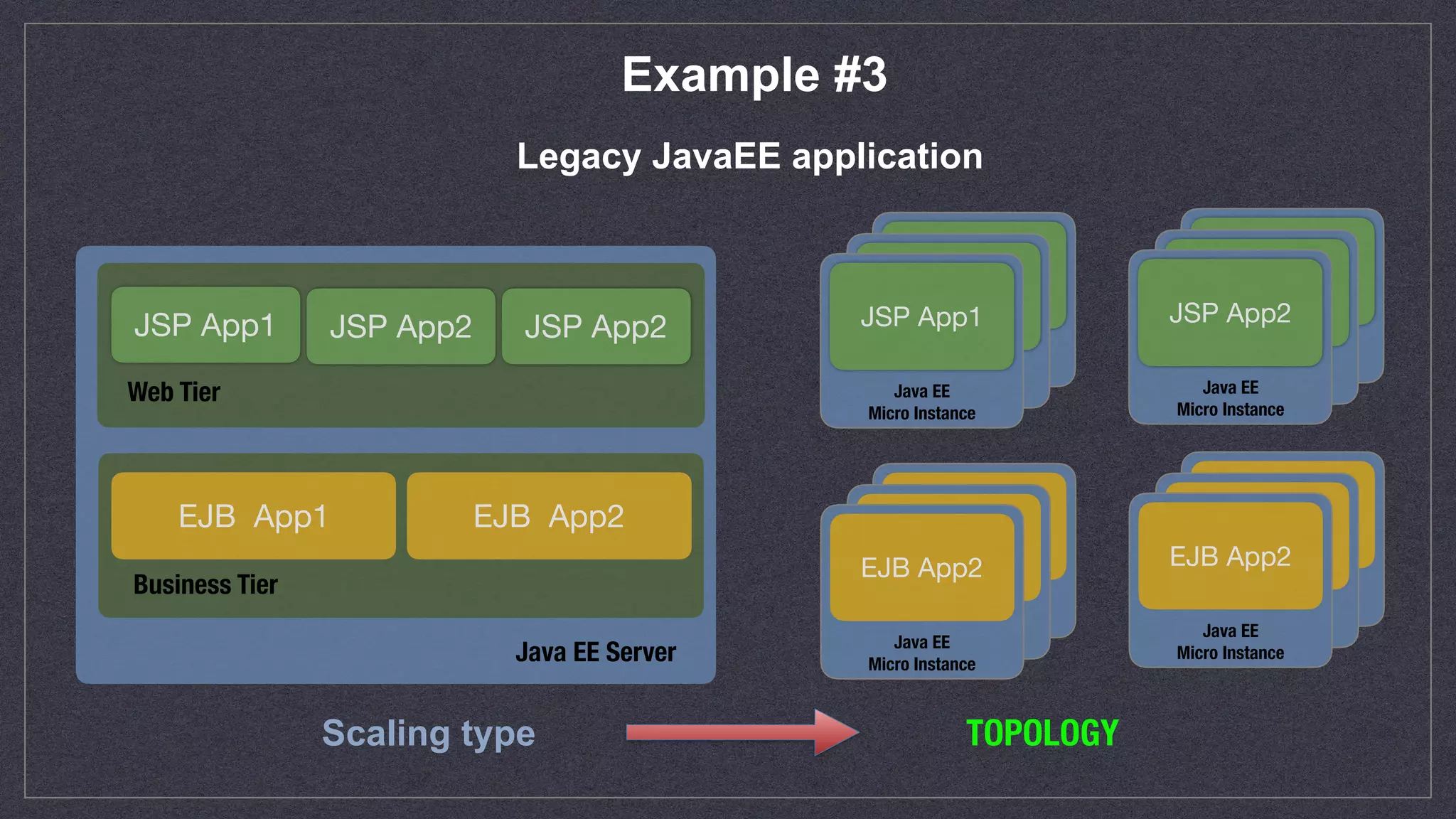

32. Example #3
Legacy JavaEE application
TOPOLOGY
Java EE Server
Business Tier
Web Tier
JSP App1 JSP App2 JSP App2
EJB App1 EJB App2
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App2
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
EJB App2
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
JSP App1
Java EE
Micro Instance
EJB App2
Scaling type

33. Tricky thing #2
Events subscription
Usually, just spinning up an extra instance is NOTenough

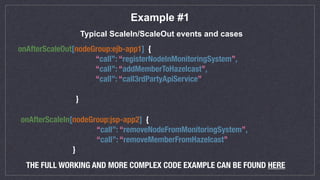

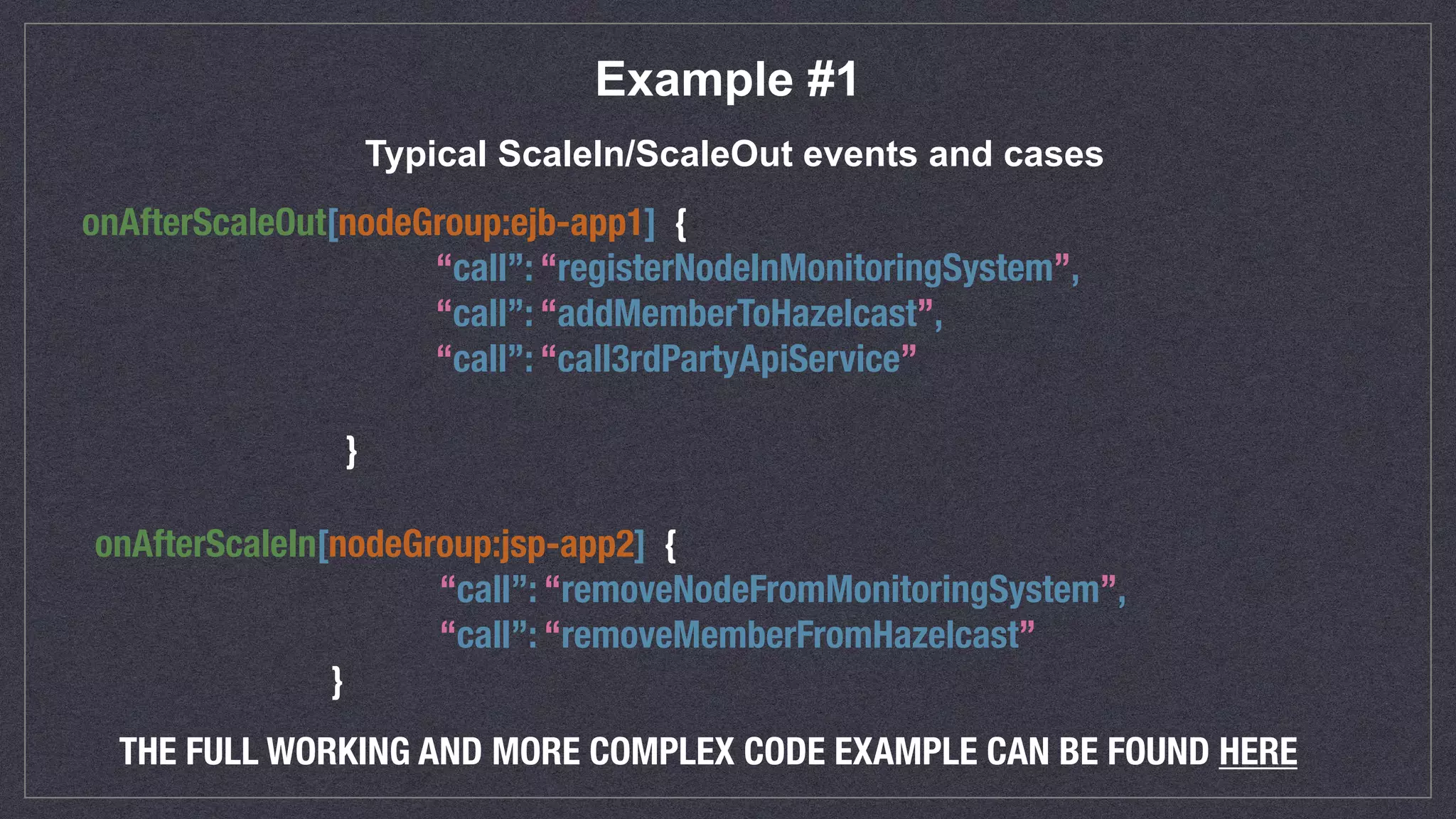

34. Example #1
Typical ScaleIn/ScaleOut events and cases
onAfterScaleOut[nodeGroup:ejb-app1] {
“call”: “registerNodeInMonitoringSystem”,
“call”: “addMemberToHazelcast”,
“call”: “call3rdPartyApiService”
}
onAfterScaleIn[nodeGroup:jsp-app2] {
“call”: “removeNodeFromMonitoringSystem”,
“call”: “removeMemberFromHazelcast”
}
THE FULL WORKING AND MORE COMPLEX CODE EXAMPLE CAN BE FOUND HERE

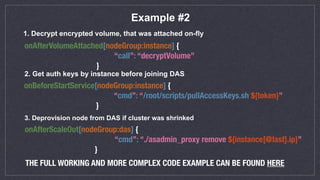

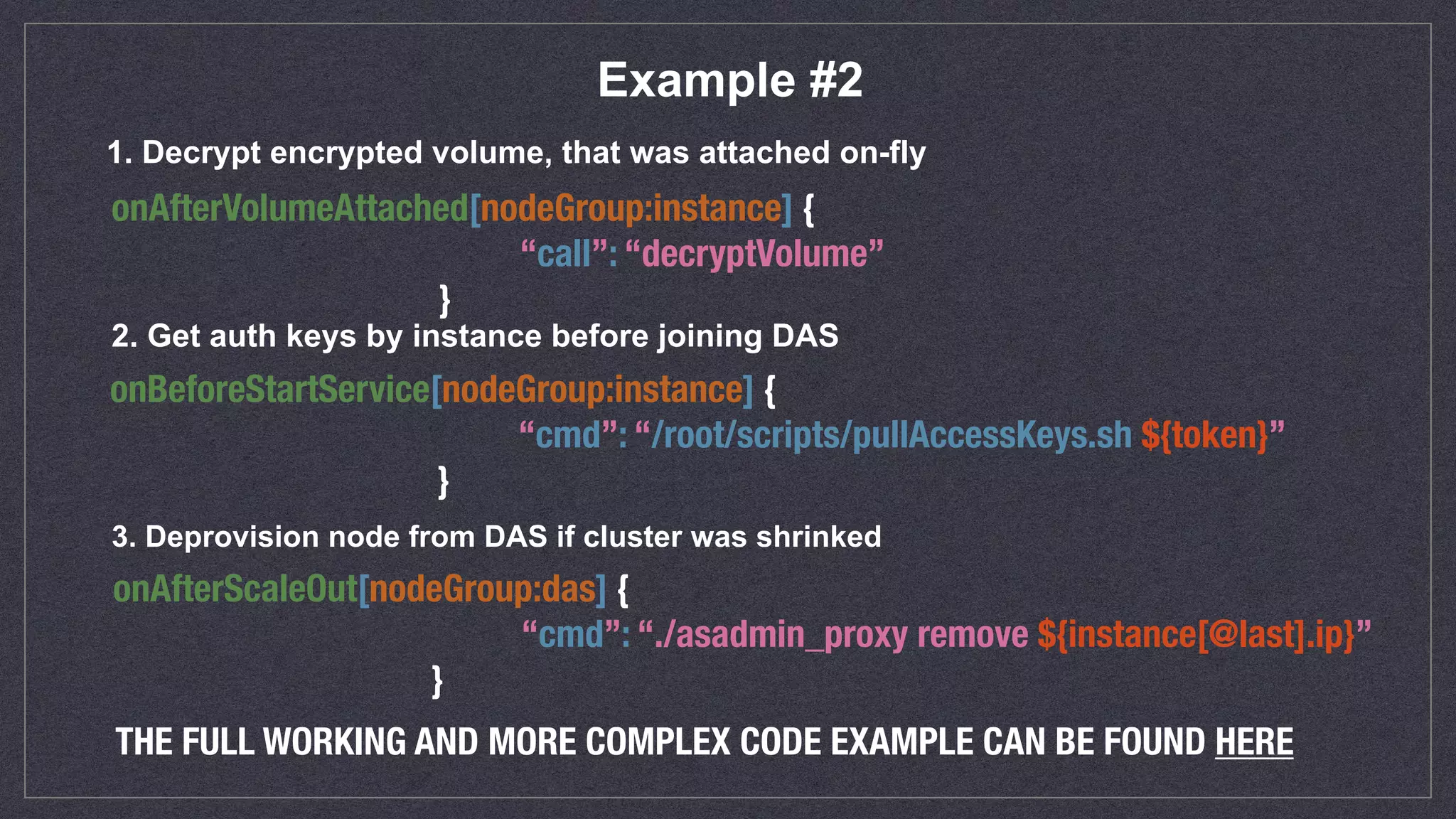

35. Example #2
2. Get auth keys by instance before joining DAS
onBeforeStartService[nodeGroup:instance] {
“cmd”: “/root/scripts/pullAccessKeys.sh ${token}”
}
THE FULL WORKING AND MORE COMPLEX CODE EXAMPLE CAN BE FOUND HERE
1. Decrypt encrypted volume, that was attached on-fly
onAfterVolumeAttached[nodeGroup:instance] {
“call”: “decryptVolume”
}
3. Deprovision node from DAS if cluster was shrinked
onAfterScaleOut[nodeGroup:das] {
“cmd”: “./asadmin_proxy remove ${instance[@last].ip}”
}

36. Tricky thing #3
Proper triggers configuration
This tuning is a long process, so be patient

37. Typical problem #1
Changing the value in one place can be reflected in other places

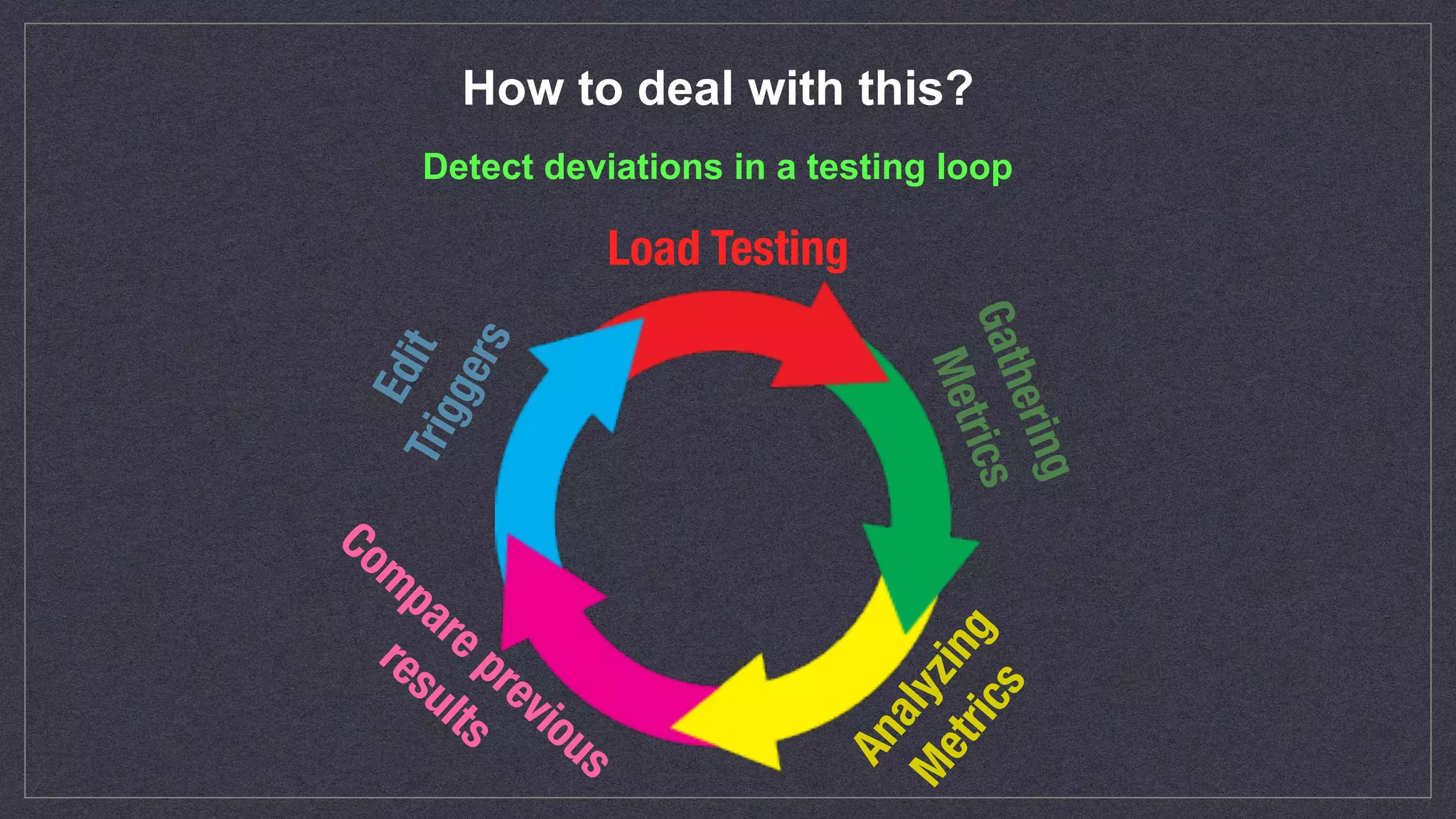

38. How to deal with this?
Load Testing
Gathering
Metrics
Detect deviations in a testing loop
Analyzing
Metrics
Edit Triggers
Com
pare previous
results

39. Typical problem #2
The triggers can become outdated with new code

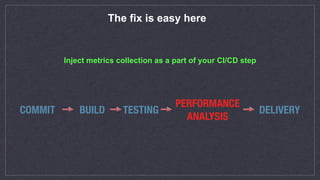

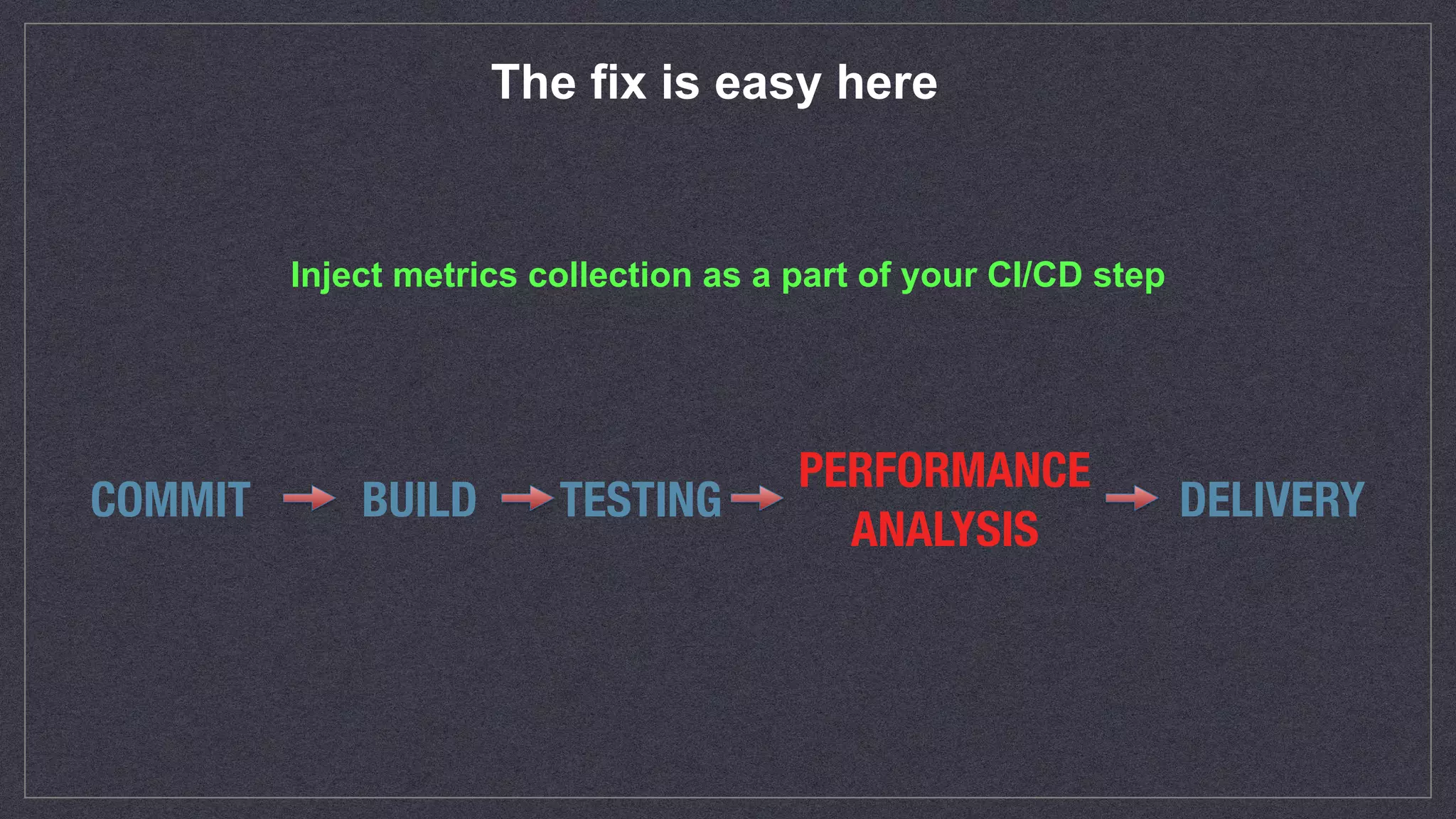

40. The fix is easy here
Inject metrics collection as a part of your CI/CD step
COMMIT BUILD TESTING
PERFORMANCE
ANALYSIS
DELIVERY

41. Tricky thing #4
Getting rid of spare things

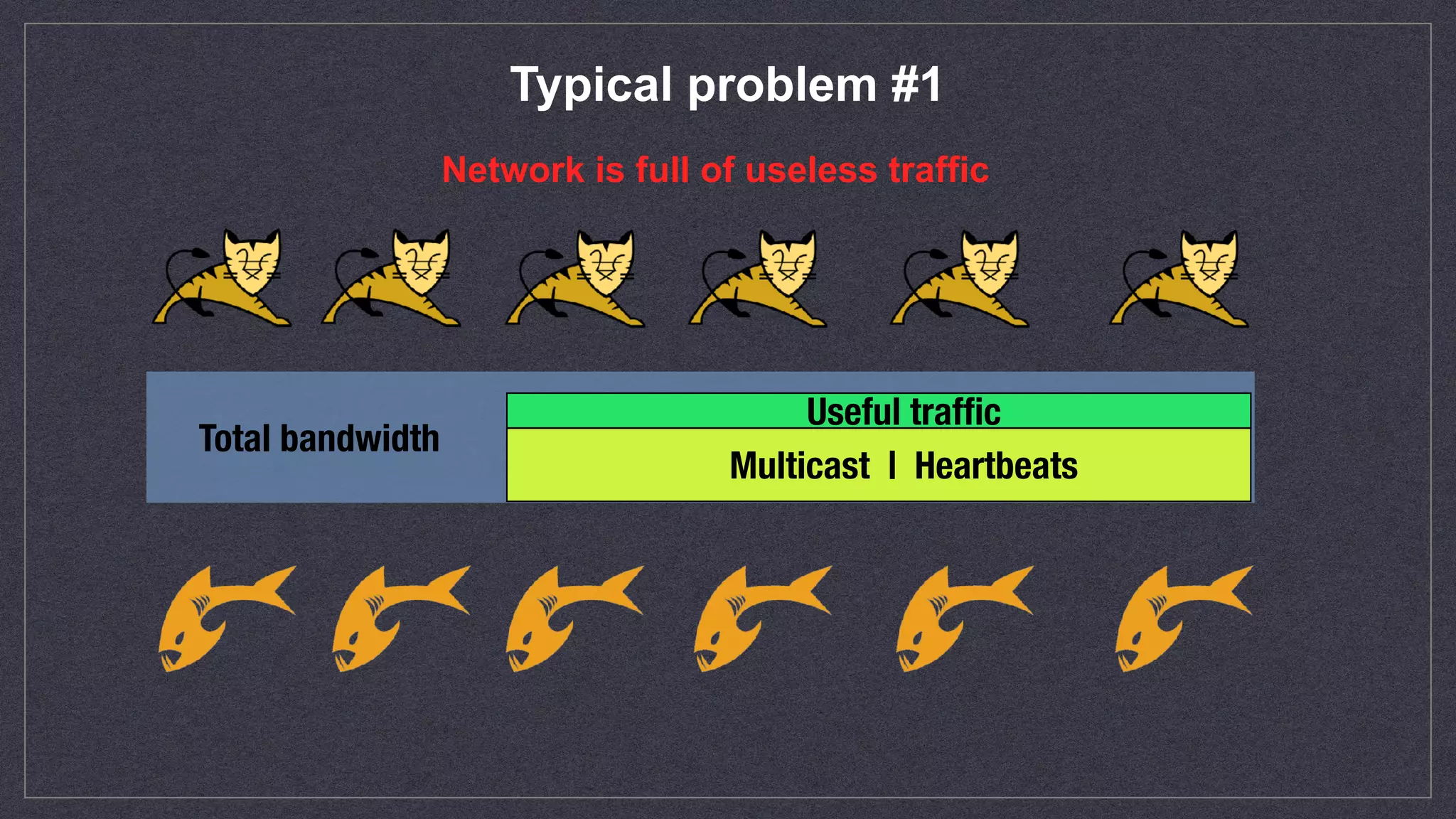

42. Typical problem #1
Network is full of useless traffic
Total bandwidth
Multicast | Heartbeats
Useful traffic

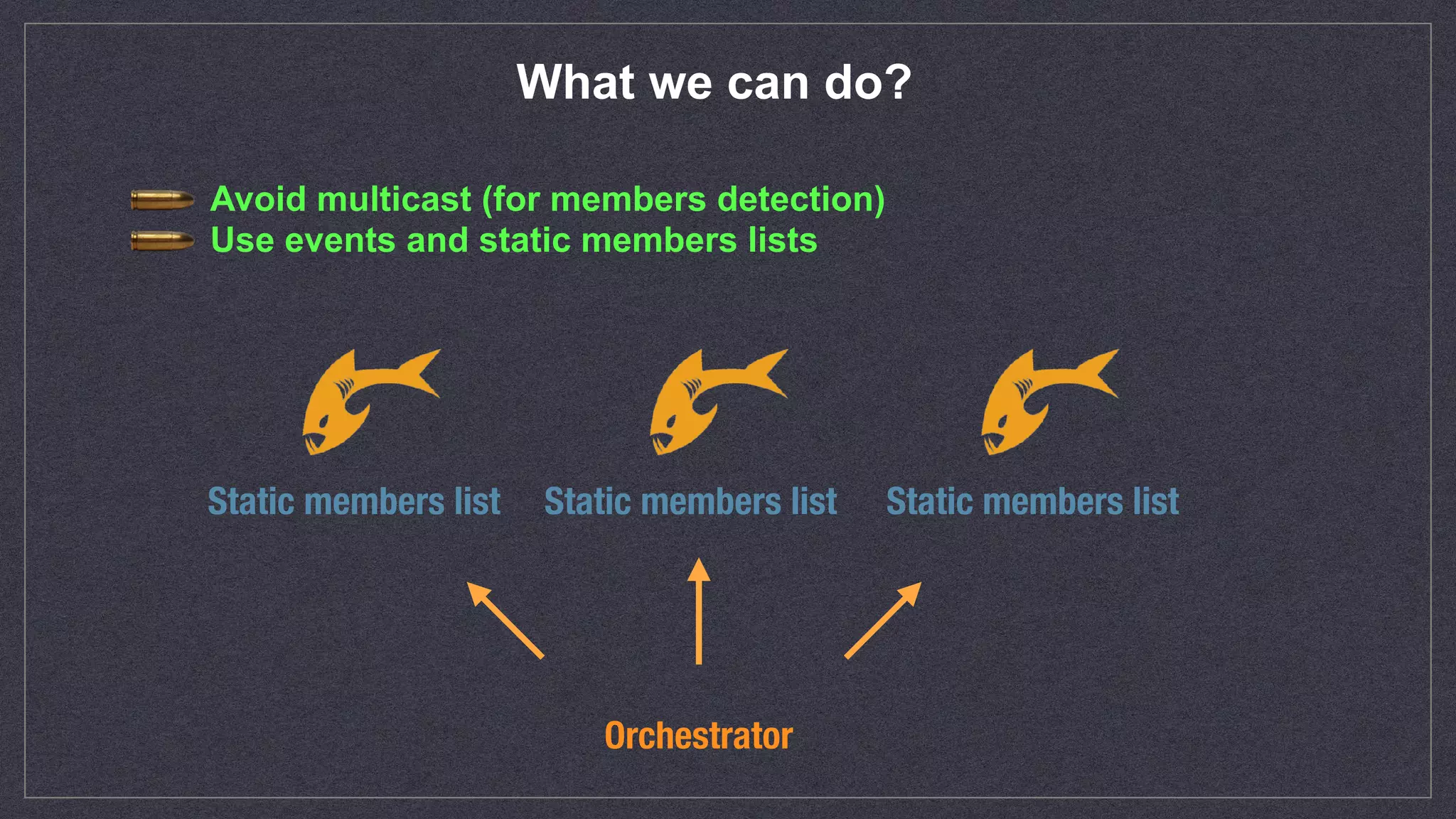

43. What we can do?
Avoid multicast (for members detection)
Use events and static members lists
Static members list Static members list Static members list
Orchestrator

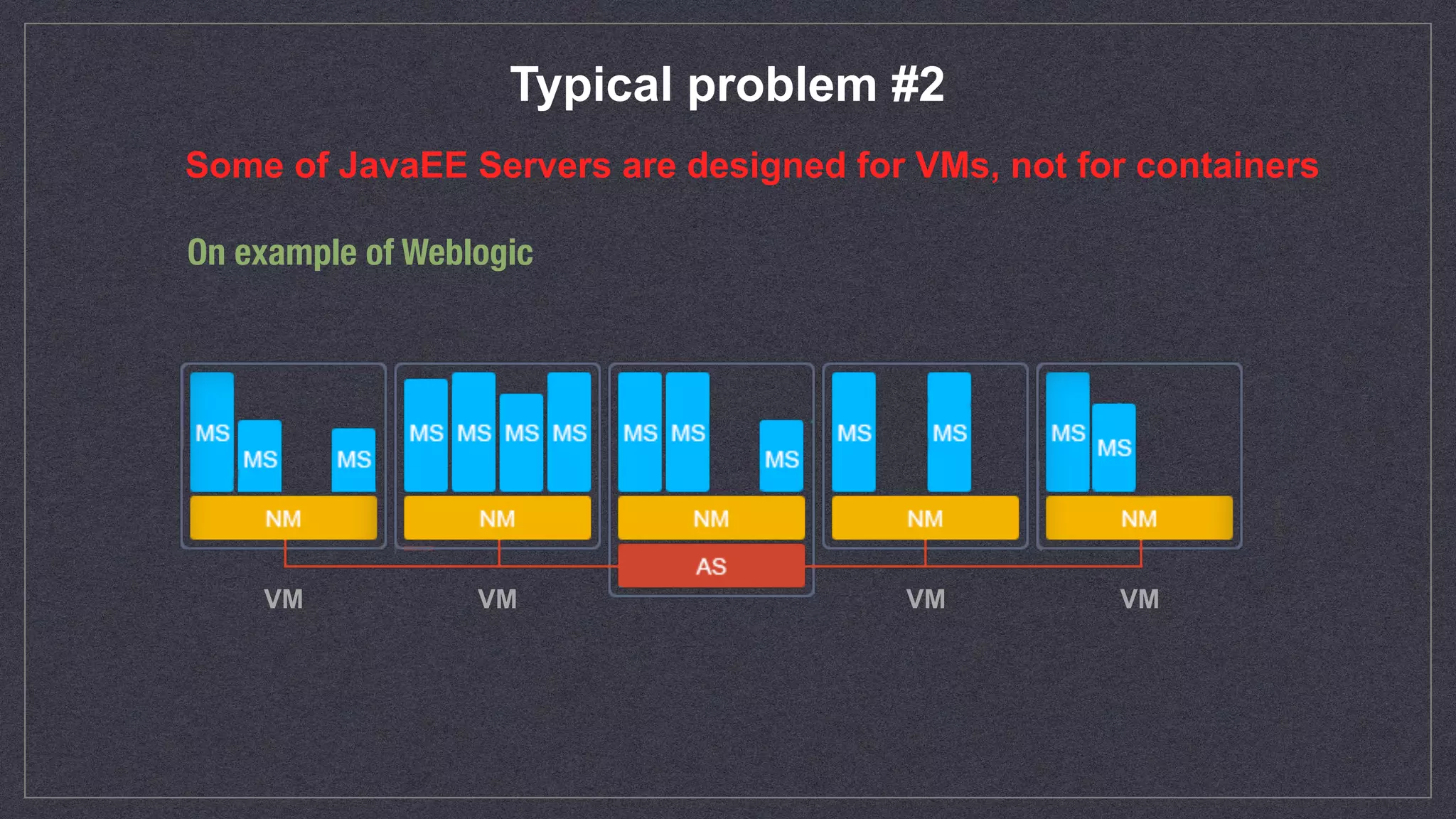

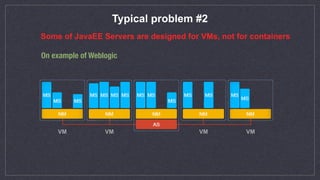

44. Typical problem #2
Some of JavaEE Servers are designed for VMs, not for containers
On example of Weblogic
VM VM VM VM

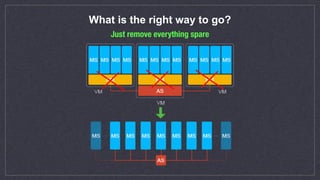

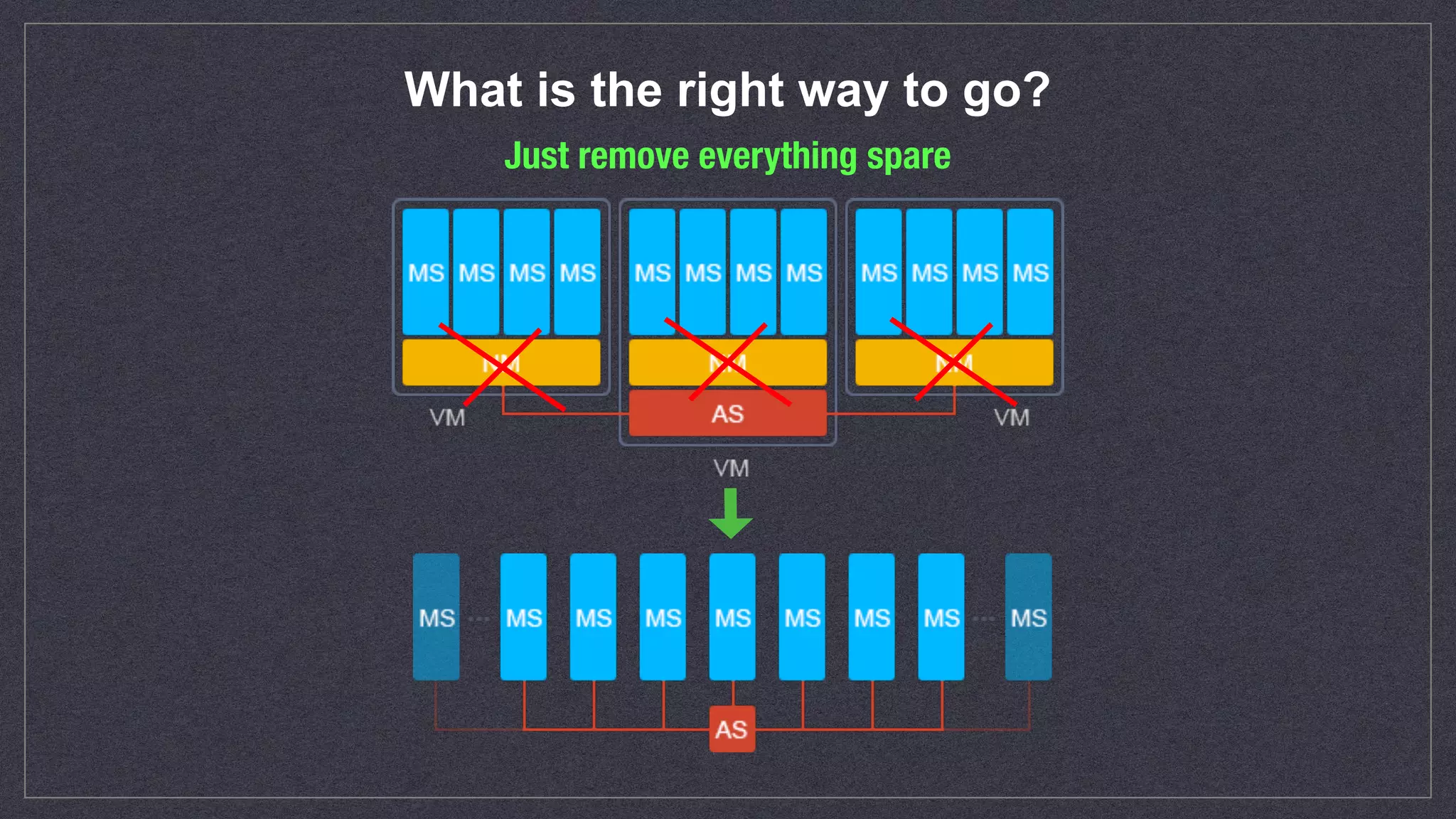

45. What is the right way to go?
Just remove everything spare

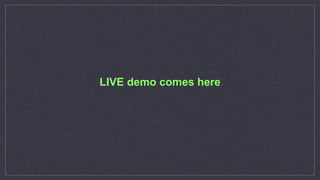

46. LIVE demo comes here

47. QUESTIONS

48. CONTACTS
http://jelastic.com ihor.kolodyuk@jelastic.com
