1. From Shabby To Chic
Jasper Potts & Richard Bair
Oracle

2. Why Design Matters

3. Good Design Makes People Happy
3
-- Don Norman, UX Week, Jan 26, 2009

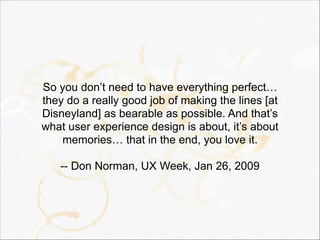

4. So you don’t need to have everything perfect…
they do a really good job of making the lines [at
Disneyland] as bearable as possible. And that’s
what user experience design is about, it’s about
memories… that in the end, you love it.
-- Don Norman, UX Week, Jan 26, 2009

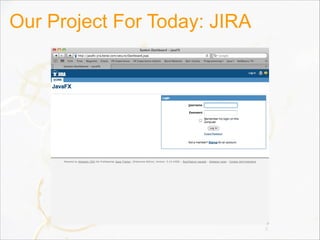

5. Our Project For Today: JIRA
5

6. Our Project For Today: JIRA
6

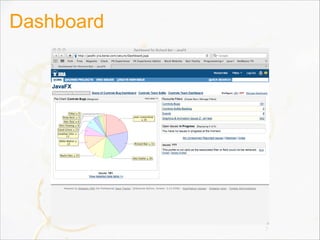

7. Dashboard
7

8. Dashboard
8

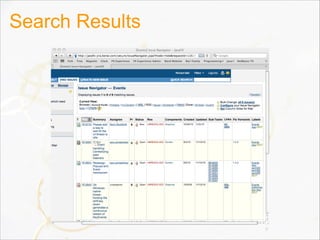

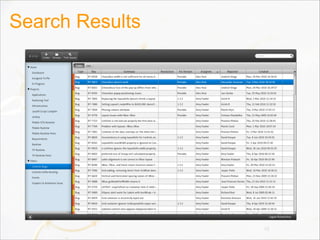

9. Search Results
9

10. Search Results
10

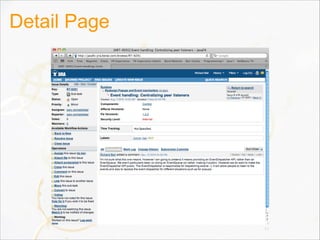

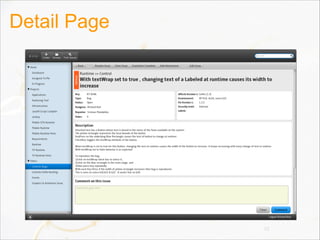

11. Detail Page
11

12. Detail Page
12

13. Demo

14. CSS In JavaFX 2.0

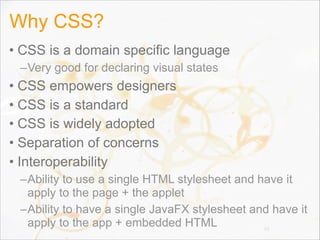

15. Why CSS?
• CSS is a domain specific language
–Very good for declaring visual states
• CSS empowers designers
• CSS is a standard
• CSS is widely adopted
• Separation of concerns
• Interoperability
–Ability to use a single HTML stylesheet and have it
apply to the page + the applet
–Ability to have a single JavaFX stylesheet and have it
apply to the app + embedded HTML 15

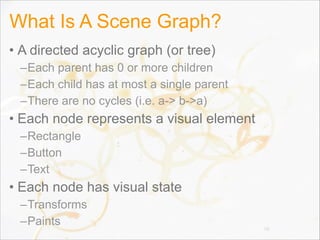

16. What Is A Scene Graph?
• A directed acyclic graph (or tree)
–Each parent has 0 or more children
–Each child has at most a single parent
–There are no cycles (i.e. a-> b->a)
• Each node represents a visual element
–Rectangle
–Button
–Text
• Each node has visual state
–Transforms
–Paints 16

17. 17
Scene
Button “Cancel”
Button “First”
Group
Button “Second” Button “Third”

18. The DOM vs. The Scene Graph
• The DOM is also a directed acyclic graph
• DOM nodes also have visual stat
• DOM mixes up semantic & visuals
–<div> vs. <b> vs. <em>
• The scene graph has custom layouts
–The DOM only uses the HTML Box model
• The APIs are quite different
–We like to think the scene graph is significantly better
18

19. 19
BODY
INPUT “Cancel”
INPUT
“First”
DIV
INPUT “Second”
INPUT
“Third”

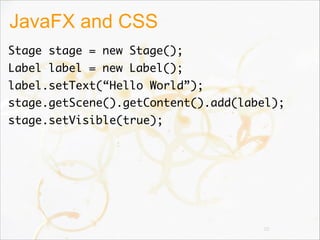

20. JavaFX and CSS
Stage stage = new Stage();
Label label = new Label();
label.setText(“Hello World”);
stage.getScene().getContent().add(label);
stage.setVisible(true);
20

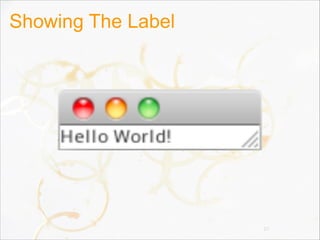

21. Showing The Label
21

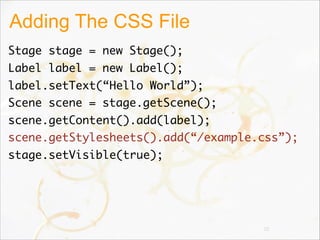

22. Adding The CSS File
Stage stage = new Stage();
Label label = new Label();
label.setText(“Hello World”);
Scene scene = stage.getScene();
scene.getContent().add(label);
scene.getStylesheets().add(“/example.css”);
stage.setVisible(true);
22

23. The example.css File
.label {
-fx-font: bold 20pt “Amble”;
-fx-text-fill:
linear (0%, 0%) to (0%, 100%)
stops (0.0, red) (1.0, black);
}
23

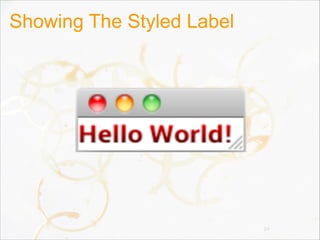

24. Showing The Styled Label
24

25. CSS Primer: Syntax
25
Rule Selector DeclarationPseudoclass
.label : hover {
-fx-font: bold 20pt “Amble”;
-fx-text-fill:
linear (0%, 0%) to (0%, 100%)
stops (0.0, red) (1.0, black);
}

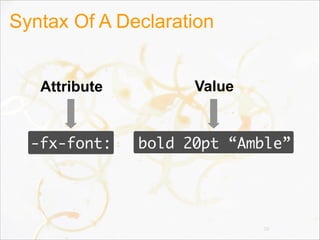

26. Syntax Of A Declaration
26
Attribute Value
-fx-font: bold 20pt “Amble”

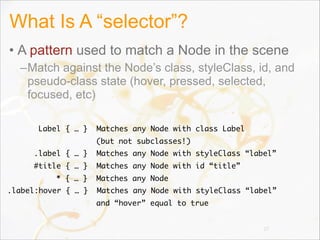

27. What Is A “selector”?
• A pattern used to match a Node in the scene
–Match against the Node’s class, styleClass, id, and
pseudo-class state (hover, pressed, selected,
focused, etc)
27
Label { … } Matches any Node with class Label
(but not subclasses!)
.label { … } Matches any Node with styleClass “label”
#title { … } Matches any Node with id “title”
* { … } Matches any Node
.label:hover { … } Matches any Node with styleClass “label”
and “hover” equal to true

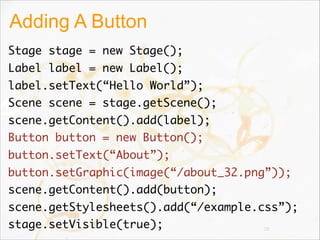

28. Adding A Button
Stage stage = new Stage();
Label label = new Label();
label.setText(“Hello World”);
Scene scene = stage.getScene();
scene.getContent().add(label);
Button button = new Button();
button.setText(“About”);
button.setGraphic(image(“/about_32.png”));
scene.getContent().add(button);
scene.getStylesheets().add(“/example.css”);
stage.setVisible(true); 28

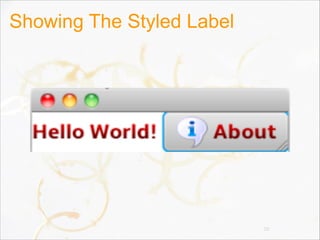

29. Showing The Styled Label
29

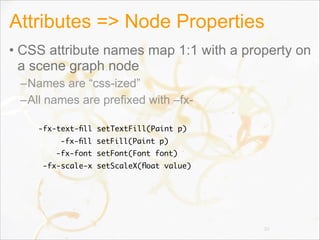

30. Attributes => Node Properties
• CSS attribute names map 1:1 with a property on
a scene graph node
–Names are “css-ized”
–All names are prefixed with –fx-
30
-fx-text-fill setTextFill(Paint p)
-fx-fill setFill(Paint p)
-fx-font setFont(Font font)
-fx-scale-x setScaleX(float value)

31. Deviations From HTML CSS
• Attribute names differ
–HTML CSS has HTML specific attribute names
–JavaFX CSS has JavaFX specific attribute names
• JavaFX has more pseudoclasses
–Controls sometimes have custom pseudoclasses
–ToggleButton, Cell has a “selected” pseudoclass
–Cell has “even” and “odd” pseudoclasses
31

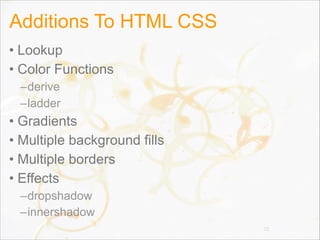

32. Additions To HTML CSS
• Lookup
• Color Functions
–derive
–ladder
• Gradients
• Multiple background fills
• Multiple borders
• Effects
–dropshadow
–innershadow
32

33. 33

34. 34

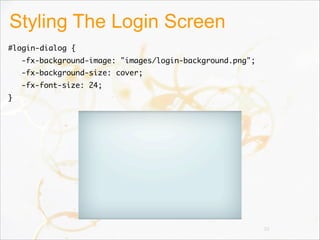

35. Styling The Login Screen
#login-dialog {
-fx-background-image: "images/login-background.png";
-fx-background-size: cover;
-fx-font-size: 24;
}
35

36. Styling The Login Screen
#login-background-logo {
-fx-background-image: "images/javafx-logo-ghost.png";
-fx-background-position: right 180px bottom 210px;
}
36

37. Styling The Login Screen
#login-box {
-fx-effect: dropshadow( three-pass-box , rgba(0,0,0,0.4) , 25, 0.0 , 0 , 0 );
-fx-background-color:
linear (0%,0%) to (0%,100%) stops (0%, #b6b467) (100%, #bcba62),
white,
linear (0%,0%) to (0%,100%) stops (0%, #fdfba8) (100%, #dcda77);
-fx-background-insets: 0, 1, 2;
-fx-background-radius: 15, 14, 13;
-fx-padding: 20px;
}
37

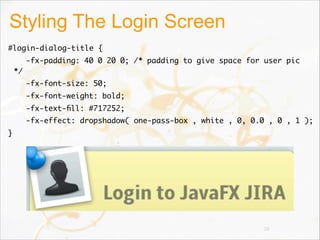

38. Styling The Login Screen
#login-dialog-title {
-fx-padding: 40 0 20 0; /* padding to give space for user pic
*/
-fx-font-size: 50;
-fx-font-weight: bold;
-fx-text-fill: #717252;
-fx-effect: dropshadow( one-pass-box , white , 0, 0.0 , 0 , 1 );
}
38

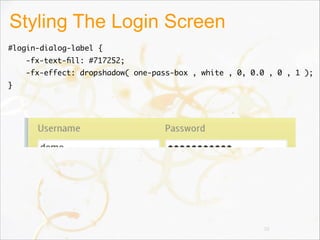

39. Styling The Login Screen
#login-dialog-label {
-fx-text-fill: #717252;
-fx-effect: dropshadow( one-pass-box , white , 0, 0.0 , 0 , 1 );
}
39

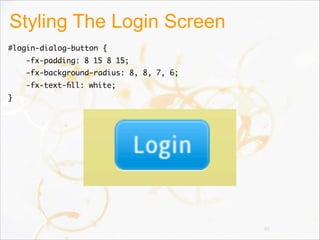

40. Styling The Login Screen
#login-dialog-button {
-fx-padding: 8 15 8 15;
-fx-background-radius: 8, 8, 7, 6;
-fx-text-fill: white;
}
40

41. 41

42. 42

43. 43

44. Parting Shots

45. dribbble.com
45

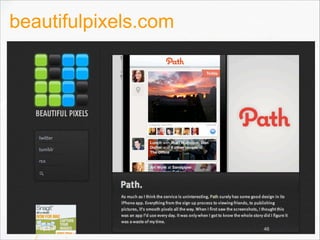

46. beautifulpixels.com
46

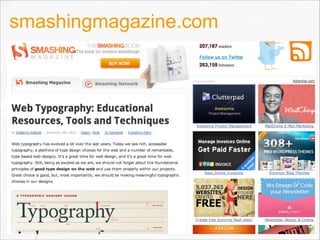

47. smashingmagazine.com
47

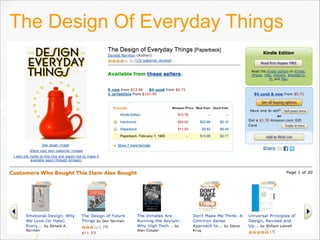

48. The Design Of Everyday Things
48

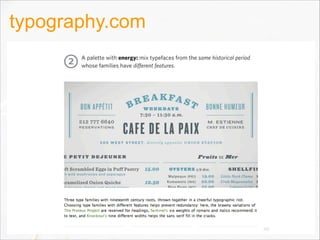

49. typography.com

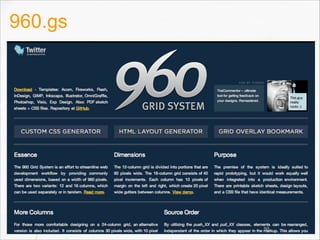

49

50. 960.gs
50
