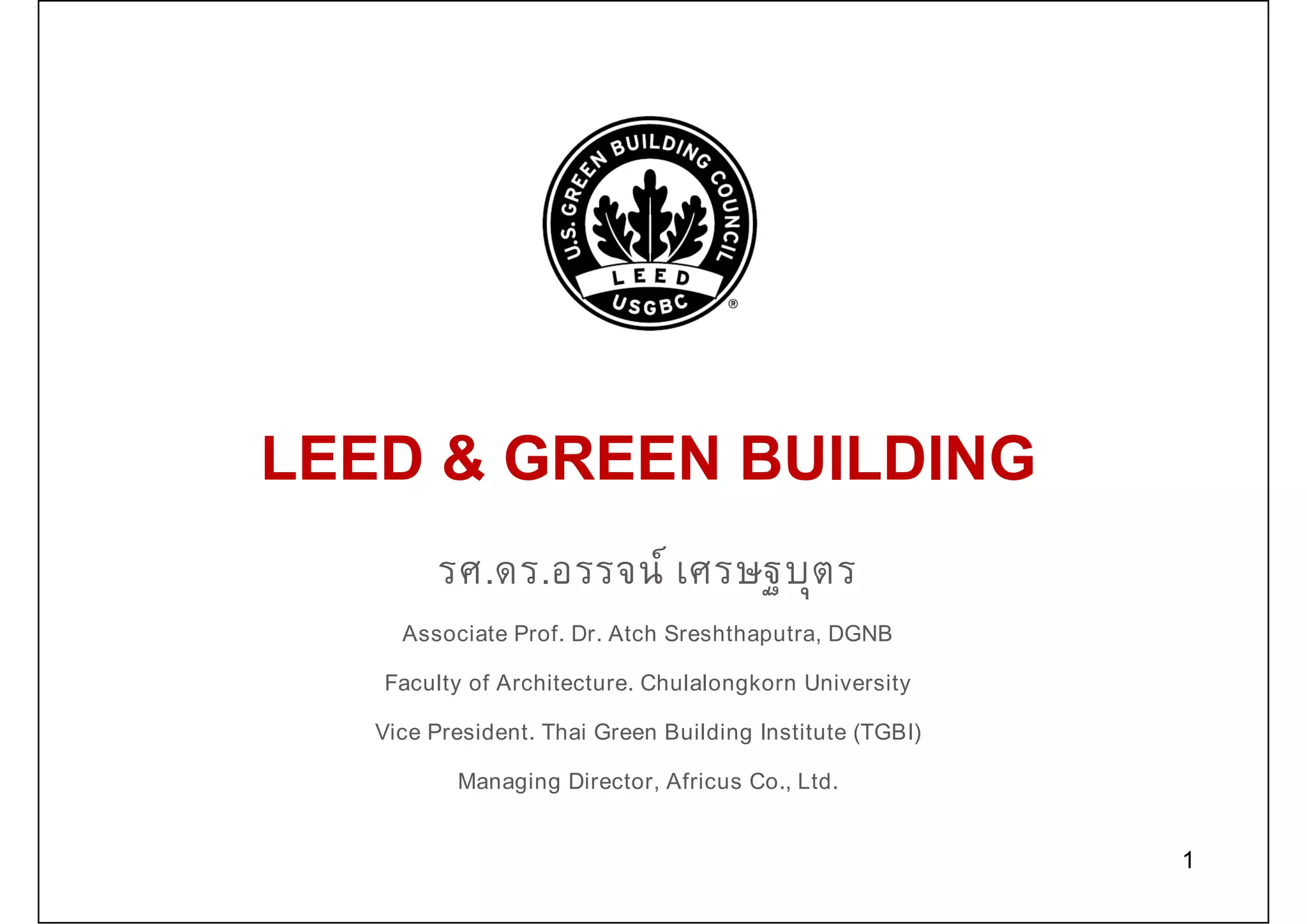

1. LEED & GREEN BUILDING
1
รศ.ดร.อรรจน์ เศรษฐบุตร
Associate Prof. Dr. Atch Sreshthaputra, DGNB
Faculty of Architecture. Chulalongkorn University
Vice President. Thai Green Building Institute (TGBI)
Managing Director, Africus Co., Ltd.

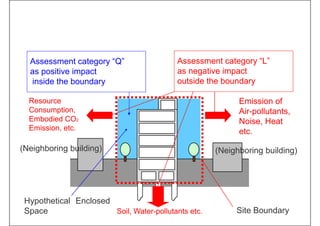

2. (Neighboring building) (Neighboring building)
Hypothetical Enclosed
Space Site Boundary
Assessment category “L”
as negative impact
outside the boundary
Assessment category “Q”
as positive impact
inside the boundary
Emission of
Air-pollutants,
Noise, Heat
etc.
Resource
Consumption,
Embodied CO2
Emission, etc.
Soil, Water-pollutants etc.

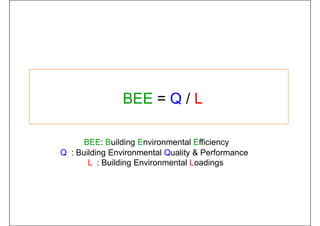

3. BEE = Q / L
BEE: Building Environmental Efficiency
Q : Building Environmental Quality & Performance
L : Building Environmental Loadings

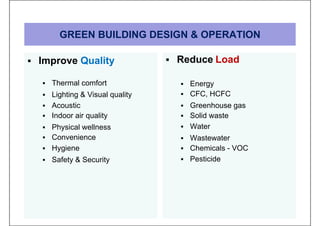

4. GREEN BUILDING DESIGN & OPERATION
 Improve Quality
 Thermal comfort
 Lighting & Visual quality
 Acoustic
 Indoor air quality
 Physical wellness
 Convenience
 Hygiene
 Safety & Security
 Reduce Load
 Energy
 CFC, HCFC
 Greenhouse gas
 Solid waste
 Water
 Wastewater
 Chemicals - VOC
 Pesticide

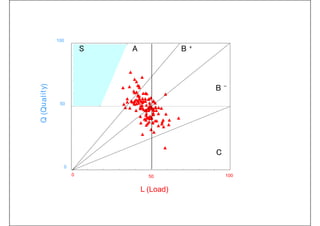

5. Submission mandatory for buildings with floor areas of more than 2000m2
0
50
100
0 50 100
Q(Quality)
A B +
B -
C
Office
School
Retail shop
Restaurant
Hall
Hospital
Hotel
Apartment
Factory
L (Load)
S

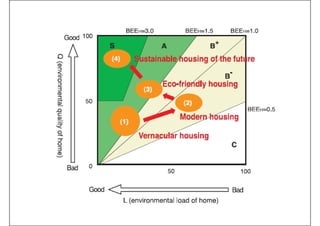

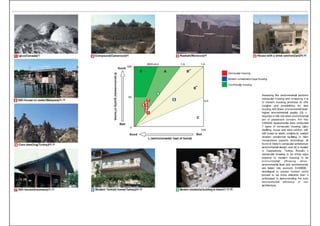

6. 50
100
0 50 100
C
B+AS
BEE=1.5BEE=3.0
BEE=0.5
Loading
Quality
B-
BEE=1.0
(Very sustainable)
(Unsustainable)
30
60 BEE=2.0 B-

8. VITRUVIUS
Commodity
Delight
Firmness
..???..

10. PEAK OIL
2010

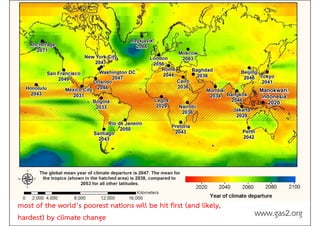

12. www.gas2.org
most of the world’s poorest nations will be hit first (and likely,
hardest) by climate change

13. 13

14. 14

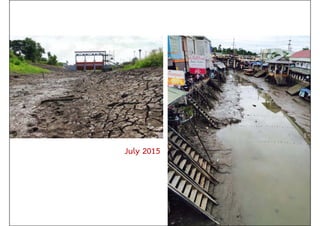

15. July 2015

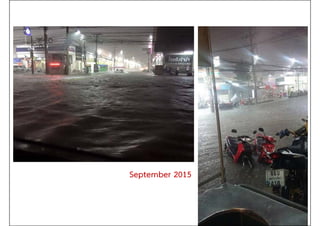

16. September 2015

17. 17

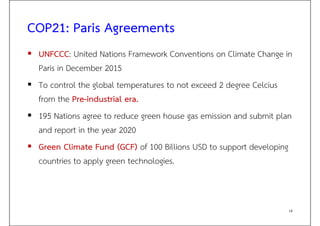

18. COP21: Paris Agreements
 UNFCCC: United Nations Framework Conventions on Climate Change in
Paris in December 2015
 To control the global temperatures to not exceed 2 degree Celcius
from the Pre-industrial era.
 195 Nations agree to reduce green house gas emission and submit plan
and report in the year 2020
 Green Climate Fund (GCF) of 100 Billions USD to support developing
countries to apply green technologies.
18

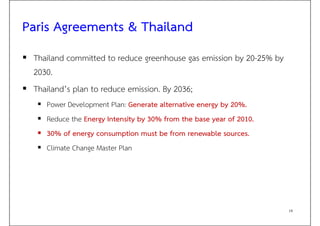

19. Paris Agreements & Thailand
 Thailand committed to reduce greenhouse gas emission by 20-25% by
2030.
 Thailand’s plan to reduce emission. By 2036;
 Power Development Plan: Generate alternative energy by 20%.
 Reduce the Energy Intensity by 30% from the base year of 2010.
 30% of energy consumption must be from renewable sources.
 Climate Change Master Plan
19

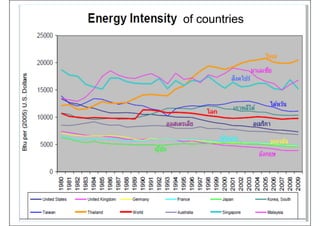

20. 20
of countries

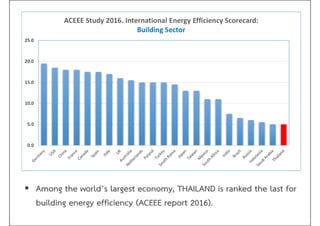

21.  Among the world’s largest economy, THAILAND is ranked the last for
building energy efficiency (ACEEE report 2016).

22. 22

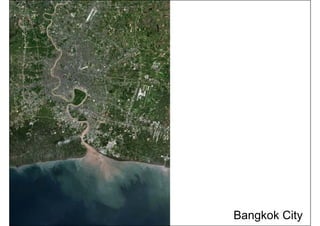

23. Bangkok City

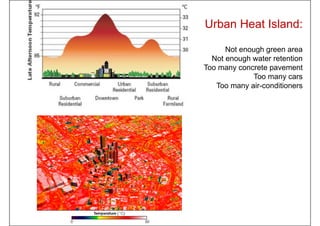

25. Urban Heat Island:
Not enough green area
Not enough water retention
Too many concrete pavement
Too many cars
Too many air-conditioners

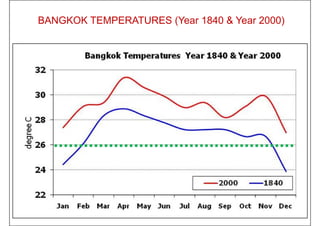

26. BANGKOK TEMPERATURES (Year 1840 & Year 2000)

27. SINGAPORE

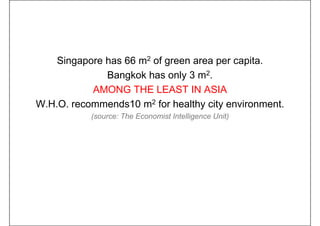

28. Singapore has 66 m2 of green area per capita.
Bangkok has only 3 m2.
AMONG THE LEAST IN ASIA
W.H.O. recommends10 m2 for healthy city environment.
(source: The Economist Intelligence Unit)

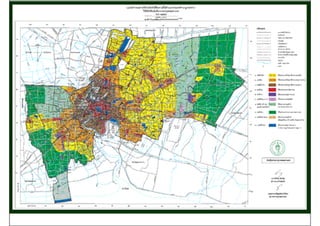

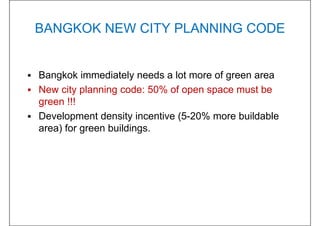

30. BANGKOK NEW CITY PLANNING CODE
 Bangkok immediately needs a lot more of green area
 New city planning code: 50% of open space must be
green !!!

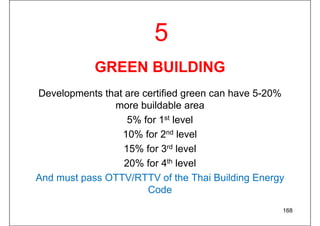

 Development density incentive (5-20% more buildable
area) for green buildings.

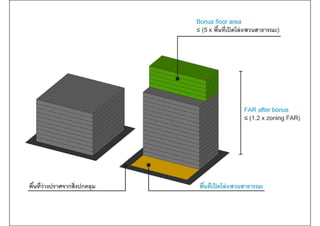

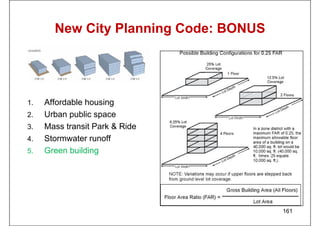

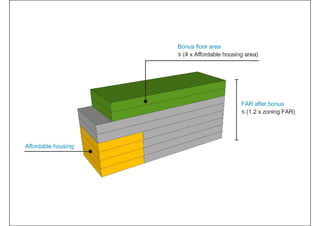

31. New City Planning Code: BONUS

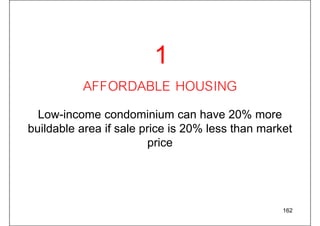

1. Affordable housing
2. Urban public space

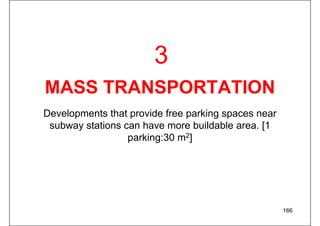

3. Mass transit Park & Ride
4. Stormwater runoff
5. Green building
31

32. GREEN BUILDING

39. Green Area
Solar Cell
Indoor Air Quality
Thermal comfort
Energy conservation
Water conservation
Recycle
Wind turbine
Daylight
Trees
Wastewater
Cotton bags
Urban Heat Island
CSR

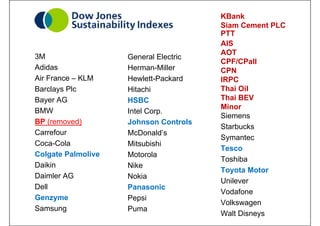

40. 3M
Adidas
Air France – KLM
Barclays Plc
Bayer AG
BMW
BP (removed)
Carrefour
Coca-Cola
Colgate Palmolive
Daikin
Daimler AG
Dell
Genzyme
Samsung
General Electric
Herman-Miller
Hewlett-Packard
Hitachi
HSBC
Intel Corp.
Johnson Controls
McDonald’s
Mitsubishi
Motorola
Nike
Nokia
Panasonic
Pepsi
Puma
KBank
Siam Cement PLC
PTT
AIS
AOT
CPF/CPall
CPN
IRPC
Thai Oil
Thai BEV
Minor
Siemens
Starbucks
Symantec
Tesco
Toshiba
Toyota Motor
Unilever
Vodafone
Volkswagen
Walt Disneys

41. 41

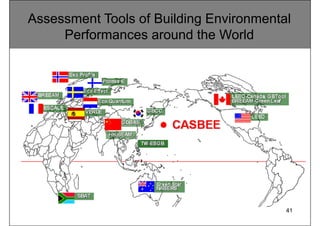

Assessment Tools of Building Environmental
Performances around the World

42. GREEN BUILDING ASSESSMENT TOOLS
 LEED & Energy Star (U.S.A.)
 DGNB (Germany)
 BREEAM (U.K.)
 CASBEE (Japan)
 Green Star (Australia)
 HQE (France)
 Green Building Tool (Canada)
 LOTUS (Vietnam)
 GOBAS (China)
 GBCC (Korea)
 HKBEAM (Hong Kong)
 Green Mark (Singapore)
 Green Index (Malaysia)
 ECOVILLAGE (Thailand)
 PCD (Thailand)
 TREES (TGBI Thailand) 42

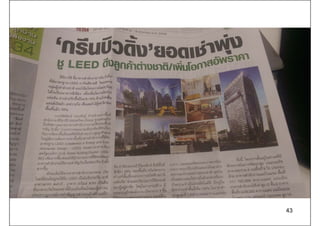

43. 43

44. GREEN BUILDING STANDARDS
Site & Landscape
Water
Energy
Materials
Indoor Environmental Quality
Community & Culture

45. Leadership in Energy and Environmental Design
(LEED)
The US. Green Building Council (USGBC)
45

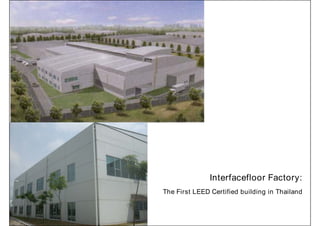

46. Interfacefloor Factory:
The First LEED Certified building in Thailand

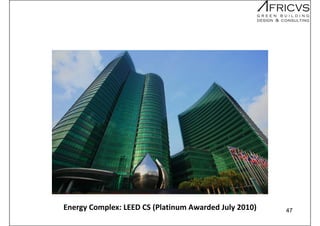

47. Energy Complex: LEED CS (Platinum Awarded July 2010) 47

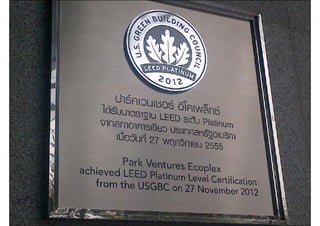

48. Park Venture Ecoplex: LEED CS (Platinum awarded November 2012) 48

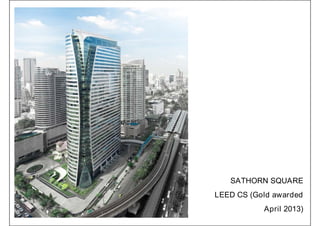

49. SATHORN SQUARE
LEED CS (Gold awarded
April 2013)

50. 50

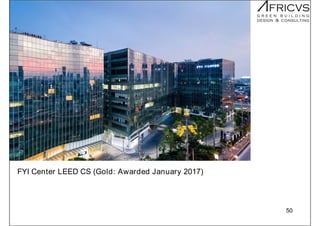

FYI Center LEED CS (Gold: Awarded January 2017)

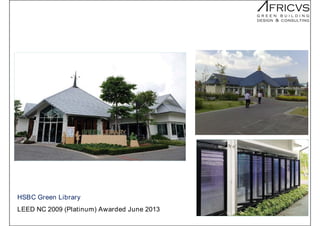

51. HSBC Green Library
LEED NC 2009 (Platinum) Awarded June 2013

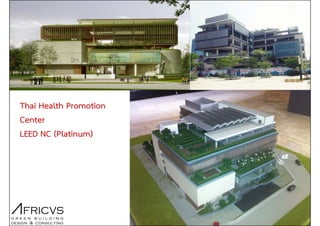

52. Thai Health Promotion
Center
LEED NC (Platinum)

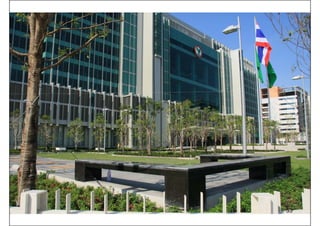

53. 53

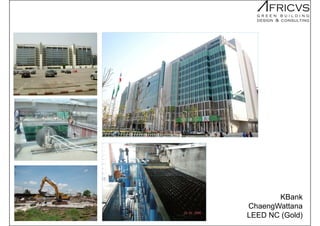

54. KBank
ChaengWattana
LEED NC (Gold)

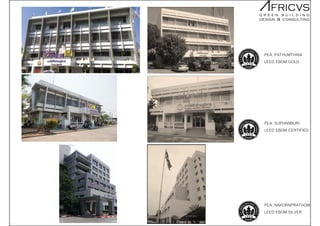

55. PEA: PATHUMTHANI
LEED EBOM GOLD
PEA: SUPHANBURI
LEED EBOM CERTIFIED
PEA: NAKORNPRATHOM
LEED EBOM SILVER

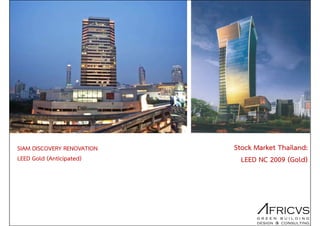

56. SIAM DISCOVERY RENOVATION
LEED Gold (Anticipated)
Stock Market Thailand:
LEED NC 2009 (Gold)

57. SAMYAN MITR TOWN
LEED CS (Anticipated)
AIA CAPITAL CENTER
LEED CS (GOLD)
LEED EBOM (Anticipated)

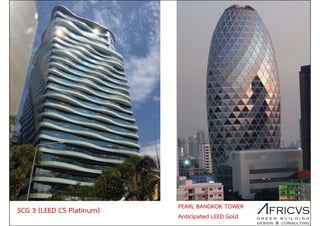

58. SCG 3 (LEED CS Platinum) PEARL BANGKOK TOWER
Anticipated LEED Gold

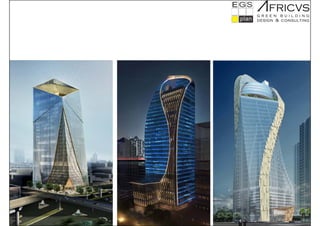

59. 59

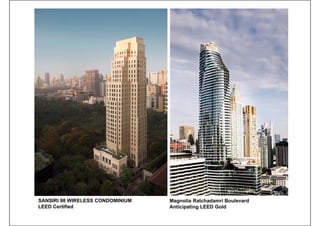

60. SANSIRI 98 WIRELESS CONDOMINIUM
LEED Certified
Magnolia Ratchadamri Boulevard
Anticipating LEED Gold

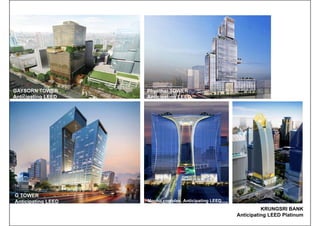

61. GAYSORN TOWER
Anticipating LEED
Gold
G TOWER
Anticipating LEED
Gold
Phyathai TOWER
Anticipating LEED
Gold
Mochit complex. Anticipating LEED
Gold
KRUNGSRI BANK
Anticipating LEED Platinum

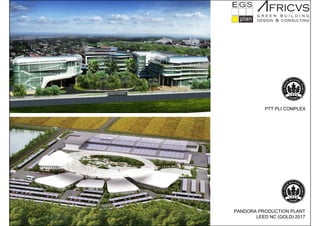

62. PTT PLI COMPLEX
PANDORA PRODUCTION PLANT
LEED NC (GOLD) 2017

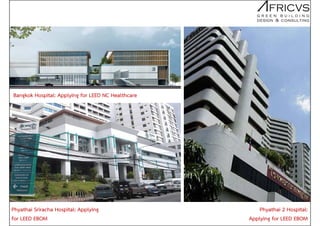

63. Phyathai Sriracha Hospital: Applying
for LEED EBOM
Phyathai 2 Hospital:
Applying for LEED EBOM
Bangkok Hospital: Applying for LEED NC Healthcare

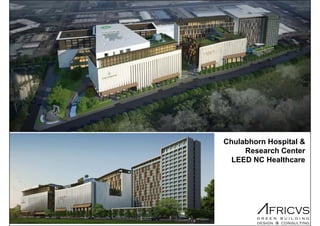

64. 64
Chulabhorn Hospital &
Research Center
LEED NC Healthcare

65. 65

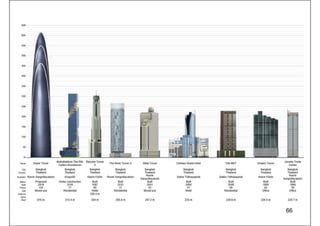

GRAND CANAL SUPER TOWER, 125 flrs, 615 m.
LEED PLATINUM ANTICIPATED

66. 66

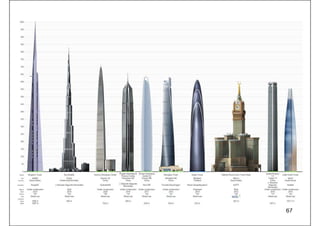

67. 67

68. 68

69. 69

70. 70

71. BCA GREENMARK
Singapore’s Building Construction Authority

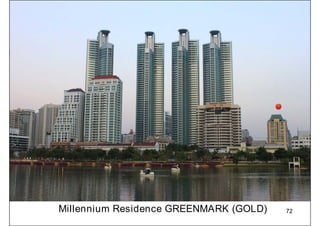

72. 72Millennium Residence GREENMARK (GOLD)

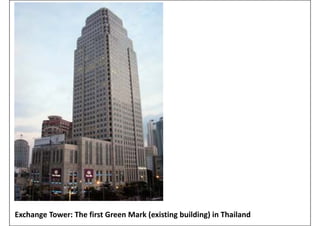

73. Exchange Tower: The first Green Mark (existing building) in Thailand

74. German Sustainable Building Council
Thailand

75. HAFELE DESIGN CENTER PHUKET.
First DGNB Gold in Thailand

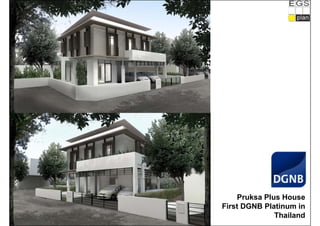

76. Pruksa Plus House
First DGNB Platinum in
Thailand

77. TREES
Thai’s Rating for Energy & Environmental Sustainability
THAILAND GREEN BUILDING INSTITUTE
ASA & EIT

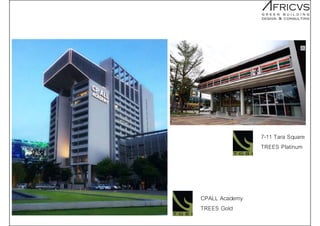

78. 7-11 Tara Square
TREES Platinum
CPALL Academy
TREES Gold

79. TOYOTA Showrooms

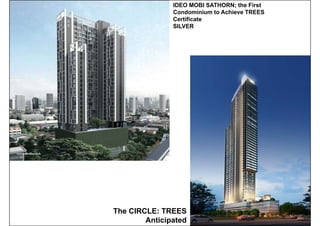

80. IDEO MOBI SATHORN; the First
Condominium to Achieve TREES
Certificate
SILVER
The CIRCLE: TREES
Anticipated

81. Leadership in Energy and Environmental Design
(LEED)
The US. Green Building Council (USGBC)
81

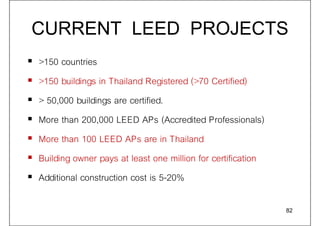

82. CURRENT LEED PROJECTS
 >150 countries
 >150 buildings in Thailand Registered (>70 Certified)
 > 50,000 buildings are certified.
 More than 200,000 LEED APs (Accredited Professionals)
 More than 100 LEED APs are in Thailand
 Building owner pays at least one million for certification
 Additional construction cost is 5-20%
82

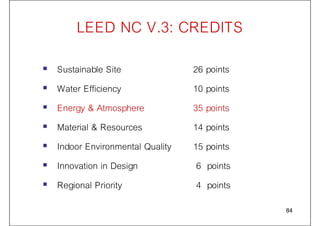

84. LEED NC V.3: CREDITS
 Sustainable Site 26 points
 Water Efficiency 10 points
 Energy & Atmosphere 35 points
 Material & Resources 14 points
 Indoor Environmental Quality 15 points
 Innovation in Design 6 points
 Regional Priority 4 points
84

85. LEED Levels
40-49 50-59 60-79 80 up
Certified Silver Gold Platinum

86. 86

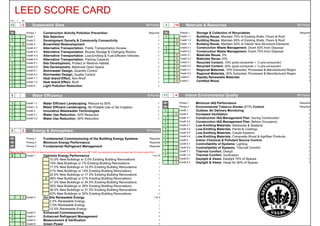

87. 87
Yes ? No
12 2 Sustainable Sites 14 Points
Y Prereq 1 Construction Activity Pollution Prevention Required
1 Credit 1 Site Selection 1
1 Credit 2 Development Density & Community Connectivity 1
1 Credit 3 Brownfield Redevelopment 1
1 Credit 4.1 Alternative Transportation, Public Transportation Access 1
1 Credit 4.2 Alternative Transportation, Bicycle Storage & Changing Rooms 1
1 Credit 4.3 Alternative Transportation, Low-Emitting & Fuel-Efficient Vehicles 1
1 Credit 4.4 Alternative Transportation, Parking Capacity 1
1 Credit 5.1 Site Development, Protect or Restore Habitat 1
1 Credit 5.2 Site Development, Maximize Open Space 1
1 Credit 6.1 Stormwater Design, Quantity Control 1
1 Credit 6.2 Stormwater Design, Quality Control 1
1 Credit 7.1 Heat Island Effect, Non-Roof 1
1 Credit 7.2 Heat Island Effect, Roof 1
1 Credit 8 Light Pollution Reduction 1
5 Water Efficiency 5 Points
1 Credit 1.1 Water Efficient Landscaping, Reduce by 50% 1
1 Credit 1.2 Water Efficient Landscaping, No Potable Use or No Irrigation 1
1 Credit 2 Innovative Wastewater Technologies 1
1 Credit 3.1 Water Use Reduction, 20% Reduction 1
1 Credit 3.2 Water Use Reduction, 30% Reduction 1
9 2 Energy & Atmosphere 17 Points
Y Prereq 1 Fundamental Commissioning of the Building Energy Systems Required
Y Prereq 2 Minimum Energy Performance Required
Y Prereq 3 Fundamental Refrigerant Management Required
6 Credit 1 Optimize Energy Performance 1 to 10
10.5% New Buildings or 3.5% Existing Building Renovations 1
14% New Buildings or 7% Existing Building Renovations 2
17.5% New Buildings or 10.5% Existing Building Renovations 3
21% New Buildings or 14% Existing Building Renovations 4
24.5% New Buildings or 17.5% Existing Building Renovations 5
6 28% New Buildings or 21% Existing Building Renovations 6
31.5% New Buildings or 24.5% Existing Building Renovations 7
35% New Buildings or 28% Existing Building Renovations 8
38.5% New Buildings or 31.5% Existing Building Renovations 9
42% New Buildings or 35% Existing Building Renovations 10
1 Credit 2 On-Site Renewable Energy 1 to 3
2.5% Renewable Energy 1
7.5% Renewable Energy 2
12.5% Renewable Energy 3
1 Credit 3 Enhanced Commissioning 1
1 Credit 4 Enhanced Refrigerant Management 1
1 Credit 5 Measurement & Verification 1
1 Credit 6 Green Power 1
*Note for EAc1: All LEED for New Construction projects registered after June 26th
, 2007 are required to achieve at least two (2) points under EAc1.
3 10 Materials & Resources 13 Points
Y Prereq 1 Storage & Collection of Recyclables Required
1 Credit 1.1 Building Reuse, Maintain 75% of Existing Walls, Floors & Roof 1
1 Credit 1.2 Building Reuse, Maintain 95% of Existing Walls, Floors & Roof 1
1 Credit 1.3 Building Reuse, Maintain 50% of Interior Non-Structural Elements 1
1 Credit 2.1 Construction Waste Management, Divert 50% from Disposal 1
1 Credit 2.2 Construction Waste Management, Divert 75% from Disposal 1
1 Credit 3.1 Materials Reuse, 5% 1
1 Credit 3.2 Materials Reuse,10% 1
1 Credit 4.1 Recycled Content, 10% (post-consumer + ½ pre-consumer) 1
1 Credit 4.2 Recycled Content, 20% (post-consumer + ½ pre-consumer) 1
1 Credit 5.1 Regional Materials, 10% Extracted, Processed & Manufactured Region 1
1 Credit 5.2 Regional Materials, 20% Extracted, Processed & Manufactured Region 1
1 Credit 6 Rapidly Renewable Materials 1
1 Credit 7 Certified Wood 1
11 4 Indoor Environmental Quality 15 Points
Y Prereq 1 Minimum IAQ Performance Required
Y Prereq 2 Environmental Tobacco Smoke (ETS) Control Required
1 Credit 1 Outdoor Air Delivery Monitoring 1
1 Credit 2 Increased Ventilation 1
1 Credit 3.1 Construction IAQ Management Plan, During Construction 1
1 Credit 3.2 Construction IAQ Management Plan, Before Occupancy 1
1 Credit 4.1 Low-Emitting Materials, Adhesives & Sealants 1
1 Credit 4.2 Low-Emitting Materials, Paints & Coatings 1
1 Credit 4.3 Low-Emitting Materials, Carpet Systems 1
1 Credit 4.4 Low-Emitting Materials, Composite Wood & Agrifiber Products 1
1 Credit 5 Indoor Chemical & Pollutant Source Control 1
1 Credit 6.1 Controllability of Systems, Lighting 1
1 Credit 6.2 Controllability of Systems, Thermal Comfort 1
1 Credit 7.1 Thermal Comfort, Design 1
1 Credit 7.2 Thermal Comfort, Verification 1
1 Credit 8.1 Daylight & Views, Daylight 75% of Spaces 1
1 Credit 8.2 Daylight & Views, Views for 90% of Spaces 1
LEED SCORE CARD

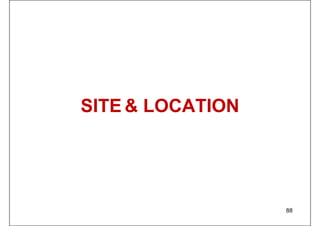

88. SITE & LOCATION
88

89. TRAFFIC REDUCTION
through
WALKABILITY

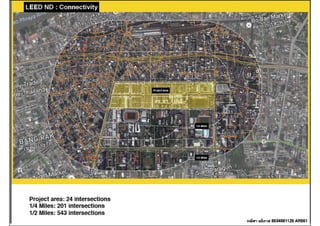

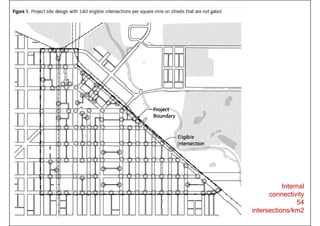

90. Internal
connectivity
54
intersections/km2

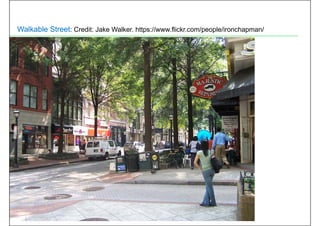

92. Walkable Street: Credit: Jake Walker. https://www.flickr.com/people/ironchapman/

93. Building entrances occur at an
average of 23 meters or less

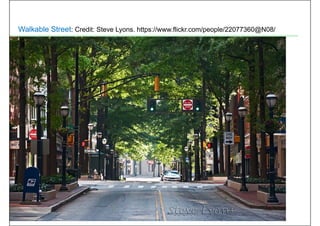

94. Walkable Street: Credit: Steve Lyons. https://www.flickr.com/people/22077360@N08/

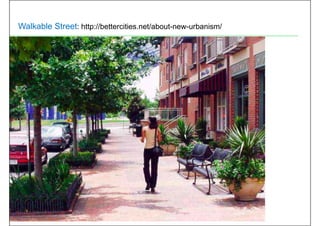

95. Walkable Street: http://bettercities.net/about-new-urbanism/

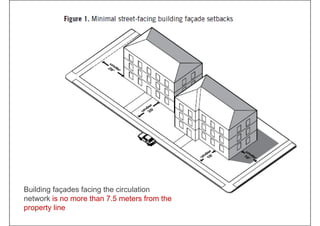

96. Building façades facing the circulation
network is no more than 7.5 meters from the
property line

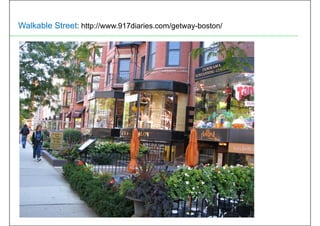

97. Walkable Street: http://www.917diaries.com/getway-boston/

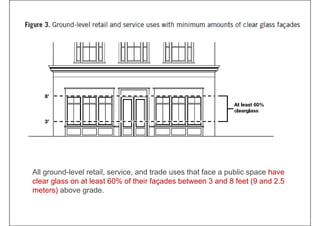

98. All ground-level retail, service, and trade uses that face a public space have
clear glass on at least 60% of their façades between 3 and 8 feet (9 and 2.5
meters) above grade.

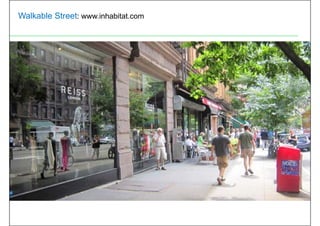

99. Walkable Street: www.inhabitat.com

100. Walkable Street: http://www.originalgreen.org/blog/a-misunderstanding-of-town-.html

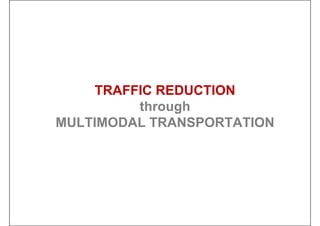

101. TRAFFIC REDUCTION
through
MULTIMODAL TRANSPORTATION

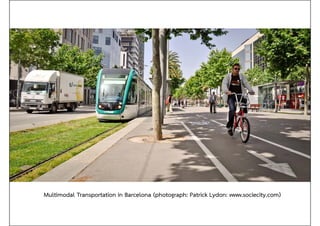

102. Multimodal Transportation in Barcelona (photograph: Patrick Lydon: www.sociecity.com)

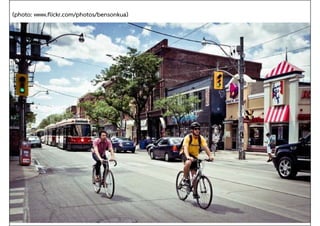

103. (photo: www.flickr.com/photos/bensonkua)

104. Connected & Open Community
Transit Facilities

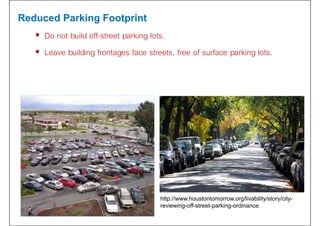

105. Reduced Parking Footprint
 Do not build off-street parking lots.
 Leave building frontages face streets, free of surface parking lots.
http://www.houstontomorrow.org/livability/story/city-
reviewing-off-street-parking-ordinance

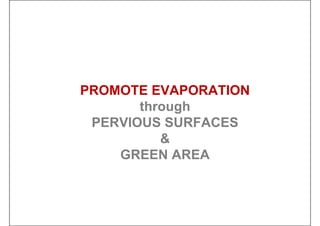

106. PROMOTE EVAPORATION
through
PERVIOUS SURFACES
&
GREEN AREA

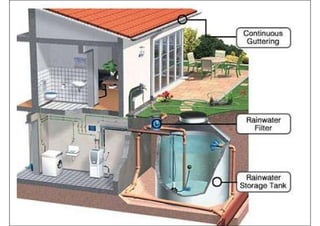

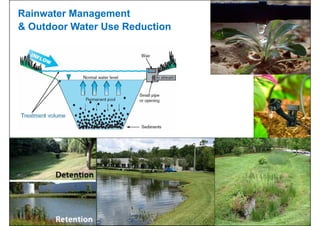

107. Rainwater Management
& Outdoor Water Use Reduction

108. http://www.mnerosion.org
http://www.bigurbie.org

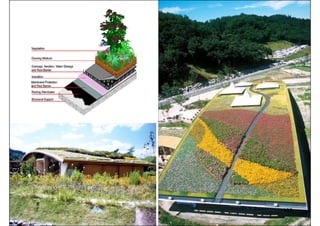

109. 109

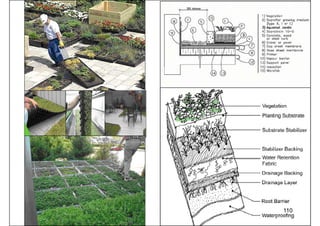

110. 110

111. 111

112. 112

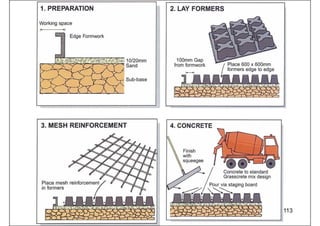

113. 113

114. 114

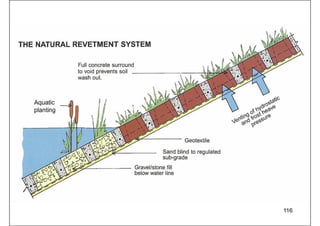

115. 116

116. WATER
117

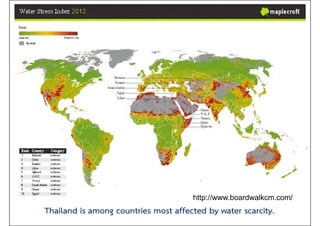

117. Thailand is among countries most affected by water scarcity.
http://www.boardwalkcm.com/

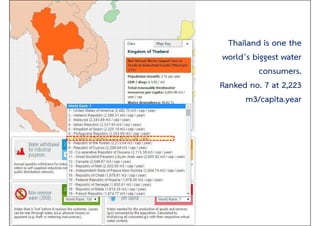

119. Thailand is one the
world’s biggest water
consumers.
Ranked no. 7 at 2,223
m3/capita.year

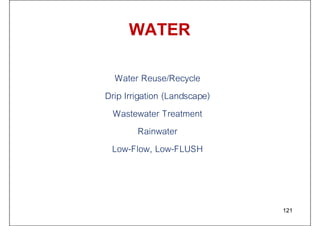

120. WATER
Water Reuse/Recycle
Drip Irrigation (Landscape)
Wastewater Treatment

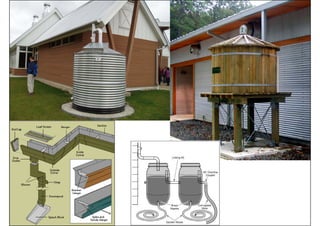

Rainwater
Low-Flow, Low-FLUSH
121

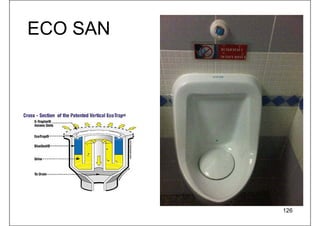

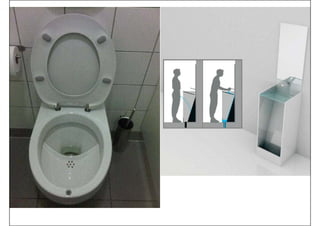

125. ECO SAN
126

127. ENERGY
128

128. ENERGY
Envelope System
Lighting/Equipment
HVAC system
Renewable Energy
Building Energy Management
Measurement & Verification
129

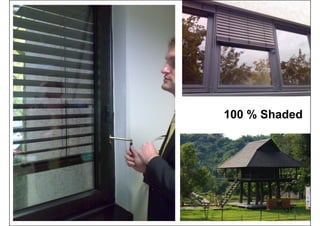

130. 100 % Shaded
131

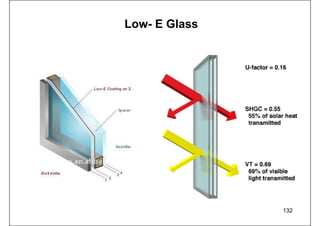

131. 132
Low- E Glass

132. 133

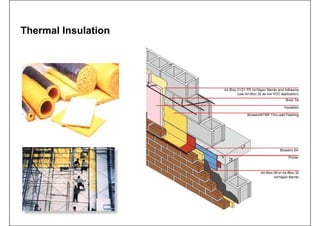

133. Thermal Insulation

136. Ekawat Ophartpongsakorn
BArch, MSc in Built Environment
January 2009

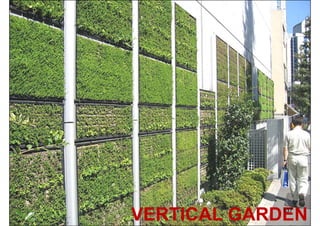

TESCO LOTUS AMATA
VERTICAL GARDEN137

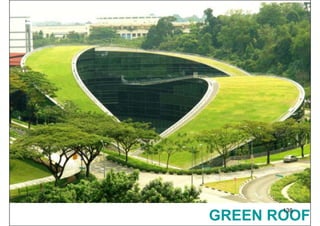

137. GREEN ROOF
138

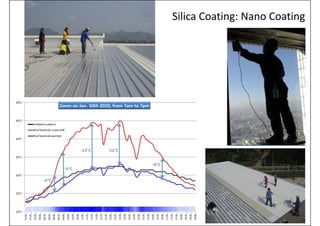

139. Silica Coating: Nano Coating
140

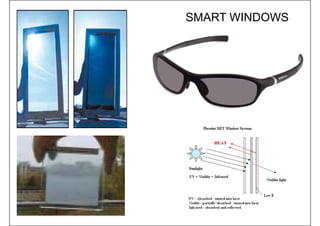

141. SMART WINDOWS

142. Natural Light Balancing Sensor
Automatic dimmer that adjusts levels of lights to amount of
necessary brightness inside, thus saving energy.

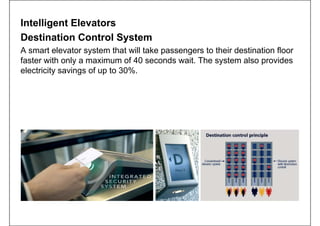

143. Intelligent Elevators
Destination Control System
A smart elevator system that will take passengers to their destination floor
faster with only a maximum of 40 seconds wait. The system also provides
electricity savings of up to 30%.

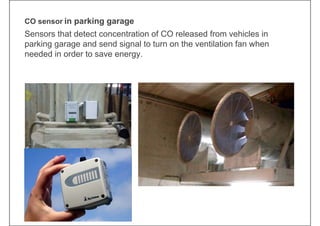

144. CO sensor in parking garage
Sensors that detect concentration of CO released from vehicles in
parking garage and send signal to turn on the ventilation fan when
needed in order to save energy.

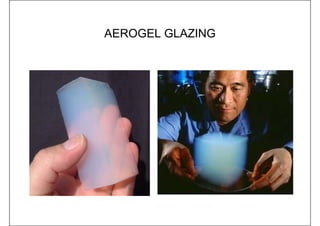

145. AEROGEL GLAZING

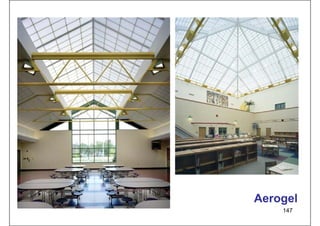

146. Aerogel
147

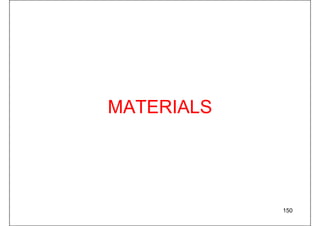

148. MATERIALS
150

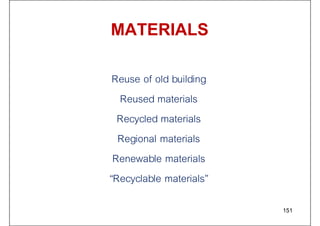

149. MATERIALS
Reuse of old building
Reused materials
Recycled materials
Regional materials
Renewable materials
“Recyclable materials”
151

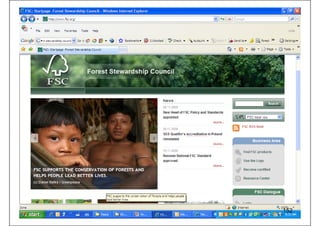

150. 152

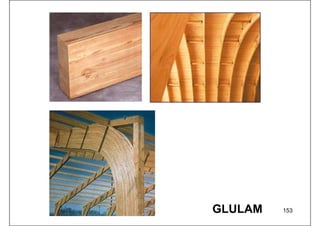

151. GLULAM 153

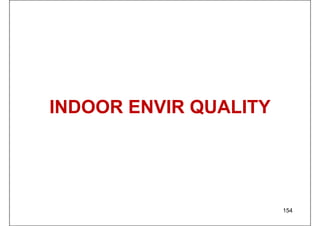

152. INDOOR ENVIR QUALITY
154

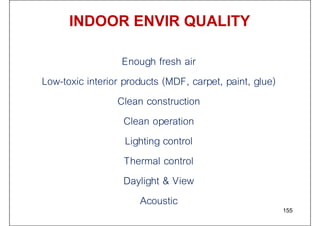

153. INDOOR ENVIR QUALITY
Enough fresh air
Low-toxic interior products (MDF, carpet, paint, glue)
Clean construction
Clean operation
Lighting control
Thermal control
Daylight & View
Acoustic
155

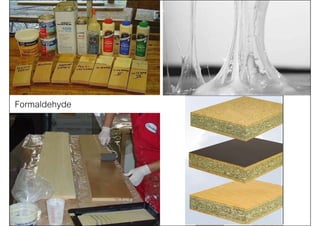

155. Formaldehyde

156. Construction cost increase 5-15%
Rental increase 15%
Energy Saving 25-30%
Water Saving 30-40%
Comfort, worker productivity and good image
Source: Punwadee Mongkolcharoen Thesis in Architecture. Chulalongkorn University

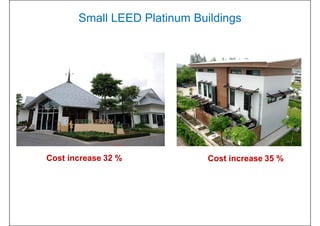

157. Cost increase 32 % Cost increase 35 %
Small LEED Platinum Buildings

158. LEED Thai Green Building Institute
1. Location & Transportation 1. Building Management
2. Sustainable Site 2. Site & Landscape
3. Water Efficiency 3. Water Conservation
4. Energy & Atmosphere 4. Energy & Atmosphere
5. Materials & Resources 5. Materials & Resources
6. Indoor Environmental Quality 6. Indoor Environmental Quality
7. Innovation & Regional Priority 7. Innovation

159. New City Planning Code: BONUS
1. Affordable housing
2. Urban public space
3. Mass transit Park & Ride
4. Stormwater runoff
5. Green building
161

160. AFFORDABLE HOUSING
Low-income condominium can have 20% more
buildable area if sale price is 20% less than market
price
162
1

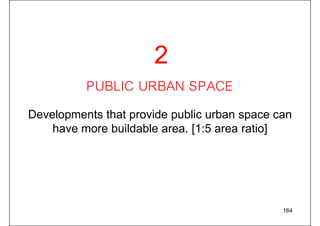

162. PUBLIC URBAN SPACE
Developments that provide public urban space can
have more buildable area. [1:5 area ratio]
164
2

164. MASS TRANSPORTATION
Developments that provide free parking spaces near
subway stations can have more buildable area. [1
parking:30 m2]
166
3

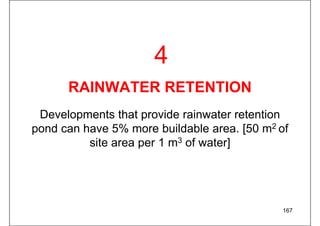

165. RAINWATER RETENTION
Developments that provide rainwater retention
pond can have 5% more buildable area. [50 m2 of
site area per 1 m3 of water]
167
4

166. GREEN BUILDING
Developments that are certified green can have 5-20%
more buildable area
5% for 1st level
10% for 2nd level
15% for 3rd level
20% for 4th level
And must pass OTTV/RTTV of the Thai Building Energy
Code
168
5

167. TREES PRE-NC
Thai’s Rating for Energy & Environmental Sustainability
THAILAND GREEN BUILDING INSTITUTE
ASA & EIT

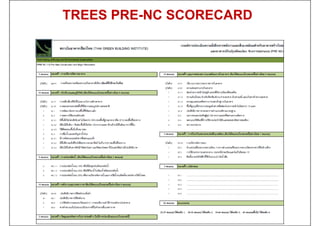

168. TREES PRE-NC SCORECARD

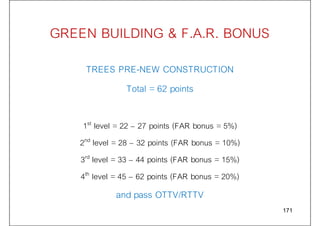

169. GREEN BUILDING & F.A.R. BONUS
TREES PRE-NEW CONSTRUCTION
Total = 62 points
1st level = 22 – 27 points (FAR bonus = 5%)
2nd level = 28 – 32 points (FAR bonus = 10%)
3rd level = 33 – 44 points (FAR bonus = 15%)
4th level = 45 – 62 points (FAR bonus = 20%)
and pass OTTV/RTTV
171

170. F.A.R. Bonus & Green Building
 Would green building certificate increase the rent ?
 If so, how much? 5%, 10%, 15%, 20% ?
 If so, does different certification levels matter ?
 If so, does it mean tenants get benefit from it ? What benefit?
 In exchange with higher rental rates, do tenants enjoy money
saving? energy saving? low-carbon? good image?
 BUT…once developers get F.A.R. Bonus ? Should the sale
prices be lower?

171. จบการนําเสนอ
173
THANK YOU

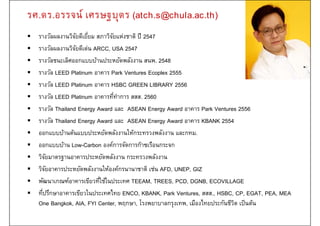

172. รศ.ดร.อรรจน์ เศรษฐบุตร (atch.s@chula.ac.th)
 รางวัลผลงานวิจัยดีเยี่ยม สภาวิจัยแห่งชาติ ปี 2547
 รางวัลผลงานวิจัยดีเด่น ARCC, USA 2547
 รางวัลชนะเลิศออกแบบบ้านประหยัดพลังงาน สนพ. 2548
 รางวัล LEED Platinum อาคาร Park Ventures Ecoplex 2555
 รางวัล LEED Platinum อาคาร HSBC GREEN LIBRARY 2556
 รางวัล LEED Platinum อาคารที่ทําการ สสส. 2560
 รางวัล Thailand Energy Award และ ASEAN Energy Award อาคาร Park Ventures 2556
 รางวัล Thailand Energy Award และ ASEAN Energy Award อาคาร KBANK 2554
 ออกแบบบ้านต้นแบบประหยัดพลังงานให้กระทรวงพลังงาน และกทม.
 ออกแบบบ้าน Low-Carbon องค์การจัดการก๊าซเรือนกระจก
 วิจัยมาตรฐานอาคารประหยัดพลังงาน กระทรวงพลังงาน
 วิจัยอาคารประหยัดพลังงานให้องค์กรนานาชาติ เช่น AFD, UNEP, GIZ
 พัฒนาเกณฑ์อาคารเขียวที่ใช้ในประเทศ TEEAM, TREES, PCD, DGNB, ECOVILLAGE
 ที่ปรึกษาอาคารเขียวในประเทศไทย ENCO, KBANK, Park Ventures, สสส., HSBC, CP, EGAT, PEA, MEA
One Bangkok, AIA, FYI Center, พฤกษา, โรงพยาบาลกรุงเทพ, เมืองไทยประกันชีวิต เป็นต้น
