Presentation, investigation and management of fractures William Beedham [1] Broken Bone (Fracture) Symptoms, Types, Causes, Treatment & Healing [Internet]. EMedicineHealth. 2019 [cited 8 September 2019]. A https://www.emedicinehealth.com/bone_fracture_broken_bone/article_em.htm [1]
Learning outcomes and rationale By the end of this session, you should be able to: 1. Describe the presentation of bone fractures. 2. Choose appropriate investigations for bone fractures and interpret the results of these investigations. 3. Demonstrate an understanding of the management principles of bone fractures. *Warning of material*
[1] Humeral Shaft Fractures - Trauma - Orthobullets [Internet]. Orthobullets.com. 2019 [cited 18 September 2019]. Available from: https://www.orthobullets.com/trauma/1016/humeral-shaft-fractures [1]
[2] Ankle Fracture Associated with Tibia Shaft Fractures [Internet]. Synapse.koreamed.org. 2019 [cited 18 September 2019]. Available from: https://synapse.koreamed.org/search.php?where=aview&id=10.12671/jkfs.2014.27.2.136&code=0104JKFS&vmode=PUBREADER [2]
What is a fracture • Simply – a broken bone [1]. • Bones are rigid, with some elasticity. • External force can cause breaking of bone. [1] Luqmani R, Robb J, Porter D, Keating J. Textbook of Orthopaedics, Trauma and Rheumatology. London: Elsevier; 2008. [2] 10 Facts You Must Know about Bone Fractures [Internet]. Ortho Atlanta - Orthopaedics and Sports Medicine. 2019 [cited 16 September 2019]. Available from: https://www.orthoatlanta.com/media/10-facts-you-must-know-about- bone-fractures [2]
Presentation of a fracture [4] Swollen Ankle and Leg Causes, Treatments, and More [Internet]. Healthline. 2019 [cited 17 September 2019]. Available from: https://www.healthline.com/health/swollen-ankle-and-leg [3] Ankle Fracture | Dr. David Geier - Sports Medicine Simplified [Internet]. Dr. David Geier - Sports Medicine Simplified. 2019 [cited 17 September 2019]. Available from: https://www.drdavidgeier.com/ankle- fractures/ [2] 9 of the Worst Injuries in the History of World Football [Internet]. 90min.com. 2019 [cited 17 September 2019]. Available from: https://www.90min.com/posts/3477820-9-of-the-worst-injuries-in-the- history-of-world-football [1] Open fracture [Internet]. Academic Dictionaries and Encyclopedias. 2019 [cited 17 September 2019]. Available from: https://medicine.academic.ru/5841/Open_fracture [1] [2][3][4]
How can we describe a fracture? 1. Type of fracture 2. Location – be specific 3. Displacement 4. Additional info – open? Additional fractures?
Type of Fracture [2] • Incomplete fractures: • Greenstick/Buckle • Fissure • Depression • Complete • Transverse • Oblique • Spiral • Comminuted • Multiple • Impaction • Compression Fractures - OrthoInfo - AAOS [Internet]. OrthoInfo. 2019 [cited 16 September 2019]. Available from: https://orthoinfo.aaos.org/en/diseases--conditions/fractures-broken-bones/ Everything You Need To Know About Your Femur Bone [Internet]. Osteoporosis institute. 2019 [cited 12 September 2019]. Available from: https://www.osteoporosisinstitute.org/femur/ [1]
Greenstick/Buckle fracture • Greenstick: • Convex surface structural integrity overcome • Concave surface in tact. • Buckle/Torus: • Convex in tact • Concave over-come • Angulated longitudinal force • Perpendicular force [3] Greenstick fracture [Internet]. En.wikipedia.org. 2019 [cited 17 September 2019]. Available from: https://en.wikipedia.org/wiki/Greenstick_fracture [2] Mechanism of Injury | Bone Fractures [Internet]. Fractures.thecommonvein.net. 2019 [cited 17 September 2019]. Available from: https://fractures.thecommonvein.net/17-2/ [1] Types of Fractures [Internet]. The Orthopedic Institute at Southwest Health. 2019 [cited 17 September 2019]. Available from: http://orthopedic-institute.org/fracture- care/types-of-fractures/ [4] Weerakkody Y. Torus fracture | Radiology Reference Article | Radiopaedia.org [Internet]. Radiopaedia.org. 2019 [cited 17 September 2019]. Available from: [1] [2] [3] [4]
Fissure fracture • Hairline fracture [2] • Repetitive injury Welck M, Hayes T, Pastides P, Khan w, Rudge B. Stress fractures of the foot and ankle. Injury [Internet]. 2017 [cited 10 September 2019];48(8):1722-1726. Available from: https://www.injuryjournal.com/article/S0020-1383(15)00343-5/fullte Stress Fractures of the Foot and Ankle - AAOS [Internet]. Orthoinfo. 2019 [cited 8 September 2019]. Available from: https://orthoinfo.aaos.org/en/diseases--conditions/stress-fractures-of-the-foot-and-ankle/ [1] • Athletes and osteoporotic patients • Small crack or severe bruising of the bone

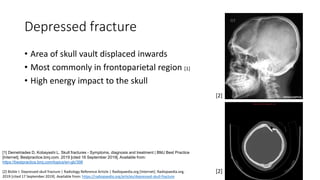

Depressed fracture • Area of skull vault displaced inwards • Most commonly in frontoparietal region [1] • High energy impact to the skull [1] Demetriades D, Kobayashi L. Skull fractures - Symptoms, diagnosis and treatment | BMJ Best Practice [Internet]. Bestpractice.bmj.com. 2019 [cited 16 September 2019]. Available from: https://bestpractice.bmj.com/topics/en-gb/398 [2] Bickle I. Depressed skull fracture | Radiology Reference Article | Radiopaedia.org [Internet]. Radiopaedia.org. 2019 [cited 17 September 2019]. Available from: https://radiopaedia.org/articles/depressed-skull-fracture [2] [2]
Transverse fracture • Complete fracture • Go across bone perpendicular to the bone axis • Strong force applied perpendicular to bone [1] • Commonly in long bones • Risk of displacement [1] Jones J. Transverse fracture | Radiology Reference Article | Radiopaedia [Internet]. Radiopaedia.org. 2019 [cited 16 September 2019]. Available from: https://radiopaedia.org/articles/transverse-fracture?lang=gb [2] Jones J. Tibial fracture: transverse diaphyseal | Radiology Case | Radiopaedia.org [Internet]. Radiopaedia.org. 2019 [cited 17 September 2019]. Available from: https://radiopaedia.org/cases/tibial-fracture-transverse-diaphyseal [2]

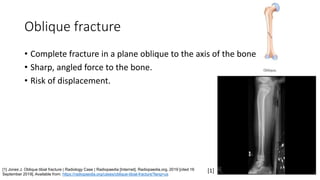

Oblique fracture • Complete fracture in a plane oblique to the axis of the bone • Sharp, angled force to the bone. • Risk of displacement. [1] Jones J. Oblique tibial fracture | Radiology Case | Radiopaedia [Internet]. Radiopaedia.org. 2019 [cited 16 September 2019]. Available from: https://radiopaedia.org/cases/oblique-tibial-fracture?lang=us [1]
Spiral fracture • Complete fracture of long bones, in a spiral appearance • Due to a high energy rotational force • Often associated with displacement [1] Figure 1 - Medical Cases. Spiral Fracture [Internet]. 2019 [cited 16 September 2019]. Available from: https://app.figure1.com/rd/images/56d4e8d6db2008a0795fdc76 [1]
Comminuted fracture • Heterogenous term • 2+ bone fragments are created • Smashed/fragmented appearance • Severe traumatic force – common in RTA [1] Tibial Shaft Fractures - Trauma - Orthobullets [Internet]. Orthobullets. 2019 [cited 16 September 2019]. Available from: https://www.orthobullets.com/trauma/1045/tibial-shaft-fractures [1]

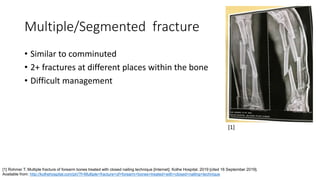

Multiple/Segmented fracture • Similar to comminuted • 2+ fractures at different places within the bone • Difficult management [1] Rohmer T. Multiple fracture of forearm bones treated with closed nailing technique [Internet]. Kolhe Hospital. 2019 [cited 16 September 2019]. Available from: http://kolhehospital.com/ph/?f=Multiple+fracture+of+forearm+bones+treated+with+closed+nailing+technique [1]
Impaction fracture • Force pushes the 2 ends of the fractured bone into each other – axial force [3] • Common in medial femoral condyle fracture [3] Luqmani R, Robb J, Porter D, Keating J. Textbook of Orthopaedics, Trauma and Rheumatology. London: Elsevier; 2008. [2] Hip Fractures [Internet]. Orthoinfo.aaos.org. 2019 [cited 16 September 2019]. Available from: https://orthoinfo.aaos.org/en/diseases--conditions/hip-fractures [1] Willems N, Langenbach G, Everts V, Zentner A. The microstructural and biomechanical development of the condylar bone: a review. The European Journal of Orthodontics [Internet]. 2013 [cited 7 September 2019];36(4):479-485. Available from: https://www.researchgate.net/publication/259491973_The_microstructural_and_biomechanical_development_of_th e_condylar_bone_A_review [2] [1]
Compression fracture • Used almost exclusively for vertebrae • Usually secondary to osteoporosis • Due to the weight bearing force on the bone. [2] Ledford J. Non-Neoplastic Diseases of Bones and Joints: Atlas of Non-tumour Pathology. American Journal of Roentgenology [Internet]. 2012 [cited 4 September 2019];199(6):W778-W778. Available from: https://www.cambridge.org/core/books/silverbergs-principles-and-practice-of-surgical-pathology-and- cytopathology/nonneoplastic-diseases-of-bones-and-joints/B20AF43D409FEBFBFE08C78A306B56BF [1] Vertebral Compression Fractures - Injuries; Poisoning - MSD Manual Professional Edition [Internet]. MSD Manual Professional Edition. 2019 [cited 17 September 2019]. Available from: https://www.msdmanuals.com/professional/injuries-poisoning/fractures/vertebral- compression-fractures [1] [2]
Open fracture • Fracture of the bone with a direct communication to the external environment. • High energy trauma – commonly RTA. • In-to-out, or out-to-in. • Risks include [3]: [2] Alexandra Ortego M. Open Fractures [Internet]. Core EM. 2019 [cited 17 September 2019]. Available from: https://coreem.net/core/open-fractures/ [1] GmbH D. Open fracture - DocCheck Pictures [Internet]. DocCheck Pictures. 2019 [cited 17 September 2019]. Available from: https://pictures.doccheck.com/com/photo/6234-open-fracture [3] National Institute for Health and Care Excellence (NICE), Fractures (complex): assessment and management: NICE Guideline [NG37]. 2016. Available from: https://www.nice.org.uk/guidance/ng37/ifp/chapter/Open-fractures#first-steps-in-treatment [cited 15 September 2019]. [1] [2]
Open fracture • Fracture of the bone with a direct communication to the external environment. • High energy trauma – commonly RTA. • In-to-out, or out-to-in. • Risks include [3]: [2] Alexandra Ortego M. Open Fractures [Internet]. Core EM. 2019 [cited 17 September 2019]. Available from: https://coreem.net/core/open-fractures/ [1] GmbH D. Open fracture - DocCheck Pictures [Internet]. DocCheck Pictures. 2019 [cited 17 September 2019]. Available from: https://pictures.doccheck.com/com/photo/6234-open-fracture [3] National Institute for Health and Care Excellence (NICE), Fractures (complex): assessment and management: NICE Guideline [NG37]. 2016. Available from: https://www.nice.org.uk/guidance/ng37/ifp/chapter/Open-fractures#first-steps-in-treatment [cited 15 September 2019]. [1] [2] Skin damage Soft tissue damage – Gustilo classification. Neurovascular damage Infection

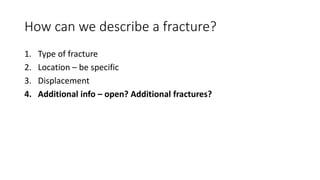

How can we describe a fracture? 1. Type of fracture 2. Location – be specific 3. Displacement 4. Additional info – open? Additional fractures?
Location location location 1. Bone 2. Location within the bone 3. Anatomical name for the part of the bone (if commonly used) [1] Easy Notes On Bones of the Hands [Internet]. Earth's Lab. 2019 [cited 17 September 2019]. Available from: https://www.earthslab.com/anatomy/bones-of-the-hand-carpals-metacarpals-and- phalanges/ [2] 6.3 Bone Structure – Anatomy and Physiology [Internet]. Opentextbc.ca. 2019 [cited 17 September 2019]. Available from: https://opentextbc.ca/anatomyandphysiology/chapter/6-3-bone-structure/ [1] [2]

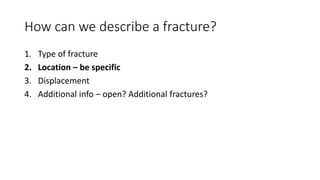

How can we describe a fracture? 1. Type of fracture 2. Location – be specific 3. Displacement 4. Additional info – open? Additional fractures?
Displacement • TRIAD [2] • Translation = sideways motion • Rotation = rotational displacement • Impaction = 2 ends of fracture pushed into each other • Angulation = one end of the fracture is not aligned with the axis of the bone - can be valgus or varus. • Distraction = increased overall bone length [2] Introduction to Trauma X-ray - Fracture displacement [Internet]. Radiologymasterclass. 2019 [cited 16 September 2019]. Available from: https://www.radiologymasterclass.co.uk/tutorials/musculoskeletal/trauma/trauma_x-ray_page3 [1] Melbourne T. Fracture Education : Evaluation [Internet]. Royal Children's Hospital Melbourne. 2019 [cited 17 September 2019]. Available from: https://www.rch.org.au/fracture-education/evaluation/Evaluation_/ [1]
How can we describe a fracture? 1. Type of fracture 2. Location – be specific 3. Displacement 4. Additional info – open? Additional fractures?

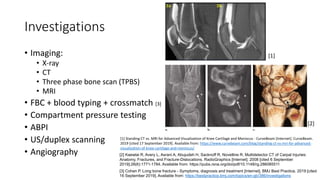

Investigations • Imaging: • X-ray • CT • Three phase bone scan (TPBS) • MRI • FBC + blood typing + crossmatch [3] • Compartment pressure testing • ABPI • US/duplex scanning • Angiography [3] Cohen P. Long bone fracture - Symptoms, diagnosis and treatment [Internet]. BMJ Best Practice. 2019 [cited 16 September 2019]. Available from: https://bestpractice.bmj.com/topics/en-gb/386/investigations [2] Kaewlai R, Avery L, Asrani A, Abujudeh H, Sacknoff R, Novelline R. Multidetector CT of Carpal Injuries: Anatomy, Fractures, and Fracture-Dislocations. RadioGraphics [Internet]. 2008 [cited 6 September 2019];28(6):1771-1784. Available from: https://pubs.rsna.org/doi/pdf/10.1148/rg.286085511 [1] Standing CT vs. MRI for Advanced Visualization of Knee Cartilage and Meniscus - CurveBeam [Internet]. CurveBeam. 2019 [cited 17 September 2019]. Available from: https://www.curvebeam.com/blog/standing-ct-vs-mri-for-advanced- visualization-of-knee-cartilage-and-meniscus/ [1] [2]
Interpreting investigations Radiograph interpretation (4 step approach): 1. Describe radiograph – who? what? why? when? where? 2. Type of fracture? 3. Location? – be specific 4. Displacement?
Presentation and investigations quiz – Case 1 28 YO M pt. Says that they were drunk last and in a fit of anger, kicked a lamp-post [1] Sorrentino S. Tibial midshaft fracture - Radiology Case [Internet]. Radiopaedia.org. 2019 [cited 17 September 2019]. Available from: https://radiopaedia.org/cases/tibial-midshaft-fracture?lang=gb [1]
Presentation and investigations quiz – Case 1 28 YO M pt. Says that they were drunk last and in a fit of anger, kicked a lamp-post X ray of 28YOM patient [1] Sorrentino S. Tibial midshaft fracture - Radiology Case [Internet]. Radiopaedia.org. 2019 [cited 17 September 2019]. Available from: https://radiopaedia.org/cases/tibial-midshaft-fracture?lang=gb [1] PA and Lateral views of the right leg Transverse fracture Of the right tibial midshaft With a translation – proximal fragment is posterior and medial

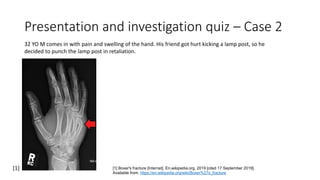

Presentation and investigation quiz – Case 2 32 YO M comes in with pain and swelling of the hand. His friend got hurt kicking a lamp post, so he decided to punch the lamp post in retaliation. [1] Boxer's fracture [Internet]. En.wikipedia.org. 2019 [cited 17 September 2019]. Available from: https://en.wikipedia.org/wiki/Boxer%27s_fracture [1]

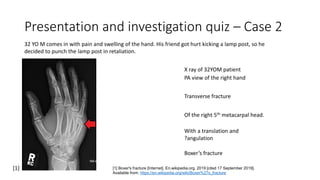

Presentation and investigation quiz – Case 2 32 YO M comes in with pain and swelling of the hand. His friend got hurt kicking a lamp post, so he decided to punch the lamp post in retaliation. X ray of 32YOM patient Boxer’s fracture [1] Boxer's fracture [Internet]. En.wikipedia.org. 2019 [cited 17 September 2019]. Available from: https://en.wikipedia.org/wiki/Boxer%27s_fracture [1] PA view of the right hand Transverse fracture Of the right 5th metacarpal head. With a translation and ?angulation
Presentation and investigation – Case 3 65 YOF arrives in A+E with husband. Says that she tripped and fell forwards in the kitchen. Managed to put her hand out in front of her to break her fall. [1] Colles' fracture [Internet]. En.wikipedia.org. 2019 [cited 17 September 2019]. Available from: https://en.wikipedia.org/wiki/Colles%27_fracture[1]
Presentation and investigation – Case 3 65 YOF arrives in A+E with husband. Says that she tripped and fell forwards in the kitchen. Managed to put her hand out in front of her to break her fall. X ray of 65YOF patient [1] Colles' fracture [Internet]. En.wikipedia.org. 2019 [cited 17 September 2019]. Available from: https://en.wikipedia.org/wiki/Colles%27_fracture[1] PA + lateral view of the L wrist Transverse fracture Of the radial metaphysis With a translation and ?angulation
Management Principles ABCDE 1. Reduce – Required for displaced fractures. 2. Hold – The reduction must be maintained whilst the fracture heals. 3. Rehabilitate – Optimise the long-term functional outcomes. 4. Arthroplasty 5. Special cases Luqmani R, Robb J, Porter D, Keating J. Textbook of Orthopaedics, Trauma and Rheumatology. London: Elsevier; 2008.
Management Quiz
Case 1 • 46 YO male came into A+E after falling off his bike onto his flexed hand. • He is in a lot of pain, which you manage. • You order an X-ray in 2 planes: • How would you manage this? [1] Smith's fracture [Internet]. En.wikipedia.org. 2019 [cited 18 September 2019]. Available from: https://en.wikipedia.org/wiki/Smith%27s_fracture [1]

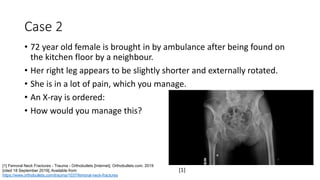

Case 2 • 72 year old female is brought in by ambulance after being found on the kitchen floor by a neighbour. • Her right leg appears to be slightly shorter and externally rotated. • She is in a lot of pain, which you manage. • An X-ray is ordered: • How would you manage this? [1] Femoral Neck Fractures - Trauma - Orthobullets [Internet]. Orthobullets.com. 2019 [cited 18 September 2019]. Available from: https://www.orthobullets.com/trauma/1037/femoral-neck-fractures [1]

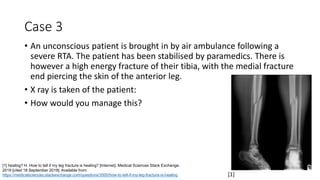

Case 3 • An unconscious patient is brought in by air ambulance following a severe RTA. The patient has been stabilised by paramedics. There is however a high energy fracture of their tibia, with the medial fracture end piercing the skin of the anterior leg. • X ray is taken of the patient: • How would you manage this? [1] healing? H. How to tell if my leg fracture is healing? [Internet]. Medical Sciences Stack Exchange. 2019 [cited 18 September 2019]. Available from: https://medicalsciences.stackexchange.com/questions/3500/how-to-tell-if-my-leg-fracture-is-healing [1]
Role-play – patient notes task • Divide into 2 groups – each group is an on-call doctor • Will be presented with a clinical case • 10 minutes - Within your group you must write in the patient’s notes with the following information: • Patient demographics • How the patient presented? • What the X-ray shows? • What further investigations are appropriate • What would the management plan be?
Role-play group 1 • You are doctor working on A+E. • Nurse calls you over to see a 53 YO F patient who fell from her mountain bike yesterday onto her left arm. • The patient is in significant pain and the nurse suspects a fracture. • Describe this presentation? • What investigations would you do to confirm this diagnosis? [1] Bruising on a woman's arm due to fractured humerus [Internet]. Science Photo Library. 2019 [cited 8 September 2019]. Available from: https://www.sciencephoto.com/media/264187/view/bruising-on-a-woman-s-arm-due-to-fractured-humerus [1]
Role-play group 2 • You are on A+E. • 32 YO M is brought in by ambulance, after his left leg got trapped under his motorcycle. • He has been stabilised, but is complaining of terrible pain. • The paramedics ask you to see the patient, as they think there may be a fracture • Describe this presentation? • What investigation would you like to do to confirm this diagnosis? [1] Swollen Ankle and Leg Causes, Treatments, and More [Internet]. Healthline. 2019 [cited 17 September 2019]. Available from: https://www.healthline.com/health/swollen- [1]
Group 1 Group 2 1. Patient demographics 2. How patient presented? 3. What the X-ray shows? 4. What further investigations are appropriate 5. What would the management plan be? Patient demographics [1] Humeral Shaft Fractures - Trauma - Orthobullets [Internet]. Orthobullets.com. 2019 [cited 18 September 2019]. Available from: https://www.orthobullets.com/trauma/1016/humeral-shaft-fractures [1] [2] Ankle Fracture Associated with Tibia Shaft Fractures [Internet]. Synapse.koreamed.org. 2019 [cited 18 September 2019]. Available from: [2]

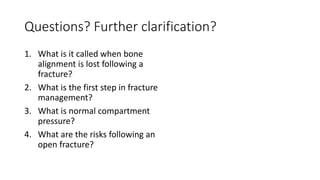

Questions? Further clarification? 1. What is it called when bone alignment is lost following a fracture? 2. What is the first step in fracture management? 3. What is normal compartment pressure? 4. What are the risks following an open fracture?
Thank you for listening!
