Distributed computing with
Javier Santos
April,13 - 2015
About me
Javier Santos @jpaniego
«Hay dos formas de programar sin
errores; solo la tercera funciona»
Alan J Perlis

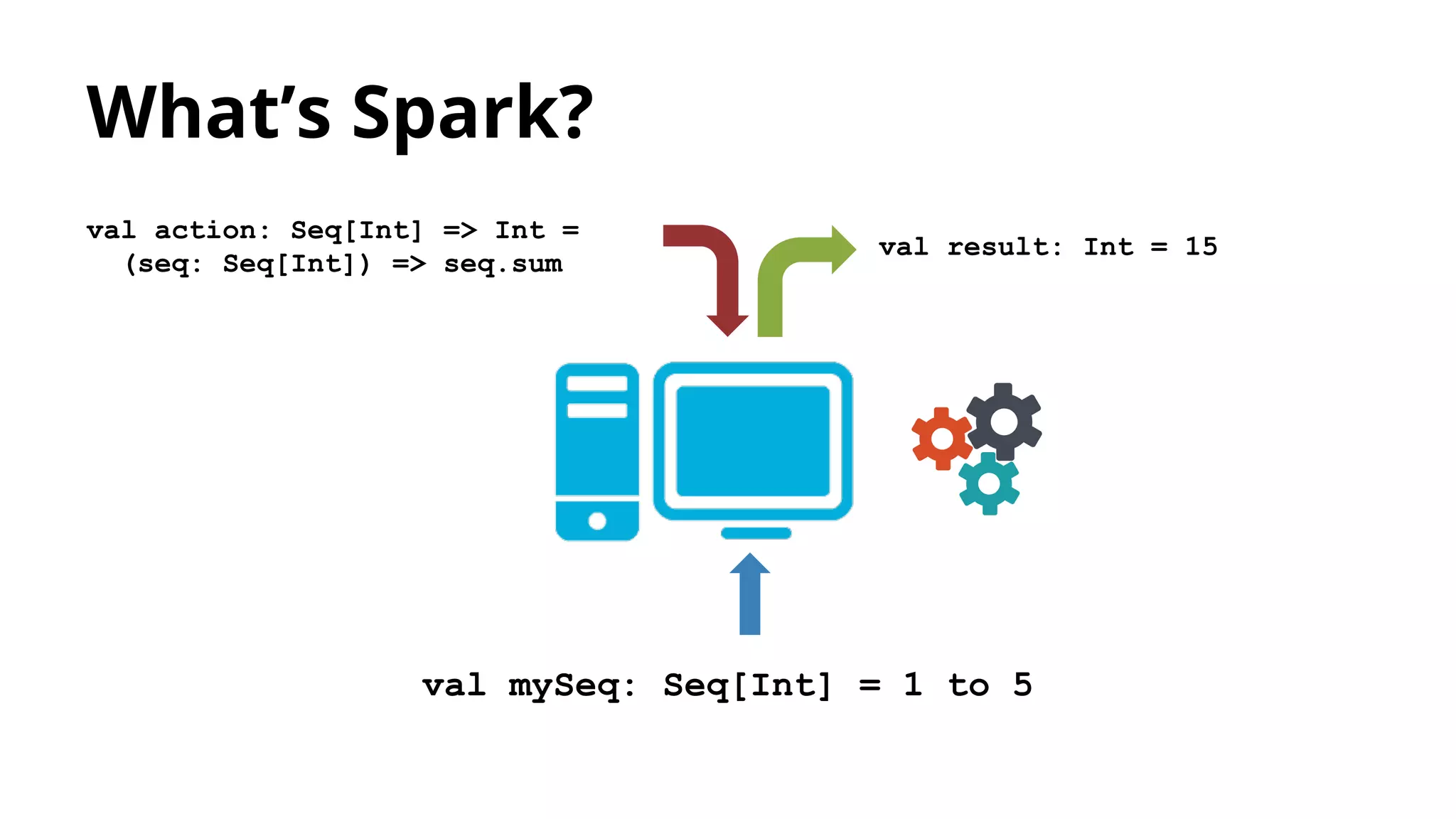

What’s Spark?
val mySeq: Seq[Int] = 1 to 5
val action: Seq[Int] => Int =
(seq: Seq[Int]) => seq.sum
val result: Int = 15

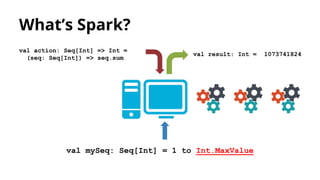

What’s Spark?
val mySeq: Seq[Int] = 1 to Int.MaxValue
val action: Seq[Int] => Int =
(seq: Seq[Int]) => seq.sum
val result: Int = 1073741824

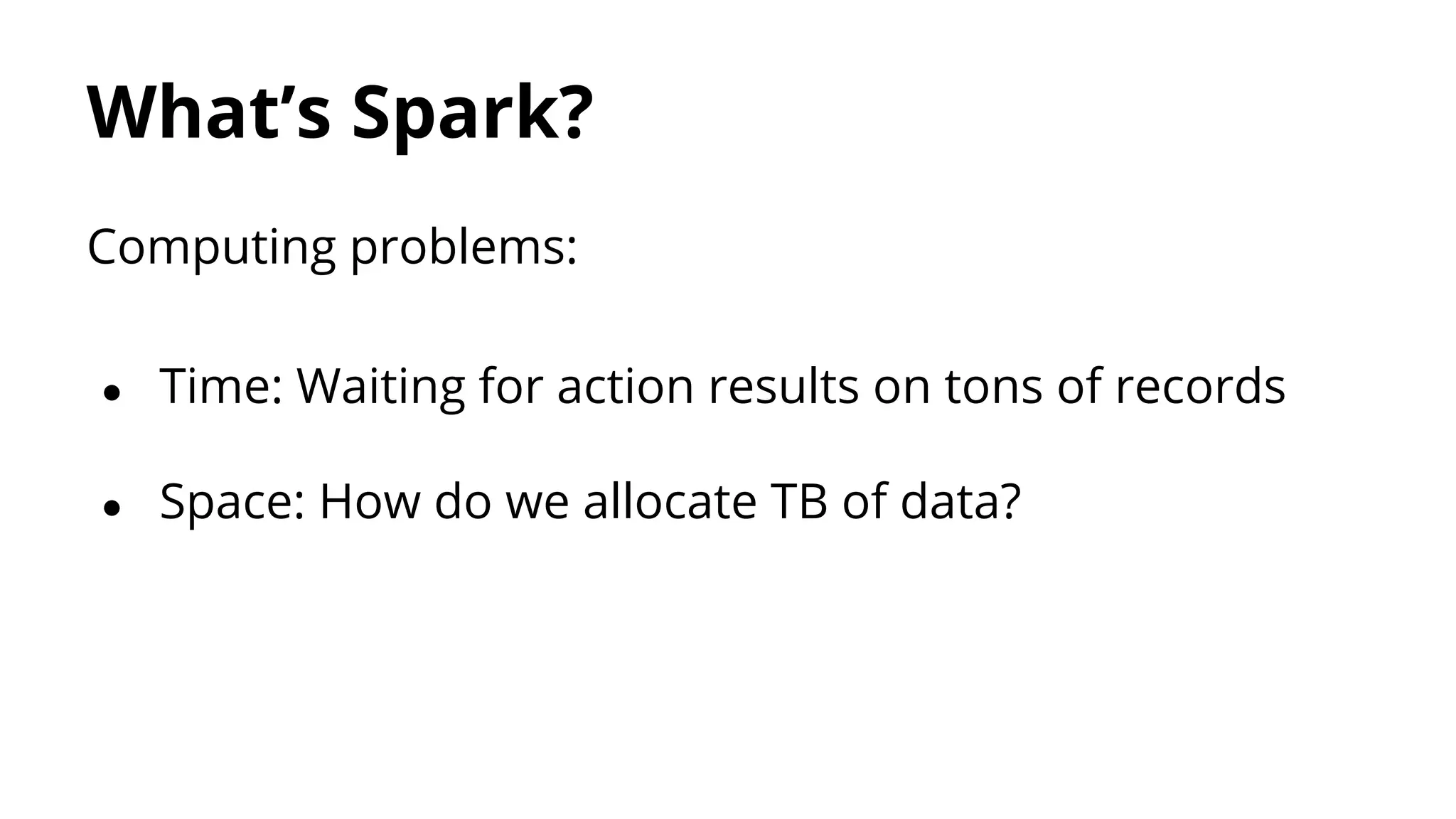

What’s Spark?
Computing problems:
● Time: Waiting for action results on tons of records
● Space: How do we allocate TB of data?
downloadmoreram.com

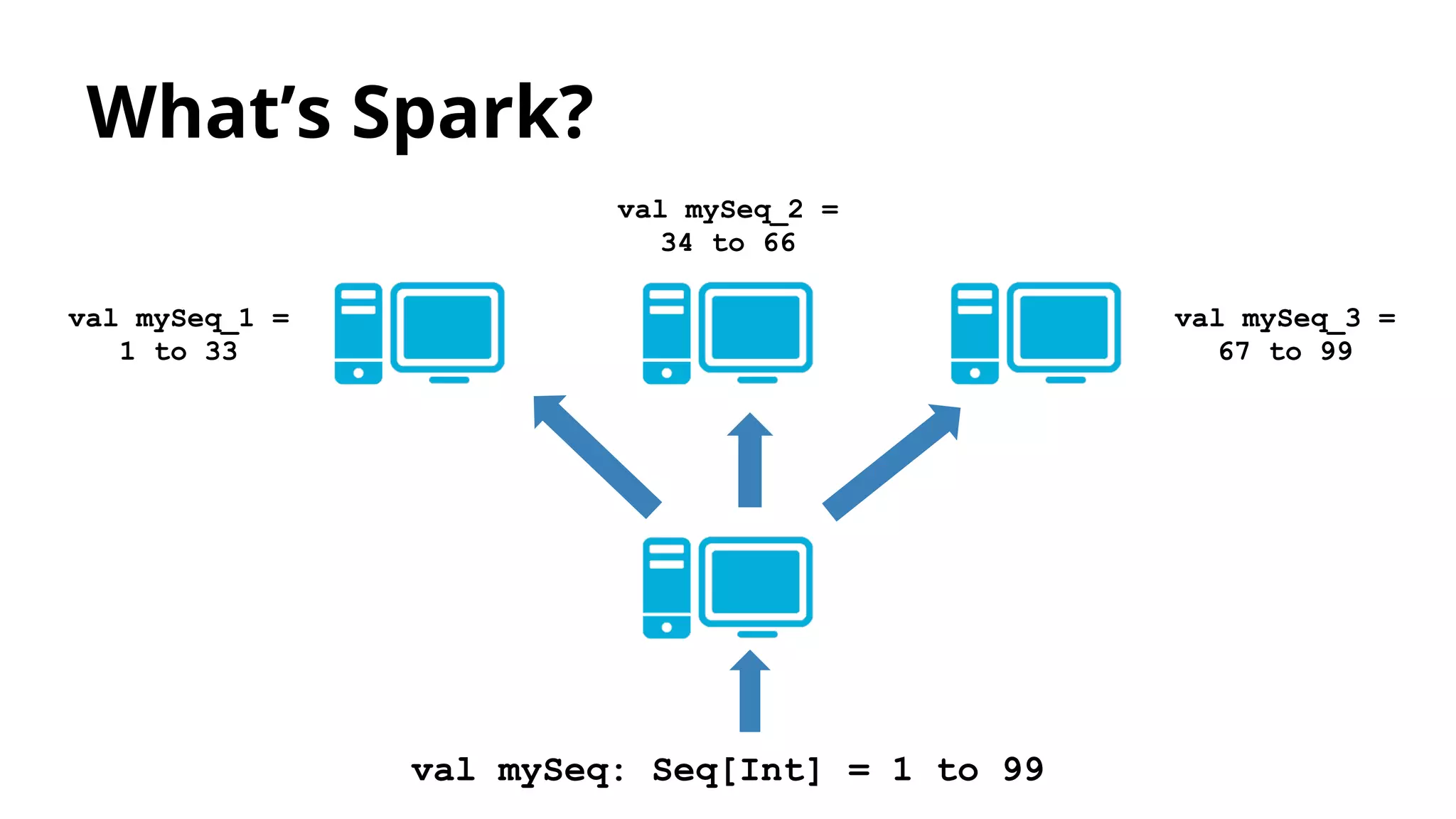

What’s Spark?
val mySeq: Seq[Int] = 1 to 99
val mySeq_1 =
1 to 33
val mySeq_3 =
67 to 99
val mySeq_2 =
34 to 66

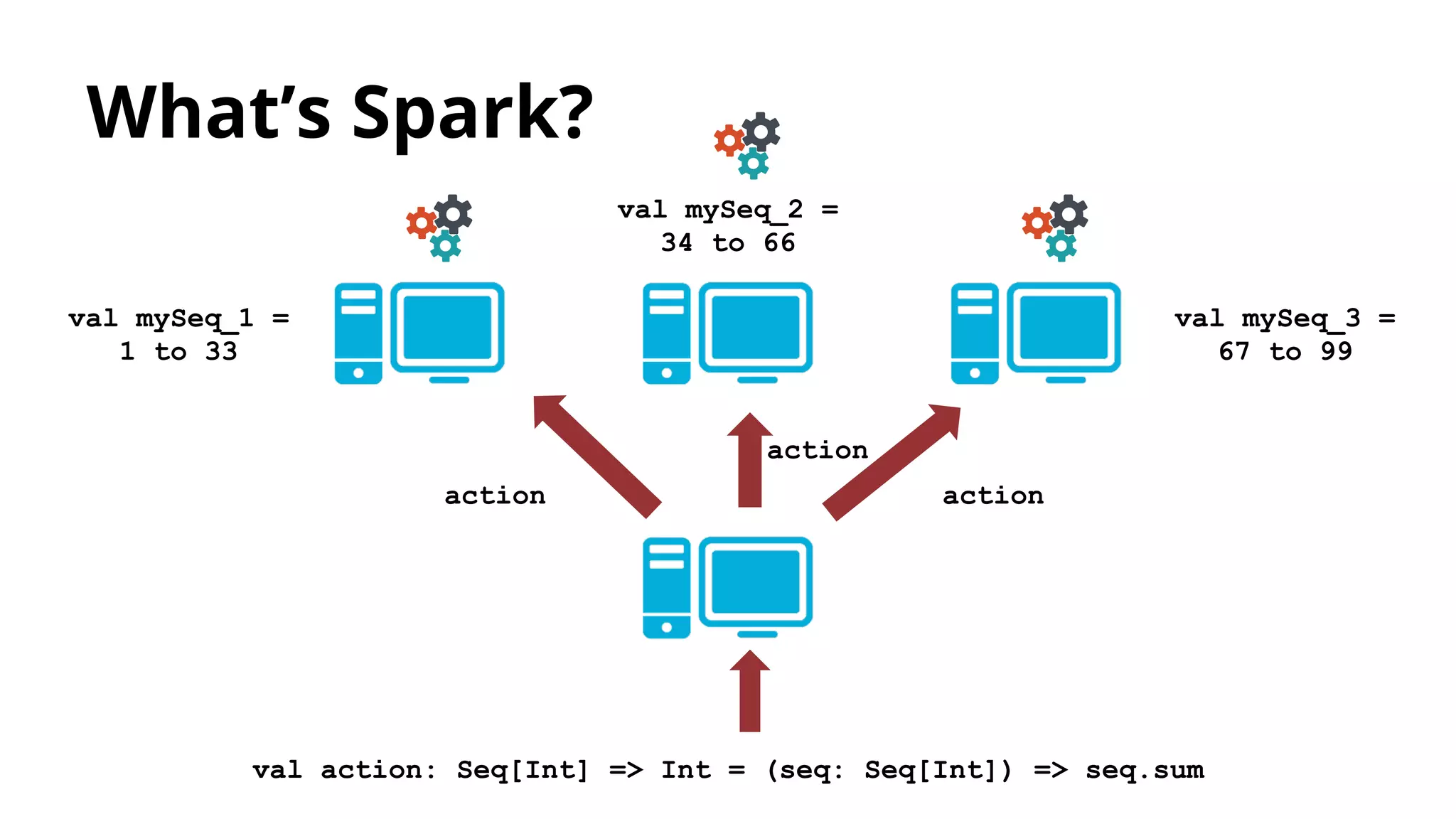

What’s Spark?
val action: Seq[Int] => Int = (seq: Seq[Int]) => seq.sum
val mySeq_1 =
1 to 33
val mySeq_3 =
67 to 99
val mySeq_2 =
34 to 66
action action
action

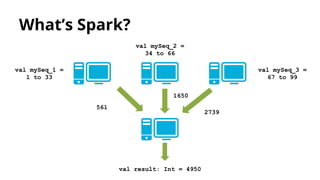

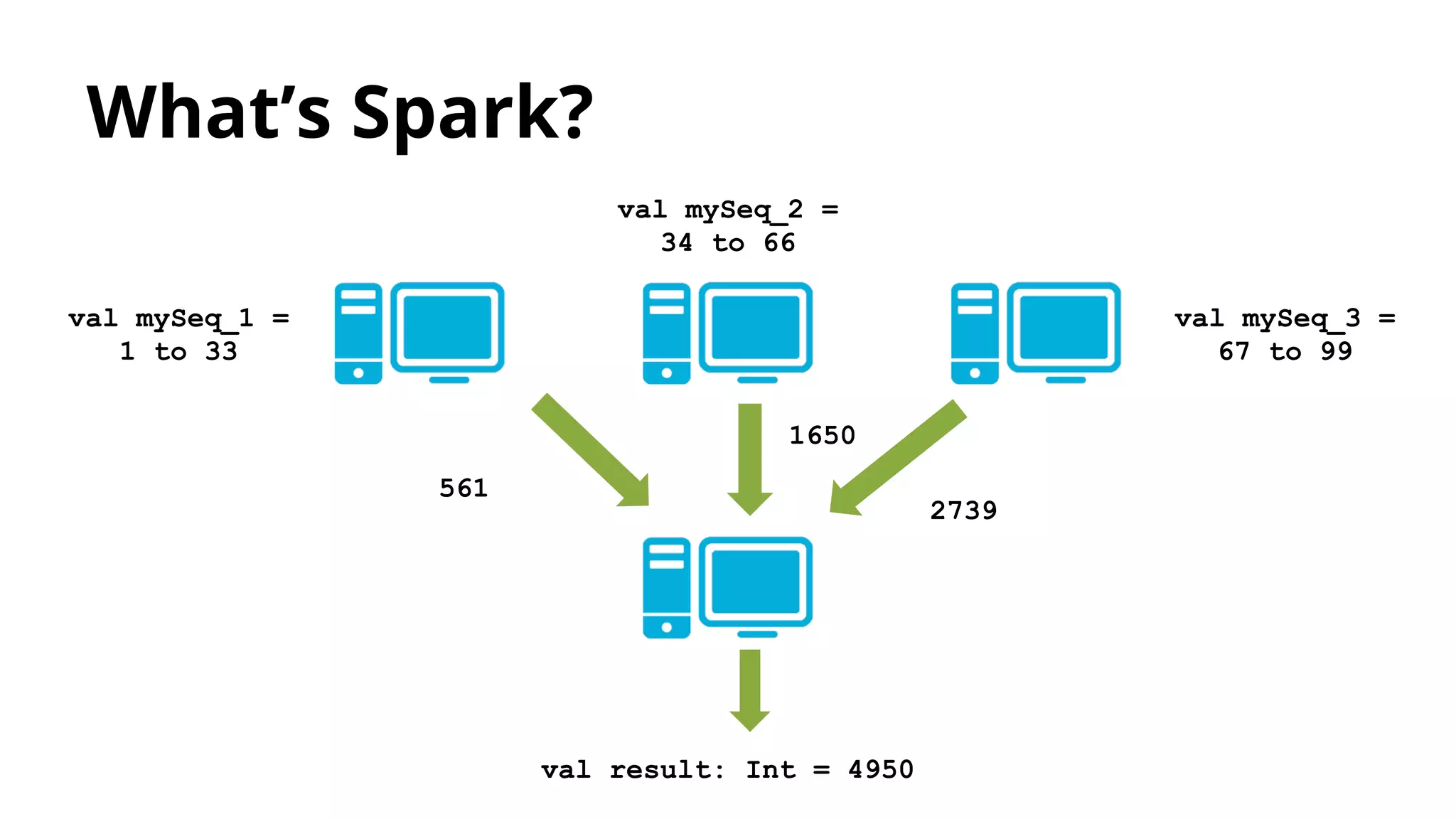

What’s Spark?
val result: Int = 4950
val mySeq_1 =
1 to 33
val mySeq_3 =
67 to 99
val mySeq_2 =
34 to 66
561
1650
2739

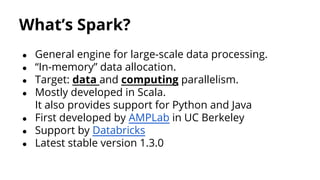

What’s Spark?
● General engine for large-scale data processing.
● “In-memory” data allocation.
● Target: data and computing parallelism.
● Mostly developed in Scala.
It also provides support for Python and Java
● First developed by AMPLab in UC Berkeley
● Support by Databricks
● Latest stable version 1.3.0

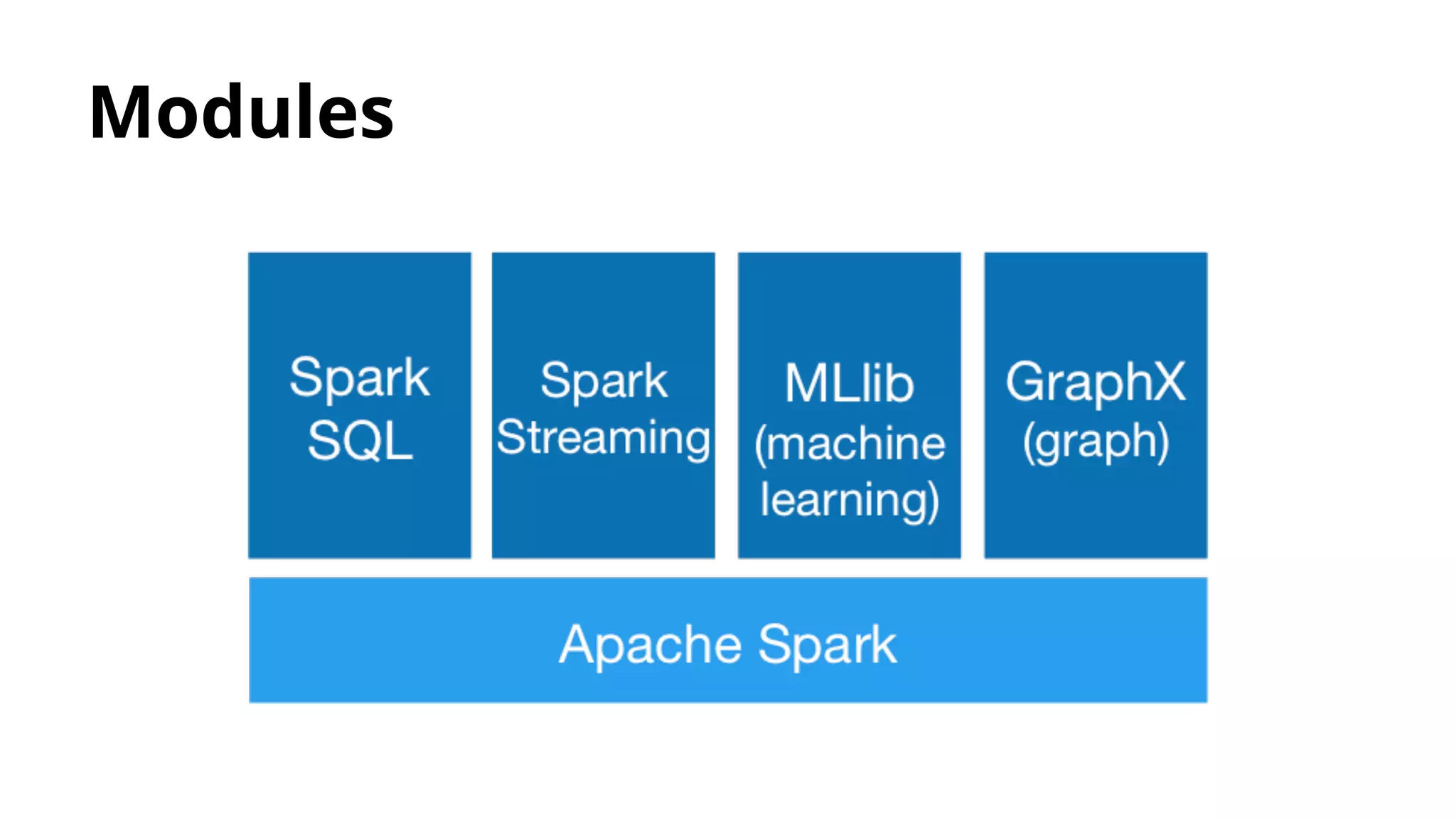

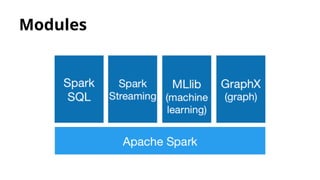

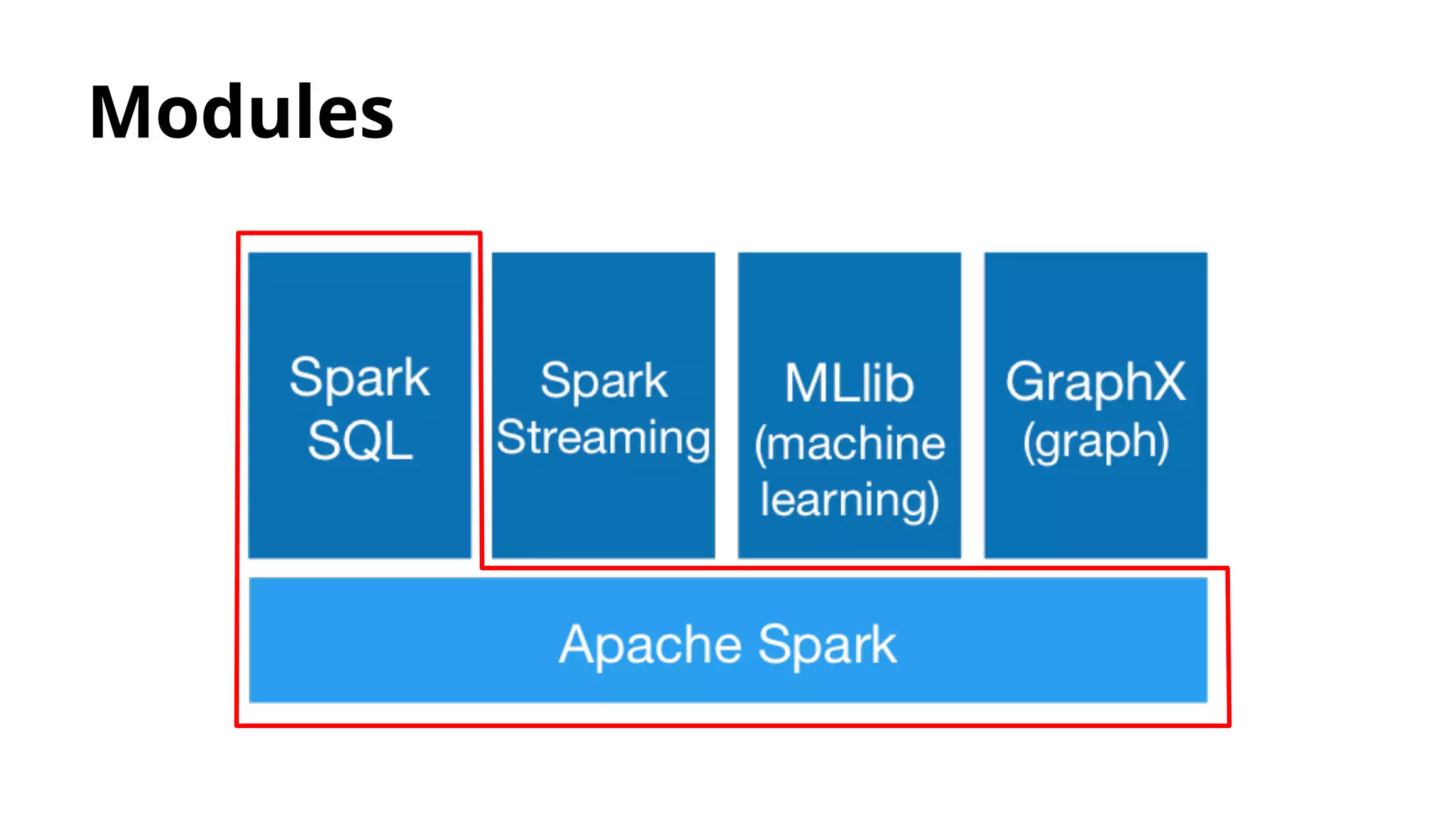

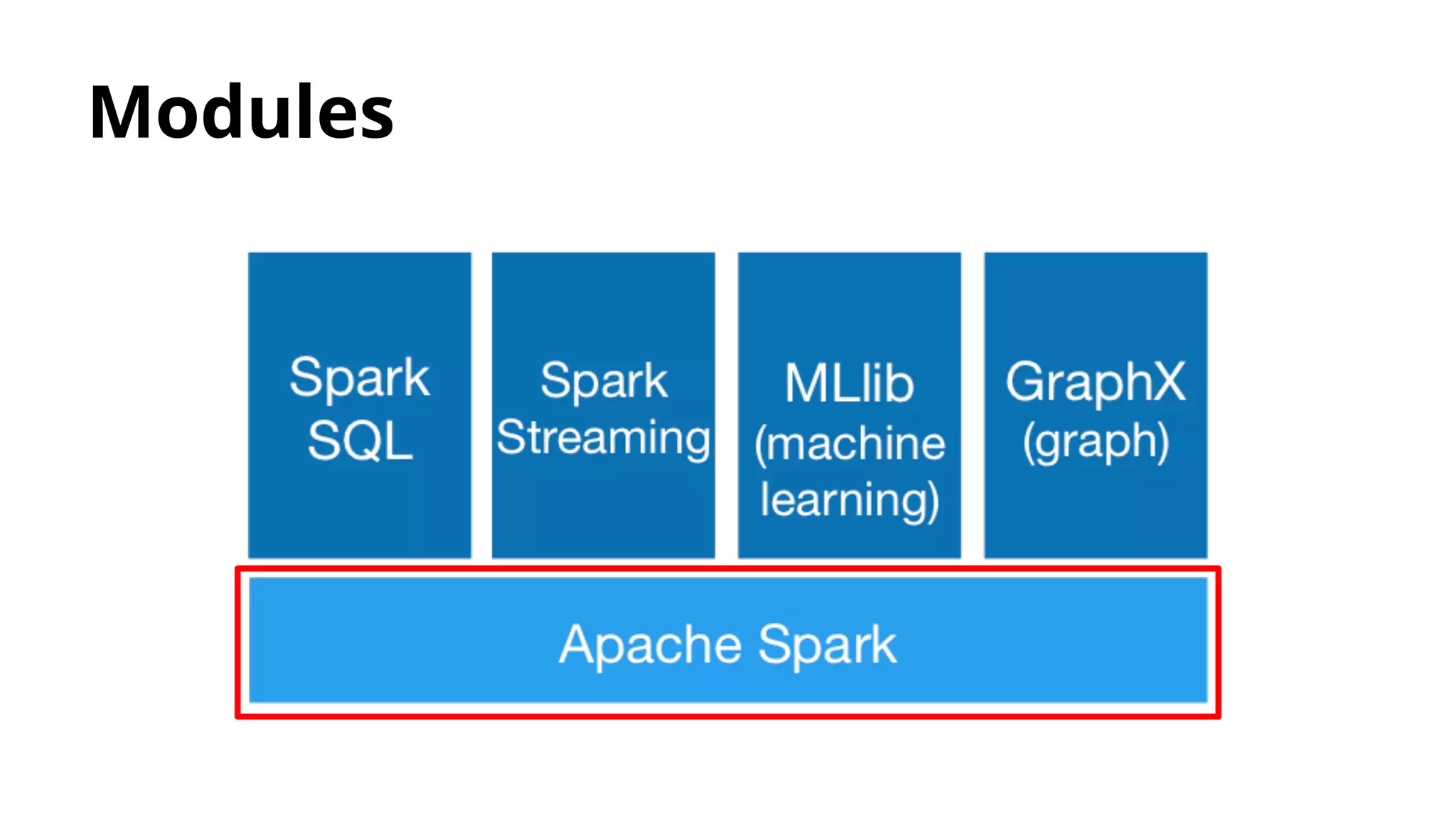

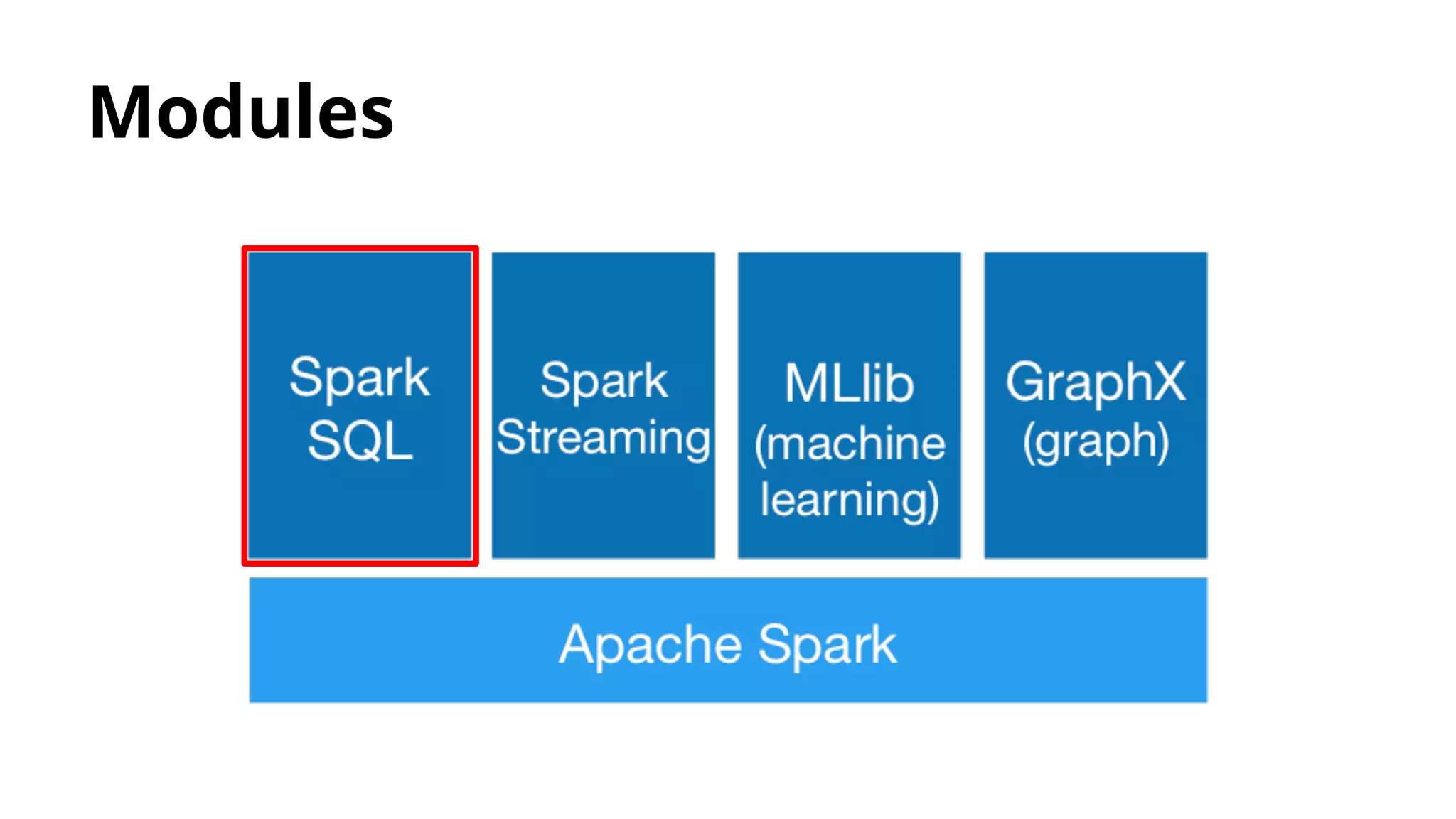

Modules
Modules

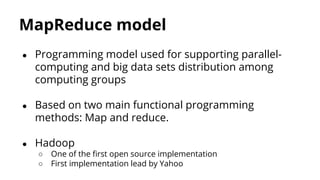

MapReduce model
● Programming model used for supporting parallel-
computing and big data sets distribution among
computing groups
● Based on two main functional programming
methods: Map and reduce.
● Hadoop
○ One of the first open source implementation
○ First implementation lead by Yahoo

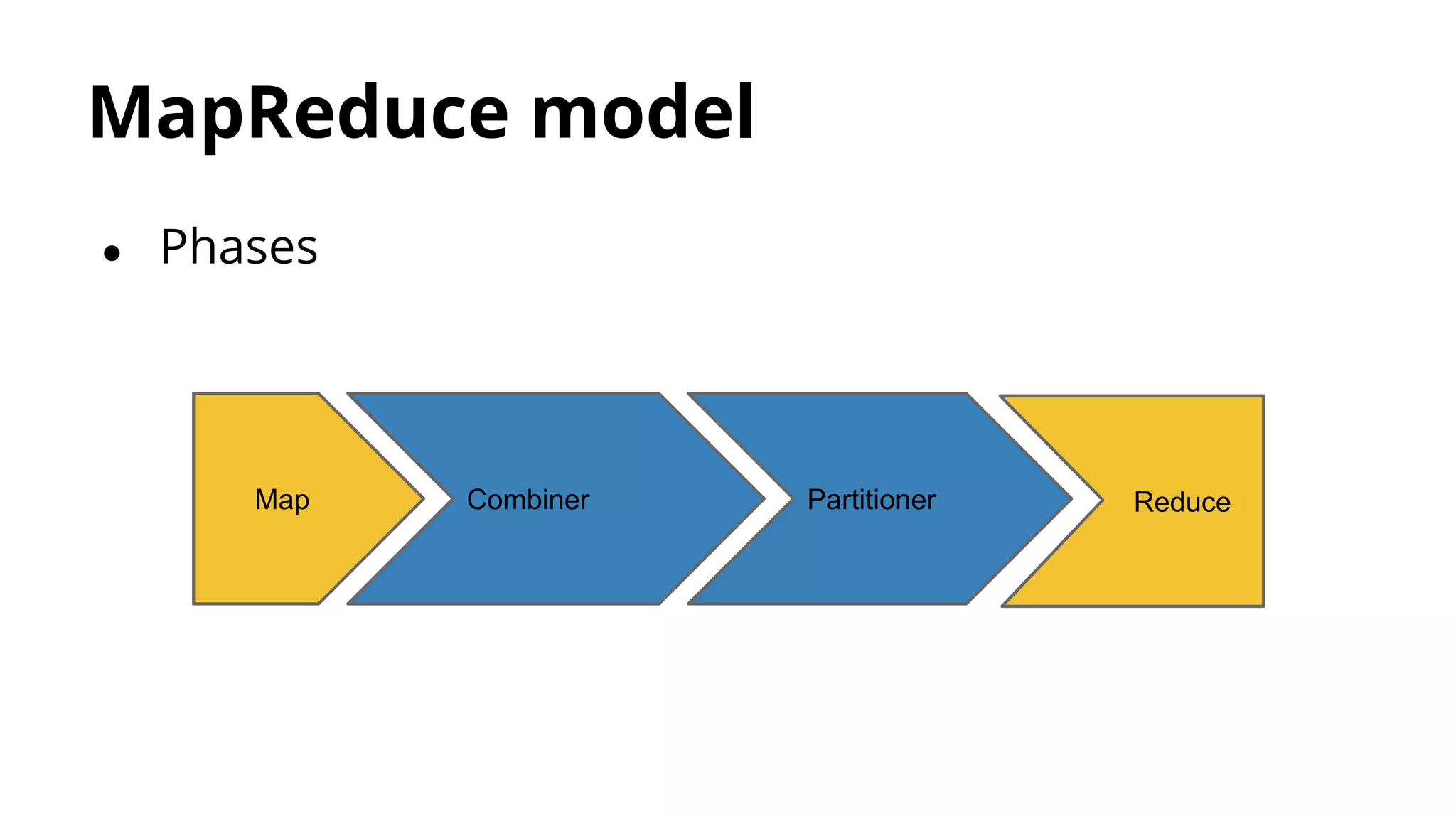

MapReduce model
● Phases
Map Combiner Partitioner Reduce

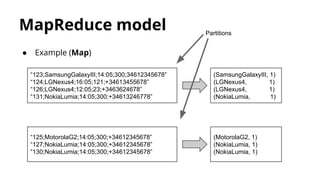

MapReduce model
● Example (Map)
“123;SamsungGalaxyIII;14:05;300;34612345678”
“124;LGNexus4;16:05;121;+34613455678”
“126;LGNexus4;12:05;23;+3463624678”
“131;NokiaLumia;14:05;300;+34613246778”
“125;MotorolaG2;14:05;300;+34612345678”
“127;NokiaLumia;14:05;300;+34612345678”
“130;NokiaLumia;14:05;300;+34612345678”
(SamsungGalaxyIII, 1)
(LGNexus4, 1)
(LGNexus4, 1)
(NokiaLumia, 1)
(MotorolaG2, 1)
(NokiaLumia, 1)
(NokiaLumia, 1)
Partitions

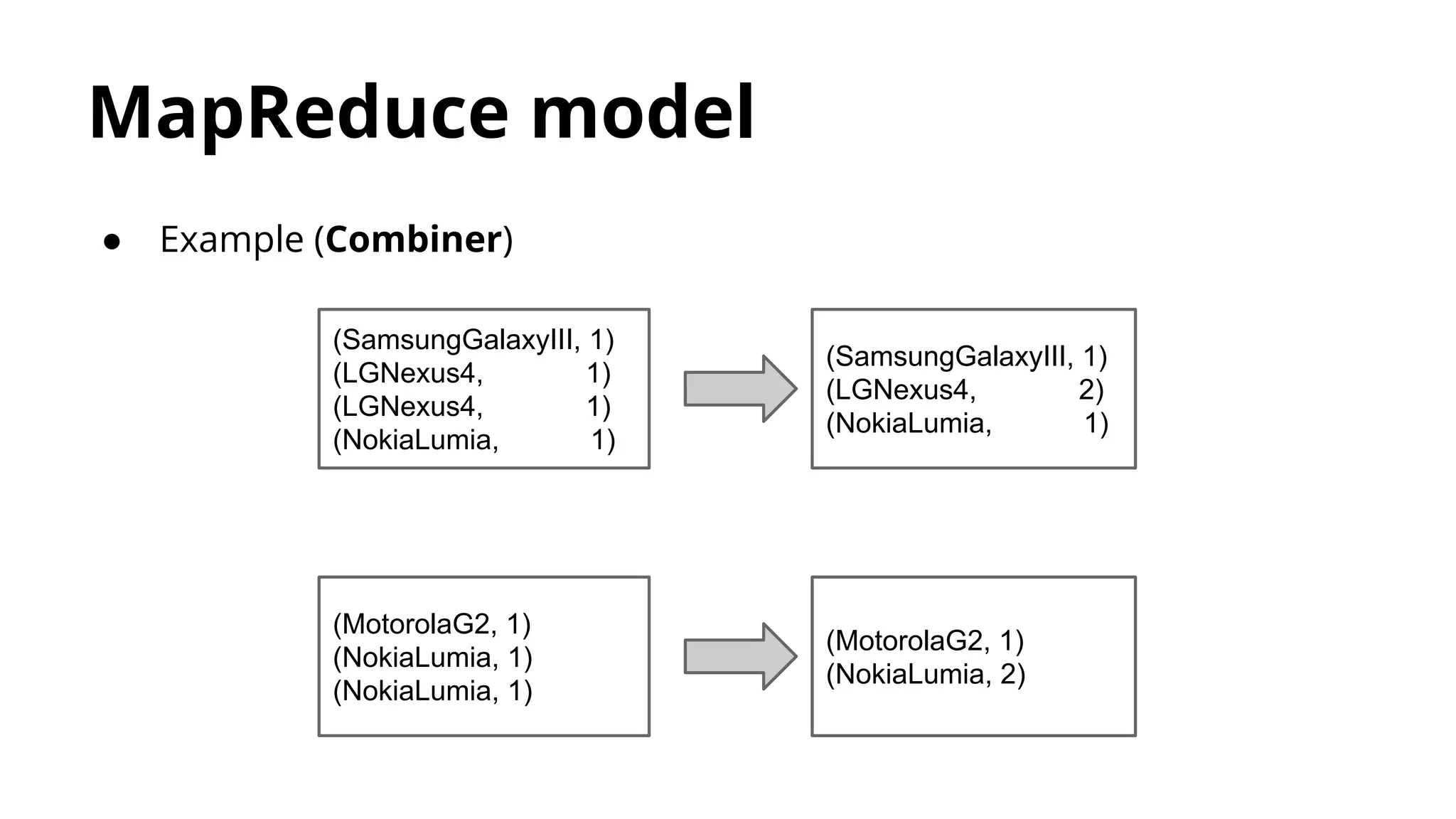

MapReduce model
● Example (Combiner)
(SamsungGalaxyIII, 1)
(LGNexus4, 1)
(LGNexus4, 1)
(NokiaLumia, 1)
(MotorolaG2, 1)
(NokiaLumia, 1)
(NokiaLumia, 1)
(SamsungGalaxyIII, 1)
(LGNexus4, 2)
(NokiaLumia, 1)
(MotorolaG2, 1)
(NokiaLumia, 2)

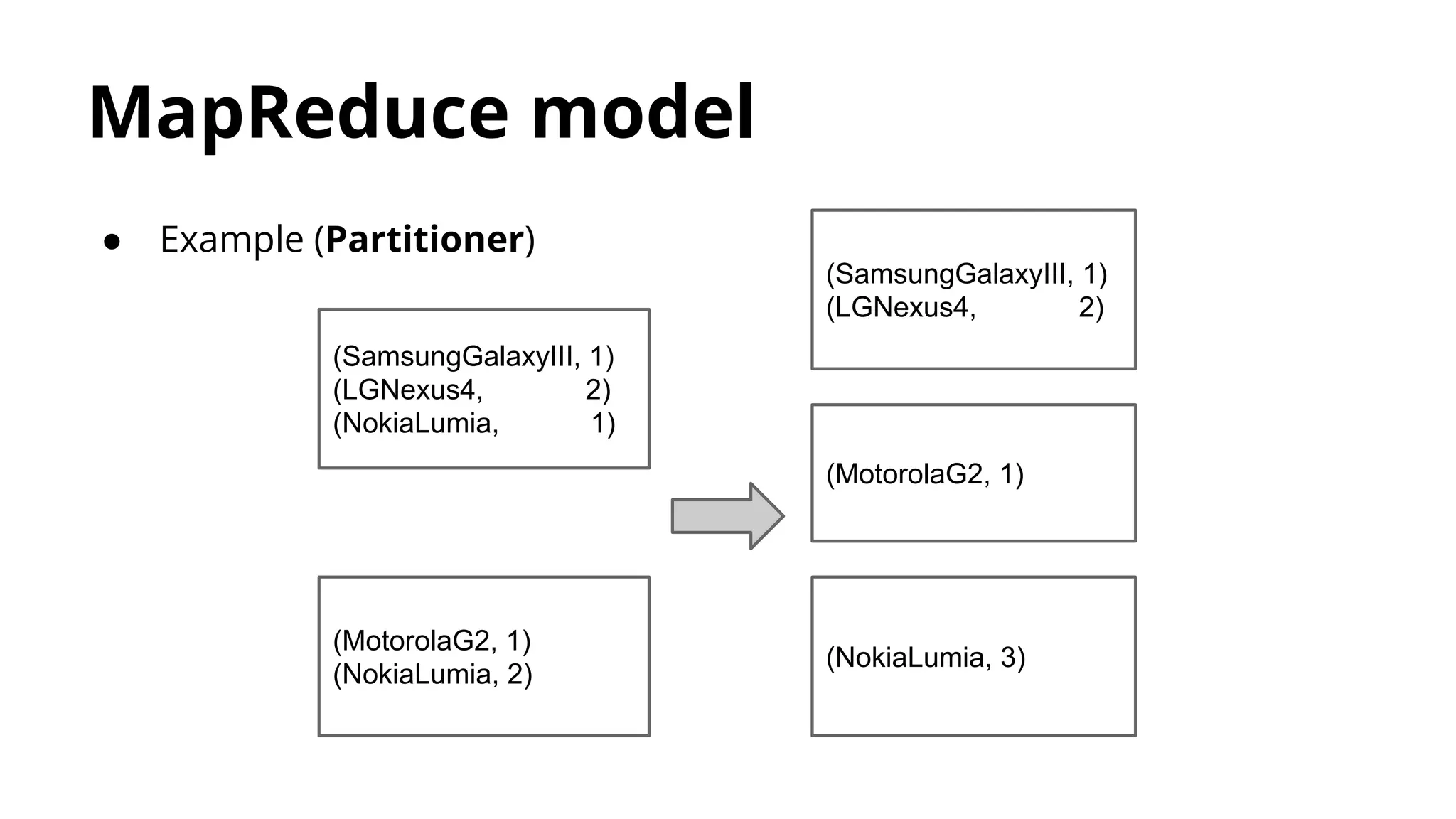

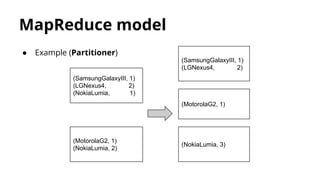

MapReduce model
● Example (Partitioner)
(SamsungGalaxyIII, 1)
(LGNexus4, 2)
(NokiaLumia, 1)
(MotorolaG2, 1)
(NokiaLumia, 2)
(SamsungGalaxyIII, 1)
(LGNexus4, 2)
(NokiaLumia, 3)
(MotorolaG2, 1)

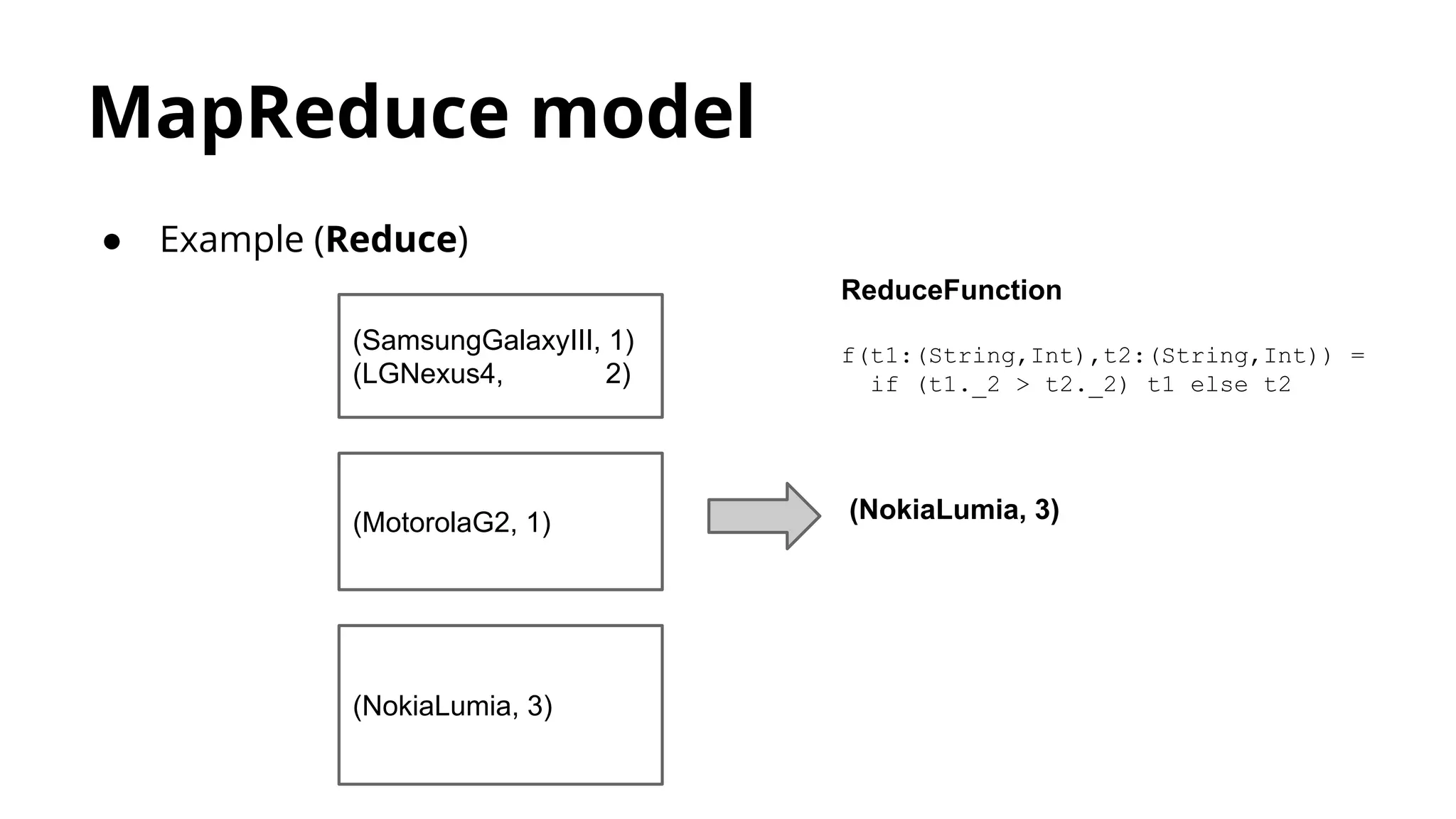

MapReduce model
● Example (Reduce)
(SamsungGalaxyIII, 1)
(LGNexus4, 2)
(NokiaLumia, 3)
(MotorolaG2, 1) (NokiaLumia, 3)
ReduceFunction
f(t1:(String,Int),t2:(String,Int)) =
if (t1._2 > t2._2) t1 else t2
So...what about Spark?

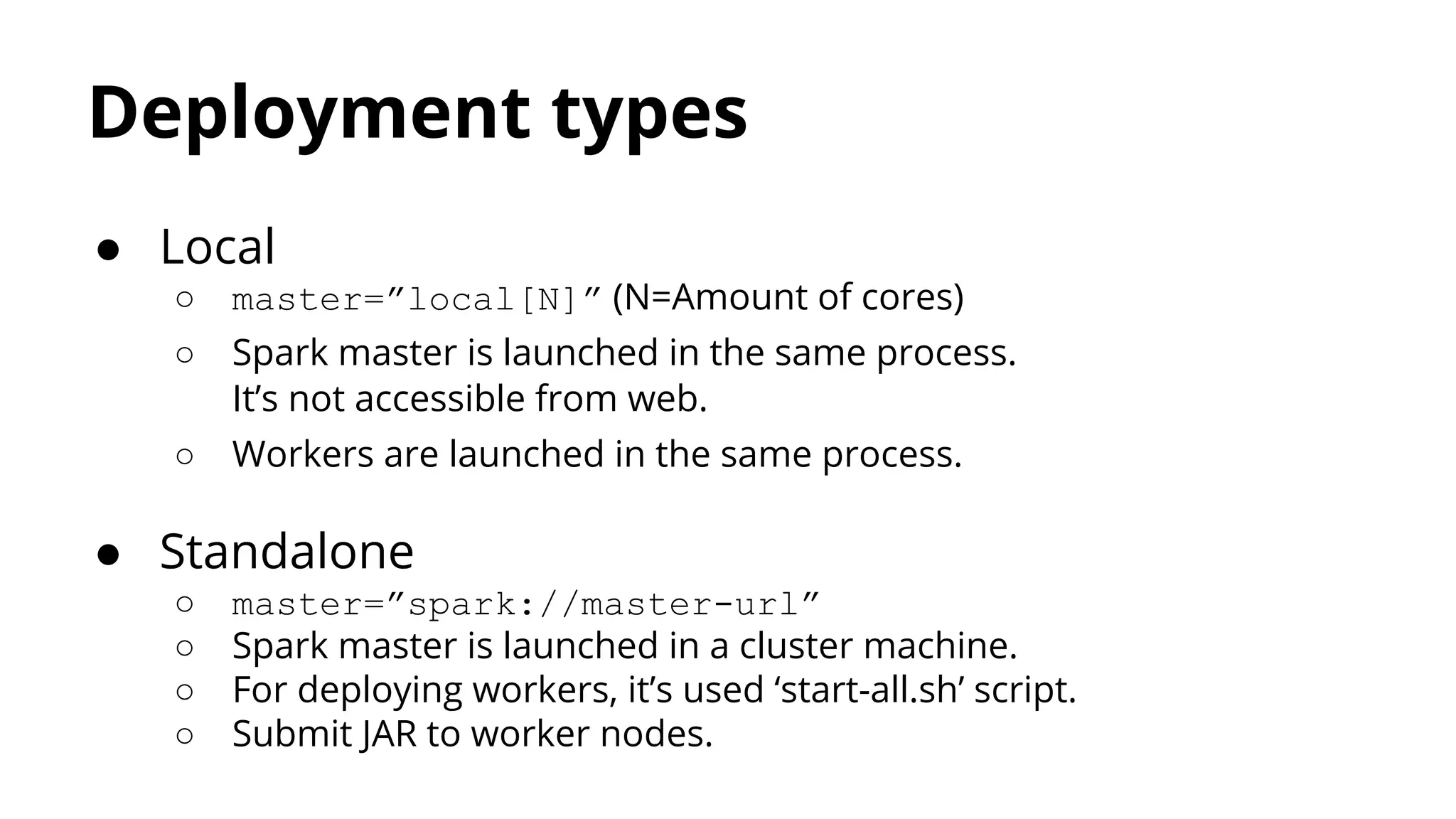

Deployment types
● Local
○ master=”local[N]” (N=Amount of cores)
○ Spark master is launched in the same process.
It’s not accessible from web.
○ Workers are launched in the same process.
● Standalone
○ master=”spark://master-url”
○ Spark master is launched in a cluster machine.
○ For deploying workers, it’s used ‘start-all.sh’ script.
○ Submit JAR to worker nodes.

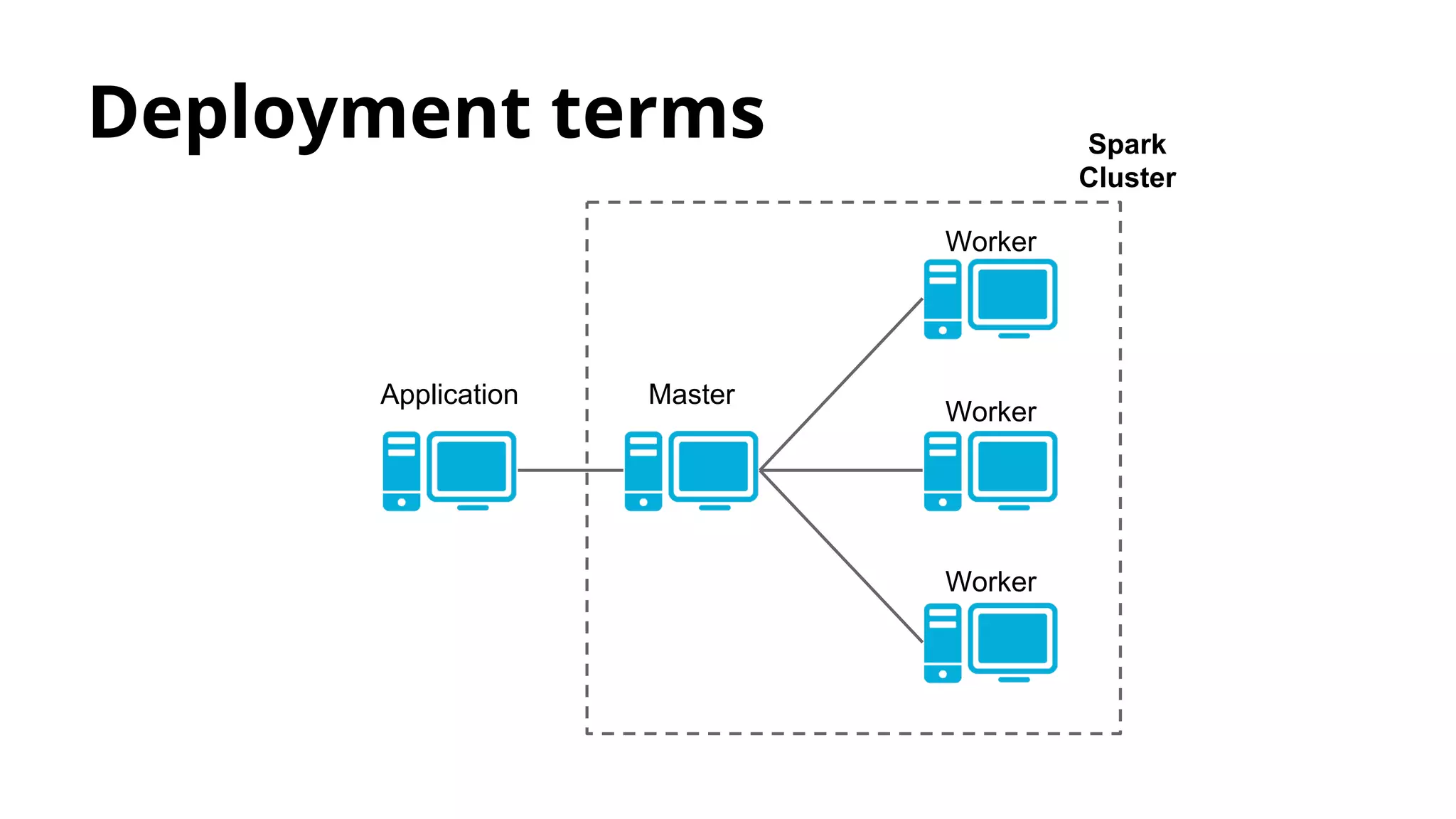

Deployment terms
Application Master
Worker
Worker
Worker
Spark
Cluster

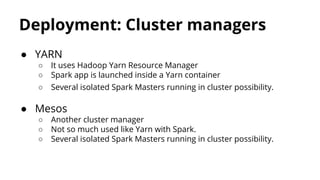

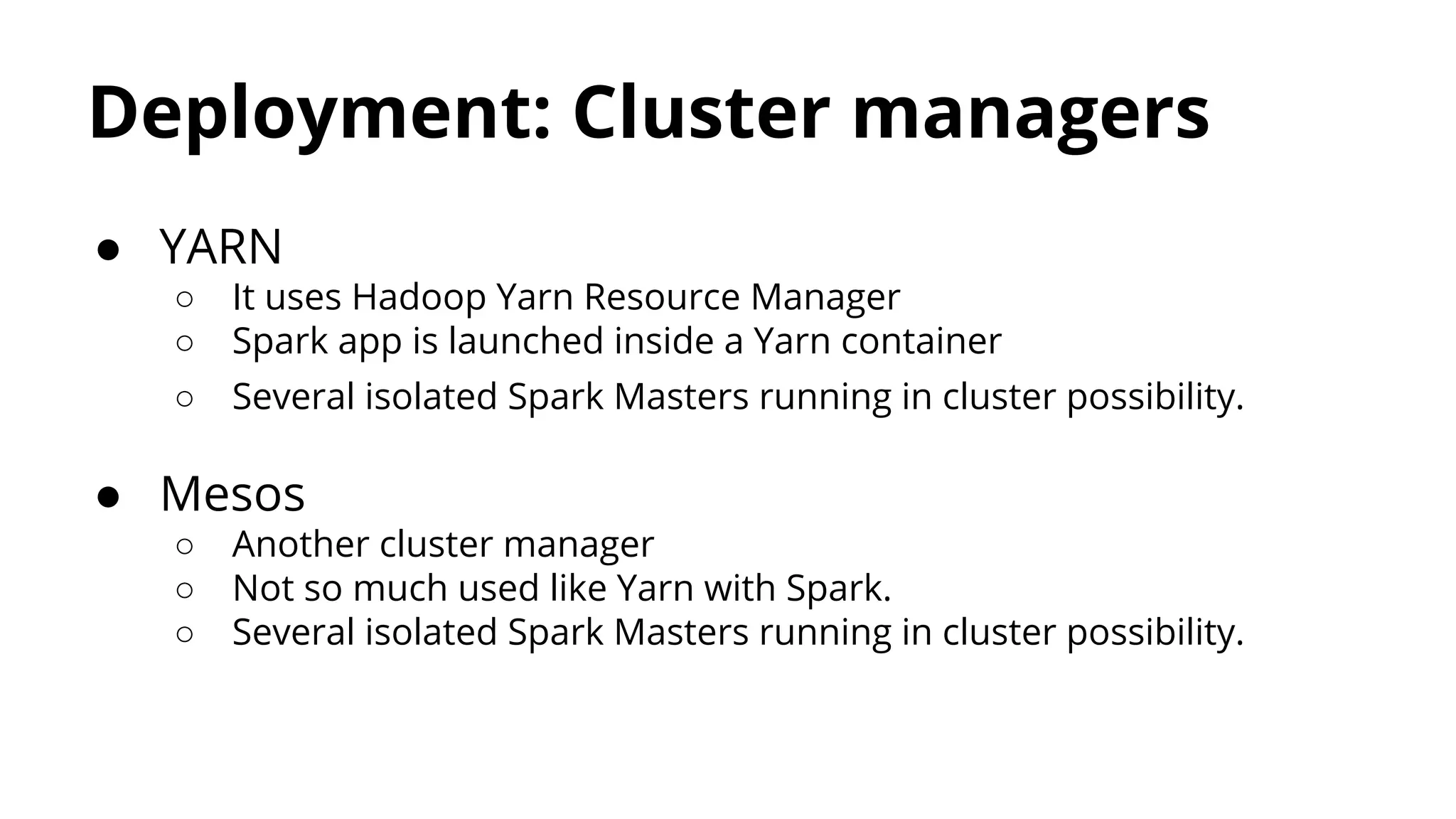

Deployment: Cluster managers
● YARN
○ It uses Hadoop Yarn Resource Manager
○ Spark app is launched inside a Yarn container
○ Several isolated Spark Masters running in cluster possibility.
● Mesos
○ Another cluster manager
○ Not so much used like Yarn with Spark.
○ Several isolated Spark Masters running in cluster possibility.

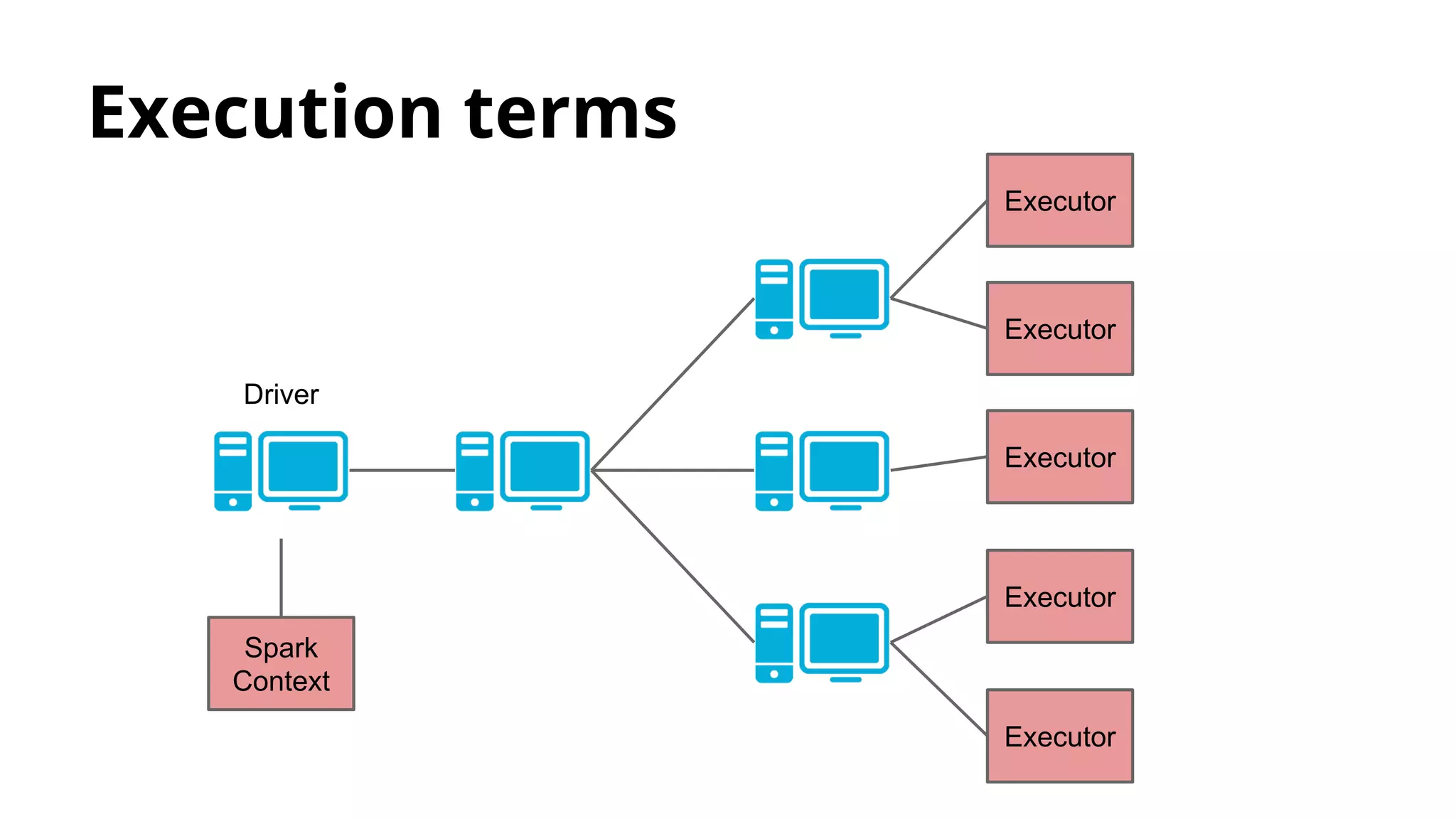

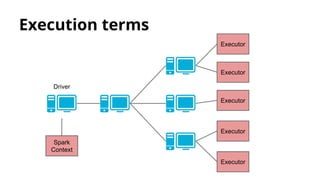

Execution terms
Driver
Executor
Executor
Executor
Executor
Executor
Spark
Context

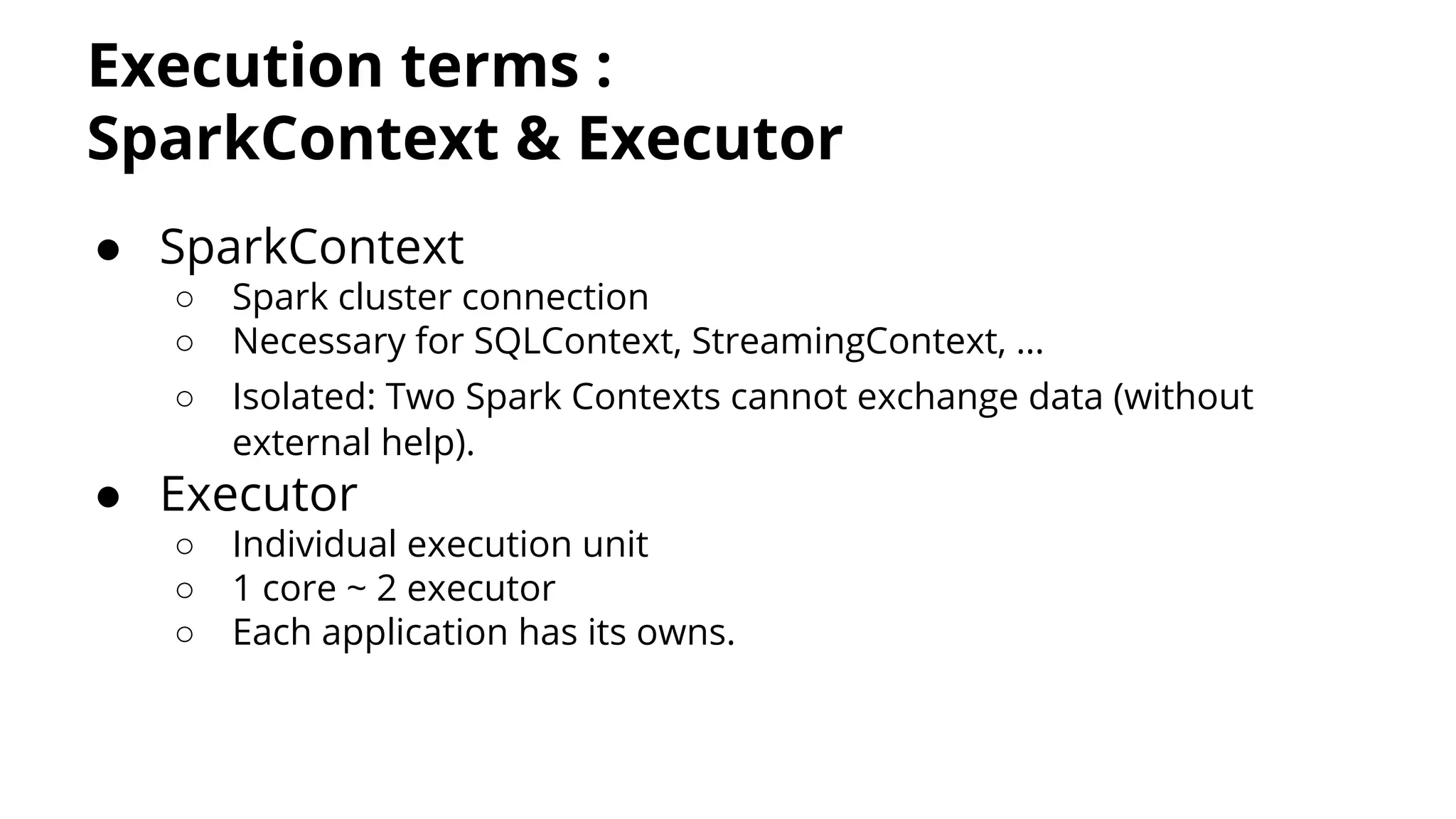

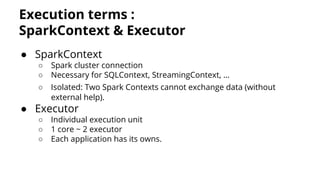

Execution terms :
SparkContext & Executor
● SparkContext
○ Spark cluster connection
○ Necessary for SQLContext, StreamingContext, …
○ Isolated: Two Spark Contexts cannot exchange data (without
external help).
● Executor
○ Individual execution unit
○ 1 core ~ 2 executor
○ Each application has its owns.

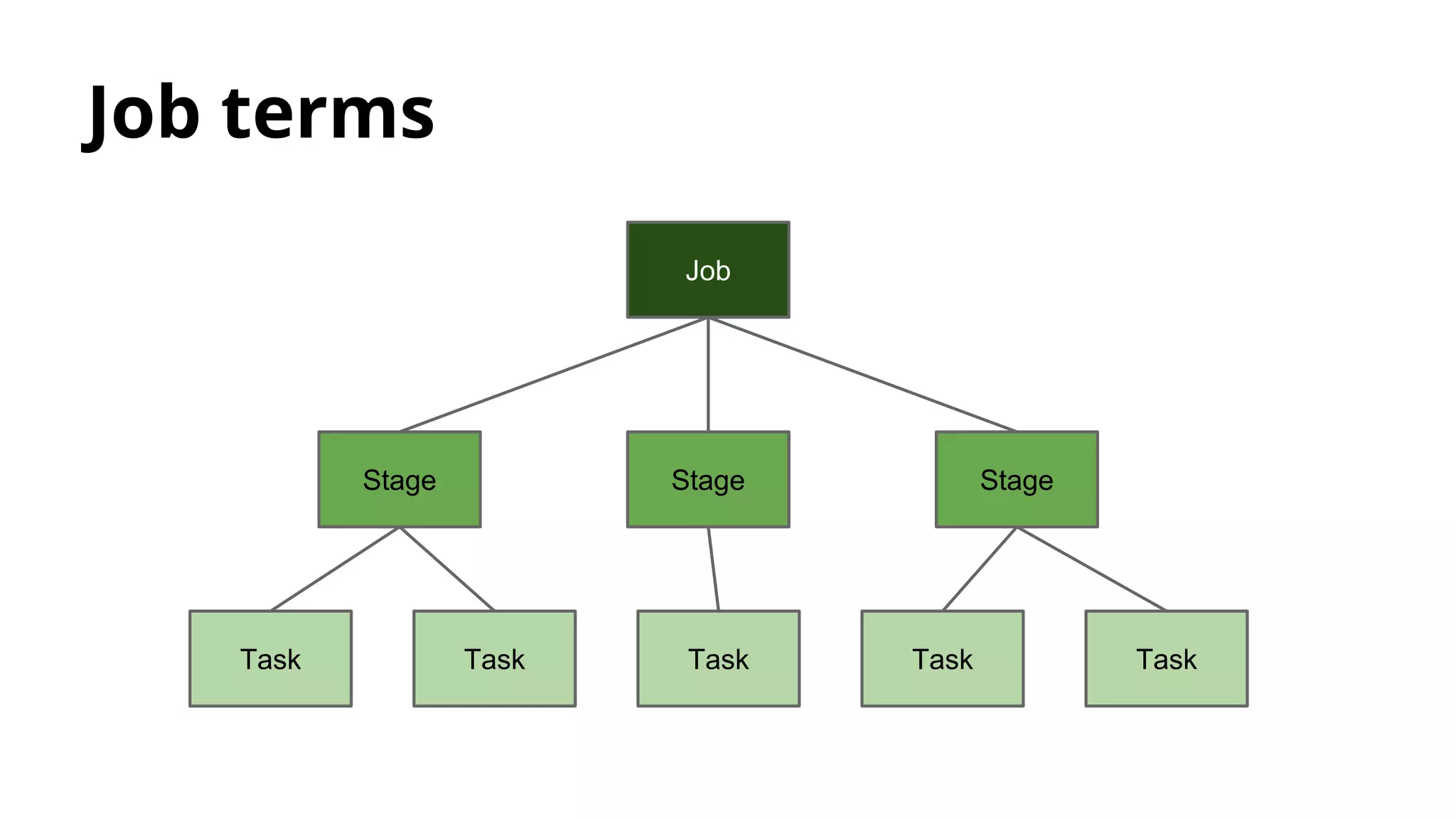

Job terms
Job
Stage Stage Stage
Task Task Task Task Task

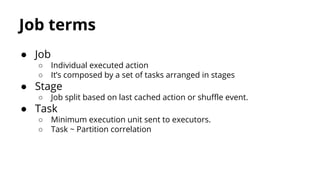

Job terms
● Job
○ Individual executed action
○ It’s composed by a set of tasks arranged in stages
● Stage
○ Job split based on last cached action or shuffle event.
● Task
○ Minimum execution unit sent to executors.
○ Task ~ Partition correlation
Modules

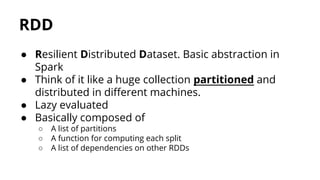

● Resilient Distributed Dataset. Basic abstraction in
Spark
● Think of it like a huge collection partitioned and
distributed in different machines.
● Lazy evaluated
● Basically composed of
○ A list of partitions
○ A function for computing each split
○ A list of dependencies on other RDDs
RDD

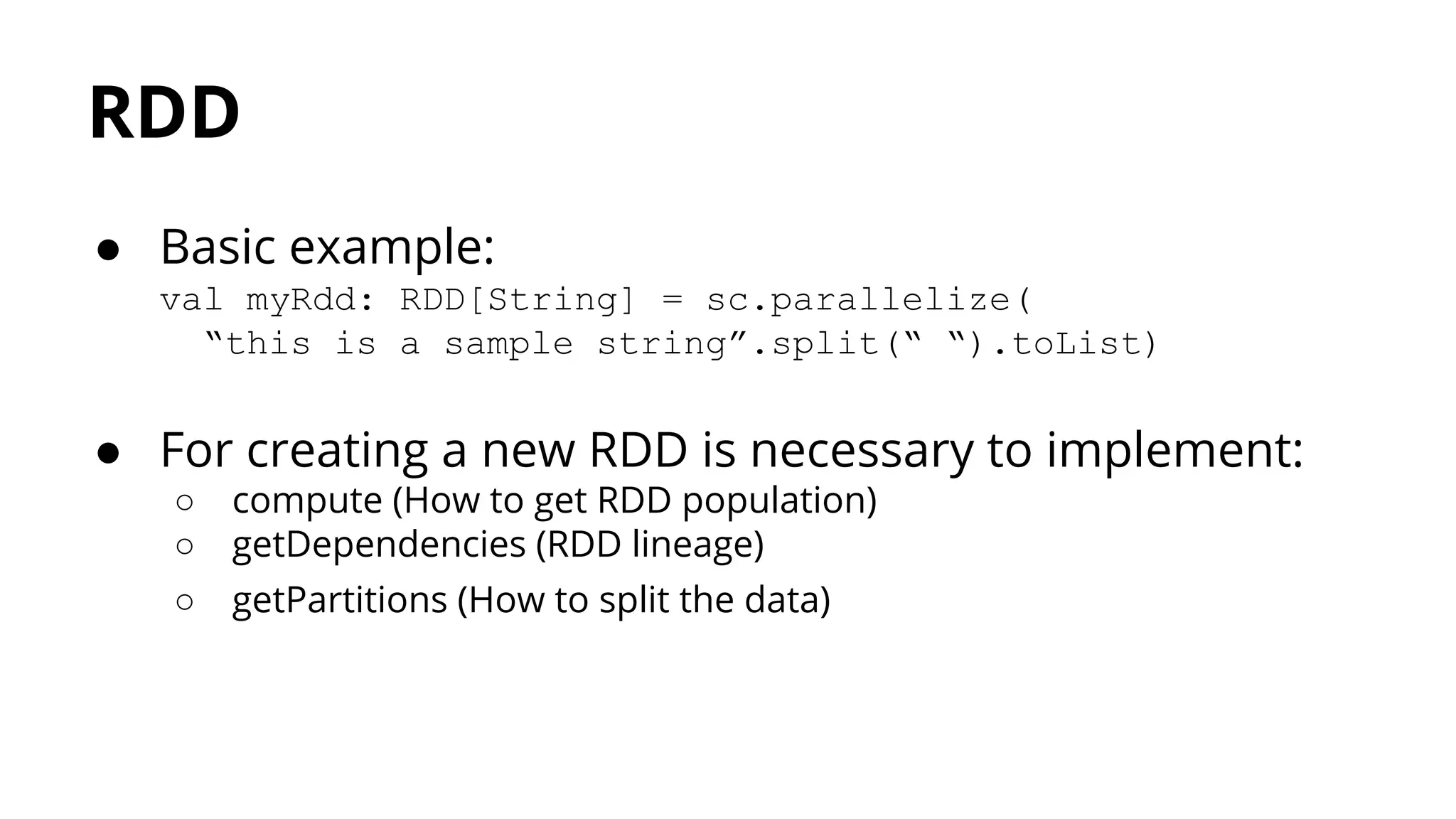

RDD
● Basic example:
val myRdd: RDD[String] = sc.parallelize(
“this is a sample string”.split(“ “).toList)
● For creating a new RDD is necessary to implement:
○ compute (How to get RDD population)
○ getDependencies (RDD lineage)
○ getPartitions (How to split the data)

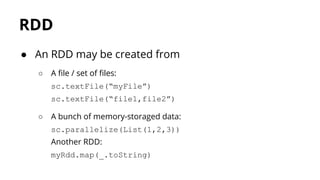

RDD
● An RDD may be created from
○ A file / set of files:
sc.textFile(“myFile”)
sc.textFile(“file1,file2”)
○ A bunch of memory-storaged data:
sc.parallelize(List(1,2,3))
Another RDD:
myRdd.map(_.toString)

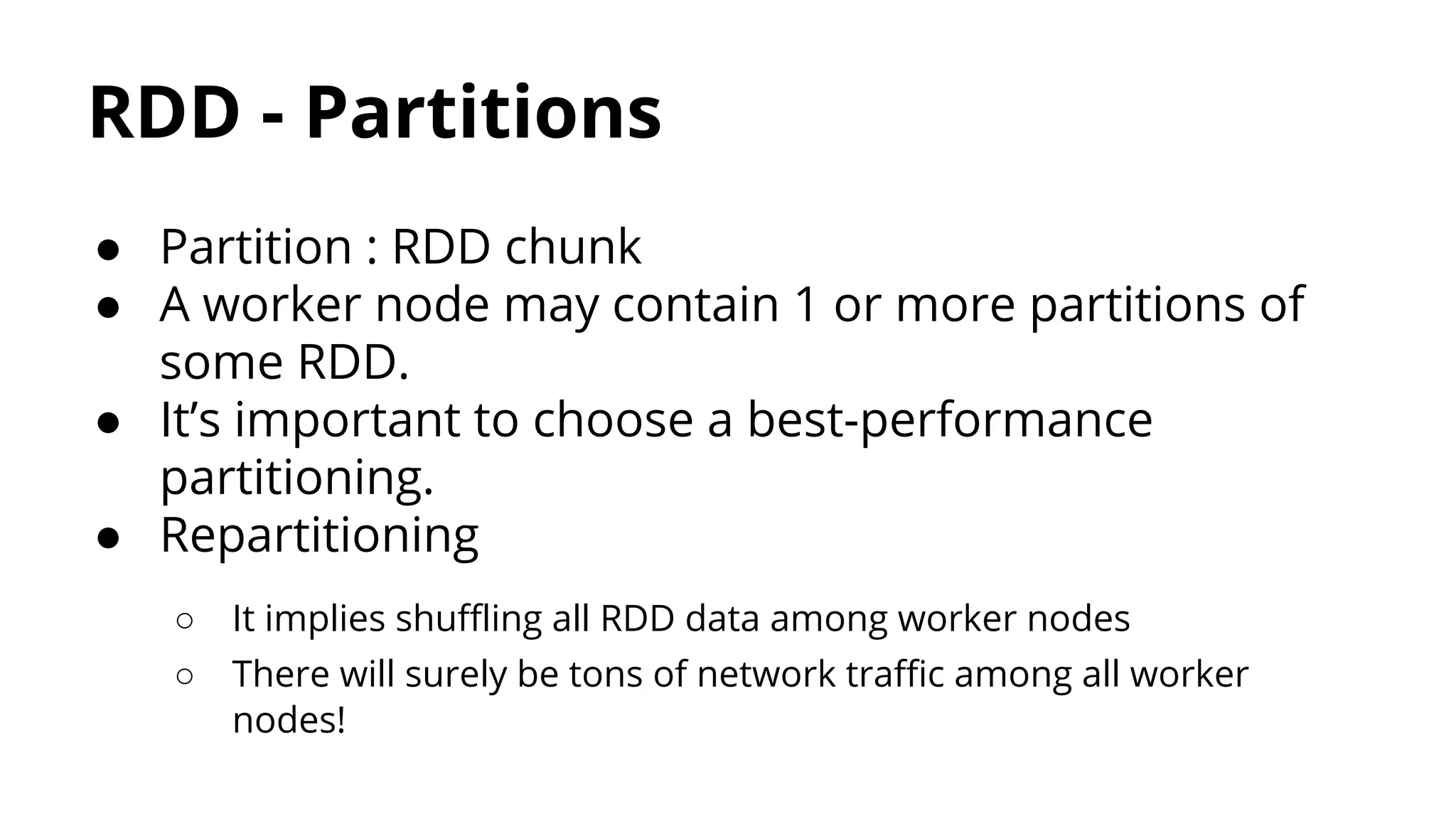

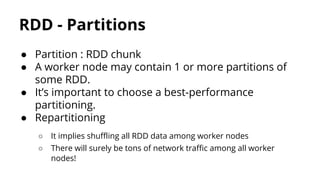

RDD - Partitions
● Partition : RDD chunk
● A worker node may contain 1 or more partitions of
some RDD.
● It’s important to choose a best-performance
partitioning.
● Repartitioning
○ It implies shuffling all RDD data among worker nodes
○ There will surely be tons of network traffic among all worker
nodes!

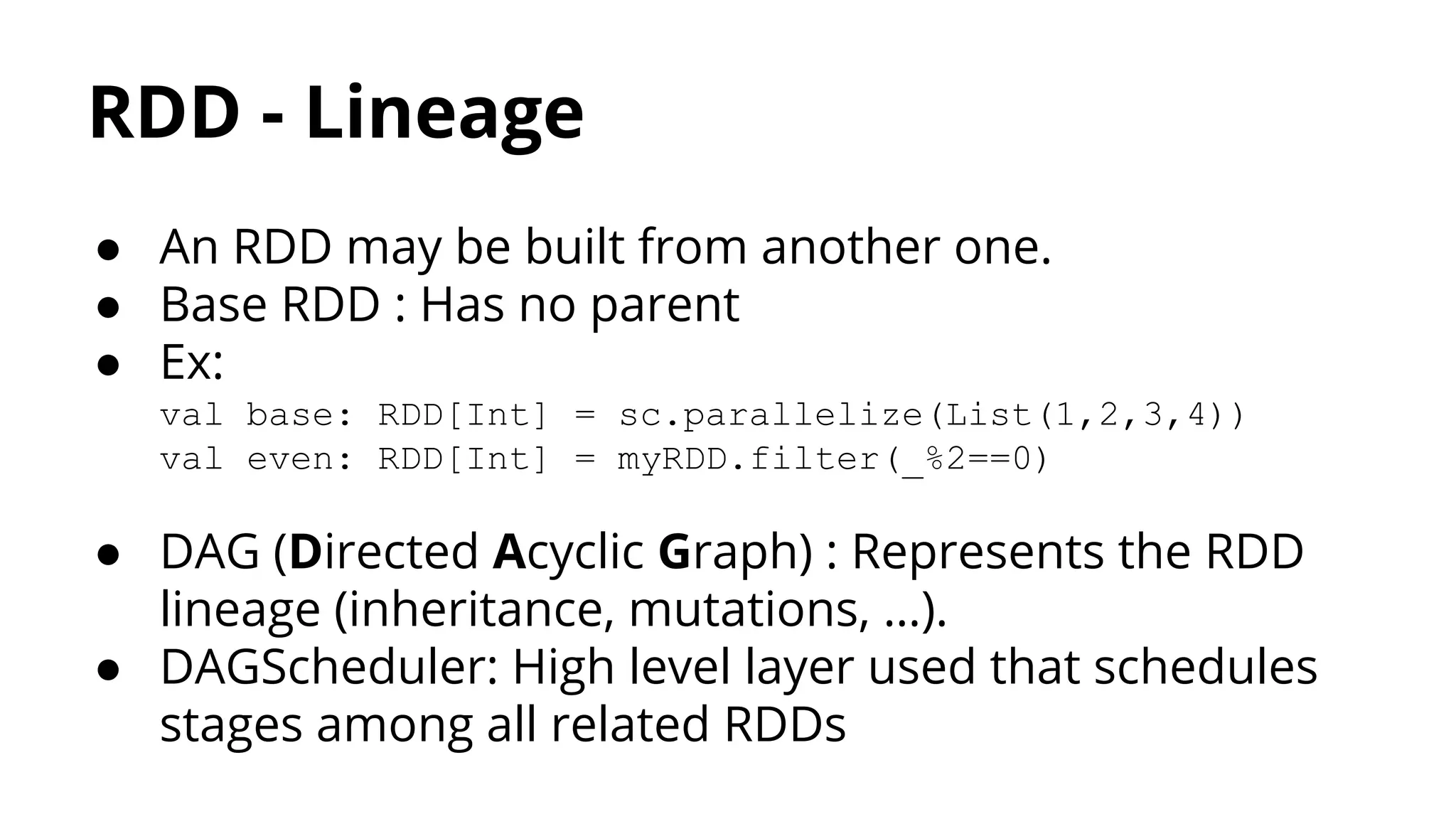

RDD - Lineage
● An RDD may be built from another one.
● Base RDD : Has no parent
● Ex:
val base: RDD[Int] = sc.parallelize(List(1,2,3,4))
val even: RDD[Int] = myRDD.filter(_%2==0)
● DAG (Directed Acyclic Graph) : Represents the RDD
lineage (inheritance, mutations, …).
● DAGScheduler: High level layer used that schedules
stages among all related RDDs

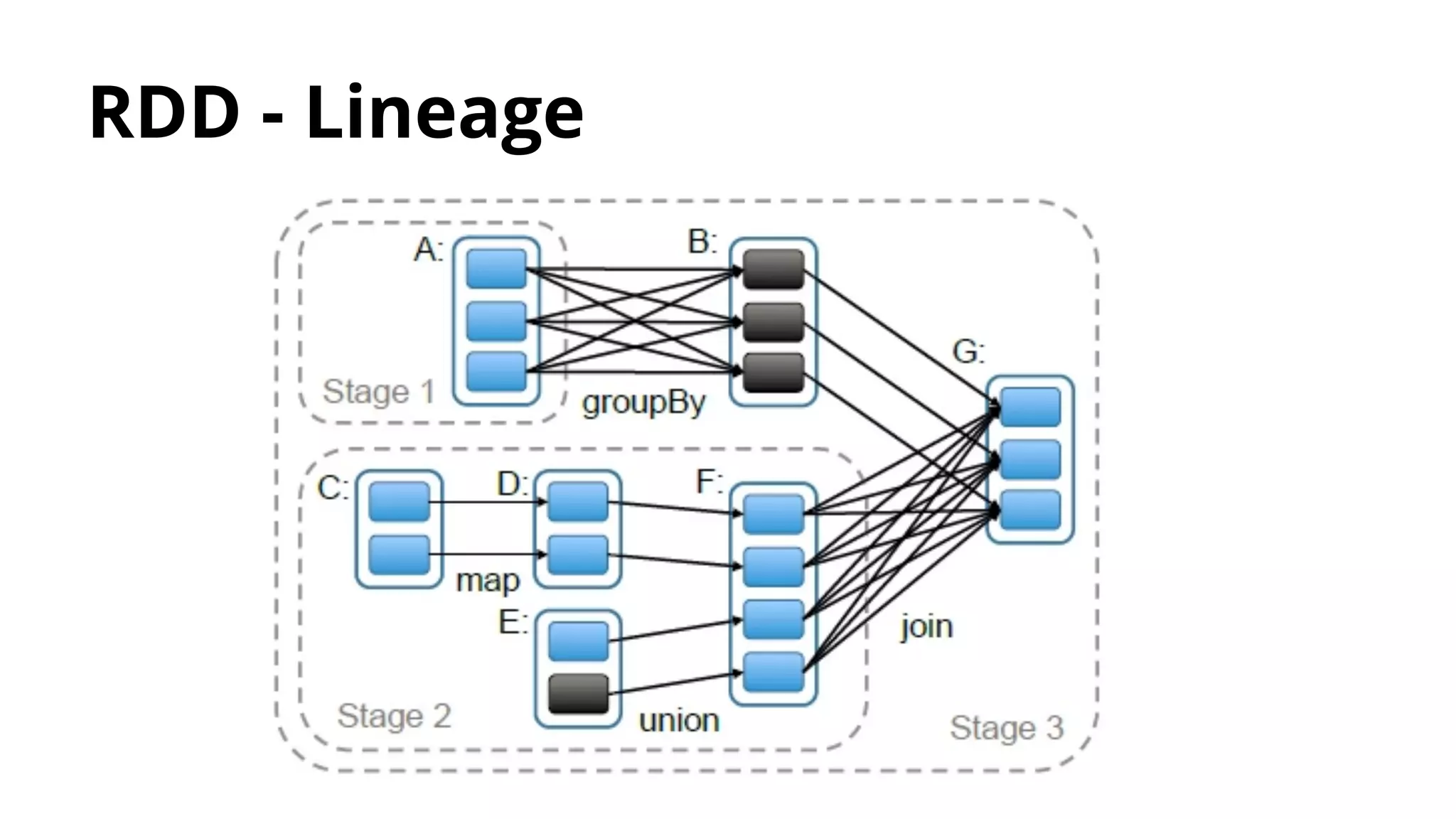

RDD - Lineage

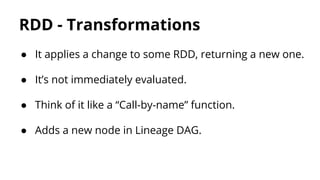

RDD - Transformations
● It applies a change to some RDD, returning a new one.
● It’s not immediately evaluated.
● Think of it like a “Call-by-name” function.
● Adds a new node in Lineage DAG.

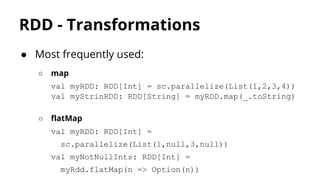

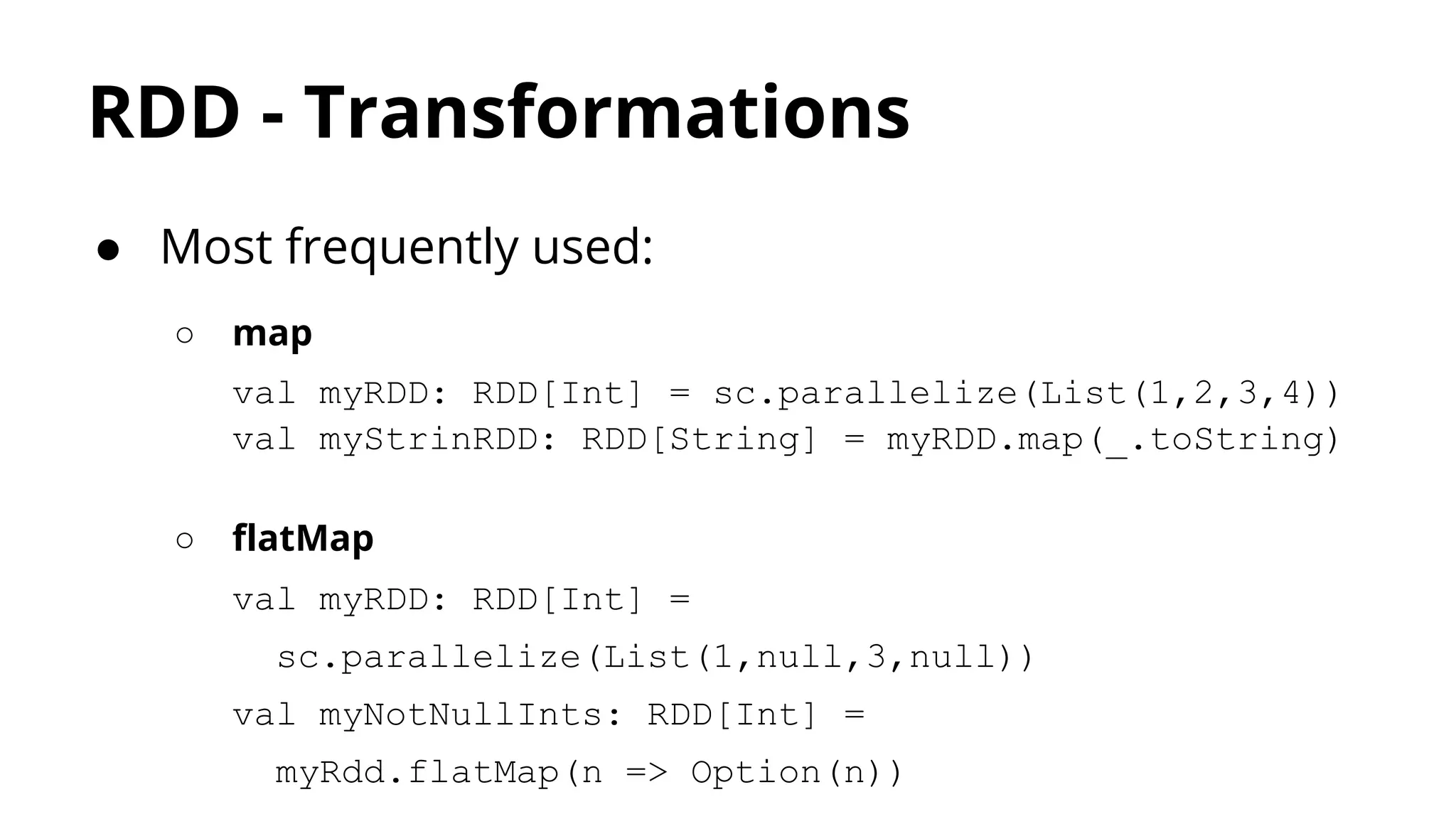

RDD - Transformations
● Most frequently used:
○ map
val myRDD: RDD[Int] = sc.parallelize(List(1,2,3,4))
val myStrinRDD: RDD[String] = myRDD.map(_.toString)
○ flatMap
val myRDD: RDD[Int] =
sc.parallelize(List(1,null,3,null))
val myNotNullInts: RDD[Int] =
myRdd.flatMap(n => Option(n))

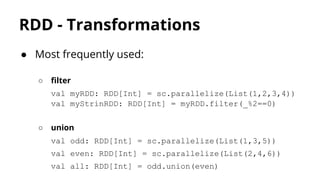

RDD - Transformations
● Most frequently used:
○ filter
val myRDD: RDD[Int] = sc.parallelize(List(1,2,3,4))
val myStrinRDD: RDD[Int] = myRDD.filter(_%2==0)
○ union
val odd: RDD[Int] = sc.parallelize(List(1,3,5))
val even: RDD[Int] = sc.parallelize(List(2,4,6))
val all: RDD[Int] = odd.union(even)

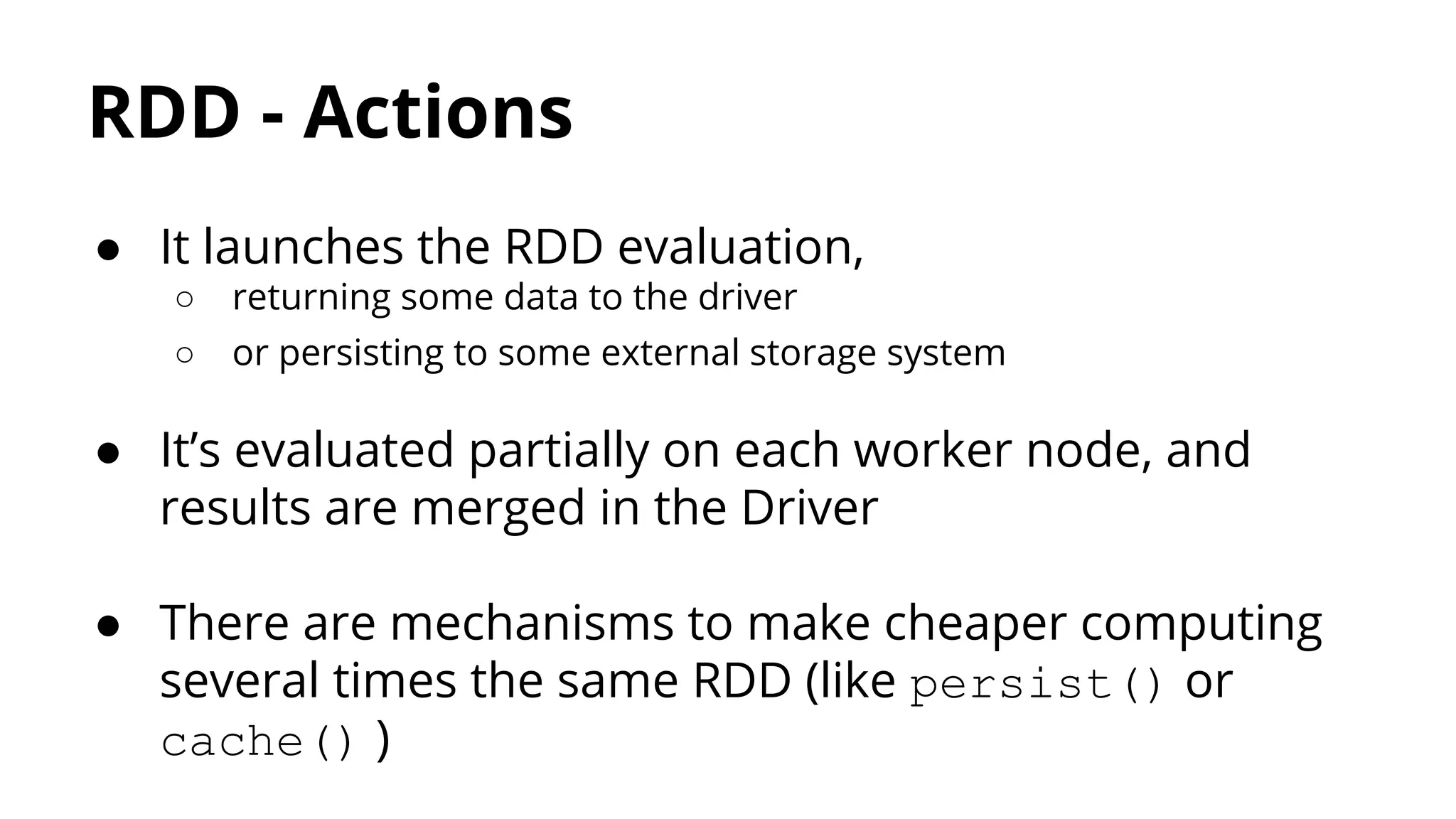

RDD - Actions
● It launches the RDD evaluation,
○ returning some data to the driver
○ or persisting to some external storage system
● It’s evaluated partially on each worker node, and
results are merged in the Driver
● There are mechanisms to make cheaper computing
several times the same RDD (like persist() or
cache() )

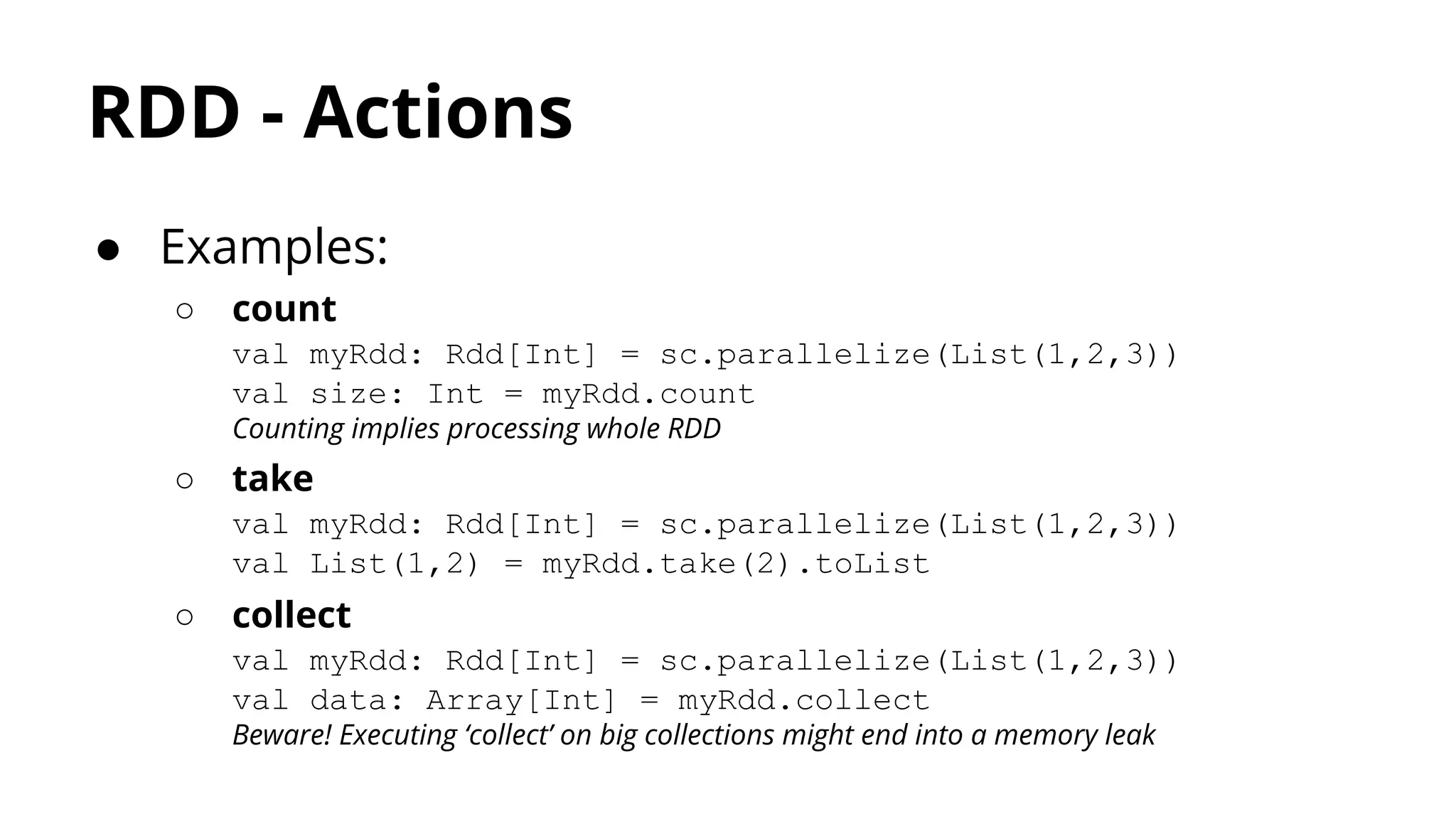

RDD - Actions
● Examples:
○ count
val myRdd: Rdd[Int] = sc.parallelize(List(1,2,3))
val size: Int = myRdd.count
Counting implies processing whole RDD
○ take
val myRdd: Rdd[Int] = sc.parallelize(List(1,2,3))
val List(1,2) = myRdd.take(2).toList
○ collect
val myRdd: Rdd[Int] = sc.parallelize(List(1,2,3))
val data: Array[Int] = myRdd.collect
Beware! Executing ‘collect’ on big collections might end into a memory leak

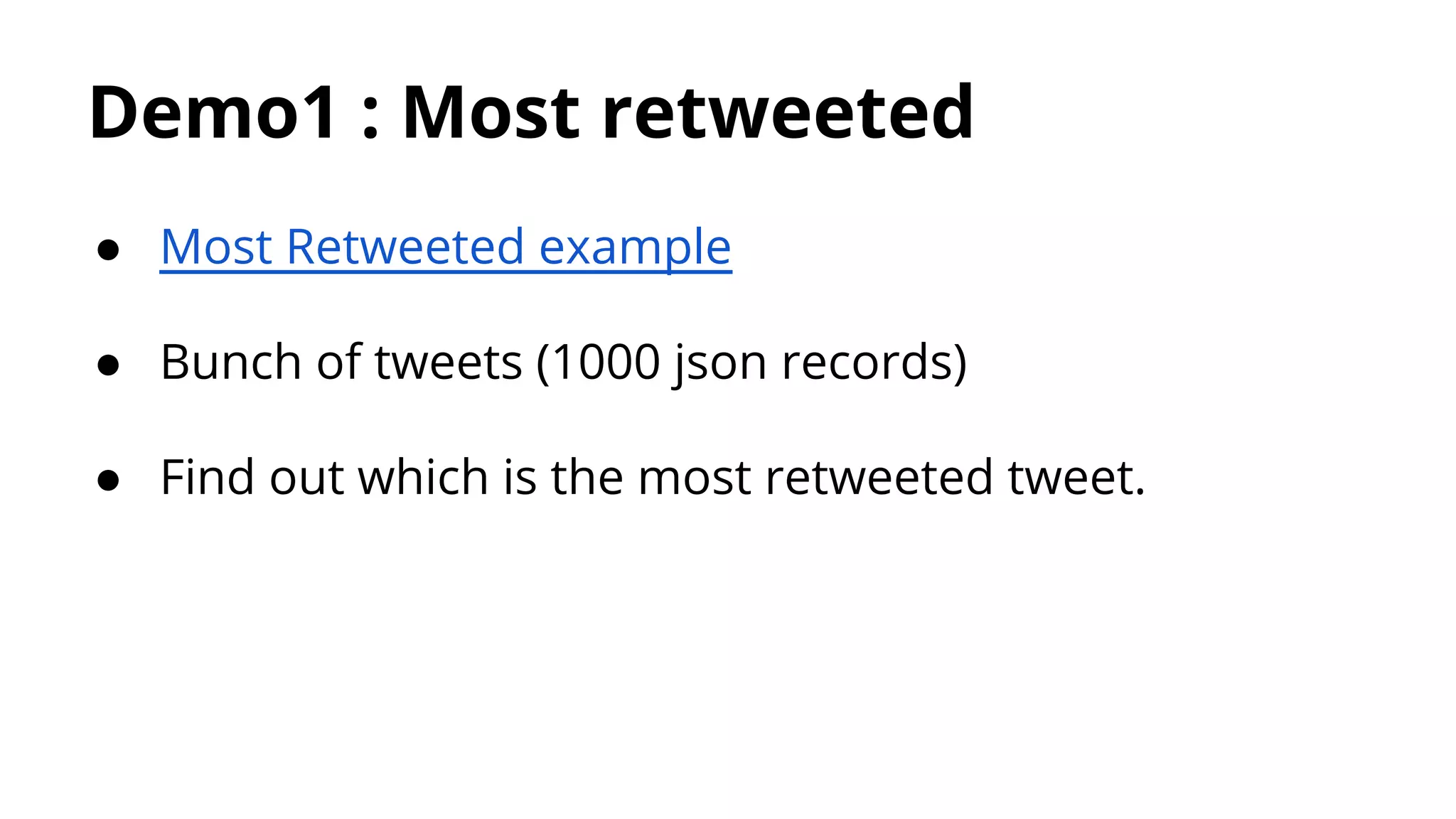

Demo1 : Most retweeted
● Most Retweeted example
● Bunch of tweets (1000 json records)
● Find out which is the most retweeted tweet.

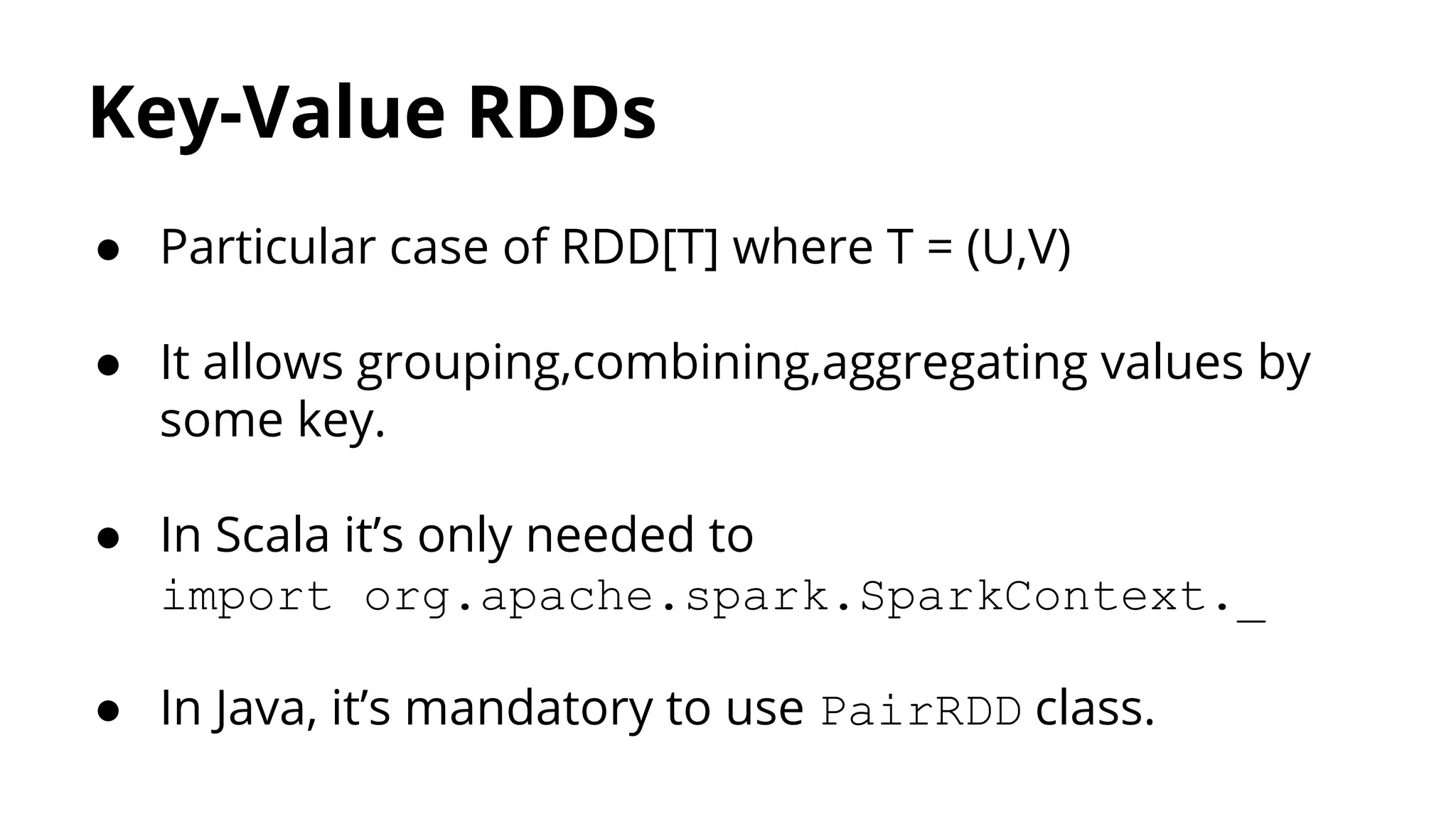

Key-Value RDDs
● Particular case of RDD[T] where T = (U,V)
● It allows grouping,combining,aggregating values by
some key.
● In Scala it’s only needed to
import org.apache.spark.SparkContext._
● In Java, it’s mandatory to use PairRDD class.

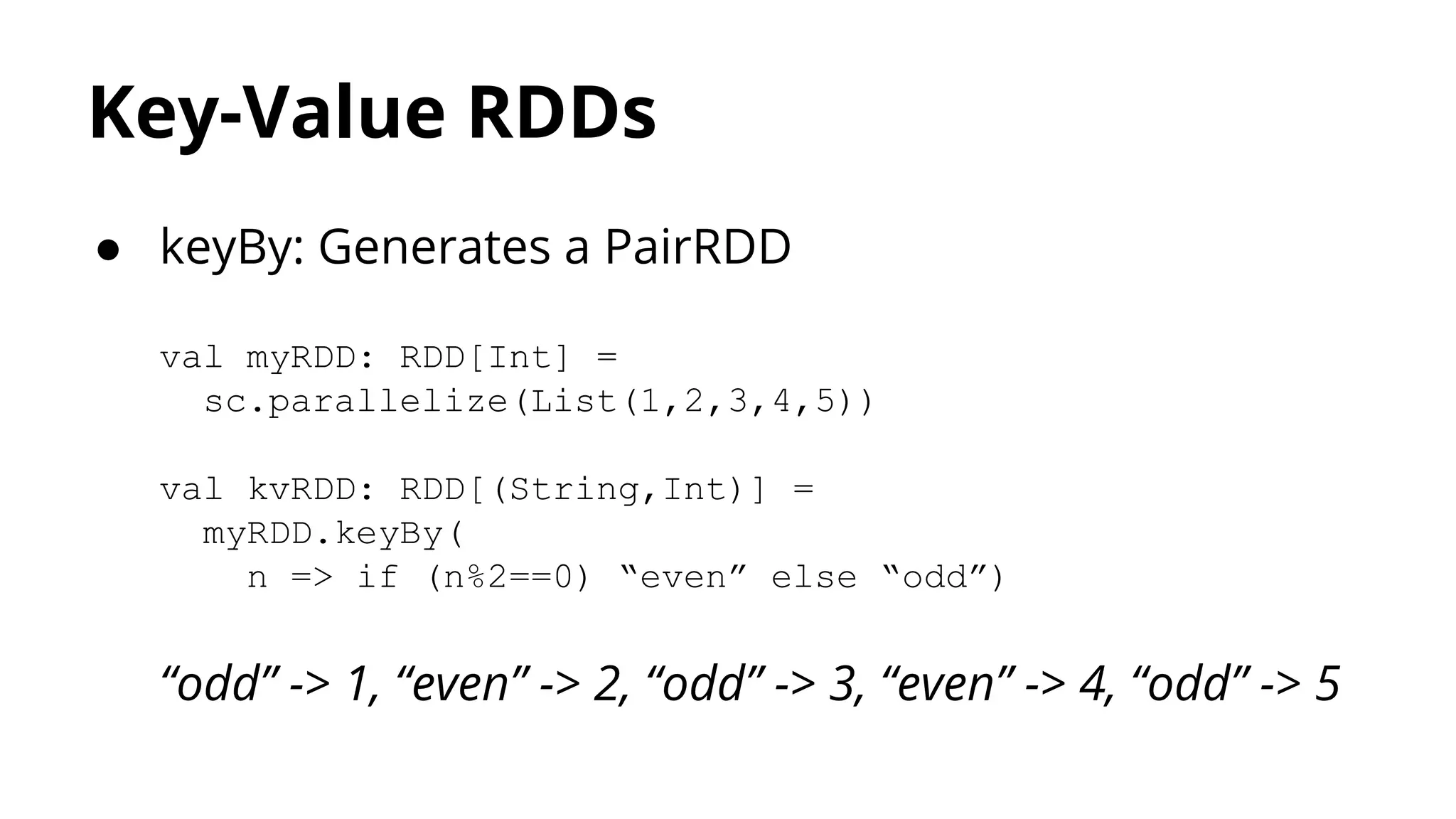

Key-Value RDDs
● keyBy: Generates a PairRDD
val myRDD: RDD[Int] =
sc.parallelize(List(1,2,3,4,5))
val kvRDD: RDD[(String,Int)] =
myRDD.keyBy(
n => if (n%2==0) “even” else “odd”)
“odd” -> 1, “even” -> 2, “odd” -> 3, “even” -> 4, “odd” -> 5

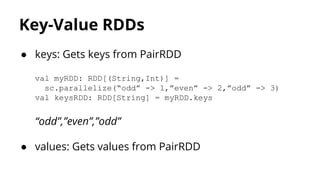

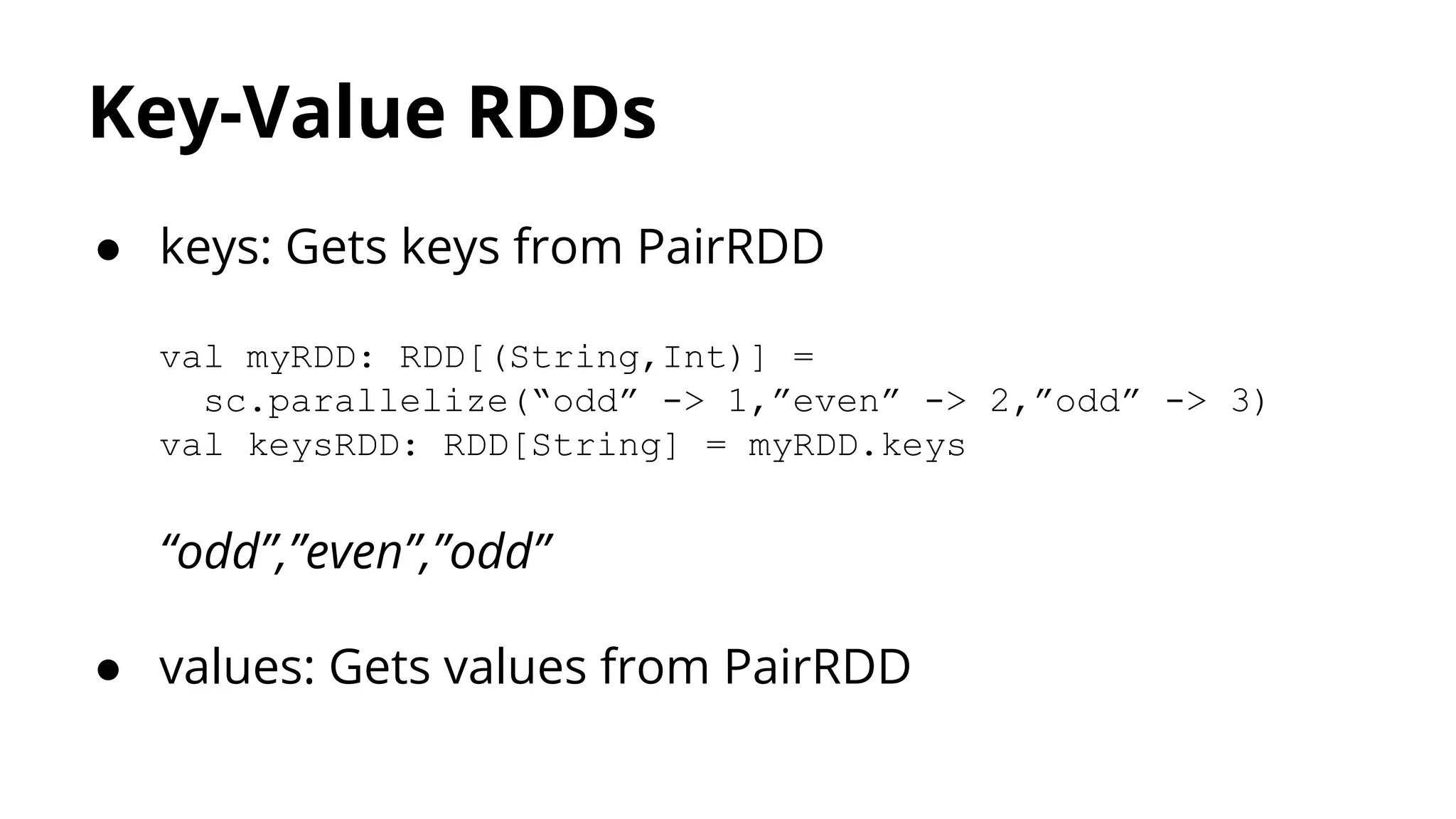

Key-Value RDDs
● keys: Gets keys from PairRDD
val myRDD: RDD[(String,Int)] =
sc.parallelize(“odd” -> 1,”even” -> 2,”odd” -> 3)
val keysRDD: RDD[String] = myRDD.keys
“odd”,”even”,”odd”
● values: Gets values from PairRDD

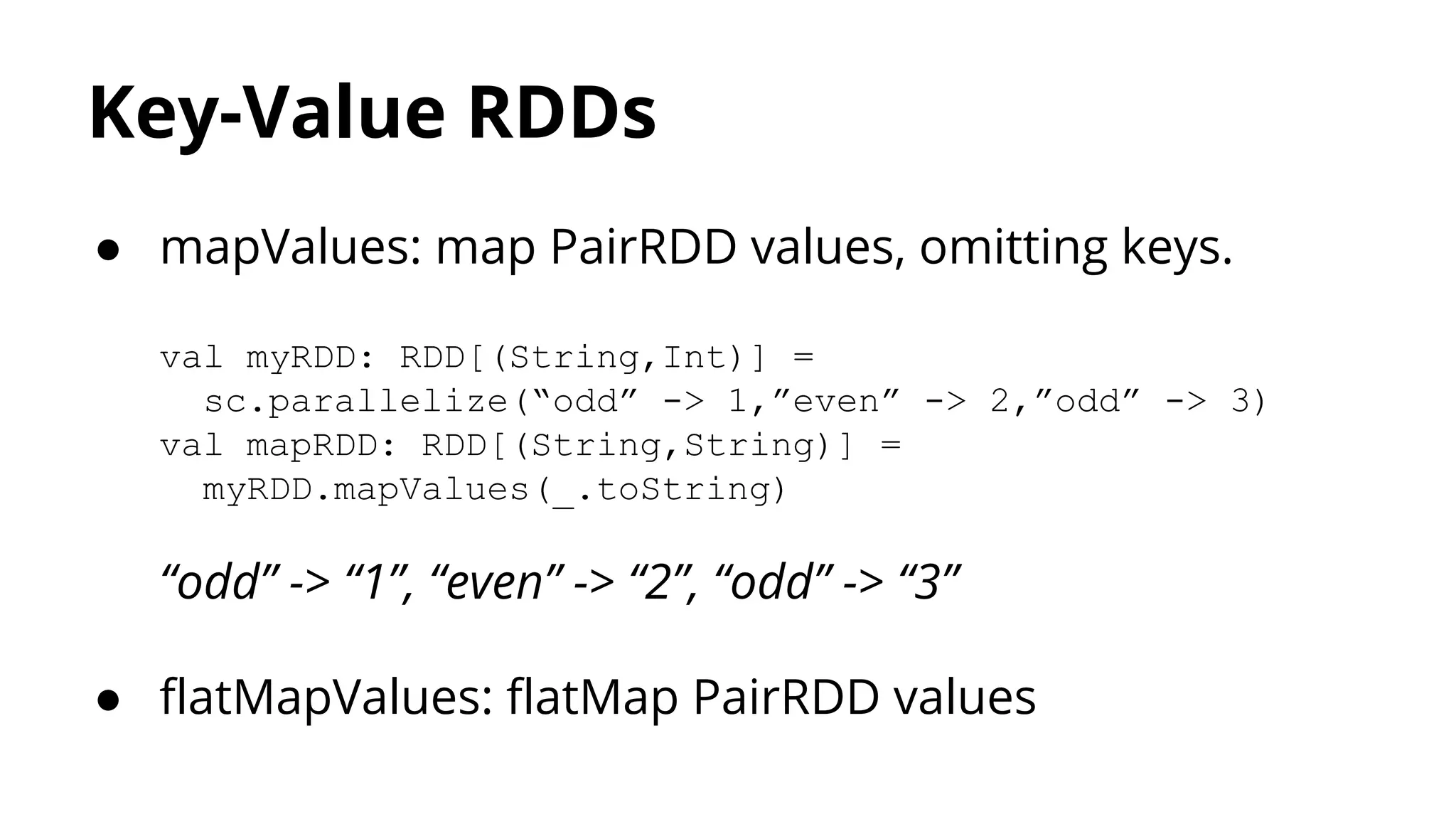

Key-Value RDDs
● mapValues: map PairRDD values, omitting keys.
val myRDD: RDD[(String,Int)] =
sc.parallelize(“odd” -> 1,”even” -> 2,”odd” -> 3)
val mapRDD: RDD[(String,String)] =
myRDD.mapValues(_.toString)
“odd” -> “1”, “even” -> “2”, “odd” -> “3”
● flatMapValues: flatMap PairRDD values

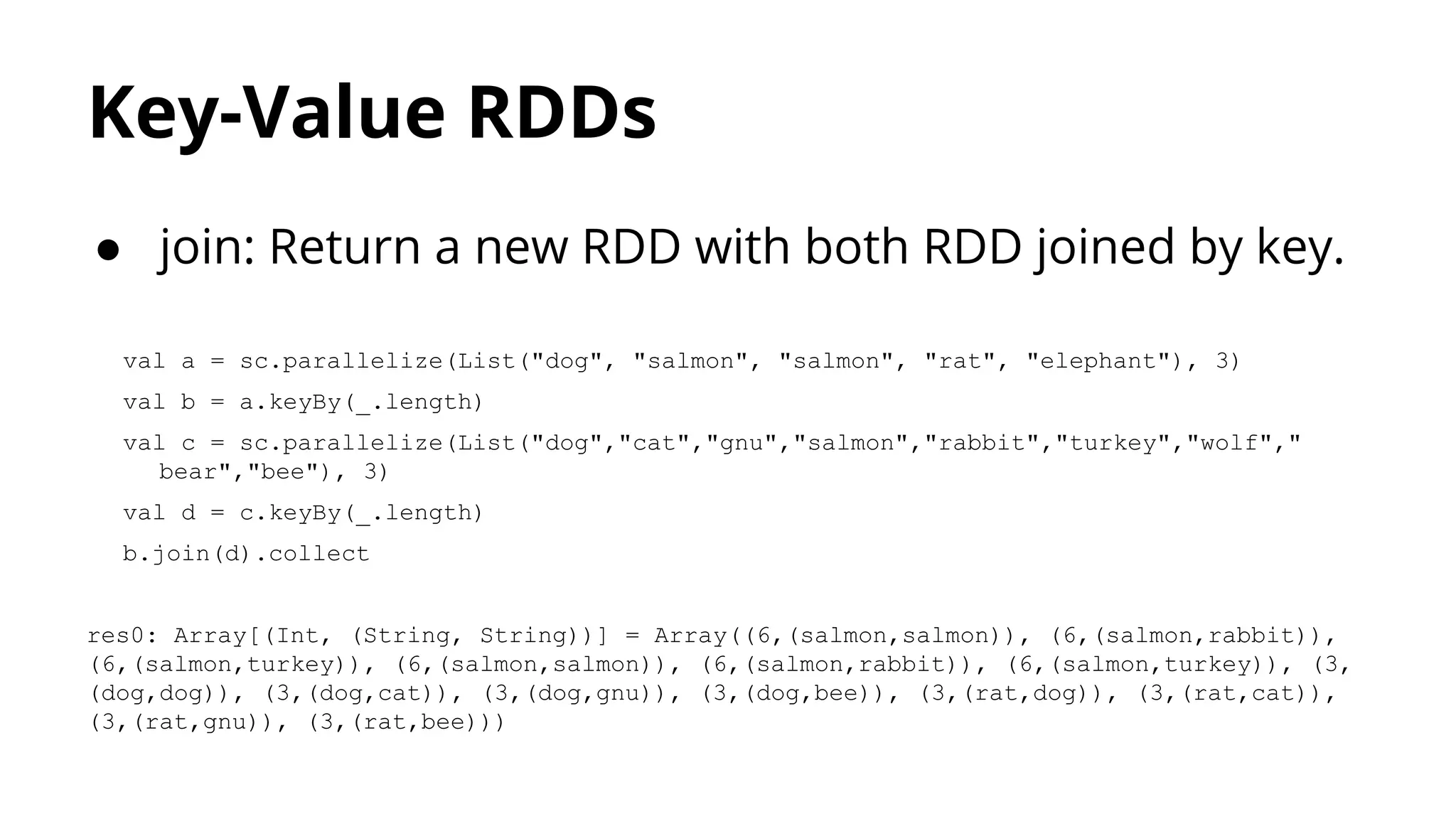

Key-Value RDDs
● join: Return a new RDD with both RDD joined by key.
val a = sc.parallelize(List("dog", "salmon", "salmon", "rat", "elephant"), 3)
val b = a.keyBy(_.length)
val c = sc.parallelize(List("dog","cat","gnu","salmon","rabbit","turkey","wolf","
bear","bee"), 3)
val d = c.keyBy(_.length)
b.join(d).collect
res0: Array[(Int, (String, String))] = Array((6,(salmon,salmon)), (6,(salmon,rabbit)),
(6,(salmon,turkey)), (6,(salmon,salmon)), (6,(salmon,rabbit)), (6,(salmon,turkey)), (3,
(dog,dog)), (3,(dog,cat)), (3,(dog,gnu)), (3,(dog,bee)), (3,(rat,dog)), (3,(rat,cat)),
(3,(rat,gnu)), (3,(rat,bee)))

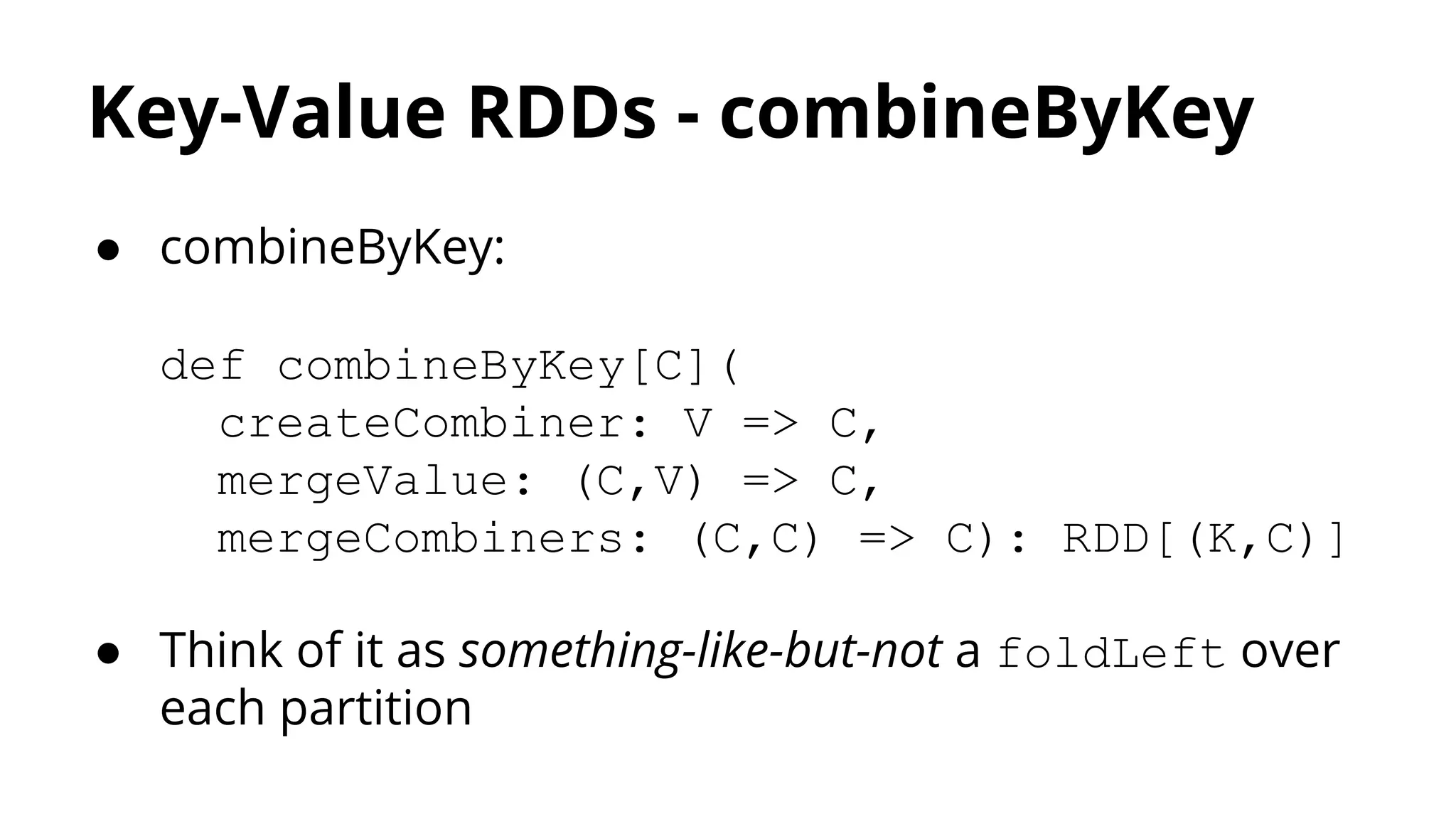

Key-Value RDDs - combineByKey
● combineByKey:
def combineByKey[C](
createCombiner: V => C,
mergeValue: (C,V) => C,
mergeCombiners: (C,C) => C): RDD[(K,C)]
● Think of it as something-like-but-not a foldLeft over
each partition

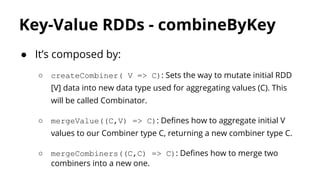

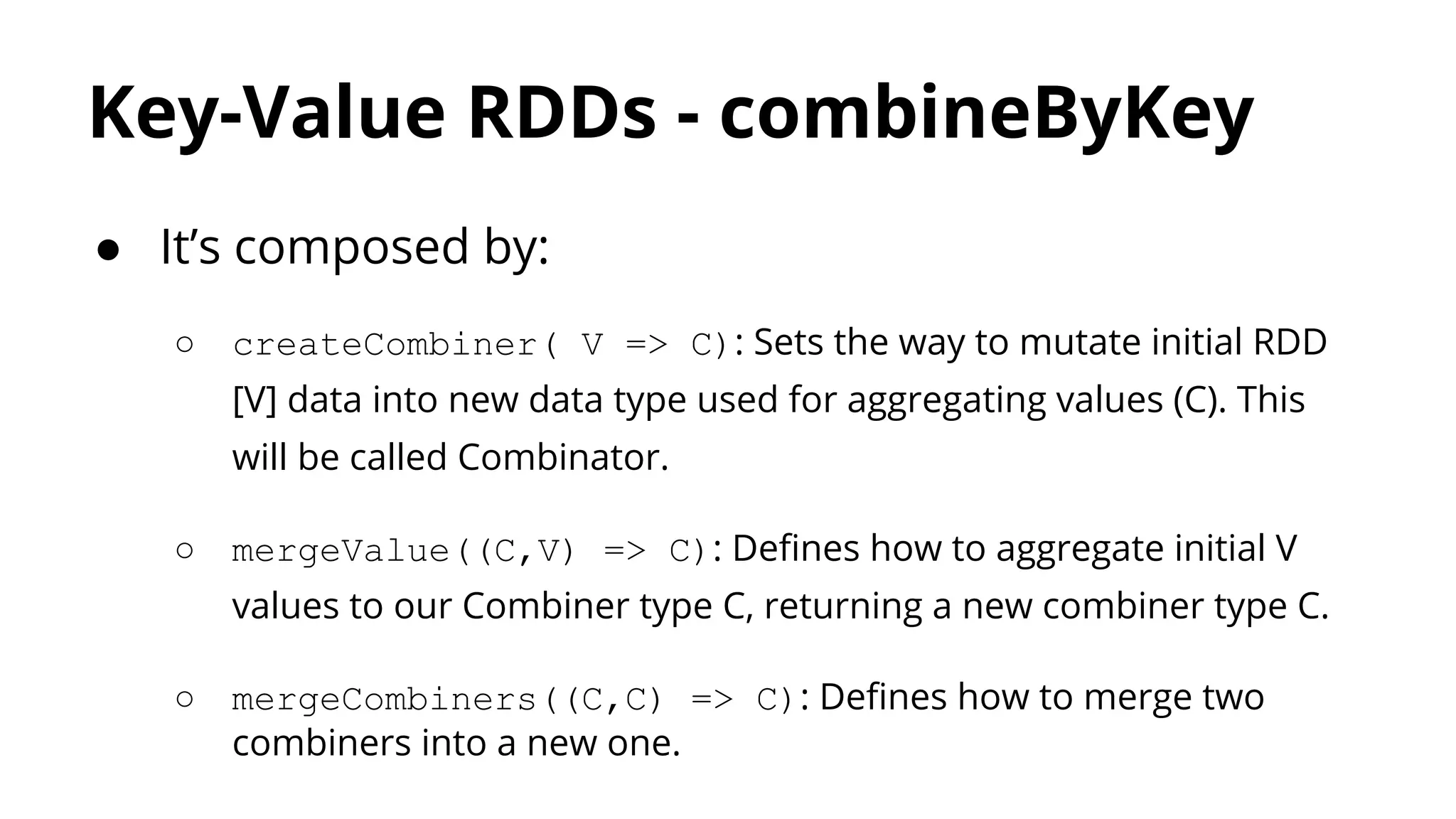

Key-Value RDDs - combineByKey
● It’s composed by:
○ createCombiner( V => C): Sets the way to mutate initial RDD
[V] data into new data type used for aggregating values (C). This
will be called Combinator.
○ mergeValue((C,V) => C): Defines how to aggregate initial V
values to our Combiner type C, returning a new combiner type C.
○ mergeCombiners((C,C) => C): Defines how to merge two
combiners into a new one.

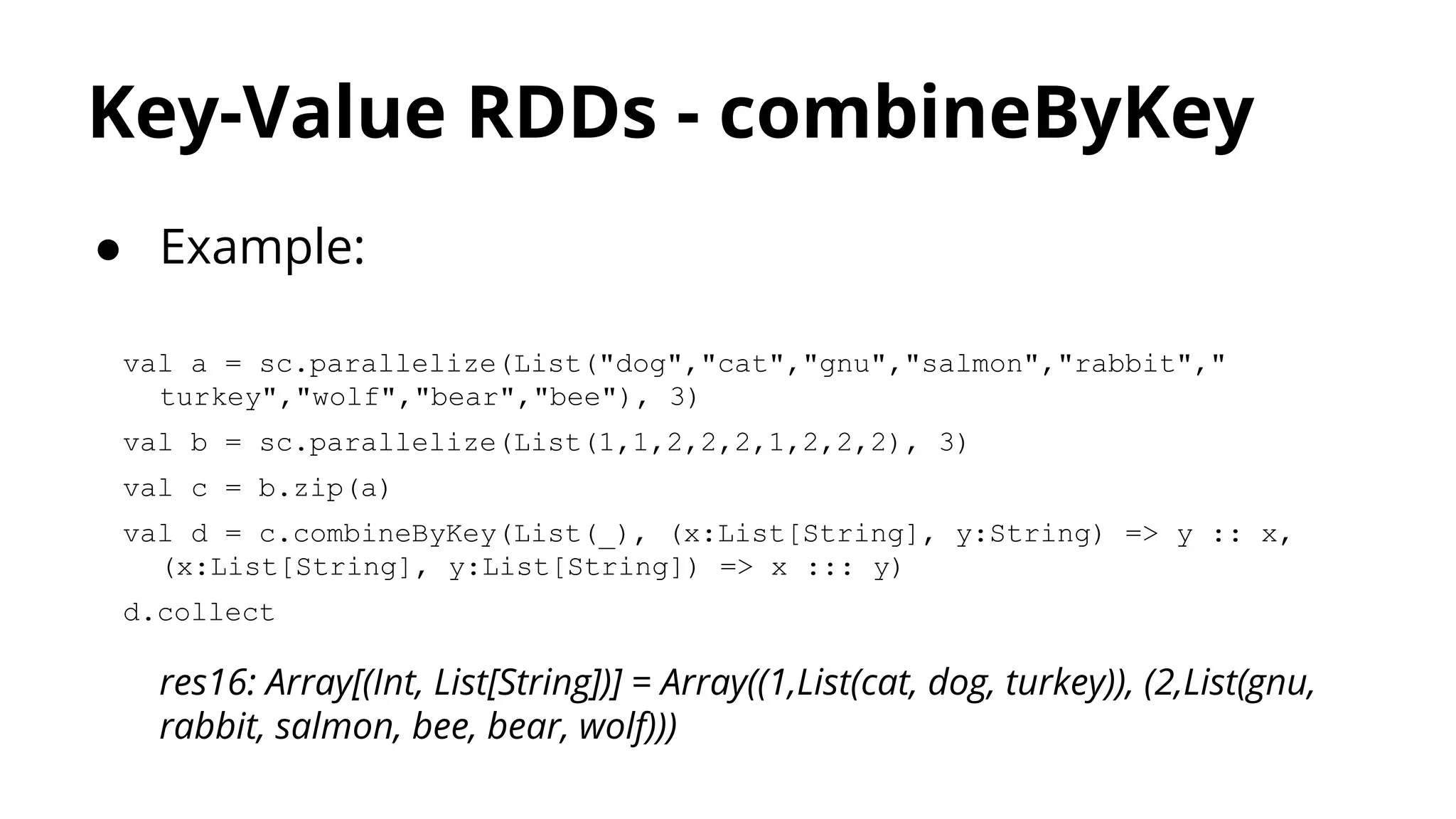

Key-Value RDDs - combineByKey
● Example:
val a = sc.parallelize(List("dog","cat","gnu","salmon","rabbit","
turkey","wolf","bear","bee"), 3)
val b = sc.parallelize(List(1,1,2,2,2,1,2,2,2), 3)
val c = b.zip(a)
val d = c.combineByKey(List(_), (x:List[String], y:String) => y :: x,
(x:List[String], y:List[String]) => x ::: y)
d.collect
res16: Array[(Int, List[String])] = Array((1,List(cat, dog, turkey)), (2,List(gnu,
rabbit, salmon, bee, bear, wolf)))

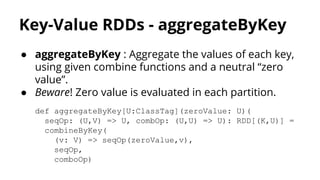

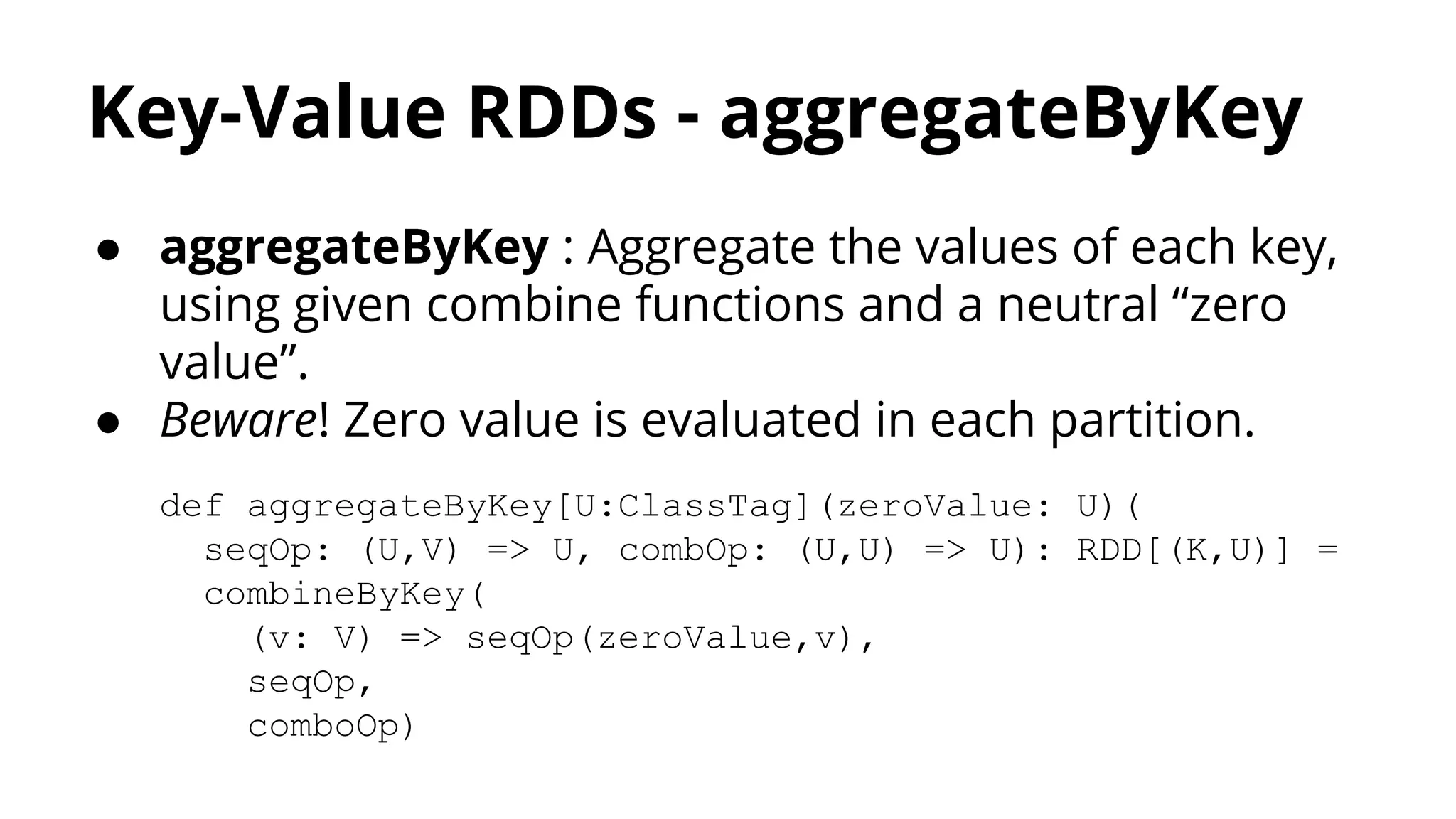

Key-Value RDDs - aggregateByKey
● aggregateByKey : Aggregate the values of each key,
using given combine functions and a neutral “zero
value”.
● Beware! Zero value is evaluated in each partition.
def aggregateByKey[U:ClassTag](zeroValue: U)(
seqOp: (U,V) => U, combOp: (U,U) => U): RDD[(K,U)] =
combineByKey(
(v: V) => seqOp(zeroValue,v),
seqOp,
comboOp)

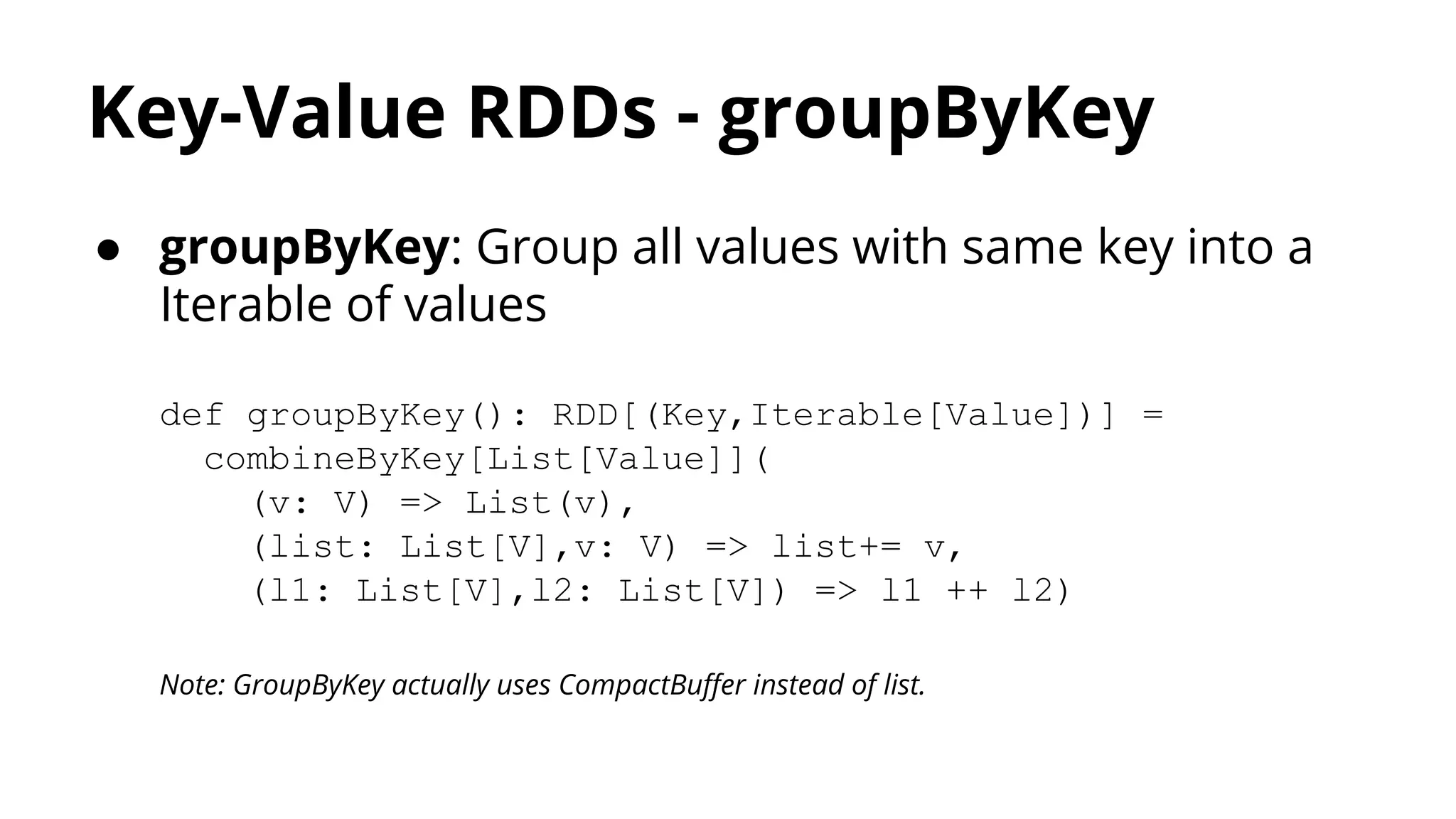

Key-Value RDDs - groupByKey
● groupByKey: Group all values with same key into a
Iterable of values
def groupByKey(): RDD[(Key,Iterable[Value])] =
combineByKey[List[Value]](
(v: V) => List(v),
(list: List[V],v: V) => list+= v,
(l1: List[V],l2: List[V]) => l1 ++ l2)
Note: GroupByKey actually uses CompactBuffer instead of list.
Modules

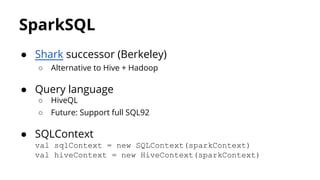

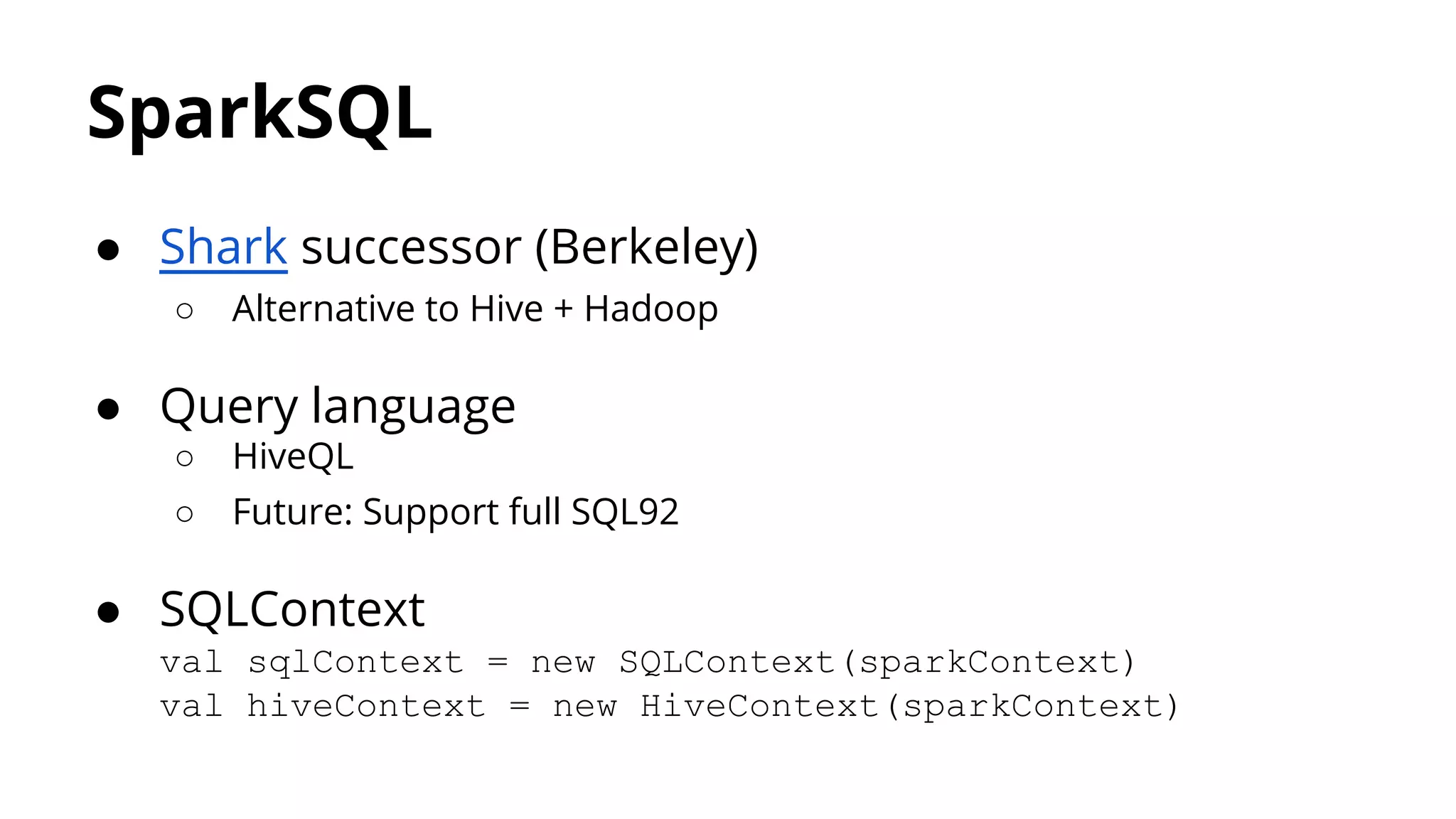

SparkSQL
● Shark successor (Berkeley)
○ Alternative to Hive + Hadoop
● Query language
○ HiveQL
○ Future: Support full SQL92
● SQLContext
val sqlContext = new SQLContext(sparkContext)
val hiveContext = new HiveContext(sparkContext)
SparkSQL
● Different datasources
○ JSON
○ Parquet
○ CSV
● New implementations
○ Cassandra
○ ElasticSearch
○ MongoDB
● Unified API in Spark 1.3.0
val students: DataFrame = sqlContext.load(
“students”,“org.apache.sql.parquet”,Map(...))

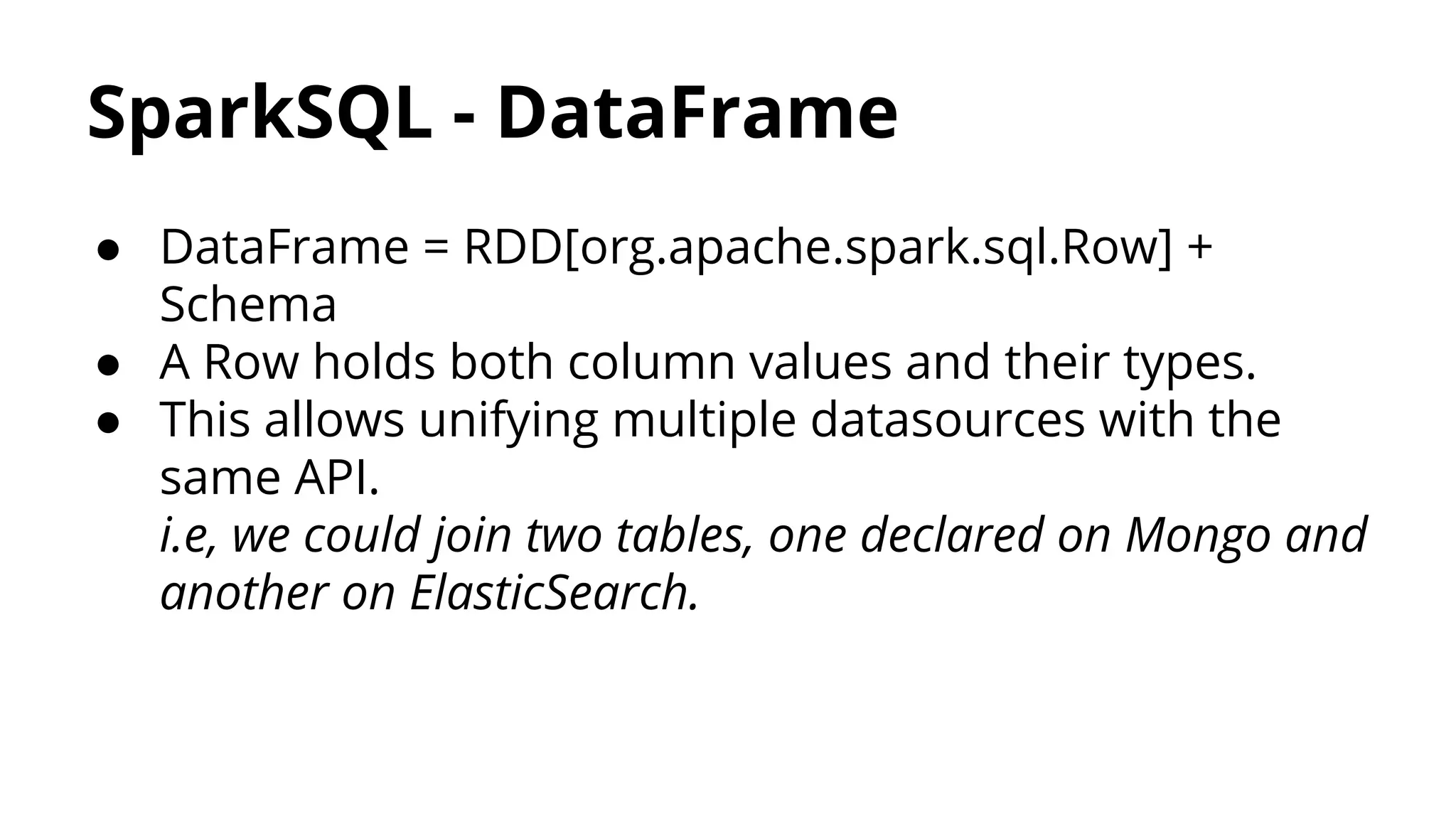

SparkSQL - DataFrame
● DataFrame = RDD[org.apache.spark.sql.Row] +
Schema
● A Row holds both column values and their types.
● This allows unifying multiple datasources with the
same API.
i.e, we could join two tables, one declared on Mongo and
another on ElasticSearch.

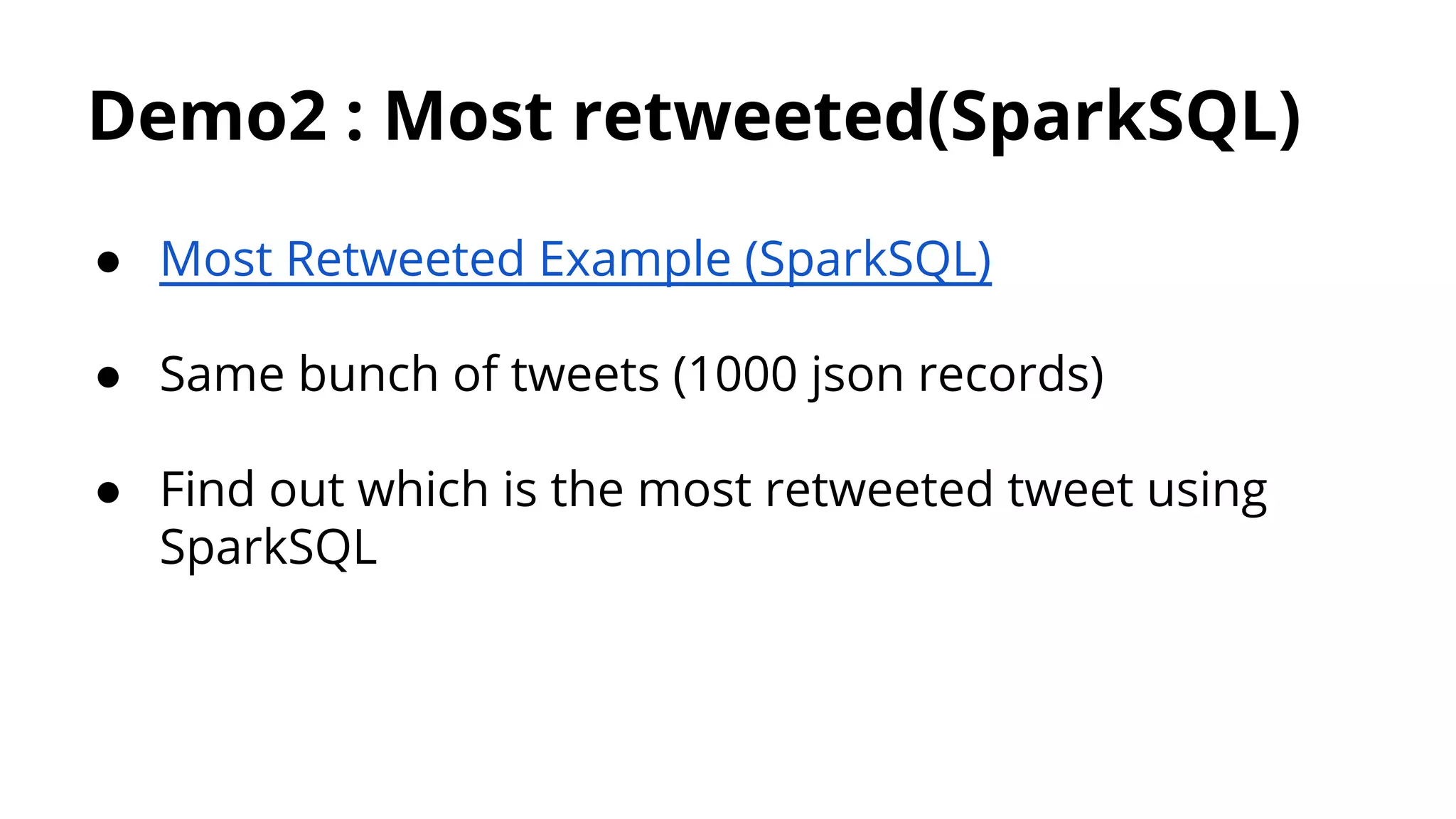

Demo2 : Most retweeted(SparkSQL)
● Most Retweeted Example (SparkSQL)
● Same bunch of tweets (1000 json records)
● Find out which is the most retweeted tweet using
SparkSQL
Who uses it?
Distributed computing with
Javier Santos
April 2015

More Related Content

What's hot

tcpdumpとtcpreplayとtcprewriteと他。
tcpdumpとtcpreplayとtcprewriteと他。tcpdumpとtcpreplayとtcprewriteと他。
tcpdumpとtcpreplayとtcprewriteと他。
(^-^) togakushi

【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮
【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮
【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮
Hibino Hisashi

【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話
【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話
【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話
Hibino Hisashi

バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~
バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~
バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~
Ryota Watabe

LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall )
LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall ) LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall )
LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall )
Hironobu Isoda


What's hot (20)

tcpdumpとtcpreplayとtcprewriteと他。
tcpdumpとtcpreplayとtcprewriteと他。tcpdumpとtcpreplayとtcprewriteと他。
tcpdumpとtcpreplayとtcprewriteと他。

【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮
【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮
【第26回Elasticsearch勉強会】Logstashとともに振り返る、やっちまった事例ごった煮

PySparkによるジョブを、より速く、よりスケーラブルに実行するための最善の方法 ※講演は翻訳資料にて行います。 - Getting the Best...
PySparkによるジョブを、より速く、よりスケーラブルに実行するための最善の方法  ※講演は翻訳資料にて行います。 - Getting the Best...PySparkによるジョブを、より速く、よりスケーラブルに実行するための最善の方法  ※講演は翻訳資料にて行います。 - Getting the Best...
PySparkによるジョブを、より速く、よりスケーラブルに実行するための最善の方法 ※講演は翻訳資料にて行います。 - Getting the Best...

Databricksを初めて使う人に向けて.pptx
Databricksを初めて使う人に向けて.pptxDatabricksを初めて使う人に向けて.pptx
Databricksを初めて使う人に向けて.pptx

Apache Spark on Kubernetes入門(Open Source Conference 2021 Online Hiroshima 発表資料)
Apache Spark on Kubernetes入門(Open Source Conference 2021 Online Hiroshima 発表資料)Apache Spark on Kubernetes入門(Open Source Conference 2021 Online Hiroshima 発表資料)
Apache Spark on Kubernetes入門(Open Source Conference 2021 Online Hiroshima 発表資料)

アーキテクチャから理解するPostgreSQLのレプリケーション
アーキテクチャから理解するPostgreSQLのレプリケーションアーキテクチャから理解するPostgreSQLのレプリケーション
アーキテクチャから理解するPostgreSQLのレプリケーション

押さえておきたい、PostgreSQL 13 の新機能!! (PostgreSQL Conference Japan 2020講演資料)
押さえておきたい、PostgreSQL 13 の新機能!! (PostgreSQL Conference Japan 2020講演資料)押さえておきたい、PostgreSQL 13 の新機能!! (PostgreSQL Conference Japan 2020講演資料)
押さえておきたい、PostgreSQL 13 の新機能!! (PostgreSQL Conference Japan 2020講演資料)

【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話
【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話
【第21回Elasticsearch勉強会】aws環境に合わせてelastic stackをログ分析基盤として構築した話

データウェアハウスモデリング入門(ダイジェスト版)(事前公開版)
データウェアハウスモデリング入門(ダイジェスト版)(事前公開版) データウェアハウスモデリング入門(ダイジェスト版)(事前公開版)
データウェアハウスモデリング入門(ダイジェスト版)(事前公開版)

Hadoop -ResourceManager HAの仕組み-
Hadoop -ResourceManager HAの仕組み-Hadoop -ResourceManager HAの仕組み-
Hadoop -ResourceManager HAの仕組み-

Hadoopの概念と基本的知識
Hadoopの概念と基本的知識Hadoopの概念と基本的知識
Hadoopの概念と基本的知識

バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~
バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~
バッチ処理にバインド変数はもうやめません? ~|バッチ処理の突発遅延を題材にして考えてみる~

Redisの特徴と活用方法について
Redisの特徴と活用方法についてRedisの特徴と活用方法について
Redisの特徴と活用方法について

ゼロから始めるSparkSQL徹底活用!
ゼロから始めるSparkSQL徹底活用!ゼロから始めるSparkSQL徹底活用!
ゼロから始めるSparkSQL徹底活用!

[Cloud OnAir] GCP で誰でも始められる HPC 2019年5月9日 放送
[Cloud OnAir] GCP で誰でも始められる HPC 2019年5月9日 放送[Cloud OnAir] GCP で誰でも始められる HPC 2019年5月9日 放送
[Cloud OnAir] GCP で誰でも始められる HPC 2019年5月9日 放送

LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall )
LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall ) LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall )
LogbackからLog4j 2への移行によるアプリケーションのスループット改善 ( JJUG CCC 2021 Fall )

本当にあったApache Spark障害の話
本当にあったApache Spark障害の話本当にあったApache Spark障害の話
本当にあったApache Spark障害の話

オンプレミスRDBMSをAWSへ移行する手法
オンプレミスRDBMSをAWSへ移行する手法オンプレミスRDBMSをAWSへ移行する手法
オンプレミスRDBMSをAWSへ移行する手法

大量のデータ処理や分析に使えるOSS Apache Sparkのご紹介(Open Source Conference 2020 Online/Kyoto ...
大量のデータ処理や分析に使えるOSS Apache Sparkのご紹介(Open Source Conference 2020 Online/Kyoto ...大量のデータ処理や分析に使えるOSS Apache Sparkのご紹介(Open Source Conference 2020 Online/Kyoto ...
大量のデータ処理や分析に使えるOSS Apache Sparkのご紹介(Open Source Conference 2020 Online/Kyoto ...

Halide による画像処理プログラミング入門
Halide による画像処理プログラミング入門Halide による画像処理プログラミング入門
Halide による画像処理プログラミング入門


Similar to Distributed computing with spark

Similar to Distributed computing with spark (20)

Apache Spark - Basics of RDD | Big Data Hadoop Spark Tutorial | CloudxLab
Apache Spark - Basics of RDD | Big Data Hadoop Spark Tutorial | CloudxLabApache Spark - Basics of RDD | Big Data Hadoop Spark Tutorial | CloudxLab
Apache Spark - Basics of RDD | Big Data Hadoop Spark Tutorial | CloudxLab

Apache Spark & Streaming
Apache Spark & StreamingApache Spark & Streaming
Apache Spark & Streaming

Stratosphere Intro (Java and Scala Interface)
Stratosphere Intro (Java and Scala Interface)Stratosphere Intro (Java and Scala Interface)
Stratosphere Intro (Java and Scala Interface)

[DSC 2016] 系列活動:李泳泉 / 星火燎原 - Spark 機器學習初探
[DSC 2016] 系列活動:李泳泉 / 星火燎原 - Spark 機器學習初探[DSC 2016] 系列活動:李泳泉 / 星火燎原 - Spark 機器學習初探
[DSC 2016] 系列活動:李泳泉 / 星火燎原 - Spark 機器學習初探

Tall-and-skinny Matrix Computations in MapReduce (ICME colloquium)
Tall-and-skinny Matrix Computations in MapReduce (ICME colloquium)Tall-and-skinny Matrix Computations in MapReduce (ICME colloquium)
Tall-and-skinny Matrix Computations in MapReduce (ICME colloquium)

Rubyconfindia2018 - GPU accelerated libraries for Ruby
Rubyconfindia2018 - GPU accelerated libraries for RubyRubyconfindia2018 - GPU accelerated libraries for Ruby
Rubyconfindia2018 - GPU accelerated libraries for Ruby

Neo4j: Graph-like power
Neo4j: Graph-like powerNeo4j: Graph-like power
Neo4j: Graph-like power

Apache Spark - Basics of RDD & RDD Operations | Big Data Hadoop Spark Tutoria...
Apache Spark - Basics of RDD & RDD Operations | Big Data Hadoop Spark Tutoria...Apache Spark - Basics of RDD & RDD Operations | Big Data Hadoop Spark Tutoria...
Apache Spark - Basics of RDD & RDD Operations | Big Data Hadoop Spark Tutoria...

Scala meetup - Intro to spark
Scala meetup - Intro to sparkScala meetup - Intro to spark
Scala meetup - Intro to spark

Tuning and Debugging in Apache Spark
Tuning and Debugging in Apache SparkTuning and Debugging in Apache Spark
Tuning and Debugging in Apache Spark

Tuning and Debugging in Apache Spark
Tuning and Debugging in Apache SparkTuning and Debugging in Apache Spark
Tuning and Debugging in Apache Spark

A Scalable Hierarchical Clustering Algorithm Using Spark: Spark Summit East t...
A Scalable Hierarchical Clustering Algorithm Using Spark: Spark Summit East t...A Scalable Hierarchical Clustering Algorithm Using Spark: Spark Summit East t...
A Scalable Hierarchical Clustering Algorithm Using Spark: Spark Summit East t...

10. R getting spatial
10.  R getting spatial10.  R getting spatial
10. R getting spatial

R getting spatial
R getting spatialR getting spatial
R getting spatial

Tulsa techfest Spark Core Aug 5th 2016
Tulsa techfest Spark Core Aug 5th 2016Tulsa techfest Spark Core Aug 5th 2016
Tulsa techfest Spark Core Aug 5th 2016

CS101- Introduction to Computing- Lecture 35
CS101- Introduction to Computing- Lecture 35CS101- Introduction to Computing- Lecture 35
CS101- Introduction to Computing- Lecture 35

[系列活動] Data exploration with modern R
[系列活動] Data exploration with modern R[系列活動] Data exploration with modern R
[系列活動] Data exploration with modern R

Introduction to Apache Spark
Introduction to Apache SparkIntroduction to Apache Spark
Introduction to Apache Spark

Transformations and actions a visual guide training
Transformations and actions a visual guide trainingTransformations and actions a visual guide training
Transformations and actions a visual guide training

Apache Spark: What? Why? When?
Apache Spark: What? Why? When?Apache Spark: What? Why? When?
Apache Spark: What? Why? When?


More from Javier Santos Paniego

More from Javier Santos Paniego (6)

Codemotion akka persistence, cqrs%2 fes y otras siglas del montón
Codemotion   akka persistence, cqrs%2 fes y otras siglas del montónCodemotion   akka persistence, cqrs%2 fes y otras siglas del montón
Codemotion akka persistence, cqrs%2 fes y otras siglas del montón

Codemotion akka voló sobre el nido del future
Codemotion   akka voló sobre el nido del futureCodemotion   akka voló sobre el nido del future
Codemotion akka voló sobre el nido del future

Introduction to spark
Introduction to sparkIntroduction to spark
Introduction to spark

Scala for dummies
Scala for dummiesScala for dummies
Scala for dummies

Codemotion 2014 Scala @real life
Codemotion 2014 Scala @real lifeCodemotion 2014 Scala @real life
Codemotion 2014 Scala @real life

Scala @ Real life
Scala @ Real lifeScala @ Real life
Scala @ Real life


Recently uploaded

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research
CaitlinCummins3

SPLICE Working Group: Reusable Code Examples
SPLICE Working Group:Reusable Code ExamplesSPLICE Working Group:Reusable Code Examples
SPLICE Working Group: Reusable Code Examples
Peter Brusilovsky

Spellings Wk 4 and Wk 5 for Grade 4 at CAPS
Spellings Wk 4 and Wk 5 for Grade 4 at CAPSSpellings Wk 4 and Wk 5 for Grade 4 at CAPS
Spellings Wk 4 and Wk 5 for Grade 4 at CAPS
AnaAcapella


Recently uploaded (20)

SURVEY I created for uni project research
SURVEY I created for uni project researchSURVEY I created for uni project research
SURVEY I created for uni project research

OS-operating systems- ch05 (CPU Scheduling) ...
OS-operating systems- ch05 (CPU Scheduling) ...OS-operating systems- ch05 (CPU Scheduling) ...
OS-operating systems- ch05 (CPU Scheduling) ...

male presentation...pdf.................
male presentation...pdf.................male presentation...pdf.................
male presentation...pdf.................

How to Send Pro Forma Invoice to Your Customers in Odoo 17
How to Send Pro Forma Invoice to Your Customers in Odoo 17How to Send Pro Forma Invoice to Your Customers in Odoo 17
How to Send Pro Forma Invoice to Your Customers in Odoo 17

How To Create Editable Tree View in Odoo 17
How To Create Editable Tree View in Odoo 17How To Create Editable Tree View in Odoo 17
How To Create Editable Tree View in Odoo 17

Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading RoomSternal Fractures & Dislocations - EMGuidewire Radiology Reading Room
Sternal Fractures & Dislocations - EMGuidewire Radiology Reading Room

ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...
ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...
ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...

Basic Civil Engineering notes on Transportation Engineering & Modes of Transport
Basic Civil Engineering notes on Transportation Engineering & Modes of TransportBasic Civil Engineering notes on Transportation Engineering & Modes of Transport
Basic Civil Engineering notes on Transportation Engineering & Modes of Transport

SPLICE Working Group: Reusable Code Examples
SPLICE Working Group:Reusable Code ExamplesSPLICE Working Group:Reusable Code Examples
SPLICE Working Group: Reusable Code Examples

Book Review of Run For Your Life Powerpoint
Book Review of Run For Your Life PowerpointBook Review of Run For Your Life Powerpoint
Book Review of Run For Your Life Powerpoint

FICTIONAL SALESMAN/SALESMAN SNSW 2024.pdf
FICTIONAL SALESMAN/SALESMAN SNSW 2024.pdfFICTIONAL SALESMAN/SALESMAN SNSW 2024.pdf
FICTIONAL SALESMAN/SALESMAN SNSW 2024.pdf

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

OSCM Unit 2_Operations Processes & Systems
OSCM Unit 2_Operations Processes & SystemsOSCM Unit 2_Operations Processes & Systems
OSCM Unit 2_Operations Processes & Systems

Mattingly "AI & Prompt Design: Named Entity Recognition"
Mattingly "AI & Prompt Design: Named Entity Recognition"Mattingly "AI & Prompt Design: Named Entity Recognition"
Mattingly "AI & Prompt Design: Named Entity Recognition"

ESSENTIAL of (CS/IT/IS) class 07 (Networks)
ESSENTIAL of (CS/IT/IS) class 07 (Networks)ESSENTIAL of (CS/IT/IS) class 07 (Networks)
ESSENTIAL of (CS/IT/IS) class 07 (Networks)

8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management8 Tips for Effective Working Capital Management
8 Tips for Effective Working Capital Management

Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptx
Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptxAnalyzing and resolving a communication crisis in Dhaka textiles LTD.pptx
Analyzing and resolving a communication crisis in Dhaka textiles LTD.pptx

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptx

DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUMDEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM
DEMONSTRATION LESSON IN ENGLISH 4 MATATAG CURRICULUM

Spellings Wk 4 and Wk 5 for Grade 4 at CAPS
Spellings Wk 4 and Wk 5 for Grade 4 at CAPSSpellings Wk 4 and Wk 5 for Grade 4 at CAPS
Spellings Wk 4 and Wk 5 for Grade 4 at CAPS


Distributed computing with spark

  • 1. Distributed computing with Javier Santos April,13 - 2015
  • 2. About me Javier Santos @jpaniego «Hay dos formas de programar sin errores; solo la tercera funciona» Alan J Perlis
  • 3. What’s Spark? val mySeq: Seq[Int] = 1 to 5 val action: Seq[Int] => Int = (seq: Seq[Int]) => seq.sum val result: Int = 15
  • 4. What’s Spark? val mySeq: Seq[Int] = 1 to Int.MaxValue val action: Seq[Int] => Int = (seq: Seq[Int]) => seq.sum val result: Int = 1073741824
  • 5. What’s Spark? Computing problems: ● Time: Waiting for action results on tons of records ● Space: How do we allocate TB of data?
  • 7. What’s Spark? val mySeq: Seq[Int] = 1 to 99 val mySeq_1 = 1 to 33 val mySeq_3 = 67 to 99 val mySeq_2 = 34 to 66
  • 8. What’s Spark? val action: Seq[Int] => Int = (seq: Seq[Int]) => seq.sum val mySeq_1 = 1 to 33 val mySeq_3 = 67 to 99 val mySeq_2 = 34 to 66 action action action
  • 9. What’s Spark? val result: Int = 4950 val mySeq_1 = 1 to 33 val mySeq_3 = 67 to 99 val mySeq_2 = 34 to 66 561 1650 2739
  • 10. What’s Spark? ● General engine for large-scale data processing. ● “In-memory” data allocation. ● Target: data and computing parallelism. ● Mostly developed in Scala. It also provides support for Python and Java ● First developed by AMPLab in UC Berkeley ● Support by Databricks ● Latest stable version 1.3.0
  • 13. MapReduce model ● Programming model used for supporting parallel- computing and big data sets distribution among computing groups ● Based on two main functional programming methods: Map and reduce. ● Hadoop ○ One of the first open source implementation ○ First implementation lead by Yahoo
  • 14. MapReduce model ● Phases Map Combiner Partitioner Reduce
  • 15. MapReduce model ● Example (Map) “123;SamsungGalaxyIII;14:05;300;34612345678” “124;LGNexus4;16:05;121;+34613455678” “126;LGNexus4;12:05;23;+3463624678” “131;NokiaLumia;14:05;300;+34613246778” “125;MotorolaG2;14:05;300;+34612345678” “127;NokiaLumia;14:05;300;+34612345678” “130;NokiaLumia;14:05;300;+34612345678” (SamsungGalaxyIII, 1) (LGNexus4, 1) (LGNexus4, 1) (NokiaLumia, 1) (MotorolaG2, 1) (NokiaLumia, 1) (NokiaLumia, 1) Partitions
  • 16. MapReduce model ● Example (Combiner) (SamsungGalaxyIII, 1) (LGNexus4, 1) (LGNexus4, 1) (NokiaLumia, 1) (MotorolaG2, 1) (NokiaLumia, 1) (NokiaLumia, 1) (SamsungGalaxyIII, 1) (LGNexus4, 2) (NokiaLumia, 1) (MotorolaG2, 1) (NokiaLumia, 2)
  • 17. MapReduce model ● Example (Partitioner) (SamsungGalaxyIII, 1) (LGNexus4, 2) (NokiaLumia, 1) (MotorolaG2, 1) (NokiaLumia, 2) (SamsungGalaxyIII, 1) (LGNexus4, 2) (NokiaLumia, 3) (MotorolaG2, 1)
  • 18. MapReduce model ● Example (Reduce) (SamsungGalaxyIII, 1) (LGNexus4, 2) (NokiaLumia, 3) (MotorolaG2, 1) (NokiaLumia, 3) ReduceFunction f(t1:(String,Int),t2:(String,Int)) = if (t1._2 > t2._2) t1 else t2
  • 20. Deployment types ● Local ○ master=”local[N]” (N=Amount of cores) ○ Spark master is launched in the same process. It’s not accessible from web. ○ Workers are launched in the same process. ● Standalone ○ master=”spark://master-url” ○ Spark master is launched in a cluster machine. ○ For deploying workers, it’s used ‘start-all.sh’ script. ○ Submit JAR to worker nodes.
  • 22. Deployment: Cluster managers ● YARN ○ It uses Hadoop Yarn Resource Manager ○ Spark app is launched inside a Yarn container ○ Several isolated Spark Masters running in cluster possibility. ● Mesos ○ Another cluster manager ○ Not so much used like Yarn with Spark. ○ Several isolated Spark Masters running in cluster possibility.
  • 24. Execution terms : SparkContext & Executor ● SparkContext ○ Spark cluster connection ○ Necessary for SQLContext, StreamingContext, … ○ Isolated: Two Spark Contexts cannot exchange data (without external help). ● Executor ○ Individual execution unit ○ 1 core ~ 2 executor ○ Each application has its owns.
  • 25. Job terms Job Stage Stage Stage Task Task Task Task Task
  • 26. Job terms ● Job ○ Individual executed action ○ It’s composed by a set of tasks arranged in stages ● Stage ○ Job split based on last cached action or shuffle event. ● Task ○ Minimum execution unit sent to executors. ○ Task ~ Partition correlation
  • 28. ● Resilient Distributed Dataset. Basic abstraction in Spark ● Think of it like a huge collection partitioned and distributed in different machines. ● Lazy evaluated ● Basically composed of ○ A list of partitions ○ A function for computing each split ○ A list of dependencies on other RDDs RDD
  • 29. RDD ● Basic example: val myRdd: RDD[String] = sc.parallelize( “this is a sample string”.split(“ “).toList) ● For creating a new RDD is necessary to implement: ○ compute (How to get RDD population) ○ getDependencies (RDD lineage) ○ getPartitions (How to split the data)
  • 30. RDD ● An RDD may be created from ○ A file / set of files: sc.textFile(“myFile”) sc.textFile(“file1,file2”) ○ A bunch of memory-storaged data: sc.parallelize(List(1,2,3)) Another RDD: myRdd.map(_.toString)
  • 31. RDD - Partitions ● Partition : RDD chunk ● A worker node may contain 1 or more partitions of some RDD. ● It’s important to choose a best-performance partitioning. ● Repartitioning ○ It implies shuffling all RDD data among worker nodes ○ There will surely be tons of network traffic among all worker nodes!
  • 32. RDD - Lineage ● An RDD may be built from another one. ● Base RDD : Has no parent ● Ex: val base: RDD[Int] = sc.parallelize(List(1,2,3,4)) val even: RDD[Int] = myRDD.filter(_%2==0) ● DAG (Directed Acyclic Graph) : Represents the RDD lineage (inheritance, mutations, …). ● DAGScheduler: High level layer used that schedules stages among all related RDDs
  • 34. RDD - Transformations ● It applies a change to some RDD, returning a new one. ● It’s not immediately evaluated. ● Think of it like a “Call-by-name” function. ● Adds a new node in Lineage DAG.
  • 35. RDD - Transformations ● Most frequently used: ○ map val myRDD: RDD[Int] = sc.parallelize(List(1,2,3,4)) val myStrinRDD: RDD[String] = myRDD.map(_.toString) ○ flatMap val myRDD: RDD[Int] = sc.parallelize(List(1,null,3,null)) val myNotNullInts: RDD[Int] = myRdd.flatMap(n => Option(n))
  • 36. RDD - Transformations ● Most frequently used: ○ filter val myRDD: RDD[Int] = sc.parallelize(List(1,2,3,4)) val myStrinRDD: RDD[Int] = myRDD.filter(_%2==0) ○ union val odd: RDD[Int] = sc.parallelize(List(1,3,5)) val even: RDD[Int] = sc.parallelize(List(2,4,6)) val all: RDD[Int] = odd.union(even)
  • 37. RDD - Actions ● It launches the RDD evaluation, ○ returning some data to the driver ○ or persisting to some external storage system ● It’s evaluated partially on each worker node, and results are merged in the Driver ● There are mechanisms to make cheaper computing several times the same RDD (like persist() or cache() )
  • 38. RDD - Actions ● Examples: ○ count val myRdd: Rdd[Int] = sc.parallelize(List(1,2,3)) val size: Int = myRdd.count Counting implies processing whole RDD ○ take val myRdd: Rdd[Int] = sc.parallelize(List(1,2,3)) val List(1,2) = myRdd.take(2).toList ○ collect val myRdd: Rdd[Int] = sc.parallelize(List(1,2,3)) val data: Array[Int] = myRdd.collect Beware! Executing ‘collect’ on big collections might end into a memory leak
  • 39. Demo1 : Most retweeted ● Most Retweeted example ● Bunch of tweets (1000 json records) ● Find out which is the most retweeted tweet.
  • 40. Key-Value RDDs ● Particular case of RDD[T] where T = (U,V) ● It allows grouping,combining,aggregating values by some key. ● In Scala it’s only needed to import org.apache.spark.SparkContext._ ● In Java, it’s mandatory to use PairRDD class.
  • 41. Key-Value RDDs ● keyBy: Generates a PairRDD val myRDD: RDD[Int] = sc.parallelize(List(1,2,3,4,5)) val kvRDD: RDD[(String,Int)] = myRDD.keyBy( n => if (n%2==0) “even” else “odd”) “odd” -> 1, “even” -> 2, “odd” -> 3, “even” -> 4, “odd” -> 5
  • 42. Key-Value RDDs ● keys: Gets keys from PairRDD val myRDD: RDD[(String,Int)] = sc.parallelize(“odd” -> 1,”even” -> 2,”odd” -> 3) val keysRDD: RDD[String] = myRDD.keys “odd”,”even”,”odd” ● values: Gets values from PairRDD
  • 43. Key-Value RDDs ● mapValues: map PairRDD values, omitting keys. val myRDD: RDD[(String,Int)] = sc.parallelize(“odd” -> 1,”even” -> 2,”odd” -> 3) val mapRDD: RDD[(String,String)] = myRDD.mapValues(_.toString) “odd” -> “1”, “even” -> “2”, “odd” -> “3” ● flatMapValues: flatMap PairRDD values
  • 44. Key-Value RDDs ● join: Return a new RDD with both RDD joined by key. val a = sc.parallelize(List("dog", "salmon", "salmon", "rat", "elephant"), 3) val b = a.keyBy(_.length) val c = sc.parallelize(List("dog","cat","gnu","salmon","rabbit","turkey","wolf"," bear","bee"), 3) val d = c.keyBy(_.length) b.join(d).collect res0: Array[(Int, (String, String))] = Array((6,(salmon,salmon)), (6,(salmon,rabbit)), (6,(salmon,turkey)), (6,(salmon,salmon)), (6,(salmon,rabbit)), (6,(salmon,turkey)), (3, (dog,dog)), (3,(dog,cat)), (3,(dog,gnu)), (3,(dog,bee)), (3,(rat,dog)), (3,(rat,cat)), (3,(rat,gnu)), (3,(rat,bee)))
  • 45. Key-Value RDDs - combineByKey ● combineByKey: def combineByKey[C]( createCombiner: V => C, mergeValue: (C,V) => C, mergeCombiners: (C,C) => C): RDD[(K,C)] ● Think of it as something-like-but-not a foldLeft over each partition
  • 46. Key-Value RDDs - combineByKey ● It’s composed by: ○ createCombiner( V => C): Sets the way to mutate initial RDD [V] data into new data type used for aggregating values (C). This will be called Combinator. ○ mergeValue((C,V) => C): Defines how to aggregate initial V values to our Combiner type C, returning a new combiner type C. ○ mergeCombiners((C,C) => C): Defines how to merge two combiners into a new one.
  • 47. Key-Value RDDs - combineByKey ● Example: val a = sc.parallelize(List("dog","cat","gnu","salmon","rabbit"," turkey","wolf","bear","bee"), 3) val b = sc.parallelize(List(1,1,2,2,2,1,2,2,2), 3) val c = b.zip(a) val d = c.combineByKey(List(_), (x:List[String], y:String) => y :: x, (x:List[String], y:List[String]) => x ::: y) d.collect res16: Array[(Int, List[String])] = Array((1,List(cat, dog, turkey)), (2,List(gnu, rabbit, salmon, bee, bear, wolf)))
  • 48. Key-Value RDDs - aggregateByKey ● aggregateByKey : Aggregate the values of each key, using given combine functions and a neutral “zero value”. ● Beware! Zero value is evaluated in each partition. def aggregateByKey[U:ClassTag](zeroValue: U)( seqOp: (U,V) => U, combOp: (U,U) => U): RDD[(K,U)] = combineByKey( (v: V) => seqOp(zeroValue,v), seqOp, comboOp)
  • 49. Key-Value RDDs - groupByKey ● groupByKey: Group all values with same key into a Iterable of values def groupByKey(): RDD[(Key,Iterable[Value])] = combineByKey[List[Value]]( (v: V) => List(v), (list: List[V],v: V) => list+= v, (l1: List[V],l2: List[V]) => l1 ++ l2) Note: GroupByKey actually uses CompactBuffer instead of list.
  • 51.
  • 52. SparkSQL ● Shark successor (Berkeley) ○ Alternative to Hive + Hadoop ● Query language ○ HiveQL ○ Future: Support full SQL92 ● SQLContext val sqlContext = new SQLContext(sparkContext) val hiveContext = new HiveContext(sparkContext)
  • 53. SparkSQL ● Different datasources ○ JSON ○ Parquet ○ CSV ● New implementations ○ Cassandra ○ ElasticSearch ○ MongoDB ● Unified API in Spark 1.3.0 val students: DataFrame = sqlContext.load( “students”,“org.apache.sql.parquet”,Map(...))
  • 54. SparkSQL - DataFrame ● DataFrame = RDD[org.apache.spark.sql.Row] + Schema ● A Row holds both column values and their types. ● This allows unifying multiple datasources with the same API. i.e, we could join two tables, one declared on Mongo and another on ElasticSearch.
  • 55. Demo2 : Most retweeted(SparkSQL) ● Most Retweeted Example (SparkSQL) ● Same bunch of tweets (1000 json records) ● Find out which is the most retweeted tweet using SparkSQL
