- 2. • In otherlives: – Network Engineer – Network Admin – WAN admin – Cloud admin • Now – SharePoint experience and certification (custom and oob / data and architect) – Forefront IM and UAG ABOUT ME
- 3. • As aportal • As an intranet • As an extranet SHAREPOINT

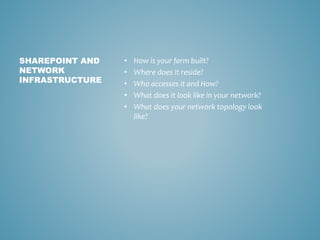

- 4. • How isyour farm built? • Where does it reside? • Who accesses it and How? • What does it look like in your network? • What does your network topology look like? SHAREPOINT AND NETWORK INFRASTRUCTURE
- 5. • Network topologyis the layout pattern of interconnections of the various elements (links, nodes, etc.) of a computer or network • Physical topology refers to the physical design of a network including the devices, location and cable installation. • Logical topology refers to how data is actually transferred in a network as opposed to its physical design WHAT IS NETWORK TOPOLOGY
- 6. • What isa LAN?INSIDE / OUTSIDE
- 7. • A localarea network (LAN) is a computer network that connects computers and devices in a limited geographical area such as home, school, computer laboratory or office building. The defining characteristics of LANs includes their usually high data-transfer rates, smaller geographic area, and lack of a need for leased telecommunication lines LAN
- 8.
- 9.
- 10. • What isa LAN? • What is a WAN? INSIDE / OUTSIDE

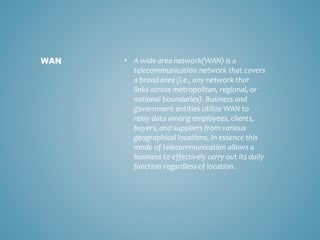

- 11. • A widearea network(WAN) is a telecommunication network that covers a broad area (i.e., any network that links across metropolitan, regional, or national boundaries). Business and government entities utilize WAN to relay data among employees, clients, buyers, and suppliers from various geographical locations. In essence this mode of telecommunication allows a business to effectively carry out its daily function regardless of location. WAN
- 12.

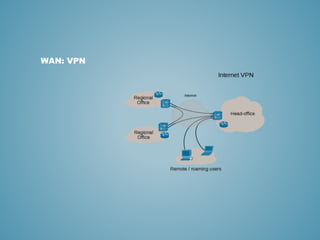

- 13.
- 14. • What isa LAN? • What is a WAN? • What is a Host? INSIDE / OUTSIDE
- 15. • A networkhost is a computer connected to a computer network. A network host may offer information resources, services, and applications to users or other nodes on the network • A web hosting service is a type of Internet hosting service that allows individuals and organizations to make their own website accessible via the World Wide Web. Web hosts are companies that provide space on a server they own or lease for use by their clients as well as providing Internet connectivity, typically in a data center. Web hosts can also provide data center space and connectivity to the Internet for servers they do not own to be located in their data center HOST
- 16. • Inside networkprotocols • Outside network protocols • How can SP be setup for outside? HOW TO USE SHAREPOINT FROM OUTSIDE
- 17.

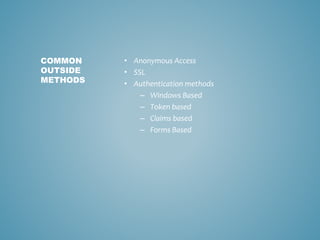

- 18. • Anonymous Access •SSL • Authentication methods – Windows Based – Token based – Claims based – Forms Based COMMON OUTSIDE METHODS
- 19.

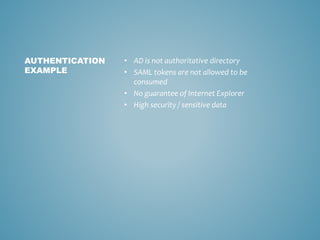

- 20. • AD isnot authoritative directory • SAML tokens are not allowed to be consumed • No guarantee of Internet Explorer • High security / sensitive data AUTHENTICATION EXAMPLE
- 21. • What isa LAN? • What is a WAN? • What is a Host? • What is a DMZ? INSIDE / OUTSIDE

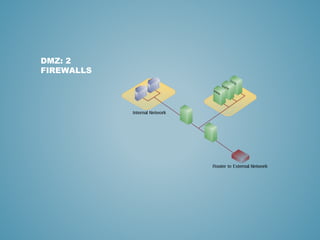

- 22. • A DMZ,or De Militarized Zone, is a physical or logical subnetwork that contains and exposes an organization's external services to a larger untrusted network, usually the Internet. It is sometimes referred to as a perimeter network. The purpose of a DMZ is to add an additional layer of security to an organization's local area network (LAN); an external attacker only has access to equipment in the DMZ, rather than any other part of the network. DMZ
- 23.
- 24.

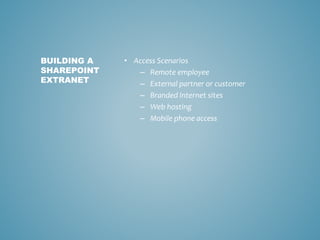

- 25. • Access Scenarios –Remote employee – External partner or customer – Branded Internet sites – Web hosting – Mobile phone access BUILDING A SHAREPOINT EXTRANET

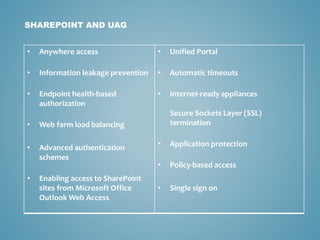

- 26. SHAREPOINT AND UAG •Anywhere access • Information leakage prevention • Endpoint health-based authorization • Web farm load balancing • Advanced authentication schemes • Enabling access to SharePoint sites from Microsoft Office Outlook Web Access • Unified Portal • Automatic timeouts • Internet-ready appliances Secure Sockets Layer (SSL) termination • Application protection • Policy-based access • Single sign on
- 27. • Part ofForeFront Suite • Reverse Proxy, Direct Access, Remote Desktop Services and VPN solution • Built with/on TMG (firewall, endpoint security) • Great for LOB apps • Highly customizable, integrates with a lot WHAT IS UAG?
- 28.
- 29. • TMG isinstalled before you install UAG • TMG can act as a router, an Internet gateway, a virtual private network (VPN) server, a network address translation (NAT) server and a proxy server. • TMG is a firewall that offers application layer protection, stateful filtering, content filtering and anti-malware protection. • TMG can compress web traffic and offers web caching UAG AND TMG
- 30. • Publishing MicrosoftExchange Server Applications • Publishing Remote Desktop Services • Remote Network Access Using SSTP • Intra-Site Automatic Tunnel Addressing Protocol • Endpoint Policies and Network Access Protection • UAG Arrays • Direct Access UAG SETUP IN GENERAL

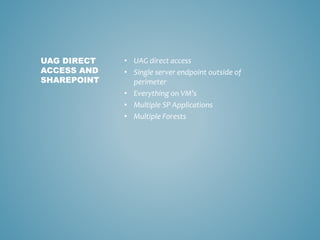

- 31. • UAG directaccess • Single server endpoint outside of perimeter • Everything on VM’s • Multiple SP Applications • Multiple Forests UAG DIRECT ACCESS AND SHAREPOINT

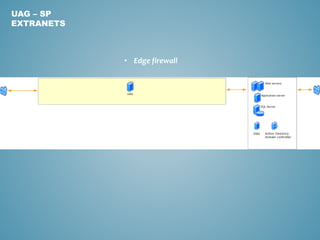

- 32. • Edge firewall UAG– SP EXTRANETS
- 33. UAG – SP EXTRANETS Splitback-to-back optimized for content publishing
- 34. Back-to-back perimeter withcontent publishing (and optional TMG caching) UAG – SP EXTRANETS
- 35. • Know thenetwork topology • Know how to get around the network topology • VM’s and VM topology • Static Routes • Make sure you have access to local session – you will likely lose ip your first time THINGS TO NOTE FOR INSTALLING UAG
- 36. • Virtual NetworkTypes – Private Virtual Network – Internal Virtual Network – External Virtual Network • Virtual NIC’s • Physical NIC’s • Static Routes UNDERSTANDING VM’S
- 37.
- 38. • Name yourNetwork Adapters • Configure the External NIC – Get rid of properties you don’t need – Default Gateway – Un check register the connection in DNS – Disable NetBIOS ADDRESSING UAG

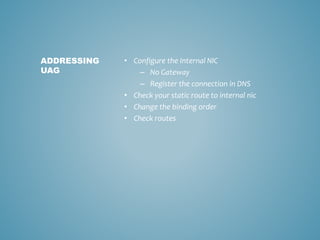

- 39. • Configure theInternal NIC – No Gateway – Register the connection in DNS • Check your static route to internal nic • Change the binding order • Check routes ADDRESSING UAG
- 40. • You canassociate a Web application with a collection of mappings between internal and public URLs. • Alternate access mappings enable a Web application that receives a request for an internal URL, in one of the five authentication zones, to return pages that contain links to the public URL for the zone. • The UAG server responds with identical content, even though external users submit a different protocol (HTTPS) and a different host header than internal users. • Alternate access mappings to allow the SharePoint server to perform URL changes on its own. This ensures that reverse proxies, such as UAG, do not have to change the content of the pages they serve to external sources. ADDRESSING SHAREPOINT: AAM – ALTERNATE ACCESS MAPPINGS

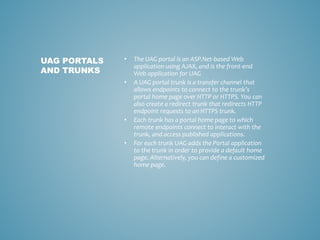

- 41. • The UAGportal is an ASP.Net-based Web application using AJAX, and is the front-end Web application for UAG • A UAG portal trunk is a transfer channel that allows endpoints to connect to the trunk’s portal home page over HTTP or HTTPS. You can also create a redirect trunk that redirects HTTP endpoint requests to an HTTPS trunk. • Each trunk has a portal home page to which remote endpoints connect to interact with the trunk, and access published applications. • For each trunk UAG adds the Portal application to the trunk in order to provide a default home page. Alternatively, you can define a customized home page. UAG PORTALS AND TRUNKS
- 42. • Each Webapp is associated with a unique public-facing host name, which is used to access the application remotely. • A Web app that is published through the Forefront UAG trunk shares the trunk's definitions in addition to some of the trunk's functionality, such as the logon and logoff pages. • This means that the application's public host name must reside under the same parent domain as the trunk's public host name; that is, the application and the trunk are subdomains of the same parent domain. ADDRESSING SHAREPOINT: PUBLIC HOST NAMES
- 43. Forefront UAG trunk’s publichost name Trunk’s parent domain Examples of valid public host names for Web app Examples of non valid public host names for Web app uag.woodgrovebank.co m woodgrovebank.co m hrportal.woodgrovebank.com hrportal.a.b.woodgrovebank.co m hrportal.uag.woodgrovebank.co m hrportal.com uag.ext.example.com ext.example.com hrportal.ext.example.com hrportal.a.b.ext.example.com hrportal.uag.ext.example.com hrportal.com hrportal.example.com ADDRESSING SHAREPOINT: PUBLIC HOST NAMES

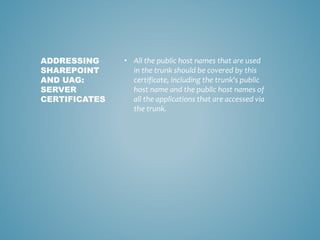

- 44. • All thepublic host names that are used in the trunk should be covered by this certificate, including the trunk's public host name and the public host names of all the applications that are accessed via the trunk. ADDRESSING SHAREPOINT AND UAG: SERVER CERTIFICATES
- 45.
- 46. • UAG isa way to go for extranets for a highly secure deployment • Big ROI for its other uses, as well as SP • Know your network infrastructure • Plan your SP install • Access to the local UAG server • Know your risks CONCLUSION
- 47.
- 48. 1. MSDN 2. Technet 3.Microsoft Press 4. Wikipedia 5. http://mikecrowley.files.wordpress.com/2010/11/ 6. http://www.windowsnetworking.com/articles_t utorials/Understanding-Virtual-Networking- Microsoft-Hyper-V.html> 7. http://mrshannon.wordpress.com/2010/04/30/se tting-ip-addresses-on-a-uag-directaccess- server/> 8. http://blog.concurrency.com/infrastructure/uag- directaccess-ip-addressing-the-server/> 9. http://www.bibble-it.com/2010/02/21/forefront- uag-in-10-minutes REFERENCES
Editor's Notes
