Dataflow Management From Edge to
Core with Apache NiFi
Andy LoPresto | @yolopey
Sr. Member of Technical Staff at Hortonworks, Apache NiFi PMC & Committer
06 February 2019 Dataworks Summit Melbourne

2. © Hortonworks Inc. 2011–2019. All rights reserved;2
Acknowledgement of Country
I acknowledge the Traditional Owners of the land on which we
are meeting. I pay my respects to their Elders, past and
present, and the Aboriginal Elders of other communities who
may be here today.

3. © Hortonworks Inc. 2011–2018. All rights reserved;3
Gauging Audience Familiarity With NiFi
“What’s a NeeFee?”
No experience with dataflow
No experience with NiFi
“I can pick this up pretty quickly”
Some experience with dataflow
Some experience with NiFi
“I refactored the Ambari
integration endpoint to allow
for mutual authentication
TLS during my coffee break”
Forgotten more about NiFi
than most of us will ever
know

4. © Hortonworks Inc. 2011–2018. All rights reserved;4
Agenda
• What is dataflow and what are the challenges?
• Apache NiFi
• Apache MiNiFi
• Apache NiFi Registry
• Complementary Tools
• Community
• All slides provided online, so no need to transcribe

5. © Hortonworks Inc. 2011–2018. All rights reserved;5
What is dataflow?

6. © Hortonworks Inc. 2011–2018. All rights reserved;6

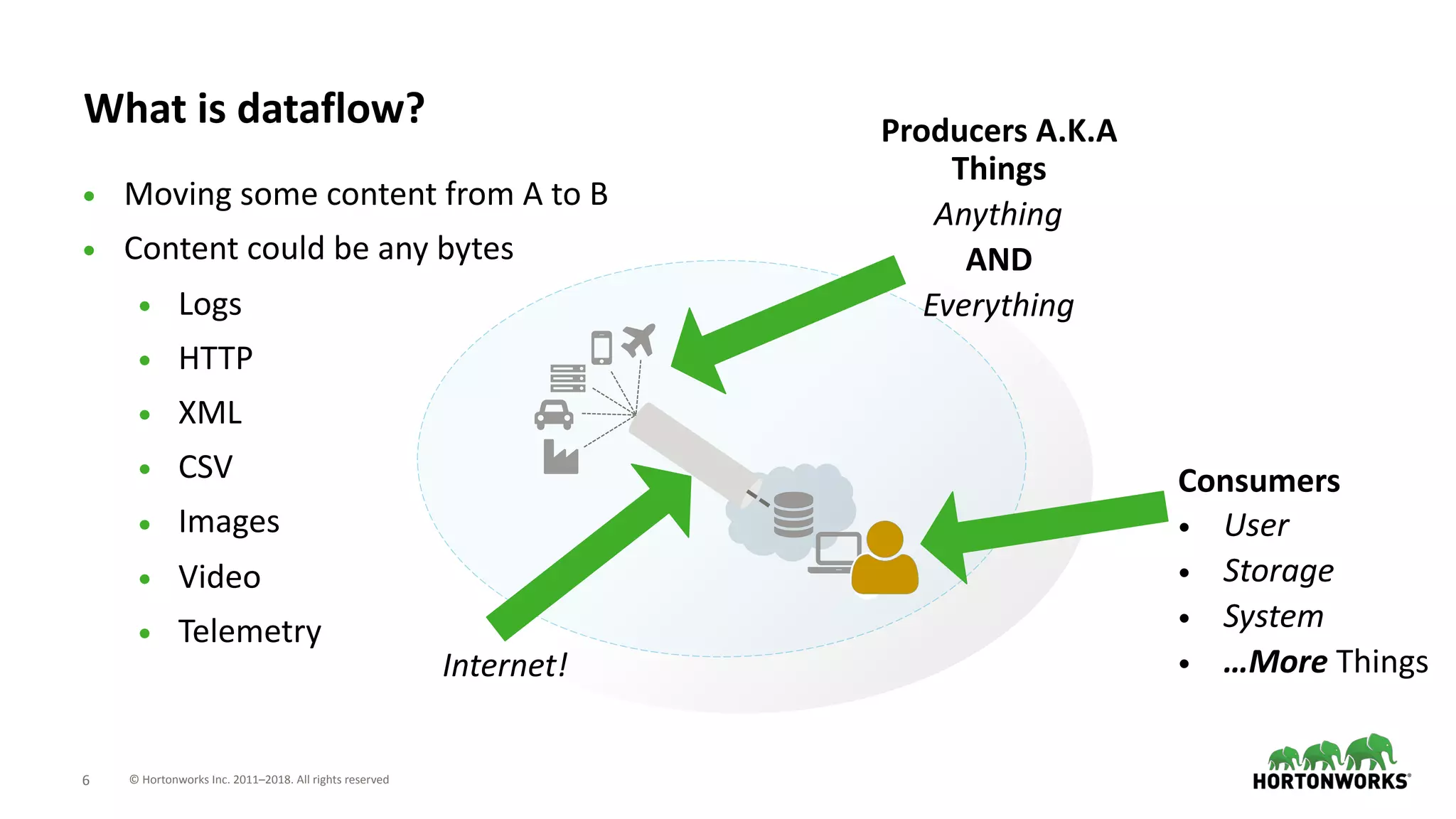

What is dataflow?
• Moving some content from A to B
• Content could be any bytes
• Logs
• HTTP
• XML
• CSV
• Images
• Video
• Telemetry
Producers A.K.A
Things
Anything
AND
Everything
Internet!
Consumers
• User
• Storage
• System
• …More Things

7. © Hortonworks Inc. 2011–2018. All rights reserved;7
Moving data effectively is hard
“Data Pipeline” https://xkcd.com/2054/

8. © Hortonworks Inc. 2011–2018. All rights reserved;8

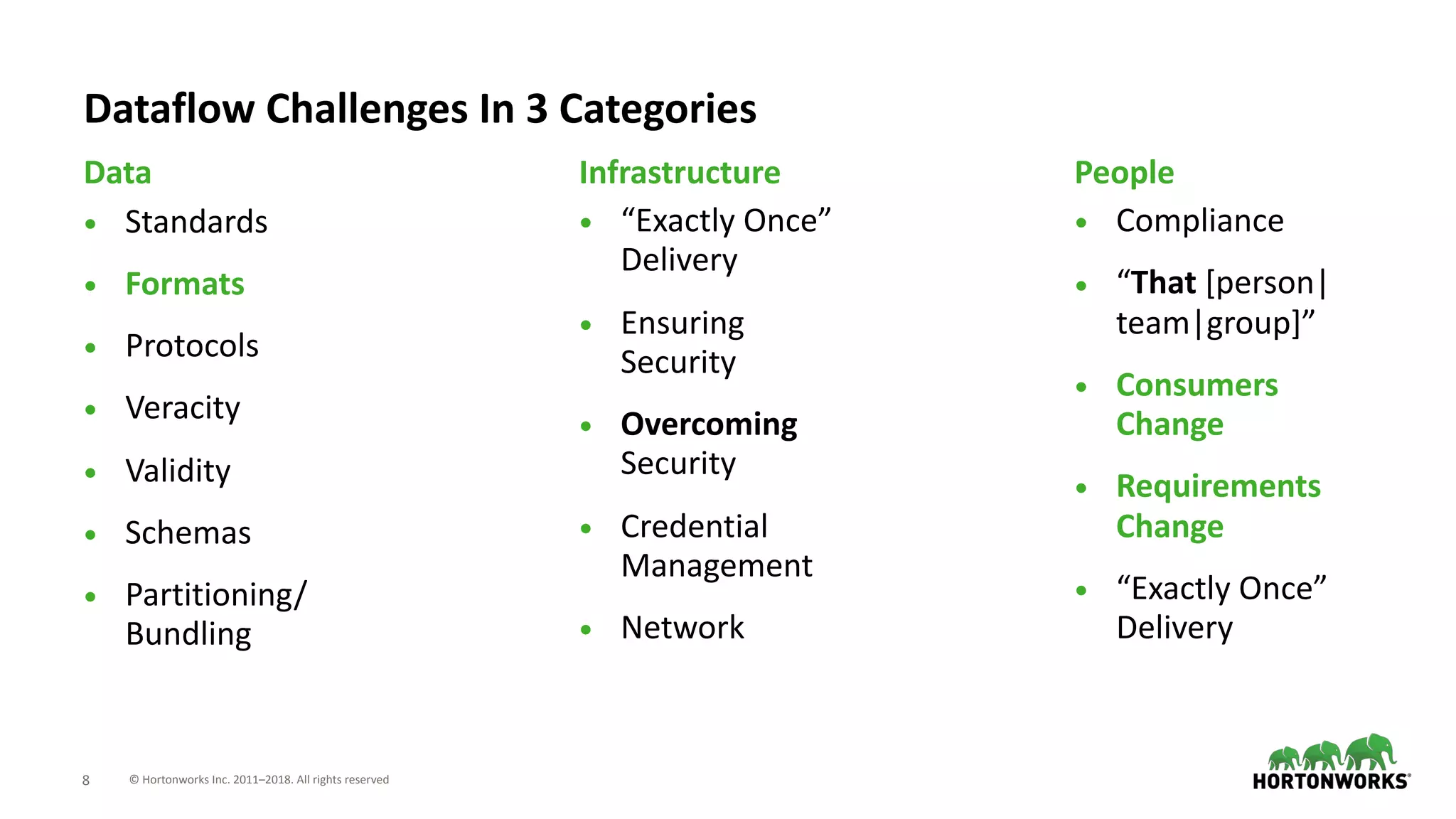

• Standards
• Formats
• Protocols
• Veracity
• Validity
• Schemas
• Partitioning/
Bundling
Data
Dataflow Challenges In 3 Categories
Infrastructure
• “Exactly Once”
Delivery
• Ensuring
Security
• Overcoming
Security
• Credential
Management
• Network
People
• Compliance
• “That [person|
team|group]”
• Consumers
Change
• Requirements
Change
• “Exactly Once”
Delivery

9. © Hortonworks Inc. 2011–2018. All rights reserved;9
Raise your hand if you want to maintain Python scripts for the rest of your life

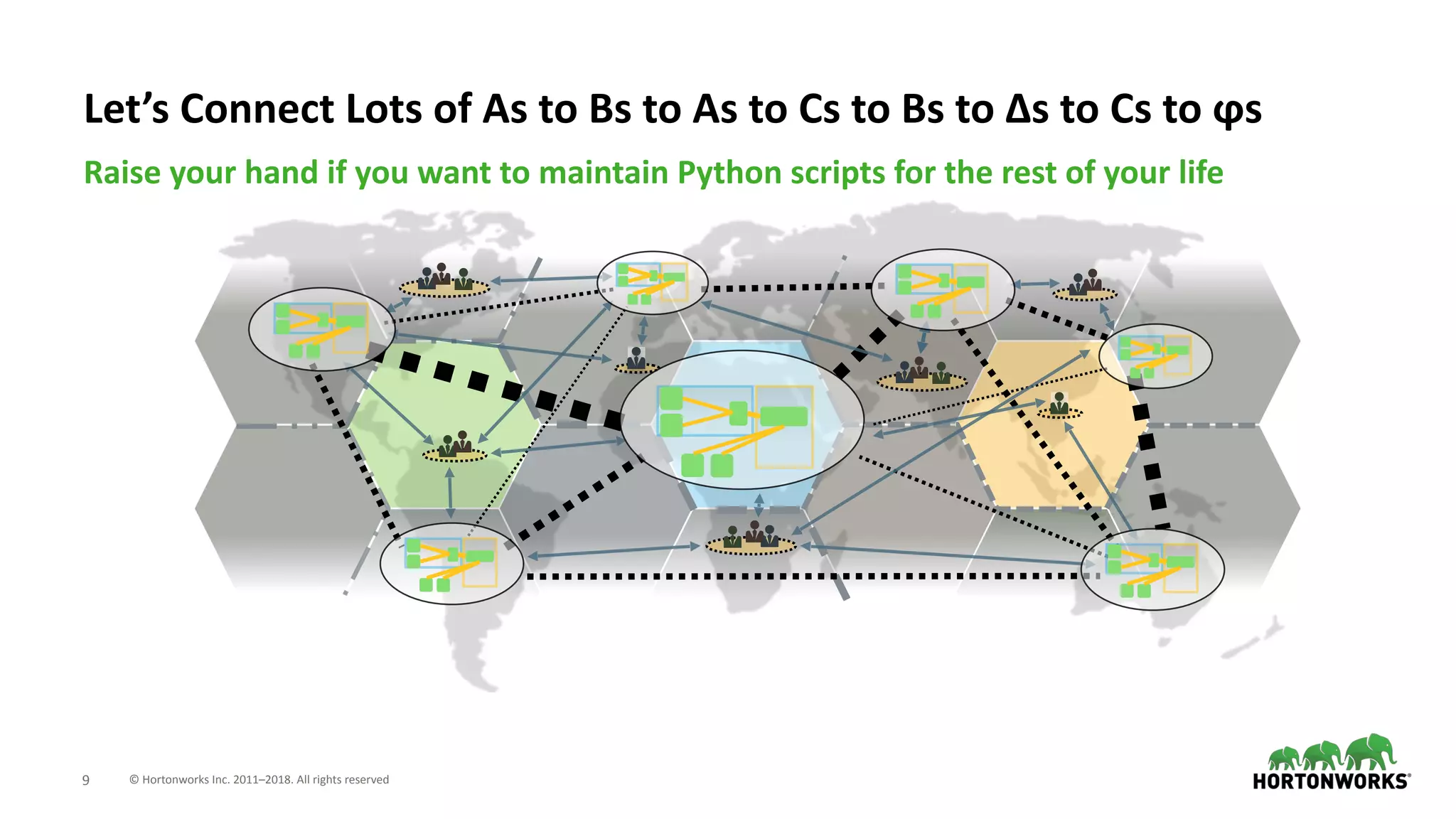

Let’s Connect Lots of As to Bs to As to Cs to Bs to Δs to Cs to ϕs

10. © Hortonworks Inc. 2011–2018. All rights reserved;10
Apache NiFi

11. © Hortonworks Inc. 2011–2018. All rights reserved;11

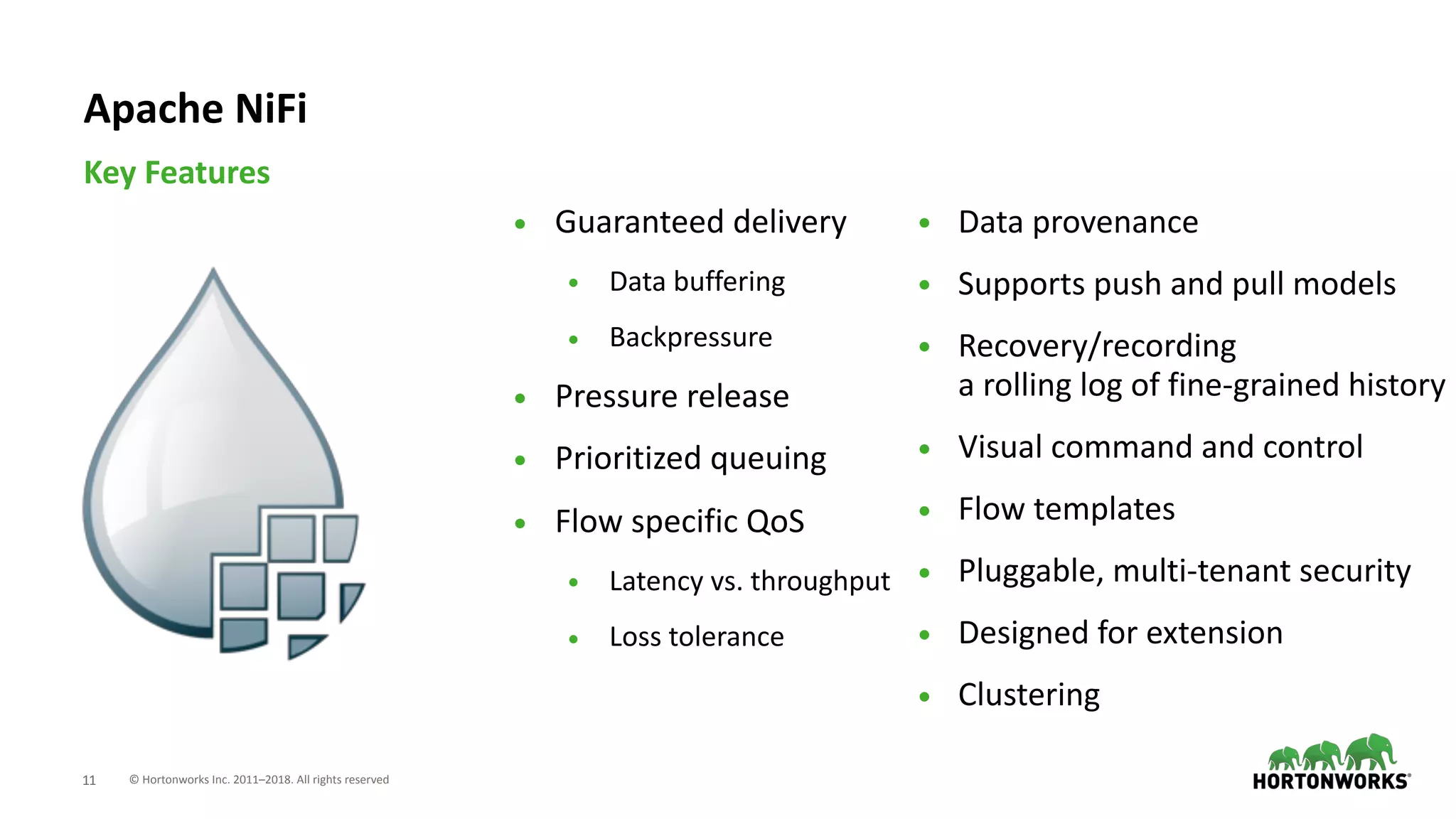

• Guaranteed delivery
• Data buffering
• Backpressure
• Pressure release
• Prioritized queuing
• Flow specific QoS
• Latency vs. throughput
• Loss tolerance
Key Features
Apache NiFi
• Data provenance
• Supports push and pull models
• Recovery/recording
a rolling log of fine-grained history
• Visual command and control
• Flow templates
• Pluggable, multi-tenant security
• Designed for extension
• Clustering

12. © Hortonworks Inc. 2011–2018. All rights reserved;12

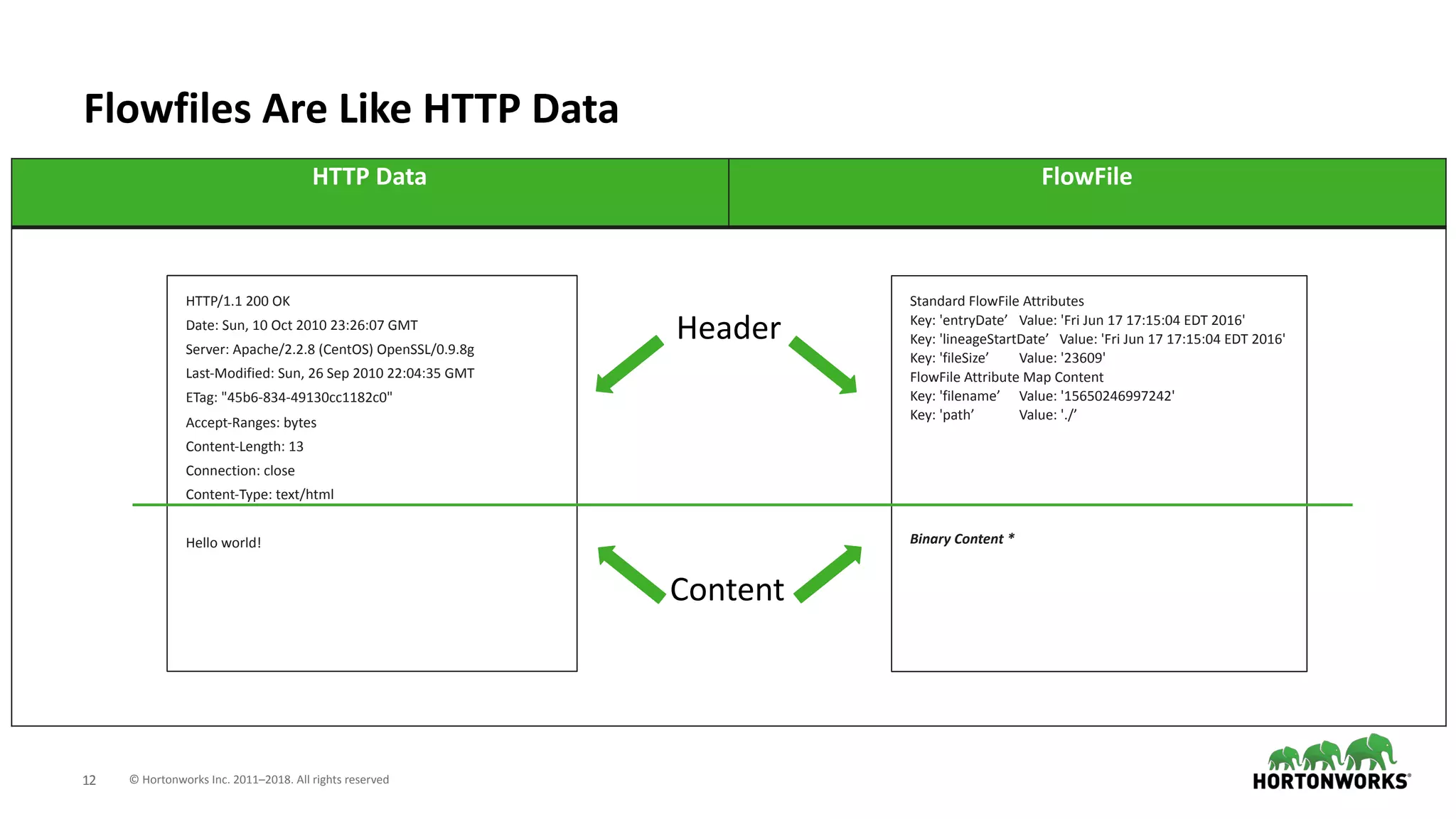

Flowfiles Are Like HTTP Data
HTTP Data FlowFile
HTTP/1.1 200 OK
Date: Sun, 10 Oct 2010 23:26:07 GMT
Server: Apache/2.2.8 (CentOS) OpenSSL/0.9.8g
Last-Modified: Sun, 26 Sep 2010 22:04:35 GMT
ETag: "45b6-834-49130cc1182c0"
Accept-Ranges: bytes
Content-Length: 13
Connection: close
Content-Type: text/html
Hello world!
Standard FlowFile Attributes
Key: 'entryDate’ Value: 'Fri Jun 17 17:15:04 EDT 2016'
Key: 'lineageStartDate’ Value: 'Fri Jun 17 17:15:04 EDT 2016'
Key: 'fileSize’ Value: '23609'
FlowFile Attribute Map Content
Key: 'filename’ Value: '15650246997242'
Key: 'path’ Value: './’
Binary Content *
Header
Content

13. © Hortonworks Inc. 2011–2018. All rights reserved;13

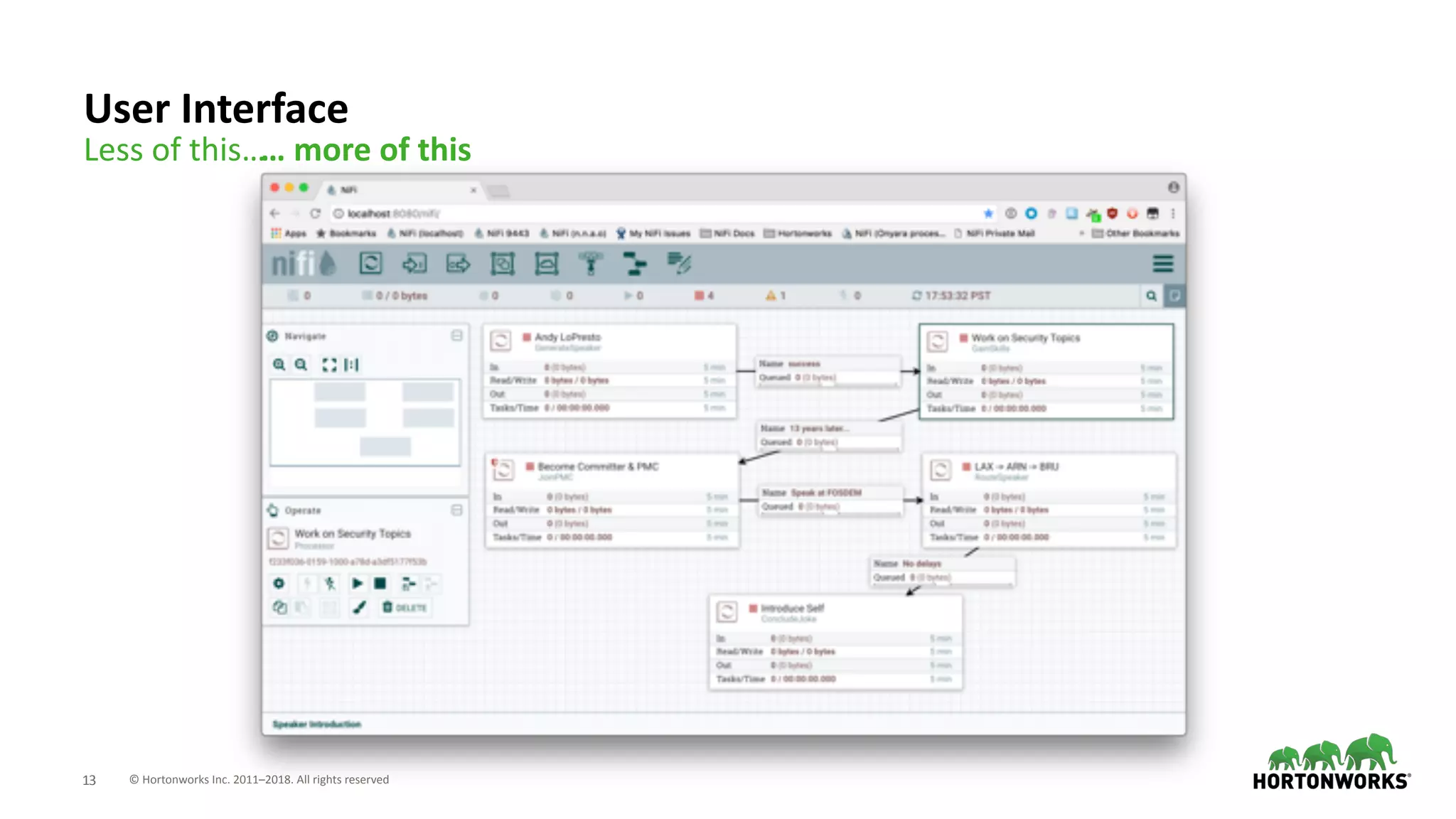

User Interface

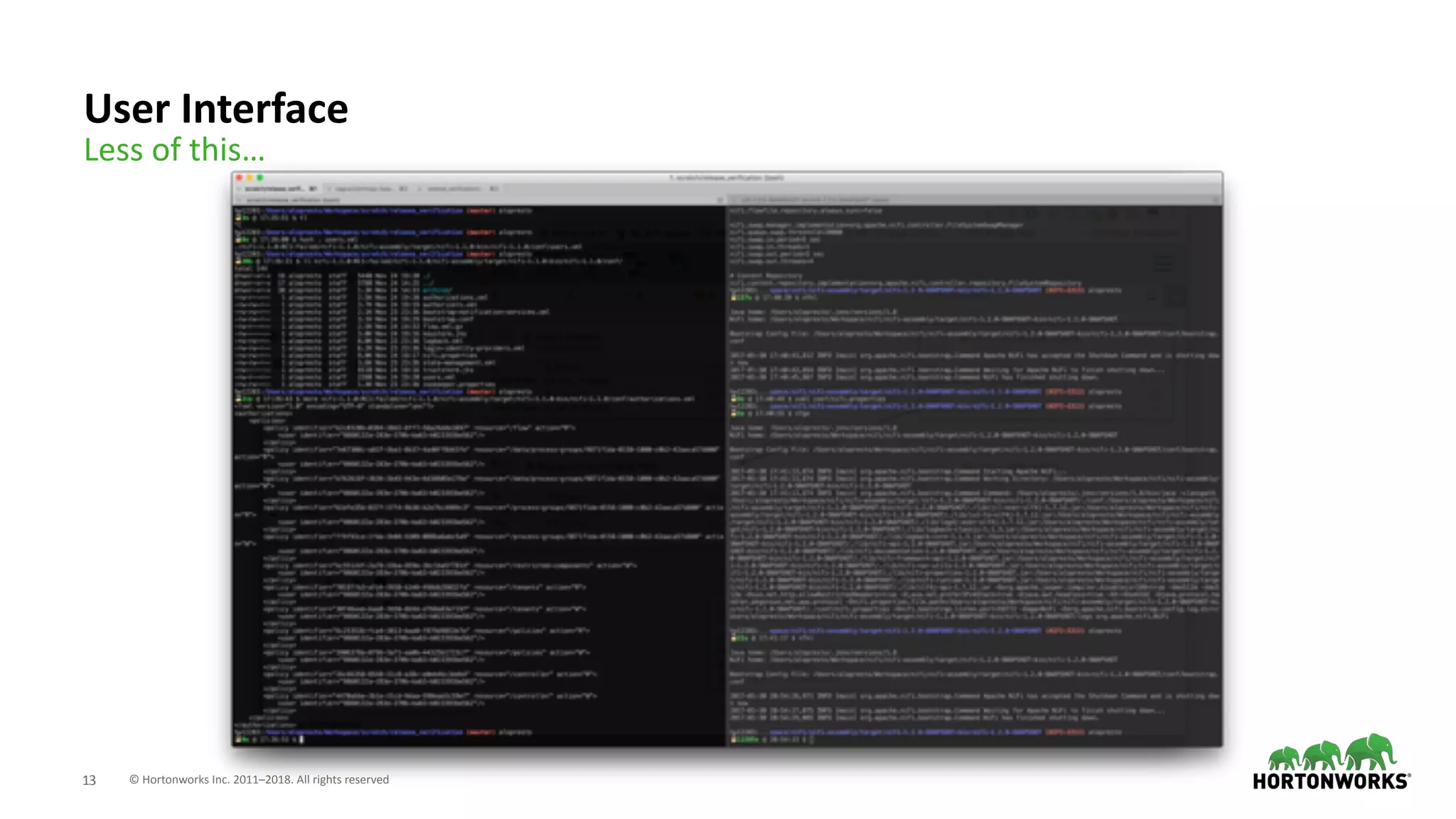

Less of this…

14. © Hortonworks Inc. 2011–2018. All rights reserved;13
User Interface
Less of this…… more of this

15. © Hortonworks Inc. 2011–2018. All rights reserved;14

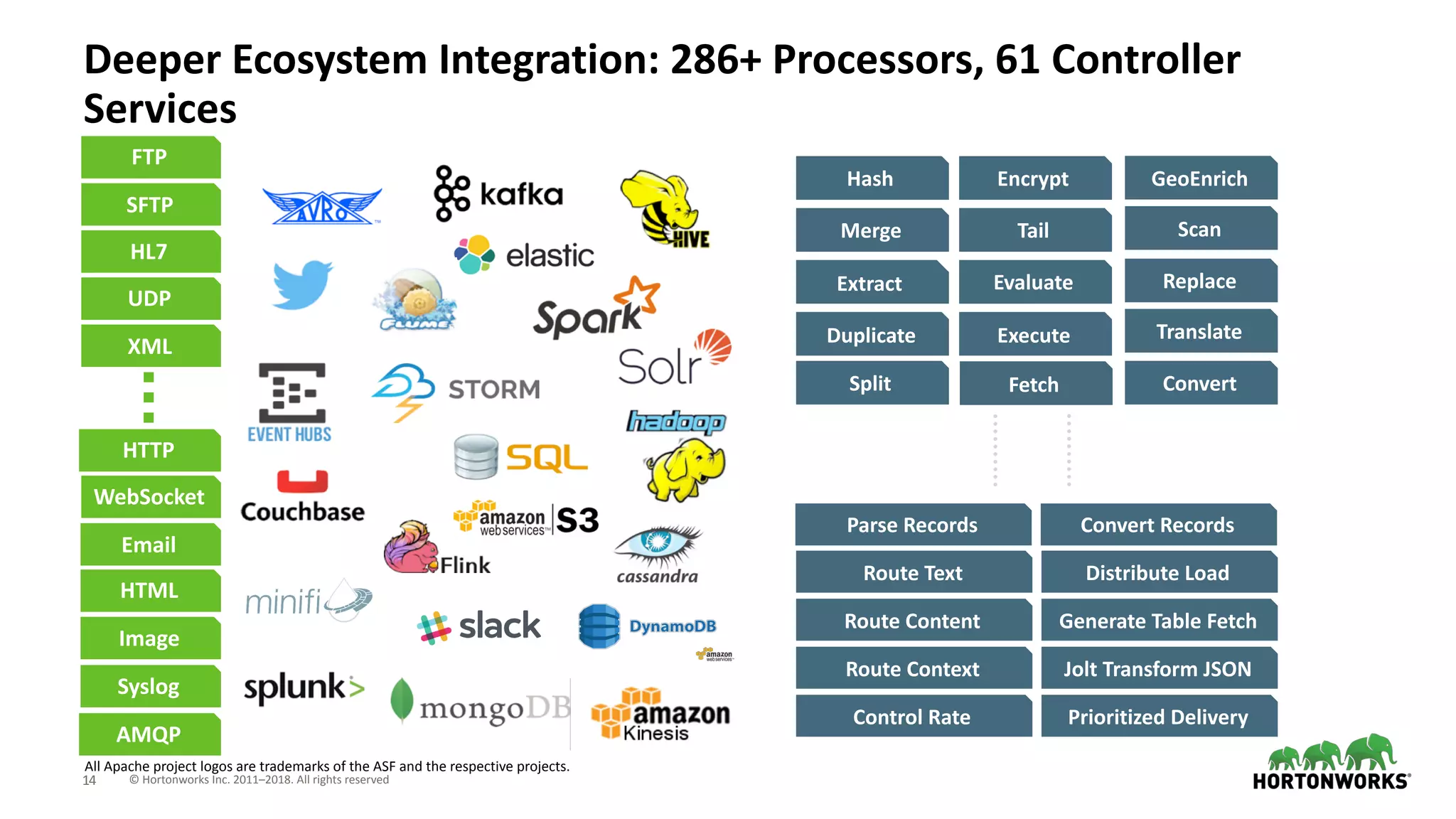

Deeper Ecosystem Integration: 286+ Processors, 61 Controller
Services
Hash
Extract
Merge
Duplicate
Scan
GeoEnrich
Replace
ConvertSplit
Translate
Route Content
Route Context
Route Text
Control Rate
Distribute Load
Generate Table Fetch
Jolt Transform JSON
Prioritized Delivery
Encrypt
Tail
Evaluate
Execute
All Apache project logos are trademarks of the ASF and the respective projects.
Fetch
HTTP
Syslog
Email
HTML
HL7
FTP
UDP
XML
SFTP
AMQP
WebSocket
Parse Records Convert Records

16. © Hortonworks Inc. 2011–2018. All rights reserved;15
Apache MiNiFi

17. © Hortonworks Inc. 2011–2018. All rights reserved;16

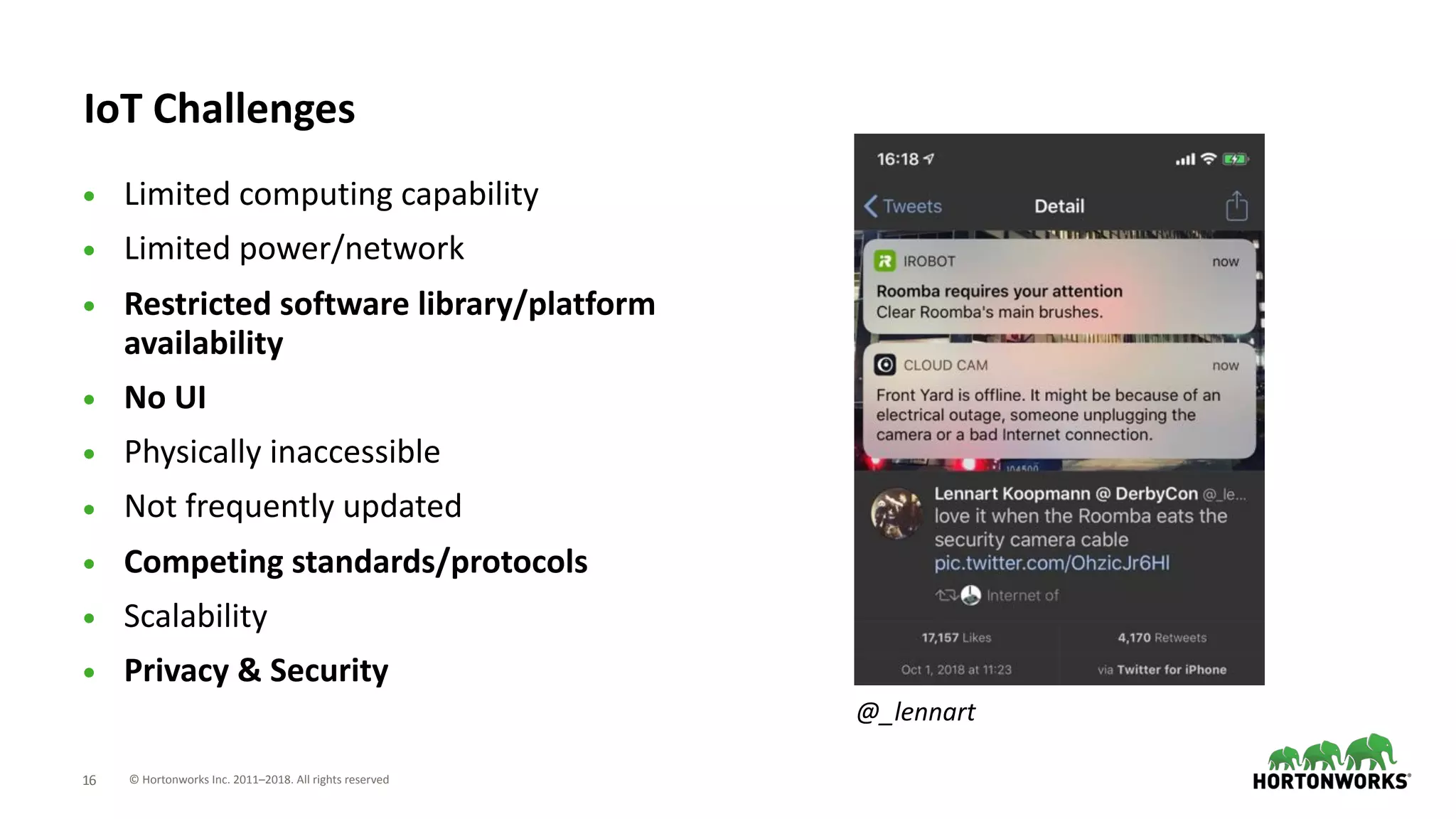

IoT Challenges
• Limited computing capability
• Limited power/network
• Restricted software library/platform
availability
• No UI
• Physically inaccessible
• Not frequently updated
• Competing standards/protocols
• Scalability
• Privacy & Security
@_lennart

18. © Hortonworks Inc. 2011–2018. All rights reserved;17
• NiFi is designed to “own the box”
• NiFi 0.7.x started up in about 10-15 minutes on RP3 (593 MB)
• NiFi 1.x started up in about 30 minutes on RP3 (760 MB)
• 33 new processors
• Rewrite for multi tenant authorization
• Complete UI overhaul
So Why Do We Need A Different Solution?

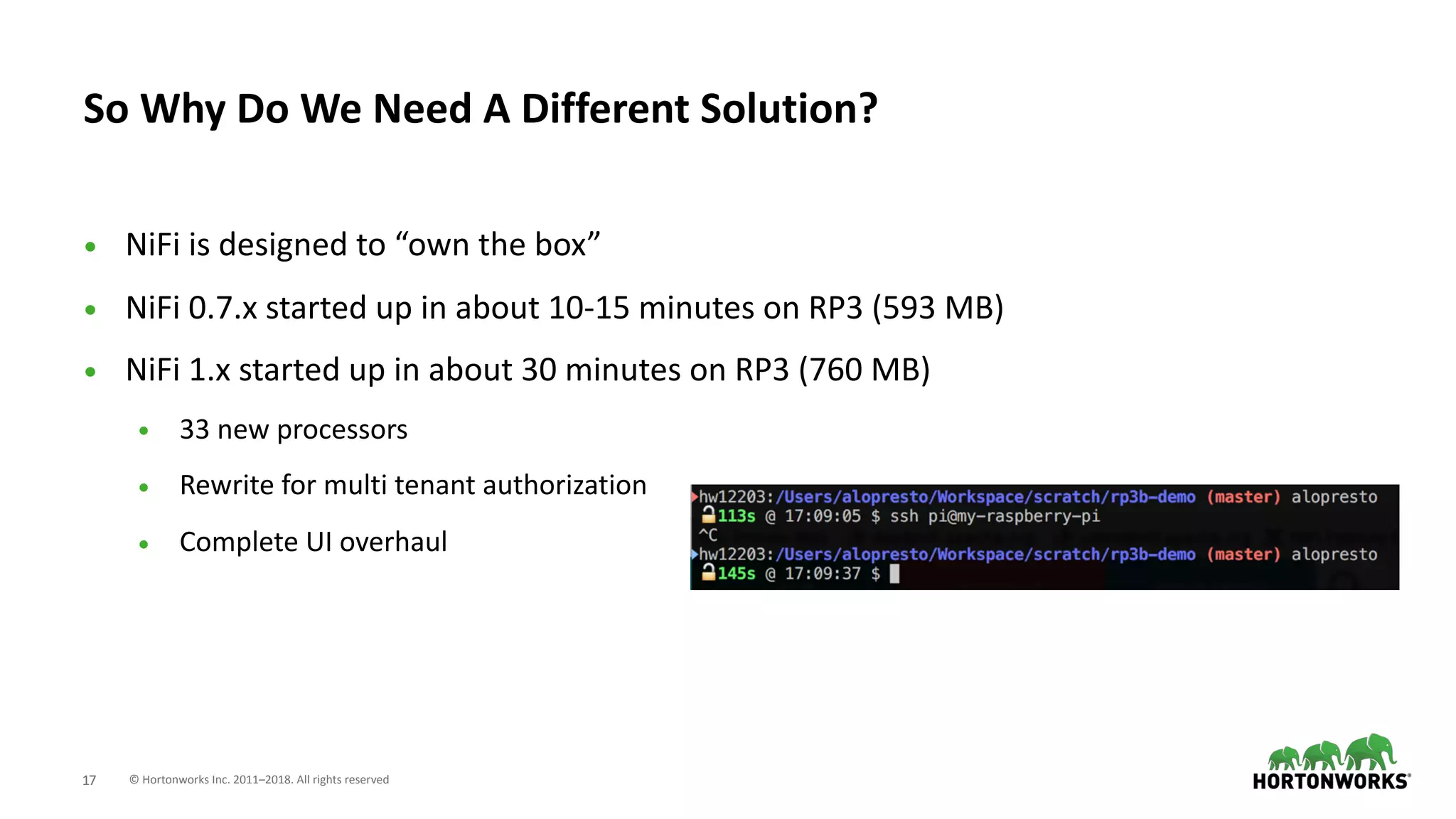

19. © Hortonworks Inc. 2011–2018. All rights reserved;18
• Get the key parts of NiFi close to where data begins and provide bidirectional
communication
• NiFi lives in the data center — give it an enterprise server or a cluster of them
• MiNiFi lives as close to where data is born and is a guest on that device or system
• IoT
• Connected car
• Legacy hardware
Apache NiFi Subproject: MiNiFi

20. © Hortonworks Inc. 2011–2018. All rights reserved;19
• MiNiFi Java (v0.5.0)
• Modified version of NiFi
• No UI
• YAML configuration
• Reduced processor count
• 63+ by default, more
available with
additional NARs
• MiNiFi C++ (v0.5.0)
• Written from scratch
• 33 processors by default
• Bi-directional site-to-site & provenance data
Flavors of MiNiFi

21. © Hortonworks Inc. 2011–2018. All rights reserved;20
• NiFi
• Design flows
• Aggregate data from many
sources
• Perform routing/analysis/SEP
• MiNiFi
• Receive flows
• Collect data
• Send for processing
How Does MiNiFi Interact With NiFi?

22. © Hortonworks Inc. 2011–2018. All rights reserved;21
• We’ve been imagining EDGE to CORE as a bi-directional linear system
• Let’s expand
that to the real
world

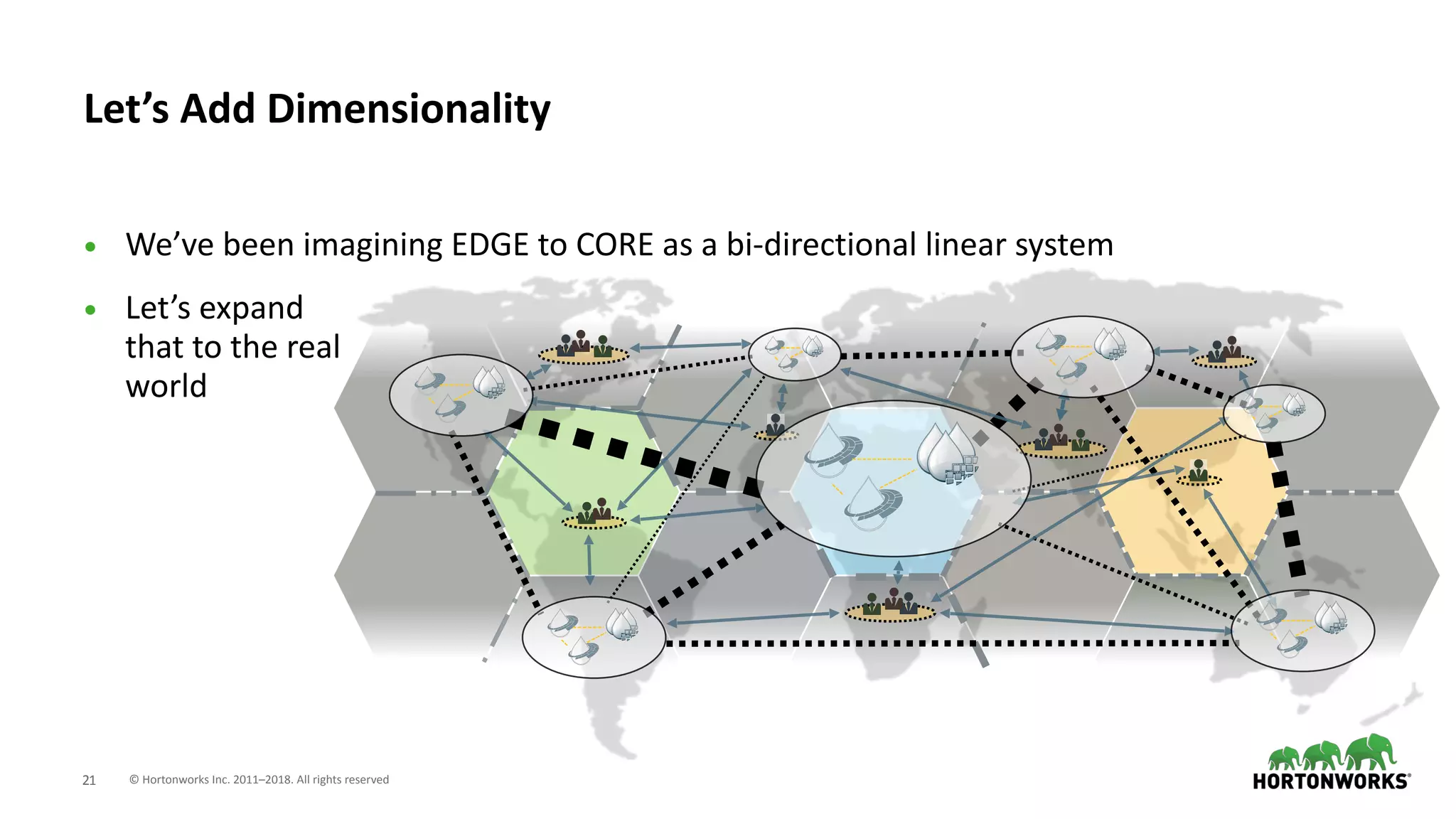

Let’s Add Dimensionality

23. © Hortonworks Inc. 2011–2018. All rights reserved;22
• Data tagging/provenance
• Governance from edge (geopolitical
restrictions)
• Security (encryption, certificate-based
authentication)
• Low latency (immediate reactions &
decision-making)

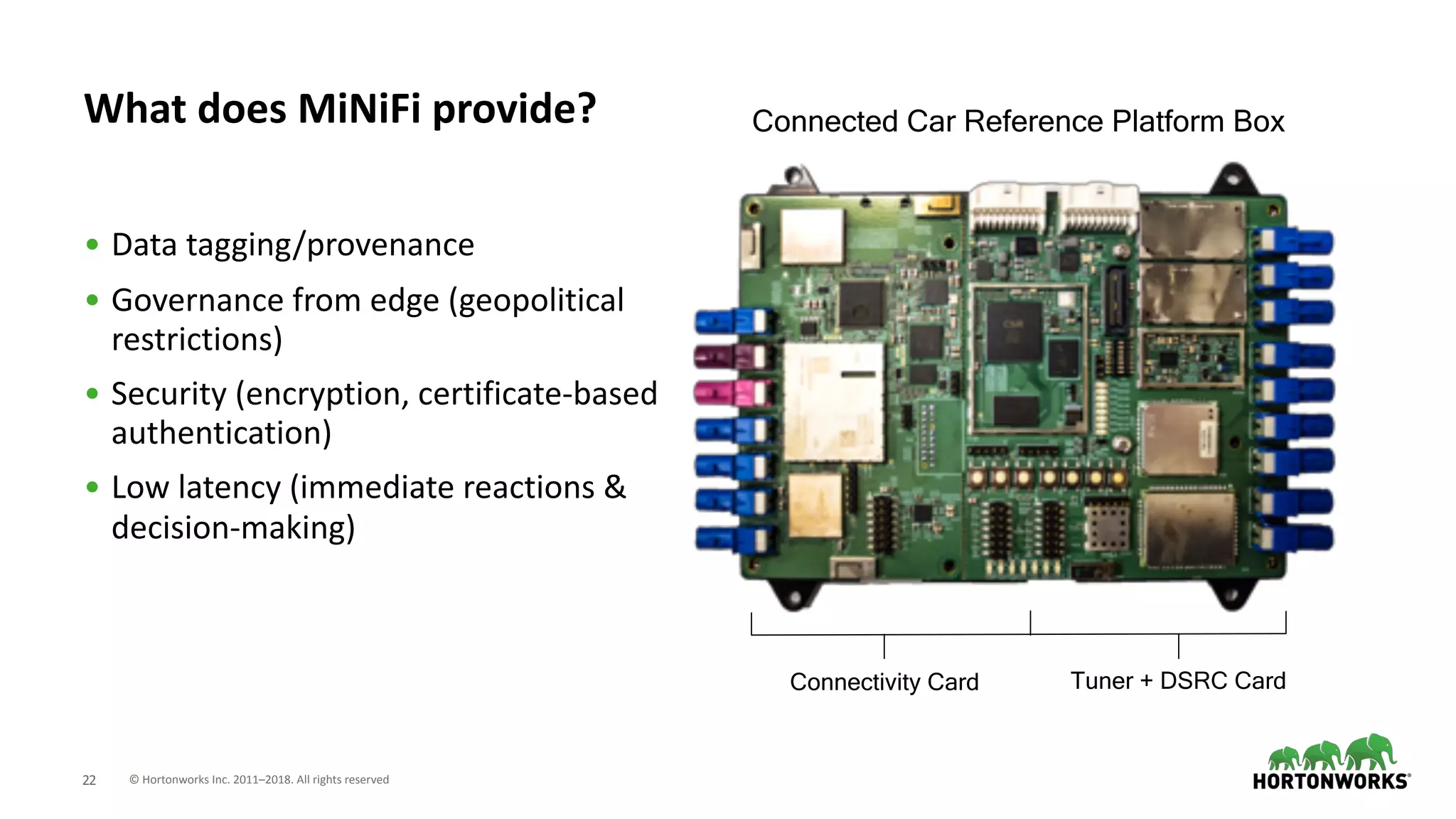

What does MiNiFi provide? Connected Car Reference Platform Box
Tuner + DSRC CardConnectivity Card

24. © Hortonworks Inc. 2011–2018. All rights reserved;23
• Site-to-Site
• NiFi protocol
• Two implementations
• Raw socket
• HTTP(S)
• Secured with mutual authentication TLS
• HTTP(S), (S)FTP, JMS, Syslog, File, Email, Process

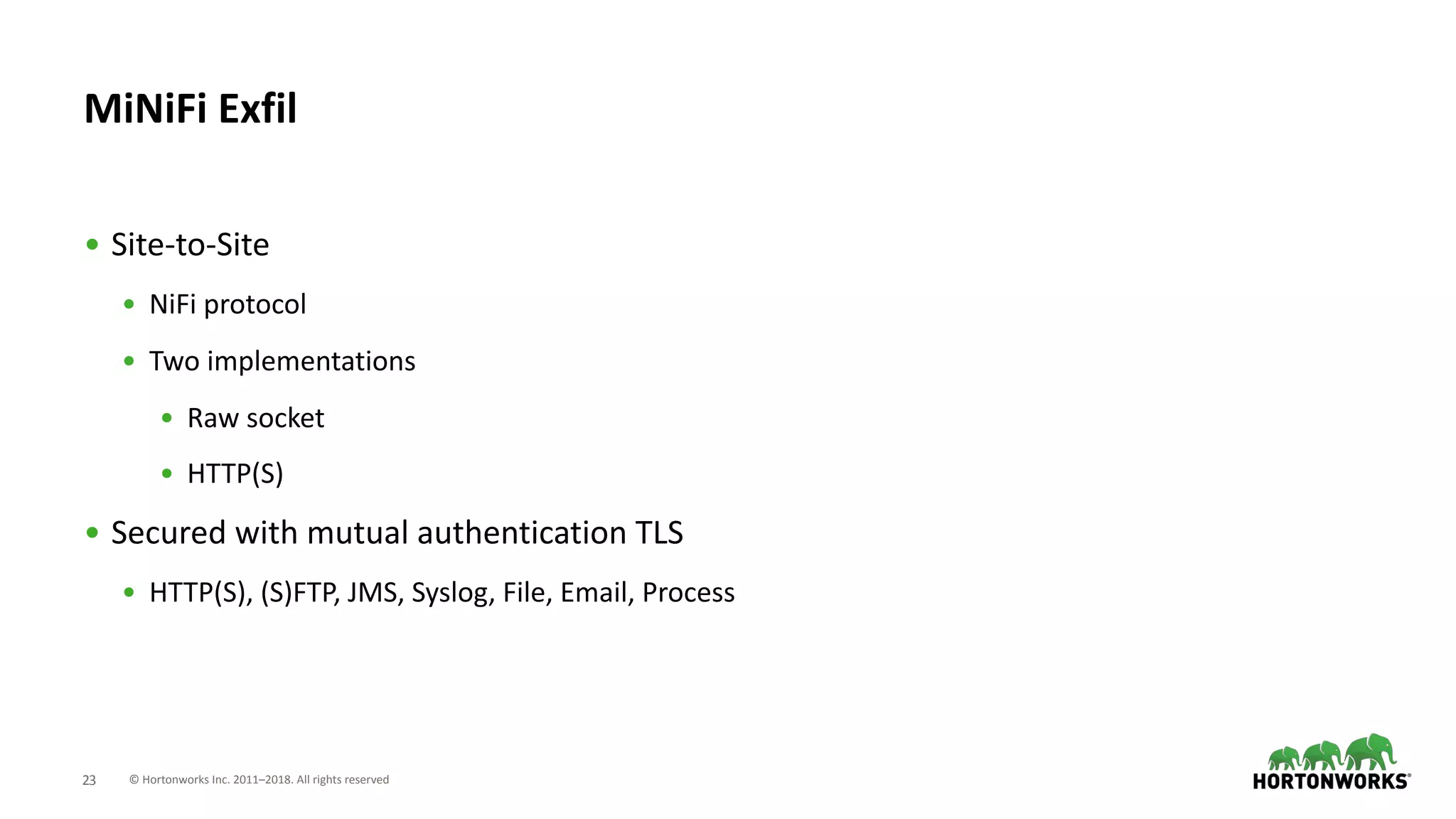

MiNiFi Exfil

25. © Hortonworks Inc. 2011–2018. All rights reserved;24
Apache NiFi Registry

26. © Hortonworks Inc. 2011–2018. All rights reserved;25
Flow Development Lifecycle (FDLC)
• Origins of NiFi
• Operator Experience
• MC data, don’t drop, mitigate
temporarily
• Version Control
• Environment Promotion

27. © Hortonworks Inc. 2011–2018. All rights reserved;26

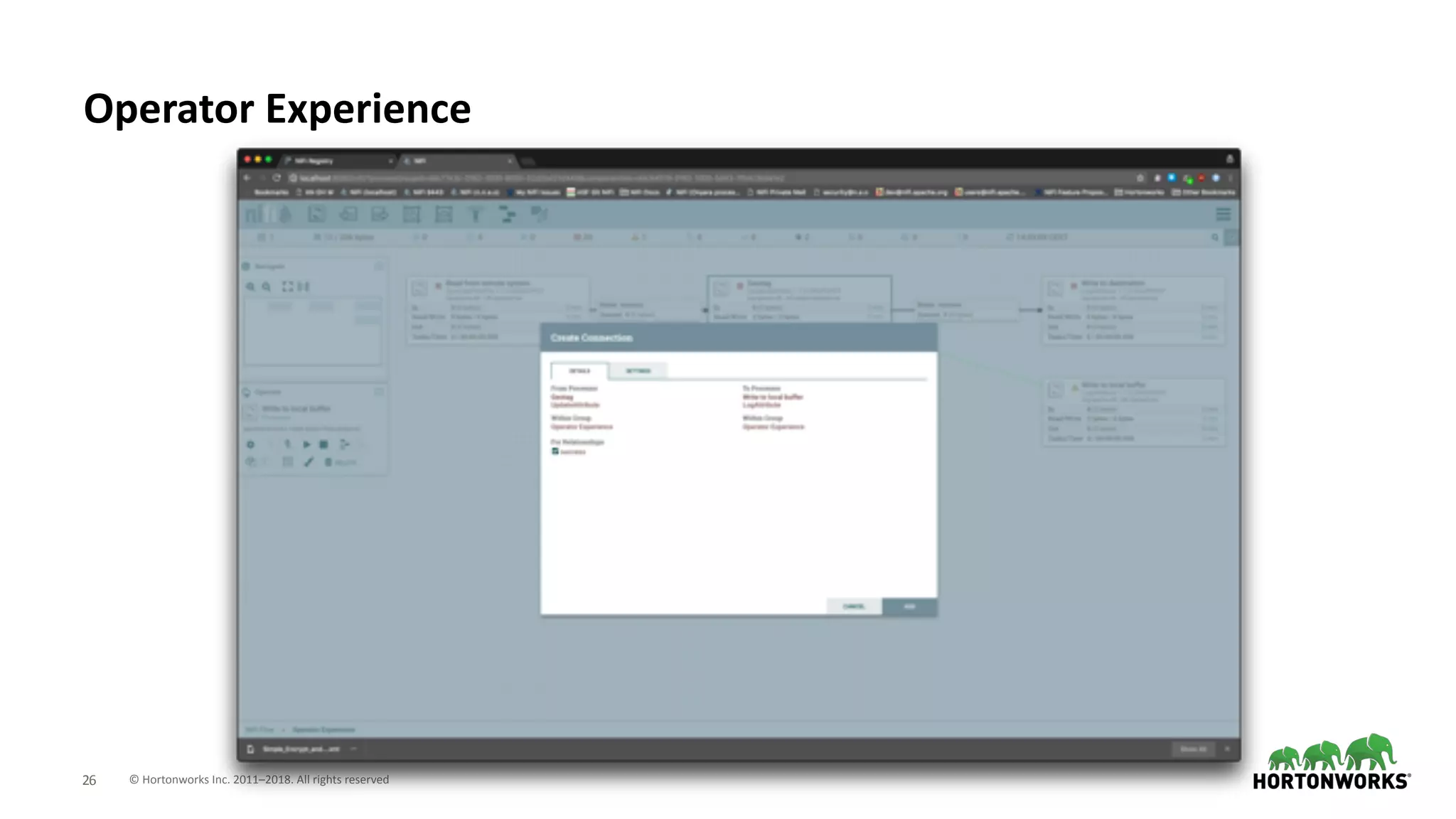

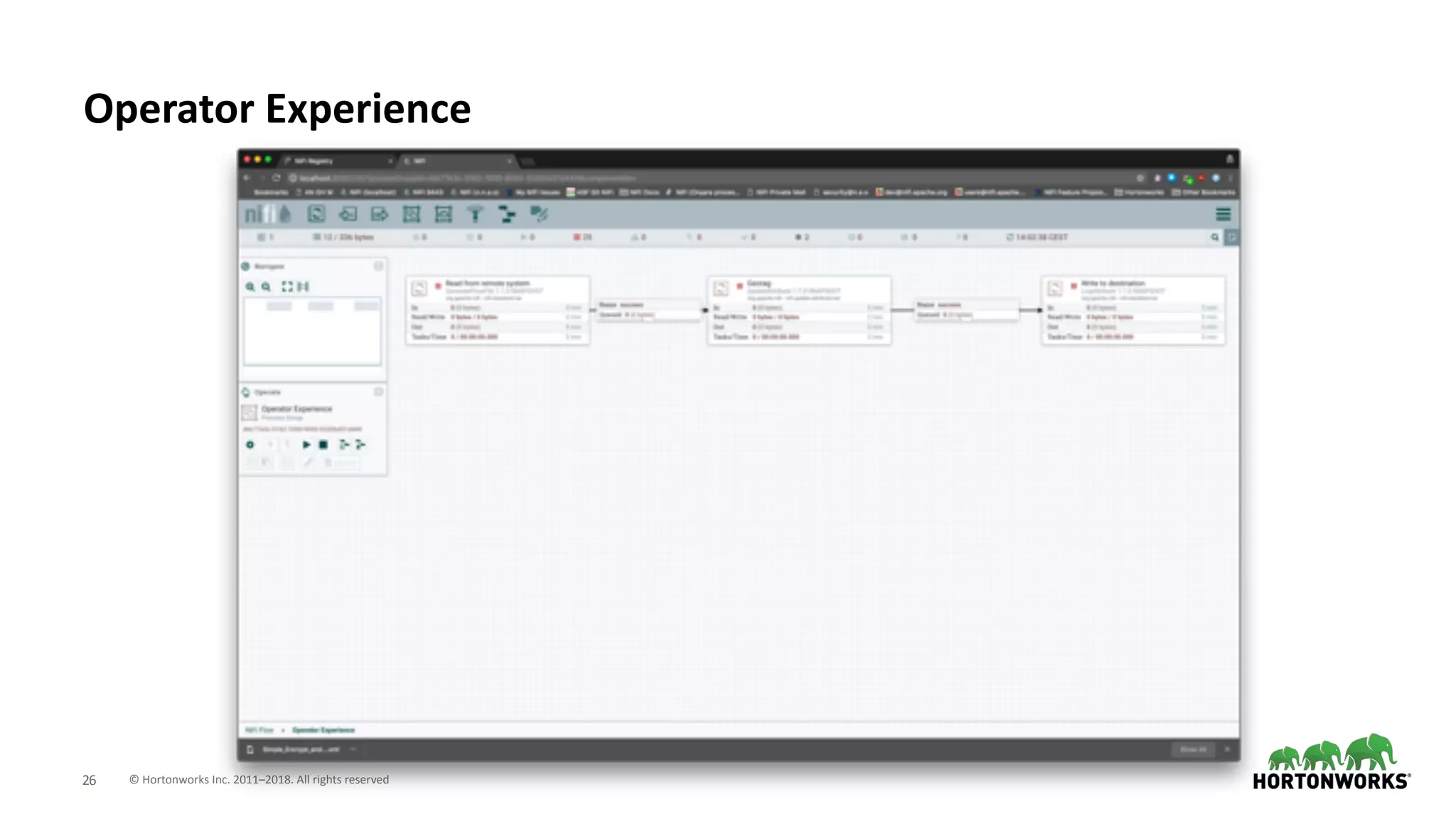

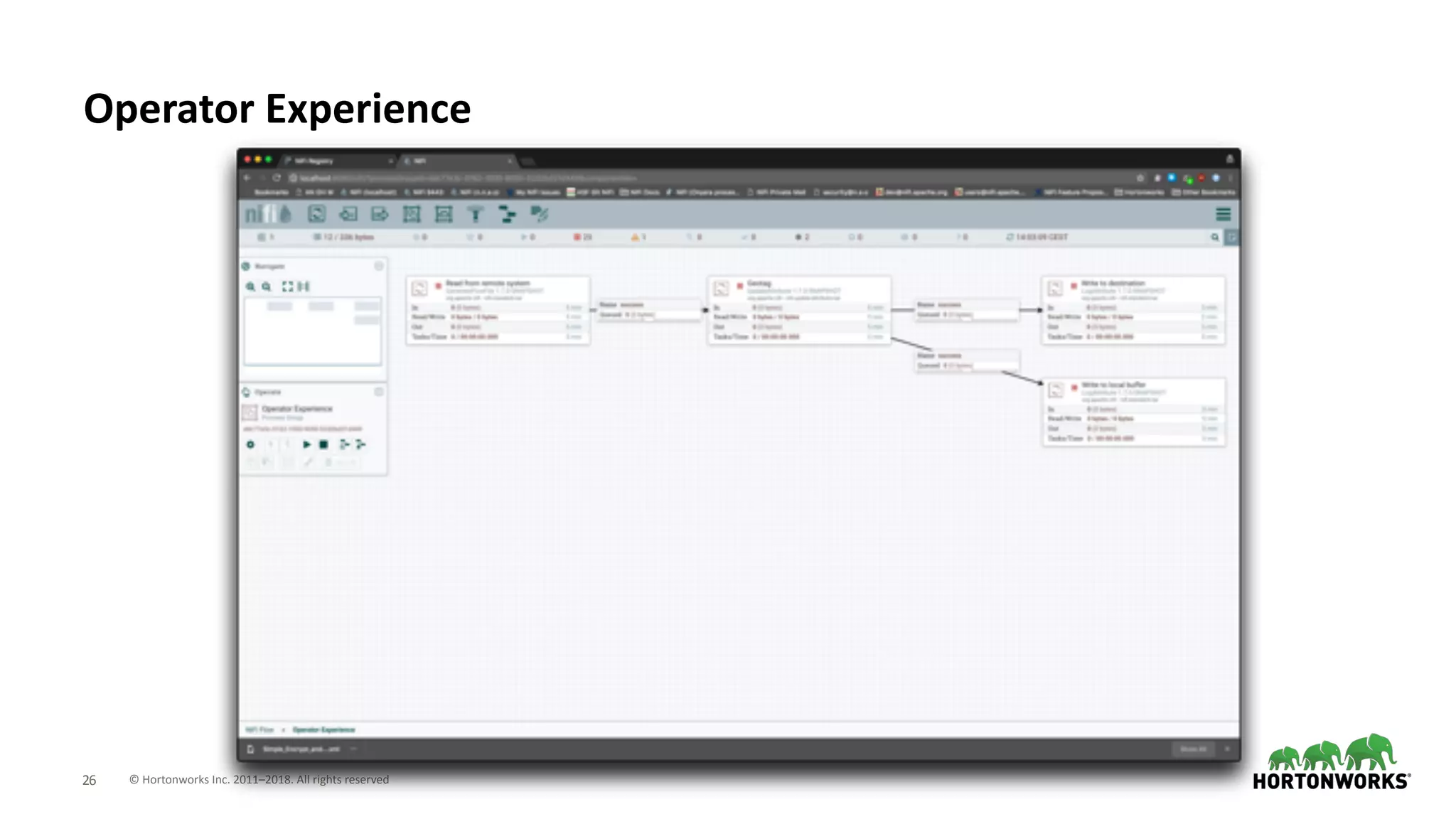

Operator Experience

28. © Hortonworks Inc. 2011–2018. All rights reserved;26
Operator Experience

29. © Hortonworks Inc. 2011–2018. All rights reserved;26
Operator Experience

30. © Hortonworks Inc. 2011–2018. All rights reserved;27
• Shows previous values (user,
time changed)
• Sensitive values are always
encrypted at rest and never
returned via the API

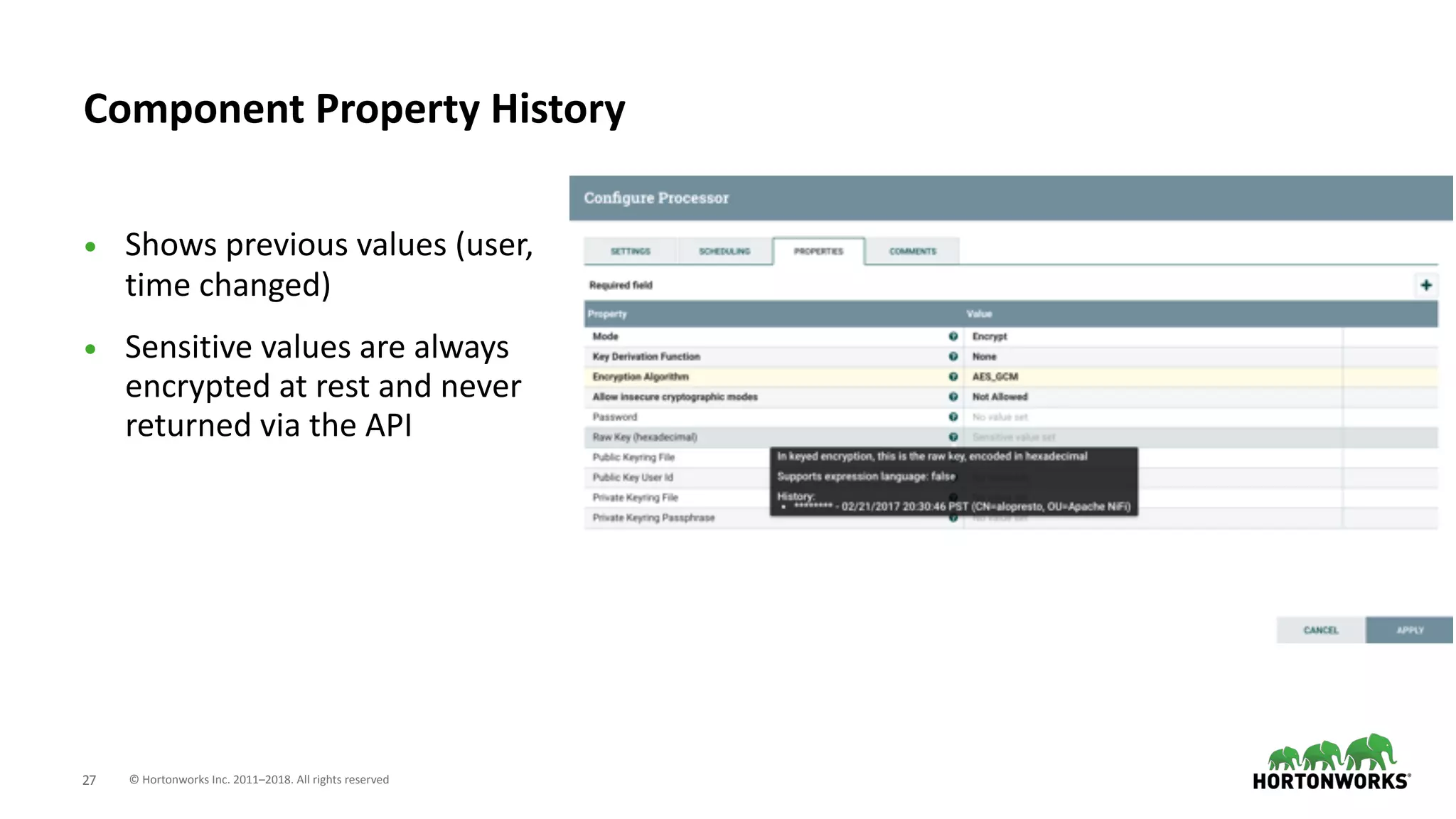

Component Property History

31. © Hortonworks Inc. 2011–2018. All rights reserved;28

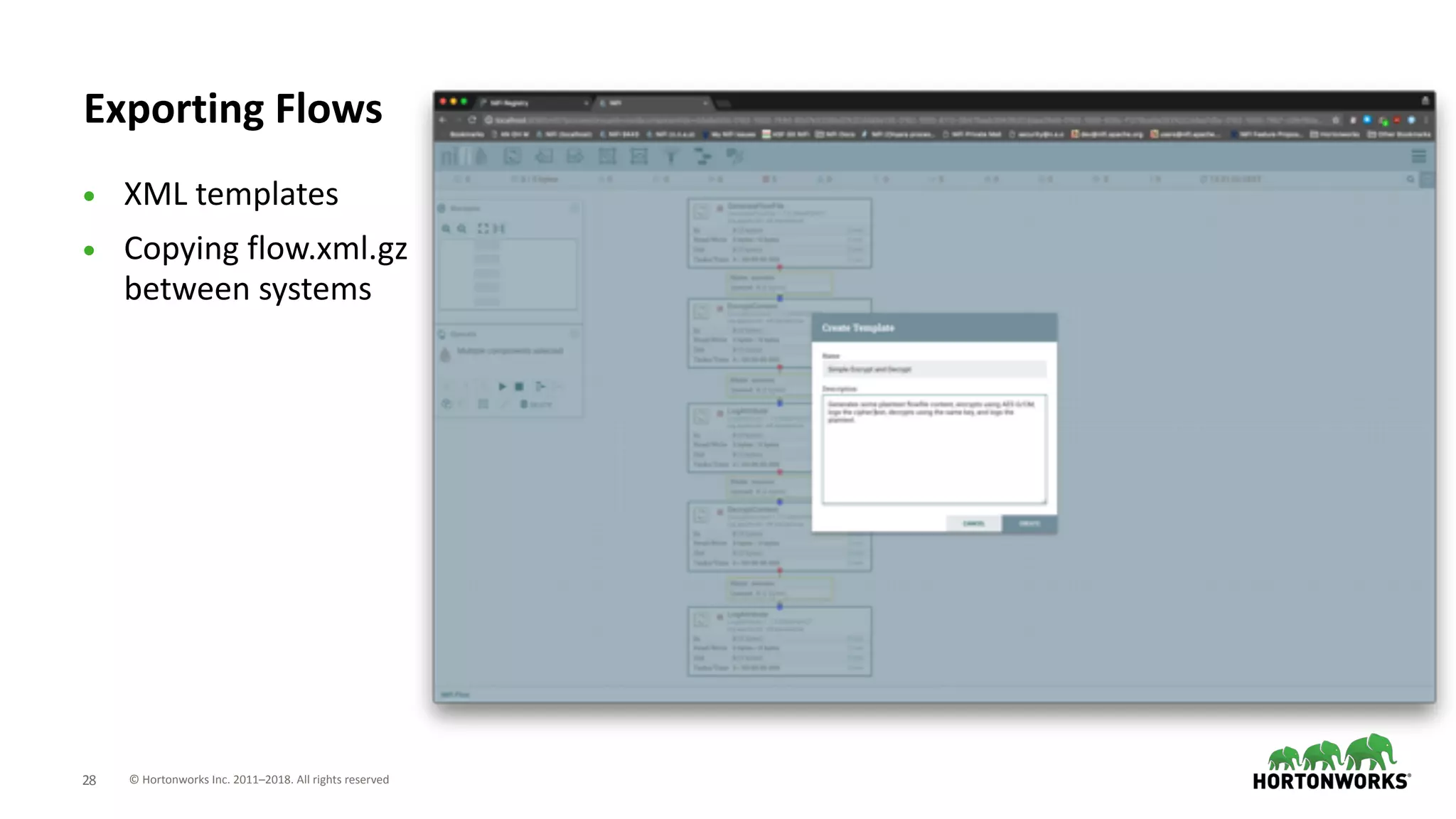

Exporting Flows
• XML templates
• Copying flow.xml.gz
between systems

32. © Hortonworks Inc. 2011–2018. All rights reserved;29

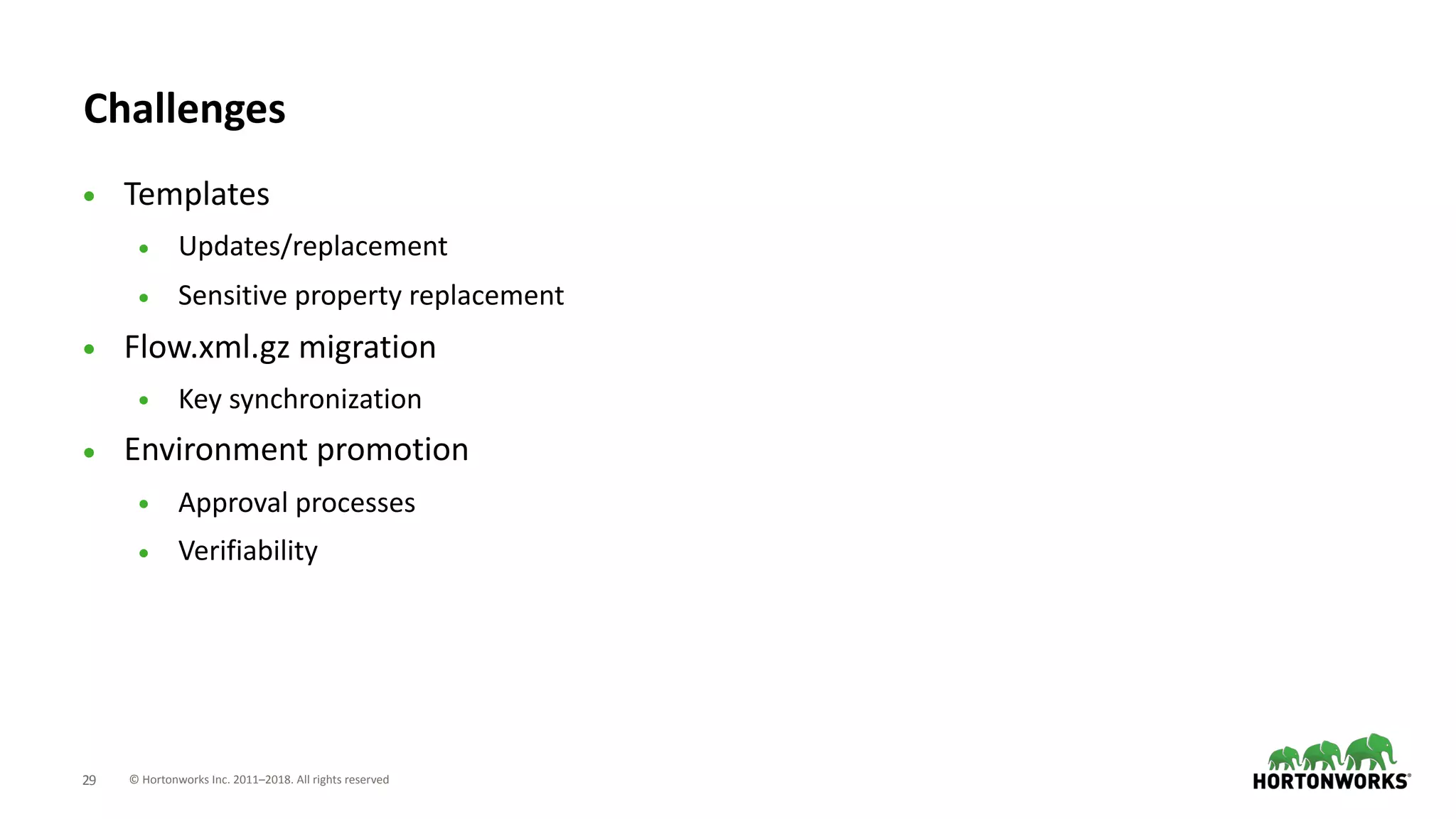

Challenges
• Templates
• Updates/replacement
• Sensitive property replacement
• Flow.xml.gz migration
• Key synchronization
• Environment promotion
• Approval processes
• Verifiability

33. © Hortonworks Inc. 2011–2018. All rights reserved;30

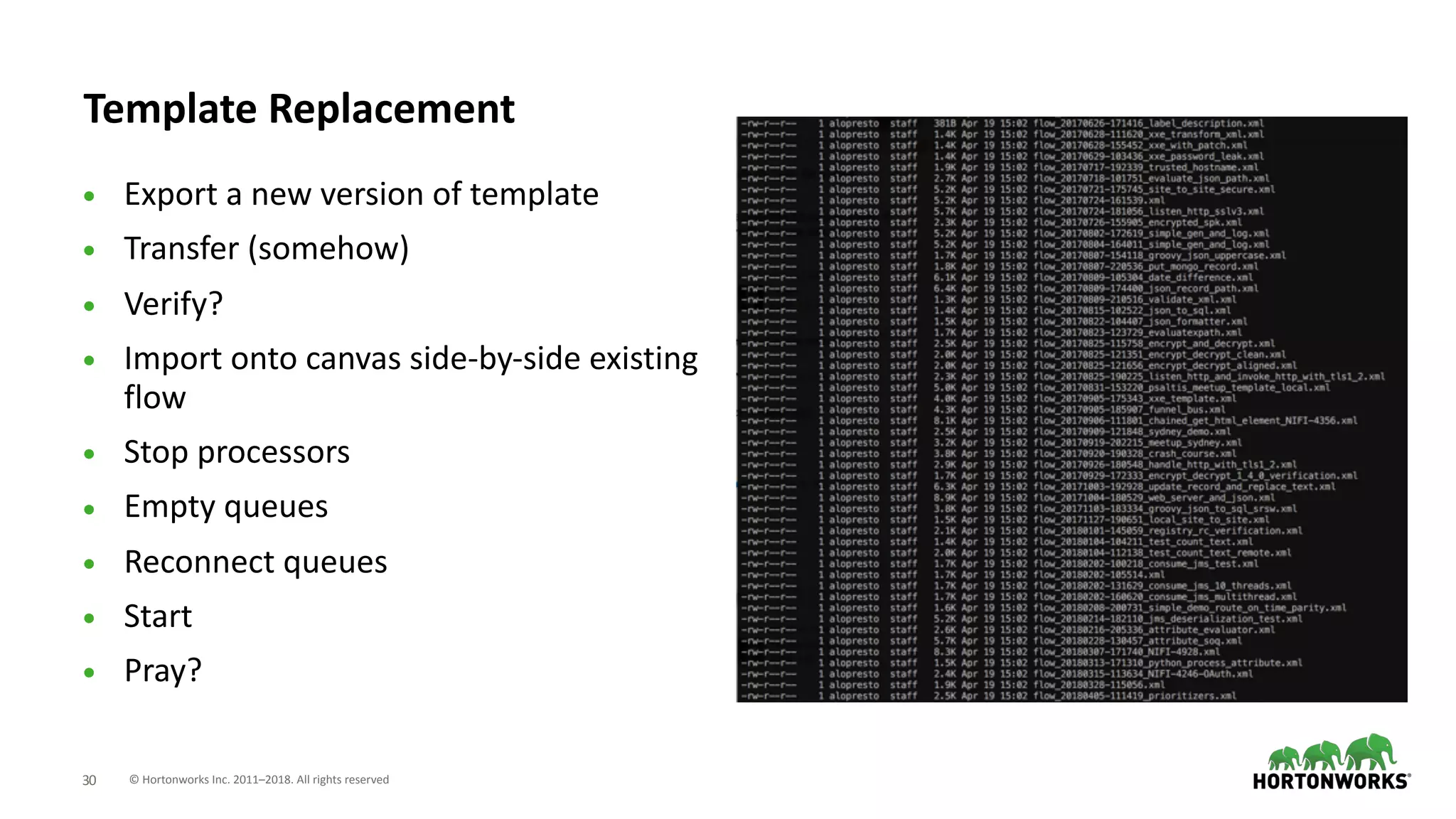

Template Replacement
• Export a new version of template
• Transfer (somehow)
• Verify?
• Import onto canvas side-by-side existing
flow
• Stop processors
• Empty queues
• Reconnect queues
• Start
• Pray?

34. © Hortonworks Inc. 2011–2018. All rights reserved;31
Template Replacement

35. © Hortonworks Inc. 2011–2018. All rights reserved;32
• Previously, flows were exported via
XML templates
• Didn’t contain sensitive values
• Couldn’t be updated in-place
• No tracking system
• NiFi Registry brings asset management
as first-class citizen to NiFi
• Flows can be versioned

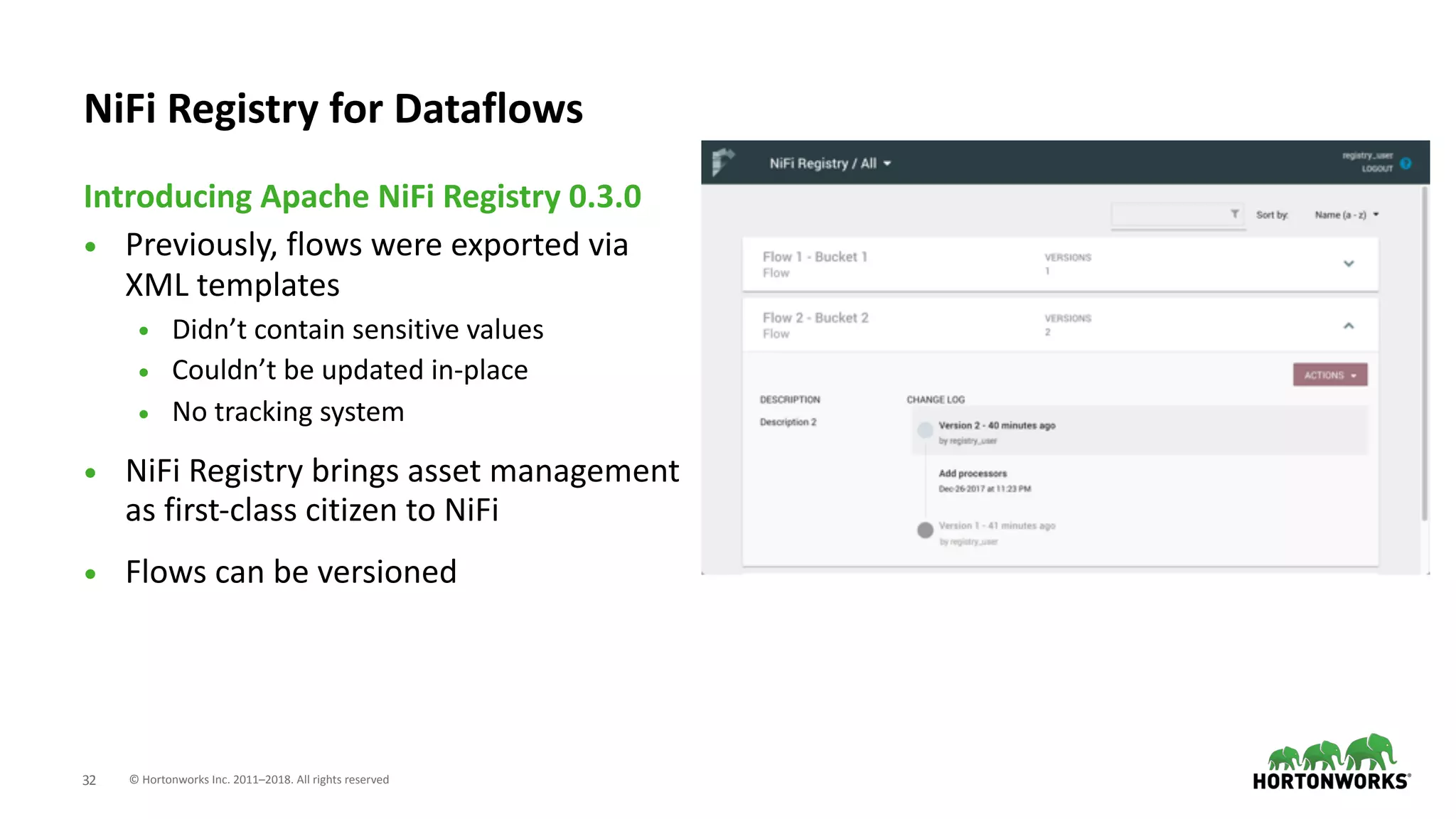

Introducing Apache NiFi Registry 0.3.0
NiFi Registry for Dataflows

36. © Hortonworks Inc. 2011–2018. All rights reserved;33
• Connect multiple NiFi instances
to a NiFi Registry instance
• Communicate between
multiple NiFi Registry instances
• via multiple Registry Clients
• via NiFi CLI

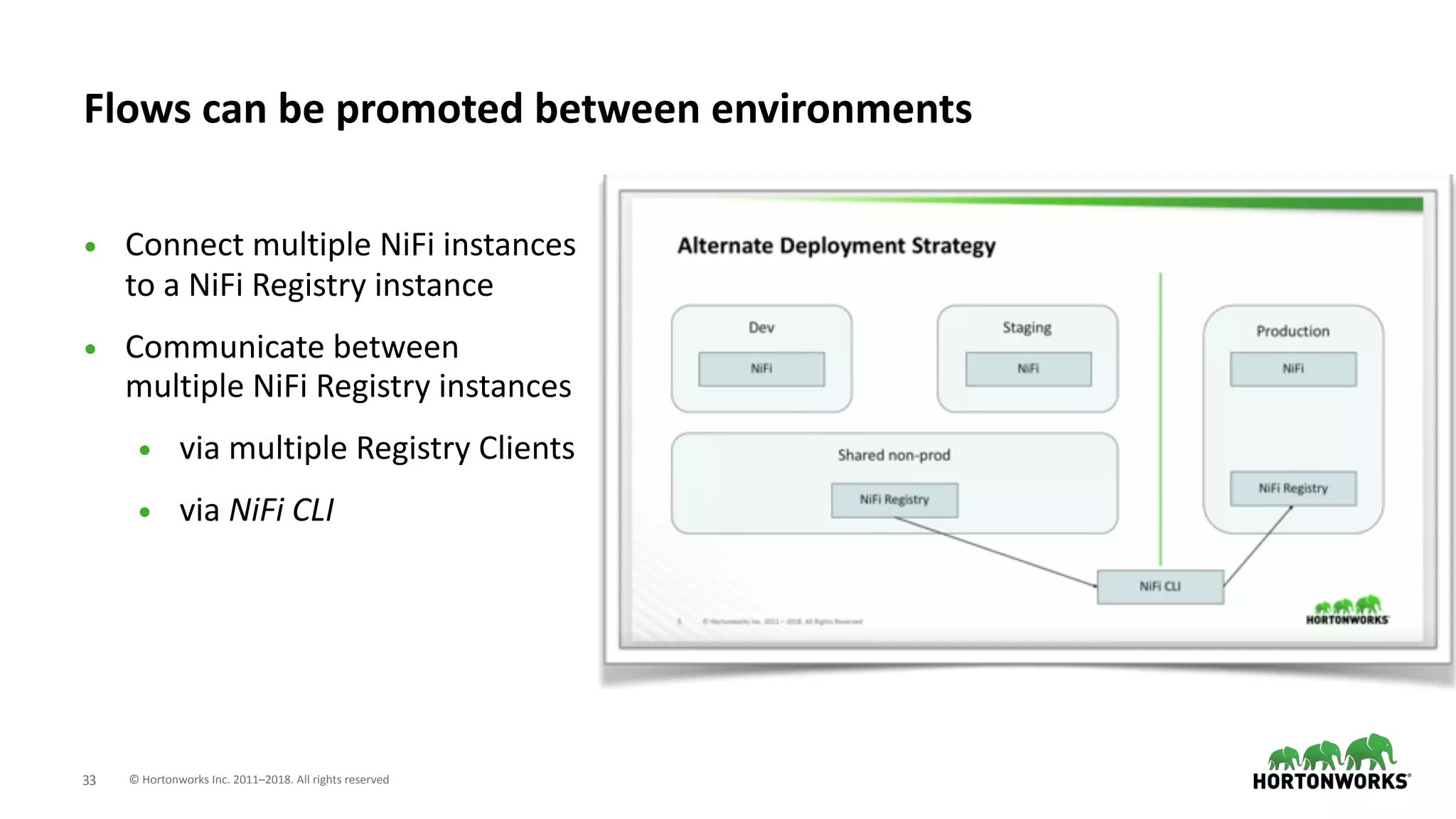

Flows can be promoted between environments

37. © Hortonworks Inc. 2011–2018. All rights reserved;34
• Git-backed persistence
• Share flows via GitHub, etc.
• Commit hooks
• Register a hook & action
• “When a new version of the
flow is committed to QA
Registry, email the QA team
and post in the QA Deploy
Slack channel”
• Pluggable DB implementations
Extensibility

38. © Hortonworks Inc. 2011–2018. All rights reserved;35
Demo

39. © Hortonworks Inc. 2011–2018. All rights reserved;36
• Install nifi-registry
• $ mvn clean install
• $ ./bin/nifi-registry.sh
start
• Browse to http://localhost:18080

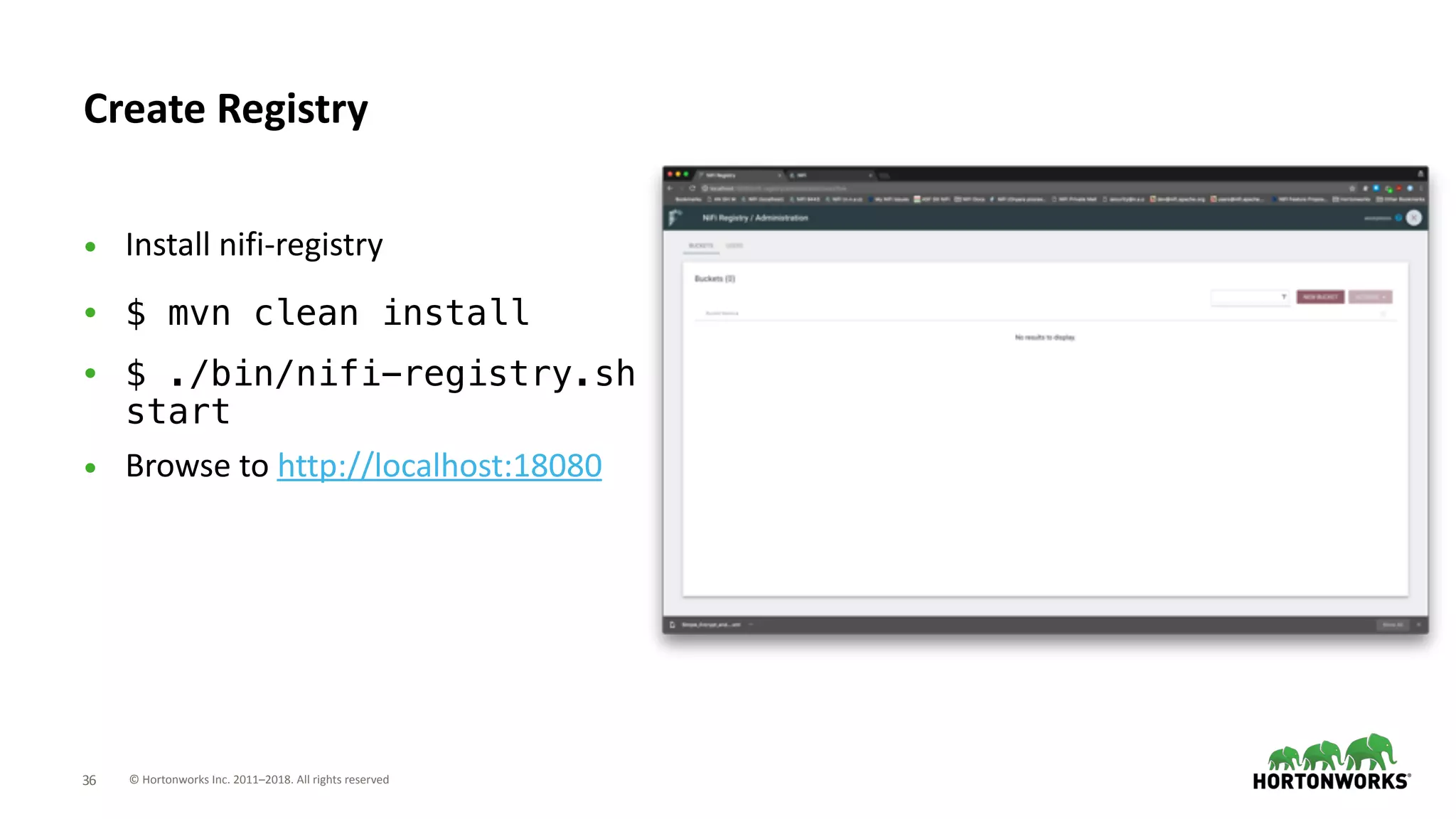

Create Registry

40. © Hortonworks Inc. 2011–2018. All rights reserved;37

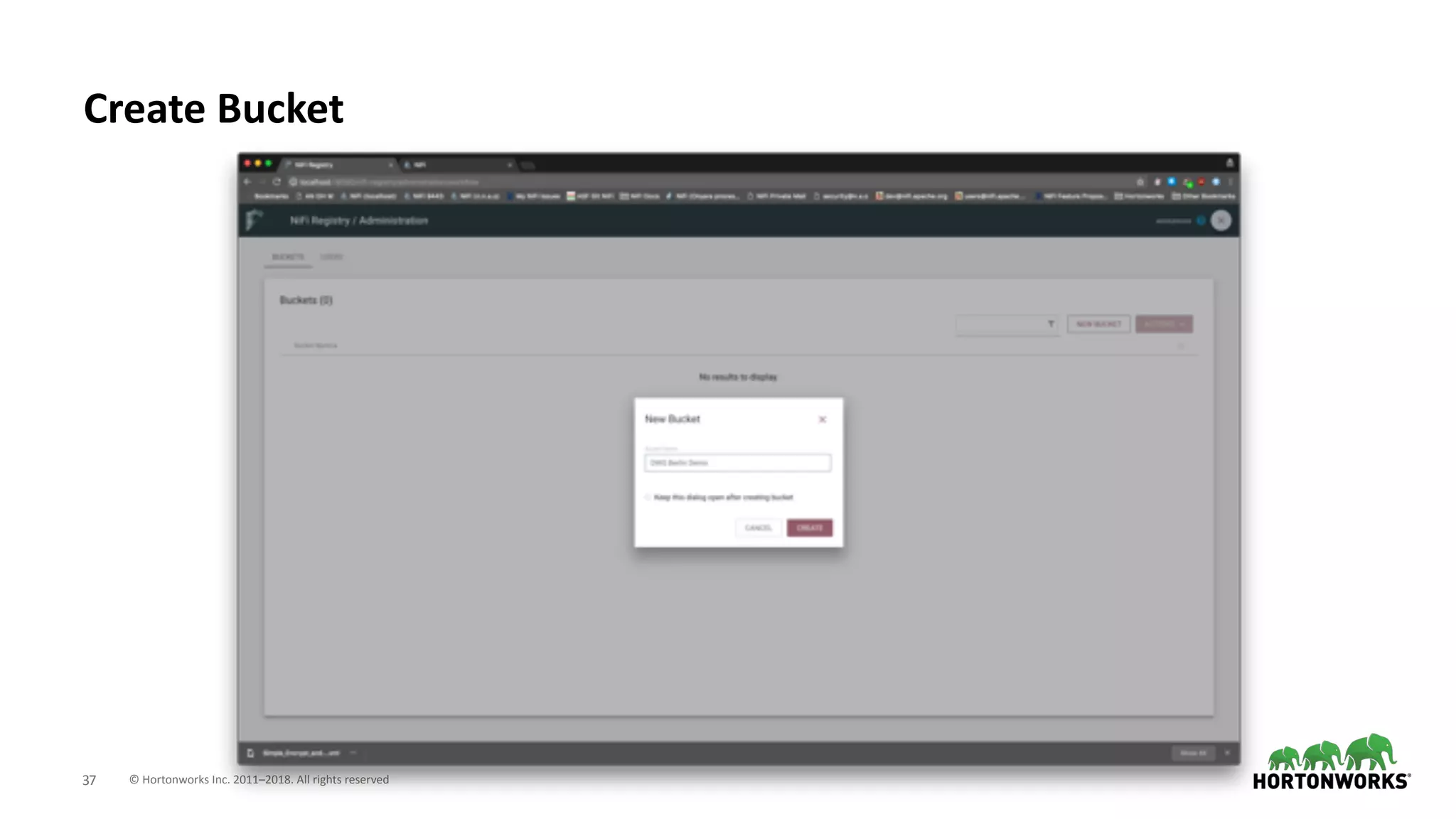

Create Bucket

41. © Hortonworks Inc. 2011–2018. All rights reserved;38

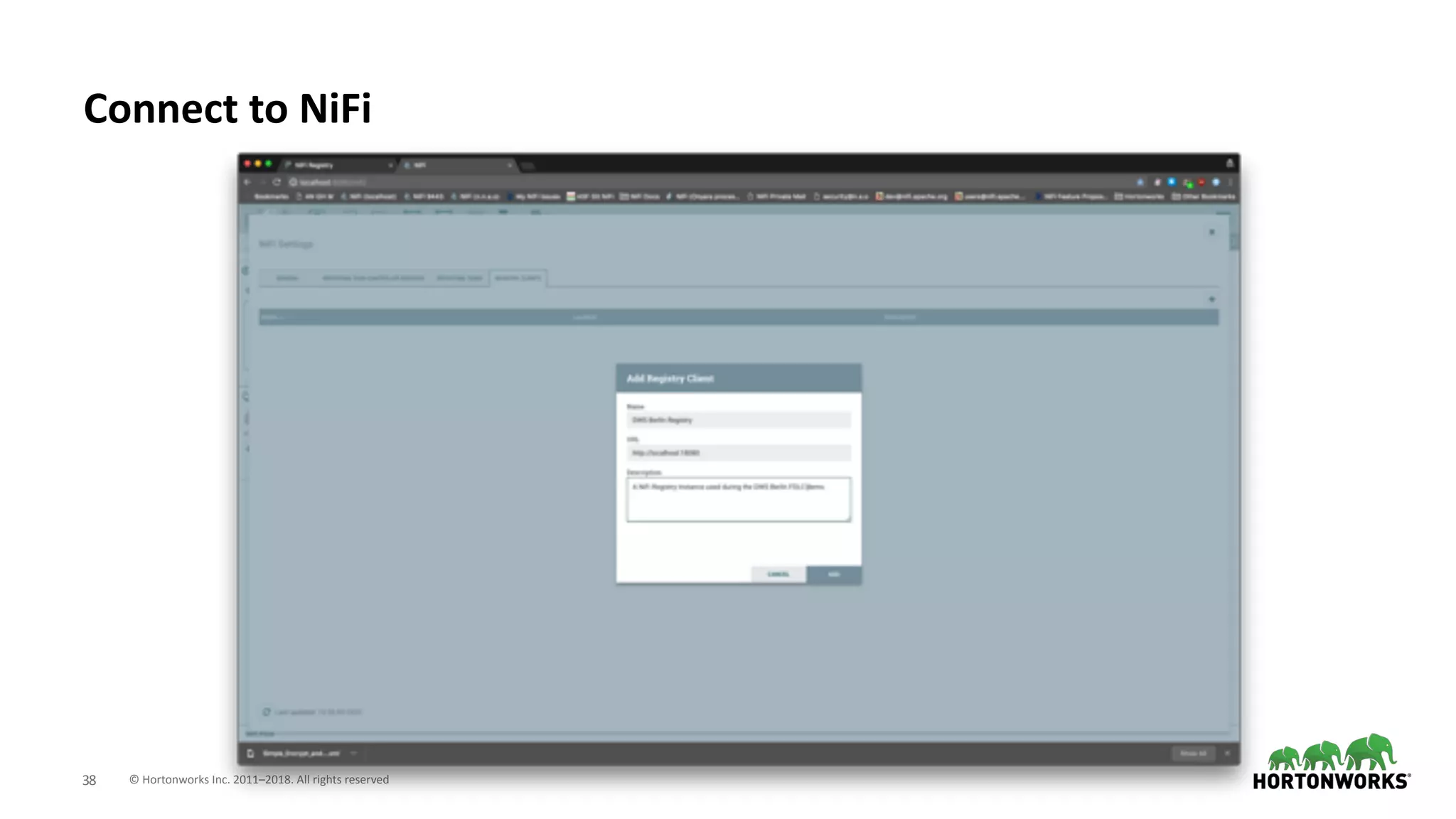

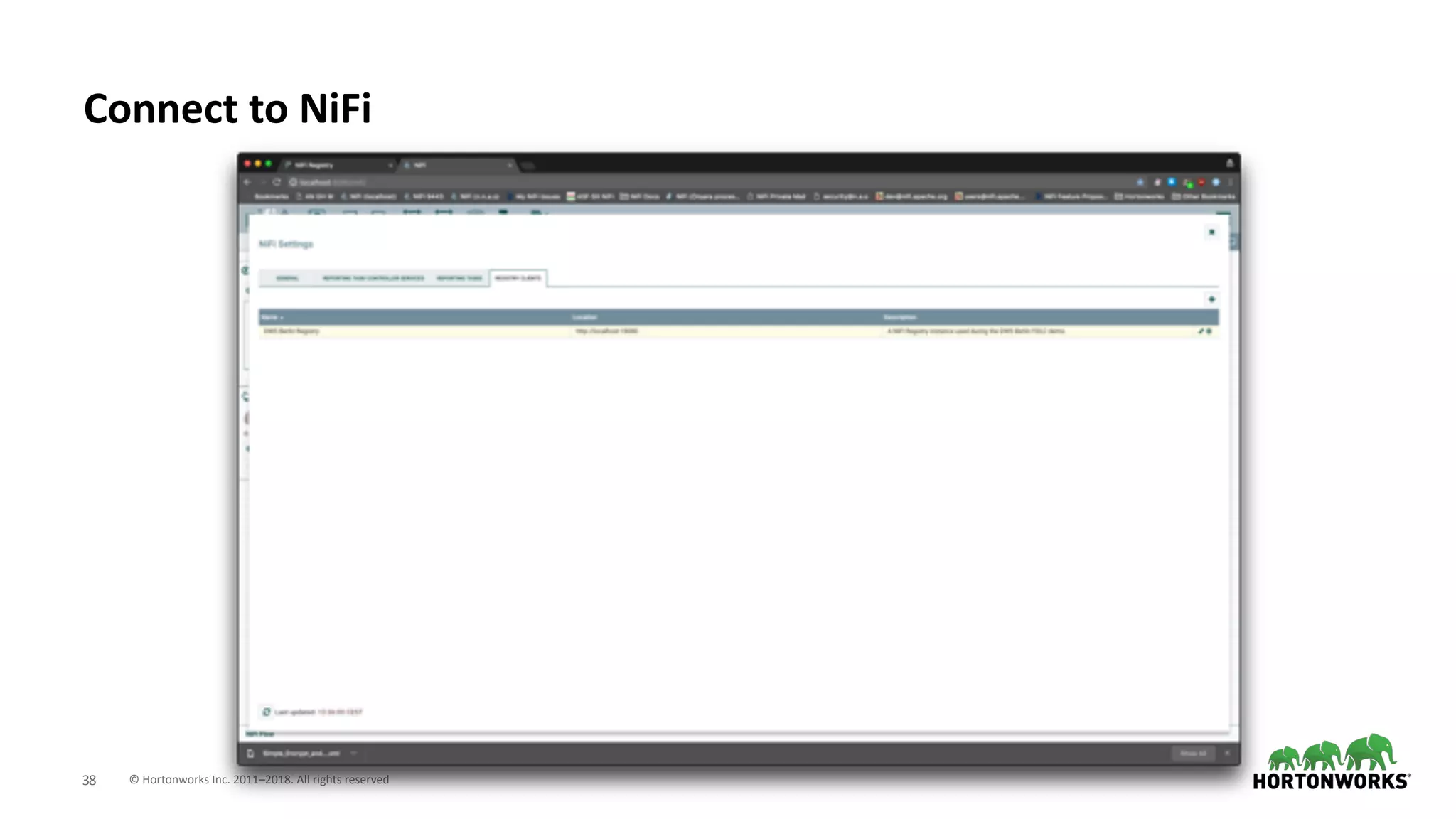

Connect to NiFi

42. © Hortonworks Inc. 2011–2018. All rights reserved;38
Connect to NiFi

43. © Hortonworks Inc. 2011–2018. All rights reserved;39

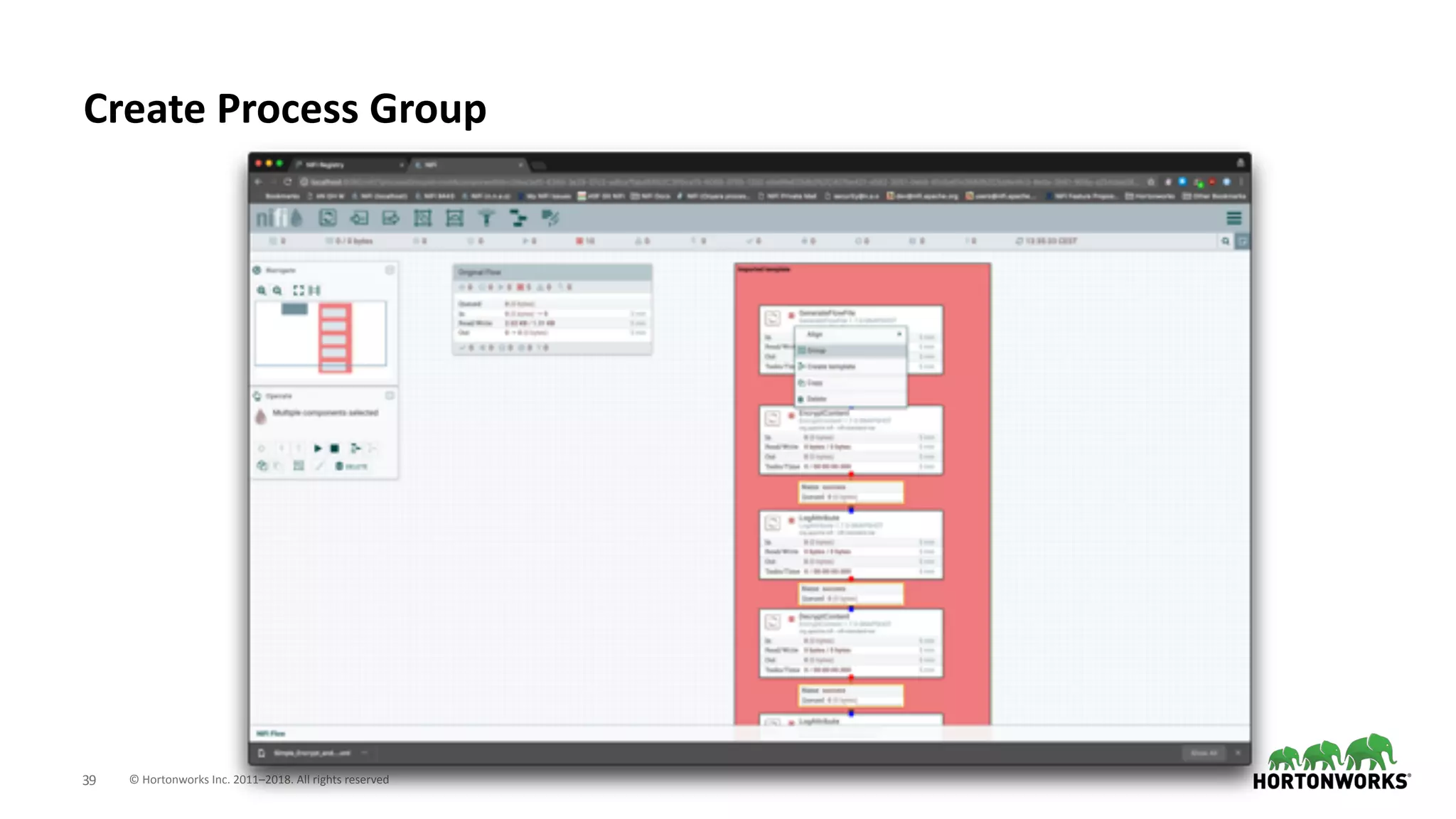

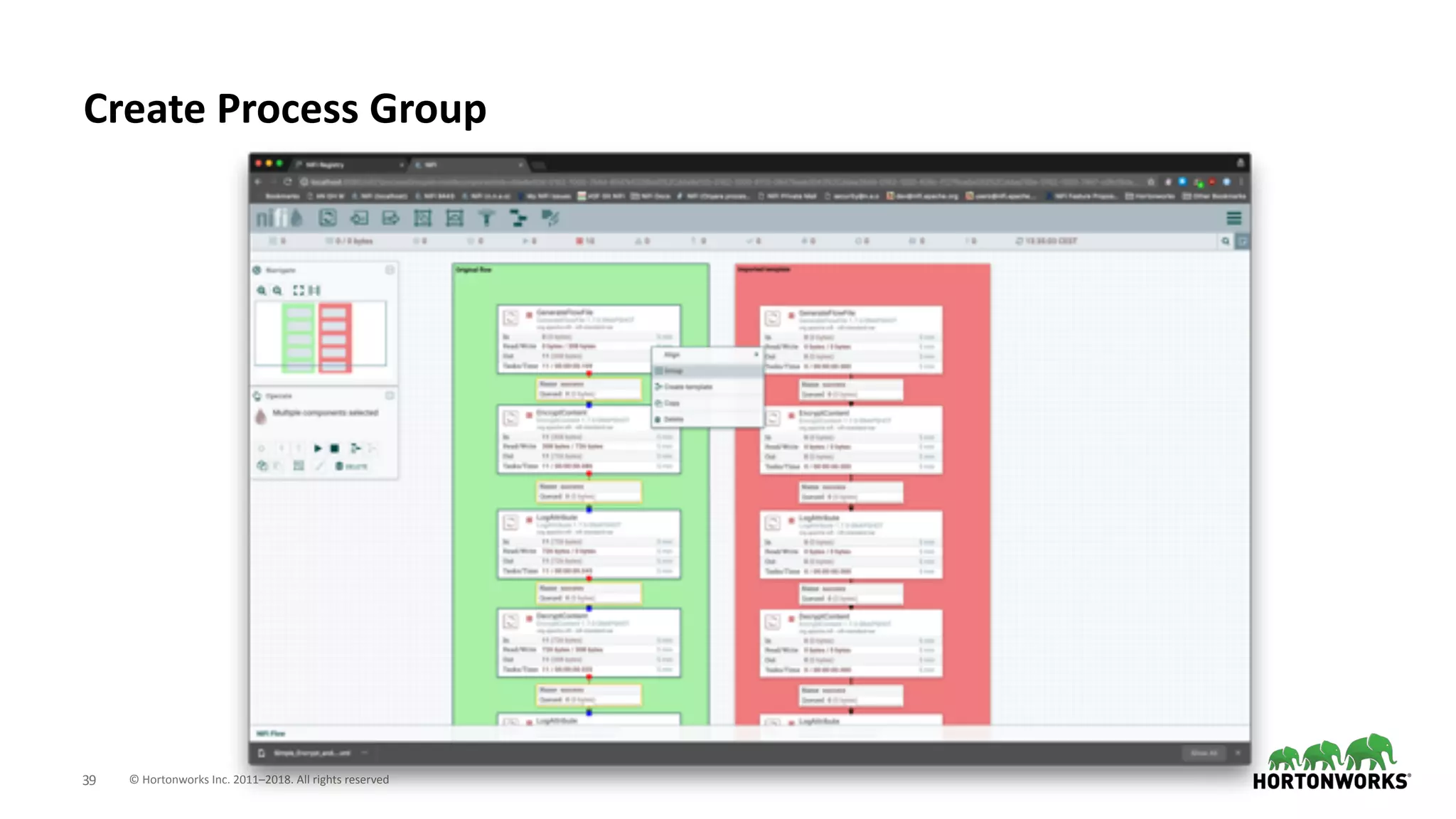

Create Process Group

44. © Hortonworks Inc. 2011–2018. All rights reserved;39
Create Process Group

45. © Hortonworks Inc. 2011–2018. All rights reserved;40

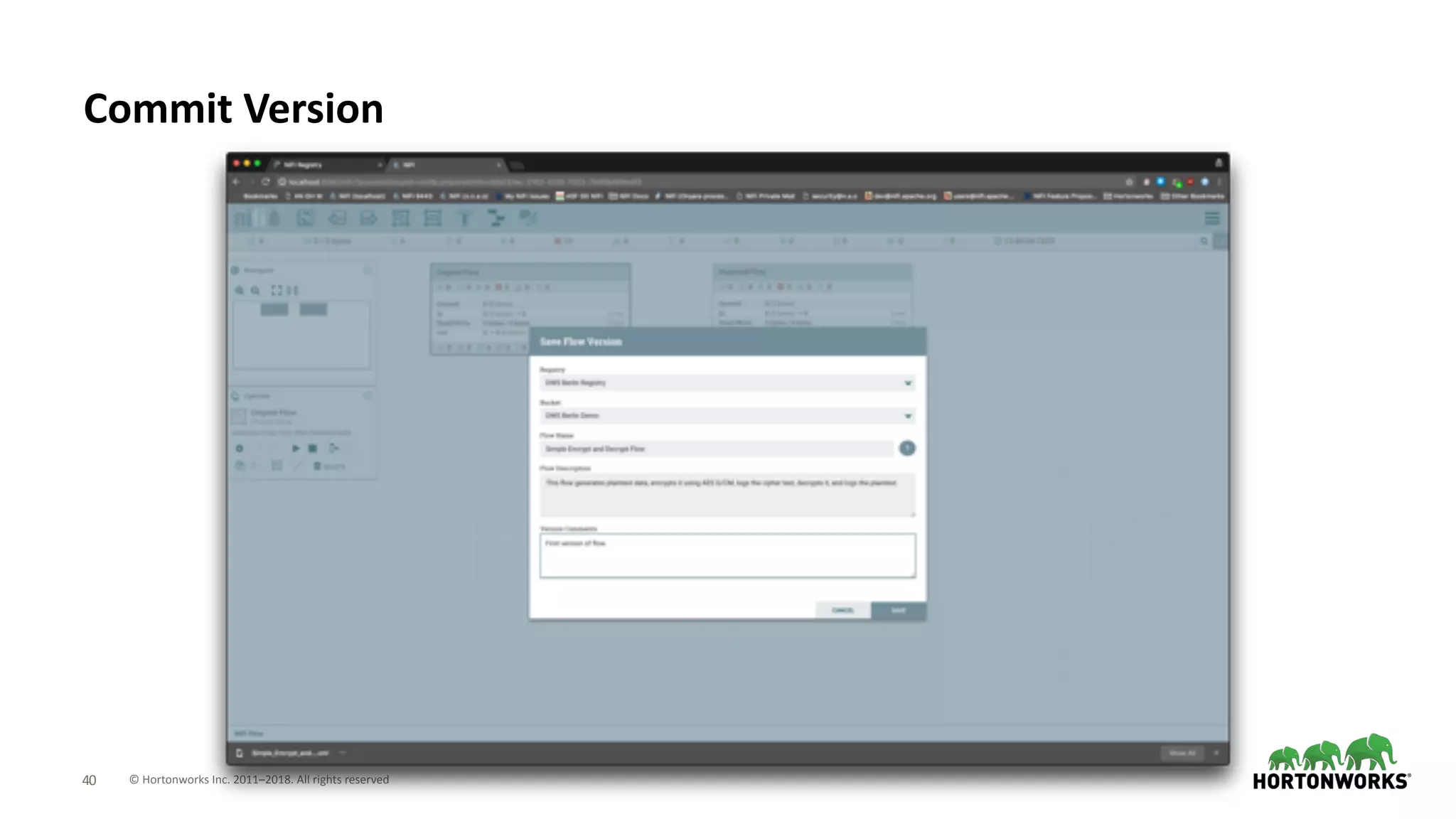

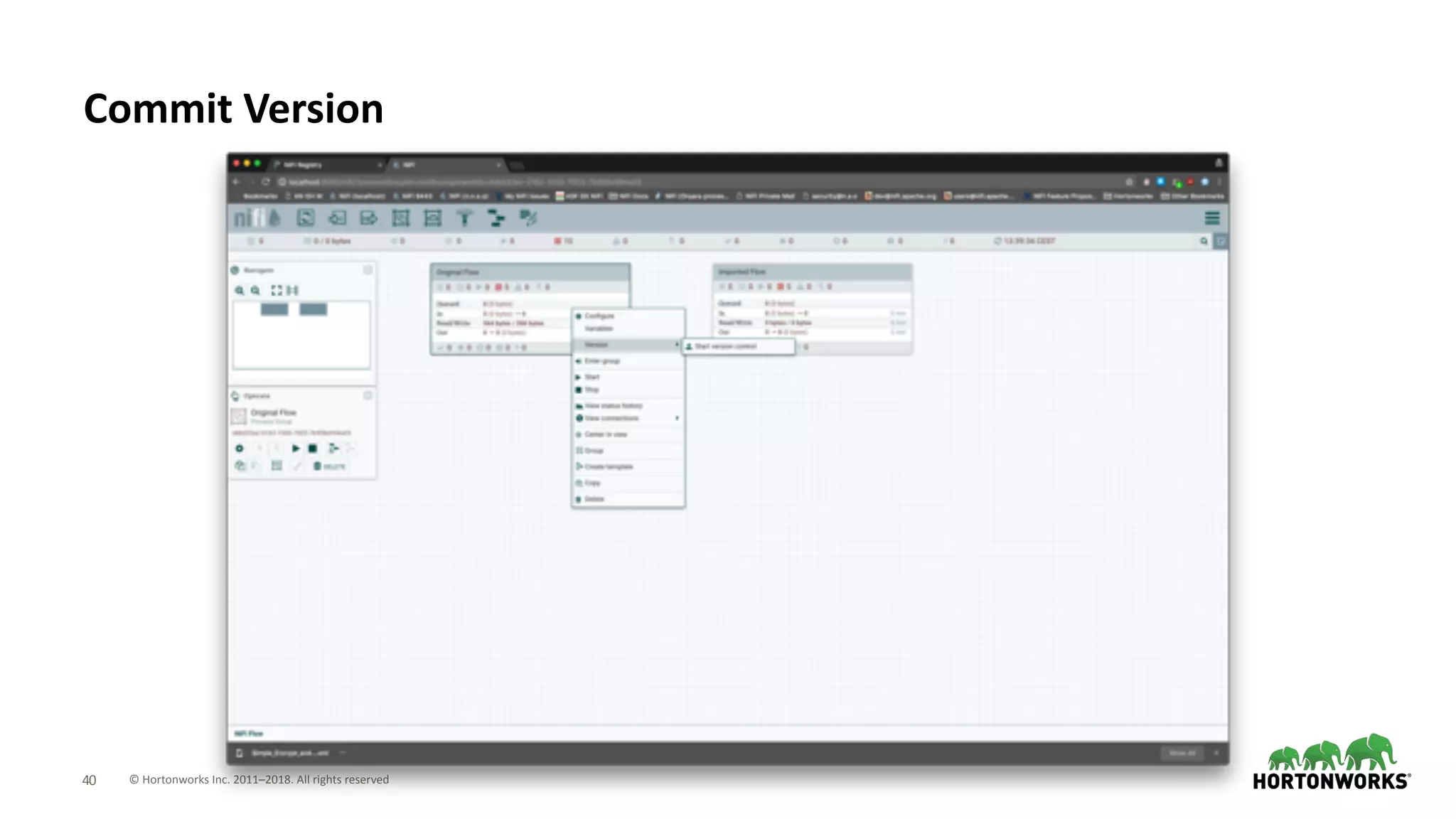

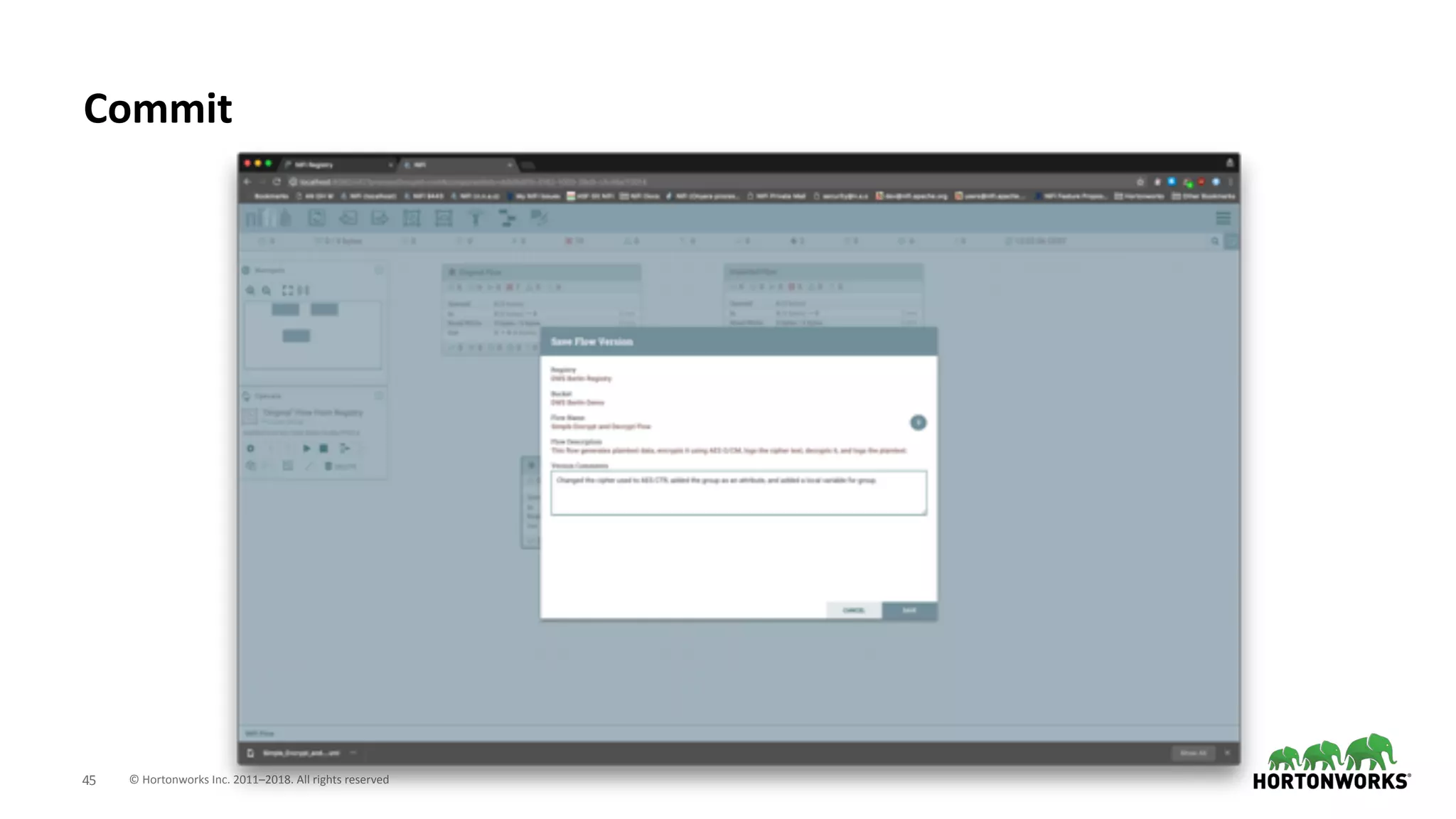

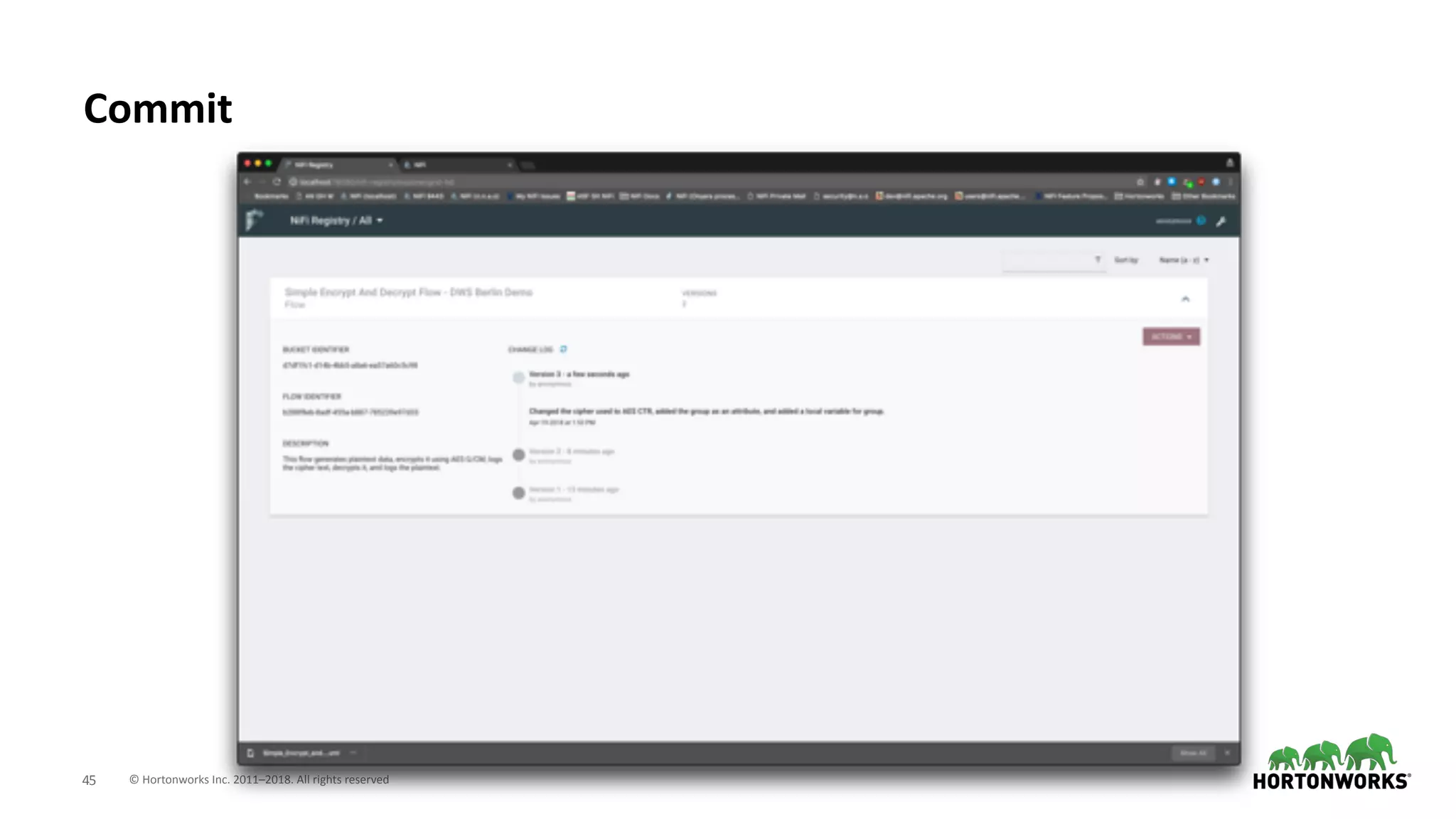

Commit Version

46. © Hortonworks Inc. 2011–2018. All rights reserved;40
Commit Version

47. © Hortonworks Inc. 2011–2018. All rights reserved;40
Commit Version

48. © Hortonworks Inc. 2011–2018. All rights reserved;41

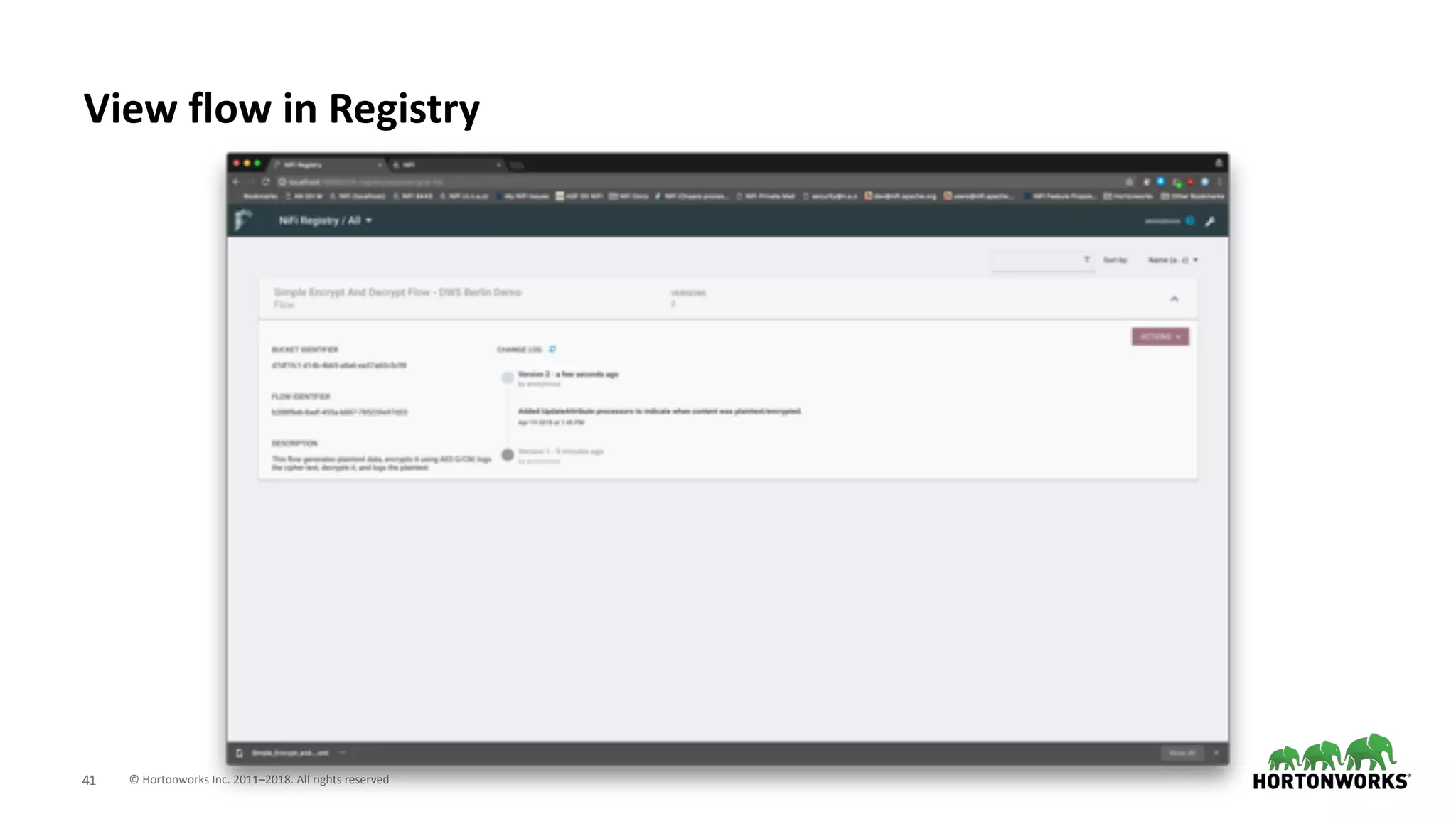

View flow in Registry

49. © Hortonworks Inc. 2011–2018. All rights reserved;42

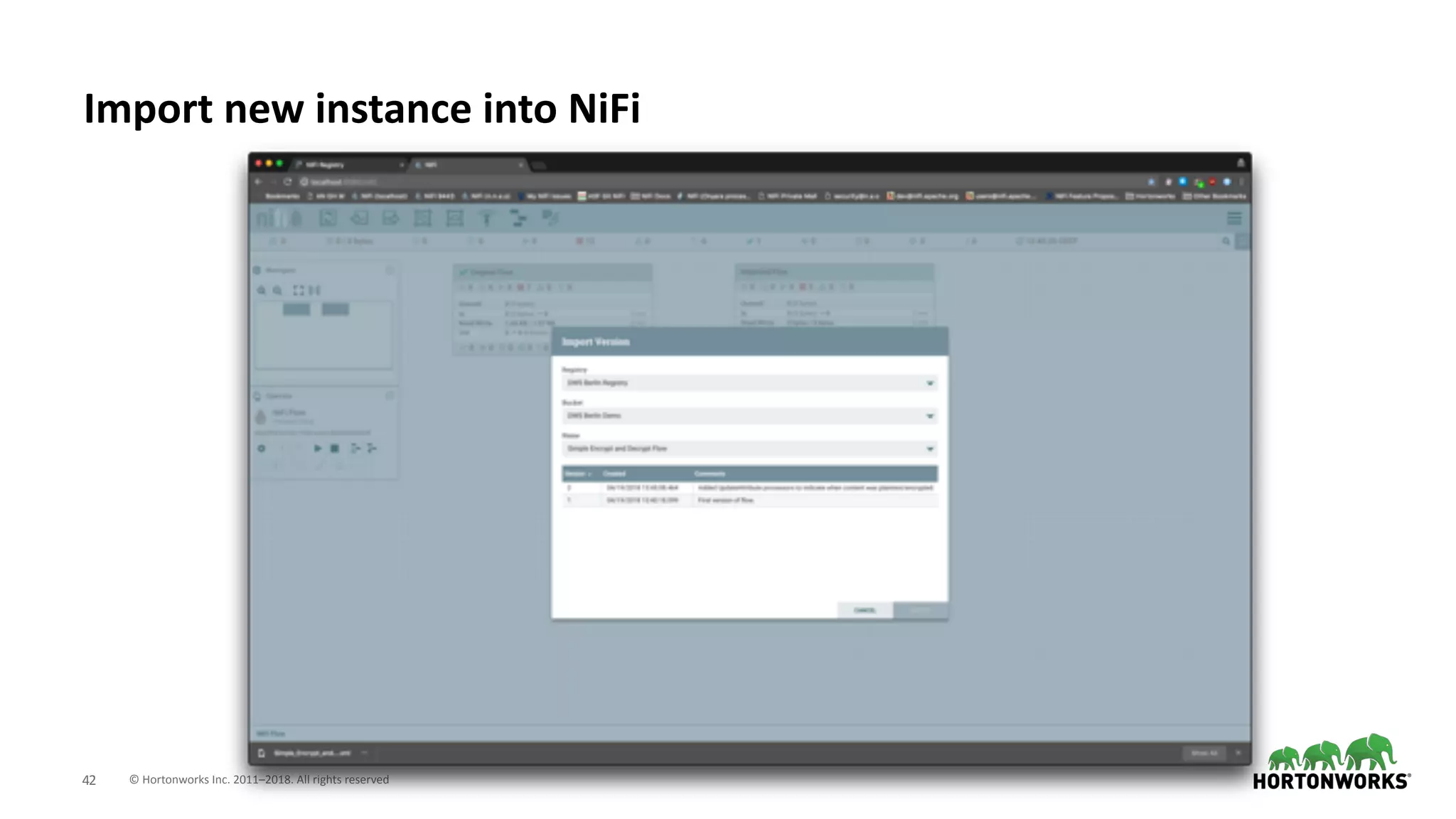

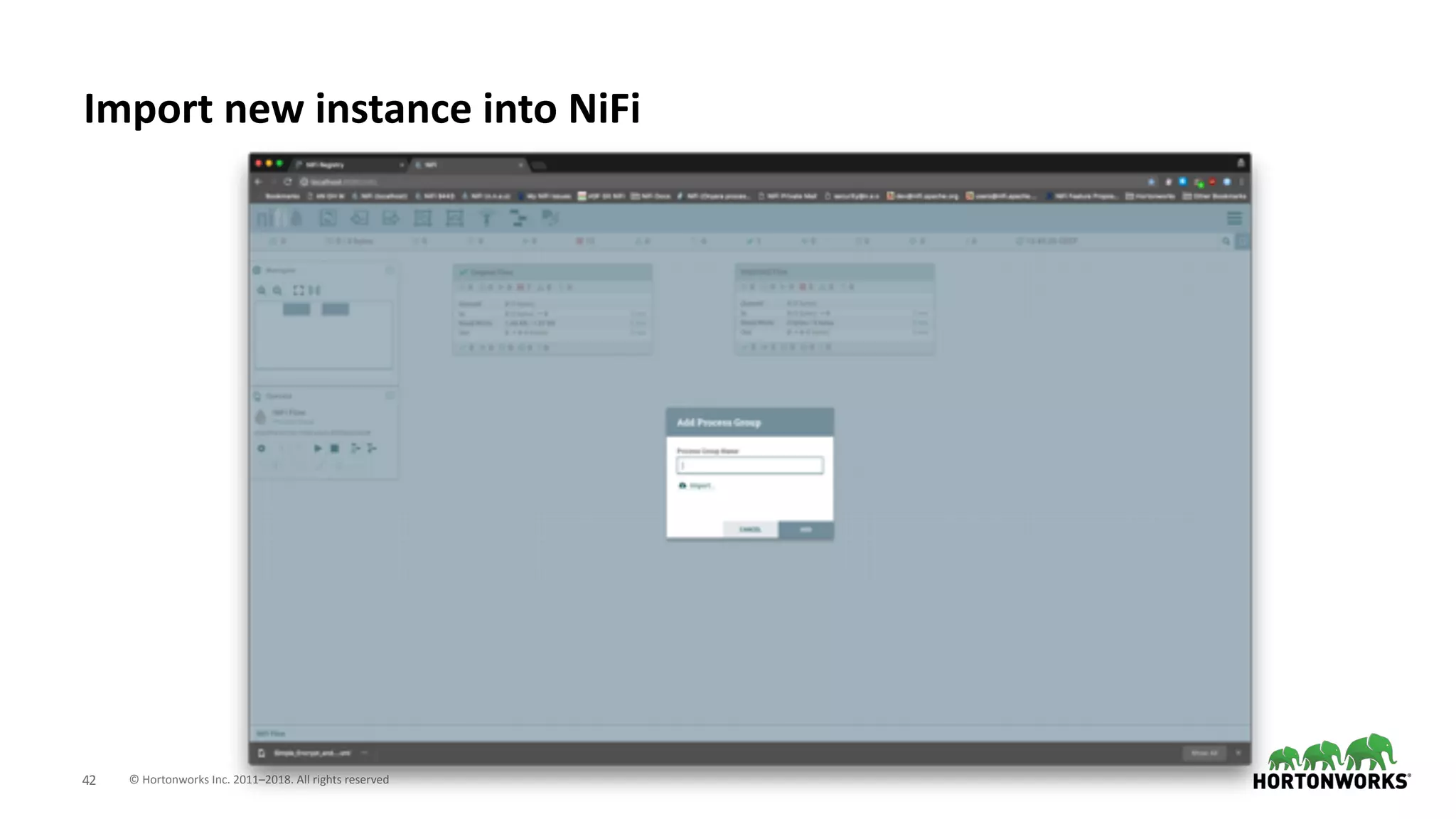

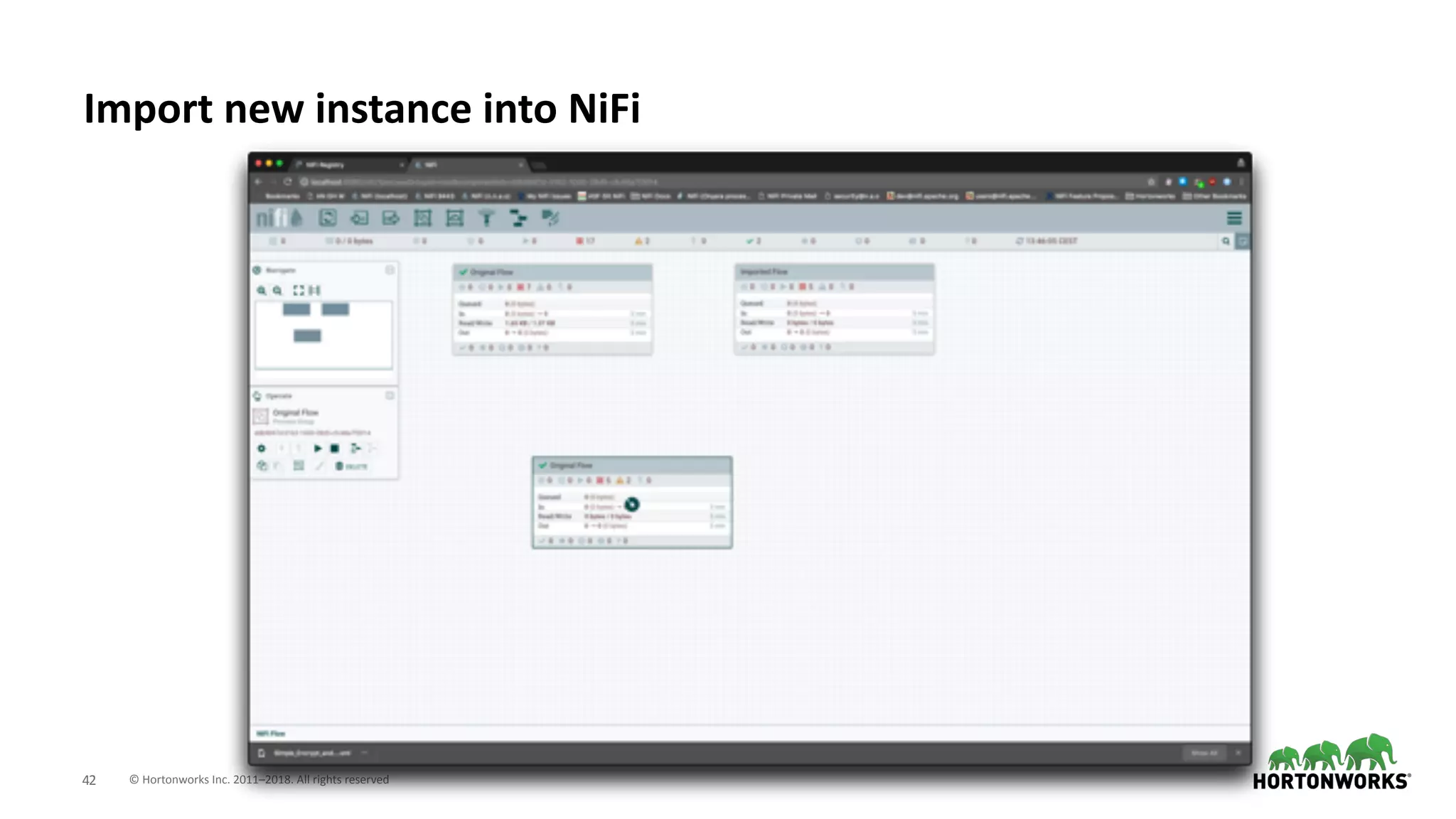

Import new instance into NiFi

50. © Hortonworks Inc. 2011–2018. All rights reserved;42
Import new instance into NiFi

51. © Hortonworks Inc. 2011–2018. All rights reserved;42
Import new instance into NiFi

52. © Hortonworks Inc. 2011–2018. All rights reserved;43

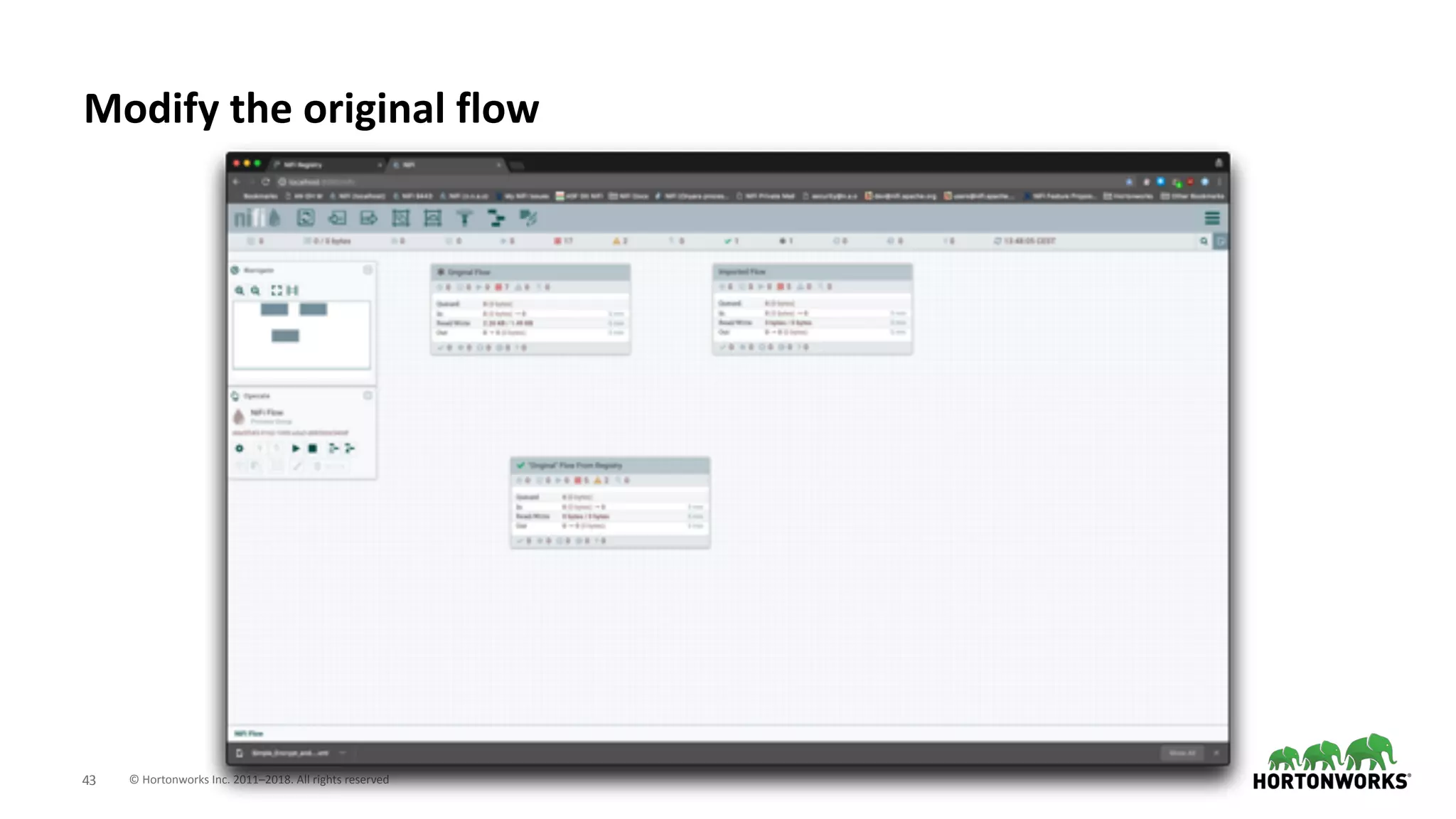

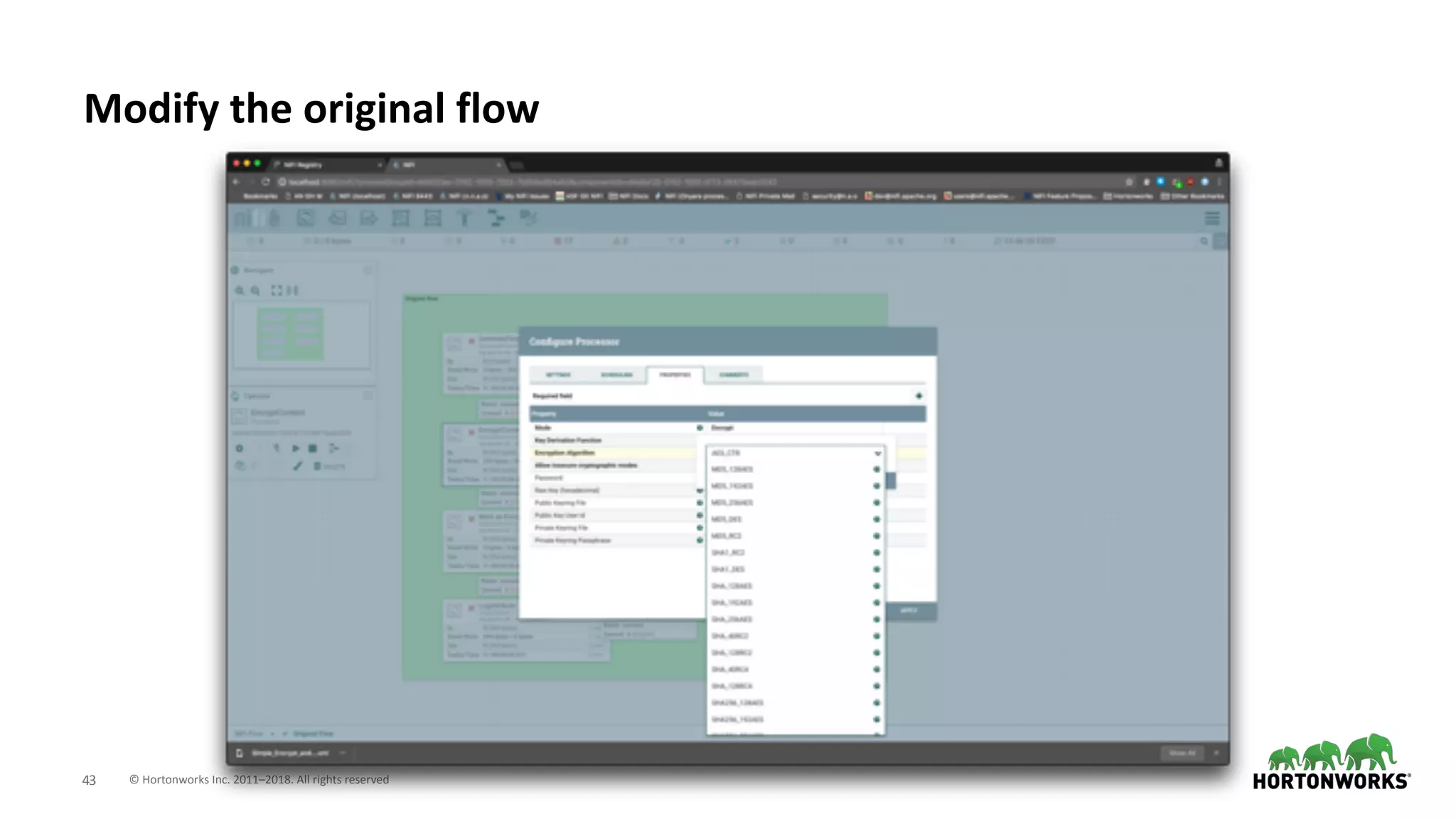

Modify the original flow

53. © Hortonworks Inc. 2011–2018. All rights reserved;43
Modify the original flow

54. © Hortonworks Inc. 2011–2018. All rights reserved;43
Modify the original flow

55. © Hortonworks Inc. 2011–2018. All rights reserved;44

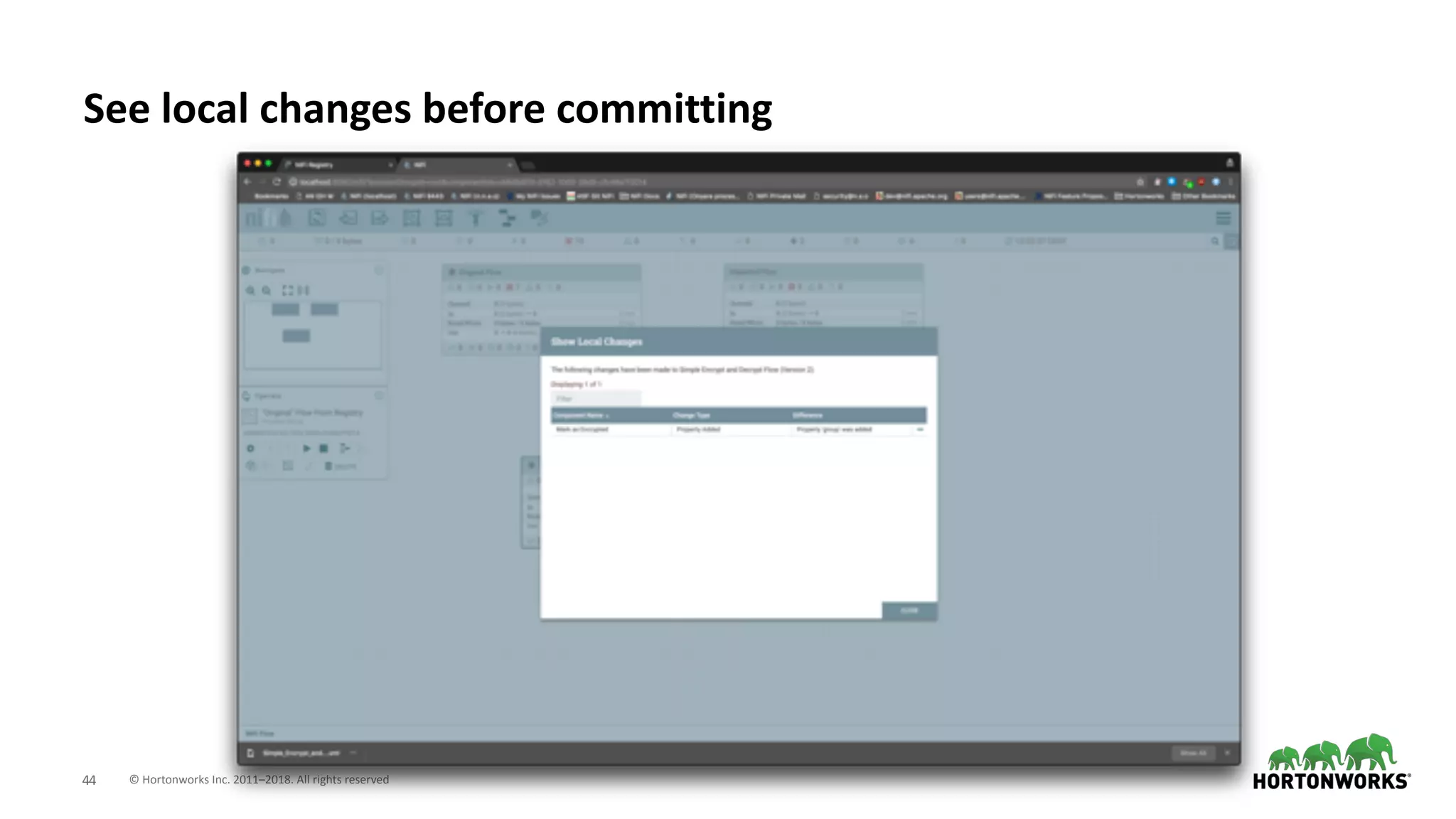

See local changes before committing

56. © Hortonworks Inc. 2011–2018. All rights reserved;44
See local changes before committing

57. © Hortonworks Inc. 2011–2018. All rights reserved;44
See local changes before committing

58. © Hortonworks Inc. 2011–2018. All rights reserved;45
Commit

59. © Hortonworks Inc. 2011–2018. All rights reserved;45
Commit

60. © Hortonworks Inc. 2011–2018. All rights reserved;46

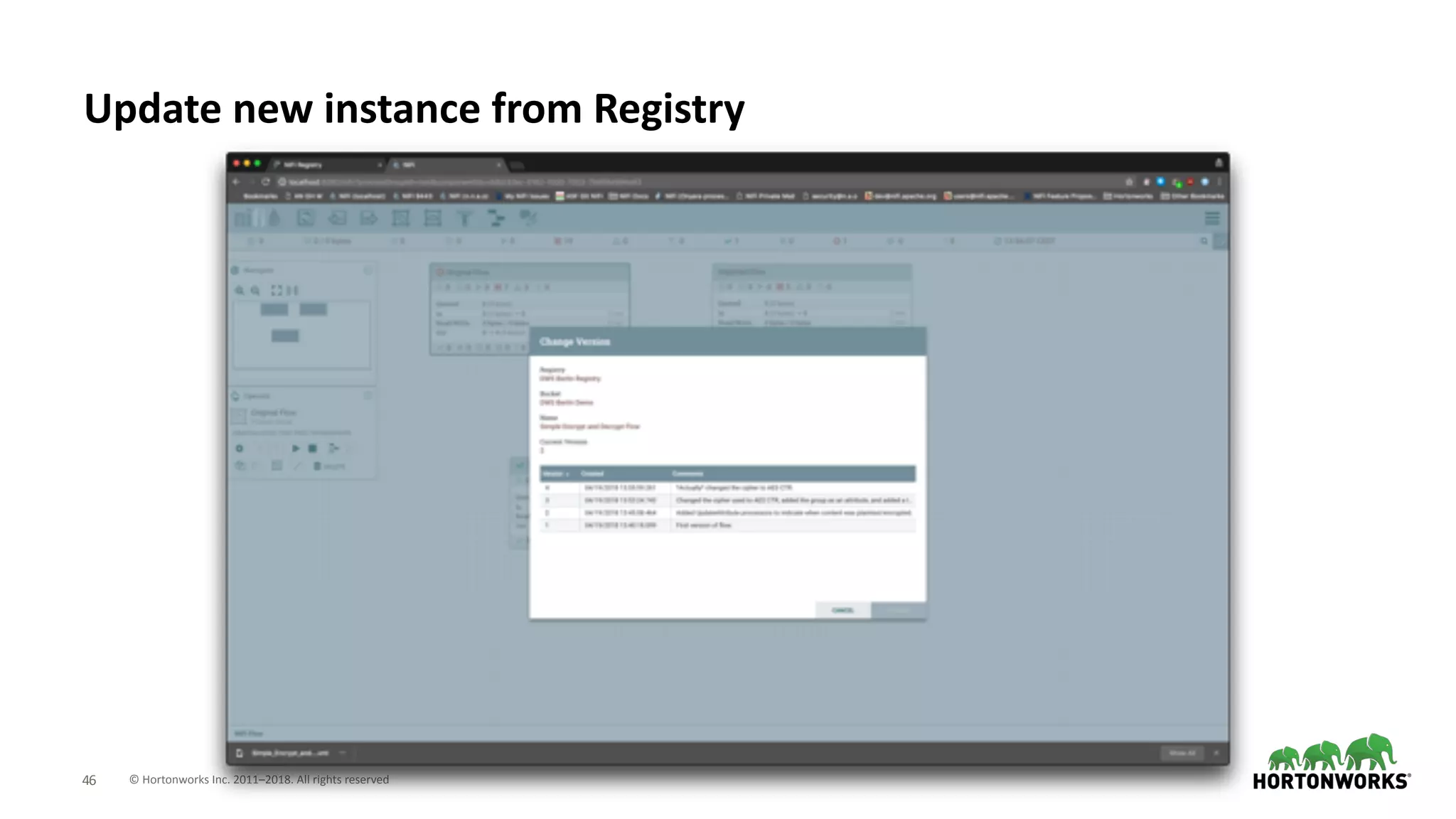

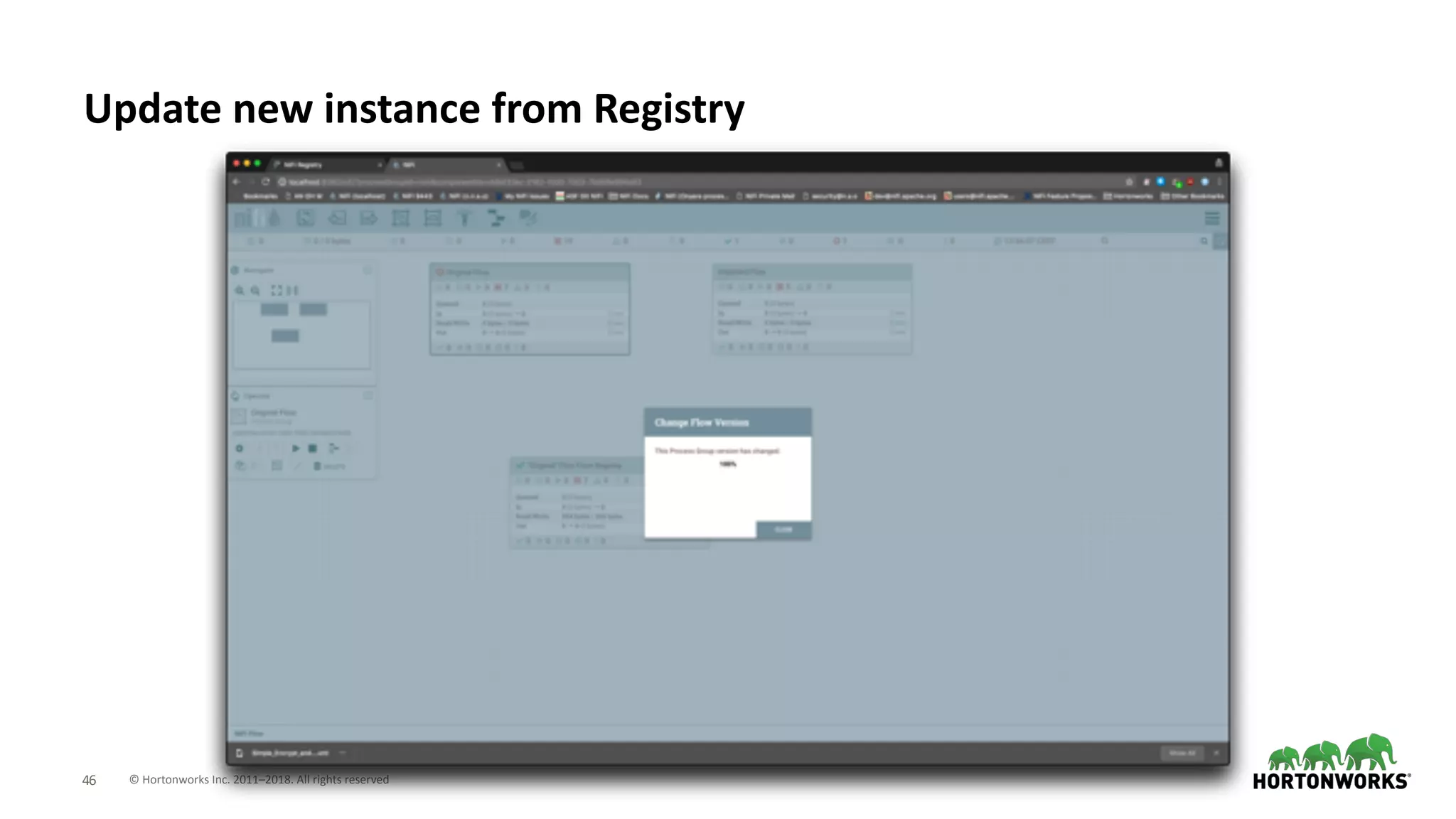

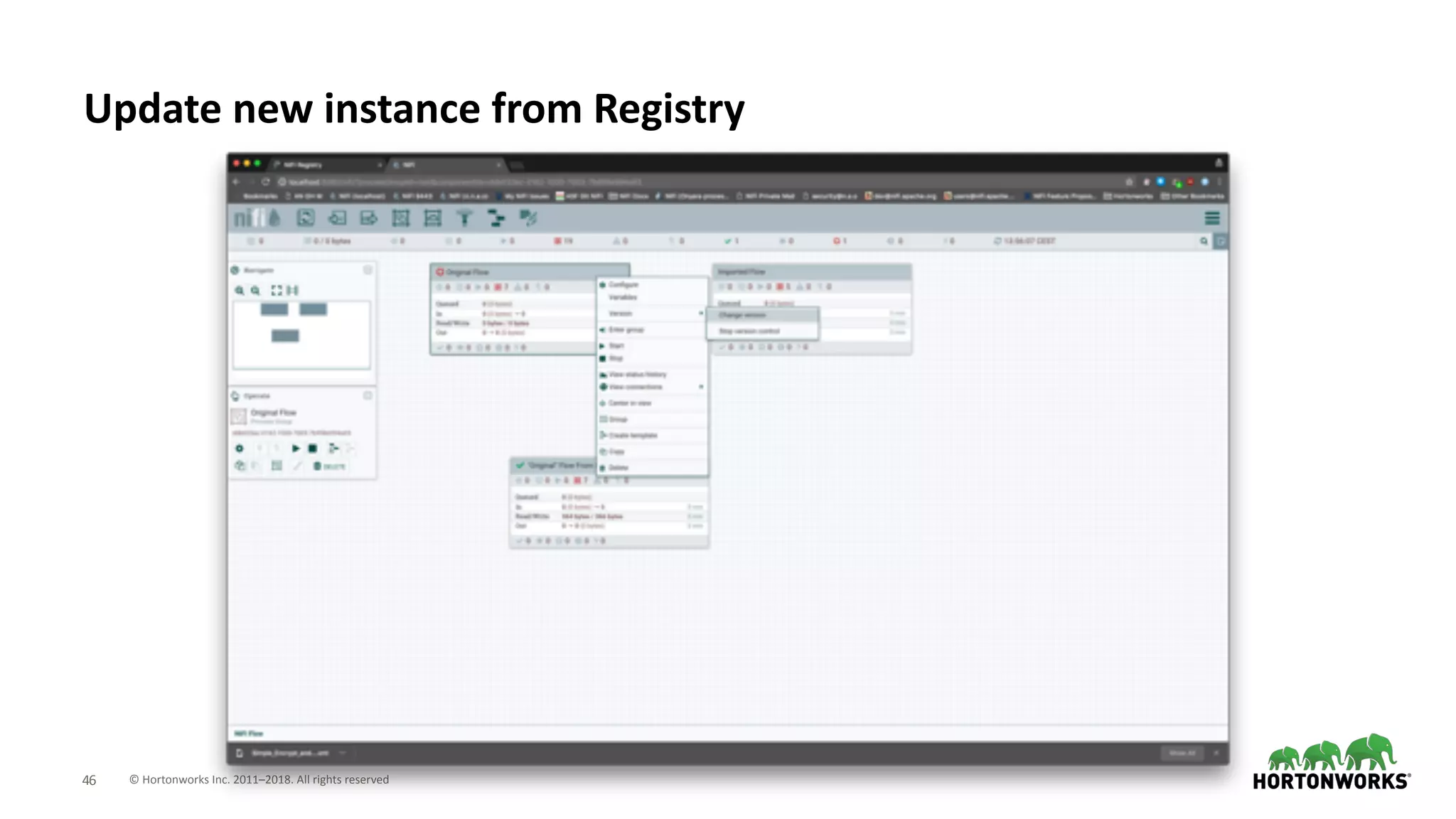

Update new instance from Registry

61. © Hortonworks Inc. 2011–2018. All rights reserved;46
Update new instance from Registry

62. © Hortonworks Inc. 2011–2018. All rights reserved;46
Update new instance from Registry

63. © Hortonworks Inc. 2011–2018. All rights reserved;47

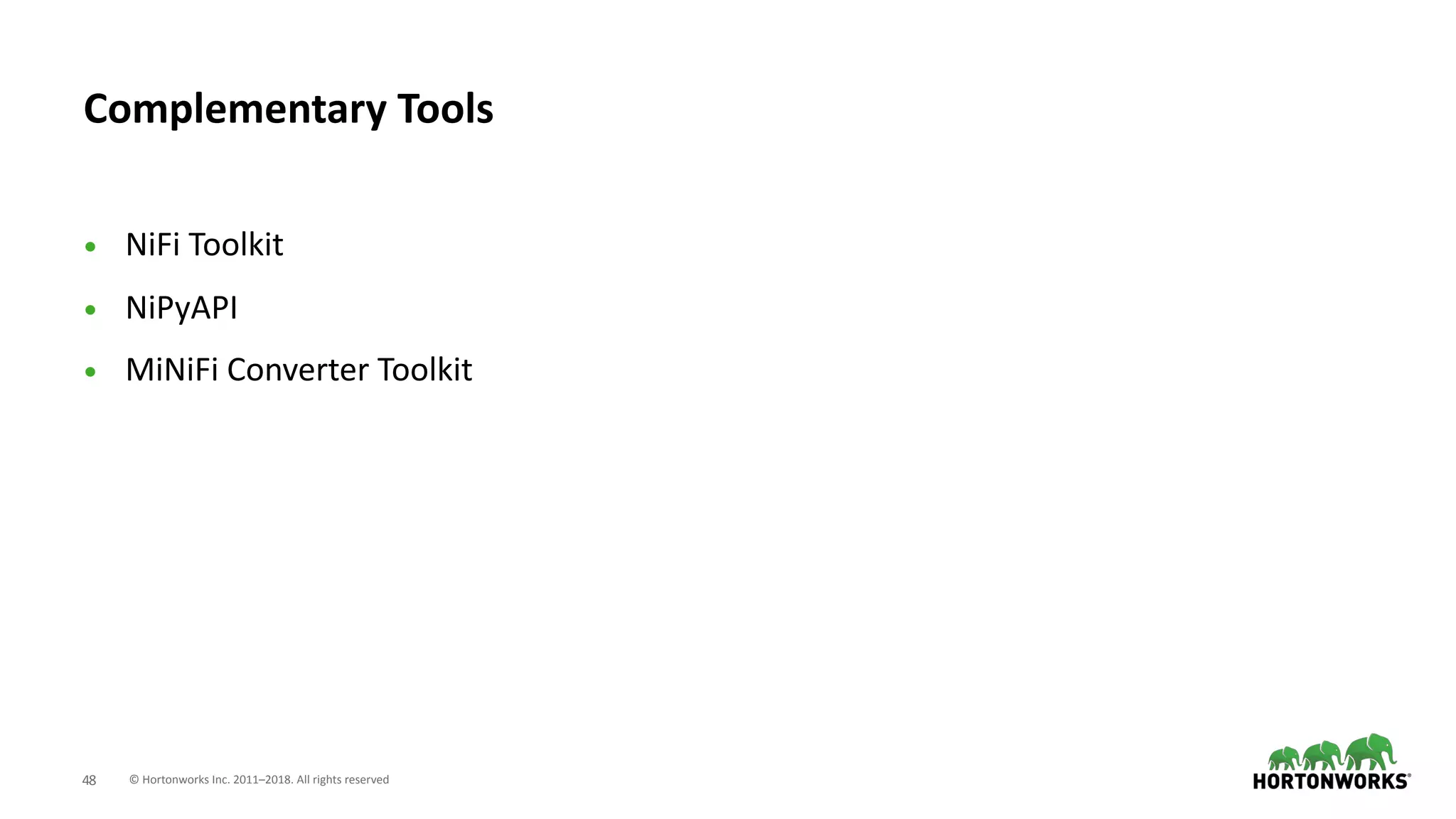

Complementary Tools

64. © Hortonworks Inc. 2011–2018. All rights reserved;48
• NiFi Toolkit
• NiPyAPI
• MiNiFi Converter Toolkit
Complementary Tools

65. © Hortonworks Inc. 2011–2018. All rights reserved;49
NiFi Toolkit
• TLS Toolkit
• Generates, signs, and packages
keys and certificates for NiFi
services (node/cluster, clients)
• Encrypt Config
• Protects sensitive
configuration values like
passwords
• CLI
• Interacts with NiFi & NiFi
Registry to operate on flows

66. © Hortonworks Inc. 2011–2018. All rights reserved;50

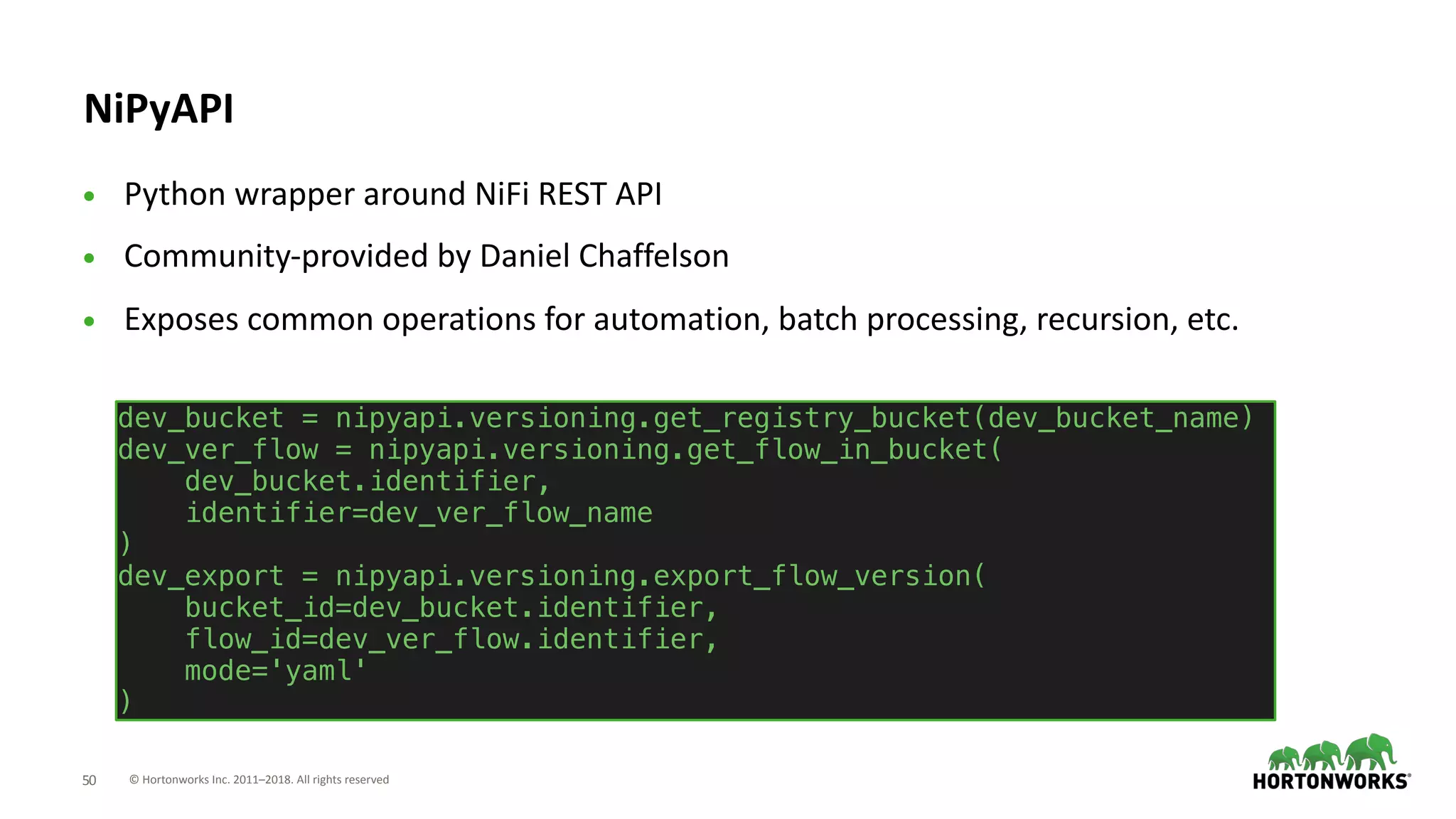

NiPyAPI
• Python wrapper around NiFi REST API
• Community-provided by Daniel Chaffelson
• Exposes common operations for automation, batch processing, recursion, etc.
dev_bucket = nipyapi.versioning.get_registry_bucket(dev_bucket_name)
dev_ver_flow = nipyapi.versioning.get_flow_in_bucket(
dev_bucket.identifier,
identifier=dev_ver_flow_name
)
dev_export = nipyapi.versioning.export_flow_version(
bucket_id=dev_bucket.identifier,
flow_id=dev_ver_flow.identifier,
mode='yaml'
)

67. © Hortonworks Inc. 2011–2018. All rights reserved;51

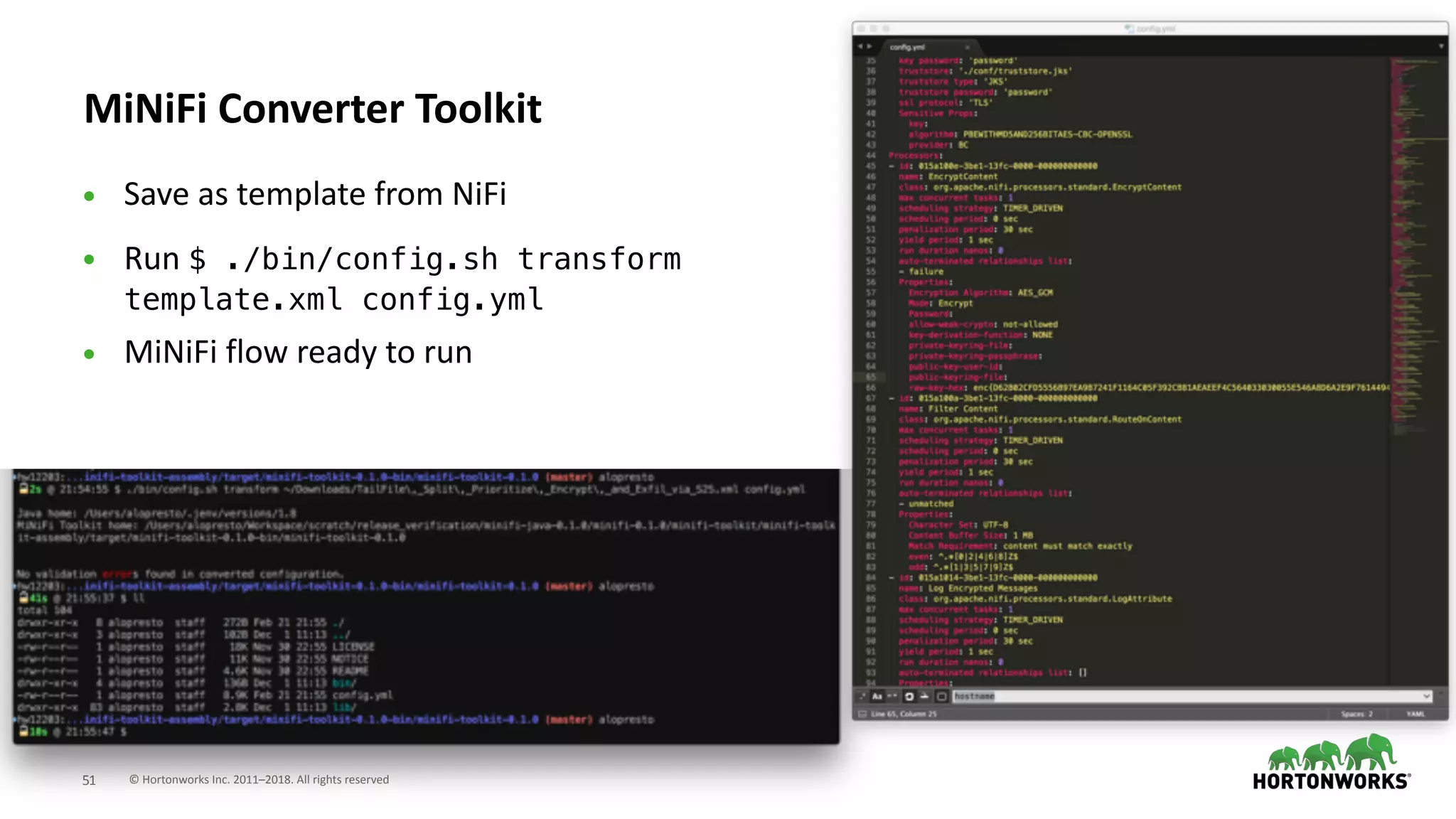

MiNiFi Converter Toolkit
• Save as template from NiFi
• Run $ ./bin/config.sh transform
template.xml config.yml
• MiNiFi flow ready to run

68. © Hortonworks Inc. 2011–2018. All rights reserved;52
Community

69. © Hortonworks Inc. 2011–2018. All rights reserved;53
• FDLC with Apache NiFi, Kevin
Doran
• NiPyAPI Docs, Daniel
Chaffelson
• DevOps Tips, Tim Spann
• Automate Workflow, Pierre
Villard

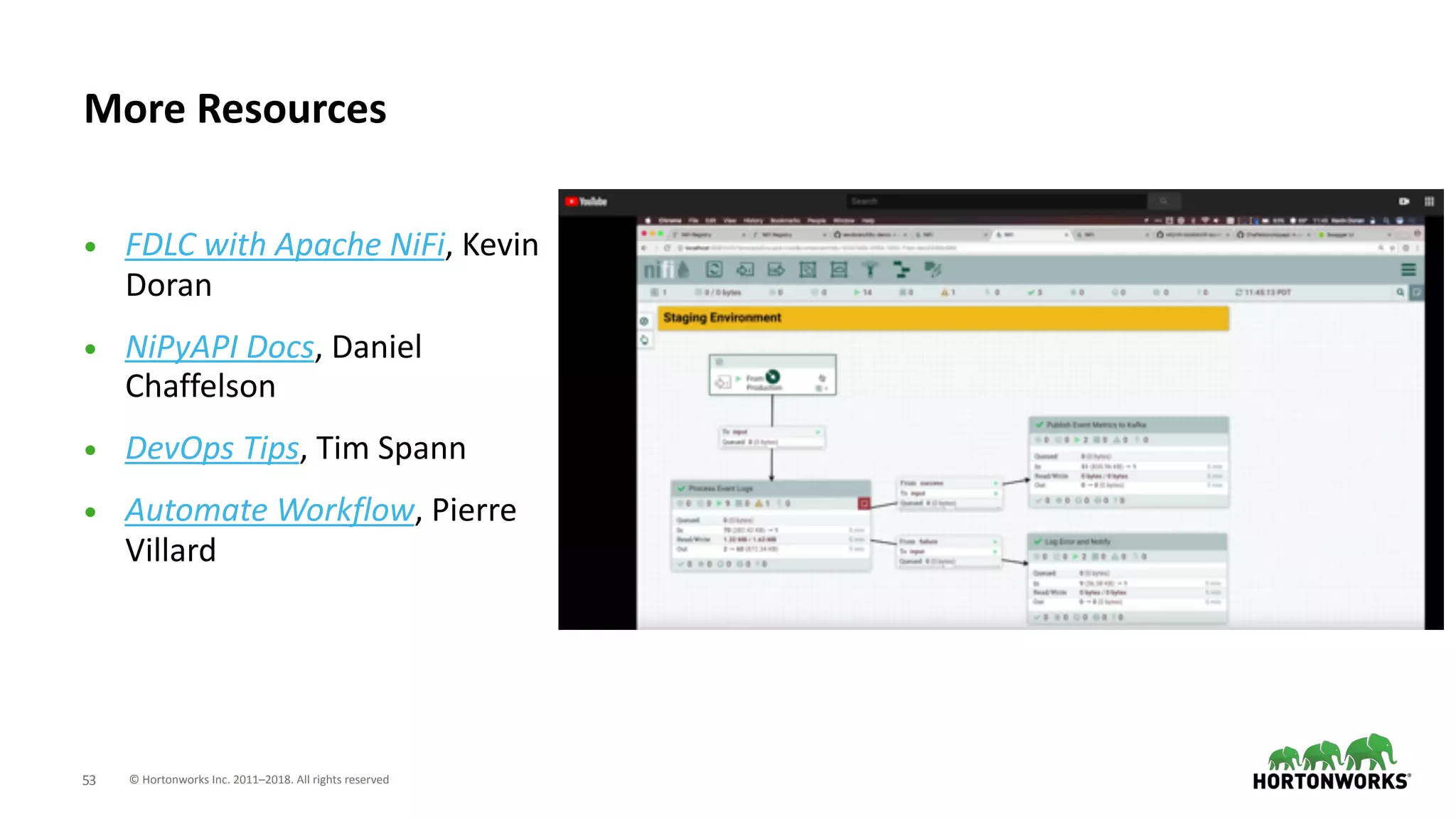

More Resources

70. © Hortonworks Inc. 2011–2018. All rights reserved;54
• NiFi 1.8.0 — 26 Oct 2018 (212+ Jiras)
• Jetty, DB improvements
• Auto load-balancing queues
• TLS Toolkit w/ external CA
• Record processor improvements
• MiNiFi C++ 0.5.0 — 6 June 2018
• MiNiFi Java 0.5.0 — 7 July 2018
• NiFi Registry 0.3.0 — 25 Sept 2018
New Announcements

71. © Hortonworks Inc. 2011–2018. All rights reserved;55

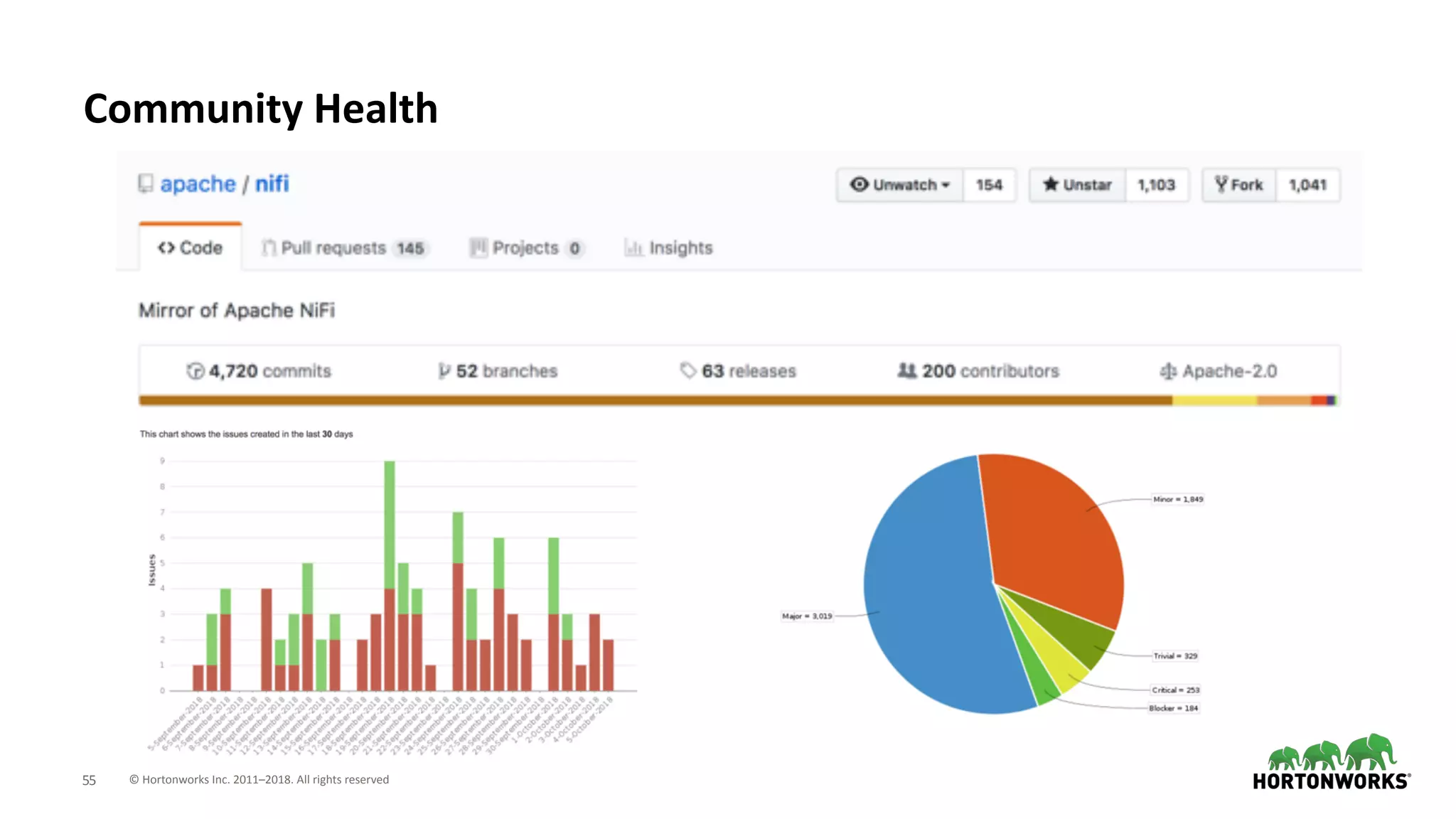

Community Health

72. © Hortonworks Inc. 2011–2018. All rights reserved;56
Apache NiFi site
https://nifi.apache.org
Subproject MiNiFi site
https://nifi.apache.org/minifi/
Subscribe to and collaborate at
dev@nifi.apache.org
users@nifi.apache.org
Submit Ideas or Issues
https://issues.apache.org/jira/browse/NIFI
Follow us on Twitter
@apachenifi
Learn more and join us

73. © Hortonworks Inc. 2011–2018. All rights reserved;57

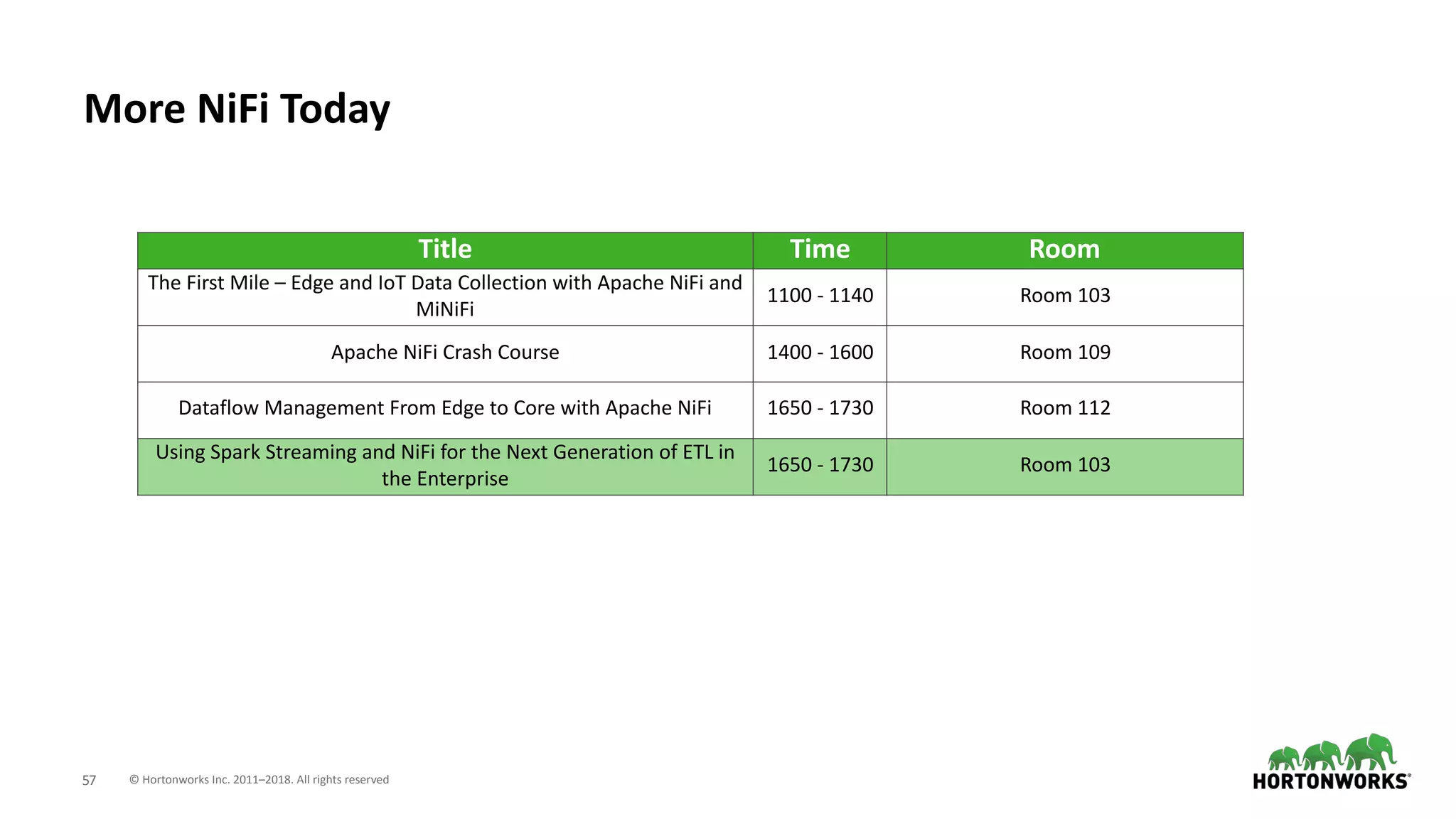

More NiFi Today
Title Time Room
The First Mile – Edge and IoT Data Collection with Apache NiFi and
MiNiFi
1100 - 1140 Room 103
Apache NiFi Crash Course 1400 - 1600 Room 109
Dataflow Management From Edge to Core with Apache NiFi 1650 - 1730 Room 112
Using Spark Streaming and NiFi for the Next Generation of ETL in
the Enterprise
1650 - 1730 Room 103

74. © Hortonworks Inc. 2011–2018. All rights reserved;58
Thank you
alopresto@hortonworks.com | alopresto@apache.org | @yolopey
github.com/alopresto/slides
