1. Jan Kristian Nielsen - Client Architect
2 maj 2012
Fordele ved Power 7 – AIX
Hindsgavl – 2 maj 2012
© 2012 IBM Corporation

2. IBM Power Systems

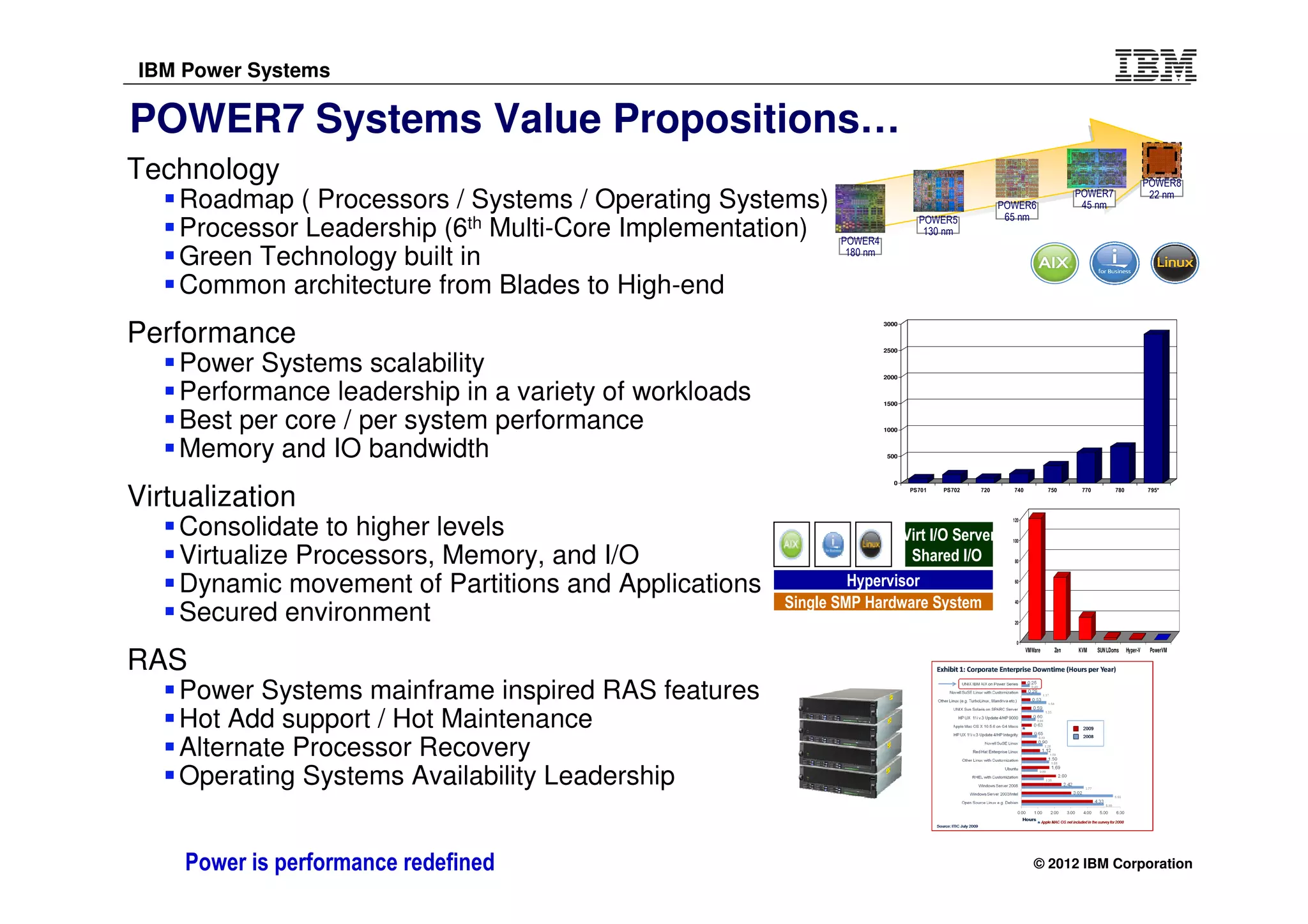

POWER7 Systems Value Propositions…
Technology POWER8
Roadmap ( Processors / Systems / Operating Systems) POWER6
65 nm
POWER7
45 nm
22 nm
POWER5
Processor Leadership (6th Multi-Core Implementation) POWER4
130 nm
Green Technology built in 180 nm
Common architecture from Blades to High-end
Performance
3000
2500
Power Systems scalability 2000
Performance leadership in a variety of workloads 1500
Best per core / per system performance 1000
Memory and IO bandwidth 500
0
Virtualization PS701 PS702 720 740 750 770 780 795*
Consolidate to higher levels Virt I/O Server
120
100
Virtualize Processors, Memory, and I/O Shared I/O 80
Dynamic movement of Partitions and Applications Hypervisor 60
Single SMP Hardware System 40
Secured environment 20
0
VMWare Zen KVM SUN LDoms Hyper-V PowerVM
RAS
Power Systems mainframe inspired RAS features
Hot Add support / Hot Maintenance
Alternate Processor Recovery
Operating Systems Availability Leadership
Power is performance redefined © 2012 IBM Corporation

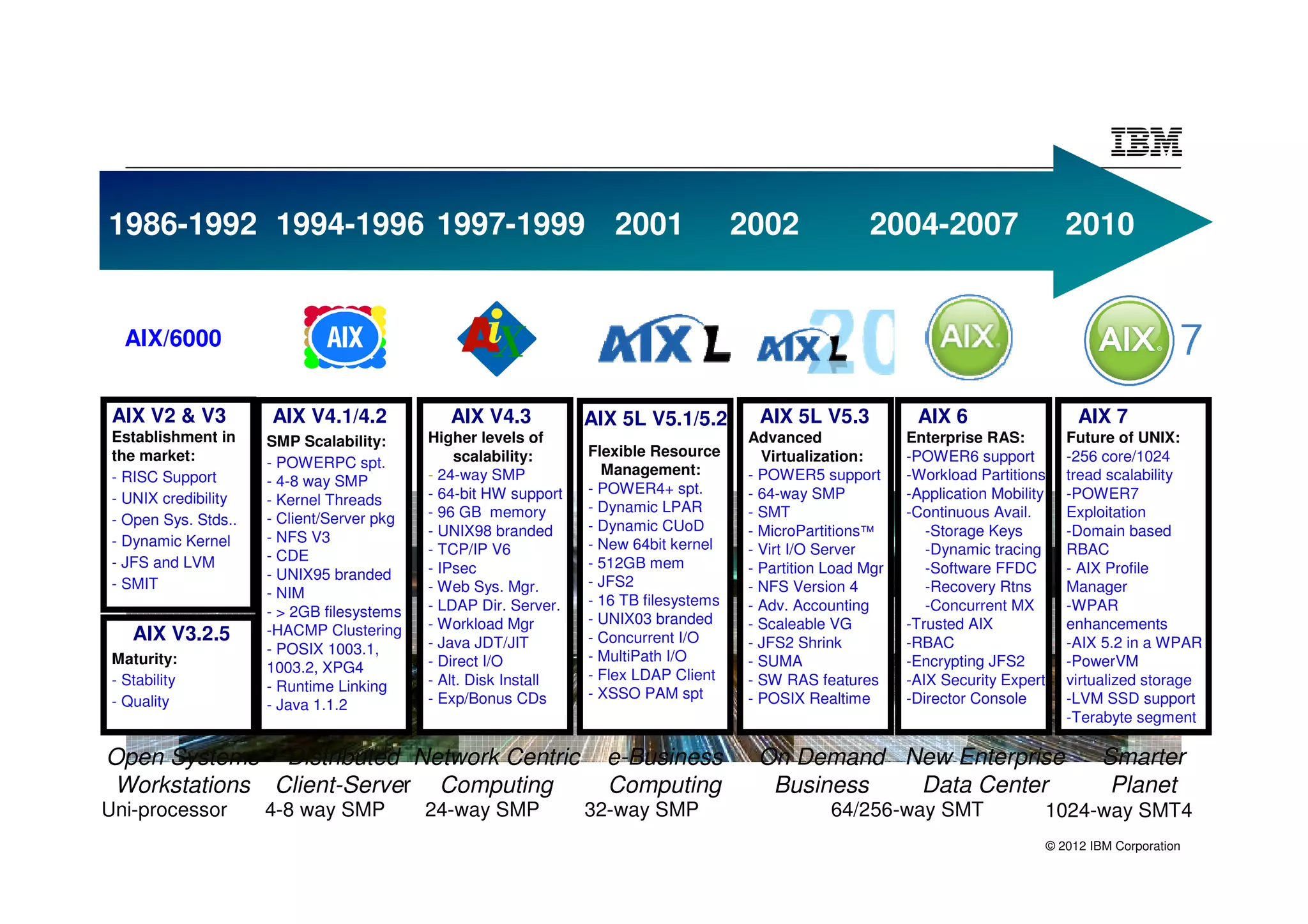

3. AIX Evolution – Over 20 years 2001 2002
1986-1992 1994-1996 1997-1999 of Progress 2004-2007 2010
AIX/6000
AIX V2 & V3 AIX V4.1/4.2 AIX V4.3 AIX 5L V5.1/5.2 AIX 5L V5.3 AIX 6 AIX 7
Establishment in SMP Scalability: Higher levels of Advanced Enterprise RAS: Future of UNIX:
the market: scalability: Flexible Resource Virtualization: -POWER6 support -256 core/1024
- POWERPC spt. Management:
- RISC Support - 4-8 way SMP - 24-way SMP - POWER5 support -Workload Partitions tread scalability
- 64-bit HW support - POWER4+ spt. - 64-way SMP -Application Mobility -POWER7
- UNIX credibility - Kernel Threads
- 96 GB memory - Dynamic LPAR - SMT -Continuous Avail. Exploitation
- Open Sys. Stds.. - Client/Server pkg - Dynamic CUoD
- NFS V3 - UNIX98 branded - MicroPartitions™ -Storage Keys -Domain based
- Dynamic Kernel - New 64bit kernel
- CDE - TCP/IP V6 - Virt I/O Server -Dynamic tracing RBAC
- JFS and LVM - IPsec - 512GB mem - Partition Load Mgr -Software FFDC - AIX Profile
- UNIX95 branded - JFS2
- SMIT - Web Sys. Mgr. - NFS Version 4 -Recovery Rtns Manager
- NIM - 16 TB filesystems
- > 2GB filesystems - LDAP Dir. Server. - Adv. Accounting -Concurrent MX -WPAR
- Workload Mgr - UNIX03 branded - Scaleable VG -Trusted AIX enhancements
AIX V3.2.5 -HACMP Clustering - Concurrent I/O
- POSIX 1003.1, - Java JDT/JIT - JFS2 Shrink -RBAC -AIX 5.2 in a WPAR
Maturity: - Direct I/O - MultiPath I/O - SUMA -Encrypting JFS2 -PowerVM
1003.2, XPG4 - Flex LDAP Client
- Stability - Runtime Linking - Alt. Disk Install - SW RAS features -AIX Security Expert virtualized storage
- Exp/Bonus CDs - XSSO PAM spt - POSIX Realtime -Director Console -LVM SSD support
- Quality - Java 1.1.2
-Terabyte segment
Open Systems Distributed Network Centric e-Business On Demand New Enterprise Smarter
Workstations Client-Server Computing Computing Business Data Center Planet
Uni-processor 4-8 way SMP 24-way SMP 32-way SMP 64/256-way SMT 1024-way SMT4
© 2012 IBM Corporation

4. Power System

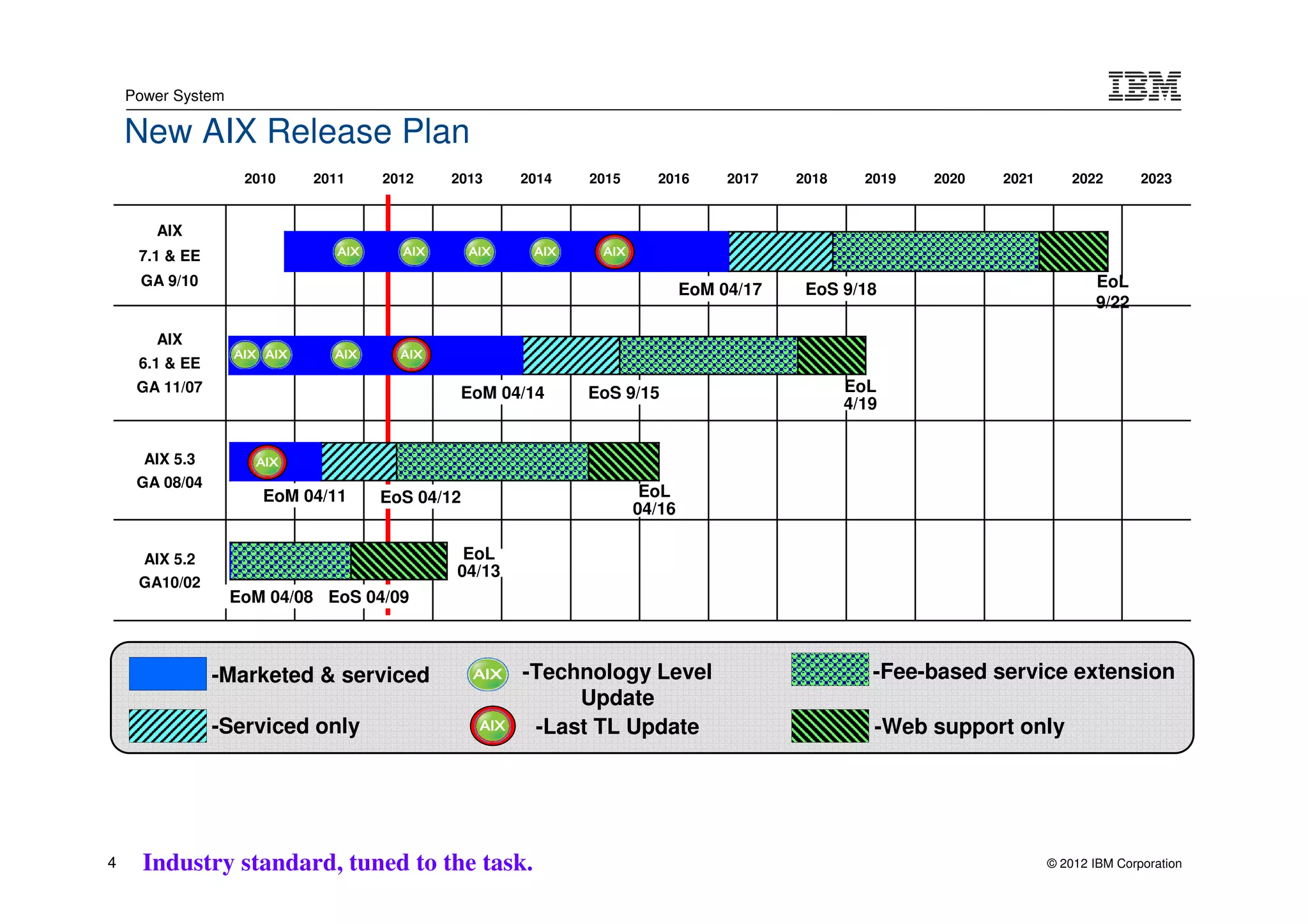

New AIX Release Plan
2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
AIX
7.1 & EE
GA 9/10 EoL
EoM 04/17 EoS 9/18
9/22
AIX
6.1 & EE
GA 11/07 EoM 04/14 EoS 9/15 EoL
4/19
AIX 5.3
GA 08/04
EoM 04/11 EoS 04/12 EoL
04/16
AIX 5.2 EoL
04/13
GA10/02
EoM 04/08 EoS 04/09
-Marketed & serviced -Technology Level -Fee-based service extension
Update
-Serviced only -Last TL Update -Web support only
4 Industry standard, tuned to the task. © 2012 IBM Corporation

5. Power System

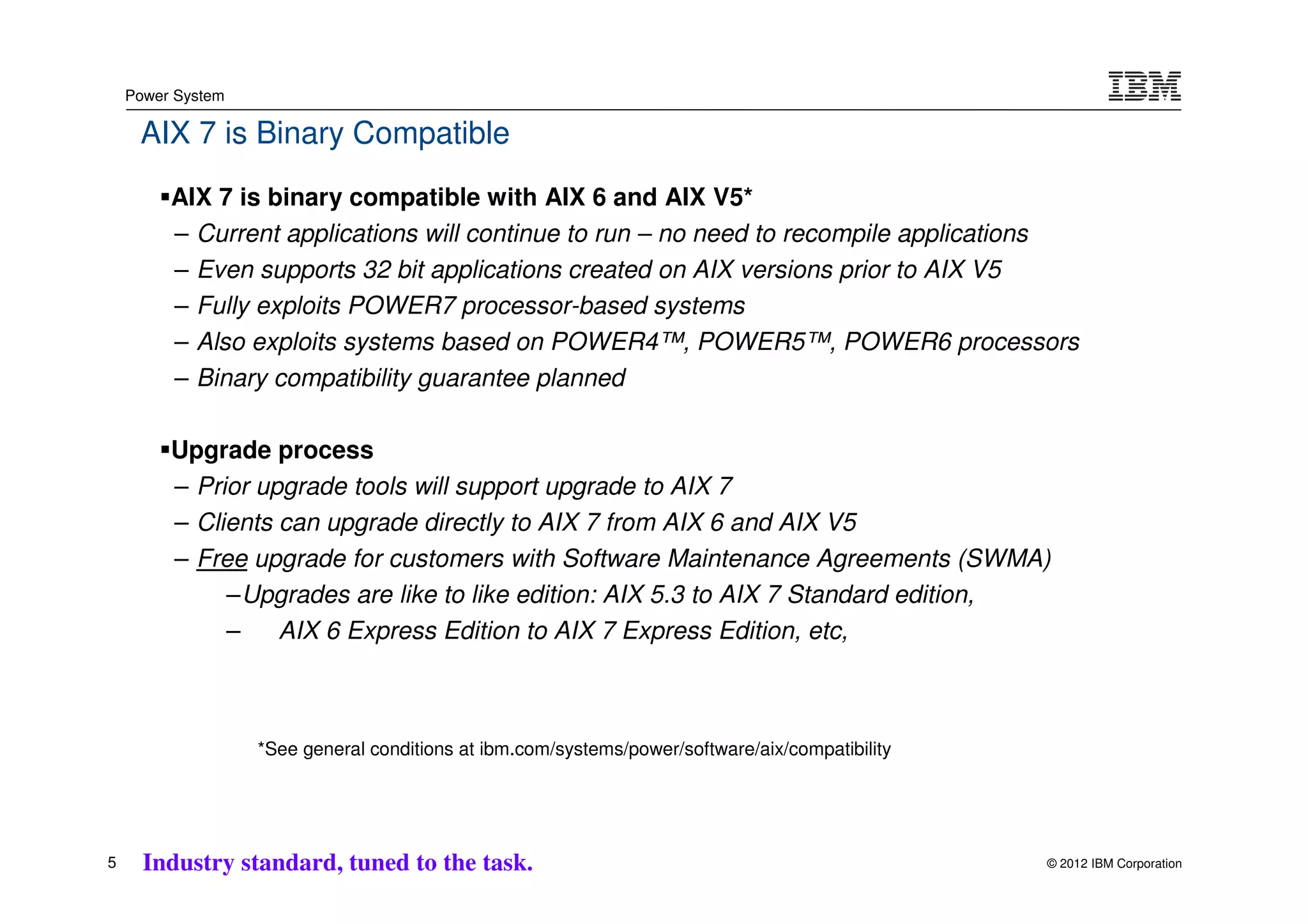

AIX 7 is Binary Compatible
AIX 7 is binary compatible with AIX 6 and AIX V5*
– Current applications will continue to run – no need to recompile applications
– Even supports 32 bit applications created on AIX versions prior to AIX V5
– Fully exploits POWER7 processor-based systems
– Also exploits systems based on POWER4™, POWER5™, POWER6 processors
– Binary compatibility guarantee planned
Upgrade process
– Prior upgrade tools will support upgrade to AIX 7
– Clients can upgrade directly to AIX 7 from AIX 6 and AIX V5
– Free upgrade for customers with Software Maintenance Agreements (SWMA)
–Upgrades are like to like edition: AIX 5.3 to AIX 7 Standard edition,
– AIX 6 Express Edition to AIX 7 Express Edition, etc,
*See general conditions at ibm.com/systems/power/software/aix/compatibility
5 Industry standard, tuned to the task. © 2012 IBM Corporation

6. Power System

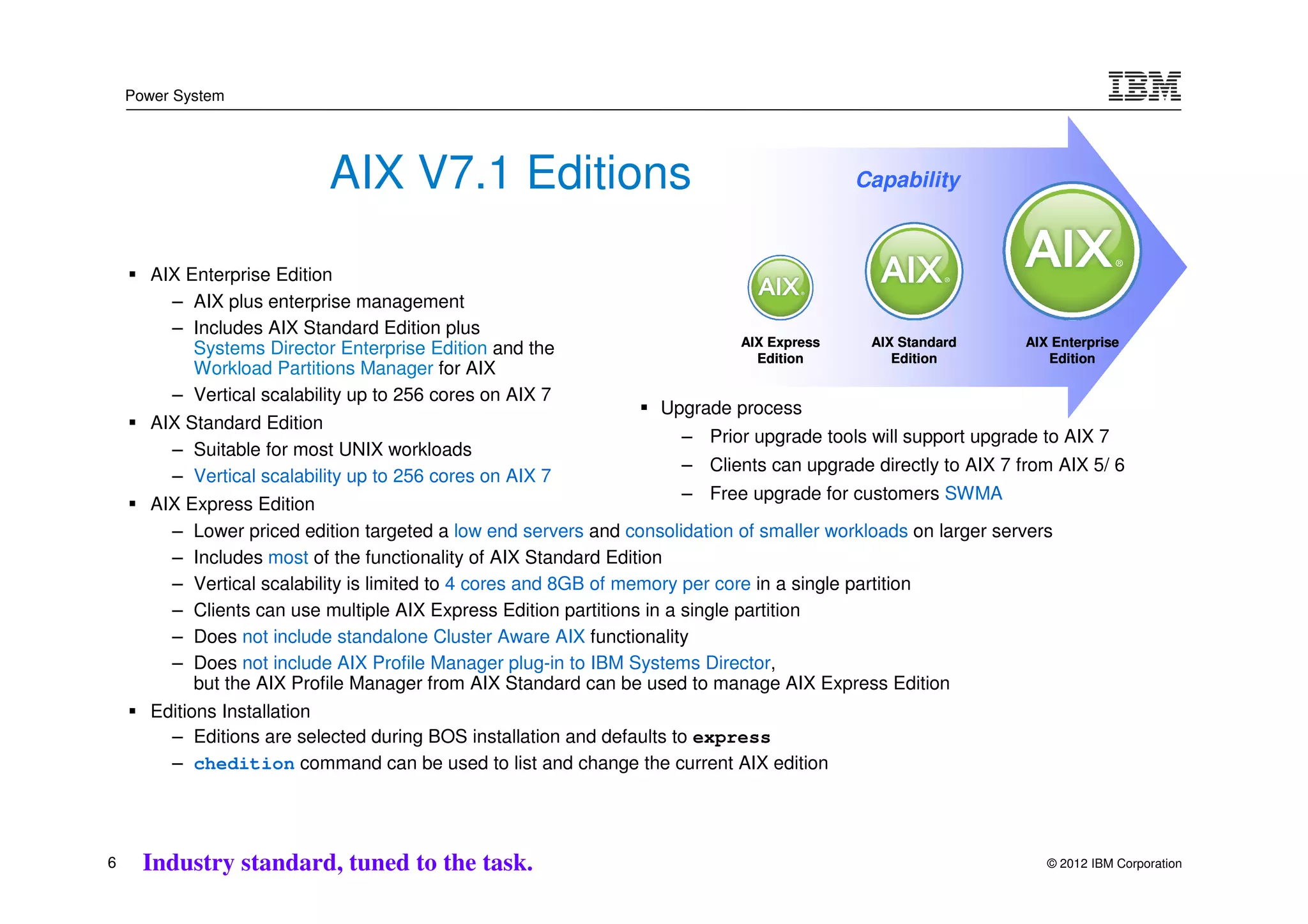

AIX V7.1 Editions Capability
AIX Enterprise Edition
– AIX plus enterprise management
– Includes AIX Standard Edition plus
AIX Express AIX Standard AIX Enterprise
Systems Director Enterprise Edition and the Edition Edition Edition
Workload Partitions Manager for AIX
– Vertical scalability up to 256 cores on AIX 7
Upgrade process
AIX Standard Edition
– Prior upgrade tools will support upgrade to AIX 7
– Suitable for most UNIX workloads
– Clients can upgrade directly to AIX 7 from AIX 5/ 6
– Vertical scalability up to 256 cores on AIX 7
– Free upgrade for customers SWMA
AIX Express Edition
– Lower priced edition targeted a low end servers and consolidation of smaller workloads on larger servers
– Includes most of the functionality of AIX Standard Edition
– Vertical scalability is limited to 4 cores and 8GB of memory per core in a single partition
– Clients can use multiple AIX Express Edition partitions in a single partition
– Does not include standalone Cluster Aware AIX functionality
– Does not include AIX Profile Manager plug-in to IBM Systems Director,
but the AIX Profile Manager from AIX Standard can be used to manage AIX Express Edition
Editions Installation
– Editions are selected during BOS installation and defaults to express
– chedition command can be used to list and change the current AIX edition
6 Industry standard, tuned to the task. © 2012 IBM Corporation

7. Power System

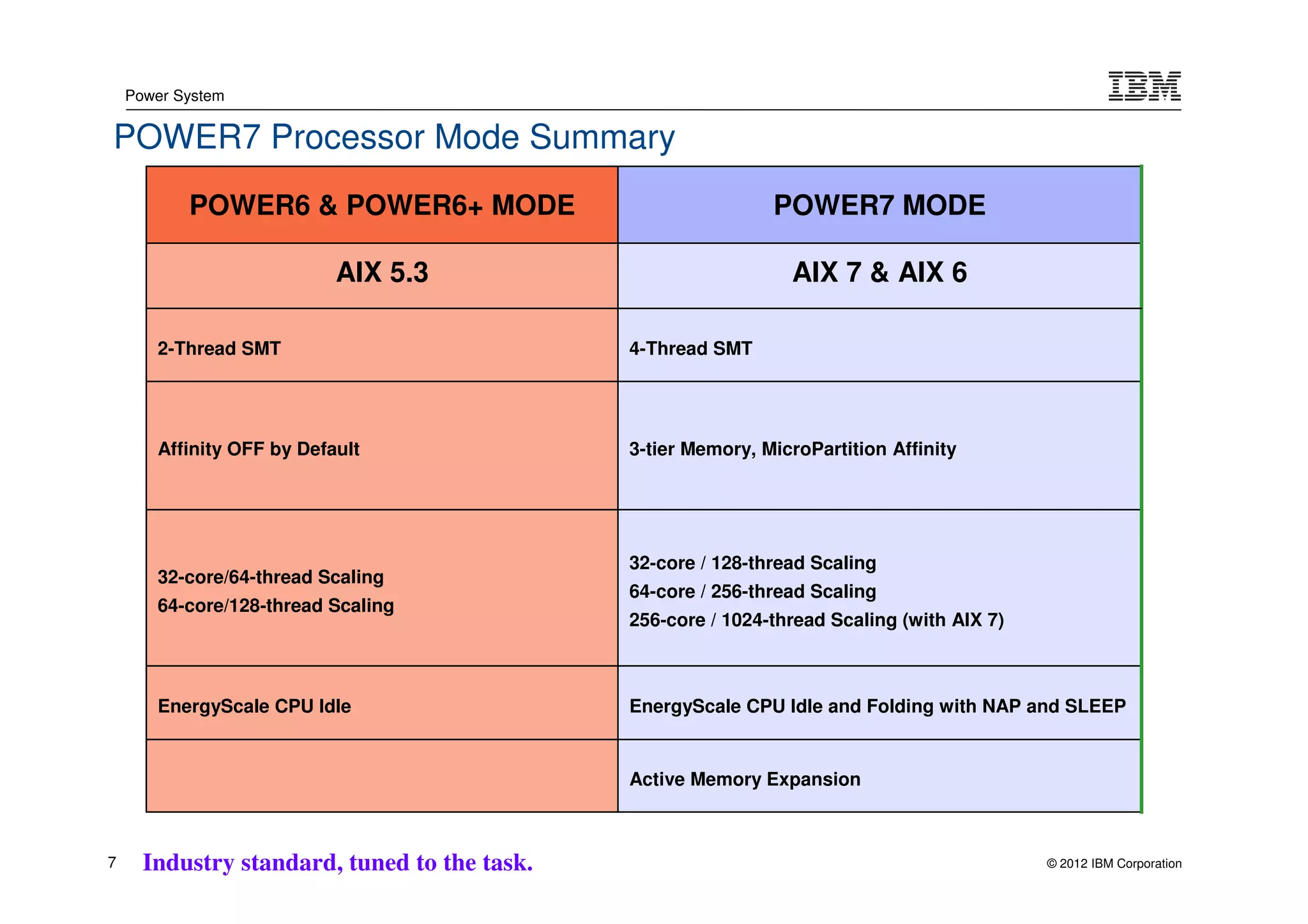

POWER7 Processor Mode Summary
POWER6 & POWER6+ MODE POWER7 MODE
AIX 5.3 AIX 7 & AIX 6
2-Thread SMT 4-Thread SMT
Affinity OFF by Default 3-tier Memory, MicroPartition Affinity
32-core / 128-thread Scaling
32-core/64-thread Scaling
64-core / 256-thread Scaling
64-core/128-thread Scaling
256-core / 1024-thread Scaling (with AIX 7)
EnergyScale CPU Idle EnergyScale CPU Idle and Folding with NAP and SLEEP
Active Memory Expansion
7 Industry standard, tuned to the task. © 2012 IBM Corporation

8. Power System

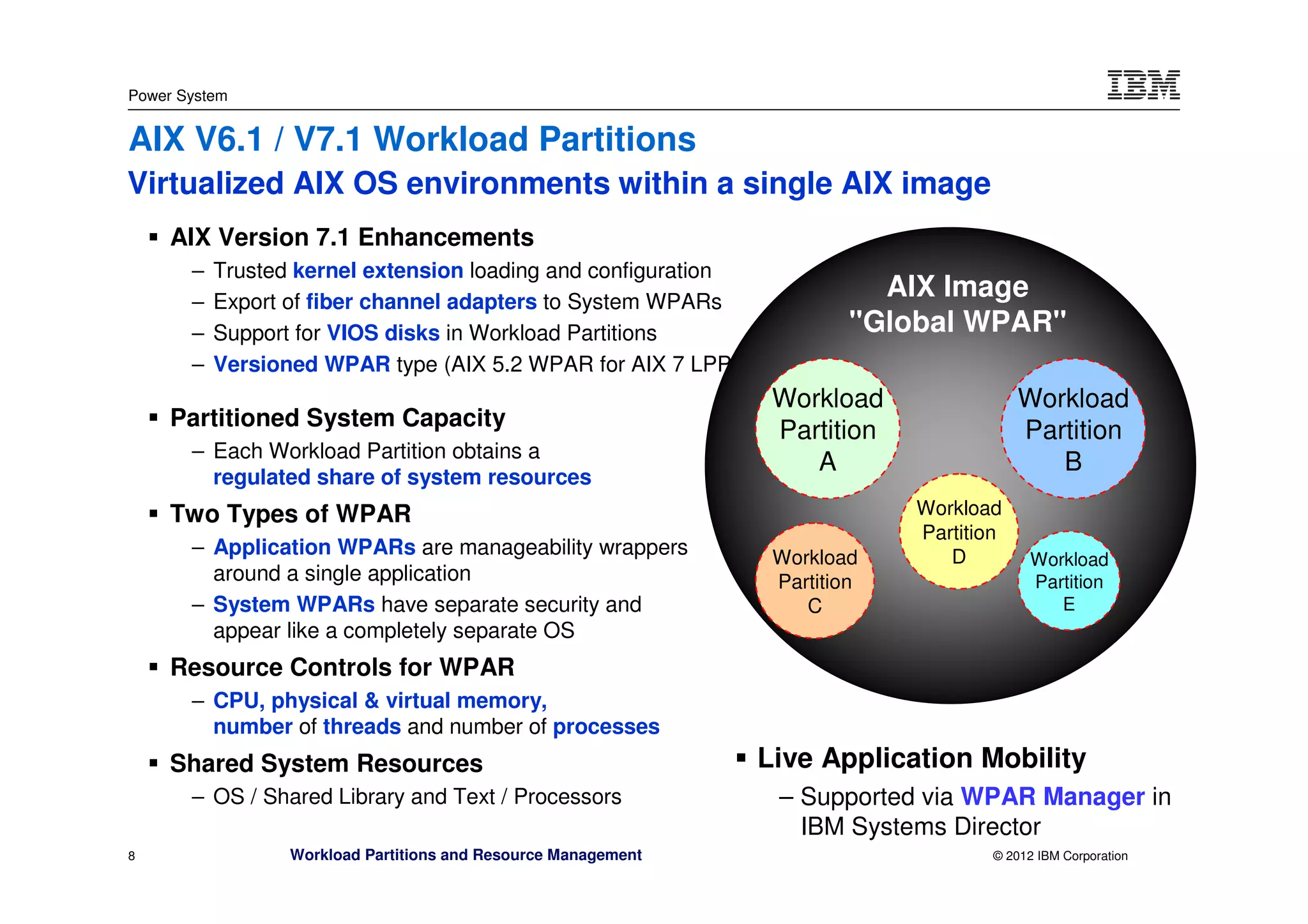

AIX V6.1 / V7.1 Workload Partitions
Virtualized AIX OS environments within a single AIX image
AIX Version 7.1 Enhancements
– Trusted kernel extension loading and configuration
– Export of fiber channel adapters to System WPARs
AIX Image
– Support for VIOS disks in Workload Partitions "Global WPAR"
– Versioned WPAR type (AIX 5.2 WPAR for AIX 7 LPP)
Workload Workload
Partitioned System Capacity
Partition Partition
– Each Workload Partition obtains a
A B
regulated share of system resources
Two Types of WPAR Workload
Partition
– Application WPARs are manageability wrappers Workload D Workload
around a single application Partition Partition
– System WPARs have separate security and C E
appear like a completely separate OS
Resource Controls for WPAR
– CPU, physical & virtual memory,
number of threads and number of processes
Shared System Resources Live Application Mobility
– OS / Shared Library and Text / Processors – Supported via WPAR Manager in
IBM Systems Director
8 Workload Partitions and Resource Management © 2012 IBM Corporation

9. Power System

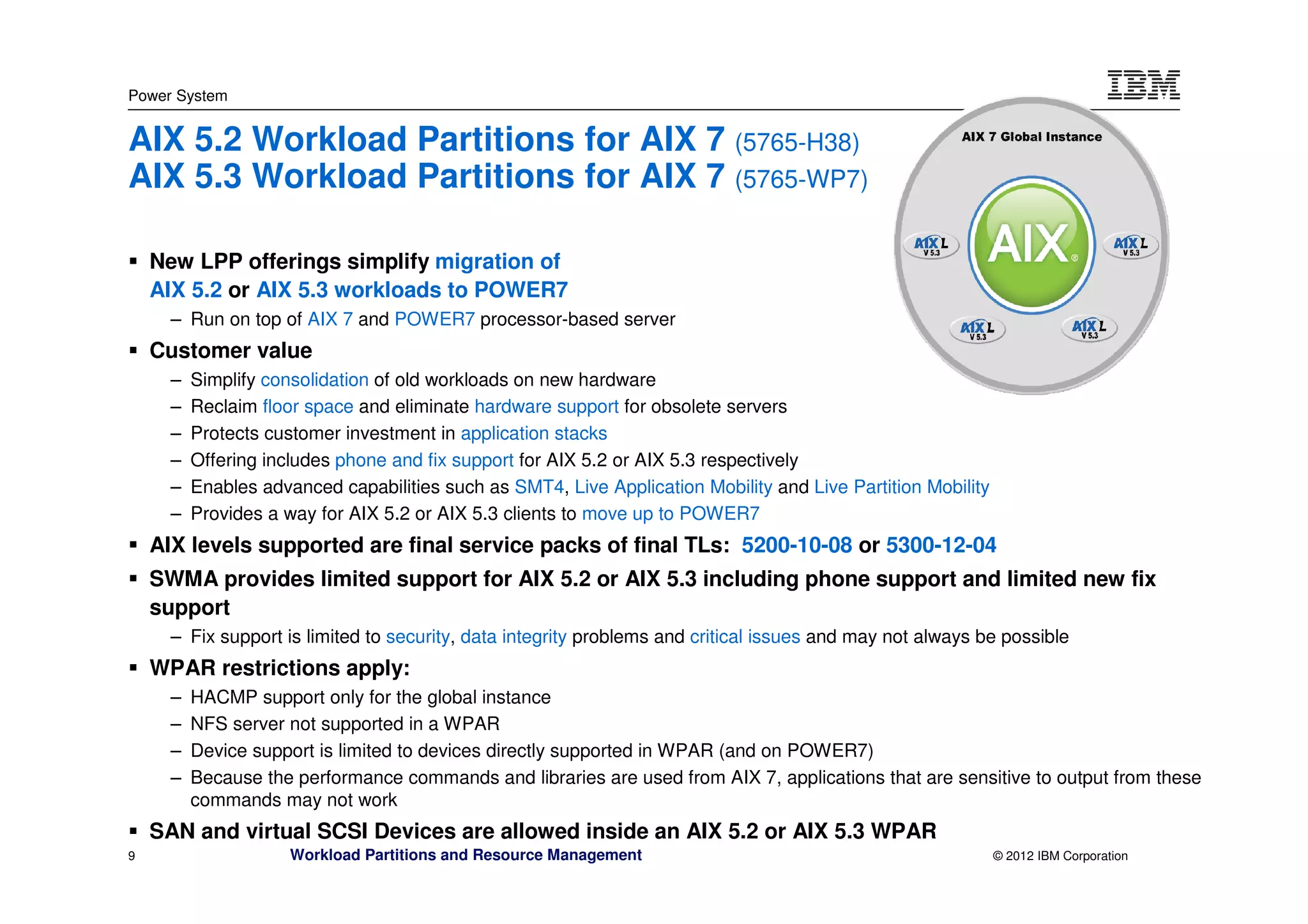

AIX 5.2 Workload Partitions for AIX 7 (5765-H38)
AIX 5.3 Workload Partitions for AIX 7 (5765-WP7)
New LPP offerings simplify migration of
AIX 5.2 or AIX 5.3 workloads to POWER7
– Run on top of AIX 7 and POWER7 processor-based server
Customer value
– Simplify consolidation of old workloads on new hardware
– Reclaim floor space and eliminate hardware support for obsolete servers
– Protects customer investment in application stacks
– Offering includes phone and fix support for AIX 5.2 or AIX 5.3 respectively
– Enables advanced capabilities such as SMT4, Live Application Mobility and Live Partition Mobility
– Provides a way for AIX 5.2 or AIX 5.3 clients to move up to POWER7
AIX levels supported are final service packs of final TLs: 5200-10-08 or 5300-12-04
SWMA provides limited support for AIX 5.2 or AIX 5.3 including phone support and limited new fix
support
– Fix support is limited to security, data integrity problems and critical issues and may not always be possible
WPAR restrictions apply:
– HACMP support only for the global instance
– NFS server not supported in a WPAR
– Device support is limited to devices directly supported in WPAR (and on POWER7)
– Because the performance commands and libraries are used from AIX 7, applications that are sensitive to output from these
commands may not work
SAN and virtual SCSI Devices are allowed inside an AIX 5.2 or AIX 5.3 WPAR
9 Workload Partitions and Resource Management © 2012 IBM Corporation

10. Power System

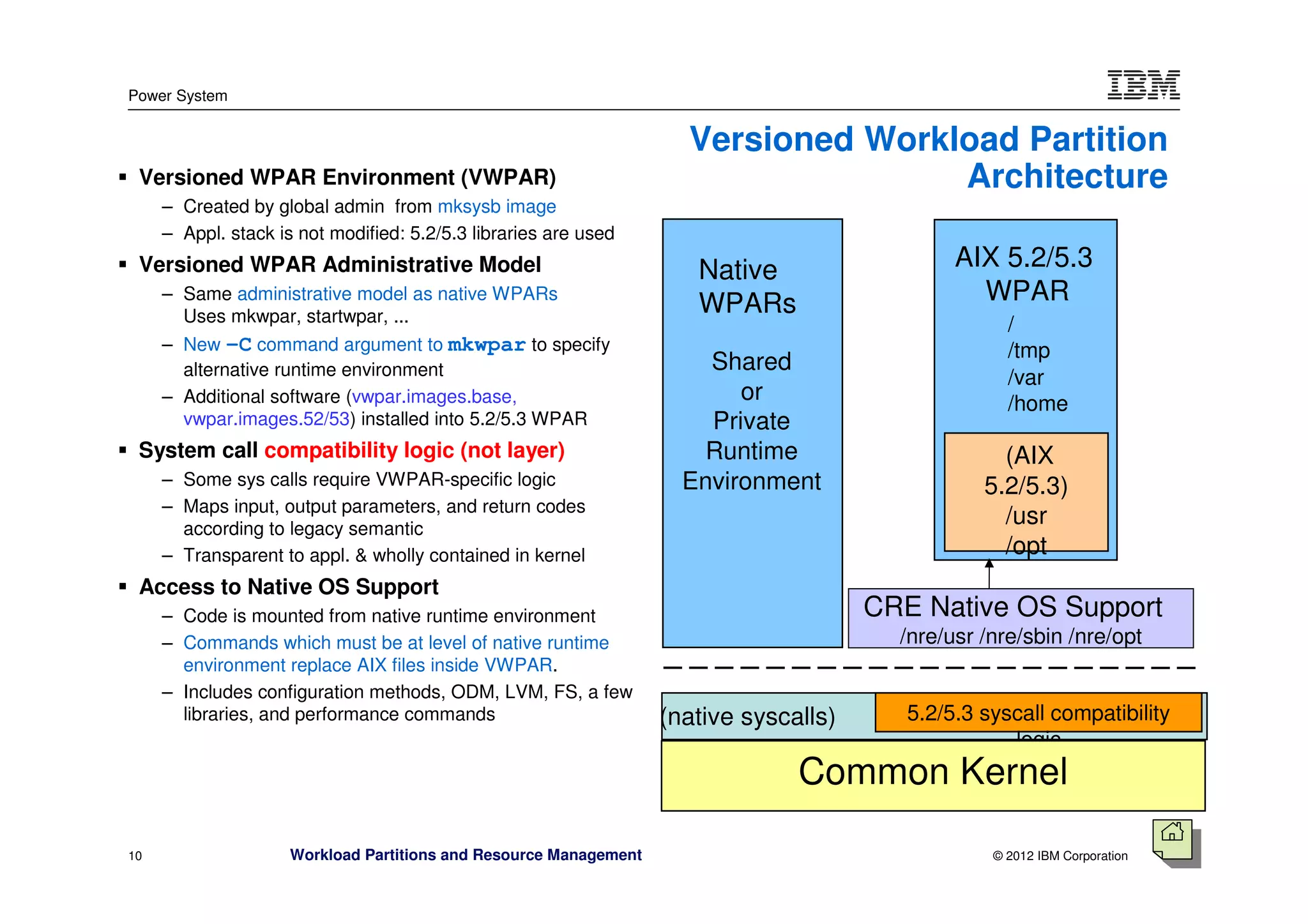

Versioned Workload Partition
Versioned WPAR Environment (VWPAR) Architecture
– Created by global admin from mksysb image
– Appl. stack is not modified: 5.2/5.3 libraries are used
Versioned WPAR Administrative Model Native AIX 5.2/5.3
– Same administrative model as native WPARs
WPARs WPAR
Uses mkwpar, startwpar, ... /
– New -C command argument to mkwpar to specify /tmp
alternative runtime environment Shared
/var
– Additional software (vwpar.images.base, or /home
vwpar.images.52/53) installed into 5.2/5.3 WPAR Private
System call compatibility logic (not layer) Runtime (AIX
– Some sys calls require VWPAR-specific logic Environment 5.2/5.3)
– Maps input, output parameters, and return codes
according to legacy semantic
/usr
– Transparent to appl. & wholly contained in kernel /opt
Access to Native OS Support
– Code is mounted from native runtime environment CRE Native OS Support
– Commands which must be at level of native runtime /nre/usr /nre/sbin /nre/opt
environment replace AIX files inside VWPAR.
– Includes configuration methods, ODM, LVM, FS, a few
libraries, and performance commands (native syscalls) 5.2/5.3 syscall compatibility
logic
Common Kernel
10 Workload Partitions and Resource Management © 2012 IBM Corporation

11. Power System

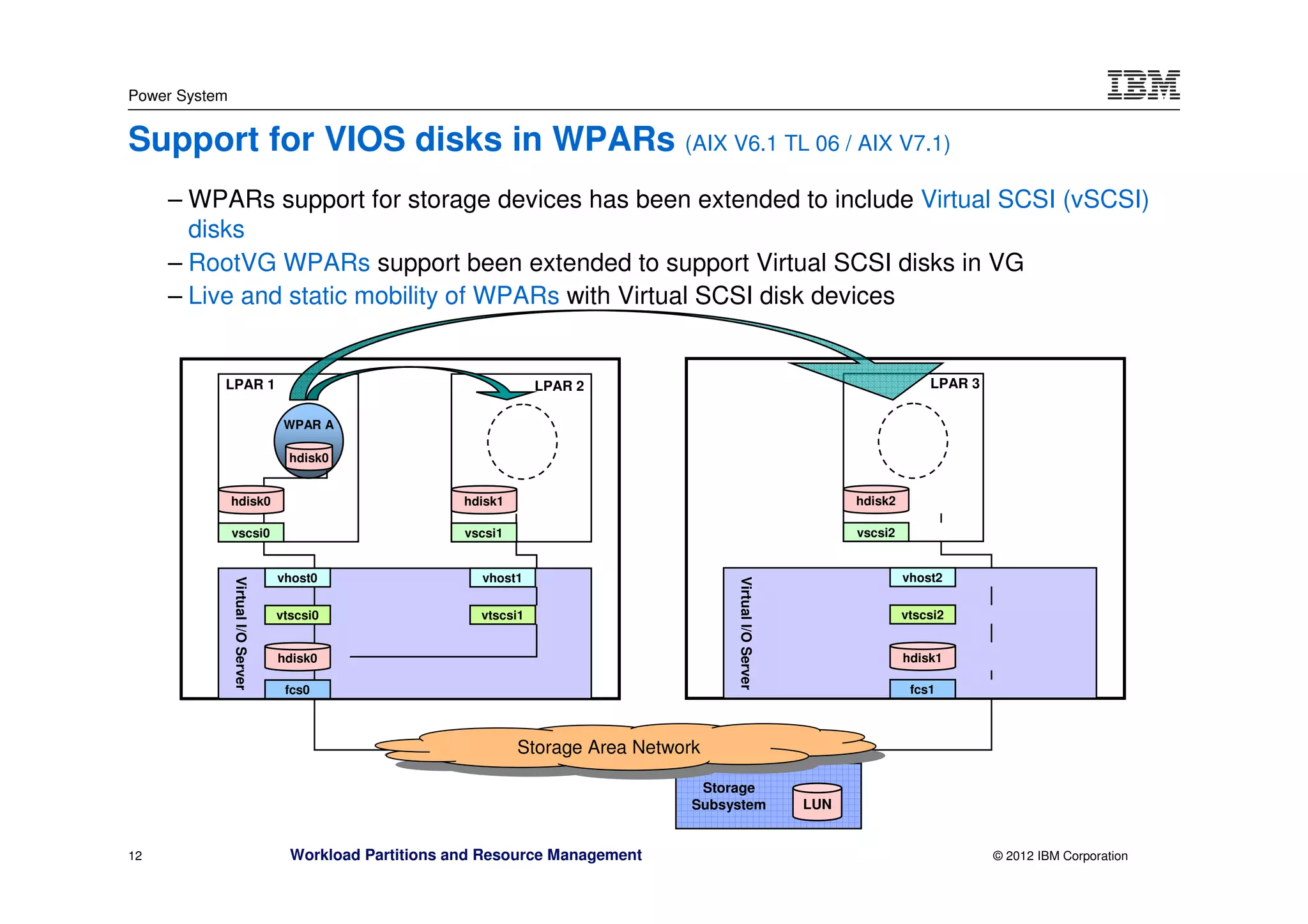

Support for VIOS disks in WPARs (AIX V6.1 TL 06 / AIX V7.1)
– WPARs support for storage devices has been extended to include Virtual SCSI (vSCSI)
disks
– RootVG WPARs support been extended to support Virtual SCSI disks in VG
– Live and static mobility of WPARs with Virtual SCSI disk devices
LPAR 1 LPAR 2 LPAR 3
WPAR A
hdisk0
hdisk0 hdisk1 hdisk2
vscsi0 vscsi1 vscsi2
vhost0 vhost1 vhost2
Virtual I/O Server
Virtual I/O Server
vtscsi0 vtscsi1 vtscsi2
hdisk0 hdisk1
fcs0 fcs1
Storage Storage Area Network
Area Network
Storage Area Network
Storage
Subsystem LUN
12 Workload Partitions and Resource Management © 2012 IBM Corporation

12. Power System

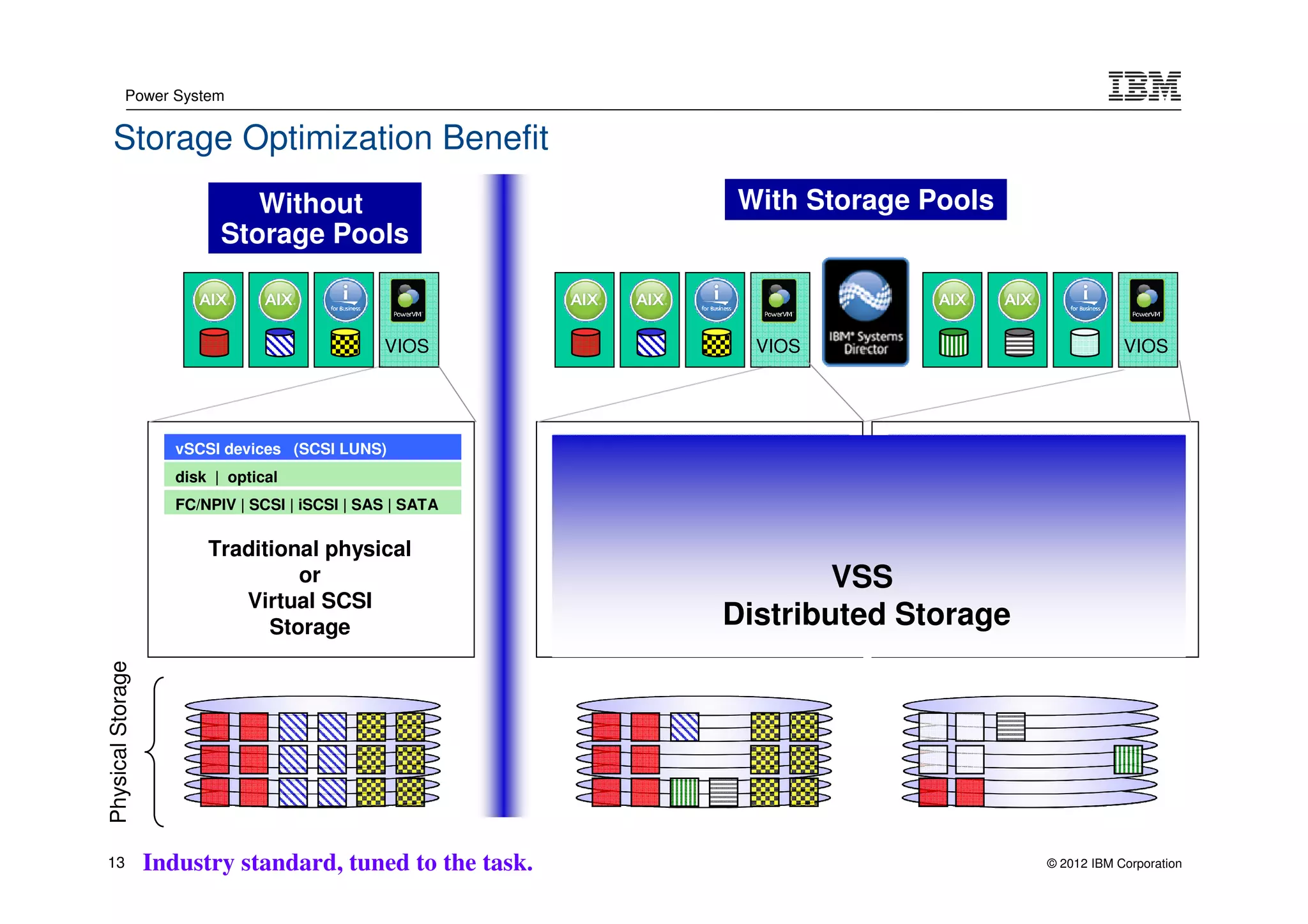

Storage Optimization Benefit
Without With Storage Pools
Storage Pools
VIOS VIOS VIOS
vSCSI devices (SCSI LUNS)
disk | optical
FC/NPIV | SCSI | iSCSI | SAS | SATA
Traditional physical
or VSS
Virtual SCSI
Storage Distributed Storage
Physical Storage
13 Industry standard, tuned to the task. © 2012 IBM Corporation

13. Power System
Direct Attach Storage
Physically
19” 1U ~24” deep
Up to 30 1.8” SSD’s
PCIe attached via GX++ adapter
Features
RAID 5 & 6 protection:
Mirrored Write cache
Supports PowerHA
RAS
Concurrent SSD / RAID Replace
Concurrent Power / Fan Replace
RAID 10, 5, & 6
SSD Hot Spare
Mirrored Write Cache
14 Industry standard, tuned to the task. © 2012 IBM Corporation

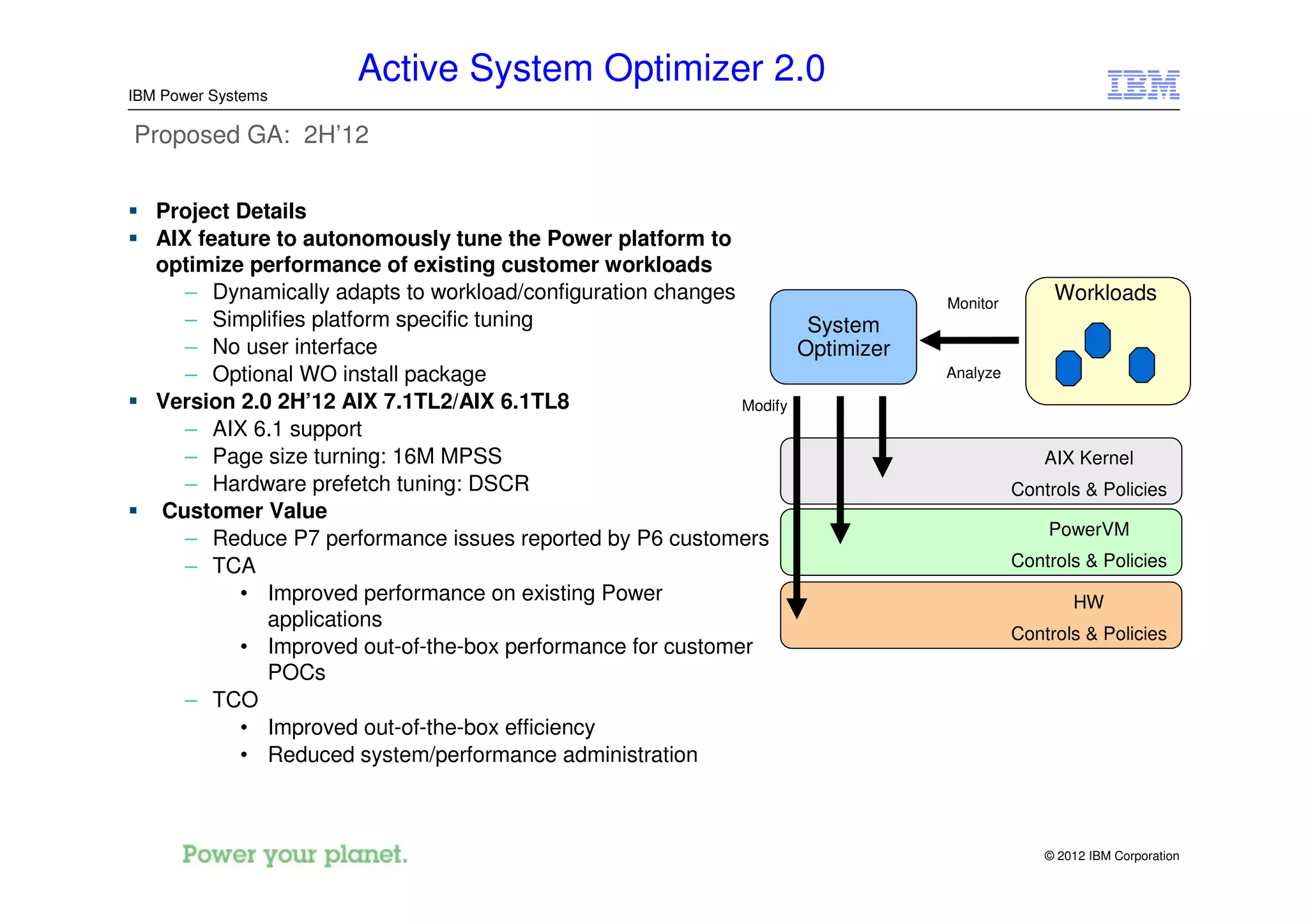

14. Active System Optimizer 2.0
IBM Power Systems
Proposed GA: 2H’12
Project Details
AIX feature to autonomously tune the Power platform to
optimize performance of existing customer workloads
– Dynamically adapts to workload/configuration changes Monitor
Workloads
– Simplifies platform specific tuning System
– No user interface Optimizer
– Optional WO install package Analyze
Version 2.0 2H’12 AIX 7.1TL2/AIX 6.1TL8 Modify
– AIX 6.1 support
– Page size turning: 16M MPSS AIX Kernel
– Hardware prefetch tuning: DSCR Controls & Policies
Customer Value
PowerVM
– Reduce P7 performance issues reported by P6 customers
– TCA Controls & Policies
• Improved performance on existing Power HW
applications
Controls & Policies
• Improved out-of-the-box performance for customer
POCs
– TCO
• Improved out-of-the-box efficiency
• Reduced system/performance administration
© 2012 IBM Corporation

15. Power System

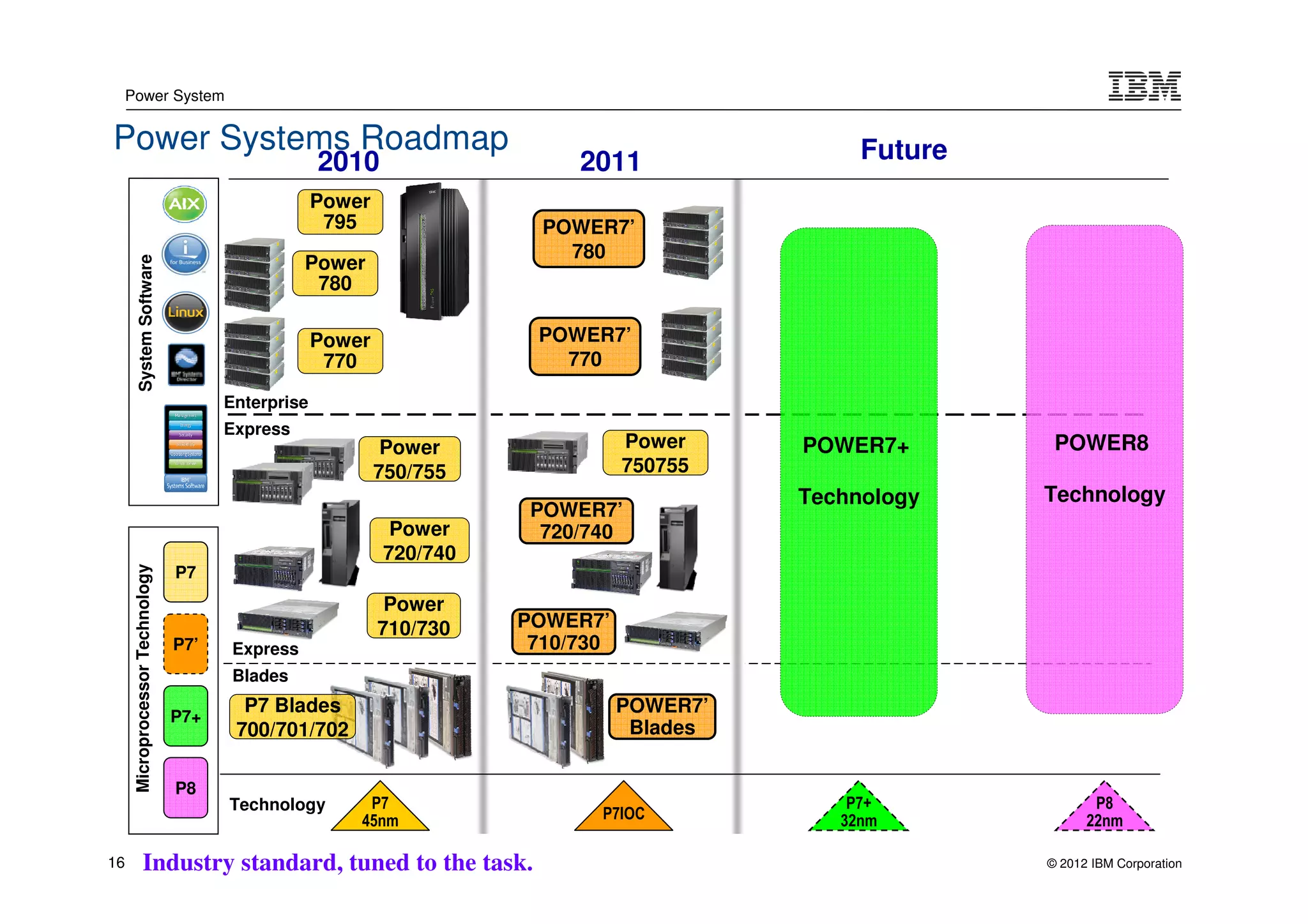

Power Systems Roadmap Future
2010 2011
Power
795 POWER7’
780
System Software
Power
780
Power POWER7’
770 770
Enterprise
Express
Power Power POWER7+ POWER8
750/755 750755
Technology Technology
POWER7’
Power 720/740
720/740
Microprocessor Technology
P7
Power
710/730 POWER7’
P7’ Express 710/730
Blades
P7 Blades POWER7’
P7+
700/701/702 Blades
P8
Technology P7 P7+ P8
45nm P7IOC 32nm 22nm
16 Industry standard, tuned to the task. © 2012 IBM Corporation

16. Power System

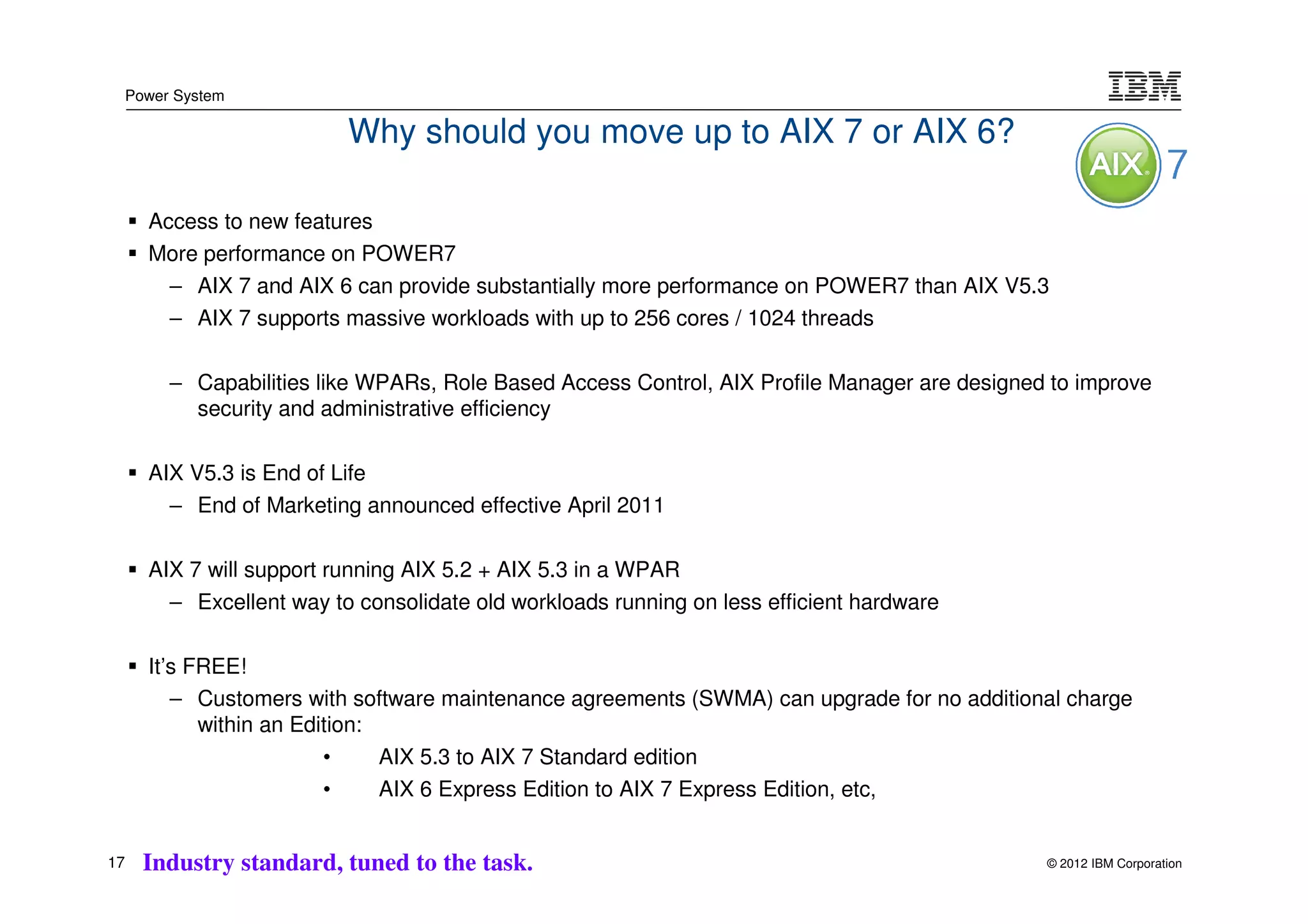

Why should you move up to AIX 7 or AIX 6?
Access to new features
More performance on POWER7
– AIX 7 and AIX 6 can provide substantially more performance on POWER7 than AIX V5.3
– AIX 7 supports massive workloads with up to 256 cores / 1024 threads
– Capabilities like WPARs, Role Based Access Control, AIX Profile Manager are designed to improve
security and administrative efficiency
AIX V5.3 is End of Life
– End of Marketing announced effective April 2011
AIX 7 will support running AIX 5.2 + AIX 5.3 in a WPAR
– Excellent way to consolidate old workloads running on less efficient hardware
It’s FREE!
– Customers with software maintenance agreements (SWMA) can upgrade for no additional charge
within an Edition:
• AIX 5.3 to AIX 7 Standard edition
• AIX 6 Express Edition to AIX 7 Express Edition, etc,
17 Industry standard, tuned to the task. © 2012 IBM Corporation

17. Power System
AIX 7 -- The Future of UNIX
Workload-Optimizing Systems
– Vertical scalability for massive workloads with up to
256 cores/1024 threads in a single AIX partition
Virtualization without limits
– Run AIX 5.2 or AIX 5.3 in a WPAR to simplify consolidation
of legacy environments on POWER7
Resiliency without downtime
– Built in clustering to simplify configuration and
management of
scale-out workloads and high availability solutions
Management with Automation
– Profile based configuration management
eases the management of pools of AIX systems
18 Industry standard, tuned to the task. © 2012 IBM Corporation
