1. Lorenc Ondřej – System x Sales Specialist
IBM System x
IBM Confidential © 2012 IBM Corporation

2. System x - Smarter Systems for a Smarter Planet
Agenda
 Přehled IBM System x serverů
 IBM Blade řešení
 New Generation Platform
 Storwize V7000
 IBM Promo akce
2 IBM Confidential © 2012 IBM Corporation

3. System x - Smarter Systems for a Smarter Planet
Agenda
 Přehled IBM System x serverů
 IBM Blade řešení
 New Generation Platform
 Storwize V7000
 IBM Promo akce
3 IBM Confidential © 2012 IBM Corporation

4. System x Portfolio Covering the Spectrum of All IT Needs
Massive scale out of 100’s or Enterprise eX5 Transition virtualization and enterprise
1000’s of parallel processing workloads (SAP, Oracle, SQL, etc…)
nodes in Web 2.0 Data Centers, requiring high availability and large
Clusters, and Large Grids memory footprints to High-end System x.
iDataPlex Server Consolidation,
Virtualization, Enterprise
Va h
Workloads (SQL, SAP, Oracle)
lio
Increased density, energy
Po lue
Hig
efficiency and simpler
rt f o
management
BladeCenter
Web 2.0, Infrastructure
HPC, Simplification,
Application Serving,
Scale Up
Grid
Energy Efficiency
Scale Out
me
System x Rack and Tower
olu
o
Traditional tower & rack servers
oli
hV
Single Applications
rt f
Hig
Po
4
4 © 2011 IBM Corporation

5. System x
Smarter Computing

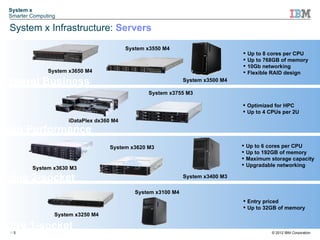

System x Infrastructure: Servers
System x3550 M4
 Up to 8 cores per CPU
 Up to 768GB of memory
 10Gb networking
System x3650 M4  Flexible RAID design
General Business System x3500 M4
System x3755 M3
 Optimized for HPC
 Up to 4 CPUs per 2U
iDataPlex dx360 M4
High Performance
System x3620 M3  Up to 6 cores per CPU
 Up to 192GB of memory
 Maximum storage capacity
 Upgradable networking
System x3630 M3
Value 2-socket System x3400 M3
System x3100 M4
 Entry priced
 Up to 32GB of memory
System x3250 M4
Entry 1-socket
5 © 2012 IBM Corporation

6. Intel® Xeon® Processor E5-2600 Product Family
More Capabilities for a Next-Generation Data Center
More Cores
More Memory
More Integration
More Bandwidth
40
lanes
PCIe*
3.0
= New On E5-2600
* Other names and brands may be claimed as the property of others
6 INTEL CONFIDENTIAL

7. System x
Smarter Computing

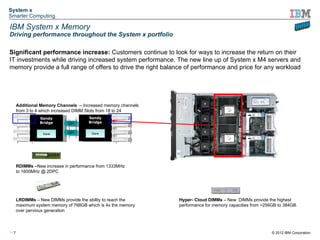

IBM System x Memory
Driving performance throughout the System x portfolio
Significant performance increase: Customers continue to look for ways to increase the return on their
IT investments while driving increased system performance. The new line up of System x M4 servers and
memory provide a full range of offers to drive the right balance of performance and price for any workload
Additional Memory Channels – Increased memory channels
from 3 to 4 which increased DIMM Slots from 18 to 24
DDR3 Sandy Sandy DDR3
Bridge QPI Bridge
DDR3 DDR3
DDR3 QPI DDR3
Core Core
DDR3 DDR3
RDIMMs –New increase in performance from 1333MHz
to 1600MHz @ 2DPC
LRDIMMs – New DIMMs provide the ability to reach the Hyper- Cloud DIMMs – New DIMMs provide the highest
maximum system memory of 768GB which is 4x the memory performance for memory capacities from >256GB to 384GB.
over pervious generation
7 © 2012 IBM Corporation

8. System x
Smarter Computing
Energy Efficiency
 Environmental monitor with fan speed control according to
following:
– CPU temperature
– Memory temperature
– Voltage Regulator temperature Zone 1
– PCI zone outlet temperature
– Adaptor temperature
– PCH temperature
– FAN failure
 Low wattage and low noise FAN modules Zone 2
 x3650 M4 has 4 (x3550 M4 has 6) independent FAN modules to
support 2 Thermal Zones with N+N FAN redundant design x3650 M4
– Fan speed is determined based on ambient temperature
– Each thermal zone will adjust fan speed based on the components and
thermal condition in the fan zone
– Lowest fan speed during low ambient condition or system idle mode
 LightPath Indicators to report FAN modules error Zone 1
 Redundant, hot-swap components Hot-swap, dual-motor cooling
fans helps maintain a healthy system by keeping internal components
cool, it serves your business-critical application running safe
Zone 2
x3550 M4
8 © 2012 IBM Corporation

9. System x
Smarter Computing
10Gb LAN Card
Mezzanine design keeps I/O slots, and choice of vendor
 Slot-less  Flexibility and choice
– Simple and easy upgrade to 10Gb – Offering a selection of both SFP+ and
without consuming a PCIe slot Base-T from two major NIC provider
Low cost Emulex and Qlogic
– Offering 10Gb NIC
at a LOM price and
maintain the
flexibility of a
PCIe card
2 x 10Gb Ports
(Mezz card)
SFP+ or copper
4 x 1Gb controller
9 © 2012 IBM Corporation

10. System x
Smarter Computing
IBM System x Networking Portfolio
New M4 Networking Enhancements
• 4 x 1GbE Ports standard (x3550 / x3650 M4)
• 10GbE Mezz Card CTO Options (Emulex VFA III)
• New FCoE / iSCSI Certified Configurations
• Virtual Fabric support on 10GbE Servers
Emulex VFA II & III
(PCI & Mezz) FCoE / iSCSI
• 10GbE LAN / SAN
G8264 QLogic 8100 CNA converged solutions
Brocade
Bandwidth / Latency
CNA
10GbE Base-T
Broadcom Base-T • Networking Switch
G8264T + Adapter
Intel x520
G8124E 10GbE Portfolio
Mellanox C2
1GbE Adapters
• New low cost
G8052 Broadcom NetXtreme NetXtreme Adapters
1GbE Adapters 1GbE Portfolio
Intel 1GbE Adapters
G8000
Networking Connectivity
10 © 2012 IBM Corporation

11. System x
Smarter Computing
Predictive Failure Analysis & Light Path Diagnostics
Predictive Failure Analysis (PFA) : Key components in the IBM System x range of servers that
provides the ability to monitor the health of server components and generate an alert up to 48 hours
before failure actually occurs. This provides the ability to either hot-swap the component (if applicable) or
schedule downtime at low-impact times for the component to be changed or refreshed.
IBM implements PFA on more server components than
any other vendor. The System x components currently
! protected by PFA are:
– Hard Disk Drives
– Fans
– Power Supply Units
– Memory
– CPU’s
Front of Light Path Diagnostics Panel – Voltage Regulator Modules
Amber light indicates there is a problem with the server
Come Home Feature:
If a hardware component generates an alert within the warranty period of the component they will
exchange the component on the basis of that alert rather than waiting for the failure to actually occur.
11 © 2012 IBM Corporation

12. System x
Smarter Computing
Management Tools positioning
Upward integration into Tivoli Service Management IBM Tivoli
IBM Systems Director
IBM Systems platform solution for
• Easy to learn and use platform management
System x, BladeCenter, Power Systems,
• Management of physical and virtual resources
System z and storage
across heterogeneous systems
Redesigned system tool ToolsCenter
portfolio for single-system • Consolidated, integrated suite of management tools
management and scripting • Powerful bootable media creator
Hardware and
firmware that is
IMM Integrated Management Module (IMM 2)
• Standards-based hardware combines diagnostic & remote control
standard across all Unified Extensible Firmware Interface (UEFI)
new systems • Next generation BIOS
12 IBM Confidential 12
© 2012 IBM Corporation

13. System x - Smarter Systems for a Smarter Planet
Agenda
 Přehled IBM System x serverů
 IBM Blade řešení
 New Generation Platform
 Storwize V7000
 IBM Promo akce
13 IBM Confidential © 2012 IBM Corporation

14. IBM BladeCenter: Fit-for-purpose choice of blades and chassis
HX5 (4P) HX5+MAX5 HX5 (2P) HS23 HS12 PS702 PS701 PS700
(2P) (16-core) (8-core) (4-core)
Scalable, Scalable, “Workhorse Entry & Performanc Scalable P7 Value
Scalable, Enterprise e P7 . P7 .
Enterprise Max Memory ” . SMB
IBM BladeCenter E IBM BladeCenter H IBM BladeCenter S IBM BladeCenter T IBM BladeCenter HT
Enterprise, best Distributed, office, Ruggedized,
efficiency, best density Enterprise high datacenter-in-a-box Ruggedized, high performance
performance short-depth
 No-single-point-of-failure design  A common set of blades
 More blade density per enterprise rack  A common set of industry-standard switches
 Systems management complete end-to- and IO fabrics
end physical and virtual stack  Common management infrastructure
 Over a decade of a stable platform
14 © 2011 IBM Corporation

15. System x
Smarter Computing
HS23 Layout
© 2012 IBM Corporation

16. INTEGRATE YOUR STANDARDS INSIDE BladeCenter
Ethernet
Cisco Intelligent Ethernet
Cisco Fiber Layer 2/3 Fibre Channel
Cisco 3012
Cisco 3110G Brocade 10 / 20-port
Cisco 3110X
QLogic 10 / 20-port
BNT Copper Layer 2/3
BNT Fiber Layer 2/3 Cisco 10 / 20-port
BNT Layer 2/7 Optical pass-through
BNT 1/10Gb Uplink
Server Connectivity Module
Copper pass-through
Right sized for your needs
HighSpeed
Simple pass-through designs
BNT Virtual Fabric 10Gb
Super low-cost, simple switches
Qlogic Virtual Fabric 10Gb
BNT 10Gb Ethernet Powerful, standard layer 2/3 offerings
10Gb Pass-thru module Highly advanced layer 2/7
Cisco Nexus 4001l High-performance 4Gb Fibre Channel
Voltaire 40Gb Infiniband First to market for blade servers with 10Gb
4X Infiniband Pass-thru module InfiniBand and Ethernet
16

17. 10Gb Ethernet solutions
1Gb Port
Traditional 1Gb solution
10Gb Port 10Gb solution
or CEE/FCoE
(QLogic)
Virtual Fabric for IBM BladeCenter
Create and maintain
Any Bandwidth between
1Gb and 10Gb!
4 Virtual functions per 10Gb port (Emulex)
17

18. Traditional setup for 6 ports requires 2 adapters per server and 6 switches per
chassis
2 x LAN Switch
1Gb Ethernet SW
2 x LAN Switch
1x LAN Card
2 x SAN Switch
1 x SAN Card 2/4 port
10Gb Ethernet
10Gb Ethernet
2 port
4/8Gb Fibre Channel 4/8Gb FibreChannel
18

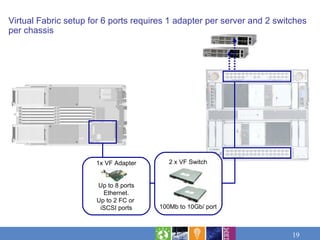

19. Virtual Fabric setup for 6 ports requires 1 adapter per server and 2 switches
per chassis
1x VF Adapter 2 x VF Switch
Up to 8 ports
Ethernet.
Up to 2 FC or
iSCSI ports 100Mb to 10Gb/ port
19

20. Virtual Fabric solution
BNT Virtual Fabric 10Gb Switch
Emulex Virtual Fabric Adapter
10 ports @ 10Gb
2 Ports @ 10Gb
Operates at 1Gb / 10Gb
Upgradable to FCoE
Upgrade to Converged IO or iSCSI
 Up to 2 Physical or 8 Virtual adapters per adapter (total of up to 12 ports per server)
 FCoE upgrade provides multiple Ethernet and Fibre Channel ports on the same adapter
 HW iSCSI upgrade also planned for even more flexibility
 Failover for both physical and virtual NICs
 50%-75% reduction in hardware components and simplified cabling
 Enables easier bandwidth allocation & data segregation
 Easy Management choices via Command Line or Switch Interface or BladeCenter Open Fabric
Manager
20

21. Brocade Converged BladeCenter Solution
 One solution for all FC and IP I/O needs
 Brocade 8470 Switch Module
– 16-port entry version with Dynamic POD license
– 30 ports total on module
Brocade 8470 converged switch
 8 × 10 GbE DCB user ports
 8 × 8 Gbps FC user ports
 14 × 10 GbE backplane ports to servers
– Lossless Ethernet (DCB), FC or FCoE deployment
 Brocade 1007 Mezzanine CNA
– Dual 10 GbE ports
– Complete FCoE processing offload Brocade 1007 CNA
– Low-power adapter: Typical 8.5 W
 Brocade DCFM
– Integrated with IBM Systems Director and IBM Tivoli Brocade
Productivity Center (TPC) DCFM
21

22. System x - Smarter Systems for a Smarter Planet
Agenda
 Přehled IBM System x serverů
 IBM Blade řešení
 New Generation Platform
 Storwize V7000
 IBM Promo akce
22 IBM Confidential © 2012 IBM Corporation

23. You experience the barriers of time, cost and risk today
Aligning IT and business goals
Business Goals
Grow top and
bottom line by: IT Reality
• Driving business Getting Up and Running
innovation Takes months:
• Specify/Design • Integrate
• Make new markets • Procure • Deploy
• Respond to competitive
threats Development Operations
• Enhance the customer Takes 30-90 days:
experience • Provision • Configure
Ongoing Effort
Takes months and requires
downtime:
• Customize/Tune • Maintain
• Scale • Upgrade
• Manage
23 © 2012 IBM Corporation

24. Clients have tried various approaches to close the gap
Client-tuned
Appliances Cloud
Systems
Benefits Flexibility Simplicity Agility
Control Rapid Deployment Elasticity
Challenges Time and
Shared
Expense Single Purpose
Dependence
Required
What if you could have the best of all three?
24 © 2012 IBM Corporation

25. The time has come for a new breed of systems
Built-in Expertise Integration by
Capturing and Design
automating what Deeply integrating and
experts do – from tuning hardware and
the infrastructure to the software – in a single,
application ready-to-go system
Fundamentally
changing the
experience and
Simplified Experience economics of IT
Making every part of the IT lifecycle easier
Integrated management of the entire system
A broad open ecosystem of optimized solutions
25 © 2012 IBM Corporation

26. Supported by the broadest ecosystem
• Solutions from 100+ leading partners
• Over 100 leading packaged
applications available
• Solution Showcase simplifies
application deployment
• Build once also use for private and
public cloud deployments
• Certified through ‘Ready for IBM
PureSystems’ program
26 © 2012 IBM Corporation
ISVs shown above not final until Launch

27. Simplified experience
Reduce time, effort and risk throughout the solution lifecycle Expert
Integrated
Systems
Starts at Acquisition: A continuum of value from building blocks to systems
IBM Flex System IBM PureFlex System IBM PureApplication System
Pre-configured, pre-integrated Pre-configured, pre-integrated
Chassis infrastructure systems with compute, platform systems with
14 half-wide bays
for nodes storage, networking, physical and middleware designed for
virtual management, and entry cloud transactional web applications
Compute management with and enabled for cloud with
Nodes integrated expertise. integrated expertise.
Power 2S/4S*
x86 2S/4S
Storage Node
V7000
Expansion inside
or outside chassis
Management
Appliance
Optional
Networking
10/40GbE, FCoE, IB
8/16Gb FC
Expansion
PCIe
Storage
27 © 2012 IBM Corporation

28. System x - Smarter Systems for a Smarter Planet
Agenda
 Přehled IBM System x serverů
 IBM Blade řešení
 New Generation Platform
 Storwize V7000
 IBM Promo akce
28 IBM Confidential © 2012 IBM Corporation

29. Storwize V7000 – Position
Block File
DS8000 XIV SONAS
For clients requiring: For clients requiring: For clients requiring:
 Advanced disaster recovery with 3-  Breakthrough ease of use and  Massive I/O, backup, or
way mirroring and System z GDPS management restores
support  High utilization with automated  Consolidation, or scale large
 Continuous availability, no performance (“hot spot”) numbers of clusters
Enterprise downtime for upgrades management
 Best-in-class response time for  Virtually unlimited snapshots
OLTP or transaction workloads,  Advanced self-healing N series
flash optimization architecture For clients requiring:
 Single system capacity scalable to  NAS storage
the PB range  Simple two-site high availability
DS5000 Storwize V7000
For clients requiring: For clients requiring:
 Good cost/performance, general-  10s of TB of rack-mounted storage with sophisticated software
Midrange purpose storage functions
 Need to add capacity to existing  Breakthrough ease of use and management
configuration  Non-disruptive migration from, or virtualization of, existing disk
 10s of TB of capacity
DS3000
Entry For clients requiring:
 SMBs or branch office locations; cost sensitive; start at as small as 100s
GB, up to low TB capacity
Storage SVC, Easy Tier, ProtecTIER, Information Archive, Real Time Compression
For clients requiring optimization of storage costs:
Optimizers  Storage technologies that add function, performance, ease of use, or efficiency to new or existing storage
29 © 2011 IBM Corporation

30. Storwize V7000 – Overview
 Control enclosure can be purchased in
12 or 24 drive bay configuration
– Includes dual controllers and internal disk drives
– 16GB Cache
 Expansion enclosures can be purchased in
12 or 24 drive bay configurations
– Maximum nine expansion enclosures
– Expand capacity up to 720 TB raw (3 TB NL SAS)
 Solid State Drives can be included in 24 bay enclosures
– Replaces spinning drives
– Enables use of Easy Tier functionality
 Drive sizes can be intermixed in an enclosure
 12 and 24 bay enclosures can be intermixed in a system
30 © 2011 IBM Corporation

31. Storwize V7000 – Software Functionalities
 Easy Tier (dynamic HDD/SSD management)
 Thin provisioning
 FlashCopy up to 256 copies of each volume
 Volume Mirroring
 Storage virtualization (internal and external disks)
 Global & Metro Mirror
 Non-disruptive data migration
 RAID 0, 1, 5, 6, 10
2U
31 © 2011 IBM Corporation

32. Storwize V7000 – High Speed Connectivity
F
Four 8 Gb FC T
Two USB T
Two Gb-E T
Two SAS 2.0 T
Two 10 Gb-E
T
Two 10 Gb-E T
Two SAS 2.0 T
Two Gb-E T
Two USB F
Four 8 Gb FC
External Enclosure Ports # Ports Internal Enclosure Ports # Ports
8 Gb Fiber Channel SAN 8 SAS 2.0 4
4
1 Gb Ethernet 4
Each SAS 2.0 ports has
10 Gb Ethernet (Models 312/324) 4 four send/receive wire
p
pairs
USB 4
Each wire pair is 6 Gb/s or
Note: Multi-path software is included at no cost 24 Gb/s total per SAS
p
port 1 4
2 3

1 2 3 4

32 © 2011 IBM Corporation

33. Storwize V7000 – Easy Tier
 Dynamically re-distributes active data across a hybrid storage pool of Solid-State Devices (SSDs) & hard disks
based on workload characteristics
 Monitors access to extents and analyses history to promote “hot” extents and demote “inactive” ones
 Supports both internal SSDs and SSDs in virtualized
disk systems
– Helps improve storage system performance
– Helps reduce cost by automatically placing only SS
D Automatic
most active data on SSD, reducing need for SSD relocation
capacity
 Easy Tier can improve throughput up to 200% and H
reduce response time up to 60% with only about 10% DD
of total capacity on SSD*
33 © 2011 IBM Corporation

34. System x - Smarter Systems for a Smarter Planet
Agenda
 Přehled IBM System x serverů
 IBM Blade řešení
 New Generation Platform
 Storwize V7000
 IBM Promo akce
34 IBM Confidential © 2012 IBM Corporation

35. System x - Smarter Systems for a Smarter Planet
First in Enterprise (FIE)
Getting started with IBM System x has never been more affordable!
Up to 3 High End Systems, e.g. x3690, x3850
Up to 2 IBM ToR Switches
e.g. G8052, G8264
,
or
Up to 1 HANA Appliance System, e.g. 7147-H1G and
Up to 1 UPS ,
e.g. 2200VA LCD 2U Rack UPS
or
Up to 7 Blades incl. 1 Chassis, e.g. HS23, HX5
Up to 1 42/47U Rack
e.g. 42U 1200 mm Deep Dynamic Rack
incl. BladeCenter Foundation for Cloud
40% off list price
Client Value Proposition:
 40% discount, but 100% IBM value. Start now with simple promotion rules.
 Choose YOUR solution fitting best YOUR workload and requirements.
 Combine with top of rack switches, UPS, and rack for a complete solution.
35 IBM Confidential © 2012 IBM Corporation

36. BladeCenter S virtualizační promo
IBM BladeCenter S
• Diskové pole:
1,2 TB Hot Swap 15K 6Gbps SAS HDD
2 TB Hot Swap 7.2K 6Gbps NL SAS HDD
• BNT Layer 2/3 Copper Gb
Ethernet Switch Module
• IBM UltraSlim Enhanced
SATA Multi-Burner
• IBM BladeCenter Open Fabric
Manager for BC-S
36 © 2011 IBM Corporation

37. BladeCenter S virtualizační promo
2 x HS23 v konfiguraci:
• 2 x Intel Xeon Quad core 1,86Ghz procesor
• 16 GB ECC DDR3 1333 MHz RAM
• USB Memory Key for VMware ESXi 5
Volitelně virtualzační hypervizor:
• VMware vSphere 5 Essential Plus Kit
• Microsoft HyperV
• KVM
Volitelně IBM Cloud StarterKit
37 © 2011 IBM Corporation

38. BladeCenter S virtualizační promo
Apple iPad 2
IBM Mobile Systems Remote
(aplikace pro ovládání šasi přímo z iPadu)
Start Advisor
(nástroj pro automatickou instalaci celého
BladeCenter systému)
IBM Systems Director
(nástroj pro vzdálenou správu)
Záruka 3 roky s reakcí do druhého dne
Cena za HW (bez DPH)
299.900,- CZK
38 © 2011 IBM Corporation

39. System x - Smarter Systems for a Smarter Planet
Q&A
IBM Confidential © 2012 IBM Corporation

40. System x - Smarter Systems for a Smarter Planet
Děkuji za Vaši pozornost.
ondrej_lorenc@cz.ibm.com
731 435 658
IBM Confidential © 2012 IBM Corporation
