1. PowerKVM provides an open source virtualization option for Power Systems running Linux workloads that is managed like other KVM systems using open source tools or OpenStack. 2. PowerKVM exploits features of Power8 like micro-threading to improve workload consolidation compared to traditional PowerVM or PowerKVM. 3. PowerKVM is best suited for customers running Linux-only workloads who prefer open technologies and are familiar with KVM or VMware.

1. Power Systems Virtualization
August 2014
T. R. Bosworth
Power Virtualization Offering Manager
trbosworth@us.ibm.com
The foundation for the Cloud

2. © 2014 IBM Corporation IBM and BP Use only not for customers

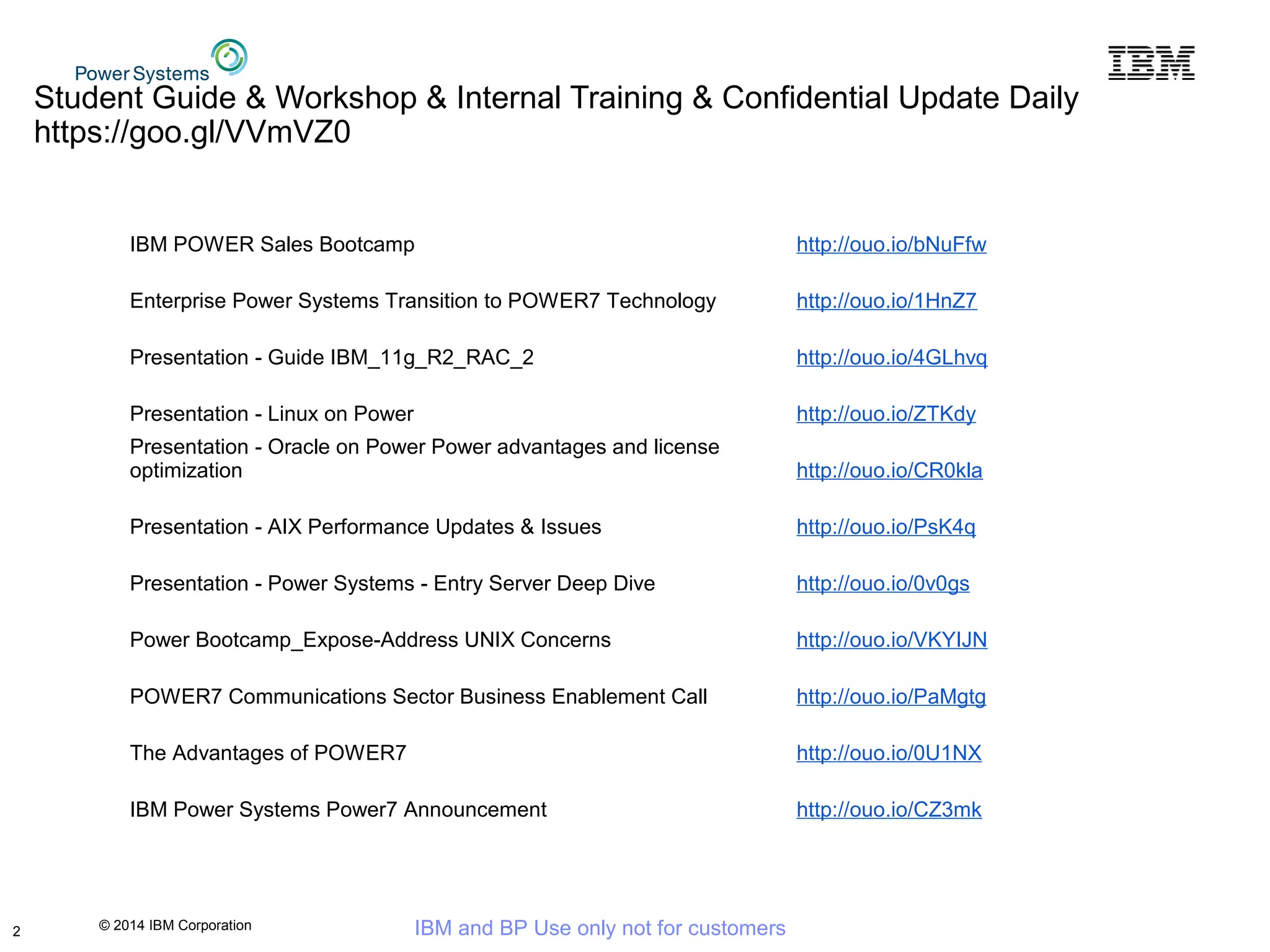

Student Guide & Workshop & Internal Training & Confidential Update Daily
https://goo.gl/VVmVZ0
IBM POWER Sales Bootcamp http://ouo.io/bNuFfw
Enterprise Power Systems Transition to POWER7 Technology http://ouo.io/1HnZ7
Presentation - Guide IBM_11g_R2_RAC_2 http://ouo.io/4GLhvq
Presentation - Linux on Power http://ouo.io/ZTKdy
Presentation - Oracle on Power Power advantages and license
optimization http://ouo.io/CR0kla
Presentation - AIX Performance Updates & Issues http://ouo.io/PsK4q
Presentation - Power Systems - Entry Server Deep Dive http://ouo.io/0v0gs
Power Bootcamp_Expose-Address UNIX Concerns http://ouo.io/VKYIJN
POWER7 Communications Sector Business Enablement Call http://ouo.io/PaMgtg
The Advantages of POWER7 http://ouo.io/0U1NX
IBM Power Systems Power7 Announcement http://ouo.io/CZ3mk
2

3. © 2014 IBM Corporation IBM and BP Use only not for customers3

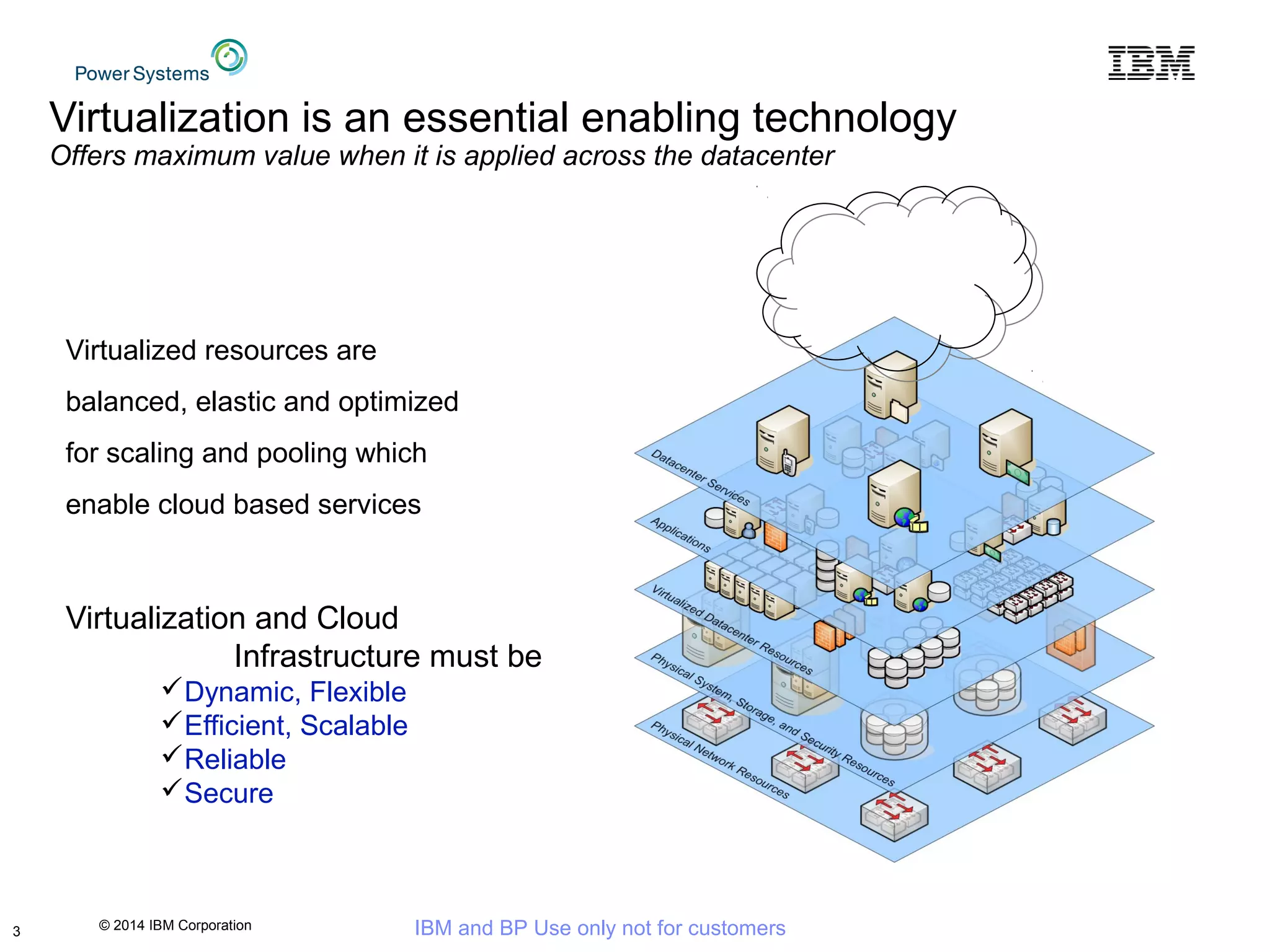

Virtualization is an essential enabling technology
Offers maximum value when it is applied across the datacenter
Virtualized resources are
balanced, elastic and optimized
for scaling and pooling which
enable cloud based services
Virtualization and Cloud
Infrastructure must be
Dynamic, Flexible
Efficient, Scalable
Reliable
Secure

4. © 2014 IBM Corporation IBM and BP Use only not for customers

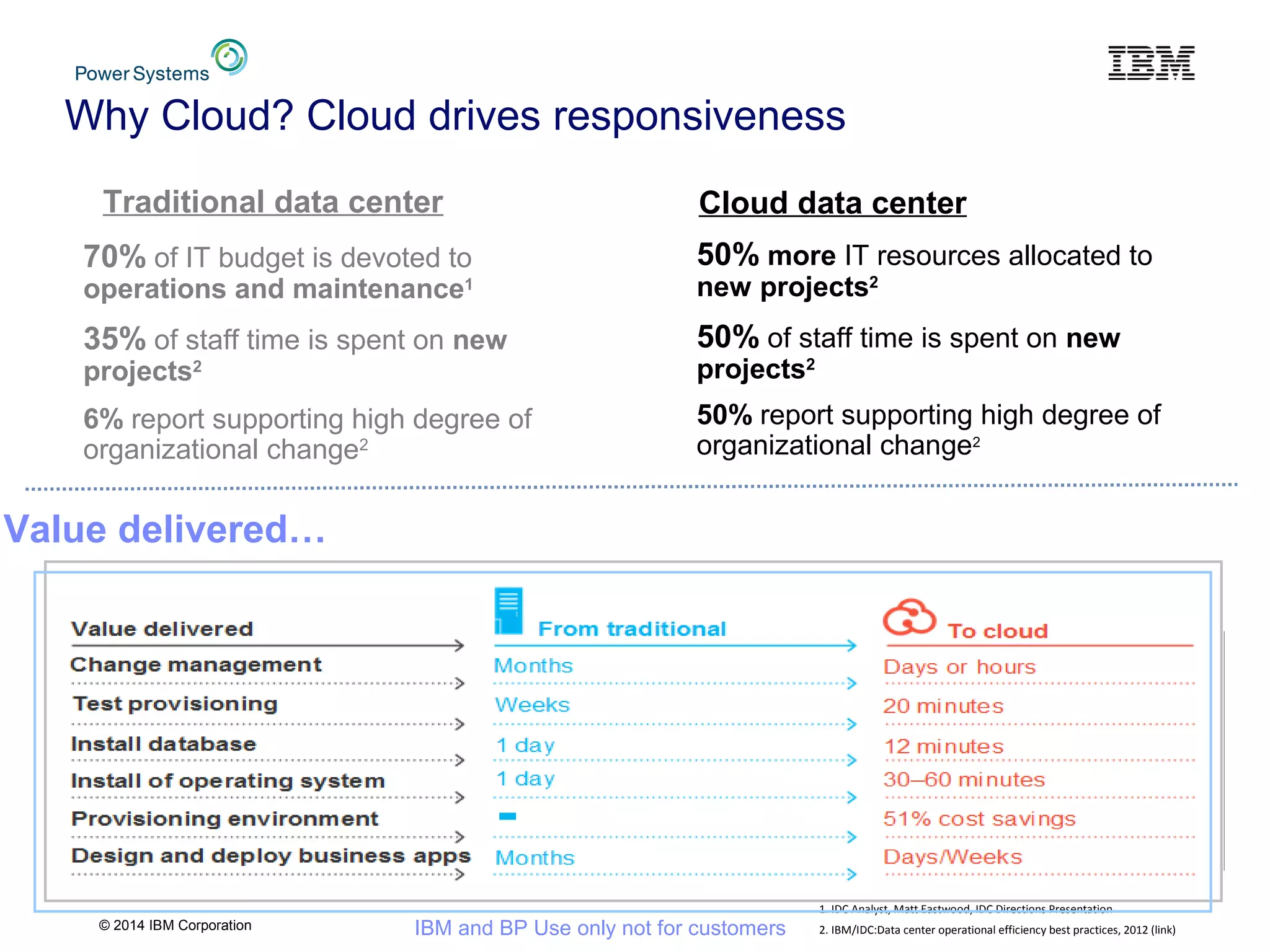

Why Cloud? Cloud drives responsiveness
50% more IT resources allocated to
new projects2
50% of staff time is spent on new
projects2
50% report supporting high degree of
organizational change2
70% of IT budget is devoted to
operations and maintenance1
35% of staff time is spent on new
projects2
6% report supporting high degree of
organizational change2
Cloud data centerTraditional data center
1. IDC Analyst, Matt Eastwood, IDC Directions Presentation
2. IBM/IDC:Data center operational efficiency best practices, 2012 (link)
“It used to take us three to four months to develop a new business
application, now it is only two to three days, giving us a much better
chance to corner the market before our competitors have a chance to
enter the fray.”
Dr. Lifeng Liu, General Manager Assistant in the Network
Development Department, China Telecom
Value delivered…

5. © 2014 IBM Corporation IBM and BP Use only not for customers

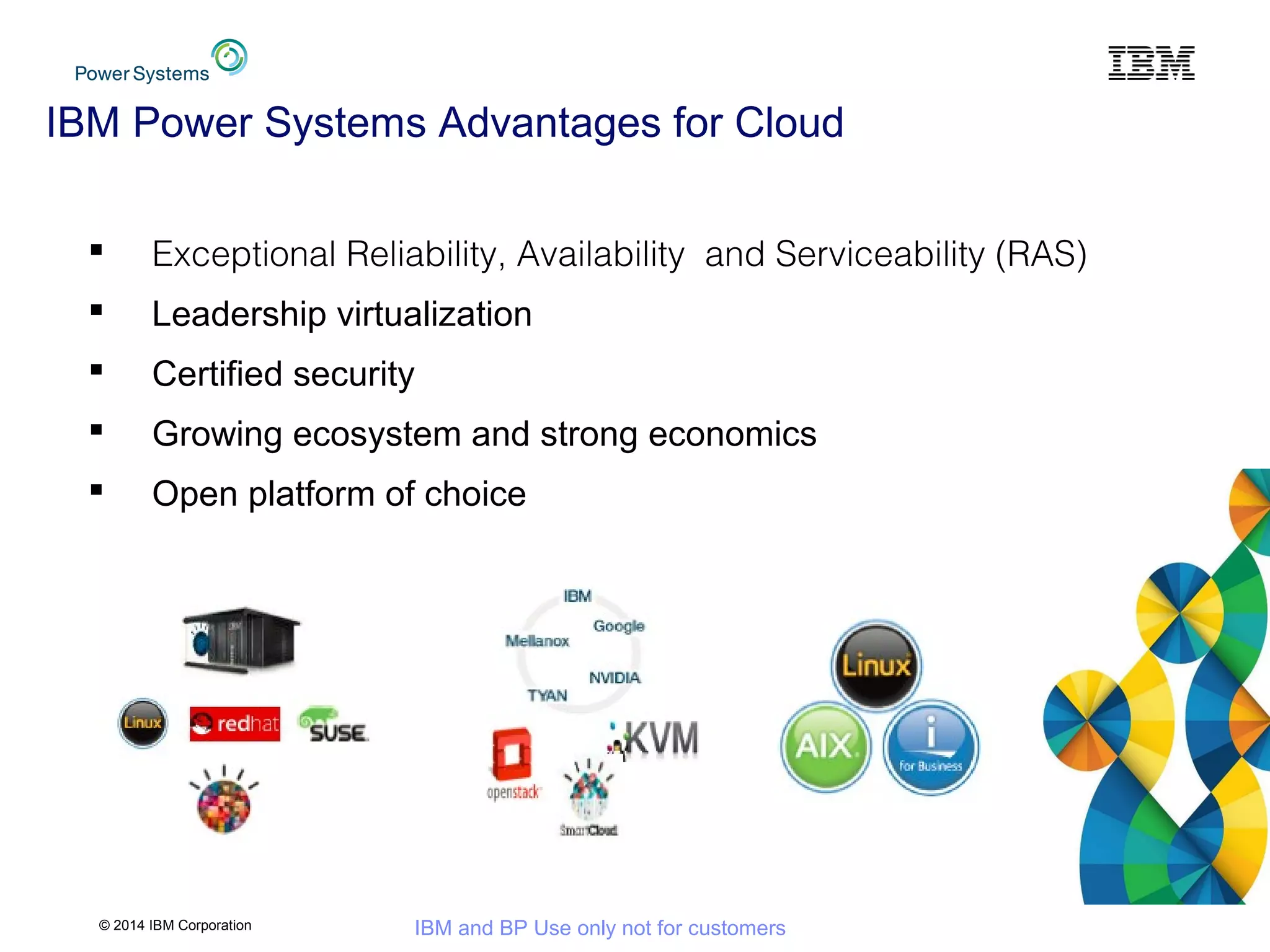

IBM Power Systems Advantages for Cloud
 Exceptional Reliability, Availability and Serviceability (RAS)
 Leadership virtualization
 Certified security
 Growing ecosystem and strong economics
 Open platform of choice

6. © 2014 IBM Corporation IBM and BP Use only not for customers

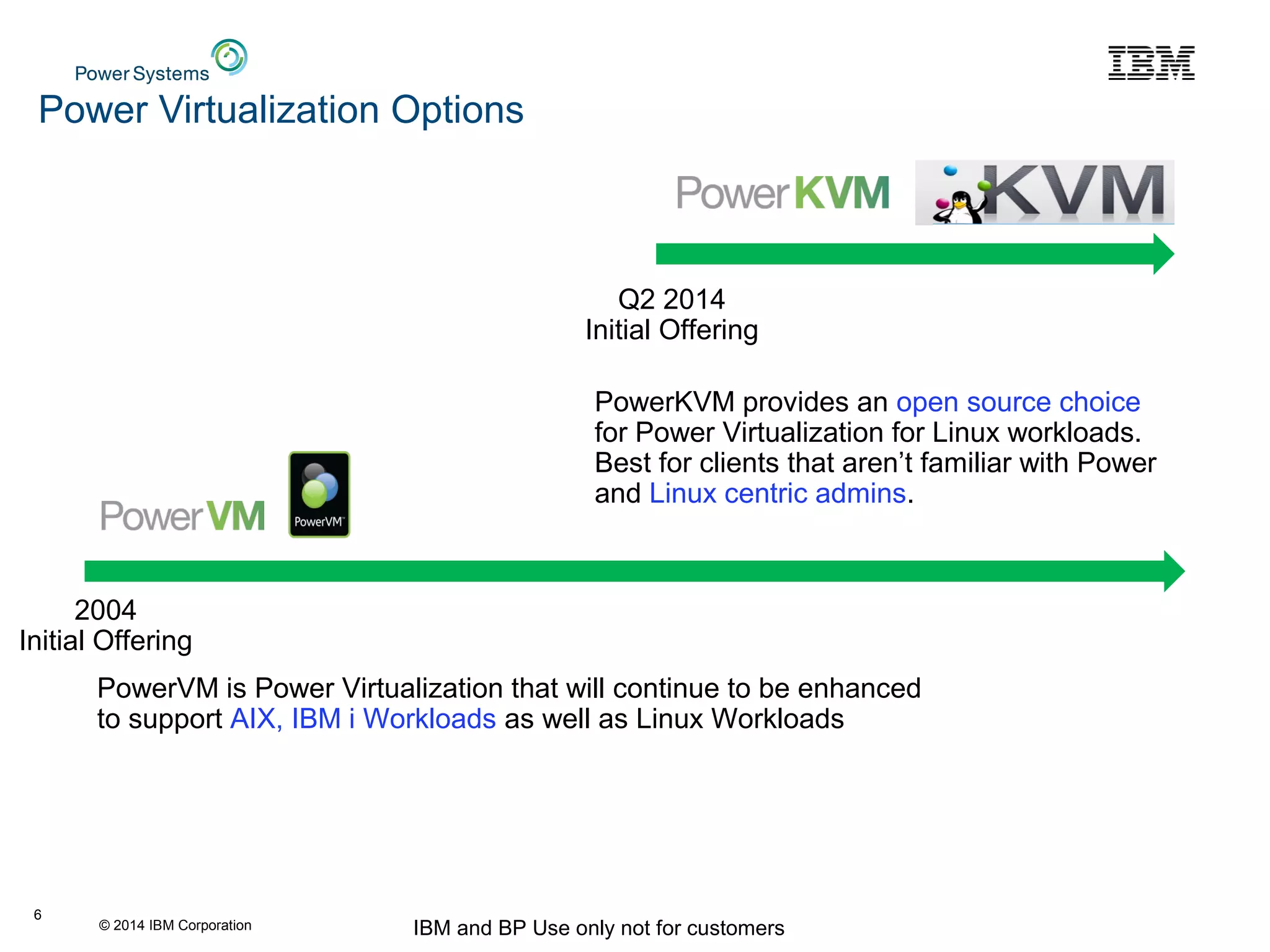

Power Virtualization Options
6
PowerVM is Power Virtualization that will continue to be enhanced
to support AIX, IBM i Workloads as well as Linux Workloads
2004
Initial Offering
Q2 2014
Initial Offering
PowerKVM provides an open source choice
for Power Virtualization for Linux workloads.
Best for clients that aren’t familiar with Power
and Linux centric admins.

7. © 2014 IBM Corporation IBM and BP Use only not for customers

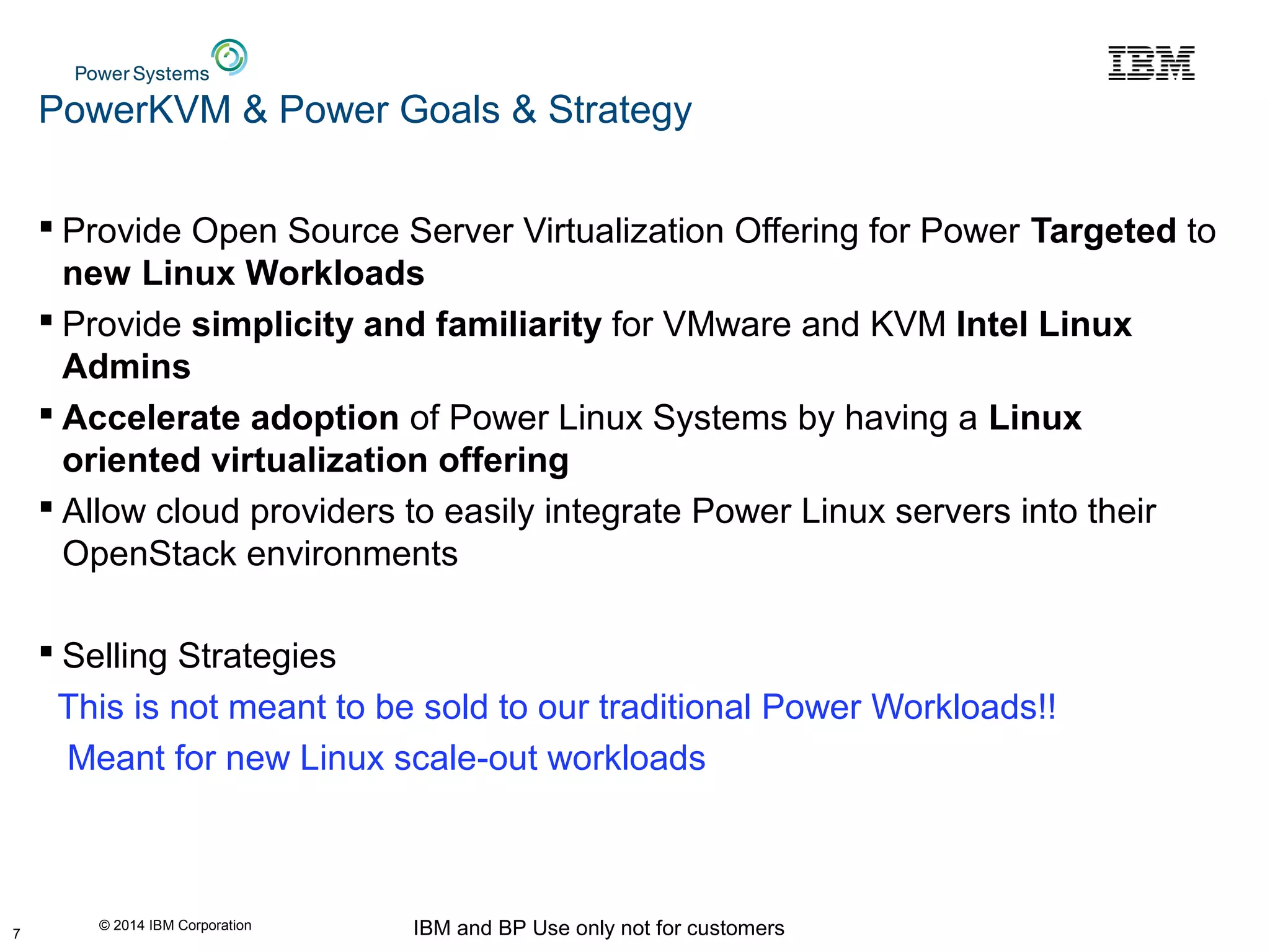

PowerKVM & Power Goals & Strategy
 Provide Open Source Server Virtualization Offering for Power Targeted to
new Linux Workloads
 Provide simplicity and familiarity for VMware and KVM Intel Linux
Admins
 Accelerate adoption of Power Linux Systems by having a Linux
oriented virtualization offering
 Allow cloud providers to easily integrate Power Linux servers into their
OpenStack environments
 Selling Strategies
This is not meant to be sold to our traditional Power Workloads!!
Meant for new Linux scale-out workloads
7

8. © 2014 IBM Corporation IBM and BP Use only not for customers

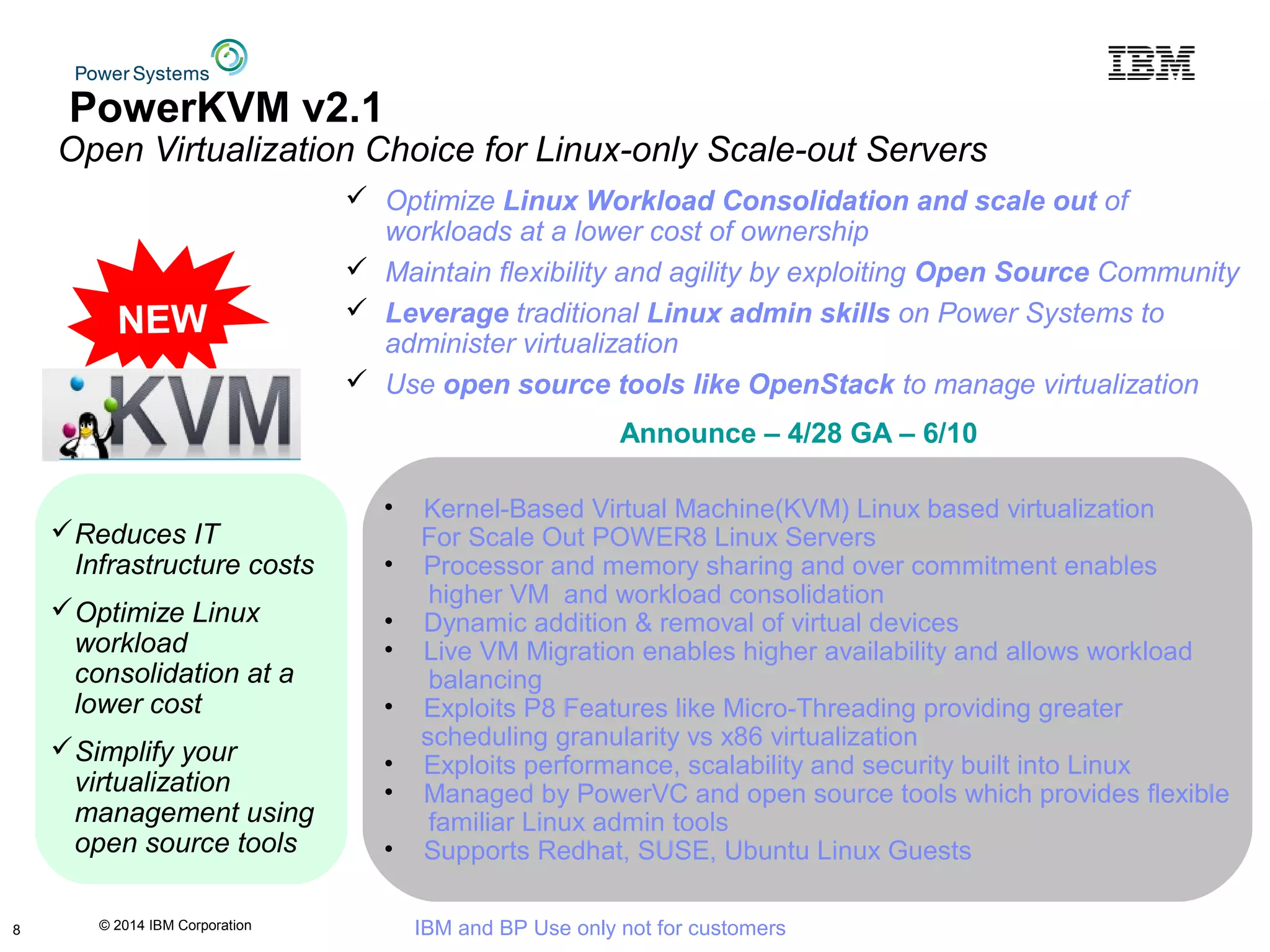

• Kernel-Based Virtual Machine(KVM) Linux based virtualization
For Scale Out POWER8 Linux Servers
• Processor and memory sharing and over commitment enables
higher VM and workload consolidation
• Dynamic addition & removal of virtual devices
• Live VM Migration enables higher availability and allows workload
balancing
• Exploits P8 Features like Micro-Threading providing greater
scheduling granularity vs x86 virtualization
• Exploits performance, scalability and security built into Linux
• Managed by PowerVC and open source tools which provides flexible
familiar Linux admin tools
• Supports Redhat, SUSE, Ubuntu Linux Guests
PowerKVM v2.1
Open Virtualization Choice for Linux-only Scale-out Servers
Reduces IT
Infrastructure costs
Optimize Linux
workload
consolidation at a
lower cost
Simplify your
virtualization
management using
open source tools
Announce – 4/28 GA – 6/10
 Optimize Linux Workload Consolidation and scale out of
workloads at a lower cost of ownership
 Maintain flexibility and agility by exploiting Open Source Community
 Leverage traditional Linux admin skills on Power Systems to
administer virtualization
 Use open source tools like OpenStack to manage virtualization
NEW
8

9. © 2014 IBM Corporation IBM and BP Use only not for customers

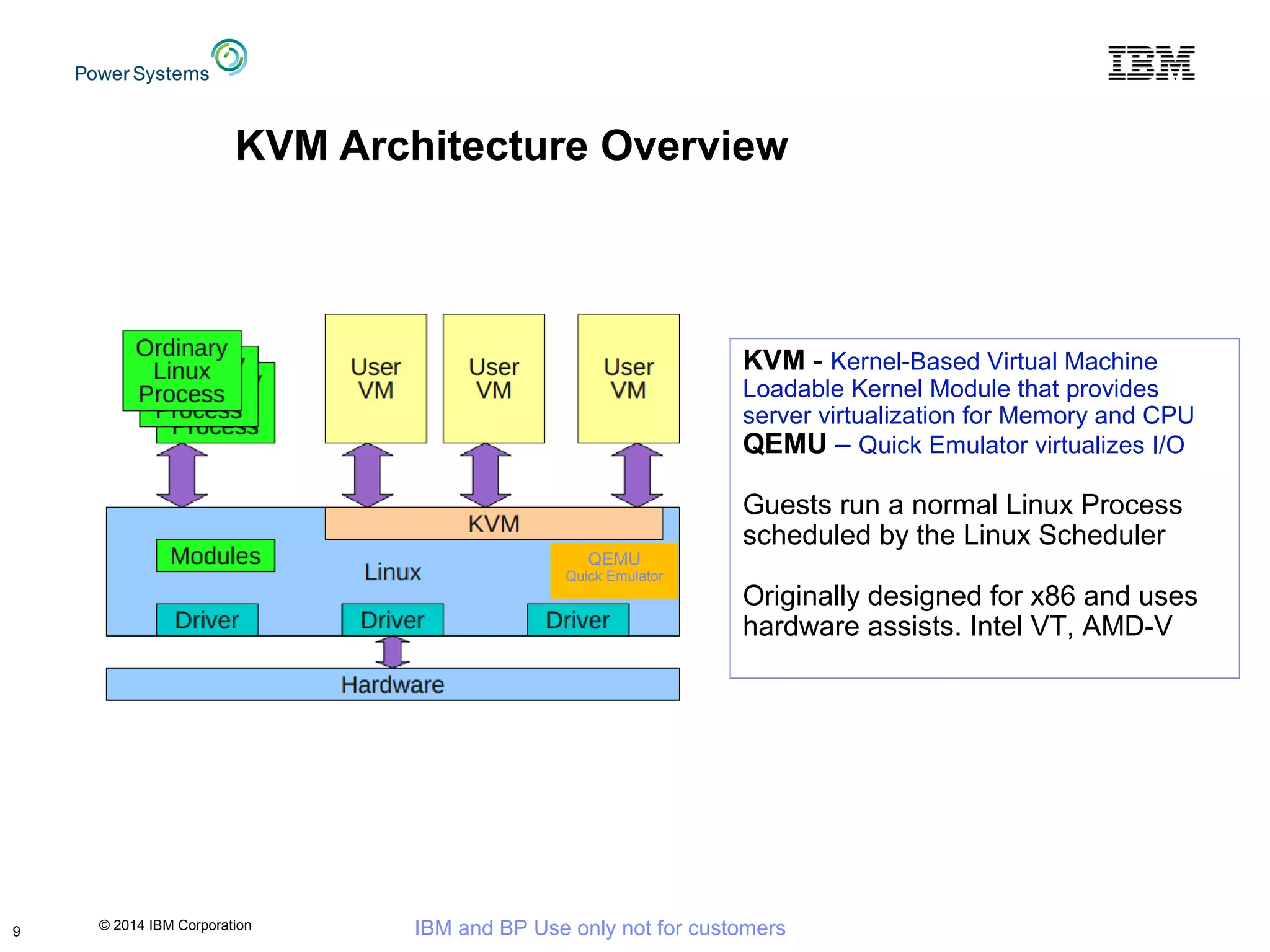

KVM Architecture Overview
9
KVM - Kernel-Based Virtual Machine
Loadable Kernel Module that provides
server virtualization for Memory and CPU
QEMU – Quick Emulator virtualizes I/O
Guests run a normal Linux Process
scheduled by the Linux Scheduler
Originally designed for x86 and uses
hardware assists. Intel VT, AMD-V
QEMU
Quick Emulator

10. © 2014 IBM Corporation IBM and BP Use only not for customers

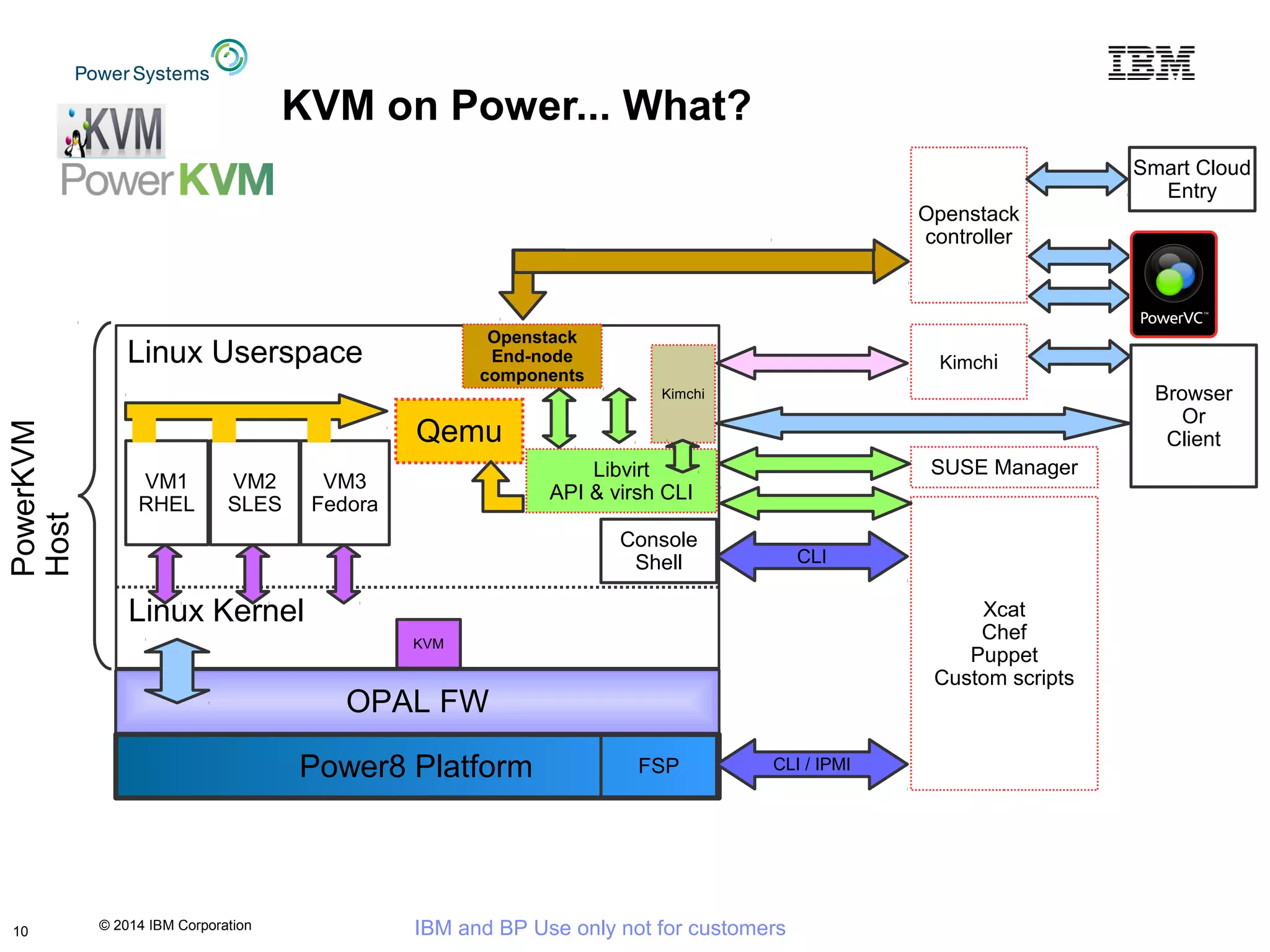

KVM on Power... What?
Power8 Platform
OPAL FW
Qemu
VM1
RHEL
VM2
SLES
Libvirt
API & virsh CLI
Linux Kernel
PowerKVM
Host
Console
Shell CLI
Linux Userspace
Openstack
End-node
components
Kimchi
Openstack
controller
Xcat
Chef
Puppet
Custom scripts
Smart Cloud
Entry
Kimchi Browser
Or
Client
CLI / IPMIFSP
SUSE Manager
KVM
VM3
Fedora
10

11. © 2014 IBM Corporation IBM and BP Use only not for customers

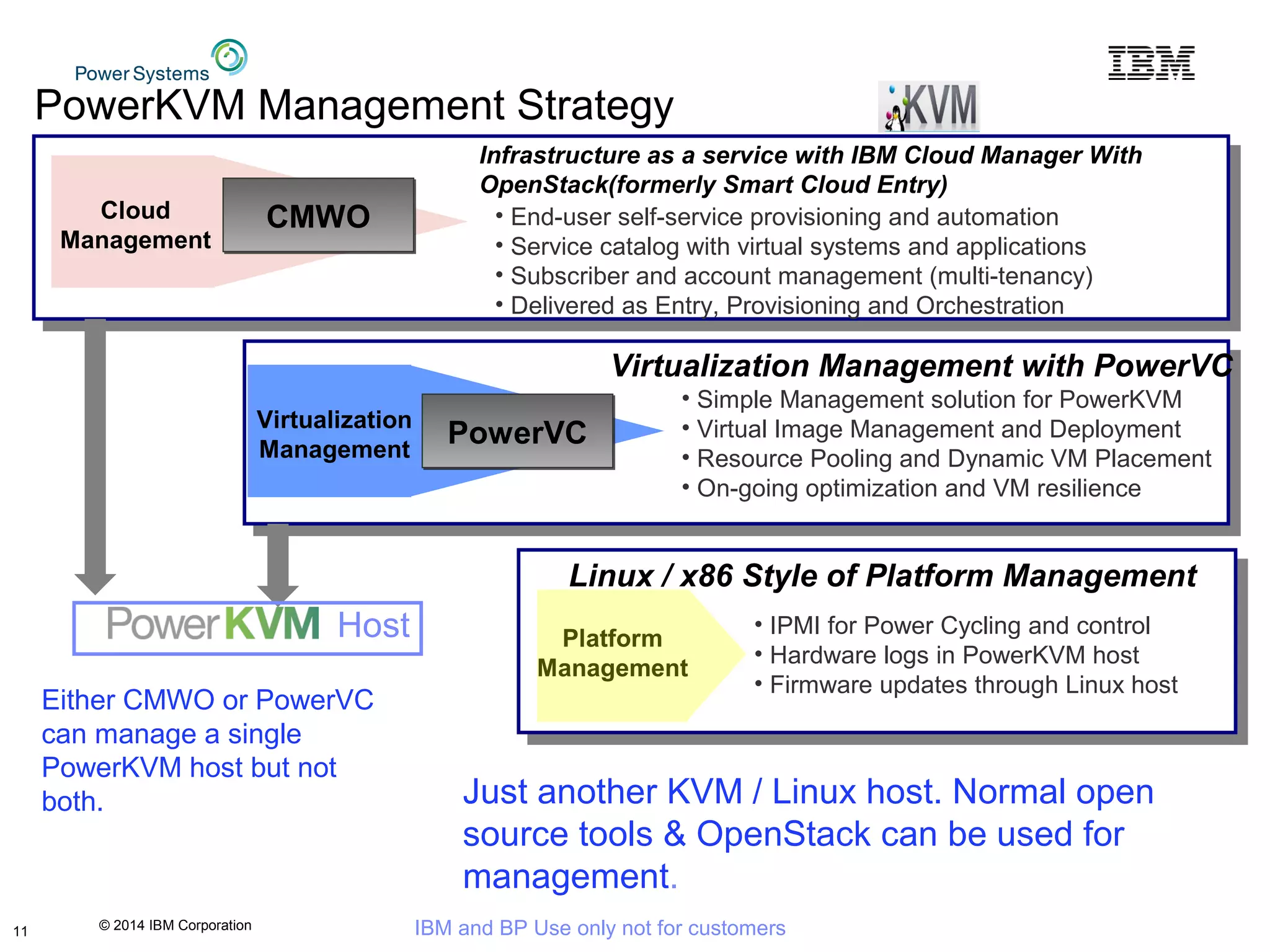

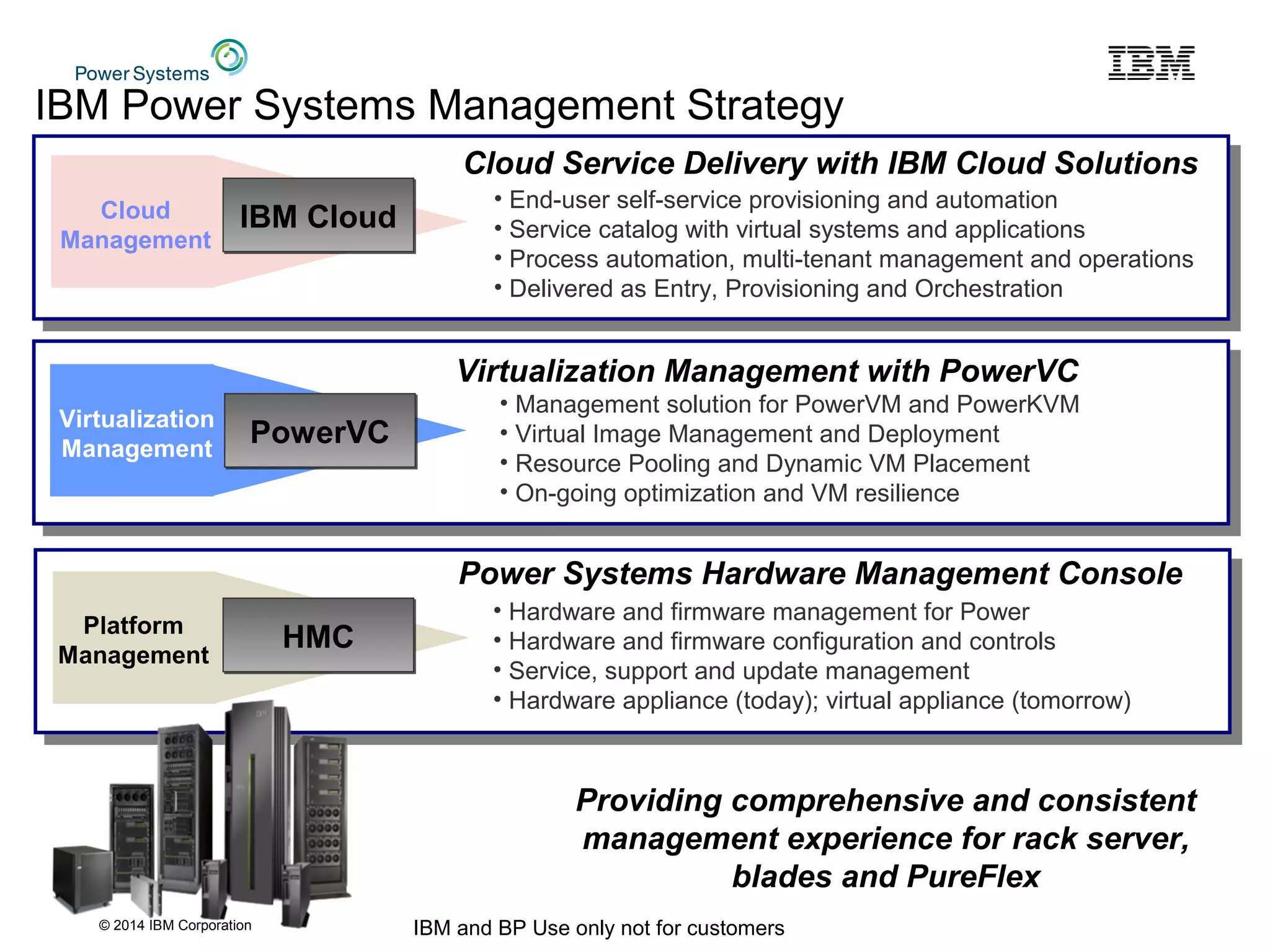

Platform
Management
Virtualization
Management
Cloud
Management
PowerVCPowerVC
CMWOCMWO
Infrastructure as a service with IBM Cloud Manager With
OpenStack(formerly Smart Cloud Entry)
Virtualization Management with PowerVC
Linux / x86 Style of Platform Management
PowerKVM Management Strategy
• IPMI for Power Cycling and control
• Hardware logs in PowerKVM host
• Firmware updates through Linux host
• Simple Management solution for PowerKVM
• Virtual Image Management and Deployment
• Resource Pooling and Dynamic VM Placement
• On-going optimization and VM resilience
• End-user self-service provisioning and automation
• Service catalog with virtual systems and applications
• Subscriber and account management (multi-tenancy)
• Delivered as Entry, Provisioning and Orchestration
Just another KVM / Linux host. Normal open
source tools & OpenStack can be used for
management.
11
Host
Either CMWO or PowerVC
can manage a single
PowerKVM host but not
both.

12. © 2014 IBM Corporation IBM and BP Use only not for customers

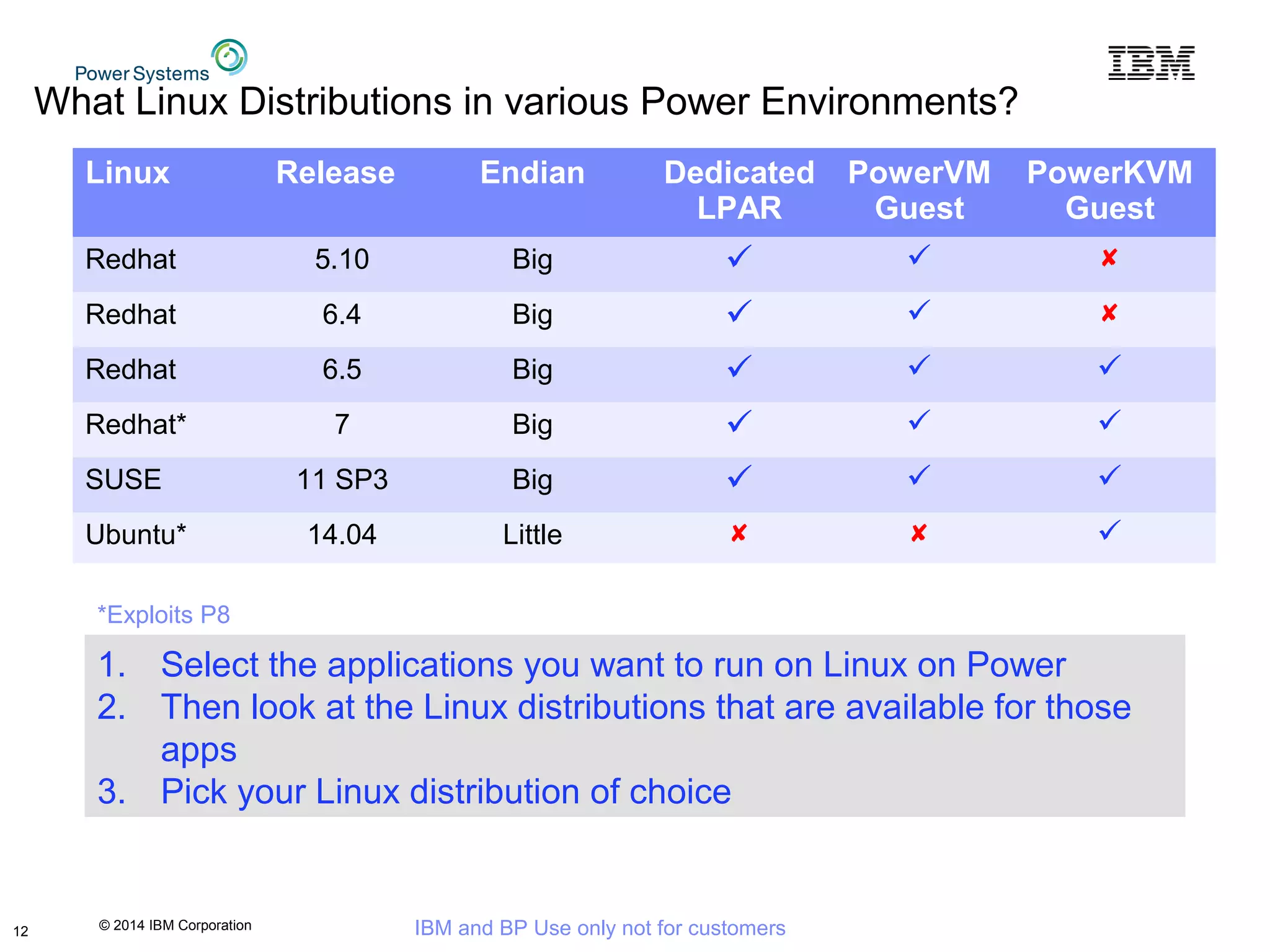

What Linux Distributions in various Power Environments?
12
Linux Release Endian Dedicated
LPAR
PowerVM
Guest
PowerKVM
Guest
Redhat 5.10 Big   
Redhat 6.4 Big   
Redhat 6.5 Big   
Redhat* 7 Big   
SUSE 11 SP3 Big   
Ubuntu* 14.04 Little   
1. Select the applications you want to run on Linux on Power
2. Then look at the Linux distributions that are available for those
apps
3. Pick your Linux distribution of choice
*Exploits P8

13. © 2014 IBM Corporation IBM and BP Use only not for customers13

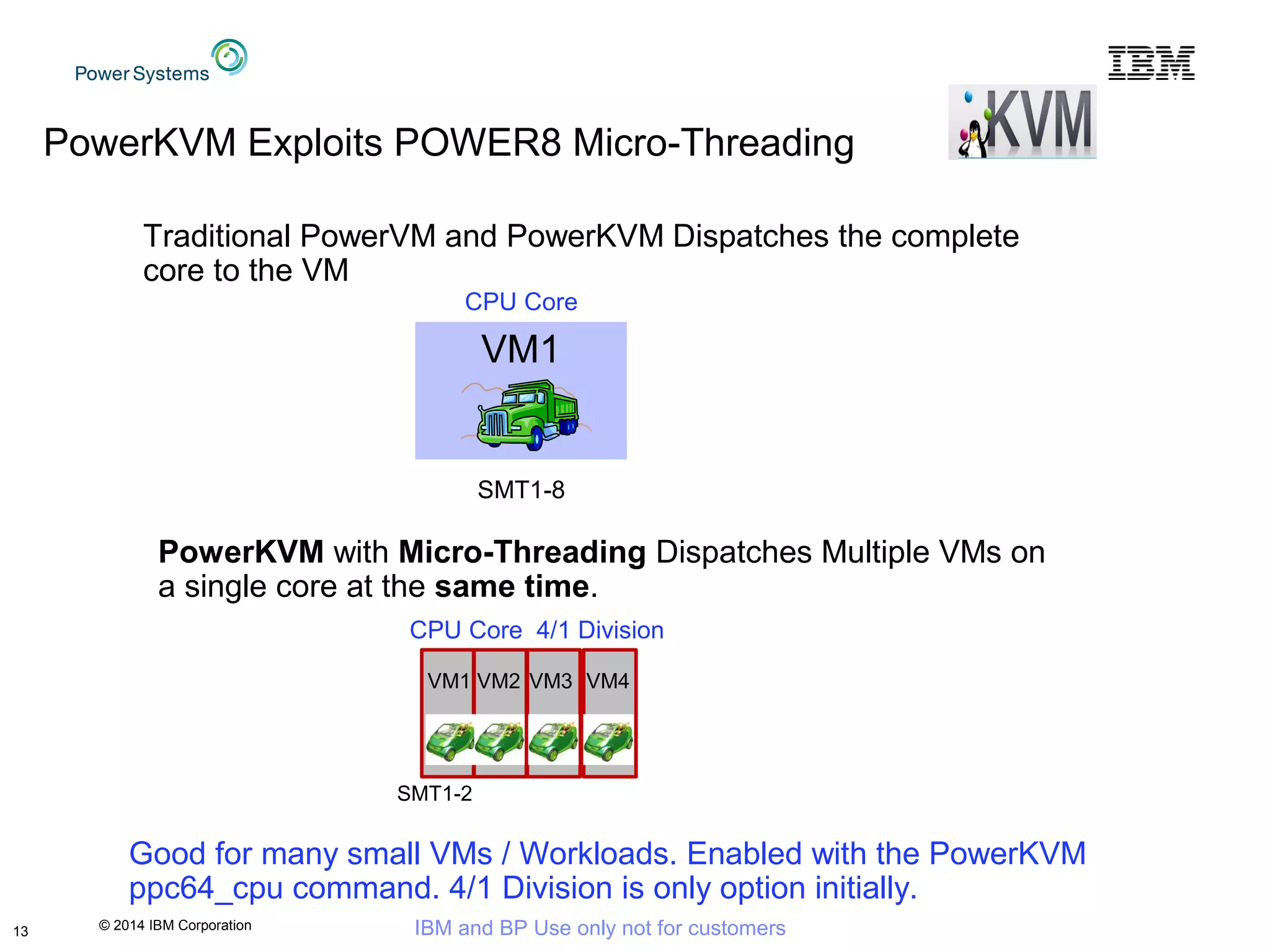

PowerKVM Exploits POWER8 Micro-Threading
VM1
Traditional PowerVM and PowerKVM Dispatches the complete
core to the VM
CPU Core
PowerKVM with Micro-Threading Dispatches Multiple VMs on
a single core at the same time.
SMT1-2
CPU Core 4/1 Division
SMT1-8
VM1 VM2 VM3 VM4
Good for many small VMs / Workloads. Enabled with the PowerKVM
ppc64_cpu command. 4/1 Division is only option initially.

14. © 2014 IBM Corporation IBM and BP Use only not for customers

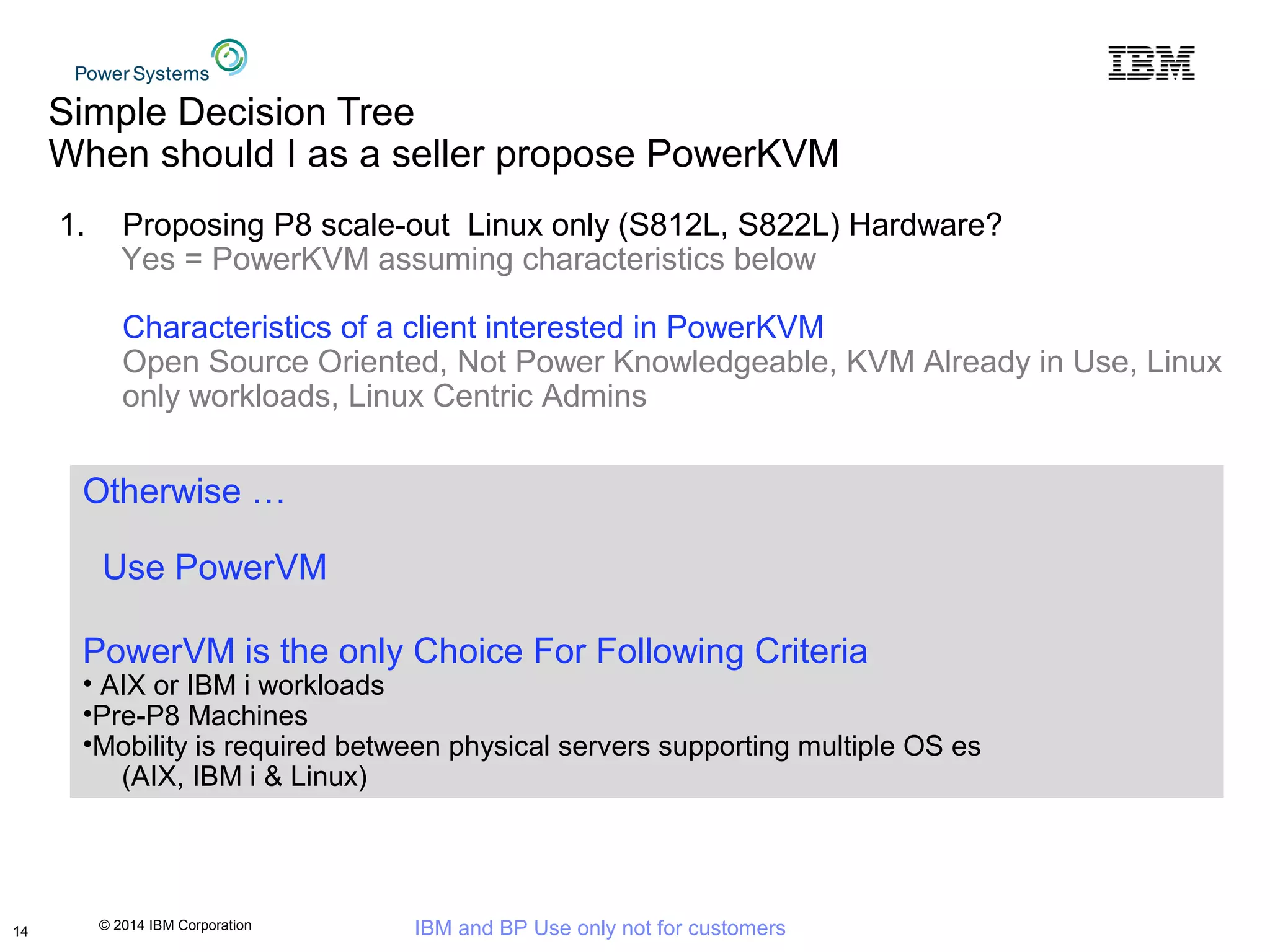

Simple Decision Tree
When should I as a seller propose PowerKVM
14
1. Proposing P8 scale-out Linux only (S812L, S822L) Hardware?
Yes = PowerKVM assuming characteristics below
Characteristics of a client interested in PowerKVM
Open Source Oriented, Not Power Knowledgeable, KVM Already in Use, Linux
only workloads, Linux Centric Admins
Otherwise …
Use PowerVM
PowerVM is the only Choice For Following Criteria
• AIX or IBM i workloads
•Pre-P8 Machines
•Mobility is required between physical servers supporting multiple OS es
(AIX, IBM i & Linux)

15. © 2014 IBM Corporation IBM and BP Use only not for customers

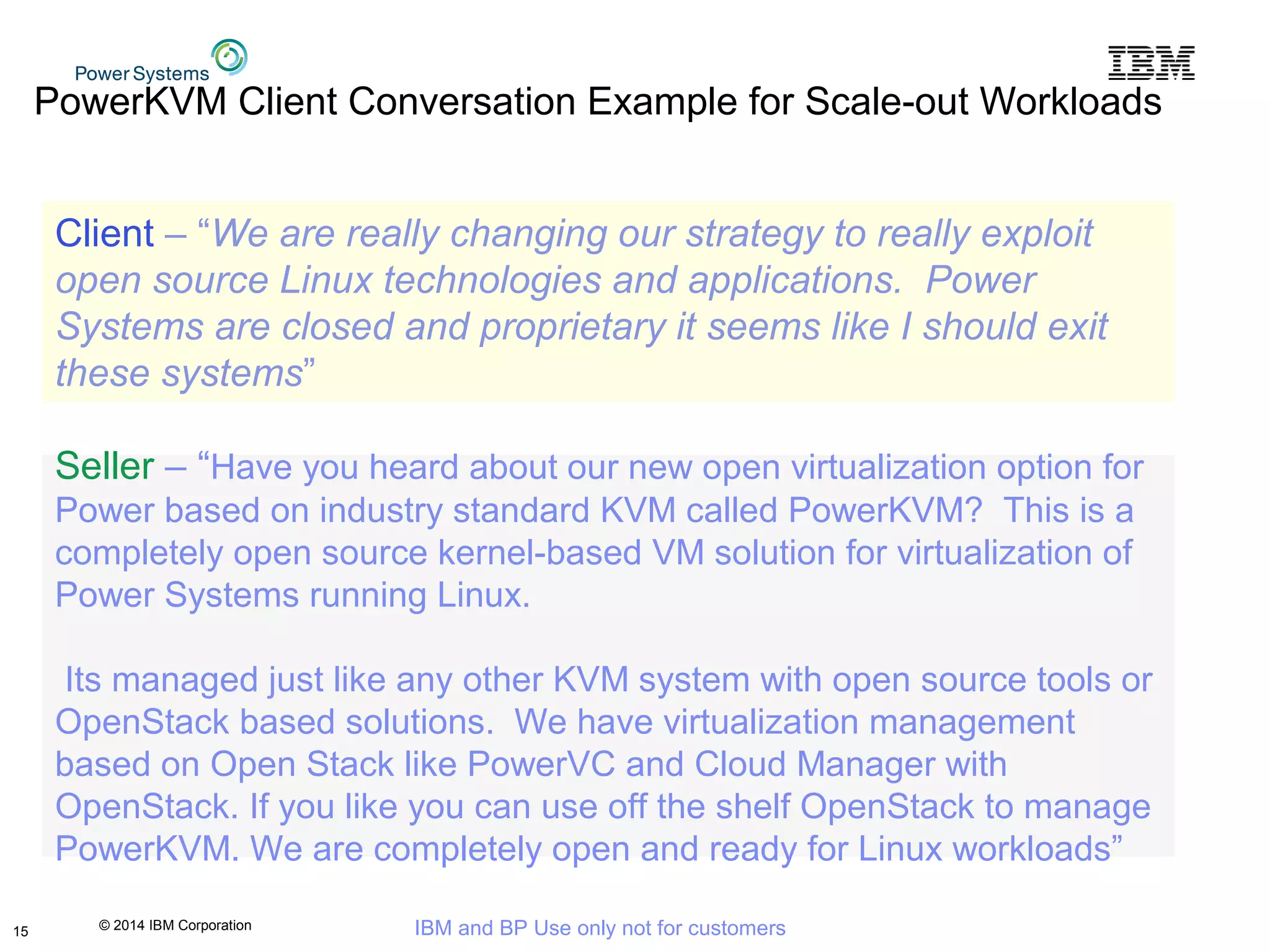

PowerKVM Client Conversation Example for Scale-out Workloads
15
Client – “We are really changing our strategy to really exploit
open source Linux technologies and applications. Power
Systems are closed and proprietary it seems like I should exit
these systems”
Seller – “Have you heard about our new open virtualization option for
Power based on industry standard KVM called PowerKVM? This is a
completely open source kernel-based VM solution for virtualization of
Power Systems running Linux.
Its managed just like any other KVM system with open source tools or
OpenStack based solutions. We have virtualization management
based on Open Stack like PowerVC and Cloud Manager with
OpenStack. If you like you can use off the shelf OpenStack to manage
PowerKVM. We are completely open and ready for Linux workloads”

16. © 2014 IBM Corporation IBM and BP Use only not for customers

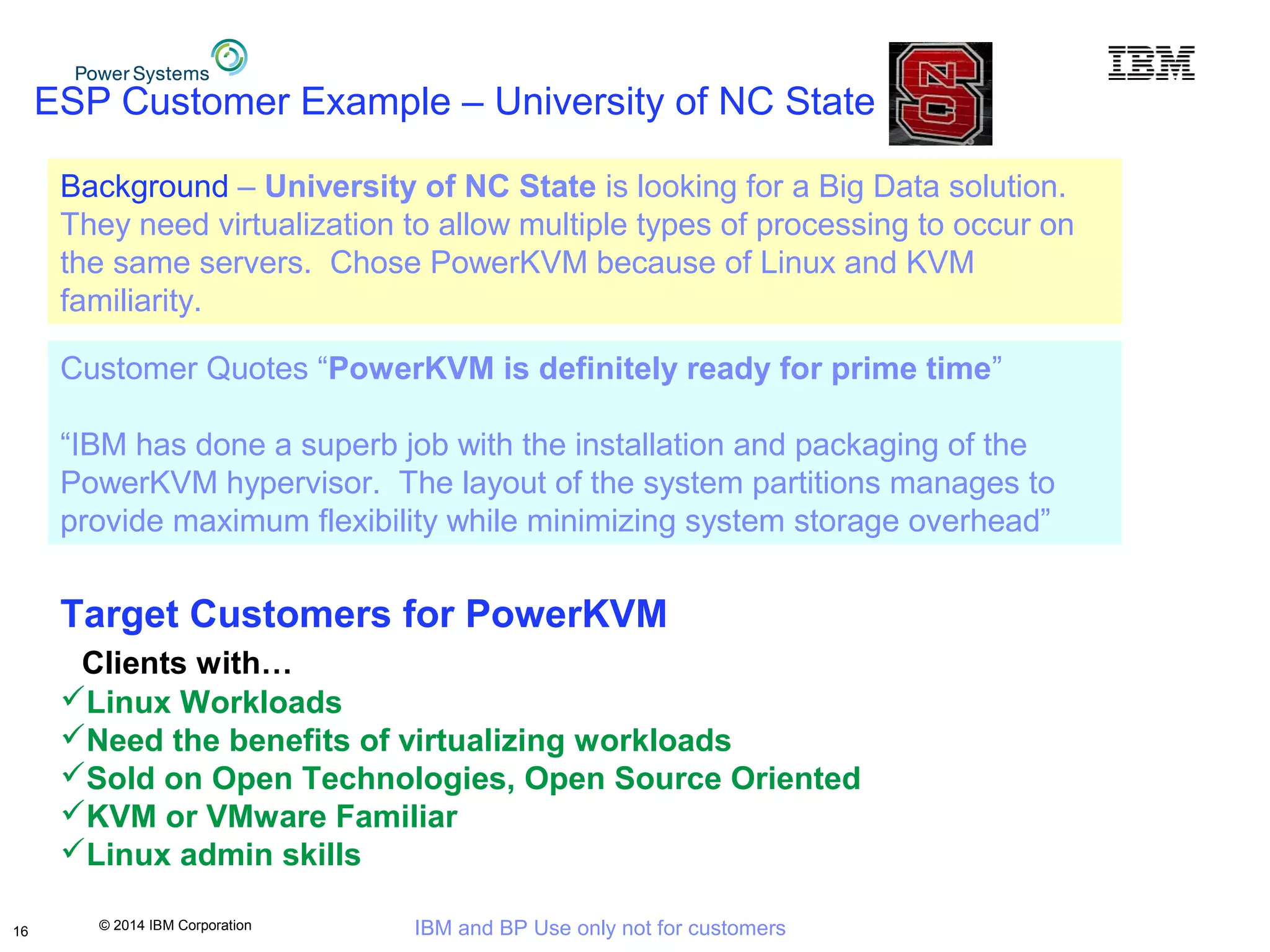

ESP Customer Example – University of NC State
16
Background – University of NC State is looking for a Big Data solution.
They need virtualization to allow multiple types of processing to occur on
the same servers. Chose PowerKVM because of Linux and KVM
familiarity.
Customer Quotes “PowerKVM is definitely ready for prime time”
“IBM has done a superb job with the installation and packaging of the
PowerKVM hypervisor. The layout of the system partitions manages to
provide maximum flexibility while minimizing system storage overhead”
Target Customers for PowerKVM
Clients with…
Linux Workloads
Need the benefits of virtualizing workloads
Sold on Open Technologies, Open Source Oriented
KVM or VMware Familiar
Linux admin skills

17. © 2014 IBM Corporation IBM and BP Use only not for customers

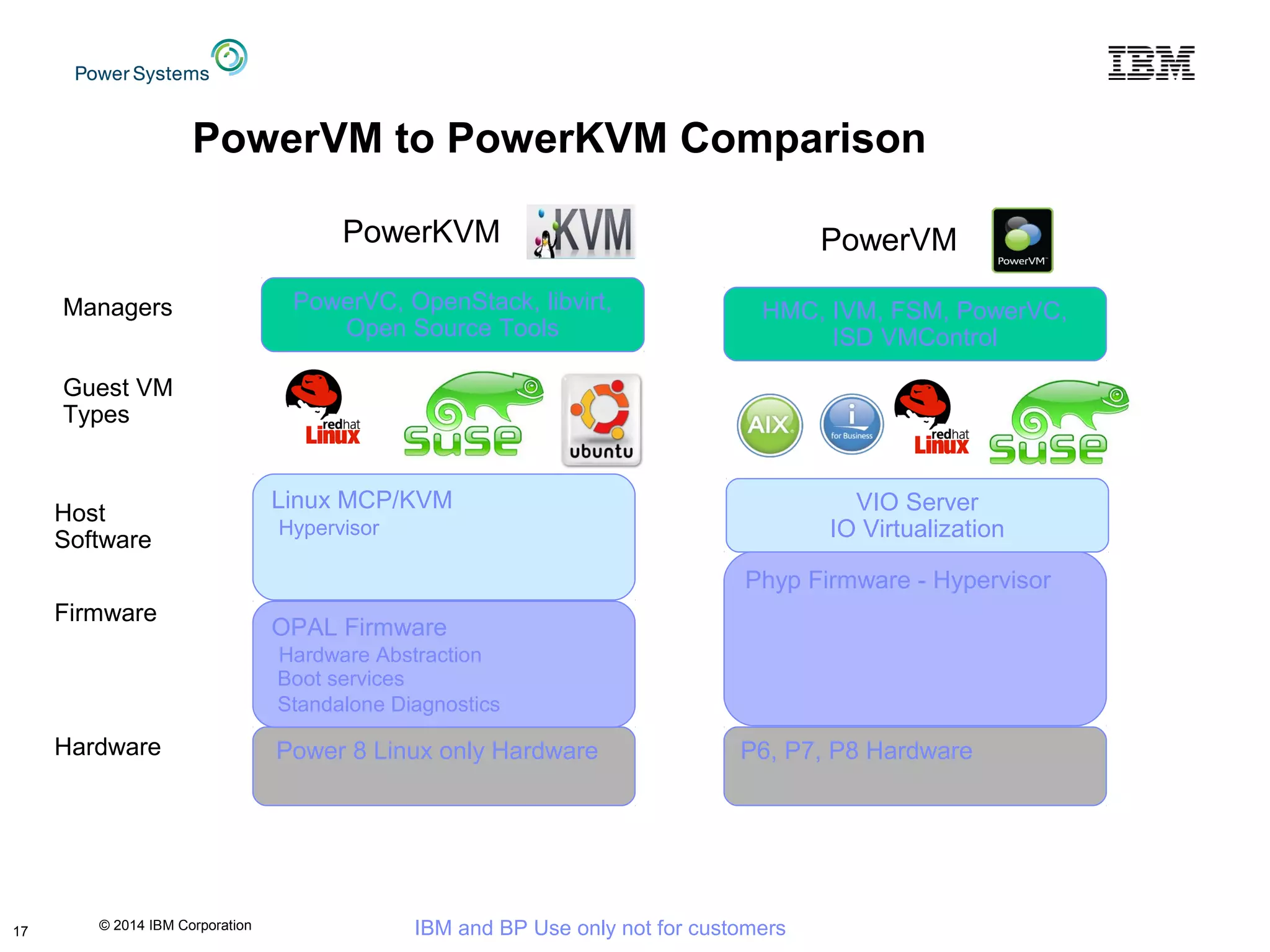

PowerVM to PowerKVM Comparison
Power 8 Linux only Hardware
Firmware
Host
Software
Hardware
OPAL Firmware
Hardware Abstraction
Boot services
Standalone Diagnostics
PowerKVM PowerVM
P6, P7, P8 Hardware
Phyp Firmware - Hypervisor
Linux MCP/KVM
Hypervisor
Guest VM
Types
Managers
VIO Server
IO Virtualization
HMC, IVM, FSM, PowerVC,
ISD VMControl
PowerVC, OpenStack, libvirt,
Open Source Tools
17

18. © 2014 IBM Corporation IBM and BP Use only not for customers

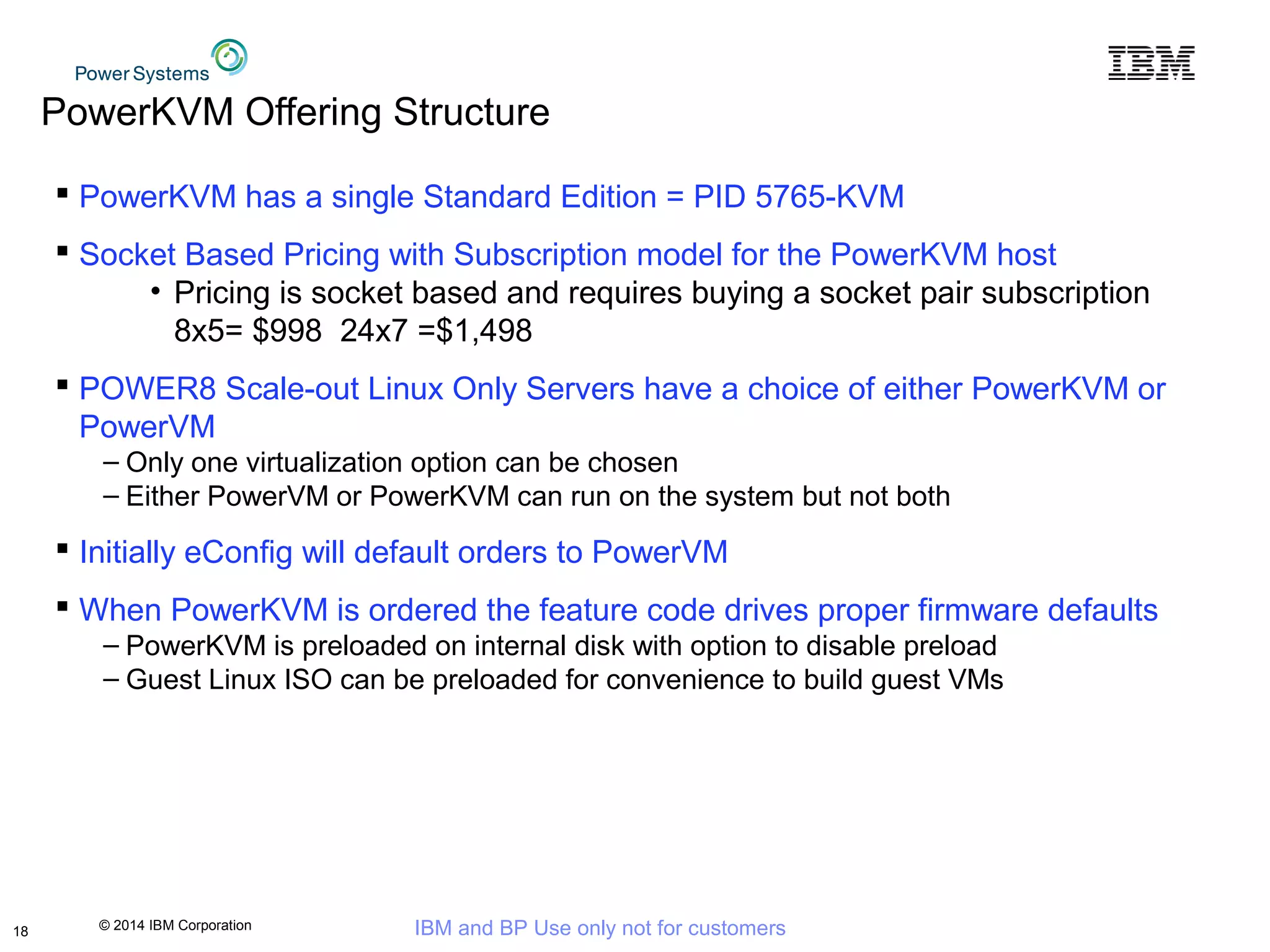

PowerKVM Offering Structure
 PowerKVM has a single Standard Edition = PID 5765-KVM
 Socket Based Pricing with Subscription model for the PowerKVM host
• Pricing is socket based and requires buying a socket pair subscription
8x5= $998 24x7 =$1,498
 POWER8 Scale-out Linux Only Servers have a choice of either PowerKVM or
PowerVM
– Only one virtualization option can be chosen
– Either PowerVM or PowerKVM can run on the system but not both
 Initially eConfig will default orders to PowerVM
 When PowerKVM is ordered the feature code drives proper firmware defaults
– PowerKVM is preloaded on internal disk with option to disable preload
– Guest Linux ISO can be preloaded for convenience to build guest VMs
18

19. © 2014 IBM Corporation IBM and BP Use only not for customers19

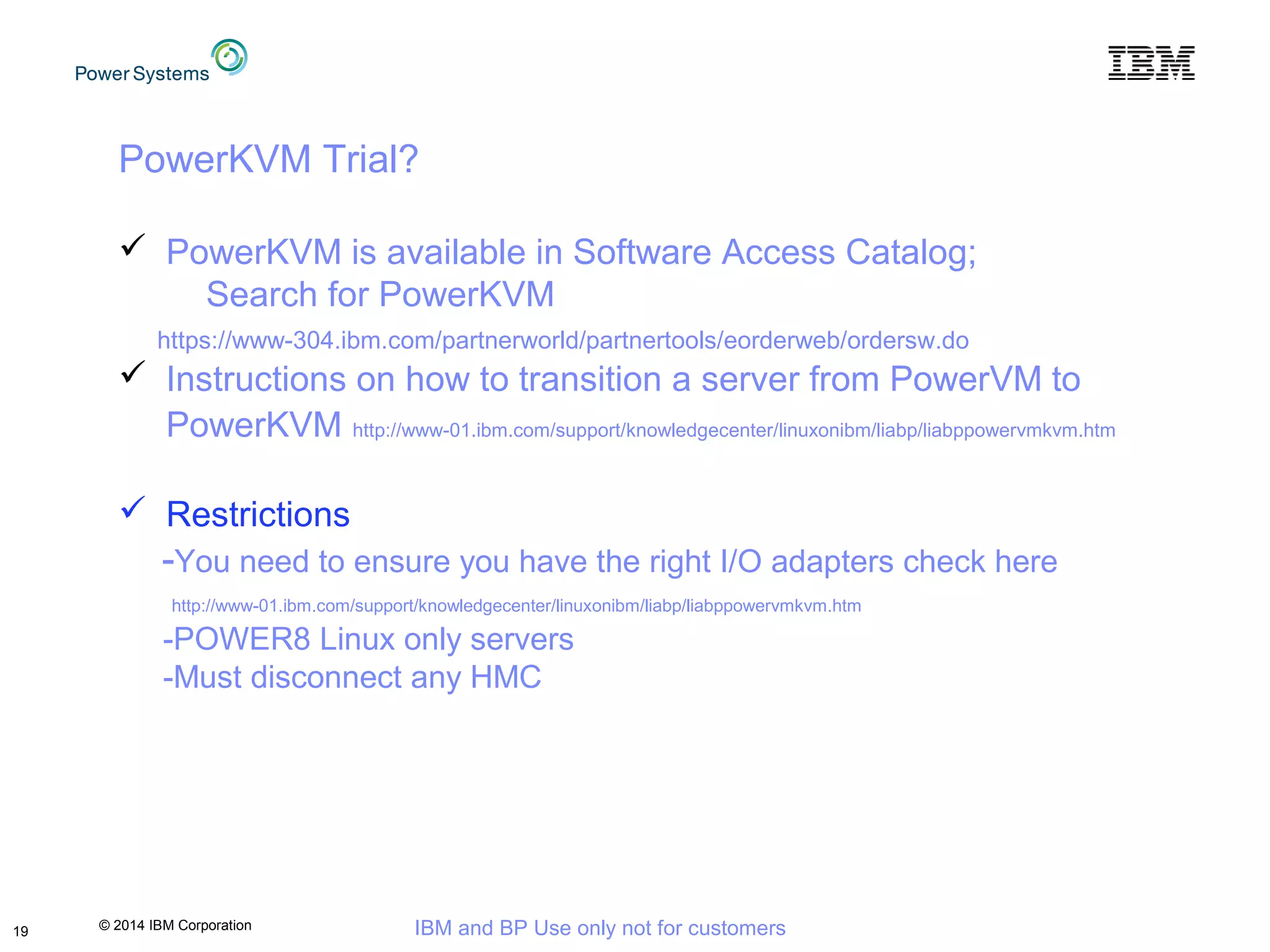

PowerKVM Trial?
 PowerKVM is available in Software Access Catalog;
Search for PowerKVM
https://www-304.ibm.com/partnerworld/partnertools/eorderweb/ordersw.do
 Instructions on how to transition a server from PowerVM to
PowerKVM http://www-01.ibm.com/support/knowledgecenter/linuxonibm/liabp/liabppowervmkvm.htm
 Restrictions
-You need to ensure you have the right I/O adapters check here
http://www-01.ibm.com/support/knowledgecenter/linuxonibm/liabp/liabppowervmkvm.htm
-POWER8 Linux only servers
-Must disconnect any HMC

20. © 2014 IBM Corporation IBM and BP Use only not for customers20

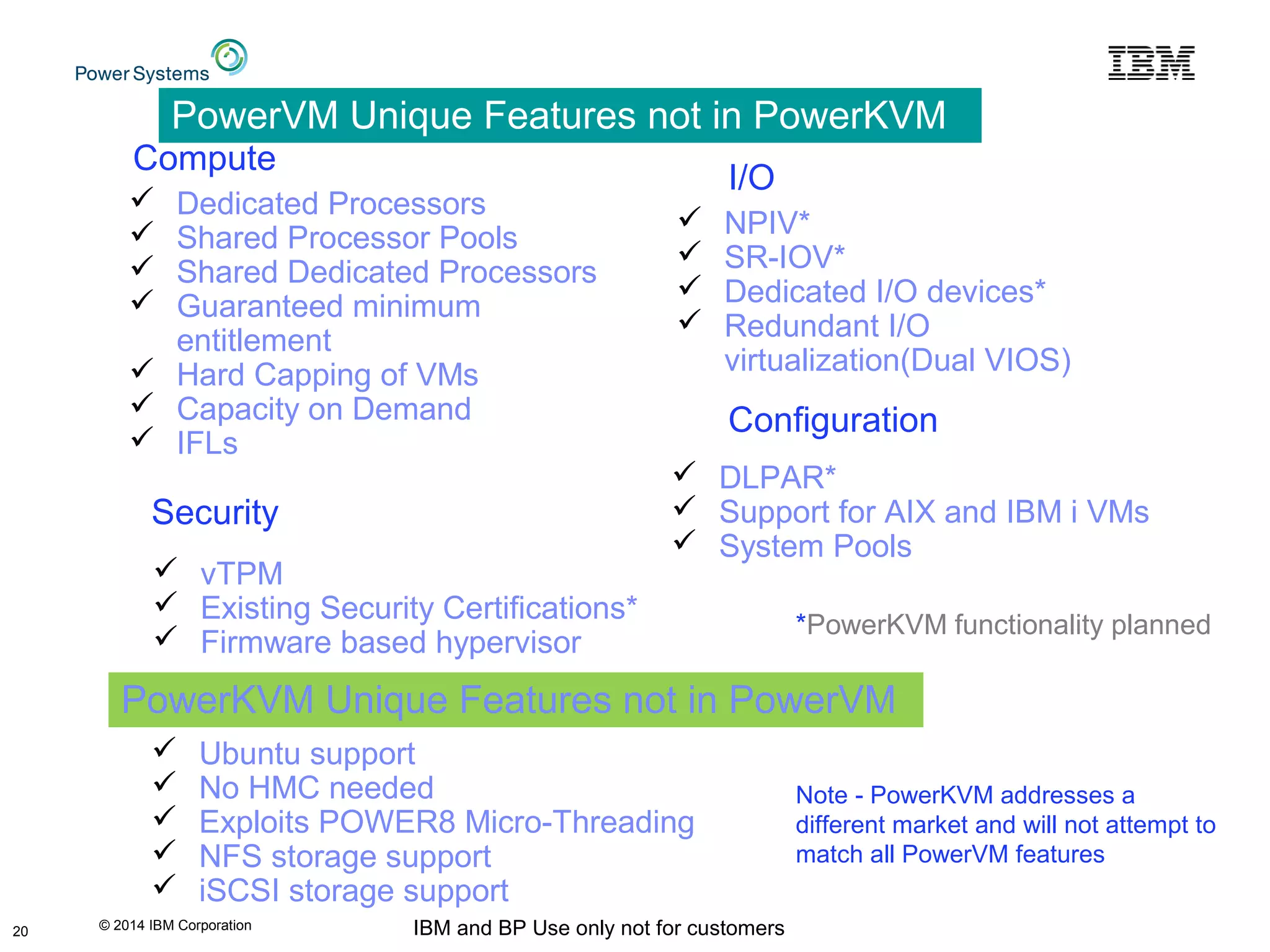

PowerVM Unique Features not in PowerKVM
 Dedicated Processors
 Shared Processor Pools
 Shared Dedicated Processors
 Guaranteed minimum
entitlement
 Hard Capping of VMs
 Capacity on Demand
 IFLs
Compute
Security
 vTPM
 Existing Security Certifications*
 Firmware based hypervisor
I/O
 NPIV*
 SR-IOV*
 Dedicated I/O devices*
 Redundant I/O
virtualization(Dual VIOS)
Configuration
 DLPAR*
 Support for AIX and IBM i VMs
 System Pools
 Ubuntu support
 No HMC needed
 Exploits POWER8 Micro-Threading
 NFS storage support
 iSCSI storage support
PowerKVM Unique Features not in PowerVM
*PowerKVM functionality planned
Note - PowerKVM addresses a
different market and will not attempt to
match all PowerVM features

21. © 2014 IBM Corporation IBM and BP Use only not for customers

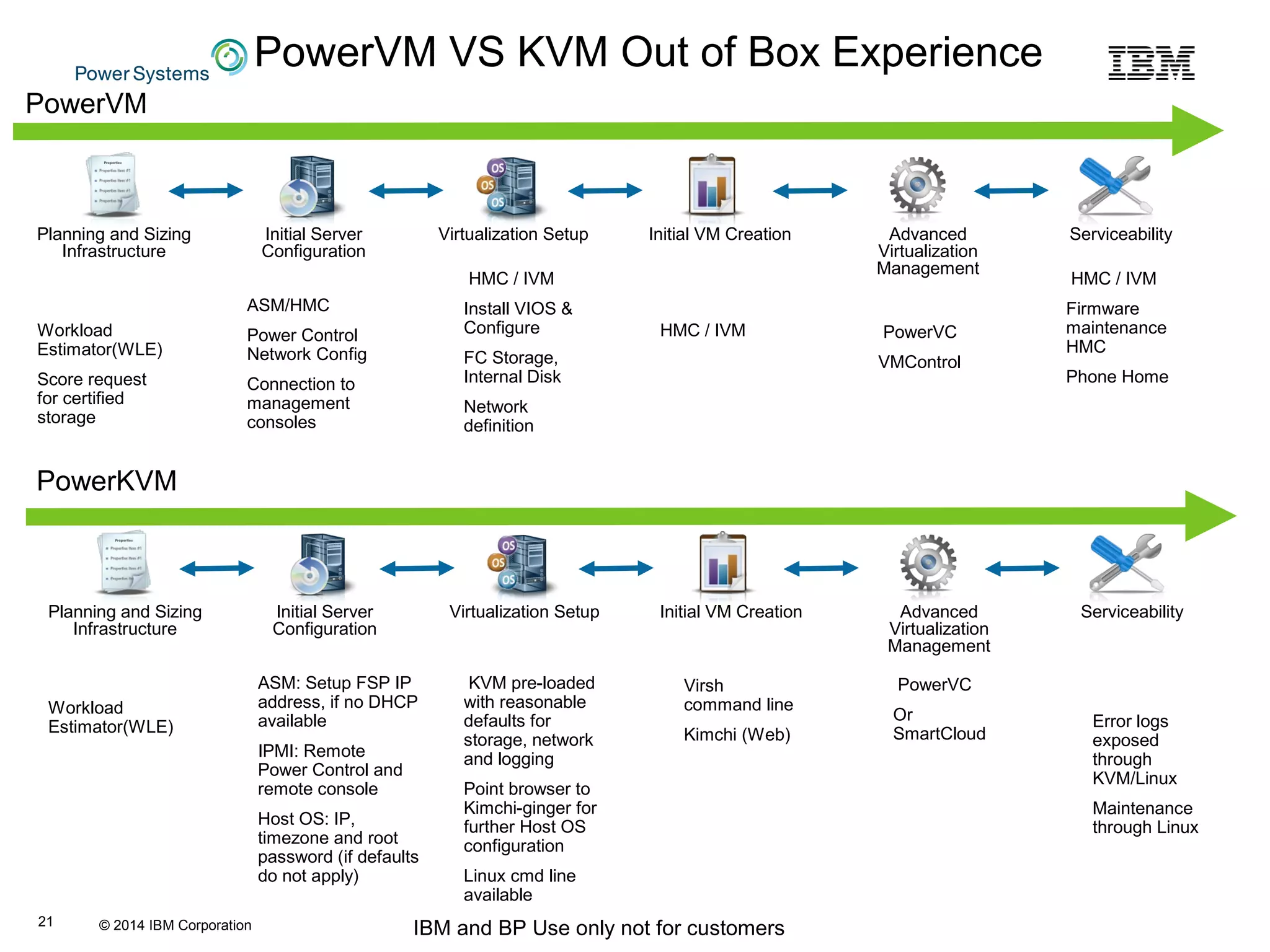

PowerVM VS KVM Out of Box Experience
Planning and Sizing
Infrastructure
Initial Server
Configuration
Virtualization Setup Initial VM Creation Advanced
Virtualization
Management
Serviceability
21
Workload
Estimator(WLE)
Score request
for certified
storage
ASM/HMC
Power Control
Network Config
Connection to
management
consoles
HMC / IVM
Install VIOS &
Configure
FC Storage,
Internal Disk
Network
definition
HMC / IVM
Firmware
maintenance
HMC
Phone Home
PowerVM
HMC / IVM PowerVC
VMControl
Planning and Sizing
Infrastructure
Initial Server
Configuration
Virtualization Setup Initial VM Creation Advanced
Virtualization
Management
Serviceability
Workload
Estimator(WLE)
ASM: Setup FSP IP
address, if no DHCP
available
IPMI: Remote
Power Control and
remote console
Host OS: IP,
timezone and root
password (if defaults
do not apply)
KVM pre-loaded
with reasonable
defaults for
storage, network
and logging
Point browser to
Kimchi-ginger for
further Host OS
configuration
Linux cmd line
available
Error logs
exposed
through
KVM/Linux
Maintenance
through Linux
PowerKVM
Virsh
command line
Kimchi (Web)
PowerVC
Or
SmartCloud

22. © 2014 IBM Corporation IBM and BP Use only not for customers
22
 Reduces IT infrastructure costs
– Consolidated diverse workloads save
operational costs
 Improves service levels
– Virtualized resources can be applied
dynamically to workloads as needed
 Manages risk
– Unrivaled flexibility enables rapid
response to business change
minimizing risk

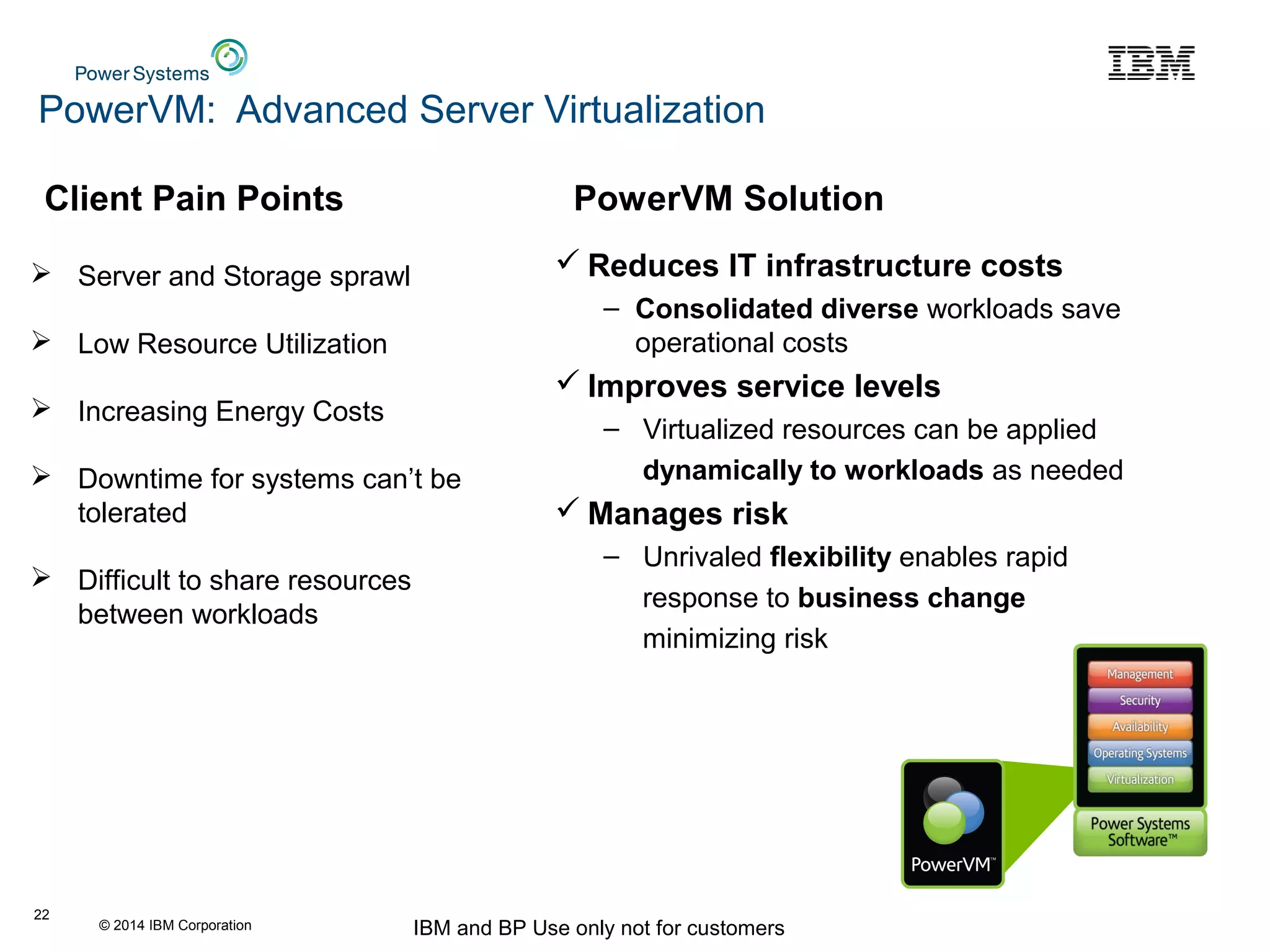

PowerVM: Advanced Server Virtualization
 Server and Storage sprawl
 Low Resource Utilization
 Increasing Energy Costs
 Downtime for systems can’t be
tolerated
 Difficult to share resources
between workloads
PowerVM SolutionClient Pain Points

23. © 2014 IBM Corporation IBM and BP Use only not for customers
Platform
Management
Virtualization
Management
Cloud
Management
HMCHMC
PowerVCPowerVC
IBM CloudIBM Cloud
Cloud Service Delivery with IBM Cloud Solutions
Virtualization Management with PowerVC
Power Systems Hardware Management Console
Providing comprehensive and consistent
management experience for rack server,
blades and PureFlex
IBM Power Systems Management Strategy
• Hardware and firmware management for Power
• Hardware and firmware configuration and controls
• Service, support and update management
• Hardware appliance (today); virtual appliance (tomorrow)
• Management solution for PowerVM and PowerKVM
• Virtual Image Management and Deployment
• Resource Pooling and Dynamic VM Placement
• On-going optimization and VM resilience
• End-user self-service provisioning and automation
• Service catalog with virtual systems and applications
• Process automation, multi-tenant management and operations
• Delivered as Entry, Provisioning and Orchestration

24. © 2014 IBM Corporation IBM and IBM BP use only. Not intended for customer use.

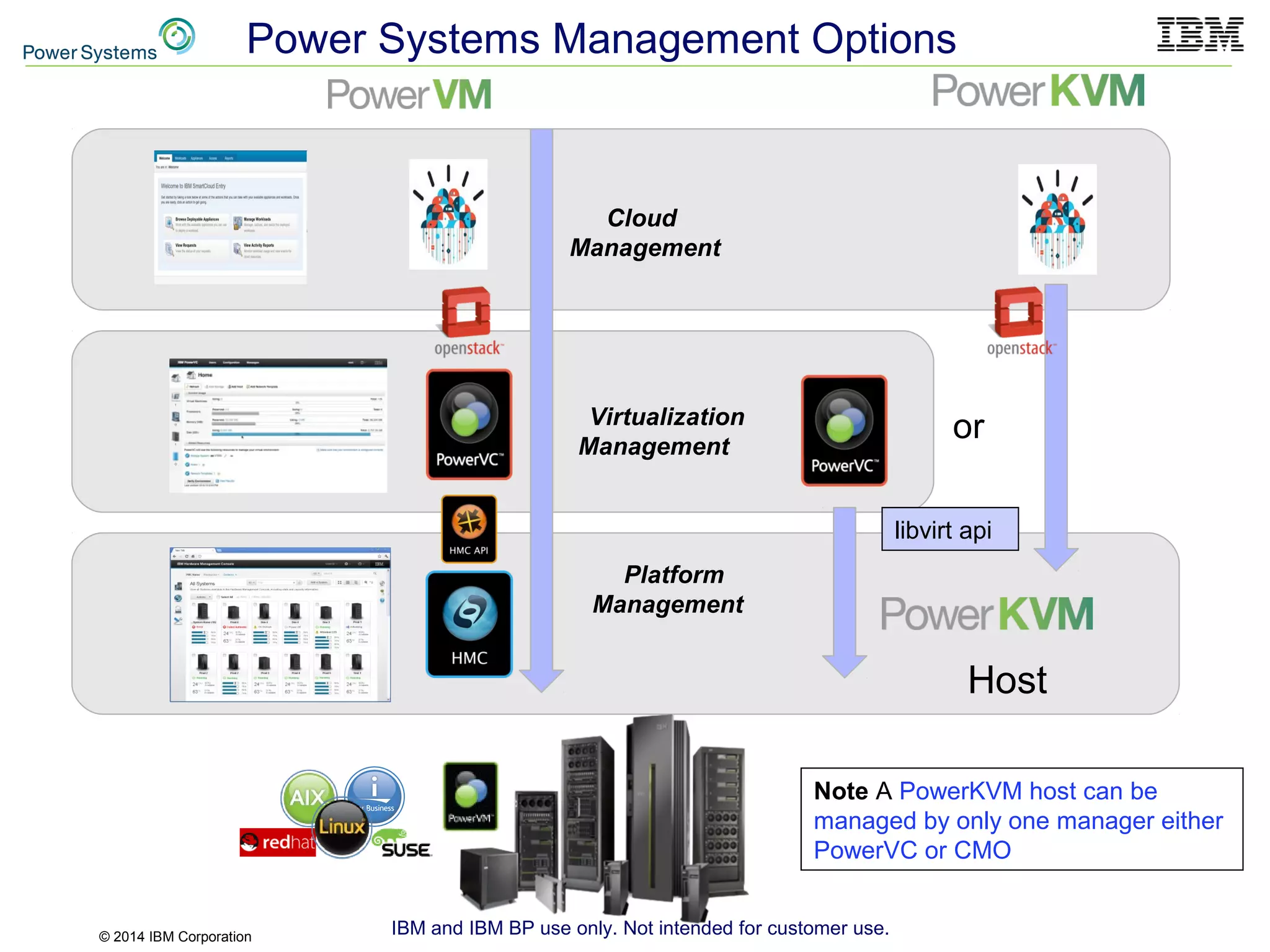

Power Systems Management Options
Cloud
Management
Virtualization
Management
Platform
Management
Host
or
Note A PowerKVM host can be
managed by only one manager either
PowerVC or CMO
libvirt api

25. © 2014 IBM Corporation IBM and BP Use only not for customers25

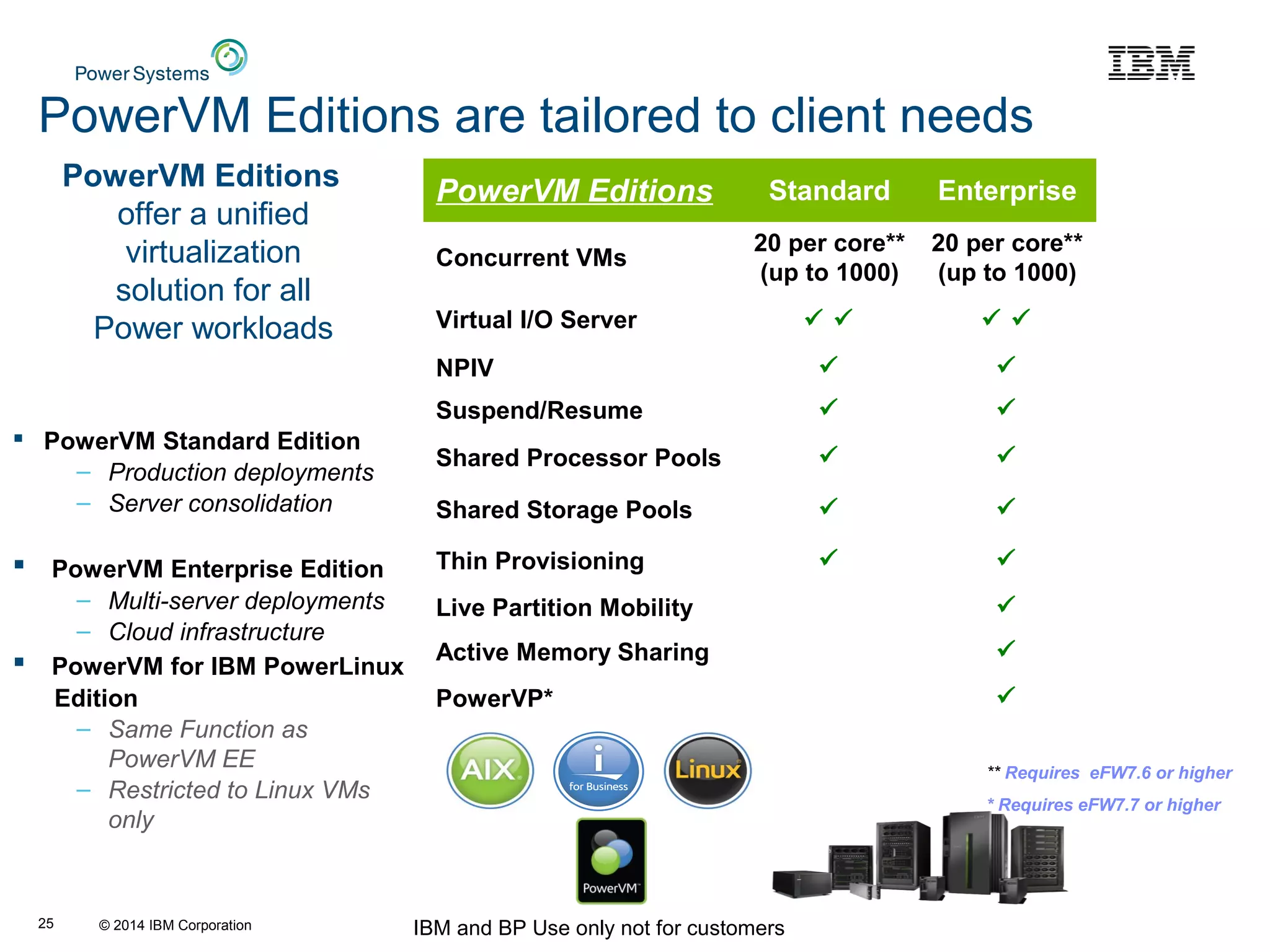

PowerVM Editions
offer a unified
virtualization
solution for all
Power workloads
 PowerVM Standard Edition
– Production deployments
– Server consolidation
 PowerVM Enterprise Edition
– Multi-server deployments
– Cloud infrastructure
 PowerVM for IBM PowerLinux
Edition
– Same Function as
PowerVM EE
– Restricted to Linux VMs
only
PowerVM Editions are tailored to client needs
PowerVM Editions Standard Enterprise
Concurrent VMs
20 per core**
(up to 1000)
20 per core**
(up to 1000)
Virtual I/O Server    
NPIV  
Suspend/Resume  
Shared Processor Pools  
Shared Storage Pools  
Thin Provisioning  
Live Partition Mobility 
Active Memory Sharing 
PowerVP* 
** Requires eFW7.6 or higher
* Requires eFW7.7 or higher

26. © 2014 IBM Corporation

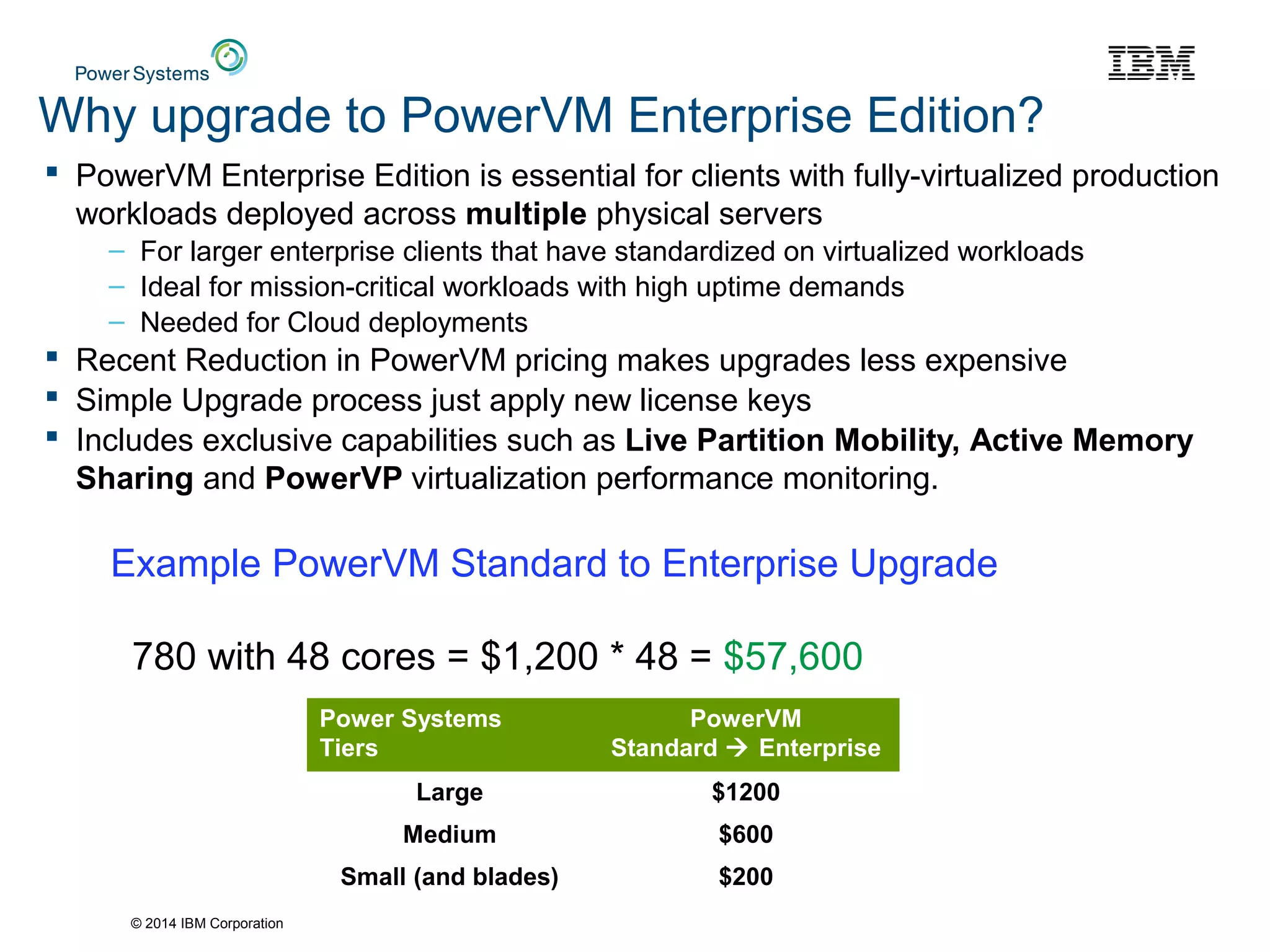

Why upgrade to PowerVM Enterprise Edition?
 PowerVM Enterprise Edition is essential for clients with fully-virtualized production
workloads deployed across multiple physical servers
– For larger enterprise clients that have standardized on virtualized workloads
– Ideal for mission-critical workloads with high uptime demands
– Needed for Cloud deployments
 Recent Reduction in PowerVM pricing makes upgrades less expensive
 Simple Upgrade process just apply new license keys
 Includes exclusive capabilities such as Live Partition Mobility, Active Memory
Sharing and PowerVP virtualization performance monitoring.
Example PowerVM Standard to Enterprise Upgrade
780 with 48 cores = $1,200 * 48 = $57,600
Power Systems
Tiers
PowerVM
Standard  Enterprise
Large $1200
Medium $600
Small (and blades) $200

27. © 2014 IBM Corporation

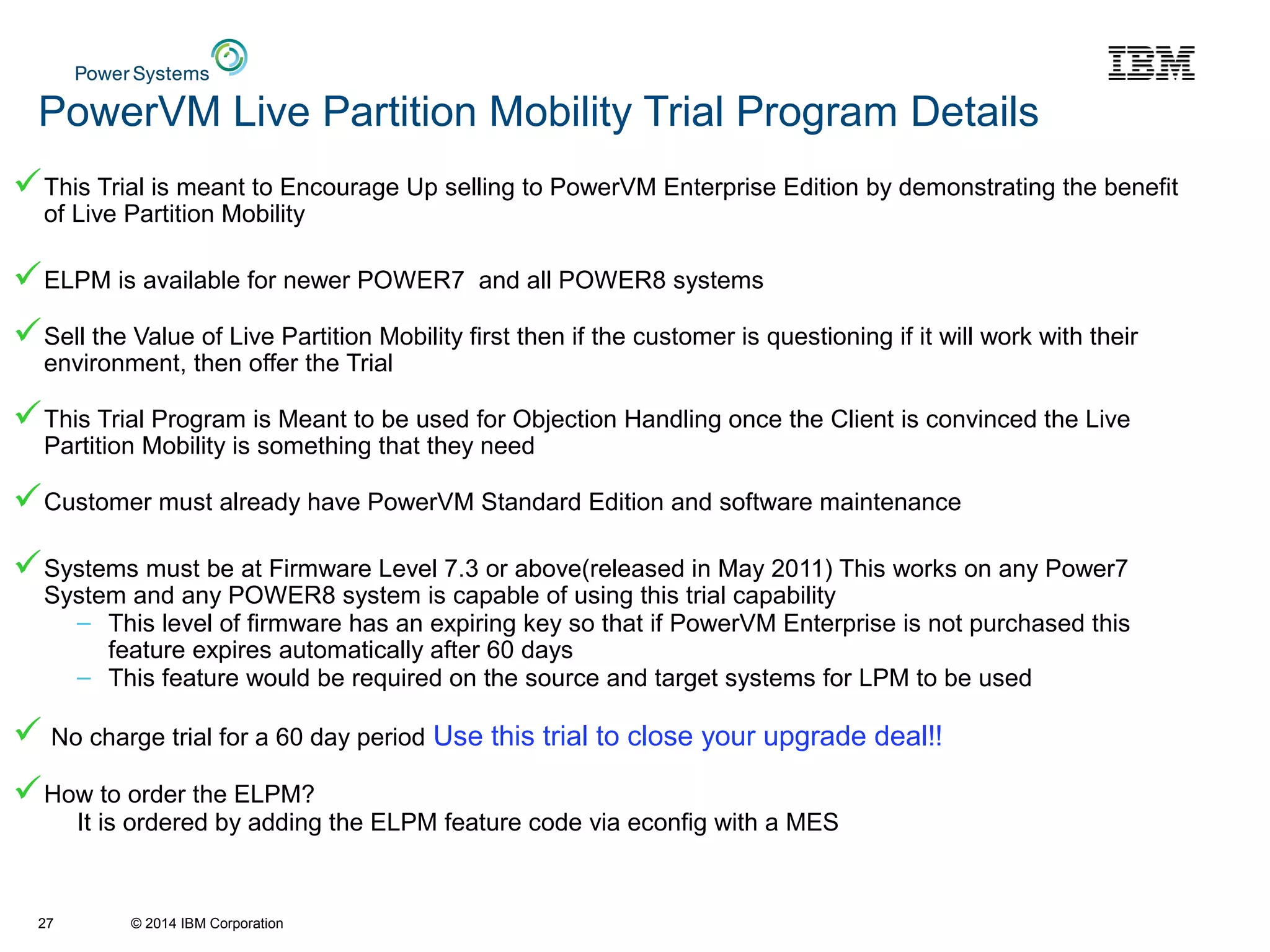

PowerVM Live Partition Mobility Trial Program Details
This Trial is meant to Encourage Up selling to PowerVM Enterprise Edition by demonstrating the benefit
of Live Partition Mobility
ELPM is available for newer POWER7 and all POWER8 systems
Sell the Value of Live Partition Mobility first then if the customer is questioning if it will work with their
environment, then offer the Trial
This Trial Program is Meant to be used for Objection Handling once the Client is convinced the Live
Partition Mobility is something that they need
Customer must already have PowerVM Standard Edition and software maintenance
Systems must be at Firmware Level 7.3 or above(released in May 2011) This works on any Power7
System and any POWER8 system is capable of using this trial capability
– This level of firmware has an expiring key so that if PowerVM Enterprise is not purchased this
feature expires automatically after 60 days
– This feature would be required on the source and target systems for LPM to be used
 No charge trial for a 60 day period Use this trial to close your upgrade deal!!
How to order the ELPM?
It is ordered by adding the ELPM feature code via econfig with a MES
27

28. © 2014 IBM Corporation IBM and BP Use only not for customers

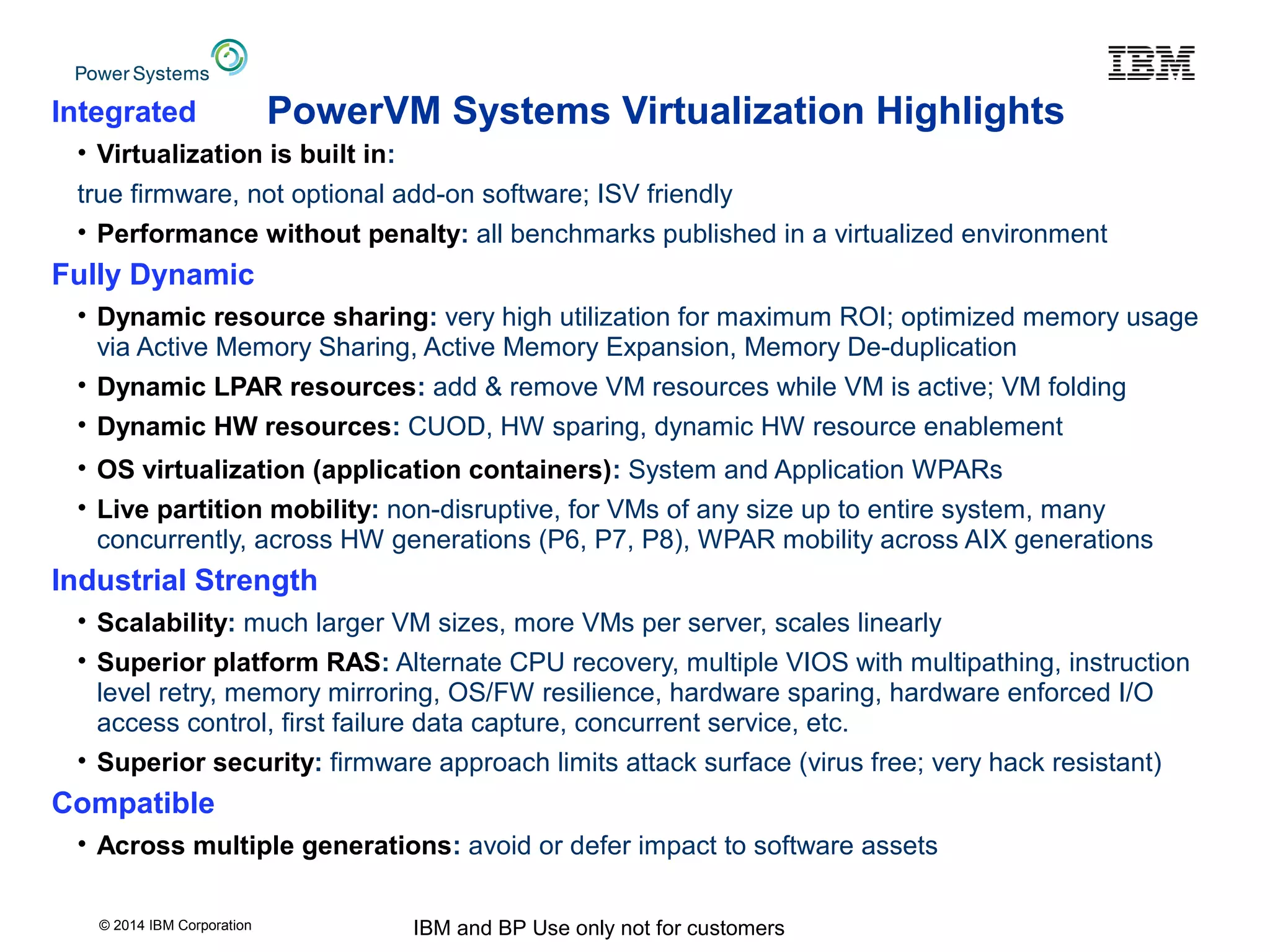

PowerVM Systems Virtualization HighlightsIntegrated
• Virtualization is built in:
true firmware, not optional add-on software; ISV friendly
• Performance without penalty: all benchmarks published in a virtualized environment
Fully Dynamic
• Dynamic resource sharing: very high utilization for maximum ROI; optimized memory usage
via Active Memory Sharing, Active Memory Expansion, Memory De-duplication
• Dynamic LPAR resources: add & remove VM resources while VM is active; VM folding
• Dynamic HW resources: CUOD, HW sparing, dynamic HW resource enablement
• OS virtualization (application containers): System and Application WPARs
• Live partition mobility: non-disruptive, for VMs of any size up to entire system, many
concurrently, across HW generations (P6, P7, P8), WPAR mobility across AIX generations
Industrial Strength
• Scalability: much larger VM sizes, more VMs per server, scales linearly
• Superior platform RAS: Alternate CPU recovery, multiple VIOS with multipathing, instruction
level retry, memory mirroring, OS/FW resilience, hardware sparing, hardware enforced I/O
access control, first failure data capture, concurrent service, etc.
• Superior security: firmware approach limits attack surface (virus free; very hack resistant)
Compatible
• Across multiple generations: avoid or defer impact to software assets

29. © 2014 IBM Corporation IBM and BP Use only not for customers29
http://www.ibm.com/systems/power/software/virtualization
PowerVM resources include
white papers, demos, client
references and Redbooks
( … or Google ‘PowerVM’ and click I’m Feeling Lucky)

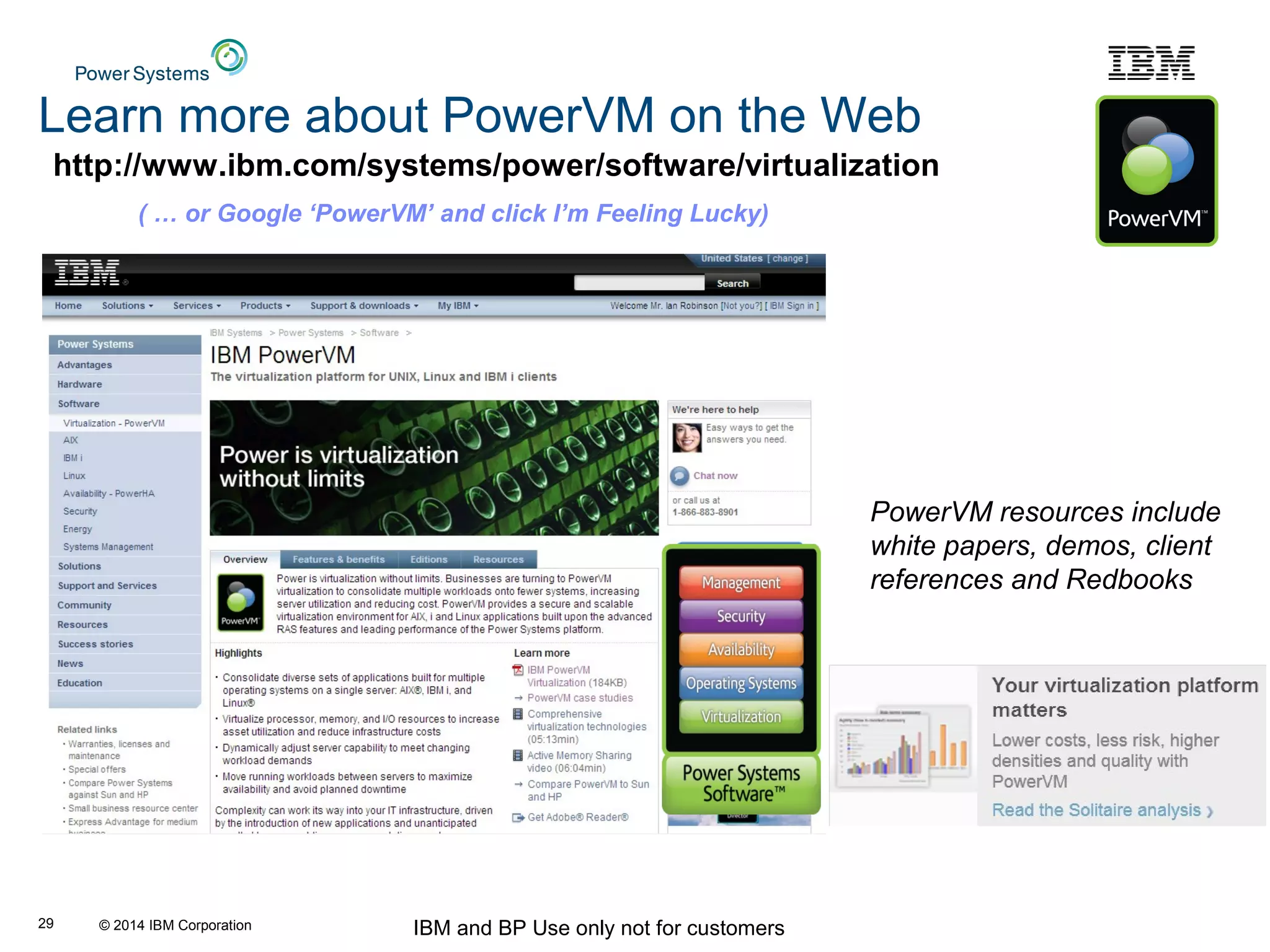

Learn more about PowerVM on the Web

30. © 2014 IBM Corporation IBM and BP Use only not for customers

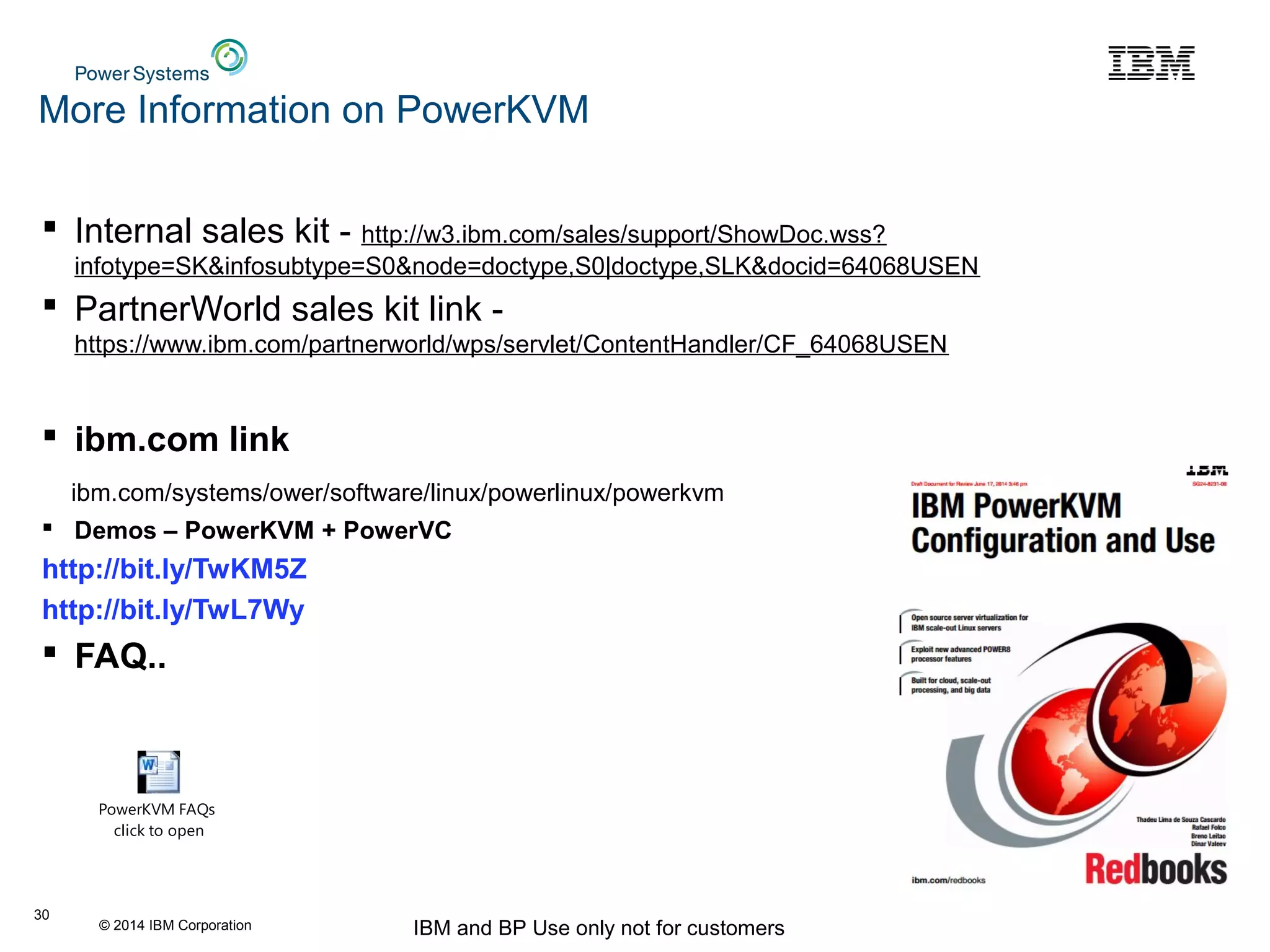

More Information on PowerKVM
 Internal sales kit - http://w3.ibm.com/sales/support/ShowDoc.wss?
infotype=SK&infosubtype=S0&node=doctype,S0|doctype,SLK&docid=64068USEN
 PartnerWorld sales kit link -
https://www.ibm.com/partnerworld/wps/servlet/ContentHandler/CF_64068USEN
 ibm.com link
ibm.com/systems/ower/software/linux/powerlinux/powerkvm
 Demos – PowerKVM + PowerVC
http://bit.ly/TwKM5Z
http://bit.ly/TwL7Wy
 FAQ..
30
PowerKVM FAQs
click to open

31. © 2014 IBM Corporation IBM and BP Use only not for customers31

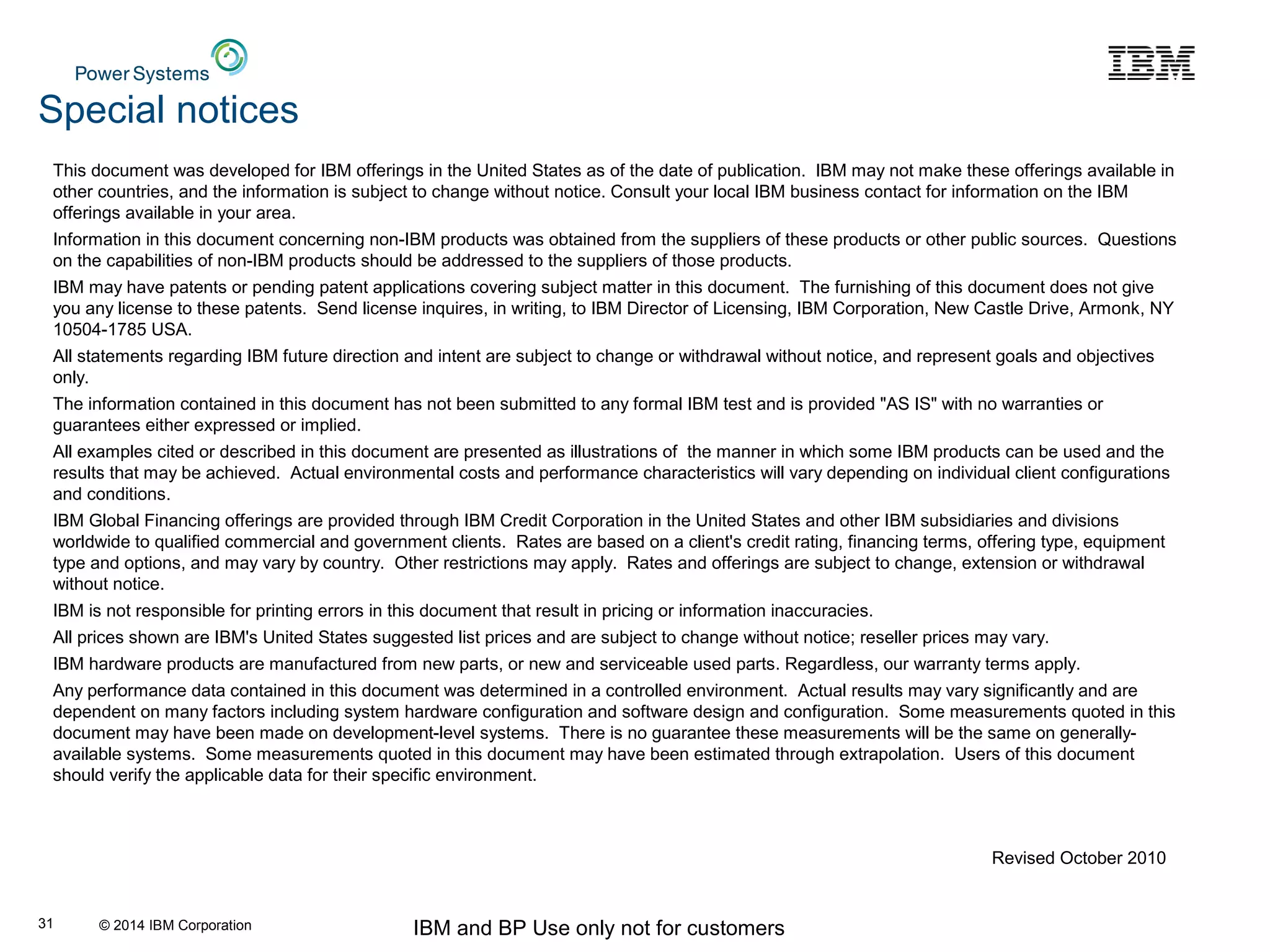

This document was developed for IBM offerings in the United States as of the date of publication. IBM may not make these offerings available in
other countries, and the information is subject to change without notice. Consult your local IBM business contact for information on the IBM
offerings available in your area.
Information in this document concerning non-IBM products was obtained from the suppliers of these products or other public sources. Questions
on the capabilities of non-IBM products should be addressed to the suppliers of those products.
IBM may have patents or pending patent applications covering subject matter in this document. The furnishing of this document does not give
you any license to these patents. Send license inquires, in writing, to IBM Director of Licensing, IBM Corporation, New Castle Drive, Armonk, NY
10504-1785 USA.
All statements regarding IBM future direction and intent are subject to change or withdrawal without notice, and represent goals and objectives
only.
The information contained in this document has not been submitted to any formal IBM test and is provided "AS IS" with no warranties or
guarantees either expressed or implied.
All examples cited or described in this document are presented as illustrations of the manner in which some IBM products can be used and the
results that may be achieved. Actual environmental costs and performance characteristics will vary depending on individual client configurations
and conditions.
IBM Global Financing offerings are provided through IBM Credit Corporation in the United States and other IBM subsidiaries and divisions
worldwide to qualified commercial and government clients. Rates are based on a client's credit rating, financing terms, offering type, equipment
type and options, and may vary by country. Other restrictions may apply. Rates and offerings are subject to change, extension or withdrawal
without notice.
IBM is not responsible for printing errors in this document that result in pricing or information inaccuracies.
All prices shown are IBM's United States suggested list prices and are subject to change without notice; reseller prices may vary.
IBM hardware products are manufactured from new parts, or new and serviceable used parts. Regardless, our warranty terms apply.
Any performance data contained in this document was determined in a controlled environment. Actual results may vary significantly and are
dependent on many factors including system hardware configuration and software design and configuration. Some measurements quoted in this
document may have been made on development-level systems. There is no guarantee these measurements will be the same on generally-
available systems. Some measurements quoted in this document may have been estimated through extrapolation. Users of this document
should verify the applicable data for their specific environment.
Revised October 2010
Special notices

32. © 2014 IBM Corporation IBM and BP Use only not for customers32
IBM, the IBM logo, ibm.com AIX, AIX (logo), AIX 6 (logo), AS/400, Active Memory, BladeCenter, Blue Gene, CacheFlow, ClusterProven, DB2, ESCON, i5/OS, i5/OS
(logo), IBM Business Partner (logo), IntelliStation, LoadLeveler, Lotus, Lotus Notes, Notes, Operating System/400, OS/400, PartnerLink, PartnerWorld, PowerPC,
pSeries, Rational, RISC System/6000, RS/6000, THINK, Tivoli, Tivoli (logo), Tivoli Management Environment, WebSphere, xSeries, z/OS, zSeries, AIX 5L, Chiphopper,
Chipkill, Cloudscape, DB2 Universal Database, DS4000, DS6000, DS8000, EnergyScale, Enterprise Workload Manager, General Purpose File System, , GPFS,
HACMP, HACMP/6000, HASM, IBM Systems Director Active Energy Manager, iSeries, Micro-Partitioning, POWER, PowerExecutive, PowerVM, PowerVM (logo),
PowerHA, Power Architecture, Power Everywhere, Power Family, POWER Hypervisor, Power Systems, Power Systems (logo), Power Systems Software, Power
Systems Software (logo), POWER2, POWER3, POWER4, POWER4+, POWER5, POWER5+, POWER6, POWER7, pureScale, System i, System p, System p5, System
Storage, System z, Tivoli Enterprise, TME 10, TurboCore, Workload Partitions Manager and X-Architecture are trademarks or registered trademarks of International
Business Machines Corporation in the United States, other countries, or both. If these and other IBM trademarked terms are marked on their first occurrence in this
information with a trademark symbol (® or ™), these symbols indicate U.S. registered or common law trademarks owned by IBM at the time this information was
published. Such trademarks may also be registered or common law trademarks in other countries. A current list of IBM trademarks is available on the Web at "Copyright
and trademark information" at www.ibm.com/legal/copytrade.shtml
The Power Architecture and Power.org wordmarks and the Power and Power.org logos and related marks are trademarks and service marks licensed by Power.org.
UNIX is a registered trademark of The Open Group in the United States, other countries or both.
Linux is a registered trademark of Linus Torvalds in the United States, other countries or both.
Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation in the United States, other countries or both.
Intel, Itanium, Pentium are registered trademarks and Xeon is a trademark of Intel Corporation or its subsidiaries in the United States, other countries or both.
AMD Opteron is a trademark of Advanced Micro Devices, Inc.
Java and all Java-based trademarks and logos are trademarks of Sun Microsystems, Inc. in the United States, other countries or both.
TPC-C and TPC-H are trademarks of the Transaction Performance Processing Council (TPPC).
SPECint, SPECfp, SPECjbb, SPECweb, SPECjAppServer, SPEC OMP, SPECviewperf, SPECapc, SPEChpc, SPECjvm, SPECmail, SPECimap and SPECsfs are
trademarks of the Standard Performance Evaluation Corp (SPEC).
NetBench is a registered trademark of Ziff Davis Media in the United States, other countries or both.
AltiVec is a trademark of Freescale Semiconductor, Inc.
Cell Broadband Engine is a trademark of Sony Computer Entertainment Inc.
InfiniBand, InfiniBand Trade Association and the InfiniBand design marks are trademarks and/or service marks of the InfiniBand Trade Association.
Other company, product and service names may be trademarks or service marks of others.
Special notices (cont.)
Revised October 2010
