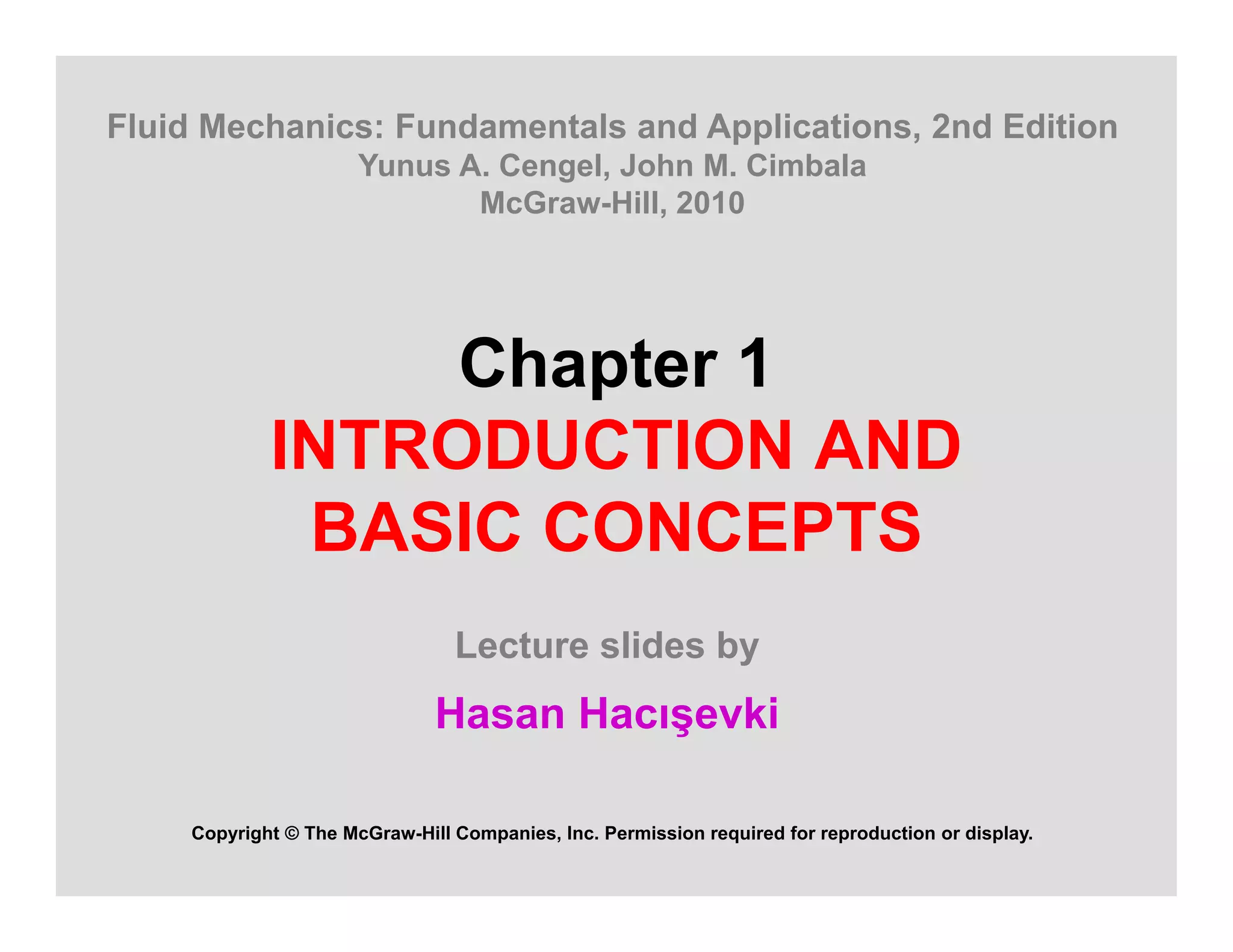

1. Chapter 1
INTRODUCTION AND
BASIC CONCEPTS
Lecture slides by
Hasan Hacışevki
Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Fluid Mechanics: Fundamentals and Applications, 2nd Edition
Yunus A. Cengel, John M. Cimbala
McGraw-Hill, 2010

2. 2
Schlieren image
showing the thermal
plume produced
by Professor
Cimbala as he
welcomes you to the
fascinating world of
fluid mechanics.

3. 3

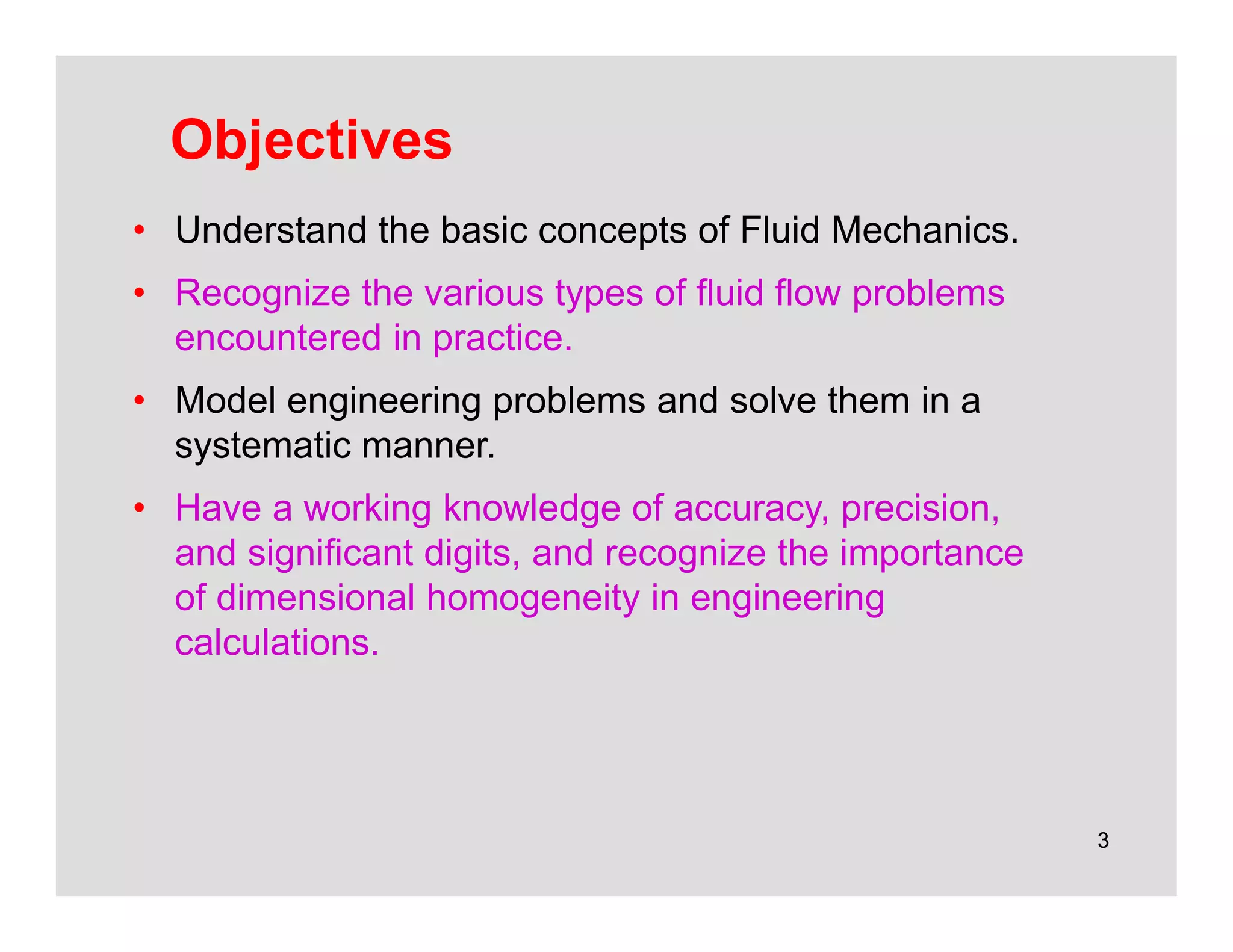

Objectives
• Understand the basic concepts of Fluid Mechanics.
• Recognize the various types of fluid flow problems
encountered in practice.
• Model engineering problems and solve them in a
systematic manner.
• Have a working knowledge of accuracy, precision,
and significant digits, and recognize the importance
of dimensional homogeneity in engineering
calculations.

4. 4

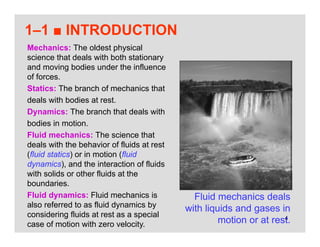

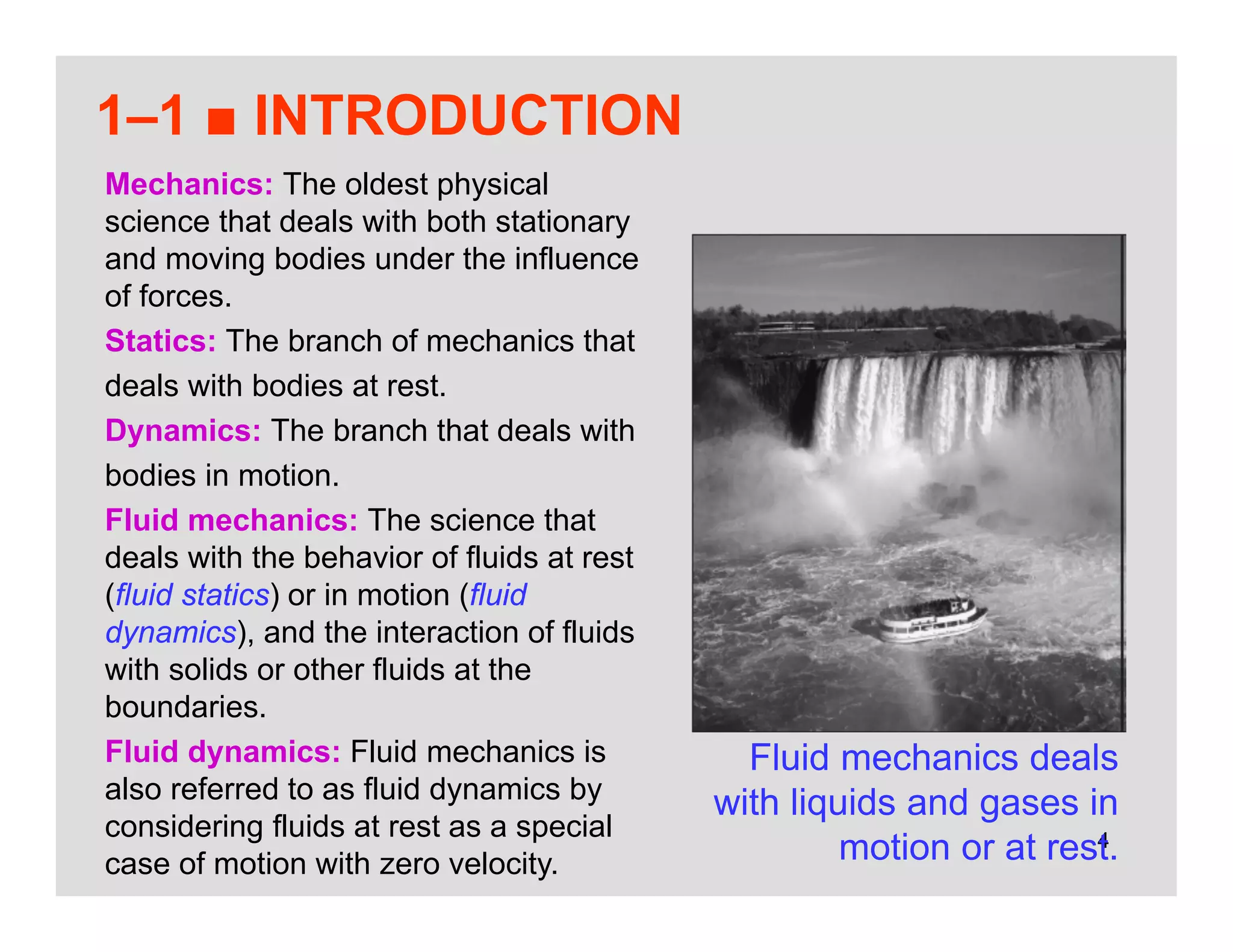

1–1 ■ INTRODUCTION
Fluid mechanics deals
with liquids and gases in
motion or at rest.
Mechanics: The oldest physical
science that deals with both stationary
and moving bodies under the influence
of forces.
Statics: The branch of mechanics that
deals with bodies at rest.
Dynamics: The branch that deals with
bodies in motion.
Fluid mechanics: The science that
deals with the behavior of fluids at rest
(fluid statics) or in motion (fluid
dynamics), and the interaction of fluids
with solids or other fluids at the
boundaries.
Fluid dynamics: Fluid mechanics is
also referred to as fluid dynamics by
considering fluids at rest as a special
case of motion with zero velocity.

5. 5

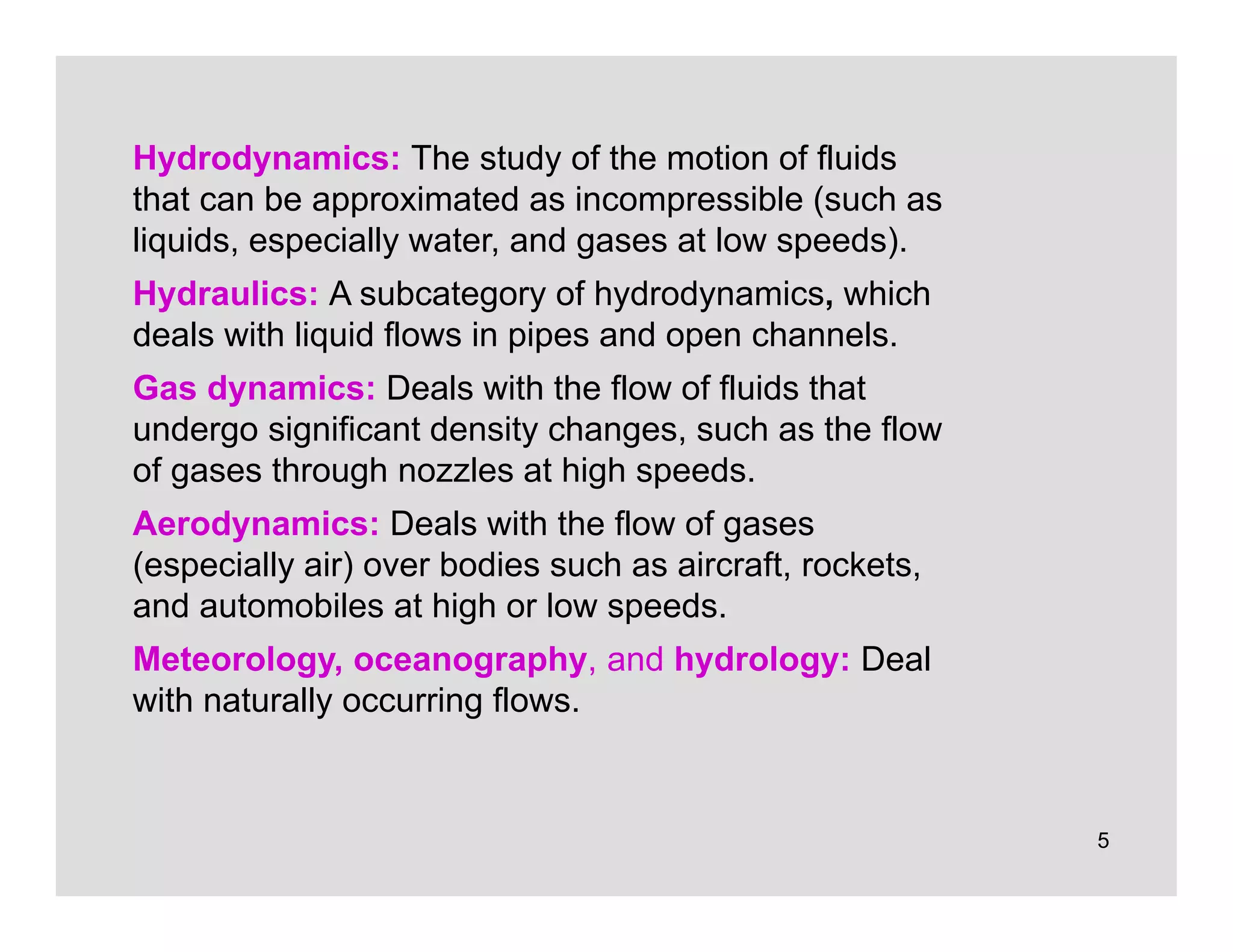

Hydrodynamics: The study of the motion of fluids
that can be approximated as incompressible (such as
liquids, especially water, and gases at low speeds).
Hydraulics: A subcategory of hydrodynamics, which
deals with liquid flows in pipes and open channels.
Gas dynamics: Deals with the flow of fluids that
undergo significant density changes, such as the flow
of gases through nozzles at high speeds.
Aerodynamics: Deals with the flow of gases
(especially air) over bodies such as aircraft, rockets,
and automobiles at high or low speeds.
Meteorology, oceanography, and hydrology: Deal
with naturally occurring flows.

6. 6
What Is a Fluid?
Fluid: A substance in the liquid
or gas phase.
A solid can resist an applied
shear stress by deforming.
A fluid deforms continuously
under the influence of a shear
stress, no matter how small.
In solids, stress is proportional
to strain, but in fluids, stress is
proportional to strain rate.
When a constant shear force is
applied, a solid eventually stops
deforming at some fixed strain
angle, whereas a fluid never
stops deforming and
approaches a constant rate of
strain.

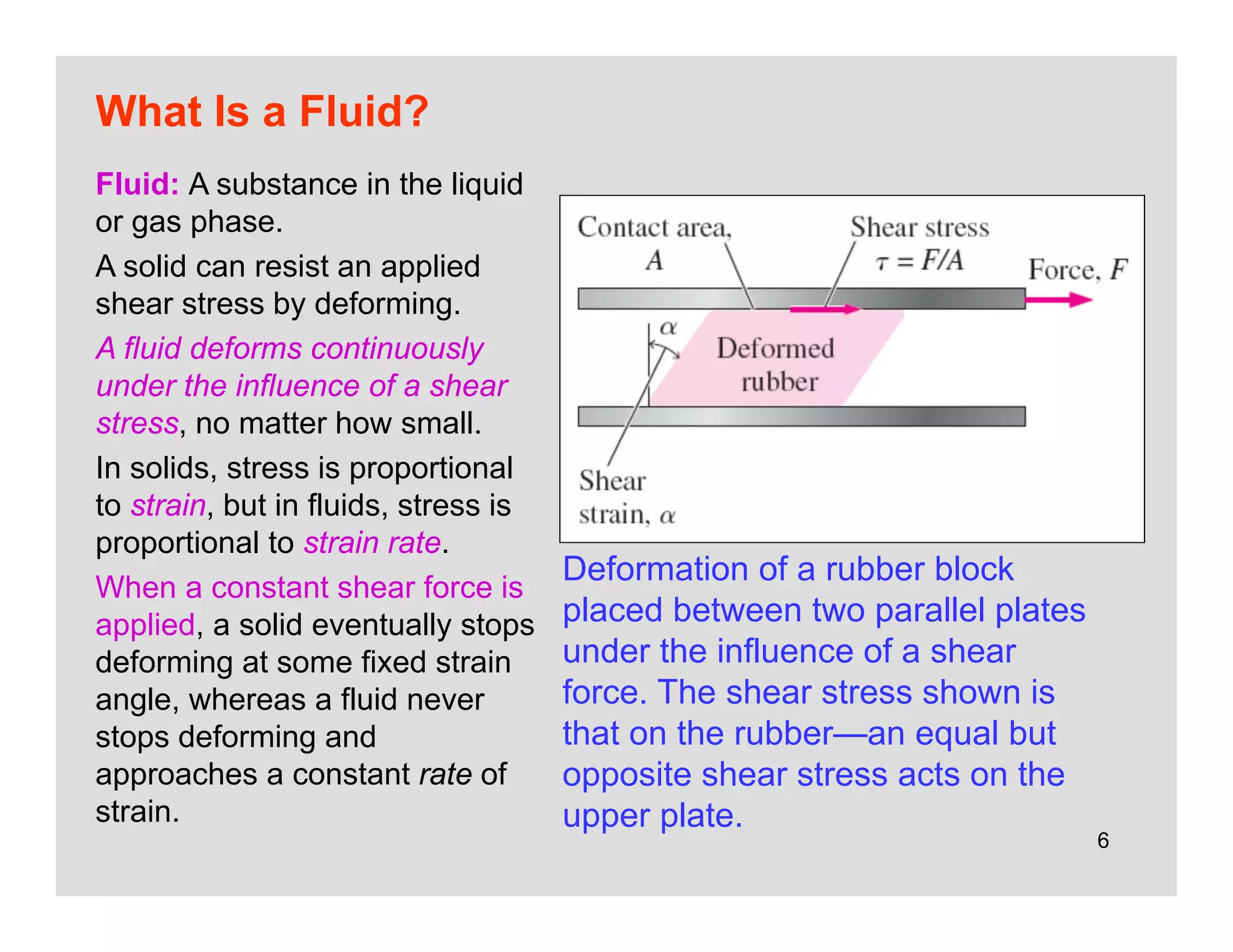

Deformation of a rubber block
placed between two parallel plates
under the influence of a shear
force. The shear stress shown is
that on the rubber—an equal but
opposite shear stress acts on the
upper plate.

7. 7
Stress: Force per unit area.
Normal stress: The normal
component of a force acting on a
surface per unit area.
Shear stress: The tangential
component of a force acting on a
surface per unit area.
Pressure: The normal stress in a
fluid at rest.
Zero shear stress: A fluid at rest is
at a state of zero shear stress.
When the walls are removed or a
liquid container is tilted, a shear
develops as the liquid moves to
re-establish a horizontal free
surface.

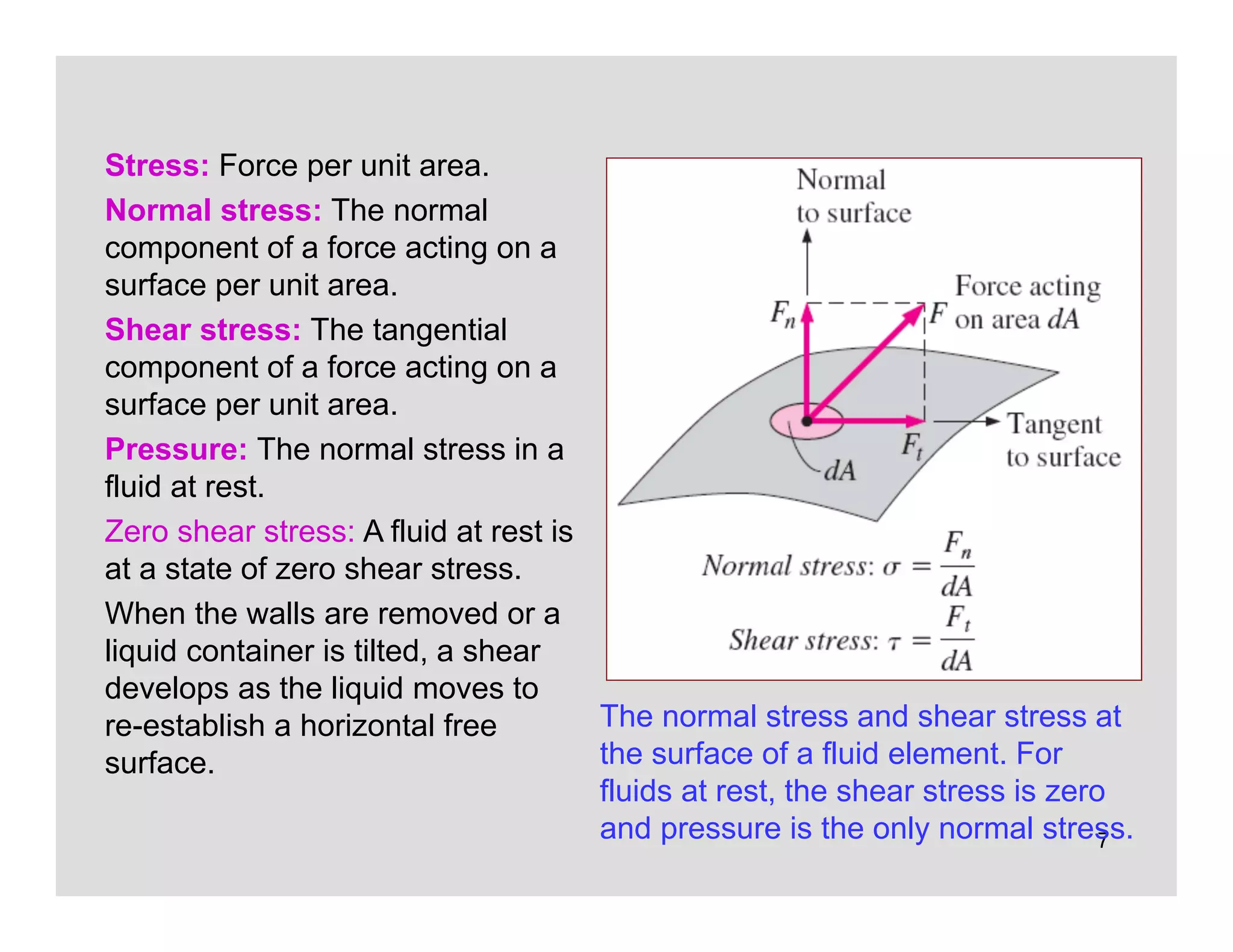

The normal stress and shear stress at
the surface of a fluid element. For
fluids at rest, the shear stress is zero
and pressure is the only normal stress.

8. 8

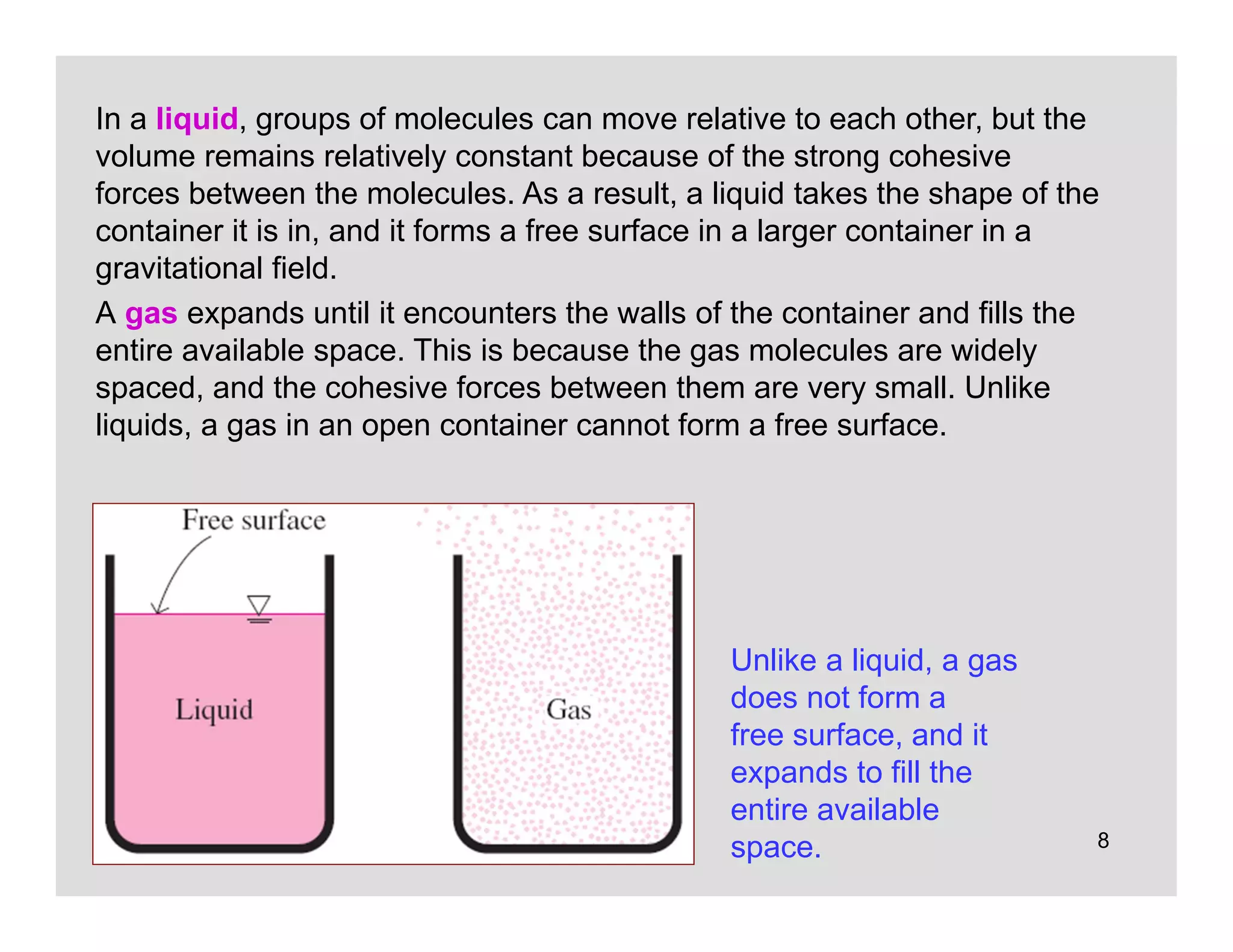

Unlike a liquid, a gas
does not form a
free surface, and it
expands to fill the
entire available
space.
In a liquid, groups of molecules can move relative to each other, but the
volume remains relatively constant because of the strong cohesive
forces between the molecules. As a result, a liquid takes the shape of the
container it is in, and it forms a free surface in a larger container in a
gravitational field.
A gas expands until it encounters the walls of the container and fills the
entire available space. This is because the gas molecules are widely
spaced, and the cohesive forces between them are very small. Unlike
liquids, a gas in an open container cannot form a free surface.

9. 9

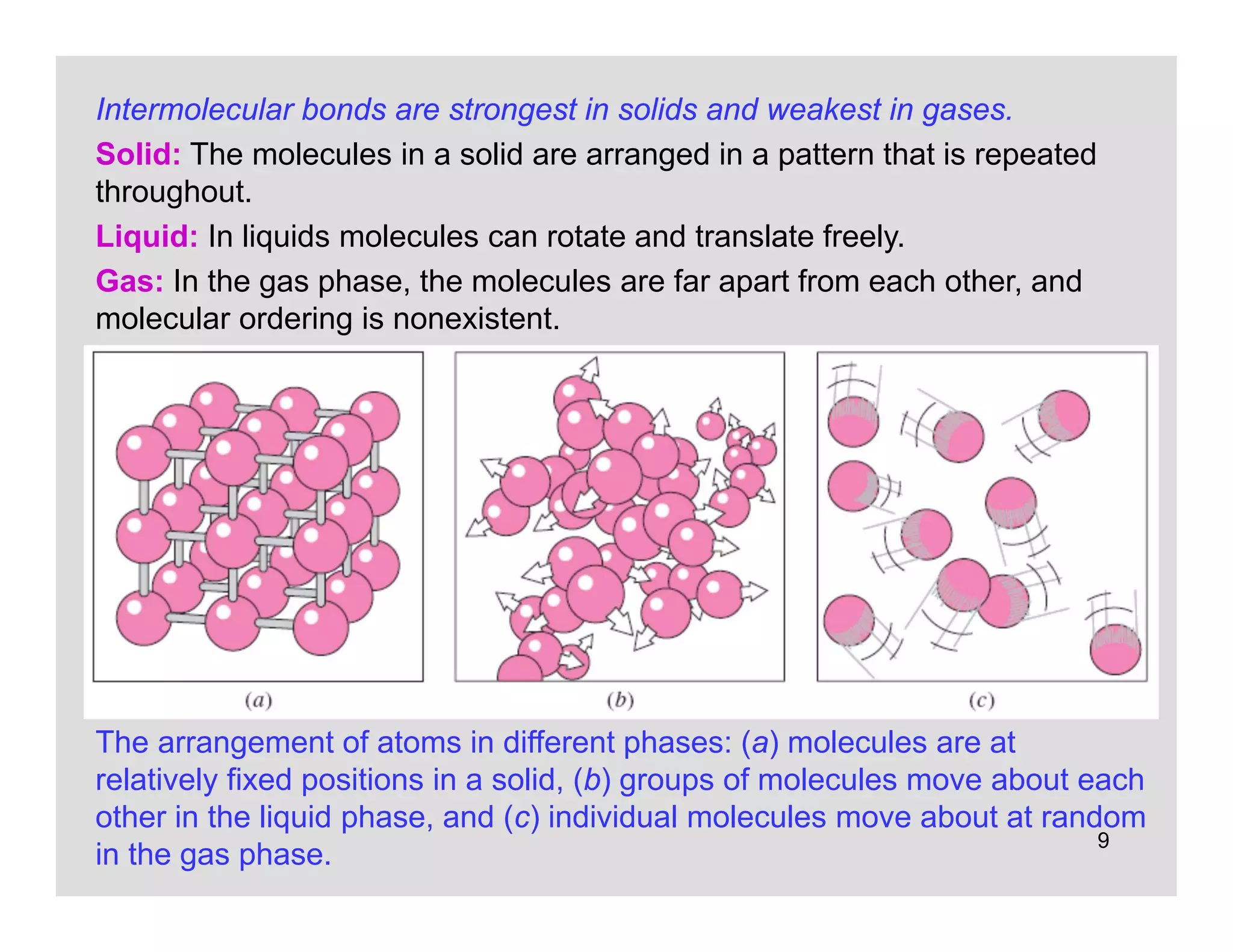

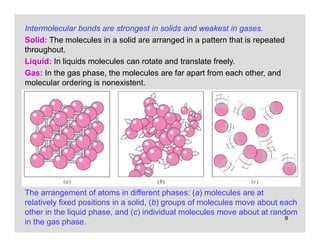

The arrangement of atoms in different phases: (a) molecules are at
relatively fixed positions in a solid, (b) groups of molecules move about each
other in the liquid phase, and (c) individual molecules move about at random
in the gas phase.
Intermolecular bonds are strongest in solids and weakest in gases.
Solid: The molecules in a solid are arranged in a pattern that is repeated
throughout.
Liquid: In liquids molecules can rotate and translate freely.
Gas: In the gas phase, the molecules are far apart from each other, and
molecular ordering is nonexistent.

10. 10

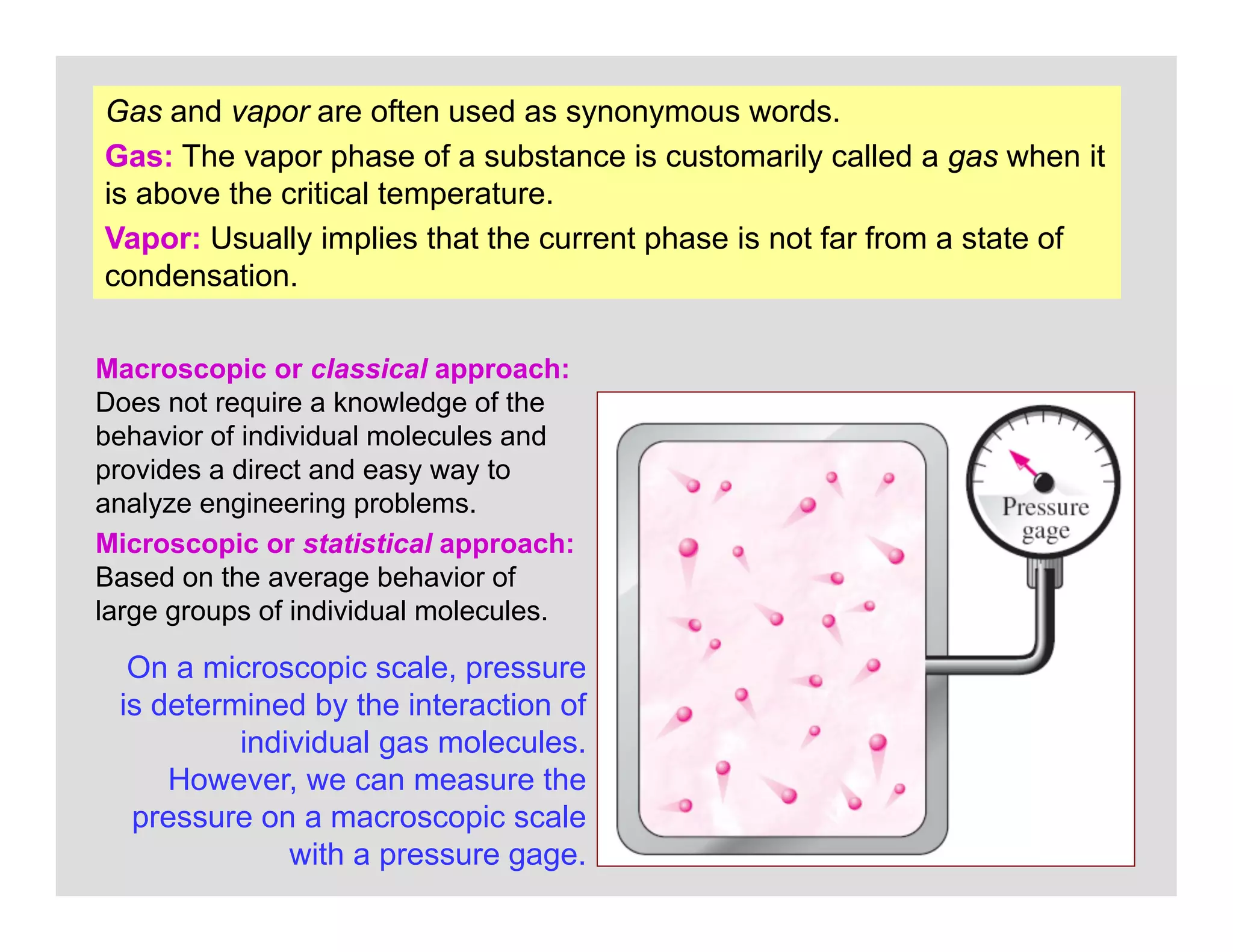

Gas and vapor are often used as synonymous words.
Gas: The vapor phase of a substance is customarily called a gas when it
is above the critical temperature.
Vapor: Usually implies that the current phase is not far from a state of
condensation.

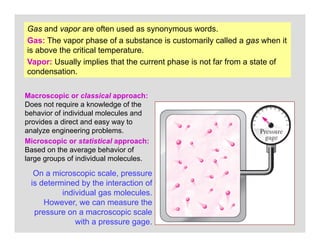

On a microscopic scale, pressure
is determined by the interaction of
individual gas molecules.
However, we can measure the
pressure on a macroscopic scale
with a pressure gage.
Macroscopic or classical approach:
Does not require a knowledge of the
behavior of individual molecules and
provides a direct and easy way to
analyze engineering problems.
Microscopic or statistical approach:
Based on the average behavior of
large groups of individual molecules.

11. 11

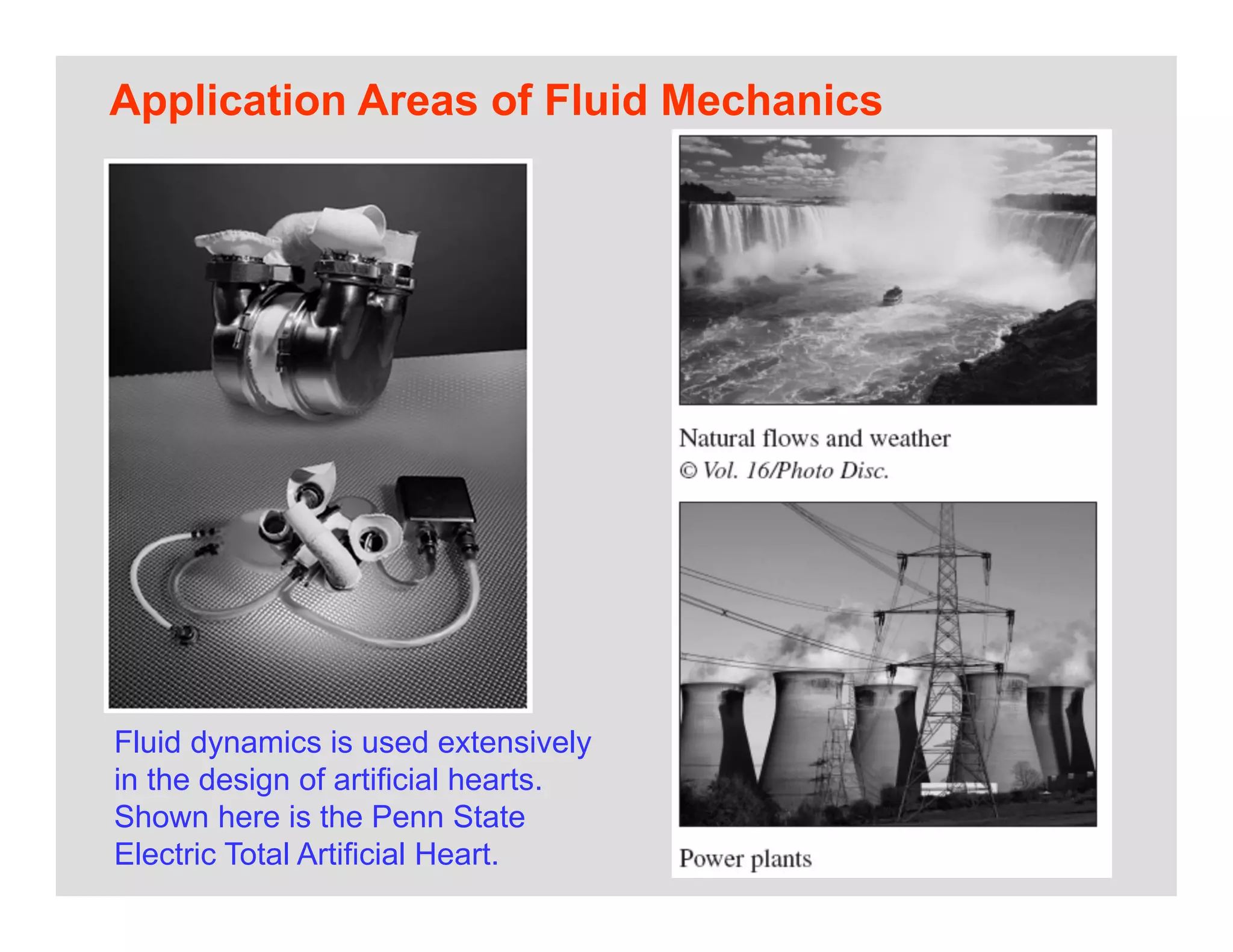

Application Areas of Fluid Mechanics
Fluid dynamics is used extensively
in the design of artificial hearts.
Shown here is the Penn State
Electric Total Artificial Heart.

12. 12

13. 13

14. 14
1–2 ■ THE NO-SLIP CONDITION

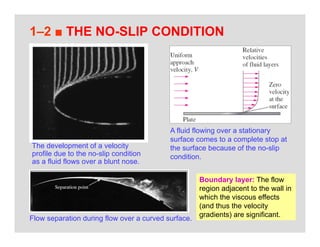

The development of a velocity
profile due to the no-slip condition
as a fluid flows over a blunt nose.
A fluid flowing over a stationary
surface comes to a complete stop at
the surface because of the no-slip
condition.
Flow separation during flow over a curved surface.
Boundary layer: The flow
region adjacent to the wall in
which the viscous effects
(and thus the velocity
gradients) are significant.

15. 15
1–3 ■ A BRIEF HISTORY OF FLUID MECHANICS

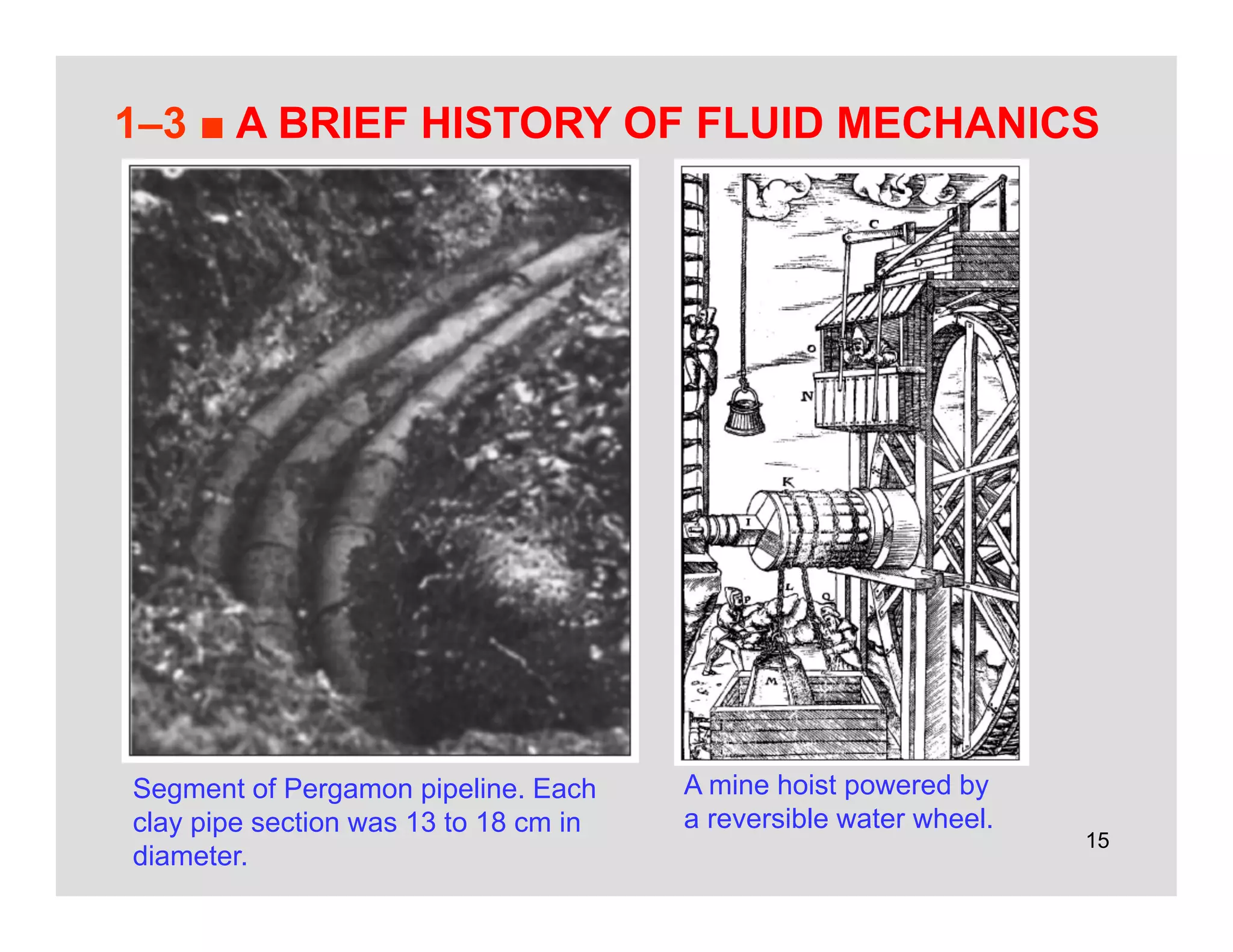

Segment of Pergamon pipeline. Each
clay pipe section was 13 to 18 cm in
diameter.
A mine hoist powered by
a reversible water wheel.

16. 16

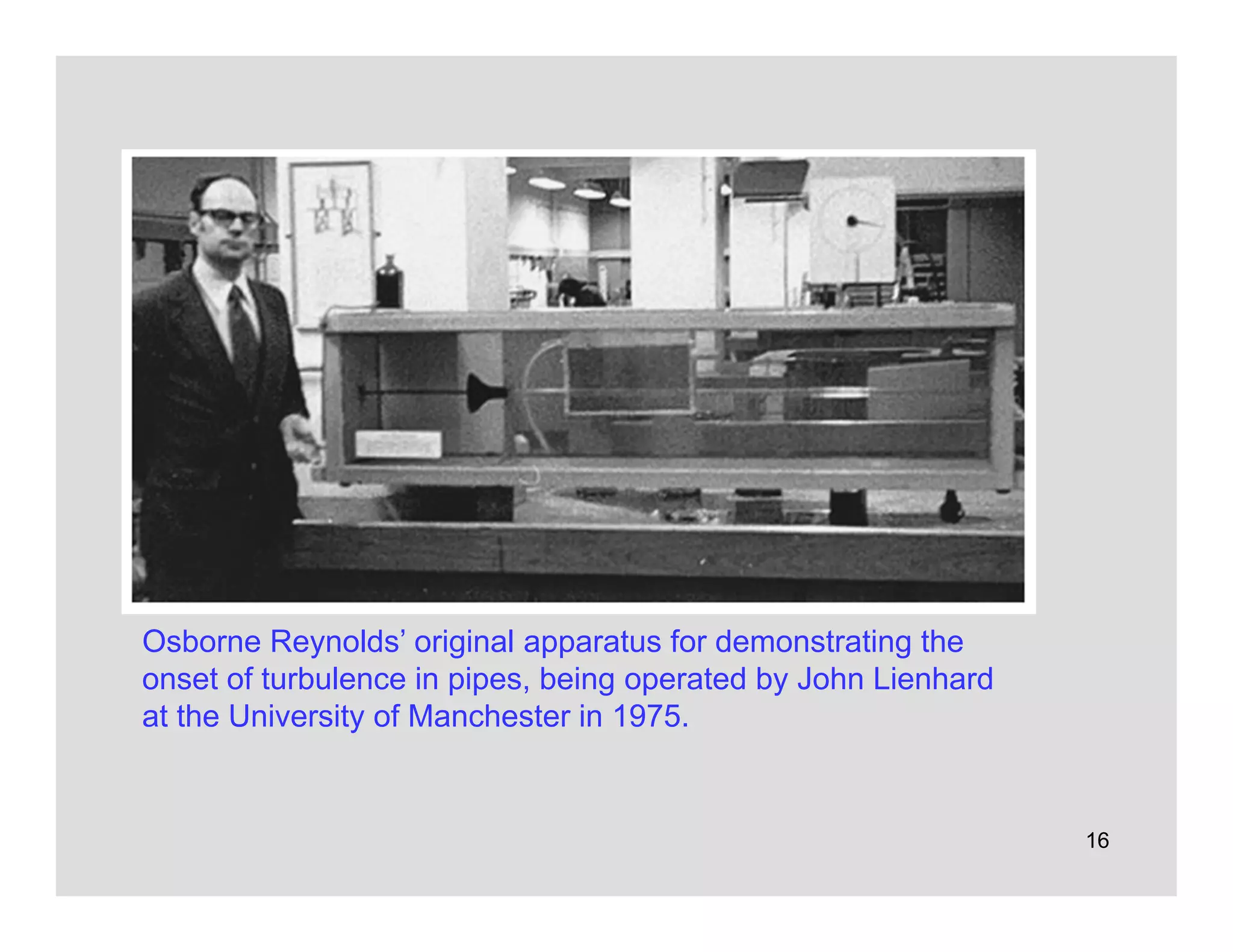

Osborne Reynolds’ original apparatus for demonstrating the
onset of turbulence in pipes, being operated by John Lienhard
at the University of Manchester in 1975.

17. 17
The Wright brothers take flight at Kitty Hawk.
The Oklahoma Wind Power Center
near Woodward consists of 68
turbines, 1.5 MW each.

18. 18
1–4 ■ CLASSIFICATION OF FLUID FLOWS
Viscous versus Inviscid Regions of Flow
Viscous flows: Flows in which the frictional effects are significant.
Inviscid flow regions: In many flows of practical interest, there are regions
(typically regions not close to solid surfaces) where viscous forces are
negligibly small compared to inertial or pressure forces.

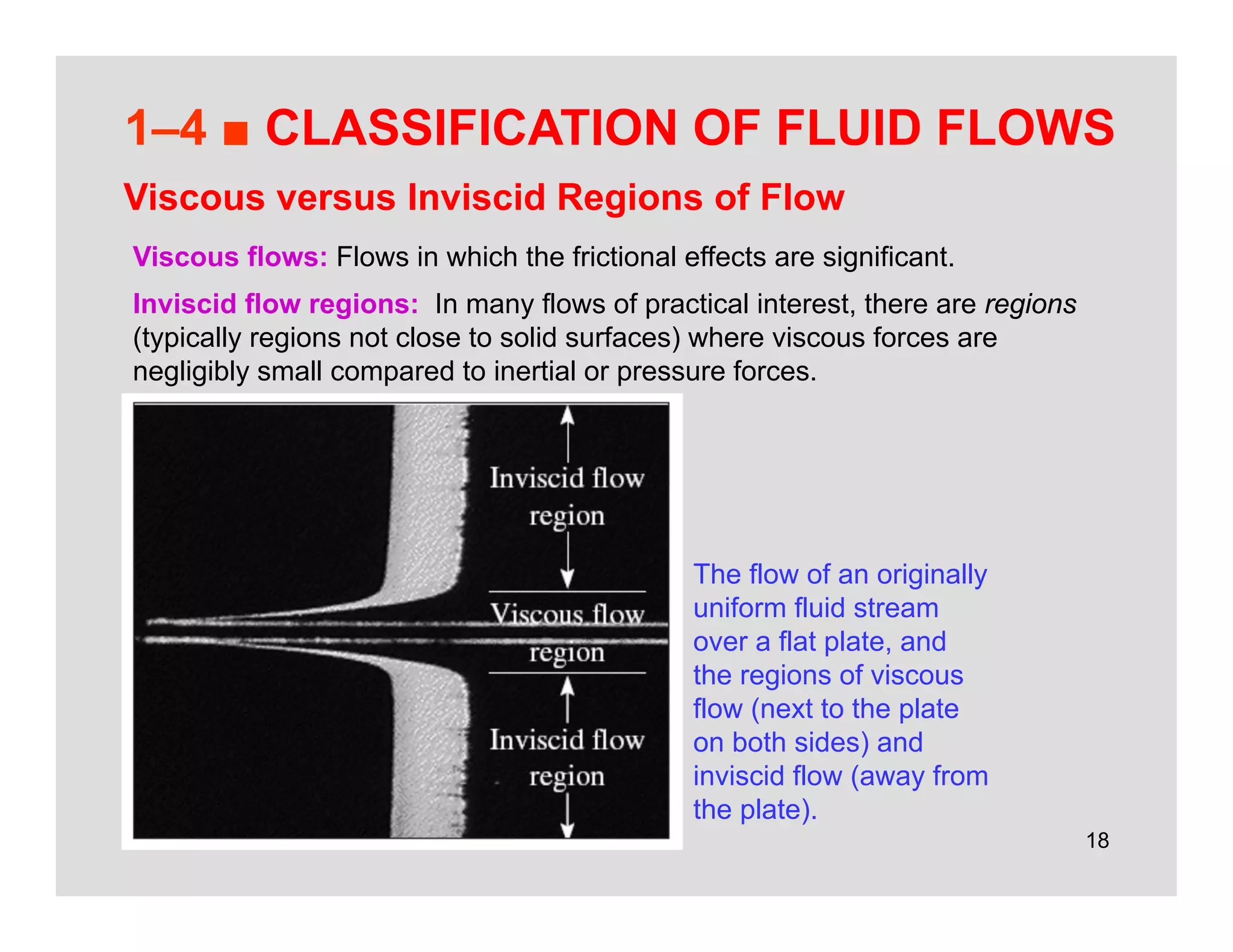

The flow of an originally
uniform fluid stream
over a flat plate, and
the regions of viscous
flow (next to the plate
on both sides) and
inviscid flow (away from
the plate).

19. 19
Internal versus External Flow

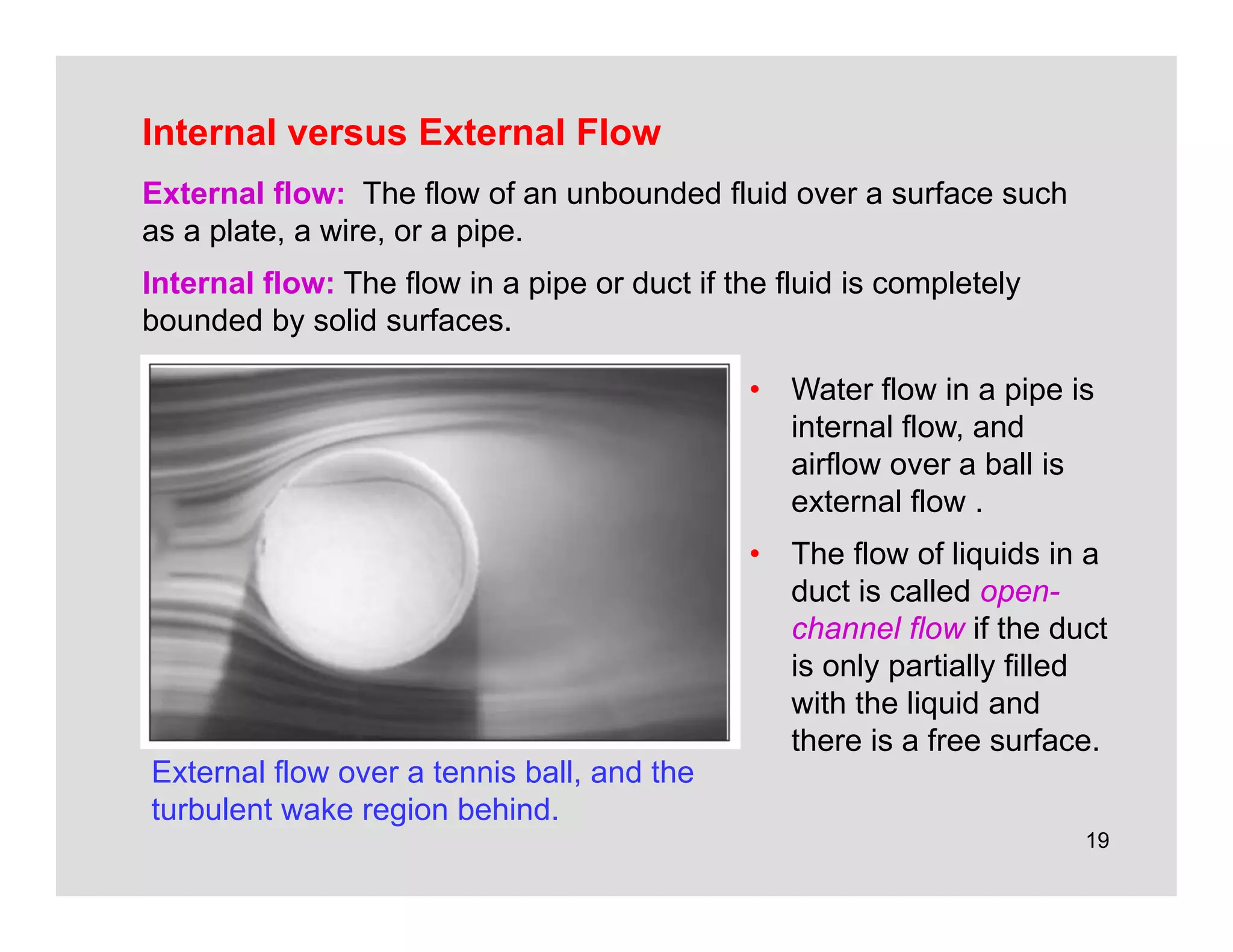

External flow over a tennis ball, and the
turbulent wake region behind.
External flow: The flow of an unbounded fluid over a surface such
as a plate, a wire, or a pipe.
Internal flow: The flow in a pipe or duct if the fluid is completely
bounded by solid surfaces.
• Water flow in a pipe is
internal flow, and
airflow over a ball is
external flow .
• The flow of liquids in a
duct is called open-
channel flow if the duct
is only partially filled
with the liquid and
there is a free surface.

20. 20
Compressible versus Incompressible Flow
Incompressible flow: If the
density of flowing fluid remains
nearly constant throughout (e.g.,
liquid flow).
Compressible flow: If the density
of fluid changes during flow (e.g.,
high-speed gas flow)
When analyzing rockets, spacecraft,
and other systems that involve high-
speed gas flows, the flow speed is
often expressed by Mach number

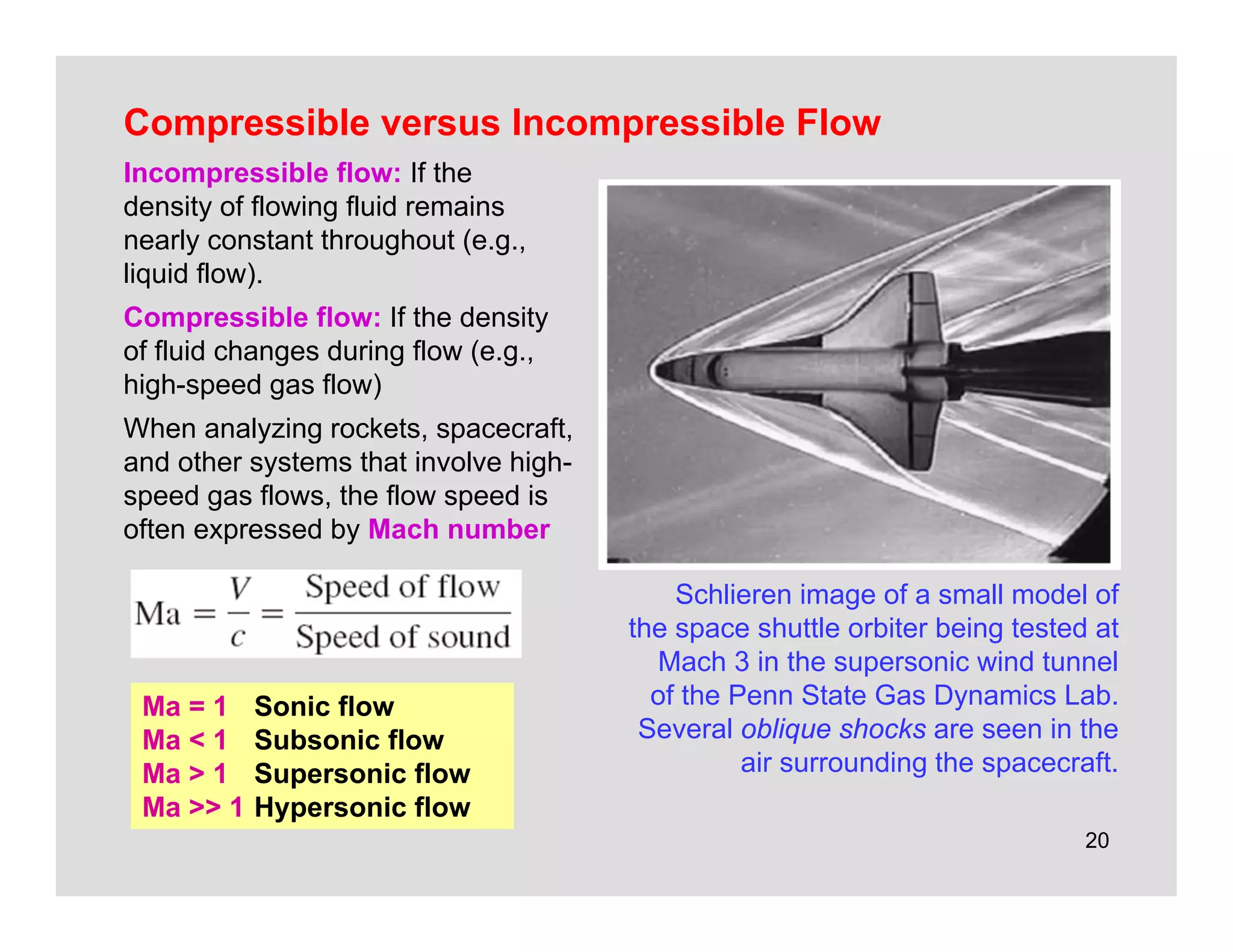

Schlieren image of a small model of
the space shuttle orbiter being tested at
Mach 3 in the supersonic wind tunnel
of the Penn State Gas Dynamics Lab.
Several oblique shocks are seen in the
air surrounding the spacecraft.
Ma = 1 Sonic flow
Ma < 1 Subsonic flow
Ma > 1 Supersonic flow
Ma >> 1 Hypersonic flow

21. 21
Laminar versus Turbulent Flow

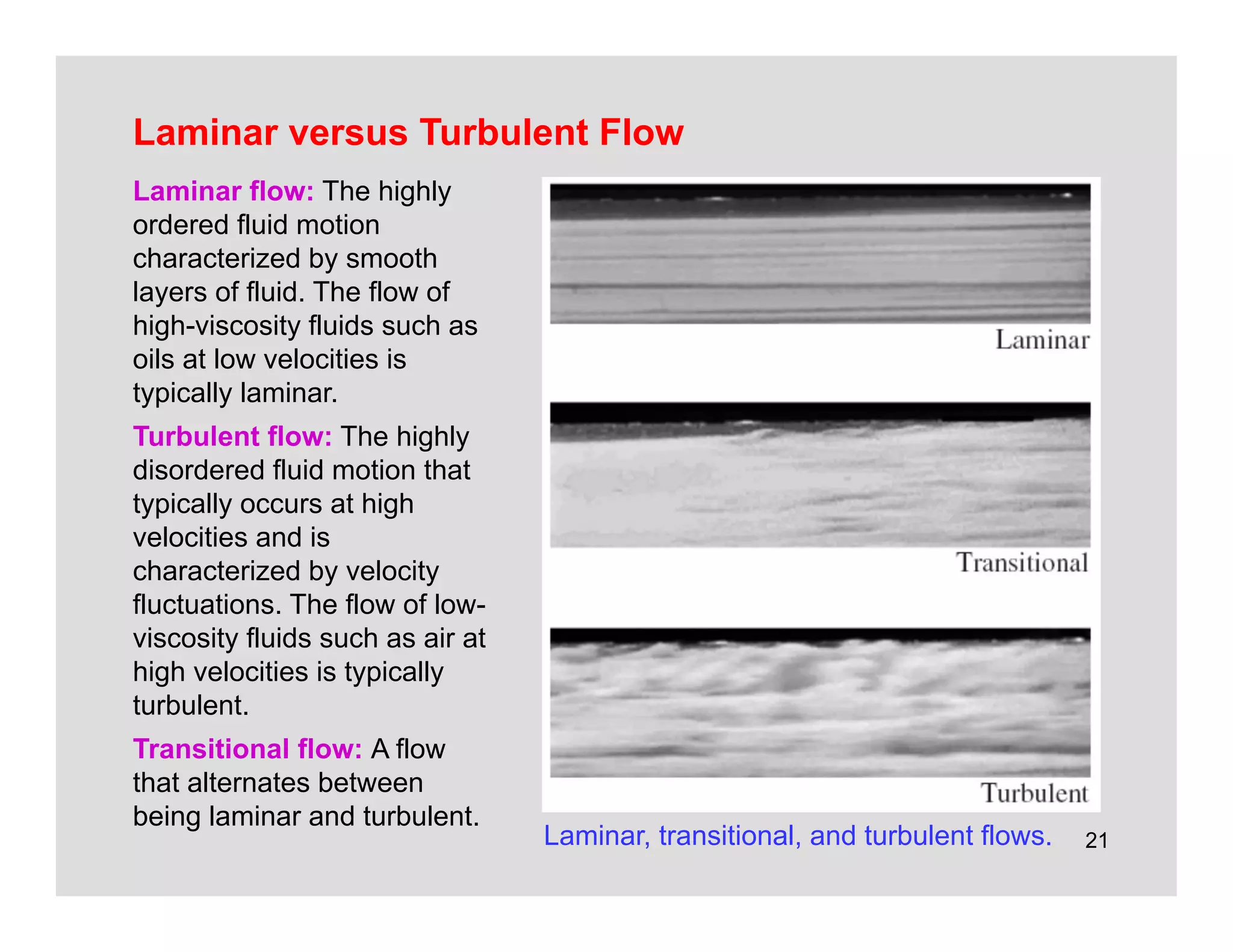

Laminar flow: The highly
ordered fluid motion
characterized by smooth
layers of fluid. The flow of
high-viscosity fluids such as
oils at low velocities is
typically laminar.
Turbulent flow: The highly
disordered fluid motion that
typically occurs at high
velocities and is
characterized by velocity
fluctuations. The flow of low-
viscosity fluids such as air at
high velocities is typically
turbulent.
Transitional flow: A flow
that alternates between
being laminar and turbulent.
Laminar, transitional, and turbulent flows.

22. 22
Natural (or Unforced)
versus Forced Flow
Forced flow: A fluid is forced
to flow over a surface or in a
pipe by external means such
as a pump or a fan.
Natural flow: Fluid motion is
due to natural means such as
the buoyancy effect, which
manifests itself as the rise of
warmer (and thus lighter) fluid
and the fall of cooler (and thus
denser) fluid.

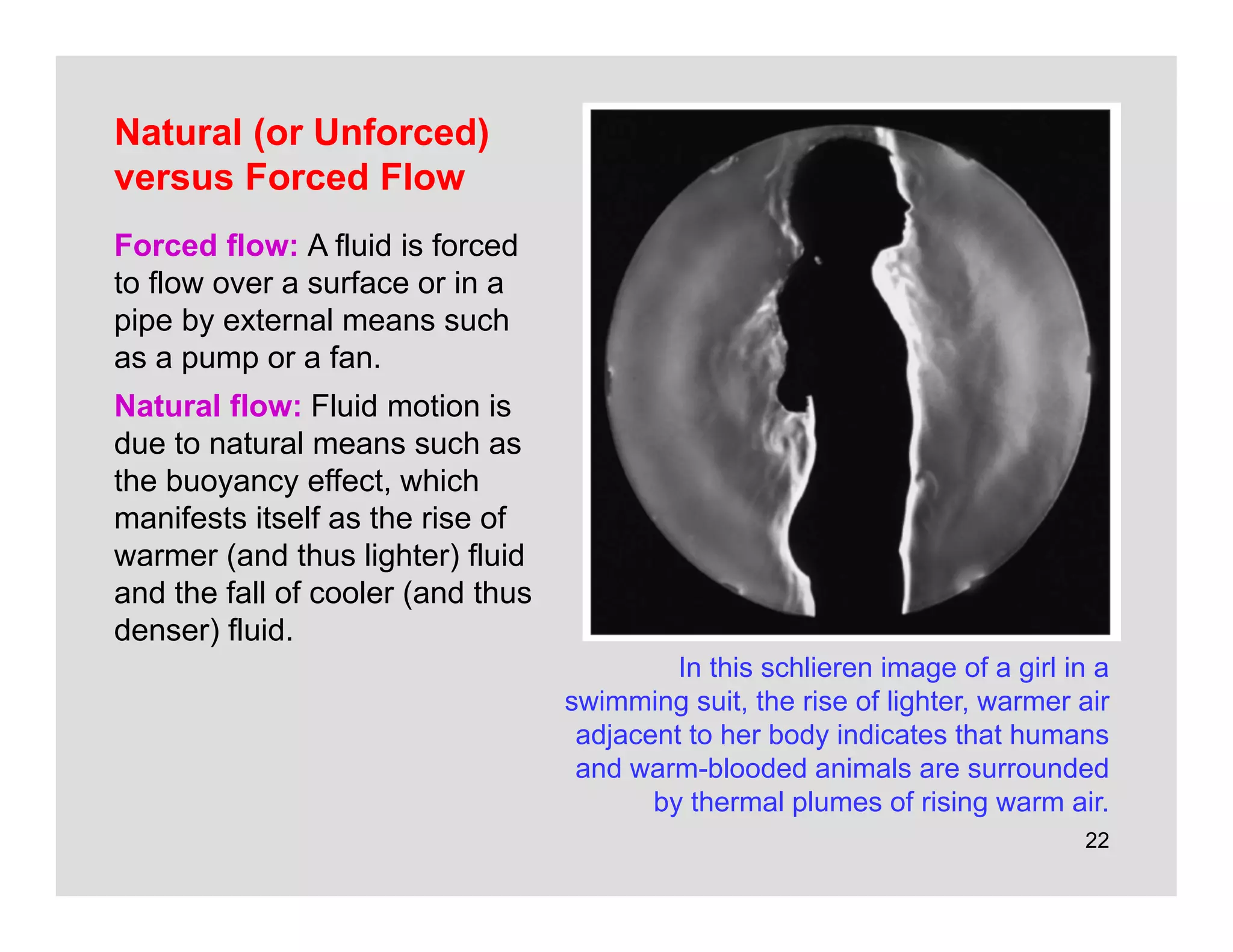

In this schlieren image of a girl in a
swimming suit, the rise of lighter, warmer air
adjacent to her body indicates that humans
and warm-blooded animals are surrounded
by thermal plumes of rising warm air.

23. 23
Steady versus Unsteady Flow
• The term steady implies no change at
a point with time.
• The opposite of steady is unsteady.
• The term uniform implies no change
with location over a specified region.
• The term periodic refers to the kind of
unsteady flow in which the flow
oscillates about a steady mean.
• Many devices such as turbines,
compressors, boilers, condensers,
and heat exchangers operate for long
periods of time under the same
conditions, and they are classified as
steady-flow devices.

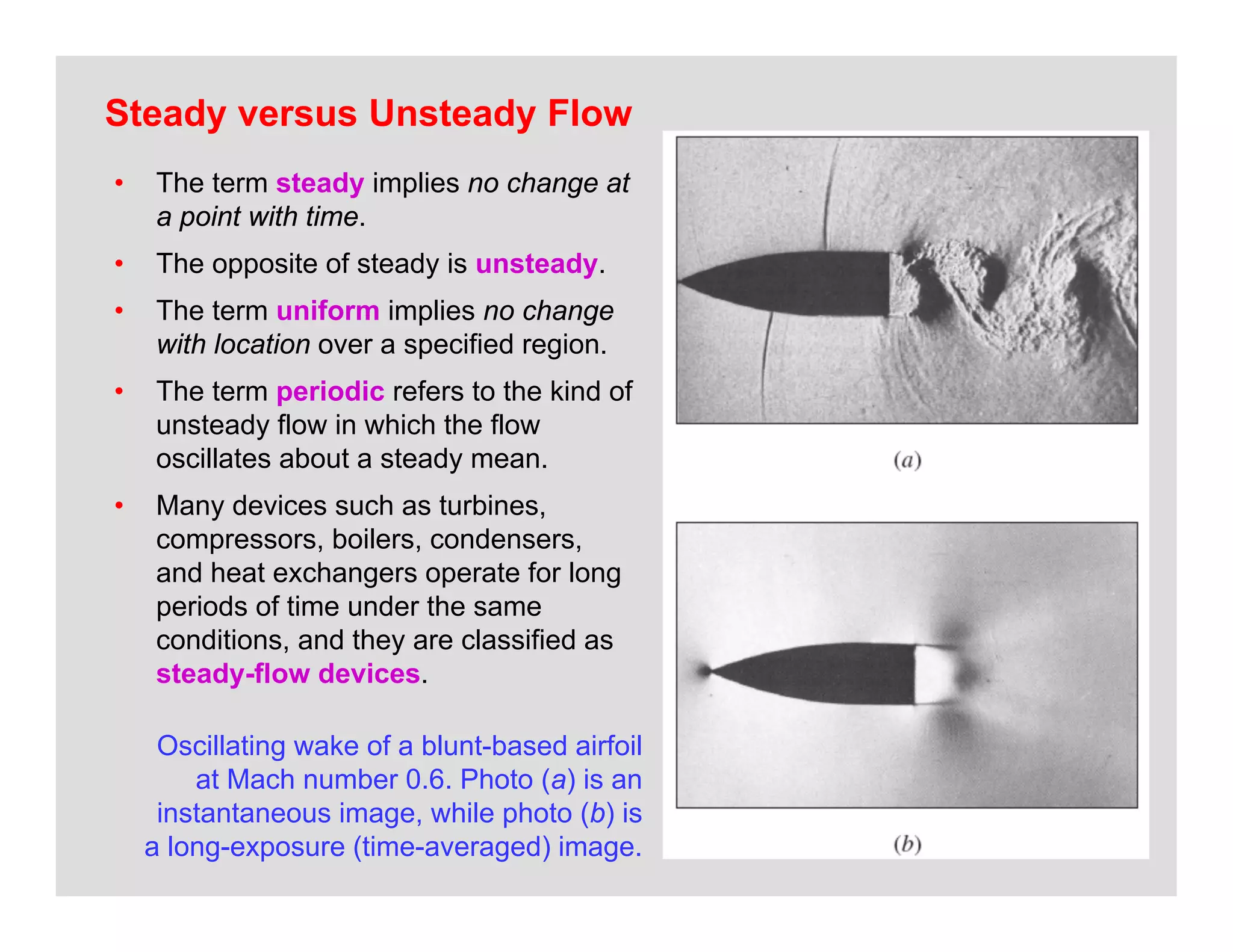

Oscillating wake of a blunt-based airfoil
at Mach number 0.6. Photo (a) is an
instantaneous image, while photo (b) is
a long-exposure (time-averaged) image.

24. 24
One-, Two-, and Three-Dimensional Flows
• A flow field is best characterized by its
velocity distribution.
• A flow is said to be one-, two-, or three-
dimensional if the flow velocity varies in
one, two, or three dimensions, respectively.
• However, the variation of velocity in certain
directions can be small relative to the
variation in other directions and can be
ignored.

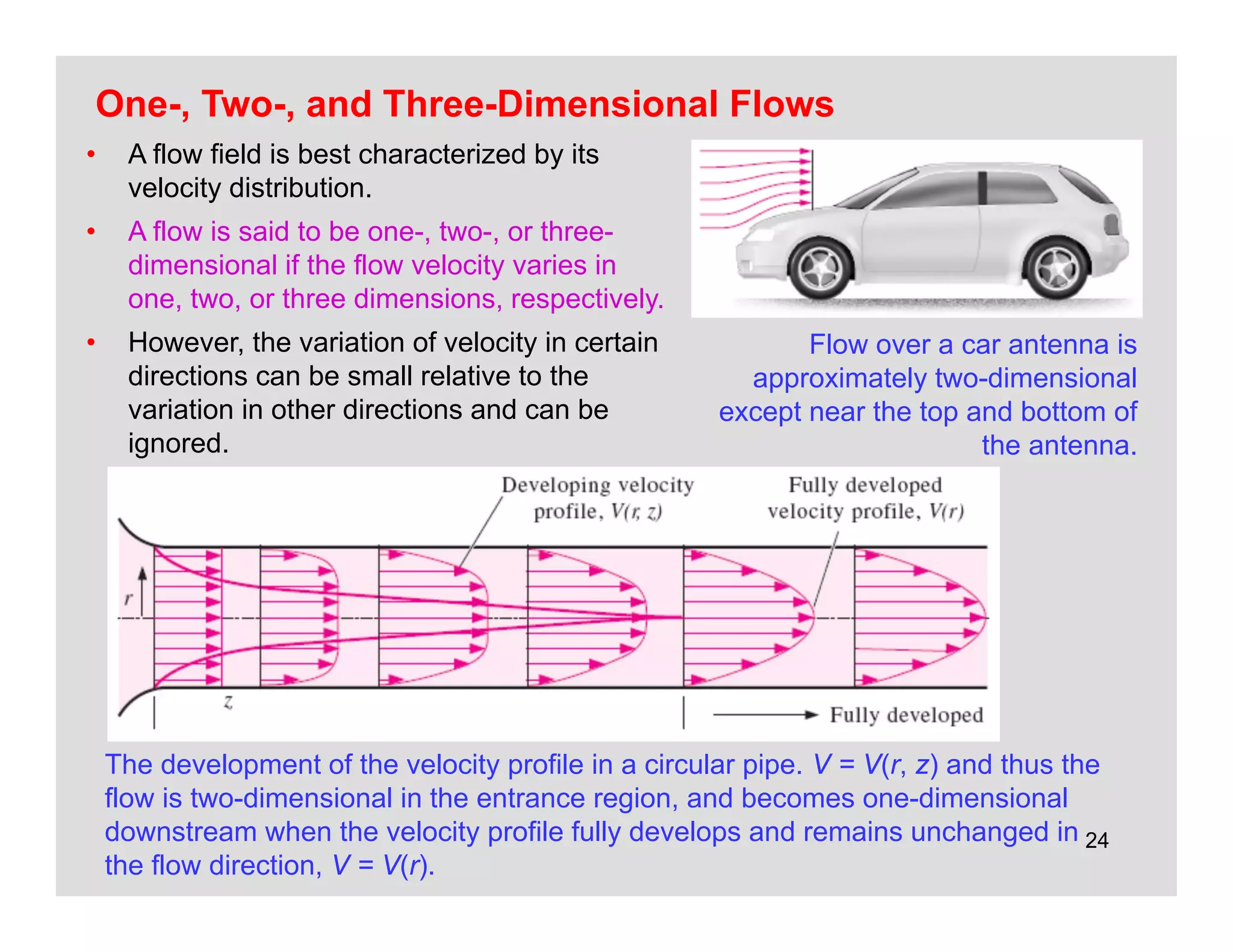

The development of the velocity profile in a circular pipe. V = V(r, z) and thus the
flow is two-dimensional in the entrance region, and becomes one-dimensional
downstream when the velocity profile fully develops and remains unchanged in
the flow direction, V = V(r).
Flow over a car antenna is
approximately two-dimensional
except near the top and bottom of
the antenna.

25. 25

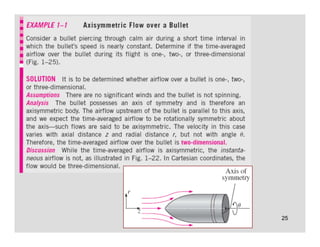

26. 26

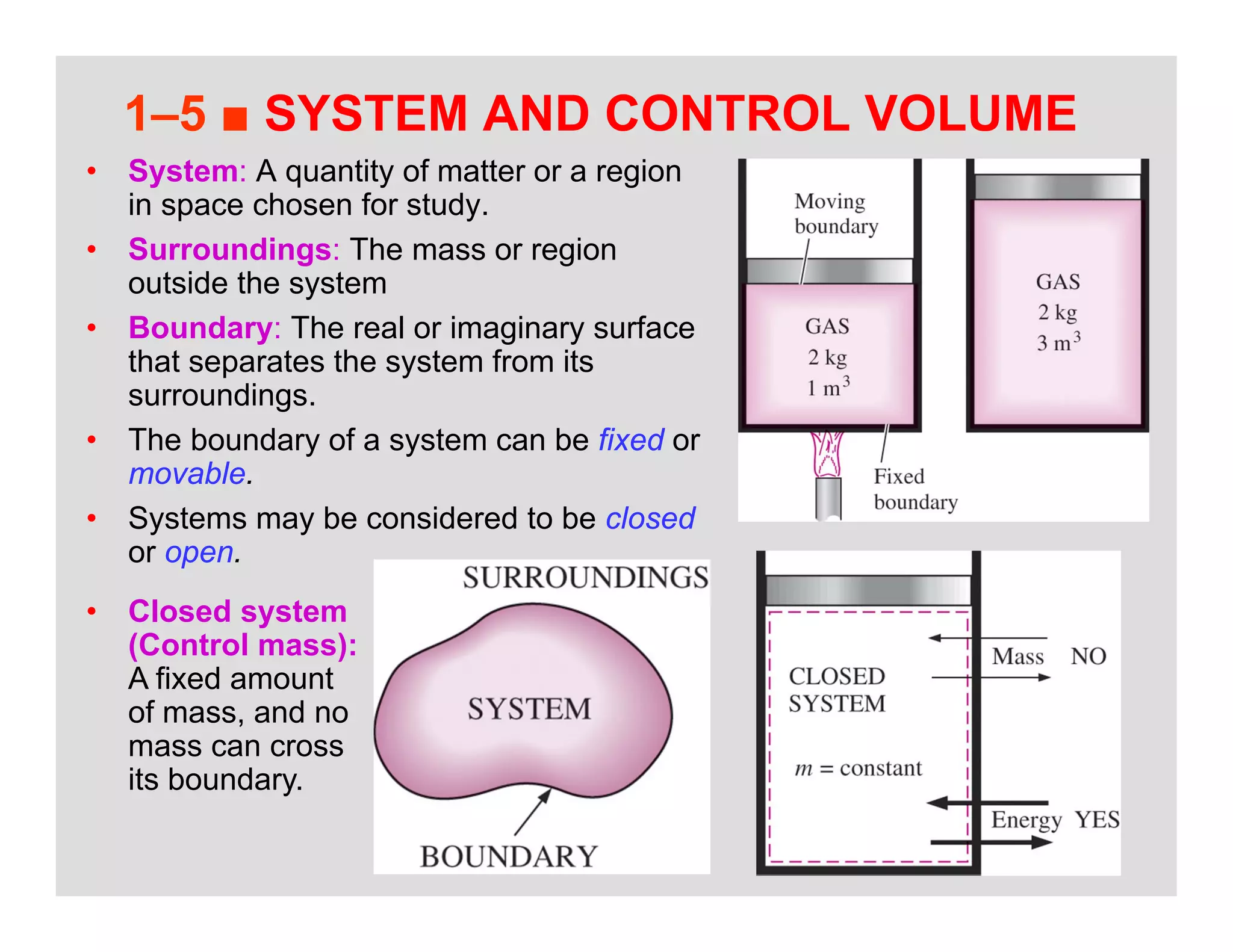

1–5 ■ SYSTEM AND CONTROL VOLUME
• System: A quantity of matter or a region
in space chosen for study.
• Surroundings: The mass or region
outside the system
• Boundary: The real or imaginary surface
that separates the system from its
surroundings.
• The boundary of a system can be fixed or
movable.
• Systems may be considered to be closed
or open.
• Closed system
(Control mass):
A fixed amount
of mass, and no
mass can cross
its boundary.

27. 27

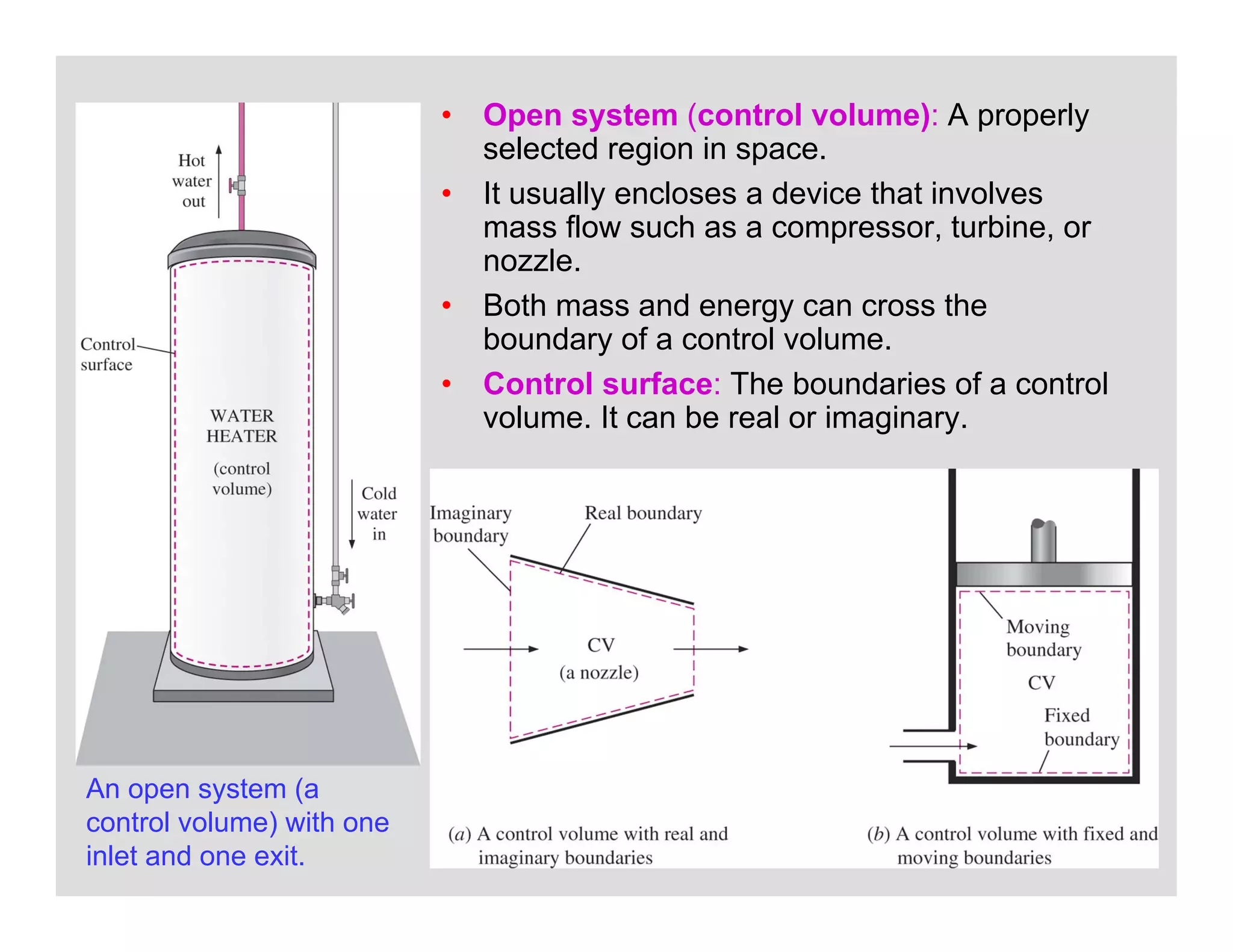

• Open system (control volume): A properly
selected region in space.
• It usually encloses a device that involves
mass flow such as a compressor, turbine, or
nozzle.
• Both mass and energy can cross the
boundary of a control volume.
• Control surface: The boundaries of a control
volume. It can be real or imaginary.
An open system (a
control volume) with one
inlet and one exit.

28. 28

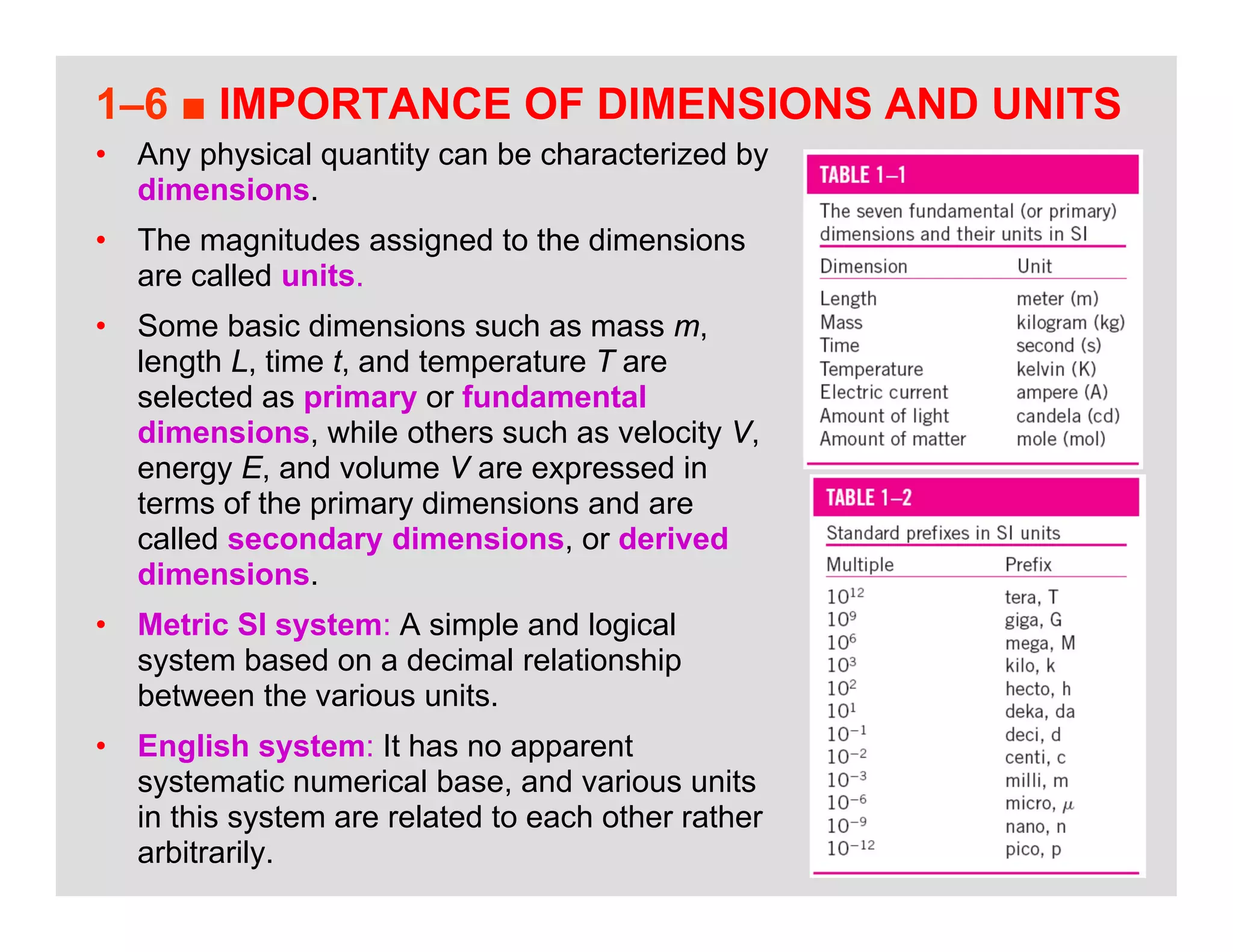

1–6 ■ IMPORTANCE OF DIMENSIONS AND UNITS
• Any physical quantity can be characterized by
dimensions.
• The magnitudes assigned to the dimensions
are called units.
• Some basic dimensions such as mass m,
length L, time t, and temperature T are
selected as primary or fundamental
dimensions, while others such as velocity V,
energy E, and volume V are expressed in
terms of the primary dimensions and are
called secondary dimensions, or derived
dimensions.
• Metric SI system: A simple and logical
system based on a decimal relationship
between the various units.
• English system: It has no apparent
systematic numerical base, and various units
in this system are related to each other rather
arbitrarily.

29. 29

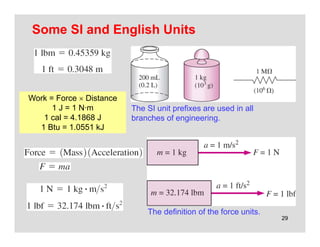

Some SI and English Units
The SI unit prefixes are used in all
branches of engineering.
The definition of the force units.
Work = Force  Distance
1 J = 1 N·m
1 cal = 4.1868 J
1 Btu = 1.0551 kJ

30. 30

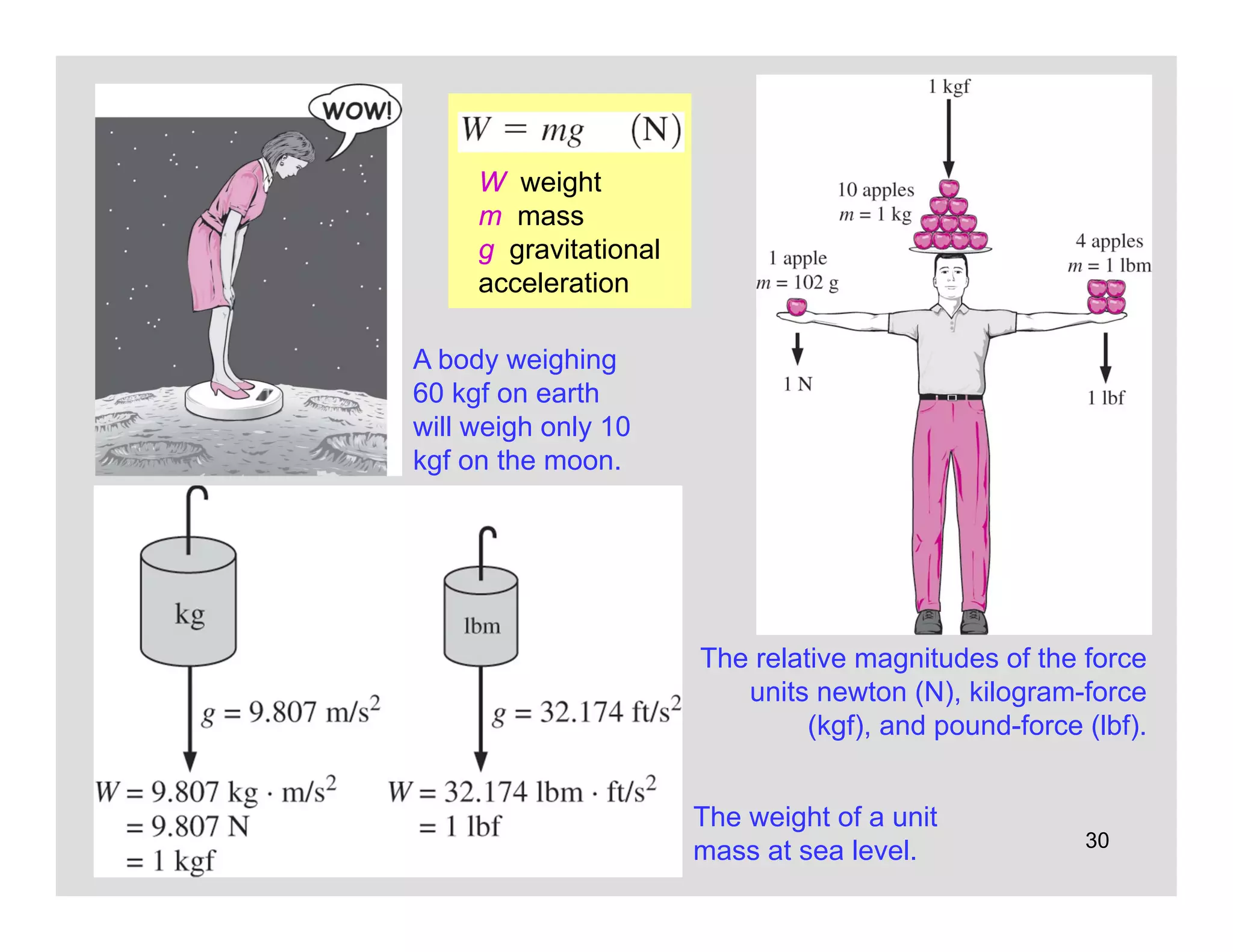

The relative magnitudes of the force
units newton (N), kilogram-force
(kgf), and pound-force (lbf).
The weight of a unit
mass at sea level.
A body weighing
60 kgf on earth
will weigh only 10
kgf on the moon.
W weight
m mass
g gravitational
acceleration

31. 31

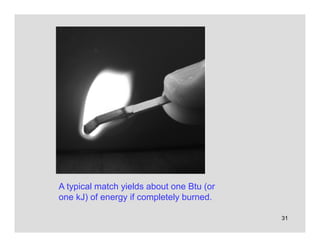

A typical match yields about one Btu (or
one kJ) of energy if completely burned.

32. 32

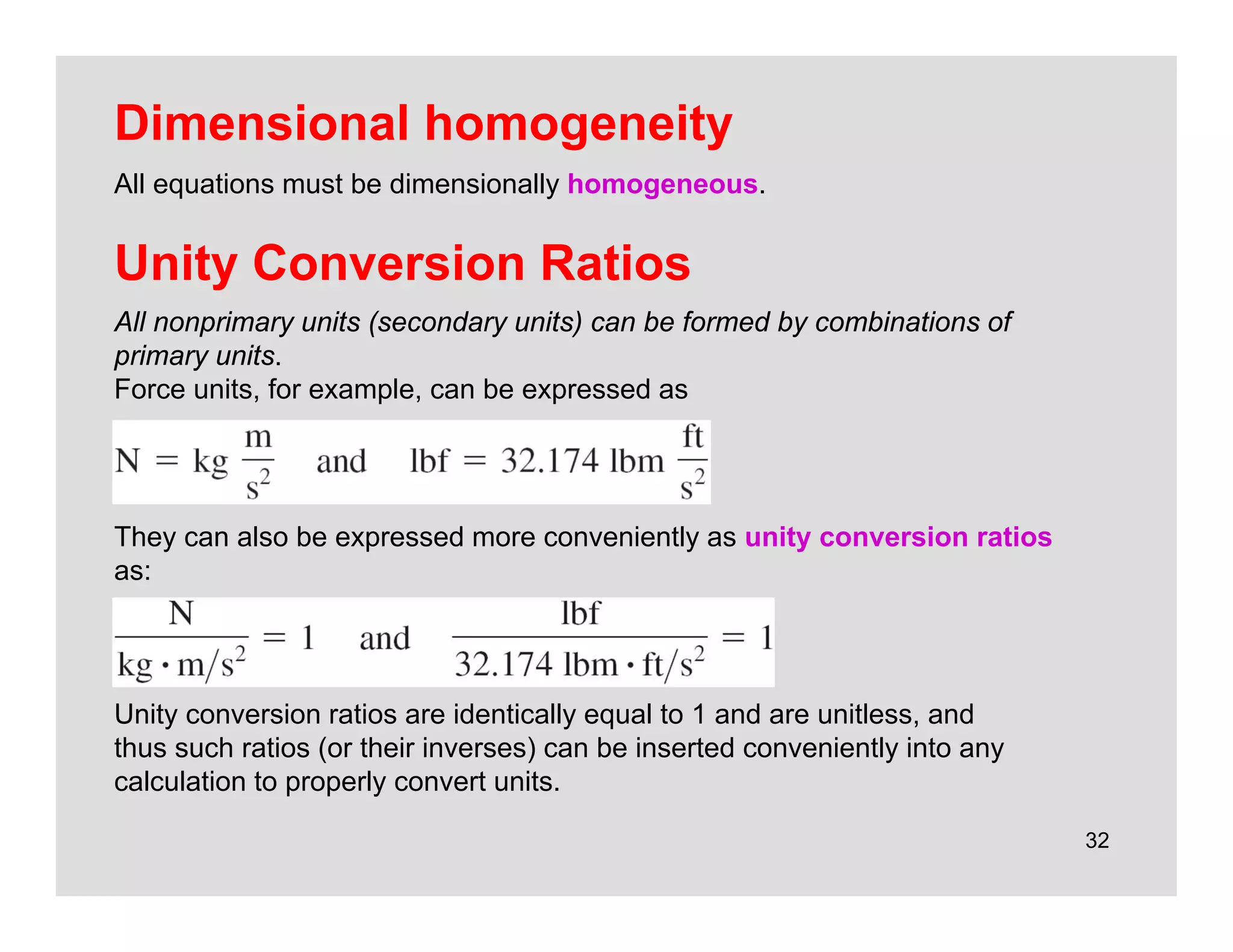

Unity Conversion Ratios
All nonprimary units (secondary units) can be formed by combinations of
primary units.
Force units, for example, can be expressed as
They can also be expressed more conveniently as unity conversion ratios
as:
Unity conversion ratios are identically equal to 1 and are unitless, and
thus such ratios (or their inverses) can be inserted conveniently into any
calculation to properly convert units.
Dimensional homogeneity
All equations must be dimensionally homogeneous.

33. 33

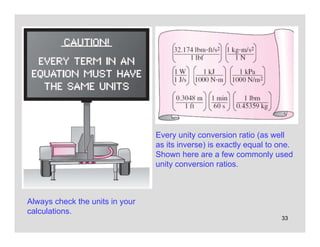

Always check the units in your
calculations.
Every unity conversion ratio (as well
as its inverse) is exactly equal to one.
Shown here are a few commonly used
unity conversion ratios.

34. 34

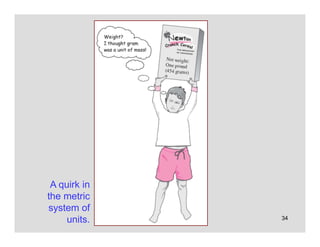

A quirk in
the metric
system of
units.

35. 35

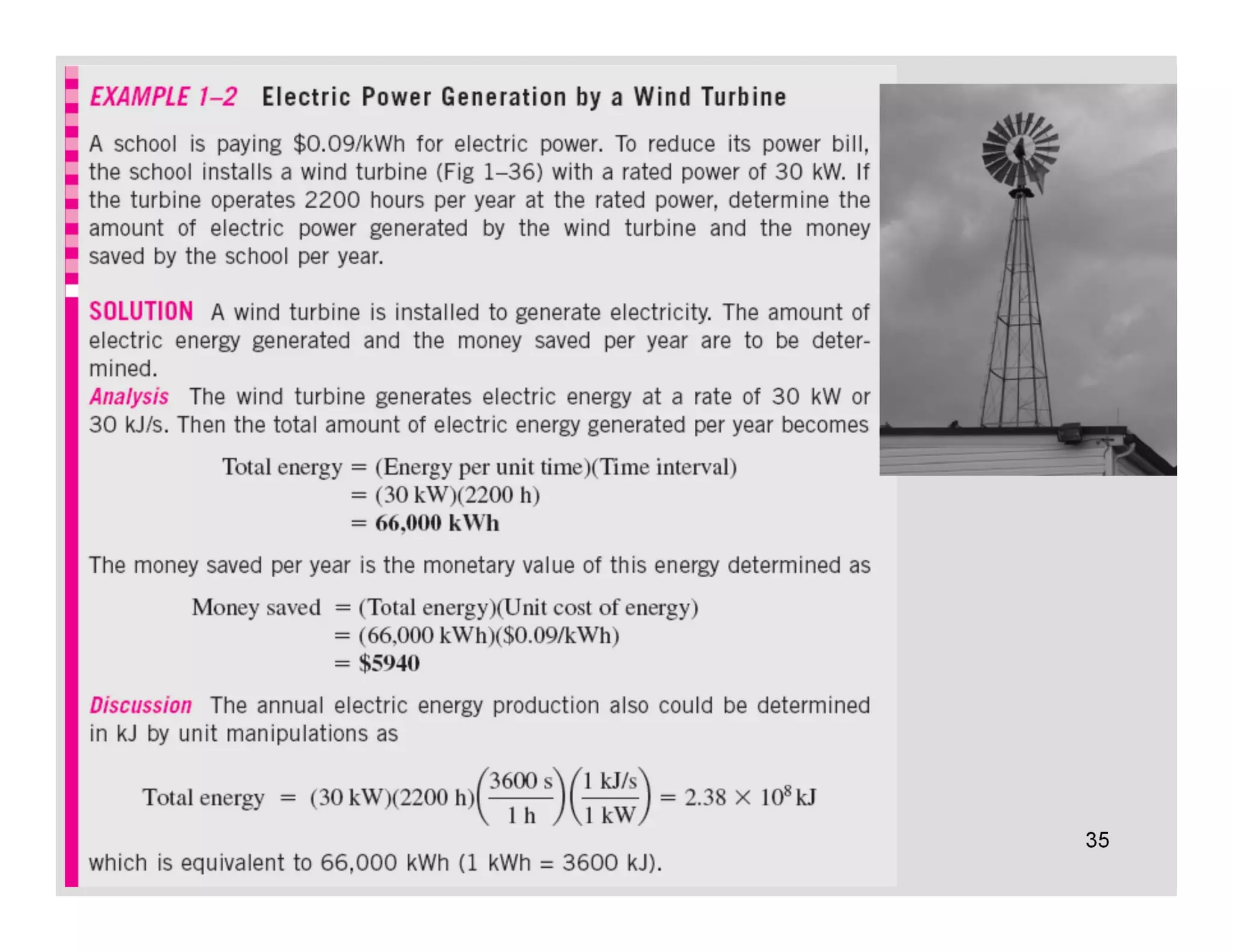

36. 36

37. 37

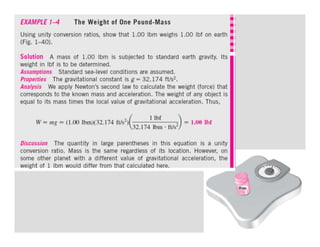

38. 38

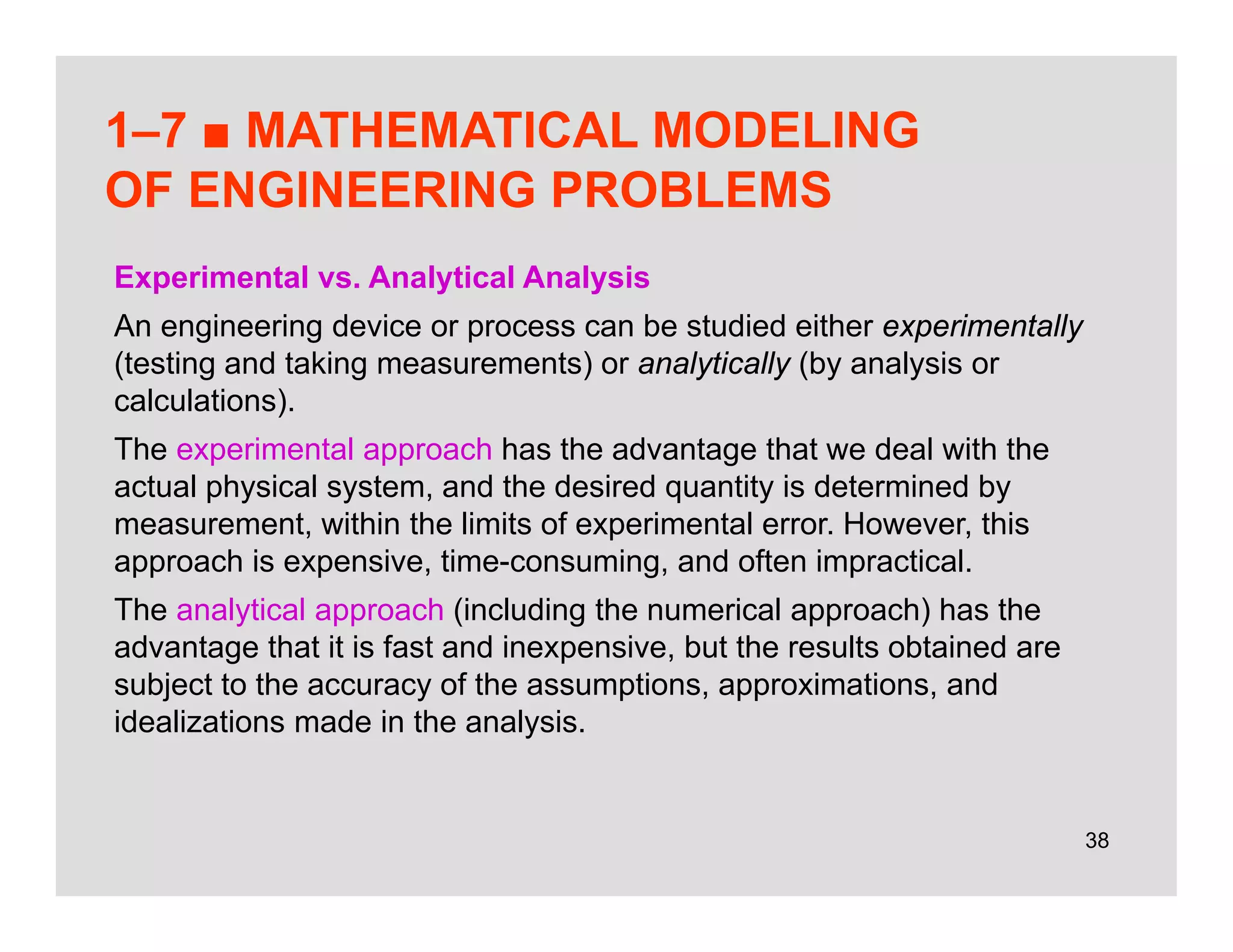

1–7 ■ MATHEMATICAL MODELING
OF ENGINEERING PROBLEMS
Experimental vs. Analytical Analysis
An engineering device or process can be studied either experimentally
(testing and taking measurements) or analytically (by analysis or
calculations).
The experimental approach has the advantage that we deal with the
actual physical system, and the desired quantity is determined by
measurement, within the limits of experimental error. However, this
approach is expensive, time-consuming, and often impractical.
The analytical approach (including the numerical approach) has the
advantage that it is fast and inexpensive, but the results obtained are
subject to the accuracy of the assumptions, approximations, and
idealizations made in the analysis.

39. 39

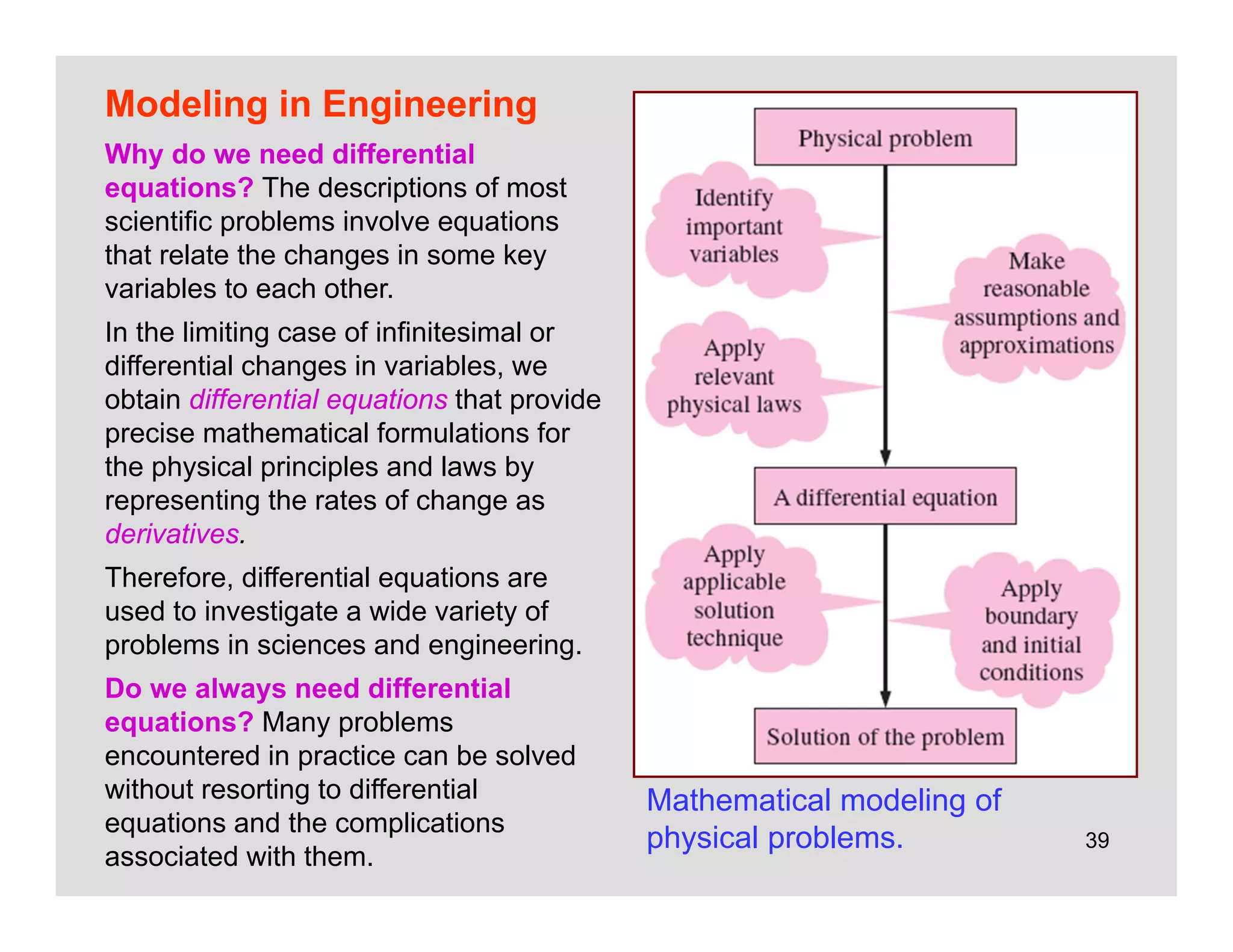

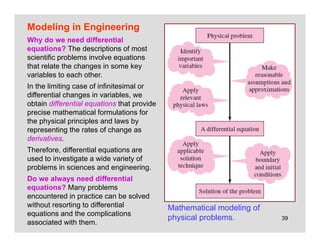

Modeling in Engineering
Mathematical modeling of
physical problems.
Why do we need differential
equations? The descriptions of most
scientific problems involve equations
that relate the changes in some key
variables to each other.
In the limiting case of infinitesimal or
differential changes in variables, we
obtain differential equations that provide
precise mathematical formulations for
the physical principles and laws by
representing the rates of change as
derivatives.
Therefore, differential equations are
used to investigate a wide variety of
problems in sciences and engineering.
Do we always need differential
equations? Many problems
encountered in practice can be solved
without resorting to differential
equations and the complications
associated with them.

40. 40

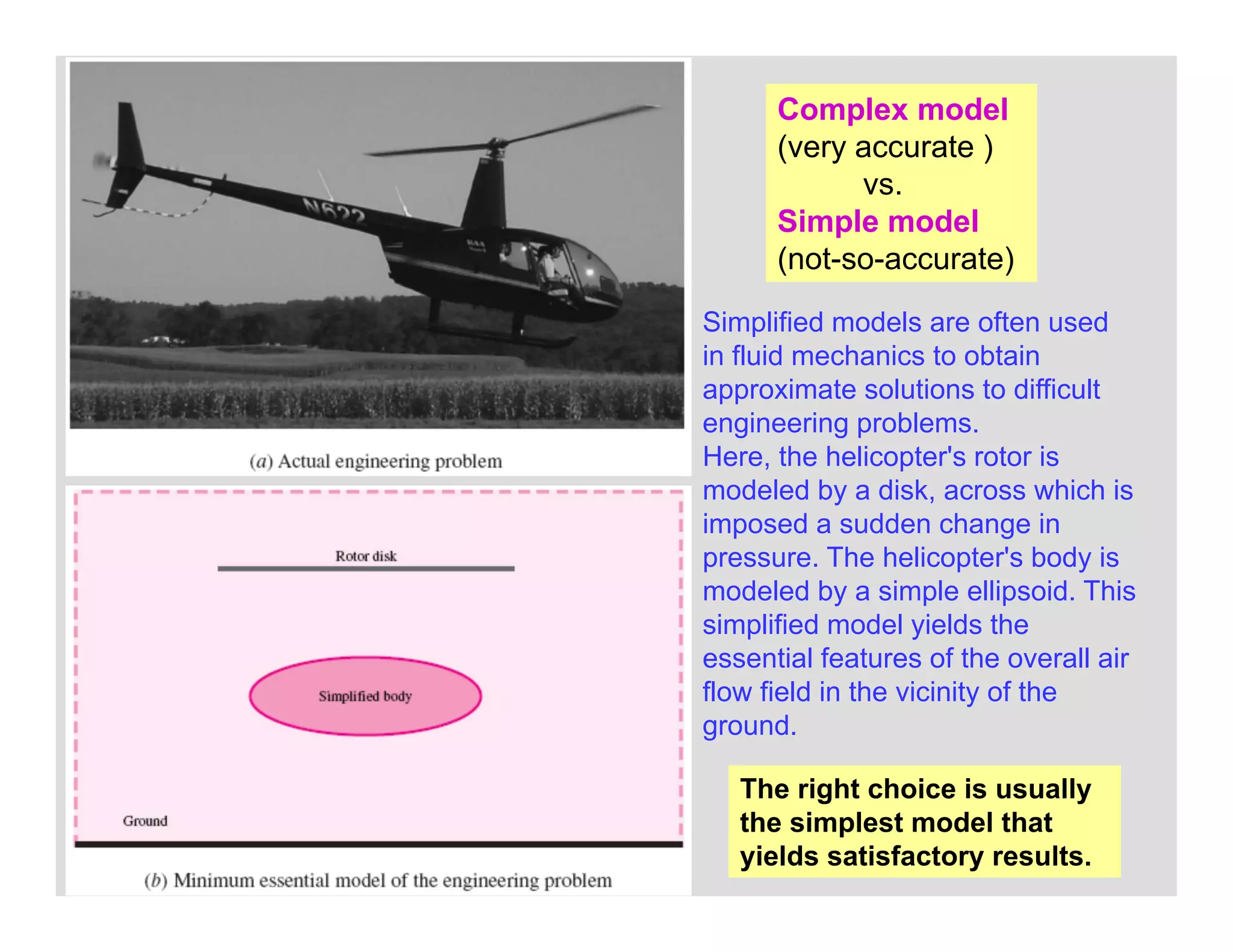

Simplified models are often used
in fluid mechanics to obtain
approximate solutions to difficult
engineering problems.
Here, the helicopter's rotor is
modeled by a disk, across which is
imposed a sudden change in
pressure. The helicopter's body is
modeled by a simple ellipsoid. This
simplified model yields the
essential features of the overall air
flow field in the vicinity of the
ground.
Complex model
(very accurate )
vs.
Simple model
(not-so-accurate)
The right choice is usually
the simplest model that
yields satisfactory results.

41. 41

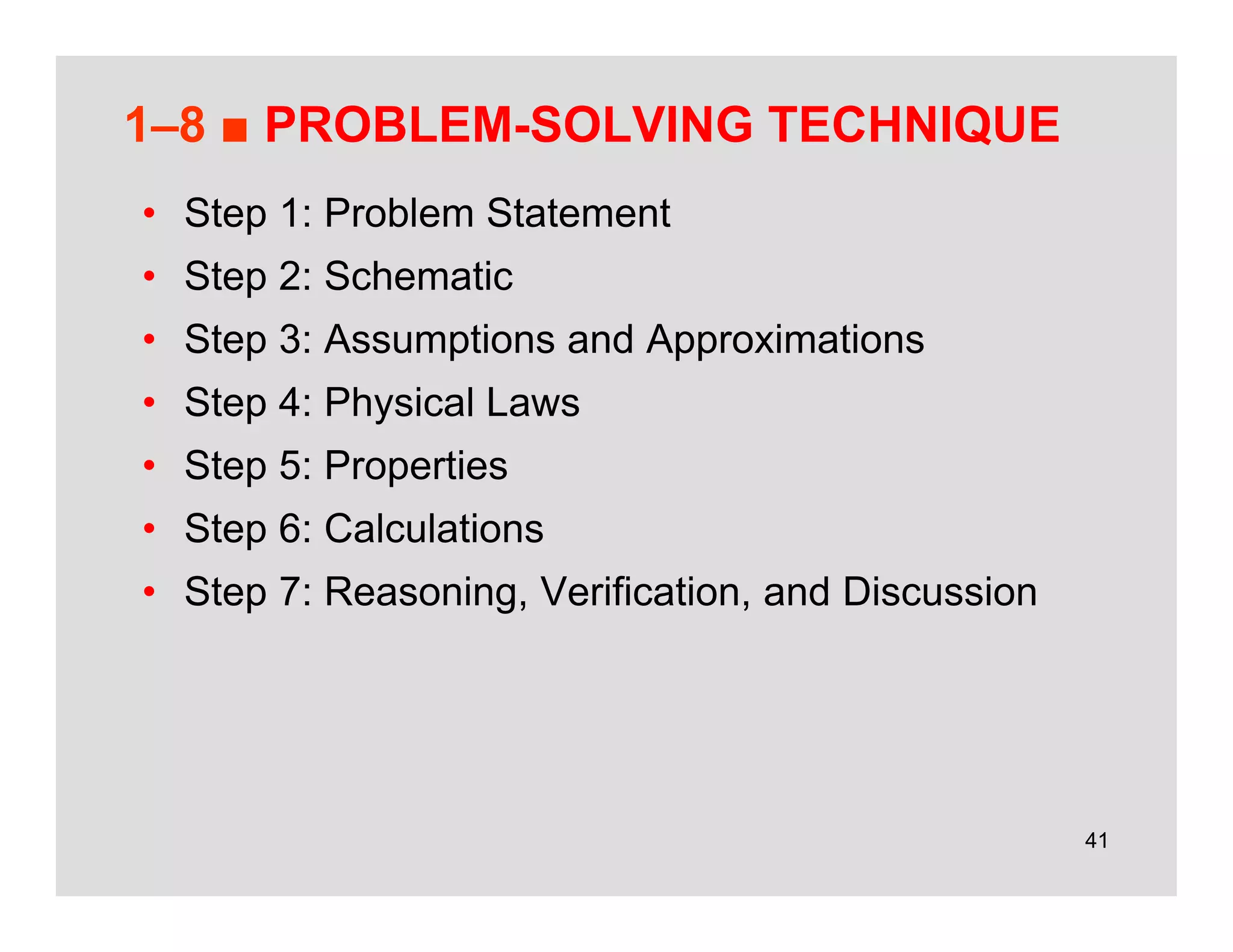

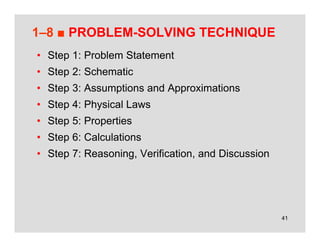

1–8 ■ PROBLEM-SOLVING TECHNIQUE
• Step 1: Problem Statement
• Step 2: Schematic
• Step 3: Assumptions and Approximations
• Step 4: Physical Laws
• Step 5: Properties
• Step 6: Calculations
• Step 7: Reasoning, Verification, and Discussion

42. 42

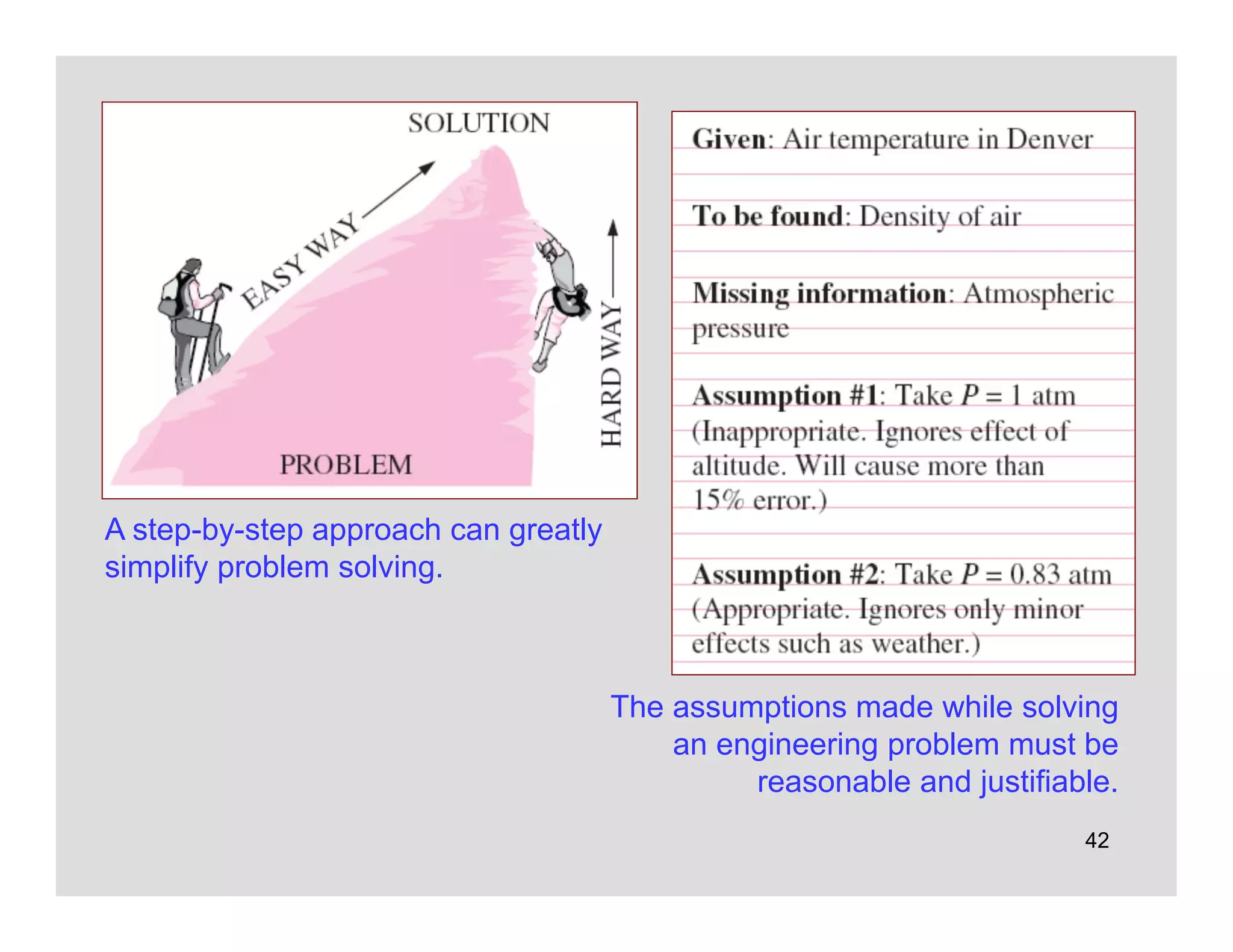

A step-by-step approach can greatly
simplify problem solving.
The assumptions made while solving
an engineering problem must be
reasonable and justifiable.

43. 43

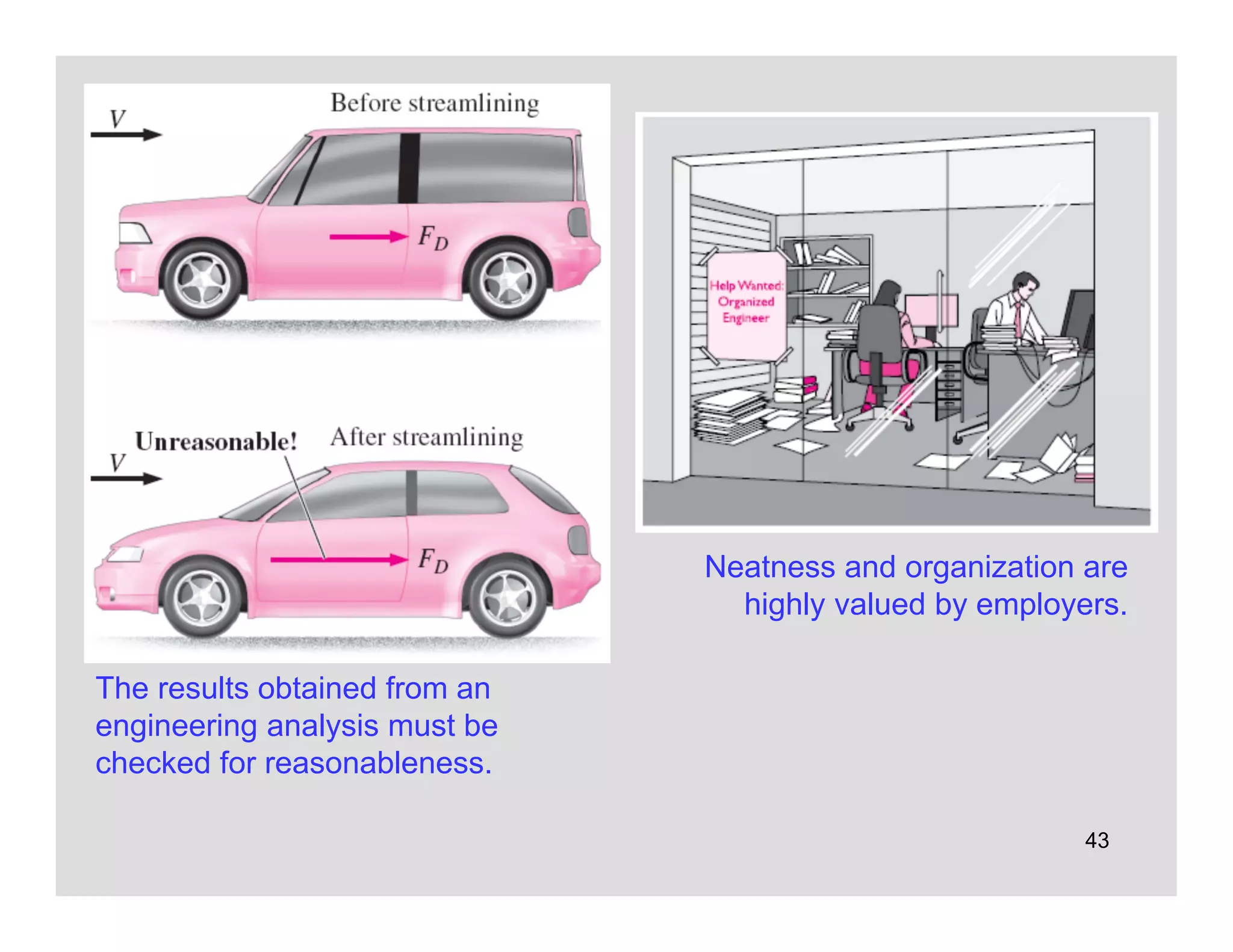

The results obtained from an
engineering analysis must be
checked for reasonableness.
Neatness and organization are
highly valued by employers.

44. 44
1–9 ■ ENGINEERING SOFTWARE PACKAGES
An excellent word-processing
program does not make a person
a good writer; it simply makes a
good writer a more efficient
writer.
We should always remember that all the
computing power and the engineering
software packages available today are just
tools, and tools have meaning only in the
hands of masters.
Hand calculators did not eliminate the need
to teach our children how to add or
subtract, and sophisticated medical
software packages did not take the place
of medical school training.
Neither will engineering software packages
replace the traditional engineering
education. They will simply cause a shift in
emphasis in the courses from mathematics
to physics. That is, more time will be spent
in the classroom discussing the physical
aspects of the problems in greater detail,
and less time on the mechanics of solution
procedures.

45. 45

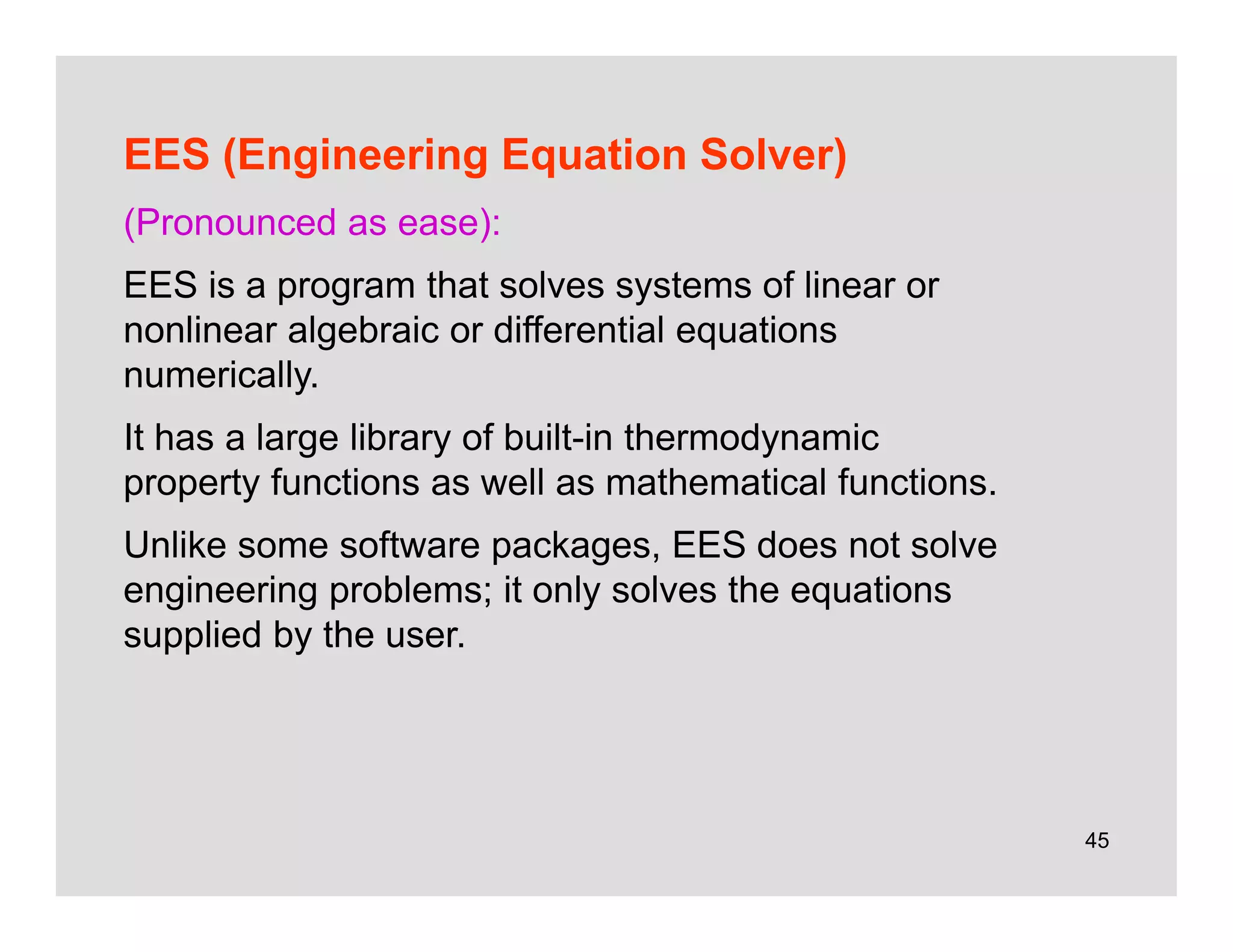

EES (Engineering Equation Solver)
(Pronounced as ease):
EES is a program that solves systems of linear or
nonlinear algebraic or differential equations
numerically.
It has a large library of built-in thermodynamic
property functions as well as mathematical functions.
Unlike some software packages, EES does not solve
engineering problems; it only solves the equations
supplied by the user.

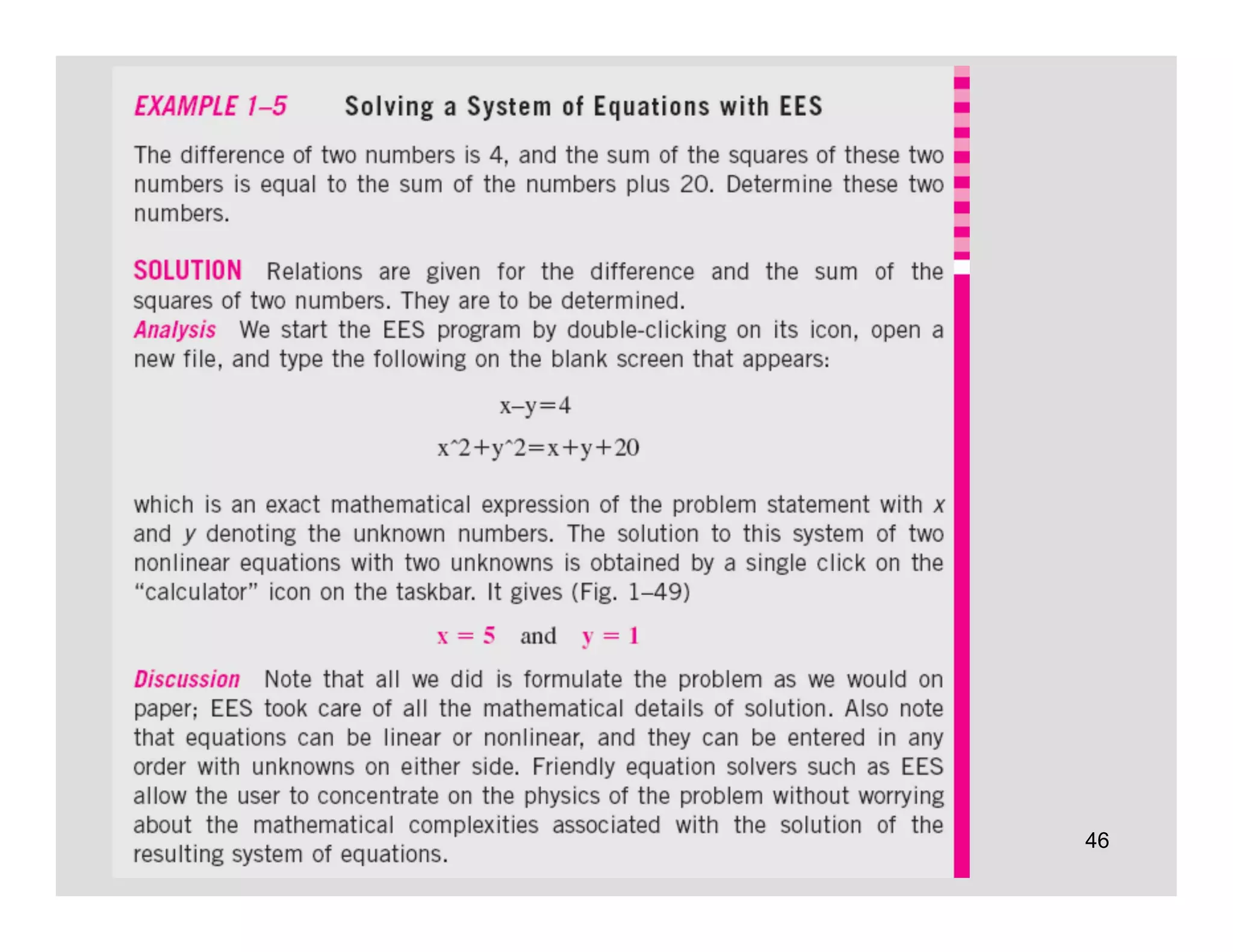

46. 46

47. 47

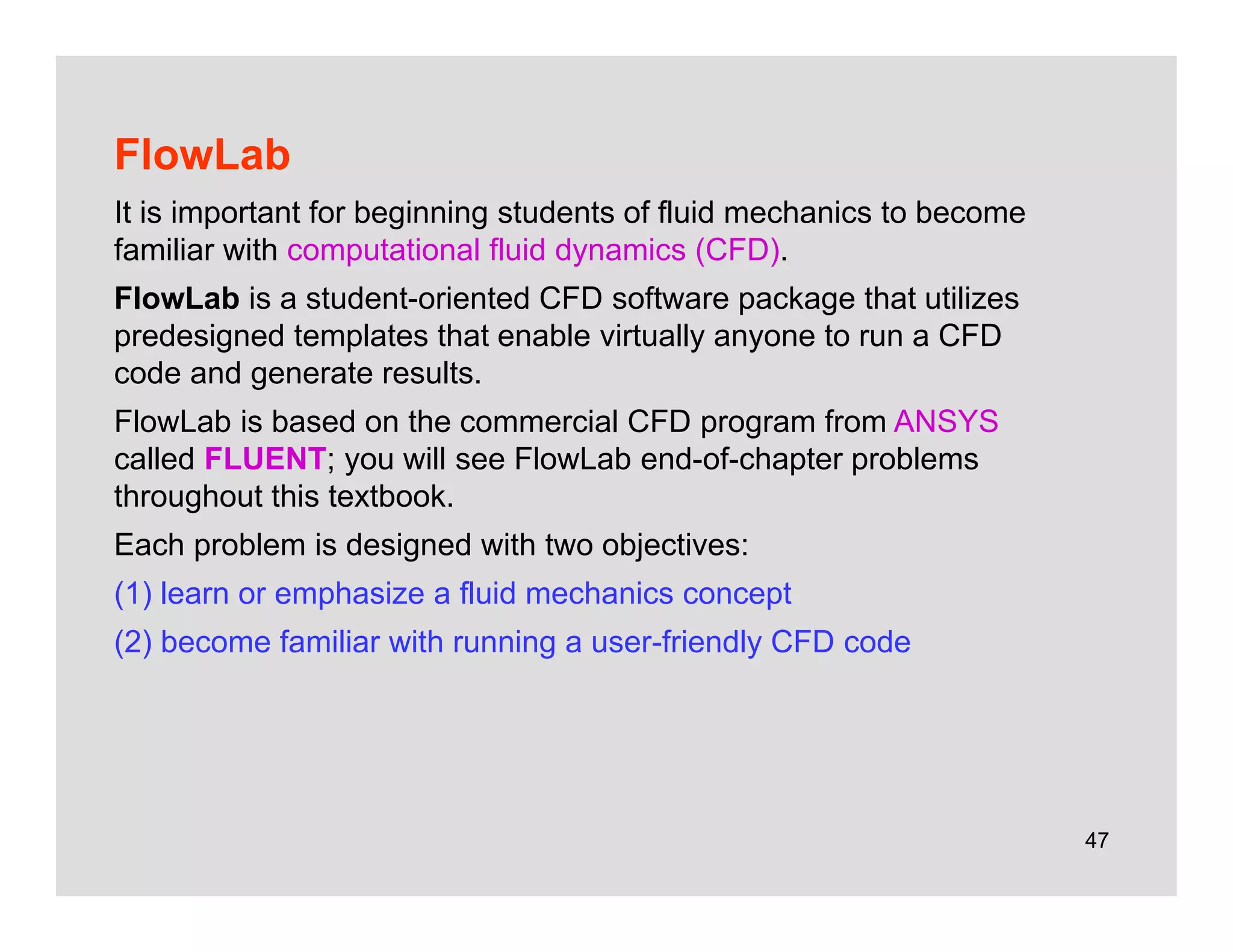

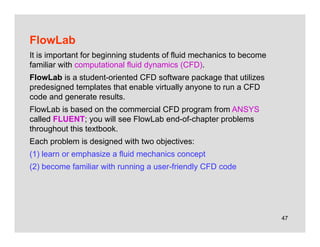

FlowLab
It is important for beginning students of fluid mechanics to become
familiar with computational fluid dynamics (CFD).
FlowLab is a student-oriented CFD software package that utilizes
predesigned templates that enable virtually anyone to run a CFD
code and generate results.
FlowLab is based on the commercial CFD program from ANSYS
called FLUENT; you will see FlowLab end-of-chapter problems
throughout this textbook.
Each problem is designed with two objectives:
(1) learn or emphasize a fluid mechanics concept
(2) become familiar with running a user-friendly CFD code

48. 48

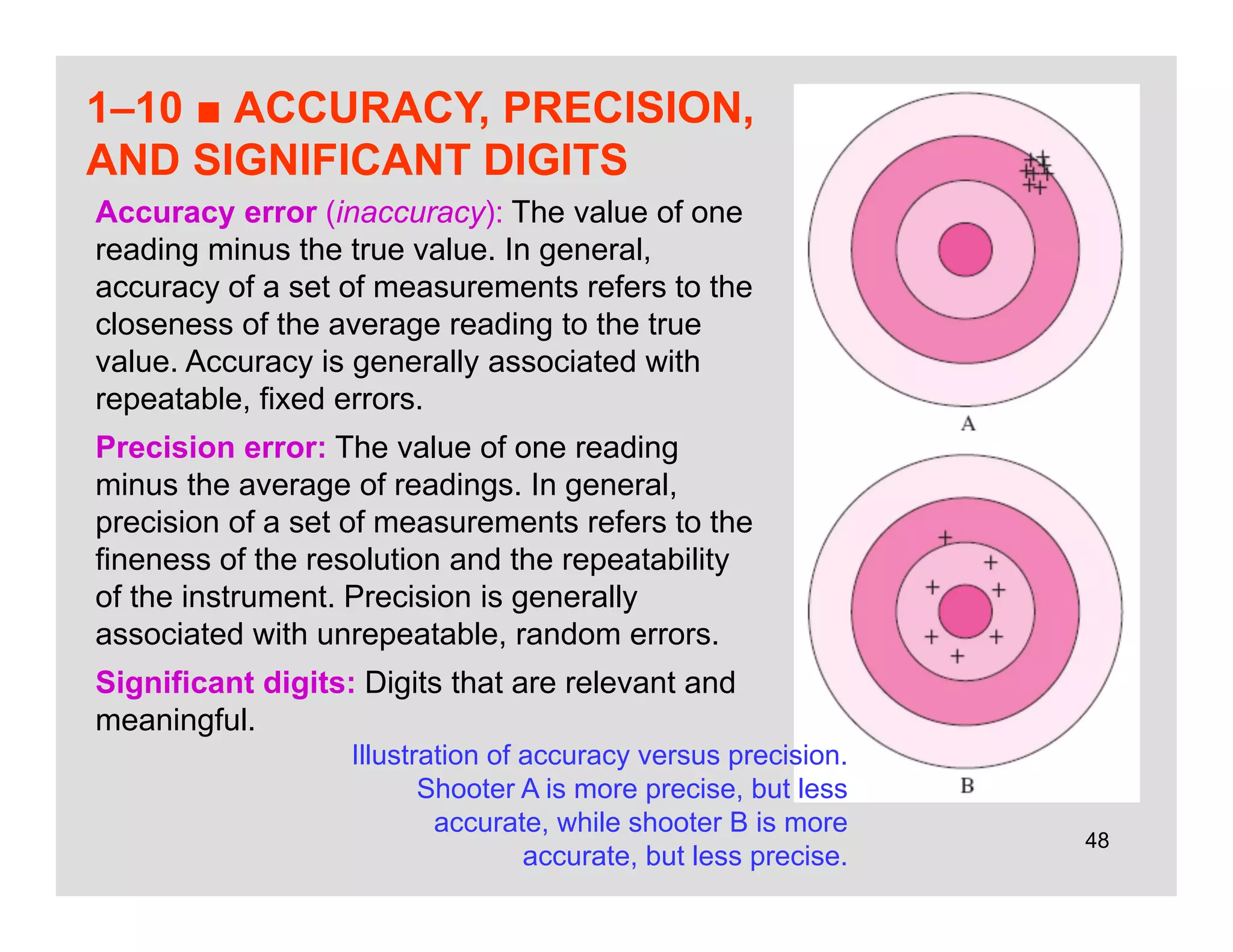

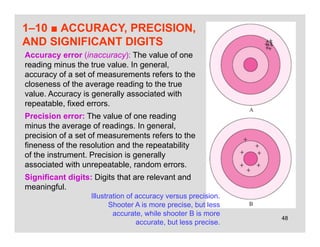

1–10 ■ ACCURACY, PRECISION,
AND SIGNIFICANT DIGITS
Accuracy error (inaccuracy): The value of one
reading minus the true value. In general,
accuracy of a set of measurements refers to the
closeness of the average reading to the true
value. Accuracy is generally associated with
repeatable, fixed errors.
Precision error: The value of one reading
minus the average of readings. In general,
precision of a set of measurements refers to the
fineness of the resolution and the repeatability
of the instrument. Precision is generally
associated with unrepeatable, random errors.
Significant digits: Digits that are relevant and
meaningful.
Illustration of accuracy versus precision.
Shooter A is more precise, but less
accurate, while shooter B is more
accurate, but less precise.

49. 49

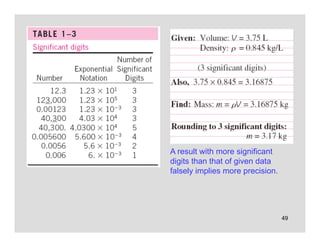

A result with more significant
digits than that of given data
falsely implies more precision.

50. 50

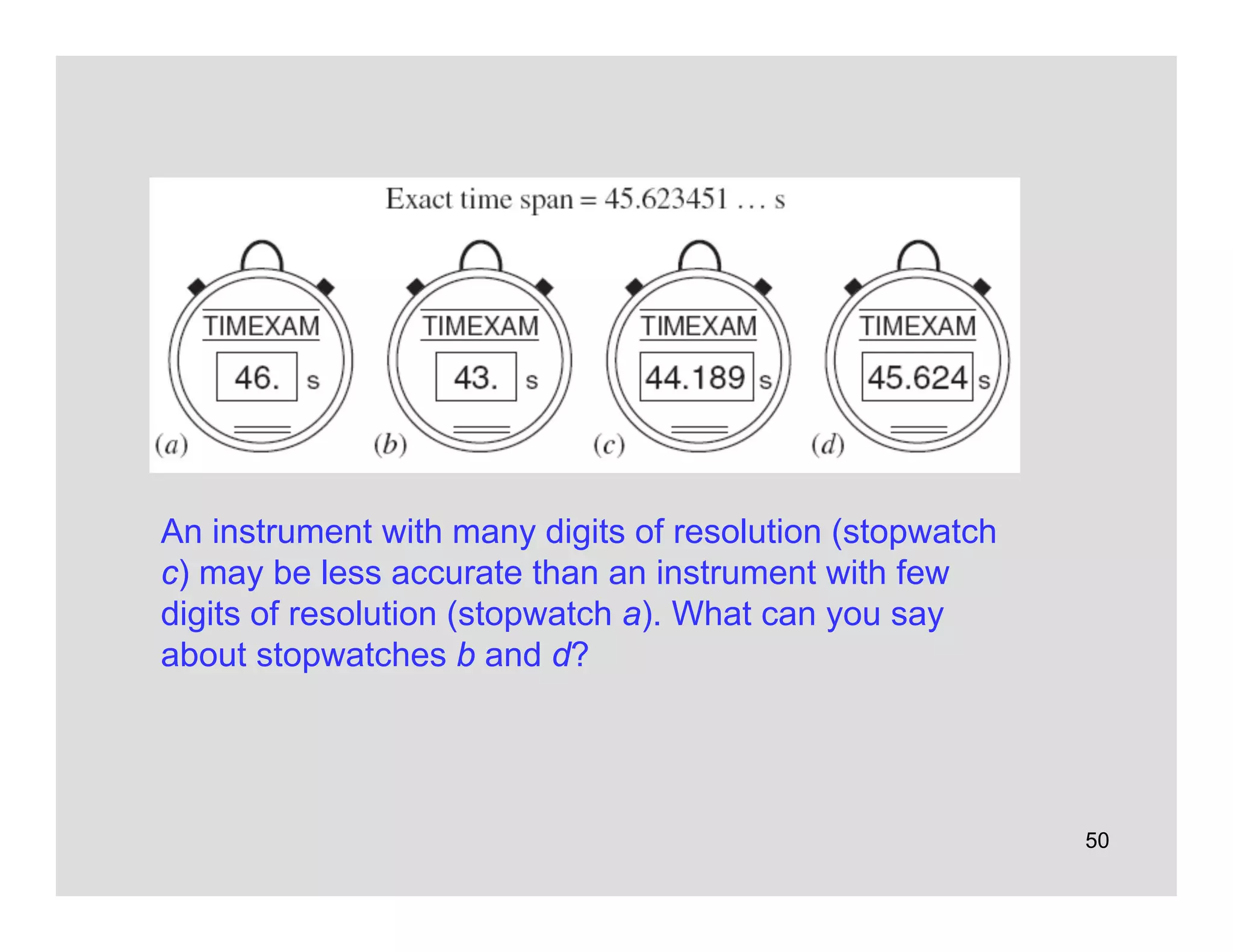

An instrument with many digits of resolution (stopwatch
c) may be less accurate than an instrument with few
digits of resolution (stopwatch a). What can you say
about stopwatches b and d?

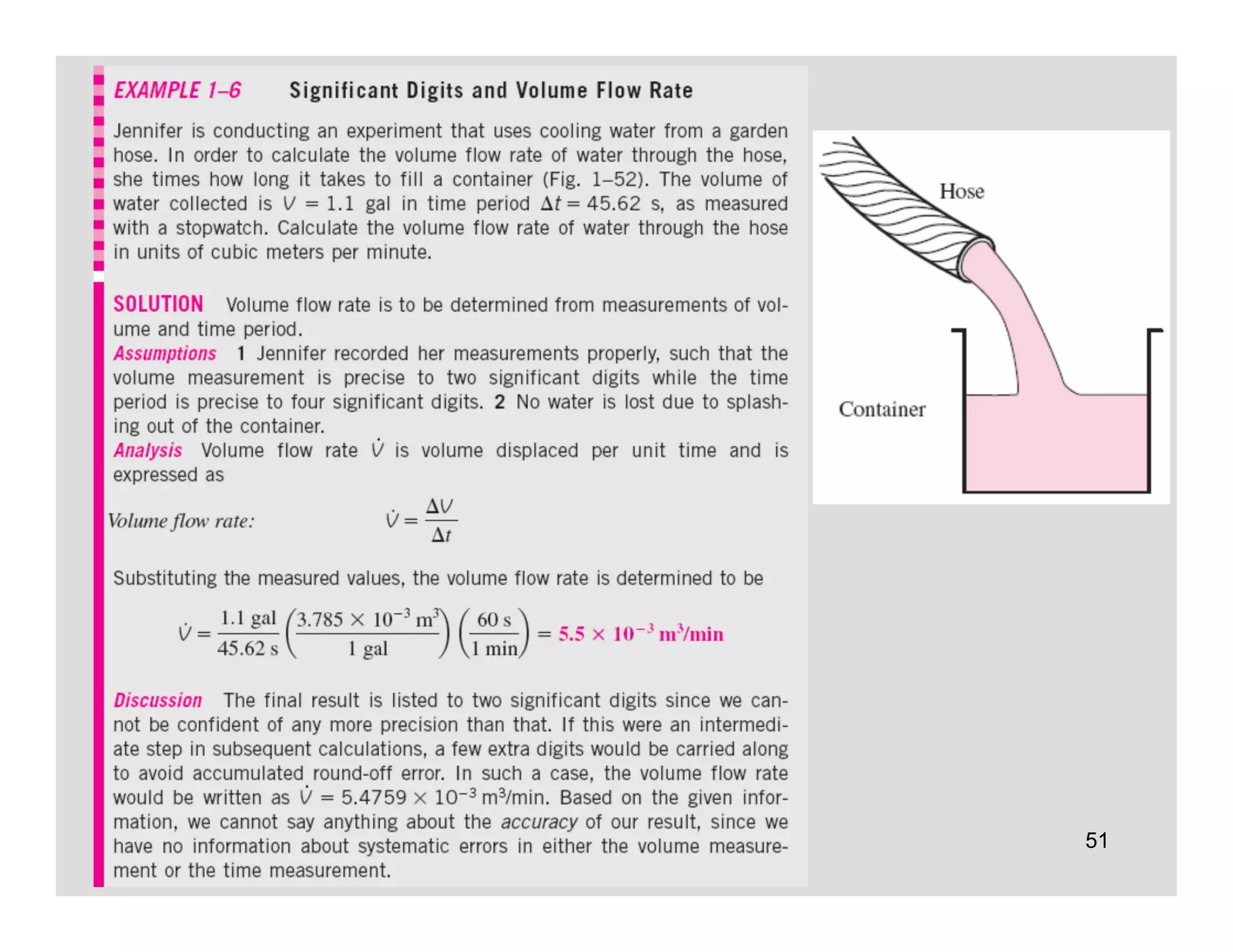

51. 51

52. 52

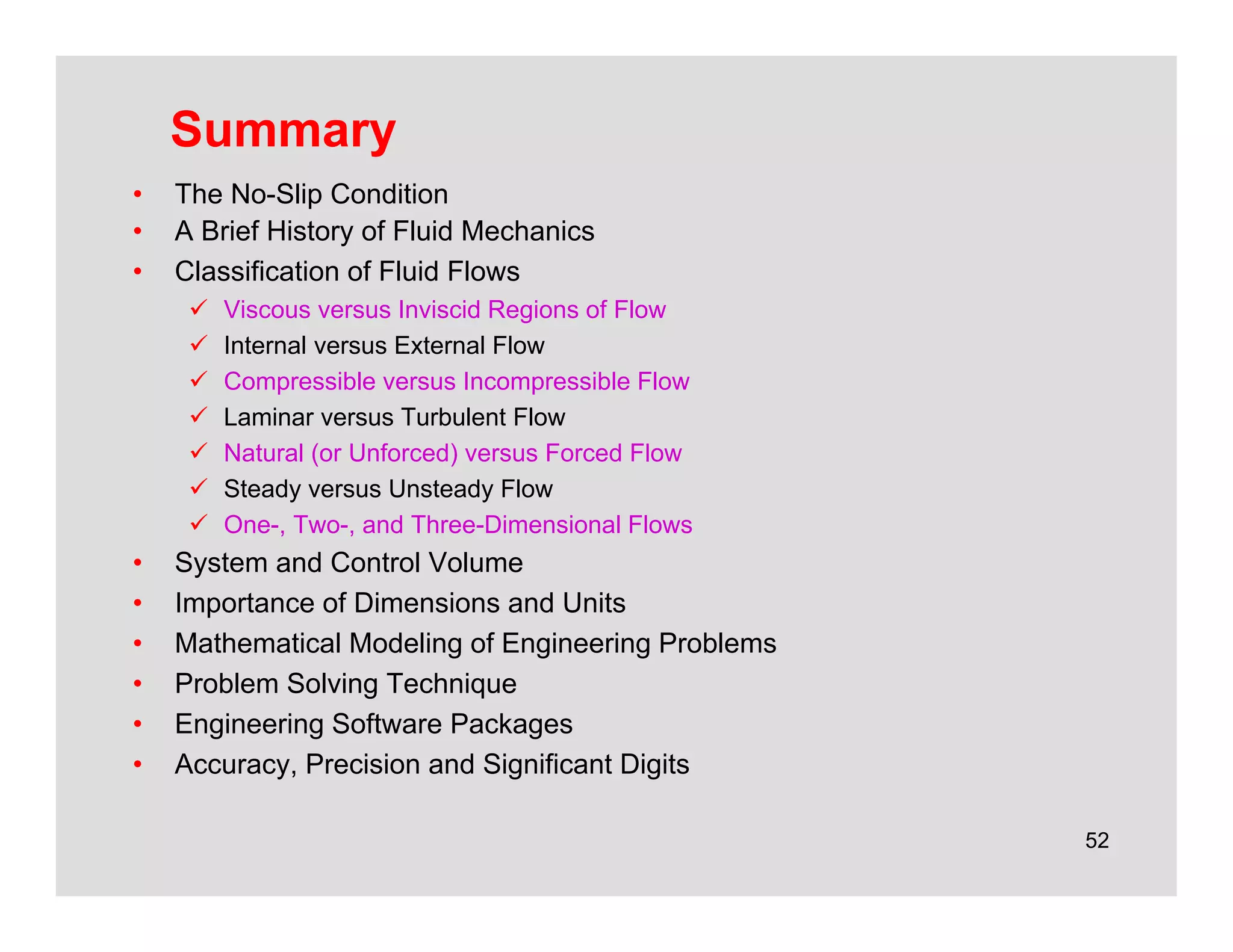

Summary
• The No-Slip Condition
• A Brief History of Fluid Mechanics
• Classification of Fluid Flows
 Viscous versus Inviscid Regions of Flow
 Internal versus External Flow
 Compressible versus Incompressible Flow
 Laminar versus Turbulent Flow
 Natural (or Unforced) versus Forced Flow
 Steady versus Unsteady Flow
 One-, Two-, and Three-Dimensional Flows
• System and Control Volume
• Importance of Dimensions and Units
• Mathematical Modeling of Engineering Problems
• Problem Solving Technique
• Engineering Software Packages
• Accuracy, Precision and Significant Digits
