The document summarizes five topics that every Win32 developer should know: 1. Performance - pointers and linked data structures are expensive due to cache misses and page faults; simple arrays can outperform more complex data structures. 2. Playing friendly with others - applications should be considerate of other programs and system resources by avoiding constant polling, using thread pools efficiently, and adapting to hardware capabilities. 3. User interface issues - high DPI displays require rescaling fonts and bitmaps, and the differences between parent/child and owner/owned windows can cause input synchronization issues. 4. Asynchronous vs synchronous input - in 32-bit Windows, each thread handles input independently, while attaching threads synchronizes their

1. Five Things Every Win32
Developer Should Know
Raymond Chen
(raymondc@microsoft.com)
FUN412
Windows User Experience
Microsoft Corporation

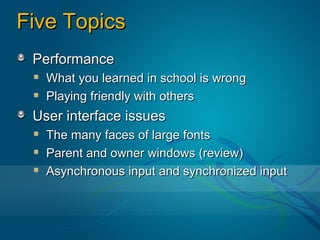

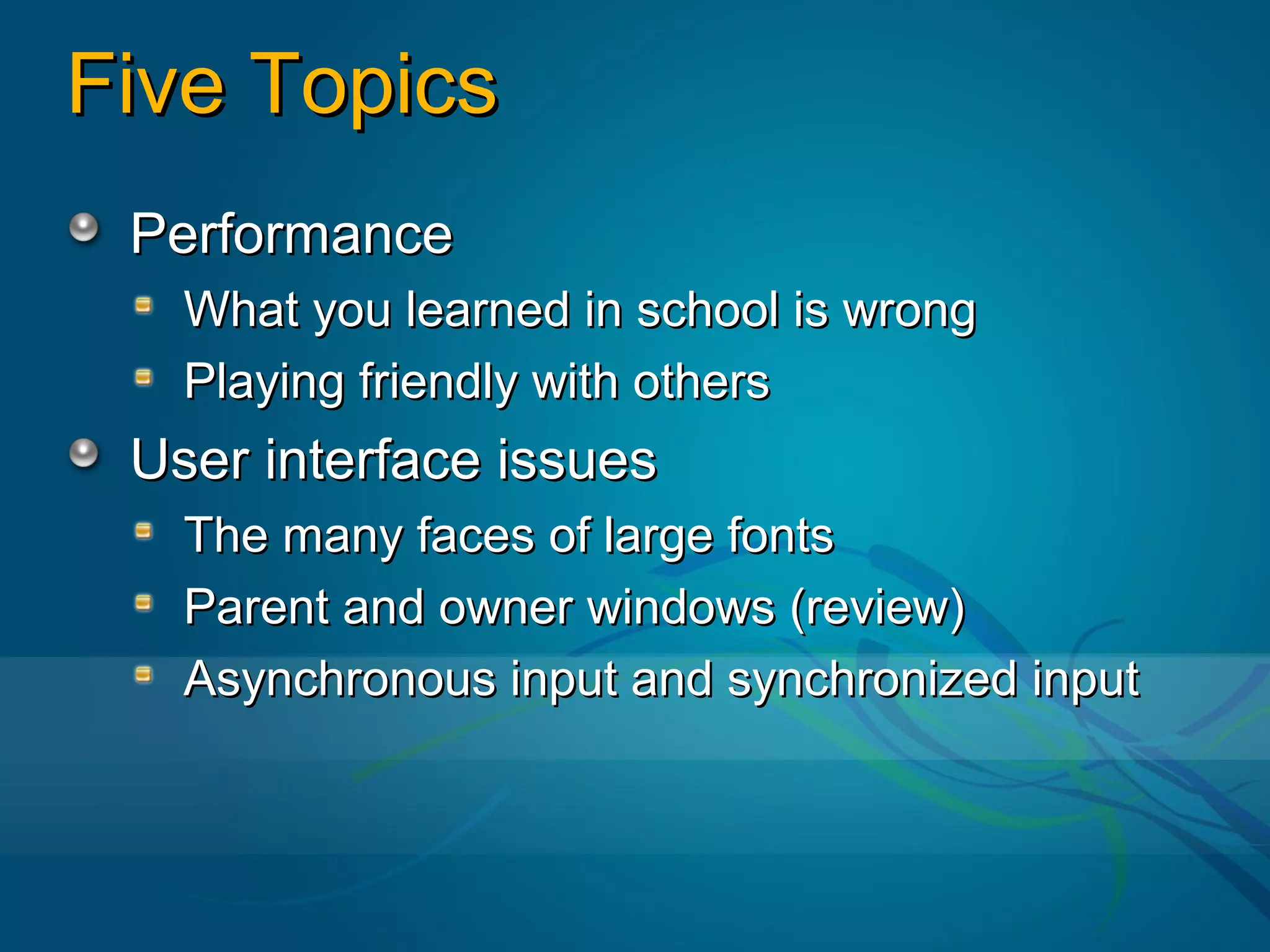

2. Five Topics
Performance
What you learned in school is wrong
Playing friendly with others
User interface issues
The many faces of large fonts
Parent and owner windows (review)
Asynchronous input and synchronized input

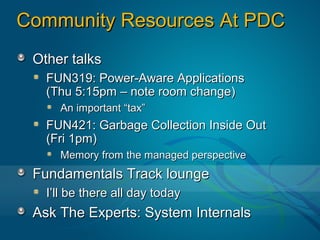

3. Community Resources At PDC
Other talks
FUN319: Power-Aware Applications
(Thu 5:15pm – note room change)
An important “tax”
FUN421: Garbage Collection Inside Out
(Fri 1pm)
Memory from the managed perspective
Fundamentals Track lounge
I’ll be there all day today
Ask The Experts: System Internals

4. Talks You May Have Missed
(watch the DVD)
FUN405: Programming with
Concurrency, Part 2
The dangers of trying too hard
FUN307: Test Automation and
Accessibility

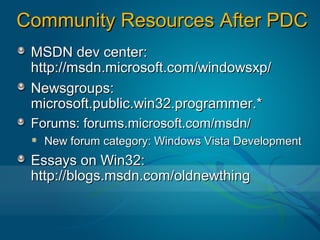

5. Community Resources After PDC
MSDN dev center:
http://msdn.microsoft.com/windowsxp/
Newsgroups:
microsoft.public.win32.programmer.*
Forums: forums.microsoft.com/msdn/
New forum category: Windows Vista Development
Essays on Win32:
http://blogs.msdn.com/oldnewthing

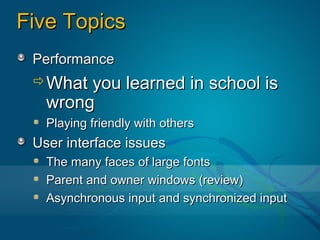

6. Five Topics
Performance
What you learned in school is
wrong
Playing friendly with others
User interface issues
The many faces of large fonts
Parent and owner windows (review)
Asynchronous input and synchronized input

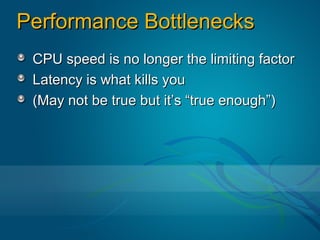

7. Performance Bottlenecks
CPU speed is no longer the limiting factor
Latency is what kills you
(May not be true but it’s “true enough”)

8. Typical Latencies
WAN (1e9-2e9)
Floppy, CD-ROM (1e9)
LAN (1e7-1e8)
Hard drive (1e7)
Main memory (25-50)
L2 cache (6-10)
L1 cache (1-2)
CPU (1)

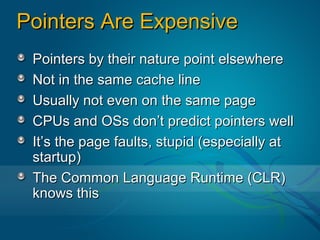

9. Pointers Are Expensive
Pointers by their nature point elsewhere
Not in the same cache line
Usually not even on the same page
CPUs and OSs don’t predict pointers well
It’s the page faults, stupid (especially at
startup)
The Common Language Runtime (CLR)
knows this

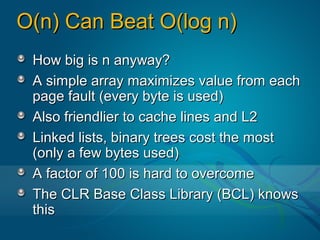

10. O(n) Can Beat O(log n)
How big is n anyway?
A simple array maximizes value from each
page fault (every byte is used)
Also friendlier to cache lines and L2
Linked lists, binary trees cost the most
(only a few bytes used)
A factor of 100 is hard to overcome
The CLR Base Class Library (BCL) knows
this

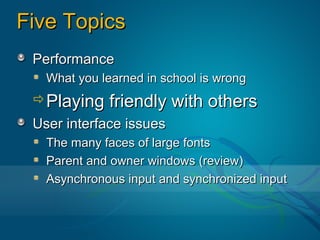

11. Five Topics
Performance
What you learned in school is wrong
Playing friendly with others
User interface issues
The many faces of large fonts
Parent and owner windows (review)
Asynchronous input and synchronized input

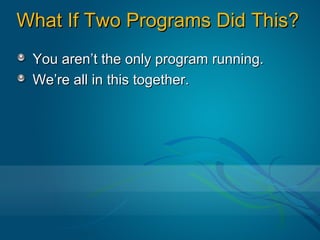

12. What If Two Programs Did This?
You aren’t the only program running.
We’re all in this together.

13. Polling
Prevents CPU from sleeping, monitor from
blanking, drive from spinning down, etc.
Keeps pages present
Effect is magnified on Terminal Servers

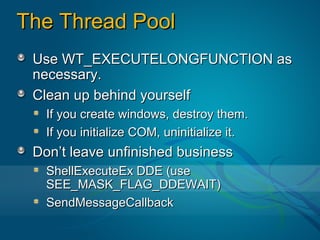

14. The Thread Pool
Use WT_EXECUTELONGFUNCTION as
necessary.
Clean up behind yourself
If you create windows, destroy them.
If you initialize COM, uninitialize it.
Don’t leave unfinished business
ShellExecuteEx DDE (use
SEE_MASK_FLAG_DDEWAIT)
SendMessageCallback

15. Remote Desktop /
Terminal Services
Your video card is very slow
Disable animations
(SPI_GETxxxANIMATION)
Suppress unnecessary background
operations
Very similar to power management

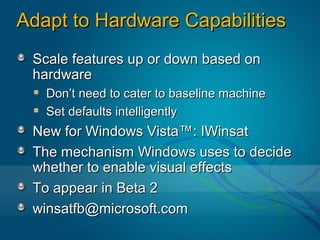

16. Adapt to Hardware Capabilities
Scale features up or down based on
hardware
Don’t need to cater to baseline machine
Set defaults intelligently
New for Windows Vista™: IWinsat
The mechanism Windows uses to decide
whether to enable visual effects
To appear in Beta 2
winsatfb@microsoft.com

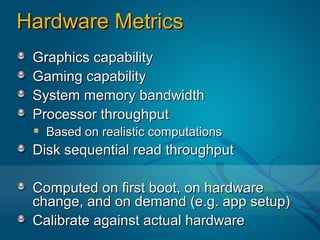

17. Hardware Metrics
Graphics capability
Gaming capability
System memory bandwidth
Processor throughput
Based on realistic computations
Disk sequential read throughput
Computed on first boot, on hardware
change, and on demand (e.g. app setup)
Calibrate against actual hardware

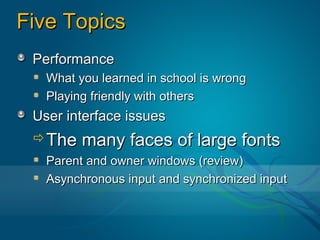

18. Five Topics
Performance
What you learned in school is wrong
Playing friendly with others
User interface issues
The many faces of large fonts
Parent and owner windows (review)
Asynchronous input and synchronized input

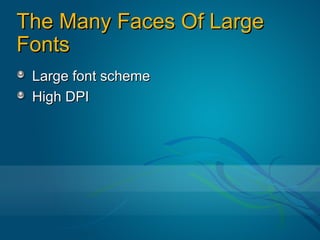

19. The Many Faces Of Large
Fonts
Large font scheme
High DPI

20. Large Font Scheme
The size of screen
elements
Caption, menu,
message box,
status bar, icon
labels
No effect on
anything else

21. High DPI
Changes the mapping between point
and pixels
Affect all point-based computations
(primarily fonts and consequently
dialog boxes)

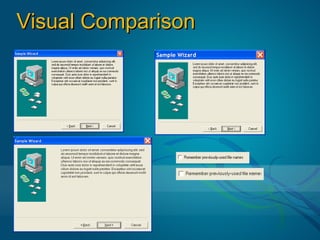

22. Visual Comparison

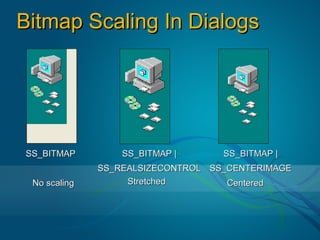

23. Bitmap Scaling In Dialogs
SS_BITMAP SS_BITMAP | SS_BITMAP |
SS_REALSIZECONTROL SS_CENTERIMAGE
No scaling Stretched Centered

24. Dealing With High DPI
Font metrics scale non-linearly
Visually inspect your dialogs
Bitmaps need to be adjusted
Author for common DPI (96, 120, 144, 192)
Stretch or center static images if no perfect
match available
Stretching down is better than stretching up
“High DPI is the new multimon”

25. High-DPI Devices
Sony VAIO U71
Toshiba M200 IBM T221:
• 6”
• 12” • 24”
• 800x600
• 1400x1050 • 3840x2400
• ≈166 DPI
• ≈144 DPI • ≈200 DPI
• ≈US$2700
• ≈US$2400 • ≈US$8000
Source: PRS325: Windows Presentation Foundation ("Avalon"): Advanced Graphics (Part 1): “2D, 3D and
Text”

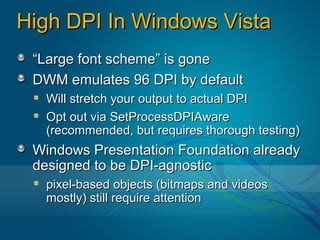

26. High DPI In Windows Vista
“Large font scheme” is gone
DWM emulates 96 DPI by default
Will stretch your output to actual DPI
Opt out via SetProcessDPIAware
(recommended, but requires thorough testing)
Windows Presentation Foundation already
designed to be DPI-agnostic
pixel-based objects (bitmaps and videos
mostly) still require attention

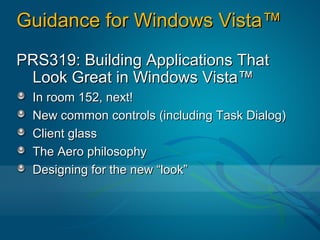

27. Guidance for Windows Vista™
PRS319: Building Applications That
Look Great in Windows Vista™
In room 152, next!
New common controls (including Task Dialog)
Client glass
The Aero philosophy
Designing for the new “look”

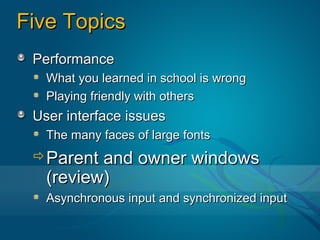

28. Five Topics
Performance
What you learned in school is wrong
Playing friendly with others
User interface issues
The many faces of large fonts
Parent and owner windows
(review)
Asynchronous input and synchronized input

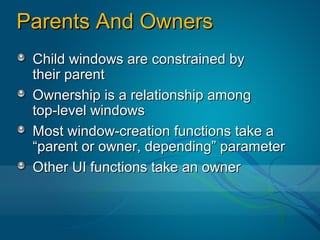

29. Parents And Owners
Child windows are constrained by
their parent
Ownership is a relationship among
top-level windows
Most window-creation functions take a
“parent or owner, depending” parameter
Other UI functions take an owner

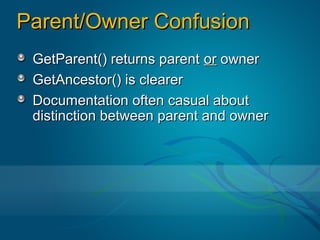

30. Parent/Owner Confusion
GetParent() returns parent or owner
GetAncestor() is clearer
Documentation often casual about
distinction between parent and owner

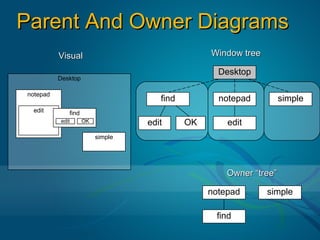

31. Parent And Owner Diagrams
Visual Window tree
Desktop
Desktop
notepad
find notepad simple
edit find
edit OK edit OK edit
simple
Owner “tree”
notepad simple
find

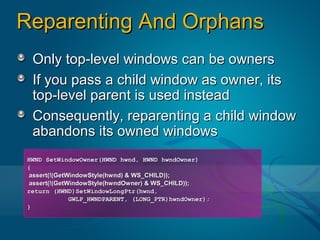

32. Reparenting And Orphans
Only top-level windows can be owners
If you pass a child window as owner, its
top-level parent is used instead
Consequently, reparenting a child window
abandons its owned windows
HWND SetWindowOwner(HWND hwnd, HWND hwndOwner)
{
assert(!(GetWindowStyle(hwnd) & WS_CHILD));
assert(!(GetWindowStyle(hwndOwner) & WS_CHILD));
return (HWND)SetWindowLongPtr(hwnd,
GWLP_HWNDPARENT, (LONG_PTR)hwndOwner);
}

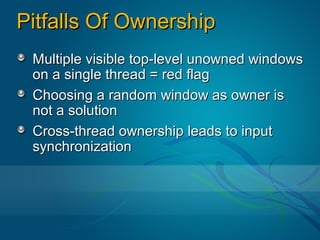

33. Pitfalls Of Ownership
Multiple visible top-level unowned windows
on a single thread = red flag
Choosing a random window as owner is
not a solution
Cross-thread ownership leads to input
synchronization

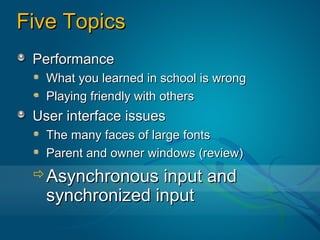

34. Five Topics
Performance
What you learned in school is wrong
Playing friendly with others
User interface issues
The many faces of large fonts
Parent and owner windows (review)
Asynchronous input and
synchronized input

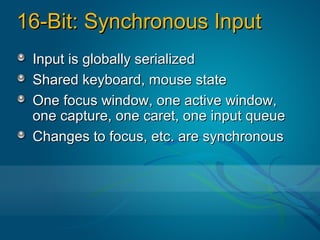

35. 16-Bit: Synchronous Input
Input is globally serialized
Shared keyboard, mouse state
One focus window, one active window,
one capture, one caret, one input queue
Changes to focus, etc. are synchronous

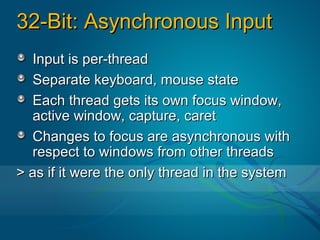

36. 32-Bit: Asynchronous Input
Input is per-thread
Separate keyboard, mouse state
Each thread gets its own focus window,
active window, capture, caret
Changes to focus are asynchronous with
respect to windows from other threads
> as if it were the only thread in the system

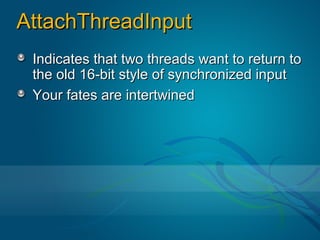

37. AttachThreadInput
Indicates that two threads want to return to
the old 16-bit style of synchronized input
Your fates are intertwined

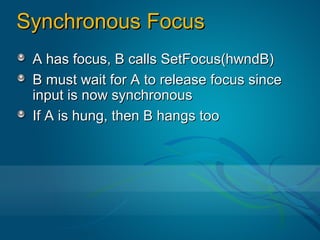

38. Synchronous Focus
A has focus, B calls SetFocus(hwndB)
B must wait for A to release focus since
input is now synchronous
If A is hung, then B hangs too

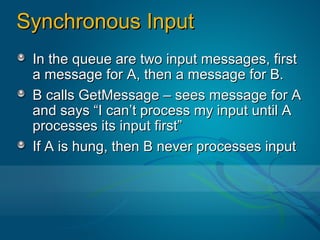

39. Synchronous Input
In the queue are two input messages, first
a message for A, then a message for B.
B calls GetMessage – sees message for A
and says “I can’t process my input until A
processes its input first”
If A is hung, then B never processes input

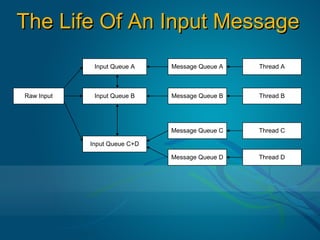

40. The Life Of An Input Message
Input Queue A Message Queue A Thread A
Raw Input Input Queue B Message Queue B Thread B
Message Queue C Thread C
Input Queue C+D
Message Queue D Thread D

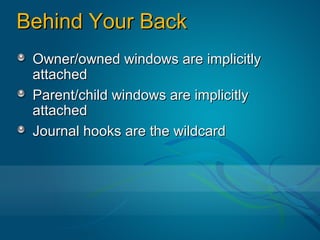

41. Behind Your Back
Owner/owned windows are implicitly
attached
Parent/child windows are implicitly
attached
Journal hooks are the wildcard

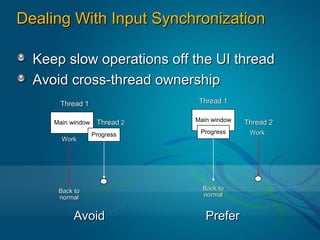

42. Dealing With Input Synchronization
Keep slow operations off the UI thread
Avoid cross-thread ownership
Thread 1 Thread 1
Main window Thread 2 Main window Thread 2
Progress Progress Work
Work
Back to Back to
normal normal
Avoid Prefer

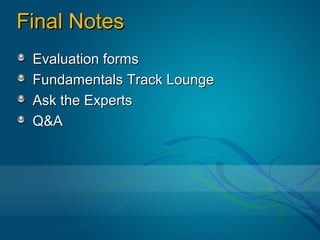

43. Final Notes
Evaluation forms
Fundamentals Track Lounge
Ask the Experts
Q&A
