This document contains configurations for routers and switches in a network. Router configurations include interfaces, OSPF, EIGRP, and RIP routing. Switch configurations include VLANs, trunk and access ports, and connections between switches. The network connects multiple locations using tunnels, VLAN trunking, and routing protocols.

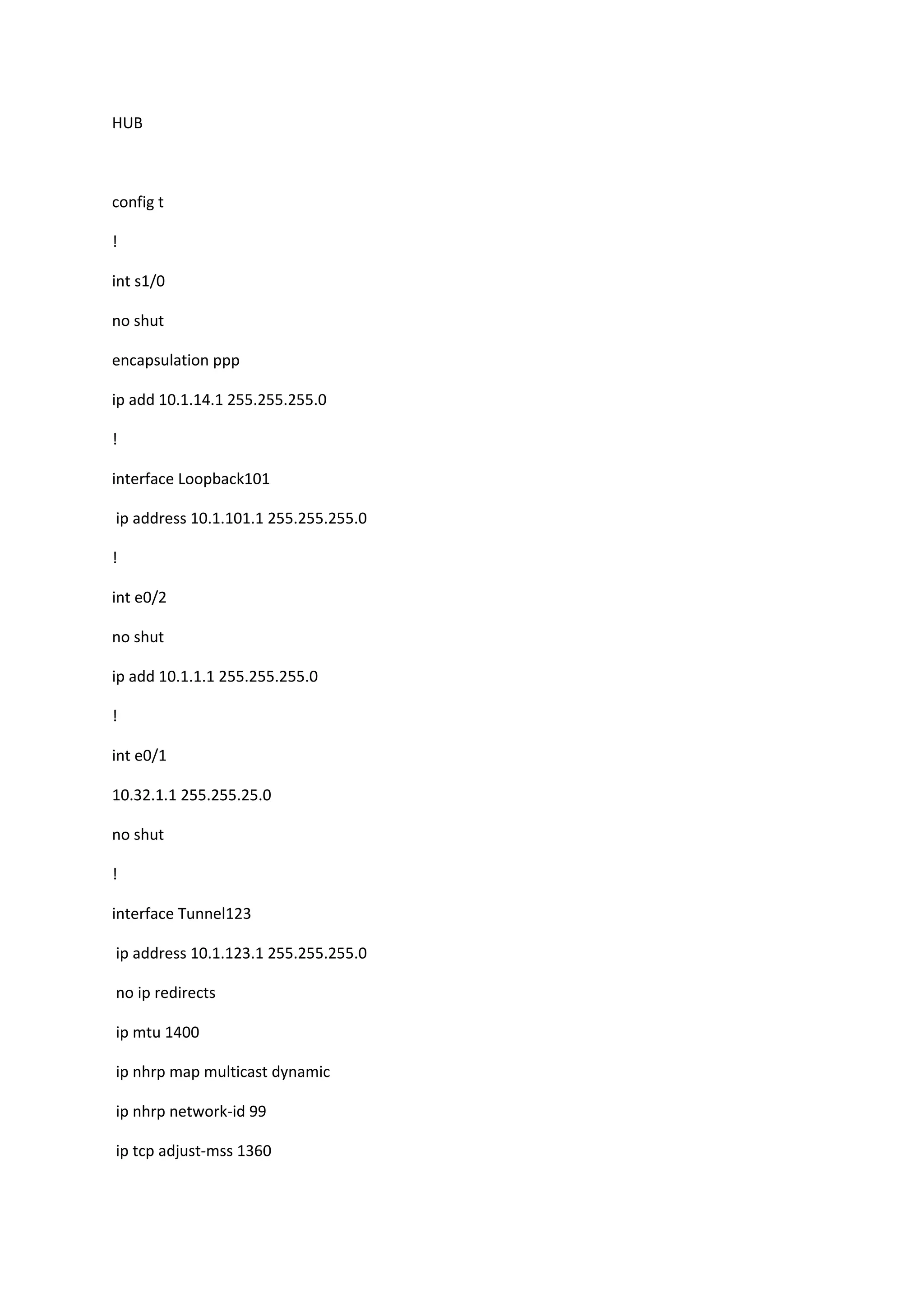

1. HUB
config t
!
int s1/0
no shut
encapsulation ppp
ip add 10.1.14.1 255.255.255.0
!
interface Loopback101
ip address 10.1.101.1 255.255.255.0
!
int e0/2
no shut
ip add 10.1.1.1 255.255.255.0
!
int e0/1
10.32.1.1 255.255.25.0
no shut
!
interface Tunnel123
ip address 10.1.123.1 255.255.255.0
no ip redirects
ip mtu 1400
ip nhrp map multicast dynamic
ip nhrp network-id 99
ip tcp adjust-mss 1360

2. ip ospf network broadcast

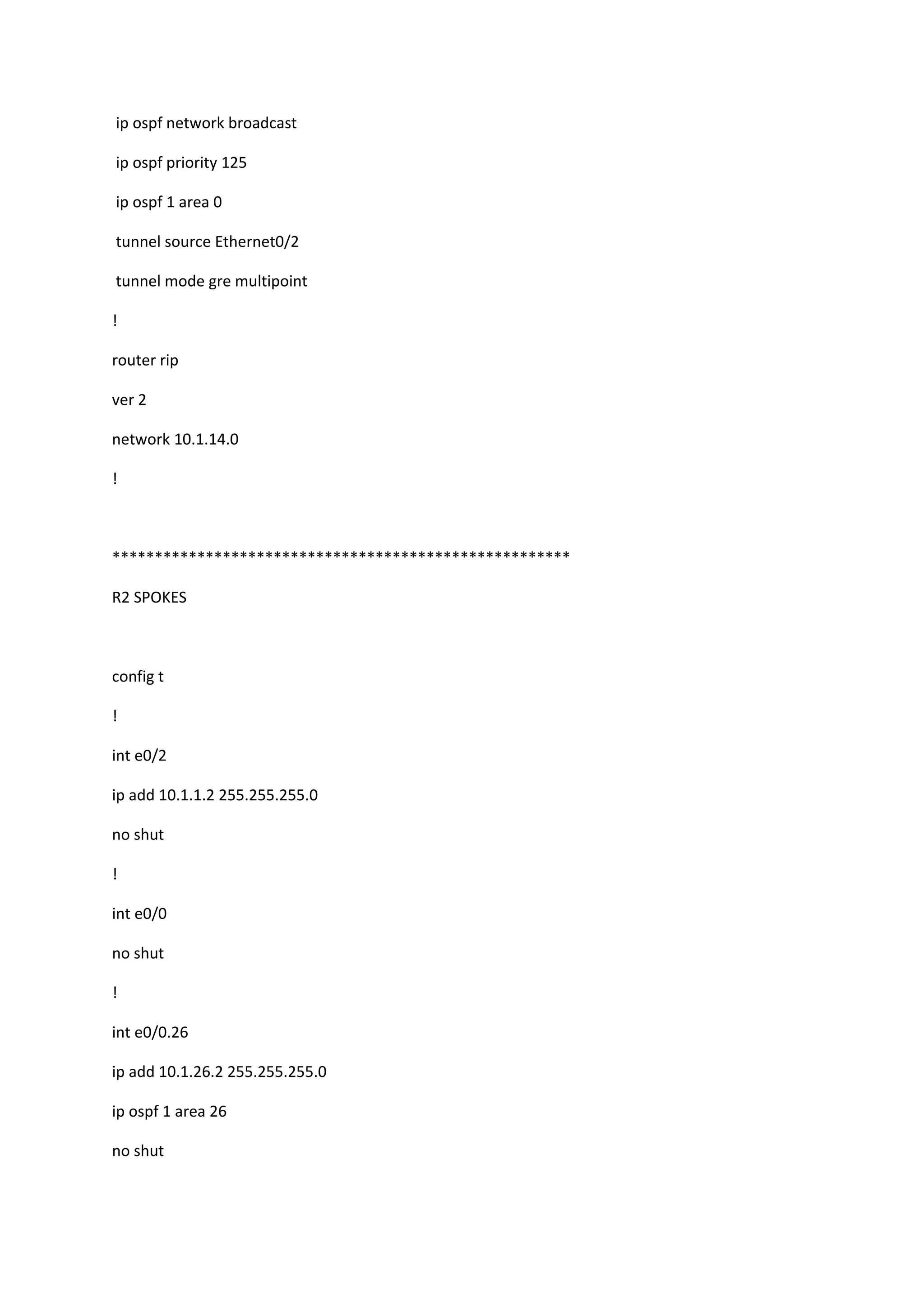

ip ospf priority 125
ip ospf 1 area 0
tunnel source Ethernet0/2
tunnel mode gre multipoint
!
router rip
ver 2
network 10.1.14.0
!
******************************************************
R2 SPOKES
config t
!
int e0/2
ip add 10.1.1.2 255.255.255.0
no shut
!
int e0/0
no shut
!
int e0/0.26
ip add 10.1.26.2 255.255.255.0
ip ospf 1 area 26
no shut

3. !
!

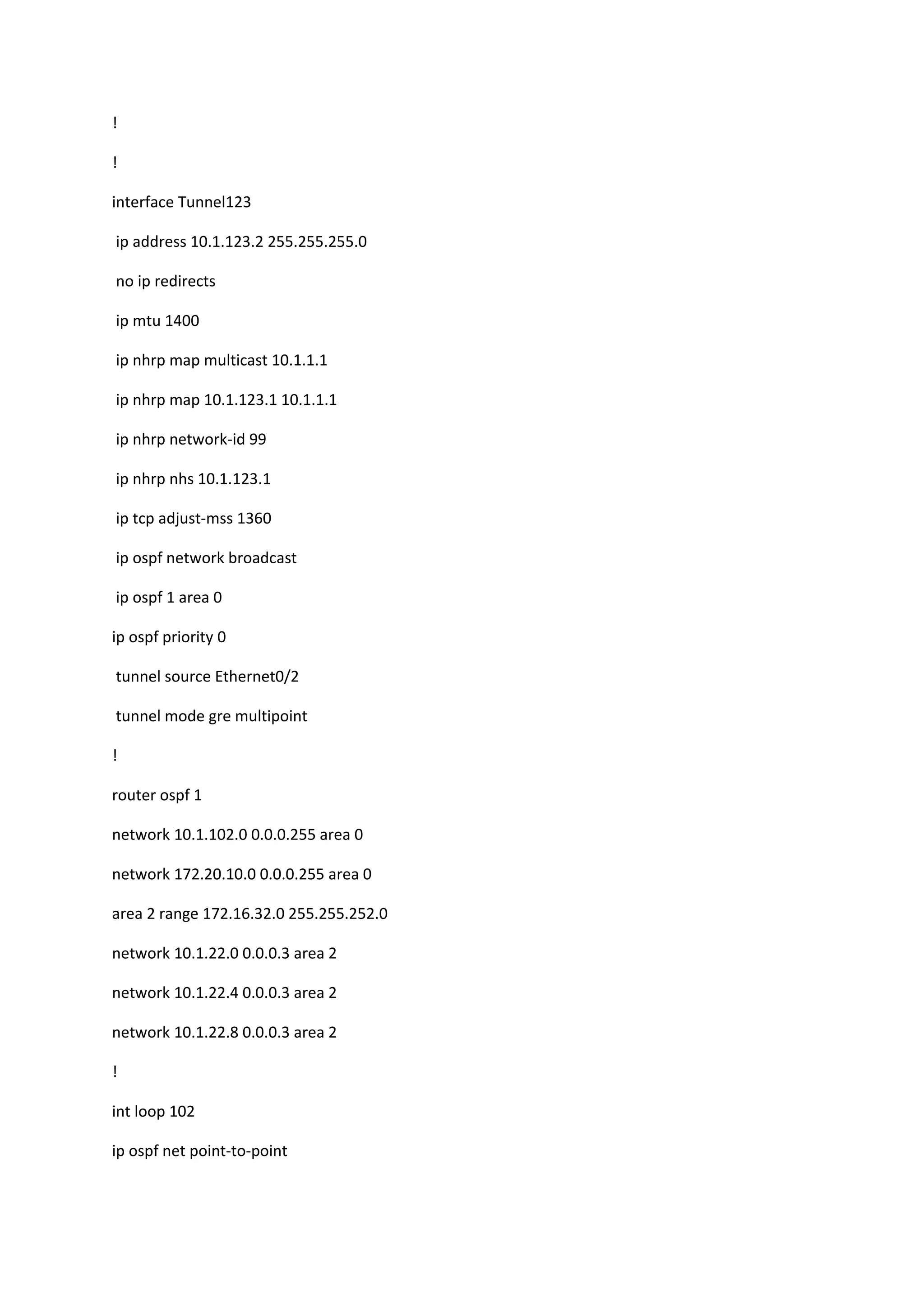

interface Tunnel123
ip address 10.1.123.2 255.255.255.0
no ip redirects
ip mtu 1400
ip nhrp map multicast 10.1.1.1
ip nhrp map 10.1.123.1 10.1.1.1
ip nhrp network-id 99
ip nhrp nhs 10.1.123.1
ip tcp adjust-mss 1360
ip ospf network broadcast
ip ospf 1 area 0
ip ospf priority 0
tunnel source Ethernet0/2
tunnel mode gre multipoint
!
router ospf 1
network 10.1.102.0 0.0.0.255 area 0
network 172.20.10.0 0.0.0.255 area 0
area 2 range 172.16.32.0 255.255.252.0
network 10.1.22.0 0.0.0.3 area 2
network 10.1.22.4 0.0.0.3 area 2
network 10.1.22.8 0.0.0.3 area 2
!
int loop 102
ip ospf net point-to-point

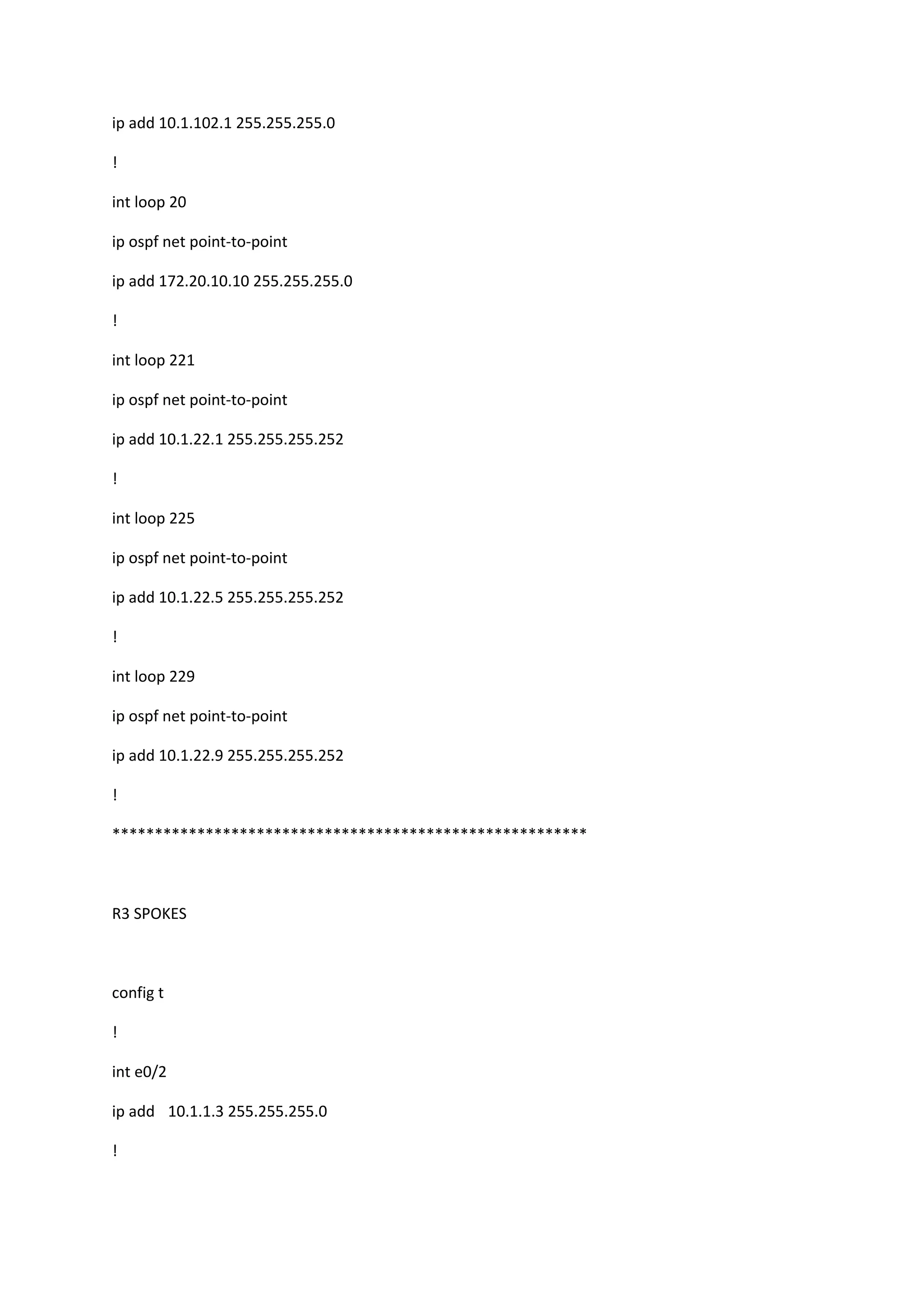

4. ip add 10.1.102.1 255.255.255.0
!
int loop 20
ip ospf net point-to-point
ip add 172.20.10.10 255.255.255.0
!
int loop 221
ip ospf net point-to-point
ip add 10.1.22.1 255.255.255.252
!
int loop 225
ip ospf net point-to-point
ip add 10.1.22.5 255.255.255.252
!
int loop 229
ip ospf net point-to-point
ip add 10.1.22.9 255.255.255.252
!
********************************************************
R3 SPOKES
config t
!
int e0/2
ip add 10.1.1.3 255.255.255.0
!

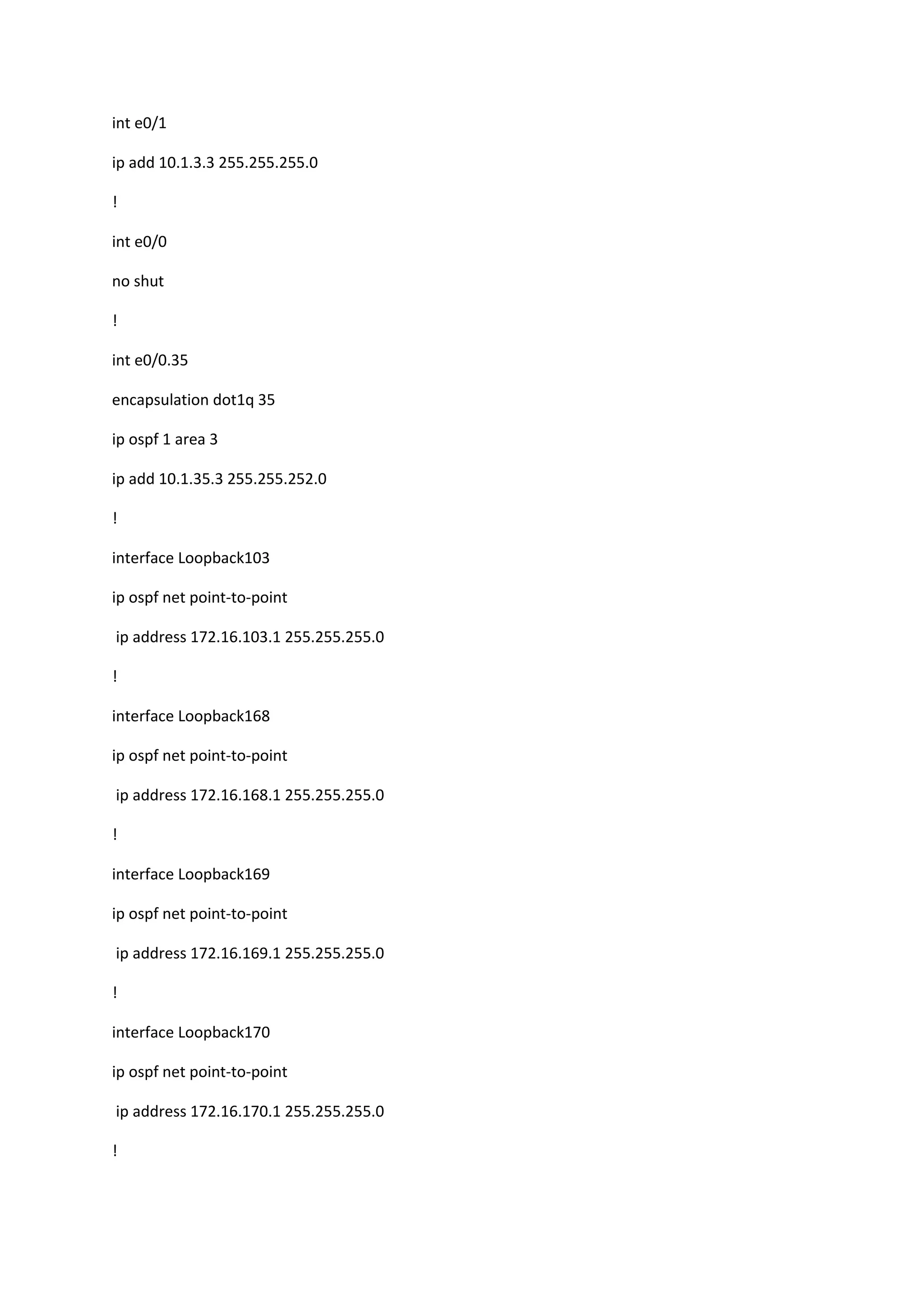

5. int e0/1
ip add 10.1.3.3 255.255.255.0
!
int e0/0
no shut
!
int e0/0.35
encapsulation dot1q 35
ip ospf 1 area 3
ip add 10.1.35.3 255.255.252.0
!
interface Loopback103
ip ospf net point-to-point
ip address 172.16.103.1 255.255.255.0
!
interface Loopback168
ip ospf net point-to-point
ip address 172.16.168.1 255.255.255.0
!
interface Loopback169
ip ospf net point-to-point
ip address 172.16.169.1 255.255.255.0
!
interface Loopback170
ip ospf net point-to-point
ip address 172.16.170.1 255.255.255.0
!

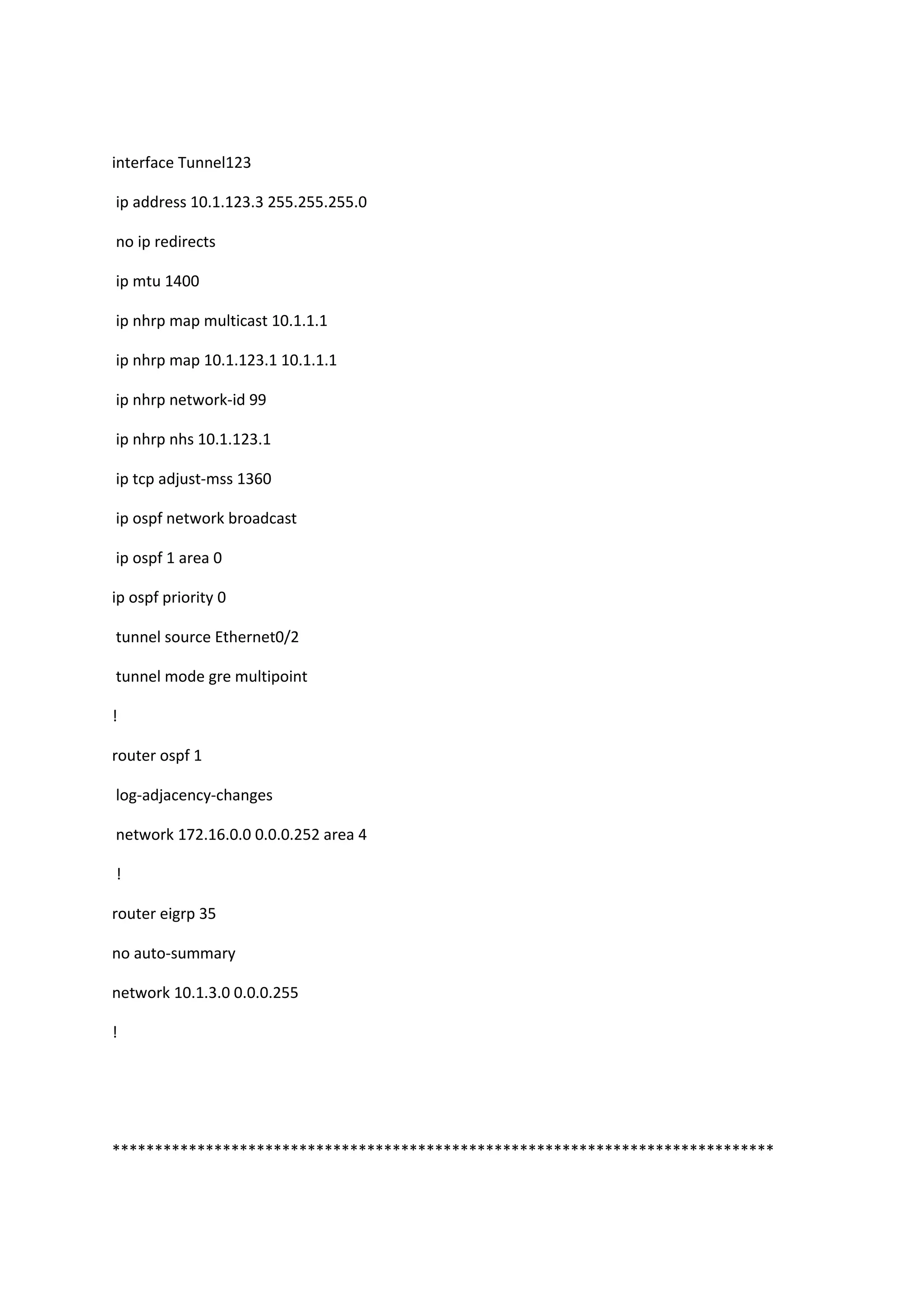

6. interface Tunnel123
ip address 10.1.123.3 255.255.255.0
no ip redirects
ip mtu 1400
ip nhrp map multicast 10.1.1.1
ip nhrp map 10.1.123.1 10.1.1.1
ip nhrp network-id 99
ip nhrp nhs 10.1.123.1
ip tcp adjust-mss 1360
ip ospf network broadcast
ip ospf 1 area 0
ip ospf priority 0
tunnel source Ethernet0/2
tunnel mode gre multipoint
!
router ospf 1
log-adjacency-changes
network 172.16.0.0 0.0.0.252 area 4
!
router eigrp 35
no auto-summary
network 10.1.3.0 0.0.0.255
!
******************************************************************************

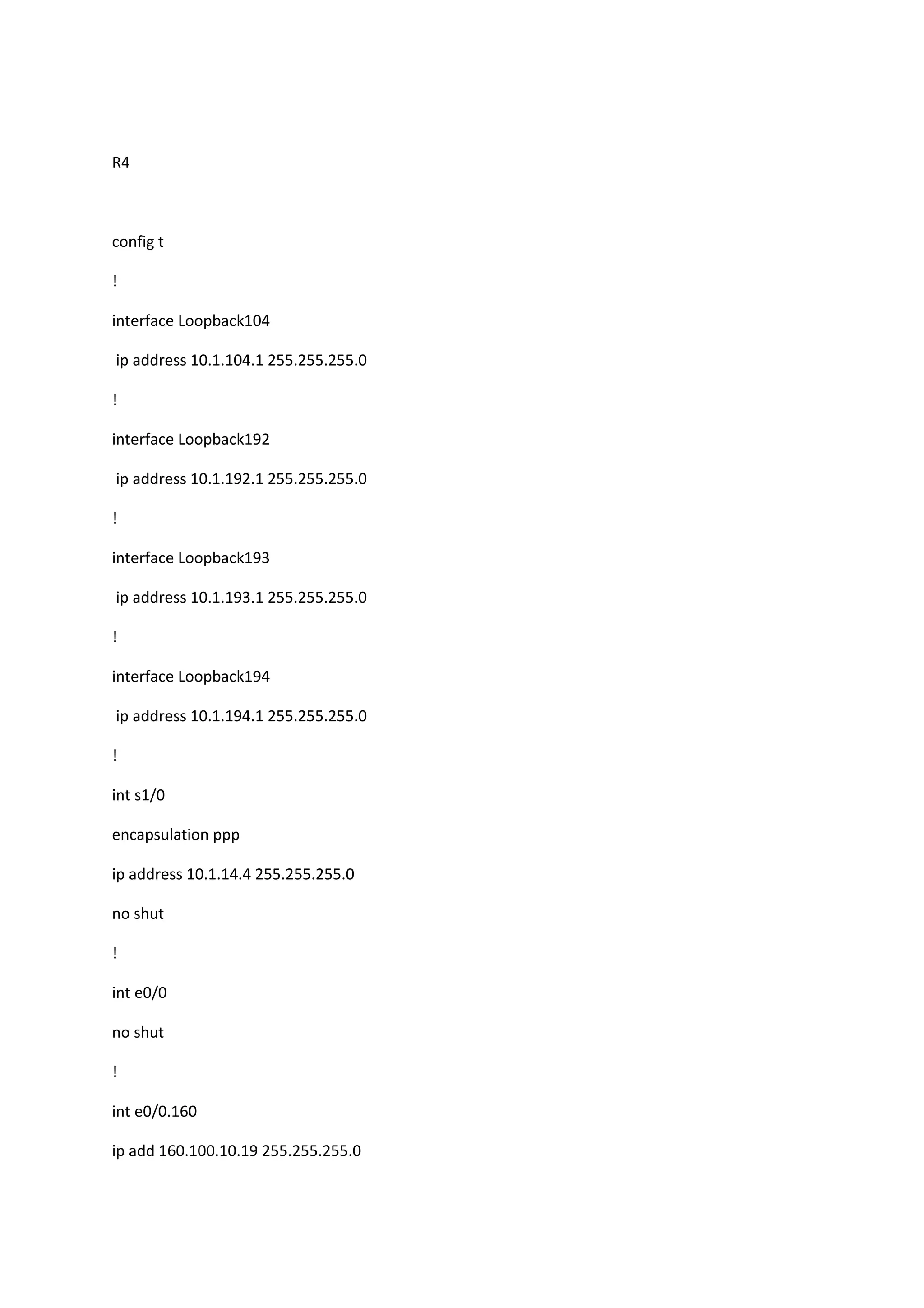

7. R4
config t
!
interface Loopback104
ip address 10.1.104.1 255.255.255.0
!
interface Loopback192
ip address 10.1.192.1 255.255.255.0
!
interface Loopback193
ip address 10.1.193.1 255.255.255.0
!
interface Loopback194
ip address 10.1.194.1 255.255.255.0
!
int s1/0
encapsulation ppp
ip address 10.1.14.4 255.255.255.0
no shut
!
int e0/0
no shut
!
int e0/0.160
ip add 160.100.10.19 255.255.255.0

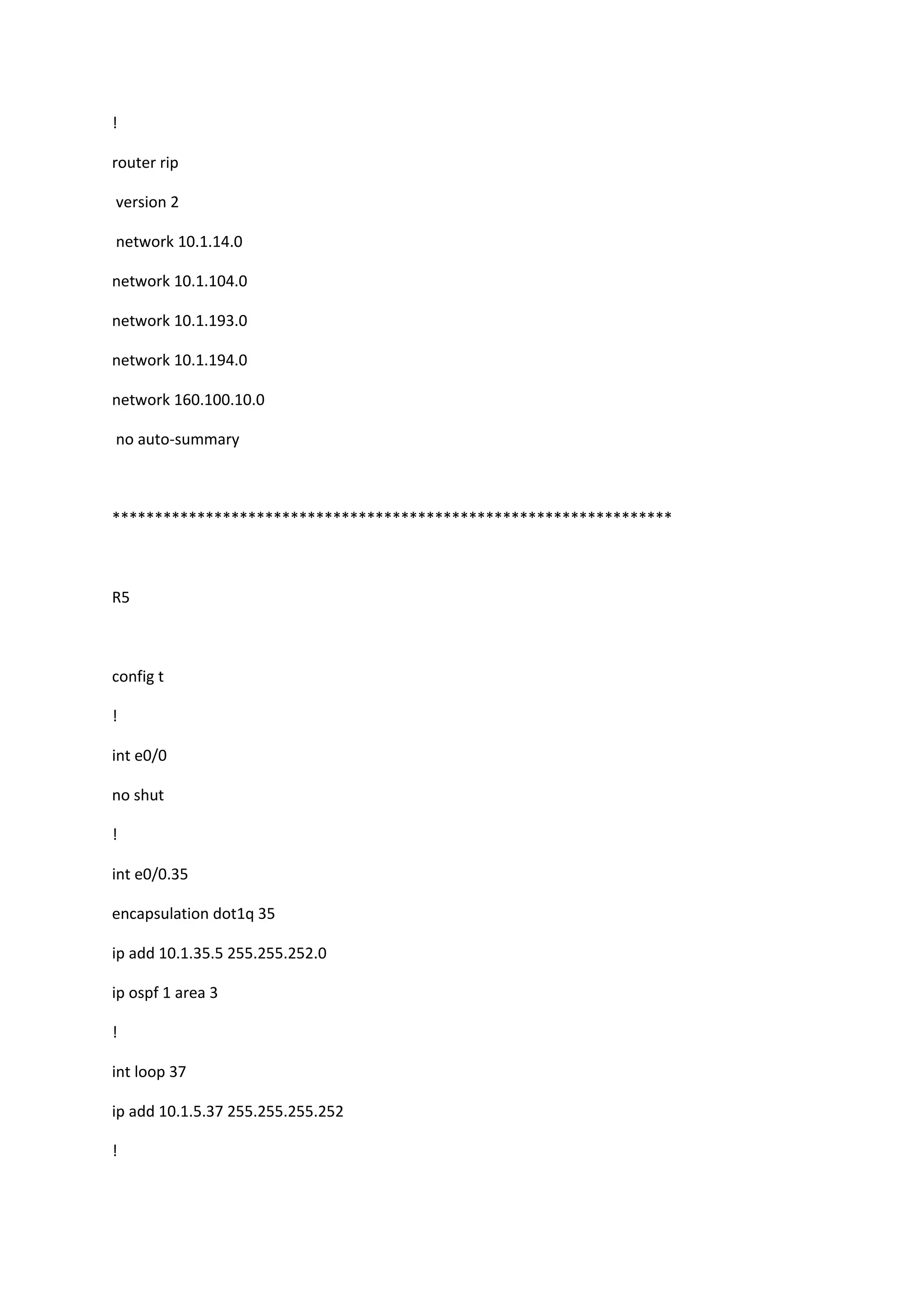

8. !
router rip
version 2
network 10.1.14.0
network 10.1.104.0
network 10.1.193.0
network 10.1.194.0
network 160.100.10.0
no auto-summary
******************************************************************
R5
config t
!
int e0/0
no shut
!
int e0/0.35
encapsulation dot1q 35
ip add 10.1.35.5 255.255.252.0
ip ospf 1 area 3
!
int loop 37
ip add 10.1.5.37 255.255.255.252
!

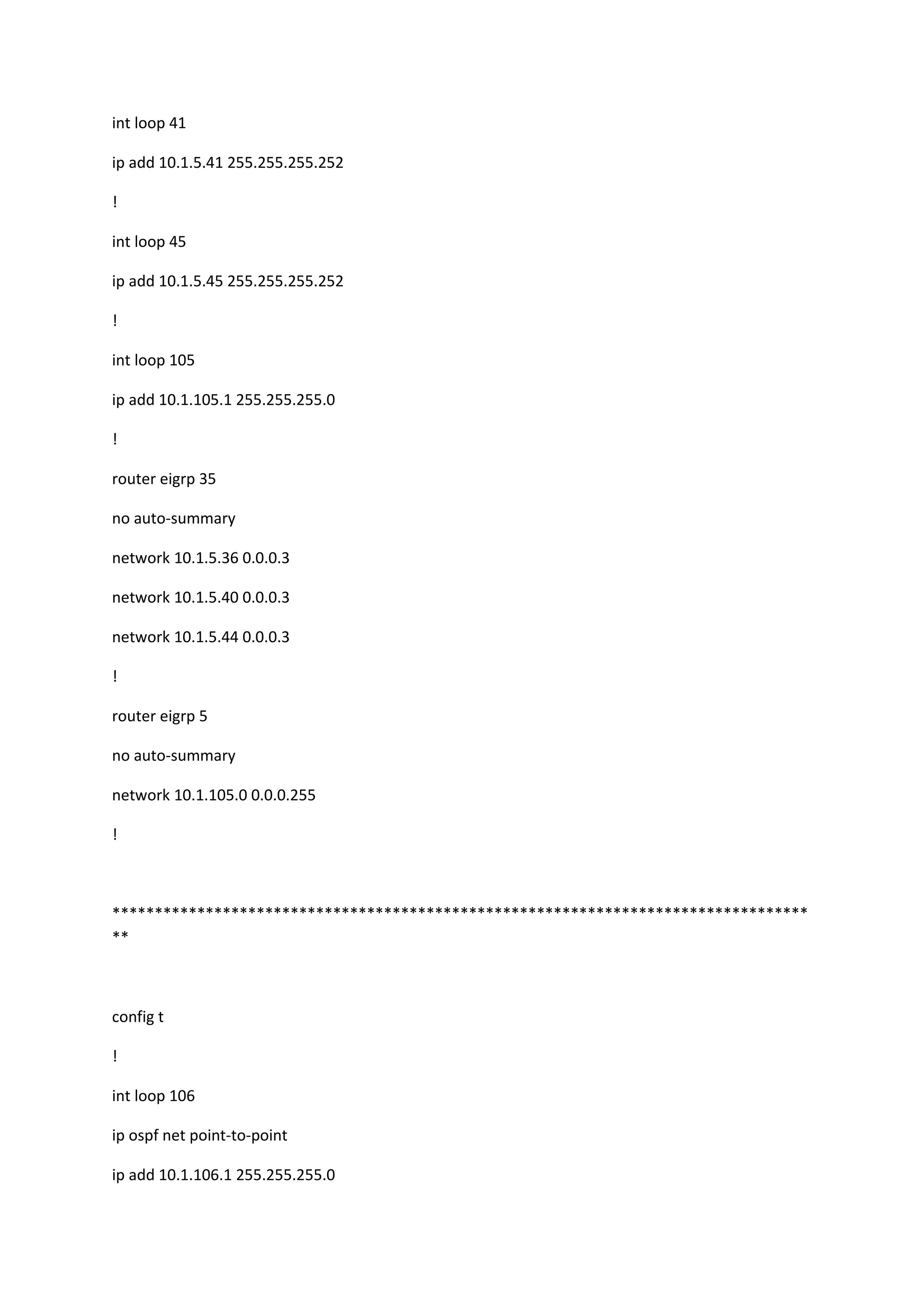

9. int loop 41
ip add 10.1.5.41 255.255.255.252
!
int loop 45
ip add 10.1.5.45 255.255.255.252
!
int loop 105
ip add 10.1.105.1 255.255.255.0
!
router eigrp 35
no auto-summary
network 10.1.5.36 0.0.0.3
network 10.1.5.40 0.0.0.3
network 10.1.5.44 0.0.0.3
!
router eigrp 5
no auto-summary
network 10.1.105.0 0.0.0.255
!
**********************************************************************************
**
config t
!
int loop 106
ip ospf net point-to-point
ip add 10.1.106.1 255.255.255.0

10. !

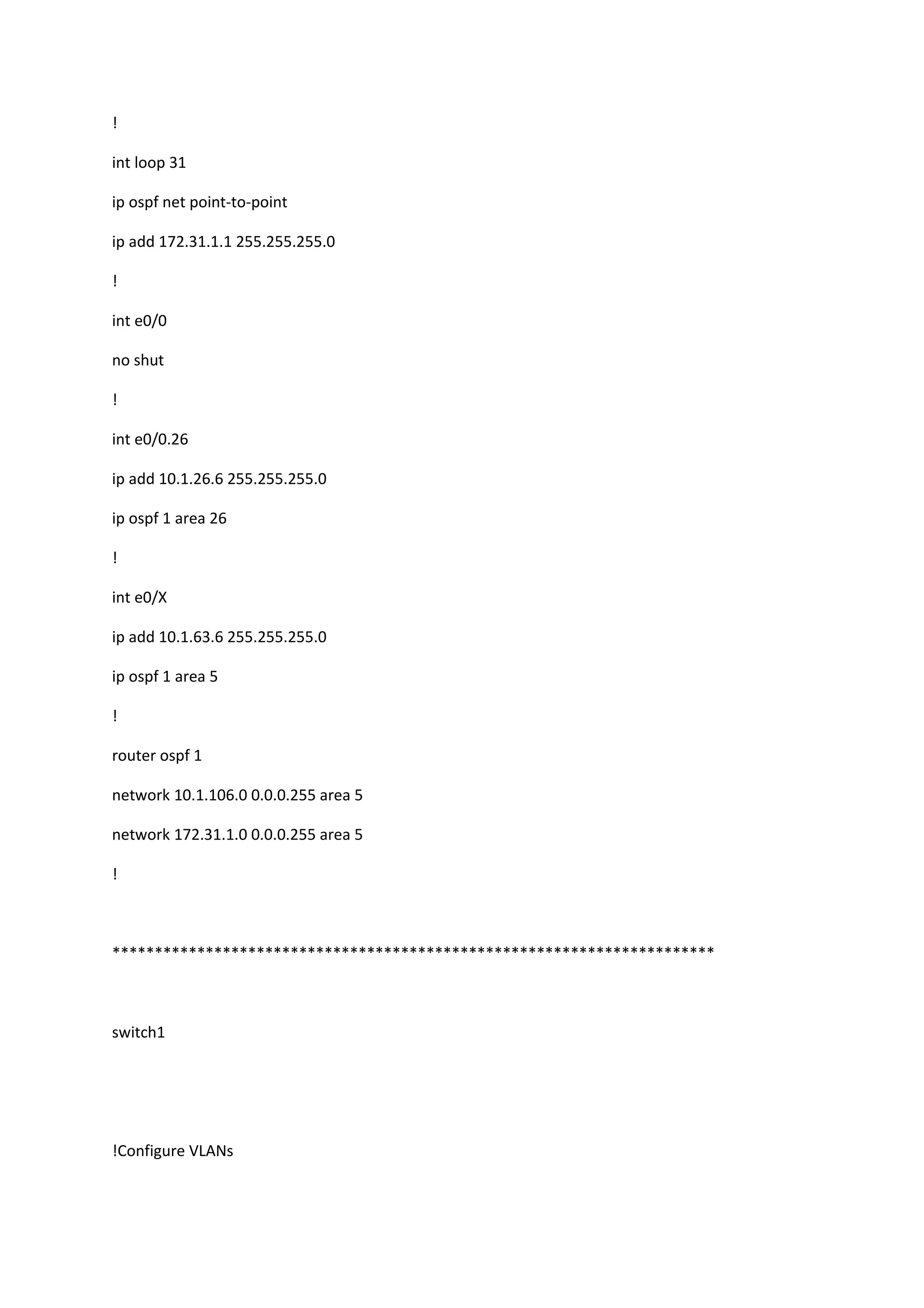

int loop 31
ip ospf net point-to-point
ip add 172.31.1.1 255.255.255.0
!
int e0/0
no shut
!
int e0/0.26
ip add 10.1.26.6 255.255.255.0
ip ospf 1 area 26
!
int e0/X
ip add 10.1.63.6 255.255.255.0
ip ospf 1 area 5
!
router ospf 1
network 10.1.106.0 0.0.0.255 area 5
network 172.31.1.0 0.0.0.255 area 5
!
***********************************************************************
switch1
!Configure VLANs

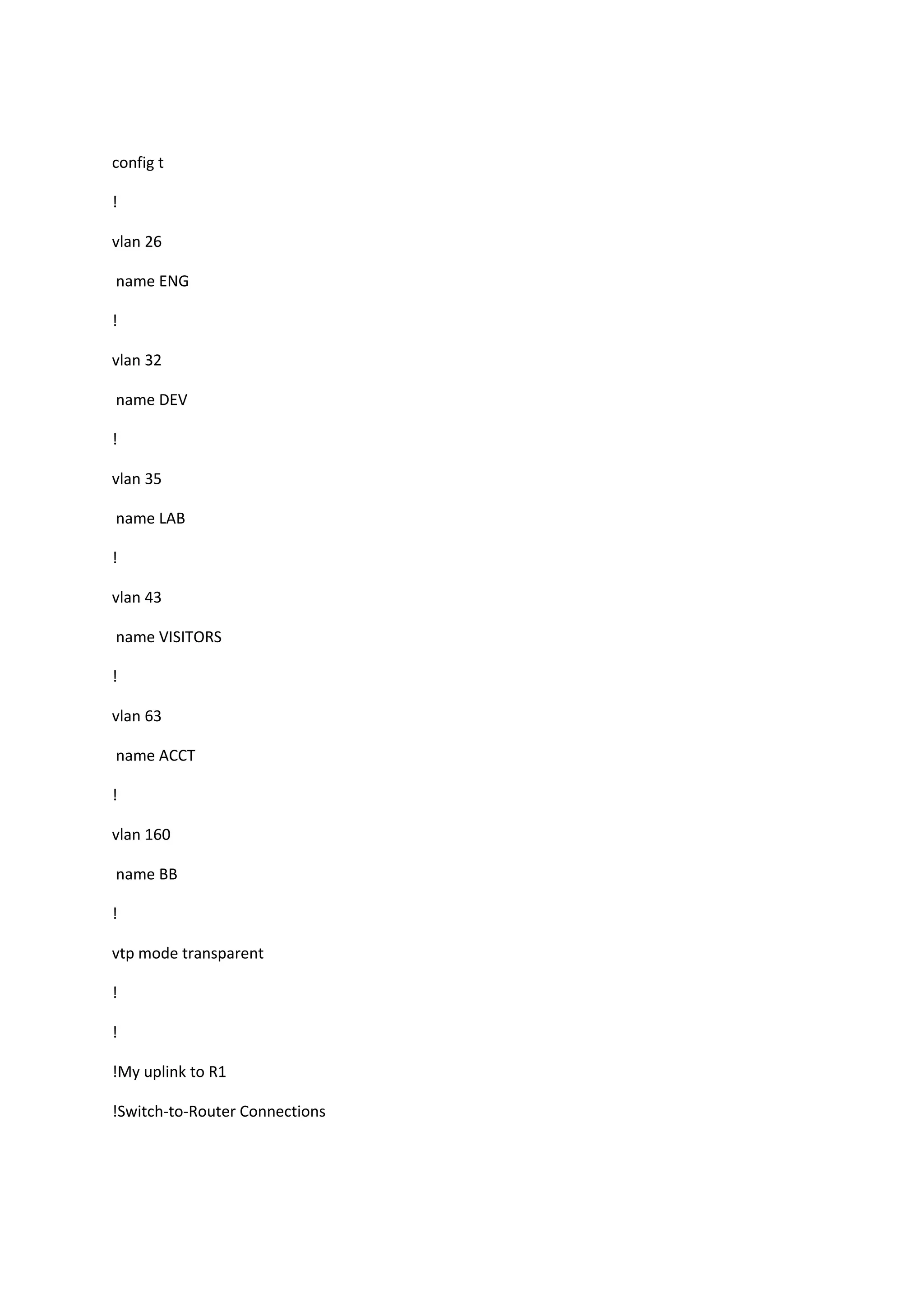

11. config t
!
vlan 26
name ENG
!
vlan 32
name DEV
!
vlan 35
name LAB
!
vlan 43
name VISITORS
!
vlan 63
name ACCT
!
vlan 160
name BB
!
vtp mode transparent
!
!
!My uplink to R1
!Switch-to-Router Connections

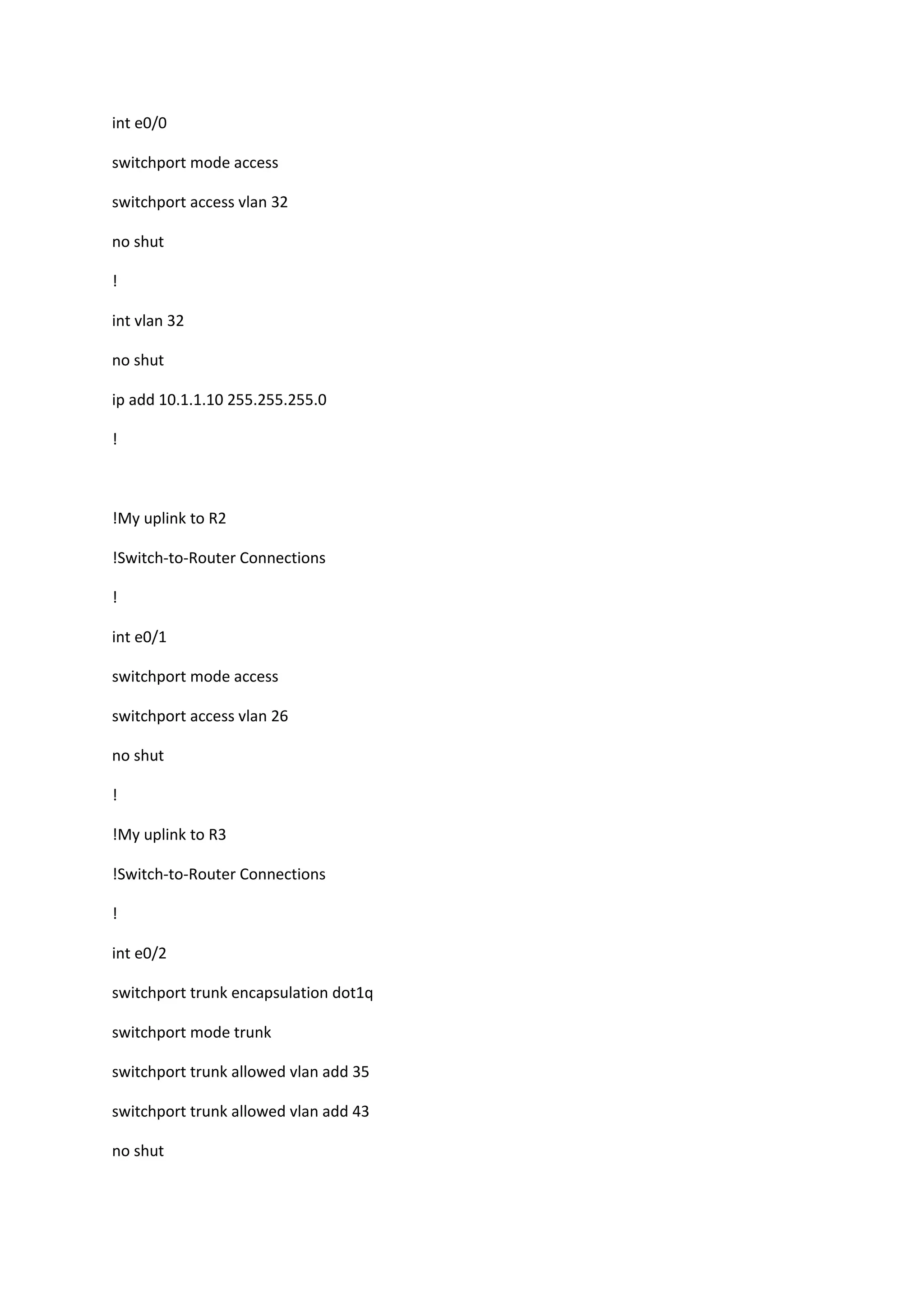

12. int e0/0
switchport mode access
switchport access vlan 32
no shut
!
int vlan 32
no shut
ip add 10.1.1.10 255.255.255.0
!
!My uplink to R2
!Switch-to-Router Connections
!
int e0/1
switchport mode access
switchport access vlan 26
no shut
!
!My uplink to R3
!Switch-to-Router Connections
!
int e0/2
switchport trunk encapsulation dot1q
switchport mode trunk
switchport trunk allowed vlan add 35
switchport trunk allowed vlan add 43
no shut

13. !

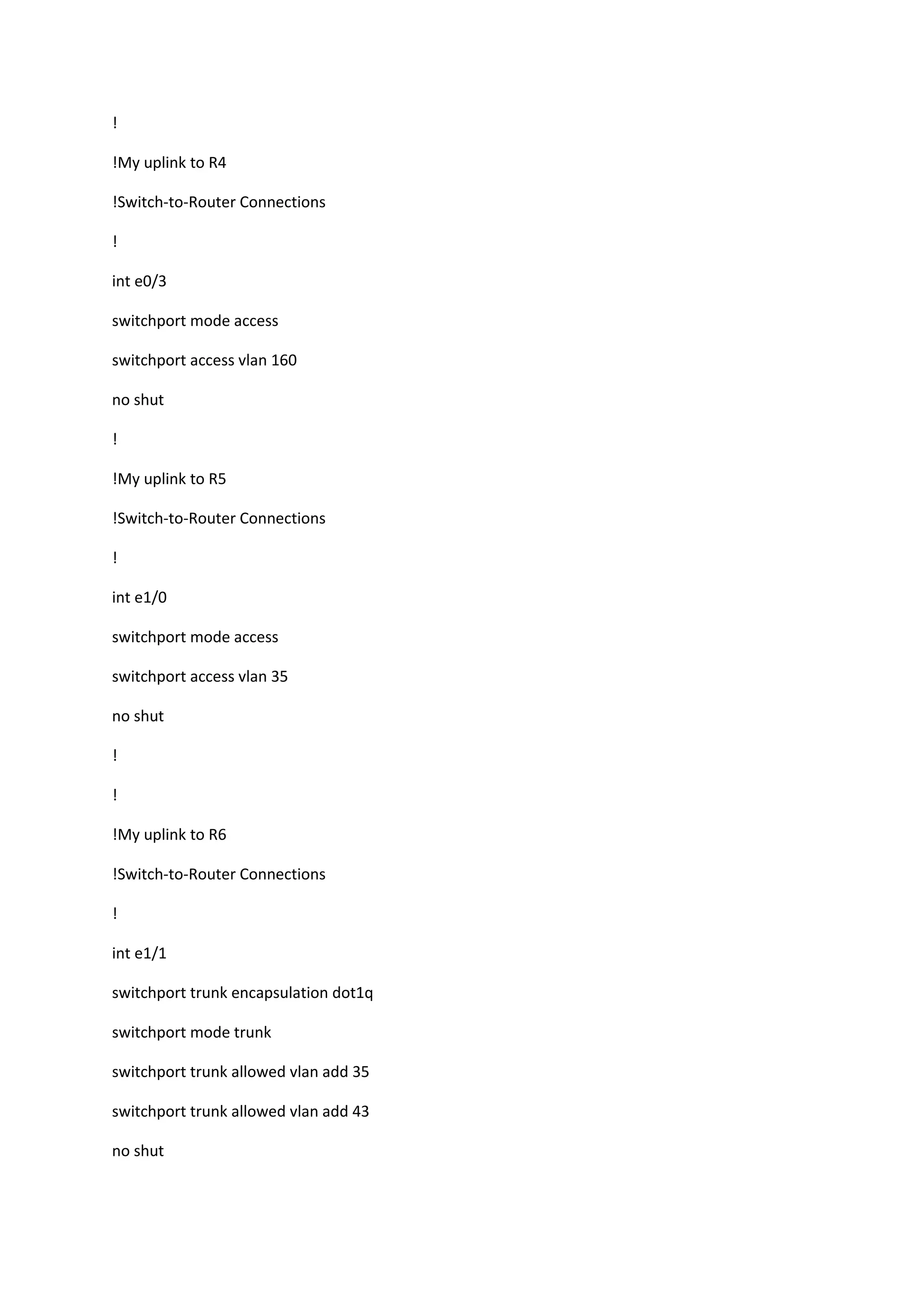

!My uplink to R4
!Switch-to-Router Connections
!
int e0/3
switchport mode access
switchport access vlan 160
no shut
!
!My uplink to R5
!Switch-to-Router Connections
!
int e1/0
switchport mode access
switchport access vlan 35
no shut
!
!
!My uplink to R6
!Switch-to-Router Connections
!
int e1/1
switchport trunk encapsulation dot1q
switchport mode trunk
switchport trunk allowed vlan add 35
switchport trunk allowed vlan add 43
no shut

14. !
!

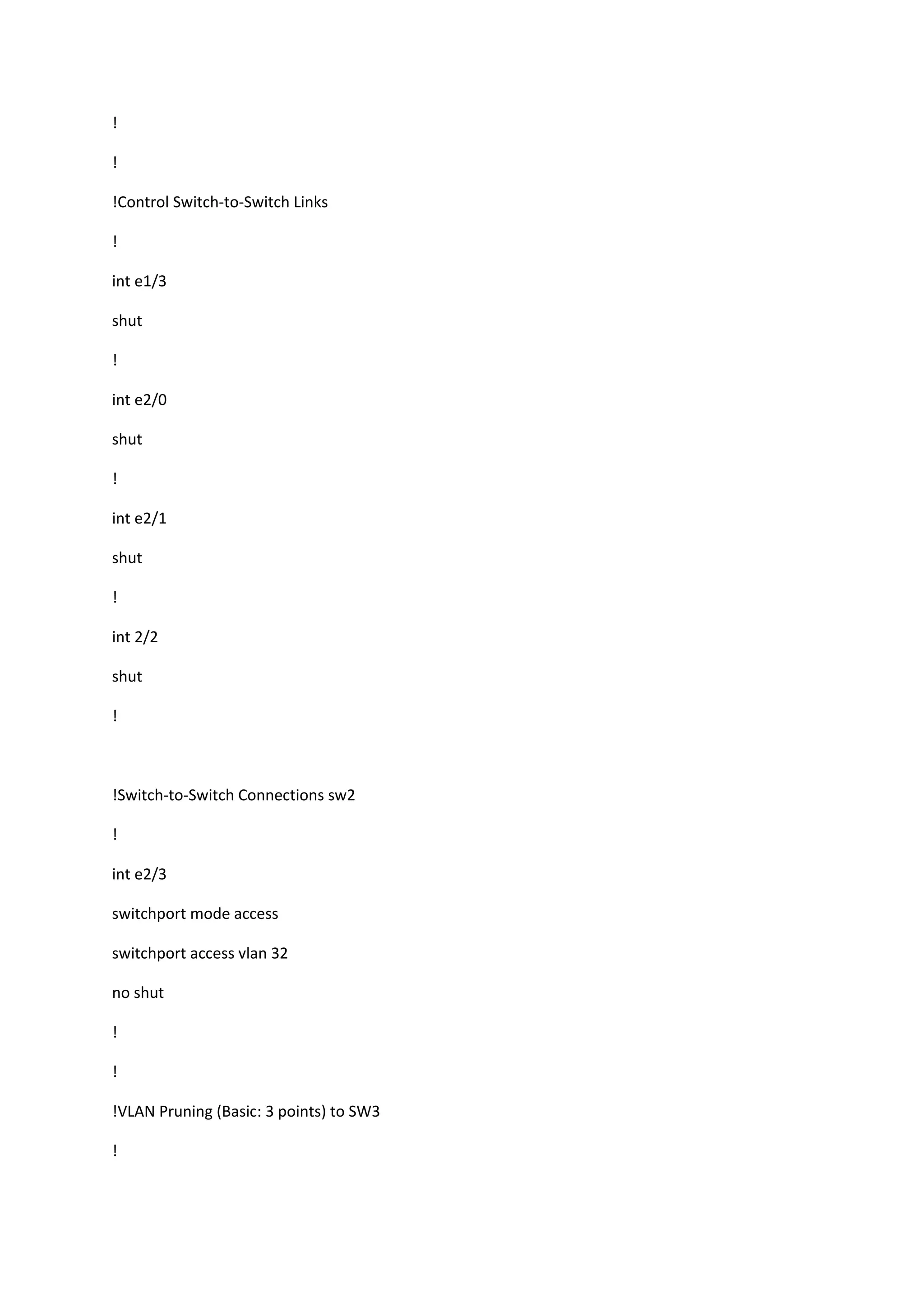

!Control Switch-to-Switch Links
!
int e1/3
shut
!
int e2/0
shut
!
int e2/1
shut
!
int 2/2
shut
!
!Switch-to-Switch Connections sw2
!
int e2/3
switchport mode access
switchport access vlan 32
no shut
!
!
!VLAN Pruning (Basic: 3 points) to SW3
!

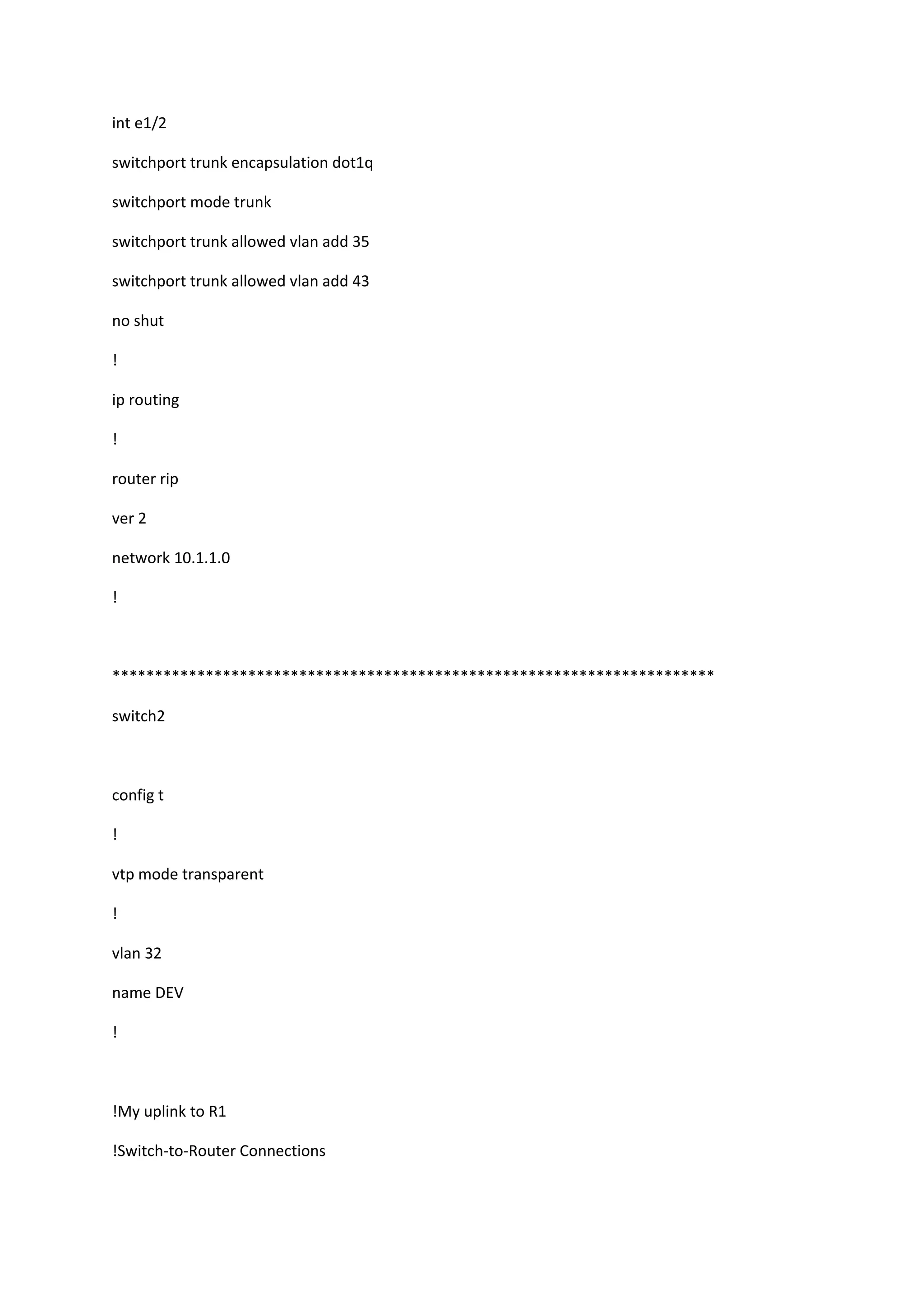

15. int e1/2
switchport trunk encapsulation dot1q
switchport mode trunk
switchport trunk allowed vlan add 35
switchport trunk allowed vlan add 43
no shut
!
ip routing
!
router rip
ver 2
network 10.1.1.0
!
***********************************************************************
switch2
config t
!
vtp mode transparent
!
vlan 32
name DEV
!
!My uplink to R1
!Switch-to-Router Connections

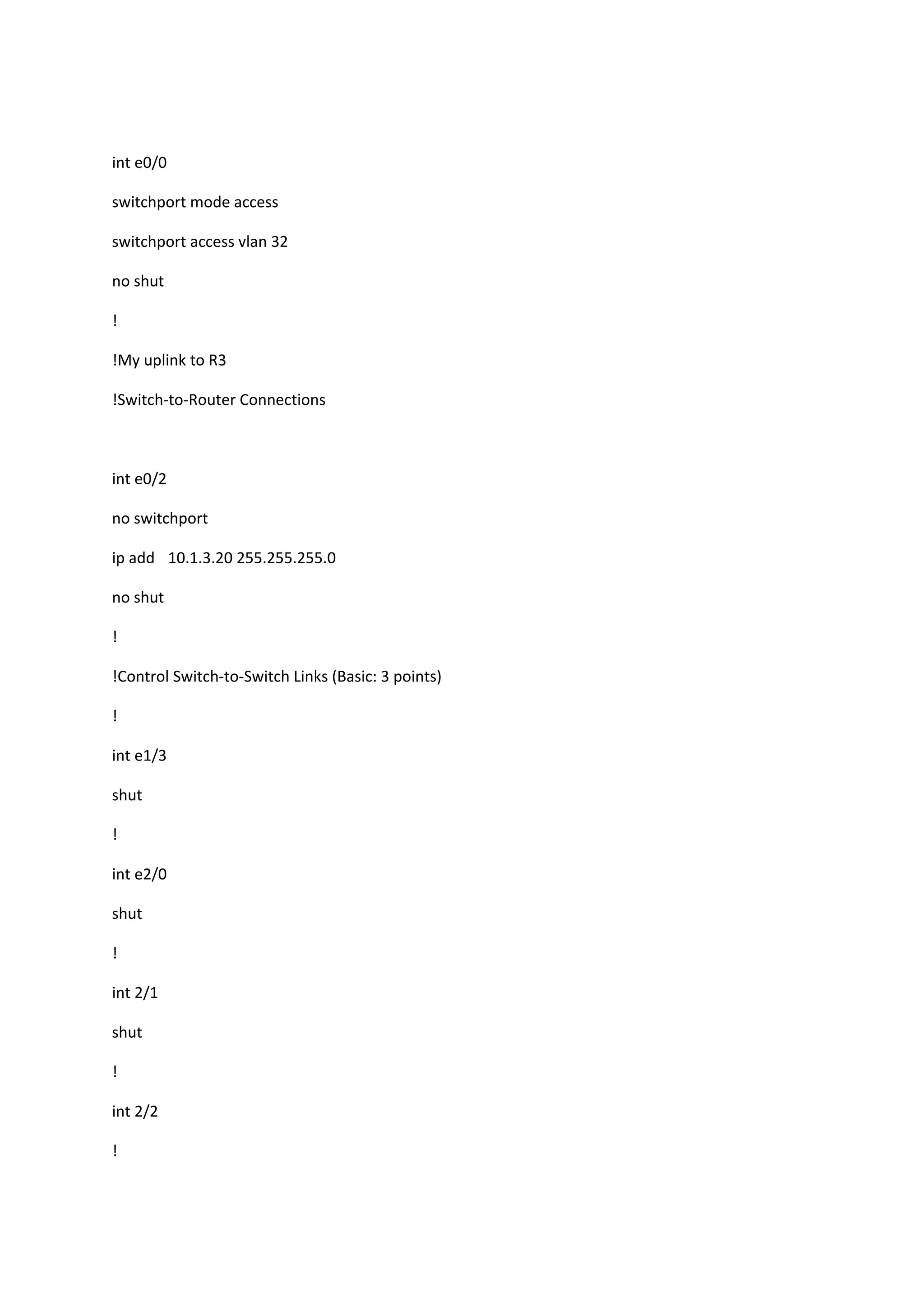

16. int e0/0
switchport mode access
switchport access vlan 32
no shut
!
!My uplink to R3
!Switch-to-Router Connections
int e0/2
no switchport
ip add 10.1.3.20 255.255.255.0
no shut
!
!Control Switch-to-Switch Links (Basic: 3 points)
!
int e1/3
shut
!
int e2/0
shut
!
int 2/1
shut
!
int 2/2
!

17. !Switch-to-Switch Connections
!
int e1/2
no switchport
ip add 10.1.42.20 255.255.255.0
!
int loop 120
ip add 10.1.120.1 255.255.255.0
!
ip routing
!
router eigrp 35
no auto-summary
network 10.1.120.0 0.0.0.255
network 10.1.3.0 0.0.0.255
!
do wr mem
!
***********************************************************
switch3
config t
!
vtp mode transparent
!
vlan 43

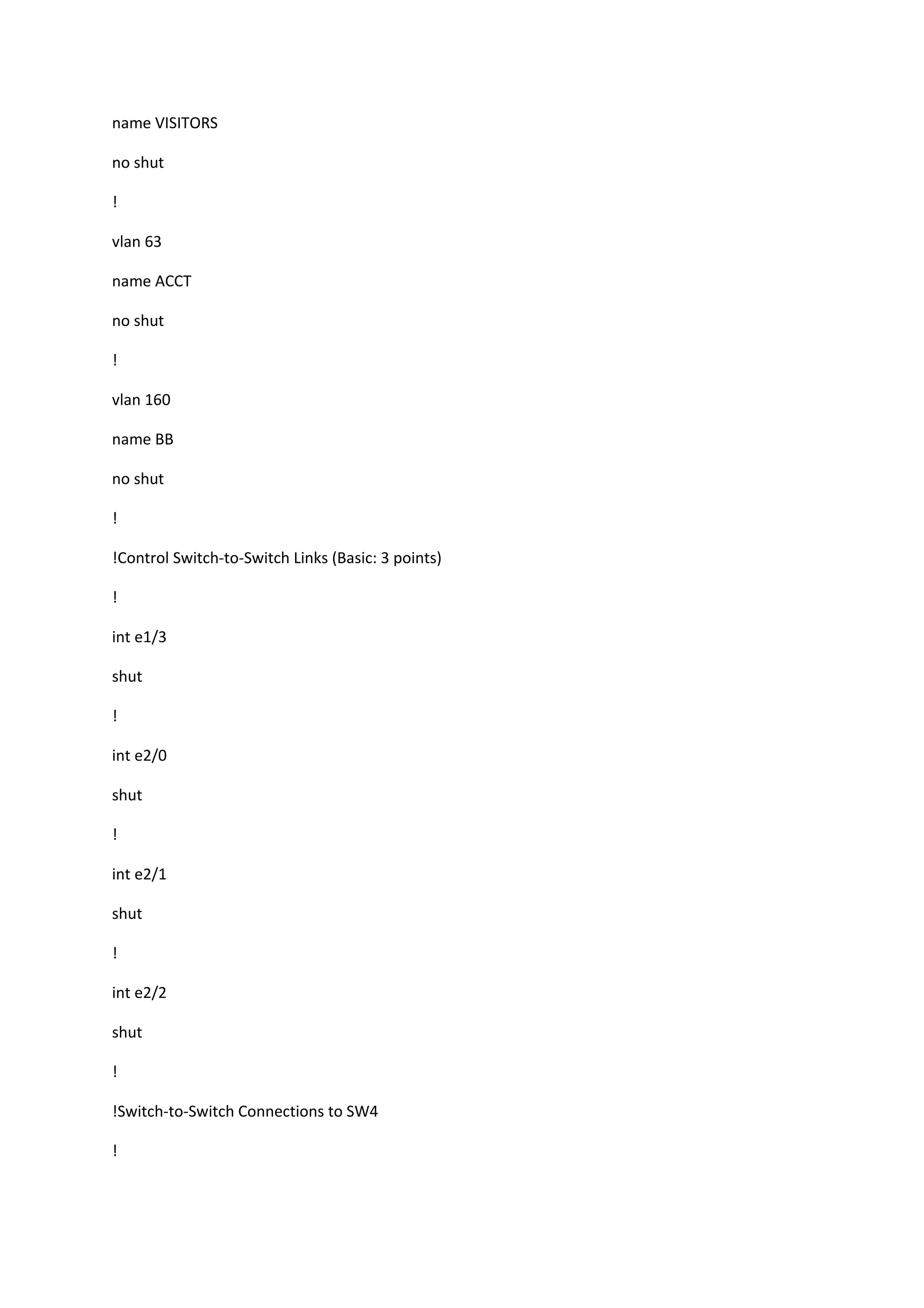

18. name VISITORS
no shut
!
vlan 63
name ACCT
no shut
!
vlan 160
name BB
no shut
!
!Control Switch-to-Switch Links (Basic: 3 points)
!
int e1/3
shut
!
int e2/0
shut
!
int e2/1
shut
!
int e2/2
shut
!
!Switch-to-Switch Connections to SW4
!

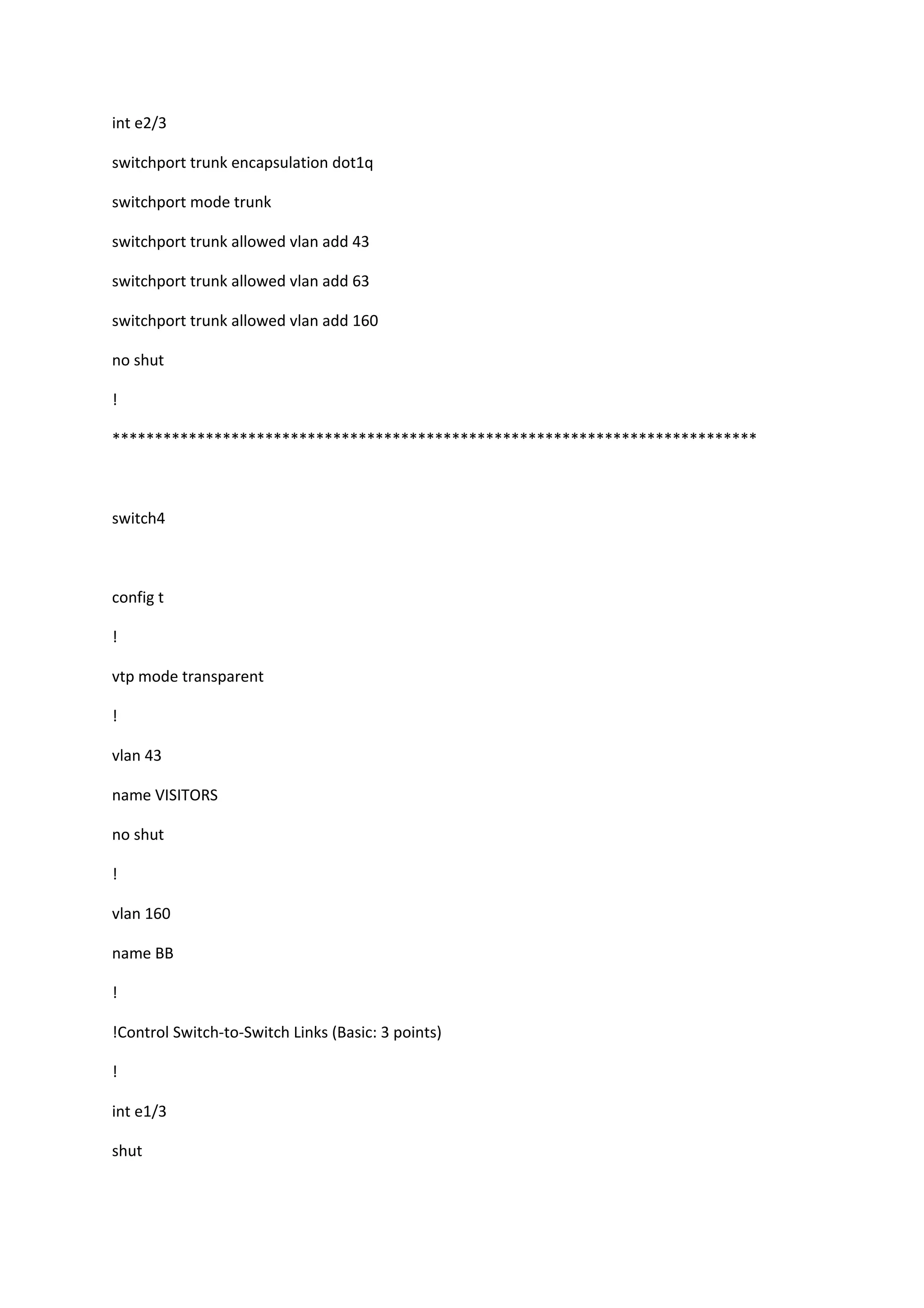

19. int e2/3
switchport trunk encapsulation dot1q
switchport mode trunk
switchport trunk allowed vlan add 43
switchport trunk allowed vlan add 63
switchport trunk allowed vlan add 160
no shut
!
****************************************************************************
switch4
config t
!
vtp mode transparent
!
vlan 43
name VISITORS
no shut
!
vlan 160
name BB
!
!Control Switch-to-Switch Links (Basic: 3 points)
!
int e1/3
shut

20. !
int e2/0
shut
!
int 2/1
shut
!
int 2/2
shut
!

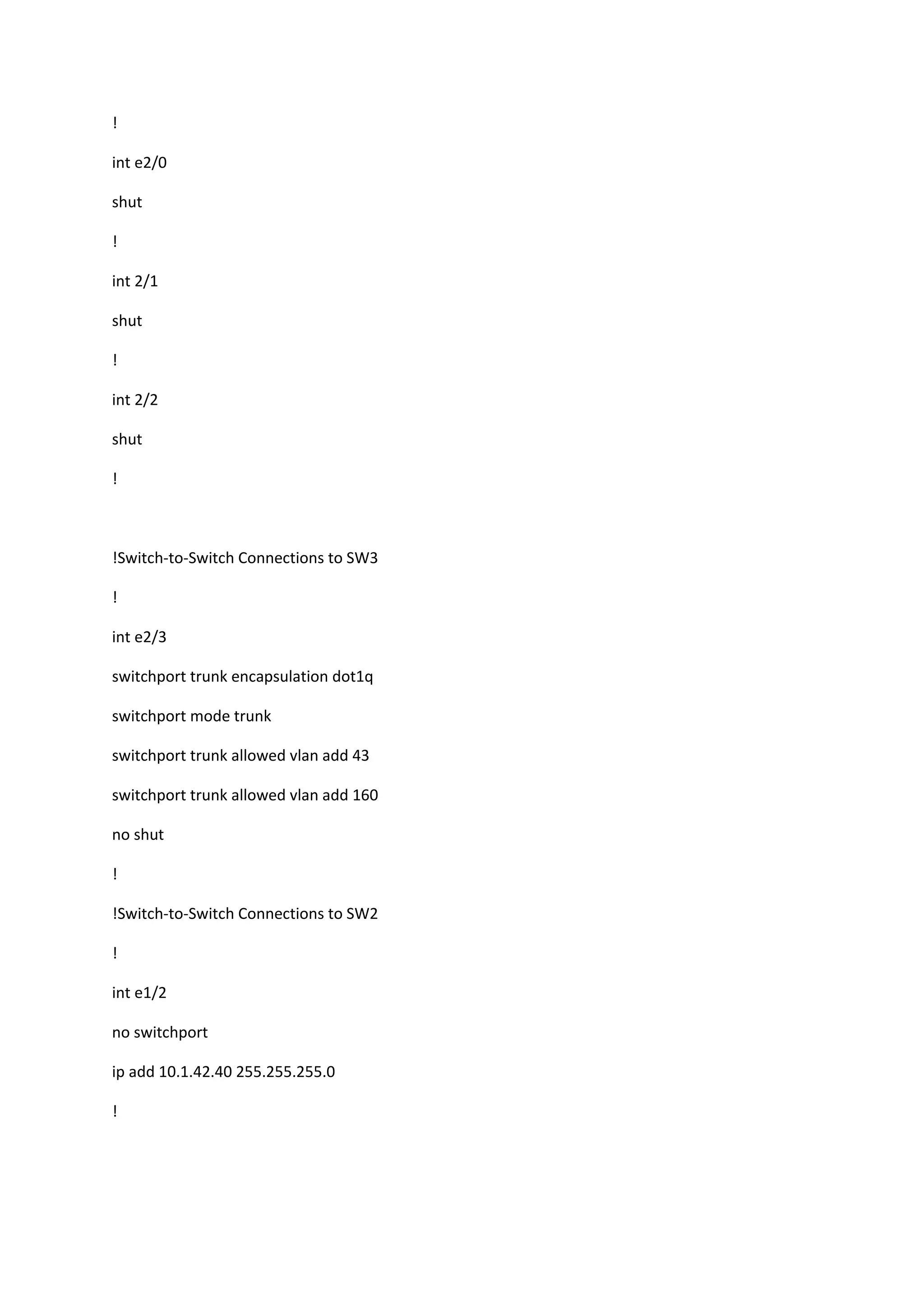

!Switch-to-Switch Connections to SW3
!
int e2/3
switchport trunk encapsulation dot1q
switchport mode trunk
switchport trunk allowed vlan add 43
switchport trunk allowed vlan add 160
no shut
!
!Switch-to-Switch Connections to SW2
!
int e1/2
no switchport
ip add 10.1.42.40 255.255.255.0
!
