Docker and the Oracle Database

Anton Els
Session ID:
Prepared by:
F3
Docker and the Oracle Database –
How to get started
Sep 2019
Anton Els
CTO
Dbvisit Software Limited
@aelsnz

Anton Els
I am a bit of a techie…
■ CTO @
■
■
■
3
Linux
Docker
Disaster Recovery
Oracle Databases
Standby DatabasesVirtualization
IoT / Raspberry Pi / Arduino
Cloud
DevOps

Anton Els

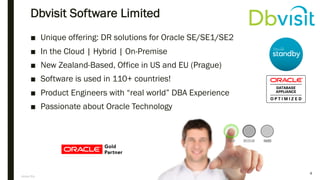

Dbvisit Software Limited
■ Unique offering: DR solutions for Oracle SE/SE1/SE2
■ In the Cloud | Hybrid | On-Premise
■ New Zealand-Based, Office in US and EU (Prague)
■ Software is used in 110+ countries!
■ Product Engineers with “real world” DBA Experience
■ Passionate about Oracle Technology
4

Anton ElsAnton Els @aelsnz

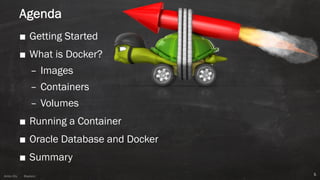

Agenda
■ Getting Started
■ What is Docker?
– Images
– Containers
– Volumes
■ Running a Container
■ Oracle Database and Docker
■ Summary
5

Why Talk About Docker…

Demo Time
DEMO

What is Monolithic?
8

What about Microservices
9

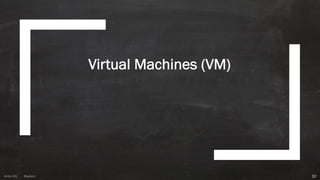

Virtual Machines (VM)
10

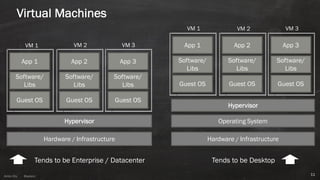

Virtual Machines
11
Hardware / Infrastructure
Hypervisor
Guest OS
Software/
Libs
App 1
Guest OS
Software/
Libs
App 2
Guest OS
Software/
Libs
App 3
Hypervisor
Guest OS
Software/
Libs
App 1
Guest OS
Software/
Libs
App 2
Guest OS
Software/
Libs
App 3
Operating System
VM 1 VM 2 VM 3
VM 1 VM 2 VM 3
Tends to be Enterprise / Datacenter Tends to be Desktop

■ Key things to note:
– VMs include an entire Guest OS
– VMs include the Application
– It runs on a Hypervisor
■ Important aspects:
– Deployment times
– Cost
– Resources Usage
12
Hypervisor
Guest OS
Software/
Libs
App 1
Guest OS
Software/
Libs
App 2
Guest OS
Software/
Libs
App 3
VM 1 VM 2 VM 3
Virtual Machines

Basics of Containers
13

What is a container ?
14

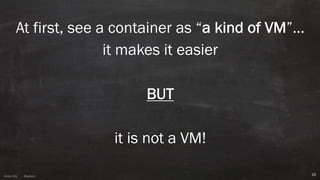

At first, see a container as “a kind of VM”…
it makes it easier
BUT
it is not a VM!
15

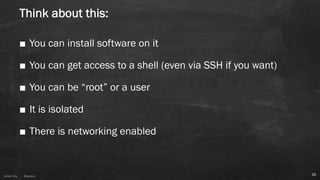

Think about this:
■ You can install software on it
■ You can get access to a shell (even via SSH if you want)
■ You can be “root” or a user
■ It is isolated
■ There is networking enabled
16

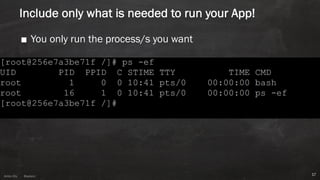

Include only what is needed to run your App!
■ You only run the process/s you want
17

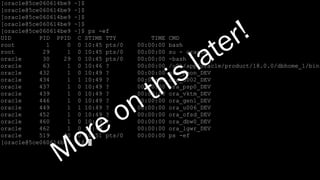

Anton Els
18
More on this later!

3 Important Building Blocks
19

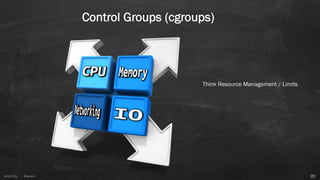

Control Groups (cgroups)
20
Think Resource Management / Limits

Anton Els
Namespaces
■ Limits processes what it can see
21

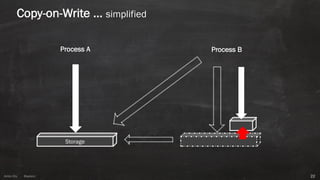

Copy-on-Write … simplified
22
Storage
Process A Process B

Time to talk about Docker
23

24

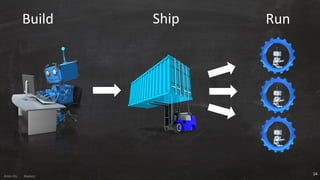

Build Ship Run

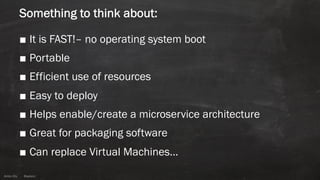

Something to think about:
■ It is FAST!– no operating system boot
■ Portable
■ Efficient use of resources
■ Easy to deploy
■ Helps enable/create a microservice architecture
■ Great for packaging software
■ Can replace Virtual Machines…

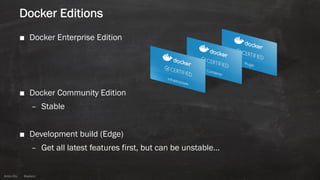

Docker Editions
■ Docker Enterprise Edition
■ Docker Community Edition
– Stable
■ Development build (Edge)
– Get all latest features first, but can be unstable…

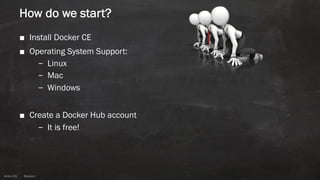

How do we start?
■ Install Docker CE
■ Operating System Support:
– Linux
– Mac
– Windows
■ Create a Docker Hub account
– It is free!

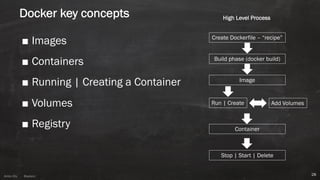

Docker key concepts
■ Images
■ Containers
■ Running | Creating a Container
■ Volumes
■ Registry
28
Create Dockerfile – “recipe”
Build phase (docker build)
Run | Create Add Volumes
Container
Stop | Start | Delete
High Level Process

Images
■ Think of images as a “Golden Image” or “Template”
■ You create a ”running” container from an Image
■ Download from a Registry
– Public or Private
■ Build your own!
■ Note:
– Keep them SMALL
– One App / Process per Image
– KISS – “Keep it simple, stupid”
29
Required bins/libs
Application
Container
RUN

Images and Layers…
30
Layer 2: Add required bins/libs
Layer 3: Add Application
Layer 1: Base Image

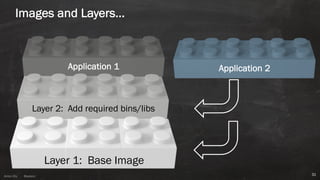

Images and Layers…
31
Layer 2: Add required bins/libs
Application 1
Layer 1: Base Image
Application 2

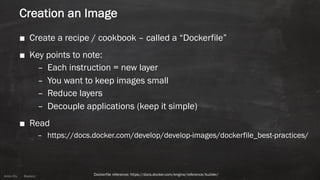

Creation an Image
■ Create a recipe / cookbook – called a “Dockerfile”
■ Key points to note:
– Each instruction = new layer
– You want to keep images small
– Reduce layers
– Decouple applications (keep it simple)
■ Read
– https://docs.docker.com/develop/develop-images/dockerfile_best-practices/
Dockerfile reference: https://docs.docker.com/engine/reference/builder/

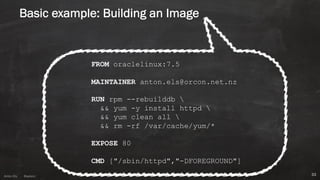

Basic example: Building an Image
33
FROM oraclelinux:7.5
MAINTAINER anton.els@orcon.net.nz
RUN rpm --rebuilddb
&& yum -y install httpd
&& yum clean all
&& rm -rf /var/cache/yum/*
EXPOSE 80
CMD ["/sbin/httpd","-DFOREGROUND"]

Creating an Image
■ Using the ”docker build” command:
Usage: docker build [OPTIONS] PATH | URL | -
■ Most Common Options:
docker build –f <yourdockerfile> –t <your-image-tag> .
■ Example:
docker build -t demohttpd -f Dockerfile .

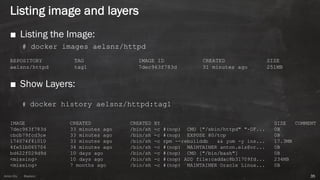

Listing image and layers
35
■ Listing the Image:
# docker images aelsnz/httpd
REPOSITORY TAG IMAGE ID CREATED SIZE
aelsnz/httpd tag1 7dec963f783d 31 minutes ago 251MB
■ Show Layers:
# docker history aelsnz/httpd:tag1
IMAGE CREATED CREATED BY SIZE COMMENT
7dec963f783d 33 minutes ago /bin/sh -c #(nop) CMD ["/sbin/httpd" "-DF... 0B
cbcb79fcd3ce 33 minutes ago /bin/sh -c #(nop) EXPOSE 80/tcp 0B
174074f41010 33 minutes ago /bin/sh -c rpm --rebuilddb && yum -y ins... 17.3MB
4fe51b065704 34 minutes ago /bin/sh -c #(nop) MAINTAINER anton.els@or... 0B
bd622f029d9d 10 days ago /bin/sh -c #(nop) CMD ["/bin/bash"] 0B
<missing> 10 days ago /bin/sh -c #(nop) ADD file:caddac8b31709fd... 234MB
<missing> 7 months ago /bin/sh -c #(nop) MAINTAINER Oracle Linux... 0B

The Dockerfile
36

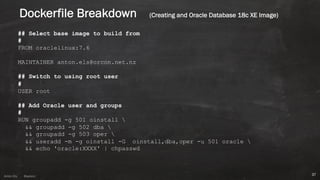

Dockerfile Breakdown (Creating and Oracle Database 18c XE Image)
## Select base image to build from
#
FROM oraclelinux:7.6
MAINTAINER anton.els@orcon.net.nz
## Switch to using root user
#
USER root
## Add Oracle user and groups
#
RUN groupadd -g 501 oinstall
&& groupadd -g 502 dba
&& groupadd -g 503 oper
&& useradd -m -g oinstall -G oinstall,dba,oper -u 501 oracle
&& echo 'oracle:XXXX' | chpasswd
37

## Install few extra packages
#
RUN rpm --rebuilddb
&& yum -y install file openssl lsof sudo sysstat tree wget which
&& yum clean all
## Update sudoers and create directories:
#
RUN echo "oracle ALL=(ALL) NOPASSWD:ALL" >> /etc/sudoers
&& echo "Defaults !requiretty" >> /etc/sudoers
&& mkdir -p /opt/oracle
&& mkdir -p /install
&& mkdir -p /home/oracle/bin
&& chown -R oracle:oinstall /opt/oracle
&& chown -R oracle:oinstall /home/oracle/bin
38

## Add oracle-xe-18c software
#
COPY software/oracle-database-xe-18c-1.0-1.x86_64.rpm /install/
ENV ORACLE_DOCKER_INSTALL=true
RUN cd /install
&& yum -y localinstall oracle-database-*18c*
&& yum clean all
## Create the XE database and Listener (optional if you want to use persistent
## storage do this during container runtime not image create time)
#
RUN printf XYZnXYZn | /etc/init.d/oracle-xe-18c configure
## Expose ports for oracle
#
EXPOSE 1521 5500
39

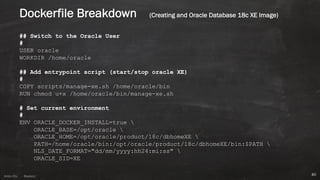

## Switch to the Oracle User
#
USER oracle
WORKDIR /home/oracle
## Add entrypoint script (start/stop oracle XE)
#
COPY scripts/manage-xe.sh /home/oracle/bin
RUN chmod u+x /home/oracle/bin/manage-xe.sh
# Set current environment
#
ENV ORACLE_DOCKER_INSTALL=true
ORACLE_BASE=/opt/oracle
ORACLE_HOME=/opt/oracle/product/18c/dbhomeXE
PATH=/home/oracle/bin:/opt/oracle/product/18c/dbhomeXE/bin:$PATH
NLS_DATE_FORMAT="dd/mm/yyyy:hh24:mi:ss"
ORACLE_SID=XE
40

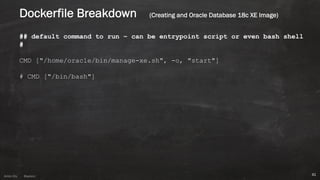

## default command to run – can be entrypoint script or even bash shell
#
CMD ["/home/oracle/bin/manage-xe.sh", -o, "start"]
# CMD ["/bin/bash"]
41

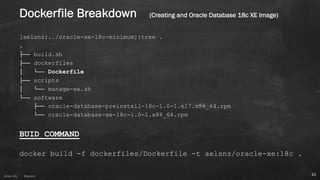

[aelsnz:../oracle-xe-18c-minimum]:tree .
.
├── build.sh
├── dockerfiles
│ └── Dockerfile
├── scripts
│ └── manage-xe.sh
└── software
├── oracle-database-preinstall-18c-1.0-1.el7.x86_64.rpm
└── oracle-database-xe-18c-1.0-1.x86_64.rpm
BUID COMMAND
docker build -f dockerfiles/Dockerfile -t aelsnz/oracle-xe:18c .
42

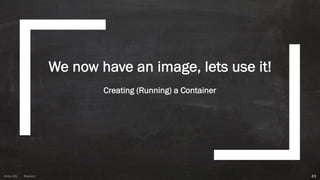

We now have an image, lets use it!
Creating (Running) a Container
43

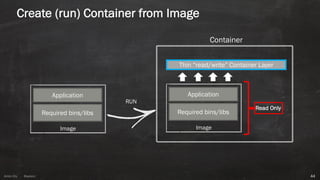

Create (run) Container from Image
44
Required bins/libs
Application
Required bins/libs
Application
Container
Thin “read/write” Container Layer
Read Only
RUN

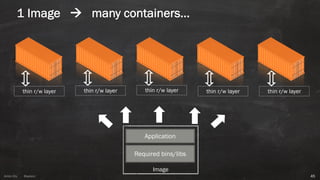

1 Image à many containers…
45
Required bins/libs
Application
thin r/w layer thin r/w layer thin r/w layer thin r/w layer thin r/w layer

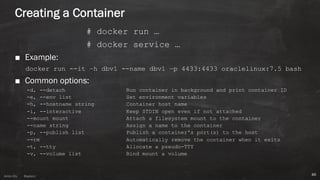

Creating a Container
# docker run …
# docker service …
■ Example:
docker run --it –h dbv1 --name dbv1 –p 4433:4433 oraclelinux:7.5 bash
■ Common options:
-d, --detach Run container in background and print container ID
-e, --env list Set environment variables
-h, --hostname string Container host name
-i, --interactive Keep STDIN open even if not attached
--mount mount Attach a filesystem mount to the container
--name string Assign a name to the container
-p, --publish list Publish a container's port(s) to the host
--rm Automatically remove the container when it exits
-t, --tty Allocate a pseudo-TTY
-v, --volume list Bind mount a volume
46

Docker Run (using Oracle 18c XE Image)
$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
aelsnz/oracle-db 18cXE a4fae4862bf5 5 minutes ago 12.7GB
docker run –it
–h devXE
–-name devXE
-p 1521:1521
-p 5500:5500
aelsnz/oracle-db:18c-XE
47

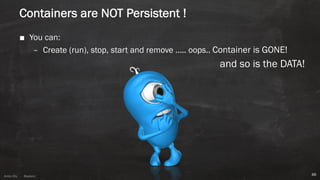

Containers are NOT Persistent !
■ You can:
– Create (run), stop, start and remove ….. oops.. Container is GONE!
and so is the DATA!
48

Docker Storage
■ Store data inside container (not persistent)
■ Using bind mounts (persistent)
■ Volumes (persistent)
■ tmpfs mounts (not persistent – it is memory!)
49

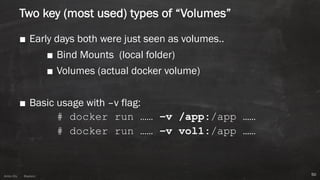

Two key (most used) types of “Volumes”
■ Early days both were just seen as volumes..
■ Bind Mounts (local folder)
■ Volumes (actual docker volume)
■ Basic usage with –v flag:
# docker run …… –v /app:/app ……
# docker run …… –v vol1:/app ……
50

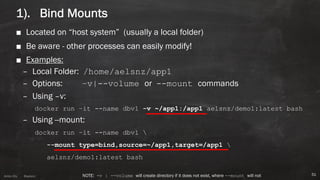

1). Bind Mounts
■ Located on “host system” (usually a local folder)
■ Be aware - other processes can easily modify!
■ Examples:
– Local Folder: /home/aelsnz/app1
– Options: –v|--volume or --mount commands
– Using –v:
docker run –it --name dbv1 -v ~/app1:/app1 aelsnz/demo1:latest bash
– Using --mount:
docker run –it --name dbv1
--mount type=bind,source=~/app1,target=/app1
aelsnz/demo1:latest bash
51NOTE: -v | --volume will create directory if it does not exist, where --mount will not

2). Volumes
■ Volumes provide persistent storage!
■ Part of host filesystem, BUT managed by Docker
– Example on Linux in:
/var/lib/docker/volumes/
■ Location is OUTSIDE the container BUT visible INSINDE the container
52

2). Volume flexibility
■ Named Volumes
docker create volume namedvol1
docker run --rm -it -v namedvol1:/namedvol1 oraclelinux:7.5 bash
■ Anonymous Volumes
docker run --rm -it -v /anonvol1 oraclelinux:7.5 bash
■ NOTE: Using the --rm to clean up container:
■ Anonymous volume will be removed!
■ Named volume will remain
53

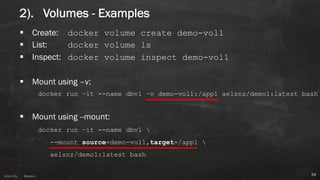

2). Volumes - Examples
§ Create: docker volume create demo-vol1
§ List: docker volume ls
§ Inspect: docker volume inspect demo-vol1
§ Mount using –v:
docker run –it --name dbv1 –v demo-vol1:/app1 aelsnz/demo1:latest bash
§ Mount using --mount:
docker run –it --name dbv1
--mount source=demo-vol1,target=/app1
aelsnz/demo1:latest bash
54

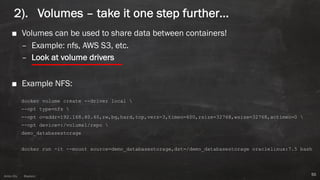

2). Volumes – take it one step further…
■ Volumes can be used to share data between containers!
– Example: nfs, AWS S3, etc.
– Look at volume drivers
■ Example NFS:
docker volume create --driver local
--opt type=nfs
--opt o=addr=192.168.40.40,rw,bg,hard,tcp,vers=3,timeo=600,rsize=32768,wsize=32768,actimeo=0
--opt device=:/volume1/repo
demo_databasestorage
docker run -it --mount source=demo_databasestorage,dst=/demo_databasestorage oraclelinux:7.5 bash
55

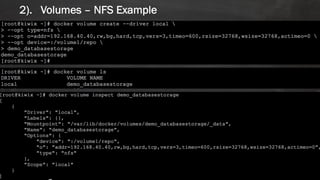

2). Volumes – NFS Example
56

What is a Registry ?
57
“The Registry is a stateless, highly scalable server side application that
stores and lets you distribute Docker images”
https://docs.docker.com/registry/

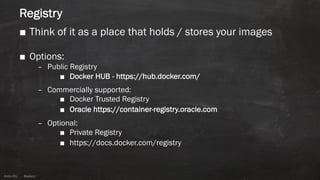

Registry
■ Think of it as a place that holds / stores your images
■ Options:
– Public Registry
■ Docker HUB - https://hub.docker.com/
– Commercially supported:
■ Docker Trusted Registry
■ Oracle https://container-registry.oracle.com
– Optional:
■ Private Registry
■ https://docs.docker.com/registry

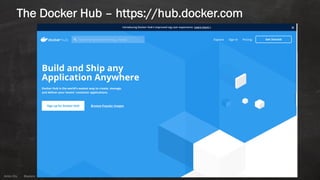

The Docker Hub – https://hub.docker.com

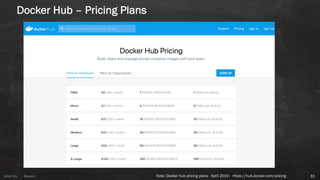

Docker Hub – Pricing Plans
61Note: Docker hub pricing plans - April 2019 - https://hub.docker.com/pricing

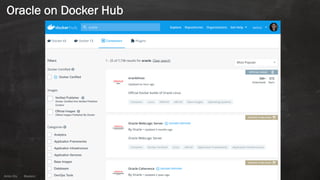

Oracle on Docker Hub

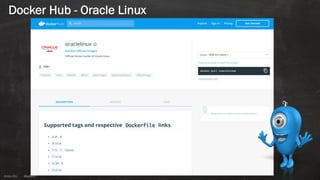

Docker Hub - Oracle Linux

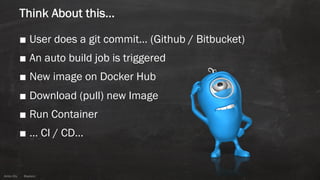

Think About this…
■ User does a git commit… (Github / Bitbucket)
■ An auto build job is triggered
■ New image on Docker Hub
■ Download (pull) new Image
■ Run Container
■ … CI / CD…

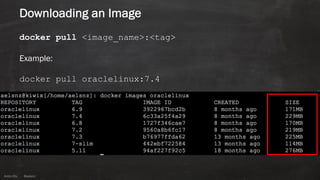

Downloading an Image
docker pull <image_name>:<tag>
Example:
docker pull oraclelinux:7.4
66

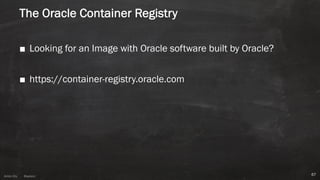

The Oracle Container Registry
■ Looking for an Image with Oracle software built by Oracle?
■ https://container-registry.oracle.com
67

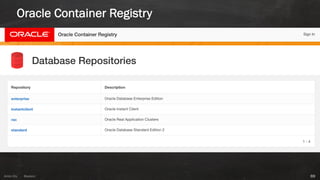

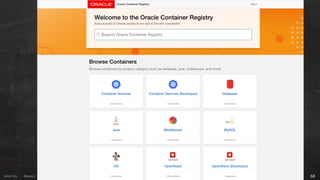

Oracle Container Registry
69

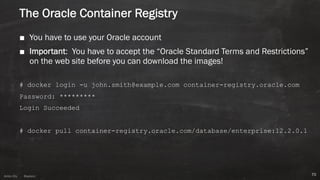

The Oracle Container Registry
■ You have to use your Oracle account
■ Important: You have to accept the “Oracle Standard Terms and Restrictions”
on the web site before you can download the images!
# docker login -u john.smith@example.com container-registry.oracle.com
Password: *********
Login Succeeded
# docker pull container-registry.oracle.com/database/enterprise:12.2.0.1
70

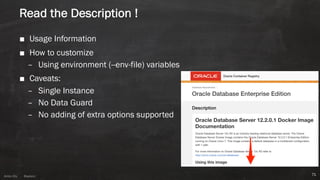

Read the Description !
■ Usage Information
■ How to customize
– Using environment (--env-file) variables
■ Caveats:
– Single Instance
– No Data Guard
– No adding of extra options supported
71

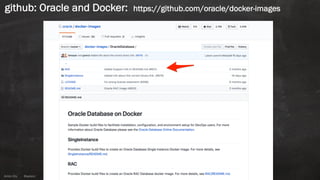

github: Oracle and Docker: https://github.com/oracle/docker-images

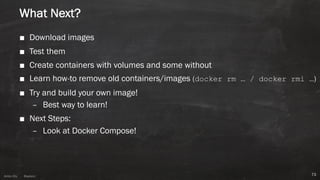

What Next?
■ Download images
■ Test them
■ Create containers with volumes and some without
■ Learn how-to remove old containers/images (docker rm … / docker rmi …)
■ Try and build your own image!
– Best way to learn!
■ Next Steps:
– Look at Docker Compose!
73

Why use Docker
74

Reasons
■ FAST!– no operating system boot
■ Portable
■ Efficient use of Resources
■ Easy to create, customize, build and deploy
■ Helps enable/create a Microservice Architecture
■ Great for packaging software
■ Can replace Virtual Machines…

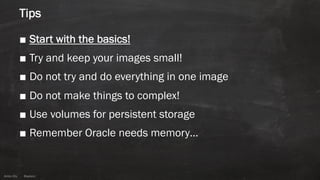

Tips
■ Start with the basics!
■ Try and keep your images small!
■ Do not try and do everything in one image
■ Do not make things to complex!
■ Use volumes for persistent storage
■ Remember Oracle needs memory…

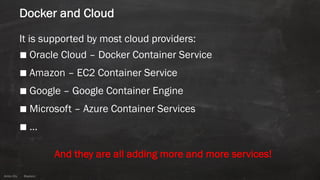

Docker and Cloud
It is supported by most cloud providers:
■ Oracle Cloud – Docker Container Service
■ Amazon – EC2 Container Service
■ Google – Google Container Engine
■ Microsoft – Azure Container Services
■ …
And they are all adding more and more services!

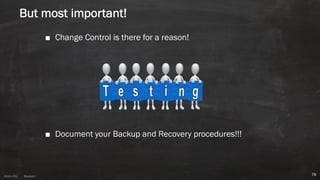

But most important!
■ Change Control is there for a reason!
■ Document your Backup and Recovery procedures!!!
78

Anton Els
Session ID:
F3
THANK YOU
Presented By: Anton Els
Email: anton.els@dbvisit.com
Twitter: @aelsnz

Docker and the Oracle Database

More Related Content

What's hot

Similar to Docker and the Oracle Database

More from Insight Technology, Inc.

Recently uploaded

Docker and the Oracle Database
