FORCET
Curso de Especialização Tecnológica de: CONDUÇÃO E
ACOMPANHAMENTO DE OBRA 2012/14
Módulo de Língua Inglesa
Nome:____________________________________ nº:______
Avaliação________________
Ficha de Trabalho 2
1. Combine the glossary you did in the previous activity with the one
you can find here: http://www.homebuildingmanual.com/Glossary.htm
2. Look for the meaning of the vocabulary (word and description).
3. Deliver your work in a word document.
2
A
A/C- An abbreviation for air conditioner or air conditioning.
A/C Condenser- The outside fan unit of the Air Conditioning system. It removes the
heat from the freon gas and "turns" the gas back into a liquid and pumps the liquid back
to the coil in the furnace.
A/C Disconnect- The main electrical ON-OFF switch near the A/C Condenser.
Aerator- The round screened screw-on tip of a sink spout. It mixes water and air for a
smooth flow.
Aggregate- A mixture of sand and stone and a major component of concrete.
Air space - The area between insulation facing and interior of exterior wall coverings.
Normally a 1" air gap.
Allowance(s) - A sum of money set aside in the construction contract for items which
have not been selected and specified in the construction contract. For example, selection
of tile as a flooring may require an allowance for an underlayment material, or an
electrical allowance which sets aside an amount of money to be spent on electrical
fixtures.
Amortization - A payment plan by which a loan is reduced through monthly payments
of principal and interest.
Anchor bolts- Bolts to secure a wooden sill plate to concrete , or masonry floor or wall.
Annual Percentage Rate (APR)- Annual cost of credit over the life of a loan,
including interest, service charges, points, loan fees, mortgage insurance, and other
items.
Appraisal An expert valuation of property.
Apron- A trim board that is installed beneath a window sill
Architect - One who has completed a course of study in building and design, and is
licensed by the state as an architect. One who draws up plans.
Area wells- Corrugated metal or concrete barrier walls installed around a basement
window to hold back the earth
Assessment - A tax levied on a property, or a value placed on the worth of a property.
Assumption - Allows a buyer to assume responsibility for an existing loan instead of
getting a new loan.
Astragal- A molding, attached to one of a pair of swinging double doors, against which
the other door strikes.
3
Attic access- An opening that is placed in the drywalled ceiling of a home providing
access to the attic.
Attic Ventilators- In houses, screened openings provided to ventilate an attic space.
4
B
Back Charge- Billings for work performed or costs incurred by one party that, in
accordance with the agreement, should have been performed or incurred by the party to
whom billed. Owners bill back charges to general contractors, and general contractors
bill back charges to subcontractors. Examples of back charges include charges for
cleanup work or to repair something damaged by another subcontractor, such as a tub
chip or broken window.
Backfill- The replacement of excavated earth into a trench around or against a basement
/crawl space foundationwall.
Backing- Frame lumber installed between the wall studs to give additional support for
drywall or an interior trim related item, such as handrail brackets, cabinets, and towel
bars. In this way, items are screwed and mounted into solid wood rather than weak
drywall that may allow the item to break loose from the wall. Carpet backing holds the
pile fabric in place.
Backout- Work the framing contractor does after the mechanical subcontractors
(Heating-Plumbing-Electrical) finish their phase of work at the Rough (before
insulation) stage to get the home ready for a municipal frame inspection. Generally, the
framing contractor repairs anything disturbed by others and completes all framing
necessary to pass a Rough Frame Inspection.
Ballast- A transformer that steps up the voltage in a florescent lamp.
Balloon - A loan that has a series of monthly payments with the remaining balance due
in a large lump sum payment at the end.
Balloon framed wall- Framed walls (generally over 10' tall) that run the entire vertical
length from the floor sill plate to the roof. This is done to eliminate the need for a gable
end truss.
Balusters- Vertical members in a railing used between a top rail and bottom rail or the
stair treads. Sometimes referred to as 'pickets' or 'spindles'.
Balustrade- The rail, posts and vertical balusters along the edge of a stairway or
elevated walkway.
Barge- Horizontal beam rafter that supports shorter rafters.
Barge board- A decorative board covering the projecting rafter (fly rafter) of the gable
end. At the cornice, this member is a fascia board.
Base or baseboard- A trim board placed against the wall around the room next to the
floor.
Basement window inserts- The window frame and glass unit that is installed in the
window buck.
Base shoe- Molding used next to the floor on interior base board. Sometimes called a
carpet strip.
5
Bat - A half-brick.
Batt - A section of fiber-glass or rock-wool insulation measuring 15 or 23 inches wide
by four to eight feet long and various thickness'. Sometimes "faced" (meaning to have a
paper covering on one side) or "unfaced" (without paper).
Batten- Narrow strips of wood used to cover joints or as decorative vertical members
over plywood or wide boards.
Bay window- Any window space projecting outward from the walls of a building,
either square or polygonal in plan.
Beam- A structural member transversely supporting a load. A structural member
carrying building loads (weight) from one support to another. Sometimes called a
"girder".
Bearing partition- A partition that supports any vertical load in addition to its own
weight.
Bearing point- A point where a bearing or structural weight is concentrated and
transferred to the foundation
Bearing wall- A wall that supports any vertical load in addition to its own weight.
Bearing header- (a) A beam placed perpendicular to joists and to which joists are
nailed in framing for a chimney, stairway, or other opening. (b) A wood lintel. (c) The
horizontal structural member over an opening (for example over a door or window).
Bedrock- A subsurface layer of earth that is suitable to support a structure.
Bid- A formal offer by a contractor, in accordance with specifications for a project, to
do all or a phase of the work at a certain price in accordance with the terms and
conditions stated in the offer.
Bid bond- A bond issued by a surety on behalf of a contractor that provides assurance
to the recipient of the contractor's bid that, if the bid is accepted, the contractor will
execute a contract and provide a performance bond. Under the bond, the surety is
obligated to pay the recipient of the bid the difference between the contractor's bid and
the bid of the next lowest responsible bidder if the bid is accepted and the contractor
fails to execute a contract or to provide a performance bond.
Bid security Funds or a bid bond submitted with a bid as a guarantee to the recipient of
the bid that the contractor, if awarded the contract, will execute the contract in
accordance with the bidding requirements of the contract documents.
Bid shopping- A practice by which contractors, both before and after their bids are
submitted, attempt to obtain prices from potential subcontractors and material suppliers
that are lower than the contractors' original estimates on which their bids are based, or
after a contract is awarded, seek to induce subcontractors to reduce the subcontract price
included in the bid.
6
Bidding requirements- The procedures and conditions for the submission of bids. The
requirements are included ion documents, such as the notice to bidders, advertisements
for bids, instructions to bidders, invitations to bid, and sample bid forms.
Bifold door- Doors that are hinged in the middle for opening in a smaller area than
standard swing doors. Often used for closet doors.
Binder- A receipt for a deposit to secure the right to purchase a home at an agreed
terms by a buyer and seller.
Bipass doors- Doors that slide by each other and commonly used as closet doors.
Blankets- Fiber-glass or rock-wool insulation that comes in long rolls 15 or 23 inches
wide.
Blocked (door blocking)- Wood shims used between the door frame and the vertical
structural wall framing members.
Blocked (rafters)- Short "2 by 4's" used to keep rafters from twisting, and installed at
the ends and at mid-span.
Blocking- Small wood pieces to brace framing members or to provide a nailing base for
gypsum board or paneling.
Block out- To install a box or barrier within a foundation wall to prevent the concrete
from entering an area. For example, foundation walls are sometimes "blocked" in order
for mechanical pipes to pass through the wall, to install a crawl space door, and to
depress the concrete at a garage door location.
Blow insulation- Fiber insulation in loose form and used to insulate attics and existing
walls where framing members are not exposed.
Blue print(s) - A type of copying method often used for architectural drawings. Usually
used to describe the drawing of a structure which is prepared by an architect or designer
for the purpose of design and planning, estimating, securing permits and actual
construction.
Blue stake- Another phrase for Utility Notification. This is when a utility company
(telephone, gas, electric, cable TV, sewer and water, etc) comes to the job site and
locates and spray paints the ground and/or installs little flags to show where their
service is located underground.
Board foot- A unit of measure for lumber equal to 1 inch thick by 12 inches wide by 12
inches long. Examples: 1" x 12" x 16' = 16 board feet, 2" x 12" x 16' = 32 board feet
Bond or bonding - An amount of money (usually $5,000-$10,000) which must be on
deposit with a governmental agency in order to secure a contractor's license. The bond
may be used to pay for the unpaid bills or disputed work of the contractor. Not to be
confused with a 'performance bond'. Such bonds are rarely used in residential
construction, they are an insurance policy which guarantees proper completion of a
project.
7
Boom- A truck used to hoist heavy material up and into place. To put trusses on a home
or to set a heavy beam into place.
Bottom chord - The lower or bottom horizontal member of a truss.
Bottom plate- The "2 by 4's or 6's" that lay on the subfloor upon which the vertical
studs are installed. Also called the 'sole plate'.
Brace- An inclined piece of framing lumber applied to wall or floor to strengthen the
structure. Often used on walls as temporary bracing until framing has been completed.
Breaker panel- The electrical box that distributes electric power entering the home to
each branch circuit (each plug and switch) and composed of circuit breakers.
Brick ledge- Part of the foundation wall where brick (veneer) will rest.
Brick lintel- The metal angle iron that brick rests on, especially above a window, door,
or other opening.
Brick mold-Trim used around an exterior door jamb that siding butts to.
Brick tie- A small, corrugated metal strip @ 1" X 6"- 8" long nailed to wall sheeting or
studs. They are inserted into the grout mortar joint of the veneer brick, and holds the
veneer wall to the sheeted wall behind it.
Brick veneer- A vertical facing of brick laid against and fastened to sheathing of a
framed wall or tile wall construction.
Bridging- Small wood or metal members that are inserted in a diagonal position
between the floor joists or rafters at mid-span for the purpose of bracing the
joists/rafters & spreading the load.
Buck- Often used in reference to rough frame opening members. Door bucks used in
reference to metal door frame. See Window Bucks
Builder's Risk Insurance- Insurance coverage on a construction project during
construction, including extended coverage that may be added for the contract for the
customer's protections.
Building codes- Community ordinances governing the manner in which a home may
be constructed or modified.
Building insurance- Insurance covering the structure of the building.
Building paper- A general term for papers, felts, and similar sheet materials used in
buildings without reference to their properties or uses. Generally comes in long rolls.
Built-up roof- A roofing composed of three to five layers of asphalt felt laminated with
coal tar, pitch, or asphalt. The top is finished with crushed slag or gravel. Generally
used on flat or low-pitched roofs.
Bull nose (drywall)- Rounded drywall corners.
8
Bundle - A package of shingles. Normally, there are 3 bundles per square and 27
shingles per bundle.
Butt edge- The lower edge of the shingle tabs.
Butt hinge- The most common type. One leaf attaches to the door's edge, the other to
its jamb.
Butt joint- The junction where the ends of two timbers meet, and also where sheets of
drywall meet on the 4 foot edge. To place materials end-to-end or end-to-edge without
overlapping.
Buy down- A subsidy (usually paid by a builder or developer) to reduce monthly
payments on a mortgage.
By fold door- Doors that are hinged in the middle for opening in a smaller area than
standard swing doors. Often used for closet doors.
By pass doors- Doors that slide by each other and commonly used as closet doors.
9
C
CO- An abbreviation for "Certificate of Occupancy". This certificate is issued by the
local municipality and is required before anyone can occupy and live within the home.
It is issued only after the local municipality has made all inspections and all monies and
fees have been paid.
Caisson- A 10" or 12" diameter hole drilled into the earth and embedded into bedrock 3
- 4 feet. The structural support for a type of foundation wall, porch, patio, monopost, or
other structure. Two or more "sticks" of reinforcing bars (rebar) are inserted into and
run the full length of the hole and concrete is poured into the caisson hole
Cantilever- An overhang. Where one floor extends beyond and over a foundation wall.
For example at a fireplace location or bay window cantilever. Normally, not extending
over 2 feet.
Cantilevered void- Foundation void material used in unusually expansive soils
conditions. This void is "trapezoid" shaped and has vertical sides of 6" and 4"
respectively.
Cap- The upper member of a column, pilaster, door cornice, molding, or fireplace.
Cap flashing- The portion of the flashing attached to a vertical surface to prevent water
from migrating behind the base flashing.
Capital- The principal part of a loan, i.e. the original amount borrowed.
Capital and interest- A repayment loan and the most conventional form of home loan.
The borrower pays an amount each month to cover the amount borrowed (or capital or
principal) plus the interest charged on capital.
Capped rate- The mortgage interest rate will not exceed a specified value during a
certain period of time, but it will fluctuate up and down below that level.
Casement- Frames of wood or metal enclosing part (or all) of a window sash. May be
opened by means of hinges affixed to the vertical edges.
Casement Window- A window with hinges on one of the vertical sides and swings
open like a normal door
Casing- Wood trim molding installed around a door or window opening.
Caulking- (1) A flexible material used to seal a gap between two surfaces e.g. between
pieces of siding or the corners in tub walls. (2) To fill a joint with mastic or asphalt
plastic cement to prevent leaks.
CCA (Chromated Copper Arsenate)- A pesticide that is forced into wood under high
pressure to protect it from termites, other wood boring insects, and decay caused by
fungus
Celotex ™- Black fibrous board that is used as exterior sheething.
10
Ceiling joist- One of a series of parallel framing members used to support ceiling loads
and supported in turn by larger beams, girders or bearing walls. Also called roof joists.
Cement- The gray powder that is the "glue" in concrete. Portland cement. Also, any
adhesive.
Ceramic tile- A man-made or machine-made clay tile used to finish a floor or wall.
Generally used in bathtub and shower enclosures and on counter tops.
CFM (cubic feet per minute)- A rating that expresses the amount of air a blower or fan
can move. The volume of air (measured in cubic feet) that can pass through an opening
in one minute.
Chair rail- Interior trim material installed about 3-4 feet up the wall, horizontally.
Chalk line- A line made by snapping a taut string or cord dusted with chalk. Used for
alignment purposes.
Change order- A written document which modifies the plans and specifications and/or
the price of the construction Contract.
Chase- A framed enclosed space around a flue pipe or a channel in a wall, or through a
ceiling for something to lie in or pass through.
Chink- To install fiberglass insulation around all exterior door and window frames,
wall corners, and small gaps in the exterior wall.
Chip Board- A manufactured wood panel made out of 1"- 2" wood chips and glue.
Often used as a substitute for plywood in the exterior wall and roof sheathing. Also
called OSB (Oriented Strand Board) or wafer board.
Circuit- The path of electrical flow from a power source through an outlet and back to
ground.
Circuit Breaker- A device which looks like a switch and is usually located inside the
electrical breaker panel or circuit breaker box. It is designed to (1) shut of the power to
portions or all of the house and (2) to limit the amount of power flowing through a
circuit (measured in amperes). 110 volt household circuits require a fuse or circuit
breaker with a rating of 15 or a maximum of 20 amps. 220 volt circuits may be designed
for higher amperage loads e.g. a hot water heater may be designed for a 30 amp load
and would therefore need a 30 amp fuse or breaker.
Class "A"- Optimum fire rating issued by Underwriter's Laboratories on roofing. The
building codes in some areas require this type of roofing for fire safety.
Class "C"- Minimum fire rating issued by the Underwriters' Laboratories for roofing
materials.
Clean out- An opening providing access to a drain line. Closed with a threaded plug.
Clip ties- Sharp, cut metal wires that protrude out of a concrete foundation wall (that at
one time held the foundation form panels in place).
11
Cold air return- The ductwork (and related grills) that carries room air back to the
furnace for re-heating.
Collar- Preformed flange placed over a vent pipe to seal the roofing above the vent pipe
opening. Also called a vent sleeve.
Collar beam- Nominal 1- or 2-inch-thick members connecting opposite roof rafters.
They serve to stiffen the roof structure.
Column- A vertical structural compression member which supports loads.
Combustion air- The duct work installed to bring fresh, outside air to the furnace
and/or hot water heater. Normally 2 separate supplies of air are brought in: One high
and One low.
Combustion chamber- The part of a boiler, furnace or woodstove where the burn
occurs; normally lined with firebrick or molded or sprayed insulation.
Compression web- A member of a truss system which connects the bottom and top
chords and which provides downward support.
Compressor- A mechanical device that pressurizes a gas in order to turn it into a liquid,
thereby allowing heat to be removed or added. A compressor is the main component of
conventional heat pumps and air conditioners. In an air conditioning system, the
compressor normally sits outside and has a large fan (to remove heat).
Concrete- The mixture of Portland cement, sand, gravel, and water. Used to make
garage and basement floors, sidewalks, patios, foundation walls, etc. It is commonly
reinforced with steel rods (rebar) or wire screening (mesh).
Concrete block - A hollow concrete 'brick' often 8" x 8" x 16" in size.
Concrete board - A panel made out of concrete and fiberglass usually used as a tile
backing material.
Condensation- Beads or drops of water (and frequently frost in extremely cold
weather) that accumulate on the inside of the exterior covering of a building. Use of
louvers or attic ventilators will reduce moisture condensation in attics. A vapor barrier
under the gypsum lath or dry wall on exposed walls will reduce condensation.
Condensing unit - The outdoor component of a cooling system. It includes a
compressor and condensing coil designed to give off heat.
Conditions, Convenants, and Restrictions (CC and Rs) - The standards that define
how a property may be used and the protections the developer makes for the benefit of
all owners in a subdivision.
Conduction- The direct transfer of heat energy through a material.
Conductivity- The rate at which heat is transmitted through a material.
Conduit, electrical- A pipe, usually metal, in which wire is installed.
12
Construction Contract - A legal document which specifies the what-when-where-how-
how much and by whom in a construction project. A good construction contract will
include:
1. The contractors registration number.
2.
A statement of work quality such as 'Standard Practices of the Trades' or 'according to
Manufacturers Specifications'.
3. A set of Blue Prints or Plans
4. A construction timetable including starting and completion dates.
5. A set of Specifications
6. A Fixed Price for the work, or a Time and Materials formula.
7. A Payment Schedule.
8. Any Allowances.
9. A clause which outlines how any disputes will be resolved.
10. A written Warrantee.
Construction drywall- A type of construction in which the interior wall finish is
applied in a dry condition, generally in the form of sheet materials or wood paneling as
contrasted to plaster.
Construction, frame- A type of construction in which the structural components are
wood or depend upon a wood frame for support.
Continuity tester- A device that tells whether a circuit is capable of carrying electricity.
Contractor- A company licensed to perform certain types of construction activities. In
most states, the generals contractor's license and some specialty contractor's licenses
don't require of compliance with bonding, workmen's compensation and similar
regulations. Some of the specialty contractor licenses involve extensive training, testing
and/or insurance requirements. There are various types of contractors:
· General contractor - responsible for the execution, supervision and overall coordination
of a project and may also perform some of the individual construction tasks. Most
general contractors are not licensed to perform all specialty trades and must hire
specialty contractors for such tasks, e.g. electrical, plumbing.
· Remodeling contractor - a general contractor who specializes in remodeling work.
· Specialty contractor - licensed to perform a specialty task e.g. electrical, side sewer,
asbestos abatement.
· Sub contractor - a general or specialty contractor who works for another general
contractor.
Control joint- Tooled, straight grooves made on concrete floors to "control" where the
concrete should crack
Convection- Currents created by heating air, which then rises and pulls cooler air
behind it. Also see radiation.
13

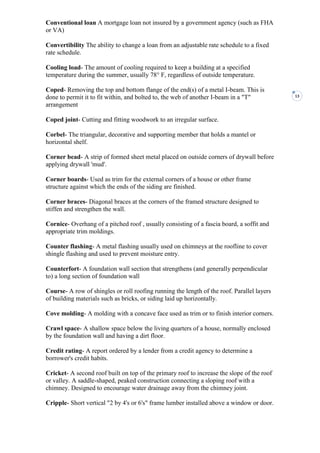

Conventional loan A mortgage loan not insured by a government agency (such as FHA
or VA)
Convertibility The ability to change a loan from an adjustable rate schedule to a fixed
rate schedule.
Cooling load- The amount of cooling required to keep a building at a specified
temperature during the summer, usually 78° F, regardless of outside temperature.
Coped- Removing the top and bottom flange of the end(s) of a metal I-beam. This is
done to permit it to fit within, and bolted to, the web of another I-beam in a "T"
arrangement
Coped joint- Cutting and fitting woodwork to an irregular surface.
Corbel- The triangular, decorative and supporting member that holds a mantel or
horizontal shelf.
Corner bead- A strip of formed sheet metal placed on outside corners of drywall before
applying drywall 'mud'.
Corner boards- Used as trim for the external corners of a house or other frame
structure against which the ends of the siding are finished.
Corner braces- Diagonal braces at the corners of the framed structure designed to
stiffen and strengthen the wall.
Cornice- Overhang of a pitched roof , usually consisting of a fascia board, a soffit and
appropriate trim moldings.
Counter flashing- A metal flashing usually used on chimneys at the roofline to cover
shingle flashing and used to prevent moisture entry.
Counterfort- A foundation wall section that strengthens (and generally perpendicular
to) a long section of foundation wall
Course- A row of shingles or roll roofing running the length of the roof. Parallel layers
of building materials such as bricks, or siding laid up horizontally.
Cove molding- A molding with a concave face used as trim or to finish interior corners.
Crawl space- A shallow space below the living quarters of a house, normally enclosed
by the foundation wall and having a dirt floor.
Credit rating- A report ordered by a lender from a credit agency to determine a
borrower's credit habits.
Cricket- A second roof built on top of the primary roof to increase the slope of the roof
or valley. A saddle-shaped, peaked construction connecting a sloping roof with a
chimney. Designed to encourage water drainage away from the chimney joint.
Cripple- Short vertical "2 by 4's or 6's" frame lumber installed above a window or door.
14
Cross bridging- Diagonal bracing between adjacent floor joists, placed near the center
of the joist span to prevent joists from twisting.
Cross Tee- Short metal "T" beam used in suspended ceiling systems to bridge the
spaces between the main beams.
Crown molding- A molding used on cornice or wherever an interior angle is to be
covered, especially at the roof and wall corner.
Culvert- Round, corrugated drain pipe (normally 15" or 18" in diameter) that is
installed beneath a driveway and parallel to and near the street.
Cupping- A type of warping that causes boards to curl up at their edges.
Curb- The short elevation of an exterior wall above the deck of a roof. Normally a 2 by
6 box (on the roof) on which a skylight is attached.
Curb stop- Normally a cast iron pipe with a lid (@ 5" in diameter) that is placed
vertically into the ground, situated near the water tap in the yard, and where a water cut-
off valve to the home is located (underground). A long pole with a special end is
inserted into the curb stop to turn off/on the water.
Cut-in brace- Nominal 2-inch-thick members, usually 2 by 4's, cut in between each
stud diagonally.
15
Damper-D
Dado- A groove cut into a board or panel intended to receive the edge of a connecting
board or panel.
Damper- A metal "door" placed within the fireplace chimney. Normally closed when
the fireplace is not in use.
Dampproofing- The black, tar like waterproofing material applied to the exterior of a
foundation wall.
Daylight- The end of a pipe (the terminal end) that is not attached to anything.
Dead bolt- An exterior security lock installed on exterior entry doors that can be
activated only with a key or thumb-turn. Unlike a latch, which has a beveled tongue,
dead bolts have square ends.
Dead light- The fixed, non-operable window section of a window unit.
Deck, decked- To install the plywood or wafer board sheeting on the floor joists,
rafters, or trusses.
Dedicated circuit- An electrical circuit that serves only one appliance (ie, dishwasher)
or a series of electric heaters or smoke detectors.
Default- Breach of a mortgage contract (not making the required payments).
De-humidistat- A control mechanism used to operate a mechanical ventilation system
based upon the relative humidity in the home.
Delamination- Separation of the plies in a panel due to failure of the adhesive. Usually
caused by excessive moisture.
Disconnect- A large (generally 20 Amp) electrical ON-OFF switch.
Discount rate- A mortgage interest rate that is lower than the current rate for a certain
period of time, e.g. 2.00% below variable rate for 2 years.
Doorjamb, interior- The surrounding case into which and out of which a door closes
and opens. It consists of two upright pieces, called side jambs, and a horizontal head
jamb. These 3 jambs have the "door stop" installed on them.
Door operator- An automatic garage door opener.
Door stop- The wooden style that the door slab will rest upon when it's in a closed
position.
Dormer- An opening in a sloping roof, the framing of which projects out to form a
vertical wall suitable for windows or other openings.
Double glass- Window or door in which two panes of glass are used with a sealed air
space between. Also known as Insulating Glass.
16
Double hung window- A window with two vertically sliding sashes, both of which can
move up and down.
Down payment- The difference between the sales price and the mortgage amount. A
downpayment is usually paid at closing.
Downspout- A pipe, usually of metal, for carrying rainwater down from the roof's
horizontal gutters.
Drain tile- A perforated, corrugated plastic pipe laid at the bottom of the foundation
wall and used to drain excess water away from the foundation. It prevents ground water
from seeping through the foundation wall. Sometimes called perimeter drain.
Draw- The amount of progress billings on a contract that is currently available to a
contractor under a contract with a fixed payment schedule.
Drip- (a) A member of a cornice or other horizontal exterior finish course that has a
projection beyond the other parts for throwing off water.(b) A groove in the underside
of a sill or drip cap to cause water to drop off on the outer edge instead of drawing back
and running down the face of the building.
Drip cap- A molding or metal flashing placed on the exterior topside of a door or
window frame to cause water to drip beyond the outside of the frame.
Dry in- To install the black roofing felt (tar paper) on the roof.
Drywall (or Gypsum Wallboard (GWB), Sheet rock or Plasterboard)- Wall board
or gypsum- A manufactured panel made out of gypsum plaster and encased in a thin
cardboard. Usually 1/2" thick and 4' x 8' or 4' x 12' in size. The panels are nailed or
screwed onto the framing and the joints are taped and covered with a 'joint compound'.
'Green board' type drywall has a greater resistance to moisture than regular (white)
plasterboard and is used in bathrooms and other "wet areas".
Ducts- The heating system. Usually round or rectangular metal pipes installed for
distributing warm (or cold) air from the furnace to rooms in the home. Also a tunnel
made of galvanized metal or rigid fiberglass, which carries air from the heater or
ventilation opening to the rooms in a building.
Due-on-sale- A clause in a mortgage contract requiring the borrower to pay the entire
outstanding balance upon sale or transfer of the property.
Dura board, dura rock- A panel made out of concrete and fiberglass usually used as a
ceramic tile backing material. Commonly used on bathtub decks. Sometimes called
Wonder board
DWV (drain-waste-vent)- The section of a plumbing system that carries water and
sewer gases out of a home.
17
E
Earnest Money- A sum paid to the seller to show that a potential purchaser is serious
about buying.
Earthquake Strap- A metal strap used to secure gas hot water heaters to the framing or
foundation of a house. Intended to reduce the chances of having the water heater fall
over in an earthquake and causing a gas leak.
Easement- A formal contract which allows a party to use another party's property for a
specific purpose. e.g. A sewer easement might allow one party to run a sewer line
through a neighbors property.
Eaves- The horizontal exterior roof overhang.
Egress- A means of exiting the home. An egress window is required in every bedroom
and basement. Normally a 4' X 4' window is the minimum size required
Elbow (ell)- A plumbing or electrical fitting that lets you change directions in runs of
pipe or conduit.
Electric lateral- The trench or area in the yard where the electric service line (from a
transformer or pedestal) is located, or the work of installing the electric service to a
home.
Electric resistance coils- Metal wires that heat up when electric current passes through
them and are used in baseboard heaters and electric water heaters.
Electrical entrance package- The entry point of the electrical power including: (1) the
'strike' or location where the overhead or underground electrical lines connect to the
house, (2) The meter which measures how much power is used and (3) The 'panel' or
'circuit breaker box ' (or 'fuse box') where the power can be shut off and where overload
devices such a fuses or circuit breakers and located.
Electrical Rough- Work performed by the Electrical Contractor after the plumber and
heating contractor are complete with their phase of work. Normally all electrical wires,
and outlet, switch, and fixture boxes are installed (before insulation).
Electrical Trim- Work performed by the electrical contractor when the house is nearing
completion. The electrician installs all plugs, switches, light fixtures, smoke detectors,
appliance "pig tails", bath ventilation fans, wires the furnace, and "makes up" the
electric house panel. The electrician does all work necessary to get the home ready for
and to pass the municipal electrical final inspection
Elevation sheet- The page on the blue prints that depicts the house or room as if a
vertical plane were passed through the structure.
Equity- The "valuation" that you own in your home, i.e. the property value less the
mortgage loan outstanding.
Escrow - The handling of funds or documents by a third party on behalf of the buyer
and/or seller.
18
Estimate- The amount of labor, materials, and other costs that a contractor anticipates
for a project as summarized in the contractor's bid proposal for the project.
Escutcheon- An ornamental plate that fits around a pipe extending through a wall or
floor to hide the cut out hole
Estimating- The process of calculating the cost of a project. This can be a formal and
exact process or a quick and imprecise process.
Evaporator coil- The part of a cooling system that absorbs heat from air in your home.
Also see condensing unit.
Expansion joint- Fibrous material (@1/2" thick) installed in and around a concrete slab
to permit it to move up and down (seasonally) along the non-moving foundation wall.
Expansive soils- Earth that swells and contracts depending on the amount of water that
is present. ("Betonite" is an expansive soil).
Exposed aggregate finish- A method of finishing concrete which washes the
cement/sand mixture off the top layer of the aggregate - usually gravel. Often used in
driveways, patios and other exterior surfaces.
Extras- Additional work requested of a contractor, not included in the original plan,
which will be billed separately and will not alter the original contract amount, but
increase the cost of building the home.
19
F
FHA strap- Metal straps that are used to repair a bearing wall "cut-out", and to "tie
together" wall corners, splices, and bearing headers. Also, they are used to hang stairs
and landings to bearing headers.
Face nail- To install nails into the vertical face of a bearing header or beam.
Faced concrete- To finish the front and all vertical sides of a concrete porch, step(s), or
patio. Normally the "face" is broom finished.
Facing brick- The brick used and exposed on the outside of a wall. Usually these have
a finished texture.
Fascia- Horizontal boards attached to rafter/truss ends at the eaves and along gables.
Roof drain gutters are attached to the fascia.
Felt- Tar paper. Installed under the roof shingles. Normally 15 lb. or 30 lb.
Female- Any part, such as a nut or fitting, into which another (male) part can be
inserted. Internal threads are female.
Ferrule- Metal tubes used to keep roof gutters "open". Long nails (ferrule spikes) are
driven through these tubes and hold the gutters in place along the fascia of the home.
Field measure- To take measurements (cabinets, countertops, stairs, shower doors, etc.)
in the home itself instead of using the blueprints.
Finger joint- A manufacturing process of interlocking two shorter pieces of wood end
to end to create a longer piece of dimensional lumber or molding. Often used in jambs
and casings and are normally painted (instead of stained).
Fire block- Short horizontal members sometimes nailed between studs, usually about
halfway up a wall. See also 'Fire stop'.
Fire brick- Brick made of refractory ceramic material which will resist high
temperatures. Used in a fireplace and boiler.
Fireplace chase flashing pan- A large sheet of metal that is installed around and
perpendicular to the fireplace flue pipe. It's purpose is to confine and limit the spread of
fire and smoke to a small area.
Fire-resistive or Fire rated- Applies to materials that are not combustible in the
temperatures of ordinary fires and will withstand such fires for at least 1 hour. Drywall
used in the garage and party walls are to be fire rated, 5/8", Type X.
Fire retardant chemical- A chemical or preparation of chemicals used to reduce the
flammability of a material or to retard the spread of flame.
Fire stop- A solid, tight closure of a concealed space, placed to prevent the spread of
fire and smoke through such a space. In a frame wall, this will usually consist of 2 by 4
cross blocking between studs. Work performed to slow the spread of fire and smoke in
the walls and ceiling (behind the drywall). Includes stuffing wire holes in the top and
20
bottom plates with insulation, and installing blocks of wood between the wall studs at
the drop soffit line. This is integral to passing a Rough Frame inspection. See also 'Fire
block'.
Fishplate (gusset)- A wood or plywood piece used to fasten the ends of two members
together at a butt joint with nails or bolts. Sometimes used at the junction of opposite
rafters near the ridge line. Sometimes called a gang nail plate.
Fish tape- A long strip of spring steel used for fishing cables and for pulling wires
through conduit.
Fixed price contract- A contract with a set price for the work. See Time and Materials
Contract.
Fixed rate- A loan where the initial payments are based on a certain interest rate for a
stated period . The rate payable will not change during this period regardless of changes
in the lender's standard variable rate.
Fixed Rate Mortgage- A mortgage with an interest rate that remains the same over the
years.
Flagstone (flagging or flags)- Flat stones (1 to 4 inches thick) used for walks, steps,
floors, and vertical veneer (in lieu of brick).
Flakeboard- A manufactured wood panel made out of 1"- 2" wood chips and glue.
Often used as a substitute for plywood in the exterior wall and roof sheathing. Also
called OSB or wafer board.
Flame retention burner- An oil burner, designed to hold the flame near the nozzle
surface. Generally the most efficient type for residential use.
Flashing- Sheet metal or other material used in roof and wall construction to protect a
building from water seepage.
Flat mold- Thin wood strips installed over the butt seam of cabinet skins.
Flat paint- An interior paint that contains a high proportion of pigment and dries to a
flat or lusterless finish.
Flatwork- Common word for concrete floors, driveways, basements, and sidewalks.
Floating- The next-to-last stage in concrete work, when you smooth off the job and
bring water to the surface by using a hand float or bull float.
Floating wall- A non-bearing wall built on a concrete floor. It is constructed so that the
bottom two horizontal plates can compress or pull apart if the concrete floor moves up
or down. Normally built on basements and garage slabs.
Fluorescent lighting- A fluorescent lamp is a gas-filled glass tube with a phosphur
coating on the inside. Gas inside the tube is ionized by electricity which causes the
phosphur coating to glow. Normally with two pins that extend from each end.
21
Flue- Large pipe through which fumes escape from a gas water heater, furnace, or
fireplace. Normally these flue pipes are double walled, galvanized sheet metal pipe and
sometimes referred to as a "B Vent". Fireplace flue pipes are normally triple walled. In
addition, nothing combustible shall be within one inch from the flue pipe.
Flue collar- Round metal ring which fits around the heat flue pipe after the pipe passes
out of the roof.
Flue damper- An automatic door located in the flue that closes it off when the burner
turns off; purpose is to reduce heat loss up the flue from the still-warm furnace or boiler.
Flue lining- 2-foot lengths, fire clay or terra-cotta pipe (round or square) and usually
madein all ordinary flue sizes. Used for the inner lining of chimneys with the brick or
masonry work done around the outside. Flue linings in chimneys runs from one foot
below the flue connection to the top of the chimney.
Fly rafters- End rafters of the gable overhang supported by roof sheathing and
lookouts.
Footer, footing- Continuous 8" or 10" thick concrete pad installed before and supports
the foundation wall or monopost.
Forced air heating - A common form of heating with natural gas, propane, oil or
electricity as a fuel. Air is heated in the furnace and distributed through a set of metal
ducts to various areas of the house.
Form- Temporary structure erected to contain concrete during placing and initial
hardening.
Foundation- The supporting portion of a structure below the first floor construction, or
below grade, including the footings.
Foundation ties- Metal wires that hold the foundation wall panels and rebar in place
during the concrete pour.
Foundation waterproofing- High-quality below-grade moisture protection. Used for
below-grade exterior concrete and masonry wall damp-proofing to seal out moisture and
prevent corrosion. Normally looks like black tar.
Frame Inspection- The act of inspecting the home's structural integrity and it's
complianceto local municipal codes.
Framer-The carpenter contractor that installs the lumber and erects the frame, flooring
system, interior walls, backing, trusses, rafters, decking, installs all beams, stairs, soffits
and all work related to the wood structure of the home. The framer builds the home
according to the blueprints and must comply with local building codes and regulations.
Framing- Lumber used for the structural members of a building, such as studs, joists,
and rafters.
Frieze- In house construction a horizontal member connecting the top of the siding with
the soffit of the cornice.
22
Frost lid- Round metal lid that is installed on a water meter pit.
Frost line- The depth of frost penetration in soil and/or the depth at which the earth will
freeze and swell. This depth varies in different parts of the country.
Furring strips- Strips of wood, often 1 X 2 and used to shim out and provide a level
fastening surface for a wall or ceiling.
Fuse- A device often found in older homes designed to prevent overloads in electrical
lines. This protects against fire. See also 'circuit breakers'.
23
G
GF C I, or G F I- Ground Fault Circuit Interrupter- an ultra sensitive plug designed to
shut off all electric current. Used in bathrooms, kitchens, exterior waterproof outlets,
garage outlets, and "wet areas". Has a small reset button on the plug.
Gable- The end, upper, triangular area of a home, beneath the roof.
Gang nail plate- A steel plate attached to both sides at each joint of a truss. Sometimes
called a fishplate or gussett.
Gate valve- A valve that lets you completely stop—but not modulate—the flow within
a pipe.
General Contractor A contractor who enters into a contract with the owner of a project
for the construction of the project and who takes full responsibility for its completion,
although the contractor may enter into subcontracts with others for the performance of
specific parts or phases of the project.
Gas lateral- The trench or area in the yard where the gas line service is located, or the
work of installing the gas service to a home.
Girder- A large or principal beam of wood or steel used to support concentrated loads
at isolated points along its length.
Glazing- The process of installing glass, which commonly is secured with glazier's
points and glazing compound.
Globe valve- A valve that lets you adjust the flow of water to any rate between fully on
and fully off. Also see gate valve.
Gloss enamel- A finishing paint material. Forms a hard coating with maximum
smoothness of surface and dries to a sheen or luster (gloss)
Glued Laminated Beam (Glulam)- A structural beam composed of wood laminations
or lams. The lams are pressure bonded with adhesives to attain a typical thickness of 1
½" . (It looks like 5 or more 2 X 4's are glued together).
Grade- Ground level, or the elevation at any given point. Also the work of leveling dirt.
Also the designated quality of a manufactured piece of wood.
Grade beam- A foundation wall that is poured @ level with or just below the grade of
theearth. An example is the area where the 8' or 16' overhead garage door "block out" is
located, or a lower (walk out basement) foundation wall is poured
Graduated Payment Mortgage (GPM) - A fixed-rate, fixed-schedule loan. It starts
with lower payments than a level payment loan; payments rise annually, with the entire
increase being used to reduce the outstanding balance. The increase in payments may
enable the borrower to pay off a 30-year loan in 15 to 20 years, or less.
Grain- The direction, size, arrangement, appearance, or quality of the fibers in wood.
24
Grid- The completed assembly of main and cross tees in a suspended ceiling system
before the ceiling panels are installed. Also the decorative slats (munton) installed
between glass panels.
Ground- Refers to electricity's habit of seeking the shortest route to earth. Neutral wires
carry it there in all circuits. An additional grounding wire or the sheathing of the metal-
clad cable or conduit—protects against shock if the neutral leg is interrupted.
Ground fault- Ground Fault Circuit Interrupter (GFCI, GFI)- an ultra sensitive plug
designed to shut off all electric current. Used in bathrooms, kitchens, exterior
waterproof outlets, garage outlets, and "wet areas". Has a small reset button on the plug.
Ground iron- The plumbing drain and waste lines that are installed beneath the
basement floor. Cast iron was once used, but black plastic pipe (ABS) is now widely
used.
Groundwater- Water from an aquifer or subsurface water source.
Grout- A wet mixture of cement, sand and water that flows into masonry or ceramic
crevices to seal the cracks between the different pieces. Mortar made of such
consistency (by adding water) that it will flow into the joints and cavities of the
masonry work and fill them solid.
Gusset- A flat wood, plywood, or similar type member used to provide a connection at
the intersection of wood members. Most commonly used at joints of wood trusses. They
are fastened by nails, screws, bolts, or adhesives.
Gutter- A shallow channel or conduit of metal or wood set below and along the (fascia)
eaves of a house to catch and carry off rainwater from the roof.
Gyp board- Drywall. Wall board or gypsum- A panel (normally 4' X 8', 10', 12', or
16')made with a core of Gypsum (chalk-like) rock, which covers interior walls and
ceilings.
Gypsum plaster- Gypsum formulated to be used with the addition of sand and water
for base-coat plaster.
25
H
H Clip- Small metal clips formed like an "H" that fits at the joints of two plywood (or
wafer board) sheets to stiffen the joint. Normally used on the roof sheeting.
Hardware- All of the "metal" fittings that go into the home when it is near completion.
For example, door knobs, towel bars, handrail brackets, closet rods, house numbers,
door closers, etc. The Interior Trim Carpenter installs the "hardware".
Haunch- An extension, knee like protrusion of the foundation wall that a concrete
porch or patio will rest upon for support.
Hazard insurance - Protection against damage caused by fire, windstorms, or other
common hazards. Many lenders require borrowers to carry it in an amount at least equal
to the mortgage.
Header- (a) A beam placed perpendicular to joists and to which joists are nailed
inframing for a chimney, stairway, or other opening. (b) A wood lintel. (c) The
horizontal structural member over an opening (for example over a door or window).
Hearth- The fireproof area directly in front of a fireplace. The inner or outer floor of a
fireplace, usually made of brick, tile, or stone.
Heating load- The amount of heating required to keep a building at a specified
temperature during the winter, usually 65° F, regardless of outside temperature.
Heat meter- An electrical municipal inspection of the electric meter breaker panel box.
Heat pump- A mechanical device which uses compression and decompression of gas to
heat and/or cool a house.
Heat Rough- Work performed by the Heating Contractor after the stairs and interior
walls are built. This includes installing all duct work and flue pipes. Sometimes, the
furnace and fireplaces are installed at this stage of construction.
Heat Trim- Work done by the Heating Contractor to get the home ready for the
municipal Final Heat Inspection. This includes venting the hot water heater, installing
all vent grills, registers, air conditioning services, turning on the furnace, installing
thermostats, venting ranges and hoods, and all other heat related work.
Heel cut- A notch cut in the end of a rafter to permit it to fit flat on a wall and on the
top, doubled, exterior wall plate.
Highlights- A light spot, area, or streak on a painted surface.
Hip- A roof with four sloping sides. The external angle formed by the meeting of two
sloping sides of a roof.
Hip roof- A roof that rises by inclined planes from all four sides of a building.
Home run (electrical)- The electrical cable that carries power from the main circuit
breaker panel to the first electrical box, plug, or switch in the circuit.
26
Honey combs- The appearance concrete makes when rocks in the concrete are visible
and where there are void areas in the foundation wall, especially around concrete
foundation windows.
Hose bib- An exterior water faucet (sill cock).
Hot wire- The wire that carries electrical energy to a receptacle or other device—in
contrast to a neutral, which carries electricity away again. Normally the black wire. Also
see ground.
Humidifier- An appliance normally attached to the furnace, or portable unit device
designed to increase the humidity within a room or a house by means of the discharge
of water vapor.
Hurricane clip- Metal straps that are nailed and secure the roof rafters and trusses to
the top horizontal wall plate. Sometimes called a Teco clip.
H V A C- An abbreviation for Heat, Ventilation, and Air Conditioning
27
I
I-beam- A steel beam with a cross section resembling the letter I. It is used for long
spans as basement beams or over wide wall openings, such as a double garage door,
when wall and roof loads bear down on the opening.
I-joist- Manufactured structural building component resembling the letter "I". Used as
floor joists and rafters. I-joists include two key parts: flanges and webs. The flange of
the I joist may be made of laminated veneer lumber or dimensional lumber, usually
formed into a 1 ½" width. The web or center of the I-joist is commonly made of
plywood or oriented strand board (OSB). Large holes can be cut in the web to
accommodate duct work and plumbing waste lines. I-joists are available in lengths up to
60 feet long
Incandescent lamp- A lamp employing an electrically charged metal filament that
glows at white heat. A typical light bulb.
Index- The interest rate or adjustment standard that determines the changes in monthly
payments for an adjustable rate loan.
Infiltration- The passage of air from indoors to outdoors and vice versa; term is usually
associated with drafts from cracks, seams or holes in buildings.
Inside corner- The point at which two walls form an internal angle, as in the corner of
a room.
Insulating glass- Window or door in which two panes of glass are used with a sealed
air space between. Also known as Double glass.
Insulation board, rigid- A structural building board made of coarse wood or cane fiber
in ½- and 25/32-inch thickness. It can be obtained in various size sheets and densities.
Insulation- Any material high in resistance to heat transmission that, when placed in
the walls, ceiling, or floors of a structure, and will reduce the rate of heat flow.
Interest - The cost paid to a lender for borrowed money.
Interior finish- Material used to cover the interior framed areas of walls and ceilings
Irrigation- Lawn sprinkler system.
28
J
J Channel- Metal edging used on drywall to give the edge a better finished appearance
when a wall is not "wrapped" Generally, basement stairway walls have drywall only on
the stair side. J Channel is used on the vertical edge of the last drywall sheet
Jack post- A type of structural support made of metal, which can be raised or lowered
through a series of pins and a screw to meet the height required. Basically used as a
replacement for an old supporting member in a building. See Monopost.
Jack rafter- A rafter that spans the distance from the wall plate to a hip, or from a
valley to a ridge.
Jamb- The side and head lining of a doorway, window, or other opening. Includes studs
as well as the frame and trim.
Joint- The location between the touching surfaces of two members or components
joined and held together by nails, glue, cement, mortar, or other means.
Joint cement or Joint compound- A powder that is usually mixed with water and used
for joint treatment in gypsum-wallboard finish. Often called "spackle" or drywall mud.
Joint tenancy- A form of ownership in which the tenants own a property equally. If one
dies, the other automatically inherits the entire property.
Joint trench- When the electric company and telephone company dig one trench and
"drop" both of their service lines in.
Joist- Wooden 2 X 8's, 10's, or 12's that run parallel to one another and support a floor
or ceiling, and supported in turn by larger beams, girders, or bearing walls.
Joist hanger- A metal "U" shaped item used to support the end of a floor joist and
attached with hardened nails to another bearing joist or beam.
Jumpers- Water pipe installed in a water meter pit (before the water meter is installed),
or electric wire that is installed in the electric house panel meter socket before the meter
is installed. This is sometimes illegal.
29
K
Keeper- The metal latch plate in a door frame into which a doorknob plunger latches.
Keyless- A plastic or porcelain light fixture that operates by a pull string. Generally
found in the basement, crawl space , and attic areas.
Keyway- A slot formed and poured on a footer or in a foundation wall when another
wall will be installed at the slot location. This gives additional strength to the
joint/meeting point.
Kilowatt (kw)- One thousand watts. A kilowatt hour is the base unit used in measuring
electrical consumption. Also see watt.
King stud- The vertical "2 X's" frame lumber (left and right) of a window or door
opening, and runs continuously from the bottom sole plate to the top plate.
Knot- In lumber, the portion of a branch or limb of a tree that appears on the edge or
face of the piece.
30
L
Laminated shingles - Shingles that have added dimensionality because of extra layers
or tabs, giving a shake-like appearance. May also be called "architectural shingles" or
"three-dimensional shingles."
Laminating- Bonding together two or more layers of materials.
Landing- A platform between flights of stairs or at the termination of a flight of stairs.
Often used when stairs change direction. Normally no less than 3 ft. X 3 ft. square.
Lap- To cover the surface of one shingle or roll with another.
Latch- A beveled metal tongue operated by a spring-loaded knob or lever. The tongue's
bevel lets you close the door and engage the locking mechanism, if any, without using a
key. Contrasts with dead bolt.
Lateral (electric, gas, telephone, sewer and water)- The underground trench and
related services (i.e., electric, gas, telephone, sewer and water lines) that will be buried
within the trench.
Lath- A building material of narrow wood, metal, gypsum, or insulating board that is
fastened to the frame of a building to act as a base for plaster, shingles, or tiles.
Lattice- An open framework of criss-crossed wood or metal strips that form regular,
patterned spaces.
Ledger (for a Structural Floor)- The wooden perimeter frame lumber member that
bolts onto the face of a foundation wall and supports the wood structural floor.
Ledger strip- A strip of lumber nailed along the bottom of the side of a girder on which
joists rest.
Leech field- A method used to treat/dispose of sewage in rural areas not accessible to a
municipal sewer system. Sewage is permitted to be filtered and eventually discharged
into a section of the lot called a leech field.
Let-in brace- Nominal 1 inch-thick boards applied into notched studs diagonally. Also,
an "L" shaped, long (@ 10') metal strap that are installed by the framer at the rough
stage to give support to an exterior wall or wall corner.
Level- True horizontal. Also a tool used to determine level.
Level Payment Mortgage- A mortgage with identical monthly payments over the life
of the loan.
Lien- An encumbrance that usually makes real or personal property the security for
payment of a debt or discharge of an obligation.
Light- Space in a window sash for a single pane of glass. Also, a pane of glass.
Limit switch- A safety control that automatically shuts off a furnace if it gets too hot.
Most also control blower cycles.
31
Lineal foot- A unit of measure for lumber equal to 1 inch thick by 12 inches wide by 12
inches long. Examples: 1" x 12" x 16' = 16 board feet, 2" x 12" x 16' = 32 board feet.
Lintel- A horizontal structural member that supports the load over an opening such as a
door or window.
Load bearing wall- Includes all exterior walls and any interior wall that is aligned
above a support beam or girder. Normally, any wall that has a double horizontal top
plate.
Loan- The amount to be borrowed.
Loan to value ratio- The ratio of the loan amount to the property valuation and
expressed as a percentage. E.g. if a borrower is seeking a loan of $200,000 on a property
worth $400,000 it has a 50% loan to value rate. If the loan were $300,000, the LTV
would be 75%. The higher the loan to value, the greater the lender's perceived risk.
Loans above normal lending LTV ratios may require additional security.
Lookout- A short wood bracket or cantilever that supports an overhang portion of a
roof.
Louver- A vented opening into the home that has a series of horizontal slats and
arranged to permit ventilation but to exclude rain, snow, light, insects, or other living
creatures.
Lumens- Unit of measure for total light output. The amount of light falling on a surface
of one square foot.
32
M
Male- Any part, such as a bolt, designed to fit into another (female) part. External
threads are male.
Mantel- The shelf above a fireplace opening. Also used in referring to the decorative
trim around a fireplace opening.
Manufactured wood- A wood product such as a truss, beam, gluelam, microlam or
joist which is manufactured out of smaller wood pieces and glued or mechanically
fastened to form a larger piece. Often used to create a stronger member which may use
less wood. See also Oriented Strand Board.
Manufacturer's specifications- The written installation and/or maintenance
instructions which are developed by the manufacturer of a product and which may have
to be followed in order to maintain the product warrantee.
Masonry- Stone, brick, concrete, hollow-tile, concrete block, or other similar building
units or materials. Normally bonded together with mortar to form a wall.
Mastic- A pasty material used as a cement (as for setting tile) or a protective coating (as
for thermal insulation or waterproofing)
Mechanics lien- A lien on real property, created by statue in many years, in favor of
persons supplying labor or materials for a building or structure, for the value of labor or
materials supplied by them. In some jurisdictions, a mechanics lien also exists for the
value of professional services. Clear title to the property cannot be obtained until the
claim for the labor, materials, or professional services is settled. Timely filing is
essential to support the encumbrance, and prescribed filing dates vary by jurisdiction.
Metal lath- Sheets of metal that are slit to form openings within the lath. Used as a
plaster base for walls and ceilings and as reinforcing over other forms of plaster base.
Microlam- A manufactured structural wood beam. It is constructed of pressure and
adhesive bonded wood strands of wood. They have a higher strength rating than solid
sawn lumber. Normally comes in l ½" thickness' and 9 ½", 11 ½" and 14" widths
Milar (mylar)- Plastic, transparent copies of a blueprint.
Millwork- Generally all building materials made of finished wood and manufactured in
millwork plants. Includes all doors, window and door frames, blinds, mantels,
panelwork, stairway components (ballusters, rail, etc.), moldings, and interior trim.
Does not include flooring, ceiling, or siding.
Miter joint- The joint of two pieces at an angle that bisects the joining angle. For
example, the miter joint at the side and head casing at a door opening is made at a 45°
angle.
Molding- A wood strip having an engraved, decorative surface.
Monopost- Adjustable metal column used to support a beam or bearing point. Normally
11 gauge or Schedule 40 metal, and determined by the structural engineer
33
Mortar- A mixture of cement (or lime) with sand and water used in masonry work.
Mortgage- Loan secured by land.
Mortgage broker - A broker who represents numerous lenders and helps consumers
find affordable mortgages; the broker charges a fee only if the consumer finds a loan.
Mortgage company - A company that borrows money from a bank, lends it to
consumers to buy homes, then sells the loans to investors.
Mortgage deed- Legal document establishing a loan on property.
Mortgagee- The lender who makes the mortgage loan.
Mortgage loan- A contract in which the borrower's property is pledged as collateral. It
is repaid in installments. The mortgagor (buyer) promises to repay principal and
interest, keep the home insured, pay all taxes and keep the property in good condition.
Mortgage Origination Fee- A charge for work involved in preparing and servicing a
mortgage application (usually one percent of the loan amount).
Mortise- A slot cut into a board, plank, or timber, usually edgewise, to receive the
tenon (or tongue) of another board, plank, or timber to form a joint.
Mudsill- Bottom horizontal member of an exterior wall frame which rests on top a
foundation, sometimes called sill plate. Also sole plate, bottom member of interior wall
frame.
Mullion- A vertical divider in the frame between windows, doors, or other openings.
Muntin- A small member which divides the glass or openings of sash or doors.
Muriatic acid- Commonly used as a brick cleaner after masonry work is completed.
Mushroom- The unacceptable occurrence when the top of a caisson concrete pier
spreads out and hardens to become wider than the foundation wall thickness.
34
N
Nail inspection- An inspection made by a municipal building inspector after the
drywall material is hung with nails and screws (and before taping).
Natural finish- A transparent finish which does not seriously alter the original color or
grain of the natural wood. Natural finishes are usually provided by sealers, oils,
varnishes, water repellent preservatives, and other similar materials.
NEC (National Electrical Code)- A set of rules governing safe wiring methods. Local
codes—which are backed by law—may differ from the NEC in some ways.
Neutral wire- Usually color-coded white, this carries electricity from an outlet back to
the service panel. Also see hot wire and ground.
Newel post- The large starting post to which the end of a stair guard railing or
balustrade is fastened.
Nonbearing wall- A wall supporting no load other than its own weight.
Nosing- The projecting edge of a molding or drip or the front edge of a stair tread.
Notch- A crosswise groove at the end of a board.
Note- A formal document showing the existence of a debt and stating the terms of
repayment.
Nozzle- The part of a heating system that sprays the fuel of fuel-air mixture into the
combustion chamber.
35
O
O C- On Center- The measurement of spacing for studs, rafters, and joists in a building
from the center of one member to the center of the next.
Oakum- Loose hemp or jute fiber that's impregnated with tar or pitch and used to caulk
large seams or for packing plumbing pipe joints
Open hole inspection- When an engineer (or municipal inspector) inspects the open
excavation and examines the earth to determine the type of foundation (caisson, footer,
wall on ground, etc.) that should be installed in the hole.
Oriented Strand Board or OSB- A manufactured 4' X 8' wood panel made out of 1"-
2" wood chips and glue. Often used as a substitute for plywood.
Outrigger- An extension of a rafter beyond the wall line. Usually a smaller member
nailed to a larger rafter to form a cornice or roof overhang.
Outside corner- The point at which two walls form an external angle, one you usually
can walk around.
Overhang- Outward projecting eave-soffit area of a roof; the part of the roof that hangs
out or over the outside wall. See also Cornice.
36
P & Q
Padding- A material installed under carpet to add foot comfort, isolate sound, and to
prolong carpet life.
Pad out, pack out- To shim out or add strips of wood to a wall or ceiling in order that
the finished ceiling/wall will appear correct.
Paint- A combination of pigments with suitable thinners or oils to provide decorative
and protective coatings. Can be oil based or latex water based.
Pallets- Wooden platforms used for storing and shipping material. Forklifts and hand
trucks are used to move these wooden platforms around.
Panel- A thin flat piece of wood, plywood, or similar material, framed by stiles and
rails as in a door (or cabinet door), or fitted into grooves of thicker material with molded
edges for decorative wall treatment.
Paper, building- A general term for papers, felts, and similar sheet materials used in
buildings without reference to their properties or uses. Generally comes in long rolls.
Parapet- A wall placed at the edge of a roof to prevent people from falling off.
Parting stop or strip- A small wood piece used in the side and head jambs of double
hung windows to separate the upper sash from the lower sash.
Particle board- Plywood substitute made of course sawdust that is mixed with resin
and pressed into sheets. Used for closet shelving, floor underlayment, stair treads, etc.
Partition- A wall that subdivides spaces within any story of a building or room.
Paver, paving- Materials—commonly masonry—laid down to make a firm, even
surface.
Payment schedule- A pre-agreed upon schedule of payments to a contractor usually
based upon the amount of work completed. Such a schedule may include a deposit prior
to the start of work. There may also be a temporary 'retainer' (5-10% of the total cost of
the job) at the end of the contract for correcting any small items which have not been
completed or repaired.
Pedestal- A metal box installed at various locations along utility easements that contain
electrical, telephone, or cable television switches and connections.
Penalty clause - A provision in a contract that provides for a reduction in the amount
otherwise payable under a contract to a contractor as a penalty for failure to meet
deadlines or for failure of the project to meet contract specifications.
Penny- As applied to nails, it originally indicated the price per hundred. The term now
series as a measure of nail length and is abbreviated by the letter "d". Normally, 16d (16
"penny") nails are used for framing
Percolation test or perc. test- Tests that a soil engineer performs on earth to determine
the feasibility of installing a leech field type sewer system on a lot. A test to determine
37
if the soil on a proposed building lot is capable of absorbing the liquid affluent from a
septic system.
Performance bond- An amount of money (usually 10% of the total price of a job) that
a contractor must put on deposit with a governmental agency as an insurance policy that
guarantees the contractors' proper and timely completion of a project or job.
Perimeter drain- 3" or 4" perforated plastic pipe that goes around the perimeter (either
inside or outside) of a foundation wall (before backfill) and collects and diverts ground
water away from the foundation. Generally, it is "daylighted" into a sump pit inside the
home, and a sump pump is sometimes inserted into the pit to discharge any
accumulation of water.
Permeability- A measure of the ease with which water penetrates a material.
Permit - A governmental municipal authorization to perform a building process as in:
· ZoningUse permit - Authorization to use a property for a specific use e.g. a garage, a
single family residence etc.
· Demolition permit - Authorization to tear down and remove an existing structure.
· Grading permit - Authorization to change the contour of the land.
· Septic permit - A health department authorization to build or modify a septic system.
· Building permit - Authorization to build or modify a structure.
· Electrical permit - A separate permit required for most electrical work.
· Plumbing permit - A separate permit required for new plumbing and larger
modifications of existing plumbing systems.
Pigtails, electrical- The electric cord that the electrician provides and installs on an
appliance such as a garbage disposal, dishwasher, or range hood.
Pier- A column of masonry, usually rectangular in horizontal cross section, used to
support other structural members. Also see Caisson.
Pigment- A powdered solid used in paint or enamel to give it a color.
Pilot hole- A small-diameter, pre-drilled hole that guides a nail or screw.
Pilot light- A small, continuous flame (in a hot water heater, boiler, or furnace) that
ignites gas or oil burners when needed.
Pitch- The incline slope of a roof or the ratio of the total rise to the total width of a
house, i.e., a 6-foot rise and 24-foot width is a one-fourth pitch roof. Roof slope is
expressed in the inches of rise, per foot of horizontal run.
PITI - Principal, interest, taxes and insurance (the four major components of monthly
housing payments).
38
Plan view- Drawing of a structure with the view from overhead, looking down.
Plate- Normally a 2 X 4 or 2 X 6 that lays horizontally within a framed structure, such
as:
Sill plate- A horizontal member anchored to a concrete or masonry wall.
Sole plate- Bottom horizontal member of a frame wall.
Top plate- Top horizontal member of a frame wall supporting ceiling joists,
rafters, or other members.
Plenum- The main hot-air supply duct leading from a furnace.
Plot plan- An overhead view plan that shows the location of the home on the lot.
Includes all easements, property lines, set backs, and legal descriptions of the home.
Provided by the surveyor.
Plough, plow- To cut a lengthwise groove in a board or plank. An exterior handrail
normally has a ploughed groove for hand gripping purposes
Plumb- Exactly vertical and perpendicular.
Plumb bob- A lead weight attached to a string. It is the tool used in determining plumb.
Plumbing boots- Metal saddles used to strengthen a bearing wall/vertical stud(s) where
a plumbing drain line has been cut through and installed.
Plumbing ground- The plumbing drain and waste lines that are installed beneath a
basement floor.
Plumbing jacks- Sleeves that fit around drain and waste vent pipes at, and are nailed to,
the roof sheeting.
Plumbing rough- Work performed by the plumbing contractor after the Rough Heat is
installed. This work includes installing all plastic ABS drain and waste lines, copper
water lines, bath tubs, shower pans, and gas piping to furnaces and fireplaces. Lead
solder should not be used on copper piping.
Plumbing stack- A plumbing vent pipe that penetrates the roof.
Plumbing trim- Work performed by the plumbing contractor to get the home ready for
a final plumbing inspection. Includes installing all toilets (water closets), hot water
heaters, sinks, connecting all gas pipe to appliances, disposal, dishwasher, and all
plumbing items.
Plumbing waste line- Plastic pipe used to collect and drain sewage waste.
Ply- A term to denote the number of layers of roofing felt, veneer in plywood, or layers
in built-up materials, in any finished piece of such material.
39
Plywood- A panel (normally 4' X 8') of wood made of three or more layers of veneer,
compressed and joined with glue, and usually laid with the grain of adjoining plies at
right angles to give the sheet strength.
Point load- A point where a bearing/structural weight is concentrated and transferred to
the foundation.
Portland cement- Cement made by heating clay and crushed limestone into a brick and
then grinding to a pulverized powder state.
Post- A vertical framing member usually designed to carry a beam. Often a 4" x 4", a 6"
x 6", or a metal pipe with a flat plate on top and bottom.
Post-and-beam- A basic building method that uses just a few hefty posts and beams to
support an entire structure. Contrasts with stud framing.
Power vent- A vent that includes a fan to speed up air flow. Often installed on roofs.
Premium- Amount payable on a loan.
Preservative-. Any pesticide substance that, for a reasonable length of time, will
prevent the action of wood-destroying fungi, insect borers, and similar destructive
agents when the wood has been properly coated or impregnated with it. Normally an
arsenic derivative. Chromated Copper Arsenate (CCA) is an example.
Pressure Relief Valve (PRV)- A device mounted on a hot water heater or boiler which
is designed to release any high steam pressure in the tank to prevent tank explosions.
Pressure-treated wood- Lumber that has been saturated with a preservative.
Primer- The first, base coat of paint when a paint job consists of two or more coats. A
first coating formulated to seal raw surfaces and holding succeeding finish coats.
Principal- The original amount of the loan, the capital.
Property survey- A survey to determine the boundaries of your property. The cost
depends on the complexity of the survey.
P trap- Curved, "U" section of drain pipe that holds a water seal to prevent sewer
gasses from entering the home through a fixtures water drain.
Pump mix- Special concrete that will be used in a concrete pump. Generally, the mix
has smaller rock aggregate than regular mix.
Punch list- A list of discrepancies that need to be corrected by the contractor.
Punch out- To inspect and make a discrepancy list.
Putty- A type of dough used in sealing glass in the sash, filling small holes and crevices
in wood, and for similar purposes.
PVC or CPVC - Poly Vinyl Chloride-A type of white or light gray plastic pipe
sometimes used for water supply lines and waste pipe.
40
Q
Quarry tile- A man-made or machine-made clay tile used to finish a floor or wall.
Generally 6" X 6" X 1/4" thick .
Quarter round- A small trim molding that has the cross section of a quarter circle.
41
R
Rabbet- A rectangular longitudinal groove cut in the corner edge of a board or plank.
Radiant heating- A method of heating, usually consisting of a forced hot water system
with pipes placed in the floor, wall, or ceiling. Also electrically heated panels.
Radiation- Energy transmitted from a heat source to the air around it. Radiators
actually depend more on convection than radiation.
Radon- A naturally-occurring, heavier than air, radioactive gas common in many parts
of the country. Radon gas exposure is associated with lung cancer. Mitigation measures
may involve crawl space and basement venting and various forms of vapor barriers.
Radon system- A ventilation system beneath the floor of a basement and/or structural
wood floor and designed to fan exhaust radon gas to the outside of the home
Rafter- Lumber used to support the roof sheeting and roof loads. Generally, 2 X 10's
and 2 X 12's are used. The rafters of a flat roof are sometimes called roof joists.
Rafter, hip- A rafter that forms the intersection of an external roof angle.
Rafter, valley- A rafter that forms the intersection of an internal roof angle. The valley
rafter is normally made of double 2-inch-thick members.
Rail- Cross members of panel doors or of a sash. Also, a wall or open balustrade placed
at the edge of a staircase, walkway bridge, or elevated surface to prevent people from
falling off. Any relatively lightweight horizontal element, especially those found in
fences (split rail).
Railroad tie- Black, tar and preservative impregnated, 6" X 8" and 6'-8' long wooden
timber that was used to hold railroad track in place. Normally used as a member of a
retaining wall.
Rake- Slope or slanted.
Rake fascia- The vertical face of the sloping end of a roof eave.
Rake siding- The practice of installing lap siding diagonally
Ranch- A single story, one level home.
Ready mixed concrete- Concrete mixed at a plant or in trucks en route to a job and
delivered ready for placement.
Rebar, reinforcing bar-Ribbed steel bars installed in foundation concrete walls,
footers, and poured in place concrete structures designed to strengthen concrete. Comes
in various thickness' and strength grade.
Receptacle- An electrical outlet. A typical household will have many 120 volt
receptacles for plugging in lams and appliances and 240 volt receptacles for the range,
clothes dryer, air conditioners, etc.
42
Recording fee - A charge for recording the transfer of a property, paid to a city, county,
or other appropriate branch of government.
Redline, red lined prints- Blueprints that reflect changes and that are marked with red
pencil.
Reducer- A fitting with different size openings at either end and used to go from a
larger to a smaller pipe.
Reflective insulation- Sheet material with one or both faces covered with aluminum
foil.
Refrigerant- A substance that remains a gas at low temperatures and pressure and can
be used to transfer heat. Freon is an example and is used in air conditioning systems.
Register- A grill placed over a heating duct or cold air return.
Reglaze- To replace a broken window.
Relief valve- A device designed to open if it detects excess temperature or pressure.
Remote- Remote electrical, gas, or water meter digital readouts that are installed near
the front of the home in order for utility companies to easily read the home owners
usage of the service.
Retaining wall- A structure that holds back a slope and prevents erosion.
Retentions- Amounts withheld from progress billings until final and satisfactory project
completion.
R factor or value- A measure of a materials resistance to the passage of heat. New
homewalls are usually insulated with 4" of batt insulation with an R value of R-13, and
a ceiling insulation of R-30.
Ribbon (girt)- Normally a 1 X 4 board let into the studs horizontally to support the
ceiling or second-floor joists.
Ridge- The horizontal line at the junction of the top edges of two sloping roof surfaces.
Ridge board- The board placed on the ridge of the roof onto which the upper ends of
other rafters are fastened.
Ridge shingles- Shingles used to cover the ridge board.
Rim joist- A joist that runs around the perimeter of the floor joists and home.
Rise- The vertical distance from the eaves line to the ridge. Also the vertical distance
from stair tread to stair tread (and not to exceed 7 ½").
Riser- Each of the vertical boards closing the spaces between the treads of stairways.
Riser and panel- The exterior vertical pipe (riser) and metal electric box (panel) the
electrician provides and installs at the "Rough Electric" stage.
43
Road base- A aggregate mixture of sand and stone.
Rock 1, 2, 3- When referring to drywall, this means to install drywall to the walls and
ceilings (with nails and screws), and before taping is performed.
Roll, rolling- To install the floor joists or trusses in their correct place. (To "roll the
floor" means to install the floor joists).
Romex- A name brand of nonmetallic sheathed electrical cable that is used for indoor
wiring.
Roll roofing- Asphalt roofing products manufactured in roll form. 36-inch wide rolls
with and 108 square feet of material. Weights are generally 45 to 90 pounds per roll.
Romex- A name brand of nonmetallic sheathed electrical cable that is used for indoor
wiring.
Roof jack- Sleeves that fit around the black plumbing waste vent pipes at, and are
nailed to, the roof sheeting.
Roof joist- The rafters of a flat roof. Lumber used to support the roof sheeting and roof
loads. Generally, 2 X 10's and 2 X 12's are used.
Roof sheathing or sheeting- The wood panels or sheet material fastened to the roof
rafters or trusses on which the shingle or other roof covering is laid.
Roof valley- The "V" created where two sloping roofs meet.
Rough opening- The horizontal and vertical measurement of a window or door opening
before drywall or siding is installed.
Rough sill- The framing member at the bottom of a rough opening for a window. It is
attached to the cripple studs below the rough opening.
Roughing-in- The initial stage of a plumbing, electrical, heating, carpentry, and/or
other project, when all components that won't be seen after the second finishing phase
are assembled. See also Heat Rough, Plumbing Rough, and Electrical Rough.
Run, roof - The horizontal distance from the eaves to a point directly under the ridge.
One half the span.
Run, stair- the horizontal distance of a stair tread from the nose to the riser.
R Value- A measure of insulation. A measure of a materials resistance to the passage of
heat. The higher the R value, the more insulating "power" it has. For example, typical
new home's walls are usually insulated with 4" of batt insulation with an R value of R-
13, and a ceiling insulation of R-30.
44
S
Saddle- A small second roof built behind the back side of a fireplace chimney to divert
water around the chimney. Also, the plate at the bottom of some—usually exterior—
door openings. Sometimes called a threshold.
Sack mix- The amount of Portland cement in a cubic yard of concrete mix. Generally, 5
or 6 sack is required in a foundation wall.
Sales contract - A contract between a buyer and seller which should explain: (1) What
the purchase includes, (2) What guarantees there are, (3) When the buyer can move in,
(4) What the closing costs are, and (5) What recourse the parties have if the contract is
not fulfilled or if the buyer cannot get a mortgage commitment at the agreed upon time.
Sand float finish- Lime that is mixed with sand, resulting in a textured finish on a wall.
Sanitary sewer- A sewer system designed for the collection of waste water from the
bathroom, kitchen and laundry drains, and is usually not designed to handle storm
water.
Sash- A single light frame containing one or more lights of glass. The frame that holds
the glass in a window, often the movable part of the window.
Sash balance- A device, usually operated by a spring and designed to hold a single
hung window vent up and in place
Saturated felt- A felt which is impregnated with tar or asphalt.
Schedule (window, door, mirror)- A table on the blueprints that list the sizes,
quantities and locations of the windows, doors and mirrors.
Scrap out- The removal of all drywall material and debris after the home is "hung out"
(installed) with drywall.
Scratch coat- The first coat of plaster, which is scratched to form a bond for a second
coat.
Screed, concrete- To level off concrete to the correct elevation during a concrete pour.
Screed, plaster- A small strip of wood, usually the thickness of the plaster coat, used as
a guide for plastering.
Scribing- Cutting and fitting woodwork to an irregular surface.
Scupper- (1) An opening for drainage in a wall, curb or parapet. (2) The drain in a
downspout or flat roof, usually connected to the downspout.
Sealer- A finishing material, either clear or pigmented, that is usually applied directly
over raw wood for the purpose of sealing the wood surface.
Seasoning- Drying and removing moisture from green wood in order to improve its
usability.
45
Self-sealing shingles- Shingles containing factory-applied strips or spots of self-sealing
adhesive.
Semigloss paint or enamel- A paint or enamel made so that its coating, when dry, has
some luster but is not very glossy. Bathrooms and kitchens are normally painted semi-
gloss
Septic system- An on site waste water treatment system. It usually has a septic tank
which promotes the biological digestion of the waste, and a drain field which is
designed to let the left over liquid soak into the ground. Septic systems and permits are
usually sized by the number of bedrooms in a house.
Service entrance panel- Main power cabinet where electricity enters a home wiring
system.
Service equipment- Main control gear at the service entrance, such as circuit breakers,
switches, and fuses.
Service lateral- Underground power supply line.
Setback Thermostat- A thermostat with a clock which can be programmed to come on
or go off at various temperatures and at different times of the day/week. Usually used as
the heating or cooling system thermostat.
Settlement- Shifts in a structure, usually caused by freeze-thaw cycles underground.
Sewage ejector- A pump used to 'lift' waste water to a gravity sanitary sewer line.
Usually used in basements and other locations which are situated bellow the level of the
side sewer.
Sewer lateral- The portion of the sanitary sewer which connects the interior waste
water lines to the main sewer lines. The side sewer is usually buried in several feet of
soil and runs from the house to the sewer line. It is usually 'owned' by the sewer utility,
must be maintained by the owner and may only be serviced by utility approved
contractors. Sometimes called side sewer.
Sewer stub- The junction at the municipal sewer system where the home's sewer line is
connected.
Sewer tap- The physical connection point where the home's sewer line connects to the
main municipal sewer line.
Shake- A wood roofing material, normally cedar or redwood. Produced by splitting a
block of the wood along the grain line. Modern shakes are sometimes machine sawn on
one side. See shingle.
Shear block- Plywood that is face nailed to short (2 X 4's or 2 X 6's) wall studs (above
a door or window, for example). This is done to prevent the wall from sliding and
collapsing.
Sheathing, sheeting- The structural wood panel covering, usually OSB or plywood,
used over studs, floor joists or rafters/trusses of a structure.
46
Shed roof- A roof containing only one sloping plane.
Sheet metal work- All components of a house employing sheet metal, such as flashing,
gutters, and downspouts.
Sheet metal duct work- The heating system. Usually round or rectangular metal pipes
and sheet metal (for Return Air) and installed for distributing warm (or cold) air from
the furnace to rooms in the home.
Sheet rock- Drywall-Wall board or gypsum- A manufactured panel made out of
gypsum plaster and encased in a thin cardboard. Usually 1/2" thick and 4' x 8' or 4' x 12'
in size. The 'joint compound'. 'Green board' type drywall has a greater resistance to
moisture than regular (white) plasterboard and is used in bathrooms and other "wet
areas".
Shim- A small piece of scrap lumber or shingle, usually wedge shaped, which when
forced behind a furring strip or framing member forces it into position. Also used when
installing doors and placed between the door jamb legs and 2 X 4 door trimmers. Metal
shims are wafer 1 1/2" X 2" sheet metal of various thickness' used to fill gaps in wood
framing members, especially at bearing point locations.
Shingles- Roof covering of asphalt. asbestos, wood, tile, slate, or other material cut to
stock lengths, widths, and thickness'.
Shingles, siding- Various kinds of shingles, used over sheathing for exterior wall
covering of a structure.
Short circuit- A situation that occurs when hot and neutral wires come in contact with
each other. Fuses and circuit breakers protect against fire that could result from a short.
Shutter- Usually lightweight louvered decorative frames in the form of doors located
on the sides of a window. Some shutters are made to close over the window for
protection.
Side sewer- The portion of the sanitary sewer which connects the interior waste water
lines to the main sewer lines. The side sewer is usually buried in several feet of soil and
runs from the house to the sewer line. It is usually 'owned' by the sewer utility, must be
maintained by the owner and may only be serviced by utility approved contractors.
Sometimes called sewer lateral.
Siding- The finished exterior covering of the outside walls of a frame building.
Siding, (lap siding)- Slightly wedge-shaped boards used as horizontal siding in a
lapped pattern over the exterior sheathing. Varies in butt thickness from ½ to ¾ inch
and in widths up to 12".
Sill- (1) The 2 X 4 or 2 X 6 wood plate framing member that lays flat against and bolted
to the foundation wall (with anchor bolts) and upon which the floor joists are installed.
Normally the sill plate is treated lumber. (2) The member forming the lower side of an
opening, as a door sill or window sill.
Sill cock- An exterior water faucet (hose bib).
47
Sill plate (mudsill)- Bottom horizontal member of an exterior wall frame which rests
on top a foundation, sometimes called mudsill. Also sole plate, bottom member of an
interior wall frame.
Sill seal- Fiberglass or foam insulation installed between the foundation wall and sill
(wood) plate. Designed to seal any cracks or gaps.
Single hung window- A window with one vertically sliding sash or window vent.
Skylight- A more or less horizontal window located on the roof of a building.
Slab, concrete- Concrete pavement, i.e. driveways, garages, and basement floors.
Slab, door- A rectangular door without hinges or frame.
Slab on grade- A type of foundation with a concrete floor which is placed directly on
the soil. The edge of the slab is usually thicker and acts as the footing for the walls.
Slag- Concrete cement that sometimes covers the vertical face of the foundation void
material.
Sleeper- Usually, a wood member embedded in concrete, as in a floor, that serves to
support and to fasten the subfloor or flooring.
Sleeve(s)- Pipe installed under the concrete driveway or sidewalk, and that will be used
later to run sprinkler pipe or low voltage wire.
Slope- The incline angle of a roof surface, given as a ratio of the rise (in inches) to the
run (in feet). See also pitch.
Slump- The "wetness" of concrete. A 3 inch slump is dryer and stiffer than a 5 inch
slump.
Soffit- The area below the eaves and overhangs. The underside where the roof
overhangs the walls. Usually the underside of an overhanging cornice.
Soil pipe- A large pipe that carries liquid and solid wastes to a sewer or septic tank.
Soil stack- A plumbing vent pipe that penetrates the roof.
Sole plate- The bottom, horizontal framing member of a wall that's attached to the floor
sheeting and vertical wall studs.
Solid bridging- A solid member placed between adjacent floor joists near the center of
the span to prevent joists or rafters from twisting.
Sonotube- Round, large cardboard tubes designed to hold wet concrete in place until it
hardens.
Sound attenuation- Sound proofing a wall or subfloor, generally with fiberglass
insulation.
48
Space heat- Heat supplied to the living space, for example, to a room or the living area
of a building.
Spacing- The distance between individual members or shingles in building
construction.
Span- The clear distance that a framing member carries a load without support between
structural supports. The horizontal distance from eaves to eaves.
Spec home- A house built before it is sold. The builder speculates that he can sell it at a
profit.
Specifications or Specs- A narrative list of materials, methods, model numbers, colors,
allowances, and other details which supplement the information contained in the blue
prints. Written elaboration in specific detail about construction materials and methods.
Written to supplement working drawings.
Splash block- Portable concrete (or vinyl) channel generally placed beneath an exterior
sill cock (water faucet) or downspout in order to receive roof drainage from downspouts
and to divert it away from the building.
Square- A unit of measure-100 square feet-usually applied to roofing and siding
material. Also, a situation that exists when two elements are at right angles to each
other. Also a tool for checking this.
Square-tab shingles- Shingles on which tabs are all the same size and exposure.
Squeegie- Fine pea gravel used to grade a floor (normally before concrete is placed).
Stack (trusses)- To position trusses on the walls in their correct location.
Standard practices of the trade(s)- One of the more common basic and minimum
construction standards. This is another way of saying that the work should be done in
the way it is normally done by the average professional in the field.
Starter strip- Asphalt roofing applied at the eaves that provides protection by filling in
the spaces under the cutouts and joints of the first course of shingles.
Stair carriage or stringer- Supporting member for stair treads. Usually a 2 X 12 inch
plank notched to receive the treads; sometimes called a "rough horse."
Stair landing- A platform between flights of stairs or at the termination of a flight of
stairs. Often used when stairs change direction. Normally no less than 3 ft. X 3 ft.
square.
Stair rise- The vertical distance from stair tread to stair tread (and not to exceed 7 ½").
Static vent- A vent that does not include a fan.
STC (Sound Transmission Class)- The measure of sound stopping of ordinary noise.
Steel inspection- A municipal and/or engineers inspection of the concrete foundation
wall, conducted before concrete is poured into the foundation panels. Done to insure
49
that the rebar (reinforcing bar), rebar nets, void material, beam pocket plates, and
basement window bucks are installed and wrapped with rebar and complies with the
foundation plan.
Step flashing- Flashing application method used where a vertical surface meets a
sloping roof plane. 6" X 6" galvanized metal bent at a 90 degree angle, and installed
beneath siding and over the top of shingles. Each piece overlaps the one beneath it the
entire length of the sloping roof (step by step).
Stick built- A house built without prefabricated parts. Also called conventional
building.
Stile- An upright framing member in a panel door.
Stool- The flat molding fitted over the window sill between jambs and contacting the
bottom rail of the lower sash. Also another name for toilet.
Stop box- Normally a cast iron pipe with a lid (@ 5" in diameter) that is placed
vertically into the ground, situated near the water tap in the yard, and where a water cut-
off valve to the home is located (underground). A long pole with a special end is
inserted into the curb stop to turn off/on the water.
Stop Order- A formal, written notification to a contractor to discontinue some or all
work on a project for reasons such as safety violations, defective materials or
workmanship, or cancellation of the contract.
Stops- Moldings along the inner edges of a door or window frame. Also valves used to
shut off water to a fixture.
Stop valve- A device installed in a water supply line, usually near a fixture, that permits
an individual to shut off the water supply to one fixture without interrupting service to
the rest of the system.
Storm sash or storm window-. An extra window usually placed outside of an existing
one, as additional protection against cold weather.
Storm sewer- A sewer system designed to collect storm water and is separated from the
waste water system.
Story- That part of a building between any floor or between the floor and roof.
Strike- The plate on a door frame that engages a latch or dead bolt.
String, stringer- A timber or other support for cross members in floors or ceilings. In
stairs, the supporting member for stair treads. Usually a 2 X 12 inch plank notched to
receive the treads
Strip flooring- Wood flooring consisting of narrow, matched strips.
Structural floor- A framed lumber floor that is installed as a basement floor instead of
concrete. This is done on very expansive soils.
Stub, stubbed- To push through.
50
Stucco- Refers to an outside plaster finish made with Portland cement as its base.
Stud- A vertical wood framing member, also referred to as a wall stud, attached to the
horizontal sole plate below and the top plate above. Normally 2 X 4's or 2 X 6's, 8' long
(sometimes 92 5/8"). One of a series of wood or metal vertical structural members
placed as supporting elements in walls and partitions.
Stud framing- A building method that distributes structural loads to each of a series of
relatively lightweight studs. Contrasts with post-and-beam.
Stud shoe- A metal, structural bracket that reinforces a vertical stud. Used on an outside
bearing wall where holes are drilled to accommodate a plumbing waste line.
Subfloor- The framing components of a floor to include the sill plate, floor joists, and
deck sheeting over which a finish floor is to be laid.
Sump- Pit or large plastic bucket/barrel inside the home designed to collect ground
water from a perimeter drain system.
Sump pump- A submersible pump in a sump pit that pumps any excess ground water to
the outside of the home.
Suspended ceiling- A ceiling system supported by hanging it from the overhead
structural framing.
Sway brace- Metal straps or wood blocks installed diagonally on the inside of a wall
from bottom to top plate, to prevent the wall from twisting, racking, or falling over
"domino" fashion.
Switch- A device that completes or disconnects an electrical circuit.
F trabalho 2
F trabalho 2
F trabalho 2
F trabalho 2
F trabalho 2
F trabalho 2
F trabalho 2
F trabalho 2

More Related Content

What's hot

Visual Dictionary: Decking
Visual Dictionary: DeckingVisual Dictionary: Decking
Visual Dictionary: Decking
Decking

Visual Dictionary- Binder
Visual Dictionary- BinderVisual Dictionary- Binder
Visual Dictionary- Binder
Binder1

Visual Dictionary
Visual DictionaryVisual Dictionary
Visual Dictionary
MasterFormat

Visual Dictionary
Visual DictionaryVisual Dictionary
Visual Dictionary
MasterFormat

Visual Dictionary BSCI 2300
Visual Dictionary BSCI 2300Visual Dictionary BSCI 2300
Visual Dictionary BSCI 2300
Sp10nail

Myvisualdictionary.materials1
Myvisualdictionary.materials1Myvisualdictionary.materials1
Myvisualdictionary.materials1
Tucker Snure

Part 3 ece
Part 3 ecePart 3 ece
Part 3 ece
Kaustubh Sane

Visual Dictionary- F09sill
Visual Dictionary- F09sillVisual Dictionary- F09sill
Visual Dictionary- F09sill
F09sill

Visual Dictionary- F09sill
Visual Dictionary- F09sillVisual Dictionary- F09sill
Visual Dictionary- F09sill
F09sill

Visual Dictionary- Cement1
Visual Dictionary- Cement1Visual Dictionary- Cement1
Visual Dictionary- Cement1
cement1

Sp10waterproofing
Sp10waterproofingSp10waterproofing
Sp10waterproofing
Sp10waterproofing

Visual Dictionary - Porosity
Visual Dictionary - PorosityVisual Dictionary - Porosity
Visual Dictionary - Porosity
porosity

Visual Dictionary - Soffit
Visual Dictionary - SoffitVisual Dictionary - Soffit
Visual Dictionary - Soffit
Soffit

!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!
!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!
!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!
Dustin Day

Visual Dictionary Spring 2010
Visual Dictionary Spring 2010Visual Dictionary Spring 2010
Visual Dictionary Spring 2010
Sp10watercloset SP10watercloset

Visual Dictionary - Chamfer
Visual Dictionary - ChamferVisual Dictionary - Chamfer
Visual Dictionary - Chamfer
Chamfer

002 ADG I: Building Components and Materials
002 ADG I: Building Components and Materials002 ADG I: Building Components and Materials
002 ADG I: Building Components and Materials
indiracad

Visual Dictionary-Blocking
Visual Dictionary-BlockingVisual Dictionary-Blocking
Visual Dictionary-Blocking
Blocking

Components of building - Building Materials and Construction
Components of building - Building Materials and ConstructionComponents of building - Building Materials and Construction
Components of building - Building Materials and Construction
Geeva Chandana

Visual Dictionary Final
Visual Dictionary FinalVisual Dictionary Final
Visual Dictionary Final
Sp10rebar


What's hot (20)

Visual Dictionary: Decking
Visual Dictionary: DeckingVisual Dictionary: Decking
Visual Dictionary: Decking

Visual Dictionary- Binder
Visual Dictionary- BinderVisual Dictionary- Binder
Visual Dictionary- Binder

Visual Dictionary
Visual DictionaryVisual Dictionary
Visual Dictionary

Visual Dictionary
Visual DictionaryVisual Dictionary
Visual Dictionary

Visual Dictionary BSCI 2300
Visual Dictionary BSCI 2300Visual Dictionary BSCI 2300
Visual Dictionary BSCI 2300

Myvisualdictionary.materials1
Myvisualdictionary.materials1Myvisualdictionary.materials1
Myvisualdictionary.materials1

Part 3 ece
Part 3 ecePart 3 ece
Part 3 ece

Visual Dictionary- F09sill
Visual Dictionary- F09sillVisual Dictionary- F09sill
Visual Dictionary- F09sill

Visual Dictionary- F09sill
Visual Dictionary- F09sillVisual Dictionary- F09sill
Visual Dictionary- F09sill

Visual Dictionary- Cement1
Visual Dictionary- Cement1Visual Dictionary- Cement1
Visual Dictionary- Cement1

Sp10waterproofing
Sp10waterproofingSp10waterproofing
Sp10waterproofing

Visual Dictionary - Porosity
Visual Dictionary - PorosityVisual Dictionary - Porosity
Visual Dictionary - Porosity

Visual Dictionary - Soffit
Visual Dictionary - SoffitVisual Dictionary - Soffit
Visual Dictionary - Soffit

!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!
!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!
!!!UPDATED!!!Visual Dictionary-Sp10Hip!!!UPDATED!!!

Visual Dictionary Spring 2010
Visual Dictionary Spring 2010Visual Dictionary Spring 2010
Visual Dictionary Spring 2010

Visual Dictionary - Chamfer
Visual Dictionary - ChamferVisual Dictionary - Chamfer
Visual Dictionary - Chamfer

002 ADG I: Building Components and Materials
002 ADG I: Building Components and Materials002 ADG I: Building Components and Materials
002 ADG I: Building Components and Materials

Visual Dictionary-Blocking
Visual Dictionary-BlockingVisual Dictionary-Blocking
Visual Dictionary-Blocking

Components of building - Building Materials and Construction
Components of building - Building Materials and ConstructionComponents of building - Building Materials and Construction
Components of building - Building Materials and Construction

Visual Dictionary Final
Visual Dictionary FinalVisual Dictionary Final
Visual Dictionary Final


Viewers also liked

Brouches of Jaypee Green
Brouches of Jaypee GreenBrouches of Jaypee Green
Brouches of Jaypee Green
Rakesh Agarwal

Verbs to do and to have
Verbs to do and to haveVerbs to do and to have
Verbs to do and to have
Pedro Vargas

Doing business abroad
Doing business abroadDoing business abroad
Doing business abroad
Pedro Vargas

Activity 1 – writing
Activity 1 – writingActivity 1 – writing
Activity 1 – writing
Pedro Vargas

Aquapol, dry wall, rising damp, wet walls, restoration, greentech,
Aquapol, dry wall, rising damp, wet walls, restoration, greentech, Aquapol, dry wall, rising damp, wet walls, restoration, greentech,
Aquapol, dry wall, rising damp, wet walls, restoration, greentech,
GREENTECH SRL

Encontro vocacional para raparigas
Encontro vocacional para raparigasEncontro vocacional para raparigas
Encontro vocacional para raparigas
sdpvsantarem

Lançai as redes novembro 2013
Lançai as redes novembro 2013Lançai as redes novembro 2013
Lançai as redes novembro 2013
Pedro Vargas

Guiao semana seminarios 2013
Guiao semana seminarios 2013Guiao semana seminarios 2013
Guiao semana seminarios 2013
Pedro Vargas

ApresentaçãO Fluxo Dry Wall
ApresentaçãO Fluxo Dry WallApresentaçãO Fluxo Dry Wall
ApresentaçãO Fluxo Dry Wall
eng_guilherme

Dry wall profile
Dry wall profileDry wall profile
Dry wall profile
Multi-D


Viewers also liked (10)

Brouches of Jaypee Green
Brouches of Jaypee GreenBrouches of Jaypee Green
Brouches of Jaypee Green

Verbs to do and to have
Verbs to do and to haveVerbs to do and to have
Verbs to do and to have

Doing business abroad
Doing business abroadDoing business abroad
Doing business abroad

Activity 1 – writing
Activity 1 – writingActivity 1 – writing
Activity 1 – writing

Aquapol, dry wall, rising damp, wet walls, restoration, greentech,
Aquapol, dry wall, rising damp, wet walls, restoration, greentech, Aquapol, dry wall, rising damp, wet walls, restoration, greentech,
Aquapol, dry wall, rising damp, wet walls, restoration, greentech,

Encontro vocacional para raparigas
Encontro vocacional para raparigasEncontro vocacional para raparigas
Encontro vocacional para raparigas

Lançai as redes novembro 2013
Lançai as redes novembro 2013Lançai as redes novembro 2013
Lançai as redes novembro 2013

Guiao semana seminarios 2013
Guiao semana seminarios 2013Guiao semana seminarios 2013
Guiao semana seminarios 2013

ApresentaçãO Fluxo Dry Wall
ApresentaçãO Fluxo Dry WallApresentaçãO Fluxo Dry Wall
ApresentaçãO Fluxo Dry Wall

Dry wall profile
Dry wall profileDry wall profile
Dry wall profile


Similar to F trabalho 2

Construction-Vocabulary.pdf
Construction-Vocabulary.pdfConstruction-Vocabulary.pdf
Construction-Vocabulary.pdf
ProfDavidRodriguezMa

HVAC
HVACHVAC
HVAC
Hvac

Visual Dictionary - Seasoning
Visual Dictionary - SeasoningVisual Dictionary - Seasoning
Visual Dictionary - Seasoning
Seasoning

Visual dictionary - Sp10Window
Visual dictionary - Sp10WindowVisual dictionary - Sp10Window
Visual dictionary - Sp10Window
Sp10window

Visual Dictionary - Scab
Visual Dictionary - ScabVisual Dictionary - Scab
Visual Dictionary - Scab
scab

sp10underlayment
sp10underlaymentsp10underlayment
sp10underlayment
Hurley spraggins

Visual Dictionary-Substrate
Visual Dictionary-SubstrateVisual Dictionary-Substrate
Visual Dictionary-Substrate
Substrate

(Power Shrink) Visual Dictionary Done
(Power Shrink)   Visual Dictionary Done(Power Shrink)   Visual Dictionary Done
(Power Shrink) Visual Dictionary Done
Auburn University

Malleability
MalleabilityMalleability
Malleability
malleability

Visual Dictionary - Prescast
Visual Dictionary - PrescastVisual Dictionary - Prescast
Visual Dictionary - Prescast
precast

Visual dictionary
Visual dictionary Visual dictionary
Visual dictionary
Sp10rebar

Visual dictionary GRADE THIS
Visual dictionary GRADE THISVisual dictionary GRADE THIS
Visual dictionary GRADE THIS
Sp10rebar

Visual Dictionary - Damper
Visual Dictionary - DamperVisual Dictionary - Damper
Visual Dictionary - Damper
damper

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon
pylon

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon
pylon

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon
pylon

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon
pylon

Visual dictionary
Visual dictionaryVisual dictionary
Visual dictionary
Sp10trowel

Visual Dictionary- Baluster
Visual Dictionary- BalusterVisual Dictionary- Baluster
Visual Dictionary- Baluster
Baluster

Rod Visual
Rod VisualRod Visual
Rod Visual
Auburn University


Similar to F trabalho 2 (20)

Construction-Vocabulary.pdf
Construction-Vocabulary.pdfConstruction-Vocabulary.pdf
Construction-Vocabulary.pdf

HVAC
HVACHVAC
HVAC

Visual Dictionary - Seasoning
Visual Dictionary - SeasoningVisual Dictionary - Seasoning
Visual Dictionary - Seasoning

Visual dictionary - Sp10Window
Visual dictionary - Sp10WindowVisual dictionary - Sp10Window
Visual dictionary - Sp10Window

Visual Dictionary - Scab
Visual Dictionary - ScabVisual Dictionary - Scab
Visual Dictionary - Scab

sp10underlayment
sp10underlaymentsp10underlayment
sp10underlayment

Visual Dictionary-Substrate
Visual Dictionary-SubstrateVisual Dictionary-Substrate
Visual Dictionary-Substrate

(Power Shrink) Visual Dictionary Done
(Power Shrink)   Visual Dictionary Done(Power Shrink)   Visual Dictionary Done
(Power Shrink) Visual Dictionary Done

Malleability
MalleabilityMalleability
Malleability

Visual Dictionary - Prescast
Visual Dictionary - PrescastVisual Dictionary - Prescast
Visual Dictionary - Prescast

Visual dictionary
Visual dictionary Visual dictionary
Visual dictionary

Visual dictionary GRADE THIS
Visual dictionary GRADE THISVisual dictionary GRADE THIS
Visual dictionary GRADE THIS

Visual Dictionary - Damper
Visual Dictionary - DamperVisual Dictionary - Damper
Visual Dictionary - Damper

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon

Visual Dictionary - Pylon
Visual Dictionary - PylonVisual Dictionary - Pylon
Visual Dictionary - Pylon

Visual dictionary
Visual dictionaryVisual dictionary
Visual dictionary

Visual Dictionary- Baluster
Visual Dictionary- BalusterVisual Dictionary- Baluster
Visual Dictionary- Baluster

Rod Visual
Rod VisualRod Visual
Rod Visual


More from Pedro Vargas

Singular and plural_nouns
Singular and plural_nounsSingular and plural_nouns
Singular and plural_nouns
Pedro Vargas

Anúncios de emprego inglês azambuja novembro 2013
Anúncios de emprego inglês azambuja novembro 2013 Anúncios de emprego inglês azambuja novembro 2013
Anúncios de emprego inglês azambuja novembro 2013
Pedro Vargas

Ficha de inscrição
Ficha de inscriçãoFicha de inscrição
Ficha de inscriçãoPedro Vargas

Speak it too e portofólio
Speak it too e portofólioSpeak it too e portofólio
Speak it too e portofólio
Pedro Vargas

Aspetos relevantes no desenho da atividade online
Aspetos relevantes no desenho da atividade onlineAspetos relevantes no desenho da atividade online
Aspetos relevantes no desenho da atividade online
Pedro Vargas

Abordagem pedagógica
Abordagem pedagógicaAbordagem pedagógica
Abordagem pedagógica
Pedro Vargas

Shopping and selling
Shopping and sellingShopping and selling
Shopping and selling
Pedro Vargas

Days of the week
Days of the weekDays of the week
Days of the week
Pedro Vargas


More from Pedro Vargas (8)

Singular and plural_nouns
Singular and plural_nounsSingular and plural_nouns
Singular and plural_nouns

Anúncios de emprego inglês azambuja novembro 2013
Anúncios de emprego inglês azambuja novembro 2013 Anúncios de emprego inglês azambuja novembro 2013
Anúncios de emprego inglês azambuja novembro 2013

Ficha de inscrição
Ficha de inscriçãoFicha de inscrição
Ficha de inscrição

Speak it too e portofólio
Speak it too e portofólioSpeak it too e portofólio
Speak it too e portofólio

Aspetos relevantes no desenho da atividade online
Aspetos relevantes no desenho da atividade onlineAspetos relevantes no desenho da atividade online
Aspetos relevantes no desenho da atividade online

Abordagem pedagógica
Abordagem pedagógicaAbordagem pedagógica
Abordagem pedagógica

Shopping and selling
Shopping and sellingShopping and selling
Shopping and selling

Days of the week
Days of the weekDays of the week
Days of the week


F trabalho 2

  • 1. 1 FORCET Curso de Especialização Tecnológica de: CONDUÇÃO E ACOMPANHAMENTO DE OBRA 2012/14 Módulo de Língua Inglesa Nome:____________________________________ nº:______ Avaliação________________ Ficha de Trabalho 2 1. Combine the glossary you did in the previous activity with the one you can find here: http://www.homebuildingmanual.com/Glossary.htm 2. Look for the meaning of the vocabulary (word and description). 3. Deliver your work in a word document.
  • 2. 2 A A/C- An abbreviation for air conditioner or air conditioning. A/C Condenser- The outside fan unit of the Air Conditioning system. It removes the heat from the freon gas and "turns" the gas back into a liquid and pumps the liquid back to the coil in the furnace. A/C Disconnect- The main electrical ON-OFF switch near the A/C Condenser. Aerator- The round screened screw-on tip of a sink spout. It mixes water and air for a smooth flow. Aggregate- A mixture of sand and stone and a major component of concrete. Air space - The area between insulation facing and interior of exterior wall coverings. Normally a 1" air gap. Allowance(s) - A sum of money set aside in the construction contract for items which have not been selected and specified in the construction contract. For example, selection of tile as a flooring may require an allowance for an underlayment material, or an electrical allowance which sets aside an amount of money to be spent on electrical fixtures. Amortization - A payment plan by which a loan is reduced through monthly payments of principal and interest. Anchor bolts- Bolts to secure a wooden sill plate to concrete , or masonry floor or wall. Annual Percentage Rate (APR)- Annual cost of credit over the life of a loan, including interest, service charges, points, loan fees, mortgage insurance, and other items. Appraisal An expert valuation of property. Apron- A trim board that is installed beneath a window sill Architect - One who has completed a course of study in building and design, and is licensed by the state as an architect. One who draws up plans. Area wells- Corrugated metal or concrete barrier walls installed around a basement window to hold back the earth Assessment - A tax levied on a property, or a value placed on the worth of a property. Assumption - Allows a buyer to assume responsibility for an existing loan instead of getting a new loan. Astragal- A molding, attached to one of a pair of swinging double doors, against which the other door strikes.
  • 3. 3 Attic access- An opening that is placed in the drywalled ceiling of a home providing access to the attic. Attic Ventilators- In houses, screened openings provided to ventilate an attic space.
  • 4. 4 B Back Charge- Billings for work performed or costs incurred by one party that, in accordance with the agreement, should have been performed or incurred by the party to whom billed. Owners bill back charges to general contractors, and general contractors bill back charges to subcontractors. Examples of back charges include charges for cleanup work or to repair something damaged by another subcontractor, such as a tub chip or broken window. Backfill- The replacement of excavated earth into a trench around or against a basement /crawl space foundationwall. Backing- Frame lumber installed between the wall studs to give additional support for drywall or an interior trim related item, such as handrail brackets, cabinets, and towel bars. In this way, items are screwed and mounted into solid wood rather than weak drywall that may allow the item to break loose from the wall. Carpet backing holds the pile fabric in place. Backout- Work the framing contractor does after the mechanical subcontractors (Heating-Plumbing-Electrical) finish their phase of work at the Rough (before insulation) stage to get the home ready for a municipal frame inspection. Generally, the framing contractor repairs anything disturbed by others and completes all framing necessary to pass a Rough Frame Inspection. Ballast- A transformer that steps up the voltage in a florescent lamp. Balloon - A loan that has a series of monthly payments with the remaining balance due in a large lump sum payment at the end. Balloon framed wall- Framed walls (generally over 10' tall) that run the entire vertical length from the floor sill plate to the roof. This is done to eliminate the need for a gable end truss. Balusters- Vertical members in a railing used between a top rail and bottom rail or the stair treads. Sometimes referred to as 'pickets' or 'spindles'. Balustrade- The rail, posts and vertical balusters along the edge of a stairway or elevated walkway. Barge- Horizontal beam rafter that supports shorter rafters. Barge board- A decorative board covering the projecting rafter (fly rafter) of the gable end. At the cornice, this member is a fascia board. Base or baseboard- A trim board placed against the wall around the room next to the floor. Basement window inserts- The window frame and glass unit that is installed in the window buck. Base shoe- Molding used next to the floor on interior base board. Sometimes called a carpet strip.
  • 5. 5 Bat - A half-brick. Batt - A section of fiber-glass or rock-wool insulation measuring 15 or 23 inches wide by four to eight feet long and various thickness'. Sometimes "faced" (meaning to have a paper covering on one side) or "unfaced" (without paper). Batten- Narrow strips of wood used to cover joints or as decorative vertical members over plywood or wide boards. Bay window- Any window space projecting outward from the walls of a building, either square or polygonal in plan. Beam- A structural member transversely supporting a load. A structural member carrying building loads (weight) from one support to another. Sometimes called a "girder". Bearing partition- A partition that supports any vertical load in addition to its own weight. Bearing point- A point where a bearing or structural weight is concentrated and transferred to the foundation Bearing wall- A wall that supports any vertical load in addition to its own weight. Bearing header- (a) A beam placed perpendicular to joists and to which joists are nailed in framing for a chimney, stairway, or other opening. (b) A wood lintel. (c) The horizontal structural member over an opening (for example over a door or window). Bedrock- A subsurface layer of earth that is suitable to support a structure. Bid- A formal offer by a contractor, in accordance with specifications for a project, to do all or a phase of the work at a certain price in accordance with the terms and conditions stated in the offer. Bid bond- A bond issued by a surety on behalf of a contractor that provides assurance to the recipient of the contractor's bid that, if the bid is accepted, the contractor will execute a contract and provide a performance bond. Under the bond, the surety is obligated to pay the recipient of the bid the difference between the contractor's bid and the bid of the next lowest responsible bidder if the bid is accepted and the contractor fails to execute a contract or to provide a performance bond. Bid security Funds or a bid bond submitted with a bid as a guarantee to the recipient of the bid that the contractor, if awarded the contract, will execute the contract in accordance with the bidding requirements of the contract documents. Bid shopping- A practice by which contractors, both before and after their bids are submitted, attempt to obtain prices from potential subcontractors and material suppliers that are lower than the contractors' original estimates on which their bids are based, or after a contract is awarded, seek to induce subcontractors to reduce the subcontract price included in the bid.
  • 6. 6 Bidding requirements- The procedures and conditions for the submission of bids. The requirements are included ion documents, such as the notice to bidders, advertisements for bids, instructions to bidders, invitations to bid, and sample bid forms. Bifold door- Doors that are hinged in the middle for opening in a smaller area than standard swing doors. Often used for closet doors. Binder- A receipt for a deposit to secure the right to purchase a home at an agreed terms by a buyer and seller. Bipass doors- Doors that slide by each other and commonly used as closet doors. Blankets- Fiber-glass or rock-wool insulation that comes in long rolls 15 or 23 inches wide. Blocked (door blocking)- Wood shims used between the door frame and the vertical structural wall framing members. Blocked (rafters)- Short "2 by 4's" used to keep rafters from twisting, and installed at the ends and at mid-span. Blocking- Small wood pieces to brace framing members or to provide a nailing base for gypsum board or paneling. Block out- To install a box or barrier within a foundation wall to prevent the concrete from entering an area. For example, foundation walls are sometimes "blocked" in order for mechanical pipes to pass through the wall, to install a crawl space door, and to depress the concrete at a garage door location. Blow insulation- Fiber insulation in loose form and used to insulate attics and existing walls where framing members are not exposed. Blue print(s) - A type of copying method often used for architectural drawings. Usually used to describe the drawing of a structure which is prepared by an architect or designer for the purpose of design and planning, estimating, securing permits and actual construction. Blue stake- Another phrase for Utility Notification. This is when a utility company (telephone, gas, electric, cable TV, sewer and water, etc) comes to the job site and locates and spray paints the ground and/or installs little flags to show where their service is located underground. Board foot- A unit of measure for lumber equal to 1 inch thick by 12 inches wide by 12 inches long. Examples: 1" x 12" x 16' = 16 board feet, 2" x 12" x 16' = 32 board feet Bond or bonding - An amount of money (usually $5,000-$10,000) which must be on deposit with a governmental agency in order to secure a contractor's license. The bond may be used to pay for the unpaid bills or disputed work of the contractor. Not to be confused with a 'performance bond'. Such bonds are rarely used in residential construction, they are an insurance policy which guarantees proper completion of a project.
  • 7. 7 Boom- A truck used to hoist heavy material up and into place. To put trusses on a home or to set a heavy beam into place. Bottom chord - The lower or bottom horizontal member of a truss. Bottom plate- The "2 by 4's or 6's" that lay on the subfloor upon which the vertical studs are installed. Also called the 'sole plate'. Brace- An inclined piece of framing lumber applied to wall or floor to strengthen the structure. Often used on walls as temporary bracing until framing has been completed. Breaker panel- The electrical box that distributes electric power entering the home to each branch circuit (each plug and switch) and composed of circuit breakers. Brick ledge- Part of the foundation wall where brick (veneer) will rest. Brick lintel- The metal angle iron that brick rests on, especially above a window, door, or other opening. Brick mold-Trim used around an exterior door jamb that siding butts to. Brick tie- A small, corrugated metal strip @ 1" X 6"- 8" long nailed to wall sheeting or studs. They are inserted into the grout mortar joint of the veneer brick, and holds the veneer wall to the sheeted wall behind it. Brick veneer- A vertical facing of brick laid against and fastened to sheathing of a framed wall or tile wall construction. Bridging- Small wood or metal members that are inserted in a diagonal position between the floor joists or rafters at mid-span for the purpose of bracing the joists/rafters & spreading the load. Buck- Often used in reference to rough frame opening members. Door bucks used in reference to metal door frame. See Window Bucks Builder's Risk Insurance- Insurance coverage on a construction project during construction, including extended coverage that may be added for the contract for the customer's protections. Building codes- Community ordinances governing the manner in which a home may be constructed or modified. Building insurance- Insurance covering the structure of the building. Building paper- A general term for papers, felts, and similar sheet materials used in buildings without reference to their properties or uses. Generally comes in long rolls. Built-up roof- A roofing composed of three to five layers of asphalt felt laminated with coal tar, pitch, or asphalt. The top is finished with crushed slag or gravel. Generally used on flat or low-pitched roofs. Bull nose (drywall)- Rounded drywall corners.
  • 8. 8 Bundle - A package of shingles. Normally, there are 3 bundles per square and 27 shingles per bundle. Butt edge- The lower edge of the shingle tabs. Butt hinge- The most common type. One leaf attaches to the door's edge, the other to its jamb. Butt joint- The junction where the ends of two timbers meet, and also where sheets of drywall meet on the 4 foot edge. To place materials end-to-end or end-to-edge without overlapping. Buy down- A subsidy (usually paid by a builder or developer) to reduce monthly payments on a mortgage. By fold door- Doors that are hinged in the middle for opening in a smaller area than standard swing doors. Often used for closet doors. By pass doors- Doors that slide by each other and commonly used as closet doors.
  • 9. 9 C CO- An abbreviation for "Certificate of Occupancy". This certificate is issued by the local municipality and is required before anyone can occupy and live within the home. It is issued only after the local municipality has made all inspections and all monies and fees have been paid. Caisson- A 10" or 12" diameter hole drilled into the earth and embedded into bedrock 3 - 4 feet. The structural support for a type of foundation wall, porch, patio, monopost, or other structure. Two or more "sticks" of reinforcing bars (rebar) are inserted into and run the full length of the hole and concrete is poured into the caisson hole Cantilever- An overhang. Where one floor extends beyond and over a foundation wall. For example at a fireplace location or bay window cantilever. Normally, not extending over 2 feet. Cantilevered void- Foundation void material used in unusually expansive soils conditions. This void is "trapezoid" shaped and has vertical sides of 6" and 4" respectively. Cap- The upper member of a column, pilaster, door cornice, molding, or fireplace. Cap flashing- The portion of the flashing attached to a vertical surface to prevent water from migrating behind the base flashing. Capital- The principal part of a loan, i.e. the original amount borrowed. Capital and interest- A repayment loan and the most conventional form of home loan. The borrower pays an amount each month to cover the amount borrowed (or capital or principal) plus the interest charged on capital. Capped rate- The mortgage interest rate will not exceed a specified value during a certain period of time, but it will fluctuate up and down below that level. Casement- Frames of wood or metal enclosing part (or all) of a window sash. May be opened by means of hinges affixed to the vertical edges. Casement Window- A window with hinges on one of the vertical sides and swings open like a normal door Casing- Wood trim molding installed around a door or window opening. Caulking- (1) A flexible material used to seal a gap between two surfaces e.g. between pieces of siding or the corners in tub walls. (2) To fill a joint with mastic or asphalt plastic cement to prevent leaks. CCA (Chromated Copper Arsenate)- A pesticide that is forced into wood under high pressure to protect it from termites, other wood boring insects, and decay caused by fungus Celotex ™- Black fibrous board that is used as exterior sheething.
  • 10. 10 Ceiling joist- One of a series of parallel framing members used to support ceiling loads and supported in turn by larger beams, girders or bearing walls. Also called roof joists. Cement- The gray powder that is the "glue" in concrete. Portland cement. Also, any adhesive. Ceramic tile- A man-made or machine-made clay tile used to finish a floor or wall. Generally used in bathtub and shower enclosures and on counter tops. CFM (cubic feet per minute)- A rating that expresses the amount of air a blower or fan can move. The volume of air (measured in cubic feet) that can pass through an opening in one minute. Chair rail- Interior trim material installed about 3-4 feet up the wall, horizontally. Chalk line- A line made by snapping a taut string or cord dusted with chalk. Used for alignment purposes. Change order- A written document which modifies the plans and specifications and/or the price of the construction Contract. Chase- A framed enclosed space around a flue pipe or a channel in a wall, or through a ceiling for something to lie in or pass through. Chink- To install fiberglass insulation around all exterior door and window frames, wall corners, and small gaps in the exterior wall. Chip Board- A manufactured wood panel made out of 1"- 2" wood chips and glue. Often used as a substitute for plywood in the exterior wall and roof sheathing. Also called OSB (Oriented Strand Board) or wafer board. Circuit- The path of electrical flow from a power source through an outlet and back to ground. Circuit Breaker- A device which looks like a switch and is usually located inside the electrical breaker panel or circuit breaker box. It is designed to (1) shut of the power to portions or all of the house and (2) to limit the amount of power flowing through a circuit (measured in amperes). 110 volt household circuits require a fuse or circuit breaker with a rating of 15 or a maximum of 20 amps. 220 volt circuits may be designed for higher amperage loads e.g. a hot water heater may be designed for a 30 amp load and would therefore need a 30 amp fuse or breaker. Class "A"- Optimum fire rating issued by Underwriter's Laboratories on roofing. The building codes in some areas require this type of roofing for fire safety. Class "C"- Minimum fire rating issued by the Underwriters' Laboratories for roofing materials. Clean out- An opening providing access to a drain line. Closed with a threaded plug. Clip ties- Sharp, cut metal wires that protrude out of a concrete foundation wall (that at one time held the foundation form panels in place).
  • 11. 11 Cold air return- The ductwork (and related grills) that carries room air back to the furnace for re-heating. Collar- Preformed flange placed over a vent pipe to seal the roofing above the vent pipe opening. Also called a vent sleeve. Collar beam- Nominal 1- or 2-inch-thick members connecting opposite roof rafters. They serve to stiffen the roof structure. Column- A vertical structural compression member which supports loads. Combustion air- The duct work installed to bring fresh, outside air to the furnace and/or hot water heater. Normally 2 separate supplies of air are brought in: One high and One low. Combustion chamber- The part of a boiler, furnace or woodstove where the burn occurs; normally lined with firebrick or molded or sprayed insulation. Compression web- A member of a truss system which connects the bottom and top chords and which provides downward support. Compressor- A mechanical device that pressurizes a gas in order to turn it into a liquid, thereby allowing heat to be removed or added. A compressor is the main component of conventional heat pumps and air conditioners. In an air conditioning system, the compressor normally sits outside and has a large fan (to remove heat). Concrete- The mixture of Portland cement, sand, gravel, and water. Used to make garage and basement floors, sidewalks, patios, foundation walls, etc. It is commonly reinforced with steel rods (rebar) or wire screening (mesh). Concrete block - A hollow concrete 'brick' often 8" x 8" x 16" in size. Concrete board - A panel made out of concrete and fiberglass usually used as a tile backing material. Condensation- Beads or drops of water (and frequently frost in extremely cold weather) that accumulate on the inside of the exterior covering of a building. Use of louvers or attic ventilators will reduce moisture condensation in attics. A vapor barrier under the gypsum lath or dry wall on exposed walls will reduce condensation. Condensing unit - The outdoor component of a cooling system. It includes a compressor and condensing coil designed to give off heat. Conditions, Convenants, and Restrictions (CC and Rs) - The standards that define how a property may be used and the protections the developer makes for the benefit of all owners in a subdivision. Conduction- The direct transfer of heat energy through a material. Conductivity- The rate at which heat is transmitted through a material. Conduit, electrical- A pipe, usually metal, in which wire is installed.
  • 12. 12 Construction Contract - A legal document which specifies the what-when-where-how- how much and by whom in a construction project. A good construction contract will include: 1. The contractors registration number. 2. A statement of work quality such as 'Standard Practices of the Trades' or 'according to Manufacturers Specifications'. 3. A set of Blue Prints or Plans 4. A construction timetable including starting and completion dates. 5. A set of Specifications 6. A Fixed Price for the work, or a Time and Materials formula. 7. A Payment Schedule. 8. Any Allowances. 9. A clause which outlines how any disputes will be resolved. 10. A written Warrantee. Construction drywall- A type of construction in which the interior wall finish is applied in a dry condition, generally in the form of sheet materials or wood paneling as contrasted to plaster. Construction, frame- A type of construction in which the structural components are wood or depend upon a wood frame for support. Continuity tester- A device that tells whether a circuit is capable of carrying electricity. Contractor- A company licensed to perform certain types of construction activities. In most states, the generals contractor's license and some specialty contractor's licenses don't require of compliance with bonding, workmen's compensation and similar regulations. Some of the specialty contractor licenses involve extensive training, testing and/or insurance requirements. There are various types of contractors: · General contractor - responsible for the execution, supervision and overall coordination of a project and may also perform some of the individual construction tasks. Most general contractors are not licensed to perform all specialty trades and must hire specialty contractors for such tasks, e.g. electrical, plumbing. · Remodeling contractor - a general contractor who specializes in remodeling work. · Specialty contractor - licensed to perform a specialty task e.g. electrical, side sewer, asbestos abatement. · Sub contractor - a general or specialty contractor who works for another general contractor. Control joint- Tooled, straight grooves made on concrete floors to "control" where the concrete should crack Convection- Currents created by heating air, which then rises and pulls cooler air behind it. Also see radiation.
  • 13. 13 Conventional loan A mortgage loan not insured by a government agency (such as FHA or VA) Convertibility The ability to change a loan from an adjustable rate schedule to a fixed rate schedule. Cooling load- The amount of cooling required to keep a building at a specified temperature during the summer, usually 78° F, regardless of outside temperature. Coped- Removing the top and bottom flange of the end(s) of a metal I-beam. This is done to permit it to fit within, and bolted to, the web of another I-beam in a "T" arrangement Coped joint- Cutting and fitting woodwork to an irregular surface. Corbel- The triangular, decorative and supporting member that holds a mantel or horizontal shelf. Corner bead- A strip of formed sheet metal placed on outside corners of drywall before applying drywall 'mud'. Corner boards- Used as trim for the external corners of a house or other frame structure against which the ends of the siding are finished. Corner braces- Diagonal braces at the corners of the framed structure designed to stiffen and strengthen the wall. Cornice- Overhang of a pitched roof , usually consisting of a fascia board, a soffit and appropriate trim moldings. Counter flashing- A metal flashing usually used on chimneys at the roofline to cover shingle flashing and used to prevent moisture entry. Counterfort- A foundation wall section that strengthens (and generally perpendicular to) a long section of foundation wall Course- A row of shingles or roll roofing running the length of the roof. Parallel layers of building materials such as bricks, or siding laid up horizontally. Cove molding- A molding with a concave face used as trim or to finish interior corners. Crawl space- A shallow space below the living quarters of a house, normally enclosed by the foundation wall and having a dirt floor. Credit rating- A report ordered by a lender from a credit agency to determine a borrower's credit habits. Cricket- A second roof built on top of the primary roof to increase the slope of the roof or valley. A saddle-shaped, peaked construction connecting a sloping roof with a chimney. Designed to encourage water drainage away from the chimney joint. Cripple- Short vertical "2 by 4's or 6's" frame lumber installed above a window or door.
  • 14. 14 Cross bridging- Diagonal bracing between adjacent floor joists, placed near the center of the joist span to prevent joists from twisting. Cross Tee- Short metal "T" beam used in suspended ceiling systems to bridge the spaces between the main beams. Crown molding- A molding used on cornice or wherever an interior angle is to be covered, especially at the roof and wall corner. Culvert- Round, corrugated drain pipe (normally 15" or 18" in diameter) that is installed beneath a driveway and parallel to and near the street. Cupping- A type of warping that causes boards to curl up at their edges. Curb- The short elevation of an exterior wall above the deck of a roof. Normally a 2 by 6 box (on the roof) on which a skylight is attached. Curb stop- Normally a cast iron pipe with a lid (@ 5" in diameter) that is placed vertically into the ground, situated near the water tap in the yard, and where a water cut- off valve to the home is located (underground). A long pole with a special end is inserted into the curb stop to turn off/on the water. Cut-in brace- Nominal 2-inch-thick members, usually 2 by 4's, cut in between each stud diagonally.
  • 15. 15 Damper-D Dado- A groove cut into a board or panel intended to receive the edge of a connecting board or panel. Damper- A metal "door" placed within the fireplace chimney. Normally closed when the fireplace is not in use. Dampproofing- The black, tar like waterproofing material applied to the exterior of a foundation wall. Daylight- The end of a pipe (the terminal end) that is not attached to anything. Dead bolt- An exterior security lock installed on exterior entry doors that can be activated only with a key or thumb-turn. Unlike a latch, which has a beveled tongue, dead bolts have square ends. Dead light- The fixed, non-operable window section of a window unit. Deck, decked- To install the plywood or wafer board sheeting on the floor joists, rafters, or trusses. Dedicated circuit- An electrical circuit that serves only one appliance (ie, dishwasher) or a series of electric heaters or smoke detectors. Default- Breach of a mortgage contract (not making the required payments). De-humidistat- A control mechanism used to operate a mechanical ventilation system based upon the relative humidity in the home. Delamination- Separation of the plies in a panel due to failure of the adhesive. Usually caused by excessive moisture. Disconnect- A large (generally 20 Amp) electrical ON-OFF switch. Discount rate- A mortgage interest rate that is lower than the current rate for a certain period of time, e.g. 2.00% below variable rate for 2 years. Doorjamb, interior- The surrounding case into which and out of which a door closes and opens. It consists of two upright pieces, called side jambs, and a horizontal head jamb. These 3 jambs have the "door stop" installed on them. Door operator- An automatic garage door opener. Door stop- The wooden style that the door slab will rest upon when it's in a closed position. Dormer- An opening in a sloping roof, the framing of which projects out to form a vertical wall suitable for windows or other openings. Double glass- Window or door in which two panes of glass are used with a sealed air space between. Also known as Insulating Glass.
  • 16. 16 Double hung window- A window with two vertically sliding sashes, both of which can move up and down. Down payment- The difference between the sales price and the mortgage amount. A downpayment is usually paid at closing. Downspout- A pipe, usually of metal, for carrying rainwater down from the roof's horizontal gutters. Drain tile- A perforated, corrugated plastic pipe laid at the bottom of the foundation wall and used to drain excess water away from the foundation. It prevents ground water from seeping through the foundation wall. Sometimes called perimeter drain. Draw- The amount of progress billings on a contract that is currently available to a contractor under a contract with a fixed payment schedule. Drip- (a) A member of a cornice or other horizontal exterior finish course that has a projection beyond the other parts for throwing off water.(b) A groove in the underside of a sill or drip cap to cause water to drop off on the outer edge instead of drawing back and running down the face of the building. Drip cap- A molding or metal flashing placed on the exterior topside of a door or window frame to cause water to drip beyond the outside of the frame. Dry in- To install the black roofing felt (tar paper) on the roof. Drywall (or Gypsum Wallboard (GWB), Sheet rock or Plasterboard)- Wall board or gypsum- A manufactured panel made out of gypsum plaster and encased in a thin cardboard. Usually 1/2" thick and 4' x 8' or 4' x 12' in size. The panels are nailed or screwed onto the framing and the joints are taped and covered with a 'joint compound'. 'Green board' type drywall has a greater resistance to moisture than regular (white) plasterboard and is used in bathrooms and other "wet areas". Ducts- The heating system. Usually round or rectangular metal pipes installed for distributing warm (or cold) air from the furnace to rooms in the home. Also a tunnel made of galvanized metal or rigid fiberglass, which carries air from the heater or ventilation opening to the rooms in a building. Due-on-sale- A clause in a mortgage contract requiring the borrower to pay the entire outstanding balance upon sale or transfer of the property. Dura board, dura rock- A panel made out of concrete and fiberglass usually used as a ceramic tile backing material. Commonly used on bathtub decks. Sometimes called Wonder board DWV (drain-waste-vent)- The section of a plumbing system that carries water and sewer gases out of a home.
  • 17. 17 E Earnest Money- A sum paid to the seller to show that a potential purchaser is serious about buying. Earthquake Strap- A metal strap used to secure gas hot water heaters to the framing or foundation of a house. Intended to reduce the chances of having the water heater fall over in an earthquake and causing a gas leak. Easement- A formal contract which allows a party to use another party's property for a specific purpose. e.g. A sewer easement might allow one party to run a sewer line through a neighbors property. Eaves- The horizontal exterior roof overhang. Egress- A means of exiting the home. An egress window is required in every bedroom and basement. Normally a 4' X 4' window is the minimum size required Elbow (ell)- A plumbing or electrical fitting that lets you change directions in runs of pipe or conduit. Electric lateral- The trench or area in the yard where the electric service line (from a transformer or pedestal) is located, or the work of installing the electric service to a home. Electric resistance coils- Metal wires that heat up when electric current passes through them and are used in baseboard heaters and electric water heaters. Electrical entrance package- The entry point of the electrical power including: (1) the 'strike' or location where the overhead or underground electrical lines connect to the house, (2) The meter which measures how much power is used and (3) The 'panel' or 'circuit breaker box ' (or 'fuse box') where the power can be shut off and where overload devices such a fuses or circuit breakers and located. Electrical Rough- Work performed by the Electrical Contractor after the plumber and heating contractor are complete with their phase of work. Normally all electrical wires, and outlet, switch, and fixture boxes are installed (before insulation). Electrical Trim- Work performed by the electrical contractor when the house is nearing completion. The electrician installs all plugs, switches, light fixtures, smoke detectors, appliance "pig tails", bath ventilation fans, wires the furnace, and "makes up" the electric house panel. The electrician does all work necessary to get the home ready for and to pass the municipal electrical final inspection Elevation sheet- The page on the blue prints that depicts the house or room as if a vertical plane were passed through the structure. Equity- The "valuation" that you own in your home, i.e. the property value less the mortgage loan outstanding. Escrow - The handling of funds or documents by a third party on behalf of the buyer and/or seller.
  • 18. 18 Estimate- The amount of labor, materials, and other costs that a contractor anticipates for a project as summarized in the contractor's bid proposal for the project. Escutcheon- An ornamental plate that fits around a pipe extending through a wall or floor to hide the cut out hole Estimating- The process of calculating the cost of a project. This can be a formal and exact process or a quick and imprecise process. Evaporator coil- The part of a cooling system that absorbs heat from air in your home. Also see condensing unit. Expansion joint- Fibrous material (@1/2" thick) installed in and around a concrete slab to permit it to move up and down (seasonally) along the non-moving foundation wall. Expansive soils- Earth that swells and contracts depending on the amount of water that is present. ("Betonite" is an expansive soil). Exposed aggregate finish- A method of finishing concrete which washes the cement/sand mixture off the top layer of the aggregate - usually gravel. Often used in driveways, patios and other exterior surfaces. Extras- Additional work requested of a contractor, not included in the original plan, which will be billed separately and will not alter the original contract amount, but increase the cost of building the home.
  • 19. 19 F FHA strap- Metal straps that are used to repair a bearing wall "cut-out", and to "tie together" wall corners, splices, and bearing headers. Also, they are used to hang stairs and landings to bearing headers. Face nail- To install nails into the vertical face of a bearing header or beam. Faced concrete- To finish the front and all vertical sides of a concrete porch, step(s), or patio. Normally the "face" is broom finished. Facing brick- The brick used and exposed on the outside of a wall. Usually these have a finished texture. Fascia- Horizontal boards attached to rafter/truss ends at the eaves and along gables. Roof drain gutters are attached to the fascia. Felt- Tar paper. Installed under the roof shingles. Normally 15 lb. or 30 lb. Female- Any part, such as a nut or fitting, into which another (male) part can be inserted. Internal threads are female. Ferrule- Metal tubes used to keep roof gutters "open". Long nails (ferrule spikes) are driven through these tubes and hold the gutters in place along the fascia of the home. Field measure- To take measurements (cabinets, countertops, stairs, shower doors, etc.) in the home itself instead of using the blueprints. Finger joint- A manufacturing process of interlocking two shorter pieces of wood end to end to create a longer piece of dimensional lumber or molding. Often used in jambs and casings and are normally painted (instead of stained). Fire block- Short horizontal members sometimes nailed between studs, usually about halfway up a wall. See also 'Fire stop'. Fire brick- Brick made of refractory ceramic material which will resist high temperatures. Used in a fireplace and boiler. Fireplace chase flashing pan- A large sheet of metal that is installed around and perpendicular to the fireplace flue pipe. It's purpose is to confine and limit the spread of fire and smoke to a small area. Fire-resistive or Fire rated- Applies to materials that are not combustible in the temperatures of ordinary fires and will withstand such fires for at least 1 hour. Drywall used in the garage and party walls are to be fire rated, 5/8", Type X. Fire retardant chemical- A chemical or preparation of chemicals used to reduce the flammability of a material or to retard the spread of flame. Fire stop- A solid, tight closure of a concealed space, placed to prevent the spread of fire and smoke through such a space. In a frame wall, this will usually consist of 2 by 4 cross blocking between studs. Work performed to slow the spread of fire and smoke in the walls and ceiling (behind the drywall). Includes stuffing wire holes in the top and
  • 20. 20 bottom plates with insulation, and installing blocks of wood between the wall studs at the drop soffit line. This is integral to passing a Rough Frame inspection. See also 'Fire block'. Fishplate (gusset)- A wood or plywood piece used to fasten the ends of two members together at a butt joint with nails or bolts. Sometimes used at the junction of opposite rafters near the ridge line. Sometimes called a gang nail plate. Fish tape- A long strip of spring steel used for fishing cables and for pulling wires through conduit. Fixed price contract- A contract with a set price for the work. See Time and Materials Contract. Fixed rate- A loan where the initial payments are based on a certain interest rate for a stated period . The rate payable will not change during this period regardless of changes in the lender's standard variable rate. Fixed Rate Mortgage- A mortgage with an interest rate that remains the same over the years. Flagstone (flagging or flags)- Flat stones (1 to 4 inches thick) used for walks, steps, floors, and vertical veneer (in lieu of brick). Flakeboard- A manufactured wood panel made out of 1"- 2" wood chips and glue. Often used as a substitute for plywood in the exterior wall and roof sheathing. Also called OSB or wafer board. Flame retention burner- An oil burner, designed to hold the flame near the nozzle surface. Generally the most efficient type for residential use. Flashing- Sheet metal or other material used in roof and wall construction to protect a building from water seepage. Flat mold- Thin wood strips installed over the butt seam of cabinet skins. Flat paint- An interior paint that contains a high proportion of pigment and dries to a flat or lusterless finish. Flatwork- Common word for concrete floors, driveways, basements, and sidewalks. Floating- The next-to-last stage in concrete work, when you smooth off the job and bring water to the surface by using a hand float or bull float. Floating wall- A non-bearing wall built on a concrete floor. It is constructed so that the bottom two horizontal plates can compress or pull apart if the concrete floor moves up or down. Normally built on basements and garage slabs. Fluorescent lighting- A fluorescent lamp is a gas-filled glass tube with a phosphur coating on the inside. Gas inside the tube is ionized by electricity which causes the phosphur coating to glow. Normally with two pins that extend from each end.
  • 21. 21 Flue- Large pipe through which fumes escape from a gas water heater, furnace, or fireplace. Normally these flue pipes are double walled, galvanized sheet metal pipe and sometimes referred to as a "B Vent". Fireplace flue pipes are normally triple walled. In addition, nothing combustible shall be within one inch from the flue pipe. Flue collar- Round metal ring which fits around the heat flue pipe after the pipe passes out of the roof. Flue damper- An automatic door located in the flue that closes it off when the burner turns off; purpose is to reduce heat loss up the flue from the still-warm furnace or boiler. Flue lining- 2-foot lengths, fire clay or terra-cotta pipe (round or square) and usually madein all ordinary flue sizes. Used for the inner lining of chimneys with the brick or masonry work done around the outside. Flue linings in chimneys runs from one foot below the flue connection to the top of the chimney. Fly rafters- End rafters of the gable overhang supported by roof sheathing and lookouts. Footer, footing- Continuous 8" or 10" thick concrete pad installed before and supports the foundation wall or monopost. Forced air heating - A common form of heating with natural gas, propane, oil or electricity as a fuel. Air is heated in the furnace and distributed through a set of metal ducts to various areas of the house. Form- Temporary structure erected to contain concrete during placing and initial hardening. Foundation- The supporting portion of a structure below the first floor construction, or below grade, including the footings. Foundation ties- Metal wires that hold the foundation wall panels and rebar in place during the concrete pour. Foundation waterproofing- High-quality below-grade moisture protection. Used for below-grade exterior concrete and masonry wall damp-proofing to seal out moisture and prevent corrosion. Normally looks like black tar. Frame Inspection- The act of inspecting the home's structural integrity and it's complianceto local municipal codes. Framer-The carpenter contractor that installs the lumber and erects the frame, flooring system, interior walls, backing, trusses, rafters, decking, installs all beams, stairs, soffits and all work related to the wood structure of the home. The framer builds the home according to the blueprints and must comply with local building codes and regulations. Framing- Lumber used for the structural members of a building, such as studs, joists, and rafters. Frieze- In house construction a horizontal member connecting the top of the siding with the soffit of the cornice.
  • 22. 22 Frost lid- Round metal lid that is installed on a water meter pit. Frost line- The depth of frost penetration in soil and/or the depth at which the earth will freeze and swell. This depth varies in different parts of the country. Furring strips- Strips of wood, often 1 X 2 and used to shim out and provide a level fastening surface for a wall or ceiling. Fuse- A device often found in older homes designed to prevent overloads in electrical lines. This protects against fire. See also 'circuit breakers'.
  • 23. 23 G GF C I, or G F I- Ground Fault Circuit Interrupter- an ultra sensitive plug designed to shut off all electric current. Used in bathrooms, kitchens, exterior waterproof outlets, garage outlets, and "wet areas". Has a small reset button on the plug. Gable- The end, upper, triangular area of a home, beneath the roof. Gang nail plate- A steel plate attached to both sides at each joint of a truss. Sometimes called a fishplate or gussett. Gate valve- A valve that lets you completely stop—but not modulate—the flow within a pipe. General Contractor A contractor who enters into a contract with the owner of a project for the construction of the project and who takes full responsibility for its completion, although the contractor may enter into subcontracts with others for the performance of specific parts or phases of the project. Gas lateral- The trench or area in the yard where the gas line service is located, or the work of installing the gas service to a home. Girder- A large or principal beam of wood or steel used to support concentrated loads at isolated points along its length. Glazing- The process of installing glass, which commonly is secured with glazier's points and glazing compound. Globe valve- A valve that lets you adjust the flow of water to any rate between fully on and fully off. Also see gate valve. Gloss enamel- A finishing paint material. Forms a hard coating with maximum smoothness of surface and dries to a sheen or luster (gloss) Glued Laminated Beam (Glulam)- A structural beam composed of wood laminations or lams. The lams are pressure bonded with adhesives to attain a typical thickness of 1 ½" . (It looks like 5 or more 2 X 4's are glued together). Grade- Ground level, or the elevation at any given point. Also the work of leveling dirt. Also the designated quality of a manufactured piece of wood. Grade beam- A foundation wall that is poured @ level with or just below the grade of theearth. An example is the area where the 8' or 16' overhead garage door "block out" is located, or a lower (walk out basement) foundation wall is poured Graduated Payment Mortgage (GPM) - A fixed-rate, fixed-schedule loan. It starts with lower payments than a level payment loan; payments rise annually, with the entire increase being used to reduce the outstanding balance. The increase in payments may enable the borrower to pay off a 30-year loan in 15 to 20 years, or less. Grain- The direction, size, arrangement, appearance, or quality of the fibers in wood.
  • 24. 24 Grid- The completed assembly of main and cross tees in a suspended ceiling system before the ceiling panels are installed. Also the decorative slats (munton) installed between glass panels. Ground- Refers to electricity's habit of seeking the shortest route to earth. Neutral wires carry it there in all circuits. An additional grounding wire or the sheathing of the metal- clad cable or conduit—protects against shock if the neutral leg is interrupted. Ground fault- Ground Fault Circuit Interrupter (GFCI, GFI)- an ultra sensitive plug designed to shut off all electric current. Used in bathrooms, kitchens, exterior waterproof outlets, garage outlets, and "wet areas". Has a small reset button on the plug. Ground iron- The plumbing drain and waste lines that are installed beneath the basement floor. Cast iron was once used, but black plastic pipe (ABS) is now widely used. Groundwater- Water from an aquifer or subsurface water source. Grout- A wet mixture of cement, sand and water that flows into masonry or ceramic crevices to seal the cracks between the different pieces. Mortar made of such consistency (by adding water) that it will flow into the joints and cavities of the masonry work and fill them solid. Gusset- A flat wood, plywood, or similar type member used to provide a connection at the intersection of wood members. Most commonly used at joints of wood trusses. They are fastened by nails, screws, bolts, or adhesives. Gutter- A shallow channel or conduit of metal or wood set below and along the (fascia) eaves of a house to catch and carry off rainwater from the roof. Gyp board- Drywall. Wall board or gypsum- A panel (normally 4' X 8', 10', 12', or 16')made with a core of Gypsum (chalk-like) rock, which covers interior walls and ceilings. Gypsum plaster- Gypsum formulated to be used with the addition of sand and water for base-coat plaster.
  • 25. 25 H H Clip- Small metal clips formed like an "H" that fits at the joints of two plywood (or wafer board) sheets to stiffen the joint. Normally used on the roof sheeting. Hardware- All of the "metal" fittings that go into the home when it is near completion. For example, door knobs, towel bars, handrail brackets, closet rods, house numbers, door closers, etc. The Interior Trim Carpenter installs the "hardware". Haunch- An extension, knee like protrusion of the foundation wall that a concrete porch or patio will rest upon for support. Hazard insurance - Protection against damage caused by fire, windstorms, or other common hazards. Many lenders require borrowers to carry it in an amount at least equal to the mortgage. Header- (a) A beam placed perpendicular to joists and to which joists are nailed inframing for a chimney, stairway, or other opening. (b) A wood lintel. (c) The horizontal structural member over an opening (for example over a door or window). Hearth- The fireproof area directly in front of a fireplace. The inner or outer floor of a fireplace, usually made of brick, tile, or stone. Heating load- The amount of heating required to keep a building at a specified temperature during the winter, usually 65° F, regardless of outside temperature. Heat meter- An electrical municipal inspection of the electric meter breaker panel box. Heat pump- A mechanical device which uses compression and decompression of gas to heat and/or cool a house. Heat Rough- Work performed by the Heating Contractor after the stairs and interior walls are built. This includes installing all duct work and flue pipes. Sometimes, the furnace and fireplaces are installed at this stage of construction. Heat Trim- Work done by the Heating Contractor to get the home ready for the municipal Final Heat Inspection. This includes venting the hot water heater, installing all vent grills, registers, air conditioning services, turning on the furnace, installing thermostats, venting ranges and hoods, and all other heat related work. Heel cut- A notch cut in the end of a rafter to permit it to fit flat on a wall and on the top, doubled, exterior wall plate. Highlights- A light spot, area, or streak on a painted surface. Hip- A roof with four sloping sides. The external angle formed by the meeting of two sloping sides of a roof. Hip roof- A roof that rises by inclined planes from all four sides of a building. Home run (electrical)- The electrical cable that carries power from the main circuit breaker panel to the first electrical box, plug, or switch in the circuit.
  • 26. 26 Honey combs- The appearance concrete makes when rocks in the concrete are visible and where there are void areas in the foundation wall, especially around concrete foundation windows. Hose bib- An exterior water faucet (sill cock). Hot wire- The wire that carries electrical energy to a receptacle or other device—in contrast to a neutral, which carries electricity away again. Normally the black wire. Also see ground. Humidifier- An appliance normally attached to the furnace, or portable unit device designed to increase the humidity within a room or a house by means of the discharge of water vapor. Hurricane clip- Metal straps that are nailed and secure the roof rafters and trusses to the top horizontal wall plate. Sometimes called a Teco clip. H V A C- An abbreviation for Heat, Ventilation, and Air Conditioning
  • 27. 27 I I-beam- A steel beam with a cross section resembling the letter I. It is used for long spans as basement beams or over wide wall openings, such as a double garage door, when wall and roof loads bear down on the opening. I-joist- Manufactured structural building component resembling the letter "I". Used as floor joists and rafters. I-joists include two key parts: flanges and webs. The flange of the I joist may be made of laminated veneer lumber or dimensional lumber, usually formed into a 1 ½" width. The web or center of the I-joist is commonly made of plywood or oriented strand board (OSB). Large holes can be cut in the web to accommodate duct work and plumbing waste lines. I-joists are available in lengths up to 60 feet long Incandescent lamp- A lamp employing an electrically charged metal filament that glows at white heat. A typical light bulb. Index- The interest rate or adjustment standard that determines the changes in monthly payments for an adjustable rate loan. Infiltration- The passage of air from indoors to outdoors and vice versa; term is usually associated with drafts from cracks, seams or holes in buildings. Inside corner- The point at which two walls form an internal angle, as in the corner of a room. Insulating glass- Window or door in which two panes of glass are used with a sealed air space between. Also known as Double glass. Insulation board, rigid- A structural building board made of coarse wood or cane fiber in ½- and 25/32-inch thickness. It can be obtained in various size sheets and densities. Insulation- Any material high in resistance to heat transmission that, when placed in the walls, ceiling, or floors of a structure, and will reduce the rate of heat flow. Interest - The cost paid to a lender for borrowed money. Interior finish- Material used to cover the interior framed areas of walls and ceilings Irrigation- Lawn sprinkler system.
  • 28. 28 J J Channel- Metal edging used on drywall to give the edge a better finished appearance when a wall is not "wrapped" Generally, basement stairway walls have drywall only on the stair side. J Channel is used on the vertical edge of the last drywall sheet Jack post- A type of structural support made of metal, which can be raised or lowered through a series of pins and a screw to meet the height required. Basically used as a replacement for an old supporting member in a building. See Monopost. Jack rafter- A rafter that spans the distance from the wall plate to a hip, or from a valley to a ridge. Jamb- The side and head lining of a doorway, window, or other opening. Includes studs as well as the frame and trim. Joint- The location between the touching surfaces of two members or components joined and held together by nails, glue, cement, mortar, or other means. Joint cement or Joint compound- A powder that is usually mixed with water and used for joint treatment in gypsum-wallboard finish. Often called "spackle" or drywall mud. Joint tenancy- A form of ownership in which the tenants own a property equally. If one dies, the other automatically inherits the entire property. Joint trench- When the electric company and telephone company dig one trench and "drop" both of their service lines in. Joist- Wooden 2 X 8's, 10's, or 12's that run parallel to one another and support a floor or ceiling, and supported in turn by larger beams, girders, or bearing walls. Joist hanger- A metal "U" shaped item used to support the end of a floor joist and attached with hardened nails to another bearing joist or beam. Jumpers- Water pipe installed in a water meter pit (before the water meter is installed), or electric wire that is installed in the electric house panel meter socket before the meter is installed. This is sometimes illegal.
  • 29. 29 K Keeper- The metal latch plate in a door frame into which a doorknob plunger latches. Keyless- A plastic or porcelain light fixture that operates by a pull string. Generally found in the basement, crawl space , and attic areas. Keyway- A slot formed and poured on a footer or in a foundation wall when another wall will be installed at the slot location. This gives additional strength to the joint/meeting point. Kilowatt (kw)- One thousand watts. A kilowatt hour is the base unit used in measuring electrical consumption. Also see watt. King stud- The vertical "2 X's" frame lumber (left and right) of a window or door opening, and runs continuously from the bottom sole plate to the top plate. Knot- In lumber, the portion of a branch or limb of a tree that appears on the edge or face of the piece.
  • 30. 30 L Laminated shingles - Shingles that have added dimensionality because of extra layers or tabs, giving a shake-like appearance. May also be called "architectural shingles" or "three-dimensional shingles." Laminating- Bonding together two or more layers of materials. Landing- A platform between flights of stairs or at the termination of a flight of stairs. Often used when stairs change direction. Normally no less than 3 ft. X 3 ft. square. Lap- To cover the surface of one shingle or roll with another. Latch- A beveled metal tongue operated by a spring-loaded knob or lever. The tongue's bevel lets you close the door and engage the locking mechanism, if any, without using a key. Contrasts with dead bolt. Lateral (electric, gas, telephone, sewer and water)- The underground trench and related services (i.e., electric, gas, telephone, sewer and water lines) that will be buried within the trench. Lath- A building material of narrow wood, metal, gypsum, or insulating board that is fastened to the frame of a building to act as a base for plaster, shingles, or tiles. Lattice- An open framework of criss-crossed wood or metal strips that form regular, patterned spaces. Ledger (for a Structural Floor)- The wooden perimeter frame lumber member that bolts onto the face of a foundation wall and supports the wood structural floor. Ledger strip- A strip of lumber nailed along the bottom of the side of a girder on which joists rest. Leech field- A method used to treat/dispose of sewage in rural areas not accessible to a municipal sewer system. Sewage is permitted to be filtered and eventually discharged into a section of the lot called a leech field. Let-in brace- Nominal 1 inch-thick boards applied into notched studs diagonally. Also, an "L" shaped, long (@ 10') metal strap that are installed by the framer at the rough stage to give support to an exterior wall or wall corner. Level- True horizontal. Also a tool used to determine level. Level Payment Mortgage- A mortgage with identical monthly payments over the life of the loan. Lien- An encumbrance that usually makes real or personal property the security for payment of a debt or discharge of an obligation. Light- Space in a window sash for a single pane of glass. Also, a pane of glass. Limit switch- A safety control that automatically shuts off a furnace if it gets too hot. Most also control blower cycles.
  • 31. 31 Lineal foot- A unit of measure for lumber equal to 1 inch thick by 12 inches wide by 12 inches long. Examples: 1" x 12" x 16' = 16 board feet, 2" x 12" x 16' = 32 board feet. Lintel- A horizontal structural member that supports the load over an opening such as a door or window. Load bearing wall- Includes all exterior walls and any interior wall that is aligned above a support beam or girder. Normally, any wall that has a double horizontal top plate. Loan- The amount to be borrowed. Loan to value ratio- The ratio of the loan amount to the property valuation and expressed as a percentage. E.g. if a borrower is seeking a loan of $200,000 on a property worth $400,000 it has a 50% loan to value rate. If the loan were $300,000, the LTV would be 75%. The higher the loan to value, the greater the lender's perceived risk. Loans above normal lending LTV ratios may require additional security. Lookout- A short wood bracket or cantilever that supports an overhang portion of a roof. Louver- A vented opening into the home that has a series of horizontal slats and arranged to permit ventilation but to exclude rain, snow, light, insects, or other living creatures. Lumens- Unit of measure for total light output. The amount of light falling on a surface of one square foot.
  • 32. 32 M Male- Any part, such as a bolt, designed to fit into another (female) part. External threads are male. Mantel- The shelf above a fireplace opening. Also used in referring to the decorative trim around a fireplace opening. Manufactured wood- A wood product such as a truss, beam, gluelam, microlam or joist which is manufactured out of smaller wood pieces and glued or mechanically fastened to form a larger piece. Often used to create a stronger member which may use less wood. See also Oriented Strand Board. Manufacturer's specifications- The written installation and/or maintenance instructions which are developed by the manufacturer of a product and which may have to be followed in order to maintain the product warrantee. Masonry- Stone, brick, concrete, hollow-tile, concrete block, or other similar building units or materials. Normally bonded together with mortar to form a wall. Mastic- A pasty material used as a cement (as for setting tile) or a protective coating (as for thermal insulation or waterproofing) Mechanics lien- A lien on real property, created by statue in many years, in favor of persons supplying labor or materials for a building or structure, for the value of labor or materials supplied by them. In some jurisdictions, a mechanics lien also exists for the value of professional services. Clear title to the property cannot be obtained until the claim for the labor, materials, or professional services is settled. Timely filing is essential to support the encumbrance, and prescribed filing dates vary by jurisdiction. Metal lath- Sheets of metal that are slit to form openings within the lath. Used as a plaster base for walls and ceilings and as reinforcing over other forms of plaster base. Microlam- A manufactured structural wood beam. It is constructed of pressure and adhesive bonded wood strands of wood. They have a higher strength rating than solid sawn lumber. Normally comes in l ½" thickness' and 9 ½", 11 ½" and 14" widths Milar (mylar)- Plastic, transparent copies of a blueprint. Millwork- Generally all building materials made of finished wood and manufactured in millwork plants. Includes all doors, window and door frames, blinds, mantels, panelwork, stairway components (ballusters, rail, etc.), moldings, and interior trim. Does not include flooring, ceiling, or siding. Miter joint- The joint of two pieces at an angle that bisects the joining angle. For example, the miter joint at the side and head casing at a door opening is made at a 45° angle. Molding- A wood strip having an engraved, decorative surface. Monopost- Adjustable metal column used to support a beam or bearing point. Normally 11 gauge or Schedule 40 metal, and determined by the structural engineer
  • 33. 33 Mortar- A mixture of cement (or lime) with sand and water used in masonry work. Mortgage- Loan secured by land. Mortgage broker - A broker who represents numerous lenders and helps consumers find affordable mortgages; the broker charges a fee only if the consumer finds a loan. Mortgage company - A company that borrows money from a bank, lends it to consumers to buy homes, then sells the loans to investors. Mortgage deed- Legal document establishing a loan on property. Mortgagee- The lender who makes the mortgage loan. Mortgage loan- A contract in which the borrower's property is pledged as collateral. It is repaid in installments. The mortgagor (buyer) promises to repay principal and interest, keep the home insured, pay all taxes and keep the property in good condition. Mortgage Origination Fee- A charge for work involved in preparing and servicing a mortgage application (usually one percent of the loan amount). Mortise- A slot cut into a board, plank, or timber, usually edgewise, to receive the tenon (or tongue) of another board, plank, or timber to form a joint. Mudsill- Bottom horizontal member of an exterior wall frame which rests on top a foundation, sometimes called sill plate. Also sole plate, bottom member of interior wall frame. Mullion- A vertical divider in the frame between windows, doors, or other openings. Muntin- A small member which divides the glass or openings of sash or doors. Muriatic acid- Commonly used as a brick cleaner after masonry work is completed. Mushroom- The unacceptable occurrence when the top of a caisson concrete pier spreads out and hardens to become wider than the foundation wall thickness.
  • 34. 34 N Nail inspection- An inspection made by a municipal building inspector after the drywall material is hung with nails and screws (and before taping). Natural finish- A transparent finish which does not seriously alter the original color or grain of the natural wood. Natural finishes are usually provided by sealers, oils, varnishes, water repellent preservatives, and other similar materials. NEC (National Electrical Code)- A set of rules governing safe wiring methods. Local codes—which are backed by law—may differ from the NEC in some ways. Neutral wire- Usually color-coded white, this carries electricity from an outlet back to the service panel. Also see hot wire and ground. Newel post- The large starting post to which the end of a stair guard railing or balustrade is fastened. Nonbearing wall- A wall supporting no load other than its own weight. Nosing- The projecting edge of a molding or drip or the front edge of a stair tread. Notch- A crosswise groove at the end of a board. Note- A formal document showing the existence of a debt and stating the terms of repayment. Nozzle- The part of a heating system that sprays the fuel of fuel-air mixture into the combustion chamber.
  • 35. 35 O O C- On Center- The measurement of spacing for studs, rafters, and joists in a building from the center of one member to the center of the next. Oakum- Loose hemp or jute fiber that's impregnated with tar or pitch and used to caulk large seams or for packing plumbing pipe joints Open hole inspection- When an engineer (or municipal inspector) inspects the open excavation and examines the earth to determine the type of foundation (caisson, footer, wall on ground, etc.) that should be installed in the hole. Oriented Strand Board or OSB- A manufactured 4' X 8' wood panel made out of 1"- 2" wood chips and glue. Often used as a substitute for plywood. Outrigger- An extension of a rafter beyond the wall line. Usually a smaller member nailed to a larger rafter to form a cornice or roof overhang. Outside corner- The point at which two walls form an external angle, one you usually can walk around. Overhang- Outward projecting eave-soffit area of a roof; the part of the roof that hangs out or over the outside wall. See also Cornice.
  • 36. 36 P & Q Padding- A material installed under carpet to add foot comfort, isolate sound, and to prolong carpet life. Pad out, pack out- To shim out or add strips of wood to a wall or ceiling in order that the finished ceiling/wall will appear correct. Paint- A combination of pigments with suitable thinners or oils to provide decorative and protective coatings. Can be oil based or latex water based. Pallets- Wooden platforms used for storing and shipping material. Forklifts and hand trucks are used to move these wooden platforms around. Panel- A thin flat piece of wood, plywood, or similar material, framed by stiles and rails as in a door (or cabinet door), or fitted into grooves of thicker material with molded edges for decorative wall treatment. Paper, building- A general term for papers, felts, and similar sheet materials used in buildings without reference to their properties or uses. Generally comes in long rolls. Parapet- A wall placed at the edge of a roof to prevent people from falling off. Parting stop or strip- A small wood piece used in the side and head jambs of double hung windows to separate the upper sash from the lower sash. Particle board- Plywood substitute made of course sawdust that is mixed with resin and pressed into sheets. Used for closet shelving, floor underlayment, stair treads, etc. Partition- A wall that subdivides spaces within any story of a building or room. Paver, paving- Materials—commonly masonry—laid down to make a firm, even surface. Payment schedule- A pre-agreed upon schedule of payments to a contractor usually based upon the amount of work completed. Such a schedule may include a deposit prior to the start of work. There may also be a temporary 'retainer' (5-10% of the total cost of the job) at the end of the contract for correcting any small items which have not been completed or repaired. Pedestal- A metal box installed at various locations along utility easements that contain electrical, telephone, or cable television switches and connections. Penalty clause - A provision in a contract that provides for a reduction in the amount otherwise payable under a contract to a contractor as a penalty for failure to meet deadlines or for failure of the project to meet contract specifications. Penny- As applied to nails, it originally indicated the price per hundred. The term now series as a measure of nail length and is abbreviated by the letter "d". Normally, 16d (16 "penny") nails are used for framing Percolation test or perc. test- Tests that a soil engineer performs on earth to determine the feasibility of installing a leech field type sewer system on a lot. A test to determine
  • 37. 37 if the soil on a proposed building lot is capable of absorbing the liquid affluent from a septic system. Performance bond- An amount of money (usually 10% of the total price of a job) that a contractor must put on deposit with a governmental agency as an insurance policy that guarantees the contractors' proper and timely completion of a project or job. Perimeter drain- 3" or 4" perforated plastic pipe that goes around the perimeter (either inside or outside) of a foundation wall (before backfill) and collects and diverts ground water away from the foundation. Generally, it is "daylighted" into a sump pit inside the home, and a sump pump is sometimes inserted into the pit to discharge any accumulation of water. Permeability- A measure of the ease with which water penetrates a material. Permit - A governmental municipal authorization to perform a building process as in: · ZoningUse permit - Authorization to use a property for a specific use e.g. a garage, a single family residence etc. · Demolition permit - Authorization to tear down and remove an existing structure. · Grading permit - Authorization to change the contour of the land. · Septic permit - A health department authorization to build or modify a septic system. · Building permit - Authorization to build or modify a structure. · Electrical permit - A separate permit required for most electrical work. · Plumbing permit - A separate permit required for new plumbing and larger modifications of existing plumbing systems. Pigtails, electrical- The electric cord that the electrician provides and installs on an appliance such as a garbage disposal, dishwasher, or range hood. Pier- A column of masonry, usually rectangular in horizontal cross section, used to support other structural members. Also see Caisson. Pigment- A powdered solid used in paint or enamel to give it a color. Pilot hole- A small-diameter, pre-drilled hole that guides a nail or screw. Pilot light- A small, continuous flame (in a hot water heater, boiler, or furnace) that ignites gas or oil burners when needed. Pitch- The incline slope of a roof or the ratio of the total rise to the total width of a house, i.e., a 6-foot rise and 24-foot width is a one-fourth pitch roof. Roof slope is expressed in the inches of rise, per foot of horizontal run. PITI - Principal, interest, taxes and insurance (the four major components of monthly housing payments).
  • 38. 38 Plan view- Drawing of a structure with the view from overhead, looking down. Plate- Normally a 2 X 4 or 2 X 6 that lays horizontally within a framed structure, such as: Sill plate- A horizontal member anchored to a concrete or masonry wall. Sole plate- Bottom horizontal member of a frame wall. Top plate- Top horizontal member of a frame wall supporting ceiling joists, rafters, or other members. Plenum- The main hot-air supply duct leading from a furnace. Plot plan- An overhead view plan that shows the location of the home on the lot. Includes all easements, property lines, set backs, and legal descriptions of the home. Provided by the surveyor. Plough, plow- To cut a lengthwise groove in a board or plank. An exterior handrail normally has a ploughed groove for hand gripping purposes Plumb- Exactly vertical and perpendicular. Plumb bob- A lead weight attached to a string. It is the tool used in determining plumb. Plumbing boots- Metal saddles used to strengthen a bearing wall/vertical stud(s) where a plumbing drain line has been cut through and installed. Plumbing ground- The plumbing drain and waste lines that are installed beneath a basement floor. Plumbing jacks- Sleeves that fit around drain and waste vent pipes at, and are nailed to, the roof sheeting. Plumbing rough- Work performed by the plumbing contractor after the Rough Heat is installed. This work includes installing all plastic ABS drain and waste lines, copper water lines, bath tubs, shower pans, and gas piping to furnaces and fireplaces. Lead solder should not be used on copper piping. Plumbing stack- A plumbing vent pipe that penetrates the roof. Plumbing trim- Work performed by the plumbing contractor to get the home ready for a final plumbing inspection. Includes installing all toilets (water closets), hot water heaters, sinks, connecting all gas pipe to appliances, disposal, dishwasher, and all plumbing items. Plumbing waste line- Plastic pipe used to collect and drain sewage waste. Ply- A term to denote the number of layers of roofing felt, veneer in plywood, or layers in built-up materials, in any finished piece of such material.
  • 39. 39 Plywood- A panel (normally 4' X 8') of wood made of three or more layers of veneer, compressed and joined with glue, and usually laid with the grain of adjoining plies at right angles to give the sheet strength. Point load- A point where a bearing/structural weight is concentrated and transferred to the foundation. Portland cement- Cement made by heating clay and crushed limestone into a brick and then grinding to a pulverized powder state. Post- A vertical framing member usually designed to carry a beam. Often a 4" x 4", a 6" x 6", or a metal pipe with a flat plate on top and bottom. Post-and-beam- A basic building method that uses just a few hefty posts and beams to support an entire structure. Contrasts with stud framing. Power vent- A vent that includes a fan to speed up air flow. Often installed on roofs. Premium- Amount payable on a loan. Preservative-. Any pesticide substance that, for a reasonable length of time, will prevent the action of wood-destroying fungi, insect borers, and similar destructive agents when the wood has been properly coated or impregnated with it. Normally an arsenic derivative. Chromated Copper Arsenate (CCA) is an example. Pressure Relief Valve (PRV)- A device mounted on a hot water heater or boiler which is designed to release any high steam pressure in the tank to prevent tank explosions. Pressure-treated wood- Lumber that has been saturated with a preservative. Primer- The first, base coat of paint when a paint job consists of two or more coats. A first coating formulated to seal raw surfaces and holding succeeding finish coats. Principal- The original amount of the loan, the capital. Property survey- A survey to determine the boundaries of your property. The cost depends on the complexity of the survey. P trap- Curved, "U" section of drain pipe that holds a water seal to prevent sewer gasses from entering the home through a fixtures water drain. Pump mix- Special concrete that will be used in a concrete pump. Generally, the mix has smaller rock aggregate than regular mix. Punch list- A list of discrepancies that need to be corrected by the contractor. Punch out- To inspect and make a discrepancy list. Putty- A type of dough used in sealing glass in the sash, filling small holes and crevices in wood, and for similar purposes. PVC or CPVC - Poly Vinyl Chloride-A type of white or light gray plastic pipe sometimes used for water supply lines and waste pipe.
  • 40. 40 Q Quarry tile- A man-made or machine-made clay tile used to finish a floor or wall. Generally 6" X 6" X 1/4" thick . Quarter round- A small trim molding that has the cross section of a quarter circle.
  • 41. 41 R Rabbet- A rectangular longitudinal groove cut in the corner edge of a board or plank. Radiant heating- A method of heating, usually consisting of a forced hot water system with pipes placed in the floor, wall, or ceiling. Also electrically heated panels. Radiation- Energy transmitted from a heat source to the air around it. Radiators actually depend more on convection than radiation. Radon- A naturally-occurring, heavier than air, radioactive gas common in many parts of the country. Radon gas exposure is associated with lung cancer. Mitigation measures may involve crawl space and basement venting and various forms of vapor barriers. Radon system- A ventilation system beneath the floor of a basement and/or structural wood floor and designed to fan exhaust radon gas to the outside of the home Rafter- Lumber used to support the roof sheeting and roof loads. Generally, 2 X 10's and 2 X 12's are used. The rafters of a flat roof are sometimes called roof joists. Rafter, hip- A rafter that forms the intersection of an external roof angle. Rafter, valley- A rafter that forms the intersection of an internal roof angle. The valley rafter is normally made of double 2-inch-thick members. Rail- Cross members of panel doors or of a sash. Also, a wall or open balustrade placed at the edge of a staircase, walkway bridge, or elevated surface to prevent people from falling off. Any relatively lightweight horizontal element, especially those found in fences (split rail). Railroad tie- Black, tar and preservative impregnated, 6" X 8" and 6'-8' long wooden timber that was used to hold railroad track in place. Normally used as a member of a retaining wall. Rake- Slope or slanted. Rake fascia- The vertical face of the sloping end of a roof eave. Rake siding- The practice of installing lap siding diagonally Ranch- A single story, one level home. Ready mixed concrete- Concrete mixed at a plant or in trucks en route to a job and delivered ready for placement. Rebar, reinforcing bar-Ribbed steel bars installed in foundation concrete walls, footers, and poured in place concrete structures designed to strengthen concrete. Comes in various thickness' and strength grade. Receptacle- An electrical outlet. A typical household will have many 120 volt receptacles for plugging in lams and appliances and 240 volt receptacles for the range, clothes dryer, air conditioners, etc.
  • 42. 42 Recording fee - A charge for recording the transfer of a property, paid to a city, county, or other appropriate branch of government. Redline, red lined prints- Blueprints that reflect changes and that are marked with red pencil. Reducer- A fitting with different size openings at either end and used to go from a larger to a smaller pipe. Reflective insulation- Sheet material with one or both faces covered with aluminum foil. Refrigerant- A substance that remains a gas at low temperatures and pressure and can be used to transfer heat. Freon is an example and is used in air conditioning systems. Register- A grill placed over a heating duct or cold air return. Reglaze- To replace a broken window. Relief valve- A device designed to open if it detects excess temperature or pressure. Remote- Remote electrical, gas, or water meter digital readouts that are installed near the front of the home in order for utility companies to easily read the home owners usage of the service. Retaining wall- A structure that holds back a slope and prevents erosion. Retentions- Amounts withheld from progress billings until final and satisfactory project completion. R factor or value- A measure of a materials resistance to the passage of heat. New homewalls are usually insulated with 4" of batt insulation with an R value of R-13, and a ceiling insulation of R-30. Ribbon (girt)- Normally a 1 X 4 board let into the studs horizontally to support the ceiling or second-floor joists. Ridge- The horizontal line at the junction of the top edges of two sloping roof surfaces. Ridge board- The board placed on the ridge of the roof onto which the upper ends of other rafters are fastened. Ridge shingles- Shingles used to cover the ridge board. Rim joist- A joist that runs around the perimeter of the floor joists and home. Rise- The vertical distance from the eaves line to the ridge. Also the vertical distance from stair tread to stair tread (and not to exceed 7 ½"). Riser- Each of the vertical boards closing the spaces between the treads of stairways. Riser and panel- The exterior vertical pipe (riser) and metal electric box (panel) the electrician provides and installs at the "Rough Electric" stage.
  • 43. 43 Road base- A aggregate mixture of sand and stone. Rock 1, 2, 3- When referring to drywall, this means to install drywall to the walls and ceilings (with nails and screws), and before taping is performed. Roll, rolling- To install the floor joists or trusses in their correct place. (To "roll the floor" means to install the floor joists). Romex- A name brand of nonmetallic sheathed electrical cable that is used for indoor wiring. Roll roofing- Asphalt roofing products manufactured in roll form. 36-inch wide rolls with and 108 square feet of material. Weights are generally 45 to 90 pounds per roll. Romex- A name brand of nonmetallic sheathed electrical cable that is used for indoor wiring. Roof jack- Sleeves that fit around the black plumbing waste vent pipes at, and are nailed to, the roof sheeting. Roof joist- The rafters of a flat roof. Lumber used to support the roof sheeting and roof loads. Generally, 2 X 10's and 2 X 12's are used. Roof sheathing or sheeting- The wood panels or sheet material fastened to the roof rafters or trusses on which the shingle or other roof covering is laid. Roof valley- The "V" created where two sloping roofs meet. Rough opening- The horizontal and vertical measurement of a window or door opening before drywall or siding is installed. Rough sill- The framing member at the bottom of a rough opening for a window. It is attached to the cripple studs below the rough opening. Roughing-in- The initial stage of a plumbing, electrical, heating, carpentry, and/or other project, when all components that won't be seen after the second finishing phase are assembled. See also Heat Rough, Plumbing Rough, and Electrical Rough. Run, roof - The horizontal distance from the eaves to a point directly under the ridge. One half the span. Run, stair- the horizontal distance of a stair tread from the nose to the riser. R Value- A measure of insulation. A measure of a materials resistance to the passage of heat. The higher the R value, the more insulating "power" it has. For example, typical new home's walls are usually insulated with 4" of batt insulation with an R value of R- 13, and a ceiling insulation of R-30.
  • 44. 44 S Saddle- A small second roof built behind the back side of a fireplace chimney to divert water around the chimney. Also, the plate at the bottom of some—usually exterior— door openings. Sometimes called a threshold. Sack mix- The amount of Portland cement in a cubic yard of concrete mix. Generally, 5 or 6 sack is required in a foundation wall. Sales contract - A contract between a buyer and seller which should explain: (1) What the purchase includes, (2) What guarantees there are, (3) When the buyer can move in, (4) What the closing costs are, and (5) What recourse the parties have if the contract is not fulfilled or if the buyer cannot get a mortgage commitment at the agreed upon time. Sand float finish- Lime that is mixed with sand, resulting in a textured finish on a wall. Sanitary sewer- A sewer system designed for the collection of waste water from the bathroom, kitchen and laundry drains, and is usually not designed to handle storm water. Sash- A single light frame containing one or more lights of glass. The frame that holds the glass in a window, often the movable part of the window. Sash balance- A device, usually operated by a spring and designed to hold a single hung window vent up and in place Saturated felt- A felt which is impregnated with tar or asphalt. Schedule (window, door, mirror)- A table on the blueprints that list the sizes, quantities and locations of the windows, doors and mirrors. Scrap out- The removal of all drywall material and debris after the home is "hung out" (installed) with drywall. Scratch coat- The first coat of plaster, which is scratched to form a bond for a second coat. Screed, concrete- To level off concrete to the correct elevation during a concrete pour. Screed, plaster- A small strip of wood, usually the thickness of the plaster coat, used as a guide for plastering. Scribing- Cutting and fitting woodwork to an irregular surface. Scupper- (1) An opening for drainage in a wall, curb or parapet. (2) The drain in a downspout or flat roof, usually connected to the downspout. Sealer- A finishing material, either clear or pigmented, that is usually applied directly over raw wood for the purpose of sealing the wood surface. Seasoning- Drying and removing moisture from green wood in order to improve its usability.
  • 45. 45 Self-sealing shingles- Shingles containing factory-applied strips or spots of self-sealing adhesive. Semigloss paint or enamel- A paint or enamel made so that its coating, when dry, has some luster but is not very glossy. Bathrooms and kitchens are normally painted semi- gloss Septic system- An on site waste water treatment system. It usually has a septic tank which promotes the biological digestion of the waste, and a drain field which is designed to let the left over liquid soak into the ground. Septic systems and permits are usually sized by the number of bedrooms in a house. Service entrance panel- Main power cabinet where electricity enters a home wiring system. Service equipment- Main control gear at the service entrance, such as circuit breakers, switches, and fuses. Service lateral- Underground power supply line. Setback Thermostat- A thermostat with a clock which can be programmed to come on or go off at various temperatures and at different times of the day/week. Usually used as the heating or cooling system thermostat. Settlement- Shifts in a structure, usually caused by freeze-thaw cycles underground. Sewage ejector- A pump used to 'lift' waste water to a gravity sanitary sewer line. Usually used in basements and other locations which are situated bellow the level of the side sewer. Sewer lateral- The portion of the sanitary sewer which connects the interior waste water lines to the main sewer lines. The side sewer is usually buried in several feet of soil and runs from the house to the sewer line. It is usually 'owned' by the sewer utility, must be maintained by the owner and may only be serviced by utility approved contractors. Sometimes called side sewer. Sewer stub- The junction at the municipal sewer system where the home's sewer line is connected. Sewer tap- The physical connection point where the home's sewer line connects to the main municipal sewer line. Shake- A wood roofing material, normally cedar or redwood. Produced by splitting a block of the wood along the grain line. Modern shakes are sometimes machine sawn on one side. See shingle. Shear block- Plywood that is face nailed to short (2 X 4's or 2 X 6's) wall studs (above a door or window, for example). This is done to prevent the wall from sliding and collapsing. Sheathing, sheeting- The structural wood panel covering, usually OSB or plywood, used over studs, floor joists or rafters/trusses of a structure.
  • 46. 46 Shed roof- A roof containing only one sloping plane. Sheet metal work- All components of a house employing sheet metal, such as flashing, gutters, and downspouts. Sheet metal duct work- The heating system. Usually round or rectangular metal pipes and sheet metal (for Return Air) and installed for distributing warm (or cold) air from the furnace to rooms in the home. Sheet rock- Drywall-Wall board or gypsum- A manufactured panel made out of gypsum plaster and encased in a thin cardboard. Usually 1/2" thick and 4' x 8' or 4' x 12' in size. The 'joint compound'. 'Green board' type drywall has a greater resistance to moisture than regular (white) plasterboard and is used in bathrooms and other "wet areas". Shim- A small piece of scrap lumber or shingle, usually wedge shaped, which when forced behind a furring strip or framing member forces it into position. Also used when installing doors and placed between the door jamb legs and 2 X 4 door trimmers. Metal shims are wafer 1 1/2" X 2" sheet metal of various thickness' used to fill gaps in wood framing members, especially at bearing point locations. Shingles- Roof covering of asphalt. asbestos, wood, tile, slate, or other material cut to stock lengths, widths, and thickness'. Shingles, siding- Various kinds of shingles, used over sheathing for exterior wall covering of a structure. Short circuit- A situation that occurs when hot and neutral wires come in contact with each other. Fuses and circuit breakers protect against fire that could result from a short. Shutter- Usually lightweight louvered decorative frames in the form of doors located on the sides of a window. Some shutters are made to close over the window for protection. Side sewer- The portion of the sanitary sewer which connects the interior waste water lines to the main sewer lines. The side sewer is usually buried in several feet of soil and runs from the house to the sewer line. It is usually 'owned' by the sewer utility, must be maintained by the owner and may only be serviced by utility approved contractors. Sometimes called sewer lateral. Siding- The finished exterior covering of the outside walls of a frame building. Siding, (lap siding)- Slightly wedge-shaped boards used as horizontal siding in a lapped pattern over the exterior sheathing. Varies in butt thickness from ½ to ¾ inch and in widths up to 12". Sill- (1) The 2 X 4 or 2 X 6 wood plate framing member that lays flat against and bolted to the foundation wall (with anchor bolts) and upon which the floor joists are installed. Normally the sill plate is treated lumber. (2) The member forming the lower side of an opening, as a door sill or window sill. Sill cock- An exterior water faucet (hose bib).
  • 47. 47 Sill plate (mudsill)- Bottom horizontal member of an exterior wall frame which rests on top a foundation, sometimes called mudsill. Also sole plate, bottom member of an interior wall frame. Sill seal- Fiberglass or foam insulation installed between the foundation wall and sill (wood) plate. Designed to seal any cracks or gaps. Single hung window- A window with one vertically sliding sash or window vent. Skylight- A more or less horizontal window located on the roof of a building. Slab, concrete- Concrete pavement, i.e. driveways, garages, and basement floors. Slab, door- A rectangular door without hinges or frame. Slab on grade- A type of foundation with a concrete floor which is placed directly on the soil. The edge of the slab is usually thicker and acts as the footing for the walls. Slag- Concrete cement that sometimes covers the vertical face of the foundation void material. Sleeper- Usually, a wood member embedded in concrete, as in a floor, that serves to support and to fasten the subfloor or flooring. Sleeve(s)- Pipe installed under the concrete driveway or sidewalk, and that will be used later to run sprinkler pipe or low voltage wire. Slope- The incline angle of a roof surface, given as a ratio of the rise (in inches) to the run (in feet). See also pitch. Slump- The "wetness" of concrete. A 3 inch slump is dryer and stiffer than a 5 inch slump. Soffit- The area below the eaves and overhangs. The underside where the roof overhangs the walls. Usually the underside of an overhanging cornice. Soil pipe- A large pipe that carries liquid and solid wastes to a sewer or septic tank. Soil stack- A plumbing vent pipe that penetrates the roof. Sole plate- The bottom, horizontal framing member of a wall that's attached to the floor sheeting and vertical wall studs. Solid bridging- A solid member placed between adjacent floor joists near the center of the span to prevent joists or rafters from twisting. Sonotube- Round, large cardboard tubes designed to hold wet concrete in place until it hardens. Sound attenuation- Sound proofing a wall or subfloor, generally with fiberglass insulation.
  • 48. 48 Space heat- Heat supplied to the living space, for example, to a room or the living area of a building. Spacing- The distance between individual members or shingles in building construction. Span- The clear distance that a framing member carries a load without support between structural supports. The horizontal distance from eaves to eaves. Spec home- A house built before it is sold. The builder speculates that he can sell it at a profit. Specifications or Specs- A narrative list of materials, methods, model numbers, colors, allowances, and other details which supplement the information contained in the blue prints. Written elaboration in specific detail about construction materials and methods. Written to supplement working drawings. Splash block- Portable concrete (or vinyl) channel generally placed beneath an exterior sill cock (water faucet) or downspout in order to receive roof drainage from downspouts and to divert it away from the building. Square- A unit of measure-100 square feet-usually applied to roofing and siding material. Also, a situation that exists when two elements are at right angles to each other. Also a tool for checking this. Square-tab shingles- Shingles on which tabs are all the same size and exposure. Squeegie- Fine pea gravel used to grade a floor (normally before concrete is placed). Stack (trusses)- To position trusses on the walls in their correct location. Standard practices of the trade(s)- One of the more common basic and minimum construction standards. This is another way of saying that the work should be done in the way it is normally done by the average professional in the field. Starter strip- Asphalt roofing applied at the eaves that provides protection by filling in the spaces under the cutouts and joints of the first course of shingles. Stair carriage or stringer- Supporting member for stair treads. Usually a 2 X 12 inch plank notched to receive the treads; sometimes called a "rough horse." Stair landing- A platform between flights of stairs or at the termination of a flight of stairs. Often used when stairs change direction. Normally no less than 3 ft. X 3 ft. square. Stair rise- The vertical distance from stair tread to stair tread (and not to exceed 7 ½"). Static vent- A vent that does not include a fan. STC (Sound Transmission Class)- The measure of sound stopping of ordinary noise. Steel inspection- A municipal and/or engineers inspection of the concrete foundation wall, conducted before concrete is poured into the foundation panels. Done to insure
  • 49. 49 that the rebar (reinforcing bar), rebar nets, void material, beam pocket plates, and basement window bucks are installed and wrapped with rebar and complies with the foundation plan. Step flashing- Flashing application method used where a vertical surface meets a sloping roof plane. 6" X 6" galvanized metal bent at a 90 degree angle, and installed beneath siding and over the top of shingles. Each piece overlaps the one beneath it the entire length of the sloping roof (step by step). Stick built- A house built without prefabricated parts. Also called conventional building. Stile- An upright framing member in a panel door. Stool- The flat molding fitted over the window sill between jambs and contacting the bottom rail of the lower sash. Also another name for toilet. Stop box- Normally a cast iron pipe with a lid (@ 5" in diameter) that is placed vertically into the ground, situated near the water tap in the yard, and where a water cut- off valve to the home is located (underground). A long pole with a special end is inserted into the curb stop to turn off/on the water. Stop Order- A formal, written notification to a contractor to discontinue some or all work on a project for reasons such as safety violations, defective materials or workmanship, or cancellation of the contract. Stops- Moldings along the inner edges of a door or window frame. Also valves used to shut off water to a fixture. Stop valve- A device installed in a water supply line, usually near a fixture, that permits an individual to shut off the water supply to one fixture without interrupting service to the rest of the system. Storm sash or storm window-. An extra window usually placed outside of an existing one, as additional protection against cold weather. Storm sewer- A sewer system designed to collect storm water and is separated from the waste water system. Story- That part of a building between any floor or between the floor and roof. Strike- The plate on a door frame that engages a latch or dead bolt. String, stringer- A timber or other support for cross members in floors or ceilings. In stairs, the supporting member for stair treads. Usually a 2 X 12 inch plank notched to receive the treads Strip flooring- Wood flooring consisting of narrow, matched strips. Structural floor- A framed lumber floor that is installed as a basement floor instead of concrete. This is done on very expansive soils. Stub, stubbed- To push through.
  • 50. 50 Stucco- Refers to an outside plaster finish made with Portland cement as its base. Stud- A vertical wood framing member, also referred to as a wall stud, attached to the horizontal sole plate below and the top plate above. Normally 2 X 4's or 2 X 6's, 8' long (sometimes 92 5/8"). One of a series of wood or metal vertical structural members placed as supporting elements in walls and partitions. Stud framing- A building method that distributes structural loads to each of a series of relatively lightweight studs. Contrasts with post-and-beam. Stud shoe- A metal, structural bracket that reinforces a vertical stud. Used on an outside bearing wall where holes are drilled to accommodate a plumbing waste line. Subfloor- The framing components of a floor to include the sill plate, floor joists, and deck sheeting over which a finish floor is to be laid. Sump- Pit or large plastic bucket/barrel inside the home designed to collect ground water from a perimeter drain system. Sump pump- A submersible pump in a sump pit that pumps any excess ground water to the outside of the home. Suspended ceiling- A ceiling system supported by hanging it from the overhead structural framing. Sway brace- Metal straps or wood blocks installed diagonally on the inside of a wall from bottom to top plate, to prevent the wall from twisting, racking, or falling over "domino" fashion. Switch- A device that completes or disconnects an electrical circuit.
