1) The new SCHUMACHER Cutting System introduces several improvements to the guard, section, crop lifter, guiding roll, and knife components. 2) Key changes include a new guard shape with positive cutting angle for improved cutting, salt bath tempering of sections for longer durability, and an upper knife screwing for easier component changes. 3) The upgrades are aimed at improving the cut of crops, reducing wear on components, and allowing for higher operating speeds of the cutting system.

1. Welcome to our internal presentation of the
new „SCHUMACHER Cutting System
Easy CutIIMähsystem 2010
Standart / Komfort / Premium

2. Cutting System „Eaesy Cut II“Eaesy Cut II“
• New shape of double and triple guard
• New toothing and surface treatment of section
• New guiding roll „upper leading“
• New screwing of knives
- New 10-hole connector bar
• New shape of crop lifter

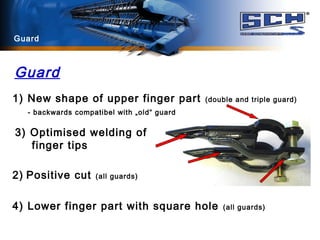

3. Guard
1) New shape of upper finger part (double and triple guard)
- backwards compatibel with „old“ guard
3) Optimised welding of
finger tips
2) Positive cut (all guards)
4) Lower finger part with square hole (all guards)
Guard

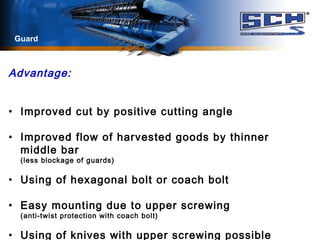

4. Advantage:
• Improved cut by positive cutting angle
• Improved flow of harvested goods by thinner
middle bar
(less blockage of guards)
• Using of hexagonal bolt or coach bolt
• Easy mounting due to upper screwing
(anti-twist protection with coach bolt)
• Using of knives with upper screwing possible
Guard

5. Sections
Guard
1) Salt bath tempering
(all sections in future)
2) New toothing „wave shape“
3) New surface treatment
(powdering rsp. KTL / Colour DB 703)
4) Three holes for mounting

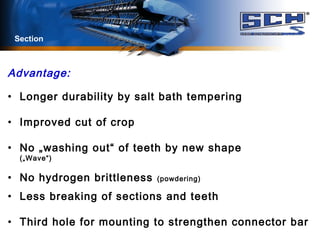

6. Advantage:
• Longer durability by salt bath tempering
• Improved cut of crop
• No „washing out“ of teeth by new shape
(„Wave“)
• No hydrogen brittleness (powdering)
• Less breaking of sections and teeth
• Third hole for mounting to strengthen connector bar
Section

7. Crop lifter
Crop lifter
1) New shape of spring leg (bend)
„bend“
Client specific
marking possible!

8. Crop lifter
Advantage:
• Less usage of rivet joint
• Herewith more
security against
loss of
crop lifter
(damage on/in combine
is minimized)
ASX Standard
NEW

9. Guiding roll
Guiding roll
1) Upper guiding roll
(rotation with downside guiding roll)
lower
upper
4-hole distance plate
(Flex-Header furthermore with 2-hole)
Rolls in rotation by 1ft

10. Advantage:
• Lower and upper guiding roll avoid „bending-to-front“
of knife at higher speeds
• Less usage of sections and guards
• Less power needed for cutting
• Higher driving speed possible
Guiding roll

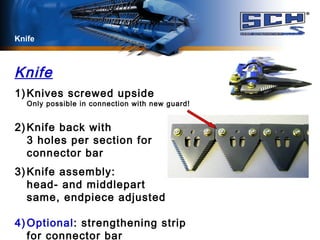

11. Knife
Knife
1) Knives screwed upside
Only possible in connection with new guard!
2) Knife back with
3 holes per section for
connector bar
3) Knife assembly:
head- and middlepart
same, endpiece adjusted
4) Optional: strengthening strip
for connector bar

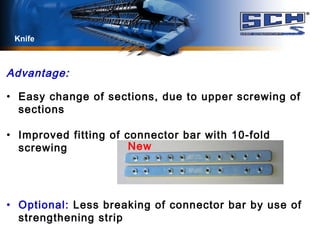

12. Advantage:
• Easy change of sections, due to upper screwing of
sections
• Improved fitting of connector bar with 10-fold
screwing
• Optional: Less breaking of connector bar by use of
strengthening strip
Knife
New

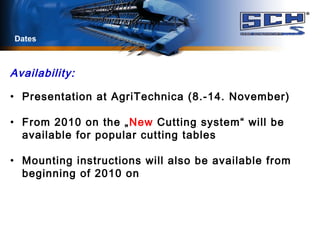

13. Dates
Availability:
• Presentation at AgriTechnica (8.-14. November)
• From 2010 on the „New Cutting system“ will be
available for popular cutting tables
• Mounting instructions will also be available from
beginning of 2010 on

14. Thank you very much
for your attention !
