ExpertsLive Session Deck
- 1. Continuous Delivery with Visual Studio Team Services, Azure Resource Manager, Azure VM ScaleSets, and Powershell DSC Justin Barias Readify

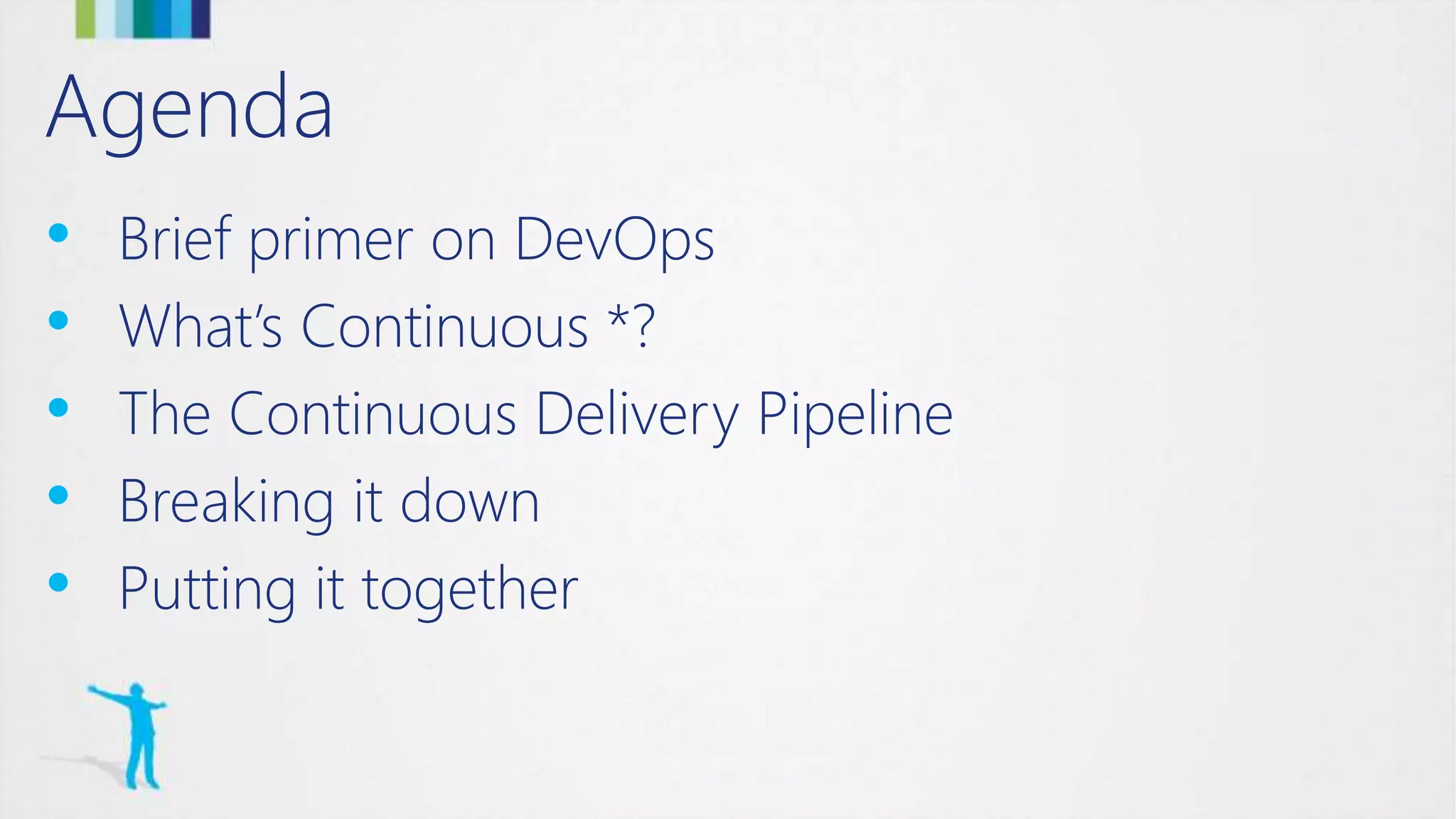

- 2. Agenda • Brief primer on DevOps • What’s Continuous *? • The Continuous Delivery Pipeline • Breaking it down • Putting it together

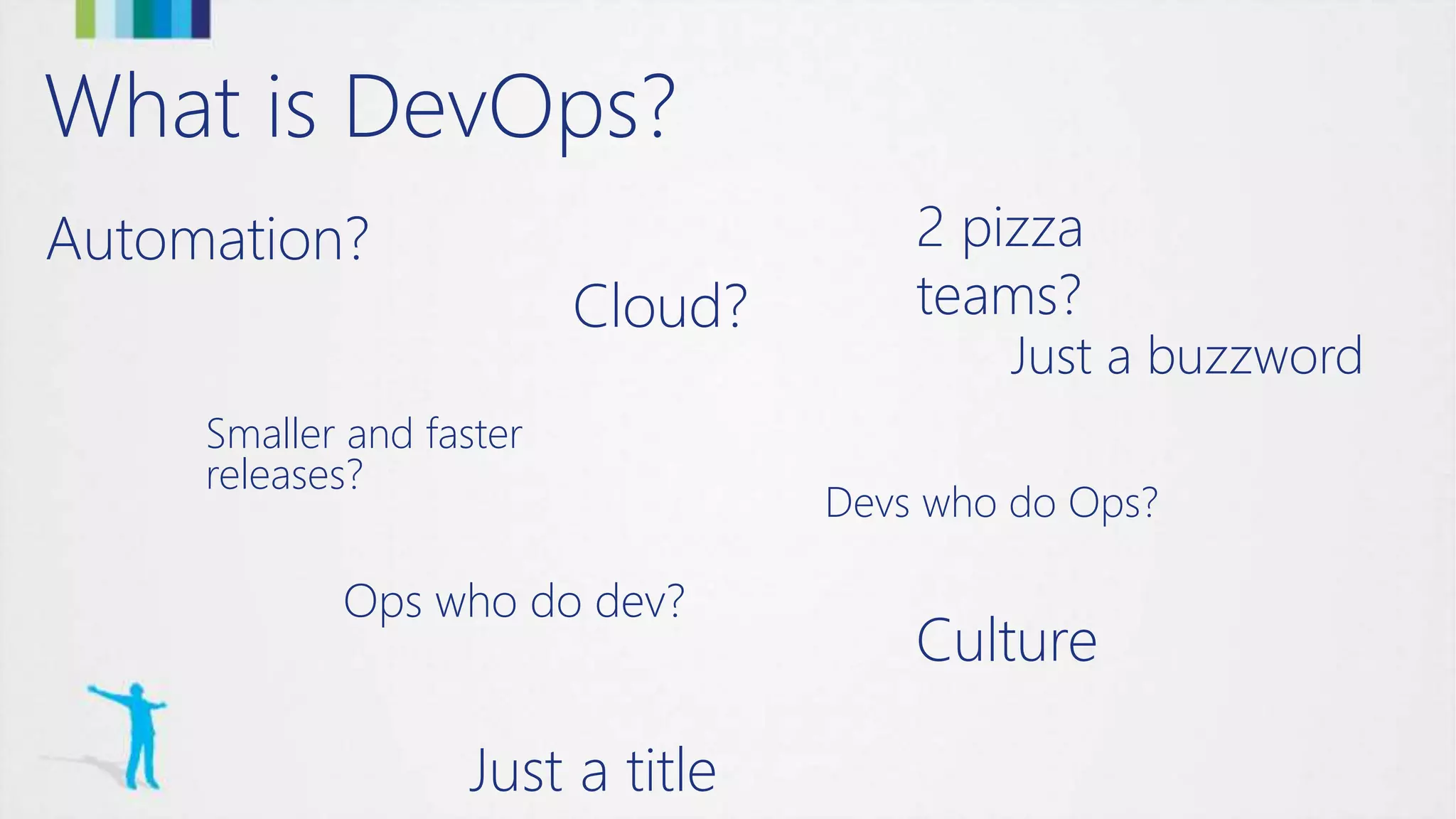

- 3. What is DevOps? Automation? Cloud? Smaller and faster releases? Devs who do Ops? Ops who do dev? 2 pizza teams? Culture Just a buzzword Just a title

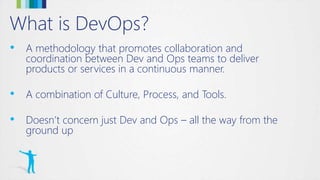

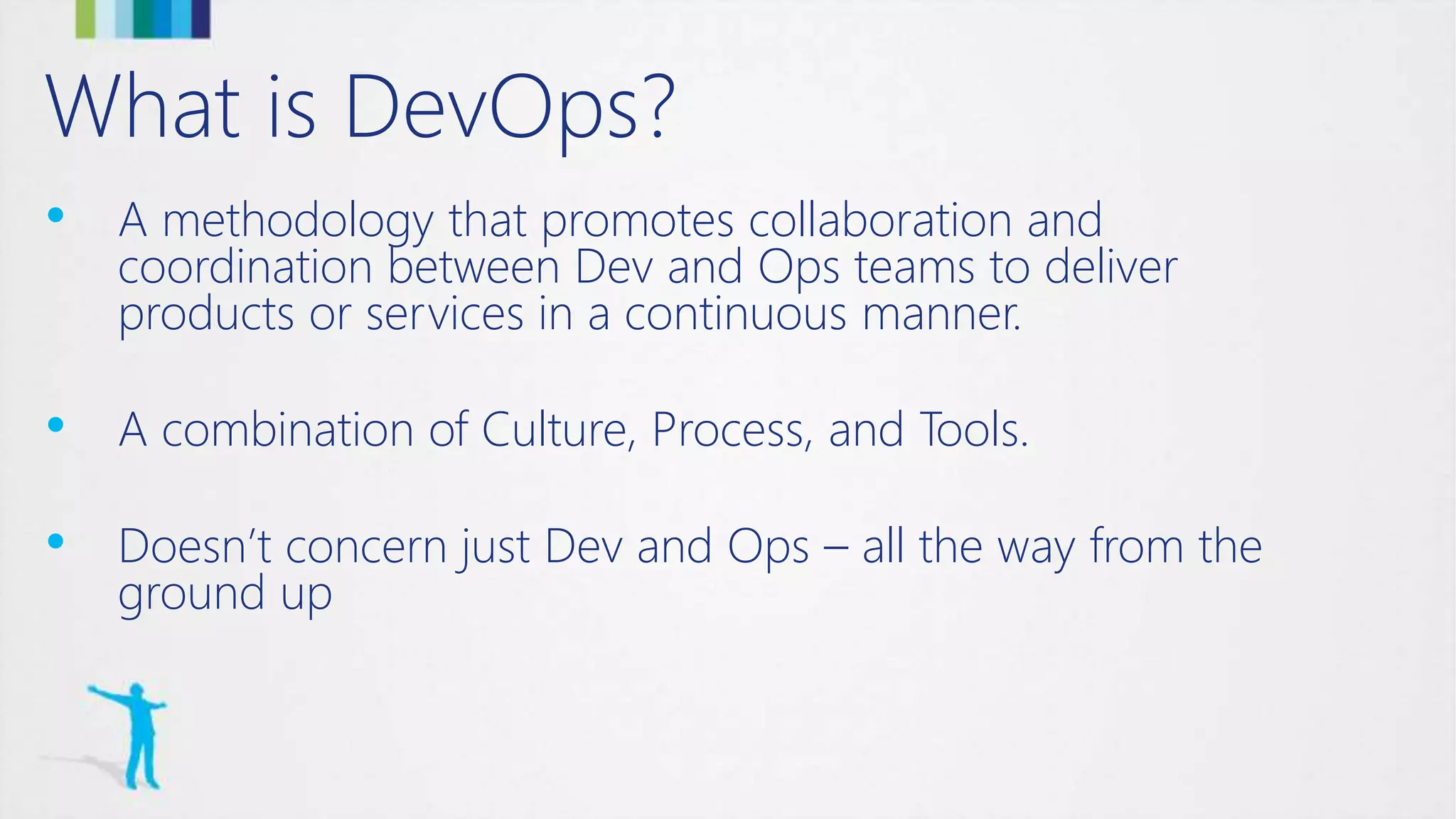

- 4. What is DevOps? • A methodology that promotes collaboration and coordination between Dev and Ops teams to deliver products or services in a continuous manner. • A combination of Culture, Process, and Tools. • Doesn’t concern just Dev and Ops – all the way from the ground up

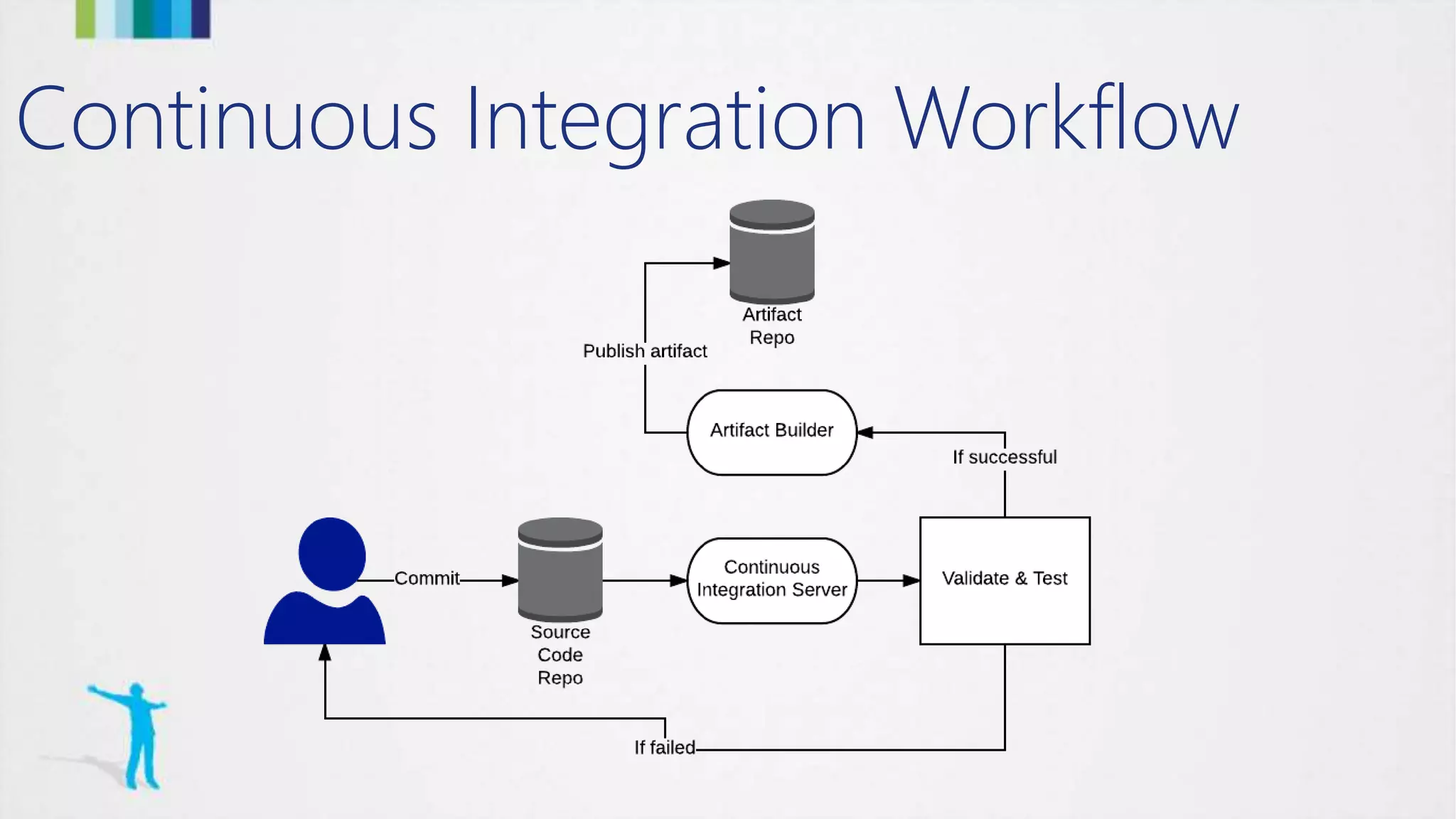

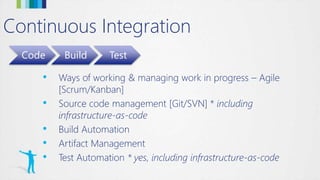

- 6. Continuous Integration Code Build Test • Ways of working & managing work in progress – Agile [Scrum/Kanban] • Source code management [Git/SVN] * including infrastructure-as-code • Build Automation • Artifact Management • Test Automation * yes, including infrastructure-as-code
- 7. Let’s talk Infrastructure as Code (IaC) Treat as you would Application Code Source control, unit testing, etc. Certain design patterns are applicable - decomposition/composition Design with the pipeline in mind A good branching strategy (ideally must match your app branching)

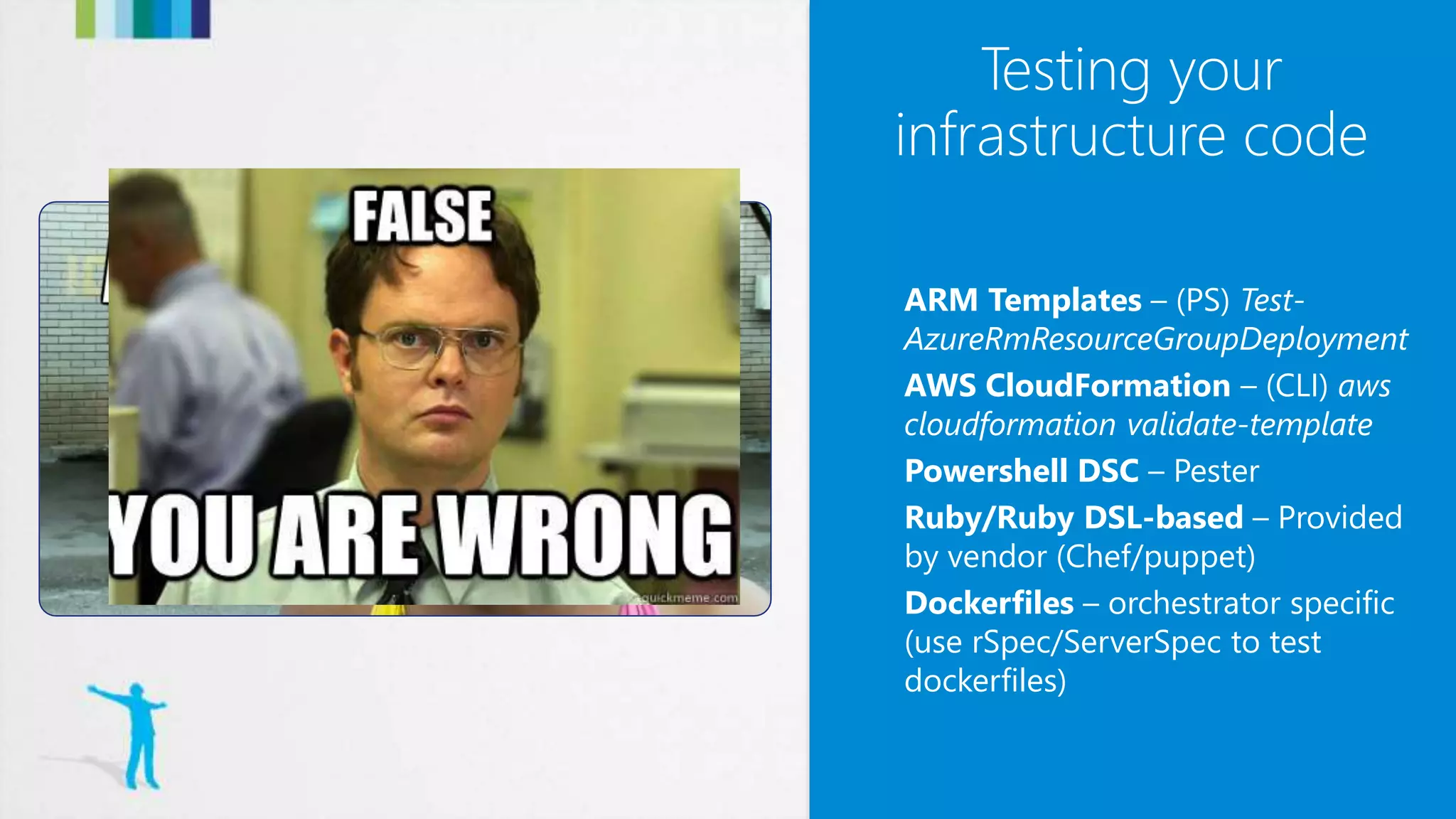

- 8. ARM Templates – (PS) Test- AzureRmResourceGroupDeployment AWS CloudFormation – (CLI) aws cloudformation validate-template Powershell DSC – Pester Ruby/Ruby DSL-based – Provided by vendor (Chef/puppet) Dockerfiles – orchestrator specific (use rSpec/ServerSpec to test dockerfiles) Testing your infrastructure code

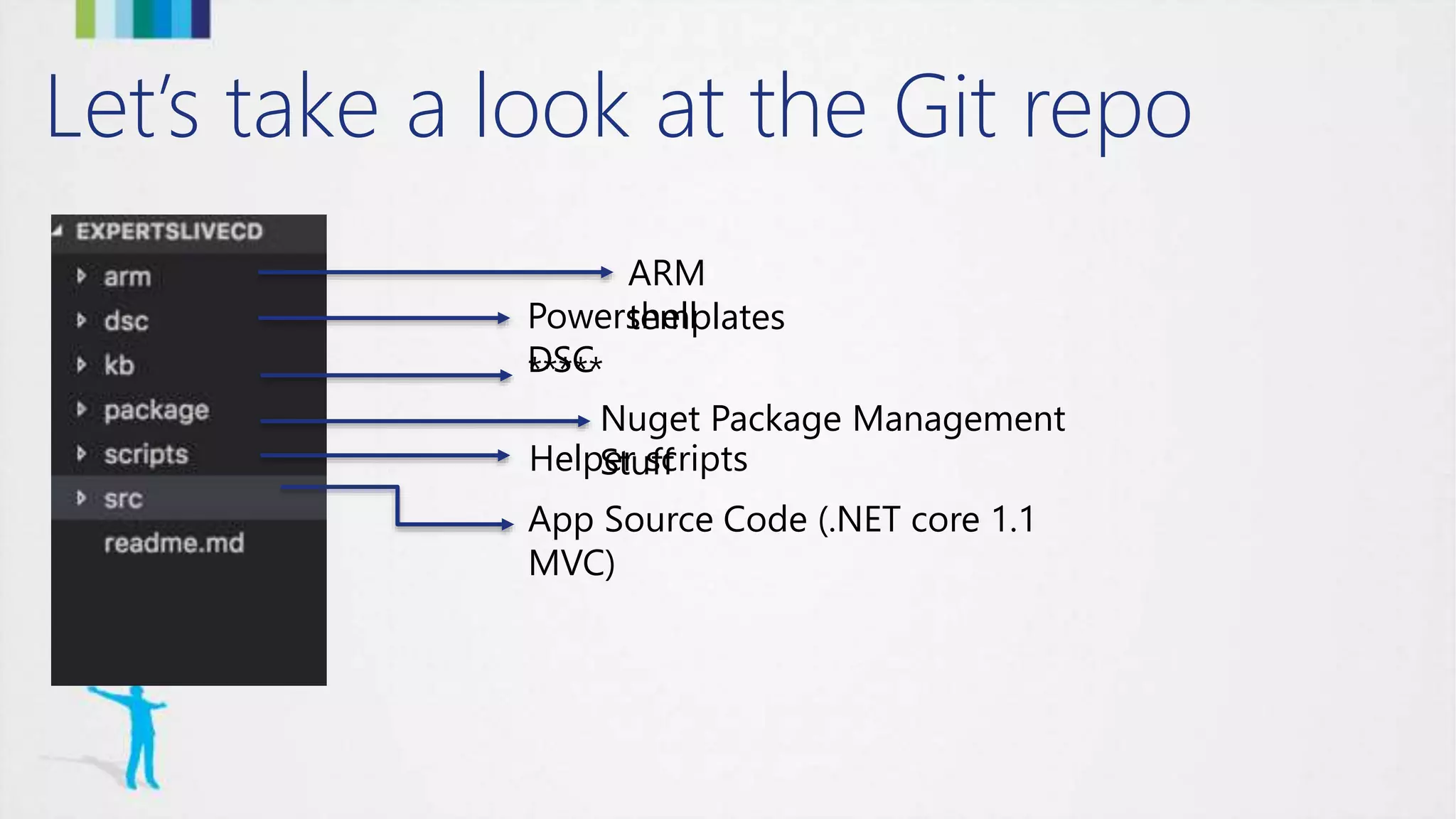

- 11. Let’s take a look at the Git repo ARM templatesPowershell DSC***** Nuget Package Management StuffHelper scripts App Source Code (.NET core 1.1 MVC)

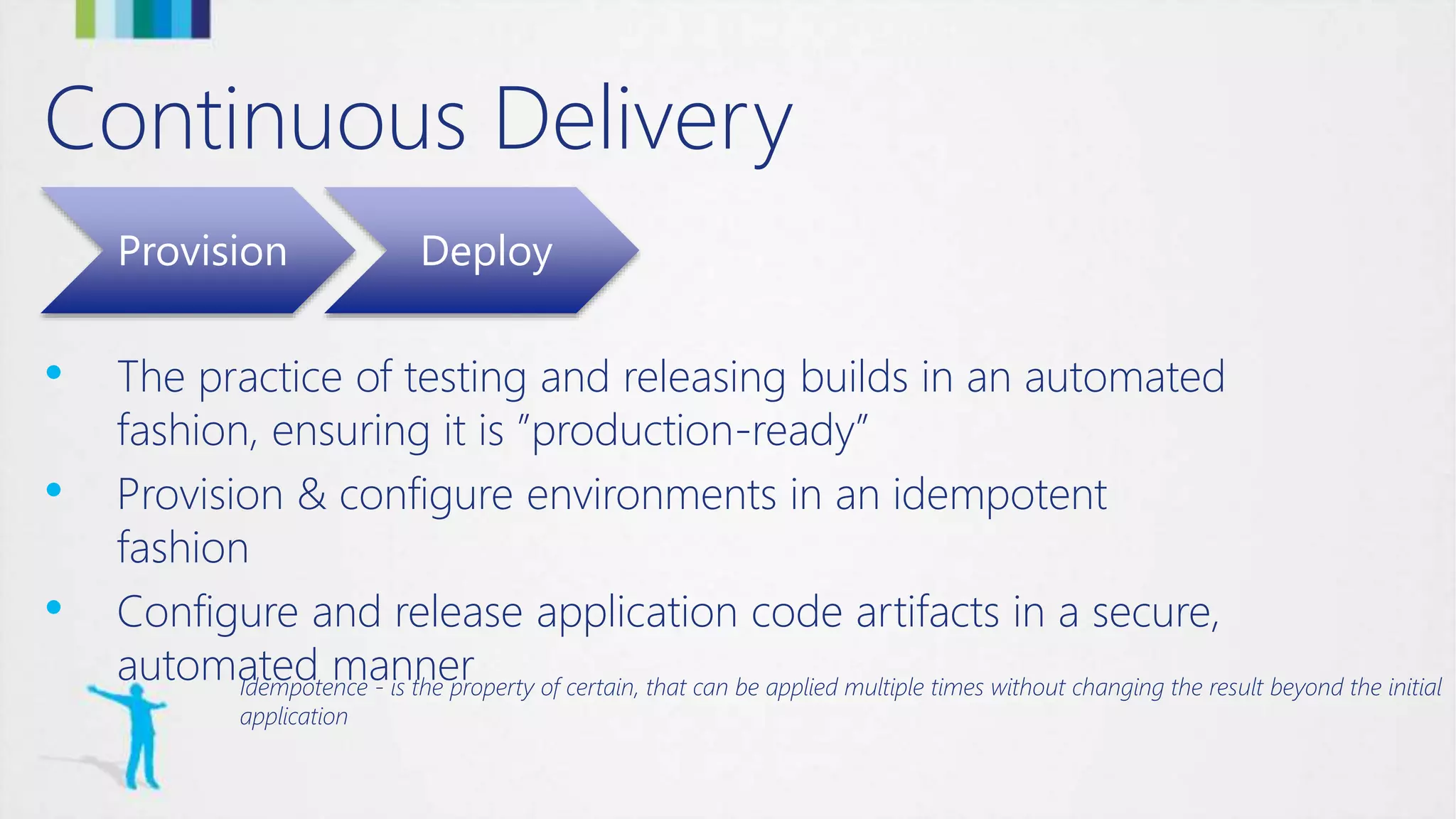

- 12. Continuous Delivery Provision Deploy • The practice of testing and releasing builds in an automated fashion, ensuring it is ”production-ready” • Provision & configure environments in an idempotent fashion • Configure and release application code artifacts in a secure, automated mannerIdempotence - is the property of certain, that can be applied multiple times without changing the result beyond the initial application

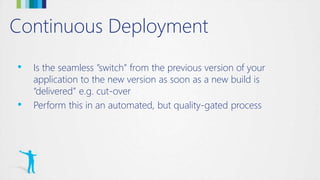

- 14. Continuous Deployment • Is the seamless ”switch” from the previous version of your application to the new version as soon as a new build is “delivered” e.g. cut-over • Perform this in an automated, but quality-gated process

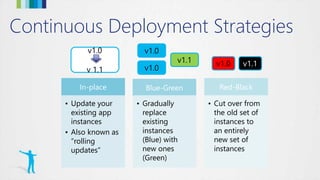

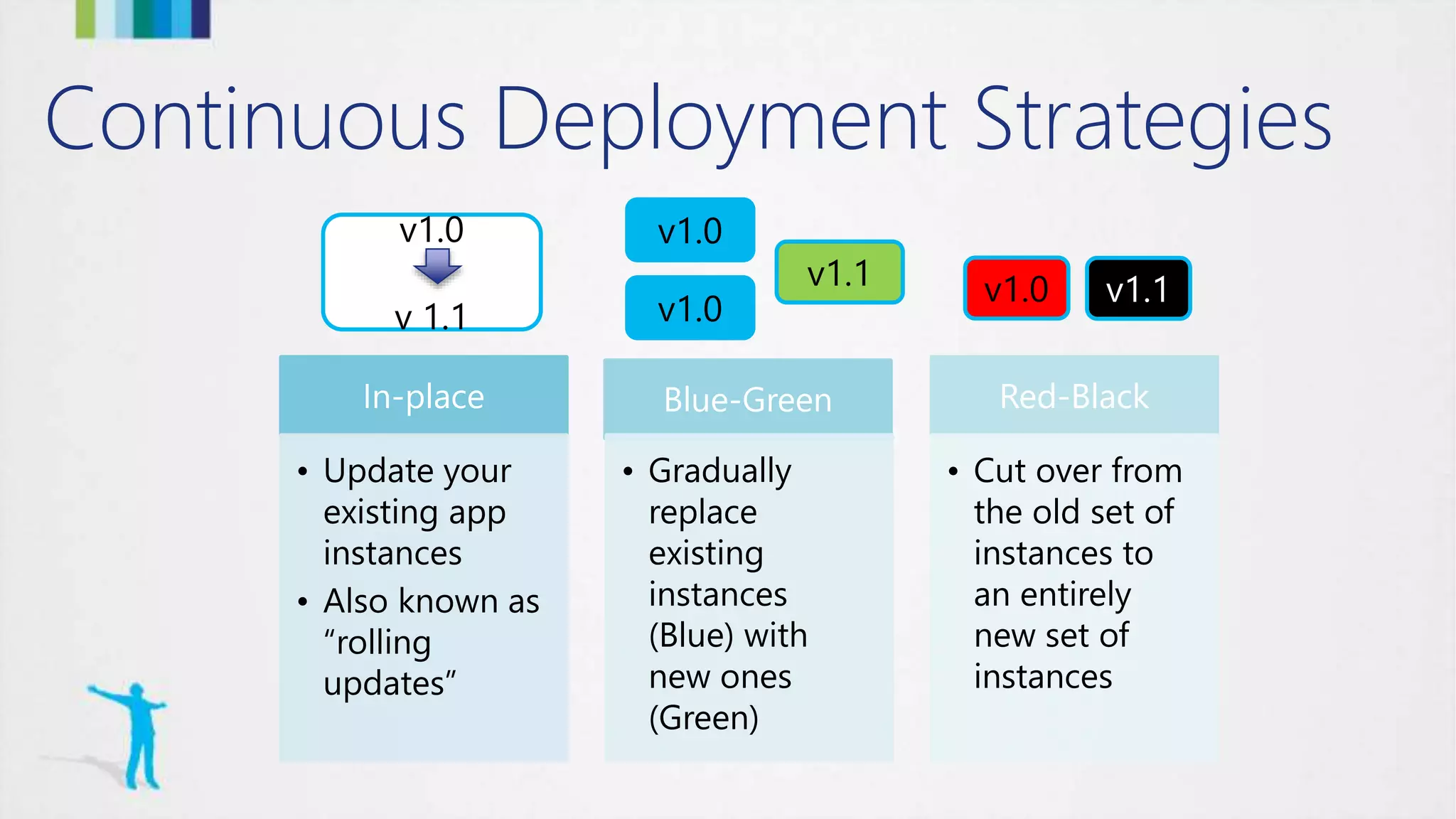

- 15. Continuous Deployment Strategies In-place • Update your existing app instances • Also known as “rolling updates” Blue-Green • Gradually replace existing instances (Blue) with new ones (Green) Red-Black • Cut over from the old set of instances to an entirely new set of instances v1.0 v 1.1 v1.0 v1.0 v1.1 v1.0 v1.1

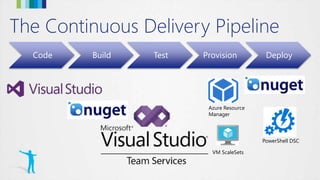

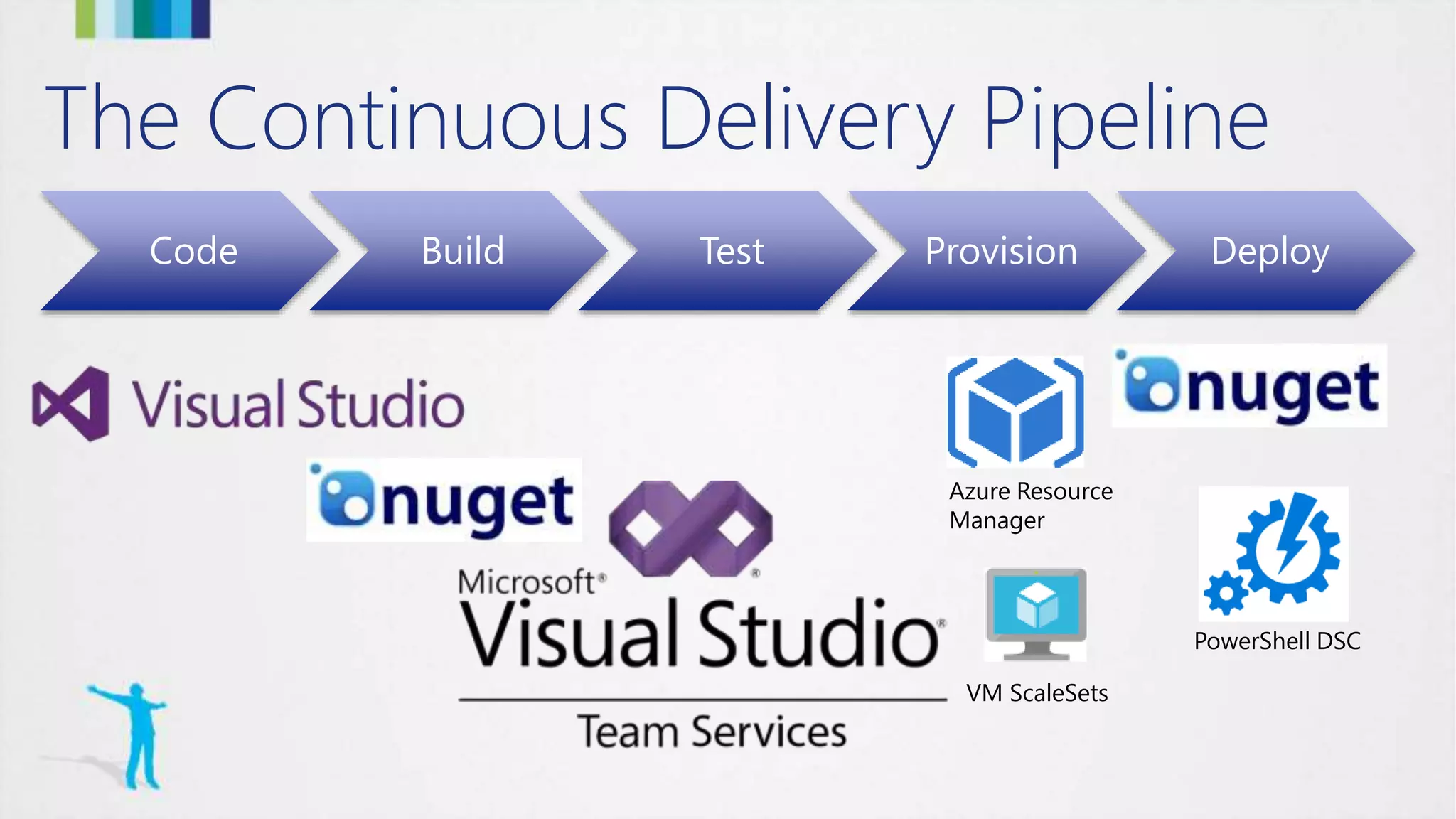

- 16. The Continuous Delivery Pipeline Code Build Test Provision Deploy Azure Resource Manager VM ScaleSets PowerShell DSC

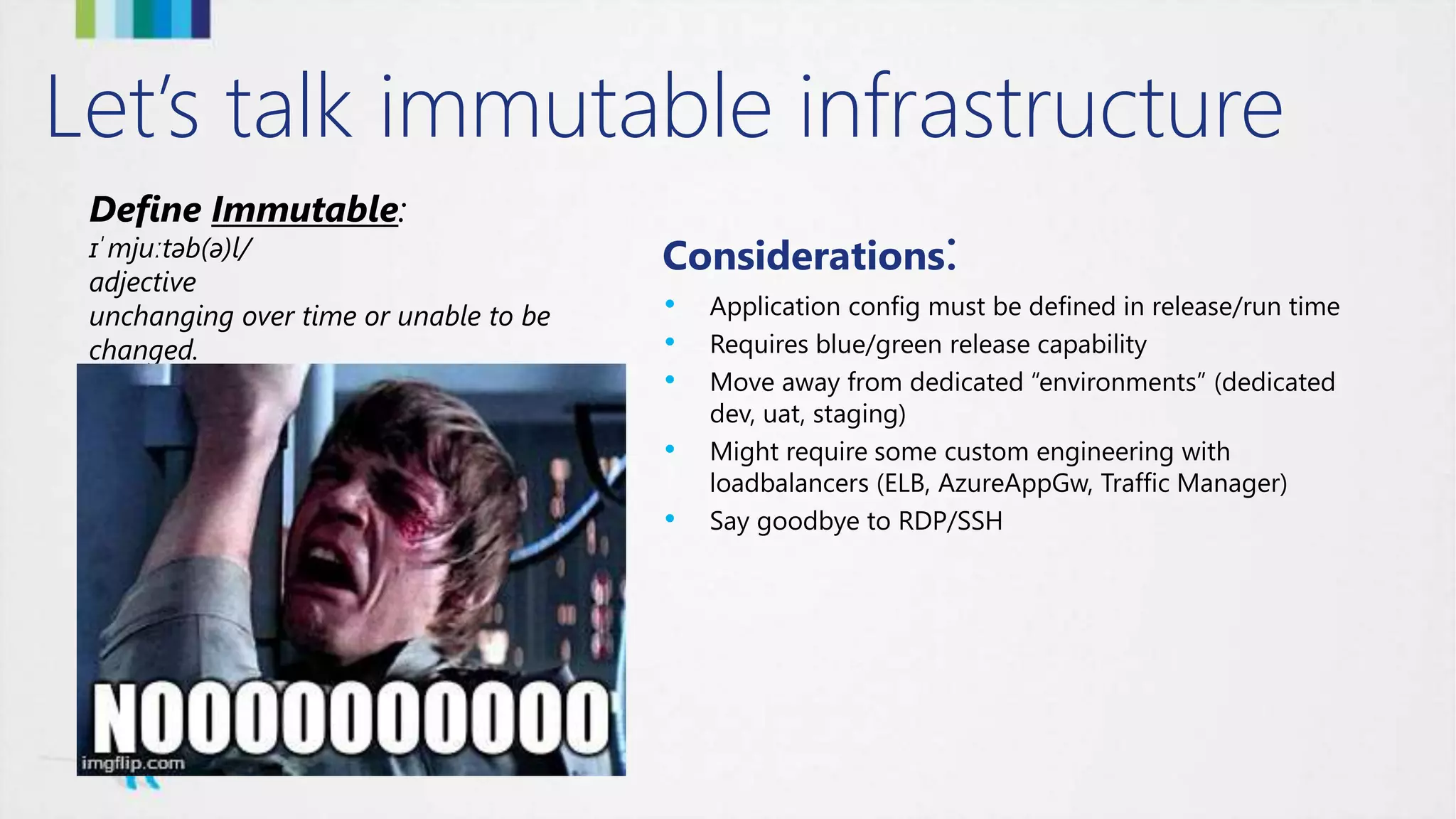

- 17. Let’s talk immutable infrastructure Define Immutable: ɪˈmjuːtəb(ə)l/ adjective unchanging over time or unable to be changed. Considerations: • Application config must be defined in release/run time • Requires blue/green release capability • Move away from dedicated “environments” (dedicated dev, uat, staging) • Might require some custom engineering with loadbalancers (ELB, AzureAppGw, Traffic Manager) • Say goodbye to RDP/SSH

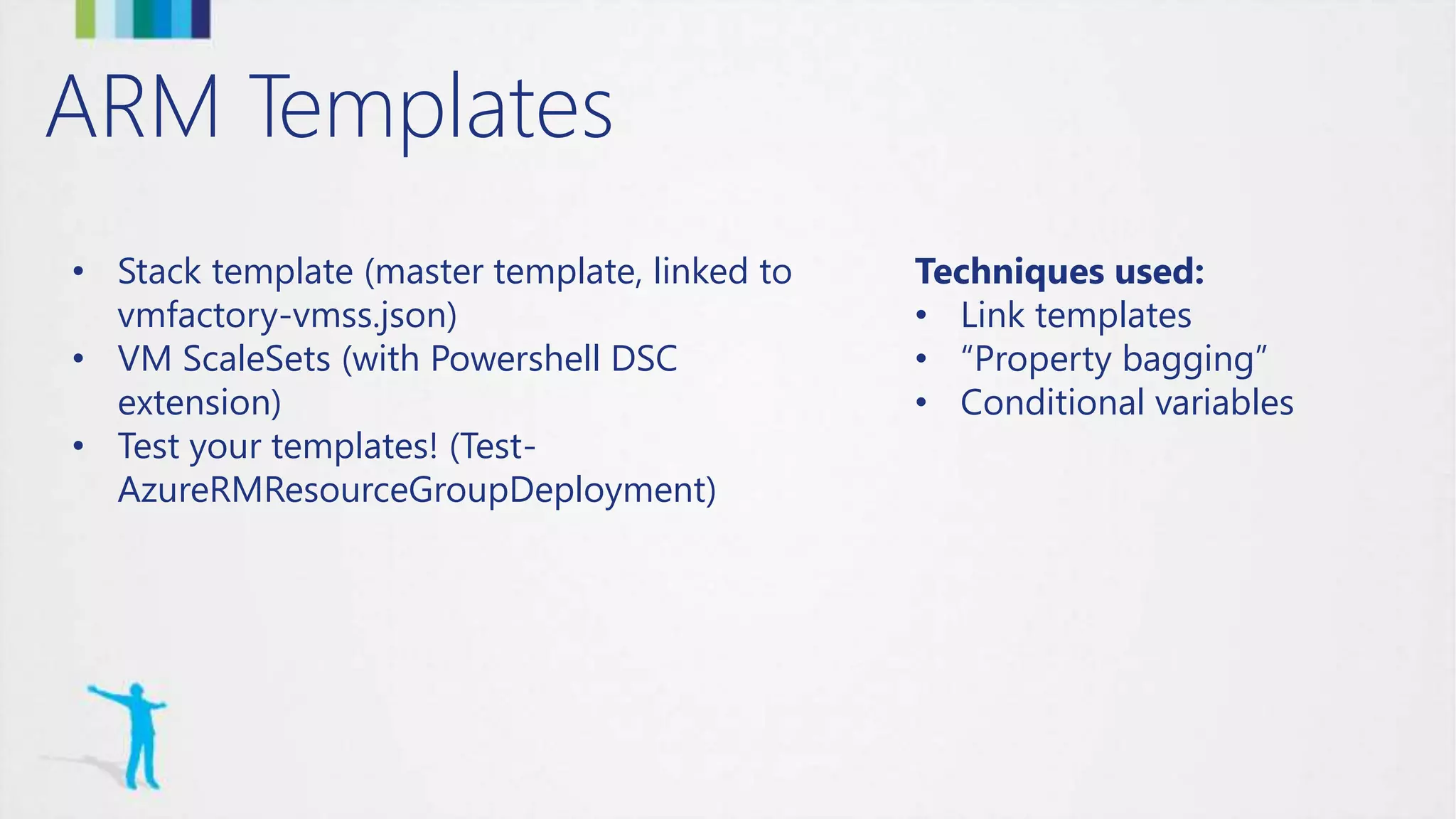

- 18. ARM Templates • Stack template (master template, linked to vmfactory-vmss.json) • VM ScaleSets (with Powershell DSC extension) • Test your templates! (Test- AzureRMResourceGroupDeployment) Techniques used: • Link templates • “Property bagging” • Conditional variables

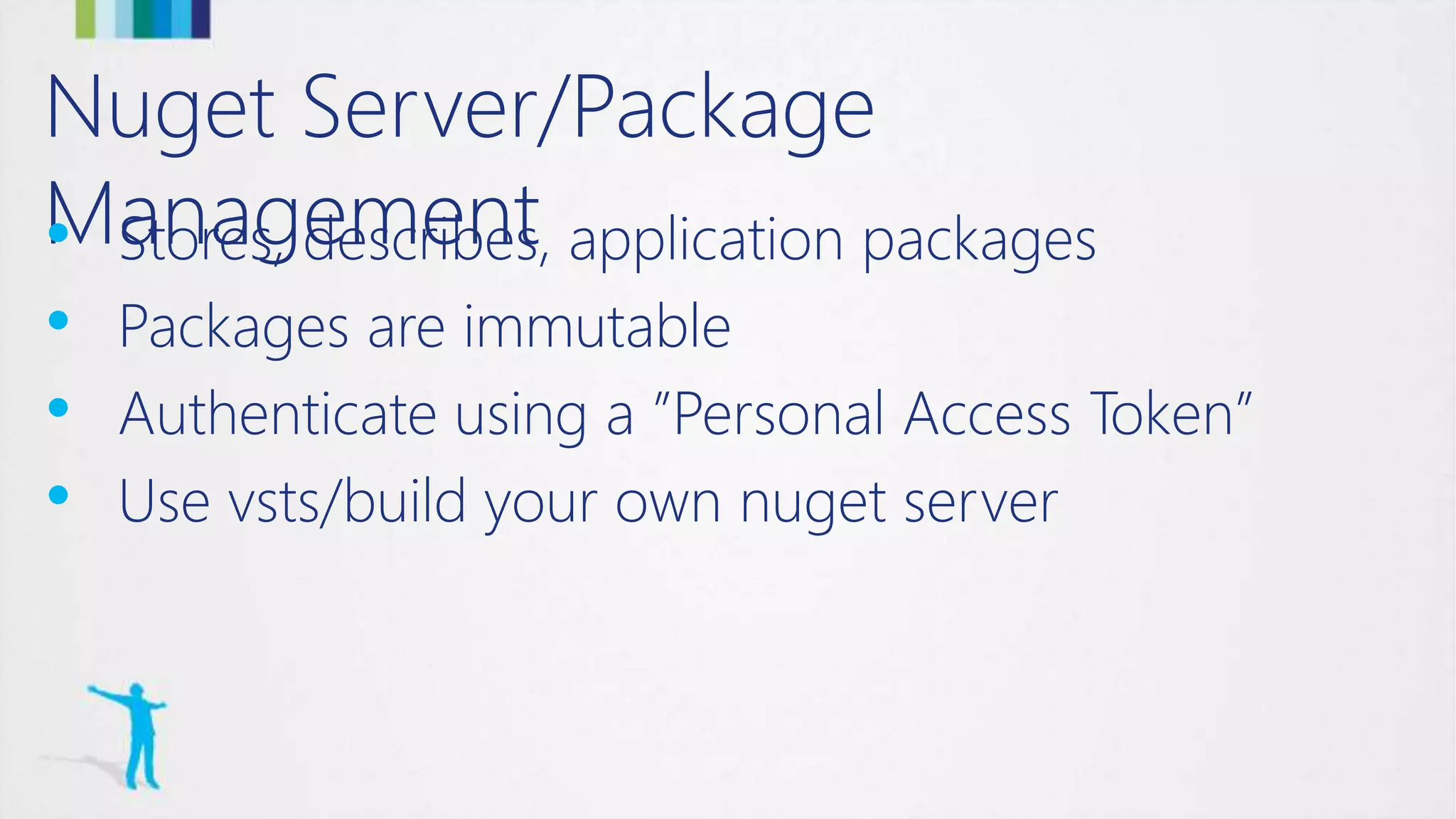

- 19. Nuget Server/Package Management• Stores, describes, application packages • Packages are immutable • Authenticate using a ”Personal Access Token” • Use vsts/build your own nuget server

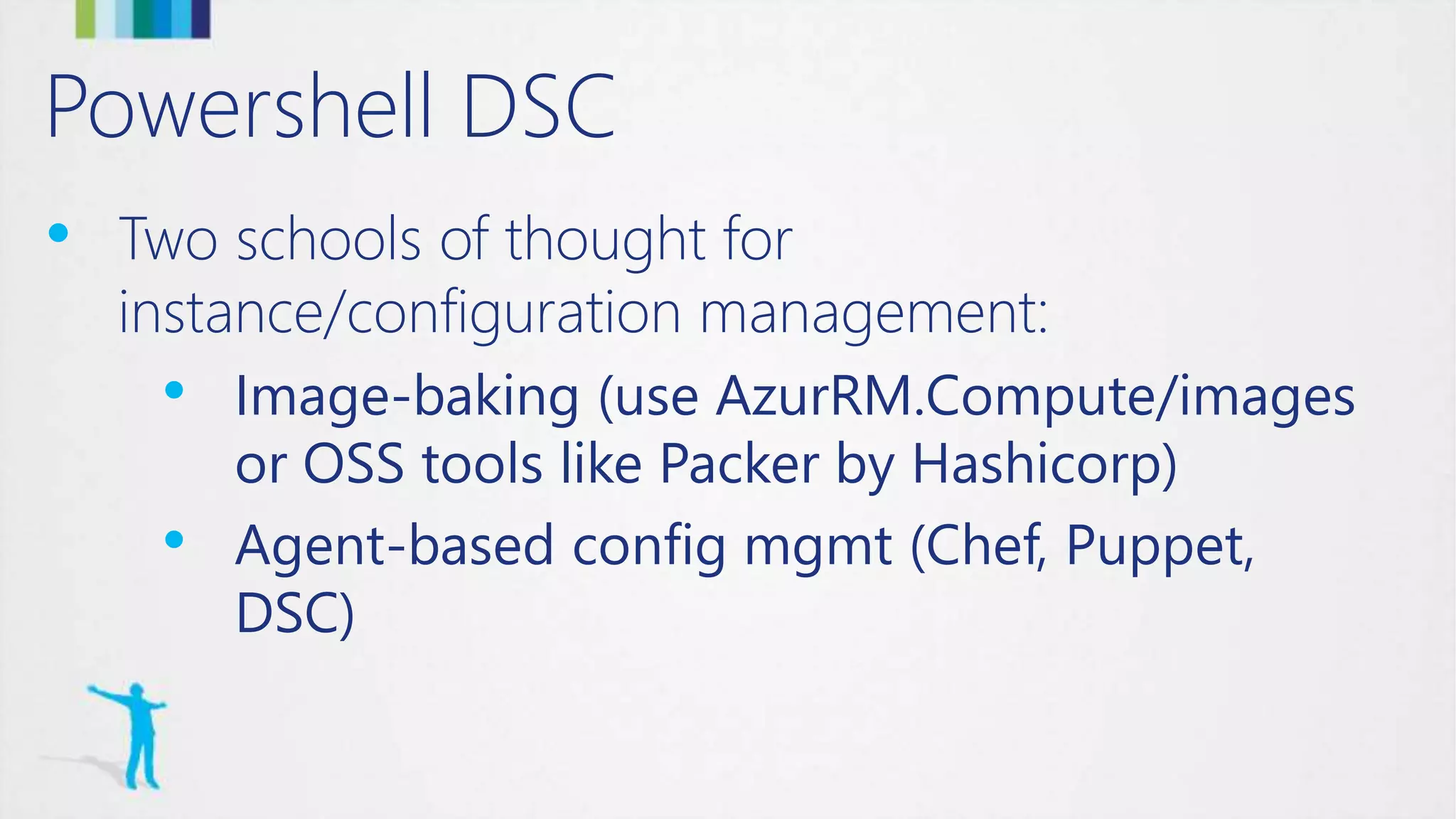

- 20. Powershell DSC • Two schools of thought for instance/configuration management: • Image-baking (use AzurRM.Compute/images or OSS tools like Packer by Hashicorp) • Agent-based config mgmt (Chef, Puppet, DSC)

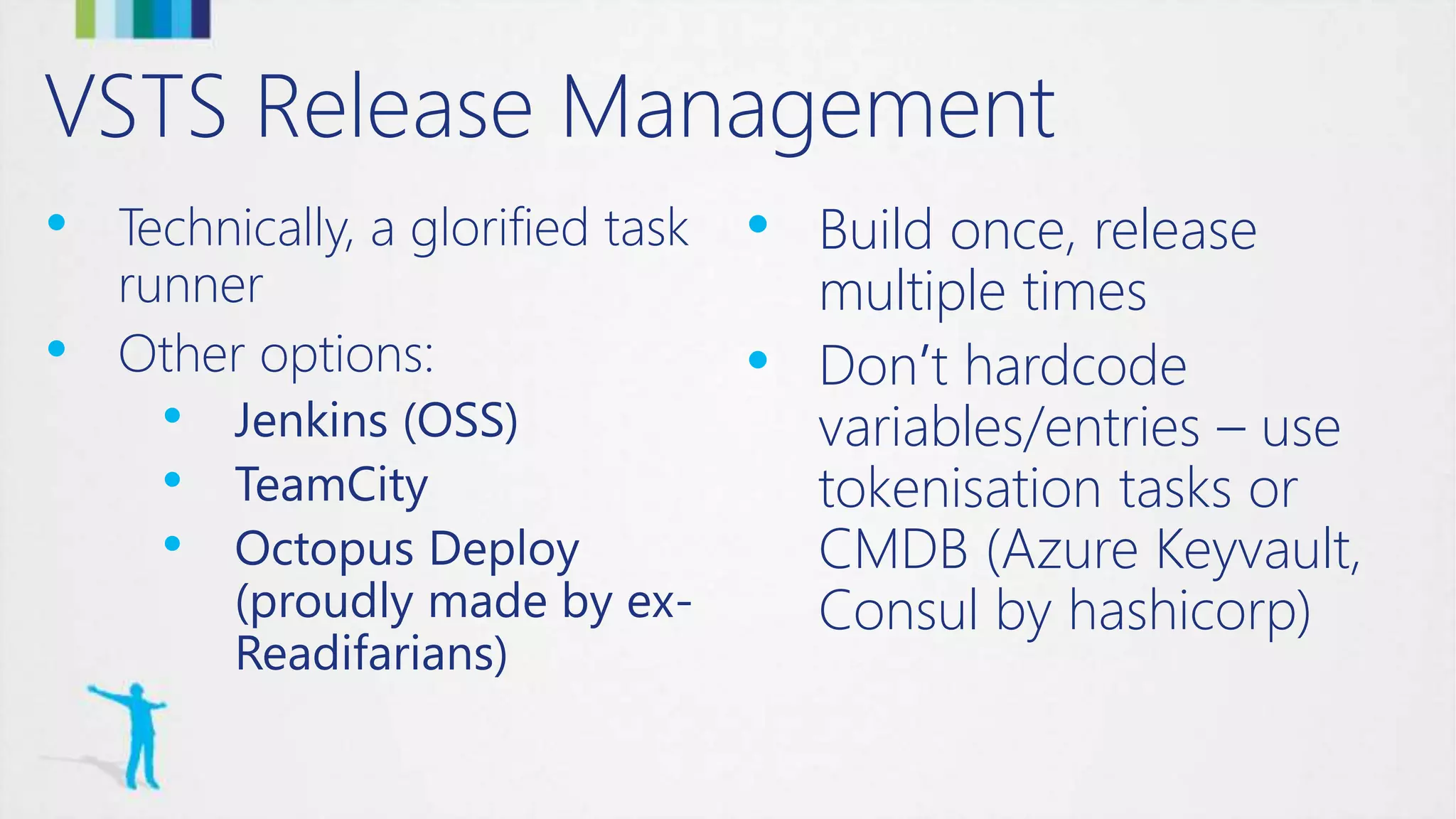

- 21. VSTS Release Management • Technically, a glorified task runner • Other options: • Jenkins (OSS) • TeamCity • Octopus Deploy (proudly made by ex- Readifarians) • Build once, release multiple times • Don’t hardcode variables/entries – use tokenisation tasks or CMDB (Azure Keyvault, Consul by hashicorp)

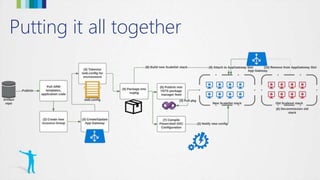

- 22. Putting it all together
- 24. One more thing….

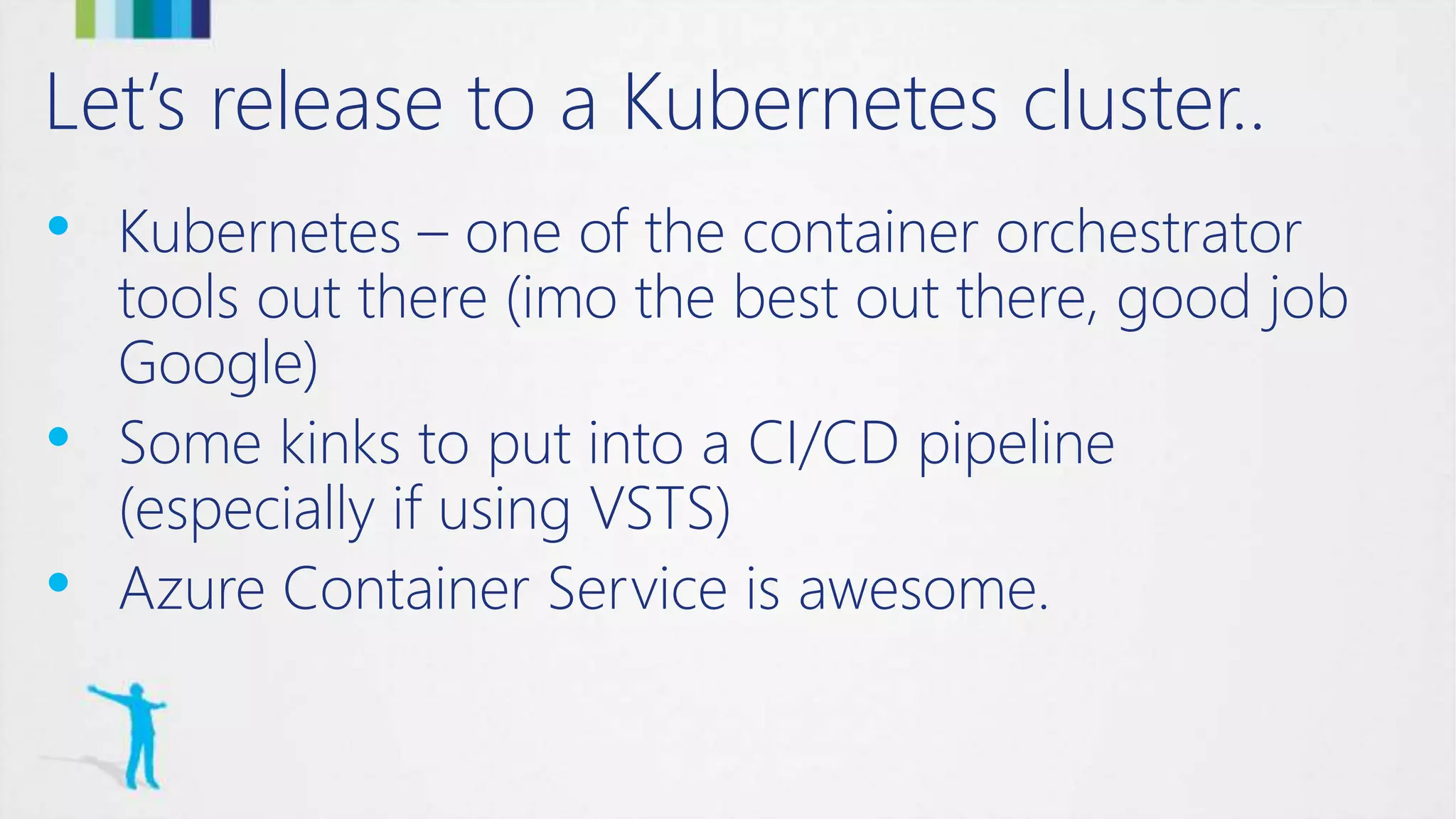

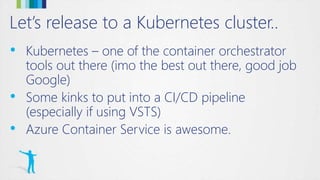

- 25. Let’s release to a Kubernetes cluster.. • Kubernetes – one of the container orchestrator tools out there (imo the best out there, good job Google) • Some kinks to put into a CI/CD pipeline (especially if using VSTS) • Azure Container Service is awesome.
Editor's Notes
- Introduce myself been in australia for 1 year, worked across multiple domains across infrastructure & ops Doing DevOps for 2 years
- Reference site reliability engineering Demos will be time sensitive Take away is not to be a master of each component of the pipeline but rather to see the bigger story And to make DevOps "real"
- Tell a story on how I got into DevOps (AWS interview story) Joke on pizza Call out agile practitioners DevOps not exclusive to cloud
- Huge releases is the source/origin of maintenance windows/down time Huge part is culture, allergy to change Pathlogical, bureaucratic organisations
- Analogy with manufacturing Comparison with waterfall
- Dockerfiles? Who has worked /played around with docker?
- Demo VSTS Change application code slightly – branch, tag, commit Show VSTS Build, show continuous integration settings Show output of build Describe GitVersion (what it does)
- Show what the website looks like on my machine
- Example of dog feeding vs dog bathing
- Normally stops at functional tests
- Example - facebook
- Red-black is highest degree of reliability
- Kick off a release from this point, will take a while
- Break-glass scenario
